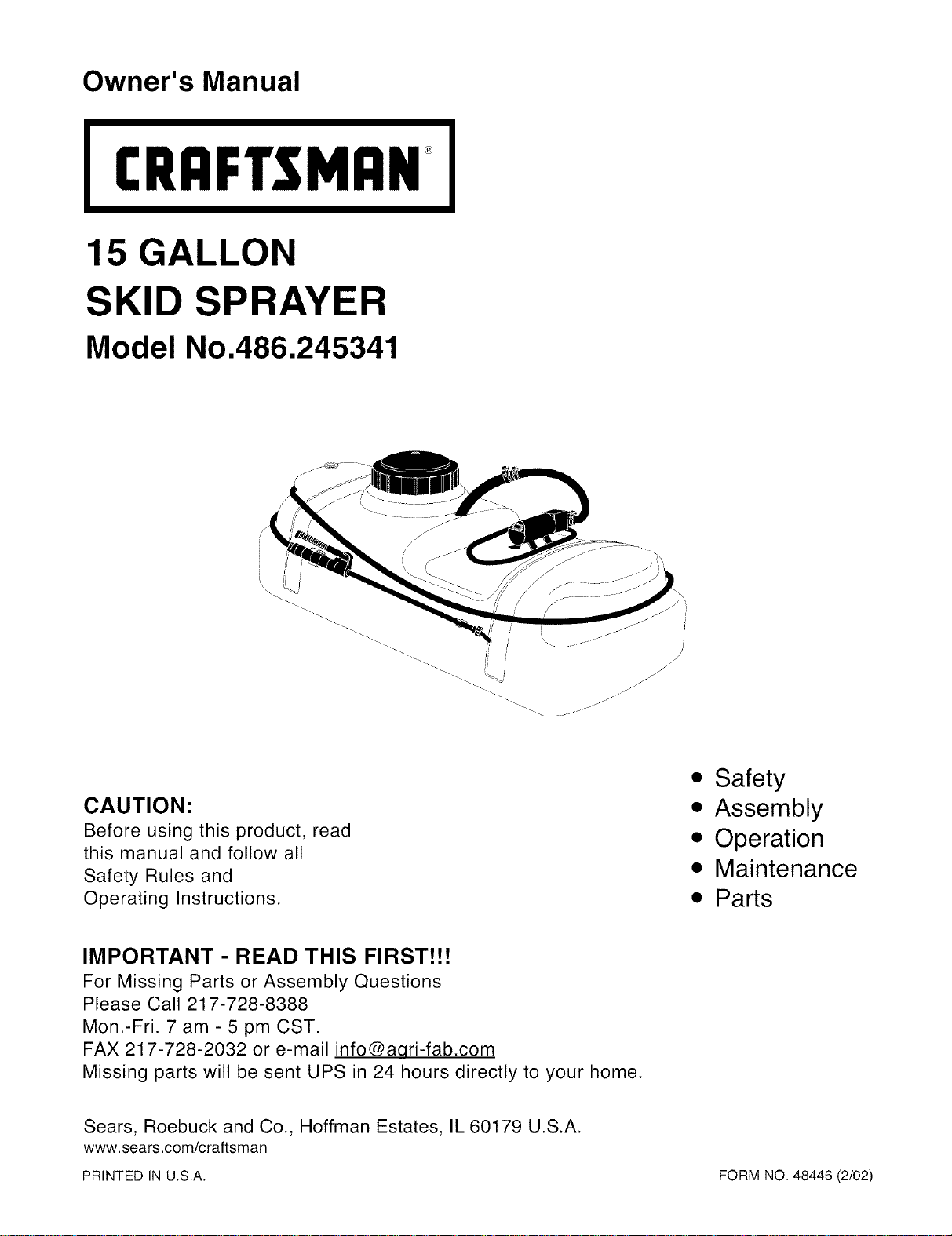

Owner's Manual
I:lN"
15 GALLON
SKID SPRAYER
Model No.486.245341
CAUTION:
Before using this product, read
this manual and follow all
Safety Rules and
Operating Instructions.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
IMPORTANT - READ THIS FIRST!!!
For Missing Parts or Assembly Questions
Please Call 217-728-8388
Mon.-Fri. 7 am - 5 pm CST.
Missing parts will be sent UPS in 24 hours directly to your home.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A. FORM NO. 48446 (2/02)

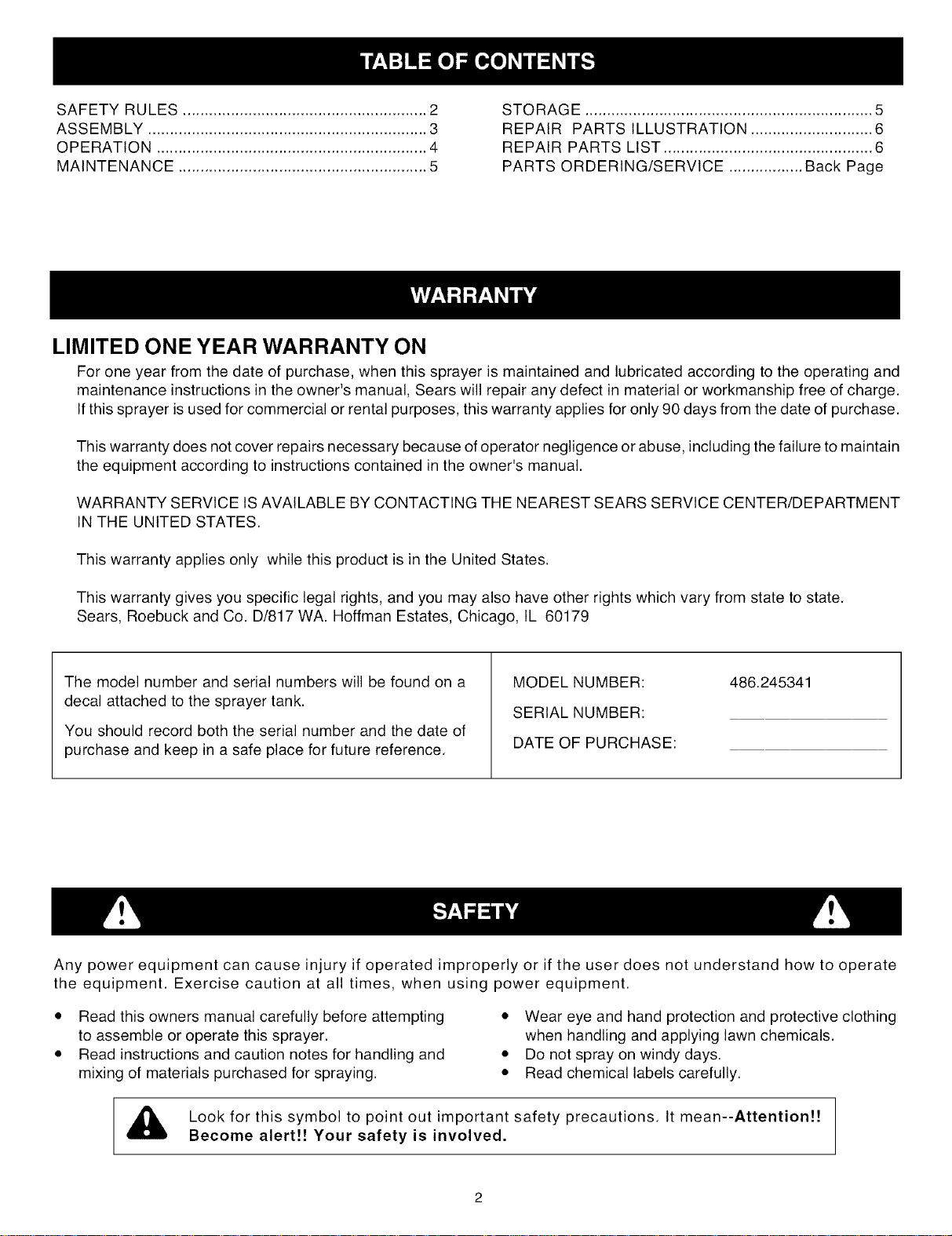

SAFETY RULES ........................................................ 2
ASSEMBLY ................................................................ 3
OPERATION .............................................................. 4
MAINTENANCE ......................................................... 5
STORAGE .................................................................. 5
REPAIR PARTSILLUSTRATION ............................ 6
REPAIR PARTS LIST ................................................ 6
PARTS ORDERiNG/SERVICE ................. Back Page
LIMITED ONE YEAR WARRANTY ON
For one year from the date of purchase, when this sprayer is maintained and lubricated according to the operating and
maintenance instructions in the owner's manual, Sears will repair any defect in material or workmanship free of charge.
if this sprayer is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
This warranty does not cover repairs necessary because of operator negligence or abuse, including the failure to maintain
the equipment according to instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT
IN THE UNITED STATES.
This warranty applies only while this product is in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179
The model number and serial numbers will be found on a
decal attached to the sprayer tank.
You should record both the serial number and the date of
purchase and keep in a safe place for future reference.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF PURCHASE:
486.245341
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate
the equipment. Exercise caution at all times, when using power equipment.
• Read this owners manual carefully before attempting
to assemble or operate this sprayer.
• Read instructions and caution notes for handling and
mixing of materials purchased for spraying.
• Wear eye and hand protection and protective clothing
when handling and applying lawn chemicals.
• Do not spray on windy days.
• Read chemical labels carefully.
Look for this symbol to point out important safety precautions. It mean--Attention!!
Become alert!! Your safety is involved.

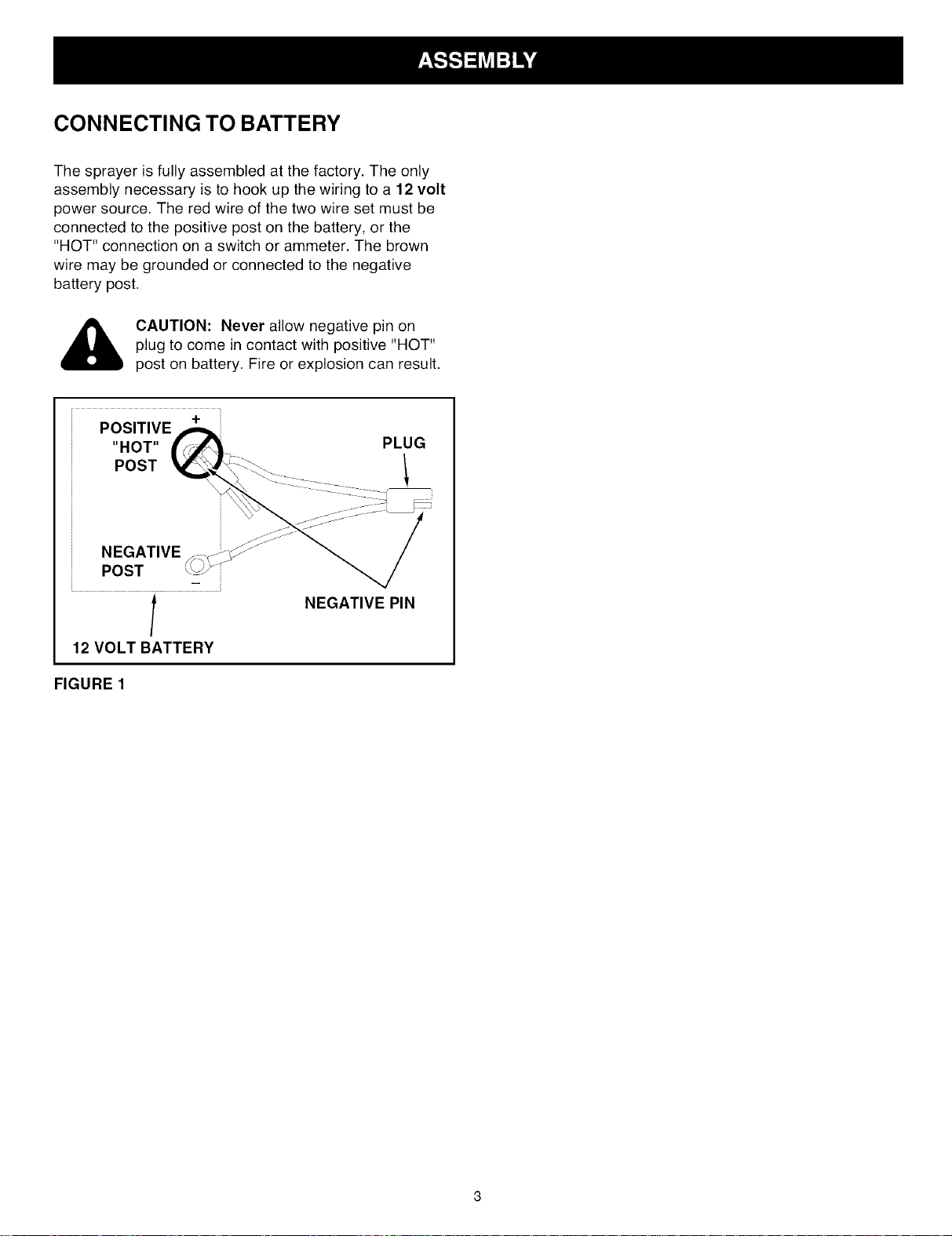

CONNECTING TO BATTERY
The sprayer is fully assembled at the factory. The only
assembly necessary is to hook up the wiring to a 12 volt
power source. The red wire of the two wire set must be
connected to the positive post on the battery, or the
"HOT" connection on a switch or ammeter. The brown
wire may be grounded or connected to the negative
battery post.
,_ CAUTION: Never allow negative pin on
plug to come in contact with positive "HOT"
post on battery. Fire or explosion can result.
FIGURE 1

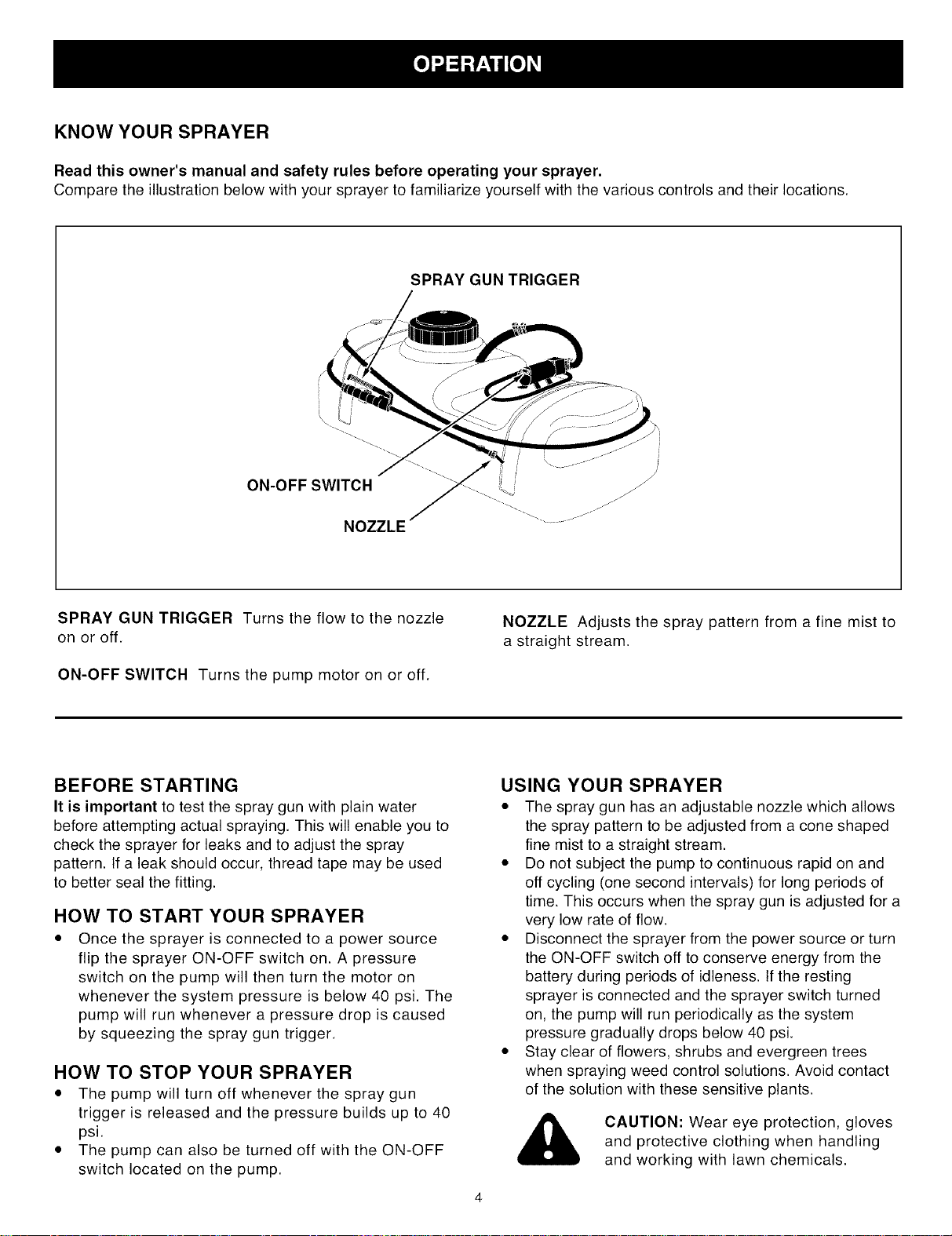

KNOW YOUR SPRAYER
Read this owner's manual and safety rules before operating your sprayer.
Compare the illustration below with your sprayer to familiarize yourself with the various controls and their locations.
SPRAY GUN TRIGGER
ON-OFF SWITCH
j J/
NOZZLE ................
SPRAY GUN TRIGGER Turns the flow to the nozzle
on or off.
ON-OFF SWITCH Turns the pump motor on or off.
NOZZLE Adjusts the spray pattern from a fine mist to
a straight stream.
BEFORE STARTING
It is important to test the spray gun with plain water
before attempting actual spraying. This will enable you to
check the sprayer for leaks and to adjust the spray
pattern. If a leak should occur, thread tape may be used
to better seal the fitting.
HOW TO START YOUR SPRAYER
• Once the sprayer is connected to a power source
flip the sprayer ON-OFF switch on. A pressure
switch on the pump will then turn the motor on
whenever the system pressure is below 40 psi. The
pump will run whenever a pressure drop is caused
by squeezing the spray gun trigger.
HOW TO STOP YOUR SPRAYER
• The pump will turn off whenever the spray gun
trigger is released and the pressure builds up to 40
psi.
• The pump can also be turned off with the ON-OFF
switch located on the pump.
USING YOUR SPRAYER
• The spray gun has an adjustable nozzle which allows
the spray pattern to be adjusted from a cone shaped
fine mist to a straight stream.
• Do not subject the pump to continuous rapid on and
off cycling (one second intervals) for long periods of
time. This occurs when the spray gun is adjusted for a
very low rate of flow.
• Disconnect the sprayer from the power source or turn
the ON-OFF switch off to conserve energy from the
battery during periods of idleness. If the resting
sprayer is connected and the sprayer switch turned
on, the pump will run periodically as the system
pressure gradually drops below 40 psi.
• Stay clear of flowers, shrubs and evergreen trees
when spraying weed control solutions. Avoid contact
of the solution with these sensitive plants.
CAUTION: Wear eye protection, gloves
and protective clothing when handling
and working with lawn chemicals.

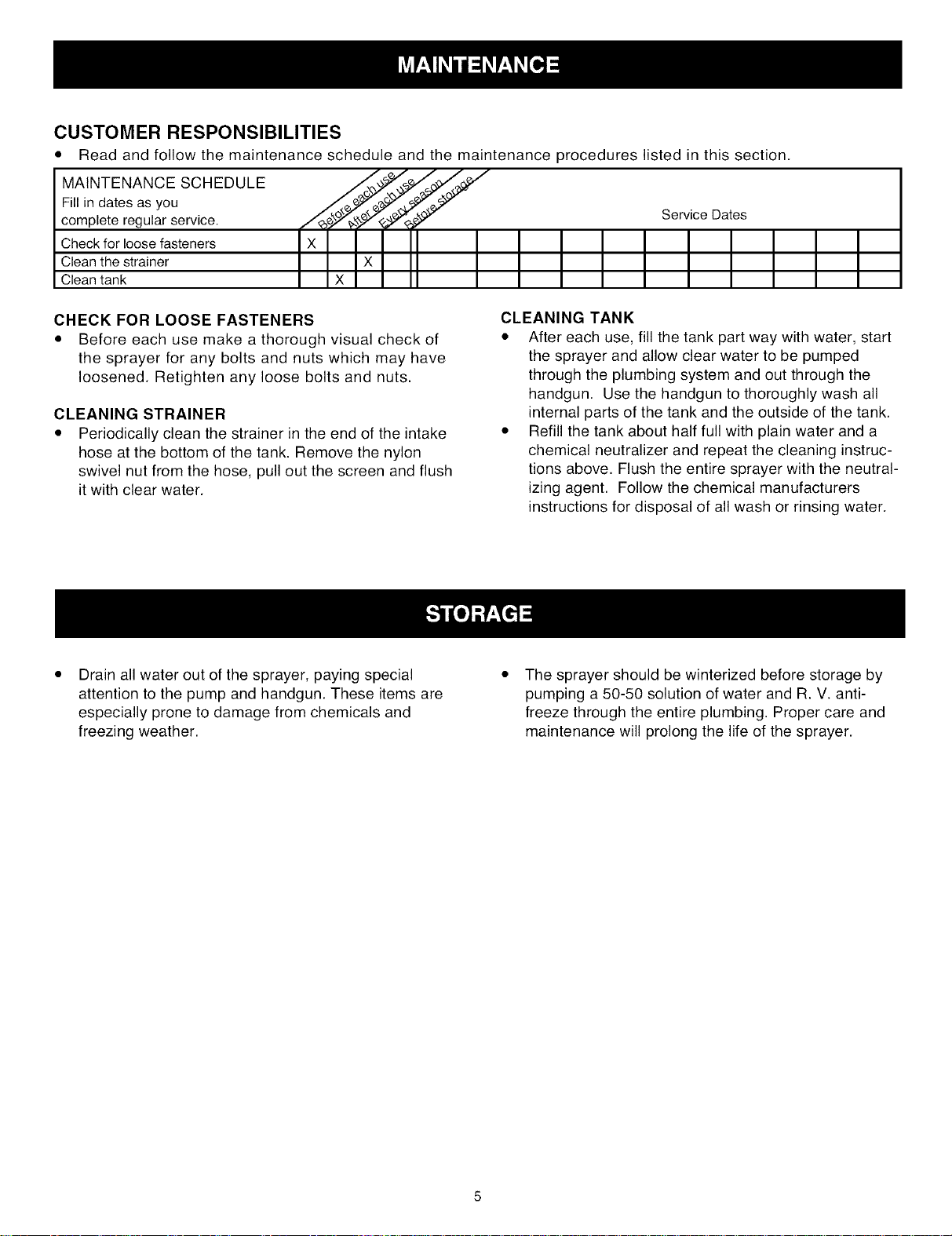

MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
Check for loose fasteners
Clean the strainer
Clean tank
CUSTOMER RESPONSIBILITIES
Read and follow the maintenance schedule and the maintenance procedures listed in this section.
__/"¢/ Service Dates
X
X
X
CHECK FOR LOOSE FASTENERS
• Before each use make a thorough visual check of
the sprayer for any bolts and nuts which may have
loosened. Retighten any loose bolts and nuts.
CLEANING STRAINER
• Periodically clean the strainer in the end of the intake
hose at the bottom of the tank. Remove the nylon
swivel nut from the hose, pull out the screen and flush
it with clear water.
CLEANING TANK
• After each use, fill the tank part way with water, start
the sprayer and allow clear water to be pumped
through the plumbing system and out through the
handgun. Use the handgun to thoroughly wash all
internal parts of the tank and the outside of the tank.
• Refill the tank about half full with plain water and a
chemical neutralizer and repeat the cleaning instruc-
tions above. Flush the entire sprayer with the neutral-
izing agent. Follow the chemical manufacturers
instructions for disposal of all wash or rinsing water.
Drain all water out of the sprayer, paying special
attention to the pump and handgun. These items are
especially prone to damage from chemicals and
freezing weather.
The sprayer should be winterized before storage by
pumping a 50-50 solution of water and R. V. anti-
freeze through the entire plumbing. Proper care and
maintenance will prolong the life of the sprayer.

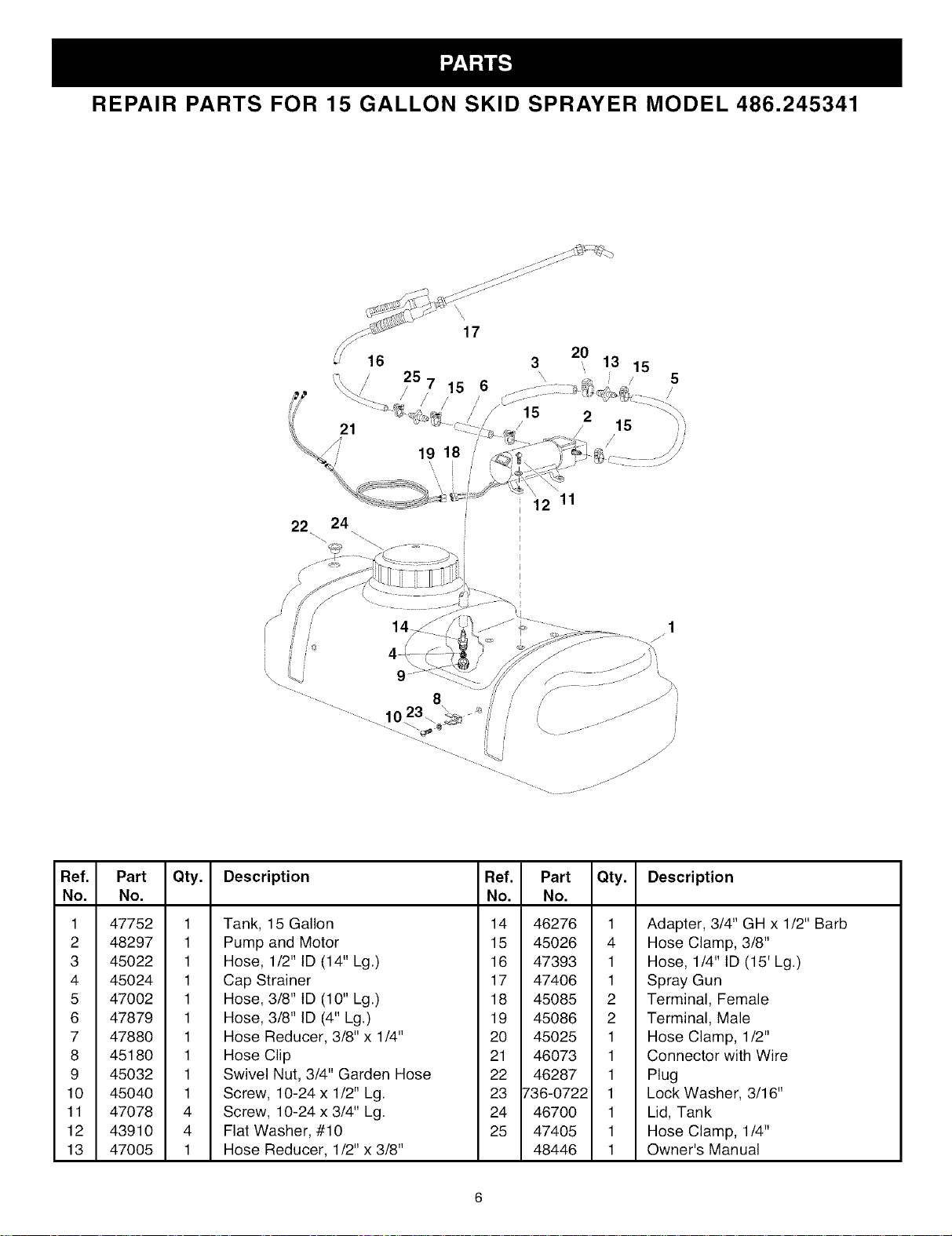

REPAIR PARTS FOR 15 GALLON SKID SPRAYER MODEL 486.245341
17
_' 16 3 20,,, 13 15
22 24
8
\
i 12 11
i
/
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Part
No.
47752
48297
45022
45024
47002
47879
47880
45180
45032
45040
47078
43910
47005
Qty. Description
1 Tank, 15 Gallon
1 Pump and Motor
1 Hose, 1/2" ID (14" Lg.)
1 Cap Strainer
1 Hose, 3/8" ID (1O"Lg.)
1 Hose, 3/8" ID (4" Lg.)
1 Hose Reducer, 3/8" x 1/4"
1 Hose Clip
1 Swivel Nut, 3/4" Garden Hose
1 Screw, 10-24 x 1/2" Lg.
4 Screw, 10-24 x 3/4" Lg.
4 Flat Washer, #10
1 Hose Reducer, 1/2" x 3/8"
Ref. Part
No. No.
14 46276
15 45026
16 47393
17 47406
18 45085
19 45086
20 45025
21 46073
22 46287
23 736-0722
24 46700
25 47405
48446
Qty. Description
1 Adapter, 3/4" GH x 1/2" Barb
4 Hose Clamp, 3/8"
1 Hose, 1/4" ID (15' Lg.)
1 Spray Gun
2 Terminal, Female
2 Terminal, Male
1 Hose Clamp, 1/2"
1 Connector with Wire
1 Plug
1 Lock Washer, 3/16"
1 Lid, Tank
1 Hose Clamp, 1/4"
1 Owner's Manual
iiiiiiiiiiiiiiiiiiiii!i

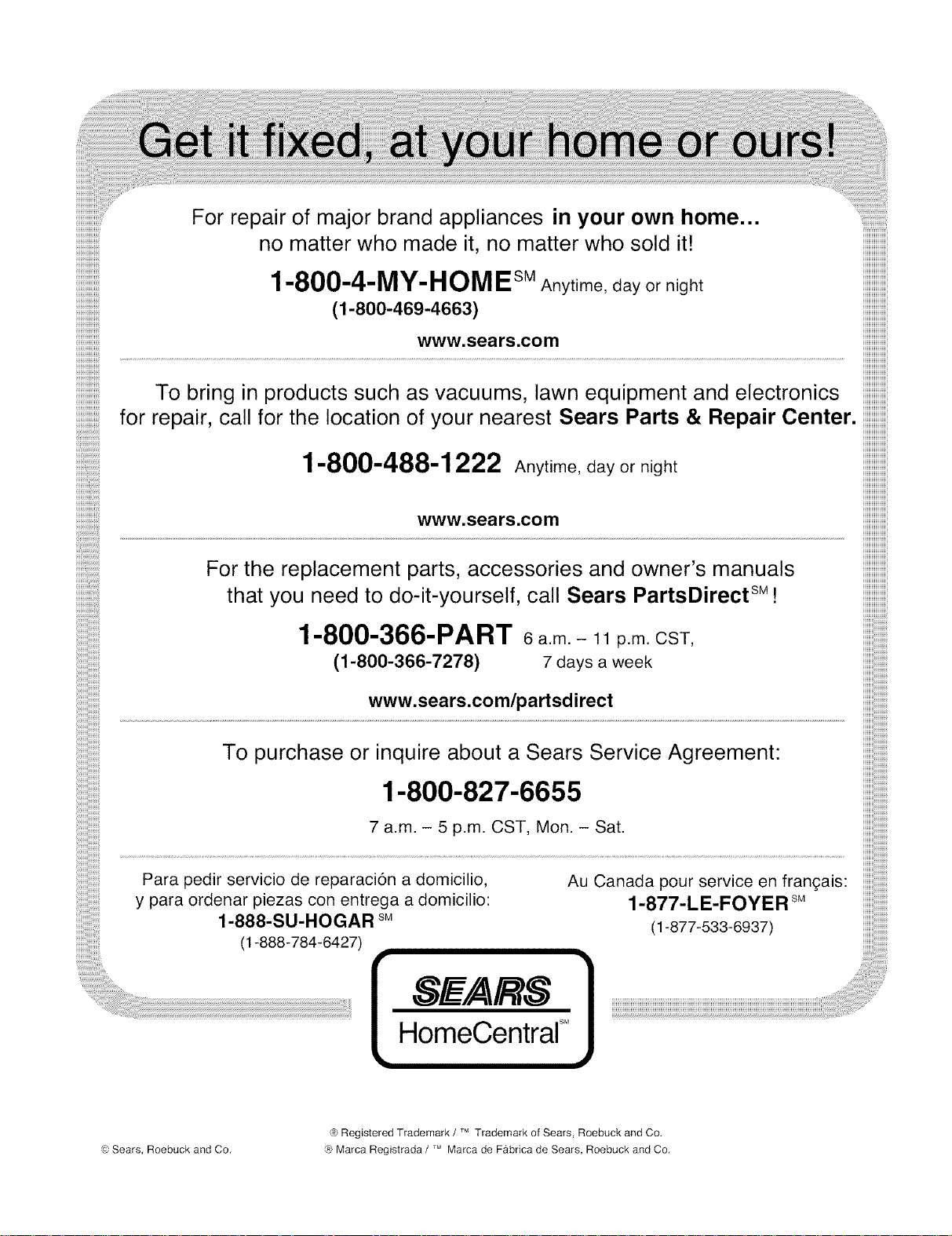

For repair of major brand appliances in your own home...
