For more than four decades, Focal has created speaker drivers and
high-end loudspeakers that deliver a unique sound. Our brand values
are innovation and performance; excellence and pleasure. We are
globally renowned for our exclusive technologies. The result of this
technological heritage is class-leading products offering a natural,
authentic performance, imbued with clarity and power.
With our collection of custom integrated loudspeakers,
we offer an outstanding listening quality with our varied,
complementary and discreet solutions.
PUBLIC PLACES
HOME CINEMA
BATHROOM
RESTAURANT
KITCHEN
BEDROOM
LIVING ROOM
OUTDOORS
ICLCR
IC ST
ICA
IWLCR
1000 SERIES
Exclusive ‘W’ technology
and pure Beryllium tweeter
300 SERIES
Exclusive Flax technology
and Aluminium/Magnesium tweeter
100 SERIES
Polyglass technology
and Aluminium tweeter
RANGES
4 4" or 10cm
5 5" or 13cm
6 6" or 16.5cm
8 8" or 21cm
SPEAKER DRIVER
DIAMETER
APPLICATIONS
IC In-Ceiling
In-ceiling loudspeaker
IW In-Wall
In-wall loudspeaker
ICW In-Wall / In-Ceiling
In-wall and in-ceiling loudspeaker
IWLCR In-Wall Left Center Right
In-wall loudspeaker for left, right,
center and surround channels
ICLCR In-Ceiling Left Center Right
In-ceiling loudspeaker for left, right,
center and surround channels
ST Stereo
In-wall and in-ceiling loudspeaker
producing a stereo eect
ICA In-Ceiling Angled
In-ceiling angled loudspeaker
for Dolby Atmos® eects
ICS In-Ceiling Shallow
In-ceiling shallow
loudspeaker
OD Outdoor
IP66-certified* outdoor loudspeaker
SUB Subwoofer
Integrated subwoofer
T 70 - 100 V transformer
To cover a very large
listening area
UL UL certification
Fire and electric shock
safety feature risks
*IP codes are international standards used to identify the
degrees of protection of products against the ingress of solid or
liquid foreign objects. The first digit of the IP code represents
the level of protection against the ingress of dust (0 to 6), the
second represents the level of protection against water (0 to 8).
1000 SERIES 300 SERIES 100 SERIES 100-T SERIES ON WALL 300 DÔME FLAX SIB EVO MU-SO
IN-CEILING
1000 ICLCR5
1000 ICA6
1000 ICW6
300 ICLCR5
300 ICW8
300 ICA6
300 ICW6
300 ICW4
100 ICLCR5
100 IC6ST
100 ICW8
100 ICW6
100 ICW5
100 IC8-T UL
100 ICW8-T
100 ICS6-T UL
100 ICW6-T
100 ICW5-T
ON-CEILING
100 OD8
100 OD6
100 OD8-T
100 OD6-T
DÔME FLAX SIB EVO
IN-WALL
1000 ICW6
1000 IWLCR UTOPIA
1000 IWSUB UTOPIA
1000 IWLCR6
1000 IW6
300 ICW8
300 ICW6
300 ICW4
300 IWLCR6
300 IW6
100 ICW8
100 ICW6
100 ICW5
100 IWLCR5
100 IW6
100 IWSUB8
100 ICW8-T
100 ICW6-T
100 ICW5-T
ON-WALL
1000 IWLCR UTOPIA*
1000 IWSUB UTOPIA*
1000 IWLCR6*
1000 IW6*
100 OD8
100 OD6
100 OD8-T
100 OD6-T
ON WALL 301
ON WALL 302
DÔME FLAX
SIB EVO
SIB EVO DOLBY ATMOS
®
DÔME FLAX
SIB EVO
SIB EVO DOLBY ATMOS
®
MU-SO
MU-SO QB
* On-wall frames available as optional extra
ON FURNITURE
01.
1000 SERIES
13
02.
300 SERIES
21
03.
100 SERIES
27
04.
ON WALL 300
35
05.
DÔME FLAX
41
06.
SIB EVO
47
07.
SUBWOOFERS
55
08.
ASTRAL 16
59
09.
UNITI
65
10.
MU-SO
71
11.
100-T SERIES
83
01.
1000 SERIES
Unrivalled listening experiences
With seven exceptional products, the 1000 Series line promises unrivalled
stereo and home cinema sound reproduction. These in-wall and in-cei-
ling loudspeakers are discreet, complementary, and can be adjusted and
positioned for flawless sound spatialisation without compromise in your
listening area. Both Utopia products enhance the line with their power
and their design, specifically thought out to be assembled together.
13
FOCAL I 1000 SERIES
Easy Quick
Install
'W'
sandwich cone
Positionable
speaker drivers
Pure Beryllium
tweeter
Bespoke
solution
Ready-to-paint
grille
15
FOCAL I 1000 SERIES
UTOPIA
1000 IWLCR UTOPIA 1000 IWSUB UTOPIA
Type 3-way closed-back in-wall Closed-back in-wall subwoofer
Speaker drivers
• 4 x 6
1/2
" (16.5cm) 'W' Bass
• 2 x 3
1/8
" (8cm) 'W' cone
'M'-shaped Midranges
• 1" (27mm) pure Beryllium
inverted dome tweeter
3 x 6
1/2
" (16.5cm) Bass with 'W' cone
Frequency response 45Hz - 40kHz 40Hz - 2.5kHz
Sensitivity (2.83V/1m) 92dB 83dB 74dB
Nominal impedance 8 8 72
Recommended
amp power
100 - 750W (8)
200 - 1,500W (4)
100 - 750W (8)
200 - 1,500W (4)
300 - 4,000W (8)
300 - 4,000W (4)
Settings
Tweeter (-3dB, 0dB, +3dB)
Midrange (-2dB, 0dB, +2dB)
Bass (-2dB, 0dB, +2dB)
Impedance selector
8 - 72
Dimensions (HxWxD)
45
3/4
x 12 x 4"
(116.2 x 30.5 x 10.1cm)
23
3/8
x 12 x 4"
(59.3 x 30.5 x 10.1cm)
Mounting
dimensions (HxW)
44
5/8
x 10
7/ 8
"
(113.4 x 27.6cm)
22
1/4
x 10
7/ 8
"
(56.4 x 27.6cm)
Mounting
depth
3
7/ 8
" (9.9cm) 3
7/ 8
" (9.9cm)
Weight (with grille) 42.77lbs (19.4kg) 21.16lbs (9.6kg)
Accessory (optional) On-Wall frame On-Wall frame
The collection’s iconic flagship product, the 1000 Series Utopia
loudspeaker does a sensational job at picking up the smallest
sound details in films. Thanks to its mid-high range plate in the
d’Appolito configuration, and with dierent speaker driver settings,
the installation can be fully customised. For the ultimate system,
the 1000 Series Utopia subwoofer has been designed to combine
perfectly with the loudspeaker and to oer exceptional bass.
The icon far ahead of the rest
17
FOCAL I 1000 SERIES UTOPIA
1000 IWLCR6 1000 IW6 1000 ICLCR5 1000 ICA6 1000 ICW6
Type 3-way closed-back in-wall 2-way closed-back in-wall 3-way bass-reflex in-ceiling 2-way coaxial in-ceiling
2-way coaxial
in-wall/in-ceiling
Speaker drivers
• 7" (18cm)
'W' Passive radiator
• 6
1/2
" (16.5cm) 'W' Bass
• 3"(8cm) 'W' Midrange
• 1" (27mm) Pure Beryllium
inverted dome tweeter
• 6
1/2
" (16.5cm) 'W' Mid-Bass
• 1" (27mm) Pure Beryllium
inverted dome tweeter
• 2 x 5" (13cm) 'W' Bass
• 4" (10cm) 'W' Midrange
• 1" (25mm) Beryllium
inverted dome tweeter
• 6
1/2
" (16.5cm)
'W' Mid-Bass
• 1" (25mm) Pure Beryllium
inverted dome tweeter
• 6
1/2
" (16.5cm)
'W' Mid-Bass
• 1" (25mm) Pure Beryllium
inverted dome tweeter
Frequency response 48Hz - 40kHz 55Hz - 40kHz 53Hz - 40kHz 55Hz - 40kHz 55Hz - 40kHz
Sensitivity (2.83V/1m) 91dB 89dB 91dB 90.5dB 89dB
Nominal impedance 8 8 8 8 8
Recommended
amp power
50 - 180W 25 - 150W 25 - 240W 25 - 150W 25 - 150W
Settings
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB)
Dimensions
(HxWxD ou ØxD)
29
3/4
x 12 x 4"
(75.5 x 30.5 x 10.1cm)
17
1/8
x 12 x 4"
(43.5 x 30.5 x 10.1cm)
14
5/8
x 14
5/8
x 7
5/8
"
(37 x 37 x 19.5mm)
11
3/4
x 5"
(29.9 x 12.7cm)
9
5/8
x 4
1/8
"
(24.4 x 10.5cm)
Mounting
dimensions
(HxW ou Ø)
28
5/8
x 10
7/ 8
"
(72.6 x 27.6cm)
16 x 10
7/ 8
"
(40.6 x 27.6cm)
13
3/8
x13
3/8
"
(34 x 34cm)
10
3/8
"
(26.4cm)
8
1/2
"
(21.6cm)
Mounting
depth
3
7/ 8
" (9.9cm) 3
7/ 8
" (9.9cm) 7
1/2
" (19cm) 5
3/4
" (14.6cm) 4" (10cm)
Weight (with grille) 24.14lbs (10.95kg) 14.88lbs (6.75kg) 18.30lbs (8.3kg) 6.61lbs (3kg) 5.29lbs (2.4kg)
Accessory (optional) On-Wall frame On-Wall frame - - -
19
FOCAL I 1000 SERIES
02.
300 SERIES
Bring a whole new vibe to your spaces with the 300 Series and its
natural flax cone speaker drivers. In addition to the acoustic qualities
and sound clarity they oer, the products are innovatively de signed and
quick to fit, thanks to the Easy Quick Install
(EQI) system. Whether
for stereo or Home Cinema use, or as a complement to a tradi-
tional hi-fi system, all you have to do is make your choice and enjoy.
A source of inspiration...
21
FOCAL I 300 SERIES
Easy Quick
Install
Flax
cone
Al/Mg
tweeter
Ready-to-paint
grille
Tweeter and
midrange settings
Positionable
plate
23
FOCAL I 300 SERIES
300 IWLCR6 300 IW6 300 ICLCR5 300 ICA6 300 ICW8 300 ICW6 300 ICW4
Type 3-way in-wall 2-way in-wall 3-way bass-reflex in-ceiling
2-way coaxial
in-ceiling
2-way coaxial
in-wall/in-ceiling
2-way coaxial
in-wall/in-ceiling
2-way in-wall/in-ceiling
Speaker drivers
• 2 x 6
1/2
" (16.5cm) Woofers
• 4" (10cm) Flax Midrange
• 1" (25mm) Al/Mg
inverted dome tweeter
• 6
1/2
" (16.5cm)
Flax cone Mid-Bass
• 1" (25mm) Al/Mg
inverted dome tweeter
• 2 x 5" (13cm) Flax woofers
• 4" (10cm) Flax Midrange
• 1" (25mm) Al/Mg
inverted dome tweeter
• 6
1/2
" (16.5cm)
Flax Mid-Bass
• 1" (25mm) Al/Mg
inverted dome tweeter
• 8" (21cm) Flax Mid-Bass
• 1" (25mm) Al/Mg
inverted dome tweeter
• 6
1/2
" (16.5cm)
Flax Mid-Bass
• 1" (25mm) Al/Mg
inverted dome tweeter
• 4" (10cm) Flax Mid-Bass
• 1" (25mm) Al/Mg
inverted dome tweeter
Frequency response 40Hz - 28kHz 55Hz - 28kHz 55Hz - 28kHz 65Hz - 28kHz 48Hz - 28kHz 65Hz - 28kHz 80Hz - 28kHz
Sensitivity (2.83V/1m) 92dB 90dB 91dB 89.5 dB 90dB 89dB 88dB
Nominal impedance 8 8 8 8 8 8 8
Recommended
amp power
50 - 150W 25 - 130W 50 - 150W 25 - 130W 25 - 150W 25 - 130W 25 - 100W
Settings
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB)
Dimensions
(HxWxD or ØxD)
23
5/8
x 8
11/16
x 3
7/ 8
"
(60 x 22 x 9.8cm)
12
3/4
x 8
11/16
x 3
7/ 8
"
(32.3 x 22 x 9.8cm)
14
9/16
x 14
9/16
x 7
11/16
"
(37 x 37 x 19.5cm)
11
3/4
x 5"
(29.9 x 12.7cm)
11
3/4
x 5"
(29.9 x 12.7cm)
9
5/8
x 4
1/8
"
(24.4 x 10.5cm)
7
9/16
x 3
7/ 8
"
(19.2 x 9.8cm)
Mounting
dimensions
(HxW ou Ø)
22
3/8
x 7
1/2
"
(56.8 x 19.1cm)
11
1/2
x 7
1/2
"
(29.2 x 19.1cm)
13
3/8
" x 13
3/8
"
(34 x 34cm)
10
3/8
" (26.4cm) 10
3/8
" (26.4cm) 8
1/2
" (21.6cm) 6
3/8
" (16.3cm)
Mounting
depth
3
5/8
" (9.3cm) 3
5/8
" (9.3cm) 7
1/2
" (19cm) 5¾" (14.6cm) 4
3/4
" (12.2cm) 4 (10cm) 3
5/8
" (9.3cm)
Weight 12.4lbs (5.65kg) 4.9lbs (2.25kg) 16.3lbs (7.4kg) 6.6lbs (3kg) 7.05lbs (3.2kg) 5.29lbs (2.4kg) 2.6lbs (1.3kg)
25
FOCAL I 300 SERIES
03.
100 SERIES
Discreet musicality
A comprehensive solution for your home audio needs, indoors and out-
doors, the 100 Series oers outstanding performance from a compact
design. The range is ideal for small-to-medium-sized rooms, for seamless
sound throughout the house, stereo listening or Home Cinema installa-
tions. The tropicalised Polyglass cone is even suited for bathroom use, too.
27
FOCAL I 100 SERIES
Polyglass
cone
Ready-to-paint
grille
Aluminium
tweeter
Positionable
tweeter
Tropicalised
cone
Compact design
unibody chassis
29
FOCAL I 100 SERIES
100 IWLCR5 100 IW6 100 ICLCR5 100 IC6ST 100 ICW8 100 ICW6 100 ICW5
Type 2-way in-wall D’Appolito 2-way in-wall 2-way in-ceiling
2-way stereo
coaxial in-ceiling
2-way coaxial
in-wall/in-ceiling
2-way coaxial
in-wall/in-ceiling
2-way coaxial
in-wall/in-ceiling
Speaker drivers
• 2 x 5" (13cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 6
1/2
" (16,5cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 2 x 5" (13cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 8" (21cm) Polyglass
Passive radiator
• 6
1/2
" (16,5cm) Dual voice
coil Polyglass Mid-Bass
• 2 x 1" (25mm) AIuminium
inverted dome tweeter
• 8" (21cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 6
1/2
" (16.5cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 5" (13cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
Frequency response 55Hz - 23kHz 60Hz - 23kHz 65Hz - 23kHz 60Hz - 23kHz 53Hz - 23kHz 62Hz - 23kHz 65Hz - 23kHz
Sensitivity (2.83V/1m) 90.5dB 89dB 92dB 89dB 90dB 89dB 88dB
Nominal impedance 8 8Ω 8 8 8 8 8
Recommended
amp power
25 - 120W 25 - 120W 25 - 120W 25 - 100W 25 - 150W 25 - 100W 15 - 100W
Settings
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB)
Midrange (-3dB, 0dB, +3dB)
Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB) Tweeter (-3dB, 0dB, +3dB)
Dimensions
(HxWxD ou ØxD)
17
3/8
x 6
3/4
x 3
3/8
"
(44 x 17.3 x 8.6cm)
11
3/4
x 7
5/8
x 3
5/8
"
(29.8 x 19.5 x 9.2cm)
14 x 14 x 5
5/16
"
(35.4 x 35.4 x 15cm)
8
3/16
x 3
3/4
"
(20.8 x 9.5cm)
9
3/4
x 4
3/8
"
(24.8 x 11.1cm)
8
3/16
x 3
3/4
"
(20.8 x 9.5cm)
7
1/4
x 3
7/ 1 6
"
(18.4 x 8.7cm)
Mounting
dimensions
(HxW ou Ø)
16
3/8
" x 5
3/4
(41.5 x 14.7cm)
10
3/4
x 6
3/4
"
(27.3 x 17cm)
12
7/ 8
x 12
7/ 8
"
(32.8 x 32.8cm)
7
1/4
" (18.4cm) 81
3/16
" (22.4cm) 7
1/4
" (18.4cm) 6
5/16
" (16cm)
Mounting
depth
3
1/4
" (8.3cm) 3
1/2
" (8.8cm) 6" (15.2cm) 3
5/8
" (9.1cm) 4
1/4
" (10.7mm) 3
3/4
" (9.1cm) 3
1/4
" (8.2cm)
Weight 3.89lbs (2.9kg) 4.1lbs (1.85kg) 11.6lbs (5.3kg) 3.86lbs (1.75kg) 3.86lbs (1.75kg) 3.3lbs (1.5kg) 3.19lbs (1.45kg)
31
FOCAL I 100 SERIES
IP66 IP66
100 IWSUB8
Type Passive subwoofer
Speaker drivers
8" (21cm) Polyglass
Woofer
Frequency response 34 - 140Hz
Sensitivity (2.83V/1m) 89dB
Nominal impedance 8
Recommended
amp power
Max 200W / 4
Dimensions (WxDxH)
13
7/ 8
x 3
7/ 8
x 5
13/16
"
(35.2 x 9.8 x 130cm)
Mounting
dimensions (WxH)
13
7/8
x 5
13/16
"
(35.2 x 130cm)
Mounting
depth
3
3/8
" (8.6cm)
Weight 32.3lbs (14.6kg)
100 IWSUB8 AMPLIFIER
Type Subwoofer amplifier
Power (continuous) Max 200W, 150W continuous 4
Minimum load 4
Voltage range
100 - 120V / 60Hz
220 - 230V / 50Hz
Power consumption 150W
Stand-by power
consumption
0.5W
Frequency response 20 - 250Hz
Subsonic filter 18dB / oct.
Inputs LFE, Line in L/R
Outputs
Line out L/R
and subwoofer out
binding post
Cord Detachable IEC power cord
Protection
Dynamic power control,
thermal protection,
short circuit, fuse
and over-current protection
Dimensions (HxWxD)
1.8" (2" with feets) x 16.9"
(19" with rack brackets) x 10.1"
Weight 6.8lbs (3.1kg)
100 OD8 100 OD6
Type
Outdoor loudspeaker
(IP66 certified)
Outdoor loudspeaker
(IP66 certified)
Speaker drivers
• 8" (21cm)
Polyglass Mid-Bass
• 1" (25mm)
AIuminium
inverted dome
tweeter
• 6
1/2
" (16.5cm)
Polyglass Mid-Bass
• 1" (25mm)
AIuminium
inverted dome
tweeter
Frequency response 60Hz - 23kHz 65Hz - 23kHz
Sensitivity (2.83V/1m) 88dB 87dB
Nominal impedance 8 8
Recommended
amp power
20 - 150W 20 - 120W
Dimensions
with brackets
(HxWxD)
15
6/16
x
10
3/16
x 11"
(39 x 25.8 x 28cm)
12
9/16
x
8
13/16
x 10
1/16
(31.9 x 22.4 x 25.6cm)
Finishes
Weight 12.6lbs (5.8kg) 9lbs (4.1kg)
PACK 100 IWSUB8 &
100 IWSUB8 AMPLIFIER
PACK 2 x 100 IWSUB8 &
100 IWSUB8 AMPLIFIER
33
FOCAL I 100 SERIES
04.
ON WALL 300
Designed for stereo and Home Cinema use, the allure of the
On Wall 300 loudspeakers lies in their sleek design, 'angled'
silhouette and incredible sound. Their speaker drivers boast a
natural Flax cone to bring realism, vocal clarity and sonic detail into
your home. Available in a White High Gloss or Black Satin finish,
On Wall 300 blends seamlessly into interiors, around a television.
Creating emotion
35
FOCAL I ON WALL 300
Black Satin
finish
Side
ports
Flax
cone
Al/Mg
tweeter
Magnetic
grille
White High Gloss
finish
37
FOCAL I ON WALL 300
Stands sold separately by pair.
ON WALL 300 STAND
ON WALL 301 ON WALL 302
Type 2-way bass-reflex loudspeaker 2.5-way bass-reflex loudspeaker
Speaker drivers
• 2 x 4" (10cm) Flax Mid-Bass
• 1 x 1" (25mm) Tweeter TNF
• 4 x 4" (10cm) Flax Mid-Bass
• 1 x 1" (25mm) Tweeter TNF
Frequency response 53Hz - 28kHz 50Hz - 28kHz
Crossover frequency 2,500Hz 1,100Hz - 2,500Hz
Sensitivity (2.83V/1m) 87dB 91dB
Nominal impedance 8Ω 8Ω
Recommended
amp power
25 - 130W 40 - 180W
Dimensions (HxWxD)
31
1/2
x 6
1/8
x 3
9/16
"
(80 x 15.5 x 9cm)
49
3/16
x 6
1/8
x 3
9/16
"
(125 x 15.5 x 9cm)
Finishes
Weight 13lbs (5.9kg) 20.72lbs (9.4kg)
39
FOCAL I ON WALL 300
05.
DÔME FLAX
Made in France, Dôme is a line of miniature loudspeakers boas-
ting a Flax sandwich cone, exclusive to Focal. This technology pro-
vides genuine benefits in terms of sound definition and precision.
In terms of appearance, the Dôme design blends fine materials
and elegant finishes. The loudspeakers are positionable and ea-
sily integrated into the wall, ceiling or on a stand, as you prefer.
The sound spotlight
41
FOCAL I DÔME FLAX
Flax
cone
Black High Gloss
finish
Optional
stand
On-wall or on-ceiling
mounting
White High Gloss
finish
Al/Mg
tweeter
43
FOCAL I DÔME FLAX
DÔME FLAX
Type
2-way compact
sealed speaker
Speaker drivers
• 4" (10cm) Flax Mid-Bass
• 1" (25mm) Al/Mg inverted dome tweeter
Frequency response 80Hz - 28kHz
Sensitivity (2.83V/1m) 88dB
Nominal impedance 8
Recommended
amp power
25 - 100W
Dimensions (HxWxD)
6
3/4
x 5
11/16
x 5
5/8
"
(17.2 x 14.4 x 14.3cm)
Finishes
Weight 4.19lbs (1.9kg)
PACK DÔME FLAX 5.1
5 x Dôme Flax
1 x Sub Air
Stands sold separately by pair.
DÔME STAND
45
FOCAL I DÔME FLAX
06.
SIB EVO

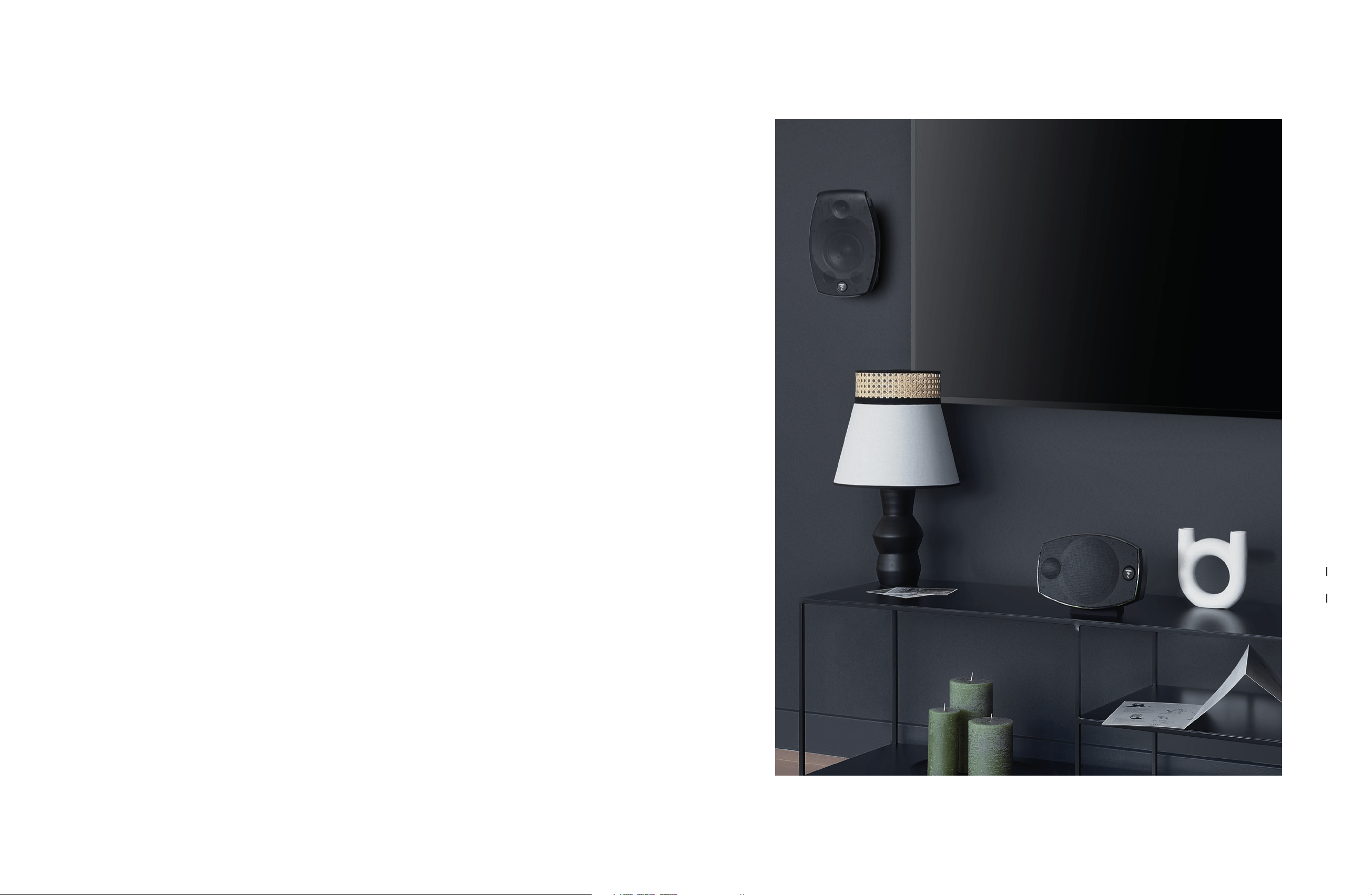

The line comprises one traditional loudspeaker, the Sib Evo, a second
Sib Evo Dolby Atmos® model equipped with a specific speaker driver on
top, and an active subwoofer, the Cub Evo. These satellite loudspeakers
combine front and vertical diusion thanks to the Dolby Atmos®
eects created. The sound waves are projected onto the ceiling and
are then reflected back to the listener for an immersive experience.
At the heart of the action
47
FOCAL I SIB EVO
Polyflex
speaker driver
Compact
loudspeaker
Dolby Atmos®
eects
Optional wall
attachment
Optional
stands
Black
finish
49
FOCAL I SIB EVO
IMMERSIVE AUDIO
Dolby Atmos® technology oers a cinema experience by creating
powerful sound eects. You will find yourself at the heart of the action,
music and dialogue of the films you watch, plunged into a 3D space
of captivating realism. The Sib Evo loudspeakers equipped with Dolby
Atmos® technology are called enabled speakers. In addition to the ver-
tical speaker driver, a second is installed on the upper surface of the
loudspeaker and directs the sound towards the ceiling at a carefully
calculated angle, so that the signal is reflected around the entire room.
The sound comes simultaneously from the front, back, sides and above.
Dolby Atmos® technology isolates each sound from the original
soundtrack and mix as an independent audio object. Imagine a sce-
ne in a house: you are hearing the conversations, the footsteps in
the neighbouring room, sounds coming through the open window,
all at the same time and spatialised in 3D, as though you were ac-
tually there... Dolby Atmos® comes into its own in scenes where
the eects are vertical: a plane or helicopter passing overhead,
a thunderstorm, pounding rain, etc. The Sib Evo 5.1.2 pack of-
fers exceptional sound eects and adds a new dimension to films.
SIB EVO DOLBY ATMOS
®
SIB EVO
Type
• Front channel: 2-way
bass-reflex loudspeaker
• Atmos® channel: Full-range
sealed loudspeaker
2-way compact
bass-reflex loudspeaker
Speaker drivers
• Front channel: 5" (13cm) Polyflex Woofer
• ¾" (19mm) soft dome tweeter
• Atmos® Channel:
4" (10cm) full-range speaker
• 5" (13cm) Polyflex Woofer
• ¾" (19mm) soft dome tweeter
Frequency response
• Front channel: 65Hz to 25kHz
• Atmos® Channel: 90Hz to 20kHz
70Hz to 25kHz
Sensitivity (2.83V/1m) 90dB 90dB
Nominal impedance 6 6
Recommended
amp power
25 - 200W 25 - 200W
Dimensions (HxWxD)
11
5/8
x 7
11/16
x7
1/2
"
(29.5 x 19.5 x 19cm)
9
15/16
x 6
3/8
x 6
3/8
"
(25.2 x 16.2 x 16.2cm)
Weight 7lbs (3.25kg) 4lbs (1.8kg)
PACK SIB EVO DOLBY ATMOS
®
5.1.2
5 x Sib Evo
2 x Sib Evo Dolby Atmos
1 x Cub Evo
2 x Wall attachment
PACK SIB EVO 5.1
5 x Sib Evo
1 x Cub Evo
2 x Wall attachment
Wall attachment supplied
with 5.1 and 5.1.2 packs.
WALL ATTACHMENT
Hip Evo stands
sold as optional extra.
HIP EVO STANDS
53
FOCAL I SIB EVO
07.
SUBWOOFERS
The subwoofer is a major component of any audio installa-
tion, providing dynamics and intensity. With their seductive de-
sign, Focal subwoofers oer a deep, impactful and powerful bass.
They eectively complement a wide range of configurations,
from the most sophisticated Home Cinema installations to com-
pact systems. All you have to do is choose the subwoofer for you!
Dynamics, impact and depth
55
FOCAL I SUBWOOFERS
1000 IWSUB
UTOPIA
Built-in
subwoofer (see p.17)
100 IWSUB8
Built-in
subwoofer (see p.33)
SUB UTOPIA EM
COLOUR EVO
SW 1000 BE SUB 1000 F SUB 600P SUB AIR CUB EVO
Type
Stackable passive
subwoofer
Active bass-reflex
subwoofer
Active sealed
subwoofer
Active closed
subwoofer
Flat bass-reflex
subwoofer
Active bass-reflex
subwoofer
Speaker drivers
• Electro-Magnetic 13"
(33cm) ‘W’ bass driver
• Stackable (up to
3 subwoofers tall)
• Almost 130dB SPL
at 1m (in a corner)
13" (33cm)
'W' Woofer
12" (30cm)
Flax Woofer
12" (30cm)
Polyflex Woofer
8" (21cm) Woofer
cellulose pulp cone
8" (21cm)
Polyflex Woofer
Frequency response 22Hz - 500Hz 20Hz - 150Hz 24Hz - 160Hz 28Hz - 270Hz 42Hz - 200Hz 35Hz - 150Hz
Response at - 6dB 19Hz 18Hz 22Hz 26Hz 35Hz
30Hz
Features
Sensitivity
(2.83V/1m)
93dB
• LFE/Stereo/Digital inputs
• Adjustable LPF: 50Hz to
150Hz (24dB/oct.),
48dB/oct.
• Adjustable subsonic
crossover
• 3 user memories
• Night mode and Boost
mode
• Autopower
• LFE/Stereo inputs
• Adjustable subsonic
crossover:
40Hz to 160Hz/12dB/Oct
• Phase inverter:
0 - 180°
• Autopower
• RCA input:
Right, left, LFE
• Variable crossover
frequency:
40Hz - 200Hz (LFE)
• Phase inverter:
0 - 180°
• AutoStandby
enable / disable
• Wireless Transmitter
(KLEER® technology)
LFE and Left/Right
Input
• Variable crossover
frequency:
50Hz to 200Hz
• Autopower
• Right, left LFE
• Variable crossover
frequency:
40Hz to 200Hz (LFE)
• On/Autopower (0.5W)
Nominal
impedance
8
Minimal
impedance
5.5
Recommended
amp power
500 - 1,000W
Amplifier power -
600W
BASH® amplifier
1000W
BASH® amplifier
600W Dynamic
300W RMS
150W
BASH® amplifier
200W
Class D amplifier
Finishes
-
- -
-
Dimensions (HxWxD)
25
15/16
x 19 x 24
1/2
"
(63.4 x 48.3 x 62.2cm)
21
1/16
x 19
11/16
x 17"
(53.5 x 50 x 43.2cm)
16
17/32
x 15
3/4
x 16
17/32
"
(42 x 40 x 42cm)
15
3/4
x 15
3/4
x 16
3/4
"
(40 x 40 x 42.5mm)
16.1 x 14.2 x 6.3"
(41 x 36 x 16cm)
12 x 11
1/8
x 11
3/4
"
(30.5 x 28.2 x 29.9cm)
Weight 158.5lbs (72kg) 92.4lbs (42kg) 47lbs (21.5kg) 46.3lbs (21kg) 17lbs (7.65kg) 17.5lbs (8kg)
57
FOCAL I SUBWOOFERS
08.
ASTRAL 16
Astral 16 is a 16-channel audio-video processor and amplifier that al-
lows you to enjoy your private cinema screenings at their best. Com-
patible with Control4, Crestron, Savant and RTI, this cutting-edge
electronic device incorporates 12 class-D amplified channels and han-
dles all audio formats (DolbyAtmos®, DTS:X™ etc.). You can control
whichever system you want by room via a simple app, enjoy access to
technical support at any time and customise your system as desired.
Sound immersion
59
FOCAL I ASTRAL 16
Audio-video
processor
Upgradable
product
Home Theater
& Multiroom
Dirac Live
acoustics
correction
Dolby Atmos
DTS:X
- Auro 3D
12 x
250W RMS
61
FOCAL I ASTRAL 16
ASTRAL 16
Type 16 channel audio-video processor and amplifier
Main features
• Compatible formats Dolby Atmos
®
/ DTS:X™ / Auro-3D
®
• Calibration Powered by Dirac Live
®
: target curve editable
from 20Hz to 20kHz for all channels
(including subwoofers), phase correction full
bandwidth 20Hz - 20kHz on all channels
(including subwoofers)
• 'Remote Monitoring' function
Multichannel /
Surround Processing
• Output channels
• Decoding / upmixing channels
• Input sampling rate supported
• Stereo downmix
• Bass management
• Multi-subwoofer channels
• Multi-way crossover
• 20 Parametric EQ per channel
16
Up to 16 channels
Up to 192kHz
Fully flexible
Unlimited
(6-12-18-24-36-48dB/oct)
HDMI
• HDMI inputs
• HDMI outputs (mirror)
• Supported video format
• High Dynamic Range
• Color Space and Subsampling
• Deep Color
• Max resolution supported
• HDMI
7 : HDMI 2.0 / HDCP 2.2
1 : HDMI 2.0 / HDCP 2.2 (with eARC)
2 : HDMI 2.0 / HDCP 2.2
up to 4K UHD
HDR10 / HLG
4:4:4, 4:2:2, 4:2:0
12 bpc
4K 60fps 4:4:4 8bpc
3D / 4K / eARC
Audio Inputs
• Digital input
• Analog stereo inputs
3 x coaxial, 3 x optical
4 x RCA inputs
Amplified Audio
Outputs
• Amplified main outputs
• Analog main outputs, balanced
• Stereo downmix outputs, balanced
• Technology
• Amplified channels
• Continuous power output, per channel,
to 0.1%THD
• 3 channels driven simultaneous
• 6 channels driven simultaneous
• 12 channels driven simultaneous
12
4 x XLR
2 x XLR
Class D
12
8 / 4 / 2.7
200W / 400W / 650W
200W / 350W / 350W
200W / 300W
Set-Up Management
• Configurable multi-theater management
• Configurable audio zones management
• Unlimited Theater and audio zones listening presets
• Backup and restore of set-up
• Firmware update via USB/network
Control Inputs
and Outputs
• USB type A
• Ethernet
• Trigger
• IR remote ports, in/out
2
4 (out)
1 / 1
Control and custom
Installation
• Web-based product configurator
• TCP/IP API based control
• Focal Remote iPad
®
control application
• Home automation
• Front panel display
Control4, Crestron, RTI and Savant
TFT 4.3"
Power Supply
• Voltage range
• Type
• Range selection
100V to 240V
SMPS
Universal
Supplied with
• Calibrated measurement microphone and tripod
• Dirac Live
®
license
• 32.9ft (10m) cable with infra-red detector
• Mounting kit
Dimensions
avec stands (HxWxD)
7½ x 18⅞ x 19⁄"
(19.1 x 47.9 x 49cm )
Weight
Weight net with stands
Weight net with accessories for rack
44.1lbs (20kg)
50.7lbs (23kg)
63
FOCAL I ASTRAL 16
09.
UNITI
The Uniti line from Naim Audio comprises all-in-one players that work
individually or in combination with other devices. Simply add loudspeakers
to allow your music to express itself fully in any room in your home.
Assembled by hand by the Naim experts in their Salisbury workshops in
England, these sleek and compact players oer a deep immersive sound.
Amplify your emotions
65
NAIM AUDIO I UNITI
Multiroom
Naim app
Volume
wheel
Glass LCD
colour screen
Brushed
Aluminium
Multiple
sources
High-resolution
streaming
67
NAIM AUDIO I UNITI
UNITI NOVA UNITI STAR UNITI ATOM
Type All-in-one music streaming player All-in-one music streaming player All-in-one music streaming player
Streaming
Streaming: Apple AirPlay 2, Chromecast
Built-in, UPnP™, Spotify® Connect, TIDAL,
Roon Ready, Bluetooth, Internet Radio, Qobuz
Streaming: Apple AirPlay 2, Chromecast
Built-in, UPnP™, Spotify® Connect, TIDAL,
Roon Ready, Bluetooth, Internet Radio, Qobuz
Streaming: Apple AirPlay 2, Chromecast
Built-in, UPnP™, Spotify® Connect, TIDAL,
Roon Ready, Bluetooth, Internet Radio, Qobuz
Audio Inputs
• 2 x Optical TOSLink (up to 24bit/96kHz)
• 2 x Coaxial RCA
(up to 24bit/192kHz, DoP 64Fs)
• 1 x BNC (up to 192kHz, DoP 64Fs)
• 1 x HDMI ARC
• 2 x RCA
• 2 x 5-pin DIN
• 2 x USB Type A socket (front and rear)
• 1 x SD card
• 2 x Optical TOSLink (up to 24bit/96kHz)
• 2 x Coaxial RCA
(up to 24bit/192kHz, DoP 64Fs)
• 1 x BNC (up to 192kHz, DoP 64Fs)
• 1 x HDMI ARC
• 1 x RCA
• 1 x 5-pin DIN
• 2 x USB Type A socket (front and rear)
• 1 x SD card
• 2 x Optical TOSLink
(up to 24bit/96kHz)
• 1 x Coaxial RCA
(up to 24bit/192kHz, DoP 64Fs)
• 1 x HDMI ARC
• 1 x RCA
• 2 x USB Type A socket (front and rear)
Audio
Outputs
• 1 x Stereo power amplifier
• 1 x RCA sub/pre output
• 1 x 3.5mm headphone jack
• 1 x Stereo power amplifier
• 1 x RCA sub/pre output
• 1 x 3.5mm headphone jack
• 1 x Stereo power amplifier
• 1 x RCA sub/pre output
• 1 x 3.5mm headphone jack
Digital
• 2 x Optical TOSLink
(up to 24bit/96kHz)
• 2 x Coaxial RCA
(up to 24bit/192kHz, DoP 64Fs)
• 1 x HDMI ARC
• 2 x Optical TOSLink (up to 24bit/96kHz)
• 2 x Coaxial RCA
(up to 24bit/192kHz, DoP 64Fs)
• 1 x BNC (up to 192kHz, DoP 64Fs)
• 1 x HDMI ARC
• 2 x Optical TOSLink (up to 24bit/96kHz)
• 1 x Coaxial RCA
(up to 24bit/192kHz, DoP 64Fs)
• 1 x HDMI ARC
USB 2 x USB Type A Socket (front and rear) 2 x USB Type A Socket (front and rear) 2 x USB Type A Socket (front and rear)
Multiroom
Sync up to five Naim Streaming products
and control via the Naim App
Sync up to five Naim Streaming products
and control via the Naim App
Sync up to five Naim Streaming products
and control via the Naim App
Amplifier Output 80W per channel into 8 70W per channel into 8 40W per channel into 8
Dimensions (HxWxD) 9.5 x 43.2 x 26.5cm 9.5 x 43.2 x 26.5cm 9.5 x 24.5 x 26.5cm
Weight 28.7lbs (13kg) 26.5lbs (12kg) 15.45lbs (7kg)
69
NAIM AUDIO I UNITI
10.
MU-SO
The Mu-so 2
nd
Generation family from Naim Audio are wire-
less all-in-one systems that deliver high-resolution listening expe-
riences, whether you want to enjoy your digital musical collection,
Internet radio or streaming platforms. You will also benefit from
multi-room installation options, multiple features and, of course,
musical power delivered by their Focal-optimised speaker drivers.
Remastered excellence
71
NAIM AUDIO I MU-SO
Integrated
streaming services
Black or
coloured grille
Multi-room
application
Aluminium
heatsink
Brushed
Aluminium finish
Interactive
control crown
73
NAIM AUDIO I MU-SO
OliveBlack TerracottaPeacock
MU-SO 2
ND
GENERATION MU-SO QB 2
ND
GENERATION
Type
3-way bass-reflex
stereo connected speaker
3-way stereo connected compact speaker
with passive radiator
Audio
Inputs
HDMI ARC and CEC -
Streaming
Apple AirPlay 2, Chromecast Built-in, UPnP™,
Spotify® Connect, TIDAL, Roon Ready, Blue-
tooth, Internet Radio, Qobuz
Apple AirPlay 2, Chromecast Built-in, UPnP™,
Spotify® Connect, TIDAL, Roon Ready, Blue-
tooth, Internet Radio, Qobuz
Analogue 3.5mm Jack 3.5mm Jack
USB USB 2 (Type A connector) USB 2 (Type A connector)
Digital
optical
toslink
S/PDIF up to 24bit/96kHz S/PDIF up to 24bit/96kHz
Finishes
Burnished and anodised aluminium
casework, CNC milled, bead blasted
and anodised aluminium heatsinks,
dual-tone grey and black fabric grille
Burnished and anodised aluminium
casework, CNC milled, bead blasted
and anodised aluminium heatsinks,
dual-tone grey and black fabric grille
Power
Amplifier Output
450W - (6 x 75W)
Amplifier Output
300W - (4 x 50W, 1 x 100W)
Dimensions (HxWxD) 12.2 x 62.8 x 26.4cm 21 x 21.8 x 21.2cm
Weight 24.7lbs (11.2kg) 12.35lbs (5.6kg)
MU-SO
WOOD EDITION
MU-SO FOR BENTLEY
SPECIAL EDITION
MU-SO QB GRILLEMU-SO GRILLE
Compatible with
the standard edition
Compatible with
the standard edition
75
NAIM AUDIO I MU-SO
SOPRA
& 1000 SERIES
300 ICW4
100 OD6
DÔME FLAX
SIB EVO
1000 SERIES
UTOPIA
300 IWLCR6
100 IC6ST
1000 ICA6
MU-SO
2
ND
GENERATION
100 ICW6
NAIM APP
MASTER
SUITE
OFFICE
KITCHEN
BATHROOM
HALL
HOME THEATER
LIVING ROOM
PLAY
ROOM
BEDROOM
POOL HOUSE
GARAGE
Available on iOS and Android, the simple yet sophisticated Naim
App lets you easily control and organise your audio experience
across all connected Naim products. Play music in every room,
adjust the volume, choose your tracks, browse album covers,
create playlists, save your favourite radio stations, and much more.
CI EXPERT
OFFICIAL PARTNER
www.focal.com/ci-expert
So you can optimise the full potential of our 1000 Series, our de-
dicated retailer network is on hand to listen to your require-
ments. These specialist teams are trained in Focal products and
can assist you with any questions you may have. Our installers
also have priority access to The Cinema Designer global software
to accurately design your installation and oer a bespoke service.
Contact our CI Expert reseller network
to help you create your home cinema:
Your bespoke Home Cinema
The Focal Integration products are available on The Cinema Designer
global database. This interactive cloud software pulls together
the entire design process of an outstanding Home Cinema
system. Based on the size of your room, it specifies the exact
placement of the loudspeakers, screen, seats and projector. It
details requirements in terms of amplification and much more.
11.
100-T SERIES
Focal sound for large spaces
The 100-T Series is a direct descendant of the 100 Series, but with
the addition of a transformer that adjusts the power of the louds-
peakers for 70V/100V systems. This makes it possible to cover a
very large listening area and minimise amplifier channels. The com-
pact design and low directivity of the speaker drivers make them in-
credibly discreet and musically uniform, whilst Focal’s expertise gua-
rantees your large spaces will have that incredible sound signature.
83
FOCAL I 100-T SERIES
Polyglass
cone
Ready-to-paint
grille
Euroblock
connector
Positionable
tweeter
Wide
dispersion
High impedance
70V/100V
85
FOCAL I 100-T SERIES
IP66 IP66
100 OD8-T 100 OD6-T
Type
Outdoor loudspeaker
(IP66 certified)
Outdoor loudspeaker
(IP66 certified)
Speaker drivers
• 8" (21cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 6
1/2
" (16.5cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
Frequency response 60Hz - 23kHz 65Hz - 23kHz
Power in 70V 15/30/60 W 7,5/15/30 W
Power in 100V 30/60/120 W 15/30/60 W
Sensitivity (2.83V/1m) 88dB 87dB
Nominal impedance 8 8
Recommended
amp power
20 - 150W 20 - 120W
Dimensions
with brackets
(HxWxD)
15
6/16
x
10
3/16
x 11"
(39 x 25.8 x 28cm)
12
9/16
x
8
13/16
x 10
1/16
(31.9 x 22.4 x 25.6cm)
Finishes
Weight 12.6lbs (5.8kg) 9lbs (4.1kg)
100 ICW8-T 100 ICW6-T 100 ICW5-T
Type
2-way coaxial
in-wall/in-ceiling
100V/70V line installation
2-way coaxial
in-wall/in-ceiling
100V/70V line installation
2-way coaxial
in-wall/in-ceiling
100V/70V line installation
Speaker drivers
• 8" (21cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 6" (16.5cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 5" (13cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
Frequency response 53Hz - 23kHZ 62Hz - 23kHz 65Hz - 23kHz
Power in 70V 7.5/15/30W 4/7.5/15W 2/4/7.5W
Power in 100V 15/30/60W 7.5/15/30W 4/8/15W
Sensitivity (2.83V/1m) 90dB 89dB 88dB
Nominal impedance 8Ω 8Ω 8Ω
Recommended
amp power
25 - 100W 25 - 100W 15 - 100W
Dimensions (ØxP)
9¾ x 4⅜"
(24.8 x 11.1cm)
8⁄ x 3¾"
(20.8 x 9.5cm)
7¼ x 4"
(18.4 x 10cm)
Mounting
dimensions
8⁄" (22.4cm) 7¼" (18.4cm) 6⁄" (15.7cm)
Mounting
depth
4¼" (10.7cm) 3⅝" (9.1cm) 3¾" (9.6cm)
Weight (with grille) 5lbs (2.3kg) 3.75lbs (1.7kg) 3.5 lbs (1.6kg)
87
FOCAL I 100-T SERIES
UL
The 100-T Series in-ceiling coaxial loudspeakers are UL-
certified (UL 1480 and UL 2043). Those are recognised american
standards for fire and electric shock risks, meaning they are fully
compliant with current regulations on fire and electric shock risks.
Safety certification
100 IC8-T UL 100 ICS6-T UL
Type
2-way coaxial bass-reflex in-ceiling
100V/70V or 8 installations
Steel back can
2-way coaxial bass-reflex in-ceiling
100V/70V or 8 installations
Steel back can
Speaker drivers
• 8" (21cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
• 6½" (16cm)
Polyglass Mid-Bass
• 1" (25mm) AIuminium
inverted dome tweeter
Frequency response 53Hz - 23kHz 70Hz - 23kHz
Power in 70V 7.5 / 15 / 30W 4 / 8 / 15W
Power in 100V 15 / 30 / 60W 8 / 15 / 30W
Sensitivity (2.83V/1m) 91dB 89dB
Nominal impedance 8 8
Recommended
amp power
15 - 150W 15 - 100W
Certifications UL 1480 / UL 2043 UL 1480 / UL 2043
Dimensions (ØxP)
11¾ x 8⅞"
(29.7 x 22.5cm)
11¾ x 4⅝"
(29.7 x 11.6cm)
Mounting
dimensions
10⅜" (26.5cm) 10⅜" (26.5cm)
Mounting
depth
8⅜" (21.2cm) 4" (10.3cm)
Weight (with grille) 9.37lbs (4.25 kg) 7.5lbs (3.4kg)
89
FOCAL I 100-T SERIES
Integrated loudspeakers
ACCESSORIES
Product compatibility
1000 IWLCR UTOPIA
2 X IWSUB UTOPIA
1000 IWSUB UTOPIA
1000 IWLCR UTOPIA & 1000 IWSUB UTOPIA
1000 IWLCR UTOPIA & 2 X 1000 IWSUB UTOPIA
1000 IWLCR6
1000 IW6
1000 ICW6
1000 ICA6
1000 ICLCR5
300 ICLCR5
300 IWLCR6
300 IW6
300 ICW8
300 ICW6
300 ICW4
100 IWLCR5
100 IW6
100 ICLCR5
100 ICW8 / 100 ICW8-T
100 ICW6 / 100 ICW6-T
100 IC6ST
100 ICW5 / 100 ICW-T
100 IC8-T UL
100 ICS6-T UL
PRE-ASSEMBLY
KITS
These kits allow you to precisely position in-wall and in-cei-
ling products in new builds. They comprise a mounting strip com-
bined with a frame for the perfect placement of your loudspeakers.
91
FOCAL I ACCESSORIES
93
FOCAL I ACCESSORIES
ON-WALL
FRAMES
FIRE
BACKCAN
Insulator
Product compatibility
Dimensions
(HxWxD)
1000 SERIES 300 SERIES 100 SERIES
1⅝" (40mm)
ceramic fibre
1000 ICW6
300 ICW4
300 ICW6
300 IW6
100 ICW5
100 ICW6
100 ICW8
100 IC6ST
100 IW6
18
7/ 8
x 19 x 5
7/ 8
"
(478 x 482 x 149mm)
Designed with materials specially adapted to high tempera-
tures, this fire-proof built-in casing ensures your installation
is safe, for perfect reliability. It also provides sound insulation.
Mounted frames allow loudspeakers to be installed on walls.
They are available in White High Gloss or raw, ready-to-paint
finish. Slim, in-wall anti-vibration studs allow for easy installation.
Product compatibility
1000 IWLCR UTOPIA
1000 IWSUB UTOPIA
1000 IWLCR6
1000 IW6
2020
Best High-End
AV Amplifier
Focal Astral 16
1000 SERIES 300 SERIES ASTRAL 16ON WALL 300100 SERIES
'Reference-grade sound
from an in-wall speaker'
AUDIOHOLICS
'Stunning new flagship CI speaker range
combines class-leading performance,
unique technologies and
extreme flexibility, for the ultimate
integration experience'
HOME THEATER HIFI
'Among the easiest to fit
in-ceiling loudspeakers
on the market'
HOME CINEMA CHOICE
'The 1000 Series goes even
further in terms of acoustic
performance and integration
possibilities'
RESIDENTIAL TECH
'My day-to-day
music listening and
home theater system,
without regret'
HOME THEATER
'An experience that was spine-tingling'
HOME CINEMA CHOICE
'This is high-end
hardware fit
for the finest of setups'
AVTECH MEDIA
'The sound is rich,
the soundscape large and
there is more than enough
bass in them'
L&B TECH REVIEWS
'Focal’s 100 ICLCR5
is a rare exception of an
in-ceiling speaker that
does a great job reproducing
your home theater’s front
soundstage'
CRUTCHFIELD
'The next best thing
to in-wall speakers'
WHAT HIFI
'An acoustic wall art
for audiophiles keen on discretion'
ON MAG
'They will delight the passionate ones
who are looking for a high-end solution
dedicated to all uses'
COBRASON BLOG
SPEAKER PACKAGE OF THE YEAR
UNDER $5000
FOCAL SIB EVO DOLBY ATMOS 5.1.2
DÔME FLAX MU-SOSIB EVO UNITI
'A lovely soundstage,
fantastic neutrality,
and great detail'
RESIDENTIAL SYSTEMS
'Focal’s Dôme Flax
sound great anywhere'
DIGITAL TRENDS
'Put simply, it’s difficult to go
back to any other wireless
speaker after trying the Qb'
THE INDEPENDANT
'Confortably
the best all-in one
we looked at this year'
AV FORUMS
'High-quality, ultra-compact,
satellite style loudspeakers'
TRUSTED REVIEWS
'Good clarity
and excellent
surround integration'
CNET
'An excellent immersive
audio experience'
AVFORUMS
'The looking is as impressive
as the sound'
WHAT HI-FI
'Among a constellation
of competitors, the Naim
Uniti Nova is a shining star'
ROBB REPORT
'Pretty perfect.
Cements Naim’s reputation
as the Aston Martin
of the audio world'
FORBES
'Great solution
for those looking
for effective
Dolby Atmos
'
TRUSTED REVIEWS
‘The best wireless speakers
deliver top sound quality’
T3
Home Collection
Professional Collection
Motorities Collection
COLLECTIONS
Combining performance and design, Focal’s collections are a revelation,
awakening the emotions through a supreme listening experience. And it
doesn’t matter where you are. At home with traditional and in-wall / in-
ceiling loudspeakers, Home Cinema systems and open-back headphones;
on the move with closed-back headphones and in-car kits; in studio with
professional monitors; and even at sea with specialist yacht solutions.
Enjoy an incredible sound experience
Find our products in 10,000 retail partner stores across the world,
but also in our Focal Powered by Naim shops. These shops,
dedicated to our brands, invite you to dive into our world,
our savoir-faire and immerse yourself in the Focal & Naim sound.
ASIA
Bengaluru - Guangzhou
Seoul Gangnam-gu
Seoul Hanam
AUSTRALIA
Adelaide - Melbourne
Perth - Sydney
EUROPE
Cannes - Lyon -
Perpignan
Berlin - Bad Schwartau
Sevenoaks
Prague
Bucharest
Vilnius
CANADA
Saskatoon
USA
Austin
Houston
Miami
www.focal.com
For more information, scan the QR code
or find us at:
PCCG1312
Focal JMLabFocal JMLab
®®
BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - France - +33 (0) 477 435 700BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - France - +33 (0) 477 435 700
Focal® is a registered trademark of Focal JMLab®, Naim® is a registered trademark of Naim Audio®.
Due to constant technological advances,Focal JMLab®and Naim Audio® reserve the right to modify prices and specifications without notice.
Non-binding pictures. Pictures : L’Atelier Sylvain Madelon / Envato Elements. SCAA/01/04/2022 - v2
