KitchenAid KERC500HWH0 electric range User Manual

ruse and Care Guide

TO THE INSTALLER: PLEASE LEAVE THIS

INSTRUCTION BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ

AND KEEP THIS BOOK FOR FUTURE

REFERENCE.

Ku ©henAmd

A Note to You .............................................. 2

Range Safety .............................................. 3

Parts and Features .................................... 6

Using and Caring for Your Cooktop ........ 9

Using the surface units ............................ 9

Cookware tips ........................................ 11

Characteristics of cookware materials..,.12

Home canning information...................... 13

Caring for your cooktop .......................... 13

Cleaning your Cooktop............................ 16

Using and replacing the cooktop light ....17

Using and Caring for Your Oven ............ 18

Using the electronic oven control .......... 18

Setting the clock .................................... 19

Using the minute timer ............................ 19

Starting/Canceling a function .................. 21

Tones ...................................................... 21

Oven settings .......................................... 21

Cooking tips ............................................ 22

Baking & Roasting .................................. 25

Convection Baking & Roasting .............. 26

Auto Convection Baking ........................ 28

Adjusting oven temperature .................... 31

Broiling .................................................... 32

Vari-Broiling ............................................ 34

Convection Broil ...................................... 34

"13medcooking ........................................ 35

Cleaning your oven and controls ............ 43

Oven lights .............................................. 45

Resetting circuit breakers ...................... 45

Using the Self-Cleaning Cycle ................ 46

Before you start ...................................... 46

Setting the controls ................................ 47

For best cleaning results ........................ 50

How the cycle works .............................. 50

Troubleshooting ...................................... 51

Requesting Assistance or Service ........ 54

Warranty .................................................... 56

In the U.S.A. for assistance or service, call

the Consumer Assistance center:

1-800-422-! 230

In Canada for assistance or service,

see page 55.

KITCHENAID®Electric Ranges

Models: KERI500 KERC500 KERS506 KERC506

YKERI500 YKERC500 YKERS506 YKERC506

9753844 www.kitchenaid.com

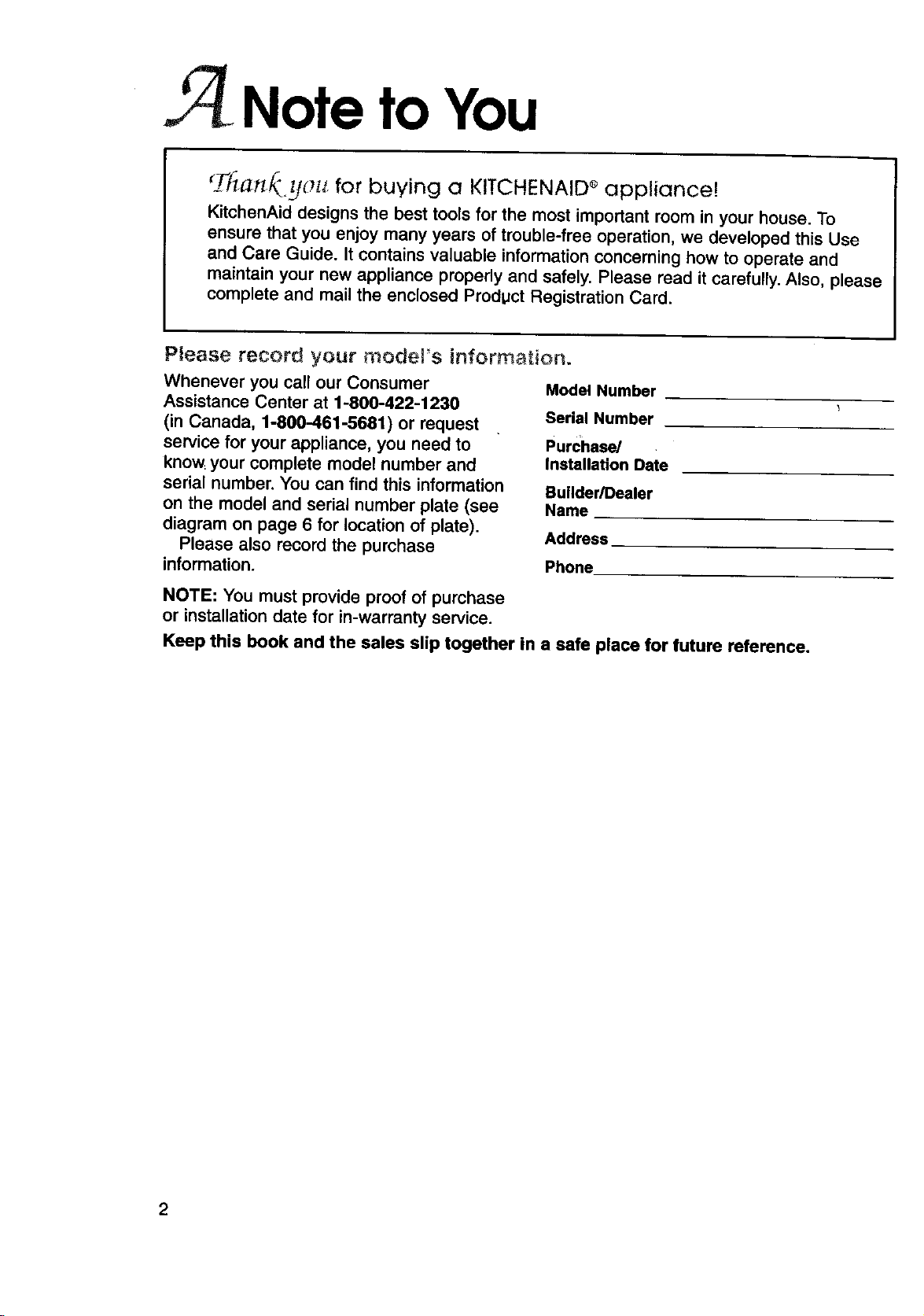

Note to You

qr_an_,you, for buying a KITCHENAID ® appliance!

KitchenAid designs the best tools for the most important room in your house. To

ensure that you enjoy many years of trouble-free operation, we developed this Use

and Care Guide. It contains valuable information concerning how to operate and

maintain your new appliance properly and safely. Please read it carefully. Also, please

complete and mail the enclosed Product Registration Card.

Please record your model s information.

Whenever you call our Consumer

Assistance Center at 1-800-422-1230

(in Canada, 1-800-461-5681) or request

service for your appliance, you need to

know_your complete model number and

serial number. You can find this information

on the model and serial number plate (see

diagram on page 6 for location of plate).

Please also record the purchase

information.

Model Number

Serial Number

Purchase/

Installation Date

Builder/Dealer

Name

Address

Phone

NOTE: You must provide proof of purchase

or installation date for in-warranty service.

Keep this book and the sales slip together in a safe place for future reference.

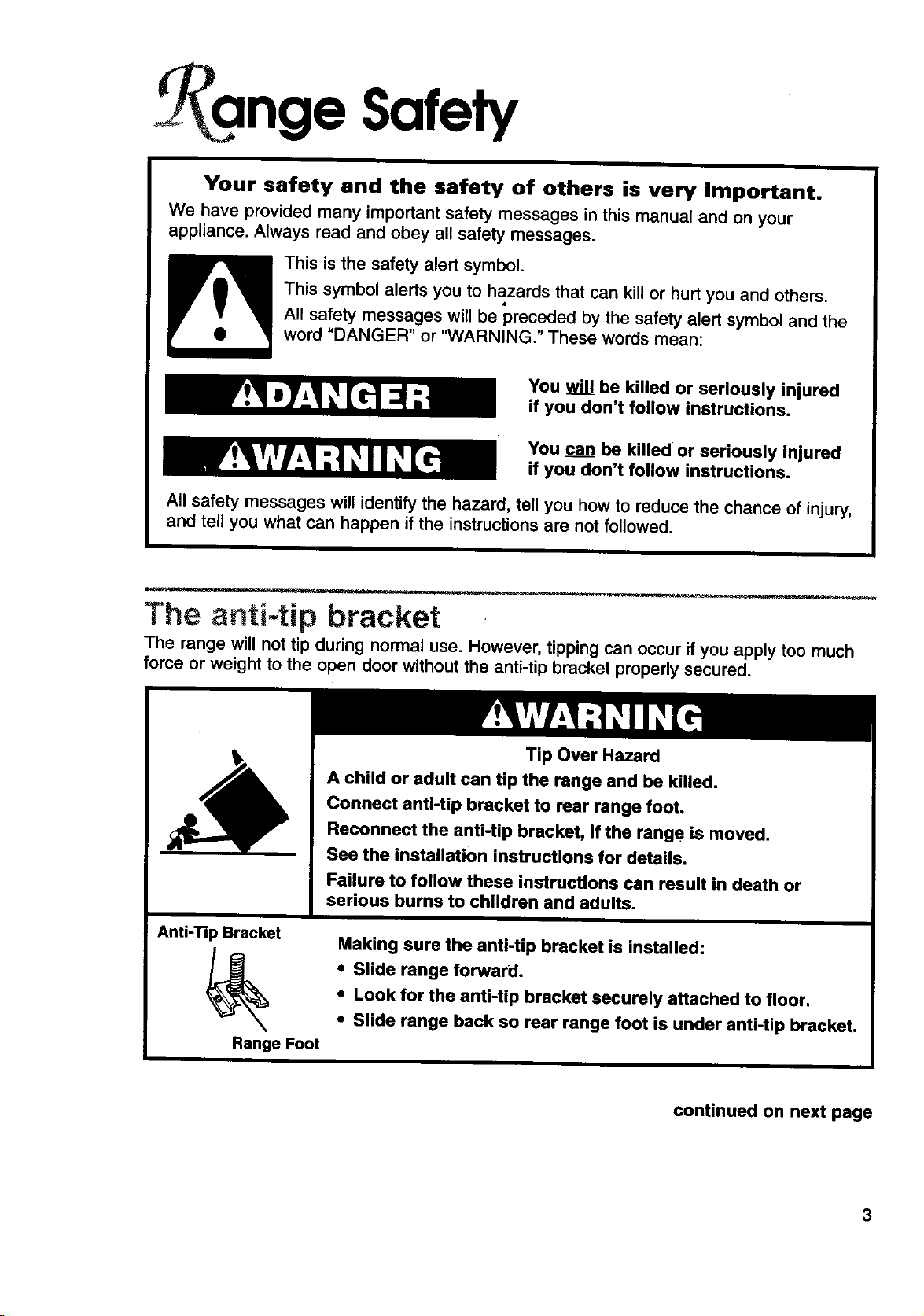

P nge Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

The anti-tip bracket

The range will not tip during normal use. However, tipping can occur if you apply too much

force or weight to the open door without the anti-tip bracket properly secured.

Anti-Tip Bracket

Range Foot

Tip Over Hazard

A child or adult can tip the range and be killed.

Connect anU-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is moved.

See the installation instructions for details.

Failure to follow these instructions can result in death or

serious burns to children and adults.

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor,

• Slide range back so rear range foot is under anti-tip bracket.

continued on next page

nge Safety

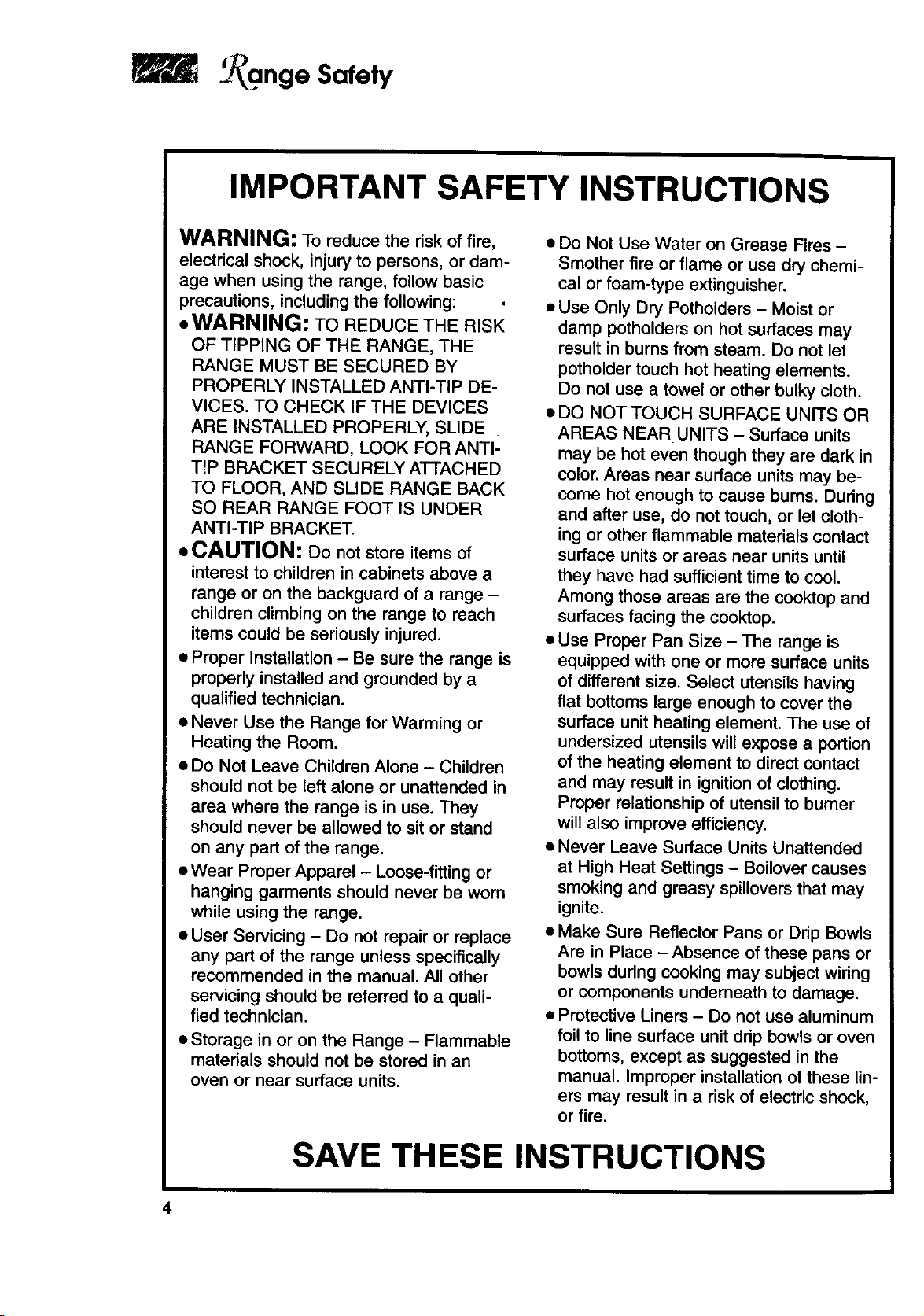

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire,

electrical shock, injuryto persons, or dam-

age when using the range, follow basic

precautions, including the following:

• WARNING: TO REDUCE THE RISK

OF TIPPING OF THE RANGE, THE

RANGE MUST BE SECURED BY

PROPERLY INSTALLED ANTI-TIP DE-

VICES. TO CHECK IF THE DEVICES

ARE INSTALLED PROPERLY, SLIDE

RANGE FORWARD, LOOK FOR ANTI

TIP BRACKET SECURELY ATTACHED

TO FLOOR, AND SLIDE RANGE BACK

SO REAR RANGE FOOT tS UNDER

ANTI-TIP BRACKET.

• CAUTION: Do not store items of

interest to children incabinets above a

range or on the backguard of a range -

children climbing on the range to reach

items could be seriously injured.

• Proper Installation- Be sure the range is

properly installed and grounded by a

qualified technician.

• Never Use the Range for Warming or

Heating the Room.

• Do Not Leave Children Alone - Children

should not be left alone or unattended in

area where the range is in use. They

should never be allowed to sit or stand

on any part of the range.

• Wear Proper Apparel - Loose-fitting or

hanging garments should never be worn

while using the range.

• User Servicing - Do not repair or replace

any part of the range unless specifically

recommended in the manual. All other

servicing should be referred to a quali-

fied technician.

• Storage in or on the Range - Flammable

materials should not be stored in an

oven or near surface units.

• Do Not Use Water on Grease Fires -

Smother fire or flame or use dry chemi-

cal or foam-type extinguisher.

• Use Only Dry Potholders - Moist or

damp potholders on hot surfaces may

result in burns from steam. Do not let

potholder touch hot heating elements.

Do not use a towel or other bulky cloth.

• DO NOT TOUCH SURFACE UNITS OR

AREAS NEAR UNITS - Surface units

may be hot even though they are dark in

color. Areas near surface units may be-

come hot enough to cause bums. During

and after use, do not touch, or let cloth-

ing or other flammable materials contact

surface units or areas near units until

they have had sufficient time to cool.

Among those areas are the cooktop and

surfaces facing the cooktop.

• Use Proper Pan Size - The range is

equipped with one or more surface units

of different size. Select utensils having

flat bottoms large enough to cover the

surface unit heating element. The use of

undersized utensils will expose a portion

of the heating element to direct contact

and may result in ignition of clothing.

Proper relationship of utensil to burner

will also improve efficiency.

• Never Leave Surface Units Unattended

at High Heat Settings - Boilover causes

smoking and greasy spillovers that may

ignite.

• Make Sure Reflector Pans or Drip Bowls

Are in Place - Absence of these pans or

bowls during cooking may subject wiring

or components underneath to damage.

• Protective Liners - Do not use aluminum

foil to line surface unit drip bowls or oven

bottoms, except as suggested in the

manual. Improper installation of these lin-

ers may result in a risk of electric shock,

or fire.

SAVE THESE INSTRUCTIONS

_ nge Safety

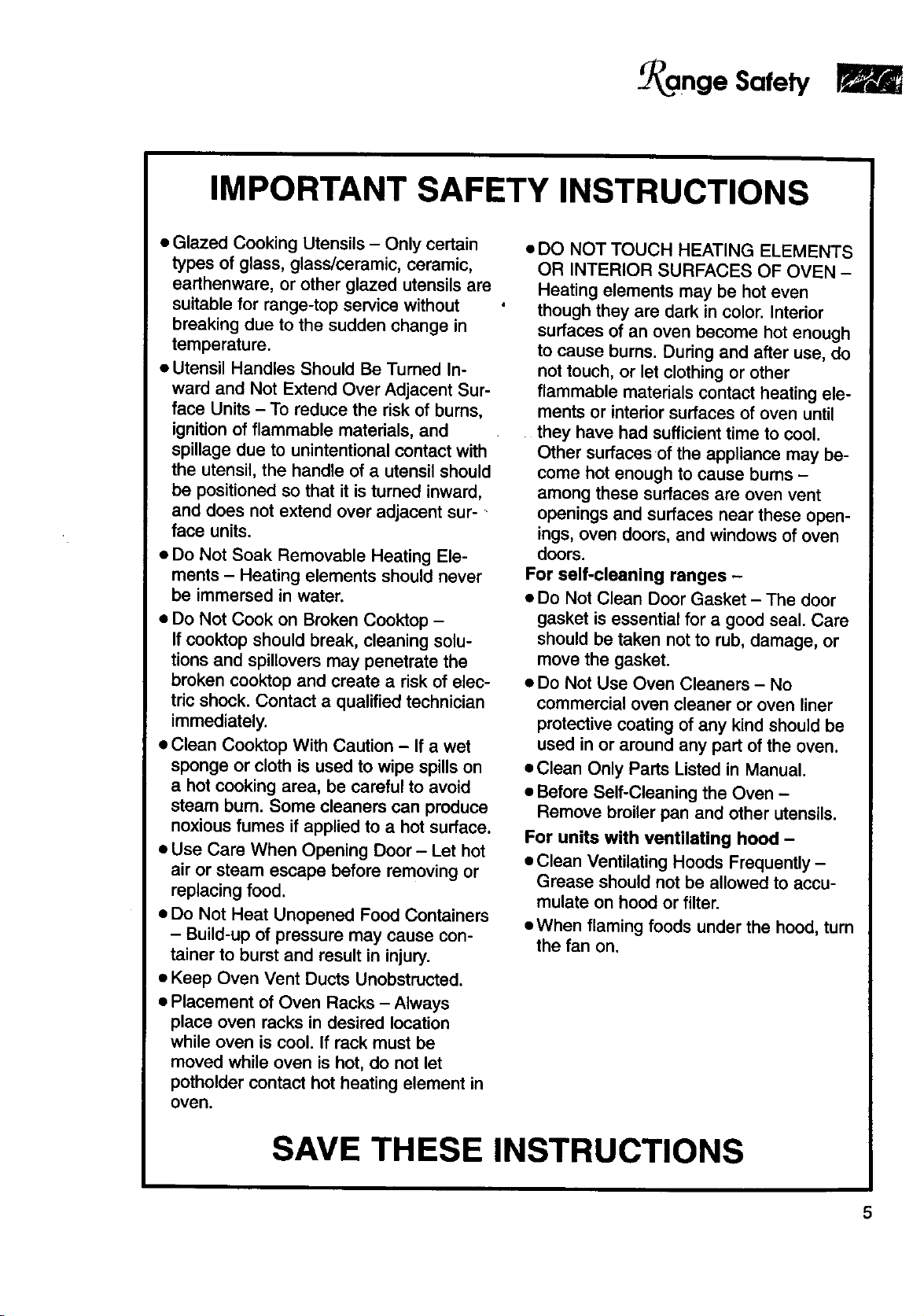

IMPORTANT SAFETY INSTRUCTIONS

• Glazed Cooking Utensils - Only certain

types of glass, glass/ceramic, ceramic,

earthenware, or other glazed utensils are

suitable for range-top service without

breaking due to the sudden change in

temperature.

• Utensil Handles Should Be Tumed In-

ward and Not Extend Over Adjacent Sur-

face Units - To reduce the risk of bums,

ignition of flammable materials, and

spillage due to unintentional contact with

the utensil, the handle of a utensil should

be positioned so that it is turned inward,

and does not extend over adjacent sur- -

face units.

• Do Not Soak Removable Heating Ele-

ments - Heating elements should never

be immersed in water.

• Do Not Cook on Broken Cooktop -

If cooktop should break, cleaning solu-

tions and spillovers may penetrate the

broken cooktop and create a risk of elec-

tric shock. Contact a qualified technician

immediately.

• Clean Cooktop With Caution - If a wet

sponge or cloth is used to wipe spills on

a hot cooking area, be careful to avoid

steam bum. Some cleaners can produce

noxious fumes if applied to a hot surface.

• Use Care When Opening Door - Let hot

air or steam escape before removing or

replacing food.

• Do Not Heat Unopened Food Containers

- Build-up of pressure may cause con-

tainer to burst and result in injury.

• Keep Oven Vent Ducts Unobstructed.

• Placement of Oven Racks - Always

place oven racks in desired location

while oven is cool. If rack must be

moved while oven is hot, do not let

potholder contact hot heating element in

oven.

• DO NOT TOUCH HEATING ELEMENTS

OR INTERIOR SURFACES OF OVEN -

Heating elements may be hot even

though they are dark in color. Interior

surfaces of an oven become hot enough

to cause burns. During and after use, do

not touch, or let clothing or other

flammable materials contact heating ele-

ments or interior surfaces of oven until

they have had sufficient time to cool.

Other surfaces of the appliance may be-

come hot enough to cause burns -

among these surfaces are oven vent

openings and surfaces near these open-

ings, oven doors, and windows of oven

doors.

For self-cleaning ranges -

• Do Not Clean Door Gasket - The door

gasket is essential for a good seal. Care

should be taken not to rub, damage, or

move the gasket.

• Do Not Use Oven Cleaners - No

commercial oven cleaner or oven liner

protective coating of any kind should be

used in or around any part of the oven.

• Clean Only Parts Listed in Manual.

• Before Self-Cleaning the Oven -

Remove broiler pan and other utensils.

For units with ventilating hood -

• Clean Ventilating Hoods Frequently-

Grease should not be allowed to accu-

mulate on hood or filter.

• When flaming foods under the hood, turn

the fan on.

SAVE THESE INSTRUCTIONS

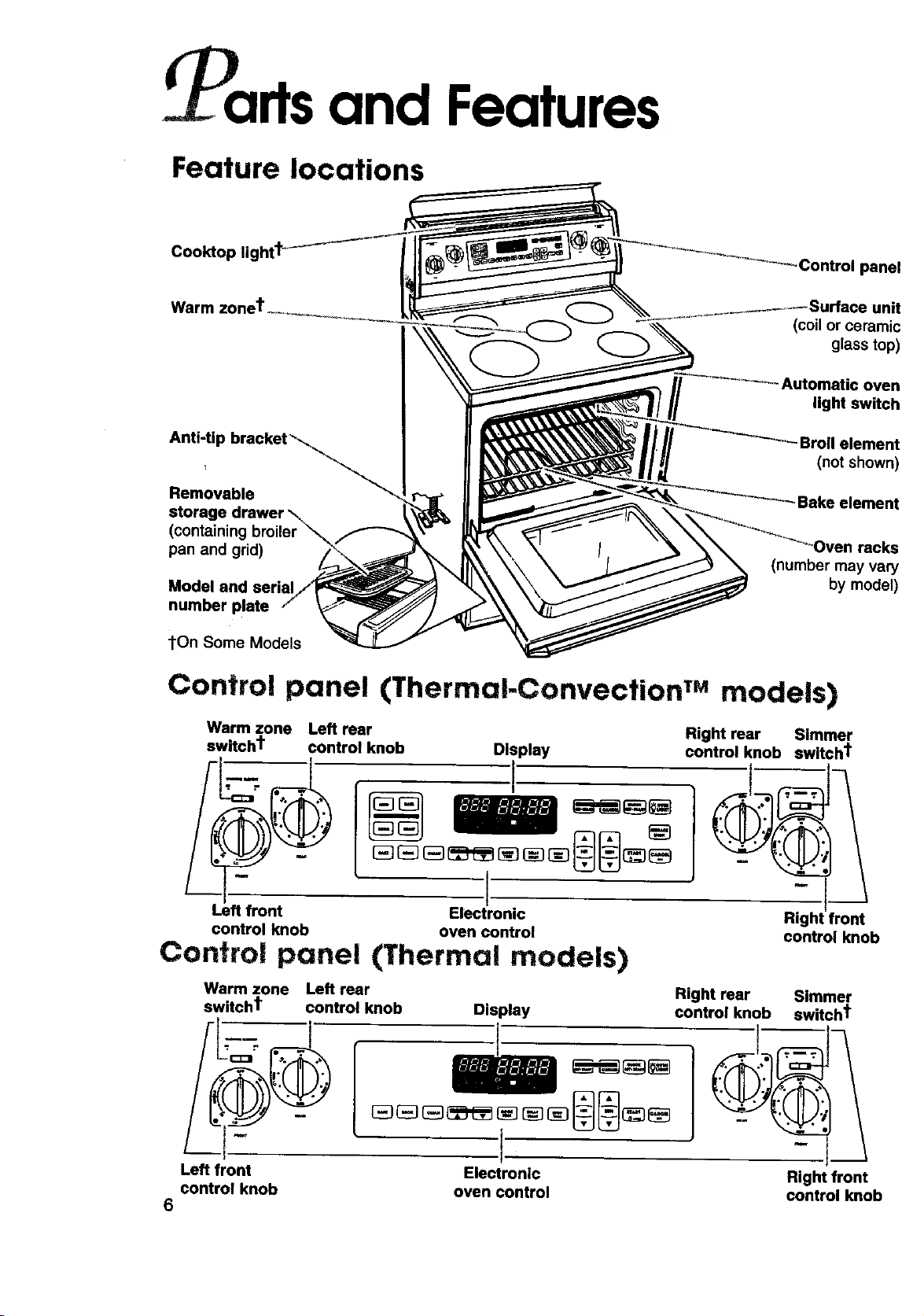

)arts and Features

Feature locations

Cooktop

_ontrol panel

unit

(coil or ceramic

glass top)

Automatic oven

light switch

Anti-Up

- Broil element

(not shown)

Removable

storage drawer \\

(containing

pan and grid)

Model and serial

number plate

.Bake element

racks

(number may vary

by model)

tOn Some Models

Control panel (Thermal-Convection TM models)

Warm zone Left rear

switcht control knob Display

Left front Electronic

control knob oven control

Control panel (Thermal models)

Right rear Simmer

control knob awltcht

Right front

control knob

Warm zone

switcht

Left front

control knob

Left rear Right rear Simmer

control knob Display control knob switcht

•

I -

Electronic Right front

oven control control knob

_)arts and Features

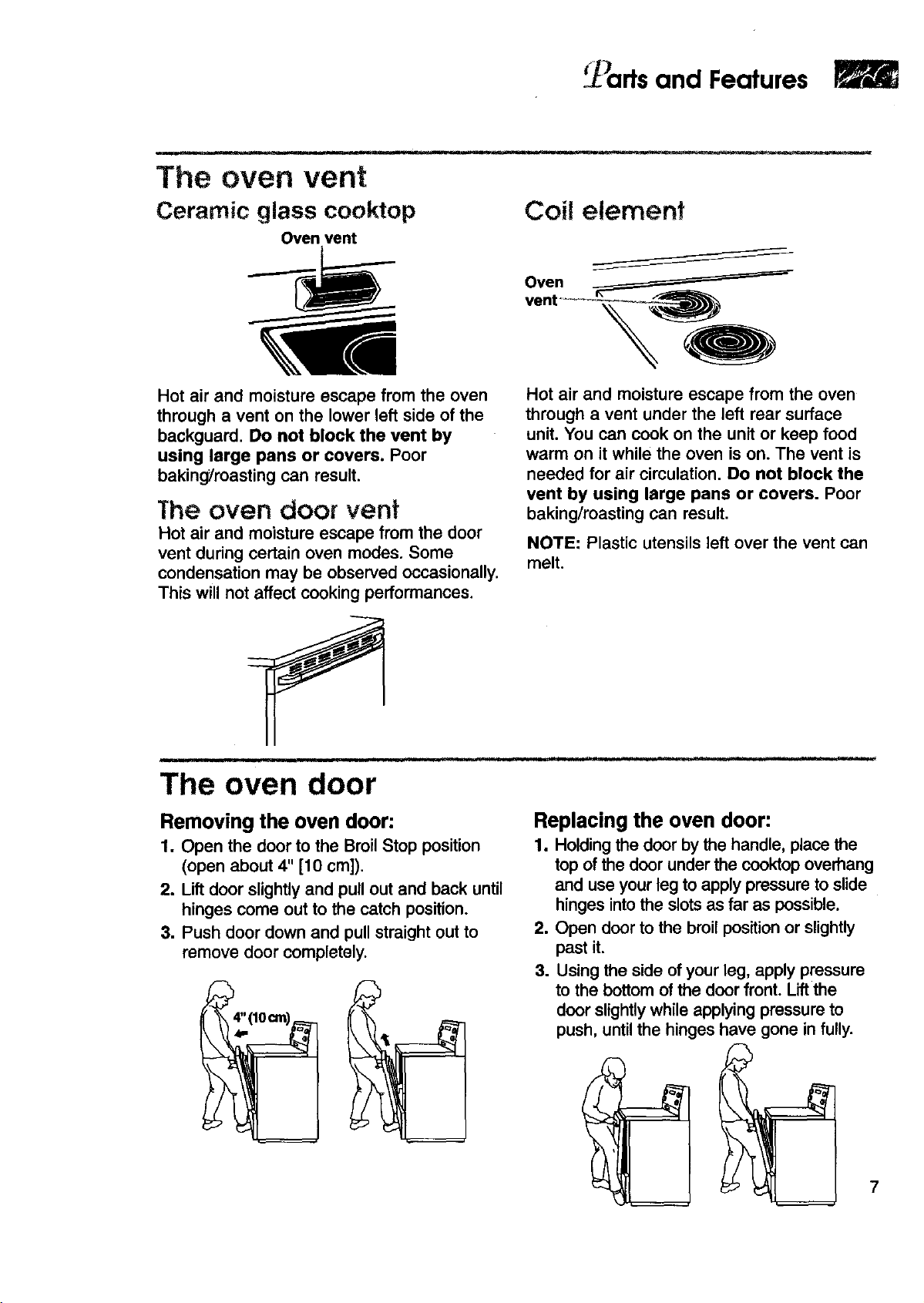

The oven vent

Ceramic glass cooktop

Oven vent

Coilelement

Oven

vent -_--o-_--_-_

Hot air and moisture escape from the oven

through a vent on the lower left side of the

backguard. Do not block the vent by

using large pans or covers. Poor

baking/roasting can result.

The oven door vent

Hot air and moisture escape from the door

vent during certain oven modes. Some

condensation may be observed occasionally.

This will not affect cooking performances.

Hot air and moisture escape from the oven

through a vent under the left rear surface

unit. You can cook on the unit or keep food

warm on it while the oven is on. The vent is

needed for air circulation. Do not block the

vent by using large pans or covers. Poor

baking/roasting can result.

NOTE: Plastic utensils left over the vent can

melt.

The oven door

Removing the oven door:

1. Open the door to the Broil Stop position

(open about 4" [10 cm]).

2. Liftdoor slightly and pull out and back until

hinges come out to the catch position.

3. Push door down and pull straight out to

remove door completely.

Replacing the oven door:

1. Holdingthe door by the handle, place the

top of the door underthe cooktop overhang

and use your leg to applypressure to slide

hinges intothe slotsas far as possible.

2. Open doorto the broil positionor slightly

past it.

3. Using the side ofyour leg, apply pressure

to the bottomof the door front. Liftthe

doorslightlywhile applying pressureto

push, untilthe hingeshave gone in fully.

)arts and Features

m__

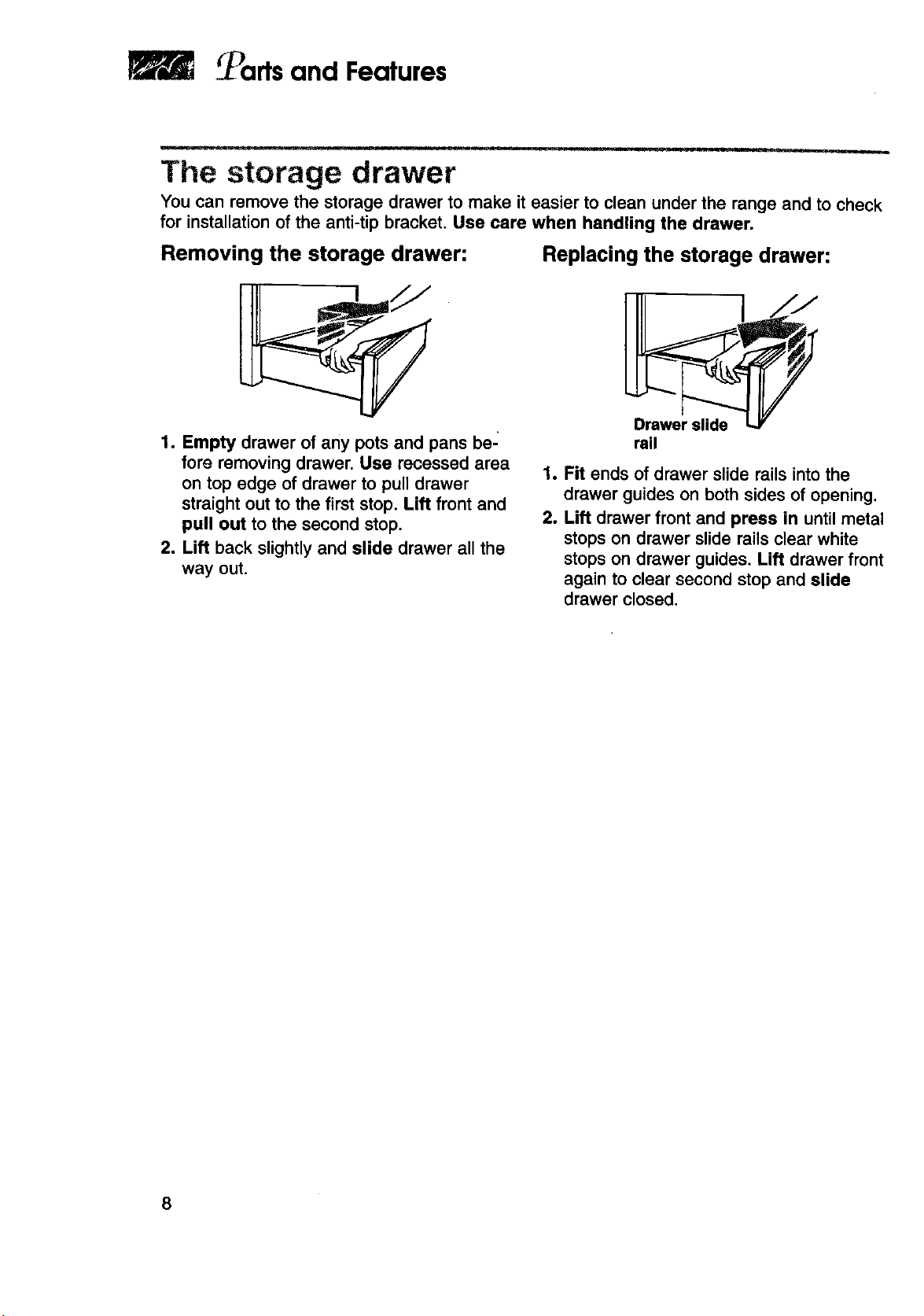

The storage drawer

You can remove the storage drawer to make it easier to clean under the range and to check

for installation of the anti-tip bracket. Use care when handling the drawer.

Removing the storage drawer: Replacing the storage drawer:

1. Empty drawer of any pots and pans be-

fore removing drawer. Use recessed area

on top edge of drawer to pull drawer

straight out to the first stop. Lift front and

pull out to the second stop.

2, Lift back slightlyand slide drawer all the

way out.

Drawer slide

rail

1. Fit ends of drawer slide rails into the

drawer guides on both sides of opening.

2, Lift drawer front and press in until metal

stops on drawer slide rails clear white

stops on drawer guides. Lift drawer front

again to clear second stop and slide

drawer closed.

(71

° sing and Caring for Your

Cooktop

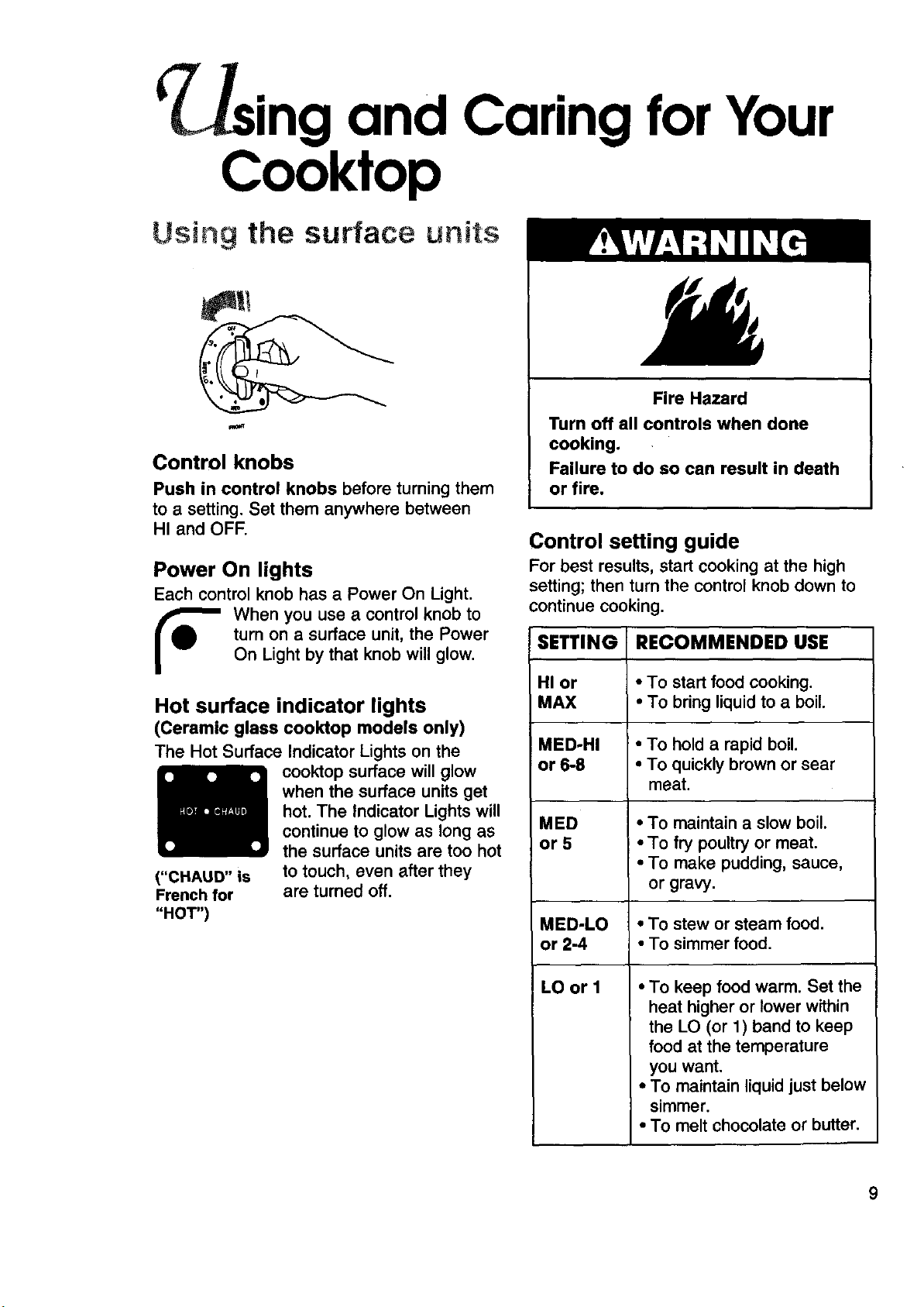

Using the surface units

Control knobs

Push in control knobs before turning them

to a setting. Set them anywhere between

HI and OFF.

Power On lights

Each control knob has a Power On Light.

When you use a control knob to

turn on a surface unit, the Power

On Light by that knob will glow.

("CHAUD" is

French for

"HOT")

Hot surface indicator lights

(Ceramic glass cooktop models only)

The Hot Surface Indicator Lights on the

cooktop surface will glow

when the surface units get

hot. The Indicator Lights will

continue to glow as long as

the surface units are too hot

to touch, even after they

are turned off.

Fire Hazard

Turn off all controls when done

cooking.

Failure to do so can result in death

or fire.

Control setting guide

For best results, start cooking at the high

setting; then turn the control knob down to

continue cooking.

SETTING RECOMMENDED USE

HI or • To start food cooking.

MAX • To bring liquid to a boil.

MED-HI • To hold a rapid boil.

or 6-8 • To quickly brown or sear

meat.

MED • To maintain a slow boil.

or 5 • To fry poultry or meat.

• To make pudding, sauce,

or gravy.

MED-LO • To stew or steam food.

or 2-4 • To simmer food.

LO or I

• To keep food warm. Set the

heat higher or lower within

the LO (or 1) band to keep

food at the temperature

you want.

• To maintain liquid just below

simmer.

• To melt chocolate or butter.

_Ising and Caring for Your Cooktop

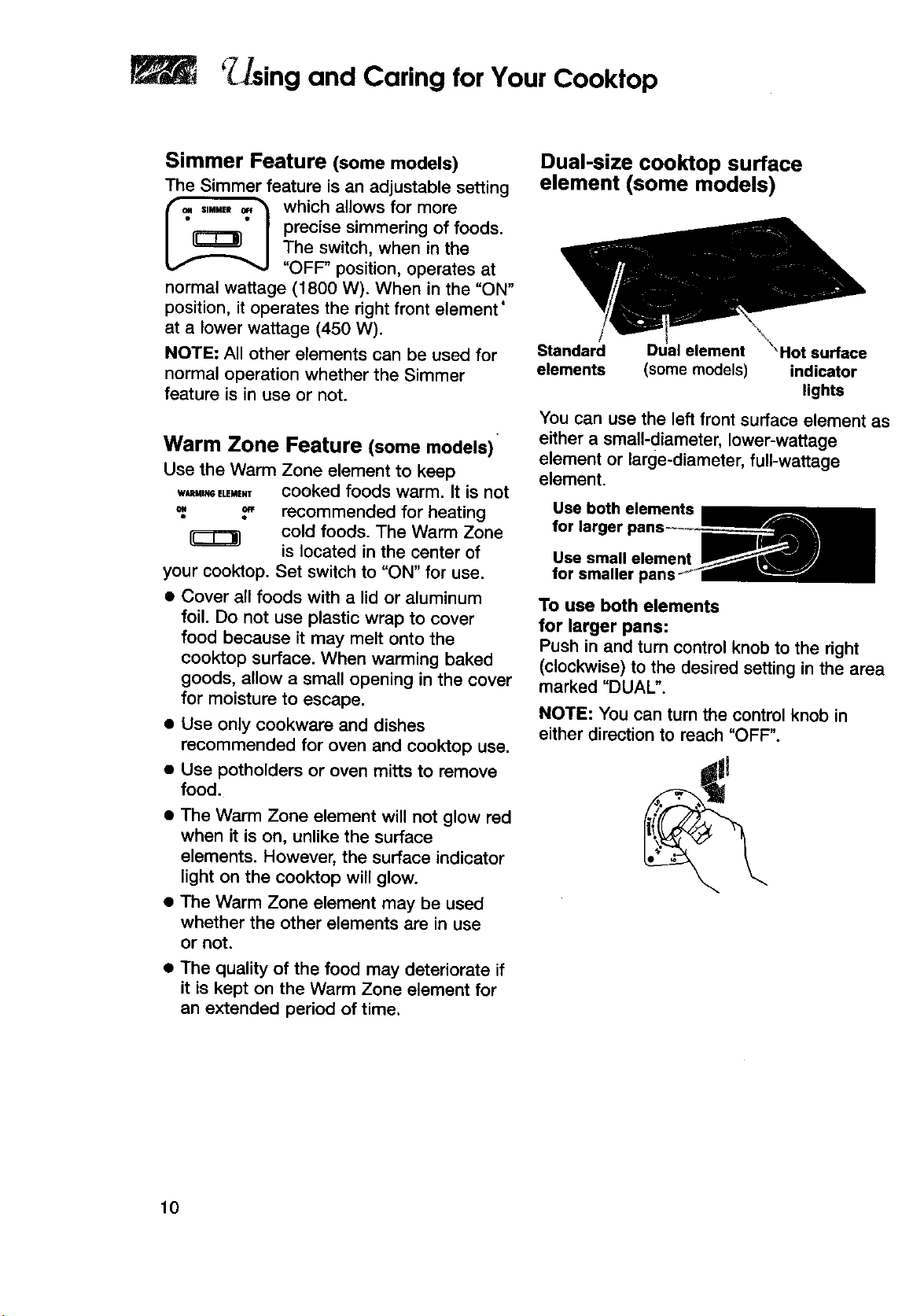

Simmer Feature (somemodels)

The Simmer feature is an adjustable setting

which allows for more

precise simmering of foods.

The switch, when in the

"OFF" position, operates at

normal wattage (1800 W). When in the "ON"

position, it operates the right front element'

at a lower wattage (450 W).

NOTE: All other elements can be used for

normal operation whether the Simmer

feature is in use or not.

Warm Zone Feature (somemodels)

Use the Warm Zone element to keep

w,t.,,o,L=._,, cooked foods warm. It is not

=' recommended for heating

cold foods. The Warm Zone

is located in the center of

your cooktop. Set switch to "ON" for use.

• Cover all foods with a lid or aluminum

foil. Do not use plastic wrap to cover

food because it may melt onto the

cooktop surface. When warming baked

goods, allow a small opening in the cover

for moisture to escape.

• Use only cookware and dishes

recommended for oven and cooktop use.

• Use potholders or oven mitts to remove

food.

• The Warm Zone element will not glow red

when it is on, unlike the surface

elements. However, the surface indicator

light on the cooktop will glow.

• The Warm Zone element may be used

whether the other elements are in use

or not.

• The quality of the food may deteriorate if

it is kept on the Warm Zone element for

an extended period of time.

Dual-size cooktop surface

element (some models)

Standard ,I element '\Hot surface

elements (some models) indicator

lights

You can use the left front surface element as

either a small-diameter, lower-wattage

element or large-diameter, full-wattage

element.

Use both

for larger pans

Use small element

for smaller

To use both elements

for larger pans:

Push in and turn control knob to the right

(clockwise) to the desired setting in the area

marked "DUAL".

NOTE: You can turn the control knob in

either direction to reach "OFF".

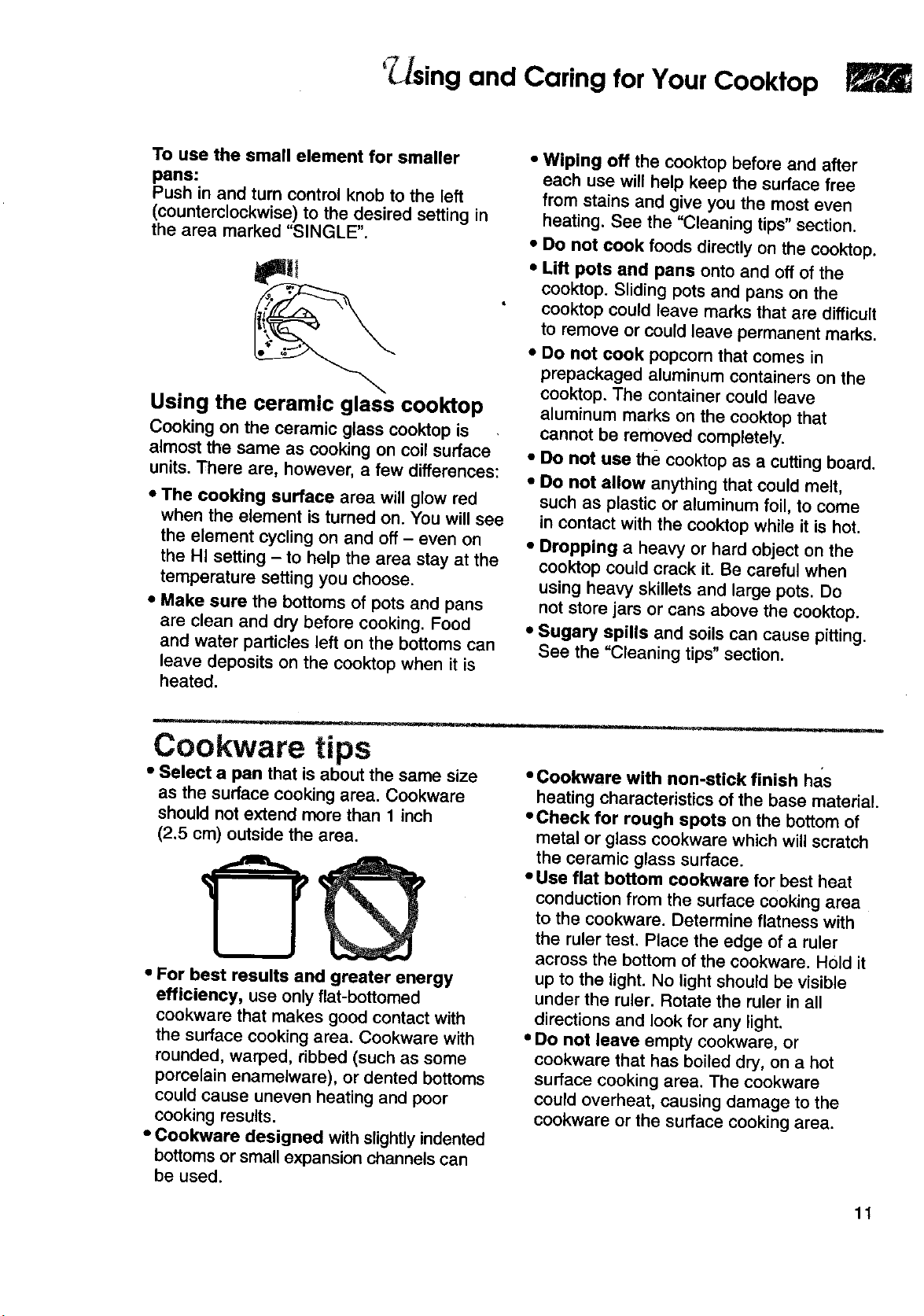

' . sing and Caring for Your Cooktop

To use the small element for smaller

pans:

Push in and turn control knob to the left

(counterclockwise) to the desired setting in

the area marked "SINGLE ".

Using the ceramic glass cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

• The cooking surface area wilt glow red

when the element is turned on. You will see

the element cycling on and off - even on

the HI setting - to help the area stay at the

temperature setting you choose.

• Make sure the bottoms of pots and pans

are clean and dry before cooking. Food

and water particles left on the bottoms can

leave deposits on the cooktop when it is

heated.

• Wiping off the cooktop before and after

each use will help keep the surface free

from stains and give you the most even

heating. See the "Cleaning tips" section.

• Do not cook foods directly on the cooktop.

• Lift pots and pans onto and off of the

cooktop. Sliding pots and pans on the

cooktop could leave marks that are difficult

to remove or could leave permanent marks.

• Do not cook popcorn that comes in

prepackaged aluminum containers on the

cooktop. The container could leave

aluminum marks on the cooktop that

cannot be removed completely.

• Do not use the cooktop as a cutting board.

• Do not allow anything that could melt,

such as plastic or aluminum foil, to come

in contact with the cooktop while it is hot.

• Dropping a heavy or hard object on the

cooktop could crack it. Be careful when

using heavy skillets and large pots. Do

not store jars or cans above the cooktop.

• Sugary spills and soils can cause pitting.

See the "Cleaning tips" section.

Cookware tips

• Select a pan that is about the same size

as the surface cooking area. Cookware

should not extend more than 1 inch

(2.5 cm) outside the area.

• For best results and greater energy

efficiency, use only flat-bottomed

cookware that makes good contact with

the surface cooking area. Cookware with

rounded, warped, ribbed (such as some

porcelain enamelware), or dented bottoms

could cause uneven heating and poor

cooking results.

• Cookware designed with slightly indented

bottoms or small expansion channels can

be used.

• Cookware with non-stick finish has

heating characteristics of the base material.

• Check for rough spots on the bottom of

metal or glass cookware which will scratch

the ceramic glass surface.

• Use flat bottom cookware for best heat

conduction from the surface cooking area

to the cookware. Determine flatness with

the ruler test. Place the edge of a ruler

across the bottom of the cookware. Hold it

up to the light. No light should be visible

under the ruler. Rotate the ruler in all

directions and look for any light.

• Do not leave empty cookware, or

cookware that has boiled dry, on a hot

surface cooking area. The cookware

could overheat, causing damage to the

cookware or the surface cooking area.

fusing and Caring for Your Cooktop

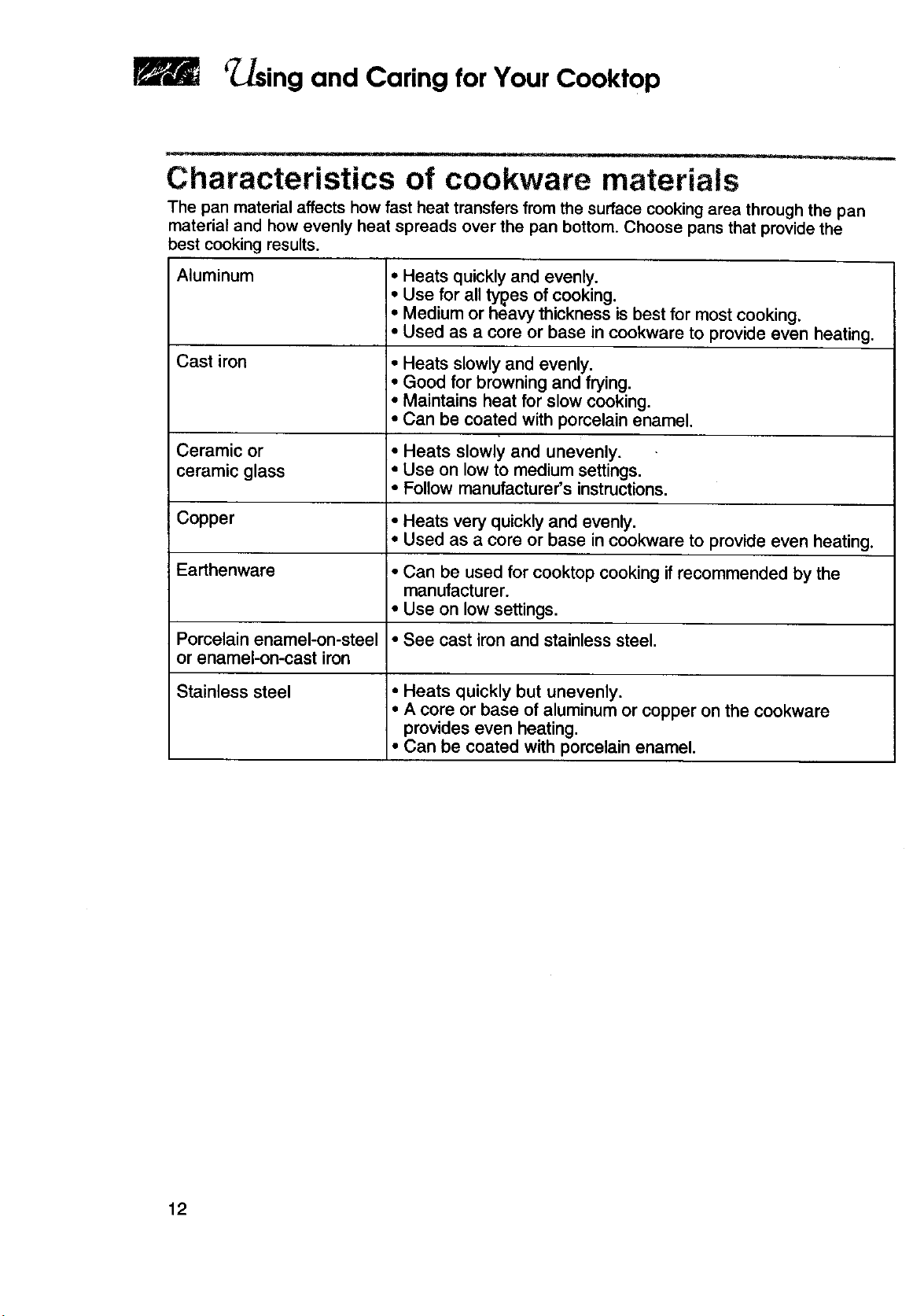

Characteristics of cookware materials

The pan material affects how fast heat transfers from the surface cooking area through the pan

material and how evenly heat spreads over the pan bottom. Choose pans that provide the

best cooking results.

Aluminum • Heats quickly and evenly.

Use for all tyl_es of cooking.

Medium or heavy thickness is best for most cooking.

• Used as a core or base in cookware to provide even heating.

Cast iron • Heats slowly and evenly.

• Good for browning and frying.

• Maintains heat for slow cooking.

• Can be coated with porcelain enamel.

Ceramic or * Heats slowly and unevenly.

ceramic glass • Use on low to medium settings.

• Follow manufacturer's instructions.

Copper ° Heats very quicklyand evenly.

• Used as a core or base in cookware to provide even heating.

Earthenware * Can be used for cooktop cooking ifrecommended by the

manufacturer.

• Use on low settings.

Porcelain enamel-on-steel • See cast iron and stainless steel.

or enamel-on-cast iron

Stainless steel • Heats quickly but unevenly.

• A core or base of aluminum or copper on the cookware

provides even heating.

• Can be coated with porcelain enamel.

¢'LLsingand Caring for Your Cooktop

m- _ ..... II,H __i i

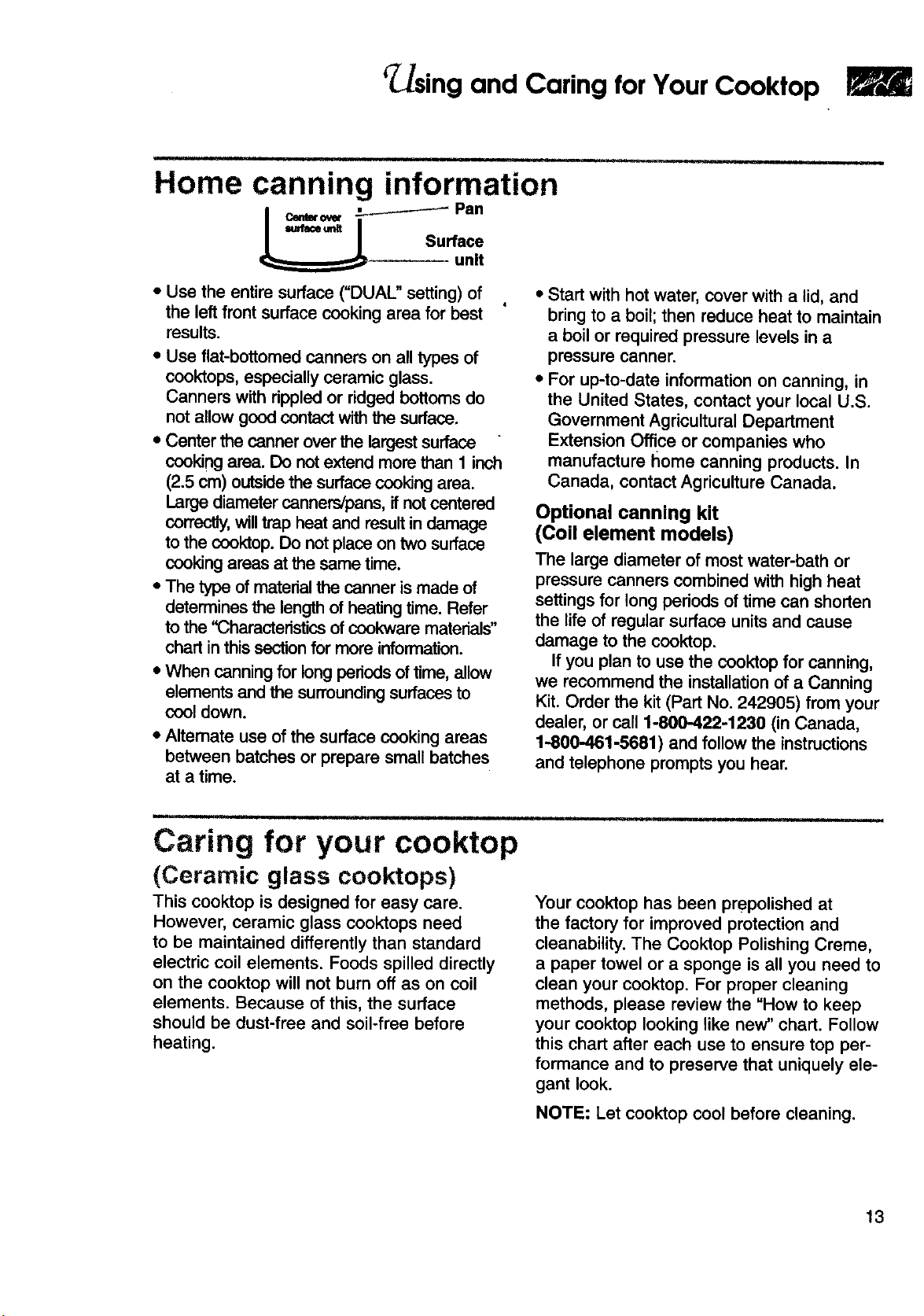

Home canning information

I c.._o,_ _ Pan

I _"'_";n_t I Surface

_--- unit

• Use the entire surface ("DUAL"setting) of

the left front surface cooking area for best

results.

• Use flat-bottomed canners on alltypes of

cooktops, especially ceramic glass.

Canners with dppled or ridged bottoms do

not allow good contact with the surface.

• Center the canner over the largest surface

cooking area. Do not extend more than 1 inch

(2.5 cm) outside the surface cooking area.

Large diameter canners/pans, if not centered

correctly, will trap heat and result in damage

to the cooktop. Do not place on two surface

cooking areas at the same time.

• The type of material the canner is made of

determines the length of heating time. Refer

to the "Characteristics of cookware materials"

chart inthis section for more information.

• When canning for long periods of time, allow

elements and the surrounding surfaces to

cool down.

•Altemate use of the surface cooking areas

between batches or prepare small batches

at a time.

Start with hot water, cover with a lid, and

bring to a boil; then reduce heat to maintain

a boil or required pressure levels in a

pressure canner.

For up-to-date information on canning, in

the United States, contact your local U.S.

Government Agricultural Department

Extension Office or companies who

manufacture home canning products. In

Canada, contact Agriculture Canada.

Optional canning kit

(Coil element models)

The large diameter of most water-bath or

pressure canners combined with high heat

settings for long periods of time can shorten

the life of regular surface units and cause

damage to the cooktop.

If you plan to use the cooktop for canning,

we recommend the installationof a Canning

Kit. Order the kit (Part No. 242905) from your

dealer, or call 1-800-422-1230 (in Canada,

1-800-461-5681 ) and follow the instructions

and telephone prompts you hear.

Caring for your cooktop

(Ceramic glass cooktops)

This cooktop is designed for easy care.

However, ceramic glass cooktops need

to be maintained differently than standard

electric coil elements. Foods spilled directly

on the cooktop will not burn off as on coil

elements. Because of this, the surface

should be dust-free and soil-free before

heating.

Your cooktop has been prepolished at

the factory for improved protection and

cleanability. The Cooktop Polishing Creme,

a paper towel or a sponge is all you need to

clean your cooktop. For proper cleaning

methods, please review the "How to keep

your cooktop looking like new" chart. Follow

this chart after each use to ensure top per-

formance and to preserve that uniquely ele-

gant look.

NOTE: Let cooktop cool before cleaning.

G sing and Caring for Your Cooktop

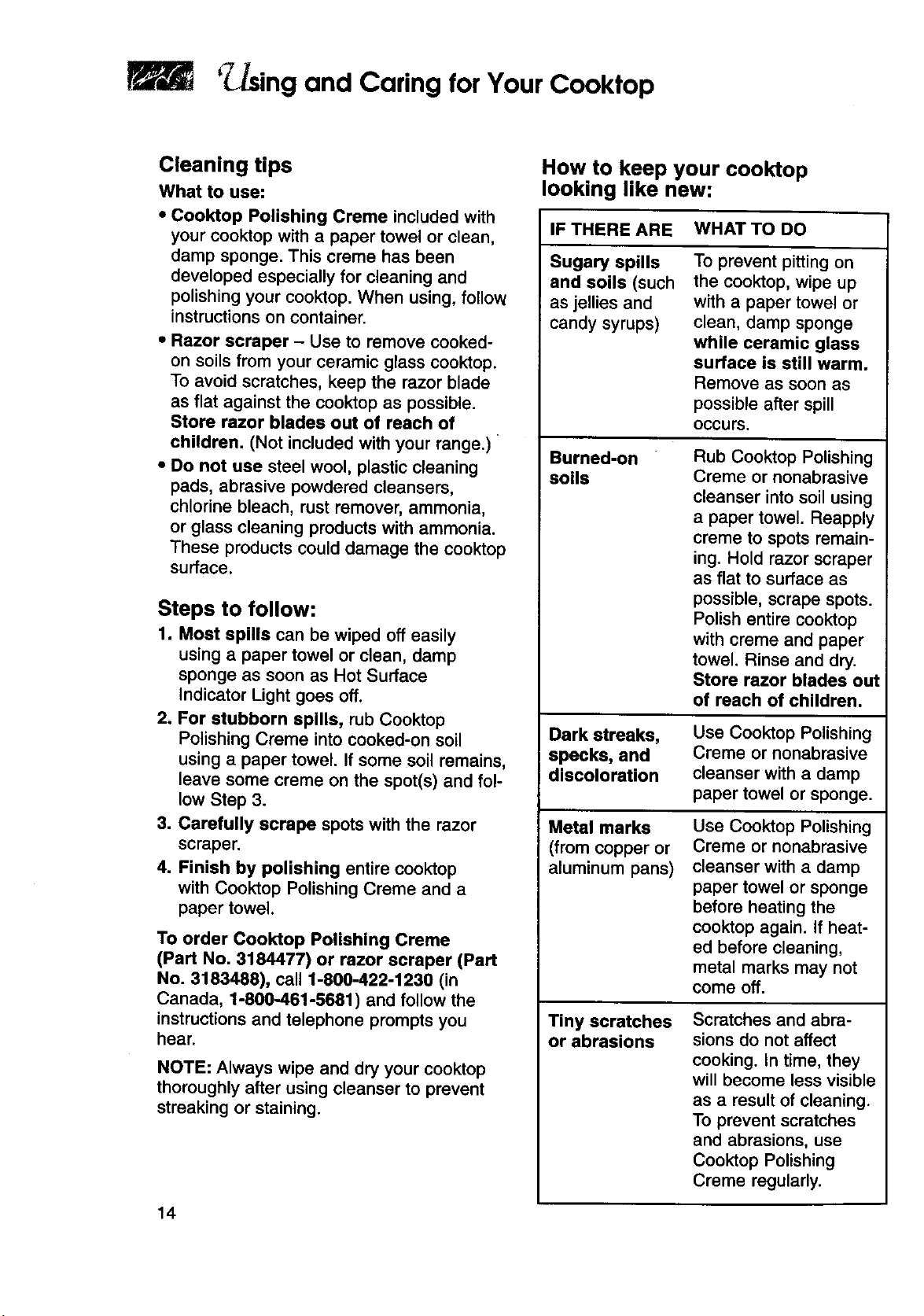

Cleaning tips

What to use:

• Cooktop Polishing Creme included with

your cooktop with a paper towel or clean,

damp sponge. This creme has been

developed especially for cleaning and

polishing your cooktop. When using, follow

instructionson container.

• Razor scraper - Use to remove cooked-

on soils from your ceramic glass cooktop.

To avoid scratches, keep the razor blade

as flat against the cooktop as possible.

Store razor blades out of reach of

children. (Not included with your range.)

• Do not use steel wool, plastic cleaning

pads, abrasive powdered cleansers,

chlorine bleach, rust remover, ammonia,

or glass cleaning products with ammonia.

These products could damage the cool<top

surface.

Steps to follow:

1. Most spills can be wiped off easily

using a paper towel or clean, damp

sponge as soon as Hot Surface

Indicator Light goes off.

2. For stubborn spills, rub Cooktop

Polishing Creme into cooked-on soil

using a paper towel. If some soil remains,

leave some creme on the spot(s) and fol-

low Step 3.

3. Carefully scrape spots with the razor

scraper.

4. Finish by polishing entire cooktop

with Cooktop Polishing Creme and a

paper towel.

To order Cooktop Polishing Creme

(Part No. 3184477) or razor scraper (Part

No. 3183488), call 1-800-422-1230 (in

Canada, 1-800-461-5681 ) and follow the

instructions and telephone prompts you

hear.

NOTE: Always wipe and dry your cooktop

thoroughly after using cleanser to prevent

streaking or staining.

How to keep your cooktop

looking like new:

IF THERE ARE WHAT TO DO

Sugary spills

and soils (such

as jellies and

candy syrups)

To prevent pitting on

the cooktop, wipe up

with a paper towel or

clean, damp sponge

while ceramic glass

surface is still warm.

Remove as soon as

possible after spill

occurs.

Burned-on

soils

Rub Cooktop Polishing

Creme or nonabrasive

cleanser into soil using

a paper towel. Reapply

creme to spots remain-

ing. Hold razor scraper

as flat to surface as

possible, scrape spots.

Polish entire cooktop

with creme and paper

towel. Rinse and dry.

Store razor blades out

of reach of children.

Dark streaks,

specks, and

discoloration

Use Cooktop Polishing

Creme or nonabrasive

cleanser with a damp

paper towel or sponge.

Metal marks

(from copper or

aluminum pans)

Use Cooktop Polishing

Creme or nonabrasive

cleanser with a damp

paper towel or sponge

before heating the

cooktop again. If heat-

ed before cleaning,

metal marks may not

come off.

Tiny scratches

or abrasions

Scratches and abra-

sions do not affect

cooking. In time, they

will become less visible

as a result of cleaning.

To prevent scratches

and abrasions, use

Cooktop Polishing

Creme regularly.

_._sing and Caring for Your Cooktop

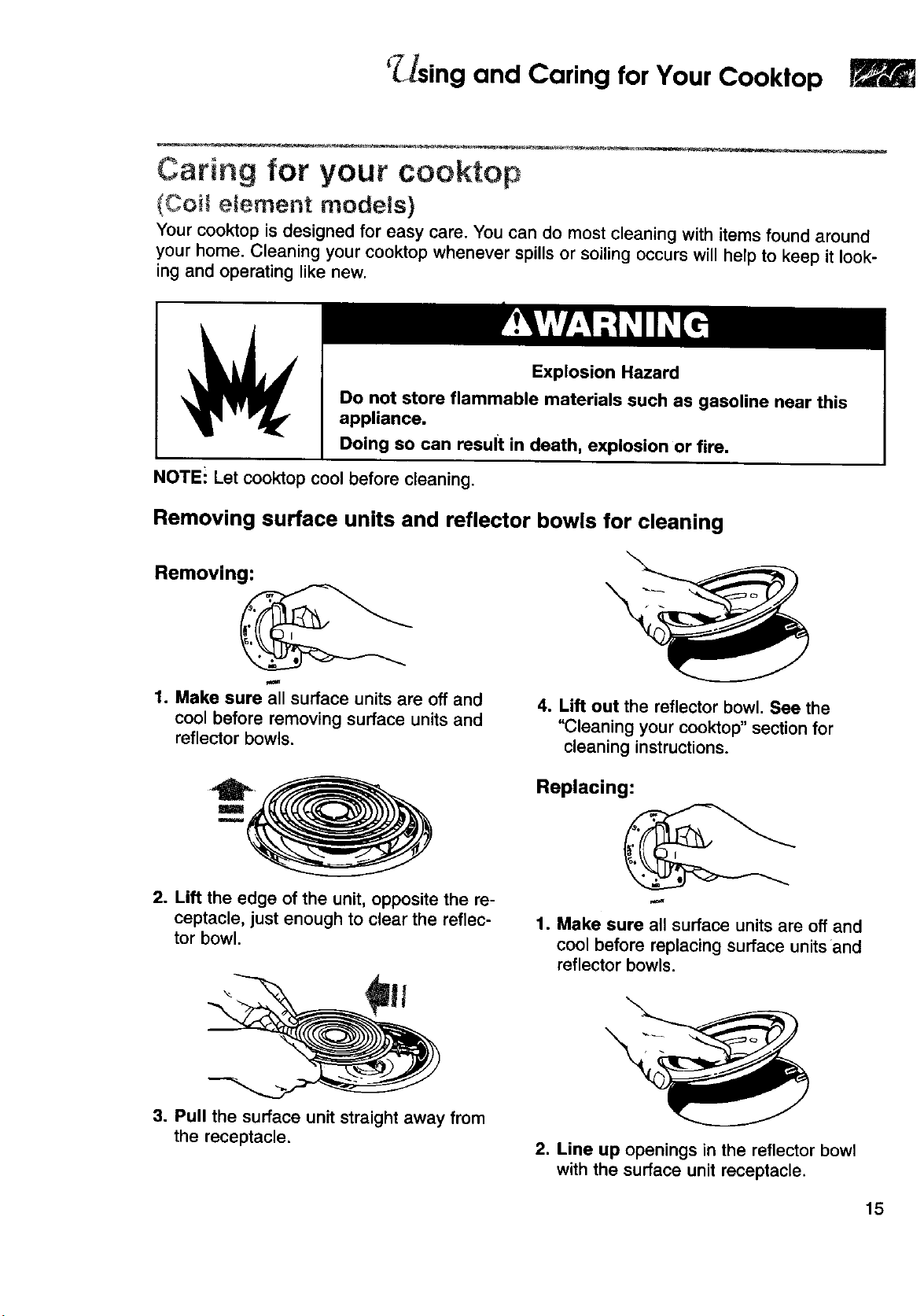

Caring for your cooktop

(Coil eiement models)

Your cooktop is designed for easy care. You can do most cleaning with items found around

your home. Cleaning your cooktop whenever spills or soiling occurs will help to keep it look-

ing and operating like new.

_ [ Explosion Hazard

Do not store flammable materials such as gasoline near this

appliance.

Doing so can resuR in death, explosion or fire,

NOTE_ Let cooktop cool before cleaning.

Removing surface units and reflector bowls for cleaning

Removing:

1. Make sure all surface units are off and

cool before removing surface units and

reflector bowls.

4. Lift out the reflector bowl. See the

"Cleaning your cooktop" section for

cleaning instructions.

Replacing:

2. Lift the edge of the unit, opposite the re-

ceptacle, just enough to clear the reflec-

tor bowl.

3. Pull the surface unit straight away from

the receptacle.

1. Make sure all surface units are off and

cool before replacing surface units and

reflector bowls.

2. Line up openings in the reflector bowl

with the surface unit receptacle.

q sing and Caring for Your Cooktop

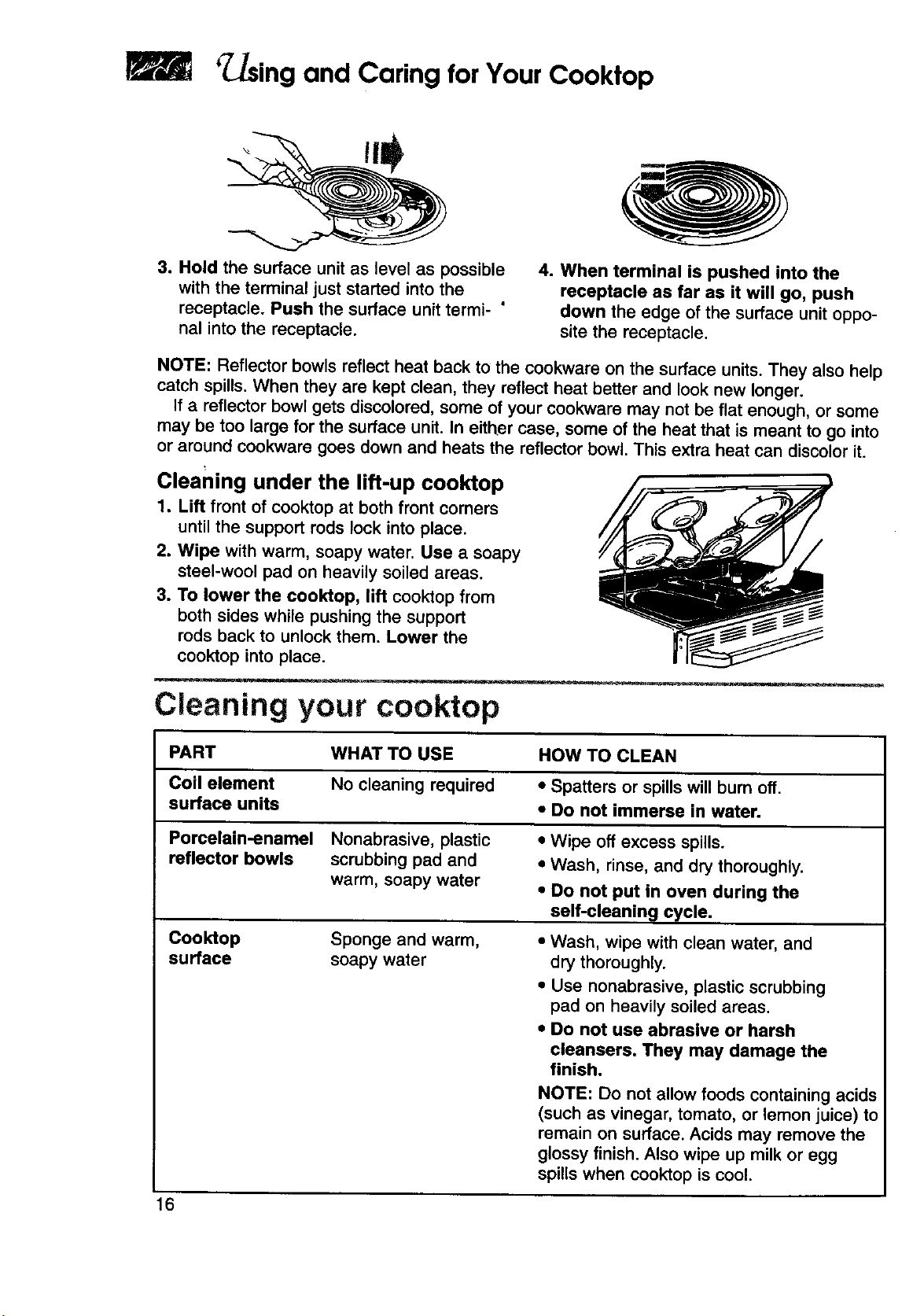

3. Hold the surface unit as level as possible

with the terminal just started into the

receptacle. Push the surface unit termi- '

hal into the receptacle.

4. When terminal is pushed into the

receptacle as far as it will go, push

down the edge of the surface unit oppo-

site the receptacle.

NOTE: Reflector bowls reflect heat back to the cookware on the surface units. They also help

catch spills. When they are kept clean, they reflect heat better and look new longer.

If a reflector bowl gets discolored, some of your cookware may not be flat enough, or some

may be too large for the surface unit. In either case, some of the heat that is meant to go into

or around cookware goes down and heats the reflector bowl. This extra heat can discolor it.

Cleaning under the lift-up cooktop

1. Lift front of cooktop at both front corners

until the support rods lock into place.

2. Wipe with warm, soapy water. Use a soapy

steel-wool pad on heavily soiled areas.

3. To lower the cooktop, lift cooktop from

both sides while pushing the support

rods back to unlock them. Lower the

cooktop into place.

Cleaning your cooktop

PART WHAT TO USE HOW TO CLEAN

Coil element No cleaning required • Spatters or spills will burn off,

surface units • Do not immerse in water.

Porcelain-enamel

reflector bowls

Cooktop

surface

Nonabrasive, plastic

scrubbing pad and

warm, soapy water

Sponge and warm,

soapy water

• Wipe off excess spills.

• Wash, rinse, and dry thoroughly.

• Do not put in oven during the

self-cleaning cycle.

• Wash, wipe with clean water, and

dry thoroughly.

• Use nonabrasive, plastic scrubbing

pad on heavily soiled areas.

• Do not use abrasive or harsh

cleansers. They may damage the

finish.

NOTE: Do not allow foods containing acids

(such as vinegar, tomato, or lemon juice) to

remain on surface. Acids may remove the

glossy finish. Also wipe up milk or egg

spills when cooktop is cool.

_sing and Caring for Your Cooktop

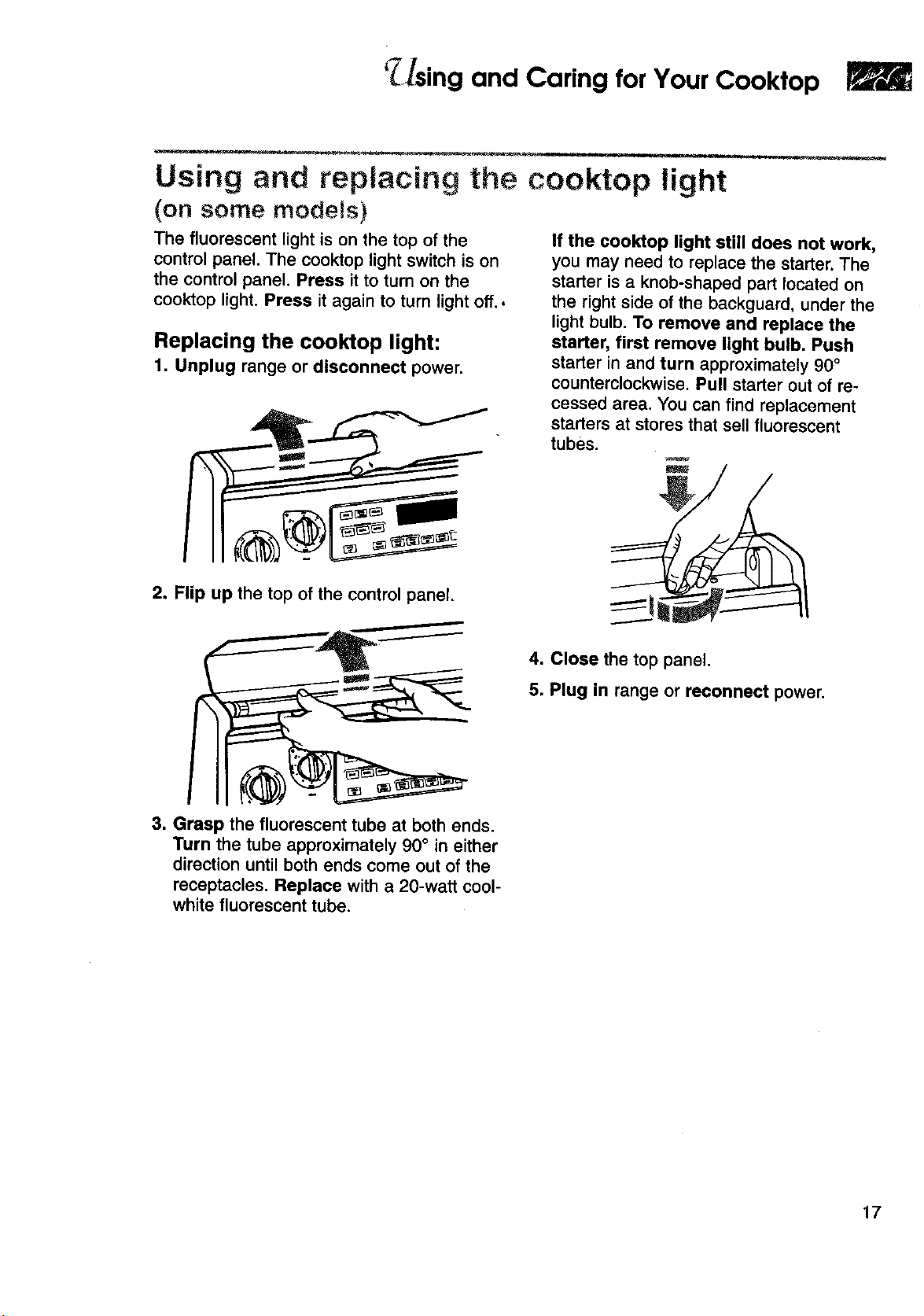

Using and replacing the cooktop light

(on some models)

The fluorescent light is on the top of the

control panel. The cooktop light switch is on

the control panel. Press it to turn on the

cooktop light. Press it again to turn light off.,

Replacing the cooktop light:

1. Unplug rangeordisconnect power,

2. Flip up the top of the control panel.

If the cooktop light still does not work,

you may need to replace the starter. The

starter is a knob-shaped part located on

the right side of the backguard, under the

light bulb. To remove and replace the

starter, first remove light bulb. Push

starter in and turn approximately 900

counterclockwise. Pull starter out of re-

cessed area. You can find replacement

starters at stores that sell fluorescent

tubes.

4. Close the top panel.

5. Plug in range or reconnect power.

3. Grasp the fluorescent tube at both ends.

Turn the tube approximately 90° in either

direction until both ends come out of the

receptacles. Replace with a 20-watt cool-

white fluorescent tube.

( sing and Caring for

Your Oven

This section tells you, step by step, how to operate all oven functions controlled by the elec-

tronic controls. Carefully follow these instructions, along with the cooking tips and cleaning

information, for successful use of your range.

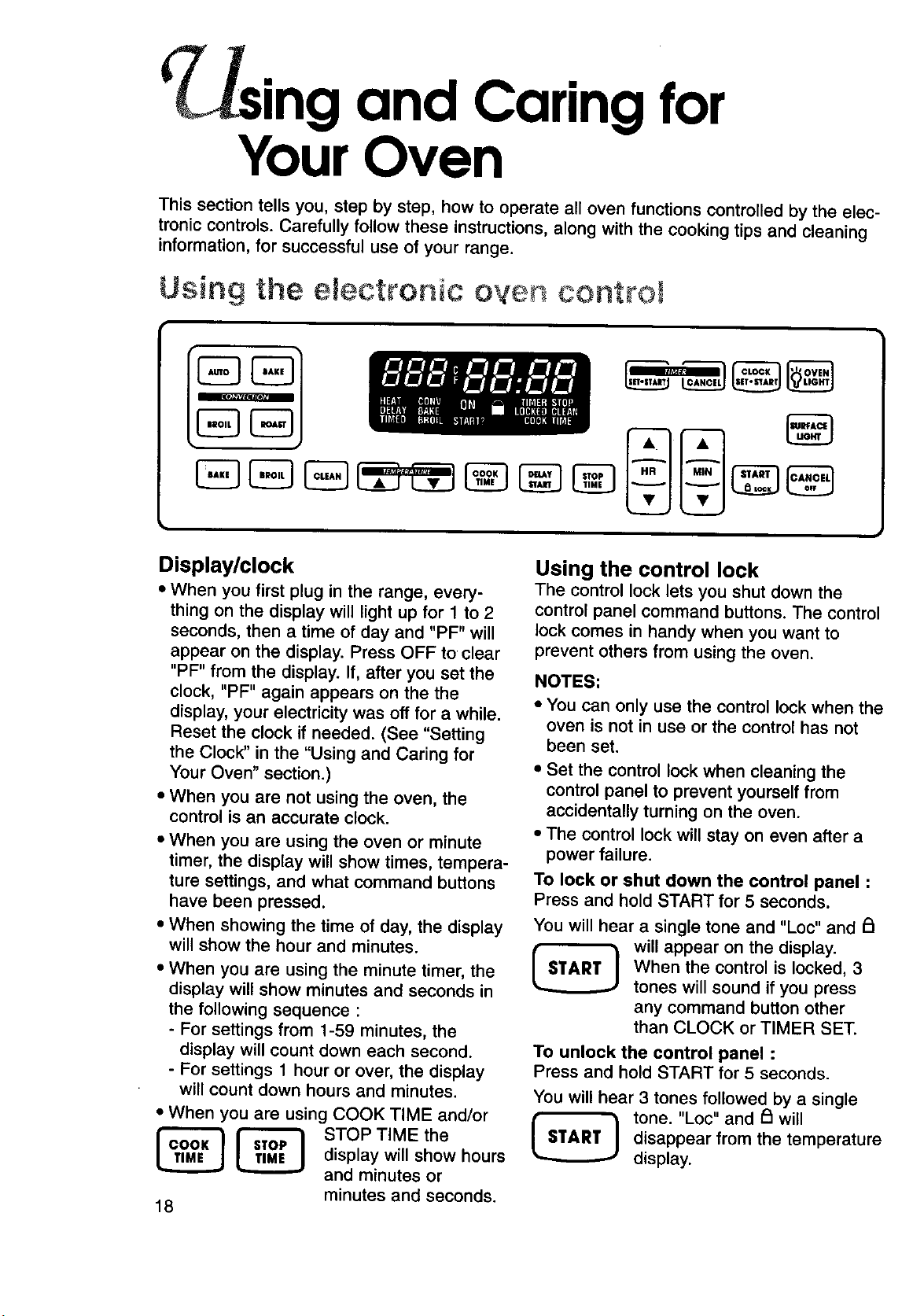

UsiB9 the electronic oven control

Display/clock

• When you first plug in the range, every-

thing on the display will light up for 1 to 2

seconds, then a time of day and "PF" will

appear on the display. Press OFF to clear

"PF" from the display. If, after you set the

clock, "PF" again appears on the the

display, your electricity was off for a while.

Reset the clock if needed. (See "Setting

the Clock" in the "Using and Caring for

Your Oven" section.)

• When you are not using the oven, the

control is an accurate clock.

• When you are using the oven or minute

timer, the display will show times, tempera-

ture settings, and what command buttons

have been pressed.

• When showing the time of day, the display

will show the hour and minutes.

• When you are using the minute timer, the

display will show minutes and seconds in

the following sequence :

- For settings from 1-59 minutes, the

display will count down each second.

- For settings 1 hour or over, the display

will count down hours and minutes.

• When you are using COOK TIME and/or

_ _ STOPTIMEthe

display will show hours

and minutes or

minutes and seconds.

Using the control lock

The control lock lets you shut down the

control panel command buttons. The control

lock comes in handy when you want to

prevent others from using the oven.

NOTES:

• You can only use the control lock when the

oven is not in use or the control has not

been set.

• Set the control lock when cleaning the

control panel to prevent yourself from

accidentally turning on the oven.

• The control lock will stay on even after a

power failure.

To lock or shut down the control panel :

Press and hold START for 5 seconds.

You will hear a single tone and "Loc" and

will appear on the display.

When the control is locked, 3

tones will sound if you press

any command button other

than CLOCK or TIMER SET.

To unlock the control panel :

Press and hold START for 5 seconds.

You will hear 3 tones followed by a single

tone. "Loc" and _ will

disappear from the temperature

display.

_._/sing and Caring for Your Oven

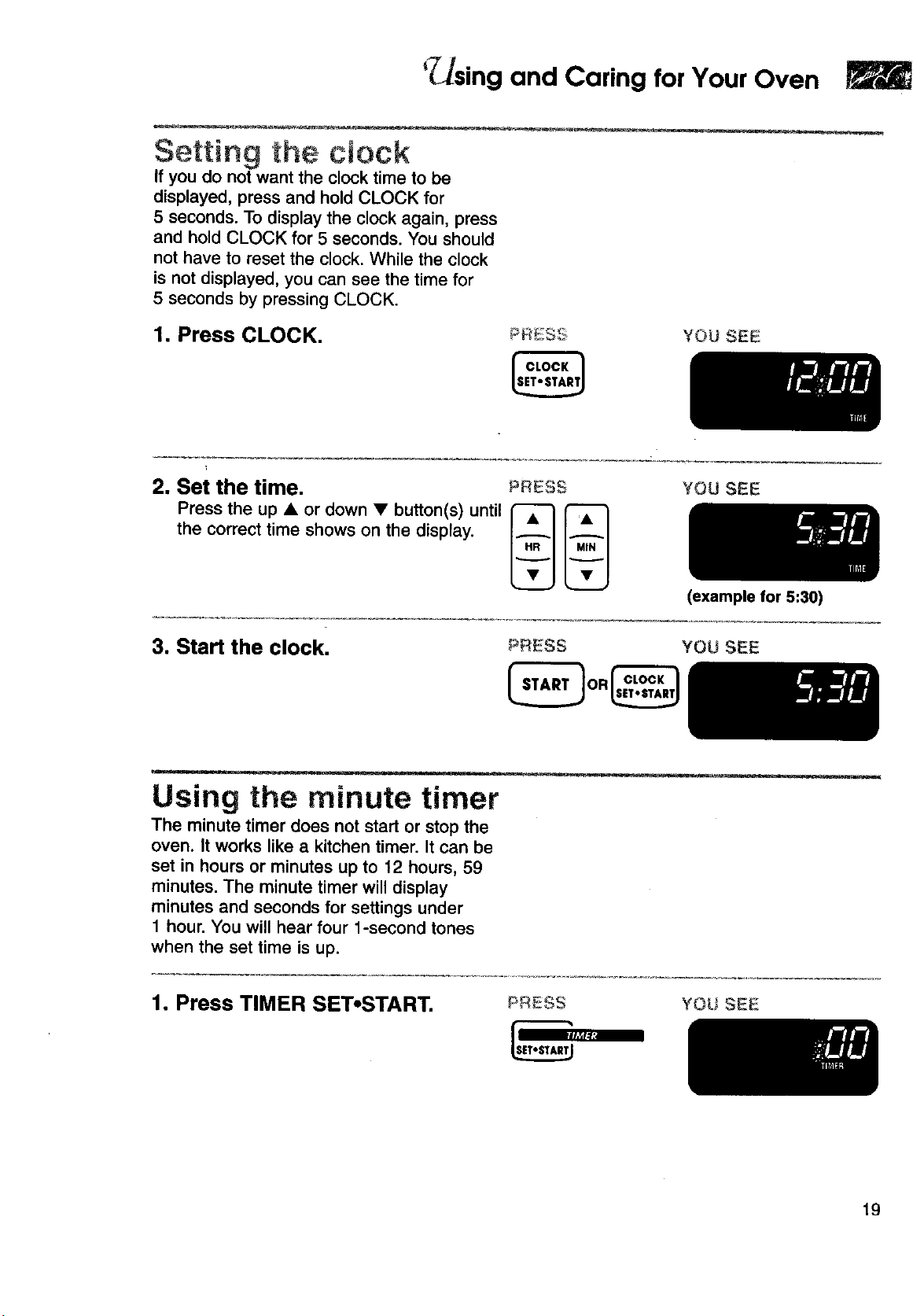

Setting the cJock

If you do not want the clock time to be

displayed, press and hold CLOCK for

5 seconds. To display the clock again, press

and hold CLOCK for 5 seconds. You should

not have to reset the clock. While the clock

is not displayed, you can see the time for

5 seconds by pressing CLOCK.

1. Press CLOCK. PRES

YOU SEE

2. Set the time.

Press the up • or down • button(s) until

the correct time shows on the display.

PRESS

YOU SEE

(example for 5:30)

3. Start the clock.

PRESS YOU SEE

Using the minute timer

The minute timer does not start or stop the

oven. It works like a kitchen timer. It can be

set in hours or minutes up to 12 hours, 59

minutes. The minute timer will display

minutes and seconds for settings under

1 hour. You will hear four 1-second tones

when the set time is up.

1. Press TIMER SET.START.

PRESS YOUSEE

q_sing and Caring for Your Oven

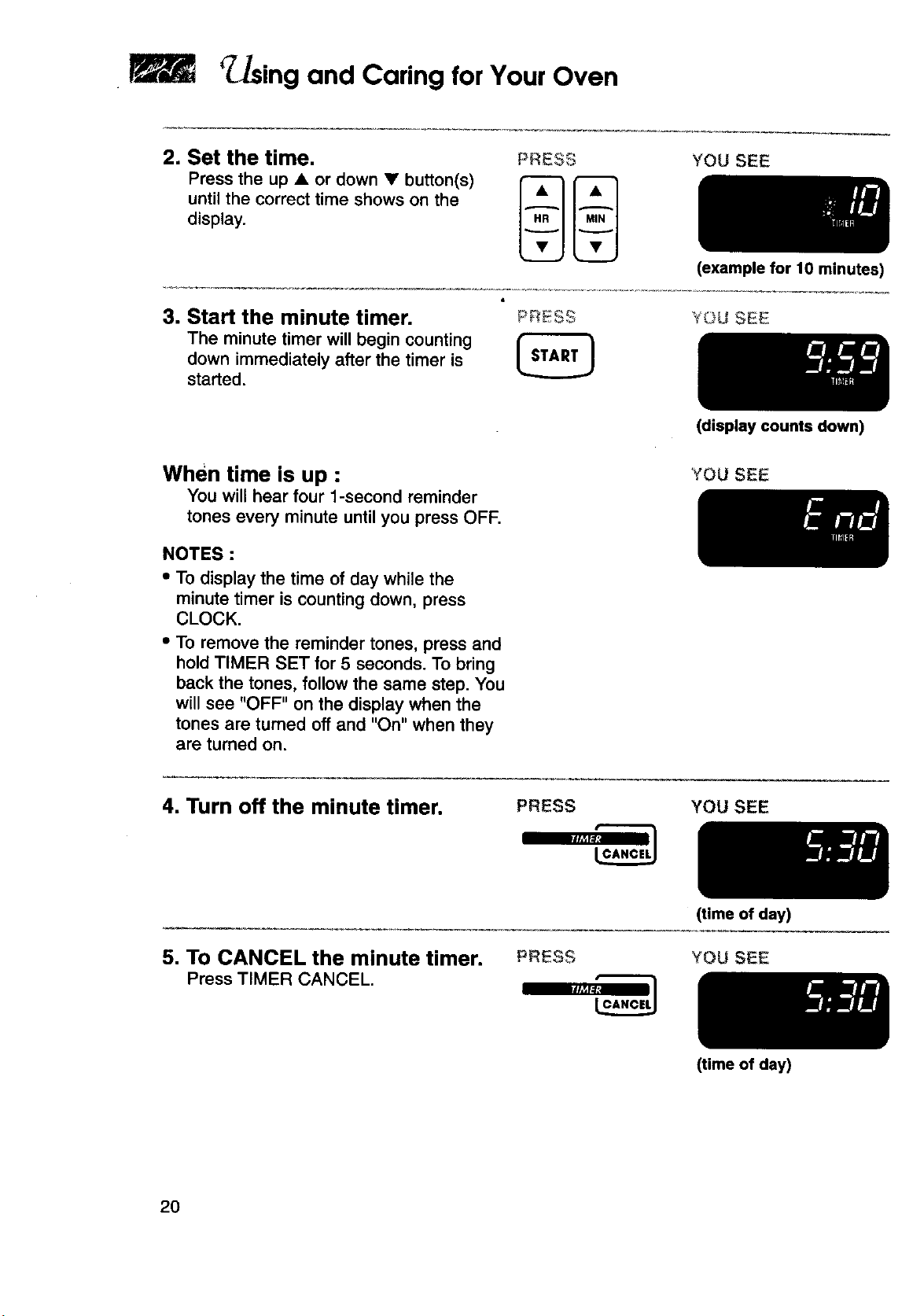

2. Set the time.

Press the up • or down • button(s)

until the correct time shows on the

display.

PRESS

YOU SEE

3. Start the minute timer.

The minute timer will begin counting

down immediately after the timer is

started,

PRESS

(example for 10 minutes)

YOU SEE

(display counts down)

When time is up :

You will hear four 1-second reminder

tones every minute until you press OFF,

NOTES :

• To display the time of day while the

minute timer is counting down, press

CLOCK,

• To remove the reminder tones, press and

hold TIMER SET for 5 seconds. To bring

back the tones, follow the same step. You

will see "OFF" on the display when the

tones are turned off and "On" when they

are turned on.

YOU SEE

4. Turn off the minute timer.

PRESS

YOU SEE

5. To CANCEL the minute timer.

PressTIMER CANCEL.

PRESS

(timeofday)

YOU SEE

(time of day)

Using and Caring for Your Oven

Starting/Canceling a function

After setting a function, you must press the

START button to start the

function, if you do not press

START within five seconds,

"START?" will be displayed as

a reminder.

The OFF button will cancel any function

except the clock, timer, and

control lock. When you press

OFF, the display will show the

time of day or, if the minute

timer is also being used, the

time remaining.

Tones

Tones tell you if a function is entered

correctly or not. They also tell you when a

cycle 'is completed.

To shut off all tones except the end-of-

timer and error tones :

To choose between high and low volume

tones :

Press and hold STOP TIME for 5 seconds. Press and hold DELAY for 5 seconds.

A short tone willtell you the tones have been

changed. Repeat to turn the tones

back on. You will see "OFF" for 3

seconds when the tones are

turned off, and "On" for 3 seconds

when they are tumed on.

A short tone will sound to tell you the tones

have been changed. Either "HI"

or "Lo"will appear on the display

for 3 seconds to show the

volume you chose.

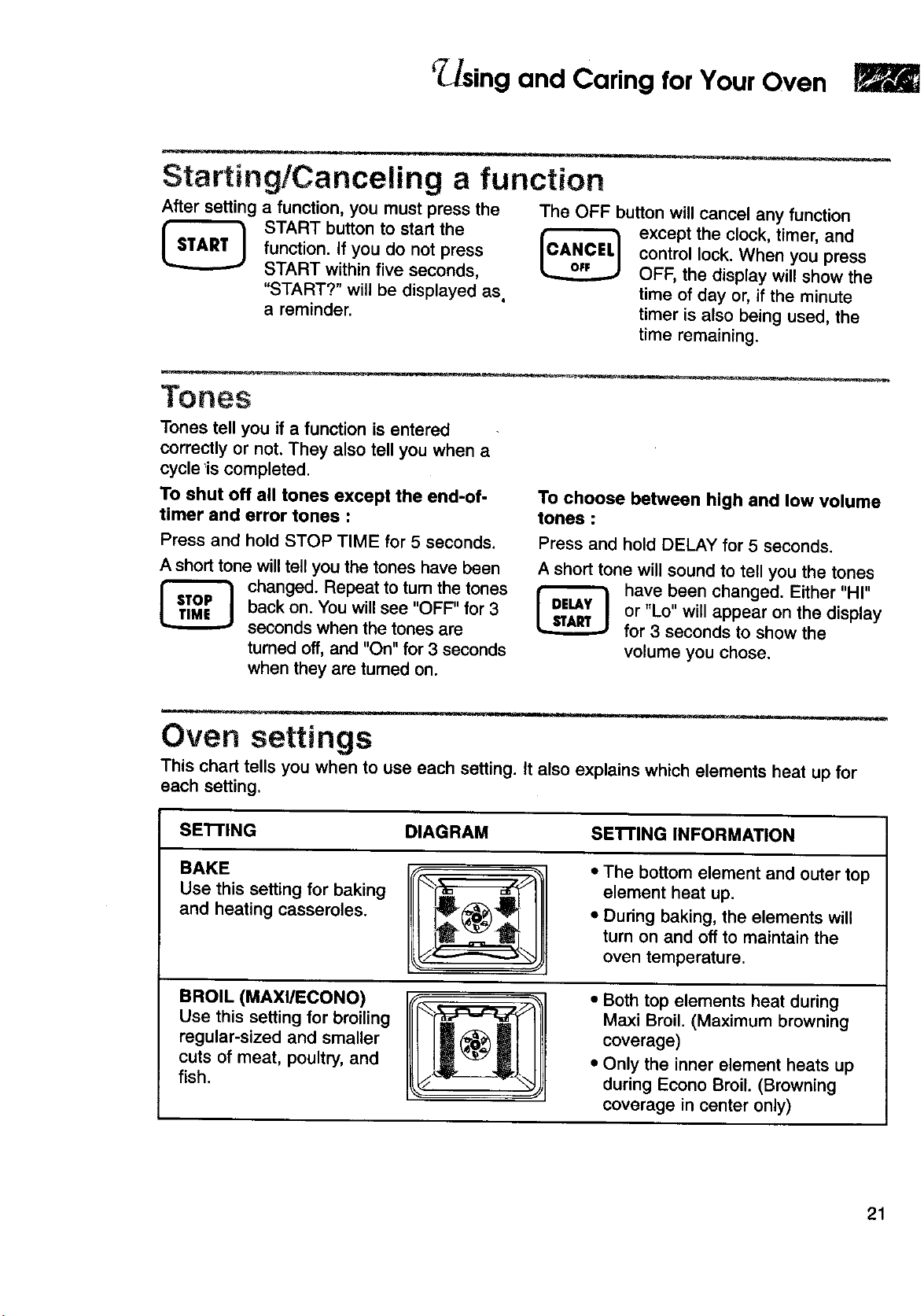

Oven settings

This chart tells you when to use each setting. It also explains which elements heat up for

each setting.

SE'I-rlNG DIAGRAM SE'I'rlNG INFORMATION

BAKE

Use this setting for baking

and heating casseroles.

BROIL (MAXI/ECONO)

Use this setting for broiling

regular-sized and smaller

cuts of meat, poultry, and

fish.

• The bottom element and outer top

element heat up.

• During baking, the elements will

turn on and oft to maintain the

oven temperature.

• Both top elements heat during

Maxi Broil. (Maximum browning

coverage)

• Only the inner element heats up

during Econo Broil. (Browning

coverage in center only)

and Caring for Your Oven

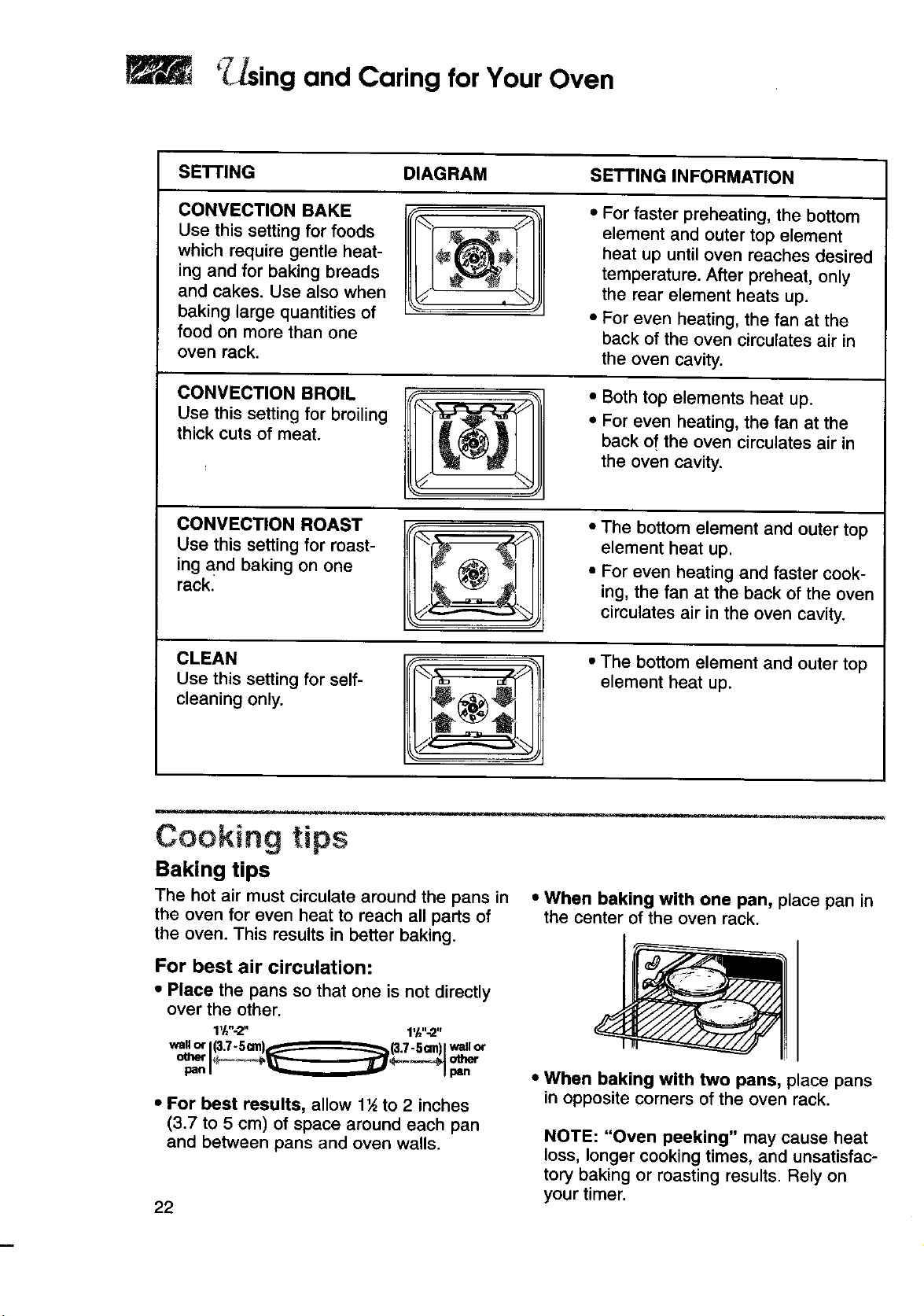

SETTING DIAGRAM SETTING INFORMATION

CONVECTION BAKE

Use this setting for foods

which require gentle heat-

ing and for baking breads

and cakes. Use also when

baking large quantities of

food on more than one

oven rack.

For faster preheating, the bottom

element and outer top element

heat up until oven reaches desired

temperature. After preheat, only

the rear element heats up.

For even heating, the fan at the

back of the oven circulates air in

the oven cavity.

CONVECTION BROIL

Use this setting for broiling

thick cuts of meat.

Both top elements heat up.

For even heating, the fan at the

back of the oven circulates air in

the oven cavity.

CONVECTION ROAST

Use this setting for roast-

ing and baking on one

rack_

• The bottom element and outer top

element heat up.

• For even heating and faster cook-

ing, the fan at the back of the oven

circulates air in the oven cavity.

CLEAN

Use this setting for self-

cleaning only.

• The bottom element and outer top

element heat up.

Cooking tips

Baking tips

The hot air must circulate around the pans in • When baking with one pan, place pan in

the oven for even heat to reach all parts of the center of the oven rack.

the oven. This results in better baking.

For best air circulation:

• Place the pans so that one is not directly

over the other.

1'&"-2" 1'A"-2"

pan I "_ / pan

• For best results, allow 1½ to 2 inches

(3.7 to 5 cm) of space around each pan

and between pans and oven walls.

• When baking with two pans, place pans

in opposite corners of the oven rack.

NOTE: "Oven peeking" may cause heat

loss, longer cooking times, and unsatisfac-

tory baking or roasting results. Rely on

your timer.

Jsing and Caring for Your Oven

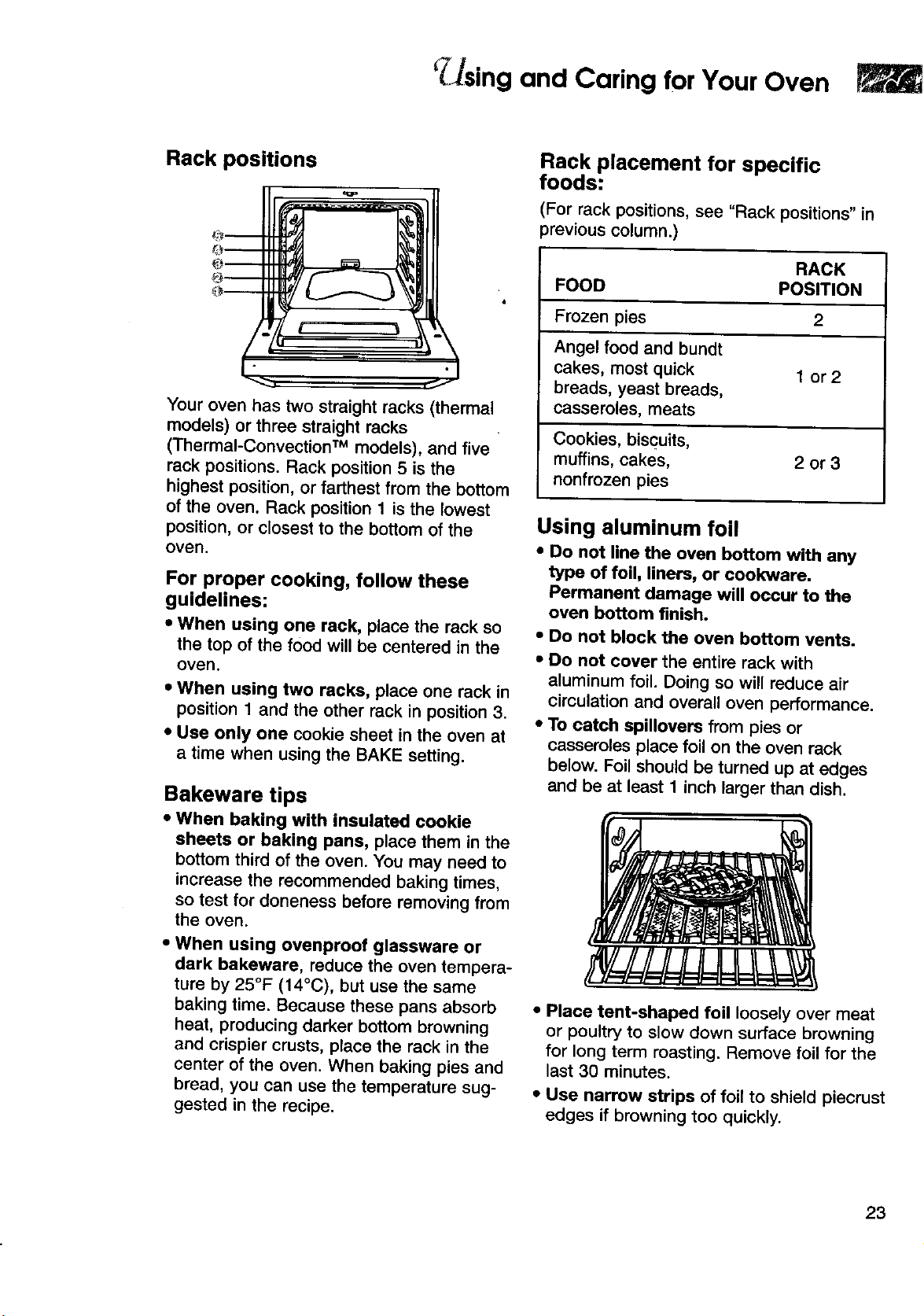

Rack positions

Your oven has two straight racks (thermal

models) or three straight racks

(Thermal-Convection TM models), and five

rack positions. Rack position 5 is the

highest position, or farthest from the bottom

of the oven, Rack position 1 is the lowest

position, or closest to the bottom of the

oven.

For proper cooking, follow these

guidelines:

• When using one rack, place the rack so

the top of the food will be centered in the

oven.

• When using two racks, place one rack in

pos_ion 1 and the other rack in position 3.

• Use only one cookie sheet in the oven at

a time when using the BAKE setting.

Bakeware tips

• When baking with insulated cookie

sheets or baking pans, place them in the

bottom third of the oven. You may need to

increase the recommended baking times,

so test for aloneness before removing from

the oven.

• When using ovenproof glassware or

dark bakeware, reduce the oven tempera-

ture by 25°F (14°C), but use the same

baking time. Because these pans absorb

heat, producing darker bottom browning

and crispier crusts, place the rack in the

center of the oven. When baking pies and

bread, you can use the temperature sug-

gested in the recipe.

Rack placement for specific

foods:

(For rack positions, see "Rack positions" in

previous column.)

RACK

FOOD POSITION

Frozen pies 2

Angel food and bundt

cakes, most quick 1 or 2

breads, yeast breads,

casseroles, meats

Cookies, biscuits,

muffins, cakes, 2 or 3

nonfrozen pies

Using aluminum foil

• Do not line the oven bottom with any

type of foil, liners, or cookware.

Permanent damage will occur to the

oven bottom finish.

• Do not block the oven bottom vents.

Do not cover the entire rack with

aluminum foil. Doing so will reduce air

circulation and overall oven performance.

To catch spillovers from pies or

casseroles place foil on the oven rack

below. Foil should be turned up at edges

and be at least 1 inch larger than dish.

• Place tent-shaped foil loosely over meat

or poultry to slow down surface browning

for long term roasting. Remove foil for the

last 30 minutes.

• Use narrow strips of foil to shield piecrust

edges if browning too quickly.

]sing and Caring for Your Oven

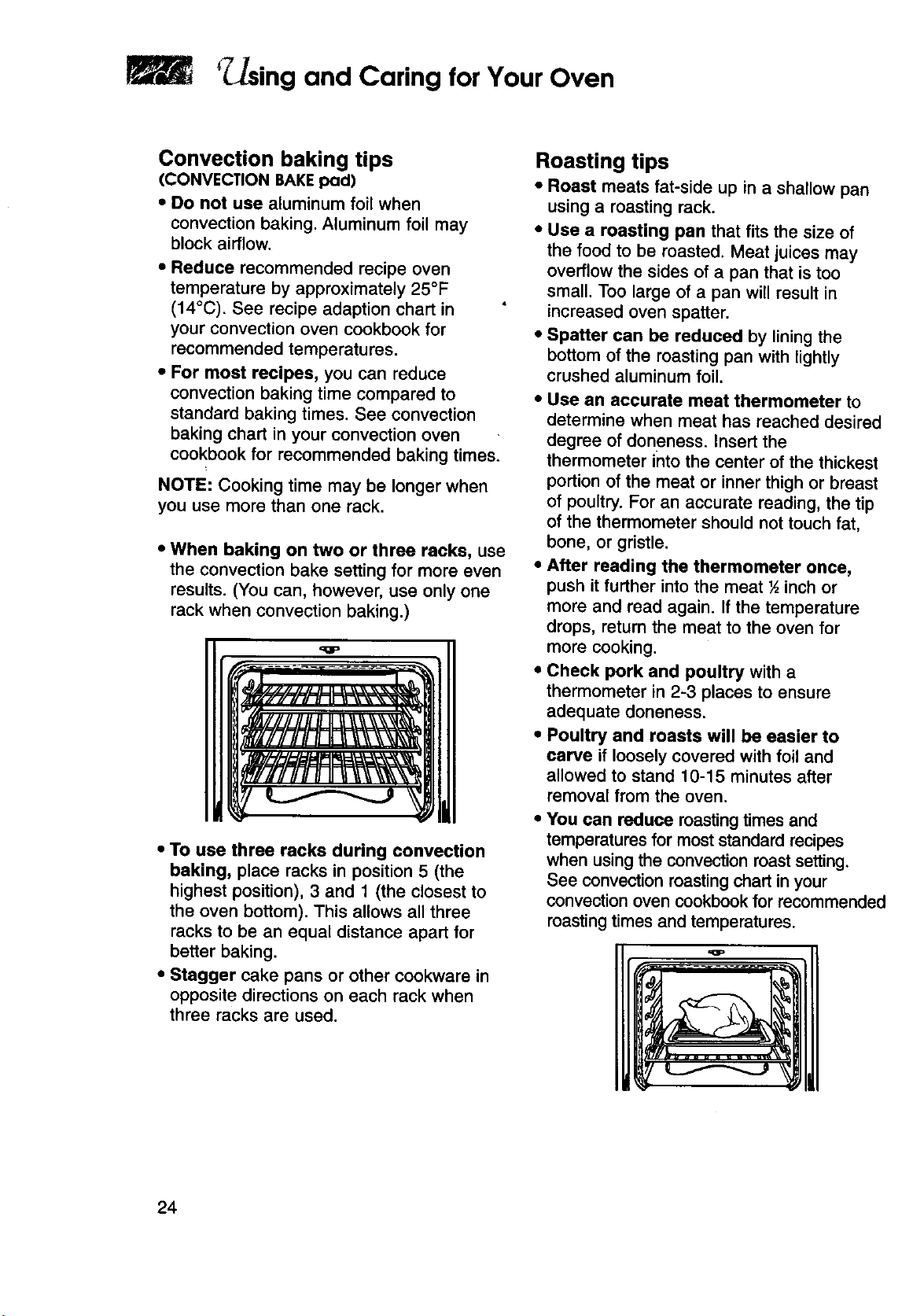

Convection baking tips

(CONVECTION BAKEpad)

• Do not use aluminum foil when

convection baking. Aluminum foil may

block airflow.

• Reduce recommended recipe oven

temperature by approximately 25°F

(14°C). See recipe adaption chart in

your convection oven cookbook for

recommended temperatures.

• For most recipes, you can reduce

convection baking time compared to

standard baking times. See convection

baking chart in your convection oven

cookbook for recommended baking times.

NOTE: Cooking time may be longer when

you use more than one rack.

* When baking on two or three racks, use

the convection bake setting for more even

results. (You can, however, use only one

rack when convection baking.)

• To use three racks during convection

baking, place racks in position 5 (the

highest position), 3 and 1 (the closest to

the oven bottom). This allows all three

racks to be an equal distance apart for

better baking,

• Stagger cake pans or other cookware in

opposite directions on each rack when

three racks are used.

Roasting tips

• Roast meats fat-side up in a shallow pan

using a roasting rack.

• Use a roasting pan that fits the size of

the food to be roasted, Meat juices may

overflow the sides of a pan that is too

small. Too large of a pan will result in

increased oven spatter.

• Spatter can be reduced by lining the

bottom of the roasting pan with tightly

crushed aluminum foil.

• Use an accurate meat thermometer to

determine when meat has reached desired

degree of doneness. Insert the

thermometer into the center of the thickest

portion of the meat or inner thigh or breast

of poultry. For an accurate reading, the tip

of the thermometer should not touch fat,

bone, or gristle.

• After reading the thermometer once,

push it further into the meat ½inch or

more and read again. If the temperature

drops, return the meat to the oven for

more cooking.

• Check pork and poultry with a

thermometer in 2-3 places to ensure

adequate doneness,

• Poultry and roasts will be easier to

carve if loosely covered with foil and

allowed to stand 10-15 minutes after

removal from the oven,

• You can reduce roastingtimes and

temperatures for most standard recipes

when using the convection roast setting,

See convection roasting chart in your

convection oven cookbook for recommended

roastingtimes and temperatures.

J_sing and Caring for Your Oven

• Use the convection roasting rack on the

broiler pan (both included with your

range). (The convection roasting rack

rests on the broiler pan, not inside it.) The

long side of the rack should be parallel

with the oven door for best heat

distribution and airflow.

NOTE: Place the convection roasting rack

on the broiler pan with grid to contain the

drippings as the meat roasts.

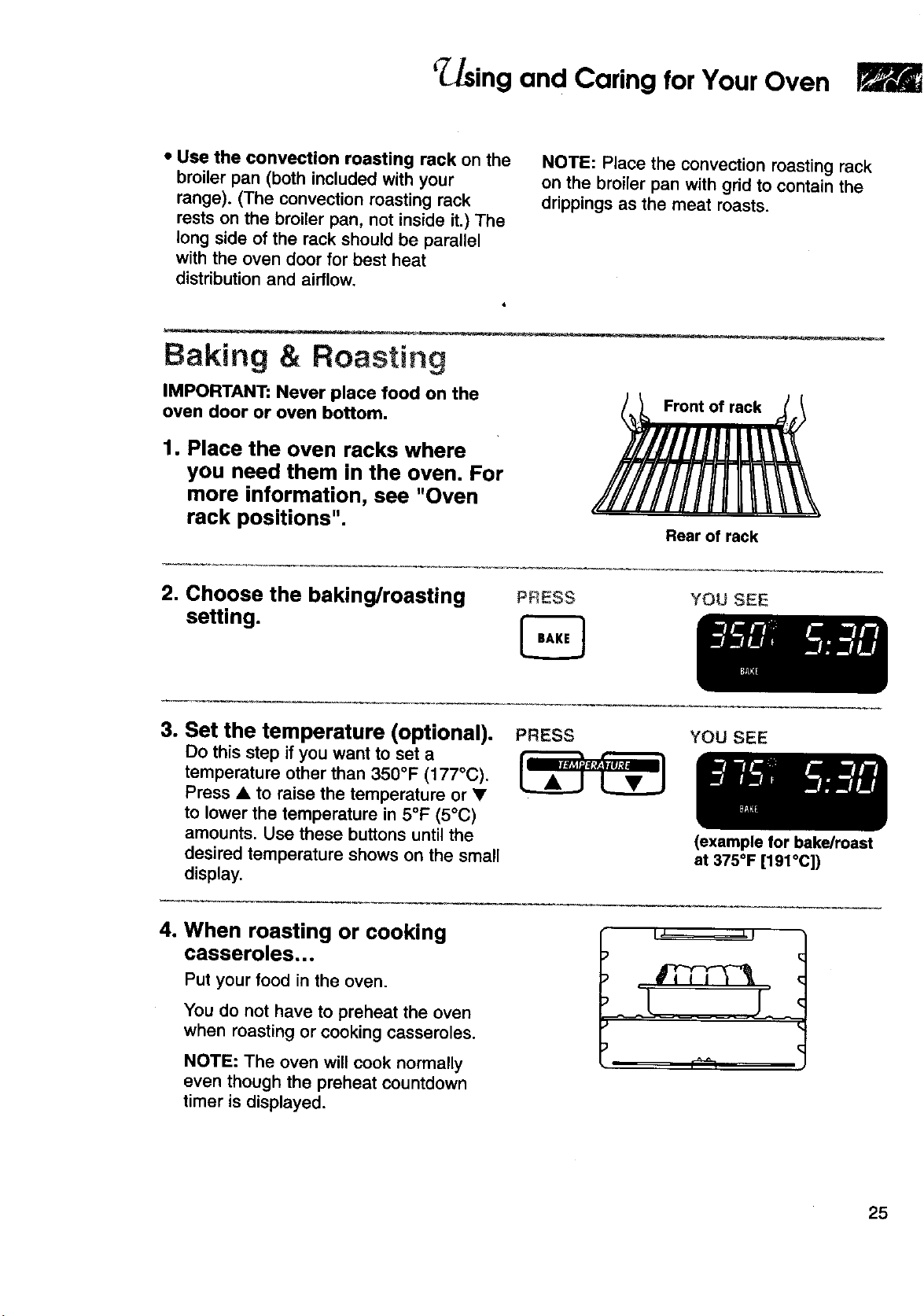

Baking & Roasting

IMPORTANT: Never place food on the

oven door or oven bottom.

1. Place the oven racks where

you need them in the oven. For

more information, see "Oven

rack positions".

Front of rack

Rear of rack

2. Choose the baking/roasting PRESS

setting.

YOU SEE

3. Set the temperature (optional).

Do this step if you want to set a

temperature other than 350°F (177°C).

Press • to raise the temperature or •

to lower the temperature in 5°F (5°C)

amounts. Use these buttons until the

desired temperature shows on the small

display.

PRESS

YOU SEE

4. When roasting or cooking

casseroles...

Put your food in the oven.

You do not have to preheat the oven

when roasting or cooking casseroles.

NOTE: The oven will cook normally

even though the preheat countdown

timer is displayed.

(example for bake/roast

at 375°F [191°C])

] i

_sing and Caring for Your Oven

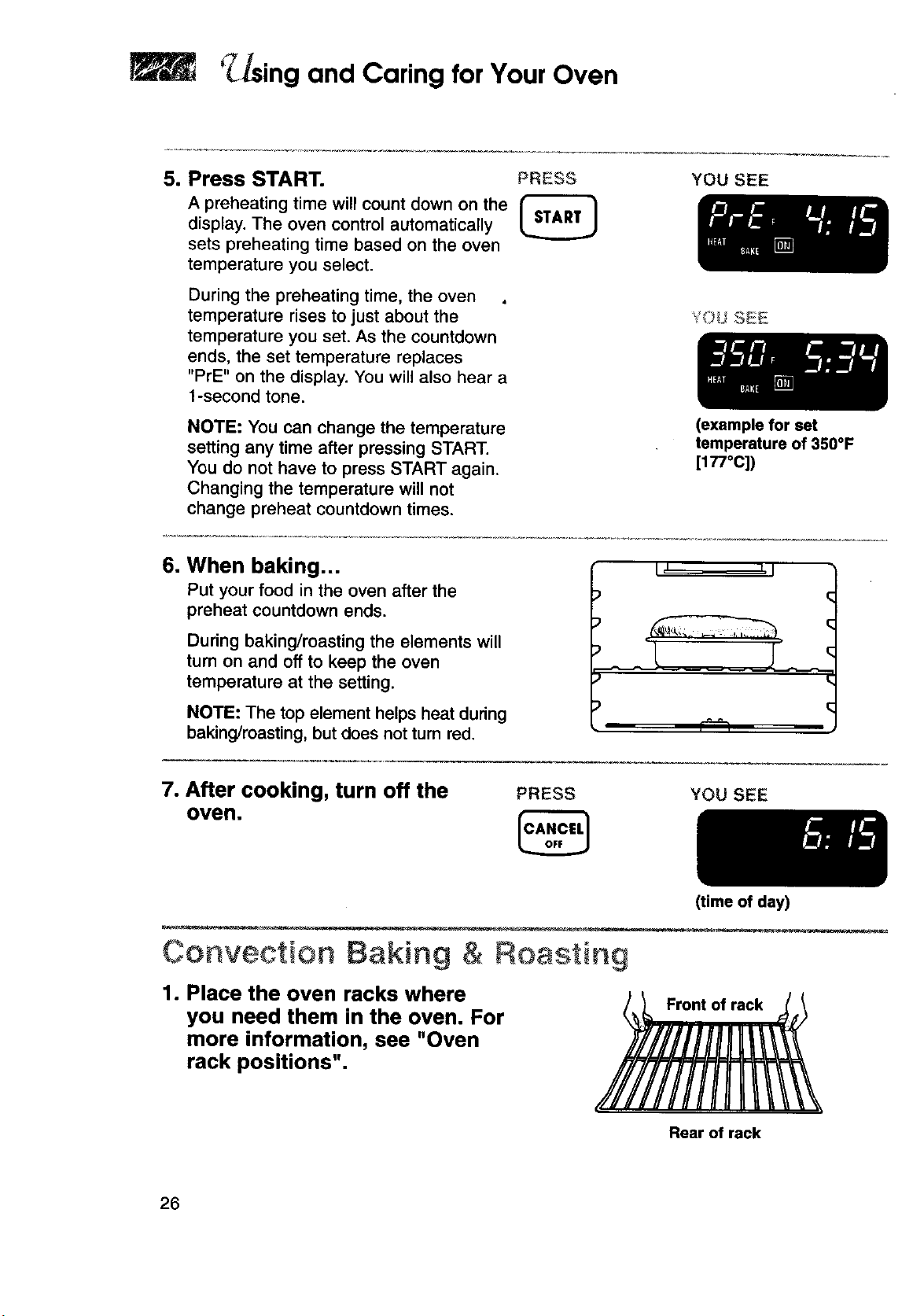

5. Press START. PRESS

A preheating time will count down on the

display. The oven control automatically

sets preheating time based on the oven

temperature you select.

During the preheating time, the oven

temperature rises to just about the

temperature you set. As the countdown

ends, the set temperature replaces

"PrE" on the display. You will also hear a

1-second tone.

NOTE: You can change the temperature

setting any time after pressing START.

You do not have to press START again.

Changing the temperature will not

change preheat countdown times.

YOU SEE

(example for set

temperature of 350°F

[177°C])

6. When baking...

Put your food in the oven after the

preheat countdown ends,

During baking/roasting the elements will

turn on and off to keep the oven

temperature at the setting.

NOTE: The top element helps heat during

baking/roasting, but does not tum red.

I I r I

^ ^

7. After cooking, turn off the PRESS

oven.

YOU SEE

(time of day)

Convection Baking & Roasting

1. Place the oven racks where

you need them in the oven. For

more information, see "Oven

rack positions".

Front

Rear of rack

'_._ing and Caring for Your Oven _r'_

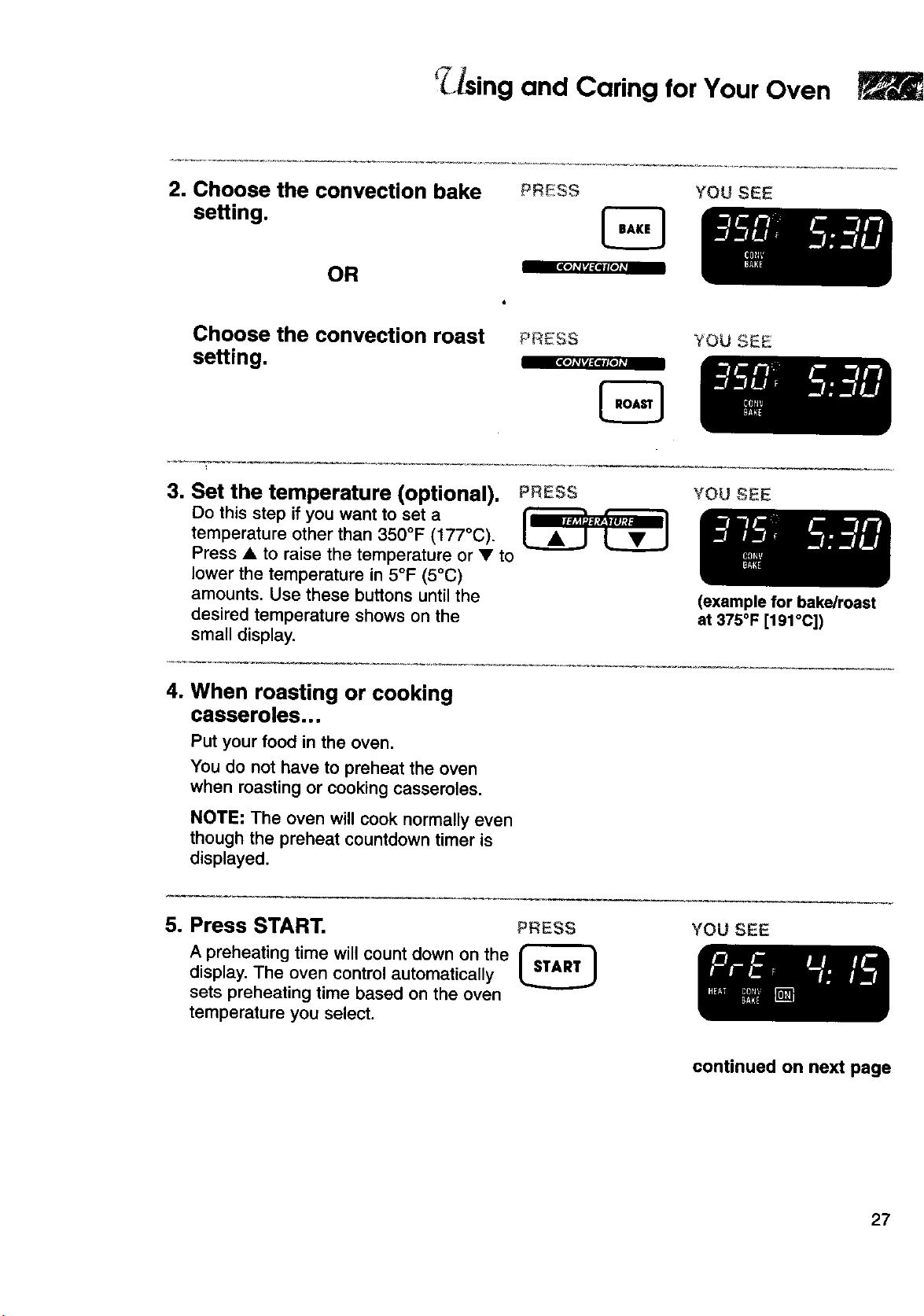

2. Choose the convection bake

setting.

PRESS YOU SEE

Choose the convection roast

setting.

PRESS

YOU SEE

3, Set the temperature (optional).

Do this step if you want to set a

temperature ether than 350°F (177°C).

Press • to raise the temperature or • to

lower the temperature in 5°F (5°C)

amounts. Use these buttons until the

desired temperature shows on the

small display.

YOU SEE

4. When roasting or cooking

casseroles...

Put your food in the oven.

You do not have to preheat the oven

when roasting or cooking casseroles.

NOTE: The oven will cook normally even

though the preheat countdown timer is

displayed.

5. Press START. PRESS

A preheating time will count down on the

display. The oven control automatically

sets preheating time based on the oven

temperature you select.

(example for bake/roast

at 375°F [191°C])

YOU SEE

continued on next page

Using and Caring for Your Oven

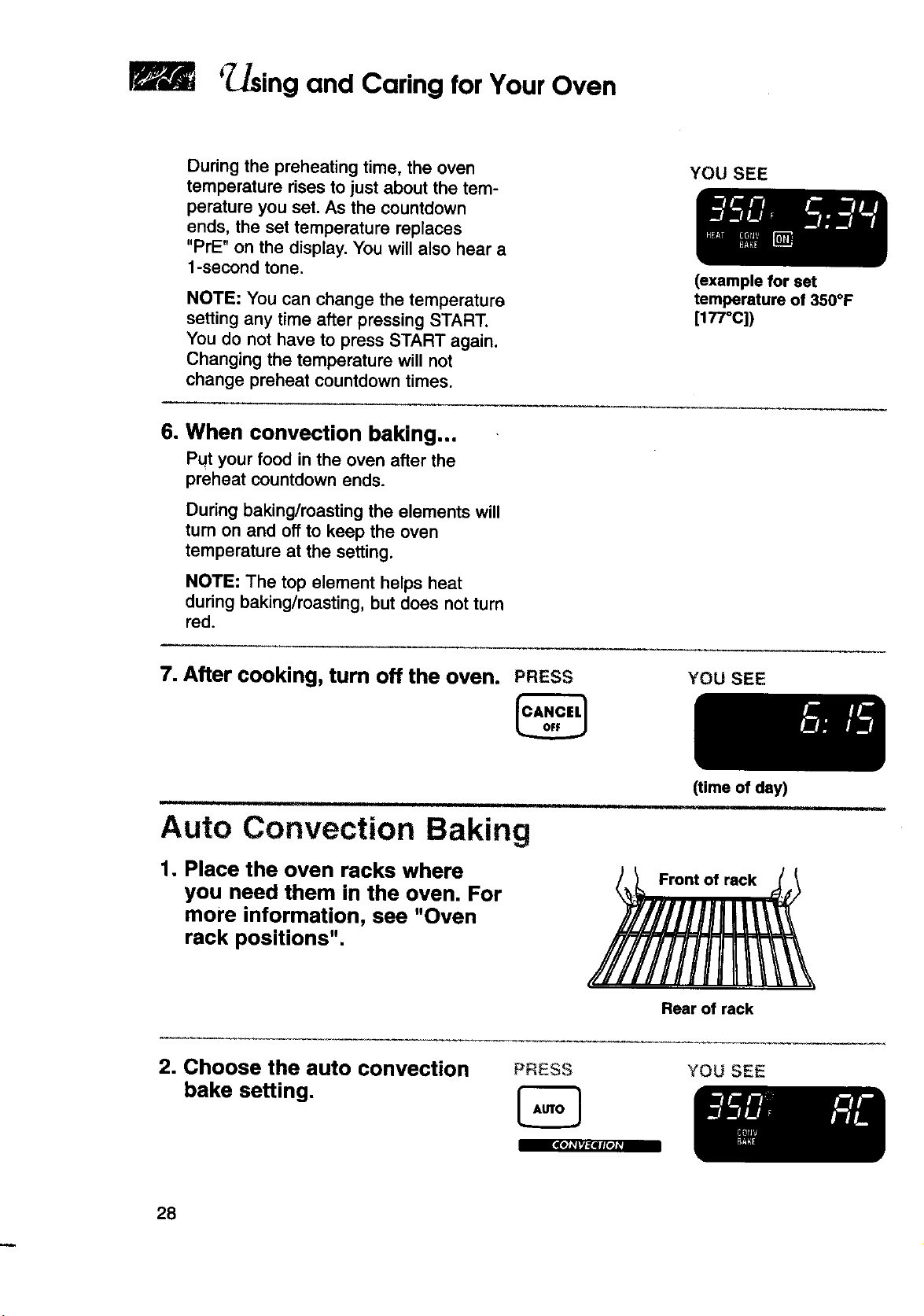

During the preheating time, the oven

temperature rises to just about the tem-

perature you set. As the countdown

ends, the set temperature replaces

"PrE" on the display. You will also hear a

1-second tone.

NOTE: You can change the temperature

setting any time after pressing START.

You do not have to press START again.

Changing the temperature will not

change preheat countdown times.

YOU SEE

(example for set

temperature of 350°F

[177°C])

6. When convection baking...

Put your food in the oven after the

preheat countdown ends.

During baking/roasting the elements will

turn on and off to keep the oven

temperature at the setting.

NOTE: The top element helps heat

during baking/roasting, but does not turn

red.

7. After cooking, turn off the oven. PRESS

YOU SEE

.... __rll Illllllll II I I I

Auto Convection Baking

1. Place the oven racks where

you need them in the oven. For

more information, see "Oven

rack positions".

(time of day)

Front of rack

Rear of rack

2. Choose the auto convection

bake setting.

PRESS

YOU SEE

Using and Caring for Your Oven

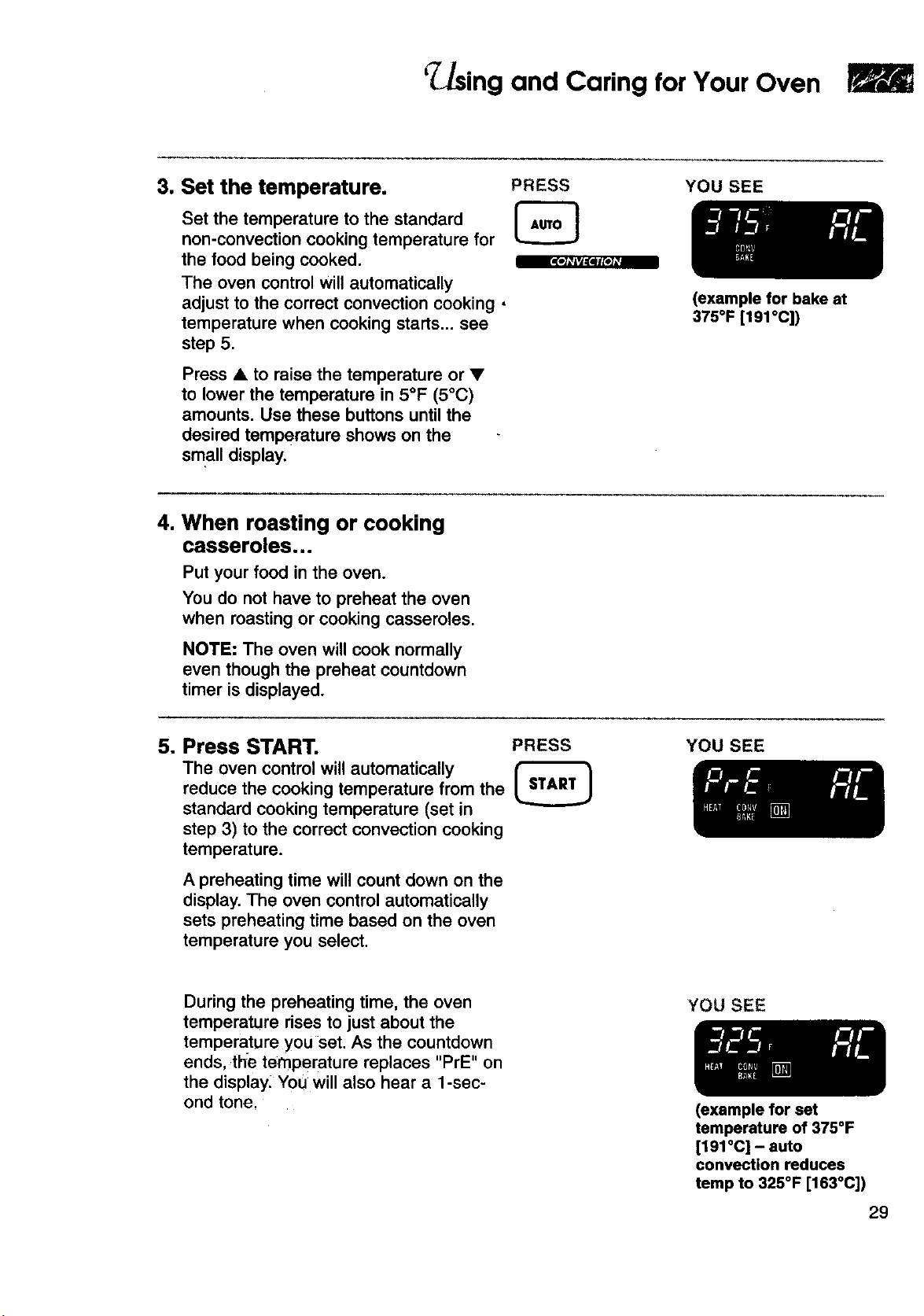

3. Set the temperature.

Set the temperature to the standard

non-convection cooking temperature for

the food being cooked.

The oven control will automatically

adjust to the correct convection cooking,

temperature when cooking starts.., see

step 5.

=le}L,ivA;[_41[eij

Press • to raise the temperature or •

to lower the temperature in 5°F (5°C)

amounts. Use these buttons until the

desired temperature shows on the

small display.

PRESS YOU SEE

4. When roasting or cooking

casseroles...

Put your food in the oven.

You do not have to preheat the oven

when roasting or cooking casseroles,

NOTE: The oven will cook normally

even though the preheat countdown

timer is displayed.

5. Press START. PRESS

The oven control will automatically

reduce the cooking temperature from the

standard cooking temperature (set in

step 3) to the correct convection cooking

temperature.

A preheating time will count down on the

display. The oven control automatically

sets preheating time based on the oven

temperature you select.

(example for bake at

375°F [191°C])

YOU SEE

During the preheating time, the oven

temperature rises to just about the

temperature you set. As the countdown

ends, ,the temperature replaces "PrE" on

the display_ You will also hear a 1-sec-

ond tone,

YOU SEE

(example for set

temperature of 375°F

[191°C] - auto

convection reduces

temp to 325°F [163°C])

Using and Caring for Your Oven

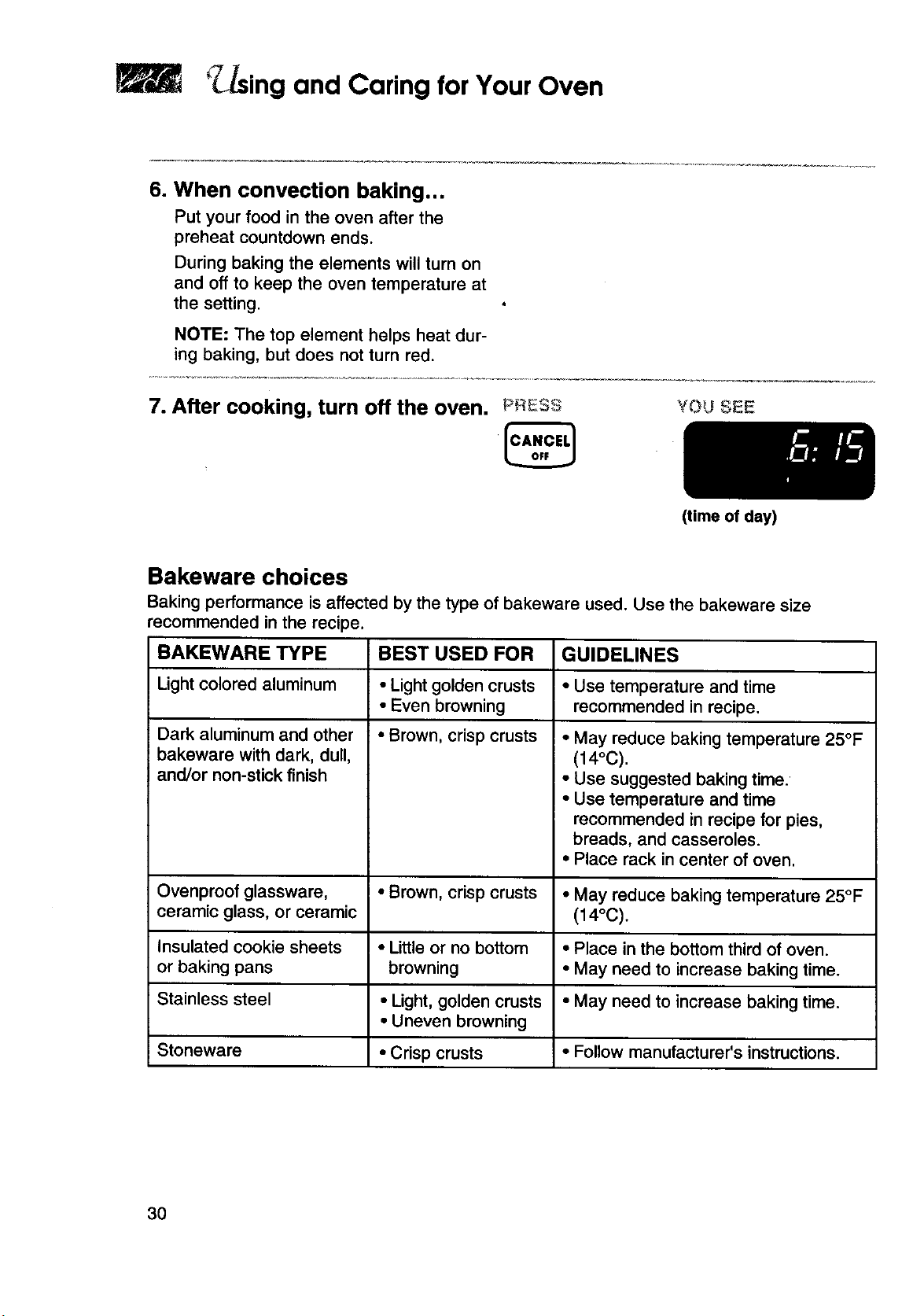

6. When convection baking...

Put yourfood in the ovenafterthe

preheat countdownends.

During baking the elements will turn on

and off to keep the oven temperature at

the setting.

NOTE: The top element helps heat dur-

ing baking, but does not turn red.

7. After cooking, turn off the oven. PRESS

YO_J SEE

(time of day)

Bakeware choices

Baking performance is affected by the type of bakeware used. Use the bakeware size

recommended in the recipe.

BAKEWARE TYPE BEST USED FOR GUIDELINES

Lightcolored aluminum * Lightgolden crusts • Use temperature and time

• Even browning recommended in recipe.

• Brown, crisp crusts

Dark aluminum and other

bakeware with dark, dull,

and/or non-stick finish

• May reduce baking temperature 25°F

(14°C).

• Use suggested baking time.

• Use temperature and time

recommended in recipe for pies,

breads, and casseroles.

• Place rack in center of oven.

Ovenproof glassware, • Brown, crisp crusts • May reduce baking temperature 25°F

ceramic glass, or ceramic (14°C).

Insulated cookie sheets • Little or no bottom • Place in the bottom third of oven.

or baking pans browning • May need to increase baking time.

Stainless steel ° Light, golden crusts ° May need to increase baking time.

• Uneven browning

Stoneware ° Crisp crusts • Follow manufacturer's instructions.

_Ising and Caring for Your Oven

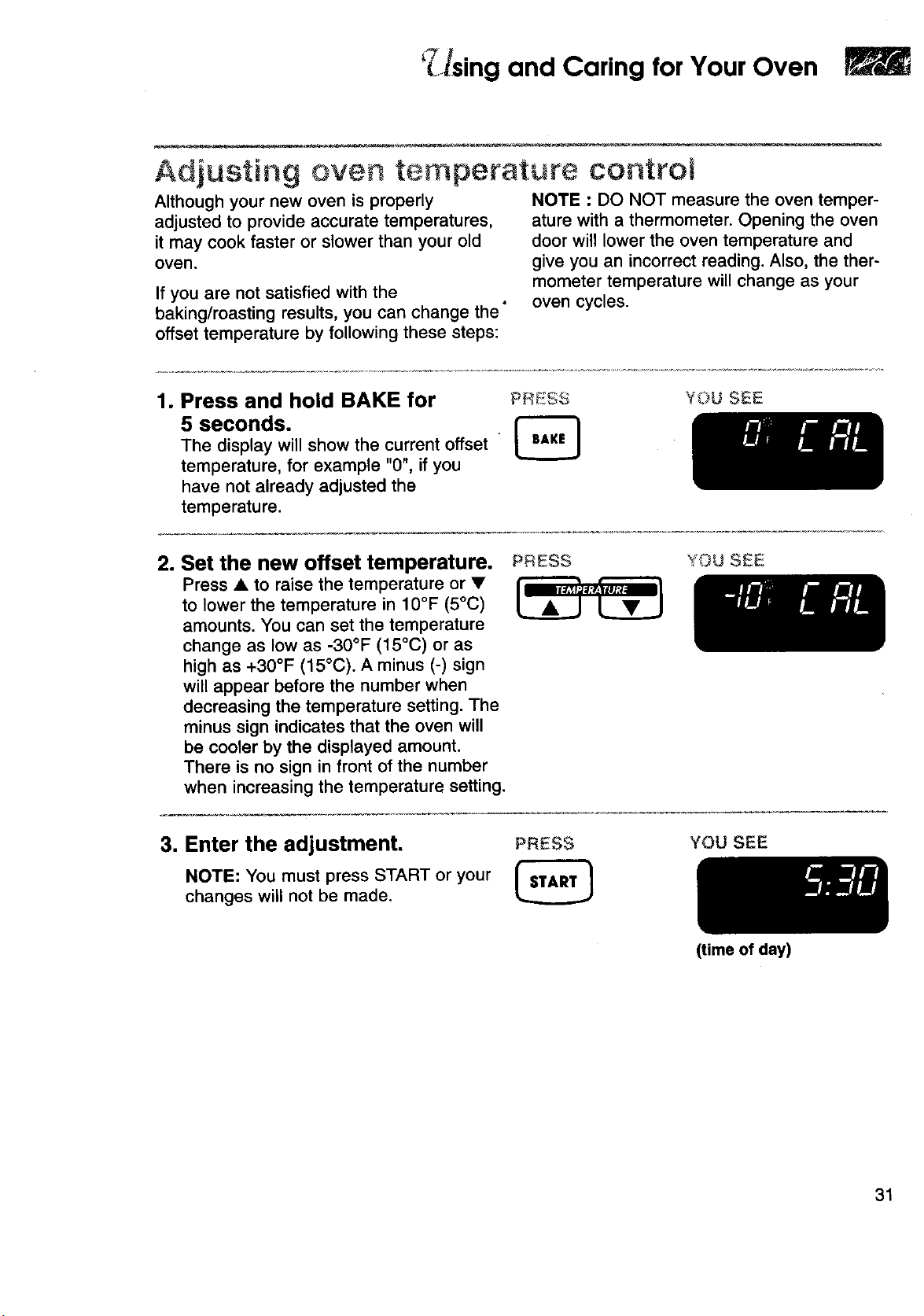

Adjusting oven temperature control

Although your new oven is properly

adjusted to provide accurate temperatures,

it may cook faster or slower than your old

oven.

If you are not satisfied with the

baking/roasting results, you can change the

offset temperature by following these steps:

NOTE : DO NOT measure the oven temper-

ature with a thermometer. Opening the oven

door will lower the oven temperature and

give you an incorrect reading. Also, the ther-

mometer temperature will change as your

oven cycles.

1. Press and hold BAKE for

5 seconds.

The displaywillshow the currentoffset

temperature,for example "0", if you

have not already adjusted the

temperature.

YOU SEE

2. Set the new offset temperature.

Press • to raise the temperature or •

to lower the temperature in 10°F (5°C)

amounts. You can set the temperature

change as low as -30°F (15°C) or as

high as +30°F (15°C). A minus (-) sign

will appear before the number when

decreasing the temperature setting. The

minus sign indicates that the oven will

be cooler by the displayed amount.

There is no sign in front of the number

when increasing the temperature setting.

YOU SEE

3. Enter the adjustment. PRESS

NOTE: You must press START or your _START ]

changes will not be made.

YOU SEE

(time of day)

_sing and Caring for Your Oven

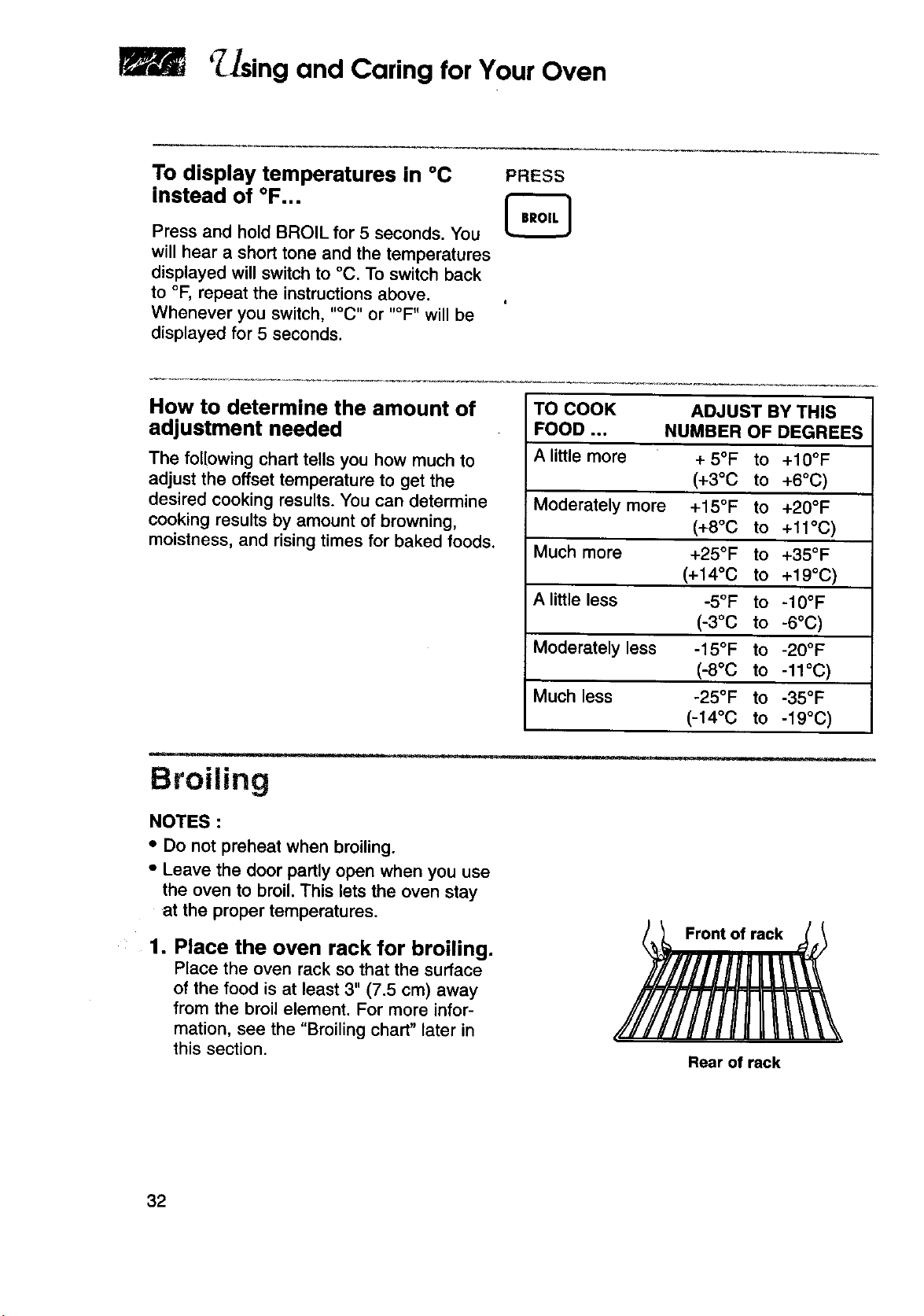

To display temperatures in °C PRESS

instead of °F...

Press and hold BROIL for 5 seconds. You

will hear a short tone and the temperatures

displayed will switch to °C. To switch back

to °F, repeat the instructions above.

Whenever you switch, "°C" or "°F" will be

displayed for 5 seconds.

How to determine the amount of

adjustment needed

The following chart tells you how much to

adjust the offset temperature to get the

desired cooking results. You can determine

cooking results by amount of browning,

moistness, and rising times for baked foods.

TO COOK ADJUST BY THIS

FOOD ... NUMBER OF DEGREES

Alittle more + 5°F to +10°F

(+3°C to +6°C)

Moderately more +15°F to +20°F

(+8°C to +11°C)

Much more +25°F to +35°F

(+14°C to +19°C)

Alittle less -5°F to -10°F

(-3°C to-6°C)

Moderately less -15°F to -20°F

(-8°0 to-11°C)

Much less -25°F to -35°F

(-14°C to-19°C)

Broiling

NOTES :

• Do not preheat when broiling.

• Leave the door partly open when you use

the oven to broil. This lets the oven stay

at the proper temperatures.

1. Place the oven rack for broiling.

Place the oven rack so that the surface

of the food is at least 3" (7.5 cm) away

from the broil element. For more infor-

mation, see the "Broiling chart" later in

this section.

Front of rack

Rear of rack

_]sing and Caring for Your Oven

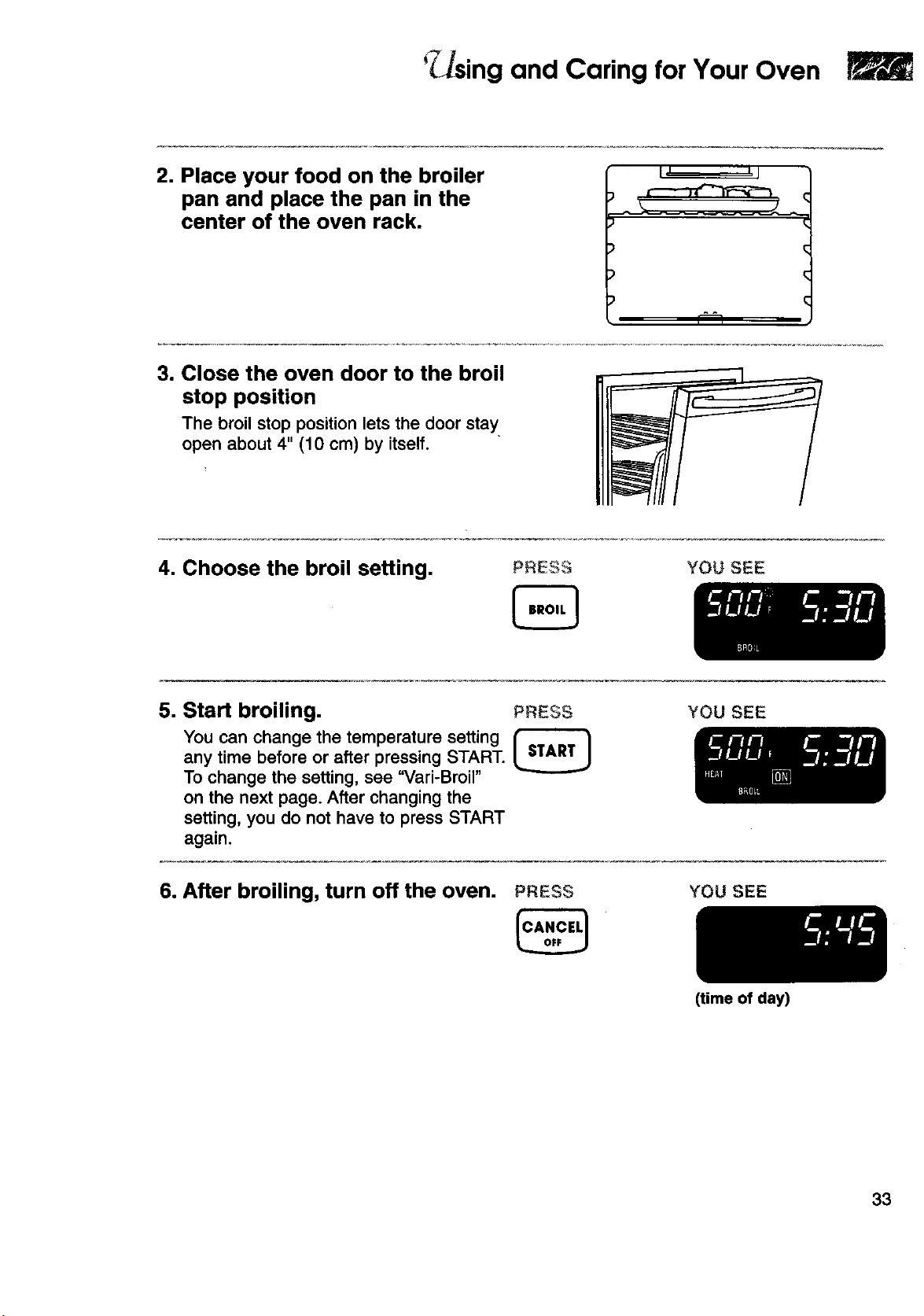

2. Place your food on the broiler

pan and place the pan in the

center of the oven rack.

i i

3. Close the oven door to the broil

stop position

The broil stop position lets the door stay

open about 4" (10 cm) by itself.

4. Choose the broil setting.

YOU SEE

5. Start broiling. PRESS

You can change the temperature setting

any time before or after pressing START.

To change the setting, see "Vari-Broir'

on the next page. After changing the

setting, you do not have to press START

again.

YOU SEE

6. After broiling, turn off the oven. PRESS

YOU SEE

(time of day)

and Caring for Your Oven

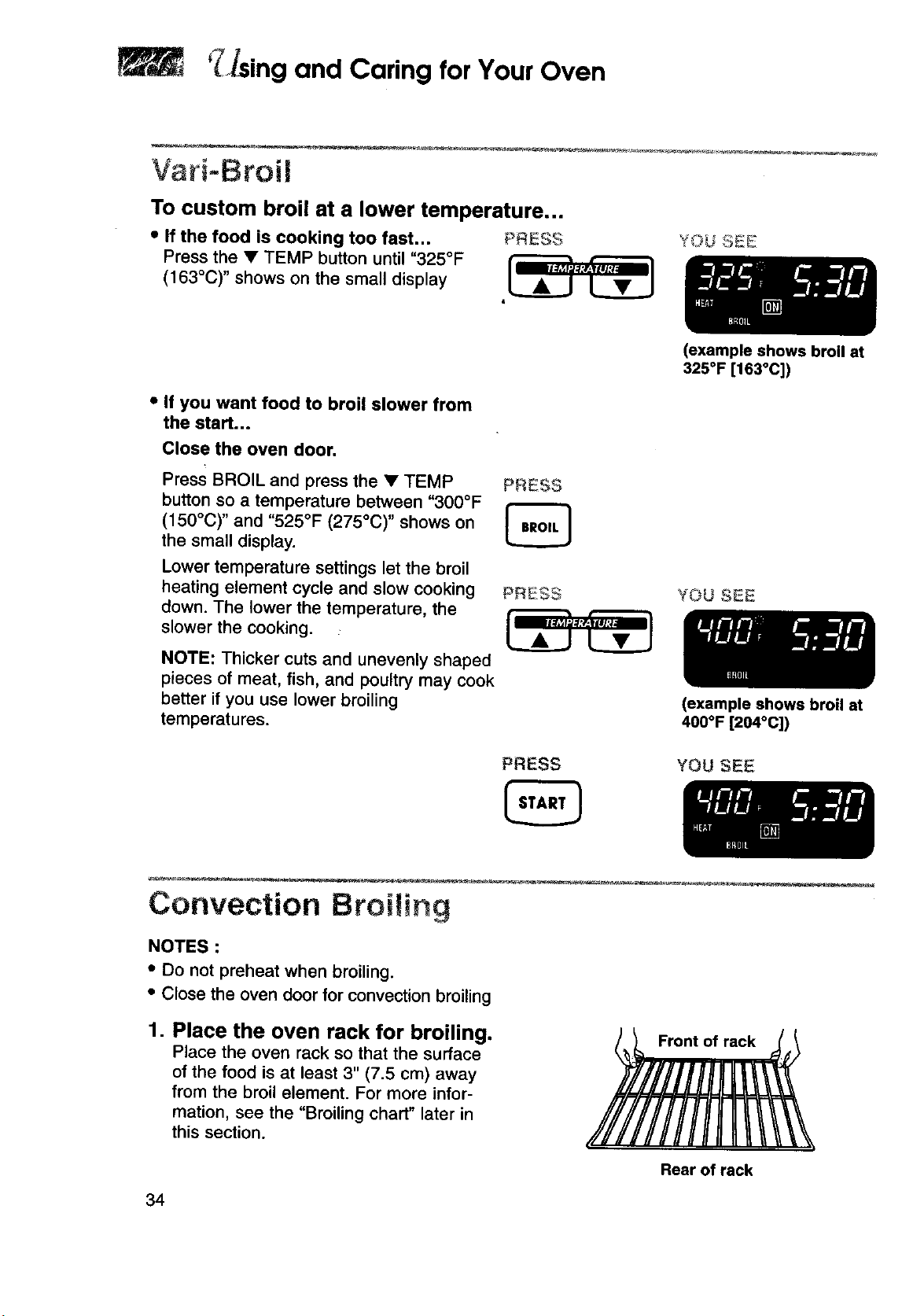

Vari-Broil

To custom broil at a lower temperature...

• If the food is cooking too fast.,. PRESS

Press the • TEMP button until "325°F

(163°C) " shows on the small display

YOU SEE

• If you want food to broil slower from

the start...

Close the oven door,

Press BROIL and press the • TEMP

button so a temperature between "300°F

(150°C) " and "525°F (275°C) '' shows on

the small display.

Lower temperature settings let the broil

heating element cycle and slow cooking

down. The lower the temperature, the

slower the cooking.

NOTE: Thicker cuts and unevenly shaped

pieces of meat, fish, and poultry may cook

better if you use lower broiling

temperatures.

PRESS

PRES-.

(example shows broil at

325°F [163°C])

YOU SEE

(example shows broil at

400°F [204°C])

PRESS YOU SEE

Convection Broiling

NOTES :

• Do not preheat when broiling.

• Close the oven door for convection broiling

1. Place the oven rack for broiling.

Place the oven rack so that the surface

of the food is at least 3" (7.5 cm) away

from the broil element. For more infor-

mation, see the "Broiling chart" later in

this section.

Front of rack

Rear of rack

_{sing and Caring for Your Oven

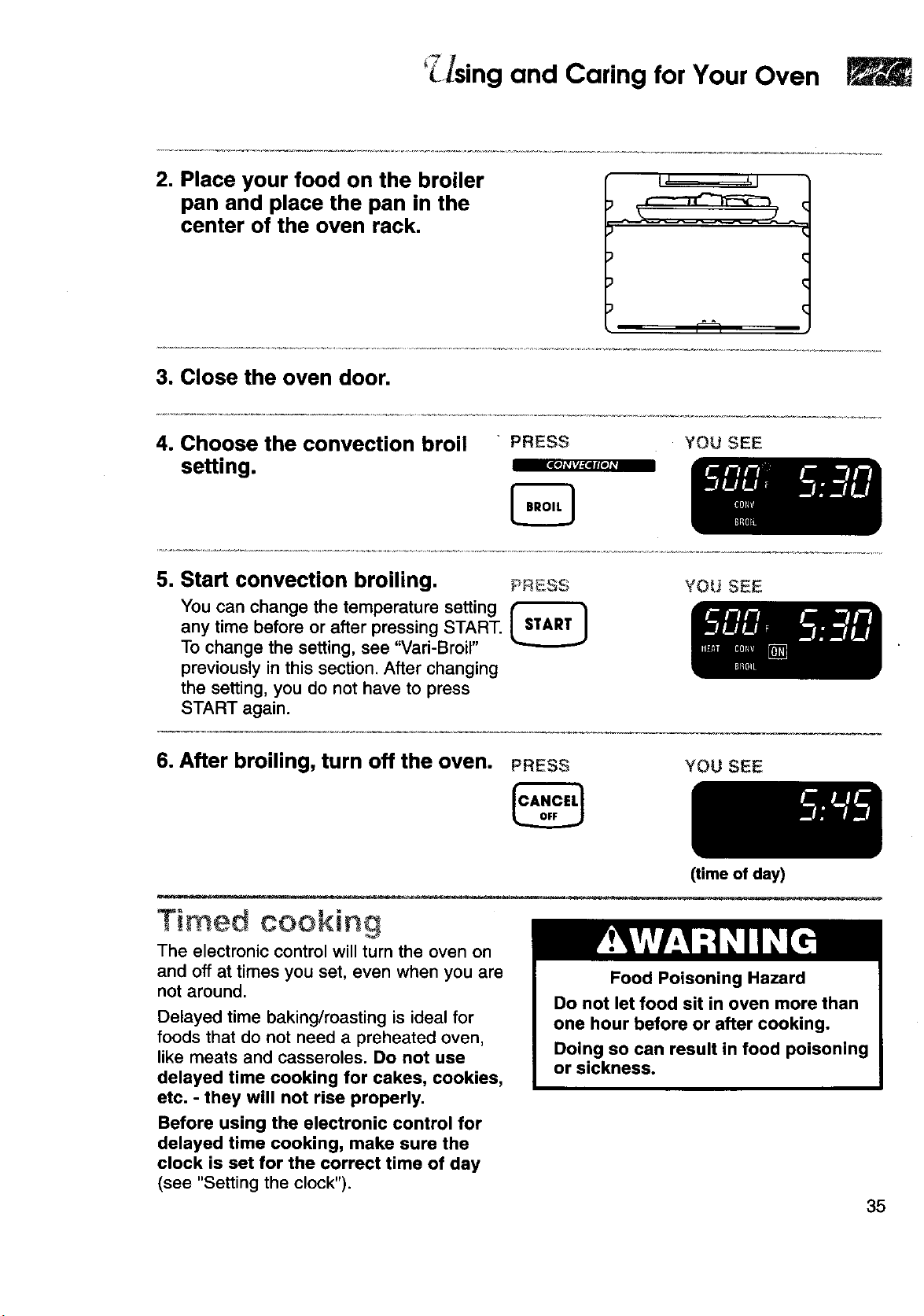

2. Place your food on the broiler

pan and place the pan in the

center of the oven rack.

3. Close the oven door.

4. Choose the convection broil

setting.

• PRESS

YOU SEE

[_eJ_t Y_q tTe]_

5. Start convection broiling. PRESS

You can change the temperature setting

any time before or after pressing START.

To change the setting, see "Vari-Broil"

previously in this section. After changing

the setting, you do not have to press

START again.

YOU SEE

6. After broiling, turn off the oven. PRESS

YOU SEE

(time of day)

Timed cooking

The electronic control will turn the oven on

and off at times you set, even when you are

not around.

Delayed time baking/roasting is ideal for

foods that do not need a preheated oven,

like meats and casseroles. Do not use

delayed time cooking for cakes, cookies,

etc. - they will not rise properly.

Before using the electronic control for

delayed time cooking, make sure the

clock is set for the correct time of day

(see "Setting the clock").

Food Poisoning Hazard

Do not let food sit in oven more than

one hour before or after cooking.

Doing so can result in food poisoning

or sickness.

_sing and Caring for Your Oven

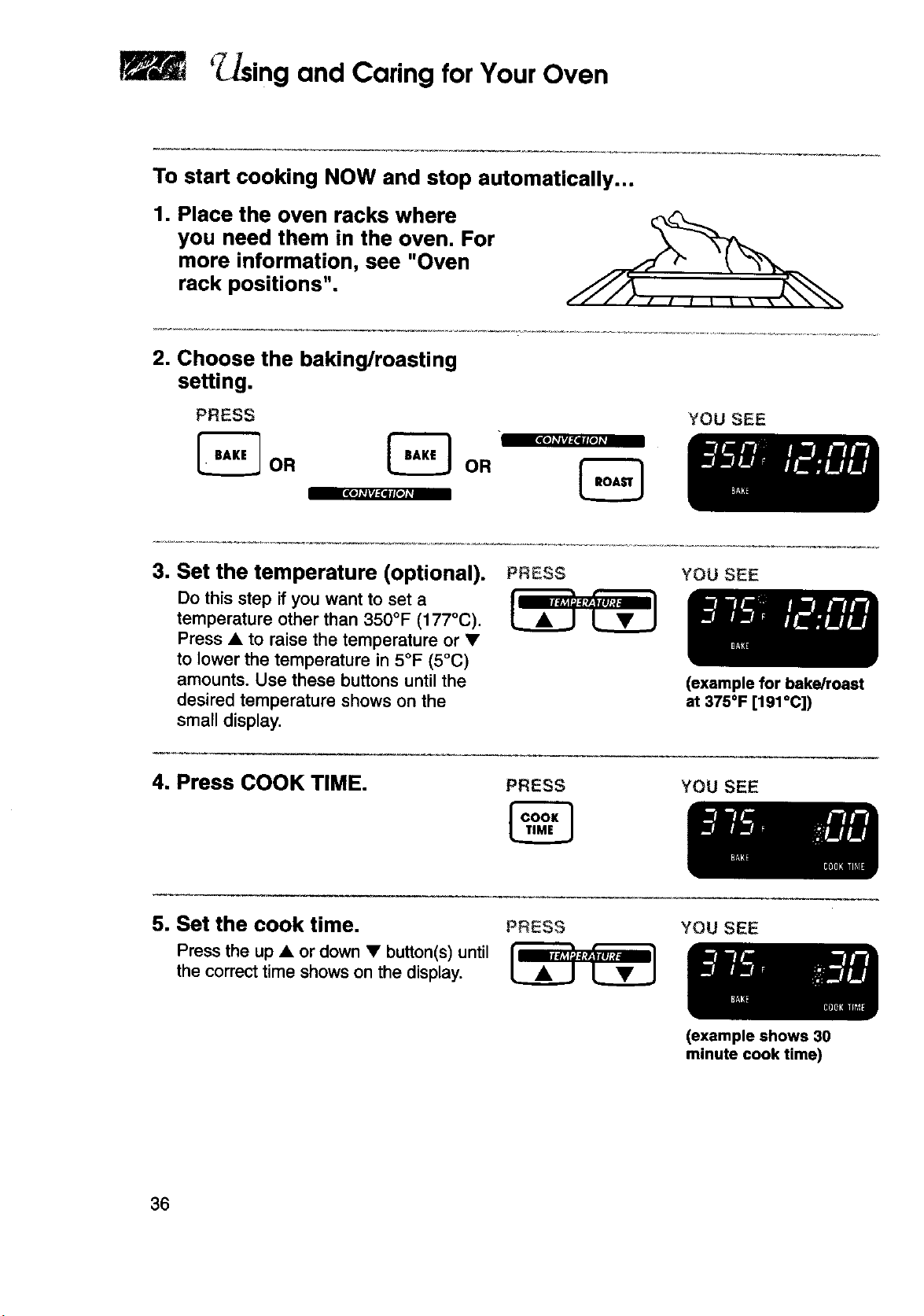

To start cooking NOW and stop automatically...

1. Place the oven racks where

you need them in the oven. For

more information, see "Oven

rack positions".

2. Choose the baking/roasting

setting.

PRESS

_eT_lvJ_qlL*Oal

YOU SEE

3. Set the temperature (optional).

Do this step if you want to set a

temperature other than 350°F (177°C).

Press • to raise the temperature or •

to lower the temperature in 5°F (5°C)

amounts. Use these buttons until the

desired temperature shows on the

small display.

PRESS

YOU SEE

4. Press COOK TIME.

PRESS

(example for bake/roast

at 375°F [191°C])

YOU SEE

5. Set the cook time. PRESS

Press the up • or down • button(s) until

the correct time shows on the display.

YOU SEE

(example shows 30

minute cook time)

sing and Caring for Your Oven

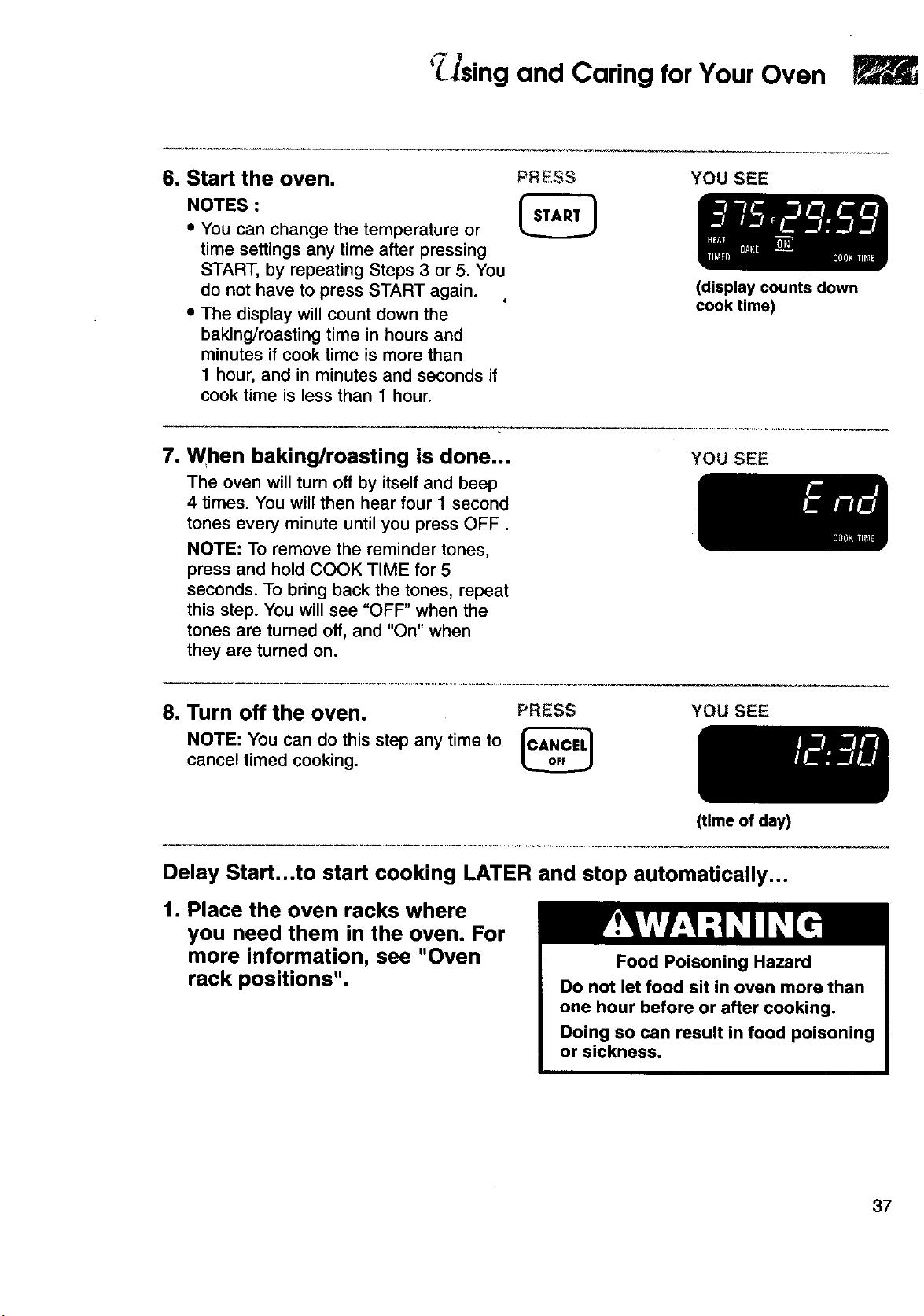

6. Start the oven.

NOTES :

• You can change the temperature or

time settings any time after pressing

START, by repeating Steps 3 or 5. You

do not have to press START again.

• The display will count down the

baking/roasting time in hours and

minutes if cook time is more than

1 hour, and in minutes and seconds if

cook time is less than 1 hour.

PRESS YOU SEE

(display counts down

cook time)

7. When baking/roasting is done...

The oven will turn off by itself and beep

4 times. You will then hear four 1 second

tones every minute until you press OFF.

NOTE: To remove the reminder tones,

press and hold COOK TIME for 5

seconds. To bring back the tones, repeat

this step. You will see "OFF" when the

tones are turned off, and "On" when

they are turned on.

YOU SEE

8. Turn off the oven. PRESS

NOTE: You can do this step any time to

cancel timed cooking.

YOU SEE

(time of day)

Delay Start...to start cooking LATER and stop automatically...

1. Place the oven racks where

you need them in the oven. For

more information, see "Oven

rack positions".

Food Poisoning Hazard

Do not let food sit in oven more than

one hour before or after cooking.

Doing so can result in food poisoning

or sickness,

_ing and Caring for Your Oven

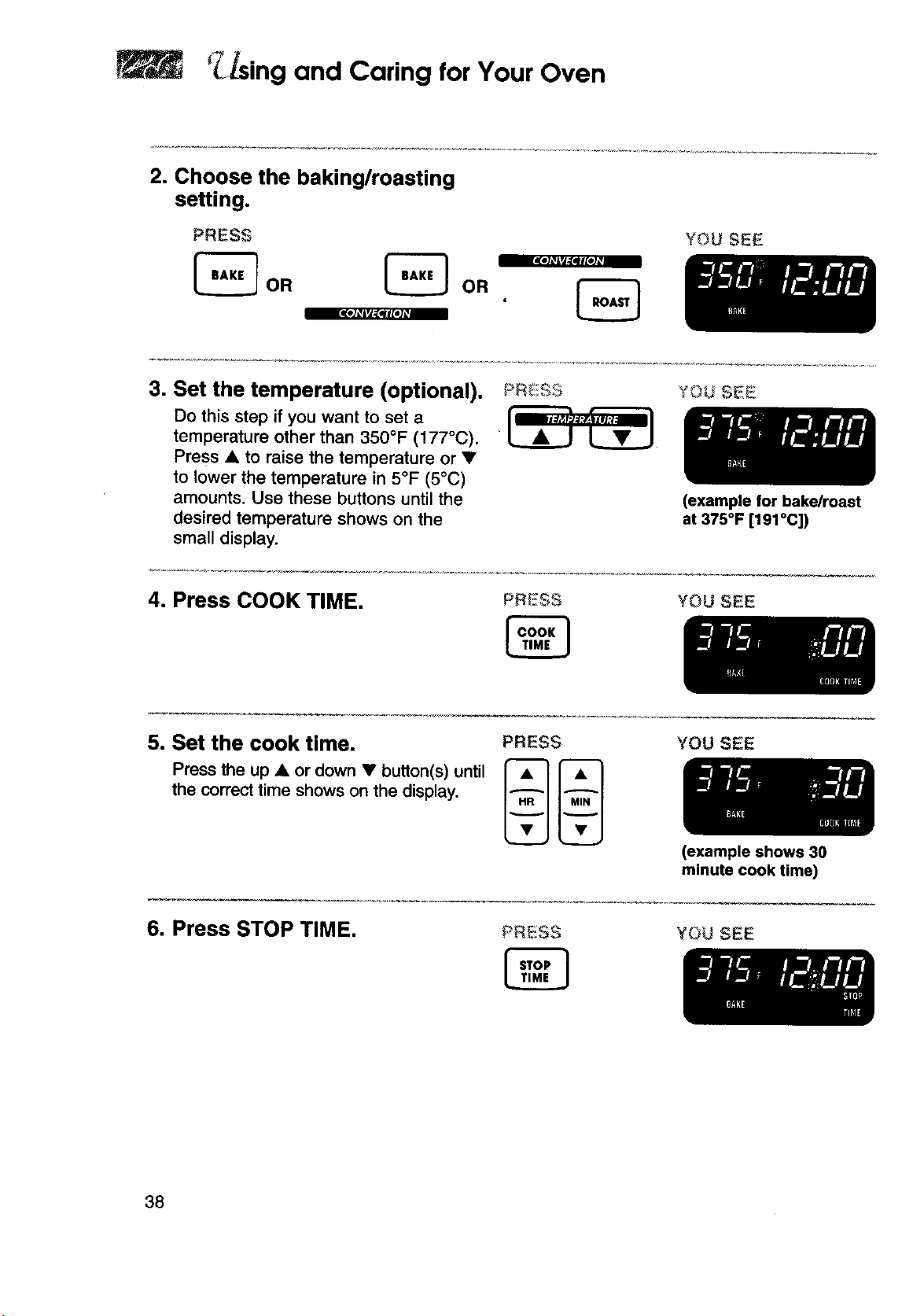

2. Choose the baking/roasting

setting.

PRESS YOU SEE

_OR _ OR

3, Set the temperature (optional).

Do this step if you want to set a

temperature other than 350°F (177°C).

Press • to raise the temperature or •

to lower the temperature in 5°F (5°C)

amounts. Use these buttons until the

desired temperature shows on the

small display.

YOU SEE

(example for bake/roast

at 375°F [191°C])

4. Press COOK TIME.

PRESS

YOU SEE

5. Set the cook time.

Press the up • or down • button(s) until

the correct time shows on the display.

PRESS

YOU SEE

6. Press STOP TIME.

PRESS

(example shows 30

minute cook time)

YOU SEE

Jsing and Caring for Your Oven

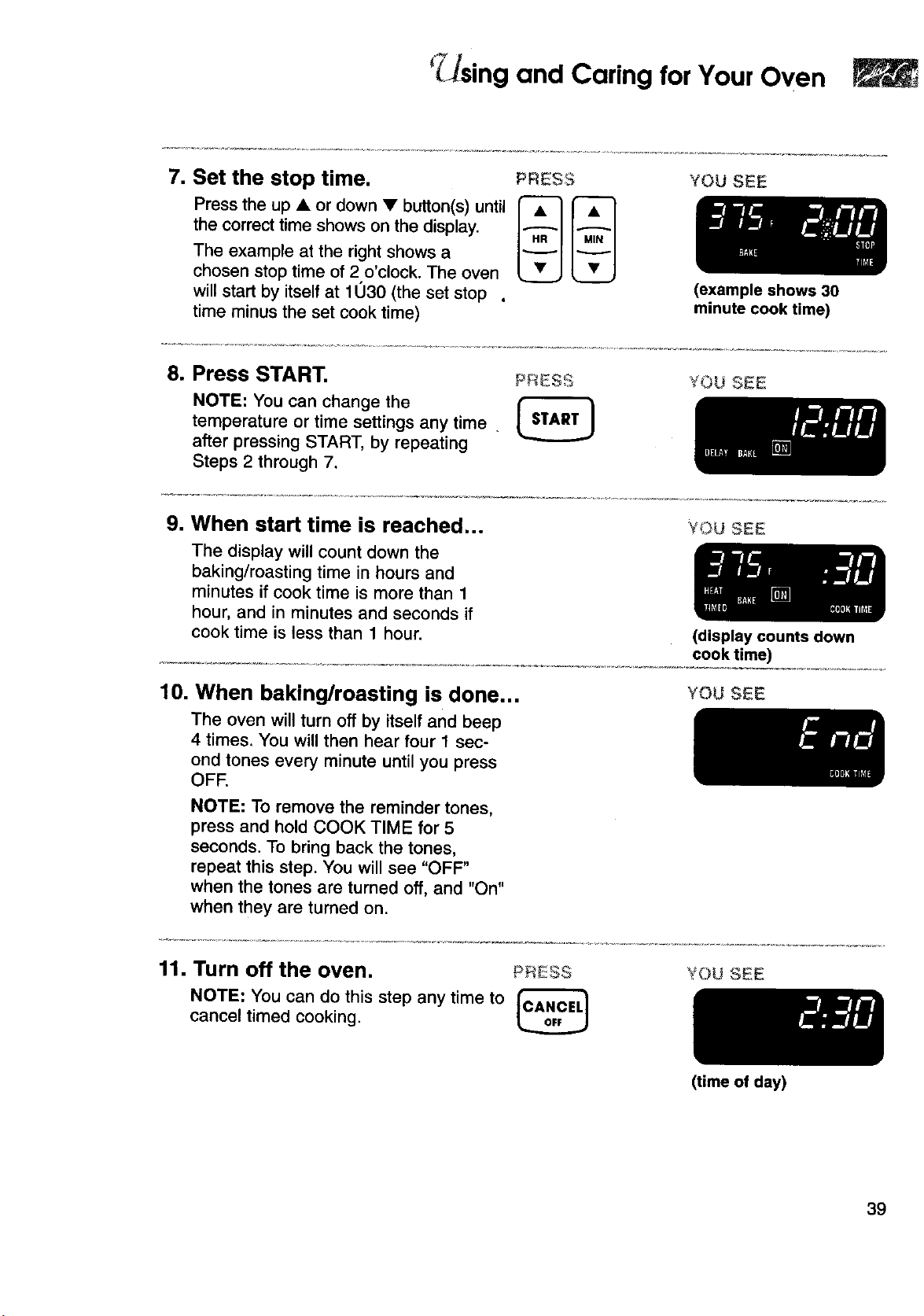

7, Set the stop time.

Press the up • or down • button(s) until

the correct time shows on the display.

The example at the right shows a

chosen stop time of 2 o'clock. The oven

will start by itself at 1030 (the set stop ,

time minus the set cook time)

PRESS

YOU SEE

(example shows 30

minute cook time)

8. Press START,

NOTE: You can change the

temperature or time settings any time .

after pressing START, by repeating

Steps 2 through 7,

YOU SEE

9, When start time is reached.,.

The display will count down the

baking/roasting time in hours and

minutes if cook time is more than 1

hour, and in minutes and seconds if

cook time is less than 1 hour.

YOU SEE

10, When baking/roasting is done...

The oven will turn off by itself and beep

4 times. You will then hear four 1 sec-

ond tones every minute until you press

OFF.

NOTE: To remove the reminder tones,

press and hold COOK TIME for 5

seconds. To bring back the tones,

repeat this step. You will see "OFF"

when the tones are turned off, and "On"

when they are turned on.

(display counts down

cook time)

YOU SEE

11, Turn off the oven. You SEE

NOTE: You can do this step any time to

cancel timed cooking.

(time of day)

.sing and Caring for Your Oven

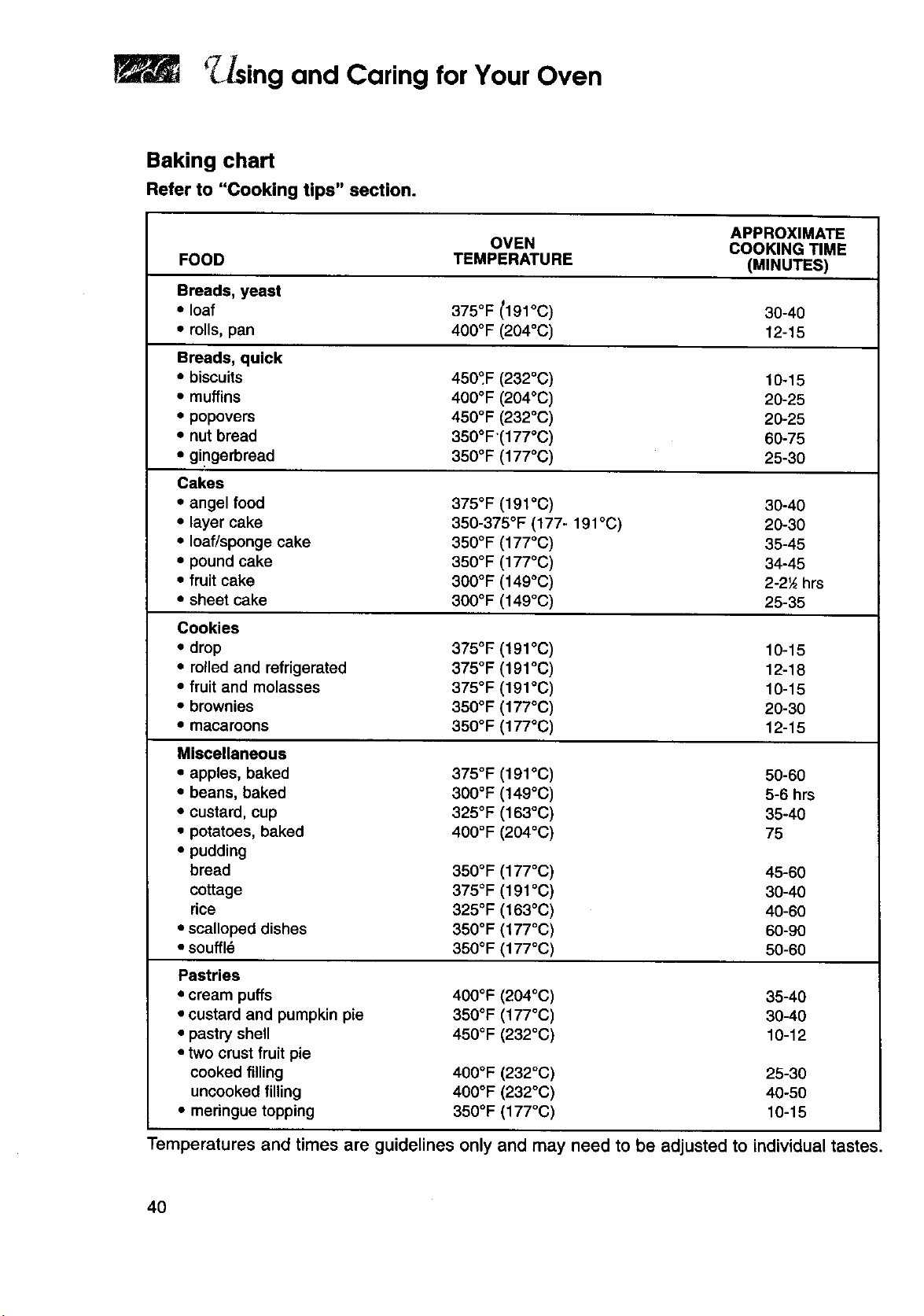

Baking chart

Refer to "Cooking tips" section.

APPROXIMATE

OVEN COOKING TIME

FOOD TEMPERATURE (MINUTES)

Breads, yeast

• loaf 375°F _191°C) 30-40

• rolls, pan 400°F (204°C) 12-15

Breads, quick

• biscuits 450°F (232°C) 10-15

• muffins 400°F (204°C) 20-25

• popovers 450°F (232°C) 20-25

• nut bread 350°F(177°C) 60-75

• gingerbread 350°F (177°C) 25-30

Cakes

• angel food 375°F (191°C) 30-40

• layer cake 350-375°F (177- 191°C) 20-30

• loaf/sponge cake 350°F (177°C) 35-45

• pound cake 350°F (177°C) 34-45

• fruit cake 300°F (149°C) 2-2_ hrs

• sheet cake 300°F (149°C) 25-35

• drop 375°F (191°C) 10-15

• roiled and refrigerated 375°F (191°C) 12-18

• fruit and molasses 375°F (191 °C) 10-15

• brownies 350°F (177°C) 20-30

• macaroons 350°F (177°C) 12-15

Miscellaneous

• apples, baked 375°F (191°C) 50-60

• beans, baked 300°F (149°C) 5-6 hrs

• custard, cup 325°F (163°C) 35-40

• potatoes, baked 400°F (204°C) 75

• pudding

bread 350°F (177°C) 45-60

cottage 375°F (191 °C) 30-40

rice 325°F (163°C) 40-60

• scalloped dishes 350°F (177°C) 60-90

• souffl_ 350°F (177°C) 50-60

Pastries

• cream puffs 400°F (204°C) 35-40

• custard and pumpkin pie 350°F (177°C) 30-40

• pastry shell 450°F (232°C) 10-12

• two crust fruit pie

cooked filling 400°F (232°C) 25-30

uncooked filling 400°F (232°C) 40-50

• meringue topping 350°F (177°C) 10-15

Temperatures and times are guidelines only and may need to be adjusted to individual tastes.

Using and Caring for Your Oven

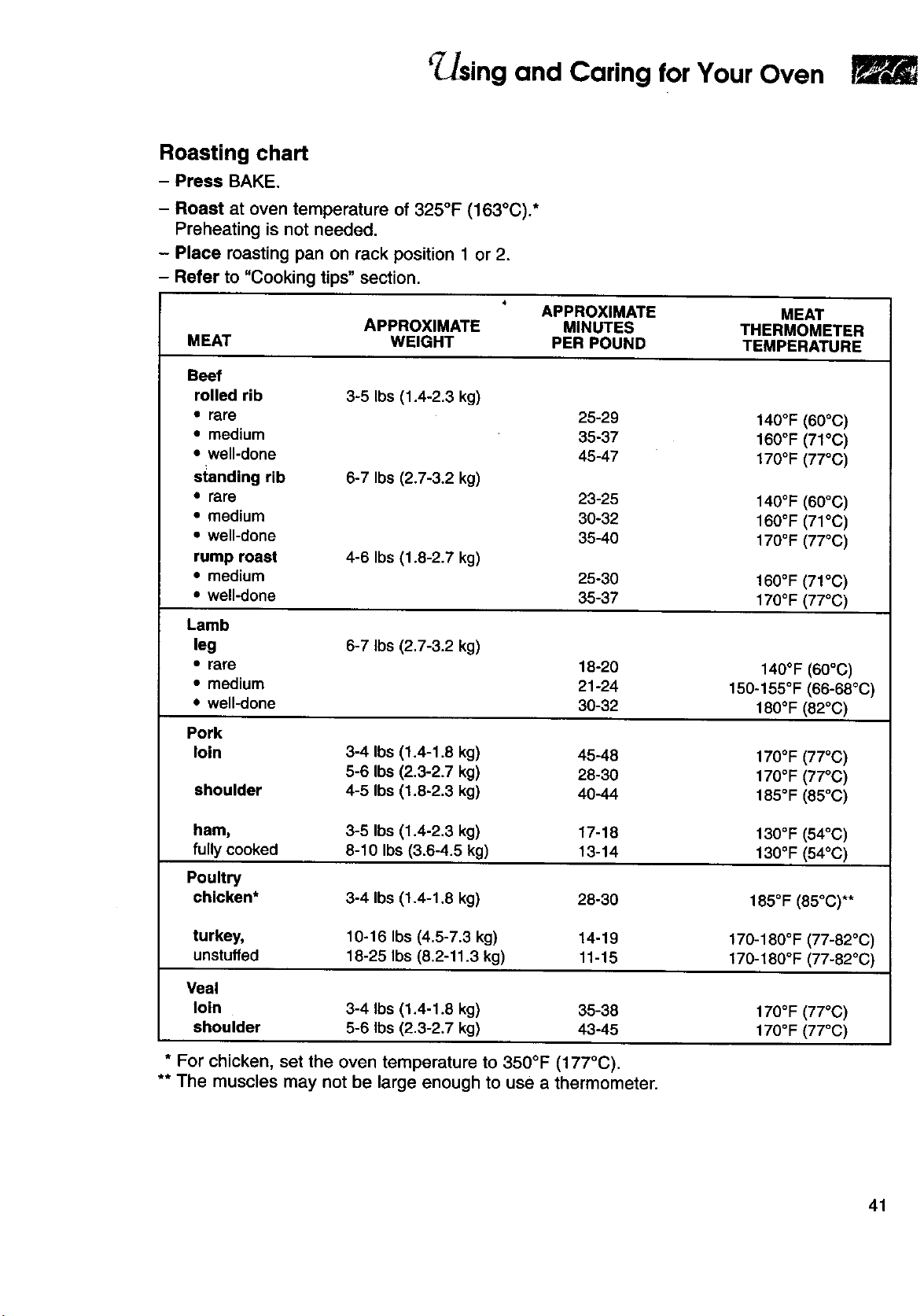

Roasting chart

- Press BAKE.

- Roast at oven temperature of 325°F (163°C). *

Preheating is not needed.

- Place roasting pan on rack position 1 or 2.

- Refer to "Cooking tips"section,

APPROXIMATE MEAT

APPROXIMATE MINUTES THERMOMETER

MEAT WEIGHT PER POUND TEMPERATURE

Beef

rolled rib 3-5 Ibs (1.4-2.3 kg)

• rare 25-29 140OF (60oc)

• medium 35-37 160OF (71oc)

• well-done 45-47 170OF (77oc)

standing rib 6-7 Ibs (2.7-3.2 kg)

• rare 23-25 140°F (60°C)

• medium 30-32 160°F (71°C)

• well-done 35-40 170°F (77°C)

rump roast 4-6 Ibs (1.8-2.7 kg)

• medium 25-30 160°F (71°C)

• well-done 35-37 170°F (77°C)

Lamb

leg 6-7 Ibs (2,7-3.2 kg)

• rare 18-20 140°F (60°C)

• medium 21-24 150.155OF (66.68oc)

• well-done 30-32 180°F (82°C)

Pork

loin

shoulder

3-4 Ibs (1.4-1.8 kg) 45-48

5-6 Ibs (2.3-2.7 kg) 28-30

4-5 Ibs (1.8-2.3 kg) 40-44

170°F (77°C)

185°F (85°C)

ham, 3-5 Ibs (1.4-2.3 kg) 17-18 130°F (54°C)

fully cooked 8-10 Ibs (3.6-4.5 kg) 13-14 130°F (54°C)

Poultry

chicken* 3-4 Ibs (1.4-1,8 kg) 28-30

185°F (85oc) **

turkey, 10-16 Ibs (4,5-7.3 kg) 14-19 170-160°F (77-82°C)

unstuffed 18-25 Ibs (8,2-11.3 kg) 11-15 170-180°F (77-82°C)

Veal

loin 3-4 Ibs (1.4-1.8 kg) 35-38 170°F (77°C)

shoulder 5-6 Ibs (2,3-2.7 kg) 43-45 170°F (77°C)

* For chicken, set the oven temperature to 350°F (177°C).

** The muscles may not be large enough to use a thermometer.

and Caring for Your Oven

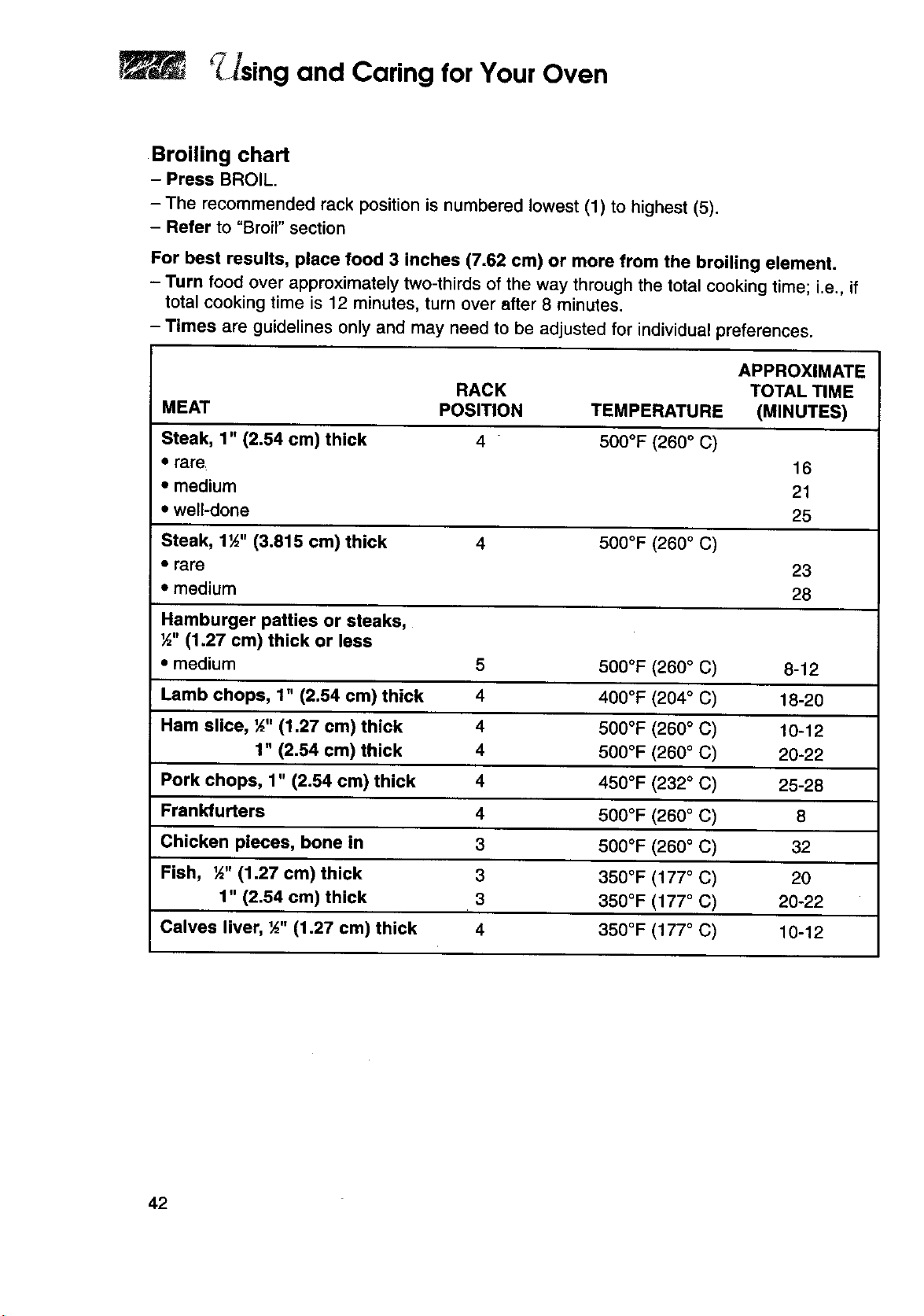

Broiling chart

- Press BROIL.

-The recommended rack position is numbered lowest (1) to highest (5).

- Refer to "Broil" section

For best results, place food 3 inches (7.62 cm) or more from the broiling element.

- Turn food over approximately two-thirds of the way through the total cooking time; i.e., if

total cooking time is 12 minutes, turn over after 8 minutes.

- Times are guidelines only and may need to be adjusted for individual preferences.

APPROXIMATE

RACK TOTAL TIME

MEAT POSITION TEMPERATURE (MINUTES)

Steak, 1" (2.54 cm) thick 4 500°F (260 ° C)

• rare_ 16

• medium 21

• well-done 25

Steak, 1½" (3.815 cm) thick 4 500°F (260 ° C)

• rare 23

• medium 28

Hamburger patties or steaks,

½" (1.27 cm) thick or less

• medium 5 500°F (260 ° C) 8-12

Lamb chops, 1" (2.54 cm) thick 4 400°F (204 ° C) 18-20

Ham slice, _" (1.27 cm) thick 4 500°F (260 ° C) 10-12

1" (2.54 cm) thick 4 500°F (260 ° C) 20-22

Pork chops, 1" (2.54 cm) thick 4 450°F (232 ° C) 25-28

Frankfurters 4 500°F (260 ° C) 8

Chicken pieces, bone in 3 500°F (260 ° C) 32

Fish, ½" (1.27 cm) thick 3 350°F (177 ° C) 20

1" (2.54 cm) thick 3 350°F (177 ° C) 20-22

Calves liver, ½" (1.27 cm) thick 4 350°F (177 ° C) 10-12

{sing and Caring for Your Oven

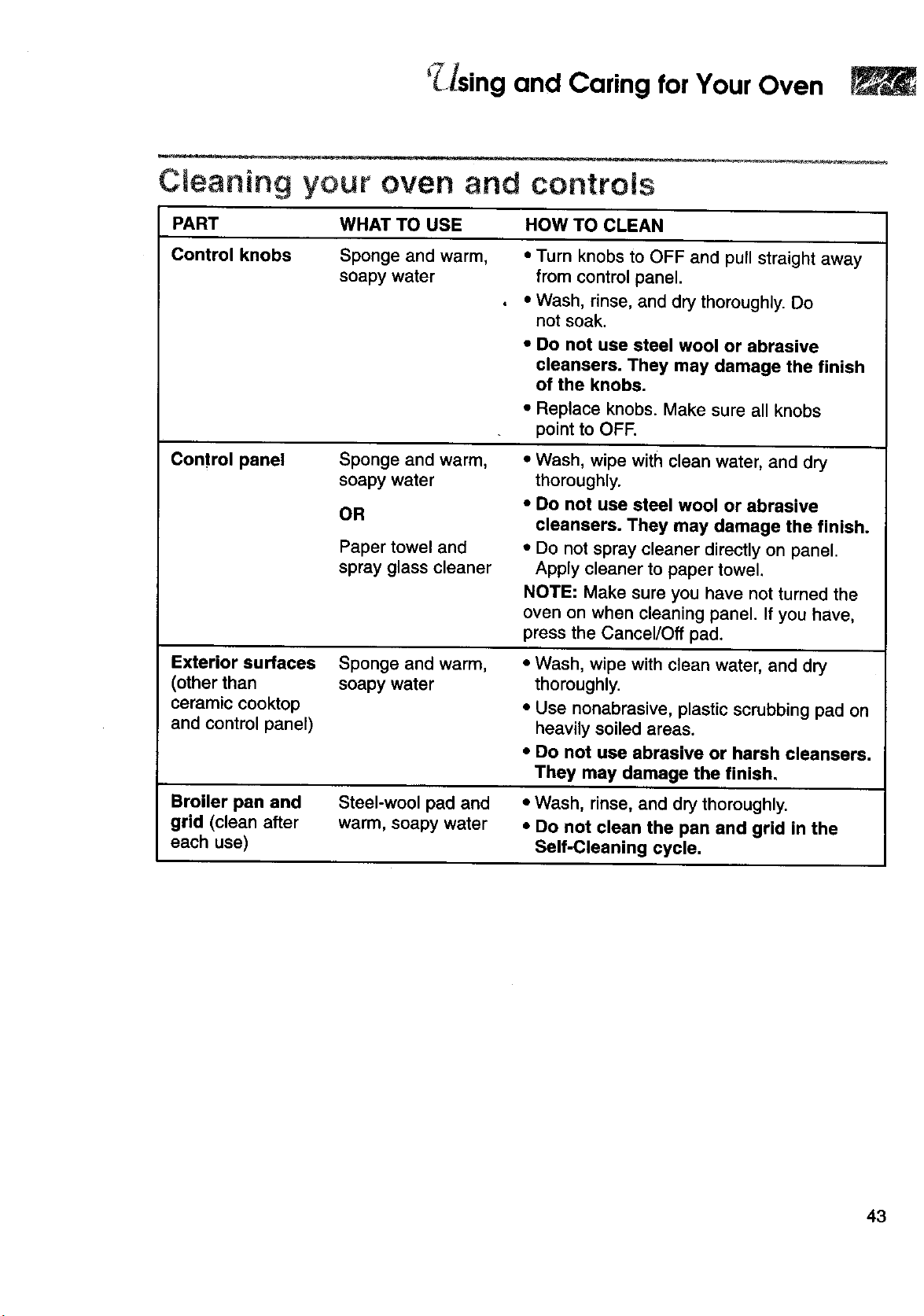

Cleaning your oven and controls

PART WHAT TO USE HOW TO CLEAN

Control knobs Sponge and warm,

soapy water

• Turn knobs to OFF and pull straight away

from control panel.

• Wash, rinse, and dry thoroughly. Do

not soak.

• Do not use steel wool or abrasive

cleansers. They may damage the finish

of the knobs.

• Replace knobs. Make sure all knobs

point to OFF.

Control panel Sponge and warm,

soapy water

Paper towel and

spray glass cleaner

• Wash, wipe with clean water, and dry

thoroughly.

• Do not use steel wool or abrasive

cleansers. They may damage the finish.

• Do not spray cleaner directly on panel.

Apply cleaner to paper towel.

NOTE: Make sure you have not turned the

oven on when cleaning panel. If you have,

press the Cancel/Off pad.

Exterior surfaces

(other than

ceramic cooktop

and control panel)

Sponge and warm,

soapy water

• Wash, wipe with clean water, and dry

thoroughly.

• Use nonabrasive, plastic scrubbing pad on

heavily soiled areas.

• Do not use abrasive or harsh cleansers.

They may damage the finish,

Broiler pan and Steel-wool pad and • Wash, rinse, and dry thoroughly.

grid (clean after warm, soapy water • Do not clean the pan and grid in the

each use) Self-Cleaning cycle.

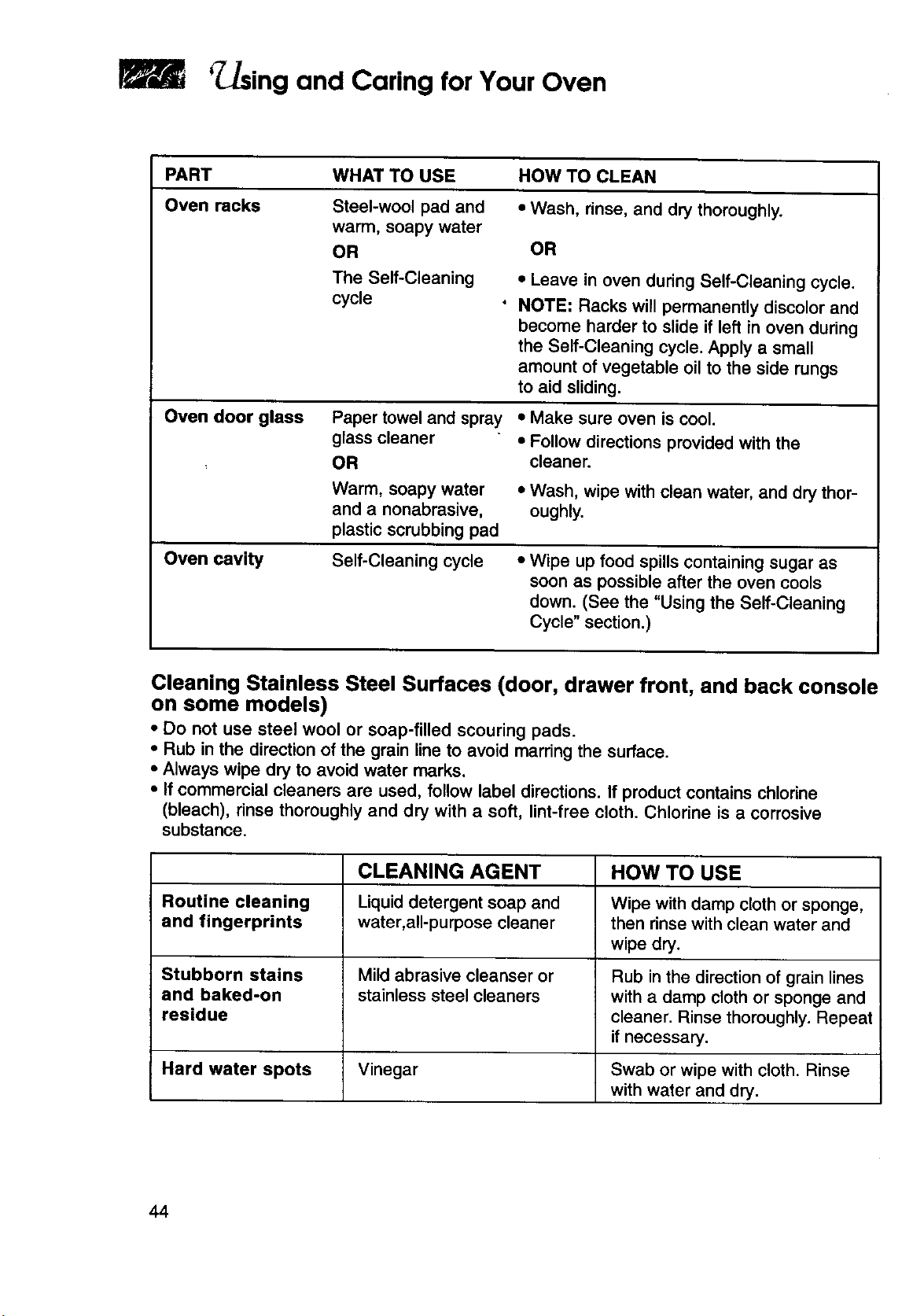

I_ _dsing and Caring for Your Oven

PART WHAT TO USE HOW TO CLEAN

Oven racks Steel-wool pad and • Wash, rinse, and dry thoroughly.

warm, soapy water

OR OR

The Self-Cleaning

cycle

Oven door glass

Oven cavity

Paper towel and spray

glass cleaner

Warm, soapy water

and a nonabrasive,

plastic scrubbing pad

Self-Cleaning cycle

• Leave in oven during Self-Cleaning cycle.

NOTE: Racks will permanently discolor and

become harder to slide if left in oven during

the Self-Cleaning cycle. Apply a small

amount of vegetable oil to the side rungs

to aid sliding.

• Make sure oven is cool.

• Follow directions provided with the

cleaner.

• Wash, wipe with clean water, and dry thor-

oughly.

• Wipe up food spills containing sugar as

soon as possible after the oven cools

down. (See the "Using the Self-Cleaning

Cycle" section.)

Cleaning Stainless Steel Surfaces (door, drawer front, and back console

on some models)

• Do not use steel wool or soap-filled scouring pads.

• Rub in the direction of the grain line to avoid marring the surface.

• Always wipe dry to avoid water marks.

• If commercial cleaners are used, follow label directions. If product contains chlorine

(bleach), rinse thoroughly and dry with a soft, lint-free cloth. Chlorine is a corrosive

substance.

CLEANING AGENT HOW TO USE

Routine cleaning Liquid detergent soap and Wipe with damp cloth or sponge,

and fingerprints water,all-purpose cleaner then rinse with clean water and

wipe dry.

Stubborn stains Mild abrasive cleanser or Rub in the direction of grain lines

and baked-on stainless steel cleaners with a damp cloth or sponge and

residue cleaner. Rinse thoroughly. Repeat

if necessary.

Hard water spots Vinegar Swab or wipe with cloth. Rinse

with water and dry.

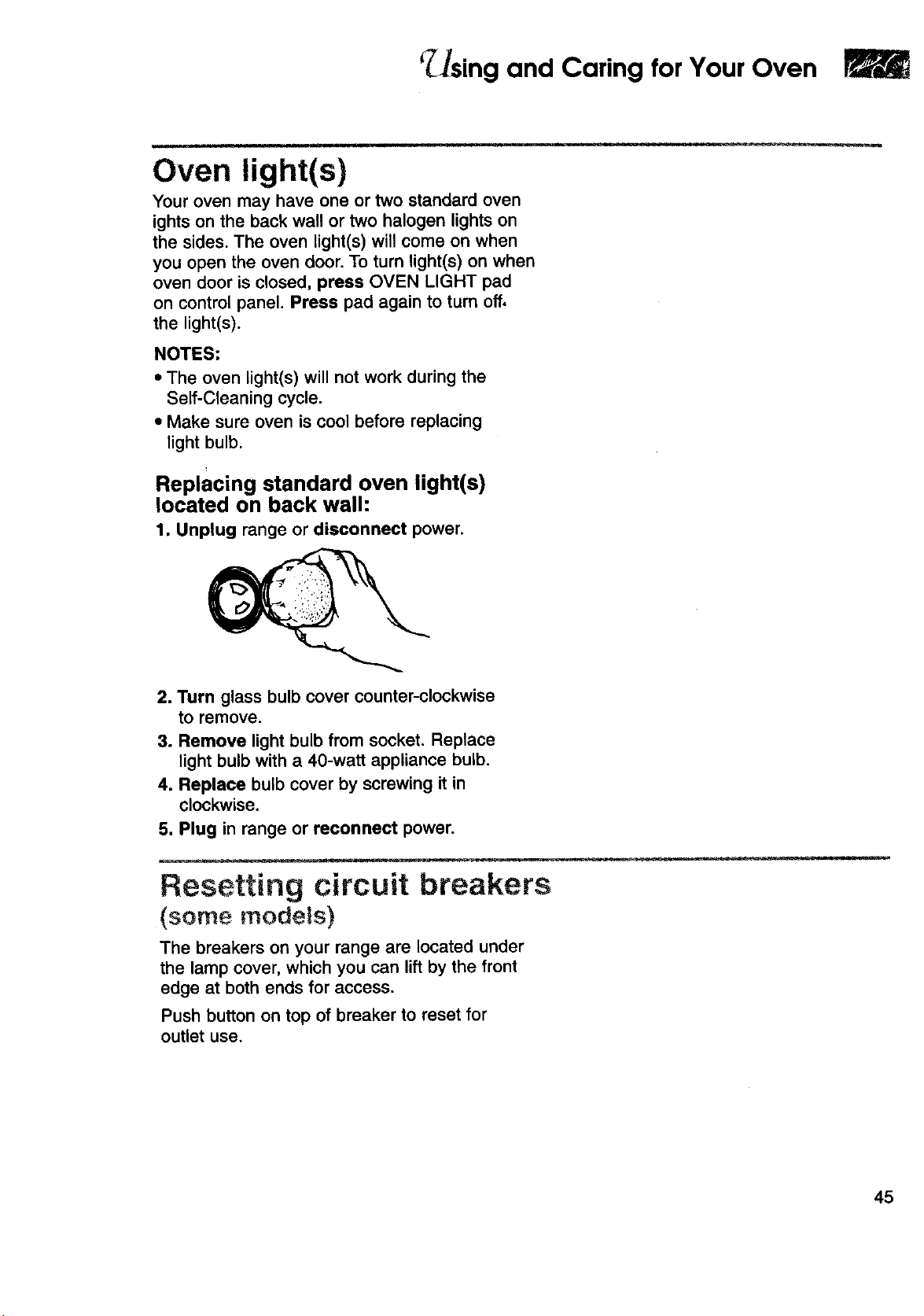

_]sing and Caring for Your Oven

Oven light(s)

Your oven may have one or two standard oven

ights on the back wall or two halogen lights on

the sides. The oven light(s) will come on when

you open the oven door. To turn light(s) on when

oven door is closed, press OVEN LIGHT pad

on control panel. Press pad again to turn off.

the light(s).

NOTES:

• The oven light(s) will not work during the

Self-Cleaning cycle.

• Make sure oven is cool before replacing

light bulb.

Replacing standard oven light(s)

located on back wall:

1. Unplug range or disconnect power.

2. Turn glass bulb cover counter-clockwise

to remove.

3. Remove light bulb from socket. Replace

light bulb with a 40-watt appliance bulb.

4. Replace bulb cover by screwing it in

clockwise.

5, Plug in range or reconnect power.

Resetting circuit breakers

(seme models)

The breakers on your range are located under

the lamp cover, which you can lift by the front

edge at both ends for access.

Push button on top of breaker to reset for

outlet use.

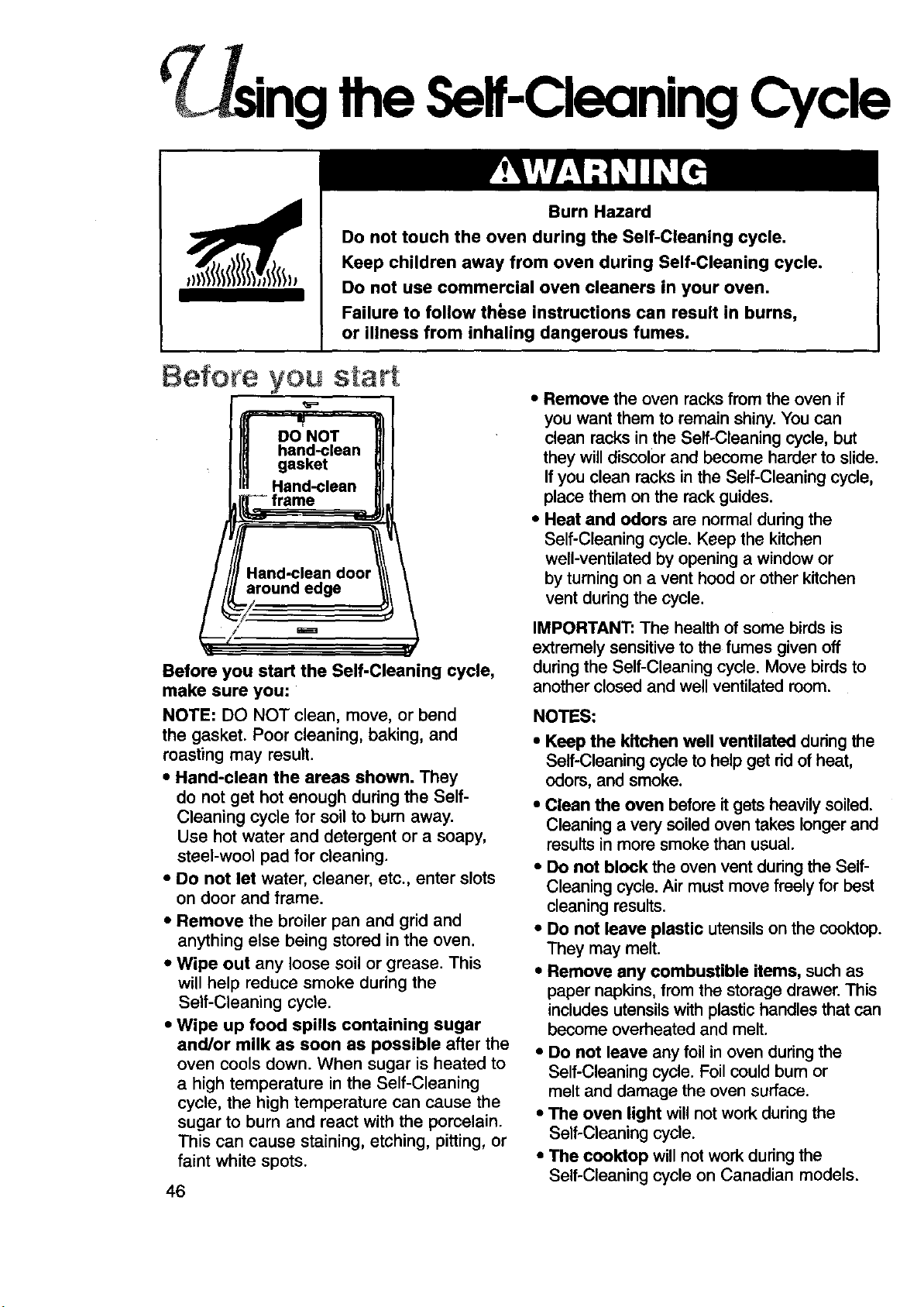

q ing the Self-CleaningCycle

Burn Hazard

Do not touch the oven during the Self-Cleaning cycle.

Keep children away from oven during Self-Cleaning cycle.

Do not use commercial oven cleaners in your oven.

Failure to follow th_se instructions can result in burns,

or illness from inhaling dangerous fumes.

Before you start

_/ land-clean dooi 1

around edge

Before you start the Self-Cleaning cycle,

make sure you:

NOTE: DO NOT clean, move, or bend

the gasket. Poor cleaning, baking, and

roasting may result.

• Hand-clean the areas shown. They

do not get hot enough during the Self-

Cleaning cycle for soil to burn away.

Use hot water and detergent or a soapy,

steel-wool pad for cleaning.

• Do not let water, cleaner, etc., enter slots

on door and frame.

• Remove the broiler pan and grid and

anything else being stored in the oven.

• Wipe out any loose soil or grease. This

will help reduce smoke during the

Self-Cleaning cycle.

• Wipe up food spills containing sugar

and/or milk as soon as possible after the

oven cools down. When sugar is heated to

a high temperature in the Self-Cleaning

cycle, the high temperature can cause the

sugar to burn and react with the porcelain.

This can cause staining, etching, pitting, or

faint white spots.

• Remove the oven racks from the oven if

you want them to remain shiny. You can

clean racks in the Self-Cleaning cycle, but

they will discolor and become harder to slide.

If you clean racks in the Self-Cleaning cycle,

place them on the rack guides.

• Heat and odors are normal during the

Self-Cleaning cycle. Keep the kitchen

well-ventilated by opening a window or

by turning on a vent hood or other kitchen

vent during the cycle.

IMPORTANT: The health of some birds is

extremely sensitive to the fumes given off

duringthe Self-Cleaning cycle. Move birds to

another closed and well ventilated room.

NOTES:

• Keep the kitchen well ventilated during the

Self-Cleaning cycle to help get rid of heat,

odors, and smoke.

• Clean the oven before itgets heavily soiled.

Cleaning a very soiledoven takes longer and

results in more smoke than usual.

• Do not block the oven vent during the Self-

Cleaning cycle.Air must move freely for best

cleaning results.

• Do not leave plastic utensilsonthe cooktop.

They may melt.

• Remove any combustible items, such as

paper napkins,from the storagedrawer. This

includes utensilswith plastichandles that can

become overheated and melt.

• Do not leave any foil in oven during the

Self-Cleaning cycle. Foil could bum or

melt and damage the oven surface.

• The oven light willnotwork during the

Self-Cleaning cycle.

• The cooktop willnot work duringthe

Self-Cleaning cycle on Canadian models.

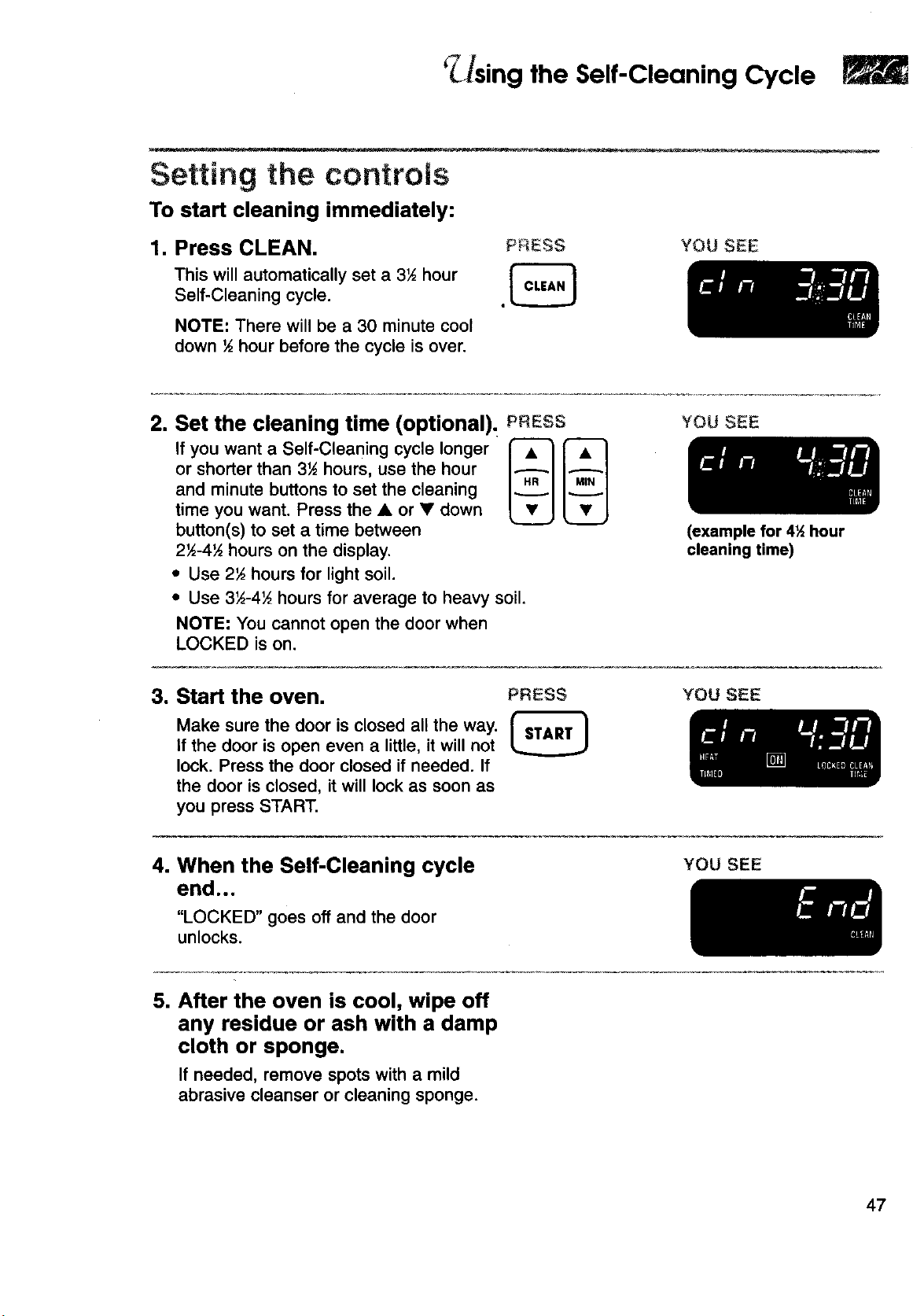

Using the Self-Cleaning Cycle

Setting the controls

To start cleaning immediately:

1. Press CLEAN. P_ESS

This will automatically set a 3_ hour

Self-Cleaning cycle.

NOTE: There will be a 30 minute cool

down ½ hour before the cycle is over.

YOU SEE

2. Set the cleaning time (optional)_ PRESS

If you want a Self-Cleaning cycle longer

or shorter than 3_ hours, use the hour

and minute buttons to set the cleaning

time you want. Press the • or • down

button(s) to set a time between

2_-4½ hours on the display.

• Use 2½ hours for light soil.

• Use 3½-4½ hours for average to heavy soil.

NOTE: You cannot open the door when

LOCKED is on.

YOU SEE

(example for 4½ hour

cleaning time)

3. Start the oven.

Make sure the door is closed all the way.

If the door is open even a little, it will not

lock. Press the door closed if needed. If

the door is closed, it will lock as soon as

you press START.

PRESS YOU SEE

4. When the Self-Cleaning cycle

end...

"LOCKED" goes off and the door

unlocks.

YOU SEE

5. After the oven is cool, wipe off

any residue or ash with a damp

cloth or sponge,

If needed, remove spots with a mild

abrasive cleanser or cleaning sponge.

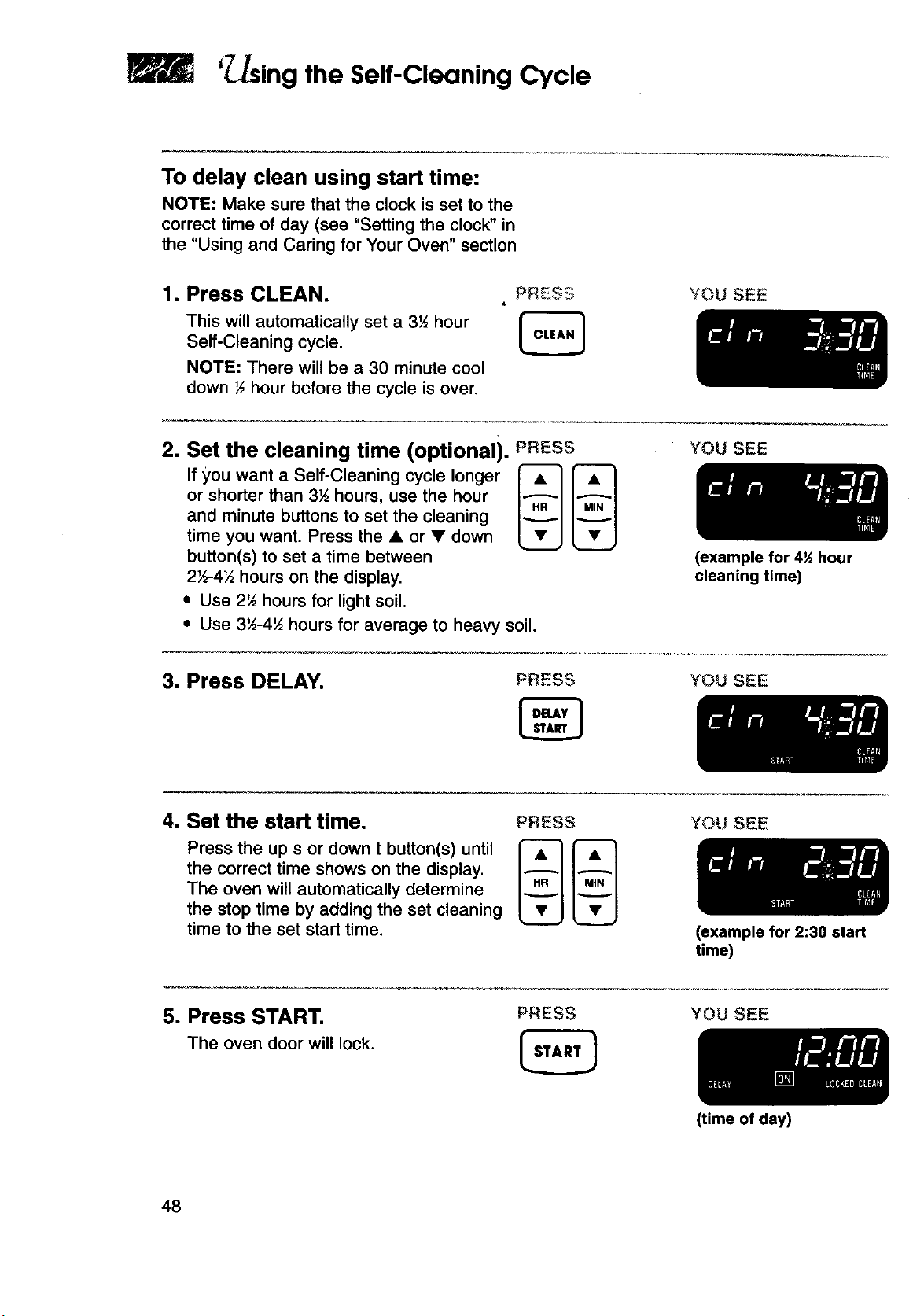

_sing the Self-Cleaning Cycle

To delay clean using start time:

NOTE: Make sure that the clock is set to the

correct time of day (see "Setting the clock" in

the "Using and Caring for Your Oven" section

1. Press CLEAN. PRESS

This will automatically set a 34 hour

Self-Cleaning cycle.

NOTE: There will be a 30 minute cool

down 4 hour before the cycle is over.

YOU SEE

or shorter than 34 hours, use the hour

and minute buttons to set the cleaning

time you want. Press the • or • down

button(s) to set a time between

24-44 hours on the display.

• Use 24 hours for light soil.

Set the cleaning time (optional). PRESS

If Y°u wanta Self'Cleaning cycle I°nger U _[_HR

• Use 34-44 hours for average to heavy soil.

YOU SEE

3, Press DELAY.

PRESS

(example for 44 hour

cleaning time)

YOU SEE

4. Set the start time.

Press the up s or down t button(s) until

the correct time shows on the display.

The oven will automatically determine

the stop time by adding the set cleaning

time to the set start time.

PRESS

YOU SEE

5. Press START,

The oven door will lock.

PRESS

(example for 2:30 start

time)

YOU SEE

(time of day)

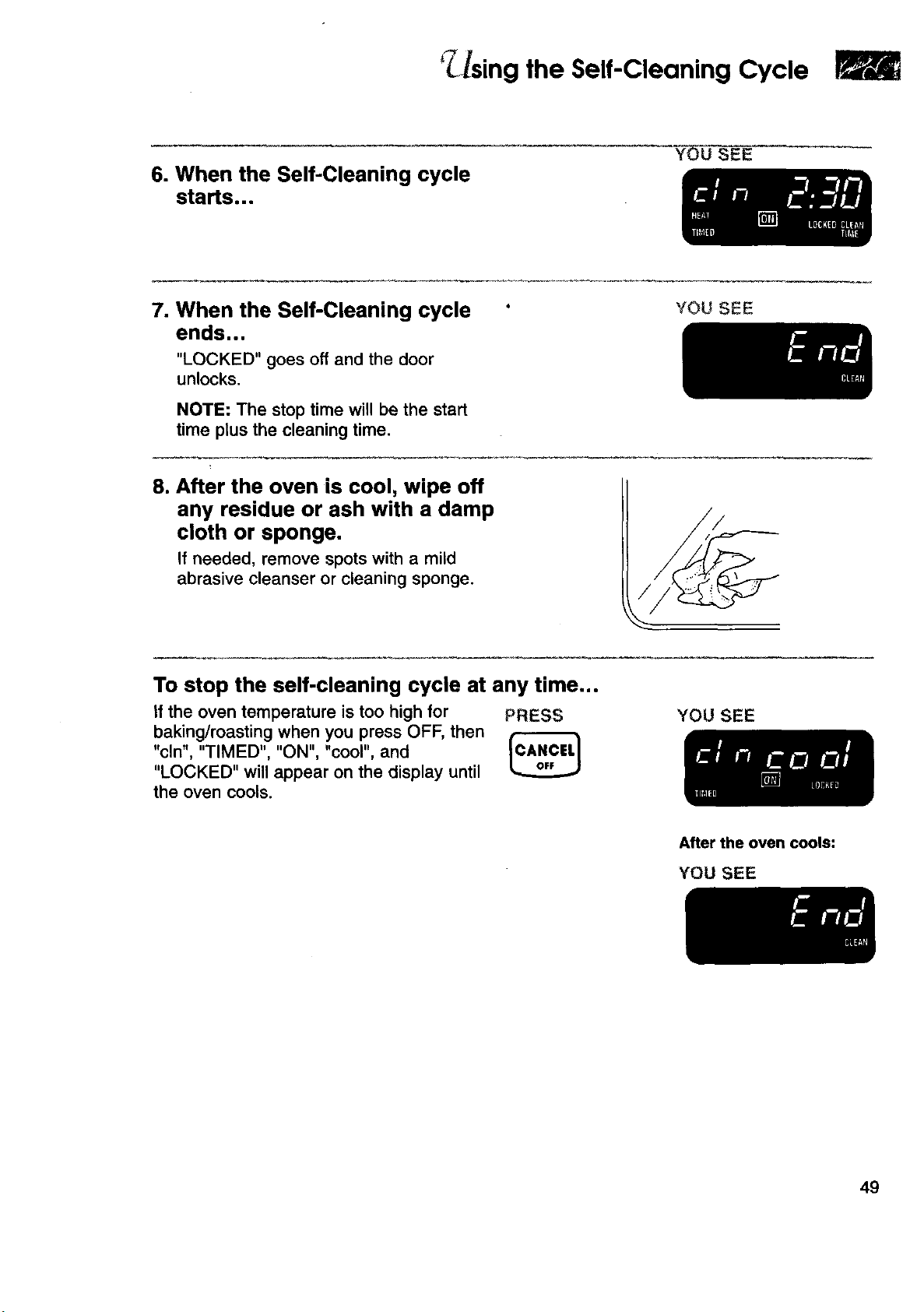

' Ising the Self-Cleaning Cycle

6. When the Self-Cleaning cycle

starts...

_/-OU- SEE

7. When the Self-Cleaning cycle

ends...

"LOCKED" goes off and the door

unlocks.

NOTE: The stop time will be the start

time plus the cleaning time.

YOU SEE

8. After the oven is cool, wipe off

any residue or ash with a damp

cloth or sponge.

If needed, remove spots with a mild

abrasive cleanser or cleaning sponge.

To stop the self-cleaning cycle at any time...

If the oven temperature is too high for PRESS

baking/roasting when you press OFF, then

"cln", "TIMED", "ON", "cool", and

"LOCKED" will appear on the display until

the oven cools.

YOU SEE

After the oven cools:

YOU SEE

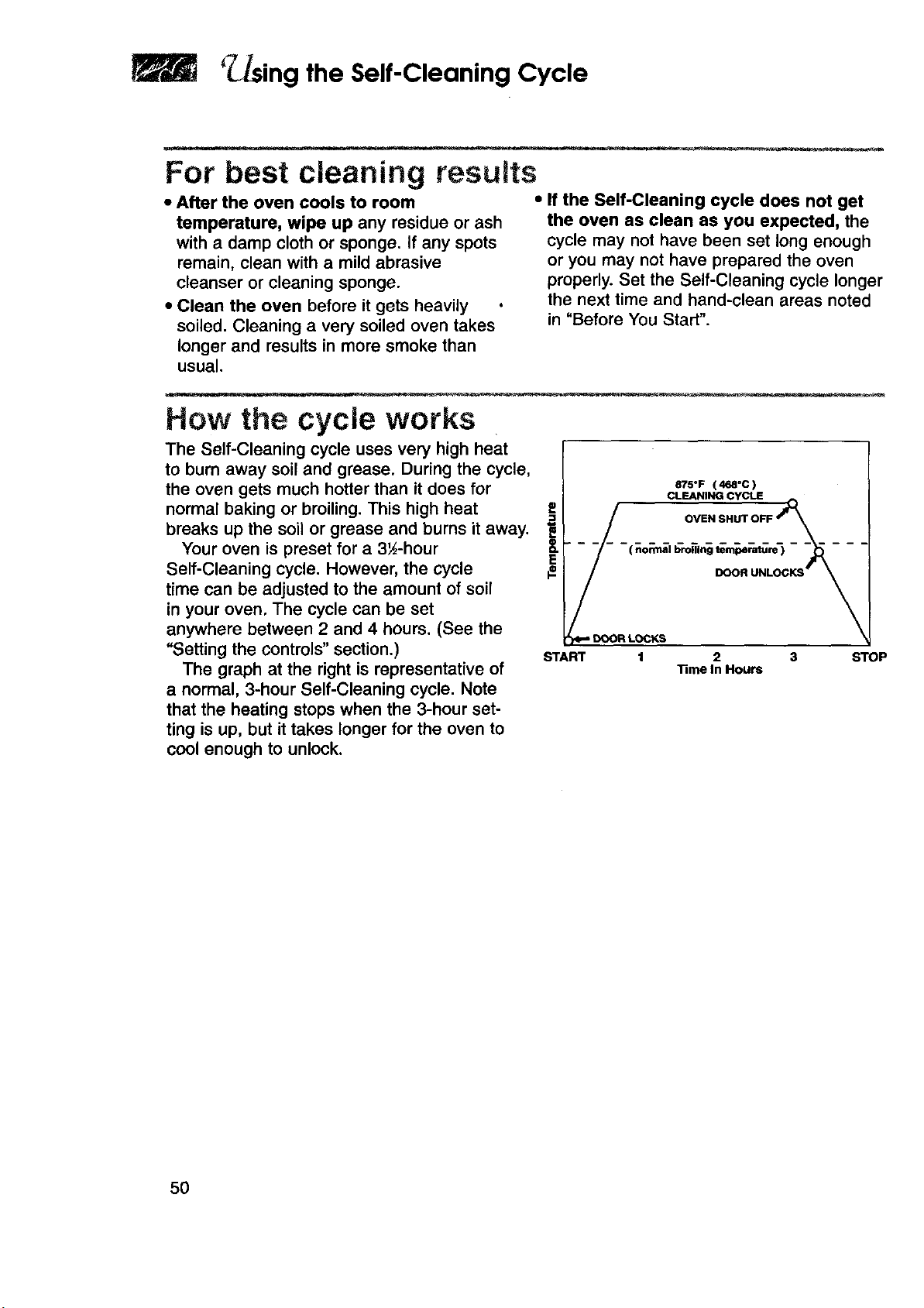

LJsing the Self-Cleaning Cycle

For best cleaning resuJts

• After the oven cools to room

temperature, wipe up any residue or ash

with a damp cloth or sponge. If any spots

remain, clean with a mild abrasive

cleanser or cleaning sponge.

• Clean the oven before it gets heavily

soiled. Cleaning a very soiled oven takes

longer and results in more smoke than

usual.

• If the Self-Cleaning cycle does not get

the oven as clean as you expected, the

cycle may not have been set long enough

or you may not have prepared the oven

properly. Set the Self-Cleaning cycle longer

the next time and hand-clean areas noted

in "Before You Start".

How the cycle works

The Self-Cleaning cycle uses very high heat

to bum away soil and grease. During the cycle,

the oven gets much hotter than it does for

normal baking or broiling. This high heat

breaks up the soil or grease and burns it away.

Your oven is preset for a 3_-hour

Self-Cleaning cycle. However, the cycle

time can be adjusted to the amount of soil

in your oven. The cycle can be set

anywhere between 2 and 4 hours. (See the

"Setting the controls" section.)

The graph at the right is representative of

a normal, 3-hour Self-Cleaning cycle. Note

that the heating stops when the 3-hour set-

ting is up, but it takes longer for the oven to

cool enough to unlock.

STSoF(46S-C)

(norrn;lffro_In_

DOOR UNLOCKS" _

t,," DOOR LOCKS

START

1 2

Time In Hours

STOP

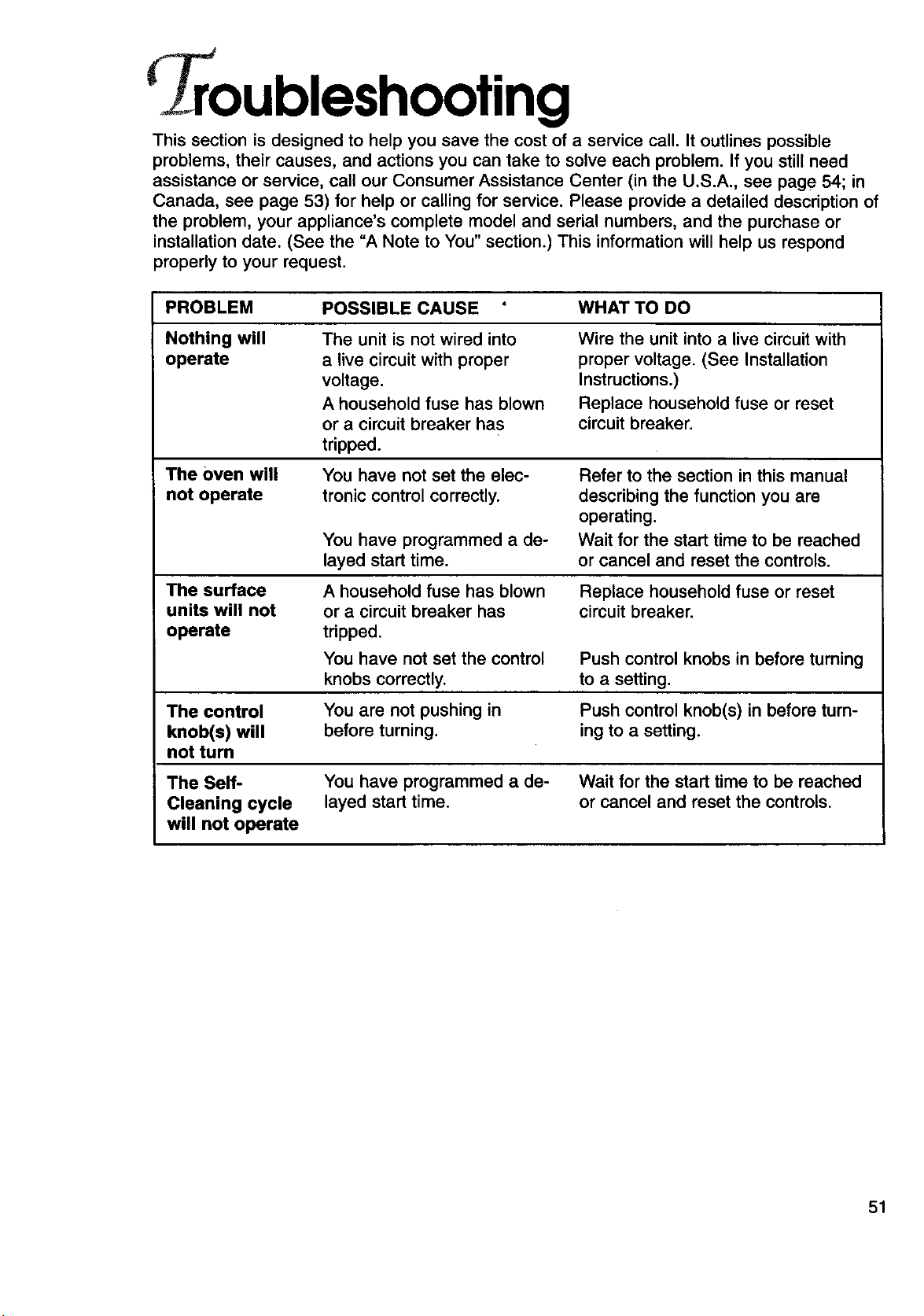

roubleshooting

This section is designed to help you save the cost of a service call. It outlines possible

problems, their causes, and actions you can take to solve each problem. If you still need

assistance or service, call our Consumer Assistance Center (in the U.S.A., see page 54; in

Canada, see page 53) for help or calling for service. Please provide a detailed description of

the problem, your appliance's complete model and serial numbers, and the purchase or

installation date. (See the "A Note to You" section.) This information will help us respond

properly to your request.

PROBLEM

Nothing will

operate

The Oven will

not operate

The surface

units will not

operate

POSSIBLE CAUSE WHAT TO DO

The unit is not wired into

a live circuit with proper

voltage.

A household fuse has blown

or a circuit breaker has

tripped.

Wire the unit into a live circuit with

proper voltage. (See Installation

Instructions.)

Replace household fuse or reset

circuit breaker.

You have not set the elec-

tronic control correctly.

You have programmed a de-

layed start time.

Refer to the section in this manual

describing the function you are

operating.

Wait for the start time to be reached

or cancel and reset the controls.

A household fuse has blown

or a circuit breaker has

tripped.

You have not set the control Push control knobs in before turning

knobs correctly, to a setting.

The control You are not pushing in Push control knob(s) in before turn-

knob(s) will before turning, ing to a setting.

not turn

The Self- You have programmed a de- Wait for the start time to be reached

Cleaning cycle layed start time. or cancel and reset the controls.

will not operate

Replace household fuse or reset

circuit breaker.

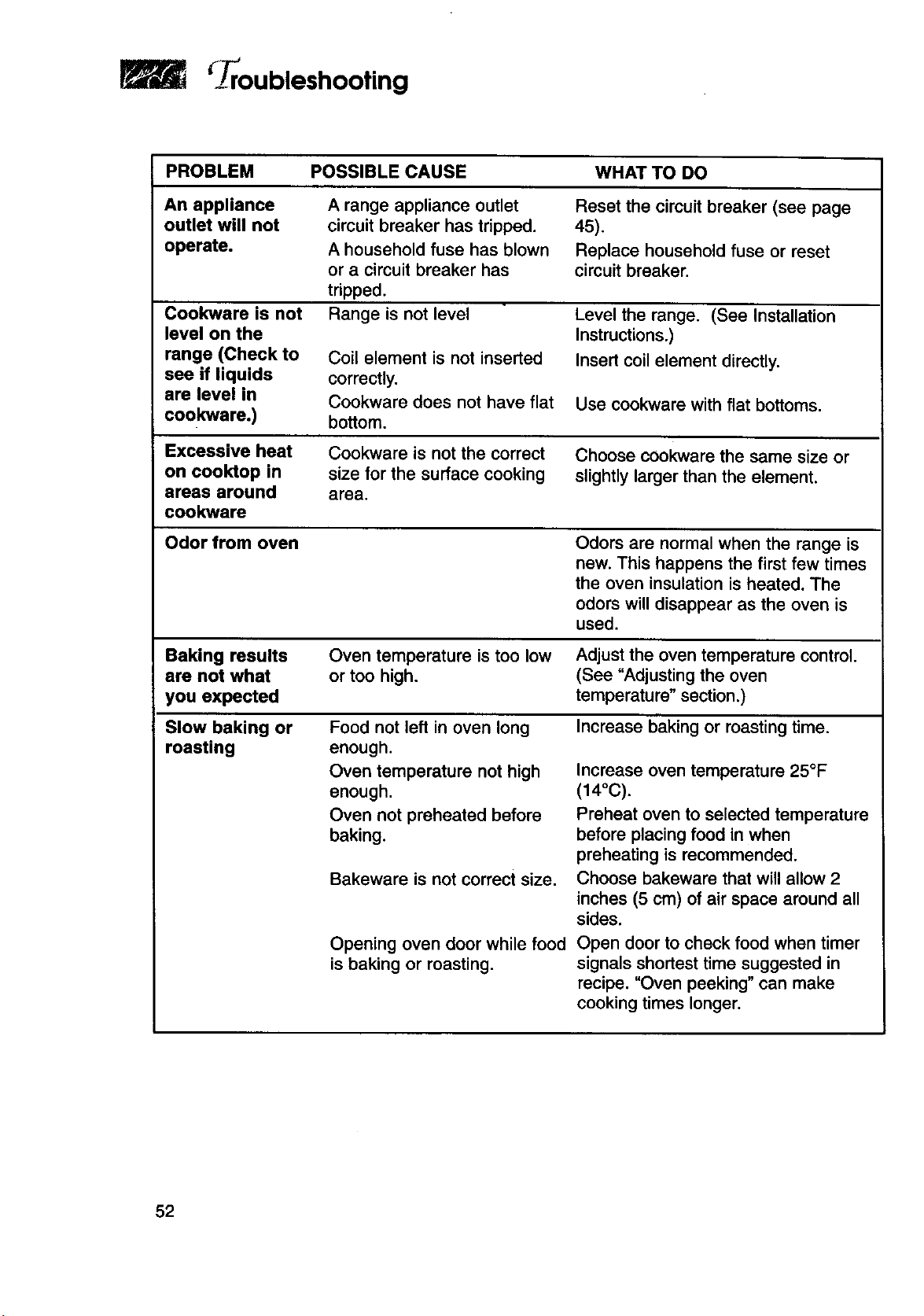

( rroubleshooting

PROBLEM POSSIBLE CAUSE WHAT TO DO

An appliance A range appliance outlet Reset the circuit breaker (see page

outlet will not circuit breaker has tripped. 45).

operate. A household fuse has blown Replace household fuse or reset

or a circuit breaker has circuit breaker.

tripped.

Cookware is not Range is not level Level the range. (See Installation

level on the Instructions.)

range (Check to

see if liquids

are level in

cookware.)

Coil element is not inserted

correctly.

Cookware does not have flat

bottom.

Insert coil element directly.

Use cookware with flat bottoms.

Excessive heat

on cooktop in

areas around

cookware

Cookware is not the correct

size for the surface cooking

area.

Choose cookware the same size or

slightly larger than the element.

Odor from oven

Odors are normal when the range is

new. This happens the first few times

the oven insulation is heated. The

odors will disappear as the oven is

used.

Baking results Oven temperature is too low Adjust the oven temperature control.

are not what or too high. (See "Adjusting the oven

you expected temperature" section.)

Slow baking or Food not left in oven long Increase baking or roasting time.

roasting enough.

Oven temperature not high

enough.

Oven not preheated before

baking.

Bakeware is not correct size.

Opening oven door while food

is baking or roasting.

Increase oven temperature 25°F

(14°C).

Preheat oven to selected temperature

before placing food in when

preheating is recommended.

Choose bakeware that will allow 2

inches (5 cm) of air space around all

sides.

Open door to check food when timer

signals shortest time suggested in

recipe. "Oven peeking" can make

cooking times longer.

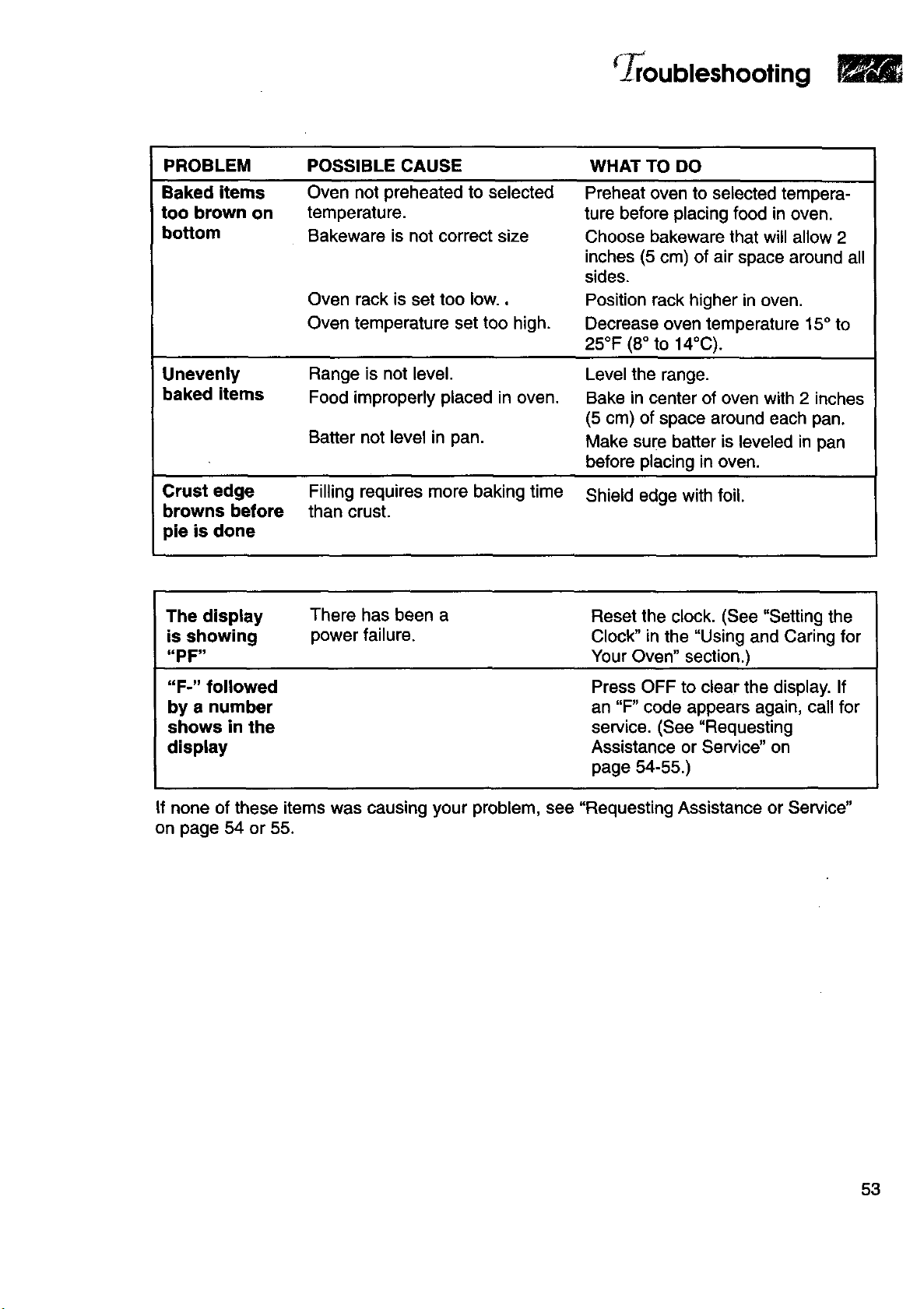

¢ roubleshooting

PROBLEM POSSIBLE CAUSE WHAT TO DO

Oven not preheated to selected

temperature.

Bakeware is not correct size

Baked items

too brown on

bottom

Unevenly

baked items

Oven rack is set too low..

Oven temperature set too high.

Preheat oven to selected tempera-

ture before placing food in oven.

Choose bakeware that will allow 2

inches (5 cm) of air space around all

sides.

Position rack higher in oven.

Decrease oven temperature 15 ° to

25°F (8° to 14°C).

Range is not level.

Food improperly placed in oven.

Level the range.

Bake in center of oven with 2 inches

(5 cm) of space around each pan.

Batter not level in pan. Make su[e batter is leveled in pan

before placing in oven.

Crust edge Filling requires more baking time Shield edge with foil.

browns before than crust.

pie is done

The display There has been a Reset the clock. (See "Setting the

is showing power failure. Clock" in the "Using and Caring for

"PF" Your Oven" section.)

"F-" followed Press OFF to clear the display. If

by a number an "F" code appears again, call for

shows in the service. (See "Requesting

display Assistance or Service" on

page 54-55.)

If none of these items was causing your problem, see "Requesting Assistance or Service"

on page 54 or 55.

questing Assistance or

Service

Before calling for assistance or service, please check the "Troubleshooting Guide" section. It

may save you the cost of a service call. If you still need help, follow these instructions.

U.S.A.:

Call the KitchenAid Consumer

_ ssistance Center toll

free: 1-800-422-1230.

Our consultants are

available to assist you.

When calling:

Please know the purchase date, and the

complete model and serial number of your

appliance (see the "A Note to You" section).

This information will helpus to better respond

to your request.

Our consultants provide assistance with:

• Features and specifications on our full line

of appliances.

• Installation information.

• Accessory and repair parts sales.

• Specialized customer assistance

(Spanish speaking, hearing impaired,

limited vision, etc.).

• Referrals to service companies and

repair parts distributors.

KitchenAid designated service

technicians are trained to fulfillthe

product warranty and provide after-

warranty service, anywhere in the

United States.

To locate the KitchenAid designated

service company in your area, you can

also look in your telephone directory

Yellow Pages.

if you need replacement parts

If you need to order replacement parts,

we recommend that you only use factory

specified pads. These parts will fit right

and work right, because they are made

with the same precision used to build

every new KITCHENAID ® appliance. To

locate factory specified replacement parts

in your area, call our Consumer Assistance

Center telephone number or your nearest

designated service center.

For further assistance

If you need further assistance, you can write to Please include a daytime phone number

KitchenAid with any questions or concerns at: in your correspondence.

KitchenAid Brand Home Appliances

Consumer Assistance Center

c/o Correspondence Dept.

2000 North M-63

Benton Harbor, MI 49022-2692

_equesting Assistance or Service

you need assistan or ser ice in Canada:

Call the KitchenAid Consumer

Relations Department toll

free: 8:30 a.m. - 6 p,m. (EST)

at 1-800-461-5681. Our

consultants are available

to assist you.

When calling: '

Please know the purchase date, and the

complete model and serial number of your

appliance (see the "A Note to You" section).

This information will help us to better

respond to your request.

Our consultants provide assistance with:

• Features and specifications on our full line

of appliances.

• Accessory and repair parts sales.

• Specialized customer assistance

(French speaking, hearing impaired,

limited vision, etc.).

• Referrals to local dealers, service

companies, and repair parts distributors.

KitchenAid designated service

technicians are trained to fulfill the

product warranty and provide after-

warranty service, anywhere in Canada.

To locate the KitchenAid designated

service company in your area, you can

also look in your telephone directory

Yellow Pages.

if you need service:

Contact Inglis Limited Appliance Service from anywhere in Canada at 1-800-807-6TT7.

if you need replacement parts

If you need to order replacement parts,

we recommend that you only use factory

specified parts. These parts will fit right

and work right, because they are made

with the same precision used to build

every new KITCHENAID ®appliance. To

locate factory specified replacement parts

in your area, call our Consumer Relations

Department telephone number or your

nearest designated service center.

For further assistance

If you need further assistance, you can Please include a daytime phone number in

write to KitchenAid with any questions or your correspondence.

concerns at:

•Consumer Relations Department

KitchenAid Canada

1901 Minnesota Court

Mississauga, Ontario L5N3A7

KitchenAi,

Electric Range

-I/jJarranty

LENGTH OF KITCHENAID KITCHENAID

WARRANTY: WILL PAY FOR: WILL NOT PAY FOR:

ONE-YEAR FULL

WARRANTY

FROM DATE OF

PURCHASE.

SECOND-

THROUGH FIFTH-

YEAR LIMITED

WARRANTY

FROM DATE OF

PURCHASE.

SECOND-

THROUGH TENTH-

YEAR LIMITED

WARRANTY

FROM DATE OF

PURCHASE.

Replacement parts

and repair labor cot_ts

to correct defects in

materials or workman-

ship. Service must be

provided by a

KitchenAid designated

servicing outlet.

Replacement parts for

any electric element

to correct defects in

materials or

workmanship.

Replacement ceramic

glass if breakage is

due to defects in mate-

rials or workmanship,

Replacement parts for

solid state touch control

system to correct

defects in materials or

workmanship,

Replacement parts for

the porcelain oven

cavity/inner door if the

part rusts through due

to defects in materials

or workmanship.

KITCHENAID AND KITCHENAID CANADA DI

A. Service calls to:

1. Correct the installation of the

range.

2. Instruct you how to use the

range.

3. Replace house fuses or correct

house wiring.

B. Repairs when range is used in other

than normal home use.

C. Damage resulting from accident,

alteration, misuse, abuse, fire, flood,

acts of God, improper installation, or

installation not in accordance with

local electrical codes.

D. Any labor costs during the limited

warranties.

E. Replacement parts or repair labor

costs for units operated outside the

United States and Canada.

F. Pickup and delivery. This product

is designed to be repaired in the

home.

G. Repairs to ceramic glass cooktop if it

has not been cared for as recom-

mended in this Use and Care Guide.

H. Repairs to parts or systems resulting

from unauthorized modifications

made to the appliance.

I. In Canada, travel or transportation

expenses to customers who reside in

remote areas. 11_

NOT ASSUME ANY RESPONSIBILITY

FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states or provinces do not

allow the exclusion or limitation of incidental or consequential damages, so this exclusion or

limitation may not apply to you. This warranty gives specific legal rights and you may also

have other rights which vary from state to state or province to province.

Outside the United States and Canada, a different warranty may apply. For details,

please contact your authorized KitchenAid dealer.

If you need service, first see the "Requesting Assistance or Service" section of this book.

After checking "Requesting Assistance or Service," additional help can be found by calling

our Consumer Assistance Center telephone number, 1-800-422-1230, from anywhere in the

U.S. For service in Canada, call 1-800-807-6777.

9753844 ® Registered Trademark/TM Trademark of KitchenAid U.S.A., 3199

KitchenAid KERC500HWH0 electric range

Product's Documents

User Manual

Specifications

KitchenAid KERC500HWH0 Questions and Answers
