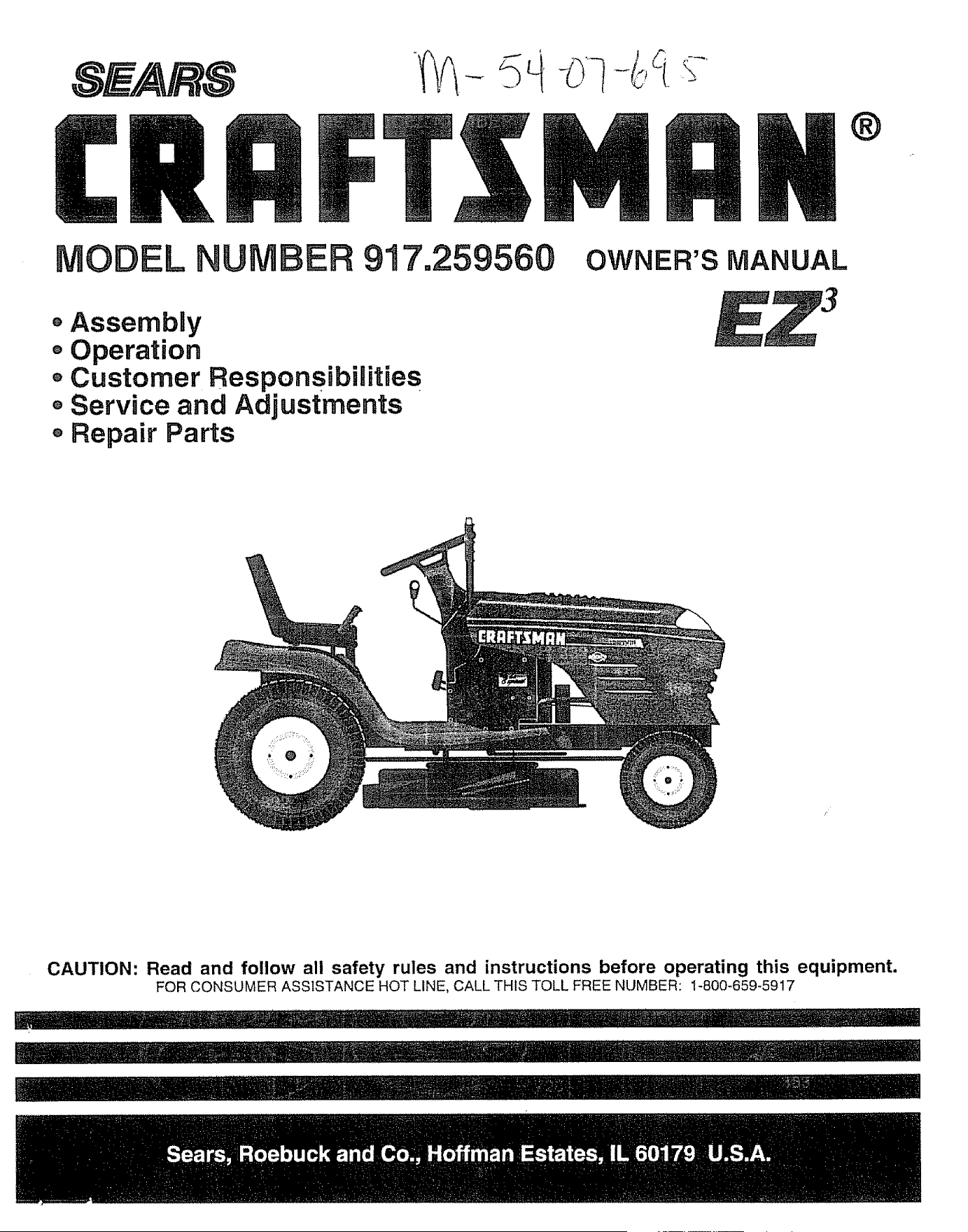

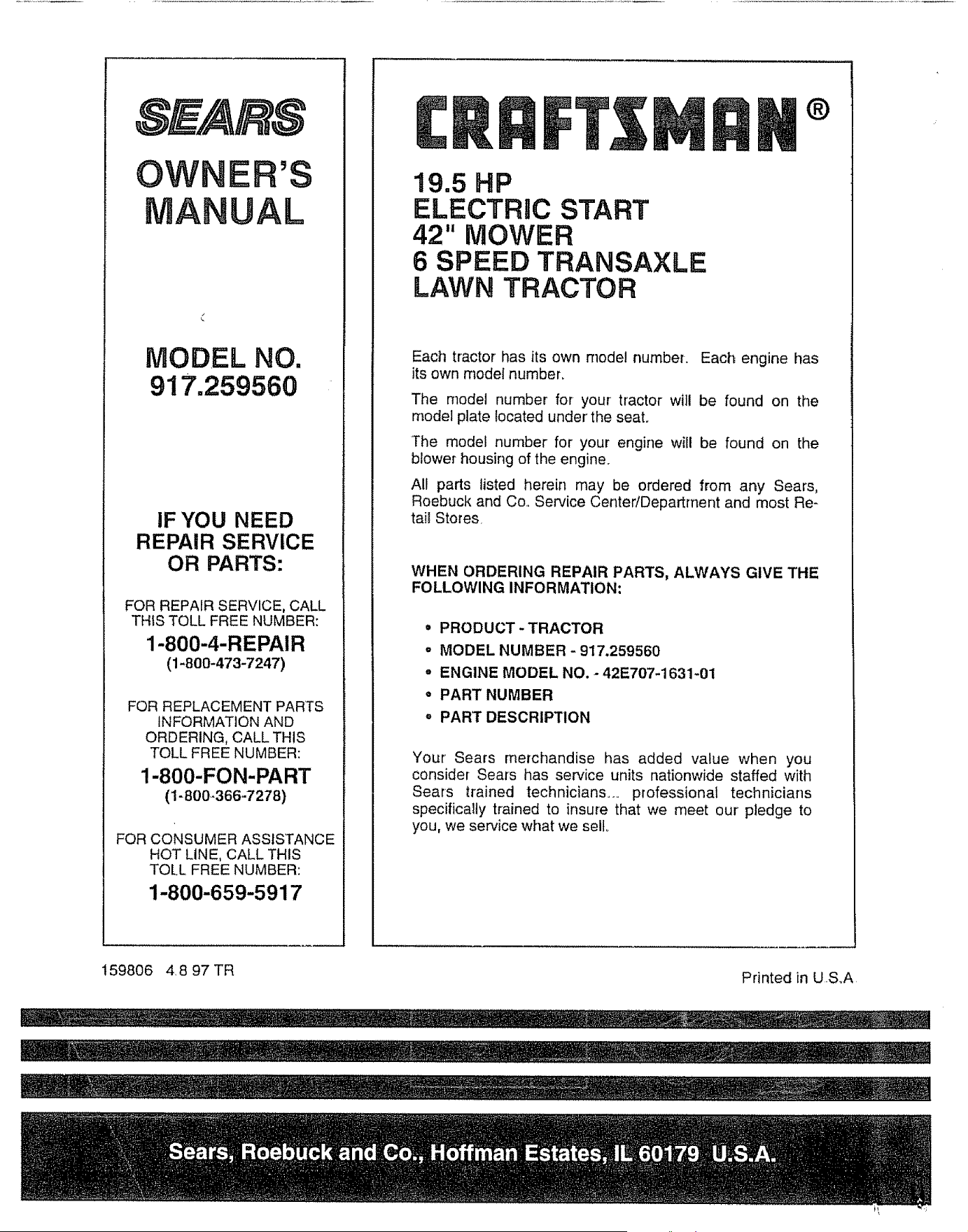

MODEL 917.259560 OWNER'SMANUAL

o Assembly

o Operation

. Customer Responsibilities

®Service and Adjustments

, Repair Parts

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

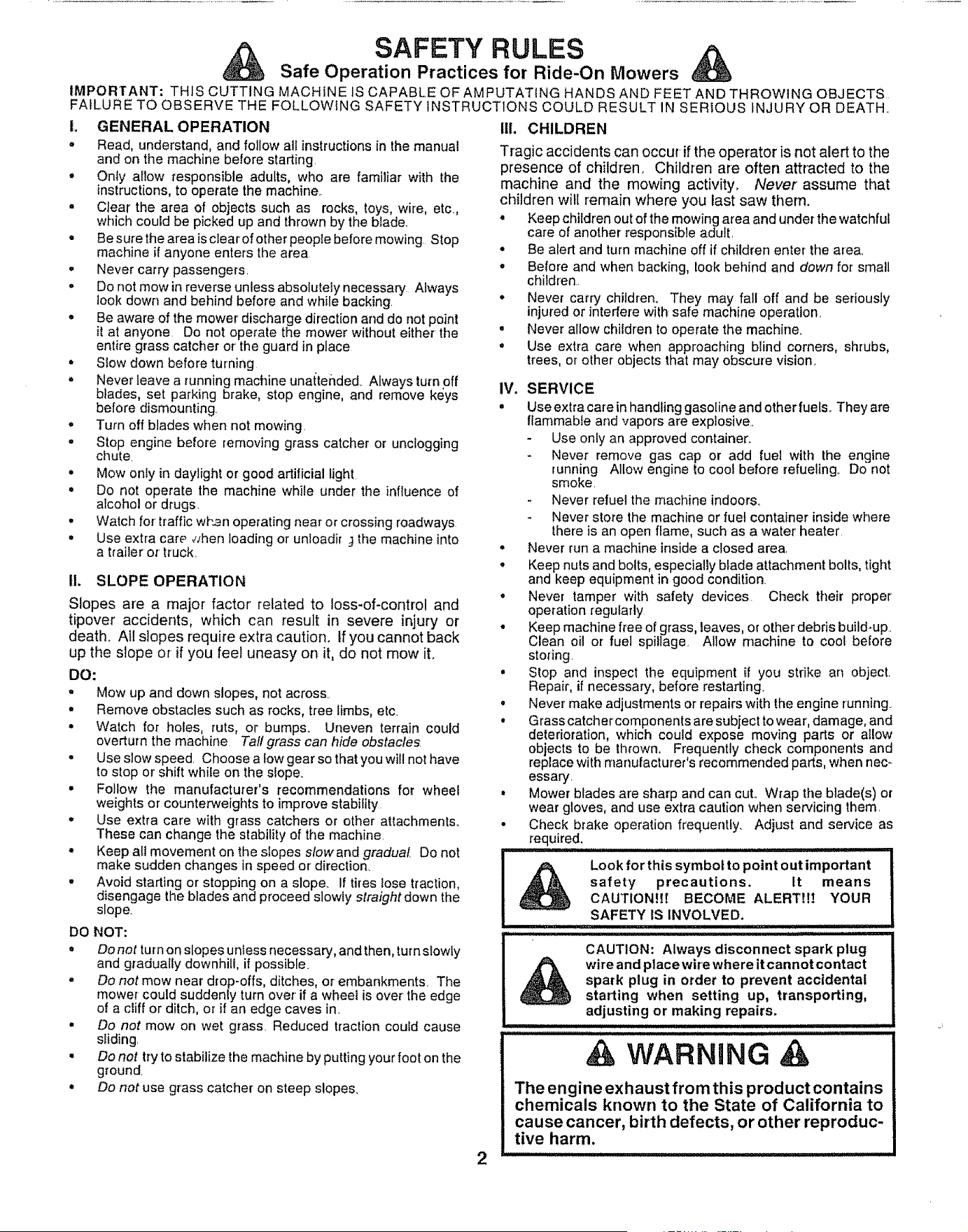

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.,

1, GENERAL OPERATION

,, Read, understand, and follow all instructions in the manual

and on the machine before starting.

,, Onty allow responsible adults, who are familiar with the

instructions, to operate the machine.

= Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing Stop

machine if anyone enters the area

• Never carry passengers.

° Do not mow in reverse unless absolutely necessary Always

took down and behind before and while backing.

• Be aware of the mower discharge direction and do not point

it at anyone De not operate the mower without either-the

entire grass catcher or' the guard in place

= Slow down before turning

° Never leave a running machine unatteilded_ Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting

° Turn off blades when not mowing.

o Stop engine before removing grass catcher or unclogging

chute

• Mow only in daylight or good artificial light

° Do not operate the machine while under the influence of

alcohol or drugs.

• Watch for traffic wl_n operating near or crossing roadways

• Use extra care _Jhenloading or unloadir j the machine into

a trailer or' truck,

ii. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

flpover accidents, which can result in severe injury or

death. All slopes require extra caution, tf you cannot back

up the slope or if you feel uneasy on it, do not mow it.

DO:

° Mow up and down slopes, not across

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine Tall grass can hide obstacles

° Use slow speed. Choose a Iow gear so that you will not have

to stop or shift while on the slope.

° Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability

° Use extra care with grass catchers or other attachments..

These can change the stability of the machine.

° Keep all movement on the slopes slow and gradual, Do not

make sudden changes in speed or' direction.

° Avoid starting or stopping on a slope, if tires lose traction,

disengage the blades and proceed slowty straight down the

slope,

DO NOT:

• Donot turn on slopes uniess necessary, and then, turn slowiy

and gradualIy downhill, if possible.

° Do not mow near drop-offs, ditches, or embankments The

mower could suddenly turn over if a wheel is over the edge

of a cliff or dilch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction coufd cause

sliding.

• Do not try to stabilize the machine by putting your foot on the

ground.

° Do not use grass catcher on steep slopes.

I11. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity_ Never assume that

children will remain where you last saw them.

° Keep children out of the mowing area and under the watchful

care of another responsible adult.

• Be alert and turn machine off if children enter the area,

° Before and when backing, look behind and down for small

children

° Never carry children, They may fall off and be seriously

injured or interfere with safe machine operation.

° Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuel& They are

flammable and vapors are explosive,,

Use only an approved container,,

Never remove gas cap or add fuel with the engine

running Allow engine to coot before refueling° Do not

smoke.

Never refuel the machine indoors,

Never store the machine or fuel container inside where

there is an open flame, such as a water heater

° Never run a machine inside a closed area,

• Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

° Never tamper with safety devices Check their proper

operation regularly

° Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

° Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

° Never make adjustments or repairs with the engine running.

• Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown, Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary.

° Mower blades are sharp and can cut.. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as

required.

Look for this symbol to point out important

safety precautions, It means

CAUTIONIIf BECOME ALERT!I! YOUR

SAFETY IS INVOLVED.

iii i ii I i , ii i I ' II iiii i iiii iiiiiiiiiiii

CAUTION: Always disconnect spark plug

wire and placewire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

A WARNUNG A

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproduc-

tive harm.

_/,ul

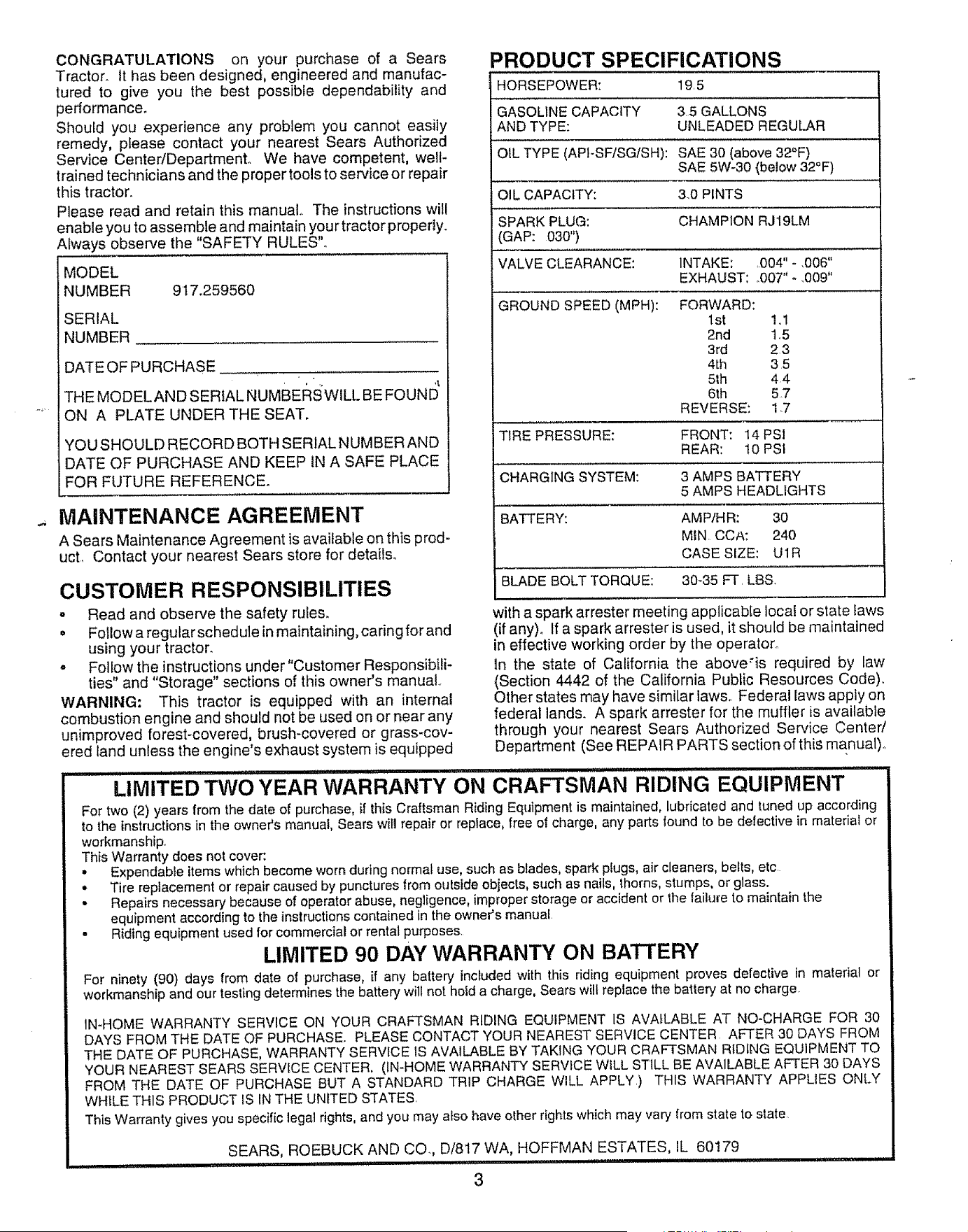

CONGRATULATIONS on your purchase of a Sears

Tractor. it has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any probtem you cannot easily

remedy, please contact your nearest Sears Authorized

Service CentedDepartmenL We have competent, well-

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

MODEL

NUMBER 917o259560

SERIAL

NUMBER

DATE OF PURCHASE

THE MODELAND SERIAL NUMBERS"WILL BE FOUND _

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct, Contact your nearest Sears store for details°

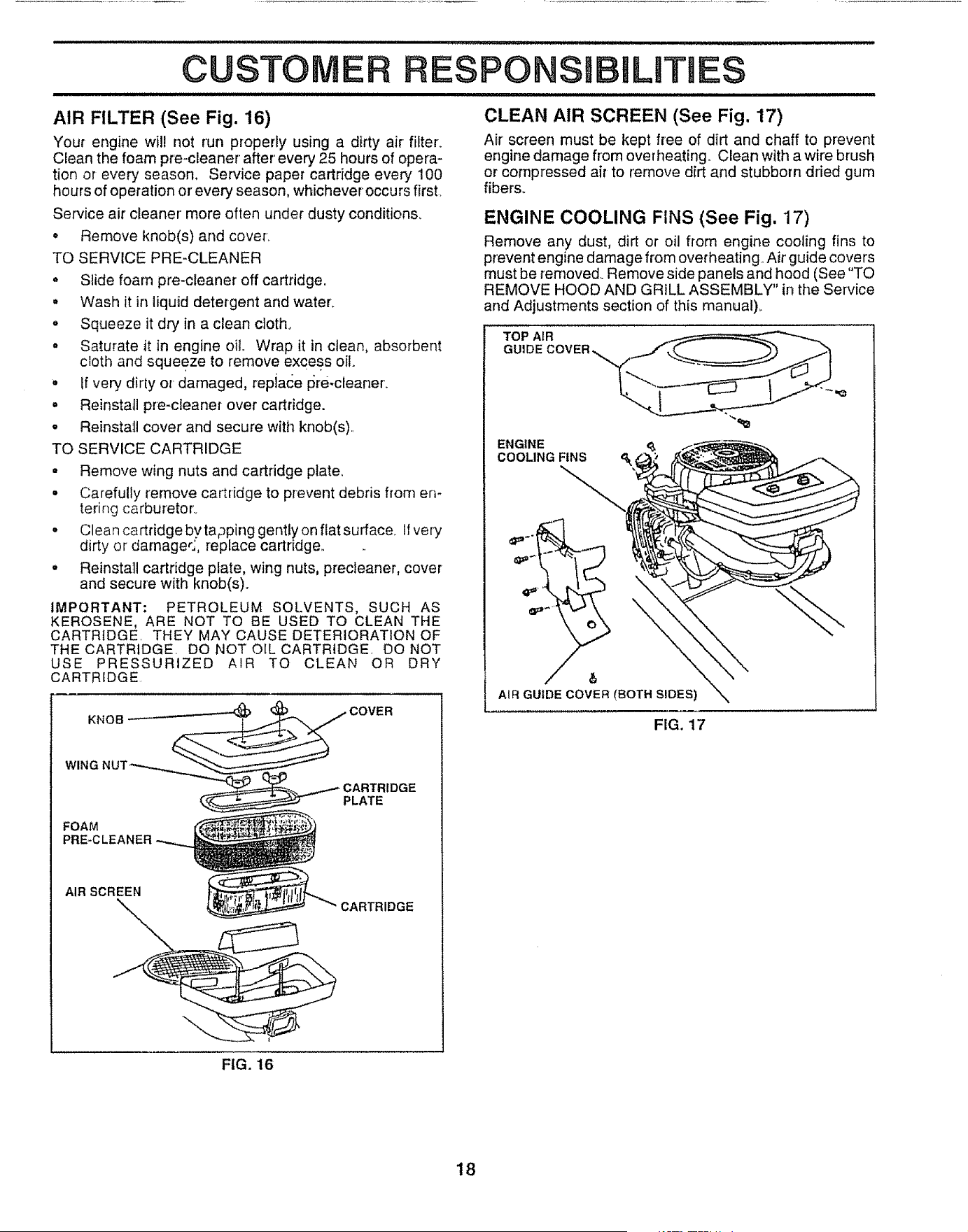

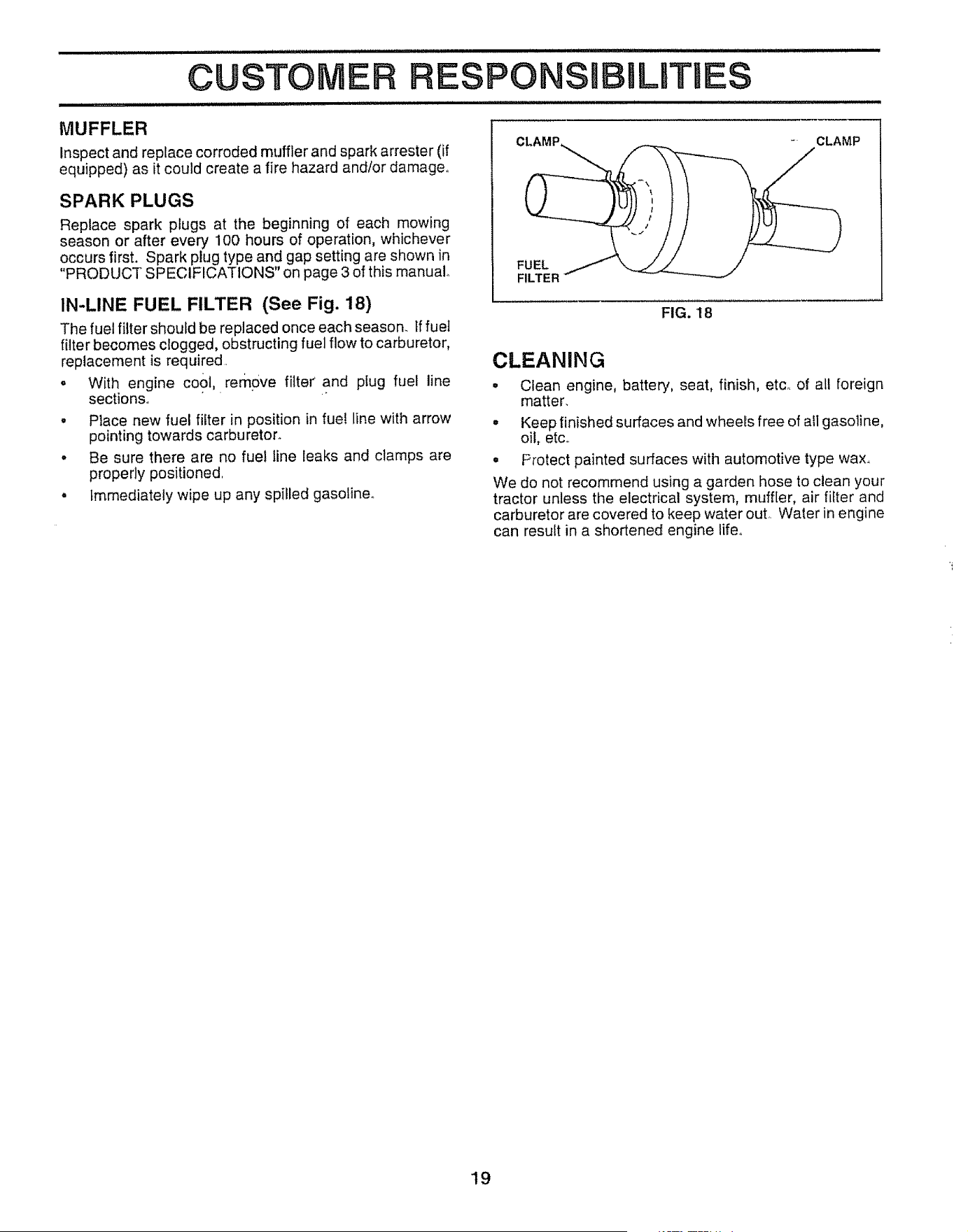

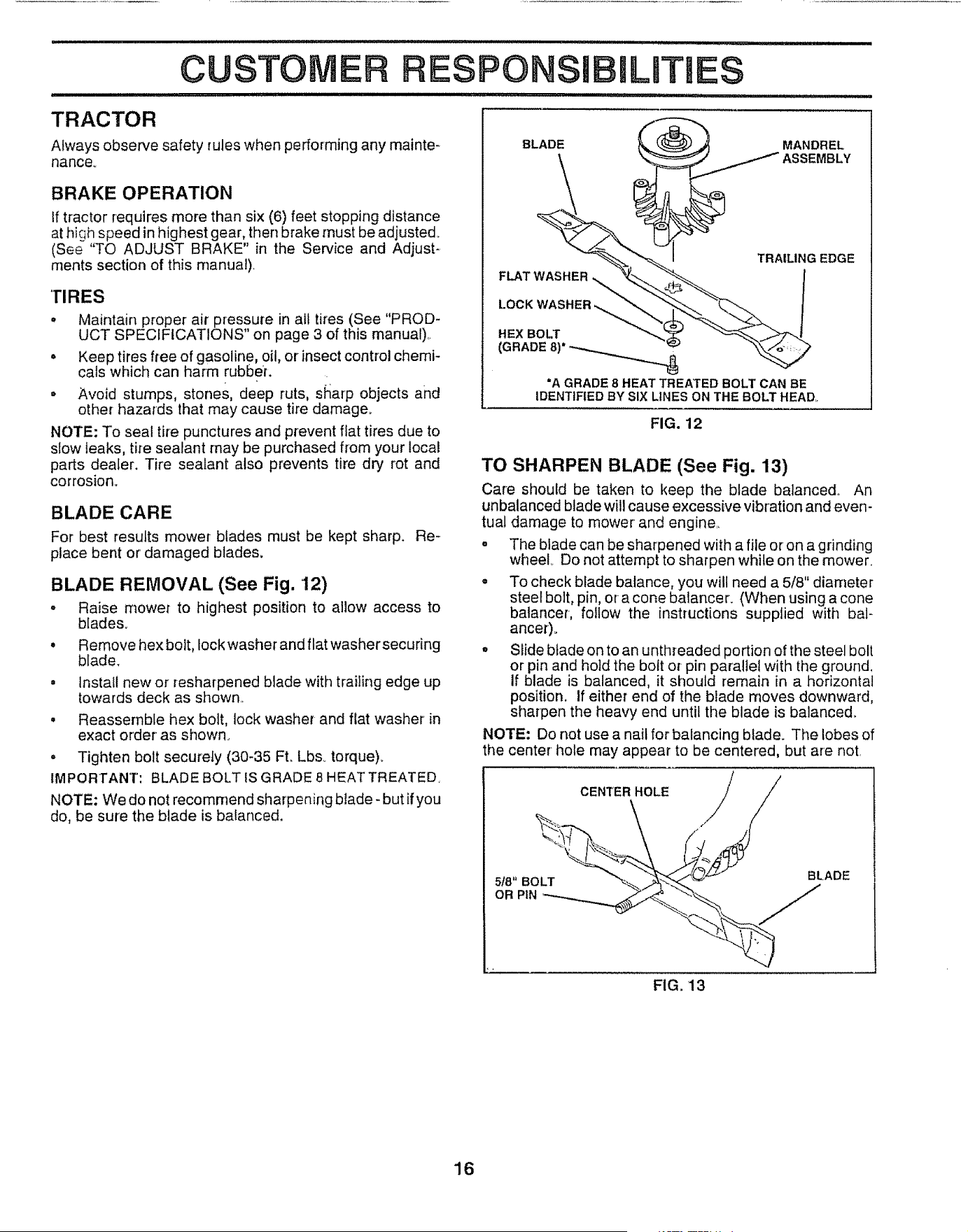

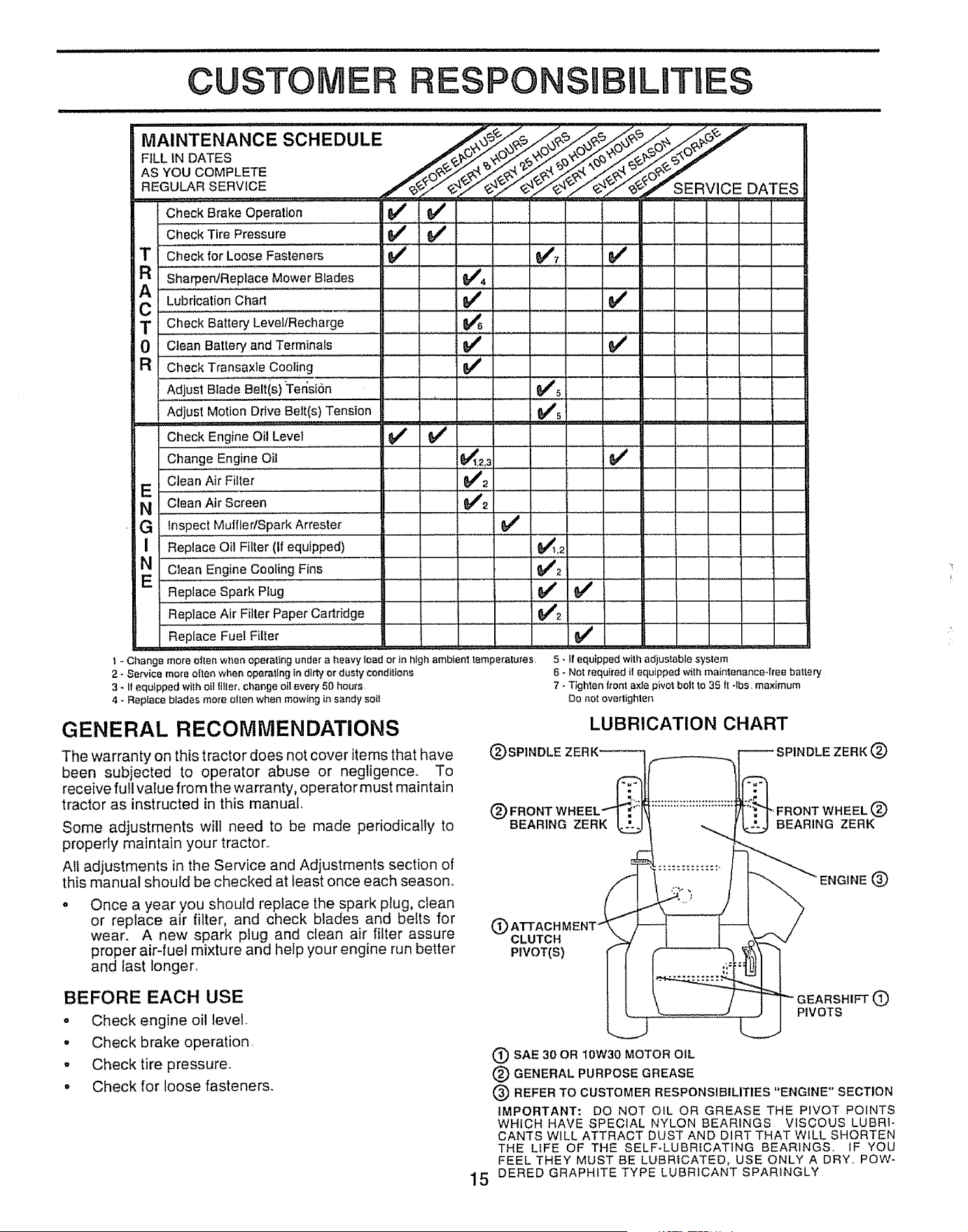

CUSTOMER RESPONSIBILITIES

- Read and observe the safety rules.

• FoJlow aregu}ar schedule in maintaining, cadng for and

using your tractor.

, Followthe instructions under"Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

PRODUCT SPECIFICATIONS

HORSEPOWER: 19.5

GASOLINE CAPACITY 3.5 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (APt-SF/SG/SH): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

...,'4

OIL CAPACITY: &0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: 030")

VALVE CLEARANCE: INTAKE: .004" - .006"

EXHAUST: .007" - .009"

GROUND SPEED (MPH): FORWARD:

1st 1,.1

2nd t.5

3rd 23

4th 3 5

5th 4.4

6th 57

REVERSE: 1.7

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PS1

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMPtHR: 30

MIN, CCA: 240

CASE SIZE: U1R

BLADE BOLT TORQUE: 30-35 FT, LBS,

with a spark arrestor meeting applicable local or state laws

(if any). If a spark arrestor Jsused, Jtshould be maintained

in effective working order by the operator°

In the state of California the aboveqs required by law

(Section 4442 of the California Pubtic Resources Code).

Other states may have similar laws,, Federal laws apply on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPA1R PARTS section of this manual).,

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be detective in material or

workmanship.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc.

o Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual.

. Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this dding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge

1N-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE, PLEASE CONTACT YOUR NEAREST SERVICE CENTER AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO

YOUR NEAREST SEARS SERVICE CENTER, (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE AFTER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY.) THIS WARRANTY APPLIES ONLY

WHILE THIS PRODUCT IS IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

SEARS, ROEBLJCK AND CO,, D/817 WA, HOFFMAN ESTATES, IL 60179

.... _ ................................... iii1! II IL'I'II .... ii ,i,

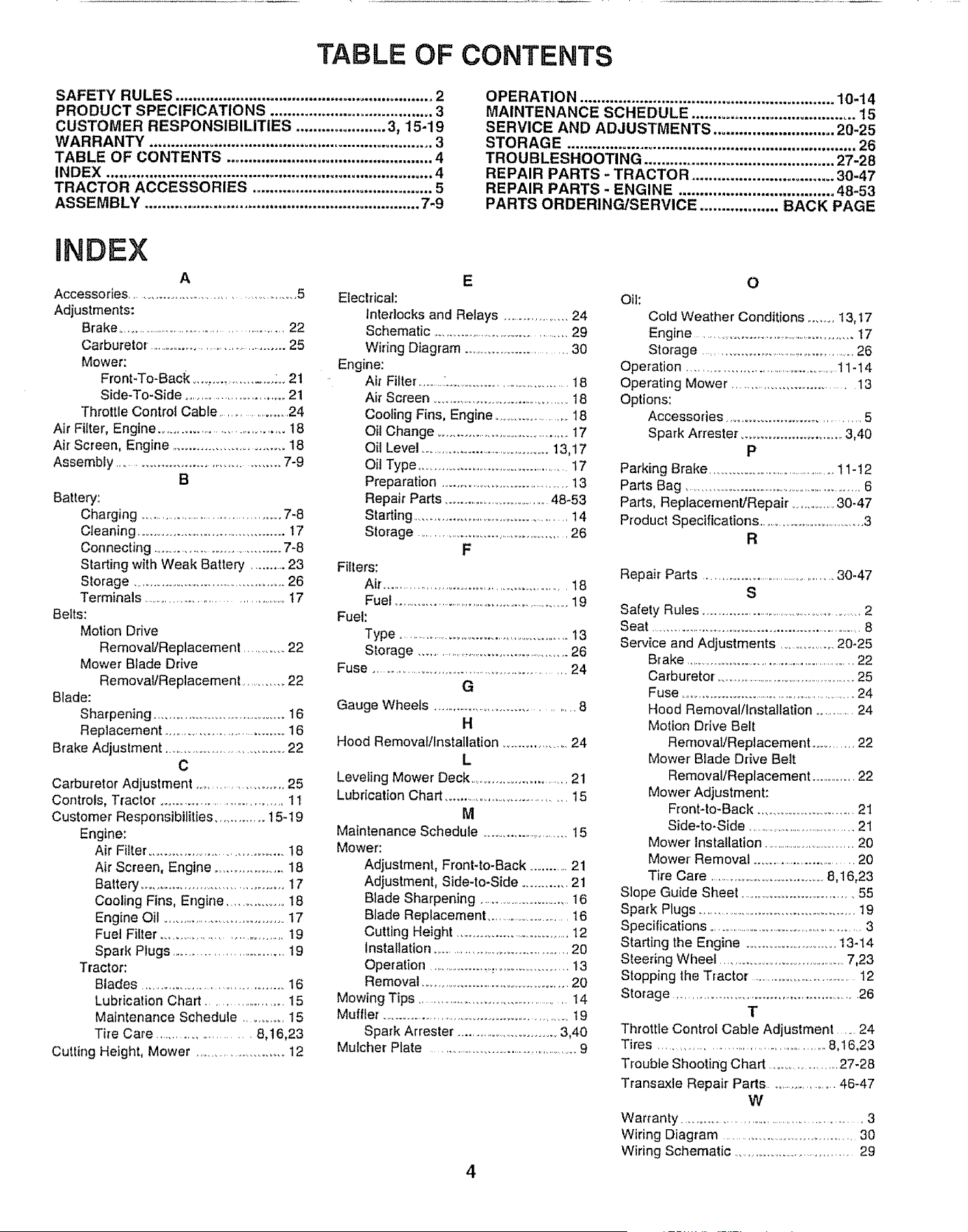

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 15-19

WARRANTY .................................................................. 3

TABLE OF CONTENTS ................................................ 4

INDEX ............................................................................ 4

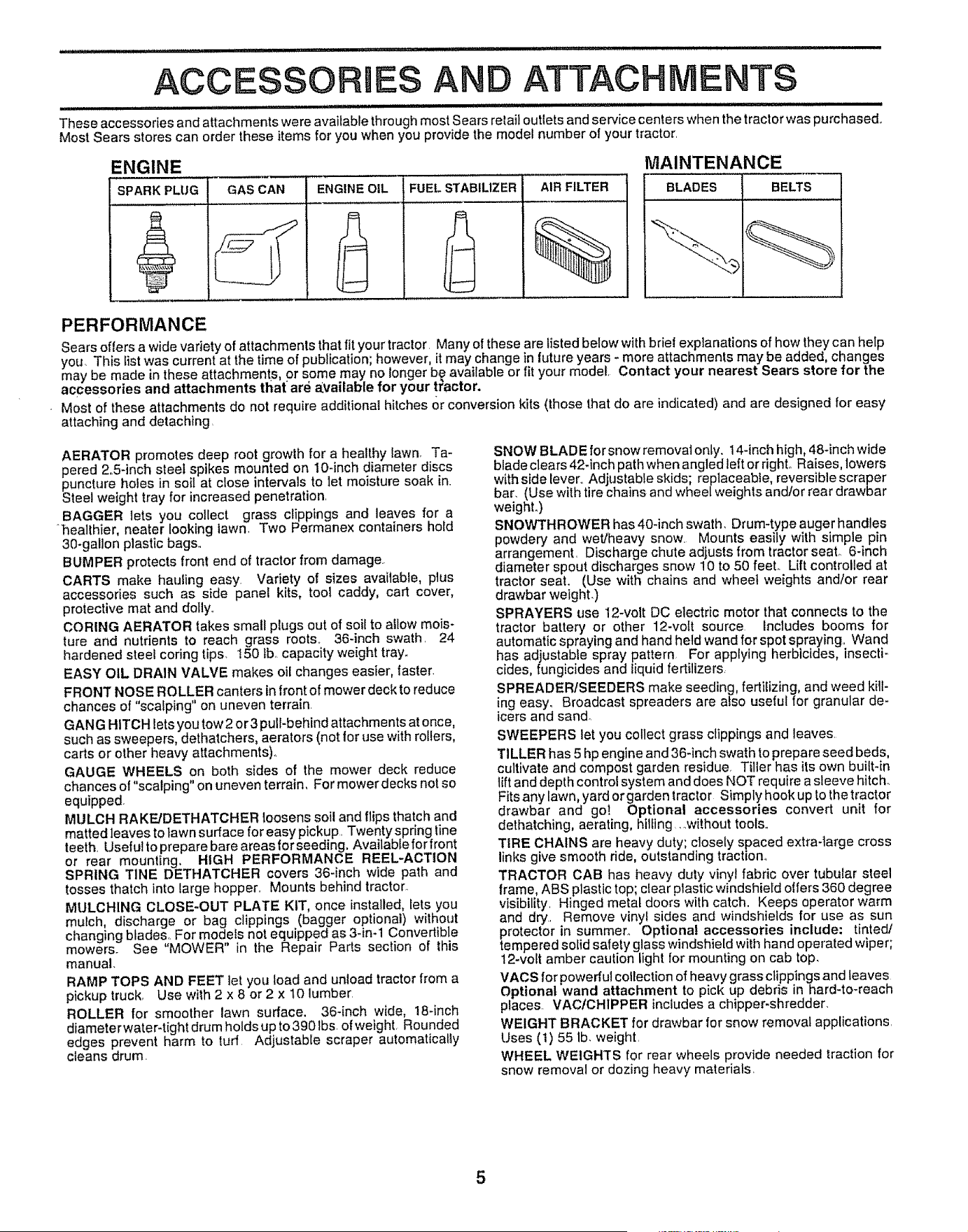

TRACTOR ACCESSORIES .......................................... 5

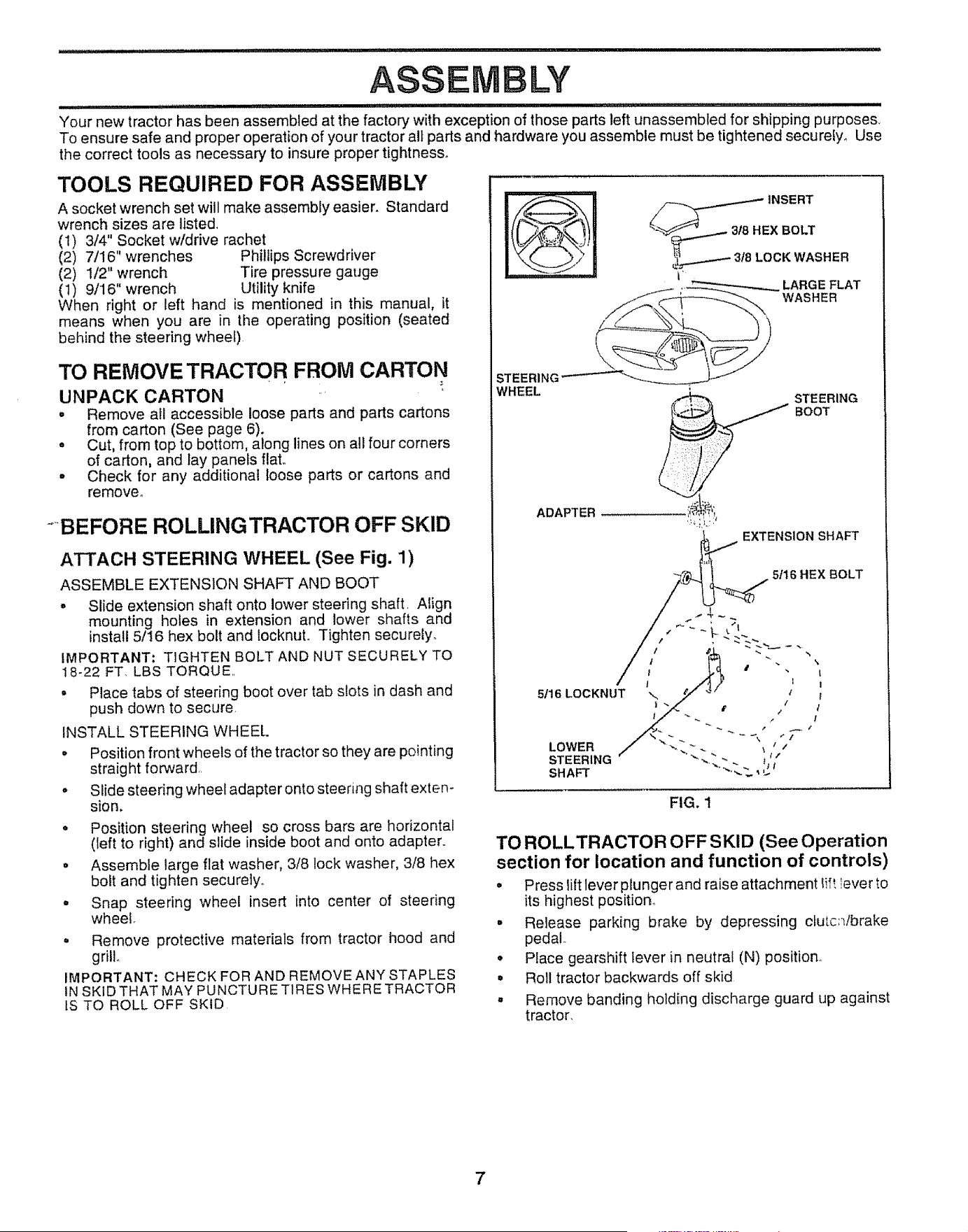

ASSEMBLY ................................................................ 7-9

OPERATION ........................................................... 10-14

MAINTENANCE SCHEDULE ...................................... 15

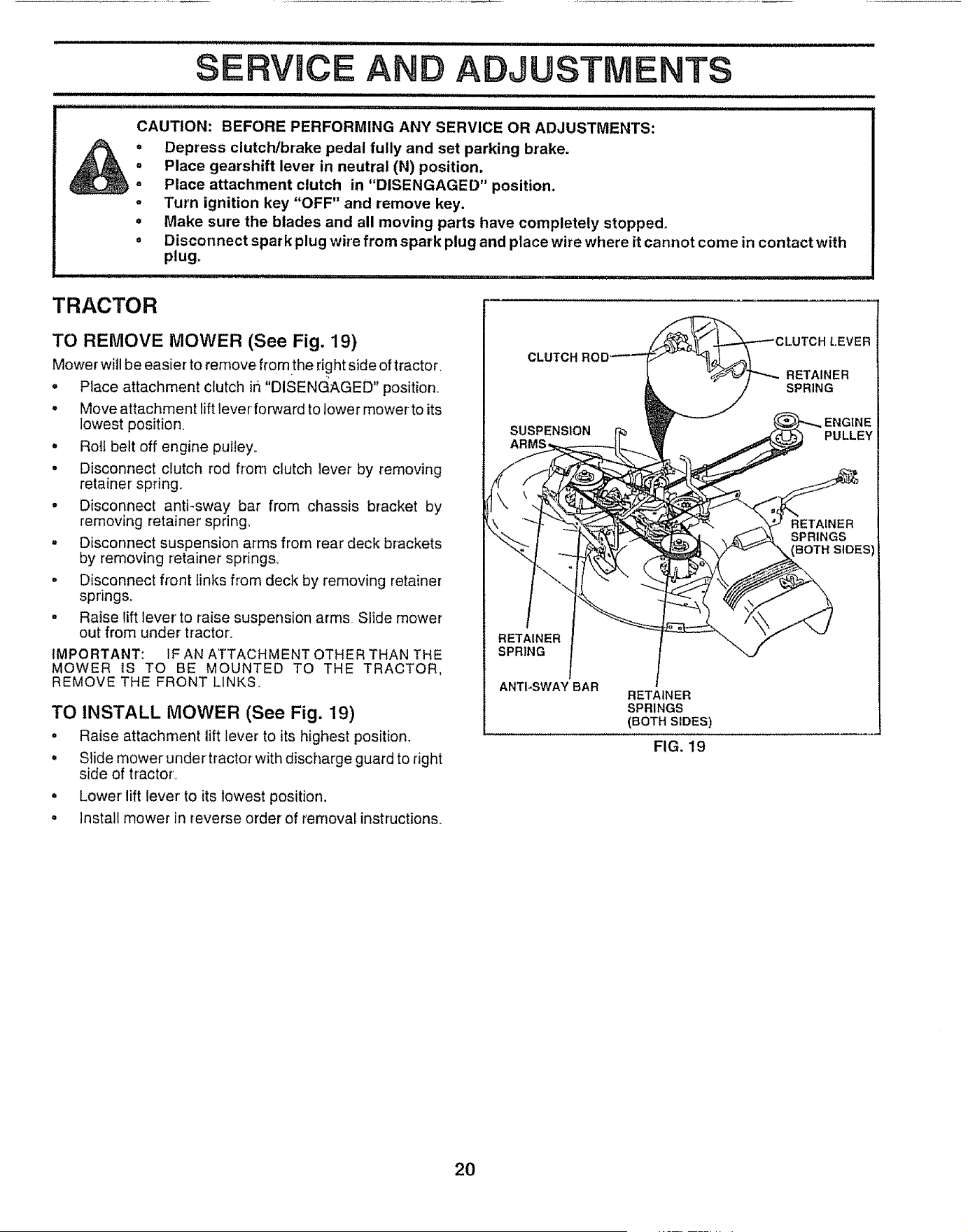

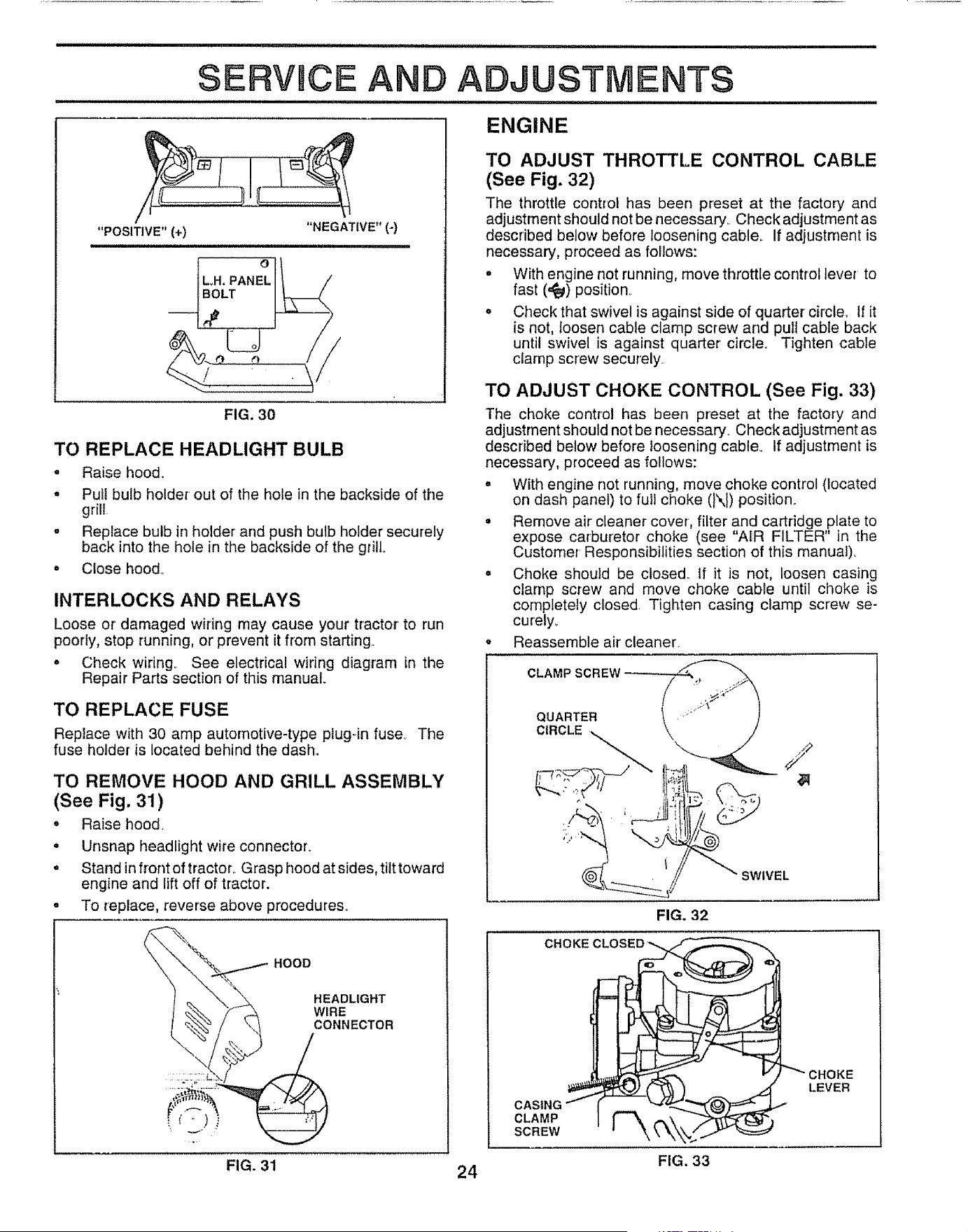

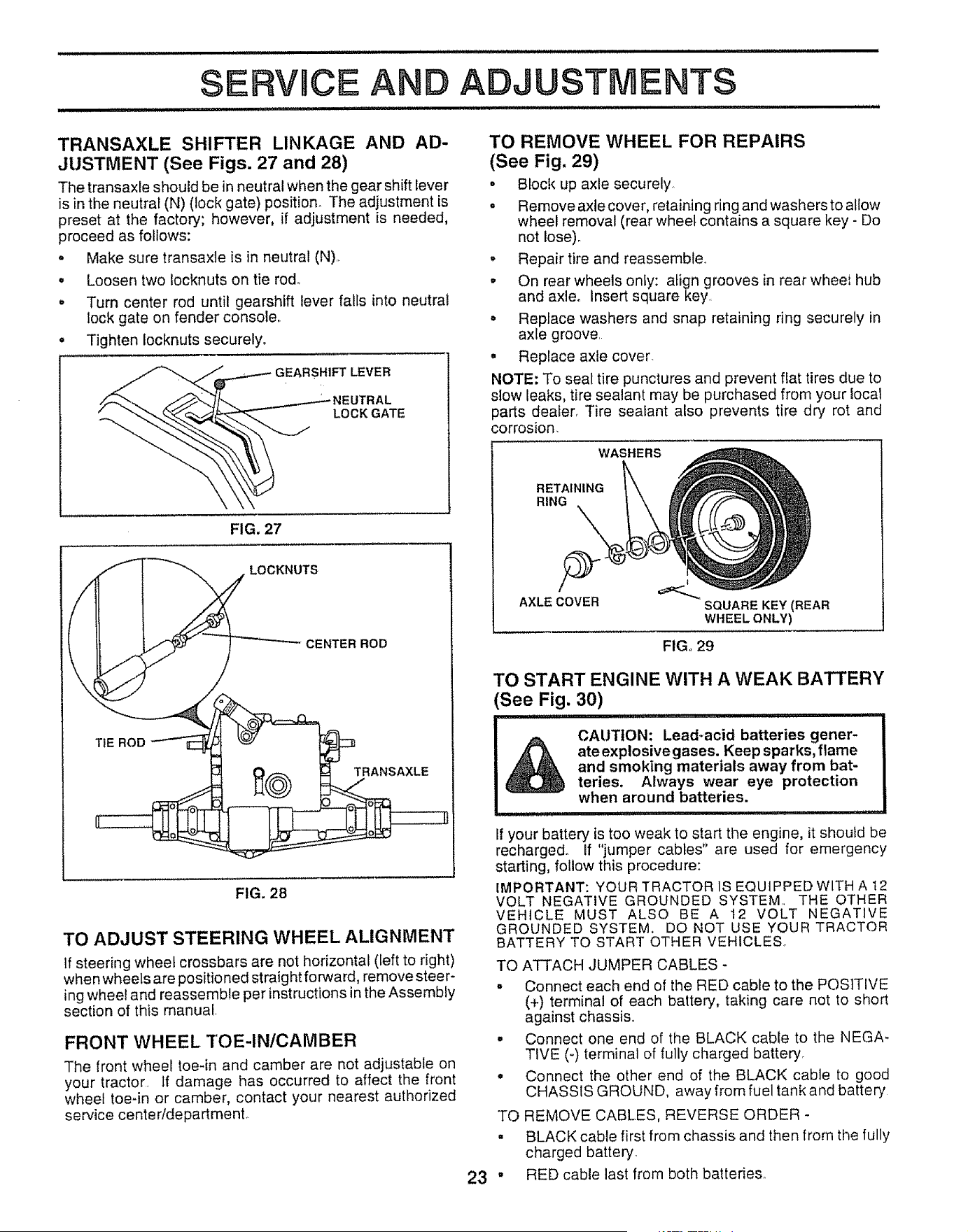

SERVICE AND ADJUSTMENTS ............................ 20-25

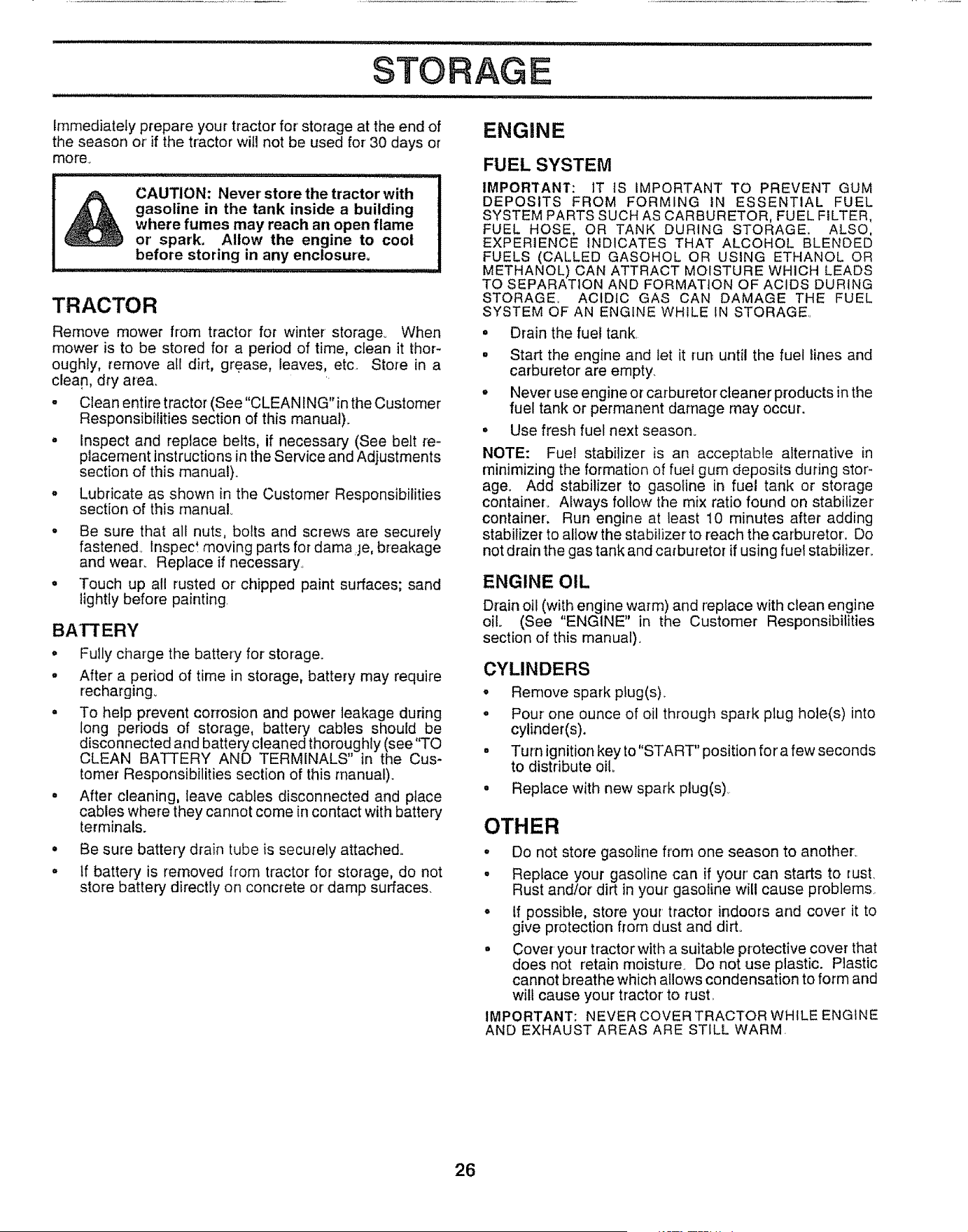

STORAGE ................................................................... 26

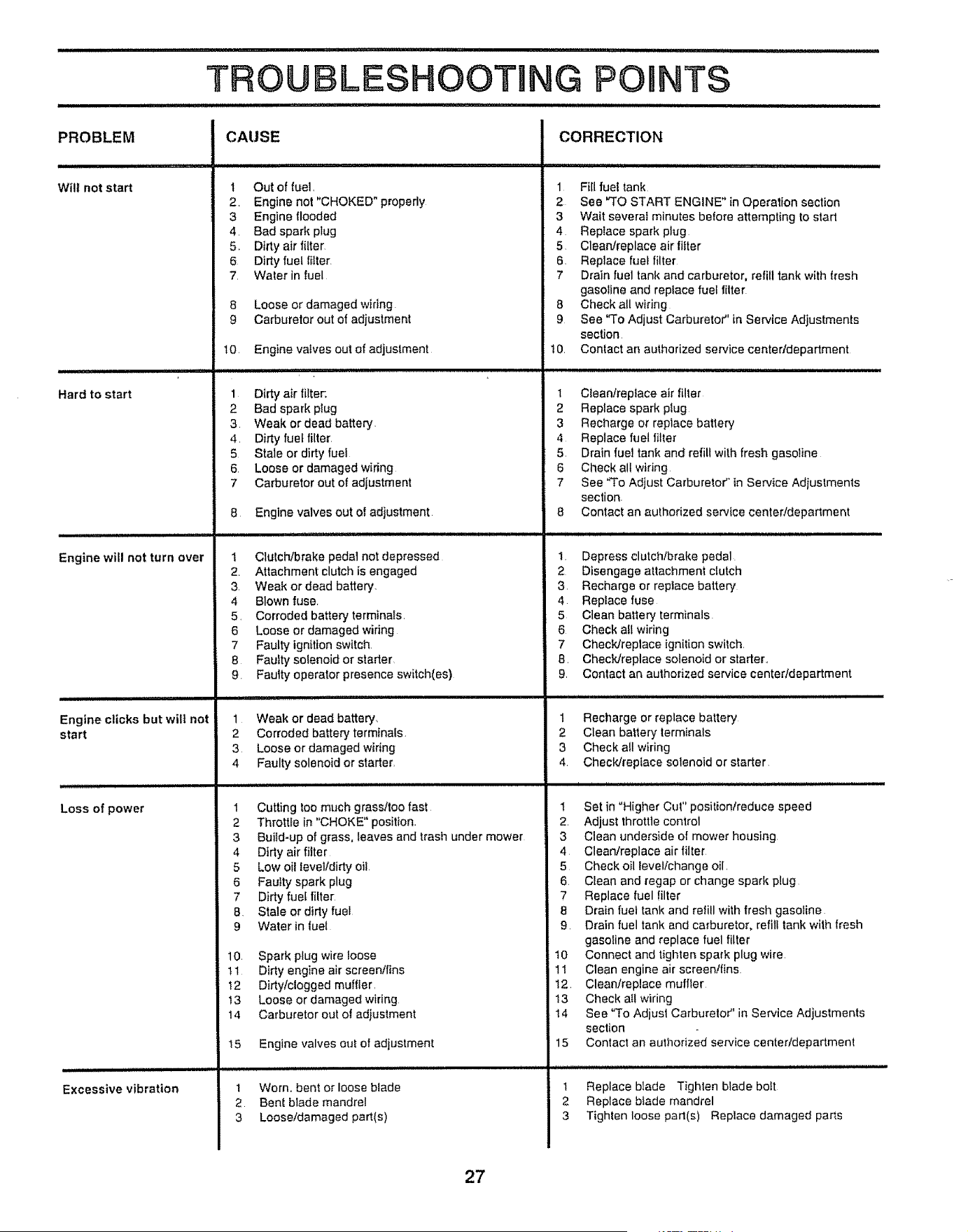

TROUBLESHOOTING ............................................ 27-28

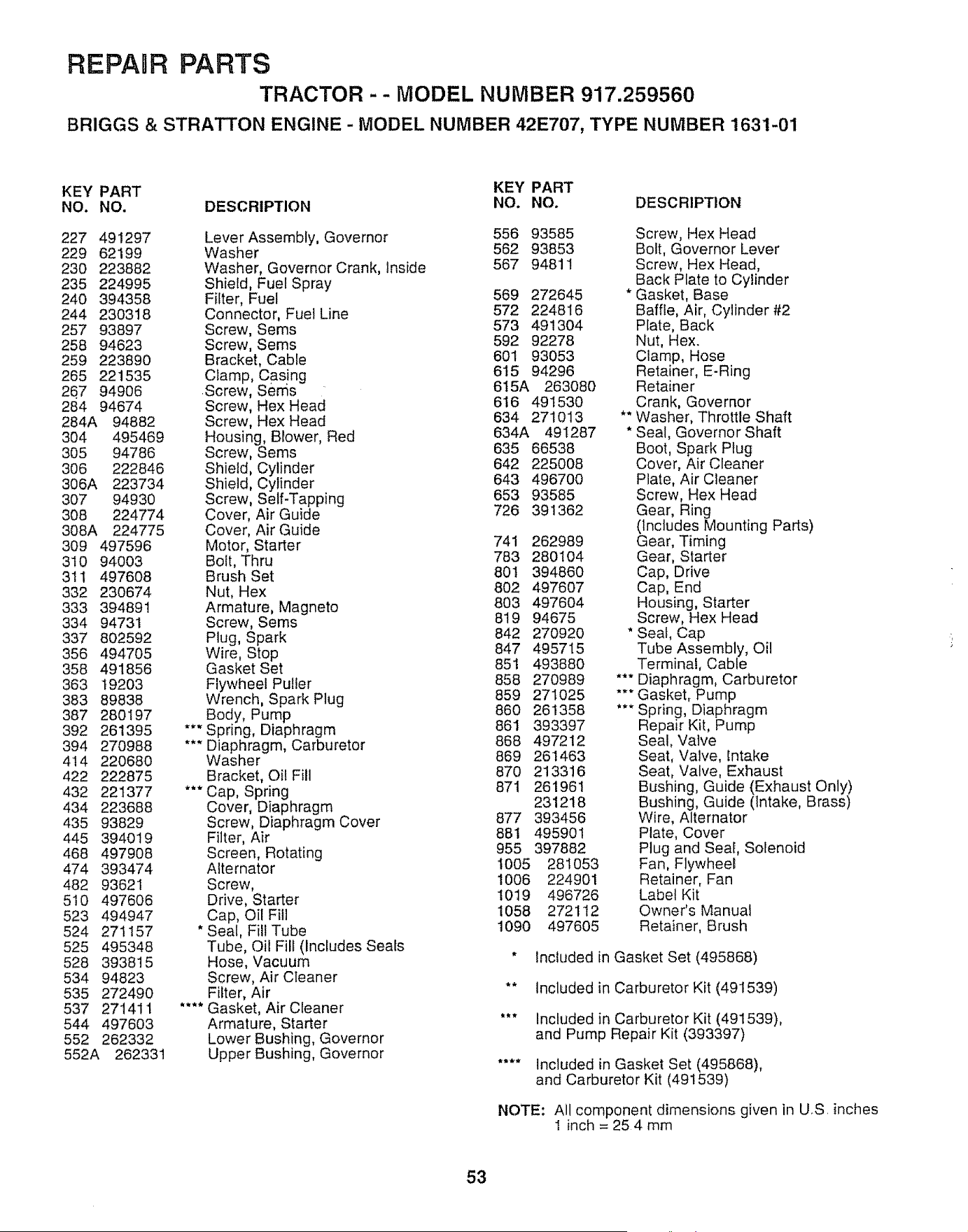

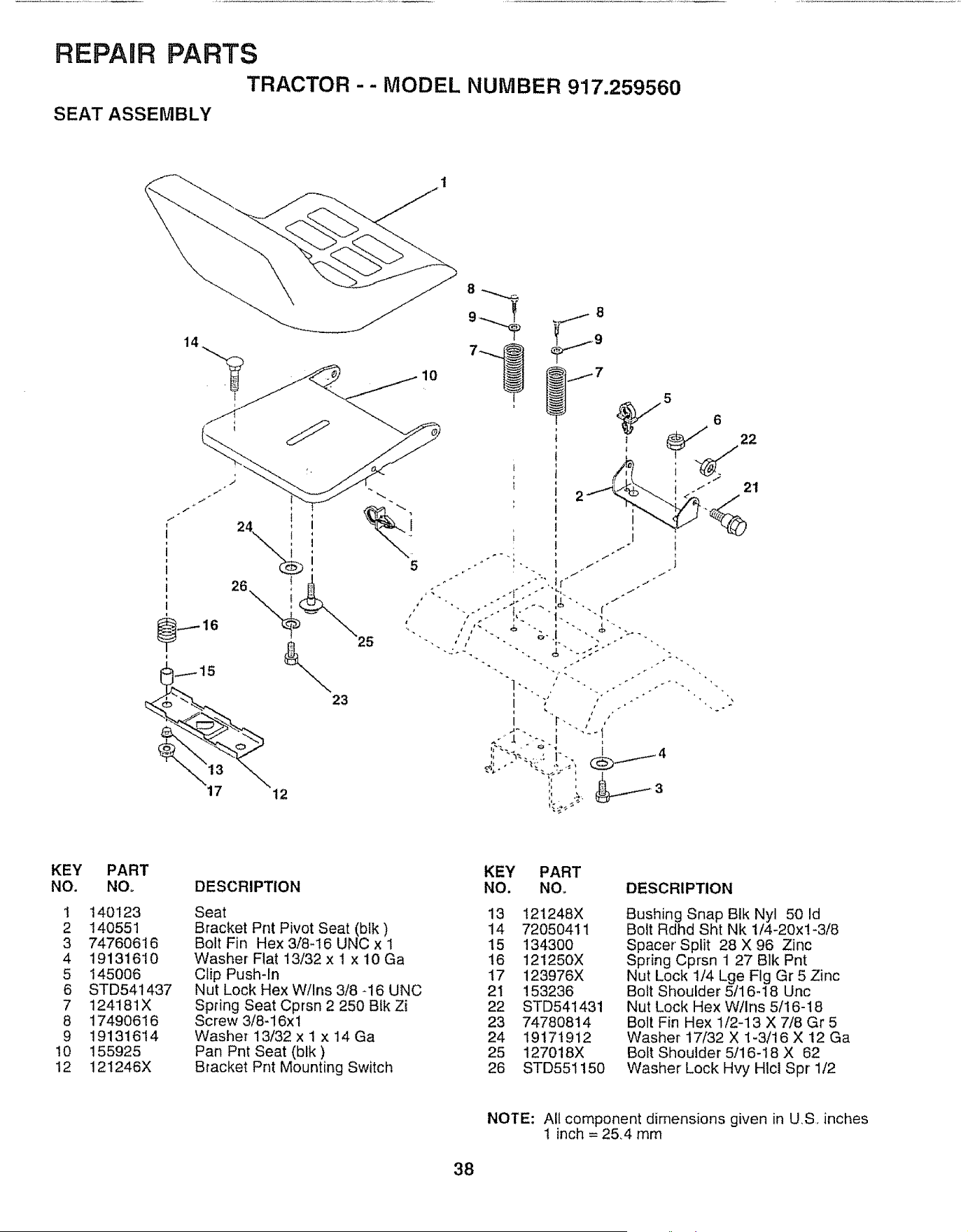

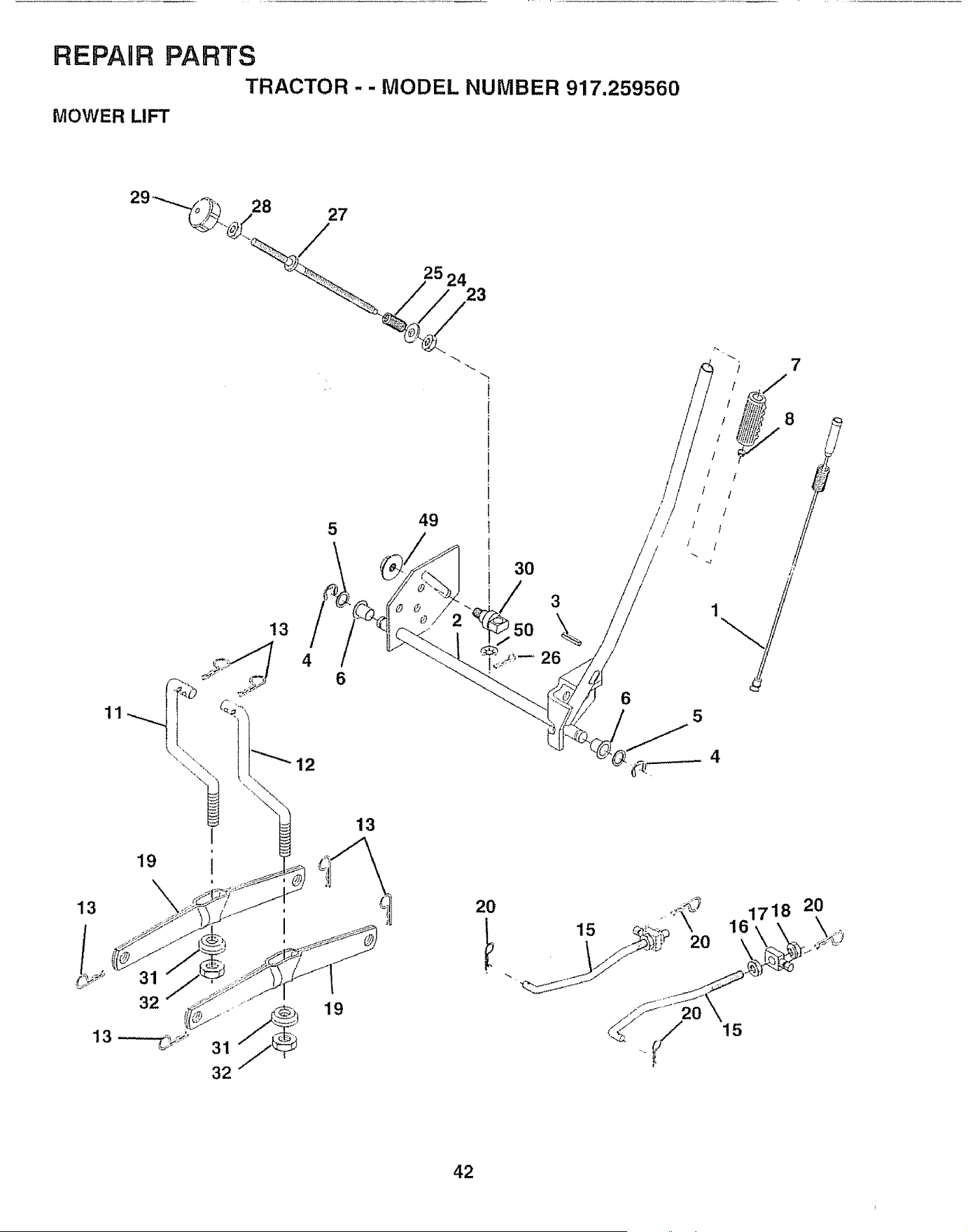

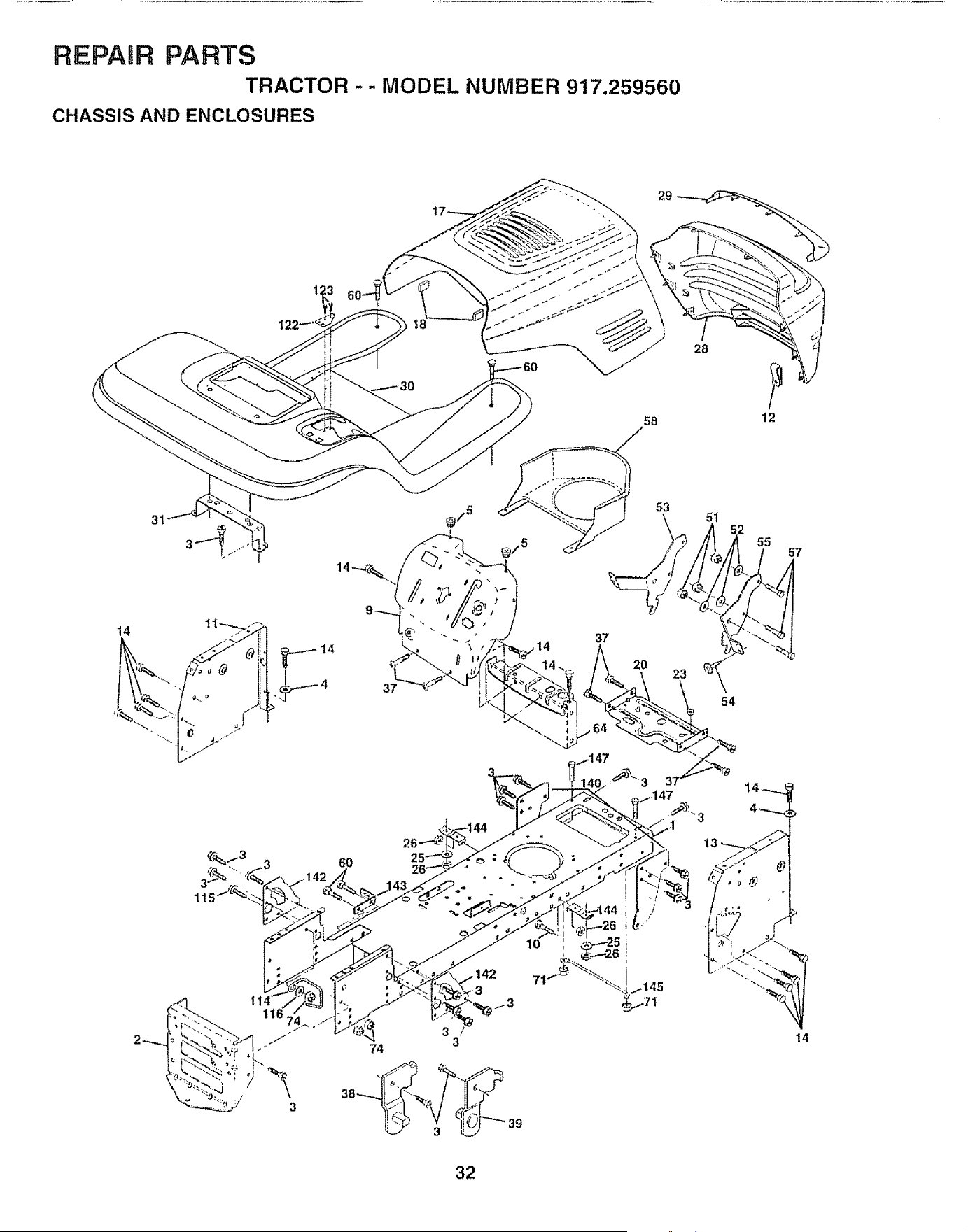

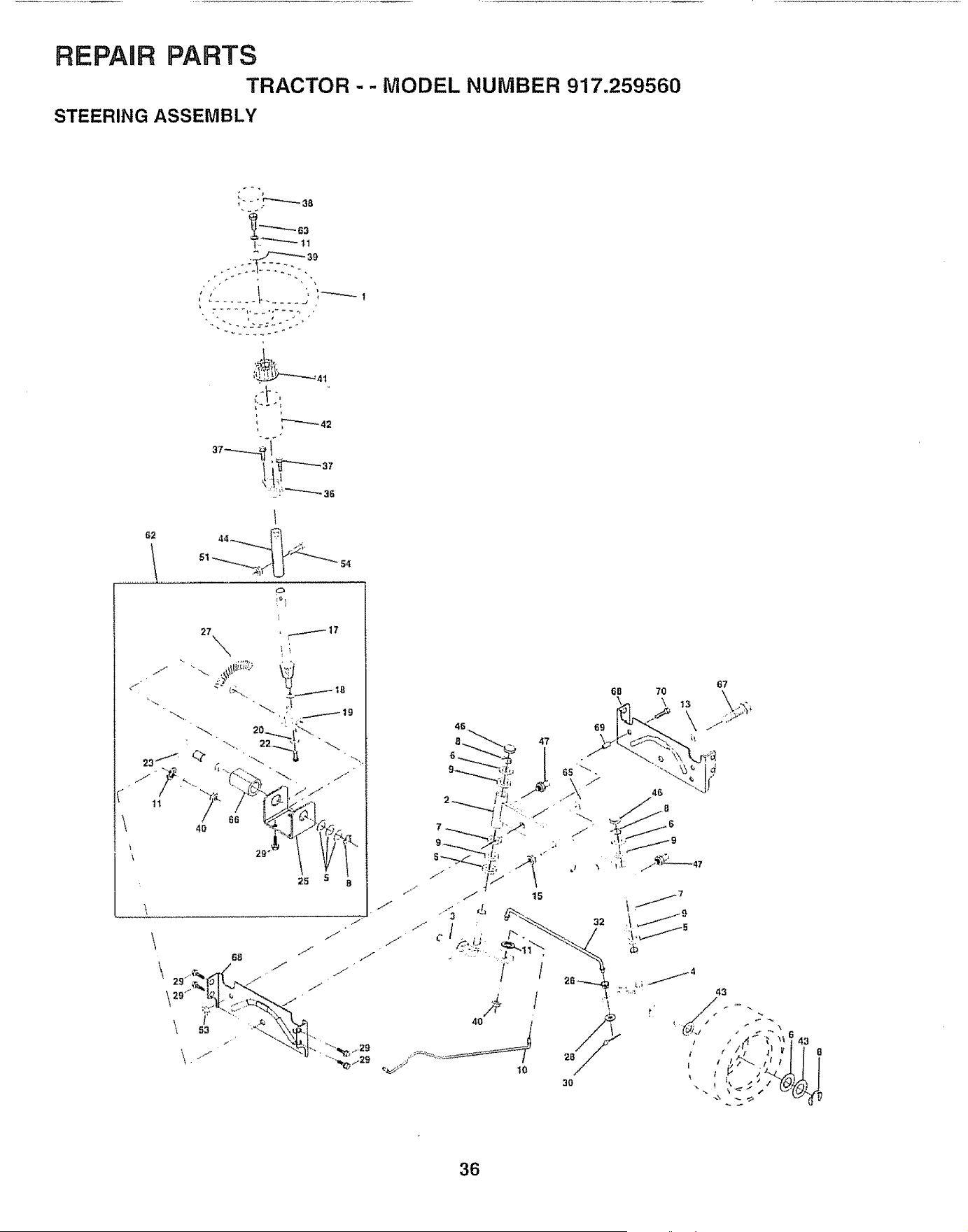

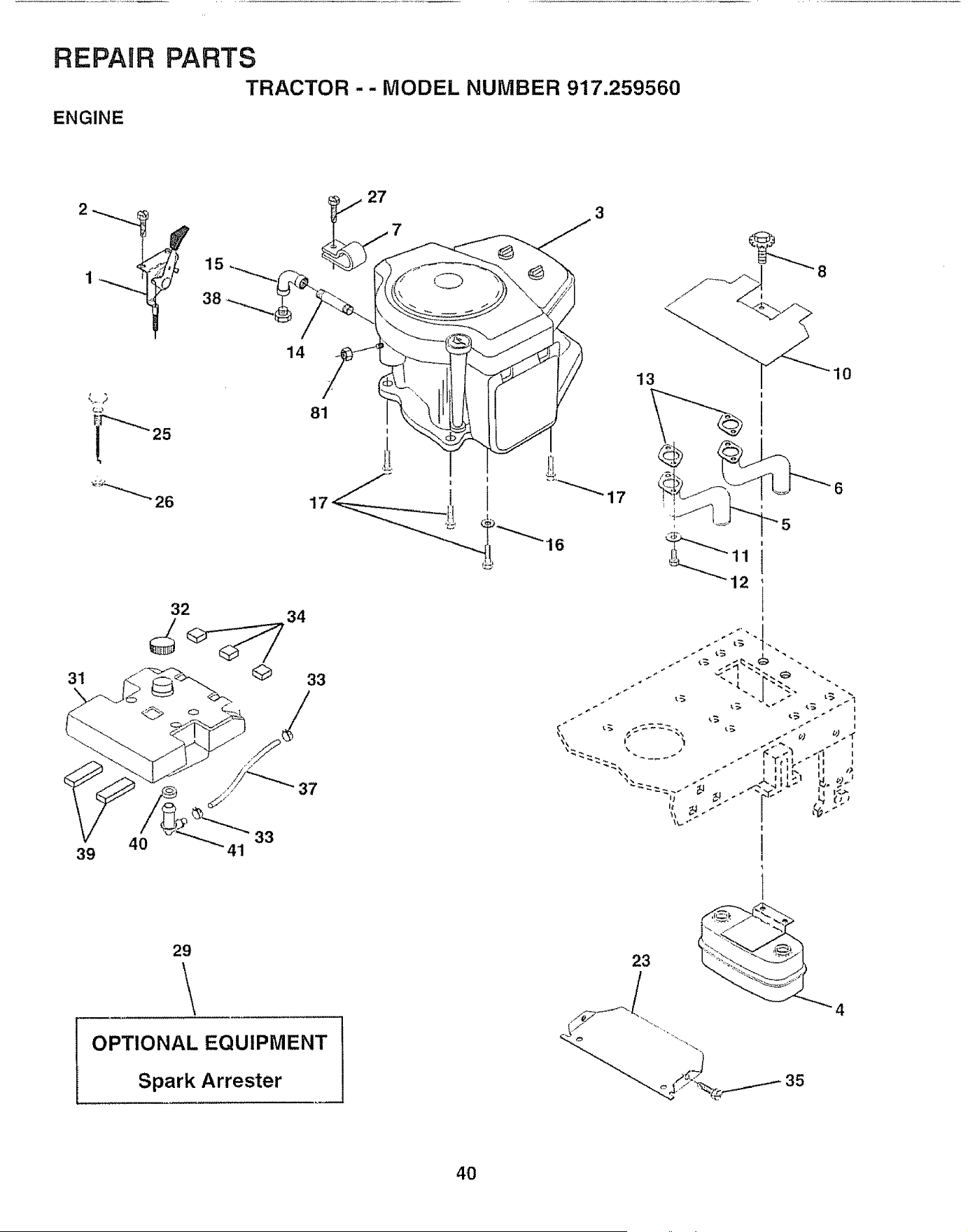

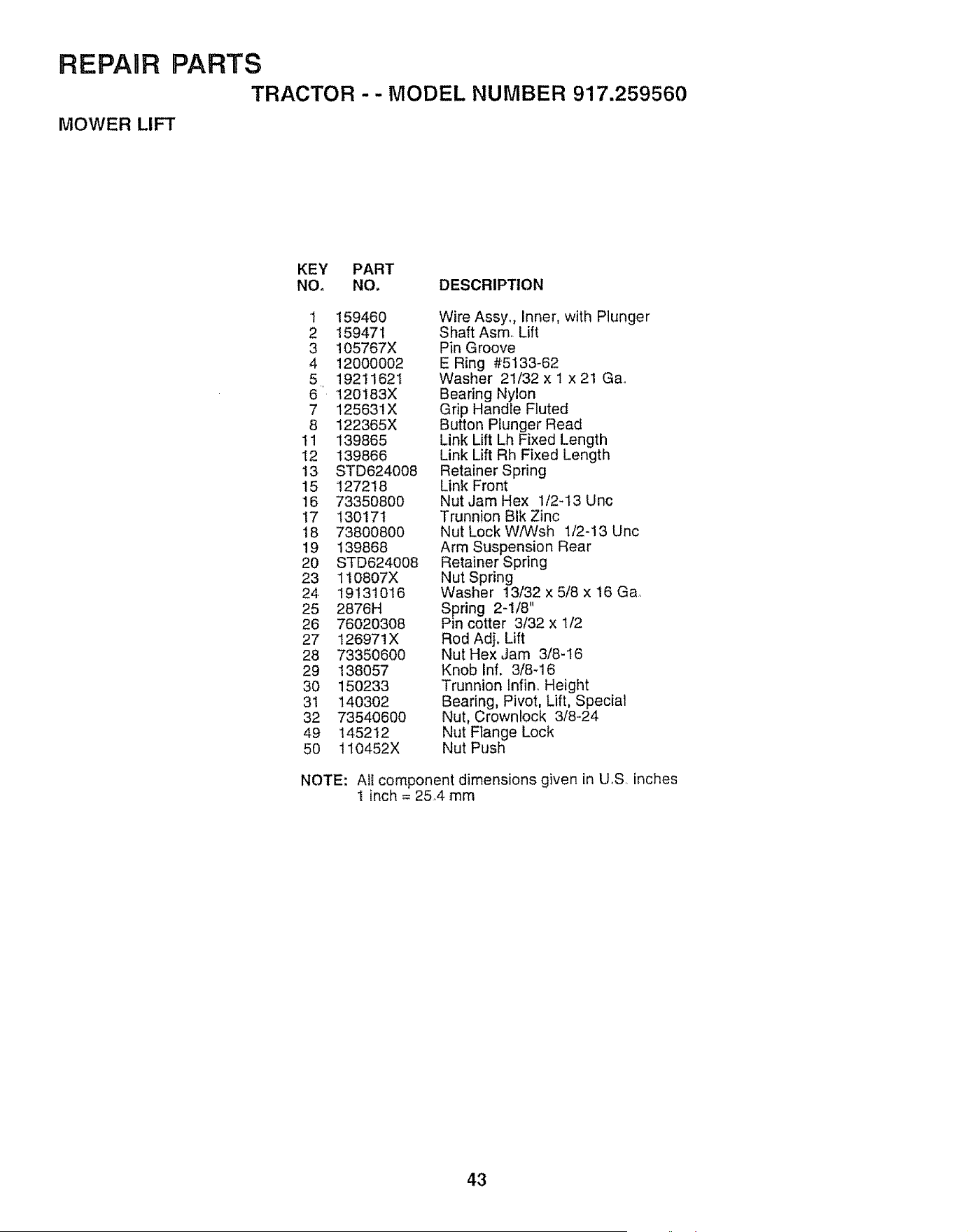

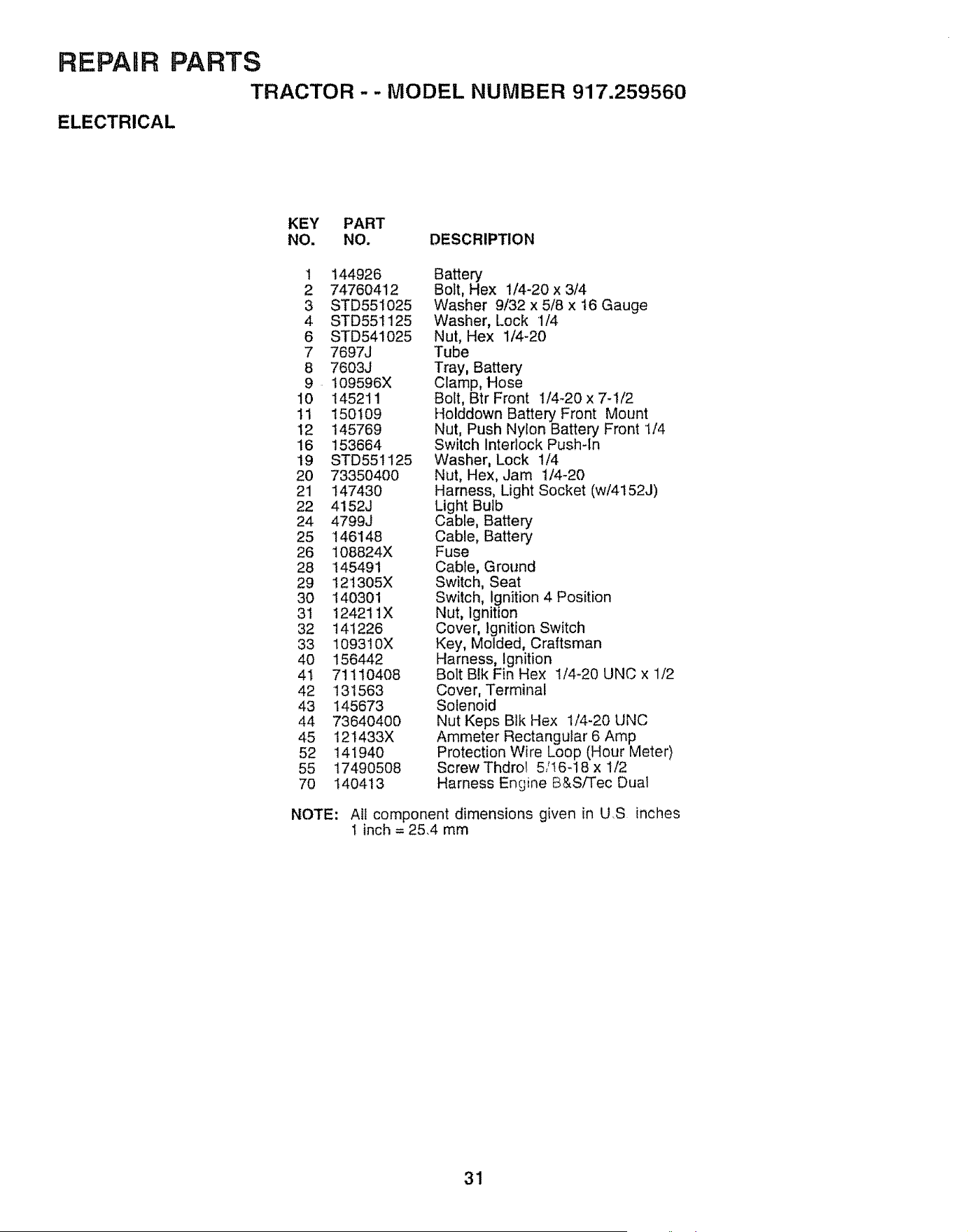

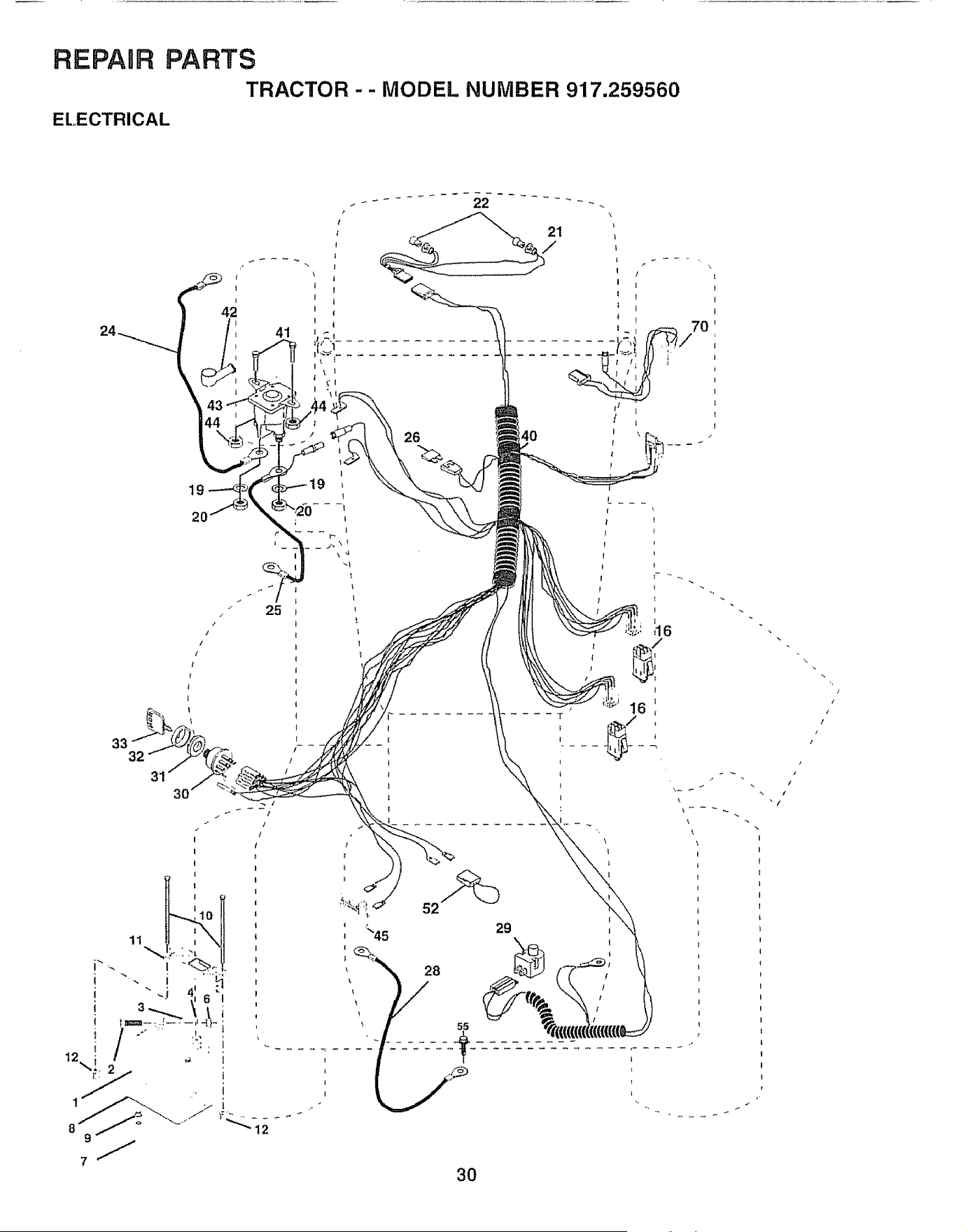

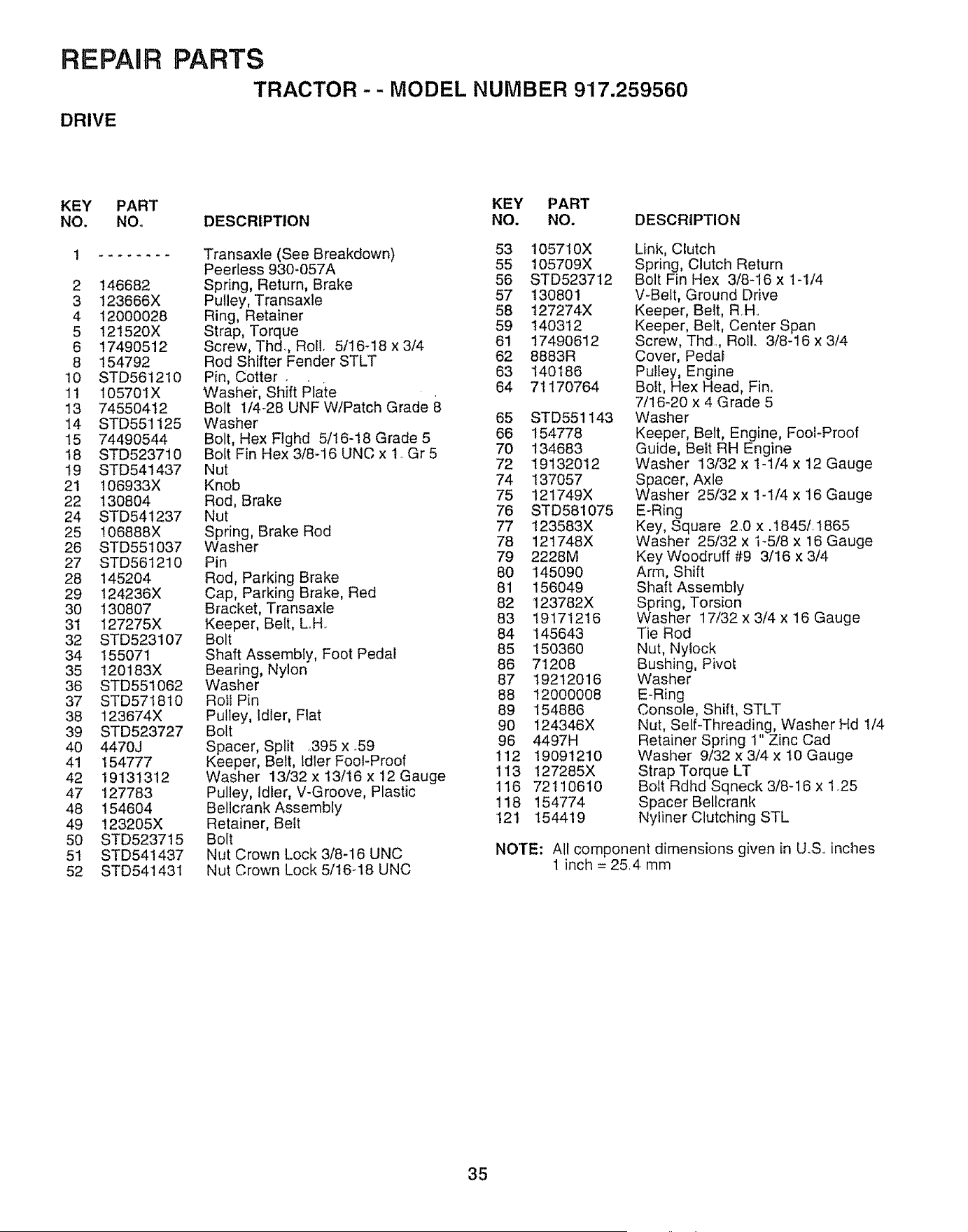

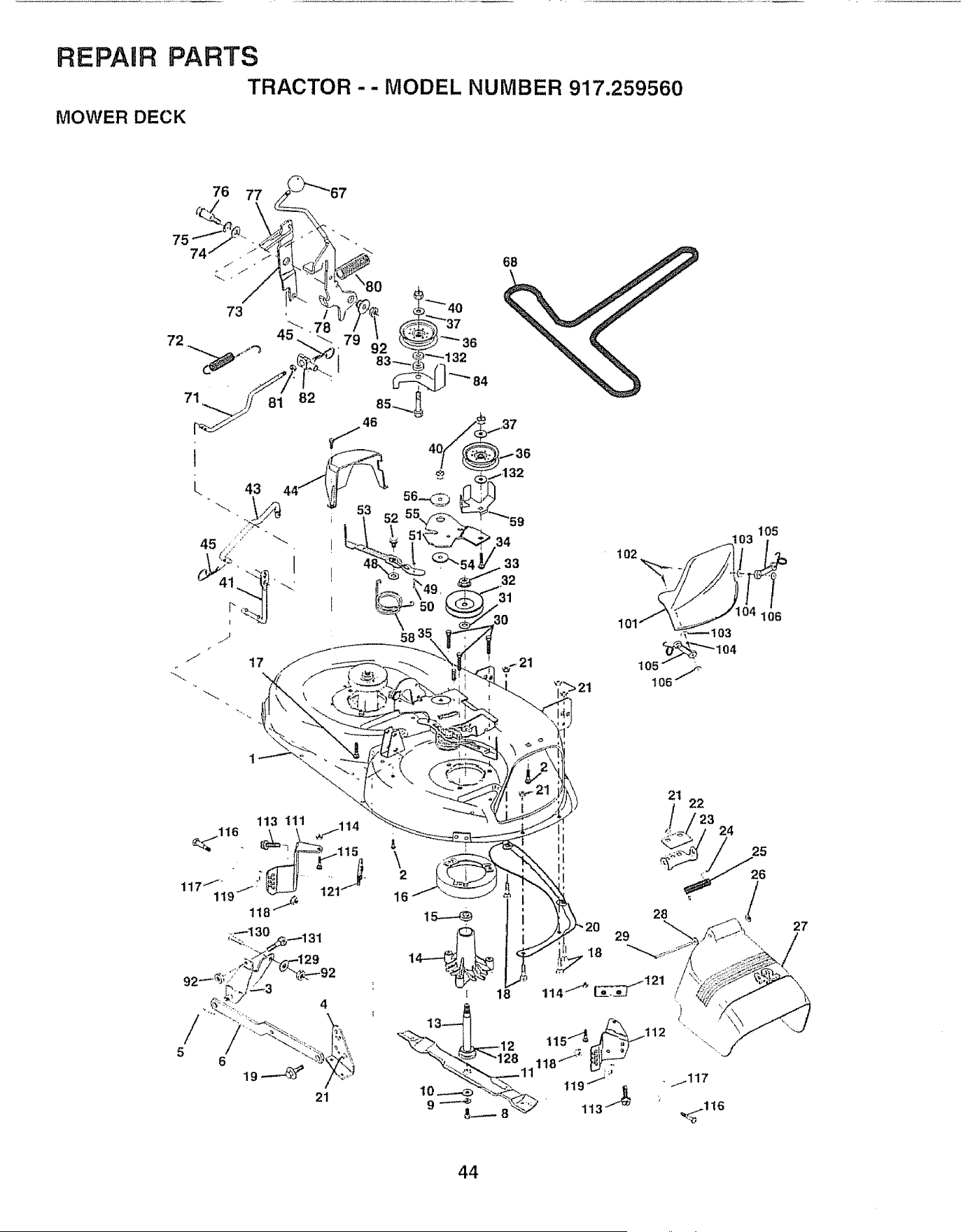

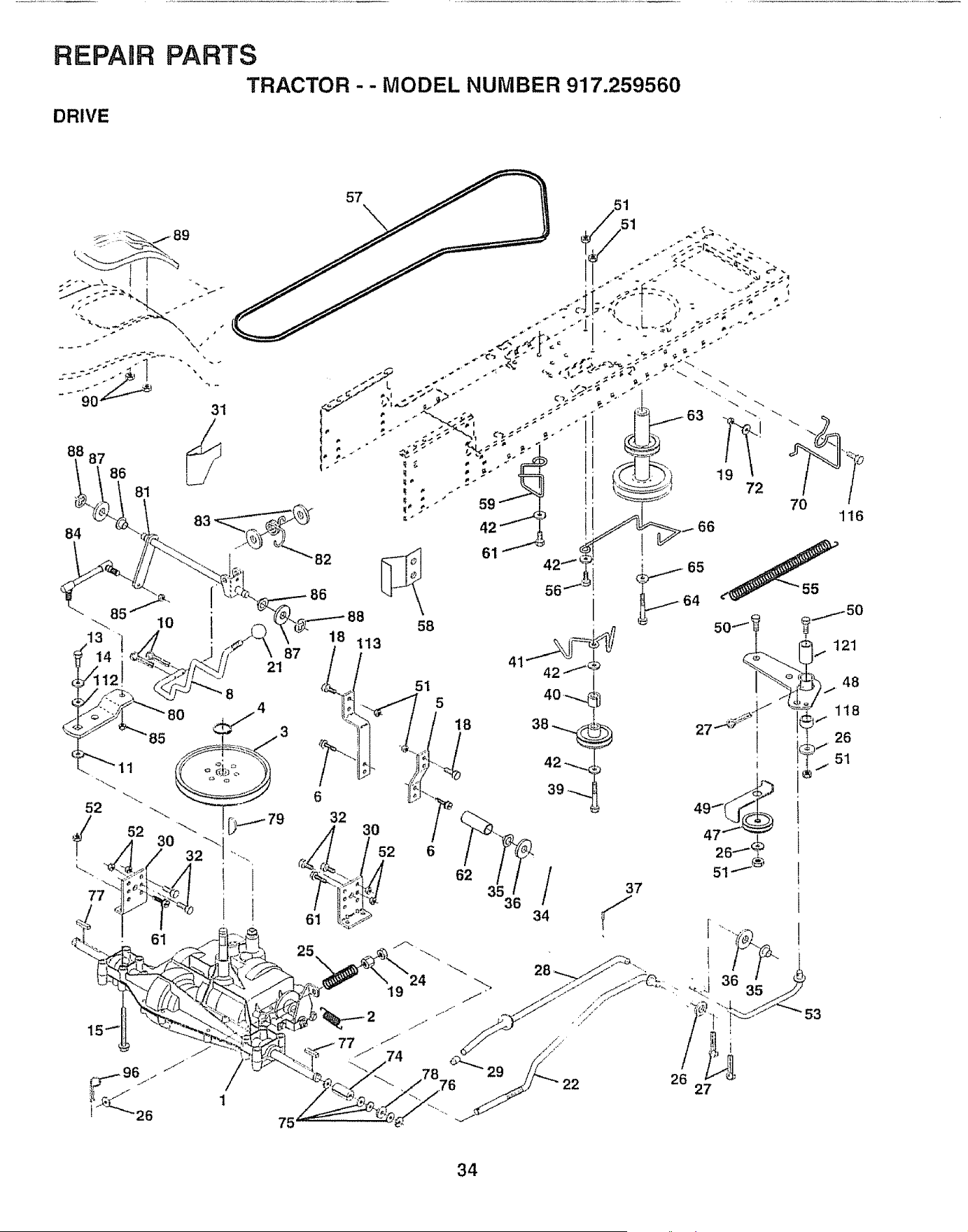

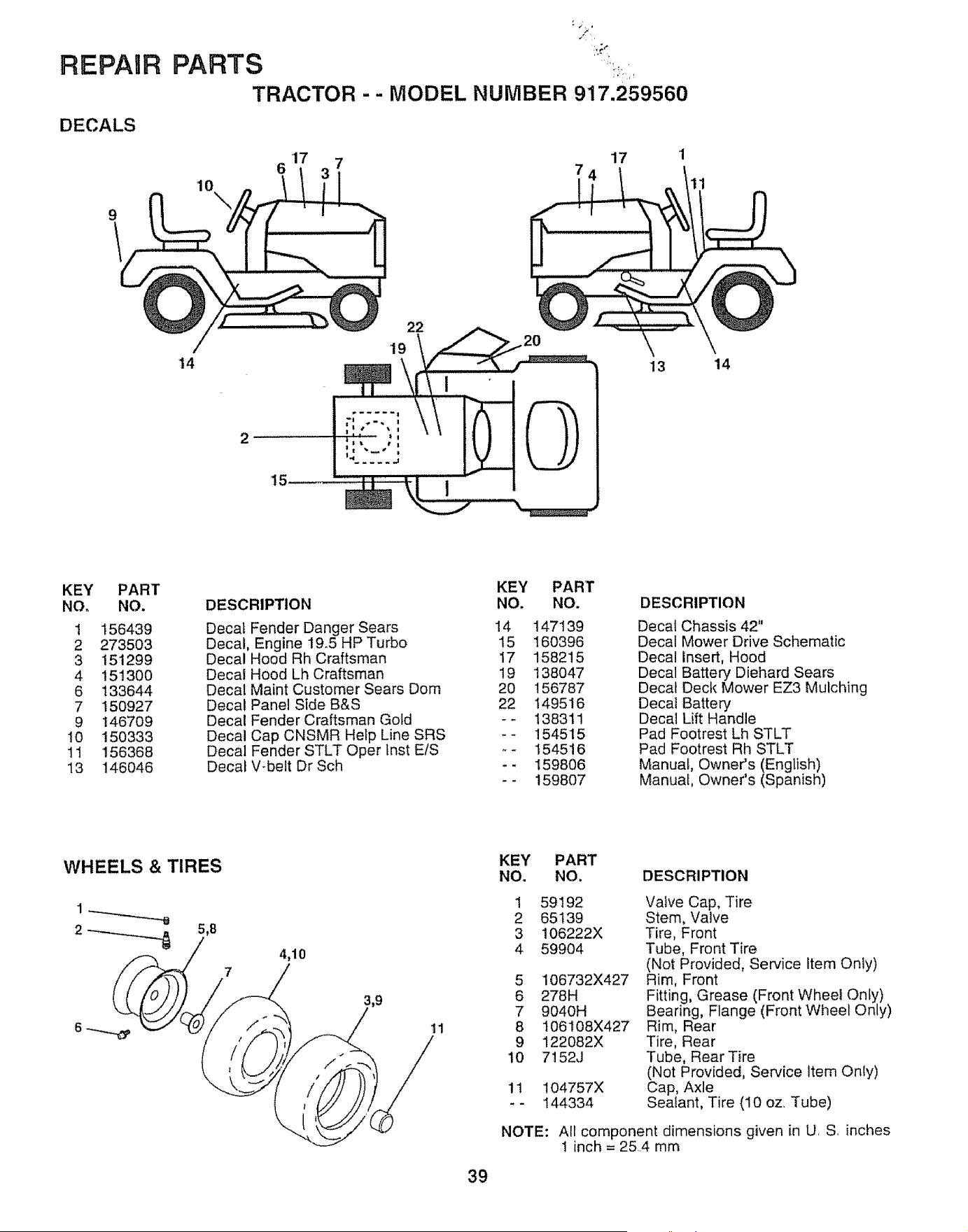

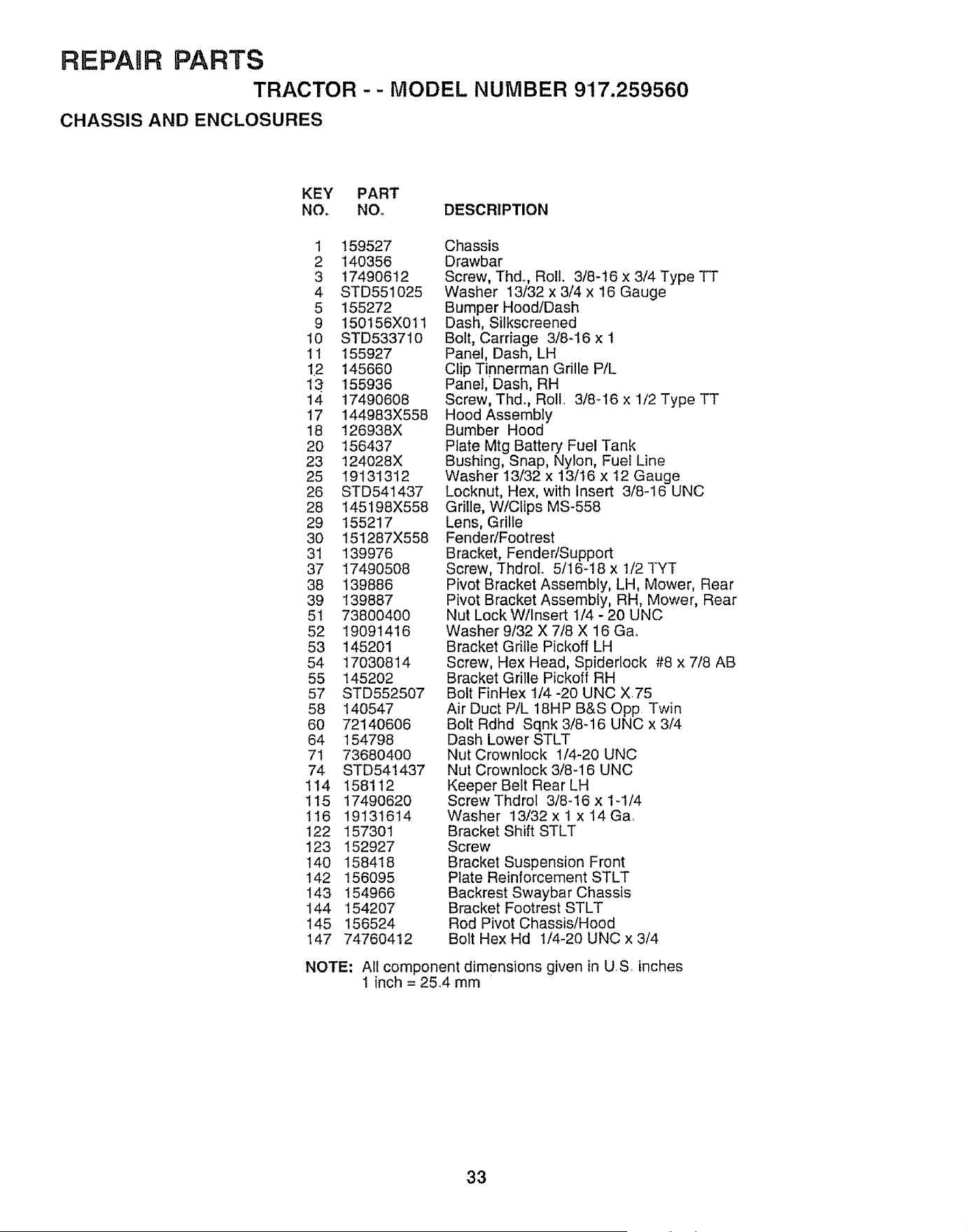

REPAIR PARTS - TRACTOR ................................. 30-47

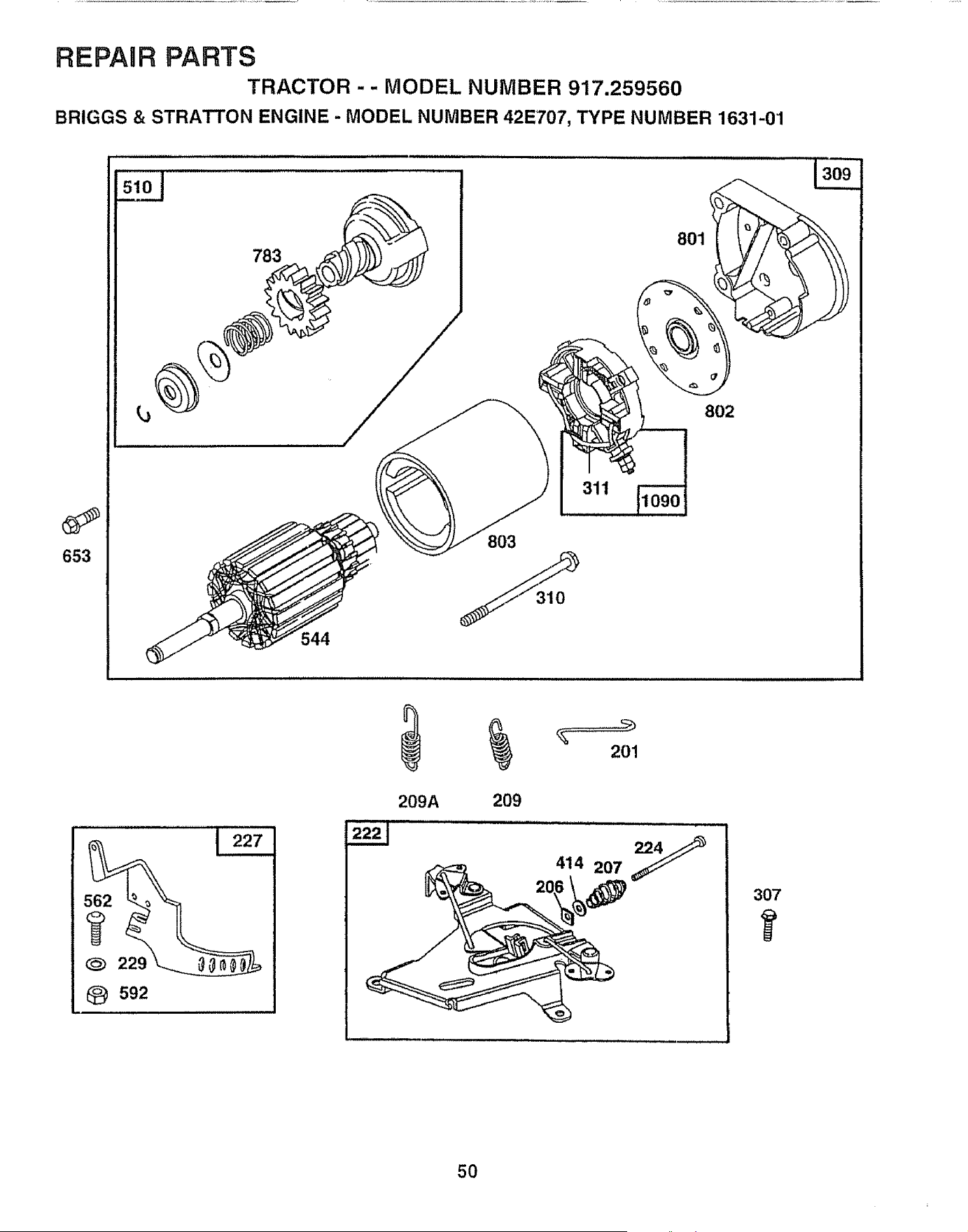

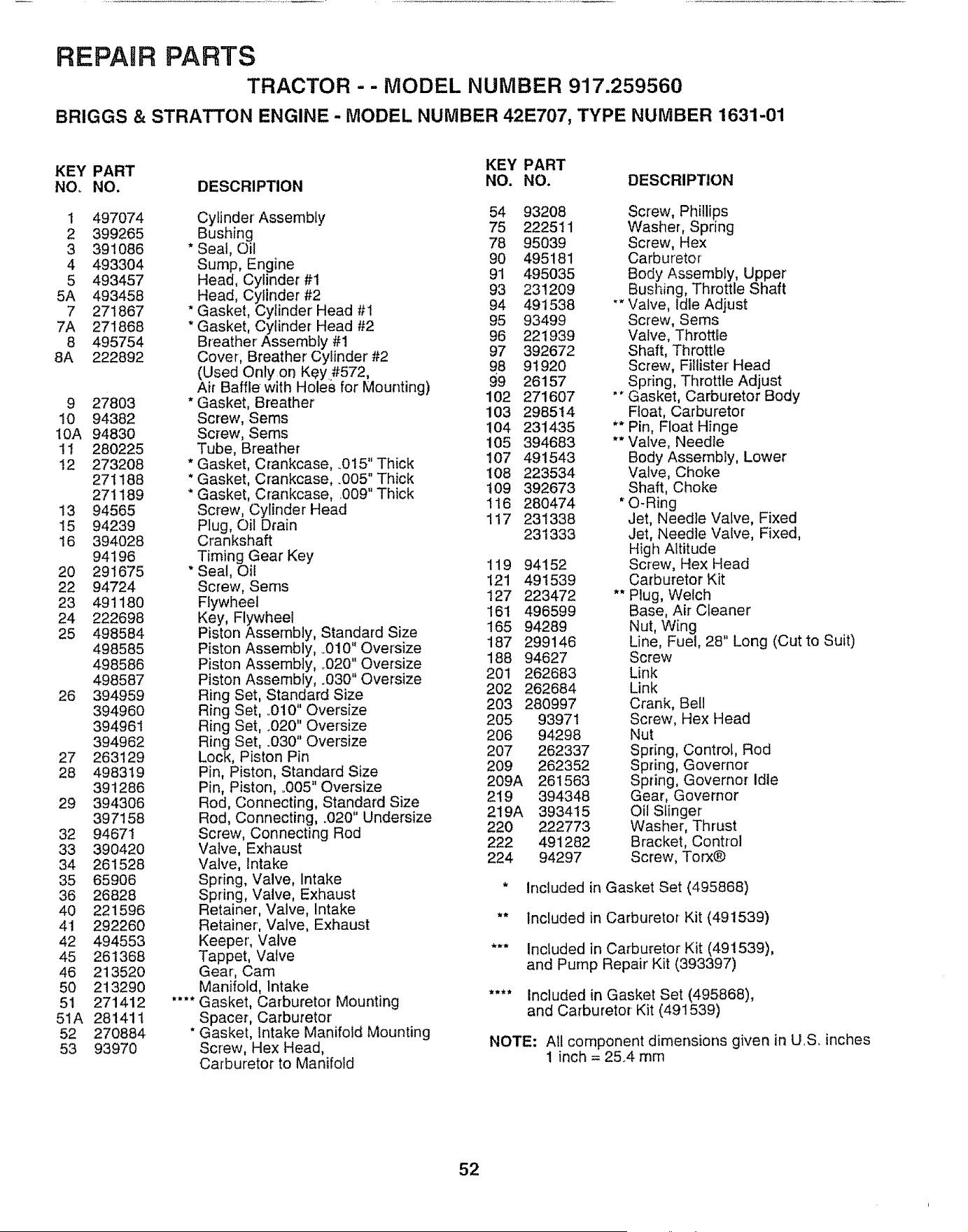

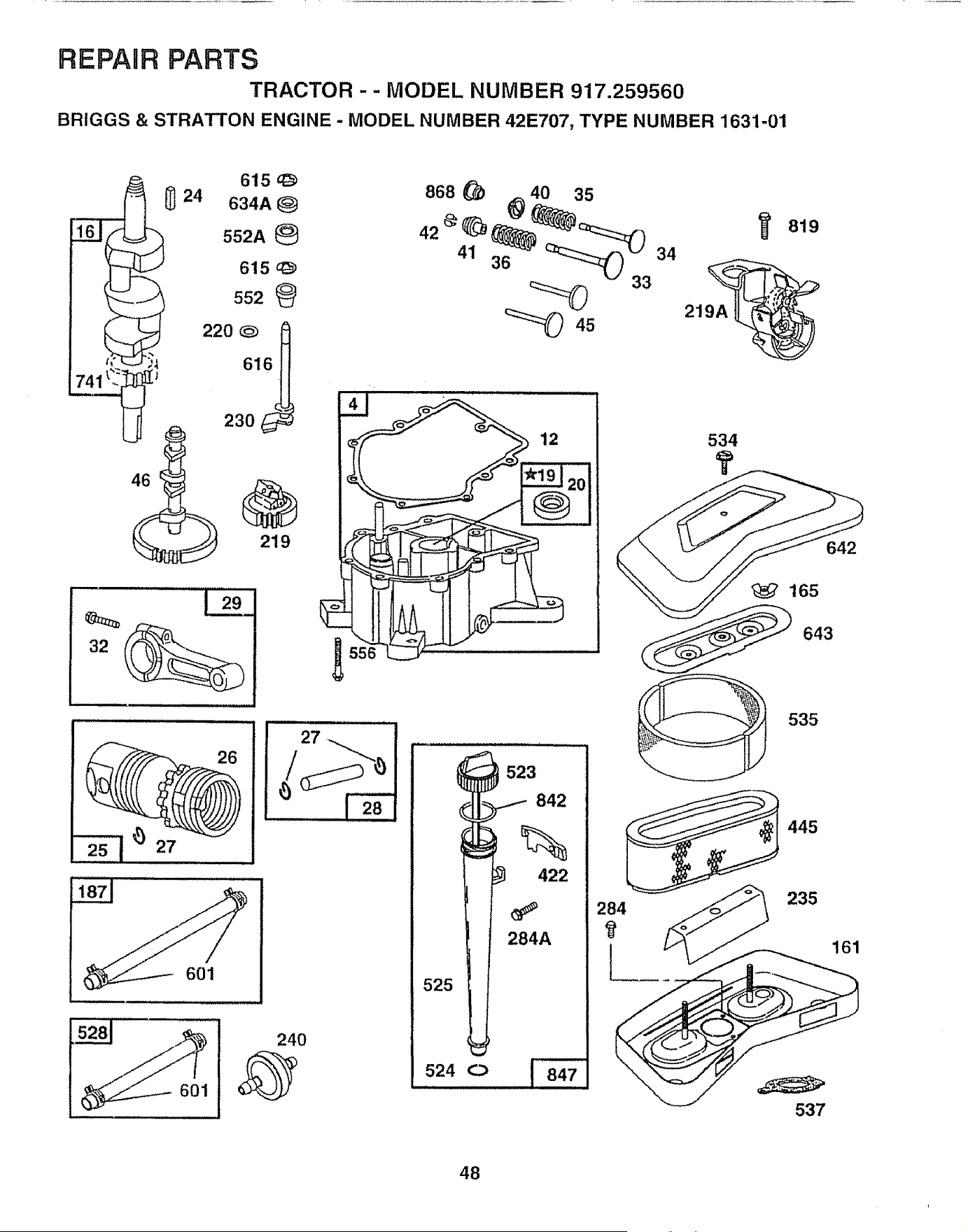

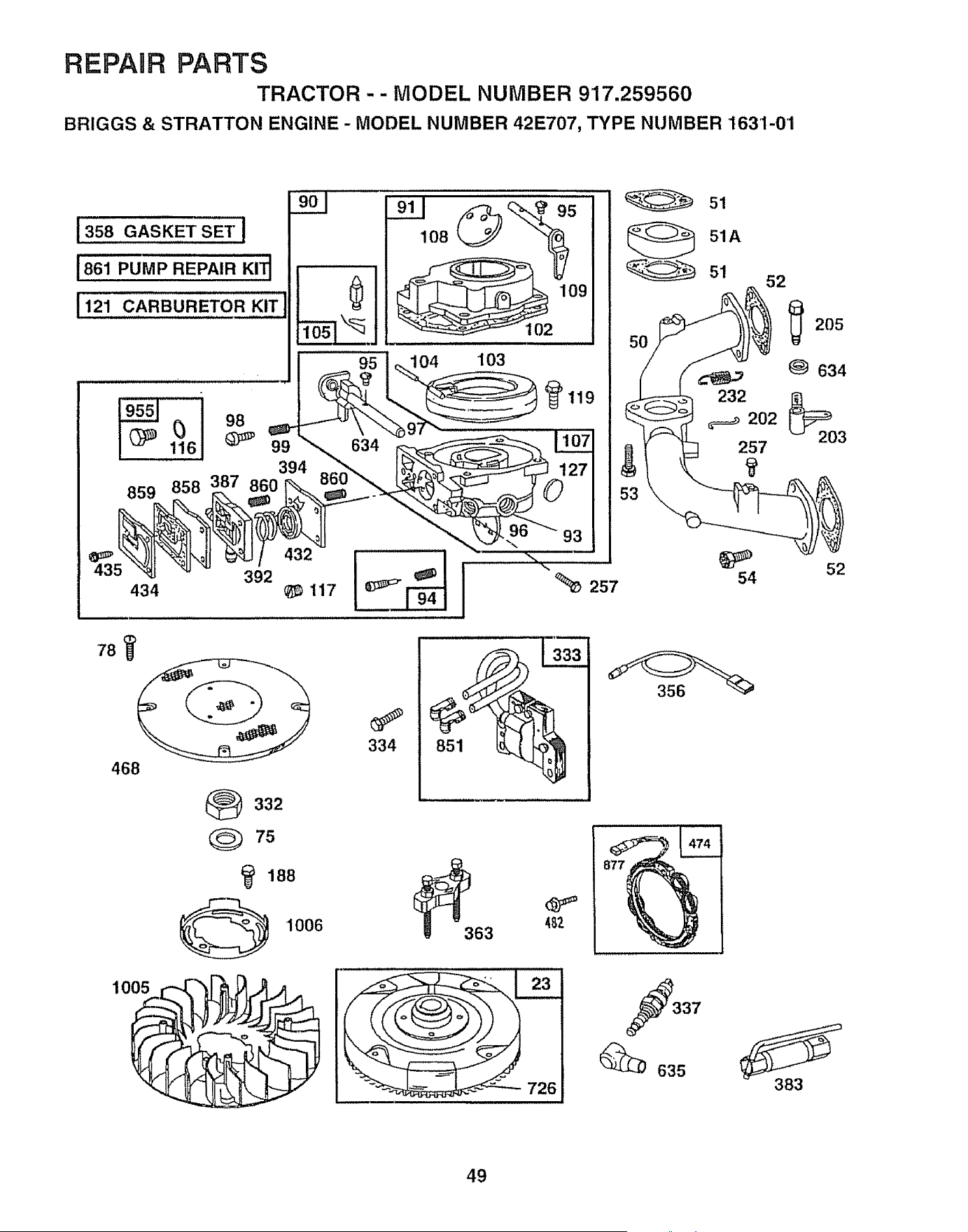

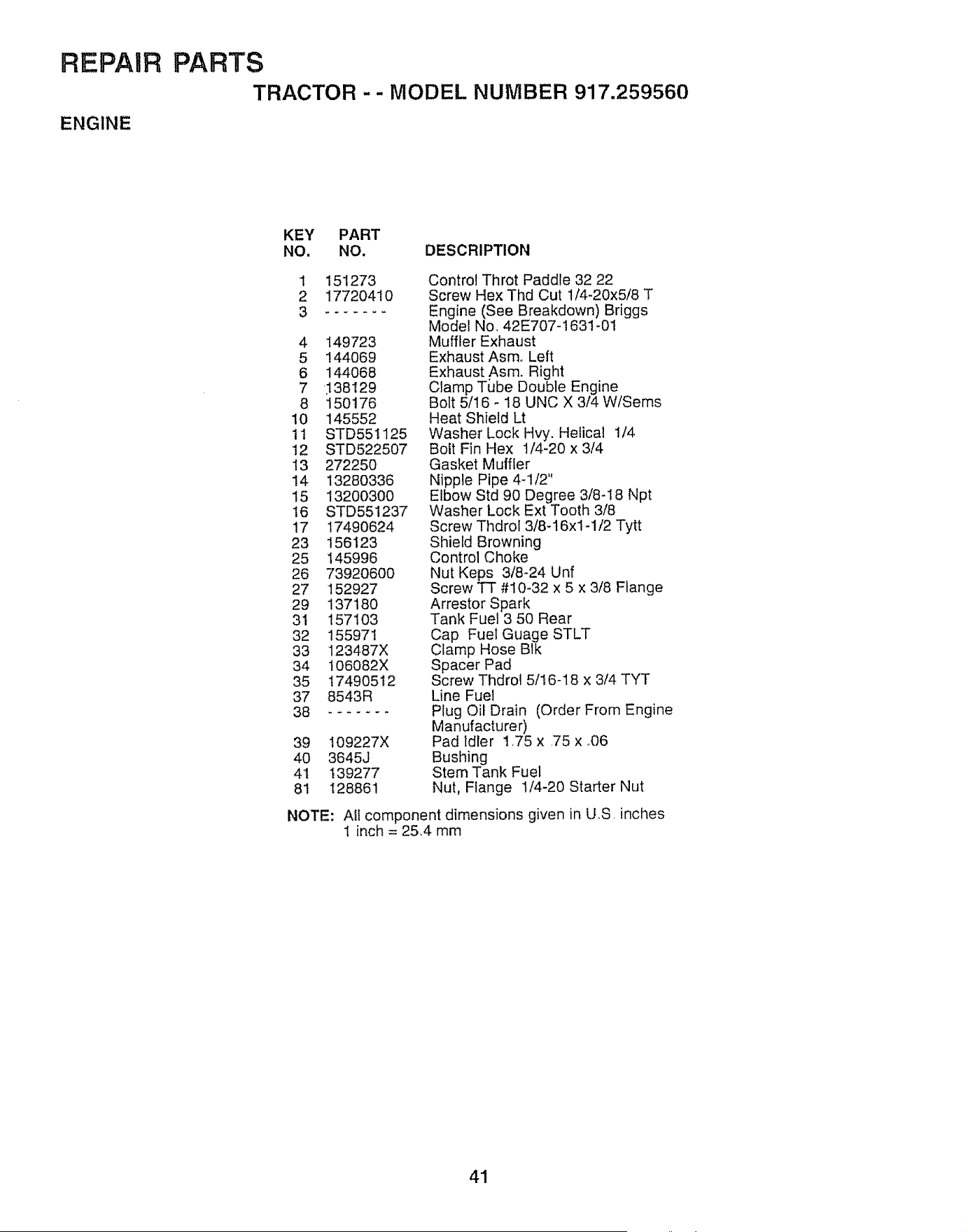

REPAIR PARTS - ENGINE .................................... 48-53

PARTS ORDERING/SERVICE .................. BACK PAGE

iNDEX

Accessories .................................................5

Adjustments:

Brake .......................................................22

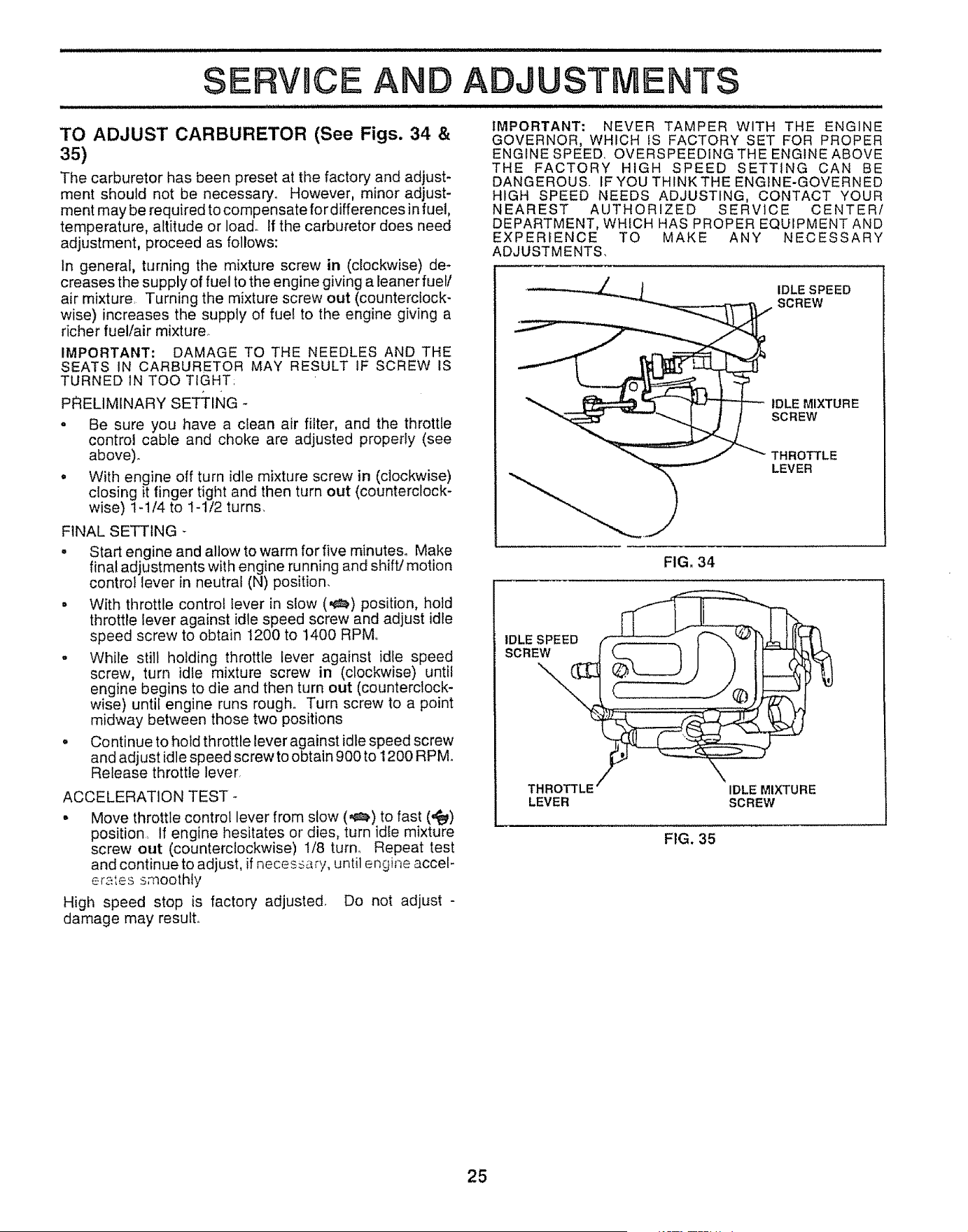

Carburetor- .............................................25

Mower:

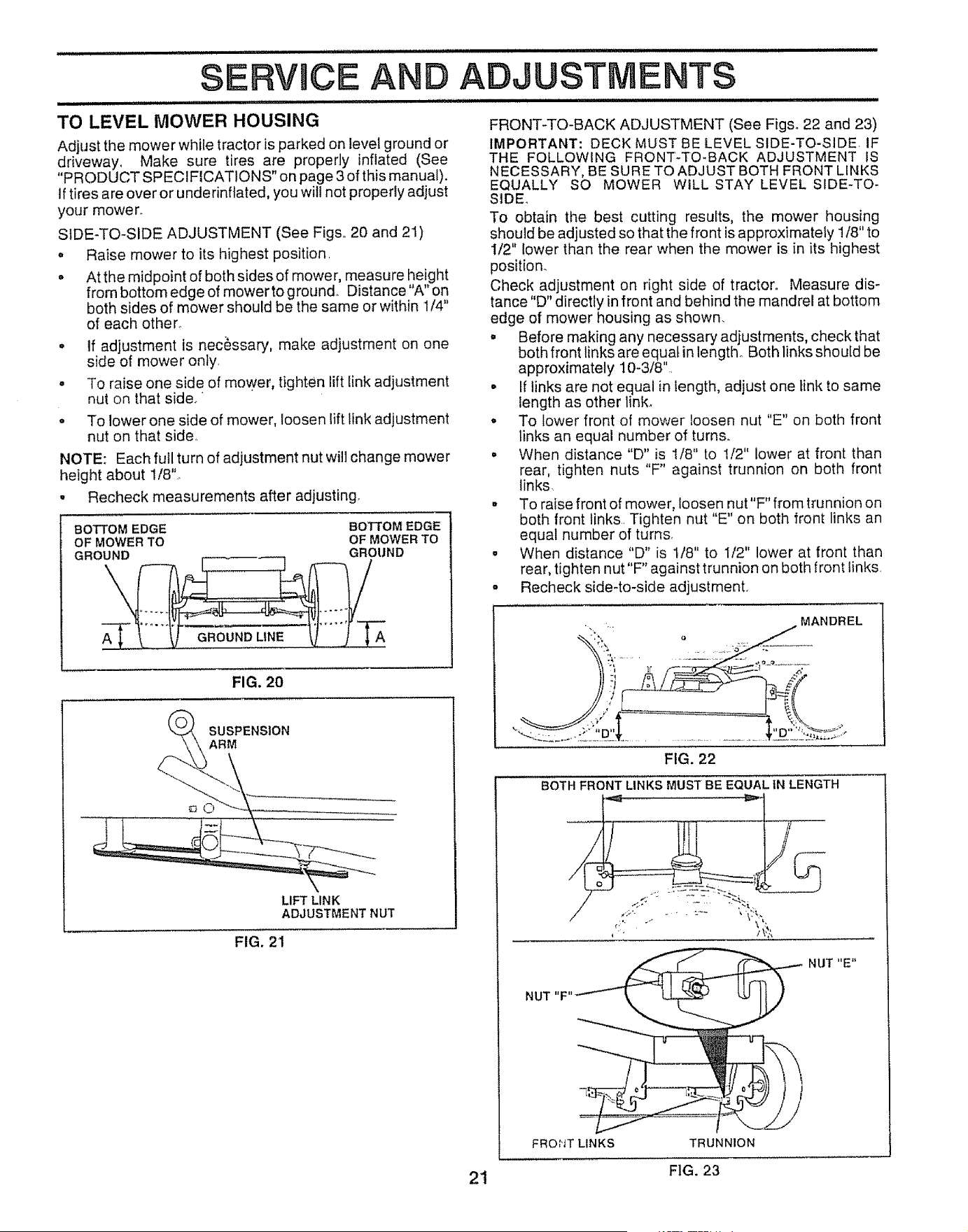

Front-To-Back ........................1o.21

Side*To-Side .....................................21

Throttle Control Cable ....................24

Air Filter, Engine .................................... 18

Air Screen, Engine .............................. 18

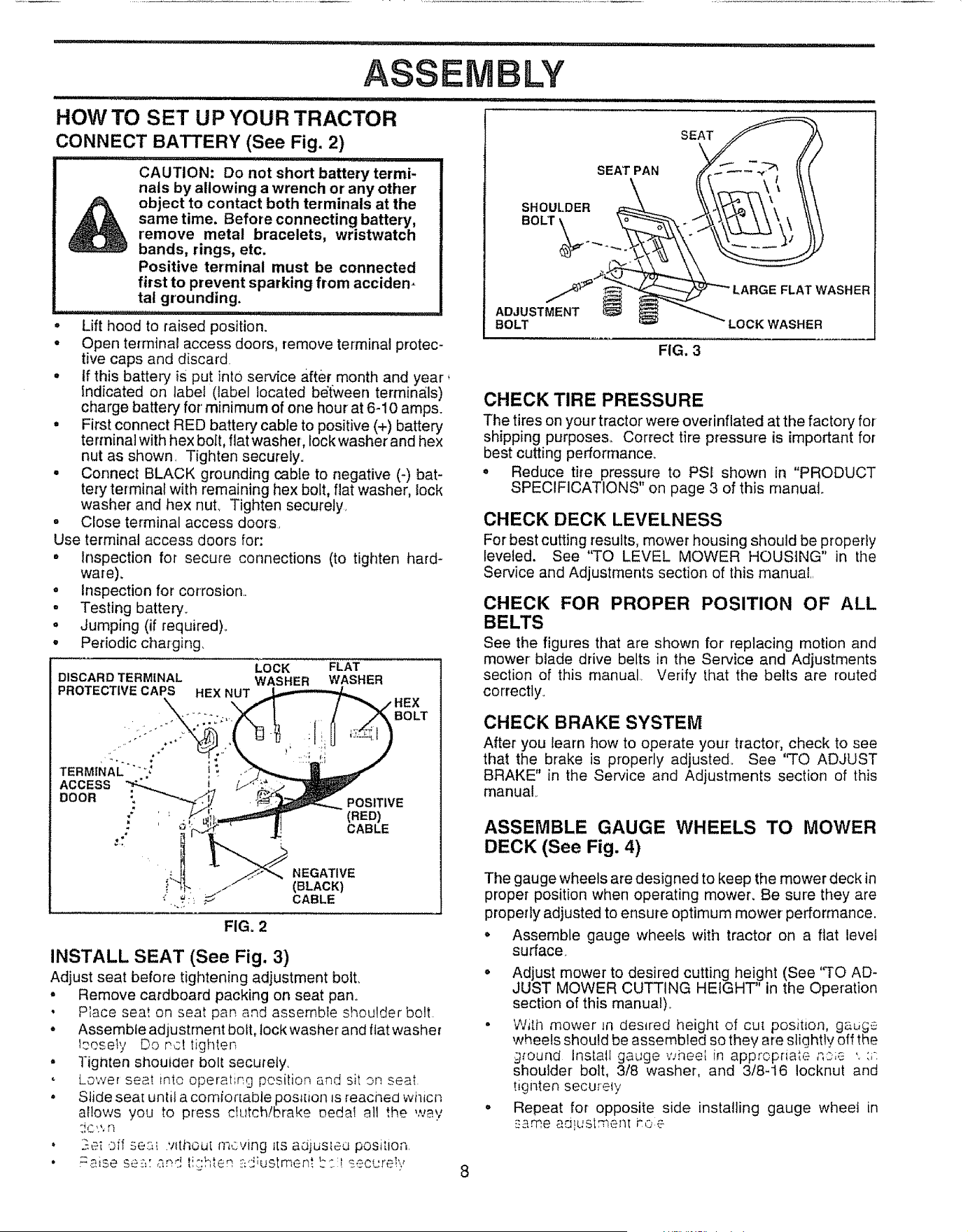

Assembly ............................................. 7-9

Battery:

Charging ................................................7-8

Cieaning ...................................... 17

Connecting .................................. 7-8

Starting with Weak Battery ...........23

Storage ........................................ 26

Terminals ............................................17

Belts:

Motion Drive

Removal/Replacement .............22

Mower Blade Drive

Removal/Replacement ............. 22

Blade:

Sharpening ..........................................t6

Replacement ....................................16

Brake Adjustment ................................. 22

Carburetor Adjustment ........................ 25

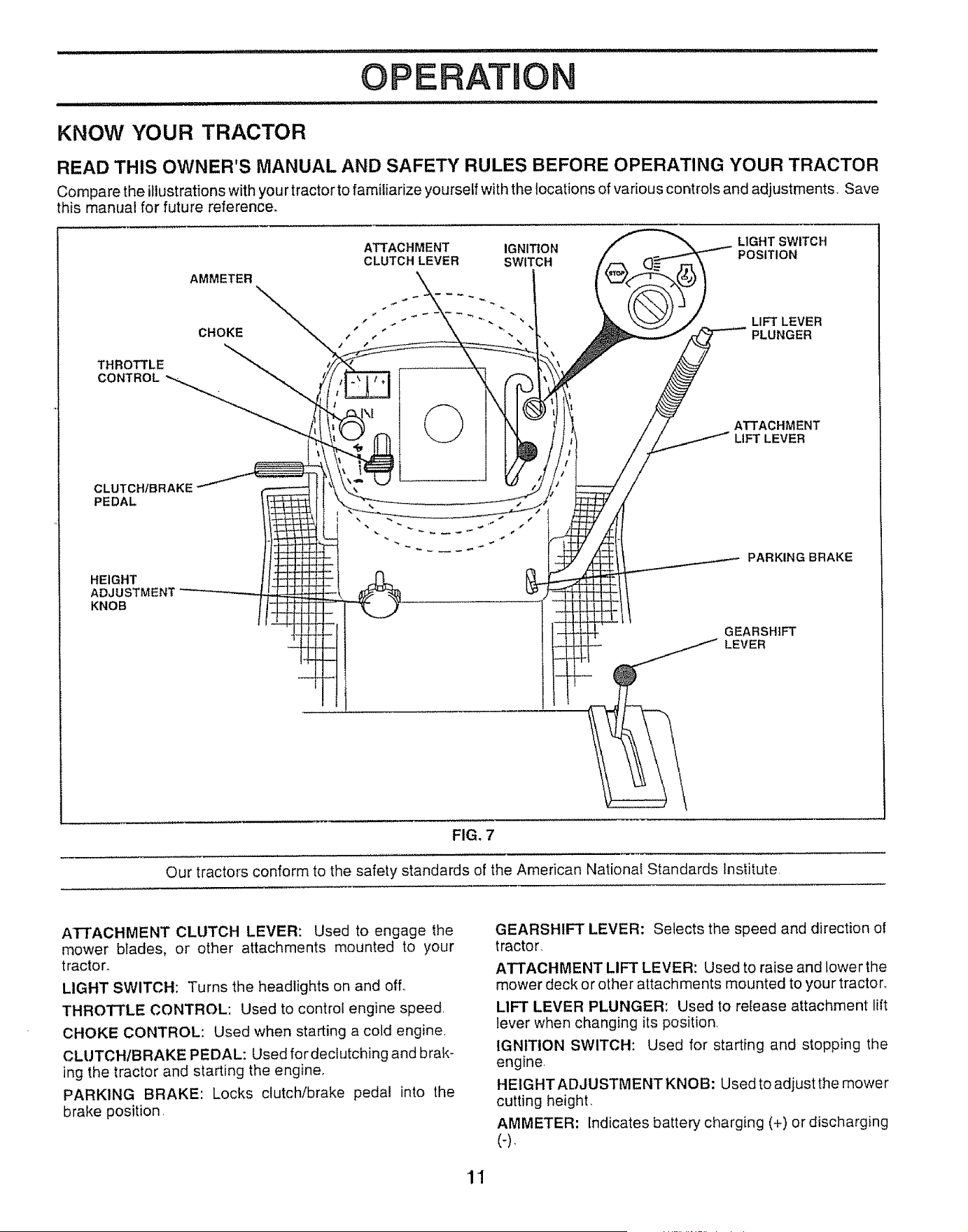

Controls, Tractor .................................... 1t

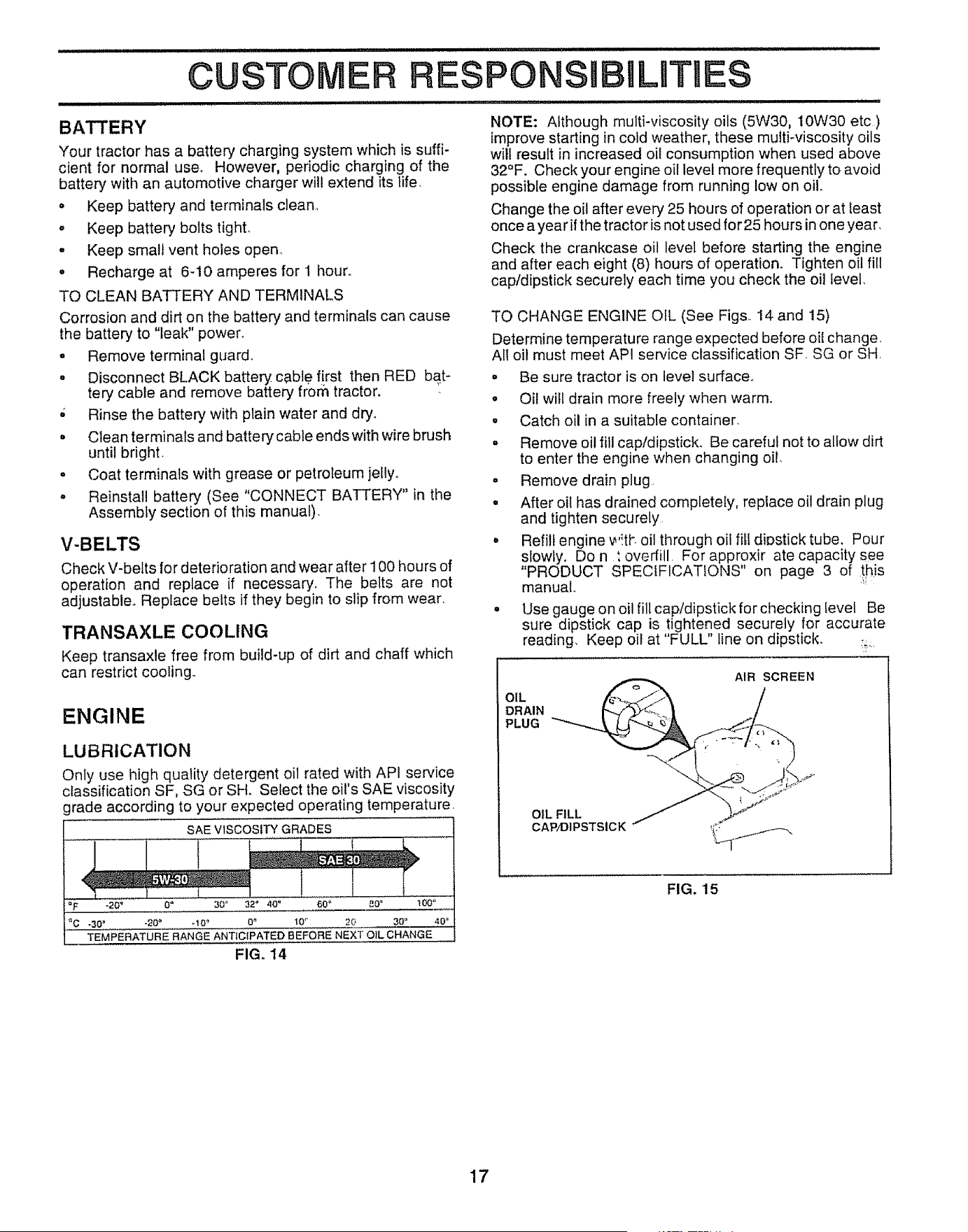

Customer Responsibilities ...............15-19

Engine:

Air Filter ................................... 18

Air Screen, Engine .................... 18

Battery ............................................17

Cooling Fins, Engine ................. 18

Engine Oil ......................................17

Fuel Filter _.....................................19

Spark Plugs ...................................19

Tractor:

Blades ..................................... 16

Lubrication Chart .........................15

Maintenance Schedule ..............15

Tire Care .......................... 8,t6,23

Cutting Height, Mower ....................... 12

Electrical:

Interlocks and Relays ....................24

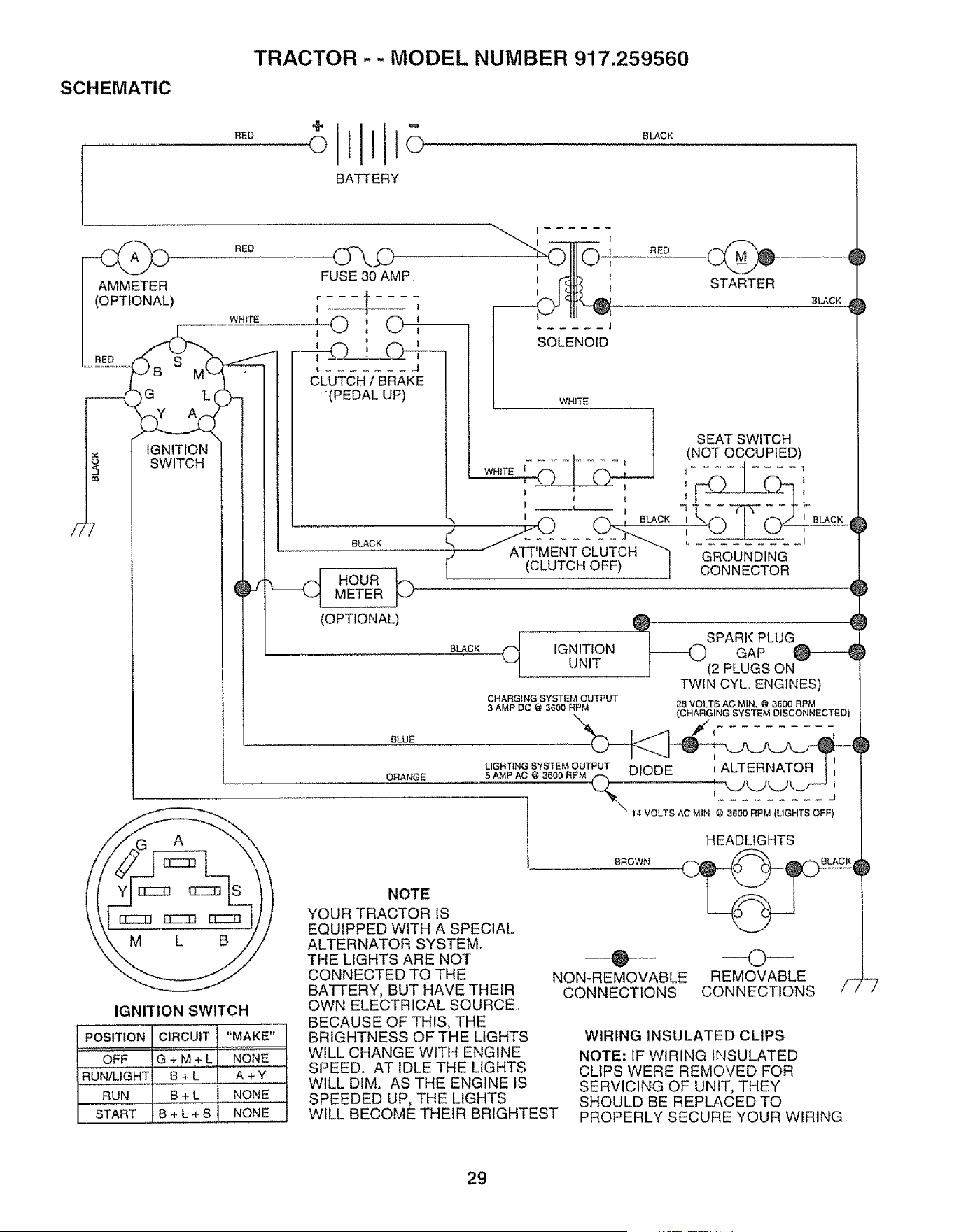

Schematic ...........................................29

Widng Diagram ...............................30

Engine:

Air Filter...........;.................................... 18

Air Screen .............................................18

Cooling Fins, Engine .........................18

Oil Change ........................................17

Oil Level ..................................... 13,17

Oil Type ..............................................17

Preparation ......................................13

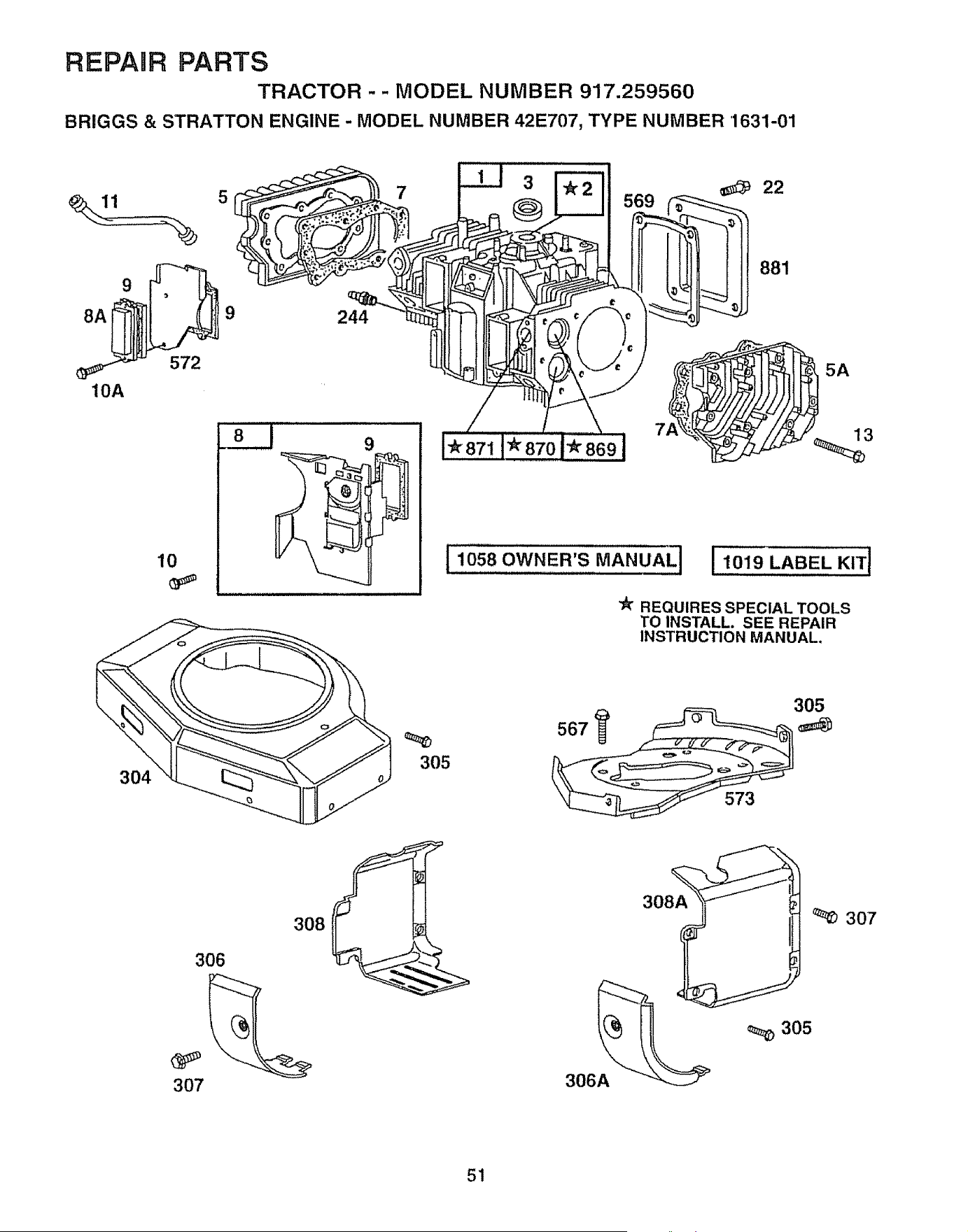

Repair Parts .................................48-53

Starting ...............................................14

Storage ................................................26

Filters:

Air. ........................................................18

Fuel .........................................................19

Fuel:

Type .......................................................13

Storage ...............................................26

Fuse

.......................................................

Gauge Wheels ....................................... 8

Hood Removal/Installation ....................24

Leveling Mower Deck ..............................21

Lubrication Chart ................................... 15

Maintenance Schedule .............................15

Mower:

Adjustment, Front4o-Back ........... 21

Adjustment, Side-to*Side ............ 21

Blade Sharpening ............................16

Blade Replacement ..........................16

Cutting Height ................................ 12

Installation ............................................20

Operation ...................................... 13

Removal ...........................................20

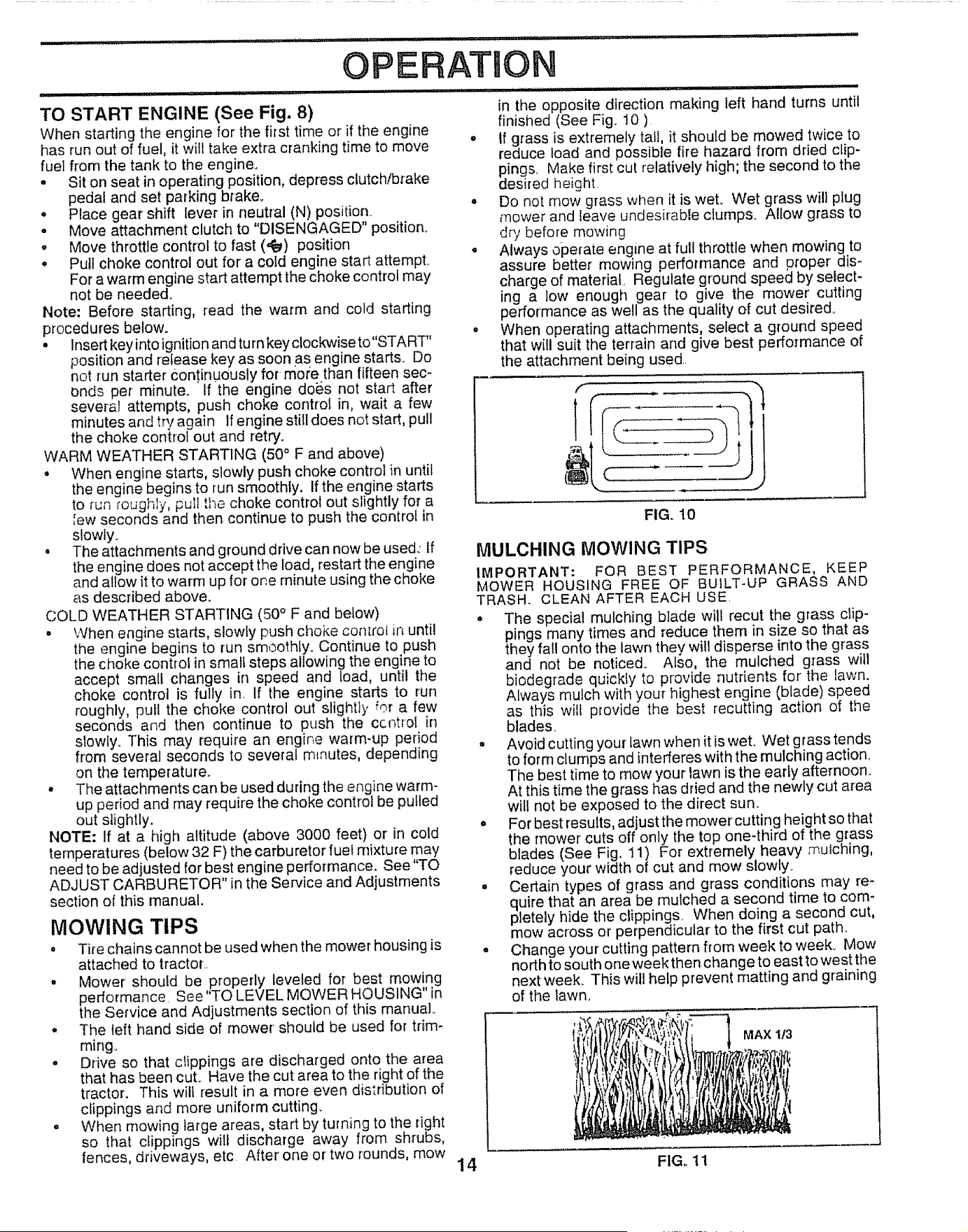

Mowing Tips .................................................14

Mufftet. ........................................................t 9

Spark Arrester ...............................3,40

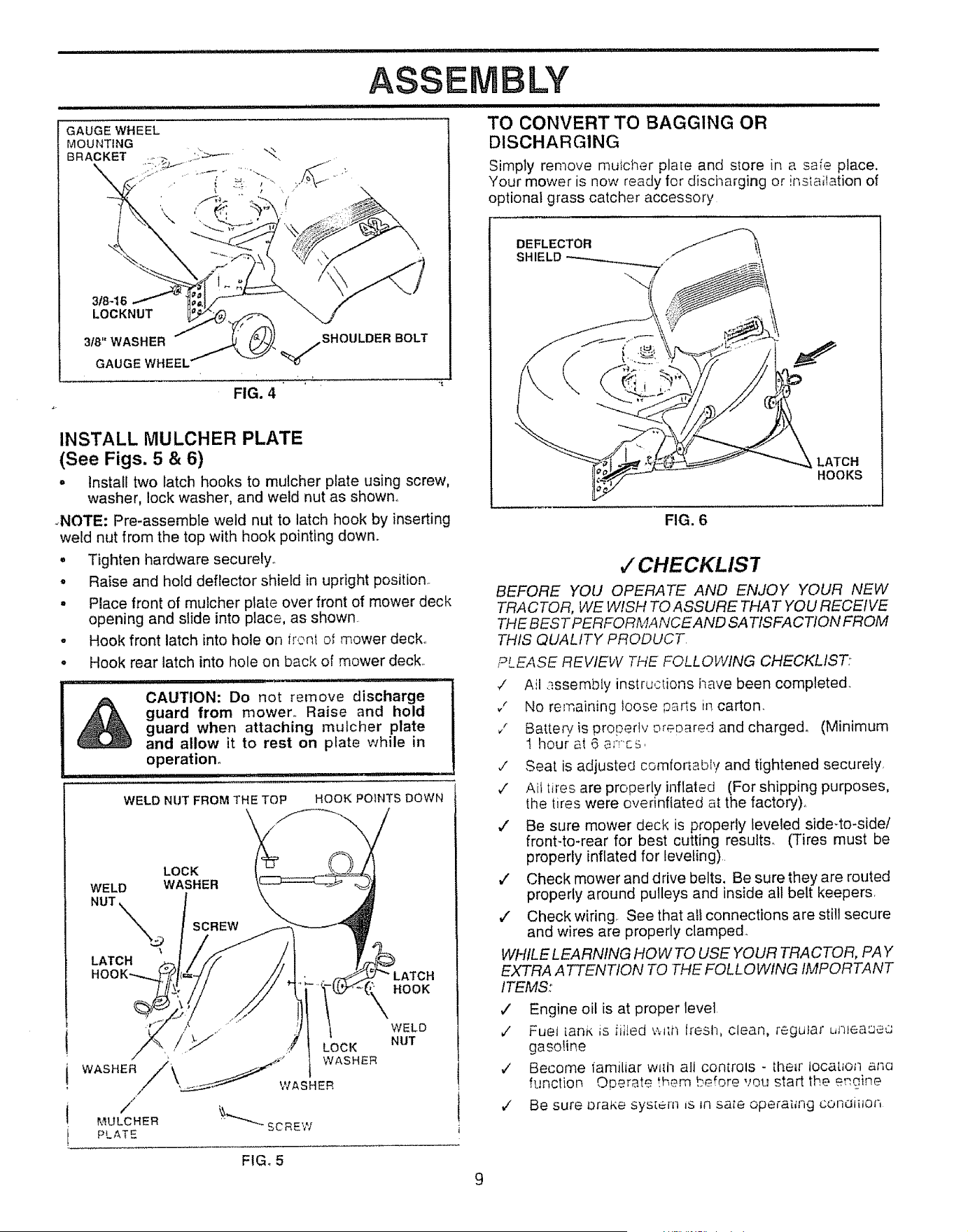

Mulcher Plate .............................................9

Oil:

Cold Weather Conditions ........ 13,17

Engine .......................................................17

Storage ....................................................26

Operation ...................................................11-14

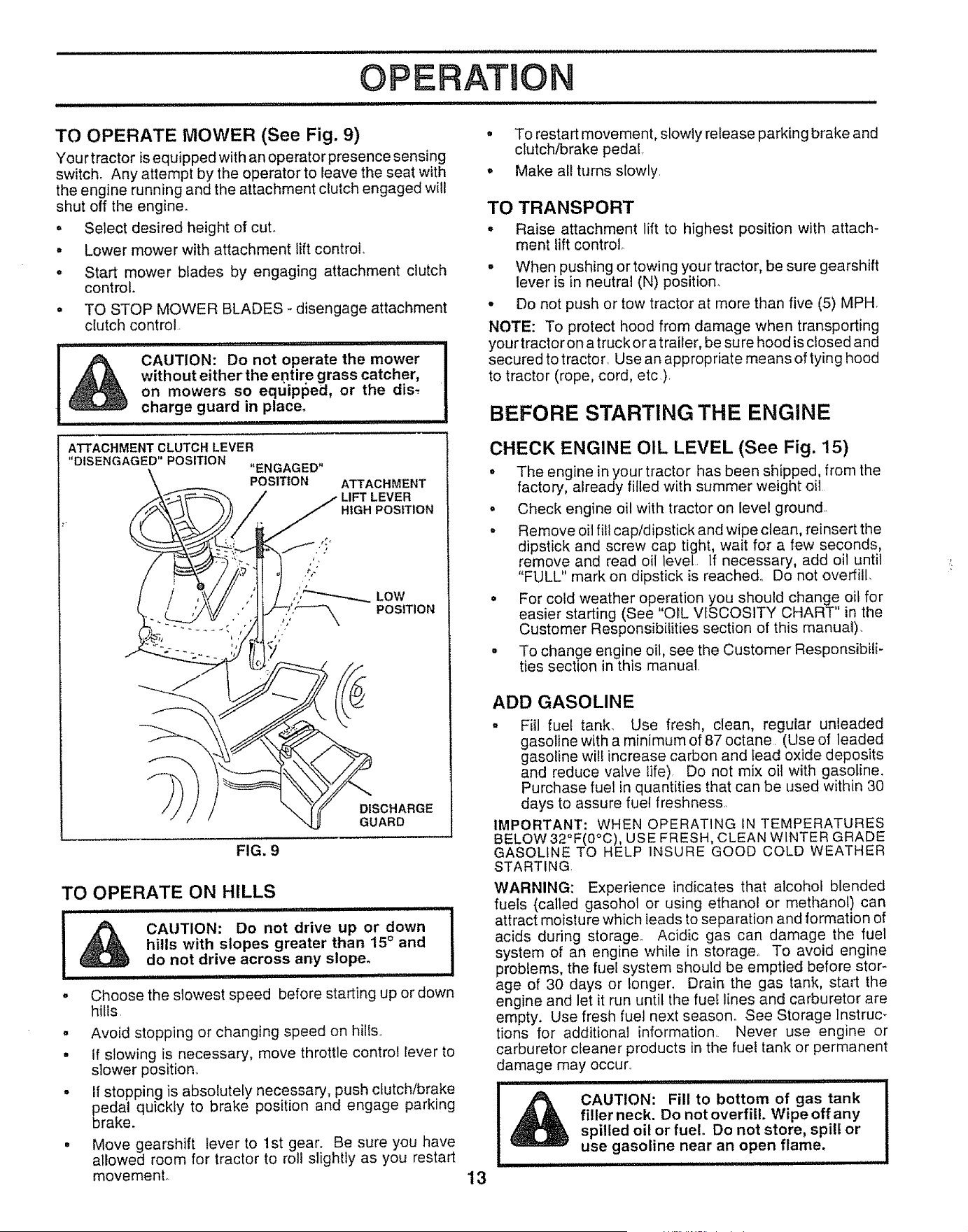

Operating Mower .................................. 13

Options:

Accessories .................................... 5

Spark Arrester ............................ 3,40

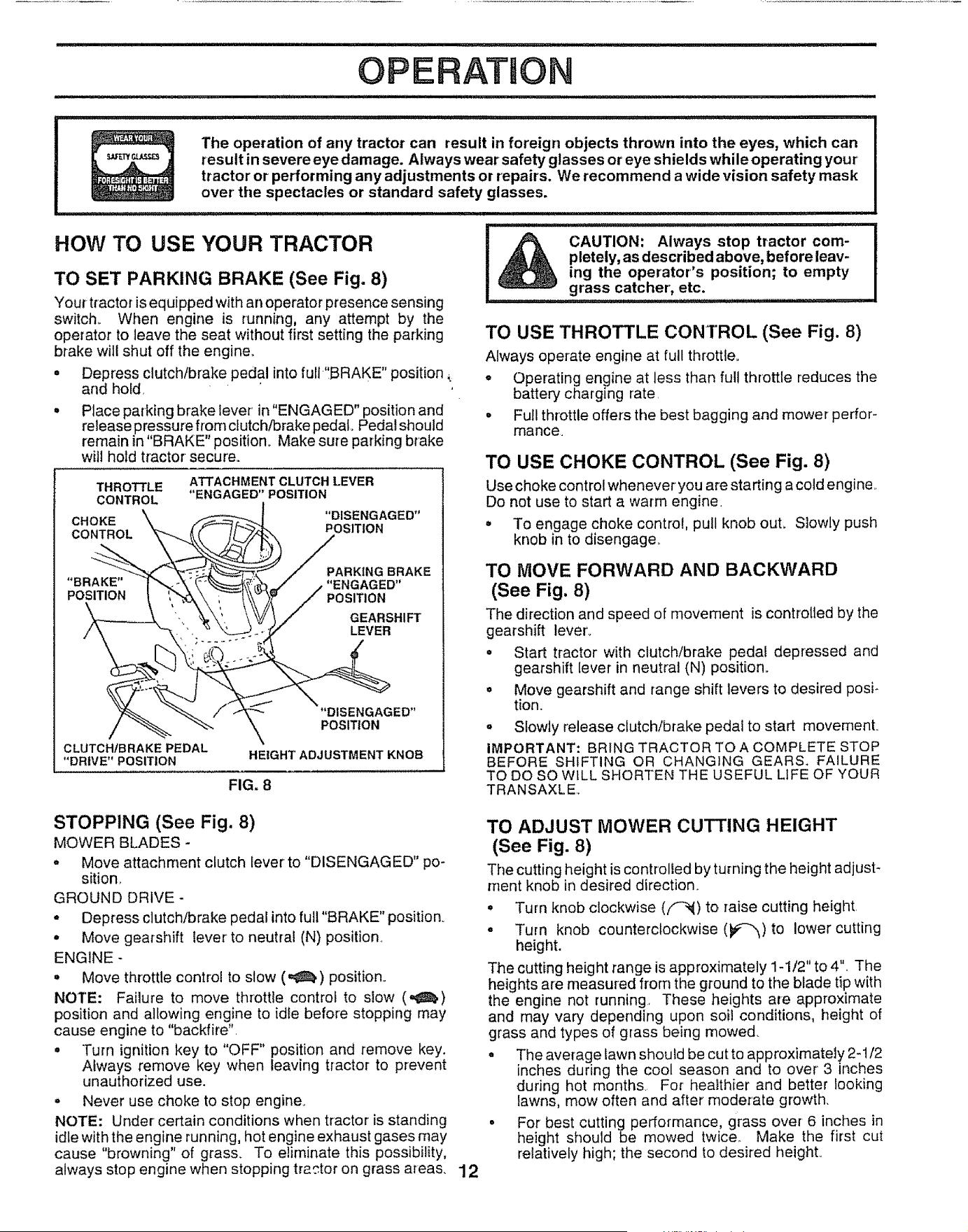

Parking Brake ..............................................11-12

Parts Bag ...........................................................6

Pads, ReplacemenlJRepair ................30-47

Product Specifications ......................................3

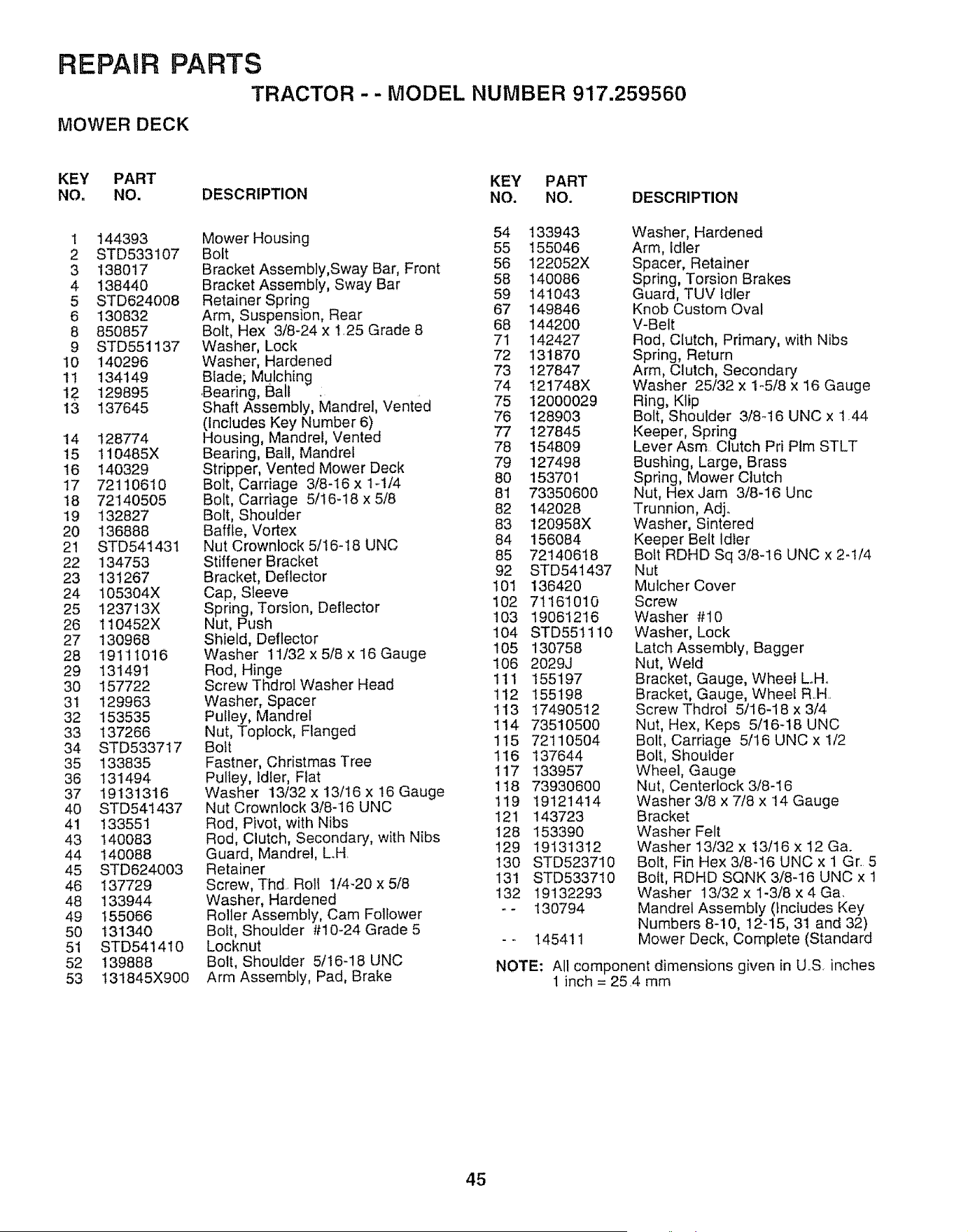

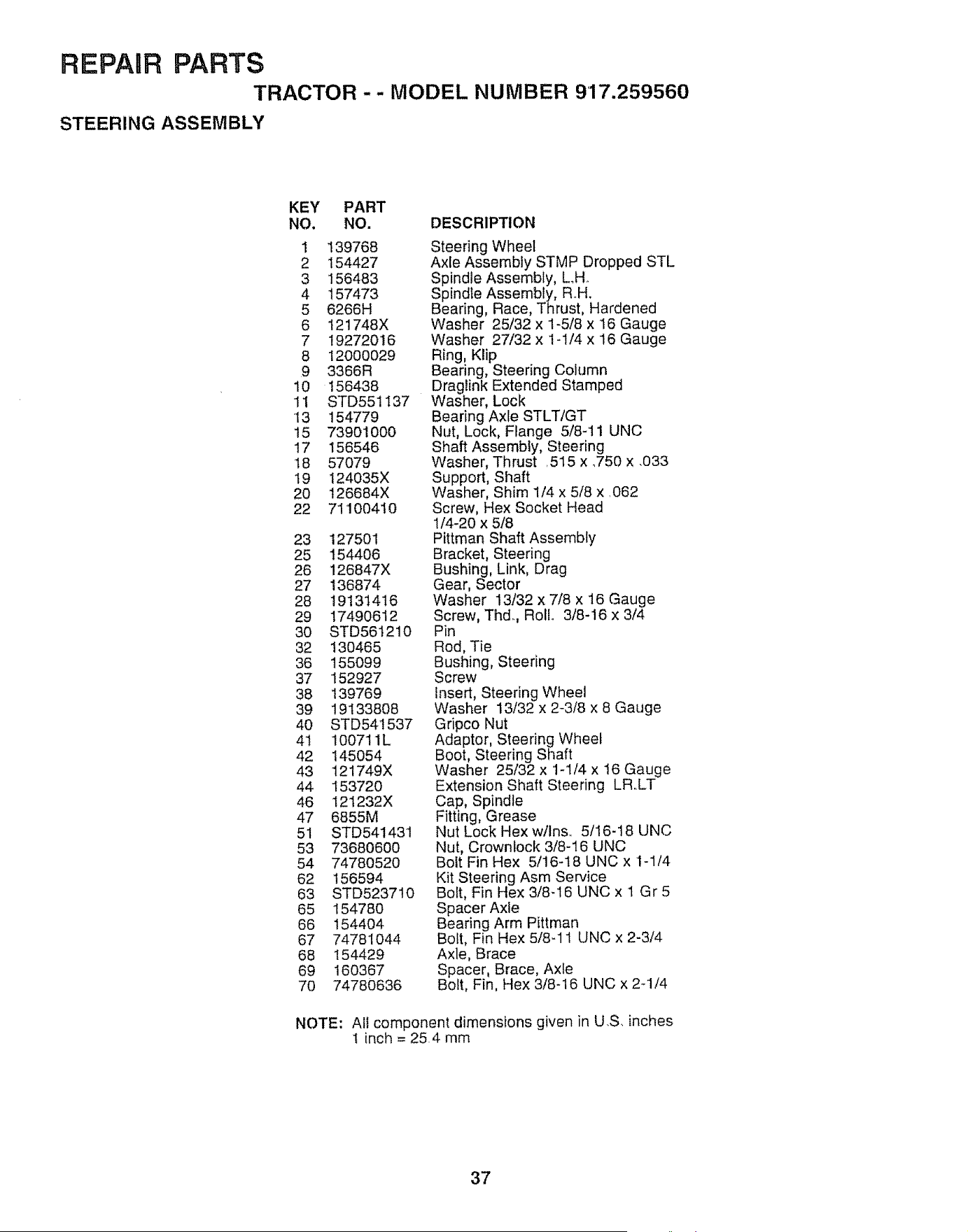

Repair Parts ..........................................30-47

Safety Rules ........................................................2

Seat ...............................................................8

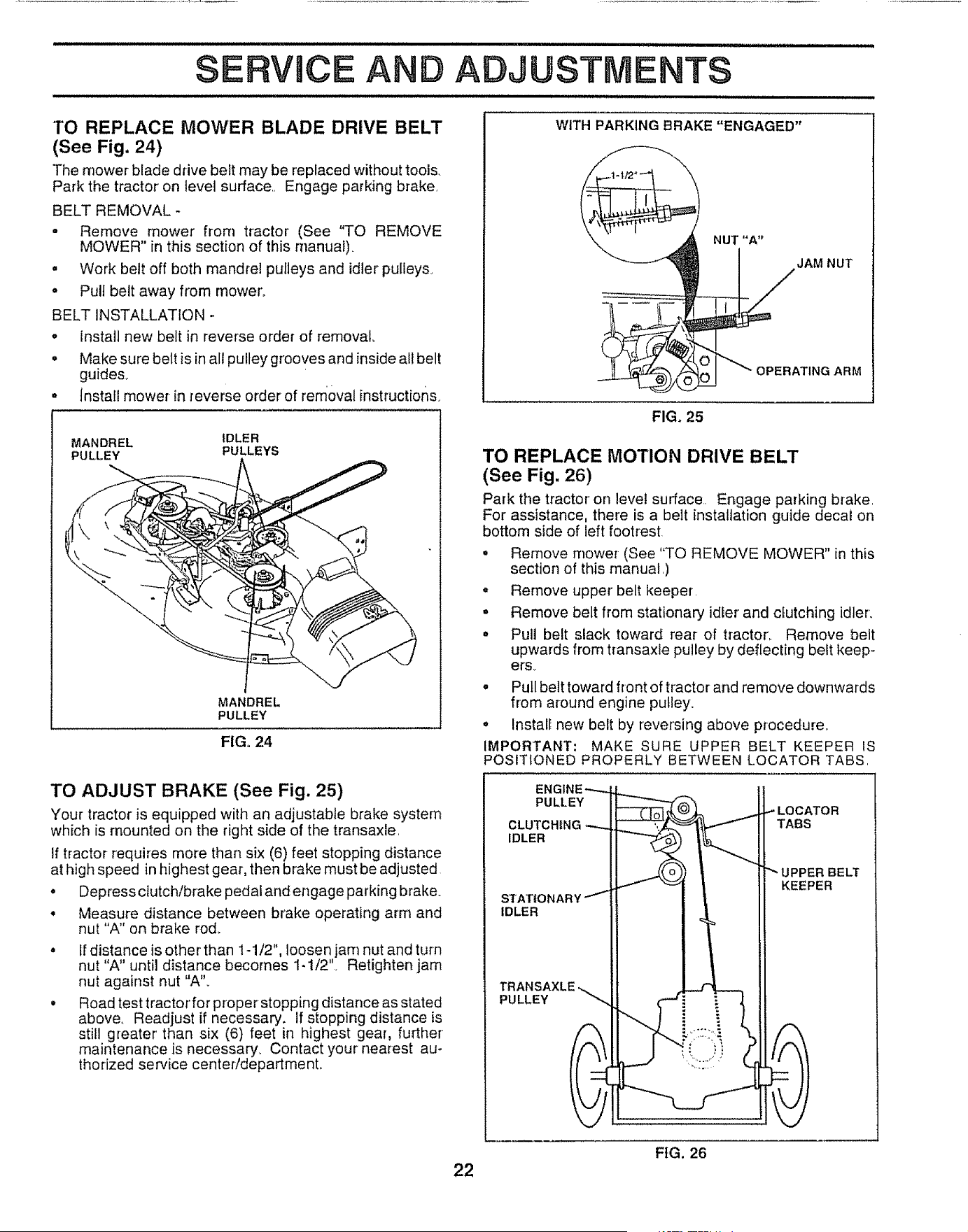

Service and Adjustments ................ 20-25

Brake .......................................................22

Carburetor'. ......................................................25

Fuse ............................................................24

Hood Removal/Installation ............24

Mofion Drive Belt

Removal/Replacement ........... 22

Mower Blade Drive Bel!

Removal/Replacement ...................22

Mower Adjustment:

Front*to-Back ........................... 21

Side-to-Side ........................................21

Mower Installation .................................20

Mower' Removal ............................. 20

Tire Care ..................................8,16,23

Slope Guide Sheet ..................................55

Spark Plugs ..............................................19

Specifications .........................................................3

Starling the Engine ........................ 13-14

Steering Wheel ......................................7,23

Stopping the Tractor ....................................12

Storage ......................................................26

Throttle Control Cable Adjustment ..... 24

Tires .....................................................8,16,23

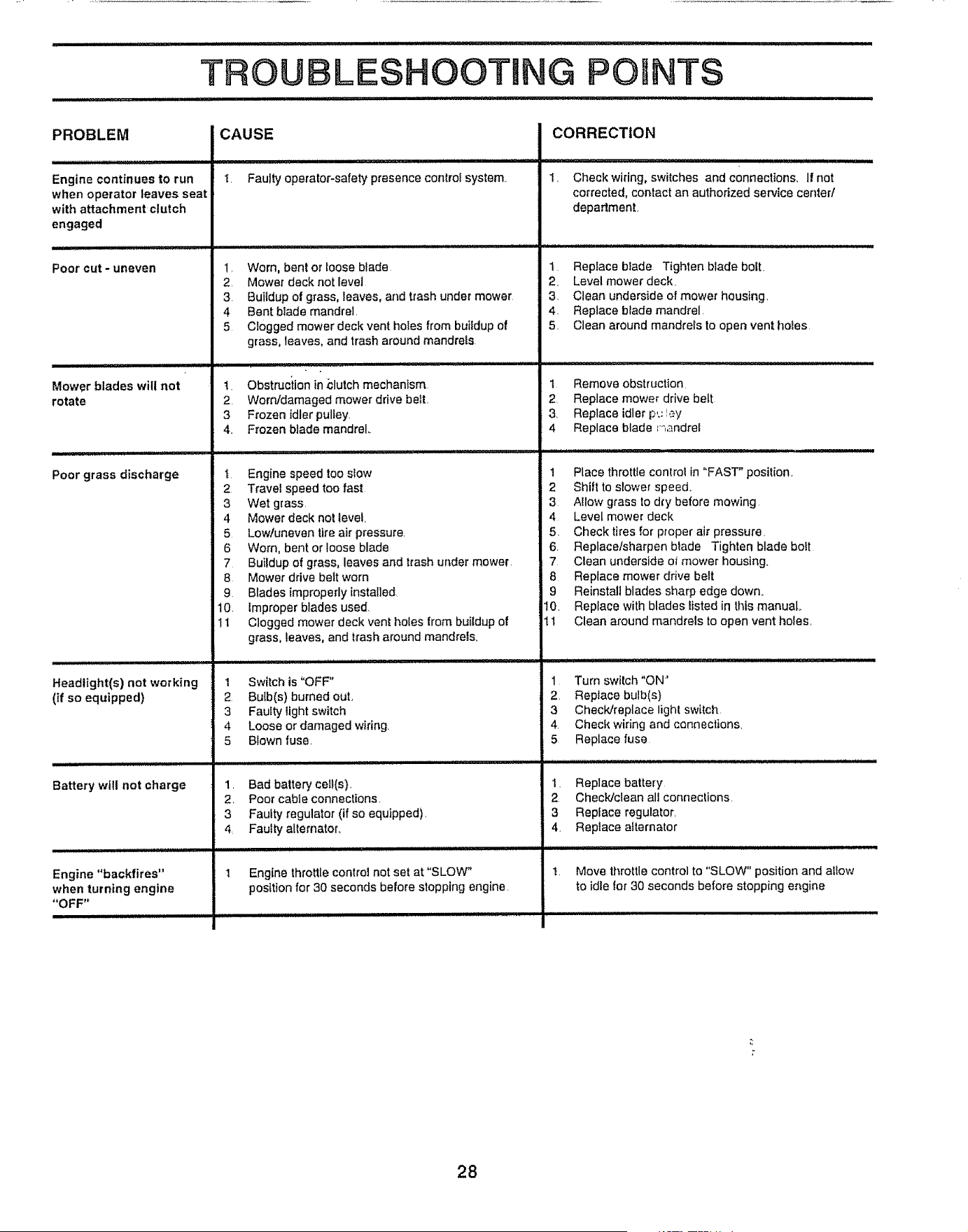

Trouble Shooting Chart ............................27-28

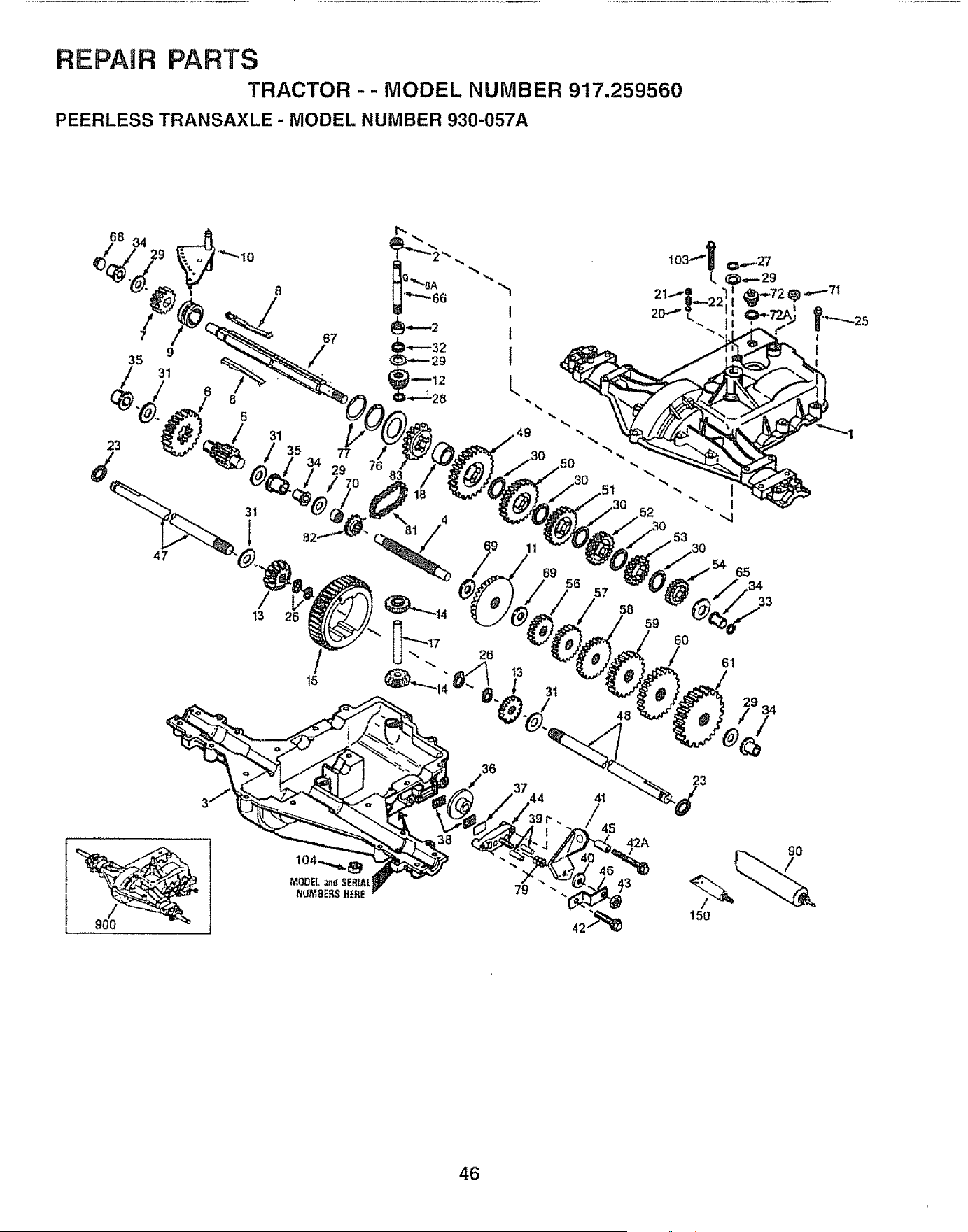

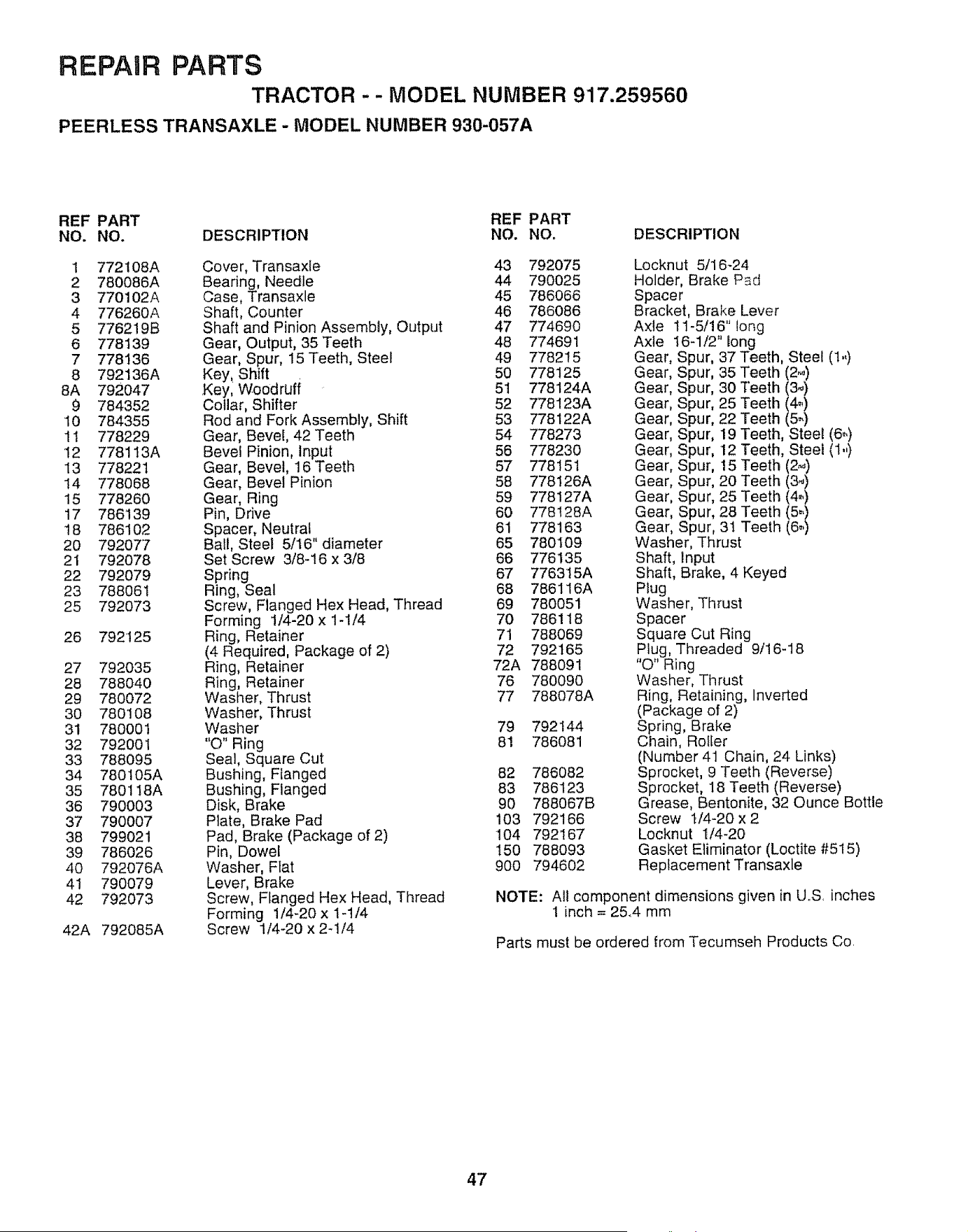

Transaxle Repair Parts .........................46-47

Warranty ..................................................... 3

Wiring Diagram .........................................30

Wiring Schematic .................................. 29

i , ,i.................... , i ii,llll,l,,n,i i,l_,lll i , nlll,lll,,,,,ll,l,nlll,,,i,,n,,lll

ACCESSOR

AND ATTACHMENTS

........illl,ll,lll, iir Li ll,i I,II,,H

These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased.,

Most Sears stores can order these items for you when you provide the model number of your tractor,

ENGINE

SPARK PLUG

GAS CAN

ENGINE OIL FUEL STABILIZER

AIR FILTER

MAINTENANCE

BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor. Many of these are fisted below with brier explanations of how they can help

you. Th s list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer b_ available or fit your model, Contact your nearest Sears store for the

accessories and attachments that' are a_vailable for your tractor.

• Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching

AERATOR promotes deep root growth for a healthy lawn, Ta-

pered 2,5-inch steet spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in.

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

_healthier, neater looking lawn, Two Permanex containers hold

30-gallon plastic bags..

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes avaitable, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and doily,.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots.. 36-inch swath. 24

hardened steel coring tips_ t50 tb,.capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster.

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain.

GANG HITCH lets you tow 2 or3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments)_

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain, For mower decks not so

equipped.

MULCH RAKE/DETHATCHER loosens soil and flips thatch and

matted leaves to lawn surface for easy pickup. Twenty spring tine

teeth. Useful to prepare bare areas forseeding, Available for front

or rear mounting, HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into farge hopper.. Mounts behind tractor.

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades.. For models not equipped as 3-in-1 Convertible

mowers. See "MOWER" in the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck, Use with 2 x 8 or 2 x t0 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater4ightdrum holdsupto3901bs, ofweight. Rounded

edges prevent harm to turf Adjustable scraper automatically

cleans drum,

SNOW BLADE for snow removal only. 14-inch high, 48-inch wide

blade clears 42-inch path when angled left or right. Raises, lowers

with side Iever.. Adjustable skids; replaceable, reversible scraper

bar. (Use with tire chains and wheel weights andtor rear drawbar

weighL)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow. Mounts easily with simple pin

arrangement. Discharge chute adjusts from tractor seat. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source includes booms for

automatic spraying and hand held wand for spot spraying.. Wand

has adjustable spray pattern For applying herbicides, insectF

cides, fungicides and liquid fertilizers,

SPREADER/SEEDERS make seeding, fertilizing, and weed kill-

ing easy, Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass clippings and leaves

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own builtqn

lift and depth control system and does NOT require a sleeve hitch_

Fits any lawn, yard orgarden tractor Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hiIfing ..without tool&.

TIRE CHAINS are heavy duty', closety spaced extra-large cross

links give smooth ride, outstanding traction..

TRACTOR CAB has heavy duty vinyl fabric over tubuEar steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry. Remove vinyt sides and windshields for use as sun

protector in summer_ Optional accessories include: tinted/

tempered solid safety glass windshie[d with hand operated wiper;

12-volt amber caution Light for mounting on cab top.

VACS for powerful collection of heavy grass clippings and leaves

Optional wand attachment to pick up debris in hard-to-reach

places. VAC/CHIPPER includes a chipper-shredder.

WEIGHT BRACKET for drawbar for snow removal applications.

Uses (t) 55 lb, weight.

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials,

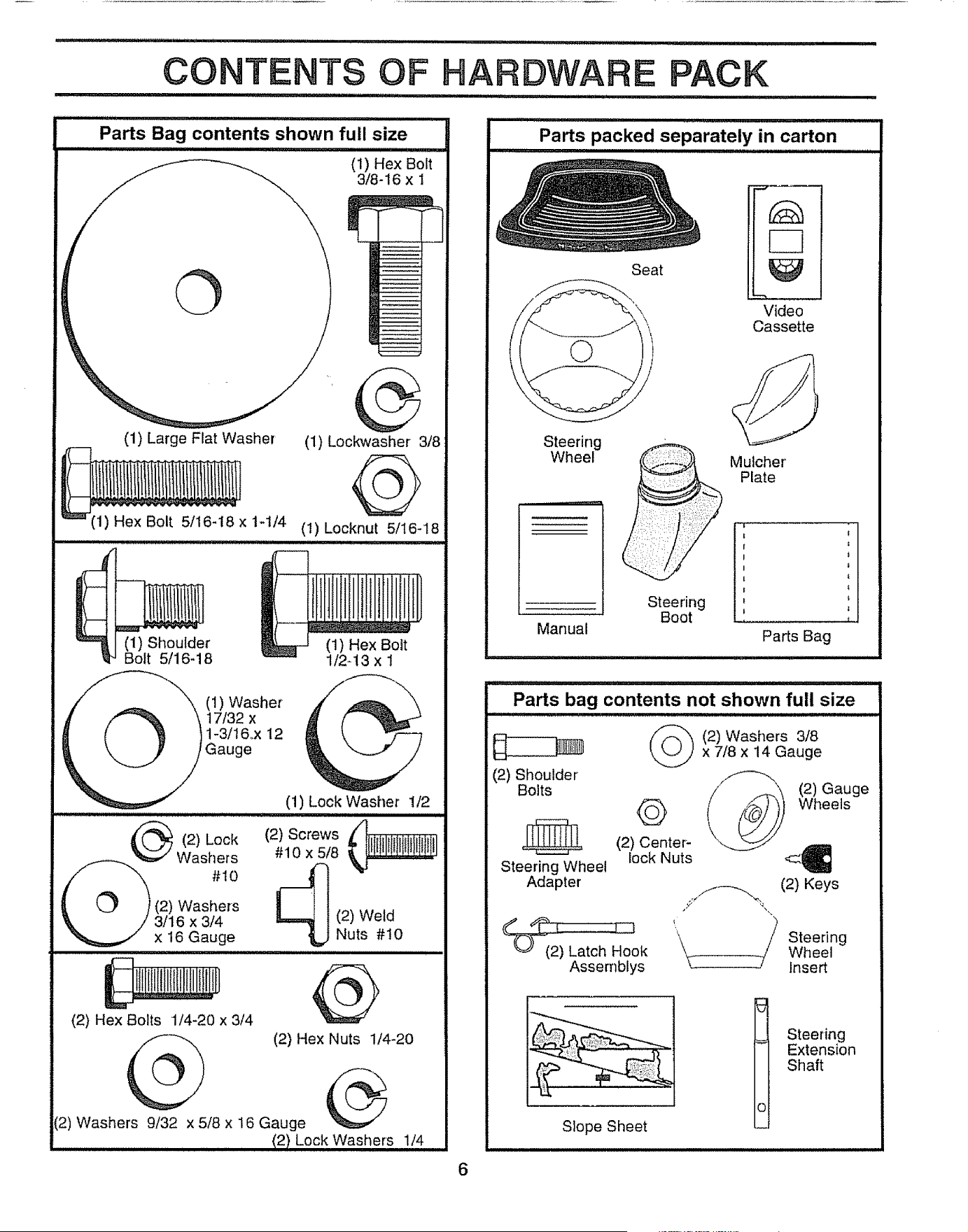

CONTENTS OF HA

DWARE PACK

Parts Bag contents shown full size

(1) Hex Bolt

3/8-16 x 1

(1) Large Flat Washer

11)Hex Bolt 5/16-18 x lq/4

(1) Lockwasher 3/8

(1) Locknut 5/16-18

llll ii ii ,i i i

(1) Shoulder (1) Hex Bolt

Boft 5/16-18 1/2-13 x 1

(1) Washer

17/32 x

1-3/!6°x 12

Gauge (1) Lock Washer 1/2

_@(2) Lock

Was'_r 0

(2) Washers

3/16 x 3/4

x 16 Gauge

(2) Screws

#10 x 5/8

(2) Weld

Nuts #10

(2) Hex Bolts 1/4-20 x 3/4

(¢

(2) Hex Nuts 1/4-20

(2) Washers 9/32 x 5/8 x 16 Gauge

(2) Lock Washers 1/4

Parts packed separately in carton

Seat

Video

Cassette

Steering

Wheel

Manual

Mulcher

Plate

Steering

Boot

Parts Bag

Parts bag contents not shown full size

(2) Shoulder

Bolts

Steering Wheel

Adapter

(2) Center-

lock Nuts

(2) Washers 3/8

x 7/8 x 14 Gauge

(2) Gauge

Wheels

,,f--_, (2) Keys

"_' '_ "\ / Steering

Latch Hook Wheel

Assernblys Insert

Slope Sheet

Steering

Extension

Shaft

ASSENIBLY

............................................................................................ i i

Your new tractor has been assembled at the factory' with exception of those parts left unassembled for shipping purposes,

To ensure safe and proper operation of your tractor alt parts and hardware you assemble must be tightened securelyo Use

the correct tools as necessary to insure proper tightness°

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed,

(I) 3/4" Socket w/drive rachet

(2) 7/16" wrenches Phillips Screwdriver

(2) 1/2" wrench Tire pressure gauge

(1) 9/16" wrench Utility knife

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel)

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON '

• Remove all accessible loose parts and parts cartons

from carton (See page 6).

• Cut, from top to bottom, along lines on al! four corners

of carton, and lay panels flat,,

o Check for any additional loose parts or cartons and

remove°

_-BEFORE ROLMNGTRACTOR OFF SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

- Slide extension shaft onto lower steering shaft, Align

mounting holes in extension and lower shafts and

install 5/t6 hex bolt and locknuto Tighten securely_

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

18-22 FT, LBS TORQUE,,

° Place tabs of steering boot over tab slots in dash and

push down to secure,

INSTALL STEERING WHEEL

o Position front wheels of the tractor so they are pointing

straight forward,,

° Slide steering wheel adapter onto steering shaft exten-

sion.

• Position steering wheel so cross bars are horizontal

(left to right) and slide inside boot and onto adapter.,

. Assemble large flat washer, 3/8 lock washer, 3t8 hex

bolt and tighten securely°

° Snap steering wheel insert into center of steering

wheel_

° Remove protective materials from tractor hood and

grill°

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID

STEERING

WHEEL

LARGE FLAT

WASHER

STEERING

BOOT

FIG. 1

TO ROLLTRACTOR OFF SKID (See Operation

section for location and function of controls)

• Press lift lever plunger and raise attachment _ift!ever to

its highest position_

• Release parking brake by depressing ctu_ca!brake

pedal,

• Place gearshift lever in neutral (N) position,

° Roll tractor backwards off skid

• Remove banding holding discharge guard up against

tractor,

ASSE LY

SEAT

SEAT PAN

FLAT WASH ER

HOW TO SET UP YOUR TRACTOR

CONNECT BATTERY (See Fig. 2)

iiiiii i1,,i i, II I

CAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

Lift hood to raised position.

• Open terminal access doors, remove terminal protec-

tive caps and discard

• If this battery iS put into service after month and year,

Indicated on label (label located between terminals)

charge battery for minimum of one hour-at 6-10 amps.

• First connect RED battery cable to positive (+) battery

terminal with hex bolt, flat washer, lock washer and hex

nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) bat-

tery terminal with remaining hex bolt, flat washer, lock

washer and hex nut. Tighten securety_

• Close terminal access doors.

Use terminal access doors for:

= Inspection for secure connections (to tighten hard-

ware),

ADJUSTMENT

BOLT LOCK WASHER

FIG. 3

CHECK TIRE PRESSURE

The tires on your tractor were ovefinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance_

• Reduce tire pressure to PSi shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

• Inspection for corrosion..

= Testing battery.

= Jumping (if required).,

• Periodic charging.

DISCARD TERMINAL

PROTECTIVE CAPS

,,,

TERMINAL "" _t

ACCESS

DOOR ;

LOCK FLAT

WASHER WASHER

HEX NUT

lil NEGATIVE

! , (BLACK)

": _:: CABLE

POSITIVE

(RED)

CABLE

FIGo 2

HEX

BOLT

INSTALL SEAT (See Fig, 3)

Adjust seat before tightening adjustment bolt.

= Remove cardboard packing on seat pan°

• P;ace seat on seat pan and assemble shoulder bolt

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual, Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted,, See "TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 4)

The gauge wheels are designed to keep the mower deck in

proper position when operating mower. Be sure they are

properly adjusted to ensure optimum mower performance,

. Assemble gauge wheels with tractor on a fiat level

surface

o Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual),.

• Assemble adjustment bolt, lock washer and fiat washer

loosely Do net tighten

° Tighten shoulder bolt securely,

° Lower seat into operating position and sit on seat

• Slide seat unlil a comior[able position _sreached which

allows you to press clutchtbrake oedal all the way

i! c,.*,n

• _et off se2,i vltt_out moving l[s adjus_.eu position

• _aise so-,: ar>d t!ghten sd;ustment bcl securely

o With mower Jn desired height of cut position, gauge

wheels should be assembled so they are slightly off the

_mund Instant gauge wheel in appropriate n::_e ', :_:

shoulder bolt, 3/8 washer, and 3/8-16 locknut and

tighten securely

• Repeat for opposite side installing gauge wheel in

_ame aalL._slmen_ioe

i i ii iiii ,11IIH"I,

ASSEM LY

GAUGE WHEEL

MOUNTING

BRACKET

318-16

LOCKNUT

318" WASHER

GAUGE WHEEL"

FIG. 4

SHOULDER BOLT

INSTALL MULCHER PLATE

(See Figs. 5 & 6)

. Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown°

_NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

, Tighten hardware securely_

• Raise and hold deflector shield in upright position_

. Place front of mulcher plate over front of mower deck

opening and slide into place, as shown

• Hook front latch into hole on iront ot mower deck,,

o Hook rear latch into hole on back of mower deck_

J ,_ CAUTION: Do not remove discharge J

I ,_ A guard from mower,, Raise and hold

j ._ guard when attaching mulcher plate

| _ and allow it to rest on plate while in

I ............... operation° ,,

WELD NIL.ITFROM THE TOP HOOK POINTS DOWN

LOCK

WELD WASHER

NUT \\_\ SCREW

LATCH

HOOK

WASHER

MULCHER

PLATE

FIGo 5

WELD

NUT

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove muicher pla[e and store in a safe place.

Your mower is now ready for disci_arging or inslailation of

optional grass catcher accessory

DEFLECTOR _-"_

SHIELD /

LATCH

HOOKS

FIG. 6

v" CHECKLIS7

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRA CTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BES T PERFORMA NCEAND SATISFACTION FROM

THIS QUALITY PRODUCT

_OLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ Ail :_ssembly instructions have been completed.

v" No rem,aining loose parts in carton.

/ Battery is property oreoared and charged° (Minimum

t hou(at 6 a;-rcs.

,/ Seat is adjusted comfortably and tightened securely,

,/ Ait tires are properly irfflated (For shipping purposes,

the tires were overinflated a[ the factory)_

,/ Be sure mower deck is properly leveled side-to-side/

fronbto-rear for best cutting results. (Tires must be

properly inflated for leveling)

¢" Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers,

,/ Check wiring See that al! connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA A TTENTION TO THE FOLL OWING fMPORTANT

ITEMS:

,/ Engine oil is at proper level

,/ Fuel lank is iiited _._.._;t_treslq, clean, regutar un_eaueo

gasoline

V Become familiar w_iq all controls - [heir loca!._on an(]

function Operate them before you start the e_o,ine

v" Be sure orake system Js Jnsate operailng COndiil0_

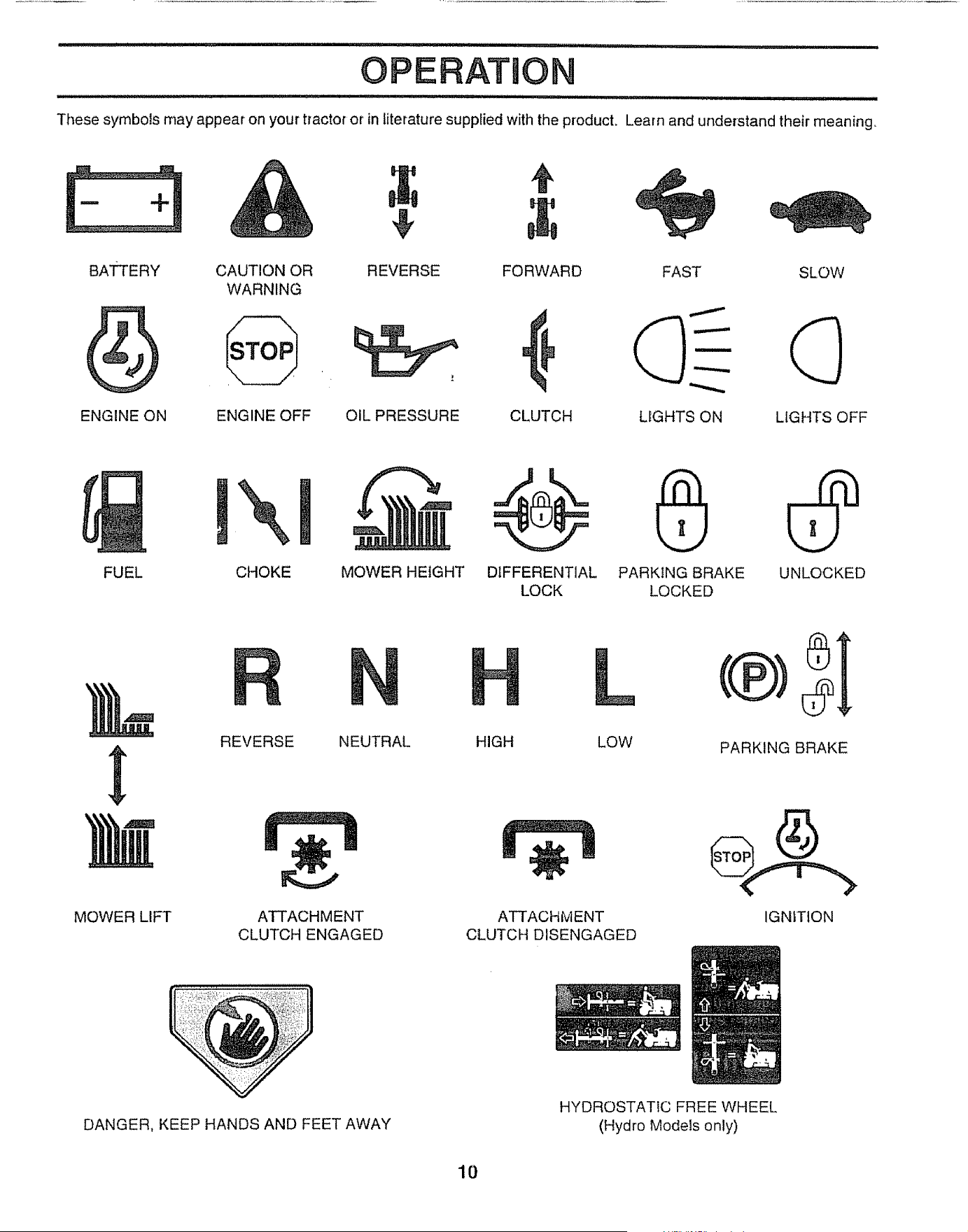

OPERATION

These symbols may appear on your tractor or in literature supptied with the product. Learn and understand their meaning,,

BATTERY

ENGINE ON

REVERSE

CAUTION OR FORWARD

WARNING

OIL PRESSUREENGINE OFF

CLUTCH

FAST SLOW

LIGHTS ON LIGHTS OFF

FUEL

CHOKE

MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

MOWER LIFT

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

HIGH

LOW

ATTACHMENT

CLUTCH DISENGAGED

PARKING BRAKE

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourself with the locations of various controls and adjustments. Save

this manual for future reference.

AMMETER

LIGHT SWITCH

ATTACHMENT IGNITION POSITION

CLUTCH LEVER SWITCH

THROTTLE

CONTROL

ATTACHMENT

LIFT LEVER

CLUTCHtBRAKE

PEDAL

HEIGHT

ADJUSTMENT

KNOB

PARKING BRAKE

GEARSHIFT

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIGHT SWITCH: Turns the headlights on and ofL

THROTTLE CONTROL: Used to control engine speed,

CHOKE CONTROL: Used when starting a cold engine.

CLUTCH/BRAKE PEDAL: Used for decfutching and brak_

ing the tractor and starting the engine.

PARKING BRAKE: Locks clutch/brake pedal into the

brake position,

GEARSHIFT LEVER: Selects the speed and direction of

tractor,

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor_

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the

engine,

HEIGHT ADJUSTMENT KNOB: Used to adjust the mower

cutting height,

AMMETER: Indicates battery charging (+) or discharging

(-),

OPEl ATION

, iiii II I III i1,1111111 , i IIII , tttlllLt ...................................

The operation of any tractor can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating your

tractor or performing any adjustments or repairs. We recommend a wide vision safety mask

over the spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your-tractor isequipped with art operator presence sensing

switch.. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine°

• Depress clutch/brake pedal into full ".BRAKE" position :

and hold,

• Place parking brake lever' in "ENGAGED" position and

release pressure from clutch/brake pedal, Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

THROTTLE

CONTROL

CHOKE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

"DISENGAGED"

POSITION

"BRAKE"

POSITION

PARKING BRAKE

"ENGAGED"

POSITION

GEARSHIFT

LEVER

CLUTCHtBRAKE PEDAL

"DRIVE" POSITION

"DISENGAGED"

POSITION

HEIGHT' ADJUSTMENT KNOB

FIG. 8

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher', etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle.,

° Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-

mance,

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a cold engine_.

Do not use to start a warm engine,

° To engage choke control, pull knob out, Slowly push

knob in to disengage_

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controlled by the

gearshift lever'.

° Start tractor with clutch!brake pedal depressed and

gearshift lever in neutral (N) position.

o Move gearshift and range shift levers to desired posi-

lion.

° Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTING OR CHANGING GEARS. FAILURE

TO DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE,.

STOPPING (See Fig. 8)

MOWER BLADES -

° Move attachment clutch lever to "DISENGAGED" po-

sition.

GROUND DRIVE -

- Depress clutch/brake pedal into full "BRAKE" position.

° Move gearshift lever to neutral (N) position,

ENGINE -

° Move throttte control to slow (',_!,) position_

NOTE: Failure to move throttle control to slow (,,_)

position and allowing engine to idle before stopping may

cause engine to "backfire".

= Turn ignition key to "OFF" position and remove key,

Always remove key when leaving tractor to prevent

unauthorized use.

° Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas, 12

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height is controlled by tumir_g the height adjust-

ment knob in desired direction.

= Turn knob clockwise (("_) to raise cutting height

° Turn knob counterclockwise (!_'-",0 to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4".. The

heights are measured from the ground to the blade tip with

the engine not running, These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over6 inches in

height should be mowed twice.. Make the first cut

relatively high; the second to desired height°

OPERATION

TO OPERATE MOWER (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch, Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged wilt

shut off the engine.

. Select desired height of cuL

° Lower mower with attachment lift control.

o Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutch control

1...........,_ ..... CAUTION: D'o not operate the mower

I ,_j_. without eitherthe entire grass catcher,

| _ on mowers so equipl_ei:t, or the dis-.

t _ guard in place.

ATTACHMENT CLUTCH LEVER

"DISENGAGED" POSITION

ATTACHMENT

FIG. 9

TO OPERATE ON HILLS

'"""_ CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

..... ,,,,, ,,, iii, i

, Choose the slowest speed before starting up or down

hills

o Avoid stopping or changing speed on hills.

° If slowing is necessary, move throttle control lever to

slower position..

- If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be sure you have

allowed room for tractor to roll slightly as you restart

movement,

• To restart movement, slowly release parking brake and

clutch/brake pedal,

° Make all turns slowly.

TO TRANSPORT

o Raise attachment lift to highest position with attach-

ment lift control_

• When pushing or towing your tractor, be sure gearshift

lever is in neutral (N) position.

° Do not push or tow tractor at more than five (5) MPH,

NOTE: To protect hood from damage when transporting

your tractor on a truck or at railer, be sure hood isclosed and

secured to tractor, Use an appropriate means of tying hood

to tractor (rope, cord, etc)_

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 15)

° The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil

• Check engine oil with tractor on level ground,

° Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level If necessary, add oil until

"FULL" mark on dipstick is reached,. Do not overfill,

° For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual),

o To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

° Fill fuel tank. Use fresh, clean, regular unieaded

gasoline with a minimum of 87 octane (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life) Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage_ Acidic gas can damage the fuel

system of an engine while in storage_ To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or Iongen Drain the gas tank, start the

engine and let it run until the fue! lines and carburetor are

empty. Use fresh fuel next season, See Storage lnstruc _

tions for additional information Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur

................ :1 ,lul,i i

i, iii iiii

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

OPERAT!ON

TO START ENGINE (See Fig. 8)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

. Sit on seat in operating position, depress clutch/brake

pedal and set parking brake,

- Place gear shift lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position_

o Move throttle control to fast (.f_) position

• Pull choke control out for a cold engine start attempt,

For a warm engine start attempt the choke control may

not be needed.

Note: Before starting, read the warm and cold starting

procedures below.

° Insert keyinto ignition and turnkeyclockwise to"START"

position and release key as soon as engine starts. Do

not run starter Con!inuously for more than fifteen sec-

onds per minute. If the engine doits not start after

severat attempts, push choke control in, wait a few

minutes and try again If engine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

. When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to rl-n roughly, pull the choke control out slightly for a

row seconds and then continue to push the control in

slowly.

, The attachments and ground drive can now be used.: If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and below)

o When engine starts, slowly push choke coa_rol in until

the engine begins to run smoothly_ Continue topush

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the

choke control is fully in. If the engine starts to run

roughly, pull the choke control out slight}y for a few

seconds and then continue to push the ccntrot in

slowly. This may require an engine warm-up period

from several seconds to several m{,_utes, depending

on the temperature_

° The attachments can be used during the engine warm-

up period and may require the choke control be pulled

out slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

in the opposite direction making left hand turns until

finished (See Fig. 10 )

• tf grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height

° Do not mow grass wt_en it is wet. Wet grass will plug

mower and leave undesirable clumps_ Allow grass to

dr,/before mowing

• Always operate engine at full throttle when mowing to

assure better mowing performance and oroper dis-

charge of material, Regulate ground specs by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

° When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

MOWING TIPS

• Tile chains cannot be used when the mower housing is

attached to tractor..

° Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming_

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

tractor. This wilt result in a more even distribution of

clippings and more uniform cutting.

o When mowing large areas, start by turning to the right

so that clippings wilt discharge away from shrubs,

fences, driveways, etc After one or two rounds, mow

FIG. 10

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE

• The special mulching blade will recut the grass clip-

pings many times and reduce then] in size so that as

they fall onto the lawn they wilt disperse into the grass

and not be noticed. Also, the mulched grass will

blodegrade qulck_y to provrde nutrrents for the la n.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades_

• Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action,

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• For best results, adjust the mowercutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig, 11) For extremely heavy mulching,

reduce your width of cut and mow slowly.

° Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path_

° Change your cutting pattern from week to week° Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawno

MAX 1/3

14 FIGo 11

CUSTO ESPO LITIES

SC. DU' ..............

7 e.<_"_-'_,_ SERVICE DATES J

Check Brake Operation v"

Check Tire Pressure _#' e#1'

Check for Loose Fasteners ........ "_1'7 : _ .........

R sharpeniReplaCe Mower BIades _/4

I -Lubrication.(_.hart .... _/ _f

T Check Ba!tery LevellRecharge

0 Clean Battery and Terminals _ _/

Check Transaxle Cooling _-J

Adjust Blade Belt(s)Ter_sion {_/'s

_61#5

V' !

V'=

l l

v'=

Adjust Motion Drive Bel(s) Tension

....'"4 ,L , .......

Check Engine Oil Level

Change Engine Oil

Clean Air Filter

Clean Air Screen

inspect MuiflertSpark Arrester

Replace Oil Filter (if equipped)

Clean Engine Cooling Fins ...................

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

t * Change more oten when operating under a heavy load or in high ambient temperatures,

2 - Service more olten when operatng in dirt,./or dusty conditions

3 - If equipped wilh oil liter, change eli eve_,i 50 hours

4 -Repface blades mo_'e ellen when mowieg in sandy soil

5- I1equipped with adjuslable system

6 - Not required it equipped wilh mainlenance-free battery

7 * Tighten trent axIe pivot bolt to 35 ft Abs maximum

De nol ovmlighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence.. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

o Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

CLUTCH

PIVOT(S)

BEFORE EACH USE

o Check engine oil level

, Check brake operation.

° Check tire pressure..

- Check for loose fasteners.

IEARSHIFT (_)

PIVOTS

(_) SAE 30 OR 10W30 MOTOR OIL

(_) GENERAL PURPOSE GREASE

(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY. POW-

15 DERED GRAPHITE TYPE LUBRICANT SPARINGLY

CUSTOM

RESPONSm ILITHES

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjust-

merits section of this manual),

"]'IRES

• Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual)_

= Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

. Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage_

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion°

BLADE CARE

For best results mower blades must be kept sharp. Re-

place bent or' damaged blades.

BLADE REMOVAL (See Fig. 12)

- Raise mower to highest position to allow access to

blades.

• Remove hex bolt, lock washer and flat washersecuring

blade.

= lnstatt new or resharpened blade with trailing edge up

towards deck as shown,,

. Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

° Tighten bolt securefy (30-35 FL Lbso torque)_

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED,

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced,

BLADE MANDREL

FLAT WASHER

LOCK WASHER _,_

HEX BOLT

(GRADE 8)*

*A GRADE S HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD,,

TRAILING EDGE

FIG. 12

TO SHARPEN BLADE (See Fig. 13)

Care should be taken to keep the blade balanced,, An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine,

° The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower,

. To check blade balance, you wilt need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with bal-

ancer)_

. SWe blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground,

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced_

NOTE: Do not use a nail for' balancing blade. The lobes of

the center hole may appear to be centered, but are not

CENTER HOLE

5f8" BOLT

OR PiN

BLADE

FIG. 13

CUSTO

ESPON

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use, However, periodic charging of the

batter), with an automotive charger will extend its life,

= Keep battery and terminals clean,

. Keep battery bolts tight,

- Keep small vent holes open,

• Recharge at 6-10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the batter/and terminals can cause

the battery to "leak" power°

o Remove terminal guard,,

o Disconnect BLACK battery, cable first then RED bat-

tery cable and remove battery fr'orn tractor,

Rinse the battery with plain water and dry_

• Clean terminals and battery cable ends with wire brush

until bright,

• Coat terminals with grease or petroleum jelly°

. Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual),

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable, Replace belts if they begin to slip from wean

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which

can restrict cooling,,

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF, SG or SH. Select the oil's SAE viscosity

grade according to your expected operating temperature.

....... SAE VISCOSITY GRADES

....... t

0F "2o_ oo _0" _2• 40" _0o 50° _o0° ....

° c .30 _ -20 _' .10 _ 0n 10_ 20 30 _ 40 _

....... TEMPERATURE' 'RANGE ANTiCiPATED BEFORE NEXT, OIL CHANGE ..........

FIG, 14

ILnTIES

NOTE: Although multi-viscosity oils (5W30, 10W30 etc )

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oii,

Change the oil after every 25 hours of operation or at least

once a year if the tractor is not used for 25 hours in one year,

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level,

TO CHANGE ENGINE OfL (See Figs. 14 and 15)

Determine temperature range expected before oil change,

All oil must meet API service classification SF SG or SH

° Be sure tractor is on level surface.

• Oil will drain more freely when warm.

° Catch oil in a suitable container,

° Remove oil fill cap/dipstick, Be careful not to allow dirt

to enter the engine when changing oil,

• Remove drain plug

° After oil has drained completely, replace oil drain plug

and tighten securely

° Refill engine w!tP.oil through oil fill di_)stick tube. Pour

slowly. Do n ',overfill For approxir ate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual.,

° Use gauge on oil fill cap/dipstick for checking tevel Be

sure dipstick cap is tightened securely for accurate

reading, Keep oil at "FULL" line on dipstick, -_

OIL

DRAIN

PLUG

AIR SCREEN

OIL FILL

CAPiDIPSTSICK

FIG. 15

CUSTOME

AIR FILTER (See Fig. 16)

Your engine will not run properly using a dirty air _ter.

Clean the foam pre-cleaner after'every 25 hours of opera-

tion or every season, Sewice paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

= Remove knob(s) and cover,

TO SERVICE PRE-CLEANER

o Stide foam pre-cleaner off cartridge.

° Wash it in liquid detergent and water'.

° Squeeze it dry in a clean cloth.

o Saturate it in engine oil Wrap it in clean, absorbent

ctoth and squeeze to remove excess oit.

o If very dirty or-damaged, replace life-cleaner.

• Reinstall pre-cleaner over cartridge.

° Reinstall cover and secure with knob(s),,

TO SERVICE CARTRIDGE

• Remove wing nuts and cartridge plate_

• Carefully remove cartridge to prevent debris from en-

tering carburetor_

• Clean cartridge by tapping gently on flat surface.. Ifvery

dirty or damaged, replace cartridge..

° Reinstall cartridge plate, wing nuts, precleaner, cover

and secure with knob(s).

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE

PLATE

FOAM

PRE-CLEANER

AIR SCREEN

CARTRIDGE

CLEAN AIR SCREEN (See Fig. 17)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating,. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

ENGINE COOLING FINS (See Fig. 17)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating,, Air guide covers

must be removed_ Remove side panels and hood (See "TO

REMOVE HOOD AND GRILL ASSEMBLY" in the Service

and Adjustments section of this manual).

TOP AIR

GUIDE COVEI

ENGINE

COOLING FINS q',t

AIR GUIDE COVER (BOTH SIDES)

FIG. 17

FIG. 16

CUSTO ER RESPONSIBILITnES

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage°

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every i00 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual

IN-LINE FUEL FILTER (See Fig. 18)

The fuel filter should be replaced once each season. If fuel

filter becomes dogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine co01, remove filter and plug fuel line

sections°

• Place new fuel filter in position in fue! line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

° Immediately wipe up any spilled gasoline.

CLAMP

FUEL

FILTER

FIG. 18

CLEANING

• Clean engine, battery, seat, finish, etc_ of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc..

• Protect painted surfaces with automotive type wax,

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out,. Water in engine

can result in a shortened engine lifeo

SERVmCE AND ADJUSTMENTS

CAUTION:

BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place gearshift lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key "OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plugo

TRACTOR

TO REMOVE MOWER (See Fig. 19)

Mower will be easier to remove from the right side of tractor.

o Place attachment clutch in "DISENGAGED" position_

• Move attachment lift lever forward to lower mower to its

lowest position,

• Rotf belt off engine pulley,

• Disconnect clutch rod from clutch lever by removing

retainer spring.

- Disconnect anti-sway bar from chassis bracket by

removing retainer spring°

- Disconnect suspension arms from rear deck brackets

by removing retainer springs,

• Disconnect front links from deck by removing retainer

springs,,

o Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR,

REMOVE THE FRONT LINKS.

TO INSTALL MOWER (See Fig. 19)

° Raise attachment lift lever to its highest position.

, Slide mower under tractor with discharge guard to right

side of tractor.

° Lower' lift lever to its lowest position.

• install mower in reverse order of rernoval instructions_

SUSPENSION

RETAINER

SPRING

ENGINE

PULLEY

RETAENER

SPRINGS

S_DES)

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 19

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 of this manual).

if tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs° 20 and 21)

- Raise mower to its highest position.

o At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance "A" on

both sides of mower should be the same or within 1/4"

of each other..

• If adjustment is nec6ssary, make adjustment on one

side of mower only,

o To raise one side of mower, tighten lift link adjustment

nut on that side/

o To lower one side of mower, loosen lift link adjustment

nut on that side.,

NOTE: Each full turn of adjustment nut will change mower

height about 1/8".

- Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

GROUND LiNE A

LIFT LINK

ADJUSTMENT NUT

FIG. 20

SUSPENSION

ARM

FIG. 21

FRONT-TO-BACK ADJUSTMENT (See Figs. 22 and 23)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/8" to

1/2" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

° Before making any necessary adjustments, check that

both front links are equal in length° Both links should be

approximately 10-3/8".

= If links are not equal in length, adjust one link to same

length as other linko

° To lower front of mower loosen nut "E" on both front

links an equal number of turns.

. When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nuts "F" against trunnion on both front

links

= To raise front of mower, loosen nut"F" from trunnion on

both front links.. Tighten nut "E" on both front links an

equal number of turns,

- When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nut"F" against trunnion on both front links.

• Recheck side-to-side adjustment,

MANDREL

FIG. 22

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "E"

NUT "1

FRONT LINKS TRUNNION

21 FIG. 23

SERVICE A

ADJUSTMENTS

iii,, i J i

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig, 24)

The mower blade drive belt may be replaced without tools

Park the tractor on level surface, Engage parking brake,

BELT REMOVAL -

= Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual)_

o Work belt off both mandrel pulleys and idler pulfeys_

= Pull belt away from mower_

BELT INSTALLATION -

° Install new belt in reverse order of removal.

° Make sure belt is inall pulley grooves and inside all belt

guides,.

o Jnstatl mower in reverse order of removal instructions_

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FIG. 24

WITH PARKING BRAKE "ENGAGED"

NUT "A"

JAM NUT

OPERATING ARM

FIG. 25

TO REPLACE MOTION DRIVE BELT

(See Fig. 26)

Park the tractor on levei surface Engage parking brake,

For assistance, there is a belt installation guide decai on

bottom side of left footrest

° Remove rnowe_ (See "TO REMOVE MOWER" in this

section of this manual,)

. Remove upper belt keeper

° Remove belt from stationary idler and cfutching idler.

o Pull belt slack toward rear of tractor',. Remove belt

upwards from transaxle pulley by deflecting belt keep-

erso

o Pull belt toward front of tractor and remove downwards

from around engine pulley.

. Install new belt by reversing above procedure_

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS

TO ADJUST BRAKE (See Fig. 25)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle,

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted

° Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and

nut "A" on brake rod_

Ifdistance is other than ld/2", loosen jam nut and turn

nut "A" until distance becomes 1-1/2'L Retighten jam

nut against nut "A"_

Road test tractor for proper stopping distance as stated

above_ Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au*

thorized service center/department,.

PULLEY

IDLER

PULLEY

TABS

BELT

KEEPER

FiG. 26

SERVDCE AND

ADJUSTMENTS

TRANSAXLE SHIFTER LINKAGE AND AD-

JUSTMENT (See Figs. 27 and 28)

The transaxle should be in neutral when the gear shift lever

is in the neutral (N) (lock gate) position The adjustment is

preset at the factory; however, if adjustment is needed,

proceed as follows:

• Make sure transaxle is in neutral (N).

o Loosen two locknuts on tie rod.

• Turn center rod until gearshift lever falls into neutral

lock gate on fender console.

• Tighten locknuts securely.

GEARSHIFT LEVER

) , ,

_ NEUTRAL

LOCK GATE

FIG. 27

FIG. 28

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straightforward, remove steer-

ing wheel and reassemble per instructionsin the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service centeddepartment.

TO REMOVE WHEEL FOR REPAIRS

(See Fig, 29)

• Block up axle securely.

= Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key- Do

not lose).

. Repair tire and reassemble,.

• On rear wheels only: align grooves in rear whee_ hub

and axleo Insert square key

° Replace washers and snap retaining ring securely in

axle groove

° Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your iocal

parts deafer_ Tire sealant also prevents tire dry rot and

corrosion.

WASHERS

RETAINING

RING

AXLE COVER

SQUARE KEY (REAR

WHEEL ONLY)

FIG, 29

TO START ENGINE WITH A WEAK BATTERY

See Fig. 30)

............. i i ii , iiii ii .,11, II II_IIIH iiiiii i1.11

CAUTION: Lead-acid batteries gener- J

ate explosive gases. Keep sparks, flame J

and smoking materials away from bat- J

teries. Always wear eye protection |

when around batteries. J

If your battery is too weak to start the engine, it should be

recharged, if "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A I2

VOLT NEGATIVE GROUNDED SYSTEM.. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES°

TO ATTACH JUMPER CABLES -

° Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis,.

° Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

° Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery

23 °

REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged batter,!.

RED cable last from both batteries.

SERVICE AND ADJUSTMENTS

"POSITIVE" (+} "NEGATIVE" (-)

FIG. 30

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.,

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting..

° Check wiring_ See electrical wiring diagr'am in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type ptugqn fuse.. The

fuse holder is located behind the dash.,

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 31)

= Raise hood.

• Unsnap headlight wire connector.

o Stand in front of tractor., Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedures.

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 32)

The throttle control has been preset at the factory and

adjustment should not be necessary,. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

. With engine not running, move throttle control lever to

fast (,_) position..

• Check that swivel is against side of quarter' circle_ if it

is not, loosen cable clamp screw and puIt cable back

until swivel is against quarter circle. Tighten cable

clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 33)

The choke control has been preset at the factory and

adjustment should not be necessary. Checkadjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

° With engine not running, move choke control (located

on dash panel) to fult choke (N) position,.

• Remove air cleaner cover, filter and cartridge plate to

expose carburetor choke (see "AIR FILTER" in the

Customer Responsibilities section of this manual).

o Choke should be closed., If it is not, loosen casing

clamp screw and move choke cable until choke is

completely closed. Tighten casing clamp screw se-

curely,

. Reassemble air cleaner,

CLAMP SCREW

QUARTER

SWIVEL

FIG. 32

CHOKE

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 31

CASING /

CLAMP

SCREW

"""'CHOKE

LEVER

FIG. 33

SERVmCE AND ADJUST ENTS

TO ADJUST CARBURETOR (See Figs. 34 &

35)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or loado If the carburetor does need

adjustment, proceed as follows:

In general, turning the mixture screw in (clockwise) de-

creases the supply of fuel to the engine giving a teaner fuel!

air mixture, Turning the mixture screw out (counterclock-

wise) increases the supply of fuel to the engine giving a

richer fuel/air mixture°

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREW IS

TURNED 1N TOO TIGHTI

PRELIMINARY SETTING

o Be sure you have a clean air filter, and the throttle

control cable and choke are adjusted properly (see

above).

= With engine off turn idle mixture screw in (clockwise)

closing it finger tight and then turn out (counterclock-

wise) 1-1/4 to 1-t/2 turns.

FINAL SETTING

• Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

° With throttle control tever in slow (,4_) position, hold

throttle lever against idle speed screw and adjust idle

speed screw to obtain I200 to 1400 RPM,,

- While still holding throttle lever against idle speed

screw, turn idle mixture screw in (clockwise) until

engine begins to die and then turn out (counterclock-

wise) until engine runs rough. Turn screw to a point

midway between those two positions

• Continue to held throttle lever against idle speed screw

and adjust idle speed screw to obtain 900 to 1200 RPM.

Release throttle lever,

ACCELERATION TEST-

- Move throttle control lever from slow (*_) to fast (,_)

position, If engine hesitates or dies, turn idle mixture

screw out (counterclockwise) I/8 turn_ Repeat test

and continue to adjust, if necess;try, until engine accef-

crates smoothty

High speed stop is factory adjusted, Do not adjust -

damage may result.,

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED, OVERSPEEDINGTHE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IFYOUTHINKTHEENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVlCE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

IDLE SPEED

SCREW

IDLE MIXTURE

SCREW

THROTTLE

LEVER

FIG. 34

IDLE MIXTURE

LEVER SCREW

FIG. 35

,Jl ill ill ...................... ii,,lll ii iiii i i

STO AGE

, ,i ill

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or' spark. Allow the engine to cool

before storing in any enclosure°

TRACTOR

Remove mower from tractor for winter storage.. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc, Store in a

clean, dry area.

• Clean entire tractor (See"CLEANING"in the Customer

Responsibilities section of this manual).

o Inspect and replace belts, if necessary (See belt re-

placement instructions inthe Service and Adjustments

section of this manuai)o

° Lubricate as shown in the Customer Responsibilities

section of this manual

° Be sure that all nuts, bolts and screws are securely

fastened,. Inspect moving parts for dama je, breakage

and wear. Replace if necessary.,

° Touch up all rusted or chipped paint surfaces; sand

lightly before painting,

BATTERY

• Fully charge the battery for storage.

° After a period of time in storage, battery may require

recharging_

. To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

° After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

° Be sure battery drain tube is securely attached,.

o If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT tS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE, ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.,

Drain the fuel tank,

Start the engine and let it run until the fuel lines and

carburetor are empty.

Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

Use fresh fuel next season_

NOTE: Fue! stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age_ Add stabilizer to gasoline in fuel tank or storage

container_ Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor, Do

not drain the gas tank and carburetor if using fue! stabilizer_

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manual),

CYLINDERS

, Remove spark ptug(s)_

° Pour' one ounce of oil through spark plug hole(s) into

cylinder(s).

. Turn ignition key to "START" position for a few seconds

to distribute oil.

• Replace with new spark plug(s),

OTHER

° Do not store gasoline from one season to another.

° Replace your gasoline can if your' can starts to rust,

Rust and/or dirt in your gasoline will cause problems,

° If possible, store your tractor indoors and cover it to

give protection from dust and dirt°

• Cover you r tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust,

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POmNTS

PROBLEM

Will not start

Hard to start

CAUSE

1 Out of fuel.

2. Engine not"CHOKED"properly

3 Engine flooded

4 Bad spark plug

5. D{rty air fi_ter

6 Dirty fuel fiIter.

7. Water in fuel

8 Loose or damaged wiring

9 Carburetor out of adjustment

Engine valves out of adjustment

1 Dirty air tilter.

2 Bad spark plug

3 Weak or dead battery.

4. Dirty fuef filter.

5 Stale or dirty fuel

6 Loose or damaged wiring

7 Carburetor out of adjustment

8 Engine valves out of adjustment.

CORRECTION

1 Fill rue? lank

2 See "TO START ENGINE"in Operation section

3 Wait several minutes before attempting to start

4 Replace spark plug

5 Clean/replace airfiiter

6. Replace fuel filter

7 Drain fuel tank and carburetor, refilt tank with fresh

gasoline and replace fuel filter

8 Check all wiring

9 See "To Adjust Carburetor'' in Service Adjustments

section

!0. Contact an authorized service center/department

1 Clean/replace air filter

2 Replace spark plug

3 Recharge or replace battery

4 Replace fuel tilter

5. Drain rue! tank and refill with fresh gasoline

6 Check all wiring

7 See 'To Adjust Carburelor" in Service Adjustments

section.

8 Contact an authorized service center!department

Engine will not turn over

Engine clicks but will not

start

Loss of power

I Clutch/brake pedal not depressed

2. Attachment clutch is engaged

3 Weakordead battery

4 Blown fuse.

5. Corroded battery'terminafs.

6 Loose or damaged wiring

7 Faulty ignition switch.

8 Faulty solenoid or starter

9. Faulty operator presence switch(es)

1 Weak or dead battery,

2 Corroded battery' terminals.

3 Loose or damaged wiring

4 Faulty solenoid or starter.

I. Depress clutch/brake pedal

2 Disengage attachment clutch

3 Recharge or replace battery

4 Replace fuse

5 Clean battery terminals

6 Check atl wiring

7 Check/replace ignilion swilch.

8. Check/replace solenoid or starter.

9. Contact an authorized service centeddepartment

t Recharge or replace battery

2 Clean battery terminals

3 Check all wiring

4 Check/rep{ace solenoid or starter

1 Cutting too much grassltoo fast

2 Throttle in "CHOKE" position.

3 Bui_d-up of grass, teaves and trash under mower

1 Set in "Higher Cut" position/reduce speed

2. Adjust throttle control

3 Clean underside of mower housing

4 Dirty air filter

5 Low oil fevettdirty oil.

6 Fautty spark plug

7 Dirty fuel filter

8 Stale or dirty fuel

9 Water in tuel

10. Spark plug wire loose

! 1 Dirty engine air screen/fins

12 Dirty/clogged muffler.

13 Loose or damaged wiring

14 Carburetor out of adjustment

15 Engine valves out of adjustment

Excessive vibration

1 Worn. bent or loose blade

2 Bent blade mandrel

3 Loose/damaged part(s)

4 Clean/replace air tilter

5 Check oil Ievelichange oil.

6. Clean and regap or change spark plug

7 Replace fuel filter

8 Drain fuel tank and retill with fresh gasoIine

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter

I0 Connect and tighten spark plug wire.

11 Clean engine air screen!fins

12. Clean/replace muffler

13 Check ail wiring

14 See "To Adjust Carburetor" in Service Adjustments

section

15 Contact an autllofized service center/department

1 Replace blade Tighten blade bott

2 Replace blade mandrel

3 Tighlen loose pan(s) Replace damaged parts

=TROUBLESHOOTING POmNTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor' cut - urteven

................ llllll ii _ ,J

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF'*

CAUSE

1. Faulty operator-safety presence contro{ system

1. Worn, bent or loose blade

2. Mower deck not level

3. Buildup of grass, leaves, and trash under mower

4 Bent blade mandrel.

5 Clogged mower deck vent holes from buitdup of

grass, leaves, and trash around mandre{s

t. Obstruciion in clutch mechanism

2. Worn]damagedmower drive heir.

3 Frozen idler pulley

4.. Frozen blade mandrel..

Eng{ne speed too stow

2 Travel speed too fast

3 Wet grass.

4 Mower deck not level

5 Low/uneven tire air pressure.

6 Worn, bent orloose blade

7 Buildup of grass, leaves and trash under mower.

8 Mower drive belt worn

9 BIades {mproperly installed,

10. Improper blades used,

11 Clogged mower deck vent ho{es from bui{dup of

grass, leaves, and trash around mandrels.

t Sw{tch is "OFF"

2 Butb(s) burned out,

3 Faulty light switch

4 Loose or damaged wiring,

5 Blown fuse.

1 Bad battery ceil(s).

2. Poor cable connections.

Faulty regulator (if so equipped).

Fauity alternator..

Engine throttle control not set at "SLOW'*

position for 30 seconds before stopping engine.

CORRECTION

Check wiring, switches and connections, I! not

corrected, contact an authorized service canted

department,

1 Replace blade Tighten blade boil

2. Level mower deck.

3. Clean underside of mower housing

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes

1 Remove obstruction

2 Replace mower drive belt

3 Replace idler _,.: !ey

4 Replace blade _",,_ndrel

1 Place throttte controt in "FAST" position,

2 Shift to slower speed.

3 A!low grass to dry before mowing

4 Level mower deck

5. Check tires for proper air pressure,

6 Replace/sharpen btade Tighten blade bolt

7 Clean underside oi mower housing.

8 Replace mower drive belt

9 Reinstall blades sharp edge down.

10. Replace with blades listed in this manual

11 Clean around mandrels to open vent holes,

1 Turn swilch "ON"

2. Replace bulb(s)

3 Check/replace light switch

4. Check wiring and connections,

5 Replace fuse

t. Replace battery

2 Check/clean all connections.

3 Replace regulator_

4, Replace alternator

t. Move throttle control to "SLOW" position and aitow

to idle for 30 seconds before stopping engine

TRACTOR - - MODEL NUMBER 917.259560

SCHEMATIC

REO

BATTERY

BLACK

AMMETER

(OPTIONAL)

_G LI

IGNITION

SWITCH

RED

WHITE

O Lp

FUSE 30 AMP

RED

STARTER

BLACK

CHARGING SYSTEM OUTPUT

3 AMP OC @ 3600 RPM

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

oFF G:"+"'M+L NONE

RUN/LIGHT B + L A + Y

RUN B + L NONE

START B + L + S NONE

SEAT SWITCH

(NOT OCCUPIED)

t l

_ BLAC!_

GROUNDING

CONNECTOR

/-7-7

BLUE

ORANGE

SPARK PLUG

------O GAP

(2 PLUGS ON

TWIN CYL, ENGINES)

28 VOLTS AC MIN, @ 3600 RFM

(CHARGING SYSTEM DISCONNECTED}

LIGHTING SYSTEM OUTPUT

ALTERNATOR

5 AMP AC @ 3600 RPM DIODE

14 VOLTS AC MIN @ 3600 RPM (LIGHTS OFF)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM°

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE,.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

HEADLIGHTS

BROWN

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WILL BECOME THEIR BRIGHTEST

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.259560

ELECTRICAL

REPAnR PARTS

TRACTOR -- MODEL NUMBER 917.259560

KEY PART

NO. NO. DESCRIPTION

1 144926

2 74760412

3 STD551025

4 STD551125

6 STD541025

7 7697J

B 7603J

9 109596X

10 145211

11 150109

12 145769

16 153664

19 STD551125

20 73350400

21 147430

22 4152J

24 4799J

25 146148

26 108824X

28 145491

29 12+t305X

3O 140301

31 124211X

32 141226

33 109310X

4O 156442

41 71110408

42 131563

43 145673

44 73640400

45 121433X

52 141940

55 17490508

70 140413

Battery

Bott, Hex t/4-20 x 3/4

Washer 9/32 x 5/B x 16 Gauge

Washer, Lock 1/4

Nut, Hex 1/4-20

Tube

Tray, Battery

Clamp, Hose

Bolt, Btr Front 1/4-20 x 7-1/2

Holddown Battery Front Mount

Nut, Push Nylon Battery Front t/4

Switch Interlock Push+In

Washer, Lock 1/4

Nut, Hex, Jam t/4-20

Harness, +

BulLight_, Socket (w/4152J)

Light

Cable, Battery

Fuse

Cable, Ground

Switch, Seat

Switch, Ignition 4 Position

Nut, Ignition

Cover, Ignitfon Switch

Key, Molded, Craftsman

Harness, Ignition

Bolt Blk Fin Hex I/4-20 UNC x 1/2

Cover, Terminal

Solenoid

Nut Keps Btk Hex 1/4-20 UNC

Ammeter Rectangular 6 Amp

Protection Wire Loop (Hour Meter)

Screw Thdrol 5/16-18 x 1/2

Harness Engine B&SFFec Dual

NOTE; All component d{mensions given in U,S inches

1 inch = 25,4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.259560

CHASSIS AND ENCLOSURES

58 12

115 1

,14

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

CHASSIS AND ENCLOSURES

KEY PART

NO, NO. DESCRIPTION

1 159527

2 140356

3 17490612

4 STD551025

5 155272

9 150156X011

10 STD533710

1! 155927

12 145660

13 155936

14 17490608

17 144983X558

18 126938X

20 156437

23 124028X

25 19131312

26 STD541437

28 145198X558

29 155217

30 151287X558

31 139976

37 17490508

38 139886

39 139887

51 73800400

52 19091416

53 145201

54 17030814

55 145202

57 STD552507

58 140547

60 72140606

64 154798

71 73680400

74 STD541437

I14 158112

115 17490620

116 191316t4

122 157301

123 152927

140 158418

142 156095

143 154966

144 154207

145 156524

147 74760412

Chassis

Drawbar

Screw, Thdo, Roll. 3/8-16 x 3/4 Type TT

Washer 13/32 x 3/4 x 16 Gauge

Bumper HoodlDash

Dash, Silkscreened

Bolt, Carriage 3/8-16 x 1

Panel, Dash, LH

Clip Tinnerman Grille P/L

Panel, Dash, RH

Screw, Thd., Roll 3/8-I6 x 1/2 Type TT

Hood Assembly

Bumber Hood

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with insert 3/8-16 UNC

Grille, W/Clips MS-558

Lens, Grille

Fender/Footrest

Bracket, Fender/Support

Screw, Thdrok 5/16-18 x 1/2 TYT

Pivot Bracket Assembly, LH, Mower, Rear

Pivot Bracket Assembly, RH, Mower, Rear

Nut Lock W/Insert 1/4 - 20 UNC

Washer 9132 X 7/8 X 16 Ga.

Bracket Grille Pickoff LH

Screw, Hex Head, Spiderlock #8 x 7t8 AB

Bracket Grille Pickoff RH

Bolt FinHex 1/4 -20 UNC X75

Air Duct P/L 18HP B&S Opp Twin

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

NtJt Crownlock !/4-20 UNC

Nut Crownlock 3/8-16 UNC

Keeper Belt Rear LH

Screw Thdrot 3/8-16 x 1-1/4

Washer 13/32 x 1 x 14 Ga.

Bracket Shift STLT

Screw

Bracket Suspension Front

Plate Reinforcement STLT

Backrest Swaybar Chassis

Bracket Footrest STLT

Rod Pivot ChassistHood

Bolt Hex Hd 1/4-20 UNC x 3/4

NOTE: All component dimensions given in US inches

1 inch = 25,4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

DRIVE

)

121

118

REPAIR

DRIVE

PARTS

TRACTOR - - MODEL NUMBER 917.259560

KEY PART

NO. NO.

2 146682

3 123666X

4 12000028

5 121520X

6 17490512

8 154792

10 STD561210

11 105701X

13 74550412

14 STD551125

15 74490544

18 STD523710

19 STD541437

21 106933X

22 130804

24 STD541237

25 !06888X

26 STD551037

27 STD56t210

28 145204

29 124236X

30 130807

31 127275X

32 STD523!07

34 155071

35 120183X

36 STD551062

37 STD571810

38 123674X

39 STD523727

40 4470J

41 154777

42 19131312

47 127783

48 154604

49 123205X

50 STD523715

5I STD541437

52 STD541431

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Transaxle (See Breakdown) 53 105710X

Peerless 930-057A 55 105709X

Spring, Return, Brake 56 STD523712

Pulley, Transaxle 57 130801

Ring, Retainer 58 127274X

Strap, Torque 59 140312

Screw, Thd, Roll. 5/16-18 x 3/4 61 17490612

Rod Shifter Fender STLT 62 8883R

Pin, Cotter . 63 140186

Washe'r, Shift I_tate 64 71170764

Bolt 1/4-28 UNF W/Patch Grade 8

Washer 65 STD551143

Bolt, Hex FIghd 5/16-18 Grade 5 66 154778

Bolt Fin Hex 3/8-16 UNC x 1 Gr 5 70 134683

Nut 72 19132012

Knob 74 t37057

Rod, Brake 75 121749X

Nut 76 STD581075

Spring, Brake Rod 77 123583X

Washer 78 121748X

Pin 79 2228M

Rod, Parking Brake 80 145090

Cap, Parking Brake, Red 81 156049

Bracket, Transaxle 82 123782X

Keeper, Belt, L.H 83 19171216

Bolt 84 145643

Shaft Assembly, Foot Pedal 85 !50360

Bearing, Nylon 86 71208

Washer 87 19212016

Roti Pin 88 12000008

Pulley, Idler, Flat 89 154886

Bolt 90 124346X

Spacer, Split 395 x .59 96 4497H

Keeper, Belt, Idler Foo!-Proof 112 19091210

Washer 13/32 x 13/16 x 12 Gauge 113 127285X

Pulley, Idler, V-Groove, Plastic 116 72110610

Bellcrank Assembly 118 154774

Retainer, Belt 121 154419

Bolt

Nut Crown Lock 3/8-16 UNC

Nut Crown Lock 5/!6-18 UNC

Link, Clutch

Spring, Clutch Return

Bolt Fin Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, R H

Keeper, Belt, Center Span

Screw, Thd, Roll. 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Bolt, Hex Head, Fin.

7/16-20 x 4 Grade 5

Washer

Keeper, Belt, Engine, Foot-Proof

Guide, Belt RH Engine

Washer 13/32 x 1_1/4 x 12 Gauge

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square 2..0 x .1845L1865

Washer 25/32 x i-5/8 x 16 Gauge

Key Woodruff #9 3/16 x 3/4

Arm, Shift

Shaft Assembly

Spring, Torsion

Washer 17/32 x 3/4 x 16 Gauge

Tie Rod

Nut, Nylock

Bushing, Pivot

Washer

E-Ring

Console, Shift, STLT

Nut, Self-Threading, Washer Hd 1/4

Retainer Spring 1" Zinc Cad

Washer 9/32 x 3/4 x t0 Gauge

Strap Torque LT

Bolt Rdhd Sqneck 3/8-16 x 1.25

Spacer Belfcrank

Nyliner Clutching STL

NOTE: All component dimensions given in U.& inches

1 inch = 25, 4 mm

REPAIR PARTS

TRACTOR

STEERING ASSEMBLY

- - MODEL NUMBER 917.259560

•_ 39

+++:._:_.

; .... ~+ +_+_.=.j .

Cb:

68 "/+

REPAIR PARTS

TRACTOR -- MODEL NUMBER 9'17.259560

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 156438

11 STD551137

13 154779

15 73901000

17 156546

t8 57079

19 124035X

20 126684X

22 71100410

23 127501

25 154406

26 126847X

27 136874

28 19131416

29 17490612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

40 STD541537

4t 100711L

42 145054

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

53 73680600

54 74780520

62 156594

63 STD523710

65 154780

66 154404

67 74781044

68 154429

69 160367

70 74780636

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L.H.

Spindle Assembly, R..H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Draglink Extended Stamped

Washer, Lock

Bearing Axle STLT/GT

Nut, Lock, Flange 5/8-11 UNC

Shaft Assembly, Steering

Washer, Thrust 515 x _750 x .033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Screw, Hex Socket Head

1/4-20 x 5/8

Pittman Shaft Assembly

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13t32 x 7/8 x 16 Gauge

Screw, Thd., Rolto 3f8-16 x 3f4

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 8 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LR.LT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/Ins.. 5/I6-18 UNC

Nut, Crownlock 3/8-16 UNC

Bolt Fin Hex 5/16-18 UNC x I-1/4

Kit Steering Asm Service

Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

Spacer Axle

Bearing Arm Pittman

Bolt, Fin Hex 5/8-1 t UNC x 2-3/4

Axle, Brace

Spacer, Brace, Axle

Bolt, Fin, Hex 3/8-16 UNC x 2-1/4

NOTE: All component dimensions given in U.S. inches

1inch=254mm

REPAUR PARTS

TRACTOR -- MODEL NUMBER 917.259560

SEAT ASSEMBLY

8,....,...=_

KEY

NO.

PART

NOo

140123

140551

747606 t 6

19131610

145006

STD541437

124181X

17490616

19131614

155925

121246 X

DESCRIPTION

Seat

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/846 UNC x 1

Washer Fiat 13/32 x 1 x !0 Ga

Clip Push-In

Nut Lock Hex W!Ins 3/8 -16 UNC

Spring Seat Cprsn 2 250 Blk Zi

Screw 3/8-16xl

Washer 13/32 x 1 x 14 Ga

Pan Pnt Seat (blk)

Bracket Pnt Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050411

15 134300

16 121250X

17 123976X

21 153236

22 STD541431

23 74780814

24 19171912

25 127018X

26 STD551150

Bushing Snap Btk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20x!-3/8

Spacer' Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoufder 5/16-18 Unc

Nut Lock Hex W/Ins 5/16-18

Bolt Fin Hex 1/2-13 X 7/8 Gr 5

Washer 17/32 X I-3/16 X 12 Ga

Bolt Shoulder 5/16-18 X 62

Washer Lock Hvy Hlcl Spr 1/2

NOTE: All component dimensions given in U,S, inches

1 inch = 25_4 mm

REPAIR

DECALS

PARTS "

TRACTOR -- MODEL NUMBER 917.259560

6 1 7 7 17

13 14

KEY

NO.

PART

NO.

1 156439

2 273503

3 151299

4 151300

6 133644

7 150927

9 146709

10 15O333

11 156368

13 146046

DESCRIPTION

KEY PART

NO, NO.

Decal Fender Danger Sears !4

Decal, Engine 19o5 HP Turbo 15

Decal Hood Rh Craftsman 17

Decal Hood Lh Craftsman 19

Decat Maint Customer Sears Dom 20

Decal Panel Side B&S 22

Decal Fender Craftsman Gold - -

Decal Cap CNSMR Help Line SRS - -

Decal Fender STLT Oper tnst E/S - -

Decal V-belt Dr Sch - -

147139

160396

158215

138047

156787

149516

138311

154515

154516

159806

159807

DESCRIPTION

Decal Chassis 42"

Decal Mower Drive Schematic

Decal Insert, Hood

Decal Battery Diehard Sears

Decal Deck Mower EZ3 Mulching

Decal Battery

Decal Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

4,10

!,9

KEY

NO.

PART

NO. DESCRIPTION

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 122082X

10 7152J

11 104757X

-- 144334

Vafve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service Item Only)

Rim, Front

Fitting, Grease (Front Wheel Onfy)

Bearing, Flange (Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, Service Item Onty)

Cap, Axle

Seafant, Tire (10 oz Tube)

NOTE: All component dimensions given in U, S, inches

1 inch = 25,4 mm

_EpAIF_ PA_J_BAcTO_

.. _,AOOF-.t-NU_IB_._

REPAIR

ENGINE

PARTS

TRACTOR - - MODEL NUMBER 917.259560

KEY PART

NO. NO. DESCRIPTION

151273

17720410

4 149723

5 144069

6 144068

7 _38129

8 150176

10 145552

11 STD551125

12 STD522507

t3 272250

14 13280336

15 13200300

16 STD551237

17 17490624

23 156123

25 145996

26 73920600

27 152927

29 137180

31 157103

32 155971

33 123487X

34 106082X

35 17490512

37 8543R

38 .......

39 109227X

40 3645J

41 139277

81 128861

NOTE:

Control Throt Paddle 32 22

Screw Hex Thd Cut 1/4-20x5/8 T

Engine (See Breakdown) Briggs

Model No, 42E707-1631-01

Muffler Exhaust

Exhaust Asm, Left

Exhaust Asm, Right

Clamp Tube Double Engine

Bolt 5/16 - 18 UNC X 3/4 W/Sems

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Boft Fin Hex 1/4-20 x 3/4

Gasket Muffler

Nipple Pipe 4-1/2"

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock Ext Tooth 3/8

Screw Thdrot 3/8-16x1-1/2 Tytt

Shield Browning

Control Choke

Nut Keps 3/8-24 Unf

Screw TT #10-32 x 5 x 3/8 Flange

Arrestor Spark

Tank Fuel 3 50 Rear

Cap Fuel Guage STLT

Clamp Hose Blk

Spacer Pad

Screw Thdrol 5/16-18 x 3/4 TYT

Line Fuel

Plug Oil Drain (Order From Engine

Manufacturer)

Pad Idler 1.75 x .75 x .06

Bushing

Stem Tank Fuel

Nut, Flange t/4-20 Starter Nut

All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

MOWER LIFT

"_ /25 2423

5 49

19 I

, /

161718

REPAnR PARTS

TRACTOR - - MODEL NUMBER

MOWER LIFT

917.259560

KEY PART

NO, NO. DESCRIPTION

1 159460 WireAssyo, Inner, with Plunger

2 159471 ShaftAsm Lift

3 105767X Pin Groove

4 12000002 E Ring #5133-62

5 19211621 Washer 21/32 x 1 x 21 Ga

6 120183X Bearing Nylon

7 125631X Grip Handle Fluted

8 122365X Button Plunger Read

11 139865 Link Lift Lh Fixed Length

12 139866 Link Lift Rh Fixed Length

13 STD624008 Retainer Spring

15 127218 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 130171 Trunnion BlkZinc

18 73800800 Nut Lock W/Wsh 1/2-13 Uric

19 139868 Arm Suspension Rear

20 STD624008 Retainer Spring

23 110807X Nut Spring

24 19131016 Washer 13/32 x 5/8 x 16 G&

25 2876H Spring 2-1/8"

26 76020308 Pin cotter 3/32 x 1/2

27 t26971X Rod Adj. Lift

28 73350600 Nut Hex Jam 3/8-t6

29 138057 Knob Inf. 3/8q6

30 150233 Trunnion lnfin. Height

31 140302 Bearing, Pivot, Lift, Special

32 73540600 Nut, Crownlock 3/8-24

49 145212 Nut Ftange Lock

50 !10452X Nut Push

NOTE: All component dimensions given in US inches

1 inch = 2&4 mm

REPAaR PARTS

TRACTOR -- MODEL NUMBER 917.259560

MOWER DECK

,_'_ 40

102

105

106

113 111

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.259560

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 144393

2 STD533107

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551137

I0 140296

11 134149

12 129895

13 137645

14 128774

15 I10485X

16 140329

17 72110610

18 72140505

19 132827

20 136888

21 STD541431

22 134753

23 131267

24 t05304X

25 123713X

26 110452X

27 130968

28 19111016

29 131491

30 157722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 19131316

40 STD541437

41 133551

43 140083

44 140088

45 STD624003

46 137729

48 133944

49 155066

50 131340

51 STD5414!0

52 139888

53 131845X900

Mower Housing 54

Bolt 55

Bracket Assembly,Sway Bar, Front 56

Bracket Assembly, Sway Bar 58

Retainer Spring 59

Arm, Suspension, Rear 67

Bolt, Hex 3/8-24 x 125 Grade 8 68

Washer, Lock 71

Washer, Hardened 72

Blade; Mulching

•Bearing, Ball 74

Shaft Assembly, Mandrel, Vented 75

(Includes Key Number 6) 76

Housing, Mandrel, Vented 77

Bearing, Ball, Mandrel 78

Stripper, Vented Mower Deck 79

Bolt, Carriage 3/8-16 x 1-1/4 80

Bolt, Carriage 5/16-18 x 5/8 81

Bolt, Shoulder 82

Baffle, Vortex 83

Nut Crownlock 5/16-18 UNC 84

Stiffener Bracket 85

Bracket, Deflector 92

Cap, Sleeve 101

Spring, Torsion, Deflector 102

Nut, Push 103

Shield, Deflector 104

Washer 11/32 x 5/8 x 16 Gauge 105

Rod, Hinge 106

Screw Thdrol Washer Head 111

Washer, Spacer 112

Pulley, Mandrel 113

Nut, Toplock, Flanged 114

Bolt 115

Fastner, Christmas Tree 116

Pulley, Idler, Flat 117

Washer 13/32 x !3/16 x 16 Gauge 1t8

Nut Crownlock 3/8-16 UNC 119

Rod, Pivot, with Nibs 121

Rod, Clutch, Secondary, with Nibs 128

Guard, Mandrel, L.H. 129

Retainer t30

Screw, Thd. Roll 1/4-20 x 5/8 131

Washer, Hardened 132

Roller Assembly, Cam Follower " "

Bolt, Shoulder #10-24 Grade 5

Locknut "

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

133943

155046

122052X

14O086

141043

149846

144200

142427

131870

127847

I2t748X

12000029

128903

127845

154809

127498

153701

73350600

142028

120958X

156084

72140618

STD541437

136420

71161010

19061216

STD55t110

130758

2029J

155197

155198

17490512

73510500

72110504

137644

133957

73930600

19121414

143723

153390

19131312

STD523710

STD533710

19132293

130794

145411

Washer, Hardened

Arm, Idler

Spacer, Retainer

Spring, Torsion Brakes

Guard, TUV Idler

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x 1-5/8 x 16 Gauge

Ring, Klip

Bolt, Shoulder 3/8-16 UNC x 1.44

Keeper, Spring

Lever Asm Clutch Pri Plm STLT

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion, Adj..

Washer, Sintered

Keeper Belt idler

Bolt RDHD Sq 3/8q6 UNC x 2-t/4

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel LoHo

Bracket, Gauge, Wheel RH

Screw Thdrol 5/16-18 x 3/4

Nut, Hex, Keps 5/16q8 UNC

Bolt, Carriage 5/t6 UNC x t/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-I6

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5

Bolt, RDHD SQNK 3/8-16 UNC x 1

Washer 13/32 x 1-3/8 x 4 Ga.

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Complete (Standard

NOTE: All component dimensions given in U.S inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

PEERLESS TRANSAXLE - MODEL NUMBER 930-057A

23 35

9OO

79 43

150

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

PEERLESS TRANSAXLE - MODEL NUMBER 930-057A

REF PART REF PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 772108A Cover, Transaxte 43 792075

2 780086A Bearing, Needle 44 790025

3 770102A Case, Transaxle 45 786066

4 776260A Shaft, Counter 46 786086

5 776219B Shaft and Pinion Assembly, Output 47 774690

6 778139 Gear, Output, 35 Teeth 48 774691

7 778136 Gear, Spur, 15 Teeth, Steel 49 778215

8 792136A Key_ Shift 50 778125

8A 792047 ,Key, WoodrUff 51 778124A

9 784352 Collar, Shifter 52 778123A

10 784355 Rod and Fork Assembly, Shift 53 778122A

11 778229 Gear, Bevel, 42Teeth 54 778273

12 778!13A Bevel Pinion, Input 56 778230

13 778221 Gear, Bevel, 16 Teeth 57 776151

14 778068 Gear, Bevel Pinion 58 778!26A

15 778260 Gear, Ring 59 778127A

17 786139 Pin, Drive 60 778!28A

18 786102 Spacer, Neutral 61 778163

20 792077 Ball, Steel 5/16" diameter 65 780109

21 792078 Set Screw 3/8-16 x 3/8 66 776135

22 792079 Spring 67 776315A

23 788061 Ring, Seal 68 786116A

25 792073 Screw, Flanged Hex Head, Thread 69 780051

Forming 1/4-20 x 1-1/4 70 786118

26 792f25 Ring, Retainer 71 788069

(4 Required, Package of 2) 72 792165

27 792035 Ring, Retainer 72A 788091

28 788040 Ring, Retainer 76 780090

29 780072 Washer, Thrust 77 788078A

30 780108 Washer, Thrust

31 780001 Washer 79 792144

32 792001 "O" Ring 81 786081

33 788095 Sea], Square Cut

34 780105A Bushing, Flanged 82 786082

35 780118A Bushing, Flanged 83 786123

36 790003 Disk, Brake 90 788067B

37 790007 Plate, Brake Pad 103 792166

38 799021 Pad, Brake (Package of 2) 104 792167

39 786026 Pin, Dowel 150 788093

40 792076A Washer, Flat 900 794602

4! 790079 Lever, Brake

42 792073 Screw, Flanged Hex Head, Thread

Forming 1/4-20 x 1-1/4

42A 792085A Screw 1/4-20 x 2-1/4

Locknut 5t16_24

Holder, Brake Psd

Spacer

Bracket, Brake Lever

Axle 1 t-5/16" long

Axle I6-1/2" long

Gear S3ur, 37 Teeth, Steel (1,,)

Gear S3ur, 35 Teeth (2°°)

Gear S 3ur, 30 Teeth (3,,)

Gear S3ur, 25 Teeth (4,,)

Gear S 3ur, 22 Teeth (5,,)

Gear S :_ur,19 Teeth, Steel (6,,)

Gear S3ur, 12 Teeth, Steel (1,,)

Gear S_ur, 15 Teeth (2.,)

Gear S 3ur, 20 Teeth (3_)

Gear S 3ur, 25 Teeth (4,,)

Gear, S 3ur, 28 Teeth (5_)

Gear S 3ur, 31 Teeth (6,,)

Washer Thrust

Shaft, In )ut

Shaft, Brake, 4 Keyed

Plug

Washer, Thrust

Spacer

Square Cut Ring

Plug, Threaded 9/16-18

"O" Ring

Washer, Thrust

Ring, Retaining, Inverted

(Package of 2)

Spring, Brake

Chain, Roller

(Number 41 Chain, 24 Links)

Sprocket, 9 Teeth (Reverse)

Sprocket, 18 Teeth (Reverse)

Grease, Bentonite, 32 Ounce Bottle

Screw t/4-20 x 2

Locknut 1/4-20

Gasket Eliminator (Loctite #515)

Replacement Transaxle

NOTE: All component dimensions given in U.S. inches

I inch = 2&4 mm

Parts must be ordered from Tecumseh Products Co.

REPARR PARTS

TRACTOR -- MODEL NUMBER 917.259560

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 1631-01

=" 615

552A

615 q_

220 _

23o

868

42 _'_

40 35

819

534

642

_' 165

643

601

525

524 0

523

842

535

445

235

537

161

REPAIR PARTS

TRACTOR -- MODEL NUMBER 9'17.259560

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 1631-0'1

1358 GASKET SET !

1861 PUMP REPAIR KIT 1

1121CARBURETOR KIT

859

394

104

103

_119

468

434

392

117

332

Q 75

188

1006

334 851

356

51A

232

_ 202

257

205

0 634

726

....... i,

337

635

383

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 1631-01

783

801

802

653

544

209A

311

803

209

201

414 207

307

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER '1631-01

8 .......................... 7A

3O5

881

304

1'i058 OWNER'SMANUALI

_r REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

i 10'i'9'LABEL KITI

305

308A

3O8

306

307 306A

307

3O5

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259560

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 1631-01

KEY PART KEY PART

NOo NO. DESCRIPTION NO. NO. DESCRIPTION

1 497074 Cylinder Assembly 54

2 399265 Bushing 78

3 391086 * Seat, Oil 90

4 493304 Sump, Engine 91

5 493457 Head, Cylinder#1

5A 493458 Head, Cylinder #2 93

7 271867 * Gasket, Cylinder Head #1 94

7A 271868 * Gasket, Cylinder Head #2 95

8 495754 Breather Assembly #1 96

8A 222892 Cover, Breather Cylinder'#2 97

(Used Only on Key#572, 98

Air Baffle with Holes for Mounting) 99

9 27803 * Gasket, Breather 102

10 94382 Screw, Sems 103

IOA 94830 Screw, Sems 104

11 280225 Tube, Breather 105

12 273208 * Gasket, Crankcase, _015" Thick 107

271188 * Gasket, Crankcase, .005" Thick 108

271189 * Gasket, Crankcase, 009" Thick 109

13 94565 Screw, Cylinder Head 116

15 94239 Plug, Oil Drain 117

16 394028 Crankshaft

94196 Timing Gear Key

20 291675 * Seal, Oil 119

22 94724 Screw, Serns 121

23 491180 Flywheel 127

24 222698 Key, Flywheel 161

25 498584 Piston Assembly, Standard Size 165

498585 Piston Assembly, .010" Oversize 187

498586 Piston Assembly, ._020"Oversize 188

498587 Piston Assembly, .030" Oversize 201

26 394959 Ring Set, Standard Size 202

394960 Ring Set, .010" Oversize 203

394961 Ring Set, °020" Oversize 205

394962 Ring Set, .030" Oversize 206

27 263129 Lock, Piston Pin 207

28 498319 Pin, Piston, Standard Size 209

391286 Pin, Piston, .005" Oversize 209A

29 394306 Rod, Connecting, Standard Size 219

397158 Rod, Connecting, .020" Undersize 219A

32 94671 Screw, Connecting Rod 220

33 390420 Valve, Exhaust 222

34 261528 Valve, Intake 224

35 65906 Spring, Valve, Intake

36 26828 Spring, Valve, Exhaust

40 221596 Retainer, Valve, Intake

41 292260 Retainer, Valve, Exhaust

42 494553 Keeper', Valve ***

45 261368 Tappet, Valve

46 213520 Gear, Cam

50 213290 Manifold, Intake ****

51 271412 .... Gasket, Carburetor Mounting

51A 281411 Spacer, Carburetor'

52 270884 * Gasket, Intake Manifold Mounting

53 93970 Screw, Hex Head,

Carburetor to Manifold

93208

222511

95039

495181

495035

231209

491538

93499

221939

392672

91920

26157

271607

298514

231435

394683

491543

223534

392673

280474

231338

231333

94152

491539

223472

496599

94289

299146

94627

262683

262684

280997

93971

94298

262337

262352

261563

394348

393415

222773

491282

94297

Screw, Phillips

Washer, Spring

Screw, Hex

Carburetor

Body Assembly, Upper

Bushing, Throttle Shaft

Valve, idle Adjust

Screw, Sems

Valve, Throttle

Shaft, Throttle

Screw, FiUister Head

Spring, Throttle Adjust

Gasket, Carburetor Body

Float, Carburetor

Pin, Float Hinge

Valve, Needle

Body Assembly, Lower

Valve, Choke

Shaft, Choke

O-Ring

Jet, Needle Valve, Fixed

Jet, Needle Valve, Fixed,

High Altitude

Screw, Hex Head

Carburetor Kit

Plug, Welch

Base, Air Cleaner

Nut, Wing

Line, Fuel, 28" Long (Cut to Suit)

Screw

Link

Crank, Bell

Screw, Hex Head

Nut

Spring, ControL, Rod

Spring, Governor

Spring, Governor Idle

Gear, Governor

Oil Slinger

Washer, Thrust

Bracket, Control

Screw, Torx®

* Included in Gasket Set (495868)

** Included in Carburetor Kit (491539)

Included in Carburetor Kit (49! 539),

and Pump Repair Kit (393397)

Included in Gasket Set (495868),

and Carburetor Kit (491539)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mrn

REPADR PARTS

TRACTOR - - MODEL NUMBER 917.259560

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 1631-01

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO, DESCRIPTION

227 491297 Lever Assembly, Governor 556 93585 Screw, Hex Head

229 62199 Washer 562 93853 Bolt, Governor Lever

230 223882 Washer, Governor Crank, Inside 567 9481t Screw, Hex Head,

235 224995 Shield, Fuel Spray Back Plate to Cylinder

240 394358 Filter, Fuel 569 272645 * Gasket, Base

244 230318 Connector, Fuel Line 572 224816 Baffle, Air, Cylinder #2

257 93897 Screw, Seres 573 491304 Plate, Back

258 94623 Screw, Seres 592 92278 Nut, Hex.

259 223890 Bracket, Cable 601 93053 Clamp, Hose

265 221535 Clamp, Casing 615 94296 Retainer, E-Ring

267 94906 .Screw, Senis 6t5A 263080 Retainer

284 94674 Screw, Hex Head 616 491530 Crank, Governor

284A 94882 Screw, Hex Head 634 271013 ** Washer, Throttle Shaft

304 495469 Housing, Blower, Red 634A 491287 * Seal, Governor Shaft

305 94786 Screw, Seres 635 66538 Boot, Spark Plug

306 222846 Shield, Cylinder 642 225008 Cover, Air Cleaner

306A 223734 Shield, Cylinder 643 496700 Plate, Air Cleaner

307 94930 Screw, Self-Tapping 653 93585 Screw, Hex Head

308 224774 Cover, Air Guide 726 391362 Gear, Ring

308A 224775 Cover, Air Guide (includes Mounting Parts)

309 497596 Motor, Starter 741 262989 Gear, Timing

310 94003 Bott, Thru 783 280104 Gear, Starter

311 497608 Brush Set 80I 394860 Cap, Drive

332 230674 Nut, Hex 802 497607 Cap, End

333 394891 Armature, Magneto 803 497604 Housing, Starter

334 94731 Screw, Seres 819 94675 Screw, Hex Head

337 802592 Plug, Spark 842 270920 * Seal, Cap

356 494705 Wire, Stop 847 495715 Tube Assembly, Oil

358 491856 Gasket Set 851 493880 Terminal, Cable

363 19203 Flywheel Puller 858 270989 *** Diaphragm, Carburetor

383 89838 Wrench, Spark Plug 859 271025 "** Gasket, Pump

387 280197 Body, Pump 860 261358 *** Spring, Diaphragm

392 261395 **" Spring, Diaphragm 861 393397 Repair Kit, Pump

394 270988 *** Diaphragm, Carburetor 868 497212 Seal, Valve

414 220680 Washer 869 261463 Seat, Valve, Intake

422 222875 Bracket, Oil Fill 870 213316 Seat, Valve, Exhaust

432 221377 ***Cap, Spring 871 261961 Bushing, Guide (Exhaust Only)

231218 Bushing, Guide (intake, Brass)

434 223688 Cover, Diaphragm

435 93829 Screw, Diaphragm Cover 877 393456 Wire, Alternator

445 394019 Filter, Air 881 495901 Plate, Cover

468 497908 Screen, Rotating 955 397882 Plug and Seal, Solenoid

474 393474 Alternator !005 281053 Fan, Flywheel

482 93621 Screw, 1006 224901 Retainer, Fan

510 497606 Drive, Starter 1019 496726 Label Kit

523 494947 Cap, Oil Fill 1058 272112 Owner's Manual

524 271157 * Seal, Fill Tube 1090 497605 Retainer, Brush

525 495348 Tube, Oil Fill (Includes Seals

528 393815 Hose, Vacuum * Included in Gasket Set (495868)

534 94823 Screw, Air Cleaner

535 272490 Filter, Air ** Included in Carburetor Kit (491539)

537 27141t .... Gasket, Air Cleaner

544 497603 Armature, Starter *** Included in Carburetor Kit (491539),

552 262332 Lower Bushing, Governor and Pump Repair Kit (393397)

552A 262331 Upper Bushing, Governor

.... Included in Gasket Set (495868),

and Carburetor Kit (491539)

NOTE: All component dimensions given in U.S. inches

1 inch=254mm

SE C NOTES

SUGGESTED GUmDEFOR SJGHTBNG SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15 ° MAX.

iiiiiiiii i iiiiii ii iiiii iiiii i iiii ii |

_! ._ Operate your Tractor up and down the face of slopes (not

_| _.A greater than 15°), never across the face. Make turns gradu-

_| | ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

OWNER'

A UAL

MODEL NO.

917.259560

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FeN-PART

(1=800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

195 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Each tractor has its own model number. Each engine has

its own model number.

The model number' for your tractor will be found on the

model plate located under' the seat.

The model number for your engine will be found on the

blower housing of the engine.

Ali parts listed herein may be ordered from any Sears,

Roebuck and Co., Service Center/Department and most Re-

tail Steres.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

" PRODUCT - TRACTOR

" MODEL NUMBER " 917.259560

° ENGINE MODEL NO. " 42E707-1631-01

° PART NUMBER

" PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians°_ professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell

159806 4.8 97 TR

Printed in U.S_A

Craftsman 917259560 19.5 Hp Electric Start 42" Mower 6 Speed Transaxle Lawn Tractor

Product's Documents

Owner’s Manual

Specifications

Craftsman 917259560 Questions and Answers

Related Products

Craftsman 917203780 19 HP* 42" Mower Electric Start Automatic Transmission Lawn Tractor
