INSTALLATION GUIDE
US CA
WALL RANGE HOOD, CHIMNEY PYRAMID
CLASSIC
HC24PCX1, HC0PCX1, HC0PCB1, HC0PCR1, HC0PCW1, HC6PCX1,
HC6PCB1, HC6PCR1 & HC6PCW1
3
EN
Safety and warnings 4
Parts supplied 6
Prior to installation 7
Product dimensions–24" models 8
Product dimensions–30" models 10
Product dimensions–36" models 12
Installation height 14
Attachment dimensions 15
Venting options 16
Prepare range hood 18
Attach brackets and mounting screws 19
Hang range hood 20
Electrical connection 21
Attach chimney 22
Final checklist 23
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
4
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in electric shock or death.
• Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
• To reduce the risk of fire or electric shock, do not use this fan
with any solid-state speed control device.
!
WARNING!
Weight Hazard
Failure to follow this advice may result in personal injury
• The appliance is heavy. Please ensure adequate care is taken
when installing the appliance to prevent personal injury.
The appliance must be installed onto a solid wall, stud, beam
or truss.
• Product weight: HC24 42 lb (19 kg), HC30 35 lb (21.5 kg),
HC36 37 lb (23.8 kg).
READ AND SAVE THESE INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions includingthe following:
General
z
Please read the entire set of instructions before installing or using this appliance.
z
Please make this information available to the person installing the appliance.
z
Always switch the power off prior to installation, servicing or cleaning of the appliance.
z
The room must have adequate ventilation when the range hood is used at the same
time as appliances burning gas or other fuels.
z
Stainless steel or powdercoat is very easily damaged during installation if abraded or
knocked by tools. It is recommended to protect the top of the appliance with cardboard
or polystyrene during the installation to minimise the risk of damage occurring.
z
To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the range hood.
z
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
z
Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.
z
Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.
5
EN
SAFETY AND WARNINGS
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THEFOLLOWING:
z
Installation work and electrical wiring must be done by qualified person(s)
inaccordance with all applicable codes and standards, including fire-ratedconstruction.
z
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Followthe heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), andthe American
Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the
local code authorities.
z
When cutting or drilling into wall or ceiling, do not damage electrical wiring andother
hidden utilities.
z
Ducted fans must always be vented to the outdoors.
z
This unit must be grounded.
z
Wear gloves to protect against sharp edges.
Electricial
z
This appliance must be installed and connected to the mains power supply only by a
qualified person according to these installation instructions and in compliance with
any applicable local building and electricity regulations. Failure to install the appliance
correctly could invalidate any warranty or liability claims.
z
To comply with electrical safety regulations, the appliance must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the appliance from the power for the
purpose of internal cleaning or maintenance.
z
A power outlet should be within 750mm of the motor assembly and can either be on
the wall, behind the chimney or in the ceiling.
z
If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
z
Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.
z
Electrical wiring must be done by qualified person(s) in accordance with all
applicablecodes and standards and the unit must be grounded.
z
Installation work and electrical wiring must be done by qualified person(s)
inaccordance with all applicable codes and standards, including fire-ratedconstruction.
Fire
z
WARNING: To reduce the risk of fire, use only metal ductwork. Do not use flexible
plastic ducting.
z
CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside –
donotvent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or
garages.
z
To reduce the risk of fire and electric shock, install this range hood only with the
integral blowers supplied with this range hood.
z
The 8’ metal duct adapter supplied with this rangehood must be used for connecting
any ducting to this rangehood. Ducting should not be fitted onto the plastic blower
outlet.
6

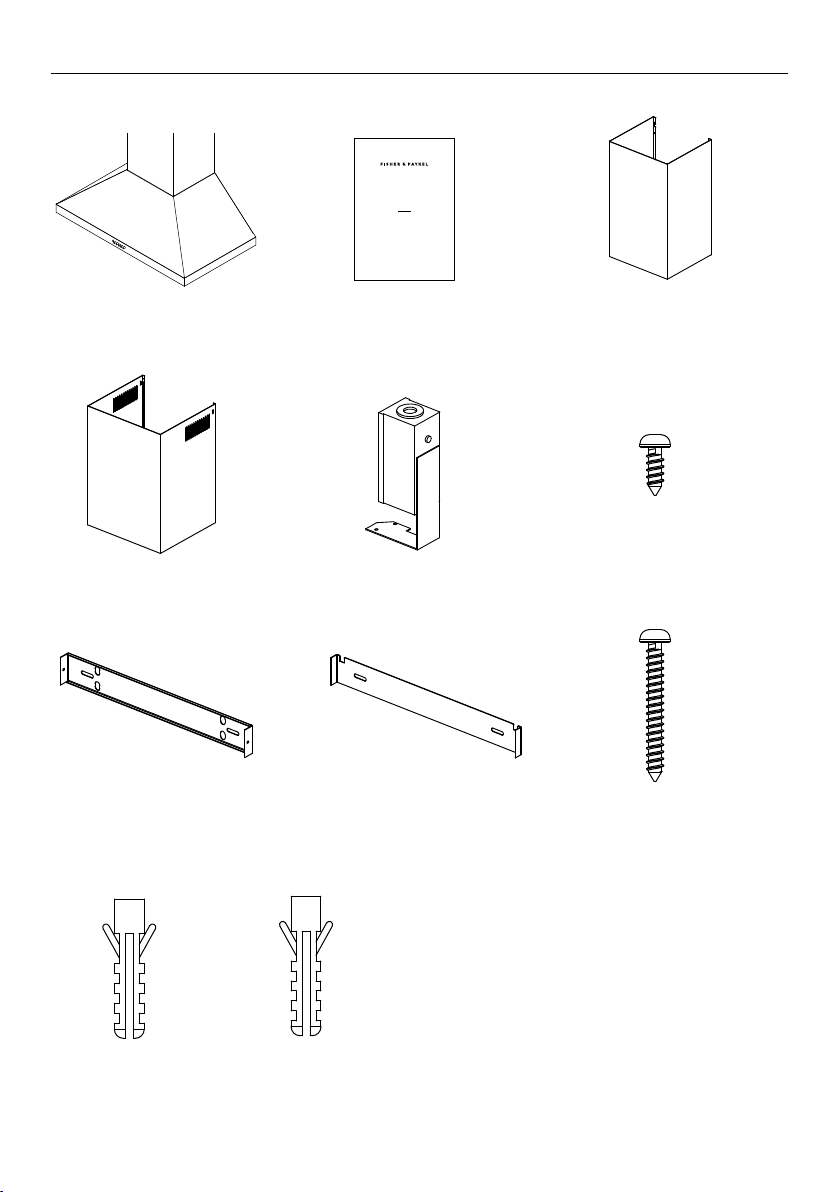

PARTS SUPPLIED
Upper chimney
bracket (1)
1 3/16" (30mm)
Expansion plug (10)
Upper chimney (1)
Chimney bracket (1)
1 3/16" (30mm)
Self tapping screw (10)
3/8" (10mm)
Self tapping
screw (4)
Range hood (1)
Power connection box (1)
Chimney (1)
1 3/4"(44mm)
Drywall expansion plug (8)
Installation guide (1)
INSTALLATION GUIDE
US CA
WALL RANGE HOOD, CHIMNEY PYRAMID
CLASSIC
HC24PCX1, HC30PCX1, HC30PCB1, HC30PCR1, HC30PCW1, HC36PCX1,
HC36PCB1, HC36PCR1 & HC36PCW1
7
EN
PRIOR TO INSTALLATION
The manufacturer is not liable for any damage caused by not following these instructions.
z
Unpack the range hood.
z
Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate
matchthevoltage and frequency of the installation site.
z
Check that the area behind the installation surface to be drilled is clear of any electrical
cables or pipes etc.
z
The range hood surfaces can be damaged during installation if grazed or knocked by
tools. Please take care to protect the surfaces during installation.
z
Protect the cooktop surface with cardboard, or the like, to prevent damage
occurring whilst the range hood is being installed above.
z
The wall used for mounting the range hood should have sufficient strength and a
flat surface.
8
PRODUCT DIMENSIONS–24" MODELS
c
f
e
A
b
g
h
i
d
j
k
l
FRONTPROFILE
PLAN
BOTTOM
UL connection box
9
EN
PRODUCT DIMENSIONS–24" MODELS
PRODUCT DIMENSIONS
HC24
IN MM
A Maximum overall height of product 38 3/8 975
B Minimum overall height of product 25 1/16 636
C Overall width of product 23 9/16 598
D Overall depth of product 19 11/16 500
E Height of product 11 3/4 298
F Width of chimney 12 5/8 320
G Depth of chimney 11 7/16 290
H Distance from center of ducting outlet to back of product 4 5/16 110
I Distance from center of ducting outlet to side of chimney 6 5/16 160
J Diameter of ducting outlet 7 7/8 200
K Distance between center of lights 16 1/4 413
L Distance between center of lights and back of product 1 5/8 42
Actual product dimensions may vary by ± 1/16’ (2 mm).
10
PRODUCT DIMENSIONS–30" MODELS
c
f
e
A
b
g
h
i
d
j
k
l
FRONTPROFILE
PLAN
BOTTOM
UL connection box
11
EN
PRODUCT DIMENSIONS–30" MODELS
PRODUCT DIMENSIONS
HC30
IN MM
A Maximum overall height of product 38 3/8 975
B Minimum overall height of product 25 1/16 636
C Overall width of product 29 3/4 755
D Overall depth of product 19 11/16 500
E Height of product 11 3/4 298
F Width of chimney 12 5/8 320
G Depth of chimney 11 7/16 290
H Distance from center of ducting outlet to back of product 4 5/16 110
I Distance from center of ducting outlet to side of chimney 6 5/16 160
J Diameter of ducting outlet 7 7/8 200
K Distance between center of lights 16 1/4 413
L Distance between center of lights and back of product 1 5/8 42
Actual product dimensions may vary by ± 1/16’ (2 mm).
12
PRODUCT DIMENSIONS–36" MODELS
c
f
e
A
b
g
h
i
d
j
k
l
FRONTPROFILE
PLAN
BOTTOM
UL connection box
13
EN
PRODUCT DIMENSIONS–36" MODELS
PRODUCT DIMENSIONS
HC36
IN MM
A Maximum overall height of product 38 3/8 975
B Minimum overall height of product 25 1/16 636
C Overall width of product 35 3/8 898
D Overall depth of product 19 11/16 500
E Height of product 11 3/4 298
F Width of chimney 12 5/8 320
G Depth of chimney 11 7/16 290
H Distance from center of ducting outlet to back of product 4 5/16 110
I Distance from center of ducting outlet to side of chimney 6 5/16 160
J Diameter of ducting outlet 7 7/8 200
K Distance between center of lights 16 1/4 413
L Distance between center of lights and back of product 1 5/8 42
Actual product dimensions may vary by ± 1/16’ (2 mm).
14
INSTALLATION HEIGHT
B
A
This range hood must be installed no lower than the minimum height indicated in the table
above. Minimum installation height may be greater if required by the cooktop, refer to your
cooktop installation instructions.
Installation at the minimum height will improve the efficiency of capturing cooking odours,
grease and smoke. Installation above the minimum height is the users preference, it is not
recommended to install above the maximum height indicated in the table above.
HEIGHT DIMENSIONS IN MM
A Ducted installation
z
Minimum height
z
Maximum hieght
25 1/16
38 3/8
636
975
Recirculation
z
Minimum height
z
Maximum hieght
26 5/8
38 3/8
676
975
B Height top of cooktop to base of product 26–30 660–762
15
EN
ATTACHMENT DIMENSIONS
ATTACHMENT DIMENSIONS IN MM
A Lower range hood attachment point width 20 508
B Lower range hood attachment point height 1 3/4 45
C Upper range hood attachment point width 9 7/8 250
D Upper range hood attachment point height 11 1/4 286
E Chimney bracket attachment point width 9 7/8 250
F Chimney bracket attachment point height 31 1/4 794
G Upper chimney bracket attachment point width 9 7/8 250
H Upper chimney bracket attachment point height 1 25
A
H
F
D
B
C
E
G
Upper chimney bracket
attachment points
Chimney bracket
attachment points
Upper range hood hood
attachment points
Lower range hood
attachment points
16
VENTING OPTIONS
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
Ducted
It is recommended that 8" (203mm) diameter, rigid or semi-rigid ducting is used. This will
require a 8 1/4" (210mm) (min) round hole in the ceiling or wall. Care should be taken to
position the hole correctly.
For optimal efficiency use the shortest and straightest duct route possible and use rigidor
semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting should
only be used as a last resort (ie in difficult installations) and if used ensure that it is
straight, smooth and extended as much as possible.
Recirculating
To enable the product to operate with the air recirculating, purchase a recirculation diverter
and carbon filters (refer to the ‘Parts and accessories’ section). This recirculation diverter
is required to channel the air out the side vents at the top of the chimney and the carbon
filters are required to remove odors.
A ducting hole is not required in the wall or ceiling if the ventilation hood is installed to
operate with exhaust air recirculating.
17
EN
ELECTRICIAL REQUIREMENTS
Before connecting the range hood to the power supply, ensure the voltage and frequency
indicated on the rating plate match that of the installation location.
MODEL FREQUENCY VOLTAGE
HC24, HC30, HC36 60 Hz 120 V
Rating plate
location
18
PREPARE RANGE HOOD
Warning: Failure to install the screws or fixing device in accordance with these instructions
may result in an electrical hazards.
Remove the filters –pull the catch
and tilt the filter downwards until
it disengages from the supports.
1
19
EN
ATTACH BRACKETS AND MOUNTING SCREWS
1
2
3
Temporarily mark the height of the
bottom of the range hood and the
centre of the cooktop on the wall
according to the information provided
in 'Installation Height'.
Attach the chimney bracket and
upper chimney bracket (if using
the upper chimney). Use the 1 3/16"
(30mm) screws and expansion plugs if
attaching to masonry.
Attach the upper hood mounting
screws. Use the 1 3/16" (30mm)
screws and expansion plugs if
attaching to masonry.
Ensure that there is a 1/16" (2mm) gap
between the screw head and the wall.
1/16"
(2 mm)
20
HANG RANGE HOOD
Hang the range hood off the upper
range hood mounting screws with
1/16" (2mm) gap. Hangoff the keyhole
attachment points on the back of the
range hood then tighten thescrews.
Attach the lower range hood
mounting screws to fix the range hood
to the wall.
Refit the filters.
1
2
Attach ducting to the ducting
adapter using aluminium duct tape.
3
21
EN
ELECTRICAL CONNECTION
1 Run three wires from the power connection box
on the rangehood to the power point.
2 Two wires for the power supply and one for the
ground wire.
Open the power connection box on the range
hood and secure the power conductor with a
strain relief (not included).
3 Connect the power conductors to the conductors
for the range hood, black to black and white
to white.
4 Connect the grounding wire (green or bare) to
the ground conductor (green) of the range hood
power connection box.
Secure all the connections with wire nuts.
Replace the power connection box cover.
22
ATTACH CHIMNEY
Bend the tabs on the chimney.
Place chimney around the range
hood chassis and hang off the
chimney bracket.
Extend the upper chimney and
attach to the upper chimney
bracket with 10mm screws.
1
2
3
REAR VIEW
23
EN
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Range hood is correctly installed and all connections are secure.
Connections have not pierced any electrical or water lines within the wall.
Ducting has not been crushed or bent in any area's.
Flexible ducting has been pulled taut and any excess removed (if required).
Power mains switch is accessible to the customer and switched on.
Operation of the product has been tested, refer to user guide.
Complete and keep for safe reference:
Model
Serial no.
Purchase date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
10597D 12.20
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2020. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
