Please read this user manual first!

Dear Customer,

Thank you for prefering a Beko product. We hope that you get the best results from your product which has

been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user

manual and all other accompanying documents carefully before using the product and keep it as a reference

for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings

and information in the user manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints

about usage.

Warning for hazardous situations with

regard to life and property.

Warning for electric shock.

Warning for danger of fire.

Warning for hot surfaces.

This product has been produced in environmentally friendly, modern facilities.

Complies with the WEEE Regulation.

Does not contain PCB.

Made in: P.R.C

3 / 13 EN

Hood / User Manual

1 Recommendations and Suggestions 4-5

1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.2 Safety Precaution . . . . . . . . . . . . . . . . . . . . .4

1.3 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2 Characteristics 6

2.1 Technical Specifications . . . . . . . . . . . . . . . .6

3 Installation Instructions 7

4 Operation 10

5 Use and Maintenance 11

5.1 Carbon filter (not supplied) . . . . . . . . . . . . .12

6 Trouble shooting 13

TABLE OF CONTENTS

4 / 13 EN

Hood / User Manual

1 Recommendations and Suggestions

1.1 General

•Carefullyreadthefollowingim-

portant information regarding

installation safety and mainte-

nance. Keep this information

booklet accessible for further

consultations.

•The appliance has been de-

signed as a exhausting version

(external exhaust) or as a filter

version (inter air recycle) cooker

hood.

1.2 Safety Precaution

•Takecarewhenthecookerhood

is operating simultaneously with

an open fireplace or burner that

depend on the air from the en-

vironment and are supplied by

other than electrical energy, as

the cooker hood removes the

air from the environment which

a burner or fireplace need for

combustion.

•Provide adequate ventilation in

the environment for a safe op-

eration for the cooker hood.

•Followthelocallawsapplicable

for external air evacuation

•Appliance shall only be used

with rated voltage and frequen-

cy.

•Thereisafireriskifcleaningis

not carried out in accordance

with the instruction.

•Thereshallbeadequateventila-

tion of the room when the range

hood is used at the same time

as appliances burning gas or

other fuels. (Not applicable to

appliances that only discharge

the air back into the room).

•Thereisariskoffireifcleaning

is not carried out in accordance

with the instructions.

•Caution: Accessible parts may

become hot when used with a

cooking appliance.

•The appliance is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities,

or lack of experience and knowl-

edge, unless they have been

given supervised or instruction

concerning use of the appliance

by a responsible person for their

safely.

•Youngchildrenshouldbesuper-

vised to ensure that they do not

play with the appliance.

5 / 13 EN

Hood / User Manual

1 Recommendations and Suggestions

•Ifthesupplycordisdamaged,it

must be replaced by the manu-

facturer or its service agent or a

similarly qualified person in or-

der to avoid a hazard.

The instructions must include de-

tails concerning cleaning instruc-

tions and frequencyof cleaning

1.3 Warning

In certain circumstances electri-

cal appliances may be a danger

hazard.

•Do not check the status of the

filters while the cooker hood is

operating.

•Donottouchthelightbulbsafter

appliance use.

•Donotdisconnecttheappliance

with wet hands and without to

force the supply cord..

•Flamecookingisprohibitedun-

derneath cooker hood.

•Avoidfreeflame,asitisdamag-

ing for the filters and a fire haz-

ard.

•Constantly check food frying

to avoid that the overheated oil

may become a fire hazard .

•Disconnect the electrical plug

prior to any maintenance.

•Children don’t recognize the

risks of electrical appliance.

Therefore use or keep the appli-

ance only under supervision of

adults and out of the reach from

children.

•Ifthepowercordisdamaged,it

must be replaced by the manu-

facturer or a qualified service

engineer in order to avoid a har-

zad.

•Keep electrical appliances out

of reach from Children or infirm

persons. Do not let them use the

appliances without supervision.

•Indooruseonly.

•Donotdisposeofelectricalap-

pliances as unsorted municipal

waste, use separate collection

facilities.

•Contact you local government

for information regarding the

collection systems available.

•If electrical appliances are dis-

posed of in landfills or dumps,

hazardous substances can leak

into the groundwater and get

into the food chain, damaging

your health and well-being.

•Whentheapplianceisnotinuse

and before cleaning, unplug the

appliance from the outlet.

6 / 13 EN

Hood / User Manual

2 Characteristics

CTB 6253 X

Width 695 mm

Depth 265 mm

Height 400 mm

Supply voltage 220 - 240 V, 50 Hz

Control 2 positions

Suction power 440 m

/h / 260 m

/h (with CF)

Motor power 200 W

Lamp power 2 x 28W

Total power 256 W

Net weight 8,1 kg

Gross weight 9,63 kg

2.1 Technical Specifications

Markings on the product or the values stated in other documents

supplied with the product are values obtained under laboratory

conditions as per relevant standards. These values may vary according

to the usage of the product and ambient conditions.

7 / 13 EN

Hood / User Manual

• The exhaust air must not be discharged into a

flue which is used for exhausting fumes from

other appliances burning gas or other fuels. (Not

applicable for appliances which only discharge

air back into the room)

• The minimum distance between the support-

ing surface for the cooking vessels on the hob

and the lowest part of the range hood: When the

range hood is located above a gas appliance,

this distance shall be 65cm. If the instructions

for installation for the gas hob specify a greater

distance, this must be taken into account. (The

distance of 65cm can be reduced for non com-

bustible parts of range hoods and parts operating

at safety extra low voltage provided these parts

do not give access to live parts. Distance may

bereducedto60cmtoalignwiththeAGAcode.

• Regulations concerning the discharge of air have

to be fulfilled

• Warning: Failure to install the screws or fixing

device in accordance with the instructions may

result in electrical hazards

3 Installation Instructions

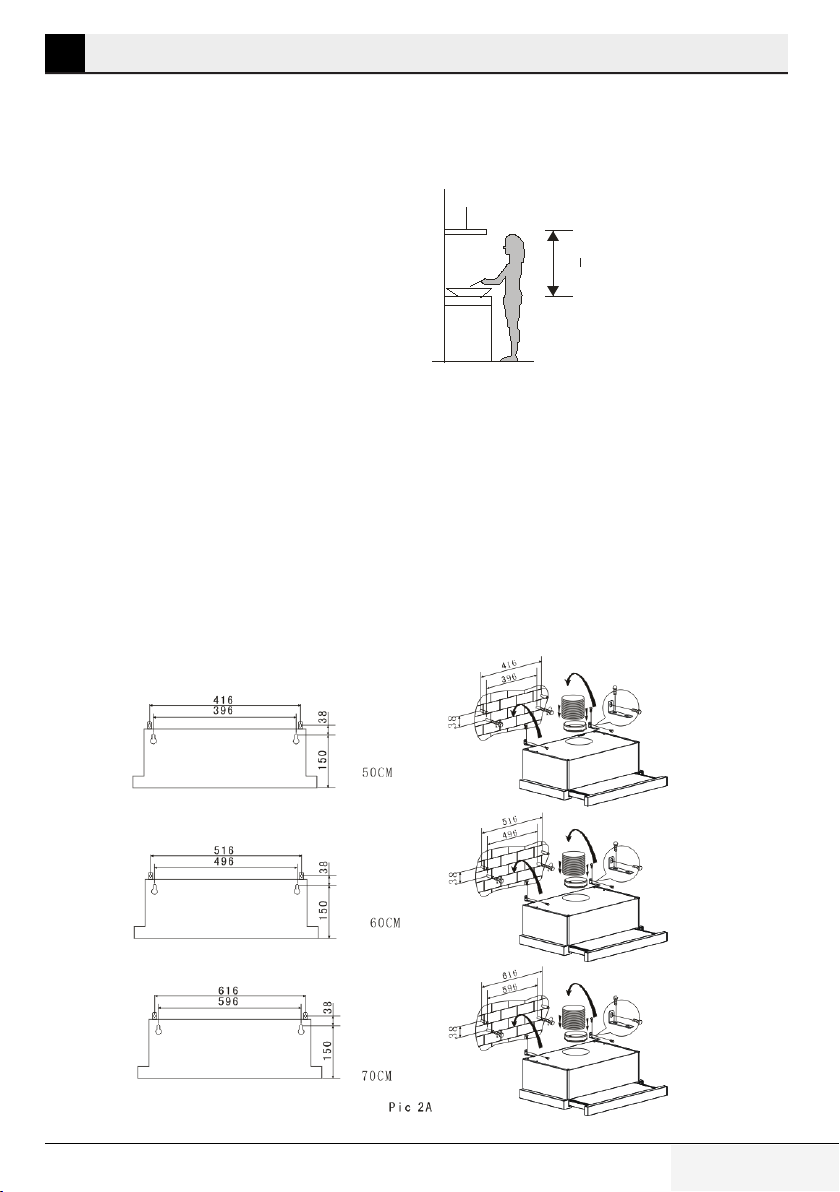

The cooker hoods should be placed at a distance

of 65-75cm from the cooking surface for best

effect. (See Pic 1)

65cm

75cm

Pic 1

Wayone:(SeePic2A)

•Toinstallontothewalldrill4holesofØ8mm

on a suitable place according with the centre

distance of hole in the back of the cooker hood.

•Insertthewallplugsintotheholes.

•Insertthescrewsintothewallpulgsandtight

the screws.

•Putupthecookerhoodontothefixedscrews.

•Puttheoneairoutletandextensiblepipeonto

the cooker hood. (the extensible pipe is optional

not supplied)



8 / 13 EN

Hood / User Manual

Way two: (See Pic 2B)

•Drill6holesof4mmdiameteratthebottomof

the hanging cupboard

•Puttheairoutletonthecookerhood,thenins-

tall the cooker hood on the bottom of the cup-

board, tighten the hood with enclosed 6 screws.

•Installtheadjustedboardonthebottomofthe

hood in order to keep out the gap between

hood back and cupboard.

3 Installation Instructions



9 / 13 EN

Hood / User Manual

3 Installation Instructions

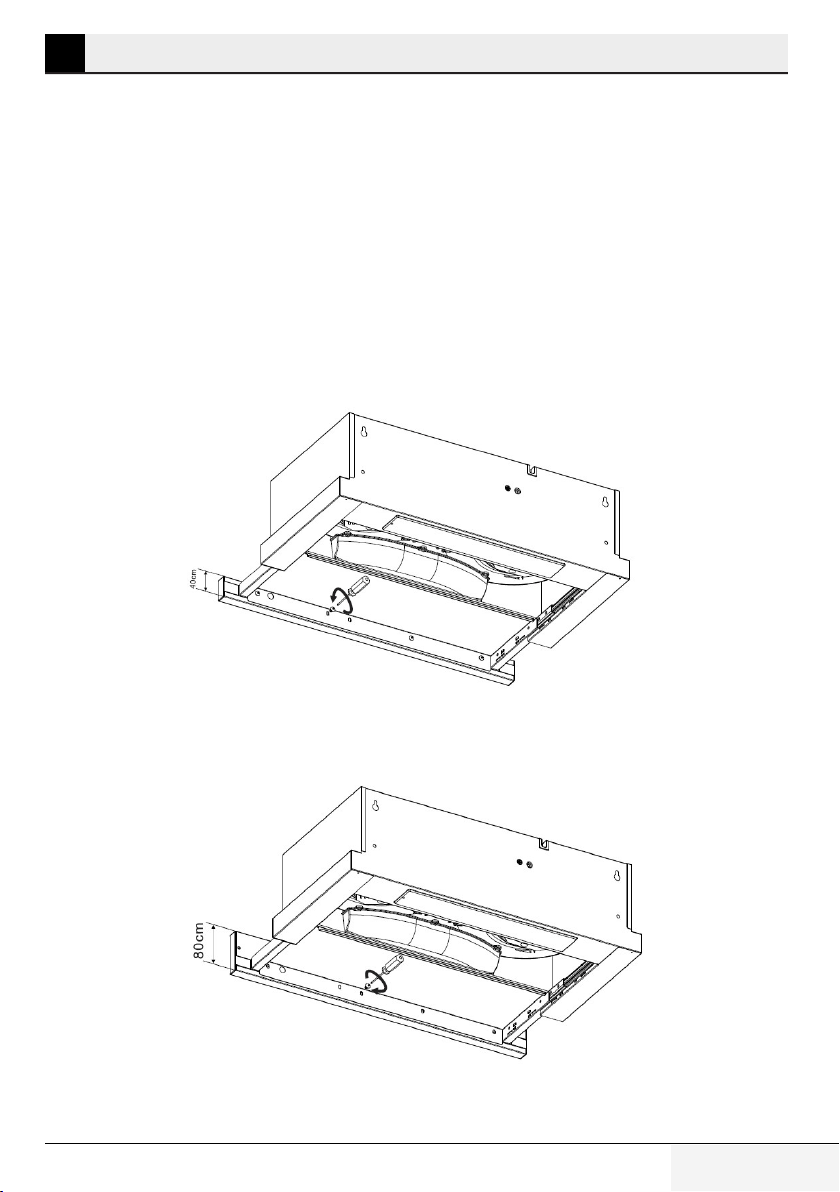

7 Replacement for the front panel

Replace the front panel (80mm) is as below:

- Side the front panel of the cooker hood.

- Inordertochangefrontpanel,theAlanti-greasefiltershouldbedetachedfirstly.Pressthelockand

pull it downward.

- Remove 4 screws in the back of the front panel (40mm)

- Putthefrontpanel(80mm)onthesliderboard,adjustpositioninordertokeepbalancewiththehood

body, tighten with enclosed 4 screws.

- Repeat the same way if change to 40mm

10 / 13 EN

Hood / User Manual

4 Operation

Connect the plug into the power.

Choose the ducting mode or the recirculation

mode as you need (for Front- re-circulating mo-

dels only):

ducting mode

recirculation mode

Push the switch into “



”, the lamp be on;

push into “0”, the lamp be off.

Push the switch into “I, II”, the motor will be on

“low, high” two speeds, push into “0”, the motor

will be off.

The cooker hood will working at low or high speed

when pull out the front panel.



11 / 13 EN

Hood / User Manual

5 Use and Maintenance

•Itisrecommendedtooperatetheappliance

prior to cooking.

•Thereshallbeadequateventilationoftheroom

when the cooker hood is used at the same time

as appliances burning gas or other fuels(not

applicable to appliances that only discharge the

air back into the room.

•Itisrecommendedtoleavetheappliancein

operation for 15 minutes after cooking is termi-

nated in order to completely eliminate cooking

vapours and odours.

•Iftheapplianceisnotused,pleaseturnoff.

•Don’thaveflameunderthecookerhood.

•Don’tuseorstopuseiftheapplianceisdama-

ged especially the supply cord and the case.

•Ifthesupplycordisdamaged,itmustberep-

laced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a

hazard.

•Don’timmersetheapplianceinliquid.

•Theexhaustairmustnotbedischargeintoa

flue which is used for exhausting fumes from

appliance burning gas or other fuels.

•Regulationsconcerningthedischargeofair

have to be fulfilled.

•Thedetailsconcerningthemethodandfrequ-

ency of cleaning.

•Inordertopreventfirehazard,itisrecommen-

dable to clean the filter at a maximum of 2

months by carrying out the followings:

- Unplug before cleaning, then remove the fil-

ters from the cooker hood and wash them in a

solution of water and neutral liquid detergent,

leaving to soak.

- Rinse thoroughly with warm water and leave

to dry.

- The filters may also be washed in the dish-

washer.

•Thealuminumpanelsmayalterincolorafter

several washes. This is not cause for customer

complaint nor replacement of panels.



•Cleanthesurfaceofthecookerhoodregularly

using cloth moistened with denatured alcohol of

non abrasive liquid detergent. (Remark: There

can not clear the motor and inside part.)

•Replacefiltersapproximatelyevery4months.

•Thereisafireriskifcleaningisnotcarriedout

in accordance with the instruction.

•Replacethelampplsseepic5.

12 / 13 EN

Hood / User Manual

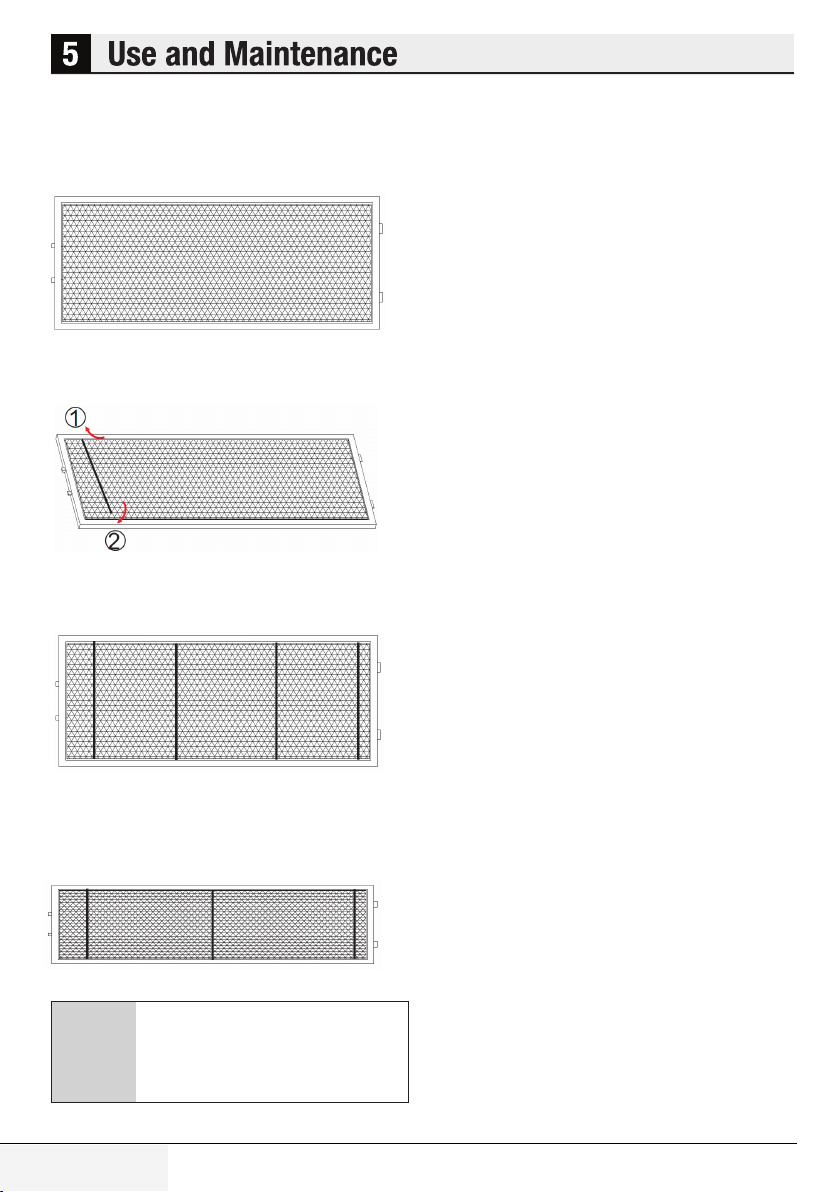

5.1 Carbon ﬁlter

1.Put the charcoal filter foam on the back of the

outer aluminium cassette filter.

2.Use an iron wire to insert in the side of aluminium

filter and press the charcoal filter foam.

3.Use other three iron wires in the same method

to press the charcoal filter foam flat.

4.The same method is used to install the charcoal filter

foam for inner aluminium filter, but it only uses three

iron wires.

Note:

When the activated carbon ﬁlter

installed, the suction power will be

lowered.

13 / 13 EN

Hood / User Manual

6 Trouble shooting

Problem Possible cause Solution

The extractor fan cea-

ses to function.

The kitchen hood feed cable is

not connected to the network.

There is no electrical current in

the network.

Connect feed cable to the network.

Check that the network has electrical

current.

Insufficient suction

power.

Did not set to the right speed

and/or air outlet being blocked.

If the kitchen hood is set up for recircula-

tion, check that the charcoal filter is still

effective.

If the kitchen hood is set up for extrac-

tion, check that the ducting and outlets

are not blocked.

The kitchen is adequately vented to allow

the entry of fresh air.

Hood has switched off

during operation.

The safety cut-out device has

been tripped.

Turn off the hood and then wait for the

device to reset.

If the hood has been installed below

the heights indicated in the installation

instructions, the motor will cut-out frequ-

ently which may damage the hood.

The lamps do not light

up.

The lamps are burnt out.

The lamps are loose.

Change the lamps.

Tighten the lamps.

Oil leakage. One-way valve and air ventilati-

on entrance not tightly sealed.

Leakage from the connection of

U-shaped section and cover.

Seal with glue on the one-way valve.

Seal with soap or paint on U-shaped

section.

Hood shakes during

operation.

Leaf is damage.

The body or motor tightly hung.

Replace the leaf as a damaged leaf cau-

ses shaking.

Lock the motor tightly or fix the body

tightly, respectively.

Beko Manufacturers Guarantee

Congratulations on purchasing a quality Beko product. Beko automatically

provide you with a 2 year Manufacturers Guarantee, covering parts and

labour for servicing within the geographical limits of Australia and New

Zealand.

General Terms and Conditions

For Australian Consumers

goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major

failure and for compensation for any other reasonably foreseeable loss or

damage. You are also entitled to have the goods repaired or replaced if the

goods fail to be of acceptable quality and the failure does not amount to a

major failure.

For New Zealand Consumers

Nothing in this guarantee purports to modify or exclude the conditions,

guarantees and undertakings, and other legal rights, under the New Zealand

Consumer Guarantees Act and other laws, except in those circumstances

contemplated by section 43(2) of the New Zealand Consumer Guarantees

Act.

Beko Guarantee

The Beko Manufacturers’ Guarantee provides additional protection for your

claims which will allow for a quick and simple process for all parties, subject

to our terms and conditions below.

To enable us to assist you in the most expedient way please contact us by

phoning the Toll free number (relative to your country of residence) as listed

below. Please ensure you refer to your user manual and in particular the

section headed

“Recommended Solutions for the problems” before phoning.

The commencement date of this guarantee starts on the day of purchase

and proof of purchase must be supplied to the Beko Service Centre prior to

commencement of any guarantee work.

Beko Manufacturers Guarantee

Congratulations on purchasing a quality Beko product. Beko automatically

provide you with a 2 year Manufacturers Guarantee, covering parts and

labour for servicing within the geographical limits of Australia and New

Zealand.

General Terms and Conditions

For Australian Consumers

goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major

failure and for compensation for any other reasonably foreseeable loss or

damage. You are also entitled to have the goods repaired or replaced if the

goods fail to be of acceptable quality and the failure does not amount to a

major failure.

For New Zealand Consumers

Nothing in this guarantee purports to modify or exclude the conditions,

guarantees and undertakings, and other legal rights, under the New Zealand

Consumer Guarantees Act and other laws, except in those circumstances

contemplated by section 43(2) of the New Zealand Consumer Guarantees

Act.

Beko Guarantee

The Beko Manufacturers’ Guarantee provides additional protection for your

claims which will allow for a quick and simple process for all parties, subject

to our terms and conditions below.

To enable us to assist you in the most expedient way please contact us by

phoning the Toll free number (relative to your country of residence) as listed

below. Please ensure you refer to your user manual and in particular the

section headed

“Recommended Solutions for the problems” before phoning.

The commencement date of this guarantee starts on the day of purchase

and proof of purchase must be supplied to the Beko Service Centre prior to

commencement of any guarantee work.

Terms and Conditions

Beko Australia and New Zealand Pty Ltd guarantees to the original purchaser

trap yna rof renwo eht ot egrahc tuohtiw ,ecalper noitpo sti ta ro ,riaper ot

which is not of ‘acceptable quality’ within two years of date of purchase.

“No Lemon Guarantee” * if the product fails more than 2 times during

the Guarantee period due to the same type failure caused by the same part,

we will automatically replace the product with an equivalent product free of

charge.

Food Spoilage*

If your product is a fridge or freezer, we will reimburse you for food which

due to a valid fault as per our guarantee is spoilt; reimburse you as per the

Up to 200 Litre $100.00

>200 Litre - 400 Litre $200.00

>400 Litre - 600 Litre $300.00

>600 litre $350.00

Subject to a valid claim under the terms and conditions of this Guarantee

To be eligible for this Guarantee the product must be purchased from an

Authorised Reseller in Australia or New Zealand.

What is not covered under this Guarantee

1. Any service calls in which the problem is found not to be caused or

related to any defect in the Product. In this instance, the cost of the

fo )oot detimil ton tub( selpmaxE .uoy ot degrahc eb lliw llac ecivres

no product fault listed below:

a. Correcting the installation, e.g. levelling of product, adjust-

ment of drain crossed or kinked hoses, leakage of hoses if

ers), noises due to water hammer and/or power supplies.

b. Replacing fuses or correcting house power wiring or house

plumbing issues.

c. Failure due to incorrect set up or requiring instructions nor-

mally covered in user manual.

d. Blocked pumps, removal of foreign objects/substances from

the washing machine, e.g. socks, bra wires, dirt etc.

e. Normal noise or vibration

f. Infestation of pests, insects or vermin

2. This Guarantee does not cover damage caused by:

a. Misuse or abuse of the Beko Product

b. Accidental damage of any kind

c. Rust and Corrosion where the product is located within a cor-

rosive environment

d. Discolouration of burners or trivets on gas cooktops or chrome

surrounds

e. Incorrect operation or not following the operation instructions

as stated in the user manual.

f. Improper installation

g. Failure to clean or improper cleaning

h. Use of incorrect non – compliant electrical or gas connections

i. External sources including but not limited to electrical inter-

j. Any loss caused by civil commotion

k. Any loss caused from extreme events of nature including but

l. Use of non genuine/authorised parts

m. Any repair or other work carried out on the Beko product

other than by an Authorised Beko Service Personnel.

3. This Guarantee does not cover costs associated with replacing and

2. This Guarantee does not cover damage caused by:

a. Misuse or abuse of the Beko Product

b. Accidental damage of any kind

c. Rust and Corrosion where the product is located within a cor-

rosive environment

d. Discolouration of burners or trivets on gas cooktops or chrome

surrounds

e. Incorrect operation or not following the operation instructions

as stated in the user manual.

f. Improper installation

g. Failure to clean or improper cleaning

h. Use of incorrect non – compliant electrical or gas connections

i. External sources including but not limited to electrical inter-

j. Any loss caused by civil commotion

k. Any loss caused from extreme events of nature including but

l. Use of non genuine/authorised parts

m. Any repair or other work carried out on the Beko product

other than by an Authorised Beko Service Personnel.

3. This Guarantee does not cover costs associated with replacing and

285.9101.78/R-AA-27092011

This Guarantee has been designed for Products used in normal domestic

environment. Our products are not designed for commercial use. Any com-

mercial use may affect this Product’s Guarantee.

Service under this Manufacturer’s Guarantee is provided by the Beko Aus-

tralia and New Zealand Authorised Repairer.

The Guarantee is provided by Beko Australia and New Zealand Pty Ltd (ABN:

49 152 055 162) of 55 Blanck Street, Ormeau, QLD Australia 4208, P O Box

354 Ormeau QLD Australia 4208.

In Australia if you need assistance.... Toll Free 1300 282 356

Email: Beko.care@Beko.com

In New Zealand if you need assistance.... Toll Free 0800 69 2356

Email: Beko.care@Beko.com

Beko CTB 6253 X Hood Telescopic, 60 cm

Product's Documents

User Manual

Specifications

Beko CTB 6253 X Questions and Answers
