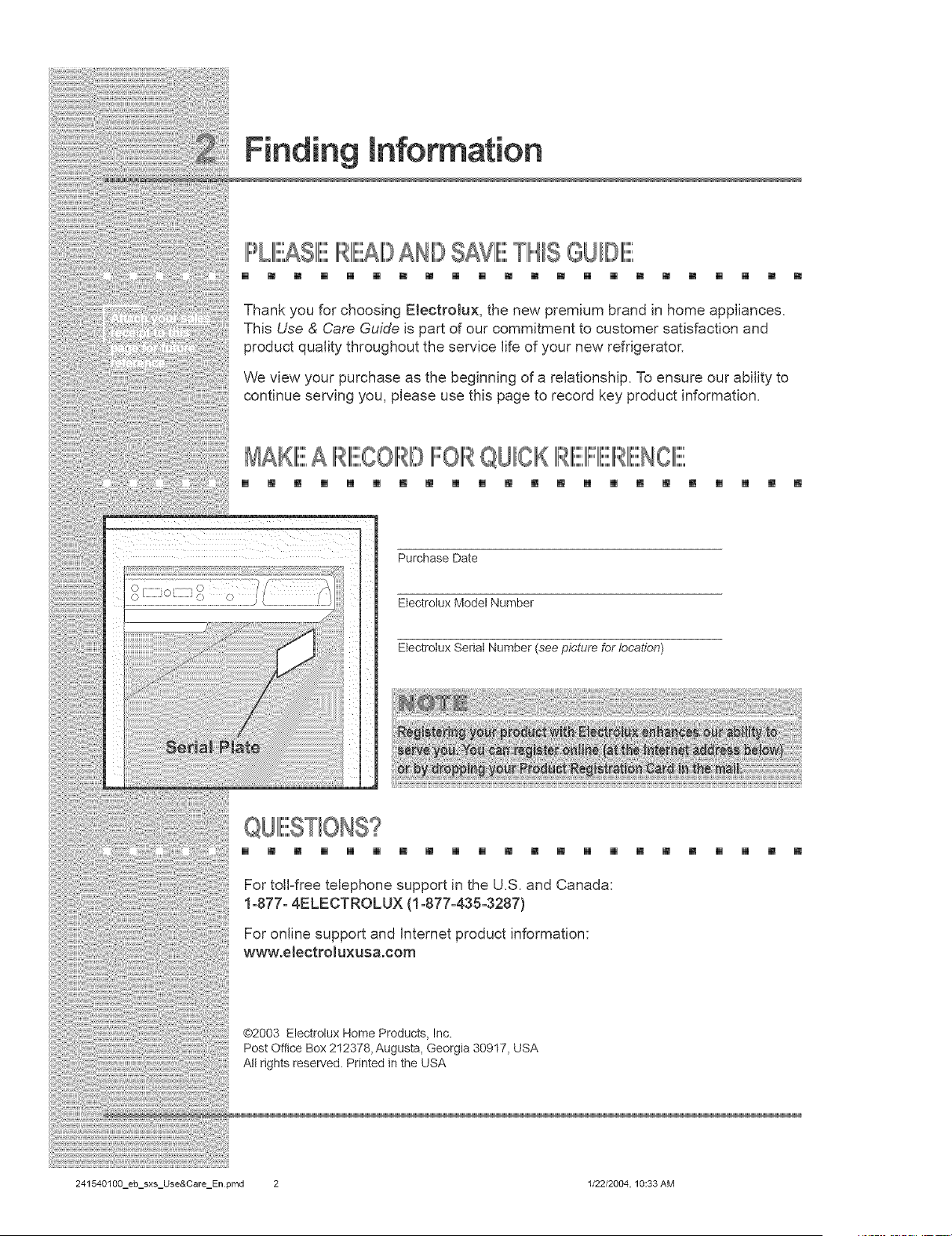

Finding Information
IIII:::>LIIII!!!!!!!!!ASIIII!!!!!!!!!,IIII:::@IIII!!!!!!!!!AIII[::_ANDSAVIIII!!!!!!!!!,TIIIi""HSGUIIDIIII!!!!!!!!!,
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Thank you for choosing EJectrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life of your new refrigerator.
We view your purchase as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record key product information.
MAKIIII!!!!!!!!!,A IIIi:::@IIII!!!!!!!!!,COIIII:::_DIII1:::::::'01111:::_QUIICKIIIRIIIEH!!!!!!!!!,IIh:::_IIh!!!!!!!!!,HClII'!!!!!!!!!,
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Purchase Date
Electrolux Model Number
Etectrolux Serial Number (see picture Forlocation)
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
For toll=free telephone support in the U.S. and Canada:
1o877o4ELECTROLUX (1°877°435°3287)
For online support and Internet product information:
www.electroluxusa.com
@2003 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
241540100_eb_sxs_Use&Care_En.pmd 2 1/22/2004, 10:33 AM
Finding information

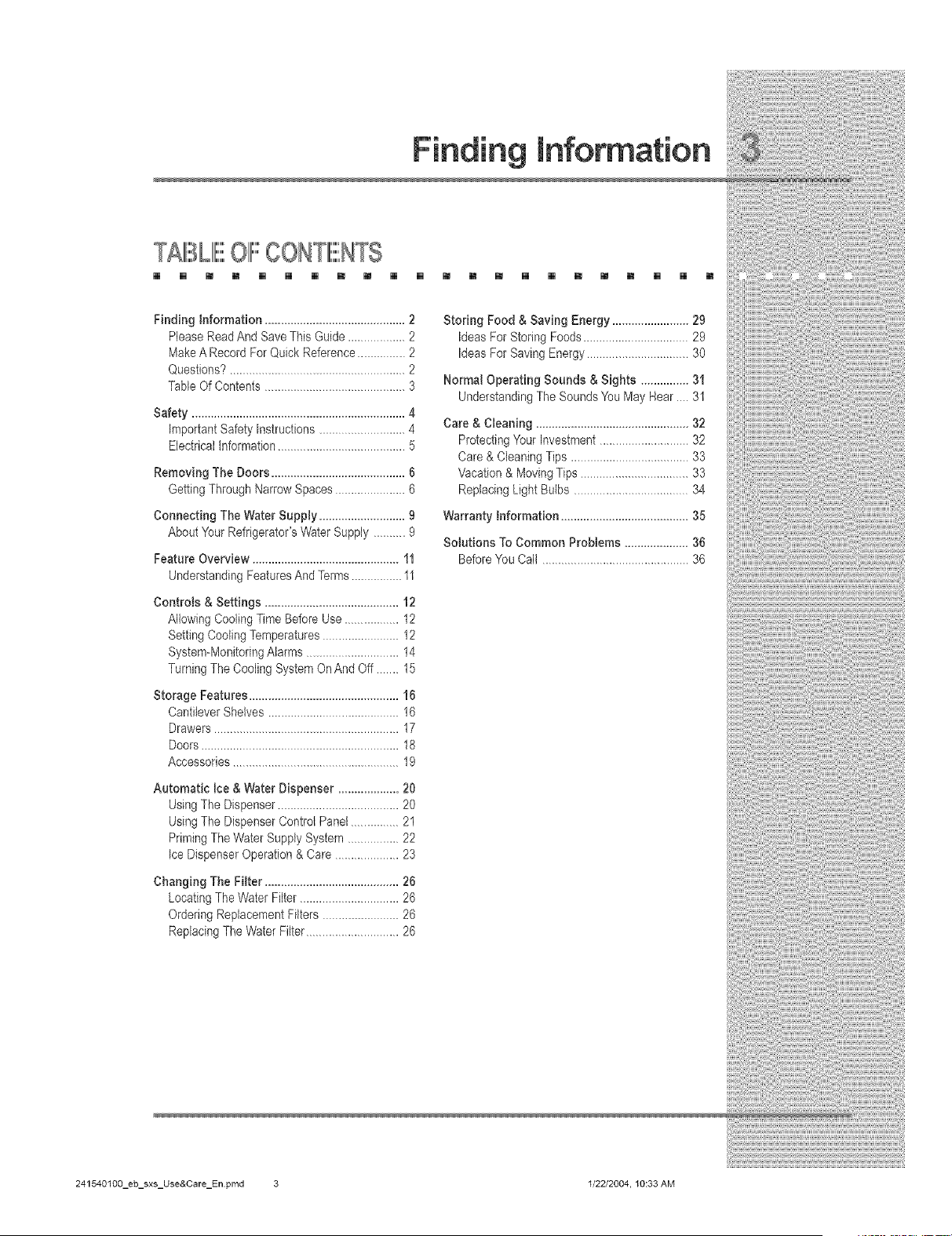

TABLEOF CONT NTS
[] [] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m
Finding Information ........................................... 2
Please Read And Save This Guide ................. 2
Make A Record For Quick Reference ............... 2
Questions? ...................................................... 2
Table Of Contents ............................................ 3
Safety ................................................................... 4
Important Safety Instructions ........................... 4
Electrical information ........................................ 5
Removing The Doors ..........................................fi
GettingThroughNarrowSpaces......................6
Connecting The WaterSupply ..........................9
AboutYourRefrigerator'sVVeterSupply ..........9
Feature Overview .............................................. 11

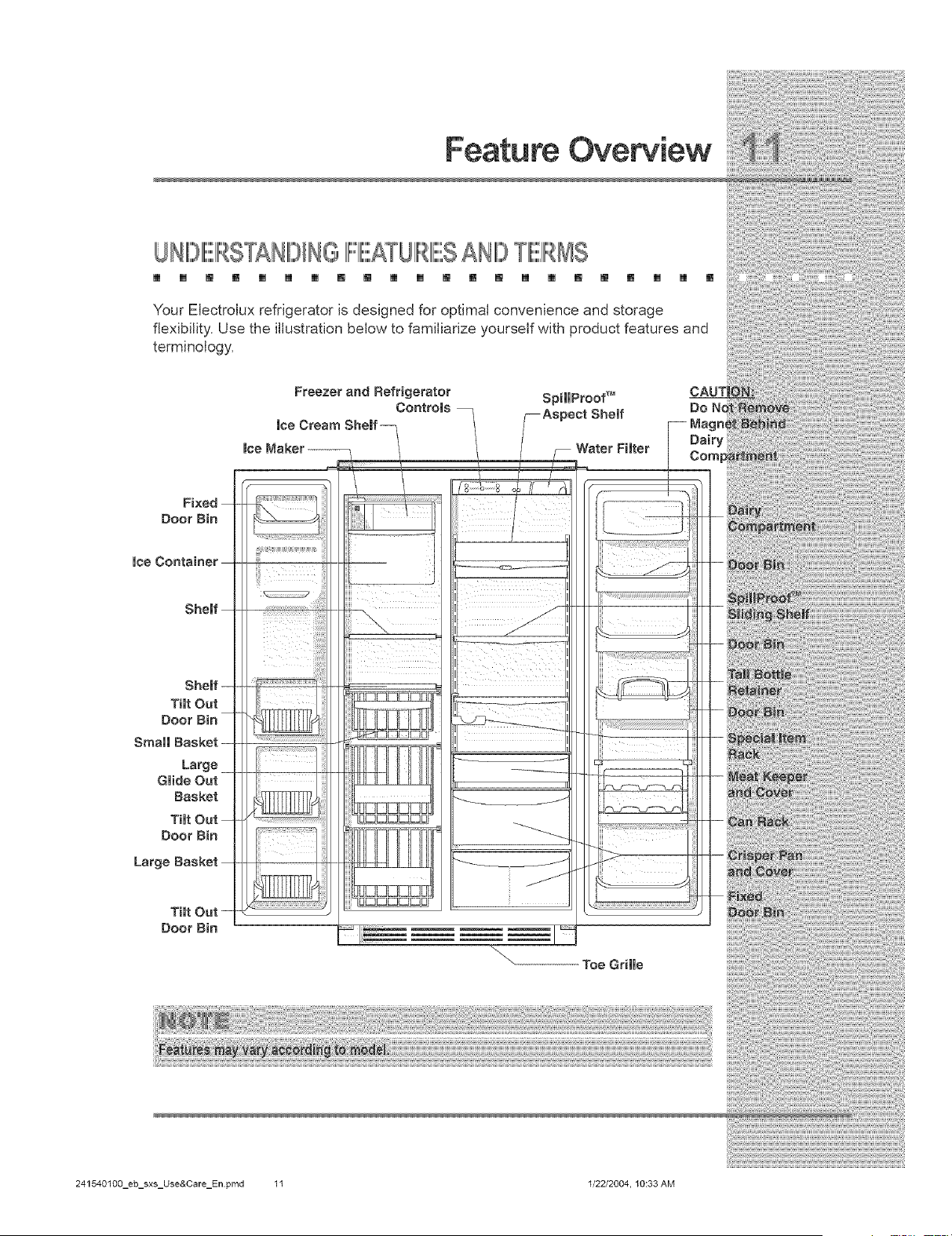

Understanding Features And Terms ................ 1I
Controls & Settings ..........................................12
AHowingCoolingTimeBeforeUse.................12
SettingCoolingTemperatures..................... 12
System-MonitoringAlarms .............................14

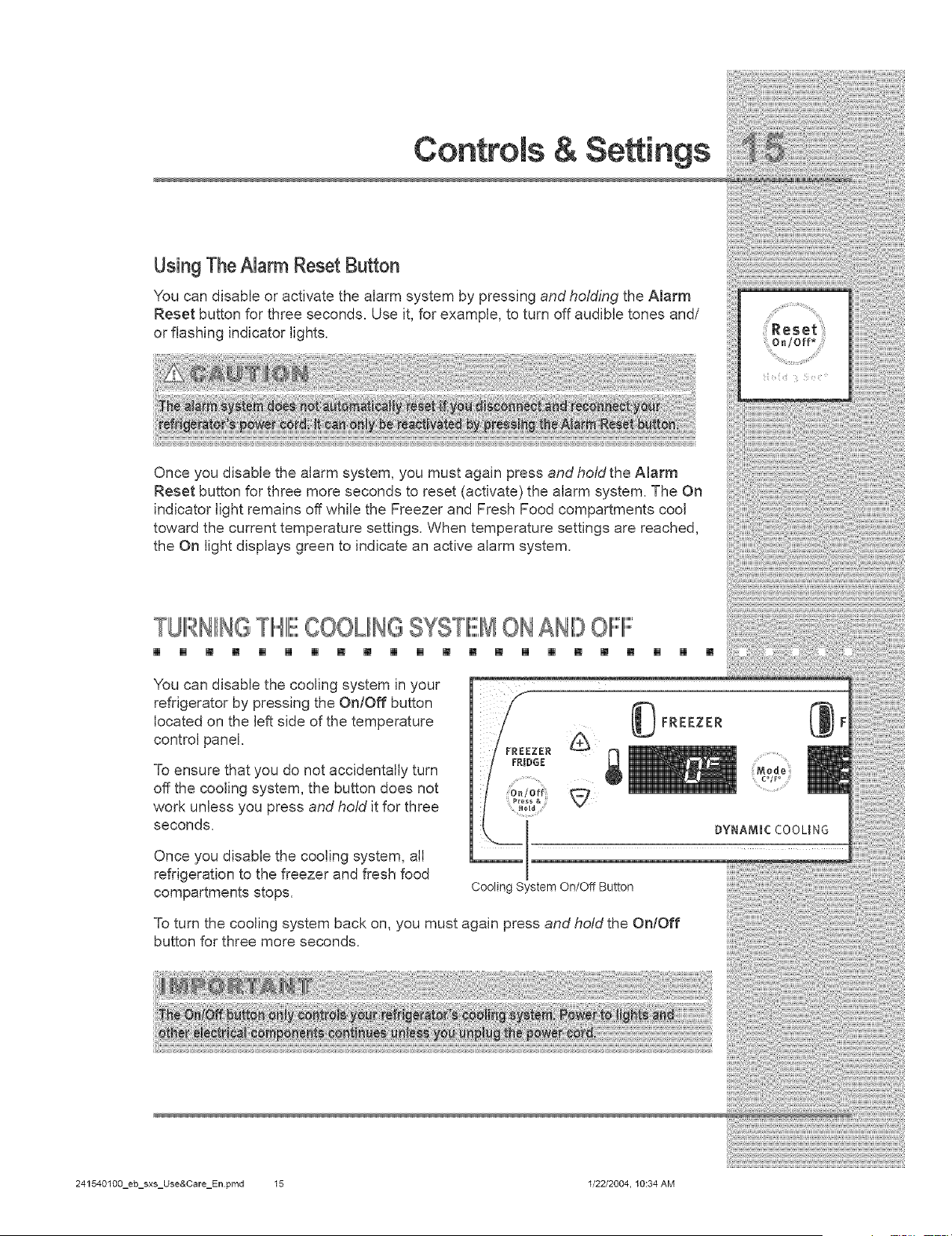

TurningThe CoolingSystemOnAnd Off ....... 15
Storage Features...............................................16
CantileverShelves.........................................16

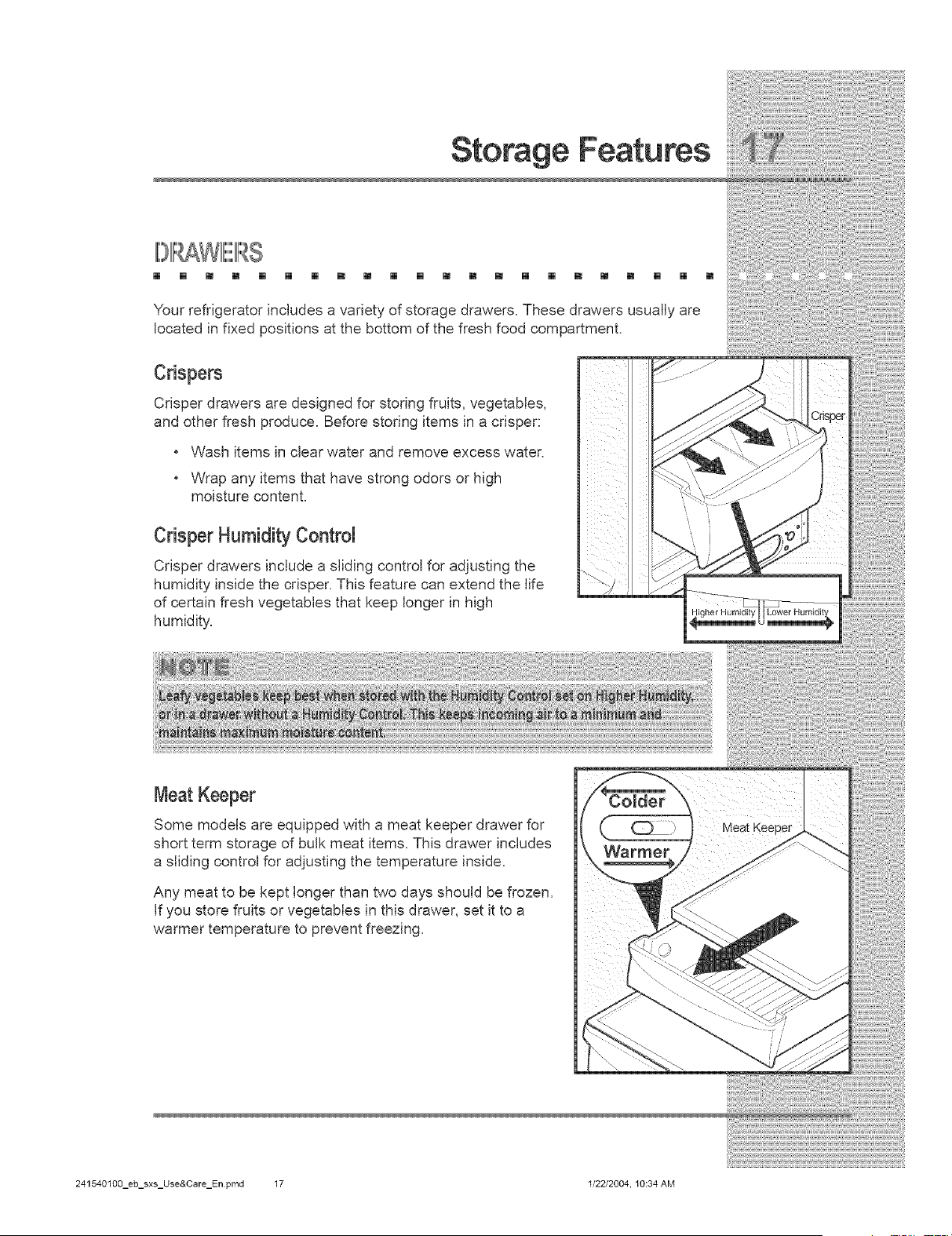

Drawers.................................................... 17
Doors..........................................................18
Accessories............................................. 19
Automatic Ice & Water Dispenser ................... 20
Using The Dispenser .................................... 20

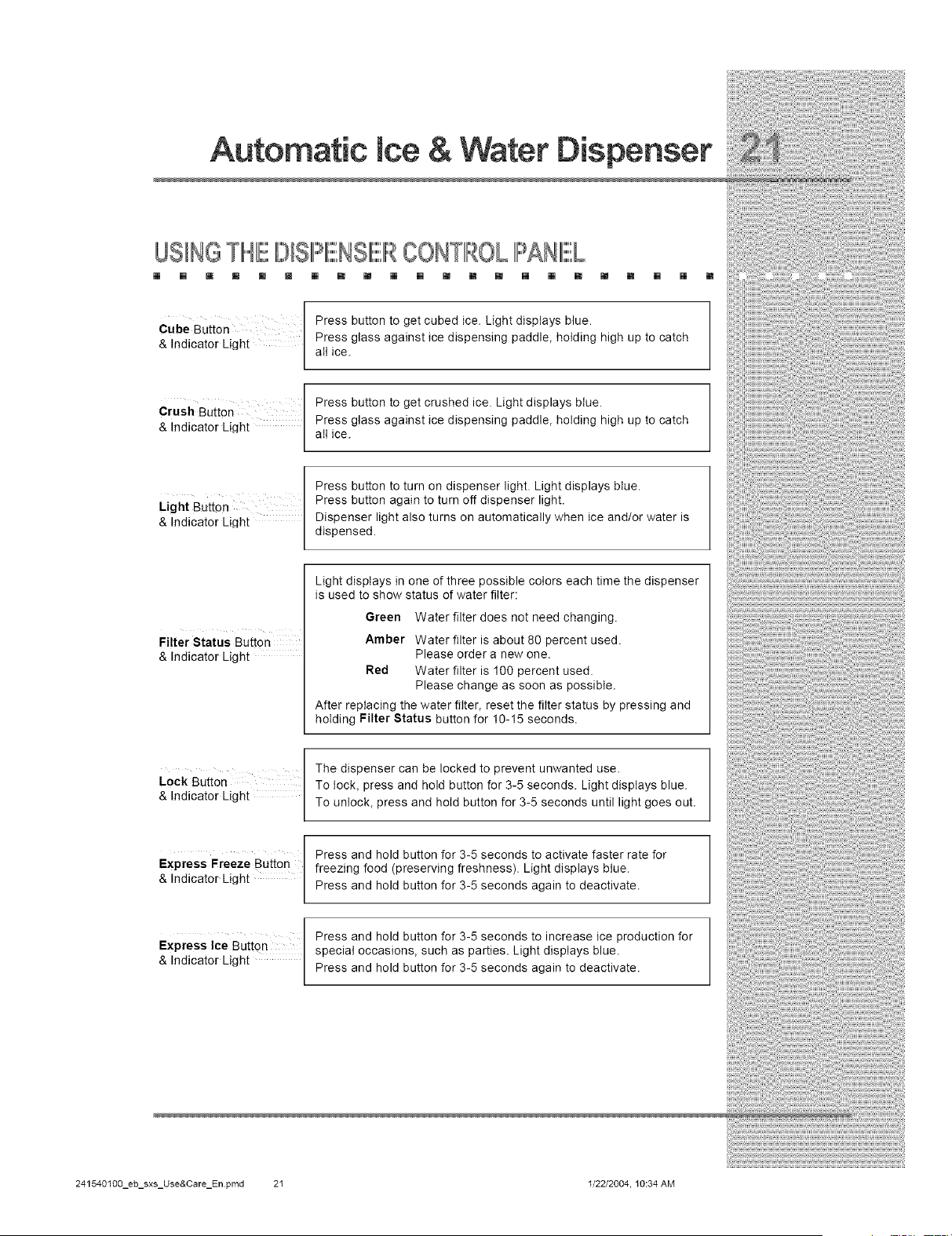

Using The Dispenser Control Panel ............... 2I
Priming The Water Supply System ................ 22
Ice Dispenser Operation & Care .................... 23
Changing The Filter .........................................26
LocatingTheWaterFilter...............................26
OrderingReplacementFilters........................26
ReplacingThe WaterFilter........................ 26
Storing Food & Saving Energy........................29
IdeasForStoringFoods.................................29
IdeasForSavingEnergy............................ 30
Normal Operating Sounds & Sights ....____...31
UnderstandingThe SoundsYouMayHear 31
Care & Cleaning ............................................... 32
Protecting Your Investment ............................ 32
Care & Cleaning Tips ..................................... 33
Vacation & Moving Tips ................................. 33
Replacing Light Bulbs .............................. 34
Warranty information ........................................ 35

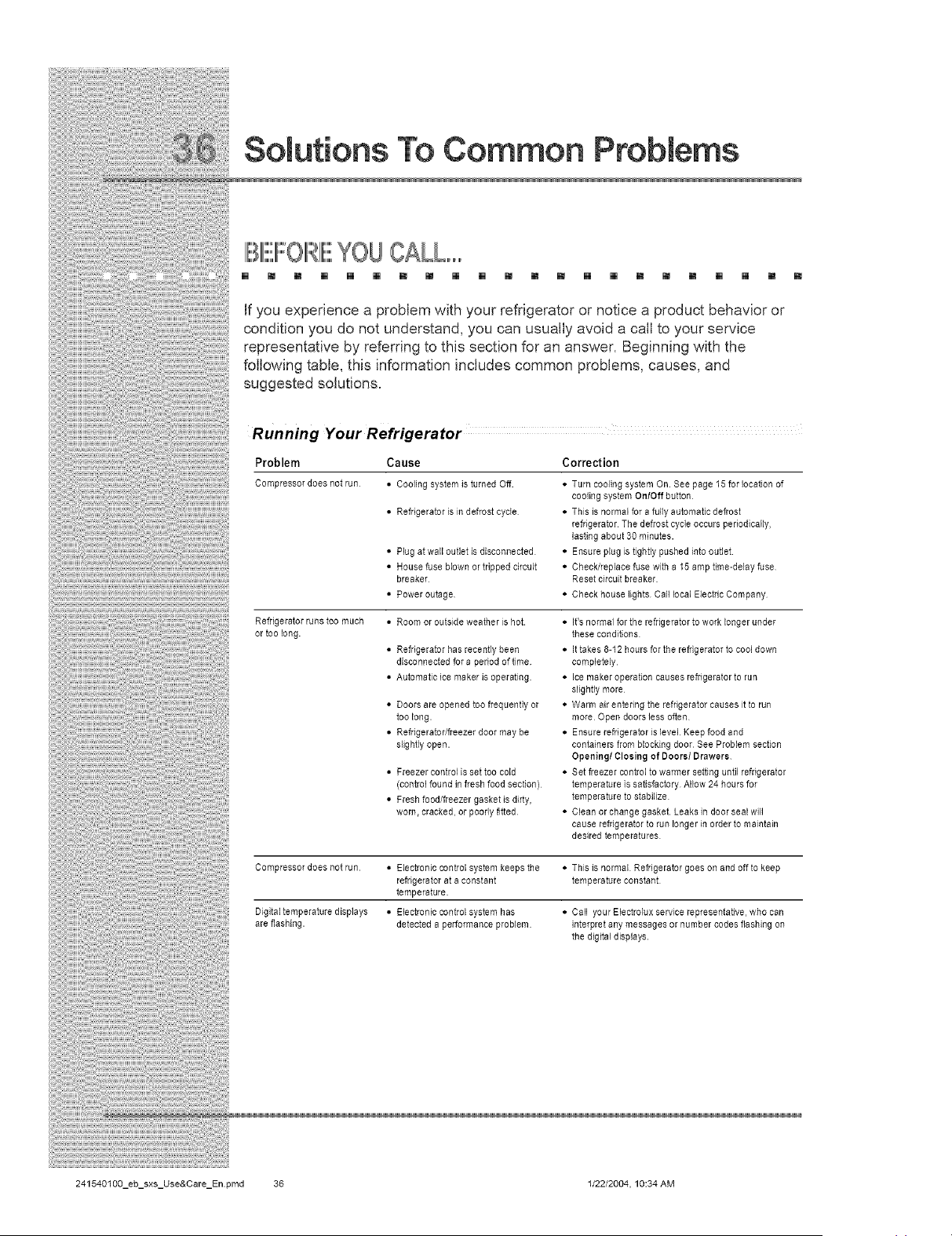

Solutions To Common ProNems .................... 36
Before You Call .............................................. 36
241540100_eb_sxs_Use&Care_En.pmd 3 1/22/2004, 10:33 AM

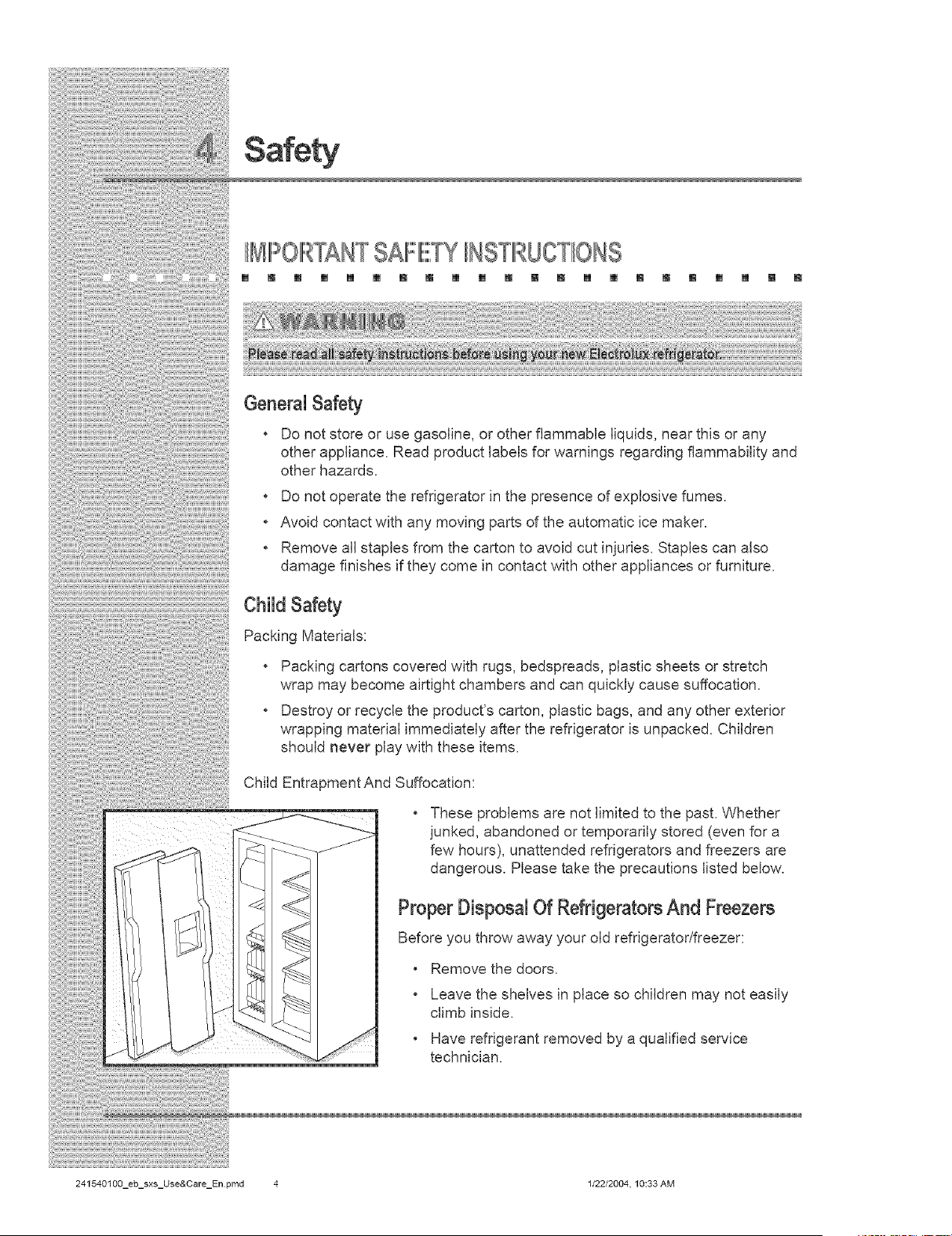

IMIIII::::>OIIII:::@TANTSAIIIF'IIII!!!!!!!!!,TYINSTIIIRUCT ONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
GeneralSafety
• Do not store or use gasoline, or other flammable liquids, near this or any
other appliance. Read product labels for warnings regarding flammability and
other hazards.
• Do not operate the refrigerator in the presence of explosive fumes.
• Avoid contact with any moving parts of the automatic ice maker.
• Remove all staples from the carton to avoid cut injuries. Staples can also
damage finishes if they come in contact with other appliances or furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers and can quickly cause suffocation.
• Destroy or recycle the product's carton, plastic bags, and any other exterior
wrapping material immediately after the refrigerator is unpacked. Children
should never play with these items.
Child EntrapmentAnd Suffocation:
These problems are not limited to the past. Whether
junked, abandoned or temporarily stored (even for a
few hours), unattended refrigerators and freezers are
dangerous. Please take the precautions listed below.
Proper DisposalOf RefrigeratorsAnd Freezers
Before you throw away your old refrigerator/freezer:
• Remove the doors.
• Leave the shelves in place so children may not easily
cJimb inside.
• Have refrigerant removed by a qualified service
technician.
241540100_eb_sxs_Use&Care_En.pmd 4 1/22/2004, 10:33 AM
Safety
IELIIII!!!!!!!!!,CTIIII::: IICALINIIII::OIIII::: MAT ON
[] [] [] [] [] [] [] [] [] [] [] [] Bl [] [] [] [] [] [] [] [] []

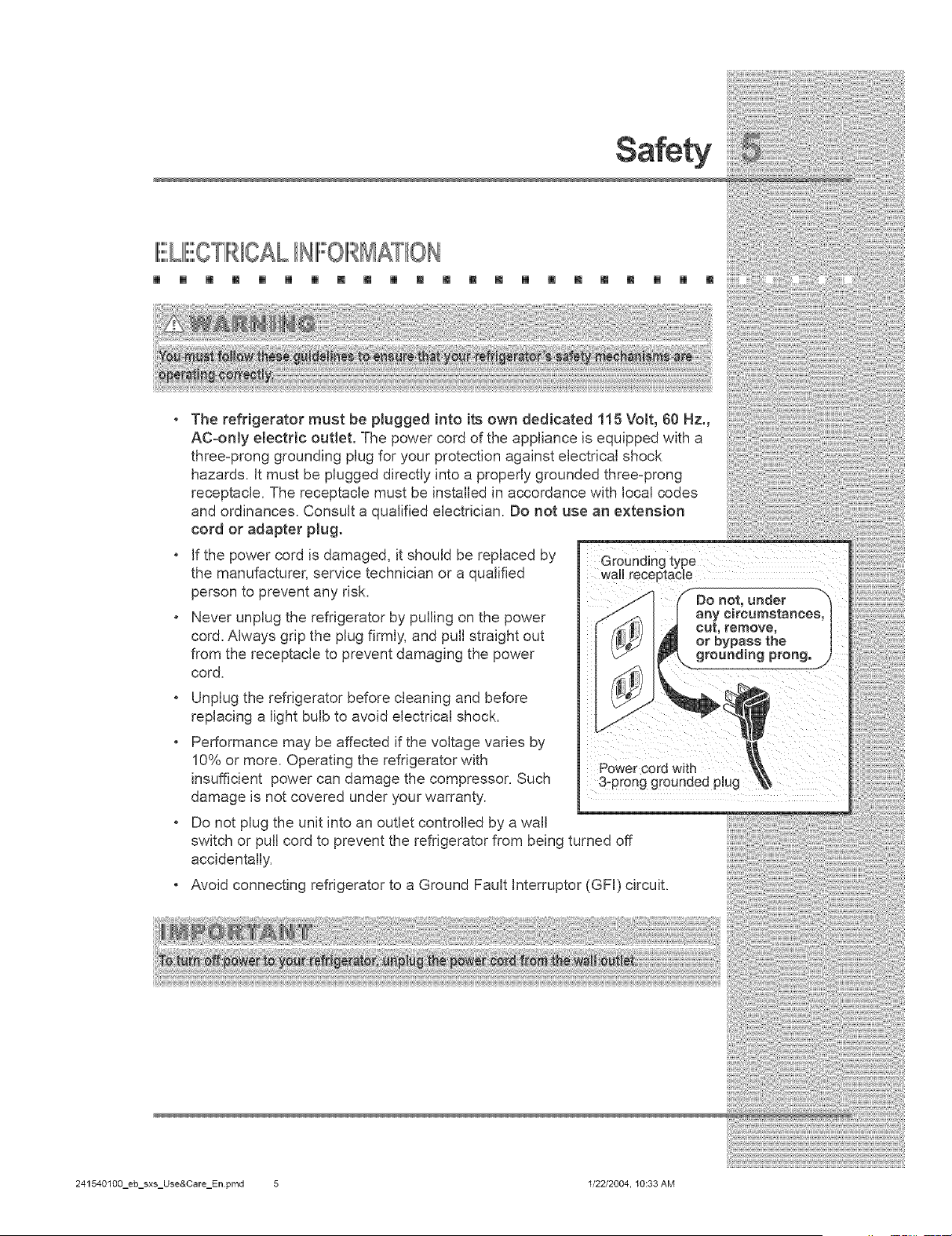

The refrigerator must be plugged into its own dedicated 115 Vomt,60 Hz.,
AC-onmy electric outlet. The power cord of the appliance is equipped with a
three=prong grounding plug for your protection against electrical shock
hazards, it must be plugged directly into a properly grounded three=prong
receptacle. The receptacle must be installed in accordance with local codes
and ordinances. Consult a qualified electrician. Do not use an extension
cord or adapter pmug.
if the power cord is damaged, it should be replaced by
the manufacturer, service technician or a qualified
person to prevent any risk.
Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pql straight out
from the receptacle to prevent damaging the power
cord.
Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with
insufficient power can damage the compressor. Such
damage is not covered under your warranty.
Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being turned off
accidentally.
Avoid connecting refrigerator to a Ground Fault Interruptor (GF!) circuit.
Power cord with
3=prong grounded plug
241540100_eb_sxs_Use&Care_En.pmd 5 1/22/2004, 10:33 AM

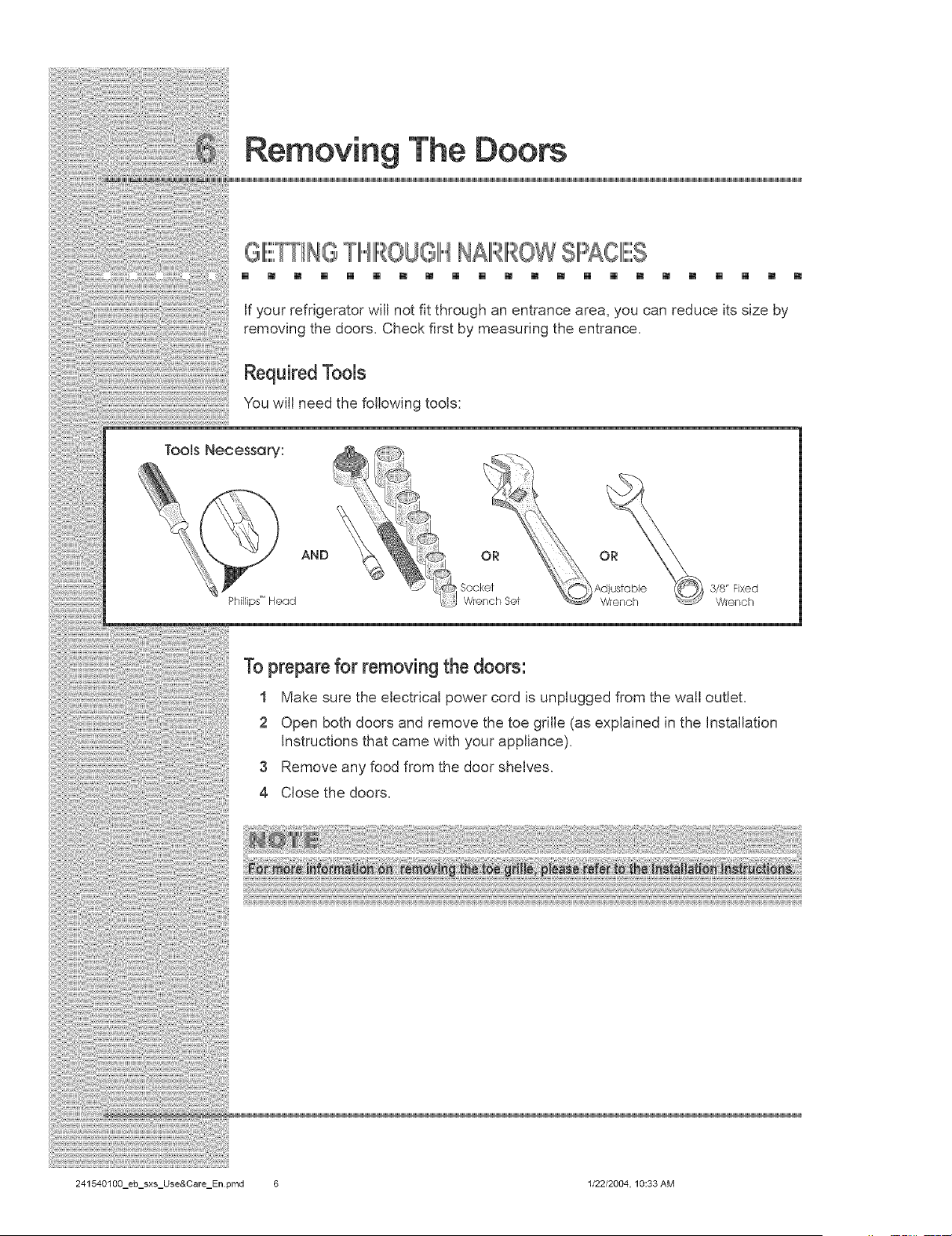

Removing The Doors
TIIII""HI::: OUGII"" NAIIII::: IIII:::@,OWSIIII:::>AOlIII!!!!!!!!!,S
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
if your refrigerator will not fit through an entrance area, you can reduce its size by
removing the doors. Check first by measuring the entrance.
RequiredTools
You will need the following tools:
Tools Necessary:
AND
3/8" Fixed
Phillips '_'Head Wrench
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Open both doors and remove the toe grille (as explained in the Installation
Instructions that came with your appliance).
3 Remove any food from the door shelves.
4 Close the doors.
241540100_eb_sxs_Use&Care_En.pmd 6 1/22/2004, 10:33 AM
Removing The Doors

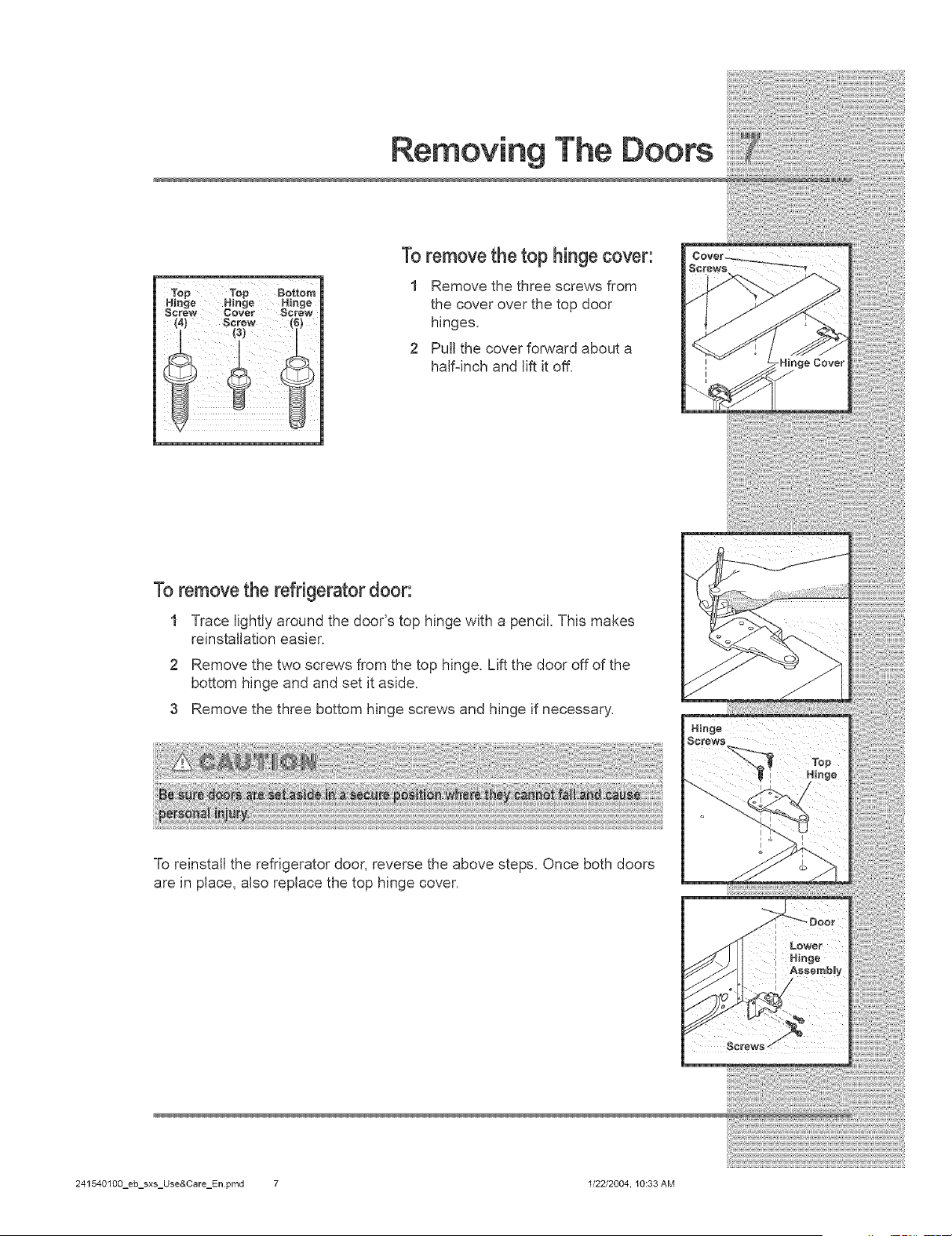

To remove the top hinge cover:
1 Remove the three screws from
the cover over the top door
hinges.
2 Pull the cover forward about a
half4nch and lift it off.
To remove the refrigerator door:
1 Trace lightly around the door's top hinge with a pencil. This makes
reinstallation easier.
2 Remove the two screws from the top hinge. Lift the door off of the
bottom hinge and and set it aside.
3 Remove the three bottom hinge screws and hinge if necessary.
To reinstall the refrigerator door, reverse the above steps. Once both doors
are in place, also replace the top hinge cover.
241540100_eb_sxs_Use&Care_En.pmd 7 1/22/2004, 10:33 AM
Removing The Doors
To remove the freezer door:
1 Detach the multi-wire cable connector located above the top hinge.
Grasp both sides of the connector firmly and pull apart.
TO DISCONNECT
Press oater sleeve
reward connecter
2 Pu_m t_ remove tube
TO CONNECT
touches face of co_ne¢t_r
2 Trace lightly around the hinge with a pencil.
This makes reinstallation easier.
3 Detach the water tube from the connector located below the freezer
door. The connector releases when you press its outer sleeve inward.
Multi-Wire
I
i
H_nge
, Screws
4 Remove the screws from the top hinge and
pull the multi=wire cable through it. Lift the
door off of the bottom hinge,
Assembly
5 Remove the three bottom hinge screws and hinge if necessary.
6 Lay the door on its side to avoid damage to the water tube extending
from the bottom hinge.
To reinstall the freezer door, reverse the above steps. Once both doors
are in place, also replace the top hinge cover (see Page 7).
241540100_eb_sxs_Use&Care_En.pmd 8 1/22/2004, 10:33 AM

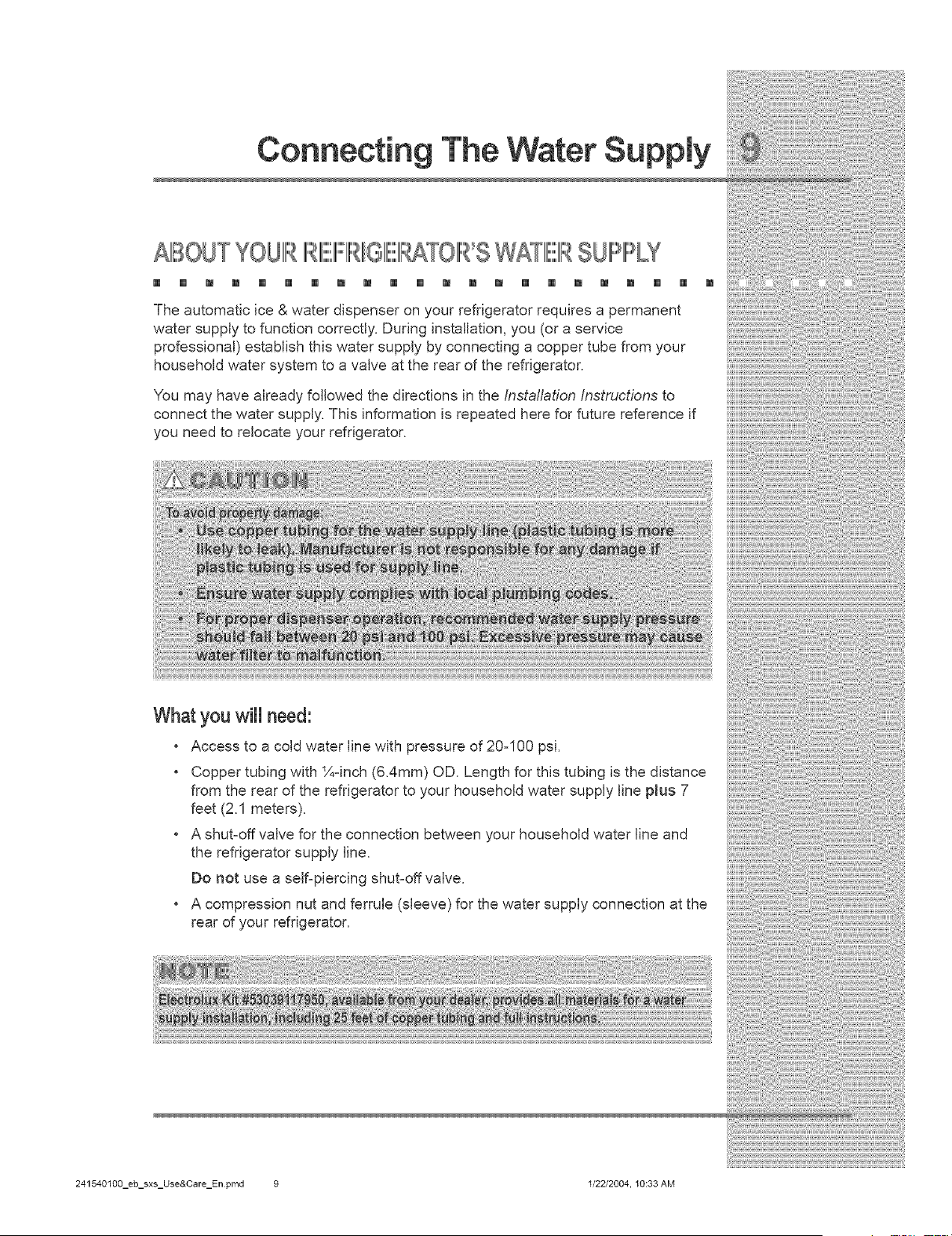

Connecting The Water SuppJy
ABOUTYOUR WATIIE,IIIRSUIIIDIIII:::>LY
[] [] [] m [] [] [] [] m [] [] m m m [] [] [] m m [] []
The automatic ice & water dispenser on your refrigerator requires a permanent
water supply to function correctly. During installation, you (or a service
professional) establish this water supply by connecting a copper tube from your
household water system to a valve at the rear of the refrigerator.
You may have already followed the directions in the Installation Instructions to
connect the water supply. This information is repeated here for future reference if
you need to relocate your refrigerator.
What you will need:
• Access to a cold water line with pressure of 20z100 psi.
• Copper tubing with %dnch (6.4mm) OD. Length for this tubing is the distance
from the rear of the refrigerator to your household water supply line plus 7
feet (2.1 meters).
• A shut_off valve for the connection between your household water line and
the refrigerator supply line.
Do not use a self-piercing shut-off valve.
• A compression nut and ferrule (sleeve) for the water supply connection at the
rear of your refrigerator.
241540100_eb_sxs_Use&Care_En.pmd 9 1/22/2004, 10:33 AM
Connecting The Water Supply

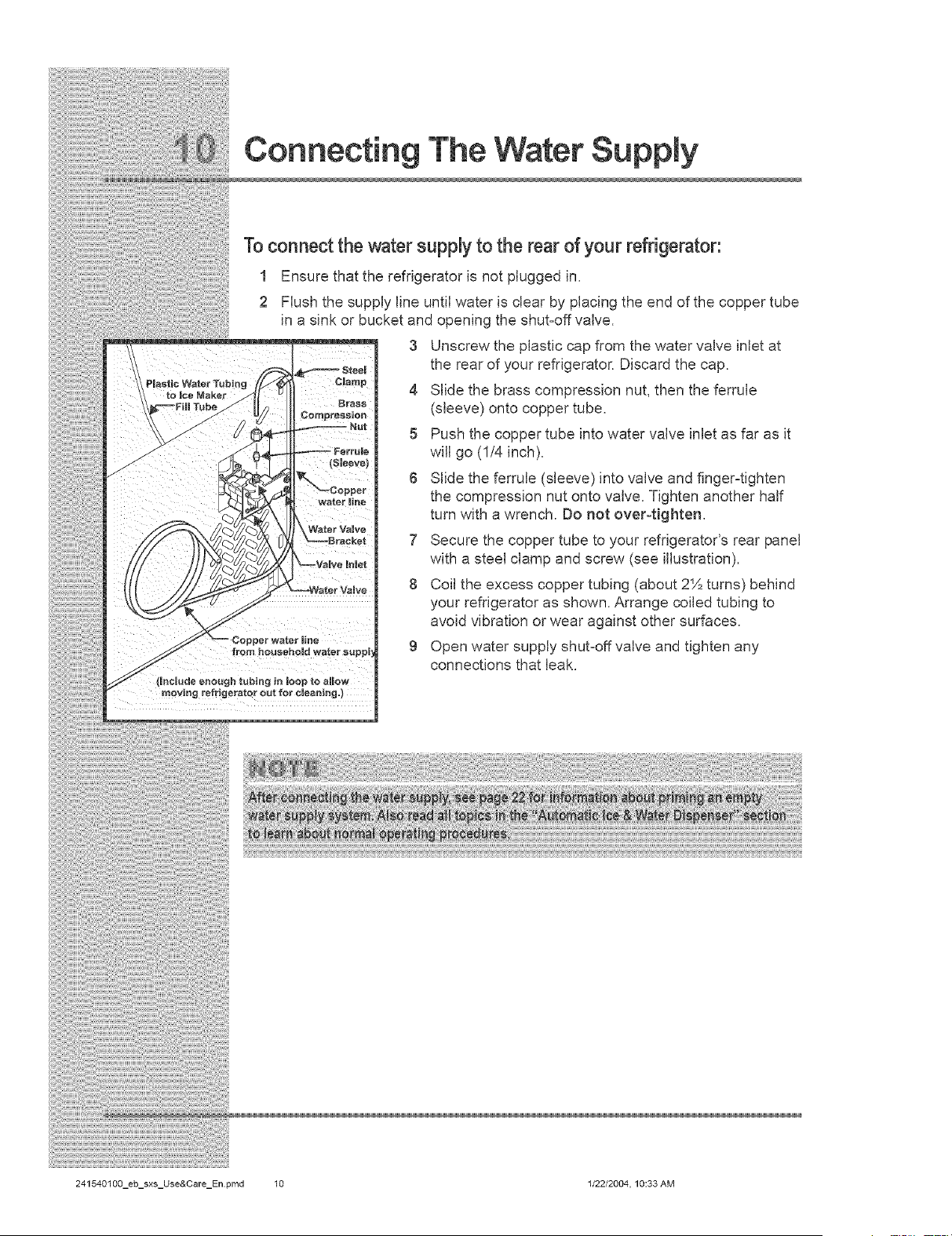

To connect the water supply to the rear of your refrigerator:
1 Ensure that the refrigerator is not plugged in.
2 Flush the supply line until water is clear by placing the end of the copper tube
in a sink or bucket and opening the shut=off valve.
3 Unscrew the plastic cap from the water valve inlet at
the rear of your refrigerator. Discard the cap.
4 Slide the brass compression nut, then the ferrule
(sleeve) onto copper tube.
5 Push the copper tube into water valve inlet as far as it
will go (1/4 inch).
6 Slide the ferrule (sleeve) into valve and finger=tighten
the compression nut onto valve. Tighten another half
turn with a wrench. Do not over=tighten,
7 Secure the copper tube to your refrigerator's rear panel
with a steel clamp and screw (see illustration).
8 Coil the excess copper tubing (about 2½ turns) behind
your refrigerator as shown. Arrange coiled tubing to
avoid vibration or wear against other surfaces.
9 Open water supply shut=off valve and tighten any
connections that leak.
241540100_eb_sxs_Use&Care_En.pmd 10 1/22/2004, 10:33 AM
Feature Overview
UNIIDIIII!!!!!!!!!,IIII:::_STANIII_/NGIIII:::::::'IIII!!!!!!!!!,ATUIIIi:::_IIIi!!!!!!!!!,SANDTIIIE,IIII:::_MS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Your Electrolux refrigerator is designed for optima( convenience and storage
flexibi(ity. Use the illustration below to familiarize yourself with product features and
terminology,
Fixed
Door B(n
rose
Tilt Out
Door Bin
Small
Large
Basket
Door Bin
Large
241540100_eb_sxs_Use&Care_En.pmd 11 1/22/2004, 10:33 AM
Controls & Settings
ALLOWINGCOOLING USIIE,
[] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m m
To ensure reliable food storage, allow your refrigerator and freezer to operate with
the doors closed for 8 to 12 hours before placing food inside. During this cooling
period, you do not need to adjust the controls, which are preset at the factory.
SIIIl!! COOLINGTIIIE,
[] m m [] [] [] m [] [] [] m m m [] [] m m m [] [] m m
Your refrigerator comes with a statezofzthezart electronic digital control system. The
system's control panel is located at the top of the the fresh food compartment.
_FREEZER
DYNAMIC COOLING
FRmDGE
The two digital displays on the left half of the control panel
indicate the current temperatures of your freezer and fresh
_ food compartments.
To adjust the temperature to a higher or lower setting, press the Up or Down
Arrow button closest to the display. The first time you press the button, the display
shows the last setting you entered. Each press of the button after that increments
the setting by one degree.
The display shows your new setting momentarily, then changes back to the current
temperature. (Refer to page 13 for more about temperature settings.)
241540100_eb_sxs_Use&Care_En.pmd 12 1/22/2004, 10:33 AM
ControJs & Settings
Choosing Fahrenheitor Centigrade
Depending on which temperature standard you
prefer to use, you can set your control panel to
display in fahrenheit or centigrade. To change
between fahrenheit and centigrade, press the
Mode button (located between the two digital
temperature displays).
Press to alternate between
Fahrenheit and Centigrade
Making Temperature Adjustments
After running your refrigerator for 24 hours, you can adjust temperatures as
needed. Make your adjustments small and gradual, allowing time for temperatures
to change and stabilize. Refer to the following guidelines for temperature settings.
TemperatureControl Range
Freezer Fresh Food
Fahrenheit
Wa|errm Warmest 6 °
I
Factory Setting Midpoint O°
I
Co_er Coldest -6 °
Centigrade Fahrenheit Centigrade
-t4Q 47÷
-21Q 33Q
8_
Temperature Adjustment Guide
If Fresh Food C0mpartraent is too warm
if Fresh Food Compartment is too C0Id
If Freezer ComPartment is too warm
If Freezer comPartment is too Cold
Adjust Fresh Food control one degree
colder by pressing Down Arrow button.
Adjust Fresh Food control one degree
warmer by pressing the Up Arrow button.
Adjust Freezer control one degree colder
by pressing Down Arrow button.
Adjust Freezer control one degree warmer
by pressing the Up Arrow button.
What To Do If TheTemperatureDisplays Flash
if ever you you see both temperature displays continuously flashing, it may indicate
that the control system has detected a performance problem. Call your Electrolux
service representative, who can interpret the flashing message.
241540100_eb_sxs_Use&Care_En.pmd 13 1/22/2004, 10:33 AM
Controls & Settings
The electronic control system continuously
monitors your refrigerator/freezer for temperature
consistency, doors left ajar, and power failures.
Variances from normal operating conditions are
communicated by audible tones and a set of four
status indicatorlights.

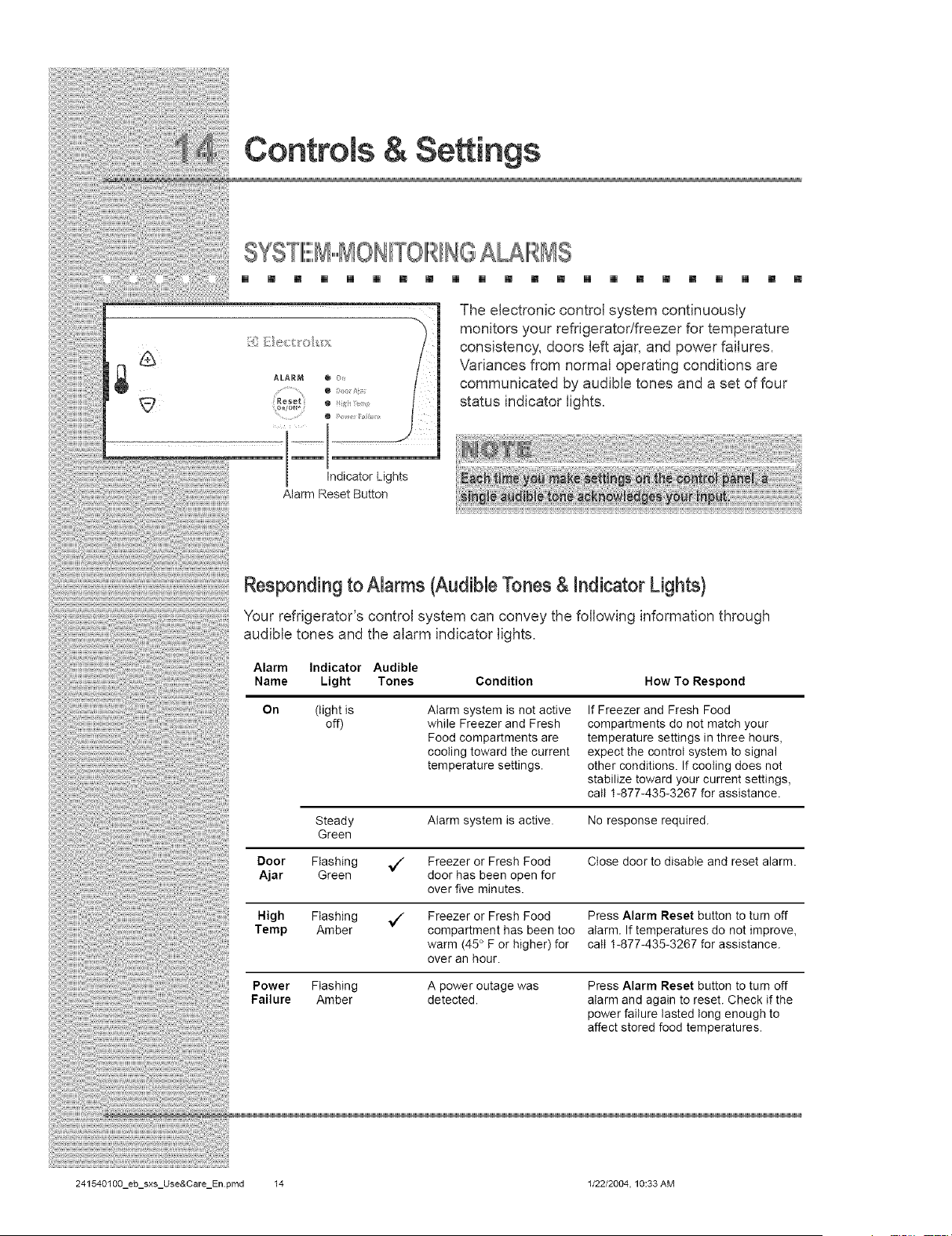

Indicator Lights
Alarm Reset Button
Responding to Alarms (Audible Tones & Indicator Lights)
Your refrigerator's control system can convey the following information through
audible tones and the alarm indicator lights.
Alarm Indicator Audible
Name Light Tones Condition How To Respond
On (light is
off)
Alarm system is not active
while Freezer and Fresh
Food compartments are
cooling toward the current
temperature settings.
If Freezer and Fresh Food
compartments do not match your
temperature settings in three hours,
expect the control system to signal
other conditions. If cooling does not
stabilize toward your current settings,
call 1-877-435-3267 for assistance.
Steady Alarm system is active. No response required.
Green
Door Flashing _ Freezer or Fresh Food Close door to disable and reset alarm.
Ajar Green door has been open for
over five minutes.
High Flashing _ Freezer or Fresh Food Press Alarm Reset button to turn off
Temp Amber compartment has been too alarm. If temperatures do not improve,
warm (45° F or higher) for call 1-877-435-3267 for assistance.
over an hour.
Power Flashing A power outage was Press Alarm Reset button to turn off
Failure Amber detected, alarm and again to reset. Check if the
power failure lasted tong enough to
affect stored food temperatures.
241540100_eb_sxs_Use&Care_En.pmd 14 1/22/2004, 10:33 AM
Controls & Settings
Using The Alarm Reset Button
You can disable or activate the alarm system by pressing and holding the Alarm
Reset button for three seconds, Use it, for example, to turn off audible tones and/
or flashing indicator lights,
Once you disable the alarm system, you must again press and hold the Alarm
Reset button for three more seconds to reset (activate) the alarm system. The On
indicator light remains off while the Freezer and Fresh Food compartments cool
toward the current temperature settings. When temperature settings are reached,
the On light displays green to indicate an active alarm system.
TUIIIi::: N/NGTIIHIIIECOOLINGSYSTIIIEII ONAN[>:::::::::::::::::::::::::
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
You can disable the cooJing system in your
refrigerator by pressing the On/Off button
located on the left side of the temperature
control panel.
To ensure that you do not accidentally turn
off the cooling system, the button does not
work unless you press and hold it for three
seconds.
Once you disable the cooling system, all
refrigeration to the freezer and fresh food
compartments stops.
Cooling System On/Off Button
To turn the cooling system back on, you must again press and hold the On/Off
button for three more seconds.
241540100_eb_sxs_Use&Care_En.pmd 15 1/22/2004, 10:34 AM
Storage Features
8111i""HELVIE8
[] m m [] [] [] m [] [] [] m m [] [] [] m m [] [] [] • m

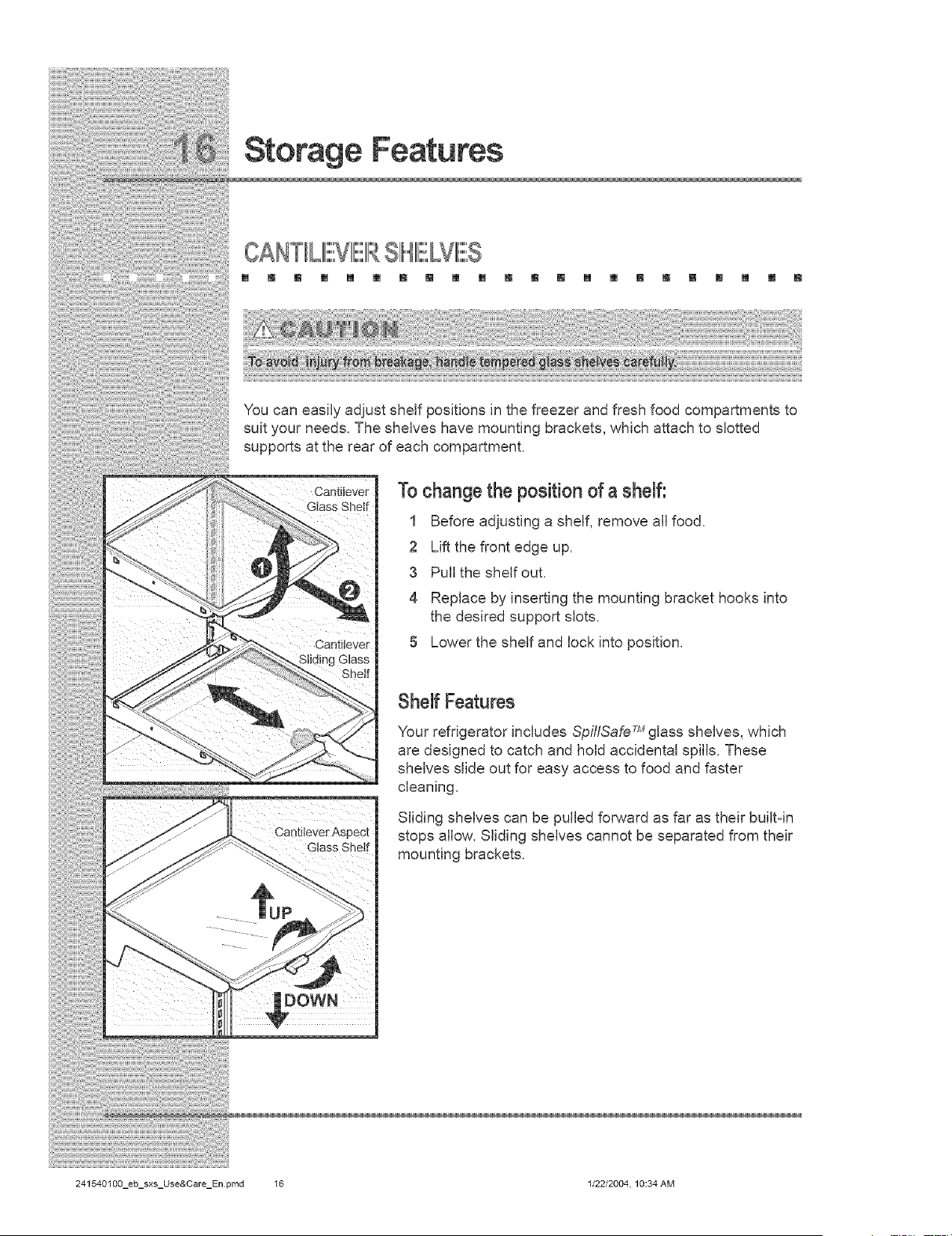

You can easily adjust sheJf positions in the freezer and fresh food compartments to
suit your needs. The shelves have mounting brackets, which attach to slotted
supports at the rear of each compartment.
Cantilever
Cautilever Aspect
Glass Shelf
DOWN
To change the position of a shelf:
1 Before adjusting a shelf, remove all food.
2 Lift the front edge up.
3 Pull the shelf out.
4 Replace by inserting the mounting bracket hooks into
the desired support slots.
5 Lower the shelf and lock into position.
Shelf Features
Your refrigerator includes SpillSafe 7:_glass sheJves, which
are designed to catch and hold accidental spills. These
shelves slide out for easy access to food and faster
cleaning.
Sliding shelves can be pulled forward as far as their buiJtdn
stops allow. Sliding shelves cannot be separated from their
mounting brackets.
241540100_eb_sxs_Use&Care_En.pmd 16 1/22/2004, 10:34 AM
Storage Features
Your refrigerator includes a variety of storage drawers. These drawers usually are
located in fixed positions at the bottom of the fresh food compartment.
Crispers
Crisper drawers are designed for storing fruits, vegetables,
and other fresh produce. Before storing items in a crisper:
• Wash items in clear water and remove excess water.
• Wrap any items that have strong odors or high
moisture content.
Crisper Humidity Control
Crisper drawers include a sliding control for adjusting the
humidity inside the crisper. This feature can extend the life
of certain fresh vegetables that keep longer in high
humidity.
i
ii i
iiil_i_iiii_i
iill i _
":-.j
it
Meat Keeper
Some models are equipped with a meat keeper drawer for
short term storage of bulk meat items. This drawer includes
a sliding control for adjusting the temperature inside.
Any meat to be kept longer than two days should be frozen.
If you store fruits or vegetables in this drawer, set it to a
warmer temperature to prevent freezing.
Meat Keeper
Warme_
241540100_eb_sxs_Use&Care_En.pmd 17 1/22/2004, 10:34 AM
Storage Features
ii i i i ii
ii i
Adj
Door Bins
Door Bin
Storage Bins
The doors to your freezer and fresh food compartments use a
system of modular storage bins. All of these bins are removable
for easy cleaning. Some of them have fixed positions, while
others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles, cans, and large drink
containers. They also enable quick selection of frequently used
items.
To change the position of an adjustable door bin:
1 Before adjusting a bin, remove all food.
2 Grip the bin firmly with both hands and lift it upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in place.
Tilt Out
Door Bin With
241540100_eb_sxs_Use&Care_En.pmd 18 1/22/2004, 10:34 AM

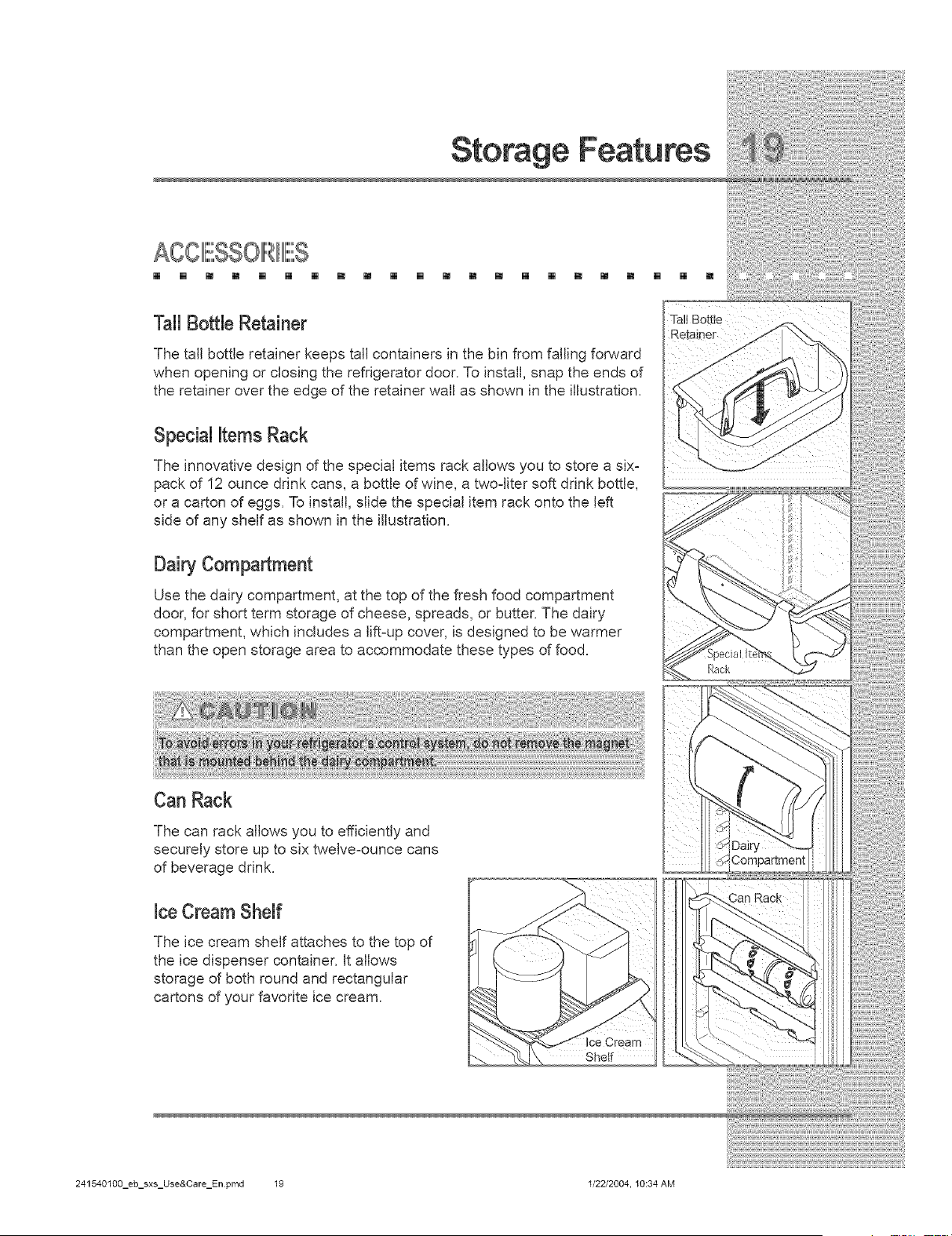

Storage Features
mmmmmmmmmmmmmmmmmmm
Tall Bottle Retainer
The tall bottle retainer keeps tall containers in the bin from failing forward
when opening or closing the refrigerator door, To install, snap the ends of
the retainer over the edge of the retainer wall as shown in the illustration,
Special itemsRack
The innovative design of the special items rack allows you to store a six=
pack of 12 ounce drink cans, a bottle of wine, a two-liter soft drink bottle,
or a carton of eggs. To install, slide the special item rack onto the left
side of any shelf as shown in the illustration.
Dairy Compartment
Use the dairy compartment, at the top of the fresh food compartment
door, for short term storage of cheese, spreads, or butter. The dairy
compartment, which includes a lift=up cover, is designed to be warmer
than the open storage area to accommodate these types of food.
Can Rack
The can rack allows you to efficiently and
securely store up to six twelve=ounce cans
of beverage drink.
Ice CreamShelf
The ice cream shelf attaches to the top of
the ice dispenser container, It allows
storage of both round and rectangular
cartons of your favorite ice cream,
Shelf
[] [] []
Tall Bottle
Rack
Compartment
Can Rack
241540100_eb_sxs_Use&Care_En.pmd 19 1/22/2004, 10:34 AM

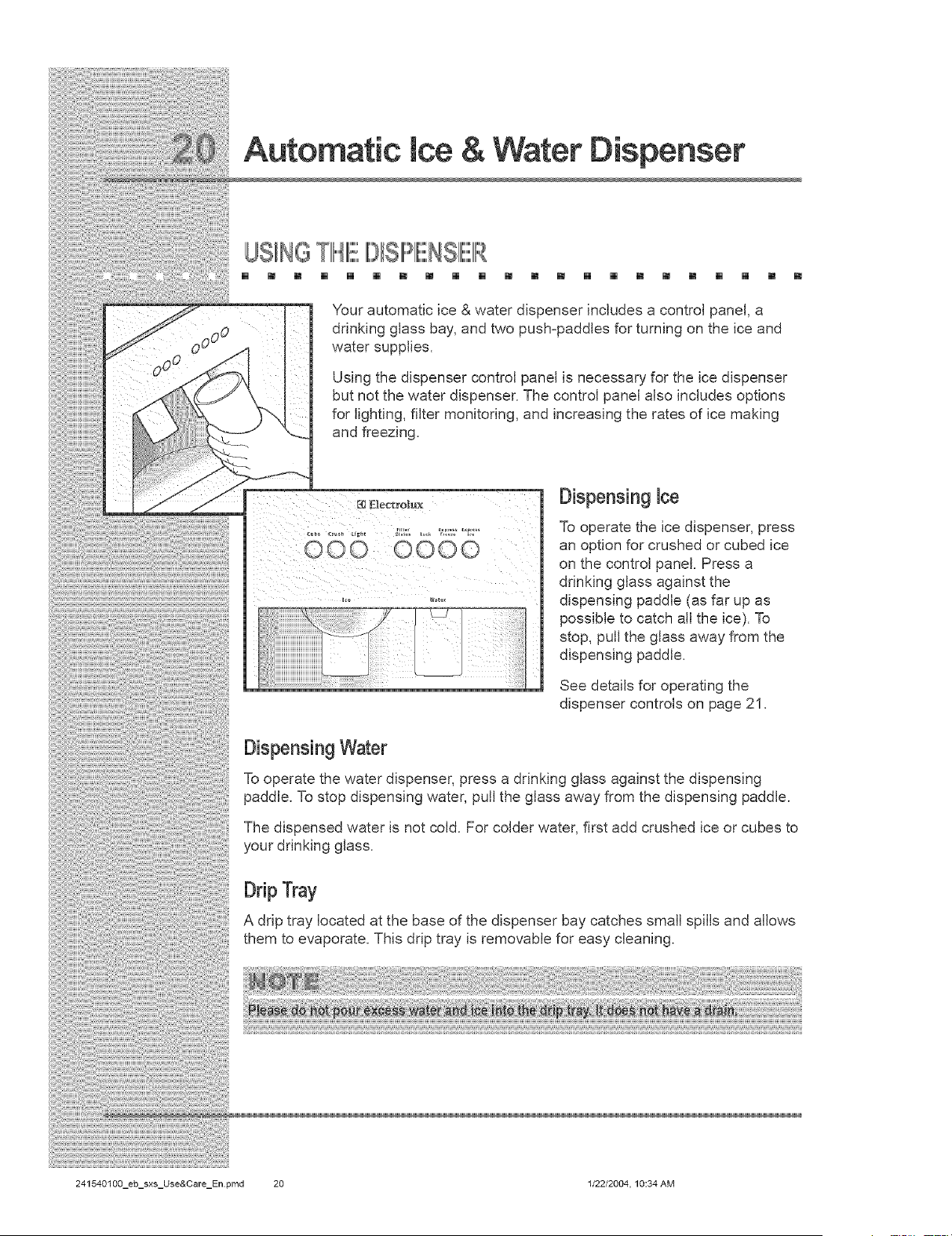

Automatic ice & Water Dispenser
...... __ .........,
USINGTIIIi""HEIIh,,,} SIIIl"':::::::::::::::::::::::::::::::::
[] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m m
0 oo°
Your automatic ice & water dispenser includes a control panel, a
drinking glass bay, and two push-paddles for turning on the ice and
water supplies.
Using the dispenser control panel is necessary for the ice dispenser
but not the water dispenser. The control panel also includes options
for lighting, filter monitoring, and increasing the rates of ice making
and freezing.
QQO OOOO
Dispensingice
To operate the ice dispenser, press
an option for crushed or cubed ice
on the control panel. Press a
drinking glass against the
dispensing paddle (as far up as
possible to catch all the ice). To
stop, pull the glass away from the
dispensing paddle.
See details for operating the
dispenser controls on page 21.
Dispensing Water
To operate the water dispenser, press a drinking glass against the dispensing
paddle. To stop dispensing water, pull the glass away from the dispensing paddle.
The dispensed water is not cold. For colder water, first add crushed ice or cubes to
your drinking glass.
Drip Tray
A drip tray located at the base of the dispenser bay catches small spills and allows
them to evaporate. This drip tray is removable for easy cleaning.
241540100_eb_sxs_Use&Care_En.pmd 20 1/22/2004, 10:34 AM
Automatic ice & Water Dispenser
,..... _ _ .........,
USINGTIIIi"" EID SIIII"':::::::::::::::::::::::::::::::::CONTIIROLIIII:::>ANIIEL
[] [] [] [] [] E [] m m [] [] m m m [] [] m m m [] []
Cube Button
& nd Cator L ght
Crush Butt°n
& nd Cator L .qht
Press button to get cubed ice. Light displays blue.
Press glass against ice dispensing paddle, holding high up to catch
alt ice.
Press button to get crushed ice. Light displays blue.
Press glass against ice dispensing paddle, holding high up to catch
alt ice.
Press button to turn on dispenser light. Light displays blue.
Press button again to turn off dispenser light.
Dispenser light also turns on automatically when ice and/or water is
dispensed.
Light Button
& indicator Li.qht
Filter Status Button
& indicator Light
Light displays in one of three possible colors each time the dispenser
is used to show status of water filter:
Green Water filter does not need changing.
Amber Water filter is about 80 percent used.
Please order a new one.
Red Water filter is lOg percent used.
Please change as soon as possible.
After replacing the water filter, reset the filter status by pressing and
holding Filter Status button for 10-15 seconds.
Lock Button
& nd cator L ght
The dispenser can be locked to prevent unwanted use.
To lock, press and hold button for 3-5 seconds. Light displays blue.
To unlock, press and hold button for 3-5 seconds until light goes out.
Express Freeze Button
& nd cator L ght
Press and hold button for 3-5 seconds to activate faster rate for
freezing food (preserving freshness). Light displays blue.
Press and hold button for 3-5 seconds again to deactivate.
Express Ice Button Press and hold button for 3-5 seconds to increase ice production for
& nd Cator L ght special occasions, such as parties. Light displays blue.
Press and hold button for 3-5 seconds again to deactivate.
241540100_eb_sxs_Use&Care_En.pmd 2I 1/22/2004, 10:34 AM
Automatic ice & Water Dispenser
IIII:::>IIIRH_/NGTIIII""E!!,WATIIII!!!!!!!!!,IIIRSUIIII:::>IIII:::>LYSYSTIIIE,M
[] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m m

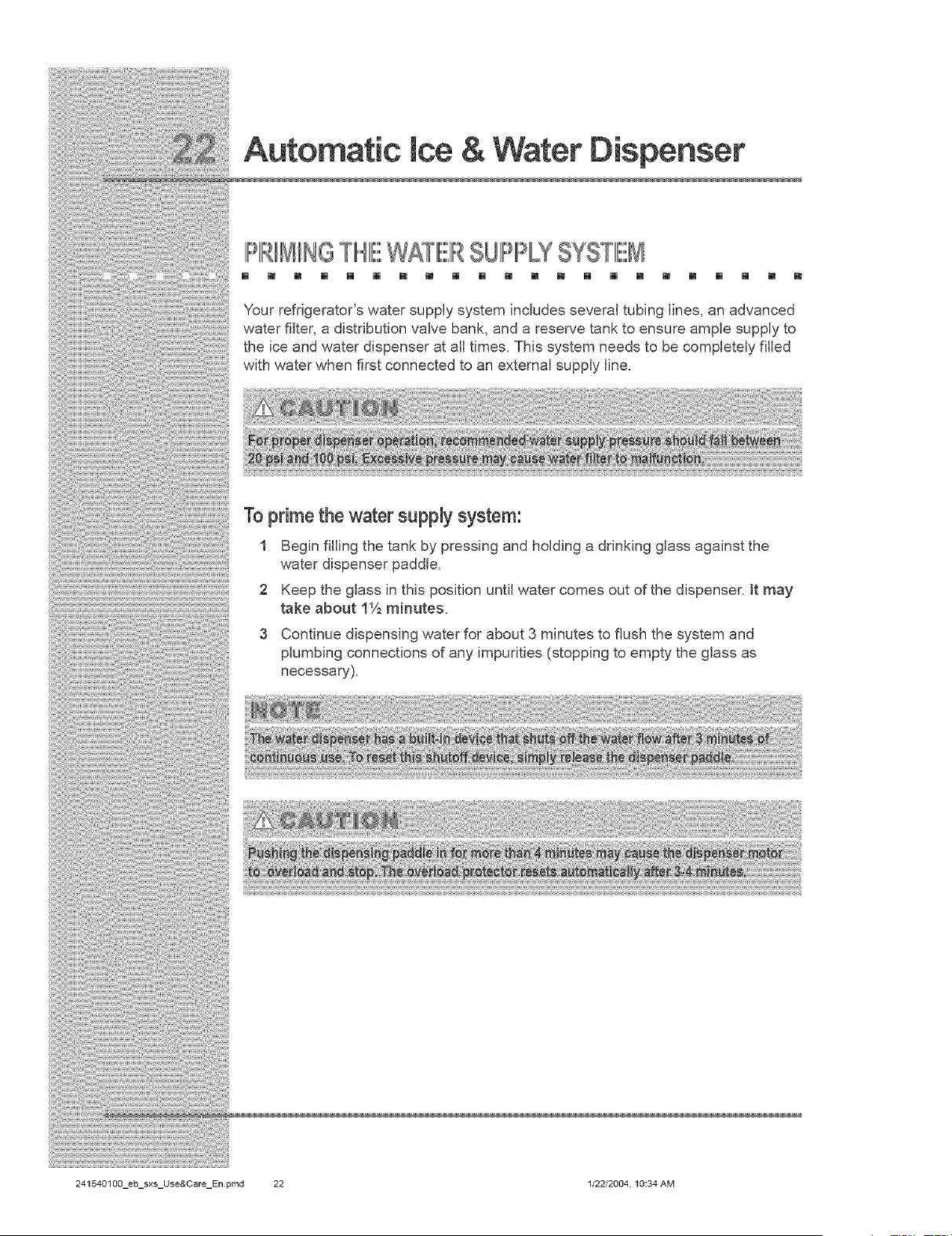

Your refrigerator's water supply system includes several tubing lines, an advanced
water filter, a distribution valve bank, and a reserve tank to ensure ample supply to
the ice and water dispenser at all times. This system needs to be completely filled
with water when first connected to an external supply line.
To prime the water supply system:
1 Begin filling the tank by pressing and holding a drinking glass against the
water dispenser paddle.
2 Keep the glass in this position until water comes out of the dispenser. It may
take about 11/2minutes.
3 Continue dispensing water for about 3 minutes to flush the system and
plumbing connections of any impurities (stopping to empty the glass as
necessary).
241540100_eb_sxs_Use&Care_En.pmd 22 1/22/2004, 10:34 AM

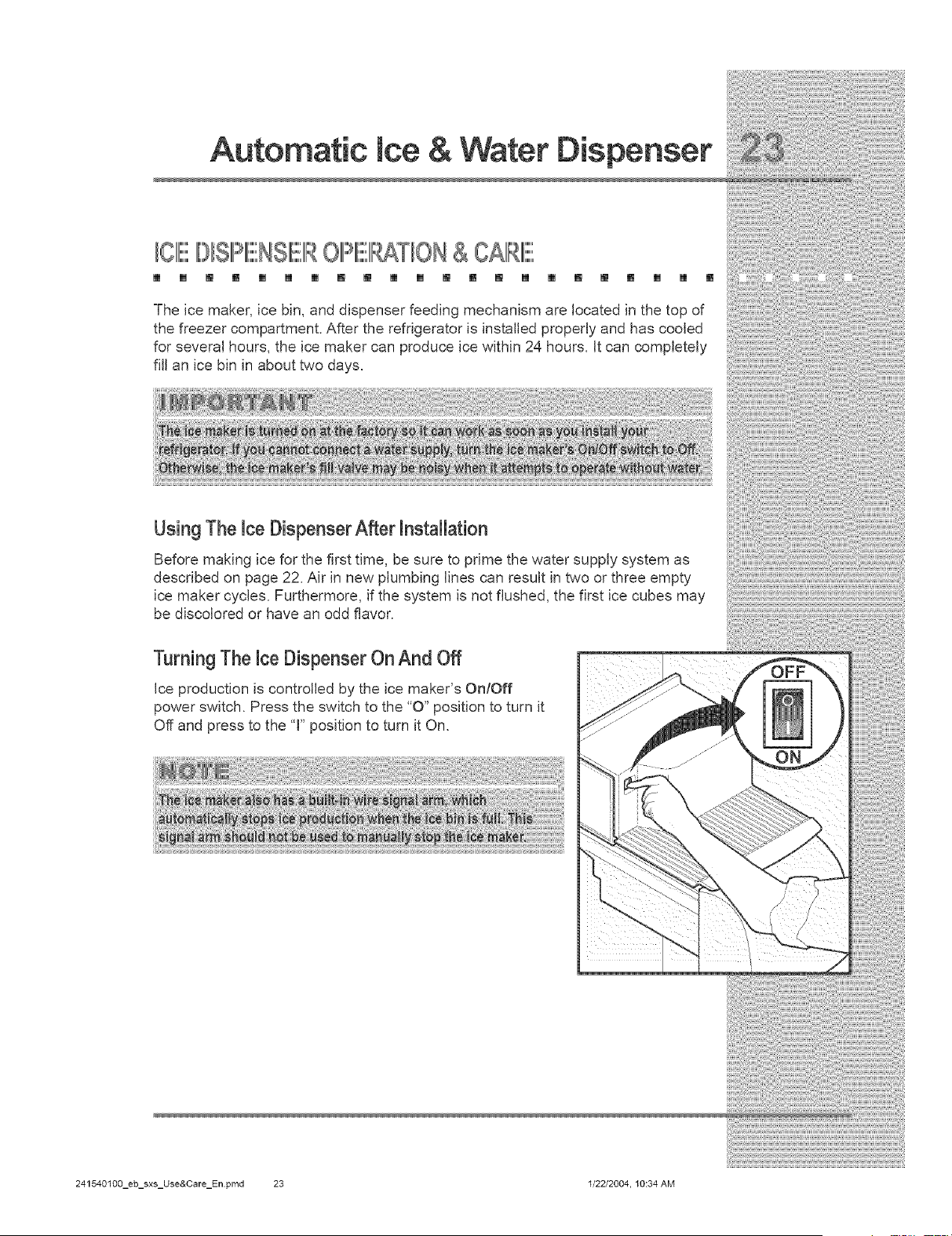

Automatic (ce & Water Dispenser
IOlIIE!, OIIII::: IIIEIII TION& CAIIIRIE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The ice maker, ice bin, and dispenser feeding mechanism are located in the top of
the freezer compartment. After the refrigerator is installed properly and has cooled
for several hours, the ice maker can produce ice within 24 hours. It can completely
fill an (ce bin (n about two days.
Using The (ce Dispenser After (nstallation
Before making ice for the first time, be sure to prime the water supply system as
descnbed on page 22. Air )n new plumbing lines can result )n two or three empty
ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may
be discolored or have an odd flavor.
Turning The (ce Dispenser On And Off
Ice product)on (s controlled by the ice maker's On/Off
power switch. Press the switch to the "O" position to turn (t
Off and press to the "(" pos(tion to turn (t On.
241540100_eb_sxs_Use&Care_En.pmd 23 1/22/2004, 10:34 AM

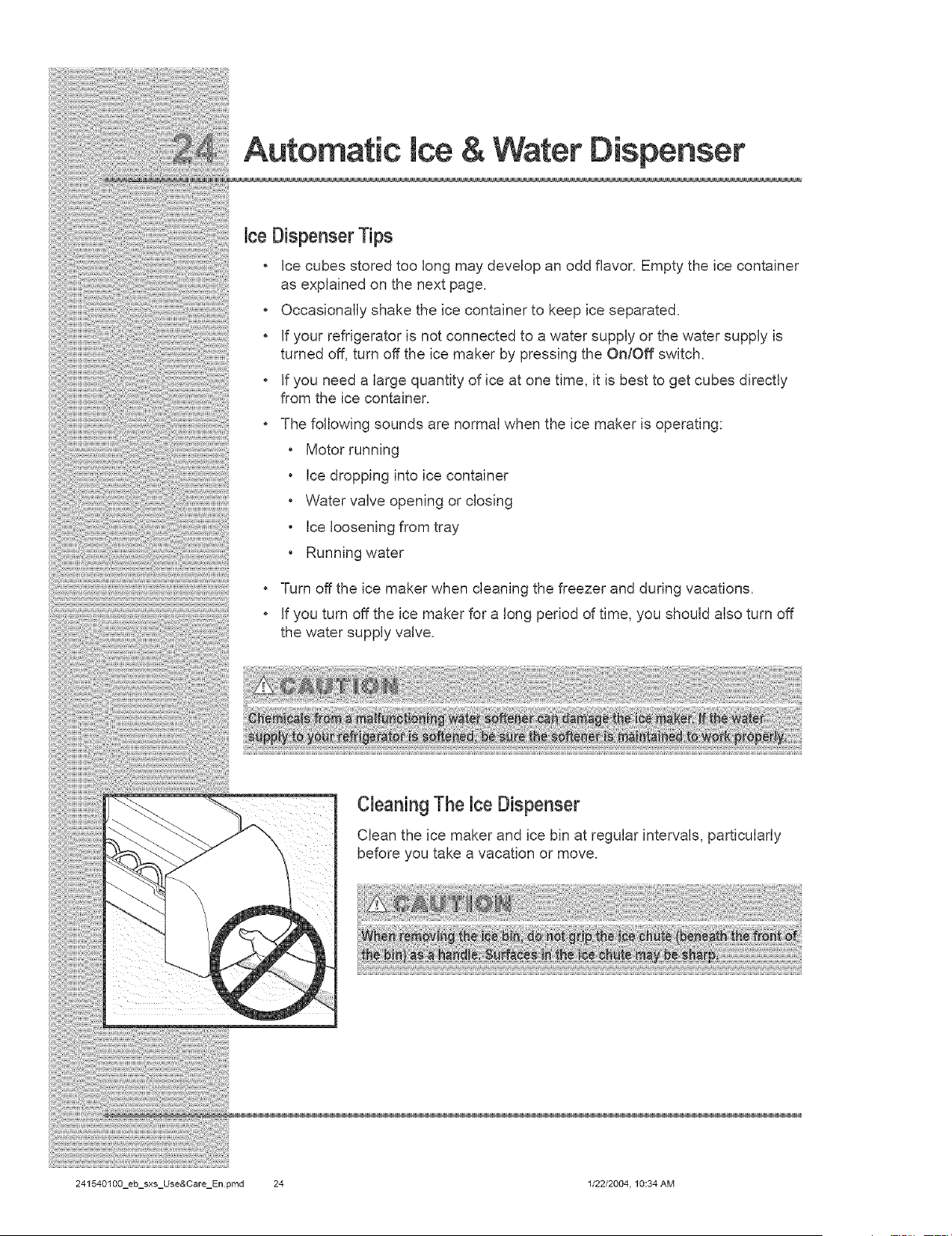

Automatic Ice & Water Dispenser
Ice Dispenser Tips
° Ice cubes stored too long may develop an odd flavor. Empty the ice container
as explained on the next page.
° Occasionally shake the ice container to keep ice separated.
° If your refrigerator is not connected to a water supply or the water supply is
turned off, turn off the ice maker by pressing the On/Off switch.
° If you need a large quantity of ice at one time, it is best to get cubes directly
from the ice container.
° The following sounds are normal when the ice maker is operating:
° Motor running
• ice dropping into ice container
• Water valve opening or closing
• ice loosening from tray
• Running water
• Turn off the ice maker when cleaning the freezer and during vacations.
, if you turn off the ice maker for a long period of time, you should also turn off
the water supply valve.
Cleaning The ice Dispenser
Clean the ice maker and ice bin at regular intervals, particularly
before you take a vacation or move=
241540100_eb_sxs_Use&Care_En.pmd 24 1/22/2004, 10:34 AM

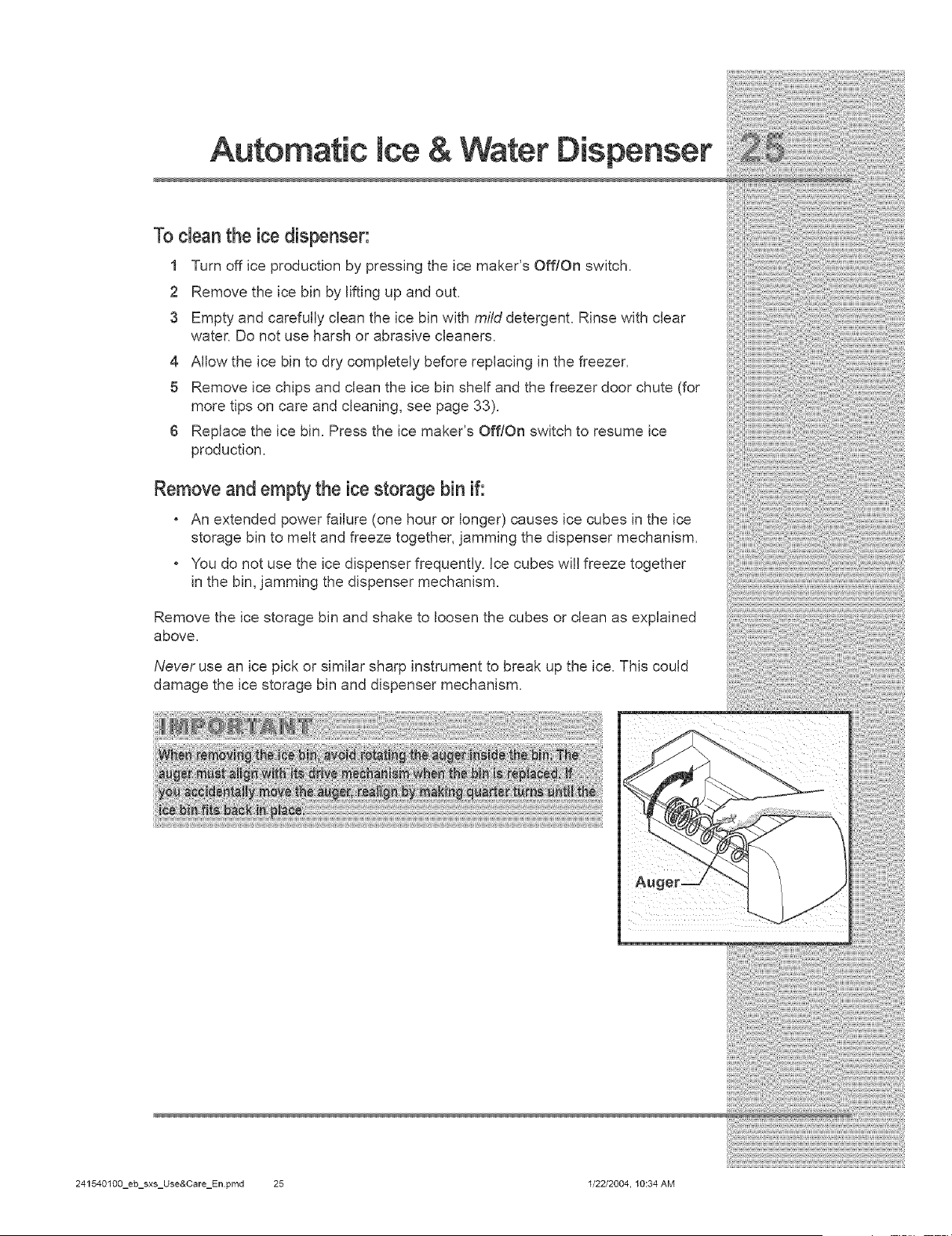

Automatic Ice & Water Dispenser
To clean the ice dispenser:
1 Turn off ice production by pressing the ice maker's Off/On switch,
2 Remove the ice bin by lifting up and out.
3 Empty and carefully clean the ice bin with mild detergent. Rinse with clear
water. Do not use harsh or abrasive cleaners.
4 Allow the ice bin to dry completely before replacing in the freezer.
5 Remove ice chips and clean the ice bin shelf and the freezer door chute (for
more tips on care and cleaning, see page 33).
6 Replace the ice bin. Press the ice maker's Off/On switch to resume ice
production.
Remove and empty the ice storage bin if:
, An extended power failure (one hour or longer) causes ice cubes in the ice
storage bin to melt and freeze together, jamming the dispenser mechanism.
, You do not use the ice dispenser frequently. Ice cubes will freeze together
in the bin, jamming the dispenser mechanism.
Remove the ice storage bin and shake to loosen the cubes or clean as explained
above.
Neveruse an ice pick or similar sharp instrument to break up the ice. This could
damage the ice storage bin and dispenser mechanism.
241540100_eb_sxs_Use&Care_En.pmd 25 1/22/2004, 10:34 AM
Changing The Filter
LOCATINGTIIII""E!!,WATIIE,IIIRIIIF LTIIIEIIII:::
[] m m [] [] [] m m [] [] [] [] m [] [] m m m [] [] m
Your refrigerator is equipped with a water filtering system. The water filter, which
uses Electroiux pure advantage TMtechnology, filters all dispensed drinking water
as well as the water used to produce ice.
Water Filter Location
The water filter is located at the top of the fresh food
compartment, next to the electronic control system panel.
For more information about when to replace the filter, see
"Using The Dispenser Control Panel" on page 21.
IIII::' IIE,IIII:::'LAClIE!,II IIIENT
[] [] m [] [] [] m [] [] [] m m m [] [] [] [] [] [] [] m m
Order new filters through the dealer where you bought your refrigerator, or contact
the Electrolux Customer Care Center at !o877o435-3287, or go to our web site at
www.electroJuxusa.eom. You may want to consider ordering extra filters when
you first install your refrigerator. Here is the product number to request when
ordering:
Water Filter pure advantage TMreplacement cartridge
241540100_eb_sxs_Use&Care_En.pmd 26 1/22/2004, 10:34 AM
Changing The FiJter
IIII::: IIE!,IIII:::>LAC NGTIIII""E!!,WATIIEIIII:::
[] [] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m
In generaJ, you should change the water filter every six to nine months to ensure
highest possible water quality. The Filter Status light on the dispenser control
panel (see page 20) prompts you to replace the filter after 400 gallons of water has
flowed through the system.
If your refrigerator has not been used for a period of time (during moving for
example), change the filter before reinstalling the refrigerator.
MoreAbout YourAdvanced Water Filter
The pure advantage TMIce & Water FiJter System is tested and certified
by NSF International, the nationally respected, not=for=profit
certification organization for public health safety. The pure advantage TMfilter
system is tested and certified to ANSI/NSF Standards 42 and 53. See the
performance data sheet that came with your product for detailed specifications.
This system should not be used on water that is microbioJogicaJly unsafe or with
water of unknown quality unless the water has been adequately disinfected before
or after traveling through the filtration system.
NSF Test & Certification Results:
• Rated Capacity =400 gaJlons
• Rated service flow =.5 gallons per minute
• Maximum Rated Pressure = 100 pounds per square inch
• Maximum Operating Temp. =100° F
241540100_eb_sxs_Use&Care_En.pmd 27 1/22/2004, 10:34 AM
Changing The Fi ter

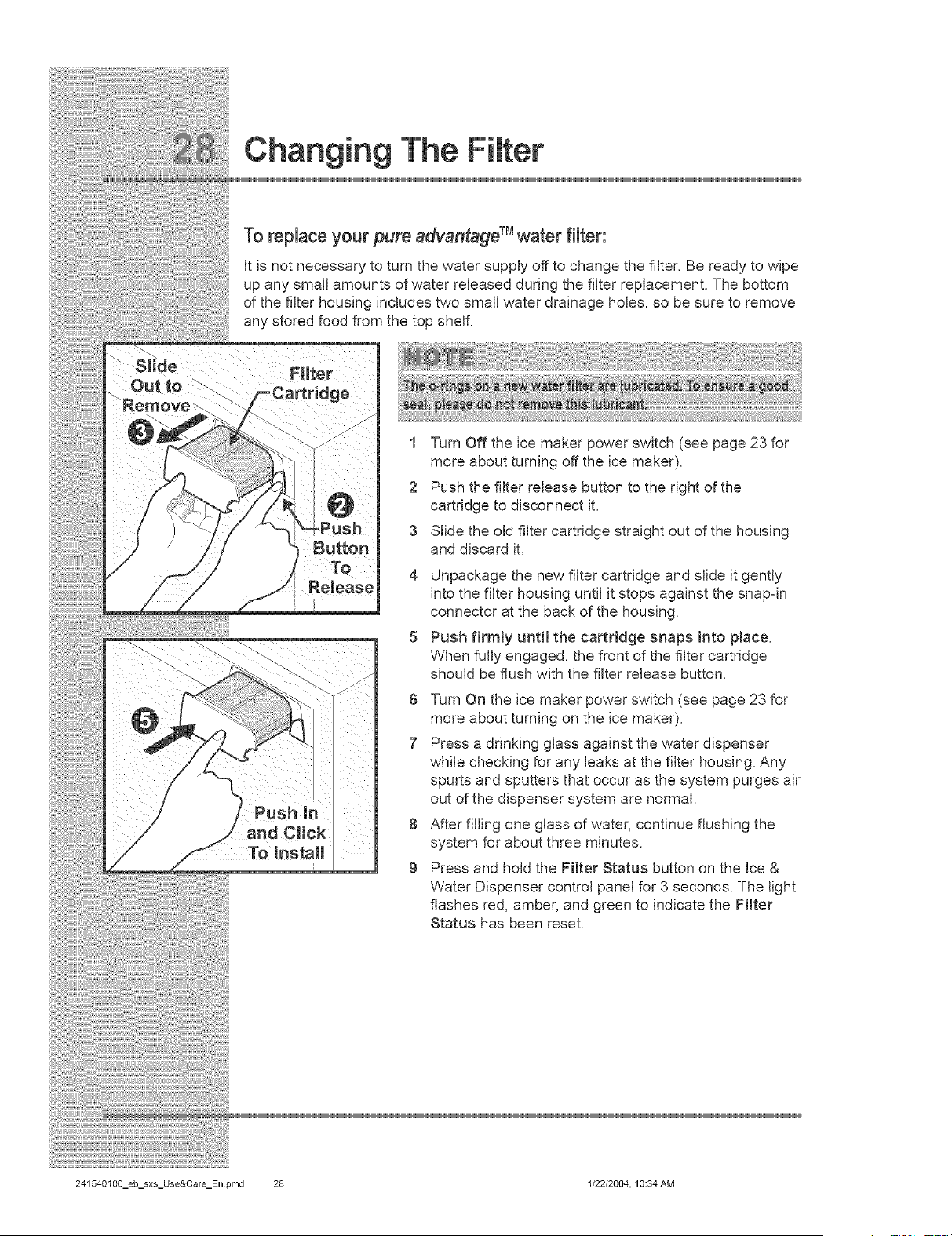

To replace your pure advantage TMwater filter:
it is not necessary to turn the water supply off to change the filter. Be ready to wipe
up any small amounts of water released during the filter replacement. The bottom
d the filter housing includes two small water drainage holes, so be sure to remove
any stored food from the top shelf.
1 Turn Off the ice maker power switch (see page 23 for
more about turning off the ice maker).
2 Push the filter release button to the right of the
cartridge to disconnect it.
3 Slide the old filter cartridge straight out of the housing
and discard it.
4
Unpackage the new filter cartridge and slide it gently
into the filter housing until it stops against the snapzin
connector at the back of the housing.
Push firmly until the cartridge snaps into place.
When fully engaged, the front of the filter cartridge
should be flush with the filter release button.
6 Turn On the ice maker power switch (see page 23 for
more about turning on the ice maker).
7 Press a drinking glass against the water dispenser
while checking for any leaks at the filter housing. Any
spurts and sputters that occur as the system purges air
out of the dispenser system are normal.
8 After filling one glass of water, continue flushing the
system for about three minutes.
9 Press and hold the Filter Status button on the Ice &
Water Dispenser control panel for 3 seconds. The light
flashes red, amber, and green to indicate the Filter
Status has been reset.
241540100_eb_sxs_Use&Care_En.pmd 28 1/22/2004, 10:34 AM
Storing Food & Saving Energy
IDIIII!!!!!!!!!A8IFOIIII::: 8TOIIII::: BNG1111:::::::00111[}8
[] [] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m
Fresh Food Storage
, Keep the fresh food compartment between 34 ° F and 40° F with an optimum
temperature of 37 ° F (see page 13 for more about temperature settings).
• Avoid overcrowding the refrigerator shelves, which reduces air circulation and
causes uneven cooling.
Fruits and Vegetables
, Store fruits and vegetables in crisper drawers, where trapped moisture helps
preserve food quality for longer time periods.
Meat
, Wrap raw meat and poultry securely so leakage and contamination of other
foods or surfaces does not occur.
• Use the meat keeper drawer for short term storage. Any meat to be kept
longer than two days should be frozen.
, See page 17 for more about the meat keeper drawer.
Frozen Food Storage
, Keep the freezer compartment at 0° F or lower (see page 13 for more about
temperature settings).
, A freezer operates most efficiently when it is at least 2/3 full.
Packaging Foods for Freezing
, To minimize food dehydration and quality deterioration, use aluminum foil,
freezer wrap, freezer bags or airtight containers. Force as much air out of the
packages as possible and seal them tightly. Trapped air can cause food to
dry out, change color, and develop an off41avor (freezer burn).
, Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
, Do not refreeze meat that has completely thawed.
241540100_eb_sxs_Use&Care_En.pmd 29 1/22/2004, 10:34 AM
Storing Food & Saving Energy
Loading the Freezer
• Avoid adding too much warm food to the freezer at one time. This overloads
the freezer, slows the rate of freezing, and can raise the temperature of
frozen foods.
, Leave a space between packages, so cold air can circulate freely, allowing
food to freeze as quickly as possible.
• Avoid storing hard-to-freeze foods, such as ice cream and orange juice, on
the freezer door shelves. These foods are best stored in the freezer interior
where the temperature varies less.
IIDIIII!!!!!!!!!ASSAVINGIIII!!!!!!!!!,HIIII!!!!!!!!!,IIIi:::@GY
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Installation
• Locate the refrigerator in the coolest part of the room, out of direct sunlight,
and away from heating ducts or registers. Do not place the refrigerator next
to heat-producing appliances such as a range, oven, or dishwasher, if this is
not possible, a section of cabinetry or an added layer of insulation between
the two appliances will help the refrigerator operate more efficiently.
• Level the refrigerator so that the doors close tightly.
Temperature Settings
, Refer to earlier sections in this Use & Care Manual (beginning on page 12)
for recommendations on temperature control settings.
Food Storage
, Avoid overcrowding the refrigerator or blocking cold air vents. Doing so
causes the refrigerator to run longer and use more energy.
° Cover foods and wipe containers dry before placing them in the refrigerator.
This cuts down on moisture build-up inside the unit.
, Organize the refrigerator to reduce door openings. Remove as many items as
needed at one time and close the door as soon as possible.
241540100_eb_sxs_Use&Care_En.pmd 30 1/22/2004, 10:34 AM

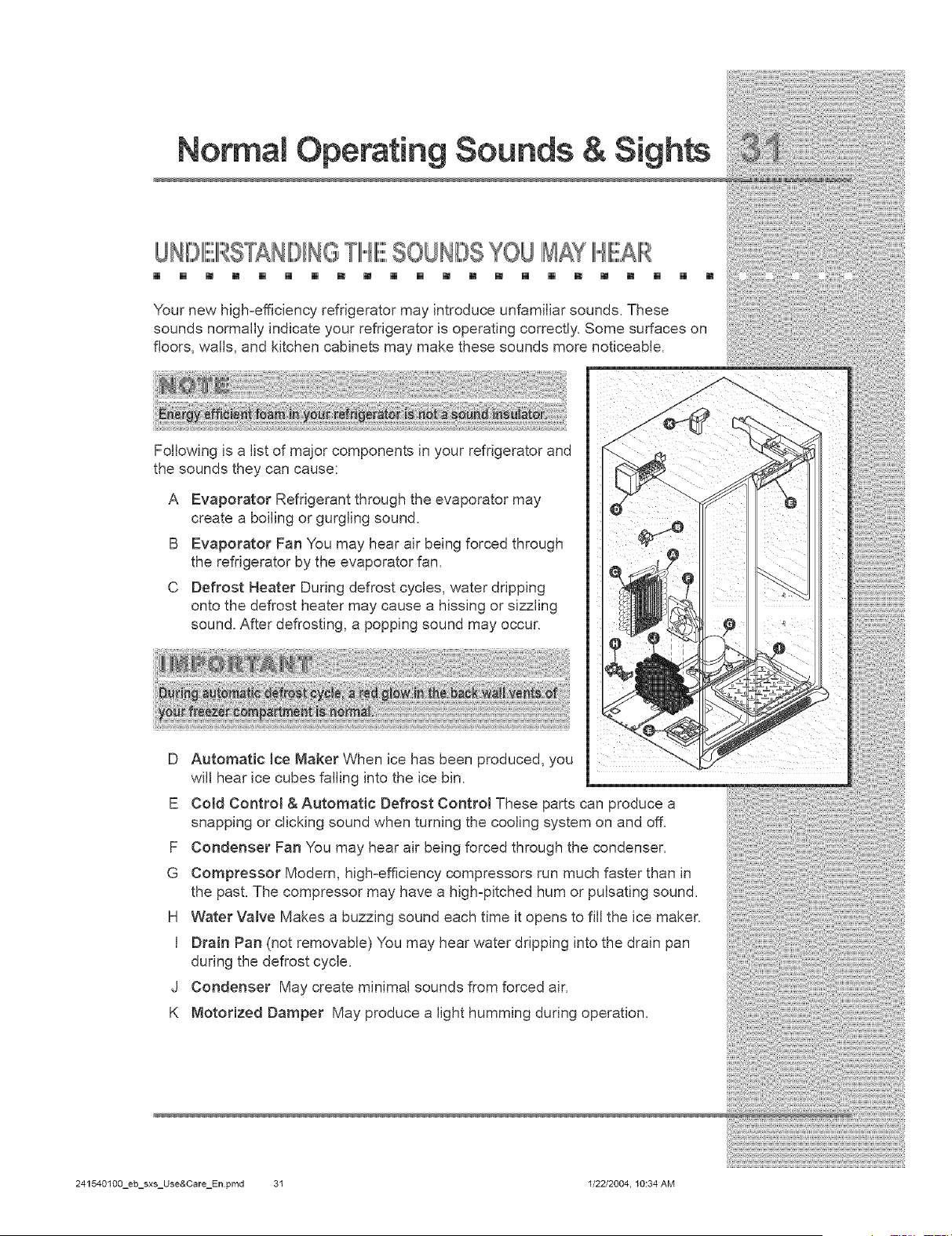

NormaJ Operating Sounds & Sights
UNDIIII!!!!!!!!!,IIII::: STANIID/NGTIIII""E!!,SOUNDSYOUMAYIIIi""IIIIE,AIIIR
[] [] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m
Your new high=efficiency refrigerator may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may make these sounds more noticeable.
Following is a list of major components in your refrigerator and
the sounds they can cause:
A Evaporator Refrigerant through the evaporator may
create a boiling or gurgling sound.
B Evaporator Fan You may hear air being forced through
the refrigerator by the evaporator fan.
C Defrost Heater During defrost cycles, water dripping
onto the defrost heater may cause a hissing or sizzling
sound. After defrosting, a popping sound may occur.
D Automatic Ice Maker When ice has been produced, you
will hear ice cubes falling into the ice bin.
E Cold Control & Automatic Defrost Control These parts can produce a
snapping or clicking sound when turning the cooling system on and off.
F Condenser Fan You may hear air being forced through the condenser.
G Compressor Modern, high=efficiency compressors run much faster than in
the past. The compressor may have a high=pitched hum or pulsating sound.
H Water Valve Makes a buzzing sound each time it opens to fill the ice maker.
I Drain Pan (not removable) You may hear water dripping into the drain pan
during the defrost cycle.
J Condenser May create minimal sounds from forced air.
K Motorized Damper May produce a light humming during operation.
241540100_eb_sxs_Use&Care_En.pmd 3I 1/22/2004, 10:34 AM

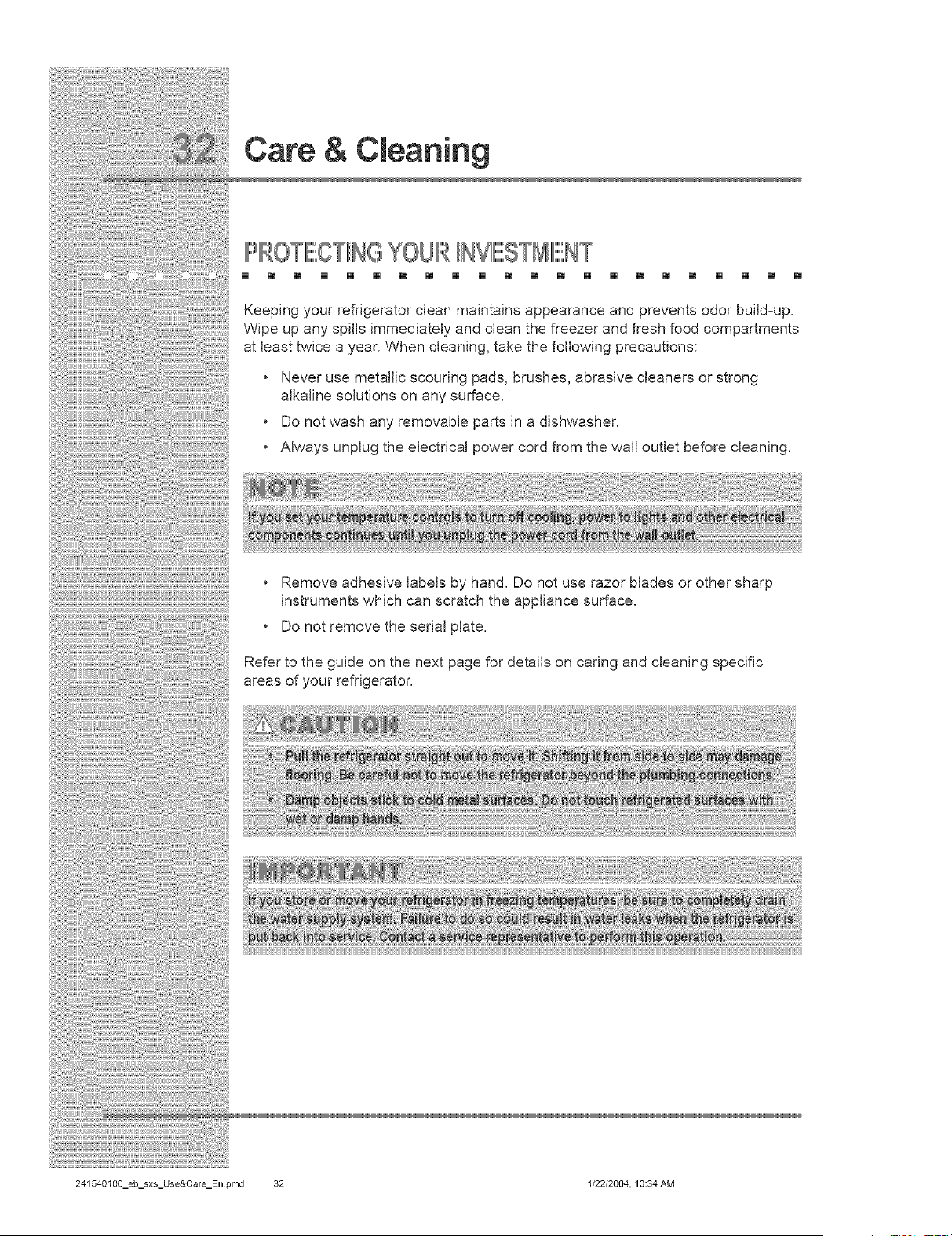

Care & Cleaning
IIII:::>IIIROTIIIE,CT NGYOUIIIi::: INVIIII!!!!!!!!!,STMIIII!!!!!!!!!,NT
[] m m [] [] [] m m [] [] m m m [] [] m m m [] [] m m
Keeping your refrigerator clean maintains appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments
at least twice a year. When cleaning, taRe the following precautions:
• Never use metallic scouring pads, brushes, abrasive cleaners or strong
alkaline solutions on any surface.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate.
Refer to the guide on the next page for details on caring and cleaning specific
areas of your refrigerator.
241540100_eb_sxs_Use&Care_En.pmd 32 1/22/2004, 10:34 AM

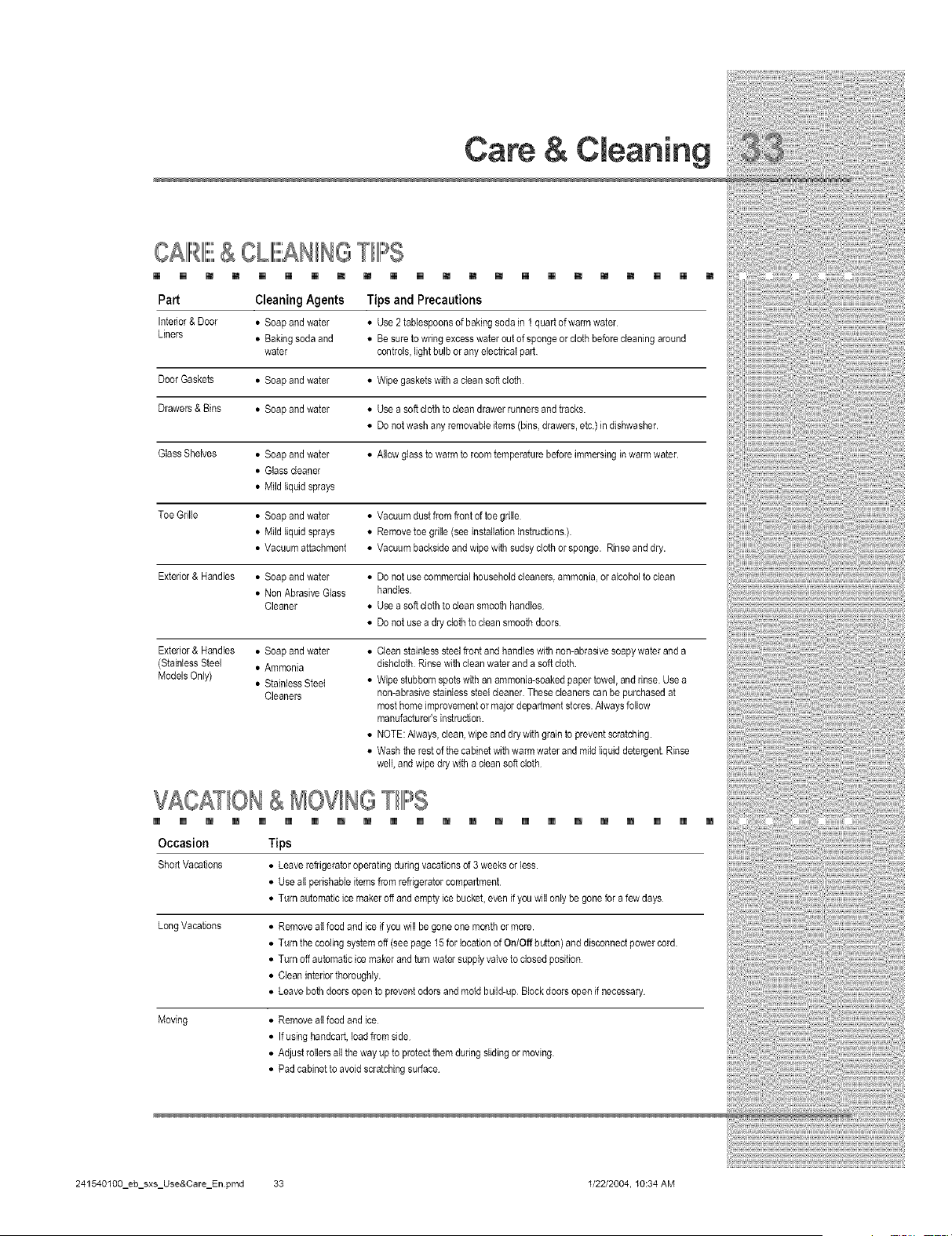

Care & Cmeaning
CAIIII::: IIE& CLIIII!!!!!!!!!AN/NGT IIIi::::>S
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Part Cleaning Agents Tips and Precautions
Interior& Door • Soap and water • Use 2taNespoons of baking soda in 1 quart of warmwater
Liners • Baking soda and • Besure to wring excess water outof sponge or clothbefore cleaning around
water controls,light bulb or any electricalpart
Door Gaskets • Soap and water • Wipe gasketswith a clean softcloth
Drawers & Bins • Soap and water • Use asoft cloth to cleandrawer runnersand tracks.
• Do netwash any removable items(bins, drawers, etc) in dishwasher.
Glass Shelves • Soap and water • Allow glass to warm to room temperaturebefore immersingin warm water.
• Glass cleaner
• Mild liquid sprays
Toe Grille • Soap and water • Vacuum dust from front of toe gdlle
• Mild liquid sprays • Remove tee grille (see InstallationInstructions).
• Vacuum attachment • Vacuum backsideand wipe with sudsy cloth or sponge. Rinseand dry.
Exterior& Handles • Soap and water • Do not usecommercial household cleaners,ammonia,or alcohol to clean
• Non Abrasive Glass handles.
Qeaner • Use asoft cloth to cleansmooth handles
• Do net usea dry cloth to clean smooth doors.
Exterior& Handles • Soap and water
(Stainlese Steel • Ammonia
Models Only)
• Stainlese Steet
Qeaners
• Cleanstainless steelfront and handles with non-abrasive soapy water and a
dishcloth Rinsewith clean water and a soft cloth.
• Wipe stubbornspots with an ammonia-soakedpaper towel, and rinse. Use a
non-abrasivestainlesssteet cleaner.These cleaners can be purchased at
most home improvementor major department stores. Alwaysfollow
manufacturer'sinstruction.
• NOTE: Always, clean, wipeand dry with grainto prevent scratching.
• Wash the rest of the cabinet with warmwater and mild liquid detergent Rinse
well, and wipe dry with aclean soft cloth
VACATION& MOVINGT IIII:::>S
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Occasion Tips
Short Vacations • Leaverefrigeratoroperating duringvacations of 3 weeks or less.
• Use all perishable itemsfrom refrigeratorcompartment
• Turnautomatic icemaker off and empty ice bucket,even if you will only be gone for a few days
Long Vacations
• Removeall food and ice if you will be gone one month or more.
• Turnthe cooling system off (see page 15 for location of On/Off button) and disconnectpower cord
• Turnoff automatic ice makerand turn water supplyvalve to closed position
• Clean interiorthoroughly.
• Leaveboth doors opento prevent odors and motd build-up Blockdoors open if necessary
Moving
• Removeall food and ice
• If usinghandcart, load from side
• Adjustrollers all the way up to protect them duringsliding ormoving.
• Pad cabinetto avoidscratching surface
241540100_eb_sxs_Use&Care_En.pmd 33 1/22/2004, 10:34 AM
Care & Cleaning
IIRIIHi"" LIGIIII"" TIIIJ3ULBS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Both the freezer and fresh food compartments of your refrigerator include light
bulbs that will need replacing from time to time. Some lights have covers that you
will need to remove before replacing the bulbs. Always use bulbs that are designed
for appliance lighting.
To replace light bulbs:
1 Unplug your refrigerator's power cord.
2 Wear gloves as protection against possible broken glass.
3 Remove light cover, if necessary.
4 Unscrew and replace old bulb with an appliance bulb of the
same type and wattage (normally 40 watts).
5 Replace light cover, if necessary.
6 Plug in the refrigerator's power cord.
241540100_eb_sxs_Use&Care_En.pmd 34 1/22/2004, 10:34 AM

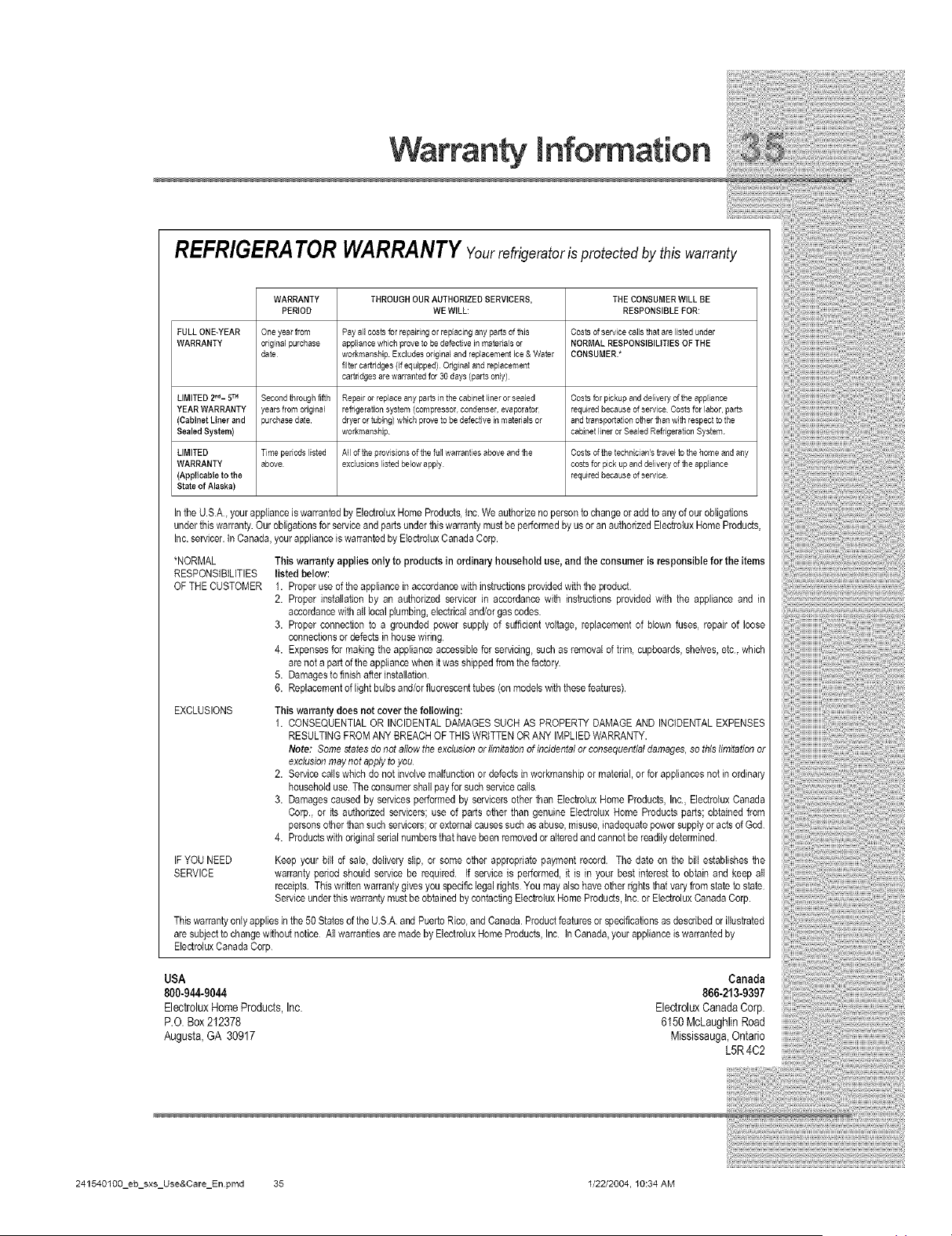

Warranty information
REFRIGERATOR WARRANTY vo.r refrigeratoris protected by this warranty
WARRANTY THROUGHOURAUTHORIZEDSERVICERS, THECONSUMERWILLBE
PERIOD WEWILL: RESPONSIBLEFOR:
FULLONE-YEAR Oneyearfrom Payall costsforrepairingorreplacinganypartsof this Costsof servicecallsthatarelistedunder
WARRANTY originalpurchase appliancewhichprovetobedefectivein materialsor NORMALRESPONSIBILITIESOF THE
date workmanshipExcludesodginalandreplacementIce& Water CONSUMER.*
filtercartridges(if equipped)Originalandreplacement
cartridgesarewarrantedfor 30days(partsonly)
LIMITED2.d-5TM Secondthroughfifth RepairorreplaceanypartsinthecabinetJnerorsealed Costsforpickupanddeliveryoftheappliance
YEARWARRANTY yearsfromoriginal refrigerationsystem(compressor,condenser,evaporator requiredbecauseofserviceCostsfor labor,parts
(CabinetLinerand purchasedate dryerortubing)whichprovetobedefectiveinmatedatsor andtransportationotherthanwithrespectto the
SealedSystem) workmanship cabinetlineror SealedRefdgera_onSystem
LIMITED Timeperiodslisted Allof theprovisionsofthefullwarrantiesaboveandthe Costsof thetechnicia_Ystravelto thehomeandany
WARRANTY above exclusionslistedbelowapply costsforpickupanddeliveryof theappliance
(Applicableto the requiredbecauseofservice
Stateof Alaska)
Inthe U.SA, your applianceis warrantedby Electrolux Home Products,Inc. We authorizeno personto changeor add to any of our obligations
under thiswarranty. Our obligationsfor service and partsunder thiswarranty must be performedby usor an authorized ElectroluxHome Products,
Inc.servicer.In Canada,your applianceis warrantedby EtectroluxCanada Corp.
*NORMAL
RESPONSIBILITIES
OF THE CUSTOMER
EXCLUSIONS
IFYOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
I. Proper useof the appliance in accordancewith instructionsprovidedwith the product.
2. Proper installation by an authorized servicer in accordance with instructionsprovided with the appliance and in
accordance withall local plumbing, electricaland/or gas codes
3. Proper connection to a grounded power supply of sufficient voltage, replacement of btown fuses, repair of loose
connectionsor defects in housewiring
4. Expensesfor maPJngthe apptianse accessible for servidng, such as removal d trim, cupboards,shetves,etc, which
are not a partof the appliance whenit was shippedfrom the factory.
5. Damagesto t]nish atter installation
6. Replacementof light bulbs and/or fluorescenttubes (onmodels withthese features).
This warranty does not cover the following:
1. CONSEQUENTIALOR INCIDENTALDAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTINGFROM ANYBREACH OFTHIS WRITTEN ORANY IMPLIEDWARRANTY.
Note: Some states donet allowthe exclusion or limitationof incidental or consequential damages,so thislimitation or
exclusionmaynot apply toyou
2. Service calls which do net involve malfunctionor defects inworkmanship or material,or for appliances not inordinary
householduse The consumershall pay for such service calls
3. Damagescaused by services performed by servicers other than Electrolux Home Products, Inc, Electrolux Canada
Corp., or its a_horJzed servicers; use of parts other than genuine Etectrolux Home Products parts; obtained from
personsother than such servicers;or external causessuch as abuse, misuse,inadequate powersapptyor acts of God
4. Productswith original serial numbersthat have been removedor alteredand cannot be readilydetermined
Keep your bill d sele, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required. If service is performed, it is in your best interest to obtain and keep atl
receipts Thiswritten warranty gives you specific legal rights You may also have other rightsthat vary from state to state
Service under this warranty must be obtained by contactingEtectroluxHome Products, Inc or ElectroluxCanadaCorp.
This warrantyonly applies inthe 50 Statesof the US.A and PuertoRico, and Canada.Productfeatures or specificationsasdescribed or illustrated
are subject to change wJtho_4notice AIt warrantiesare made by Electrolux Home Products,Inc In Canada,your applianceis warrantedby
EtectroluxCanada Corp
USA Canada
800-944-9044 866-213-9397
ElectroluxHomeProducts,Inc. ElectroluxCanadaCorp.
P.O. Box212378 6150McLaughlinRoad
Augusta,GA 30917 Mississauga,Ontario
L5R4C2
241540100_eb_sxs_Use&Care_En.pmd 35 1/22/2004, 10:34 AM

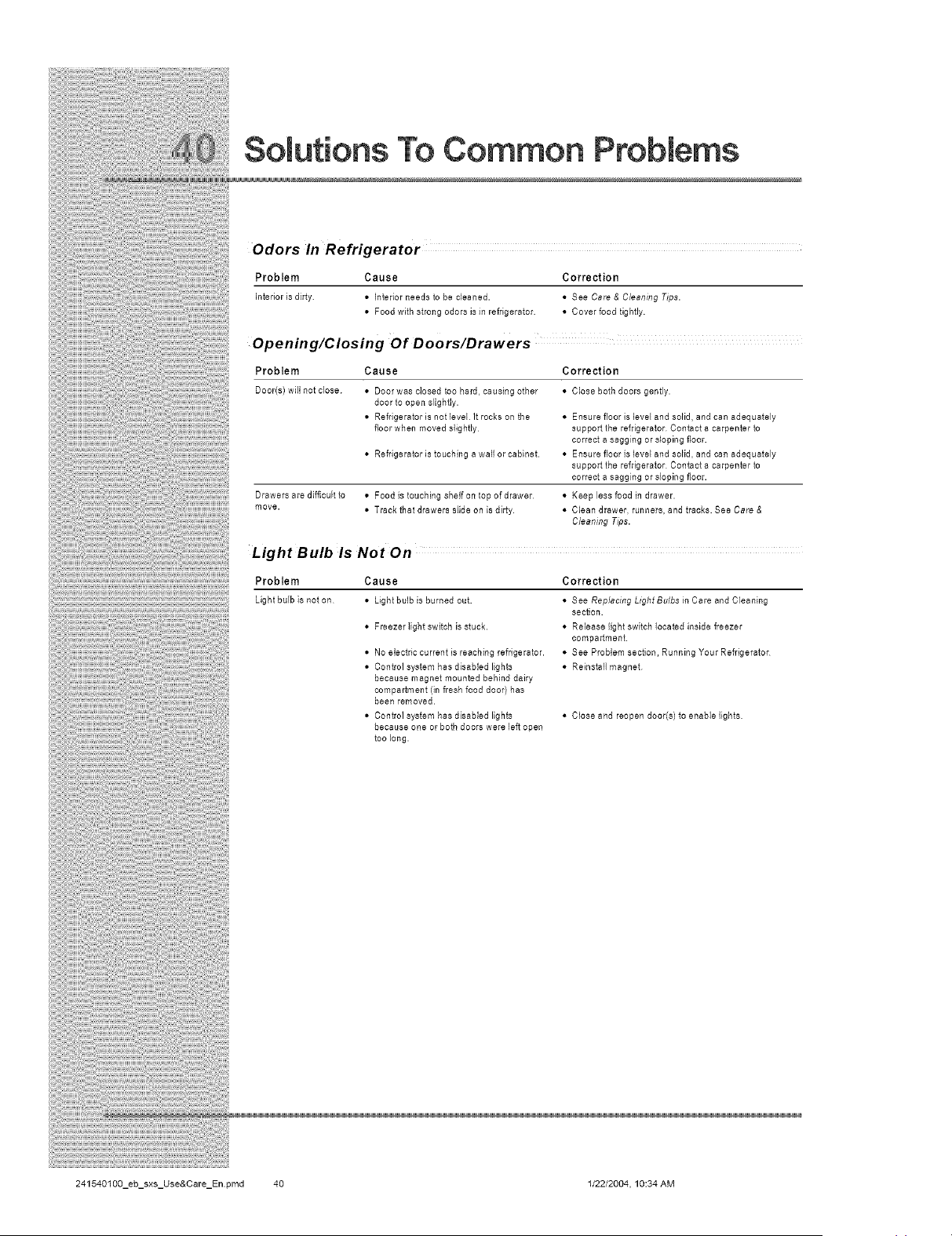

SoJutions To Common ProbJems
YOUCALL.........
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
If you experience a problem with your refrigerator or notice a product behavior or
condition you do not understand, you can usually avoid a call to your service
representative by referring to this section for an answer. Beginning with the
following table, this information includes common problems, causes, and
suggested solutions.
Problem Cause
Compressordoes not run • Dooling system is turned Off.
• Refrigerator isin defrost cycle
Refrigerator runs too much
or too long.
• Plug at wall outlet is disconnected
• House Use blown or tripped ci_uit
breaker
• Powerou_ge
• Room or outside weather is hot
• Refrigerator has recently been
disconnected for a period of time
• Automatic ice maker is operating
• Doors are opened bo frequently or
too long.
• Refdgerabr/freezer door may be
slightly open.
• Freezer control is set too cold •
(control found in fresh food section)
• Fresh food/freezer gasket is dirty,
worn, cracked, or poorly fitted •
Correction
• Turn cooling system On. See page 15 for location of
cooling system On/Off button
• This is normal for a fully automatic defrost
refrigerator The defrost cycle occurs periodically,
lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet
• Check/replace fuse with a 15 amp time-delay fuse
Reset circuit breaker.
Check house lights Cali local Electric Company
It's normal for the refrigerator to work longer under
these conditions
It takes 8-12 hours for the refrigerator to cool down
completely
Ice maker operation causes refrigerator to run
slightly more
Warm air entering the refrigerator causes it to run
more Open doors less often
Ensure refrigerator is level Keep food and
containers from blocking door See Problem section
Opening/Closing of Doors/Drawers
Set freezer control to warmer setting until refrigerator
temperature is satisfactory Allow 24 hours for
temperature to stabilize
Clean or change gasket. Leaks in door seal will
cause refrigerator to run longer in order to maintain
desired temperatures
Compressor does not run • Electronic control system keeps the • This is normal Refrigerator goes on and off to keep
refrigerator at a constant temperature constant
temperature
Digital temperature displays • Electronic control system has • Call your Electrolux service representative, who can
are flashing, detected a performance problem interpret any messages or number codes flashing on
the digital displays.
241540100_eb_sxs_Use&Care_En.pmd 36 1/22/2004, 10:34 AM

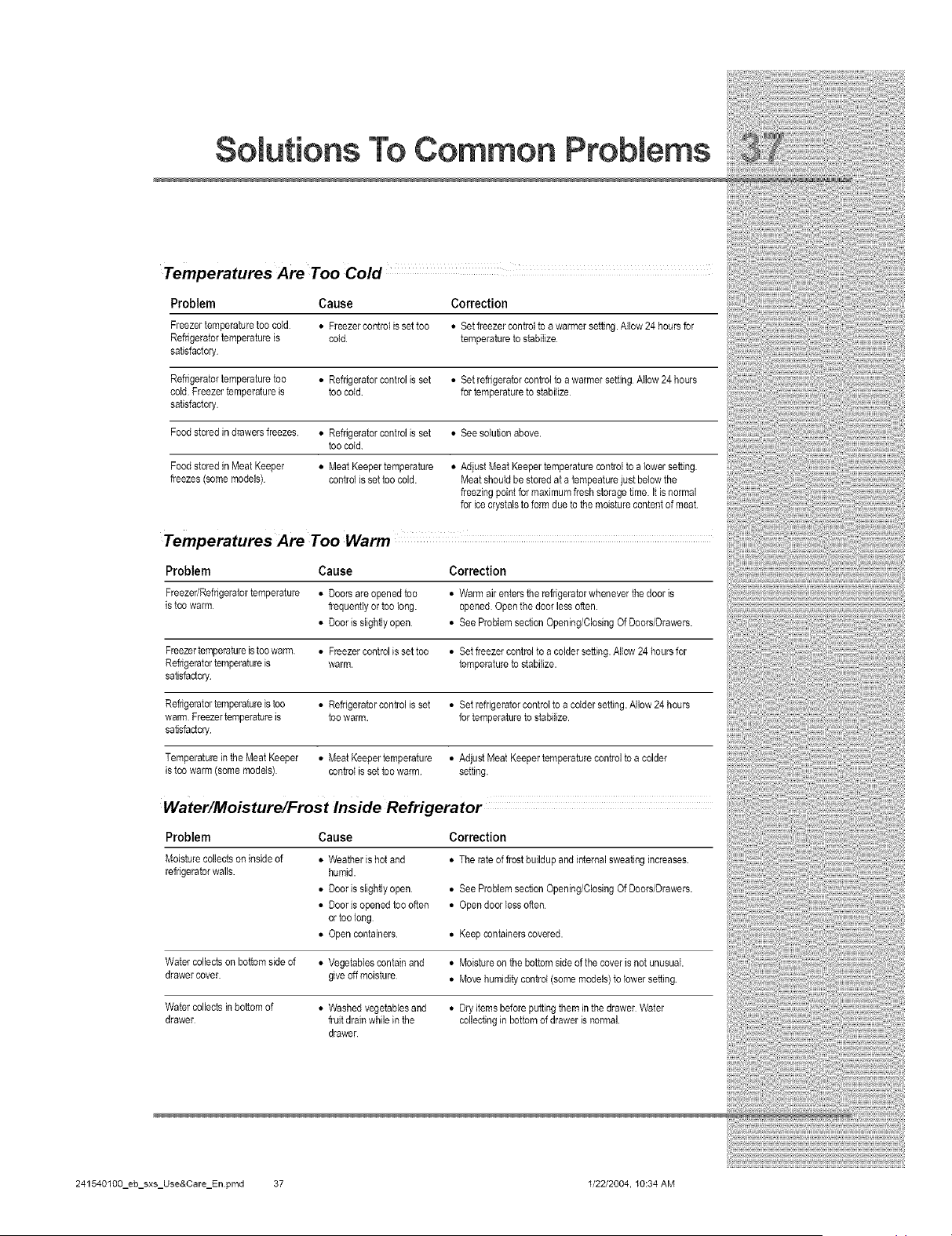

Somutions To Common Problems
Temperatures Are Too Cold
Problem Cause Correction
Freezertemperaturetoo cold * Freezeroontrelissettoo • Setfreezercootroltoawarmersetting. Allow24 h_re for
Refrigeratortemperature is cold temperatureto stabitize
satisfactory
Refrigeratortemperaturetoo ° Refrigeratorcontrol is set • Set refrigeratorcontrol to a warmer setting Atlow 24 hours
cold Freezer temperatureis too cold for temperature to stabilize
satisfactory
Food stored in drawersfreezes. ° Refrigeratorcontrol is set • See solution above.
too cold
Food stored in Meat Keeper * Meat Keepertemperature • Adjust Meat Keepertemperaturecontrol to a lower setting.
freezes (some models) control is set too cold. Meat shouldbe stored at a tempeature just belowthe
freezingpoint for maximum freshstorage time. It is normal
for icecrystals to form due to the moisture contentof meat
Temperatures Are Too Warm
Problem Cause Correction
Freezer/Refrigeratortemperature • Doors are opened too • Warm air enters the refrigeratorwhenever the door is
istoo warm frequentlyor too long. opened Openthe door less often.
• Door is slightlyopen • See Problemsection Opening/Closing OfDoors/Drawers.
Freezertemperatureis toowarm • Freezercontrol is set too • Set freezer control to a colder setting. Allow 24 hours for
Refrigeratortemperatureis warm. temperatureto stabilize.
satisfactory
Refrigeratortemperatureis too • Refrigeratorcontrol is set • Set refrigerator control to a colder setting.Allow 24 hours
warm Freezertemperature is too warm. for temperature to stabilize.
satisfactory
Temperaturein the Meat Keeper • MeatKeeper temperature • Adjust Meat Keepertemperaturecontrol to a colder
istoo warm (some modets) sontroIis set too warm setting.
Water/Moisture/Frost Inside Refrigerator
Problem Cause Correction
Moisture collects on insideof • Weatheris hot and • Tile rateof frostbuildup and internalsweating increases
refrigeratorwalls, humid.
• Door is slightlyopen • See Problemsection Opening/Closing OfDoors/Drawers.
• Door isopened too often • Open door less often
ortoo long
• Open containers. • Keep containers covered.
Water collects on botbm side of • Vegetablescontain and • Moisture on the botbm side of tile cover isnot unusual.
drawercover give off moisture • Move humiditycontrol (some models)to lower setting
Water collects in bottom of • Washed vegetables and • Dry items before putting them in the drawer Water
drawer fruit drain while in the collecting in bottomof drawer isnormal
drawer
241540100_eb_sxs_Use&Care_En.pmd 37 1/22/2004, 10:34 AM

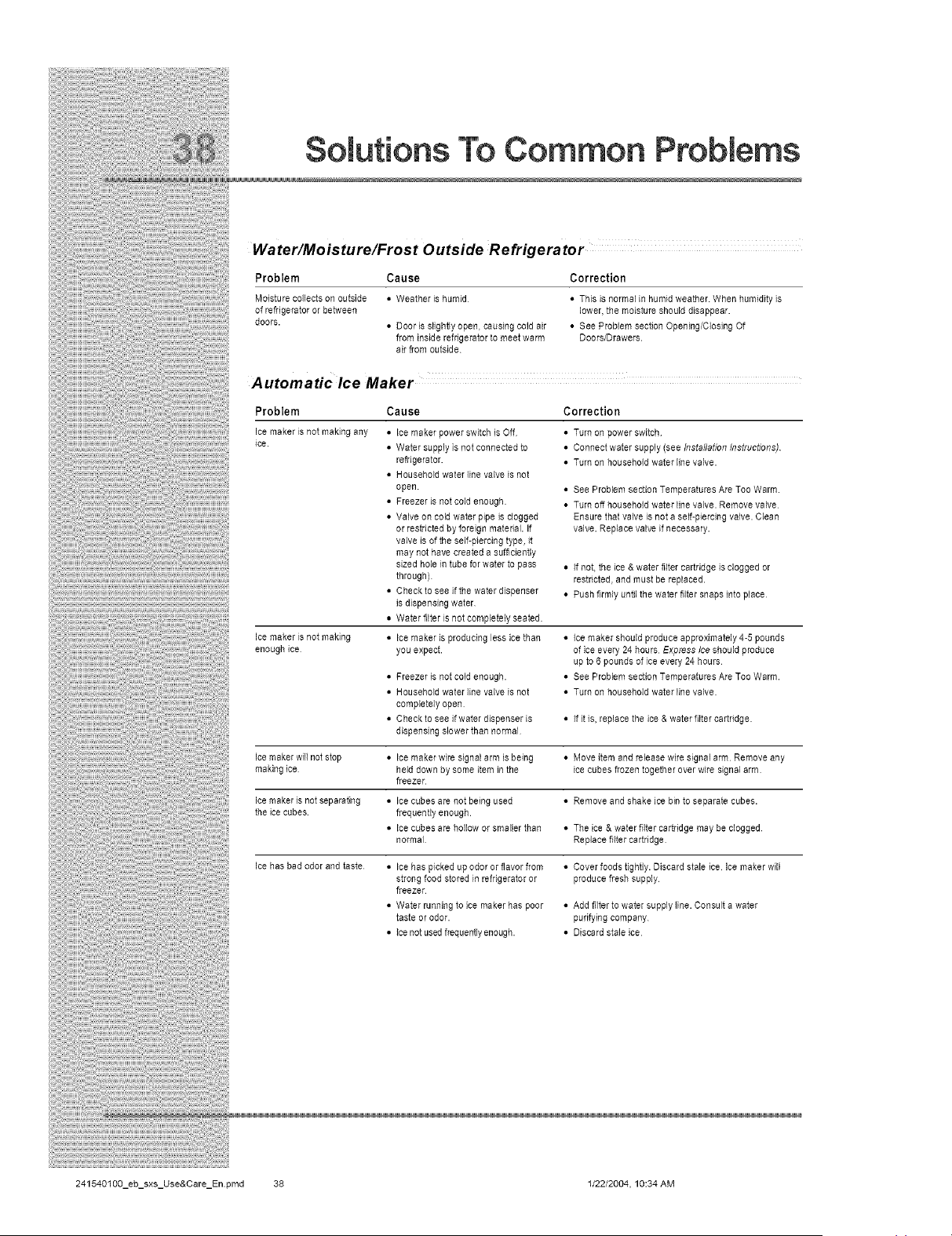

SoJutions To Common Problems
Water/Moisture/Frost Outside Refrigerator
Problem Cause Correction
Moisture collects on outside
of refrigerator or between
doors.
• Weather is humid
• Door is slighfiy open, causing cold air
from inside refrigerator to meet warm
air from outside.
• This is normal in humid weather When humidity is
lower, the moisture should disappear.
• See Problem section Opening/Closing Of
Doors/Drawers.
Automatic Ice Maker
Problem Cause Correction
Ice maker is not making any
ice.
Ice maker is not making
enough ice
• Ice maker power switch is Off
• Water supply is not connected to
refrigerator.
• Household water line valve is not
open
• Freezer is not cold enough.
• Valve on cold water pipe is clogged
or restricted by foreign matenal. If
valve is of the self-piercing type it
may not have created a sufficiently
sized hole in tube for water to pass
through)
• Checkto see ifthe water dispenser
is dispensing water
• Water filter is not compEetely seated.
• Ice maker is producing less ice than
you expect.
• Turn on power swdch
• Connect water supply (see Installation Instructions)
• Turn on household water line valve.
• See Problem section Temperatures Are Too Warm.
• Turn off household water line valve. Remove valve
Ensure that valve is not a self-piercing valve. Clean
valve. Replace valve if necessary.
• If not, the ice & water filter cartridge is clogged or
restricted, and must be replaced.
• Push firmly until the water filter snaps into place
• Ice maker should produce approximately 4-5 pounds
of ice every 24 hours Express Ice should produce
up to 6 pounds of ice every 24 hours
• See Problem section Temperatures Are Too Warm.
• Turn on household water line valve.
• Freezer is not cold enough.
• Household waterline valve is not
completely open
• Check to see if water dispenser is • If it is, replace the ice & water filter cartridge
dispensing slower than normal
Ice maker will not stop • Ice maker wire signal arm is being • Move item and release wire signal arm Remove any
making ice held down by some item in the ice cubes frozen together over wire signal arm
freezer
Ice maker is not separating • Ice cubes are not being used • Remove and shake ice bin to separate cubes.
the ice cubes frequently enough
• Ice cubes are hollow or smaller than • The ice & water filter cartridge may be clogged
normal Replace filter cartridge
Ice has bad odor and taste • Ice has picked up odor or flavor from • Cover foods tightly. Discard stale ice Ice maker will
strong food stored in refrigerator or produce fresh supply
freezer
• Water running to ice maker has poor
taste or odor.
• Ice not used frequently enough.
• Add filter to water supply line. Consult a water
purifying company
• Discard stale ice
241540100_eb_sxs_Use&Care_En.pmd 38 1/22/2004, 10:34 AM

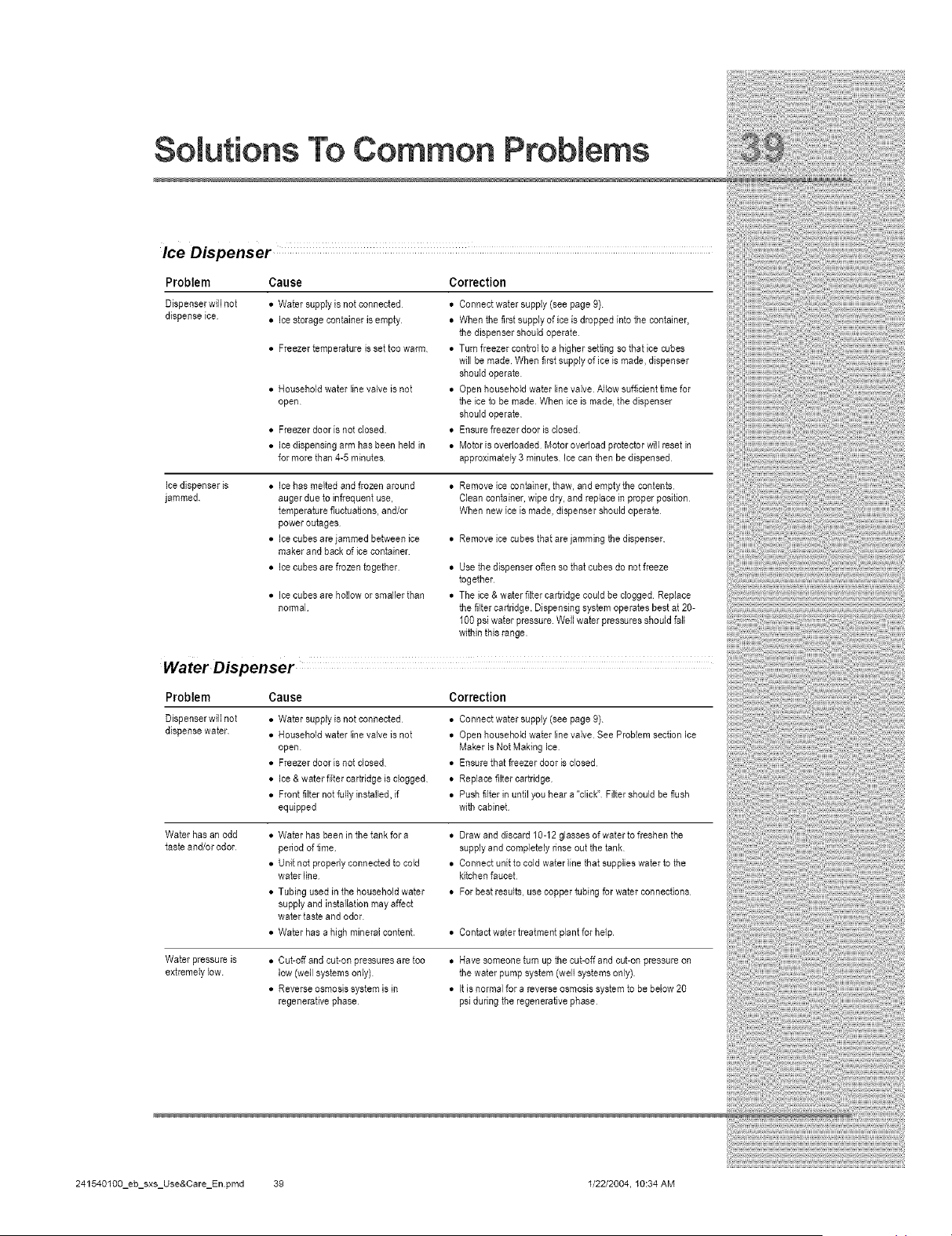

Solutions To Common Problems
Ice Dispenser
Problem
Dispenser will not
dispense ice
Cause Correction
• Water supply is not connected
• Ice storage container is empty
• Freezer temperature is set too warm
• Household water line valve is not
open
• Freezer door is not closed
• Ice dispensing arm has been held in
for more than 4-5 minutes
• Connect water supply (see page 9)
• When the first supply of ice is dropped into the container,
the dispenser should operate
• Turn freezer control to a higher setting so that ice cubes
will be made When first supply of ice is made, dispenser
should operate
• Open household water line valve Allow sufficient time for
the ice to be made When ice is made, the dispenser
should operate
• Ensure freezer door is closed
• Motor is overloaded Motor overload protector will reset in
approximately 3 minutes Ice can then be dispensed
Ice dispenser is
jammed
• Ice has melted and frozen around
auger due to infrequent use,
temperature fluctuations, and/or
power outages
• Ice cubes are jammed between ice
maker and back of ice container
• Ice cubes are frozen together
• Ice cubes are hollow or smaller than
nornla]
• Remove ice container, thaw, and emptythe contents
Clean container, wipe dry, and replace in proper position
When new ice is made, dispenser should operate
• Remove ice cubes that are jamming the dispenser
• Use the dispenser often so that cubes do not freeze
together
• The ice & water filter cartridge could be clogged Replace
the filter cartridge Dispensing system operates best at 20-
100 psi water pressure. Well water pressures should fall
within this range.
Problem
Dispenser wi]l not
dispense water
Water has an odd
taste and/or odor
Water pressure is
extremely low
Cause
• Water supply is not connected
• Household water line valve is not
open
• Freezer door is not dosed
• Ice & water filter cartridge is clogged
• Front filter not fully installed, if
equipped
Correction
• Connect water supply (see page 9)
• Open household water line valve See Problem section Ice
Maker Is Not Making Ice
• Ensure that freezer door is closed
• Replace filter cartridge
• Push filter in until you hear a "click" Filter should be flush
with cabinet
• Water has been in the tank for a
pedod of time
• Unit not properly connected to cold
waterline
• Tubing used in the household water
supply and installation may affect
water taste and odor
• Water has a high mineral content
• Draw and discard 10-12 glasses of water to freshen the
supply and completely r_nse out the tank
• Connect unit to cold water line that supplies water to the
kitchen faucet
• For best results, use copper tubing for water connections
• Contact water b'eatment plant for help
• Cut-off and cut-on pressures are too
low (well systems only)
• Reverse osmosis system is in
regenerative phase
• Have someone turn up the cut-off and cut-on pressure on
the water pump system (well systems onty)
• It is normal for a reverse osmosis system to be below 20
psi during the regenerative phase
241540100_eb_sxs_Use&Care_En.pmd 39 1/22/2004, 10:34 AM
SoJutions To Common ProbJems
Odors In Refrigerator
Problem
Interior isdirty.
Cause Correction
• Interior needs to be cleaned. • See Care & Cleamng T_ps.
• Food with strong odors is in refrigerator. • Cover food tightly.
Opening/Closing Of Doors/Drawers
Problem
Door(s) will not close
Drawers are difficult to
move.
Cause Correction
• Door was closed too hard, causing other
door to open slightly.
• Refrigerator is not level It rocks on the
floor when moved slightly
• Refrigerator is touching a wall or cabinet.
• Food is touching shelf on top of drawer
• Track that drawers sEideon is dirty.
• CJose both doors gently.
• Ensure floor is level and solid, and can adequately
support the refrigerator Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid, and can adequately
support the refrigerator Contact a carpenter to
correct a sagging or s]oping floor.
• Keep less food in drawer.
• CJean drawer, runners, and tracks. See Care &
Cleaning T;gs.
Light Bulb Is Not On
Problem Cause
Light bulb is not on • Light bulb is burned out.
Correction
• Freezer light switch is stuck.
• No electric current is reaching refrigerator.
• Control system has disabled lights
because magnet mounted behind dairy
compartment (in fresh food door) has
been removed.
• Control system has disabled lights
because one or both doors were left open
too long.
• See Replacing LightBulbs in Care and Cleaning
section.
• Release light switch located inside freezer
compartment.
• See Problem section, Running Your Refrigerator
• Reinstall magnet
• Close and reopen door(s) to enable Jights
241540100_eb_sxs_Use&Care_En.pmd 40 1/22/2004, 10:34 AM
