DRYERS
SAFETY INFORMATION .........3
USING THE DRYER
WiFi Connect ........................ 5
Getting Started ...................... 5
Cycles ................................7
Settings ..............................8
Options ..............................8
Loading .............................10
CARE AND CLEANING .......... 11
INSTALLATION
INSTRUCTIONS ..................12
Reversing The Door Swing (Optional) . . 30
Stacking (Optional) ...................32
TROUBLESHOOTING TIPS ..... 36
LIMITED WARRANTY .......... 39
CONSUMER SUPPORT ......... 40
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
Write the model and serial
numbers here:
Model # _________________
Serial # _________________
They are on the label on the front
of the dryer behind the door.
ENGLISH/FRANÇAIS/
ESPAÑOL
GFD85
GFD65
GFD55
GFV55
2 49-3000206 Rev 1
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-3000206 Rev 1 3
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
WARNING
To reduce the risk of fire, explosion, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
• Read all instructions before using the appliance.
•
DO NOT dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite
or explode.
• DO NOT place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to
contaminated loads, the final part of the tumble dryer cycle occurs without heat (cool down period). Avoid
stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
• DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this
appliance is used near children.
• Before the appliance is removed from service or discarded, remove the door to the drying compartment.
• DO NOT reach into the appliance if the drum is moving.
• DO NOT install or store this appliance where it will be exposed to the weather.
• DO NOT tamper with controls.
• DO NOT climb or stand on this unit.
• DO NOT repair or replace any part of this appliance or attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published user-repair instructions that you understand and have the
skills to carry out.
• Follow all fabric care instructions and warnings to prevent melting of garments or damage to the appliance.
• DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the
fabric softener or product.
• DO NOT dry articles containing foam rubber or similarly textured rubber-like materials.
• Clean lint screen before or after each load.
• DO NOT operate the dryer without the lint filter in place.
• DO NOT store combustible materials, gasoline or other flammable liquids near the dryer. Keep area around
the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt.
• The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
• Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power or Start/Pause pad
DOES NOT disconnect power.
• DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or
broken parts, including a damaged cord or plug.
• DO NOT spray any type of aerosol into, on or near dryer at any time. DO NOT use any type of spray cleaner
when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
• See “ELECTRICAL CONNECTION” located in the Installation Instructions for grounding instructions.
READ AND SAVE THESE INSTRUCTIONS
4 49-3000206 Rev 1
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
Failure to follow safety warnings exactly could result in serious injury, death, or property
damage.
- DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch; DO NOT use any phone in your building.
• Clear the room, building, or area of any occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.
ADDITIONAL GAS DRYER WARNINGS
- Fire or Explosion Hazard
WARNING
49-3000206 Rev 1 5
Throughout this manual, features and appearance will vary from your model.

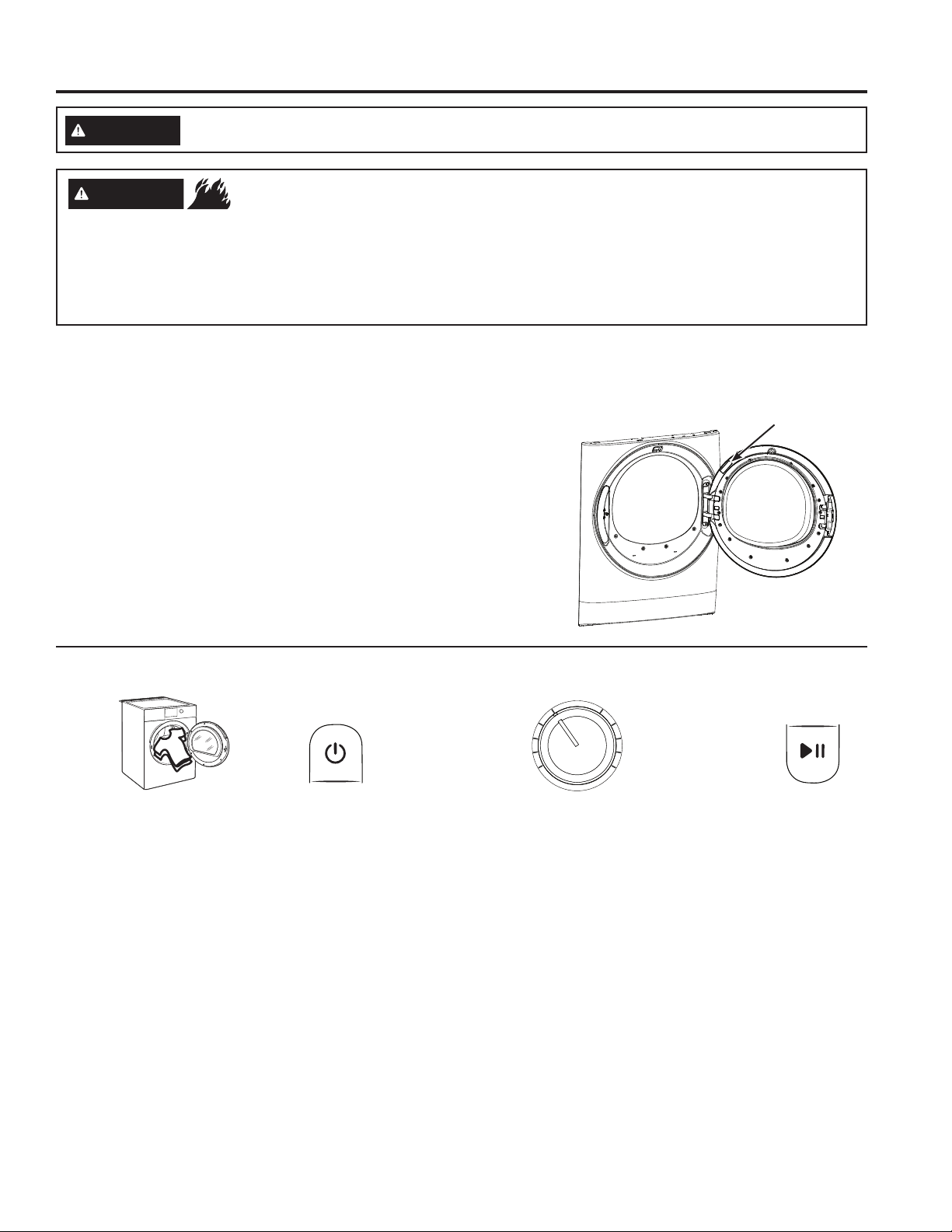

• If the screen is dark,
press the Power pad
to “wake up” the
display.
Step 2 Step 3
Step 4
Step 1
• Select a sensor dry cycle.
(Defaults are set for each dry
cycle. These default settings
can be changed. See the cycle
descriptions for more information.)
• Press the Start/
Pause pad.
• Clean lint filter
• Loosely add items.
• Close door.
NOTE: Dryer will not
start with door open.
USING THE DRYER
Getting started
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INFORMATION before operating this appliance.
WARNING
OR
• Select TIMED DRY and set Time,
Temp and Level.
• Keep flammable materials and vapors, such as
gasoline, away from dryer.
• DO NOT dry anything that has ever had anything
flammable on it (even after washing).
• No washer can completely remove oil.
• DO NOT dry anything that has ever had any type of oil
on it (including cooking oils).
• Items containing foam, rubber, or plastic must be dried
on a clothesline.
• Failure to do so can result in death, explosion, or fire.
- Fire Hazard
WARNING
Qu
i
c
k
Sta
r
t
:
WiFi Label Location
WiFi Connect (For customers in the United States only - on some models)
Your dryer is GE Appliances WiFi Connect enabled.
Visit geappliances.com/connect and enter your model number to
show you the proper steps to connect your appliance.
Please visit GEAppliances.com/connect to learn more about
connected appliance features, to learn what connected appliance
app’s will work with your smartphone.
WiFi Connectivity: For assistance with the appliance or the
ConnectPlus network connectivity, please call GE Appliances at
800.GE.CARES.
6 49-3000206 Rev 1
A
B
C

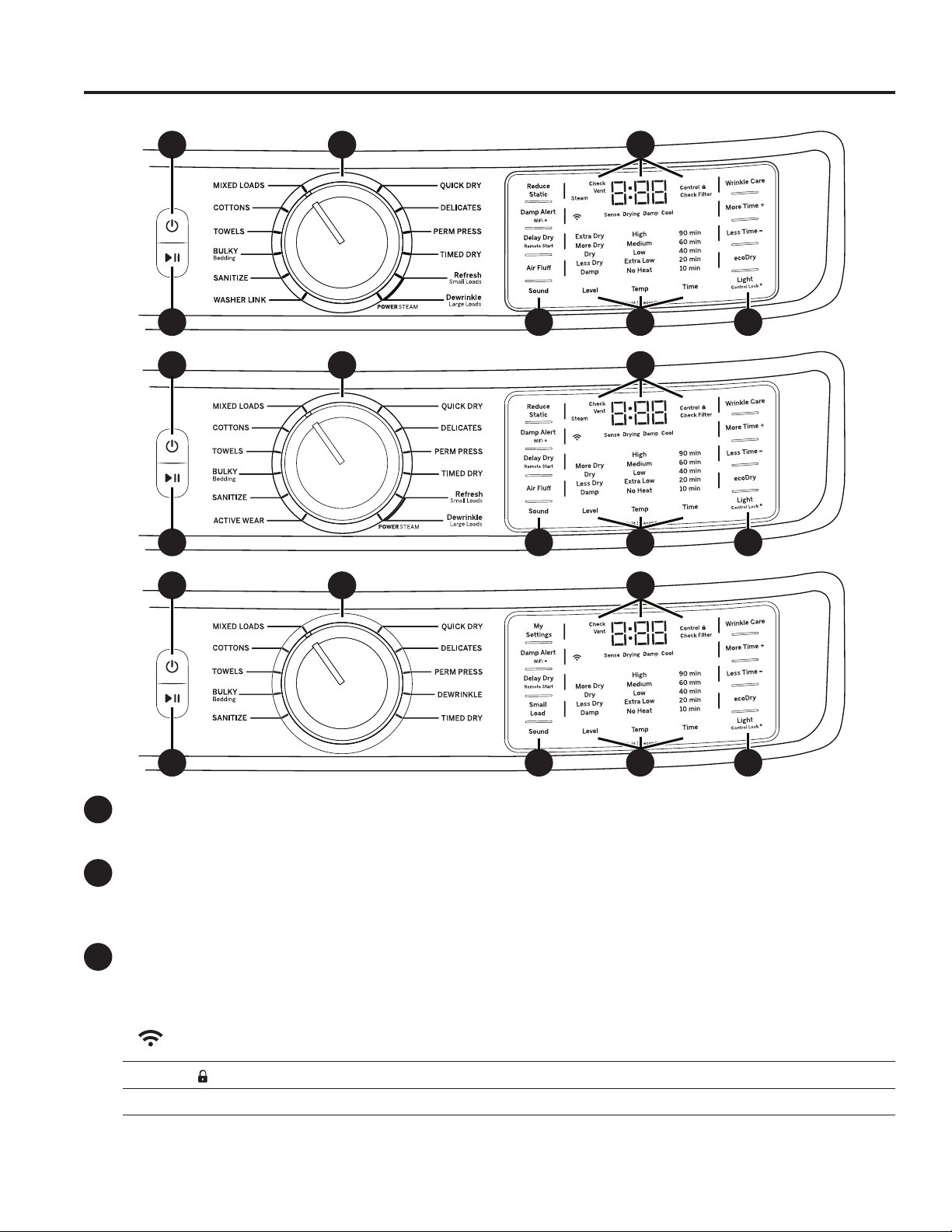

Power
Press to “wake up” the display. If the display is active, press to put the dryer into idle mode.
NOTE: Pressing Power does not disconnect the appliance from the power supply.
Start and Pause
Press Start to begin the cycle. NOTE: The door must be closed for the dryer to start the cycle. Pressing Start
again will pause the cycle, the Start light will blink and “Pause” will display.
To continue the cycle, press Start again.
Display and Status Lights
The display shows the approximate time remaining until the end of the cycle and the dryer cycle status
(Sense, Drying, Damp and Cool).
In addition, the display will show:
Features and appearance will vary.
Getting started
USING THE DRYER
(WiFi)
Will allow your appliance to communicate with your smartphone for remote appliance
monitoring control and notifications.
Controls
The dryer is locked - will blink once if you press any pad or turn the cycle knob.
Check Filter The Check Filter light will stay on for 15 seconds after the cycle stops.
Check Vent
The Check Vent light indicates an issue has been found due to reduced airflow from a possible
blocked or restricted vent. Checking and/or cleaning the vent system is recommended. See the,
“Check Vent” light is on in the Troubleshooting Tips section.
CDA
B F FE
CDA
B F FE
CDA
B F FE
49-3000206 Rev 1 7
D
USING THE DRYER
Getting started
Drying
Cycles
Sensor cycles automatically determine fabric dryness.
Timed cycles run for the selected time.
MIXED LOADS
For loads consisting of cottons and poly-blends.
COTTONS For cottons and most linens. NOTE: ENERGY STAR
®
models are tested on COTTONS cycle
with default settings (Temp setting on Low, Level setting on Dry, and ecoDry default on).
TOWELS For most towels and linens.
BULKY For large coats, bed spreads, mattress covers, sleeping bags, and similar large/bulky items such as
blankets, comforters, jackets, and small rugs.
SANITIZE This option reduces certain types of bacteria including: Staphylococcus aureus, Pseudomonas
aeruginosa and Klebsiella pneumoniae. The anti-bacterial process occurs when high heat is used
during a portion of the drying cycle; cool down also will be longer to protect you from a hot garment.
NOTE: Do not use this cycle on delicate fabrics.
WASHER
LINK (on
some models)
When selected (and if connected to a compatible washer through WiFi communication)
the dryer receives load information from the washer to automatically make cycle, dryness,
temperature and time recommendations to optimize drying.
ACTIVE
WEAR
Clothing worn for active sports exercise and some casual wear. Fabrics include new
technology finishes and stretch fibers such as Spandex. Also for clothing labeled Easy Care or
Perma Press: For wrinkle-free and permanent press items.
QUICK DRY For small loads that are needed in a hurry, such as sport or school uniforms. Can also be used if the
previous cycle left some items damp, such as collars or waistbands. NOTE: On some models, the time
remaining in the cycle will show counting down in the display.
DELICATES For delicate items, special-care fabrics and knits.
PERM PRESS
For wrinkle-free, permanent press and special sports items that need extra drying care.
DEWRINKLE For removing wrinkles from items that are dry or slightly damp. This cycle is not recommended
for delicate fabrics.
STEAM
Dewrinkle (on
some models)
For use with larger loads than STEAM Refresh. Ideal for loads left in the dryer for an extended time.
STEAM Dewrinkle is recommended for larger loads (9-13 garments).
NOTE: Steam cycles are not intended for use with towels.
Important - the temperature setting must be set to High and water must be turned on before
running the STEAM Dewrinkle cycle.
STEAM
Refresh (on
some models)
For slightly wrinkled dry garments. Significantly reduces wrinkles. After the STEAM Refresh cycle,
the unit will beep (if Sound is selected) and display “00.”
STEAM Refresh is recommended for small loads (3-5 garments).
NOTE: Steam cycles are not intended for use with towels.
NOTE: A single extremely light fabric item may need to have an additional item included in the
STEAM Refresh cycle to achieve optimum results.
Important - the temperature setting must be set to High and water must be turned on before
running the STEAM Refresh cycle.
TIMED DRY
Use to set your own dry time. To use:
1. Turn cycle dial to TIMED DRY.
2. Increase the drying time by pressing the Time pad.
NOTE: This pad only increases the time. When max time is reached, pressing the pad again
will reset the counter to the lowest setting.
3. Select the Temp.
4. Close the door.
5. Press Start/Pause pad.
8 49-3000206 Rev 1
Settings
Individual settings for cycle minutes (Time), dryness level (Level) and temperature (Temp) can be set from the
minimum (lowest in column) to maximum (highest in column). In general, the higher up the column, the more
energy will be used. NOTE: The selected cycle set Time can be further adjusted, in one minute increments, by
pressing the More Time
+ and Less Time - pads.
F
E
Getting started
USING THE DRYER
Dryness Level - Selection only used for Sensor cycles. Timed cycles run for the selected time.
Extra Dry Use for heavy-duty fabrics or items that should be very dry, such as towels.
More Dry Use for heavy-duty or mixed type fabrics.
Dry Use for a normal dryness level suitable for most loads. This is the preferred cycle for energy savings.
Less Dry Use for lighter fabrics.
Damp
For leaving items partially damp.
Temperature
High For regular to heavy cottons.
NOTE: STEAM Dewrinkle and STEAM Refresh require the High temperature setting.
Medium For synthetics, blends, delicates and items labeled permanent press.
Low For delicates, synthetics and items labeled tumble dry low.
Extra Low For lingerie and special-care fabrics.
No Heat For fluffing items without heat. For use only with the AIR FLUFF cycle.
Options
Reduce Static (on some models)
When selected, the dryer will spray a mist of water onto the load, at the end of the drying cycle, to reduce static.
This option is not available with BULKY, SANITIZE or STEAM cycles.
Damp Alert (Damp Alert/WiFi pad)
This option causes the dryer to beep when clothes have dried to a damp level. Remove items that you wish
to hang dry. The Damp Alert will only beep when this option is selected (but the dry cycle will keep running).
Removing clothes and hanging them when they are damp, can reduce the need to iron some items.
Delay Dry
Press the Delay Dry pad to set the delay start time in 1 hour increments up to 24 hours, and then back to clear
(0 hours). After selecting the delay start time, press Start and the delay time will count down the time remaining
until the cycle starts. NOTE: To set the amount of delay time faster, you can press and hold the Delay Dry pad.
Delay Dry for WiFi Connected Dryers
You have two options to set Delay Dry using your smartphone.
Option 1: Follow Delay Dry instructions. You can use the GE Appliances Laundry App to adjust the amount of
time via your smartphone.
Option 2 - Remote Start: Set your dryer to “AP” using the Delay Dry pad. This allows you to use the GE
Appliances Laundry App via your smartphone to start your dryer remotely at the time of your choosing. If the
dryer is set to AP with no activity, it will start the dryer 24 hours later.
Air Fluff (on some models)
Provides 10 minutes of tumbling time with no heat. NOTE: On models without AIR FLUFF cycle, select TIMED
DRY and set Temp to No Heat.
Sound
Use the Sound pad to change the volume of the pad presses and the end of cycle signal. Press the pad until
you reach the desired volume or off. The clothes should be removed when the end of cycle signal goes off so
wrinkles do not set in.
NOTE:
• Remove garments promptly at the sound of signal. Place clothes on hangers so wrinkles will not set in.
• Use the Sound especially when drying fabrics like polyester, knits and permanent press. These fabrics should
be removed so wrinkles will not set in.
49-3000206 Rev 1 9
Getting started
F
Options (cont.)
Wrinkle Care
Use this option to minimize the wrinkles in clothes. It provides 1 hour of no-heat tumbling after the clothes are
dry. If you are using the cycle Sound and you select the Wrinkle Care option, a signal will sound at the end of
the drying time and several times during the Wrinkle Care cycle. This will remind you that it is time to remove
the clothes.
More Time + / Less Time -
The selected cycle set Time can be further adjusted, in one minute increments, by pressing the More Time +
and Less Time - pads.
ecoDry
Available for BULKY, TOWELS, COTTONS, MIXED LOADS, ACTIVE WEAR and DELICATES. When the
ecoDry pad is pressed, cycle settings change to reduce the total energy consumption of the selected sensor
cycle. NOTE: Cycle times will change when ecoDry is selected. The ecoDry option will default to on for
COTTONS. For optimal energy savings, turn ecoDry on. For optimal drying times, turn ecoDry off. NOTE:
Energy savings will vary across loads and cycles.
Light
The drum light will turn on if the Light pad is pressed or the door is opened. It will turn off when the door is shut,
the Light pad is pressed again or after 5 minutes if the door is left open.
Small Load (on some models)
Select to use for a small load with any sensor cycle (except SANITIZE).
My Settings
As the cycle selector knob is turned, the Time (timed dry), Level (dryness level) and Temp (temperature)
settings change to automatic pre-set default settings. If you desire a different setting, press the appropriate
pad(s). Then press and hold the My Settings pad for 3 seconds and the dryer will “remember” these settings
for that Knob Selection. In the future, when you turn the selector knob to that cycle, your settings will be
automatically recalled. NOTE: Signal sound cannot be set for My Settings.
Control Lock
You can lock the controls to prevent any selections from being made. Or you can lock the controls after you
have started a cycle. Children cannot accidentally start the dryer by touching pads with this option selected.
To lock/unlock the dryer controls, press and hold the Light pad for 3 seconds. The control lock icon will flash
while locking/unlocking, stay on when locked, and turn off when unlocked.
NOTE: The Power pad can still be used when the machine is locked.
WiFi (Damp Alert/WiFi pad)
Press and hold the Damp Alert/WiFi pad for 3 seconds to activate.
USING THE DRYER
10 49-3000206 Rev 1
Drying Rack (on some models)

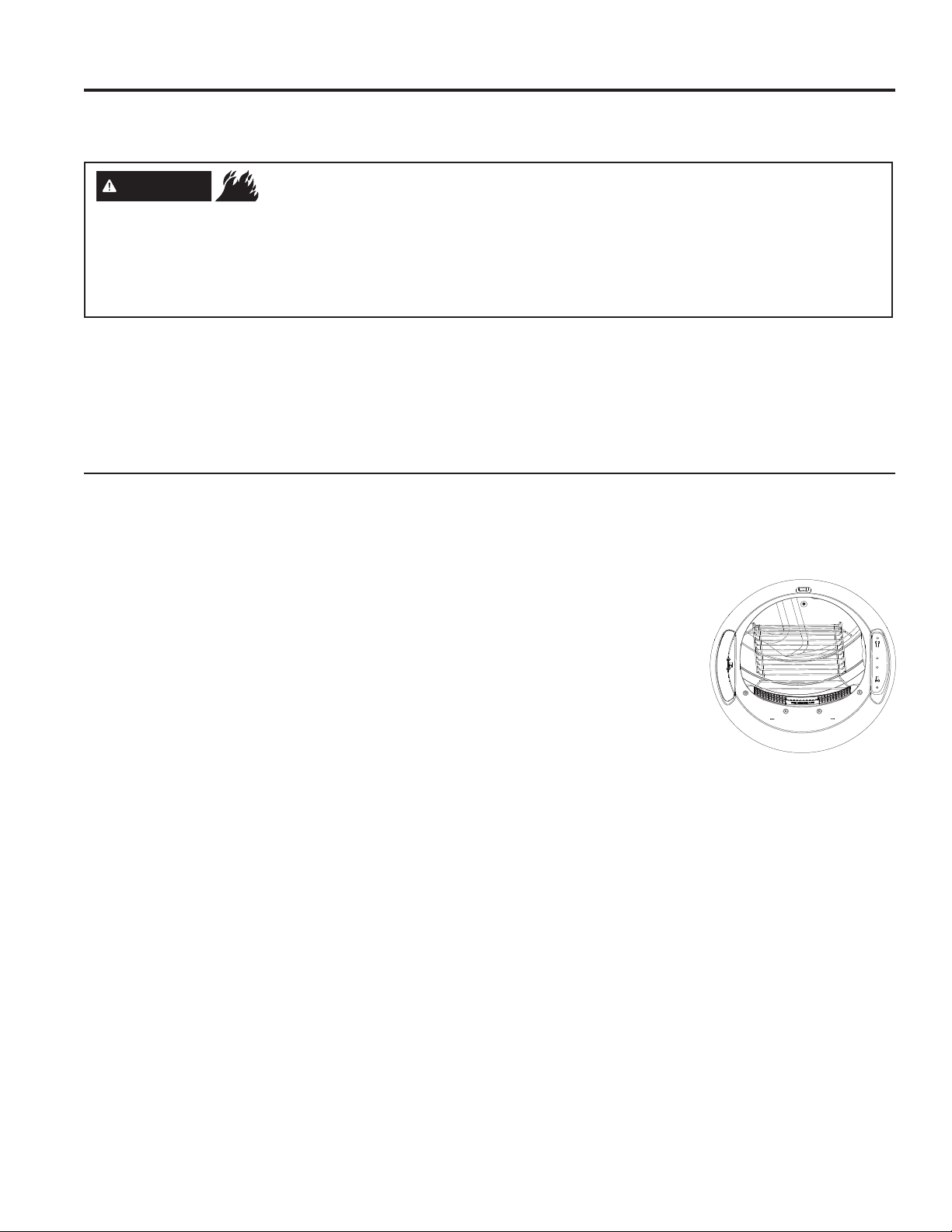

A handy drying rack may be used for drying delicate items such as washable sweaters.
To install the drying rack, place the rack all the way into the dryer drum and fit its feet down and securely into place
in the dryer.
NOTES:
• The drying rack must be used with the TIMED DRY cycle. Use with sensor cycles may
result in damp items or extended cycle times.
• Do not use this drying rack when there are other clothes in the dryer.
• If your model did not come with a drying rack, order WE02X29449 on-line at
GEApplianceparts.com, 24 hours a day or by phone at 877.959.8688 during normal
business hours.
Always follow fabric manufacturer’s care label when laundering.
As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer. Try also to sort
items according to size. For example, do not dry a sheet with socks or other small items.
Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce
®
Fabric Conditioner Dryer Sheets have been approved for use in this dryer when used in accordance with the
manufacturer’s instructions.
Do not overload. This wastes energy and causes wrinkling.
• Keep flammable materials and vapors, such as
gasoline, away from dryer.
• DO NOT dry anything that has ever had anything
flammable on it (even after washing).
• No washer can completely remove oil.
• DO NOT dry anything that has ever had any type of oil
on it (including cooking oils).
• Items containing foam, rubber, or plastic must be dried
on a clothesline.
• Failure to do so can result in death, explosion, or fire.
Sorting and Loading Hints
- Fire Hazard
WARNING
Loading
USING THE DRYER
49-3000206 Rev 1 11
Lint Filter
Clean the lint filter before each use.
Remove by pulling straight up. Run your fingers across the filter. A waxy buildup may form
on the lint filter from using dryer added fabric softener sheets.
To remove this buildup, wash the lint screen in warm, soapy water. Dry thoroughly and
replace.
Vacuum the lint from the dryer lint filter area if you notice a change in dryer performance.
NEVER OPERATE THE DRYER WITHOUT ITS FILTER IN PLACE.
CARE AND CLEANING
Care and cleaning
Exterior
Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged
by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric
may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your
warranty.
Stainless Steel
To clean stainless steel surfaces use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel
surfaces. Remove the cleaner residue and then dry with a clean cloth.
The stainless steel used to make the dryer drum provides the highest reliability available in a GE Appliances dryer.
If the dryer drum should be scratched or dented during normal use, the drum will not rust or corrode. These surface
blemishes will not affect the function or durability of the drum.
Interior and Duct
The interior of the appliance and exhaust duct should be cleaned once a year by qualified service personnel.
The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged
exhaust can lengthen the drying time.
Follow these steps:
1
Turn off electrical supply by disconnecting the plug from the wall socket.
2
Disconnect the duct from the dryer.
3
Vacuum the duct with the hose attachment and reconnect the duct.
The Exhaust Hood: Check with a mirror that the inside flaps of the hood move freely when operating. Make sure that there
is no wildlife (birds, insects, etc.) nesting inside the duct or hood.
Drum Light
The drum light is an LED light. Replacement must be done by a qualified technician.
12 49-3000206 Rev 1
Installation
Dryer
Instructions
If you have any questions, call GE Appliances at 800.GE.CARES
(800.432.2737)
or visit our Website at: GEAppliances.com
In Canada, call 800.561.3344
or visit www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for
local electrical inspector’s use.
• IMPORTANT – Observe all governing
codes and ordinances.
• Install the clothes dryer according to the
manufacturer’s instructions and local codes.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Clothes dryer installation must be performed by a
qualified installer.
• This dryer must be exhausted to the outdoors.
• Before the old dryer is removed from service or
discarded, remove the dryer door.
• Service information and the wiring diagram are
located in the control console.
• Do not allow children on or in the appliance. Close
supervision of children is necessary when the
appliance is used near children.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• Install the dryer where the temperature is above
50°F for satisfactory operation of the dryer control
system.
• Remove and discard existing plastic or metal foil
duct and replace with UL-listed duct.
- Risk of Fire
• Clothes dryer installation must be performed by a
qualified installer.
• Install the clothes dryer according to these
instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic
venting materials. If flexible metal (semi-rigid or
foil-type) duct is installed, it must be UL-listed and
installed in accordance with the instructions found
in “Connecting the Dryer to House Vent” later in
this manual. Flexible venting materials are known
to collapse, be easily crushed and trap lint. These
conditions will obstruct dryer airflow and increase
the risk of fire.
• DO NOT install or store this appliance in any
location where it could be exposed to water or
weather.
• To reduce the risk of severe injury or death, follow
all installation instructions.
• Save these instructions. (Installers: Be sure to
leave these instructions with the customer.)

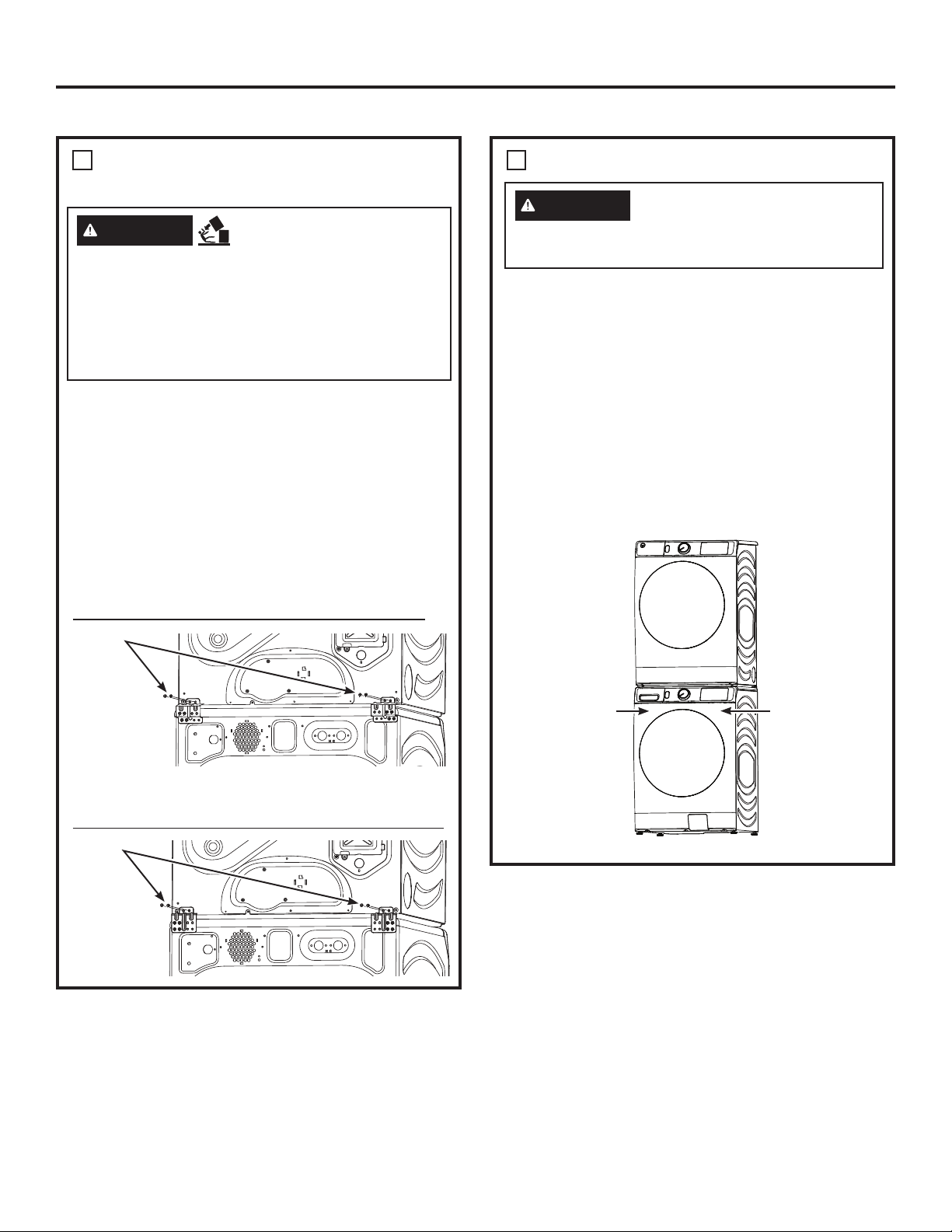

If you are planning to stack the washer and dryer, order
Stacking Kit number GFA28KITN to be used for this
dryer. Kit sold separately.
WARNING
In the Commonwealth of Massachusetts,
the following installation instructions apply:
• Installation must be performed by a qualified or
licensed contractor, plumber, or gasfitter qualified
or licensed by the State.
• If using a ball valve, it shall be a T-handle type.
• A flexible gas connector, when used, must not
exceed 4 feet.
FOR GAS DRYERS ONLY
49-3000206 Rev 1 13
*NOTE:
With leveling legs retracted: 39-3/4 (101 cm).
With leveling legs fully extended: 40-5/8 (103.1 cm).
With Optional Pedestal: 55-1/2” (141 cm) Min. - 56-5/8” (143.8 cm) Max.
Stacked: 79-1/8” (201 cm).
Installation Instructions
Tilt the dryer sideways and remove the foam shipping pads by pulling at the sides and
breaking them away from the dryer legs. Be sure to remove all of the foam pieces around
the legs.
Remove the bag containing the literature.
UNPACKING YOUR DRYER
DRYER

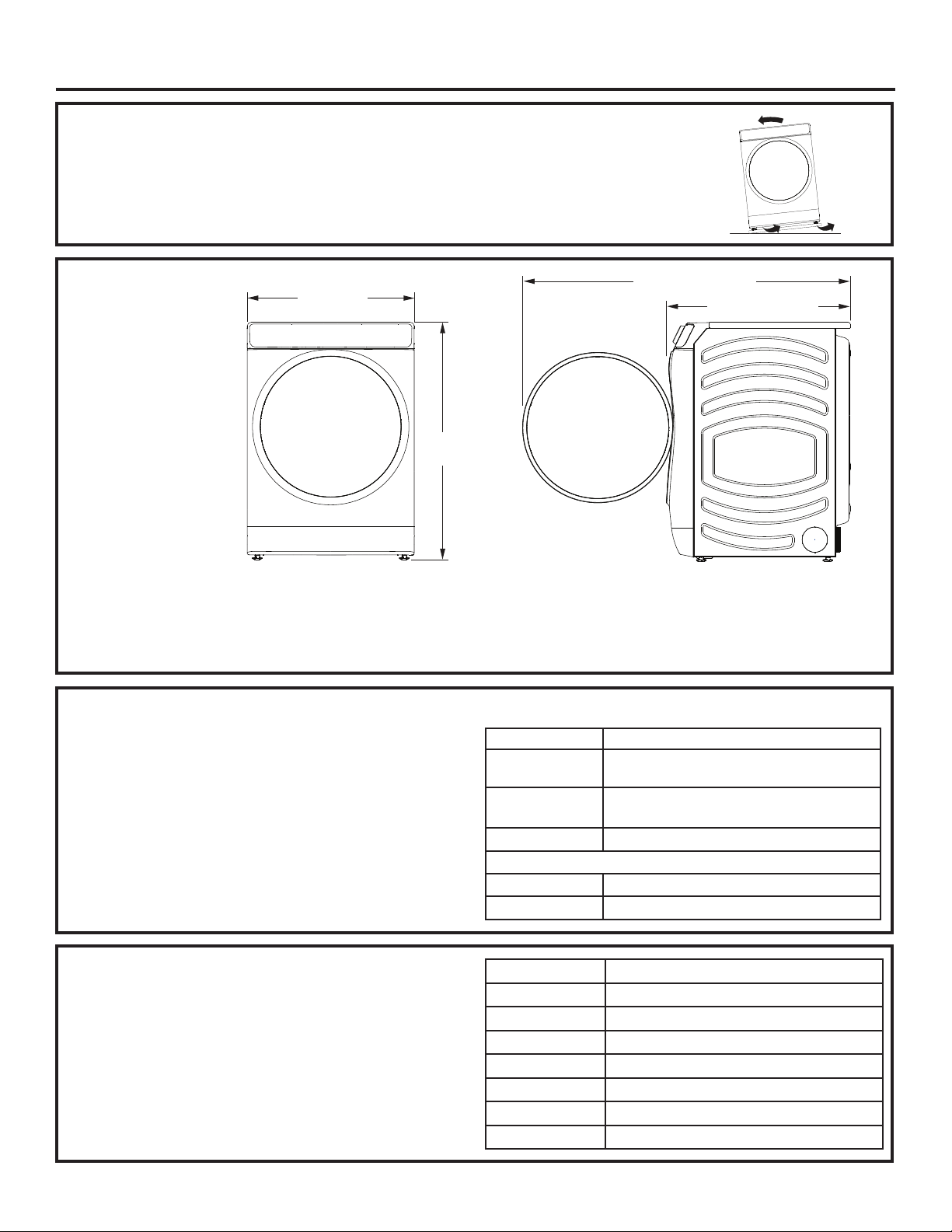

DIMENSIONS
Side View
31-3/8” (79.7 cm)
54-1/4” (137.8 cm)
Front View
28”
(71.2 cm)
*39-3/4”
(101 cm)
GE Appliances strongly recommends the use of factory
specified parts. These hoses are manufactured and tested
to meet GE Appliances specifications.
GE Appliances strongly recommends the use of new water
supply hoses. Hoses degrade over time and need to be
replaced every 5
years to reduce the risk of hose failures
and water damage.
Parts and Accessories
Order on-line at GEApplianceparts.com, 24 hours a day
or by phone at 877.959.8688 during normal business hours.

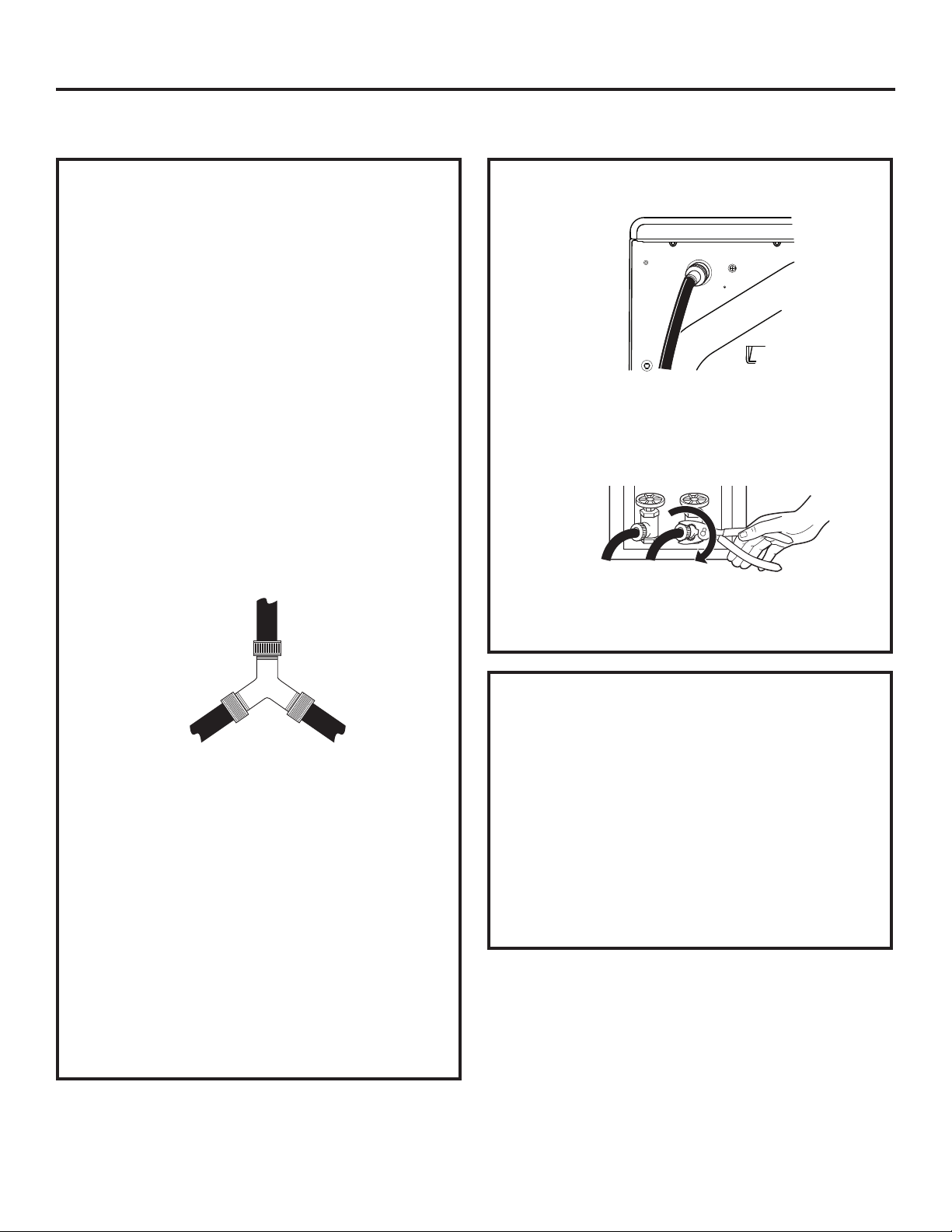

STEAM WATER HOSES (for steam dryer models only):
ACCESSORIES:
Order on-line at GEApplianceparts.com, 24 hours a day or
by phone at 877.959.8688 during normal business hours.
Part Number Accessory
GFP1528SNWW
White Pedestal
GFP1528PNSN
Satin Nickel Pedestal
GFP1528PNRS Royal Sapphire Pedestal
GFP1528PNDG Diamond Gray Pedestal
GFA28KITN Stacking Kit for Dryer over Washer
PM08X10085
Flexible Metal Dryer Transition Duct
WE02X29449
Clothes Dryer Drying Rack
Part Number Accessory
WE25X20060
Complete Kit (hoses, Y-adapter, washers)
or
WE49X25794
Kit (Short hose, Y-adapter, washers)
and
WE1M847 Long Hose
OR SEPARATELY
WE1M847 Long Hose and
WE1M848 Short Hose
14 49-3000206 Rev 1
Installation Instructions
MOBILE OR MANUFACTURED
HOME INSTALLATION
• Installation MUST conform to the
MANUFACTURED HOME CONSTRUCTION
AND SAFETY STANDARD, TITLE 24, PART
3280 or STANDARD FOR MOBILE HOMES
CAN/CSA-Z240 MH, or, when such standards
are not applicable, with AMERICAN NATIONAL
STANDARD FOR MOBILE HOME, ANSI/NFPA
NO. 501B.
• The dryer MUST be vented to the outdoors.
• The exhaust vent MUST be securely fastened to a
non-combustible portion of the mobile home.
• The vent MUST NOT be terminated beneath a
mobile or manufactured home.
• The vent duct material MUST BE METAL.
• KIT 14-D346-33 MUST be used to attach the dryer
securely to the structure.
• The vent MUST NOT be connected to any other
duct, vent or chimney.
• DO NOT use sheet metal screws or other
fastening devices which extend into the interior of
the exhaust vent.
• Provide an opening with a free area of at least 25
square inches for introduction of outside air into
the dryer room.
• See the sections for electrical connection information.
REQUIREMENTS FOR ALCOVE OR
CLOSET INSTALLATION
Keep flammable materials and vapors, such as gasoline,
away from dryer.
Place dryer at least 18” (46 cm) above the floor for a
garage installation.
Failure to do so can result in death, explosion, or fire.
• The dryer MUST be vented to the outdoors.
• Minimum clearance between dryer cabinet and
adjacent walls or other surfaces is:
0” either side*
0” front
0” rear
0” top
* For improved performance, a 1/2” clearance is
suggested on each side.
• The rear of the dryer should face a wall.
• Consideration must be given to provide adequate
clearance for installation and service.
• Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches of
open area. If the closet contains both a washer
and a dryer, doors must contain a minimum of 120
square inches of open area.
NOTE: WHEN THE EXHAUST DUCT IS LOCATED AT
THE REAR OF THE DRYER, THE CONFIGURATION
OF THE DUCTING MAY REQUIRE GREATER
CLEARANCE.
Gas Dryers Only:
• No other fuel burning appliance shall be installed in
the same closet as a gas dryer.
• The dryer must be disconnected from the gas
supply piping during pressure testing at pressures
greater than 1/2 psi (3.5 kPa).
• A 1/8 inch NPT minimum plugged tapping,
accessible for test gauge connection, must be
installed immediately upstream of the gas supply
connection to the dryer.
MINIMUM CLEARANCE OTHER
THAN ALCOVE OR CLOSET
INSTALLATION
Minimum clearance to combustible surfaces and for
air opening are: 0” both sides*, 0” rear and 0” top.
* For improved performance, a 1/2” clearance is
suggested on each side.
The rear of the dryer should face a wall.
Consideration must be given to provide adequate
clearance for installation and service.
- Explosion Hazard
WARNING
49-3000206 Rev 1 15
Installation Instructions
CONNECTING INLET HOSES (for steam dryer models only)
CONNECTING INLET HOSES (cont.)
7. Using pliers, tighten all the couplings with an
additional two–thirds turn.
NOTE: Do not overtighten. Damage to the
couplings may result.
8. Turn the water faucet on.
9. Check for leaks around the ‘’Y’’ connector,
faucet and hose couplings.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed
within 42 in. (107 cm) of your washer’s water
inlet. The faucets MUST be 3/4 in. (1.9 cm)
garden hose-type so inlet hoses can be
connected. Water pressure MUST be between
10 and 120 pounds per square inch. Your
water department can advise you of your water
pressure.
NOTE: A water softener is recommended
to reduce buildup of scale inside the steam
generator if the home water supply is very hard.
To produce steam, the dryer must connect to
the cold water supply. Since the washer must
also connect to the cold water, a “Y” connector
is inserted to allow both inlet hoses to make that
connection at the same time.
NOTE: Use new inlet hoses; never use old
hoses.
1. Turn the cold water faucet off. Remove the
washer inlet hose from the washer fill valve
connector (cold).
2. Ensure the rubber flat washer is in place and
attach one female coupling of the short hose
provided onto the washer fill valve connector.
Tighten by hand until firmly seated.
3. Attach one male end of the “Y” connector to
the other female coupling of the short hose.
Ensure the rubber flat washer is in place.
Tighten by hand until firmly seated.
4. Insert the filter screen in the coupling of the
washer’s inlet hose. If a rubber flat washer is
already in place remove it before installing the
filter screen. Attach this coupling to one male
end of the ‘’Y’’ connector. Tighten by hand until
firmly seated.
5. Ensure the rubber flat washer is in place and
attach a 4 ft. to 6 ft. long water inlet hose (may
need to be purchased separately) to one male
end of the ‘’Y’’ connector. Tighten by hand until
firmly seated.
6. Ensure the rubber flat washer is in place and
attach the other end of the dryer’s long inlet
hose to the fill valve connector at the bottom
of the dryer back panel. Tighten by hand until
firmly seated.
CONNECTING INLET HOSES
16 49-3000206 Rev 1
Installation Instructions

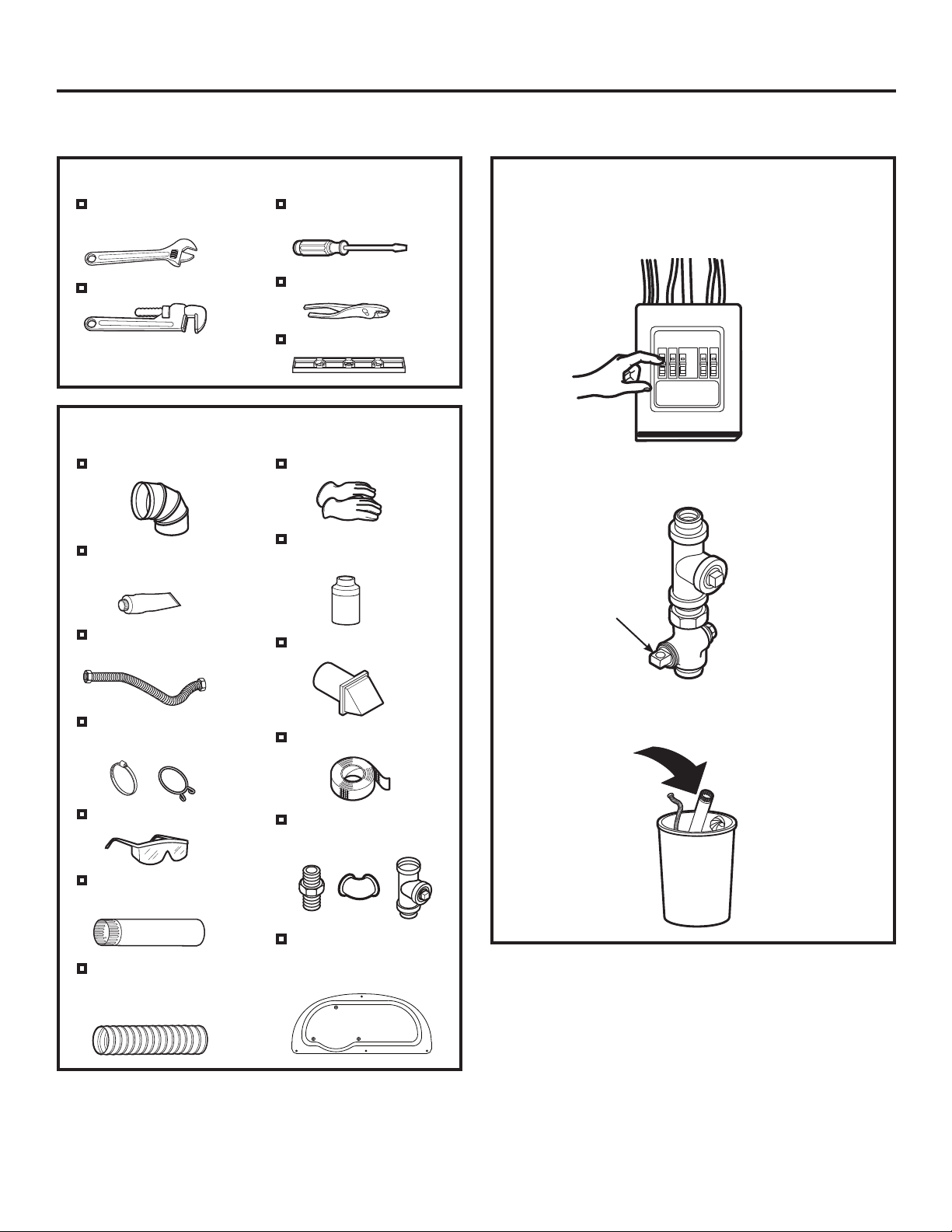

CONNECTING A GAS DRYER (skip for electric dryers)
• Before beginning the installation, turn off the circuit
breaker(s) or remove the dryer’s circuit fuse(s) at
the electrical box. Be sure the dryer
cord is unplugged from the wall.
• Turn the dryer’s gas shut-off valve in the supply line
to the OFF position.
• Disconnect and discard old flexible gas connector
and ducting material.
Shut-off
Valve
MATERIALS YOU WILL NEED
Ŷ
4” dia. metal elbow
Ŷ
Pipe compound or
PTFE tape
Ŷ
Flexible gas line
connector
Ŷ
Duct clamps (2) or
Spring clamps (2)
Ŷ
Safety glasses
Ŷ
4” dia. metal duct
(recommended)
Ŷ
Gloves
Ŷ
Soap solution for
leak detection
Ŷ
Exhaust hood
Ŷ
Duct tape
Ŷ
Gas pipe adapters (2),
elbow and pipe plug
TOOLS YOU WILL NEED
Ŷ
10” Adjustable
wrenches (2)
Ŷ
8” Pipe wrench
Ŷ
Flat-blade
screwdriver
Ŷ
Level
Ŷ
Slip-joint pliers
Ŷ
4” dia., UL-listed
flexible metal duct
(if needed)
Ŷ
Access Panel
(Kit WE16X29317)
(if needed)
49-3000206 Rev 1 17
Installation Instructions
GAS REQUIREMENTS
DRYER GAS SUPPLY CONNECTION
GAS SUPPLY
• A 1/8” National Pipe Taper thread plugged
tapping, accessible for test gauge connection,
must be installed immediately upstream of the
gas supply connection to the dryer. Contact your
local gas utility should you have questions on the
installation of the plugged tapping.
• Supply line is to be 1/2” rigid pipe and equipped
with an accessible shutoff within 6 feet of, and in
the same room with, the dryer.
• Use pipe thread compound appropriate for
natural or LP gas or use PTFE tape.
• Connect flexible metal connector to dryer and
gas supply.
ADJUSTING FOR ELEVATION
• Gas clothes dryers input ratings are based on
sea level operation and need not be adjusted
for operation at or below 2000 ft. elevation. For
operation at elevations above 2000 ft., input
ratings should be reduced at a rate of 4 percent
for each 1000 ft. above sea level.
• Installation must conform to local codes and
ordinances or, in their absence, the NATIONAL
FUEL GAS CODE, ANSI Z223.
You must use with this dryer a flexible metal connector
(listed connector ANSI Z21.24 / CSA 6.10). The length
of the connect shall not exceed 4 ft.
• Use a new CSA International approved flexible
gas supply line. Never reuse old flexible
connectors.
• Install an individual manual shut-off valve
within 6ft. of the dryer in accordance with the
National Fuel Gas Code, ANSI Z223.1/NFPA
54.
• Securely tighten all gas connections.
• If connected to LP gas, have a qualified
person make sure gas pressure DOES NOT
exceed 13” water column.
• Examples of a qualified person include:
licensed heating personnel, authorized gas
company personnel, and authorized service
personnel.
• Failure to do so can result in death,
explosion, or fire.
• The installation must conform with local
codes, or in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1/
NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1.
FOR USE WITH NATURAL GAS ONLY
Dryer as produced by manufacturer is to be used
only with a natural gas supply. A manufacturer-
supplied conversion kit is required to convert this
dryer for propane gas supply. Use propane
gas
conversion kit WE25M87
. Conversion must be
made by properly trained and qualified personnel
in accordance with local codes and ordinances.
- Fire Hazard
WARNING
- Explosion Hazard
WARNING
CONNECTING A GAS DRYER (cont.)
NOTE: Add to vertical dimension the
GLVWDQFHEHWZHHQFDELQHWERWWRPWRÀRRU
3/8” NPT MALE
THREAD GAS
SUPPLY
1-5/8”
5-3/4”
18 49-3000206 Rev 1

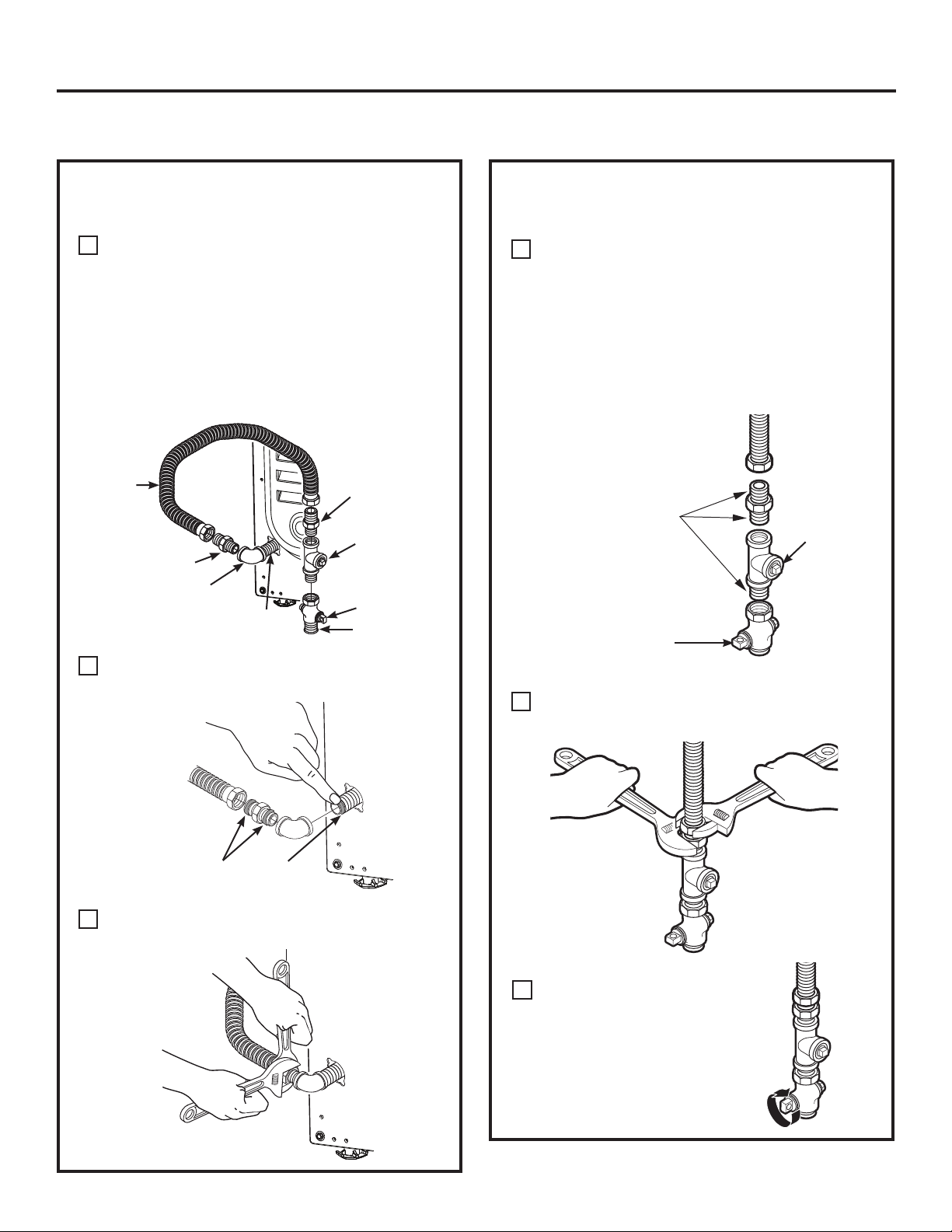

Installation Instructions
CONNECTING A GAS DRYER (cont.)
Install a 1/8” NPT plugged tapping to the
dryer gas line shut-off valve for checking gas
inlet pressure.
Install a flare union adapter to the plugged
tapping.
NOTE: Apply pipe compound or PTFE tape
to the threads of the adapter and plugged
tapping.
Attach the flexible metal gas line connector to
the adapter.
B
Tighten the flexible gas line connection, using
two adjustable wrenches.
C
D
Tighten all connections, using two adjustable
wrenches. Do not overtighten.
E
CONNECTING THE DRYER TO
THE GAS SUPPLY (cont.)
Open the gas shut-off valve.
F
Apply pipe compound
or PTFE tape to all
male threads.
Shut-Off
Valve
Plugged
Tapping
CONNECTING THE DRYER TO
THE GAS SUPPLY
Install a female 3/8” NPT elbow at the end of
the dryer gas inlet.
Install a 3/8” flare union adapter to the female
elbow.
IMPORTANT: Use a pipe wrench to securely
hold on to the end of the dryer gas inlet to
prevent twisting the inlet.
NOTE: Apply pipe compound or PTFE tape to
the threads of the adapter and dryer gas inlet.
A
Elbow
Adapter
Items not supplied
Adapter
1/8” NPT
Pipe Plug for
Checking Gas
Inlet Pressure
Shut-Off Valve
Pipe size at
least 1/2”
3/8” NPT
New Metal
Flexible Gas
Line Connector
Apply pipe compound to the
adapter and dryer gas inlet.
49-3000206 Rev 1 19

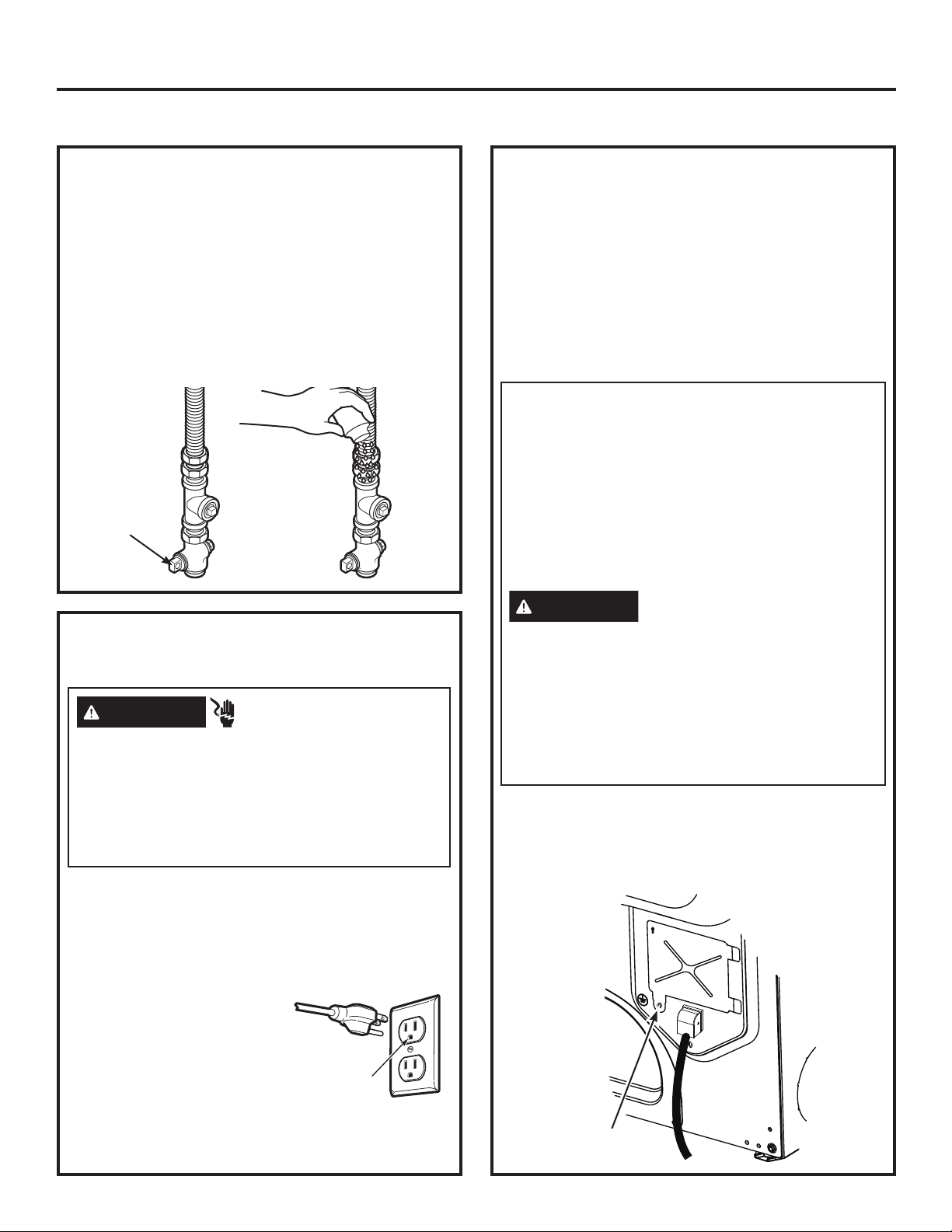

Installation Instructions
TEST FOR LEAKS
Never use an open flame to test for gas leaks.
Check all connections for leaks with soapy solution or
equivalent.
Apply a soap solution. The leak test solution must not
contain ammonia, which could cause damage to the
brass fittings.
If leaks are found, close the valve, retighten the joint
and repeat the soap test.
ELECTRICAL CONNECTION
INFORMATION FOR GAS DRYERS
(cont.)
ELECTRICAL CONNECTION
INFORMATION FOR GAS DRYERS
Plug into a grounded 3 prong outlet.
DO NOT remove ground prong.
DO NOT use an adapter.
DO NOT use an extension cord.
Failure to do so can result in death, fire or
electrical shock.
• Circuit – Individual properly polarized and grounded
15 or 20 amp circuit breaker or time-delay fuse.
• Power Supply – 2-wire plus ground, 120 Volt, single
phase, 60 Hz, alternating current.
• Outlet Receptacle – Properly grounded 3-prong
receptacle to be located
so the power cord is
accessible when the dryer
is in an installed position.
If a 2-prong receptacle is
present, it is the owner’s
responsibility to have a
licensed electrician replace
it with a properly grounded 3-prong grounding type
receptacle.
GROUNDING INSTRUCTIONS
This dryer must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This dryer
uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is
properly installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the
equipment-grounding conductor
can result in a risk of electric shock. Check with a
qualified electrician, or service representative or
personnel, if you are in doubt as to whether the
appliance is properly grounded. DO NOT modify
the plug on the power supply cord. If it will not
fit the outlet, have a proper outlet installed by a
qualified electrician.
SAVE THESE INSTRUCTIONS
• Dryer must be electrically grounded in accordance
with local codes and ordinances, or in the absence
of local codes, with the latest edition of the
NATIONAL ELECTRICAL CODE, ANSI/NFPA
NO. 70 or CANADIAN ELECTRICAL CODE, CSA
C22.1. Check with a licensed electrician if you are
not sure that the dryer is properly grounded.
Open Gas
Valve
- Electrical Shock Hazard
WARNING
WARNING
Ensure proper
ground exists
before use.
• If required by local codes, an external 18 gauge or
larger copper ground wire (not provided) may be
added. Attach to dryer cabinet with a #8-18 x ½”
sheet metal screw (available at any hardware store)
to rear of dryer as illustrated.
CONNECTING A GAS DRYER (cont.)
Ground
Screw
20 49-3000206 Rev 1
Installation Instructions

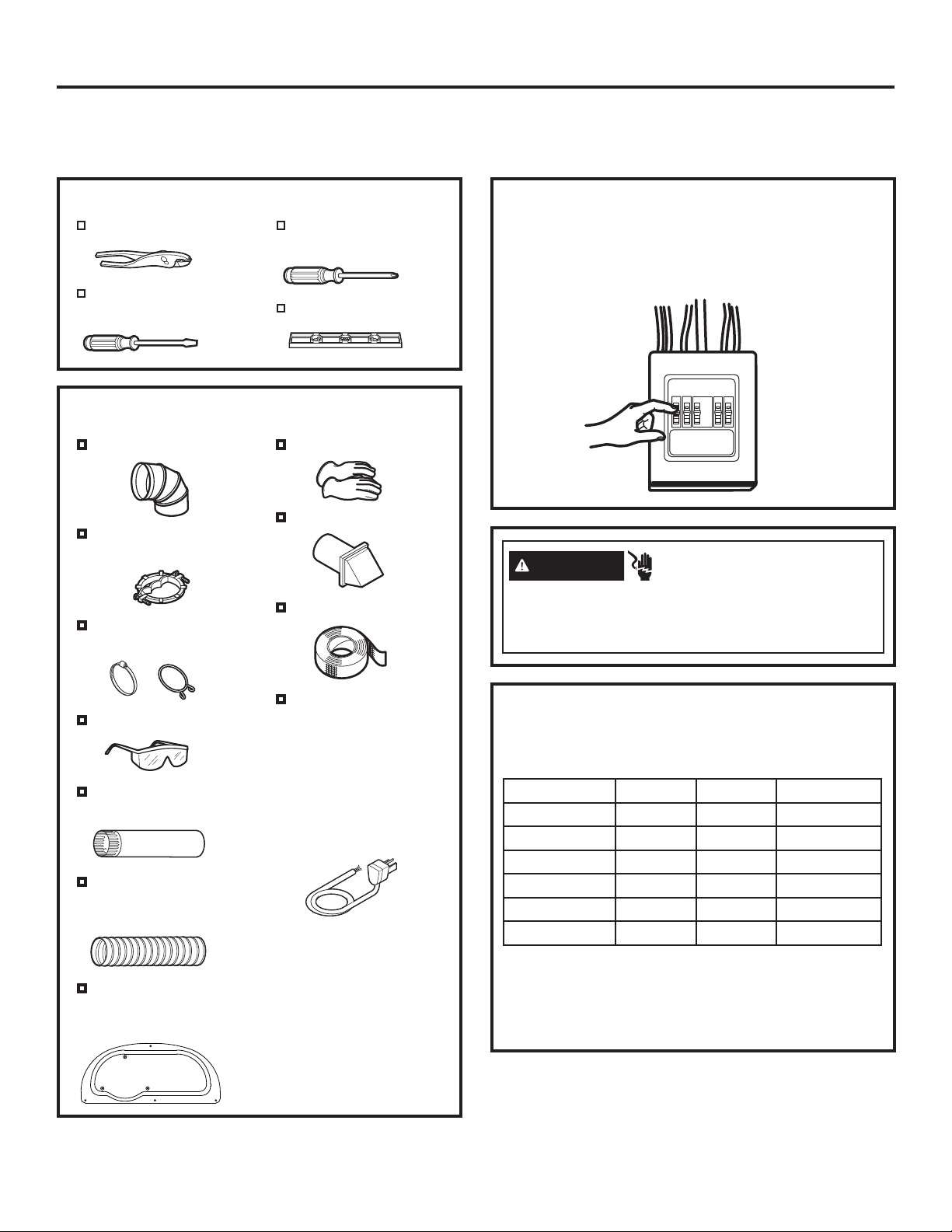

CONNECTING AN ELECTRIC DRYER
(Skip for gas dryers and if your dryer already has a power cord attached)
Before making the electrical connection, turn off the
circuit breaker(s) or remove the dryer’s circuit fuse(s) at
the electrical box. Be sure the dryer cord is unplugged
from the wall. NEVER LEAVE THE ACCESS COVER
OFF THE TERMINAL BLOCK.
TOOLS YOU WILL NEED
Slip-joint pliers
Flat-blade
screwdriver
Phillips
screwdriver
Level
Disconnect power supply before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
- Electrical Shock Hazard
WARNING
MATERIALS YOU WILL NEED
Ŷ
4” dia. metal elbow
Ŷ
Metal strain relief clamp
(UL recognized)
Ŷ
4” Duct clamps (2) or
4” spring clamps (2)
Ŷ
Safety glasses
Ŷ
4” dia. metal duct
(recommended)
Ŷ
Gloves
Ŷ
Exhaust hood
Ŷ
Duct tape
Ŷ
4” dia., UL-listed
flexible metal duct
(if needed)
Ŷ
Dryer power cord kit
(not provided with
dryer)
UL rated 120/240V,
30A with 3 or 4 prongs.
Identify the plug type
as per the house
receptacle before
purchasing line cord.
Ŷ
Access Panel
(Kit WE16X29317)
(if needed)
Stacking installations
may require a power
cord up to 6 feet in
length.
POWER CORDS
GE Appliances strongly recommends the use of
factory specified parts. Select the power cord to fit your
installation requirements.
Order on-line at GEApplianceparts.com today,
24 hours a day or by phone at 877.959.8688 during
normal business hours. In Canada, visit your local
GE Appliances parts distributor or call 800.661.1616
or
GEAppliances.ca/en/products/parts-filters-accessories.
Part Number Type Length Amperage
WX9X2 3-Prong 4 Feet 30
WX9X3 3-Prong 5 Feet 30
WX9X4 3-Prong 6 Feet 30
WX9X18 4-Prong 4 Feet 30
WX9X19 4-Prong 5 Feet 30
WX9X20 4-Prong 6 Feet 30
49-3000206 Rev 1 21
For direct wire connections:
Use 10 gauge copper wire.
Use a UL-listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal.
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining two supply wires to remaining two
terminals.
Securely tighten all electrical connections.
Replace the terminal block cover.
Failure to do so can result in death, fire or electrical shock.
GROUNDING INSTRUCTIONS
For a permanently connected dryer: This dryer
must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor
must be run with the circuit conductors and
connected to the equipment-grounding terminal on
the appliance.
Improper connection of the
equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified
electrician, or service representative or personnel, if
you are in doubt as to whether the appliance is properly
grounded.
SAVE THESE INSTRUCTIONS
- Fire Hazard
WARNING
WARNING
Use a new UL-listed 240V 30 amp dryer power supply
cord with closed ring terminals or spade terminals with
upturned ends.
Use a UL-listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal.
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining two supply wires to remaining two
terminals.
Securely tighten all electrical connections.
Replace the terminal block cover.
Failure to do so can result in death, fire or electrical shock.
For electrical connections using a
power cord:
GROUNDING INSTRUCTIONS
For a grounded, cord-connected dryer: This dryer
must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric
shock by providing a path of least resistance for
electric current. This dryer uses a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Improper connection of the
equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified
electrician, or service representative or personnel, if
you are in doubt as to whether the appliance is properly
grounded. DO NOT modify the plug on the power supply
cord. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
- Fire Hazard
WARNING
WARNING
ELECTRICAL CONNECTION
INFORMATION FOR ELECTRIC
DRYERS
ELECTRICAL CONNECTION
INFORMATION FOR ELECTRIC
DRYERS
Installation Instructions
TO PREVENT ELECTRIC SHOCK, DISCONNECT
POWER BEFORE SERVICING.
This dryer should be connected to an individual branch
circuit with 10 gauge copper wire minimum through a
30 amp fuse or circuit breaker. DO NOT fuse neutral.
Use copper conductors only.
- Electrical Shock Hazard
WARNING
TO PREVENT ELECTRIC SHOCK, DISCONNECT
POWER BEFORE SERVICING.
This dryer should be connected to an individual branch
circuit with 10 gauge copper wire minimum through a
30 amp fuse or circuit breaker. DO NOT fuse neutral.
Use copper conductors only.
- Electrical Shock Hazard
WARNING
22 49-3000206 Rev 1
Installation Instructions

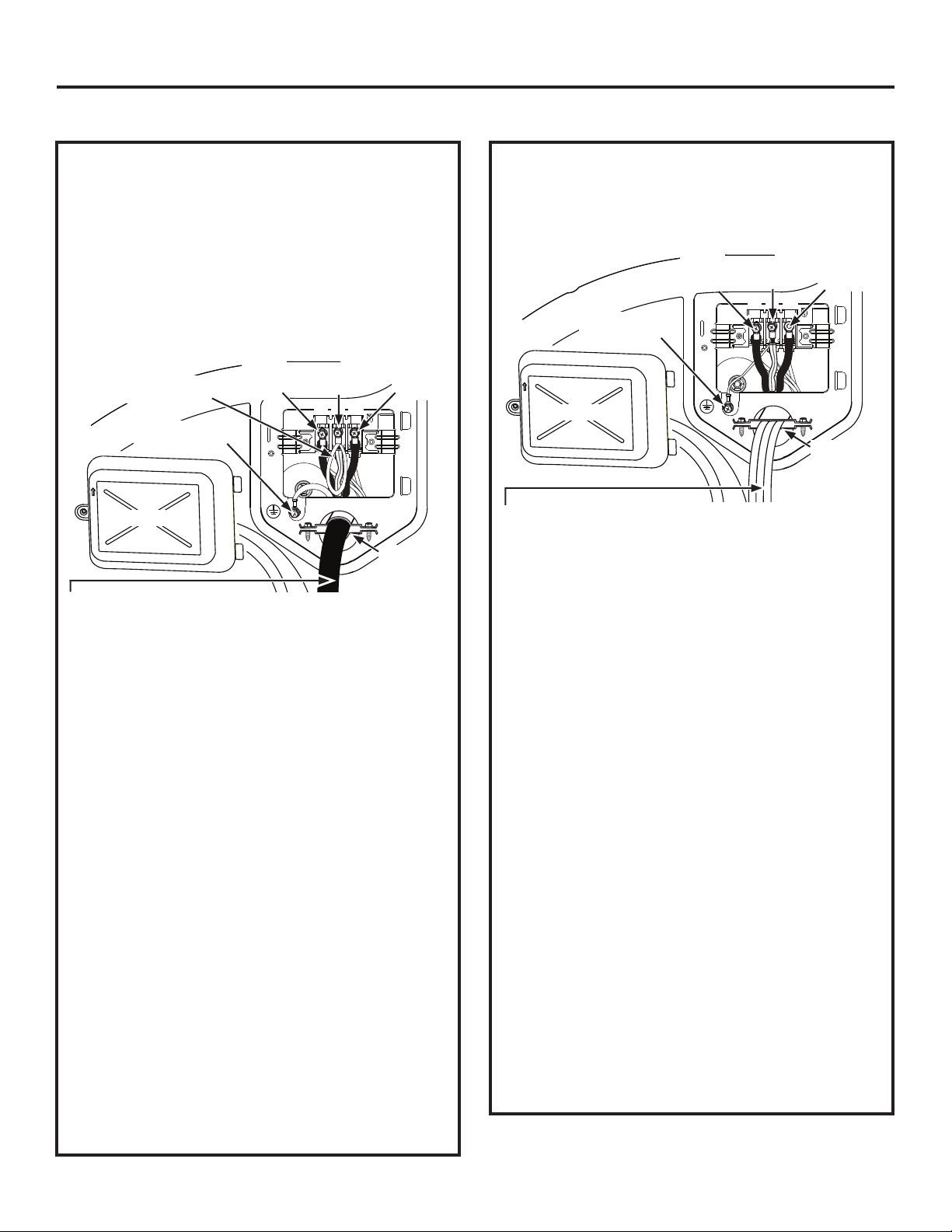

CONNECTING DRYER USING
3-WIRE CONNECTION
CONNECTING DRYER USING
4-WIRE CONNECTION (MUST
BE USED FOR MOBILE HOME
INSTALLATION)
NOTE: Since January 1, 1996, the National Electrical
Code requires that new constructions use a 4-wire
connection to an electric dryer. A 4-wire cord must
also be used where local codes do not permit grounding
through the neutral. 3-wire connection is NOT for use
on new construction.
1. Turn off the circuit breaker(s) (30 amp) or remove
the dryer’s circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the wall
receptacle.
3. Remove the power cord cover located at the lower
back.
4. Remove green ground screw and retain for use
in Step 7. Leave one end of the short white strap
loose until Step 6. Remove center screw (marked
N) in terminal block.
5. Place the UL-recognized metal strain relief clamp
to power cord entry hole. Bring power cord through
strain relief clamp.
6. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws of the
terminal block (marked L1 and L2).
B. Connect the neutral (white) line and the loose
end of the short white strap to the center of the
terminal block (marked N).
7. Attach ground wire of power cord with the green
ground screw (hole to left of strain relief clamp).
Tighten all terminal block screws (3) securely.
8. Properly secure power cord to strain relief clamp.
9. Reinstall the cover.
NEVER LEAVE THE COVER OFF OF THE
TERMINAL BLOCK.
NEVER LEAVE THE COVER OFF OF THE
TERMINAL BLOCK.
3-wire Connection
Not for use in Canada.
DO NOT use for Mobile Home Installations.
NOT for use on new construction.
NOT for use on recreational vehicles.
NOT for use in areas where local codes prohibit
grounding through the neutral conduction.
1. Turn off the circuit breaker(s) (30 amp) or remove
the dryer’s circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the wall
receptacle.
3. Remove the power cord cover located at the lower
back.
4. Place the UL-recognized metal strain relief clamp
to power cord entry hole. Bring power cord through
strain relief clamp.
5. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws of
the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center of
the terminal block (marked N).
6. Be sure ground white strap is connected to green
ground screw on cabinet rear. Tighten all terminal
block screws (3) securely.
7. Properly secure power cord to strain relief clamp.
8. Reinstall the cover.
CONNECTING AN ELECTRIC DRYER (cont.)
L1 N L2
4 #10 AWG minimum copper conductors or 120/240V 30A
power supply cord kit marked for use with dryers and provided
with closed loop or spade terminals with upturned ends (not
supplied).
Green wire from
power cord
Cover
Black
or Red
Wire
Metal Strain
Relief
Clamp UL
White
Wire
Black
or Red
Wire
Dryer’s White Strap
Looped to Neutral (N)
If required, by local code, install external ground (not
provided) to grounded metal, cold water pipe, or other
established ground determined by a qualified electrician.
L1 N L2
3 #10 AWG minimum copper conductors or 120/240V 30A
power supply cord kit marked for use with dryers and provided
with closed loop or spade terminals with upturned ends (not
supplied).
Ground
White Strap
Cover
Black
or Red
Wire
White
Wire
Black
or Red
Wire
Metal Strain
Relief
Clamp UL
49-3000206 Rev 1 23
Installation Instructions
EXHAUSTING THE DRYER
CONNECTING THE DRYER TO
HOUSE VENT
RIGID METAL TRANSITION DUCT
• For best drying performance, a rigid metal transition
duct is recommended.
• Rigid metal transition ducts reduce the risk of
crushing and kinking.
UL-LISTED FLEXIBLE METAL CLOTHES
DRYER TRANSITION DUCT
• If rigid metal cannot be used, then UL-listed flexible
metal clothes dryer transition duct (GE Appliances
part – PM08X10085) can be used.
• Never install transition duct in walls, ceilings, floors
or other enclosed spaces.
• Total length of transition duct should not exceed 8’
(2.4 m).
• For many applications, installing elbows at both
the dryer and the wall is highly recommended (see
illustrations in next section). Elbows allow the dryer
to sit close to the wall without kinking and/or crushing
the transition duct, maximizing drying performance.
• Avoid resting the duct on sharp objects.
UL-LISTED FLEXIBLE METAL (FOIL-TYPE)
TRANSITION DUCT
• In special installations, it may be necessary to
connect the dryer to the home exhaust vent
using flexible metal (foil-type) transition duct. UL–
LISTED universal flexible dryer transition duct
(GE Appliances parts – PM8X73 or WX8X73)
may be used ONLY in installations where rigid
metal or flexible metal transition ducting cannot be
used AND where a 4” diameter can be maintained
throughout the entire length of the transition duct.
• In Canada and the United States, only transition
ducts that comply with “UL 2158A STANDARD
FOR CLOTHES DRYER TRANSITION DUCT”
shall be used.
• Avoid resting the duct on sharp objects.
• For best drying performance:
1. Slide one end of the duct over the clothes
dryer outlet pipe.
2. Secure the duct with a clamp.
3. With the dryer in its permanent position,
extend the duct to its full length. Allow 2”
of duct to overlap the exhaust pipe. Cut off
and remove excess duct. Keep the duct as
straight as possible for maximum airflow.
4. Secure the duct to the exhaust pipe with the
other clamp.
This dryer MUST be vented to the outdoors.
Use only 4” rigid metal ducting for the home
exhaust duct.
Use only 4" rigid metal, UL-listed flexible
metal, or UL-listed metal foil dryer transition
duct to connect the dryer to the home exhaust.
DO NOT use any plastic to vent the dryer,
this includes the home exhaust duct, dryer
transition duct, or within the dryer.
DO NOT use flexible metal or metal foil ducting
for a home exhaust duct or within the dryer.
DO NOT exhaust into a chimney, kitchen
exhaust, gas vent, wall, ceiling, attic, crawl
space, or concealed space of a building.
DO NOT install a screen in or over the exhaust
duct.
DO NOT install a booster fan in the exhaust duct.
DO NOT use duct longer than specified in the
exhaust length table.
Failure to follow these instructions can result in
death or fire.
PARTS AVAILABLE FROM
GEAPPLIANCEPARTS.COM OR
LOCAL SERVICE ORGANIZATIONS
WE16X29317
Dryer Venting Kit
PM8X85
Outdoor exhaust hood
WX08X10130
4” Dryer exhaust clamp
- Fire Hazard
WARNING
TOOLS AND MATERIALS YOU WILL
NEED TO INSTALL EXHAUST DUCT
Ŷ
1/4" Socket & Nut Driver
Ŷ
1/4" Socket & Wrench
Ŷ
Vent hood
Ŷ
Duct tape or
duct clamp
24 49-3000206 Rev 1
Installation Instructions

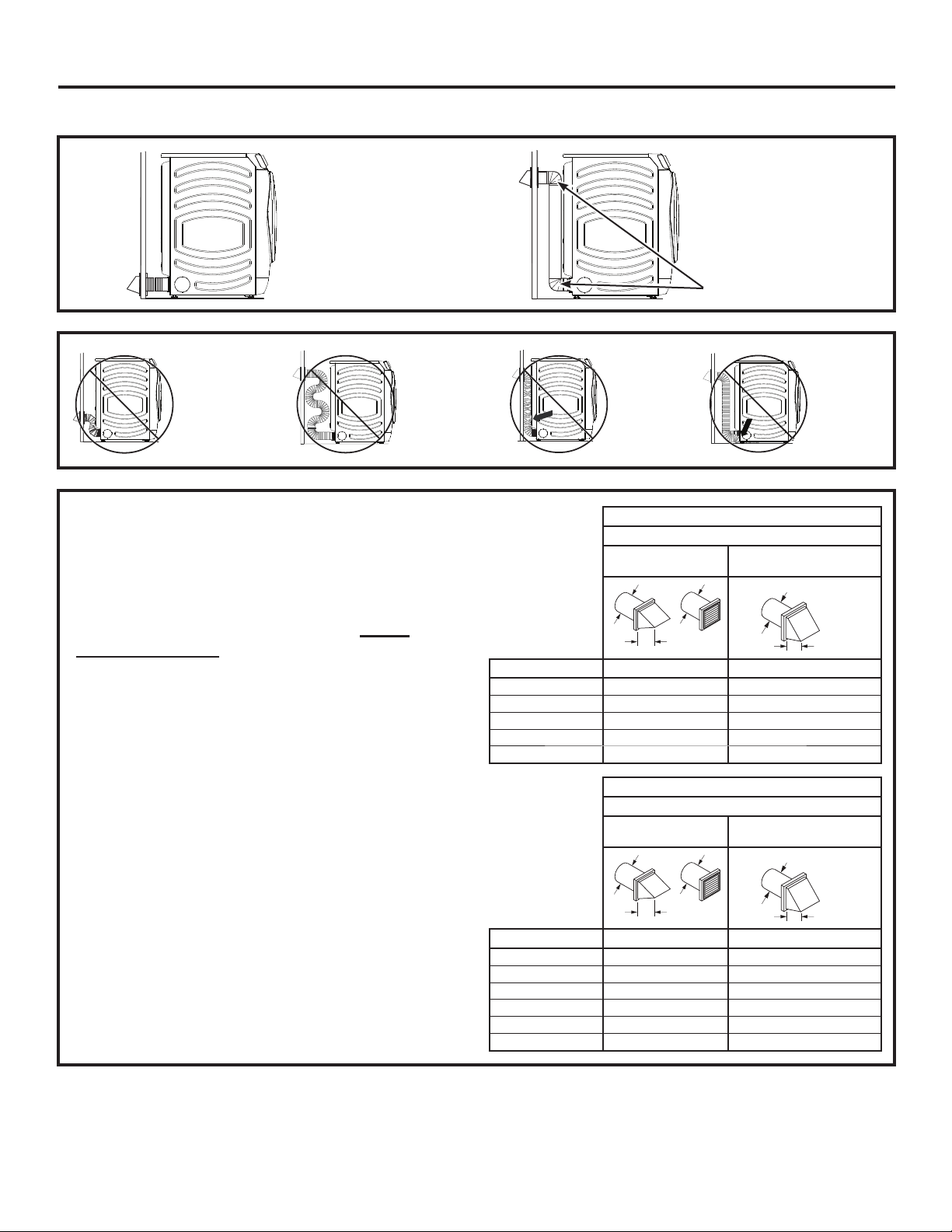

EXHAUSTING THE DRYER (cont.)
• DO NOT bend
or collapse
ducting.
Use elbows
if turns are
necessary.
• DO NOT use
excessive
exhaust
length. Cut
duct as short
as possible.
• DO NOT
crush duct
against
the wall
.
• DO NOT
set dryer
on duct
.
• DO cut duct as short
as possible and
install straight into
wall.
• DO use elbows
when turns are
necessary.
Elbows
Using exhaust longer than specified length will:
• Increase the drying times and the energy cost.
• Reduce the dryer life.
• Accumulate lint, creating a potential fire hazard.
The correct exhaust installation is YOUR
RESPONSIBILITY.
Problems due to incorrect installation are not
covered by the warranty.
The MAXIMUM ALLOWABLE length of the exhaust
system depends upon the type of duct, number of turns,
the type of exhaust hood (wall cap) and all conditions
noted on the chart.
• Internal elbows added for side or bottom vent
conversions must be included in the total elbow count.
• Any elbow greater than 45° should be treated as a 90°
elbow; one elbow of 45° or less may be ignored.
• Two 45° elbows will be treated like one 90° elbow.
• For the side exhaust installations, add one 90° elbow to
the chart.
• For every additional 90° elbow, reduce the allowable
vent system length by 10 feet.
• When calculating the total vent system length, you
must add all the straight portions and elbows of the
system (including the transition duct).
EXHAUST LENGTH
EXHAUST
LENGTH
FOR
NORMAL
VENT
MODELS
RECOMMENDED MAXIMUM LENGTH
Exhaust Hood Types
Recommended
Use only for short run
installations
4" DIA.
4"
4" DIA.
4" DIA.
2-1/2"
No. of 90° Elbows Rigid Metal Rigid Metal
0 90 Feet 60 Feet
1 60 Feet 45 Feet
2 45 Feet 35 Feet
3 35 Feet 25 Feet
4 25 Feet 15 Feet
EXHAUST
LENGTH
FOR
LONG
VENT
MODELS
RECOMMENDED MAXIMUM LENGTH
Exhaust Hood Types
Recommended
Use only for short run
installations
4" DIA.
4"
4" DIA.
4" DIA.
2-1/2"
No. of 90° Elbows Rigid Metal Rigid Metal
0 200 Feet 175 Feet
1 185 Feet 165 Feet
2 175 Feet 155 Feet
3 165 Feet 145 Feet
4 155 Feet 135 Feet
5 145 Feet 125 Feet
49-3000206 Rev 1 25
Installation Instructions

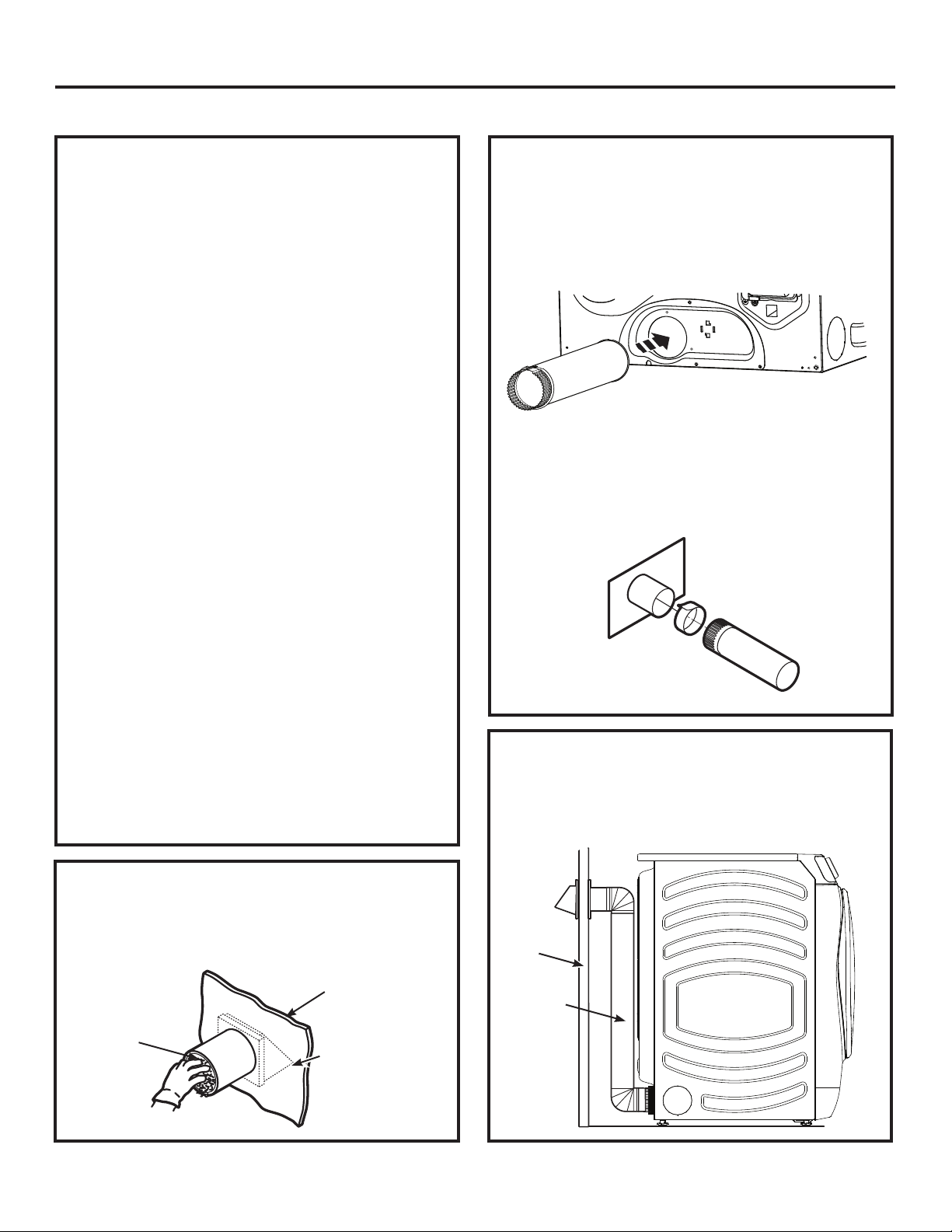

BEFORE YOU BEGIN
• Remove and discard existing plastic or metal foil
duct and replace with UL-listed duct.
• Remove any lint from the wall exhaust opening.
Internal
Duct
Opening
Wall
Check that exhaust
hood damper
opens and closes
freely.
STANDARD REAR EXHAUST
We recommend that you install your dryer before
installing your washer. This will permit direct
access for easier exhaust connection.
Slide the end of the exhaust duct on the back of the
dryer and secure with duct tape or a hose clamp.
NOTE: We strongly recommend using rigid metal
exhaust duct. However, if flexible ducting is used it
must be UL-Listed metal, not plastic.
• For straight line installation, connect the dryer
exhaust to the external exhaust hood using duct
tape or clamp.
RECOMMENDED CONFIGURATION
TO MINIMIZE EXHAUST BLOCKAGE
Using duct elbows will prevent duct kinking and
collapsing.
EXHAUST SYSTEM CHECKLIST
HOOD OR WALL CAP
• Terminate in a manner to prevent back drafts or entry of
birds or other wildlife.
• Termination should present minimal resistance to
the exhaust airflow and should require little or no
maintenance to prevent clogging.
• Wall caps must be installed at least 12” above ground
level or any other obstruction with the opening pointed
down.
SEPARATION OF TURNS
• For best performance, separate all turns by at least
4 ft. of straight duct, including distance between
last turn and dampened exhaust hood (wall cap).
SEALING OF JOINTS
• All joints should be tight to avoid leaks. The male end
of each section of duct must point away from the dryer.
• Duct joints should be made air- and moisture-tight
by wrapping the overlapped joints with duct tape or
aluminum tape.
• Do not assemble ductwork with any fasteners that
extend into the duct. These fasteners can accumulate
lint, creating a potential fire hazard.
• Horizontal runs should slope down towards the
outdoors 1/4” per foot.
• Provide an access for inspection and cleaning of
the exhaust system, especially at turns and joints.
Exhaust system shall be inspected and cleaned at
least once a year.
INSULATION
• Ductwork that runs through an unheated area or is
near air conditioning should be insulated to reduce
condensation and lint build-up.
Wall Side
Dryer
Side
Duct Tape
EXHAUSTING THE DRYER (cont.)
Transition
Ducting
Wall
Duct
26 49-3000206 Rev 1
Installation Instructions

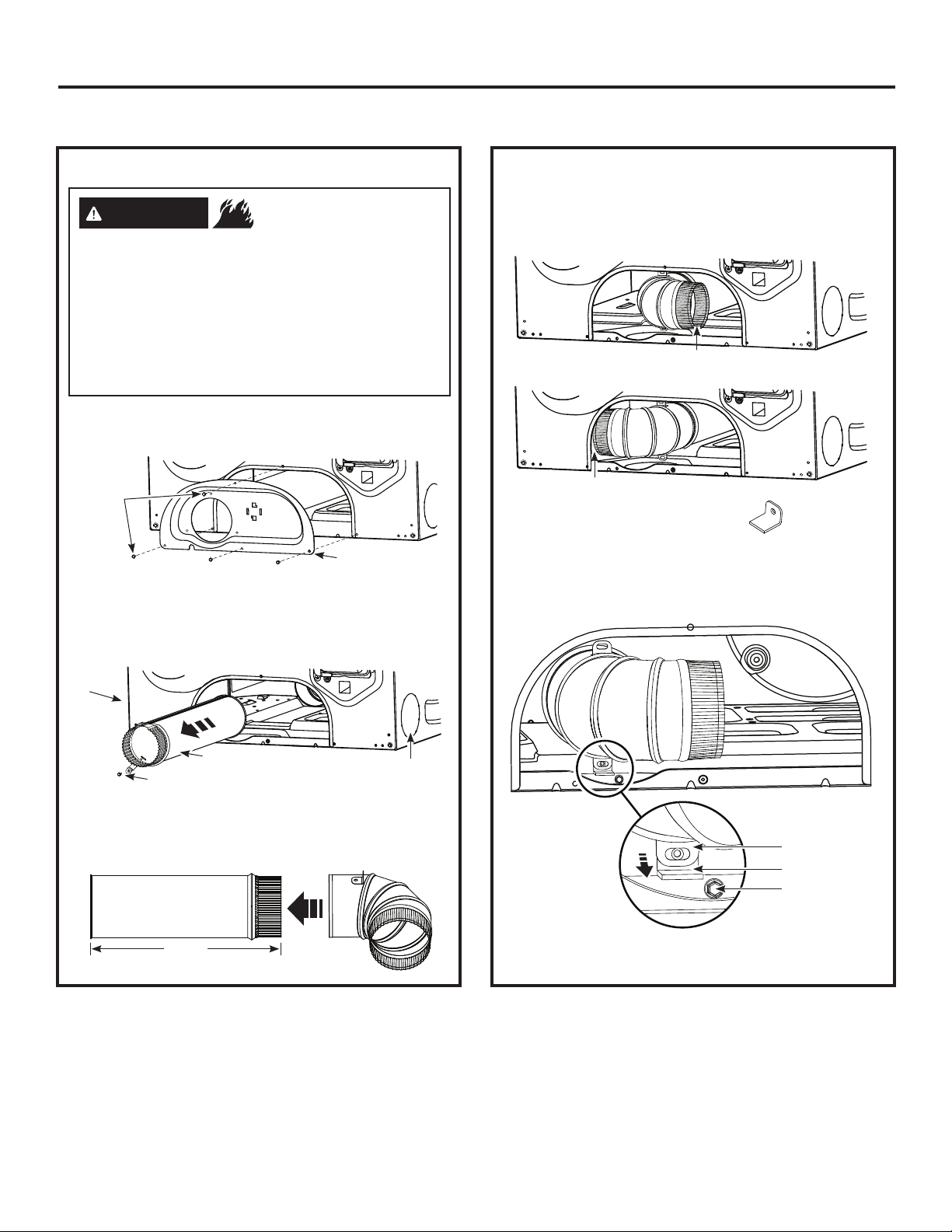

EXHAUSTING THE DRYER (cont.)
SIDE VENTING
Disconnect dryer from electrical supply.
Wear gloves and arm guards.
Close the back opening with the access
panel included in kit WE16X29317.
Failure to do so may result in fire, electrical
shock or lacerations.
- Fire Hazard
WARNING
• Remove the 4 screws that secure the access panel
and save. Remove the access panel.
• Detach and remove the right or left side knockout
as desired. Remove the screw that secures the
dryer exhaust duct and save. Pull the exhaust duct
out of the dryer.
Remove
4 screws
and save
Access Panel
SIDE VENTING (cont.)
• Locate the 12-1/2” exhaust duct and elbow duct
from the kit and assemble together. Apply duct tape
around the joint to eliminate leaks between ducts.
• Insert and connect the elbow/exhaust duct assembly
to the blower housing and orient the elbow for either
left or right venting.
12-1/2"
Right Venting
Left Venting
Left Knockout
Right
knockout
Remove screw and save
Exhaust Duct
• Locate the bracket from the kit.
• Remove the adhesive liner from the bottom of the
bracket and position it behind the elbow duct tab.
• Press down firmly to secure the bracket to the bottom
of the dryer.
• Using one of the screws from earlier, secure the
elbow duct tab to the bracket.
Elbow Duct Tab
Bracket
Saved Screw
49-3000206 Rev 1 27
Installation Instructions

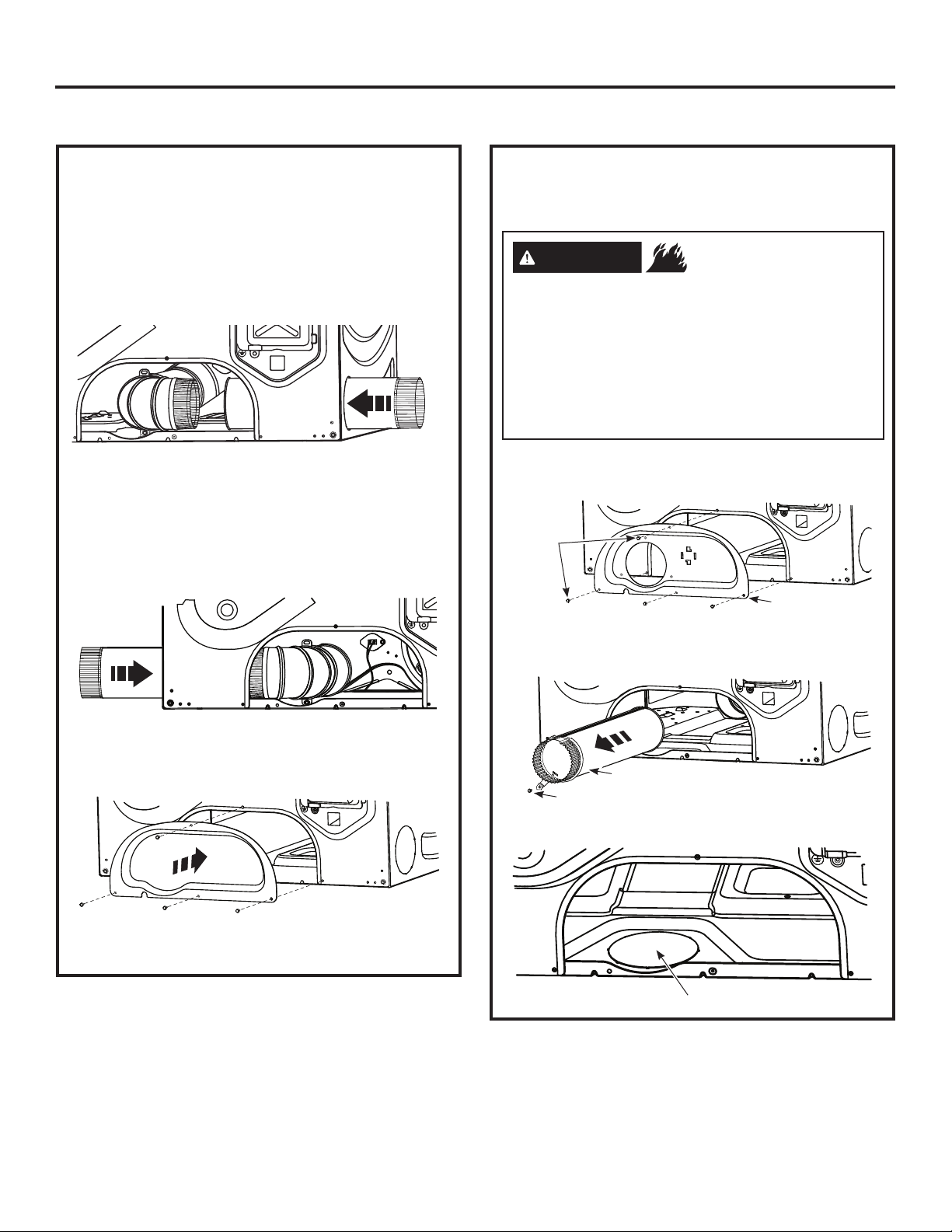

EXHAUSTING THE DRYER (cont.)
SIDE VENTING (cont.)
For LEFT venting:
• Locate the 15-1/2” exhaust duct from the kit.
• Insert exhaust duct through knockout opening on
the LEFT side of dryer.
• Assemble exhaust duct to elbow duct.
• Wrap the joint with duct tape to avoid air leaks.
For RIGHT venting:
• Locate the 9-1/2” exhaust duct from the kit.
• Insert exhaust duct through knockout opening on
the RIGHT side of dryer.
• Assemble exhaust duct to elbow duct.
• Wra
p
the
j
oint with duct ta
p
e to avoid air leaks.
Right
Venting
Le
f
t
Venting
• Install the new access panel from the kit.
• Secure access panel with 4 screws saved from
earlier.
NEVER LEAVE THE BACK OPENING WITHOUT
THE ACCESS PANEL.
BOTTOM VENTING
Dryer Exhaust to the bottom of cabinet for Gas
and Electric models WITHOUT Built-In Pedestal™.
Disconnect dryer from electrical supply.
Wear gloves and arm guards.
Close the back opening with the access
panel included in kit WE16X29317.
Failure to do so may result in fire, electrical
shock or lacerations.
- Fire Hazard
WARNING
• Remove the 4 screws that secure the access panel
and save. Remove the access panel.
Remove
4 screws
and save
Access Panel
• Remove the screw that secures the dryer exhaust
duct and save. Pull the exhaust duct out of the dryer.
Remove screw and save
Exhaust Duct
• Detach and remove the bottom knockout.
Botom Knockout
28 49-3000206 Rev 1
Installation Instructions
EXHAUSTING THE DRYER (cont.)

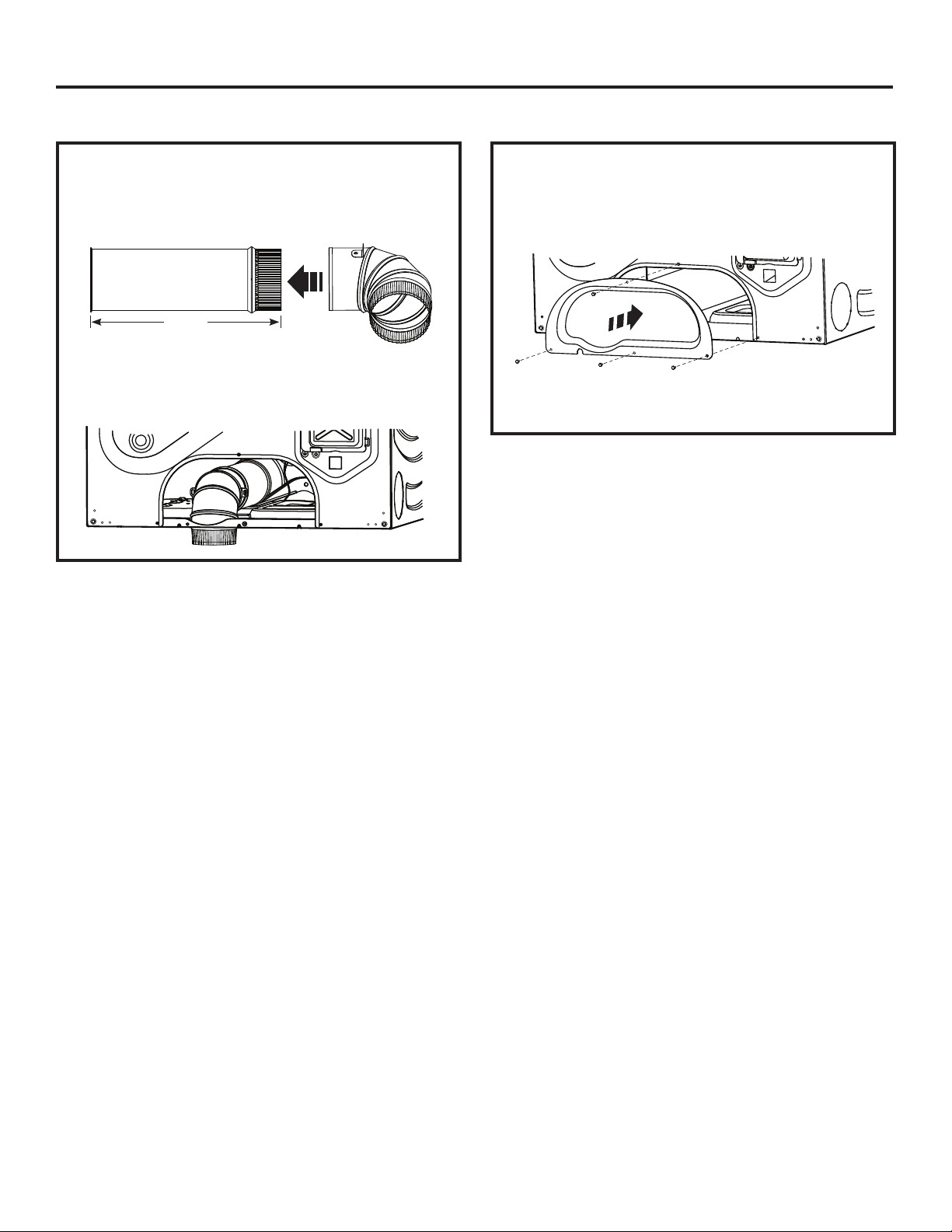

BOTTOM VENTING (cont.) BOTTOM VENTING (cont.)
• Locate the 12-1/2” exhaust duct and elbow duct
from the kit and assemble together. Apply duct tape
around the joint to eliminate leaks between ducts.
12-1/2"
• Install the new access panel from the kit.
• Secure access panel with 4 screws saved from
earlier.
NEVER LEAVE THE BACK OPENING WITHOUT
THE ACCESS PANEL.
• Insert and connect the elbow/exhaust duct
assembly to the blower housing and insert the
elbow through the bottom knockout.
49-3000206 Rev 1 29
Installation Instructions

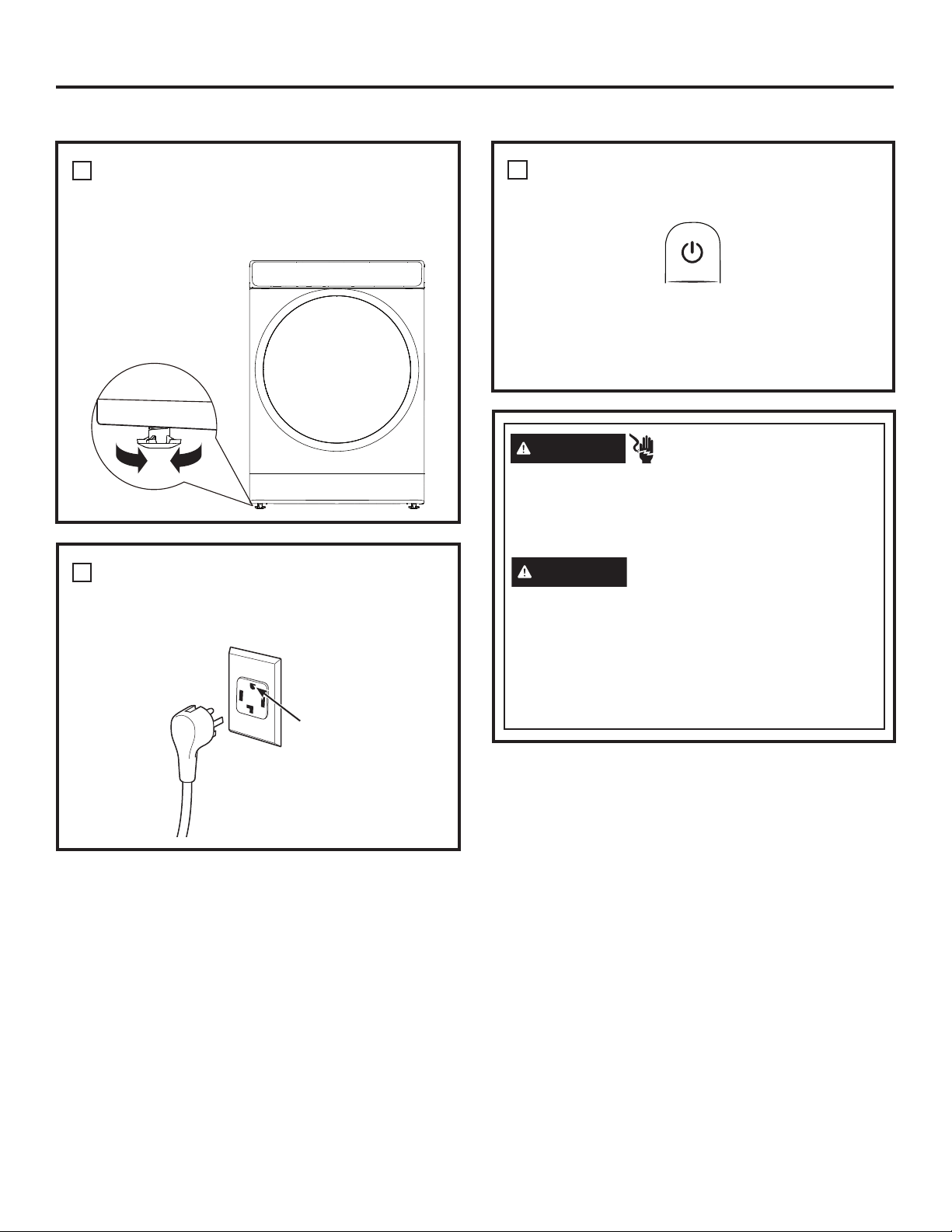

FINAL SETUP
NOTE: Stacking installations may require a power
cord up to 6 feet in length.
LEVEL THE DRYER
Stand the dryer upright near the final location and
adjust the four leveling legs at the corners to ensure
that the dryer is level from side to side and front to
rear.
PLUG DRYER IN
1
2
DRYER START-UP
Press the Power pad.
NOTE: If the dryer has been exposed to temperatures
below freezing for an extended period of time, allow it to
warm up before pressing Power. Otherwise, the display
will not come on.
The dryer is now ready for use.
3
Ensure proper
ground exists
before use.
Raise
Lower
Disconnect power supply before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical
shock.
WARNING
- Shock Hazard
Certain internal parts are intentionally not grounded
and may present a risk of electric shock only during
servicing.
Service personnel – DO NOT contact the following
parts while the appliance is energized: water
valve, door switch, electronic board, igniter,
thermostats, flame detector.
- Electrical Shock Hazard
WARNING
30 49-3000206 Rev 1
Installation Instructions

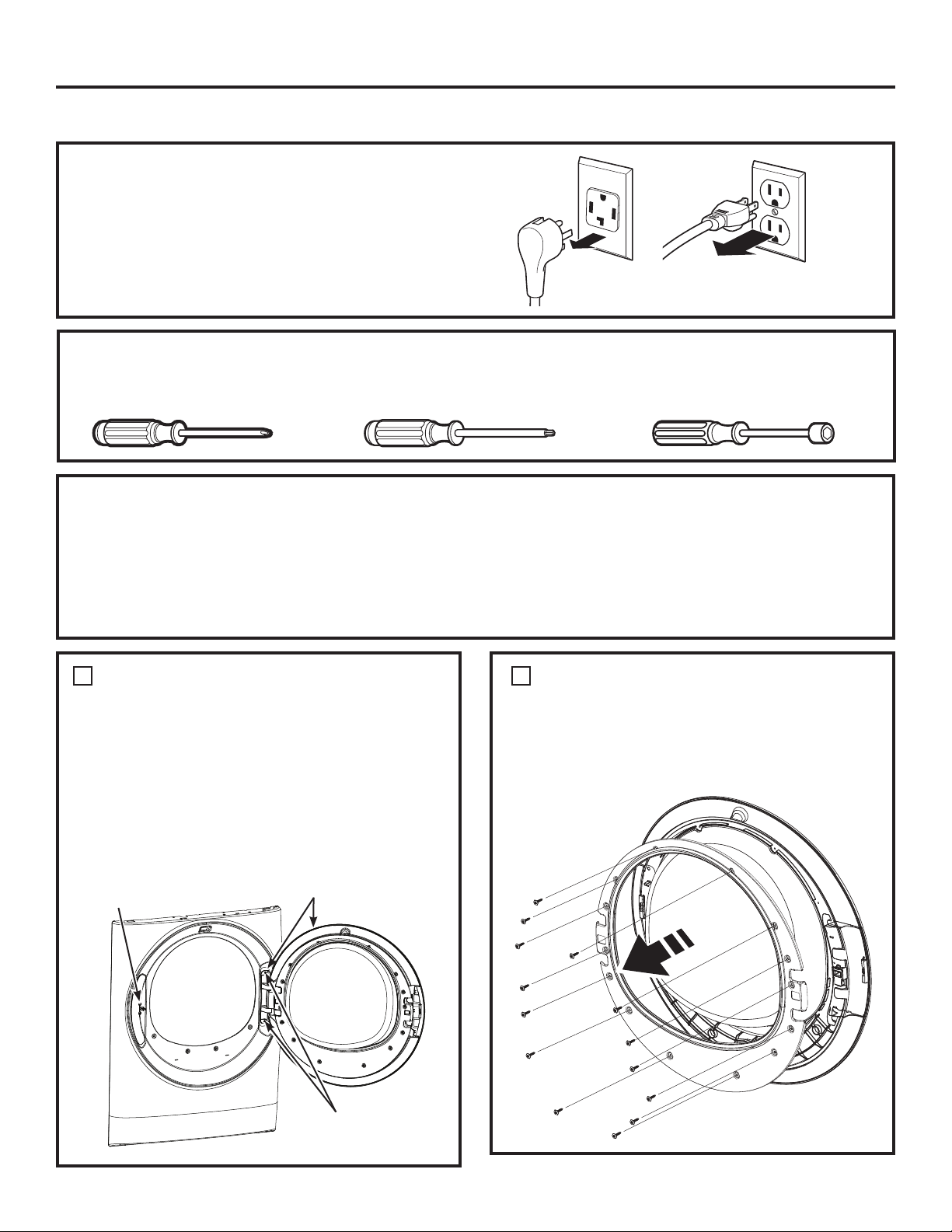

REVERSING THE DOOR SWING (Optional)
IMPORTANT NOTES
• Handle parts carefully to avoid scratching paint.
• Provide a non-scratching work surface for the door.
• Set screws down by their related parts to avoid using
them in the wrong places.
• Once you begin, do not move the cabinet until
door-swing reversal is completed.
• These instructions are for changing the hinges from the
right side to the left side—if you ever want to switch them
back to the right side, follow these same instructions and
reverse all references to the left and right.
REMOVE THE STRIKE PLATE
AND DOOR ASSEMBLY
• Open the dryer door.
• Remove the two screws from the strike plate using
a T-25 torx driver.
• Remove the strike plate and set it aside.
• While supporting the door, remove the two screws
from the hinge in the dryer face using a 1/4” nut driver.
• Lift the door assembly to remove it from the dryer
face and set it aside on a protective surface.
1
Phillips-head screwdriver T-25 torx driver 1/4” nut driver
TOOLS YOU WILL NEED
BEFORE YOU START
Unplug the dryer from its electrical outlet.
REMOVE THE INNER DOOR
• Remove the 14 screws from the inner door frame
using a Phillips-head screwdriver and set them aside.
• Remove the inner door frame from the outer door.
NOTE: Do not remove the gasket from the inner door
frame.
2
Hold the Door and
Remove Hinge Screws
from the Dryer
Remove Strike
Plate and Screws
Hinge and Door
Assembly
49-3000206 Rev 1 31
Installation Instructions
REVERSING THE DOOR SWING (Optional)

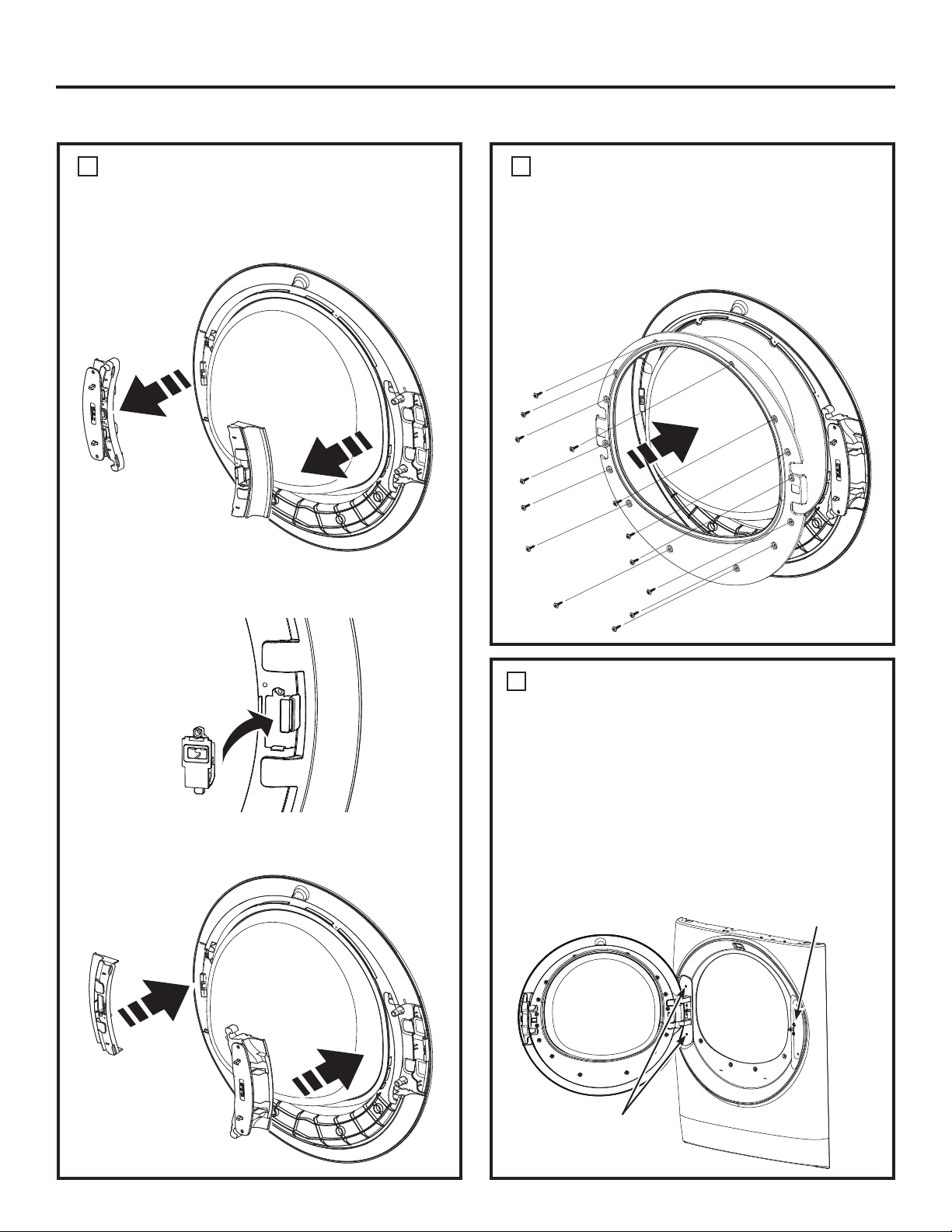

REMOVE, ROTATE AND REPLACE
THE HANDLE AND HINGE INTO
THE OPPOSITE SIDES
• Lift the handle and the hinge out of the door pockets.
NOTE: Make sure the latch remains seated inside the
handle. If it moves or falls out, seat it back into place.
• Rotate the handle and hinge, and replace them
back into the pockets on the opposite sides.
3
REPLACE THE INNER DOOR
• Replace the inner door frame into the outer door.
•
Replace the 14 screws into the inner door, using a
Phillips-head screwdriver, securing it to the outer door.
NOTE: Make sure the gasket is properly seated on
the inner door frame when replaced.
4
REPLACE THE STRIKE PLATE
AND DOOR ASSEMBLY
• On the opposite side from where removed, replace
the strike plate with its two screws using a T-25 torx
driver.
• Lift the door assembly into place and secure it onto
the dryer face with its two screws using a 1/4” nut driver.
• Close the dryer door.
NOTE: Make sure the door opens and closes
correctly. If not, repeat all steps making sure the
gasket, all parts, and screws are securely seated.
5
Hold the Door and
Replace Hinge Screws
into the Dryer
Replace Strike
Plate and Screws
32 49-3000206 Rev 1
If you have any questions, call GE Appliances at 800.432.2737 or visit our Website at: GEAppliances.com
In Canada, call 800.561.3344 or visit www.GEAppliances.ca
Installation Instructions
STACKING THE WASHER AND DRYER (if desired)
If you are planning to stack the washer and dryer, order Stacking Kit number GFA28KITN to be used for this dryer.
Kit sold separately.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for
local electrical inspector’s use.
• IMPORTANT – Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Installation must be performed by a qualified
installer.
• Proper installation is the responsibility of the installer.
MINIMUM CLEARANCE OTHER
THAN ALCOVE OR CLOSET
INSTALLATION
Minimum clearance to combustible surfaces and for
air opening are: 0” both sides*, 0” rear and 0” top.
The rear of the dryer should face a wall.
Consideration must be given to provide adequate
clearance for installation and service.
REQUIREMENTS FOR ALCOVE OR
CLOSET INSTALLATION
• The dryer MUST be vented to the outdoors.
• Minimum clearance between dryer cabinet and
adjacent walls or other surfaces is:
0” either side*
0” front
0” rear
0” top
• The rear of the dryer should face a wall.
• Consideration must be given to provide adequate
clearance for installation and service.
• Closet doors must be louvered or otherwise ventilated
and have at least 60 square inches of open area. If the
closet contains both a washer and a dryer, doors must
contain a minimum of 120 square inches of open area.
NOTE: WHEN THE EXHAUST DUCT IS LOCATED AT
THE REAR OF THE DRYER, THE CONFIGURATION
OF THE DUCTING MAY REQUIRE GREATER
CLEARANCE.
Gas Dryers Only:
• No other fuel burning appliance shall be installed in
the same closet as a gas dryer.
• The dryer must be disconnected from the gas
supply piping during pressure testing at pressures
greater than 1/2 psi (3.5 kPa).
• A 1/8 inch NPT minimum plugged tapping,
accessible for test gauge connection, must be
installed immediately upstream of the gas supply
connection to the dryer.
Keep flammable materials and vapors, such as
gasoline,
away from dryer.
Place dryer at least 18” (46 cm) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
- Explosion Hazard
WARNING
Stack dryer only on washer. Do not stack washer on
dryer, washer on washer or dryer on dryer.
Do not modify this installation kit. Any modification will
void the product Warranty.
*
For improved performance, a 1/2” clearance is suggested on either side.
Remove the packaging.
Flatten the product carton to use as a pad to lay
the dryer down on its back or side. Continue using
the carton to protect the finished floor in front of the
installation location.
Mobile Home or Manufactured Home Installation –
Stacking of a gas dryer is not permitted in a mobile
home or manufactured home.
• Use two or more people to install dryer.
• Avoid tipping and rupture of utility services.
• Dryer must be securely attached to the washer.
• DO NOT place the washer on top of the dryer.
Failure to do so may result in serious injury,
death, or property damage.
WARNING
- Excessive Weight
Hazard
Disconnect power before
installing. Failure to do so could
result in serious injury or death.
WARNING
INSTALLATION PREPARATION
49-3000206 Rev 1 33
Installation Instructions

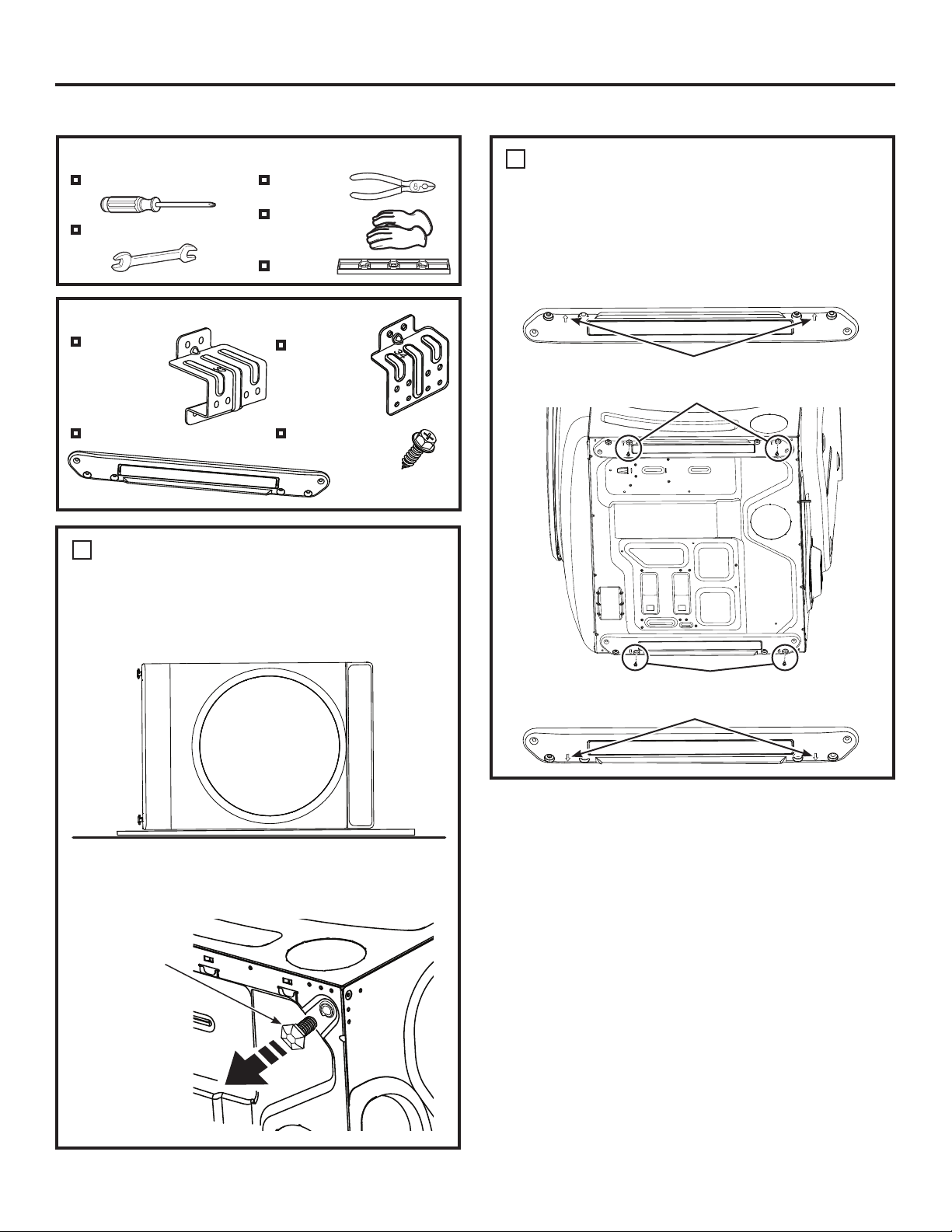

TOOLS YOU WILL NEED
Ŷ
Phillips screwdriver
Ŷ
Pliers
Ŷ
Gloves
Ŷ
Open-ended wrench
Ŷ
Bracket 32
(2)
Ŷ
Spacer (2)
Ŷ
#8 1/2" Screws
(16)
CONTENTS
Ŷ
Level
Ŷ
Bracket 34
(2)
REMOVE THE DRYER LEVELING
LEGS
A. Carefully lay the dryer on its back or side. Use the
packing material so you don’t scratch the finish on
the dryer.
1
B. Use an open-end wrench or pliers to remove the
dryer leveling legs. NOTE: Retain the leveling legs
for future use.
Back out and
remove all 4
leveling legs
INSTALL SPACERS TO THE
DRYER BOTTOM
Locate a spacer on the bottom side with its holes over
the leveling leg holes. Attach spacer using 2 screws.
Attach the second spacer on the other bottom side
using 2 screws. NOTE: The arrows on the spacers
should point to the outside.
2
Attach spacer using 2 screws
Attach spacer using 2 screws
Front Back
Make sure the arrows on the spacer point to the outside.
Make sure the arrows on the spacer point to the outside.
STACKING THE WASHER AND DRYER
(Optional Kit GFA28KITN)
34 49-3000206 Rev 1
Installation Instructions

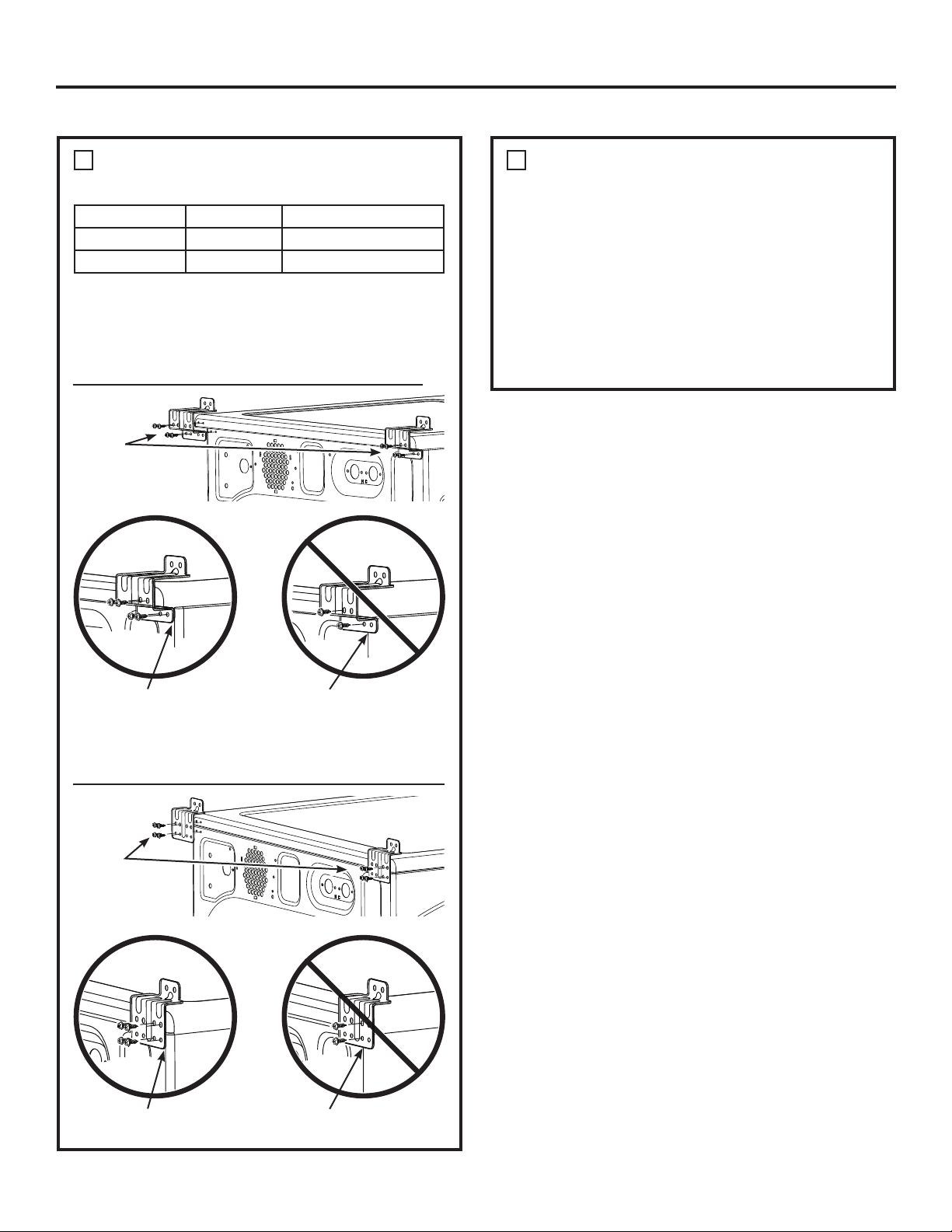

STACKING THE WASHER AND DRYER
(Optional Kit GFA28KITN)
INSTALL THE APPROPRIATE
BRACKETS TO THE WASHER
Select the appropriate brackets for your model sizes.
Using the outside holes in the bracket, attach it to the
top left corner of the washer back using 4 screws.
Repeat on the top right corner of the washer back.
3
Washer Depth Dryer Depth Bracket Number
32" 32" 32
34" 32" 34
32 Brackets for 32" Washer & Dryer Combinations:
Attach
brackets to
washer using
4 screws on
each side
34 Brackets for 34" Washer & 32" Dryer Combinations:
Attach
brackets to
washer using
4 screws on
each side
OR
Install brackets flush at
washers edges
Do not install brackets
overhanging washers edges
Install brackets flush at
washers edges
Do not install brackets
overhanging washers edges
PREPARE THE WASHER AND
DRYER
A. Place the washer in the approximate final
installation location.
B. Make sure the washer is level. Refer to the washer
Installation Instructions for details.
C. Upright the dryer.
D. Reverse the washer and dryer door swings, if
desired, before stacking the dryer on the washer.
See the washer and dryer Installation Instructions
for details.
4
49-3000206 Rev 1 35
Installation Instructions
STACKING THE WASHER AND DRYER
(Optional Kit GFA28KITN)
FINALIZE THE INSTALLATION
6
INSTALL THE DRYER AND THE
BRACKET ON THE WASHER
A. Lift the dryer onto the top of the washer.
Be sure to lift the dryer high enough to clear the
washer control panel.
Be careful not to scratch the top of the washer with
the spacers. Protect the washer control panel with
cardboard or other protection.
B. Align the holes in the back of the dryer with the
holes in the bracket sticking up from the washer.
Attach both brackets to the dryer with 2 screws on
each side.
5
32 Brackets for 32" Washer & Dryer Combinations:
Attach
brackets
to dryer
using 2
screws on
each side
34 Brackets for 34" Washer & 32" Dryer Combinations:
Attach
brackets
to dryer
using 2
screws on
each side
A. Refer to the washer Installation Instructions to
complete the washer installation.
B. Refer to the dryer Installation Instructions to
complete the dryer installation.
C. Carefully slide or walk the stacked washer and
dryer into place. Use felt pads or other sliding
device to assist moving and to protect flooring.
D. Verify the units are level. Make adjustments to
the washer feet if necessary to level. It is always
best to set the washer feet to the minimum height
necessary to level the washer and dryer properly.
Do not push on the dryer once
installed to top of the washer.
Pushing on the dryer may result in pinched
fingers.
CAUTION
Place
hands
here
Place
hands
here
Washer
Dryer
OR
• Use two or more people to install dryer.
• Avoid tipping and rupture of utility services.
• Dryer must be securely attached to the washer.
• DO NOT place the washer on top of the dryer.
Failure to do so may result in serious injury,
death, or property damage.
WARNING
- Excessive Weight
Hazard
36 49-3000206 Rev 1
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Problem Possible Cause What To Do
Dryer shakes or
makes noise
Some shaking/noise is normal.
Dryer may be sitting unevenly.
Move dryer to an even floor space, or adjust leveling legs as
necessary until even.
Clothes take
too long to dry
Improper or obstructed
ducting
Check the Installation Instructions to make sure the dryer
venting is correct.
Make sure ducting is clean, free of kinks and unobstructed.
Check to see if outside wall damper operates easily.
Improper sorting Separate heavy items from lightweight items (generally, a
well-sorted washer load is a well-sorted dryer load).
Large loads of heavy fabrics
(like beach towels)
Large, heavy fabrics contain more moisture and take longer to dry.
Separate large, heavy fabrics into smaller loads to speed drying time.
Controls improperly set Match control settings to the load you are drying.
Lint filter is full Clean lint filter before every load.
Blown fuses or tripped
circuit breaker
Replace fuses or reset circuit breakers. NOTE: Some electric
dryers use 2 fuses/breakers, make sure both are operating.
Overloading/combining loads Do not put more than one washer load in the dryer at a time.
Underloading If you are drying only one or two items, add a few items to ensure
proper tumbling.
ecoDry is enabled The ecoDry feature is designed to operate your dryer in the
most energy efficient mode, which is not always the fastest
mode. In some instances, dry times may be extended to
reduce overall energy usage for the cycle.
The Dry dryness
level was
chosen but load
is still damp
Load consists of a mixture of
heavy and light fabrics
When combining heavy and light fabrics in a load, choose
More Dry.
Exhaust system is blocked Inspect and clean exhaust system.
Dryer doesn’t
start
Control panel is “asleep” This is normal. Press Power to activate the control panel.
Dryer is unplugged Make sure the dryer plug is pushed completely into the outlet.
Fuse is blown/circuit breaker
is tripped
Check the building’s fuse/circuit breaker box and replace fuse
or reset breaker. NOTE: Some electric dryers use two fuses/
breakers, make sure both are operating.
Dryer was accidentally paused
when starting Delay Dry
If the light on the Start/Pause pad is flashing, the dryer is paused.
Press Start/Pause to restart the countdown.
No numbers
displayed
during cycle,
only lights
Dryer is continuously
monitoring the amount of
moisture in the clothes
This is normal. When the dryer senses a low level of moisture in
the load, the dryer will display the dry time remaining.
Time Remaining
jumped to a
lower number
The estimated time may
change when a smaller load
than usual is drying
This is normal.
Cannot make a
selection and
the dryer beeps
twice
The dryness Level, Temp or
option that you are trying to
select is incompatible with
the chosen dry cycle
This is normal.
Dryer is running
but 00 is
displayed in
Time Remaining
The Wrinkle Care option
was chosen
This is normal. During extended tumbling, the time remaining is
not displayed. The extended tumbling option lasts approximately
60 minutes.
“Check Vent”
light is on
Lint filter is full Clean lint filter, dry a load on an automatic cycle and verify that
light turns off.
Improper or obstructed
ducting
Check the Installation Instructions to make sure the dryer venting
is correct.
Make sure ducting is clean, free of kinks and unobstructed. Check
to see if outside wall damper operates easily.
Dry a load on an automatic cycle and verify that light turns off.
Exhaust system is blocked Inspect and clean the exhaust system.
Dry a load on an automatic cycle and verify that light turns off.
49-3000206 Rev 1 37
Troubleshooting Tips... Before you call for service
TROUBLESHOOTING TIPS
Problem Possible Causes What To Do
Dryer doesn’t
heat
Fuse is blown/circuit breaker
is tripped; the dryer may
tumble but not heat
Check the building’s fuse/circuit breaker box and replace both
fuses or reset both breakers. Your dryer may tumble if only one
fuse is blown or one breaker tripped. NOTE: Some electric
dryers use 2 fuses/breakers, make sure both are operating.
Gas service is off (gas
models only)
Make sure gas shutoff at dryer and main shutoff are fully open.
LP gas supply tank is empty
or there has been a utility
interruption of natural gas
(gas models only)
Refill or replace tank. Dryer should heat when utility service is
restored.
No heat temperature selected Select another heat setting
Inconsistent
drying times
Type of heat Drying time will vary according to the type of heat used. If
you recently changed from an electric to a gas (natural or LP)
dryer, or vice versa, the drying time could be different.
Type of load and drying
conditions
The load size, types of fabric, wetness of clothes and the
length and condition of the exhaust system will affect drying
times.
Clothes are still
wet and dryer
shut off after a
short time
The door was opened
mid-cycle. The load was then
removed from the dryer and
a new load put in without
selecting a new cycle
A dry cycle must be reselected each time a new load is put in.
Small load When drying 3 items or less, choose QUICK DRY or TIMED DRY.
Load was already dry except
for collars and waistbands
Choose
QUICK DRY or TIMED DRY to dry damp collars and
waistbands. In the future, when drying a load with collars and
waistbands, choose More Dry.
Dryer is not level Move dryer to an even floor space or adjust leveling legs as
necessary until even.
Clothes are
wrinkled
Overdrying Select a shorter drying time.
Remove items while they still hold a slight amount of moisture.
Select a Less Dry or Damp setting.
Letting items sit in dryer after
cycle ends
Remove items when cycle ends and fold or hang immediately, or
use the Wrinkle Care option.
Overloading Separate large loads into smaller ones.
Clothes shrink Some fabrics will naturally
shrink when washed. Others
can be safely washed, but
will shrink in the dryer.
To avoid shrinkage, follow garment care labels exactly.
Some items may be pressed back into shape after drying.
If you are concerned about shrinkage in a particular
item, do not machine wash or tumble dry it.
Greasy spots
on clothes
Improper use of fabric
softener
Follow directions on fabric softener package.
Drying dirty items with clean
ones
Use your dryer to dry only clean items. Dirty items can stain clean
items and the dryer.
Clothes were not completely
clean
Sometimes stains which cannot be seen when the clothes are wet
appear after drying. Use proper washing procedures before drying.
Lint on clothes Lint filter is full Clean lint screen before each load.
Improper sorting Sort lint producers (like chenille) from lint collectors (like corduroy).
Static electricity can attract
lint
See suggestions in this section under Static occurs.
Overloading Separate large loads into smaller ones.
Paper, tissue, etc., left in
pockets
Empty all pockets before laundering clothes.
38 49-3000206 Rev 1
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Problem Possible Causes What To Do
Static occurs No fabric softener was used Try a fabric softener.
Bounce
®
Fabric Conditioner Dryer Sheets have been approved for
use in all GE Appliances dryers when used in accordance with the
manufacturer’s instructions.
Overdrying Try a fabric softener.
Adjust setting to Less Dry or Damp.
Synthetics, permanent press
and blends can cause static
Try a fabric softener.
Collars and
waistbands still
wet at end of
cycle
The dryness monitor senses
that the body of the clothes
is dry
Choose QUICK DRY or TIMED DRY to dry damp collars and
waistbands. In the future, when drying a load with collars and
waistbands, choose More Dry.
Slight variation
in metallic color
This is normal Due to the metallic properties of paint used for this unique product,
slight variations of color may occur due to viewing angles and
lighting conditions.
Dryer continues
to tumble after
display says
Complete
Wrinkle Care was selected Ensure Wrinkle Care option is not selected. For the Steam
Refresh cycle, Wrinkle Care will automatically be turned on
and cannot be turned off.
Door is too
foggy to see
clothes during a
steam cycle
Steam condenses on inner
door
This is normal.
Water seen on
inside of door
and top of lint
filter when
opening door
after steam
cycle
Steam condenses on these
surfaces
This is normal.
Small areas
on clothes are
damp after
steam cycle
Steam condenses on inner
drum
If using the STEAM Dewrinkle cycle, manually reduce the cycle
time. If using the STEAM Refresh cycle, add more garments to
the load.
Small amount of
water on floor in
front of dryer
Inadequate load size for
steam cycle selected, excess
steam condenses inside
cabinet and leaks out
If using the STEAM Dewrinkle cycle, manually reduce the cycle
time. If using the STEAM Refresh cycle, add more garments to
the load.
Water on floor in
back of dryer
Loose water hose connection Tighten connection.
Hose missing rubber washer
at connection with valve
Install rubber washer provided with hose.
Water drips
from door when
opened after a
Steam Cycle
Steam condenses on inner
door
This is normal.
Cannot see
steam at
beginning of
cycle
Steam released at different
times in the cycle
This is normal.
Cannot see
steam during
cycle
The steam nozzle might be
clogged with debris from your
water supply
Call GE Appliances at 877.959.8688 to order nozzle
replacement kit WE25M71 or to request a technician to replace
this for you.
Garments still
wrinkled after
steam cycle
Too many garments Load fewer garments; manually increase time.
Lint filter not clean Clean lint filter
Load is children/infant
garments
Use the Steam Refresh cycle
49-3000206 Rev 1 39
GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care
®
technician. To schedule
service online, visit us at GEAppliances.com/service, or call GE Appliances at 800.GE.CARES (800.432.2737). Please
have your serial number and your model number available when calling for service.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory
service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its
products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be
sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.
Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are
available while your warranty is still in effect. You can purchase it online anytime at
GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.
LIMITED WARRANTY
GE Appliances Dryer Limited Warranty
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances
Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier Company
Louisville, KY 40225
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law.
For the period of: We will replace:
One year
From the date of the
original purchase
Any part of the dryer which fails due to a defect in materials or workmanship. During
this limited one-year warranty, we will also provide, free of charge, all labor and
related service to replace the defective part.
What is not covered:
Ŷ
Service trips to your home to teach you how to use
the product.
Ŷ
Improper installation, delivery or maintenance.
Ŷ
Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
Ŷ
Replacement of house fuses or resetting of circuit
breakers.
Ŷ
Products which are not defective or broken, or which
are working as described in the Owner’s Manual.
Ŷ
Damage to the product caused by accident, fire,
floods or acts of God.
Ŷ
Incidental or consequential damage caused by
possible defects with this appliance.
Ŷ
Defects or damage due to operation in freezing
temperatures.
Ŷ
Damage caused after delivery.
Ŷ
Product not accessible to provide required service.
40 49-3000206 Rev 1
Printed in USA
CONSUMER SUPPORT
Consumer Support
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day
of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support
services designed for your convenience. GEAppliances.com
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail in
the pre-printed registration card included in the packing material. GEAppliances.com/register
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at
your convenience any day of the year. GEAppliances.com/service or call 800.432.2737 during normal business hours.
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your
warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your
warranty expires. GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.
Remote Connectivity
For assistance with wireless network connectivity (for models with remote enable), visit our website at
GEAppliances.com/connected-home-smart-appliances/ or call 800.220.6899.
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.
GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the
details including your phone number, or write to:
General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225
GEAppliances.com/contact
