49-2000650 Rev. 1 01-20 GEA
Microwave Oven
Horno Microondas
Owner’s Manual
Manual del propietario
QVM7167
Design may vary by model number.
Some models may have an additional
letter after the model number
El diseño puede variar según el número
de modelo
Algunos modelos pueden tener una
letra adicional después del número del
modelo
2 49-2000650 Rev. 1
ENGLISH
49-2000650 Rev. 1 3
ENGLISH
TABLE OF CONTENTS
SAFTEY INFORMATION ...........................................................................................4
USING THE MICROWAVE ..........................................................................................5
Features ......................................................................................................... 7
About the Features .............................................................................................. 8
Other Features ................................................................................................. 16
WiFi Connect ................................................................................................... 21
Remote Enable On/Off Features ................................................................................. 21
Remote Enabled Equipment ..................................................................................... 21
PARTS AND FEATURES .......................................................................................... 7
CARE AND CLEANING .......................................................................................... 22
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
LIMITED WARRANTY ............................................................................................26
RECORD KEEPING
Thank you for purchasing this Haier product. This user
manual will help you get the best performance from your new
microwave oven.
For future reference, record the model and serial number
located on the your microwave and the date of purchase.
Staple your proof of purchase to this manual to aid in
obtaining warranty service if needed.
____________________________________________________
Model number
____________________________________________________
Serial number
____________________________________________________
Date of purchase
HAIER WEBSITE
Have a question or need assistance with your appliance? Try the Haier Website 24 hours a day, any day of the year! You can also
shop for more great Haier products and take advantage of all our on-line support services designed for your convenience. In the US:
Haierappliances.com
4 49-2000650 Rev. 1
ENGLISH
WARNING
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive
microwave energy:
When using electrical appliances, basic safety precautions should be followed, including the following:
• Read all instructions before using this appliance.
• Read and follow the specific “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” found on page 6.
• Use this appliance only for its intended use as described in
this manual. Do not use corrosive chemicals or vapors
in this appliance. This microwave oven is specifically
designed to heat, dry or cook food, and is not intended for
laboratory or industrial use.
• This appliance should be serviced only by qualified service
personnel. Contact nearest authorized service facility for
examination, repair, or adjustment.
INSTALLATION
• Install or locate this appliance only in accordance with the
provided installation instructions.
• This appliance must be grounded. Connect only to
a properly grounded outlet. See the “GROUNDING
INSTRUCTIONS” found on page 6.
•
This microwave oven is UL listed for installation over
both gas and electric ranges.
• This unit is suitable for use above gas or electric
cooking equipment, 36’’ or less wide.
• Do not operate this appliance if it has a damaged power cord
or plug, if it is not working properly, or if it has been damaged
or dropped.
• Keep power cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• Do not immerse power cord or plug in water.
• Do not cover or block any opening on the appliance.
• Do not store this appliance outdoors. Do not use this
product near water - for example, in a wet basement, near a
swimming pool, or in a similar location.
• Do not mount over a sink.
TO REDUCE THE RISK OF FIRE IN THE CAVITY:
— Do not overcook food. Carefully attend appliance when
paper, plastic or other combustible materials are placed
inside the oven while cooking.
— Remove wire twist-ties and metal handles from paper or
plastic containers before placing them in the oven.
— If materials inside the oven ignite, keep the oven door
closed, turn the oven off and disconnect the power cord, or
shut off power at the fuse or circuit breaker panel.
— Do not store any materials in the oven when not in use. Do
not leave paper products, cooking utensils, or food in the
cavity when not in use.
— Do not operate the microwave feature without food in
the oven.
TO REDUCE THE RISK OF BURNS
• Be careful when opening containers of hot food. Use pot
holders and direct steam away from face and hands.
•
Vent, pierce, or slit containers, pouches or plastic bags to
prevent build-up of pressure.
•
Be careful when touching the turntable, door, or walls of the
oven which may become hot during use.
•
Liquids and certain foods heated in the microwave oven
can present a risk of burn when removing them from the
microwave. The potential for a burn is greater in young
children, who should not be allowed to remove hot items
from the microwave.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
IMPORTANT SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
49-2000650 Rev. 1 5
ENGLISH
READ AND SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
OPERATING
• As with any appliance, close supervision is necessary when
used by children.
• Do not operate the oven without the turntable in place. The
turntable must be unrestricted so it can turn.
• Make sure all cookware used in your microwave oven is
suitable for microwaving. Most glass casseroles, cooking
dishes, measuring cups, custard cups, pottery or china
dinnerware which does not have metallic trim or glaze with
a metallic sheen can be used in compliance with cookware
manufacturers’ recommendations.
• Do not store anything directly on top of the microwave
surface when the microwave is in operation.
• Some products such as whole eggs and sealed containers -
for example, closed jars - are able to explode and should not
be heated in the microwave oven.
• Do not overcook potatoes. They could dehydrate and catch fire.
• Do not cover any other part of the oven with metal foil. This
will cause overheating of the oven.
• Cook meat and poultry thoroughly—meat to at least an
INTERNAL temperature of 160°F and poultry to at least
an INTERNAL temperature of 180°F. Cooking to these
temperatures usually protects against foodborne illness.
• This oven is not approved or tested for marine use.
CLEANING
• Keep the oven free from grease buildup.
• Do not clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving risk of electric
shock.
• When cleaning surfaces of door and oven that come
together on closing the door, use only mild, nonabrasive
soaps, or detergents applied with a clean sponge or soft
cloth. Rinse well.
SUPER HEATED WATER
• Liquids, such as water, coffee, or tea, are able to be
overheated beyond the boiling point without appearing
to be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is
not always present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
• To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through heating
it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
- Use extreme care when inserting a spoon or other
utensil into the container.
IMPORTANT SAFETY INFORMATION
6 49-2000650 Rev. 1
ENGLISH
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
WARNING
Improper use of the grounding plug can result in a risk of electric shock.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the risk of
electric shock by providing an
escape wire for the electric
current.
This appliance is equipped
with a power cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
Consult a qualified electrician or service technician if
the GROUNDING INSTRUCTIONS are not completely
understood, or if doubt exists as to whether the appliance
is properly grounded.
If the outlet is a standard 2-prong wall outlet, it is your
personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
Do not under any circumstances cut or remove the third
(ground) prong from the power cord.
Do not use an extension cord. If the power cord is too
short, have a qualified electrician or service technician
install an outlet near the appliance.
For best operation, plug this appliance into its own
electrical outlet to prevent flickering of lights, blowing of
fuse or tripping of circuit breaker.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do Not Attempt to operate this oven with the door
open since open-door operation can result in harmful
exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
(b) Do Not Place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do Not Operate the oven if it is damaged.
It is particularly important that the oven door close
properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The Oven Should Not be adjusted or repaired by
anyone except properly qualified service personnel.
NOTICE: PACEMAKERS
Most pacemakers are shielded from interference from electronic products, including microwaves. However, patients with
pacemakers may wish to consult their physicians if they have concerns.
Ensure proper ground
exists before use.
VENT FAN
The fan will operate automatically under certain conditions. Take care to prevent the starting and
spreading of accidental cooking fires while the vent fan is in use.
•
Clean the underside of the microwave often. Do not allow
grease to build up on the microwave or the fan filters.
• In the event of a grease fire on the surface units below
the microwave oven, smother a flaming pan on the
surface unit by covering the pan completely with a lid, a
cookie sheet or a flat tray.
• Use care when cleaning the vent fan filters. Corrosive
cleaning agents, such as lye-based oven cleaners, may
damage the filters.
• When preparing flaming foods under the microwave,
turn the fan on.
• Never leave surface units beneath your microwave
oven unattended at high heat settings. Boilovers cause
smoking and greasy spillovers that may ignite and spread
if the microwave vent fan is operating. To minimize
automatic fan operation, use adequate sized cookware
and use high heat on surface units only when necessary.
WARNING
IMPORTANT SAFETY INFORMATION
49-2000650 Rev. 1 7
ENGLISH

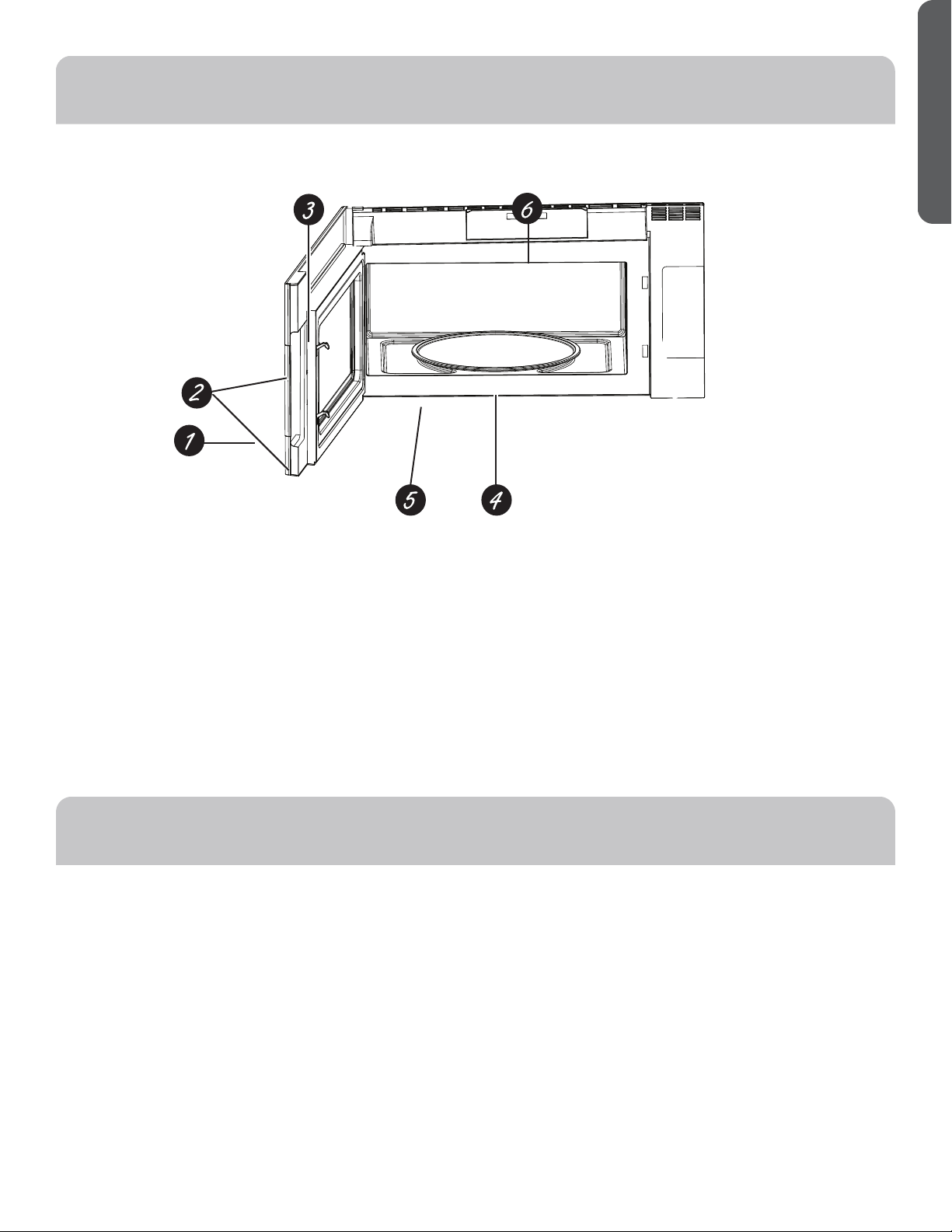

1. Door Handle
2. Door Latches
3. Window with Metal Shield
Screen allows cooking to be viewed while keeping
microwaves confined in the oven.
4. Removable Turntable
Do not operate the oven in the microwave mode without
the turntable and turntable support seated and in place.
5. Removable Turntable Support
Do not operate the oven in the microwave mode without
the turntable and turntable support seated and in place.

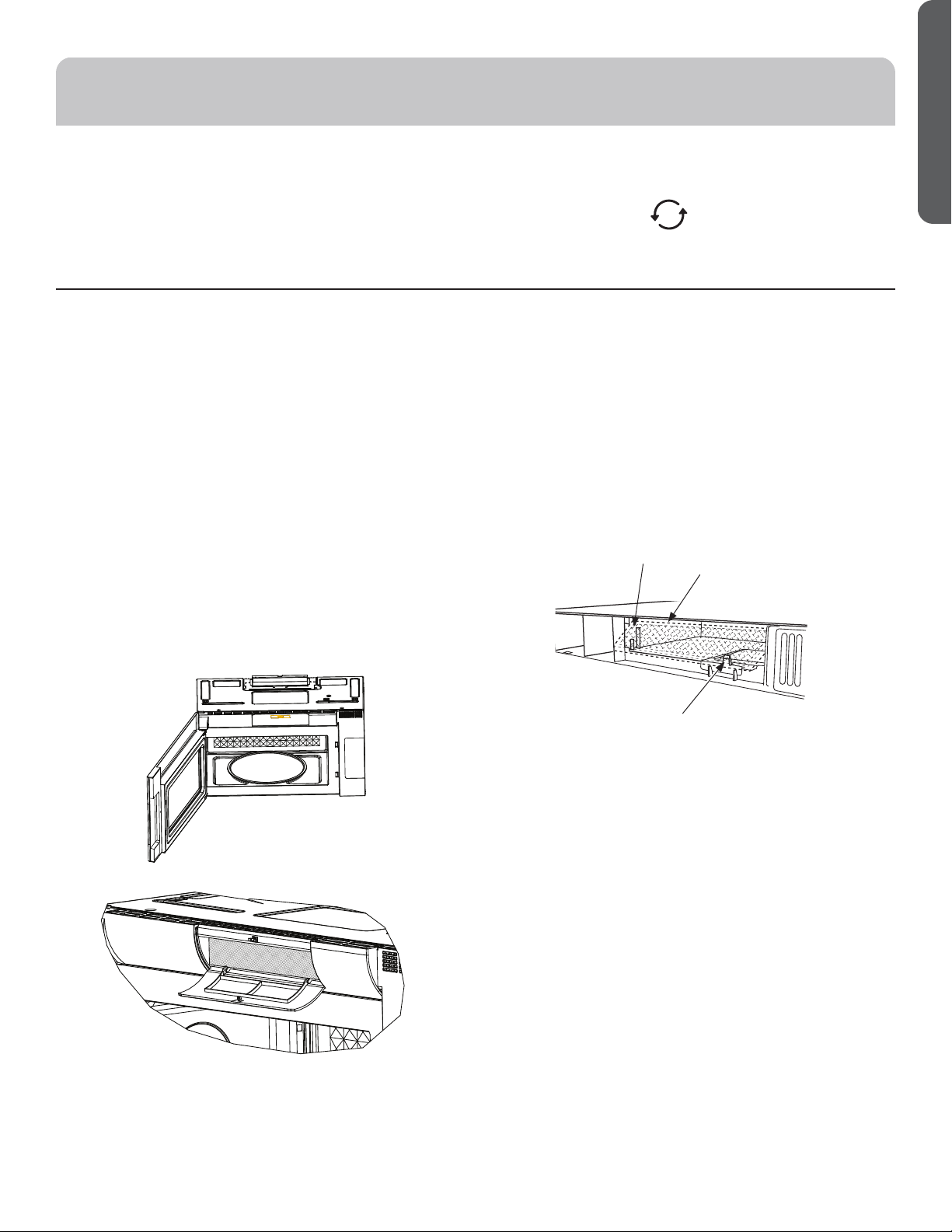

6. Charcoal Filter Cover
Push the cover to replace the charcoal filter without taking
the unit off from cabinet.
Throughout this manual, features and appearance may vary from your model.
15” Cabinet Installation Kit
For use with cabinets deeper than 13 inches. Brings microwave further out from the wall for improved ventilation, access, and
appearance.
Bump-Out Kit
JX15BUMPBB
FEATURES
ACCESSORIES
8 49-2000650 Rev. 1
ENGLISH

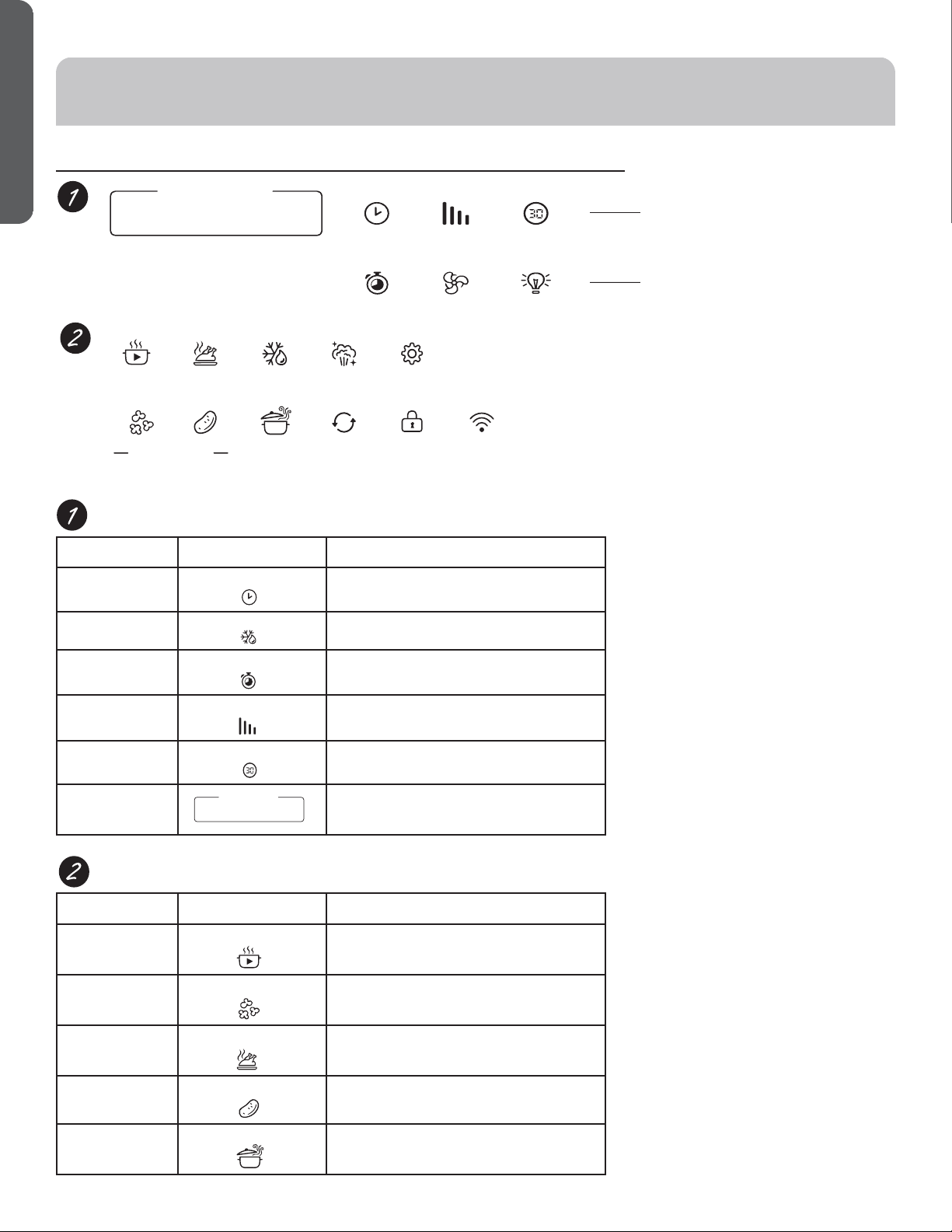

Cooking Controls
Check the Convenience Guide before you begin.
Sensor/Convenience Features
Time Features
Cook
Timer
Level
LightVent
+Time
Start
Pause
Cancel
Off
12345
09876
EXPRESS COOKING
Auto Clean
Filter
Reheat
Potato
Hold 3 Sec Hold 3 SecHold 3 Sec
Connect
Defrost
Control
Settings
SENSOR COOKING
Popcorn
Steam
ABOUT THE FEATURES
Press Icon Enter
COOK TIME
Cook
Amount of cooking time
DEFROST
Defrost
Weight or time
TIMER
Timer
POWER LEVEL
Level
Power level 1 to 10
ADD #) SEC
+Time
Starts immediately
EXPRESS COOK
12345
EXPRESS COOKING
Starts immediately
Press Icon Enter
AUTO COOK
Auto
Press pad to select food
POPCORN
Popcorn
Start immediately
REHEAT
Reheat
Press pad to select food
PO TAT O
Potato
Start immediately
STEAM COOK
Steam
Press pad to select food
49-2000650 Rev. 1 9
ENGLISH
Cook Time
Allows you to microwave for any time up to 99 minutes and 99
seconds.
Power level 10 (HIGH) is automatically set, but you may change
it for more flexibility.
1. Press Cook Time.
2. Enter cooking time.
3. Press START.
Cooking will start when the countdown begins in the display.
You may open the door during Cook Time to check the food.
Close the door and press START to resume cooking.
Express Cook
This is a quick way to set cooking time for 1-5 minutes.
1. Press one of the Express Cook pads (from 1-5) for 1-5
minutes of cooking at power level 10.
For example, press the 2 pad for 2 minutes of cooking time.
The power level can be changed as time is counting down. Press
POWER LEVEL and enter 1-10.
NOTE: Express Cook function pertains to pads 1-5 only.
Add 30 Sec
This will add 30 seconds to the time counting down each time
the pad is pressed. Each touch will add 30 seconds, up to 99
minutes and 99 seconds.
Add 30 sec can also be used like an express 30
seconds button. The microwave oven will start
immediately when pressed.
Weight Defrost
Use Weight Defrost for meat, poultry and fish. Use Time
Defrost for most other frozen foods. (Time Defrost is
explained on page 13.)
1. Press DEFROST once for Weight Defrost.
2. Enter the weight in pounds.
3. Press START.
Cooking will start when the countdown begins in the display.
Defrosting Tips
• Remove meat from package and place on microwave-safe
dish.
• When the oven signals, turn the food over. Remove
defrosted meat or shield warm areas with small pieces of
foil.
• After defrosting, most meats need to stand 5 minutes to
complete defrosting. Large roasts should stand for about
30 minutes.
Conversion Guide
If the weight of food is stated in pounds and ounces, the
ounces must be converted to tenths (.1) of a pound.
Ounces Pounds
1-2 .1
3.2
4-5 .3
6-7 .4
8.5
9-10 .6
11 .7
12-13 .8
14-15 .9
ABOUT THE FEATURES
12345
09876
EXPRESS COOKING
12345
09876
EXPRESS COOKING
Cook
Start
Pause
+Time
12345
09876
EXPRESS COOKING
Start
Pause
Defrost
10 49-2000650 Rev. 1
ENGLISH
Time Defrost
Allows you to defrost for a selected length of time. See the
Defrosting Guide on page 11 for suggested times (Weight
Defrost is explained on page 9).
1. Press DEFROST twice for Time Defrost.
2. Enter defrosting time in minutes and seconds.
3. Press START.
Cooking will start when the countdown begins in the display.
At one half of selected defrosting time, turn food over and break
apart or rearrange pieces for more even defrosting. Shield any
warm areas with small pieces of foil. The oven will continue to
defrost if you don’t open the door and turn the food.
Noises may be heard during defrosting. This is normal when
oven is not operating at High power.
Defrosting Tips
•
Foods frozen in paper or plastic can be defrosted in the
package. Closed packages should be slit, pierced or vented
AFTER food has partially defrosted. Plastic storage containers
should be partially uncovered.
•
Family-size, prepackaged frozen dinners can be defrosted
and microwaved. If the food is in a foil container, transfer it to
a microwave-safe dish.
•
Foods that spoil easily should not be allowed to sit out for
more than one hour after defrosting. Room temperature
promotes the growth of harmful bacteria.
•
For more even defrosting of larger foods, such as roasts, use
Time Defrost. Be sure large meats are completely defrosted
before cooking.
•
When defrosted, food should be cool but softened in all areas.
If still slightly icy, return to the microwave very briefly, or let it
stand a few minutes.
ABOUT THE FEATURES
12345
09876
EXPRESS COOKING
Start
Pause
Defrost
49-2000650 Rev. 1 11
ENGLISH
Defrosting Guide
Food Time Comments
Breads, Cakes
Bread, buns or rolls (1 piece) 1/4 min.
Sweet rolls (approx. 12 oz.) 2 to 4 min. Rearrange after half of time.
Fish and Seafood
Fillets, frozen (1 lb.) 6 to 9 min.
Shellfish, small pieces (1 lb.) 3 to 7 min. Place block in casserole. Turn over and break up after first half of time.
Fruit
Plastic pouch—1 or 2
(10-oz. package)
1 to 5 min.
Meat
Bacon (1 lb.) 2 to 5 min.
Place unopened package in oven. Let stand 5 minutes after defrosting.
Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be
separated. Let stand 5 minutes, if necessary, to complete defrosting.
Ground meat (1 lb.) 4 to 6 min. Turn meat over after first half of time.
Roast: beef, lamb, veal, pork 9 to 12 min.
per lb.
Use power level Warm (1).
Steaks, chops and cutlets 4 to 8 min.
per lb.
Place unwrapped meat in cooking dish. Turn over after first half of time
and shield warm areas with foil. After second half of time, separate pieces
with table knife. Let stand to complete defrosting.
Poultry
Chicken, broiler-fryer, cut up
(2
1
¼2 to 3 lbs.)
14 to 19 min. Place wrapped chicken in dish. Unwrap and turn over after first half of
time. After second half of time, separate pieces and place in cooking dish.
Microwave 2 to 4 minutes more, if necessary. Let stand a few minutes to
finish defrosting.
Chicken, whole (2
1
¼2 to 3 lbs.) 20 to 24 min. Place wrapped chicken in dish. After first half of time, unwrap and turn
chicken over. Shield warm areas with foil. To complete defrosting, run
cool water in cavity until giblets can be removed.
Cornish hen 7 to 12 min.
per lb.
Place unwrapped hen in oven breast-side-up. Turn over after first half of
time. Run cool water in cavity until giblets can be removed.
Turkey breast (4 to 6 lbs.) 3 to 8 min.
per lb.
Place unwrapped breast in microwave-safe dish breast-side-down. After
first half of time, turn breast-side-up and shield warm areas with foil.
Defrost for second half of time. Let stand 1 to 2 hours in refrigerator to
complete defrosting.
ABOUT THE FEATURES
12 49-2000650 Rev. 1
ENGLISH
How to Change the Automatic Settings
To reduce time by 10%:
Press 1 after the feature pad.
To add 10% to cooking time:
Press 9 after the feature pad.
Auto Cook
Allows you to microwave food choices with sensor.
1. Press AUTO COOK button.
2. Enter the food type code. See Cooking Guide for AUTO
COOK below for codes or check the display for food types..
2. Press START.
The oven signals when steam is sensed and the time
remaining begins counting down.
Do not open the oven door until time is counting down. If the
door is opened before time is counting down 4 beeps are emitted
while the display will Scroll & Cycle “SENSOR ERROR “ until
CANCEL is pressed. The sensor cook will be cancelled as well. If
the Door is opened during the counting down, close it and press
START immediately.
Cooking Guide for Auto Cook Feature
CODE ENTRY FOOD COMMENTS
1 Chicken
2 Fish
3 Ground Meat
4 Veggies Enter Veggie Type
1. Fresh Veggies
2. Frozen Veggies
3. Canned Veggies
The Sensor Features detect the increasing humidity released
during cooking. The oven automatically adjust the cooking time
to various types and amounts of food.
Do not use the Sensor Features twice in succession on the same
food portion - It may result in severely overcooked or burnt
food. Be sure to let the oven cool down for 5 - 10 minutes before
starting the next sensor cook.
If food is undercooked after the countdown, use Cook Time for
additional cooking time

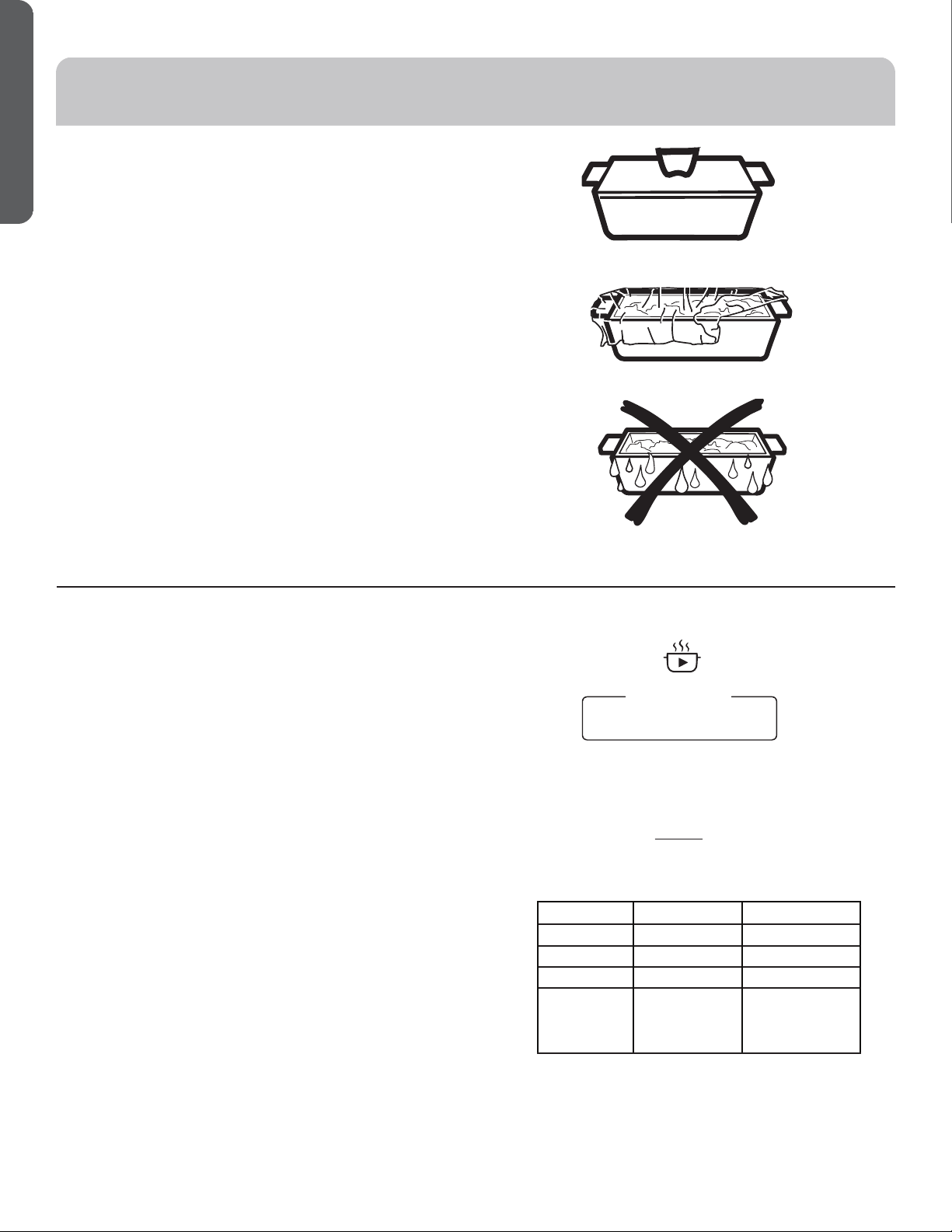

• The proper containers and covers are essential for best sensor
cooking.
• Always use microwave-safe containers and cover them with
lids or vented plastic wrap. Never use tight-sealing plastic
covers - they can prevent steam from escaping and cause food
to overcook.
• Be sure the outside of the cooking container and the inside of
the microwave oven are dry before placing food in the oven.
Beads of moisture turning into steam can mislead the sensor.
Covered
Vented
Dry off dishes so they don’t
mislead the sensor.
ABOUT THE FEATURES
12345
09876
EXPRESS COOKING
Start
Pause
Auto
49-2000650 Rev. 1 13
ENGLISH
Popcorn
To use the Popcorn feature:
1. Place the package of popcorn in the center of the
microwave.
2. Press POPCORN. The oven starts immediately.
Your popcorn bag may get stuck and stop rotating, but
this will not affect the cooking performance. Do not open
the door even if the bag is not rotating.
Using the vent function in combination with the popcorn
sensor feature may lead to over cooking.
Popcorn
How to Change the Automatic Settings
To reduce time by 10%:
Press 1 after the feature pad.
To add 10% to cooking time:
Press 9 after the feature pad.
If food is undercooked after the countdown, use Cook Time
for additional cooking time. We recommend 30 seconds and
watch carefully.
Reheat
The Reheat feature reheats servings of previously cooked
foods or a plate of leftovers.
1. Press REHEAT.
2. Using the cooking guide below, enter food code. For
example, 1 for Pasta.
3. Press START/PAUSE. The oven signals when steam is
sensed and the time remaining begins counting down.
Do not open the oven door until time is counting down. If
the door is opened before time is counting down 4 beeps are
emitted while the display will Scroll & Cycle “SENSOR ERROR
“ until CANCEL is pressed. The sensor cook will be cancelled
as well. If the Door is opened during the counting down, close
it and press START immediately.
Reheat
After removing food from the oven, stir, if possible, to
even out the temperature. If the food is not hot enough,
use Cook Time to reheat for more time. Reheated foods
may have wide variations in temperature. Some areas may
be extremely hot.
It is best to use Cook Time for these foods:
• Bread products.
• Foods that must be reheated covered.
• Foods that need to be stirred or rotated during reheating.
• Foods calling for a dry look or crisp surface after reheating.
How to Change the Automatic Settings
To reduce time by 10%:
Press 1 after the feature pad.
To add 10% to cooking time:
Press 9 after the feature pad.
Cooking Guide for Reheat Feature:
Code Entry Food
1 Pasta
2 Pizza
3 Plate
4 Soup
Potato
To use the Potato feature:
1. Place the potato in the center of the microwave.
2. Press POTATO.
The oven starts immediately.
Do not open the oven door until time is counting down. If
the door is opened before time is counting down 4 beeps are
emitted while the display will Scroll & Cycle “SENSOR ERROR
“ until CANCEL is pressed. The sensor cook will be cancelled
as well. If the Door is opened during the counting down, close
it and press START immediately.
Potato
How to Change the Automatic Settings
To reduce time by 10%:
Press 1 after the feature pad.
To add 10% to cooking time:
Press 9 after the feature pad.
ABOUT THE FEATURES
14 49-2000650 Rev. 1
ENGLISH
Term Definition
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:
• metal or foil touching the side of the oven.
• foil that is not molded to food (upturned edges act like antennas).
• metal such as twist-ties, poultry pins, gold-rimmed dishes.
• recycled paper towels containing small metal pieces.
Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or
covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When
microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on
poultry, which would cook before larger parts.
Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking
or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is
not placed on a cooling rack.
Venting After covering a dish with plastic wrap, vent the plastic wrap by turning back one corner so excess steam
can escape.
Microwave Terms
Steam Cook
Use the Steam Cook feature to steam certain
preprogrammed foods.
1. Press Steam Cook button.
2. Enter the food type code you wish to Steam Cook. See
Cooking Guide for Steam Cook below for codes or check
the display for food types.
3. Place steamer bowl with water, salt (if necessary), and food
in the microwave with the steam vents on the steamer
bowl in the OPEN position.
4. Press START button to being cooking.
NOTE: The NordicWare Rice Cooker/Steamer Bowl should
be used for best cooking results.
Cooking Guide for Steam Cook Feature
Code
Entry
Food Amount Entry
1 Rice 1 - 1 cup white
2 - 1 cup brown
2 Asparagus 1 - 1 cup
2 - 2 cups
3 Broccoli 1 - 1 cup
2 - 2 cups
4 Brussel
Sprouts
1 - 1 cup
2 - 2 cups
5 Carrots 1 - 1 cup
2 - 2 cups
6 Cauliflower 1 - 1 cup
2 - 2 cups
7 Zucchini 1 - 1 cup
2 - 2 cups
ABOUT THE FEATURES
12345
09876
EXPRESS COOKING
Start
Pause
Steam
49-2000650 Rev. 1 15
ENGLISH
Changing the Power Level
The power level may be entered or changed before or during
cooking. Power Level is set for Level 10 (High) unless it is
changed.
1. Press Power Level button.
2. Enter new power level by using the number pads or press
the Power Level button multiple times until you find the
level you want.
3. After you have selected the power level, wait five seconds.
The display will go back to the Cook Time screen.
4. Enter cooking time and press START.
OR
1. Press Cook Time button.
2. Enter your cooking time.
3. Press Power Level button.
4. Enter new power level by using the number pads or press
the Power Level button multiple times until you find the
level you want.
5. After you have selected the power level, wait five seconds.
The display will go back to the Cook Time (Enter Time)
screen.
6. Press START.
Variable power levels add flexibility to microwave cooking.
The power levels on the microwave oven can be compared
to the surface units on a range. Each power level gives you
microwave energy a certain percent of the time. Power
level 7 is microwave energy 70% of the time. Power level
3 is energy 30% of the time. Most cooking will be done on
High (power level 10) which gives you 100% power. Power
level 10 will cook faster but food may need more frequent
stirring, rotating or turning over. A lower setting will cook
more evenly and need less stirring or rotating of the food.
Some foods may have better flavor, texture or appearance
if one of the lower settings is used. Use a lower power level
when cooking foods that have a tendency to boil over, such
as scalloped potatoes and some casseroles.
Rest periods (when the microwave energy cycles off) give
time for the food to “equalize” or transfer heat to the inside
of the food. An example of this is shown with Power level
3—the defrost cycle. If microwave energy did not cycle off,
the outside of the food would cook before the inside was
defrosted.
Here are some examples of uses for various power levels:
High 10 (100%): Fish, bacon, vegetables, boiling liquids.
Med-High 7 (70%): Gentle cooking of meat and poultry;
baking casseroles and reheating.
Medium 5 (50%): Slow cooking and tenderizing for stews
and less tender cuts of meat.
Low 2 or 3 (20 or 30%): Defrosting; simmering; delicate
sauces.
Warm 1 (10%): Keeping food warm; softening butter.
NOTE: You can also change the power level during many
cooking modes by pressing the power level button entering a
valid power level.
ABOUT THE FEATURES
12345
09876
EXPRESS COOKING
Start
Pause
Level
16 49-2000650 Rev. 1
ENGLISH
Surface Light
Press SURFACE LIGHT once for high light, twice for low light
or a third time to turn the light off.
Start/Pause
In addition to starting many functions, START/PAUSE allows
you to stop cooking without opening the door or clearing the
display and resume cooking later.
Cancel/Off
Press the CANCEL/OFFåø÷÷òñ÷òö÷òóäñçæäñæèïæòòîìñê
at any time.
Control Lock-Out
You may lock the control panel to prevent the oven from
being accidentally started during cleaning or being used by
children.
To lock or unlock the controls, press and hold the LOCK
CONTROL button for three seconds. When the control panel
is locked, LOCKED will be displayed briefly anytime a button
or dial is pressed. “L” will show in the display.
Timer
NOTE: The Timer indicator will be lit while the timer is operating.
The Timer operates as a minute timer and can be used at any time,
even when the oven is operating.
1. Press the Timer button.
2. Enter a time.
3. Press the Timer button to start.
To cancel, press the Timer button.
When time is up, the oven will signal.
To turn off the timer signal, press Timer.
OTHER FEATURES
Start
Pause
Cancel
Off
Hold 3 Sec
Control
Light
Timer
49-2000650 Rev. 1 17
ENGLISH
Display
If you have the Timer counting down and you are using the
Cook Time at the same time, you can change the display to
show either the timer or the cook time countdown.
If the display shows the time for the
Timer and you would like to view the
Cook Time, press the COOK TIME
button.
If the display shows the time for the
Cook Time and you would like to view the Timer, press the
TIMER button
Steam Clean
1. Press the Steam Clean button.
2. Put steam bowl with 1/4 cup of water.
3. Press the dial or Start/Pause to start.
Once the cycle is terminated, wipe oven cavity with paper towel
or cloth.
Clean
Vent Fan
The vent fan removes steam and other vapors from surface
cooking.
Press Vent Fan once for high fan speed, twice for low fan
speed, three times to turn the fan off
Automatic Fan
An automatic fan feature protects the microwave from too
much heat rising from the cooktop below it. It automatically
turns on if it senses too much heat.
If you have turned the fan on you may find that you cannot
turn it off. The fan will automatically turn off when the
internal parts are cool. It may stay on for 30 minutes or more
after the cooktop and microwave controls are turned off.
Vent
Insert Food Reminder
A reminder will show on the display if the user tries to start
the cooking cycle without placing food inside the microwave
oven within 5 minutes prior to starting the cooking cycle.
Cooking Complete Reminder
To remind you that you have food in the oven, the oven
will display “Food is ready” and beep once a minute until
you either open the oven door or press the CANCEL/OFF
button.
OTHER FEATURES
18 49-2000650 Rev. 1
ENGLISH
Settings
Settings allow to change the default settings of your OTR.
1. Press the Settings pad. “SELECT SETTING ITEM
3- BEEPER VOLUME
2- CLOCK MODE
1- CLOCK SETTING
5- DISPLAY ON/OFF
4- TURN TABLE
6- REMOTE ENABLE
7- EXIT
2. Select the item to change the settings. See below tables for detail
Guide
Settings
Code Entry Items for setting Level Entry
3 Beeper Volume 0 - Mute
1 - Low
2 - Normal
3 - Loud
Default is normal
2 Clock Mode 0 - 12 hours
1 - 24 hours
Default is 12 hours
1 CLOCK Setting Entry valid number for setting clock time
5 Display On/Off 0 - OFF
1 - ON
default setting is ON
4 Turntable On/Off 0 - OFF
1 - ON
default setting is ON
6 Remote Enable: Remote Enable On/Off feature could enable you to start the microwave
from a remote source or avoid you unintendedly to control your microwave remotely.
For turn on/off this feature please press “Settings” button on the control panel then
press “9” to select this feature then press “1” for On and “0” for Off function.
0-OFF
1-ON
Default is off
7 Setting Exit 1 - EXIT
OTHER FEATURES
49-2000650 Rev. 1 19
ENGLISH
Reset Filter
The red LED indicator will light every 6 months as a reminder
to replace the charcoal filter.
After replacing the charcoal filters, Hold the Rest Filter for 3
seconds to turn off the Red LED indicator.
Filter
Hold 3 Sec
Charcoal Filter
The charcoal filter cannot be cleaned. It must be replaced.
Order Part No. WB02X11550 from your Haier supplier.
If the model is not vented to the outside, the air will be
recirculated through a disposable charcoal filter that helps
remove smoke and odors.
The charcoal filter should be replaced when the red LED
indicator lights under the Reset Filter pad. See “Optional
Kits,” page 8, for more information.
To Remove The Charcoal Filter
To remove the charcoal filter, first disconnect power at
the main fuse or circuit breaker, or pull the plug. Open the
microwave oven door and push the “Push” area on charcoal
filter cover at center of the grille. Press back on the top of
the filter with both hands until the filter lays down almost
horizontal. Lift the filter at the bottom until it comes free of
the tabs. Slide the filter down and out.
To Install the Charcoal Filter
To install a new charcoal filter, remove plastic and other
outer wrapping from the new filter.
Insert the top of the filter up and into the grooves on both
sides of the inside of the top opening. Once you have cleared
the bottom tab, push the bottom of the filter in until it rests
in place vertically behind the tab.
Close the charcoal filter cover at center of the grille by
pushing the “Push” area again.
Filter (dashed to show
details of grooves)
Bottom Tab
Grooves in
Microwave for
Filter on Each Side
OTHER FEATURES
20 49-2000650 Rev. 1
ENGLISH
Connecting your WiFi Connect enabled microwave oven (on some models)
Your Haier Appliances microwave oven is designed to provide you with two-way communication between your appliance
and smart device. By using the Haier Appliances WiFi Connect features, you will be able to control essential operations such as turning on
and off your microwave, convenience features, cook time, timers using your smartphone, tablet or voice control device.
What you will need:
1. Know the password of your home WiFi router.
2. Download the
Haier
Appliances Kitchen App to your smart
device.
3. Follow the app on-screen instructions
to connect your
Haier
microwave.
For further instructions, visit:
Haierappliances.com/connect
Remote Enable is a feature that allows you to start the
microwave from a remote source such as the Haier
Appliances Kitchen App or Voice Commands from Amazon
Alexa or Google Assistant.
When the Remote Enable feature is off, you will still receive
messages from your microwave, you can turn off the
microwave, or you can use the timer and clock from your
smart device.
When the Remote Enable feature is on, you need to have
opened the microwave door within the last 5 minutes. The 5
minute restriction is to help ensure food is in the microwave
before starting the cooking cycle.
To turn this feature on/off select the
Settings button on the control panel
and then press “6” to select this
feature. Press “1” for Remote Enable
On and “0” for Remote Enable Off.
WiFi CONNECT
REMOTE ENABLE ON/OFF FEATURE
REMOTE ENABLE EQUIPMENT
Hold 3 Sec
Connect
Settings
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
The wireless communication equipment installed on this microwave has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to:
(a) provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
(b) accept any interference received, including interference
that may cause undesired operation of the device.
NOTE: Any changes or modifications to the wireless
communication device installed on this oven that are not
expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
RF Exposure - This device is only authorized for use in a
mobile application. At least 20 cm of separation distance
between the transmitting antenna device and the user’s
body must be maintained at all times.
49-2000650 Rev. 1 21
ENGLISH

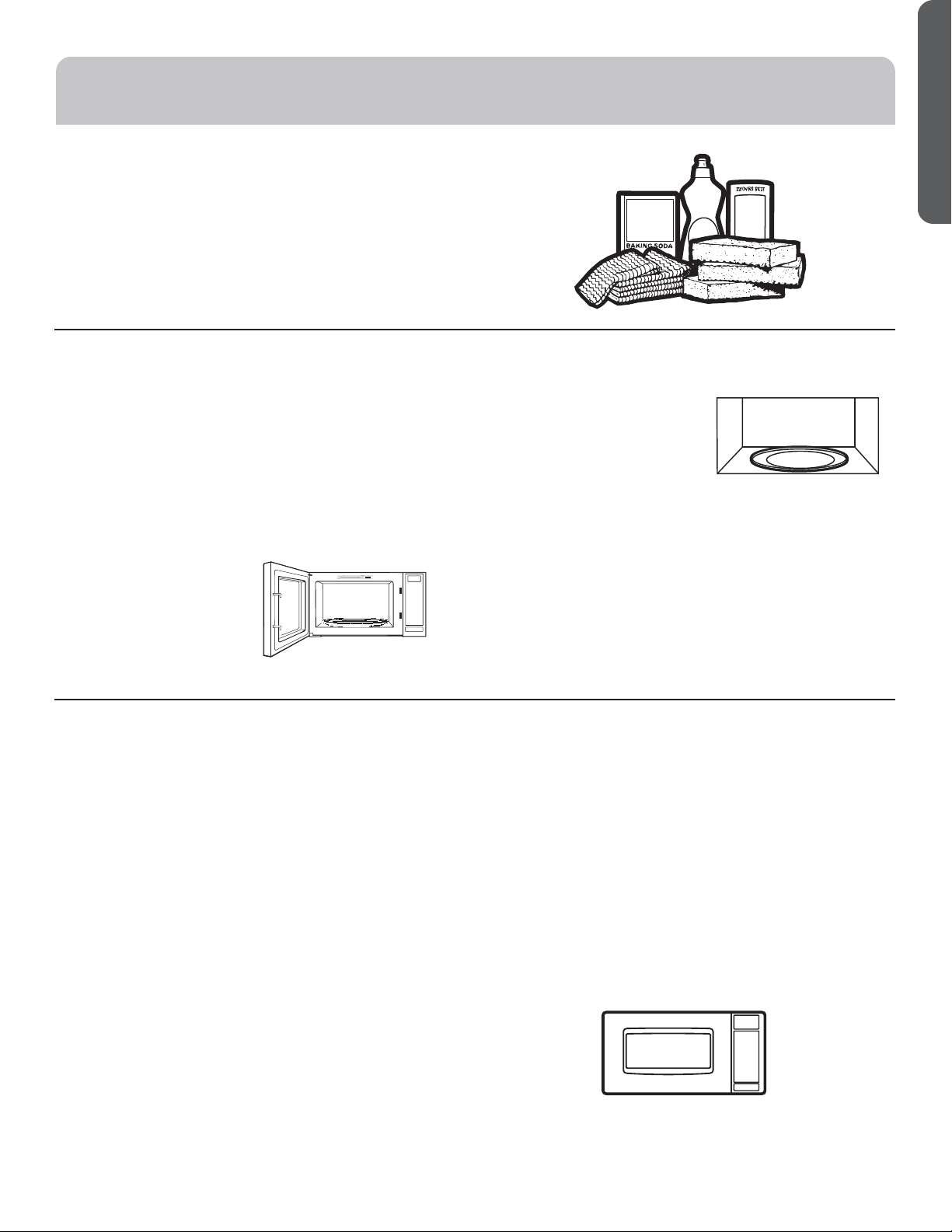

How to Clean the Outside
Do not use cleaners containing ammonia or alcohol on
the microwave oven. Ammonia or alcohol can damage the
appearance of the microwave.
Case
Clean the outside of the microwave with a sudsy cloth. Rinse
with a damp cloth and then dry. Wipe the window clean with a
damp cloth.
Control Panel and Door
Wipe with a damp cloth. Dry thoroughly. Do not use cleaning
sprays, large amounts of soap and water, abrasives or sharp
objects on the panel—they can damage it. Some paper
towels can also scratch the control panel.
Door Surface
It is important to keep the area clean where the door
seals against the microwave. Use only mild, non-abrasive
detergents applied with a clean sponge or soft cloth. Rinse
well.
Power Cord
If the cord becomes soiled, unplug and wash with a damp
cloth. For stubborn spots, sudsy water may be used, but be
certain to rinse with a damp cloth and dry thoroughly before
plugging cord into outlet.
Stainless Steel (on some models)
Do not use a steel-wood pad; it will scratch the surface.
To clean the stainless steel surface, use a hot, damp cloth
with a mild detergent suitable
for stainless steel surfaces. Use a clean, hot, damp cloth to
remove soap. Dry with a dry, clean cloth. Always scrub lightly
in the direction of the grain.
Helpful Hints
An occasional thorough wiping with a solution of baking soda
and water keeps the inside fresh.
Be certain the oven control is turned off before cleaning
any part of this oven.
How to Clean the Inside
Walls, Floor, Inside Window, Metal and Plastic Parts on the
Door
Some spatters can be removed with a paper towel; others
may require a damp cloth. Remove greasy spatters with
a sudsy cloth, then rinse with a damp cloth. Do not use
abrasive cleaners or sharp utensils on oven walls.
To clean the surface of the door and the surface of the oven
that come together upon closing, use only mild, nonabrasive
soaps or detergents using a sponge or soft cloth. Rinse with
a damp cloth and dry.
Never use a commercial oven
cleaner on any part of your
microwave.
Removable Turntable and
Turntable Support
To prevent breakage, do not
place the turntable into water
just after cooking. Wash it
carefully in warm, sudsy water or
in the dishwasher. The turntable and support can be broken
if dropped. Remember, do not operate the oven in the
microwave mode without the turntable and support seated
and in place.
CARE AND CLEANING
22 49-2000650 Rev. 1
ENGLISH
CARE AND CLEANING
Removing and Cleaning the Filters
To remove, slide them to the rear using the tabs. Pull down
and out.
To clean the vent filters, soak them and then swish around
in hot water and detergent. Don’t use ammonia or ammonia
products because they will darken the metal. Light brushing
can be used to remove embedded dirt.
Rinse, shake and let dry before replacing.
To replace, slide the filters into the frame slots on the back of
each opening. Press up and to the front to lock into place.
Cooktop Lights/Nite Lights
Replace with DC12 volt, 1.2 watt LED lights. Order
WB25X33469 from your Haier supplier.
1. To replace the cooktop lights/nite lights, first disconnect
the power at the main fuse or circuit breaker panel, or
pull the plug.
2. One side at a time, remove the screw from the side of the
light compartment cover and lower the cover until it stops.
3. Be sure the LED light is cool before removing. Gently
remove the LED wiring connector from LED board.
4. Replace with the new LED board and insert the wiring
plug, then raise the light cover and replace the screw.
Repeat for the other light. Connect electrical power to
the oven.
Remove screws.
Vent Fan
The vent fan has two metal reusable vent filters.
Models that recirculate air back into the room also use a
charcoal filter.
Reusable Vent Filters
The metal filters trap grease released by foods on the
cooktop. They also prevent flames from foods on the
cooktop from damaging the inside of the oven.
For this reason, the filters must always be in place when
the hood is used. The vent filters should be cleaned once
a month, or as needed.
Reusable vent filters
(on all models).
Charcoal filter
(on some models).
Replacing the Oven Cavity Lamp
1. Disconnect power at the main fuse or circuit breaker
panel.
2. Press the charcaol access door at the top to open.
3. Remove charcoal filter if present. NOTE: Charcoal filter
is an optional kit, you may not have one.
4. Press the retainer holding the lamp shield in place.
5. Pull the lamp shield out. Unscrew the LED light out and
replace with the new LED board. Order WB25X33469
from your Haier supplier.
6. Return the lamp and lamp shield to original position and
replace charcoal filter.
7. Reconnect power to the oven.
49-2000650 Rev. 1 23
ENGLISH
Things That Are Normal With Your Microwave Oven
• Steam or vapor escaping from around the door.
• Light reflection around door or outer case.
• Dimming oven light and change in the blower sound at
power levels other than high.
• Dull thumping sound while oven is operating.
• TV-radio interference might be noticed while using the
microwave. Similar to the interference caused by other
small appliances, it does not indicate a problem with the
microwave. Plug the microwave into a different electrical
circuit, move the radio or TV as far away from the
microwave as possible or check the position and signal of
the TV/radio antenna.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE
STATEMENT (U.S.A. ONLY)
This equipment generates and uses ISM frequency energy
and if not installed and used properly, that is in strict
accordance with the manufacturer’s instructions, may
cause interference to radio and television reception. It has
been type tested and found to comply with limits for ISM
Equipment pursuant to part 18 of FCC Rules, which are
designed to part 18 of FCC Rules, which are designed to
provide residential installation.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the following:
• Reorient the receiving antenna of the radio or television.
• Relocate the Microwave Oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that the
microwave oven and the receiver are on different branch
codes.
The manufacturer is not responsible for any radio of TV
interference caused by unauthorized modification to this
microwave oven. It is the responsibility of the user to correct
such interference.
TROUBLESHOOTING
24 49-2000650 Rev. 1
ENGLISH
Save time and money! Review the charts on the following pages first and you may not need to schedule service.
For more information on troubleshooting, visit us at Haierappliances.com/support/microwaves.
Problem Possible Causes What To Do
Oven will not start A fuse in your home may be blown or the
circuit breaker tripped.
Replace fuse or reset circuit breaker.
Power surge. Unplug the microwave oven, then plug it back in.
Plug not fully inserted into wall outlet. Make sure the 3-prong plug on the oven is fully
inserted into wall outlet.
Door not securely closed. Open the door and close securely.
Control panel lighted,
yet oven will not start
Door not securely closed. Open the door and close securely.
START button not pressed after entering
cooking selection.
Press START.
Another selection entered already in oven
and OFF/CLEAR button not pressed to cancel
it.
Press OFF/CLEAR.
Cooking time not entered after pressing
TIME COOK.
Make sure you have entered cooking time after
pressing ÝÒÖÎÌØØÔ.
ØÏϦÌÕÎÊÛúäöóõèööèçäææìçèñ÷äïïü Reset cooking program and press START.
Food weight not entered after selecting
ÊÞÝØÍÎÏÛØÜÝ
Make sure you have entered food weight after
selecting AUTO DEFROST.
Food type not entered after pressing COOK. Make sure you have entered a food type.
ÌØ×ÝÛØÕÕØÌÔÎÍ
appears on display
The control has been locked. Press and hold OFF/CLEAR for about 3 seconds to
unlock the control.
HOT appears on
display
The temperature inside the oven is greater
than 200°F.
This is normal.
One of the sensor cooking pads was pressed
when the temperature inside the oven was
greater than 200°F.
These features will not operate when the oven is hot.
TROUBLESHOOTING
49-2000650 Rev. 1 25
ENGLISH
NOTES
26 49-2000650 Rev. 1
ENGLISH
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
Haierappliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule
service online, visit us at Haierappliances.com/support/schedule-service, or call Haier at 1-877-470-9174. Please have your
serial number and your model number available when calling for service.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a Haier factory service
technician the ability to quickly diagnose any issues with your appliance and helps Haier improve its products by providing
Haier with information on your appliance. If you do not want your appliance data to be sent to Haier, please advise your
technician not to submit the data to Haier at the time of service.
What
Haier
will not cover:
• Service trips to your home to teach you how to use the
product.
• Improper installation, delivery or maintenance. If you
have an installation problem, contact your dealer or
installer. You are responsible for providing adequate
electrical,exhausting, and other connecting facilities.
• Failure of the product or damage to the product if it is
abused, misused (for example, cavity arcing from wire rack
or metal/foil), or used for other than the intended purpose
or used commercially.
• Replacement of house fuses or resetting of circuit
breakers.
• Damage to the product caused by accident, fire, floods, or
acts of God.
•
Damage to finish, such as surface rust, tarnish, or small
blemishes not reported within 48 hours of delivery.
• Incidental or consequential damage caused by possible
defects with this appliance.
• Damage caused after delivery.
• Product not accessible to provide required service.
• Service to repair or replace light bulbs, except for LED lamps.
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within the USA. If the product is located in an area where service by a Haier Authorized Servicer is not available, you may be
responsible for a trip charge or you may be required to bring the product to an Authorized Haier Service location for service. In
Alaska, the limited warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights
are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
Louisville, KY 40225
For the period of
Haier
will replace
One year
From the date of the
original purchase
Haier
will choose to replace or service the defective unit. In the event of service,
Haier
will provide
any part of the microwave oven which fails due to a defect in materials or workmanship. During this
limited one-year warranty, Haier will also provide, free of charge, all labor and related service costs
to replace the defective part when the unit is serviced.
HAIER MICROWAVE OVEN LIMITED WARRANTY
Extended Warranties: Purchase a Haier extended warranty and learn about special discounts that are available while your
warranty is still in effect. You can purchase it online anytime at:
Haierappliances.com/extended-warranty
Haier Service will still be there after your warranty expires.
