• Page 1 - English - : Washing Machine OWNERS MANUAL Before using your washing machine please read this manual carefully and keep it for future reference Read This Manual Inside you will find many helpful hints on how to use and maintain your washing machine properly Just a little preventative care on your part can save you a great deal of time and money over the life of your washing machine Youll find many answers to common problems in the chart of troubleshooting tips If you review the chart of Troubleshooting Tips first you may not need to call for service MODELTL6Kg

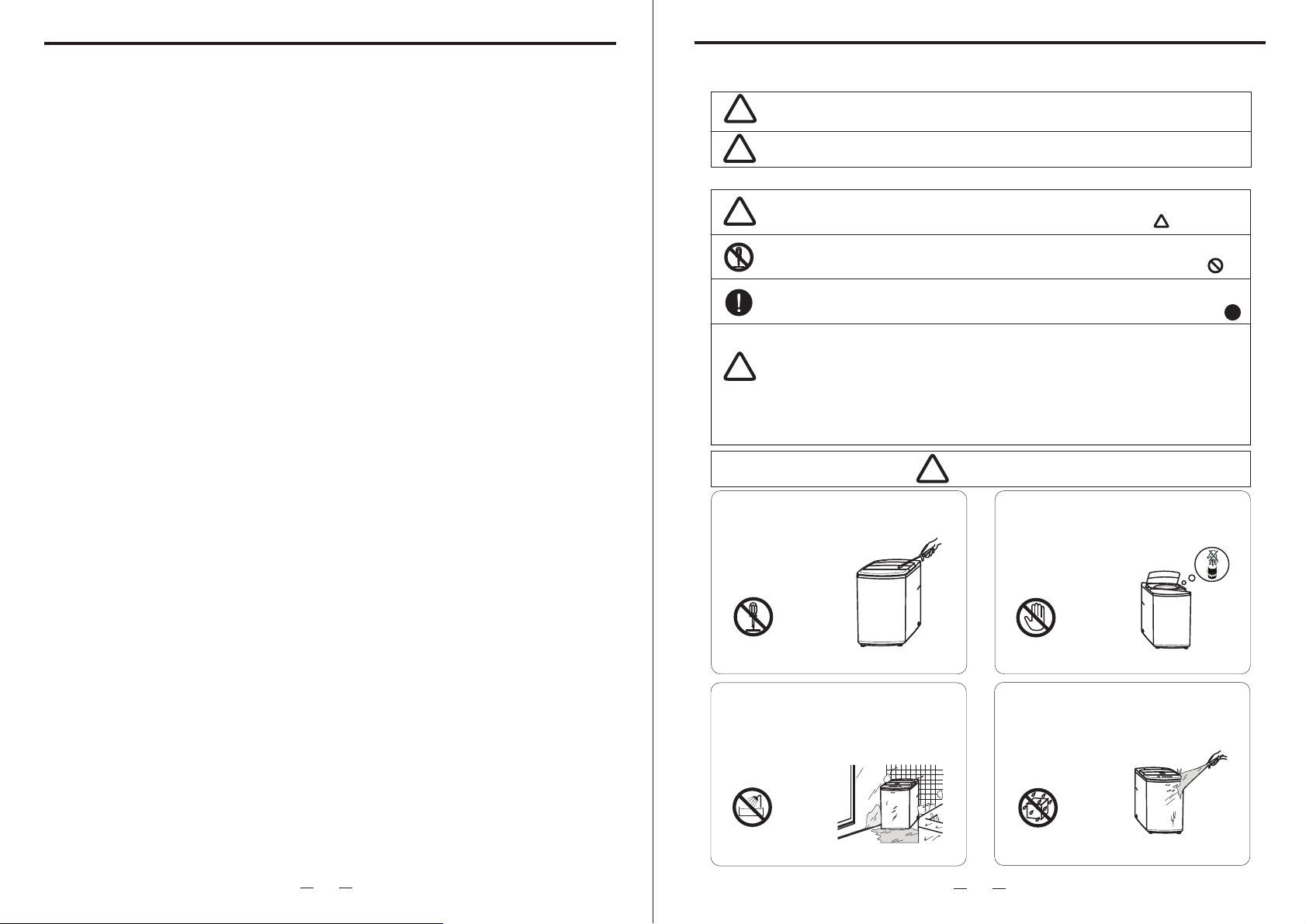

• Page 2 - English - : Notes Contents Safety and precautions Installation of the washer Preparation before washing Parts identification of the washer Instruction of the washer operation panel Quick start The main wash Special features About the procedure of full automatic wash program Cleaning and Maintenance of the washing machine Identify usual trouble of washer Malfunction display and solutions Technical specifications Safety and precautions Please do not directly rinse the machine with water when cleaning Please do not install the machine in damp and raining environment to avoid electric shocking catching fire faults and distortion accidents No dampness No rinsing 小天鹅 小天鹅 Observe the following items in order to prevent from injuring yourself others and the damage of property Please observe following contents of graphics Warning Caution This indicates serious injury or death to human being may be caused This will remind you that injury to people and damage to property may occur This graphics represents operation prohibited and detailed prohibitive items will be displayed inside the graphics This graphics representscause attentionand detailed cautions will be displayed inside the graphics This graphic represents forcible execution and detailed forcible execution items will be displayed inside the graphics Warning No dismantling No touching Please do not disassembly and assembly the machine without authorization Please do not insert your hand and take out clothes inside the spin barrel before it is fully stopped This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack knowledge unless they have been of experience and given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance
• Page 3 - English - : Please do not let children climb the machine or peer into the rotating spin barrel to avoid accidents It is prohibited to wash the clothes touching with kerosene gasoline alcohol and other flammable materials Please do not damage power flexible cord and power plug to avoid electric shocking short circuit and catching fire Regularly clean the power plug to remove dust and dirt to avoid contact failure Please pull out plug from the socket if the machine is not in use Please well connect the earth line of socket to avoid electric shocking by accidental leakage earthing Please insert the power plug tightly 小天鹅 Prohibited Prohibited Prohibited Smoke and fire prohibited Earthing Pull out the plug Warning Please do not place on the washer burning candle mosquitorepellent incense cigarette and other flammable things as well as electric stove air heating fan and other heating sources Please use correct power source Please do not pull out or insert the plug with wet hands to avoid electric shocking Please ensure that the water inlet pipe is connected and the tap is opened before washing clothes Customers are not allowed to change the power line without permission It is strictly prohibited to place children or lay weights on the washer Please do not pull the electric cord when pulling out the plug Please do not wash down jacket raincoat fishing coat and similar clothes in the washer Wet hands are prohibited 小天鹅 gt50 C 小天鹅 The water temperature shall not exceed 50 when washing with warm water Prohibited Prohibited Prohibited Prohibited Caution
• Page 4 - English - : Remove package Installation of drain hose Remove package and take out the bottom board of the cabinet on the foam cover Open the lid of washers door and take out accessories A trial operation or washing on the foamed cushion is strictly forbidden Completely sleeve the drain hose over the sewer Fix and tighten it with a hoop As shown in the figure Base foamed cushion FOR LOWER DRAIN SYSTEM ONLY Placement of water drain hose Under3m Under 15cm If the water drain hose shall be extended its length shall not exceed 3 meters otherwise it will affect the water discharging time The placed height of water drain hose shall not exceed 15cm Do not bend the water drain hose and place it under the washer The height of drain hose ashould between 86100 cm Diameter of bshuld not less than 3 cm and flow capacity not less than 40 LMin FOR UPPER DRAIN SYSTEM ONLY 86100 cm Placement of upper water drain hose Installation of water inlet pipe Before washing machine starts user should hang up the drain pipe 86100cm height from the floor Put the water inlet pipewhich has metallic filtering bag screw on to the tap Tightly screw another end of water inlet hose on water inlet valve with rubber seal ring inside Note When tightening the clamping nut evenly apply the force and do not twist the water inlet valve to avoid breaking of water inlet valve joint Water inlet hose Clamping nut Only for model with double screw thread water inlet pipe Installation of the washer Installation of the washer Clamping nut Water inlet hose Small ball Junk ring Connect Push down the slide jacket of speedy connector 4 small balls must be exposed insert it into the connection socket and then push upward Release the connection of water tap with speedy connector completely If it is required to feed water simply open the water tap Separate Close the water tap push down the slide jacket of speedy connector and pull out the speedy connector Unscrew four screws of part A and sleeve part A horizontally over the mouth at the end of water tap the mouth at the end of water tap must be flat and smooth Flatten it by filing if it is not flat and push it upward with force making the rubber washer firmly press the plane center of water tap mouth Then tighten the screw sequentially After that tightly screw on part B Connect Separate The connection socket consists of A and B two parts Before installation A and B two parts must be unscrewed about 5mm or directly disconnected If the bore of water tap is larger remove the plastic junk ring of part A Push down the slide jacket to expose the small balls and enable separation of connector socket from speedy connector 5mm A B Installation of water inlet pipe Tightly screw another end of water inlet hose on water inlet valve with rubber seal ring inside Note When tightening the clamping nut evenly apply the force and do not twist the water inlet valve to avoid breaking of water inlet valve joint Only for model with single screw thread water inlet pipe If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard The instructions for appliances connected to the water mains by detachable hosesets shall state that the new hosesets supplied with the appliance are to be used and that old hosesets should not be reusedThe openings must not be obstructed by a carpetThis appliance is for indoor use only
• Page 5 - English - : Preparation before washing Before washing please do take out coins keys and other hard goods and zip up clothes and barrel from damage NOTICE Adjust the adjustable foot to make the washer be placed stable Adjustable foot extend when clockwise rotating and shorten when counterclockwise rotating Slightly incline the washer first and loosen the adjustable foot knob Adjust the adjustable foot so as to ensure four corners of washer be steadily contacted with the ground Then tighten the adjustable foot knob and lock it If the ground is obviously not flat correction should be made on the ground surface otherwise the washer barrel will incline and knock the cabinet Connect with to power source Put down the drain house Gravity drain Upper drain Note The water will overflow when the height of the drain hose under 860mm gt860mm Put in clothes and suitable amount of washing powder Install the water inlet hose For one inlet hose For two inlet hoses Parts identification of the washer tightly to prevent them Turn on the water supply Accessories Water inlet hose assembly Base cover Only for lower drain hose Fixing ring 1 is used for the fixing in time of the installation of the lower drain hose Universal connector Water inlet hose assembly Selftapping screw Only for models including base cover Only for model with double screw thread water inlet pipe Only for model with single screw thread water inlet pipe Please refer to the real material as the attachment Adjustable foot knob frame Top lid Cabinet Handle Drain hose For lower drain only Upper drain hose For upper drain only Control panel Power line
• Page 6: Instruction of the washer operation panel 1 2 Warm Cold Normal Heavy Hot Rinse Spin Wash Quick Antiwrinkle Air dry Jeans Heavy Normal
• Page 7 - English - : The wash stops Programme selection 1 Install the washing machine 3 measure out the detergent 7 Plug the power supply 8 Select the desired programme 5 Put down hang up the drain pipe 4 Close the machine door 9 Press the startpause key When the wash stops the buzzer will buzz continuously for 6 times and then the power will be automatically cut off Turn off the water tap Although the power can be cut off automatically the power plug must be pull out for the safety Press the POWER button press the startpause key Select the proper water level and other attached functions 2 Load the laundry Instruction of the Heavy program Instruction to single wash procedure Steps in details 1Press the power switch 2According to the washing amount choose the proper water level 3Press STARTPAUSE button Close the lid of the door when machine is running otherwise it will automatically stop working during spin process and send out abnormal warning The washer will not work when the filled water does not reach the set water level 1Heavy wash program is the easiest most convenient and most common washing program When the user press the power switch and then press StartPause button the heavy washing program will start to work 2When the washer start to work the digital tube show the remain time 1User may freely select any single procedure or any combination of procedures among WASH RINSE and SPIN according to the actual requirements It is only required to turn off any one or two of these three indicators that not needed by the user And keep the indicator be on showing the process needed by the user 2Single wash after switching on the power turn off RINSE and SPIN two indicators by pressing these two keys The operation for single rinse and single spin is similar 3Single washspin after switching on the power turn off RINSE indicator by pressing that key The operation for single rinsespin and single washrinse is similar NOTICE Quick start The main wash Use the cleaning solution for twice 1 Put the laundry in the first batch and wash powder and press Function button to set single wash to run 2 Take out the laundry in the first batch after hearing the buzzing sound 3 put in the laundry in the second batch and run Wash Rinse Spin 4 Take out the laundry in the second batch after hearing the buzzing sound 5 Put in the laundry in the first batch and press Function button to run Rinse and Spin 6 Turn on water supply
• Page 8 - English - : Special features Delay time means the preset beginning time of washing 2Open the tap and lay the drain hose 3Put in the laundry and detergent Delay time program Confirmation of the delay and inspection 1 After the delay function is started the corresponding delay light will flash and other lights are turned off 2 After the delay function is started press Delay button continuously you may inspect the preset program and function Loose the button the program return to delay status Cancel the delay time or alternate the delay time 2 To change the delay time cancel the delay time first and then press Delay button to reset 1Switch on the power 4Select the propre water level according to the quantity of clothes 5Select the functions and programs 6Press DELAY button to select the beginning time of washing 7close the lid and press STARTPAUSE button 1 Press Power button to cancel the delay time Press t he DELAY b utton e ach t ime the n umber o n the d igital i ndication adds b y 1 After the n umber reaches 24press t he DELAYbutton each t ime t he n umber a dds b y 6 After t he number reaches 4 8 t he l ight of delay t ime i s turned o ff and t he delay p rogram return to original status Special features 1 If the machine do not start to work within 10 minutes after powered on it will power off automatically 2 After end of operation and the buzzer sounding 6 times it will power off automatically Function of automatic power shut off Function of adjusting for imbalance 1 If the laundry is placed uneven before spinning it is likely to cause vibration during spinning The washing machine has a function of adjusting imbalance When workingthe washing machine always inspects operation state automatically If the spinning vibration is too great the washing machine automatically starts the adjusting program to balance 2 When the machine adjusts imbalance rinse light will flash and the machine will start to inject water to set water level The machine adjusts imbalance automatically for about 1 minute then drains water returns to original spinning state If the washing machine can adjust the imbalance twice If the adjustment has no function it will alarm Fuzzy control function Standard procedures default implementation fuzzy control function After startup such as water level before starting the keys will be cancelled automatically according to the fuzzy control functions In addition the fuzzy measure before if there is no water tub fuzzy measurement the water level directly as the default file namely 6 gear levels Fuzzy control function is at boot automatically after the determination of cloth is measured decide the water level In fuzzy testing process water circulation flashing lights display digital pipe display quotquot Power failure memory function If the power supply becomes off suddenly during operation the machine remembers the current operation stateWhen power is onthe machine returns to former operation state automatically Press the Function and water levelat the same time to lock buttons on control panelPress the Function and water levelat the same time again to unlock buttons Child lock Jeans High wash ability suitable to wash heavy or serious stained clothes Quick Wash time is short Suitable to wash light stained clothes and clothes in summer Air dry As for not easily fadingdeforming and nonwaterproof clothes can use the function to dry clothes without heating and to reach the result of being dried in a room Antiwrinkle The wash time is shortrinses many time with high water levelthoroughly wash away the garment Heavy Delicate wash especially for heavy fabrics
• Page 9 - English - : About the procedure of full automatic wash program Cleaning and Maintenance of the washing machine If the drain filter is not cleaned at proper time every 10 times of useDrain problem could be caused Notes End of program The washing machine will send off the sound of doudou at the end of any program operation to remind you to take out the laundry or operate it again After the sound the washing machine returns to its poweroff state with no display and all lights off Please shut off the tap pull out the plug when not in use to avoid water leakage or the fire accidents quot quot Maintenance Use gentle clothing to wipe off the water and dirt on the surface each time after using the washing machine Detergent propellant and other chemicals are not allowed to use so as to avoid any damage to the plastic accessories Clean the water inlet Clean the lint filter in the drain pump only for having drain filter 1 Drain the water out of the pumpunder which use a container to collect 2 Loosen the pump cover anticlockwise 3 Take out the lint filter 4 Clean the filter 5 Restore it and adjust the convex place to align at the pump hole 6 Tighten the pump cover clockwise Clean Of the filter After long time use the water inlet mesh bag may be blocked with smudginess and should be cleaned according to the following steps 1 Switch on the power followed by shutting off the tap 2 Let the washer works for 5 seconds so that water flows into the tub through the water inlet hose then turn off the power 3 Unload the water inlet hose and clean the mesh bag then restore the water inlet assembly After using the washing machine for a period please clean it according to the following steps 1 Take out the lint filter 2Open the filter and wash it clean in the water 3 Restore it and fix it After using the washing machine for a period clean it according to the following steps 1 Take off the lint filter 2 Turn over the mesh bag and wash it clean in the water 3 Restore and fix it only for magic filter only for normal filter 87 minutes 48 minutes one time 14 minutes Heavy 44 minutes
• Page 10 - English - : No washing Abnormal draining Abnormal spin Identify usual trouble of washer List of faults and inspection Faults Inspection Items No water flows in If the power is off or the fuse is burned out If the water supply is cut off or the water pressure is too low If the inlet hose is properly connected and the water tap is opened If the filtering screen of inlet valve is blocked by dirt If the coil of inlet valve is damaged The slight electromagnetic sound is normal phenomenon when the inlet valve is switched on If the quotStart Pausequot button is pressed after the power switch is pressed If the door lid is closed If all clothing piled largely at one side of barrel or the clothing is excessively placed If the washer is not placed in stable condition or it is placed in inclination state The ground is not flat If the motor belt is loosened Note During the de spin process if washing are piled at one side of the spin barrel it will cause unbalance of spin barrel resulting in striking At this moment the computer inside the washer will feel this unbalance phenomenon and will automatically correct it fill in water Washing However if unbalance situation is not removed after continuous three corrections which means the computer autocorrection can not resolve the problem Then the user has to manually and evenly place the clothing inside the barrel to solve the problem When the washer is in trouble please contact local service office or the sales service department of our company and the customer should not dismantle the machine without permission If the washer can not work normally or appear abnormity or alarms please check and correct as follows If the water drain hose is placed very high If the end of water drain hose is sealed in pond If the internal rubber ring of drain valve is blocked by dirt If the power is off or the fuse is burned out If the power supply voltage is too low If the water amount reaches to the required water level The washer will not work if the water amount does not reach the required water level If it is set to quotDelayquot washing mode It will only start to work until the reservation time reached Malfunction display and solutions When the washer is in trouble please contact local service office or the sales service department of our company and the customer should not dismantle the machine without permission If the washer can not work normally and the abnormal indication is shown in the nixie tube window or the machine alarms please check and correct them as follows Alarm for water drain time out Technical specifications Weight of the product Maximum water pressure permitted in the water inlet Minimum water pressure permitted in the water inlet 36Kg 60kg dry clothes 50Hz 240V 06Mpa 01Mpa 545x560x940mm 560W Size Rated input power Rated voltage Rated frequency Rated capacity of wash and spinning
