58,000 Btu/h
D.805.000.V0
Model number FMPPC2H-805
® Registered trademark of FMI Brands Inc.
The OUTLAND flame is a registered trademark of FMI Brands Inc.
Owner’s
Manual
®
From the Backyard to the Backwoods
®
FIRECUBE
®
Owner & Safety Manual
D.805.000.V0
En -1
OUTLAND FIRECUBE
®
OWNER & SAFETY MANUAL
Model number FMPPC2H-805 - Tested by CSA International
ANS Z21.97-2017/CSA 2.41-2017 Outdoor Decorative Gas Appliances.
DANGER:
If you smell gas:
1 Shut off gas to the appliance.
2 Extinguish any open flame.
3 If odor continues, leave the area immediately.
4 After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING:
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
WARNING: For outdoor use only.
Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car, or home.
En-2
1-888-514-1663 | WWW.OUTLANDLIVING.COM
GAS SAFETY:
a. Do not store a spare gas cylinder under or near this appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in “(a)” and “(b)” is not followed exactly, a
fire causing death or serious injury may occur.
Do not use this appliance under overhead combustible surfaces.
MINIMUM CLEARANCES:
• Bottom: Non-Combustible Surface
• Top: 2 m / 80 in
• Sides: 0.9 m / 36 in
• For Installation on (or over) non-combustible floors only.
Input: 58,000 Btu/h (17 kW) and manifold pressure:
11 in wc (2.74 kPa)
Min. gas supply for input adj.: 11 in wc (2.74 kPa)
Max. gas supply: 11 in wc (2.74 kPa)
Injector Size* 2.35mm
* Injector size marked clearly on the gas valve orifice.
Type of Gas: Propane (LP)
This appliance shall be used only outdoors in a well-ventilated
space and shall not be used in a building, garage or any other
enclosed area.
The gas supply must be turned off at the LP-gas supply cylinder
when this appliance is not in use.
Indoor storage of this appliance is permissible only if the cylinder
is disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well-ventilated area out of
the reach of children.
Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage or any other
enclosed area.
The gas pressure regulator provided with this appliance must be
used, and must be the same model as supplied with the unit.
The cylinder supply system must be arranged for vapor
withdrawal.
Cylinders used with this unit must have a collar to protect the
cylinder valve.
An approved LP-Cylinder stabilizer, such as the stabilizer ring
included, must be used when the appliance is in use.
Replacement parts and a list of such parts are available from
FMI Brands Inc. through the contact information provided on the
last page of this Manual.
WARNING:
Please ensure that all adults and children which use or are
near a unit in use are aware of the hazard of high-surface
temperatures present on the unit during use and should use
caution and stay away to avoid burns or clothing ignition.
Carefully supervise young children in the area of this
appliance. Clothing or other flammable materials should
not be hung from the appliance or placed on or near the
appliance. Any guard or other protective device removed for
servicing the appliance must be replaced prior to operating
the appliance.
Installation and repair should be done by a qualified service
person. The appliance should be inspected before use and
at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative
that control compartment, burners and circulating air
passageways of the appliance be kept clean.
All LP cylinders to be used with this appliance must be:
a. Constructed and marked in accordance with the U.S.
Department of Transportation (DOT) Specifications for LP-Gas
Cylinders, or the Standard for Cylinders, Spheres and Tubes
for Transportation of Dangerous Goods, CAN/CSA B339, as
applicable.
b. Provided with a listed overfilling prevention device.
c. Provided with a cylinder connection device compatible with
the connection for the appliance.
d. Only a 9 kg / 20 lb LP gas cylinder is to be used for this
appliance, approximately 46 cm / 18 in” high & 30 cm / 12 in”
diameter.
e. The use of an approved LP gas cylinder stabilizer, such as the
one included, must be used when using this appliance in order
to prevent the LP gas cylinder from tipping over.
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Read
the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING:
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
IN S TAL LE R : Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Owner & Safety Manual
D.805.000.V0
En-3
OUTLAND FIRECUBE
®
OWNER & SAFETY MANUAL
2
CONNECTION:
1. Be sure the cylinder valve and appliance valves are “off”.
2. Place full LP gas cylinder on tank stabilizer ring.
3. Center the nipple in the cylinder valve and hold in place.
4. Using the other hand, turn the hand wheel clockwise until
there is a positive stop. Do not use tools.
5. Hand tighten only. When making the connection, hold the
regulator in a straight line with the cylinder valve, so as not
to cross thread the connection.
6. Leak test the connection. See section named “LEAK TEST”.
LEAK TEST:
1. DO NOT USE OR PERMIT SOURCES OF IGNITION
IN THE AREA WHILE DOING THE LEAK TEST.
THIS INCLUDES SMOKING.
2. Leak testing should be done once per year or whenever the
LP gas cylinder or any other gas system part is taken apart,
serviced or replaced, whichever is more frequent.
3. Ensure all gas system coupling joints are tight
and properly attached.
4. Prepare a leak testing solution of half liquid detergent
and half water.
5. Apply the solution to the LP gas delivery system at points as
shown in illustration indicated to the right.
6. If parts of the fitting begin to produce bubbles, spray liquid,
or if you smell liquid propane gas, immediately close the valve
on the tank.
7. Wait 5 minutes for any gas to dissipate.
8. After waiting for 5 minutes, the leak(s) must be stopped by
tightening the loose joints, if possible, or by replacing the
faulty parts(s) with the part(s) recommended by the appliance
manufacturer.
WARNING:
Ensure that the appliance is kept at a minimum distance of
0.91 m / 36 in from the gas cylinder.
LP Cylinder
Tank Ring
Appliance LP Gas Cylinder
Minimum
0.91 m / 36 in
!
Caution:
Trip Hazard!

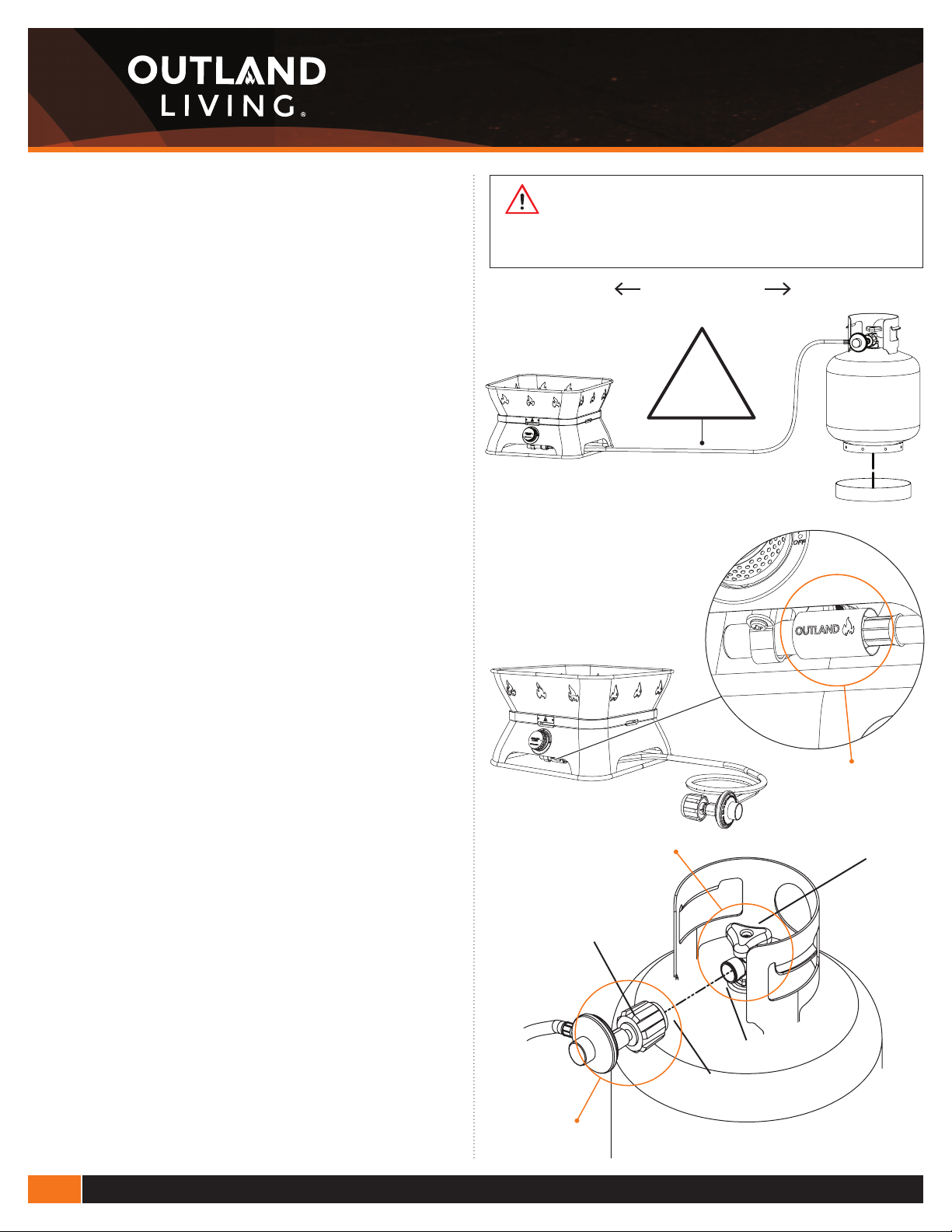

LEAK TEST: Apply the solution to the LP gas
delivery system at points:
1. OUTLAND Firecube Valve Coupling
2. Gas Hose Regulator
3. Cylinder Valve Coupling
2. Gas Hose
Regulator
Heat Sensitive
Hand Wheel
Cylinder
Shut Off
Valve
Check Valve
Nipple with
Flow Limiting Device
3. Cylinder Valve
Coupling
1. OUTLAND Firecube
Valve Coupling
En-4
1-888-514-1663 | WWW.OUTLANDLIVING.COM
THE APPLIANCE IS NOT TO BE USED UNTIL
ANY LEAK IS CORRECTED.
A gas appliance repairman or LP gas dealer should be called if
attempts to stop the leak(s) are unsuccessful and, in such case, the
LP gas supply must be shut off at the cylinder valve or the cylinder
must be removed from the appliance until the leak(s) is corrected.
Should any part of this appliance (including the burner) become
soiled or dirty, wipe lightly with a damp cloth. Do not use
flammable or corrosive cleaning products on or near this unit.
Ensure that gas hose is placed in an area where it is unlikely to
be tripped over (such as pathways or trails) or subject to other
accidental damage.
Keep the appliance area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
Solid fuels shall not be burned in this appliance.
Installation must conform with local codes or, in the absence of
local codes, with either the National Fuel Gas Code, ANSI Z223.1/
NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1
or Propane Storage and Handling Code, B149.2, or the Standard for
Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV
Series, Recreational Vehicle Code, as applicable.
3
PRE-IGNITION INSPECTIONS
GAS HOSE INSPECTION
Clean and inspect the hose before each use of the appliance.
Attention: If there is evidence of abrasion, wear, cuts, or leaks,
the hose must be replaced prior to the appliance being put into
operation. Only use a replacement hose by OUTLAND Living.
BURNER & ORIFICE INSPECTION
Inspect the burner prior to each use. Ensure the orifice holes are
not plugged and the burner tube is not damaged, or compromised.
The burner must be replaced prior to the appliance being put into
operation if there is evidence of damage. Replacement burners are
available from FMI Brands Inc.

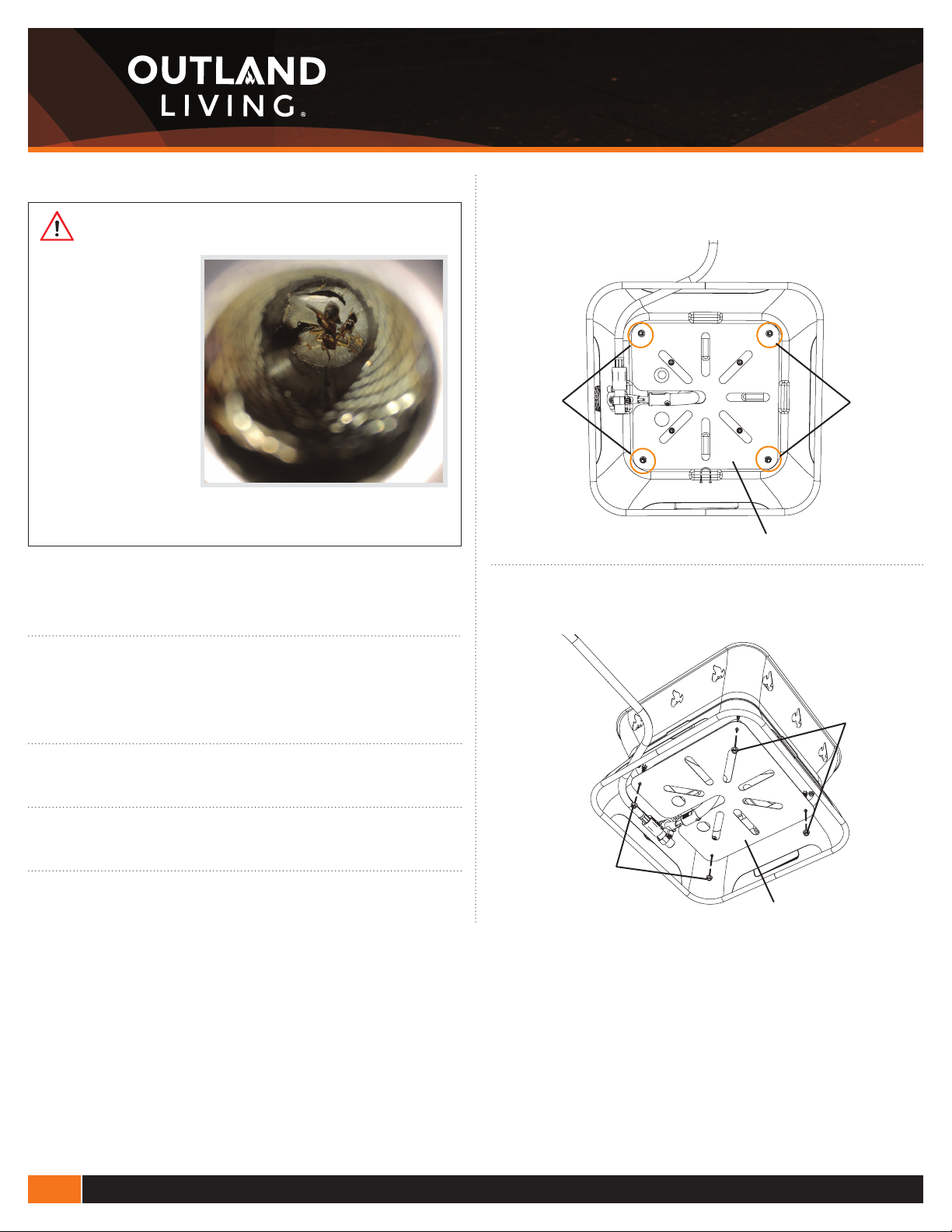

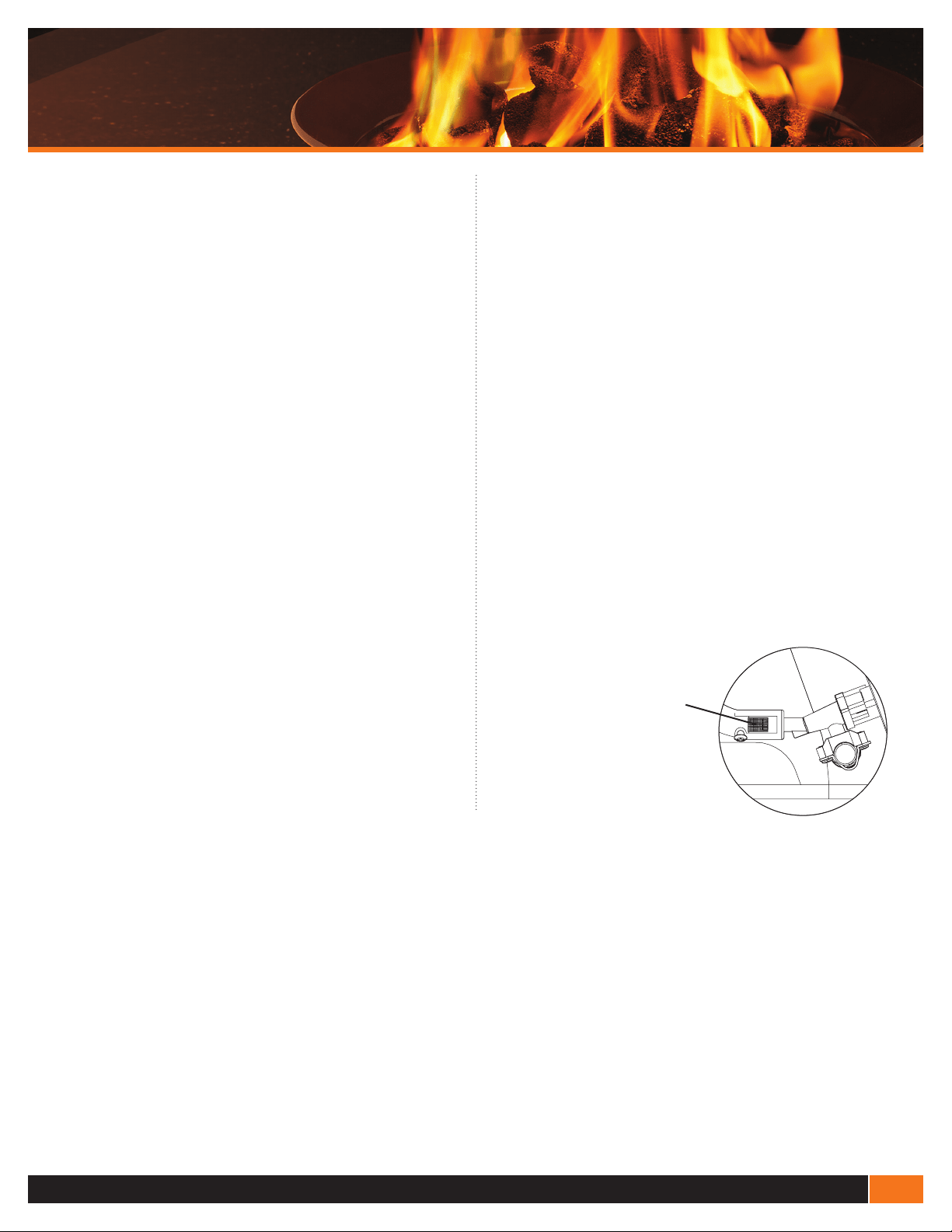

BURNER TUBE INSPECTION
Inspect the burner tube under the appliance and ensure the mesh
screen is in place, prior to each use.
ATTENTION: If the screen is dislodged perform an insect nest
inspection, prior to ignition. See section ‘REMOVING INSECT
NESTS’.
Mesh Screen
Owner & Safety Manual
D.805.000.V0
En-5
OUTLAND FIRECUBE
®
OWNER & SAFETY MANUAL
STEP 3
Extend hose to full length and ensure that the propane tank is as
far as safely possible from the OUTLAND Firecube and place the
tank in the included stabilizer ring.

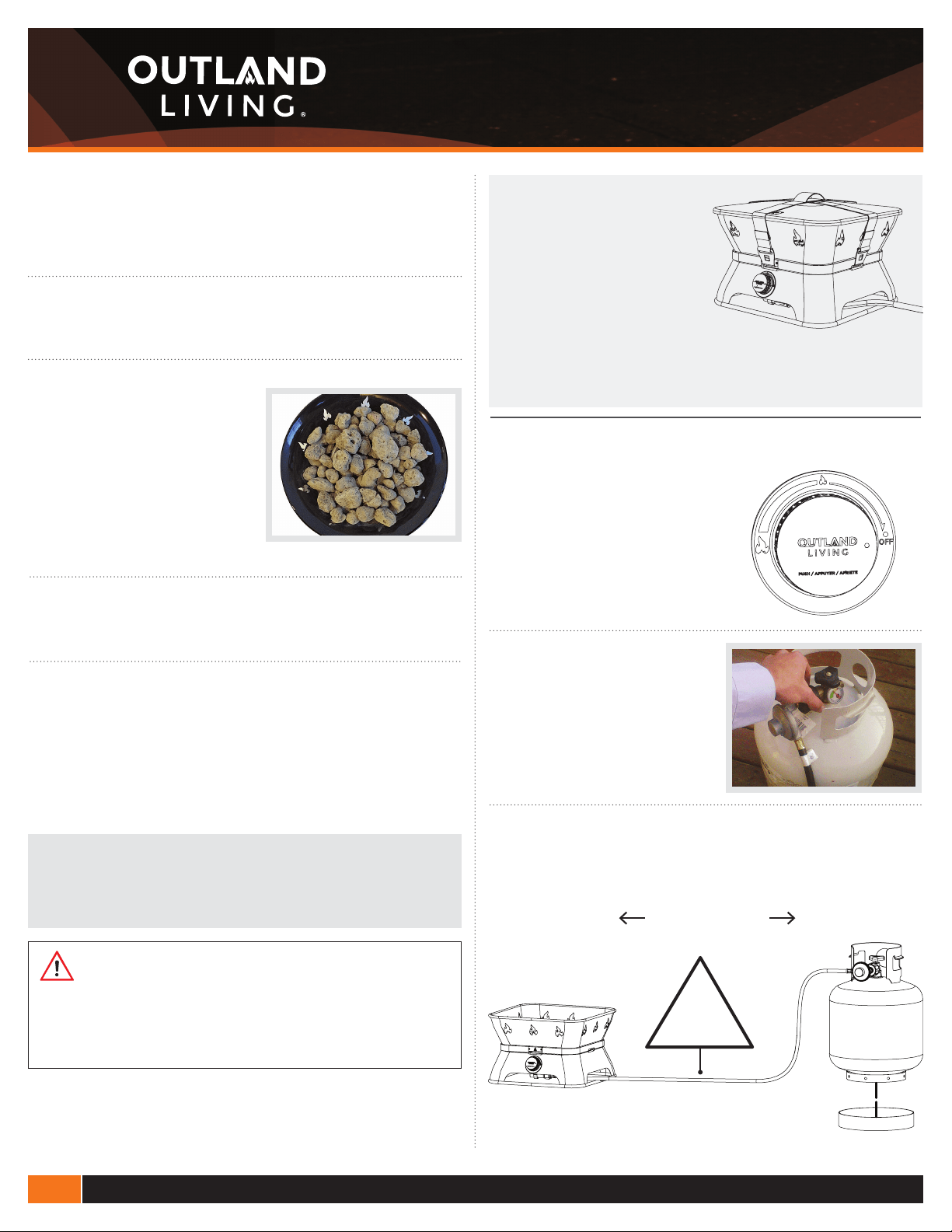

SECTION 1: ASSEMBLY
Enclosed are four bags of rocks, one factory installed 3 m / 10 ft
propane-rated hose with attached regulator, one propane tank
stabilizer ring, one lid and one carry strap.
STEP 1 Open the three bags of rocks and arrange the rocks in
burner area. Select larger sized rocks and arrange on top of the
mid-sized rocks.
SECTION 2: IGNITION
STEP 1
Ensure that the appliance valve dial
is in the “OFF” position by pushing
and turning clockwise until the dial
stops.
STEP 2
Securely attach regulator (large
end of hose) to your propane
cylinder.
NOTE TO USER:
Before igniting the unit for the first time, follow steps 1
through 5 in the below Ignition section.
Our preferred configuration is
pictured here.
Never handle rocks which
have not been allowed to
cool from exposure to flame.
Never attempt to rearrange
rocks while unit is ignited.
COVER & CARRY KIT
INSTALLATION
Your included Cover & Carry
kit is to be used for storage
and transportation as shown.
The carry straps are designed
to hook onto the bottom of the Outland Living Firecube’s
waistband. Please note the carry straps fit snug but will
stretch enough to ensure the perfect fit.
WARNING:
Never use the lid to cover your OUTLAND Firecube while the
burner is in operation. After use, allow the OUTLAND Firecube
to cool for at least 10 minutes prior to deploying
the lid and carry strap.
LP Cylinder
Tank Ring
Rocks are of natural and varying sizes.
Model may not look exactly as shown.
Appliance LP Gas Cylinder
Minimum
0.91 m / 36 in
!
Caution:
Trip Hazard!
STEP 2 The fourth bag of rocks are included as spares and
labelled “Spare Rocks”. These can be stored and used as
replacements.
Note:
• Rocks are not to exceed a maximum weight of 2.5 kg /
5.5 lb.
• Never use a lid to extinguish the flame on your OUTLAND
Firecube
®
.
• The lid and carry straps (Cover & Carry Kit) is to be used for
storage and transportation only.
En-6
1-888-514-1663 | WWW.OUTLANDLIVING.COM
STEP 4
***SLOWLY*** turn cylinder valve to the FULLY open position to
avoid tripping the excess flow safety device in the gas regulator.
For more information about the excess flow safety device see
STEP 8.
STEP 5
Leak Test all connections. See section labeled “Leak Test” (page 3).
STEP 6
Using a lighter or match, ignite
lighter and hold flame slightly
above the burner, then open the
valve on the appliance slowly by
turning (counter-clockwise) until
the unit ignites.
SECTION 2: IGNITION (continued)
STEP 7
Once the unit is burning normally
set the dial to desired flame
height.
STEP 8: TROUBLESHOOTING
GOT A LOW FLAME?: If your
OUTLAND Firecube
experiences low
flame, or flame height does not appear to be normally adjusted by
the gas knob, it is likely that the gas cylinder is low in fuel, or the
excess flow safety device has been tripped in the gas regulator.
NOTE: Elevation and temperature affect the cylinder gas pressure
and performance (flame height) of gas appliances. Your geographic
location or local weather may be at fault.
CORRECTIVE ACTION:
a. Confirm your gas cylinder is NOT empty.
b. Close the propane cylinder valve.
c. Open and then close the appliance gas knob valve to release
pressure.
d. Be sure the appliance valve is OFF.
e. Disconnect the gas hose from the propane cylinder.
f. Gently tap the gas regulator housing on the ground once or
twice.
g. Reconnect the gas hose to the propane cylinder.
h. Slowly and fully open the propane cylinder valve.
i. Perform a Leak Test and follow the Ignition sequence.
TIP: Try tapping the regulator on the ground or hard surface 3
times. Sometimes, this will reset the safety device in the regulator.
WARNING:
TRIP HAZARD! Ensure the gas hose is placed in an area where
it is unlikely to be tripped over (such as pathways or trails) or
subject to other accidental damage.
WARNING:
The hose should not be twisted or kinked when attached to
the gas cylinder. The hose should never touch the appliance.
Ensure that the appliance is kept at a minimum distance of
0.91m (36”) from the gas cylinder.
WARNING:
Ensure that no parts of your body, clothing, or any other
combustible material are above the burner before, during and
after ignition.

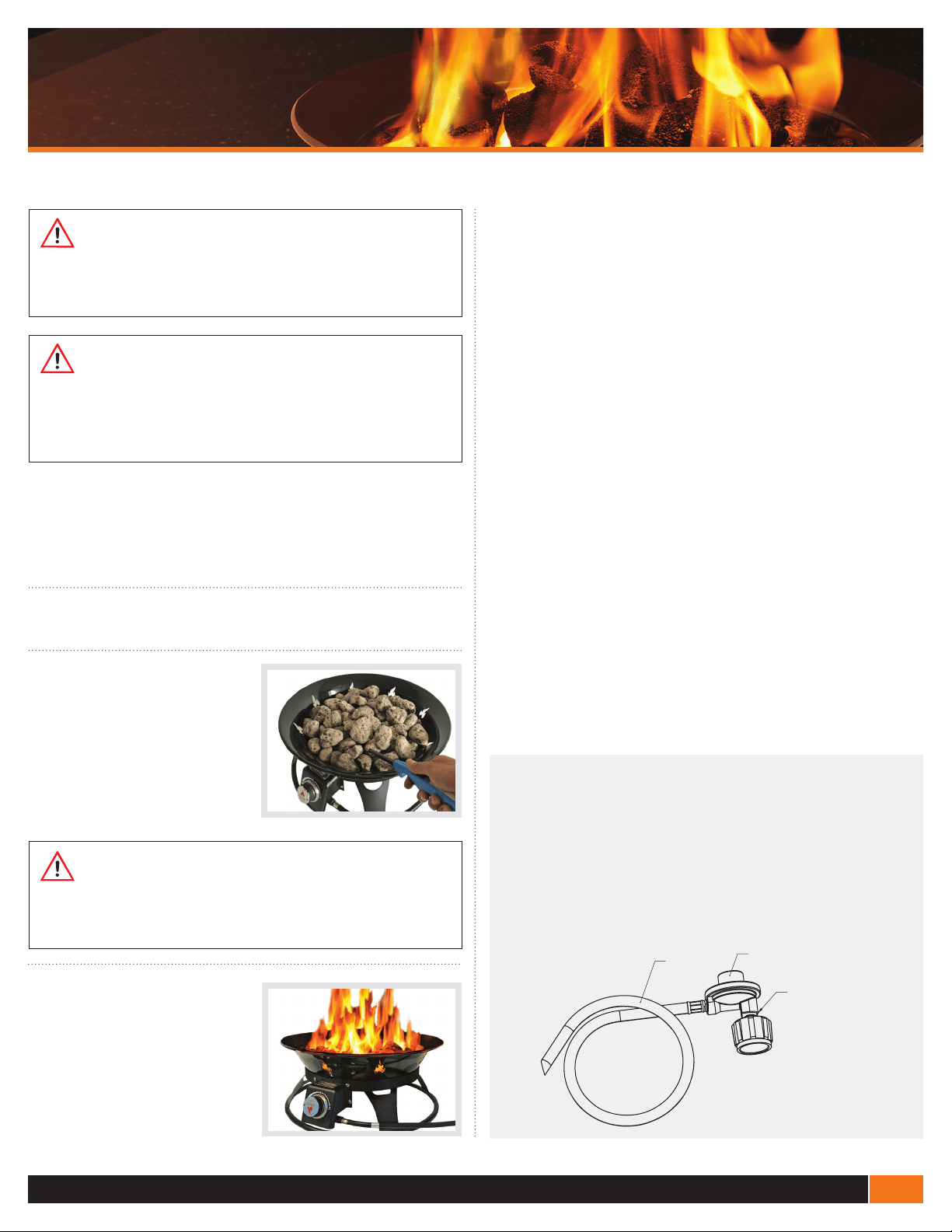

WHAT IS AN EXCESS FLOW SAFETY VALVE? (EFV)
The EFV is a safety mechanism contained within the gas
regulator. The purpose of the EFV is to restrict the gas supply
if too much gas is flowing too quickly through the gas hose.
For example this could happen if the gas hose was severed.
It is normal that your Fire Bowl EFV trips if you open the
propane tank valve too quickly or if you leave the OUTLAND
Firecube gas knob open before lighting, or both.
Model may not look exactly as shown
Model may not look exactly as shown
Gas
Hose
Gas Regulator
Excess Flow
Safety Valve
Owner & Safety Manual
D.805.000.V0
En -7
OUTLAND FIRECUBE
®
OWNER & SAFETY MANUAL

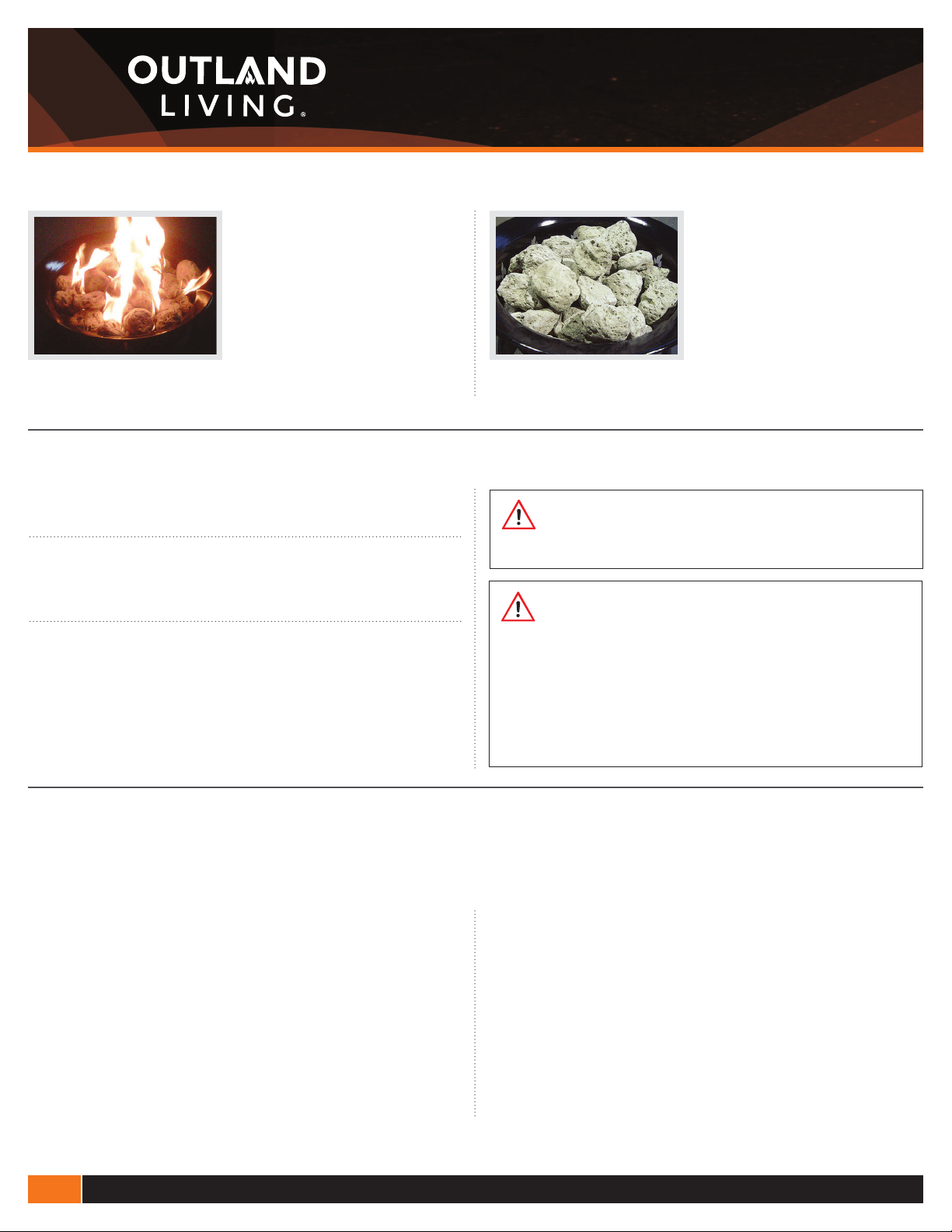

If there are no flames present,
as demonstrated in the image
to the left, the appliance is likely
not burning. If this is the case,
IMMEDIATELY turn the appliance
valve to the “off” position if it is
not already and repeat the ignition
procedure as outlined in Section 2.
Upon igniting the appliance,
visually verify that the burner is
indeed burning as demonstrated
in the image to the left.
The presence of flames will
confirm that the burner is burning.
Periodically check that the burner
flame is present during operation
by visually inspecting the burner
to ensure the presence of flames.
SECTION 3: PERIODIC INSPECTION OF BURNER FLAMES
1 Keep your Firecube out of the rain and store it in a dry place
when not in use.
2 Ensure to keep the lid on when storing your Outland Firecube.
The lid is designed to keep leaves and debris out of the firecube.
The lid is not designed to protect from rain and rust. Your
firecube and lid are made from steel and will naturally form rust
if left out in the rain for extended lengths of time.
3 Always inspect and clear all valve and gas orifices of any foreign
debris including spider webs prior to lighting. If any doubt there
may be a nest inside, use a pipe cleaner up the tube. See section
‘REMOVING INSECT NESTS’.
4 Clean any plugged burner orifices with a small paper clip.
5 Ensure that you clean the bowl of your Outland Firecube after
every use to keep it looking GREAT. Simply wipe the outer edge
of the Firecube with a damp paper towel or cloth to remove any
combustion particulates. Do not use flammable or corrosive
cleaning products on or near this unit.
SECTION 5: APPLIANCE MAINTENANCE
REGULAR CLEANING & MAINTENANCE
Your OUTLAND Firecube requires periodic maintenance to keep it in good running order.
Follow the steps below to ensure your appliance will provide you with the best possible performance:
STEP 1
Turn cylinder valve to the “closed” position.
STEP 2
Turn appliance valve to the “OFF” position by pushing and turning
knob clockwise.
STEP 3
Allow unit to cool for at least five (5) minutes before relighting.
SECTION 4: EXTINGUISHING THE APPLIANCE
WARNING:
The rocks are HOT!
WARNING:
Don’t burn yourself! Do not touch or handle the appliance
when hot! To avoid injury always allow the OUTLAND Firecube
to cool down for at least 30 minutes before moving and
handling the appliance. Never handle rocks which have not
been allowed to cool from exposure to flame.
Never attempt to rearrange rocks while unit is ignited.
Model may not look exactly as shown Model may not look exactly as shown
En-8
1-888-514-1663 | WWW.OUTLANDLIVING.COM
WARNING NOTES:
• Expected burn time: The anticipated burn time for your
OUTLAND Firecube using a full 9 kg / 20 lb propane cylinder is
between 7 and 11 hours, depending on flame height setting and
complete cylinder fill.
• FMI Brands Inc. recommends that you ignite this unit only when
safely placed on a non-combustible surface.
• Never use this appliance in tall grass
• This is NOT a toy.
• Children should be supervised at all times when using this unit
without exception.
• Please ensure that all adults and children which use or are near a
unit in use are aware of the hazard of high-surface temperatures
present on the unit during use and should use caution and stay
away to avoid burns or clothing ignition.
• Do not place any objects other than supplied rocks inside the
burner component of the OUTLAND Firecube.
• Do not add wood or any other materials to the fire.
It is designed to safely combust gas only.
• Do not connect to a remote gas supply.
• Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
• Do not leave this appliance in the rain.
• Always inspect and clear all valve and gas orifices of any foreign
debris including spider webs prior to lighting.
• This device has been engineered to provide the maximum
amount of heat and comfort. If you experience any signs of
your propane cylinder ‘freezing off’ or start to experience lower
flames than usual, please simply turn the burner control setting
to low for 5–10 minutes, or replace the cylinder with a full one.
• Elevation and temperature affect the performance (flame height)
of gas appliances.
SECTION 5: FIREBOWL MAINTENANCE (continued)

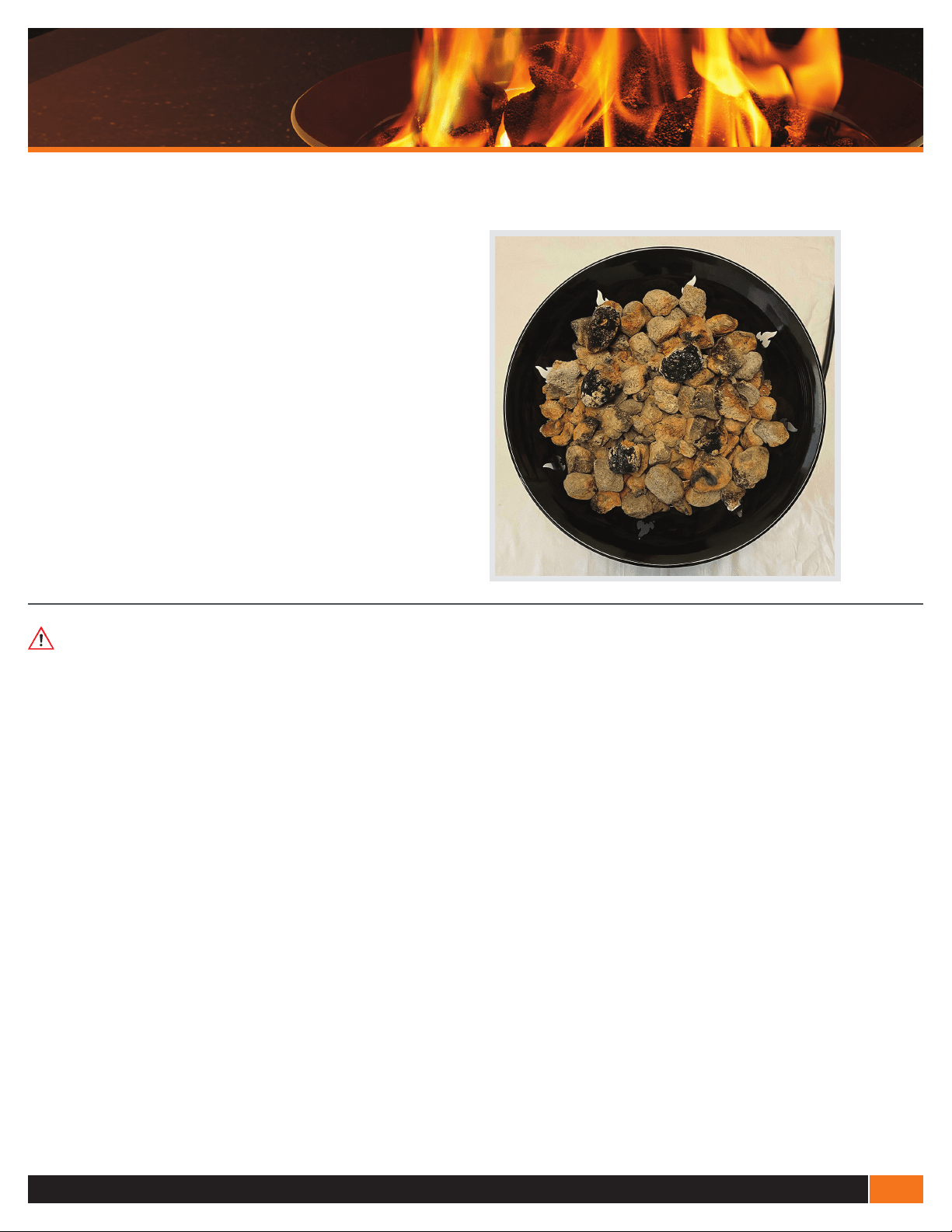

LAVA ROCKS
Your non-toxic natural lava rocks will form cracks and turn brown
and black under normal operating conditions. This does not affect
the functionality of your firebowl.
The image shown is a visual reference on what the lava rocks will
look like over time while under normal operating conditions.
Model may not look exactly as shown
Owner & Safety Manual
D.805.000.V0
En-9
OUTLAND FIRECUBE
®
OWNER & SAFETY MANUAL
REMOVING INSECT NESTS
Clean the burner tubes often and especially if the appliance has
been sitting unused for a period of time. You must remove the gas
valve to gain access to the burner tube for cleaning.
BURNER TUBE CLEANING INSTRUCTIONS:
STEP 1
Ensure the appliance valve(s) are OFF and the cylinder valve is
closed.
STEP 2
Disconnect LP Cylinder.
STEP 3
Remove the lava rocks and set them aside.
WARNING:
Small critters like
spiders and earwigs
can quickly build nests
inside the burner tube
which can obstruct
gas flow and impact
the flame height and
heat performance of
your appliance. More
seriously, a nest or
blockage of the burner
tube can cause a back
flame event, damage
to your appliance, or even extreme operator injuries!
STEP 4

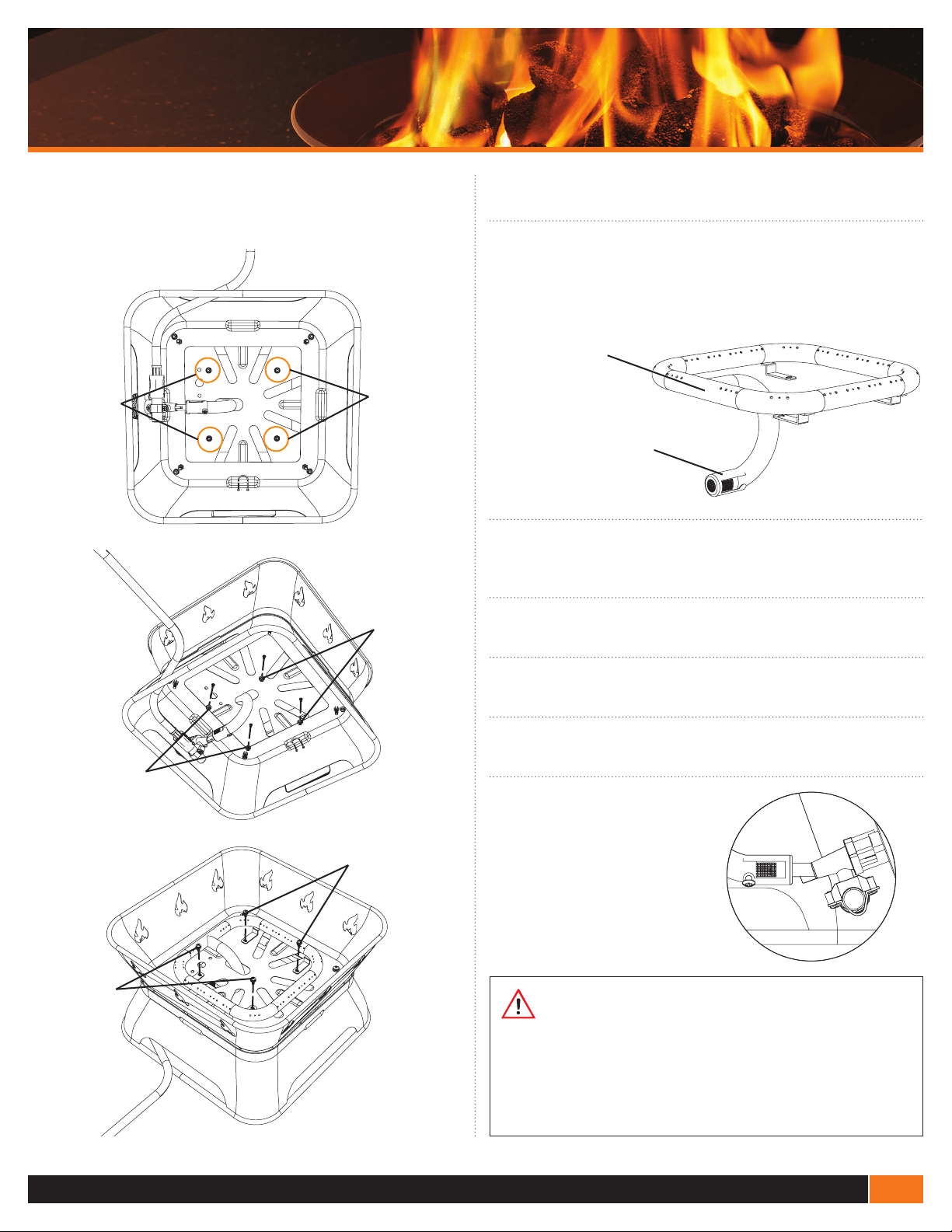

Locate and remove the heatshield nuts underneath the Firecube.
Carefully set these nuts aside.
Heatshield
Nuts
Heatshield
Nuts
Heatshield
Nuts
TOP
VIEW
BOTTOM
VIEW
Heatshield
Nuts
Heatshield
Heatshield
STEP 5
Carefully remove and set aside the heatshield.
En -10
1-888-514-1663 | WWW.OUTLANDLIVING.COM
Mounting
Nuts
Mounting
Nuts
Mounting
Screws
TOP
VIEW
TOP
VIEW
BOTTOM
VIEW
Mounting
Nuts
Burner Tube
Mounting
Nuts
Mounting
Screws
STEP 6
Locate and remove the mounting screws and nuts of the burner
tube. Carefully set the mounting screws and nuts aside.
STEP 7
Carefully remove the burner tube.
STEP 8
Use a flashlight to look inside the burner tube. Use a long flexible
pipe cleaner, or long small utensil to clean out any debris or nest
material. An air tool to blow out the burner is helpful, but please
wear eye protection.
STEP 9
When the burner tube is determined to be clear, install the burner.
Install the mounting screws and nuts.
STEP 10
Install the heat shield. Install the heatshield nuts.
STEP 11
Insert the lava rocks in the burner area.
STEP 12
Connect the LP Cylinder.
IMPORTANT: Align gas valve orifice
inside burner tube.
Use a pipe cleaner or
long small utensil here
to clean out any debris
or nest material
WARNING:
The gas valve orifice should be inside the burner tube and
visible through the bug screen mesh. If your orifice and burner
tube does not line up like in the image above, please call
customer service at (888) 514-1663 or E-Mail to
info@outlandliving.com.
D.805.000.V0
E n -11
Owner & Safety Manual
OUTLAND FIRECUBE
®
OWNER & SAFETY MANUAL
FOR REPLACEMENT PARTS AND ACCESSORIES PLEASE VISIT
WWW.OUTLANDLIVING.COM
The owner’s manual is available as a free download from www.outlandliving.com
Should you have any questions or comments regarding this appliance, please do not hesitate to contact FMI Brands Inc. at 1-888-514-1663
or E-Mail to [email protected].
STOP
DO NOT
RETURN
TO STORE
If you experience ANY problems with your OUTLAND Firecube,
PLEASE DO NOT RETURN IT TO YOUR POINT OF PURCHASE!
Simply call us or send an email to info@outlandliving.com and we will answer all
questions and/or concerns that you may have.
We take pride in our products at FMI Brands Inc. (Outland Living) and will strive to
provide excellent customer support.
FMI BRANDS INC.
107 – 19052 26 Avenue, Surrey, BC Canada V3Z 3V7
USA, Canada Toll Free: 1-888-514-1663
Tel: (+1) 778-294-0988 • Email: info@outlandliving.com
Hours of Operation: 8:30AM - 4:00PM (Pacific Time)
Customer Service in English only
1 YEAR LIMITED WARRANTY
Customers in Canada & USA
All components are warranted by the manufacturer for a period of 1 year after date of purchase by the original owner against
defects in materials and workmanship under normal use.
This warranty does NOT cover normal wear and weathering, assembly and/or maintenance OR use in a commercial application.
At FMI Brands Inc.’ sole discretion, products under warranty will be repaired and/or replaced
at no charge to the customer.
Any returns sent back to FMI Brands Inc. must be sent via prepaid freight and in the original retail packaging.
Please register your OUTLAND Living product for proof of purchase and warranty at:
http://outlandliving.com/register-products/.
Registration in English only.
For more warranty information and details please contact Customer Service at info@outlandliving.com.
