PRODUCT GUIDE
MODEL 463230512
C-69G5CB
IMPORTANT: Fill out the product record information below.
Serial Number
Seeratinglabelongrillfor serialnumber.
Date Purchased
Forsupportandto registeryour
grill, pleasevisit us at
www.charbroil.com
If you havequestionsor need
assistanceduringassembly,
pleasecall 1-800-241-7548.
©2011 Char-Broil, LLC Columbus,GA 31902 Printed in China Assembly instructions©2011 09/28/11 QG651-001-120801
For Your Safety .................................... 2-3
Grilling Guide ...................................... 4-7
Use and Care .................................... 8-14

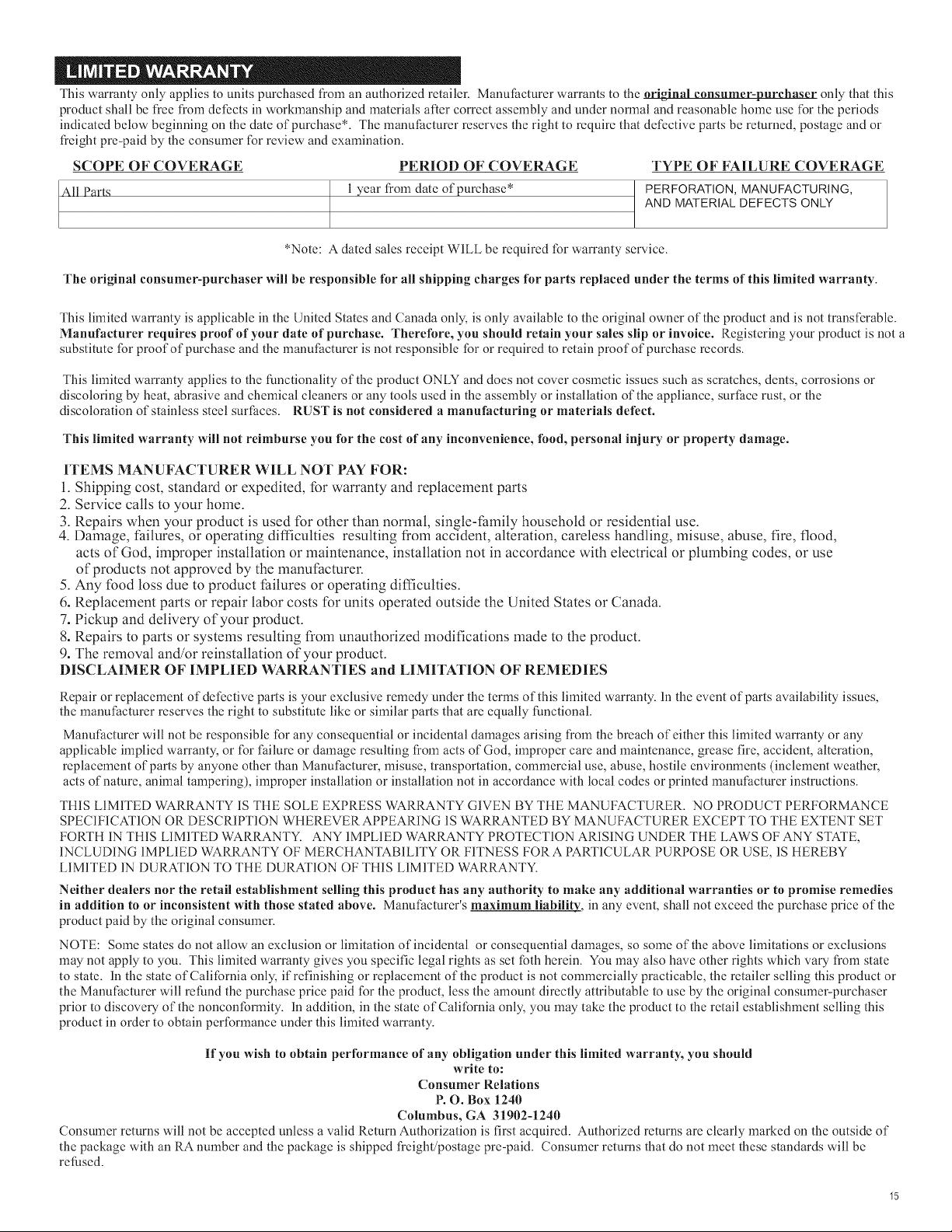

Limited Warranty .................................... 15

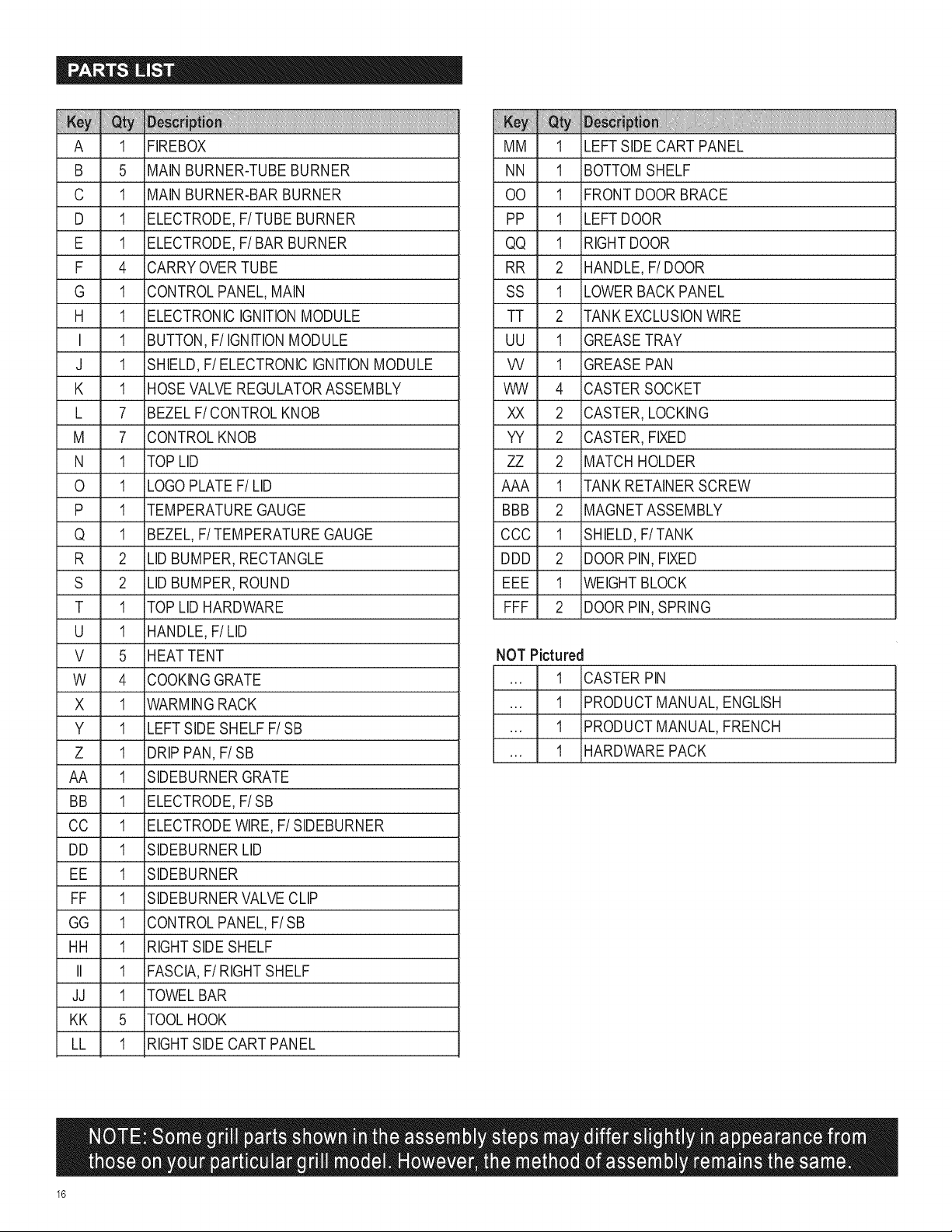

Parts List.......................................... 16
Parts Diagram...................................... 17

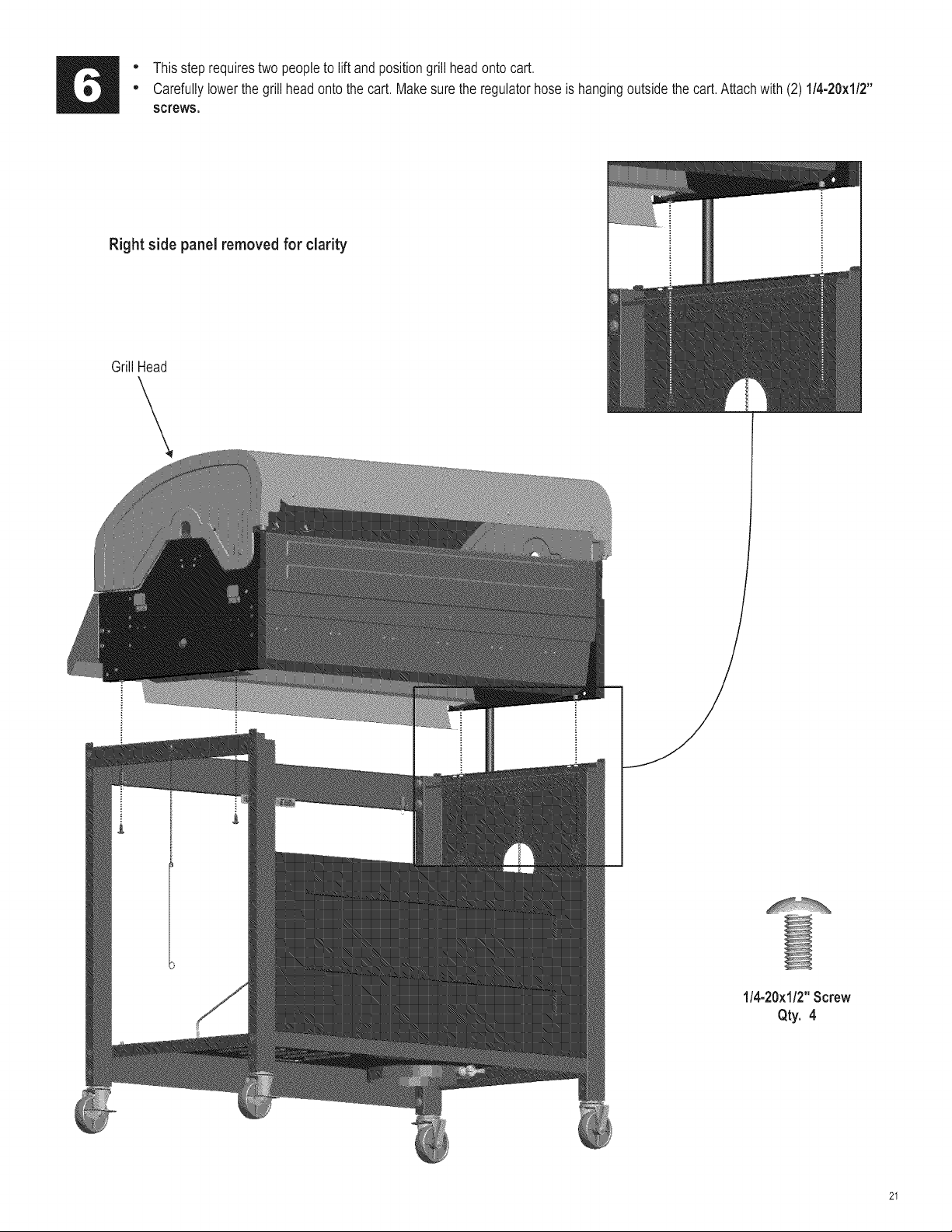

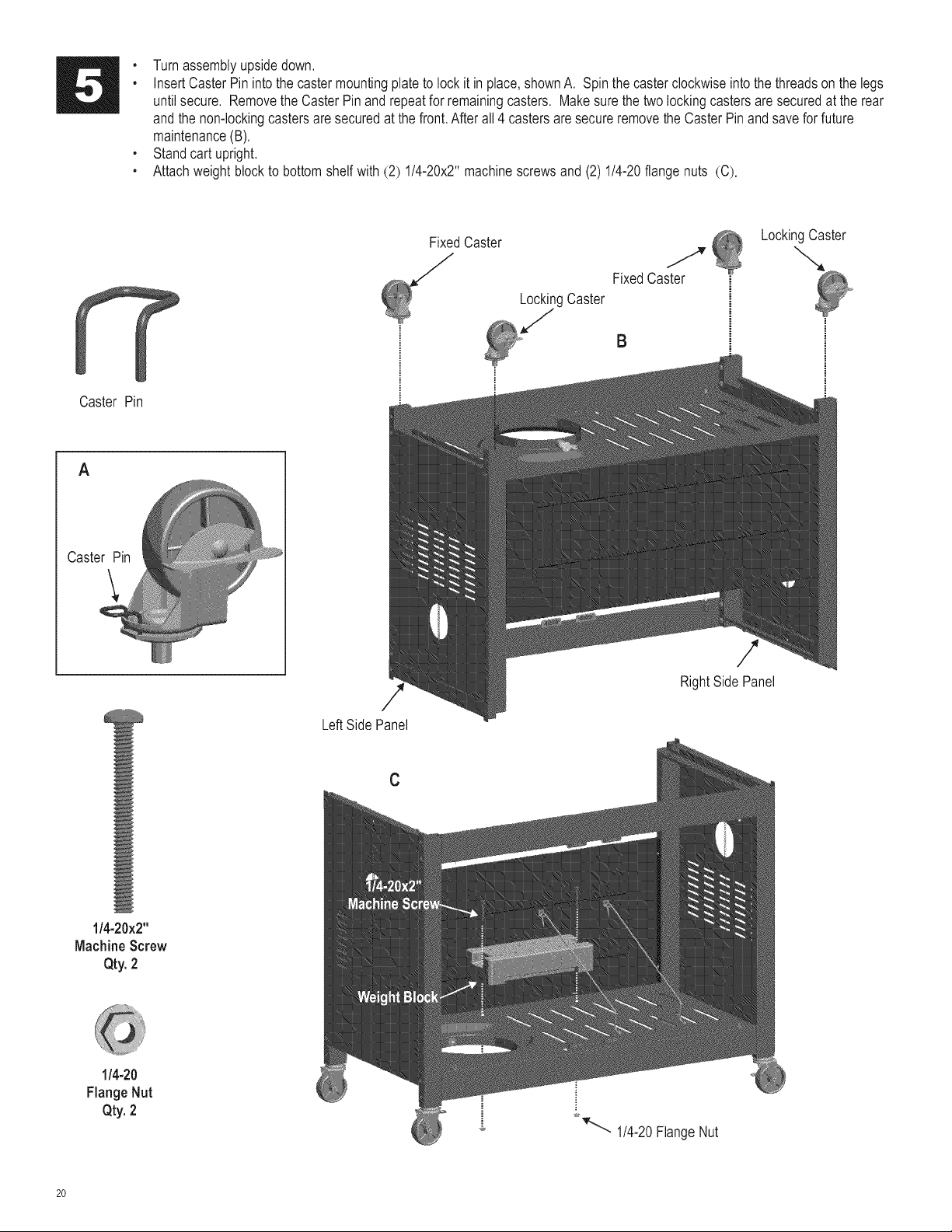

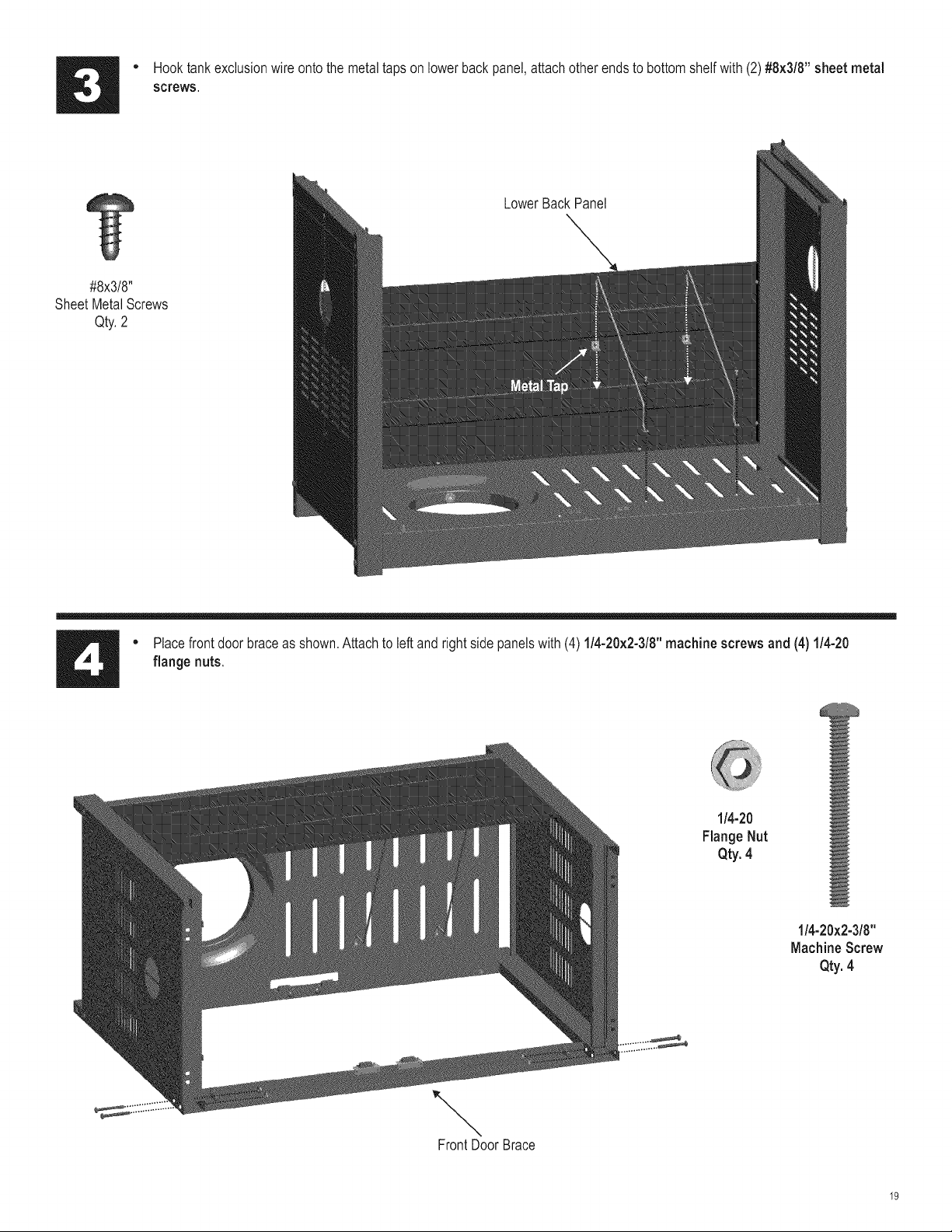

Assembly ....................................... 18-27
Troubleshooting .................................. 28-30
Registration Card ................................... 31

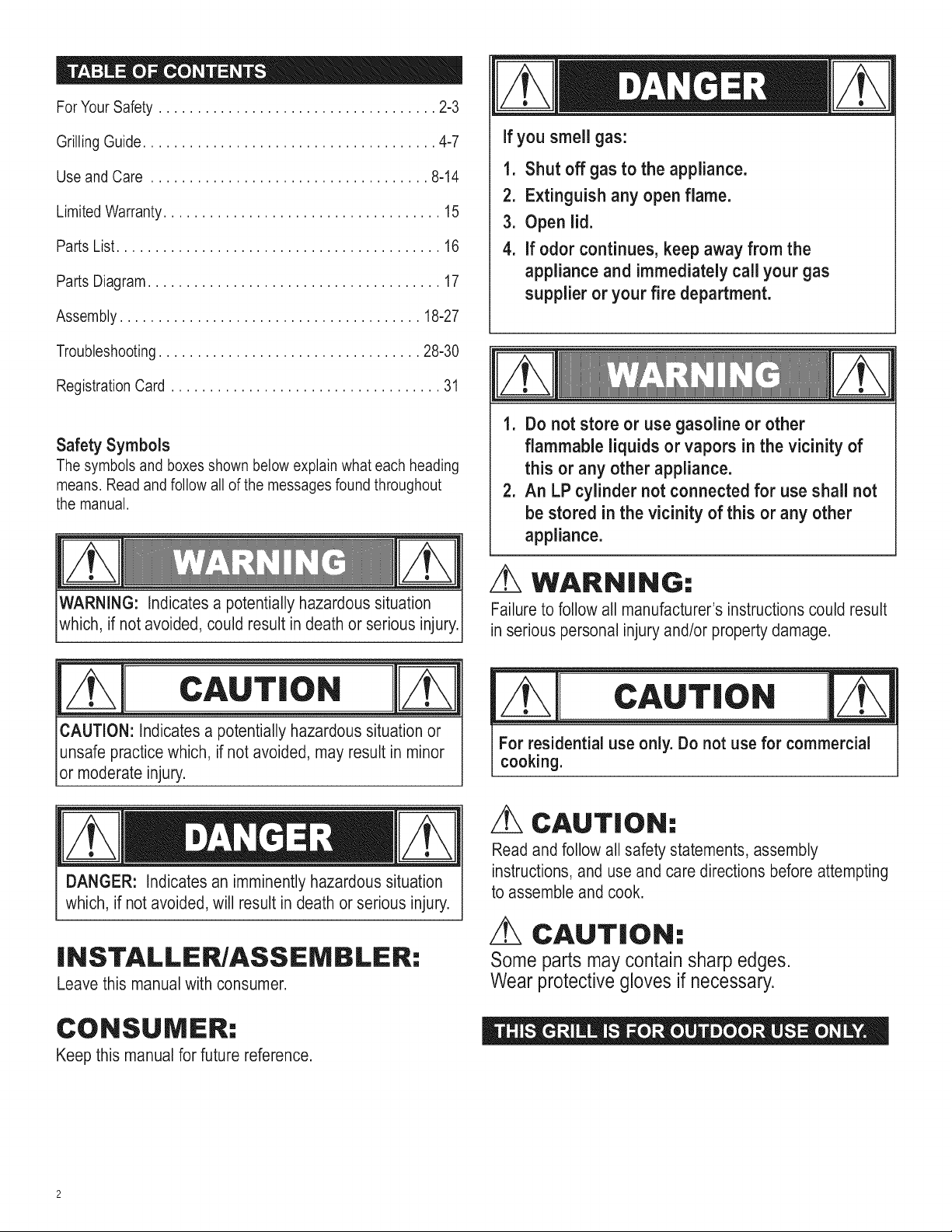

Safety Symbols
The symbols and boxesshown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicatesa potentially hazardoussituation or
unsafe practicewhich, if not avoided, may result in minor
or moderate injury,
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury,
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING:
Failure to follow all manufacturer's instructions could result
in serious personal injuryand/or property damage.
CAUTION
For residential use only. Do not use for commercial
cooking.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before attempting
to assemble and cook.
CAUTION:
Some parts may containsharp edges.
Wear protectivegloves if necessary.

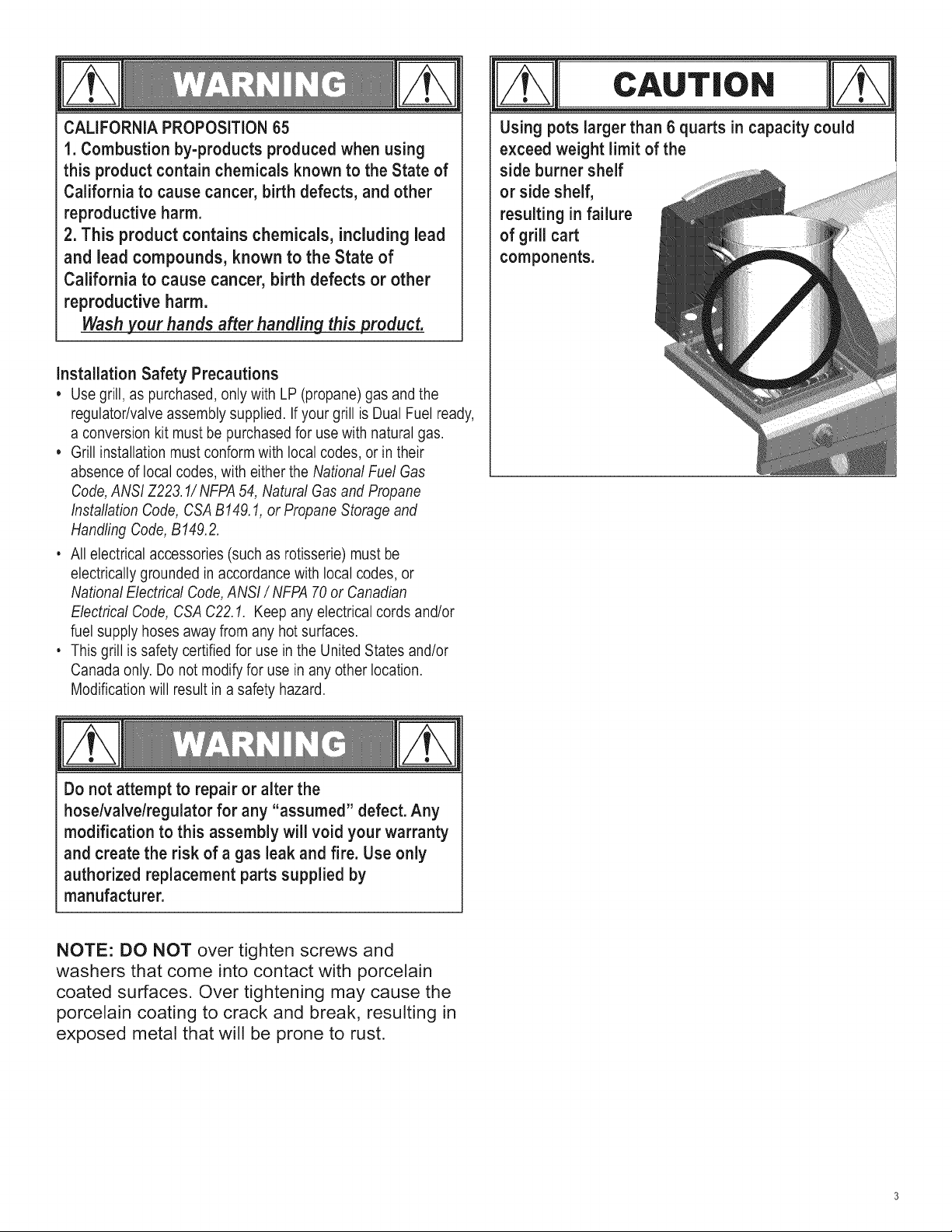

CALIFORNIA PROPOSITION 65
1. Combustion by-products produced when using
this product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
Installation Safety Precautions
• Use grill, as purchased, only with LP (propane) gas and the
regulator/valve assembly supplied. Ifyour grill is Dual Fuel ready,
a conversion kit must be purchased for use with natural gas.
• Grill installation must conform with local codes, or in their
absence of local codes, with either the National Fuel Gas
Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2.
• All electrical accessories (such as rotisserie) must be
electrically grounded in accordance with local codes, or
National Electrical Code,ANSI/NFPA 70 or Canadian
Electrical Code, CSA C22.1. Keep any electrical cords and/or
fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or
Canada only. Do not modify for use in any other location.
Modification will result in a safety hazard.
CAUTION
Using pots larger than 6 quarts in capacity could
exceed weight limit of the
side burner shelf
or side shelf,
resulting in failure
of grill cart
components.
Do not attempt to repair or alter the
hose/valve/regulator for any "assumed" defect. Any
modification to this assembly will void your warranty
and create the risk of a gas leak and fire. Use only
authorized replacement parts supplied by
manufacturer.
NOTE: DO NOT over tighten screws and
washers that come into contact with porcelain
coated surfaces. Over tightening may cause the
porcelain coating to crack and break, resulting in
exposed metal that will be prone to rust.

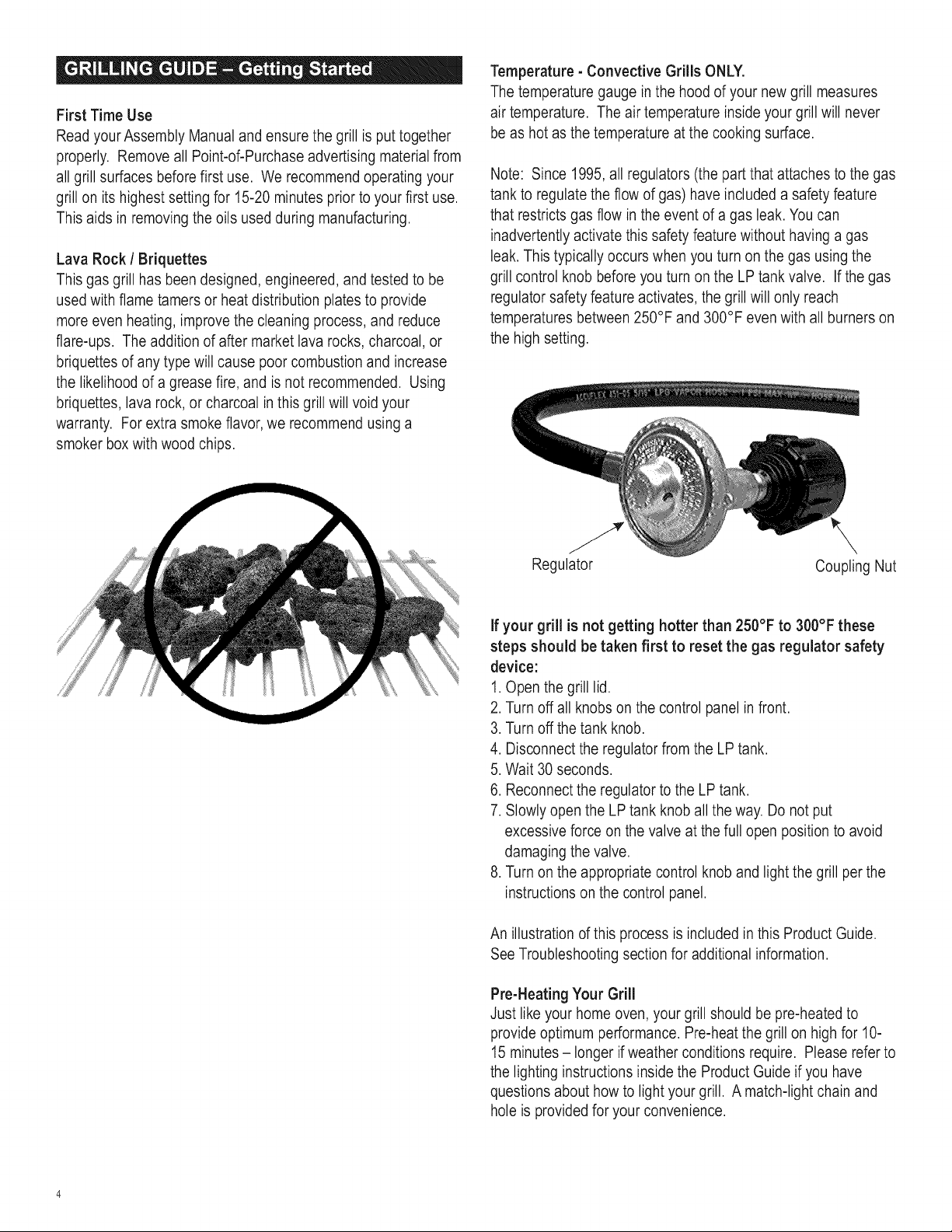

First Time Use
Read your Assembly Manual and ensure the grill is put together
properly. Remove all Point-of-Purchase advertising material from
all grill surfaces before first use. We recommend operating your
grill on its highest setting for 15-20 minutes prior to your first use.
This aids in removing the oils used during manufacturing.
Lava Rock / Briquettes
This gas grill has been designed, engineered, and tested to be
used with flame tamers or heat distribution plates to provide
more even heating, improve the cleaning process, and reduce
flare-ups. The addition of after market lava rocks, charcoal, or
briquettes of any type will cause poor combustion and increase
the likelihood of a grease fire, and is not recommended. Using
briquettes, lava rock, or charcoal in this grill will void your
warranty. For extra smoke flavor, we recommend using a
smoker box with wood chips.
Temperature - Convective Grills ONLY.
The temperature gauge in the hood of your new grill measures
air temperature. The air temperature inside your grill will never
be as hot as the temperature at the cooking surface.
Note: Since 1995, all regulators (the part that attaches to the gas
tank to regulate the flow of gas) have included a safety feature
that restricts gas flow in the event of a gas leak. You can
inadvertently activate this safety feature without having a gas
leak. This typically occurs when you turn on the gas using the
grill control knob before you turn on the LP tank valve. If the gas
regulator safety feature activates, the grill will only reach
temperatures between 250°F and 300°F even with all burners on
the high setting.
Regulator Coupling Nut
If your grill is not getting hotter than 250°F to 300°F these
steps should be taken first to reset the gas regulator safety
device:
1. Open the grill lid.
2. Turn off all knobs on the control panel in front.
3. Turn off the tank knob.
4. Disconnect the regulator from the LP tank.
5. Wait 30 seconds.
6. Reconnect the regulator to the LP tank.
7. Slowly open the LP tank knob all the way. Do not put
excessive force on the valve at the full open position to avoid
damaging the valve.
8. Turn on the appropriate control knob and light the grill per the
instructions on the control panel.
An illustration of this process is included in this Product Guide.
See Troubleshooting section for additional information.
Pre-Heating Your Grill
Just like your home oven, your grill should be pre-heated to
provide optimum performance. Pre-heat the grill on high for 10-
15 minutes -longer if weather conditions require. Please refer to
the lighting instructions inside the Product Guide if you have
questions about how to light your grill. A match-light chain and
hole is provided for your convenience.
Outdoorgrillingisreallyquitesimple.You'llsucceedwith
burgers,dogs,orsteaksusuallyonyourveryfirsttry.With
experience,youwilllearnhowtoworkwithyourgrill,creating
moreimaginativemealsallthetime.Thisknowledgemakesup
theartofgrilling.Beforeyoustartgrilling,organizeyourfood
accordingtocookingtechniqueandrequiredcookingtime,and
optimizetheuseofyourgrillingarea.

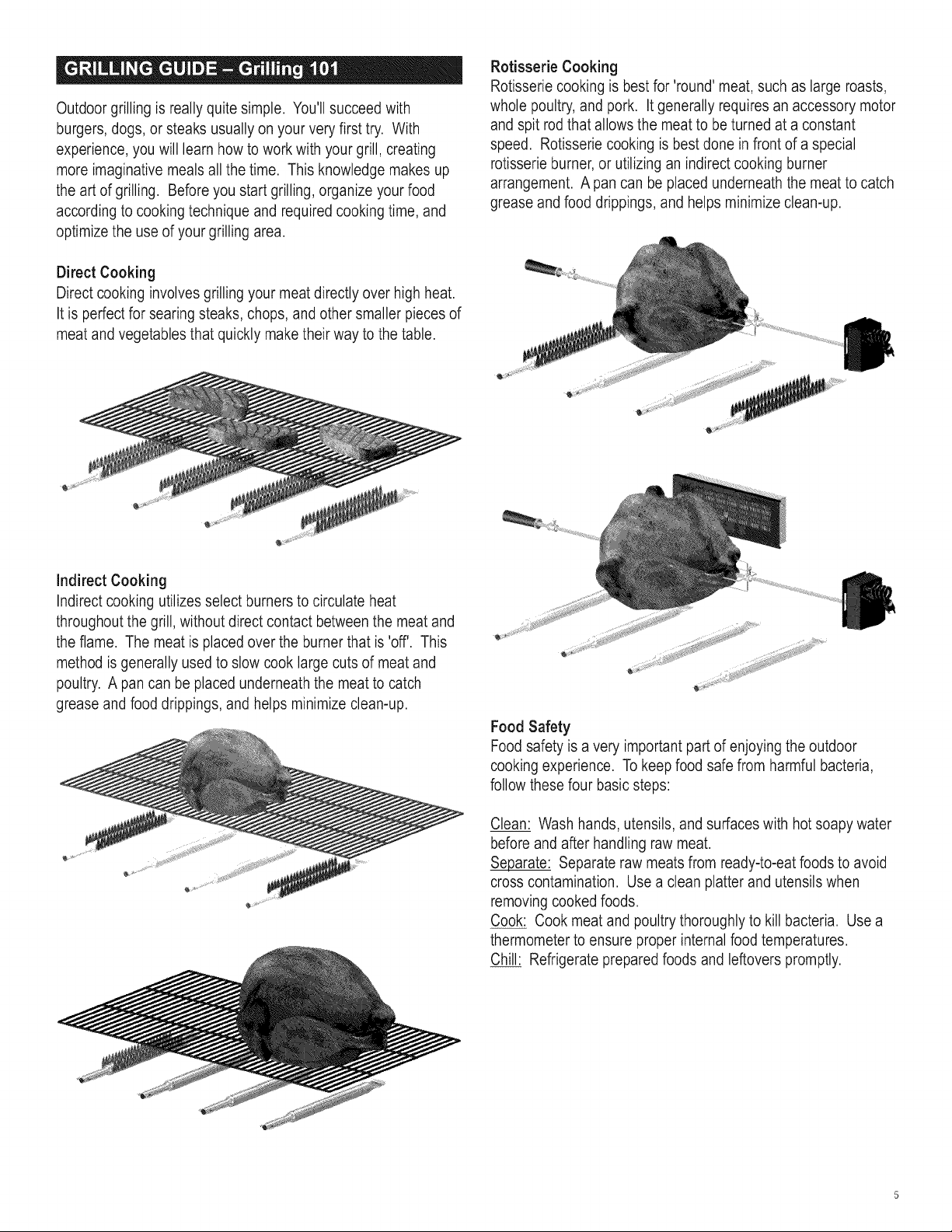

DirectCooking
Directcookinginvolvesgrillingyourmeatdirectlyoverhighheat.
Itisperfectforsearingsteaks,chops,andothersmallerpiecesof
meatandvegetablesthatquicklymaketheirwaytothetable.
RotisserieCooking
Rotisseriecookingisbestfor'round'meat,suchaslargeroasts,
wholepoultry,andpork.Itgenerallyrequiresanaccessorymotor
andspitrodthatallowsthemeattobeturnedataconstant
speed.Rotisseriecookingisbestdoneinfrontofa special
rotisserieburner,orutilizinganindirectcookingburner
arrangement.Apancanbeplacedunderneaththemeattocatch
greaseandfooddrippings,andhelpsminimizeclean-up.
IndirectCooking
Indirectcookingutilizesselectburnerstocirculateheat
throughoutthegrill,withoutdirectcontactbetweenthemeatand
theflame.Themeatisplacedovertheburnerthatis'off'.This
methodisgenerallyusedtoslowcooklargecutsofmeatand
poultry.Apancanbeplacedunderneaththemeattocatch
greaseandfooddrippings,andhelpsminimizeclean-up.
FoodSafety
Foodsafetyisa veryimportantpartofenjoyingtheoutdoor
cookingexperience.Tokeepfoodsafefromharmfulbacteria,
followthesefourbasicsteps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat.
Separate: Separate raw meats from ready-to-eat foods to avoid
cross contamination. Use a clean platter and utensils when
removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.

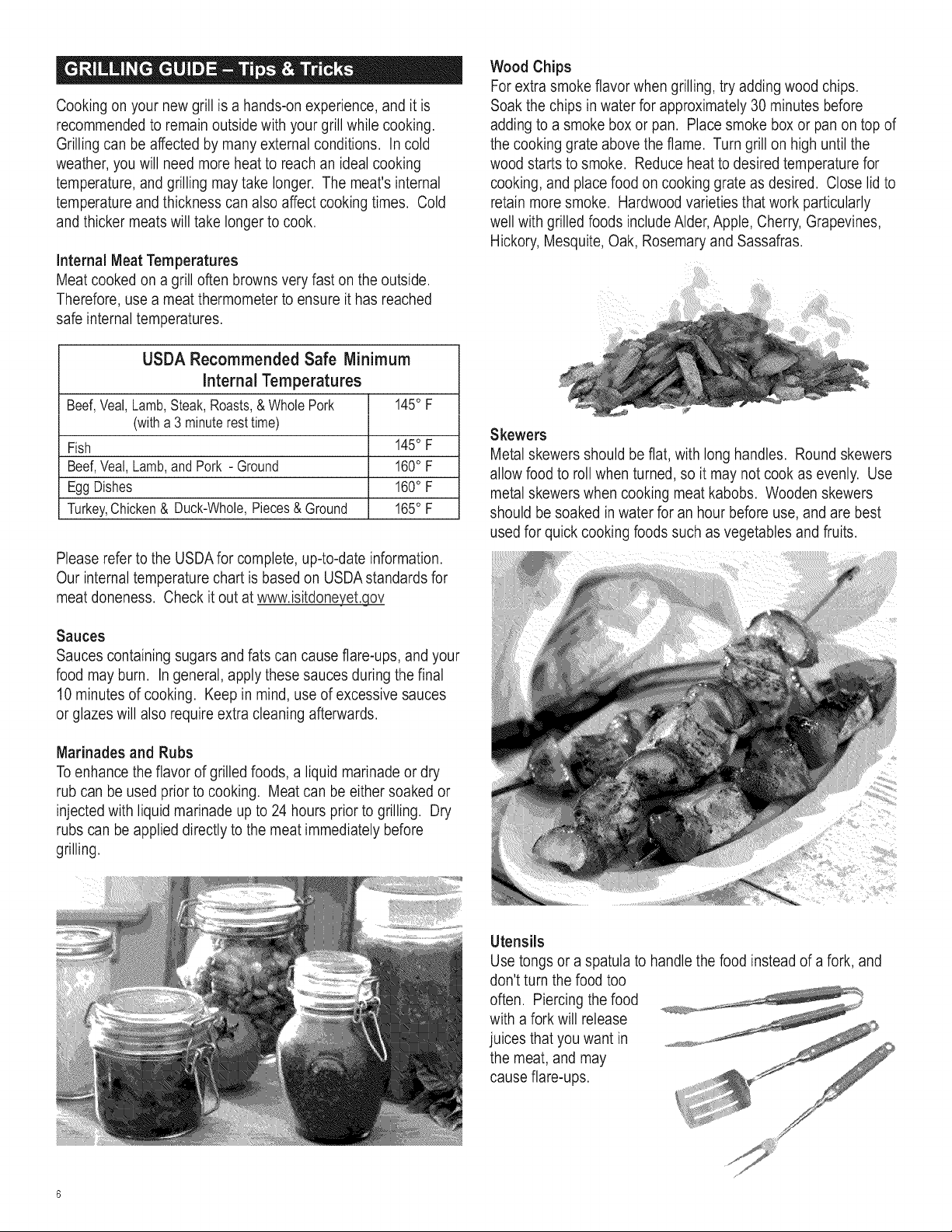

Cookingonyournewgrillisahands-onexperience,anditis
recommendedtoremainoutsidewithyourgrillwhilecooking.
Grillingcanbeaffectedbymanyexternalconditions.Incold
weather,youwillneedmoreheattoreachanidealcooking
temperature,andgrillingmaytakelonger.Themeat'sinternal
temperatureandthicknesscanalsoaffectcookingtimes.Cold
andthickermeatswilltakelongertocook.
InternalMeatTemperatures
Meatcookedonagrilloftenbrownsveryfastontheoutside.
Therefore,usea meatthermometertoensureithasreached
safeinternaltemperatures.
USDA Recommended Safe Minimum
internal Temperatures
Beef,Veal,Lamb,Steak,Roasts,& WholePork 145° F
(witha 3 minuteresttime)
Fish 145° F
Beef,Veal,Lamb,andPork - Ground 160° F
EggDishes 160° F
Turkey,Chicken& Duck-Whole,Pieces& Ground 165° F
Please refer to the IJSDAfor complete, up-to-date information.
Our internal temperature chart is based on USDA standards for
meat doneness. Check it out at www.isitdone_gD2
Sauces
Sauces containing sugars and fats can cause flare-ups, and your
food may burn. In general, apply these sauces during the final
10 minutes of cooking. Keep in mind, use of excessive sauces
or glazes will also require extra cleaning afterwards.
Marinades and Rubs
To enhance the flavor of grilled foods, a liquid marinade or dry
rub can be used prior to cooking. Meat can be either soaked or
injected with liquid marinade up to 24 hours prior to grilling. Dry
rubs can be applied directly to the meat immediately before
grilling.
Wood Chips
For extra smoke flavor when grilling, try adding wood chips.
Soak the chips in water for approximately 30 minutes before
adding to a smoke box or pan. Place smoke box or pan on top of
the cooking grate above the flame. Turn grill on high until the
wood starts to smoke. Reduce heat to desired temperature for
cooking, and place food on cooking grate as desired. Close lid to
retain more smoke. Hardwood varieties that work particularly
well with grilled foods include Alder, Apple, Cherry, Grapevines,
Hickory, Mesquite, Oak, Rosemary and Sassafras.
Skewers
Metal skewers should be flat, with long handles. Round skewers
allow food to roll when turned, so it may not cook as evenly. Use
metal skewers when cooking meat kabobs. Wooden skewers
should be soaked in water for an hour before use, and are best
used for quick cooking foods such as vegetables and fruits.
Utensils
Use tongs or a spatula to handle the food instead of a fork, and
don't turn the food too
often. Piercing the food
with a fork will release
juices that you want in
the meat, and may
cause flare-ups.

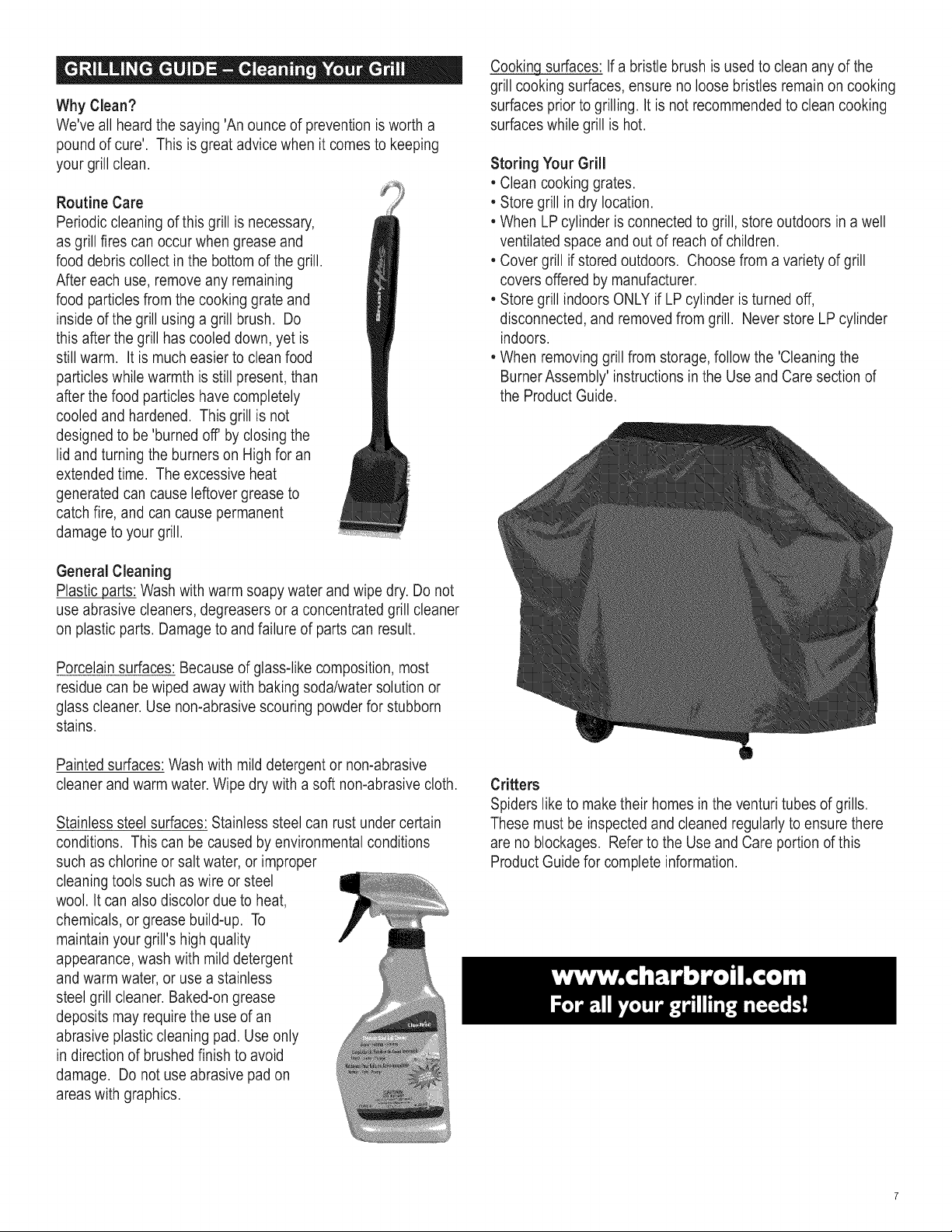

WhyClean?
We'veallheardthesaying'Anounceofpreventioniswortha
poundofcure'.Thisisgreatadvicewhenitcomestokeeping
yourgrillclean.
RoutineCare
Periodiccleaningofthisgrillisnecessary,
asgrillfirescanoccurwhengreaseand
fooddebriscollectinthebottomofthegrill.
Aftereachuse,removeanyremaining
foodparticlesfromthecookinggrateand
insideofthegrillusinga grillbrush.Do
thisafterthegrillhascooleddown,yetis
stillwarm.Itismucheasiertocleanfood
particleswhilewarmthisstillpresent,than
afterthefoodparticleshavecompletely
cooledandhardened.Thisgrillis not
designedtobe'burnedoff'byclosingthe
lidandturningtheburnersonHighforan
extendedtime.Theexcessiveheat
generatedcancauseleftovergreaseto
catchfire,andcancausepermanent
damagetoyourgrill.
GeneralCleaning
Plastic parts: Wash with warm soapy water and wipe dry. Do not
use abrasive cleaners, degreasers or a concentrated grill cleaner
on plastic parts. Damage to and failure of parts can result.
Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
glass cleaner. Use non-abrasive scouring powder for stubborn
stains.
Painted surfaces: Wash with mild detergent or non-abrasive
cleaner and warm water. Wipe dry with a soft non-abrasive cloth.
Stainless steel surfaces: Stainless steel can rust under certain
conditions. This can be caused by environmental conditions
such as chlorine or salt water, or improper
cleaning tools such as wire or steel
wool. It can also discolor due to heat,
chemicals, or grease build-up. To
maintain your grill's high quality
appearance, wash with mild detergent
and warm water, or use a stainless
steel grill cleaner. Baked-on grease
deposits may require the use of an
abrasive plastic cleaning pad. Use only
in direction of brushed finish to avoid
damage. Do not use abrasive pad on
areas with graphics.
Cooking surfaces: If a bristle brush is used to clean any of the
grill cooking surfaces, ensure no loose bristles remain on cooking
surfaces prior to grilling. It is not recommended to clean cooking
surfaces while grill is hot.
Storing Your Grill
• Clean cooking grates.
• Store grill in dry location.
• When LP cylinder is connected to grill, store outdoors in a well
ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer.
• Store grill indoors ONLY if LP cylinder is turned off,
disconnected, and removed from grill. Never store LP cylinder
indoors.
• When removing grill from storage, follow the 'Cleaning the
BurnerAssembly' instructions in the Use and Care section of
the Product Guide.
Critters
Spiders like to make their homes in the venturi tubes of grills.
These must be inspected and cleaned regularly to ensure there
are no blockages. Refer to the Use and Care portion of this
Product Guide for complete information.

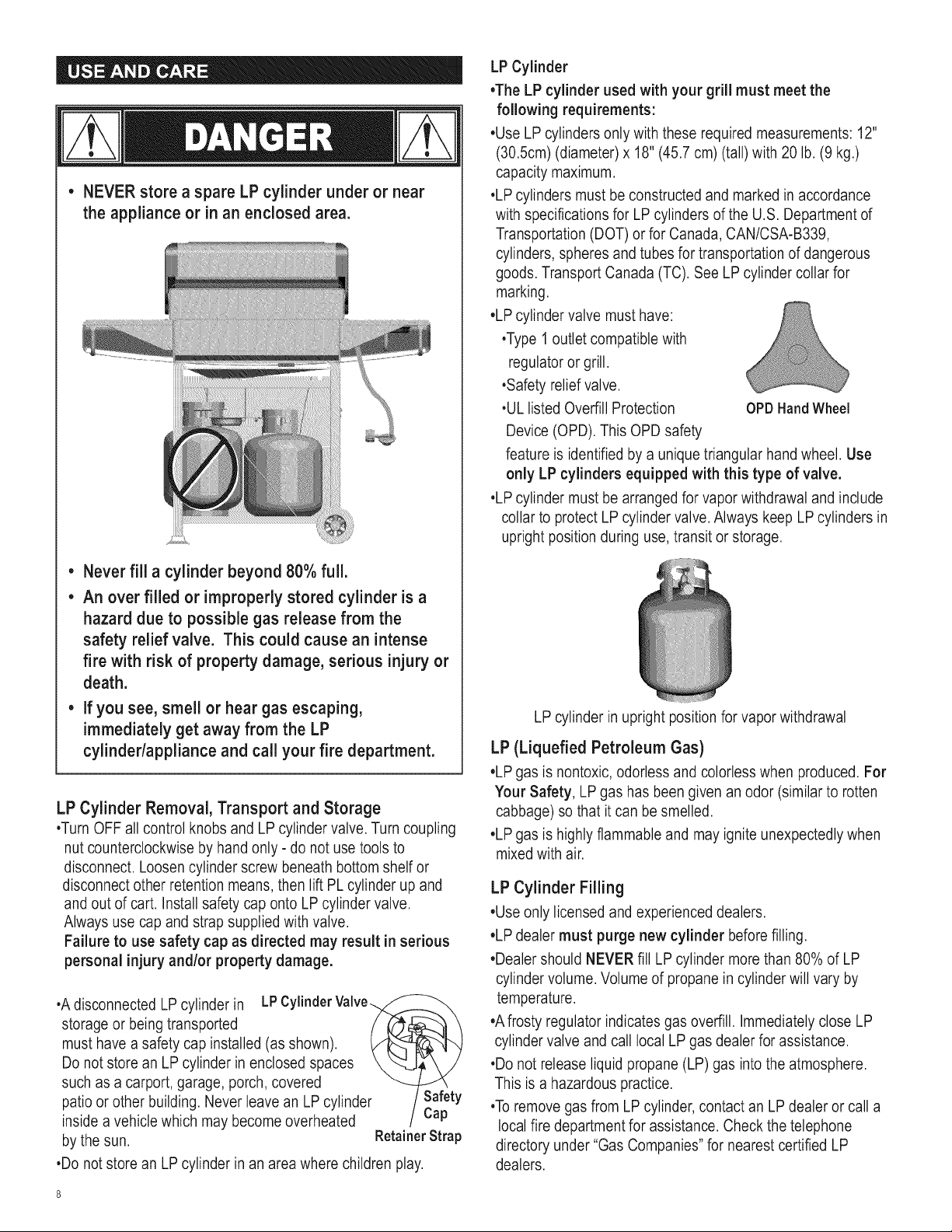

• NEVER store a spare LP cylinder under or near
the appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a
hazard due to possible gas release from the
safety relief valve. This could cause an intense
fire with risk of property damage, serious injury or
death.
If you see, smell or hear gas escaping,
immediatelyget away from the LP
cylindedappliance and call your fire department.
LP Cylinder Removal, Transport and Storage
•Turn OFF all control knobs and LP cylinder valve. Turn coupling
nut counterclockwise by hand only - do not use tools to
disconnect. Loosen cylinder screw beneath bottom shelf or
disconnect other retention means, then lift PL cylinder up and
and out of cart. Install safety cap onto LP cylinder valve.
Always use cap and strap supplied with valve.
Failure to use safety cap as directed may result in serious
personal injury and/or property damage.
•Adisconnected LP cylinder in LPCylinder
storage or being transported
must have a safety cap installed (as shown).
Do not store an LP cylinder in enclosed spaces
such as a carport, garage, porch, covered
patio or other building. Never leave an LP cylinder Safety
inside a vehicle which may become overheated Cap
by the sun. RetainerStrap
•Do not store an LP cylinder in an area where children play.
LP Cylinder
*The LP cylinder used with your grill must meet the
following requirements:
*Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
,LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods. Transport Canada (TC). See LP cylinder collar for
marking.
*LP cylinder valve must have:
,Type 1 outlet compatible with
regulator or grill.
,Safety relief valve.
,UL listed Overfill Protection OPDHandWheel
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
,LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve. Always keep LP cylinders in
upright position during use, transit or storage.
i i
LP cylinder in upright position for vapor withdrawal
LP (Liquefied Petroleum Gas)
*LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
*LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
*Use only licensed and experienced dealers.
*LP dealer must purge new cylinder before filling.
*Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
*A frosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
,Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
,To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under "Gas Companies" for nearest certified LP
dealers.
LP Cylinder Exchange Connecting Regulator to the LP Cylinder
•Many retailers that sell grills offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPD safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
•Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
•Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the cylinder valve
outlet that is provided with the cylinder valve. Other types of caps
or plugs may result in leakage of propane.

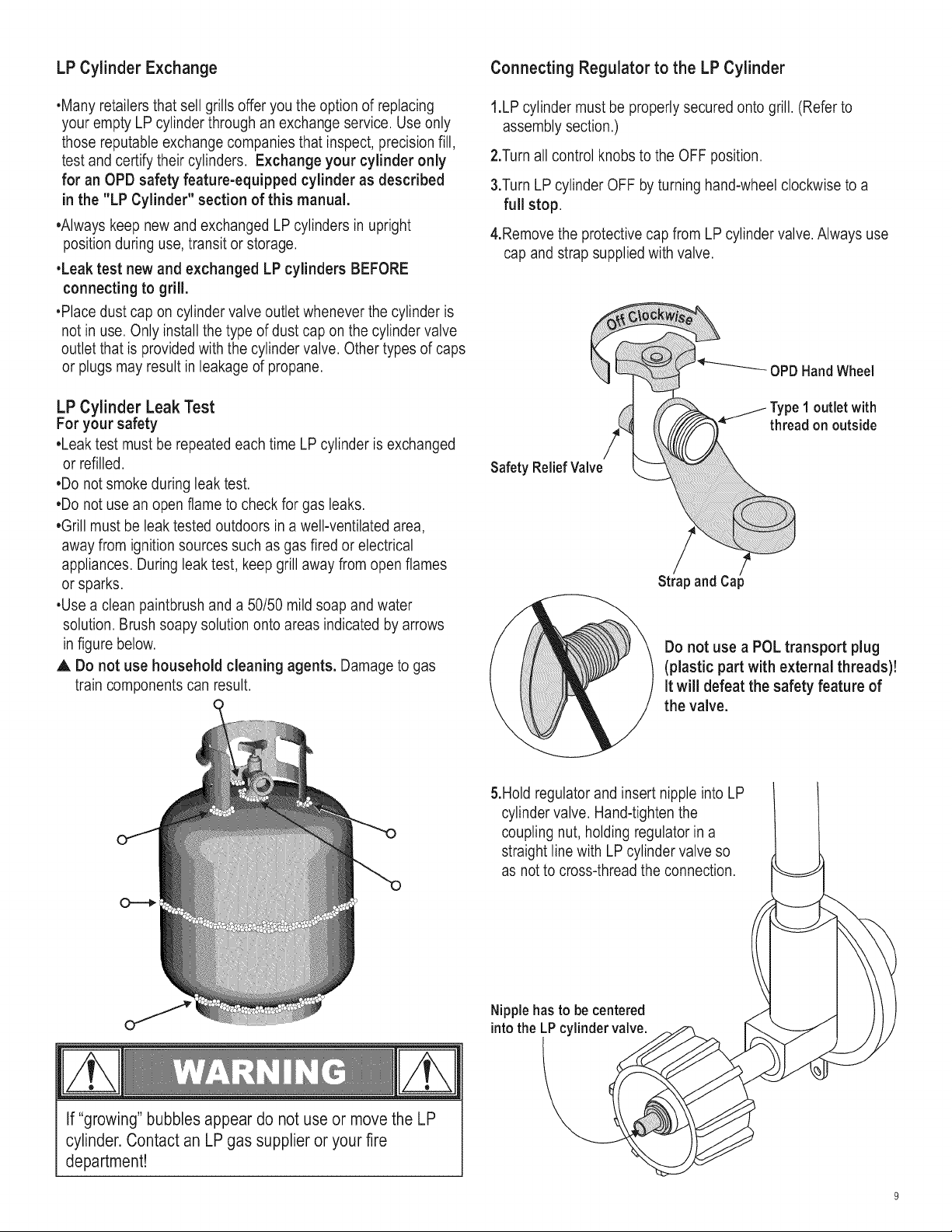

LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder is exchanged
or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
•Grill must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep grill away from open flames
or sparks.
•Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by arrows
in figure below.
A Do not use household cleaning agents. Damage to gas
train components can result.
1.LP cylinder must be properly secured onto grill. (Refer to
assembly section.)
2.Turn all control knobs to the OFF position.
3.Turn LP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4.Remove the protective cap from LP cylinder valve. Always use
cap and strap supplied with valve.
OPDHandWheel
j Type1 outlet with
thread on outside
Safety ReliefValve
!
Strap and Cap
Do not use a POL transport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
5.Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
Nipple has to be centered
intothe LP cylinder valve.
If "growing" bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!
Hold coupling nut and regulator
as shown for properconnection
to LP cylinder valve.

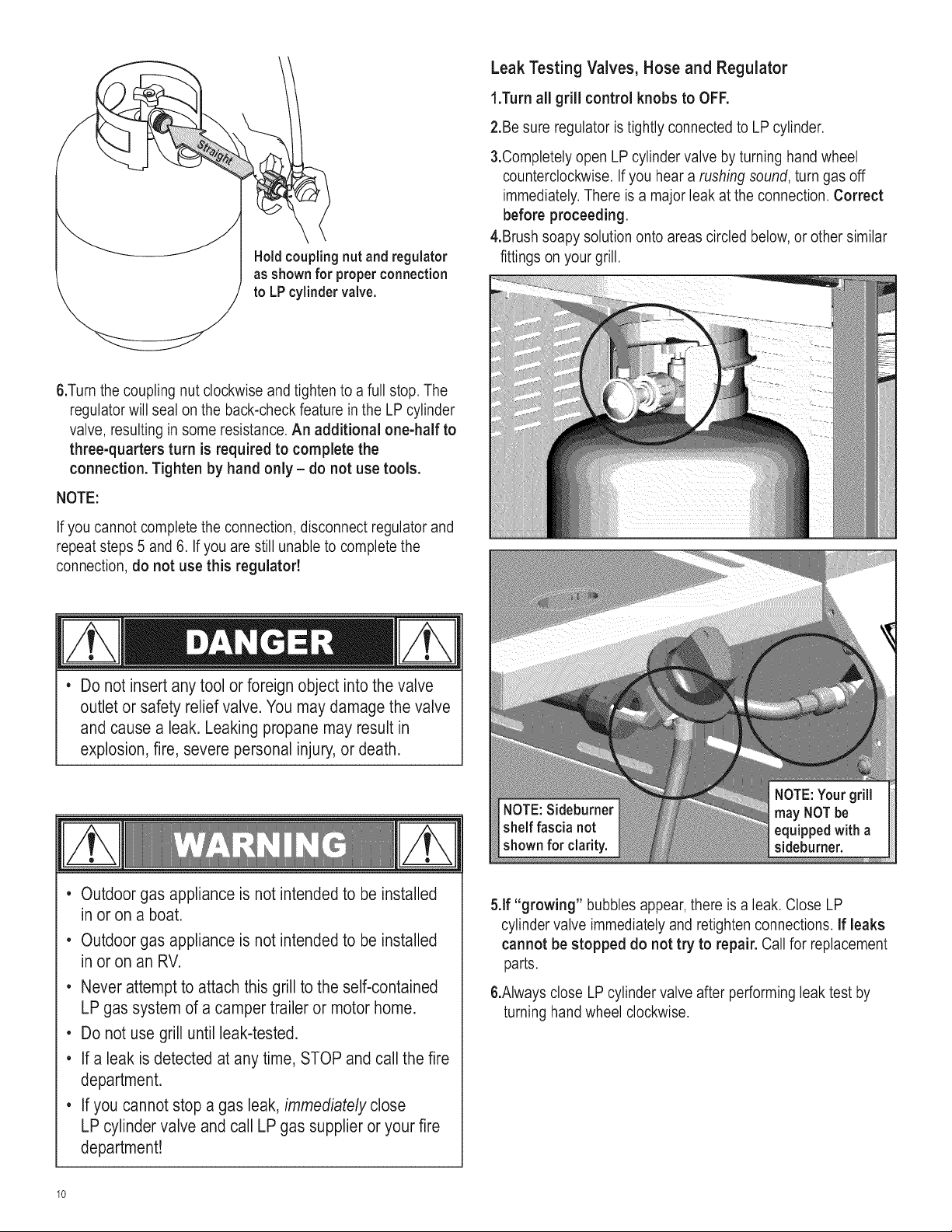

Leak Testing Valves, Hose and Regulator
1.Turn all grill control knobs to OFF.
2.Be sure regulator is tightly connected to LP cylinder.
3.Completely open LP cylinder valve by turning hand wheel
counterclockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection. Correct
before proceeding.
4.Brush soapy solution onto areas circled below, or other similar
fittings on your grill.
6.Turn the coupling nut clockwise and tighten to a full stop. The
regulator will seal on the back-check feature in the LP cylinder
valve, resulting in some resistance. An additional one-half to
three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection, do not use this regulator!
Do not insert any tool or foreign object into the valve
outlet or safety relief valve. You may damage the valve
and cause a leak. Leaking propane may result in
explosion,fire, severe _ersonal injury, or death.
Outdoor gas appliance is not intended to be installed
in or on a boat.
Outdoor gas appliance is not intended to be installed
in or on an RV.
, Never attempt to attach this grill to the self-contained
LP gas system of a camper trailer or motor home.
, Do not use grill until leak-tested.
, If a leak is detected at any time, STOP and call the fire
department.
, If you cannot stop a gas leak, immediately close
LP cylinder valve and call LP gas supplier or your fire
department!
5.If "growing" bubbles appear, there is a leak. Close LP
cylinder valve immediately and retighten connections. If leaks
cannot be stopped do not try to repair. Call for replacement
parts.
6.Always close LPcylinder valve after performing leak test by
turning hand wheel clockwise.

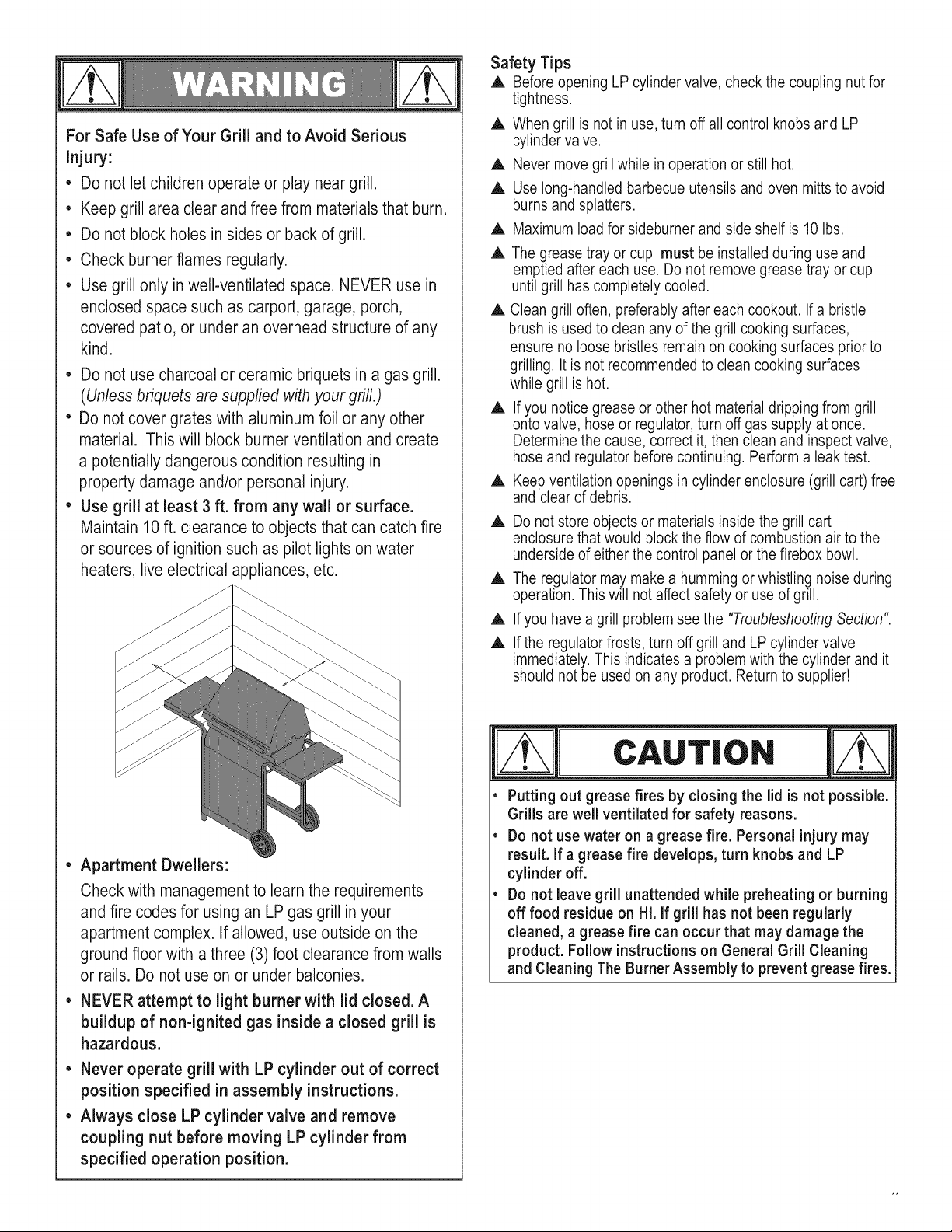

For Safe Use of YourGrill and to Avoid Serious
injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Do not block holes in sides or back of grill.
• Check burnerflames regularly.
• Use grill only in well-ventilated space. NEVER use in
enclosed space such as carport, garage, porch,
covered patio, or under an overhead structure of any
kind.
• Do not use charcoal or ceramic briquets in a gas grill.
(Unless briquets are supplied with your grill.)
• Do not cover grates with aluminum foil or any other
material. This will block burner ventilation and create
a potentially dangerous condition resulting in
property damage and/or personal injury.
" Use grill at least 3 ft. from any wall or surface.
Maintain 10 ft. clearance to objects that can catch fire
or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• Apartment Dwellers:
Check with managementto learn the requirements
and fire codes for using an LP gas grill in your
apartment complex. If allowed, use outside on the
ground floor with a three (3) foot clearance from walls
or rails. Do not use on or under balconies.
• NEVER attempt to light burner with lid closed.A
buildup of non-ignited gas inside a closed grill is
hazardous.
• Never operate grill with LP cylinder out of correct
positionspecified in assembly instructions.
• Always close LP cylinder valve and remove
coupling nut before moving LP cylinder from
specified operation position.
Safety Tips
A Before opening LP cylinder valve, check the coupling nut for
tightness.
A When grill is not in use, turn off all control knobs and LP
cylinder valve.
A Never move grill while in operation or still hot.
A Use long-handled barbecue utensils and oven mitts to avoid
burns and splatters.
A Maximum load for sidebumer and side shelf is 10 Ibs.
A The grease tray or cup must be installed during use and
emptied after each use. Do not remove grease tray or cup
until grill has completely cooled.
A Clean grill often, preferably after each cookout. If a bristle
brush is used to clean any of the grill cooking surfaces,
ensure no loose bristles remain on cooking surfaces prior to
grilling. It is not recommended to clean cooking surfaces
while grill is hot.
A If you notice grease or other hot material dripping from grill
onto valve, hose or regulator, turn off gas supply at once.
Determine the cause, correct it, then clean and inspect valve,
hose and regulator before continuing. Perform a leak test.
A Keep ventilation openings in cylinder enclosure (grill cart) free
and clear of debris.
A Do not store objects or materials inside the grill cart
enclosure that would block the flow of combustion air to the
underside of either the control panel or the firebox bowl.
A The regulator may make a humming or whistling noise during
operation. This will not affect safety or use of grill.
A If you have a grill problem see the "Troubleshooting Section".
A If the regulator frosts, turn off grill and LP cylinder valve
immediately. This indicates a problem with the cylinder and it
should not be used on any product. Return to supplier!
CAuT,o.
i" Putting out grease fires by closing the lid is not possible.
Grills are well ventilated for safety reasons.
i" Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP
cylinder off.
i, Do not leave grill unattended while preheating or burning
off food residue on HI. if grill has not been regularly
cleaned, a grease fire can occur that may damage the
product. Follow instructions on General Grill Cleaning
and Cleaning The Burner Assembly to prevent grease fires.

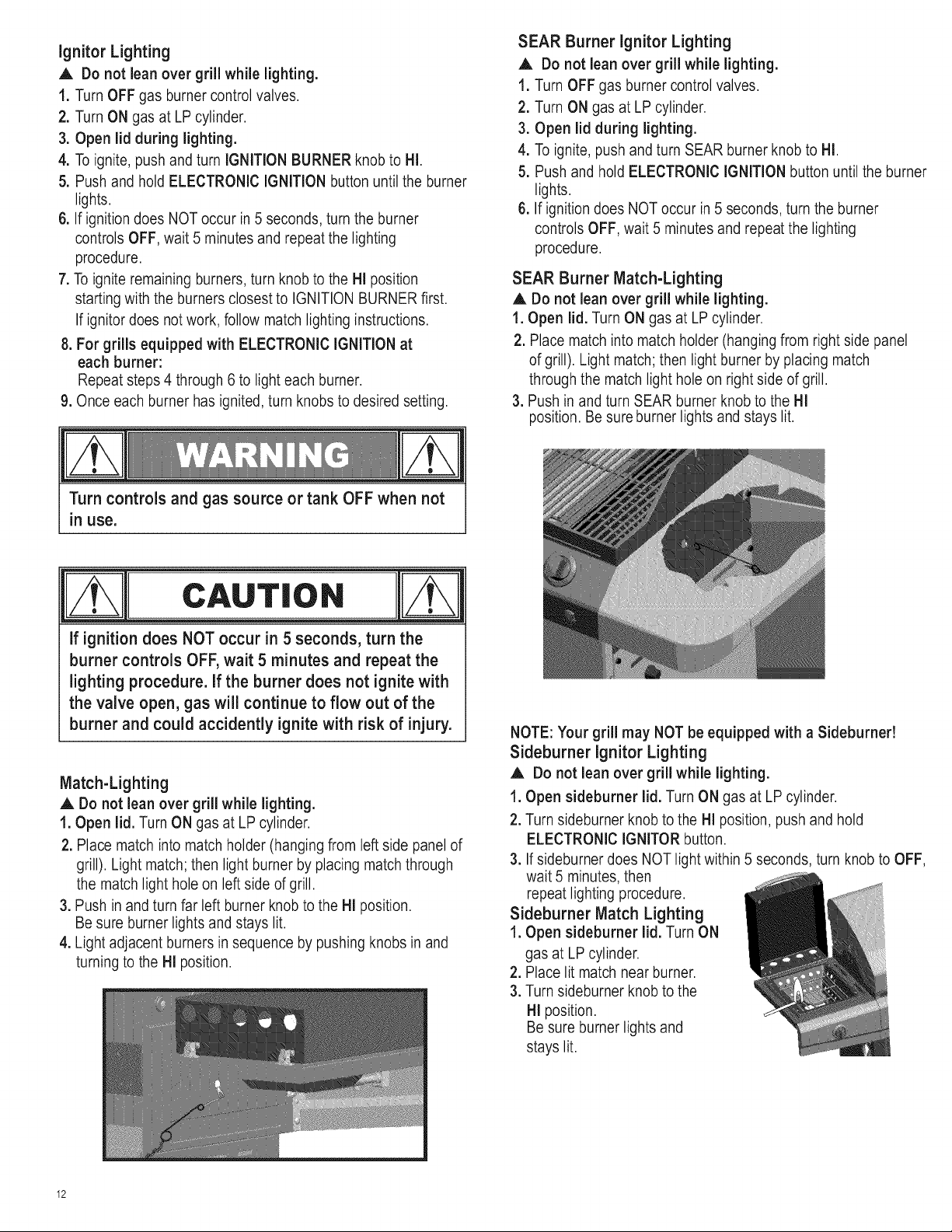

Ignitor Lighting
A Do not lean over grill while lighting.
1. Turn OFF gas burner control valves.
2. Turn ON gas at LP cylinder.
3. Open lid during lighting.
4. To ignite, push and turn IGNITION BURNER knob to HI.
5. Push and hold ELECTRONIC IGNITION button until the burner
lights.
6. If ignition does NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes and repeat the lighting
procedure.
7. To ignite remaining burners, turn knob to the HI position
starting with the burners closest to IGNITION BURNER first.
If ignitor does not work, follow match lighting instructions.
8. For grills equipped with ELECTRONIC IGNITION at
each burner:
Repeat steps 4 through 6 to light each burner.
9. Once each burner has ignited, turn knobs to desired setting.
SEAR Burner Ignitor Lighting
A Do not lean over grill while lighting.
1. Turn OFF gas burner control valves.
2. Turn ON gas at LP cylinder.
3. Open lid during lighting.
4. To ignite, push and turn SEAR burner knob to HI.
5. Push and hold ELECTRONIC IGNITION button until the burner
lights.
6. If ignition does NOT occur in 5 seconds, turn the burner
controls OFF, wait 5 minutes and repeat the lighting
procedure.
SEAR Burner Match-Lighting
A Do not lean over grill while lighting.
1. Open lid. Turn ON gas at LP cylinder.
2. Place match into match holder (hanging from right side panel
of grill). Light match; then light burner by placing match
through the match light hole on right side of grill.
3. Push in and turn SEAR burner knob to the HI
position. Be sure burner lights and stays lit.
Turn controls and gas source or tank OFF when not
in use.
/L cAuT,o. /L
If ignition does NOT occur in 5 seconds, turn the
burner controls OFF,wait 5 minutes and repeat the
lighting procedure. If the burner does not ignite with
the valve open, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
Match-Lighting
A Do not lean over grill while lighting.
1. Open lid. Turn ON gas at LP cylinder.
2. Place match into match holder (hanging from left side panel of
grill). Light match; then light burner by placing match through
the match light hole on left side of grill.
3. Push in and turn far left burner knob to the HI position.
Be sure burner lights and stays lit.
4. Light adjacent burners in sequence by pushing knobs in and
turning to the HI position.
NOTE: Your grill may NOT be equipped with a Sideburner!
Sideburner Ignitor Lighting
,A, Do not lean over grill while lighting.
1. Open sideburner lid. Turn ON gas at LP cylinder.
2. Turn sideburner knob to the HI position, push and hold
ELECTRONIC IGNITOR button.
3. If sideburner does NOT light within 5 seconds, turn knob to OFF,
wait 5 minutes, then
repeat lighting procedure.
Sideburner Match Lighting
1. Open sideburner lid. Turn ON
gas at LP cylinder.
2. Place lit match near burner.
3. Turn sideburner knob to the
HI position.
Be sure burner lights and
stays lit.

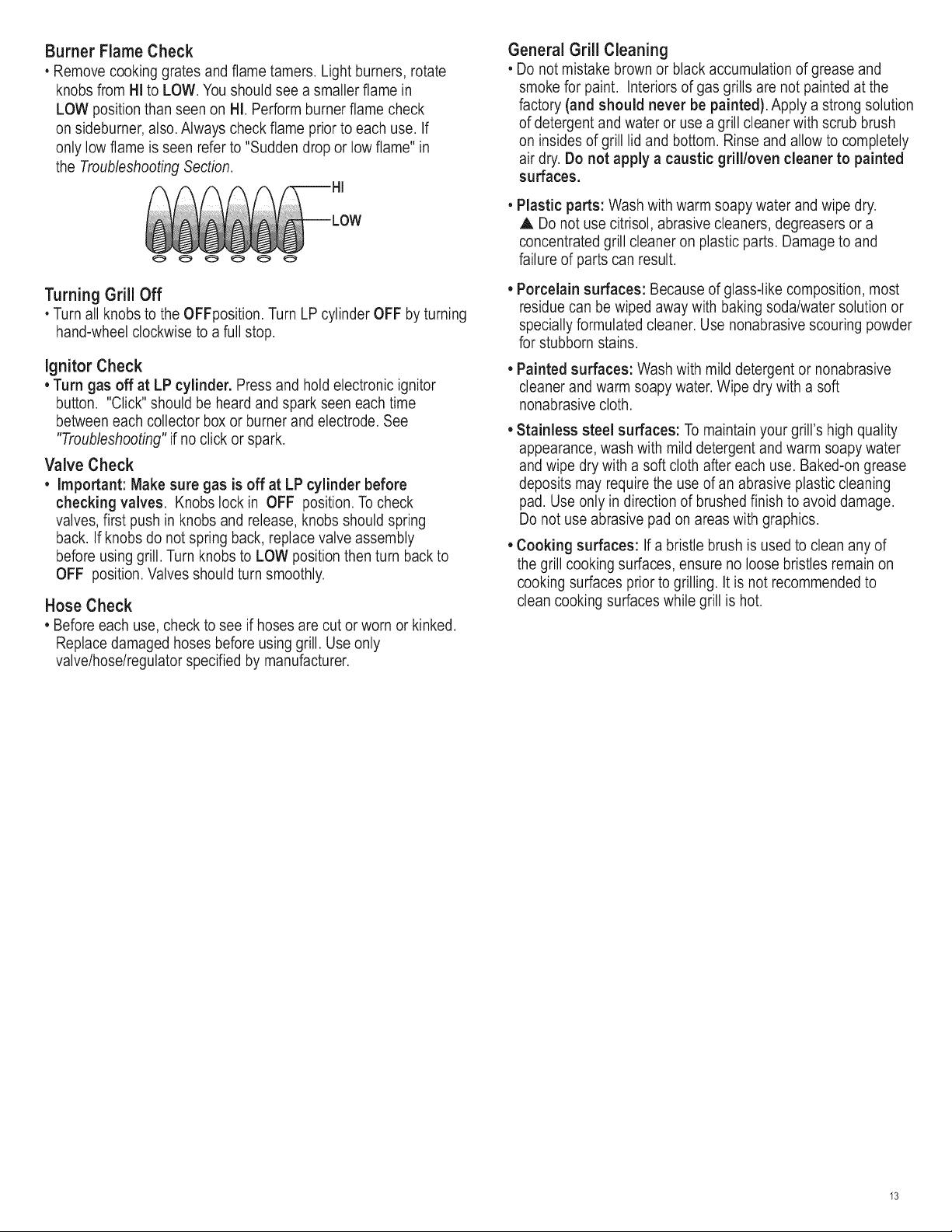

BurnerFlame Check
• Remove cooking grates and flame tamers. Light burners, rotate
knobs from Hi to LOW. You should see a smaller flame in
LOW position than seen on Ill. Perform burner flame check
on sideburner, also. Always check flame prior to each use. If
only low flame is seen refer to "Sudden drop or low flame" in
the Troubleshooting Section.
Turning Grill Off
• Turn all knobs to the OFFposition. Turn LP cylinder OFF by turning
hand-wheel clockwise to a full stop.
Ignitor Check
• Turn gas off at LP cylinder. Press and hold electronic ignitor
button. "Click" should be heard and spark seen each time
between each collector box or burner and electrode. See
"Troubleshooting" if no click or spark.
Valve Check
• Important: Make sure gas is off at LP cylinder before
checking valves. Knobs lock in OFF position. To check
valves, first push in knobs and release, knobs should spring
back. If knobs do not spring back, replace valve assembly
before using grill. Turn knobs to LOW position then turn back to
OFF position. Valves should turn smoothly.
Hose Check
* Before each use, check to see if hoses are cut or worn or kinked.
Replace damaged hoses before using grill. Use only
valve/hose/regulator specified by manufacturer.
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and
smoke for paint. Interiors of gas grills are not painted at the
factory (and should never be painted). Apply a strong solution
of detergent and water or use a grill cleaner with scrub brush
on insides of grill lid and bottom. Rinse and allow to completely
air dry. Do not apply a caustic grill/oven cleaner to painted
surfaces.
Plastic parts: Wash with warm soapy water and wipe dry.
,& Do not use citrisol, abrasive cleaners, degreasers or a
concentrated grill cleaner on plastic parts. Damage to and
failure of parts can result.
Porcelain surfaces: Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use nonabrasive scouring powder
for stubborn stains.
Painted surfaces: Wash with mild detergent or nonabrasive
cleaner and warm soapy water. Wipe dry with a soft
nonabrasive cloth.
Stainless steel surfaces: To maintain your grill's high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baked-on grease
deposits may require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to avoid damage.
Do not use abrasive pad on areas with graphics.
Cooking surfaces: Ifa bristle brush is used to clean any of
the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to
clean cooking surfaces while grill is hot.

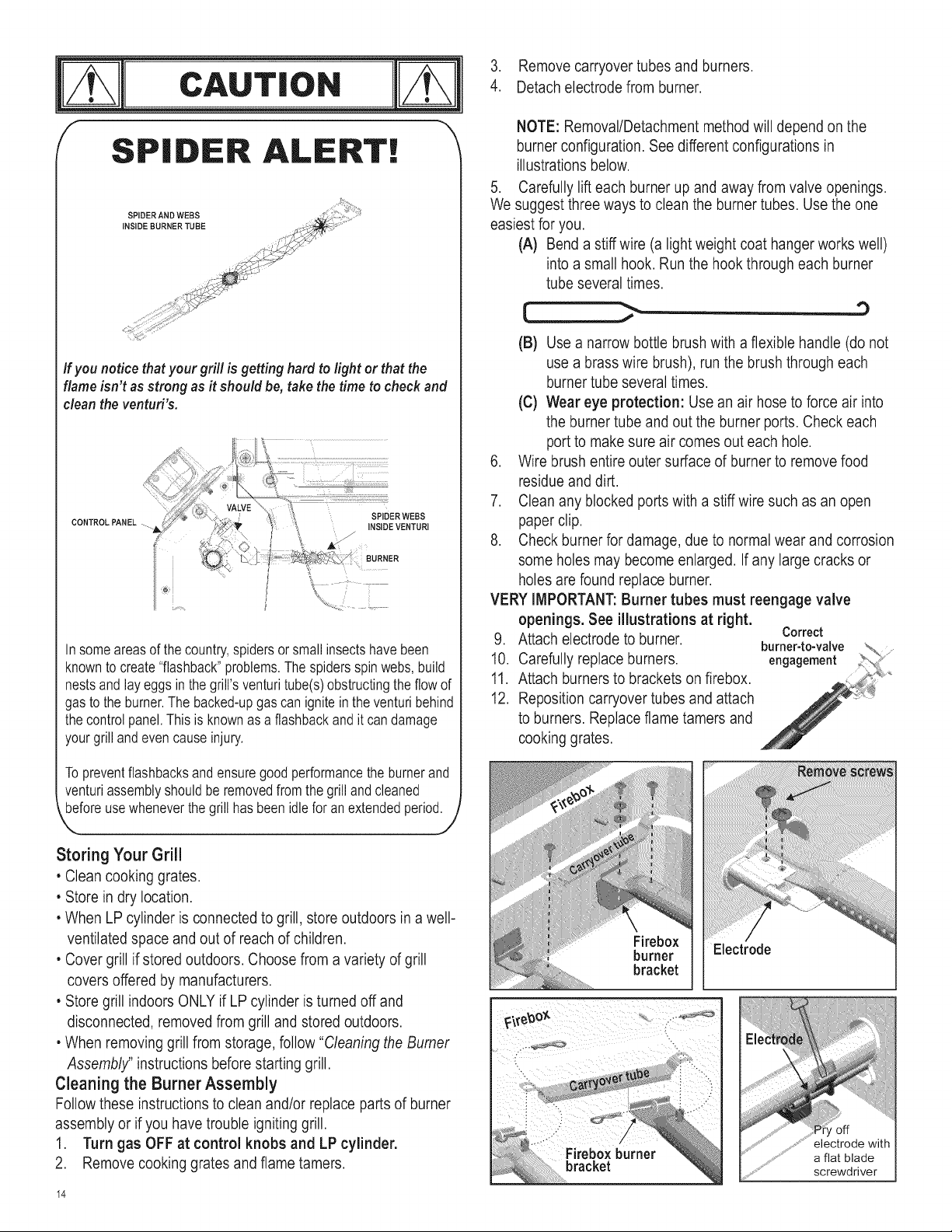

cAuTioN
f
SPIDER ALERT!
If you notice thatyour grill is getting hard to light or thatthe
flame isn't as strong as it should be, takethe time to check and
clean the ventud's.
CONTROLPANEL
SPIDERWEBS
INSIDE VENTURI
!
BURNER
In someareasof the country,spidersor small insectshavebeen
knownto create"flashback"problems.The spidersspinwebs,build
nestsand layeggs in the grill'sventuritube(s)obstructingthe flowof
gasto the burner.Thebacked-upgascan igniteinthe venturibehind
thecontrolpanel.Thisis knownasa flashbackandit candamage
yourgrillandevencauseinjury.
Topreventflashbacksand ensuregoodperformancethe burnerand
venturiassemblyshouldbe removedfrom the grill and cleaned
eforeusewheneverthe grill hasbeenidlefor anextendedperiod, j
J
Storing Your Grill
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-
ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturers.
• Store grill indoors ONLY if LP cylinder is turned off and
disconnected, removed from grill and stored outdoors.
• When removing grill from storage, follow "Cleaning the Burner
Assembly" instructions before starting grill.
Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1. Turn gas OFF at control knobs and LP cylinder,
2. Remove cooking grates and flame tamers.
3. Remove carryover tubes and burners.
4. Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the
burner configuration. See different configurations in
illustrations below.
5. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner
tube several times.
r.._.,_ _
(B) Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
(C) Wear eye protection: Use an air hose to force air into
the burner tube and out the burner ports. Check each
port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food
residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open
paper clip.
8. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or
holes are found replace burner.
VERY IMPORTANT:Burner tubes must reengage valve
openings. See illustrations at right.
9. Attach electrode to burner. Correct
burner-to-valve
10. Carefully replace burners, engagement
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach
to burners. Replace flame tamers and
cooking grates.
Firebox
burner
bracket
Electrode
a flat blade
screwdriver
This warranty only applies to units purchased l¥om an authorized retailer. ManuPacturer warrants to the original consumer-purchaser only that this
product shall be fiee from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods
indicated below beginning on the date of purchase*. The manuPacturer reserves the right to require that defective parts be returned, postage and or
freight pre-paid by the consumer for review and examination.
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
All Parts
l year from date of prochase* PERFORATION, MANUFACTURING,
AND MATERIAL DEFECTS ONLY
*Note: A dated sales receipt WILL be required for wananty service.
The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.
This limited wananty is applicable in the United States and Canada only; is only available to the original owner of the product and is not transferable.
Manufacturer requires proof of your date of purchase. Theretbre, you should retain your sales slip or invoice. Registering your product is not a
substitute for proof of purchase and the manuPacturer is not responsible for or required to retain proof of prochase records.
This limited wananty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or
discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surt:ace rust, or the
discoloration of stainless steel surfiaces. RUST is not considered a manufacturing or materials defect.
This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.
ITEMS MAN UFACTURER WILL NOT PAY FOR:
1. Shipping cost, standard or expedited, for warranty and replacement parts
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting t}om accident, alteration, careless handling, misuse, abuse, fire, flood,
acts of God, improper installation or maintenance, installation not in accordance with electrical or plmnbing codes, or use
of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.
DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues,
the manufacturer reserves the right to substitute like or similar parts that are equally functional.
Manufacturer will not be responsible for any consequential or incidental damages arising l¥om the breach of either this limited wananty or any
applicable implied warranty; or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration,
replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather,
acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE
SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET
FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY S'IWFE,
INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PAt_FICULAR PURPOSE OR USE, IS HEREBY
LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies
in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the
product paid by the original consumer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions
may not apply to you. This limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state
to state. In the state of California only; if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or
the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser
prior to discovery of the nonconformity. In addition, in the state of California only; you may take the product to the retail establishment selling this
product in order to obtain performance under this limited wanonly.
If you wish to obtain performance of any obligation under this limited warranty, you should
write to:
Consumer Relations
P. O. Box 1240
Columbus, GA 31902-1240
Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of
the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be
refused.

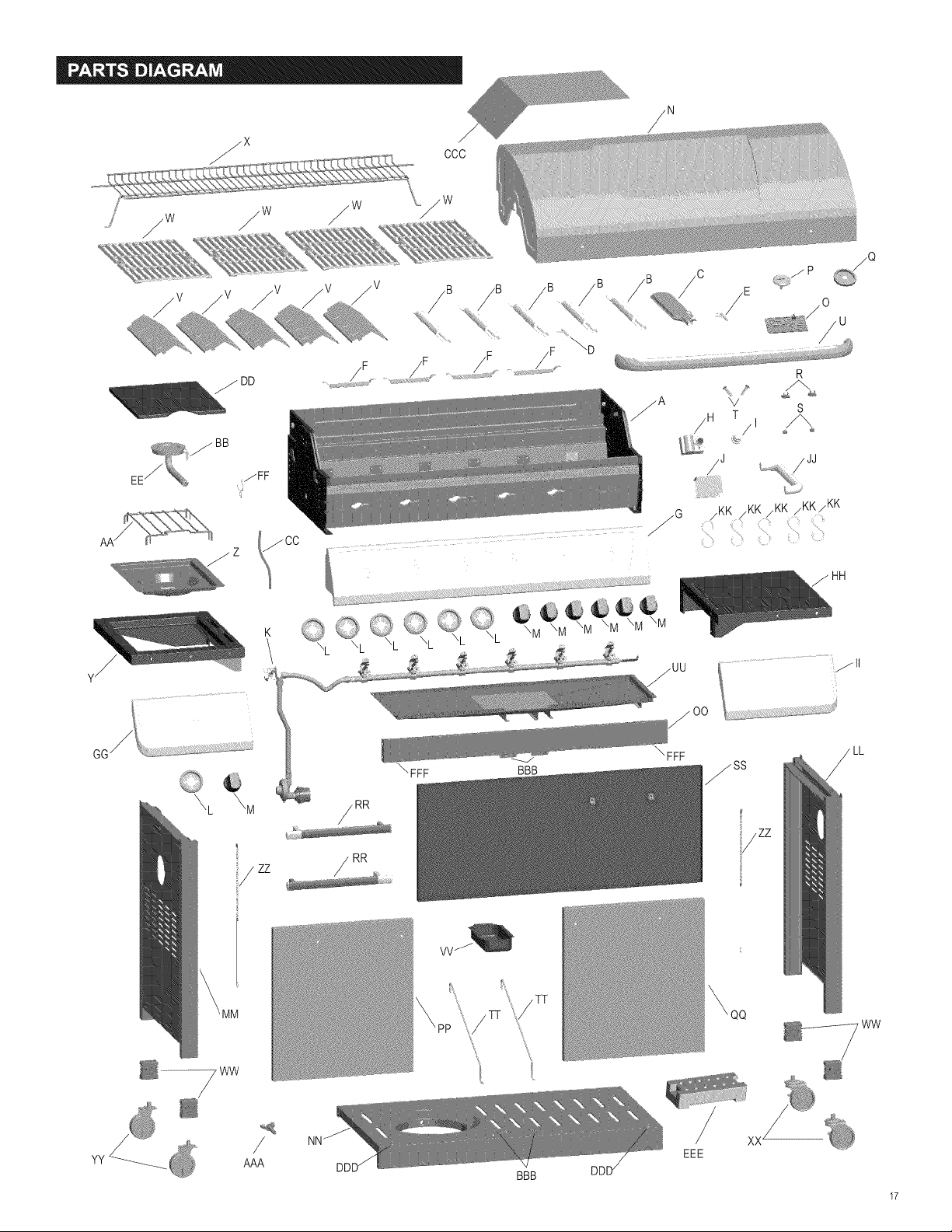

A 1 FIREBOX
B 5 MAIN BURNER-TUBEBURNER
C 1 MAIN BURNER-BARBURNER
D 1 ELECTRODE, F/TUBE BURNER
E 1 ELECTRODE, F/BAR BURNER
F 4 CARRY OVER TUBE
G 1 CONTROL PANEL, MAIN
H 1 ELECTRONICIGNITIONMODULE
I 1 BUTTON, F/IGNITION MODULE
J 1 SHIELD, F/ELECTRONIC IGNITIONMODULE
K 1 HOSEVALVE REGULATORASSEMBLY
L 7 BEZEL F/CONTROL KNOB
M 7 CONTROL KNOB
N 1 TOP LID
O 1 LOGOPLATE F/LID
P 1 TEMPERATURE GAUGE
Q 1 BEZEL,F/TEMPERATURE GAUGE
R 2 LIDBUMPER, RECTANGLE
S 2 LIDBUMPER, ROUND
T 1 TOP LIDHARDWARE
U 1 HANDLE, F/LID
V 5 HEATTENT
W 4 COOKINGGRATE
X 1 WARMING RACK
Y 1 LEFTSIDE SHELFF/SB
Z 1 DRIP PAN, F/SB
AA 1 SIDEBURNER GRATE
BB 1 ELECTRODE, F/SB
CC 1 ELECTRODE WIRE, F/SIDEBURNER
DD 1 SIDEBURNERLID
EE 1 SIDEBURNER
FF 1 SIDEBURNERVALVE CLIP
GG 1 CONTROL PANEL, F/SB
HH 1 RIGHT SIDE SHELF
II 1 FASCIA,F/ RIGHT SHELF
JJ 1 TOWELBAR
KK 5 TOOL HOOK
LL 1 RIGHTSIDE CARTPANEL
MM 1 LEFTSIDE CART PANEL
NN 1 BOTTOM SHELF
OO 1 FRONTDOOR BRACE
PP 1 LEFT DOOR
QQ 1 RIGHT DOOR
RR 2 HANDLE, F/DOOR
SS 1 LOWERBACK PANEL
TT 2 TANK EXCLUSIONWIRE
UU 1 GREASE TRAY
W 1 GREASE PAN
WW 4 CASTER SOCKET
XX 2 CASTER, LOCKING
YY 2 CASTER, FIXED
ZZ 2 MATCH HOLDER
AAA 1 TANK RETAINER SCREW
BBB 2 MAGNETASSEMBLY
CCC 1 SHIELD, F/TANK
DDD 2 DOOR PIN, FIXED
EEE 1 WEIGHTBLOCK
FFF 2 DOOR PIN, SPRING
NOT Pictured
... 1 CASTER PIN
... 1 PRODUCT MANUAL, ENGLISH
... 1 PRODUCT MANUAL, FRENCH
... 1 HARDWARE PACK
16
/,w /w jw /w
CCC
N
/ OD
EE_ /FF
R
J T S
/H I
iJ ,JJ
/G /KB /KK ,/KK /KK./KK
/ t
© O © @ @ '©
\L \L \L \L \L \L
YY
/
A4_A
/ RR
VV
BBB
BBB
DDI
/UU
/ O0
\FFF
/
EEE
/SS

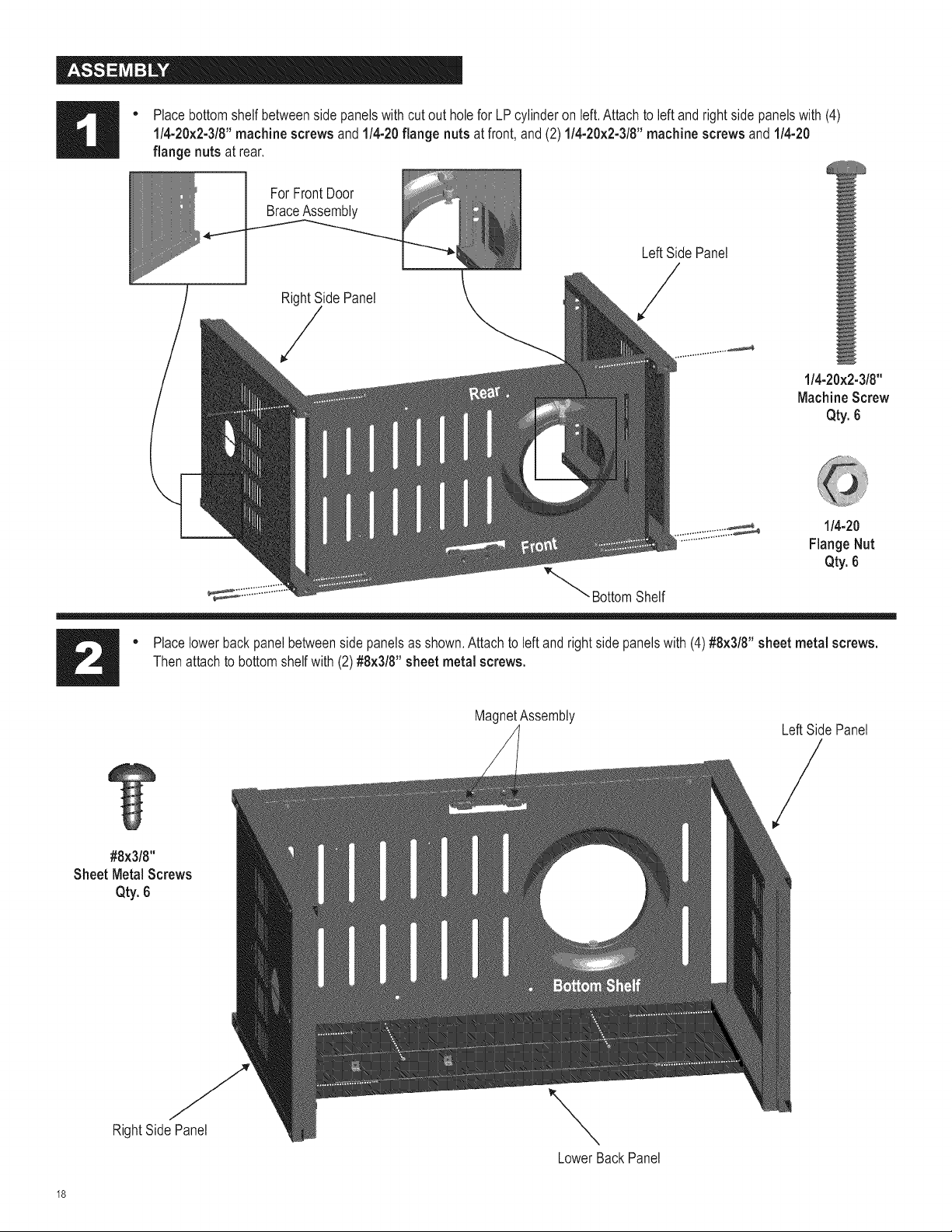

" Placebottomshelfbetweenside panelswith cut out holefor LPcylinderon left.Attachto leftandrightside panelswith (4)
1/4-20x2-3/8"machinescrews and 1/4-20flange nuts at front,and(2) 1/4-20x2-3/8"machine screws and 1/4-20
flange nuts at rear.
ForFrontDoor
BraceAssembly
RightSidePanel
/
LeftSidePanel
/
1/4-20x2-3/8"
Machine Screw
Qty. 6
1/4-20
Flange Nut
Qty.6
_""- BottomShelf
D " Placelowerbackpanelbetweensidepanelsas shown.Attachto leftand rightsidepanelswith (4)#8×3/8"sheet metalscrews.
Thenattachto bottomshelfwith (2) #8×3/8"sheet metal screws.
MagnetAssembly
LeftSidePanel
#8×3/8"
Sheet MetalScrews
Qty.6
RightSidePanel
\
LowerBackPanel
" Hooktankexclusionwireontothemetaltapsonlowerbackpanel,attachotherendstobottomshelfwith(2)#8x3/8"sheetmetal
screws,
#8x3/8"
SheetMetalScrews
Qty.2
LowerBackPanel
" Placefrontdoorbraceas shown.Attachto leftandrightsidepanelswith (4) 1/4-20x2-3/8"machinescrews and (4) 1/4-20
flange nuts.
1/4-20
Flange Nut
Qty. 4
1/4-20x2-3/8"
MachineScrew
Qty.4
\
FrontDoorBrace
, Turnassemblyupsidedown.
, InsertCasterPinintothecastermountingplatetolockitinplace,shownA. Spinthecasterclockwiseintothethreadsonthelegs
untilsecure.RemovetheCasterPinandrepeatforremainingcasters.Makesurethetwolockingcastersaresecuredattherear
andthenon-lockingcastersaresecuredatthefront.Afterall4castersaresecureremovetheCasterPinandsaveforfuture
maintenance(B).
, Standcartupright.
, Attachweightblocktobottomshelfwith(2)1/4-20x2"machinescrewsand(2)1/4-20flangenuts(C).
FixedCaster
LockingCaster
J
f
FixedCaster
B
LockingCaster
\
Caster Pin
A 1
Caster Pin
\
RightSidePanel
LeftSidePanel
1/4-20x2"
MachineScrew
Qty. 2
1/4-20
FlangeNut
Qty.2
C
2O
" Thissteprequirestwo peopleto lift and positiongrill headonto cart.
" Carefullylowerthegrill headontothe cart. Makesure the regulatorhoseis hangingoutsidethecart.Attachwith(2) 1/4-20x1/2"
screws.
Right side panel removed for clarity
GrillHead
1/4-20x1/2"Screw
Qty. 4
21

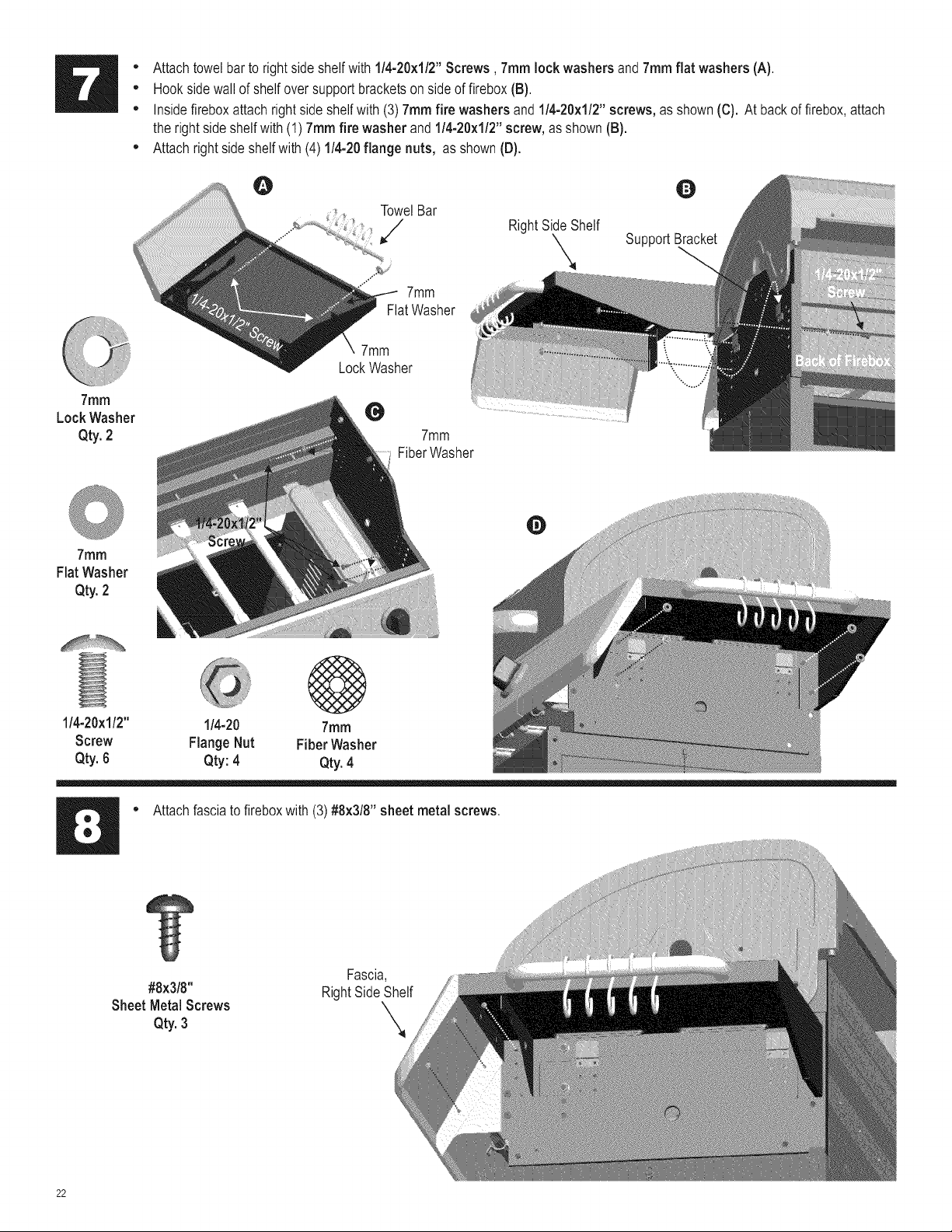

" Attachtowelbarto rightsideshelfwith 1/4-20×1/2"Screws, 7ramlock washersand7ramfiat washers(A).
" Hooksidewallof shelfoversupportbracketson sideof firebox(B).
" Insidefireboxattachrightside shelfwith (3) 7ram fire washers and1/4-20×1/2"screws, as shown(C). At backof firebox,attach
the rightsideshelfwith(1) 7ramfire washer and 1/4-20×1/2"screw,as shown(B).
" Attachrightsideshelfwith(4) 1/4-20flange nuts, as shown(D).
O Q
TowelBar
/
7ram
FlatWasher
RightSideShelf
X SupportBracket
7ram
Lock Washer
Qty. 2
7mm
LockWasher
O
7mm
FiberWasher
7ram
FlatWasher
Qty.2
O
1/4-20x1/2" 1/4-20 7ram
Screw Flange Nut FiberWasher
Qty. 6 Qty: 4 Qty.4
" Attachfasciato fireboxwith (3)#8×3/8" sheet metal screws.
Fascia,
#8x3/8" RightSideShelf
Sheet MetalScrews \
Qty.3
\
22

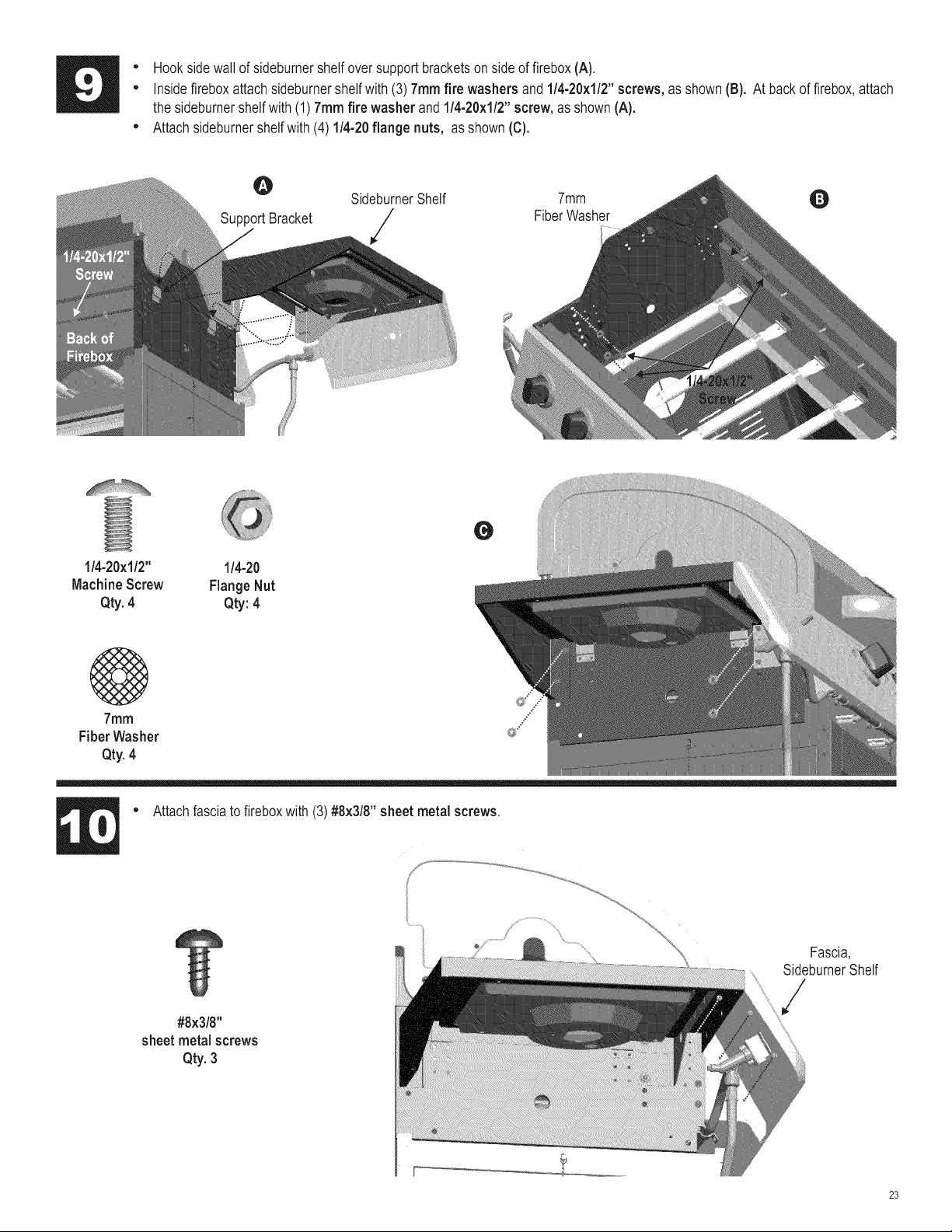

" Hooksidewallof sideburnershelfoversupportbracketson sideof firebox(A).
" Insidefireboxattachsideburnershelfwith (3) 7ramfire washers and 1/4-20x1/2"screws, as shown(B). At back of firebox,attach
the sidebumershelfwith (1)7ramfire washer and1/4-20x1/2"screw, as shown(A).
" Attachsideburnershelfwith(4) 1/4-20flange nuts, asshown (C).
O
SupportBracket
SideburnerShelf
7mm
FiberWasher
1/4-20x1/2"
MachineScrew
Qty. 4
Q
7mm
FiberWasher
Qty. 4
1/4-20
FlangeNut
Qty: 4
" Attachfasciato fireboxwith (3)#8x3/8" sheet metal screws.
Fascia,
SideburnerShelf
#8x3/8"
sheetmetal screws
Qty. 3
23

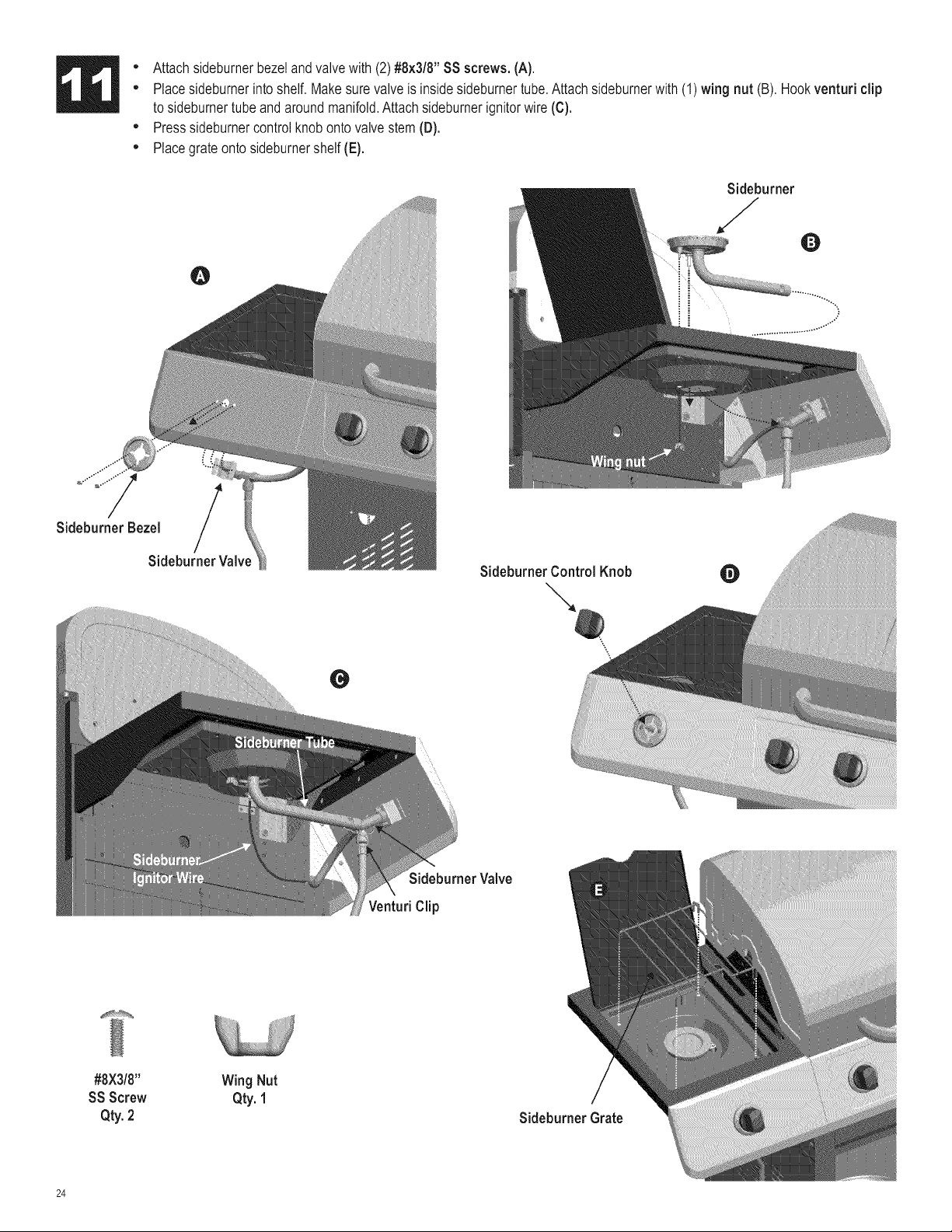

" Attachsideburnerbezelandvalvewith(2)#8x3/8" SS screws. (A).
" Placesideburnerinto shelf.Makesurevalveis insidesideburnertube.Attachsideburnerwith (1) wing nut (B). Hookventuri clip
to sideburnertube andaroundmanifold.Attachsideburnerignitorwire (C).
" Presssideburnercontrol knobontovalvestem (D).
" Placegrateontosideburnershelf(E).
Sideburner
J
/
Sideburner Bezel
SideburnerValve
Sideburner Control Knob
\
\
SideburnerValve
VenturiClip
#8X3/8"
SS Screw
Qty.2
Wing Nut
Qty. 1
Sideburner Grate
24

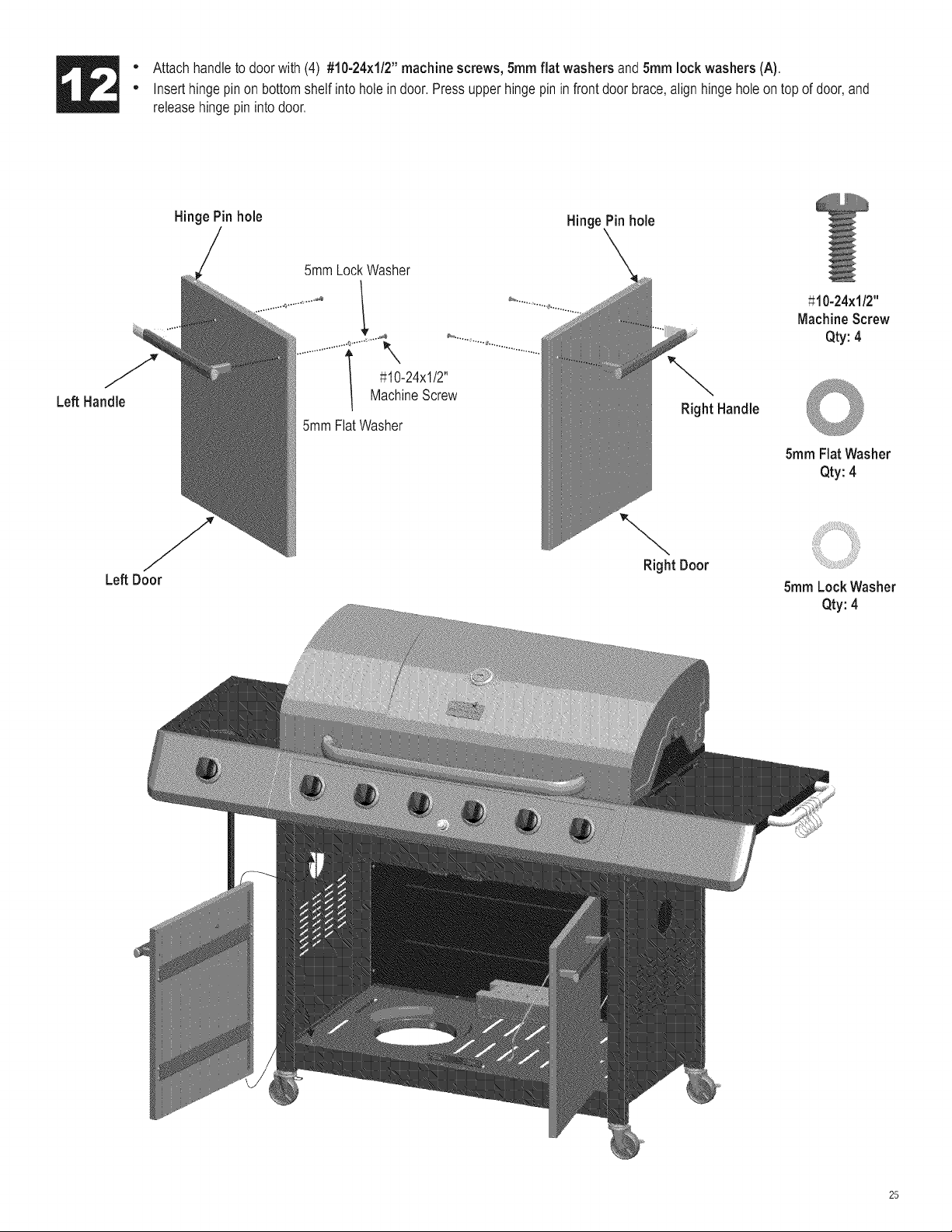

• Attachhandleto doorwith (4) #10-24x1/2"machinescrews, 5ramflat washers and 5ram lock washers (A).
• Inserthingepinon bottomshelfinto holein door.Pressupperhinge pin in front door brace,alignhinge holeon topof door,and
releasehingepininto door.
Hinge Pinhole Hinge Pin hole
LeftHandle
5mmLockWasher
\
#10-24xl/2"
Machine Screw
5mmFlatWasher
"- #10-24x1/2"
MachineScrew
--. Qty: 4
Right Handle
5ram FlatWasher
Qty: 4
f
Left Door
Right Door
5ramLock Washer
Qty: 4
25

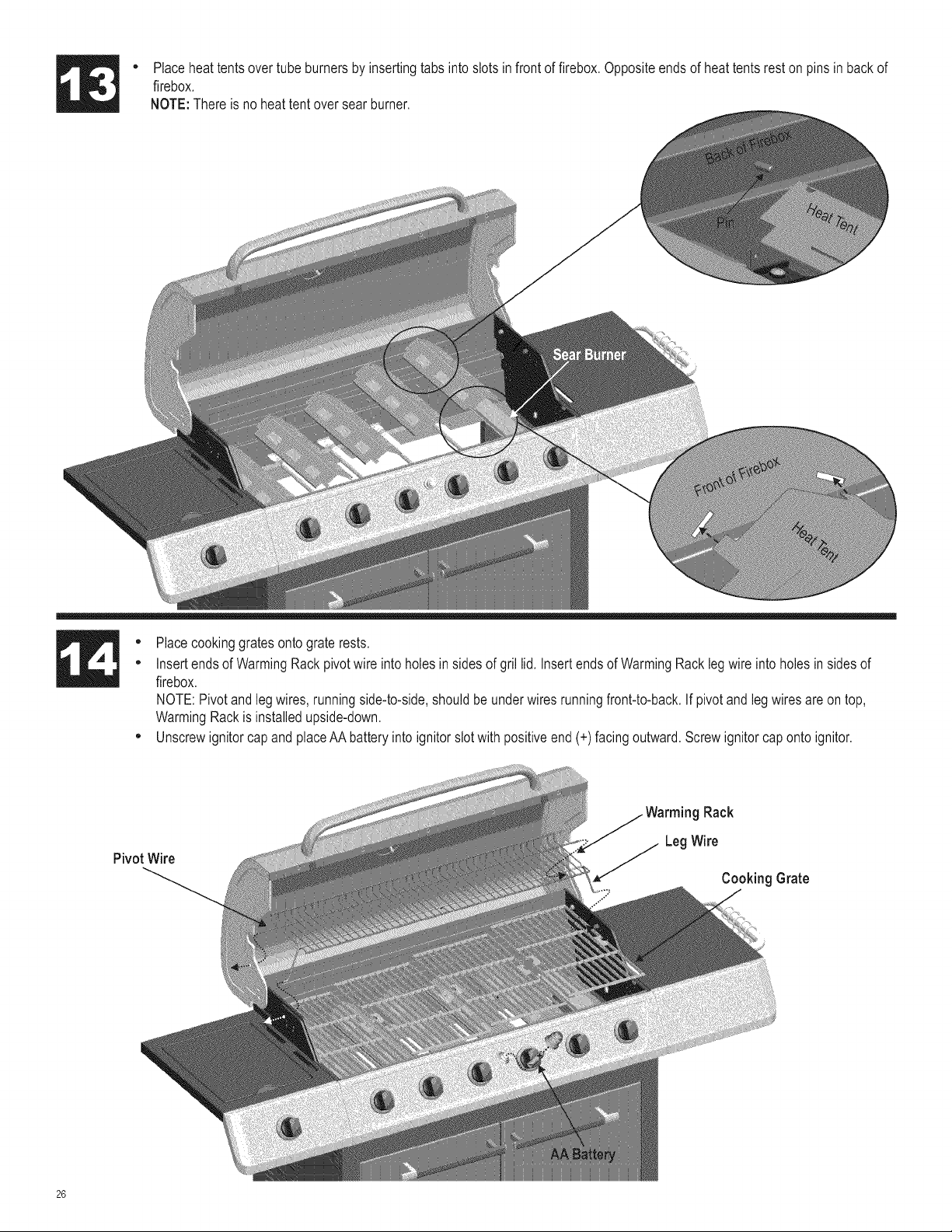

" Placeheattentsovertube burnersby insertingtabsintoslots infrontof firebox.Oppositeendsof heattentsrest on pinsin backof
firebox.
NOTE:Thereis noheattentover searburner.
" Placecookinggratesonto graterests.
" Insertendsof WarmingRackpivotwire intoholesin sides of gril lid. Insertendsof WarmingRackleg wire intoholesin sides of
firebox.
NOTE:Pivotandlegwires,runningside-to-side,shouldbe underwires runningfront-to-back.If pivot and leg wiresare on top,
WarmingRackis installedupside-down.
" UnscrewignitorcapandplaceAAbatteryintoignitorslotwith positiveend (+)facingoutward.Screwignitorcaponto ignitor.
PivotWire
Rack
LegWire
Cooking Grate
26

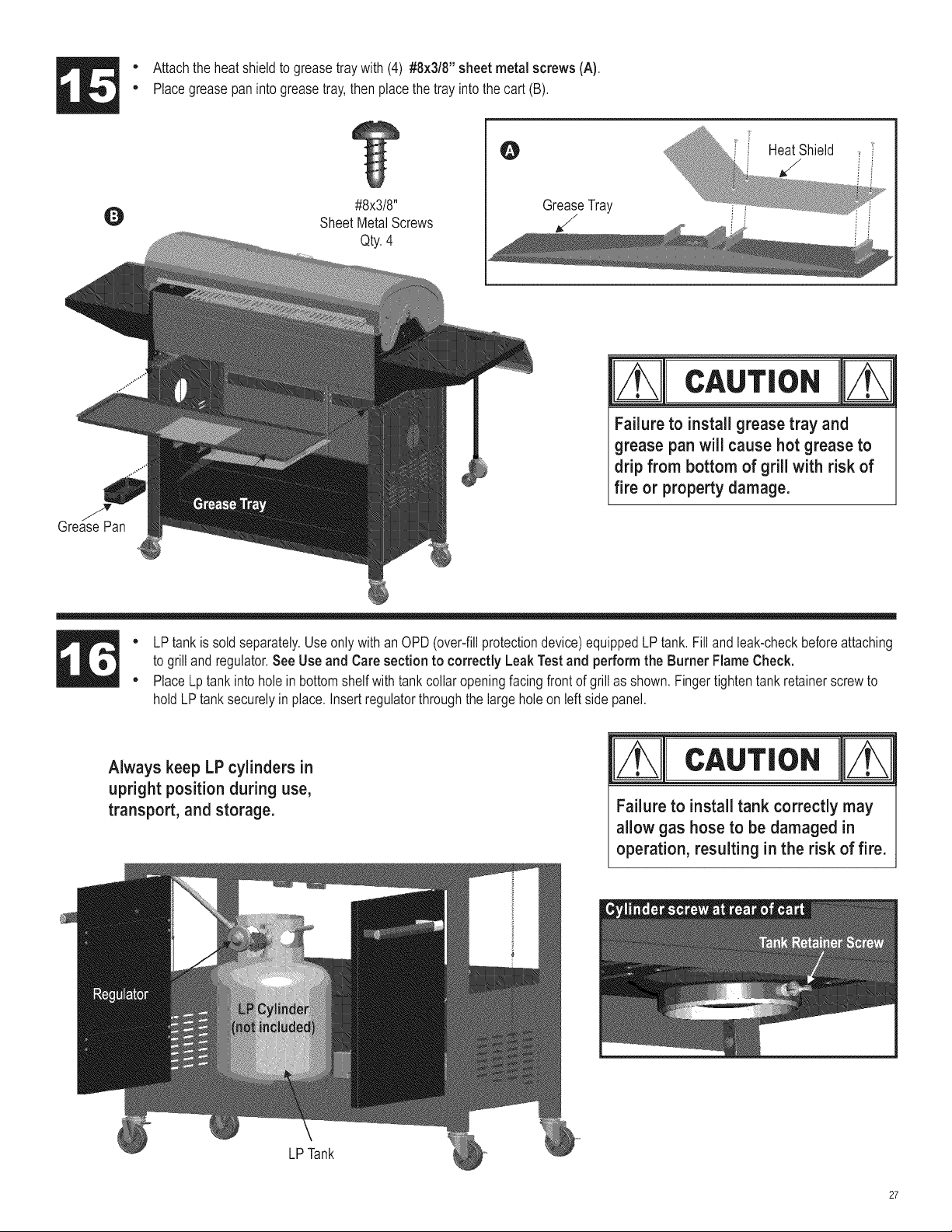

• Attachthe heatshieldto greasetraywith (4) #8x3/8"sheet metal screws (A).
" Placegreasepaninto greasetray,thenplacethetray intothe cart (B).
Q
#8x3/8"
SheetMetalScrews
Qty.4
O
GreaseTray
i HeatShield
GreasePan
CAUTION
Failure to install grease tray and
grease pan will cause hot grease to
drip from bottom of grill with risk of
fire or property damage.
" LPtankis sold separately.Useonlywithan OPD(over-fillprotectiondevice)equippedLPtank.Filland leak-checkbeforeattaching
to grillandregulator.See Use and Caresection to correctly LeakTest and perform the Burner Flame Check.
" PlaceLptankinto holeinbottomshelfwithtankcollaropeningfacingfrontof grillas shown.Fingertightentankretainerscrewto
holdLPtanksecurelyinplace.Insertregulatorthroughthe largeholeon left sidepanel.
Always keep LP cylinders in
upright position during use,
transport, and storage.
m m
Tio.
Failure to install tank correctly may
allow gas hose to be damaged in
operation, resulting in the risk of fire.
LPTank
27

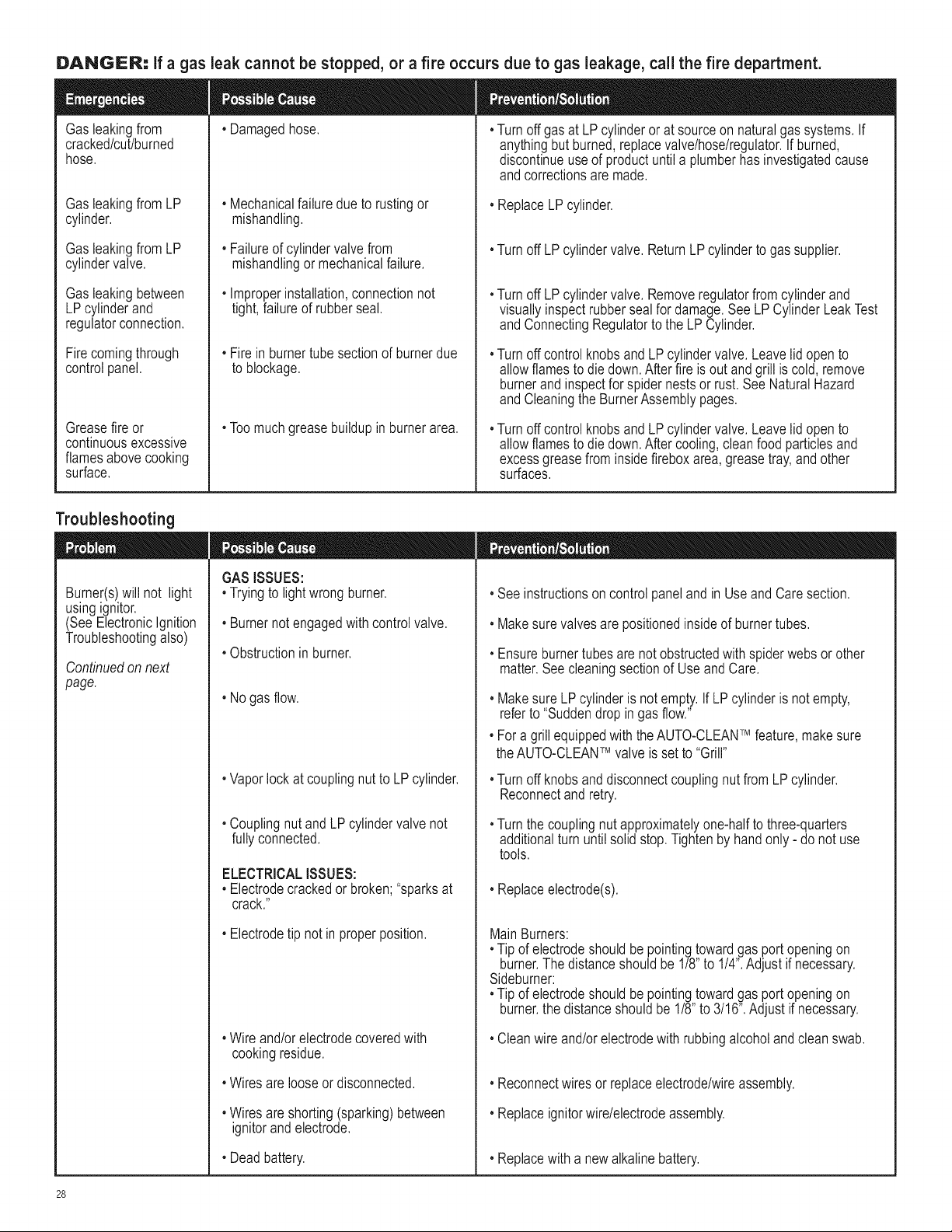

DANGER; If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
Gasleakingfrom
cracked/cut/burned
hose.
Gasleakingfrom LP
cylinder.
Gasleakingfrom LP
cylindervalve.
Gasleakingbetween
LPcylinderand
regulatorconnection.
Firecomingthrough
controlpanel.
Greasefire or
continuousexcessive
flamesabovecooking
surface.
• Damagedhose.
• Mechanicalfailuredue to rustingor
mishandling.
• Failureof cylindervalve from
mishandlingormechanicalfailure.
• Improperinstallation,connectionnot
tight,failureof rubberseal.
• Firein burnertube sectionof burnerdue
to blockage.
•Toomuchgreasebuildupin burnerarea.
. Turnoffgas at LP cylinderor at sourceon naturalgassystems.If
anythingbut burned,replacevalve/hose/regulator.If burned,
discontinueuseof productuntila plumberhas investigatedcause
andcorrectionsare made.
• ReplaceLP cylinder.
•Turnoff LPcylindervalve.ReturnLP cylinderto gassupplier.
•Turnoff LPcylindervalve.Removeregulatorfromcylinderand
visuallyinspectrubbersealfor damage.See LP CylinderLeakTest
andConnectingRegulatorto the LPCylinder.
•TurnoffcontrolknobsandLPcylindervalve.Leavelidopento
allowflamesto diedown.Afterfire is outand grill is cold,remove
burnerandinspectfor spidernestsor rust.See NaturalHazard
andCleaningthe BurnerAssemblypages.
•TurnoffcontrolknobsandLPcylindervalve.Leavelidopento
allowflamesto diedown.Aftercooling,cleanfood particlesand
excessgreasefrom insidefireboxarea,greasetray,and other
surfaces.
Troubleshooting
Burner(s)will not light
usingignitor.
(SeeElectronicIgnition
Troubleshootingalso)
Continuedon next
page.
GASISSUES:
•Tryingto lightwrongburner.
• Burnernot engagedwithcontrolvalve.
• Obstructionin burner.
. Nogas flow.
•Vaporlockat couplingnutto LP cylinder.
• Couplingnut and LP cylindervalvenot
fullyconnected.
ELECTRICALISSUES:
• Electrodecrackedor broken;"sparksat
• Seeinstructionson control paneland in UseandCaresection.
• Makesurevalvesare positionedinsideof burnertubes.
• Ensureburnertubesarenot obstructedwithspiderwebsor other
matter.See cleaningsectionof Useand Care.
• MakesureLPcylinderis not empty.If LP cylinderis notempty,
referto "Suddendropin gasflow."
• Fora grill equippedwith theAUTO-CLEANTM feature,makesure
theAUTO-CLEANTM valveis setto "Grill"
•Turnoff knobsanddisconnectcouplingnut fromLPcylinder.
Reconnectandretry.
•Turnthe couplingnutapproximatelyone-halfto three-quarters
additionalturn untilsolidstop.Tightenby handonly- do not use
tools.
• Replaceelectrode(s).
crack."
• Electrodetip notin properposition.
•Wire and/orelectrodecoveredwith
cookingresidue.
•Wiresarelooseordisconnected.
•Wiresareshorting(sparking)between
ignitorandelectrode.
• Deadbattery.
MainBurners:
•Tip of electrodeshouldbe pointingtowardgasport openingon
burner.The distanceshouldbe 118"to 114".Adjustif necessary.
Sideburner:
•Tip of electrodeshouldbe pointingtowardgasport openingon
burner,the distanceshouldbe 118"to 3116".Adjustif necessary.
• Cleanwireand/orelectrodewith rubbingalcoholandcleanswab.
• Reconnectwiresor replaceelectrode/wireassembly.
• Replaceignitorwire/electrodeassembly.
• Replacewith a newalkalinebattery.
28

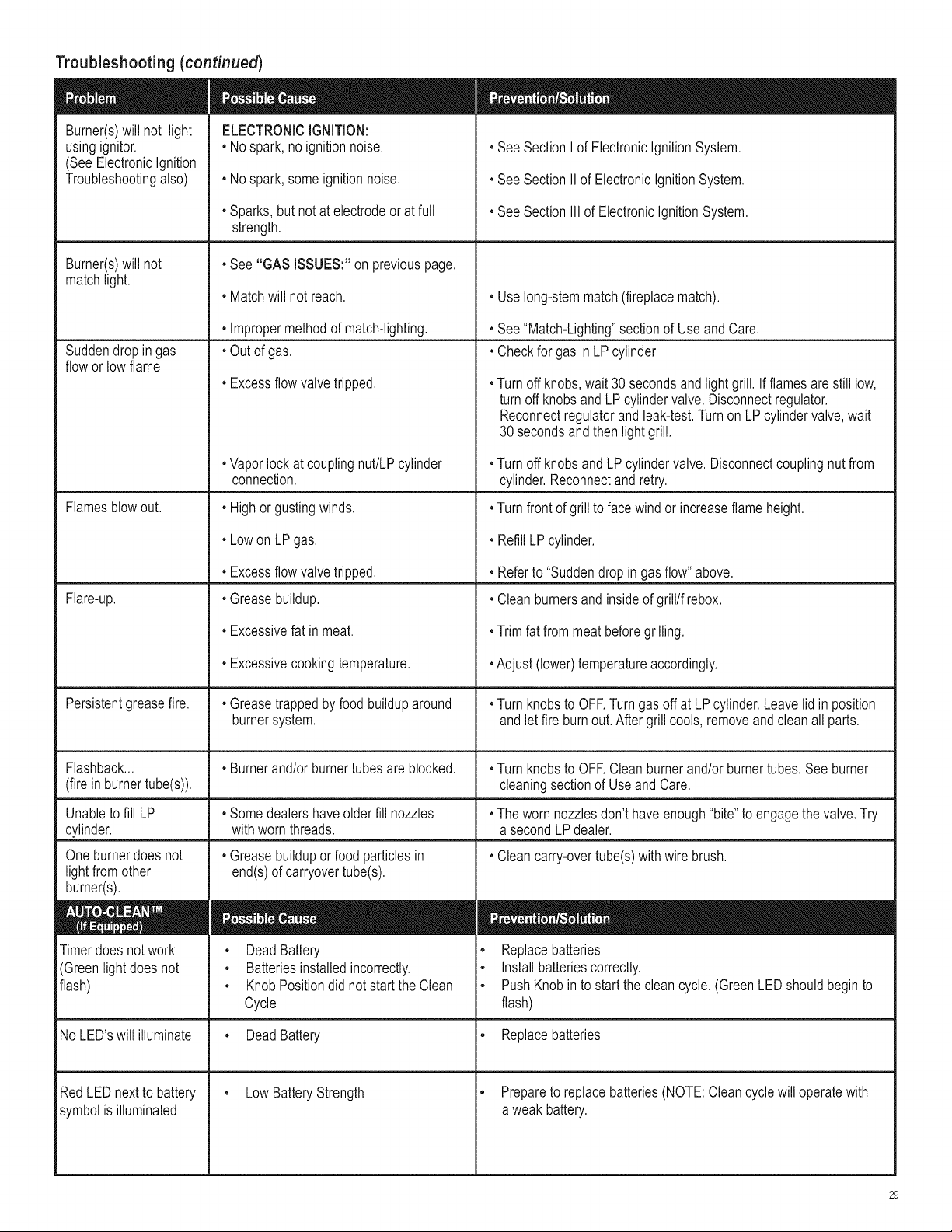

Troubleshooting(continued)
Burner(s)will not light
usingignitor.
(SeeElectronicIgnition
Troubleshootingalso)
Burner(s)will not
matchlight.
Suddendrop in gas
floworlow flame.
Flamesblowout.
Flare-up.
ELECTRONICIGNITION:
• Nospark,noignitionnoise.
• Nospark,someignitionnoise.
, Sparks,but notat electrodeorat full
strength.
• See"GAS ISSUES:"onpreviouspage.
• Matchwill not reach.
• Impropermethodof match-lighting.
Unableto fill LP
cylinder.
Oneburnerdoes not
lightfromother
burner(s).
Timerdoesnot work
(Greenlightdoesnot
flash)
, Outof gas.
• Excessflow valvetripped.
•Vaporlockat couplingnut/LPcylinder
connection.
• Highorgustingwinds.
• LowonLPgas.
• Excessflow valvetripped.
• Greasebuildup.
• Excessivefat in meat.
• Excessivecookingtemperature.
• Greasetrappedby foodbuilduparound
burnersystem.
• SeeSectionI of ElectronicIgnitionSystem.
• SeeSectionII of ElectronicIgnitionSystem.
• SeeSectionIII of ElectronicIgnitionSystem.
, Uselong-stemmatch(fireplacematch).
• See"Match-Lighting"sectionof Useand Care.
• Checkfor gasin LPcylinder.
•Turnoff knobs,wait30secondsandlightgrill. Ifflamesarestilllow,
turnoff knobsand LP cylindervalve.Disconnectregulator.
Reconnectregulatorandleak-test.Turnon LPcylindervalve,wait
30secondsandthenlightgrill.
•Turnoff knobsandLPcylindervalve.Disconnectcouplingnutfrom
cylinder.Reconnectandretry.
•Turnfrontof grill to face windor increaseflameheight.
• RefillLPcylinder.
• Referto "Suddendropin gasflow"above.
• Cleanburnersand insideof grilltfirebox.
•Trimfatfrommeatbeforegrilling.
•Adjust(lower)temperatureaccordingly.
•Turnknobsto OFF.Turngas off at LPcylinder.Leavelid in position
andlet fire burnout.After grill cools,removeandcleanall parts.
Persistentgreasefire.
Flashback... • Burnerand/orburnertubesare blocked. •Turnknobsto OFF.Cleanburnerand/orburnertubes.See burner
(firein burnertube(s)), cleaningsectionof Use andCare.
• Somedealershaveolderfill nozzles •The wornnozzlesdon'thaveenough"bite"to engagethe valve.Try
withworn threads, a secondLPdealer.
• Cleancarry-overtube(s)with wirebrush.
• Greasebuildupor foodparticlesin
end(s)of carryovertube(s).
• DeadBattery
• Batteriesinstalledincorrectly.
• KnobPositiondid notstart the Clean
Cycle
• Replacebatteries
• Installbatteriescorrectly.
• PushKnobin to startthe cleancycle.(GreenLEDshouldbeginto
flash)
No LED'swill illuminate • DeadBattery • Replacebatteries
• LowBatteryStrengthRedLED nextto battery
symbolis illuminated
• Prepareto replacebatteries(NOTE:Cleancyclewill operatewith
a weak battery.
29

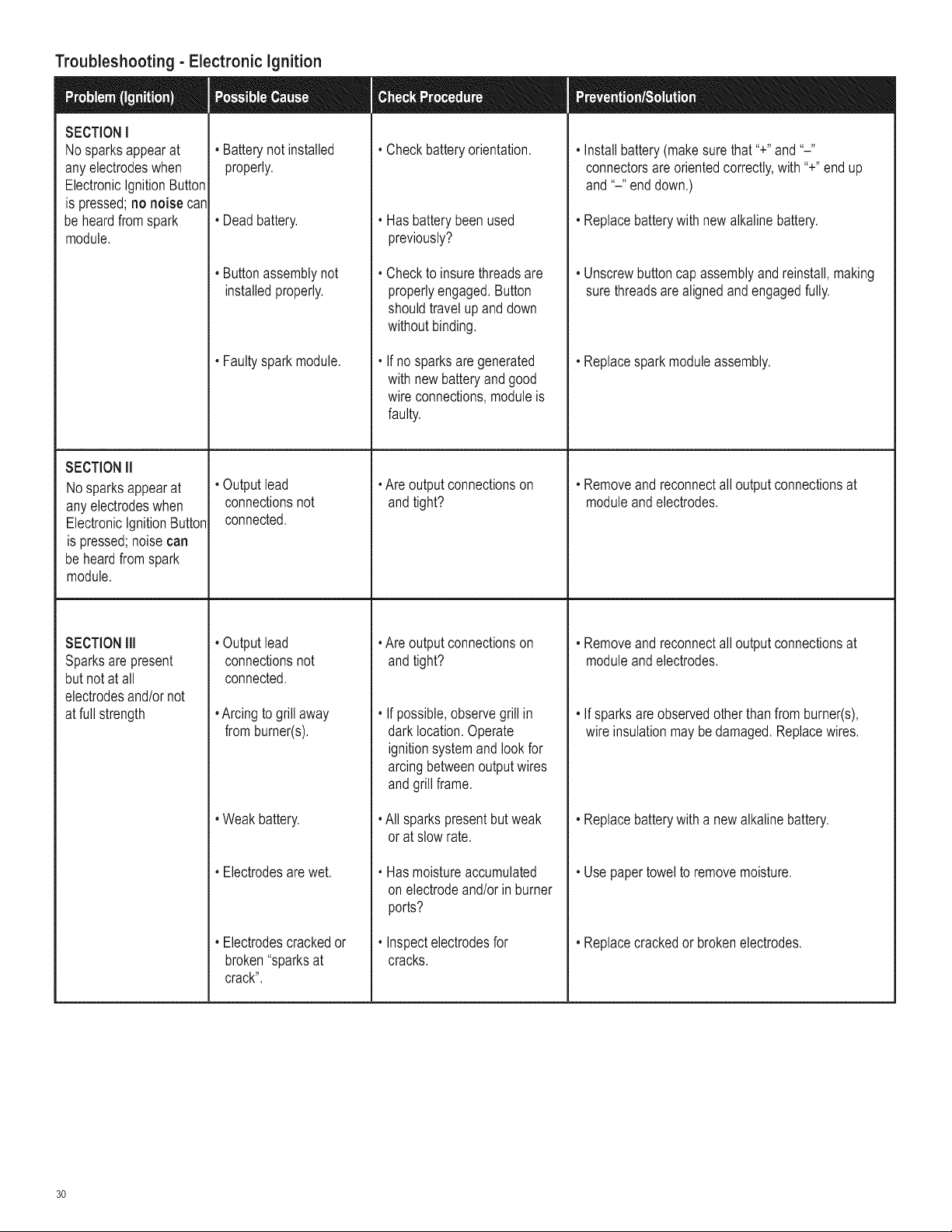

Troubleshooting - Electronic Ignition
• Batterynot installed
properly.
SECTIONI
Nosparksappearat
anyelectrodeswhen
ElectronicIgnitionButton
is pressed;no noise can
be heardfromspark
module.
SECTIONII
Nosparksappearat
any electrodeswhen
ElectronicIgnitionButton
is pressed;noisecan
beheardfromspark
module.
SECTIONill
Sparksare present
butnot at all
electrodesand/ornot
at fullstrength
, Checkbatteryorientation. • Installbattery(makesurethat "+"and"-"
connectorsare orientedcorrectly,with "+"endup
, Deadbattery. , Hasbatterybeenused
previously?
and"-" enddown.)
, Replacebatterywith newalkalinebattery.
, Buttonassemblynot
installedproperly.
, Faultysparkmodule.
• Outputlead
connectionsnot
connected.
Checkto insurethreadsare
properlyengaged.Button
shouldtravelupanddown
withoutbinding.
If no sparksare generated
withnew batteryandgood
wire connections,moduleis
faulty.
, Are outputconnectionson
andtight?
, Unscrewbuttoncap assemblyand reinstall,making
sure threadsare alignedandengagedfully.
, Replacespark moduleassembly.
, Removeandreconnectall outputconnectionsat
moduleandelectrodes.
• Outputlead
connectionsnot
connected.
, Arcingto grill away
fromburner(s).
, Weakbattery.
, Electrodesarewet.
, Electrodescrackedor
broken"sparksat
crack".
, Are outputconnectionson
andtight?
If possible,observegrillin
dark location.Operate
ignitionsystemandlookfor
arcingbetweenoutputwires
andgrillframe.
All sparkspresentbutweak
or at slow rate.
Hasmoistureaccumulated
on electrodeand/orin burner
ports?
Inspectelectrodesfor
cracks.
, Removeandreconnectall outputconnectionsat
moduleandelectrodes.
, If sparksare observedotherthanfromburner(s),
wire insulationmay be damaged.Replacewires.
, Replacebatterywitha newalkalinebattery.
, Usepapertowelto removemoisture.
, Replacecrackedor brokenelectrodes.
3O
Please register your product online at:
Registre su producto en linea en"
Veuillez enregistrer votre produit a radresse:
(Ifyou register online,you do notneedto send in this registration card.)
(Siregistra en linea, no es necesarioenviar esta tarjeta de registro.)
(Sivous enregistrez votre produiten ligne,il n'est pas necessaired'envoyer la carte
d'enregistrement)
PLEASE FILL OUTTHIS CARD AND ATTACH A COPY OF YOUR SALES RECEIPT. RETURN IT WITHIN 10 DAYS OF PURCHASE. FOR WARRANTY SERVICE PROOF OF PURCHASE
WILL BE REQUIRED. THIS WARRANTY IS NON-TRANSFERABLE.
LLENE ESTA TARJETA Y DEVUELVALA DENTRO DE LOS 10 DIAS DE LA COMPRA. PARA EL SERVlCIO DE GARANTIA ES NECESARIO QUE PRESENTE SU COMPROBANTE DE
COMPRA. CONSERVE LA FACTURA. ESTA GARANTIA ES INTRANSFERIBLE.
VEUILLEZ COMPLETER CETTE CARTE ET LA RETOURNER DANS LES 10 JOURS SUIVANT L'ACHAT. POUR OBTENIR LESERVICE SOUS GARANTIE, UNE PREUVE D'ACHAT DOlT
ETRE PRESENTEE. VEUILLEZ CONSERVER VOTRE FACTURE. LA PRESENTE GARANTIE N'EST PAS TRANSFERABLE.
*Required _Necesario _Exig_ ~ PLEASEPRINT ~IMPRIMA POR FAVOR ~ S'IL YOU5 PLA'[TIMPRIMER ~
_O First Name [ Nombre [ Pr_nom
Initial JlnicialJlnitiale Last Name [ Apellido [ Nora de Famillie
Address (number & street) [ Direcci6n (nOmero y cane) I Adresse (num_ro et rue) Apt Number [ N-°de apart I N°d'app t.
Zip Code [ C6digo Zip [ Code PostalCity [ Cludad [ Ville State I Estado I Province
_O E-mail Address [ Direcci6n de correo electr6nico [ Adresse _lectronique _O Phone Number [ N6mero telef6nico [ Num_ro de t_l_phone
* Model Number [N_mero de modelo [ Numero" de model" _,_,_,-_,;,,_ ......,
STICKER ON PRODUCT
Serial Number [ N_mero de serie[ Num_ro de s@rie
A
_ Attach copy o/your
sales receipt here.
O
0
¢)
Date of Purchase I Fecha de compra I Date de I'achat O
S
Purchase Price I Precio de compra I Prix d'achat O
Which product are you registering?
_,Qu_ producto est_ registrando?
Quel produit enregistrez-vous?
1. [_Gas Grill l Parrilla a gas l Gril au gaz
2. [_ Electric Grill I Parrilla el_ctrica ] Gril _lectrique
3. [_Smoker I Ahumador I Fumoir
4. [_ Charcoal Grill I Parrilla a carb6n I Barbecue au charbon
5. [_ Cooker/Fryer I Cocina/freidora I Cuiseur/Friteuse
6. []Otherl Otro I Autre
Store Name I Nombre de la tienda [ Nora du magasin
Your Gender I Sexo I Sexe:
[] Male I Masculino I Masculin
[]Female I Femeninol F_minin
Adjunte aqui la copia
de su recibo de
compra
Veuillez attacher une
copie de votre re¢u
icL
We respect your privacy. [ Respetamos su privacidad. [ Nous respectons votre vie priv_e.
® If you prefer not to receive special offers and promotions from Char-Broil, please check here: [ _
Marque aqu[ si no desea recibir ofertas y promociones especiales de Char-Broil:
® Si vous pr6f6rez ne pas recevoir d'informations concernant des offres sp_ciales et des
promotions de Charbroil, veuillez cocher ici:
Thank you for completing this questionnaire. [ Gracias pot completer este cuestionario. [ Merci d'avoir bien voulu remplir ce questionnaire.
31
Register your product to receive a special offer
www.c h a rbroi i.co m/reg iste r
