Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
To protect your investment, we urge you to
take responsibility for keeping your vehicle
well-serviced and maintained. Also, observe
the break-in guidelines and always perform
the pre-ride inspection and other periodic
checks in this manual.
When service is required, remember that
your Honda dealer knows your vehicle best.
If you have the required mechanical “know-
how” and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks. 2 P. 113
Read the warranty information thoroughly so
that you understand the warranty coverage
and are aware of your rights and
responsibilities. 2 P. 114
You may also want to visit our website at
www.powersports.honda.com.
Canada
www.honda.ca.
Happy riding!
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Safety Guidelines................................................. P. 3
Safety Labels......................................................... P. 7
Safety Precautions...............................................P. 9
Riding Precautions ............................................ P. 11
Accessories & Modifications...........................P. 15
Loading ................................................................ P. 16
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Vehicle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flames
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 9
Before Riding
Model not equipped with Optional Passenger Seat Kit
Make sure that you are physically fit, mentally
focused, and free of alcohol and drugs. Check
that you are wearing an approved helmet and
protective apparel.
Model equipped with Optional Passenger Seat Kit
Make sure that you are physically fit, mentally
focused, and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
seat strap or your waist, leaning with you in
turns, and keeping their feet on the footpegs,
even when the vehicle is stopped.
Safety Guidelines
Vehicle Safety
3
Continued
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF) or a state approved training
course. New riders should start with the basic
course, and even experienced riders will find the
advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
USA
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your vehicle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Safety Guidelines
Vehicle Safety
4
Never Carry a passenger
Model not equipped with Optional Passenger Seat Kit
There are no handholds, seat, or footrests to
carry a passenger.
Do not carry a passenger unless you have
purchased and installed the Honda Accessory
Passenger Seat Kit, or equivalent parts
specifically designed for this vehicle, which must
include the passenger seat, seat strap, footpegs,
and the mounting hardware.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
or use and ride, and don't let your friends do it
either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 16), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 15).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
Safety Guidelines
Vehicle Safety
5
Continued
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your vehicle. Inspect for fluid
leaks, check the tightness of critical nuts and
bolts, and check the handlebar, control levers,
brakes, and wheels. Ride slowly and cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in a confined or even
partly enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Safety Guidelines
Vehicle Safety
6
Safety Labels
Safety and information labels on your vehicle
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Safety Labels
Vehicle Safety
7
Continued

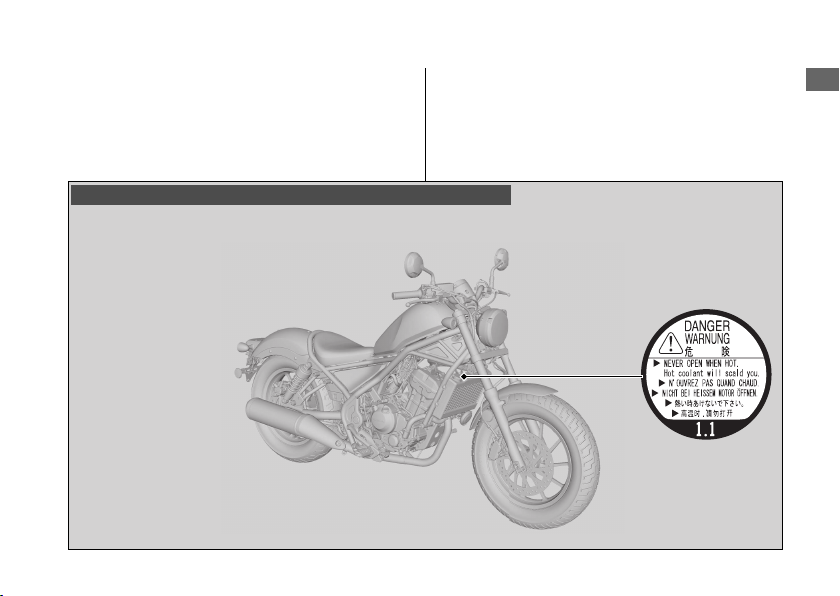

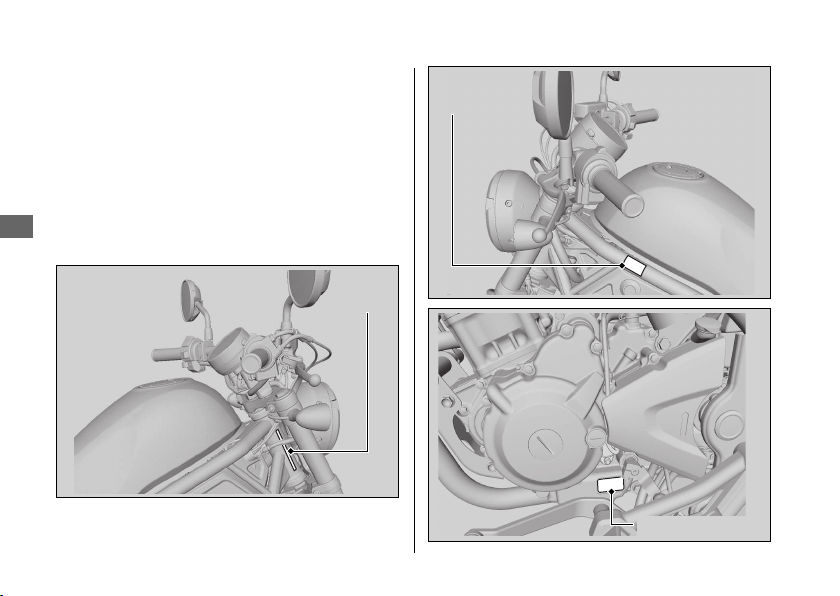

Model not equipped with Optional Passenger Seat Kit shown
Safety Labels
Vehicle Safety
8
Model not equipped with Optional Passenger Seat Kit shown
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
●
Model equipped with Optional Passenger Seat Kit
Instruct your passenger to keep their hands
on the seat strap or your waist and their feet
on the footpegs while riding.
●
Model not equipped with Optional Passenger Seat Kit
Always consider the safety of other drivers
and riders.
●
Model equipped with Optional Passenger Seat Kit
Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Model not equipped with Optional Passenger Seat Kit
Make sure that you are wearing an approved
helmet, eye protection, and high-visibility
protective clothing. Avoid wearing loose clothes
that could get caught on any part of the vehicle.
Ride defensively in response to weather and
road conditions.
Model equipped with Optional Passenger Seat Kit
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Avoid
wearing loose clothes that could get caught on
any part of the vehicle. Ride defensively in
response to weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and the correct size for your head.
● Must fit comfortably but securely, with the
chin strap fastened
● Face shield with unobstructed field of vision
or other approved eye protection
Safety Precautions
Vehicle Safety
9
Continued
USA
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Model not equipped with Optional
Passenger Seat Kit
Make sure that you always wear an
approved helmet and protective
apparel.
Model equipped with Optional Passenger Seat Kit
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
#
Gloves
Full-finger leather gloves with high abrasion
resistance
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Safety Precautions
Vehicle Safety
10
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
Riding Precautions
Vehicle Safety
11
Continued
#
Anti-lock Brake System (ABS)
CMX300A only
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended front/rear
tires and sprockets to ensure correct ABS
operation.
#
Engine Braking
Engine braking helps slow your vehicle down
when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Riding Precautions
Vehicle Safety
12
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the vehicle unattended.
Use of an anti-theft device is also
recommended.
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
5.
Turn the ignition switch to the OFF position
and remove the key.
6.
Lock the steering. 2 P. 38
Riding Precautions
Vehicle Safety
13
Continued
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use the recommended octane number.
Using lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 112
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Riding Precautions
Vehicle Safety
14
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle, be certain
the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Accessories & Modifications
Vehicle Safety
15
Loading
●
Model not equipped with Optional Passenger Seat
Kit
Never carry a passenger. Your vehicle was
not designed to carry a passenger.
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 121
●
Tie all luggage securely, evenly balanced,
and close to the center of the vehicle.
●
Do not place objects near the lights or the
muffler.
3WARNING
Model not equipped with Optional Passenger Seat Kit
Overloading, improper loading, or
carrying a passenger can cause a crash
and you can be seriously hurt or killed.
Model equipped with Optional Passenger
Seat Kit
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Loading
Vehicle Safety
16
Your vehicle comes from the factory with a
single seat for operator only, but has the
capacity (subject to applicable weight ratings) to
also carry a passenger with the purchase and
installation of the optional Honda Accessory
Passenger Seat Kit, or equivalent parts
specifically designed for this vehicle.
Do not carry a passenger unless a passenger
seat (with seat strap) and footpegs have been
securely installed on your vehicle.
3WARNING
Carrying a passenger without a properly
designed and installed passenger seat
and footpegs can result in serious injury
or death to you and/or the passenger.
Never carry a passenger without first
installing a passenger seat (with seat
strap) and footpegs specifically
designed for this vehicle. Further, never
carry more than one passenger.
Loading
Vehicle Safety
17
Continued
The vehicle GVWR, weight ratings and tire load
capacities can be found on the vehicle.
Single Seat as produced.
Optional Honda Accessory Passenger Seat Kit
shown.
Loading
Vehicle Safety
18
Single Seat
Passenger Seat Kit
Vehicle Safety
19
This page intentionally left blank.

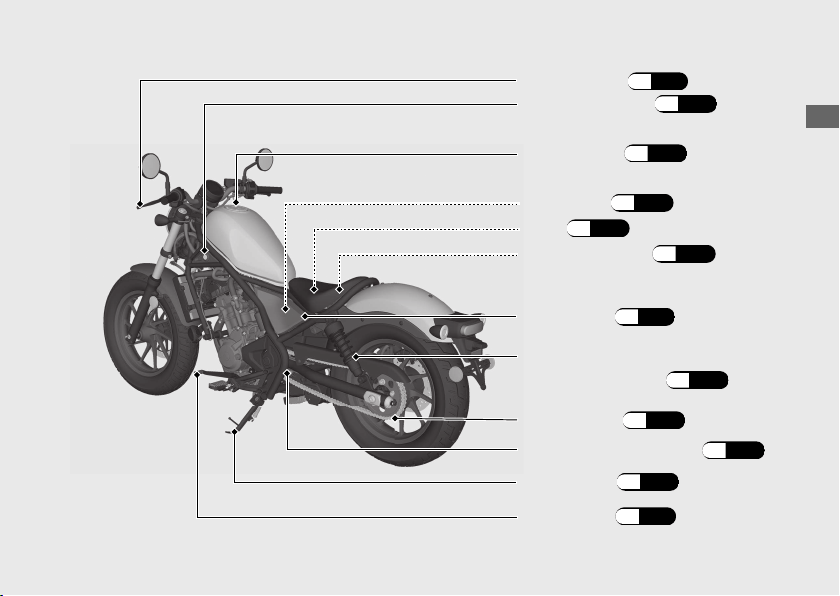

Parts Location
Operation Guide
20
Fuse box (P.93)
Front brake fluid reservoir
(P.76
)
Front brake lever
Throttle grip (P.84)
Engine oil level inspection
window
(P.72
)
Rear brake fluid reservoir
(P.76
)
Rear brake pedal
Rear suspension spring
preload adjuster
(P.85
)
Seat (P.70)
Side cover (P.71)
Engine oil fill cap (P.72)
Steering lock (P.38)
Model not equipped with Optional Passenger Seat Kit shown
Battery (P.66)
Instruments
Operation Guide
22
Display Check
When the ignition switch is turned to the ON position, an initial animation will
show. If any part of these displays does not come on when it should, have your
dealer check for problems.
SEL button
SET button
Operation Guide
23
Continued
Remaining fuel when only 1st (E) segment starts
flashing: approximately 0.58 US gal (2.2 L)
Fuel gauge
If the fuel gauge indicator flashes in a
repeat pattern or turns off:
(P.90
)
Clock (12-hour or 24-hour display)
Speedometer
To set the clock: (P.30)
Odometer [TOTAL] and Tripmeter [TRIP
A/B] and Average fuel mileage [AVG A/B]
and Current fuel mileage and Reserve fuel
consumption [RES]
(P.24)
u “-” appears when the transmission
is not shifted properly.
The gear position is shown in the gear
position indicator.
Gear position indicator
NOTICE
You should refuel when the reading approaches the
E (1st) segment. Running out of fuel can cause the
engine to misfire, damaging the catalytic converter.
Odometer [TOTAL] and Tripmeter [TRIP A/B] and Average fuel mileage [AVG A/B] and
Current fuel mileage and Reserve fuel consumption [RES]
The SEL button switches between the odometer, tripmeter A, tripmeter B, average fuel mileage A,
average fuel mileage B, current fuel mileage and reserve fuel consumption.
When the 1st (E) segment of the fuel gauge starts flashing, the reserve fuel consumption
information will replace the current display.
Operation Guide
24
Instruments (Continued)
Odometer
Tripmeter A
Tripmeter B
Average fuel
mileage B
Current fuel
mileage
Average fuel
mileage A
When the 1st (E)
segment of the fuel
gauge starts flashing
Reserve fuel
consumption
#
Odometer [TOTAL]
Total distance ridden. When “------” is
displayed, go to your dealer for service.
#
Tripmeter [TRIP A/B]
Distance ridden since tripmeter was reset.
When “-----.-” is displayed, go to your dealer
for service.
To reset the tripmeter: (P.27)
#
Average fuel mileage [AVG A/B]
The average fuel mileage A will be based on
tripmeter A. This indicator displays the average
fuel mileage A since tripmeter A was reset.
The average fuel mileage B will be based on
tripmeter B. This indicator displays the average
fuel mileage B since tripmeter B was reset.
Display range: 0.0 to 299.9 mile/gal (or L/
100km or km/L)
•
When the tripmeter A or B is reset: “---.-”
is displayed.
•
More than 299.9: “299.9” is displayed.
When “---.-” is displayed except for the
above-mentioned cases, go to your dealer
for service.
To reset the average fuel mileage:
(P.27)
Operation Guide
25
Continued
#
Current fuel mileage
Displays the current instant fuel mileage.
Display range: 0.0 to 299.9 mile/gal (or L/
100km or km/L)
• When your speed is less than 4 mph (6
km/h): “---.-” is displayed.
• More than 299.9: “299.9” is displayed.
When “---.-” is displayed except for the
above-mentioned cases, go to your dealer
for service.
#
Reserve fuel consumption [RES]
Displays the fuel consumption since the 1st
(E) segment of the fuel gauge starts flashing.
When the 1st (E) segment of the fuel gauge
starts flashing, the odometer, tripmeter A,
tripmeter B, average fuel mileage A, average
fuel mileage B or current fuel mileage
switches to the reserve fuel consumption.
You should refill the tank as soon as possible.
Display range: 0.0 to 99.9 gal (gallon) or 0.0
to 99.9 L (liters)
•
More than 99.9: “99.9” is displayed.
After refueling more than the reserve
amount, the display returns to normal.
When “---.-” is displayed, go to your dealer
for service.
Operation Guide
26
Instruments (Continued)
#
To reset the tripmeter [TRIP A/B] and
average fuel mileage [AVG A/B]
To reset the tripmeter A and average fuel
mileage A together, press and hold the SET
button while the tripmeter A or average fuel
mileage A is displayed.
When they are reset, the display quickly
cycles through each indication to show each
item has been reset. Then, the display returns
to the last selected indication.
Operation Guide
27
Continued
Tripmeter A
Average fuel
mileage A
or
To reset the tripmeter B and average fuel
mileage B together, press and hold the SET
button while the tripmeter B or average fuel
mileage B is displayed.
When they are reset, the display quickly
cycles through each indication to show each
item has been reset. Then, the display returns
to the last selected indication.
Operation Guide
28
Instruments (Continued)
Tripmeter B
Average fuel
mileage B
or
Display Setting
The following items can be changed
sequentially.
•
Time format setting
•
Clock setting
• Backlight brightness adjustment
• Changing of speed and mileage unit
• Changing of fuel mileage meter unit (only
when km unit system is selected)
Operation Guide
29
Continued
Ordinary display
Setting Mode
Time format setting
Backlight brightness adjustment
Clock setting
Changing of speed and mileage unit
Changing of fuel mileage meter unit
(only when km unit system is selected)
Press and hold the SEL and SET buttons
Press the SET button
To return to the ordinary display, turn the
ignition switch to the OFF position or press
the SET button until the end of the settings is
reached.
If no buttons are pressed for 30 seconds, the
display will automatically return to the
ordinary display and the selected settings
except clock setting will be saved and
applied.
1 Time format setting:
You can switch the time format between 12
hour format or 24 hour format.
a
Turn the ignition switch to the ON position.
b
Press and hold the SEL and SET buttons until
the current time format start flashing.
c
Press the SEL button to select “12 hr” or “24
hr”.
d
Press the SET button. The time format is set,
and then the display moves to the clock
setting.
Operation Guide
30
Instruments (Continued)
2 Clock setting:
a
Press the SEL button until the desired hour is
displayed.
u Press and hold the SEL button to
advance the hour quickly.
b
Press the SET button. The minute digits start
flashing.
c
Press the SEL button until the desired
minute is displayed.
u Press and hold the SEL button to
advance the minute quickly.
d
Press the SET button. The clock is set, and
then the display moves to the backlight
brightness adjustment.
Operation Guide
31
Continued
3 Backlight brightness adjustment:
You can adjust the brightness to one of five
levels.
a
Press the SEL button. The brightness is
switched.
b
Press the SET button. The backlight is set,
and then the display moves the changing of
the speed and mileage unit.
4 Changing of speed and mileage unit:
a
Press the SEL button to select either “mph”
and “mile” or “km/h” and “km”.
b
When “km/h” for speed and “km” for mileage
are selected
Press the SET button. The speed and
mileage unit is set, and then the display
moves to the changing of fuel mileage
meter unit.
When “mph” for speed and “mile” for
mileage are selected
Press the SET button. The speed and
mileage unit is set, and then the display
returns to the ordinary display.
Operation Guide
32
Instruments (Continued)
5 Changing of fuel mileage meter unit:
a
Press the SEL button to select “km/L” or “L/
100km” .
b
Press the SET button. The fuel mileage
meter unit is set, and then the display moves
to the ordinary display.
To finalize selected settings, turn the
ignition switch to the OFF position or
press the SET button until the end of the
settings is reached.
Operation Guide
33
Indicators
Operation Guide
34
Comes on briefly when the ignition switch is turned
to the ON position with the engine stop switch in
the
(Run) position.
If one of these indicators does not come on when it should, have your dealer check for
problems.
If it comes on while engine is running:
(P.89
)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
High coolant temperature indicator
If it comes on while riding: (P.88)
Right turn signal indicator
Comes on briefly when the ignition switch is turned
to the ON position.
Operation Guide
35
High beam indicator
Neutral indicator
Comes on when the transmission is in Neutral.
ABS (Anti-lock Brake System) indicator
Comes on when the ignition switch is turned to
the ON position. Goes off when your speed
reaches approximately 6 mph (10 km/h).
If it comes on while riding: (P.89)
CMX300A only
Left turn signal indicator
Switches
Operation Guide
36
Should normally remain in the
(Run) position.
u In an emergency, switch to the
(Stop) position (the starter
motor will not operate) to stop
the engine.
Engine stop switch
Headlight dimmer/
Passing light control switch
• : High beam
• : Low beam
Start button
Turn signal switch
u Pressing the switch turns
the turn signal off.
Horn button
Hazard switch
Switchable when the ignition switch is
in the ON position.
• : Flashes the high beam headlight.
Operation Guide
37
Continued
Ignition switch
Switches the electrical system on/off.
u Key can only be removed when in the OFF position.
ON
Turns electrical system
on for starting/riding.
OFF
Turns engine off.
Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebar all the way to the left.
b
Insert the ignition key in the steering lock.
c
Push the ignition key down, and turn it 180
degrees clockwise.
u Jiggle the handlebar if the lock is difficult
to engage.
d
Remove the ignition key.
#
Unlocking
Insert the ignition key, push it in, and turn it
180 degrees counterclockwise.
Operation Guide
38
Switches (Continued)
a
b
Turn
Ignition key
Push
Steering lock

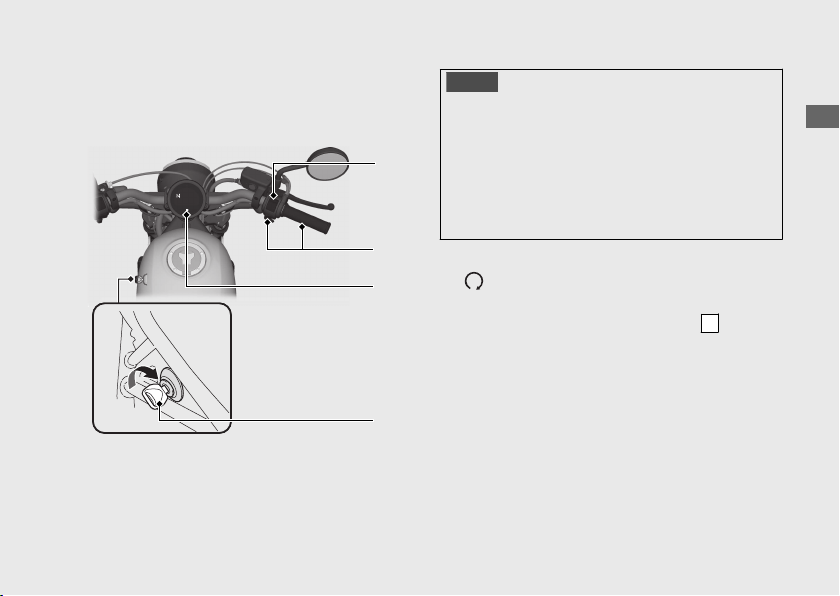

Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the OFF position
and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine and the exhaust
system.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the
clutch lever to start your vehicle with the
transmission in gear so long as the side
stand is raised.
d
Press the start button with the throttle
completely closed.
Operation Guide
39
Continued
a
b
c
d
If you cannot start the engine:
With the throttle slightly open (about 1/8 in [3
mm], without freeplay) while starting the
engine.
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying steps a & b again.
#
If Engine Will Not Start (P.87)
Operation Guide
40
Starting the Engine (Continued)
About 1/8 in (3 mm), without freeplay
Shifting Gears
Your vehicle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the vehicle in gear with the side
stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the vehicle for long distances with the
engine off can damage the transmission.
Operation Guide
41
6
5
4
3
2
N
1
Refueling
Do not fill with fuel above the level plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity: 2.96 US gal (11.2 L)
#
Refueling and Fuel Guidelines (P.14)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, push the fuel fill cap closed
until it locks.
b
Remove the ignition key and close the lock
cover.
u The ignition key cannot be removed if
the fuel fill cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flames away.
• Only handle fuel outdoors.
• Wipe up spills immediately.
Operation Guide
42
Lock cover
Level plate
Ignition key
Fuel fill cap
Storage Equipment
Tool
The 5 mm Hex wrench is stored behind the
right side cover.
To remove the 5 mm Hex wrench, loosen the
screw with a coin.
#
Removing the Right Side Cover
(P.71)
The tools are stored on the underside of the
seat.
Store the tools and secure them with the
rubber strap as shown.
#
Removing the Seat (P.70
)
Operation Guide
43
Continued
5 mm Hex wrench
Screw
Rubber strap
Canada modelUSA model
Tools
Tools
The fuse puller is stored on the battery cover
under the seat.
#
Removing the Seat (P.70)
Document Bag
The document bag is stored on the
underside of the seat.
Store the document bag and secure it with
the rubber strap as shown.
#
Removing the Seat (P.70)
Operation Guide
44
Storage Equipment (Continued)
Fuse puller
Rubber strap
Document bag
Canada model shown
Importance of Maintenance ........................... P. 46
Maintenance Schedule..................................... P. 48
Maintenance Record......................................... P. 51
Maintenance Fundamentals ...........................P. 52
Removing & Installing Body Components.. P. 66
Battery.................................................................... P. 66
Clip.......................................................................... P. 69
Seat ......................................................................... P. 70
Side Cover............................................................. P. 71
Engine Oil ............................................................ P. 72
Coolant................................................................. P. 74
Brakes................................................................... P. 76
Side Stand ........................................................... P. 79
Drive Chain.......................................................... P. 80
Clutch ................................................................... P. 81
Throttle ................................................................ P. 84
Other Adjustments............................................ P. 85
Adjusting the Rear Suspension ........................ P. 85
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 48
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and the
Environment and Climate Change Canada
(ECCC). 2 P. 107
USA
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any vehicle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance
46
Maintenance Safety
Always read the maintenance instructions
before you begin each task and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your vehicle on a firm, level surface
using the side stand or a maintenance stand
to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
Importance of Maintenance
Maintenance
47
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. All scheduled maintenance is
considered a normal owner operating cost and
will be charged to you by your dealer. Keeping
an accurate maintenance record will help
ensure your vehicle is properly maintained.
2 P. 51
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your vehicle, these service documents should
be transferred with the vehicle to the new
owner.
Maintenance
48
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line –
Throttle Operation 84
Air Cleaner
*2
–
Crankcase Breather
*3
–
Spark Plug
Every 16,000 mi (25,600 km):
Every 32,000 mi (51,200 km):
–
Valve Clearance –
Engine Oil 1 Year –
Engine Oil Filter –
Engine Idle Speed –
Radiator Coolant
*5
3 Years 74
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*4
–
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 113).
:
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Replace
Lubricate
Clean
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
Maintenance Schedule
Maintenance
49
Continued
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Regular
Replace
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain
Every 600 mi (1,000 km):
80
Brake Fluid
*5
2 Years 76
Brake Pads Wear 77
Brake System 52
Brake Light Switch 78
Headlight Aim –
Clutch System 81
Side Stand 79
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tires 62
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : 50 STATE (meets California).
*
5 : Replacement requires mechanical skill.
Maintenance Schedule
Maintenance
50
Maintenance Record
Distance Odometer Date Performed By: Notes
600 miles (1,000 km)
4,000 miles (6,400 km)
8,000 miles (12,800 km)
12,000 miles (19,200 km)
16,000 miles (25,600 km)
20,000 miles (32,000 km)
24,000 miles (38,400 km)
28,000 miles (44,800 km)
32,000 miles (51,200 km)
36,000 miles (57,600 km)
40,000 miles (64,000 km)
44,000 miles (70,400 km)
48,000 miles (76,800 km)
52,000 miles (83,200 km)
56,000 miles (89,600 km)
60,000 miles (96,000 km)
64,000 miles (102,400 km)
68,000 miles (108,800 km)
Maintenance
51
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Tire tread wear and air pressures are within
limits 2 P. 62
● Lights, horn, and turn signals operate
normally
● Check the condition of the drive chain.
Adjust slack and lubricate as needed 2 P. 60
Model not equipped with Optional Passenger Seat Kit
Check the following items if you are carrying
cargo:
Model equipped with Optional Passenger Seat Kit
Check the following items if you are carrying a
passenger or cargo:
● Combined weight is within load limits
2 P. 121
● Cargo is secured properly
● Suspension is adjusted to suit load 2 P. 85
Check the following items after you get on your
vehicle:
● Throttle action moves smoothly without
binding 2 P. 84
● Brake lever and pedal operate normally
● Check the fuel level and refuel when needed
2 P. 14, 2 P. 42
● Engine stop switch functions properly
2 P. 36
Maintenance
52
Check the following items at regular intervals:
● Oil level is between the upper and lower
level marks 2 P. 72
● Brake fluid level is
Front: above the LOWER level mark 2 P. 76
Rear: between the UPPER and LOWER level
marks 2 P. 76
● Engine coolant level is between the UPPER
and LOWER level marks 2 P. 74
● Side stand functions properly 2 P. 79
Maintenance Fundamentals
Maintenance
53
Tires and wheels
Check the air pressure (2 P. 62), examine tread for wear and damage
(2 P. 62), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 72), engine coolant level (2 P. 74),
and brake fluid level (2 P. 76).
Lights
Check that the headlight, brake light, taillight, license plate light, turn
signals, and position lights are working properly.
Controls
Check the freeplay of the clutch lever (2 P. 82) and throttle grip
(2 P. 84).
Drive chain
Check the slack (2 P. 80), adjust the slack, and lubricate (2 P. 61) as
needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 48
Maintenance Fundamentals
Maintenance
54
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.

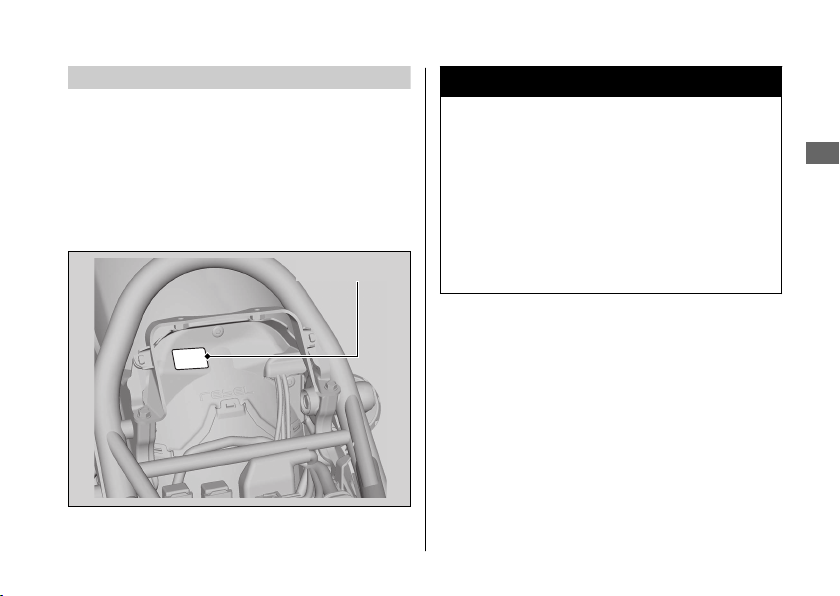

The color label is attached to the battery box
under the seat. 2 P. 70
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
Maintenance Fundamentals
Maintenance
55
Color label
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
●
Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and do
not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and related
accessories contain lead and lead compounds.
Wash your hands after handling.
Maintenance Fundamentals
Maintenance
56
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 66
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
Maintenance Fundamentals
Maintenance
57
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 93
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 123
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Maintenance Fundamentals
Maintenance
58
Blown fuse
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 122
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MA
● SAE standard
*2
: 10W-30
● API classification
*3
: SJ or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SJ or higher
oils, excluding oils marked as “Energy Conserving”
or “Resource Conserving” on the circular API
service symbol.
Maintenance Fundamentals
Maintenance
59
Oil code
Oil classification
Not recommended Recommended
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
3WARNING
Clean filler cap before removing. Use
only DOT 4 fluid from a sealed
container.
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration. 2 P. 80
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, has missing O-rings, or has kinks, have the
chain inspected by your dealer.
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
Maintenance Fundamentals
Maintenance
60
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
#
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a
dry cloth with chain cleaner designed
specifically for O-ring chains, or neutral
detergent. Use a soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the vehicle.
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
Maintenance Fundamentals
Maintenance
61
Continued
NOTICE
Using coolant not specified for aluminum engines
or tap/mineral water can cause corrosion.
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil, causing
poor engine performance.
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
expose fabric or cords,
or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
Maintenance Fundamentals
Maintenance
62
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
Maintenance
63
Continued
Wear indicator
location mark
or TWI
Have your tires replaced by your dealer.
For recommended tires, air pressure, and
minimum tread depth, see “Specifications.”
2 P. 122
Follow these guidelines whenever you replace
tires:
● Use the recommended tires or their
equivalents of the same size, construction,
speed rating, and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
●
Do not install a tube inside a tubeless tire on
this vehicle. Excessive heat build-up can
cause the tube to burst.
●
Use only tubeless tires on this vehicle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your vehicle
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner's manual.
Maintenance Fundamentals
Maintenance
64
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S.
Department of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
Maintenance Fundamentals
Maintenance
65
Tire Labeling Example
Tire identification
number (TIN)
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Remove the seat. 2 P. 70
2.
Remove the data link connector while
pressing its tab from the battery cover.
3.
CMX300A only
Remove the air check connector while
pressing its tab from the battery cover.
4.
Remove the connector holder and relay
holders from the battery cover.
5.
Release the wire harness from the guide
on the battery cover.
Maintenance
66
Connector holder
Battery
cover
Data link
connector
Wire
harness
Guide
Tab
Air check connector
Tab
Relay holders
CMX300A only
6.
Remove the clips. 2 P. 69
7.
Disconnect the negative - terminal from
the battery.
8.
Pull up the battery cover.
9.
Disconnect the positive + terminal from
the battery.
10.
Remove the battery, taking care not to
drop the terminal nuts.
Removing & Installing Body Components u Battery
Maintenance
67
Continued
Clips
Negative terminal
Battery
cover
Positive terminal
Battery
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure bolts and nuts are
tight.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 30
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 56
“Battery Goes Dead.” 2 P. 92
Removing & Installing Body Components u Battery
Maintenance
68
Clip
#
Removal
1.
Press down on the center pin to release
the lock.
2.
Pull the clip out of the hole.
#
Installation
1.
Push the bottom of the center pin.
2.
Insert the clip into the hole.
3.
Press down on the center pin to lock the
clip.
Removing & Installing Body Components u Clip
Maintenance
69
Center pin
Seat
#
Removal
1.
Pull the rear corners of the seat up, then
remove the mounting bolts using the
provided 5 mm Hex wrench. 2 P. 43
2.
Pull the seat back and up.
#
Installation
1.
Insert the tab into the recess.
2.
Install and tighten the mounting bolts
securely.
Make sure that the seat is locked securely in
position by pulling it up lightly.
Removing & Installing Body Components u Seat
Maintenance
70
TabSeat
Recess
Mounting bolts
Side Cover
The right and left side covers can be
removed in the same way.
#
Removal
1.
Grasp the side cover.
2.
Remove the prongs from the grommets.
3.
Remove the side cover.
#
Installation
Install the parts in the reverse order of
removal.
Removing & Installing Body Components u Side Cover
Maintenance
71
Prongs
Grommets
Side cover
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your vehicle in an upright position
on a firm, level surface.
4.
Check that the oil level is between the
upper level and lower level marks on the
oil level inspection window.
Maintenance
72
Upper level
Lower level
Oil fill cap
Oil level inspection
window
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 59, 2 P. 122
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle in an upright
position on a firm, level surface when
checking the oil level.
u
Do not overfill above the upper level
mark.
u
Make sure no foreign objects enter the
oil filler opening.
u
Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 59
Engine Oil u Adding Engine Oil
Maintenance
73
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your vehicle on a firm, level surface.
2.
Hold your vehicle in an upright position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your vehicle inspected by
your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 61) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
Maintenance
74
UPPER level
LOWER level
Reserve tank
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
2.
Securely reinstall the reserve tank cap.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Coolant u Adding Coolant
Maintenance
75
Reserve tank cap
Brakes
Checking Brake Fluid
1.
Place your vehicle in an upright position
on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is:
Front
above the LOWER level mark.
Rear
between the LOWER level and
UPPER level marks.
If the brake fluid level in either reservoir is
below the LOWER level mark or the brake
lever and pedal freeplay becomes excessive,
inspect the brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your vehicle
inspected by your dealer.
Maintenance
76
Front brake fluid reservoir
UPPER level
mark
LOWER level
mark
Rear brake fluid reservoir
Front Rear
LOWER level mark
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators.
The pads need to be replaced if a brake pad
is worn to the indicator.
1.
Front
Inspect the brake pads from below
the brake caliper.
2.
Rear
Inspect the brake pads from the rear
right of the vehicle.
If necessary, have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
Brakes u Inspecting the Brake Pads
Maintenance
77
Front Rear
Brake pads
Disc
Wear indicators
Brake pads
Wear indicators
Disc
Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
Brakes u Adjusting the Brake Light Switch
Maintenance
78

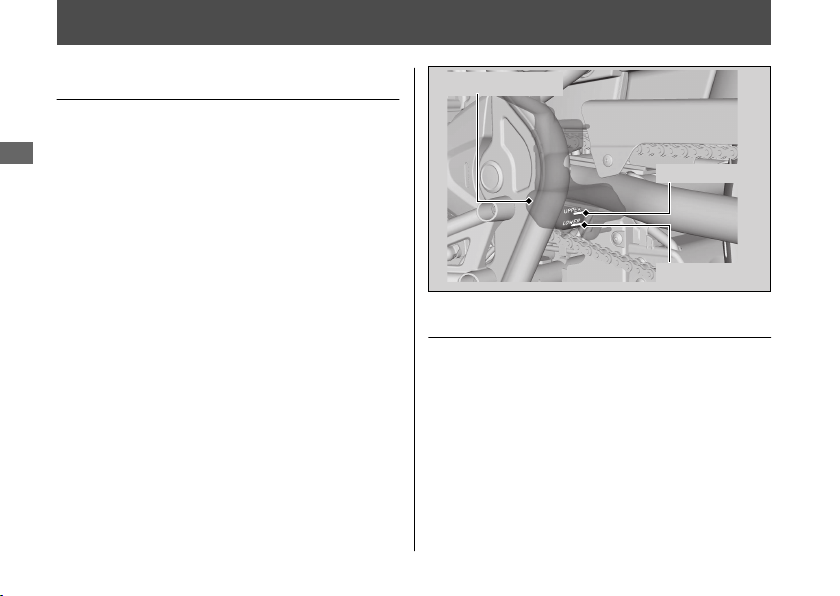

Brake light switch
Adjusting nut
A
B
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the springs for damage or loss of
tension.
3.
Sit on the vehicle, shift the transmission to
Neutral, and raise the side stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your vehicle inspected by your dealer.
Maintenance
79
Side stand
springs
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your vehicle on its side stand on a
firm, level surface.
3.
Move the lower part of the drive chain up
and down to check chain slack, midway
between the sprockets.
Drive chain slack:
1 - 1 3/8 in (25 - 35 mm)
u
Do not ride your vehicle if the slack
exceeds 1 15/16 in (50 mm).
4.
Roll the vehicle forward and check that
the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 60
6.
Clean and lubricate the drive chain.
2 P. 61
If the drive chain slack is outside the specified
range, have your vehicle inspected by your
dealer.
Maintenance
80
Drive chain
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
3/8 - 13/16 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary, have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
Maintenance
81
Freeplay
Clutch lever
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Loosen the upper lock nut.
2.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 - 13/16 in (10 - 20 mm).
3.
Tighten the upper lock nut and check the
freeplay again.
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
82
Upper clutch cable adjuster
Upper lock nut
+
–
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
to provide maximum freeplay.
Tighten the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the lower adjusting nut until the
clutch lever freeplay is 3/8 - 13/16 in (10 -
20 mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the vehicle does not
creep. Gradually release the clutch lever
and open the throttle. Your vehicle should
move smoothly and accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
83

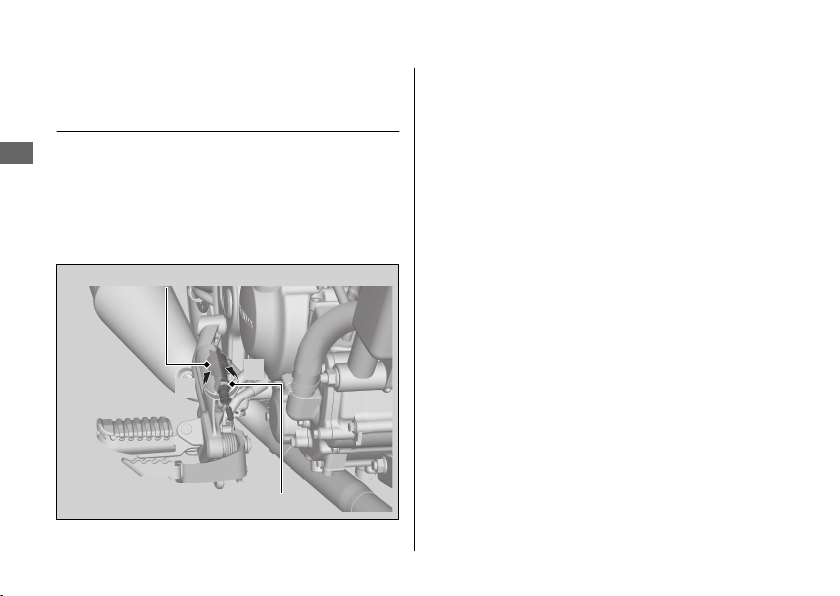

Lower adjusting nut
Lower lock nut
+
–
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly or close automatically, or if
the cable is damaged, have the vehicle
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
- 1/4 in (2 - 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
Maintenance
84
Freeplay
Flange
Throttle grip
Lock nut
Adjuster
Cable boot
–
+
Other Adjustments
Adjusting the Rear Suspension
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Turn the adjuster using the provided pin
spanner. 2 P. 43
Position 1 is for a decrease in spring preload
(soft), or turn the position from 3 to 5 to increase
spring preload (hard). The standard position is 2.
NOTICE
Attempting to adjust directly from 1 to 5 or 5 to 1
may damage the shock absorber.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right shock absorbers to the
same spring preload.
Maintenance
85
Pin spanner
1 2 3 4 5
Engine Will Not Start........................................ P. 87
Overheating (High coolant temperature
indicator is on) ................................................. P. 88
Warning Indicators On or Flashing............... P. 89
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL)................. P. 89
ABS (Anti-lock Brake System) Indicator ......... P. 89
Other Warning Indications.............................. P. 90
Fuel Gauge Failure Indication........................... P. 90
Tire Puncture ...................................................... P. 91
Electrical Trouble............................................... P. 92
Battery Goes Dead .............................................. P. 92
Burned-out Light Bulb........................................ P. 92
Blown Fuse ............................................................ P. 93
Unstable Engine Operation Occurs
Intermittently ................................................... P. 96
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 39
●
Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 39
●
Make sure engine stop switch is in the
(Run) position. 2 P. 36
● Check for a blown fuse. 2 P. 93
●
Check for a loose battery connection
(2 P. 66) or battery terminal corrosion
(2 P. 56).
● Check the condition of the battery.
2 P. 92
If the problem continues, have your vehicle
inspected by your dealer.
Troubleshooting
87
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following
occurs:
● High coolant temperature indicator
comes on.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your vehicle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 74
If there is a leak:
Do not start the engine. Transport your
vehicle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 74
u
Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
Troubleshooting
88
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your vehicle
inspected by your dealer as soon as possible.
ABS (Anti-lock Brake System)
Indicator
CMX300A only
If the indicator operates in one of the
following ways, you may have a serious
problem with the ABS. Reduce your speed
and have your vehicle inspected by your
dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
● Indicator does not come on when the
ignition switch is in the ON position.
● Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while the rear wheel is lifted off
the ground. In this case, turn the ignition
switch to the OFF position, and then to the
ON position again. The ABS indicator will go
off after your speed reaches 19 mph (30
km/h).
Troubleshooting
89
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge
indicators will be displayed as shown in the
illustrations.
If this occurs, see your dealer as soon as
possible.
Troubleshooting
90
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your vehicle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your vehicle with a temporary
tire repair can be risky. If the temporary
repair fails, you can crash and be
seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Troubleshooting
91
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the vehicle before
charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
All light bulbs on the vehicle are LEDs. If
there is an LED which is not turned on, see
your dealer for servicing.
Troubleshooting
92
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 58
#
Fuse Box Fuses
1.
Remove the battery cover. 2 P. 66
2.
Open the fuse box covers.
3.
Pull the fuses out one by one with the
fuse puller and check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
u
The fuse puller is stored on the battery
cover.
CMX300
u
The spare fuses are provided in the
fuse box.
CMX300A
u The spare fuses are provided in the
fuse box and on the battery cover (to
access the spare fuse, open the cover).
4.
Close the fuse box covers.
5.
Reinstall parts in the reverse order of
removal.
Electrical Trouble u Blown Fuse
Troubleshooting
93
Continued
Fuse pullerCover
30 A spare fuse
CMX300A only
CMX300 CMX300A
Electrical Trouble u Blown Fuse
Troubleshooting
94
Fuse box
covers
Spare fuses
Fuse box
covers
Spare fuses
Fuse box covers
#
Main Fuse
1.
Remove the left side cover. 2 P. 71
2.
Remove the starter magnetic switch from
the air cleaner housing cover, then
disconnect the wire connector of the
starter magnetic switch.
3.
Pull the main fuse out and check for a
blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
u
The spare main fuse is provided in the
starter magnetic switch.
4.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your vehicle inspected
by your dealer.
Electrical Trouble u Blown Fuse
Troubleshooting
95

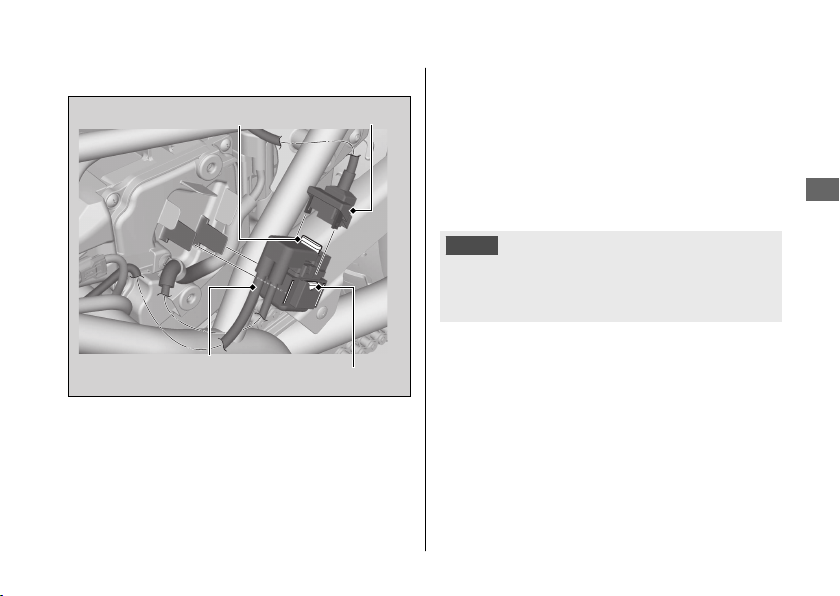

Main fuse Wire connector
Starter magnetic
switch
Spare main fuse
Unstable Engine Operation Occurs Intermittently
If the fuel pump filter is clogged, unstable
engine operation will occur intermittently
while riding.
Even if this symptom occurs, you can
continue to ride your vehicle.
If unstable engine operation occurs even if
sufficient fuel is available, have your vehicle
inspected by your dealer as soon as possible.
Troubleshooting
96
Keys....................................................................... P. 98
Instruments, Controls, & Other Features..... P. 99
Caring for Your Vehicle.................................. P. 100
Storing Your Vehicle....................................... P. 103
Transporting Your Vehicle ............................ P. 104
You & the Environment .................................P. 105
Vehicle Identification Number..................... P. 106
Emission Control Systems ............................. P. 107
Catalytic Converter ......................................... P. 111
Oxygenated Fuels............................................ P. 112
Authorized Manuals ....................................... P. 113
Warranty Coverage and Service .................. P. 114
Honda Contacts ............................................... P. 117
Reporting Safety Defects .............................. P. 119
Information
Keys
Ignition Key/Steering Lock Key
Be sure to record the key number provided with
the key number plate. Store the spare key and
key number in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all ignition keys and the key number,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Keys
Information
98
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The display remains at 999,999 when the
odometer exceeds 999,999.
Tripmeter
Each tripmeter resets to 0.0 when the trip
mileage exceeds 9,999.9.
Document Bag
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bags located underside of the seat.
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the vehicle
falls over. To reset the sensor, you must turn the
ignition switch to the OFF position and back to
the ON position before the engine can be
restarted.
Instruments, Controls, & Other Features
Information
99
Continued
Assist-slipper Clutch System
The assist-slipper clutch system helps to prevent
the rear tire from locking up when the
deceleration of your vehicle produces a strong
engine braking effect. It also makes the clutch
lever operation feel lighter.
Use only MA classification engine oil for your
vehicle. Using engine oil other than MA
classification oil could result in damage to the
assist-slipper clutch system.
Caring for Your Vehicle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean vehicle
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your vehicle thoroughly
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care
to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
Caring for Your Vehicle
Information
100
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the vehicle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your vehicle.
Keep the wax clear of the tires and
brakes.
u If your vehicle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
Caring for Your Vehicle
Information
101
Continued
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
matte painted surfaces:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
Caring for Your Vehicle
Information
102
Exhaust Pipe and Muffler
If the exhaust pipe and muffler are painted, do
not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Storing Your Vehicle
If you store your vehicle outdoors, you should
consider using a full-body cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your vehicle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 60
● Place your vehicle on a maintenance stand
and position a block so that both tires are
off the ground.
●
After rain, remove the body cover and allow
the vehicle to dry.
●
Remove the battery (2 P. 66) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
Storing Your Vehicle
Information
103
Continued
After removing your vehicle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
USA
For more information about storage, refer
to the Honda Winter Storage Guide, available
from your dealer.
Canada
For more information about storage,
visit our website at www.honda.ca and look up
“Storage Tips” under the “Honda Warranty” in
the Warranty tab for your Model.
Transporting Your Vehicle
If your vehicle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform and motorcycle tie-down
straps. Never try to tow your vehicle with a
wheel or wheels on the ground.
NOTICE
Towing your vehicle with a wheel or wheels on
the ground can cause serious damage to the
transmission.
Transporting Your Vehicle
Information
104
You & the Environment
Owning and riding a vehicle can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your vehicle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
You & the Environment
Information
105
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your vehicle and are required in order
to register your vehicle. They may also be
required when ordering replacement parts.
You should record these numbers and keep
them in a safe place.
Vehicle Identification Number
Information
106
VIN
VIN
Engine number
Emission Control Systems
Your vehicle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Exhaust Emission Requirements
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment and Climate Change
Canada (ECCC) require that your vehicle comply
with applicable exhaust, crankcase, and fuel
permeation emission standards during its useful
life, when operated and maintained according
to the instructions provided.
CARB also requires that your vehicle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
USA
Compliance with the terms of the
Distributor's Warranties for Honda Motorcycle
Emission Control Systems is necessary in order
to maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is located on the right side of the swingarm.
Emission Control Systems
Information
107
Continued

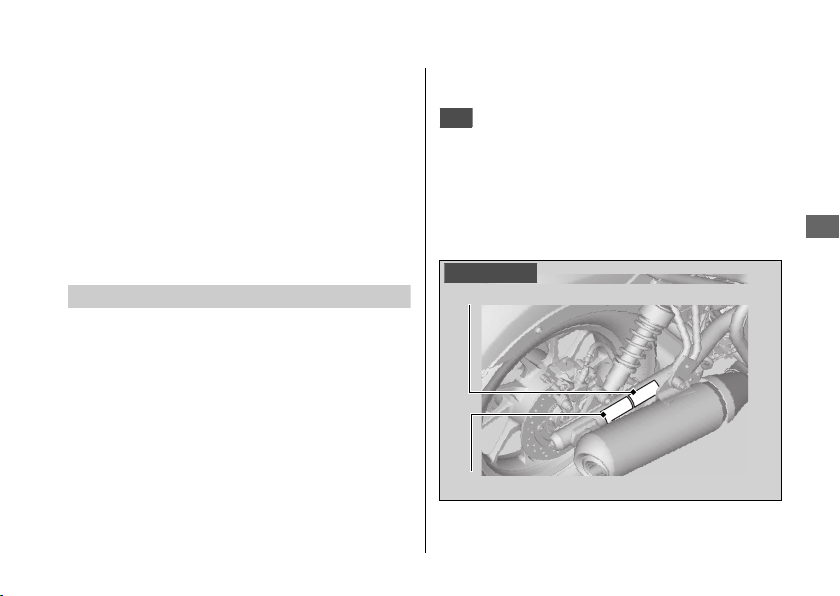

Vehicle emission control information label
Vehicle emission control information label
Canada only
Noise Emission Requirements
The EPA requires that vehicles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems. The
engine control module (ECM) uses sensors to
determine how much air enters the engine, and
then controls how much fuel to inject.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
#
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Emission Control Systems
Information
108
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through
the crankcase breather hose, air cleaner
housing and throttle body.
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Emission Control Systems
Information
109
Continued
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Vehicle Exhaust
Emissions
Have your vehicle inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Emission Control Systems
Information
110
Catalytic Converter
This vehicle is equipped with a three-way
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gases into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your vehicle's
catalytic converter:
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat, causing
damage to the converter or the vehicle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
vehicle serviced as soon as possible.
Catalytic Converter
Information
111
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends have been approved
for use in your vehicle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Do not use gasoline containing methanol
(methyl alcohol).
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
Oxygenated Fuels
Information
112
Description
2023 Rebel 300 Service Manual
Common Service Manual (61CSM00)
USA
Winter Storage Guide (S9507)
2023 Rebel 300 Owner’s Manual
Authorized Manuals
USA
The Service Manual used by your
authorized dealer is available from your Honda
dealer or Helm, Inc.
Canada
See your dealer to order authorized
manuals.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, ATV, and SxS.
USA
The Winter Storage Guide in conjunction
with the Owner's Manual and Service Manual
can help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
USA
Order online: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM ET
Authorized Manuals
Information
113
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Vehicle Limited Warranty
● Emission Control System Warranty
●
USA
Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
Canada
Please refer to the Warranty Booklet
posted on our website at www.honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
vehicle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
USA
You can extend almost all of your warranty
coverage through the HondaCare
®
Protection
Plan. For more information, see your Honda
dealer.
Warranty Coverage and Service
Information
114
Statement on Warranty Coverage for
Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.
2301 et seq., makes it illegal for motor vehicle
manufacturers to void a motor vehicle warranty
or deny warranty coverage solely because an
aftermarket or recycled part has been used to
repair the vehicle or someone other than the
authorized service provider performed service
on the vehicle. This provision does not apply to
a new motor vehicle purchased solely for
commercial or industrial use.
Under federal law, a manufacturer may deny
warranty coverage and charge for repairs to a
vehicle if it is discovered that an aftermarket or
recycled part installed on the vehicle is defective
or was installed incorrectly and caused damage
to another part of the vehicle otherwise covered
under warranty. The Federal Trade Commission
requires that a manufacturer demonstrate that
an aftermarket or recycled part or service
performed by a person other than an
authorized service provider caused damage to
another part of the vehicle otherwise covered
under warranty before denying warranty
coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warranty
or deny warranty coverage if the manufacturer
provides the article or service to consumers free
of charge under the warranty or the
manufacturer has secured a waiver from the
Federal Trade Commission.
Warranty Coverage and Service
Information
115
Continued
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
vehicle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Warranty Coverage and Service
Information
116
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your vehicle
or with your dealer, please send your comments
using one of the following methods:
Powersports Customer Relations
American Honda Motor Co., Inc.
P.O. Box 2200, Torrance, CA 90509-2200
Mailstop: 100-4W-5F
Telephone: (866) 784-1870
Website: https://powersports.honda.com/
contact-us
Canada
Honda Canada Inc.
Customer Relations Department,
180 Honda Boulevard
Markham, Ontario
L6C 0H9
Telephone: (888) 946-6329
Fax: (877) 939-0909
E-mail: [email protected]
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
Honda Contacts
Information
117
Continued
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and unexpected repairs. It has the
latest available service information from Honda
and also handles warranty inspections and
repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Accessories
(USA only), and Honda accessories and
products (Canada only) that provide the same
quality that went into your vehicle.
USA
The sales department offers the
HondaCare
®
Protection Plan to extend almost
all of your warranty coverage.
Your Honda dealer can also supply information
about riding events and information about
safety training available in your local area.
Honda Contacts
Information
118
Reporting Safety Defects
USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying American Honda Motor Co.,
Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
https://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
https://www.safercar.gov.
Reporting Safety Defects
Information
119
Continued
Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Honda
Canada Inc. and you may also inform
Transport Canada.
If Transport Canada receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may lead to a recall and
remedy campaign. However, Transport
Canada cannot become involved in
individual problems between you, your
dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect
Investigations and Recalls Division,
Mailing Address:
Transport Canada - ASFAD
330 Sparks Street
Ottawa, ON
K1A 0N5
Telephone: 819-994-3328 (Ottawa-
Gatineau area or internationally)
Toll free: 1-800-333-0510 (in Canada)
Online:
(English Link:)
www.tc.canada.ca/recalls
(French Link:)
www.tc.canada.ca/rappels
For more information on reporting
safety defects or about motor vehicle
safety, go to
https://www.tc.gc.ca/roadsafety.
Reporting Safety Defects
Information
120
Specifications
■ Main Components
Overall length 86.8 in (2,205 mm)
Overall width 32.3 in (820 mm)
Overall height 42.9 in (1,090 mm)
Wheelbase 58.7 in (1,490 mm)
Minimum ground
clearance
5.9 in (150 mm)
Caster angle 28°
Trail 4.3 in (110 mm)
Curb weight
CMX300 364 lb (165 kg)
CMX300A
49 STATE 368 lb (167 kg)
50 STATE (meets
California)
370 lb (168 kg)
Canada model 368 lb (167 kg)
Maximum weight
capacity
*1
357 lb (162 kg)
*1 : Including rider, passenger, all luggage, and accessories
Passenger
capacity
Model not equipped
with Optional
Passenger Seat Kit
Rider only (no
passenger)
Model equipped with
Optional Passenger
Seat Kit
Rider and 1
passenger
Minimum
turning radius
9.19 ft (2.80 m)
Displacement 17.4 cu-in (286 cm
3
)
Bore x stroke 2.99 x 2.48 in (76.0 x 63.0 mm)
Compression
ratio
10.7 : 1
Fuel
Unleaded gasoline
Recommended: 86 PON or higher
Tank capacity 2.96 US gal (11.2 L)
Battery
YTZ8V or FTZ8V
12 V-7 Ah (10 HR)
Gear ratio
1st 3.416
2nd 2.250
3rd 1.650
4th 1.350
5th 1.166
6th 1.038
Reduction ratio
(primary / final)
2.807 / 2.571
Specifications
121
■ Service Data
Tire size
Front 130/90-16M/C 67H
Rear 150/80-16M/C 71H
Tire type Bias-ply, tubeless
Recommended
tire
Front DUNLOP D404F QA
Rear DUNLOP D404 QA
Tire air pressure
Front
29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear
29 psi (200 kPa, 2.00 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plug (standard) SIMR8A9 (NGK)
Spark plug gap
(non-
adjustable)
0.031 - 0.035 in (0.80 - 0.90 mm)
Idle speed
(non-
adjustable)
1,500 ± 100 rpm
Recommended
engine oil
API Service Classification SJ or higher
except oils labeled as energy conserving or
resource conserving on the circular API
service label, SAE 10W-30, JASO T 903
standard MA, Pro Honda GN4 4-stroke oil
(USA & Canada) or Honda 4-stroke oil, or
an equivalent motorcycle oil
Engine oil
capacity
After
draining
1.5 US qt (1.4 L)
After
draining &
filter change
1.6 US qt (1.5 L)
After
disassembly
1.9 US qt (1.8 L)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
1.17 US qt (1.11 L)
Recommended
coolant
Pro Honda HP Coolant
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain slack 1 - 1 3/8 in (25 - 35 mm)
Standard drive
chain
DID520VF2 or RK520MOZX
No. of links 110
Standard sprocket
size
Drive
sprocket
14T
Driven
sprocket
36T
Specifications
Specifications
122
■ Bulbs
Headlight LED
Brake light/Taillight LED
Front turn signal/Position light LED
Rear turn signal LED
License plate light LED
■ Fuses
Main fuse 30 A
Other fuse
CMX300 15 A, 7.5 A
CMX300A 30 A, 15 A, 7.5 A
Specifications
Specifications
123
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
124
California Proposition 65 Warning
WARNING: Operating, servicing and maintaining a passenger
vehicle or off-highway motor vehicle can expose you to chemicals
including engine exhaust, carbon monoxide, phthalates, and lead,
which are known to the State of California to cause cancer and birth
defects or other reproductive harm. To minimize exposure, avoid
breathing exhaust, do not idle the engine except as necessary, service
your vehicle in a well-ventilated area and wear gloves or wash your
hands frequently when servicing your vehicle.
For more information
go to
www.P65Warnings.ca.gov/passenger-vehicle.
© 2022 Honda Motor Co., Ltd.
All Rights Reserved
Printed in the U.S.A.
31K2YA00
00X31-K2Y-A000
