USE +
INSTALLATION
MANUAL
Range Hoods
FH3011
FH3611
FH3018
FH3618
FH3624
2
Welcome to the Forza family!
Congratulations on your recent Forza purchase! Before you begin using your new Forza product, please take a moment
to review the Use + Installation Manual. You will find the answers to all of your questions as well as some very important safety
information. Your Forza product is ready and waiting to be used for your next gourmet creation!
3
Table of Contents
04 Dimensions and Specifications
10 Preparation for Installation
12 Installation
15 Installation Under Wall Cabinet with Cabling
16 Wall-Mounted Horizontal Vent
20 Cleaning and Maintenance
22 Technical Specifications
24 Warranty
4

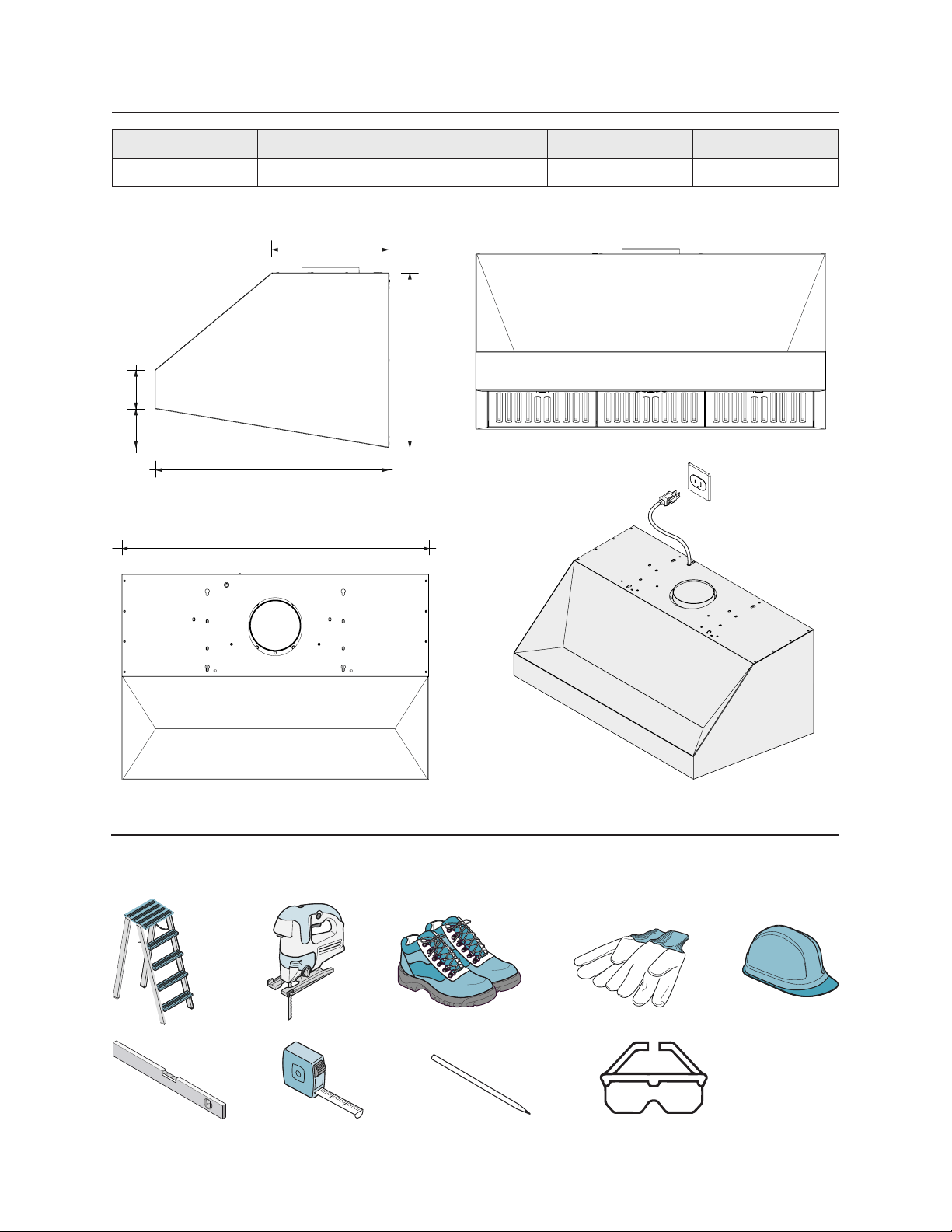

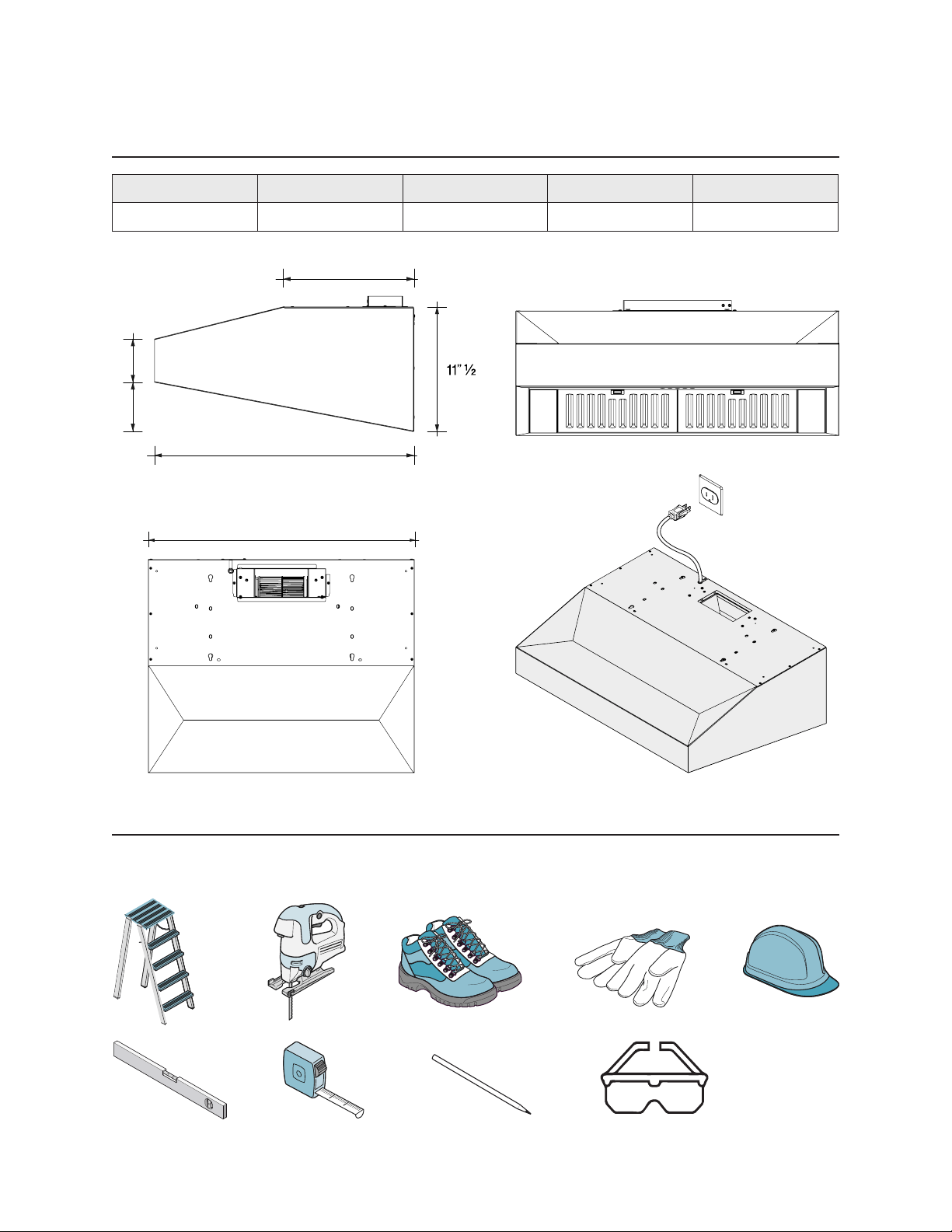

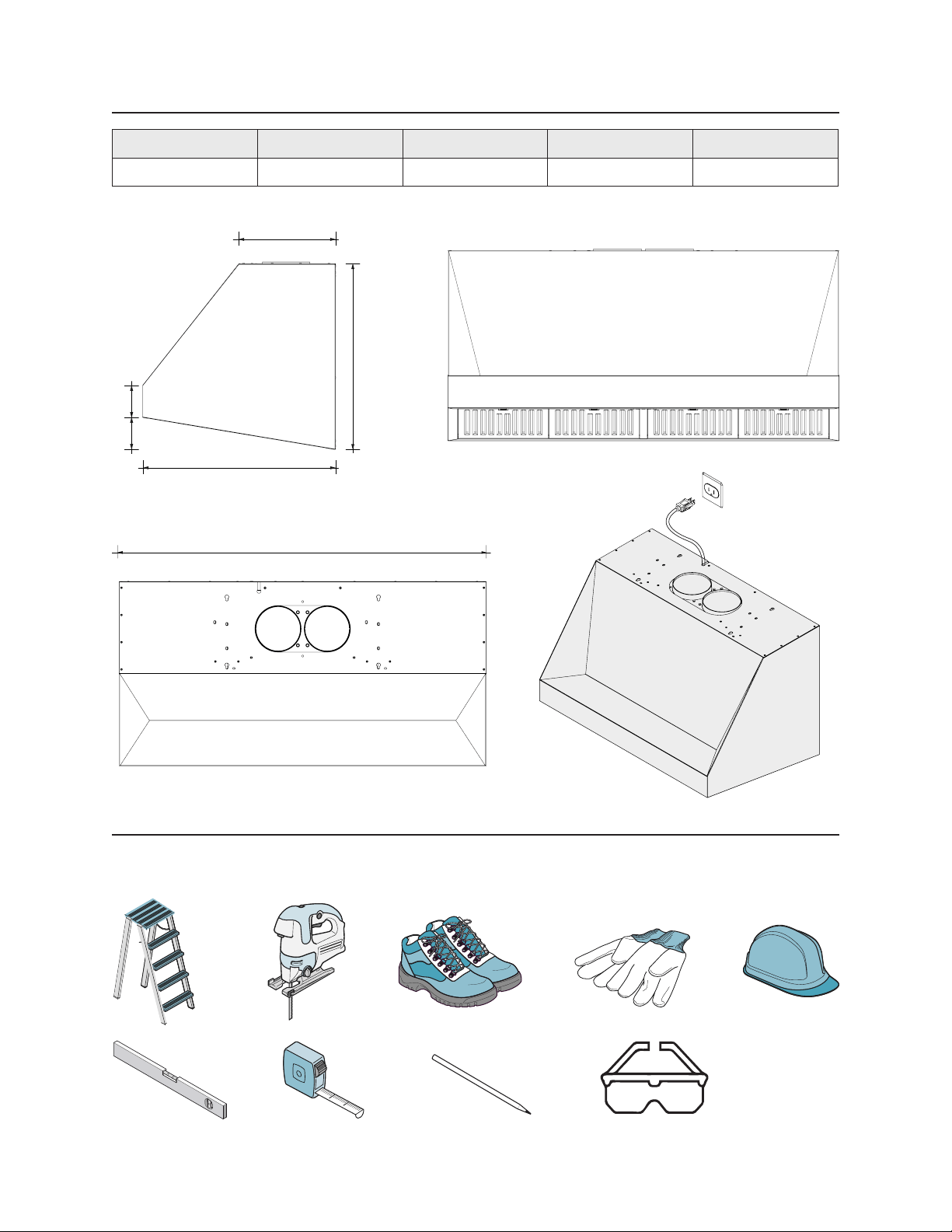

Dimensions and Specifications
4”
24”
12”
4”
30”
Model Number Voltage Frequency Power Weight
FH3011 120 V 60 Hz 233 W 35 lb / 15.90 kg
Tools Required
5
4”
24”
12”
4”
Model Number Voltage Frequency Power Weight
FH3611 120 V 60 Hz 353 W 41.8 lb / 19 kg
Tools Required

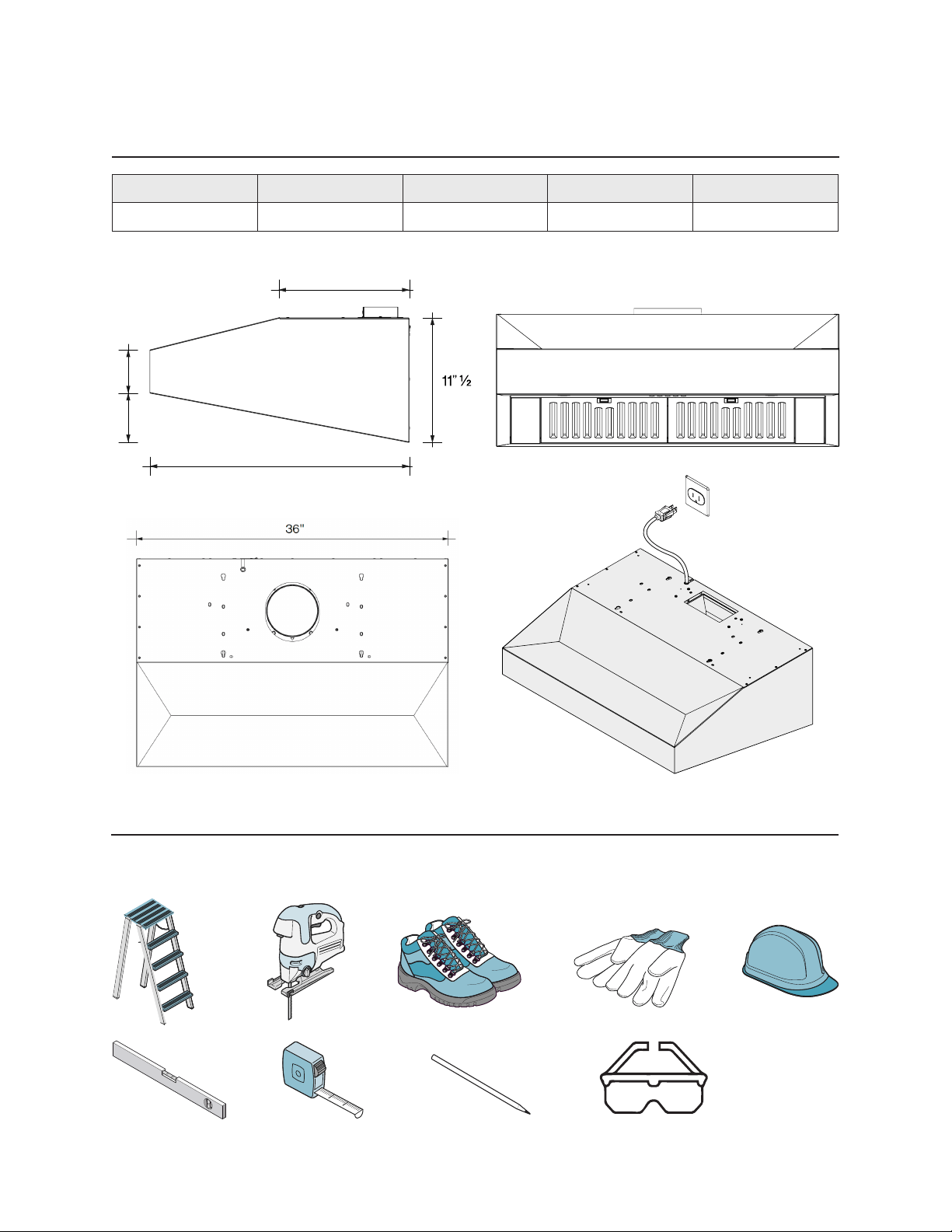

6
30”
Model Number Voltage Frequency Power Weight
FH3018 120 V 60 Hz 353 W 43.6 lb / 19.80 kg
24”
12”
18”
4”
4”
Tools Required
7
Model Number Voltage Frequency Power Weight
FH3618 120 V 60 Hz 353 W 52.8 lb / 24 kg
24”
12”
18”
4”
4”
36”
Tools Required
8
Model Number Voltage Frequency Power Weight
FH3624 120 V 60 Hz 706 W 68 lb / 30.95 kg
24”
12”
24”
4”
4”
36"
Tools Required
9

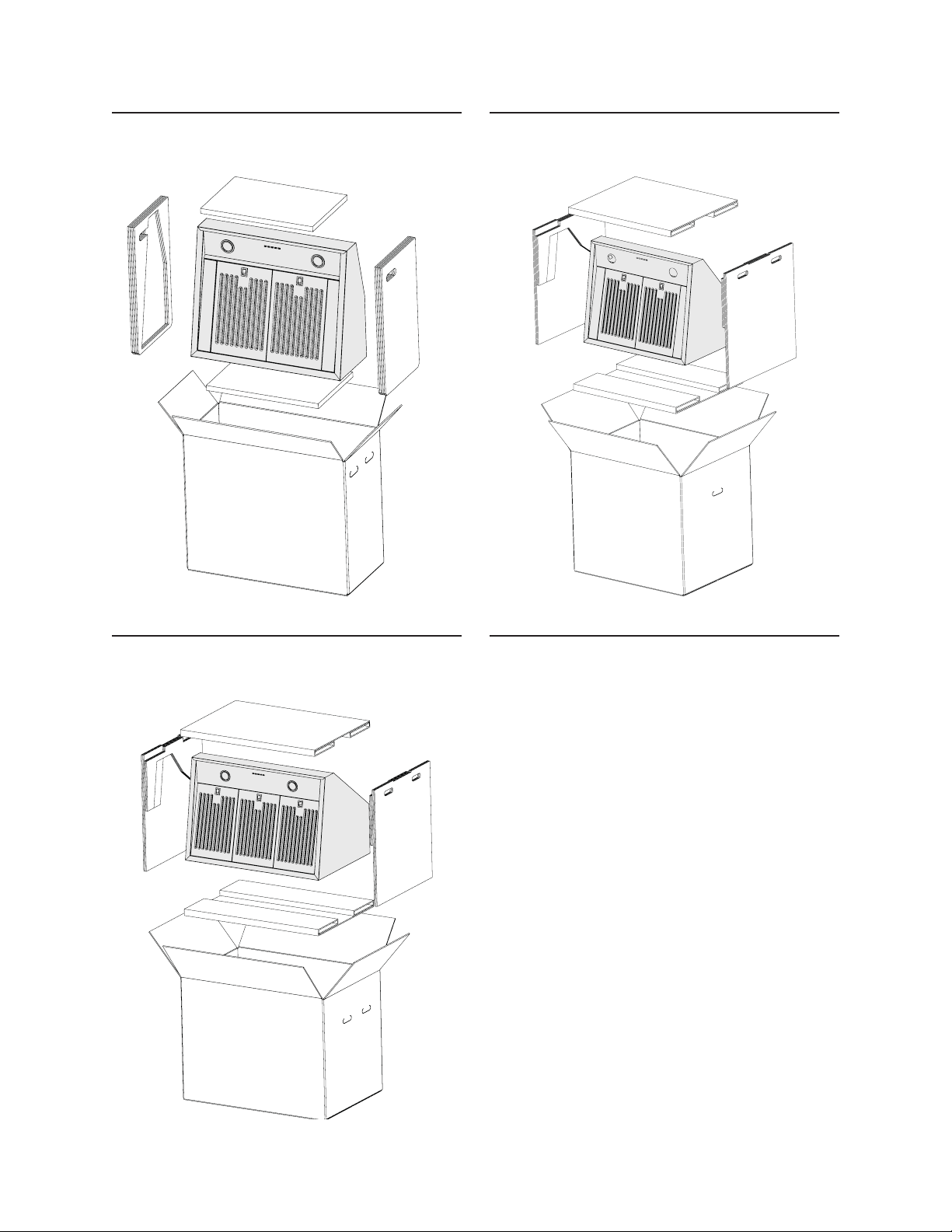

Check the contents of the box before installing the product.
If any items are missing or damaged contact the manufacturer.
Remove the bag of component accessories from inside the
body of the hood.
Contents of bag according to model:
No. 2 – 3.5 x 9.5 mm
No. 4 – 4.5 x 40 mm
No. 4 – Dowel Ø8
No. 6 – 4.5 x 15 mm
No. 4 – M4 x 10 mm
FH3011 - FH3611
FH3624
FH3018 - FH3618
10
2. Remove the accessories.
Preparation for Installation
Remove the protective plastic film from the product before installing.
It is advisable to wear personal protective equipment during installation.
Before installing the product remove the indicated accessories from the body
of the hood, as shown in the figures. These parts must be removed even if they
are not used during installation. The screws provided are required during the
installation of the component.

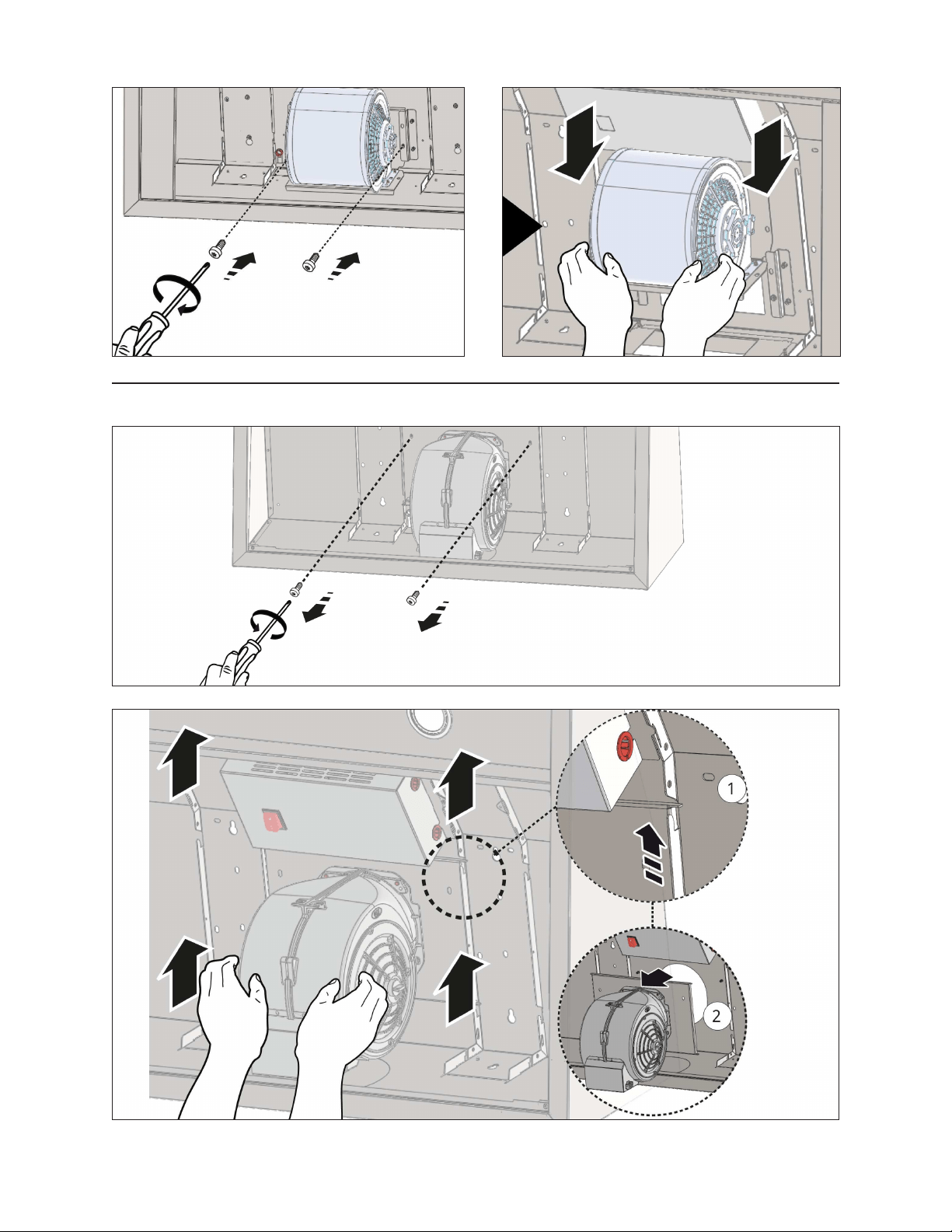

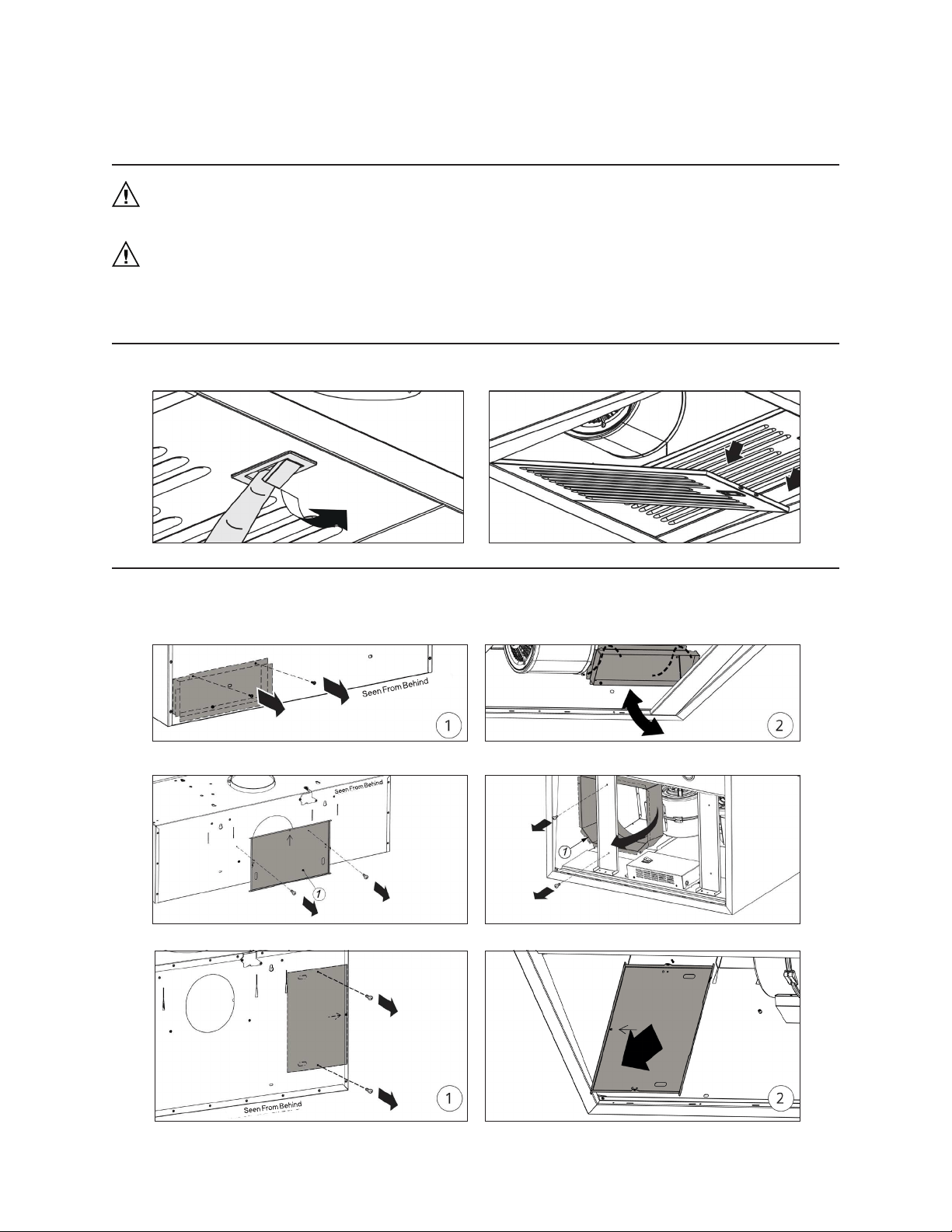

1. Remove the filters.
FH3011
FH3611 FH3624
FH3018 - FH3618
11

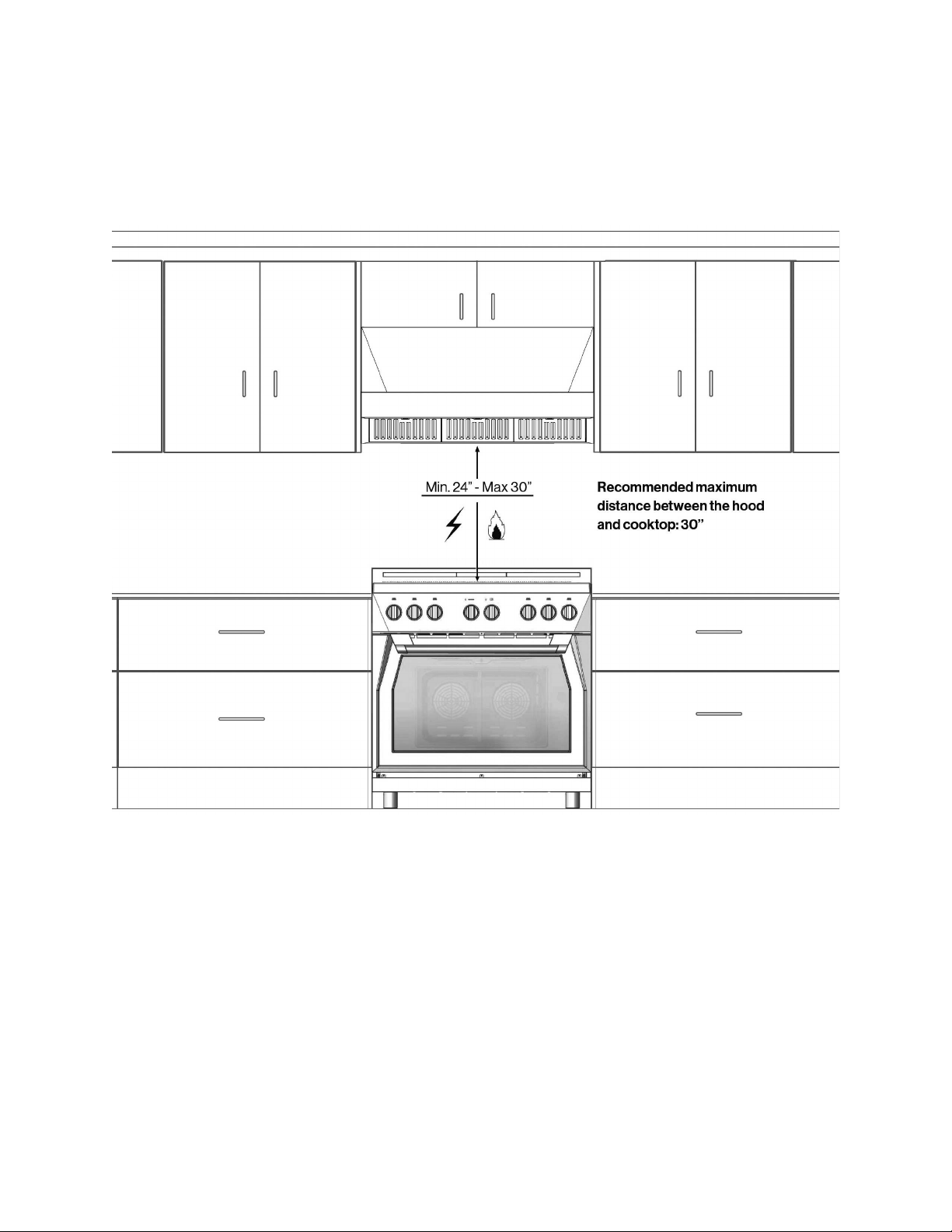

IMPORTANT: The minimum hood installation height requirements indicated in the cooktop / range instructions take
precedence over the requirements outlined in this manual. If missing from the cooktop manual, refer to the measures shown
in figure (1).
Figure 1

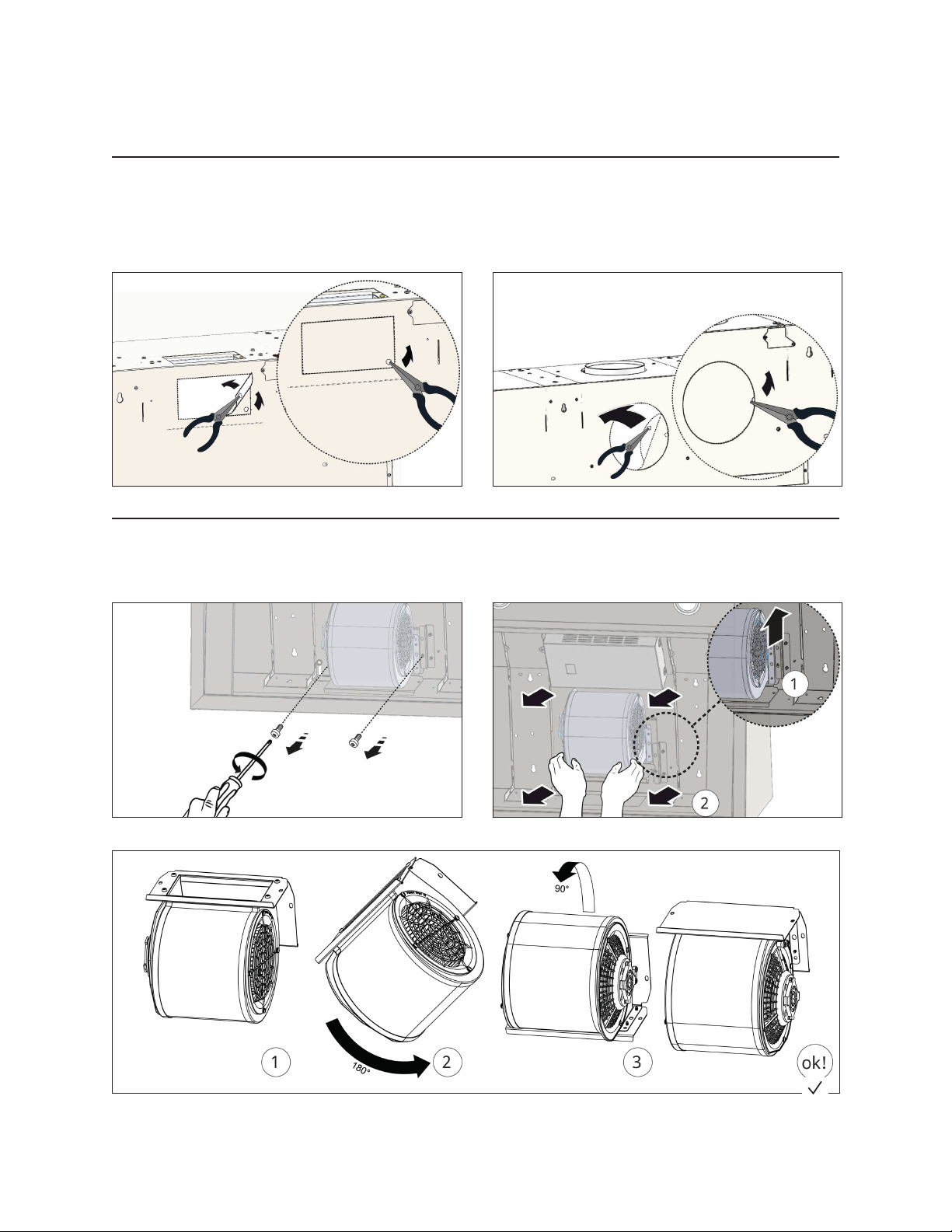

12
Installation

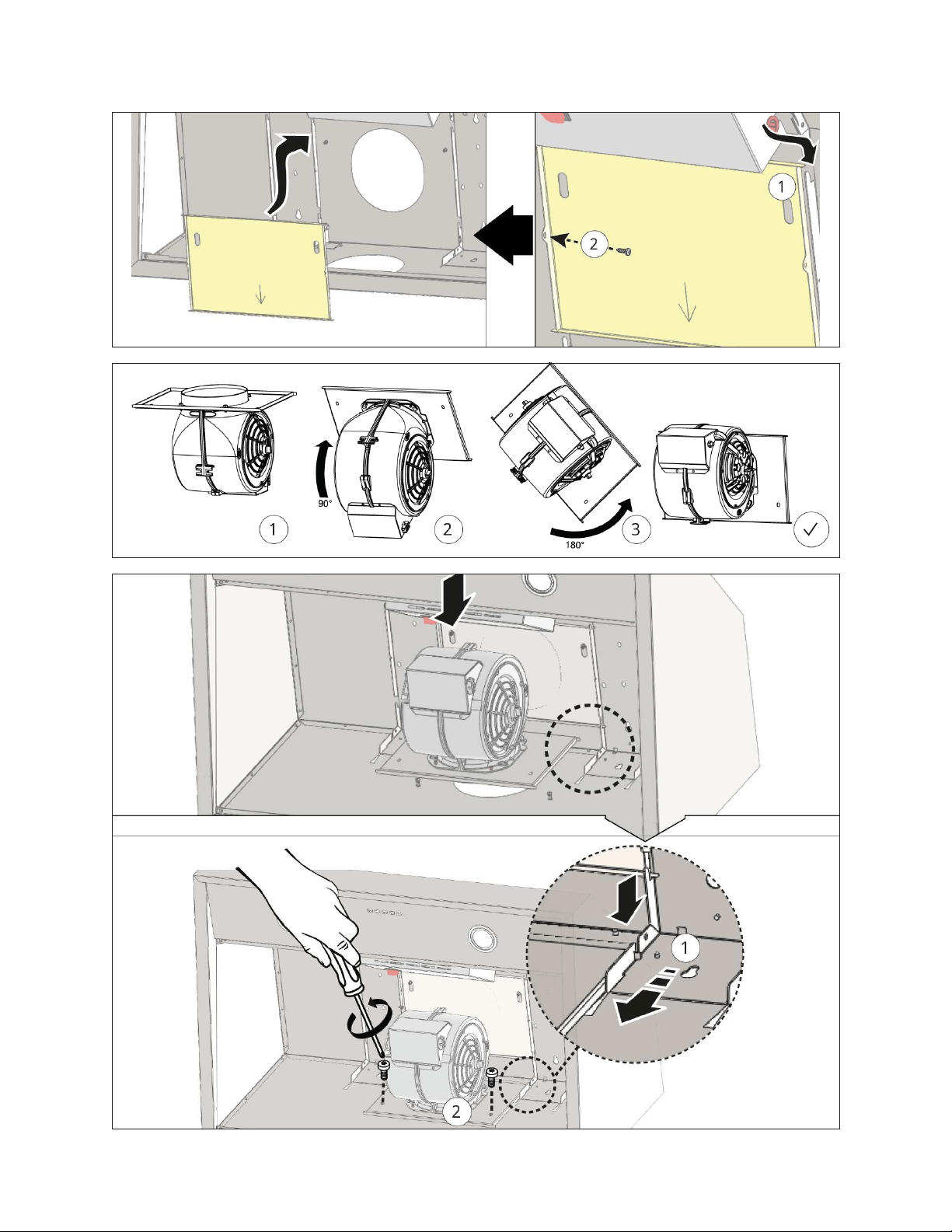

Horizontal Vent Option
(PRE-CUT)
FH3011
FH3011
FH3611 - FH3018 - FH3618
(Positioning of motor for horizontal vent)
13
FH3611 - FH3018 - FH3618
14
Closing
15

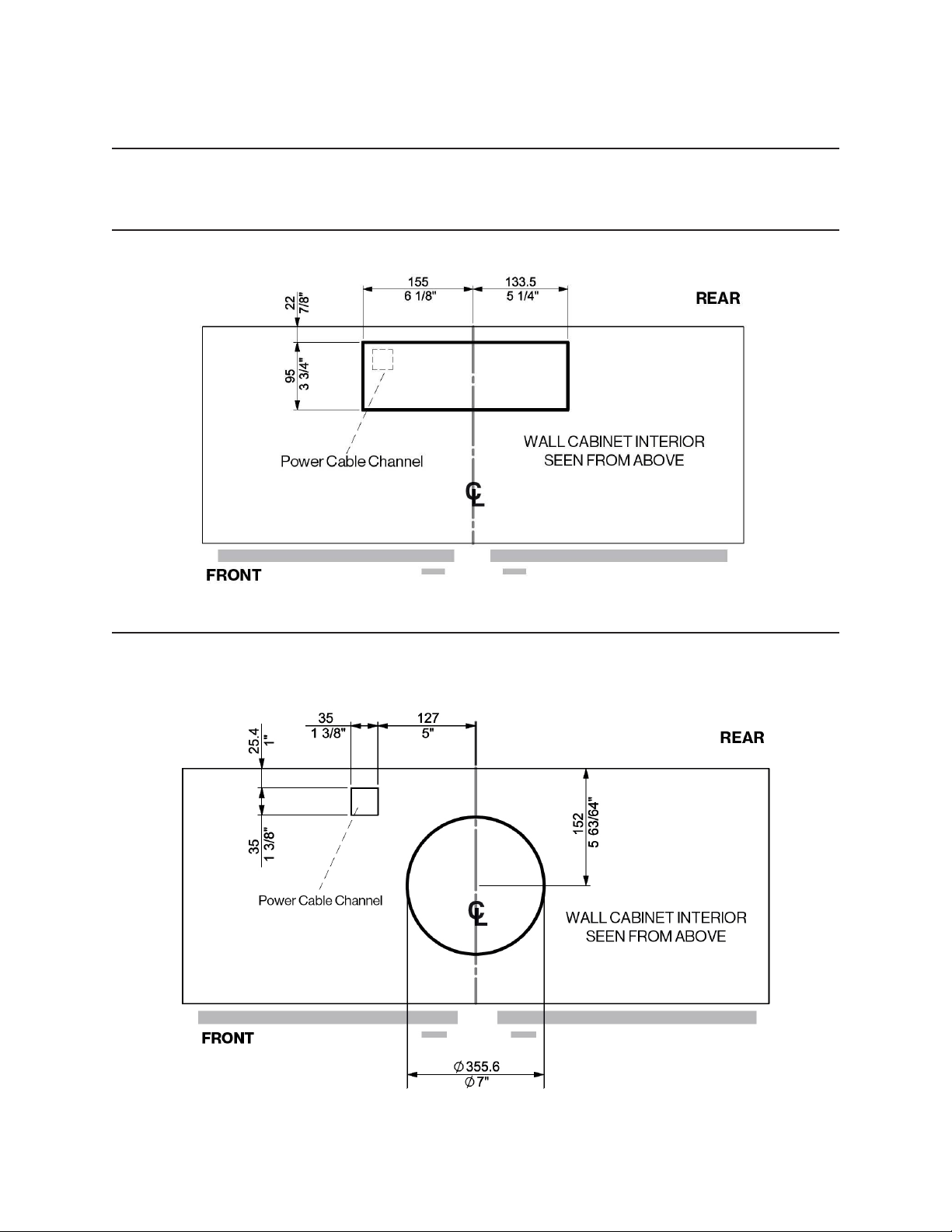

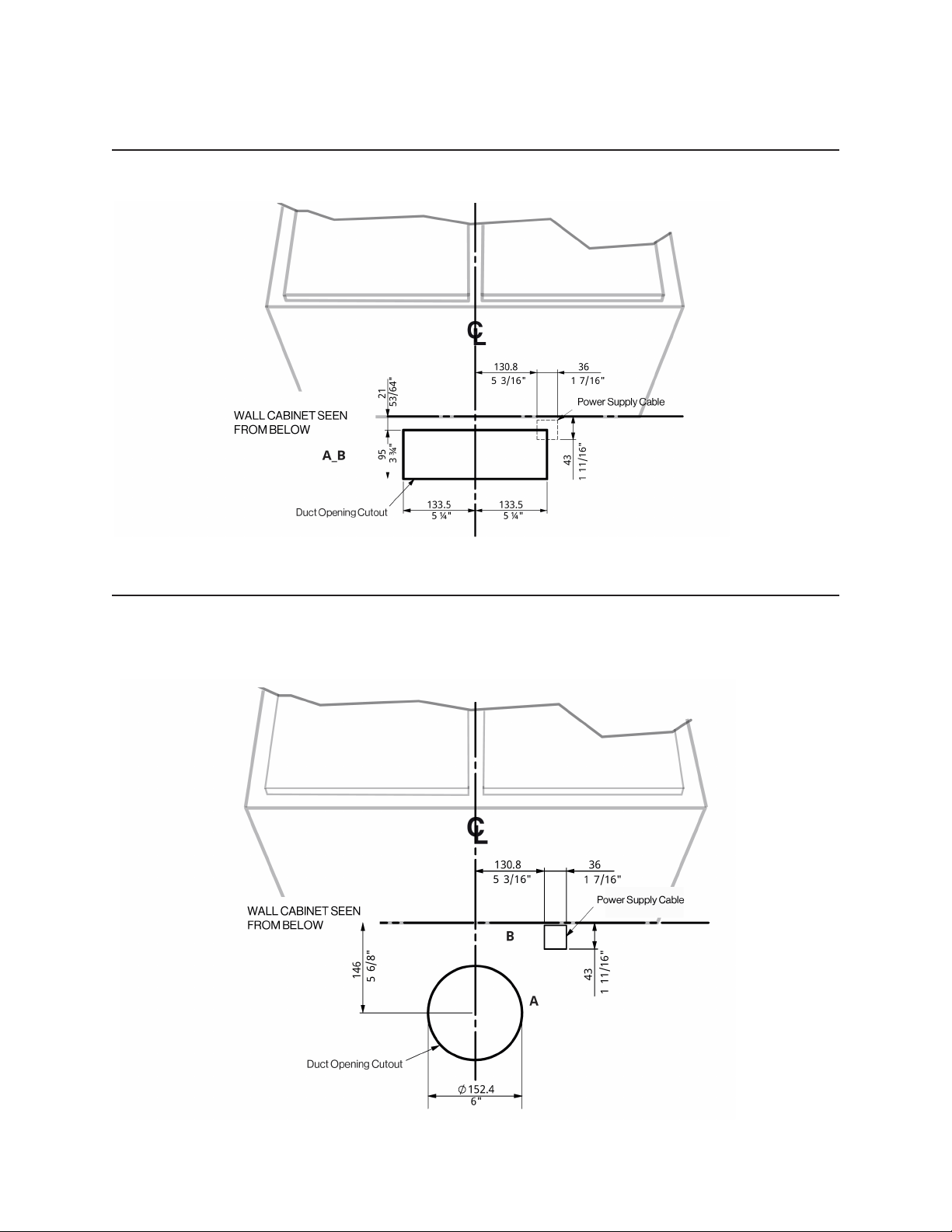

Installation Under Wall Cabinet with Cabling
Horizontal Vent Option
(PRE-CUT)
FH3011
FH3611 - FH3018 - FH3618
16
Wall-Mounted Horizontal Vent
FH3011
FH3611 - FH3018 - FH3618
17
FH3011
Wall Installation MeasurementsInstallation Measurements
Reinforcement for Bottom of Wall Cabinet
18
Installation Under Wall Cabinet
19
Drywall Reinforcement
Wall Installation
20
Cleaning and Maintenance
Read and follow these instructions.
This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned
to other parties, check that the booklet is supplied with it to ensure that the new user has the correct information on the
operation of the range hood and is aware of the warnings. These warnings have been provided for your safety and the safety
of others. As a result, please read them carefully before installing and operating the appliance. This appliance is not intended
for use by persons (including children) with reduced physical, sensory or mental capabilities, or persons who lack the
necessary experience and knowledge, unless they are supervised or given instructions on the use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
The appliance must be installed by qualified personnel in accordance with the standards in force. If the power cable is
damaged it must be replaced by the manufacturer, its authorized service technician or similarly qualified persons in order to
avoid hazards. Any modifications that may be required to the electrical system for the installation of the range hood must only
be made by qualified electricians. It is dangerous to modify or attempt to modify the characteristics of this system. In the event
of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems yourself. Repairs performed
by unqualified persons may cause damage. For all repairs and other work on the appliance, contact an authorized service/
spare parts center. Always check that all electrical parts (lights, exhaust device) are o when the appliance is not being used.
Read the entire instruction booklet before performing any operations on the range hood.
The range hood must only be used for the ventilation of cooking fumes in home kitchens. The manufacturer shall not be held
liable for any other use of the appliance. The maximum weight of any object placed above the hood, or hung to it (if possible),
must not exceed 2.67 lb. After installing the stainless steel hood, clean it to remove any residues of the protective glue and
grease or oil stains. The manufacturer recommends using the dedicated cleaning cloth, available for purchase separately.
The manufacturer shall not be held liable in the event of damage caused by dierent types of detergent. Do not operate any
fan with a damaged cable or plug. Dispose of the fan or return it to an authorized service center for examination and/or repair.
Do not run cables under carpeting. Do not cover cables with throw rugs, runners, or similar coverings. Do not run cables
under furniture or appliances. Arrange cables away from busy areas where people will not trip over them.
CAUTION:
• This product must be disposed of at end of its life according to the rules in force.
• The electrical system features an earth connection in compliance with international safety standards; furthermore,
it is compliant with the USA and Canada standards for electromagnetic compatibility.
• Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the main voltage corresponds to
the values on the rating plate located inside the range hood.
• Never cook on “open” flames under the range hood.
• Check deep-fryers during use: overheated oil may be flammable.
• Ensure there is adequate ventilation in the room when the range hood is used at the same time as appliances,
burning gas or other fuels.
• Do not flambé under the range hood.
21
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances, burning gas or
other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been met before you use the appliance.
Before performing any cleaning or maintenance operations, disconnect the appliance
by unplugging it or using the main switch. The manufacturer shall not be held liable for
any damage that may directly or indirectly cause harm to people, things and animals due
to the failure to follow the instructions provided in this booklet–including the warnings
relating to the installation, operation and maintenance of the appliance.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
CAUTION: Accessible parts may become hot when used with cooking appliances.
• Max. screw length for fixing the chimney is 25/64 mm (provided by the manufacturer).
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.
WARNING: To reduce the risk of fire, use only metal ductwork.
WARNING – To reduce the risk of a range top grease fire:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn the hood ON when cooking over a high heat or when flambéing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
c) Clean ventilator fans frequently. Grease should not be allowed to accumulate on the fan or filter.
d) Use pans of a suitable size. Always use cookware appropriate for the size of the surface element.
WARNING: To reduce the risk of injury to persons in the event of a range top grease fire, observe the following:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn o the burner. TAKE CARE TO
PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department has been called.
4) You can fight the fire with your back to an exit.
22
Technical Specifications
The technical specifications of the appliance are shown on the rating plates located inside the range hood.
Electrical Connection
Before carrying out any work inside the hood, disconnect the appliance from the mains. Check that the wires inside the hood
are not disconnected or cut; if they are, contact your service center. The electrical connections must be made by qualified
personnel. The connections must be made in accordance with the legal regulations in force. Check that the safety valve and
the electrical wiring are able to support the appliance’s electrical load (see the label inside the product). Some types of
appliances are supplied with a cable without a plug; in this case “standard” plugs must be used, making sure that:
• The green-yellow wire is used for earthing;
• The blue wire is used as the neutral conductor;
• The brown wire is used as the single-phase conductor; the wire must not come into contact with hot parts (over 70°C).
• An appropriate plug for the power cable load is used and connected to a suitable electric socket.
For appliances supplied with cable and plug, make sure they are connected to a suitable electric circuit. Please consult an
expert. The manufacturer shall not be held responsible for any failure to respect safety standards.
Earthing Instructions
This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shocks,
providing an outlet for the electrical current. This appliance comes with a cable with an earthed wire and an earthed plug.
The plug must be inserted in a correctly installed and earthed socket.
WARNING: Incorrect earthing could carry the risk of electric shocks. Consult a
qualified electrician if you have not fully understood the earthing instructions or if
you think that the appliance may not be correctly earthed. Do not use an extension
cable. If the power cable is too short, ask a qualified electrician to install a socket
near the appliance.
23

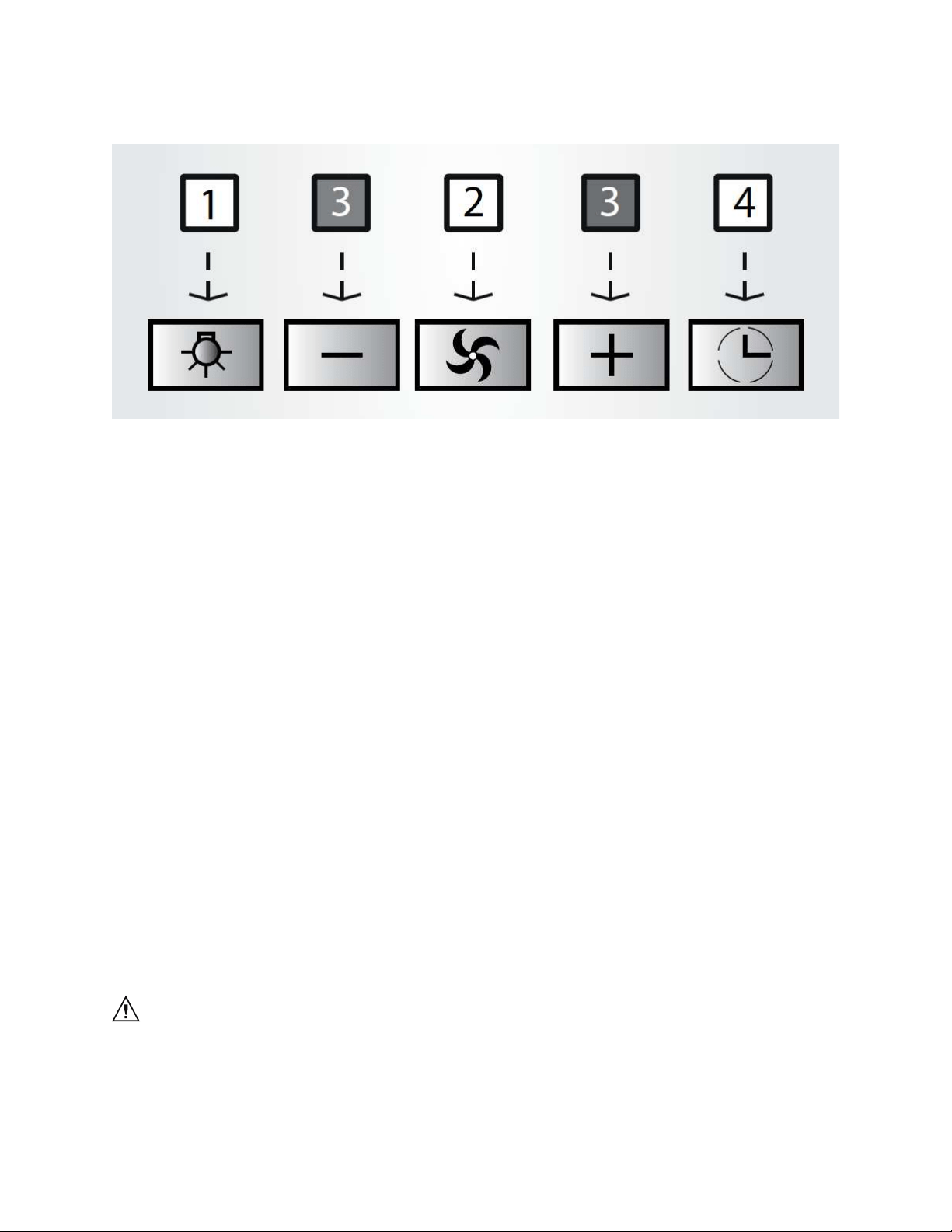

Electronic Control Of Buttons
1) Hood light on/o (the button light is on when the hood light is on).
2) Hood extractor on/o (the button light is on when the extractor is on).
3) (- Symbol) Reduces extractor speed (the button light is on when the function is activated).
3) (+ Symbol) Increases extractor speed (the button light is on when the function is activated).
4) Timer function, the extraction time at levels 1, 2 and 3 is 15 minutes and the hood turns o automatically. At speed 4
the timer function turns on, the button lights up and the extractor fan works for 7 minutes, before switching to speed 3.
For maximum eciency, speed 3 should be used when there are strong smells and lots of steam, speed 2 in normal
conditions and speed 1 to keep the air clean with minimal energy consumption. The hood must be turned on when you start
cooking and left on until all odors have disappeared.
Bae And Mesh Filters
Use the handle to remove the metallic grease filter.
Bae Filters
These capture the grease particles in the air. They can be washed and must be cleaned every month with hot water and
detergent. The filters can be washed in the dishwasher. Wait until they are completely dry before putting them back in the
hood. This operation should be carried out at regular intervals.
Lights
The hood has high-eciency and low power consumption LED lights that work for many hours in regular conditions.
Maintenance And Cleaning
Do not spray detergents directly on the controls when cleaning the hood.
The hood must be cleaned regularly (at least as frequently as the maintenance of the grease filters) internally and externally.
Clean using a cloth moistened with neutral liquid detergent. Do not use abrasive products.
DO NOT USE ALCOHOL!
WARNING: Ignoring the basic advice for cleaning the hood and replacing the
filters could lead to a fire risk. As such, it is advisable to follow these instructions.
The manufacturer shall not be held liable for damage to the motor or other forms of
damage caused by inadequate maintenance or the failure to comply with the above
safety recommendations.
24
Forza Warranty U.S.A.
The warranties provided by Forza in this statement apply exclusively to Forza appliances and accessories sold as new
products to the original owner by a Forza authorized distributor, retailer, dealer or service center and installed in the United
States.
The warranties provided in this statement are not transferable and have validity from the date of original purchase.
Duration Of Warranty:
For twenty-four (24) months from the original date of purchase, the Forza warranty covers all parts and labor to repair or
replace, under normal residential use, any part of the product that proves to be defective, in materials or workmanship, as
a result of the original manufacturing process. Repairs must be performed by an authorized Forza Service Center during
normal working hours.
Responsibilities Of The Buyer:
When writing or calling about a service problem, please include the following information:
• Your name, address and telephone number
• Appliance model and serial number
• Name of your dealer
• A clear description of the problem you are having
• Proof of purchase (sales receipt)
Cosmetic Warranty:
Forza will cover parts showing cosmetic defects (doors, handles, glass, product frames, racking and interior, exterior surfaces)
in materials and workmanship for a period of seven (7) days after the delivery of the appliance. This coverage will include
scratches, stains, surface imperfections on stainless steel, paint and porcelain, with the exception of slight dierences in
color due to materials and painting/enameling technologies. Slight color variations may be due to the inherent dierences in
painted parts and porcelain parts as well as dierences in kitchen lighting, product locations, and other factors. Therefore,
this warranty does not apply to color variations attributable to such factors.
Labor costs, B-stock items, products not sold in the original factory packaging and display appliances are not covered.
What Is Not Covered:
1) Use of the product in commercial applications.
2) Maintenance call-outs in which no defects are found.
3) Repair services provided by any service center that is not authorized by Forza.
4) Damage or repairs to correct any service provided by an unauthorized service center.
5) Damage or repair services to correct the use, addition or substitution of any original part with an unauthorized part.
6) Installation not compliant with local electrical codes or plumbing codes.
7) Defects or damage due to improper storage of the product.
8) Damage due to the failure to follow the manufacturer’s recommended care, cleaning and maintenance instructions;
in particular, damage to the oven and/or the cooktop if they have not been cared for and cleaned according to these
instructions.
25
9) Defects, damage or missing parts on products not sold in the original factory packaging or from displays.
10) Service calls or repairs to correct the installation of the product and/or related accessories, calibrations and normal
adjustments after installation and setup, including burner adjustments.
11) Service calls to connect, convert or otherwise repair electrical wiring and/or gas pipes to properly use the product.
12) Service calls to provide instructions on the use of a Forza product.
13) Repair or failure of the product if it is abused, misused, used improperly, not used for its intended purpose or if used
commercially/industrially.
14) Damage or repairs due to the use of harsh chemicals or cleaning products that have been applied incorrectly.
15) Replacement of parts due to wear and tear.
16) Replacement of house fuses or resetting of circuit breakers.
17) Damage to anything situated next to the product including, but not limited to, ceilings, floors and cabinetry.
18) Defects and damage arising from accidents, alterations, misuse, abuse, improper installation or installations that do not
comply with the instructions provided by Forza.
19) Damage occurring during the transit, handling and/or installation of the product.
20) Defects and damage arising from external forces beyond the control of Forza such as fire, flooding, earthquakes and
other acts of God.
21) Expenses for travel and transportation to locations more than 30 miles from an authorized Forza retailer.
22) Replacement filters for ventilation hood recirculating kits are not covered by the product warranty.
23) Products with original serial numbers that have been removed.
24) Replacement light bulbs are not covered by the product warranty.
25) Damage to people or property caused by the product or through its usage.
In the event the product is installed in a remote area where certified trained technicians are not widely available, the customer
will be responsible for the transportation costs for the delivery of the product to the nearest authorized service center or for
the travel costs of a certified trained technician.
The warranty is only valid if the product was purchased less than a year after the production date. Any product which has
been warehoused for more than this one year period will only be covered under the terms of Forza’s B-Stock / Display Model
warranty.
Forza reserves the right to revise this warranty at any time.
Forza does not assume any responsibility for incidental or consequential damage.
Some states do not allow the exclusion or limitation of incidental or consequential damage, so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which
may vary from state to state.
26
