Sku Number: 351-8346
3LT Semi-flush Mount
Model Number: ISF720A03ORB
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
CARE AND MAINTENANCE
04-18
A
4
Wire Nut
x 3
AA
CC
DD
Mounting Bracket
x 1
Electrical Box Screw
x 2
BB
EE
FF
GG
• To clean, turn off and wipe with a damp, non-abrasive cloth.
• When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage
to finish.
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
5-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
®
light fixture fails due to a defect in material and workmanship within five (5) years
from the date of purchase, simply bring this light fixture with your original sales
receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the lighting fixture replaced with the same or similar
PATRIOT LIGHTING
®
product free of charge, within the stated warranty period,
when returned by the original purchaser with original sales receipt. This warranty:
(1) excludes expendable parts including but not limited to light bulbs; (2) does not
cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you
specific legal rights and you may have other rights, which vary from state to state.
Star Washer
x 2
Cap Nut
x 2
Canopy
x 1
Center Rod
x1
B
C
HH
Bulb
x 3
2
3
IMPORTANT SAFETY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
PREPARATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product.
Please save this instruction manual.
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning
installation by removing fuse (or switching off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture
installation. Do not permit wires to contact any surface having a sharp edge.
To do so may damage or cut the wire insulation, which could cause serious
injury or death from electric shock.
• This product must be installed in accordance with the applicable installation
code by a person familiar with the construction and operation of the product and
the hazards involved.
• Connect the ground wires (bare copper or green) from your fixture to the ground
wire (bare copper or green) or ground screw in the electrical box.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or
the national electric code (NEC). Contact your municipal building department to
learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC.
Consult a qualified electrician before installation.
• Do not connect this fixture to an electrical system that does not provide a means for
equipment grounding. Never use a fixture in a two-wire system that is not grounded.
If you are not sure your lighting system has a grounding means, do not attempt to
install this fixture. Contact a qualified, licensed electrician for information with regards
to proper grounding methods as required by the local electrical code in your area.
• If a dimmer control switch is used with this fixture, obtain professional advice to
determine the correct type and electrical rating required.
Before beginning assembly, installation or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper
AA
AA
BB
CC

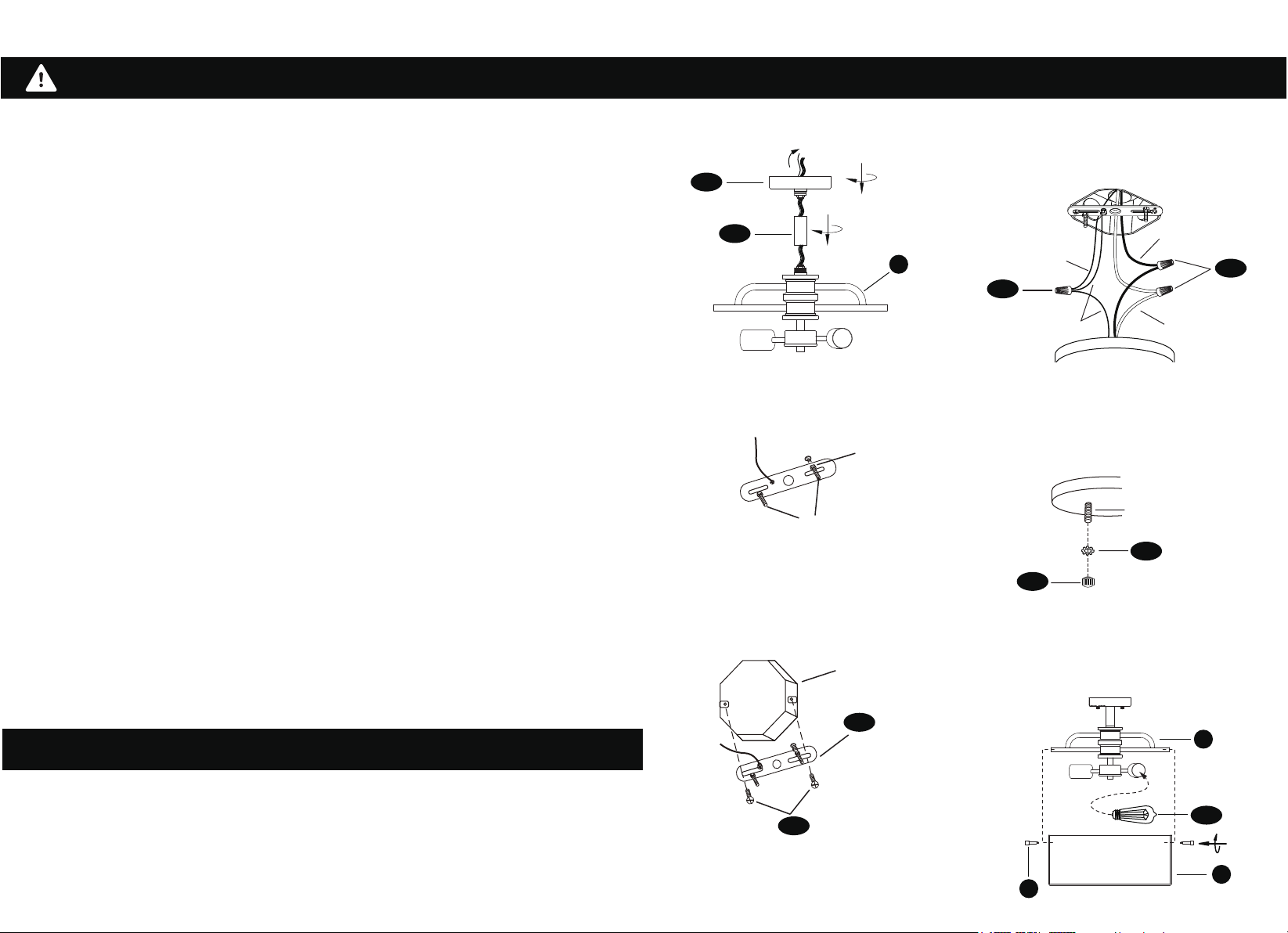

1. Screw the center rod (GG) and canopy
(FF) to the fixture (A).
DD
EE
GG
White
Black
House supply
Ground wire
Fixture
Ground wire
4. Connect the ground wires (bare copper or
green) from your fixture to the ground wire (bare
copper or green) or ground screw in the electri-
cal box. Connect black wires from fixture to
black wire in electrical box and connect the white
wires from fixture to white wire in electrical box.
Electrical
Box
3. Mount the mounting bracket (BB) to
electrical box using electrical box
screws (CC). Make sure the studs on the
mounting bracket (BB) are facing out from
the electrical box.
5. Once connections of wires are completed,
carefully tuck wires and wire nuts (AA) into the
electrical box making sure no bare wire (on the
black and white) is visible at the wire nuts (AA).
6. Position fixture over studs on mounting
bracket (BB) assembly. Secure fixture (A) in
place with star washers (DD) and cap nuts (EE).
Stud
Studs
2. Loosen the hex nuts. Adjust studs to
desired length and lock in place with hex
nuts.
Hex Nut
A
FF
B
A
HH
C
7. Install the specified bulb (HH) type and
wattage.
8. Remove the thumb screws (C) that are
already on your fixture (A). Attach the glass
shade (B) to the fixture (A) using the thumb
screws (C) (tighten with fingers only).
