*Select Models Only
ENGLISH/FRANÇAIS/
ESPAÑOL
Write the model and serial
numbers here:
Model # _________________
Serial # _________________
Find these numbers on a label
on the left side, near the middle
of the refrigerator compartment.
Pub No. 49-1000472 Rev. 1 07-20 GEA
GE and GE Profile
Models 18, 19, 21, 24, 25, 26
& 27 cuft
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
REFRIGERATORS
Bottom Freezer
GE is a trademark of the General Electric Company. Manufactured under trademark license.
SAFETY INFORMATION .....3
OPERATING INSTRUCTIONS
Features ..........................5
Controls ..........................7
Sabbath Modes ....................11
Dispenser* ....................... 12
Water Filter - MWF ............... 13
Water Filter - XWFE .............. 14
Shelves and Bins .................. 16
Pans ............................ 17

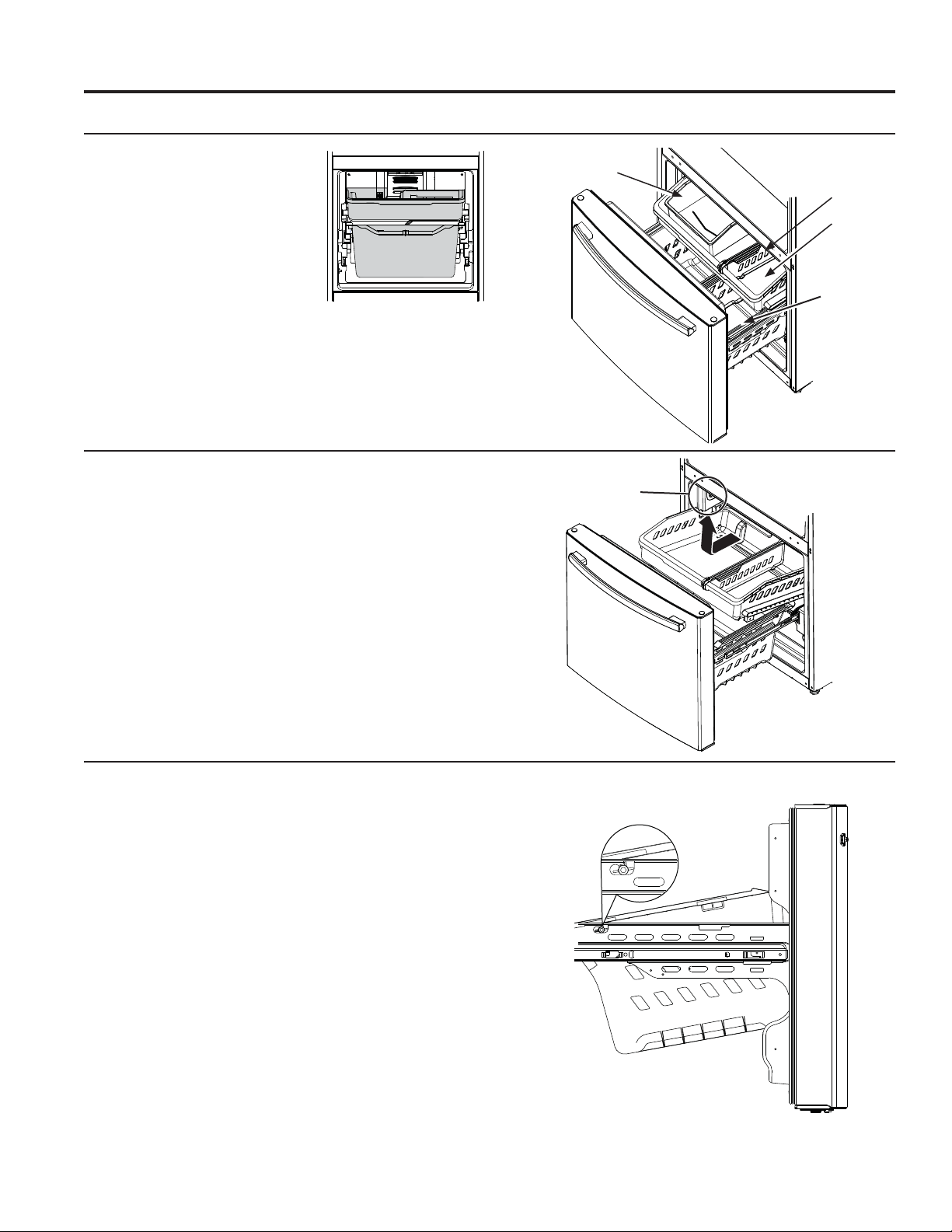

Freezer Drawer* .................. 18
Freezer Compartment ............. 19
Automatic Icemaker ...............20
CARE AND CLEANING ...... 21
Replacing the Lights ..............22
INSTALLATION INSTRUCTIONS

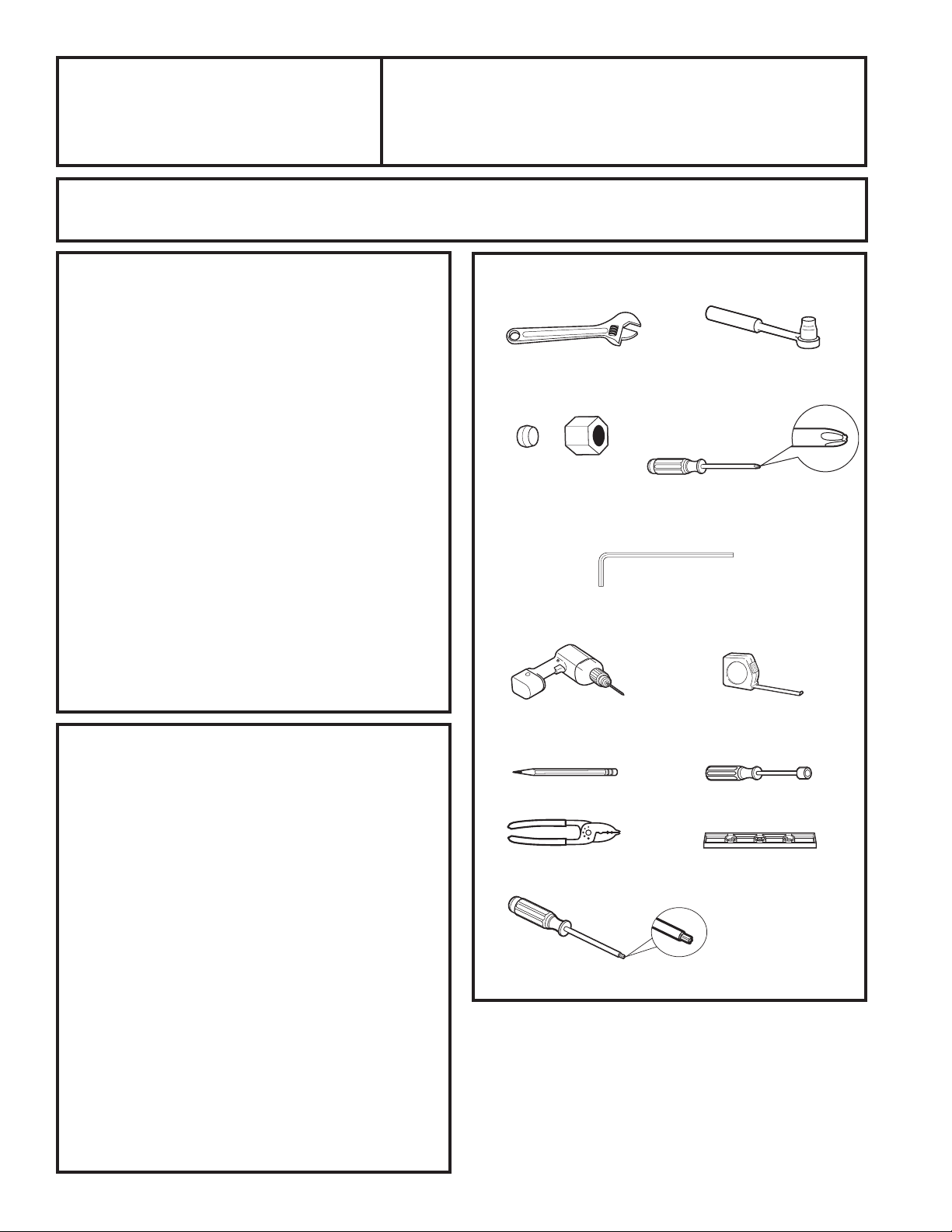

Preparing to Install the
Refrigerator .....................23
Appliance Dimensions .............24

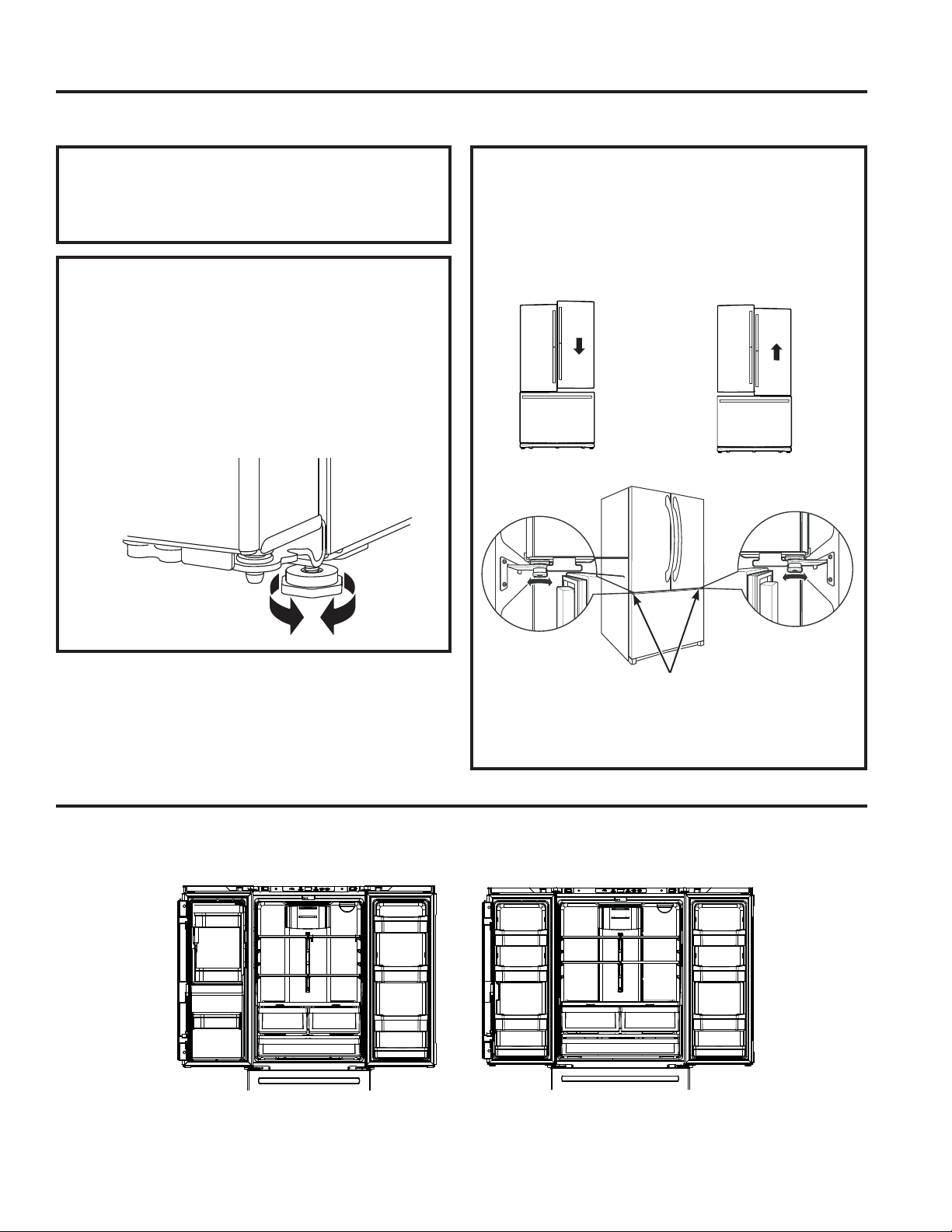

Installing the Refrigerator ..........25

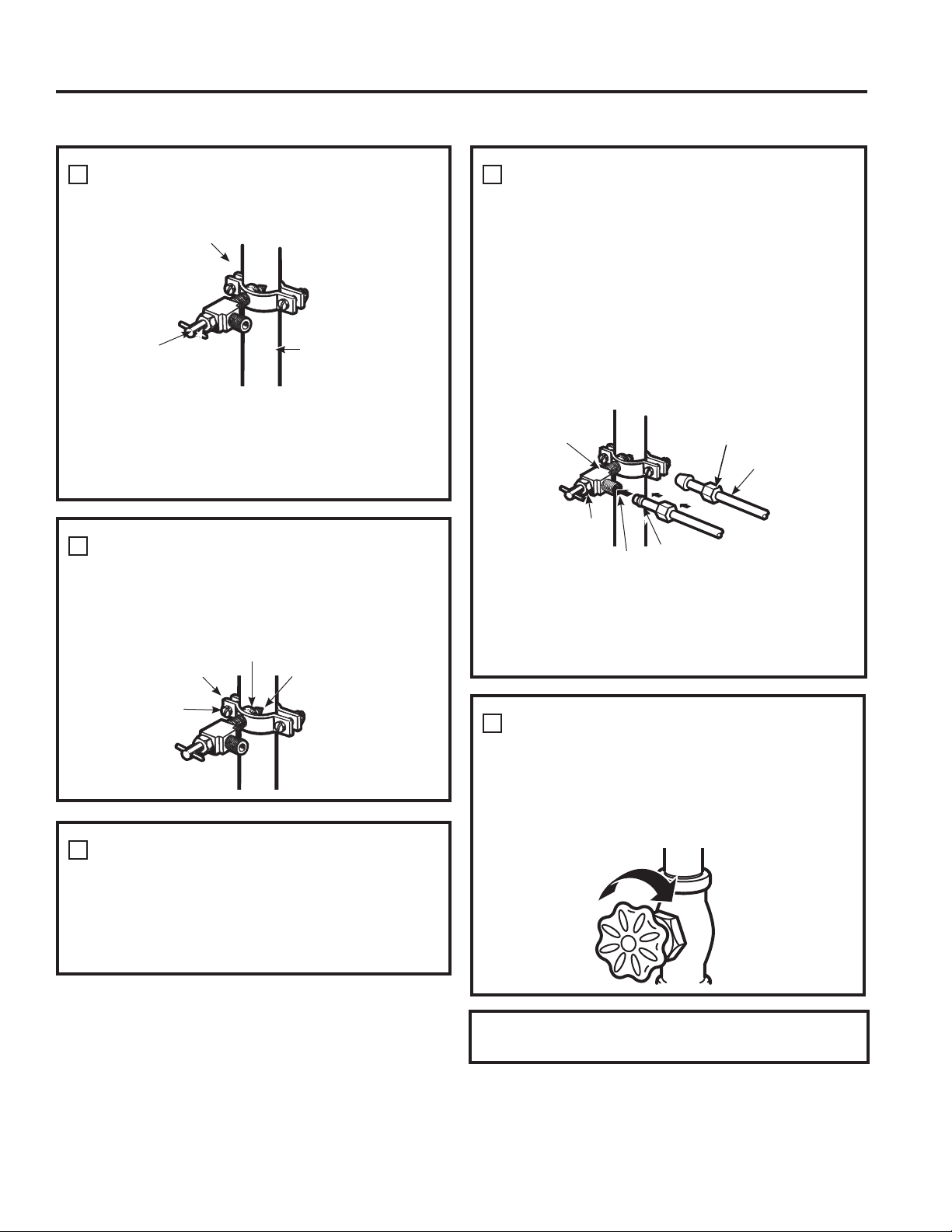

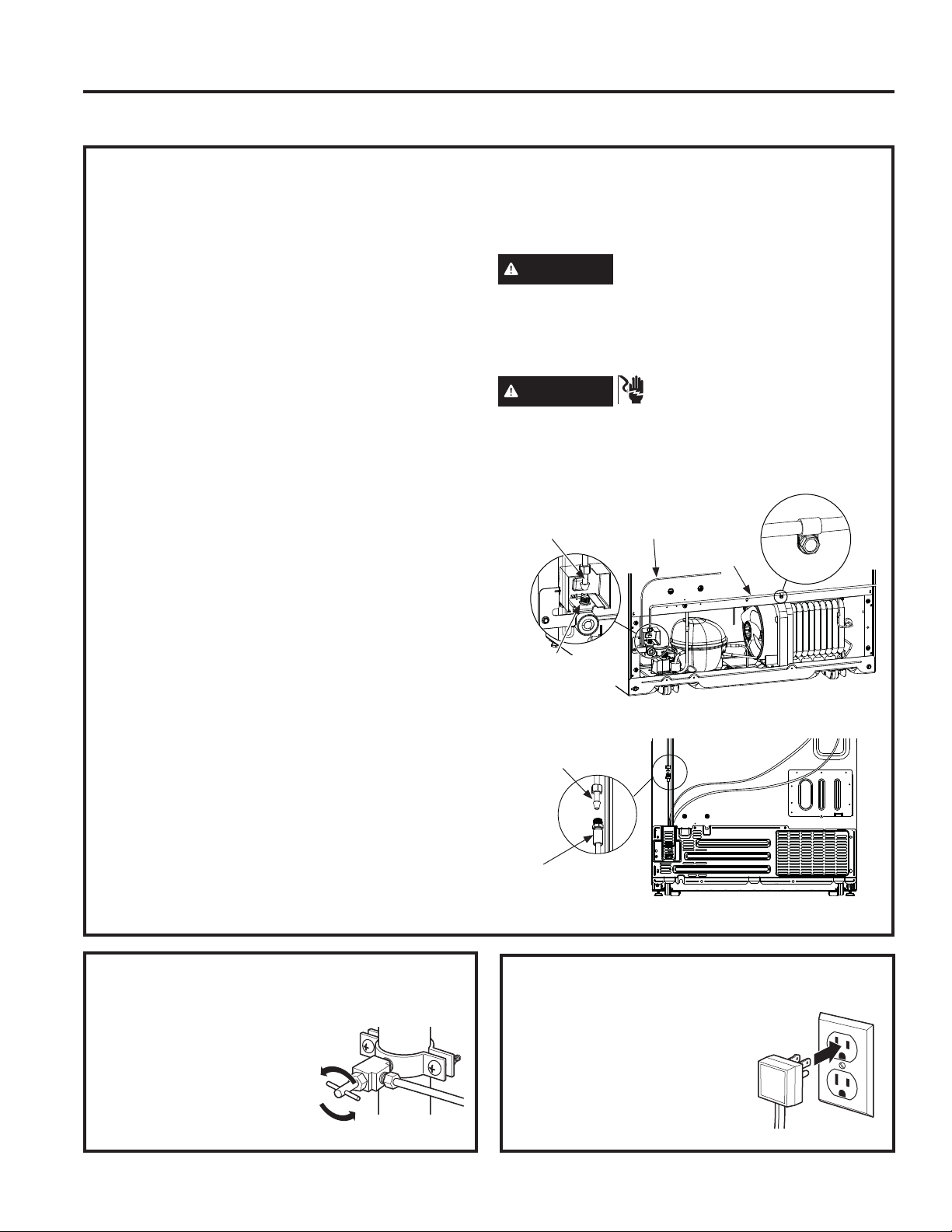

Installing the Water Line ...........39
TROUBLESHOOTING TIPS
Normal Operating Conditions ......42
Troubleshooting ..................43
LIMITED WARRANTY .......46
CONSUMER SUPPORT
Water Filter Limited Warranty .....47
Performance Data Sheets ..........49
Appliance Communication ......... 51
Consumer Support ................52
2 49-1000472 Rev. 1
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-1000472 Rev. 1 3
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
CAUTION
To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.
Ŷ 'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUP
water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact, such as bumping or dropping.
Tempered glass is designed to shatter into many
small pieces if it breaks.
Ŷ .HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDV
clearances between the doors and between the
doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
Ŷ 'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HU
compartment when hands are damp or wet, skin
may stick to these extremely cold surfaces.
Ŷ 'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHG
completely.
Ŷ ,QUHIULJHUDWRUVZLWKDXWRPDWLFLFHPDNHUVDYRLG
contact with the moving parts of the ejector
mechanism, or with the heating element that
UHOHDVHVWKHFXEHV'RQRWSODFHILQJHUVRUKDQGV
on the automatic ice making mechanism while the
refrigerator is plugged in.
ŶUse a sturdy glass when dispensing ice (on models with
ice dispenser
READ AND SAVE THESE INSTRUCTIONS
WARNING
To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow
these basic safety precautions:
Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHG
DQGORFDWHGLQDFFRUGDQFHZLWKWKH,QVWDOODWLRQ
,QVWUXFWLRQVEHIRUHLWLVXVHG
Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUVRU
cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified
Service Professional.
Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJ
Ŷ 'RQRWXVHDQH[WHQVLRQFRUG
Ŷ 'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOH
vapors and liquids in the vicinity of this or any other
appliance.
Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVRO
cans with a flammable propellant in this appliance.
Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGV
WRFKLOGUHQUHPRYHWKHIUHVKIRRGDQGIUHH]HU
doors from any refrigerator before disposing of it or
discontinuing its use.
Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRW
stand on, or play in or with the appliance.
Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\
or mental capabilities or lack of experience and
knowledge can use this appliance only if they are
supervised or have been given instructions on safe
XVHDQGXQGHUVWDQGWKHKD]DUGVLQYROYHG
Ŷ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROG
and similar applications such as: staff kitchen areas
LQVKRSVRIILFHVDQGRWKHUZRUNLQJHQYLURQPHQWV
IDUPKRXVHVE\FOLHQWVLQKRWHOVPRWHOVEHG
EUHDNIDVWDQGRWKHUUHVLGHQWLDOHQYLURQPHQWV
catering and similar non-retail applications.
Ŷ &RQQHFWWRSRWDEOHZDWHUVXSSO\RQO\$FROGZDWHU
supply is required for automatic icemaker operation.
The water pressure must be between 40 and 120 psi
(275-827 kilopascals).
Ŷ 'RQRWDSSO\KDUVKFOHDQHUVWRWKHUHIULJHUDWRU
Certain cleaners will damage plastic which may
cause parts such as the door or door handles to
detach unexpectedly. See the Care and Cleaning
section for detailed instructions.
INSTALLATION
WARNING
EXPLOSION HAZARD
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVVXFKDVJDVROLQHDZD\IURPUHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQILUH
explosion, or death.
4 49-1000472 Rev. 1
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
SURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKH
SRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVDSSOLDQFH
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
'RQRWXVHDQDGDSWHU
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
$9ROW$&+]RUDPSIXVHGJURXQGHG
electrical supply is required. This provides the best
performance and also prevents overloading house
ZLULQJFLUFXLWVZKLFKFRXOGFDXVHDILUHKD]DUGIURP
overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
,PPHGLDWHO\GLVFRQWLQXHXVHRIDGDPDJHGVXSSO\
FRUG,IWKHVXSSO\FRUGLVGDPDJHGLWPXVWEH
replaced by a qualified service professional with an
DXWKRUL]HGVHUYLFHSDUWIURPWKHPDQXIDFWXUHU
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING
ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
'RQRWUHPRYHWKHJURXQGSURQJ
'RQRWXVHDQDGDSWHU
'RQRWXVHDQH[WHQVLRQFRUG
)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQGHDWKILUHRUHOHFWULFDOVKRFN
WARNING
SUFFOCATION AND ENTRAPMENT HAZARD
)DLOXUHWRIROORZWKHVHGLVSRVDOLQVWUXFWLRQVFDQUHVXOWLQGHDWKRUVHULRXVLQMXU\
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
refrigerators are still dangerous even if they will sit
IRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXUROG
refrigerator, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old Appliance
Ŷ7DNHRIIWKHIUHVKIRRGDQGIUHH]HUGRRUV
Ŷ Leave the shelves in place so that children may not
easily climb inside.
Refrigerant and Foam Disposal:
'LVSRVHRIDSSOLDQFHLQDFFRUGDQFHZLWK)HGHUDODQG/RFDO5HJXODWLRQV)ODPPDEOHLQVXODWLRQPDWHULDOXVHG
requires special disposal of your appliance. Contact your local authorities for the environmentally safe disposal of
your appliance.
49-1000472 Rev. 1 5
Features
USING THE REFRIGERATOR: )HDWXUHV
Space-saving icemaker (on some models)
,FHPDNHUDQGELQDUHORFDWHGRQWKHGRRUFUHDWLQJ
more usable storage space.
LED lighting
/('OLJKWVLQWKHIUHVKIRRGFRPSDUWPHQWDUH
located at the top center and on the left and right
sides of FOLPDWH]RQHSDQV/('OLJKWVDUHDOVR
ORFDWHGLQWKHIUHH]HUVHHSDJHVDQG
Full-width drawer
A full-width drawer that can accommodate larger
items is located at the bottom of the fresh food
compartment.
QuickSpace™ shelf (on some models)
)XQFWLRQVDVDQRUPDOIXOOVL]HGVKHOIZKHQQHHGHG
and easily slides back to store tall items below.
Removable/adjustable door bins
Can be moved up or down to accommodate your
needs.
Climate zone drawers
Separate pans for produce storage.
Water filter
Accessible for easy replacement.
French Door Models
6 49-1000472 Rev. 1
Features
USING THE REFRIGERATOR:)HDWXUHV
Floating snack pan
Can be moved to different locations to best serve
your needs.
LED lighting
/('OLJKWLVORFDWHGDWWKHWRSRIWKHIUHVKIRRG
FRPSDUWPHQW/('OLJKWVDUHDOVRORFDWHGLQWKH
IUHH]HUVHHSDJHVDQG
Full-width shelves
)XOOZLGWKVKHOYHVWKDWFDQDFFRPPRGDWHODUJHU
items.
Full-width gallon door bins
Nonadjustable full-width door bins that will hold
gallon containers.
Climate zone pans
Separate bins for produce storage.
Water filter (on some models)
Accessible for easy replacement.
Adjustable door bins
Can be moved up or down to accommodate your
needs.
Icemaker (on some models)
,FHPDNHULVORFDWHGLQWKHIUHH]HURQVRPH
PRGHOV,FHPDNHU.LW,0'LVDYDLODEOHIRU
PRGHOVWKDWDUHLFHPDNHUUHDG\)RULQVWDOODWLRQ
LQVWUXFWLRQVVHHWKH,0'RZQHU¶VPDQXDOIRXQG
at GEAppliances.com.
Single Door Models
49-1000472 Rev. 1 7

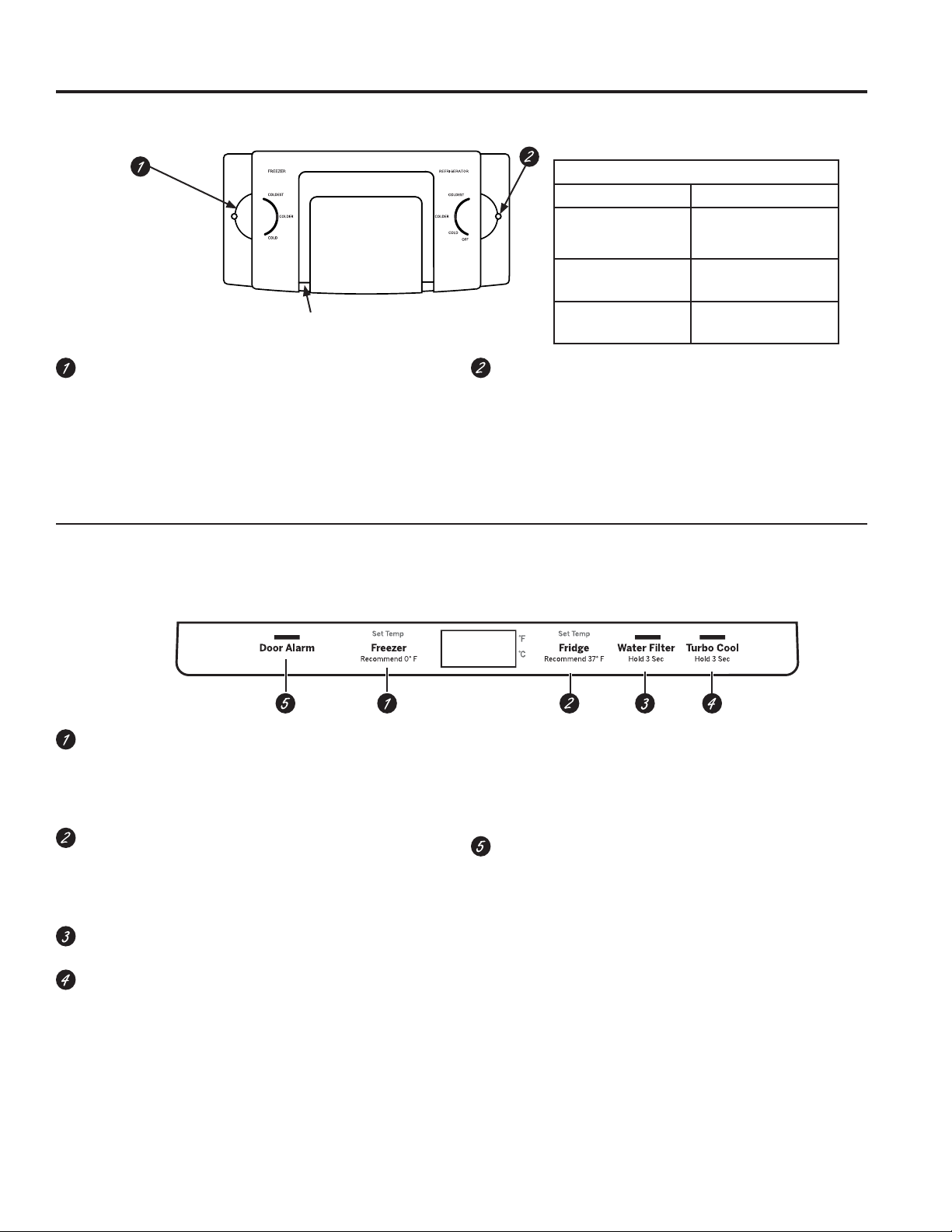

Controls
USING THE REFRIGERATOR: Controls
Figure A
Figure B
Knob Position Temperature Guide
Refrigerator Freezer
Coldest )
(1.1°C)
Coldest )
(-21.1°C)
Colder )
(2.8°C)
Colder )
(-17.8°C)
Cold )
(6.7°C)
Cold )
(-14.4°C)
Note:'RQRWEORFNDLURXWOHWE\SODFLQJIRRGLWHPV
directly against it. Erratic temperatures may result.
Freezer Compartment Temperature Control
$GMXVWIUHH]HUFRPSDUWPHQWWHPSHUDWXUH7KH
IUHH]HUWHPSHUDWXUHLVSUHVHWLQWKHIDFWRU\DWWKH
Colder position. Allow 24 hours for temperature to
VWDELOL]HWRWKHSUHVHWUHFRPPHQGHGVHWWLQJ
Fresh Food Compartment Temperature Control
Adjust fresh food compartment temperature. The
fresh food temperature is preset in the factory at the
Colder position. Allow 24 hours for temperature to
VWDELOL]HWRWKHSUHVHWUHFRPPHQGHGVHWWLQJ
NOTE: Power to the refrigerator cannot be disconnected
by any setting on the control panel.
Freezer Compartment Temperature Control
$GMXVWIUHH]HUFRPSDUWPHQWWHPSHUDWXUH7KH
IUHH]HUWHPSHUDWXUHLVSUHVHWLQWKHIDFWRU\DW 0°F
(-17.8°C)$OORZKRXUVIRUWHPSHUDWXUHWRVWDELOL]H
to the preset recommended setting.
Fresh Food Compartment Temperature Control
Adjust fresh food compartment temperature. The
fresh food temperature is preset in the factory at
37°F (2.8°C). Allow 24 hours for temperature to
VWDELOL]HWRWKHSUHVHWUHFRPPHQGHGVHWWLQJ
Water Filter
3UHVVDQGKROGVHFRQGVWRUHVHWWKH:DWHU)LOWHU
Turbo Cool
To set the TurboCool™, press the Turbo Cool pad
for 3 seconds. The display will show tc.
TurboCool™ rapidly cools the refrigerator
compartment in order to more quickly cool foods.
Use TurboCool™ when adding a large amount of
the food to the refrigerator compartment, putting
away foods after they have been sitting out at room
WHPSHUDWXUHRUZKHQSXWWLQJDZD\ZDUPOHIWRYHUV,W
can also be used if the refrigerator has been without
power for an extended period.
NOTE: The refrigerator temperature cannot
be changed during TurboCool™7KHIUHH]HU
temperature is not affected during Turbo Cool.
When opening the refrigerator door during
TurboCool™, the fans will continue to run if they
have cycled on.
Door Alarm
To set the alarm, press the Door Alarm pad. This
alarm will sound if either door is open for more than
2 minutes. The beeping stops when you close the
door.
NOTE: To put the refrigerator control in the OFF position,
simultaneously touch the words Freezer and Fridge
for 3 seconds. Power to the refrigerator cannot be
disconnected by any setting on the control panel.
Changing °F to °C or °C to °F: Press and hold the
'225$/$50DQG)5((=(5EXWWRQVVLPXOWDQHRXVO\
IRUVHFRQGVWRVHW&WR)RU)WR&
GBE21D, GBE21A ,QWHUQDO&RQWURO
GDE21D, GDE21E, PDE21K, GDE25E, GNE21D, GNE21F, PNE21K, PNE21N,
GWE19J, GNE25D, GNE25J, PNE25J, CNE25S, PNE25N, GNE27J, GNE27E
Top Control (some models)
8 49-1000472 Rev. 1
Controls
USING THE REFRIGERATOR: Controls
Figure B
Freezer Compartment Temperature Control
$GMXVWIUHH]HUFRPSDUWPHQWWHPSHUDWXUH7KH
IUHH]HUWHPSHUDWXUHLVSUHVHWLQWKHIDFWRU\DW 0°F
(-17.8°C)$OORZKRXUVIRUWHPSHUDWXUHWRVWDELOL]H
to the preset recommended setting.
Fresh Food Compartment Temperature Control
Adjust fresh food compartment temperature. The
fresh food temperature is preset in the factory at
37°F (2.8°C). Allow 24 hours for temperature to
VWDELOL]HWRWKHSUHVHWUHFRPPHQGHGVHWWLQJ
Filter Status
Press the Filter Status pad to display the water
filter's life percentage (%).
Turbo Cool
To set the TurboCool™, press the Turbo Cool pad
for 3 seconds. The display will show tc.
TurboCool™ rapidly cools the refrigerator
compartment in order to more quickly cool foods.
Use TurboCool™ when adding a large amount of
the food to the refrigerator compartment, putting
away foods after they have been sitting out at room
WHPSHUDWXUHRUZKHQSXWWLQJDZD\ZDUPOHIWRYHUV,W
can also be used if the refrigerator has been without
power for an extended period.
NOTE: The refrigerator temperature cannot
be changed during TurboCool™7KHIUHH]HU
temperature is not affected during TurboCool. When
opening the refrigerator door during TurboCool™,
the fans will continue to run if they have cycled on.
Door Alarm
To set the alarm, press the Door Alarm pad. This
alarm will sound if either door is open for more than 2
minutes. The beeping stops when you close the door.
NOTE: To put the refrigerator control in the OFF position,
simultaneously touch the words Freezer and Fridge
for 3 seconds. Power to the refrigerator cannot be
disconnected by any setting on the control panel.
Changing °F to °C or °C to °F: Press and hold the
'225$/$50DQG)5((=(5EXWWRQVVLPXOWDQHRXVO\
IRUVHFRQGVWRVHW&WR)RU)WR&
GDE21D, GDE21E, PDE21K, GDE25E, GNE21D, GNE21F, PNE21K, PNE21N,
GWE19J, GNE25D, GNE25J, PNE25J, CNE25S, PNE25N, GNE27J, GNE27E
Top Control (some models)
49-1000472 Rev. 1 9
Controls
Figure C
GYE18J, PYE18H, GFE24J, PFE24J, CFE24S, PFE24H, GFE26J
External Control (some models)
Freezer Compartment Temperature Control
$GMXVWIUHH]HUFRPSDUWPHQWWHPSHUDWXUH7KH
IUHH]HUWHPSHUDWXUHLVSUHVHWLQWKHIDFWRU\DW 0°F
(-17.8°C)$OORZKRXUVIRUWHPSHUDWXUHWRVWDELOL]H
to the preset recommended setting.
Fresh Food Compartment Temperature Control
Adjust fresh food compartment temperature. The
fresh food temperature is preset in the factory at
37°F (2.8°C). Allow 24 hours for temperature to
VWDELOL]HWRWKHSUHVHWUHFRPPHQGHGVHWWLQJ
Water Filter
3UHVVDQGKROGVHFRQGVWRUHVHWWKH:DWHU)LOWHU
Turbo Cool
To set the Turbo Cool™, press the Alarm pad for 3
seconds. The display will show tc.
Turbo Cool™ rapidly cools the refrigerator
compartment in order to more quickly cool foods.
Use Turbo Cool™ when adding a large amount of
the food to the refrigerator compartment, putting
away foods after they have been sitting out at room
WHPSHUDWXUHRUZKHQSXWWLQJDZD\ZDUPOHIWRYHUV,W
can also be used if the refrigerator has been without
power for an extended period.
NOTE: The refrigerator temperature cannot
be changed during Turbo Cool™7KHIUHH]HU
temperature is not affected during Turbo Cool. When
opening the refrigerator door during Turbo Cool™,
the fans will continue to run if they have cycled on.
Alarm
Press the Alarm pad to toggle the door alarm
between off and on. The alarm will sound if either
door is left open for more than 2 minutes. The
beeping stops when you close the door.
Lock
Press and hold the Lock pad for 3 seconds to lock
out ice and water dispenser and all other controls.
Press and hold to unlock the controls.
LED dispenser Light
Press the Light pad to turn your dispenser light on
and off.
NOTE: To put the refrigerator control in the OFF
position, simultaneously touch the words Freezer and
Fridge for 3 seconds. Power to the refrigerator cannot
be disconnected by any setting on the control panel.
Changing °F to °C or °C to °F: Press and hold the
)5((=(5DQG$/$50EXWWRQVVLPXOWDQHRXVO\IRU
VHFRQGVWRVHW&WR)RU)WR&
NOTE: The refrigerator is shipped with protective
film covering the temperature controls.
,IWKLVILOPZDVQRWUHPRYHGGXULQJLQVWDOODWLRQ
remove it now.
USING THE REFRIGERATOR: Controls
10 49-1000472 Rev. 1
GYE18J, PYE18H, GFE24J, PFE24J, CFE24S, PFE24H, GFE26J
External Control (some models)
NOTE:7KHUHIULJHUDWRULVVKLSSHGZLWKSURWHFWLYHILOPFRYHULQJWKHWHPSHUDWXUHFRQWUROV,IWKLVILOPZDVQRWUHPRYHG
during installation, remove it now.
Figure C
Freezer Compartment Temperature Control
$GMXVWIUHH]HUFRPSDUWPHQWWHPSHUDWXUH7KH
IUHH]HUWHPSHUDWXUHLVSUHVHWLQWKHIDFWRU\DW 0°F
(-17.8°C)$OORZKRXUVIRUWHPSHUDWXUHWRVWDELOL]H
to the preset recommended setting.
Fresh Food Compartment Temperature Control
Adjust fresh food compartment temperature. The
fresh food temperature is preset in the factory at
37°F (2.8°C). Allow 24 hours for temperature to
VWDELOL]HWRWKHSUHVHWUHFRPPHQGHGVHWWLQJ
Filter Status
Press the Filter Status pad to display the water
filter's life percentage (%).
Turbo Cool
To set the TurboCool™, press the Alarm pad for 3
seconds. The display will show tc.
TurboCool™ rapidly cools the refrigerator
compartment in order to more quickly cool foods.
Use TurboCool™ when adding a large amount of
the food to the refrigerator compartment, putting
away foods after they have been sitting out at room
WHPSHUDWXUHRUZKHQSXWWLQJDZD\ZDUPOHIWRYHUV,W
can also be used if the refrigerator has been without
power for an extended period.
NOTE: The refrigerator temperature cannot
be changed during TurboCool™7KHIUHH]HU
temperature is not affected during TurboCool. When
opening the refrigerator door during TurboCool™,
the fans will continue to run if they have cycled on.
Alarm
Press the Alarm pad to toggle the door alarm
between off and on. The alarm will sound if either
door is left open for more than 2 minutes. The
beeping stops when you close the door.
Lock
Press and hold the Lock pad for 3 seconds to lock
out ice and water dispenser and all other controls.
Press and hold to unlock the controls.
LED dispenser Light
Press the Light pad to turn your dispenser light on
and off.
NOTE: To put the refrigerator control in the OFF
position, simultaneously touch the words Freezer
and Fridge for 3 seconds. Power to the refrigerator
cannot be disconnected by any setting on the control
panel.
Changing °F to °C or °C to °F: Press and hold the
)5((=(5DQG$/$50EXWWRQVVLPXOWDQHRXVO\IRU
VHFRQGVWRVHW&WR)RU)WR&
Controls
USING THE REFRIGERATOR: Controls
49-1000472 Rev. 1 11
USING THE REFRIGERATOR: Sabbath Modes
Sabbath Modes (on some models)
Activate Sabbath Mode to turn off the temperature control
DQGDGYDQFHGIHDWXUHVH[GRRUDODUP'HSHQGLQJ
on the model, the interior lights will be off, or on low
brightness regardless of whether the door is open or
closed. The compressor will run on a timed defrost when
in Sabbath mode.
Models with Figure B controls
Ŷ'HSHQGLQJRQWKHPRGHOSUHVVDQGKROGWKHAlarm
and Water Filter or the Alarm and Filter Status
simultaneously for 5 seconds to enter and exit the
Sabbath mode
Ŷ7KHLFHPDNHUPXVWEHWXUQHGRIIPDQXDOO\GXULQJ
Sabbath mode. To turn off the icemaker,
VHWWKHVZLWFKWRWKH2))SRVLWLRQ7RWXUQWKHLFHPDNHU
on, set the switch to the ON position.
Model with Figure C controls
Ŷ3UHVVDQGKROGWKHLOCK and LIGHT buttons
simultaneously for 5 seconds to enter/exit Sabbath
Mode.
Ŷ7KHLFHPDNHUPXVWEHWXUQHGRIIPDQXDOO\GXULQJ
Sabbath mode. To turn off the icemaker, set the switch
WRWKH2))SRVLWLRQ7RWXUQWKHLFHPDNHURQVHWWKH
switch to the ON position.

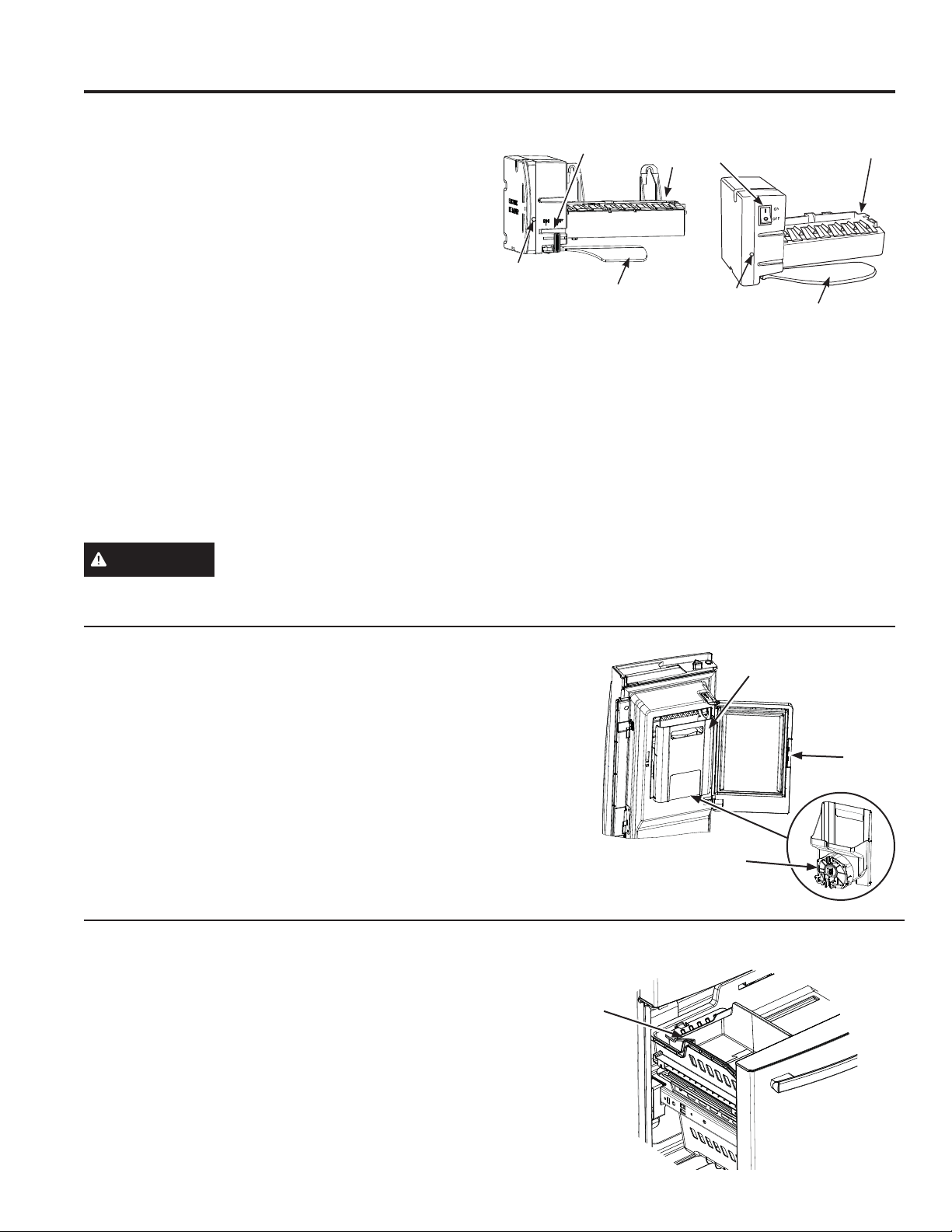

,FHPDNHU
)HHOHU$UP
Switch
Green
Power Light
(On some models)
12 49-1000472 Rev. 1
Dispenser (on some models)
Water & Ice Dispenser
(See Controls)
Press the glass gently against the dispenser cradle.
The spill shelf is not self-draining. To reduce water
spotting, the shelf should be cleaned regularly.
,IQRZDWHULVGLVSHQVHGZKHQWKHUHIULJHUDWRULVILUVW
installed, there may be air in the water line system.
Press the dispenser paddle for at least five minutes to
remove trapped air from the water line and to fill the
water system. To flush out impurities in the water line,
throw away the first six full glasses of water.
CAUTION
Laceration Hazard
Ŷ1HYHUSXWILQJHUVRUDQ\RWKHUREMHFWLQWRLFHFUXVKHU
GLVFKDUJHRSHQLQJ'RLQJVRFDQUHVXOWLQFRQWDFWLQJ
the ice crushing blades and lead to serious injury or
amputation
Ŷ8VHDVWXUG\JODVVZKHQGLVSHQVLQJLFH$GHOLFDWH
glass may break and result in personal injury.
To remove Dispenser Tray
Ŷ3XOO'LVSHQVHU7UD\RXW
To reinstall Dispenser Tray
Ŷ3XVKLQXQWLOLWLVILUPO\LQSODFH
Door Ice Bin
1. Open left fresh food door.
2. Pull down latch to release bin
door.
3. Using handhold, lift ice bucket
up and out to clear locators in
bottom of bin.
4. To replace the ice bucket, set
it on the guide brackets and
push until the ice bucket seats
properly.
,IEXFNHWFDQQRWEHUHSODFHG
URWDWHWKH,FH%XFNHW)RUNWXUQFORFNZLVH
Internal Water Dispenser
(on some models)
The water dispenser is located on the left wall inside the
refrigerator compartment.
To dispense water:
1. Hold the glass against the recess.
2. Push the water dispenser button.
3. Hold the glass underneath the
dispenser for 2–3 seconds after
releasing the dispenser button.
Water may continue to dispense
after the button is released.
,IQRZDWHULVGLVSHQVHGZKHQWKHUHIULJHUDWRULVILUVW
installed, there may be air in the water line system. Press
the dispenser button for at least 5 minutes to remove
trapped air from the water line and to fill the water
V\VWHP'XULQJWKLVSURFHVVWKHGLVSHQVHUQRLVHPD\EH
loud as the air is purged from the water line system. To
flush out impurities in the water line, throw away the first
6 glassfuls of water.
NOTE: To avoid water deposits, the dispenser should
be cleaned periodically by wiping with a clean cloth or
sponge.
Important Facts About Your Dispensers
Ŷ'RQRWDGGLFHIURPWUD\VRUEDJVWRWKHGRRULFHPDNHU
EXFNHW,WPD\QRWFUXVKRUGLVSHQVH
Ŷ$YRLGRYHUILOOLQJJODVVZLWKLFHDQGXVHRIQDUURZ
glasses. Backed-up ice can jam the chute or cause the
GRRULQWKHFKXWHWRIUHH]HVKXW,ILFHLVEORFNLQJWKH
chute remove the ice bucket, poke it through with a
wooden spoon.
Ŷ%HYHUDJHVDQGIRRGVVKRXOGQRWEHTXLFNFKLOOHGLQWKH
door icemaker bin. Cans, bottles or food packages in
the storage drawer may cause the icemaker or auger
to jam.
Ŷ7RNHHSGLVSHQVHGLFHIURPPLVVLQJWKHJODVVSXWWKH
glass close to, but not touching, the dispenser opening.
Ŷ6RPHFUXVKHGLFHPD\EHGLVSHQVHGHYHQWKRXJK\RX
selected CUBED ICE. This happens occasionally when
a few cubes accidentally get directed to the crusher.
Ŷ$IWHUFUXVKHGLFHLVGLVSHQVHGVRPHZDWHUPD\GULS
from the chute.
Ŷ6RPHWLPHVDVPDOOPRXQGRIIURVWZLOOIRUPRQWKH
door in the ice chute. This condition is normal and
usually occurs when you have dispensed crushed ice
repeatedly.
'LVSHQVHU
Tray
,FHEXFNHW
fork
Latch
,FHEXFNHW
USING THE REFRIGERATOR: 'LVSHQVHU(on some models)
49-1000472 Rev. 1 13
USING THE REFRIGERATOR::DWHU)LOWHU&DUWULGJH0:)
Water Filter Cartridge - MWF (on some models)
Water Filter Cartridge
The water filter cartridge is located in back upper right
corner of the refrigerator compartment.
When to replace the filter on models with a
replacement indicator light
There is a replacement indicator light for the water filter
cartridge on the dispenser. A red light will start blinking
to tell you that you need to replace the filter soon.
The filter cartridge should be replaced when the
replacement indicator light turns red or if the flow of
water to the dispenser or icemaker decreases.
When to replace the filter on models without
a replacement indicator light
The filter cartridge should be replaced every six months
or earlier if the flow of water to the dispenser or icemaker
decreases.
Removing the filter cartridge
,I\RXDUHUHSODFLQJWKHFDUWULGJHILUVWUHPRYHWKHROG
one by slowly turning it to the left. Do not pull down on
the cartridge. A small amount of water may drip down.
NOTE: To reduce the risk associated with property
damage due to water leakage, read and follow
instructions before installation and use of this system.
,QVWDOODWLRQDQGXVH0867FRPSO\ZLWKDOOVDWHDQGORFDO
plumbing codes.
CAUTION
,IDLUKDVEHHQWUDSSHGLQWKHV\VWHP
the filter cartridge may be ejected as it is removed. Use
caution when removing.
Installing the Filter Cartridge
)LOOWKHUHSODFHPHQWFDUWULGJHZLWKZDWHUIURPWKHWDS
to allow for better flow from the dispenser immediately
after installation.
2. Line up the arrow on the cartridge
and the cartridge holder. Place the
top of the new cartridge up inside
WKHKROGHU'RQRWSXVKLWXSLQWRWKH
holder.
3. Slowly turn it to the right until the
ILOWHUFDUWULGJHVWRSV'2127
29(57,*+7(1$V\RXWXUQWKHFDUWULGJHLWZLOO
automatically raise itself into position. The cartridge
will move about a 1/2 turn.
4. For dispenser-only models - Run water from the
dispenser for 1-1/2 gallons (about three minutes) to
clear the system and prevent sputtering.
For icemaker-only models - 'LVFDUGWKHILUVWELQ
of ice to allow air to purge from the system. A newly
installed filter cartridge will cause water to spurt into
the icemaker body, which could lead to ice droplets
around the icemaker area. NOTE: ,WLVQRUPDOIRU
these droplets and initial ice production to appear
GLVFRORUHGGXULQJWKHLQLWLDOV\VWHPIOXVK,FHFRORUZLOO
return to normal after the first bin of ice production.
5. Press and hold the RESET WATER FILTER pad (on
some models) on the dispenser for three seconds.
NOTE: A newly installed water filter cartridge may cause
water to spurt from the dispenser.
Filter Bypass Plug
You must use the filter bypass plug when a replacement
filter cartridge is not available. The dispenser and the
icemaker will not operate without the filter or filter bypass
plug.
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to have access to
small parts during the installation of this product. The disposable filter cartridge should be replaced every 6
months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.
)RUWKHPD[LPXPEHQHILWRI\RXUILOWUDWLRQV\VWHP*($SSOLDQFHVUHFRPPHQGVWKHXVHRI*($SSOLDQFHVEUDQGHG
filters only. Using GE-branded filters in GE Appliances and Hotpoint
®
refrigerators provides optimal performance
DQGUHOLDELOLW\*($SSOLDQFHVILOWHUVPHHWULJRURXVLQGXVWU\16)VWDQGDUGVIRUVDIHW\DQGTXDOLW\WKDWDUHLPSRUWDQW
for products that are filtering your water. GE Appliances has not qualified non-GE-branded filters for use in GE
Appliances and Hotpoint refrigerators and there is no assurance that non-GE-branded filters meet GE’s standards for
quality, performance and reliability.
If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com or
call GE Appliances Parts and Accessories, 877.959.8688. (Canada 1.800.661.1616 or geappliances.ca/en/
products/parts-filters-accessories).
Cartridge
Holder
)LOWHU%\SDVV
Plug
SmartWater
14 49-1000472 Rev. 1
Water Filter Cartridge - XWFE (on some models)
WATER FILTER CARTRIDGE
The water filter cartridge holder is located in the
back upper-right corner of the fresh food refrigerator
compartment.
6HOHFWPRGHOVXVHUDGLRIUHTXHQF\LGHQWLILFDWLRQ5),'
WRGHWHFWOHDNVDQGPRQLWRUILOWHUVWDWXV7KH5),'
WHFKQRORJ\LVFHUWLILHGE\WKH)&&
WHEN TO REPLACE THE FILTER
,IWKHUHLVDUHSODFHPHQWLQGLFDWRUOLJKWIRUWKHZDWHUILOWHU
cartridge on the dispenser, the red filter light will start
blinking to tell you that you need to replace the filter soon.
)RUH[WHUQDOFRQWUROPRGHOVWKHILOWHUOLJKWZLOOEOLQN
while you are dispensing until the filter is replaced.
)RUWRSFRQWUROPRGHOVWKHILOWHUOLJKWZLOOEOLQNZKLOH
the door is open until the filter is replaced.
)RUPRGHOVWKDWGRQ¶WKDYHWKHLQGLFDWRUOLJKWWKHILOWHU
cartridge should be replaced every six months, or earlier
if the flow of water to the dispenser or icemaker
decreases.
REMOVING THE FILTER
,I\RXDUHUHSODFLQJWKHILOWHUILUVWUHPRYHWKHSUHYLRXV
RQH2SHQWKHILOWHUFDUWULGJHKRXVLQJE\VTXHH]LQJ
the 2 front tabs and gently pulling down.
2. Rotate the filter down.
3. Gently grasp the filter and slowly turn it
counterclockwise about a ¼ turn. The filter should
automatically release itself when you have rotated it far
enough to the left. A small amount of water may drip
down.
CAUTION
,IDLUKDVEHHQWUDSSHGLQWKHV\VWHP
the filter cartridge may be ejected as it is removed. Use
caution when removing.
FILTER BYPASS PLUG
To reduce the risk of property damage due to water
leakage, you MUST use the filter bypass plug when a
replacement filter cartridge is not available. Some models
do not come equipped with the filter bypass plug. To obtain
DIUHHE\SDVVSOXJFDOO*(&$5(6,Q&DQDGDFDOO
800.561.3344. The dispenser and icemaker will not operate
without either the filter or bypass plug installed. The bypass
plug is installed in the same way as a filter cartridge.
INSTALLING THE FILTER IN A BOTTOM
FREEZER REFRIGERATOR
1. Open the filter cartridge housing
E\VTXHH]LQJWKHIURQWWDEVDQG
gently pulling down.
2. Line up the ports on the filter
with the ports on the filter
cartridge holder, and gently
insert the filter.
3. Slowly turn the filter to the
ULJKWXQWLOLWVWRSV'2127
29(57,*+7(1$V\RXWXUQ
the filter, it will automatically
adjust itself into position. The
filter will move about a ¼ turn or
90 degrees, until the arrow on
the filter aligns with the arrow on
the filter cartridge holder.
4.
Slowly push the filter up into the clips.
5. Close the filter cartridge housing by gently pushing the
lid upwards until the tabs lock into place.
6. For dispenser-only models - Run water from the
dispenser for 2 gallons (7.6 liters) or approximately 5
minutes to clear the system. Water may spurt out and
DLUEXEEOHVPD\EHYLVLEOHGXULQJWKLVSURFHVV,IZDWHU
is not flowing, check to make sure the filter has been
fully rotated to the right.
For icemaker-only models - 'LVFDUGWKHILUVWELQ
of ice to allow air to purge from the system. A newly
installed filter cartridge will cause water to spurt into
the icemaker body, which could lead to ice droplets
around the icemaker area. NOTE: ,WLVQRUPDOIRU
these droplets and initial ice production to appear
GLVFRORUHGGXULQJWKHLQLWLDOV\VWHPIOXVK,FHFRORUZLOO
return to normal after the first bin of ice production.
7. Press and hold the RESET WATER FILTER button on
the dispenser for 3 seconds. On select models, filter
reset will be automatic when a new filter is installed.
Contains
FCC ID: ZKJ-294D2018 IC: 10229A-294D2018
“This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.”
“This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including
interference that may cause undesired operation of the
device.”
USING THE REFRIGERATOR: :DWHU )LOWHU &DUWULGJH ;:)(
49-1000472 Rev. 1 15
Water Filter Cartridge - XWFE (on some models)(Cont.)
USING THE REFRIGERATOR: :DWHU)LOWHU&DUWULGJH;:)(
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to
have access to small parts during the installation of this product. The disposable filter cartridge should be
replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.
)RUWKHPD[LPXPEHQHILWRI\RXUILOWUDWLRQV\VWHP*($SSOLDQFHVUHFRPPHQGVWKHXVHRI*($SSOLDQFHVEUDQGHG
filters only. Using GE Appliances-branded filters in GE Appliances and Hotpoint® refrigerators provides optimal
performance and reliability. GE Appliances filters meet rigorous industry standards for safety and quality that are
important for products that are filtering your water. GE Appliances has not qualified non-GE Appliances-branded
filters for use in GE Appliances and Hotpoint refrigerators and there is no assurance that non-GE Appliances-
branded filters meet GE Appliances standards for quality, performance and reliability.
If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com
or call GE Appliances Parts and Accessories, 877.959.8688. ,Q&DQDGDFDOO
6HUYLFH)ORZ 0.5 gpm (1.89 lpm)
Water Supply Potable Water
Water Pressure 25-120 psi (172-827 kPa)
Water Temperature ))&&
Capacity 170 gallons (643.5 liters)
Sign-up for TEXT REMINDERS by texting REPLACE to 70543.
Application Guidelines/Water Supply
16 49-1000472 Rev. 1
USING THE REFRIGERATOR: Shelves and Bins
Shelves and Bins
Rearranging the Refrigerator Shelves
Shelves in the refrigerator compartment are adjustable.
To remove the shelves:
1. Remove all items from the
shelf.
2. Tilt the shelf up at the
front.
3. Lift the shelf up at the back
and bring the shelf out.
To replace the shelves:
1. While tilting the shelf up, insert the
top hook at the back of the shelf in
a slot on the track.
2. Lower the front of the shelf until
the bottom of the shelf locks into
place.
Adjustable Door Bins (on some models)
To remove: /LIWWKHELQVWUDLJKWXSWKHQSXOORXW
To replace: Engage the bin in the molded supports on
the door and push down to lock in place.
Non-Adjustable Gallon Door Bins (on some
models)
To remove: /LIWWKHELQVWUDLJKWXSWKHQSXOORXW
To replace: Engage the bin in the molded supports on
the door and push down to lock in place.
Not all features are on all models.
Quick Space Shelf (on some models)
This shelf splits in half
and slides under itself
for storage of tall items
on the shelf below.
This shelf can be
removed and replaced
or relocated.
NOTE: The back half of
the Quick Space Shelf is
not adjustable.
49-1000472 Rev. 1 17
USING THE REFRIGERATOR: Pans
Pans
Climate Zone Pans
.HHSIUXLWVDQGYHJHWDEOHVRUJDQL]HGLQVHSDUDWH
compartments for easy access. Excess water that may
accumulate in the bottom of the drawers or under the
drawers should be wiped dry.
To remove pan:
Slide the pan out to the stop position, lift the pan up and
past the stop position and pull forward.
Floating Snack Pan (on some models)
This pan can be moved to the most useful location for
your family’s needs.
To remove, slide the pan out to the stop position, lift the
pan up and past the stop position and lift it out.
Full -Width Pan (on some models)
To remove pan:
1. Pull the pan out to the stop position.
2. Lift the front of the drawer up and out.
To replace pan:
1. Place back of the drawer in first and rotate drawer
front down to seat it on the slides.
2. Push the drawer in to the closed position.
How to Remove and Replace Drawer Divider
To remove:
1. Pull the drawer out to the stop position.
2. Slide pan divider to right to release it from pan.
To replace:
Reverse steps 1 and 2 to replace drawer divider.
Not all features are on all models.
18 49-1000472 Rev. 1
USING THE REFRIGERATOR:)UHH]HU'UDZHU
Freezer Drawer (on some models)
FREEZER BASKETS
1. An ice bucket in the top basket
(on some models).
2. A top full-width basket.
3. A bottom full-width basket (with
divider - in some models).
NOTE: 'RQRWILOOEDVNHWVKLJKHU
than the rim of the basket. This
may cause baskets to stick or jam
when opening or closing.
Top Basket Removal
To remove the top full-width basket on freezer
drawer models:
1. Pull the basket out to the stop location.
2. Lift basket up to release it from the slides.
When replacing the basket, make sure that the basket
remains mounted on the side rails and over the slides of
the bottom basket.
NOTE: Always be sure to fully close this basket.
Bottom Basket Removal
To remove the bottom full-width basket on freezer
drawer models:
2SHQWKHERWWRPIUHH]HUGUDZHUXQWLOLWVWRSV
5HPRYHWKHWRSIUHH]HUEDVNHW
7KHERWWRPIUHH]HUEDVNHWUHVWVRQWKHLQVLGHWDEVRQ
the drawer slides.
4. Lift the front of the basket and pull forward.
5. Release the pin from the slot to remove the basket.
When replacing the bottom full-width basket, tilt the
basket back and lower it into the drawer. Rotate the
EDVNHWWRDKRUL]RQWDOSRVLWLRQDQGSUHVVGRZQ0DNH
sure to place the pin back into the slot.
NOTE: Always be sure that the basket is seated on
the bracket tabs before sliding the drawer back into the
IUHH]HU
Not all features are on all models.
Appearance and features
may vary
1
2
3
,FH%XFNHW
(on some models)
/('OLJKWVDUHORFDWHGRQ
ERWKVLGHVRIWKHIUHH]HU
Top Basket
Top Basket
'LYLGHU
Bottom
Basket
49-1000472 Rev. 1 19
USING THE REFRIGERATOR:)UHH]HU&RPSDUWPHQW
Freezer Compartment
FREEZER SHELF AND BASKET
1. A full-width fixed wire shelf
2. A full-width sliding plastic
basket
NOTE: 'RQRWILOOEDVNHWV
higher than the rim. This may
cause basket to stick or jam
when opening or closing.
Basket Removal
To remove the full-width sliding basket on freezer
door models:
1. Open the basket out to its full extension.
2. Lift up the front of the basket and pull straight out to
remove.
When replacing the basket, insert the plastic basket
into the lower liner rails and push back into place.
Fixed Shelf Removal
NOTE: The full-width wire shelf is not intended to slide.
To remove for cleaning, push the shelf to one side
while then pull up on the opposite side and out to
remove.
To replace the full-width wire shelf, insert one side of
the shelf into the supports, pushing the shelf to that side
until the opposite side will fit into its supports.
Not all features are on all models.
1
2
/('OLJKWVDUHORFDWHG
on both sides of the
IUHH]HU
20 49-1000472 Rev. 1
USING THE REFRIGERATOR: $XWRPDWLF,FHPDNHU
Automatic Icemaker
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Icemaker (on some models)
The icemaker will produce seven cubes per cycle
approximately 100–130 cubes in a 24-hour period,
GHSHQGLQJRQIUHH]HUFRPSDUWPHQWWHPSHUDWXUHURRP
temperature, number of door openings and other use
conditions.
,IWKHUHIULJHUDWRULVRSHUDWHGEHIRUHWKHZDWHUFRQQHFWLRQ
is made to the icemaker, set the switch in the OFF
position.
When the refrigerator has been connected to the water
supply, set the switch to the ON position.
7KHLFHPDNHUZLOOILOOZLWKZDWHUZKHQLWFRROVWR)
(–10°C). A newly installed refrigerator may take 12 to 24
hours to begin making ice cubes.
<RXPD\KHDUDEX]]LQJVRXQGHDFKWLPHWKHLFHPDNHU
fills with water.
Throw away the first few batches of ice to allow the
water line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
LFHPDNHUZLOOVWRSSURGXFLQJLFH,WLVQRUPDOIRUVHYHUDO
cubes to be joined together.
,ILFHLVQRWXVHGIUHTXHQWO\ROGLFHFXEHVZLOOEHFRPH
cloudy, taste stale and shrink.
NOTE: ,QKRPHVZLWKORZHUWKDQDYHUDJHZDWHU
pressure, you may hear the icemaker cycle multiple
times when making one batch of ice.
For Refrigerator Models with Icemaker in the Door
Ice Bucket and Dispenser
• Open the ice box door on inside of the left door.
• Pull up and out on the ice bucket in the left hand door
to remove it from the compartment .
• To replace the ice bucket, set it on the guide brackets
and push until the ice bucket seats properly.
,IEXFNHWFDQQRWEHUHSODFHGURWDWHWKHLFHEXFNHWIRUN
1/4 turn clockwise.
,FHPDNHUFDQEHWXUQHGRQDQGRIIXVLQJWKLVGLVSOD\
(see Controls on pages 7 and 8.)
For Refrigerator Models with Icemaker in the Freezer Compartment
Some models come with an icemaker installed in the
IUHH]HUFRPSDUWPHQW)RUWKRVHPRGHOVWKDWFRPH
LFHPDNHUUHDG\\RXFDQSXUFKDVH.LW,0'Visit our
website at GEAppliances.com or call GE Appliances
Parts and Accessories, 877.959.8688 (in Canada
visit geappliances.ca/en/products/parts-filters-
accessories or call 1.800.661.1616).
7KHUHLVLFHVWRUDJHLQWKHIUHH]HUFRPSDUWPHQWORFDWHG
on the left side of the upper basket. Pull the upper basket
forward to remove the ice bucket.
CAUTION
7RPLQLPL]HWKHULVNRISHUVRQDOLQMXU\DYRLGFRQWDFWZLWKWKHPRYLQJSDUWVRIWKHHMHFWRU
PHFKDQLVPRUZLWKWKHKHDWLQJHOHPHQWWKDWUHOHDVHVWKHFXEHV'RQRWSODFHILQJHUVRUKDQGVRQWKHDXWRPDWLFLFH
making mechanism while the refrigerator is plugged in.
,FHEXFNHWIRUN
Latch
,FHEXFNHW
,FHEXFNHW
,FHPDNHU
)HHOHU$UP
Switch
Green
Power Light
,FHPDNHU
)HHOHU$UP
Switch
Green
Power Light
(on some models)
(on some models)
49-1000472 Rev. 1 21
Care and Cleaning
Cleaning the Inside
Unplug the refrigerator before cleaning.
,IWKLVLVQRWSUDFWLFDOZULQJH[FHVVPRLVWXUHRXWRI
sponge or cloth when cleaning around switches, lights or
controls.
Use an appliance wax polish on the inside surface
between the doors.
Use warm water and baking soda solution—about a
tablespoon (15 ml) of baking soda to a quart (1 liter) of
ZDWHU7KLVERWKFOHDQVDQGQHXWUDOL]HVRGRUV5LQVHDQG
wipe dry.
CAUTION
'RQRWFOHDQJODVVVKHOYHVRUFRYHUV
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
CARE AND CLEANING
DO USE DO NOT USE
Soft, clean cloth or sponge
Microfiber cloth
Abrasive cloths, paper towels, scrubbing sponges (with or without soap),
scouring or steel wool pads
Mild detergent mixed with warm
water
Abrasive powders, liquids, or sprays
Window sprays, ammonia, or bleach
Citrus or plant oil-based cleaners
Acidic or vinegar-based cleaners
Oven cleaners
Alkaline cleaners
Stainless steel cleaners
DO NOT use Stainless Steel cleaners on the door surfaces.
IMPORTANT:7KHXVHRILQFRUUHFWSURGXFWVPD\GDPDJHWKHRXWHUILQLVKRI)LQJHUSULQW5HVLVWDQW6WDLQOHVVDQG
Black Stainless models. Please follow these instructions and use only the appropriate items below to clean your
appliance surfaces.
Ɣ&OHDQLQWHULRUH[WHULRUVXUIDFHVZLWKZDUPZDWHUPLOGVRDSRUGHWHUJHQWDQGDVRIWRUPLFURILEHUFORWKWRDYRLG
damage.
Ɣ:LSHWKHDSSOLDQFHVXUIDFHGU\ZLWKDVRIWFOHDQFORWKRUPLFURILEHUWRZHOWRDYRLGVWUHDNLQJRUZDWHUVSRWWLQJ
DO USE DO NOT USE
Soft, clean cloth or sponge Abrasive cloths, scrubbing sponges (with or without
soap), scouring or steel wool pads
Mild detergent mixed with warm water
$SSURYHGVWDLQOHVVVWHHOFOHDQHUV9LVLWWKH*(
Appliances parts store for approved stainless steel
cleaners: GEApplianceparts.com or call 877.959.8688
&OHDQHUVZLWKR[DOLFDFLGVXFKDV%DU.HHSHUV)ULHQG6RIW
Cleanser™ can be used to remove surface rust, tarnish
and small blemishes on stainless steel surfaces only.
Abrasive powders or sprays
Window Sprays or Ammonia
Citrus or plant oil-based cleaners
Acidic or vinegar-based cleaners
Oven cleaners
Cleaners containing acetone (propanone)
$Q\FOHDQHUZLWK:$51,1*DERXWSODVWLFFRQWDFW
NOTE: DO NOT allow stainless steel cleaner to come in contact with any plastic parts such as trim pieces, handle
KDUGZDUHDQGOLQHUV,IXQLQWHQWLRQDOFRQWDFWRIFOHDQHUVZLWKSODVWLFSDUWVGRHVRFFXUFOHDQSODVWLFSDUWZLWKD
sponge and mild detergent mixed with warm water.
STAINLESS STEEL - Outside surfaces, door handles, and trim
FINGERPRINT RESISTANT STAINLESS STEEL*, BLACK STAINLESS, SLATE, DARK
SLATE, PAINTED - Outside surfaces, door handles, and trim
Cleaning the Outside
*Easily wipe away smudges and fingerprints.
22 49-1000472 Rev. 1
CARE AND CLEANING
Care and Cleaning
Replacing the Lights
7KHUHLV/('OLJKWLQJLQWKHIUHVKIRRGFRPSDUWPHQW
at the top center and on the left and right sides above
WKHFOLPDWH]RQHSDQVRQWKHIUHQFKGRRUPRGHOV
/('OLJKWLQJLVORFDWHGDWWKHWRSRIWKHIUHVKIRRG
compartment on the single door models.
/('OLJKWVDUHDOVRORFDWHGDWWKHWRSRIWKHOHIWDQGULJKW
VLGHVRIWKHIUHH]HULQDOOPRGHOV
$QDXWKRUL]HGWHFKQLFLDQZLOOQHHGWRUHSODFHWKH/('
light.
,IWKLVDVVHPEO\QHHGVWREHUHSODFHGFDOO*(
Appliances Service at 1.800.432.2737 in the United
States or 1.800.561.3344 in Canada.
/('VORFDWLRQV
may vary by
model)
Preparing to Move
Secure all loose items such as shelves and drawers by
taping them securely in place to prevent damage.
When using a hand truck to move the refrigerator, do not
rest the front or back of the refrigerator against the hand
truck. This could damage the refrigerator.
Handle only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright position
during moving.
Preparing for Vacation
)RUORQJYDFDWLRQVRUDEVHQFHVUHPRYHIRRGDQG
unplug the refrigerator. Clean the interior with a baking
soda solution of one tablespoon (15 ml) of baking soda
to one quart (1 liter) of water. Leave the doors open.
,IWKHWHPSHUDWXUHFDQGURSEHORZIUHH]LQJKDYHD
qualified service technician drain the water supply
system to prevent serious property damage due to
flooding.
1) Turn refrigerator off (pages 7 and 8) or unplug the
refrigerator.
2) Empty ice bucket
3) Turn water supply off
If you cut the water supply off, turn off the icemaker
(pg. 16).
Upon returning from vacation:
1) Replace the water filter.
2) Run 2 gallons of water through the cold water
dispenser (about 5 minutes) to flush the system.
Behind the Refrigerator
Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with
embossed surfaces.
Raise the leveling legs located at the bottom front of the
refrigerator.
Pull the refrigerator straight out and return it to position
by pushing it straight in. Moving the refrigerator in a side
direction may result in damage to the floor covering or
refrigerator.
Lower the leveling legs until they touch the floor.
When pushing the refrigerator back, make sure you
don’t roll over the power cord or water supply line.
49-1000472 Rev. 1 23
Installation
Instructions
Refrigerator
Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca
TOOLS YOU MAY NEED
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
•
IMPORTANT — Observe all
governing codes and ordinances. Save these
instructions for local inspector’s use.
•
Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer –.HHSWKHVHLQVWUXFWLRQV
for future reference.
• Skill level – ,QVWDOODWLRQRIWKLVDSSOLDQFH
requires basic mechanical skills.
• Completion time –5HIULJHUDWRU,QVWDOODWLRQ
20 minutes
:DWHU/LQH,QVWDOODWLRQ
30 minutes
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is
not covered under the Warranty.
PREPARATION
MOVING THE REFRIGERATOR INDOORS
If the refrigerator will not fit through a
doorway, the refrigerator door and freezer
drawer or door can be removed.
• To remove the refrigerator door, see Step 1
LQWKH5HYHUVLQJWKH'RRU6ZLQJVHFWLRQ
7RUHPRYHWKHIUHH]HUGUDZHUVHHWKH
5HPRYLQJWKH)UHH]HU'UDZHUVHFWLRQ
WATER SUPPLY TO THE ICEMAKER AND
DISPENSER
,IWKHUHIULJHUDWRUKDVDQLFHPDNHULWZLOO
have to be connected to a cold water line. A
GE Appliances water supply kit (containing
tubing, shutoff valve, fittings and instructions)
is available at extra cost from your dealer, by
visiting our website at GEAppliances.com (in
Canada at GEAppliances.ca) or from Parts
and Accessories, 877.959.8688 (in Canada
1.800.661.1616).
Adjustable Wrench
´2XWHU'LDPHWHU
Compression Nut
DQG)HUUXOHVOHHYH
(icemaker models only)
Phillips-Head Screwdriver
Ǫ´ and ǫ´Socket
5DWFKHW'ULYHU
´1/8´& ´Allen
Wrenches
Pencil
´'ULOO%LWDQG
(OHFWULFRU+DQG'ULOO
Tape Measure
´1XW'ULYHU
Wire Cutters
Level
7RU[7'ULYHU
INSTALLATION INSTRUCTIONS
24 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
Installation Instructions
MEASURE THE CABINET OPENING
ACCORDING TO THE WIDTH OF THE
REFRIGERATOR
Measure width of cabinet opening where refrigerator will be placed, B.
Be sure to account for any countertop overhang, baseboard thickness
DQGDQ\FOHDUDQFHGHVLUHG:LGWK%VKRXOGQRWEHOHVVWKDQ´´
(76.2 cm - 91.4 cm) (depending on model). The refrigerator will be
placed approximately in the middle of this opening.
Back Wall
Front
Right
Side
REFRIGERATOR
B
Baseboard
Thickness or
Countertop
Overhang
(Whichever is
Larger) Plus
$Q\'HVLUHG
Clearance
,7(0 18/19 cuft models
with french doors
21 cuft models
with single door
21 cuft models
with french doors
25 cuft models
with single door
24/25 cuft models
with french doors
26/27 cuft models
with french doors
A* 69-7/8" (177.5 cm) ´
(177.5 cm) ´(177.5 cm) ´(177.5 cm) ´(177.5 cm) 69-7/8" (177.5 cm)
B 33" (83.8 cm) ´
(76.2 cm) ´(76.2 cm) ´(83.8 cm) ´(83.8 cm) 36" (91.4 cm)
C** 30-7/8" (78.4 cm) ´(91.8 cm) ´(92.4 cm) ´(94.9 cm) ´(94.3 cm) 36-5/16" (92.2 cm)
' 41-3/32" (104.4 cm) - ´(137.2 cm) ´(139.1 cm) ´(139.1 cm) 50-3/16" [127.5 cm]
E 48-3/8" (122.8 cm) ´
(139.7 cm) ´(139.4cm) ´(153.7 cm) ´(153.7 cm) 54-13/16" (139.2 cm)
) 39-17/32" (100.4 cm) ´(115.9 cm) ´(94 cm) ´(121.9 cm) ´(98.4 cm) 43-23/32" (111.1 cm)
G 28-7/8" (73.3 cm) ´
(86 cm) ´(87.3 cm) ´(88.6 cm) ´(89.9 cm) 33-13/16" (85.9 cm)
H 41-15/16" (106.5 cm) ´
(154.9 cm) ´(116.5 cm) ´(165.1 cm) ´(122.9 cm) 48-3/4" (123.8 cm)
, 40-1/2" (102.9 cm) ´
(85.1 cm) ´(95.6 cm) ´(91.4 cm) ´(102.9 cm) 43-3/8" (110.2 cm)
NOTE:7KHKHLJKWRIWKHUHIULJHUDWRUWRWKHWRSRIWKHGRRU,QFOXGHVWKHKDQGOH
A
C
G
G
D
E
E
F
I
H
F
B
A
C
D
B
155Û
155Û
I
H
90Û
90Û
APPLIANCE DIMENSIONS
Single Door Models with
Fresh Food and Freezer Doors
(some models)
Single Door Models
with Drawer (some models)
French Door Models
49-1000472 Rev. 1 25
INSTALLATION INSTRUCTIONS
REFRIGERATOR LOCATION
Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH
WHPSHUDWXUHZLOOJREHORZ)&EHFDXVH
it will not run often enough to maintain proper
temperatures.
Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKH
WHPSHUDWXUHZLOOJRDERYH)&EHFDXVHLW
will not perform properly.
Ŷ 'RQRWLQVWDOOWKHUHIULJHUDWRULQDORFDWLRQH[SRVHG
to water (rain, etc.) or direct sunlight.
Ŷ,QVWDOOLWRQDIORRUVWURQJHQRXJKWRVXSSRUWLWIXOO\
loaded.
CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
6LGHV ´PP
7RS ´PP&DELQHW+LQJH&RYHU
%DFN ´PP
Installation Instructions
INSTALLING THE REFRIGERATOR
IMPORTANT NOTES
This refrigerator without the handles ranges from
´WR´FPFPGHSHQGLQJRQ
your model (see dimension G on the previous page).
'RRUVDQGSDVVDJHZD\VOHDGLQJWRWKHLQVWDOODWLRQ
ORFDWLRQPXVWEHDWOHDVW´FPLQRUGHU
to leave the doors attached to the refrigerator
while transporting it into the installation location.
,ISDVVDJHZD\VDUHOHVVWKDQ´ (91.4 cm), the
refrigerator doors can easily be scratched and
damaged. The doors can be removed to allow the
refrigerator to be safely moved indoors.
•,I\RXQHHGWRUHPRYHWKHGRRUDQG\RXKDYHWKH
IUHQFKGRRUPRGHOVHH5HPRYLQJ)UHQFK'RRUV
•,I\RXQHHGWRUHPRYHWKHGRRUDQG\RXKDYHWKH
single fresh food door model, see Reversing the
'RRU
• 7RUHPRYHWKHIUHH]HUGRRUDQG\RXKDYHWKH
PRGHOZLWKDIUHH]HUGUDZHUVHHRemoving
)UHH]HU'UDZHU
• ,I\RXKDYHWKHPRGHOZLWKWKHKLQJHGIUHH]HUGRRU
see 5HYHUVLQJWKH'RRU
•,ILWLVNOT necessary to remove doors, skip to
Page 31. Leave tape and all packaging on doors
until the refrigerator is in the final location. Once in
place, install door handles (see Steps 1 and 2).
• SKID REMOVAL: Tilt refrigerator to each side to
remove skid.
• NOTE: Use a padded hand truck to move this
refrigerator. Place the refrigerator on the hand
truck with a side against the truck. We strongly
recommend that TWO PEOPLE move and
complete this installation.
ATTACH FRESH FOOD
HANDLE(S)
Attach the handle to the mounting fasteners
by aligning the slots on the handle with the
mounting fasteners. Slide the handle down until
\RXKHDUD³FOLFN´
NOTE: )RU)UHQFK'RRUPRGHOVIROORZWKHVDPH
procedure for both doors.
1
ATTACH FREEZER HANDLE
Attach the handle to the mounting fasteners by
aligning the slots on the handle with the mounting
fasteners. Slide the handle to the right until you
KHDUD³FOLFN´
2
Mounting
)DVWHQHUV
Mounting
)DVWHQHUV
26 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
Installation Instructions

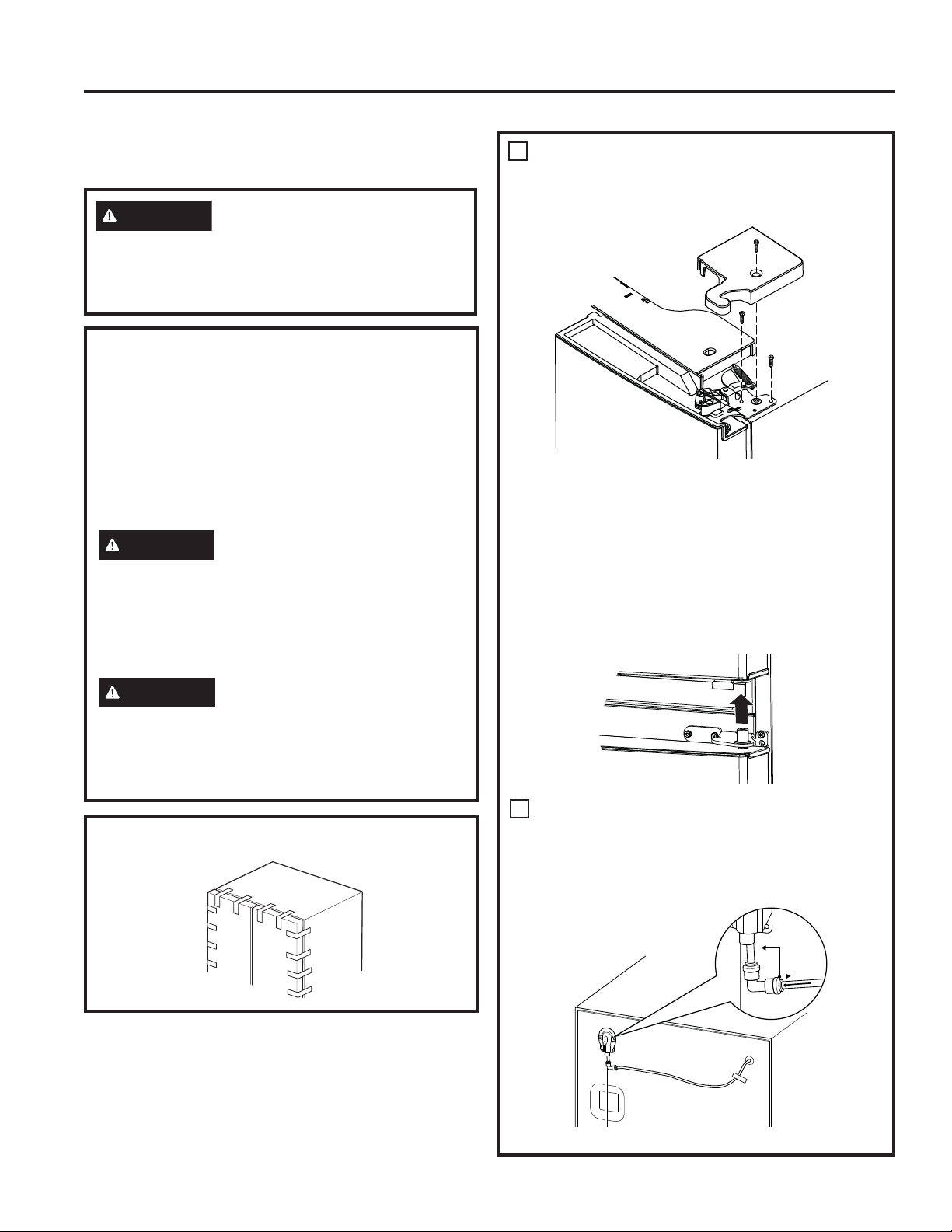

REMOVING FRENCH DOORS
(on some models)
INSTALLING THE REFRIGERATOR (Cont.)
IMPORTANT NOTES
When removing french doors:
• Read the instructions all the way through before
starting.
• Handles are included inside the refrigerator.
• Place the screws by their related parts to avoid
using them in the wrong places.
• Provide a non-scratching work surface for the
doors.
CAUTION
Lifting Hazard.
Single person lift can cause injury. Use assistance
when handling, moving or lifting the refrigerator
doors.
NOTE: When moving door, to prevent damage to
door and electronics carefully place the door in a
proper location.
WARNING
To eliminate the risk of electric shock or injury
during installation, you must first unplug the
UHIULJHUDWRUEHIRUHSURFHHGLQJ)DLOXUHWRIROORZ
these instructions can result in electrical shock.
Tape the doors shut with adhesive tape.
1

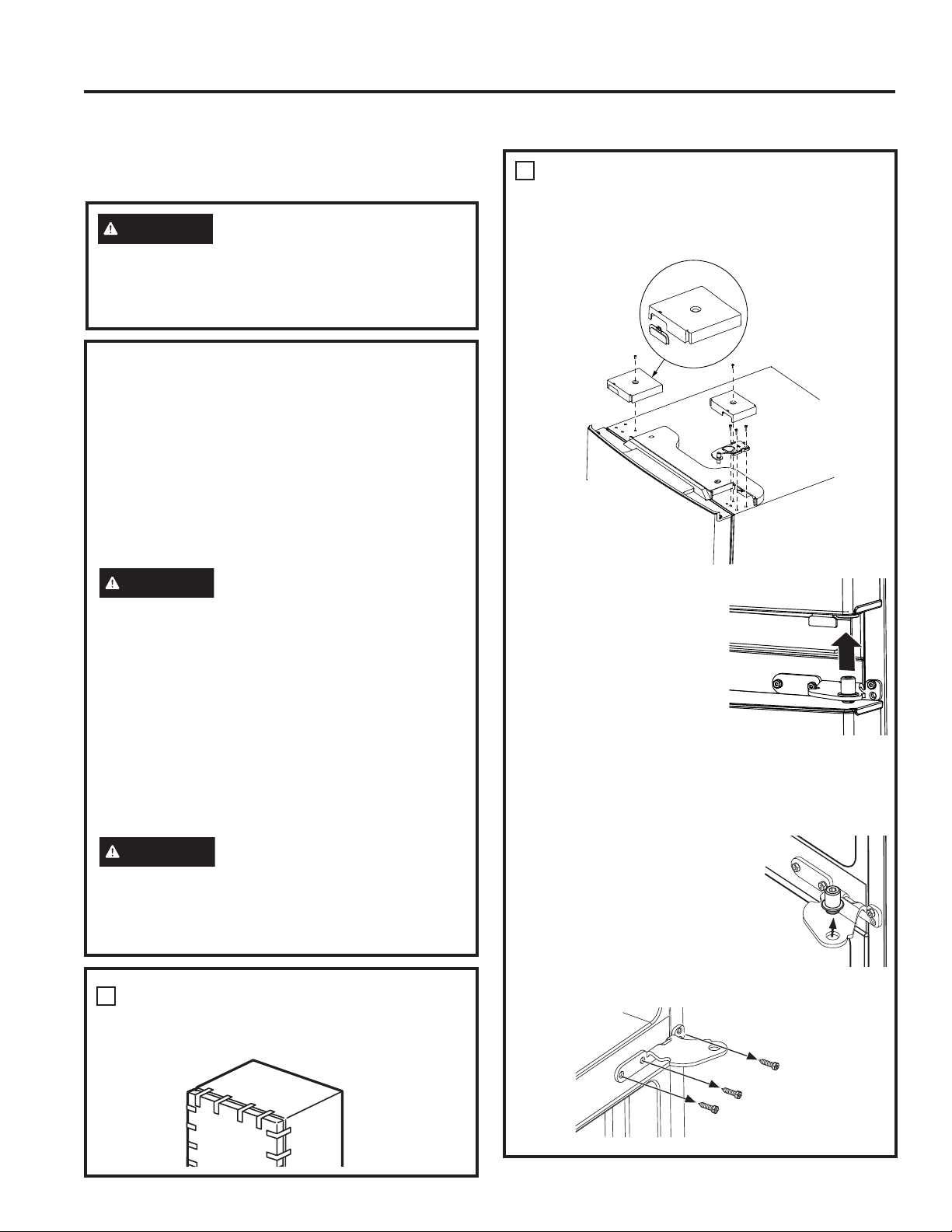

REMOVING RIGHT DOOR
A. Remove the hinge cover on top of the right
fresh food door by removing the screw using
a Phillips screwdriver.
B 8VLQJD´VRFNHWUDWFKHWGULYHUUHPRYHWKH
bolts securing the top hinge to the cabinet. Lift
the hinge support straight up to free the hinge
pin from the socket in the top of the door.
C. Remove the tape from the right door and tilt
the door away from the cabinet. Lift the door
off the center hinge pin.
D. Set the door on a non-scratching surface with
the inside up.
2
REMOVING LEFT DOOR
A. For Ice and Water Models Only:
Unplug the water line from the back of
the refrigerator and remove all tape that
fixes the water line to the refrigerator.
WARNING
)ROORZDOOVWHSVZKHQUHYHUVLQJ
WKHGRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
49-1000472 Rev. 1 27
INSTALLATION INSTRUCTIONS
Installation Instructions
3
REMOVING CENTER HINGES AND
BRACKETS
A. 8VLQJD´$OOHQZUHQFKUHPRYHWKHKLQJH
pins from the hinge brackets.
B.8VLQJD´VRFNHWUDWFKHWGULYHUUHPRYHWKH
bolts securing the center hinge brackets to the
cabinet.
2
REMOVING LEFT DOOR (cont.)
B. Remove the hinge cover on top of the left
fresh food door by removing the screw
using a Phillips screwdriver.
C. Unplug the 3 wire connectors and move the
wires until you can see the screws holding
the hinge.
For Ice and Water Models Only: Pull the
water line very carefully.
D. 8VLQJD´VRFNHWUDWFKHWGULYHUUHPRYH
the bolts securing the top hinge to the
cabinet.
Wire
Connectors
Water Line
,FHDQG:DWHU
Models Only)
Wire Connectors
Bolts
Water Line
,FHDQG
Water
Models
Only)
For NON Ice and Water Models Only: Lift the
hinge straight up to free the hinge pin from the
socket in the top of the door and pass the wire
through the slot in the hinge. For Ice and Water
Models Only: Do not remove hinge from the
door.
E. Remove the tape from the door, open the
door 90 degrees and tilt the door away from
the cabinet. Lift the door off the center hinge
pin.
F. Set the door on a non-scratching surface with
the inside up.
INSTALLING THE REFRIGERATOR (Cont.)
28 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
REINSTALLING FRENCH DOORS
(on some models)
Installation Instructions
IMPORTANT NOTES
When replacing the french doors:
• Read the instructions all the way through before
starting.
CAUTION
Lifting Hazard.
Single person lift can cause injury. Use assistance
when handling, moving or lifting the refrigerator
doors.
NOTE: When moving door, to prevent damage to
door and electronics carefully place the door in a
proper location.
WARNING
To eliminate the risk of electric shock or injury
during installation, you must first unplug the
UHIULJHUDWRUEHIRUHSURFHHGLQJ)DLOXUHWRIROORZ
these instructions can result in electrical shock.
1
REINSTALLING CENTER HINGE
BRACKETS AND HINGES
A.8VLQJD´VRFNHWUDWFKHWGULYHUUHLQVWDOO
the bolts and center hinge brackets to the
cabinet.
B. 8VLQJD´$OOHQZUHQFKUHLQVWDOOWKH
hinge pins into the hinge brackets.
2
REHANGING THE RIGHT DOOR
A. Lower the refrigerator door onto the right
hinge pin.
B. Make sure the door is aligned with the
cabinet. Attach the hinge to the top of the
cabinet loosely with bolts removed earlier.
C. Make sure the gasket on the door is flush
against the cabinet and is not folded. Tighten
the bolts to 60 lb/in.(6.78 Nm).
D. Replace the right hinge cover on top of the
refrigerator using a Phillips screwdriver.
3
REHANGING THE LEFT DOOR
A. For NON Ice and Water Models Only:
Pass the wire through the slot in the
hinge. Place the hinge pin into the top of
the door.
B. Lower the refrigerator door onto the left
hinge pin.
INSTALLING THE REFRIGERATOR (Cont.)
49-1000472 Rev. 1 29
INSTALLATION INSTRUCTIONS
Installation Instructions
REINSTALLING FRENCH DOORS (Cont.) (on some models)
3
REHANGING THE LEFT DOOR (Cont.)
C. Make sure the door is aligned with the
cabinet. Attach the hinge to the top of the
cabinet loosely with bolts removed earlier.
D. Make sure the gasket on the door is flush
against the cabinet and is not folded. Tighten
the bolts to 60 lb/in. (6.78 Nm).
E. Plug the wire connectors together and rout the
wire inside the plastic port.
F. For Ice and Water Models Only: Put the
water line into the hole and pass through the
plastic port to the back of the refrigerator.
Plug the water line back into the fixture on
back of the refrigerator. Tape water line to
the refrigerator.
G. Replace the left hinge cover on top of the
refrigerator using a Phillips screwdriver.
Wire
Connectors
Water Line
,FHDQG:DWHU
Models Only)
Wire Connectors
Bolts
Water Line
,FHDQG
Water
Models
Only)
INSTALLING THE REFRIGERATOR (Cont.)
30 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS

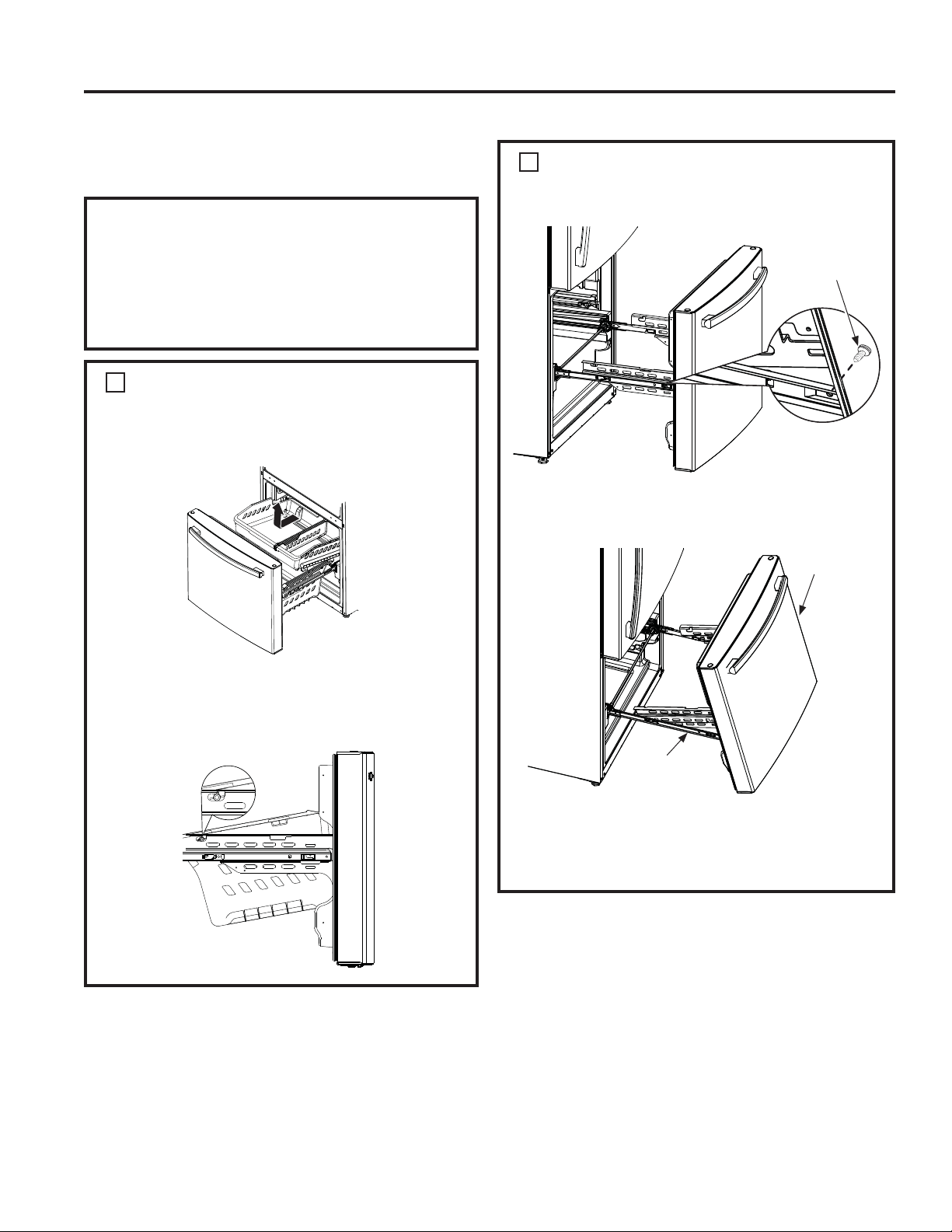

REMOVING FREEZER DRAWER
(on some models)
Installation Instructions
IMPORTANT NOTES
:KHQUHPRYLQJIUHH]HUGUDZHU
• Read the instructions all the way through before
starting.
• Provide a non-scratching work surface for the
doors.
1
REMOVE THE BASKETS
A. 2SHQWKHIUHH]HUGUDZHUXQWLOLWVWRSV
B. Pull the top basket out until it stops. Lift the
basket up on the front and out to remove.
C. The lower basket rests on a frame inside the
IUHH]HUGUDZHU/LIWWKHIURQWRIWKHEDVNHW
and pull it forward. Release the pins from the
slots on the frame to remove the basket.
2
REMOVE THE DRAWER FRONT
A. Remove the screw on each side of the
railing.
B./LIWXSRQERWKVLGHVRIWKHIUHH]HUGUDZHU
handle to separate the drawer railings from
the rail assemblies.
C. Set the drawer front on a non-scratching
surface.
D. Push the rail assemblies back into locking
position.
Screw
'UDZHU
Assembly
Rail
Assembly
INSTALLING THE REFRIGERATOR (Cont.)
49-1000472 Rev. 1 31
INSTALLATION INSTRUCTIONS
Installation Instructions
REMOVING FREEZER DRAWER (on some models) (Cont.)
3
REINSTALL FREEZER DRAWER FRONT
A. Pull the rail assemblies to the maximum
extension.
B. Locate the slots on the inside of each slide.
C. ,QVHUWWKHKRRNVRQWKHHQGVRIWKHGUDZHU
assembly extensions into the slots near the
back of the slides.
D. /RZHUWKHIURQWHQGRIWKHIUHH]HUGUDZHU
assembly so the side tabs fit into the front slots
on the rail assemblies.
E. Replace the safety screws in both sides of the
slide assemblies.
F. Replace lower and upper baskets (see About
IUHH]HUGUDZHUSDJH
Hook
Slot
Side Tab
)URQW6ORW
INSTALLING THE REFRIGERATOR (Cont.)
32 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
REVERSING THE DOOR
(on some models)
Installation Instructions
WARNING
)ROORZDOOVWHSVZKHQUHYHUVLQJ
WKHGRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
IMPORTANT NOTES
When reversing doors:
• Read the instructions all the way through before
starting.
• Logo badge, handles, plugs and right hinge
cover are included inside the refrigerator (some
models).
• Place the screws by their related parts to avoid
using them in the wrong places.
• Provide a non-scratching work surface for the
doors.
CAUTION
Lifting Hazard.
Single person lift can cause injury. Use assistance
when handling, moving or lifting the refrigerator
doors.
NOTE: When removing door, to prevent damage to
door and electronics carefully place the door in a
proper location.
NOTE: The lower door hinge pin and hinge are
keyed and must be matched correctly for the door
to self close properly. Please follow directions
carefully.
)UHH]HUGRRULVKHDY\8VHERWKKDQGVWRVHFXUH
the door before lifting.
WARNING
To eliminate the risk of electric shock or injury
during installation, you must first unplug the
UHIULJHUDWRUEHIRUHSURFHHGLQJ)DLOXUHWRIROORZ
these instructions can result in electrical shock.
1
REMOVE THE REFRIGERATOR
DOORS
A. Tape the door shut with masking tape.
1
REMOVE THE REFRIGERATOR
DOORS (Cont.)
B. Remove right and left hinge covers on top of
the refrigerator using a Phillips screwdriver.
C. 8VLQJD´VRFNHW
ratchet driver, remove
the bolts securing
the top hinge to the
cabinet. Lift the hinge
straight up to remove.
D. Remove the tape and
tilt the fresh food door
away from the cabinet.
Lift the door off of the center hinge pin.
E. Set the fresh food door on a non-scratching
surface with the inside up.
For Models With a Freezer DRAWER:
F.8VLQJD´$OOHQZUHQFK
remove the hinge pin from
the hinge bracket. The hinge
pin will be used again on the
opposite side.
G.8VLQJD´VRFNHWUDWFKHW
driver, remove the bolts
securing the center hinge to the cabinet.
INSTALLING THE REFRIGERATOR (Cont.)
49-1000472 Rev. 1 33
INSTALLATION INSTRUCTIONS
Installation Instructions
1
REMOVE THE REFRIGERATOR DOORS (Cont.)
H. Remove the button plugs on the left side of the
cabinet across from where the hinge bracket
was located and install in the holes where the
bracket was removed.
I.)OLSWKHFHQWHUKLQJH
bracket and install
on the left side of the
cabinet where the
button plugs were
removed.
J.8VLQJD´$OOHQ
wrench, install the hinge pin into the center
hinge bracket.
For Models With a Freezer DOOR:
F.7DSHWKHIUHH]HUGRRUVKXWZLWKDGKHVLYHWDSH
G.8VLQJD´$OOHQZUHQFK
remove the hinge pin from
the hinge bracket. The
hinge pin will be used
again on the opposite
side.
H. Remove the tape and tilt the door away from
the cabinet. Lift the door off of the bottom hinge
pin.
I. Using a thing-blade screwdriver remove the
button plug from the top left side of the door
and install it on the opposite side.
J. Set the door on a non-scratching surface with
the inside up.
K.8VLQJD´VRFNHW
ratchet driver, remove
the bolts securing the
center hinge to the
cabinet.
L. Locate the button plugs in the kit and install
them in the opposite side of center hinge.
M.)OLSWKHFHQWHUKLQJH
EUDFNHW8VLQJD´
socket/ratchet driver, install
the center hinge bolt on the
left side of the cabinet and
torque to 60 in-lb.
(6.78 Nm).
N.8VLQJD´$OOHQZUHQFKLQVWDOOWKHKLQJHSLQ
LQWRWKHFHQWHUKLQJHEUDFNHW'RQRWOHWWKHSLQ
go past the bottom of the bracket.
O.8VLQJD´VRFNHW
ratchet driver, remove
the screws from
the bottom hinge
bracket. These will
be reinstalled on the
other side. Pull up
on the hinge pin to
remove.
P. Using a Torx T-20
screwdriver, remove the
screw from the cabinet and
install it on the other side.
Q.8VLQJ´VRFNHW
ratchet driver, install
the bottom hinge
bracket and torque
the screws to 60
in-lb. (6.78 Nm).
Remount the hinge
and pin in the opposite hole on the cabinet.
INSTALLING THE REFRIGERATOR (Cont.)
34 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
Installation Instructions
2
REINSTALL FREEZER DOOR
A. Using a Torx T-20 screwdriver, remove the
bolts securing the door stop on the bottom
right of the door.
B. Using a Trox T-20 screwdriver, remove the
plastic force closure on the bottom right of the
door.
C.)OLSWKHSODVWLFIRUFHFORVXUHDQGPRXQWLWWR
the bottom left of the door.
D.,QVWDOOWKHGRRUVWRSWRWKHERWWRPOHIWRIWKH
door.
E. /RZHUWKHIUHH]HUGRRUDQGPDNHVXUHWRLQVHUW
the hinge pin in the bottom hole of the door.
F. Straighten the door and line it up with the
FHQWHUKLQJHEUDFNHW8VLQJD´$OOHQ
wrench, turn the hinge pin until it extends
through the hinge bracket and into the door.
3
REINSTALL FRESH FOOD DOOR
A. Using a Torx T-20 screwdriver, remove the
bolts securing the door stop on the bottom
right of the door.
B. Transfer the plastic thimble to the opposite
KROH,QVWDOOWKHGRRUVWRSZLWKWKHSODVWLF
thimble on the opposite side.
C. Using a Trox T-20 screwdriver, remove the
plastic force closure on the bottom right of the
door.
D.)OLSWKHSODVWLFIRUFHFORVXUHDQGPRXQWLWWR
the bottom left of the door.
E.,QVWDOOWKHGRRUVWRSWRWKHERWWRPOHIWRIWKH
door.
F. Lower the fresh food door and make sure to
insert the hinge pin in the bottom hole of the
door.
G.5HPRYHWKHKLQJHEDVHIURPWKHKLQJH)OLS
the hinge over and remount to hinge base.
)RUFHFORVXUH
'RRUVWRS
)RUFHFORVXUH
Plastic Thimble
'RRUVWRS
Hinge base
Hinge
WARNING
)ROORZDOOVWHSVZKHQUHYHUVLQJ
WKHGRRUVZLQJ)DLOXUHWRIROORZWKHVHLQVWUXFWLRQV
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
INSTALLING THE REFRIGERATOR (Cont.)
49-1000472 Rev. 1 35
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
3
REINSTALL FRESH FOOD DOOR
(Cont.)
H.,QVHUWWKHWRSKLQJHSLQLQVLGHWKHKROHLQWKH
top left of the fresh food door. Make sure the
door is aligned with the cabinet. Attach the
hinge to the top of the cabinet loosely with
the bolts that were removed previously.
Make sure the gasket
on the door is flush
against the cabinet
and not folded.
Support the door on
the handle side and
make sure the door is
straight and the gap
between the doors is
even across the front.
While holding the
door in place, tighten
the screws to 60 in-lb.
(6.78 Nm).
For Models with a Freezer DRAWER:
I. Remove the front insert from the left hinge
FRYHU,QVWDOOWKHOHIWKLQJHFRYHUXVLQJD
Phillips screwdriver and the screw removed
earlier.
J. ,QVWDOOWKHIURQWLQVHUWLQWRWKHULJKWKLQJH
FRYHU,QVWDOOWKHULJKWKLQJHFRYHUXVLQJD
Phillips screwdriver and the screws removed
earlier.
For Models with a Freezer DOOR:

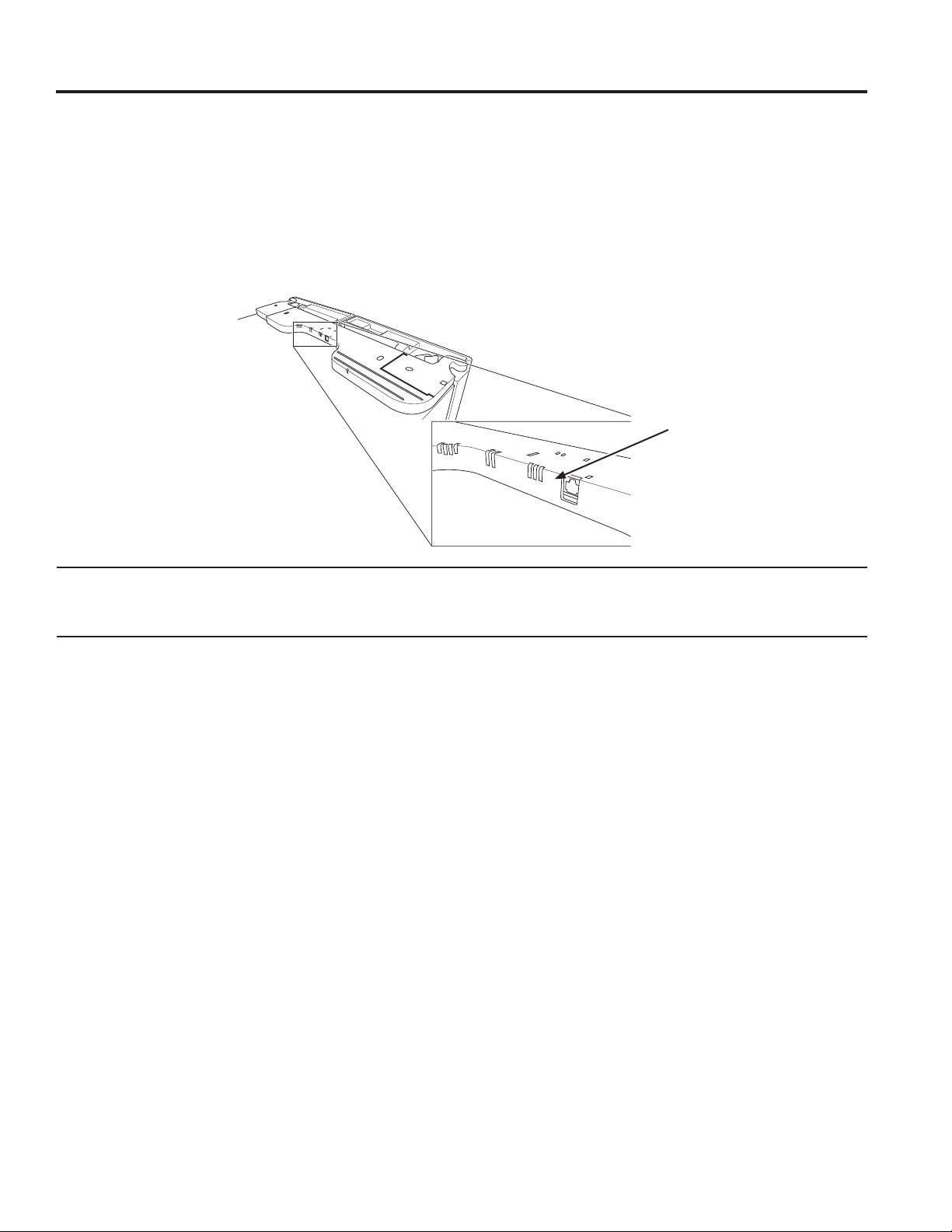

I. Locate the left hinge
cover that comes
with the kit. Using a
Phillips screwdriver,
install the cover with
the screws provided.
)URQWLQVHUW
)URQW
insert
3
REINSTALL FRESH FOOD DOOR
(Cont.)
J. Locate the insert for the right hinge cover that
comes with the kit and install.
K. Using a Phillips screwdriver, install the right
hinge cover with screws provided.
4
TRANSFER HANDLE
MOUNTING FASTENERS
A. Remove the plug from the lower right whole.
B. Using a Phillips screwdriver remove the
screws holding the mounting brackets from
the left side and install them on the right side.
5
INSTALLING LOGO BADGE
A. Locate the new logo
badge from the kit.
Remove the adhesive
backing paper and align
the pins on the back
of the badge with the
holes in the door. Apply
pressure to the badge to
ensure it sticks to the door.
B. Locate the button plug from
the kit and install it in the
opposite side of handle.
)URQWLQVHUW
Remove plug
36 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
CONNECTING TO THE HOUSE WATER LINE
(Icemaker models only)
A cold water supply is required for automatic icemaker
RSHUDWLRQ,IWKHUHLVQRWDFROGZDWHUVXSSO\\RXZLOO
QHHGWRSURYLGHRQH6HH,QVWDOOLQJWKH:DWHU/LQH
section.
NOTES:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
,I\RXUUHIULJHUDWRUGRHVQRWKDYHDZDWHUILOWHUZH
recommend installing one if your water supply has
sand or particles that could clog the screen of the
UHIULJHUDWRU¶VZDWHUYDOYH,QVWDOOLWLQWKHZDWHUOLQH
near the refrigerator.,IXVLQJ8QLYHUVDO:DWHU/LQH
5HIULJHUDWRU7XELQJ.LW, you will need an additional
WXEH:;;WRFRQQHFWWKHILOWHU'RQRWFXW
plastic tube to install filter.
• Before connecting the water line to the house, purge
the house line for at least 2 minutes.
A. If you are using copper tubing, place a
compression nut and ferrule (sleeve) onto the end
of the tubing coming from the house cold water
supply.
If you are using the universal water line tubing,
the nuts are already assembled to the tubing.
B. If you are using copper tubing, insert the end of
the tubing into the refrigerator connection, at the
back of the refrigerator, as far as possible. While
holding the tubing, tighten the fitting.
,I\RXDUHXVLQJXQLYHUVDOZDWHUOLQHWXELQJLQVHUW
the molded end of the tubing into the refrigerator
connection, at the back of the refrigerator, and
tighten the compression nut until it is hand tight.
Then tighten one additional turn with a wrench.
Over tightening may cause leaks.
C. )DVWHQWKHWXELQJLQWRWKHFODPSSURYLGHGWRKROGLW
in position. You may need to pry open the clamp.
One of the illustrations below will look like the
connection on your refrigerator.
WARNING
Connect to potable water supply only.
A cold water supply is required for automatic icemaker
operation. The water pressure must be between 40
and 120 psi (275-827 kilopascals).
WARNING
ELECTRIC SHOCK HAZARD
$WWDFKWXELQJFODPSXVLQJH[LVWLQJKROHRQO\'2127
drill into the refrigerator.
Refrigerator
connection
Universal Water
Line Tubing
,FHPDNHUILOO
tubing
Tubing
clamp
´&RSSHU
tubing
Icemaker-Ready Models
Icemaker-Installed Models
TURN ON THE WATER SUPPLY
(Icemaker models only)
Turn the water on at the
shutoff valve (house water
supply) and check for any
leaks.
PLUG IN THE REFRIGERATOR
On models with an icemaker,
before plugging in the
refrigerator, make sure the
icemaker switch is set to the 0
(off) position.
See the grounding information
attached to the power cord.
Universal Water
Line Tubing
Refrigerator
connection
49-1000472 Rev. 1 37
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
PUT THE REFRIGERATOR IN
PLACE
Move the refrigerator to its final location.
LEVEL THE REFRIGERATOR
Adjustable legs at the front corners of the
refrigerator should be set so the refrigerator is firmly
positioned on the floor, and the front is raised just
enough that the door closes easily when opened
about halfway.
To adjust the leveling legs, turn the
legs clockwise to raise the refrigerator,
counterclockwise to lower it.
LEVEL THE REFRIGERATOR
DOORS
(on some models)
Remember a level refrigerator is necessary for
JHWWLQJWKHGRRUVSHUIHFWO\HYHQ,I\RXQHHG
help, review the previous section on leveling the
refrigerator.
,IWKHGRRUVUHPDLQXQHYHQWXUQWKHDGMXVWDEOHSLQ
WRUDLVHWKHORZHVWGRRUXVLQJD´DOOHQZUHQFKWR
turn the pin.
When
the left
door is
lower than
the right
door.
When
the left
door is
higher
than
the right
door.
Adjustment point
Refrigerator suggested assembly
Shelves shown in the location for best energy efficiency.
GWE19J
19 cuft. Models
French Door with
Freezer Drawer
GYE18J, PYE18H
18 cuft. Models
French Door with Freezer Drawer
38 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
Installation Instructions
Refrigerator suggested assembly (cont.)
Shelves shown in the location for best energy efficiency.
,FHPDNHULQWKH
door is available
for all 24 and
26 french door
models.
GBE21D, GBE21A
21 cuft. Models
Single Door with Freezer Door
GDE21D, GDE21E,
PDE21K, GDE25E
21, 25 cuft. Models
Single Door with Freezer Drawer
GNE21D, GNE21F,
PNE21K, PNE21N
21 cuft. Models
French Door with Freezer Drawer
GNE25D, GNE25J, PNE25J,
CNE25S, PNE25N, GNE27J
25, 27 cuft. Models
French Door with Freezer Drawer
GFE24J, PFE24J, CFE24S,
PFE24H 24 cuft. Models
French Door with Freezer Drawer
GFE26J
26 cuft. Models
French Door with Freezer Drawer
GNE27E
27 cuft. Models
French Door with Freezer Drawer
49-1000472 Rev. 1 39
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE WATER LINE
BEFORE YOU BEGIN
5HFRPPHQGHGFRSSHUZDWHUVXSSO\NLWVDUH:;;
:;;RU:;;GHSHQGLQJRQWKHDPRXQWRI
tubing you need. Approved plastic water supply
lines are Universal Water Line Refrigerator Tubing
:;;:;;DQG:;;
When connecting your refrigerator to a GE
Appliances Reverse Osmosis Water System, the only
DSSURYHGLQVWDOODWLRQLVZLWKD*($SSOLDQFHV59.LW
)RURWKHUUHYHUVHRVPRVLVZDWHUV\VWHPVIROORZWKH
manufacturer’s recommendations.
,IWKHZDWHUVXSSO\WRWKHUHIULJHUDWRULVIURPD5HYHUVH
2VPRVLV:DWHU)LOWUDWLRQ6\VWHP52$1'WKH
refrigerator also has a water filter, use the refrigerator’s
filter bypass plug. Using the refrigerator’s water
filtration cartridge in conjunction with an RO water filter
can result in hollow ice cubes. Some models do not
come equipped with the filter bypass plug. To order the
E\SDVVSOXJVHHWKH:DWHU)LOWHU&DUWULGJHVHFWLRQ
This water line installation is not warranted by the
UHIULJHUDWRURULFHPDNHUPDQXIDFWXUHU)ROORZWKHVH
LQVWUXFWLRQVFDUHIXOO\WRPLQLPL]HWKHULVNRIH[SHQVLYH
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing the
water supply line to the refrigerator.
To prevent burns and product damage, do not hook
up the water line to the hot water line.
'RQRWLQVWDOOWKHLFHPDNHUWXELQJLQDUHDVZKHUH
WHPSHUDWXUHVIDOOEHORZIUHH]LQJ
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent the
KD]DUGRIHOHFWULFVKRFNRULVEDWWHU\SRZHUHG
All installations must be in accordance with local
plumbing code requirements.
WHAT YOU WILL NEED
• Copper or Universal Water Line Refrigerator Tubing
NLW´RXWHUGLDPHWHUWRFRQQHFWWKHUHIULJHUDWRUWR
WKHZDWHUVXSSO\,IXVLQJFRSSHUEHVXUHERWKHQGV
of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Be sure there is
sufficient extra tubing to allow the refrigerator to move
out from the wall after installation.
8QLYHUVDO:DWHU/LQH5HIULJHUDWRU7XELQJ.LWVDUH
available in the following lengths:
¶P ±:;;
¶P ±:;;
¶P ±:;;
WARNING
Connect to potable water supply only.
A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 psi (275-827 kilopascals)
40 49-1000472 Rev. 1
INSTALLATION INSTRUCTIONS
INSTALLING THE WATER LINE (cont.)
WHAT YOU WILL NEED (cont.)
NOTE: The only GE Appliances approved plastic
tubing is that supplied in Universal Water Line
Refrigerator Tubing kits'RQRWXVHDQ\RWKHUSODVWLF
water supply line because the line is under pressure
at all times. Certain types of plastic will crack or
rupture with age and cause water damage to your
home.
• A GE Appliances water supply kit (containing
tubing, shutoff valve and fittings listed below) is
available at extra cost from your dealer or from
Parts and Accessories, 877.959.8688 (in Canada
1.800.661.1616).
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i. (138-827 kPa).
• Power drill.
´RUDGMXVWDEOHZUHQFK
• Straight and Phillips blade screwdriver.
7ZR´RXWHUGLDPHWHUFRPSUHVVLRQQXWVDQG
ferrules (sleeves)—to connect the copper tubing to
the shutoff valve and the refrigerator water valve.
OR
• ,I\RXDUHXVLQJD8QLYHUVDO:DWHU/LQH5HIULJHUDWRU
Tubing kit, the necessary fittings are preassembled
to the tubing.
,I\RXUH[LVWLQJFRSSHUZDWHUOLQHKDVDIODUHGILWWLQJ
at the end, you will need an adapter (available at
plumbing supply stores) to connect the water line to
the refrigerator OR you can cut off the flared fitting
with a tube cutter and then use a compression
ILWWLQJ'RQRWFXWIRUPHGHQGIURPUniversal Water
Line Refrigerator tubing.
• Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
PLQLPXPLQVLGHGLDPHWHURI´DWWKHSRLQWRI
FRQQHFWLRQWRWKH&2/':$7(5/,1(6DGGOHW\SH
shutoff valves are included in many water supply
kits. Before purchasing, make sure a saddle-type
valve complies with your local plumbing codes.
Installation Instructions
,QVWDOOWKHVKXWRIIYDOYHRQWKHQHDUHVWIUHTXHQWO\XVHG
drinking water line.
2
CHOOSE THE VALVE LOCATION
Choose a location for the valve that is easily
DFFHVVLEOH,WLVEHVWWRFRQQHFWLQWRWKHVLGHRI
a vertical water pipe. When it is necessary to
FRQQHFWLQWRDKRUL]RQWDOZDWHUSLSHPDNHWKH
connection to the top or side, rather than at the
bottom, to avoid drawing off any sediment from
the water pipe.
1
SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough to clear
the line of water.
3
DRILL THE HOLE FOR THE
VALVE
'ULOOD´KROHLQWKHZDWHUSLSHHYHQLIXVLQJ
a self-piercing valve), using a sharp bit. Remove
any burrs resulting from drilling the hole in the
pipe.
Take care not to allow water to drain into
the drill.
)DLOXUHWRGULOOD´KROHPD\UHVXOWLQUHGXFHG
ice production or smaller cubes.
49-1000472 Rev. 1 41
Installation Instructions
INSTALLING THE WATER LINE (cont.)
4
FASTEN THE SHUTOFF VALVE
)DVWHQWKHVKXWRIIYDOYHWRWKHFROGZDWHUSLSH
with the pipe clamp.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with your
licensed plumber.
7
FASTEN THE SHUTOFF VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing
and connect it to the shutoff valve.
Make sure the tubing is fully inserted into
the valve. Tighten the compression nut securely.
)RUSODVWLFWXELQJIURPD8QLYHUVDO:DWHU/LQH
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then
tighten one additional turn with a wrench. Over
tightening may cause leaks.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with your
licensed plumber.
5
TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE: 'RQRWRYHUWLJKWHQRU\RXPD\FUXVK
the tubing.
8
FLUSH OUT THE TUBING
Turn the main water supply on and flush out
the tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter), or 2 minutes, of water has
been flushed through the tubing.
6
ROUTE THE TUBING
Route the tubing between the cold water line
and the refrigerator.
Route the tubing through a hole drilled in the
wall or floor (behind the refrigerator or adjacent
base cabinet) as close to the wall as possible.
Pipe Clamp
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Washer
,QOHW(QG
Pipe Clamp
Clamp
Screw
Saddle-Type
Shutoff Valve
Compression Nut
Packing Nut
Outlet Valve
)HUUXOHVOHHYH
Universal Water
Line Tubing
To complete the installation of the refrigerator, go
EDFNWR6WHSLQ,QVWDOOLQJWKH5HIULJHUDWRU
INSTALLATION INSTRUCTIONS
42 49-1000472 Rev. 1
TROUBLESHOOTING TIPS: Normal Operating Conditions
Newer refrigerators sound different from older refrigerators.
Modern refrigerators have more features and use newer technology.
HUMMM...
WHOOSH...
Ŷ The new high efficiency compressor may run faster
and longer than your old refrigerator and you may
hear a high-pitched hum or pulsating sound while it
is operating.
Ŷ <RXPD\KHDUDZKRRVKLQJVRXQGZKHQWKHGRRUV
FORVH7KLVLVGXHWRSUHVVXUHHTXDOL]LQJZLWKLQWKH
refrigerator.
Ŷ
You may hear the fans spinning at high speeds.
This happens when the refrigerator is first plugged
in, when the doors are opened frequently or when
a large amount of food is added to the refrigerator
RUIUHH]HUFRPSDUWPHQWV7KHIDQVDUHKHOSLQJWR
maintain the correct temperatures.
Ŷ
The fans change speeds in order to provide optimal
cooling and energy savings.
CLICKS, POPS,
CRACKS and SNAPS
Ŷ You may hear cracking or popping sounds when
the refrigerator is first plugged in. This happens as
the refrigerator cools to the correct temperature.
Ŷ Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
Ŷ On models with an icemaker, after an ice making
cycle, you may hear the ice cubes dropping into the
ice bucket.
Ŷ On models with a dispenser, during water dispense,
you may hear the water lines move at initial
dispense and after dispenser button is released.
WATER SOUNDS
Ŷ The flow of refrigerant through the cooling coils may
make a gurgling noise like boiling water.
Ŷ Water dropping on the defrost heater can cause
DVL]]OLQJSRSSLQJRUEX]]LQJVRXQGGXULQJWKH
defrost cycle.
Ŷ A water dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows
into the drain pan.
Ŷ Closing the door may cause a gurgling sound due to
SUHVVXUHHTXDOL]DWLRQ
Do you hear what I hear? These conditions are normal.
Normal Operating Conditions.
49-1000472 Rev. 1 43
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Causes What to Do
Refrigerator does not operate Refrigerator in defrost cycle. Wait about 30 minutes for defrost cycle to end.
(LWKHURUERWKFRQWUROVVHWWR2)) Set the controls to a lower temperature setting.
Refrigerator is unplugged. Push the plug completely into the outlet.
The fuse is blown/circuit breaker is
tripped.
Replace fuse or reset the breaker.
Refrigerator is in showroom mode. Unplug the refrigerator and plug it back in.
Vibration or rattling (slight vibration is
normal)
Leveling legs need adjusting. See Level the refrigerator.
Motor operates for long periods or
cycles on and off frequently. (Modern
refrigerators with more storage space
DQGDODUJHUIUHH]HUUHTXLUHPRUH
operating time. They start and stop
often to maintain even temperatures.)
Normal when refrigerator is first
plugged in.
Wait 24 hours for the refrigerator to completely
cool down.
Often occurs when large amounts of
food are placed in refrigerator.
This is normal.
'RRUOHIWRSHQ Check to see if package is holding door open.
Hot weather or frequent door openings. This is normal.
Temperature controls set at the coldest
setting.
See Controls section
5HIULJHUDWRURUIUHH]HUFRPSDUWPHQW
too warm
Temperature control not set cold
enough.
See Controls section
Warm weather or frequent door
openings.
Set the temperature control one step colder.
See Controls section
'RRUOHIWRSHQ Check to see if package is holding door open.
)URVWRULFHFU\VWDOVRQIUR]HQIRRG
(frost within package is normal)
'RRUOHIWRSHQ Check to see if package is holding door open.
Too frequent or too long door openings. This is normal.
'LYLGHUEHWZHHQUHIULJHUDWRUDQG
IUHH]HUFRPSDUWPHQWVIHHOVZDUP
Automatic energy saver system
circulates warm liquid around front
HGJHRIIUHH]HUFRPSDUWPHQW
This helps prevent condensation on the
outside.
Automatic icemaker does not work ,FHPDNHUVZLWFKLVLQWKH2))SRVLWLRQ Set the switch to the ON position.
Water supply turned off or not
connected.
6HH,QVWDOOLQJWKH:DWHU/LQHVHFWLRQ
)UHH]HUFRPSDUWPHQWWRRZDUP Wait 24 hours for the refrigerator to completely
cool down.
Piled up cubes in the storage bin cause
the icemaker to shut off.
Level cubes by hand.
,FHFXEHVVWXFNLQLFHPDNHU Turn off the icemaker, remove cubes, and turn
the icemaker back on.
)LOWHULVQRWSURSHUO\LQVWDOOHG
)LOWHUZDWHUOHDN
Replace filter or make sure the water filter is
properly installed (see water filter section).
)UHH]HUFRROLQJIUHVKIRRGQRW
cooling
Normal, when refrigerator first plugged
in or after extended power outage
Wait 24 hours for temperature in both
compartments to reach selected temperatures.
,FHGLVSHQVHURSHQVDIWHUFORVLQJ
IUHH]HUGUDZHURQVRPHPRGHOV
Normal The ice dispenser door may open after closing
IUHH]HUGRRUWRDOORZDFFHVV
,FHFXEHVKDYHRGRUWDVWH ,FHVWRUDJHELQQHHGVFOHDQLQJ (PSW\DQGZDVKELQ'LVFDUGROGFXEHV
)RRGWUDQVPLWWLQJRGRUWDVWHWRLFH
cubes.
Wrap foods well.
,QWHULRURIUHIULJHUDWRUQHHGVFOHDQLQJ See Care and Cleaning section.
Small or hollow cubes Water filter clogged. Replace filter cartridge with new cartridge or
with plug.
6ORZLFHFXEHIUHH]LQJ 'RRUOHIWRSHQ Check to see if package is holding door open.
Temperature control not set cold enough. See Controls section
)UHTXHQWµEX]]LQJVRXQG´ ,FHPDNHUVZLWFKLVLQWKHRQSRVLWLRQ
but the water supply to the refrigerator
has not been connected.
6HWWKHVZLWFKWRWKHRIISRVLWLRQ.HHSLQJLWLQ
the on position will damage the water valve.
44 49-1000472 Rev. 1
TROUBLESHOOTING TIPS
Troubleshooting Tips... Before you call for service
Problem Possible Causes What to Do
2UDQJHJORZLQWKHIUHH]HU 'HIURVWKHDWHULVRQ This is normal.
Water has poor taste/odor Water dispenser has not been used for
a long time.
'LVSHQVHZDWHUXQWLODOOZDWHULQV\VWHPLV
replenished.
Water in first glass is warm Normal when refrigerator is first
installed.
Wait 24 hours for the refrigerator to completely cool
down.
Water dispenser has not been used for
a long time.
'LVSHQVHZDWHUXQWLODOOZDWHULQV\VWHPLV
replenished.
Water system has been drained. Allow several hours for replenished supply to chill.
Water dispenser does not work Water supply line turned off or not
connected.
6HH,QVWDOOLQJWKHZDWHUOLQHVHFWLRQ
Water filter clogged. Replace filter cartridge or remove filter and install plug.
Air may be trapped in the water system. Press the dispenser arm for at least two minutes.
'LVSHQVHULV/2&.(' 3UHVVDQGKROGWKH/2&.SDGIRUVHFRQGV
Water spurting from dispenser Newly-installed filter cartridge. Run water from the dispenser for 3 minutes (about
one and a half gallons).
Water is not dispensed but
icemaker is working
:DWHULQUHVHUYRLULVIUR]HQ Call for service.
Refrigerator control setting is too cold. Set to a warmer setting.
No water or ice cube
production
Supply line or shutoff valve is clogged. Call a plumber.
Water filter clogged. Replace filter cartridge or remove filter and install plug.
6HH:DWHU)LOWHU&DUWULGJHVHFWLRQSDJHRU
)LOWHULVQRWSURSHUO\LQVWDOOHG
)LOWHUZDWHUOHDN
Replace filter or make sure the water filter is properly
installed (see water filter section).
Refrigerator has odor )RRGVWUDQVPLWWLQJRGRUWRUHIULJHUDWRU )RRGVZLWKVWURQJRGRUVVKRXOGEHWLJKWO\ZUDSSHG
.HHSDQRSHQER[RIEDNLQJVRGDLQWKHUHIULJHUDWRU
replace every three months.
,QWHULRUQHHGVFOHDQLQJ See Care and Cleaning section
Moisture forms on outside of
refrigerator
Not unusual during periods of high
humidity.
Wipe surface dry.
Moisture collects inside (in
humid weather, air carries
moisture into refrigerator when
doors are opened)
Too frequent or too long door openings. This is normal.
'XHWRWKHKLJKHUKXPLGLW\LQWKH
refrigerator, you may on occasion
experience fog or small amounts
of moisture in the refrigerator
compartment.
This is normal and may come and go as different
food loads and environmental conditions change.
Wipe dry with a paper towel if desired.
,QWHULRUOLJKWGRHVQRWZRUN No power at outlet. Replace fuse or reset the breaker.
/('OLJKWVDUHRXW Call Service - see Replacing the Lights
Hot air from bottom of
refrigerator
1RUPDODLUIORZFRROLQJPRWRU,QWKH
refrigeration process, it is normal that
heat be expelled in the area under
the refrigerator. Some floor coverings
are sensitive and will discolor at these
normal and safe temperatures.
This is normal.
Refrigerator never shuts off but
WKHWHPSHUDWXUHVDUH2.
Adaptive defrost keeps compressor
running during door openings.
This is normal. The refrigerator will cycle off after the
door remains closed for 2 hours.
Refrigerator is beeping 'RRULVRSHQ Close door.
'RRUQRWFORVLQJSURSHUO\ 'RRUJDVNHWRQKLQJHVLGHVWLFNLQJRU
folding over.
Apply paraffin wax to the face of the gasket.
Actual temperature not equal
to Set temperature
Unit just plugged in. $OORZKRXUVIRUV\VWHPWRVWDELOL]H
'RRURSHQIRUWRRORQJ $OORZKRXUVIRUV\VWHPWRVWDELOL]H
Warm food added to refrigerator. $OORZKRXUVIRUV\VWHPWRVWDELOL]H
'HIURVWF\FOHLVLQSURFHVV $OORZKRXUVIRUV\VWHPWRVWDELOL]H
49-1000472 Rev. 1 45
Troubleshooting Tips... Before you call for service
Problem Possible Causes What to Do
'RRUGUDZHUGRHVQRWFORVHE\LWVHOI
Leveling legs need adjusting. See level the refrigerator
)UHH]HUGRRUGUDZHUSRSVRSHQ
when refrigerator door is closed
This is normal if, after popping
RSHQWKHIUHH]HUGRRUGUDZHU
closed on its own.
7KLVLQGLFDWHVWKDWWKHUHLVDJRRGVHDORQWKHIUHH]HU
GRRUGUDZHU,IWKHIUHH]HUGRRUGUDZHUGRHVQRW
automatically close after popping open, then see the
Problem:'RRUGUDZHUGRHVQRWFORVHE\LWVHOIDERYH
)RRGIUHH]LQJLQWKHUHIULJHUDWRU )RRGWRRFORVHWRWKHDLUYHQWDW
the back of the refrigerator.
Move the food away from the air vent.
Refrigerator control is set too
cold.
Move the refrigerator control to a warmer temperature
setting one increment at a time.
Water is leaking from dispenser Glass not being held under the
dispenser long enough after
button is released.
Hold the glass underneath the dispenser for 2–3 seconds
after releasing the dispenser button. Water may continue
to dispense after the button is released
Air may be present in the water
line system, causing water to
drip after being dispensed.
'LVSHQVHZDWHUIRUDWOHDVWPLQXWHVWRUHPRYHDLUIURP
system.
My display is showing tc Turbo Cool function is activated. See Controls section
Water filter indicator light changed
color
This is normal. 6HH:DWHU)LOWHU&DUWULGJH0:)RU;:)(VHFWLRQ
Water filter indicator light remains
red even after replacing the water
filter
,PSURSHUO\LQVWDOOHGILOWHU
Leak is detected
Using expired filter
9HULI\\RXKDYHWKH;:)(ILOWHUDQGQRW;:)
Verify no scratches or damage to filter label. Replace filter
if label shows damage.
6HH:DWHU)LOWHU&DUWULGJH;:)(VHFWLRQ
Water filter indicator must be
reset (on some models).
3UHVVDQGKROGWKH:$7(5),/7(5SDGIRUVHFRQGV
6HH:DWHU)LOWHU&DUWULGJH
Water filter indicator light is not lit This is normal. The filter
cartridge should be replaced
when the replacement indicator
light turns red.
6HH:DWHU)LOWHU&DUWULGJH0:)RU;:)(VHFWLRQ
Handle is loose / handle has a
gap
Handle needs adjusting. 6HH$WWDFKWKH)UHVK)RRG+DQGOHDQG$WWDFKWKH)UHH]HU
Handle sections
Refrigerator doors are not even
RQ)UHQFK'RRUPRGHOVRQO\
'RRUVQHHGUHDOLJQLQJ 6HH/HYHOWKH5HIULJHUDWRU'RRUVVHFWLRQ
Baskets stick or jam when
opening or closing
Baskets are too full. To open: remove some of the products from the basket
when opened as far as possible. Readjust the products left
in the basket and try to open the basket again. To close:
readjust products in the basket or remove any product that
is above the rim of the basket and close the basket.
)LOWHU6WDWXV,QGLFDWRU/('WXUQV
red
)LOWHUUHDFKLQJH[SLUHGVWDWHRU
expired
Press the Filter Status pad to show remaining filter life.
,IWKHGLVSOD\VKRZVWKHILOWHUQHHGVWREHUHSODFHG
When the unit has detected a new filter (a filter has been
UHSODFHGWKH)LOWHU6WDWXV/('ZLOOIODVKWLPHVDQGWKHQ
remain off to indicate the filter was successfully replaced.
/($.RUVFUROOLQJ³/($.´RQWKH
display
Water is disabled
)LOWHU6WDWXVLQGLFDWRU/('IODVKLQJ
red
%X]]HUVRXQG
)LOWHUOHDNGHWHFWHG Replace filter.
Wipe off the filter/surrounding area if there is any water
from filter replacement.
³(UU´RQWKHGLVSOD\
Water is disabled
)LOWHU6WDWXVLQGLFDWRU/('IODVKLQJ
red
%X]]HUVRXQG
)LOWHULVQRWGHWHFWHG
No communication with filter
9HULI\\RXKDYHWKH;:)(ILOWHUDQGQRWWKH;:)
Verify there are no scratches or filter label damage.
Replace filter if filter label shows damage.
Refrigerator beeps when pressing
dispenser paddle
)LOWHULVQRWSURSHUO\LQVWDOOHG
)LOWHUZDWHUOHDN
Replace filter or make sure the water filter is properly
installed (see water filter section).
TROUBLESHOOTING TIPS
46 49-1000472 Rev. 1
Ŷ Service trips to your home to teach you how to use the
product.
Ŷ ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH
Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGRU
used for other than the intended purpose or used
commercially.
Ŷ /RVVRIIRRGGXHWRVSRLODJH
Ŷ 5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW
breakers.
Ŷ 'DPDJHWRILQLVKVXFKDVVXUIDFHUXVWWDUQLVKRUVPDOO
blemishes not reported within 48 hours of delivery.
Ŷ 5HSODFHPHQWRIWKHZDWHUILOWHUFDUWULGJHLILQFOXGHGGXH
to water pressure that is outside the specified operating
range or due to excessive sediment in the water supply.
Ŷ 5HSODFHPHQWRIWKHOLJKWEXOEVLILQFOXGHGRUZDWHUILOWHU
cartridge, if included, other than as noted above.
Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUHIORRGV
or acts of God.
Ŷ ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\SRVVLEOH
defects with this appliance.
Ŷ3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH
Ŷ'DPDJHFDXVHGE\DQRQ*($SSOLDQFHV%UDQGZDWHU
filter.
What GE Appliances Will Not Cover:
For the Period of: GE Appliances Will Replace
One Year
)URPWKHGDWHRIWKHRULJLQDO
purchase
Any part of the refrigerator which fails due to a defect in materials or workmanship.
'XULQJWKHlimited one-year warranty, GE Appliances will also provide, free of charge, all
labor and related service to replace the defective part.
Thirty Days
(Water filter, if included)
)URPWKHRULJLQDOSXUFKDVH
date of the refrigerator
Any part of the water filter cartridge which fails due to a defect in materials or workmanship.
'XULQJWKLV limited thirty-day warranty, GE Appliances will also provide, free of charge, a
replacement water filter cartridge.
GE PROFILE ™ AND GE CAFÉ™ MODELS
Five Years
)URPWKHGDWHRIWKHSXUFKDVH
Any part of the sealed refrigerating system (the compressor, condenser, evaporator an all
connecting tubing) which fails due to a defect in materials or workmanship.
'XULQJWKLVOimited five-year sealed refrigerating system warranty, GE Appliances will also
provide, free of charge, all labor and related service to replace the defective part in the sealed
refrigerating system.
GEAppliances.com
For US Customers, DOOZDUUDQW\VHUYLFHLVSURYLGHGE\RXU)DFWRU\6HUYLFH&HQWHUVRUDQDXWKRUL]HG&XVWRPHU&DUH
®
technician. To
schedule service online, visit us at geappliances.com, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your
serial number and your model number available when calling for service. In Canada, call 800.561.3344.
GE Appliances Refrigerator Limited Warranty
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the
implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law.
For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for
KRPHXVHZLWKLQWKH86$,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUHVHUYLFHE\D*($SSOLDQFHV$XWKRUL]HG6HUYLFHULVQRWDYDLODEOH
\RXPD\EHUHVSRQVLEOHIRUDWULSFKDUJHRU\RXPD\EHUHTXLUHGWREULQJWKHSURGXFWWRDQ$XWKRUL]HG*($SSOLDQFHV6HUYLFHORFDWLRQ
IRUVHUYLFH,Q$ODVNDWKHOLPLWHGZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXUKRPH
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult
your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
Louisville, KY 40225
For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products
SXUFKDVHGLQ&DQDGDIRUKRPHXVHZLWKLQ&DQDGD,QKRPHZDUUDQWVHUYLFHZLOOEHSURYLGHGLQDUHDVZKHUHLWLVDYDLODEOHDQG
GHHPHGUHDVRQDEOHE\0&&RPPHUFLDO,QFWRSURYLGH,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUHVHUYLFHE\D*($SSOLDQFHV
$XWKRUL]HG6HUYLFHULVQRWDYDLODEOH\RXPD\EHUHVSRQVLEOHIRUDWULSFKDUJHRU\RXPD\EHUHTXLUHGWREULQJWKHSURGXFWWRDQ
$XWKRUL]HG*($SSOLDQFHV6HUYLFHORFDWLRQIRUVHUYLFH
Warrantor Canada: MC Commercial Inc., Burlington Ontario, L7R 5B6
Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE Appliances
Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances
improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance
data to be sent to GE Appliances, please advise your technician NOT to submit the data to GE Appliances at the time of
service.
LIMITED WARRANTY
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
49-1000472 Rev. 1 47
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
LIMITED WARRANTY
,I\RXU*($SSOLDQFHVSDUWIDLOVEHFDXVHRIDPDQXIDFWXULQJGHIHFWZLWKLQWKLUW\GD\VIURPWKHGDWHRIRULJLQDOSXUFKDVHIRUXVHZHZLOOJLYH\RX
a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a
FRS\RIWKH³SURRIRISXUFKDVH´IRUWKHSDUW,IWKHSDUWLVGHIHFWLYHDQGVKRZVQRVLJQVRIDEXVHLWZLOOEHH[FKDQJHG7KHZDUUDQW\GRHVQRW
FRYHUWKHIDLOXUHRISDUWVZKLFKDUHGDPDJHGZKLOHLQ\RXUSRVVHVVLRQDUHDEXVHGRUKDYHEHHQLQVWDOOHGLPSURSHUO\,WGRHVQRWFRYHUWKHFRVW
RIUHWXUQLQJWKHSDUWWRWKHVXSSOLHUIURPZKRPLWZDVSXUFKDVHGQRUGRHVLWFRYHUWKHFRVWRIODERUWRUHPRYHRULQVWDOOLWWRGLDJQRVHWKHIDXOW,W
GRHVQRWFRYHUSDUWVXVHGLQSURGXFWVLQFRPPHUFLDOXVHH[FHSWLQWKHFDVHRIDLUFRQGLWLRQLQJHTXLSPHQW,QQRHYHQWVKDOO*($SSOLDQFHVEH
liable for consequential damages.
Warrantor: GE Appliances, a Haier company
Louisville, KY 40225
Seller:
Name
Address
City State =LS
Signature 'DWH
Buyer:
Name
Address
City State =LS
Signature 'DWH
What GE Appliances will not cover:
Ŷ Service trips to your home to teach you how to use the product.
Ŷ ,PSURSHULQVWDOODWLRQ
Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGXVHGIRURWKHUWKDQWKHLQWHQGHGSXUSRVHRUXVHGFRPPHUFLDOO\
Ŷ Replacement of house fuses or resetting of circuit breakers.
Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUHIORRGVRUDFWVRI*RG
Ŷ ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\SRVVLEOHGHIHFWVZLWKWKLVDSSOLDQFH
Water Filter Cartridge MWF Limited Warranty
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
ZLWKLQWKH86$,Q$ODVNDWKHZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXUKRPH
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights
are, consult your local or state consumer affairs office or your state’s Attorney General.
For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the
consummation of this sale.
This form should be retained on file by the seller for a minimum of two years.
For the period of GE Appliances will replace
Thirty Days
)URPWKHGDWH
of the original
purchase
Any part of the water filter cartridge which fails due to a defect in materials
or workmanship during this limited thirty-day warranty.*
Contact us at geapplianceparts.com, or call 800.GE.CARES.
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or
the shortest period allowed by law.
48 49-1000472 Rev. 1
,I\RXU*($SSOLDQFHVSDUWIDLOVEHFDXVHRIDPDQXIDFWXULQJGHIHFWZLWKLQWKLUW\GD\VIURPWKHGDWHRIRULJLQDOSXUFKDVHIRUXVHZHZLOOJLYH\RX
a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a
FRS\RIWKH³SURRIRISXUFKDVH´IRUWKHSDUW,IWKHSDUWLVGHIHFWLYHDQGVKRZVQRVLJQVRIDEXVHLWZLOOEHH[FKDQJHG7KHZDUUDQW\GRHVQRW
FRYHUWKHIDLOXUHRISDUWVZKLFKDUHGDPDJHGZKLOHLQ\RXUSRVVHVVLRQDUHDEXVHGRUKDYHEHHQLQVWDOOHGLPSURSHUO\,WGRHVQRWFRYHUWKHFRVW
RIUHWXUQLQJWKHSDUWWRWKHVXSSOLHUIURPZKRPLWZDVSXUFKDVHGQRUGRHVLWFRYHUWKHFRVWRIODERUWRUHPRYHRULQVWDOOLWWRGLDJQRVHWKHIDXOW,W
GRHVQRWFRYHUSDUWVXVHGLQSURGXFWVLQFRPPHUFLDOXVHH[FHSWLQWKHFDVHRIDLUFRQGLWLRQLQJHTXLSPHQW,QQRHYHQWVKDOO*($SSOLDQFHVEH
liable for consequential damages.
Warrantor: GE Appliances, a Haier company
Louisville, KY 40225
Seller:
Name
Address
City State =LS
Signature 'DWH
Buyer:
Name
Address
City State =LS
Signature 'DWH
What GE Appliances will not cover:
Ŷ Service trips to your home to teach you how to use the product.
Ŷ ,PSURSHULQVWDOODWLRQ
Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGXVHGIRURWKHUWKDQWKHLQWHQGHGSXUSRVHRUXVHGFRPPHUFLDOO\
Ŷ Replacement of house fuses or resetting of circuit breakers.
Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUHIORRGVRUDFWVRI*RG
Ŷ ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\SRVVLEOHGHIHFWVZLWKWKLVDSSOLDQFH
Water Filter Cartridge XWFE Limited Warranty
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for
KRPHXVHZLWKLQWKH86$,Q$ODVNDWKHOLPLWHGZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXUKRPH
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the
consummation of this sale.
This form should be retained on file by the seller for a minimum of two years.
For the period of GE Appliances will replace
Thirty Days
)URPWKHGDWH
of the original
purchase
Any part of the water filter cartridge which fails due to a defect in materials
or workmanship during this limited thirty-day warranty.*
Contact us at geapplianceparts.com, or call 800.GE.CARES.
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or
the shortest period allowed by law.
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
LIMITED WARRANTY
49-1000472 Rev. 1 49
Performance Data Sheet
SmartWater
™
Filtration System—GE Appliances MWF Cartridge
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the
SHUPLVVLEOHOLPLWIRUZDWHUOHDYLQJWKHV\VWHPDVVSHFLILHGLQ16)$16,6WDQGDUGDQG6WDQGDUG6\VWHPWHVWHGDQGFHUWLILHGE\16)
,QWHUQDWLRQDODJDLQVW16)$16,6WDQGDUGDQG6WDQGDUGIRUWKHUHGXFWLRQRIVXEVWDQFHVOLVWHGEHORZ
The following pharmaceutical reduction claims have not been certified by NSF International or the state of California.
Claims tested and verified by independent laboratory:
Contaminant
Reduction
Average
Influent
NSF specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max Permissible
Product Water
Concentration
NSF Reduction
Requirements
NSF
Test Report
Atenolol 978 ng/L N/A 99.5% 5.0 ng/L N/A N/A J-00121587
Fluoxetine 907 ng/l N/A 99.4% 5.4 ng/L N/A N/A J-00121587
Ibuprofen 885 ng/L N/A 94.1% 52.3 ng/L N/A N/A J-00121588
Progesterone 1097 ng/L N/A 99.5% 5.0 ng/L N/A N/A J-00121589
Trimethoprim 415 ng/L N/A 99.5% 2.0 ng/L N/A N/A J-00121587
,WLVHVVHQWLDOWKDWWKHPDQXIDFWXUHU¶VUHFRPPHQGHGLQVWDOODWLRQPDLQWHQDQFHDQGILOWHUUHSODFHPHQWUHTXLUHPHQWVEHFDUULHGRXWIRUWKHSURGXFWWRSHUIRUPDV
DGYHUWLVHG6HH,QVWDOODWLRQ0DQXDOIRU:DUUDQW\LQIRUPDWLRQ
Application Guidelines/Water Supply Parameters
6HUYLFH)ORZ 0.5 gpm (21.9 lpm)
Water Supply Potable Water
Water Pressure 40-120 psi (276-827 kPa)
Water Temperature ))&&
Capacity 300 Gallons (1,135 Liters). Contaminant Reduction Determined by NSF testing.
Substance Tested
for Reduction
Average
Influent
NSF specified
Challenge
Concentration
Avg %
Reduction
Average
Product Water
Concentration
Max Permissible
Product Water
Concentration
NSF Reduction
Requirements
NSF
Test Report
Chlorine Taste and Odor 2.0 mg/L 2.0 mg/L ± 10% 97.4% 0.05 mg/L N/A J-00137878
Nominal Particulate Class
,WRP 11,333,333 pts/mL At least 10,000 particles/mL 99.9% 5,510 pts/mL N/A J-00137881
Cyst* 101,000 cysts/L Minimum 50,000 cysts/L 99.99% 1 cyst/L N/A J-00100036
Asbestos 133 MF/L
10
7
to 10
8
fibers/L; fibers
JUHDWHUWKDQPLQOHQJWK >99% 0)/ N/A J-00137886
Atrazine 0.008 mg/L 0.009 mg/L ± 10% 91.3% 0.0007 mg/L 0.003 mg/L N/A J-00137910
Benzene 0.014 mg/L 0.015 mg/L ± 10%± 96.5% 0.0005 mg/L 0.005 mg/L N/A J-00137912
Carbofuran 0.08 mg/L 0.08 mg/L ± 10% 74.5% 0.01 mg/L 0.04 mg/L N/A J-00147488
Endrin 0.007 mg/L 0.006 mg/L ± 10% 97.1% 0.0002 mg/L 0.002 mg/L N/A J-00100039
Lead @ pH 6.5 0.148 mg/L 0.15 mg/L ± 10% 99.3% 0.001 mg/L 0.010 mg/L N/A J-00137914
Lead @ pH 8.5 0.155 mg/L 0.15 mg/L ± 10% 99.3% 0.001 mg/L 0.010 mg/L N/A J-00137915
Lindane 0.002 mg/L 0.002 mg/L ± 10% 96.5% 0.00002 mg/L 0.0002 mg/L N/A J-00137924
Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L ± 10% 87.6% 0.0004 mg/L 0.002 mg/L N/A J-00137925
Mercury @ pH 8.5 0.006 mg/L 0.006 mg/L ± 10% 93.2% 0.0007 mg/L 0.07 mg/L N/A J-00092355
P-Dichlorobenzene 0.223 mg/L 0.225 mg/L ± 10% 99.8% 0.005 mg/L 0.075 mg/L N/A J-00137926
Tetrachloroethylene 0.014 mg/L 0.015 mg/L ± 10% 96.5% 0.0005 mg/L 0.005 mg/L N/A J-00137929
Toxaphene 0.017 mg/L 0.015 mg/L ± 10% >93.9% 0.001 mg/L 0.003 mg/L N/A J-00137928
2, 4-D 0.192 mg/L 0.210 mg/L ± 10% 77.7% 0.040 mg/L 0.07 mg/L N/A J-00147489
*Based on the use of Cryptosporidium parvum oocysts.
NOTE: While the testing was performed under standard laboratory
conditions, actual performance may vary. Contaminant reduction
testing is conducted every five years by certifying agency to
maintain certification.
5HSODFHPHQW&DUWULGJH0:))RUHVWLPDWHGFRVWVRIUHSODFHPHQW
elements please call 1.877.959.8688 or visit our website at
geapplianceparts.com.
WARNING
To reduce the risk associated with ingestion of contaminants:
• Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before and
after the system. Systems certified for cyst reduction may be
used on disinfected water that may contain filterable cysts.
NOTICE
To reduce the risk associated with property damage due to
water leakage:
• Read and follow use instructions before installation and use of
this system.
,QVWDOODWLRQDQGXVHMUST comply with all state and local
plumbing codes.
• Do notLQVWDOOLIZDWHUSUHVVXUHH[FHHGVSVLN3D,I
your water pressure exceeds 80 psi (552 kPa), you must install
a pressure-limiting valve. Contact a plumbing professional if you
are uncertain how to check your water pressure.
• Do notLQVWDOOZKHUHZDWHUKDPPHUFRQGLWLRQVPD\RFFXU,I
water hammer conditions exist you must install a water hammer
arrester. Contact a plumbing professional if you are uncertain
how to check for this condition.
• Do not install on hot water supply lines. The maximum operating
ZDWHUWHPSHUDWXUHRIWKLVILOWHUV\VWHPLV)&
• Protect filter from freezing. 'UDLQILOWHUZKHQWHPSHUDWXUHVGURS
EHORZ)&
• The disposable filter cartridge should be replaced every 6
months at the rated capacity, or sooner if a noticeable reduction
in flow rate occurs.
Tested and certified by NSF International against
NSF/ANSI Standard 42 and Standard 53 in model
GE Appliances MWF for the reduction of the
claims specified on the performance data sheet.
REPLACEMENT
ELEMENT
50 49-1000472 Rev. 1
Performance Data Sheet
Model: GE Appliances XWFE
Ŷ6\VWHPFHUWLILHGE\,$30257DJDLQVW16)$16,6WDQGDUGVDQG3IRUWKHUHGXFWLRQRIFODLPVVSHFLILHGRQWKHSHUIRUPDQFHGDWDVKHHWDQG
at iapmort.org.
Ŷ$FWXDOSHUIRUPDQFHPD\YDU\ZLWKORFDOZDWHUFRQGLWLRQV
,WLVHVVHQWLDOWKDWWKHPDQXIDFWXUHU¶VUHFRPPHQGHGLQVWDOODWLRQ
maintenance and filter replacement requirements be carried out for the
SURGXFWWRSHUIRUPDVDGYHUWLVHG6HH,QVWDOODWLRQ0DQXDOIRU:DUUDQW\
information.
Application Guidelines/Water Supply Parameters
6HUYLFH)ORZ 0.5 gpm (1.89 lpm)
Water Supply Potable Water
Water Pressure 25-120 psi (172-827 kPa)
Water Temperature ))&&
Capacity 170 gallons (643.5 liters)
Substance Tested for Reduction
,QIOXHQWFKDOOHQJH
concentration
(mg/L)
Maximum permissible
product water
concentration (mg/L)
Avg %
Reduction
Chlorine Taste and Odor 2.0 mg/L +/- 10% N/A > 99
Chloramine Taste and Odor 3.0 mg/L +/- 10% 0.5 > 99
3DUWLFXODWH&ODVV, At least 10,000/mL N/A 91.4
Cysts 50,000/L N/A > 99.99
Lead 0.15 0.01 98.85
Mercury 0.006 0.002 96.95
Asbestos 107 to 108 fibers/ L N/A > 99
Toxaphene 0.015 +/- 10% 0.003 86.95
VOC (Chloroform surrogate chemical) 0.300 0.015 > 99
Alachlor 0.050 0.001 > 98
$WUD]LQH 0.100 0.003 > 97
%HQ]HQH 0.081 0.001 > 99
Carbofuran 0.190 0.001 > 99
carbon tetrachloride 0.078 0.0018 98
FKORUREHQ]HQH 0.077 0.001 > 99
chloropicrin 0.015 0.0002 99
' 0.110 0.0017 98
GLEURPRFKORURSURSDQH'%&3 0.052 0.00002 > 99
R'LFKORUREHQ]HQH 0.08 0.001 > 99
S'LFKORUREHQ]HQH 0.040 0.001 > 98
1,2-dichloroethane 0.088 0.0048 95
1,1-dichloroethylene 0.083 0.001 > 99
cis-1,2-dichloroethylene 0.170 0.0005 > 99
trans-1,2-dichloroethylene 0.086 0.001 > 99
1,2-dichloropropane 0.080 0.001 > 99
cis-1,3-dichloropropylene 0.079 0.001 > 99
dinoseb 0.170 0.0002 99
Endrin 0.053 0.00059 99
(WK\OEHQ]HQH 0.088 0.001 > 99
HWK\OHQHGLEURPLGH('% 0.044 0.00002 > 99
bromochloroacetonitrile 0.022 0.0005 98
dibromoacetonitrile 0.024 0.0006 98
dichloroacetonitrile 0.0096 0.0002 98
trichloroacetonitrile 0.015 0.0003 98
1,1-dichloro-2-propanone 0.0072 0.0001 99
1,1,1-trichloro-2-propanone 0.0082 0.0003 96
heptachlor (H-34, Heptox) 0.025 0.00001 > 99
heptachlor epoxide 0.0107 0.0002 98
hexachlorobutadiene 0.044 0.001 > 98
hexachlorocyclopentadiene 0.060 0.000002 > 99
Lindane 0.055 0.00001 > 99
methoxychlor 0.050 0.0001 > 99
pentachlorophenol 0.096 0.001 > 99
VLPD]LQH 0.120 0.004 > 97
Styrene 0.150 0.0005 > 99
1,1,2,2-tetrachloroethane 0.081 0.001 > 99
Tetrachloroethylene 0.081 0.001 > 99
Toluene 0.078 0.001 > 99
2,4,5-TP (silvex) 0.270 0.0016 99
tribromoacetic acid 0.042 0.001 > 98
7ULFKORUREHQ]HQH 0.160 0.0005 > 99
1,1,1-trichloroethane 0.084 0.0046 95
1,1,2-trichloroethane 0.150 0.0005 > 99
trichloroethylene 0.180 0.0010 > 99
bromoform 0.300 0.015 95
bromodichloromethane 0.300 0.015 95
chlorodibromomethane 0.300 0.015 95
xylenes 0.070 0.001 > 99
Meprobamate 400 +/- 20% 60 > 99
Atenolol 200 +/- 20% 30 > 99
&DUEDPD]HSLQH 1400 +/- 20% 200 > 99
'((7 1400 +/- 20% 200 > 99
Metolachlor 1400 +/- 20% 200 > 99
Trimethoprim 140 +/- 20% 20 > 99
Linuron 140 +/- 20% 20 > 99
TCEP 5000 +/- 20% 700 > 99
TCPP 5000 +/- 20% 700 > 99
Phenytoin 200 +/- 20% 30 > 99
,EXSURIHQ 400 +/- 20% 60 > 99
Naproxen 140 +/- 20% 20 > 99
Estrone 140 +/- 20% 20 > 99
Bisphenol A 2000 +/- 20% 300 > 99
Nonyl phenol 1400 +/- 20% 200 > 99
3)2$3)26 1.5 mg/L +/- 10% 0.07 99.25
NOTE: While the testing was performed under standard
laboratory conditions, actual performance may vary.
5HSODFHPHQW&DUWULGJH;:)()RUHVWLPDWHGFRVWVRI
replacement elements please call 1.877.959.8688 or visit our
website at gewaterfilters.com.
WARNING
To reduce the risk associated with
ingestion of contaminants:
• Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection
before and after the system. Systems certified for cyst
reduction may be used on disinfected water that may contain
filterable cysts.
NOTICE
To reduce the risk of water leakage or flooding, and to
ensure optimal filter performance:
• Read and follow use instructions before installation and
use of this system.
,QVWDOODWLRQDQGXVHMUST comply with all state and local
plumbing codes.
• Do not install if water pressure exceeds 120 psi (827
N3D,I\RXUZDWHUSUHVVXUHH[FHHGVSVLN3D\RX
must install a pressure-limiting valve. Contact a plumbing
professional if you are uncertain how to check your water
pressure.
• Do not install where water hammer conditions may occur.
,IZDWHUKDPPHUFRQGLWLRQVH[LVW\RXmust install a water
hammer arrester. Contact a plumbing professional if you are
uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum
RSHUDWLQJZDWHUWHPSHUDWXUHRIWKLVILOWHUV\VWHPLV)
(38º C).
• Protect filter from freezing. 'UDLQILOWHUZKHQWHPSHUDWXUHV
GURSEHORZ)&
• Change the disposable filter cartridge every six months or
sooner if you observe a noticeable reduction in water flow
rate.
)DLOXUHWRUHSODFHWKHGLVSRVDEOHILOWHUFDUWULGJHDW
recommended intervals may lead to reduced filter
performance and cracks in the filter housing, causing water
leakage or flooding.
7KLV6\VWHPKDVEHHQWHVWHGDFFRUGLQJWR16)$16,
53, 401 and P473 for the reduction of the substances listed
below. The concentration of the indicated substances in
water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving
WKHV\VWHPDVVSHFLILHGLQ16)$16,DQG3
;:)(6\VWHPLVFHUWLILHGE\,$302
57DJDLQVW16)$16,6WDQGDUGV
53, 401, and P473 for the reduction of
claims specified on the performance
data sheet and at iapmort.org.
49-1000472 Rev. 1 51
REGULATORY INFORMATION
FCC/IC Compliance Statement:
7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV7KLVGHYLFHFRQWDLQVOLFHQVHH[HPSWWUDQVPLWWHUVUHFHLYHUV
WKDWFRPSO\ZLWK,QQRYDWLRQ6FLHQFHDQG(FRQRPLF'HYHORSPHQW&DQDGD¶VOLFHQVHH[HPSW566V2SHUDWLRQLV
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
RIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQD
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
WKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLVHTXLSPHQWGRHVFDXVHKDUPIXO
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
ConnectPlus module only (or similar communication module)
RF Exposure -7KLVGHYLFHLVRQO\DXWKRUL]HGIRUXVHLQDPRELOHDSSOLFDWLRQ$WOHDVWFPRIVHSDUDWLRQGLVWDQFH
between the ConnectPlus device and the user’s body must be maintained at all times.
GE WiFi Connect Optional*
You refrigerator is GE WiFi Connect compatible using the GE ConnectPlus module. To connect this appliance to
the internet you will need to attach the module to your appliance through the communication port in the appliance.
The GE ConnectPlus will allow your appliance to communicate with your smart phone for remote appliance
monitoring, control and notifications. Please visit GEAppliances.com/connect to learn more about connected
appliance features, to learn what connected appliance App’s will work with your Smart Phone and to learn where you
can purchase a GE ConnectPlus.**
Plug the ConnectPlus module into the RJ45 port located on the backside of the top refrigerator control cover. No
need to remove the cover.
:L)L&RQQHFWLYLW\)RUDVVLVWDQFHZLWKWKHDSSOLDQFHRUWKHConnectPlus network connectivity (for models that are
:L)LHQDEOHGRU:L)LRSWLRQDOSOHDVHFDOO1-800-220-6899.
*Select Models Only )RU86867HUULWRULHVDQG&DQDGD2QO\
Appliance Communication (on some models)
RJ45 Port
APPLIANCE COMMUNICATION
52 49-1000472 Rev. 1
Printed in United States
Consumer Support
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year!
You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for
\RXUFRQYHQLHQFH,QWKH86GEAppliances.com ,Q&DQDGDGEAppliances.ca
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and
prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card
included in the packing material.
,QWKH86GEAppliances.com/register
,Q&DQDGDProdsupport.mabe.ca/crm/Products/ProductRegistration.aspx
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your
FRQYHQLHQFHDQ\GD\RIWKH\HDU,QWKH86GEAppliances.com/service or call 800.432.2737 during normal business hours.
,Q&DQDGDGEAppliances.ca/en/support/service-request or call 800.561.3344
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still
LQHIIHFW<RXFDQSXUFKDVHLWRQOLQHDQ\WLPH*($SSOLDQFHV6HUYLFHVZLOOVWLOOEHWKHUHDIWHU\RXUZDUUDQW\H[SLUHV,QWKH86
GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.
,Q&DQDGDGEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842
Parts and Accessories
,QGLYLGXDOVTXDOLILHGWRVHUYLFHWKHLURZQDSSOLDQFHVFDQKDYHSDUWVRUDFFHVVRULHVVHQWGLUHFWO\WRWKHLUKRPHV
9,6$0DVWHU&DUGDQG'LVFRYHUFDUGVDUHDFFHSWHG2UGHURQOLQHWRGD\KRXUVHYHU\GD\
,QWKH86GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should
be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe
operation.
&XVWRPHUVLQ&DQDGDVKRXOGFRQVXOWWKH\HOORZSDJHVIRUWKHQHDUHVWDXWKRUL]HG*($SSOLDQFHVVHUYLFHSDUWVGLVWULEXWRUYLVLWRXU
website at GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616.
Contact Us
,I\RXDUHQRWVDWLVILHGZLWKWKHVHUYLFH\RXUHFHLYHIURP*($SSOLDQFHVFRQWDFWXVRQRXU:HEVLWHZLWKDOOWKHGHWDLOVLQFOXGLQJ
your phone number, or write to:
,QWKH86*HQHUDO0DQDJHU&XVWRPHU5HODWLRQV_*($SSOLDQFHV$SSOLDQFH3DUN_/RXLVYLOOH.<
GEAppliances.com/contact
,Q&DQDGD'LUHFWRU&RQVXPHU5HODWLRQV0&&RPPHUFLDO,QF_6XLWH)DFWRU\/DQH_0RQFWRQ1%(&0
GEAppliances.ca/en/contact-us
CONSUMER SUPPORT
