American Outdoor Grill 36PBT00SP 36 Inch Stainless Steel User Manual

IMPORTANT:

READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.

DANGER:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open ﬂame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your

gas supplier or the ﬁre department.

WARNING:

1. Do not store or use gasoline or other

ﬂammable vapors and liquids in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use

shall not be stored in the vicinity of this

or any other appliance.

CODE AND SUPPLY REQUIREMENTS: This

grill must be installed in accordance with local

codes and ordinances, or, in the absence of local

codes, with the latest National Fuel Gas Code

(ANSI Z223.1/NFPA 54), or Natural Gas and

Propane Storage and Handling Installation Code

(CSA-B149.1).

This appliance and its dedicated manual shutoff

valve must be disconnected from the gas-supply

piping system when testing the system at pressures

in excess of ½ psig (3.5 kPa).

This appliance must be isolated from the gas-

supply piping system by closing its dedicated

manual shutoff valve during any pressure testing

of the gas-supply system at pressures up to and

including ½ psig (3.5 kPa).

All electrical outlets in the vicinity of the grill must be

properly grounded in accordance with local codes,

or, in the absence of local codes, with the National

Electrical Code, ANSI/NFPA 70, or the Canadian

Electrical Code, CSA C22.1, whichever is applicable.

Keep all electrical-supply cords and fuel-supply

hoses away from any heated surface.

INSTALLER: Leave these instructions with consumer.

CONSUMER: Retain for future reference.

WARNING:

Improper installation, adjustment, alteration,

service, or maintenance can cause injury

or property damage. For proper installation,

refer to the installation instructions. For

assistance or additional information, consult

a qualiﬁed professional service technician,

service agency, or the gas supplier.

Proper operation of your grill

requires prompt and periodic

maintenance. See the SERVICING

AND CLEANING section for details.

Certiﬁed to: ANSI Z21.58

CSA 1.6

INSTALLATION AND

OWNER’S MANUAL

American Outdoor Grill • PO Box 4053 • La Puente, CA 91747

WARNINGS AND SAFETY CODES

BUILT-IN OUTDOOR GAS GRILLS

GETTING STARTED

REV 4 - 1904110720

L-C2-441

24, 30, & 36 "T" Series

IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION OU L’UTILISATION

GRIL EXTÉRIEUR DE GAZ DU BUILT-IN

DANGER:

SI VOUS SENTEZ LE GAZ :

1. Coupez le gaz à l’appareil.

2. Éteignez-vous n’importe quelle ﬂamme nue.

3. Ouvrez le couvercle.

4. Si l’odeur continue, gardez loin de

l’appareil et appelez immédiatement

votre département de fournisseur ou de

feu de gaz.

AVERTISSEMENT:

1. Ne stockez pas ou n’employez pas

l’essence ou d’autres vapeurs et liquides

inﬂammables à proximité de ceci ou

d’aucun autre appareil.

2. Un cylindre de propane non relié pour

l’usage ne sera pas stocké à proximité

de ceci ou d’aucun autre appareil.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce gril doit être installé selon des codes et des ordonnances

locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre

le plus défunt Code national de gaz de carburant (norme ANSI

Z223.1/NFPA 54), et Stockage de gaz naturel et de propane

et manipulation du code d’installation (CSA-B149.1).

Cet appareil et ses différents robinets d’isolement doivent être

démontés du gaz-fournissent le système sifﬂant en examinant

le système aux pressions au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans gaz-fournissent le système

sifant par fermeture que ses différents robinets d’isolement

manuels pendant tous les essais sous pression du gaz-

fournissent le système aux pressions jusques et y compris

le ½ psig (kPa 3.5).

Toutes les sorties électriques à proximité du gril doivent être

correctement fondues selon des codes locaux, ou en l’absence

de local code, avec le code électrique national, ANSI/NFPA

70, ou le code électrique canadien, CSA C22.1, celui qui est

applicable.

Maintenez tout électrique-fournissent des cordes et carburant-

fournissent des tuyaux partis de n’importe quelle surface de

chauffage.

INSTALLATEUR : Laissez ces instructions avec le consommateur.

CONSOMMATEUR : Maintenez pour la future référence.

AVERTISSEMENT:

L’installation inexacte, l’ajustement, le

changement, le service, ou l’entretien

peuvent causer des dommages ou des

dégats matériels. Référez-vous à ce manuel.

Pour de l'aide ou des renseignements

supplémentaires, consultez un technicien

professionnel qualifié de service, une

agence de service ou le fournisseur de gaz.

• Ce gril est pour ultilisation à l’extérieur seulement.

Si l’appareil est entreposé à l’intérieur, enlever les

bouteilles et les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.

le laisser refroidir avant de le déplacer ou de la ranger.

Le non respect de cette mesure de sécurité pourrait

entraîner un incendie causant des dommages à la

propriété, des blessures ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non

respect de cette mesure de sécurité pourrait entraîner

un incendie ou des blessures.

• Dégagement minimal entre les parois latérales et l’arriére

de l’appareil et la construction combustible (45.7 cm à

partir des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil

de cuisson à gaz pour l’extérieur doit être utilisé. Ce

régulateur est réglé pour une pression de sortie de 5

pouces de colonne de l’eau pour le gaz naturel, et 10

pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ

POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE

CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS

GRAND QUE (LIVRES PAR POUCE CARRÉ), UN

RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ

AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS

D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE

D’OFFRE DE GAZ.

• Ne couvrez jamais la surface entière de cuisine ou de

gril de gauffreuses ou de casseroles. La surchauffe se

produira et les brûleurs ne seront pas très performants

quand la chaleur de combustion est emprisonnée au-

dessous de la surface à cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,

comme ceci peut endommager des composants de

porcelaine ou de fer de fonte.

• Une fuite de GPL peut causer une incendie ou une

explosion si enflammée entraînant des blessures

corporelles graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les

réparations ou pour disposer de qules bouteille ou du

GPL non utilisé.

Certiﬁé à la norme: ANSI Z21.58 / CSA 1.6

SÛRETÉ ET CODES D’AVERTISSEMENT

INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE

REV 4 - 1904110720

L-C2-441

TABLE OF CONTENTS

REV 4 - 1904110720

L-C2-441

GETTING STARTED

WARNINGS AND SAFETY CODES ��1

INSTALLATION, OPERATION, AND

SAFETY INFORMATION ��4

GAS SAFETY INFORMATION ��5

WARNING �� 5

WHEN USING PROPANE GAS �� 5

WHEN USING NATURAL GAS �� 5

INSTALLATION SAFETY GUIDELINES ��5

OPERATING THE UNIT SAFELY AND CORRECTLY �� 5

SAFE USE & MAINTENANCE OF PROPANE

GAS CYLINDERS �� 7

GRILL ENCLOSURE / VENTILATION

REQUIREMENTS ��

VENTILATION (ALL ENCLOSURES)�� 8

WHEN A PROPANE (L.P.) CYLINDER IS USED

IN THE ENCLOSURE

�� 9

INSTALLATION REQUIREMENTS ��10

OVERHEAD CONSTRUCTION AND

EXHAUST HOOD REQUIREMENTS

��10

SIDE AND REAR WALL CLEARANCES ��11

BACKSPLASH CLEARANCE (if applicable) �� 11

COMBUSTION AIR AND COOLING AIRFLOW ��12

GAS-SUPPLY PLUMBING REQUIREMENTS ��12

MODEL SPECIFICATIONS ��13

COUNTERTOP OVERHANG ��14

ENCLOSURE VENTILATION ��14

SUBSTRATE ��15

AOG GRILL REPLACEMENT PARTS LIST �� 16

INSTALLATION

INSTALLATION �� 19

COUNTER PREPARATION �� 19

CONNECT THE GAS SUPPLY �� 19

INSTALL THE VAPORIZER PANELS�� 20

INSTALL THE COOKING GRIDS �� 21

INSTALL THE DRIP TRAY �� 21

USE, CARE, & SERVICE

IDENTIFICATION OF GRILL CONTROLS �� 22

USING THE GRILL �� 23

LIGHTING (IGNITION) INSTRUCTIONS �� 25

ELECTRONIC LIGHTING �� 25

MANUAL LIGHTING�� 25

SHUTTING OFF THE UNIT �� 25

ROTISSERIE INSTRUCTIONS (IF EQUIPPED) �� 26

SERVICING AND CLEANING �� 27

CLEANING YOUR GRILL �� 27

CONVERT GAS TYPE / CHECK BURNER ORIFICES �� 29

BURNER AIR SHUTTER ADJUSTMENT �� 31

VALVE "LOW" SETTING ADJUSTMENT �� 32

BURNER REMOVAL�� 33

CONTROL PANEL REMOVAL �� 34

TROUBLESHOOTING �� 35

WARRANTY �� 36

COMMONWEALTH OF MASSACHUSETTS

REQUIREMENTS

�� 36

1. The outdoor appliance and surrounding area MUST

remain clear of ﬂammable substances such as gasoline,

yard debris, wood, etc. Maintain a minimum horizontal

clearance of 18" (in all directions) from combustible

materials/items.

2. Do not block the 1" front air inlet along the bottom of

the control panel. See the COMBUSTION AIR AND

COOLING AIRFLOW section under INSTALLATION

REQUIREMENTS for details.

3. This unit must be installed so that the required

vent openings and surrounding area of the unit

enclosure remain clear and free at all times.

See the GRILL ENCLOSURE/VENTILATION

REQUIREMENTS section for details.

4. When using propane gas: the propane cylinder,

regulator, and rubber hose must be in a location

not subject to temperatures above 125° F (51° C).

5. The back burner cover (if equipped) must be removed

before using the burner.

6. The ﬂames on each burner burn evenly along the

entire burner with a steady ﬂame (mostly blue). If

burner ﬂames are not normal, check and clean the

oriﬁce and burner/venturi tubes for insects and insect

nests. A clogged tube can lead to a ﬁre beneath the

unit. A proper ﬂame pattern will ensure safe operation

and optimal performance. Adjust the air shutter as

needed (see AIR SHUTTER ADJUSTMENT section).

7. The in-line gas valve or gas cylinder valve must always

be shut OFF when the unit is not in use.

8. The drip collector holes must be clear and unobstructed.

Excessive grease deposits can result in a grease ﬁre.

9. Wear gloves and use extreme caution whenever

installing and handling this product and its accessories

as certain components have sharp edges that can

cause personal injury.

WARNING: NEVER cover more than 75% of the cooking or grill surface with griddles or pans. Overheating will occur,

and burners will not perform properly when combustion heat is trapped below the cooking surface.

IMPORTANT

IN THE EVENT OF A GREASE FIRE, IMMEDIATELY SHUT OFF THE MAIN GAS VALVE TO THE UNIT. KEEP THE LID

OPEN AND ALLOW THE FIRE TO EXTINGUISH ITSELF. KEEP AT A SAFE DISTANCE. A THOROUGH INSPECTION BY

A QUALIFIED PROFESSIONAL SERVICE TECHNICIAN SHOULD BE CONDUCTED BEFORE FUTURE USE OF YOUR

UNIT. THE SERVICE TECHNICIAN WILL CHECK THE SYSTEM FOR GAS LEAKS AND WILL CHECK ALL ELECTRICAL

WIRING FOR DAMAGE. ALL GAS LEAKS AND WIRING MUST BE REPAIRED PRIOR TO FUTURE USE.

CAUTION: FOR YOUR SAFETY, you must provide openings in the grill enclosure for replacement air

and ventilation (in case of possible leakage from gas connections or propane cylinders).

Failure to do so may result in a ﬁre or explosion causing property damage, bodily injury,

or death. See the GRILL ENCLOSURE / VENTILATION REQUIREMENTS section for details.

The unit serial number tag can be found afﬁxed to the grill body behind the control panel (on an

aluminum tag) and on the underside of the drip tray handle (on a thermal label). It is recommended

that the drip tray ﬁrst be removed and cleaned / emptied of its contents, then turned over to view.

The unit rating label is located inside of the control panel.

INSTALLATION, OPERATION, AND SAFETY INFORMATION

WARNING

This gas appliance, its enclosure, and the propane cylinder enclosure, if any, MUST be plumbed and vented

in accordance with local building and safety codes and should be approved by local code enforcement

ofﬁcials. This appliance MUST be installed and operated according to the information below.

FAILURE TO PROPERLY VENT THE GRILL ENCLOSURE MAY RESULT IN A FIRE OR EXPLOSION CAUSING

PROPERTY DAMAGE, BODILY INJURY, OR DEATH.

A leaking gas connection or valve unintentionally left open will create a hazard.

WHEN USING PROPANE GAS

• Propane gas (also known as L.P. gas) is heavier than air and will accumulate or pool in an inadequately

vented enclosure or recessed area.

• If a pool of propane gas is ignited, an explosion will occur. Adequate venting at the ﬂoor level, or the lowest

point where gas could accumulate, will eliminate this danger.

Refer to the GRILL ENCLOSURE / VENTILATION REQUIREMENTS section.

Observe all local codes.

• DO NOT store a spare propane-gas cylinder under or near the grill enclosure.

WHEN USING NATURAL GAS

• Natural gas is lighter than air and will accumulate at the top of an inadequately vented enclosure.

• If an accumulation of natural gas is ignited, an explosion will occur. Adequate venting at the top of the

enclosure, or the highest point where gas could accumulate, will eliminate this danger.

Refer to the GRILL ENCLOSURE / VENTILATION REQUIREMENTS section.

Observe all local codes.

INSTALLATION SAFETY GUIDELINES

THIS UNIT MUST BE INSTALLED SO THAT THE REQUIRED VENT OPENINGS AND SURROUNDING AREA

OF THE GRILL ENCLOSURE REMAIN CLEAR AND FREE AT ALL TIMES. See the GRILL ENCLOSURE /

VENTILATION REQUIREMENTS section for details.

CAUTION: FOR YOUR SAFETY, you must provide openings in the grill enclosure for replacement air and

ventilation (in case of possible leakage from gas connections or propane cylinders). Failure

to do so may result in a ﬁre or explosion causing property damage, bodily injury, or death.

See the GRILL ENCLOSURE / VENTILATION REQUIREMENTS section for details.

The gas cylinder, regulator, and rubber hose must be in a location not subject to temperatures above

125° F (51° C).

IF A PROPANE CYLINDER IS INSTALLED INSIDE OF THE GRILL ENCLOSURE, THE GUIDELINES FOUND

IN THE GRILL ENCLOSURE / VENTILATION REQUIREMENTS SECTION MUST BE FOLLOWED.

WHEN OPERATING THIS GAS APPLIANCE, ALL INSTRUCTIONS AND WARNINGS

MUST BE OBSERVED. FAILURE TO DO SO MAY RESULT IN A FIRE OR EXPLOSION

CAUSING PROPERTY DAMAGE, BODILY INJURY, OR DEATH.

Every time you use the unit, make sure that:

1. The area around the grill enclosure is clear and free from combustible materials, gasoline and ﬂammable

vapors/liquids.

2. There is no blockage of the airﬂow through the vent openings located on the grill enclosure.

3. The hose is inspected (if applicable). See SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS section.

DO NOT store any combustible materials, gasoline, and any other ﬂammable vapors/liquids in the vicinity of the

unit. Provide adequate clearance for servicing and operation.

GAS SAFETY INFORMATION

OPERATING THE UNIT SAFELY AND CORRECTLY

U

L

Fig. 6-1 type coupleur rapide de ﬁl de point culminant d’I

Valve

décompression

QCC

Type 1

Valve

Ajustage de précision

en laiton de ﬁl de

point culminant

Indicateur

de niveau

de liquide

(facultatif)

Écrou de main avec le

ﬁl de point culminant.

Régulateur

Passage

Tuyau

Volant de commande

main dans le sens des aiguilles d’une montre pour engager les

ﬁls et pour serrer jusqu’à ce que douillettement. L’utilisation des

pinces ou de la clé ne devrait pas être nécessaire. Seulement

le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens

contraire des aiguilles d’une montre jusqu’à isolé (ﬁg. 6-1).

Important: Avant d’employer le unité, et ensuite chaque

fois que le cylindre est enlevé et rattaché,

examinez tous les raccordements pour

déceler les fuites. Arrêtez les valves de unité

et ouvrez la valve principale de cylindre, puis

vériﬁez les raccordements avec de l’eau

savonneux. Réparez toutes les fuites avant

d’allumer le unité.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation,

et avant de déplacer le unité et le cylindre, ou

débrancher l’accouplement. Cette valve doit

rester fermée et le cylindre a débranché alors

que l’appareil n’est pas en service, quoique

l’écoulement de gaz soit arrêté par un dispositif

de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois

avant que le gaz soit allumé. Un tuyau ﬁssuré ou efﬁloché doit

être immédiatement remplacé.

Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected

et a enlevé. Des cylindres Disconnected doivent être stockés

dehors, hors de la portée des enfants, avec les prises de valve

ﬁletées étroitement installées, et ne doivent pas être stockés dans

un bâtiment, le garage, ou n'importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES

DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET

CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a

des dommages évidents au cylindre ou à la valve.

b. Ce unité, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane

équipé d’un OPD (remplissez au-dessus du niveau le

dispositif d’empêchement). L’OPD a été exigé sur tous les

cylindres vendus depuis octobre 1.1998 pour empêcher le

remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des

cylindres doivent être construits et marqués selon les

caractéristiques pour des cylindres de gaz de propane du

département des ETATS-UNIS du transport (D.O.T.) ou

le niveau national du Canada, du CAN/CSA-B339, des

cylindres, des sphères et des tubes pour le transport des

marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être

assuré le retrait de vapeur.

e. Le montage du régulateur de pression et le ﬂexible (Fig. 6-1)

fourni avec cet appareil au gaz en plein air (modèles au

propane seulement) doit être utilisé. Assemblées d'origine et

régulateur de pression et le tuyau de remplacement doivent

être ceux spéciﬁés par le fabricant pour le raccordement d'un

dispositif de cylindre de liaison identiﬁée comme de type I

par le ANSI Z 21.58/CGA 1.6 (voir liste des pièces pour les

informations de commande).

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de

cylindre, décrit comme type I dans la norme déﬁnie dans le

e. de paragraphe ci-dessus. Ce dispositif est généralement

décrit comme coupleur rapide de ﬁl de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la

sortie de valve de cylindre toutes les fois que le cylindre

n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de

valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de ﬁl

de point culminant sur la valve de cylindre. Tournez l’écrou de

e. Le régulateur de pression et l’ensemble de tuyau utilisé

doivent assortir les spéciﬁcations pour le type I par ANSI

Z 21.58/CGA 1.6 (voir la ﬁgue. 6-1).

Pour les besoins de ventilation et d'enceinte au propane,

Voir la section GRILL ENCLOSURE / VENTILATION REQUIREMENTS.

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE

U

L

Fig. 7-1 Type I Acme thread quick coupler

Pressure

relief

valve

QCC

Type 1

valve

Brass Acme

thread ﬁtting

Liquid level

indicator

(optional)

Hand nut with Acme

thread

Regulator

Vent

Hose

Hand wheel

The use of pliers or a wrench should not be necessary. Only

cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until

detached (Fig. 7-1).

Important: Before using the unit, and after each time

the cylinder is removed and reattached,

check the hose for wear (see a.) and check

all connections for leaks. Turn off the unit

valves and open the main cylinder valve,

then check connections with soapy water.

Repair any leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit

and cylinder or disconnecting the coupling.

This valve must remain closed and the

cylinder disconnected while the appliance

is not in use, even though the gas ﬂow is

stopped by a safety feature when the coupler

is disconnected.

Carefully inspect the hose assembly each time before the

gas is turned on. A cracked or frayed hose must be replaced

immediately.

If the appliance is stored indoors, the cylinder must be

disconnected and removed. Disconnected cylinders must be

stored outdoors, out of the reach of children, with threaded

valve plugs tightly installed, and must not be stored in a

building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER ﬁll the cylinder beyond 80-percent full.

c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS

INJURY MAY OCCUR.

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if

there is visible damage to either the cylinder or valve. If the

hose is cut or shows excessive abrasion or wear, it must

be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder

equipped with an OPD (Overﬁll Prevention Device).

The OPD has been required on all cylinders sold since

October 1,1998, to prevent overﬁlling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must

be constructed and marked in accordance with the

Speciﬁcations for Propane Gas Cylinders of the U.S.

Department of Transportation (D.O.T.) or the National

Standard of Canada, CAN/CSA-B339, Cylinders,

Spheres, and Tubes for Transportation of Dangerous

Goods.

d. The cylinder used must include a collar to protect the

cylinder valve, and the cylinder supply system must be

arranged for vapor withdrawal.

e. The pressure regulator and hose assembly (Fig. 7-1)

supplied with this outdoor gas appliance (L.P. models

only) must be used. Original and replacement pressure

regulator and hose assemblies must be those speciﬁed by

the manufacturer for connection with a cylinder connecting

device identiﬁed as Type I by the ANSI Z 21.58/CGA 1.6

(see PARTS LIST for ordering information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I

in the standard deﬁned in paragraph e. above. This device

is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the

cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propane-

gas cylinder valve ﬁtting: Press the hand nut on the regulator

over the Acme thread ﬁtting on the cylinder valve. Turn the hand

nut clockwise to engage the threads and tighten until snug.

e. The pressure regulator and hose assembly used must

match the speciﬁcation for Type I by ANSI Z 21.58/CGA

1.6 (see Fig. 7-1).

For propane ventilation and enclosure requirements,

see the GRILL ENCLOSURE / VENTILATION REQUIREMENTS section.

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

AOG GFRC islands are available. They meet all enclosure

and ventilation requirements. For requirements regarding

custom-built enclosures, see below.

VENTILATION (ALL ENCLOSURES)

For All Piping Systems and All Gas Types:

(Natural Gas, Household Propane, L.P. Cylinder)

FOR YOUR SAFETY, you must provide the openings

listed below for replacement air and ventilation of the

grill enclosure (in case of possible leakage from gas

connections or L.P. cylinders). Failure to do so may

result in a ﬁre or explosion causing property damage,

bodily injury, or death.

One side of the enclosure shall be left completely open

to the outside; OR 4 (minimum) ventilation openings

MUST be created (reference Fig. 8-1 and Fig. 8-2):

• Each opening must have a minimum of 10 sq. in.

of free area. The openings must be equally sized.

(Total of 40 sq. in. free area.)

• Two openings must be in the side walls of the

enclosure, at the top level, and spaced at a minimum

of 90 degrees. The openings must begin 1" or less

below the countertop level and end no more than 5"

below the countertop level.

• Two openings must be in the side walls of the

enclosure, at the ﬂoor level, and spaced at a minimum

of 90 degrees. The openings must begin 1" or less

above the ﬂoor level and end no more than 5" above

the ﬂoor level.

• The openings must remain unobstructed:

The clearance between the openings and any items

outside of the enclosure is a minimum of 6". The

clearance between the openings and any items within

the enclosure is a minimum of 2". See Fig. 8-2.

When an L.P. cylinder is used in the enclosure, additional

requirements exist, see the following section.

It is acceptable to use RHP venting panels (PN 5510-01).

Contact your dealer.

KEEP THE REQUIRED VENT OPENINGS AND

SURROUNDING AREA OF THE ENCLOSURE CLEAR

AND FREE AT ALL TIMES.

WARNING: Ventilation openings in side walls shall not

communicate directly with other enclosures

of the outdoor cooking gas appliance.

Fig. 8-1 Ventilation detail

Min.

90˚

Ventilation Requirements:

• Minimum 4 openings

(2 per side wall - spaced at min. 90 degrees)

• Top openings: within 5" of countertop (see below)

• Bottom openings: within 5" of ﬂoor (see below)

• Each vent opening: min. 10 sq. in. of free area

(Total = 40 sq. in. free area)

max.

Keep surrounding

area and vent

openings clear and

free at all times.

max.

Vent openings (4)

10 sq. in. of free

area min. (each)

(Total = 40 sq. in.)

Note: Vent openings example shown. Your design may vary.

• 6" min. clearance between all vent openings

and any items outside of enclosure

• 2" min. clearance between all vent openings

and any items within enclosure

Fig. 8-2 Vent openings clearance

min.

(Side View)

min.

Vent

opening

When installing this unit in a combustible

enclosure, an AOG insulating liner must be used.

Reference Table 1 for liner model #.

GRILL ENCLOSURE / VENTILATION REQUIREMENTS

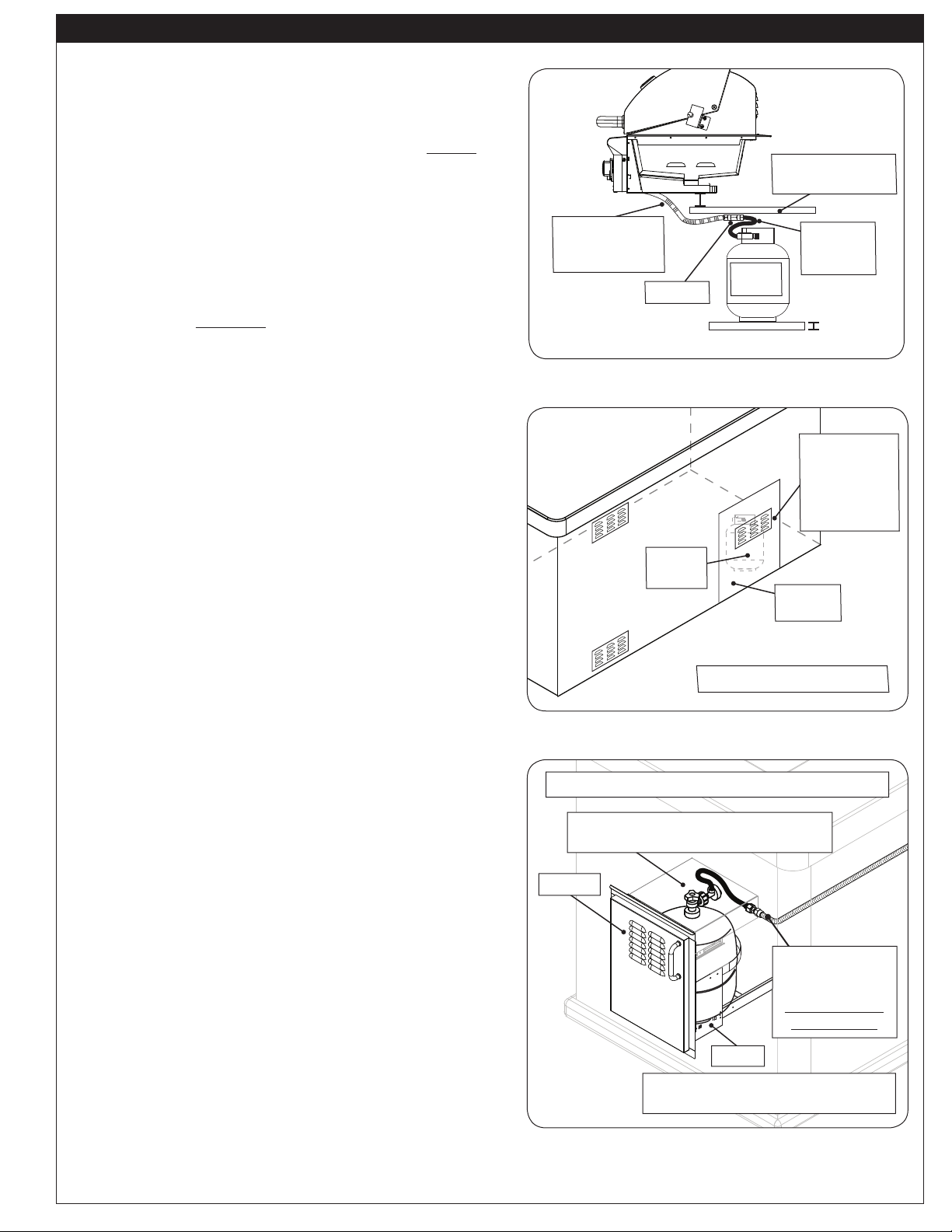

WHEN A PROPANE (L.P.) CYLINDER IS USED IN

THE ENCLOSURE

When a propane (L.P.) cylinder is installed inside of the

enclosure, the additional guidelines below MUST be

followed. FAILURE TO DO SO MAY CAUSE DAMAGE TO

YOUR UNIT AND/OR PERSONAL INJURY. Reference

Fig. 9-1 and 9-2 for an example.

• Only a C.S.A. listed stainless steel connector can be

connected to the unit.

• The regulator/hose assembly coming from the cylinder

can only be connected to the above mentioned ﬂex

connector. DO NOT connect the regulator/hose

assembly directly to the unit. An adapter will be

required.

• A non-combustible heatshield must be installed to

protect the regulator/hose assembly and cylinder valve.

• The cylinder must rest at least 2" above the ground.

• An additional vent opening is recommended in

the access door near the cylinder and at the gas

connection level (minimum 10 sq. in. of free area).

AOG offers an "access door with tank tray and louvers"

which includes a heatshield that rests directly above

the L.P. cylinder, a tray, and louvers to meet the cylinder

install requirements. The door is shown in Fig. 9-3.

Contact your dealer for ordering information.

Fig. 9-3 Optional door w/ tank tray & louvers

Cylinder & regulator/hose assembly

protected by heatshield

Additional adapters may be required

for your setup (not included)

Equipped with

adapter for hose

assembly.

Flex connector

not included.

Fig. 9-2 Additional ventilation opening for L.P. cylinder

RHP DOOR MEETS ALL REQUIREMENTS ABOVE

Access

door

L.P.

cylinder

Ventilation

opening

(at cylinder gas

connection level,

min. 10 sq. in

free area)

(L.P. Cylinder setups only)

Louvers

Tray

Adapter

C.S.A. listed

stainless steel

ﬂex connector

Non-combustible

heatshield

Regulator/

hose

assembly

L.P.

cylinder

3" min.

2" min.

from ground

Fig. 9-1 L.P cylinder orientation

GRILL ENCLOSURE / VENTILATION REQUIREMENTS (Cont.)

Installation must be performed by a qualiﬁed professional

service technician.

This unit is designed for outdoor use only. DO NOT use this

unit inside a building, garage, or enclosed area. DO NOT use

this unit in or on a recreational vehicle or boat.

OVERHEAD CONSTRUCTION AND EXHAUST

HOOD REQUIREMENTS

A minimum 5 foot clearance is required between the countertop

and the overhead construction.

When installed under combustible overhead construction,

the area above the cooking surface of the unit must be

covered with an exhaust hood. The exhaust hood provides

the protection for the combustible overhead construction.

See exhaust hood information below and Fig. 10-1.

Important: DO NOT use this appliance under unprotected

combustible overhead construction.

When installed under overhead non-combustible construction,

an exhaust hood is highly recommended; see exhaust hood

information below and Fig. 10-1.

Exhaust Hood

When using an exhaust hood, the area above the cooking

surface of the grill must be covered with a hood larger than

the cooking area of the grill, and with a minimum of 1200

CFM (cubic feet per minute) for proper outdoor application.

INSTALLATION REQUIREMENTS

Fig. 10-1 Overhead requirements

Min.

OVERHEAD CONSTRUCTION

EXHAUST

HOOD

Combustible overhead

construction:

Exhaust hood required

Non-combustible

overhead construction:

Exhaust hood highly recommended

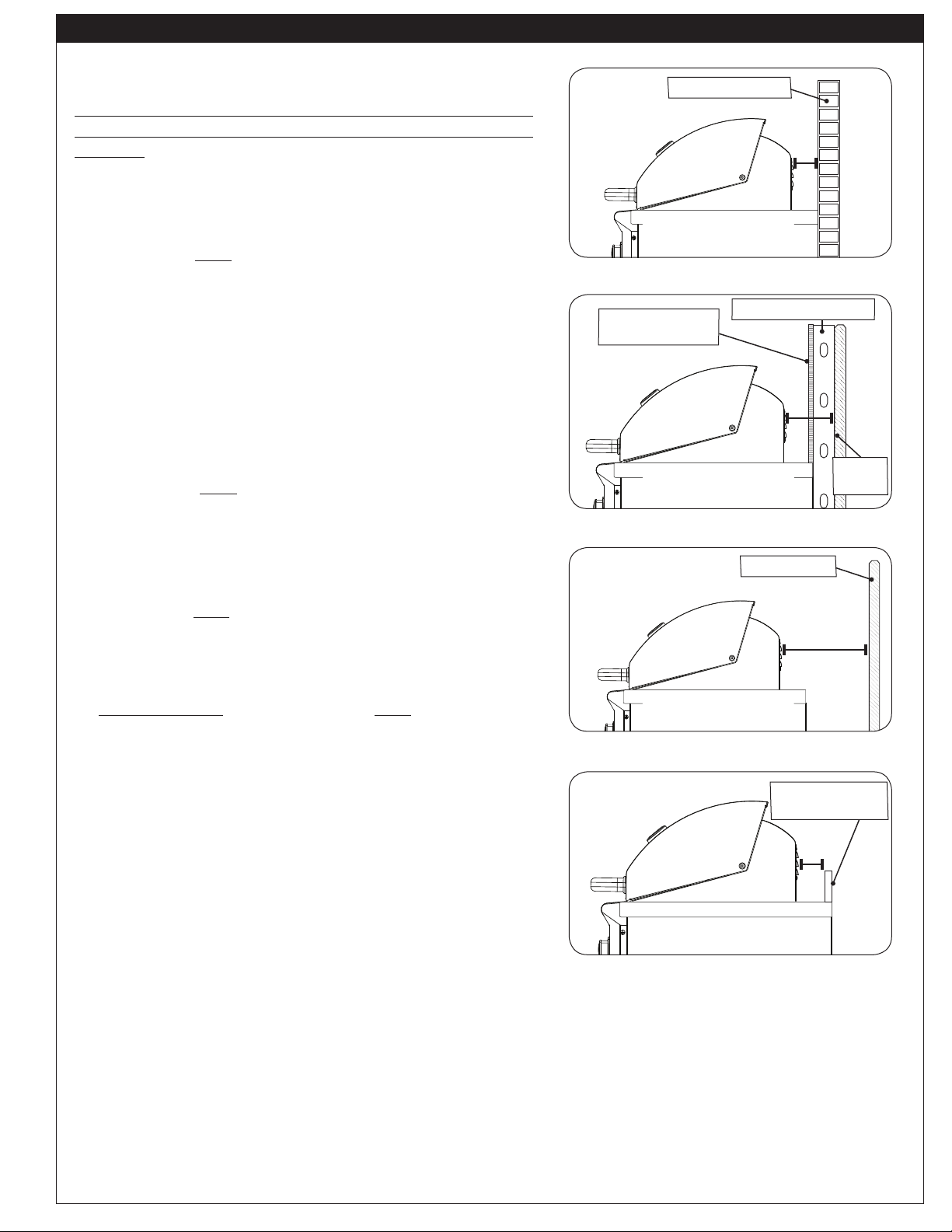

SIDE AND REAR WALL CLEARANCES

For the minimum clearances between the unit and any side

or rear walls, your setup must fall within one (or more) of the

following:

A. Clearance between unit and strictly non-combustible

wall

(i.e. brick wall, see Fig. 11-1)

• The unit must have a minimum of 4" right, left, and rear

clearance from any non-combustible wall.

(To allow for proper ventilation and prevent dangerous

overheating.)

B. Clearance between unit and a protected combustible

wall

(i.e. a non-combustible wall in front of a combustible wall

to serve as a barrier. This can be accomplished by brick,

or a metal stud ﬁnished with non-combustible substrate,

see Fig. 11-2)

• The unit must have a minimum of 14" right, left, and

rear clearance from the protected combustible wall.

(The 4" non-combustible material plus an additional

10" clearance between the unit and protected wall.)

C. Clearance between unit and combustible wall

• The unit must have a minimum of 18" right, left, and rear

clearance from any combustible wall (see Fig. 11-3).

BACKSPLASH CLEARANCE (if applicable)

If a non-combustible backsplash exists, it must have a minimum

of a 4" clearance from the rear of the unit (to allow for proper

ventilation and prevent dangerous overheating). See Fig. 11-4.

Important: This 4" backsplash clearance must ﬁrst be met

prior to any non-combustible walls beginning

behind it.

INSTALLATION REQUIREMENTS (Cont.)

Fig. 11-1 Clearance 'A' Diagram

Fig. 11-2 Clearance 'B' Diagram

Fig. 11-3 Clearance 'C' Diagram

Non-combustible

Min.

14"

Non-combustible

substrate

Non-combustible 4"

Combustible

Min.

18"

(Clearance required for

right, left, and rear)

Fig. 11-4 Backsplash clearance

Non-combustible

Backsplash

Min.

Com-

bustible

(Clearance required for

right, left, and rear)

(Clearance required for

right, left, and rear)

The control panel MUST remain removable for servicing (see

CONTROL PANEL REMOVAL section).

COMBUSTION AIR AND COOLING AIRFLOW

Proper airﬂow (front-to-back, Fig. 12-1) MUST be maintained

for the unit to perform as it was designed. If airﬂow is blocked,

overheating and poor combustion will result. Do not block the

1" front air inlet along the bottom of the control panel.

CAUTION: Wind blowing into or across the rear oven lid

vent (Fig. 12-3) can cause poor performance

and/or dangerous overheating. Install the grill

so that the prevailing wind blows toward the

front of the grill (Fig. 12-2). A wind deﬂector

is available for purchase to assist in proper

airﬂow during windy conditions . See Table

1 for model numbers. Follow the instructions

inlcuded with the wind deﬂector for installation.

GAS-SUPPLY PLUMBING REQUIREMENTS

For natural gas or a household propane system, rigid

" or

" black steel pipe or local code-approved pipe is required

to conduct the gas supply to the unit. Contact your local gas

supplier. Connect this pipe to the required C.S.A.-approved

stainless-steel ﬂex connector (attached). An NPT adapter

has been provided for

" pipe. DO NOT use a rubber hose

within the unit enclosure. Apply only joint compounds that

are resistant to all gasses to all male pipe ﬁttings except ﬂare

ﬁttings. Make sure to tighten every joint securely.

Note: If

" pipe is used with natural gas, it should be

no longer than 20'.

Important: A shut-off valve (not included) in the gas

line is required. It provides for safety when

the unit is not in use and for convenient

maintenance and repair. It must be installed

within 6 feet of the unit. Use a pipe joint

compound resistant to all gasses on all male

ﬁttings except ﬂare ﬁttings.

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" water column (w.c.), minimum

5", maximum 10

". For propane gas - normal 11" w.c.,

minimum 10", maximum 13".

INSTALLATION REQUIREMENTS (Cont.)

CORRECT

PLACE GRILL SO PREVAILING WIND

BLOWS TOWARD FRONT OF GRILL

Fig. 12-2 Airﬂow direction - CORRECT

Fig. 12-1 Airﬂow diagram

YOU MUST PROTECT REAR OVEN VENT FROM

PREVAILING WIND

Rear oven lid vent

INCORRECT

Fig. 12-3 Airﬂow direction - INCORRECT

(1" front air inlet)

Model

Height Width Depth

(Top to bottom) (Left to right) (Front to

back)

Upper hanger to top

(with oven)

Hanger to

hanger

(C)

Control panel

width

(D)

Maximum

depth

(E)

Open

(A)

Closed

(B)

24"

22" 11

" 28" 25" 26

30"

22" 11

" 34" 31" 26

36"

22" 11

" 40

" 37

" 26

Fig. 13-1

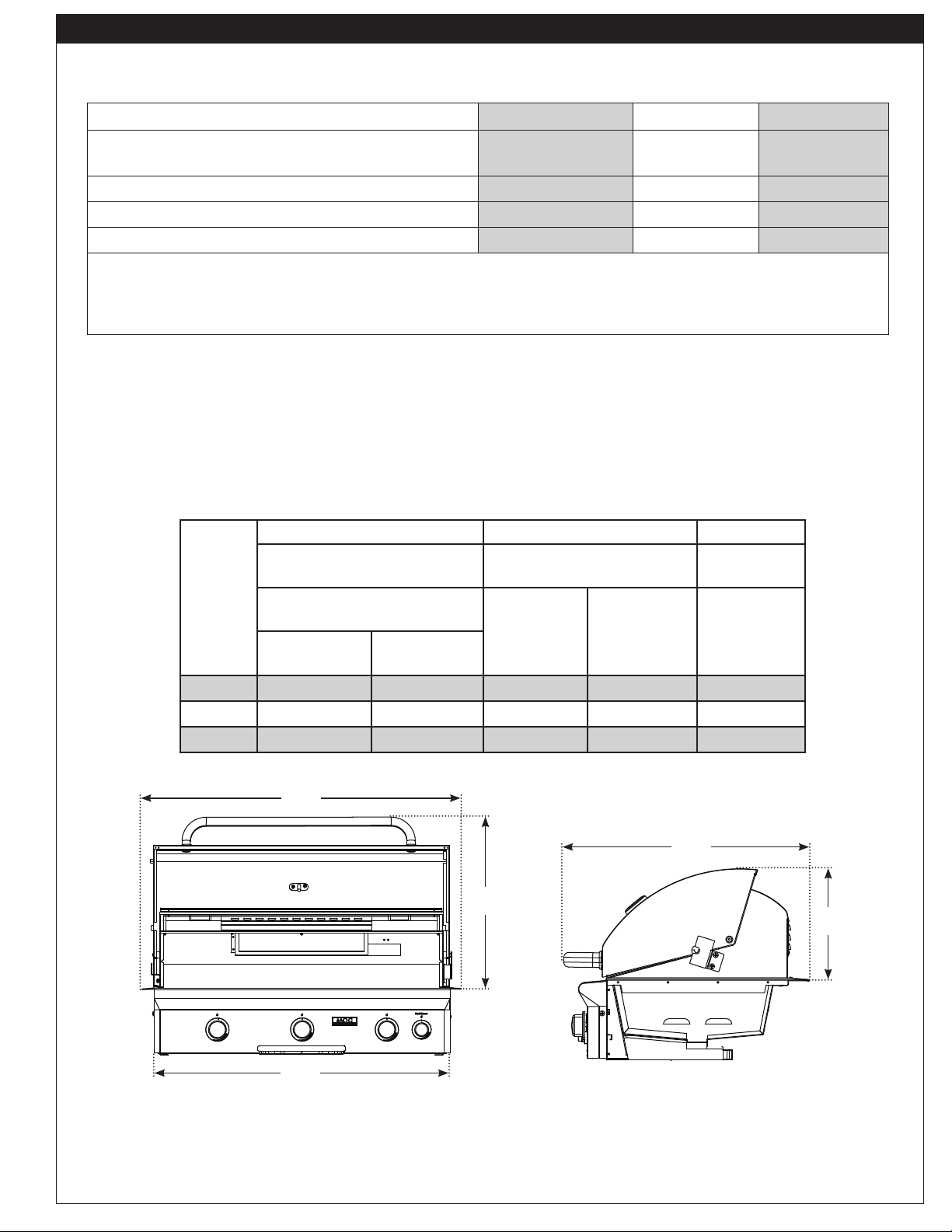

MODEL SPECIFICATIONS

Table 2 - Grill Dimensions

24" 30" 36"

Main burner Quantity

N/P oriﬁce drill size

1.82mm / 1.16mm

#50 / 1.16mm

#49 / #56

Backburner

▲

N/P oriﬁce drill size #53 / #64 #52 / #62 #52 / #62

Insulating liner model # (not included)* 24-IL-C 30-IL-C 36-IL-C

Wind deﬂector model # (not included) 24-B-24 30-B-24A 36-B-24

▲

If equipped

* Note: If installing this grill in a combustible enclosure, the correct AOG insulating liner must be used. Consult liner instructions

for counter cut-out dimensions and installation.

Table 1 - Product Speciﬁcations

COUNTERTOP OVERHANG

The control panel is designed to sit ﬂush against the grill enclosure front wall. If the non-combustible enclosure

countertop extends beyond the front wall, creating a countertop overhang, it must be cut ﬂush with the front wall

for the width of the control panel or a gap will be created exposing the forward portions of the left and right side

grill ﬁre walls. See illustrations above.

ENCLOSURE VENTILATION

FOR YOUR SAFETY, you must provide openings in the grill enclosure for replacement air and ventilation (in

case of possible leakage from gas connections or propane cylinders). Failure to do so may result in a ﬁre or

explosion causing property damage, bodily injury, or death. See the GRILL ENCLOSURE / VENTILATION

REQUIREMENTS section for details.

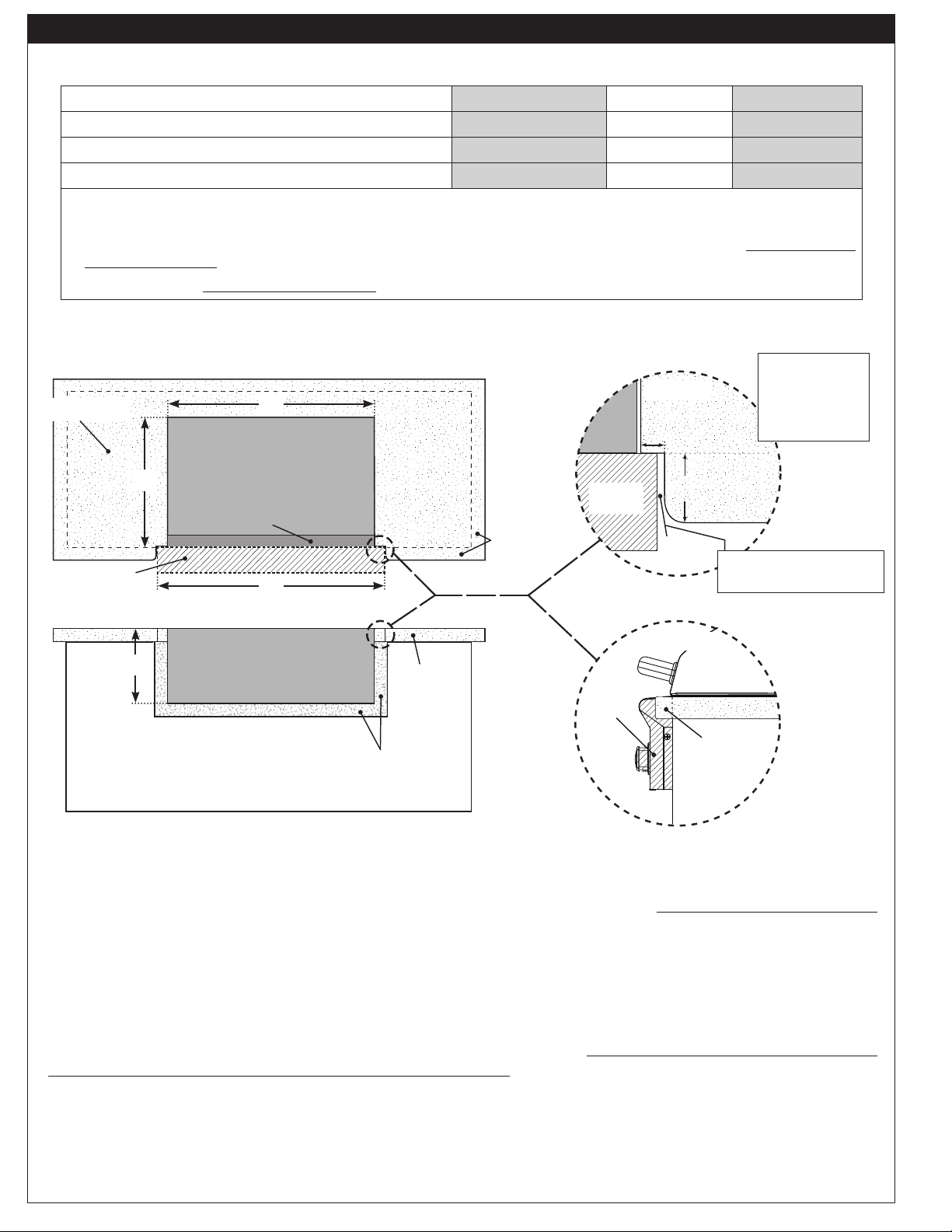

TOP VIEW

Countertop

Lower support

Countertop

overhang

Control panel

NON-COMBUSTIBLE

GRILL ENCLOSURE

CUTOUT DIMENSIONS

Fig. 14-1

FRONT VIEW

See next page

for substrate

considerations

Countertop

overhang

TOP VIEW

SIDE VIEW

Countertop

overhang

(Control

panel)

(Countertop)

Clearance

(Overhang)

Y= Total

Countertop

Overhang

Control

panel

Check clearance for

control panel removal

A Countertop to unit bottom cutout* 8

" 8

B Side to side non-combustible cutout* 24

" 30

" 36

C Front to back non-combustible cutout*† 19

" 19

D Control panel width non-combustible cutout‡ 25

" 31

" 37

* Note: If installing this grill in a combustible enclosure, the correct AOG insulating liner must be used. Consult liner instructions

for counter cutout dimensions and installation.

†

Includes any substrate at front wall of enclosure (in the area the rear of the control panel is to sit ﬂush against). See SUBSTRATE

section on next page.

‡

Only applicable for non-combustible enclosures that have countertops with an overhang (see illustration and section below).

MODEL SPECIFICATIONS (Cont.)

Table 3 - Cutout Dimensions

SUBSTRATE

When adding any substrate to the grill enclosure front wall (including tiles, stone, etc.), consider the following:

Substrate Behind Control Panel

Substrate Alongside Control Panel

Flush

(Control panel)

(Countertop)

(Control panel)

Substrate

(includes tiles,

etc. at front of

enclosure)

Countertop

overhang

(if applicable)

Flush

Grill liner

Substrate

(includes tiles,

etc. at front of

enclosure)

Clearance

Any additional substrate alongside the control panel

does not need to be considered in Dim. C (see previous

page), however a

/4" clearance on each side (same as

overhang) and below is required.

Substrate

countertop "front to back" cutout

must equate to Dim. C (see previous page)

when the substrate sits ﬂush behind the

control panel.

Fig. 15-1 Fig. 15-2

Countertop

overhang

(if applicable)

Clearance

TOP VIEW TOP VIEW

MODEL SPECIFICATIONS (Cont.)

IMPORTANT

This AOG oven and backburner (if equipped)

are fully pre-assembled and tested at the

factory.

DO NOT attempt to remove the oven and

backburner from the barbecue prior to

or during installation or damage to the

connecting gas line and igniter wiring may

occur.

The plastic straps that secure the oven to

the barbecue unit must be removed and

discarded prior to lighting the barbecue.

This note applies for all 3 size (24", 30",

36") models.

Replacement parts can be ordered

from your local AOG dealer.

AOG GRILL REPLACEMENT PARTS LIST

24" Model shown

AOG GRILL REPLACEMENT PARTS LIST (Cont.)

24" 30" 36"

Item Description Part No. Qty. Part No. Qty. Part No. Qty.

Stainless cooking grid (set of 2 or 3) 24-B-11A 1 30-B-11A 1 36-B-11A 1

Vaporizer panel 24-B-05 2 30-B-05 3 36-B-05 3

Main burner 24-B-06 2 24-B-06 3 24-B-06 3

Backburner* 24-B-17A 1 30-B-17A 1 30-B-17A 1

Oven hood thermometer 23305 1 23305 1 23305 1

Oven lid 24-B-25A 1 30-B-25A 1 36-B-25A 1

Warming rack 24-B-02A 1 30-B-02A 1 36-B-02A 1

Drip tray with match holder 3085 1 3085 1 3085 1

Control panel w/ backburner 24-B-26T 1 30-B-26T 1 36-B-26T 1

Control panel w/o backburner ‡ 24-B-27T 1 30-B-27T 1 36-B-27T 1

10.

Valve manifold w/ backburner (nat. gas) 24-B-08T 1 30-B-08T 1 36-B-08T 1

Valve manifold w/ backburner (L.P. gas) 24-B-08TP 1 30-B-08TP 1 36-B-08TP 1

Valve manifold w/o backburner (nat. gas)‡ 24-B-34T 1 30-B-34T 1 36-B-34T 1

Valve manifold w/o backburner (L.P. gas)‡ 24-B-34TP 1 30-B-34TP 1 36-B-34TP 1

11.

Main burner igniter assy only 24-B-04T 2 24-B-04T 3 24-B-04T 3

12.

Main burner valve w/ igniter assy 24-B-51T 2 24-B-51T 3 24-B-51T 3

13.

Backburner valve* 24-B-35T 1 24-B-35T 1 24-B-35T 1

14.

Back burner igniter assy*‡ 24-B-03T 1 24-B-03T 1 24-B-03T 1

15.

Large knob 24-B-37T 2 24-B-37T 3 24-B-37T 3

16.

Small knob* 24-B-38T 1 24-B-38T 1 24-B-38T 1

17.

Convertible regulator ‡ PR-4 1 PR-4 1 PR-4 1

18.

Flex connector w/ ﬁttings ‡

3035 1 3035 1 3035 1

* If equipped

‡

Not shown

24" 30" 36"

Item Description Part No. Qty. Part No. Qty. Part No. Qty.

1. Stainless steel motor 24-B-32 1 24-B-32 1 24-B-32 1

2. Spit prongs (set of 2) 24-B-18 1 24-B-18 1 24-B-18 1

3. Spit rod

" hex 24-B-33 1 30-B-33 1 36-B-33 1

4. Handle knob 24-B-09 1 24-B-09 1 24-B-09 1

AOG GRILL REPLACEMENT PARTS LIST (Cont.)

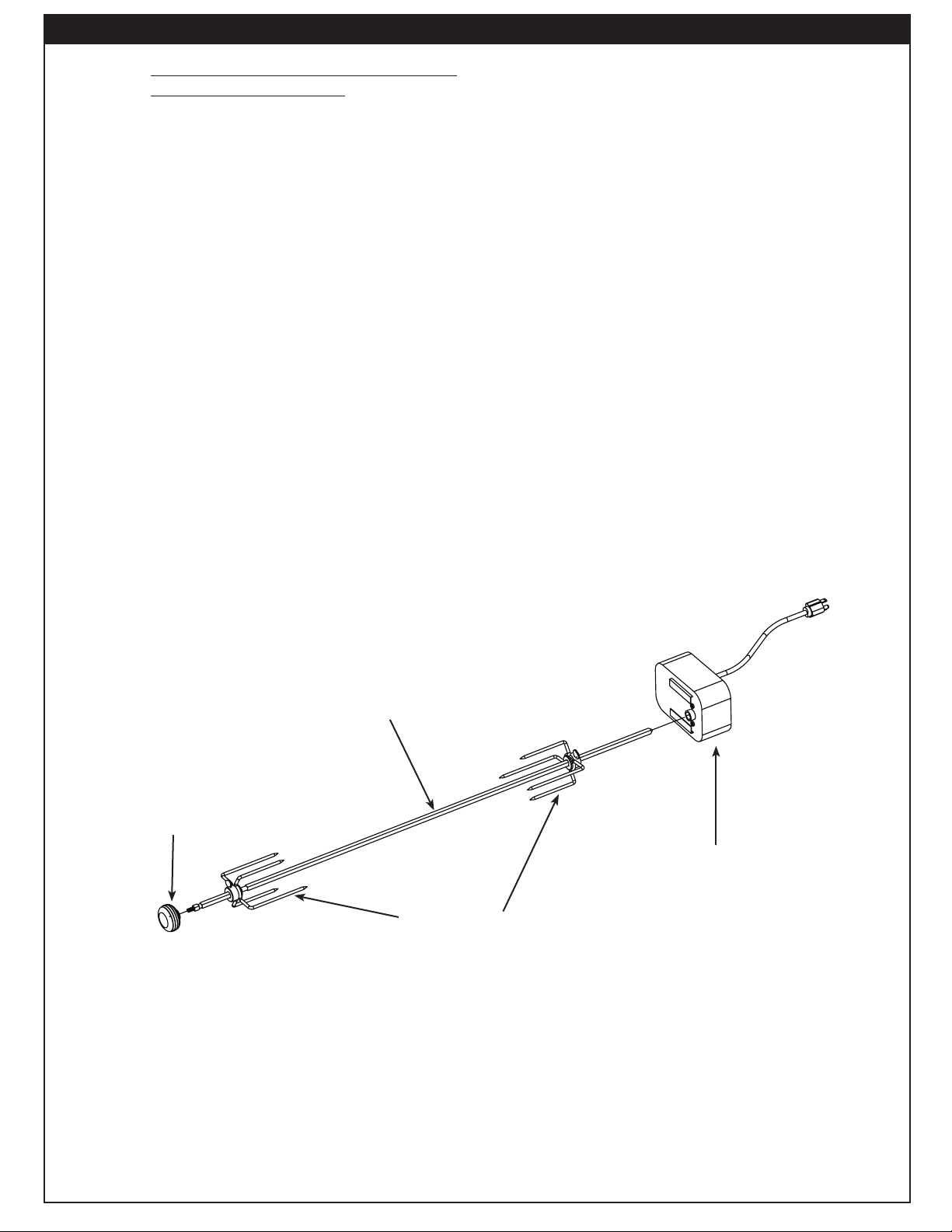

ROTISSERIE KIT (if equipped)

It is not required to remove the control panel or knobs

to install this unit.

DO NOT lift the unit from the control panel when

installing.

COUNTER PREPARATION

Consult Table 3 for non-combustible enclosure cut-out

dimensions. An AOG insulating liner must be used if

any supporting construction is combustible. Consult the

instructions that come with the liner for dimensions and

additional installation information before beginning the

installation.

This outdoor built-in grill must be supported by the

stainless-steel hanger extending from the upper portion

of the grill. The hanger rests on the left, right, and back

of the countertop.

The control panel is designed to sit ﬂush against the

enclosure front wall (see Fig. 19-1). If the non-combustible

countertop extends beyond the front wall, creating a

countertop overhang (see Fig. 19-2), it must be cut ﬂush

with the front wall for the width of the control panel or

a gap will be created exposing the forward portions of

the left and right side grill ﬁre walls. See the MODEL

SPECIFICATIONS section.

CONNECT THE GAS SUPPLY

Always ensure the oriﬁces and regulator are set for

the gas type your unit is to be installed to.

For propane cylinders:

For connecting a propane unit to a portable propane tank,

read the safety warnings and follow the instructions in the

section SAFE USE AND MAINTENANCE OF PROPANE

GAS CYLINDERS.

Note: When a propane cylinder is installed inside

of the enclosure, the guidelines found in

the GRILL ENCLOSURE / VENTILATION

REQUIREMENTS section MUST be followed.

For household propane or natural gas units:

THE ATTACHED FLEX LINE AND REGULATOR MUST

BE PROPERLY ATTACHED TO A RIGID GAS SUPPLY

PIPE . See diagram on next page.

CAUTION: Use only C.S.A. listed stainless-steel ﬂex

connectors within the enclosure.

WARNING

A rubber or plastic connector will rupture or leak,

resulting in an explosion or serious injury if used

inside the appliance enclosure.

GAP CREATED

IDEAL

Flush-mounted

control panel

Proposed cutout

in overhang

Countertop

Overhang

Control panel

stops here

INSTALLATION

CORRECT

INCORRECT

Fig. 19-2 Countertop overhang - incorrect cutout

Fig. 19-1 Countertop overhang - correct cutout

Procedure continued on next page

INSTALLATION

CONNECT THE GAS SUPPLY (cont.)

1. Route the attached ﬂex connector with regulator

(located underneath the grill) to the gas-supply

stub. (An adapter is required if the gas-supply stub

is other than

" in diameter.)

2. Turn OFF the gas supply at the source. Then

connect the regulator to the gas-supply stub. Use

pipe joint compound that is resistant to all gasses

on the male pipe ﬁtting and tighten securely. DO

NOT use pipe joint compound to connect ﬂare

ﬁttings.

Note: The regulator may need to be disconnected

from the ﬂex connector to make the proper

connections. Reconnect the ﬂex to the

regulator if removed.

3. Turn all burner control knobs to the OFF position.

Turn the gas supply on. Then carefully check all gas

connections for leaks with a brush and half-soap/

half-water solution before lighting. Never use a

match or open ﬂame to test for leaks.

4. Close the shut-off valve, then slide the grill into place.

Do not to pinch, kink, or damage the gas connector

line.

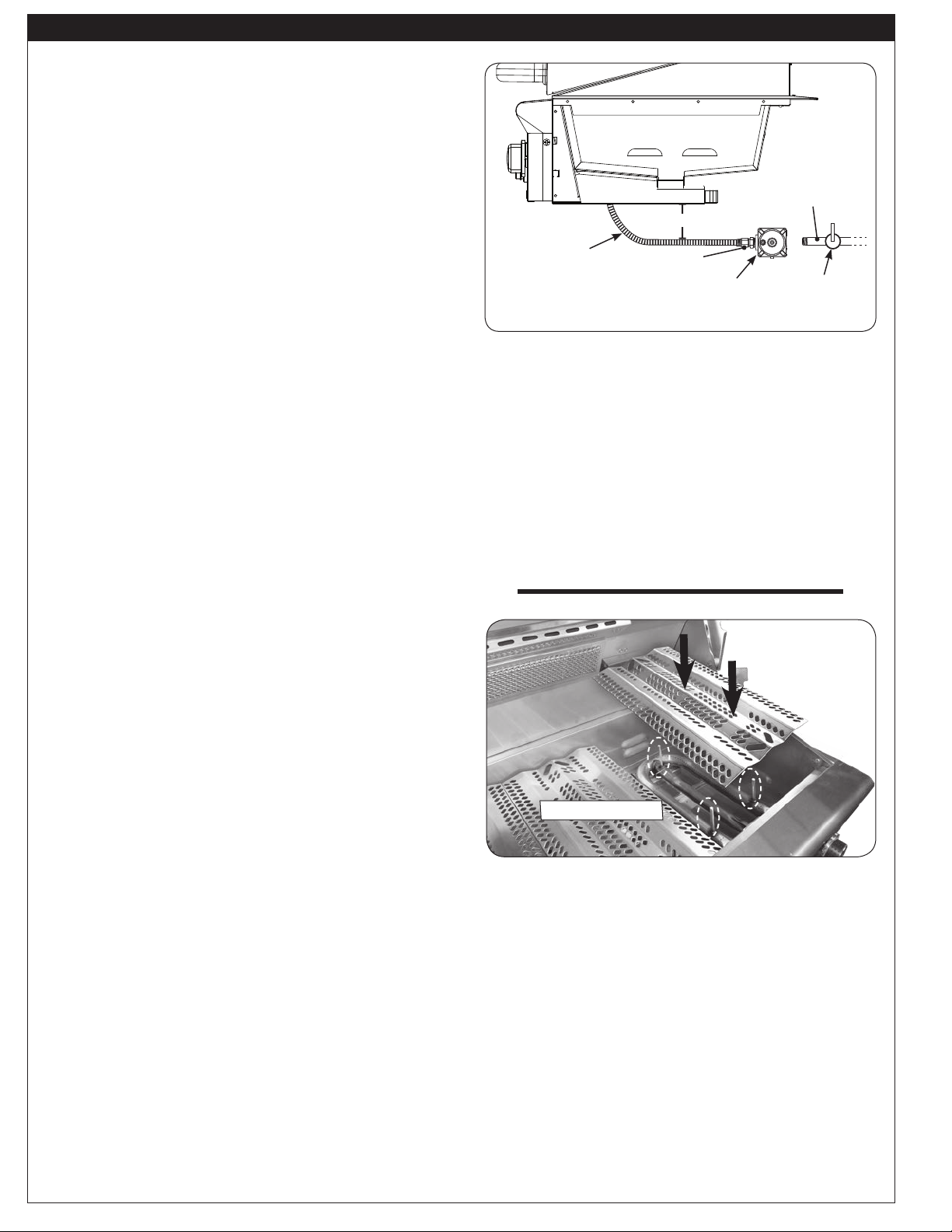

INSTALL THE VAPORIZER PANELS

Place the vaporizer panels directly onto the studs on the

burners. See Fig. 20-2. The panels allow heat from the

burners to be evenly distributed throughout the cooking

area. The panels are stainless steel and will heat and cool

quickly, making your grill very responsive to the changes

you specify in grill temperature. They are rust resistant

and may be cleaned with standard oven cleaners. Some

discoloring will be seen with use. This is normal for

stainless steel and does not affect the function.

Flex connector

Adapter

Regulator

6" Grill clearance

Gas

supply

INSTALLATION (Cont.)

Fig. 20-1 Household propane & natural gas diagram

Shut-off valve

(required, not included,

must be installed within 6

feet of the unit)

Fig. 20-2 Install vaporizer panels

Place onto studs

INSTALLATION (Cont.)

INSTALL THE COOKING GRIDS

Carefully place each cooking grid onto the front and rear

grid rests of the grill. See Fig. 21-1.

INSTALL THE DRIP TRAY

Fully insert the drip tray into the bottom front of the control

panel. See Fig. 21-2.

INSTALL THE WARMING RACK

The warming rack (Fig. 21-3) is packed separately. To

install the warming rack, carefully insert the rack hangers

into the two holes in the back of the inner oven hood,

then lower the front of the rack to a level position.

Note: Removing the warming rack before using the

rotisserie will leave more clearance for the meat

being cooked (if applicable).

Warming

rack

Fig. 21-3 Install warming rack

Fig. 21-1 Install cooking grids

Fig. 21-2 Install drip tray

Left

main burner

control knob

Right

main burner

control knob

Backburner

control knob

(if equipped)

Center main burner

control knob

Control panel

screw(s)

Drip

tray

Left

main burner

control knob

Right

main burner

control knob

Backburner

control knob

(if equipped)

Control panel

screw(s)

Drip

tray

Fig. 22-1 24" model controls

Fig. 22-2 30" and 36" model controls

IDENTIFICATION OF GRILL CONTROLS

USE, CARE, & SERVICE

BEFORE INITIAL USE

Ensure that:

• the unit has been properly installed and leak tested by a qualiﬁed professional service technician and as instructed

in this manual.

• you have read and understand all of the information in this manual.

BEFORE EACH USE

Ensure that:

• you smell around the appliance area for gas. If you smell gas (and all control knobs are in the OFF position),

immediately shut off the gas supply and contact a qualiﬁed professional service technician or the gas supplier

for inspection.

• the required vent openings and surrounding area of the enclosure are clear at all times.

• the cooking area and drip tray are clean, and the drip tray is properly installed.

• you inspect all piping and hoses for damage, cuts, wear, and tear. Replace any damaged components prior to use.

OPERATION

• The unit becomes HOT during use. NEVER touch any part of the cooking area or surrounding hot surfaces

with bare hands. Use long-handled insulated BBQ tools and wear an insulated glove / oven mitt.

• Always keep your face and body as far from the unit as possible during use. Avoid wearing loose-ﬁtting

clothing as they could ignite.

• NEVER use charcoal or any other solid-fuel in the unit.

• NEVER leave the unit unattended during use.

• NEVER cover more than 75% of the cooking or grill surface with griddles or pans to prevent overheating.

After reading and understanding all bullets above, follow these steps to light and use your grill:

1. Light the grill per the LIGHTING INSTRUCTIONS section.

2. Turn the control knobs to the HI-LIGHT position, close the hood, and allow the grill to preheat for 15 minutes or

until desired cooking temperature is reached.

3. Place the food on the grill and cook as desired. Monitor the ﬂames and the temperature, and adjust the heat

setting if necessary.

4. See the sections below and the following pages for all other information regarding use.

WIND CONSIDERATIONS

Proper airﬂow (front-to-back, Fig. 23-1) MUST be maintained for the unit

to perform as it was designed. See the INSTALLATION REQUIREMENTS

section for details.

When using the unit in windy conditions, the wind can disrupt the airﬂow and

cause overheating. To prevent overheating during windy conditions, do not

leave the hood closed with the burners on high for more than 15 minutes.

AFTER EACH USE

1. Brush the cooking grids to remove all residue.

2. Operate on high with hood closed for 10-15 minutes to burn off all grease.

3. Cover the grill once it has completely cooled.

Note: For additional cleaning information, refer to the SERVICING AND CLEANING section.

Fig. 23-1 Airﬂow diagram

USING THE GRILL

ARRÊT DU UNITÉ

Pour couper le unité, diminuez chaque bouton de commande

de valve et tout en pressant tour il dans le sens des aiguilles

d’une montre à la position de repos.

Fermez toujours la valve de la fourniture de gaz après chaque

utilisation du unité.

ÉCLAIRAGE ÉLECTRONIQUE

Note: L’éclairage électronique exige une batterie installée

de 9 volts avec une bonne charge.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

Note: N’ouvrez

pas plus d’une

valve à la fois

pour l’éclairage

électronique ou

manuel.

4. Appuyez sur le bouton de commande souhaité pendant 5

secondes. Assurez-vous que l’allumeur brille (à l’intérieur

du tube d’éclairage), puis tout en appuyant, tournez le

bouton dans le sens inverse des aiguilles d’une montre

jusqu’à la position HI LIGHT. Une fois le brûleur allumé,

relâchez le bouton.

ATTENTION : Si un brûleur ne s’allume pas dans cinq

(5) secondes d’allumer le bouton de

commande, enfoncez le bouton et tournez-

le à la position de repos. ATTENDEZ CINQ

(5) MINUTES avant de répéter l’étape 4. Si

vous sentez le gaz, suivez les instructions

sur la couverture de ce manuel. Si les

brûleurs ne s’allument toujours pas après

que plusieurs tentatives, se rapportent aux

instructions pour l’éclairage manuel.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF

Des réservoirs de propane sont équipés d’un dispositif

d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes

pression de gaz/ﬂamme aux brûleurs si le fonctionnement

et l’allumage des instructions ne sont pas suivis exactement

(voir la note importante dans la section de dépannage pour

plus de détails.)

ÉCLAIRAGE MANUEL

ATTENTION: Attendez toujours cinq (5) minutes le gaz

pour se dégager après que n’importe quelle

tentative non réussie d’éclairage.

1. Suivez les étapes 1 à 3 (à gauche).

2. Passez un allumeur brûlant de butane de long-baril ou

une allumette brûlante de long-tige dans la grille à cuire

s’ouvrant au dessus du tube d’éclairage. (Fig. 24-2). Pour

des backburners, tenez la ﬂamme contre le surface du

backburner. Pour des sideburners, tenez la ﬂamme contre

le brûleur.

3. Vieux match / ﬂamme d’un briquet à la partie supérieure

du tube d’éclairage pendant 5 secondes, ou, à côté de la

brûleur latéral / veilleuse. Puis appuyer sur le bouton de

contrôle approprié et en appuyant tourner dans le sens

antihoraire à la position HI LIGHT. Retirez le briquet ou

des allumettes quand le brûleur s’allume, puis relâchez

le bouton de commande.

4. Si le brûleur ne se allume pas dans les cinq (5)

secondes de tourner le bouton de commande, enfoncez

immédiatement le bouton et tournez la valve à AU LOIN.

ATTENDEZ CINQ (5) MINUTES avant de répéter les

étapes 2 à 4 des instructions manuelles d’éclairage.

Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.

Fig. 24-2 - Éclairage manuel

Plus

léger

Tube

d’éclairage

Fig. 24-1 - bouton de commande

OFF

LIGHT

LOW

TURN OFF

TO TURN ON

Read setting

here

HIGH to

LIGHT

OUTRE DE

SUR

Utilisation

SALUT

(haute)

à la lu-

mière

Lisez l’établissement ici

(OUTRE de montrer)

Enfoncez

le bouton

pour

tourner

ALLUMAGE COMMANDE ECLAIRAGE

Note: N’ouvrez pas plus d’une valve à la fois pour

l’éclairage électronique ou manuel.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

4. Appuyez sur le bouton de commande souhaité et, tout

en appuyant sur cette touche, tournez-le dans le sens

inverse des aiguilles d’une montre jusqu’à la position HI

LIGHT. Une fois le brûleur allumé, relâchez le bouton.

Note: Tourner le bouton crée un «clic» et allume le brûleur.

S’il n’y a pas d’allumage, mettez-le immédiatement

sur OFF et répétez la séquence rapidement jusqu’à

ce que le brûleur s’allume.

ATTENTION : Si un brûleur ne s’allume pas dans deux

ou trois (2-3) secondes suivant la mise

sur le bouton de commande, appuyez

sur le bouton et le tourner vers la position

OFF. ATTENDEZ CINQ (5) MINUTES

avant de répéter l’étape 4. Si vous sentez

le gaz, suivez les instructions sur la

couverture de ce manuel. Si les brûleurs

ne s’allument toujours pas après que

plusieurs tentatives, se rapportent aux

instructions pour l’éclairage manuel.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

2. Insérez soit un brûlant long baril briquet au butane, un

match à longue tige de brûlure, ou une allumette en feu

détenues par un titulaire d’extension de ﬁl (Fig. 24-2) À

travers les grilles de cuisson du brûleur (Fig. 24-3). Pour

backburners, maintenez la ﬂamme contre le matériau

perforé de la veilleuse.

3. Tout en maintenant le match ou ﬂamme d’un briquet

à proximité du brûleur, appuyez sur le bouton de

contrôle approprié et en appuyant son tour dans le sens

antihoraire à la position LIGHT HI. Retirez le briquet ou

des allumettes quand le brûleur s’allume, puis relâchez

le bouton de commande.

4. Si le brûleur ne se allume pas dans les cinq (5)

secondes de tourner le bouton de commande, appuyez

immédiatement sur le bouton et tournez la valve sur

OFF. Attendez cinq (5) minutes avant de répéter les

étapes 2 à 4 des instructions du manuel d’éclairage.

Fig. 24-3 - Éclairage manuel

Fig. 24-2 - Titulaire de match

ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)

SHUTTING OFF THE UNIT

To shut off the unit, depress each valve control knob

and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each

use of the unit.

ELECTRONIC LIGHTING

Note: Electronic lighting requires an installed 9-volt

battery with a good charge.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source.

Note: DO NOT

turn on more

than one valve at

a time for either

electronic or

manual lighting.

4. Depress the desired control knob for 5 seconds.

Ensure the igniter is glowing (inside of lighting tube),

then, while pressing turn the knob counterclockwise

to the HI LIGHT position. Once the burner lights,

release the knob.

CAUTION: If a burner does not light within ﬁve (5)

seconds of turning on the control knob,

depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES

before repeating step 4. If you smell

gas, follow the instructions on the cover

of this manual. If the burners still do not

light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

WHEN USING A PORTABLE PROPANE TANK

Propane tanks are equipped with a safety shutdown

device that may cause low or no gas pressure/ﬂame

at the burners if operating and lighting instructions

are not followed exactly (See important note in the

TROUBLESHOOTING section for more details.)

MANUAL LIGHTING

CAUTION: Always wait ﬁve (5) minutes for gas to

clear after any unsuccessful lighting

attempt.

1. Follow steps 1 through 3 (left).

2. Insert either a burning long-barrel butane lighter or

a burning long-stem match through the cooking grid

opening to the top of the lighting tube (Fig. 25-2). For

backburners, hold the ﬂame against the surface of

the backburner.

For sideburners, hold the ﬂame against the burner.

3. Hold the match / lighter ﬂame at the top of the lighting

tube for 5 seconds, or, next to the sideburner /

backburner. Then depress the appropriate control

knob and while pressing turn it counterclockwise to

the HI LIGHT position. Remove the lighter or match

when the burner lights, and release the control knob.

4. If the burner does not light within ﬁve (5) seconds

of turning the control knob, immediately depress

the knob and turn the valve to OFF. WAIT FIVE

(5) MINUTES before repeating steps 2 through 4 of

the MANUAL LIGHTING instructions.

Read all instructions before lighting, and follow these instructions each time you light the unit.

Fig. 25-2 - Manual lighting

Lighting

tube

Lighter

Fig. 25-1 Control knob

OFF

LIGHT

LOW

TURN OFF

TO TURN ON

Read setting

here

HIGH to

LIGHT

Read setting here

(OFF position shown)

To Turn OFF

To Turn ON

Use

HI (high)

to light

Press

knob in

to turn

SPARK IGNITION LIGHTING

Note: DO NOT turn on more than one valve at a time

for either electronic or manual lighting.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source.

4. Depress the desired control knob, and while pressing

turn it counterclockwise to the HI LIGHT position.

Once the burner lights, release the knob.

Note: Turning the knob will create a “click” sound

and ignite the burner. If there is no ignition,

immediately turn to OFF position and repeat

sequence quickly until the burner ignites.

CAUTION: If a burner does not light within ﬁve (5)

seconds of turning on the control knob,

depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES

before repeating step 4. If you smell

gas, follow the instructions on the cover

of this manual. If the burners still do not

light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

2. Insert either a burning long-barrel butane lighter,

a burning long-stem match, or a burning match

held by a wire extension holder (Fig. 25-2)

through the cooking grids to the burner (Fig. 25-3).

For backburners, hold the flame against the

perforated material of the backburner.

3. While holding the match or lighter ﬂame next to the

burner, depress the appropriate control knob and

while pressing turn it counterclockwise to the HI

LIGHT position. Remove the lighter or match when

the burner lights, and release the control knob.

4. If the burner does not light within ﬁve (5) seconds

of turning the control knob, immediately depress

the knob and turn the valve to OFF. WAIT FIVE

(5) MINUTES before repeating steps 2 through 4 of

the MANUAL LIGHTING instructions.

Fig. 25-2 - Match holder

Fig. 25-3 - Manual lighting

SHUTTING OFF THE UNIT

To shut off the unit, depress each valve control knob

and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each

use of the unit.

LIGHTING (IGNITION) INSTRUCTIONS

ROTISSERIE INSTRUCTIONS (IF EQUIPPED)

Spit rod

Handle

Spit prongs

Stainless

steel motor

CAUTION: WHEN USING THE BACKBURNER;

KEEP THE OVEN LID CLOSED TO

PREVENT HEAT LOSS, PROVIDE

PROPER CONVECTION, AND PROVIDE

PROPER VENTING. THIS WILL ENSURE

EVEN COOKING TEMPERATURES.

DO NOT KEEP YOUR OVEN LID OPEN

DURING ROTISSING, AS THIS MAY

CAUSE PERSONAL INJURY, OR IN

SOME CASES, IN WINDY CONDITIONS,

DAMAGE TO THE GRILL.

DO NOT USE THE ROTISSERIE MOTOR

IN THE RAIN. DO NOT LEAVE THE

MOTOR ON THE GRILL WHEN NOT IN

USE.

1. Remove the warming rack and cooking grids from

the barbecue. The vaporizer panels may also be

removed if required.

Tip: Aluminum foil or a baking pan is recommended

and may be placed over the main burners /

vaporizer panels, a little forward of center, to

catch excess drippings from the meat.

2. Attach the rotisserie motor to the rotisserie

mounting on the right side of your barbecue by

sliding the bracket attached to the motor onto the

tab on the right of the barbecue. The motor should

be installed so that the spit rod will ﬁt into the motor

drive socket from the left.

3. Slide the left spit prong onto the rod (and tighten),

the meat onto the rod and into the prong, followed

by the right spit prong onto the rod and into the

meat. Tighten the right spit prong. Be sure the meat

is centered and balanced as well as possible.

4. Insert the pointed end of the rod into the motor drive

socket and the groove next to the handle into the

left support bracket.

5. Plug in (if necessary) and turn on the rotisserie

motor.

6. Light backburner per lighting instructions in this

manual (or on drip tray handle) and close oven lid.

7. Allow the backburner to preheat for approximately

10 minutes on HI LIGHT setting.

Note: When burning properly, the backburner grating

will glow red. The ﬁrst time it is used the

backburner may smoke a little.

Important: Turn the backburner to low or off

when stopping the rotisserie to prevent

overcooking.

Your grill requires regular cleaning and maintenance. Refer to these instructions for details. Performing these procedures

will ensure proper operation, appearance, and safety.

WARNINGS

• Prior to servicing or cleaning make sure the unit is completely cool, the control knobs are turned to the OFF position,

and the gas supply is shut off.

• Wear appropriate gloves and safety glasses during any servicing or cleaning.

• DO NOT spray any cleaner or liquids on the grill when hot.

• The grill MUST be cleaned regularly to prevent grease build-up and other food deposits. A clean and well maintained

grill prevents the risk of grease build-up and grease ﬁres.

• Verify proper operation after servicing or deep cleaning.

• See INSTALLATION, OPERATION, AND SAFETY INFORMATION section for additional related information.

CLEANING YOUR GRILL

Before Each Use

1. Inspect and clean the exterior surfaces of the unit: With a cool grill, clean any dust, grease, splatter, or spills as needed

with a damp clean cloth.

After Each Use

1. Perform a burn-off and clean the cooking grids: Operate the grill on high with the hood closed for 15 minutes to burn-

off food and grease and allow for an easier cooking grid clean. Then turn OFF the grill and use a grill brush to clean

the cooking grids of all residue. Wear protective gloves and use caution around hot surfaces.

2. Check and clean your drip tray: When the grill is cool, carefully remove the drip tray and dispose of contents appropriately.

Clean tray in a soapy water solution if needed. For tough deposits, a copper pad can be used. Rinse and dry completely.

3. Cover your grill: Once the grill is dry and cool, cover your grill with a vinyl cover.

Twice A Year (or as needed) - Deep Clean

1. Interior of grill: In addition to cleaning the cooking grids and drip tray, a deep clean of the interior of

the grill, burners, and all components MUST be performed twice year (or as needed depending on

use). Refer to the CARE, CLEANING, & MAINTENANCE GUIDE manual provided with your grill, or

simply scan the QR code on the right.

Important: The burner ports and carry-over ports/slots MUST be kept clean to ensure proper ignition

and operation. The guide provides all details on cleaning.

2. Exterior of grill: With a cool grill, use a grill cleaner (or a soapy water solution) and a clean cloth

to remove grease and dirt from the outside of the grill. For tough deposits, a

copper pad can be used. Always wipe with the grain. Rinse and dry completely.

Then follow up with a stainless steel cleaner and a clean cloth. DO NOT use

other cleaners or chemicals.

If this routine cleaning is not performed, the stainless steel may become

dull and develop surface rust (due to use and atmospheric conditions). If left

uncleaned, signiﬁcant damage and pitting may occur.

Important: DO NOT use steel wool, any other metal tools, or any other

cleaners/chemicals to clean the exterior other than recommended

above. Such items promote rust.

Note: Due to the nature of stainless steel, temperatures produced by the grilling process will cause discoloration. This

can be reduced by routine cleaning.

Wipe with grain

Fig. 27-1 Wipe with grain

SERVICING AND CLEANING

For Environments High In Salt, Chloride, Or Other Corrosive Chemicals

When this grill is installed in a corrosive environment such as near the ocean (salt air), poolside (chlorine and/or

pool chemicals) or any other location with exposure to high salt/chloride content or corrosive chemicals/solutions,

it will be more susceptible to corrosion and MUST be maintained/cleaned more frequently.

• DO NOT store any corrosive chemicals (chlorine, hydrochloric acid, fertilizer, etc.) near your stainless steel grill.

• DO NOT allow any corrosive materials (masonry dust, debris, etc.) to settle on your stainless steel grill.

• These environments, chemicals, and materials may cause the 304 stainless steel to develop surface rust and

consequently pitting. Under these conditions the grill exterior MUST be cleaned at least monthly. Inspect your grill

often and clean accordingly.

Protecting Your Grill

An optional vinyl cover will protect your grill when not in use. Install the cover on a cool and dry grill. DO NOT cover a damp

grill. During high humidity or after rainy conditions, remove the cover to dry trapped moisture if present. (If the cover is

installed over a damp grill it can cause surface rust.)

Ensure that the INSIDE of the cover is DRY before putting it back on the grill.

SERVICING AND CLEANING (cont.)

SERVICING AND CLEANING (Cont.)

Convert/Check Main Burner Oriﬁces

Note: It may be necessary to remove the rotisserie

rod before beginning this procedure.

1. Remove the cooking grids and vaporizer panels and

set them aside.

2. Remove the burners (see BURNER REMOVAL

section for step-by-step instructions).

3. Use a

" hex deep socket nut driver to remove the

exposed oriﬁces. Access the oriﬁces through the

holes in the forward ﬁrebox plate inside the grill (see

Fig. 29-2, A). Check oriﬁces. If needed, replace all

with the correct oriﬁces for the new gas.

Alternatively, the oriﬁces can be accessed through

the inside of the control panel if the proper tool is

not available (see Fig. 29-2, B). This allows a

open-end wrench to be used instead of a

" hex

deep socket nut driver. To open the control panel,

see the CONTROL PANEL REMOVAL section.

Procedure continued on next page

Oriﬁce

View from forward

ﬁrebox (inside grill)

Oriﬁce

View from inside of

control panel

Fig. 29-2

Burner

valve

CONVERT GAS TYPE / CHECK BURNER

ORIFICES

CAUTION: Make sure the grill is at a safe temperature

and isolated from gas and electrical

supplies before beginning.

For your safety, exercise caution, and make sure you

have adequate hand protection, such as gloves, when

handling metal parts.

Apply Conversion Label

This grill comes from the factory conﬁgured for one type

of gas as marked on the label behind the control panel.

When the grill is converted, the label for the new gas

(included at original shipping) MUST be ﬁlled out and

applied next to the existing label mentioned above.

Convert Regulator

The gas regulator, located beneath the grill, must be

set for the type of gas used to fuel the grill. To check the

regulator setting, remove the cap in the center of the

regulator (Fig. 29-1, A). Holding the cap vertical (see

Fig. 29-1, B), the letters at the bottom of the plastic stalk

indicate the gas type for which the regulator is currently

conﬁgured.

If the text on the bottom of the regulator stalk does not

match the gas type connected to the grill, remove the

stalk from the cap, invert, and replace into center of cap.

Replace cap on the regulator, screwing down until snug.

Note: Models to be connected to household propane

or natural gas lines require the regulator. For

models to be connected to L.P. cylinders, the

regulator is optional.

Convert Gas Oriﬁces

When converting the grill to a different gas type, each

burner’s oriﬁce must be replaced with the corresponding

oriﬁce for the new gas.

See

MODEL SPECIFICATIONS TABLE, Table 1 to

determine the proper oriﬁce sizes for each burner.

See the following sections for details on oriﬁce

conversion.

Important: It is critical to the operation of each

burner that its oriﬁce be fully inserted

into the center of its oriﬁce opening.

WARNING

HAZARDOUS OVERHEATING WILL OCCUR

IF A NATURAL-GAS ORIFICE IS USED WITH

PROPANE GAS.

Connect To New Gas Supply

Plumb the unit as appropriate for the new gas supply.

(Additional components may be needed for your speciﬁc

setup.) Be sure to leak test at all connections.

Fig. 29-1

A B

Invert if

needed

Gas regulator cap

Read gas

type here

(LP shown)

5. Replace burners (See BURNER REMOVAL section).

Note: It is critical to the continued safe functioning of the burners

that the oriﬁces are centered and completely inside the

burner gas inlets.

5. Replace the vaporizer panels and the cooking grids.

6. If applicable, reinstall the control panel.

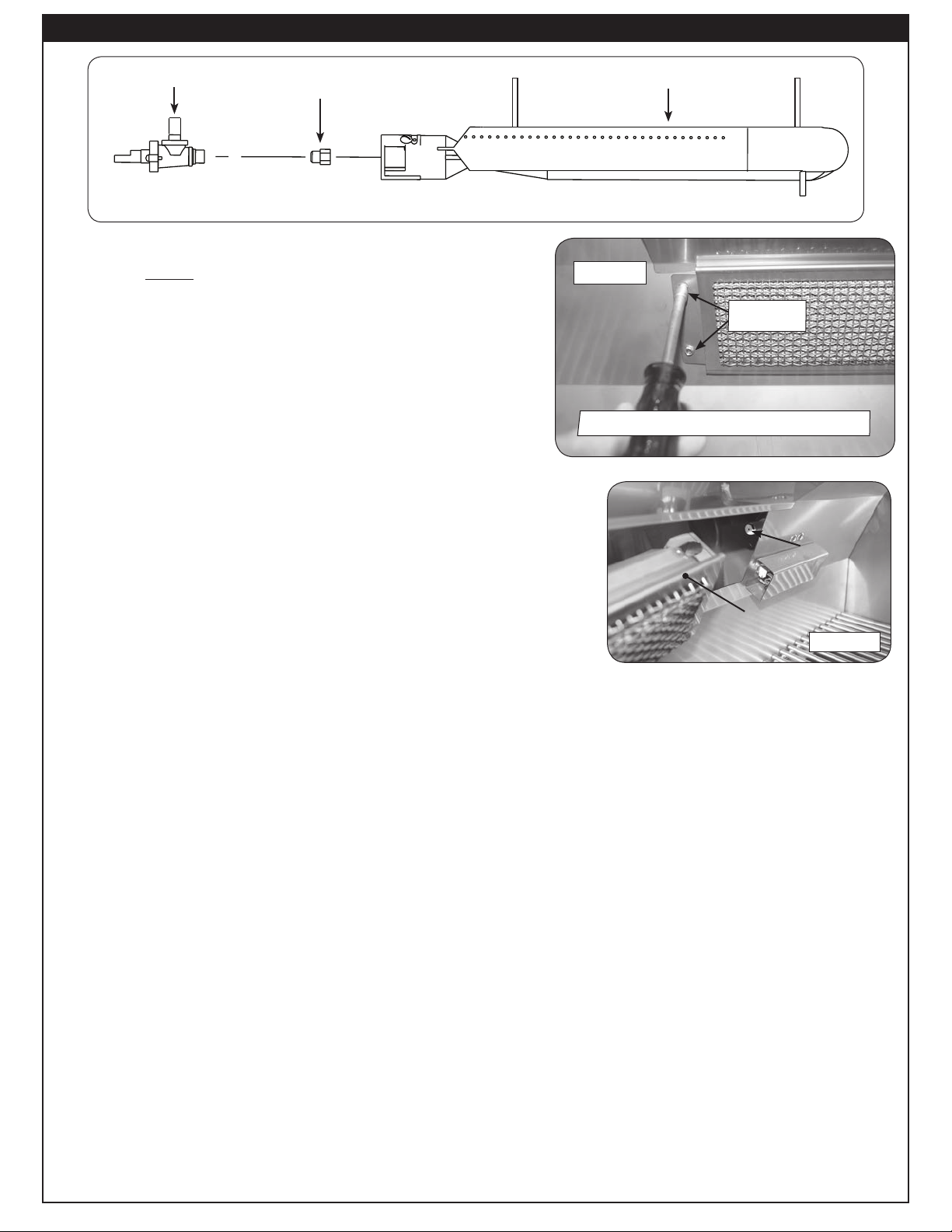

Convert/Check Backburner Oriﬁce (if equipped)

Note: It may be necessary to remove the rotisserie rod before

beginning this procedure.

1. Remove the backburner mounting screws (

" hex) located at

the left end of the backburner assembly (see Fig. 30-2).

2. Carefully pull the left end of the backburner forward until the burner

can be moved to the left pulling it free from the oriﬁce located on the

right side (see Fig. 30-3).

3. Use a

" hex nut driver to remove the exposed oriﬁce. Check oriﬁce.

If needed, replace it with the correct oriﬁce for the new gas.

4. Replace the backburner assembly and the electrode by reversing the

procedure in steps 1. through 2.

Fig. 30-1 - Main burner oriﬁce diagram

Oriﬁce

Burner

Valve

The backburner oriﬁce can be

seen on the right side after

removing the backburner.

Backburner

Oriﬁce

Fig. 30-3

Fig. 30-2

Mounting

screws

Remove backburner mounting screws

SERVICING AND CLEANING (Cont.)

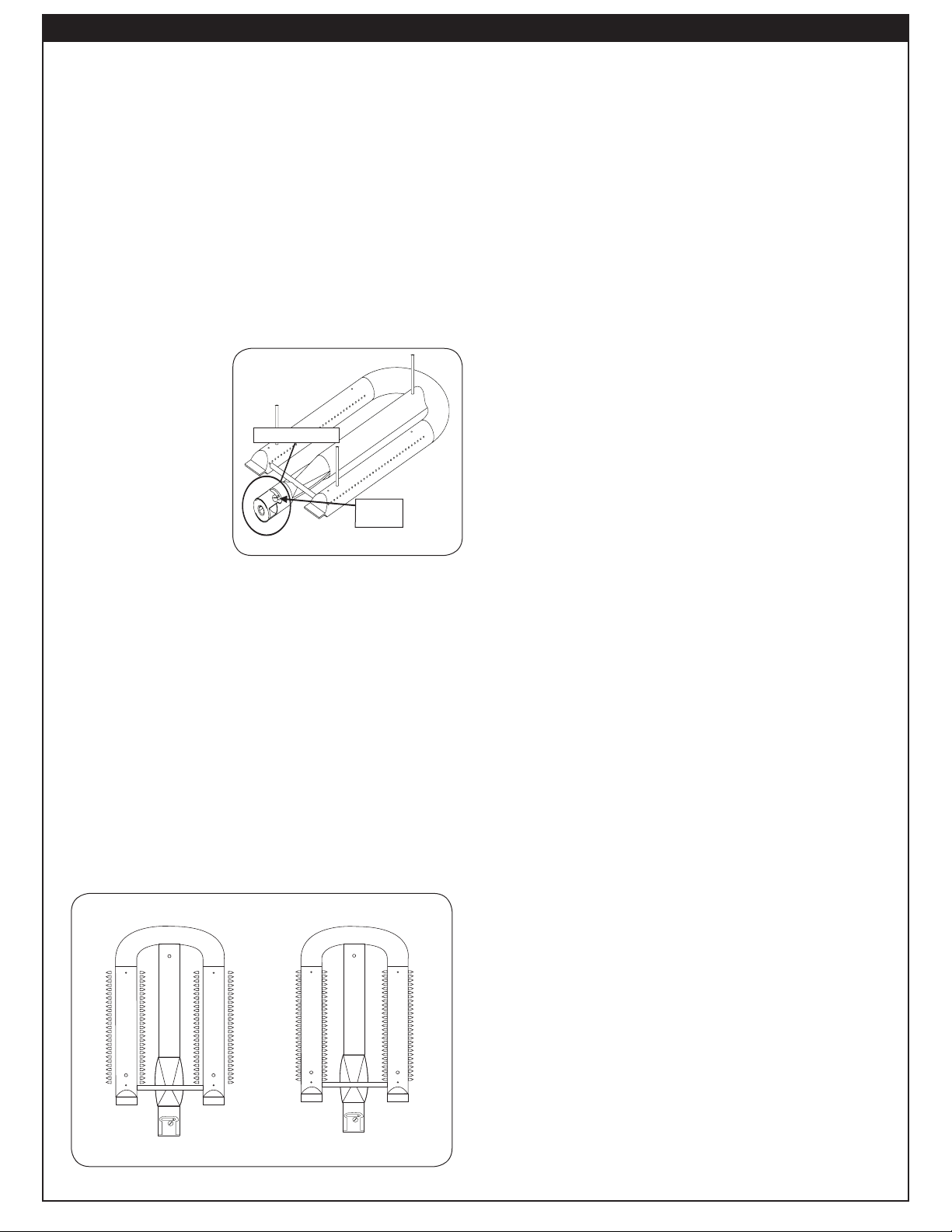

BURNER AIR SHUTTER ADJUSTMENT

Important: This appliance may not light or heat evenly

or cook properly unless the air shutters

are adjusted following installation (see

AIR SHUTTER ADJUSTMENT section).

Burner air shutters are easily accessed by removing the

control panel. See the CONTROL PANEL REMOVAL

section for access.

The air shutters are located on the front portion of each

burner and have a locking screw that prevents the air

shutter from inadvertent movement (see Fig. 31-1).

Remove the cooking grids & vaporizer panels from the grill.

To close or open the

air shutters, simply

loosen the locking

screw, using a long

stemmed Phillips

screwdriver, and turn

the air shutter to open

or close it. Tighten the

screws down when

the desired setting is

achieved.

Main Burner

Light the burner to be adjusted in accordance with the

LIGHTING INSTRUCTIONS and burn for 2 minutes with

the burner control knob set to HIGH and the oven open.

After burning for 2 minutes, open the air shutter until the

ﬂames lift off, or appear not to be touching the burner.

Then begin closing the air shutter until the ﬂames appear

to burn while touching the burner ports (Fig. 31-2). If

ﬂames are a lazy yellow, open the air shutters until the

ﬂame is mostly blue.

Note: Grills in some installations achieve a better

air/gas mixture and will ignite more quickly

if the valve is ﬁrst turned beyond HIGH to

MEDIUM or LOW for lighting.

Fig. 31-1

Locking

screw

Air shutter

Fig. 31-2 - Flame appearance diagram

Flame off ports

Flame on ports

SERVICING AND CLEANING (Cont.)

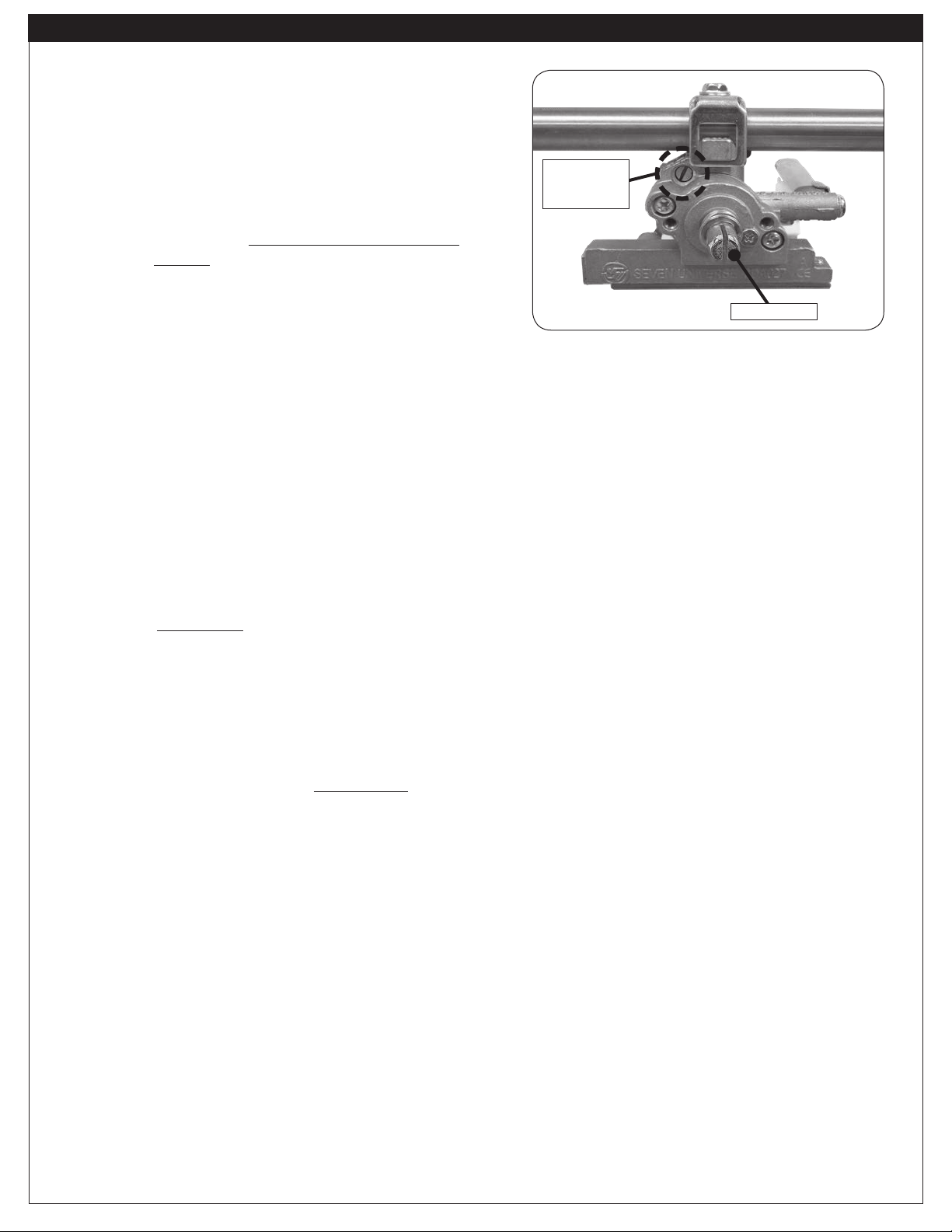

VALVE "LOW" SETTING ADJUSTMENT

Stability of the "low" setting on main burners may vary

due to wind direction, grill conﬁguration, and grill position.

If your burner goes out when set on low, adjust the valve

"low" setting.

Important: The valve "low" setting for the

backburner must remain at the factory

setting. It is recommended to only use

the backburner at a medium to high

setting.

To adjust the valve "low" setting:

1. Ensure the grill is completely cool and the knobs

are in the OFF position.

2. Remove the cooking grids, vaporizer panels, control

knobs and control panel. See the CONTROL PANEL

REMOVAL section for panel removal instructions.

3. Re-install the control knobs on the valve stems with

the control panel removed.

4. Light the burner on HIGH, then immediately turn the

burner to LOW setting. While the burner is lit, remove

the control knob from the valve.

5. Locate the FLATHEAD adjustment screw found above

the valve stem and below the manifold (see Fig. 32-1).

6. Using a flathead screwdriver, slowly turn the

adjustment screw a little at a time (30° to 45°) in either

direction. Adjust the screw as needed until the ﬂame is

approximately

/4" in height from all the burner ports,

and the ﬂames are stable.

CAUTION: Only adjust the FLATHEAD screw.

Adjusting other screws may result in

a dangerous gas leak.

7. Once the appropriate setting is reached, re-install the

control knob and shut off the burner valve.

8. Repeat this procedure for other main burner valves,

if needed.

9. Re-install the control panel, vaporizer panels, and

cooking grids.

Fig. 32-1 Valve adjustment screw location

Valve

adjustment

screw

Valve stem

(Manifold)

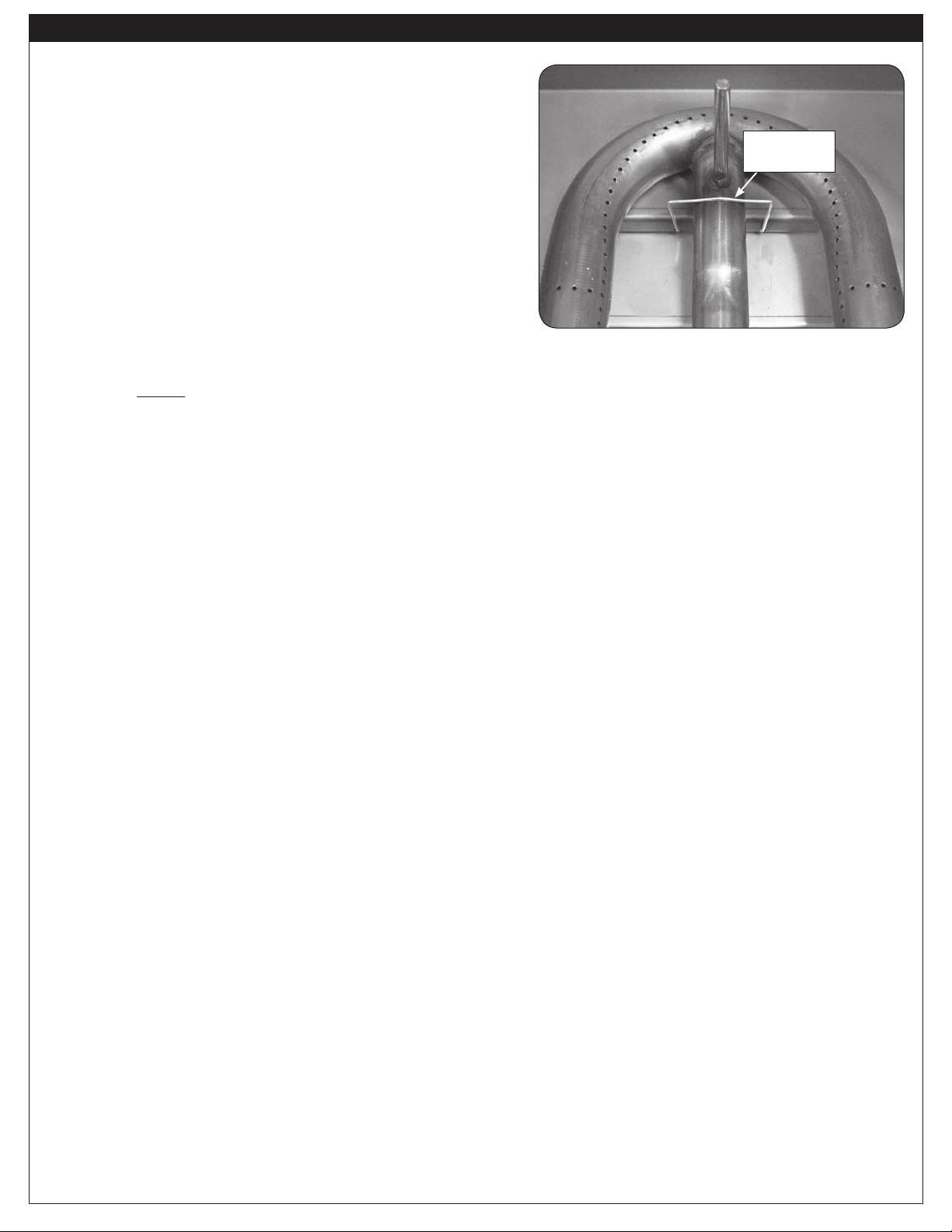

BURNER REMOVAL

1. Remove the cooking grid and vaporizer panel from above

the burner that is to be removed and set them aside.

2. Locate the burner clip (located over the rear center tube

of the burner) and slightly pinch and remove the clip from

the burner support. See Fig. 33-1.

3. Carefully lift the burner from the burner support anchor

peg holes and out from the hole in the forward ﬁre wall.

4. To replace the burner, slide the open cylindrical end of the

burner around the oriﬁce, enveloping it and centering on

it. Then lower the back end anchor pegs into the burner

support anchor peg holes.

Note: It is critical to the continued safe functioning of the burners

that the oriﬁces are centered and completely inside

the burner gas inlets.

5. Re-install the burner clip around the burner and into the

holes in the burner support.

6. Replace the cooking grid and vaporizer panel.

Fig. 33-1 Main burner removal

Remove

burner clip

SERVICING AND CLEANING (Cont.)

CONTROL PANEL REMOVAL

1. Turn the control knobs to the OFF position and turn off the gas supply to the grill.

2. Pull the control knobs from their stems and set them aside (A).

3. Using a Phillips screwdriver, unscrew the control panel fastener screws (located on the sides of the

control panel). Retain the screws for later re-installation (B).

4. Carefully remove the control panel by lifting and pulling the control panel from the frame (C).

Important: During reinstallation; prior to opening the gas shut-off valve, be sure the control knob(s) are in the

OFF position.

CONTROL PANEL REMOVALSERVICING AND CLEANING (Cont.)

If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions

to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or

if you have other technical difﬁculties with the unit, please contact your local dealer.

Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/ﬂame at the

burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank

safety shutoff is in effect: 1) Shut off all grill valves. 2) Shut off tank valve. 3) Open and close a main

burner valve. 4) Open tank valve. 5) Follow the LIGHTING INSTRUCTIONS. Lighting instructions are

located in the owner’s manual and printed on the unit's metal drip tray. If the problem persists, continue

troubleshooting, or contact your local dealer or distributor for assistance.

PROBLEM POSSIBLE CAUSE CORRECTION

Ignition system

failure

Improper air shutter adjustment 1. Adjust air shutters.

2. No spark generated at the valve 2. Retry to light. If ignition failure continues,

contact dealer for valve replacement.

3. Low gas pressure 3. Have the gas co. check supply pressure.

4. Front carry-over port 4. Clean burner ports.

5. Igniter malfunction 5. Contact dealer for replacement.

Insufﬁcient heat /

low ﬂame

Burner ports clogged

2. Improper air-shutter adjustment

1. Remove burners and clean out ports.

2. Adjust air shutters.

3. Using propane oriﬁce for natural gas 3. Check/change oriﬁces.

4. Low gas pressure/ﬂame (propane) 4. Reﬁll propane tank, or reset propane

tank safety*: Shut off all valves

(including propane tank) and follow

lighting instructions exactly.

5. Low gas pressure/ﬂame (natural) 5. Have a qualiﬁed professional service

technician check for proper gas supply,

setup, and pressure.

6. L.P. regulator hose cracked due to age 6. Replace L.P. regulator hose.

Uneven heating

Burner ports partially blocked by debris 1. Remove burners and clean out ports.

2. Small spiders or insects in burner 2. Inspect burners and oriﬁces for spider

webs or other debris that may block ﬂow.

3. Improper air shutter adjustment 3. Adjust air shutter.

Rotisserie noisy

Rotisserie out of balance 1. Adjust rotisserie counterbalance.

Burner goes out on

LOW

Valve “Low” setting needs adjustment 1. See the VALVE "LOW" SETTING

ADJUSTMENT section for details.

TROUBLESHOOTING

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Quality Check Date:_________________

Burner Oriﬁces Nat. L.P. Leak Test: ___________ Model#: ___________________

Main: ____ ____ Burn Test: ___________ Serial#: ___________________

Back: ____ ____ Gas Type:

Nat. / L.P. Air Shutter: ___________________

Side/Power: ____ ____ Inspector: ___________________

Infrared: ____ ____

Other: ____ ____

COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS

This appliance is approved for installation in the state of Massachusetts subject to the following requirements:

Install this appliance in accordance with 248 C.M.R., the Rules and Regulations Governing Plumbers and Gas Fitters. The

installer or service agent must be a plumber or gas ﬁtter licensed in the Commonwealth of Massachusetts. The ﬂexible

gas line connector used must not exceed 36 inches (92 centimeters) in length. The individual manual shut-off must be a

T-handle type valve, listed and approved by the state of Massachusetts.

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained

as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall

terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,

use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,

lack of required routine maintenance (as speciﬁed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure

to protect against combustibles. Product must be installed (and gas must be connected) as speciﬁed in the Owner’s Manual/Installation Instructions by

a qualiﬁed professional installer. Modiﬁcations to products which are not speciﬁcally authorized will void this warranty. Accessories, parts, valves,

remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.

This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate speciﬁc written programs from the Peterson Co. All repair

work must be performed by a qualiﬁed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if

the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer

if the damage is determined to have occurred during that shipment.

This warranty speciﬁcally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion

or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you speciﬁed legal rights, and

you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.

When contacting your Peterson dealer or the R. H. Peterson Co., please provide the following information:

- Your name, address, telephone number, e-mail

- Sales receipt showing where purchased and date purchased

- Model number, serial number of product, date code

- Relevant information: installer, additions, repairs, when defect was ﬁrst noted

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

American Outdoor Grill • 14724 Proctor Avenue • City of Industry, CA 91746

AMERICAN OUTDOOR GRILL

LIMITED WARRANTY

American Outdoor Grill warrants your grill to be free from defects in material and workmanship.

American Outdoor Grill stainless-steel burners are warranted for as long as the original purchaser owns the grill -- LIFETIME. All

other American Outdoor Grill parts are warranted for TEN (10) YEARS. (Except as noted below.)

American Outdoor Grill infrared burners and vaporizer panels are warranted for THREE (3) YEARS.

American Outdoor Grill ignition systems (excluding batteries) and accessories (including sideburners, motors, and thermometers)

are warranted for ONE (1) YEAR.

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.AMERICANOUTDOORGRILL.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

WARRANTY

American Outdoor Grill 36PBT00SP 36 Inch Stainless Steel Built-In Grill

Product's Documents

User Manual

Specifications

American Outdoor Grill 36PBT00SP Questions and Answers
