Model no.TRH3005/TRH3605/TRH4805
30(7
6
2
mm)/36(91
4mm)/48(1
2
19
mm)＂＂＂
4-5/16(11
0mm)＂
22(5
60mm)＂
16-1/2(420mm)
＂
· All measurements in parenthesis are in millimeter.
· All inch measurements are converted form millimeters ,thus inch measurements are estimated.
24/30/38＂
16＂
16＂
24/30/38＂
7
26/32/44＂
1.Use the sponge strip in the accessories bag and stickit around the air
outlet by one circle and make sure there is no air leakage.
2.Fix the air outlet with sponge strip onto the range hood body by 4 screws.
9＂
two
Fix the air outlet
7

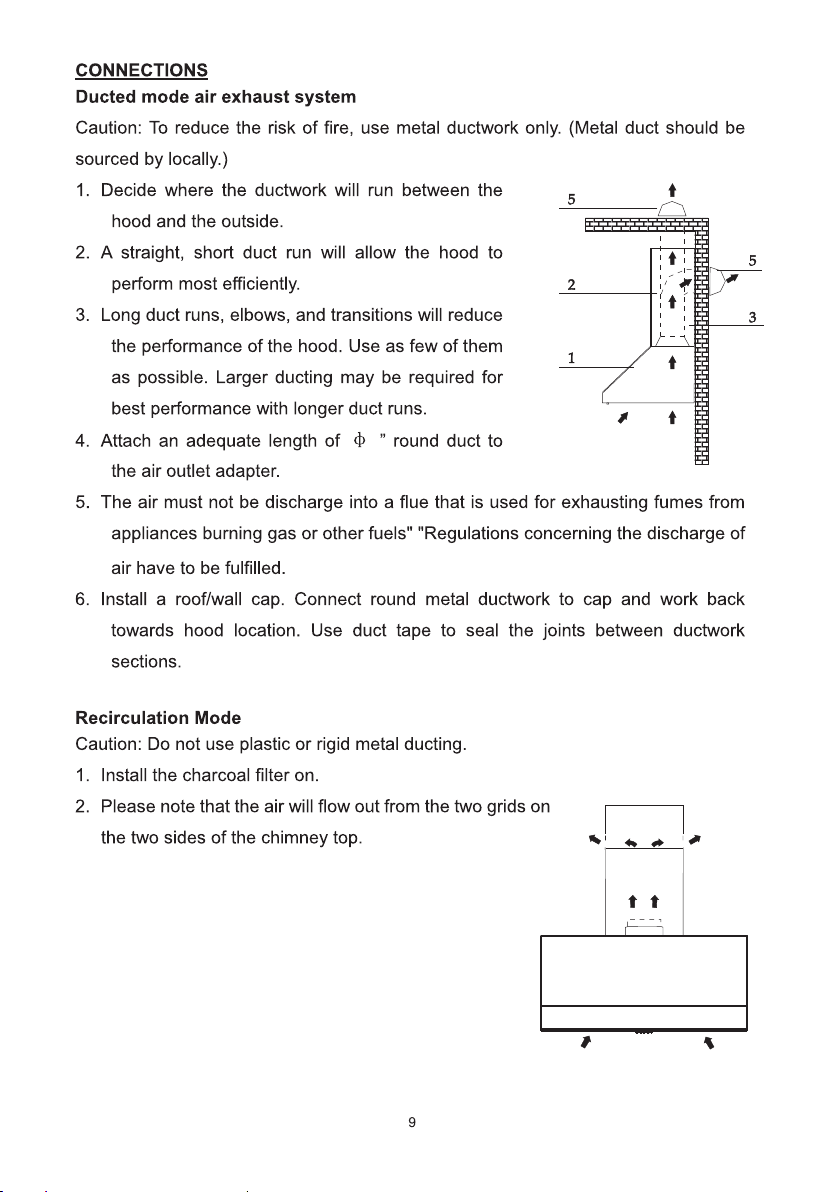

3. If choosing recirculation kit, for exhausting air smoothly,
please make sure that there is a gap of 20mm at least
between the cabinet or chimney cover and the ceiling.
Turns the light on/off
Low speed setting
Medium speed setting
High speed setting
Turns off the hood
DC12V 2.0W LED.
lock
open
This filter not washable, can not be regenerated, and should be replaced approximately
every 3 months of operation, or more frequently in the case of heavy usage.
2.0W LED.
2
