LD320SSX
Owner's Manual
Guide d'utilisation
Manual del Usuario
Hii_ml ++
MODEL NUMBER SERIAL NUMBER
IT] DOLBY
DIGITAL I
Disc ONLY
TO RECEIVE DIGITAL/ANALOG SIGNAL,
YOU MUST CONNECT ANTENNA.
POUR RECEVOIR LE SIGNAL
NUMCRIQUE/ANALOGIQUE, VOUS
DEVEZ CONNECTER L'ANTENNE.
PARA RECIBIR LA SENAL DIGITAL/
ANALOGICA, DEBE CONECTAR LA
ANTENA.
© 2009 Funai Electric Co., Ltd.
Themodelandserialnumbersofthisunitmaybefoundonthecabinet.
Youshouldrecordandretainthosenumbersforfuturereference.
ModelNo.:
SerialNo.:
[] Precautions
WARNING: TO REDUCETHE RISK OF FIREOR ELECTRICSHOCK, DO NOT EXPOSETHIS APPARATUS
TO RAIN OR MOISTURE.
APPARATUS SHALL NOT BE EXPOSEDTO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BEPLACED ON THE APPARATUS.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage"within the
apparatus's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the apparatus.
The caution marking is located on the rear or bottom of the cabinet.
Important Safety Instructions
Read these instructions. 10. Protect the power cord from being walked on or
1°
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions. 11.
5. Do not use this apparatus near water.
6. Clean only with dry cloth. 12.
7. Do not block any ventilation openings. Install in
accordance with the manufacture's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat. 13.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades 14.
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand,tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing
on it. A falling unit can cause serious injury or even death.
FCC WARNING
This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause
harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to
operate this apparatus if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This apparatus has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of
the FCCRules.These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This apparatus generates, uses,and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to
radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the apparatus and receiver.
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-O03.
EN

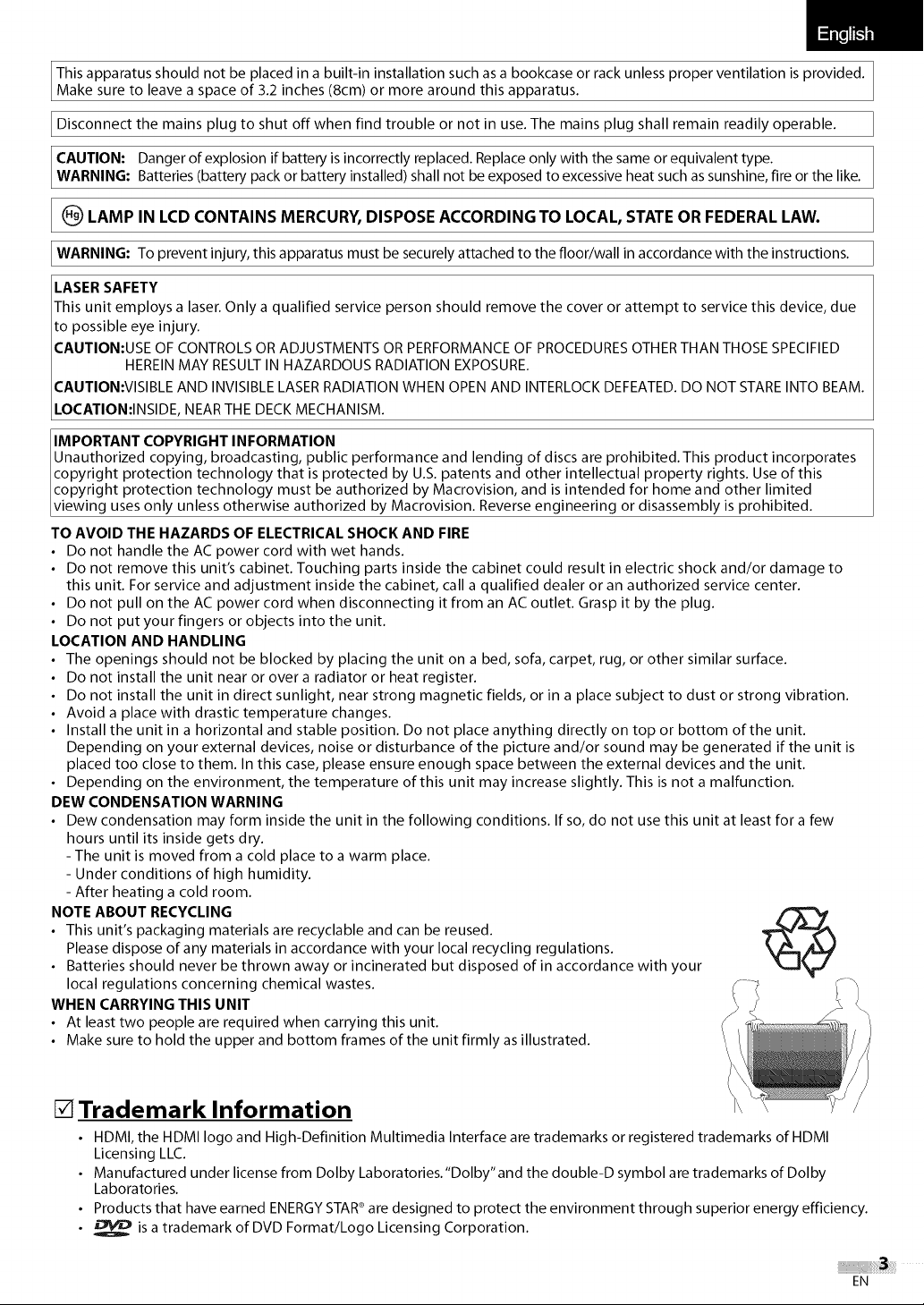

Thisapparatusshouldnotbeplacedinabuilt-ininstallationsuchasabookcaseorrackunlessproperventilationisprovided.
Makesuretoleaveaspaceof3.2inches(8cm)ormorearoundthisapparatus.
Disconnectthemainsplugtoshutoffwhenfindtroubleornotinuse.Themainsplugshallremainreadilyoperable.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
_) LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW.
WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions.
LASER SAFETY
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due
to possible eye injury.
CAUTION:USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION:VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.
LOCATION:INSIDE, NEAR THE DECK MECHANISM.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates
copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this
copyright protection technology must be authorized by Macrovision, and is intended for home and other limited
viewing uses on y un ess otherwise authorized by Macrovision. Reverse engineering or disassemb y is prohibited.
TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE
• Do not handle the AC power cord with wet hands.
• Do not remove this unit's cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to
this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center.
• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.
• Do not put your fingers or objects into the unit.
LOCATION AND HANDLING
• The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface.
• Do not install the unit near or over a radiator or heat register.
• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes.
• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.
Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is
placed too close to them. In this case, please ensure enough space between the external devices and the unit.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
DEW CONDENSATION WARNING
• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few
hours until its inside gets dry.
- The unit is moved from a cold place to a warm place.
- Under conditions of high humidity.
- After heating a cold room.
NOTE ABOUT RECYCLING
• This unit's packaging materials are recyclable and can be reused.
Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your
local regulations concerning chemical wastes.
WHEN CARRYING THIS UNIT
• At least two people are required when carrying this unit.
• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.
[] Trademark Information
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
• Manufactured under license from Dolby Laboratories."Dolby"and the double-D symbol are trademarks of Dolby
Laboratories.
• Products that have earned ENERGY STAR®are designed to protect the environment through superior energy efficiency.
• _ is a trademark of DVD Format/Logo Licensing Corporation.
EN

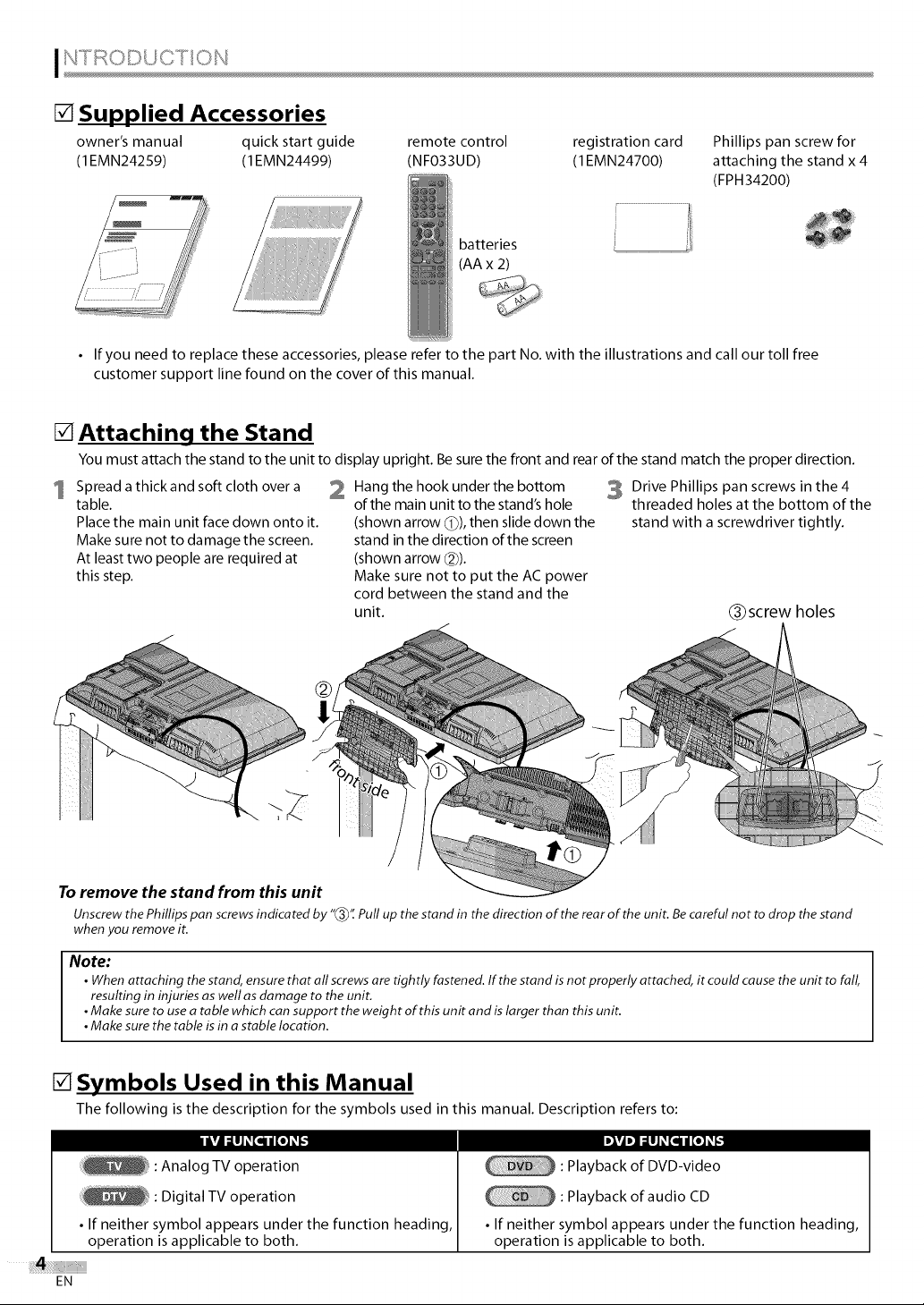

[] Supplied Accessories
owner's manual quick start guide
(1EMN24259) (1EM N24499)
remote control registration card Phillips pan screw for
(NF033UD) (1EMN24700) attaching the stand x 4
(FPH34200)
batteries
(AA x 2)
• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free
customer support line found on the cover of this manual.
[] Attaching the Stand
You must attach the stand to the unit to display upright. Be sure the front and rear of the stand match the proper direction.
1
Spread a thick and soft cloth over a
table.
Place the main unit face down onto it.
Make sure not to damage the screen.
At least two people are required at
this step.
2 Hang the hook under the bottom
of the main unit to the stand's hole
(shown arrow (_)), then slide down the
stand in the direction of the screen
(shown arrow _2)).
Make sure not to put the AC power
cord between the stand and the
unit.
3 Drive Phillips pan screws in the 4
threaded holes at the bottom of the
stand with a screwdriver tightly.
(_ screw holes
To remove the stand from this unit
Unscrew the Phillips pan screws indicated by "_3_'_Pull up the stand in the direction of the rear of the unit. Becareful not to drop the stand
when you remove it.
Note:
• When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fal_
resulting in injuries as well asdamage to the unit.
•Make sure to use a table which can support the weight of this unit and is larger than this unit.
•Make sure the table is in a stable location.
[] Symbols Used in this Manual
The following is the description for the symbols used in this manual. Description refers to:
IkUI:llJ_[q II[e]_
: Analog TV operation heading,
: Digital TV operation
• If neither symbol appears under the function
operation is applicable to both.
DlVJ D] ::1IIJ_ [q II [e] _ [_
: Playback of DVD-video
: Playback of audio CD
• If neither symbol appears under the function heading,
operation is applicable to both.
EN

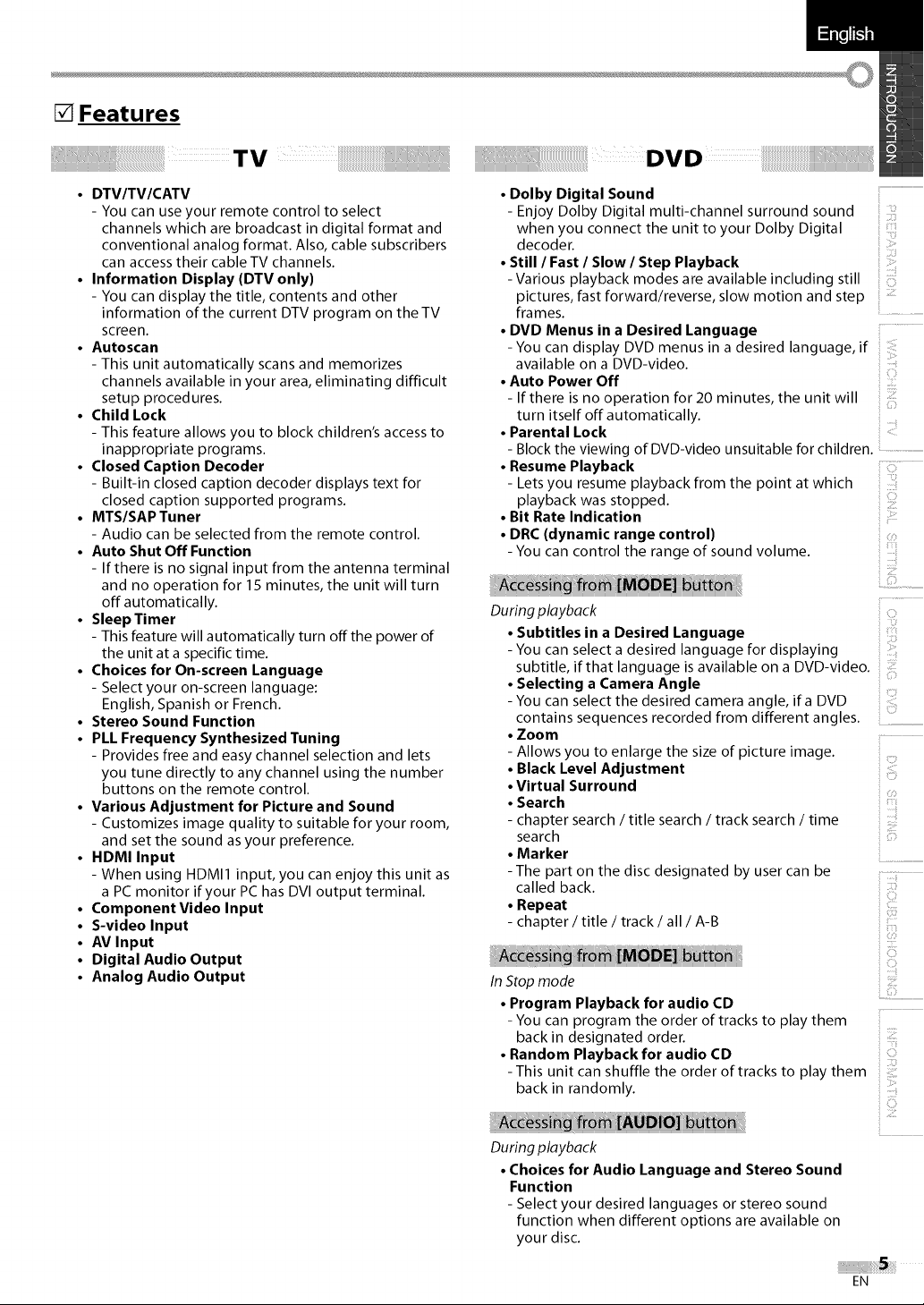

[] Features
TV
• DTV/TV/CATV
- You can use your remote control to select
channels which are broadcast in digital format and
conventional analog format. Also, cable subscribers
can access their cable TV channels.
• Information Display (DTV only)
- You can display the title, contents and other
information of the current DTV program on the TV
screen.
• Autoscan
- This unit automatically scans and memorizes
channels available in your area, eliminating difficult
setup procedures.

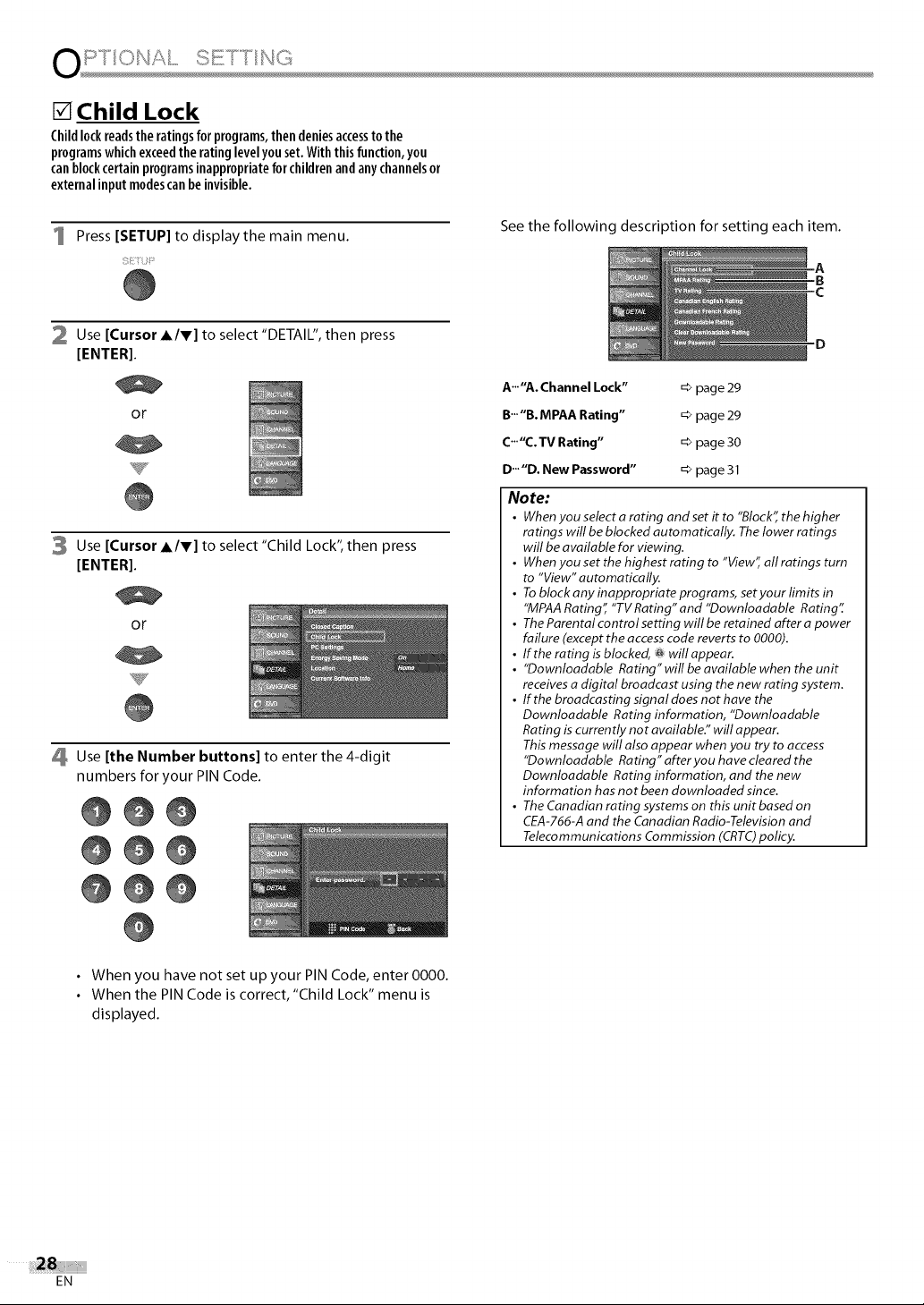

• Child Lock
- This feature allows you to block children's access to
inappropriate programs.

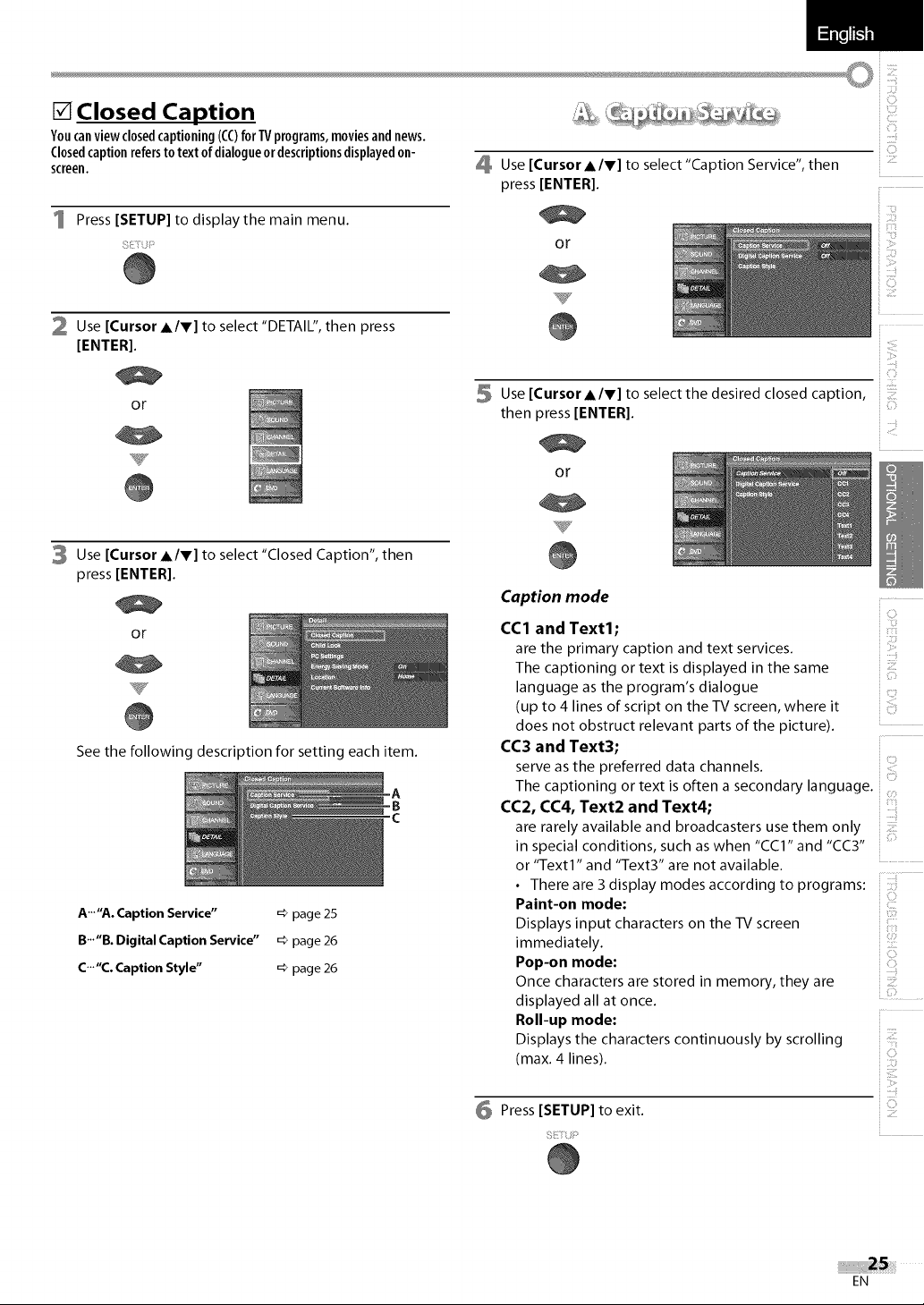

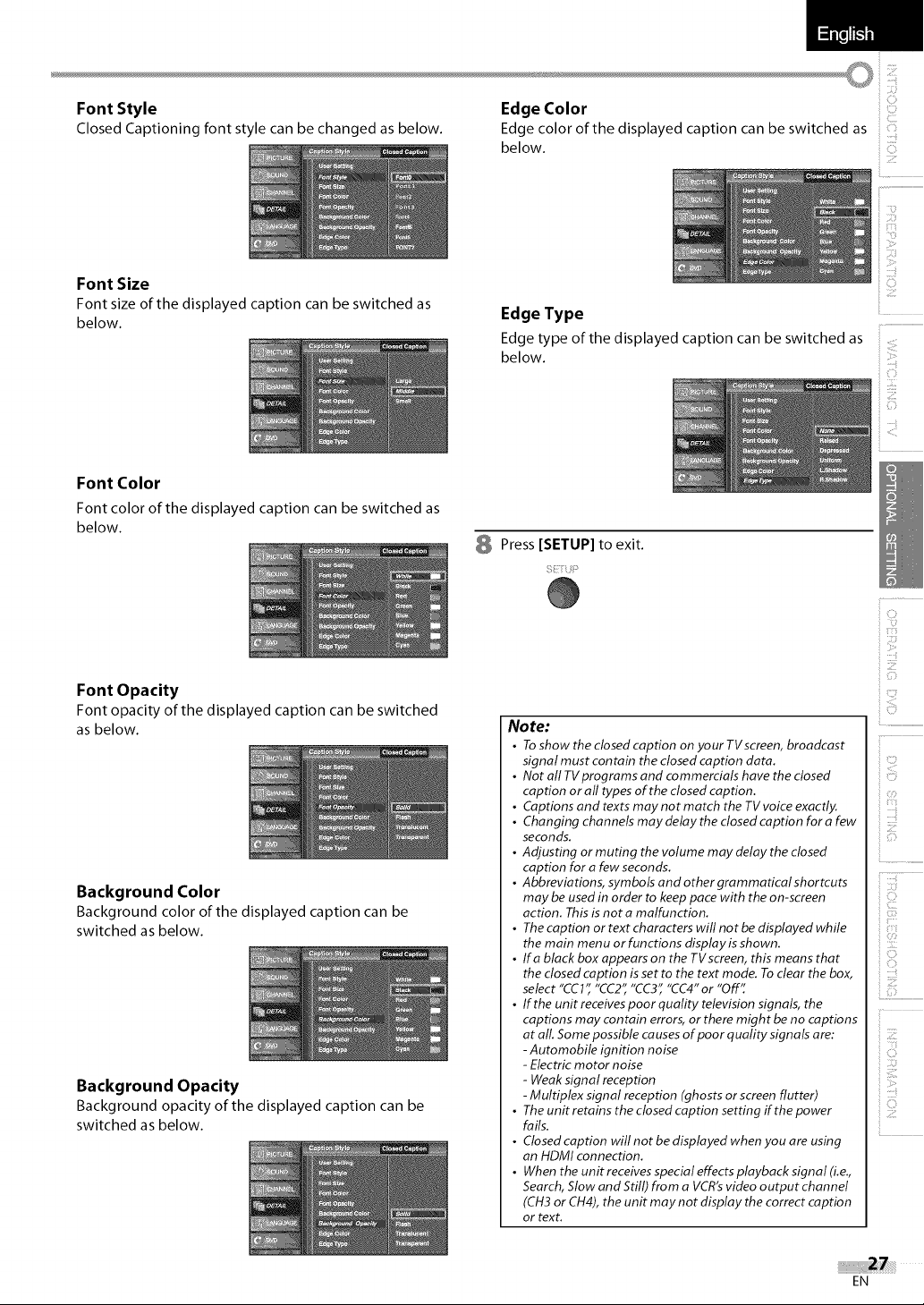

• Closed Caption Decoder
- Built-in closed caption decoder displays text for
closed caption supported programs.
• MTS/SAP Tuner
- Audio can be selected from the remote control.
• Auto Shut Off Function
- If there is no signal input from the antenna terminal
and no operation for 15 minutes, the unit will turn
off automatically.
• Sleep Timer
- This feature will automatically turn off the power of
the unit at a specific time.
• Choices for On-screen Language
- Select your on-screen language:
English, Spanish or French.
• Stereo Sound Function
• PLL Frequency Synthesized Tuning
- Provides free and easy channel selection and lets
you tune directly to any channel using the number
buttons on the remote control.

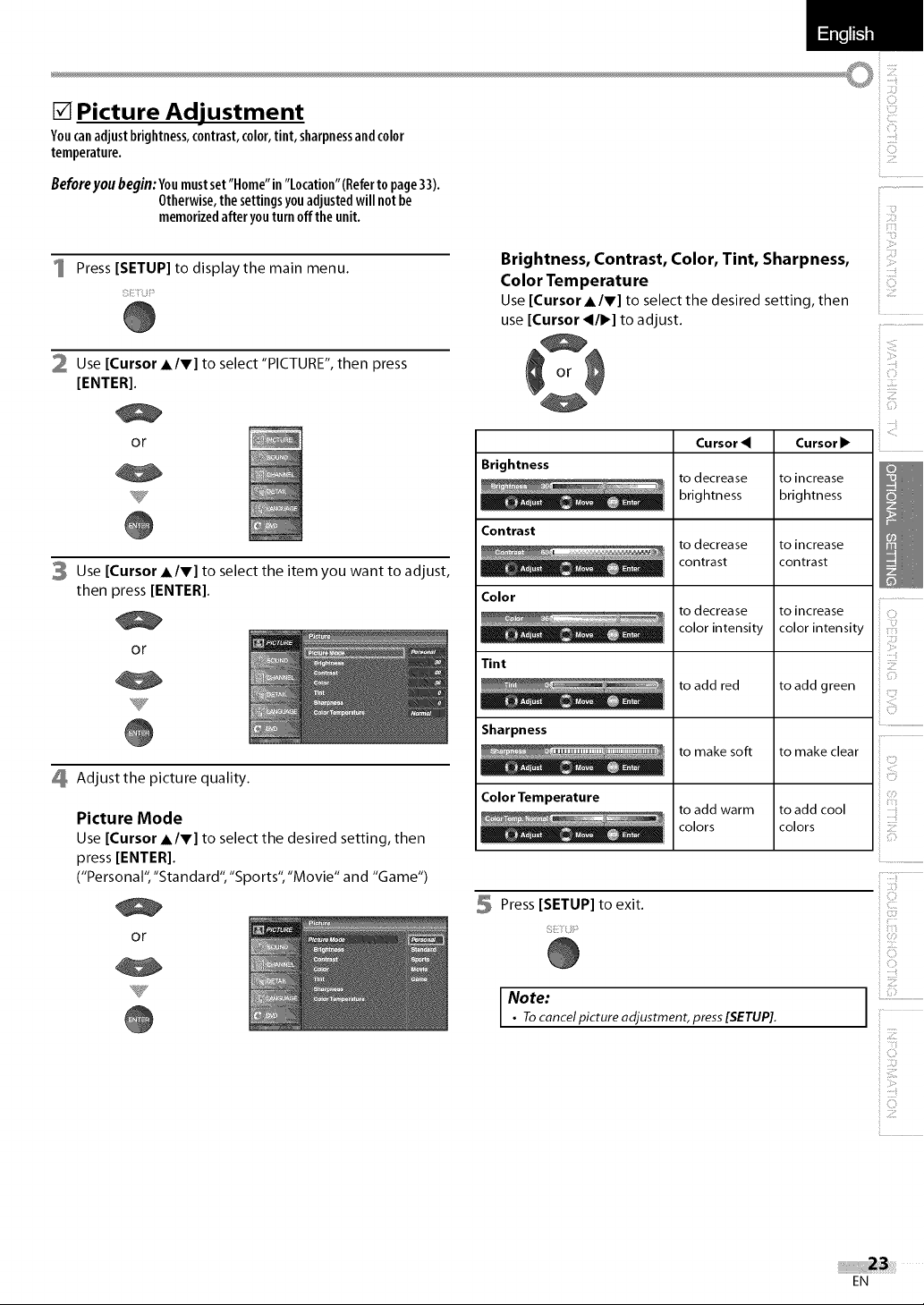

• Various Adjustment for Picture and Sound
- Customizes image quality to suitable for your room,
and set the sound as your preference.

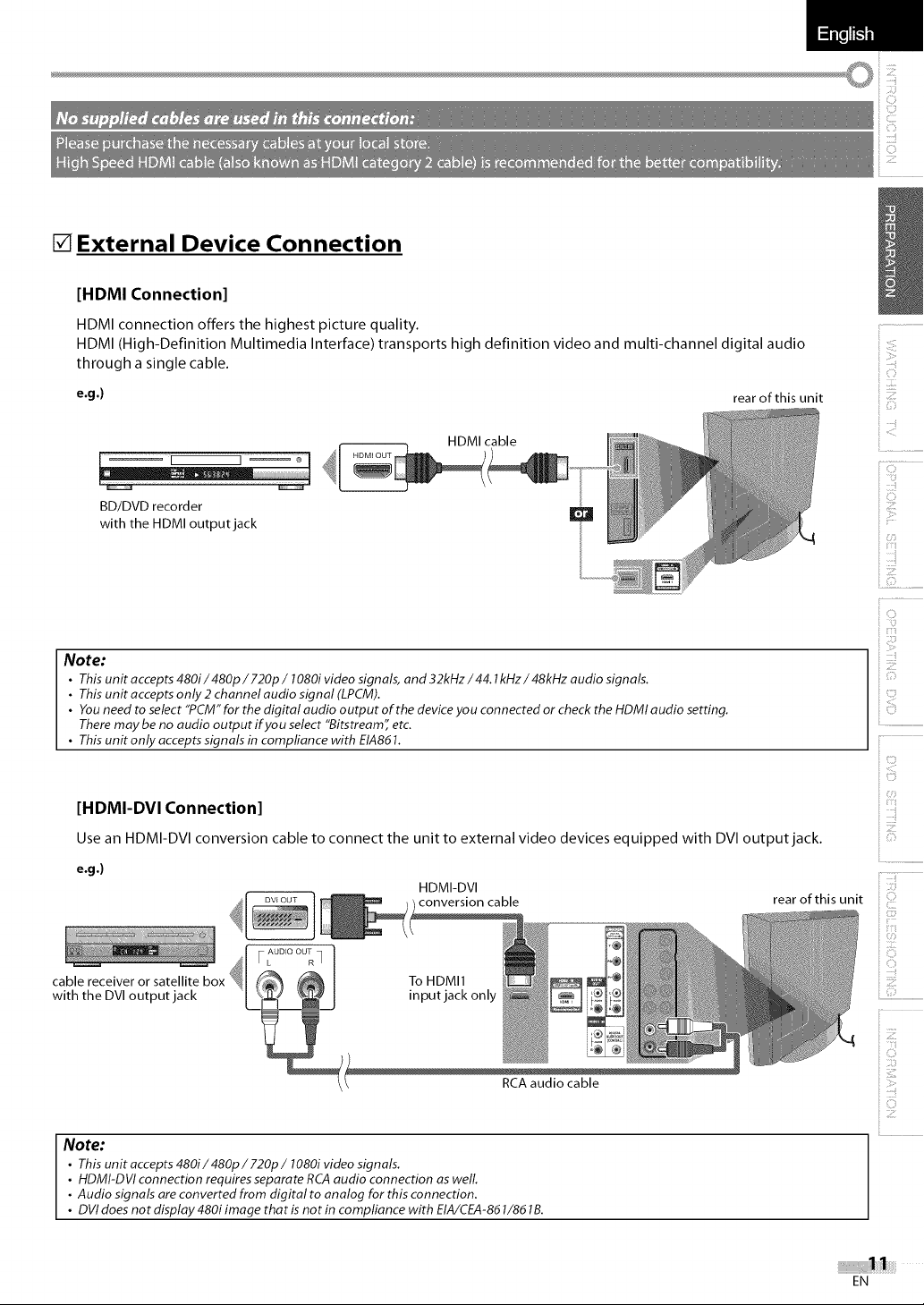

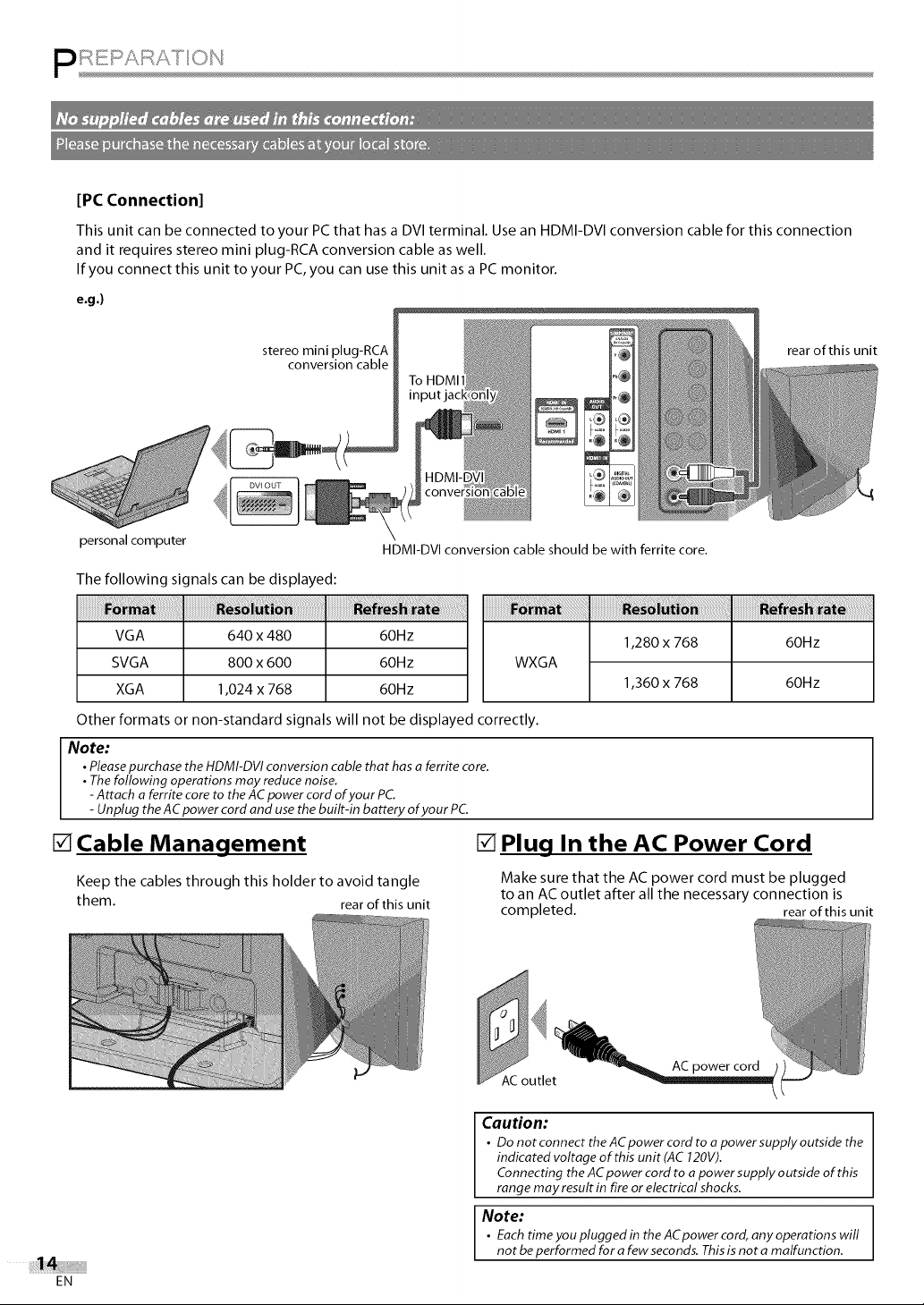

• HDMI Input
- When using HDMII input, you can enjoy this unit as
a PC monitor if your PC has DVI output terminal.

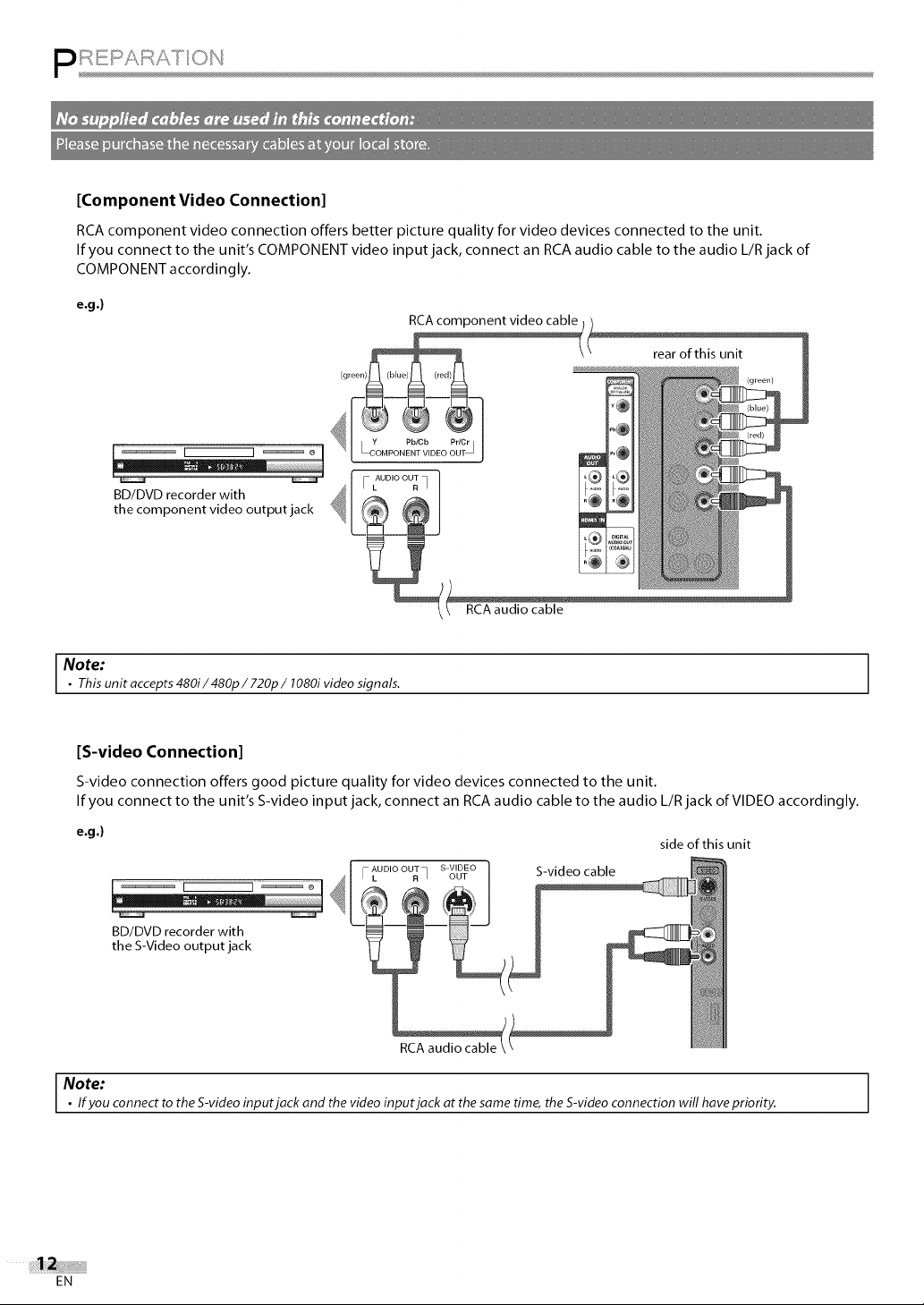

• Component Video Input
• S-video Input

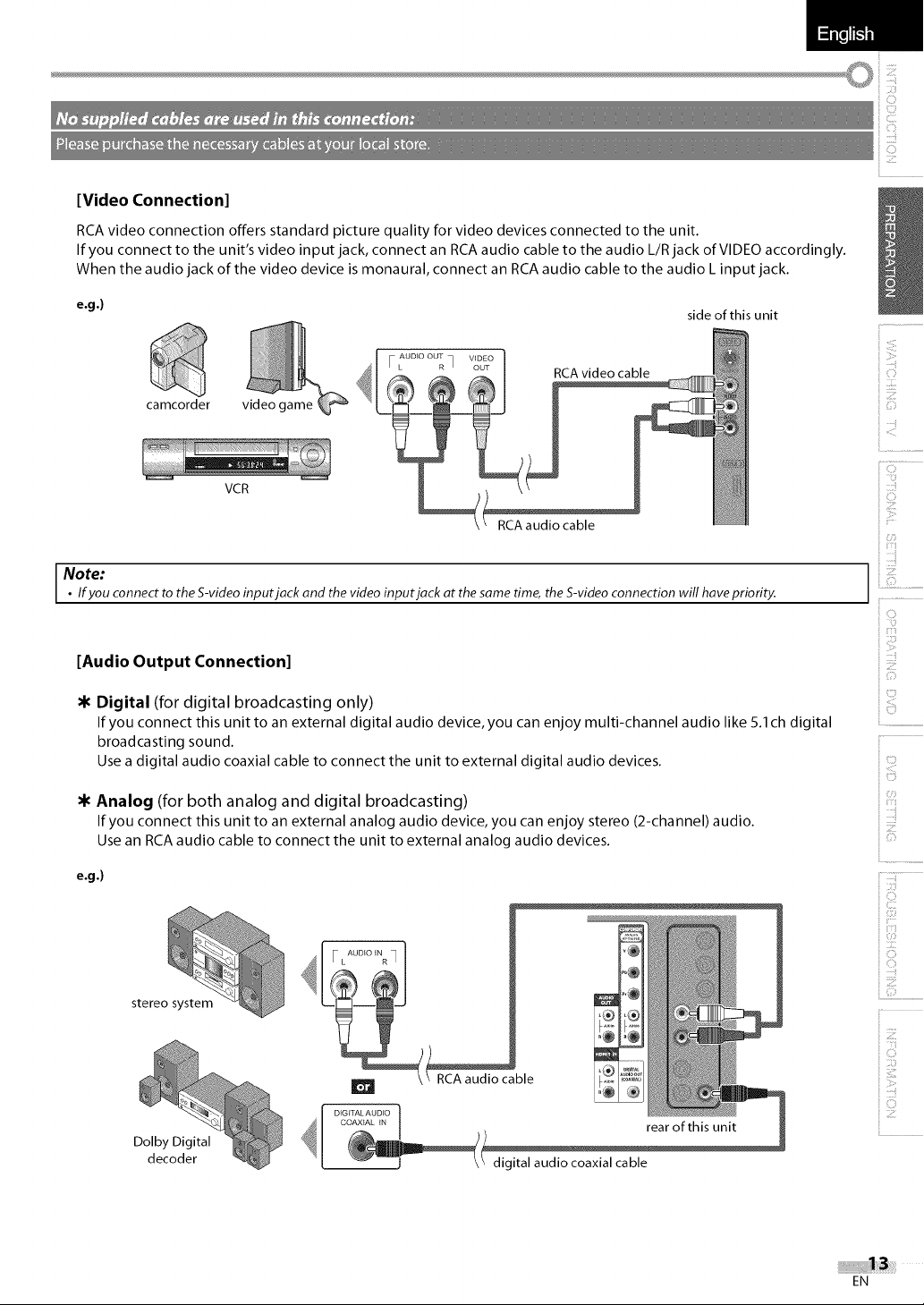

• AV Input
• Digital Audio Output
• Analog Audio Output
DVD
• Dolby Digital Sound ....................................................
- Enjoy Dolby Digital multi-channel surround sound
when you connect the unit to your Dolby Digital
decoder.
• Still / Fast / Slow / Step Playback
- Various playback modes are available including still
pictures, fast forward/reverse, slow motion and step
frames.
• DVD Menus in a Desired Language ............
- cand,sp,ayDVDmenus,nodes,red,anguage,,f
available on a DVD-video.
• Auto Power Off
- If there is no operation for 20 minutes, the unit will
turn itself off automatically.
• Parental Lock ....
- Block the viewing of DVD-video unsuitable for children. ..............................
• Resume Playback .....]: ....
- Lets you resume playback from the point at which
playback was stopped.
• Bit Rate Indication
• DRC (dynamic range control)
- You can control the range of sound volume.
During playback
• Subtitles in a Desired Language
- You can select a desired language for displaying
subtitle, if that language is available on a DVD-video.
• Selecting a Camera Angle
- You can select the desired camera angle, ira DVD
contains sequences recorded from different angles.
• Zoom
- Allows you to enlarge the size of picture image.
• Black Level Adjustment
• Virtual Surround
• Search
- chapter search / title search / track search / time
search

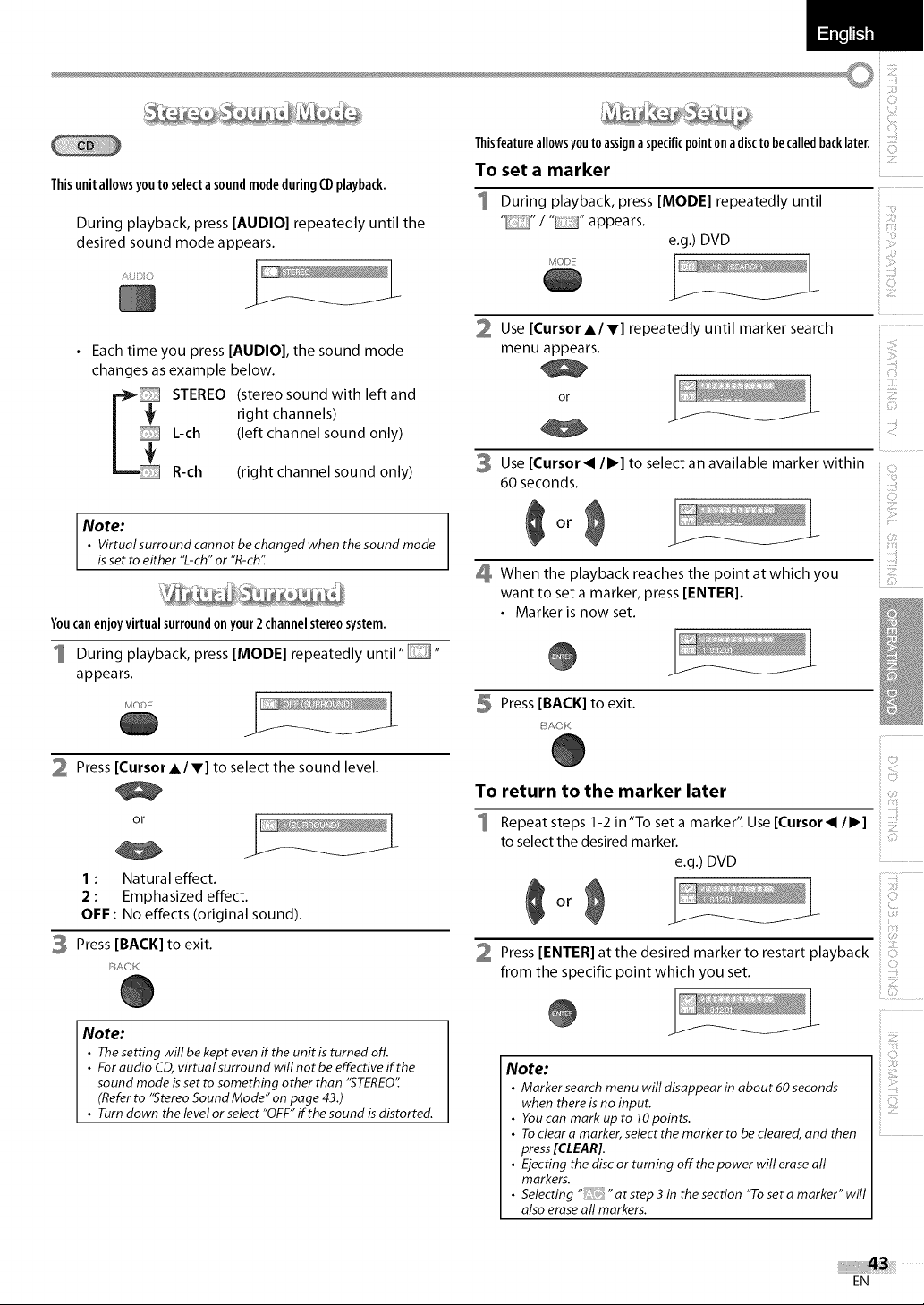

• Marker
- The part on the disc designated by user can be
called back.
• Repeat
- chapter / title / track / all / A-B
ii ,_!
,! i::ii!
ii iii_i_!__,
ii_iii:i
ii:iii!!
i'iiii!_'
_i!filialII
ii i,iiiil
iii!:;il
In Stop mode
• Program Playback for audio CD
- You can program the order of tracks to play them : .......
back in designated order. :::
• Random Playback for audio CD
-This unit can shuffle the order of tracks to play them ::
back in randomly. ::
ii!_!:
During playback
• Choices for Audio Language and Stereo Sound
Function
- Select your desired languages or stereo sound
function when different options are available on
your disc.
EN

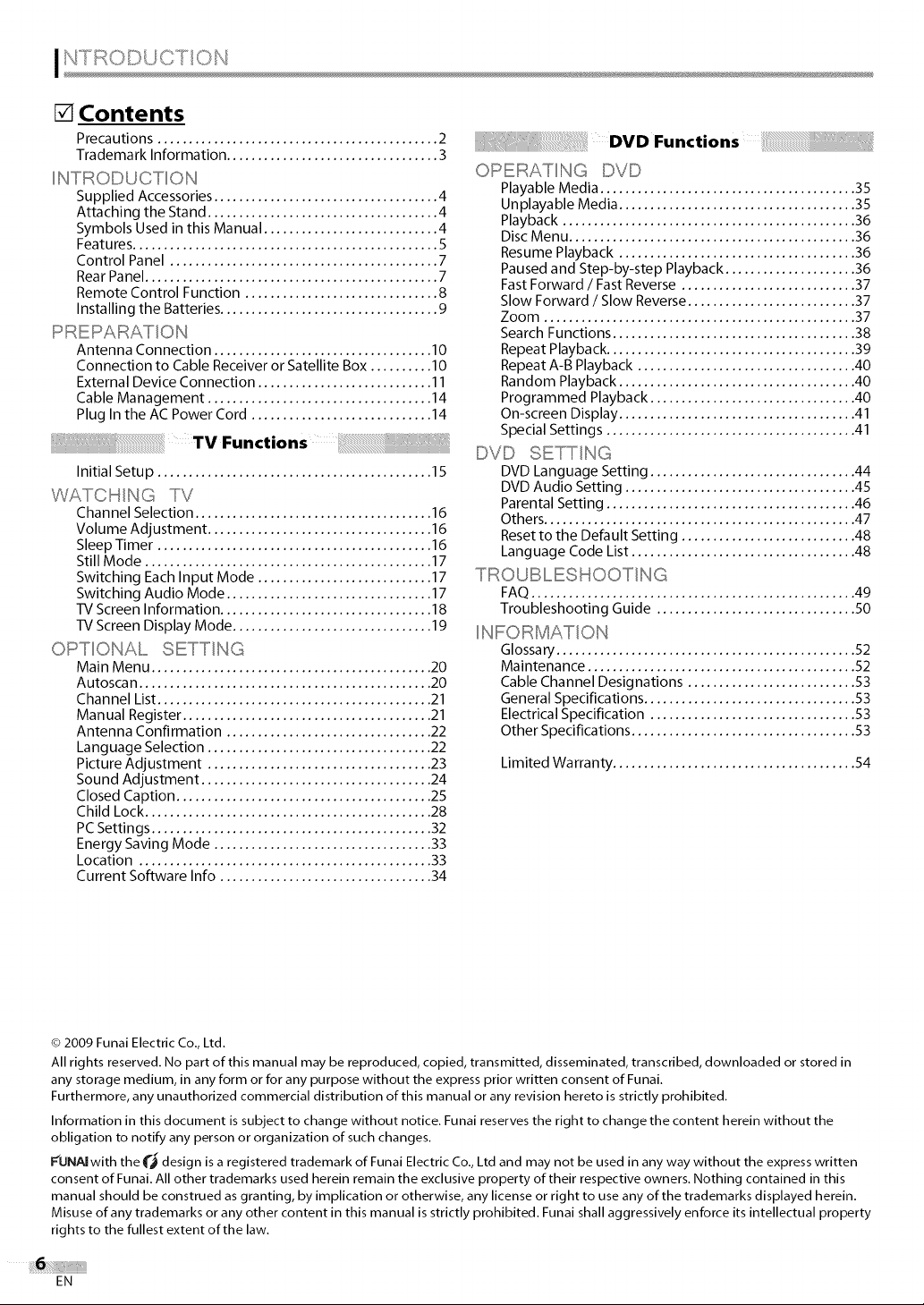

[] Contents
Precautions ............................................. 2
Trademark Information .................................. 3
INTRODUCTION
Supplied Accessories .................................... 4
Attaching the Stand ..................................... 4
Symbols Used in this Manual ............................ 4
Features ................................................. 5
Control Panel ........................................... 7
Rear Panel ............................................... 7
Remote Control Function ............................... 8
Installing the Batteries ................................... 9
PREPARATION
Antenna Connection ................................... 10
Connection to Cable Receiver or Satellite Box .......... 10
External Device Connection ............................ 11
Cable Management .................................... 14
Plug In the AC Power Cord ............................. 14
TV Functions : ${{{

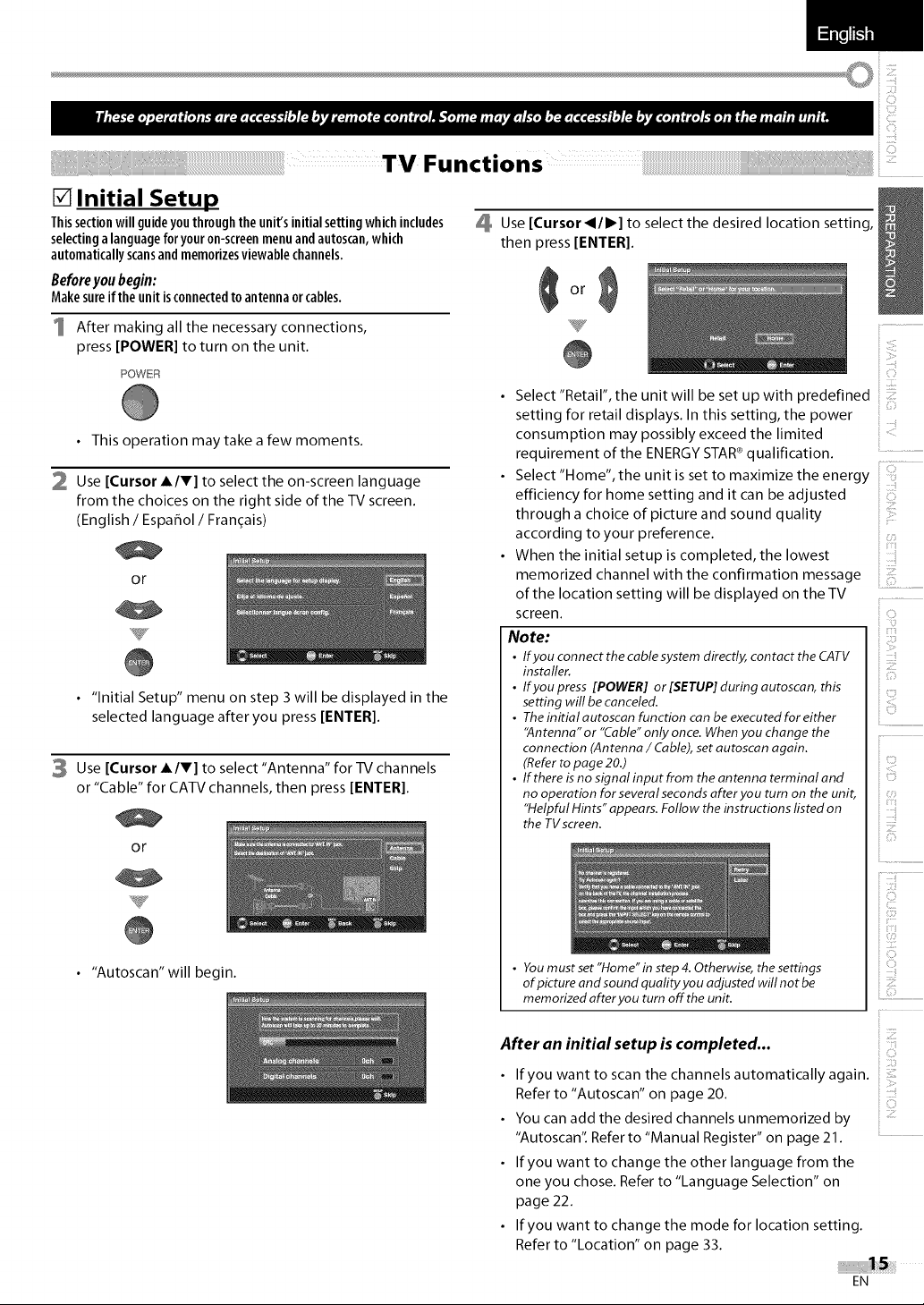

Initial Setup ............................................ 15
WATCHINQ TV

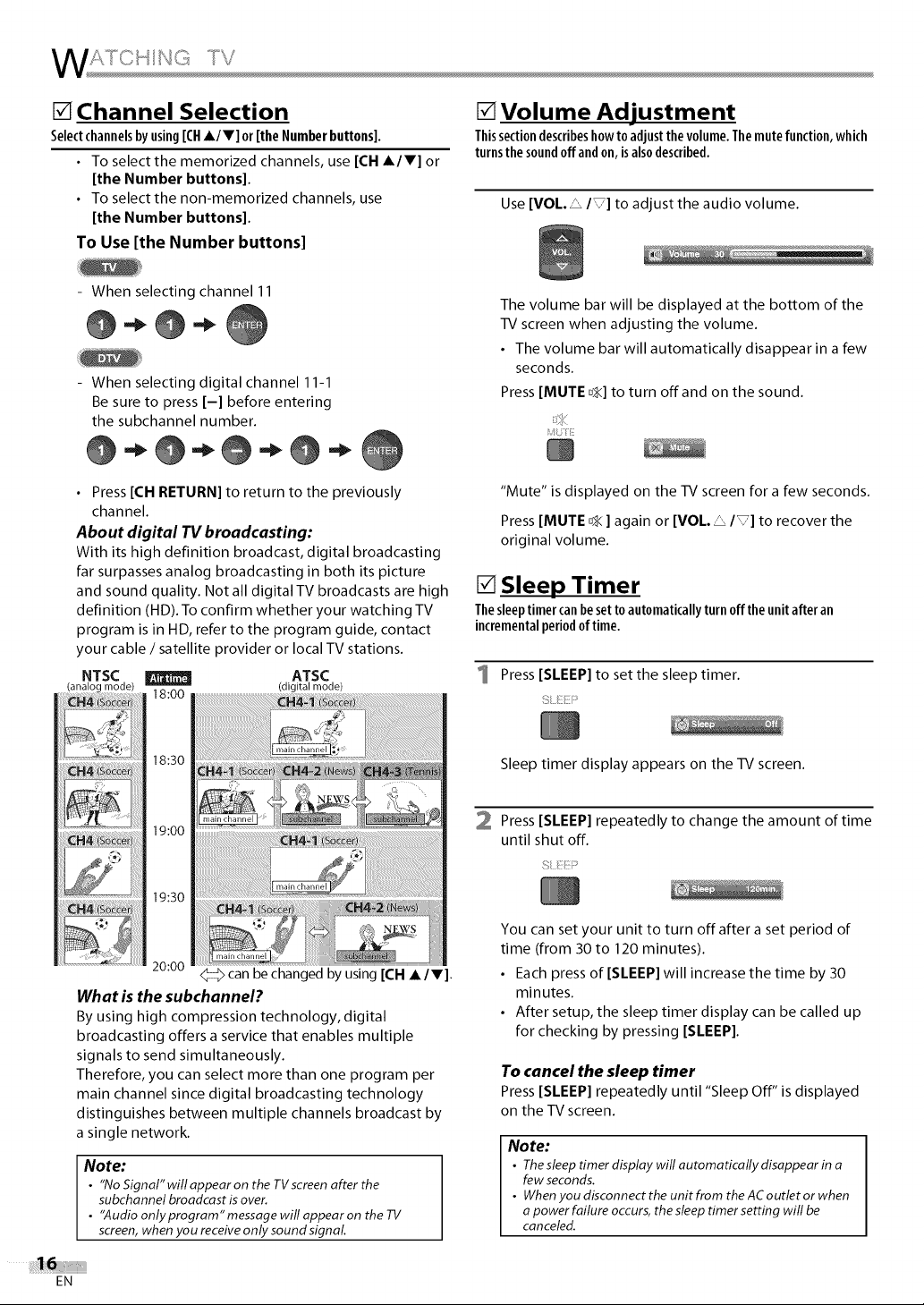

Channel Selection ...................................... 16
Volume Adjustment .................................... 16
SleepTimer ............................................ 16

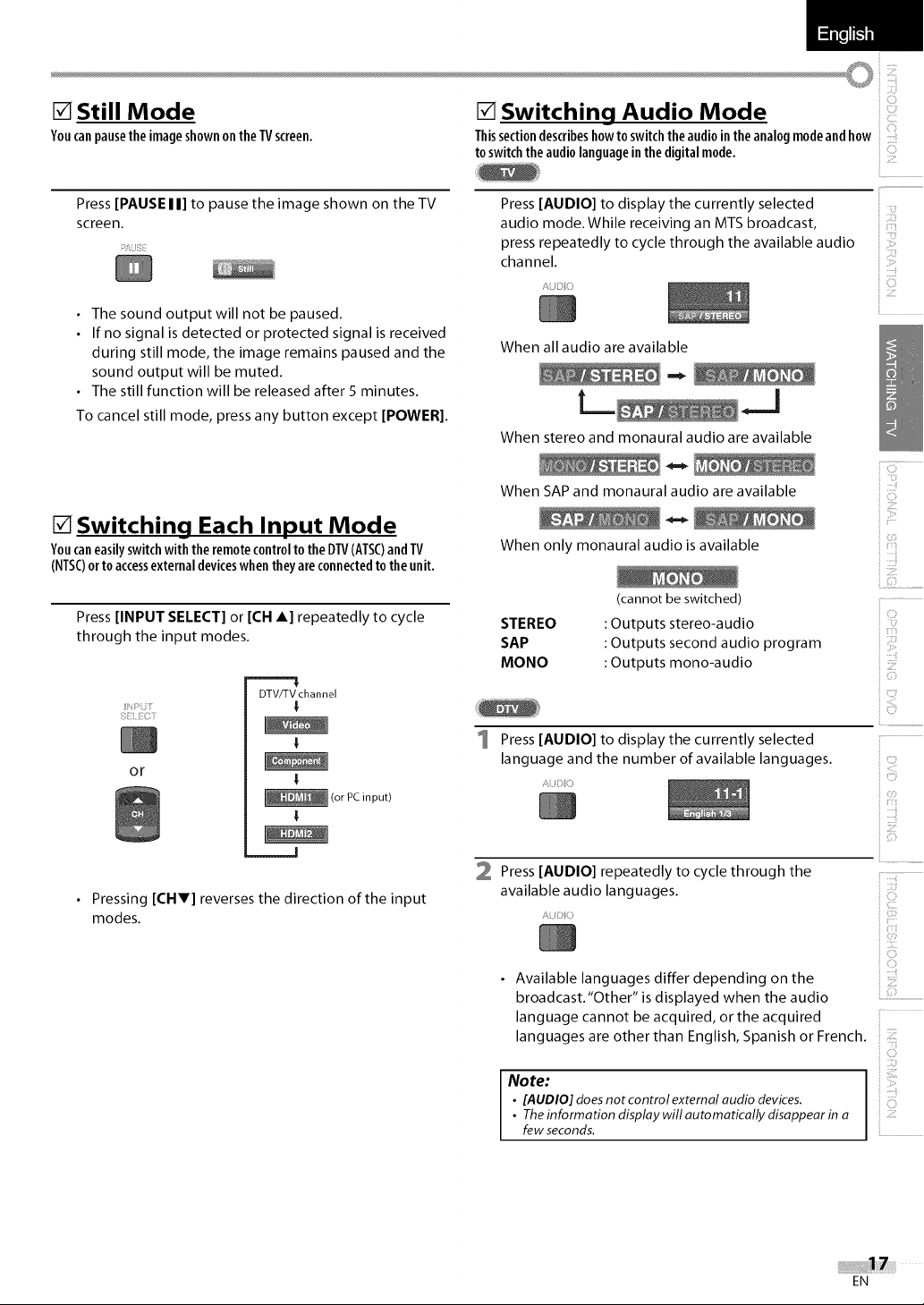

Still Mode .............................................. 17
Switching Each Input Mode ............................ 17
Switching Audio Mode ................................. 17
TV Screen Information .................................. 18

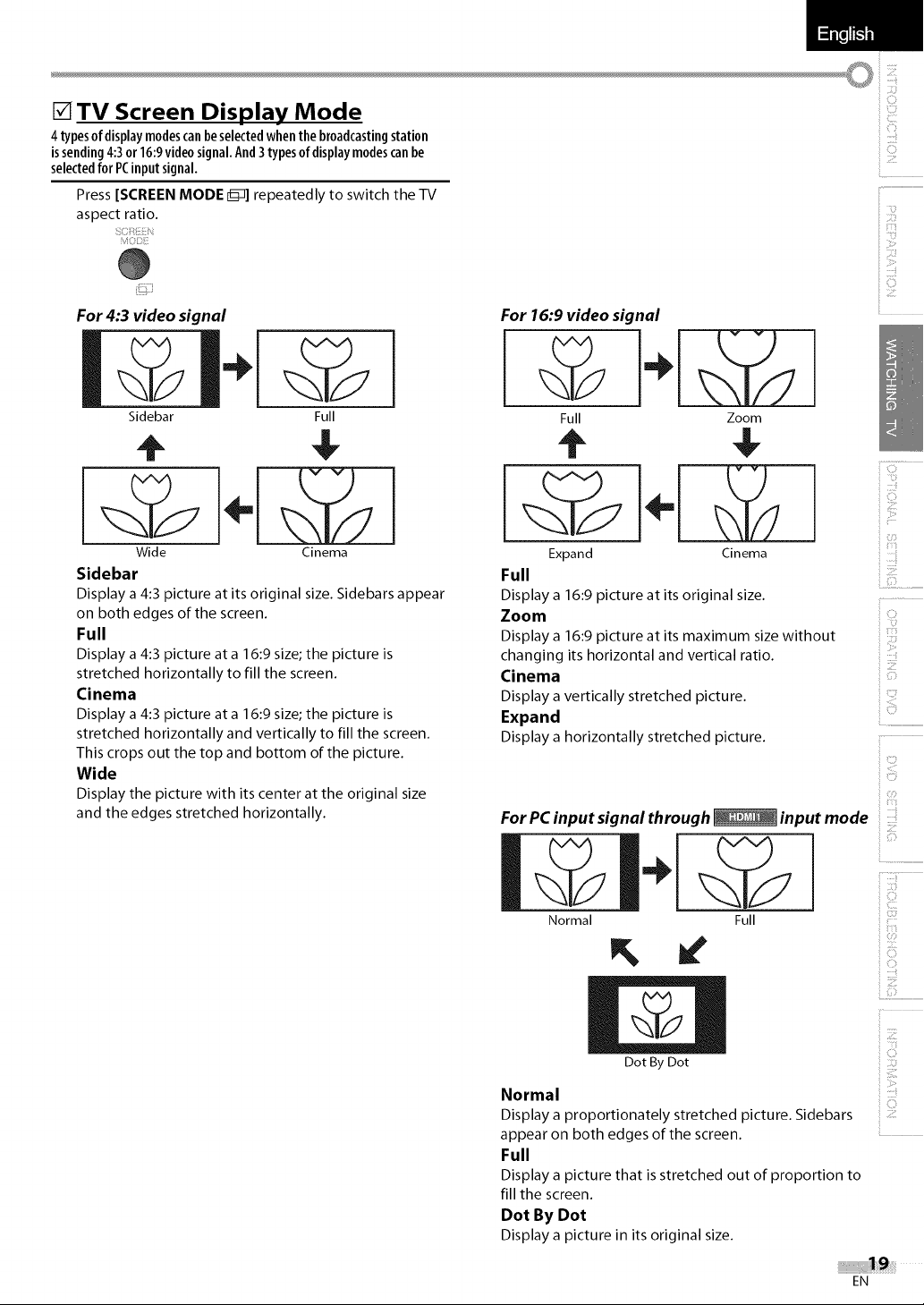

TV Screen Display Mode ................................ 19
OPTIONAl .......SETTING

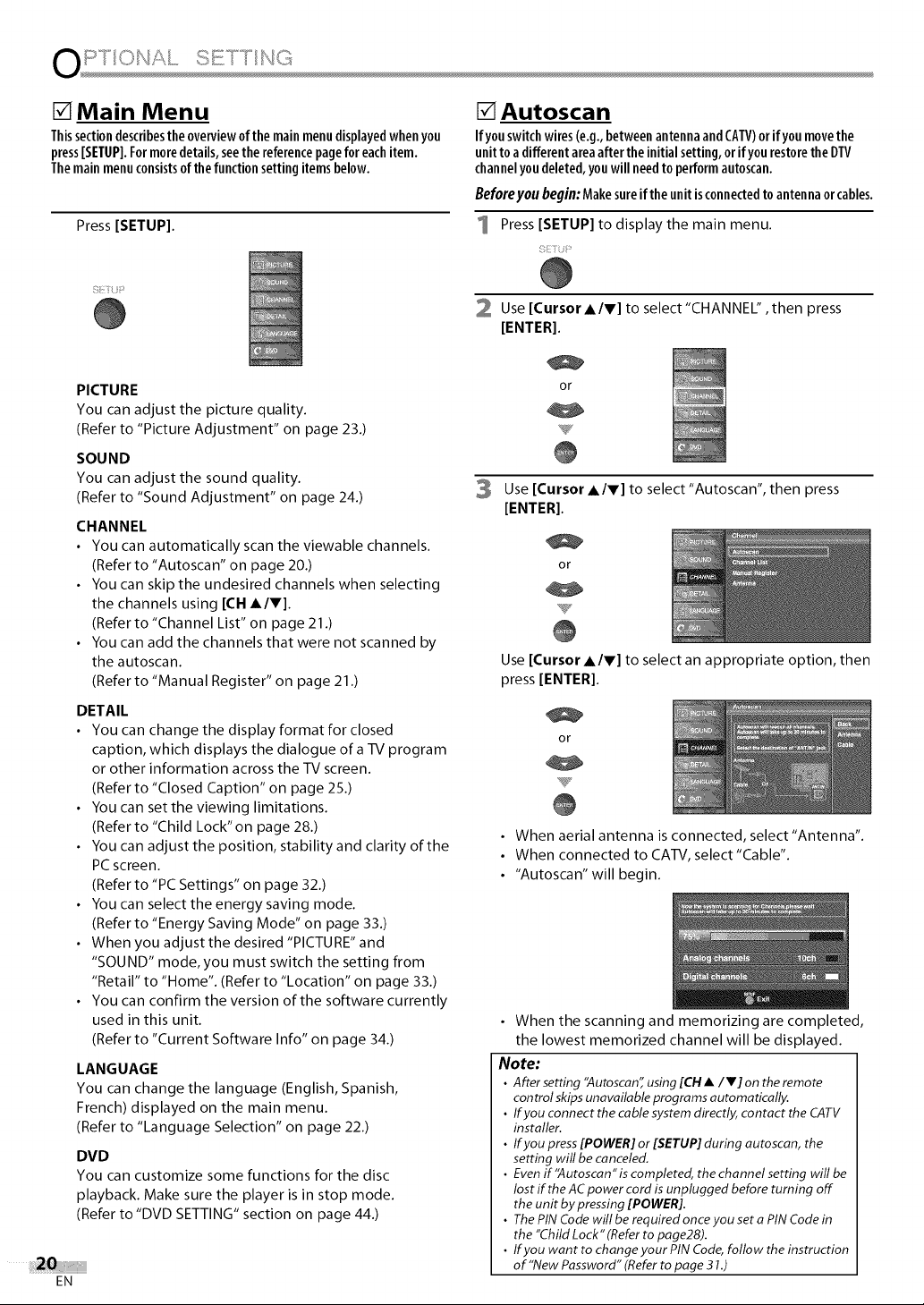

Main Menu ............................................. 20
Autoscan ............................................... 20

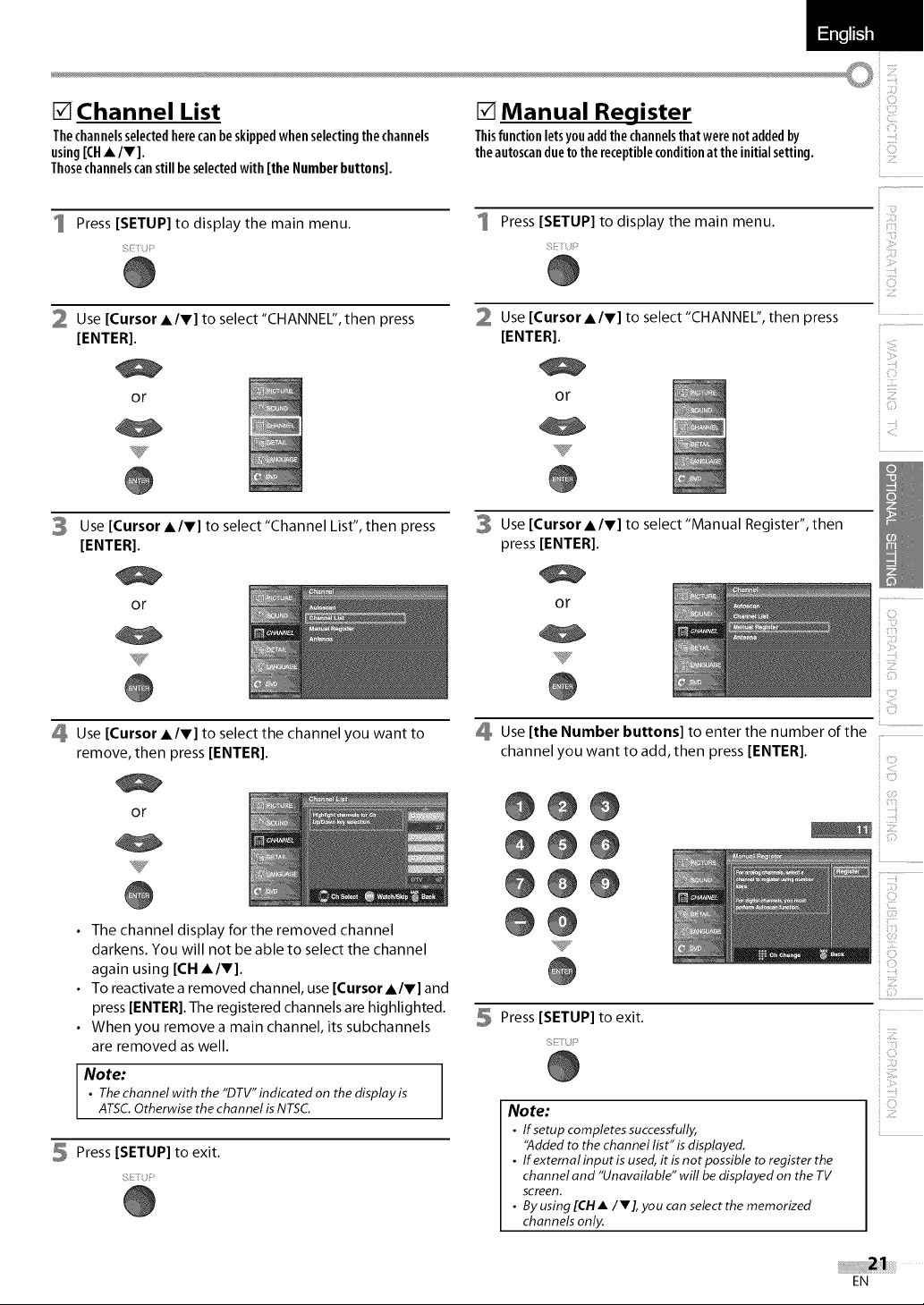

Channel List ............................................ 21
Manual Register ........................................ 21

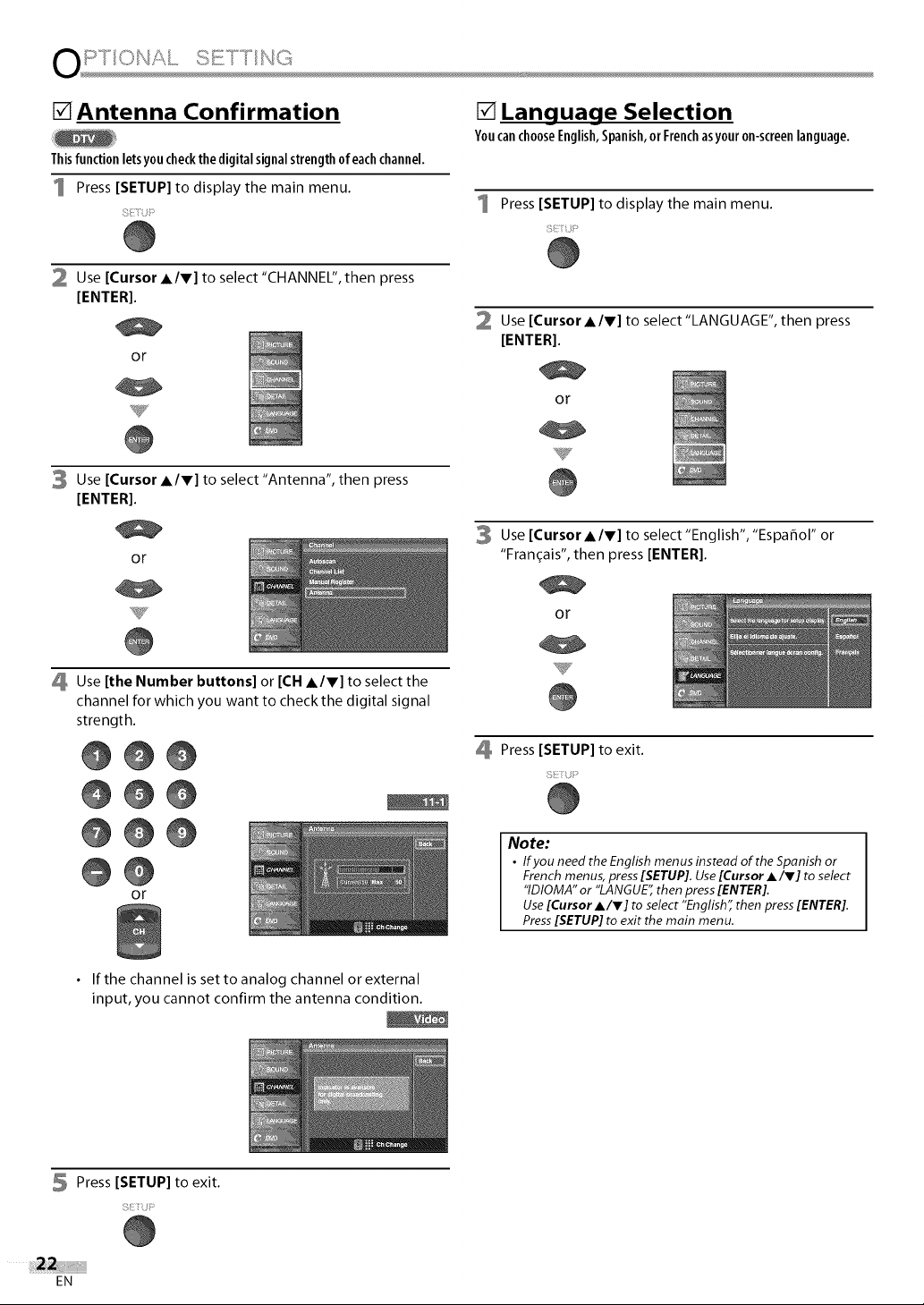

Antenna Confirmation ................................. 22
Language Selection .................................... 22
Picture Adjustment .................................... 23

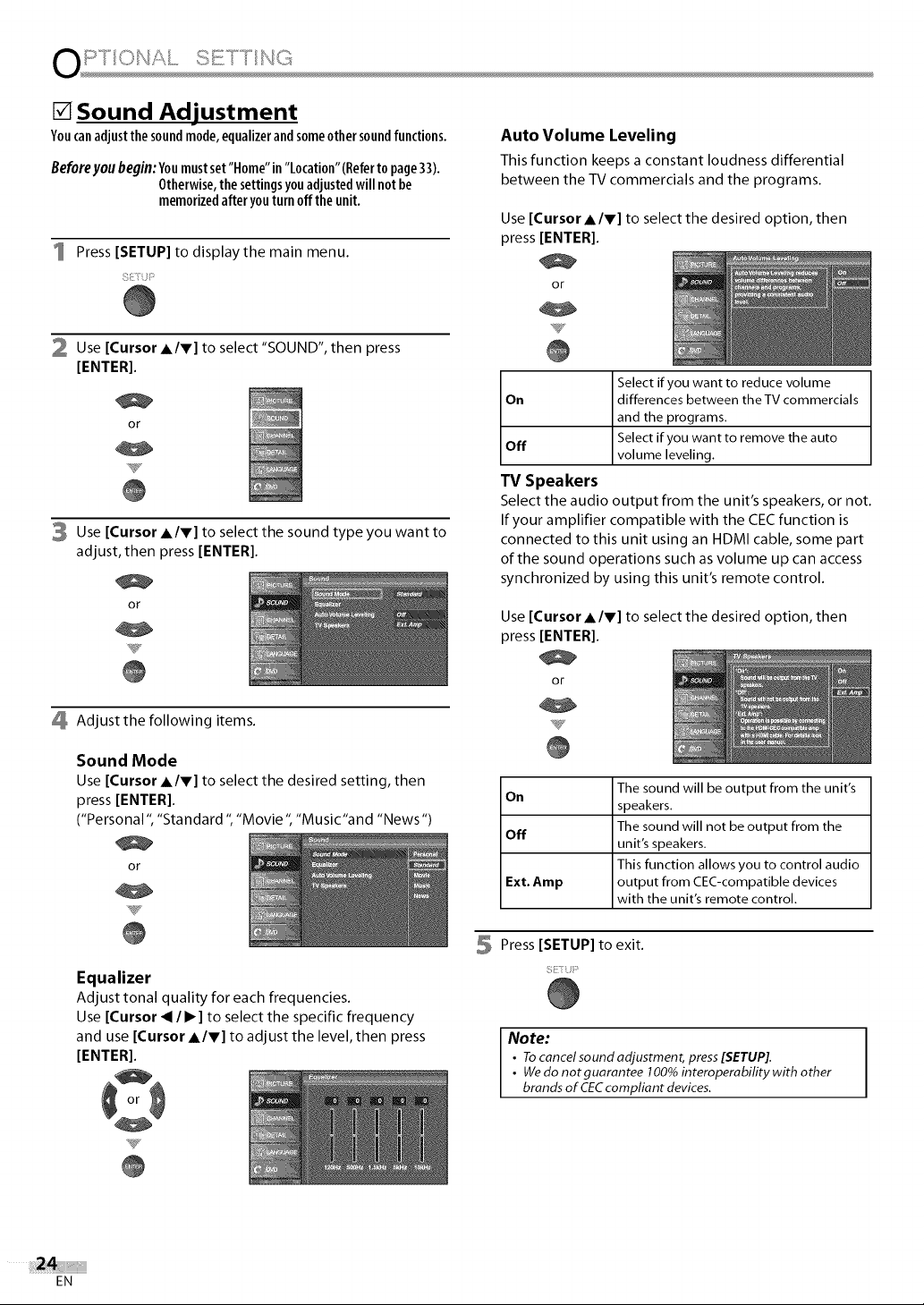

Sound Adjustment ..................................... 24

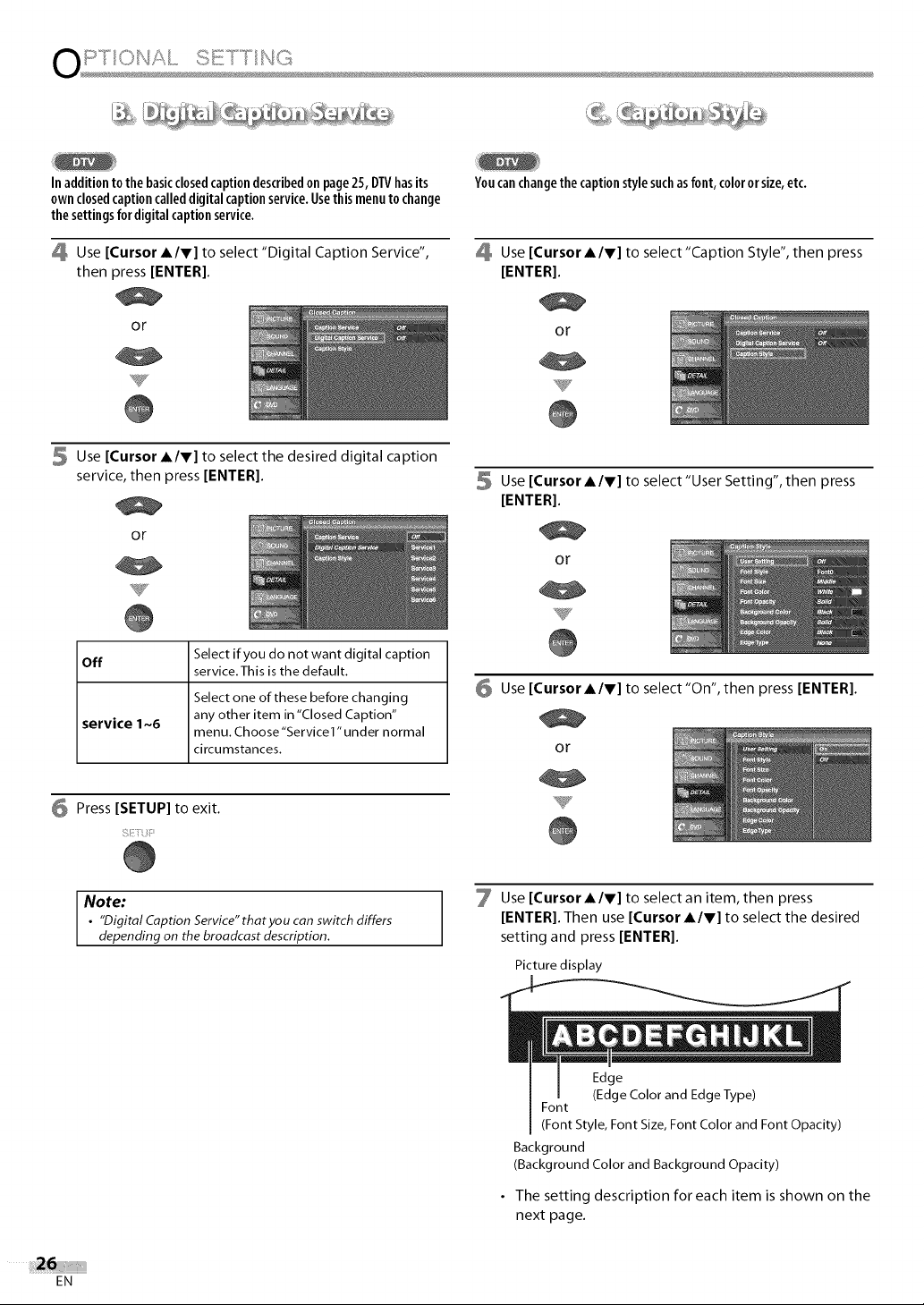

Closed Caption ......................................... 25

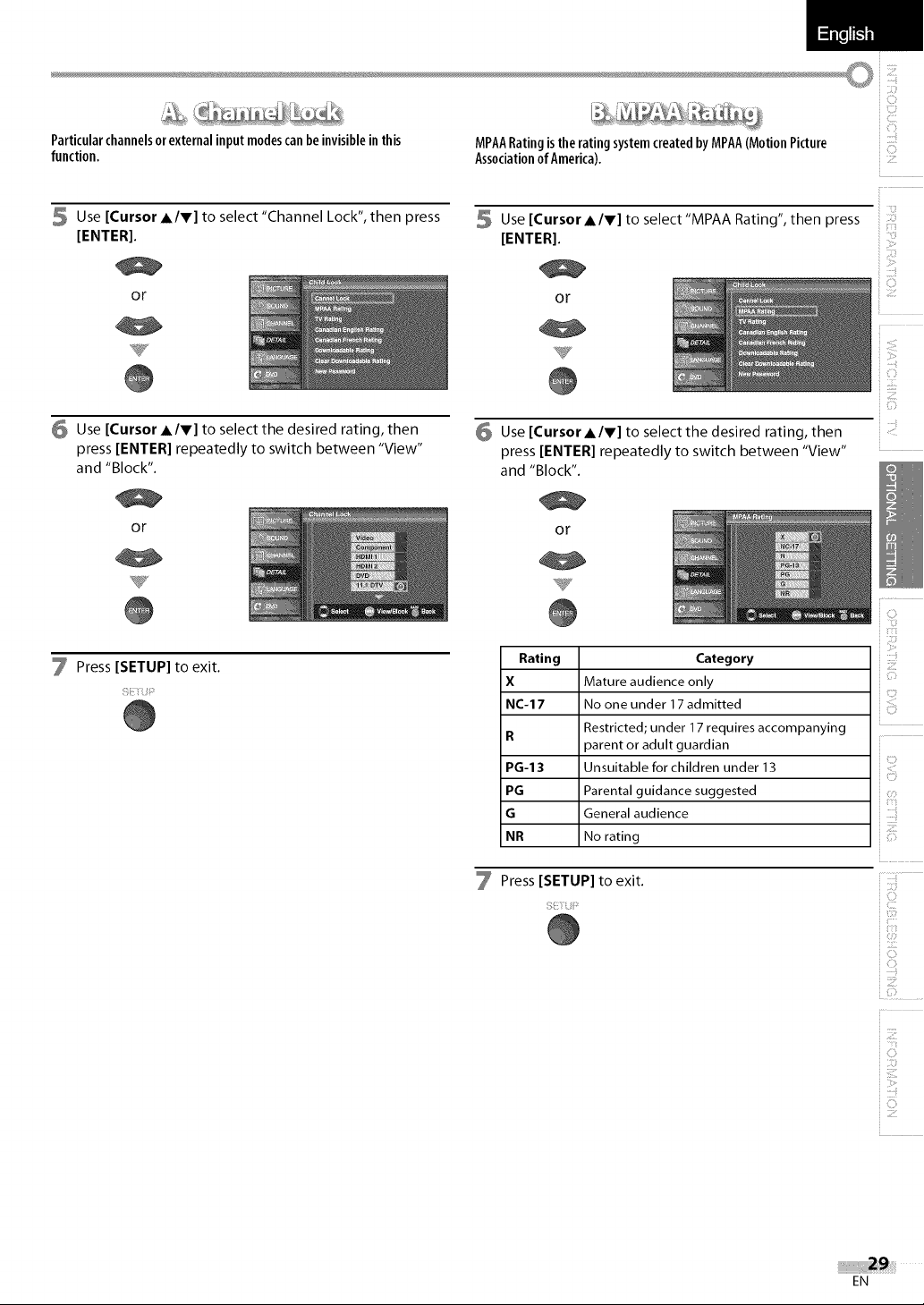

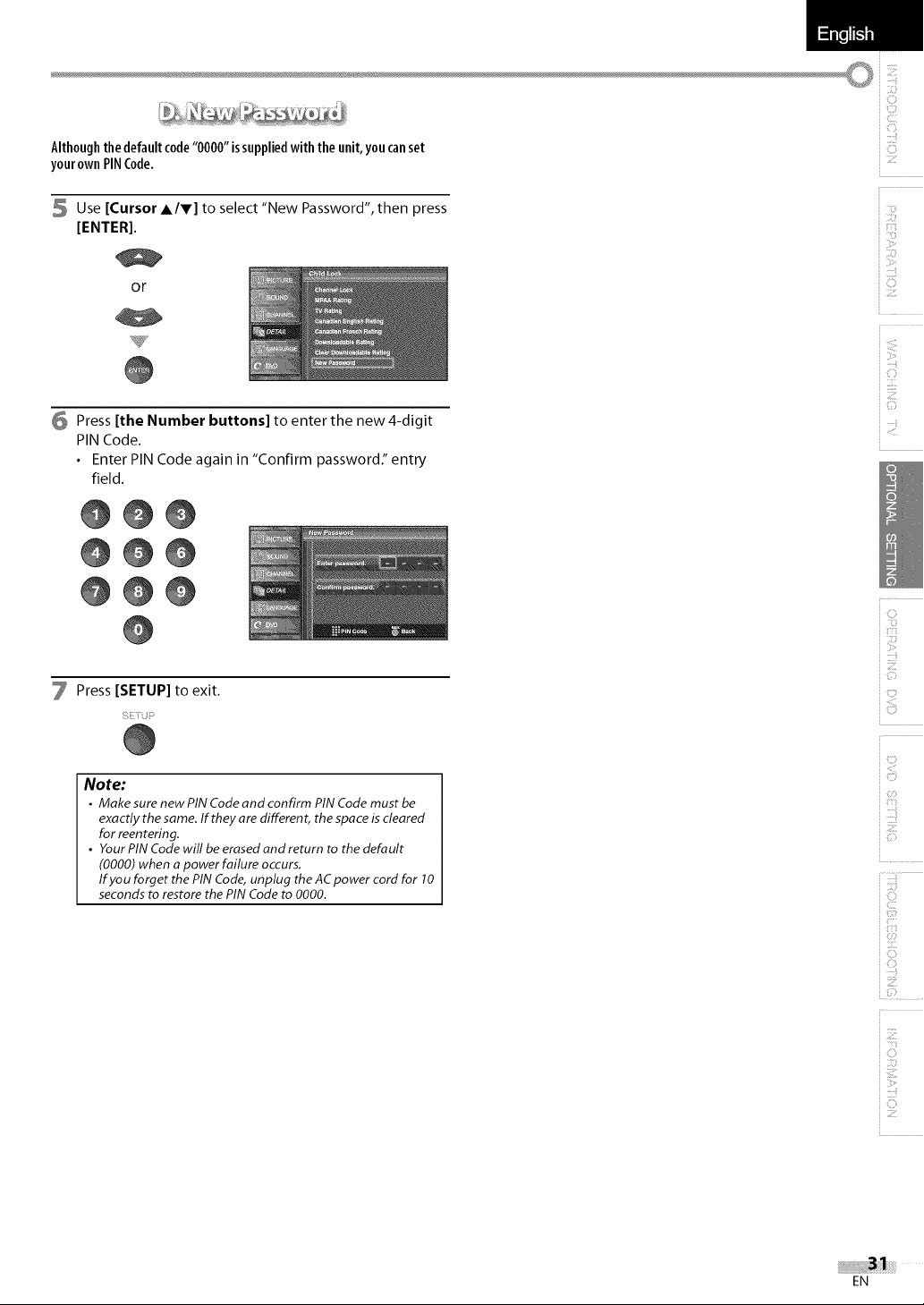

Child Lock .............................................. 28

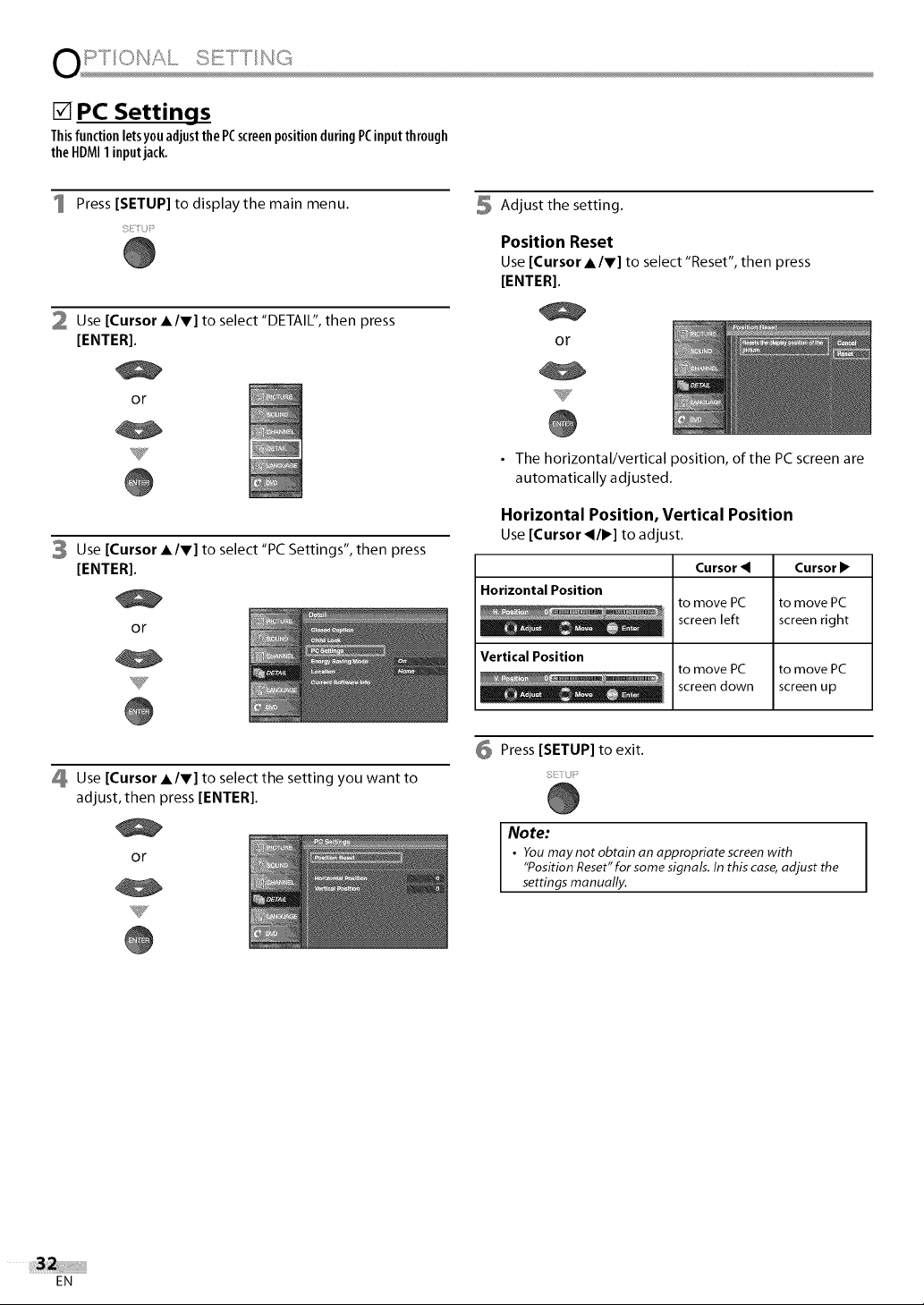

PC Settings ............................................. 32

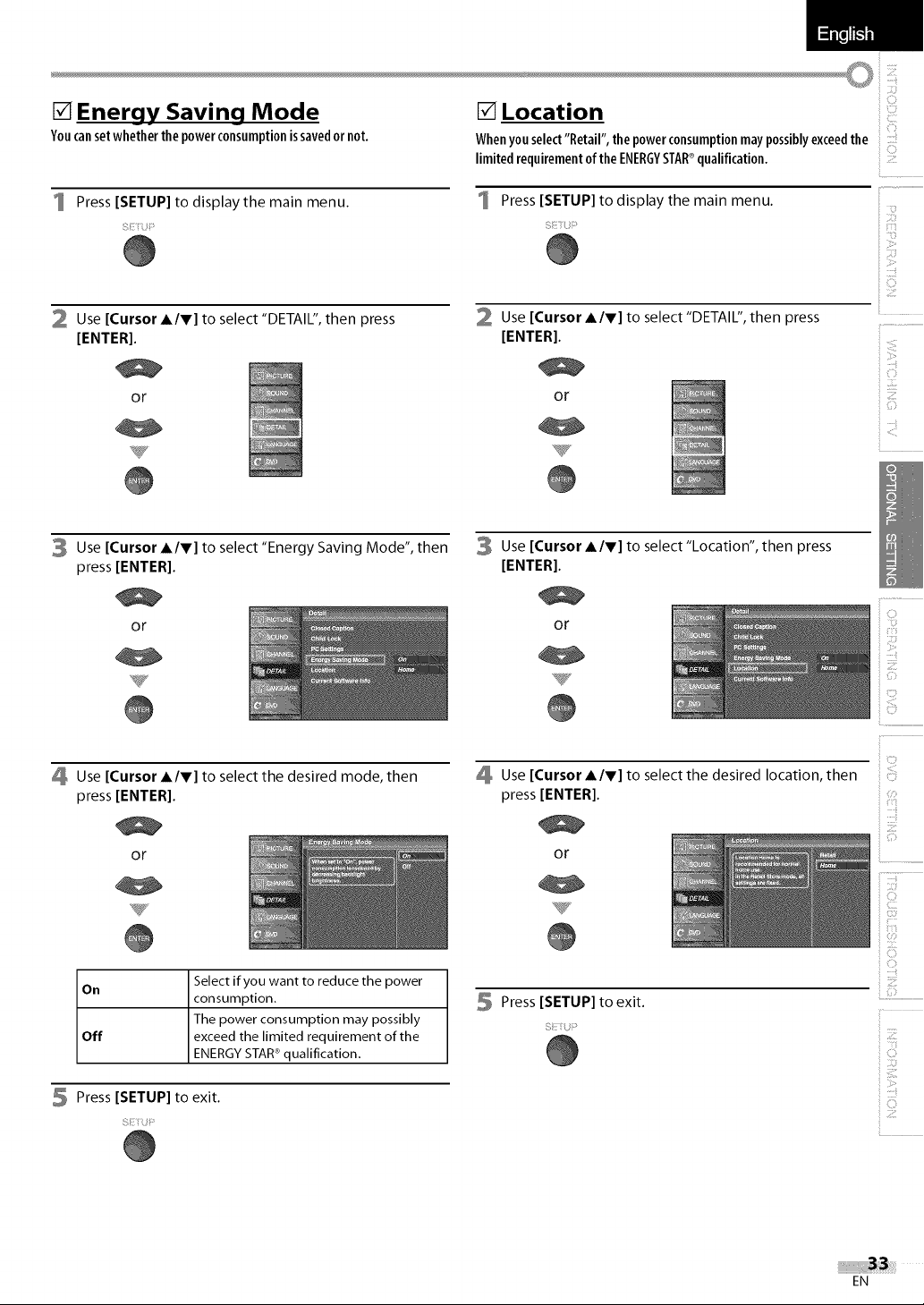

Energy Saving Mode ................................... 33
Location ............................................... 33

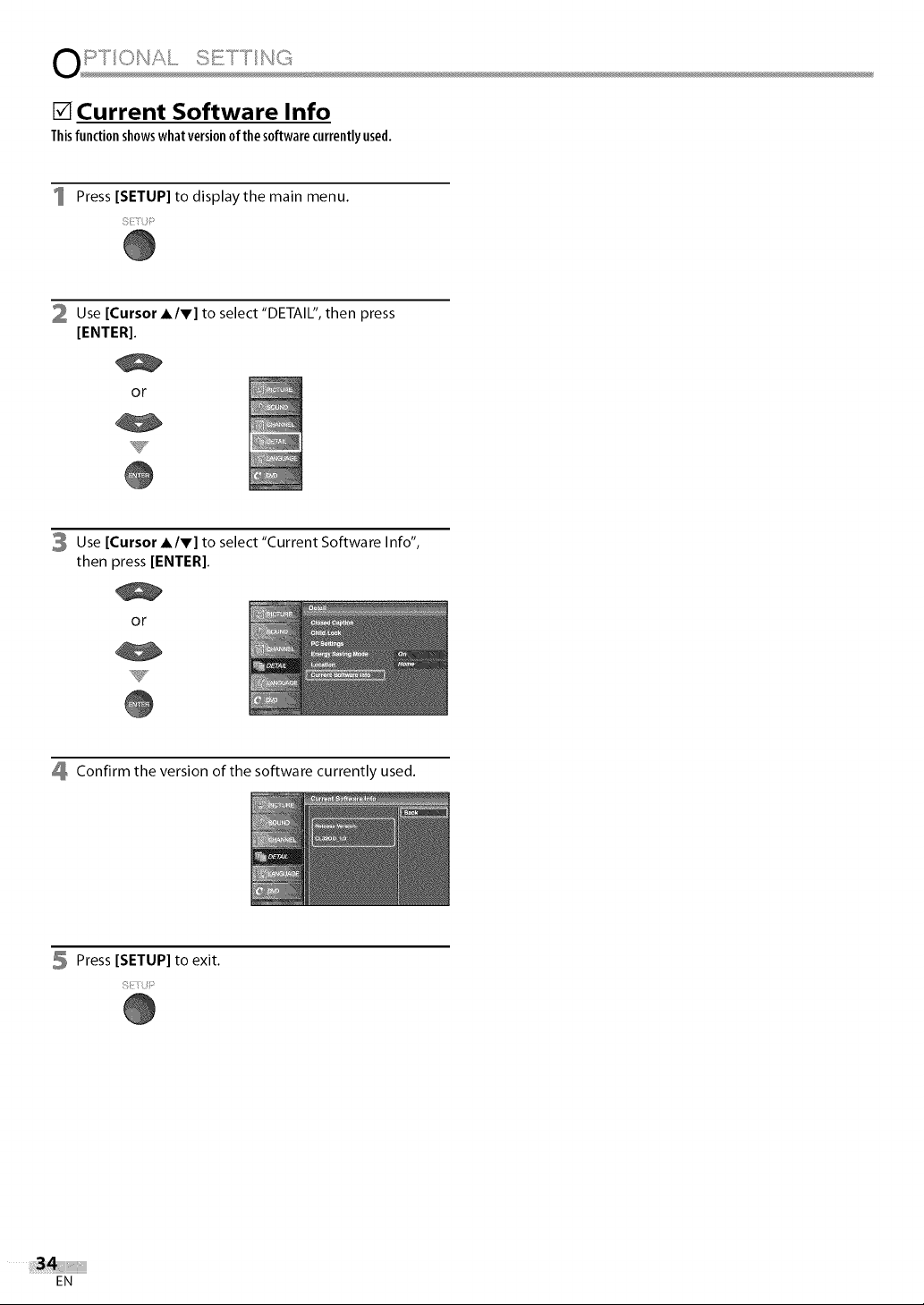

Current Software Info .................................. 34
DVD Functions
OPERATINQ DVD
Playable Media ......................................... 35
Unplayable Media ...................................... 35

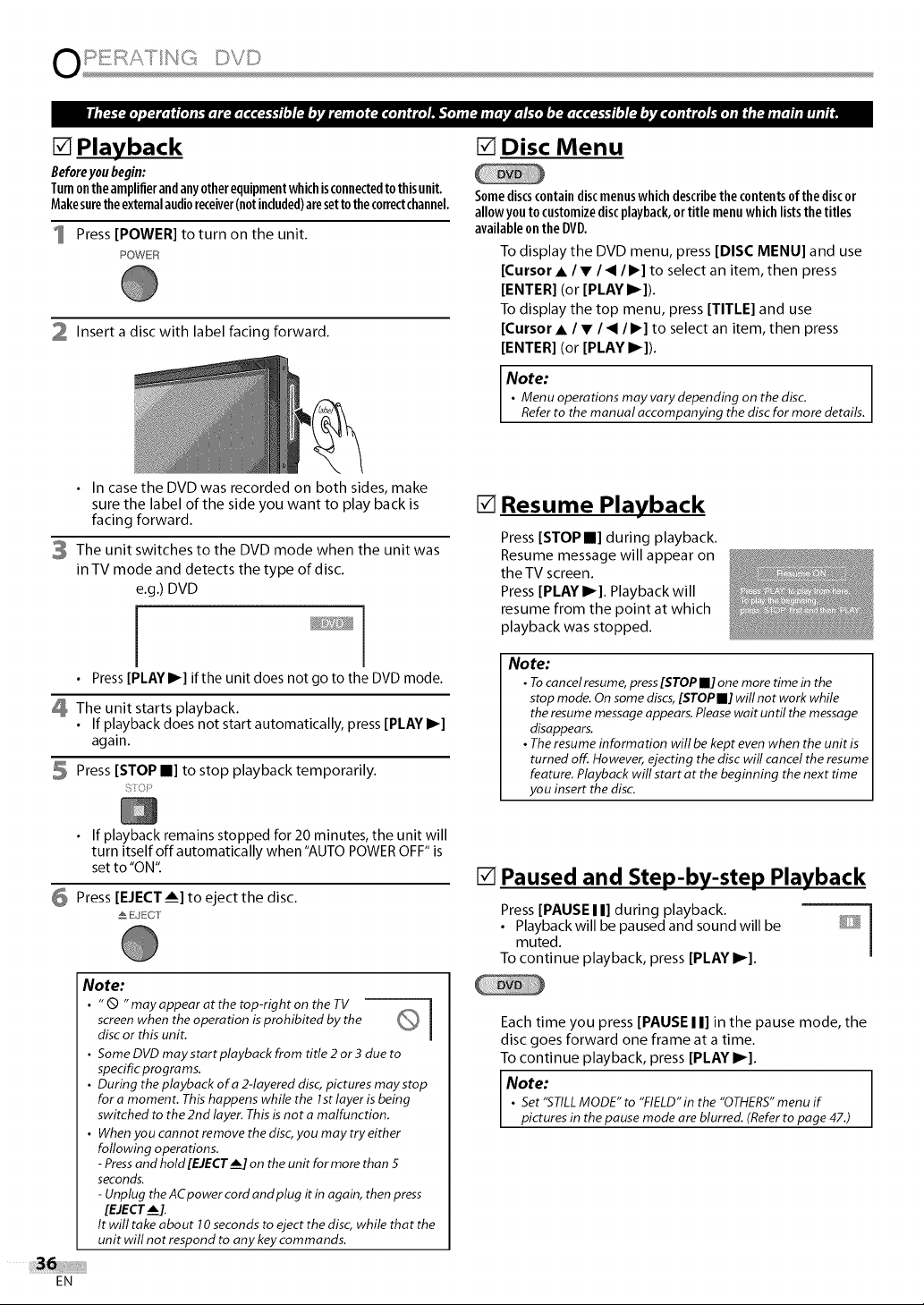

Playback ............................................... 36
Disc Menu .............................................. 36
Resume Playback ...................................... 36
Paused and Step-by-step Playback ..................... 36

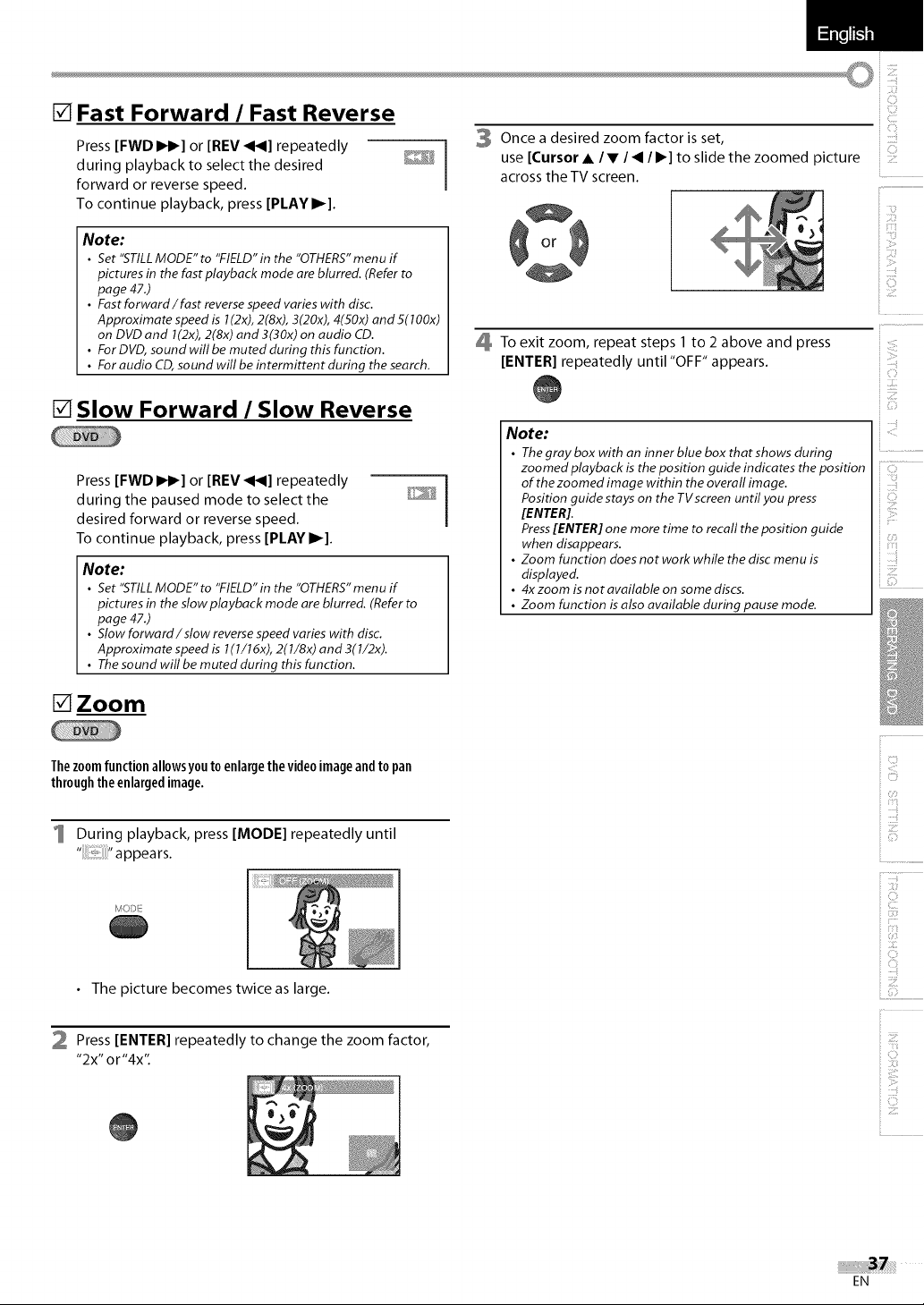

Fast Forward / Fast Reverse ............................ 37
Slow Forward / Slow Reverse ........................... 37
Zoom .................................................. 37

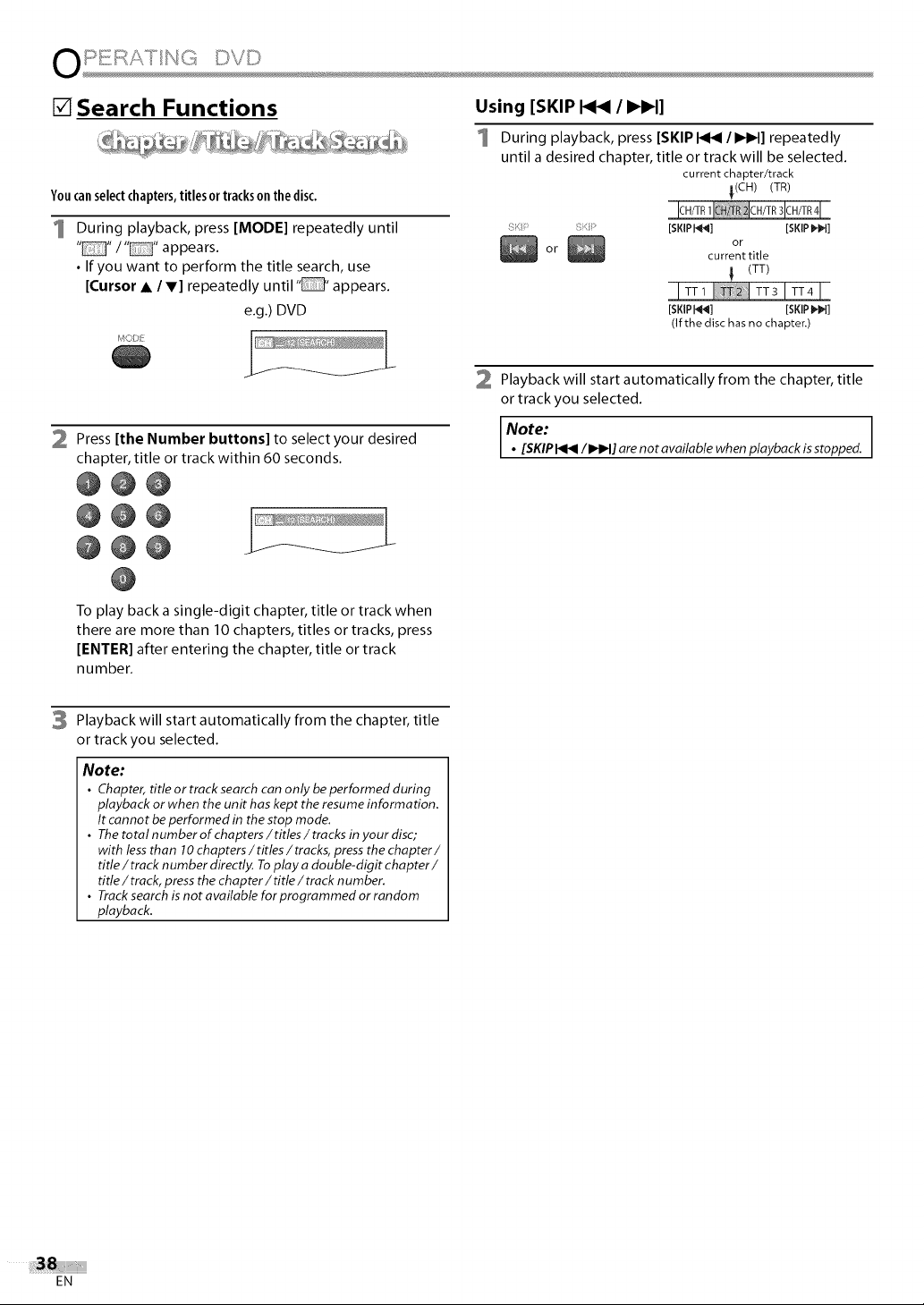

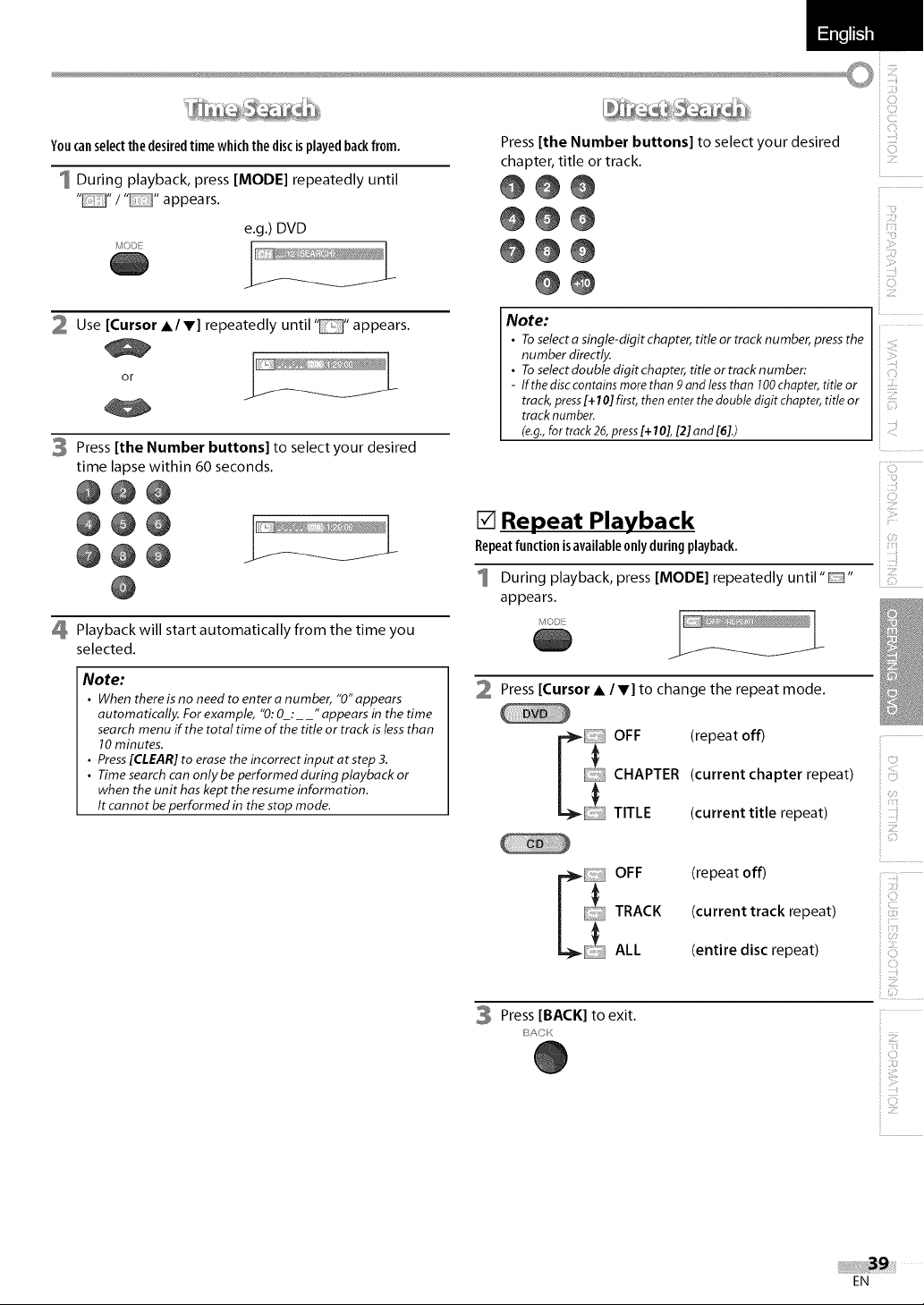

Search Functions ....................................... 38
Repeat Playback ........................................ 39

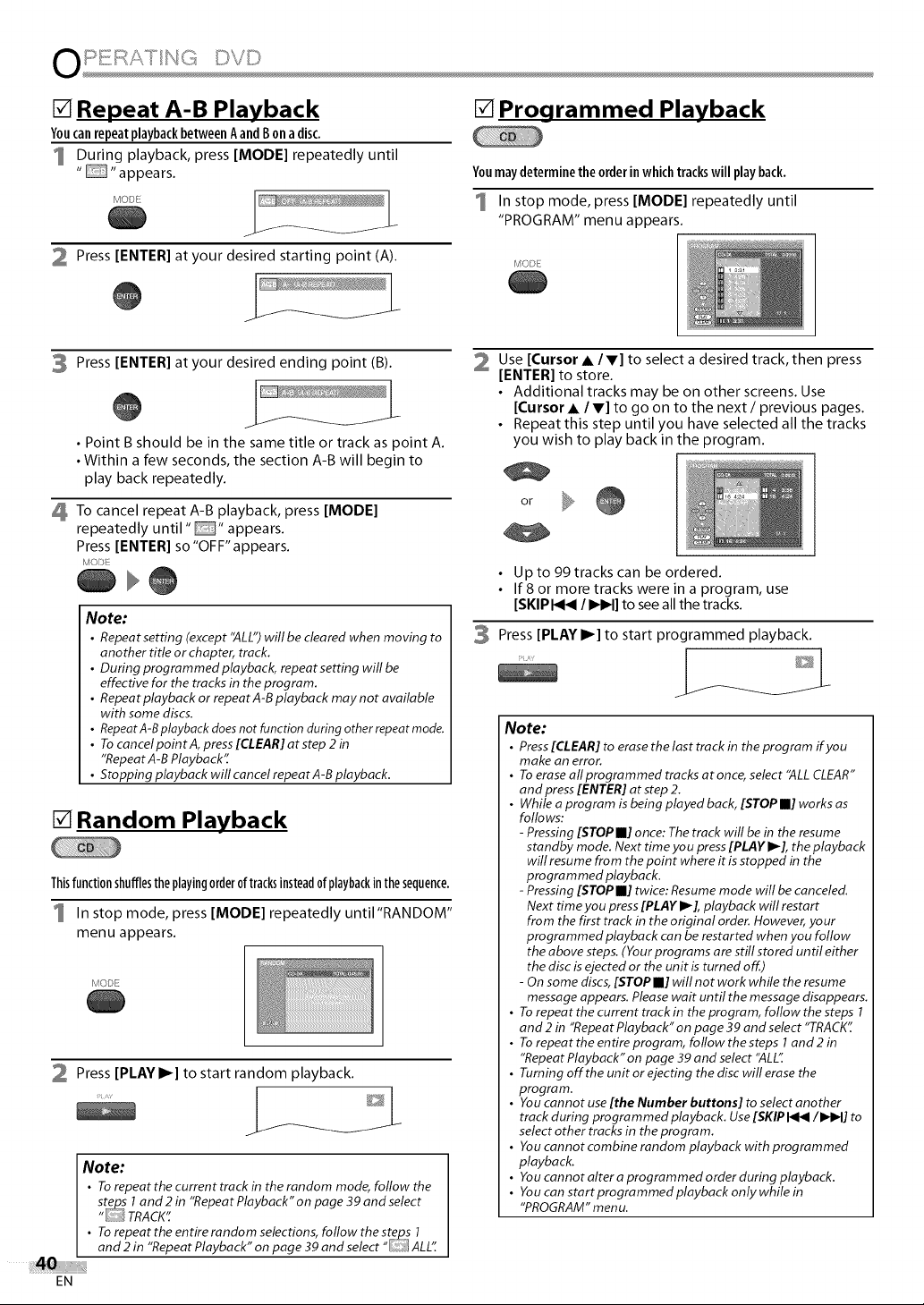

Repeat A-B Playback ................................... 40
Random Playback ...................................... 40
Programmed Playback ................................. 40

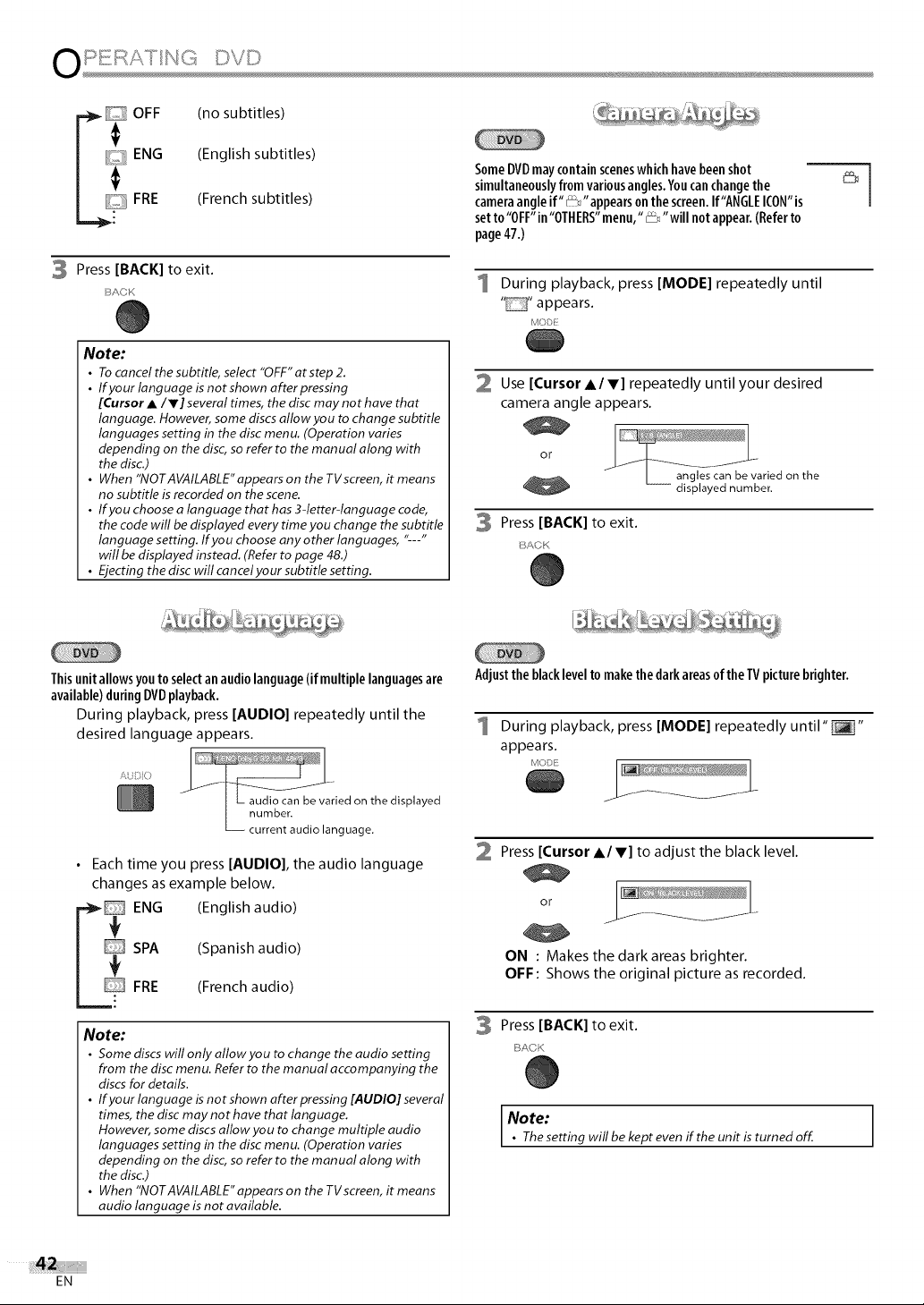

On-screen Display ...................................... 41
Special Settings ........................................ 41
DVD SETTING
DVD Language Setting ................................. 44

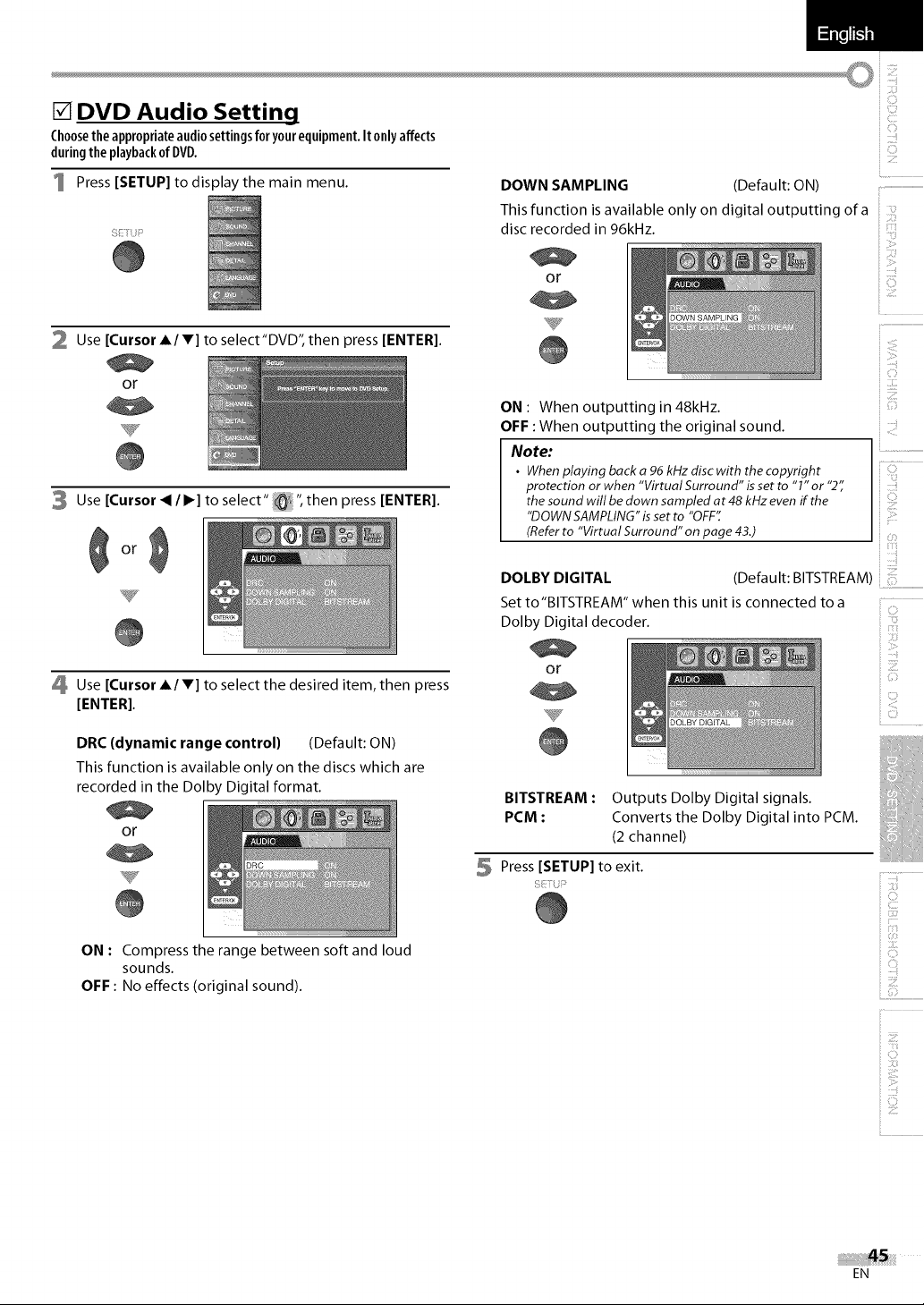

DVD Audio Setting ..................................... 45
Parental Setting ........................................ 46

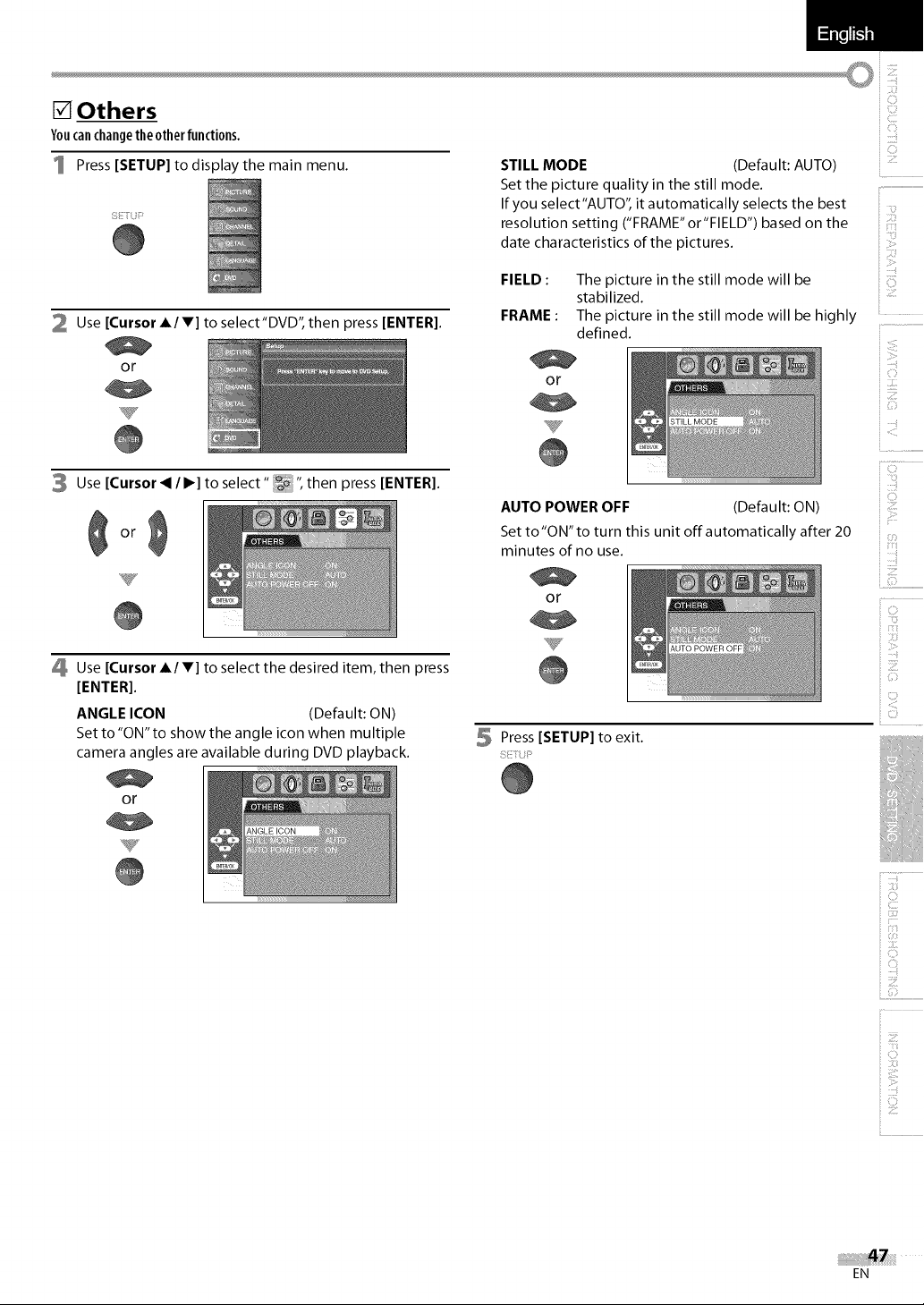

Others .................................................. 47

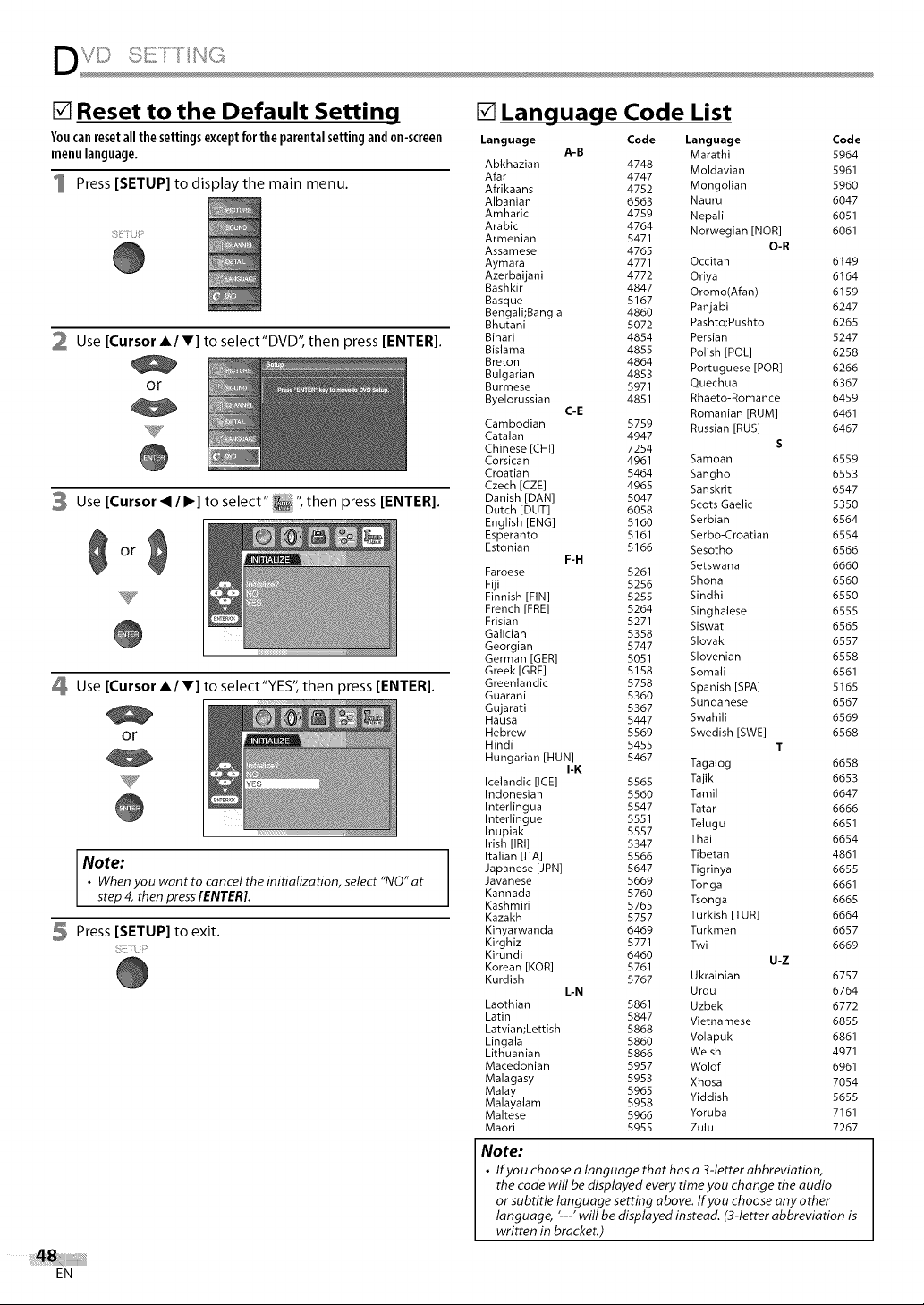

Reset to the Default Setting ............................ 48
Language Code List .................................... 48
TROU BLESHOOTINQ

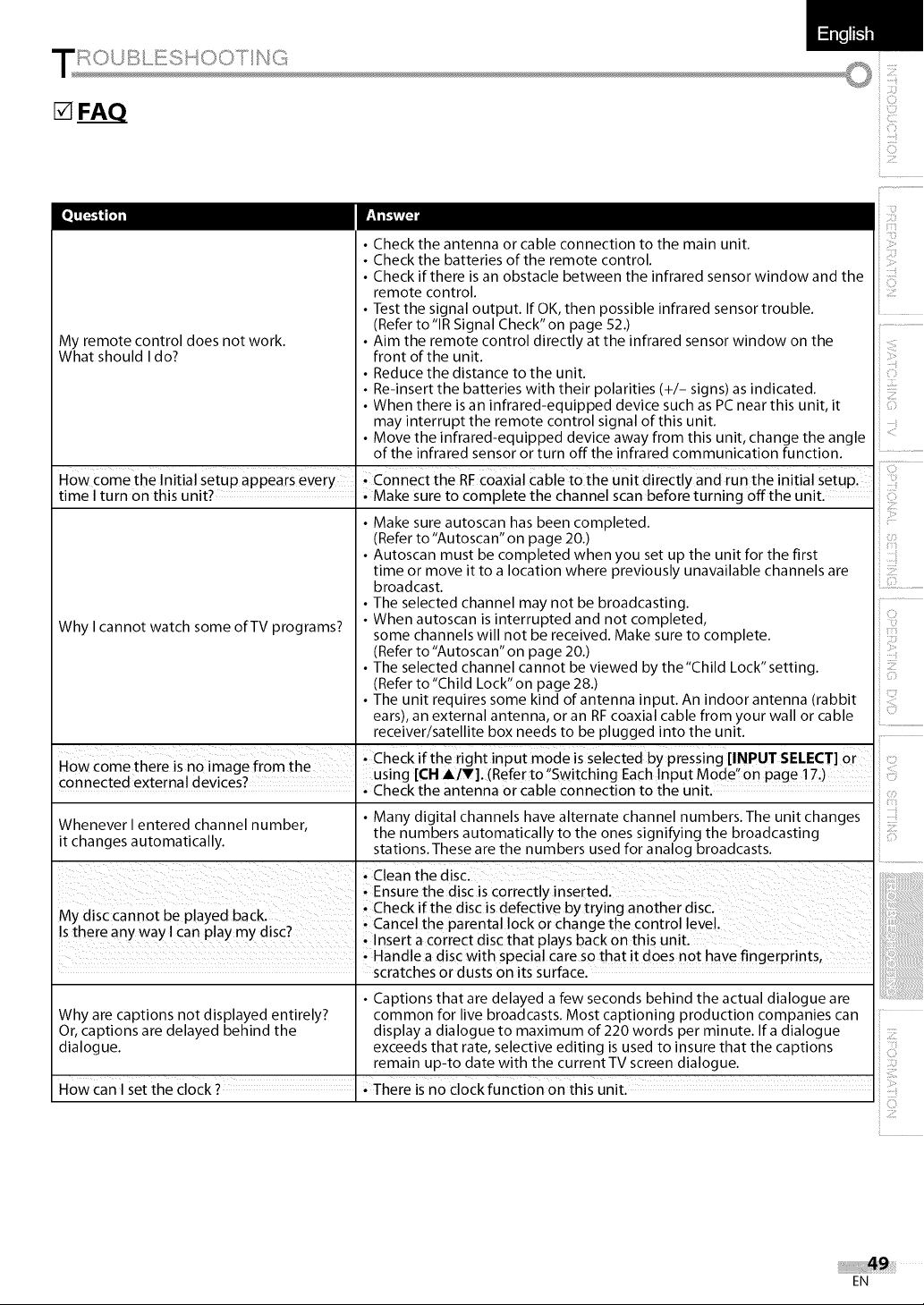

FAQ .................................................... 49

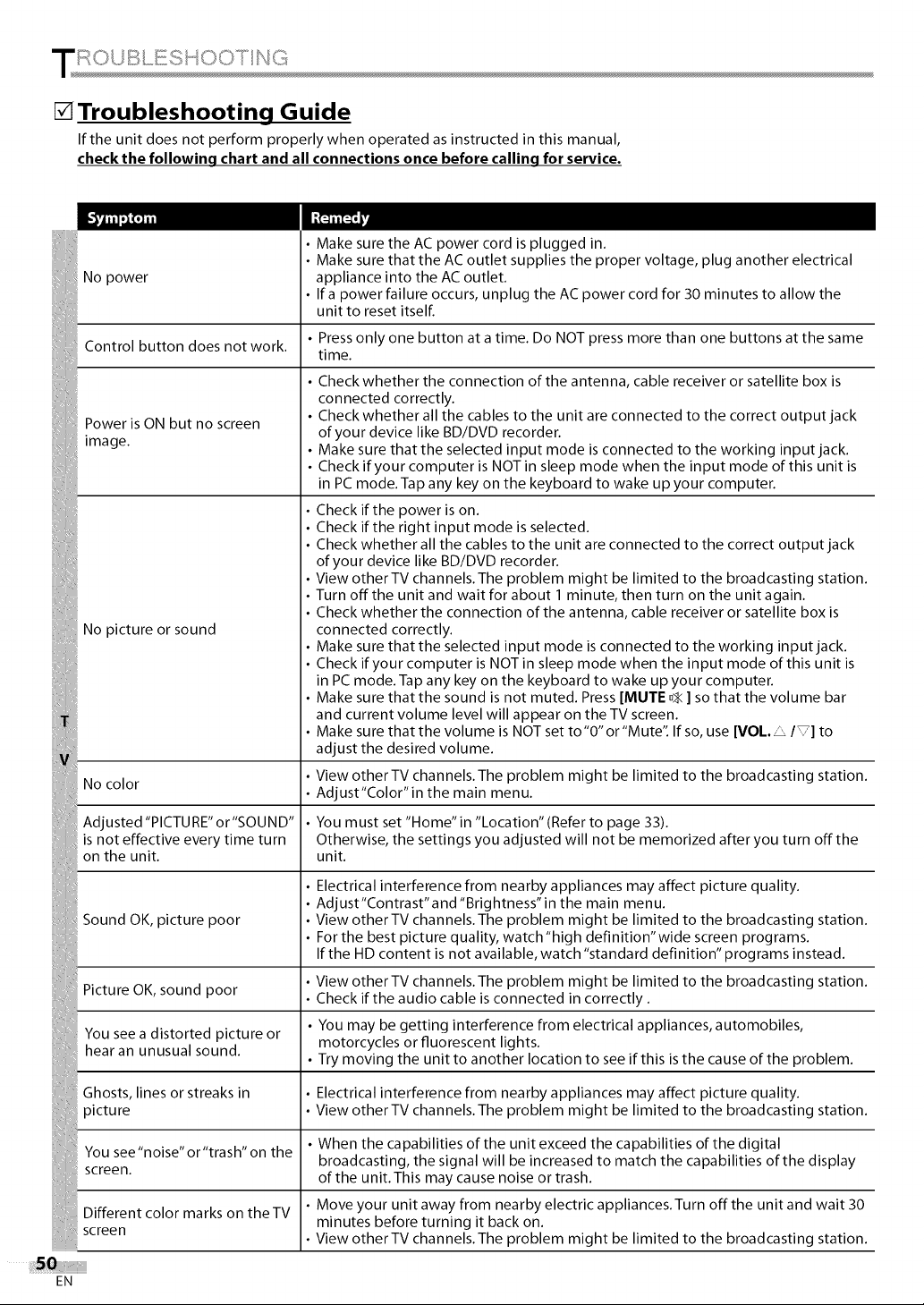

Troubleshooting Guide ................................ 50
INFORMATION

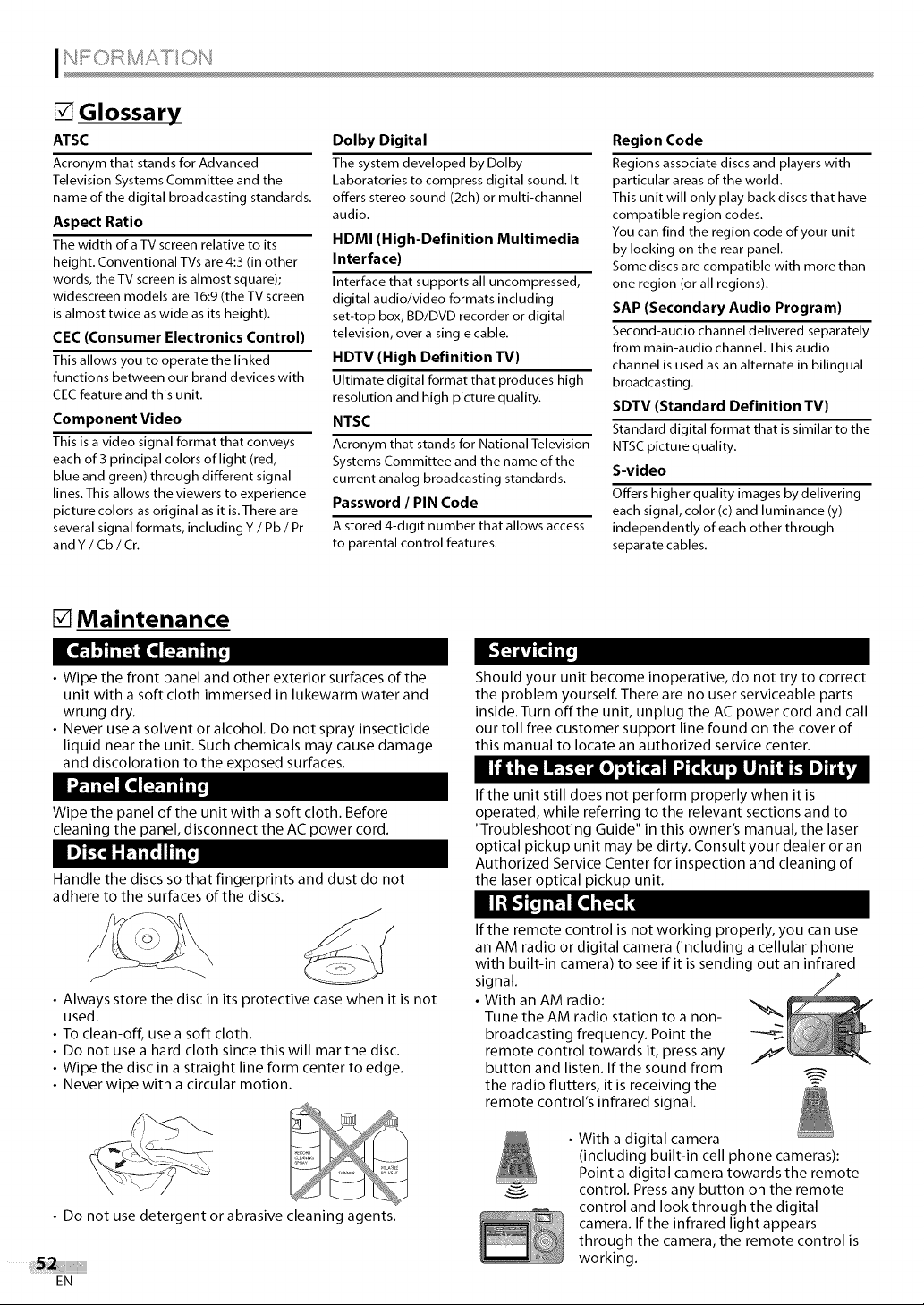

Glossary ................................................ 52
Maintenance ........................................... 52

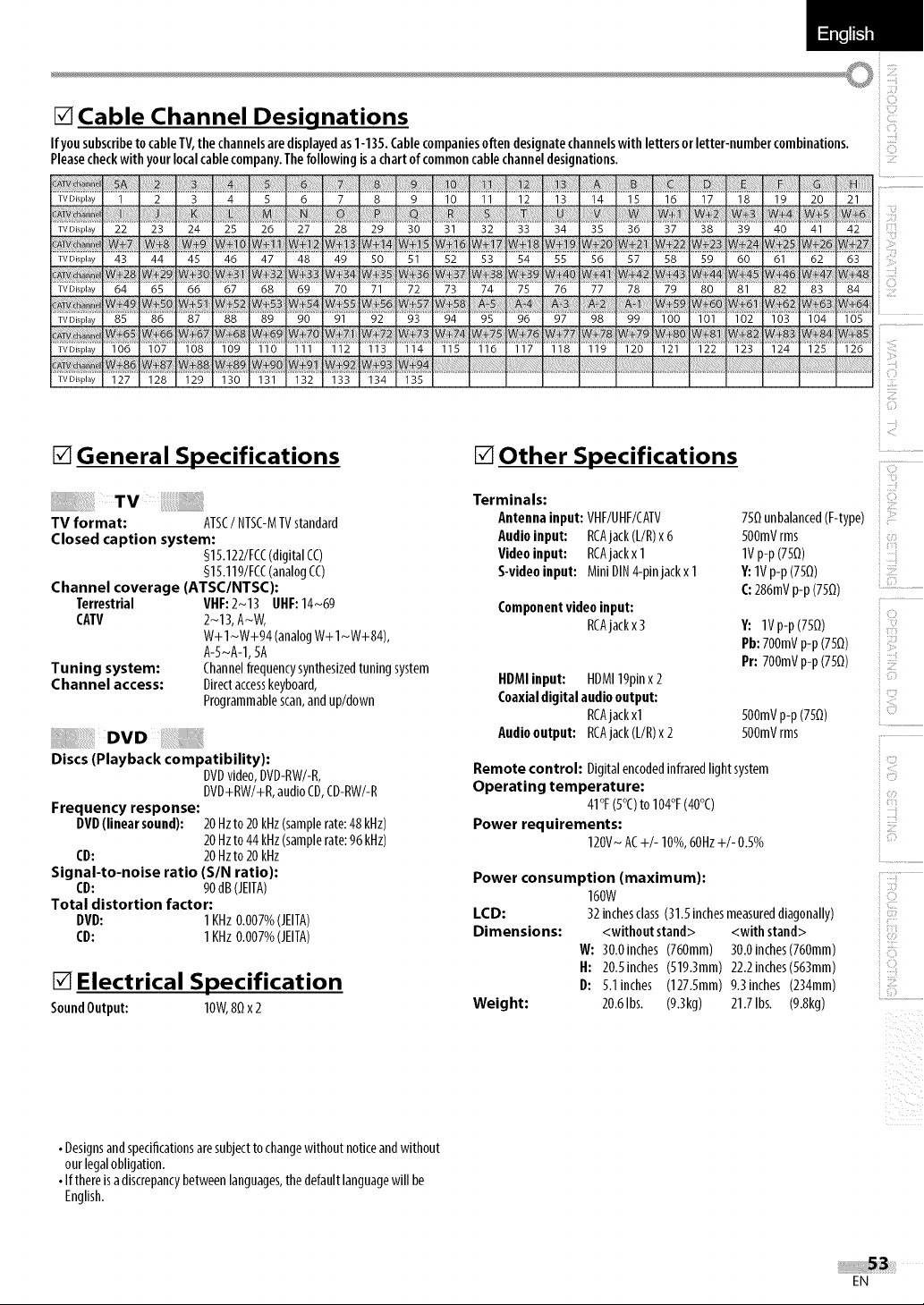

Cable Channel Designations ........................... 53
General Specifications .................................. 53
Electrical Specification ................................. 53
Other Specifications .................................... 53

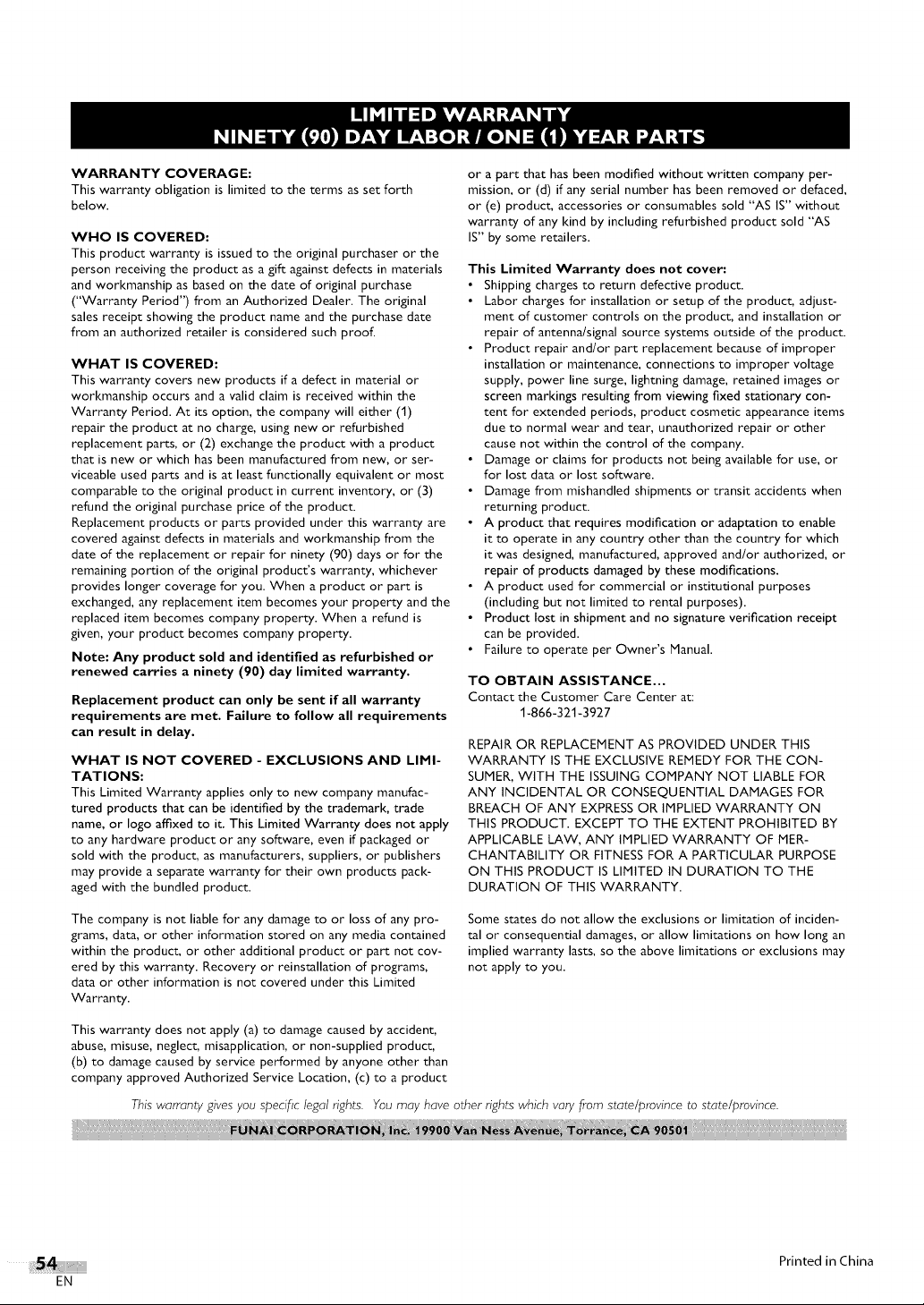

Limited Warranty ....................................... 54
@ 2009 Funai Electric Co., Ltd.
All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in
any storage medium, in any form or for any purpose without the express prior written consent of Funai.
Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the
obligation to notify any person or organization of such changes.
F'UNAi with the __ design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written
consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this
manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein.
Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property
rights to the fullest extent of the law.
EN

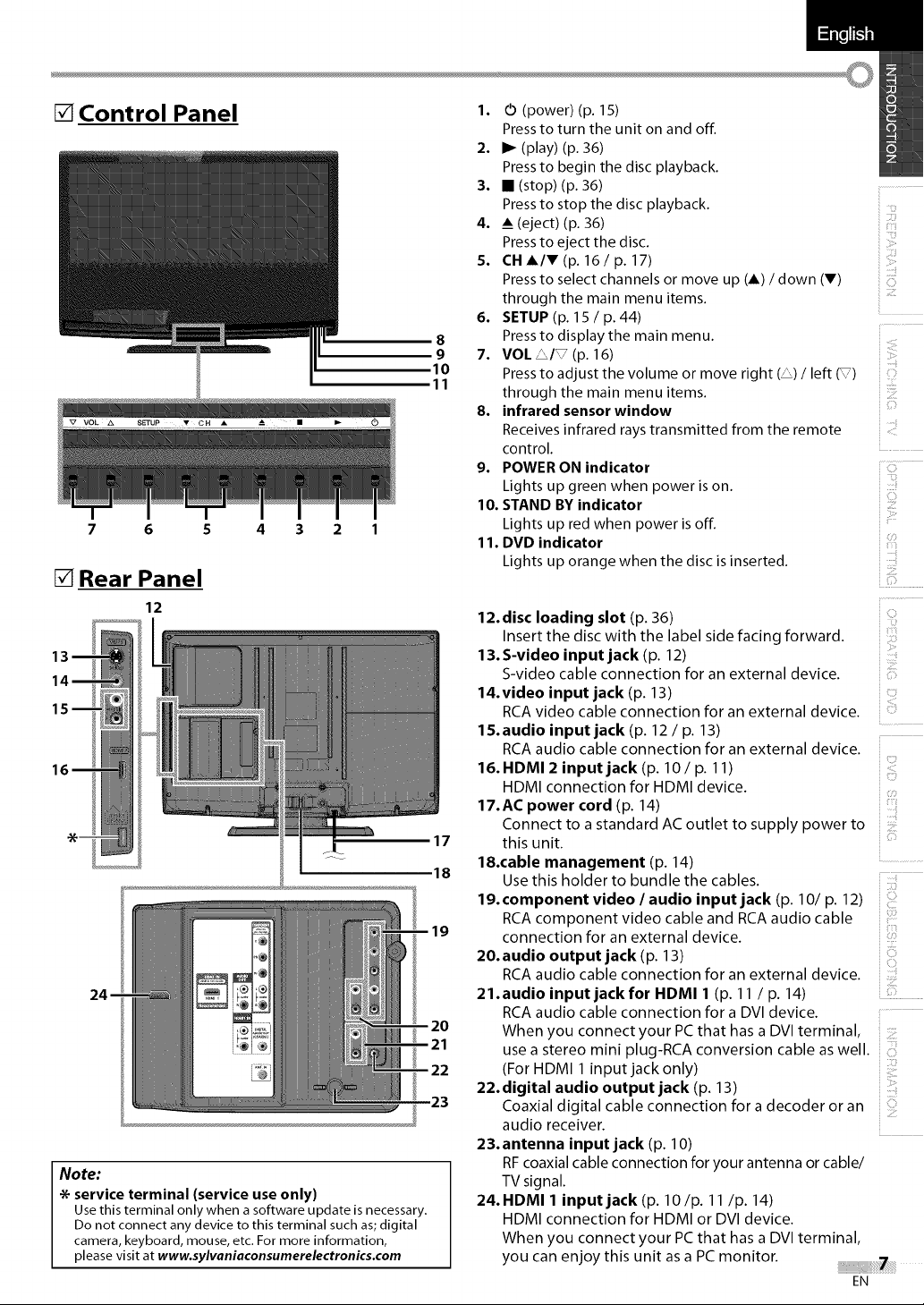

[] Control Panel
8
9
10
11
7 6 5 4 3 2 1
[] Rear Panel
12
17
18
Note:
* service terminal (service use only)
Use this terminal only when a software update is necessary.
Do not connect any device to this terminal such as; digital
camera, keyboard, mouse, etc. For more information,
please visit at www.sylvaniaconsumerelectronics.com
1. 0 (power) (p. 15)
Press to turn the unit on and off.
2. I_ (play) (p. 36)
Press to begin the disc playback.
3. • (stop) (p. 36)
Press to stop the disc playback.
4. _ (eject) (p. 36)
Press to eject the disc.
5. CH A/V (p. 16 / p. 17)
Press to select channels or move up (A) / down (V)
through the main menu items.
6. SETUP (p. 15 / p. 44)
Press to display the main menu.
7. VOL _/_ (p. 16)
Press to adjust the volume or move right (_) / left (_)
through the main menu items.
8. infrared sensor window
Receives infrared rays transmitted from the remote
control.
9. POWER ON indicator
Lights up green when power is on.
10. STAND BY indicator
Lights up red when power is off.
11. DVD indicator
Lights up orange when the disc is inserted.
)
::ii,!iii!i
! !:!!:i¸¸
<i:i
i iii_iiil
12.disc loading slot (p. 36)
Insert the disc with the label side facing forward.
13. S-video input jack (p. 12)
S-video cable connection for an external device.
14.video input jack (p. 13)
RCA video cable connection for an external device.
15.audio input jack (p. 12 / p. 13)
RCA audio cable connection for an external device.
16. HDMI 2 input jack (p. 10 / p. 11)
HDMI connection for HDMI device.
17.AC power cord (p. 14)
Connect to a standard AC outlet to supply power to
this unit.
18.cable management (p. 14)
Use this holder to bundle the cables.
19. component video / audio input jack (p. 10/p. 12)
RCA component video cable and RCA audio cable
connection for an external device.
20.audio output jack (p. 13)
RCA audio cable connection for an external device.
21.audio input jack for HDMI 1 (p. 11 / p. 14)
RCA audio cable connection for a DVI device.
When you connect your PC that has a DVI terminal,
i:_iiiiii
i !iT'_I
i iiii_ii!i!i
i C ¸¸i
i _:_:i¸
i!!iiii!
i Tii
i iiiiii!!
i!i_ii!i.........
use a stereo mini plug-RCA conversion cable as well.
(For HDMI 1 input jack only)
22.digital audio output jack (p. 13)
Coaxial digital cable connection for a decoder or an
audio receiver.
23.antenna input jack (p. 10)
RFcoaxialcable connection for your antenna or cable/
TV signal.
24.HDMI 1 input jack (p. lO/p. 11/p. 14)
HDMI connection for HDMI or DVl device.
When you connect your PC that has a DVl terminal,
you can enjoy this unit as a PCmonitor.
EN

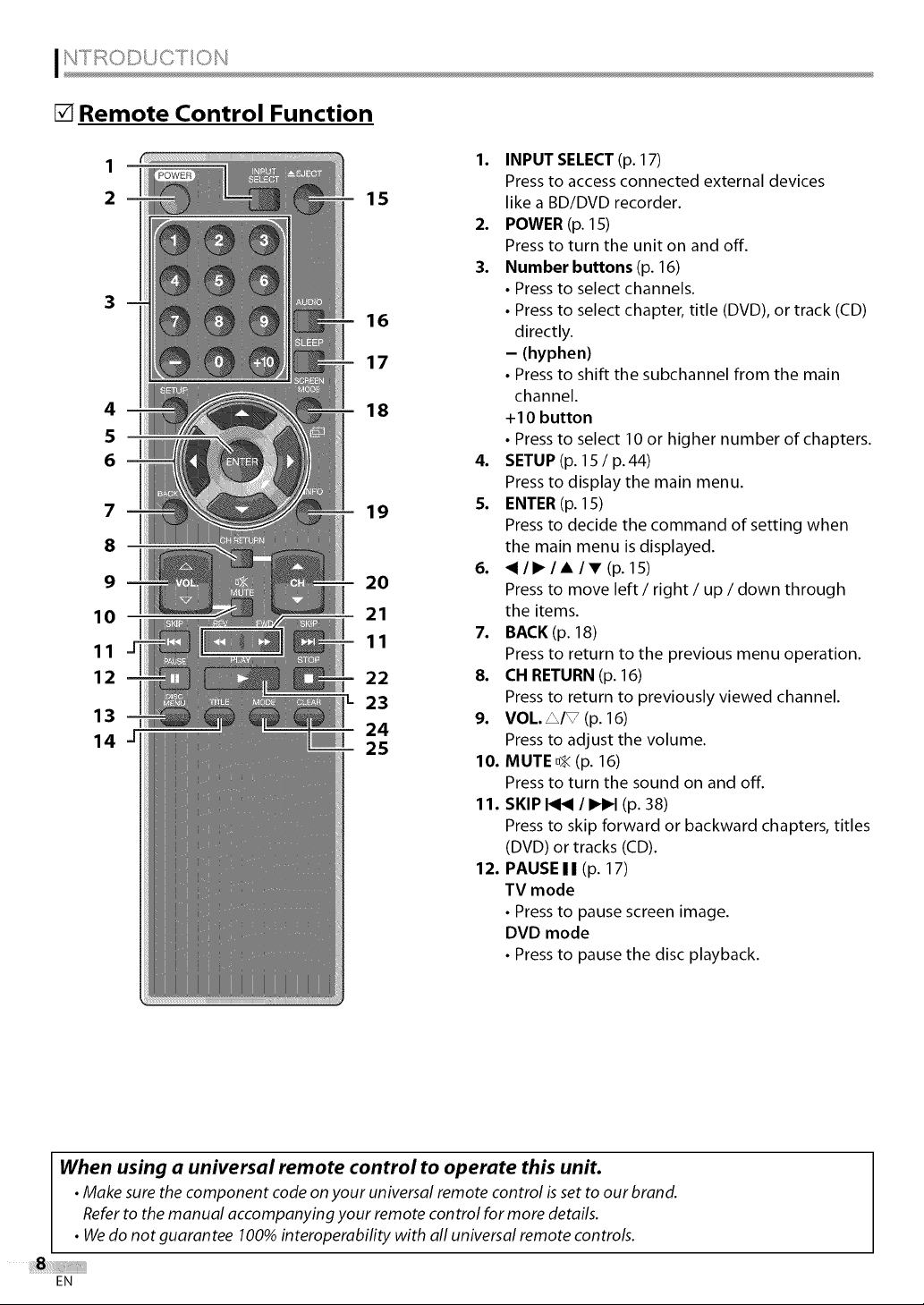

[] Remote Control Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1. INPUT SELECT (p. 17)
Press to access connected external devices
1 5 like a BD/DVD recorder.
2. POWER (p. 15)
Press to turn the unit on and off.
3. Number buttons (p. 16)
• Press to select channels.
• Press to select chapter, title (DVD), or track (CD)
16
directly.
17 - (hyphen)
• Press to shift the subchannel from the main
channel.
18 +10 button
• Press to select 10 or higher number of chapters.
4. SETUP (p. 15 / p. 44)
Press to display the main menu.
19 5. ENTER (p. 15)
Press to decide the command of setting when
the main menu is displayed.
6. <II_IAIT(p. 15)
20 Press to move left / right / up / down through
21 the items.
7. BACK (p. 18)
11
Press to return to the previous menu operation.
22 8. CH RETURN (p. 16)
_L 23 Press to return to previously viewed channel.
9. VOL. _/q//(p. 16)
24
Press to adjust the volume.
25
10. MUTE D_(p. 16)
Press to turn the sound on and off.
11. SKIP I<1<1/ _ (p. 38)
Press to skip forward or backward chapters, titles
(DVD) or tracks (CD).
12. PAUSE I I (p. 17)
TV mode
• Press to pause screen image.
DVD mode
• Press to pause the disc playback.
When using a universal remote control to operate this unit.
• Make sure the component code on your universal remote control is set to our brand.
Referto the manual accompanying your remote control for more details.
• Wedo not guarantee 100%interoperability with all universal remote controls.
EN
13. DISC MENU (p. 36)
Press to display the menu on the disc.
14. TITLE (p. 36)
Press to display the title menu (DVD).
15. EJECT _ (p. 36)
Press to eject the disc.
16. AUDIO (p. 17/p. 42)
Digital mode (DTV)
• Press to select the audio language.
Analog mode (TV)
• Press to select the audio mode.
DVD mode
• Press to select the audio language (DVD), or
sound mode (CD).
17. SLEEP (p. 16)
Press to activate the sleep timer.
18. SCREEN MODE _ (p. 19)
Press to select aspect ratio available for the TV
screen.
19. INFO (p. 18/p. 41)
• Digital mode (DTV)
Press to display the channel information, signal
type and TV setting.
• Analog mode (TV)
Press to display the channel number, signal
type and TV setting.
• External input mode
Press to display the external input mode, signal
type and TV setting.
• DVD mode
Press to display the current status.
20. CH A/T (p. 16 / p. 17)
Press to select channels and the external input
mode.
21. REV _1 / FWD _ (p. 37)
Press to begin slow forward or slow reverse
playback during the pause mode (DVD) and
search forward or backward through the disc.
22. STOP • (p. 36)
Press to stop the disc playback.
23. PLAY I_ (p. 36)
Press to begin the disc playback.
24. MODE (p. 5)
• Press to arrange the playing order or
playback randomly (CD).
• Press to set the black level (DVD) and
the virtual surround on or off.
• Press to change the camera angle to see the
sequence being played back from different
angle (DVD).
• Press to search chapter, title (DVD),
track (CD) or time.
• Press to set the marker.
• Press to repeat playback chapter, title (DVD),
track, disc (CD) repeatedly or between
designated point A and B.
• Press to magnify the part of picture
(2x and 4x : DVD).
• Press to select the subtitles on the disc (DVD).
25. CLEAR (p. 39)
• Press to clear the numbers entered incorrectly.
• Press to cancel the point A for A-B repeat.
• Press to remove the track number in program
input (CD).
[] Installing the Batteries
Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control.
Battery Precautions:
• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or
old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture.
ii....................................................
ii iii_i_ii_
_i _ii'll
ii I,C_!
_ii_i!iiii!i
ii!ii!ii
C_
C_
ii!iiii!!
i,!!i_!ill
ii ,_!
'i ii:iii!
ii,:!ili_iiii!_i...............
i! iili>,
i! ::_!!
i! i_iiii!i!i
i Ti
ii .......
ii _::iiiil
i iiiii,_,!!
i!!_!iii
i!ii_ii!il
EN
Before you connect...
Be sure your antenna or other device is connected properly before plugging in the AC power cord.
[] Antenna Connection
Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.
e.g.) VHF/_
antenna g
@
rear of this unit
RF coaxial cable
cableTV signal
Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit
to memorize all available channels in your area. (Refer to"lnitial Setup" on page 15.)
Note:
• If you have any question about the DTV'santenna, visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local
electronics store for these items.
• Foryour safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.
• If you usean antenna to receive analog TV,it should also work for DTV reception. Outdoor or attic antennas wifl be more effective than
settop versions.
• Toswitch your reception source easily between antenna and cable, install an antenna selector.
• If you connect to the cable system directly, contact the CATVinstaller.
[] Connection to Cable Receiver or Satellite Box
Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the
HDMI or the component video output jack of the cable receiver/satellite box.
If you connect to the unit's COMPONENT video input jack, connect an RCA audio cable to the audio L/R jack of
COMPONENT accordingly.
e.g.) HDMI cable
satellite dish
rear of this unit
including PPV
cable receiver / satellite box
RCAcomponent video cable
and RCAaudio cable
You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video
output jack because they might have different output jacks.
Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the
clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable /
satellite provider.
EN
[] External Device Connection
[HDMI Connection]
HDMI connection offers the highest picture quality.
HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio
through a single cable.
e.g.) rear of this unit
BD/DVD recorder
with the HDMI output jack
HDMI cable
Note:
• This unit accepts 480i/480p/720p/1080i video signals, and 32kHz/44.1kHz/48kHz audio signals.
• This unit accepts only 2 channel audio signal (LPCM).
• You need to select "PCM" for the digital audio output of the device you connected or check the HDMI audio setting.
There may be no audio output if you select "Bitstream" etc.
• This unit only accepts signals in compliance with EIA861.
[HDMI-DVI Connection]
Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack.
e.g.)
HDIVll DVl
conversion cable rear of this unit
cable receiver or satellite
with the DVI output jack
To HDMI1
input jack only
RCA audio cable
Note:
• This unit accepts 480i/480p/720p/1080i video signals.
• HDMI-DVI connection requires separate RCA audio connection as welL
• Audio signals are converted from digital to analog for this connection,
• DVI does not display 480i image that is not in compliance with EIA/CEA-861/86 lB.
i................................................
iii!!!i
i C_
ili!iliiiii!
iiiiiiii_
iiii!_ii
ij ::::ii
ilii!!!!
ii!!iiiii
ii Ziil
iiii!!il;il
ii Cil
ii ii!Z
i C::¸_
EN
[Component Video Connection]
RCA component video connection offers better picture quality for video devices connected to the unit.
If you connect to the unit's COMPONENT video input jack, connect an RCA audio cable to the audio L/R jack of
COMPONENT accordingly.
e.g.)
BD/DVD recorder with
the component video output jack
RCA component video cable
RCA audio cable
Note:
• This unit accepts 480i/480p / 720p / 1080i video signals.
[S-video Connection]
S-video connection offers good picture quality for video devices connected to the unit.
If you connect to the unit's S-video input jack, connect an RCA audio cable to the audio L/R jack of VIDEO accordingly.
e.g.)
side of this unit
BD/DVD recorder with
the S-Video output jack
AUDIO OUT S-VIDEO
L R _ OUT S-video cable
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
EN
[Video Connection]
RCA video connection offers standard picture quality for video devices connected to the unit.
If you connect to the unit's video input jack, connect an RCA audio cable to the audio L/R jack of VIDEO accordingly.
When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.
e.g.)
side of this unit
camcorder video game _ 4
VCR
RCA video cable
RCA audio cable
Note:
• If you connect to the S-video inputjack and the video inputjack at the same time, the S-video connection will have priority.
[Audio Output Connection]
Digital (for digital broadcasting only)
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1 ch digital
broadcasting sound.
Use a digital audio coaxial cable to connect the unit to external digital audio devices.
Analog (for both analog and digital broadcasting)
If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio.
Use an RCA audio cable to connect the unit to external analog audio devices.
e.g.)
stereo system
Dolby Digital
decoder
m
DiGiTAL AUDIO
COAXIAL iN
rear of this unit
digital audio coaxial cable
il................................................
iii! !!i
i! :i,i:,i
'<:ii
ii Li_i
]i:!.......
_i!!i__
i! ::!!
ii i_iiii!i!i
ii
il
:C!
_ii'iii'_!
i,i:iiii
i CCi
iiii:i_:ii
ii iiii_'ii
i .......
f !:::_
ii :i!:!:
EN
[PC Connection]
This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection
and it requires stereo mini plug-RCA conversion cable as well.
If you connect this unit to your PC, you can use this unit as a PC monitor.
e.g.)
stereo mini plug-RCA rear of this unit
conversion cable
personal computer
HDMI-DVI conversion cable should be with ferrite core.
The following signals can be displayed:
VGA 640 x 480 60Hz
SVGA 800 x 600 60Hz
XGA 1,024 x 768 60Hz
1,280 x 768
WXGA
1,360 x 768
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ! i i ilil
60Hz
60Hz
Other formats or non-standard signals will not be displayed correctly.
Note:
• Please purchase the HDMI-DVI conversion cable that has a ferrite core.
• The following operations may reduce noise.
- Attach a ferrite core to the AC power cord of your PC.
- Unplug the AC power cord and use the built-in battery of your PC.
[] Cable Management [] Plug In the AC Power Cord
Keep the cables through this holder to avoid tangle
them. rear of this unit
Make sure that the AC power cord must be plugged
to an AC outlet after all the necessary connection is
completed, rear of this unit
AC outlet
EN
Caution:
• Do not connect the AC power cord to a power supply outside the
indicated voltage of this unit (AC 120V).
Connecting the AC power cord to a power supply outside of this
range may result in fire or electrical shocks.
Note:
• Each time you plugged in the ACpower cord, any operations will
not be performed for a few seconds. This is not a malfunction.
[] Initial Setup
Thissectionwill guideyouthroughtheunit'sinitialsettingwhichincludes
selectinga languageforyouron-screenmenuandautoscan,which
automaticallyscansandmemorizesviewablechannels.
Beforeyoubegin:
Makesureifthe unitisconnectedtoantennaorcables.
1 After making all the necessary connections,
press [POWER] to turn on the unit.
POWER
• This operation may take a few moments.
2 Use [Cursor A/T] to select the on-screen language
from the choices on the right side of the TV screen.
(English / Espafiol / Fran(_ais)
or
• "Initial Setup" menu on step 3 will be displayed in the
selected language after you press [ENTER[.
3 Use [Cursor A/T] to select "Antenna" for TV channels
or "Cable" for CATV channels, then press [ENTER[.
or
• "Autoscan"will begin.
Use [Cursor _11_] to select the desired location setting,
then press [ENTER[.
efficiency for home setting and it can be adjusted
through a choice of picture and sound quality
according to your preference.
When the initial setup is completed, the lowest
memorized channel with the confirmation message
of the location setting will be displayed on the TV
screen.
iii£i
ii !i:?
Select "Retail", the unit will be set up with predefined
setting for retail displays. In this setting, the power
consumption may possibly exceed the limited
requirement of the ENERGY STAR® qualification.
Select "Home", the unit is set to maximize the energy
i
_ii!!i
Note:
• If you connect the cable system directly, contact the CATV
installer.
• If you press [POWER] or [SETUP] during autoscan, this
setting will be canceled.
• The initial autoscan function can be executed for either
"Antenna" or "Cable"only once. Whenyou change the
connection (Antenna / Cable),set autoscan again.
(Referto page 20.)
• Ifthereisnosignalinputfrom theantenna terminaland
no operation for several seconds after you turn on the unit,
"Helpful Hints" appears. Follow the instructions listed on
the TVscreen.
• You must set "Home"in step 4. Otherwise, the settings
of picture and sound quality you adjusted will not be
memorized after you turn off the unit.
i
ii ilii!:¸
!i!!iii!i
After an initial setup is completed...
If you want to scan the channels automatically again. :
Refer to "Autoscan" on page 20.
You can add the desired channels unmemorized by
"Autoscan't Refer to "Manual Register" on page 21.
• If you want to change the other language from the
one you chose. Refer to "Language Selection" on
page 22.
If you want to change the mode for location setting.
Refer to "Location" on page 33.
EN
[] Channel Selection
Selectchannelsby using[CHA/V] or [the Numberbuttons].
• To select the memorized channels, use [CH •IV] or
[the Number buttons].
• To select the non-memorized channels, use
[the Number buttons].
To Use [the Number buttons]
- When selecting channel 11
When selecting digital channel 11-1
Be sure to press [-] before entering
the subchannel number.
• Press [CH RETURN] to return to the previously
channel.
About digital TV broadcasting:
With its high definition broadcast, digital broadcasting
far surpasses analog broadcasting in both its picture
and sound quality. Not all digital TV broadcasts are high
definition (HD). To confirm whether your watching TV
program is in HD, refer to the program guide, contact
your cable / satellite provider or local TV stations.
NTSC _ ATSC
(analog mode) (digital mode)
18:oo
........................)_{:_
...................... 18:30
ii ii
]9:oo
ii!ii........................
iiii_;;
_9:3o
20:00
can be changed by using [CH •/T].
What is the subchannel?
By using high compression technology, digital
broadcasting offers a service that enables multiple
signals to send simultaneously.
Therefore, you can select more than one program per
main channel since digital broadcasting technology
distinguishes between multiple channels broadcast by
a single network.
Note:
• "No Signal"willappearon the TVscreen after the
subchannel broadcast is over.
• "Audio onlyprogram" message will appear on the TV
screen, when you receiveonly sound signal
[] Volume Adjustment
Thissectiondescribeshowto adjustthevolume.Themutefunction,which
turnsthesoundoff andon, isalsodescribed.
Use [VOL._/_] to adjust the audio volume.
The volume bar will be displayed at the bottom of the
TV screen when adjusting the volume.
• The volume bar will automatically disappear in a few
seconds.
Press [MUTE D_] to turn offand on the sound.
MU_
"Mute" is displayed on the TV screen for a few seconds.
Press [MUTE D_ ] again or [VOL• _/_] to recover the
original volume.
[] Sleep Timer
Thesleeptimer canbesettoautomaticallyturnoff theunit after an
incrementalperiodoftime.
Press [SLEEP] to set the sleep timer.
Sleep timer display appears on the TV screen.
2 Press [SLEEP] repeatedly to change the amount of time
until shut off.
_#.!!/!( :>
You can set your unit to turn off after a set period of
time (from 30 to 120 minutes).
• Each press of [SLEEP] will increase the time by 30
minutes.
• After setup, the sleep timer display can be called up
for checking by pressing [SLEEP].
Tocancel the sleep timer
Press [SLEEP] repeatedly until "Sleep Off" is displayed
on the TV screen.
Note:
• The sleep timer display will automatically disappear in a
few seconds.
• Whenyoudisconnecttheunitfrom theACoutletorwhen
a power failure occurs, the sleep timer setting will be
canceled.
EN
[] Still Mode
Youcanpausethe imageshownontheTVscreen.
Press [PAUSE I I] to pause the image shown on the TV
screen.
i_4iSE
• The sound outputwill not be paused.
• If no signal is detected or protected signal is received
during still mode, the image remains paused and the
sound output will be muted.
• The still function will be released after 5 minutes.
To cancel still mode, press any button except [POWER].
[] Switching Each Input Mode
Youcaneasilyswitchwith theremotecontrolto the DTV(ATSC)andTV
(NTSC)orto accessexternaldeviceswhentheyareconnectedto theunit.
Press [INPUT SELECT] or [CH A] repeatedly to cycle
through the input modes.
C/
or
DTV/TV channel
I
I
(or PC input)
I
• Pressing [CHV] reverses the direction of the input
modes.
[] Switching Audio Mode ::
Thissectiondescribeshowto switchthe audioin theanalogmodeandhow
toswitch the audiolanguageinthe digitalmode. ::
Press [AUDIO] to display the currently selected
audio mode.While receiving an MTS broadcast,
press repeatedly to cycle through the available audio
channel.
AUDIO
i ill
31¸¸¸¸!
iiiii!:!::i
When all audio are available
When stereo and monaural audio are available
When SAP and monaural audio are available
When only monaural audio is available
STEREO
SAP
MONO
(cannot be switched)
: Outputs stereo-audio
: Outputs second audio program
: Outputs mono-audio
ilG:......
i! IIIU!
_i i_ili!!i':i
_ii!!i!ill
s:F
_i!!!ii_!!i:
_i!!i__
i! ::!!
Press [AUDIO] to display the currently selected
language and the number of available languages.
/, :C
il
:iii!{!
C3!
1i)
)
2 Press [AUDIO] repeatedly to cycle through the
available audio languages.
iU}:)
ii"ii{iii.....
i CO!¸
iiii:i_:ii
• Available languages differ depending on the
broadcast.'Other" is displayed when the audio ................................
language cannot be acquired, or the acquired
languages are other than English, Spanish or French. ::
Note:
• [AUDIO] does not control external audio devices.
• The information display will automatically disappear in a
few seconds.
EN
[] TV Screen Information
Youcandisplaythecurrentlyselectedchannelor otherinformationsuchas
the audiomodeonthe TVscreen.
In theanalogmode,the currentchannelnumberandthe audiomodeare
displayed.
Inthe digitalmode,thedetailedbroadcastinginformationfor the current
channelsuchasprogramtitle, programguidesaredisplayed.
Press [INFO].
Press [INFO] to display the details of the currently
selected program.
_,FC:
• The current channel number, audio mode, type of
resolutions for video signal, TV aspect ratio, CC and
TV program rating are displayed on the top-right
corner of the TV screen.
• To clear the display, press [INFO] again.You can also
press [BACK].
Broadcasting information
The following information is displayed.
1 2 3
7, 8
1 program title
2 program guide
(The program guide added to broadcasting
information is displayed to a maximum of 4 lines.)
3 broadcast station
4 channel number
5 audio language
(Refer to "Switching Audio Mode" on page 17.)
6 effective scanning lines and scan mode
7 digitaITV format
8 program aspect ratio
9 CC (not available if closed caption is set to "Off")
lOchild lock rating
Note:
• When the program guide consists of more than 4 lines, use
[Cursor A/V] to scroll
• "No descriptionprovided.'isdisplayedwhen theprogram
guide is not provided.
• While the program guide isdisplayed, the closed caption
function is interrupted.
• In external input mode, the following screen is displayed;
e.g.) When an external device is connected to VIDEOinput
jack.
• The information display will automatically disappear in
1minute.
EN
[] TV Screen Display Mode
4 typesofdisplaymodescanbeselectedwhenthe broadcastingstation
issending4:3 or 16:9videosignal.And3 typesofdisplaymodescanbe
selectedforPCinputsignal.
Press [SCREEN MODE @3] repeatedly to switch the TV
aspect ratio.
MODZ
For 4:3 video signal
Sidebar Full
Wide Cinema
Sidebar
Display a 4:3 picture at its original size. Sidebars appear
on both edges of the screen.
Full
Display a 4:3 picture at a 16:9 size; the picture is
stretched horizontally to fill the screen.
Cinema
Display a 4:3 picture at a 16:9 size; the picture is
stretched horizontally and vertically to fill the screen.
This crops out the top and bottom of the picture.
Wide
Display the picture with its center at the original size
and the edges stretched horizontally.
iiS
ii ii:}i
For 16:9 video signal
Full
Expand
Full
Zoom
Cinema
Display a 16:9 picture at its original size.
Zoom
Display a 16:9 picture at its maximum size without
changing its horizontal and vertical ratio.
Cinema
Display a vertically stretched picture.
Expand
Display a horizontally stretched picture.
For PC input signal through _ input mode
Normal Full
il ZII_!
iiiii!_!:i
_ii_i!ii'!!!i
i! ZII_!
_i Z!!I'II
_ii!_ii{ill
s:F
ii C:_
_i!!i__
i! ::_!{
ii ZI!I!I
c?
00
::!i
iiiii_!}}!_
(ii/';_
[' ::::ii'
i U3
ii!!i i iii
ii Ziil
L,Z................................
y,
Dot By Dot
Normal
Display a proportionately stretched picture. Sidebars
appear on both edges of the screen.
Full
Display a picture that is stretched out of proportion to
fill the screen.
Dot By Dot
Display a picture in its original size.
ii i}}Z
i C}
ii Zt!:
EN
[] Main Menu
Thissectiondescribestheoverviewofthe mainmenudisplayedwhenyou
press[SETUP].Formoredetails,seethereferencepageforeachitem.
Themainmenuconsistsof thefunctionsettingitemsbelow.
Press [SETUP].
[] Autoscan
Ifyouswitchwires(e.g.,betweenantennaandCATV)or ifyoumovethe
unitto a differentareaafter the initialsetting,or ifyourestorethe DTV
channelyoudeleted,youwillneedto performautoscan.
Beforeyou begin: Makesureifthe unit isconnectedtoantennaorcables.
1 Press [SETUP] to display the main menu.
EN
You can adjust the picture quality.
(Refer to "Picture Adjustment" on page 23.)
SOUND
You can adjust the sound quality.
(Refer to "Sound Adjustment" on page 24.)
CHANNEL
• You can automatically scan the viewable channels.
(Refer to "Autoscan" on page 20.)
• You can skip the undesired channels when selecting
the channels using [CH A/V].
(Refer to "Channel List" on page 21.)
• You can add the channels that were not scanned by
the autoscan.
(Refer to "Manual Register" on page 21 .)
DETAIL
• You can change the display format for closed
caption, which displays the dialogue of a TV program
or other information across the TV screen.
(Refer to "Closed Caption" on page 25.)
• You can setthe viewing limitations.
(Refer to "Child Lock" on page 28.)
• You can adjust the position, stability and clarity of the
PC screen.
(Refer to "PC Settings" on page 32.)
• You can select the energy saving mode.
(Refer to "Energy Saving Mode" on page 33.)
• When you adjust the desired "PICTURE" and
"SOUND" mode, you must switch the setting from
"Retail" to "Home". (Refer to "Location" on page 33.)
• You can confirm the version of the software currently
used in this unit.
(Refer to "Current Software Info" on page 34.)
LANGUAGE
You can change the language (English, Spanish,
French) displayed on the main menu.
(Refer to "Language Selection" on page 22.)
DVD
You can customize some functions for the disc
playback. Make sure the player is in stop mode.
(Refer to "DVD SETTING" section on page 44.)
2 Use [Cursor AIr] to select "CHANNEL", then press
[ENTER].
or
3 Use [Cursor AIr] to select "Autoscan", then press
[ENTER].
or
Use [Cursor AIr] to select an appropriate option, then
press [ENTER].
or
• When aerial antenna is connected, select"Antenna".
• When connected to CATV, select"Cable".
• "Autoscan"will begin.
• When the scanning and memorizing are completed,
the lowest memorized channel will be displayed.
Note:
• After setting "Autoscan" using [CH •/V] on the remote
con trol skips unavailable programs automatically.
• If you connect the cable system directly, contact the CATV
installer.
• If you press [POWER] or [SETUP] during autoscan, the
setting will be canceled.
• Even if'Autoscan" is completed, the channel setting will be
lost if the AC power cord is unplugged before turning off
the unit by pressing [POWER].
• The PIN Code will be required once you set a PIN Code in
the "Child Lock" (Refer to page28).
• If you want to change your PIN Code, follow the instruction
of "New Password" (Refer to page 31.)
[] Channel List
Thechannelsselectedherecanbe skippedwhenselectingthechannels
using[CHA/V].
Thosechannelscanstill be selectedwith [the Numberbuttons].
Press [SETUP] to display the main menu.
2 Use [Cursor A/V] to select "CHANNEL", then press
[ENTER].
or
V
[] Manual Register
Thisfunctionletsyouaddthechannelsthat werenot addedby
theautoscandueto thereceptibleconditionat theinitialsetting.
Press [SETUP] to display the main menu.
Use [Cursor A/V] to select "CHANNEL", then press
[ENTER].
or
ii ii:i!i¸
ii..................................................
ii ii,_i,_,_!
C
iil,i,i,i
......ii
3 Use [Cursor A/V] to select "Channel List", then press
[ENTER].
or
y
3 Use [Cursor A/V] to select "Manual Register", then
press [ENTER[.
or
Use [Cursor A/V] to select the channel you want to
remove, then press [ENTER].
or
• The channel display for the removed channel
darkens. You will not be able to select the channel
again using [CH A/V].
• To reactivate a removed channel, use [Cursor A/V] and
press [ENTER[. The registered channels are highlighted.
• When you remove a main channel, its subchannels
are removed as well.
Note:
• The channel with the "DTV" indicated on the display is
ATSC.Otherwise the channel is NTSC.
5 Press [SETUP] to exit.
Use [the Number buttons] to enter the number of the .........................................
channel you want to add, then press [ENTER].
@@@
@@@
@@@
@@
Press [SETUP] to exit.
Note:
• If setup completes successfully,
"Added to the channel list" is displayed.
• If external input isused, it is not possible to register the
channel and "Unavailable" will be displayed on the TV
screen.
• By using [CHA/V], you canselect the memorized
channels only.
i i_¸¸¸
EN
[] Antenna Confirmation
Thisfunctionletsyoucheckthe digitalsignalstrengthofeachchannel.
Press [SETUP] to display the main menu.
[] Language Selection
YoucanchooseEnglish,Spanish,or Frenchasyouron-screenlanguage.
Press [SETUP] to display the main menu.
2 Use [Cursor AIr] to select"CHANNEL", then press
[ENTER].
or
v
3 Use [Cursor AIr] to select"Antenna", then press
[ENTER].
or
Use [Cursor A/V] to select"LANGUAGE", then press
[ENTER].
or
Use [Cursor A/V] to select "English", "Espar_ol" or
"Fran_ais", then press [ENTER].
or
Use [the Number buttons] or [CH AIr] to select the
channel for which you want to check the digital signal
strength.
@@@
@@@
@@@
@@
or
Press [SETUP] to exit.
Note:
• IfyouneedtheEnglish menusinsteadoftheSpanish or
French menus, press [SETUP]. Use[Cursor A/V] to select
"IDIOMA" or "LANGUE"then press [ENTER].
Use[CursorA/V] to select "English", then press [ENTER].
Press[SETUP] to exit the main menu.
• If the channel is set to analog channel or external
input, you cannot confirm the antenna condition.
Press [SETUP] to exit.
EN
[] Picture Adjustment
Youcanadjustbrightness,contrast,color,tint, sharpnessandcolor
temperature.
Beforeyou begin: Youmustset"Home"in "Location"(Referto page33).
Otherwise,the settingsyouadjustedwill notbe
memorizedafter youturn offthe unit.
Press [SETUP] to display the main menu.
SEiU_
2 Use [Cursor l/V] to select "PICTURE", then press
[ENTER].
or
3 Use [Cursor l/V] to select the item you want to adjust,
then press [ENTER[.
Or
V
4 Adjust the picture quality.
Picture Mode
Use [Cursor l/V] to select the desired setting, then
press [ENTER[.
("Personal", "Standard", "Sports", "Movie" and "Game")
or
Brightness, Contrast, Color, Tint, Sharpness,
Color Temperature
Use[Cursor AIr] to select the desired setting, then
use [Cursor _1•] to adjust.
Brightness
Contrast
Color
Tint
Sharpness
Color Temperature
Cu rsor
to decrease
brightness
to decrease
contrast
to decrease
color intensity
to add red
to make soft
to add warm
colors
Cursor •
to increase
brightness
to increase
contrast
to increase
color intensity
to add green
to make clear
to add cool
colors
5 Press [SETUP] to exit.
Note:
• To cancel picture adjustment, press [SETUP].
ii ii:i!i¸
ii..................................................
ii II,_C,_!
_iiiii
Z7
C
il................................................
iii! !!i
ii!!!?
ij :::ii
ii!!i i iii
ii ZIZ
l iiiiiiiiii!................................
! ZTZ
i i_r¸¸¸
EN
[] Sound Adjustment
Youcanadjustthe soundmode,equalizerandsomeothersoundfunctions.
Beforeyou begin: Youmustset"Home"in "Location"(Referto page33).
Otherwise,the settingsyouadjustedwill notbe
memorizedafter youturn offthe unit.
Press [SETUP] to display the main menu.
2 Use [Cursor AIr] to select "SOUND", then press
[ENTER].
or
3 Use [Cursor AIr] to select the sound type you want to
adjust, then press [ENTER[.
or
Adjust the following items.
Sound Mode
Use [Cursor AIr] to select the desired setting, then
press [ENTER[.
("Personal ", "Standard ", "Movie ", "Music"and "News ")
or
Equalizer
Adjust tonal quality for each frequencies.
Use [Cursor _ /I_ ] to select the specific frequency
and use [Cursor A/V] to adjust the level, then press
[ENTER].
Auto Volume Leveling
This function keeps a constant loudness differential
between the TV commercials and the programs.
Use [Cursor AIr] to select the desired option, then
press [ENTER[.
or
Select if you want to reduce volume
On differences between theTV commercials
and the programs.
Select if you want to remove the auto
Off
volume leveling.
TV Speakers
Select the audio output from the unit's speakers, or not.
If your amplifier compatible with the CEC function is
connected to this unit using an HDMI cable, some part
of the sound operations such as volume up can access
synchronized by using this unit's remote control.
Use [Cursor AIr] to select the desired option, then
press [ENTER[.
or
The sound will be output from the unit's
On
speakers.
The sound will not be output from the
Off
unit's speakers.
This function allows you to control audio
Ext. Amp output from CEC-compatible devices
with the unit's remote control.
5 Press [SETUP] to exit.
Note:
• To cancel sound adjustment, press [SETUP].
• Wedo not guarantee 100%interoperabifity with other
brands of CECcompliant devices.
EN
o !!
iCi
[] Closed Caption
Youcanview closedcaptioning(CC)forTVprograms,moviesandnews.
Closedcaptionrefersto textof dialogueor descriptionsdisplayedon-
screen.
1 Press [SETUP] to displaythe main menu.
2 Use [Cursor A/V] to select "DETAIL", then press
[ENTER].
_ ...........
Use [Cursor A/V] to select "Caption Service", then
press [ENTER[.
or
i
or
3 Use [Cursor A/v] to select "Closed Caption", then
press [ENTER[.
or
See the following description for setting each item.
.A
B
c
A'""A. Caption Service" _ page 25
B..."B. Digital Caption Service" _ page 26
C..."C. Caption Style" => page 26
s UseECu,so,.,.,toseectthedesiredcosedcaptioni!!ii
then press [ENTER[.
or
Caption mode
CC1 and Text1;
are the primary caption and text services.
The captioning or text is displayed in the same
language as the program's dialogue
(up to 4 lines of script on the TV screen, where it
does not obstruct relevant parts of the picture).
CC3 and Text3;
serve as the preferred data channels.
The captioning or text is often a secondary language.
CC2, CC4, Text2 and Text4;
are rarely available and broadcasters use them only
in special conditions, such as when "CC1" and "CC3"
or "Text1" and "Text3" are not available.
_i,iiii
ii,C!i_
i ":"il
• There are 3 display modes according to programs:
Paint-on mode:
Displays input characters on the TV screen
immediately.
Pop-on mode:
Once characters are stored in memory, they are
displayed all at once. ...........
i
Roll-up mode:
Displays the characters continuously by scrolling
(max. 4 lines).
Press [SETUP] to exit.
EN
In additionto thebasicclosedcaptiondescribedonpage25, DTVhasits
ownclosedcaptioncalleddigitalcaptionservice.Usethismenuto change
the settingsfor digitalcaptionservice.
Use [Cursor A/V] to select "Digital Caption Service",
then press [ENTER[.
or
Youcanchangethe captionstyle suchasfont, coloror size,etc.
Use [Cursor A/V] to select "Caption Style", then press
[ENTER].
or
Use [Cursor A/V] to select the desired digital caption
service, then press [ENTER].
or
Off Select if you do not want digital caption
service.This is the default.
Select one of these before changing
any other item in "Closed Caption"
service 1-6
menu. Choose"Service] "under normal
circumstances.
Press [SETUP] to exit.
Use [Cursor A/V] to select "User Setting", then press
[ENTER].
or
Use [Cursor &IV] to select "On", then press [ENTER].
or
Note:
• "Digital Caption Service" thatyou can switch differs
depending on the broadcast description.
Use [Cursor A/V] to select an item, then press
[ENTER]. Then use [Cursor A/V] to select the desired
setting and press [ENTER].
Picture display
Edge
(Edge Color and Edge Type)
Font
(Font Style, Font Size, Font Color and Font Opacity)
Background
(Background Color and Background Opacity)
• The setting description for each item is shown on the
next page.
EN
Font Style
Closed Captioning font style can be changed as below.
Edge Color iI
Edge color of the displayed caption can be switched as
below.
Font Size
Font size of the displayed caption can be switched as
below.
Edge Type
Edge type of the displayed caption can be switched as
below.
ii_::iiiii
Font Color
Font color of the displayed caption can be switched as
below.
8 Press [SETUP] to exit.
Font Opacity
Font opacity of the displayed caption can be switched
as below.
Background Color
Background color of the displayed caption can be
switched as below.
Background Opacity
Background opacity of the displayed caption can be
switched as below.
Note:
• To show the closed caption on your TVscreen, broadcast
signal must contain the closed caption data.
• Not all TVprograms and commercials have the closed
caption or all types of the closed caption.
• Captions and texts may not match the TV voice exactly.
• Changing channels may delay the closed caption for a few
seconds.
• Adjusting or muting the volume may delay the closed
caption for a few seconds.
• Abbreviations, symbols and other grammatical shortcuts
may be used in order to keep pace with the on-screen
action. This is not a malfunction.
• The caption or text characters will not be displayed while
the main menu or functions display is shown.
• Ifa black box appears on the TVscreen, this means that
the closed caption is set to the text mode. To clear the box,
select "CC 1" "CC2" "CC3" "CC4" or "Off':
• If the unit receives poor quality television signals, the
captions may contain errors, or there might be no captions
at alL Some possible causes of poor quality signals are:
- Automobile ignition noise
- Electric motor noise
- Weak signal reception
- Multiplex signal reception (ghosts or screen flutter)
• The unit retains the closed caption setting if the power
fails.
• Closed caption will not be displayed when you are using
an HDMI connection.
• When the unit receives special effects playback signal (i.e.,
Search, Slow and Still) from a VCR's video output channel
(CH3 or CH4), the unit may not display the correct caption
or text.
ii
_i!!i__
EN
[] Child Lock
Childlockreadsthe ratingsfor programs,thendeniesaccessto the
programswhichexceedthe ratinglevelyouset. Withthisfunction,you
canblockcertainprogramsinappropriateforchildrenandanychannelsor
externalinput modescanbeinvisible.
1 Press [SETUP] to displaythe main menu.
2 Use [Cursor A/V] to select "DETAIL", then press
[ENTER].
or
3 Use [Cursor A/V] to select "Child Lock", then press
[ENTER].
or
Use [the Number buttons] to enter the 4-digit
numbers for your PIN Code.
@@@
@@O
@@@
See the following description for setting each item.
A
B
C
A..."A. Channel Lock" ,_ page 29
B..."B. MPAA Rating" _ page 29
C'""C. TV Rating" => page 30
D'""D. New Password" => page 31
Note:
• When you select a rating and set it to "Block" the higher
ratings will be blocked automatically. The lower ratings
will be available for viewing.
• When you set the highest rating to "View'; all ratings turn
to "View" automatically.
• To block any inappropriate programs, setyour limits in
"MPAA Rating" "TV Rating" and "Downloadable Rating "[
• The Parental control setting will be retained after a power
failure (except the access code reverts to 0000).
• If the rating is blocked, @ will appear.
• "Downloadable Rating" will be available when the unit
receives a digital broadcast using the new rating system.
• If the broadcasting signal does not have the
Downloadable Rating information, "Downloadable
Rating is currently not available." will appear.
This message will also appear when you try to access
"Downloadable Rating" after you have cleared the
Downloadable Rating information, and the new
information has not been downloaded since.
• The Canadian rating systems on this unit based on
CEA-766-A and the Canadian Radio-Television and
Telecommunications Commission (CRTC) policy.
• When you have not set up your PIN Code, enter 0000.
• When the PIN Code is correct, "Child Lock" menu is
displayed.
EN
Particularchannelsor external input modescanbe invisiblein this MPAARatingisthe ratingsystemcreatedbyMPAA(MotionPicture
function. AssociationofAmerica).
5 Use [Cursor A/V] to select "Channel Lock", then press
[ENTER].
or
[ENTER].
Or
6 Use [Cursor A/V] to select the desired rating, then
press [ENTER[ repeatedly to switch between "View"
and "Block".
or
Use [Cursor A/V] to select the desired rating, then
press [ENTER[ repeatedly to switch between "View"
and "Block".
or
.....ii
Press [SETUP] to exit.
Rating Category
X Mature audience only
NC-17 No one under 17 admitted
R Restricted; under 17 requires accompanying
parent or adult guardian
PG-13 Unsuitable for children under 13
PG Parental guidance suggested
G General audience
NR No rating
Press [SETUP] to exit.
i i-
i'
i i;!ii_IIIII
EN
5 Use [Cursor A/V] to select "TV Rating", then press
[ENTER].
or
6 Use [Cursor AIVI411>] to select the desired rating,
then press [ENTER] repeatedly to switch between
"View" and "Block".
Rating Category
TV-MA Mature audience only higher
TV-14 Unsuitable for children under 14 _
TV-PG Parental guidance suggested
TV-G General audience
TV-Y7 Appropriate for all children 7 and
older _
TV-Y Appropriate for all children lower
Rating
TV-Y7
Sub Rating
FV
V
S
L
D
Category
Fantasy Violence
Violence
Sexual Situation
Coarse Language
Suggestive Dialogue
TV-PG
TV-14
TV-MA
TV-PG,TV- 14
7 Press [SETUP] to exit.
Note:
• Blocked sub rating will appear beside the main rating
category in "TV Rating" menu.
• You cannot block a sub rating (D, L, S or V) if the main
rating is set to "View".
• Changing thecategoryto "Block"or "View"automatically
changes all its sub ratings to the same ("Block" or "View").
To Set the Sub Ratings
As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further
set the sub ratings to block specific elements of
programming. To set the sub ratings, follow the step
below.
Use [Cursor AIVI411>] to select the desired rating,
then press [ENTER] repeatedly to switch between
"View" and "Block".
EN
Althoughthe defaultcode"0000" issuppliedwith the unit,youcanset
yourownPINCode.
5 Use [Cursor A/V] to select "New Password", then press
[ENTER].
or
6 Press [the Number buttons] to enter the new 4-digit
PIN Code.
• Enter PIN Code again in "Confirm password:' entry
field.
@@@
@@@
@@@
Press [SETUP] to exit.
Note:
• Make sure new PIN Code and confirm PIN Code must be
exactly the same. If they are different, the space is cleared
for reentering.
• YourPINCodewillbeerasedandreturn to thedefault
(0000) when a power failure occurs.
If you forget the PIN Code, unplug the AC power cord for 10
seconds to restore the PIN Code to 0000.
i
i 0
i ,,ili_ii_i
i iTi
i::ili!,i!
i ii:__!il
i iiiii_ii!i
o
i c}
i ci;!
i __i__
iUi!i
i i::!!
i ;i_i!ii'il
i f-
i'
i 0
i i;!i;i:il
EN
[] PC Settings
Thisfunctionletsyouadjustthe PCscreenpositionduringPCinputthrough
the HDMI1 inputjack,
Press [SETUP] to display the main menu.
2 Use [Cursor A/V] to select "DETAIL", then press
[ENTER].
or
Y
3 Use [Cursor A/V] to select "PC Settings", then press
[ENTER].
or
5 Adjust the setting.
Position Reset
Use [Cursor A/V] to select "Reset", then press
[ENTER].
or
• The horizontal/vertical position, of the PC screen are
automatically adjusted.
Horizontal Position, Vertical Position
Use[Cursor _/•] to adjust.
Horizontal Position
Vertical Position
Cursor
to move PC
screen left
to move PC
screen down
Cursor •
to move PC
screen right
to move PC
screen up
Use [Cursor A/V] to select the setting you want to
adjust, then press [ENTER[.
or
6 Press [SETUP] to exit.
Note:
• You may not obtain an appropriate screen with
"Position Reset"for some signals. In this case,adjust the
settings manually.
EN
[] Energy Saving Mode
Youcanset whetherthepowerconsumptionissavedor not.
Press [SETUP] to display the main menu.
2 Use [Cursor A/V] to select "DETAIL", then press
[ENTER].
or
[] Location
Whenyouselect"Retail", thepowerconsumptionmaypossiblyexceedthe
limitedrequirementofthe ENERGYSTAR®qualification.......
Press [SETUP] to display the main menu.
2
Use [Cursor A/V] to select "DETAIL", then press
[ENTER].
or
ii..................................................
ii ii,_i,_,_!
C
iil,i,i,i
......ii
3 Use [Cursor A/V] to select"Energy Saving Mode", then
press [ENTER[.
or
Use [Cursor A/V] to select the desired mode, then
press [ENTER[.
or
3 Use [Cursor A/V] to select "Location", then press
[ENTER].
or
Use [Cursor A/V] to select the desired location, then
press [ENTER[.
or
i,iiiii!
On Select if you want to reduce the power
consumption.
The power consumption may possibly
Off exceed the limited requirement of the
ENERGY STAR®qualification.
5 Press [SETUP] to exit.
Press [SETUP] to exit.
i i_¸¸¸
EN
[] Current Software Info
Thisfunctionshowswhatversionof thesoftwarecurrentlyused.
Press [SETUP] to display the main menu.
2 Use [Cursor A/V] to select "DETAIL", then press
[ENTER].
or
3 Use [Cursor A/V] to select "Current Software Info",
then press [ENTER[.
or
Confirm the version of the software currently used.
5 Press [SETUP] to exit.
EN
[] Playable Media
DVD-VIDEO
V_DEO
DVD-RW DVD-R DVD+RW DVD+R CD-DA CD-RW CD-R
digital video (MPfG2) digital audio
5 inches (12 cm)
[] Unplayable Media
NEVER play back the following discs• Otherwise, malfunction may result!
3 inch (8 cm) disc, DVD-RAM, DVD-audio, CD-i, photo CD, Video CD, DVD with region codes other than 1 or ALL, DTS-CD,
DVD-ROM for personal computers, CD-ROM for personal computers, the discs with labels, scratches, stains, blemishes, etc.,
HD DVD, Blu-ray Disc, CD-RW/-R with MP3 files and CD-RW/-R with JPEG files including Kodak Picture CD.
On the following disc, the sound MAY NOT be heard•
super audio CD
Any other discs without compatibility indications
i C)
i ]iii!!]
CI)
Note:
• Unfinalized discs cannot be played back.
• For DVD-RW/R,discs recorded in the VR(video recording) format cannot be played back. Only the finalized video format discs can be
played back.
• Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of
discs.
• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CDlayer cannot be
delivered.
• Do not usea single CD adaptor which makes 3 inch (8 cm) to 5 inch (12 cm) disc.
• Youcan play back discs with the marks listed in "Playable Medid[ If you use non-standardized discs, this unit may not play them back or
the sound and video quality will be compromised.
• If the recorded portion of the disc is too small (lessthan 2-3/16 inches (55 m m) across),it may not play back properly.
This unit has been designed to play back DVD
with region 1. DVD must be labeled for ALL
regions or for region 1 in order to play back on
the unit. You cannot play back DVD that are
labeled for other regions. Look for the symbols on I_l
your DVD. If these region symbols are not on your
DVD, you cannot play back the DVD in this unit.
The number inside the globe refers to region of the world.
A DVD labeled for a specific region can only be played
back on the unit with the same region code.
ill)
00 . ii................................
ili
DVD is recorded in different color systems throughout the
world. The most common color system is NTSC (which is
used primarily in the United States and Canada).
i
This unit uses NTSC, so DVD you play back must be
recorded in the NTSC system. You cannot play back DVD
recorded in PAL color systems.
i
i
EN
[] Playback
Beforeyoubegin:
Turnontheamplifierandanyotherequipmentwhichisconnectedtothisunit.
Makesuretheexternalaudioreceiver(notincluded)aresettothecorrectchannel.
Press [POWER] to turn on the unit.
POW£R
2 Insert a disc with label facing forward.
[] Disc Menu
Somediscscontain discmenuswhichdescribethe contentsof the discor
allowyoutocustomizediscplayback,or title menuwhichliststhetitles
availableonthe DVD.
To display the DVD menu, press [DISC MENU] and use
[Cursor • / • / _ / I_] to select an item, then press
[ENTER] (or [PLAY I_]).
To display the top menu, press [TITLE] and use
[Cursor • / • / _ / I_] to select an item, then press
[ENTER] (or [PLAY I_]).
Note:
• Menu operations may varydepending on the disc.
Refer to the manual accompanying the disc for more details.
• In case the DVD was recorded on both sides, make
sure the label of the side you want to play back is
facing forward.
3 The unit switches to the DVD mode when the unit was
in TV mode and detects the type of disc.
e.g.) DVD
• Press [PLAYI_] ifthe unit does not go to the DVD mode.
The unit starts playback.
• If playback does not start automatically, press [PLAY I_]
again.
5 Press [STOP II] to stop playback temporarily.
S_OP
[] Resume Playback
Press [STOP II] during playback.
Resume message will appear on
the TV screen.
Press [PLAY I_]. Playback will
resume from the point at which
playback was stopped.
Note:
• Tocancel resume,press[STOPII] one more dme in the
stop mode. Onsome discs,[STOP II] will not work while
the resume messageappears.Pleasewait until the message
disappears.
• The resume information will be kept even when the unit is
turned off. However, ejecting the disc will cancel the resume
feature. Playback will start at the beginning the next time
you insert the disc.
• If playback remains stopped for 20 minutes, the unit will
turn itself off automatically when "AUTO POWEROFF" is
set to "ON".
6 Press [EJECT _] to eject the disc.
EJECT
Note:
• "Q "maYwhenappeartheat the top-rightison the TVthe I
screen operation prohibited by @
I
disc or this unit.
• Some DVD may start playback from title 2 or 3 due to
specific programs.
• During the playback of a 2-layered disc,pictures maystop
for a moment. Thishappens while the 1st layer is being
switched to the 2nd layer. This isnot a malfunction.
• Whenyou cannot remove the disc,you may try either
following operations.
- Pressandhold[EJECT___]on the unit formore than 5
seconds.
- Unplug the ACpower cord andplug it in again, then press
[EJECT___].
It will take about 10 seconds to eject the disc, while that the
unit will not respond to any key commands.
[] Paused and Step-by-step Playback
Press [PAUSE I I] during playback.
• Playback will be paused and sound will be
muted.
To continue playback, press [PLAY I_].
D
Each time you press [PAUSE I I] in the pause mode, the
disc goes forward one frame at a time.
To continue playback, press [PLAY I_].
Note:
• Set "STILLMODE" to "FIELD"in the "OTHERS"menu if
pictures in the pause mode are blurred. (Referto page 47.)
EN
o •_ ii
[] Fast Forward / Fast Reverse
Press [FWD IH_] or [REV _1_1]repeatedly
during playback to select the desired
forward or reverse speed.
To continue playback, press [PLAY I_].
Note:
• Set "STILL MODE" to "FIELD"in the "OTHERS" menu if
pictures in the fast playback mode are blurred. (Refer to
page 47.)
• Fast forward/fast reverse speed varies with disc.
Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x) and 5(100x)
on DVD and 1(2x), 2(8x) and 3(30x) on audio CD.
• For DVD, sound will be muted during this function.
• For audio CD, sound will be intermittent during the search.
[] Slow Forward / Slow Reverse
Press [FWD IH_] or [REV _1_1] repeatedly _ i
during the paused mode to select the _2D
I
desired forward or reverse speed.
To continue playback, press [PLAY I_].
Note:
• Set "STILL MODE" to "FIELD"in the "OTHERS" menu if
pictures in the slow playback mode are blurred. (Refer to
page 47.)
• Slow forward/slow reverse speed varies with disc.
Approximate speed is 1(1/16x), 2(1/8x) and 3(1/2x).
• The sound will be muted during this function.
3 Once a desired zoom factor is set,
use [Cursor • / • / < / I_] to slide the zoomed picture
across the TV screen.
To exit zoom, repeat steps 1 to 2 above and press
[ENTER[ repeatedly until "OFF" appears.
0
i;;ii_i_i,
ii....................................................
i i;_:¸¸
_ii_i!ii'!!il
_ iil,i,i,i
Note:
• The gray box with an inner blue box that shows during
zoomed playback is the position guide indicates the position
of the zoomed image within the overall image.
Position guide stays on the TV screen until you press
[ENTER].
Press [ENTER] one more time to recall the position guide
when disappears.
• Zoom function does not work while the disc menu is
displayed.
• 4x zoom is not available on some discs.
• Zoom function is also available during pause mode.
[]Zoom
Thezoomfunctionallowsyouto enlargethevideoimageandto pan
throughtheenlargedimage.
During playback, press [MODE[ repeatedly until
,!
iii!iiiiii!
(S:r
ii!i!i i!i
• The picture becomes twice as large.
2 Press[ENTER]repeatedly to change the zoom factor,
"2x" or "4x".
0
i!::tii{!
iiii:i:i
ii iiiiiiii_i_!_!i!
i 0
!iiii!!
EN
[] Search Functions
Youcanselectchapters,titlesortracksonthedisc.
During playback, press [MODE] repeatedly until
.... / .... appears.
• If you want to perform the title search, use
[Cursor • / V] repeatedly until" appears.
e.g.) DVD
2 Press [the Number buttons] to select your desired
chapter, title or track within 60 seconds.
@@@
@@@
@@0
Using [SKIP _ / I_IH]
During playback, press [SKIP _/IHH] repeatedly
until a desired chapter, title or track will be selected.
current chapter/track
_(CH) (TR)
_;_',_' [SKIP F_] [SKIP _]
°ror current title
(TT)
[SKIP t_] [SKIP 1_I]
(If the disc has no chapter.)
Playback will start automatically from the chapter, title
or track you selected.
l Note:
• [SKIPI<I<I/IHH] are not available when playback is stopped.
To play back a single-digit chapter, title or track when
there are more than 10 chapters, titles or tracks, press
[ENTER[ after entering the chapter, title or track
number.
3 Playback will start automatically from the chapter, title
or track you selected.
Note:
• Chapter, title or track search can only be performed during
playback or when the unit has kept the resume information.
It cannot be performed in the stop mode.
• The total number of chapters /titles / tracks in your disc;
with lessthan 10chapters / titles / tracks, press the chapter /
title / track n umber directly. Toplay a double-digit chapter /
title / track, press the chapter / title / track number.
• Tracksearch is not available for programmed or random
playback.
EN
Youcanselectthedesiredtimewhichthe discisplayedbackfrom.
1 During playback, press [MODE] repeatedly until
" "/ .... appears.
e.g.) DVD
M(}DE
2 Use [Cursor A/V] repeatedly until .... appears.
Or /
3 Press [the Number buttons] to select your desired
time lapse within 60 seconds.
@@@
@@@
@@@
Playback will start automatically from the time you
selected.
Note:
• When there is no need to enter a number, "0" appears
automatically. For example, "0: 0 : " appears in the time
search menu if the total time of the title or track is less than
10 minutes.
• Press [CLEAR] to erase the incorrect input at step 3.
• Time search can only be performed during playback or
when the unit has kept the resume information.
It cannot be performed in the stop mode.
{
3
{£
Press [the Number buttonsl to select your desired }}
chapter, title or track.
@@@
@@@
)
@ @ @
@ @
Note:
• To select a single-digit chapter, title or track number, press the
number directly.
• Toselectdoubledigitchapter, tifleortracknumber:
- If the disc contains more than 9 and less than 100 chapter, title or
track, press [+I0] first, then enter the double digit chapter, title or
track number.
(e.g., for track 26, press [+ I 0], [2] and [6].)
[] Repeat Playback
Repeat function is available only during playback.
During playback, press [MODE[ repeatedly until""
appears.
MOD_-
J
Press [Cursor • /V] to change the repeat mode.
i •
i}3
!i]}
Ei OFF (repeat off)
CHAPTER (current chapter repeat)
r
TITLE (current title repeat)
OFF (repeat off)
L_ TRACK (current track repeat)
ALL (entire disc repeat) :
Press [BACK] to exit.
i
i i!?i!;
i i•i
EN
[] Repeat A-B Playback
Youcan repeat playback between A and B on a disc.
1 During playback, press [MODE] repeatedly until
.... appears.
J
2 Press [ENTER] at your desired starting point (A).
@
[] Programmed Playback
Youmaydeterminethe orderin whichtrackswillplayback.
1 In stop mode, press [MODE] repeatedly until
"PROGRAM" menu appears.
MODE
3 Press [ENTER] at your desired ending point (B).
@
• Point B should be in the same title or track as point A.
• Within a few seconds, the section A-B will begin to
play back repeatedly.
To cancel repeat A-B playback, press [MODE]
repeatedly until .... appears.
Press [ENTER] so"OFF'appears.
MODI
Note:
• Repeat setting (except 'ALL") will be cleared when moving to
another tire or chapter, track.
• During programmedplayback, repeatsetting wifl be
effective for the tracks in the program.
• Repeat playback or repeat A-B playback may not available
with some discs.
• RepeatA-Bplayback does not function during other repeat mode.
• To cancel point A, press [CLEAR] at step 2 in
"Repeat A-B Playback':
• Stopping playback wifl cancel repeat A-B playback.
[] Random Playback
Thisfunctionshufflestheplayingorderof tracksinsteadofplaybackinthesequence.
1 In stop mode, press [MODE] repeatedly untiI"RANDOM"
menu appears.
MODE
Press [PLAY I_] to start random playback.
/
Note:
• To repeat the current track in the random mode, follow the
stej2s i and 2 in "Repeat Playback" on page 39 and select
"L i TRACK':
• To repeat the entire random selections, follow the st_s 1
and 2 in "Repeat Playback" on page 39 and select" ALL"
Use [Cursor • / V] to select a desired track, then press
[ENTER] to store.
• Additional tracks may be on other screens. Use
[Cursor • /V] to go on to the next/previous pages.
• Repeat this step until you have selected all the tracks
you wish to play back in the program.
or
3
Up to 99 tracks can be ordered.
If 8 or more tracks were in a program, use
[SKIP I_1_1/ IHH] to see all the tracks.
Press [PLAY I_] to start programmed playback.
/
Note:
• Press [CLEAR] to erase the last track in the program if you
make an error.
• To erase all programmed tracks at once, select "ALL CLEAR"
and press [ENTER] at step 2.
• While a program is being played back, [STOP II] works as
follows:
- Pressing [STOP m] once: The track will be in the resume
standby mode. Next time you press [PLAY I_], the playback
will resume from the point where it is stopped in the
program med playback.
- Pressing [STOP II] twice: Resume mode will be canceled.
Next time you press [PLAY I_ ], playback will restart
from the first track in the original order. However, your
programmed playback can be restarted when you follow
the above steps. (Your programs are still stored until either
the disc is ejected or the unit is turned off.)
- On some discs, [STOP II] will not work while the resume
message appears. Please wait until the message disappears.
• To repeat the current track in the program, follow the steps 1
and 2 in "Repeat Playback" on page 39 and select "TRACK"
• To repeat the entire program, follow the steps I and 2 in
"Repeat Playback" on page 39 and select "ALL"
• Turning offthe unit or ejecting the disc will erase the
program.
• You cannot use [tEe Number buttons] to select another
track during programmed playback. Use [SKIP I<1</IHIH] to
select other tracks in the program.
• You cannot combine random playback with programmed
playback.
• Youcannotalteraprogrammedorderduringplayback.
• You can start programmed playback only while in
"PROGRAM" menu.
EN
[] On-screen Display
Youcan check the information about the current disc by pressing [INFO]
on the remote control.
_:O
INF{}
('_';;eappears only when multi-
angle is available on the DVD
current playback status
remaining time of the current
chapter
elapsed time of the current
chapter
CH (Chapter):
current chapter number /
total chapters
remaining time of the current title
elapsed time of the current title
TT (Title):
current title number / total titles
layer number, appears only when
playing a 2-layered disc
L0 : Layer 0 is playing
L1 : Layer 1 is playing
__ current repeat setting appears
only when the repeat setting is
active
c-C : Chapter repeat
_--T: Title repeat
A_-B : A-B repeat
bit rate indication for the amount
of audio and video data currently
being read
current playback status
remaining time of the current
track
elapsed time of the current track
i 7:
i
i
i }3
i
i i:!!:ii
!!ii:
TR (Track):
current track number/
i
total tracks
ALL:
current track number /
total tracks
currentrepeatsettingappearsonlyii ;ii{iii
when the repeat setting is active
_-T: Trackrepeat
_- A : All tracks repeat
A_-B : A-B repeat
remaining time of the entire disc
elapsed time of the entire disc
Note:
• When you are playing back an audio CD in program or
random mode, " PROGRAM" (or" RANDOM") will be
displayed instead ofF21.
[] Special Settinqs
Thisunit allows you to select a subtitle language (if available) during DVD i
playback.
During playback, press [MODE] repeatedly until
"@" appears.
Md?,}
2 Use [Cursor A/V] repeatedly until your desired
language appears.
or
i il}:il
:?
i
i }_,_i!{ill
i li{iil
i Z}i
t L subtitles can be varied on the
displayed number.
L--- current subtitles language.
Each time you press [Cursor A/V], the subtitle
language changes as shown on the next page.
EN
OFF
_ENG
FRE
(nosubtitles)
(Englishsubtitles)
(Frenchsubtitles)
3 Press [BACK] to exit.
BACK
Note:
• To cancel the subtitle, select "OFF" at step 2.
• If your language is notshown afterpressing
[Cursor • iV] several times, the disc may not have that
language. However, some discs allow you to change subtitle
languages setting in the disc menu. (Operation varies
depending on the disc, so refer to the manual along with
the disc.)
• When "NOTAVAILABLE'appears on the TVscreen, it means
no subtitle is recorded on the scene.
• If you choose a language that has 3-letter-language code,
the code will be displayed every time you change the subtitle
language setting. If you choose any other languages, "---"
will be displayed instead. (Refer to page 48.)
• Ejecting the disc will cancelyour subtitle setting.
SomeDVDmaycontain sceneswhich havebeenshot
simultaneouslyfrom variousangles.Youcanchangethe
cameraangleif"_ "appears on the screen.If"ANGLEICON"is
setto"OFF"in"OTHERS"menu,"_ "will notappear.(Referto
page47.)
I During playback, press [MODE] repeatedly until
" "appears.
MODE
2 Use [Cursor AI V] repeatedly until your desired
camera angle appears.
or
Press [BACK] to exit.
BA©_
Thisunit allowsyou toselectan audio language (if multiple languagesare
available)duringDVDplayback.
During playback, press [AUDIO] repeatedly until the
desired language appears.
A }}(:
Adjust the black level to make the dark areas of the TV picture brighter.
1 During playback, press [MODE] repeatedly until"_"
appears.
|MODE ,_
/
ENG
[_ SPA
FRE
Each time you press [AUDIO], the audio language
changes as example below.
(English audio)
(Spanish audio)
(French audio)
Note:
• Some discs will only allowyou to change the audio setting
from the disc menu. Refer to the manual accompanying the
discs for details.
• If your language is not shown after pressing [AUDIO] several
times, the disc may not have that language.
However, some discs allow you to change multiple audio
languages setting in the disc menu. (Operation varies
depending on the disc, so refer to the manual along with
the disc.)
• When "NOTAVAILABLE'appears on the TVscreen, it means
audio language is not available.
Press [Cursor A/V] to adjust the black level.
or
/
ON : Makes the dark areas brighter.
OFF: Shows the original picture as recorded.
Press [BACK] to exit.
BACK
Note:
• The setting will be kept even if the unit is turned off..
EN
Thisunitallowsyoutoselecta sound modeduringCDplayback.
During playback, press [AUDIO] repeatedly until the
desired sound mode appears.
_/ii}HC/ /
Each time you press [AUDIO], the sound mode
changes as example below.
STEREO (stereo sound with leftand
right channels)
L-ch (left channel sound only)
R-ch (right channel sound only)
Note:
• Virtual surround cannot be changed when the sound mode
is set to either "L-ch" or "R-ch'[
Youcan enjoy virtual surroundon your 2 channelstereosystem.
1 During playback, press [MODE] repeatedly until ....
appears.
2 Press [Cursor A/V] to select the sound level.
or
1 : Natural effect.
2 : Emphasized effect.
OFF : No effects (original sound).
3 Press [BACK] to exit.
ACK
Note:
• The setting will be kept even if the unit is turned off..
• For audio CD, virtual surround will not be effective if the
sound mode is set to something other than "STEREO"
(Referto "Stereo Sound Mode" on page 43.)
• Turn down the level or select "OFF" if the sound is distorted.
Thisfeatureallowsyoutoassignaspecificpointonadisctobecalledbacklater.
To set a marker
During playback, press [MODE] repeatedly until
.... / .... appears.
e.g.) DVD
1\,_0/)
(}
}
Use [Cursor AI V] repeatedly until marker search
menu appears.
Or /
:ii!iii!i
i i,,{_:,_
Use [Cursor< ll_] to select an available marker within
60 seconds.
Or
When the playback reaches the point at which you
want to set a marker, press [ENTER]•
• Marker is now set.
iZ
5 Press [BACK] to exit.
BA©K
To return to the marker later
I Repeat steps 1-2 in"To set a marker". Use [Cursor< 11_]
to select the desired marker.
e.g.) DVD
or
}
i }}ii_!i
i i:,_:_
i i'_'!}i_'iil
i Y
Press [ENTER] atthe desired marker to restart playback
from the specific point which you set.
i}_,_i!{ill
Note:
• Markersearch menu willdisappearin about@seconds
when there is no input.
• Youcan mark up to 10points.
• To clear a marker, select the marker to be cleared, and then
press[CLEAR].
• Ejecting the disc or turning off the power will erase all
markers.
• Selecting "at step 3 in the section "To set a marker" will
also eraseall markers.
EN
[] DVD Language Setting
Youcan change the desired language when playing back the disc,
Press [SETUP] to display the main menu.
;Ii{ i:'
SUBTITLE _1, _2 (Default: OFF)
Select the desired subtitle language.
or
2 Use [Cursor A/V] to select"DVD", then press [ENTER].
or
3 Use [Cursor _ / I_] to select" _!_ ", then press [ENTER].
Use [Cursor A/V] to select the desired item, then press
[ENTER].
or
Y
5 Use [Cursor A/V] to select the desired item, then press
[ENTER].
AUDIO _1, _2 (Default: ORIGINAL)
Select the desired audio language.
or
DISC MENU _1 (Default: ENGLISH)
Select the desired language in DVD menu.
or
Note:
• To change the on-screen language, call up "LANGUAGE"
from the main menu and set the desired language.
(Refer to "Language Selection" on page 22.)
• Languageoptionsarenotavailablewithsomediscs.
• If"OTHER"is selected in "AUDIO" "SUBTITLE" or
"DISC MENU" menu, press 4-digit number to enter the code
for the desired language. (Refer to "Language Code List"
on page 48.)
• Only the languages supported by the disc can be selected.
_2
• Language setting for Audio and Subtitle are not available
with some discs.
- Use [MODE] to selectsubtitles available on the DVD.
- Use [AUDIO] to select audio available on the DVD.
• If the DVD's default settings for audio and subtitle are the
same language, the subtitles may not show unless you
turn them on.
6 Press [SETUP] to exit.
EN
[] DVD Audio Setting
Choosetheappropriateaudiosettingsforyourequipment.Itonly affects
duringthe playbackof DVD.
1 Press [SETUP] to display the main menu.
S_TU__
2 Use [Cursor A/V] to select"DVD", then press [ENTER].
or
3 Use [Cursor _ / I_] to select" !_;i ", then press [ENTER].
Use [Cursor A/V] to select the desired item, then press
[ENTER].
DRC (dynamic range control) (Default: ON)
This function is available only on the discs which are
recorded in the Dolby Digital format.
or
DOWN SAMPLING (Default: ON)
This function is available only on digital outputting of a
disc recorded in 96kHz.
or
T
ON : When outputting in 48kHz.
OFF : When outputting the original sound.
Note:
• When playing back a 96 kHz disc with the copyright
protection or when "Virtual Surround" is set to "1" or "2"
the sound will be down sampled at 48 kHz even if the
"DOWN SAMPLING"is set to "OFF';
(Referto "Virtual Surround" on page 43.)
ON : Compress the range between soft and loud
sounds.
OFF : No effects (original sound).
il.................................................
iiiiii_
,; IIIIC
DOLBY DIGITAL
Set to"BITSTREAM" when this unit is connected to a
Dolby Digital decoder.
or
,ii!!_ii_!!i
i'i'i
iI :,_i
(Defa u It: BITSTREAM)
i iii
ii C; ¸
BITSTREAM : Outputs Dolby Digital signals.
PCM : Converts the Dolby Digital into PCM.
(2 channel)
5 Press [SETUP] to exit.
iiiii_iii_!!
ii ii:ii::i_i
ii iiiiiiii_i_!_!i!
EN
[] Parental Setting
Parentalsettingpreventsyourchildrenfromviewinginappropriate
materials,(passwordprotected,)Playbackwillstopif the ratingsexceed
the levelsyouset.
Press [SETUP] to display the main menu.
6 Use [Cursor AI V] to select the desired item, then press
[ENTER].
or
2 Use [Cursor A/V] to select"DVD", then press [ENTER].
or
3 Use [Cursor < / I_] to select" _ ",then press [ENTER].
Use [the Number buttons] to enter the 4-digit
numbers for your password, then press [ENTER].
@@@
@@0
@@@
T
• If you have set password already, use
[the Number buttons] to enter the current 4-digit
password.
• You cannot use the default password (4737) to play back
a DVD.
5 Use [Cursor A/V] to select the"PARENTAL LEVEL",then
press [ENTER].
or
PARENTAL LEVEL
ALL : All parental locks are cancelled.
8 [ADULT] : All ratings (adult / general / children)
can be played back.
7 [NC-17]-2 [G]: Only DVD intended for general use
and children can be played back.
I [KID SAFE] : Only DVD intended for children can
be played back.
Press [SETUP] to exit.
To change the password
Follow steps 1 to 4. Use [Cursor A/V] to select
"PASSWORD CHANGE", then press [ENTER].
or
Use [the Number buttons] to enter the new 4-digit
password.
@@@
@@@
@@@
Y
Note:
• DVD-video may not respond to parental lock settings. Make
sure this function works with your DVD-video.
• Record the password in case you forget it.
• If you forget the password, press [4], [7], [3], [7], then enter
your new password. Password will be cleared and parental
levels will be set to "ALL':
• A power failure will not eraseyour password.
Press [SETUP] to exit.
EN
o ii
Others
Youcanchangetheotherfunctions.
Press [SETUP] to display the main menu.
2 Use [Cursor A/V] to select'DVD', then press [ENTER].
or
3 Use [Cursor < / I_] to select" _ ", then press [ENTER].
or
Use [Cursor A/V] to select the desired item, then press
[ENTER].
ANGLE ICON (Default: ON)
Set to "ON"to show the angle icon when multiple
camera angles are available during DVD playback.
or
%7•
STILL MODE (Default: AUTO)
Set the picture quality in the still mode.
If you select"AUTO", it automatically selects the best
resolution setting ("FRAME"or"FIELD") based on the
date characteristics of the pictures.
ii....................................................
i 2:i
FIELD : The picture in the still mode will be
stabilized.
FRAME : The picture in the still mode will be highly .........
defined. '_..............................................
or
2
)
G_
AUTO POWER OFF (Default: ON)
Set to "ON" to turn this unit off automatically after 20
minutes of no use.
or
V
5 Press [SETUP] to exit.
il!iiii:i!
_3
ii C:¸¸¸
i <::
iiiii_:iii_!!
iiii:i_i:i_i
i G¸¸¸i
ii iiiiiiii_i_!_!i!
:3
}
EN
[] Reset to the Default Setting
Youcanresetall the settingsexceptforthe parentalsettingand0n-screen
menulanguage.
1 Press [SETUP] to display the main menu.
2 Use [Cursor A/V] to select"DVD", then press [ENTER[.
or
3 Use [Cursor _ / I_] to select" _ ", then press [ENTER[.
,or
"W
Use [Cursor A/V] to select"YES", then press [ENTER].
or
Note:
• When you want to cancel the initialization, select "NO"at
step 4, then press [ENTER].
5 Press [SETUP] to exit.
[] Language Code List
Language Code Language Code
A-B Marathi 5964
Abkhazian 4748 Moldavian 5961
Afar 4747
Afrikaans 4752 Mongolian 5960
Albanian 6563 Nauru 6047
Amharic 4759 Nepali 6051
Arabic 4764 Norwegian [NOR] 6061
Armenian 5471
Assamese 4765 O-R
Aymara 4771 Occitan 6149
Azerbaijani 4772 Oriya 6164
Bashkir 4847 Oromo(Afan) 6159
Basque 5167 Panjabi 6247
Bengali;Bangla 4860
Bhutani 5072 Pashto;Pushto 6265
Bihari 4854 Persian 5247
Bislama 4855 Polish [POL] 6258
Breton 4864
Bulgarian 4853 Portuguese [POIR] 6266
Burmese 5971 Quechua 6367
Byelorussian 4851 IRhaeto-iRomance 6459
C-E Romanian [RUM] 6461
Cambodian 5759 Russian [IRUS] 6467
Catalan 4947
Chinese [CHI] 7254 S
Corsican 4961 Samoan 6559
Croatian 5464 Sangho 6553
Czech [CZE] 4965 Sanskrit 6547
Danish [DAN] 5047 Scots Gaelic 5350
Dutch [DUT] 6058
English [ENG] 5160 Serbian 6564
Esperanto 5161 Serbo-Croatian 6554
Estonian 5166 Sesotho 6566
F-H Setswana 6660
Faroese 5261
Fiji 5256 Shona 6560
Finnish [FIN] 5255 Sindhi 6550
French [FIRE] 5264 Singhalese 6555
Frisian 5271 Siswat 6565
Galician 5358
Georgian 5747 Slovak 6557
German [GEIR] 5051 Slovenian 6558
Greek [GIRE] 5158 Somali 6561
Greenlandic 5758 Spanish [SPA] 5165
Guarani 5360 Sundanese 6567
Gujarati 5367
Hausa 5447 Swahili 6569
Hebrew 5569 Swedish [SWE] 6568
Hindi 5455 T
Hungarian [HUN] 5467
I-K Tagalog 6658
Icelandic lICE] 5565 Tajik 6653
Indonesian 5560 Tamil 6647
Interling ua 5547 Tatar 6666
Interlingue 5551 Telugu 6651
Inupiak 5557
Irish [IIRI] 5347 Thai 6654
Italian [ITA] 5566 Tibetan 4861
Japanese [JPN] 5647 Tigrinya 6655
Javanese 5669 Tonga 6661
Kannada 5760
Kashmiri 5765 Tsonga 6665
Kazakh 5757 Turkish [TU IR] 6664
Kinyarwanda 6469 Turkmen 6657
Kirghiz 5771 Twi 6669
Kirundi 6460 U-Z
Korean [KOIR] 5761
Kurdish 5767 Ukrainian 6757
L-N Urdu 6764
Laothian 5861 Uzbek 6772
Latin 5847 Vietnamese 6855
Latvia n;Lettish 5868
Lingala 5860 Volapuk 6861
Lithuanian 5866 Welsh 4971
Macedonian 5957 Wolof 6961
Malagasy 5953 Xhosa 7054
Malay 5965 Yiddish 5655
Malayalam 5958
Maltese 5966 Yoruba 7161
Maori 5955 Zulu 7267
Note:
• If you choose a language that has a 3-letter abbreviation,
the code will be displayed every time you change the audio
or subtitle language setting above. If you choose any other
language, '---" will be displayed instead. (3-letter abbreviation is
written in bracket.)
EN
[] FAQ
iiii:i_i,;_
ii..................................................
My remote control does not work.
What should I do?
• Check the antenna or cable connection to the main unit.
• Check the batteries of the remote control.
• Check if there is an obstacle between the infrared sensor window and the
remote control.
• Test the signal output. If OK, then possible infrared sensor trouble.
(Refer to"lR Signal Check" on page 52.)
• Aim the remote control directly at the infrared sensor window on the
front of the unit.
• Reduce the distance to the unit.
• Re-insert the batteries with their polarities (+/- signs) as indicated.
• When there is an infrared-equipped device such as PC near this unit, it
may interrupt the remote control signal of this unit.
• Move the infrared-equipped device away from this unit, change the angle
of the infrared sensor or turn off the infrared communication function.
How come the Initial setup appears every : connect the RE Coaxial Cable tO the unit directly and run the initial setup,
time I turn On this unit? • Make sure to complete the channel scan before turning offthe unit.
• Make sure autoscan has been completed.
(Refer to"Autoscan" on page 20.)
• Autoscan must be completed when you set up the unit for the first
time or move it to a location where previously unavailable channels are
broadcast.
• The selected channel may not be broadcasting.
Why I cannot watch some of TV programs? • When autoscan is interrupted and not completed,
some channels will not be received. Make sure to complete.
(Refer to"Autoscan" on page 20.)
• The selected channel cannot be viewed by the"Child Lock"setting.
(Refer to "Child Lock" on page 28.)
• The unit requires some kind of antenna input. An indoor antenna (rabbit
ears), an external antenna, or an RF coaxial cable from your wall or cable
receiver/satellite box needs to be plugged into the unit.
' Check if the right input mode iS selectee by pressing [INPUT SELECT] or
HOw €0me there is no image from the .... using [CH A/V]. (Refer to"Switching Each Input Mode' on Page 17.)
connected external devices? • Check the antenna or cable connection to the unit.
• Many digital channels have alternate channel numbers. The unit changes
Whenever I entered channel number, the numbers automatically to the ones signifying the broadcasting
it changes automatically, stations. These are the numbers used for analog broadcasts.
' clean the disc
, Ensure the d sc is correctly inse[ted.
"_ "scc n ot-e a ed- ck I °Check fthedsc sdefectvebytrynganotherdsc
!vly_ a n D p y Da .: _ ,Cance!theparent a ock or change the contro eve!
s mere any way can pay my a sc
, Insert a correct disc that plays back on this unit.
Handle a disc with special care so that it does not have fingerprints,
scratches or dusts on its surface.
• Captions that are delayed a few seconds behind the actual dialogue are
Why are captions not displayed entirely? common for live broadcasts. Most captioning production companies can
Or. captions are delayed behind the display a dialogue to maximum of 220 words per minute. Ira dialogue
dialogue, exceeds that rate. selective editing is used to insure that the captions
remain up-to date with the currentTV screen dialogue.
How Can I set the clock ? ' There is no clock function on this unit.
EN
[] Troubleshooting Guide
If the unit does not perform properly when operated as instructed in this manual,
check the following chart and all connections once before calling for service.
No power
Make sure the AC power cord is plugged in.
Make sure that the AC outlet supplies the proper voltage, plug another electrical
appliance into the AC outlet.
If a power failure occurs, unplug the AC power cord for 30 minutes to allow the
unit to reset itself.
• Press only one button at a time. Do NOT press more than one buttons at the same
Control button does not work.
time.
Power is ON but no screen
image.
No picture or sound
• Check whether the connection of the antenna, cable receiver or satellite box is
connected correctly.
• Check whether all the cables to the unit are connected to the correct output jack
of your device like BD/DVD recorder.
• Make sure that the selected input mode is connected to the working input jack.
• Check if your computer is NOT in sleep mode when the input mode of this unit is
in PC mode. Tap any key on the keyboard to wake up your computer.
Check if the power is on.
Check if the right input mode is selected.
Check whether all the cables to the unit are connected to the correct output jack
of your device like BD/DVD recorder.
View otherTV channels.The problem might be limited to the broadcasting station.
Turn off the unit and wait for about 1 minute, then turn on the unit again.
Check whether the connection of the antenna, cable receiver or satellite box is
connected correctly.
Make sure that the selected input mode is connected to the working input jack.
Check if your computer is NOT in sleep mode when the input mode of this unit is
in PC mode. Tap any key on the keyboard to wake up your computer.
Make sure that the sound is not muted. Press [MUTE n¾] so that the volume bar
and current volume level will appear on the TV screen.
Make sure that the volume is NOT set to"O" or"Mute". If so, use [VOL. _/_] to
adjust the desired volume.
View otherTV channels.The problem might be limited to the broadcasting station.
No color
Adjust"Color"in the main menu.
Adjusted "PICTURE"or"SOUND" You must set "Home"in "Location"(Refer to page 33).
is not effective every time turn Otherwise, the settings you adjusted will not be memorized after you turn off the
on the unit. unit.
Electrical interference from nearby appliances may affect picture quality.
Adjust"Contrast"and "Brightness"in the main menu.
Sound OK, picture poor View otherTV channels.The problem might be limited to the broadcasting station.
For the best picture quality, watch "high definition"wide screen programs.
If the HD content is not available, watch "standard definition" programs instead.
View otherTV channels.The problem might be limited to the broadcasting station.
Picture OK, sound poor Check if the audio cable is connected in correctly.
• You may be getting interference from electrical appliances, automobiles,
You see a distorted picture or motorcycles or fluorescent lights.
hear an unusual sound.
• Try moving the unit to another location to see if this is the cause of the problem.
Ghosts, lines or streaks in Electrical interference from nearby appliances may affect picture quality.
picture View other TV channels. The problem might be limited to the broadcasting station.
• When the capabilities of the unit exceed the capabilities of the digital
You see "noise" or "trash" on the
broadcasting, the signal will be increased to match the capabilities of the display
screen, of the unit. This may cause noise or trash.
Different color marks on the TV Move your unit away from nearby electric appliances.Turn off the unit and wait 30
minutes before turning it back on.
screen View other TV channels. The problem might be limited to the broadcasting station.
EN
!!!U!!I!!!!!!!
li!ii il
You switch to a different input
and the volume.
i.................................................
iii!iiii
• This unit will memorize the volume level from the last time you adjusted it.
• If the volume of the sound from another device is higher or lower, then the
loudness will change.
You switch to a different input • This unit will memorize the viewing mode from the last time you used the
and the screen size changes, particular input modes.
• If you are using the unit as a PC monitor, make sure that"Horizontal Position"and
The display image does not "Vertical Position" in "PC Settings"are set correctly.
cover the entire screen. • If you are watching TV or using the video, S-video, component video or HDMI with
480i input, press [SCREEN MODE _i_] repeatedly to switch various screen modes.
Interference from buildings or weather conditions may cause captioning to be
incomplete.
Broadcasting station may shorten the program to insert advertisement.
The closed caption decoder cannot read the information of the shortened
program.
• The disc or cassette tape may be illegally copied, or the caption signal might not
have been read during copying.
• The text mode is selected for caption. Select"CC1 ","CC2","CC3", "CC4" or"Off".
Completely distorted picture or . Make sure the disc is compatible with the unit.
black/white picture with DVD.
Picture freezes momentarily • Check the disc for finger prints/scratches and clean with a soft cloth wiping from
during playback, center to edge.
Disc cannot be played.
C
iiiii!!!i
C_
i! iiiiiii!
_i i;ili!!i:i
_i!!!ii_!!i:
_i!!i__
i! ::_!!
Clean the disc.
Ensure the disc is correctly inserted. ::
Check if the disc is defective by trying another disc.
Cancel the parental lock or change the control level.
Insert a correct disc that plays on this unit.
Handle a disc with special care so that it does not have fingerprints, scratches, or
dusts on its surface.
Buttons do not work or the unit • To completely reset the unit, unplug the AC power cord from the power outlet for
stops responding. 5-10 seconds.
The unit does not respond to
some operating commands • Operations may not be permitted by the disc. Refer to the instructions of the disc.
during playback.
Angle does not switch. • The angle cannot be switched for DVD which do not contain multiple angles. In
some cases multiple angles are only recorded for specific scenes.
Playback does not start when
the title is selected. • Check the "PARENTAL" setting.
The password for rating level • Enter the default password"4737", then your forgotten password will be cleared.
has been forgotten.
Note:
• The LCDpanel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of
blue, green or red. Thisis not to be considered a defect in the LCDscreen.
• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on
correct operations.
• Some functions are prohibited on some discs.
il
i .......
ii_!_iii,!ill
i C::¸_
EN
[] Glossary
ATSC
Acronym that stands for Advanced
Television Systems Committee and the
name of the digital broadcasting standards.
Aspect Ratio
The width of a TV screen relative to its
height. Conventional TVs are 4:3 (in other
words, theTV screen is almost square);
widescreen models are 16:9 (the TV screen
is almost twice as wide as its height).
CEC (Consumer Electronics Control)
This allows you to operate the linked
functions between our brand devices with
CECfeature and this unit.
Component Video
This is a video signal format that conveys
each of 3 principal colors of light (red,
blue and green) through different signal
lines. This allows the viewers to experience
picture colors as original as it is.There are
several signal formats, including Y / Pb / Pr
andY/Cb/Cr.
Dolby Digital
The system developed by Dolby
Laboratories to compress digital sound. It
offers stereo sound (2ch) or multi-channel
audio.
HDMI (High-Definition Multimedia
Interface)
Interface that supports all uncompressed,
digital audio/video formats including
set-top box, BD/DVD recorder or digital
television, over a single cable.
HDTV (High Definition TV)
Ultimate digital format that produces high
resolution and high picture quality.
NTSC
Acronym that stands for National Television
Systems Committee and the name of the
current analog broadcasting standards.
Password / PIN Code
A stored 4-digit number that allows access
to parental control features.
Region Code
Regions associate discs and players with
particular areas of the world.
This unit will only play back discs that have
compatible region codes.
You can find the region code of your unit
by looking on the rear panel.
Some discs are compatible with more than
one region (or all regions).
SAP (Secondary Audio Program)
Second-audio channel delivered separately
from main-audio channel.This audio
channel is used as an alternate in bilingual
broadcasting.
SDTV (Standard Definition TV)
Standard digital format that is similar to the
NTSC picture quality.
S-video
Offers higher quality images by delivering
each signal, color (c) and luminance (y)
independently of each other through
separate cables.
[] Maintenance
• Wipe the front panel and other exterior surfaces of the
unit with a soft cloth immersed in lukewarm water and
wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide
liquid near the unit. Such chemicals may cause damage
and discoloration to the exposed surfaces.
Wipe the panel of the unit with a soft cloth. Before
cleaning the panel, disconnect the AC power cord.
Handle the discs so that fingerprints and dust do not
adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is not
used.
• To clean-off, use a soft cloth.
• Do not use a hard cloth since this will mar the disc.
• Wipe the disc in a straight line form center to edge.
• Never wipe with a circular motion.
• Do not use detergent or abrasive cleaning agents.
EN
Should your unit become inoperative, do not try to correct
the problem yourself. There are no user serviceable parts
inside.Turn offthe unit, unplug the AC power cord and call
our toll free customer support line found on the cover of
this manual to locate an authorized service center.
If the unit still does not perform properly when it is
operated, while referring to the relevant sections and to
"Troubleshooting Guide" in this owner's manual, the laser
optical pickup unit may be dirty. Consult your dealer or an
Authorized Service Center for inspection and cleaning of
the laser optical pickup unit.
If the remote control is not working properly, you can use
an AM radio or digital camera (including a cellular phone
with built-in camera) to see if it is sending out an infrared
signal.
• With an AM radio:
Tune the AM radio station to a non-
broadcasting frequency. Point the
remote control towards it, press any
button and listen. If the sound from
the radio flutters, it is receiving the
remote control's infrared signal.
• With a digital camera
(including built-in cell phone cameras):
Point a digital camera towards the remote
control. Press any button on the remote
control and look through the digital
camera. If the infrared light appears
through the camera, the remote control is
working.
[] Cable Channel Designations
Ifyousubscribeto cableTV,thechannelsaredisplayedas1-135.Cablecompaniesoftendesignatechannelswith lettersor letter-numbercombinations.
Pleasecheckwith yourlocalcablecompany.Thefollowingisa chartof commoncablechanneldesignations.
TVDisplay 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
IV Display 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
TVDisplay 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
TVDisplay 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84
TVDisplay 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105
TVDisplay 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126
TVDisplay 127 128 129 130 131 132 133 134 135
iiiiiiii!i i
ii !ii!:ii
ii G
[] General Specifications
TV format: ATSC/ NTSC-MTVstandard
Closed caption system:
§15.122/ECC(digitalCC)
§15.119/FCC(analogCC)
Channel coverage (ATSC/NTSC}:
Terrestrial VHF:2_13 UHF:14_69
CAW 2_13,A_W,
W+1_W+94 (analogW+1_W+84),
A-5_A-I, 5A
Tuning system: Channelfrequencysynthesizedtuningsystem
Channel access: Directaccesskeyboard,
Programmablescan,and up/down
Discs (Playback compatibility):
DVDvideo,DVD-RW/-R,
DVD+RW/+R,audioCD,CD-RW/-R
Frequency response:
DVD(linear sound): 20Hzto 20 kHz(samplerate:48kHz)
20Hzto 44 kHz(samplerate:96 kHz)
CD: 20Hzto20 kHz
Signal-to-noise ratio (SIN ratio):
CD: 90dB (JEITA)
Total distortion factor:
DVD: 1KHz0.007%(JEITA)
CD: I KHz 0.007%(JEITA)
[] Electrical Specification
SoundOutput: lOW,80 x2
• Designsandspecificationsaresubjectto changewithout noticeandwithout
our legalobligation.
• If there isa discrepancybetweenlanguages,the defaultlanguagewill be
English.
[] Other Specifications
Terminals:
Antennainput: VHF/UHF/CATV
Audioinput: RCAjack(L/R)x 6
Videoinput: RCAjackxl
S-videoinput: Mini DIN4-pinjackx 1
Componentvideo input:
RCAjackx 3
HDMI input: HDM119pinx 2
Coaxialdigital audiooutput:
RCAjackxl
Audio output: RCAjack(L/R)x 2
ilG:......
ii iiii_!:_i
i i_ili!!i'il
7SOunbalanced(F-type) ii
500mYrms
IV p-p (750)
Y:IV p-p (750)
C:286mVp-p (750)
Y: IV p-p (750)
Pb:700mYp-p (750)
Pr: 700mYp-p(750)
500mYp-p(750)
500mYrms
Remote control: Digitalencodedinfraredlightsystem
Operating temperature:
41°F(5°C)to I04°F (40°C)
Power requirements:
120V_AC+/- I0%, 60Hz+/- 0.5%
iiii!i:!!__.......
_i!!i__
il:i:i_!_:i!
il
iiii!_i!
i Ti
Power consumption (maximum):
160W
ICD: 32inchesclass(31.5inchesmeasureddiagonally)
Dimensions: <without stand> <with stand>
W: 30.0inches (760mm) 30.0inches(760mm)
H: 20.Sinches (519.3mm) 22.2inches(563mm)
D: 5.1inches (127.5mm) 9.3inches (234mm)
Weight: 20.61bs. (9.3kg) 21.71bs. (9.8kg)
ij ::::ii
3L_I¸
il_iiiiiii!!
i _S!¸¸
_i3)
ii i_i
EN
WARRANTY COVERAGE:
This warranty obligation is limited to the terms as set forth
below.
WHO IS COVERED:
This product warranty is issued to the original purchaser or the
person receiving the product as a gift against defects in materials
and workmanship as based on the date of original purchase
("Warranty Period") from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
This warranty covers new products if a defect in material or
workmanship occurs and a valid claim is received within the
Warranty Period. At its option, the company will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or ser-
viceable used parts and is at least functionally equivalent or most
comparable to the original product in current inventory, or (3)
refund the original purchase price of the product.
Replacement products or parts provided under this warranty are
covered against defects in materials and workmanship from the
date of the replacement or repair for ninety (90) days or for the
remaining portion of the original product's warranty, whichever
provides longer coverage for you. When a product or part is
exchanged, any replacement item becomes your property and the
replaced item becomes company property. When a refund is
given, your product becomes company property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements
can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-
TATIONS:
This Limited Warranty applies only to new company manufac-
tured products that can be identified by the trademark, trade
name, or logo affixed to it. This Limited Warranty does not apply
to any hardware product or any software, even if packaged or
sold with the product, as manufacturers, suppliers, or publishers
may provide a separate warranty for their own products pack-
aged with the bundled product.
or a part that has been modified without written company per-
mission, or (d) if any serial number has been removed or defaced,
or (e) product, accessories or consumables sold "AS IS" without
warranty of any Idnd by including refurbished product sold "AS
IS" by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product.
• Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.
• Product repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary con-
tent for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of the company.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage from mishandled shipments or transit accidents when
returning product.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for which
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner's Manual.
TO OBTAIN ASSISTANCE...
Contact the Customer Care Center at:
1-866-321-3927
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY tS THE EXCLUSIVE REMEDY FOR THE CON-
SUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY.
The company is not liable for any damage to or loss of any pro-
grams, data, or other information stored on any media contained
within the product, or other additional product or part not cov-
ered by this warranty. Recovery or reinstallation of programs,
data or other information is not covered under this Limited
Warranty.
Some states do not allow the exclusions or limitation of inciden-
tal or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, neglect, misapplication, or non-supplied product,
(b) to damage caused by service performed by anyone other than
company approved Authorized Service Location, (c) to a product
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
EN
Printed in China
