Turbo Air TOM36DXBN 36 Inch Freestanding Open Air User Manual

TOM-36-DX*-**-*-N

TOM-48-DX*-**-*-N

TOM-60-DX*-**-*-N

TOM-72-DX*-**-*-N

TOM-96-DX*-**-*-N

Extra Deep

TOM-40*-**-*-N

TOM-50*-**-*-N

Full Heights

TOM-40M*-**-*-N

TOM-50M*-**-*-N

Mid Heights

TOM-36E*-**-*-N

TOM-48E*-**-*-N

TOM-60E*-**-*-N

TOM-72E*-**-*-N

TOM-96E*-**-*-N

Vertical Air Curtain

www.turboairinc.com

Turbo Air Speeds up the Pace of Innovation

Open Display Merchandiser

Installation and Operation Manual

Please read this manual completely before attempting to install or operate this equipment.

CONTENTS

PAGE

INTRODUCTION

SPECIFICATIONS

11~12

INSTALLATION

Damage inspection

Power switch

Light switch

Temperature control

Thermometer

Placing the product

Merchandiser not functioning

Merchandiser is warm

Lights are not working

Condenser coil

Location of display

Leveling of display

OPERATING INSTRUCTIONS

MAINTENANCE & CLEANING

TROUBLESHOOTING

NOTE

19~22

WARRANTY

NOTICE

•฀This฀equipment฀is฀not฀intended฀for฀use฀by฀persons฀(including฀children)฀with฀฀

฀฀฀reduced฀physical,฀sensory฀or฀mental฀capabilities,฀or฀lack฀of฀experience฀and฀

฀฀฀knowledge฀unless฀they฀have฀been฀given฀supervision฀or฀instructions฀concerning฀

฀฀฀the฀use฀of฀this฀equipment฀and฀the฀hazards฀involved฀by฀a฀person฀responsible฀for฀

฀฀฀their฀safety.

•฀Special฀instructions฀for฀those฀persons฀(including฀children)฀with฀reduced฀physical,

฀฀฀sensory฀or฀mental฀capabilities,฀or฀lack฀of฀experience฀and฀knowledge,฀are฀not฀

฀฀฀included฀in฀this฀manual฀and฀are฀not฀required฀to฀be฀included.

•฀Children฀shall฀not฀play฀with฀the฀appliance.

•฀Cleaning฀and฀user฀maintenance฀shall฀not฀be฀made฀by฀children฀without฀supervi

฀฀฀sion.

This฀manual฀uses฀the฀following฀safety฀symbols.฀These฀safety฀symbols฀with฀the฀

words฀of฀DANGER, WARNING฀or฀CAUTION฀alert฀users฀of฀the฀potential฀hazards฀that฀

could฀cause฀injury฀or฀even฀death.

DANGER

WARNING

CAUTION

Indicates฀hazards฀of฀death฀or฀serious฀injury,

if฀the฀instructions฀are฀not฀followed.

Indicates฀dangers฀of฀death฀or฀serious฀injury,

if฀the฀instructions฀are฀not฀followed.

Indicates฀risks฀of฀personal฀injury฀or฀material฀damage,

if฀the฀instructions฀are฀not฀followed.

FOR HYDROCARBON REFRIGERATION UNITS

PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK

REFRIGERATION TYPE AND VOLUME.

WARNING

This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These hydrocarbon

refrigerants are highly environmentally compatible but also are flammable and combus-

tible. Please read this manuel thoroughly before installing and operating the unit. Please

take cautious measures to avoid risk of fire or explosion.

DANGER - Risk of fire or explosion. Flammable refrigerant used. Do

not use mechanical devices to defrost refrigerator. Do not puncture

refrigerant tubing.

DANGER - Risk of fire or explosion. Flammable refrigerant used. To be

repaired only by trained service personnel. Do not puncture refriger-

ant tubing.

CAUTION - Risk of fire or explosion. Dispose of properly in accor-

dance with federal or local regulations. Flammable refrigerant used.

CAUTION - Risk of fire or explosion. Flammable refrigerant used.

Consult repair manual/owner’s guide before attempting to service

this product. All safety precautions must be followed.

CAUTION - Risk of fire or explosion due to puncture of refrigerant

tubing; follow handling instructions carefully. Flammable refrigerant

used.

WARNING

- Keep ventilation openings in the appliance enclosure or in the

built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufac-

turer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the food storage compart-

ments of the appliance unless they are of a type recommended by

the manufacturer.

FOR HYDROCARBON REFRIGERATION UNITS

WARNING

•฀Handle฀the฀unit฀with฀care฀in฀order฀to฀avoid฀any฀serious฀damage฀to฀the฀

฀refrigeration฀system.

•฀The฀refrigerant฀tubing,฀condenser,฀and฀evaporator฀coils฀are฀easily฀prone฀to฀฀฀

฀damage฀while฀handling,฀moving,฀installing,฀and฀cleaning฀the฀unit,฀which฀may฀lead฀

฀฀to฀fire฀or฀even฀explosion.฀

•฀Refrigerant฀squirting฀out฀of฀the฀pipes฀could฀ignite฀or฀cause฀an฀eye฀injury.฀If฀a฀leak

฀is฀detected,฀avoid฀any฀naked฀flames฀or฀potential฀sources฀of฀ignition฀and฀air฀the฀

฀room฀in฀which฀the฀appliance฀is฀standing฀for฀several฀minutes.

•฀In฀order฀to฀avoid฀the฀creation฀of฀a฀flammable฀gas-air฀mixture฀in฀case฀of฀a฀leak

฀in฀the฀refrigerating฀circuit,฀the฀size฀of฀the฀room฀in฀which฀the฀appliance฀is฀placed฀

฀depends฀on฀the฀amount฀of฀refrigerant฀used.฀The฀room฀must฀be฀35.31ft

3฀

1m³฀in฀size฀

฀for฀every฀0.28oz฀(8g)฀of฀R-290฀refrigerant฀inside฀the฀appliance.฀The฀amount฀of฀

฀refrigerant฀in฀your฀particular฀appliance฀is฀shown฀on฀the฀label฀inside฀the฀cabinet.

•฀Never฀start฀up฀an฀appliance฀showing฀any฀signs฀of฀damage.฀If฀in฀doubt,฀contact

฀a฀qualified฀service฀professional.

•฀In฀case฀of฀any฀hazardous฀activities฀such฀as฀fire฀or฀explosion,฀move฀the฀unit฀away฀

฀from฀any฀source฀of฀ignition฀to฀a฀well฀ventilated฀area.

•฀Further฀service฀and฀repair฀must฀be฀done฀by฀a฀qualified฀technician฀who฀is฀familiar฀

฀with฀the฀safety฀standards,฀and฀also฀has฀thorough฀understanding฀and฀knowledge

฀of฀the฀flammable฀refrigerants.฀

•฀Any฀and฀all฀technicians฀handling฀these฀units฀must฀be฀equipped฀with฀proper฀

฀personal฀protection฀and฀equipment฀and฀follow฀applicable฀safety฀measures฀and฀

฀precautions฀to฀avoid฀risk฀of฀fire฀or฀explosion.

This฀appliance฀contains฀a฀small฀amount฀of฀propane฀(R-290)฀or฀isobutane฀

(R-600a)฀refrigerant,฀a฀natural฀gas฀with฀high฀environmental฀compatibility,฀฀

but฀which฀is฀also฀combustible.฀When฀transporting฀and฀installing฀the฀

appliance,฀care฀should฀be฀taken฀to฀ensure฀that฀no฀part฀of฀the฀refrigerating฀

circuit฀is฀damaged.

IMPORTANT SAFETY INFORMATION

WARNING

•฀The฀unit฀must฀be฀installed฀and฀located฀in฀accordance฀with฀the฀manufacturer’s฀

฀installation฀instructions.

•฀Installation฀work฀must฀be฀performed฀in฀accordance฀with฀the฀National฀Electric฀Code฀

฀by฀qualified฀and฀authorized฀personnel฀only.

•฀Repairs฀and฀replacement฀work฀must฀be฀performed฀by฀a฀qualified฀and฀authorized฀

฀service฀professional฀only฀using฀genuine฀replacement฀parts.

•฀Do฀not฀use฀an฀extension฀cord฀or฀an฀adapter฀plug.฀Because฀of฀the฀potential฀safety฀

฀hazards฀under฀certain฀conditions,฀we฀strongly฀recommend฀against฀any฀use฀of฀an฀

฀extension฀cord฀or฀an฀adapter฀plug.฀

•฀Do฀not,฀under฀any฀circumcetances,฀cut฀or฀remove฀the฀ground฀prong฀from฀the

฀power฀cord.฀For฀personal฀safety,฀this฀appliance฀must฀be฀properly฀grounded.

•฀Do฀not฀store฀volatile฀and฀flammable฀substances฀in฀the฀refrigerator.฀The฀storage฀of฀

฀benzene,฀thinner,฀alcohol,฀ether,฀LP฀gas,฀or฀other฀explosive฀substances฀may฀cause฀

฀an฀explosion.

•฀Do฀not฀store฀or฀use฀gasoline฀or฀other฀flammable฀vapors฀and฀liquids฀in฀the฀vicinity

฀of฀this฀appliance฀as฀well฀as฀any฀other฀appliances.

•฀The฀appliance฀is฀not฀intended฀for฀use฀by฀children฀without฀supervision.

•฀Do฀not฀allow฀children฀to฀climb,฀stand,฀or฀hang฀on฀the฀refrigerator฀doors฀or฀shelves฀

฀in฀the฀refrigerators.฀They฀could฀damage฀the฀refrigerator฀and฀seriously฀injure

฀themselves.

•฀To฀prevent฀suffocation฀and฀entrapment฀hazards฀to฀children,฀remove฀the฀doors฀and฀

฀seals฀from฀the฀refrigerator฀before฀disposing฀of฀it฀or฀discontinuing฀its฀use.

SAFETY PRECAUTIONS

To฀avoid฀any฀risk฀of฀fire,฀explosion,฀electric฀shock,฀personal฀injury,฀material฀damage฀or฀

incorrect฀use฀of฀the฀appliance,฀be฀sure฀to฀observe฀the฀following฀safety฀precautions.฀(After฀

reading฀these฀owner’s฀manual฀instructions,฀please฀keep฀the฀manual฀booklet฀in฀a฀safe฀place฀

for฀reference.฀Remember฀to฀hand฀it฀over฀to฀any฀subsequent฀owners)

IMPORTANT SAFETY INFORMATION

INSTALLATION & USAGE

WARNING

CAUTION

•฀Do฀not฀install฀the฀unit฀in฀a฀damp฀place฀where฀it฀could฀be฀splashed฀with฀water.

Incorrect฀insulation฀of฀the฀electrical฀parts฀may฀cause฀fire฀or฀electric฀shock.

•฀Do฀not฀plug฀several฀appliances฀into฀the฀same฀sockets.฀This฀could฀cause฀overheating฀

and฀risk฀start฀of฀a฀fire.

•฀Keep฀the฀power฀plug฀away฀from฀the฀rear฀of฀the฀cabinet.฀A฀damaged฀power฀plug฀may฀

cause฀fire฀due฀to฀overheating.

•฀Do฀not฀spray฀water฀directly฀to฀the฀interior฀or฀exterior฀of฀the฀appliance.฀There฀is฀a฀risk฀

of฀fire฀or฀electric฀shock.

•฀Do฀not฀place฀any฀containers฀filled฀with฀water฀on฀top฀of฀the฀appliance.฀If฀the฀water฀

spills฀onto฀any฀electrical฀parts,฀it฀may฀lead฀to฀fire฀or฀electric฀shock.

•฀Do฀not฀attempt฀to฀repair,฀disassemble฀or฀alter฀the฀appliance.฀It฀may฀cause฀fire฀or฀

abnormal฀operations฀which฀may฀lead฀to฀injury.

•฀Unplug฀the฀refrigerator฀before฀making฀repairs,฀replacing฀a฀light฀bulb,฀or฀cleaning.

•฀Plug฀into฀a฀grounded฀3-prong฀outlet.฀Do฀not฀remove฀the฀ground฀prong.

•฀Do฀not฀store฀too฀much฀food฀in฀the฀appliance.฀When฀you฀open฀the฀door,฀an฀item฀may฀

fall฀out฀and฀cause฀personal฀injury฀or฀material฀damage.

•฀Do฀not฀put฀bottles฀or฀any฀kind฀of฀glass฀in฀the฀freezer.฀The฀container฀may฀break฀and฀

cause฀personal฀injury.

•฀Do฀not฀disconnect฀the฀power฀cord฀by฀pulling฀on฀it.฀This฀may฀disconnect฀a฀wire฀and฀

cause฀a฀short฀circuit.

IMPORTANT SAFETY INFORMATION

INSTALLATION & USAGE

CAUTION

•฀There฀is฀a฀risk฀of฀death฀from฀suffocation฀if฀a฀child฀puts฀the฀packing฀materials฀on฀his฀

or฀her฀head.

•฀Do฀not฀store฀any฀articles฀on฀top฀of฀the฀appliance.฀Articles฀may฀fall฀while฀opening฀or฀

closing฀the฀door,฀and฀could฀cause฀personal฀injury฀or฀material฀damage.

•฀Do฀not฀store฀pharmaceutical฀products,฀scientific฀materials฀or฀other฀

temperature-sensitive฀products฀in฀the฀refrigerator.฀Products฀that฀require฀strict฀

temperature฀controls฀must฀not฀be฀stored฀in฀the฀refrigerator.

•฀Do฀not฀let฀children฀hang฀on฀the฀door.

•฀Do฀not฀touch฀any฀cold฀surfaces฀or฀food฀containers฀in฀the฀freezer฀with฀damp฀or฀wet฀

hands.฀Skin฀may฀stick฀to฀these฀extremely฀cold฀surfaces฀and฀may฀cause฀frostbite.

•฀Remove฀any฀foreign฀matter฀from฀the฀power฀plug฀pins.฀Otherwise,฀there฀is฀a฀risk฀of฀

fire.

•฀Do฀not฀insert฀your฀hand฀into฀the฀bottom฀area฀of฀appliance.฀Any฀sharp฀edges฀may฀

cause฀personal฀injury.

•฀After฀unplugging฀the฀appliance,฀wait฀at฀least฀five฀minutes฀before฀plugging฀it฀back฀in.฀

Abnormal฀operation฀of฀the฀freezer฀may฀cause฀material฀damage.

•฀If฀the฀appliance฀is฀not฀used฀for฀a฀long฀period฀of฀time,฀unplug฀it฀from฀the฀power฀

supply.฀Any฀deterioration฀in฀the฀insulation฀may฀cause฀fire.

•฀Do฀not฀let฀children฀touch฀or฀play฀with฀the฀control฀panel฀on฀the฀front฀of฀the฀appliance.

-฀Do฀not฀allow฀children฀to฀play฀with฀this฀appliance.

-฀Do฀not฀stand฀or฀lean฀on฀the฀base฀panel,฀pull-out฀parts,฀or฀doors.

-฀Repairs฀and฀maintenance฀of฀the฀appliance฀should฀only฀be฀performed฀by฀a฀qualified฀

technician.฀Incorrect฀repairs฀done฀by฀an฀unqualified฀person฀may฀be฀a฀potential฀

source฀of฀danger฀that฀could฀have฀critical฀consequences฀for฀the฀user฀of฀the฀

appliance.

-฀Never฀put฀ice฀cubes฀or฀ice฀pops฀straight฀from฀the฀freezer฀into฀your฀mouth.

฀The฀low฀temperature฀may฀cause฀cold฀burns.

IMPORTANT SAFETY INFORMATION

The refrigeration used in refrigerator/freezer and the gases in the insulation

material require special disposal procedures. Ensure that none of the pipes on

the back of the appliance are damaged prior to disposal.

WARNING

CAUTION

Before disposing of old appliances, make them inoperable. Remove plug from mains,

severe the power cable, and remove or destroy any snap or latch closures.

This eliminates the danger of any children locking themselves into the appliance

(danger of suffocation) or placing themselves into other life-threatening situations.

•฀The฀appliance฀may฀not฀be฀disposed฀of฀with฀domestic฀waste฀or฀bulky฀refuse.

•฀The฀refrigerant฀circuit,฀especially฀the฀heat฀exchanger฀at฀the฀back฀of฀the฀appliance,฀

may not be damaged.

•฀Information฀concerning฀collection฀schedules฀or฀locations฀can฀be฀obtained฀from฀the฀

local disposal authorities.

PROPER DISPOSAL OF OLD APPLIANCE

BEFORE YOU CALL FOR SERVICE

For environmental purposes, refrigeration appliances must be disposed of properly.

This applies to your old appliance, and at the end of its service life, for your new

appliance as well.

Before contacting our Service Department, review the detailed troubleshooting tips in

the Owner’s manual.

1. Try to remedy the problem. Please read the “Troubleshooting Guide” section first

and you may not need to call for service.

2.฀Restart฀the฀appliance฀to฀check฀whether฀the฀fault฀repeats.฀If฀the฀malfunction฀

persists, switch off the appliance and try again after an hour.

3.฀If฀the฀malfunction฀still฀persists,฀then฀contact฀our฀Customer฀Service,฀specifying:

•฀The฀nature฀of฀the฀problem,

•฀The฀appliance฀model฀number฀and฀serial฀number

•฀Your฀full฀address,฀telephone฀number฀and฀area฀code.

INTRODUCTION

WARNING

CUSTOMER SERVICE DEPARTMENT

TURBO AIR

4184 E. Conant St.

Long Beach, CA 90808

1-800-381-7770

MODEL NUMBER

SERIAL NUMBER

This owner’s manual has important information. Please read the entire manual before

installing your new Turbo Air Open Display Merchandiser. For specific questions not

answered on this manual, please call:

Please write down the model and serial number of your merchandiser for future refer-

ences:

Keep this manual in a safe place for your reference.

Failure to read this manual in its entirety can result in misuse of the equipment, which may

cause personal injury or equipment failure.

WARNING!

(TOM-36DX, TOM-36E, TOM-40, TOM-48DX, TOM-48E, TOM-50, TOM-60DX, TOM-60E, )

Display Case should be on a minimum 20 Amps dedicated outlet and minimum 12 AWG wire

for proper operation.

(TOM-72DX, TOM-72E, TOM-96DX, TOM-96E, )

Display Case should be on a minimum 30 Amps dedicated outlet and minimum 10 AWG wire

for proper operation.

SPECIFICATIONS

Model TOM-40*-**-*-N

39 x 28 x 78.5

115V/1Ph/60Hz

NEU6217U

R-290

Timed off defrost

15.5A

9.5W X 5

512 lbs.

TOM-50*-**-*-N

50.8 x 28 x 78.5

15.5A

12.6W X 5

590 lbs.

TOM-40M*-**-*-N

39 x 28 x 60.5

15.5A

9.5W X 4

421 lbs.

TOM-50M*-**-*-N

50.8 x 28 x 60.5

15.5A

12.6W X 4

463 lbs.

Model TOM-36DX*-**-*-N

35.6 x 34.7x 78.8

115V/1Ph/60Hz

NEU6217U

R-290

Timed off defrost

15.5A

50.4W

488 lbs.

TOM-48DX*-**-*-N

47.6 x 34.7 x 78.8

15.5A

69.3W

562 lbs.

TOM-60DX*-**-*-N

59.6 x 34.7 x 78.8

15.5A

88.2W

635 lbs.

Model TOM-36E*-**-*-N

36 x 29.8 x 81.2

115V/1Ph/60Hz

NEU6217U

R-290

Timed off defrost

15.5A

50.4W

498 lbs.

TOM-48E*-**-*-N

48 x

29.8 x 81.2

15.5A

69.3W

573 lbs.

TOM-60E*-**-*-N

60 x

29.8 x 81.2

15.5A

88.2W

648 lbs.

Dimension

(W x D x H) in.

Electricity

Full Load Amperes

Compressor

Refrigerant

Lighting

Defrost

Net Weight

Dimension

(W x D x H) in.

Electricity

Full Load Amperes

Compressor

Refrigerant

Lighting

Defrost

Net Weight

Dimension

(W x D x H) in.

Electricity

Full Load Amperes

Compressor

Refrigerant

Lighting

Defrost

Net Weight

SPECIFICATION

Model

Dimension

(W x D x H) in.

Electricity

Full Load Amperes

Compressor

Refrigerant

Lighting

Defrost

Net Weight

TOM-72E*-**-*-N

72 X 29.8 X 81.2

220V/1PH/60HZ

NEU6217U

R-290

Timed off defrost

18.0A

102.9W

723 lbs.

TOM-96E*-**-*-N

92.8 X 29.8 X 81.2

18.0A

138.6W

873 lbs.

TOM-72DX*-**-*-N

68.8 X 34.7 X 78.8

18.0A

100.8W 138.6W

703 lbs.

TOM-96DX*-**-*-N

92.8 X 34.7 X 78.8

18.0A

852 lbs.

Model TOM-36DX*-**-*-N

35.6 x 34.7x 78.8

220V/1Ph/60Hz

NEU6217U

R-290

Timed off defrost

9.0A

50.4W

488 lbs.

TOM-48DX*-**-*-N

47.6 x 34.7 x 78.8

9.0A

69.3W

562 lbs.

TOM-60DX*-**-*-N

59.6 x 34.7 x 78.8

9.0A

88.2W

635 lbs.

Model TOM-36E*-**-*-N

36 x

29.8 x 81.2

220V/1Ph/60Hz

NEU6217U

R-290

Timed off defrost

9.0A

50.4W

498 lbs.

TOM-48E*-**-*-N

48 x

29.8 x 81.2

9.0A

69.3W

573 lbs.

TOM-60E*-**-*-N

60 x

29.8 x 81.2

9.0A

88.2W

648 lbs.

Dimension

(W x D x H) in.

Electricity

Full Load Amperes

Compressor

Refrigerant

Lighting

Defrost

Net Weight

Dimension

(W x D x H) in.

Electricity

Full Load Amperes

Compressor

Refrigerant

Lighting

Defrost

Net Weight

INSTALLATION INSTRUCTIONS

Prior to installation, the customer must check for damages with the freight company

before the unit is accepted.

1. If the crate is damaged, make sure to note the damage on the Bill of Lading

prior to signing the delivery off.

2. Concealed damage must be reported within 5 days of receiving the unit. Bill

of Lading must be faxed to the Claims department. Pictures of both unit

and crating may be requested.

Open Display Merchandisers are designed to be in an area that is ambient 75 degrees

Fahrenheit (dry bulb) or colder with 55 percent relative humidity. If the installed unit is

in a warm ambient area, it may not be as effective. Position the Merchandiser at its final

location before removing the shipping skid. There are four bolts at the bottom of the

merchandiser that secure the shipping skid. Remove all four bolts to remove the skid.

Allow three inches of space from the wall to the back of the merchandiser. Condenser is

located to the front. Do NOT block inlet.

LOCATION OF OPEN DISPLAY MERCHANDISER

Four leveling legs are provided to level your Merchandiser. Use a leveler to ensure the

unit is evenly leveled on all four corners. If the unit is not leveled correctly, excess water

buildup will not drain properly. If you do not wish to use the levelers, they can be turned

inwards.

LEVELING THE OPEN DISPLAY MERCHANDISER

DAMAGE INSPECTION

OPERATING INSTRUCTIONS

Level and set your merchandiser in place. Connect all necessary electrical connections.

Your Open Display Merchandiser should now be ready for use.

POWER SWITCH:

Located at the bottom of front panel, colored in red.

LIGHT SWITCH:

Located at the bottom of front panel, colored in green.

TEMPERATURE CONTROL:

Located at the bottom of front panal,

THERMOMETER:

(TOM-36DX, TOM-36E, TOM-40, TOM-48DX, TOM-48E,TOM-50, TOM-60DX, TOM-60E, TOM-72DX,

TOM-72E, TOM-96DX, TOM-96E)

Thermometer showing temperature is located on the left side of the back panel .

(TOM-40M, TOM-50M, )

Thermometer showing temperature is located on the right side of the back panel .

PRODUCT PLACEMENT:

Overloading of product or placing products against the back wall or suction grill may cause.

disruption in air flow, which may cause the unit to not cool properly.

NOTE:

•฀Do฀not฀place฀products฀into฀your฀merchandiser฀until฀the฀desired฀temperature฀is฀reached.

•฀Do฀not฀place฀hot฀฀products฀into฀the฀merchandiser.

OW TO SET THE TEMPERATURE

Press the SET button for 1S to check the temperature setting.

2. The display panel shows the current temperature setting.

To change the temperature, press the UP or DOWN button and press the SET

button when adjustment is complete.

The temperature setting has been changed and the display panel shows the current

temperature.

ANUAL DEFROST

Press the DEFROST button for 3S to begin a manual defrost.

Defrost mode will be off automatically when it is complete

During the defrosting process, pressing the DEFROST button for 3S will stop

defrosting and turn off the defrost mode.

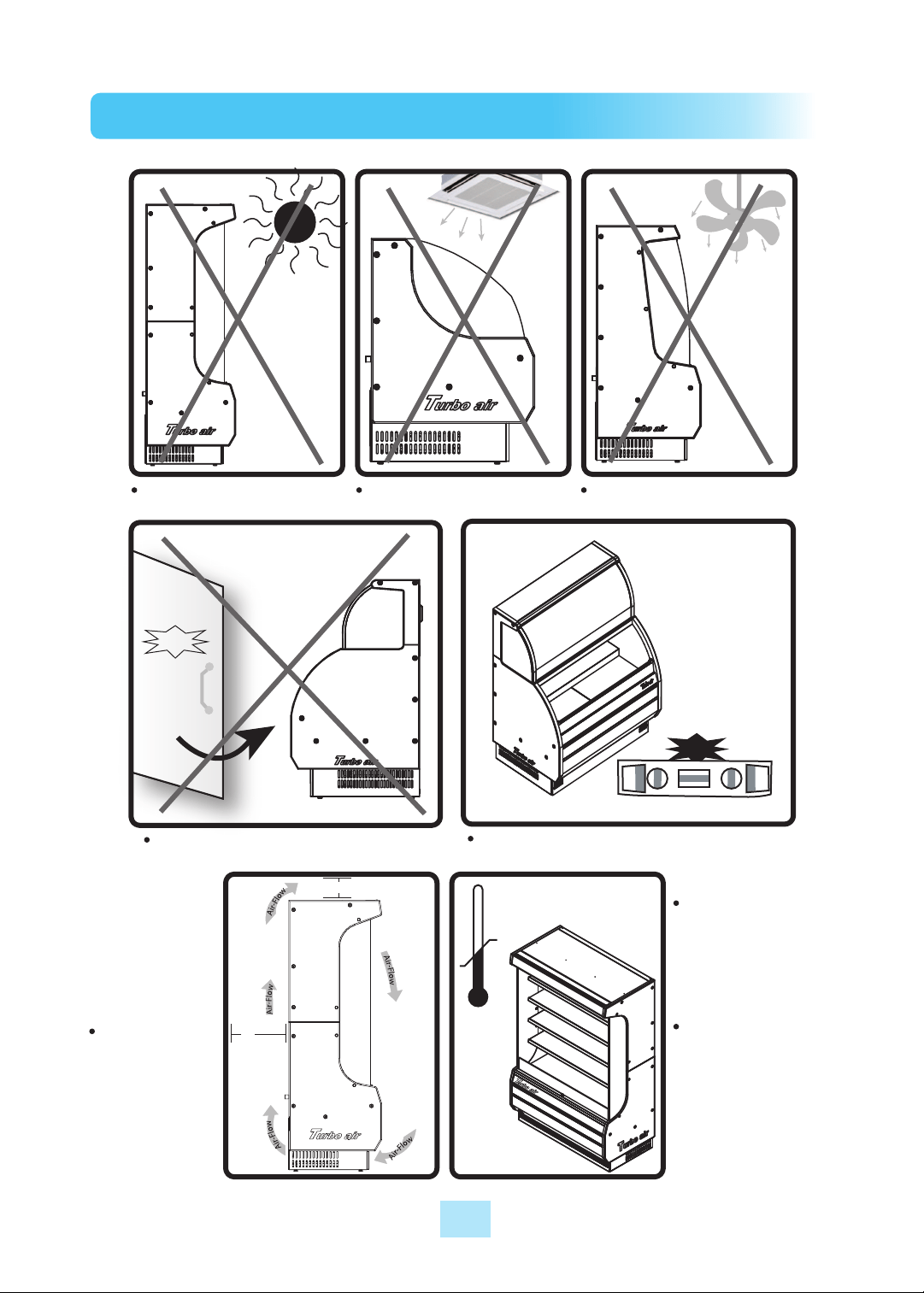

75℉

(23℃) and 55%

humidity

Units should not be placed

in direct sunlight.

Units should not be placed near

doorways.

Level the cabinet on all four corners of the

base.

Units should not be placed

near HVAC vents.

Units should not be placed

near fans.

Confirm there is

enough clearance

for proper air

circulation

Operating

environment not

to exceed 75℉

(23℃) and 55%

humidity.

Do not load

product beyond

the edge of the

shelf

LEVEL

DOOR

4“ 102mm

12” 305mm

Turbo Air Recommended Operating Conditions

MAINTENANCE & CLEANING

Always turn off your unit (both power and lights) when cleaning. Remove all products

and allow your unit to reach room temperature. Do not allow electrical components to

get wet.

a. Do not clean with harsh detergents. Use mild soap.

b. Remove all products.

c. Remove shelves and bottom trays.

d. Clean interior with warm water and mild detergent.

e. Wipe with damp cloth. Do not leave soap residue.

1. Disconnect the electrical power from the unit.

2. Remove the front cover and base cover with screw driver.

3. Brush the dirt, lint, etc. from the finned condenser coil.

4. When finished, be sure to replace the front cover and base cover.

5. Reconnect the electrical power to the unit.

CLEAN YOUR OPEN DISPLAY MERCHANDISER THOROUGHLY

BEFORE FIRST USAGE.

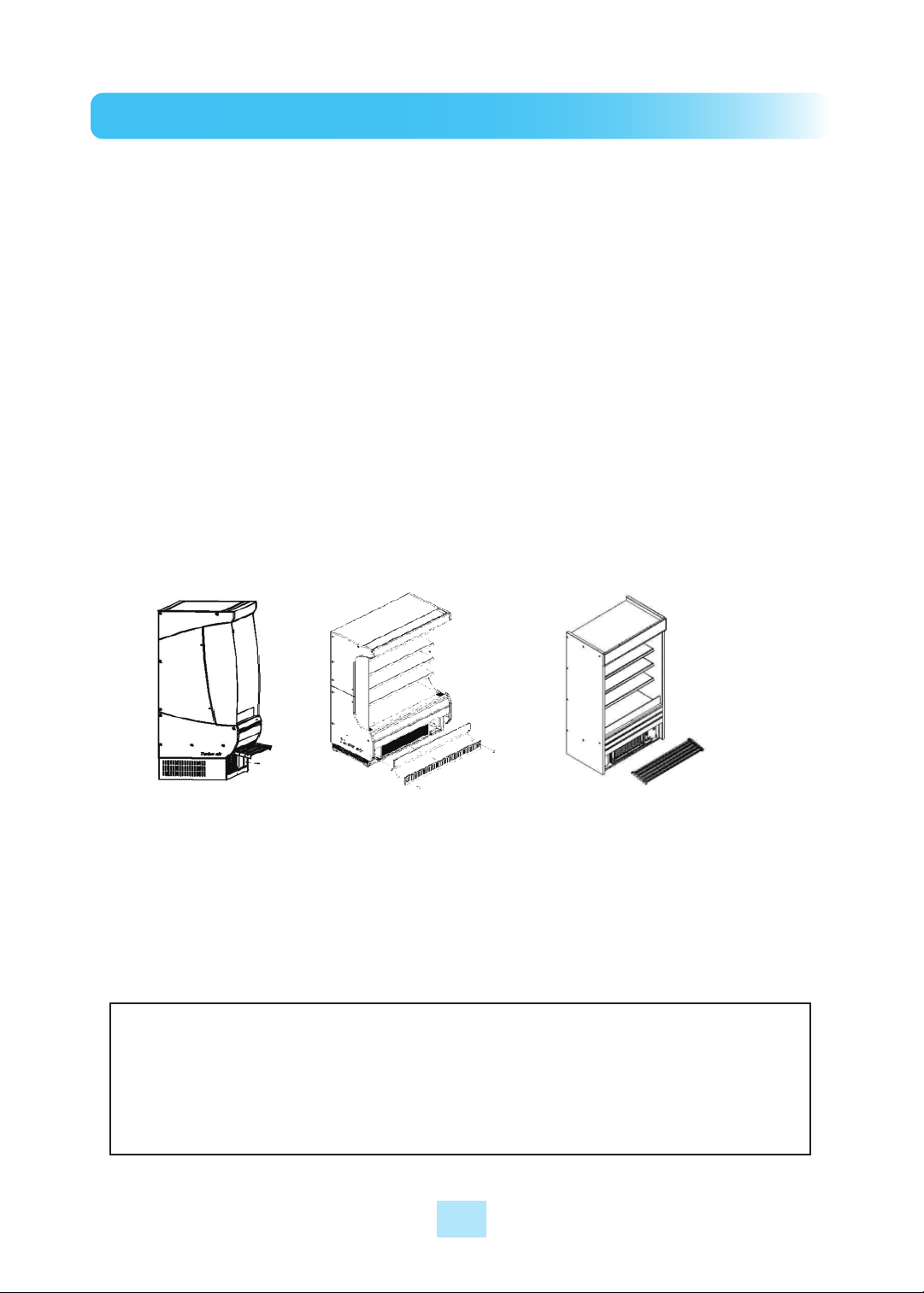

CLEANING THE CONDENSER COIL

Condenser coil is located at bottom behind panel.

NOTE:

For a self-cleaning condenser equipped model, condenser cleaning is not

required.

However, it is recommended to blow the condenser coil out with Nitrogen

once or twice a year. Note that the condenser cleaner may not remove grease.

TROUBLESHOOTING

For any problems with your unit, please refer to the following check list. If you are still

experiencing problems or have questions, please call the Customer Service line at

1-800-381-7770.

a. Check to see that the breaker hasn’t tripped.

b. Check that enough power is BEING supplied to the unit.

c. Check that the power switch is on.

Ⅰ. MERCHANDISER NOT FUNCTIONING

a. Check the condenser to see if it is clean.

b. Check that the inner airflow is not being blocked by products.

Ⅱ. MERCHANDISER IS WARM

a. Check that light switch is on.

b. Check that the lights are placed in the lamp holders correctly.

Ⅲ. LIGHTS ARE NOT WORKING

2220

2221

2222

Turbo Air TOM36DXBN 36 Inch Freestanding Open Air Refrigerator

Product's Documents

User Manual

Specifications

Turbo Air TOM36DXBN Questions and Answers
