QUICK SET UP YOUR APPLIANCE
It is recommended you install the appliance in a place where the ambient temperature is between
60- 90 degrees Fahrenheit(16-32ºC ). If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in extreme
cold or hot conditions may cause interior temperatures to fluctuate. The average temperature range of
40-65 degrees Fahrenheit may not be reached.
Model#
Temperature Ranges
CBE-025SL
41º- 64ºF
5º-18ºC
CBE-030SL
37º- 64ºF
3º-18ºC
CWE-034SL
41º- 64ºF
5º-18ºC
CWBE-024SL
Left zone: 41º- 64ºF
Right zone: 37º-64ºF
5º-18ºC
3º-18ºC
CONTROL PANEL
CONTROL PANEL LOCK
Your unit is equipped with an automatic control panel lock function. This function will prevent any
unwanted changes to your temperature or power settings.
The lock function will activate automatically 12 seconds after the last time a button is pushed on
the control panel.
Push and hold the button simultaneously for 3 seconds to unlock the control panel. You will
hear a “BEEP” sound to alert you that the control is now active.
SETTING THE TEMPERATURE CONTROL
You can set the temperature by pushing the or buttons on the control panel. The
temperature that you desire to set will increase 1ºF or 1ºC if you push the button once, on the
contrary the temperature will decrease 1ºF or 1ºC if you push the button once.
Interior Light
You can turn the interior light ON or OFF by pushing the button marked with the “Light” symbol
The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button
marked with the “Light” symbol again and the light will turn back on.
You can select temperature display setting from Fahrenheit to Celsius degree by
pushing and holding the button until the display changes.
2
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Number/ No. de Modelo:
CBE-025SL/CBE-030SL/ CWE-034SL/CWBE-024SL
BEVERAGE COOLER / ENFRIADOR DE BEBIDAS
( Image may vary)
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 11.
Made In China
3
Table of Contents
Quick Set up Your Appliance
1
Control Panel
1
Control Panel Lock
1
Setting the Temperature Control
1
Interior Light
1
Appliance Safety
4
Important Safe Guides
5
Parts and Features
6~7
Installation of the handle ( for CWBE-024SL only )
8
Wiring Diagram
9
Important Safety Instructions
10
Installation Instructions
11
Before Using Your Appliance
11
Installation of Your Appliance
11
Electrical Connection
12
Extension Cord
12
Surge Protector
12
Care and Maintenance
13
Cleaning Your Appliance
13
Vacation Time
13
Moving Your Appliance
13
Problems with Your Appliance
14
Troubleshooting Guide
14
Error Code
14
Instrucciones en Español
15~16
4
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, property or
equipment damage.
All safety messages will alert you to know what the potential hazard is, tell you how to reduce the
chance of injury, and let you know what can happen if the instructions are not followed.
PROP. 65 WARNING FOR CALIFORNIA RESIDENTS
WARNING:
Cancer And Reproductive Harm
www.p65warnings.ca.gov
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
5
IMPORTANT SAFE GUIDES
Before the Appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the Appliance, follow basic precautions,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
It is recommended that a separate circuit, serving only your Appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean Appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the Appliance or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your Appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Use two or more people to move and install Appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your Appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16
°
C) and below
90°F (32°C). This unit must be installed in an area protected from the elements, such as wind,
rain, water spray or drips.
The Appliance should not be located next to ovens, grills or other sources of high heat.
The Appliance must be installed with all electrical, water and drain connections in accordance
with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly
grounded in accordance with the National Electrical Code and local codes and ordinances is
required.
Do not kink or pinch the power supply cord of Appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the Appliance to be leveled in order to work properly. You may need to make
several adjustments to level it.
All installation must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched or kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the Appliance.
Although the unit has been tested at the factory, due to long-term transit and storage, the first
batch of cubes must be discarded.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
6

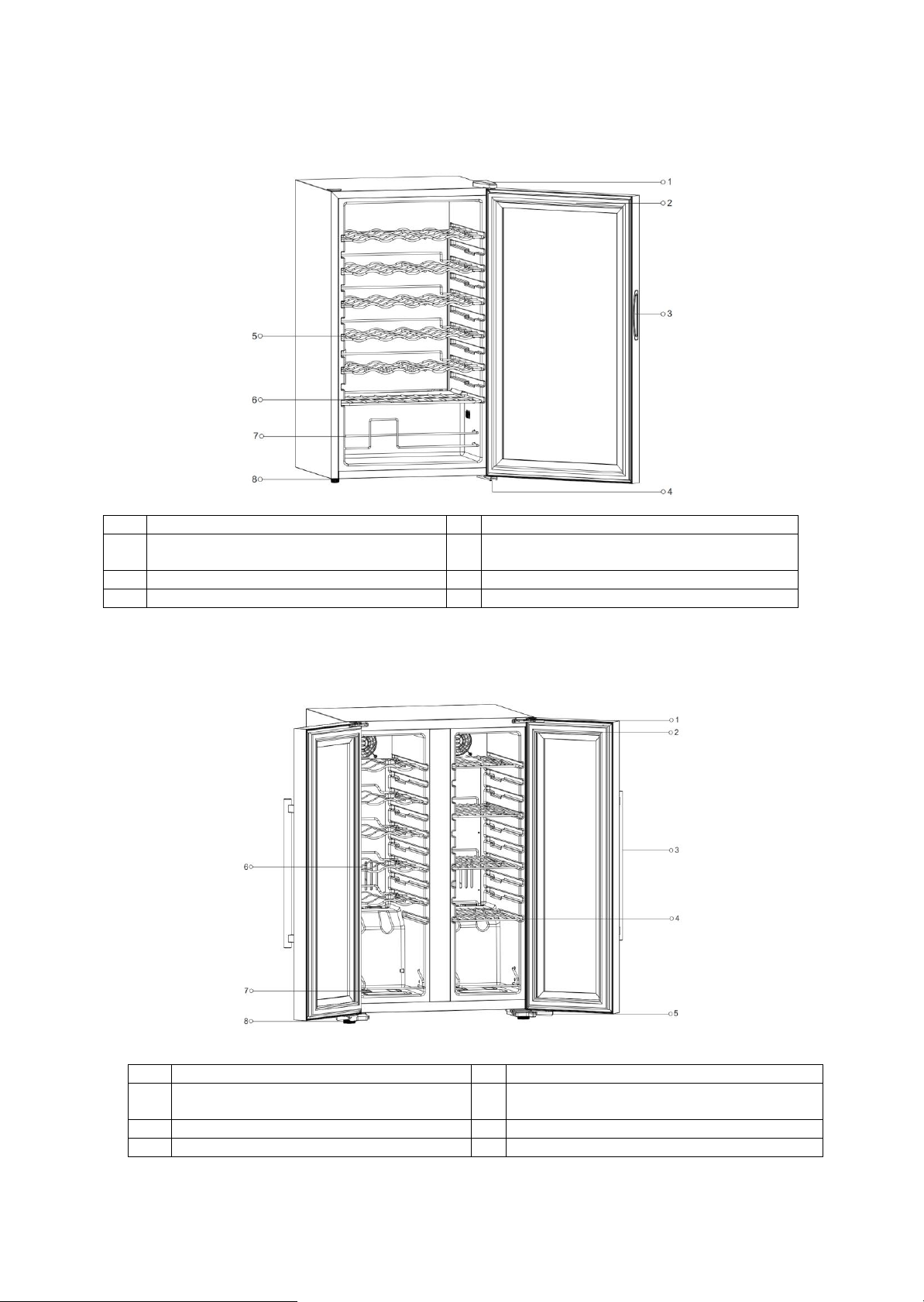

PARTS & FEATURES (CBE-025SL)
PARTS & FEATURES (CBE-030SL)
1
Full Size Shelf (4pcs)
6
Door Frame
2
Half Size Shelf (1pc)
7
Glass
3
Retainer Bar (1pc）
8
Integrated Door Handle
4
Foot
9
Door Gasket
5
Upper door hinge with cover
10
Lower Door Hinge
1
Top Hinge Cover
5
Full Size Shelf (2pcs)
2
LED Digital Display
with Touch Screen Control
6
Half Size Shelf(1pc)
3
Integrated Handle
7
Retainer Bar(1pc)
4
Lower Hinge
8
Leveling Foot
7
PARTS & FEATURES (CWE-034SL)
PARTS & FEATURES (CWBE-024SL))
1
Top Hinge Cover
5
Full Size Shelf (5pcs)
2
LED Digital Display
with Touch Screen Control
6
Half Size Shelf(1pc)
3
Integrated Handle
7
Retainer Bar(1pc)
4
Lower Hinge
8
Leveling Foot
1
Top Hinge
5
Lower Hinge
2
LED Digital Display
with Touch Screen Control
6
Wavy Shelf (5pcs)
3
S/S Handle
7
Retainer Bar (2pcs)
4
Flat Shelf(4pcs)
8
Leveling Foot
8
INSTALLATION OF THE HANDLE
This cooler includes two stainless steel handles. To install the handles, please follow the
below instructions:
Pull away the door gasket in the area where the handle is to be installed on the left side as shown
below in Illustration#1. The gasket is easily displaced by hand, no tools are necessary.
Align the handle with the pre-installed screws. Tighten the screws using a Phillips head
screwdriver until the handle sets both flush and secured tightly against the door frame.
(DO NOT over tighten as this will cause damage to the handle assembly).
Replace the door gasket to its original position.
1. Gasket
2. Phillips Head Screw (Pre-installed)
3. Philips Head Screw Driver
4. Handle
9
WIRING DIAGRAM
CBE-025SL/CBE-030SL/CWE-034SL
CWBE-024SL
10
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury when
using your appliance, follow these basic precautions:
·Before using the appliance, please read this user manual to ensure that you gain the maximum
benefit from it.
WARNING:
1) This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
2) Children should be supervised to ensure that they do not play with the appliance.
3) This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the
instructions.
6) When positioning the appliance, ensure the supply cord is not trapped or damaged.
7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the
appliance.
8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
9) Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
10) Do not damage the refrigerant circuit.
11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
12) Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
13) This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
15) To avoid contamination of drink, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in
thecompartments of the appliance.
- Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
- Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
·Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane.
Please avoid contact fire when you transport and use it.
Please ask professional for servicing when the machine broke down. Please send it to your local appointed
disposal station when you discard it.
-Save these instructions-
11
INSTALLATION INSTRUCTIONS
Before Using Your Appliance
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
Wire Shelves (see details in “ PARTS & FEATURES”)
Retainer Bar
Instruction manual
Before connecting the Appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Installation of Your Appliance
This appliance is designed to be free standing only, and should not be recessed or built-in.
Place your Appliance on a floor that is strong enough to support the Appliance when it is fully
loaded. To level your Appliance, adjust the front legs at the bottom of the Appliance.
Allow 5 inches of space between the back and sides of the Appliance, which allows the
proper air circulation to cool the compressor.
Locate the Appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the Appliance not to
perform properly.
Avoid locating the Appliance in moist areas.
Plug the Appliance into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
contact us ecoonefuture1@gmail.com.
After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before
placing food in the chiller or Appliance compartment.
12
ELECTRICAL CONNECTION
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or dangling to prevent
accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
SURGE PROTECTOR
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances
you use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge protector
needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void your
product warranty.
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, please contact us [email protected].
13
CARE AND MAINTENANCE
Cleaning Your Appliance
Unplug the Appliance, and remove the contents, shelves, and trays.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to a quart of water.
Wash the shelves and trays with a mild detergent solution.
The outside of the Appliance should be cleaned with mild detergent and warm water.
Vacation Time
Short vacations: Leave the Appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all contents and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly: blocking it open if necessary.
Moving Your Appliance
Remove all the contents.
Turn the leveling screws up to the base to avoid damage.
Tape the door shut.
Be sure the Appliance stays secure in the upright position during transportation. Also protect the
outside of Appliance with a blanket, or similar item.
14
PROBLEMS WITH YOUR APPLIANCE?
You can solve many common Appliance problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before contacting us
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Appliance does not operate.
Not plugged in.
The circuit breaker tripped or a blown fuse.
Turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the Appliance.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The Appliance does not have the correct
clearances.
Vibrations.
Check to assure that the Appliance is level.
The Appliance seems to make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
Appliance.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The Appliance is not level.
The door will not close properly.
The Appliance is not level.
The door was reversed and not properly installed.
The shelves, bins, or baskets are out of position.
ERROR CODE
Error Code
Problem
Solution
EE
Temperature sensor open or
short circuit
Check and make sure TEM sensor is well
connected.
Replace a new sensor if it is broken.
HH
The temperature inside is too
hot (more than 98F / 37C)
Check and make sure TEM sensor is well
connected.
Replace a new sensor if it is broken.
LL
The temperature inside is too
cold (lower than 32F / 0C)
Check and make sure TEM sensor is well
connected.
Replace a new sensor if it is broken.
_ _
Something wrong with the
connecting between control
board and main power PCB.
Take off the hinge cover, make sure all wires are
connected well.
Open power box at back, make sure all wires are
connected well.
Open the control board cover, and make sure all
wires are connected well.
15
INSTRUCCIONES EN ESPANOL
INSTALACION
Retire los accesorios de empaque (plásticos protectores, cartón y tiras engomadas). Limpie el
exterior con un trapo suave y seco, y el interior con un trapo húmedo y tibio.
UBICACION
1. Seleccione un lugar con un piso firme y nivelado.
2. Su electrodomestico requiere ventilación. Deje un espacio mínimo de 5” hacia arriba y
espacio suficiente en el respaldo para permitir la circulación de aire.
3. Evite luz directa del sol o calor. La luz directa del sol puede afectar la capa de pintura. Las
fuentes de calor en su proximidad causarán un consumo mayor de electricidad.
4. Para un mejor desempeño, nivele el aparato utilizando las patas ajustables o tornillos
niveladores. Para verificar el nivel, abra la puerta hasta la mitad, debe regresar sola.
INSTRUCCIONES PARA LA CONEXION A TIERRA
Este aparato electrodoméstico debe estar conectado a tierra. En caso de un cortocircuito eléctrico, la
conexión a tierra reduce el riesgo de choque eléctrico proporcionando un cable de escape para la
corriente eléctrica. Este aparato viene equipado con un cordón que posee un cable a tierra con un
enchufe de conexión a tierra. Este enchufe debe estar conectado en un tomacorriente instalado
correctamente y conectado a tierra.
ADVERTENCIA
El uso inadecuado del enchufe de conexión a tierra puede resultar en un riesgo de choque eléctrico.
Consulte con un electricista si no comprende bien las instrucciones de conexión a tierra o si existe
alguna duda sobre si el aparato está conectado a tierra correctamente.
NO USE UN CORDON DE EXTENSION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su aparato a cordones de prolongación
eléctrica o junto a cualquier otro electrodoméstico en el mismo tomacorriente de pared.
ADVERTENCIA IMPORTANTE:
Un electrodomestico vacío es una atracción muy peligrosa para los niños. Quite los sellos
magnéticos, puertas o cerraduras de todo electrodoméstico que esté en uso.
OPERACION
PANEL DE CONTROL DE SEGURIDAD
Su unidad está equipada con un Panel de Control de Seguridad de función automática. Esta
función previene cualquier cambio no deseado en el control de temperatura.
La función de seguridad se activará automáticamente 12 segundos después de la última vez
que cualquier botón del Panel de Control sea presionado.
Para poder hacer cambios en el Panel de Control, oprima y mantenga presionados los
botones ( ) por 3 segundos, el Panel del Control emitirá un sonido de “Beep” y
Cambiar entre grados Centígrados y Fahrenheit
Ud. puede seleccionar los grados centígrados ó Fahrenheit oprimiendo el botón marcado
por aproximadamente 5 segundos .
En la pantalla digital aparecerá el F ó C indicador.
16
parpadeará una vez, indicando que el Panel de Control ha sido activado y que puede
efectuar cambios en los controles.
Control de temperatura
Su unidad viene equipada con un control de temperatura electrónico con una pantalla digital.
Ud. se puede seleccionar la temperatura preferida a su gusto presionando los botones marcados
o . La temperatura que Ud. selecciona subará 1ºC/F cada vez que presione el botón
marcado al contrario la temperatura bajará 1ºC/F cada vez que presione el botón marcado .
Luz interior
Ud. puedes encender o apagar la luz interior presionando el botón marcado . Ud. necesita
presionar el botón de nuevo para encender la luz.
CUIDADOS EN LOS PERIODOS DE AUSENCIA
Para cortos períodos de ausencia (menos de 21 días) el enfriador de bebidas podrá quedar
funcionando.
En períodos de ausencia más largos, se aconseja dejar el aparato limpio y desconectado.
Saque todo lo que tenga adentro del aparato y la limpieza general.
Deje la puerta entreabierta para que penetre el aire y así evitar la formación de olores.
ECONOMIA DE ENERGIA
Evite dejar por mucho tiempo la puerta abierta.
Evite aperturas frecuentes de la puerta.
Nunca coloque alimentos calientes dentro del aparato. Espere que estén a una temperatura
ambiental.
Coloque la temperaturas en la posición adecuada.
SI USTED SE VA DE VACACIONES
Saque todos los artículos del aparato si Ud. se va de vacaciones por un mes o más.
Desconecte el aparato del tomacorriente y limpie el aparato bien,
Deje la puerta abierta para evitar la formación de olores, condensación o moho.
SI USTED SE MUDA
Desconecte el aparato del tomacorriente y limpie el aparato bien.
Saque todas las partes movibles y empaquételas para que no se muevan durante la
transportación.
Cierre la puerta del aparato y séllela con cinta adhesiva.
Asegúrese que el aparato va parado durante el viaje y cúbralo con una frazada.
COMO CAMBIAR LA DIRECCION DE APERTURA DE LA PUERTA
En caso de que necesite cambiar el lado de apertura de la puerta, por favor consulte al servicio pos-
venta de su localidad o al empleado que le vendió la unidad.
Correct disposal of this product
This symbol on the product, or in its packaging,
indicates
that this product may not be treated as household waste.
Instead, it should be taken to the appropriate waste
collection point for the recycling of
electrical and electronic
equipment. By ensuring this product is disposed of
correctly, you will help prevent
potential negative
consequences for the environment
and human health,
which could otherwise be caused
by the inappropriate waste handling of this product. For
more detailed information about the recycling of this
product, please contact your local council, your household
waste disposal service, or the shop where you purchased
the product.
