Minimum Cutout Opening Width 24-3/8" (619.13 mm)
Maximum Cutout Opening Width 24-11/16" (627.06 mm)
Minimum Cutout Opening Height 16
-
3/4" (425.5 mm)
Maximum Cutout Opening Height 17" (431.8 mm)
Maximum Height distance between holes 14-1/4" (361.825 mm)
Distance between centerline to holes
12-13/16" (324.65 mm)
Distance between holes A 25-9/16" (649.3 mm)
Distance between centerline to holes
14-5/16" (362.75 mm)
Distance between holes B 28-9/16" (725.5 mm)
15-13/32" (391.45 mm)
Center Line
BUILT-IN TRIM KIT TEMPLATE
FOR CUSTOM SERIES MICROWAVE OVEN
1. Align the mounting template center line with the center of the cutout
and the floor line with the floor of the cutout. Tape it into place.
2. For VMTK272, predrill 4 holes marked A with a 1/16" drill bit.
For VMTK302, predrill 4 holes marked B with a 1/16" drill bit.
3. Remove template from the cabinet.
TINSKB133MRR0
Floor Line of Cutout Opening
USE THIS SIDE OF TEMPLATE FOR MODELS
VMTK272 and VMTK302 ONLY.
1-5/32"
(29.6 mm)
Viking Installation Guide
Custom Series Convection /
Conventional Microwave Built-In Trim Kit
111 Front Street
Greenwood, Mississippi 38930 USA
IMPORTANT–Please Read and Follow!
• Before beginning, please read these instructions completely and carefully.
• Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the built-in trim kit.
Remove the turntable from the oven cavity.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
• Please observe all local and national codes and ordinances.
• Theinstallershouldleavetheseinstructionswiththeconsumerwhoshouldretainforlocalinspector’suseandfor
futurereference.
• This built-in trim kit is designed for use ONLY WITH VIKING CONVECTION AND CONVENTIONAL MICROWAVE OVENS
SPECIFYING BUILT-IN TRIM KIT VMTK272, VMTK302, VMTK362, VMTK277, VMTK307 or VMTK367 on the rating label on
the bottom face plate of the oven cavity.
• YOUR OVEN CAN BE BUILT INTO A CABINET OR WALL BY ITSELF OR ABOVE ANY ELECTRIC WALL OVEN OR WARMING
DRAWER.

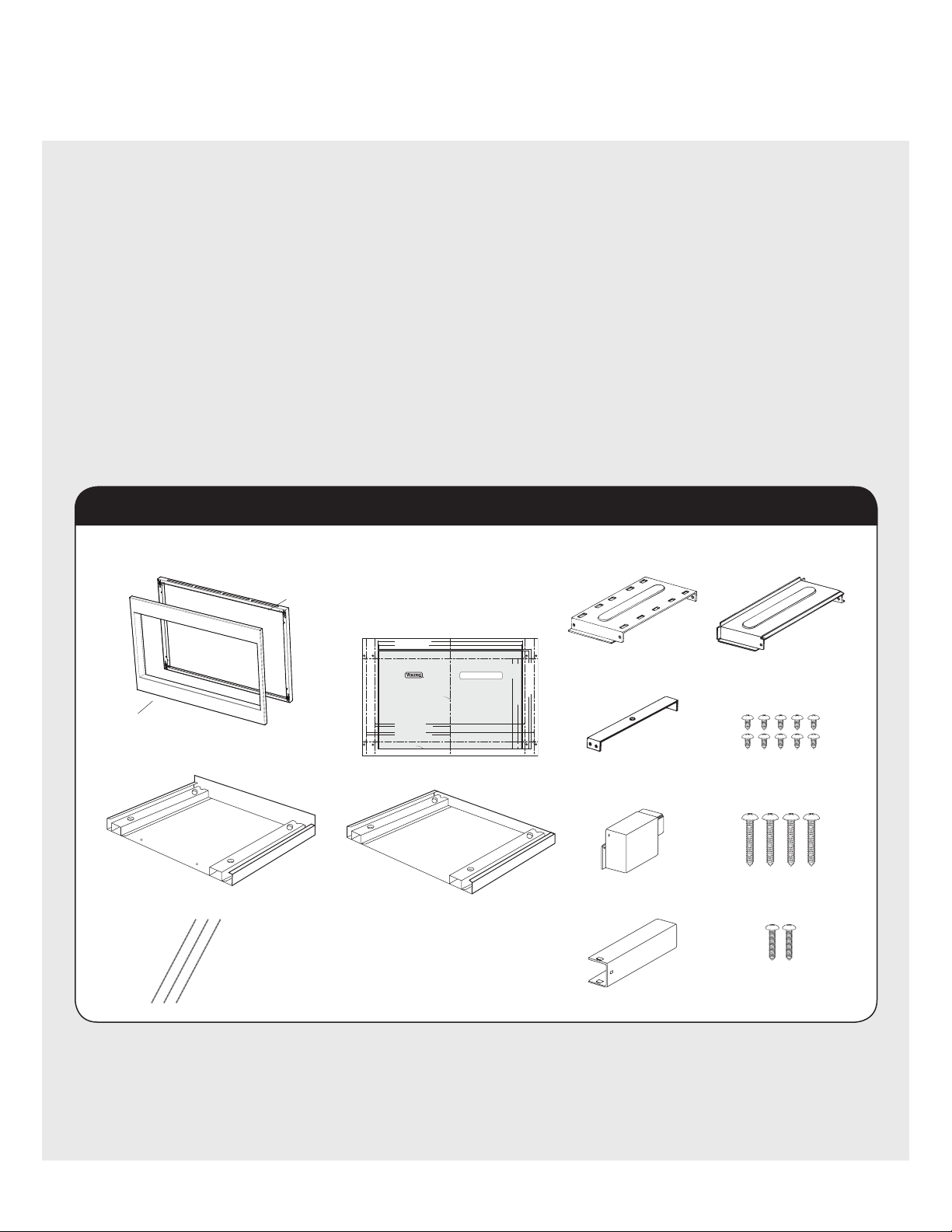

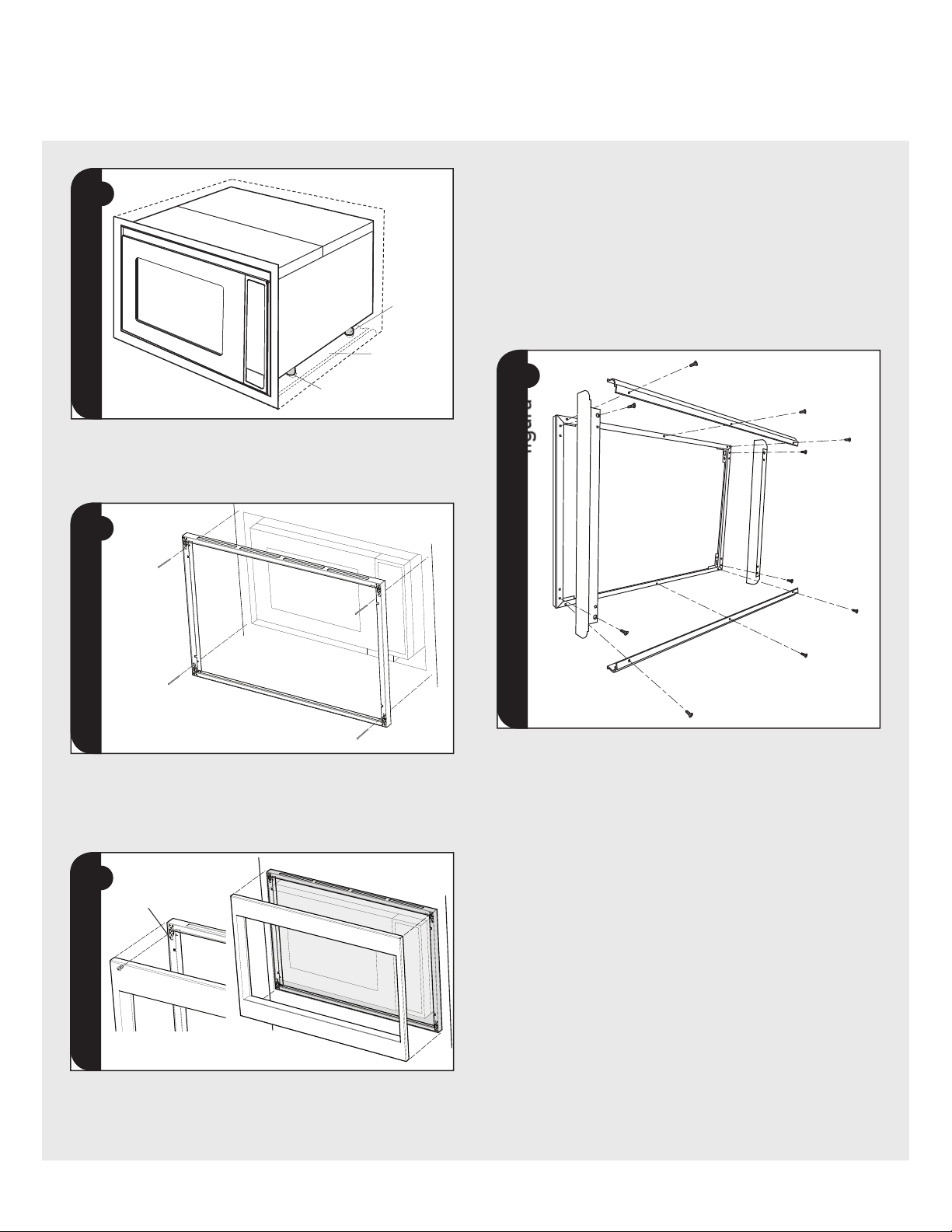

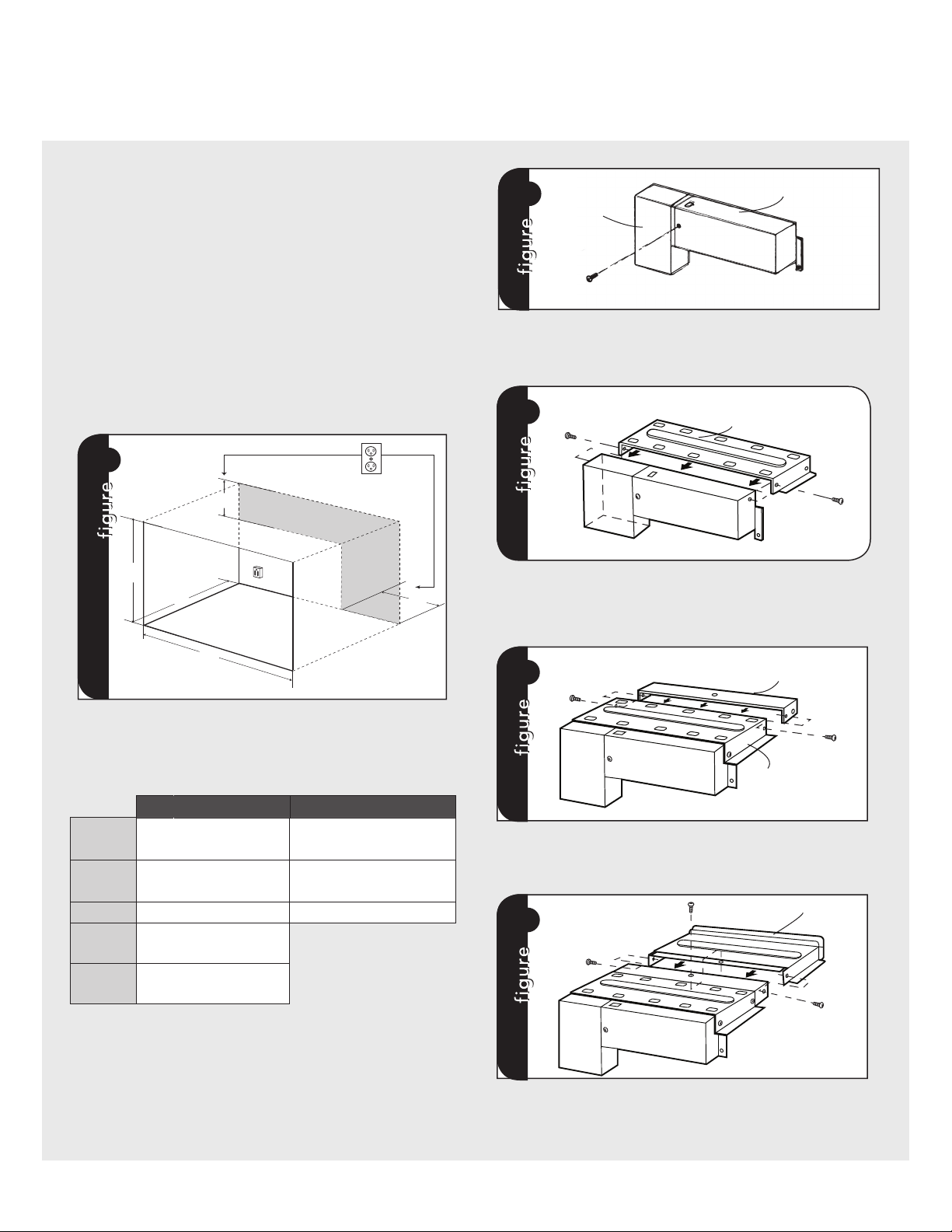

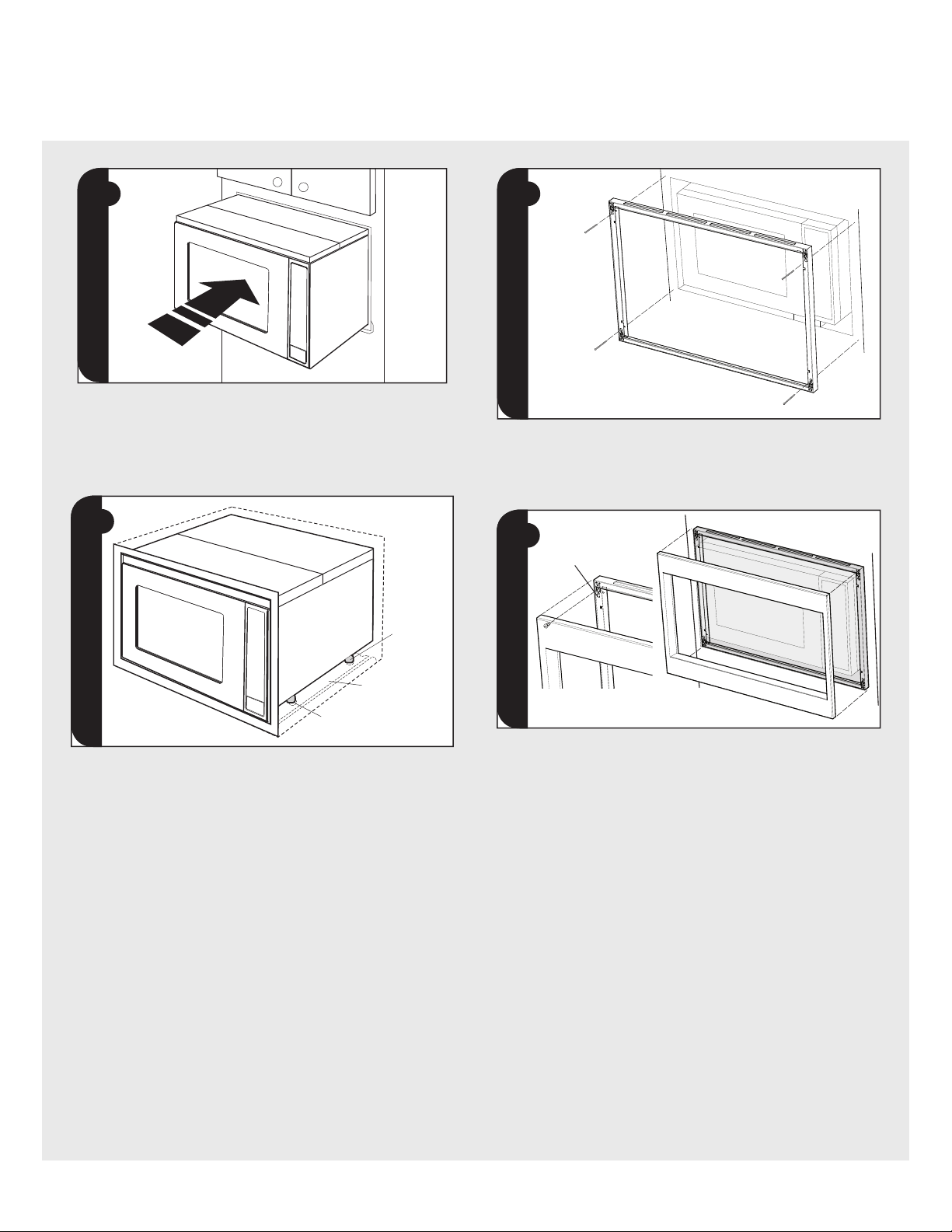

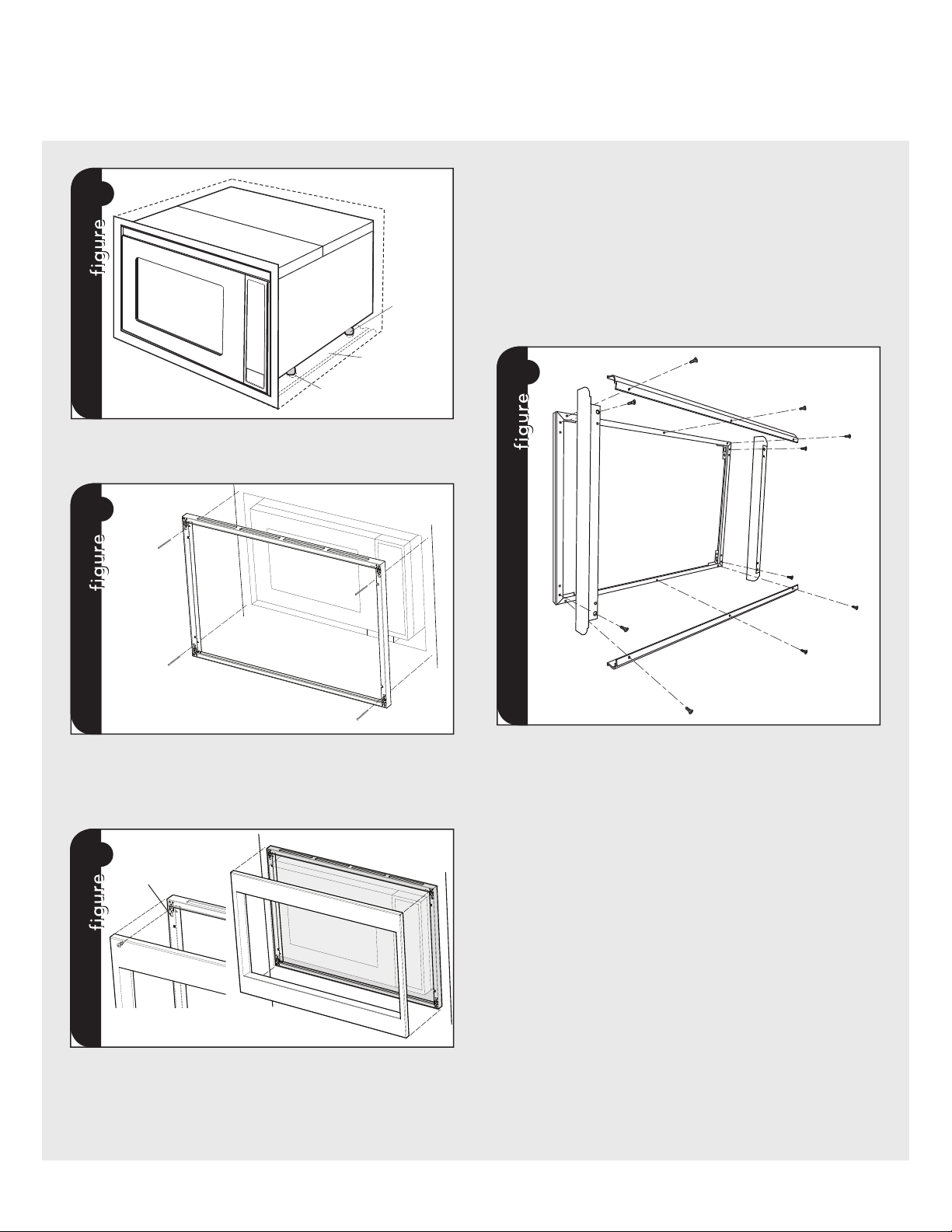

Parts Included in VMTK kits
Front Frame
QTY 1
Back Frame
QTY 1
Front Frame Assembly QTY 1
Bottom Duct Assembly QTY 1
Screw A (1/2" length)
QTY 10 *
Screw B (1-3/4" length)
QTY 4
27" & 30"Surface Mount
Template 2-sided
or 36"Surface Mount
Template single-sided
QTY 1
Cushion QTY 3
Duct (A)-1 QTY 1 * Duct (A)-3 QTY 1 *
Duct (B) QTY 1 *
*
Duct (C) QTY 1 *
Duct (A)-2 QTY 1 *
Screw C (3/4" length)
QTY 2
*VMTK277, VMTK307 and VMTK367 ONLY.
