OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
REFRIGERATORS
Quad Door
GE is a trademark of the General Electric Company. Manufactured under trademark license.
SAFETY INFORMATION .....3
USE THE REFRIGERATOR
Features ..........................5
Controls ..........................6
Dispensers ........................9
Auto Fill Pitcher ...................11
Doors ........................... 12
Storage Features ................. 12
CARE AND CLEANING ...... 13
INSTALLATION INSTRUCTIONS
Preparing to Install the
Refrigerator ...................... 16
Installing the Refrigerator .......... 17
Installing the Water Line ...........22
Electrical Connection ..............24
Level Refrigerator ................25
Align Doors ......................25
TROUBLESHOOTING TIPS . . 26
WARRANTY ..................29
CONSUMER SUPPORT
RPWFE Water Filter Cartridge
Limited Warranty .................30
Performance Data Sheet ........... 31
Consumer Support ................32
2 49-60765
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-60765 3
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS:
WARNING
This product contains one or more chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
CAUTION
To reduce the risk of injury when using your refrigerator, follow these basic safety
precautions.
Ŷ 'RQRWFOHDQJODVVVKHOYHVRUFRYHUVZLWKZDUP
water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact, such as bumping or dropping.
Tempered glass is designed to shatter into many
small pieces if it breaks.
Ŷ .HHSILQJHUVRXWRIWKH³SLQFKSRLQW´DUHDV
clearances between the doors and between the
doors and cabinet are necessarily small. Be careful
closing or opening doors when children are in the
area.
Ŷ 'RQRWWRXFKWKHFROGVXUIDFHVLQWKHIUHH]HU
compartment when hands are damp or wet, skin
may stick to these extremely cold surfaces.
Ŷ 'RQRWUHIUHH]HIUR]HQIRRGVZKLFKKDYHWKDZHG
completely.
Ŷ ,QUHIULJHUDWRUVZLWKDXWRPDWLFLFHPDNHUVDYRLG
contact with the moving parts of the ejector
mechanism, or with the heating element that
UHOHDVHVWKHFXEHV'RQRWSODFHILQJHUVRUKDQGV
on the automatic ice making mechanism while the
refrigerator is plugged in.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
WARNING
To reduce the risk of fire, explosion, electric shock, or injury when using your
refrigerator follow these basic safety precautions:
Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHG
DQGORFDWHGLQDFFRUGDQFHZLWKWKH,QVWDOODWLRQ
,QVWUXFWLRQVEHIRUHLWLVXVHG
Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUV
replacing a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified
service professional.
Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJ
Ŷ 'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOH
vapors and liquids in the vicinity of this or any other
appliance.
Ŷ 'RQRWXVHDQDGDSWHU
Ŷ 'RQRWXVHDQH[WHQVLRQFRUG
Ŷ 8VHRQO\QRQIODPPDEOHFOHDQHU
Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGVWR
children, remove doors from any refrigerator before
disposing of it or discontinuing its use.
Ŷ 'RQRWDOORZFKLOGUHQWRFOLPEVWDQGRUKDQJRQWKH
door handles or the shelves in the refrigerator. They
could seriously injure themselves.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
INSTALLATION
WARNING
EXPLOSION HAZARD
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVVXFKDVJDVROLQHDZD\IURPUHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQILUH
explosion, or death.
4 49-60765
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
SURQJJURXQGLQJZDOORXWOHWWRPLQLPL]HWKH
SRVVLELOLW\RIHOHFWULFVKRFNKD]DUGIURPWKLVDSSOLDQFH
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
'RQRWXVHDQDGDSWHU
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating
WKDWPDWFKHVWKHUDWLQJSODWH8VHDQRXWOHWWKDWFDQQRW
be turned off by a switch.
$9ROW$&+]RUDPSIXVHGJURXQGHG
electrical supply is required. This provides the best
performance and also prevents overloading house
ZLULQJFLUFXLWVZKLFKFRXOGFDXVHDILUHKD]DUGIURP
overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
Repair or replace immediately all power cords that
KDYHEHFRPHIUD\HGRURWKHUZLVHGDPDJHG'RQRW
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING
ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
'RQRWUHPRYHWKHJURXQGSURQJ
'RQRWXVHDQDGDSWHU
'RQRWXVHDQH[WHQVLRQFRUG
)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQGHDWKILUHRUHOHFWULFDOVKRFN
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
SUFFOCATION AND CHILD ENTRAPMENT HAZARD
5HPRYHDOOGRRUVIURPWKHUHIULJHUDWRUSULRUWRGLVSRVDO)DLOXUHWRGRVRFDQUHVXOWLQFKLOGHQWUDSPHQWZKLFKFDQ
lead to death or brain damage.
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
refrigerators are still dangerous even if they will sit
IRU³MXVWDIHZGD\V´,I\RXDUHJHWWLQJULGRI\RXUROG
appliance, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old Refrigerator:
Ŷ Take off all of the doors.
Ŷ Leave the shelves in place so that children may not
easily climb inside.
Refrigerants
All refrigeration products contain refrigerants, which
under federal law must be removed prior to product
GLVSRVDO,I\RXDUHJHWWLQJULGRIDQROGUHIULJHUDWLRQ
product, check with the company handling the disposal
about what to do.
PROPER DISPOSAL OF YOUR OLD APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
49-60765 5

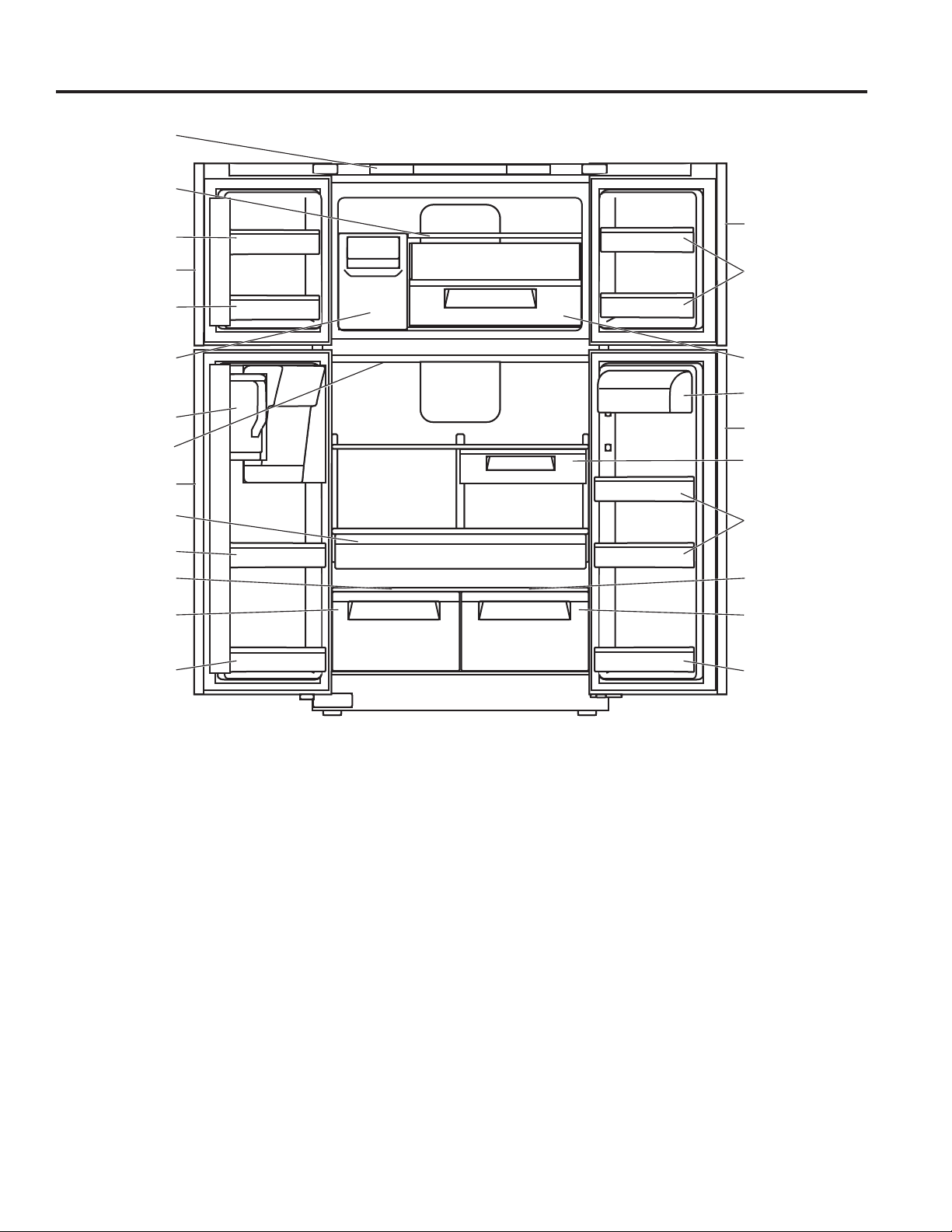

Features
USING THE REFRIGERATOR: )HDWXUHV
1. Control Panel
2.*ODVV)XOOZLGWK6KHOI
3.'RRU%LQV
4. Handle Lights (4) (On Some Models)
5.6KDOORZ'RRU%LQ
6.,FH6WRUDJH%LQ
7.$XWR)LOO3LWFKHU
8.*DOORQ3OXV'RRU%LQRU
'HSHQGLQJRQ0RGHO
9. Crisper Humidity Control (2)
10.&ULVSHU'UDZHUV
11.*DOORQ'RRU%LQ
12.'HOL'UDZHU2Q6RPH0RGHOV
13.8WLOLW\&RPSDUWPHQW
14.)UHH]HU6WRUDJH'UDZHU2Q6RPH0RGHOV
15.)XOO:LGWK'UDZHU
16.:DWHU)LOWHU
3
9
11
10
13
8
12
14
4
4
1
6
16
2
3
5
4
4
7
8
11
10
9
15
6 49-60765
IMPORTANT:7RRSHUDWHWKHFRQWUROVSUHVVWKH,&21DERYHWKHWH[WDQGWKH,&21ZLOOLOOXPLQDWHWRLQGLFDWHWKH
status of the control.
Controls
USING THE REFRIGERATOR: Controls
Ice Maker Quick Freeze Freezer
Units Select
Dehumidify
Vacation
Quick CoolFridge Auto Fill
Power
Hold 3 sec
Lock
Hold 3 sec
Water Filter
Hold to Reset
°F
°C
Factory
Setting
Sabbath
Hold 3 sec
Freezer Controls Feature Controls Refrigerator Controls
Freezer Controls
ICE MAKER
Turns On/Off the ice maker function.
Ŷ7RWXUQRQWKHLFHPDNHUSUHVV,&(0$.(57KHLFH
maker icon will illuminate.
Ŷ7RWXUQRIIWKHLFHPDNHUSUHVV,&(0$.(57KHLFH
maker will turn off.
QUICK FREEZE
7KH4XLFN)UHH]HIXQFWLRQVHWVWKHIUHH]HUFRPSDUWPHQW
WR)&WRDFFHOHUDWHWKHIUHH]LQJRIIUHVKIRRG
and to protect food already stored from undesirable
warming.
NOTE: ,I\RXQHHGWRIUHH]HDODUJHDPRXQWRIIRRGLWLV
UHFRPPHQGHG\RXVHWWKH4XLFN)UHH]HIXQFWLRQDIHZ
hours in advance.
Ŷ7RWXUQRQWKH4XLFN)UHH]HIXQFWLRQSUHVV48,&.
)5((=(7KH4XLFN)UHH]HLFRQZLOOLOOXPLQDWH
Ŷ7RWXUQRIIWKH4XLFN)UHH]HIXQFWLRQSUHVV48,&.
)5((=(7KH4XLFN)UHH]HLFRQZLOOWXUQRII
NOTE: 4XLFN)UHH]HZLOODXWRPDWLFDOO\WXUQRIIDIWHU
hours.
TEMPERATURE DISPLAY
When Power is first turned on, the preset recommended
WHPSHUDWXUHRI)&ZLOOLOOXPLQDWHEOXHLQWKH
display.
Feature Controls
POWER
Turns the cooling On and Off.
Ŷ Press and hold POWER for 3 seconds. The icon will
EHJUHHQZKHQ21DQGUHGZKHQ2))
LOCK
7R/RFNDQG8QORFNWKHGLVSHQVHUDQGWKHUHIULJHUDWRU
controls:
Ŷ3UHVVDQGKROG/2&.IRUVHFRQGV7KH/RFNLFRQ
will illuminate to indicate the control panel is locked.
Ŷ3UHVVDQGKROG/2&.IRUVHFRQGVWRXQORFN7KH
Lock icon will turn off.
NOTE: When Lock is activated,any press of a control
,&21ZLOOUHVXOWLQDQHUURUWRQH
UNIT SELECT (°F/ °C)
This feature allows you to select between displaying the
WHPSHUDWXUHLQHLWKHUGHJUHHV)DKUHQKHLW)RUGHJUHHV
Celsius (°C).
Ŷ3UHVV81,76(/(&7WRWRJJOHEHWZHHQ)DQG&
The corresponding icon will illuminate.
FACTORY SETTING
Ŷ3UHVV)$&725<6(77,1*WRUHVHWWKHUHIULJHUDWRUWR
the factory settings.
SABBATH MODE
The Sabbath mode is designed for those whose religious
observances require turning off the lights. All interior
lights, exterior lights and dispenser controls will be
GLVDEOHG,IDGRRULVOHIWDMDUWKH'RRU$MDULFRQZLOO
illuminate, but no alarm will sound.
Ŷ To activate Sabbath mode, press and hold SABBATH
for 3 seconds. The Sabbath icon will illuminate.
Ŷ To deactivate Sabbath mode, press and hold
SABBATH for 3 seconds. The Sabbath icon will turn
off.
NOTE: Sabbath mode will turn off automatically after 74
hours have passed.
VACATION MODE
,Q9DFDWLRQ0RGHWKHIUHH]HUZLOOGHIURVWOHVVRIWHQWR
conserve energy.
Ŷ 3UHVV9$&$7,21WRWXUQ2Q2IIYDFDWLRQPRGH7KH
Vacation icon is illuminated when Vacation mode is
activated.
NOTE: Vacation mode will turn off automatically if a door
is opened or a control on the panel is pressed.
°F
°C
Freezer
49-60765 7
Adjusting Temperature
When the refrigerator is first plugged in, the display will
show the recommended temperatures.
IMPORTANT:
Ŷ The recommended setting should be correct for normal
household refrigerator use.
Ŷ When the refrigerator is first turned on, it may take up
to 12 hours to cool to the preset temperatures.
Ŷ Wait 24 hours for your refrigerator to cool completely
EHIRUHDGGLQJIRRG,I\RXDGGIRRGEHIRUHWKH
refrigerator has cooled completely, your food may spoil.
Ŷ Except when first turning on the refrigerator, do not
adjust either control more than one setting at a time.
Wait 24 hours between adjustments for the temperature
WRVWDELOL]H
Ŷ,IWKHWHPSHUDWXUHLVWRRZDUPRUWRRFROGLQWKH
UHIULJHUDWRURUIUHH]HUILUVWFKHFNWKHDLUYHQWVWREH
sure they are not blocked before adjusting the controls.
REFRIGERATOR COMPARTMENT
The temperature range for the refrigerator compartment
LV)WR)&WR&
Ŷ Press the up and down arrow controls
to raise or lower the temperature in
the compartment.
NOTE: Wait 24 hours between adjustments for the
WHPSHUDWXUHWRVWDELOL]H
FREEZER COMPARTMENT
7KHWHPSHUDWXUHUDQJHIRUWKHIUHH]HUFRPSDUWPHQWLV
)WR)&WR&
Ŷ Press the up and down arrow controls
to raise or lower the temperature in
the compartment.
Controls
USING THE REFRIGERATOR: Controls
Refrigerator Controls
TEMPERATURE DISPLAY
When Power is first turned on, the
preset recommended temperature of
)&ZLOOLOOXPLQDWHEOXHLQWKH
display.
QUICK COOL
The Quick Cool function sets the refrigerator
FRPSDUWPHQWWR)&WRDFFHOHUDWHWKHFRROLQJRI
fresh food and protects the foods already stored from
undesirable warming.
Ŷ7RWXUQRQWKH4XLFN&RROIXQFWLRQSUHVV48,&.
COOL. The Quick Cool indicator will illuminate.
Ŷ7RWXUQRIIWKH4XLFN&RROIXQFWLRQSUHVV48,&.
COOL. The Quick Cool indicator will turn off
NOTE: 4XLFN&RROZLOODXWRPDWLFDOO\WXUQRIIDIWHU
hours.
AUTO FILL
Controls the water pitcher automatic fill function.
Ŷ3UHVV$872),//7KH$XWR)LOOLFRQZLOOLOOXPLQDWHWR
indicate that the auto fill function is activated.
Ŷ3UHVV$872),//DJDLQWRWXUQRIIWKHIXQFWLRQ7KH
$XWR)LOOLFRQZLOOWXUQRII
Feature Controls (Continued)
DEHUMIDIFY
7KH'HKXPLGLI\IHDWXUHWXUQVRQKHDWHUVWRUHGXFHWKH
amount of moisture that may appear on the door edges
DQGPXOOLRQVYHUWLFDOEDUVKLQJHGWRWKHOHIWKDQGIUHH]HU
and refrigerator doors) in warm, humid conditions.
When the dehumidify function is turned off, and
sensors detect that the room temperature and humidity
measurements require turning on the heaters to keep
moisture from forming on the door edges and the
mullions, the dehumidify icon will blink once every 3
seconds to alert you to this condition.
7RWXUQRQWKH'HKXPLGLI\IXQFWLRQSUHVVDehumidify.
The indicator will illuminate.
7RWXUQ2))WKHGHKXPLGLI\IXQFWLRQSUHVVDehumidify.
The indicator will turn off. NOTE: The heaters will remain
on until they are manually turned off by pressing the
'HKXPLGLI\,&21
WATER FILTER STATUS INDICATOR
*RRG6WDWXV:DWHU)LOWHULFRQZLOOLOOXPLQDWHJUHHQ
5HSODFH6WDWXV:DWHU)LOWHULFRQZLOOLOOXPLQDWHUHG
7RUHVHWSUHVVDQGKROG:$7(5),/7(5IRUVHFRQGV
The icon will change from red to green.
°F
°C
Fridge
°F
°C
Fridge
°F
°C
Freezer
49-60765
USING THE REFRIGERATOR: Controls
Controls
Dispenser Panel Controls
The icons on the dispenser control panel illuminate to indicate that a feature is activated.
Cubed
Ice
Door
Ajar
Water
External
>ŝŐŚƟŶŐ
Crushed
Ice
DISPENSER LIGHT AND HANDLE LIGHT
When you use the dispenser, the dispenser light will turn
on automatically.
ŶPress External Lighting on the control panel to turn
on the dispenser light and handle lights when you are
not dispensing.
NOTE: 7KHGLVSHQVHUOLJKWVDUH/('VWKDWFDQQRWEH
FKDQJHG,ILWDSSHDUVWKDW\RXUGLVSHQVHUOLJKWVDUHQRW
ZRUNLQJVHH³7URXEOHVKRRWLQJ´IRUPRUHLQIRUPDWLRQ
DOOR AJAR
When a door has been opened, the Door Ajar icon will
illuminate.
When a door has been left open for 5 minutes or longer,
WKH'RRU$MDUDODUPZLOOVRXQGDQGWKHLQWHUQDOOLJKWLQJ
will flash.
7RVQRR]HWKHDODUPIRUPLQXWHVSUHVVDoor Ajar,ID
door is still ajar, the door ajar alarm will sound again and
the internal lighting will flash
CUBED ICE
Press Cubed Ice to dispense ice cubes. Your selection
will illuminate.
CRUSHED ICE
Press Crushed Ice to dispense crushed ice. Your
selection will illuminate.
WATER
Press Water to dispense water. Your selection will
illuminate.
49-60765 9
Water Dispenser
IMPORTANT:
Ŷ'LVSHQVHDWOHDVWTW/RIZDWHUHYHU\ZHHNWR
maintain a fresh supply.
Ŷ,IWKHIORZRIZDWHUIURPWKHGLVSHQVHUGHFUHDVHVLW
could be caused by low water pressure.
ŶWith the water filter installed, dispense 1 cup (237 mL)
RIZDWHU,IFXSP/RIZDWHULVGLVSHQVHGLQ
seconds or less, the water pressure to the refrigerator
meets the minimum requirement.
Ŷ,ILWWDNHVORQJHUWKDQVHFRQGVWRGLVSHQVH
cup (237 mL) of water, the water pressure to the
UHIULJHUDWRULVORZHUWKDQUHFRPPHQGHG6HH³:DWHU
6XSSO\5HTXLUHPHQWV´DQG³7URXEOHVKRRWLQJ´IRU
suggestions.
Flush the Water System
Air in the water dispensing system can cause the water
dispenser to drip. After connecting the refrigerator to a
water source or replacing the water filter, flush the water
system.
)OXVKLQJWKHZDWHUGLVSHQVLQJV\VWHPIRUFHVDLUIURP
the water line and the filter, and prepares the water filter
for use. Additional flushing may be required in some
households.
'LVSHQVHJDOORQVRIZDWHUWKURXJKWKHZDWHUGLVSHQVHU
into a wide-mouthed container to flush air from the water
system (it takes approximately 5 minutes to dispense 2
gallons of water).
NOTE: As air is forced from the system water may spurt
out of the dispenser.
Dispenser Drip Tray
There is an insert in the dispenser drip tray. The insert
can be removed from the drip tray to carry to the sink to
empty or clean.
ŶPush down on the rear edge of the insert to tilt up the
front edge for easy removal.
To Dispense Water:
1. Select the Water icon on the dispenser controls
and press the container against the ice and water
dispenser paddle.
NOTE:
,WLVQRWQHFHVVDU\WRXVHDORWRISUHVVXUHWRDFWLYDWH
the water dispenser. Pressing hard could cause foam
or plastic containers to crack.
2. Release the ice and water dispenser paddle, and then
remove the container.
NOTE:
ŶAllow 3 hours for the refrigerator to cool down and chill
water.
ŶThe water dispensing system will not operate when
the left hand refrigerator dispenser door is open or if a
water filter or bypass plug is not installed.
Dispensers
USING THE REFRIGERATOR: 'LVSHQVHUV
:DWHU'LVSHQVHU
Spigot
,FHDQG:DWHU
'LVSHQVHU
Paddle
'LVSHQVHU'ULS7UD\
,FH&KXWH
10 49-60765
USING THE REFRIGERATOR:'LVSHQVHUV
Dispensers
Ice Dispenser
NOTE:
ŶAllow 24 hours to produce the first batch of ice.
'LVFDUGWKHILUVWWKUHHEDWFKHVRILFHSURGXFHG
ŶThe ice dispensing system will not operate when either
refrigerator door is open.
Ŷ,FHWUDYHOVIURPWKHLFHVWRUDJHELQWKURXJKWKH
dispenser chute to the dispenser.
Ŷ)RUFUXVKHGLFHFXEHVDUHFUXVKHGEHIRUHEHLQJ
dispensed. This may cause a slight delay when
dispensing crushed ice.
ŶNoise from the ice crusher is normal, and pieces of ice
PD\YDU\LQVL]H
ŶWhen changing from crushed to cubed ice, a few
ounces of crushed ice will be dispensed along with the
first cubes.
,IWKHLFHFXEHVDUHKROORZRUKDYHDQLUUHJXODUVKDSH
LWFRXOGEHEHFDXVHRIORZZDWHUSUHVVXUH6HH³:DWHU
6XSSO\5HTXLUHPHQWV´
To Dispense Ice:
3UHVV&8%(',&(RU&586+(',&(WRVHOHFWWKH
desired type of ice. The corresponding icon will
illuminate.
2. Press a sturdy glass against the dispenser paddle.
Hold the glass close to the dispenser opening so ice
does not fall outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure
to the paddle to activate the ice dispenser. Pressing
hard will not make the ice dispense faster or in greater
quantities.
3. Remove the glass to stop dispensing.
NOTE:
Ŷ,FHPD\FRQWLQXHWRGLVSHQVHIRUVHYHUDOVHFRQGV
after removing the glass from the dispenser paddle.
The dispenser may continue to make noise for a few
seconds after dispensing.
Ŷ,IFUXVKHGLFHLVPLVVLQJWKHJODVVZKHQGLVSHQVLQJ
move the glass up so that it is closer to ice chute.
ICE DISPENSER CHUTE
+XPLGLW\FDXVHVLFHWRQDWXUDOO\FOXPSWRJHWKHU,FH
particles can build up until the ice dispenser chute
becomes blocked.
,ILFHLVQRWGLVSHQVHGUHJXODUO\LWPD\EHQHFHVVDU\
to empty the ice storage bin and clean the ice delivery
chute, the ice storage bin and the area beneath the
storage bin every 2 weeks.
,IQHFHVVDU\UHPRYHWKHLFHFORJJLQJWKHVWRUDJHELQ
and delivery chute using a plastic utensil.
ŶClean the ice delivery chute and the bottom of the ice
storage bin using a warm, damp cloth, and then dry
thoroughly.
WARNING
CUT HAZARD
8VHDVWXUG\JODVVZKHQGLVSHQVLQJLFHRUZDWHU
)DLOXUHWRGRVRFDQUHVXOWLQFXWV
49-60765 11

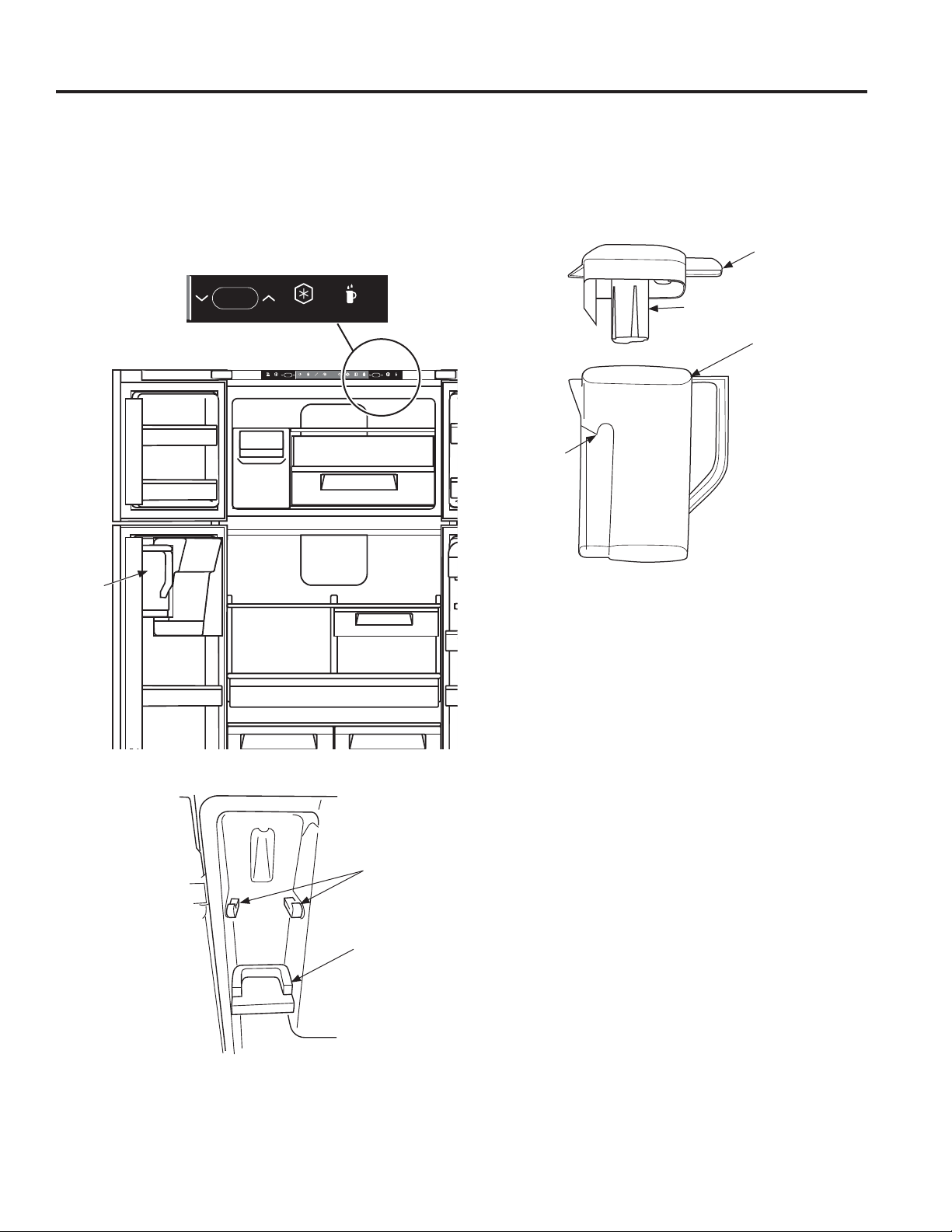

7RHQDEOHWKH$XWR)LOO3LWFKHUSUHVVWKH,&21PDUNHG
Auto Fill RQWKHFRQWUROSDQHODWWKHWRSRIWKHIUHH]HU
FRPSDUWPHQWDQGORFDWHGEHKLQGWKHULJKWIUHH]HUGRRU
7KH$XWR)LOO3LWFKHUPRXQWVRQWRWKHLQVLGHRIWKHOHIW
fresh food door. The pitcher sets on the pitcher shelf
and hooks into the retaining lugs on each side. Once the
door is closed, the pitcher will be automatically filled to a
specified level.
To Clean the Auto Fill Pitcher
Both the pitcher and the lid are hand wash only (as
printed on each piece) using warm water. Be sure to
WKRURXJKO\ULQVHERWKSDUWVDIWHUZDVKLQJ,WLVLPSRUWDQW
to ensure that the float contained within the pitcher lid is
moving freely.
Auto Fill Pitcher
USING THE REFRIGERATOR: $XWR)LOO3LWFKHU
Quick CoolFridge Auto Fill
Ice Maker Quick Freeze Freezer
Units Select
DehumidifyVacation
Quick CoolFridge Auto Fill
Power
Hold 3 sec
Lock
Hold 3 sec
Water Filter
Hold to Reset
°F
°C
Factory
Setting
Sabbath
Hold 3 sec
$XWR)LOO
Pitcher
Retaining
Lugs
Pitcher
Shelf
Pitcher
Lid
&RQWDLQV)ORDWHU
Sits into
retaining
lugs
NOTE: Auto fill pitcher will not operate without
either a water filter or a bypass plug installed.
12 49-60765
Doors
Storage Features
USING THE REFRIGERATOR: 'RRUV6WRUDJH)HDWXUHV
Opening and Closing Doors
There are two refrigerator compartment doors and two
IUHH]HUFRPSDUWPHQWGRRUV7KHGRRUVFDQEHRSHQHG
and closed either separately or together.
Ŷ7KHUHDUHYHUWLFDOO\KLQJHGEDUVRQWKHOHIWKDQGVLGH
doors.
Ŷ When closing a left-hand side door, the hinged bar
folds behind the right-hand door, joining the two doors.
NOTE: Before closing the left-hand door, make sure the
YHUWLFDOO\KLQJHGEDULVIROGHGLQZDUG,IWKHEDULVSXOOHG
outward it may become damaged when you try to close
the door.
GALLON PLUS DOOR BIN
The Gallon Plus door bin is deep enough to store four
2L bottles.
ICE MAKER AND ICE STORAGE BIN
The ice maker is located on the left-hand side of the
IUHH]HUFRPSDUWPHQW,FHFXEHVDUHHMHFWHGIURPWKHLFH
maker and fall into the ice storage bin underneath.
,03257$177RDYRLGORZLFHSURGXFWLRQDQGSRRU
quality ice, flush the water system before turning on the
LFHPDNHU6HH³:DWHU'LVSHQVHU´
Ŷ )ROORZLQJLQVWDOODWLRQDOORZKRXUVWRSURGXFHWKH
ILUVWEDWFKRILFH'LVFDUGWKHILUVWWKUHHEDWFKHVRILFH
produced.
Ŷ Allow 2 to 3 days for the ice storage bin to fill
completely.
Ŷ The quality of your ice will be only as good as the
quality of the water supplied to your ice maker. Avoid
connecting the ice maker to a softened water supply.
Water softener chemicals (such as salt) can damage
SDUWVRIWKHLFHPDNHUDQGOHDGWRSRRUTXDOLW\LFH,ID
softened water supply cannot be avoided, make sure
the water softener is operating properly and is well
maintained.
Ŷ ,IWKHLFHLQWKHVWRUDJHELQFOXPSVWRJHWKHUEUHDN
XSLFHXVLQJDSODVWLFXWHQVLODQGGLVFDUG'RQRWXVH
anything sharp to break up the ice. This can cause
damage to the ice bin and the dispenser mechanism.
Ŷ Only ice should be in the ice storage bin.
To Turn the Ice Maker On/Off:
Ŷ 3UHVV,&(0$.(57KH,FH0DNHULFRQZLOOLOOXPLQDWH
NOTE: Your ice maker has an automatic shutoff. The
sensor will automatically stop ice production if the
storage bin is full, if the door is open, or the storage bin
is removed. The control will remain On.
Ŷ 7RPDQXDOO\WXUQRIIWKHLFHPDNHUSUHVV,&(0$.(5
7KH,FH0DNHULFRQZLOOWXUQRII
To Remove and Replace the Ice Storage Bin:
Ŷ Remove the ice storage bin by inserting your fingers
into the opening and pulling the storage bin straight out
from the compartment.
Ŷ Replace the storage bin inside the ice making
compartment and push down to make sure it is firmly
in place.
Ice Production Rate
Ŷ The ice maker should produce approximately 3 lbs
(1.4 kg) of ice per day under normal operation.
Ŷ 7RLQFUHDVHLFHSURGXFWLRQSUHVV48,&.)5((=(RQ
WKH)HDWXUHVVHFWLRQRIWKHFRQWUROSDQHO
Correct
Hinged Bar
Placement
,QFRUUHFW
Hinged Bar
Placement
49-60765 13
%RWKWKHUHIULJHUDWRUDQGIUHH]HUVHFWLRQVGHIURVW
automatically. However, clean both sections about
once a month to avoid buildup of odors. Wipe up spills
immediately.
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To
avoid odor transfer and drying out of food, wrap or cover
foods tightly.
IMPORTANT:
Ŷ'RQRWXVHKDUVKFKHPLFDOVDPPRQLDFKORULQH
bleach, concentrated detergent, solvents, abrasives
or metal scouring pads to clean your product inside or
out. They can damage and/or discolor the refrigerator
finish.
CAUTION
'RQRWFOHDQJODVVVKHOYHVZLWKZDUP
water when they are cold. Glass shelves may break if
exposed to sudden temperature changes or impact such
as bumping or dropping. Tempered glass is designed to
shatter into many small pieces if it breaks.
'RQRWZDVKDQ\SODVWLFUHIULJHUDWRUSDUWVLQWKH
dishwasher.
Care and Cleaning
CARE AND CLEANING
WARNING
EXPLOSION HAZARD
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVVXFKDV
JDVROLQHDZD\IURPUHIULJHUDWRU)DLOXUHWRGRVRFDQ
result in fire, explosion, or death.
WARNING
ELECTRICAL SHOCK
HAZARD
8QSOXJ\RXUDSSOLDQFHRUGLVFRQQHFWSRZHUEHIRUH
cleaning.
)DLOXUHWRGRVRFDQUHVXOWLQGHDWKHOHFWULFVKRFNRU
personal injury.
Cleaning
8QSOXJUHIULJHUDWRURUGLVFRQQHFWSRZHU
8VLQJDFOHDQVSRQJHRUVRIWFORWKDQGDPLOG
detergent dissolved in warm water, wash removable
parts and the interior surfaces. Rinse well and dry
thoroughly.
3. Clean the exterior surfaces.
Painted metal: Wash painted metal exteriors with a
clean, soft cloth or sponge and a mild detergent in warm
water. Rinse surfaces with clean, warm water and dry
immediately to avoid water spots.
Stainless steel: Stainless steel is corrosion resistant
and not corrosion-proof. To help avoid corrosion of your
stainless steel, wash stainless steel surfaces with a
clean, soft cloth or sponge and a mild detergent in warm
water. Rinse surfaces with clean, warm water and dry
immediately to avoid water spots.
NOTE: When cleaning stainless steel, always wipe in the
direction of the grain to avoid cross-grain scratching.
&OHDQWKHGRRUJDVNHWVHYHU\PRQWKV8VLQJDFOHDQ
sponge or soft cloth and a mild detergent dissolved
in warm water, wash the gaskets. Rinse well and dry
thoroughly. Lightly apply petroleum jelly to the hinge
side of the gaskets to keep the gasket pliable and
assure a good seal.
NOTE: Clean gaskets will maintain a better seal than
dirty gaskets.
5. Plug in refrigerator or reconnect power.
Lights
The interior lights of the refrigerator start flashing when
one or more doors are open for longer than 5 minutes.
IMPORTANT: <RXUUHIULJHUDWRULVHTXLSSHGZLWK/('
lighting. These lights are designed to last for the life of
your refrigerator. However, if the lights stop operating,
please contact a qualified technician for replacement.
Preparing for Vacation
,I\RXZLOOEHJRQHIRUDQH[WHQGHGSHULRGRIWLPHDQG
do not want to leave your refrigerator on while you are
away, prepare it for your absence.
5HPRYHDOOLWHPVIURPWKHUHIULJHUDWRUDQGIUHH]HU
compartments. Remove ice from the ice storage bin
DQGXVHXSRUIUHH]HHOVHZKHUH
8QSOXJUHIULJHUDWRURUGLVFRQQHFWSRZHU
3. Clean refrigerator. Rinse and dry thoroughly.
4. Clean door and/or drawer gaskets. See Cleaning
section.
5. Tape rubber or wood blocks to the top of the door(s)
and/or drawer(s) to allow air to circulate inside. This
stops odor and mold from building up.
14 49-60765
Care and Cleaning
CARE AND CLEANING
Preparing to Move
Secure all loose items such as shelves and drawers by
taping them securely in place to prevent damage.
When using a hand truck to move the refrigerator, do not
rest the front or back of the refrigerator against the hand
truck. This could damage the refrigerator.
Handle only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright position
during moving.
CAUTION
LIFTING HAZARD
8VHWZRRUPRUHSHRSOHWRPRYHDQGLQVWDOO
UHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQEDFNRU
other injury.

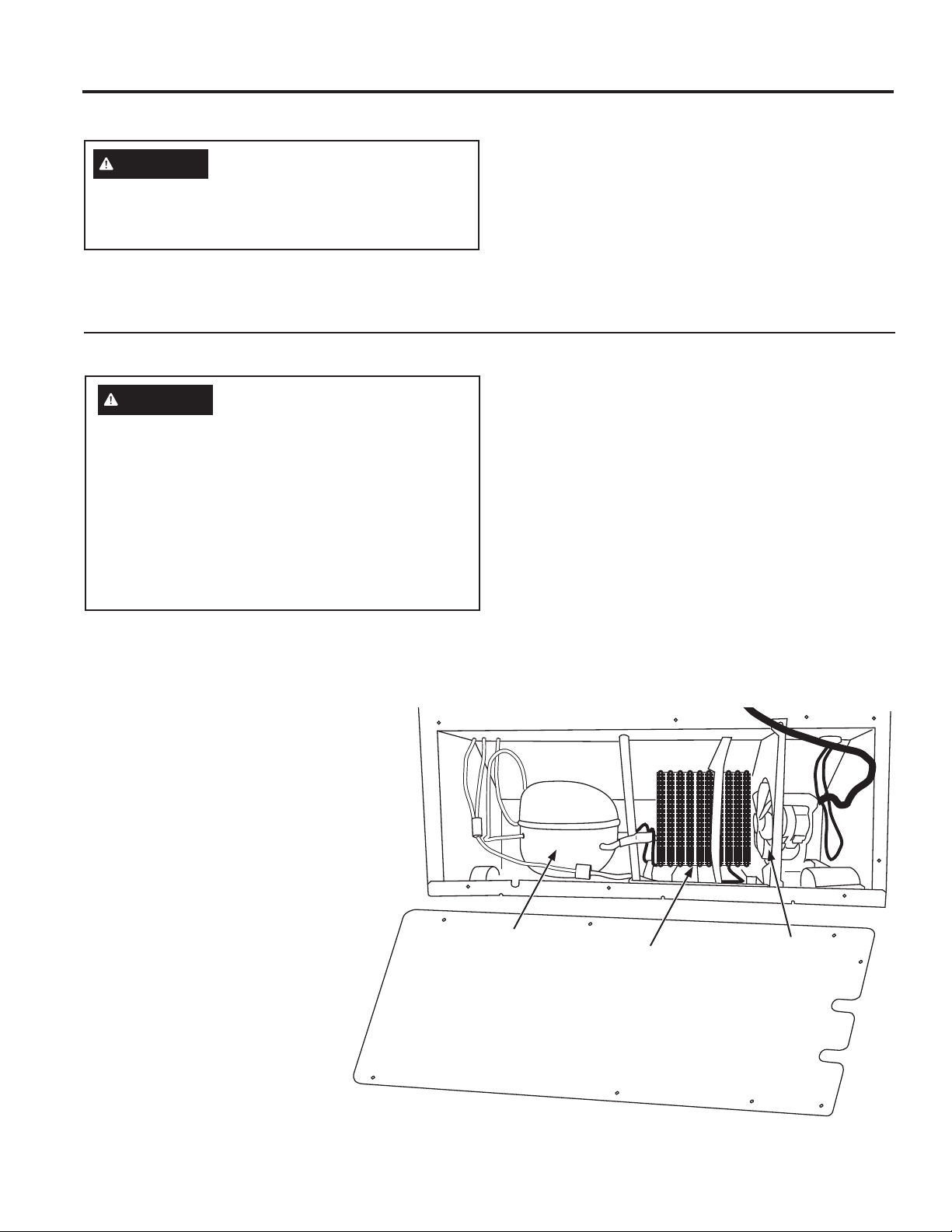

Cleaning the Condenser
WARNING
To reduce the risk of death or
electric shock, you must follow these
instructions:
Ŷ Unplug the refrigerator before removing any
panels.
Ŷ Do not contact or damage any wiring while the
panel is removed.
Ŷ Replace all parts and panels before plugging
the refrigerator back in.
Periodically, the condenser of the refrigerator will
become covered with dust and dirt. This can make your
refrigerator cool less effectively and use more energy.
You can improve the refrigerators' performance by
FOHDQLQJWKHFRQGHQVHU,WLVORFDWHG
at the back of your refrigerator, at the
bottom, behind the access cover.
Cleaning the condenser requires a
philliips screwdriver, vacuum cleaner
and soft brush with a long handle.
To clean the condenser:
1. Turn off the refrigerator.
2. Turn the leveling legs at each
front corner of the refrigerator
counterclockwise until the rollers
support the refrigerator.
3. Roll the refrigerator out far
enough so you can get behind it
at the bottom. Be sure not to pull
out any water lines connected to
your refrigerator.
4. Unplug the refrigerator.
8VHWKH3KLOOLSVKHDGVFUHZGULYHU
to remove the screws securing
the cover to the refrigerator.
/RFDWHWKHFRQGHQVHU,WLVEHWZHHQWKHFRPSUHVVRU
DQGWKHIDQ,WLVDEODFNVTXDUHVKDSHPDGHRI
tubes with fins.
9DFXXPWKHFRQGHQVHU8VHWKHEUXVKWRJHQWO\
loosen dust and dirt from the gaps and fins of the
condenser.
2QFHWKHFRQGHQVHULVFOHDQUHLQVWDOOWKHDFFHVV
cover, replacing all screws.
9. Plug in the refrigerator.
10. Return it to its normal position. Turn the legs
clockwise until the legs again bear the weight of the
refrigerator. Also level the refrigerator as required
11. Turn the refrigerator back on. Check to see if the
refrigerator begins operating.
Compressor
Access Cover
)DQ
Condenser - clean with a soft,
long handled brush and a
vacuum cleaner
49-60765 15
BEFORE YOU BEGIN
Read these instructions completely and carefully.
Ŷ
IMPORTANT — Observe all governing
codes and ordinances. Save these instructions for
local inspector’s use.
Ŷ 1RWHWR,QVWDOOHU± Be sure to leave these
instructions with the Consumer.
Ŷ
1RWHWR&RQVXPHU±.HHSWKHVHLQVWUXFWLRQVIRU
future reference.
Ŷ
6NLOOOHYHO±,QVWDOODWLRQRIWKLVDSSOLDQFHUHTXLUHV
basic mechanical skills.
Ŷ
Completion time :
5HIULJHUDWRU,QVWDOODWLRQFDQYDU\
:DWHU/LQH,QVWDOODWLRQPLQXWHV
Ŷ
Proper installation is the responsibility of the
installer.
Ŷ
Product failure due to improper installation is not
covered under the Warranty.
WATER SUPPLY REQUIREMENTS
IMPORTANT
Ŷ,I\RXWXUQWKHUHIULJHUDWRURQEHIRUHWKHZDWHUOLQH
LVFRQQHFWHG'2127WXUQLFHPDNHUIXQFWLRQ21
until water line is connected.
Ŷ All installations must meet local plumbing code
requirements.
Ŷ8VHFRSSHUWXELQJDQGFKHFNIRUOHDNV,QVWDOO
copper tubing only in areas where the household
WHPSHUDWXUHVZLOOUHPDLQDERYHIUHH]LQJ
CLEARANCES
Allow a 2" (50mm) back clearance for ease of
installation, proper air circulation and plumbing and
electrical connections.
WATER PRESSURE
IMPORTANT: A cold water supply with water
SUHVVXUHEHWZHHQDQGSVLDQGN3D
is required to operate the ice maker.
NOTE:,IWKHZDWHUSUHVVXUHLVOHVVWKDQZKDWLV
required, ice cubes could be hollow or irregular
shaped.
,I\RXKDYHTXHVWLRQVDERXW\RXUZDWHUSUHVVXUHFDOO
a licensed, qualified plumber.
Reverse Osmosis Water Supply
,IDUHYHUVHRVPRVLVZDWHUILOWUDWLRQV\VWHPLV
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to be
a minimum of 40 to 60 psi (276 to 414 kPa).
,IWKHLFHPDNHULVVWLOOQRWRSHUDWLQJSURSHUO\
Ŷ Check to see whether the sediment filter in the
reverse osmosis system is blocked. Replace the
filter if necessary.
Ŷ Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
Installation
Instructions
Refrigerator
G6S28TSLSS Models
Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com
INSTALLATION INSTRUCTIONS
CAUTION
LIFTING HAZARD
8VHWZRRUPRUHSHRSOHWRPRYHDQGLQVWDOO
UHIULJHUDWRU)DLOXUHWRGRVRFDQUHVXOWLQEDFNRU
other injury.
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to cover
the floor with cardboard or hardboard to avoid floor
damage. Always pull the refrigerator straight out
ZKHQPRYLQJLW'RQRWZLJJOHRUZDONWKHUHIULJHUDWRU
when trying to move it, as floor damage could occur.
REFRIGERATOR LOCATION
Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUH
ZLOOJREHORZ)&EHFDXVHLWZLOOQRWUXQ
often enough to maintain proper temperatures.
Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUH
ZLOOJRDERYH)&EHFDXVHLWZLOOQRW
perform properly.
Ŷ'RQRWLQVWDOOWKHUHIULJHUDWRULQDORFDWLRQH[SRVHG
to water (rain, etc.) or direct sunlight.
Ŷ,QVWDOOLWRQDIORRUVWURQJHQRXJKWRVXSSRUWLWIXOO\
loaded.
16 49-60765
Installation Instructions
INSTALLATION INSTRUCTIONS
Masking Tape

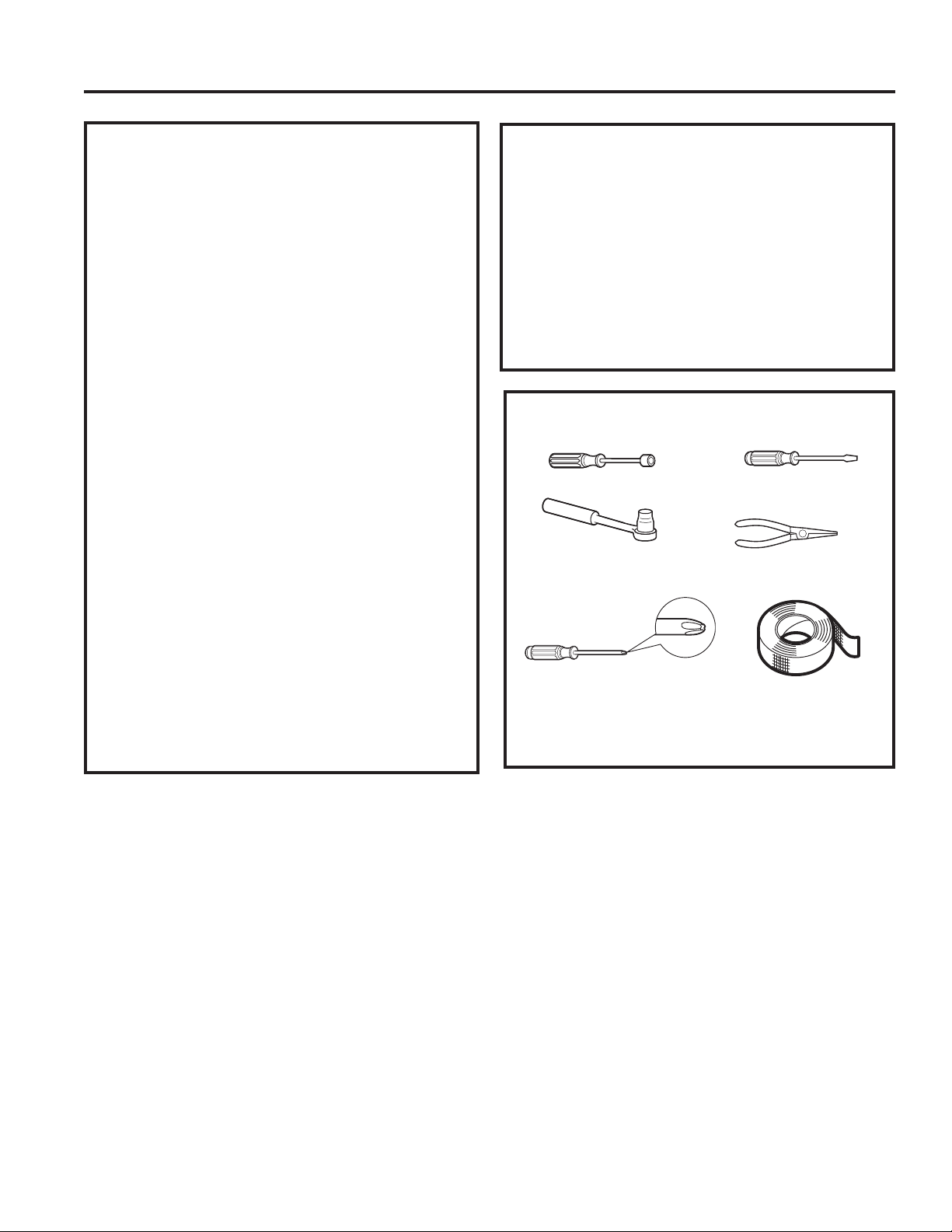

TOOLS YOU MAY NEED
Phillips-Head Screwdriver
PP6RFNHW:UHQFK
1/4´1XW'ULYHU
Needle-nose Pliers
)ODW+HDG6FUHZGULYHU
PREPARATION

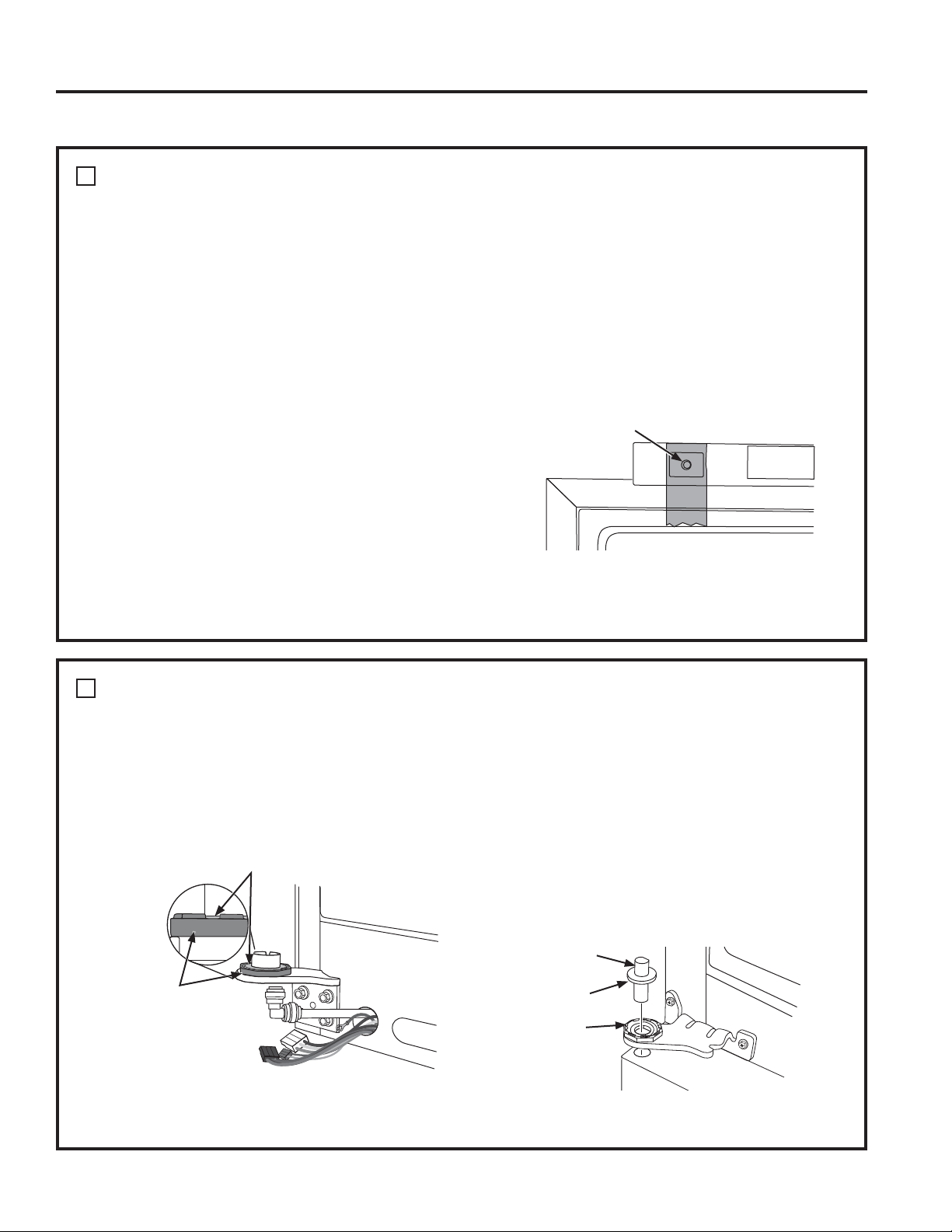

Measure the width of your doorway to see whether
or not you need to remove the refrigerator doors
to move the refrigerator into or out of your home.
,IUHPRYLQJWKHGRRUVLVQHFHVVDU\UHIHUWRWKH
following instructions. The graphics illustrating the
steps show the doors on the left-hand side.
IMPORTANT:
Ŷ
)RUDQHZLQVWDOODWLRQGR127UHPRYHWKHILOP
covering the door finish. The film helps shield the
finish from scratches.
Ŷ
,IWKHUHIULJHUDWRUZDVSUHYLRXVO\LQVWDOOHGDQG\RX
are moving it out of the home, remove any items,
and bins from the doors.
WATER SUPPLY TO THE ICE MAKER
,IWKHUHIULJHUDWRUKDVDQLFHPDNHULWZLOOKDYHWR
be connected to a cold water line. A GE Appliances
water supply kit (containing tubing, shutoff valve,
fittings and instructions) is available at extra cost from
your dealer, by visiting our website at
GEAppliances.com or from Parts and Accessories,
IMPORTANT:
Ŷ
8QSOXJUHIULJHUDWRURUGLVFRQQHFWSRZHU
Ŷ
.HHSWKHGRRUVFORVHGXQWLO\RXDUHUHDG\WROLIW
them free from the cabinet.
Ŷ
Provide additional support for the doors while the
KLQJHVDUHEHLQJUHPRYHG'RQRWGHSHQGRQWKH
door gasket magnets to hold the door in place
while you are working.
REMOVE PACKAGING
Ŷ Remove tape and glue residue from surfaces before
turning on the refrigerator. Rub a small amount of
liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
NOTE: 'RQRWXVHVKDUSLQVWUXPHQWVUXEELQJ
alcohol, flammable fluids, or abrasive cleaners
to remove tape or glue. These products can
GDPDJHWKHVXUIDFHRI\RXUUHIULJHUDWRU)RUPRUH
information, see Care and Cleaning section
Ŷ 'LVSRVHRIUHF\FOHDOOSDFNDJLQJPDWHULDOV
49-60765 17
Installation Instructions
1

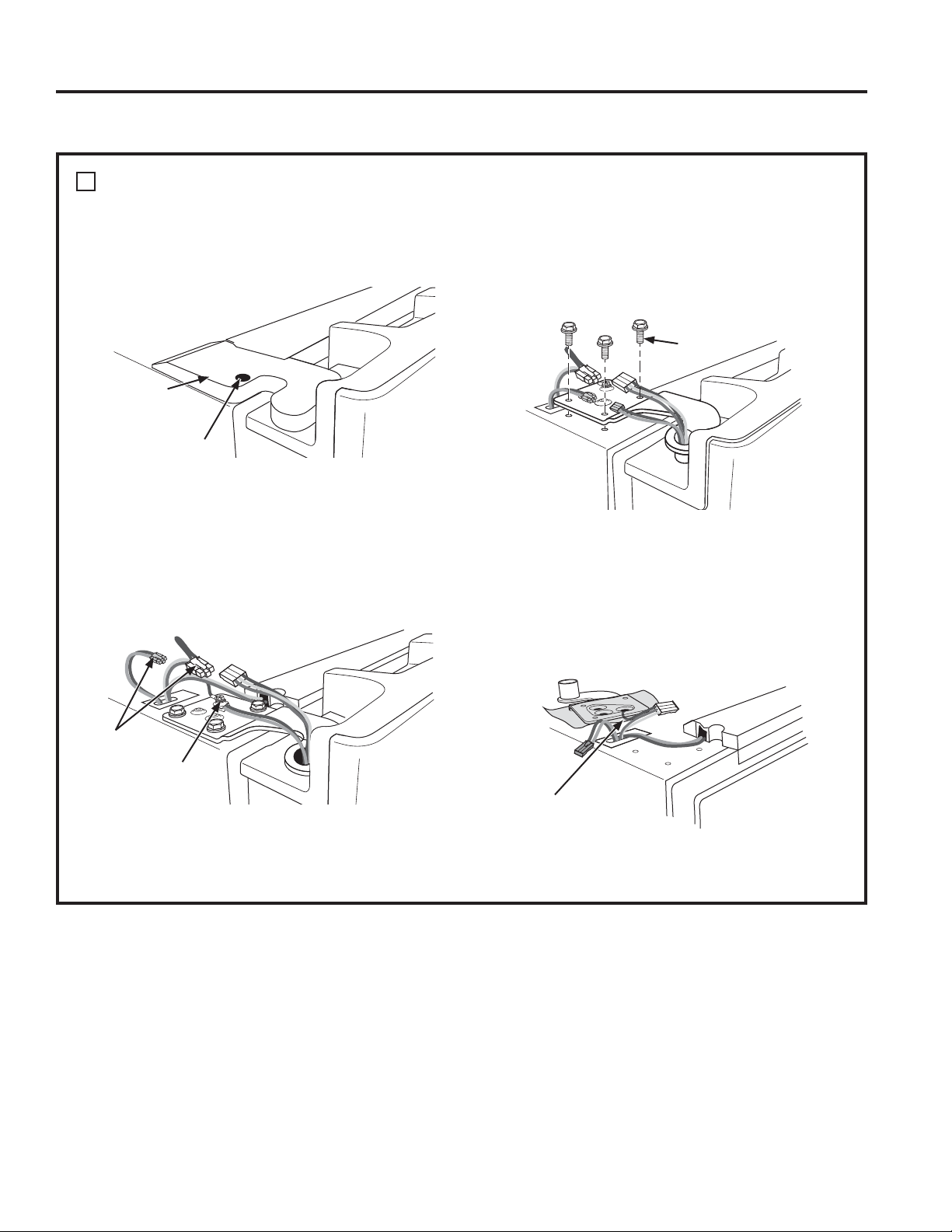

REMOVE THE FREEZER DOORS (if needed)
NOTE: 8QSOXJUHIULJHUDWRUEHIRUHUHPRYLQJGRRUV
A. Starting with the left-hand door, use a 1/4"
nut driver to remove the screw from the top
hinge cover, and then remove the cover.
B.'LVFRQQHFWWKHZLULQJKDUQHVVHVXQGHUWKH
hinge cover by pressing the release catch on
the wire harness connector and pulling the
ends apart.
NOTE: there are 2 wire harness connections
under the left-hand top hinge cover, and 1
wire harness connection under the right-hand
top hinge cover.
C.8VLQJDPPVRFNHWZUHQFKUHPRYHWKUHH
screws from the top hinge. NOTE: '2127
remove the green ground screw.
D. Lift up on the top hinge until the hinge
SLQLVUHPRYHGIURPWKHIUHH]HUGRRUDQG
then gently pull the wires and wire harness
connector through the hinge pin. NOTE: 'R
not tug on the wires or connector(s) as you
pull them through the hinge pin.
E. 3DUWLDOO\RSHQWKHIUHH]HUGRRUDQGOLIWWKH
door off of the center hinge pin. Place the
door on a soft, covered surface to avoid
damage to the finish.
F. Tape the hinge to the top of the refrigerator
cabinet to avoid possible damage to the
cabinet finish, the hinge itself or the ground
wire which is still attached.
G.)ROORZWKHSUHFHGLQJVWHSVWRUHPRYHWKH
right-handIUHH]HUGRRU
INSTALLING THE REFRIGERATOR
Hinge
Cover
Screw
Green Ground
Screw
Release
Catch
Top Hinge
Screws
Ground
Wire
INSTALLATION INSTRUCTIONS
49-60765
2

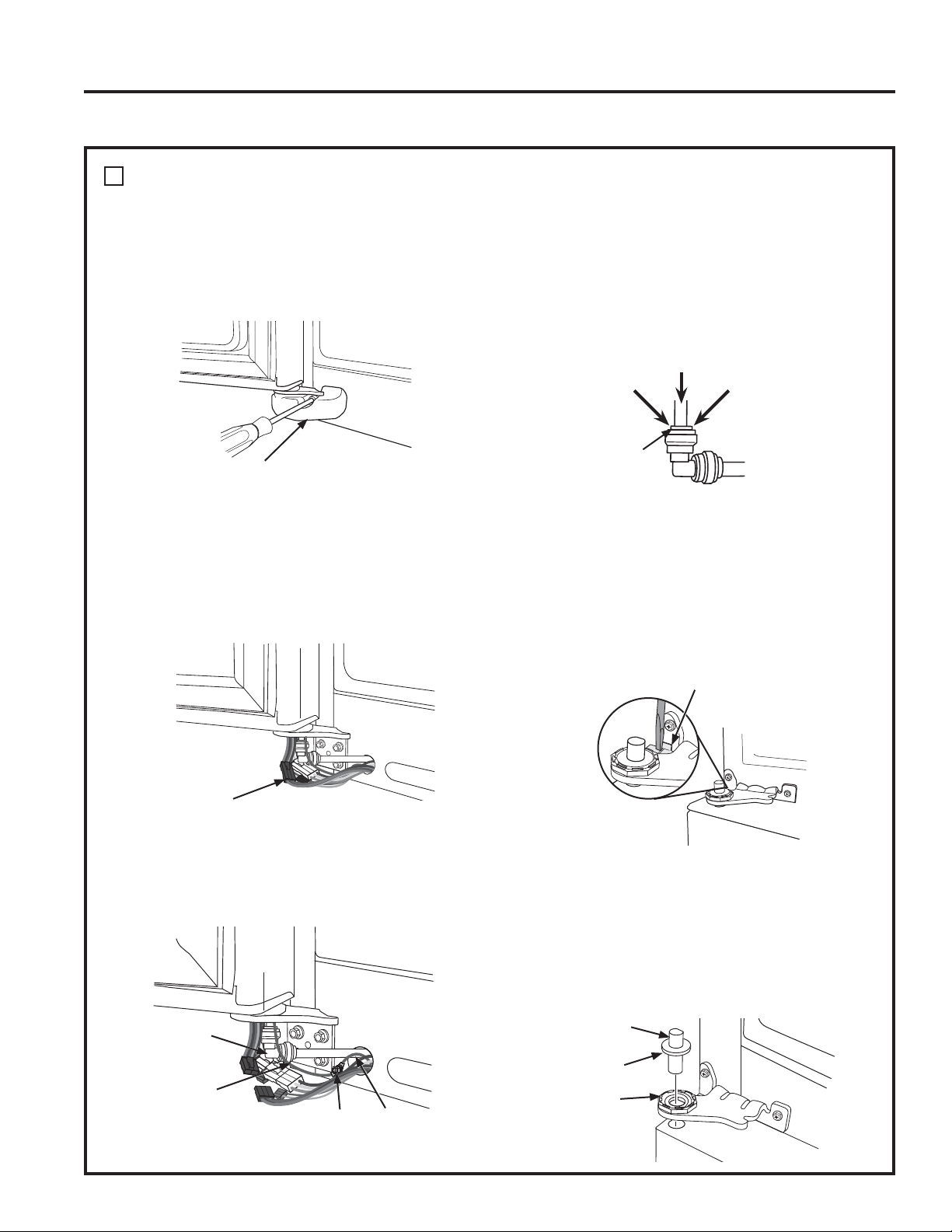

REMOVE THE REFRIGERATOR DOORS
A. Starting with the left-hand side, open the
refrigerator door enough to allow easy access
to the bottom hinge cover.
B.8VLQJD´QXWGULYHUUHPRYHWKHVFUHZ
from the bottom hinge cover, and then pull off
the cover.
C.'LVFRQQHFWWKHZLULQJKDUQHVVHVE\SUHVVLQJ
the release catch on the wire harness
connector and pulling the ends apart.
NOTE: There are 3 wire harness connections
behind the left-hand, bottom hinge cover,
and 1 wire harness connection behind the
right-hand, bottom hinge cover.
D.8VLQJD´QXWGULYHUUHPRYHWKHJURXQG
screw. Separate the two ground wires so
that the ground wire coming from the door
can later be easily pulled through the bottom
hinge pin.
E. Gently grasp the section of the water line that
is coming from the door. Press down on the
collar of the 90° elbow connector to release
the water line, and then gently pull the water
line from the elbow connector.
IMPORTANT:7KHZDWHUOLQH0867EH
disconnected from the door end of the
connection to allow the water line to pass
through the bottom hinge pin.
F. Close the refrigerator door, so that the door
gasket will help hold the door in place while
you are removing the center hinge pin.
G. ,QVHUWWKHWLSRIDIODWEODGHVFUHZGULYHU
between the hinge clip tab and the center
hinge. Pry the hinge clip away from the hinge
to disengage the clip from the hinge pin, and
then remove the clip with your fingers and set
it aside.
H. Open the refrigerator door so that it is at a
90° angle to the cabinet.
I. Lift up to remove the hinge pin and inner cam.
The inner cam will stay with the hinge pin.
NOTE: The outer adjustable cam will be
resting freely on the center hinge. Remove
WKHFDPDQGNHHSLWLQDVDIHSODFH,WZLOOEH
needed to reinstall the center hinge.
Installation Instructions
INSTALLING THE REFRIGERATOR (Continued)
Bottom Hinge
Cover
Wire
Harness(es)
90° Elbow (water
line connection)
Ground Wire
(from door)
Ground Wire
(from cabinet)
Green
Ground
Screw
Collar
Clip Tab
,QQHU&DP
Outer
Adjustable
Cam
Hinge Pin
INSTALLATION INSTRUCTIONS
49-60765 19
INSTALLATION INSTRUCTIONS
2
REMOVE THE REFRIGERATOR DOORS (Continued)
J. 8VLQJWZRRUPRUHSHRSOHWLOWWKHGRRUVOLJKWO\
forward from underneath the center hinge.
While continuing to hold the door upright,
guide the wire harness(es), ground wire and
water line through the bottom hinge pin.
K. Remove the refrigerator door and place it on
a soft, covered surface to avoid damage to
the finish.
L. Measure the depth of the refrigerator, without
the doors, to determine whether or not it is
necessary to remove the center and bottom
hinges.
NOTE: There is no need to remove the
center and bottom hinges from the cabinet,
if you can now fit the refrigerator through the
doorway.
M. ,IQHHGHGUHPRYHWKHFHQWHUDQGERWWRP
hinges to fit the refrigerator through the
doorway.
NOTE:
Ɣ&HQWHU+LQJH8VHDPPVRFNHWZUHQFK
to remove the three screws.
Ɣ%RWWRP+LQJH8VHDPPVRFNHW
wrench to remove the four screws.
Ɣ'RQRWGLVORGJHWKHLQQHURURXWHU
adjustable cam from the bottom hinge.
N. )ROORZWKHSUHFHGLQJVWHSVWRUHPRYHWKH
right-hand refrigerator door.
O. Tape down the door light switch plungers, as
shown, and protect the electrical wiring and
water line connections to avoid damaging
them when moving the refrigerator through
the doorway.
P. Move the refrigerator to its final location before
replacing the doors.
3
REPLACE THE REFRIGERATOR DOORS
A. Remove the tape from the door light switch
plungers, and if removed, reinstall the bottom
and center hinges to the cabinet.
B. Make sure the inner and outer cams are
on the bottom hinge. Push down on the
inner cam while turning the outer cam
counterclockwise until it is level with the top of
the inner cam.
C. With one person holding the left-hand door,
thread the electrical and water connections
from the door through the bottom hinge pin.
D. Set the refrigerator door onto the bottom
hinge pin and close the door.
E. Place the outer cam over the center hinge
hole so that the smooth, flat side of the cam
is against the center hinge.
F. Holding the center hinge pin so that the
groove in the pin is closer to the refrigerator
door, align the flat side of the pin with the flat
side of the hinge pin opening, and then insert
the hinge pin through the hinge and into the
top of the door. NOTE: Make sure the groove
in the hinge pin is below the hinge bracket.
INSTALLING THE REFRIGERATOR (Continued)
Installation Instructions
Light Switch
Plunger
,QQHU&DP
Outer Adjustable
Cam
,QQHU&DP
Outer
Adjustable
Cam
Hinge Pin
20 49-60765
3

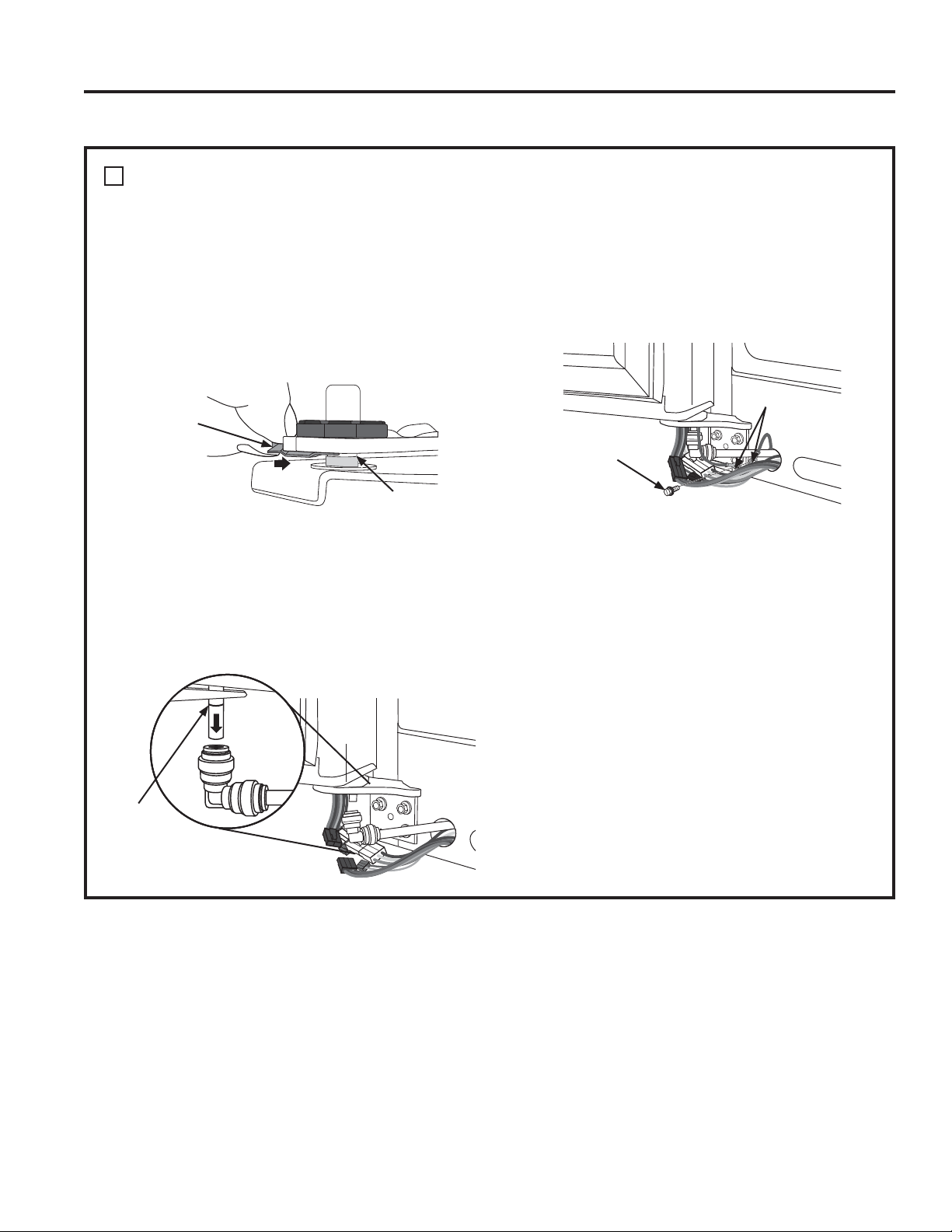

REPLACE THE REFRIGERATOR DOORS (Continued)
G. Align the hinge clip so that the clip tab is
facing the cabinet, and then insert the clip
under the hinge and into the groove in the
hinge pin.
NOTE: Check the placement of the hinge
clip again to make sure it is completely in the
hinge pin groove.
H. Push down on the inner cam while turning
the outer cam counterclockwise until it is level
with the top of the inner cam.
I. Open the refrigerator door for easier access
to the electrical and water connections at the
bottom of the door.
J. ,QVHUWWKHZDWHUOLQHLQWRWKHHOERZFRQQHFWRU
until the top of the connector is aligned with
the insertion mark. Gently tug on the water
line to make sure it is fully seated in the
connector.
K. Reconnect the electrical harness(es) that are
threaded through the bottom hinge pin.
L. Overlap the ring terminals on the ground
wires (one from the door and the other from
the cabinet), and then reinstall the ground
screw making sure both ring terminals are
secured under the screw.
M. Reinstall the bottom hinge cover, and close
the refrigerator door.
N. Replace the right-hand refrigerator door.
NOTE: The water line connects only through
the left-hand refrigerator door.
Installation Instructions
INSTALLING THE REFRIGERATOR (Continued)
Hinge
Clip
Groove in
Hinge Pin
Water
,QVHUWLRQ
Mark
Ground
Screw
Ring Terminals
INSTALLATION INSTRUCTIONS
49-60765 21
INSTALLATION INSTRUCTIONS
4

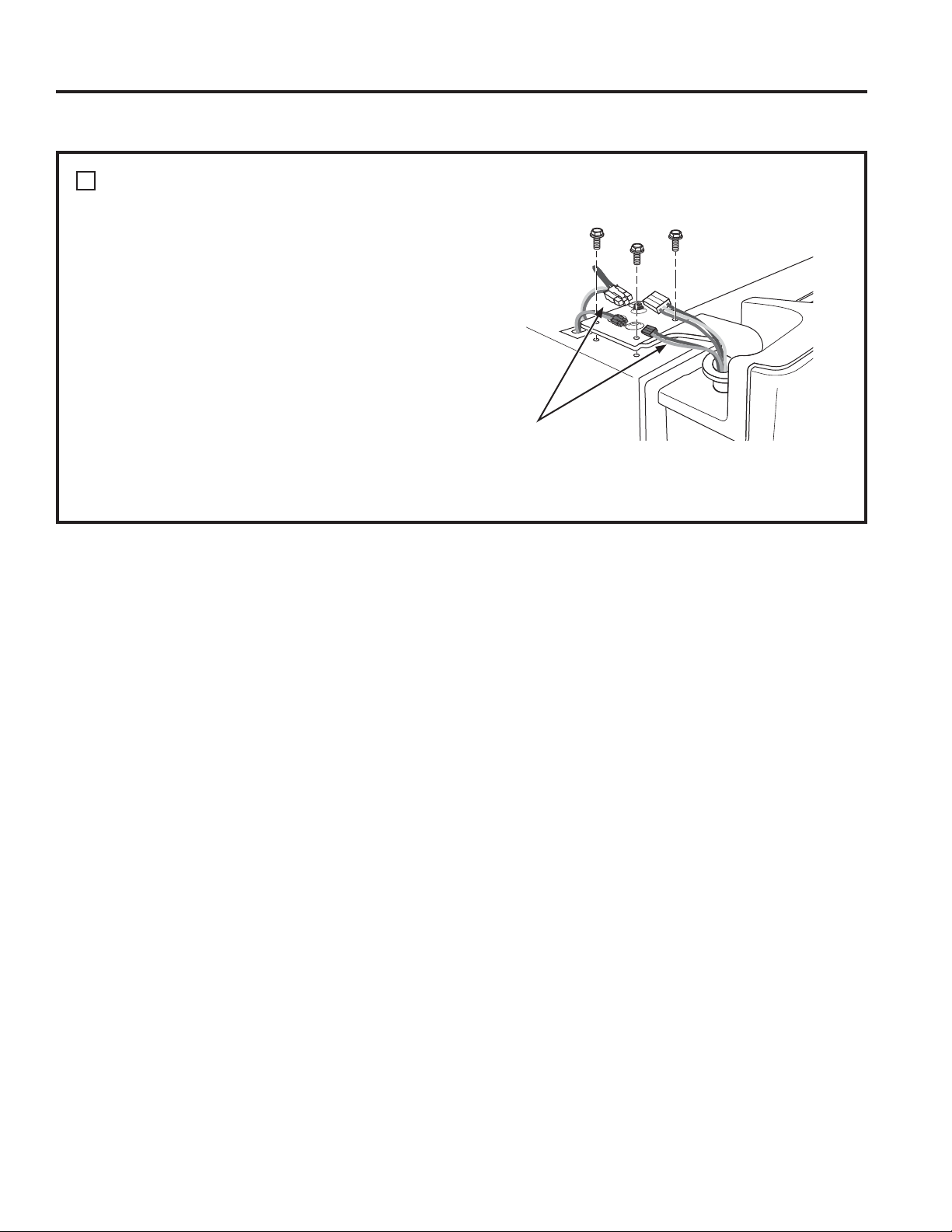

REPLACE THE FREEZER DOORS (Continued)
A. Remove the tape attaching the left-hand, top
hinge to the top of the cabinet.
B. 3ODFHIUHH]HUGRRURQWRWKHFHQWHUKLQJHSLQ
and close the door.
C. Thread the wire harnesses from the door up
through the top hinge pin and push the pin
down into the door.
D. 8VLQJWKHWKUHHVFUHZVUHPRYHGHDUOLHU
reinstall the top hinge to the top of the
refrigerator cabinet.
E. Reconnect the wire harness(es), and gently
tuck the connections under the top hinge
cover. Reinstall the top hinge cover.
F. )ROORZWKHSUHFHGLQJVWHSVWRUHSODFHWKH
ULJKWKDQGIUHH]HUGRRU
INSTALLING THE REFRIGERATOR (Continued)
Installation Instructions
Wire Harness(es)
22 49-60765
Installation Instructions

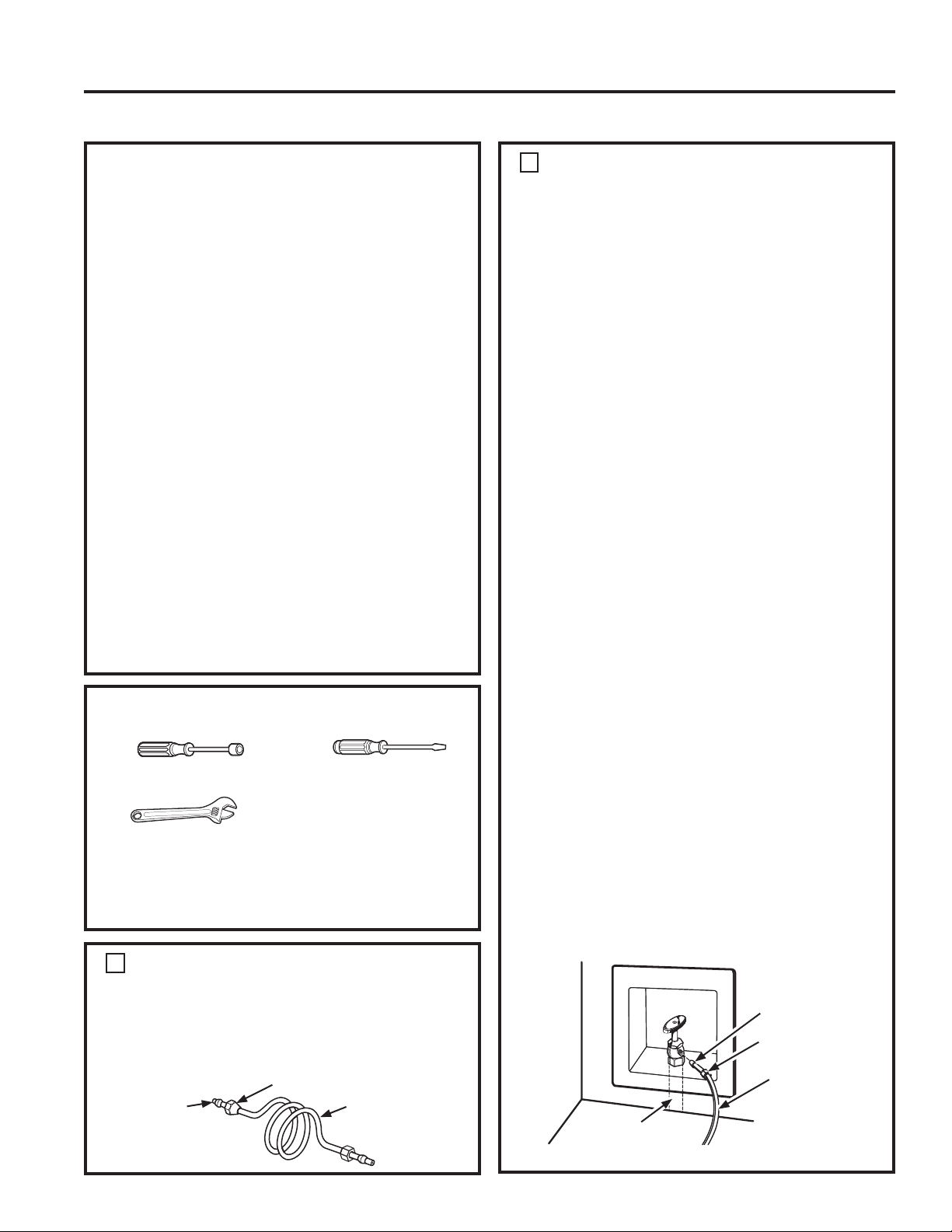

INSTALLING THE WATER LINE
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WATER SUPPLY TO THE ICE MAKER
,IWKHUHIULJHUDWRUKDVDQLFHPDNHULWZLOOKDYHWR
be connected to a cold water line. A GE Appliances
water supply kit (containing tubing, shutoff valve,
fittings and instructions) is available at extra cost from
your dealer, by visiting our website at
GEAppliances.com (in Canada at
www.GEAppliances.ca) or from Parts and
$FFHVVRULHVLQ&DQDGD
Ŷ
IMPORTANT — Plumbing shall be installed
LQDFFRUGDQFHZLWKWKH,QWHUQDWLRQDO3OXPELQJ&RGH
and any local codes and ordinances.
Ŷ
The gray water tubing on the back of the
refrigerator (which is used to connect to the
household water line) is a PEX (cross-linked
polyethylene) tube. Copper and PEX tubing
connections from the household water line to the
refrigerator are acceptable and will help avoid
off-taste or odor in your ice or water. Check for
leaks.
Ŷ
,QVWDOOWXELQJRQO\LQDUHDVZKHUHWHPSHUDWXUHVZLOO
UHPDLQDERYHIUHH]LQJ
1
CONNECT TO WATER LINE
IMPORTANT: ,I\RXWXUQWKHUHIULJHUDWRURQ
EHIRUHWKHZDWHUOLQHLVFRQQHFWHG'2127
turn the ice maker or auto fill functions on to
avoid excessive noise or damage to the water
valve.
1
CONNECT TO WATER LINE
(Continued)
A. 8QSOXJUHIULJHUDWRURUGLVFRQQHFWSRZHU
B. 7XUQ2))PDLQZDWHUVXSSO\7XUQ21QHDUHVW
faucet and let it run until there is no more water
in the line.
C. 8VHDTXDUWHUWXUQVKXWRIIYDOYHRUWKH
equivalent, served by a 1/2" household supply
line.
NOTE: To allow sufficient water flow to the
UHIULJHUDWRUDPLQLPXPPPVL]H
household supply line is recommended.
D. 8VHPP2'RXWVLGHGLDPHWHUVRIW
copper tubing to connect the refrigerator to the
water shutoff valve.
Ɣ8VHDOHQJWKRIVRIWFRSSHUWXELQJWKDWLVORQJ
enough to make the connection, and with
enough allowance so that the refrigerator can
be pulled out of the cabinet or away from the
wall for service.
Ɣ Make sure both ends of the copper tubing are
cut square.
E. Slip the compression sleeve and compression
QXWRQWRWKHFRSSHUWXELQJDVVKRZQ,QVHUWWKH
end of the tubing into the outlet end squarely
as far as it will go. Screw compression nut onto
RXWOHWHQGZLWKDGMXVWDEOHZUHQFK'RQRWRYHU
tighten.
F. Place the free end of the tubing into a container
or sink, and turn on main water supply to flush
out tubing until water is clear. Turn off shutoff
valve on the water pipe.
NOTE: Always drain the water line before
making the final connection to the inlet of
the water valve to avoid possible water valve
malfunction.
G. Bend the copper tubing to meet the water line
inlet, located on the back of the refrigerator
cabinet.
TOOLS NEEDED
1/4´1XW'ULYHU
)ODW+HDG6FUHZGULYHU
7/16" and 1/2" Open-end wrenches
or adjustable wrenches (2)
NOTE: 'RQRWXVHDSLHUFLQJW\SHRU
(4.76 mm) saddle valve which reduces water flow
and clogs easier.
Compression
Sleeve
Compression Nut
Copper Tubing
Compression Sleeve
Compression Nut
Copper Tubing
Household Supply Line
INSTALLATION INSTRUCTIONS
49-60765 23
INSTALLATION INSTRUCTIONS
2

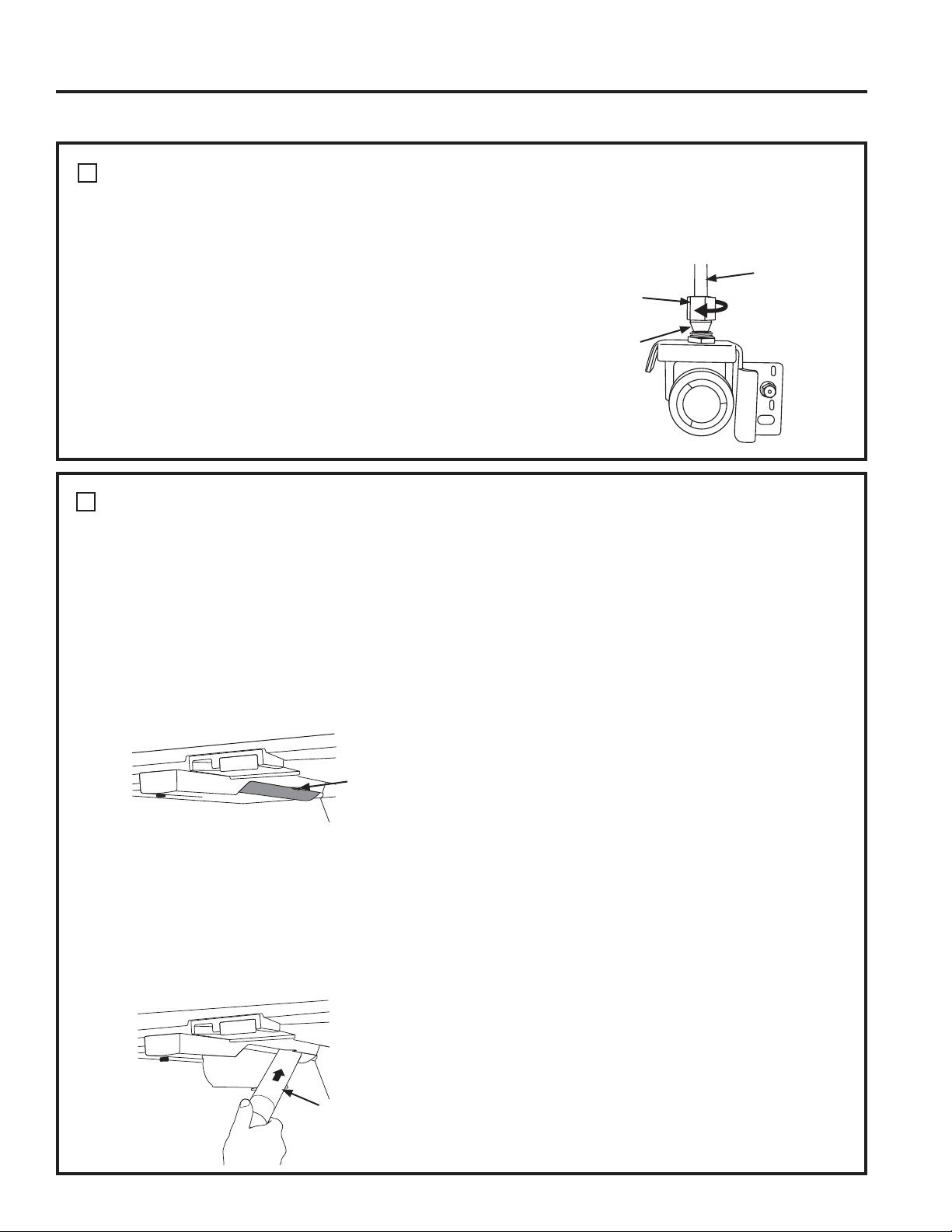

CONNECT TO REFRIGERATOR
A. Remove plastic cap from water valve inlet
port. Attach the copper tube to the valve
inlet using a compression nut and sleeve as
shown. Tighten the compression nut, but do
not over tighten. Gently tug on the copper
tubing to confirm that it is secure.
B. Create a service loop with the copper tubing.
Coil the tubing with care to avoid kinking the
tubing.
C. Open the shutoff valve to turn on water
supply to refrigerator, and check for
leaks. Tighten any connections (including
connections at the shutoff valve) that leak.
D After completing the water connection, turn
RQWKH$872),//DQG,&(0$.(5IHDWXUHV
by pressing the respective icons on the
controls
3
WATER FILTER
'RQRWXVHZLWKZDWHUWKDWLVPLFURELRORJLFDOO\XQVDIHRURIXQNQRZQTXDOLW\ZLWKRXWDGHTXDWHGLVLQIHFWLRQ
before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may
contain filterable cysts.
IMPORTANT: ,FHPDNHU:DWHU'LVSHQVHUDQG$XWR)LOO3LWFKHUIHDWXUHVZLOOQRWIXQFWLRQZLWKRXWHLWKHUD
water filter or bypass plug installed.
INSTALL WATER FILTER
A. Take the water filter out of its packaging and
remove the cover from the O-rings. Be sure
the O-rings are still in place after the cover is
removed.
B. The water filter compartment is located in
the refrigerator ceiling. Press in on the tab to
open the filter access door.
C. Align the water filter so that the tip of the
water filter cartridge is toward the cartridge
KROGHUDQGWKHZRUG³)URQW´IDFHVRXWZDUG
Push the filter into the cartridge holder until
it is fully engaged. NOTE: '2127WZLVWWKH
water filter.
D. While continuing to press the filter into the
cartridge holder, gently swing the filter upward
until it is inside the filter housing.
NOTE: ,IWKHILOWHUFDUWULGJHGRHVQRWVZLQJ
easily, make sure it is properly aligned and
fully engaged in the holder. The dispenser
and ice maker will not operate unless either
a water filter or bypass plug is correctly
installed.
E. )OXVKDLUIURPWKHZDWHUV\VWHP6HH³:DWHU
'LVSHQVHU´IRULQVWUXFWLRQVRQKRZWRIOXVKDLU
from the water system.
NOTE: A newly installed water filter will cause
water to spurt from the dispenser unless the
air is removed from the water system.
WATER FILTER STATUS INDICATOR
The water filter should be replaced every six months or
earlier if 170 gallons of water has been dispensed or the
flow of water to the dispenser or ice maker decreases.
7KH:DWHU)LOWHULFRQRQWKHFRQWUROSDQHOZLOOLOOXPLQDWH
to indicate that it is time to replace the water filter.
After replacing the water filter, press and hold the Water
)LOWHUFRQWUROWRUHVHWWKHILOWHUXVHWUDFNLQJV\VWHP7KH
indicator light will turn off when the system is reset. See
³&RQWURO3DQHO´
INSTALLING THE WATER LINE (Continued)
Installation Instructions
Copper
Tubing
Compression
Nut
Compression
Sleeve
Tab
:DWHU)LOWHU
24 49-60765
3
WATER FILTER (Continued)
REPLACE WATER FILTER
To order a replacement water filter, visit
GEApplianceparts.com or call GE Appliances at
A. Press in on the tab to open the access door in
the refrigerator ceiling.
B. Gently pull on the bottom of the used water filter
to allow the filter cartridge to swing down from
the filter housing.
C. When the filter cartridge is completely lowered,
gently pull on the cartridge to remove it from the
cartridge holder.
NOTE:
Ɣ '2127WZLVWWKHZDWHUILOWHU
Ɣ A small amount of water may drip from the
filter or filter housing.
D.,QVWDOOWKHUHSODFHPHQWZDWHUILOWHU6HH³,QVWDOO
:DWHU)LOWHU´
E. After replacing the water filter, reset the Water
)LOWHUXVHWUDFNLQJV\VWHP6HH³:DWHU)LOWHU
6WDWXV,QGLFDWRU´
FILTER BYPASS PLUG
IMPORTANT:
Ɣ To reduce the risk of property damage due to
ZDWHUOHDNDJH\RX0867XVHWKHILOWHUE\SDVV
plug when a replacement water filter cartridge is
not available.
Ɣ The bypass plug is installed in the same way as
the water filter cartridge.
NOTE: $OORZKRXUVWRSURGXFHWKHVWEDWFKRILFH'LVFDUGWKHILUVWWKUHHEDWFKHVRILFHSURGXFHG$OORZ
days to completely fill ice container.
1. Plug into a grounded 3 prong outlet.
2. Allow the refrigerator to cool for several hours before adding food.
INSTALLING THE WATER LINE (Continued)
ELECTRICAL CONNECTION
WARNING
ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
'RQRWUHPRYHWKHJURXQGSURQJ
'RQRWXVHDQDGDSWHU
'RQRWXVHDQH[WHQVLRQFRUG
)DLOXUHWRIROORZWKHVHLQVWUXFWLRQVFDQUHVXOWLQGHDWK
fire, or electrical shock.
Installation Instructions
INSTALLATION INSTRUCTIONS
49-60765 25
INSTALLATION INSTRUCTIONS
Installation Instructions

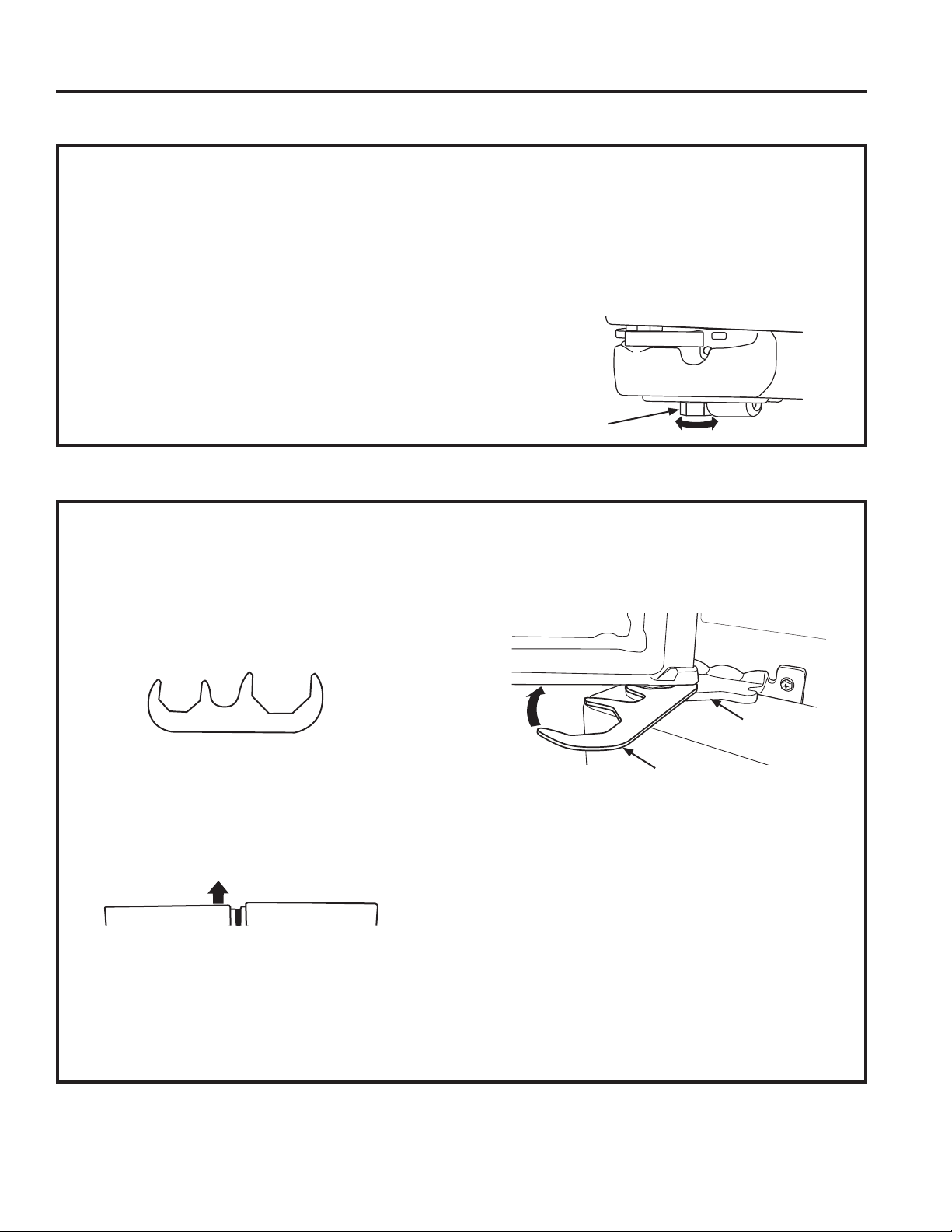

The refrigerator must be level to maintain optimal
performance and appearance, and to avoid excess
vibration and noise.
1. Move the refrigerator to its final location on a flat,
even floor.
2. Turn the leveling leg on the bottom, front of the
cabinet to raise or lower that side of the refrigerator
until the refrigerator is level side-to-side.
Ɣ7R5DLVH7XUQ&ORFNZLVH
Ɣ7R/RZHU7XUQ&RXQWHUFORFNZLVH
NOTE:
Ɣ+DYLQJVRPHRQHSXVKDJDLQVWWKHWRSRIWKH
refrigerator takes some weight off the leveling legs,
so they will be easier to turn.
Ɣ7KHUHIULJHUDWRUGRRUVZLOOFORVHHDVLHULIWKHIURQWRI
the refrigerator is slightly raised. To maintain level,
raise both legs the same distance.
LEVEL REFRIGERATOR (if needed)
Leveling Leg
ALIGN DOORS (if needed)
When the doors are properly aligned, the width of the
vertical space between the doors is even, and the
tops of the doors appear level. When the doors are
removed and replaced on the refrigerator they may
become misaligned, and appear angled or uneven. You
can adjust the height of each door to bring it back into
proper alignment.
Door Adjustment Tool is provided:
The door alignment procedure consists of multiple small
adjustments.
IMPORTANT: Because the doors are replaced onto the
hinges at the lowest position, they cannot be lowered.
<RX0867UDLVHWKHORZHUGRRURIHDFKGRRUSDLUXQWLOLW
is even with the higher door.
Ɣ7RUDLVHWKHKHLJKWRIDIUHH]HUGRRU0DNHWKH
DGMXVWPHQWDWWKHFHQWHUKLQJH8VHWKHVPDOOHU
VLGHGRSHQLQJLQWKH'RRU$GMXVWPHQWWRRO
Ɣ To raise the height of a refrigerator door: Make the
DGMXVWPHQWDWWKHERWWRPKLQJH8VHWKHODUJHU
VLGHGRSHQLQJLQWKH'RRU$GMXVWPHQWWRRO
1.,GHQWLI\WKHORZHUGRRURIWKHSDLUDQGRSHQLWWR
access the inner side of the door hinge.
2. Working from inside the open door, insert the door
adjustment tool around the outer cam just above the
door hinge.
3.8VLQJDFORFNZLVHPRWLRQWXUQWKHDGMXVWDEOHRXWHU
cam until it meets the door stop and can no longer
turn. Remove the tool.
4. Close the door to see whether or not the two doors
DUHQRZOHYHO,IWKH\DUHQRWOHYHOFRQWLQXHDGMXVWLQJ
the lower door, checking between each adjustment,
until the lower door is aligned and level with the
higher door.
'RRU+LQJH
'RRU$GMXVWPHQW7RRO
26 49-60765
Problem Possible Causes What to Do
Refrigerator does not run Refrigerator is unplugged. Plug into a grounded 3 prong outlet.
Circuit breaker is tripped/turned off
or the fuse is blown.
Reset / Turn on circuit breaker or
replace fuse.
Refrigerator is in defrost mode. Wait approximately 40 minutes for
defrost cycle to end, and the cooling
system to restart.
Refrigerator is in Showroom
PRGHWKHZRUG³6KRZURRP´LV
illuminated on the control panel).
Exit Showroom mode by pressing
DQGKROGLQJWKH)&8QLWV6HOHFW
and the Sabbath controls at the same
time for 3 seconds.
Power was turned off at the control
panel (Power icon is illuminated
red).
Press and hold POWER for 3
seconds (Power icon will illuminate
green).
Refrigerator compressor runs
frequently or for long periods of
time.
NOTE: This refrigerator is designed
to run for longer periods of time at a
lower energy usage.
Refrigerator is first plugged in. This is normal. Allow 24 hours for the
refrigerator to cool down.
Warm food or large amounts of
food added.
This is normal.
'RRULVEORFNHGRSHQ Rearrange or remove items that
are keeping the door from closing
completely.
Hot weather or frequent openings This is normal. Limit door openings
Temperature control set to coldest
setting.
Adjust temperature to a warmer
setting.
Refrigerator has an odor )RRGLVQRWVHDOHGRUSDFNDJHG
properly.
Reseal packaging. Place an opened
box of baking soda in the refrigerator,
replace every 3 months.
,QWHULRUQHHGVWREHFOHDQHG &OHDQWKHLQWHULRU6HH³&OHDQLQJ´
)RRGVWRUHGWRRORQJ 'LVSRVHRIVSRLOHGIRRG
Light does not come on Refrigerator is unplugged. Plug into a grounded 3 prong outlet.
/('OLJKWLVEXUQHGRXW
Contact a qualified technician to
UHSODFHWKHEXUQHGRXW/('
Sabbath Mode is activated.
Lights are disabled in Sabbath mode.
To turn on lights you must turn off
6DEEDWK0RGH6HH³6DEEDWK0RGH´
for instructions.
Interior lights are flashing One or more doors have been left
open for longer than 5 minutes.
Make sure all four doors are closed.
Doors do not close properly Refrigerator is not level. /HYHOWKHUHIULJHUDWRU6HH³/HYHOLQJ³
'RRULVEORFNHGRSHQ Rearrange or remove items that
are keeping the door from closing
completely.
Vibration or rattling Refrigerator is not resting firmly on
floor.
/HYHOWKHUHIULJHUDWRU6HH³/HYHOLQJ³
It sounds like water is flowing
from the refrigerator.
Refrigerant flowing in the lines
will make this sound when the
compressor starts and stops.
This sound is normal.
The refrigerator has an automatic
defrosting system. The defrosted
water will make this sound.
This sound is normal.
Troubleshooting Tips... Before you call for service
Save time and money! Review the charts on the following pages first and you may not need to call for service.
TROUBLESHOOTING TIPS
49-60765 27
TROUBLESHOOTING TIPS
Problem Possible Causes What to Do
Humming or buzzing sounds The compressor and fans for
cold air circulation can make this
sound.
This sound is normal.
Cracking or clicking sounds The interior parts will make this
sound as they contract and
expand in response to temperature
changes.
This sound is normal.
The ice maker is not producing
ice, enough ice,or hollow cubes
,FHPDNHULVQRWWXUQHGRQ Turn on the ice maker at the control
panel. The ice maker icon will
illuminate.
The refrigerator is in Sabbath
mode (the Sabbath icon is
illuminated.
Press and hold the Sabbath control for
3 seconds to turn off Sabbath mode.
New installation Wait 24 hours after installation for ice
production to begin.
.LQNLQWKHZDWHUOLQH Straighten the water source line.
Water filter or bypass plug is not
installed
,QVWDOOZDWHUILOWHURUE\SDVVSOXJ
,QDGHTXDWHZDWHUSUHVVXUH Contact a licensed, qualified plumber.
Refrigerator is not connected to a
cold water pipe.
Make sure the refrigerator is connected
to a cold water pipe.
Dispenser is not operating
properly
Not connected to water supply or
water shutoff valve not opened.
Connect refrigerator to a water supply
and turn the water shutoff valve fully
open.
Removed the door recently. Make sure the dispenser water tubing
and wire harness have been properly
reconnected.
,QDGHTXDWHZDWHUSUHVVXUH The water pressure to the home
determines the flow from the dispenser.
The water pressure must be at least
30 psi (207 kPa).
Refrigerator door is ajar. Check for obstructions, and close the
door firmly.
Water is leaking from the
dispenser
Glass is not held under the
dispenser long enough.
Hold the glass under the dispenser 2 to
3 seconds after releasing the dispenser
OHYHU,WLVQRUPDOIRUWKHGLVSHQVHUWR
continue to dispense a couple drops of
water after the lever is released.
New installation or recently
replaced water filter.
)OXVKWKHZDWHUV\VWHPE\GLVSHQVLQJ
water for 5 minutes.
Water from the dispenser is
warm
Water has not been dispensed
recently.
The first glass of water may not be
FRRO'LVFDUGWKHILUVWJODVVRIZDWHU
'LVSHQVHGDODUJHDPRXQWRIZDWHU
recently.
Allow 24 hours for water to cool
completely.
No water in the Auto fill pitcher $XWR)LOOIHDWXUHLVQRWWXUQHGRQ 7XUQRQWKH$XWR)LOOIHDWXUHDWWKH
FRQWUROSDQHO7KH$XWR)LOOLFRQZLOO
illuminate.
Troubleshooting Tips... Before you call for service
49-60765
Problem Possible Causes What to Do
Refrigerator or freezer is too
warm.
Temperature control is not set cold
enough.
Adjust the compartment to a colder
VHWWLQJDOORZKRXUVIRUWKH
temperature to adjust.
'RRURSHQHGIUHTXHQWO\RUOHIWDMDU Limit door openings. Check for
items keeping the door from closing
completely.
Warm food added recently. Allow time for food and refrigerator to
cool.
Not enough space between the
back of the refrigerator and the
wall for the air to circulate properly.
$OORZ´FPVSDFHEHWZHHQWKH
back of the refrigerator and the wall.
,WHPVDJDLQVWUHDULQWHULRUZDOODUH
blocking airflow.
Store items only inside the trim of
WKHJODVVVKHOYHVGRQ¶WSODFHLWHPV
against sides of the compartments or
directly in front of any vents.
Refrigerator or freezer is too
cold.
Temperature control is set too cold. Adjust temperature to the next less
cold setting.
Allow 24 hours for temperature to
VWDELOL]H
Moisture on exterior/interior of
refrigerator
High humidity This is normal during times of high
KXPLGLW\'U\VXUIDFHDQGDGMXVW
temperature to slightly colder setting.
'RRURSHQHGIUHTXHQWO\RUOHIWDMDU Limit door openings. Check for
items keeping the door from closing
completely.
Open container of liquid in
refrigerator
Cover or seal container.
Water droplets on the flipper
mullion (hinged bar on the left
hand door)
High humidity in the house. 7XUQRQWKH'HKXPLGLI\IXQFWLRQ6HH
³)HDWXUH&RQWUROV´
Frost or ice crystals on frozen
food
'RRURSHQHGIUHTXHQWO\RUOHIWDMDU Limit door openings. Check for
items keeping the door from closing
completely.
,WHPVEORFNLQJIUHH]HUDLUYHQWVDUH
preventing proper air flow.
Move items away from rear interior
wall.
Food freezing in refrigerator ,WHPVSODFHGWRRFORVHWRWKHDLU
vents.
Move items away from back and top
of the refrigerator.
Temperature control set too cold. Adjust the temperature to a less cold
setting.
Troubleshooting Tips... Before you call for service
TROUBLESHOOTING TIPS
49-60765 29
Ŷ Service trips to your home to teach you how to use
the product.
Ŷ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH
Ŷ)DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGRU
used for other than the intended purpose or used
commercially.
Ŷ/RVVRIIRRGGXHWRVSRLODJH
Ŷ5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW
breakers.
Ŷ'DPDJHWRILQLVKVXFKDVVXUIDFHUXVWWDUQLVKRU
small blemishes not reported within 48 hours of
delivery.
Ŷ5HSODFHPHQWRIWKHZDWHUILOWHUFDUWULGJHLI
included, due to water pressure that is outside
the specified operating range or due to excessive
sediment in the water supply.
Ŷ5HSODFHPHQWRIWKHOLJKWEXOEVLILQFOXGHGRU
water filter cartridge, if included, other than as
noted above.
Ŷ'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUH
floods or acts of God.
Ŷ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\
possible defects with this appliance.
Ŷ3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH
Ŷ'DPDJHFDXVHGE\DQRQ*($SSOLDQFHV%UDQG
water filter.
What GE Appliances Will Not Cover:
For the Period of: GE Appliances Will Replace
One Year
)URPWKHGDWHRIWKH
original purchase
Any part of the refrigerator which fails due to a defect in materials or workmanship.
'XULQJWKHlimited one-year warranty, GE Appliances will also provide, free of
charge, all labor and related service to replace the defective part.
GEAppliances.com
AOOZDUUDQW\VHUYLFHLVSURYLGHGE\RXU)DFWRU\6HUYLFH&HQWHUVRUDQDXWKRUL]HG&XVWRPHU&DUH
®
technician. To schedule
service online, visit us at www.geappliances.comRUFDOO*($SSOLDQFHVDW*(&$5(63OHDVH
have your serial number and your model number available when calling for service.
GE Appliances Refrigerator Warranty
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
XVHZLWKLQWKH86$,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUHVHUYLFHE\D*($SSOLDQFHV$XWKRUL]HG6HUYLFHULVQRW
DYDLODEOH\RXPD\EHUHVSRQVLEOHIRUDWULSFKDUJHRU\RXPD\EHUHTXLUHGWREULQJWKHSURGXFWWRDQ$XWKRUL]HG*(
$SSOLDQFHV6HUYLFHORFDWLRQIRUVHUYLFH,Q$ODVNDWKHZDUUDQW\H[FOXGHVWKHFRVWRIVKLSSLQJRUVHUYLFHFDOOVWR\RXU
home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights
are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
WARRANTY
30 49-60765
RPWFE Water Filter Cartridge Limited Warranty.
Contact us at www.geapplianceparts.com,
or call 800.GE.CARES.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the U.S.A. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the
consummation of this sale.
This form should be retained on file by the seller for a minimum of two years.
Buyer:
Name
Address
City State Zip
Signature Date
Seller:
Name
Address
City State Zip
Signature Date
For The Period Of: We Will Replace, At No Charge To You:
Thirty Days
From the date of the
original purchase
Any part of the water filter cartridge which fails due to a defect in materials or
workmanship during this limited thirty-day warranty.*
What is Not Covered:
• Service trips to your home to teach you how to use the product.
• Improper installation.
• Failure of the product if it is abused, misused, used for other than the intended
purpose or used commercially.
• Replacement of house fuses or resetting of circuit breakers.
• Replacement of the water filter cartridge due to water pressure that is outside the
specified operating range or due to excessive sediment in the water supply.
• Damage to the product caused by accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance.
Staple your receipt
here. Proof of the
original purchase
date is needed to
obtain service
under the warranty.
Appliance Service
800-GE-CARES
GE
Appliances
* If your GE part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge.
Return the defective part to the parts supplier from whom it was purchased together with a copy of the “proof of purchase” for the part. If the part is defective and shows no signs of abuse,
it will be exchanged. The warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost
of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in
commercial use except in the case of air conditioning equipment. In no event shall GE be liable for consequential damages. Warrantor: General Electric Company
EXCLUSION OF IMPLIED WARRANTIES: Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of
merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law.
49-60765 31
Performance Data Sheet
Model: GE RPWFE
Use Replacement Cartridge RPWFE.
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible
limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53. System tested and certified by NSF International against
NSF/ANSI Standard 42 and Standard 53 for the reduction of substances listed below.
The following pharmaceutical reduction claims have not been certified by NSF International. Claims tested and verified
by independent laboratory:
Substance
Reduction Average Influent
NSF specified
Challenge Concentration
Avg %
Reduction
Average Product Water
Concentration
Max Permissible
Product Water
Concentration
NSF
Test Report
Atenolol 1088 ng/L N/A 99.5% 5.0 ng/L N/A J-00103221
Fluoxetine 845 ng/L N/A 99.4% 5.0 ng/L N/A J-00103221
Ibuprofen 898 ng/L N/A 98.8% 9.9 ng/L N/A J-00103726
Progesterone 945 ng/L N/A 99.4% 5.5 ng/L N/A J-00103727
Trimethoprim 403 ng/L N/A 99.5% 2.0 ng/L N/A J-00103221
It is essential that the manufacturer’s recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised.
See Installation Manual for Warranty information.
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.89 lpm)
Water Supply Potable Water
Water Pressure 25-120 psi (172– 827 kPa)
Water Temperature 33º F - 100º F (0.6º C - 38º C)
Note: While the testing was performed under standard laboratory conditions,
actual performance may vary.
Replacement Cartridge: RPWFE. For estimated costs of replacement elements
please call 1-800-626-2002 or visit our website at www.geapplianceparts.com.
WARNING
To reduce the risk associated with ingestion of contaminants:
• Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before and after the system. Systems certified
for cyst reduction may be used on disinfected water that may contain filterable
cysts. EPA Establishment Number 070595-MEX-001.
NOTICE
To reduce the risk of water leakage or flooding, and to ensure optimal filter
performance:
• Read and follow use instructions before installation and use of this system.
• Installation and use MUST comply with all state and local plumbing codes.
• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure
exceeds 80 psi, you must install a pressure-limiting valve. Contact a plumbing
professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer
conditions exist you must install a water hammer arrester. Contact a plumbing
professional if you are uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum operating water
temperature of this filter system is 100º F (38º C).
• Protect filter from freezing. Drain filter when temperatures drop
below 33ºF (0.6ºC).
•
a noticeable reduction in water flow rate.
•
lead to reduced filter performance and cracks in the filter housing, causing water
leakage or flooding.
Capacity 170 Gallons (643.5 Liters). Contaminant Reduction Determined by NSF testing.
Substance Tested
for Reduction Average Influent
NSF specified
Challenge Concentration
Avg %
Reduction
Average Product
Water
Concentration
Max Permissible
Product Water
Concentration
NSF Reduction
Requirements
NSF
Test Report
Chlorine Taste and Odor 2.0 mg/L 2.0 mg/L ± 10% 97.4% 0.05 mg/L N/A ≥50% J-00102044
Nominal Particulate
Class I, , ≥0.5 to < 1.0 μm 7,633,333 pts/mL At least 10,000 particles/mL 99.0% 71,850 pts/ml N/A ≥85% J-00106249
Asbestos 109 MFL
10
7
to 10
8
fibers/L; fibers
greater than 10μm in length 99.99% <1 MFL N/A ≥99% J-00102069
Atrazine 0.009 mg/L 0.009 mg/L ± 10% 94.4% 0.0005 mg/L 0.003 mg/L N/A J-00102058
Benzene 0.016 mg/L 0.015 mg/L ± 10% 96.4% 0.001 mg/L 0.005 mg/L N/A J-00102065
Carbofuran 0.08 mg/L 0.08 mg/L ± 10% 98.8% 0.001 mg/L 0.04 mg/L N/A J-00102059
Cyst* 104,750 cysts/L Minimum 50,000 cysts/L 99.99% 3 cyst/L N/A ≥99.95% J-00102057
Lead pH @6.5 0.140 mg/L 0.15 mg/L ± 10% 99.3% 0.001 mg/L 0.010 mg/L N/A J-00102052
Lead pH @8.5 0.158 mg/L 0.15 mg/L ± 10% 98.3% 0.002 mg/L 0.010 mg/L N/A J-00102053
Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L ± 10% 91% 0.0003 mg/L 0.002 mg/L N/A J-00102054
Mercury @ pH 8.5 0.006 mg/L 0.006 mg/L ± 10% 88.3%% 0.0007 mg/L 0.002 mg/L N/A J-00104087
Lindane 0.002 mg/L 0.002 mg/L ± 10% 99% 0.00002 mg/L 0.0002 mg/L N/A J-00102063
P-Dichlorobenzene 0.222 mg/L 0.225 mg/L ± 10% 99.8% 0.0005 mg/L 0.075 mg/L N/A J-00102067
Toxaphene 0.015 mg/L 0.015 mg/L ± 10% 93.5% 0.001 mg/L 0.003 mg/L N/A J-00102061
2, 4-D Reduction 0.218 mg/L 0.210 mg/L±10% 99.9% 0.0001 mg/L 0.07 mg/L N/A J-00102064
VOC 0.278 mg/L 0.300 mg/L ± 10% 97.7% 0.0015 mg/L N/A ≥95% J-00102070
*Based on the use of Cryptosporidium parvum oocysts.
REPLACEMENT
ELEMENT
Tested and certified by NSF International
against NSF/ANSI Standard 42 and Standard 53
in model GE RPWF and GE RPWFE for the
reduction of the claims specified on the
performance data sheet.
RPWFE
WARNING
32 49-60765
3ULQWHGLQ8QLWHG6WDWHV
Consumer Support
CONSUMER SUPPORT
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year!
You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for
\RXUFRQYHQLHQFH,QWKH86GEAppliances.com
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and
prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card
included in the packing material.
,QWKH86GEAppliances.com/register
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your
FRQYHQLHQFHDQ\GD\RIWKH\HDU,QWKH86GEAppliances.com/ge/service-and-support/service.htm
RUFDOOGXULQJQRUPDOEXVLQHVVKRXUV&$1$1'$
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still
LQHIIHFW<RXFDQSXUFKDVHLWRQOLQHDQ\WLPH*($SSOLDQFHV6HUYLFHVZLOOVWLOOEHWKHUHDIWHU\RXUZDUUDQW\H[SLUHV,QWKH86
GEAppliances.com/ge/service-and-support/shop-for-extended-service-plans.htm
RUFDOOGXULQJQRUPDOEXVLQHVVKRXUV
,Q&DQDGDGEAppliances.ca/en/support/purchase-extended-warrantyRUFDOO
Parts and Accessories
,QGLYLGXDOVTXDOLILHGWRVHUYLFHWKHLURZQDSSOLDQFHVFDQKDYHSDUWVRUDFFHVVRULHVVHQWGLUHFWO\WRWKHLUKRPHV
9,6$0DVWHU&DUGDQG'LVFRYHUFDUGVDUHDFFHSWHG2UGHURQOLQHWRGD\KRXUVHYHU\GD\
,QWKH86GEApplianceparts.comRUE\SKRQHDWGXULQJQRUPDOEXVLQHVVKRXUV
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should
be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe
operation.
Contact Us
,I\RXDUHQRWVDWLVILHGZLWKWKHVHUYLFH\RXUHFHLYHIURP*($SSOLDQFHVFRQWDFWXVRQRXU:HEVLWHZLWKDOOWKHGHWDLOVLQFOXGLQJ
your phone number, or write to:
*HQHUDO0DQDJHU&XVWRPHU5HODWLRQV_*($SSOLDQFHV$SSOLDQFH3DUN_/RXLVYLOOH.<
GEAppliances.com/ge/service-and-support/contact.htm
