INSTALLER - PLEASE READ & FOLLOW THESE
INSTALLATION INSTRUCTIONS
Please retain for owner as care instructions are included.
FOR UNDERMOUNT SINKS
CHECK MODEL
The model number on the sink
packaging must match the model
of sink the customer ordered.
Do not install if incorrect.
AVOID CUTS
The perimeter and punch-outs on
the sink may contain sharp edges.
Handle the sink carefully to avoid
personal injury.
TF45e - Undermount Installation and Care Instructions
Oliveri Solutions Pty Ltd
51 Naweena Rd, Regency Park SA 5010 Phone: +61 8 8348 6444 Email: [email protected]
oliveri.com.au
REMOVE EXCESS SEALANT
Excess sealant must be removed promptly with a suitable clean-up solvent
recommended for use on both the counter/benchtop and stainless steel to
ensure damage does not occur.
PLUMBING & TAPWARE
IMPORTANT - Connections to plumbing should always be done by a licensed
plumber. Fit supplied basket wastes to sink bowls. Install tapware according to
manufacturers instructions.
If 2 or more individual basins/bowls are under-mounted, a minimum distance of 3 ½”
(90mm) is required between the basins/bowls. The counter/benchtop supplier is to
determine the support method required.
It is essential that the installation is waterproof and carried out in accordance
with these instructions. Oliveri Solutions will not be held responsible for any
damage caused by leakage or faulty installation.
CARE INSTRUCTIONS FOR YOUR OLIVERI STAINLESS STEEL SINK
AVOID CONTACT WITH ROUGH OR DIRTY SURFACES.
Polished stainless steel will show scratches!
Manufactured from genuine 18/10, 304-grade stainless steel, Oliveri stainless steel sinks offer
optimum hygiene and durability. Your sink will continue to shine for many years with regular care.
• Clean daily with soap and water and then towel dry
• Always clean in the direction of the grain of the Stainless Steel surface
• Use a soft brush or sponge (old tooth brush)
• Wipe over with a glass cleaner (Windex is very good)
• Polish with a metal polish paste (Autosol / Brasso)
• Use a Liquid cleaner (Bon-Ami or Jiff)
IT IS IMPORTANT TO NOTE THE FOLLOWING:
• NEVER use steel wool
• Beware of harsh liquid cleaners
• Beware of grit within cloths and mineral deposits within water
• Avoid prolonged exposure to acids from fruit, fruit juices, salts, spirits, bleach, tea-bags
• Avoid prolonged contact with ordinary steel such as tin cans or steel wool (rust stains may result)
• Do not keep harsh (acids or chlorine) chemicals under the sink / laundry tub
• Do not leave chlorine/chloride chemicals on the stainless steel surface
• Do not leave liquid soaps & cleaners to dry on stainless steel
• Do not use bleaches
AVOID SCRATCHES
Stainless steel can be scratched if
proper care is not taken during
installation.
CHECK CONDITION OF THE SINK
Inspect the sink for any visible
defects. Do not install the sink if
defects are found. Contact your
sink retailer/point of purchase.
CLAIMS FOR DAMAGE WILL NOT BE ACCEPTED AFTER INSTALLATION.
Any advice, recommendation, information, assistance or service provided by Oliveri Solutions in
relation to goods manufactured by it or their use and installation, is given in good faith and is believed
by Oliveri Solutions to be appropriate and reliable. However, any advice, recommendation,
information, assistance or service is provided by Oliveri Solutions without responsibility or liability.
IT IS HIGHLY RECOMMENDED THE ACTUAL SINK BE PRESENT WHEN THE
COUNTER/BENCHTOP IS CUT OUT AS A REFERENCE FOR ACCURACY
Downloadable cut-out template files and/or cut-out dimensions are available from our website.
MATERIALS FOR FITTING THE UNDERMOUNT SINK:
• Oliveri sink including mounting clips, basket waste(s) and accessories (depending on model).
• These installation instructions
• Cut-out template and/or dimensions (refer website)
• Level to check counter/benchtop and sink is installed level
• Flat head screwdriver (large - to tighten basket wastes)
• Suitable sealant & fastening materials (neutral-cure silicone sealant and structural hardware)
• Clamping mechanism (such as threaded rod and timber bearers)
• Additional mounting hardware if fitting into thinner material. The instructions for bolting
the sink require a minimum counter/benchtop thickness of 25mm (1”).
FITTING THE SINK
Position and align the sink correctly in the cutout (some threaded
rod and timber bearers will help to clamp the sink in place) and either:
‘A’ Sandwich Method: RECOMMENDED FOR BOTH THIN AND
THICK COUNTER/BENCHTOP. Firmly fix a support board into / over
the cabinet and cut the sink hole so that the sink flange will sit
above the edge of the board. Slightly rout the edge so that the sink
flange will sit flush with the top surface. Test for fit. Install sink and
seal between flange and support board. Apply sealant to the
underside edge of the cutout on counter/benchtop material and
position it over the support board to sandwich the sink in place.
Fasten the counter/ benchtop securely.
‘B‘ Bolt: For minimum 25mm (1”) thick material. Bolt it to the
counter /benchtop using “molly” assemblies. Care must be taken
during drilling and tightening to avoid cracking.
NOT RECOMMENDED TO BE USED WHEN FITTING SINK TO
THINNER COUNTER/BENCHTOPS.
FOLLOW THESE STEPS TO INSTALL AN OLIVERI UNDERMOUNT SINK
IF COUNTER / BENCHTOP IS SUPPLIED WITH CUT-OUT, SKIP STEPS MARKED WITH*

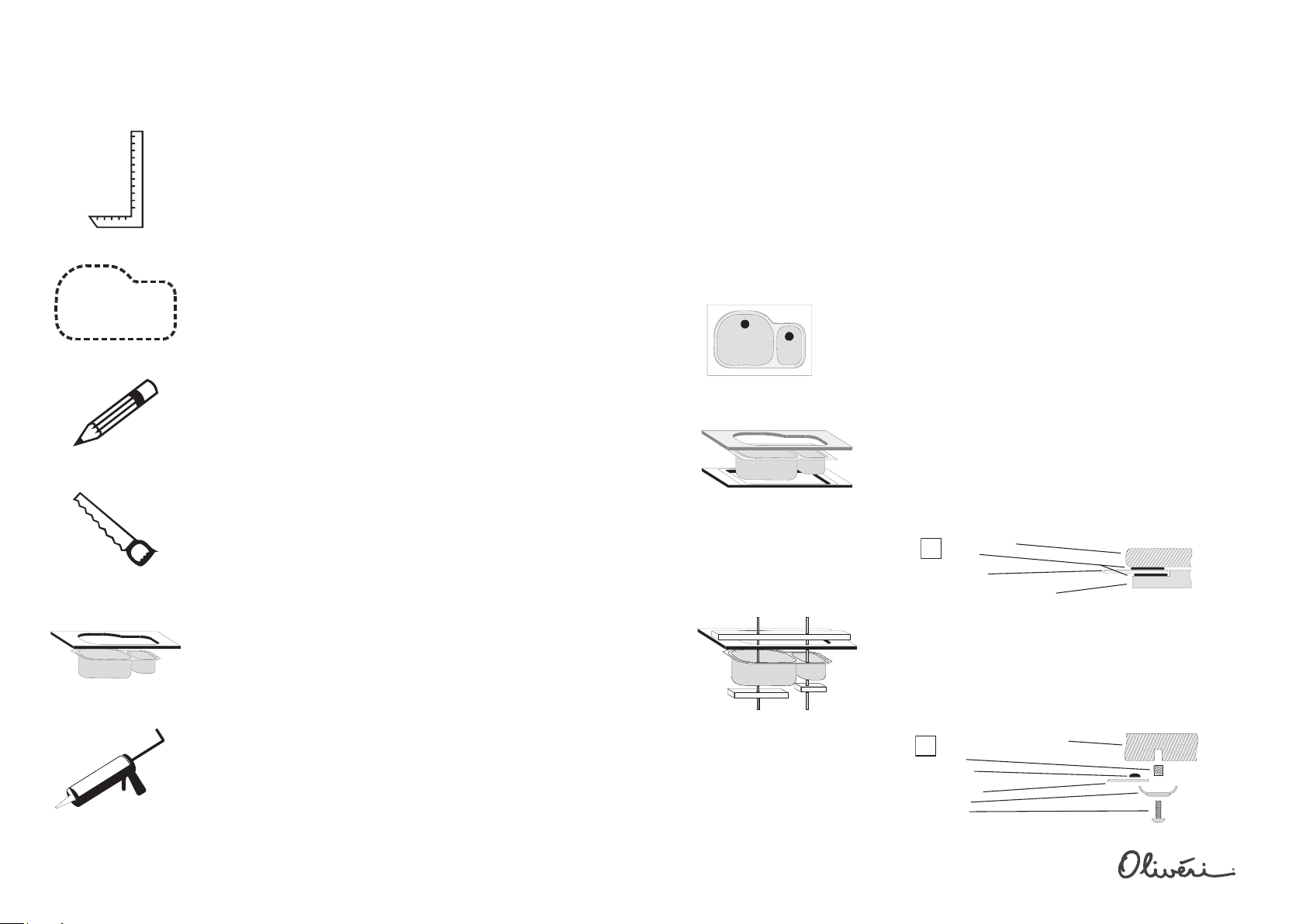

Above shows sandwich method
where sink is clamped between a
lower support board (with routed
edge) and the upper counter/
benchtop using method A.
Above shows how threaded rod
and timber bearers may be used
to clamp the sink in place while
fastening to the counter/benchtop
using method B.
Do not overtighten as this may
damage the sink.
Counter / benchtop
Sealant
Sink flange
Support board with routed edge
(such as timber)
A
1” Counter / benchtop with hole drilled
Molly
Sealant
Sink flange
Saddle
Screw
B
TF45e - Undermount Installation and Care Instructions
CHECK SPACE
Ensure there is adequate space for tapware (including a splashback if
specified). Check space for installation (underneath) and operation
(above). Particular care must be taken when a thick splash back is
used (it may interfere with tapware location and operation). Ensure
the cabinet will not foul the sink mounting flange or basins.
TEMPLATE *
Cut-out templates for your Oliveri sink are available online at
oliveri.com.au Use the product model number to find the template.
Some sink templates apply to both left-hand and right-hand models.
Ensure template is the correct way around for your model.
MARK CUT OUT *
Carefully mark out the template (or follow drawing instructions)
making allowance for any additional polishing back that is required
after cutting. NOTE: The template is the exact finished cut-out
size required.
CUT & FINISH HOLE *
Drill pilot holes to accept an appropriate cutting tool for the counter/
benchtop material (wear suitable personal protection equipment).
Cut inside the mark, allowing sufficient material for any sanding and
polishing back if required. NOTE: Accuracy of the cutout shape is
essential to ensure visual alignment with the bowl / basin
perimeter and so any accessories fit correctly.
TRIAL FIT THE SINK
Carefully position the sink against counter/benchtop to make sure it
fits the cut-out correctly. If the fit is not correct, remove the sink and
proceed with remedial work. Perform another trial fit after corrections
have been made.
APPLY SEALANT
Apply suitable sealant recommended for both the counter/benchtop
material being used and for stainless steel. Neutral-cure sealant will
not damage stainless steel. It may be easier to apply sealant after
preparing your clamping equipment. Do not allow the sealant to dry
before the sink is clamped to the counter/benchtop.
DO NOT INSTALL USING EPOXY ADHESIVES
Should a genuine warranty claim arise for a sink installed using this method, Oliveri will cover the
replacement cost of the sink only and not the cost of sink removal or reinstallation. If you have
any doubts, confirm the correct mounting method for your material by consulting the
counter/benchtop supplier.
ADDITIONAL FASTENING
The sealant alone may appear to bond the sink to the counter/ benchtop. However, when installing
your Oliveri undermount sink, it is important to always use methods A or B (below) to locate the sink
securely in the counter/bench top in conjunction with the sealant manufacturer’s instructions.
