OWNER’S MANUAL
JBL MICRO WIRELESS
Blue (flashing)
3 sec.

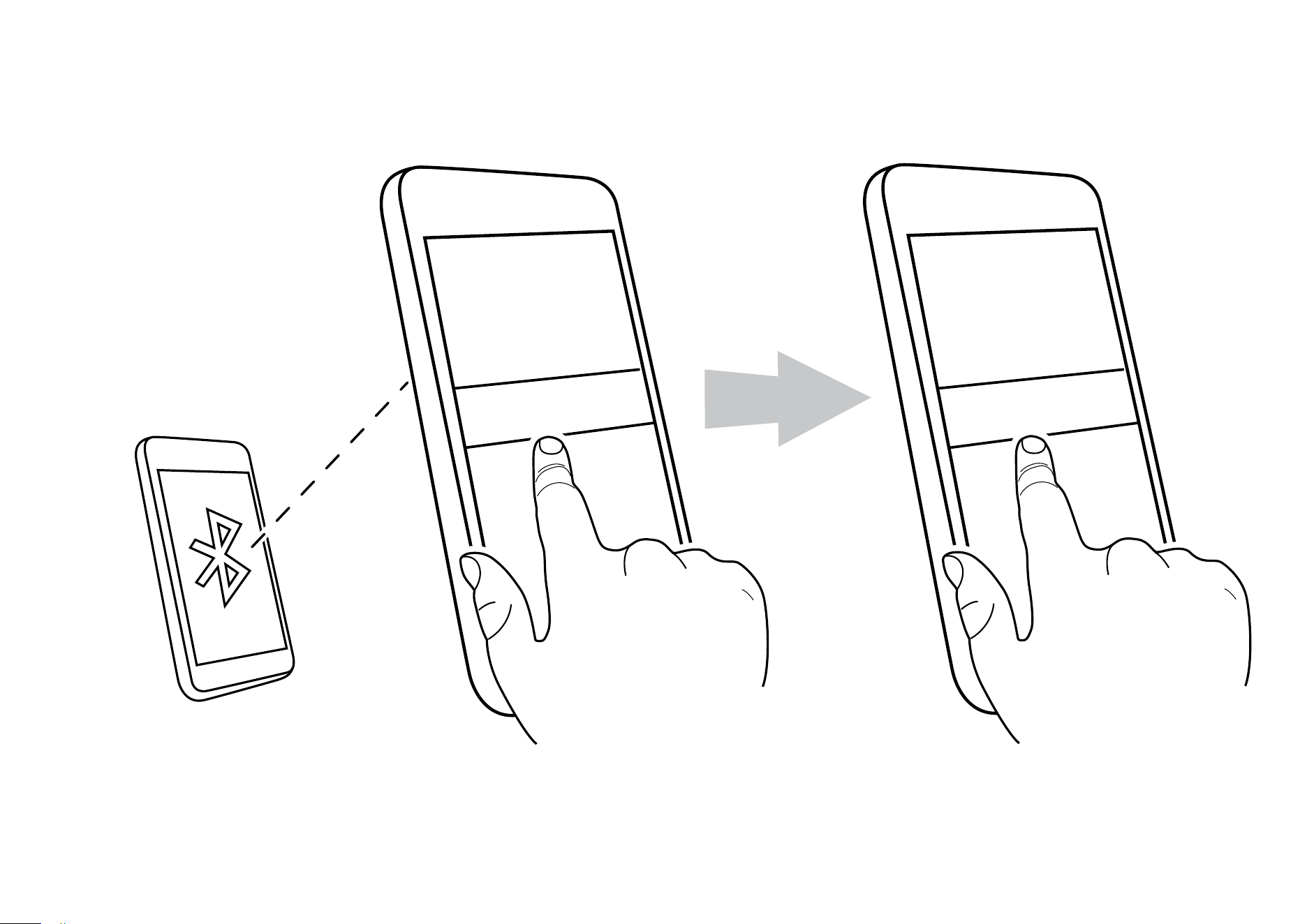

1.
JBL MicroWireless
0-0-0-0
2.
Blue (constant)
3.
Blue (bright) Blue (dim)
Blue(�ashing) Red
Bleu (vif) Bleu (faible)
Bleu (clignotant) Rouge
Azul (brillante) Azul (tenue) Azul (intermitente) Rojo
Azul (brilhante) Azul (opaca) Azul (piscando) Vermelha
Blau (hell) Blau (matt) Blau (blinken) Rot
Blu (brillante) Blu (tenue) Blu (lampeggiante) Rosso
Blauw (helder) Blauw (gedimd) Blauw (knipperen) Rood
Blå (kraftig) Blå (dempet) Blå (blinkende) Rød
Sininen (kirkas) Sininen (himmeä) Sininen (vilkkuu) Punainen
Blått (starkt) Blått (svagt) Blått (blinkande) Rött
Blå (klar) Blå (svag) Blå (blinkende) Rød
Синий(яркий) Синий(тусклый)
Синий(мигающий) Красный
파란색(밝음) 파란색(흐림) 파란색(점멸) 빨간색
Blue
(bright)
Blue
(dim)
Blue
Red
=
=
Blue
(flashing)
=
=
=
www.jbl.com
© 2012 HARMAN International Industries,
Incorporated. All rights reserved. JBL is a
trademark of HARMAN International Industries,
Incorporated, registered in the United States and/
or other countries. Features, specifications and
appearance are subject to change without notice.
Part #: 950-0473-001 Rev. A
HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge,
CA 91329 USA
2.402 2.480GHz
0 ~ 4dBm
GFSK
SPECIFICATIONS
Transducers: 1 x JBL 40mm
Amplifier power: 2.7W
Frequency response: 150Hz – 20kHz
Signal-to-noise ratio: >80dB
Battery type: Li-ion
Bluetooth transmitter
frequency range:
2.402 – 2.480GHz
Bluetooth transmitter
power:
0 ~ 4dBm
Bluetooth transmitter
modulation:
GFSK
Listening time on
battery power:
>5 hours @ 0.2W
Battery charge time: 2 hours
Dimensions
(Dia x H):
83mm x 39mm
(3-1/4" x 1-9/16")
SPECIFICATIONS
Transducteurs : 1 x 40mm
Puissance d’amplificateur : 2,7W
Courbe de résonance : 150Hz – 20kHz
Rapport signal sur bruit : >80dB
Type de batterie : Li-ion
Plage de frequence de
l’emetteur Bluetooth :
2.402 – 2.480GHz
Puissance de l’emetteur
Bluetooth :
0 ~ 4dBm
Modulation de l’emetteur
Bluetooth :
GFSK
Autonomie d’écoute : > 5 heures à 0,2W
Durée de charge : 2 heure
Dimensions (Dia x H) : 83mm x 39mm
(3-1/4 po x 1-9/16 po)
ESPECIFICACIONES
Transductores: 1 x 40mm
Potencia de amplificador: 2,7W
Respuesta en frecuencia: 150Hz – 20kHz
Relación señal/ruido: >80dB
Tipo de pila: Litio-ion
Rango de frecuencia del
transmisor Bluetooth:
2.402 – 2.480GHz
Potencia del transmisor
Bluetooth:
0 ~ 4dBm
Modulacion del
transmisor Bluetooth:
GFSK
Tiempo de escucha a
pilas:
>5 horas a 0,2W
Tiempo de carga de
la pila:
2 horas
Dimensiones (Diámetro
x Altura):
83mm x 39mm
(3-1/4" x 1-9/16")
ESPECIFICAÇÕES
Transdutores: 1 x 40mm
Potência do amplificador: 2,7W
Resposta de frequência: 150Hz – 20kHz
Relação sinal/ruído: >80dB
Tipo da bateria: Íon-lítio
Intervalo de frequencia do
transmissor Bluetooth:
2.402 – 2.480GHz
Potencia do transmissor
Bluetooth:
0 ~ 4dBm
Modulacao do transmissor
Bluetooth:
GFSK
Tempo de reprodução com
energia da bateria:
>5 horas @ 0,2W
Tempo de carga da bateria: 2 horas
Dimensões (Diâm. x A): 83mm x 39mm
(3-1/4" x 1-9/16")
SPECIFICHE
Trasduttori: 1 x 40mm
Potenza amplificatore: 2,7W
Risposta in frequenza: 150Hz – 20kHz
Rapporto segnale-rumore: >80dB
Tipo batteria: Ioni di litio
Intervallo di frequenza
trasmettitore Bluetooth:
2.402 – 2.480GHz
Alimentazione trasmettitore
Bluetooth:
0 ~ 4dBm
Modulazione trasmettitore
Bluetooth:
GFSK
Tempo di ascolto con
batteria:
>5 ore a 0,2W
Tempo di ricarica della
batteria:
2 ore
Dimensioni (diam x A): 83mm x 39mm
(3-1/4 po x 1-9/16 po)
SPEZIFIKATIONEN
Wandler: 1 x JBL 40mm
Verstärkerleistung: 2,7W
Frequenzgang: 150Hz – 20kHz
Signal-Rausch-Verhältnis: >80dB
Batterietyp: Li-ion
Bluetooth-
Sendefrequenzbereich:
2.402 – 2.480GHz
Bluetooth-Sendeleistung: 0 ~ 4dBm
Bluetooth-
Sendemodulation:
GFSK
Hörstunden bei
Batteriebetrieb:
>5 Stunden bei 0,2W
Batterieladezeit: 2 Stunden
Abmessungen
(Durchm. x H):
83mm x 39mm
SPECIFICATIES
Omvormers: 1 x 40mm
Versterkervermogen: 2,7W
Frequentieweergave: 150Hz – 20kHz
Signaal-ruisverhouding: >80dB
Type batterij: Li-ion
Bluetooth zender
frequentiebereik:
2.402 – 2.480GHz
Vermogen van de
Bluetooth zender:
0 ~ 4dBm
Bluetooth
zendermodulatie:
GFSK
Luistertijd voor batterij: >5 uur @ 0,2W
Oplaadtijd voor batterij: 2 uur
Afmetingen (Diameter x
Hoogte):
83mm x 39mm
SPESIFIKASJONER
Omformere: 1 x 40mm
Forsterkereffekt: 2,7W
Frekvensrespons: 150Hz – 20kHz
Signal-til-støy-forhold: >80dB
Batteritype: Li-ion
Bluetooth-senders
frekvensomrade:
2.402 – 2.480GHz
Bluetooth-senders
effekt:
0 ~ 4dBm
Bluetooth-senders
effekt:
GFSK
Lyttetid på batteristrøm: >5 timer ved 0,2W
Batteriladetid: 2 time
Dimensjoner (D x H): 83mm x 39mm
(3-1/4" x 1-9/16")
TEKNISET TIEDOT
Anturit: 1 x 40mm
Vahvistinteho: 2,7W
Taajuusvaste: 150Hz – 20kHz
Äänentoisto: >80dB
Paristo: Li-ion
Bluetooth-lahettimen
taajuusalue:
2.402 – 2.480GHz
Bluetooth-lahettimen
teho:
0 ~ 4dBm
Bluetooth-lahettimen
modulaatio:
GFSK
Kuunteluaika
paristokäytöllä:
> 5 tuntia @ 0,2W
Pariston latausaika: 2 tuntia
Mitat (Halk. x K): 83mm x 39mm (3-1/4
tuumaa x 1-9/16 tuumaa)
SPECIFIKATIONER
Omvandlare: 1 x 40mm
Förstärkareffekt: 2,7W
Frekvensåtergivning: 150Hz – 20kHz
Signalbrusförhållande: >80dB
Batterityp: Litiumjon
Bluetooth-sandarens
frekvensomrade:
2.402 – 2.480GHz
Bluetooth-sandareffekt: 0 ~ 4dBm
Bluetooth-
sandarmodulering:
GFSK
Lyssningstid med
batteri:
> 5 timmar vid 0,2W
Batteriladdningstid: 2 timmar
Mått (diameter x höjd): 83mm x 39mm
SPECIFIKATIONER
Transducere: 1 x 40mm
Forstærkerstrøm: 2,7W
Frekvenssvar: 150Hz – 20kHz
Signal-til-støj-forhold: >80dB
Batteri-type: Li-ion
Bluetooth-sender: 2.402 – 2.480GHz
Bluetooth-sendereffekt: 0 ~ 4dBm
Bluetooth-
sendermodulation:
GFSK
Lyttetid på batteristrøm: > 5 timer ved 0,2W
Batteri-opladetid: 2 time
Dimensioner (Dia. x H): 83mm x 39mm (3-1/4
tommer x 1-9/16 tommer)
ТЕХНИЧЕСКИЕХАРАКТЕРИСТИКИ
Динамики:
1 x 40mm
Мощностьусилителя: 2,7Вт
Частотнаяхарактеристика: 150Гц–20кГц
Отношениесигнал/шум: >80дБ
Типаккумулятора: Литий-ионный
Диапазончастот
передатчикаBluetooth:
2.402–2.480GHz
Мощностьпередатчика
Bluetooth:
0~4dBm
Модуляцияпередатчика
Bluetooth:
GFSK
Времязвучанияот
аккумулятора:
>5часовпримощности
0,2Вт
Времязарядки
аккумулятора:
2часа
Размеры(ДиаметрxВ): 83mmx39mm
(3-1/4"x1-9/16")
–
