Read This Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
OWNER’S MANUAL
MF200W70B/E
MF200W90B/E
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATION
Quick Start .............................................................
Before Each Washing ..............................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Programmes............................................................
Option....................................................................
MAINTENANCE
Cleaning and Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................

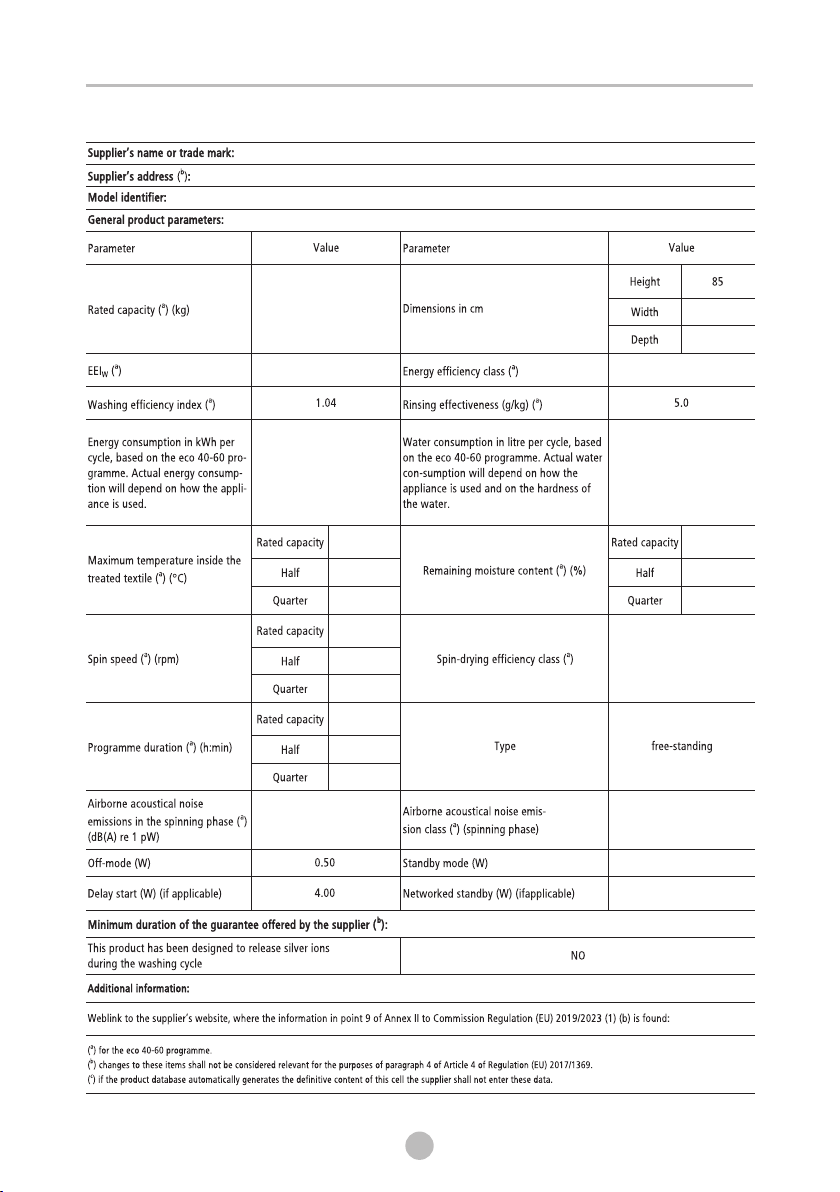

Product Fiche ........................................................
2
9
10
13
15
16
18
19
24
27
31
32
33
1
Please read the following safety information thoroughly and follow it
strictly to minimize the risk of fire or explosion, electric shock and to
prevent property damage, personal injury or loss of life. Failing to follow
these instructions shall void any warranty.
its service agent or similarly qualified persons in order to avoid a hazard.
•If the machine is damaged, it must not be operated unless repaired by
the manufacturer, its service agent or similarly qualified persons.
Risk of electric shock!
•If the supply cord is damaged, it must be replaced by the manufacturer,
ELECTRIC SHOCK HAZARD
SAFETY INSTRUCTIONS
Safety Instructions
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
This combination of symbol and signal word indicates
Warning!
！
a potentially dangerous situation which may result in
slight or minor injuries.
This combination of symbol and signal word indicates
Note!
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
This combination of symbol and signal word indicates
Caution!
Warning!
！
2
SAFETY INSTRUCTIONS
•The appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•Children should be supervised that they do not play with the
appliance.
•Children 3 years and under shall be kept away from the appliance
or continuously supervised.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Do not climb or sit on the appliance.
INSTALLATION LOCATION AND SURROUNDING
•All washing and additional substances are to be kept in a safe place
out of the reach of children.
•Do not install the machine on a carpet floor. The obstruction of the
openings by a carpet can damage the machine.
•Keep the appliance clear from heating sources and direct sunlight
to avoid plastic and rubber parts to corrode.
•Do not use the appliance in humid environments or rooms
containing explosive or caustic gas. In case of water leakage or
water splashes let the appliance dry in the open air.
•The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of the
washing machine.
3
SAFETY INSTRUCTIONS
•Do not operate the machine in rooms with a temperature of below
5°C. This can cause damages to parts of it. If it is unavoidable, make
sure to drain the water completely from the appliance after every
use (see “Maintenance - Cleaning of drain pump filter“) to avoid
damages caused by frost.
•Never use flammable sprays or substances in the immediate
proximity of the appliance.
INSTALLATION
•Remove all packaging material and transport bolts before using the
appliance. Otherwise, serious damage may result.
•This appliance is equipped with a single inlet valve and can be
connected to the cold water supply only.
•Mains plug must be accessible after installation.
•Before washing clothes for the first time, the product shall be
operated once throughout all the procedures without any clothes
inside.
•Before using the washing machine, the product shall be calibrated.
•Do not put any excessively heavy objects on the appliance, like
water containers or heating devices.
•The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
•Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05
MPa.
ELECTRICAL CONNECTION
•Make sure the supply cable is not trapped by the machine, it can get
damaged.
•Connect the product to a grounded outlet protected by a fuse
complying with the values in the “ Technical specifications“ table.
The grounding installation has to be made by a qualified electrician.
Ensure that the machine is installed in accordance with the local
regulations.
4
SAFETY INSTRUCTIONS
•Water and electrical connections must be carried out by a qualified
technician in accordance with the manufacturer‘s instructions and
local safety regulations.
•Don´t use multiple plugs or extension cords.
•The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
•Do not pull the plug out of the mains outlet if there is flammable gas around.
•Never pull out power plug with wet hands.
•Always pull at the plug, not at the cable.
•Always unplug the appliance if it is not being used.
Warning!
！
WATER CONNECTIONS
•Check the connections of the water inlet tubes, the water tap and
the outlet hose for possible problems due to changes of water
pressure. If the connections loosen or leak close the water tap and
get it repaired. Do not use the appliance before the pipes and hoses
are installed properly by qualified persons.
•Glass door may become very hot during the operation. Keep
children and pets far away from the machine while it is operating.
•The water inlet and outlet hoses have to be safely installed and
remain undamaged. Otherwise, water leakage can occur.
•Do not remove the drain pump filter while there is still water in the
appliance. Big quantities of water can leak out, and there is a risk of
scalding due to hot water.
5
SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
•Never use any flammable, explosive or toxic solvents. Do not use
gasoline and alcohol etc. as detergents. Only select detergents that
are suitable for machine washing.
•Make sure that all pockets are emptied. Sharp and rigid items such
as coins, brooches, nails, screws, stones etc. may cause serious
damages to this machine.
•Remove all objects from pockets such as lighters and matches
before use the appliance.
•Thoroughly rinse items that have been washed by hand.
•Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax
and wax removers should be washed in hot with an extra amount of
detergent before being dried in the appliance.
•Items containing foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in the machine
•Fabric softeners or similar products should be used as
recommended in their instructions.
•Never try to open the door forcefully. The door will unlock shortly
after the end of a cycle.
•Please do not close the door with excessive force. If it is found
difficult to close the door, please check if the clothes are properly
inserted and distributed.
6
SAFETY INSTRUCTIONS
•Always unplug the appliance and close the water tap before
cleaning and maintenance and after each use.
•Never pour water over the appliance for cleaning purpose. Risk of
electric shock!
•Repairs shall only be carried out by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard. The
producer will not be responsible for damages caused by the
intervention of not authorized persons.
TRANSPORT
•Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person
-Accumulated water shall be drained out of the machine
•This appliance is heavy. Transport with care. Never hold any
protruding part of the machine when lifting. The machine door
cannot be used as a handle.
INTENDED USE
The product is intended only for home use and for textiles in
household amounts suitable for machine washing and drying. This
appliance is for indoor use only and not intended for built in use.
Only use according to these instructions. The appliance is not
intended for commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
•This appliance is intended to be used in household and similar
applications such as:
-Staff kitchen areas in shops, offices and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-Bed and breakfast type environments;
-Areas for communal use in blocks of flats or in launderettes.
7
SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
8
INSTALLATION
Accessories
Product Description
4 x Cover caps
1 x Supply hose
cold water
• The product picture is for illustration only, please refer to real product as
reference.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service flap
Door
Water supply hose
Top cover
Drain hose
1 x Owner’s manual
9
INSTALLATION
Installation
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0°C
5.Keep far away from the heat sources such as coal or gas burning appliances.
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging.Make sure the small triangle
foam (a) is removed with the bottom packaging together. If not, lay the unit down on
the side surface and remove it manually.
4. Remove the inlet hose from the drum.
3. Remove the tape securing the power supply cord and drain hose.
• Stability is important to prevent the product from
wandering! Make sure the machine is standing leveled and
stable.
• Make sure that the product does not stand onto the power
cord.
• Make sure to maintain the minimum distances from the
walls as shown in the picture
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
w
w
W> 20mm
Installation area
a
10
INSTALLATION
Remove transport bolts
• You must remove the transport bolts from the backside before using the product.
Warning!
！
Loosen the 4 transport
bolts with a spanner.
Remove the bolts
including the rubber parts
and keep them for future
use.
Close the holes using the
cover caps.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Warning!
！
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level and
steady.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush or modify water inlet hose.
Warning!
！
Connect the water supply hose
to the water inlet valve and a
water tap with cold water as
indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Note!
11
INSTALLATION
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Warning!
！
Warning!
！
12
Quick Start
OPERATION
• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove
any residual water and to neutralize potential odors, it’s recommended to
clean your appliance before first use. For this reason, start the Cotton program
at 90°C without laundry and detergent.
Caution!
It’s recommended to calibrate the washing machine, so that provide the best
performance.
The appliance is able to detect the amount of laundry loaded. This function is
optimizing the product performance by minimizing energy and water
consumption, saving you money and time. For this reason it’s recommended to
calibrate the appliance for best use.
1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washing machine and press “Turbo” and “Extra Rinse”
simultaneously for 10 seconds until “t19” is displayed;
4- Press [ ] to start the appliance and wait till “****” is displayed.
Calibration
13
2. Washing
Buzzer beep and “End” on display.
3. After Washing
1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
• Detergent need to be added in compartment I if the pre-wash function is selected.
1 2 3 4 5
Note!
Main
wash
Prewash
Softener
ear th
terminal
OPERATION
Select programme
Select function or
remain default
settings
Press
Start/Pause to
start the program
2 3 4
Power On
1
14
• Do not wash or dry articles that have been cleaned in, washed in, soaked in,
or dabbed with combustible or explosive substances like wax, oil, paint,
gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause
alarm due to unbalance. Therefore it is suggested to add one or two more
laundry items to the wash so that spin can be done smoothly.
• The ambient temperature of the washing machine should be 5-40°C. If used under
0°C, the inlet valve and draining system may be damaged. If the machine is
installed under freezing conditions, it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose can unfreeze before
use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine
washing properly.
Tie together long textile
strips and belts, close zips
and button
Take all items out of the
pockets
Put small items into a
laundry bag
Check the care label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Sort laundry according to
color and textile type
Warning!
！
OPERATION
1 2 3
4 5 6
15
Detergent Dispenser
Caution!
• Detergent only need to be added in "compartment I “after selecting
pre-wash function.
OPERATION
Pre wash
Main wash
Softener
II
I
Release button to
pull out the dispenser
Programme
Cotton
Mix
Synthetic
Jeans
Cold Wash
Allergy Care
Steam Care
Quick 15’
Means must ○ Means optional
Programme
Rapid 45’
ECO 40-60
Bullky
Wool
Rinse & Spin
Spin Only
Drum Clean
16
Detergent Recommendation
OPERATION
Agglomerating or ropy detergent or additive can be diluted in some water
before pouring it into the detergent dispenser, to avoid its inlet to get blocked
and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap
water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less
detergent.
• Highly concentrated (compact detergent) requires particularly accurate
dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the
laundry
•
Note!
Recommended washing
detergent
Heavy-duty detergent with
bleaching agents and
optical brighteners
Colour detergent without
bleaching agent and optical
brighteners
Color or mild detergent
without optical brighteners
Mild washing detergent
Special wool detergent
Wash cycles
Cotton,ECO 40-60,Mix,Bulky
Cotton,ECO40-60,Mix,Bulky,
Cold Wash
Cold Wash,Synthetic
Synthetic
Wool
Washing
temp.
20/30
40/60
/
20 30/
20 30/
Type of laundry and textile
White laundry made from
boil-proof cotton or linen
Coloured laundry made
from cotton or linen
Coloured laundry made
from easy care fibres or
synthetic materials
Delicate textiles, silk,
viscose
Wool
Cold/20/
30/40
Cold/20/
30/40
17
OPERATION
On/Off
Turn the appliance on and off.
Start/Pause
Start or pause your programme.
Programmes
Available according to the laundry type.
Option
This allows you to select additional
functions and will light when selected.
1
1
3
1
2
4
Display
The display shows settings, estimated
remaining time, options and status
messages.
5
Control Panel
5
3
2
1
1
4
Reload
B
Door Lock
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
A
B C
G
Delay
C
Child Lock
E
D E
KI
F
J
SteamCare
F
AutoClean
G
Pre Wash
H
Wash
I
Rinse
J
H
Spin
K
18
Programme
Load(kg) Display Time
Cotton
Mix
Synthetic
Jeans
Cold Wash
Allergy Care
Steam Care
Quick 15’
Rapid 45’
ECO 40-60
Bulky
Wool
Rinse & Spin
Spin Only
Drum Clean
9.07.0
7.0
7.0
3.5
7.0
3.5
3.5
3.5
2.0
2.0
7.0
7.0
2.0
7.0
7.0
-
9.0
9.0
4.5
9.0
4.5
4.5
4.5
2.0
2.0
9.0
9.0
2.0
9.0
9.0
-
9.07.0
3:49
1:30
3:27
1:56
0:58
2:38
1:57
0:15
0:45
3:13
1:48
1:07
0:30
0:12
1:18
3:49
1:30
3:27
1:56
0:58
2:38
1:57
0:15
0:45
3:41
1:48
1:07
0:30
0:12
1:18
maybe different with the parameters in above mentioned table.
• The parameters in this table are only for user's reference. The actual parameters
Note!
OPERATION
Programmes
19
Programmes
OPERATION
•
actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme
are indicative only.

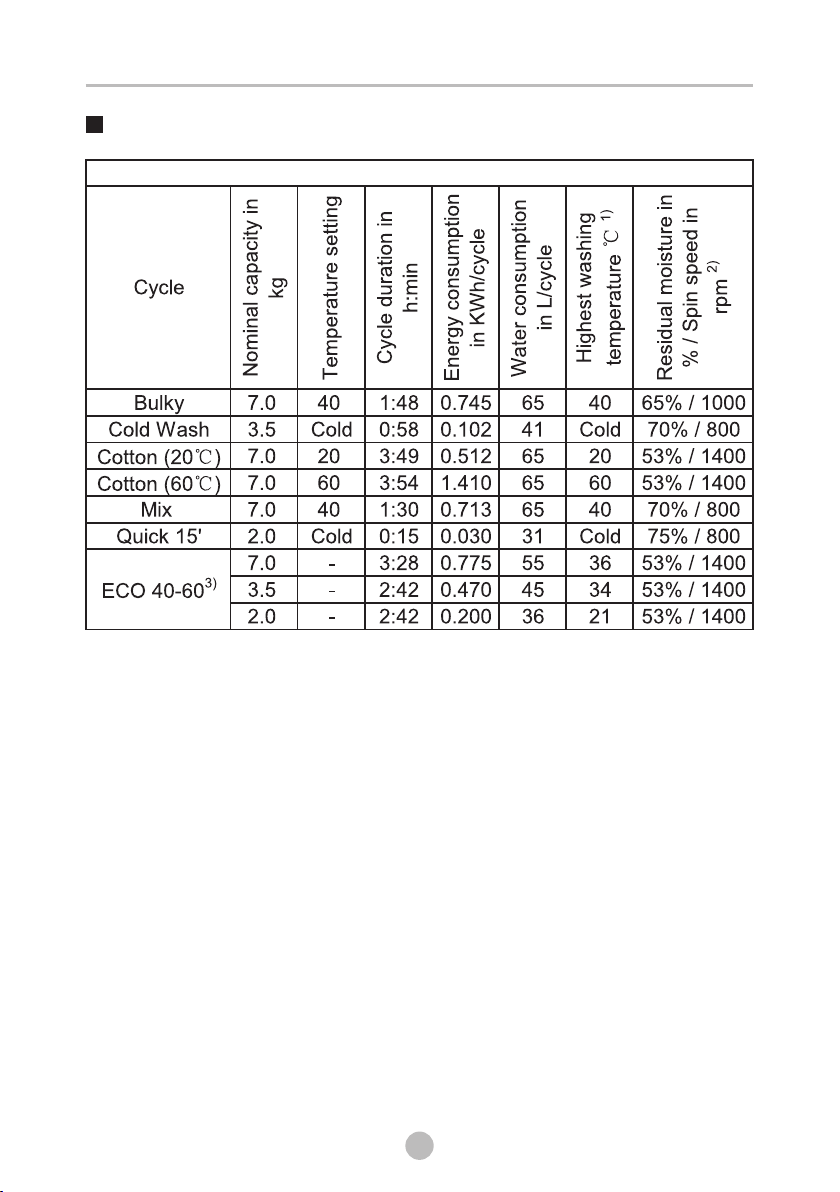

• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023,
The EU energy efficiency class is: B
Energy test program: ECO 40-60. Other as the default.
Half load for 7.0Kg machine:3.5Kg.
Quarter load for 7.0Kg machine:2.0Kg.
The above data is for reference only, and the data may change due to different
20
MF200W70B/E
OPERATION
Programmes
•
actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme
are indicative only.

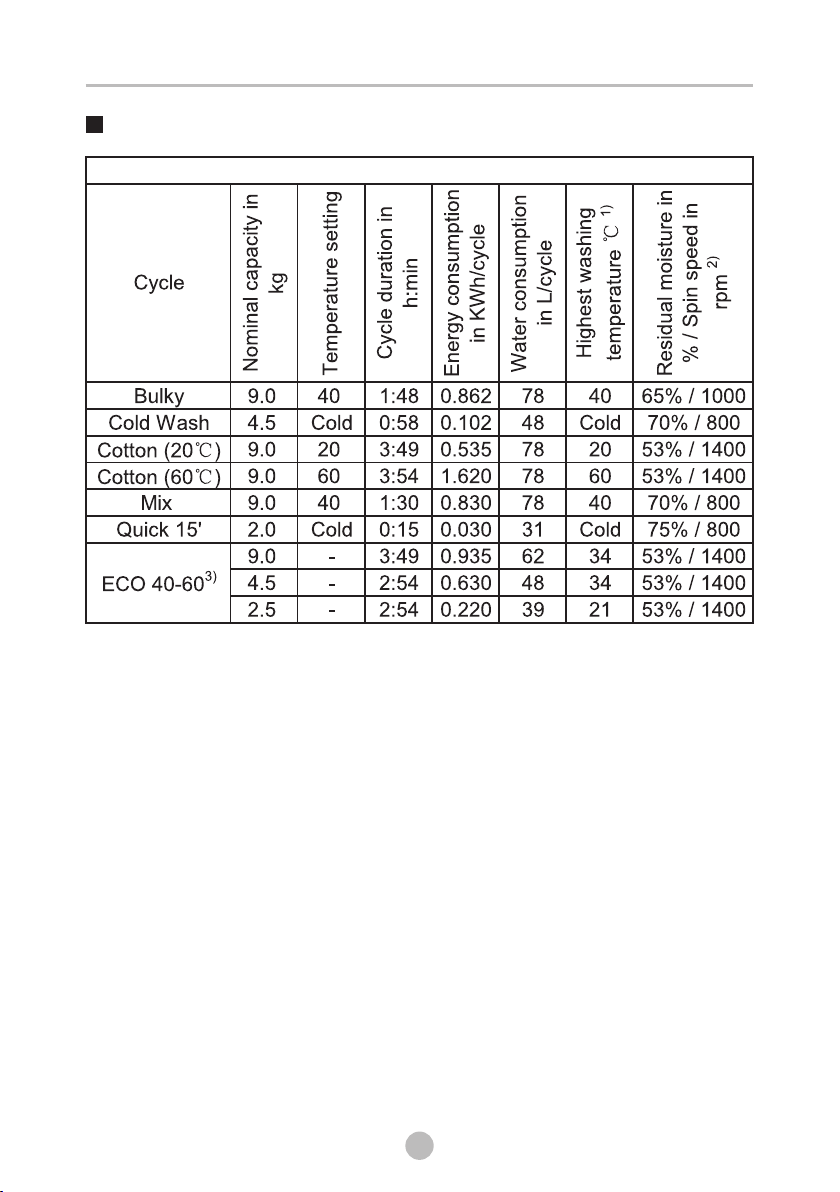

• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023,
The EU energy efficiency class is: B
Energy test program: ECO 40-60. Other as the default.
Half load for 9.0Kg machine:4.5Kg.
Quarter load for 9.0Kg machine:2.5Kg.
The above data is for reference only, and the data may change due to different
21
MF200W90B/E
OPERATION
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme. The machine will continue
the programme when the power supply is re-established.
1) The highest temperature reached by the laundry in the wash cycle for at least 5
minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at
which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to
be washable at 40°C or 60°C, together in the same cycle. This programme is used to
assess the compliance with the regulation (EU) 2019/2023.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
Loading the household washer up to the capacity indicated for the respective
programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the higher
the spinning speed in the spinning phase, the higher the noise and the lower the
remaining moisture content.
22
OPERATION
Programmes
Programmes are available according to the laundry type.
Programmes
Mix
Cotton
Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Mixed load consisting of textiles made of cotton and synthetics.
Wash synthetic articles, for example: shirts, coats, blending.
While washing the knitting textiles, detergent quantity shall be
reduced due to its loose string construction and easily forming
bubbles.
Synthetic
Jeans
Specially for jeans.
Cold Wash
Washing brightly colored clothes, it can protect the colors better.
Allergy Care
This program applies 60℃ high temperature sterilization to make
the clothes washing more clean to achieve the anti-allergy effect.
Steam Care
Steam Care is applicable for daily laundries like cotton and
synthetics. The steam can deeply penetrate the fiber, which
effectively eliminate bacterias and germs, preventing odors and
protecting your health.
Quick 15'
ECO 40-60
Default 40℃,not selectable,suitabale for laundry washing at
about 40℃-60℃.
Extra short programme approx, suitable for lightly soiled
washing as a small amounts of laundry.
Rapid 45'
This programme is suitable for washing not very dirty clothes,
save more energy and washing.
Bulky
This program is specially designed for washing duvet coats.
Wool
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor).
Rinse&Spin
Extra rinse with spin.
Spin Only
Extra spin with selectable spin speed.
Drum Clean Specially set in this machine to clean the drum and tube. It
applys 90 °C high temperature sterilization to make the
clothes washing more green. When this programme is
performed, the clothes or other washing cannot be added.
When proper amount of chlorine bleaching agent is put in,
the barrel cleaning effect will be better. The customer can use
this programme regularly according to the need.
23
OPERATION
Options
Temp.
When needed, the washing temperature can be adjusted by pressing the temperature
button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.
Cold
40
--
40
40
--
--
40
60
Cold
60
40
40
40
90
1400
Quick 15’
Rapid 45’
ECO 40-60
Bulky
Wool
Rinse & Spin
Spin Only
Steam Care
Allergy Care
Cold Wash
Jeans
Synthetic
Mix
Cotton
Drum Clean
800
800
1400
1000
600
1000
1000
800
800
800
1000
1200
800
1400
--
Default
Temp.(℃)
Default spin
speed in rpm
For the maximum spin speed, program time, and other details of the
ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an
adjustment is not possible for a cycle.
•
Note!
24
OPERATION
Spin Speed
When needed, the spinning speed can be adjusted pressing the Speed button in the
following steps: 1400：0-400-600-800-1000-1200-1400
Speed
Delay
2.Press the Delay button to choose the delaying time 0-24h
3.Press [Start/Pause] to start the delay operation
1. Select a programme
Choose programme
StartSetting time
Delay
To cancel the Delay function, press the “Delay” button before starting the program
until the display shows 0 h. If the program has already started, switch the appliance
off and afterwards on and select a new programme.
Turbo
The function can decrease the washing time.
Reload
This operation can be executed during the washing progress. When the drum is
still rolling and there is large amount of water with high temperature in the drum.
The state is unsafe and the door cannot be opened forcefully. To Press
[3s for Reload]3sec. to reload, and start the clothes adding in the midway
function. Please follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.
Start
Press[3s for Reload]3sec.
Clothes
Reload the clothes
Pre Wash
Extra washing function before the main washing cycle starts to increase the washing
performance.
Note: Detergent needs to be added to the compartment I.
Extra Rinse
The laundry will undergo an extra rinse after selecting this function.
25
OPERATION
When the Child Lock is activated, the display will alternately show “CL” and the
remaining time.
Pressing any other button will cause the Child Lock indicator to flash for 3 sec.
When the program ends, “CL” and “END” will alternate on the display for 10 sec,
then the indicator will flash for 3 sec.
The Child Lock deactivates the function of all buttons except the On/Off button and
the Child lock button!
Only the simultaneous pressing of the button [3s for Child Lock] can
deactivate the Child Lock!
Please deactivate the Child Lock before selecting a new program!
Caution!
Child Lock
This function is meant to keep children from misusing the controls.
AutoClean
The self-clean function will be automatically activated during every
washing cycle. Hygiene Pro system will keep your laundry always clean.
Environmentally save time and ease your laundry.
Water Level
Press the button to change the water level : AU/L-1/L-2/L-3/L-4
Press [ ] simultaneously for 3 sec
until the buzzer beep. The child lock indicator switches on.
3s for Child Lock
SteamCare
SteamCare is the function added before main wash, which will generate warm
steam to sterilization and greater washing performance especially for cold wash.
Some programs have automatically added AutoClean or SteamCare functions,
these two functions can’t be manually selected or canceled.
Caution!
26
• Always unplug the appliance and close the water tap before cleaning and
maintenance.
Cleaning the Cabinet
Cleaning the Drum
• Keep any laundry away from the machine while cleaning the drum.
Cleaning the Door Seal and Glass
Warning!
！
Note!
Cleaning and Care
Any rust stains left inside the drum by metal articles must be removed immediately
using chlorine-free detergents. Never use steel wool for cleaning the drum!
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use a cloth to wipe it off immediately.
Never use sharp items to clean the appliance.
MAINTENANCE
Caution!
• Never use abrasive or caustic agents. formic acids or its diluted solvents or
similar substances, like alcohol or chemical products.
Wipe the glass and seal after each wash
to remove lint and stains. If lint builds up it
can cause leakages.
Remove any coins, buttons and other objects
from the seal after each wash.
Clean the Door Seal and Glass every month to
ensure the normal operation of the appliance.
27
MAINTENANCE
1. Close the tap and remove the water supply
hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the
backside of the machine. Pull out the filter
with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and
reconnect the water supply hose.
6. Clean the Inlet filter every 3 months
to ensure the normal operation of the
appliance.
Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter need to be cleaned.
Note!
Clean The Detergent Dispenser
• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the
appliance.
Press the release and
remove the dispenser
drawer
Clean the dispenser
drawer and the softener
cover under water
Clean the recess with
an soft brush
Insert the dispenser
drawer
Note!
1. Press down the release [ ] on the softener cover and pull the dispenser
drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.
1
3
4
2
1 2
3 4
28
MAINTENANCE
Cleaning the Drain Pump Filter
• Make sure emergency drain hose cap and the emergency drain hose are reinstalled
properly, otherwise water may leak.
•
and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the
appliance.
Make sure that the machine has finished the washing cycle and is empty. Switch it off
Warning!
Caution!
1
2
3
6
Emergency
drain hose
5
4
Filter cap
Open the lower cover cap
Pull out the emergency drain
hose, and take off the hose cap
Open the filter by turning
to the counter clockwise
Remove extraneous matter
Close the lower cover cap
After water runs out,reset
the drain hose
29
MAINTENANCE
1.Open filter door
Emergency door pull cord
2.Useing a straght screwdriver
(or other non-sharp tool),
insert into the emergency door pull cord
Emergency Door Release
In case of power failure or other circumstances and door cannot be opened. If it is
necessary to open the door under this circumstances, please pull down the pull cord
inside emergency door and restore the pull cord after opening the door.
The machine is not allowed to use the emergency switch pull cord during
washing. If need to run machine urgently, it is recommended to open door
after water is cooled, to avoid getting burn caused by high temperature
residual water outflow from the machine tub.
Warning!
！
3.Pull down the emergency door pull cord
(refer to direction of the arrow in the picture).
If unlocked successfully, you will find the door
lock icon will go out.
30
Description
Possible cause
Solution
Check if the water pressure
is high enough.
Straighten the water pipe.
Clean the inlet valve filter.
Check the drain hose for blockage.
Water injecting
problem during
wash cycle.
Overtime water draining
Restart the appliance. If problem
persists, please contact the
customer service.
Others
Water overflow
Restart the appliance.
Close the door properly and
restart.
Door is not closed properly
Trouble Shooting
Whenever there is a problem with the appliance, check if you can solve it following
the tables below. If the problem persists, please contact the customer service.
Description
Possible cause
Solution
Close the door properly and
restart.
Check the laundry.
Door is not closed properly.
Clothes are stuck.
Safety protection
is activated.
Disconnect the power and
restart.
Water leakage
Connections are
not tight enough.
Check and fasten the water inlet
pipe.
Check and clean the outlet hose.
Clean and wipe the detergent
dispenser dry.
Abnormal noise
Check if the fixing bolts have
been removed
Make sure the appliance is
installed on a solid and level
floor.
Indicator or display
does not work
PC board or harness have
connection problems.
Switch off the power and check
if the mains plug is connected
properly.
Appliance does
not start
Detergent residues
in the detergent
dispenser
Detergent is damp
and/or clotted.
MAINTENANCE
Door can´t be
opened
Fixing bolts still in place.
Floor is not solid or level.
Error Codes
31
MAINTENANCE
Technical Specifications
MAX.Current
Standard Water Pressure
10A
0.05MPa~1MPa
Power Supply
220-240V~,50Hz
H
W
D
Customer service
In case of questions please contact our customer service at:
Risk of electric shock
• Never try repair an appliance which is defective of presumed to be defective.
You may put your own and future users' lives in danger.Only authorised specialists are
allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!
Warning!
！
Spare part for your appliance are available for a minimum of 10 years.
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see “Maintenance Cleaning the
drain pump filter”)
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door cannot be used as a handle.
Unplug the appliance and close the water inlet tap.
Dimension
(W*D*Hmm)
Rated Power
Net Weight
Washing Capacity
Model
MF200W70B/E
7.0kg
595*495*850
2000W
60kg
MF200W90B/E
9.0kg
595*565*850
2000W
71kg
32
Product Information Sheet acc. regulation (EU) 2019/2023
MF200W70B/E
36
34
1400
1400
1400
76
7.0
0.516 45
21
53
53
53
B
3 28：
2 42：
2：42
59.9
B
B
60
50
N/A
N/A
MAINTENANCE
Product Fiche
33
MF200W90B/E
34
34
1400
1400
1400
76
9.0
0.570 49
21
53
53
53
B
3 48：
2 54：
2：54
59.9
B
B
60
57
N/A
N/A
MAINTENANCE
Product Information Sheet acc. regulation (EU) 2019/2023
34
1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the
hardness of the water.
3)Delivery of the spare parts within 15 working days after having received the order.
Product Data Sheet concerning (EU) 2019/2014
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to
download the data sheet.
The model identifier for your appliance can be found in the technical specifications
section.
MAINTENANCE
35
