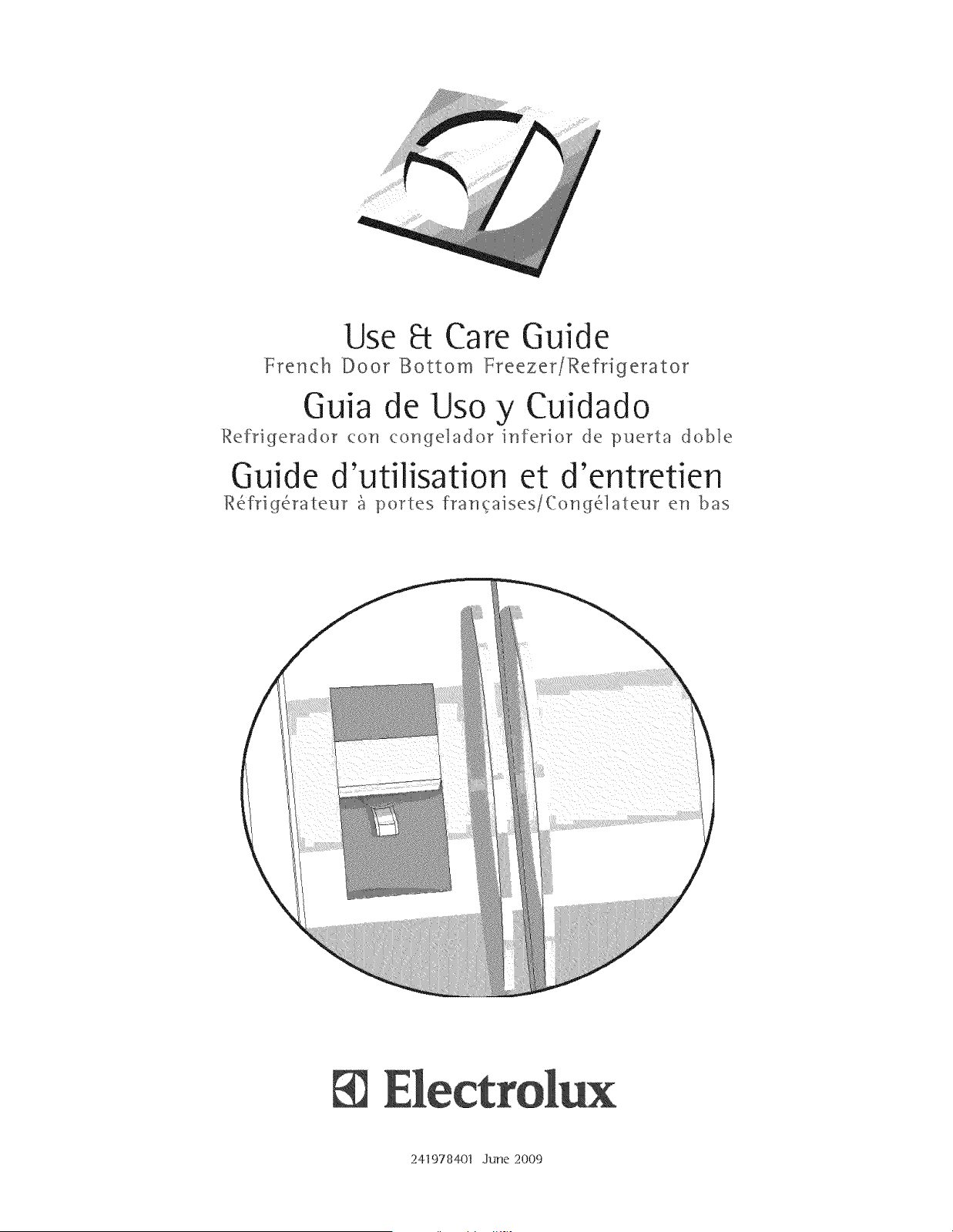

Electrolux E23BC78IPS6 refrigerator User Manual

Use a Care Guide

Frer_ch Door Bottom Freezer/Refrigerator

Guia de Uso y Cuidado

Refrigerador (o_ cor_gelador ir_fefior de puerta doble

Guide d'utilisation et d'entretien

R_ffig_rateur i_portes fran{:aisesiCor_g{qa_eur er_ bas

241978401 June 2009

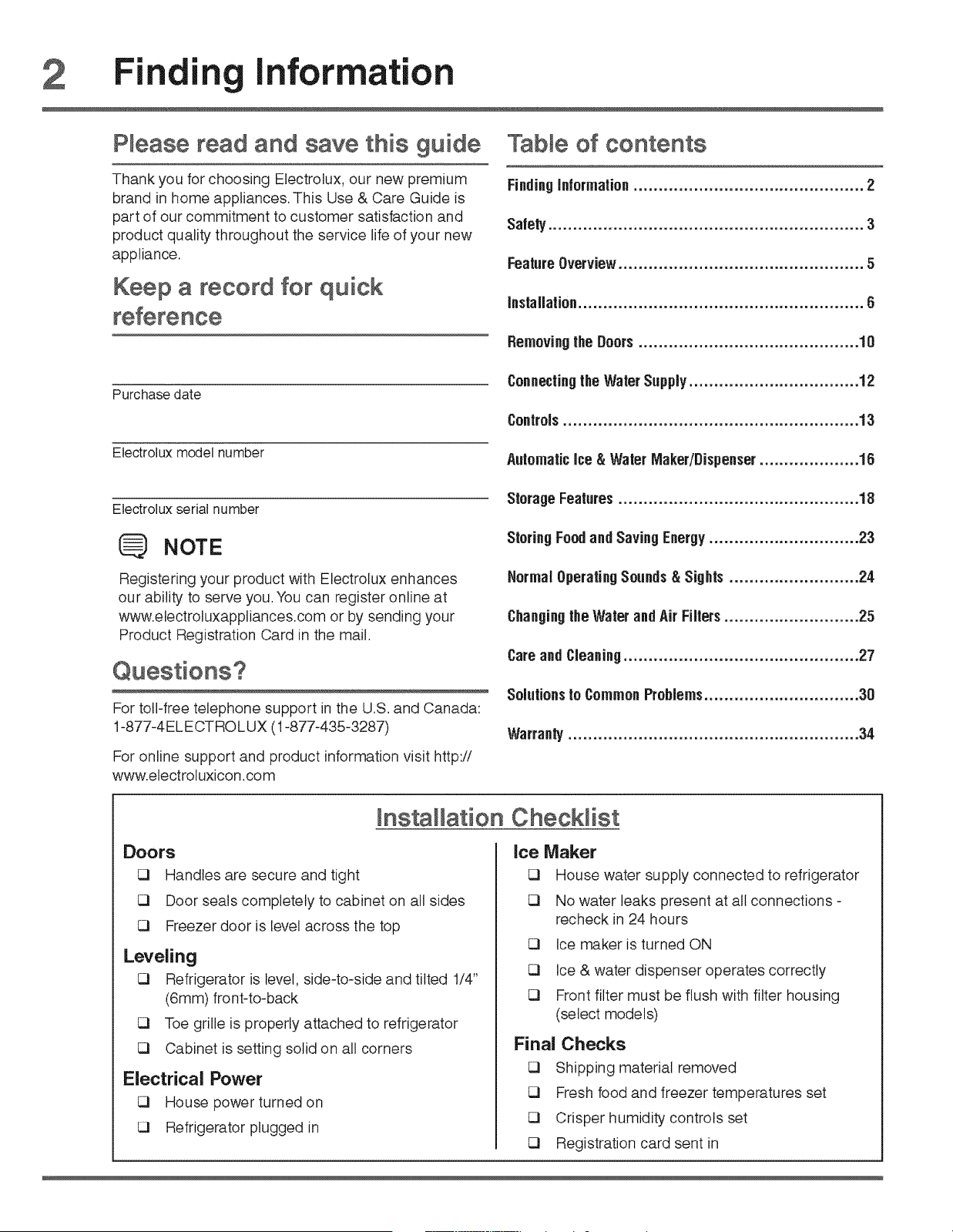

2 Finding information

P_ease read and save this 9uide

Thank you for choosing Electrolux, our new premium

brand in home appliances.This Use & Care Guide is

part of our commitment to customer satisfaction and

product quality throughout the service life of your new

appliance.

Keep a record for quick

TabJe of contents

FindingInformation .............................................. 2

Salely ............................................................... 3

FeatureOverview ................................................. 5

installation......................................................... G

Removingthe Doors............................................ 10

Purchase date

Etectrolux model number

Electrolux serial number

Connectingthe WaterSupply .................................. 12

Controls........................................................... 13

AutomaticIce & Water Maker/Dispenser.................... 1G

NOTE

Registering your product with Electrolux enhances

our ability to serve you. You can register online at

www.electroluxappliances.com or by sending your

Product Registration Card in the mail.

Storage Features ................................................ 18

Storing Food and Saving Energy.............................. 23

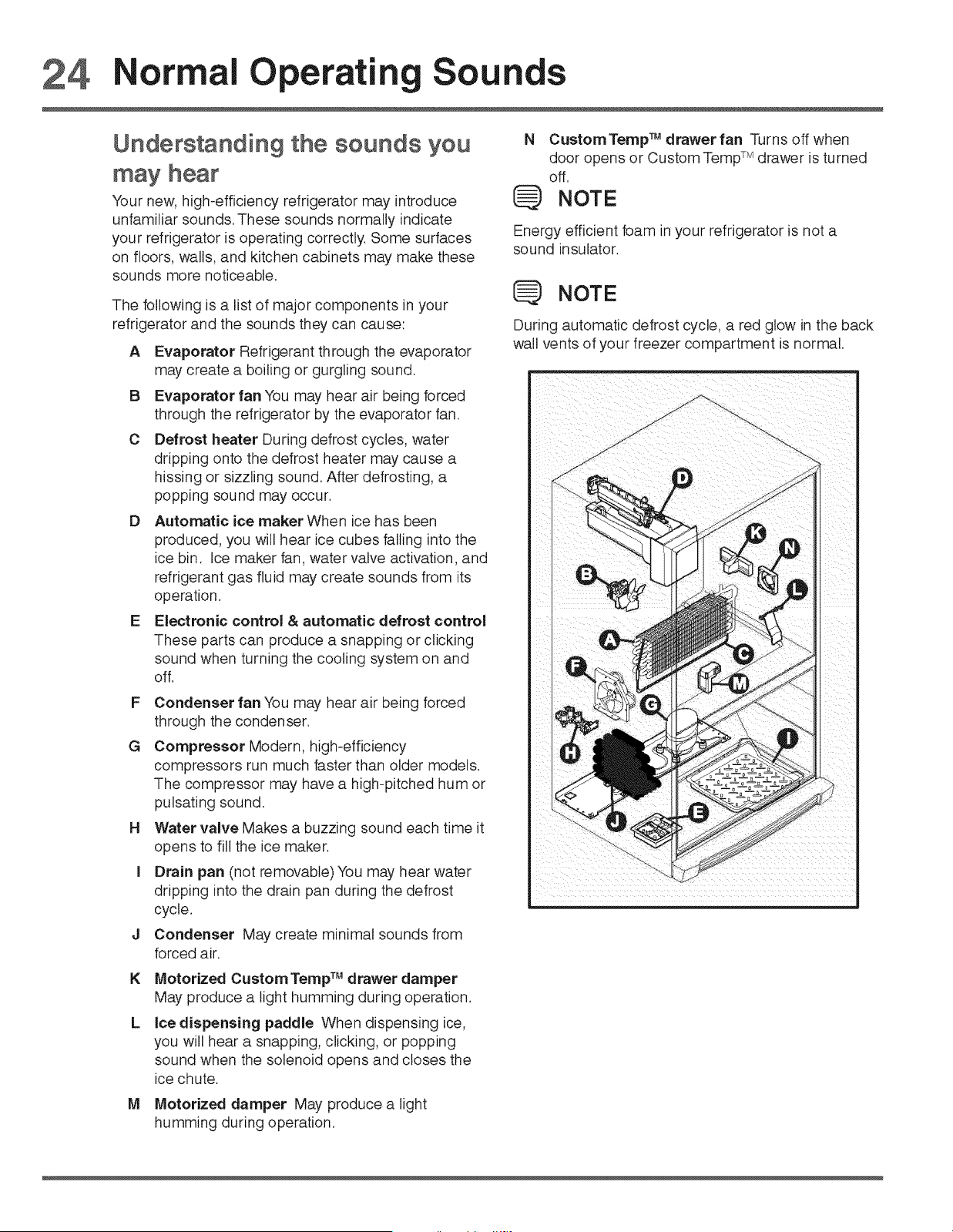

Normal Operating Sounds & Sights .......................... 24

Changingthe Water andAir Filters ........................... 25

Careand Cleaning............................................... 27

For toll-free telephone support in the U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and product information visit http:/i

www.electroluxicon.com

Solutions to CommonProblems............................... 30

Warranty.......................................................... 34

Jnsta_mation Checklist

Doors

[] Handles are secure and tight

rq Door seals completely to cabinet on all sides

[] Freezer door is level across the top

Leveling

[] Refrigerator is level, side-to-side and tilted 1/4"

(Cmm) front-to-back

13 Toe grille is properly attached to refrigerator

[] Cabinet is setting solid on all corners

Electrical Power

83 House power turned on

[] Refrigerator plugged in

Ice Maker

[:3 House water supply connected to refrigerator

[:3 No water leaks present at all connections -

recheck in 24 hours

[] Ice maker is turned ON

[] Ice & water dispenser operates correctly

[] Front filter must be flush with filter housing

(select models)

Final Checks

[] Shipping material removed

[] Fresh food and freezer temperatures set

[] Crisper humidity controls set

[] Registration card sent in

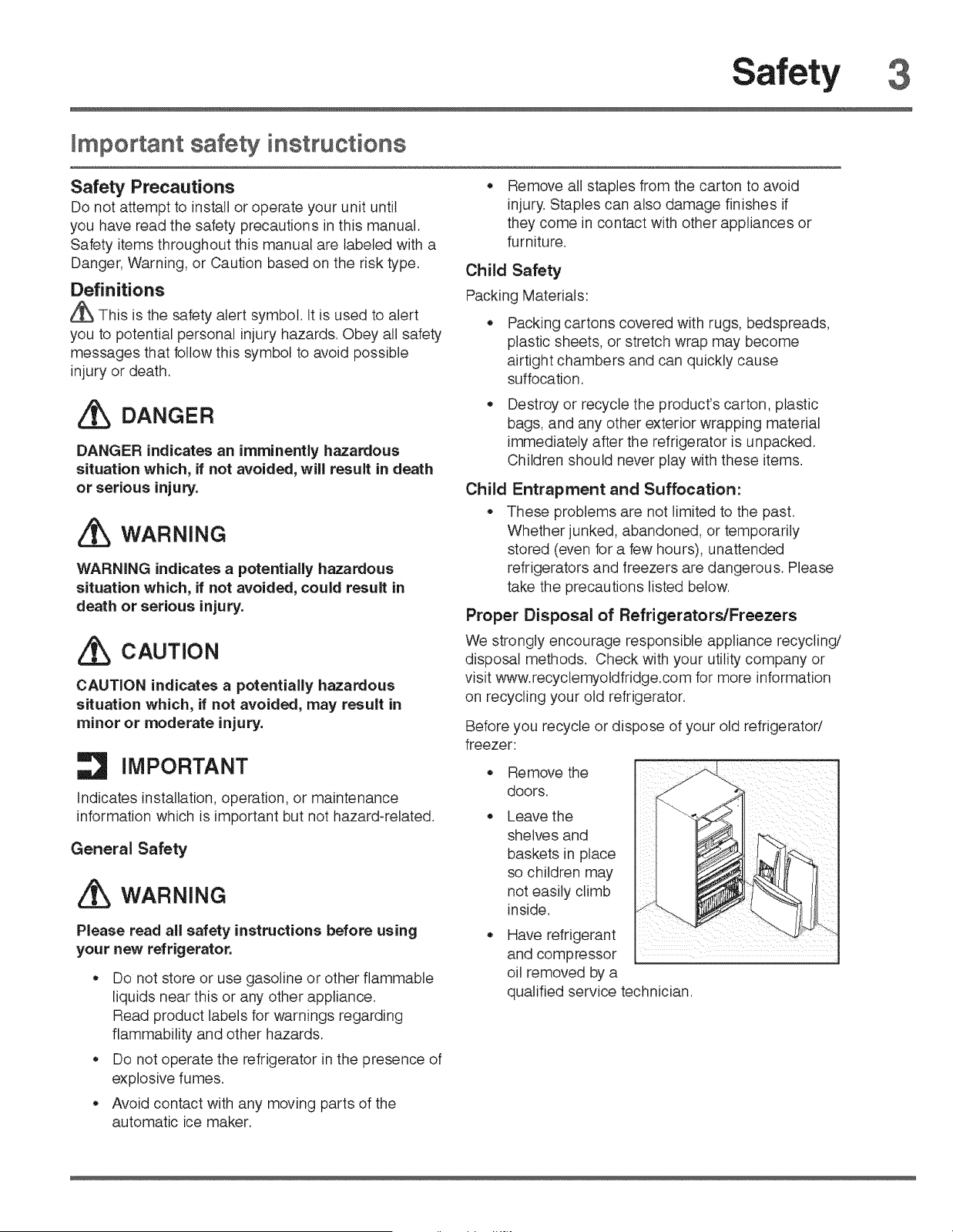

Safety 3

Important safety instructions

Safety Precautions

Do not attempt to install or operate your unit until

you have read the safety precautions in this manual.

Safety items throughout this manual are labeled with a

Danger, Warning, or Caution based on the risk type.

Definitions

_This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible

injury or death.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

IMPORTANT

Indicates installation, operation, or maintenance

information which is important but not hazard-related.

General Safety

WARNING

Please read all safety instructions before using

your new refrigerator.

,, Do not store or use gasoline or other flammable

liquids near this or any other appliance.

Read product labels for 'warnings regarding

flammability and other hazards.

• Do not operate the refrigerator in the presence of

explosive fumes.

,, Avoid contact with any moving parts of the

automatic ice maker.

Remove all staples from the carton to avoid

injury. Staples can also damage finishes if

they come in contact with other appliances or

furniture.

Child Safety

Packing Materials:

Packing cartons covered with rugs, bedspreads,

plastic sheets, or stretch wrap may become

airtight chambers and can quickly cause

suffocation.

Destroy or recycle the product's carton, plastic

bags, and any other exterior wrapping material

immediately after the refrigerator is unpacked.

Children should never play with these items.

Child Entrapment and Suffocation:

. These problems are not limited to the past.

Whether junked, abandoned, or temporarily

stored (even for a few hours), unattended

refrigerators and freezers are dangerous. Please

take the precautions listed below.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling/

disposal methods. Check with your utility, company or

visit www.recyctemyoldfridge.com for more information

on recycling your old refrigerator.

Before you recycle or dispose of your old refrigerator/

freezer:

Remove the

doors.

Leave the

shelves and

baskets in place

so children may

not easily climb

inside.

Have refrigerant

and compressor

oil removed by a

qualified service technician.

4 Safety

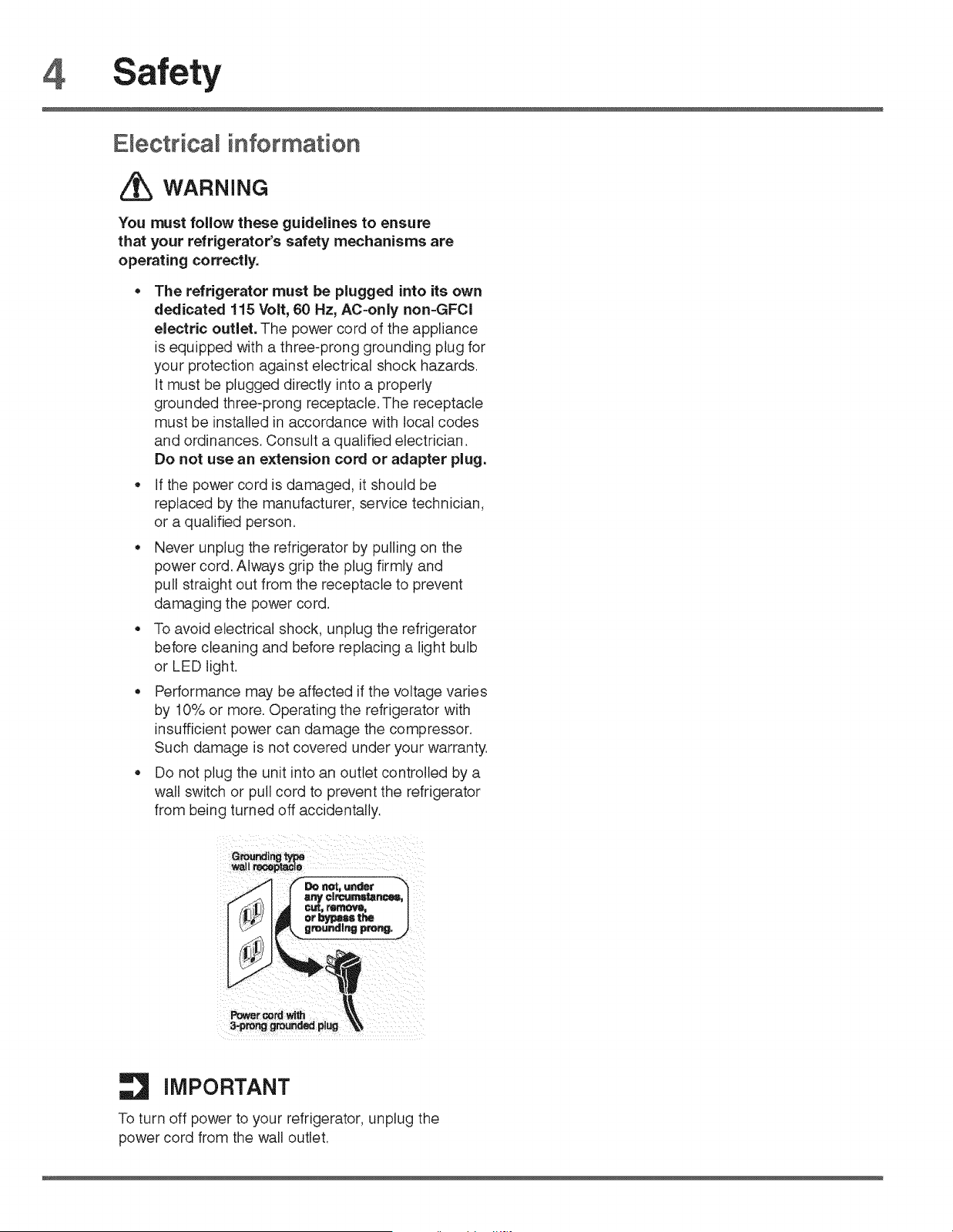

Emectdcal information

WARNING

You must follow these guidelines to ensure

that your refrigerator's safety mechanisms are

operating correctly,

. The refrigerator must be plugged into its own

dedicated 115 Volt, 60 Hz, AC-only non=GFCl

electric outlet. The power cord of the appliance

is equipped with a three-prong grounding plug for

your protection against electrical shock hazards.

It must be plugged directly into a properly

grounded three-prong receptacle. The receptacle

must be installed in accordance with local codes

and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

o If the power cord is damaged, it should be

replaced by the manufacturer, service technician,

or a qualified person.

• Never unplug the refrigerator by pulling on the

power cord. Always grip the plug firmly and

pull straight out from the receptacle to prevent

damaging the power cord.

• To avoid electrical shock, unplug the refrigerator

before cleaning and before replacing a light bulb

or LED light.

o Performance may be affected if the voltage varies

by 10% or more. Operating the refrigerator with

insufficient power can damage the compressor.

Such damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a

walt switch or pull cord to prevent the refrigerator

from being turned off accidentally.

Grounding

wall reeeptac e

| IMPORTANT

To turn off power to your refrigerator, unplug the

power cord from the wall outlet.

Feature Overview 5

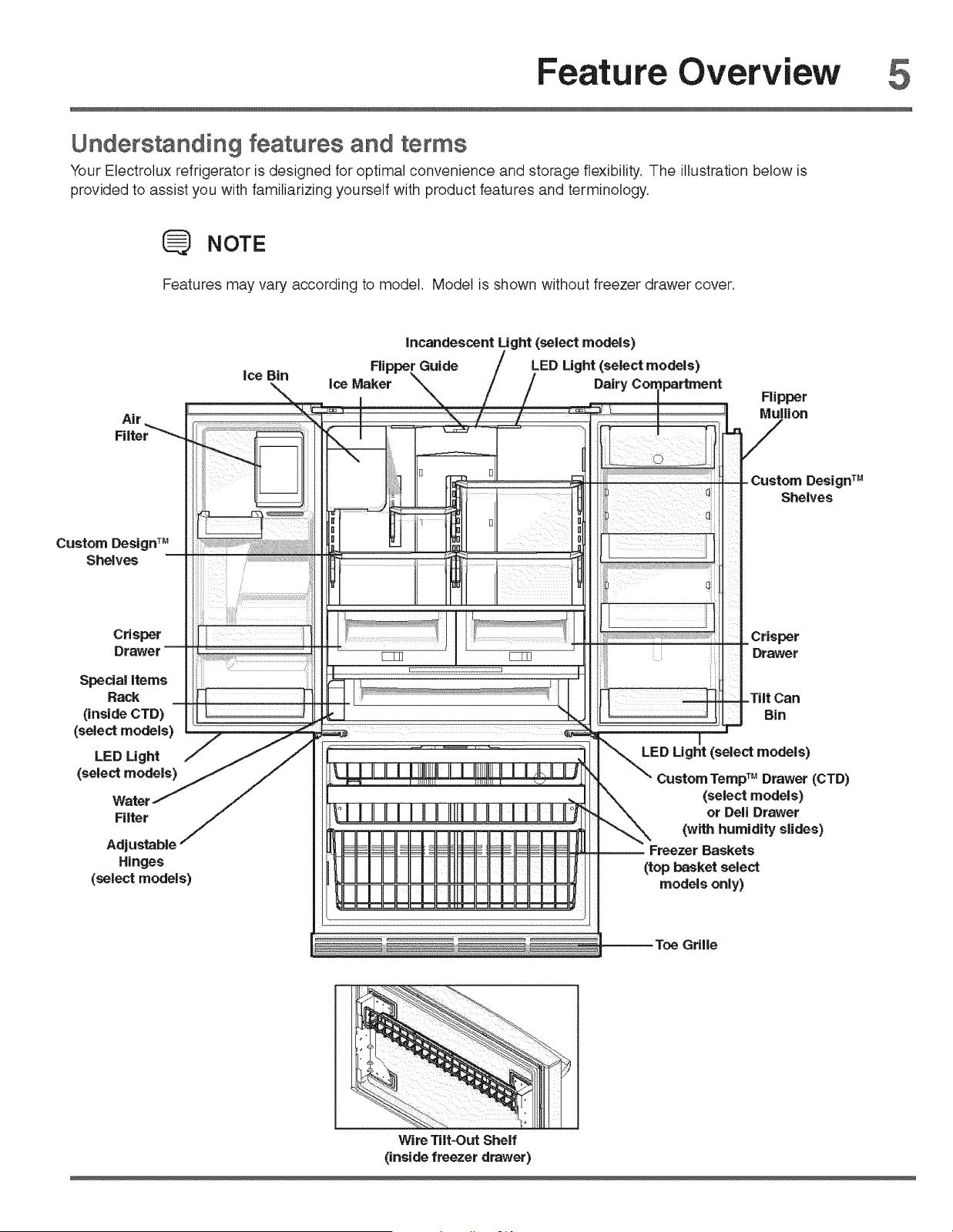

Understanding features and terms

Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. The illustration below is

provided to assist you with familiarizing yourself with product features and terminology,

NOTE

Features may vary according to model,

Model is shown without freezer drawer cover.

Custom Design TM

Shelves

Crisper

Drawer --

Special Items

Rack

(inside CTD)

(select models)

LED Light

(select models)

Watel

Filter

Adjustable

Hinges

(select models)

Ice Bin

Incandescent Light (select models)

Flipper Guide LED Light(select models)

Ice Maker Dairy

Flipper

Mullion

[:1

[]

Crisper

Drawer

Tilt Can

Bin

LED Light (select models)

Custom DesignTM

Shelves

Custom TempTM Drawer (CTD)

(select models)

or Dell Drawer

(with humidity slides)

Freezer Baskets

(top basket select

models only)

Grille

I1:_'b,

Wire Tilt-Out Shelf

(inside freezer drawer)

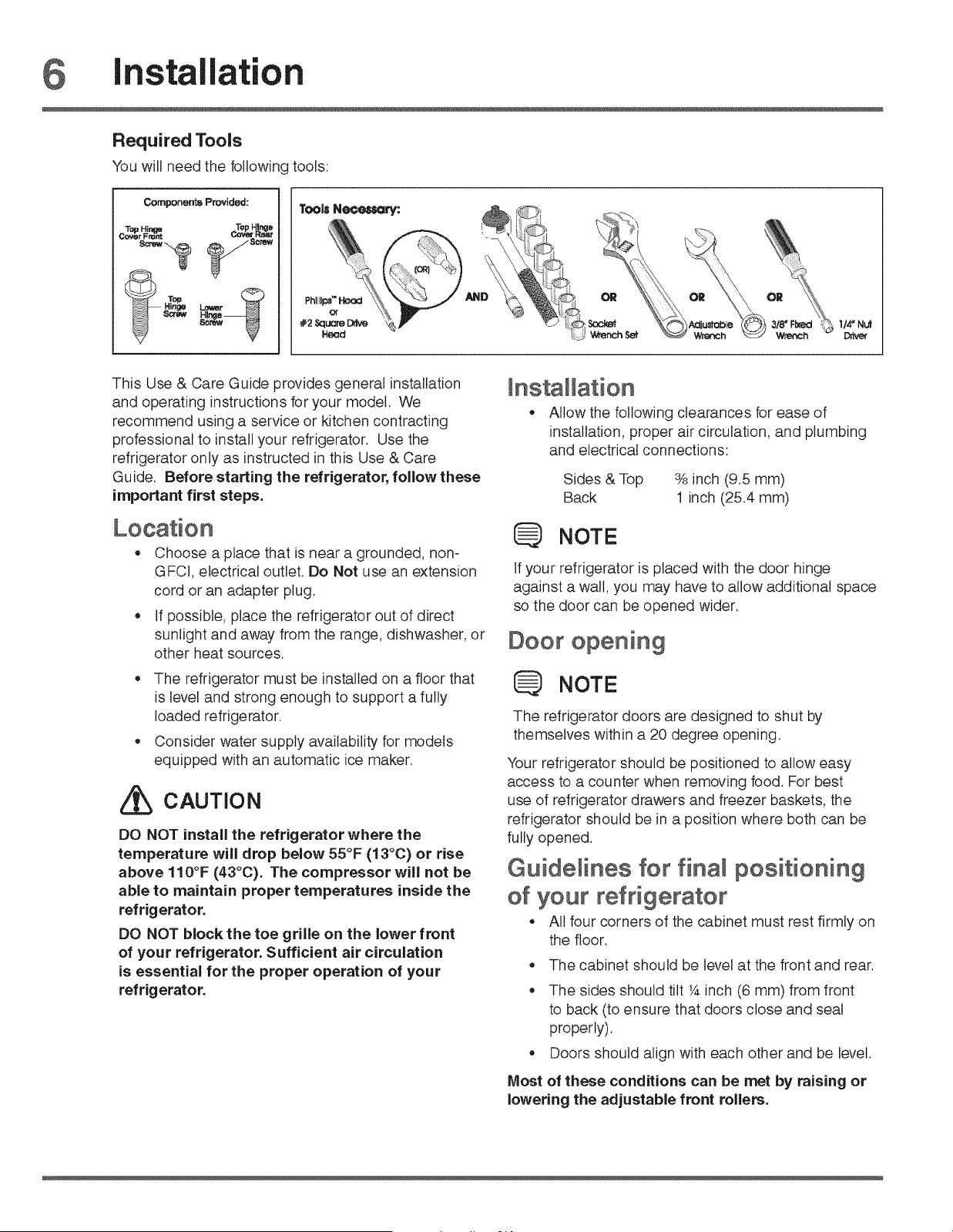

installation

Required Tools

You will need the following tools:

Components Provided."

Top Hi_ _ToP Ht_

Cover Fro_

$ctew _ _ Screw

ToolsN_n/:

114" Nut

Driv_

This Use & Care Guide provides general installation

and operating instructionsfor your model. We

recommend using a service or kitchen contracting

professional to install your refrigerator. Use the

refrigerator only as instructed in this Use & Care

Guide. Before starting the refrigerator, follow these

important first steps.

,, Choose a place that is near a grounded, non-

GFCI, electrical outlet. Do Not use an extension

cord or an adapter plug.

• If possible, place the refrigerator out of direct

sunlight and away from the range, dishwasher, or

other heat sources.

,, The refrigerator must be installed on a floor that

is level and strong enough to support a fully

loaded refrigerator.

,, Consider water supply availability for models

equipped with an automatic ice maker.

CAUTION

DO NOT install the refrigerator where the

temperature will drop below 55°F (13°O) or rise

above 110°F (43°C). The compressor will not be

able to maintain proper temperatures inside the

refrigerator,

DO NOT block the toe grille on the lower front

of your refrigerator. Sufficient air circulation

is essential for the proper operation of your

refrigerator.

Installation

,, Allow the following clearances for ease of

installation, proper air circulation, and plumbing

and electrical connections:

Sides & Top ¾ inch (9.5 mm)

Back 1 inch (25.4 mm)

NOTE

If your refrigerator is placed with the door hinge

against a wall, you may have to allow additional space

so the door can be opened wider.

Door opening

NOTE

The refrigerator doors are designed to shut by

themselves within a 20 degree opening.

Your refrigerator should be positioned to aitow easy

access to a counter when removing food. For best

use of refrigerator drawers and freezer baskets, the

refrigerator should be in a position where both can be

fully opened.

Guidelines for final positioning

of your refrigerator

* All four corners of the cabinet must rest firmly on

the floor.

The cabinet should be level at the front and rear.

The sides should tilt ¼ inch (6 mm) from front

to back (to ensure that doors close and seal

properly).

Doors should align with each other and be level.

Most of these conditions can be met by raising or

lowering the adjustable front rollers.

installation 7

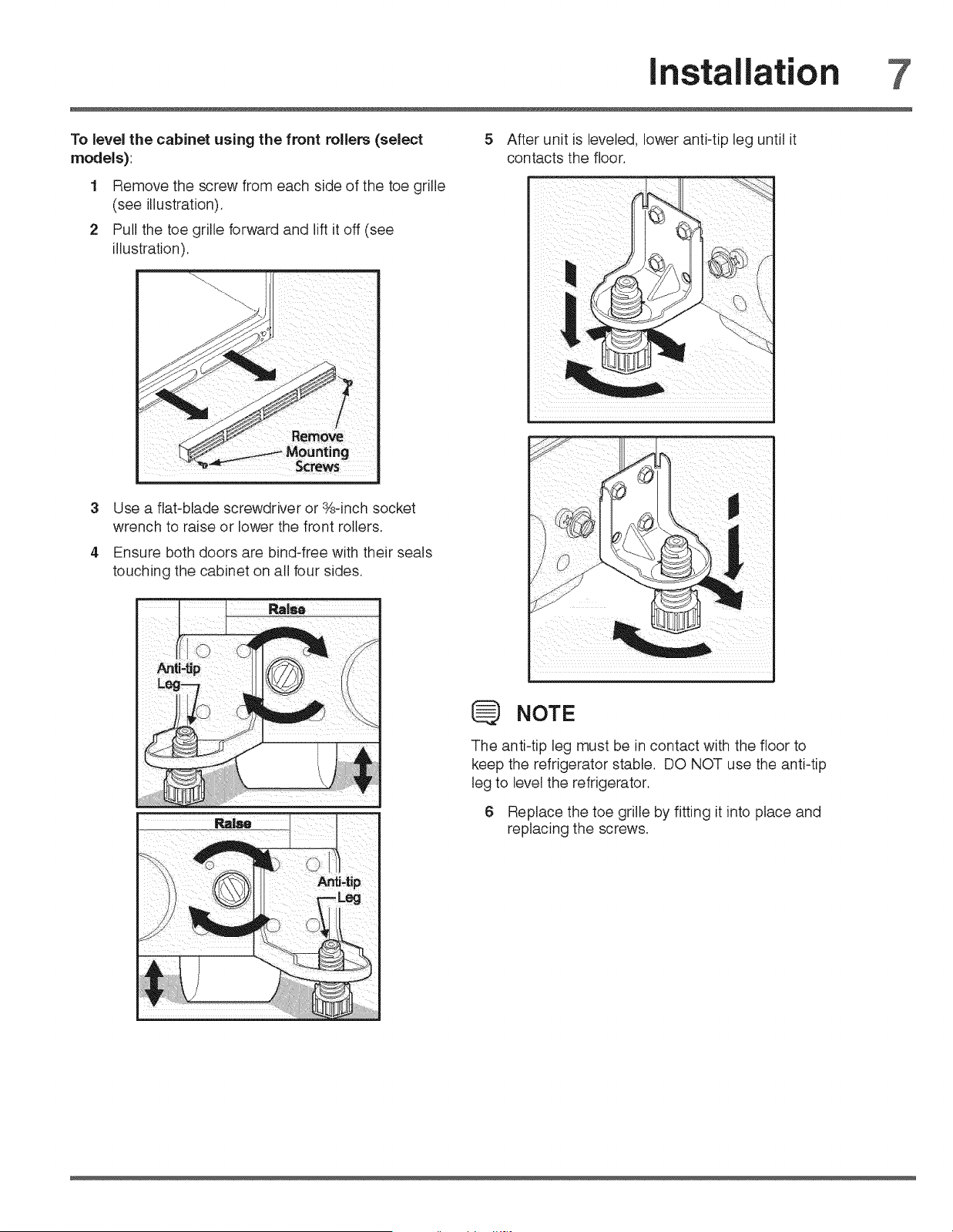

To level the cabinet using the front rollers (select

models):

1 Remove the screw from each side of the toe grille

(see illustration),

2 Pull the toe grille forward and lift it off (see

illustration),

After unit is leveled, lower anti-tip leg until it

contacts the floor,

Use a flat-blade screwdriver or ¾-inch socket

wrench to raise or lower the front rollers,

Ensure both doors are bind-free with their seals

touching the cabinet on all four sides,

NOTE

The anti-tip leg must be in contact with the floor to

keep the refrigerator stable. DO NOT use the anti-tip

leg to level the refrigerator,

6 Replace the toe grille by fitting it into place and

replacing the screws,

installation

To adjust the door stop:

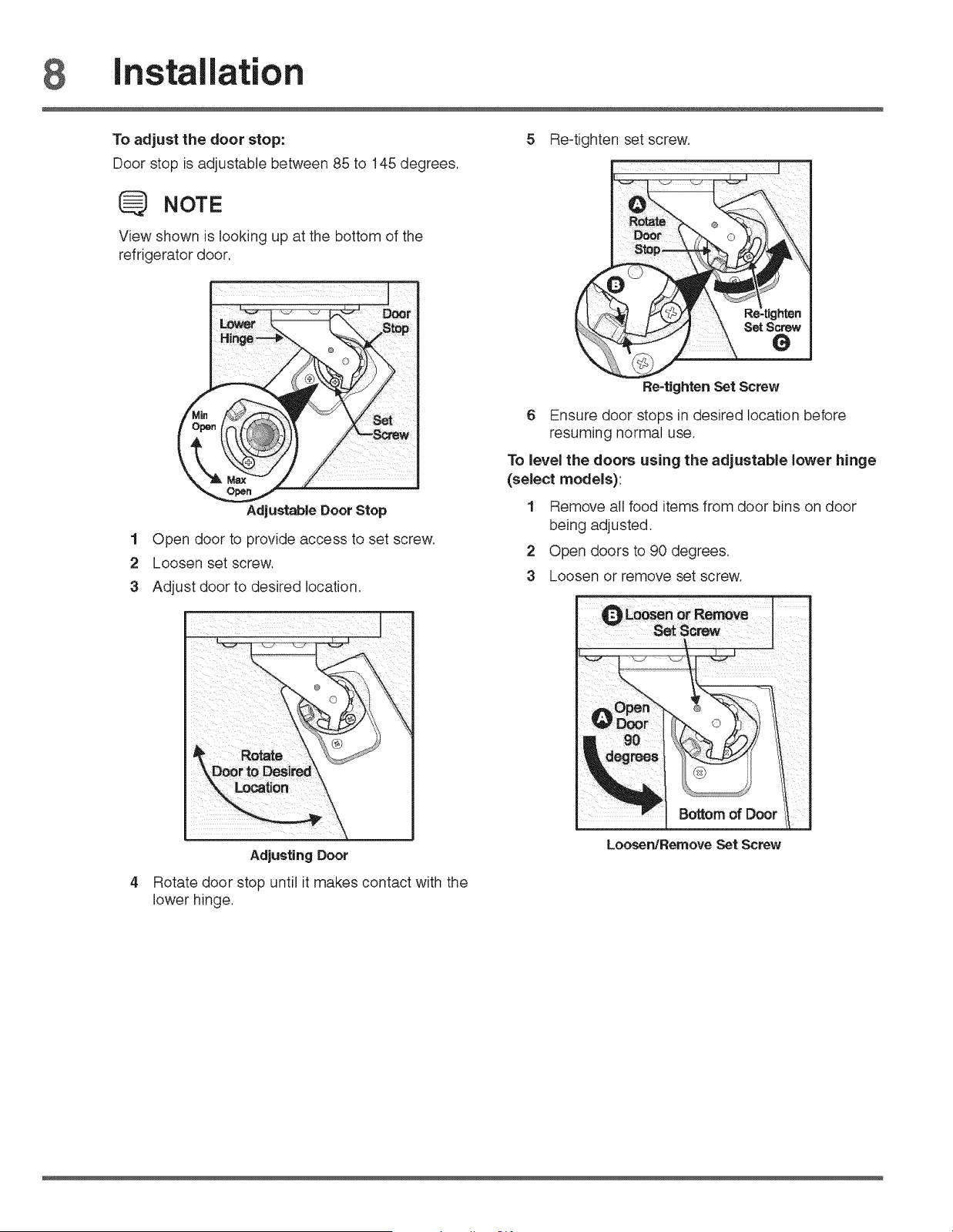

Door stop is adjustable between 85 to 145 degrees.

NOTE

View shown is looking up at the bottom of the

refrigerator door,

Adjustable Door Stop

1 Open door to provide access to set screw.

2 Loosen set screw.

3 Adjust door to desired location,

5 Re-tighten set screw.

SetScrew

Re-tighten Set Screw

6 Ensure door stops in desired location before

resuming normal use.

To level the doors using the adjustable lower hinge

(select models):

1 Remove all food items from door bins on door

being adjusted.

2 Open doors to 90 degrees.

3 Loosen or remove set screw.

Adjusting Door

Rotate door stop until it makes contact with the

lower hinge.

Bottom of Door

Loosen/Remove Set Screw

installation 9

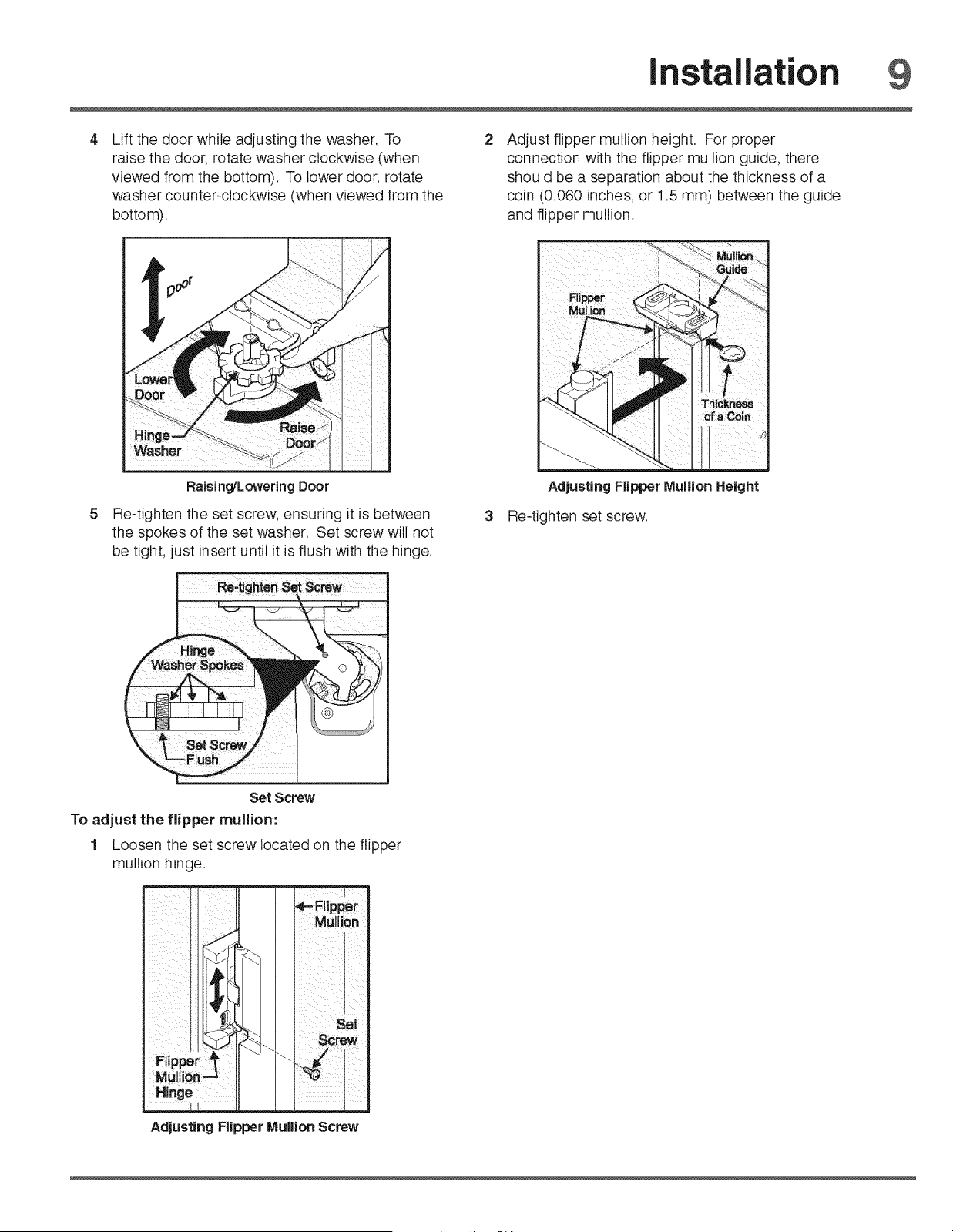

Lift the door while adjusting the washer. To

raise the door, rotate washer clockwise (when

viewed from the bottom). To lower door, rotate

washer counter_clockwise 'when viewed from the

bottom).

Raising/Lowering Door

Adjust flipper mullion height. For proper

connection with the flipper mullion guide, there

should be a separation about the thickness of a

coin (0.060 inches, or 1.5 mm) between the guide

and flipper mullion.

5 Re-tighten the set screw, ensuring it is between

the spokes of the set washer. Set screw will not

be tight, just insert until it is flush with the hinge.

Adjusting Flipper Mullion Height

3 Re-tighten set screw.

Set Screw

To adjust the flipper mullion:

1 Loosen the set screw located on the flipper

mullion hinge.

_Flipper

_ _ Mullion

Set

Mullion

Adjusting Flipper Mullion Screw

Removing e Doors

Getting through narrow spaces

if your refrigerator will not fit through an entrance area,

you can remove the doors. Check first by measuring the

entrance.

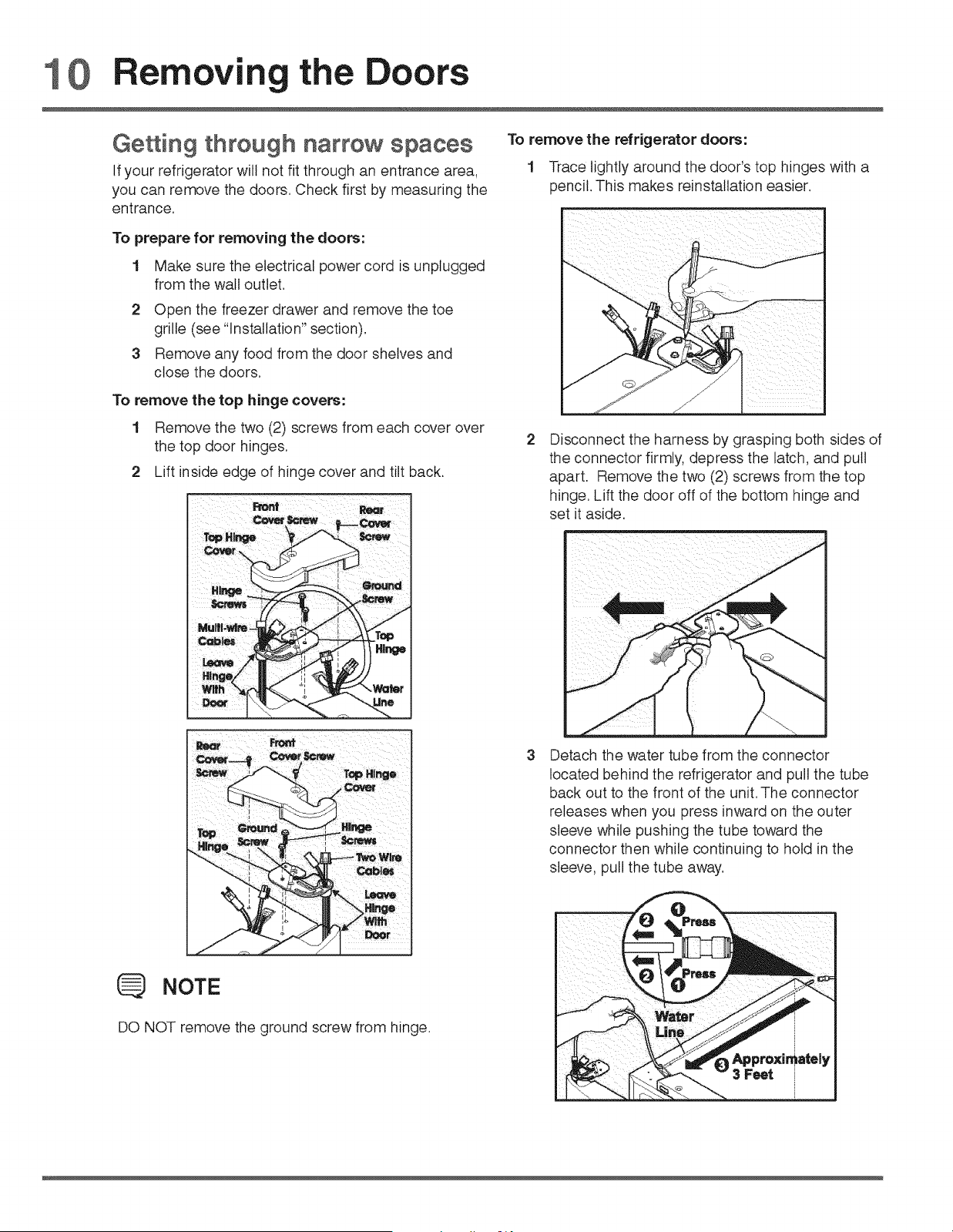

To remove the refrigerator doors:

1 Trace lightly around the door's top hinges with a

pencil. This makes reinstallation easier.

To prepare for removing the doors:

Make sure the electrical power cord is unplugged

from the wall outlet.

2 Open the freezer drawer and remove the toe

grille (see "1nstallation" section).

3 Remove any food from the door shelves and

close the doors.

To remove the top hinge covers:

1 Remove the two (2) screws from each cover over

the top door hinges,

2 Lift inside edge of hinge cover and tilt back.

Mulll-v_

I scr_ jzF'--....f

I "%_b _"-. I1| "._,l,Qe

Disconnect the harness by grasping both sides of

the connector firmly, depress the latch, and pull

apart. Remove the two (2) screws from the top

hinge. Lift the door off of the bottom hinge and

set it aside.

Detach the water tube from the connector

located behind the refrigerator and pull the tube

back out to the front of the unit, The connector

releases when you press inward on the outer

sleeve while pushing the tube toward the

connector then while continuing to hold in the

sleeve, pull the tube away.

NOTE

DO NOT remove the ground screw from hinge.

Removin

the Doors 1 1

NOTE

You will be pulling approximately three (3) feet of

water tube from the back of the refrigerator.

4 Unscrew the three (3) lower hinge screws and

hinge if necessary.

To reinstall the right door, reverse the above steps.

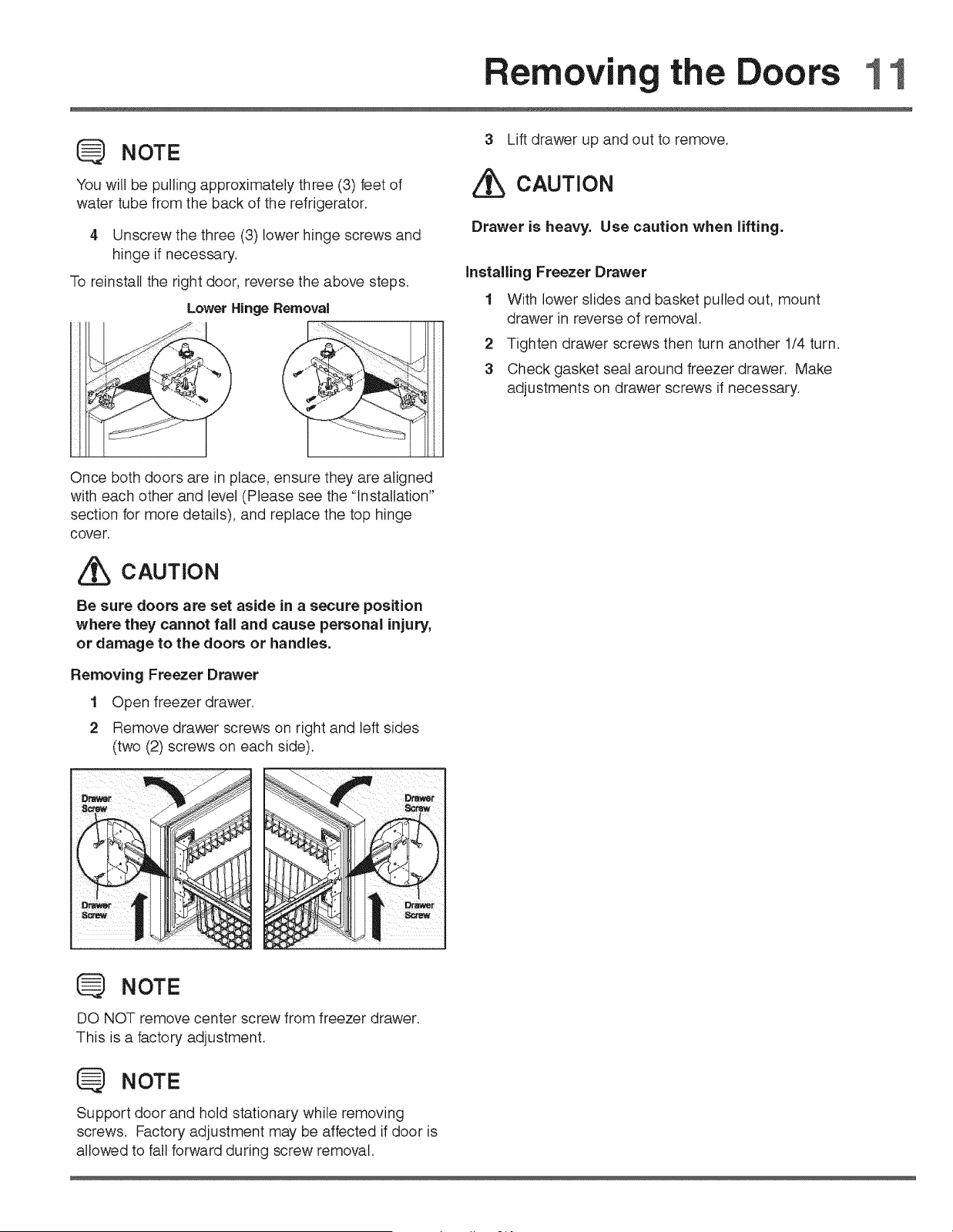

Lower Hinge Removal

Once both doors are in place, ensure they are aligned

with each other and level (Please see the "Installation"

section for more details), and replace the top hinge

cover.

CAUTION

Be sure doors are set aside in a secure position

where they cannot fall and cause personal injury,

or damage to the doors or handles.

Removing Freezer Drawer

1 Open freezer drawer,

2 Remove drawer screws on right and left sides

(two (2) screws on each side),

3 Lift drawer up and out to remove.

CAUTION

Drawer is heavy. Use caution when lifting.

Installing Freezer Drawer

1 With lower slides and basket pulled out, mount

drawer in reverse of removal.

2 Tighten drawer screws then turn another 1/4 turn.

3 Check gasket seal around freezer drawer. Make

adjustments on drawer screws if necessary.

NOTE

DO NOT remove center screw from freezer drawer.

This is a factory" adjustment.

NOTE

Support door and hold stationary while removing

screws. Factory adjustment may be affected if door is

allowed to fall forward during screw removal.

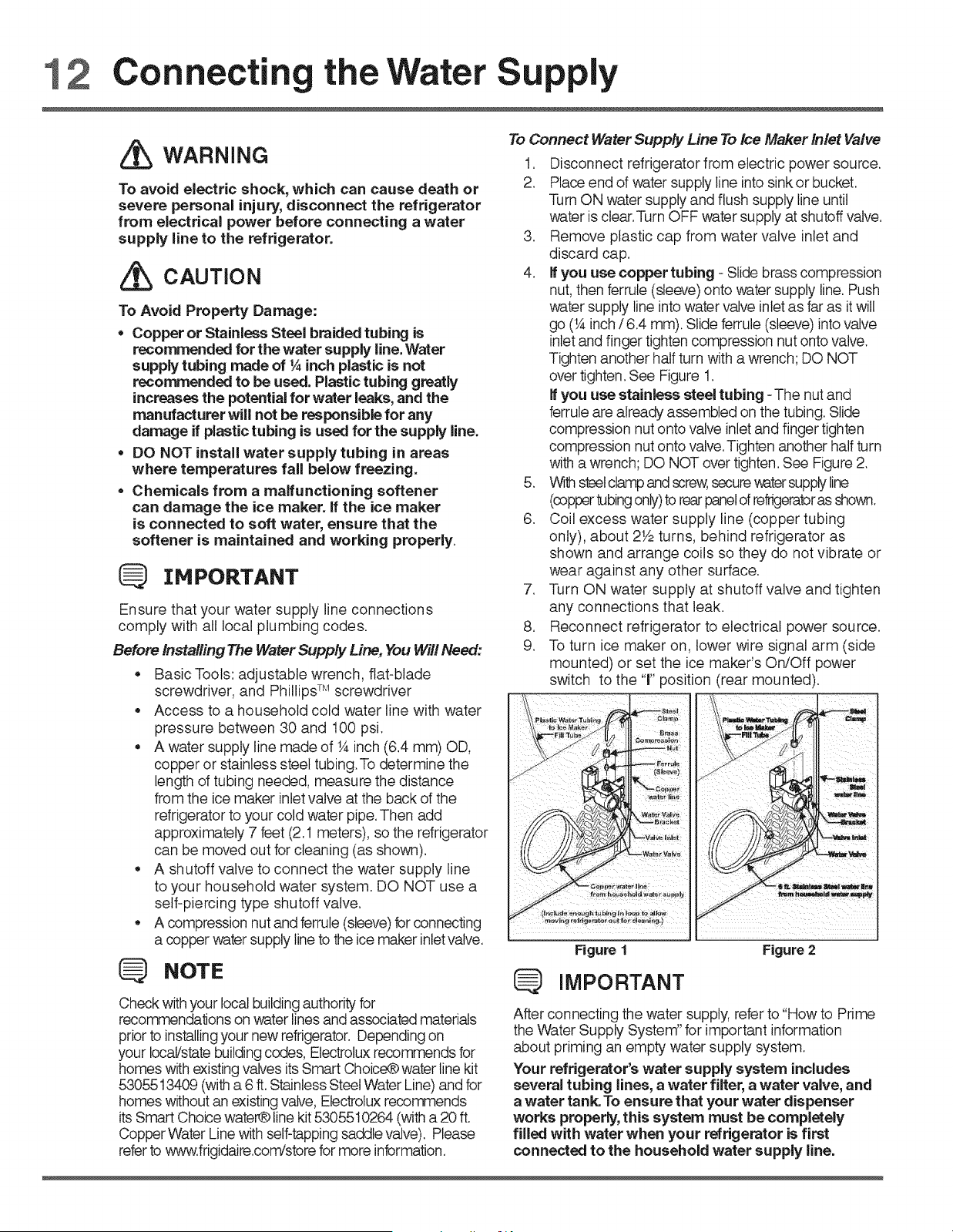

2 Connecting theWater upply

WARNING

To avoid electric shock, which can cause death or

severe personal injury, disconnect the refrigerator

from electrical power before connecting a water

supply line to the refrigerator.

CAUTION

To Avoid Properly Damage:

* Copper or Stainless Steel braided tubing is

recommended for the water supply line. Water

supply tubing made of ¼ inch plastic is not

recommended to be used. Plastic tubing greatly

increases the potential for water leaks, and the

manufacturer will not be responsible for any

damage if plastic tubing is used for the supply fine.

* DO NOT install water supply tubing in areas

where temperatures fall below freezing.

° Chemicals from a malfunctioning softener

can damage the ice maker, if the ice maker

is connected to soft water, ensure that the

softener is maintained and working properly.

IMPORTANT

Ensure that your water supply line connections

comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

* Basic Tools: adjustable wrench, flat-blade

screwdriver, and Phillips TM screwdriver

- Access to a household cold water line with water

pressure between 30 and 100 psi.

,, A water supply line made of ¼ inch (6.4 mm) OD,

copper or stainless steel tubing.To determine the

length of tubing needed, measure the distance

from the ice maker inlet valve at the back of the

refrigerator to your cold 'water pipe. Then add

approximately 7 feet (2.1 meters), so the refrigerator

can be moved out for cleaning (as shown).

* A shutoff valve to connect the water supply line

to your household water system. DO NOT use a

self-piercing type shutoff valve.

,, A compression nut and ferrule (sleeve) for connecting

a copper water supply lineto the ice maker inlet valve.

NOTE

Check with your local buildingauthority for

recommendations on ,waterlines and associated materials

prior to installingyour new refrigerator. Depending on

your local/state building codes, Electrolux recommends for

homes with existing valves itsSmart Choice@water line kit

5305513409 (with a 6 ft. Stainless Steel Water Line) and for

homes without an existing valve, Etectrotuxrecommends

its Smart Choice water_lbline kit5305510264 (with a 20 ft.

Copper Water Line with self-tapping saddle valve). Please

refer to vvvvw'frigidaire'c°rrdst°refor more information.

To Connect Water Supply Line To ice Maker inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket.

-rijrn ON water supply and flush supply line until

water is clear.Turn OFF water supply at shutoff valve.

3. Remove plastic cap from water valve inlet and

discard cap.

4. If you use copper tubing - Slide brass compression

nut, then ferrule (sleeve) onto water supply line. Push

water supply line into water valve inlet as far as it will

go (¼ inch/ 6.4 mm). Slide ferrule (sleeve) into valve

inlet and finger tighten compression nut onto valve.

Tighten another half turn with a wrench; DO NOT

over tighten. See Figure 1.

If "you use stainless steel tubing -The nut and

ferrule are already assembled on the tubing. Slide

compression nut onto vakseinlet and finger tighten

compression nut onto valve.Tighten another half turn

with a wrench; DO NOT over tighten. See Figure 2.

5. Wllhsteelclampand screw,secure'watersupplyline

(coppertubingonb!)to rear panelof refrigeratoras shown.

6. Coil excess water supply line (copper tubing

only), about 2Y2turns, behind refrigerator as

shown and arrange coils so they do not vibrate or

wear against any other surface.

7. Turn ON water supply at shutoff valve and tighten

any connections that leak.

8. Reconnect refrigerator to electrical power source.

9. To turn ice maker on, lower wire signal arm (side

mounted) or set the ice maker's On/Off power

switch to the 'T' position (rear mounted).

-- m

t_ I_ Make_

_r_

Ill /I/ L_ ".41\

tff //t2_.-,_ _,,.,o,,,.,.o

Figure 1 Figure 2

IMPORTANT

After connecting the water supply, refer to "How to Prime

the Water Supply System" for important information

about priming an empty water supply system.

Your refrigerator's water supply system includes

several tubing lines, a water filter, a water valve, and

a water tank.To ensure that your water dispenser

works properly, this system must be completely

filled with water when your refrigerator is first

connected to the household water supply line.

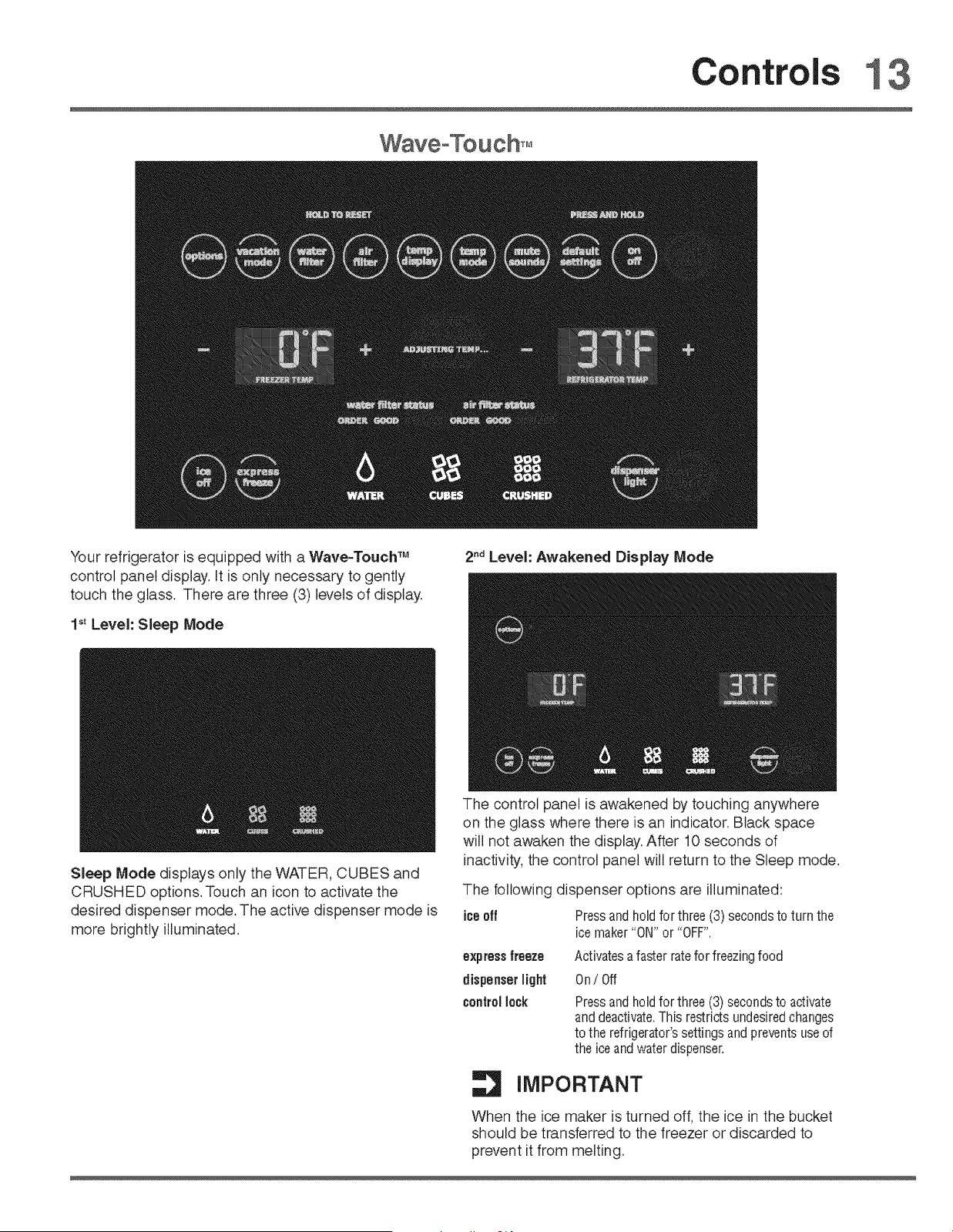

Controls 13

Your refrigerator is equipped with a Wave-Touch TM

control panel display, It is only necessary to gently

touch the glass. There are three (3) levels of display,

1_tLevel: Sleep Mode

2ndLevel: Awakened Display Mode

Sleep Mode displays only the WATER, CUBES and

CRUSHED options. Touch an icon to activate the

desired dispenser mode. The active dispenser mode is

more brightly illuminated.

The control panel is awakened by touching anywhere

on the glass where there is an indicator, Black space

will not awaken the display, After 10 seconds of

inactivity; the control panel will return to the Sleep mode.

The following dispenser options are illuminated:

ice off Press and hold for three (3) seconds to turn the

ice maker "ON" or "OFF".

expressfreeze Activates afaster rate for freezingfood

dispenser light On/Off

controllock Press and hold for three (3) seconds to activate

and deactivate.This restricts undesiredchanges

to the refrigerator's settings and prevents use of

the ice and water dispenser,

IMPORTANT

When the ice maker is turned off, the ice in the bucket

should be transferred to the freezer or discarded to

prevent it from melting.

8 Centre

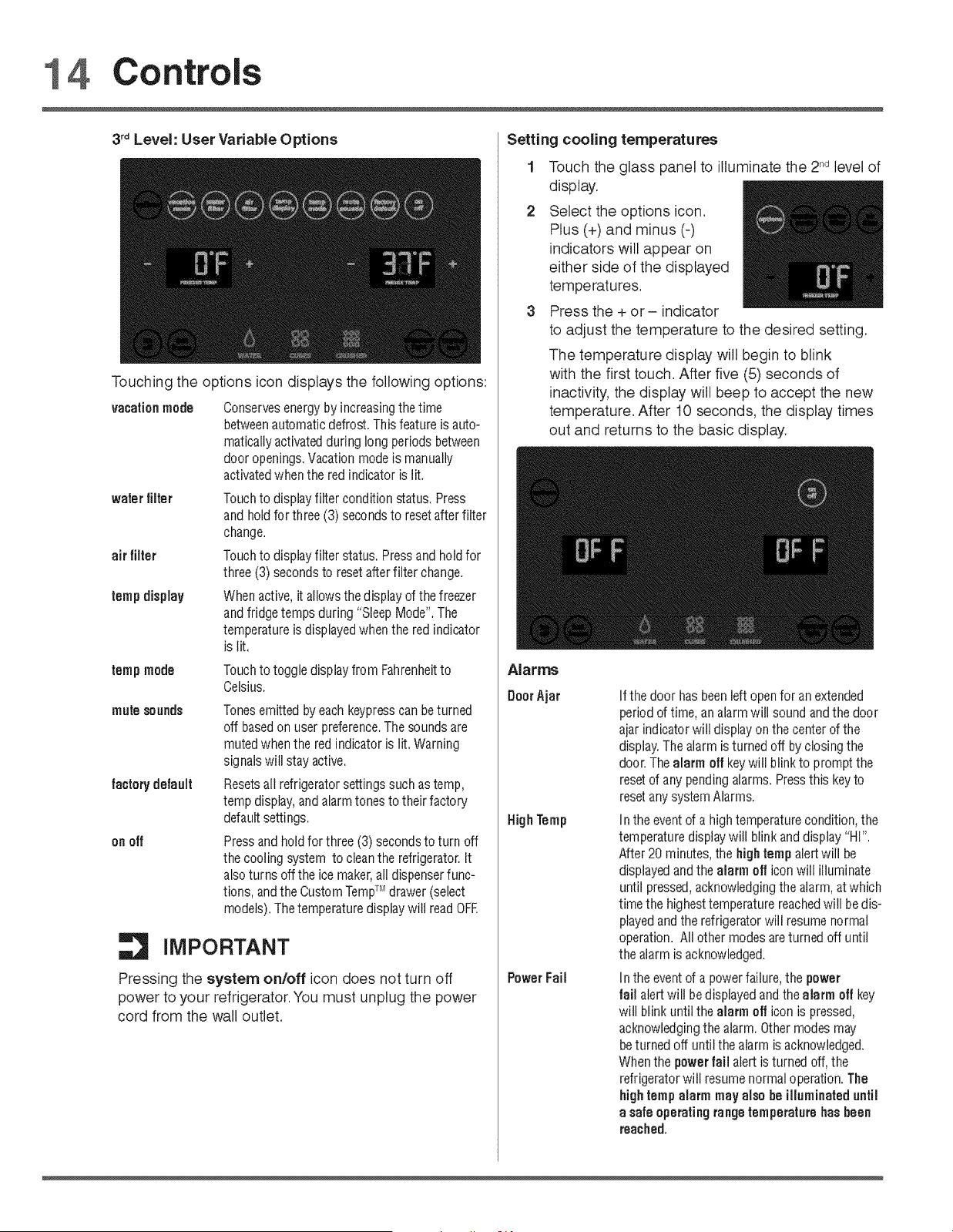

3rdLevel: User Variable Options

Touching the options icon displays the following options:

vacationmode

waterfilter

air filter

tempdisplay

fempmode

mutesounds

factorydefault

on off

Conservesenergy by increasing the time

betweenautomatic defrost. This feature is auto-

matically activatedduring long periods between

door openings. Vacation mode is manually

activatedwhen the red indicator is fit.

Touch to display filter condition status. Press

and holdfor three (3) seconds to reset after filter

change.

Touch to display filter status. Press and hold for

three (3) seconds to reset after filter change.

When active, it allows the display of the freezer

and fridge temps during "Sleep Mode". The

temperature is displayedwhen the red indicator

is tit.

Touchto toggledisplayfromFahrenheitto

Celsius.

Tones emitted by each keypresscan be turned

off basedon user preference.The sounds are

muted when the red indicator is tit, Warning

signals witl stay active.

Resets all refrigerator settings such as temp,

temp display, and alarm tones to their factory

default settings.

Press and hold for three (3) seconds to turn off

the cooling system to clean the refrigerator. It

also turns off the ice maker,all dispenserfunc-

tions, andthe Custom TempTM drawer (select

models). Thetemperature display will read OFF.

| IMPORTANT

Pressing the system onloff icon does not turn off

power to your refrigerator. You must unplug the power

cord from the wall outlet.

Setting cooling temperatures

Touch the glass panel to illuminate the 2ndlevel of

display.

Select the options icon.

Plus (+) and minus (-)

indicators will appear on

either side of the displayed

temperatures.

Press the + or- indicator

to adjust the temperature to the desired setting.

The temperature display will begin to blink

with the first touch. After five (5) seconds of

inactivity, the display will beep to accept the new

temperature. After t0 seconds, the display times

out and returns to the basic display.

Alarms

DoorAjar

HighTemp

PowerFail

If the door has been left open for an extended

period of time, an alarm will sound and the door

ajar indicator will display on the center of the

display.The alarm is turned off by closing the

door.The alarm elf keywill blink to prompt the

reset of any pending alarms. Pressthis keyto

reset any system Alarms.

In the eventof a high temperature condition, the

temperature displaywitl blink and display "HI'.

After 20 minutes, the high temp alertwill be

displayed andthe alarm off icon will illuminate

until pressed, acknowledging the alarm, at which

time the highest temperature reachedwill be dis-

playedand the refrigerator will resume normal

operation. All other modes are turned off until

the alarrn is acknowledged.

In the eventof a power failure, the power

fail alert wilt be displayed and the alarm off key

witi blink until the alarm off icon is pressed,

acknowledging the atarrn.Other modes may

be turned off until the alarm is acknowledged.

When the power fail alert is turned off, the

refrigerator witl resume normal operation. The

highletup alarm may also be illuminated until

a safe operating range temperature has been

reached,

Controls 15

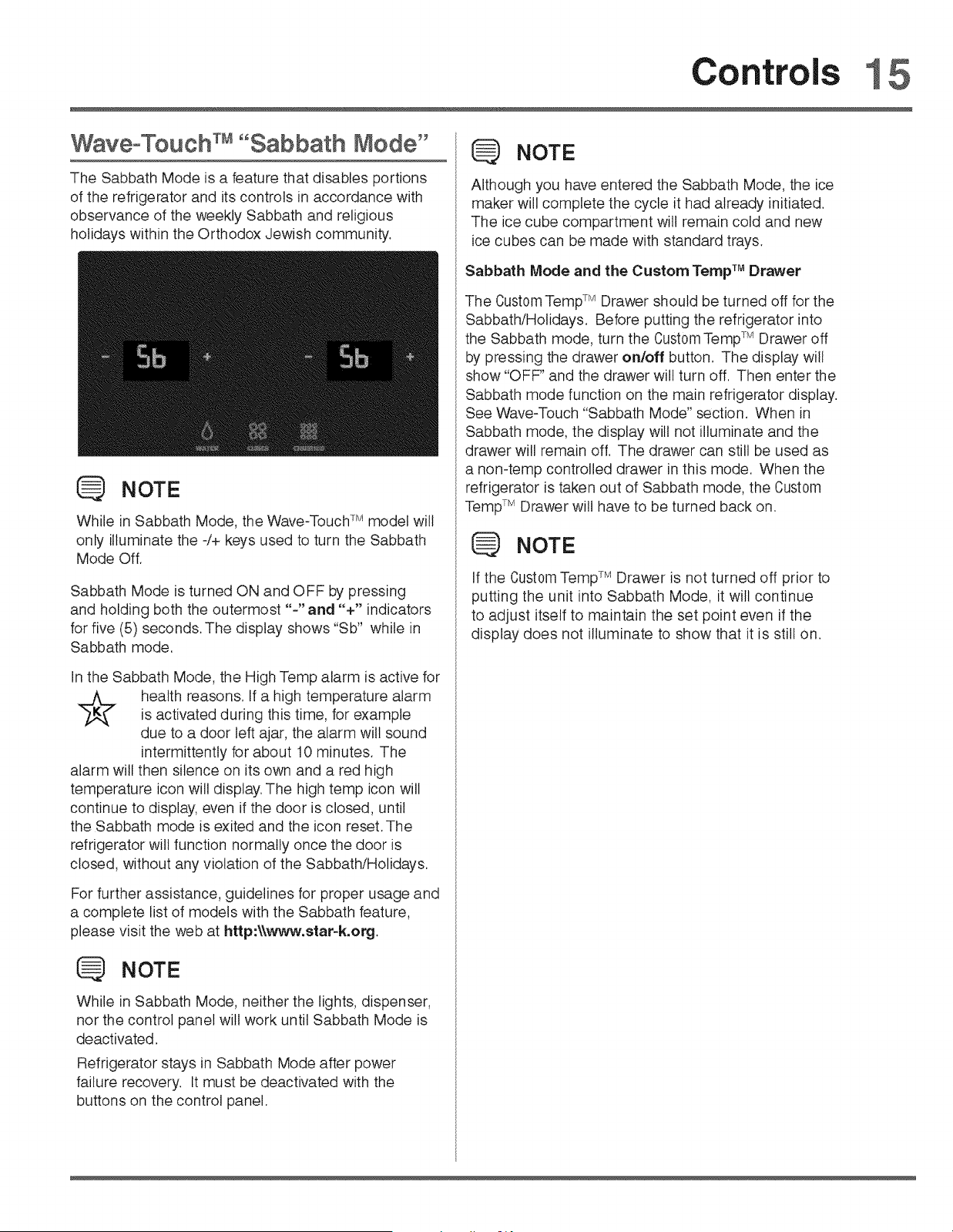

WaveoTouch TM"Sabbath Mode"

The Sabbath Mode is a feature that disables portions

of the refrigerator and its controls in accordance with

observance of the weekly Sabbath and religious

holidays within the Orthodox Jewish community.

NOTE

While in Sabbath Mode, the Wave-Touch TM model will

only illuminate the -/+ keys used to turn the Sabbath

Mode Off.

Sabbath Mode is turned ON and OFF by pressing

and holding both the outermost "-" and "+" indicators

for five (5) seconds. The display shows "Sb" while in

Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for

health reasons. If a high temperature alarm

is activated during tMs time, for example

due to a door left ajar, the alarm wilt sound

intermittently for about 10 minutes. The

alarm will then silence on its own and a red high

temperature icon will display. The high temp icon will

continue to display, even if the door is closed, until

the Sabbath mode is exited and the icon reset. The

refrigerator will function normally once the door is

closed, without any violation of the Sabbath/Holidays.

For further assistance, guidelines for proper usage and

a complete list of models with the Sabbath feature,

please visit the web at http:\\v, rww.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser,

nor the control panel will work until Sabbath Mode is

deactivated.

Refrigerator stays in Sabbath Mode after power

failure recovery. It must be deactivated with the

buttons on the control panel.

! NOTE

Although you have entered the Sabbath Mode, the ice

maker will complete the cycle it had already initiated.

The ice cube compartment will remain cold and new

ice cubes can be made with standard trays.

Sabbath Mode and the Custom Temp TM Drawer

The CustomTemp TM Drawer should be turned off for the

Sabbath/Holidays. Before putting the refrigerator into

the Sabbath mode, turn the Custom TempTM Drawer off

by pressing the drawer on/off button. The display will

show "OFF" and the drawer will turn off. Then enter the

Sabbath mode function on the main refrigerator display.

See Wave-Touch "Sabbath Mode" section. When in

Sabbath mode, the display wilt not illuminate and the

drawer will remain off. The drawer can still be used as

a non-temp controlled drawer in this mode. When the

refrigerator is taken out of Sabbath mode, the Custom

TempTM Drawer will have to be turned back on.

NOTE

If the CustomTemp TM Drawer is not turned off prior to

putting the unit into Sabbath Mode, it will continue

to adjust itself to maintain the set point even if the

display does not illuminate to show that it is still on.

6 Automatic ice Water Maker/Dispenser

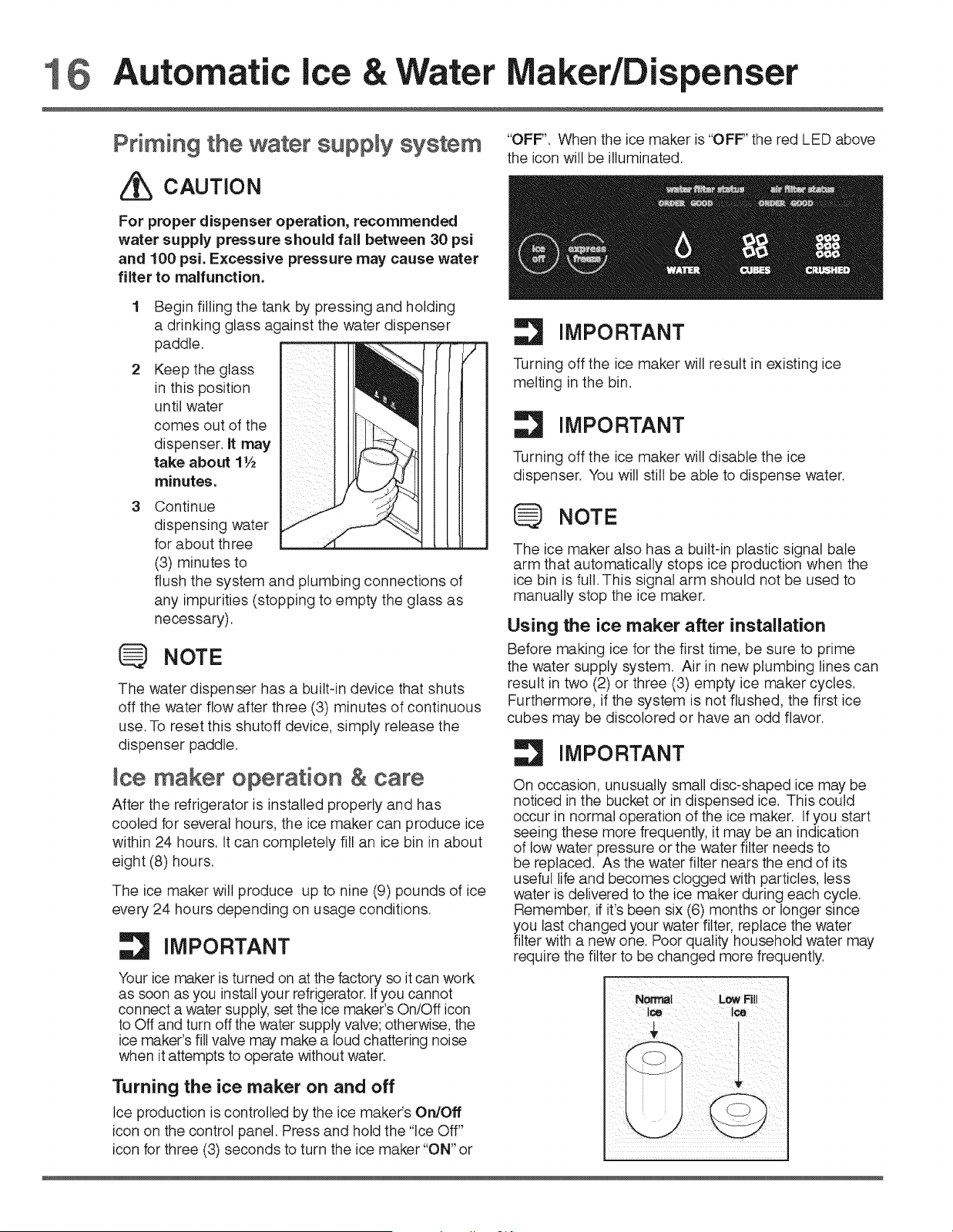

Priming the water supply system

CAUTION

For proper dispenser operation, recommended

water supply pressure should fall between 30 psi

and 100 psi. Excessive pressure may cause water

filter to malfunction.

"OFF". When the ice maker is "OFF" the red LED above

the icon will be illuminated.

Begin filling the tank by pressing and holding

a drinking glass against the water dispenser

paddle, r=

Keep the glass

in this position

until water

comes out of the

dispenser, it may

take about 1½

minutes.

Continue

dispensing water

for about three

(3) minutes to

flush the system and plumbing connections of

any impurities (stopping to empty the glass as

necessary).

NOTE

The water dispenser has a built-in device that shuts

off the water flow after three (3) minutes of continuous

use. To reset this shutoff device, simply release the

dispenser paddle.

maker operation & care

After the refrigerator is installed properly and has

cooled for several hours, the ice maker can produce ice

within 24 hours. It can completely fill an ice bin in about

eight (8) hours.

The ice maker will produce up to nine (9) pounds of ice

every 24 hours depending on usage conditions.

IMPORTANT

Your ice maker is turned on at the factory so it can work

as soon as you install your refrigerator. If you cannot

connect a water supply, set the ice maker's On/Off icon

to Off and turn off the water supply valve; otherwise, the

ice maker's fill valve may make a loud chattering noise

when it attempts to operate without water.

Turning the ice maker on and off

Ice production is controlled by the ice maker's On/Off

icon on the control panel. Press and hold the "Ice Off"

icon for three (3) seconds to turn the ice maker "ON" or

IMPORTANT

Turning off the ice maker will result in existing ice

melting in the bin.

IMPORTANT

Turning off the ice maker will disable the ice

dispenser. You will still be able to dispense water.

NOTE

The ice maker also has a built-in plastic signal bate

arm that automatically stops ice production when the

ice bin is full, This signal arm should not be used to

manually stop the ice maker.

Using the ice maker after installation

Before making ice for the first time, be sure to prime

the water supply system. Air in new plumbing lines can

result in two (2) or three (3) empty ice maker cycles.

Furthermore, if the system is not flushed, the first ice

cubes may' be discolored or have an odd flavor.

IMPORTANT

On occasion, unusually small disc-shaped ice may be

noticed in the bucket or in dispensed ice. This could

occur in normal operation of the ice maker. If you start

seeing these more frequently, it may be an indication

of low water pressure or the water filter needs to

be replaced. As the water filter nears the end of its

useful life and becomes clogged with particles, less

water is delivered to the ice maker during each cycle.

Remember, if it's been six (6) months or longer since

you last changed your water filter, replace the water

filter with a new one. Poor quality household water may

require the filter to be changed more frequently.

Automatic ice Water aker/Dispenser 17

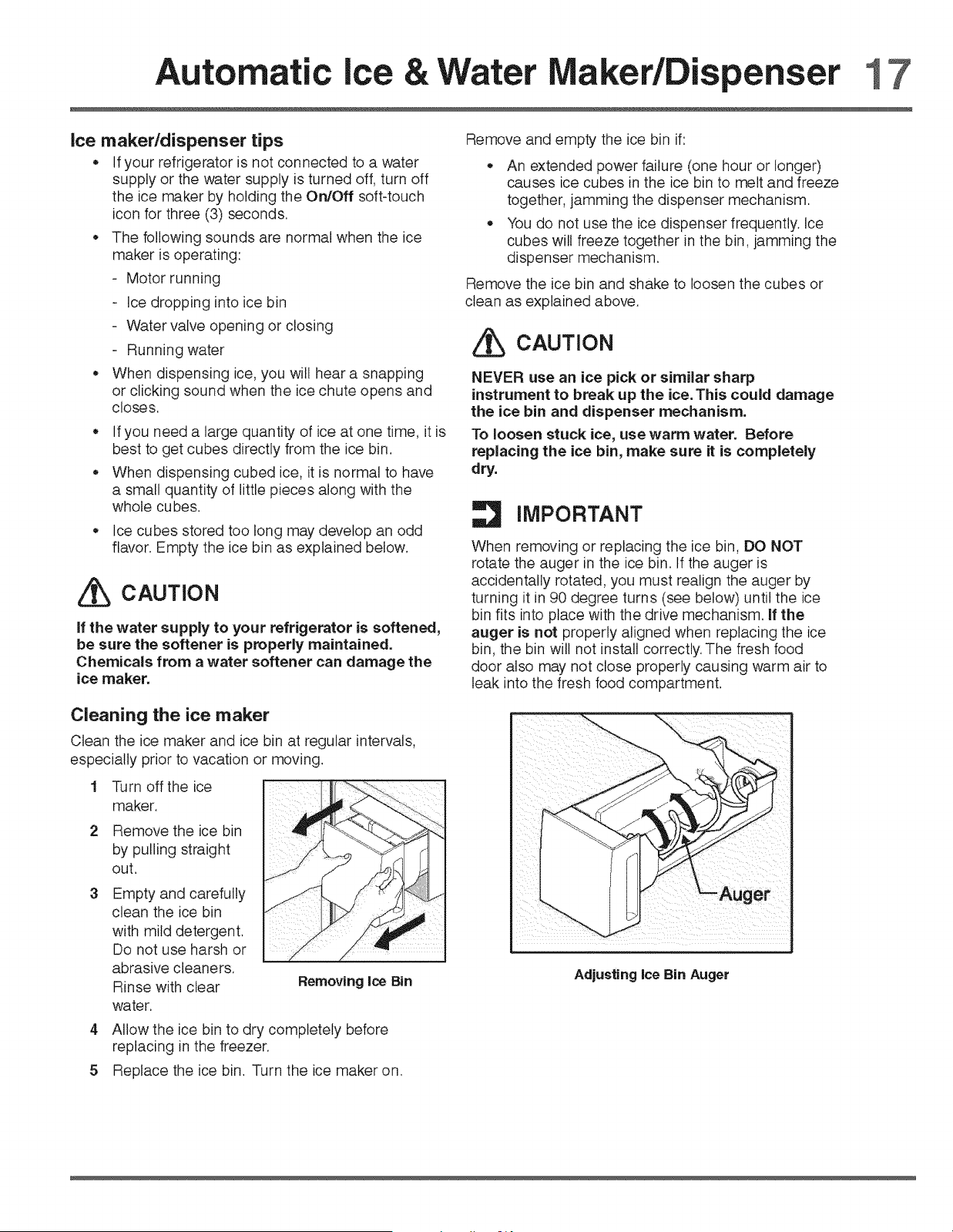

ice maker/dispenser tips

• If your refrigerator is not connected to a water

supply or the water supply is turned off, turn off

the ice maker by holding the On/Off soft-touch

icon for three (3) seconds.

The following sounds are normal when the ice

maker is operating:

- Motor running

Ice dropping into ice bin

- Water valve opening or closing

Running water

,, When dispensing ice, you will hear a snapping

or clicking sound when the ice chute opens and

closes.

• If you need a large quantity of ice at one time, it is

best to get cubes directly from the ice bin.

o When dispensing cubed ice, it is normal to have

a small quantity of little pieces along with the

whole cubes.

,, ice cubes stored too tong may develop an odd

flavor. Empty the ice bin as explained below.

CAUTION

if the water supply to your refrigerator is softened,

be sure the softener is properly maintained.

Chemicals from a water softener can damage the

ice maker.

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals,

especially prior to vacation or moving.

1 Turn off the ice

maker.

2 Remove the ice bin

by pulling straight

out.

Empty and carefully

clean the ice bin

with mild detergent.

Do not use harsh or

abrasive cleaners.

Rinse with clear

water.

Removing Ice Bin

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

An extended power failure (one hour or longer)

causes ice cubes in the ice bin to melt and freeze

together, jamming the dispenser mechanism.

You do not use the ice dispenser frequently. Ice

cubes will freeze together in the bin, jamming the

dispenser mechanism.

Remove the ice bin and shake to loosen the cubes or

clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This could damage

the ice bin and dispenser mechanism.

To loosen stuck ice, use warm water. Before

replacing the ice bin, make sure it is completely

dry.

IMPORTANT

When removing or replacing the ice bin, DO NOT

rotate the auger in the ice bin. If the auger is

accidentally rotated, you must realign the auger by

turning it in 90 degree turns (see below) until the ice

bin fits into place with the drive mechanism, if the

auger is not properly aligned when replacing the ice

bin, the bin will not install correctly. The fresh food

door also may not close properly causing warm air to

leak into the fresh food compartment.

Adjusting ice Bin Auger

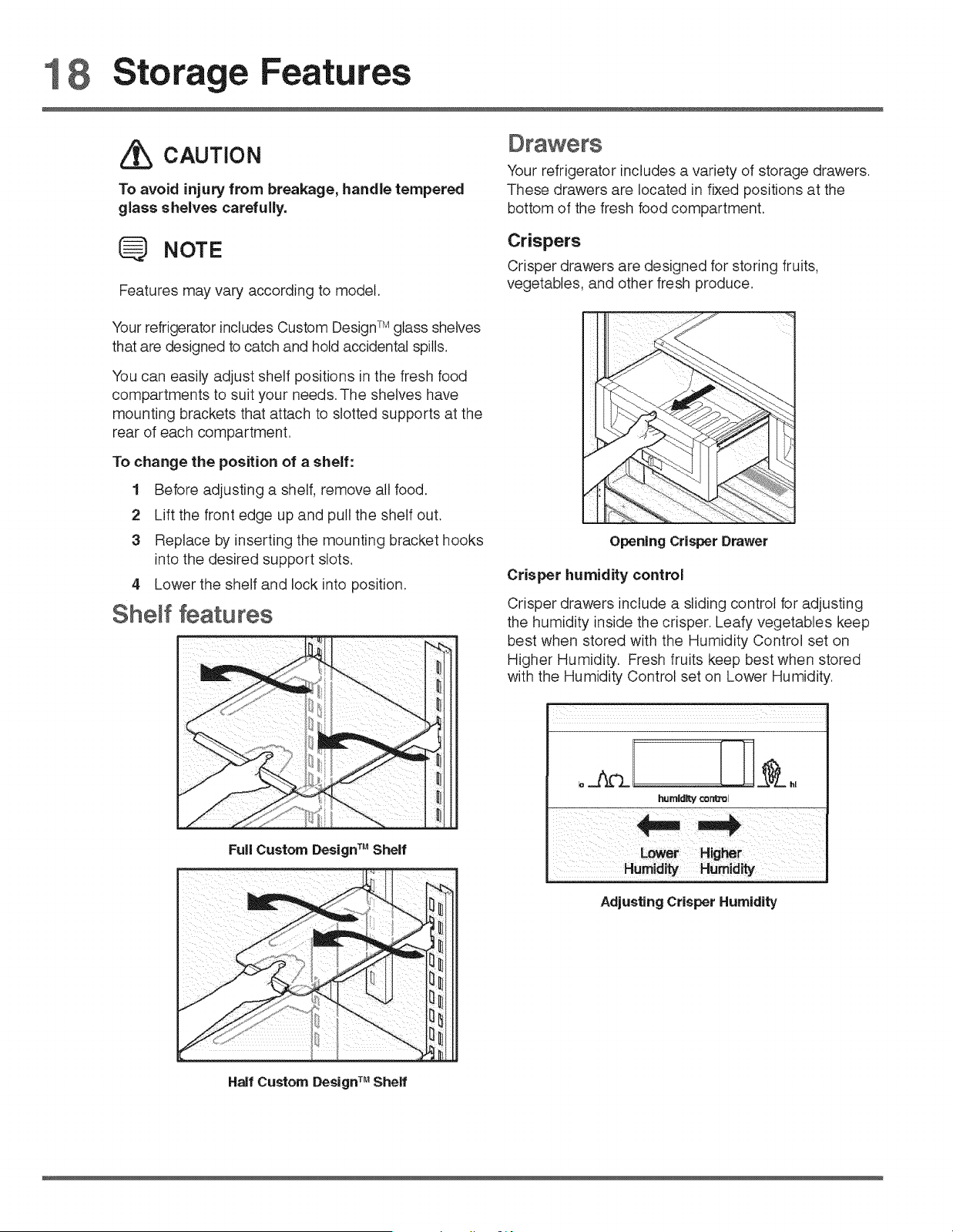

Storage Features

CAUTION

To avoid injury from breakage, handle tempered

glass shelves carefully.

NOTE

Features may vary according to model.

Your refrigerator includes a variety of storage drawers.

These drawers are located in fixed positions at the

bottom of the fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits,

vegetables, and other fresh produce.

Your refrigerator includes Custom Design TM glass shelves

that are designed to catch and hold accidental spills.

"Youcan easily adjust shelf positions in the fresh food

compartments to suit your needs. The shelves have

mounting brackets that attach to slotted supports at the

rear of each compartment.

To change the position of a shelf:

1 Before adjusting a shelf, remove all food.

2 Lift the front edge up and pull the shelf out.

3 Replace by inserting the mounting bracket hooks

into the desired support slots.

4 Lower the shelf and lock into position.

Shemf features

Opening Crisper Drawer

Crisper humidity control

Crisper drawers include a sliding control for adjusting

the humidity inside the crisper. Leafy vegetables keep

best when stored with the Humidity Control set on

Higher Humidity. Fresh fruits keep best when stored

with the Humidity Control set on Lower Humidity.

humidity corf_ol

Full Custom Design TM Shelf

Adjusting Crisper Humidity

HaJf Custom Design TM Shelf

Storage Features 19

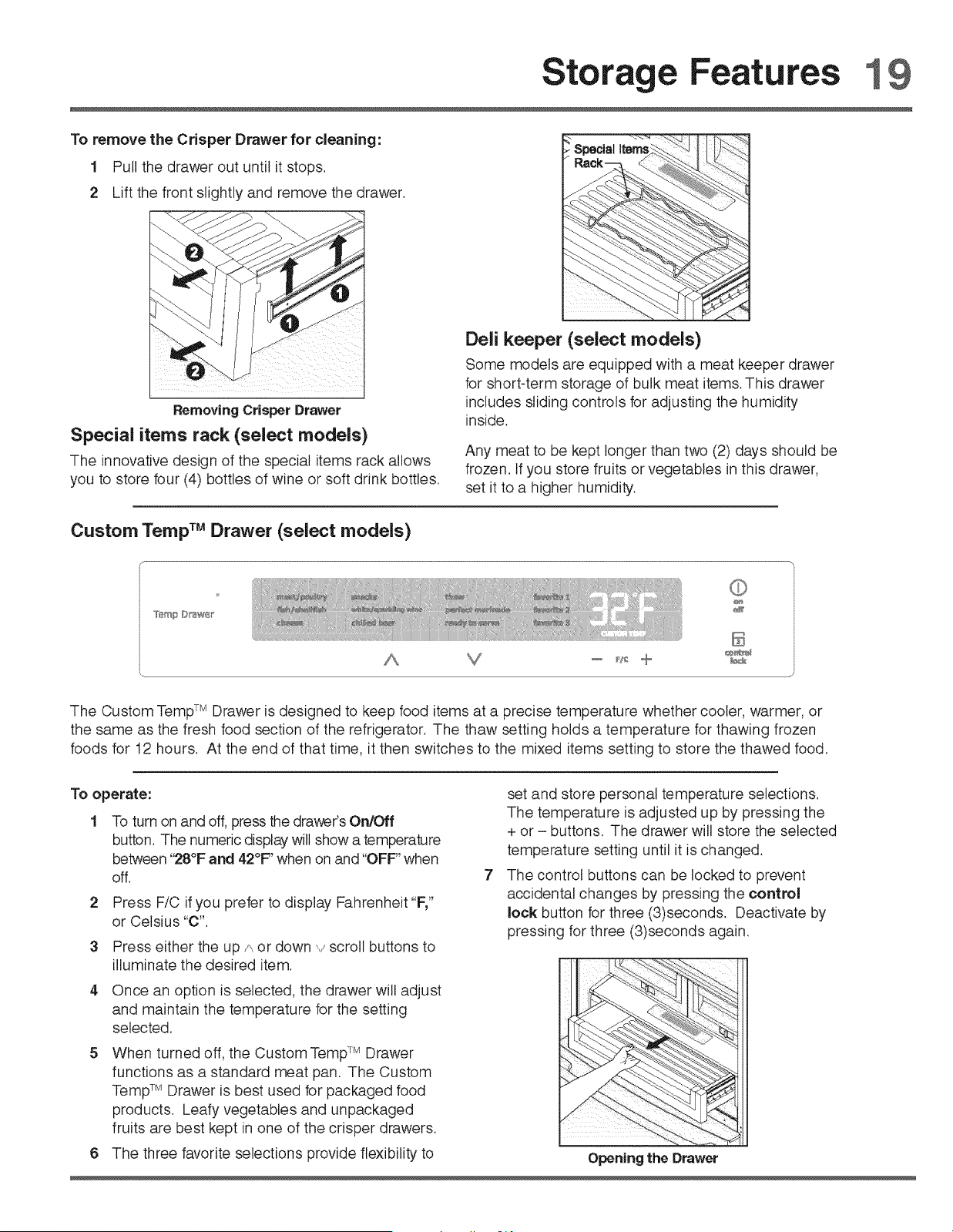

To remove the Crisper Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the drawer.

Removing Crisper Drawer

Special items rack (select models)

The innovative design of the special items rack allows

you to store four (4) bottles of wine or soft drink bottles.

Special Items

Deli keeper (select models)

Some models are equipped with a meat keeper drawer

for short-term storage of bulk meat items. This drawer

includes sliding controls for adjusting the humidity

inside.

Any meat to be kept longer than two (2) days should be

frozen. If you store fruits or vegetables in this drawer,

set it to a higher humidity.

Custom Temp TM Drawer (select models)

'Tt_'@ _S_sw__

i: ;iiii ii ii

The Custom TempTM Drawer is designed to keep food items at a precise temperature whether cooler warmer, or

the same as the fresh food section of the refrigerator. The thaw setting holds a temperature for thawing frozen

foods for 12 hours. At the end of that time, it then switches to the mixed items setting to store the thawed food.

To operate:

To turn on and off, press the drawer's On/Off

button. The numeric display will show a temperature

between "28°F and 42°F ' when on and "OFF" when

off.

2 Press FiC if you prefer to display Fahrenheit "F,"

or Celsius "C".

3 Press either the up _.,or down v scroll buttons to

illuminate the desired item.

set and store personal temperature selections.

The temperature is adjusted up by pressing the

+ or - buttons. The drawer will store the selected

temperature setting until it is changed.

The control buttons can be locked to prevent

accidental changes by pressing the control

lock button for three (3)seconds. Deactivate by

pressing for three (3)seconds again.

4 Once an option is selected, the drawer will adjust

and maintain the temperature for the setting

selected.

5 When turned off, the Custom Temp TM Drawer

functions as a standard meat pan. The Custom

TempTM Drawer is best used for packaged food

products. Leafy vegetables and unpackaged

fruits are best kept in one of the crisper drawers.

6 The three favorite selections provide flexibility to

Opening the Drawer

Storage Features

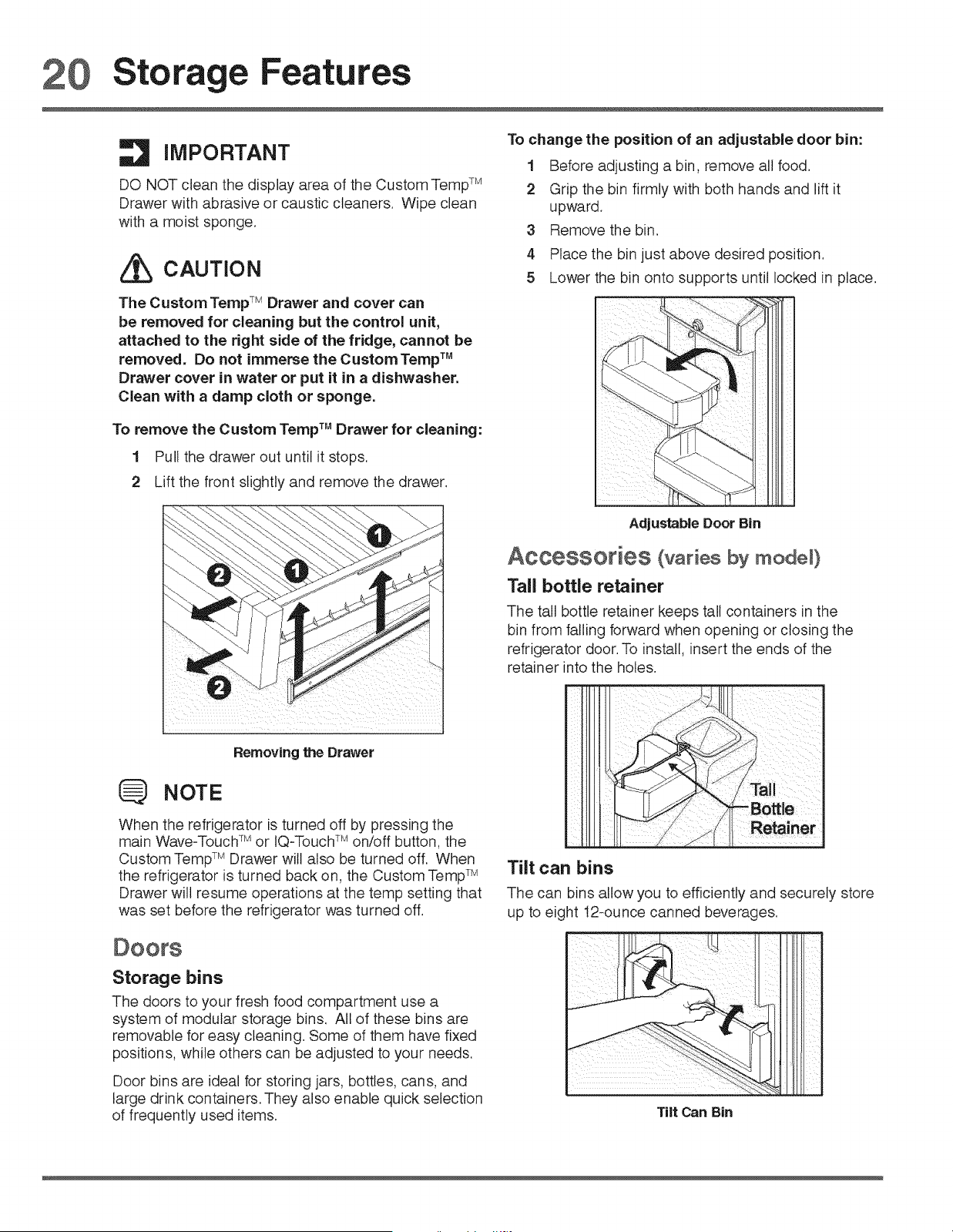

IMPORTANT

DO NOT clean the display area of the Custom Temp TM

Drawer with abrasive or caustic cleaners. Wipe clean

with a moist sponge.

CAUTION

The Custom TempTM Drawer and cover can

be removed for cleaning but the control unit,

attached to the right side of the fridge, cannot be

removed. Do not immerse the Custom Temp TM

Drawer cover in water or put it in a dishwasher.

Clean with a damp cloth or sponge.

To change the position of an adjustable door bin:

1 Before adjusting a bin, remove all food.

2 Grip the bin firmly with both hands and lift it

upward.

3 Remove the bin.

4 Place the bin just above desired position.

5 Lower the bin onto supports until locked in place.

To remove the Custom Temp TM Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the drawer.

Removing the Drawer

Adjustable Door Bin

Accessories (varies by model)

Tall bottle retainer

The tall bottle retainer keeps tall containers in the

bin from falling forward when opening or closing the

refrigerator door. To install, insert the ends of the

retainer into the holes.

NOTE

When the refrigerator is turned off by pressing the

main Wave-Touch TM or IQ-Touch TM on/off button, the

Custom TempTM Drawer wilt also be turned off. When

the refrigerator is turned back on, the Custom TempTM

Drawer will resume operations at the temp setting that

was set before the refrigerator was turned off.

Storage bins

The doors to your fresh food compartment use a

system of modular storage bins. All of these bins are

removable for easy cleaning. Some of them have fixed

positions, while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and

large drink containers. They also enable quick selection

of frequently used items.

Tilt can bins

The can bins allow you to efficiently and securely store

up to eight !2-ounce canned beverages.

Tilt Can Bin

Storage Features 21

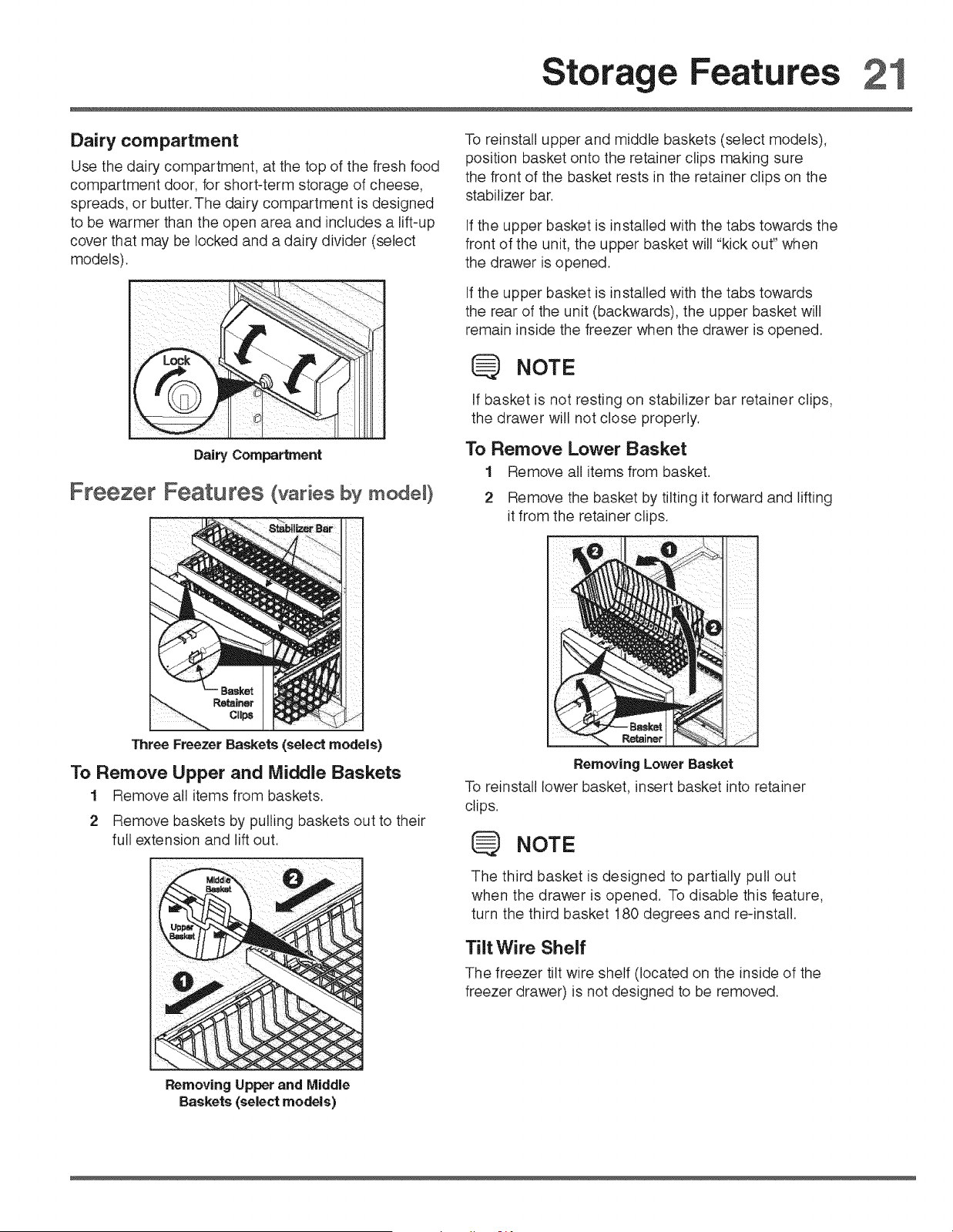

Dairy compartment

Use the dairy compartment, at the top of the fresh food

compartment door, for short-term storage of cheese,

spreads, or butter.The dairy compartment is designed

to be warmer than the open area and includes a lift-up

cover that may be locked and a dairy divider (select

models).

i iiiiiii _ ii_i

iill ii i _

ill iii _

Dairy Compartment

Freezer Features (varies by model)

Three Freezer Baskets (select models)

To Remove Upper and Middle Baskets

1 Remove all items from baskets.

2 Remove baskets by pulling baskets out to their

full extension and lift out.

Removing Upper and Middle

Baskets (select models)

To reinstall upper and middle baskets (select models),

position basket onto the retainer clips making sure

the front of the basket rests in the retainer clips on the

stabilizer bar.

If the upper basket is installed with the tabs towards the

front of the unit, the upper basket will "kick out" when

the drawer is opened.

If the upper basket is installed with the tabs towards

the rear of the unit (backwards), the upper basket will

remain inside the freezer when the drawer is opened.

NOTE

If basket is not resting on stabilizer bar retainer clips,

the drawer will not close properly.

To Remove Lower Basket

1 Remove all items from basket.

Remove the basket by tilting it forward and lifting

it from the retainer clips.

i iii

Removing Lower Basket

To reinstall lower basket, insert basket into retainer

clips.

NOTE

The third basket is designed to partially pull out

when the drawer is opened. To disable this feature,

turn the third basket 180 degrees and re-install.

Tilt Wire Shelf

The freezer tilt wire shelf (located on the inside of the

freezer drawer) is not designed to be removed.

22 Storage Features

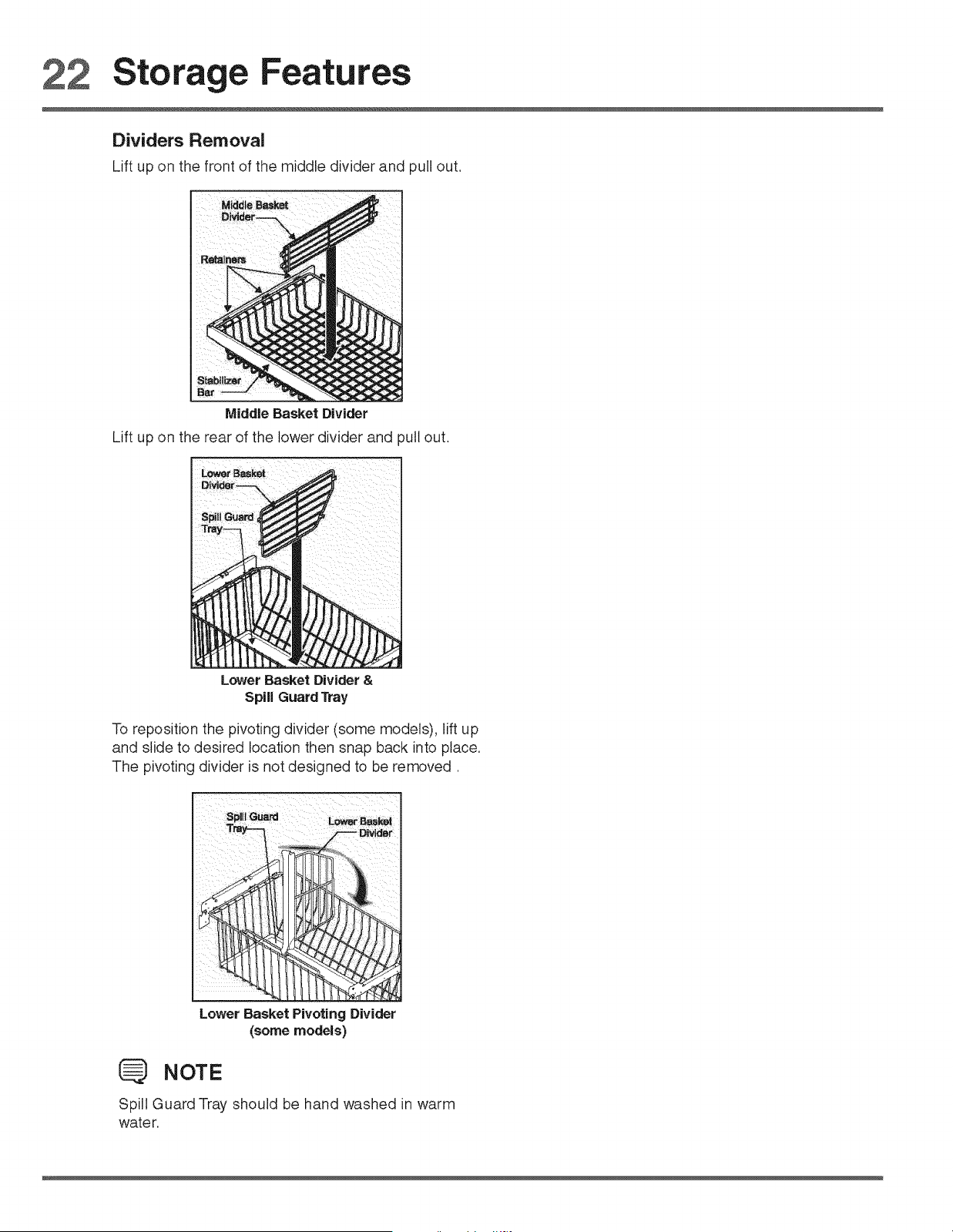

Dividers Removal

Lift up on the front of the middle divider and pull out,

Middle Basket Divider

Lift up on the rear of the lower divider and pull out.

Lower Basket Divider &

Spill Guard Tray

To reposition the pivoting divider (some models), lift up

and slide to desired location then snap back into place.

The pivoting divider is not designed to be removed,

Lower Basket Pivoting Divider

(some models)

NOTE

Spill Guard Tray should be hand washed in warm

water.

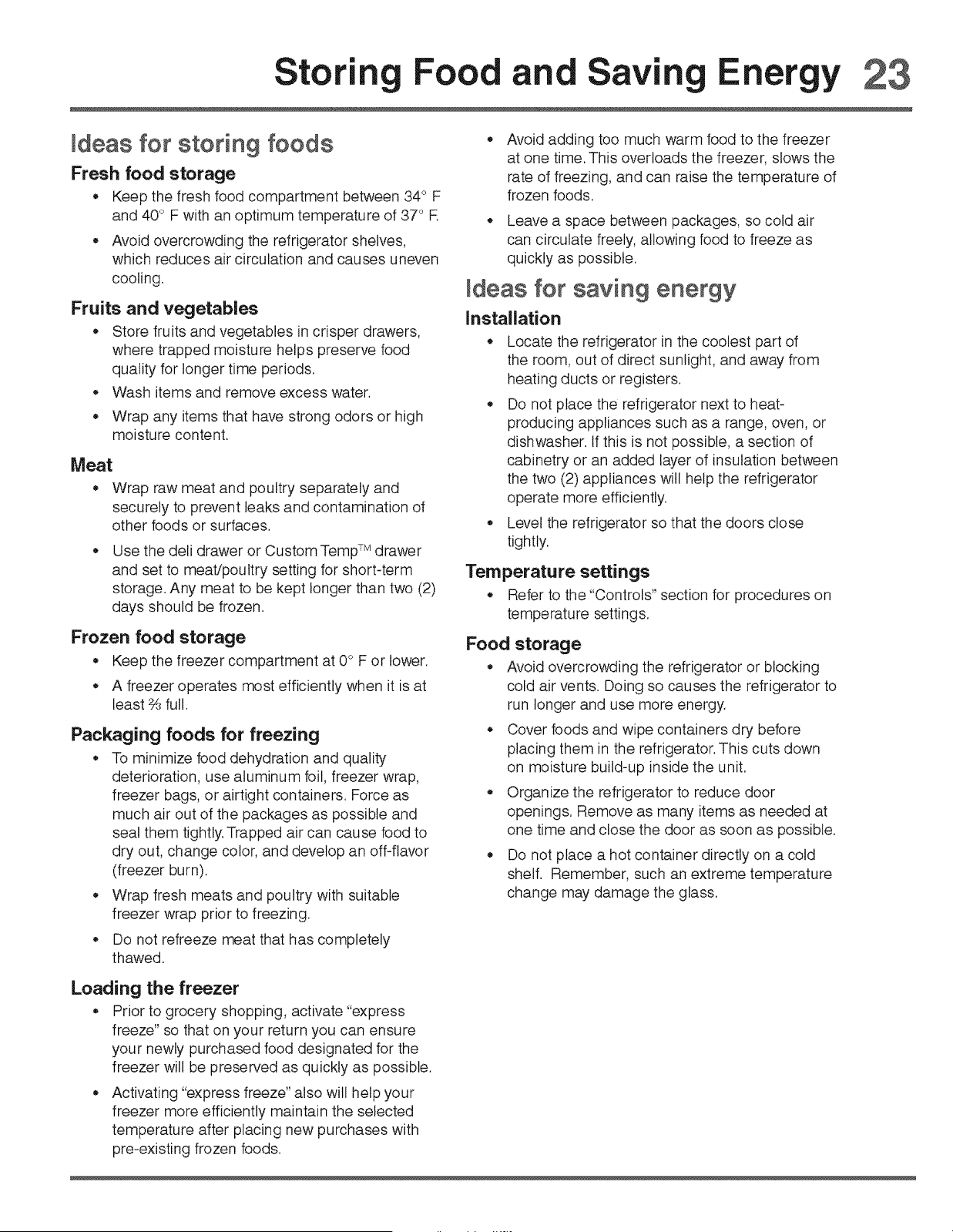

Storing Food and Saving Energy

ideas for storing foods

Fresh food storage

,, Keep the fresh food compartment between 34 ° F

and 40° F with an optimum temperature of 37° R

- Avoid overcrowding the refrigerator shelves,

which reduces air circulation and causes uneven

cooling.

Fruits and vegetables

,, Store fruits and vegetables in crisper drawers,

where trapped moisture helps preserve food

quality for longer time periods.

Wash items and remove excess water.

Wrap any items that have strong odors or high

moisture content.

Meat

_, Wrap raw meat and poultry separately and

securely to prevent leaks and contamination of

other foods or surfaces,

Use the dell drawer or Custom Temp TM drawer

and set to meat/poultry setting for short-term

storage. Any meat to be kept longer than two (2)

days should be frozen.

Frozen food storage

,, Keep the freezer compartment at 0 ° F or lower.

,, A freezer operates most efficiently when it is at

least _ full.

Packaging foods for freezing

_, To minimize food dehydration and quality

deterioration, use aluminum foil, freezer wrap,

freezer bags, or airtight containers. Force as

much air out of the packages as possible and

seal them tightly. Trapped air can cause food to

dry out, change color, and develop an off-flavor

(freezer burn).

,, Wrap fresh meats and poultry with suitable

freezer wrap prior to freezing.

o Do not refreeze meat that has completely

thawed.

Avoid adding too much warm food to the freezer

at one time. This overloads the freezer, slows the

rate of freezing, and can raise the temperature of

frozen foods.

,, Leave a space between packages, so cold air

can circulate freely, allowing food to freeze as

quickly as possible.

ideas for saving energy

Installation

,, Locate the refrigerator in the coolest part of

the room, out of direct sunlight, and away from

heating ducts or registers.

,, Do not place the refrigerator next to heat-

producing appliances such as a range, oven, or

dishwasher. If this is not possible, a section of

cabinetry or an added layer of insulation between

the two (2) appliances will help the refrigerator

operate more efficiently.

o Level the refrigerator so that the doors close

tightly.

Temperature settings

,, Refer to the"Controls" section for procedures on

temperature settings.

Food storage

= Avoid overcrowding the refrigerator or blocking

cold air "vents. Doing so causes the refrigerator to

run longer and use more energy.

• Cover foods and wipe containers dry before

placing them in the refrigerator. This cuts down

on moisture build-up inside the unit.

,, Organize the refrigerator to reduce door

openings. Remove as many items as needed at

one time and close the door as soon as possible.

,, Do not place a hot container directly on a cold

shelf. Remember, such an extreme temperature

change may damage the glass.

Loading the freezer

,, Prior to grocery shopping, activate "express

freeze" so that on your return you can ensure

your newly purchased food designated for the

freezer will be preserved as quickly as possible.

,, Activating "express freeze" also will help your

freezer more efficiently maintain the selected

temperature after placing new purchases with

pre-existing frozen foods.

24 ormai Operating Sounds

Understanding the sounds you

may hear

Your new, high-efficiency refrigerator may introduce

unfamiliar sounds, These sounds normally indicate

your refrigerator is operating correctly. Some surfaces

on floors, walls, and kitchen cabinets may make these

sounds more noticeable.

The following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the evaporator

may create a boiling or gurgling sound.

B Evaporator fan "Youmay hear air being forced

through the refrigerator by the evaporator fan.

C Defrost heater During defrost cycles, water

dripping onto the defrost heater may cause a

hissing or sizzling sound. After defrosting, a

popping sound may occur.

D Automatic ice maker When ice has been

produced, you will hear ice cubes falling into the

ice bin. Ice maker fan, water valve activation, and

refrigerant gas fluid may create sounds from its

operation.

E Electronic control & automatic defrost control

These parts can produce a snapping or clicking

sound when turning the cooling system on and

off.

F Condenser fan You may hear air being forced

through the condenser.

G Compressor Modern, high-efficiency

compressors run much faster than older models.

The compressor may have a high-pitched hum or

pulsating sound.

H Water valve Makes a buzzing sound each time it

opens to fill the ice maker.

I Drain pan (not removable) You may hear water

dripping into the drain pan during the defrost

cycle.

J Condenser May create minimal sounds from

forced air.

Motorized Custom Temp TM drawer damper

May produce a light humming during operation.

Ice dispensing paddle When dispensing ice,

you will hear a snapping, clicking, or popping

sound when the solenoid opens and closes the

ice chute.

Motorized damper May produce a light

humming during operation.

N CustomTemp TM drawerfan Turns off when

door opens or Custom Temp TM drawer is turned

off.

NOTE

Energy efficient foam in your refrigerator is not a

sound insulator.

NOTE

During automatic defrost cycle, a red glow in the back

wall vents of your freezer compartment is normal.

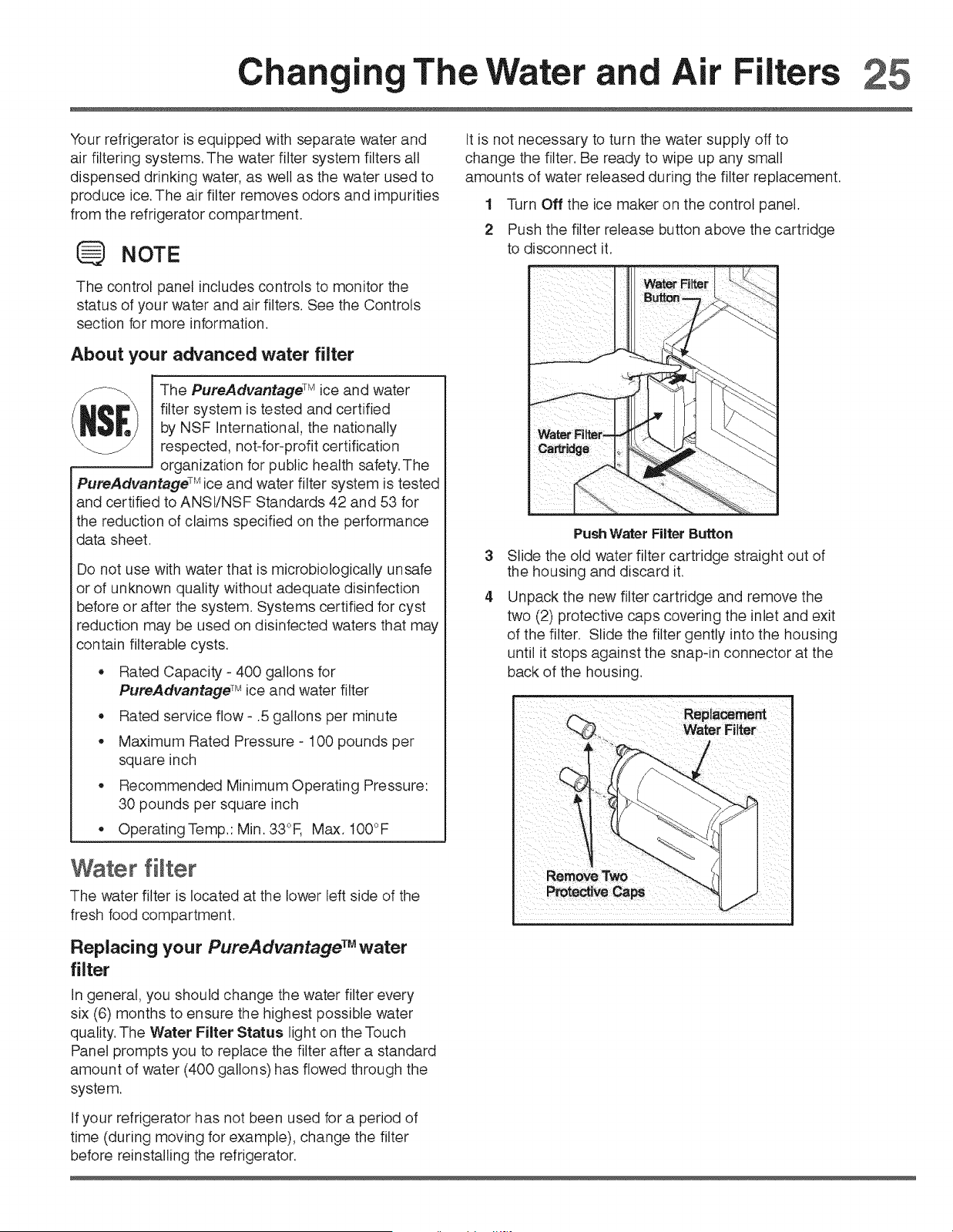

Changin TheWater an Air Filters 25

Your refrigerator is equipped with separate water and

air filtering systems. The water filter system filters all

dispensed drinking water, as well as the water used to

produce ice. The air filter removes odors and impurities

from the refrigerator compartment.

NOTE

The control panel includes controls to monitor the

status of your water and air filters. See the Controls

section for more information.

About your advanced water fitter

The PureAdvantage rMice and water

filter system is tested and certified

by NSF International, the nationally

respected, not-for=profit certification

organization for public health safety. The

PureAdvantage TM ice and water filter system is tested

and certified to ANSIiNSF Standards 42 and 53 for

the reduction of claims specified on the performance

data sheet.

Do not use with water that is microbiologically unsafe

or of unknown quality without adequate disinfection

before or after the system. Systems certified for cyst

reduction may be used on disinfected waters that may

contain filterable cysts.

,, Rated Capacity - 400 gallons for

PureAdvantage TM ice and water filter

,, Rated service flow- .5 gallons per minute

,, Maximum Rated Pressure - 100 pounds per

square inch

,, Recommended Minimum Operating Pressure:

30 pounds per square inch

,, Operating Temp.: Min.33°F, Max. 100°F

tt is not necessary to turn the water supply off to

change the filter. Be ready to wipe up any small

amounts of water released during the filter replacement.

1 Turn Off the ice maker on the control panel.

2 Push the filter release button above the cartridge

to disconnect it.

PushWater Filter Button

Slide the old water filter cartridge straight out of

the housing and discard it.

Unpack the new filter cartridge and remove the

two (2) protective caps covering the inlet and exit

of the filter. Slide the filter gently into the housing

until it stops against the snap-in connector at the

back of the housing.

Water filter

The water filter is located at the lower left side of the

fresh food compartment.

Replacing your PureAdvantage TM water

filter

In general, you should change the water filter every

six (6) months to ensure the highest possible water

quality: The "Water Filter Status light on the Touch

Panel prompts you to replace the filter after a standard

amount of water (400 gallons) has flowed through the

system.

If your refrigerator has not been used for a period of

time (during moving for example), change the filter

before reinstalling the refrigerator.

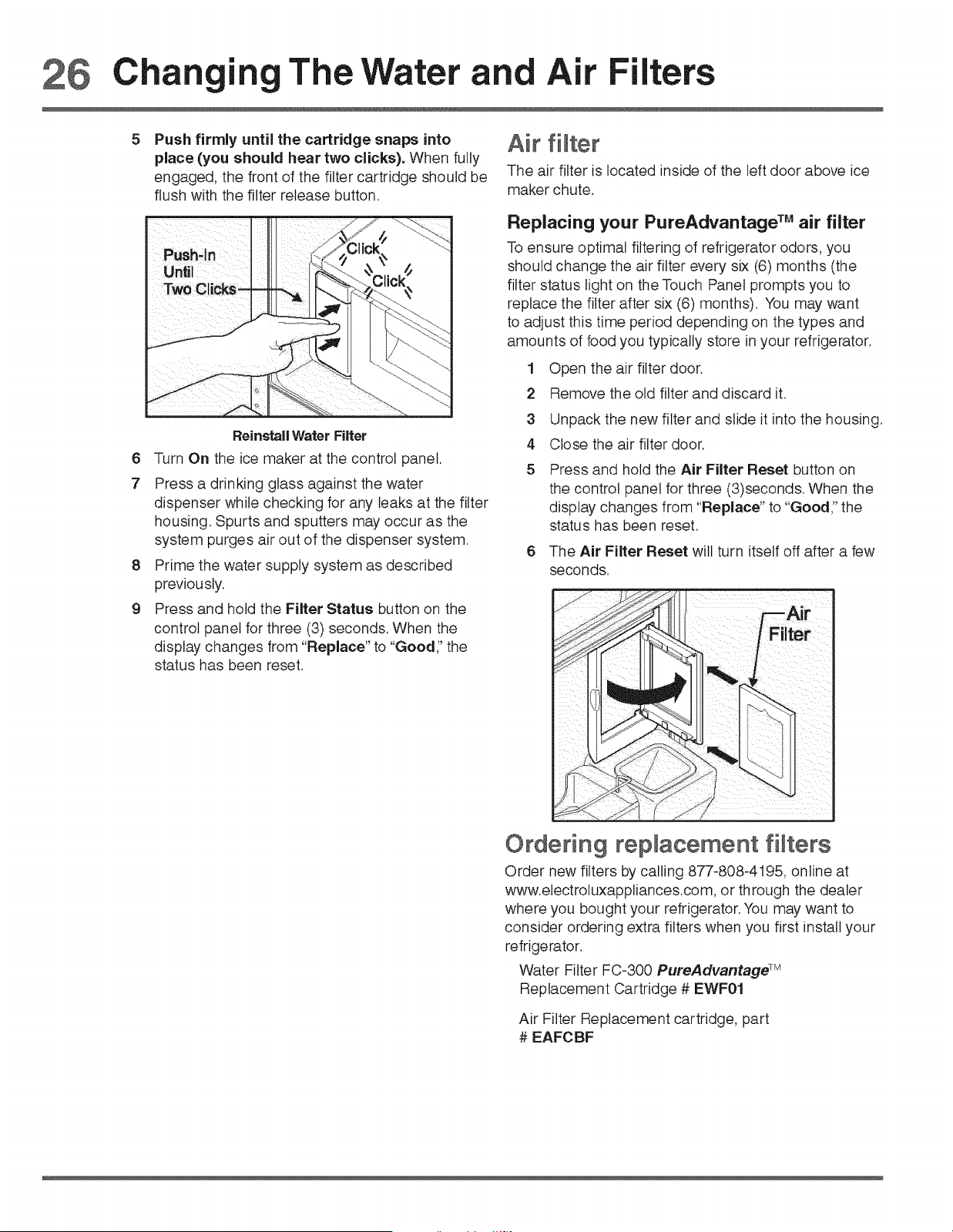

Changin TheWater and Air Filters

Push firmly until the cartridge snaps into

place (you should hear two clicks). When fully

engaged, the front of the filter cartridge should be

flush with the filter release button.

Reinstall Water Filter

6 Turn On the ice maker at the control panel.

7 Press a drinking glass against the water

dispenser while checking for any leaks at the filter

housing. Spurts and sputters may occur as the

system purges air out of the dispenser system.

8 Prime the water supply system as described

previou sly.

9 Press and hold the Filter Status button on the

control panel for three (3) seconds. When the

display changes from "Replace" to "Good," the

status has been reset.

Air fiWter

The air filter is located inside of the left door above ice

maker chute.

Replacing your PureAdvantage TM air filter

To ensure optimal filtering of refrigerator odors, you

should change the air filter every six (6) months (the

filter status light on the Touch Panel prompts you to

replace the filter after six (6) months). You may want

to adjust this time period depending on the types and

amounts of food you typically store in your refrigerator.

1 Open the air filter door.

2 Remove the old filter and discard it.

Unpack the new filter and slide it into the housing.

Close the air filter door.

Press and hold the Air Filter Reset button on

the control panel for three (3)seconds. When the

display changes from "Replace" to "Good," the

status has been reset.

The Air Filter Reset wilt turn itself off after a few

seconds.

Ordering repmacement filters

Order new filters by calling 877-808-4195, online at

www.electroluxappliances.com, or through the dealer

where you bought your refrigerator. You may want to

consider ordering extra filters when you first install your

refrigerator.

Water Filter FC-300 PureAdvantage TM

Replacement Cartridge # EWF01

Air Filter Replacement cartridge, part

# EAFCBF

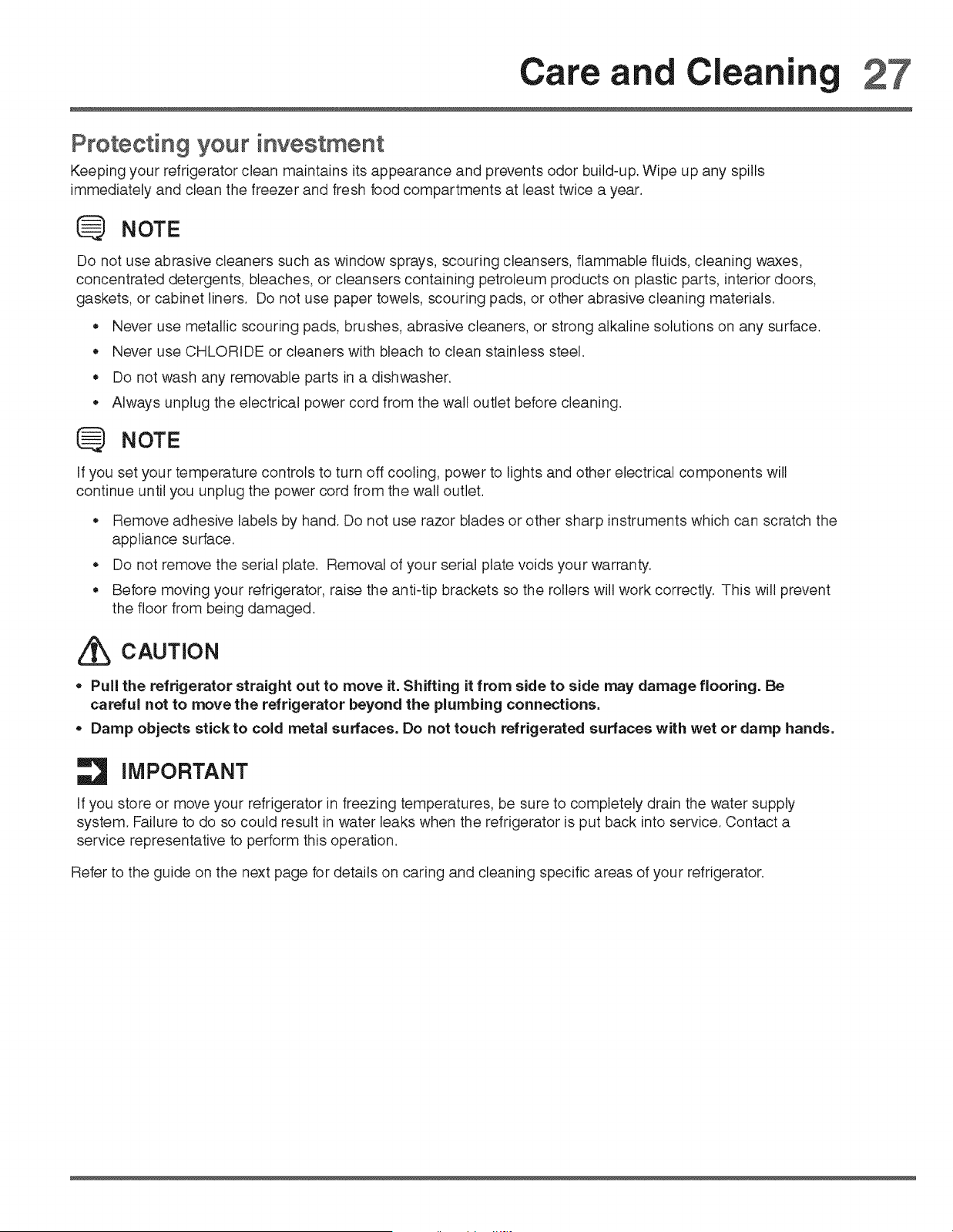

Care and Cleaning 27

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills

immediately and clean the freezer and fresh food compartments at least twice a year.

÷ NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors,

gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.

,, Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

,, Never use CHLORIDE or cleaners with bleach to clean stainless steel.

,, Do not wash any removable parts in a dishwasher,

o Always unplug the electrical power cord from the wall outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will

continue until you unplug the power cord from the wall outlet.

Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the

appliance surface.

,, Do not remove the serial plate. Removal of your serial plate voids your warranty.

,, Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent

the floor from being damaged.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be

careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply

system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a

service representative to perform this operation.

Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

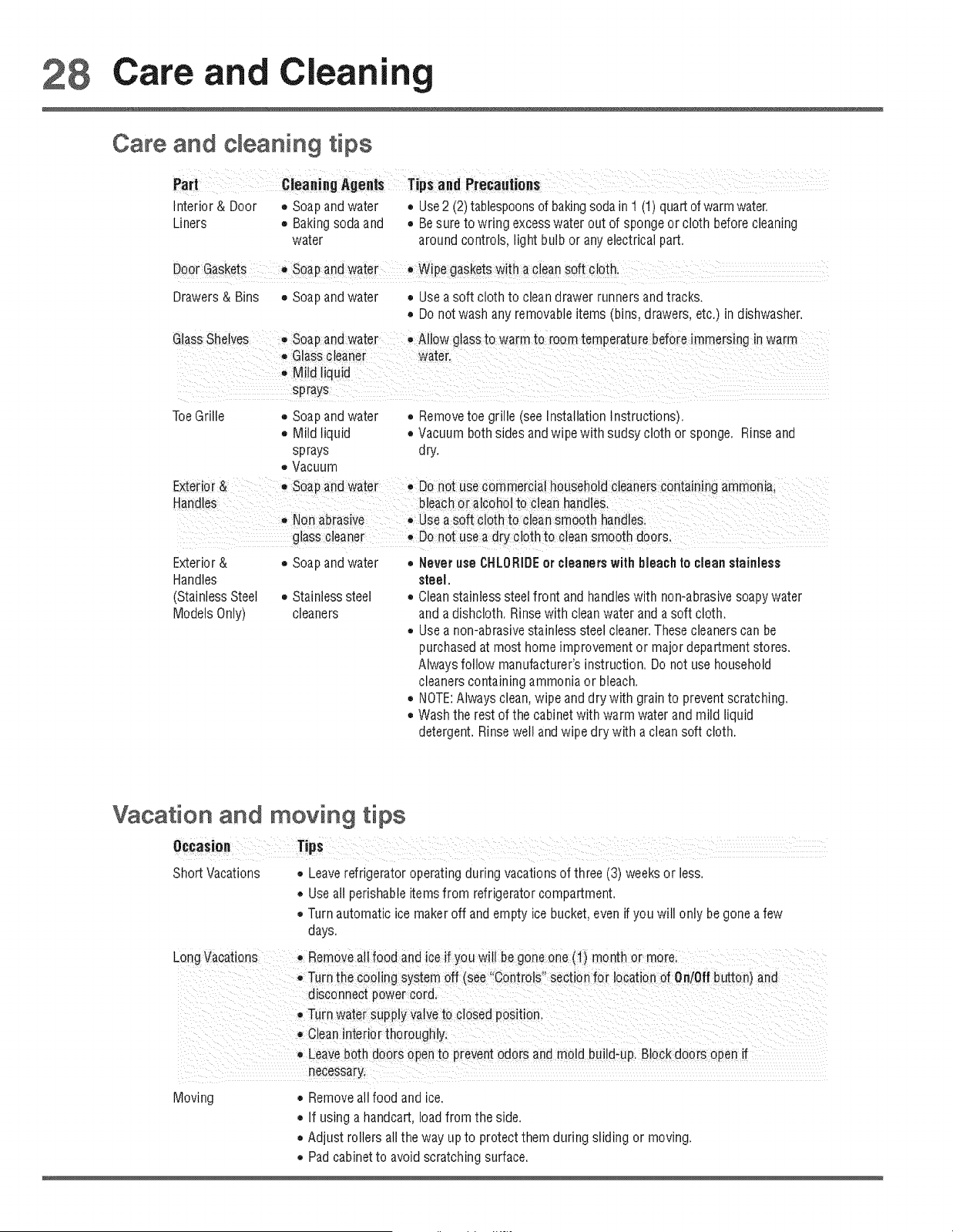

Care and Cleaning

Care and cJeaning tips

Interior& Door

Liners

,, Soap and water , Use2 (2) tablespoons of bakingsoda in 1 (1) quart of warm water,

,, Baking soda and t Besure to wring excess water out of sponge or cloth before cleaning

water around controls, fight bulb or any electrical part.

Drawers & Bins = Soap and water

o Usea softclothto cleandrawerrunnersandtracks.

,, Donotwashany removableitems (bins,drawers,etc.) in dishwasher.

ToeGrille

t Soap and water

= Mitd liquid

sprays

o Vacuum

,, Remove toe grille (see installation Instructions).

,, Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and

dry.

Exterior & • Soap and water ,, Never usa CHLORIDEor cleaners with bleach to clean stainless

Handles

(Stainless Steel w Stainless steel

Models Only) cleaners

steel.

,, Clean stainless steel front and handles with non-abrasive soapy water

and a dishcloth, Rinse with clean water and a soft cloth.

Usea non-abrasive stainless steel cleaner.These cleaners can be

purchased at most home improvement or major department stores.

Always follow manufacturer's instruction. Do not use household

cleaners containing ammonia or bleach.

,, NOTE:Always clean, wipe and dry with grain to prevent scratching.

,, Wash the rest of the cabinet with warm water and mild liquid

detergent. Rinse well and wipe dry with a clean soft cloth,

Vacation and moving tips

Short Vacations

_, Leave refrigerator operating during vacations of three (3) weeks or less.

,, Use all perishable items from refrigerator compartment.

t Turn automatic ice maker off and empty ice bucket, even if you will only be gone afew

days.

Moving ,, Rernoveall food and ice,

o If using a handcart, loadfrom the side.

o Adjust rollers all the way Lipto protect them during sliding or moving.

,, Pad cabinet to avoid scratching surface.

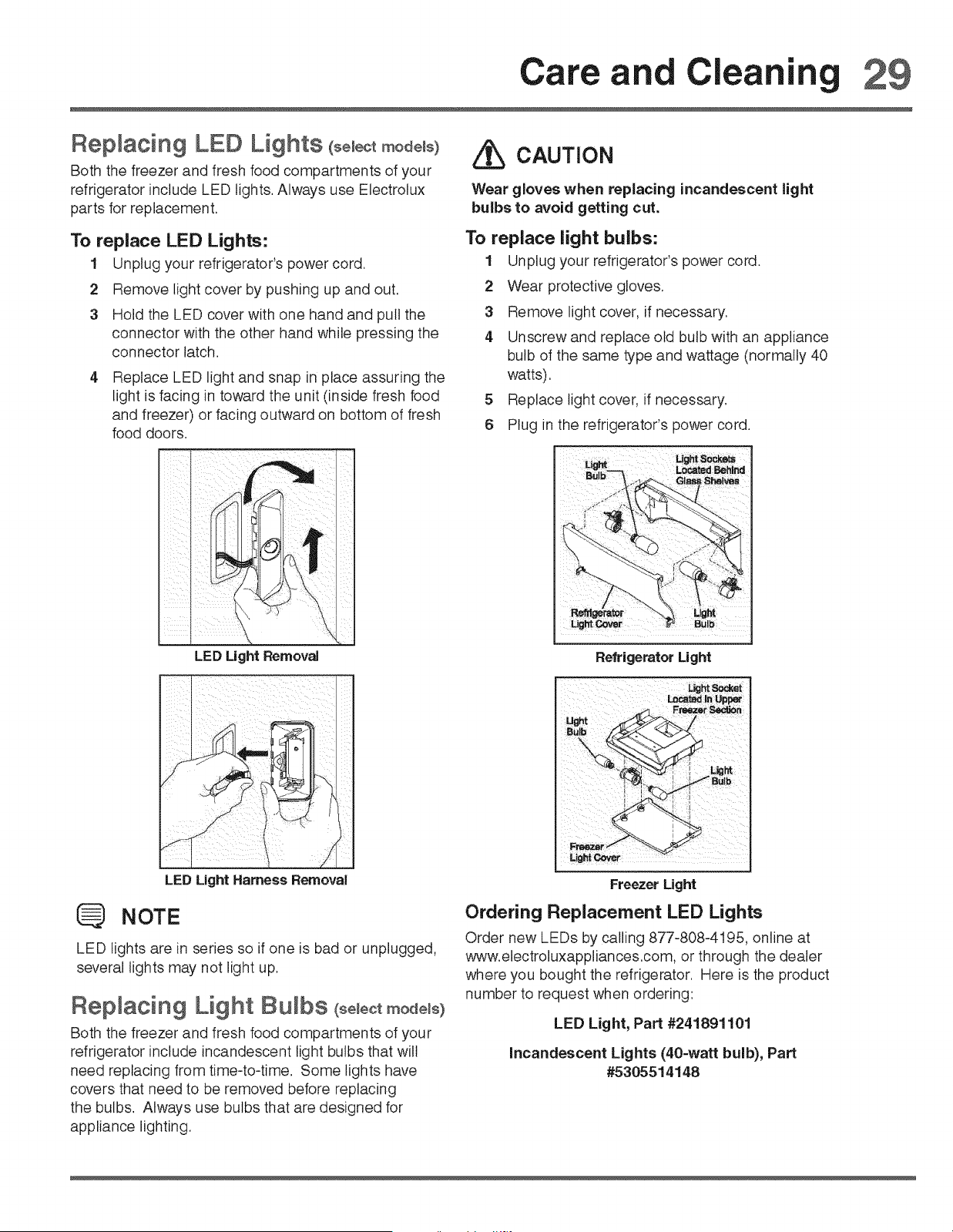

Care an Cleaning 29

RepJacin 9 LED Lights (sew÷ormodems)

Both the freezer and fresh food compartments of your

refrigerator include LED lights. Always use Electrolux

parts for replacement.

To replace LED Lights:

1 Unplug your refrigerator's power cord.

2 Remove light cover by pushing up and out.

3 Hold the LED cover with one hand and putt the

connector with the other hand while pressing the

connector latch.

Replace LED light and snap in place assuring the

light is facing in toward the unit (inside fresh food

and freezer) or facing outward on bottom of fresh

food doors,

! i! ii_ '! !ii_ii

!i_ i_

LED Light Removal

LED Light Harness Removal

CAUTION

Wear gloves when replacing incandescent light

bulbs to avoid getting cut.

To replace light bulbs:

1 Unplug your refrigerator's power cord.

2 Wear protective gloves.

3 Remove light cover, if necessary.

4 Unscrew and replace old bulb with an appliance

bulb of the same type and wattage (normally 40

watts).

5 Replace light cover, if necessary.

6 Plug in the refrigerator's power cord.

Refrigerator Light

NOTE

LED lights are in series so if one is bad or unplugged,

several lights may not light up.

Replacing Light Bulbs (so,cotmod÷_s>

Both the freezer and fresh food compartments of your

refrigerator include incandescent light bulbs that will

need replacing from time-to-time. Some lights have

covers that need to be removed before replacing

the bulbs. Always use bulbs that are designed for

appliance lighting.

Freezer Light

Ordering Replacement LED Lights

Order new LEDs by calling 877-808-4195, online at

w_vw.electroluxappliances.com, or through the dealer

where you bought the refrigerator. Here is the product

number to request when ordering:

LED Light, Part #241891101

incandescent Lights (40-watt bulb), Part

#5305514148

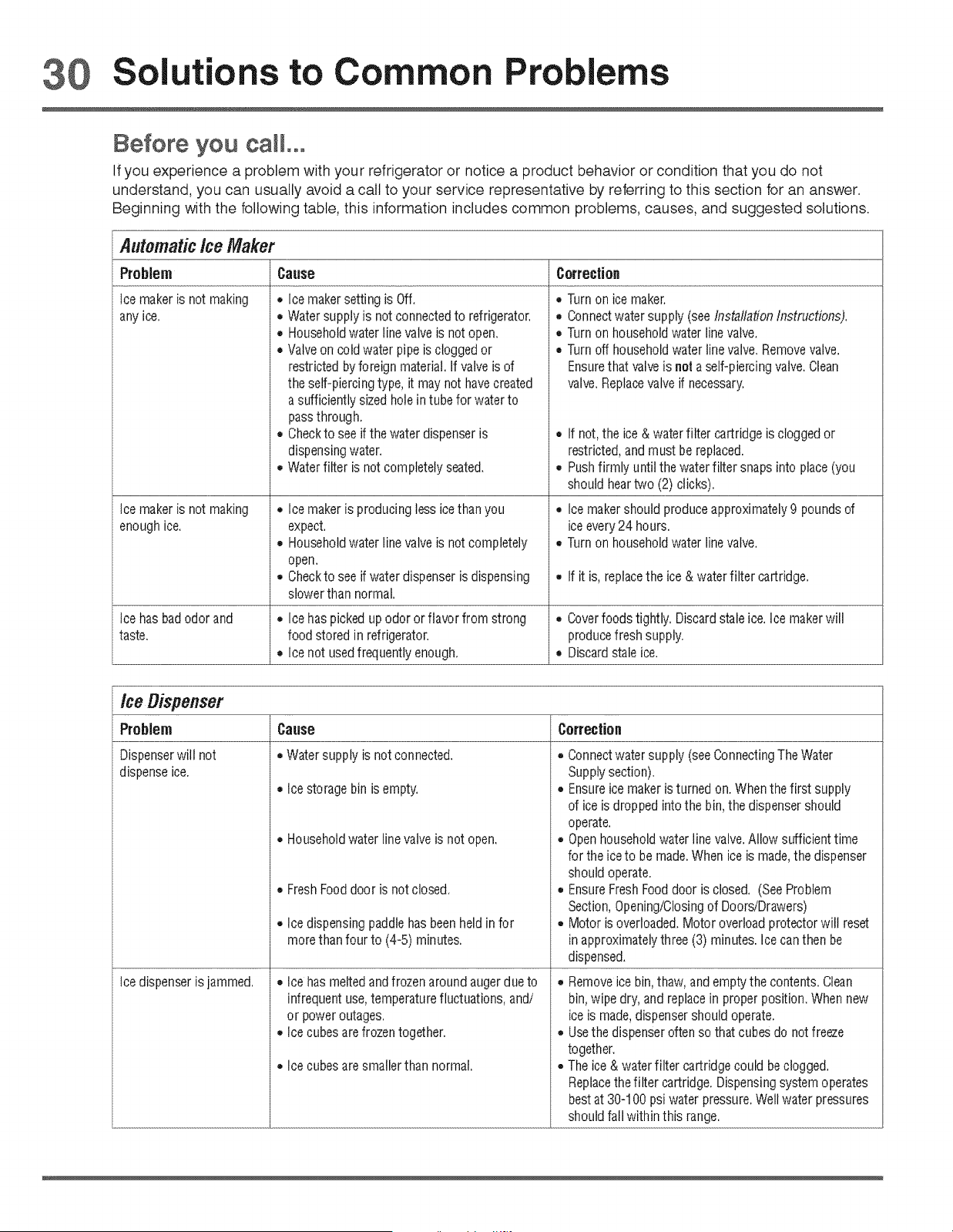

Solutions to Common Problems

Before you call.°.

if you experience a problem with your refrigerator or notice a product behavior or condition that you do not

understand, you can usually avoid a call to your service representative by referring to this section for an answer.

Beginning with the following table, this information includes common problems, causes, and suggested solutions.

Autornaticice Maker

Problem

Icemakeris not making

anyice.

Ice maker is not making

enough ice.

Icehasbadodorand

taste.

CeHS8

,, Ice maker setting is Off.

,, Water supply is not connected to refrigerator.

,, Householdwater line valve is not open.

• Valve on cold water pipe is clogged or

restricted by foreign material, if valve is of

the self-piercing type, it may not have created

a sufficiently sized hole in tube for water to

pass through.

,, Checkto see ifthe water dispenser is

dispensingwater.

,, Water filter is not completely seated.

,, Ice maker is producing less icethan you

expect.

,, Householdwater line valve is not completely

open.

, Checkto see ifwater dispenser is dispensing

slower than normal.

, Icehaspickedupodororflavorfrom strong

foodstoredin refrigerator.

,, Icenot usedfrequentlyenough.

Correction

• Turn on ice maker.

• Connectwater supply (see Installation Instructions).

, Turn on household water line valve.

Q Turn off household water line valve. Remove valve.

Ensurethat valve is not a self-piercing valve. Clean

valve. Replacevalve if necessary.

• If not, the ice & water filter cartridge is clogged or

restricted, and must be replaced.

• Push firmly until the water filter snaps into place(you

should hear two (2) clicks).

Ice makershould produce approximately 9 poundsof

ice every 24 hours.

, Turn on household water line valve.

• If it is, replacethe ice & water filter cartridge.

,, Coverfoods tightly. Discard staleice. ice makerwill

produce fresh supply.

,, Discard stale ice.

Ice Dispenser

Problem

Dispenserwill not

dispense ice.

Ice dispenser is jammed.

Cause

,, Water supply is not connected.

_,Ice storage bin is empty.

. Household water linevalve is not open.

,, Fresh Fooddoor is not closed.

,, ice dispensing paddlehas been held in for

more than four to (4*5) minutes.

Ice has meltedandfrozen around auger due to

infrequent use, temperature fluctuations, and/

or power outages.

ice cubes arefrozen together.

Ice cubes are smaller than normal.

Correction

,, Connectwater supply (see ConnectingThe Water

Supply section).

° Ensureice maker is turned on. When the first supply

of ice is dropped into the bin, the dispenser should

operate.

,, Openhousehold water line valve. Allow sufficient time

for the ice to be made.When ice is made,the dispenser

should operate.

• EnsureFreshFood door is closed. (SeeProblem

Section, Opening/Closingof Doors/Drawers)

,, Motor is overloaded. Motor overload protector will reset

in approximately three (3) minutes. Ice canthen be

dispensed.

• Remove ice bin,thaw, and empty the contents. Clean

bin, wipe dry, and replacein proper position. When new

ice is made,dispenser should operate.

,, Usethe dispenser often so that cubes do not freeze

together.

The ice & water filter cartridge could be clogged.

Replacethe filter cartridge. Dispensingsystem operates

bestat 30-1go psi water pressure.Well water pressures

should fall within this range.

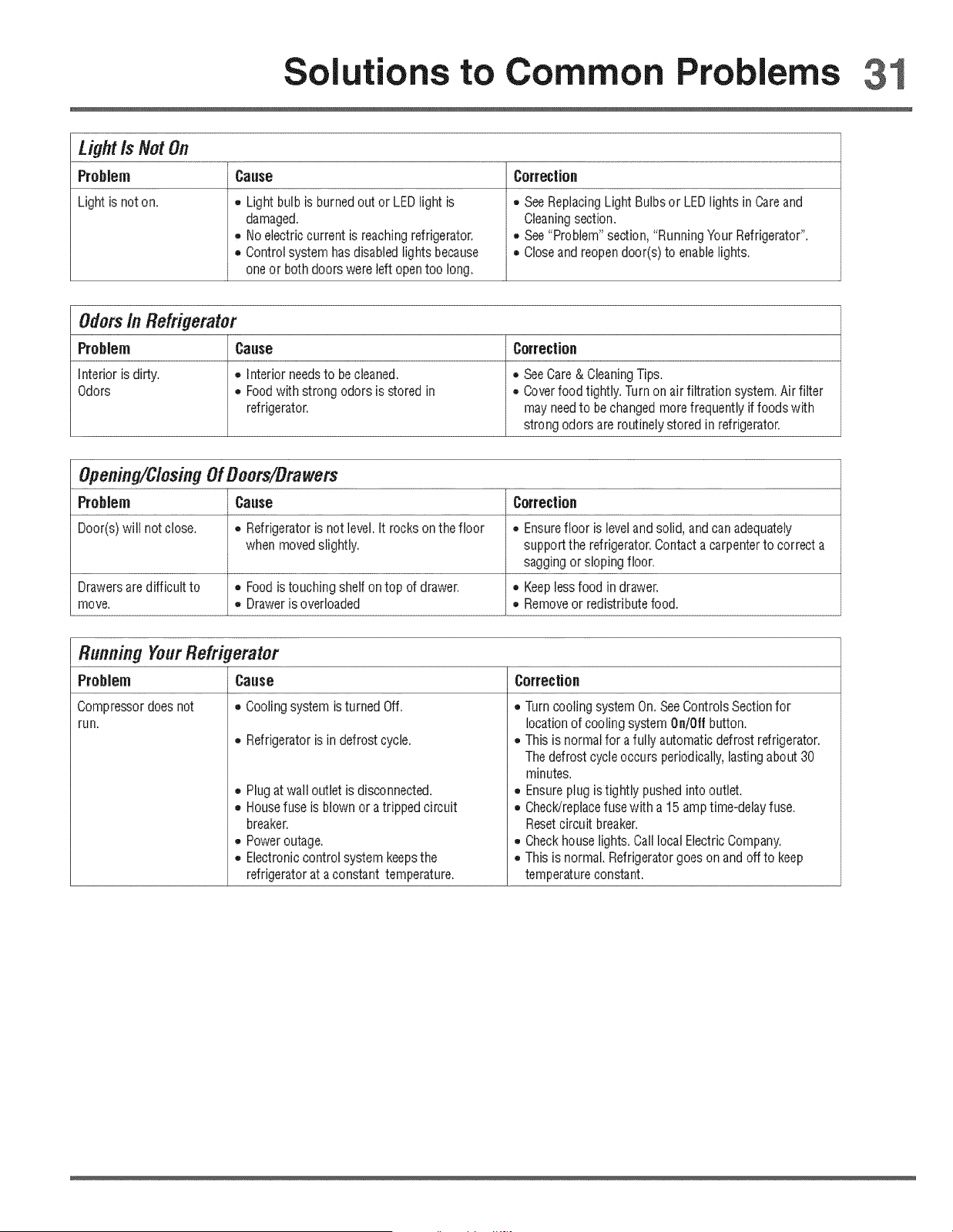

Solutions to Common Problems 31

Light is Not On

Problem

Light is not on.

Cause

• Light bulb is burned out or LED lightis

damaged.

• Noelectric current is reaching refrigerator.

,, Control system has disabled lights because

one or both doors were left open too long.

Correction

,, SeeReplacing Light Bulbs or LEDlights in Careand

Cleaningsection.

- See"Problem" section, "Running Your Refrigerator",

,, Closeand reopen door(s) to enable lights.

Odorsin Refrigerator

Problem Cause Correction

Interioris dirty. ,, interior needs to be cleaned. ,, SeeCare & CleaningTips.

Odors ,, Foodwith strong odors is stored in ,, Coverfood tightly. Turn on air filtration system. Air filter

refrigerator, may needto be changed morefrequently if foods with

strong odors are routinely stored in refrigerator.

Opening/Closing OfBoors/Drawers

Problem Cause Correction

Door(s) will not close, o Refrigerator is not level. It rocks on the floor ,, Ensurefloor is leveland solid, and can adequately

when moved slightly, support the refrigerator. Contact a carpenterto correct a

saggingor sloping floor.

Drawers are difficult to • Foodis touching shelf on top of drawer. • Keepless food in drawer.

move, t Drawer is overloaded • Remove or redistribute food,

Running YourRefrigerator

Cause Correction

,, Cooling system is turned Off.

Problem

Compressordoesnot

run.

,, Refrigerator is in defrost cycle.

• Plug at wall outlet is disconnected.

,, Housefuse is blown or a tripped circuit

breaker.

,, Power outage.

J Electroniccontrol system keepsthe

refrigerator at aconstant temperature.

. Turn cooling system On. SeeControls Section for

location of cooling system On/Off button.

,, This is normal for a fully automatic defrost refrigerator:

The defrost cycleoccurs periodically,lasting about 30

minutes.

, Ensureplug istightly pushed into outlet.

,, CheckJreplacefuse with a 15 amp time-delay fuse.

Resetcircuit breaker,

,, Checkhouse lights. Calllocal ElectricCompany.

,, This is normal. Refrigerator goes on and off to keep

temperature constant.

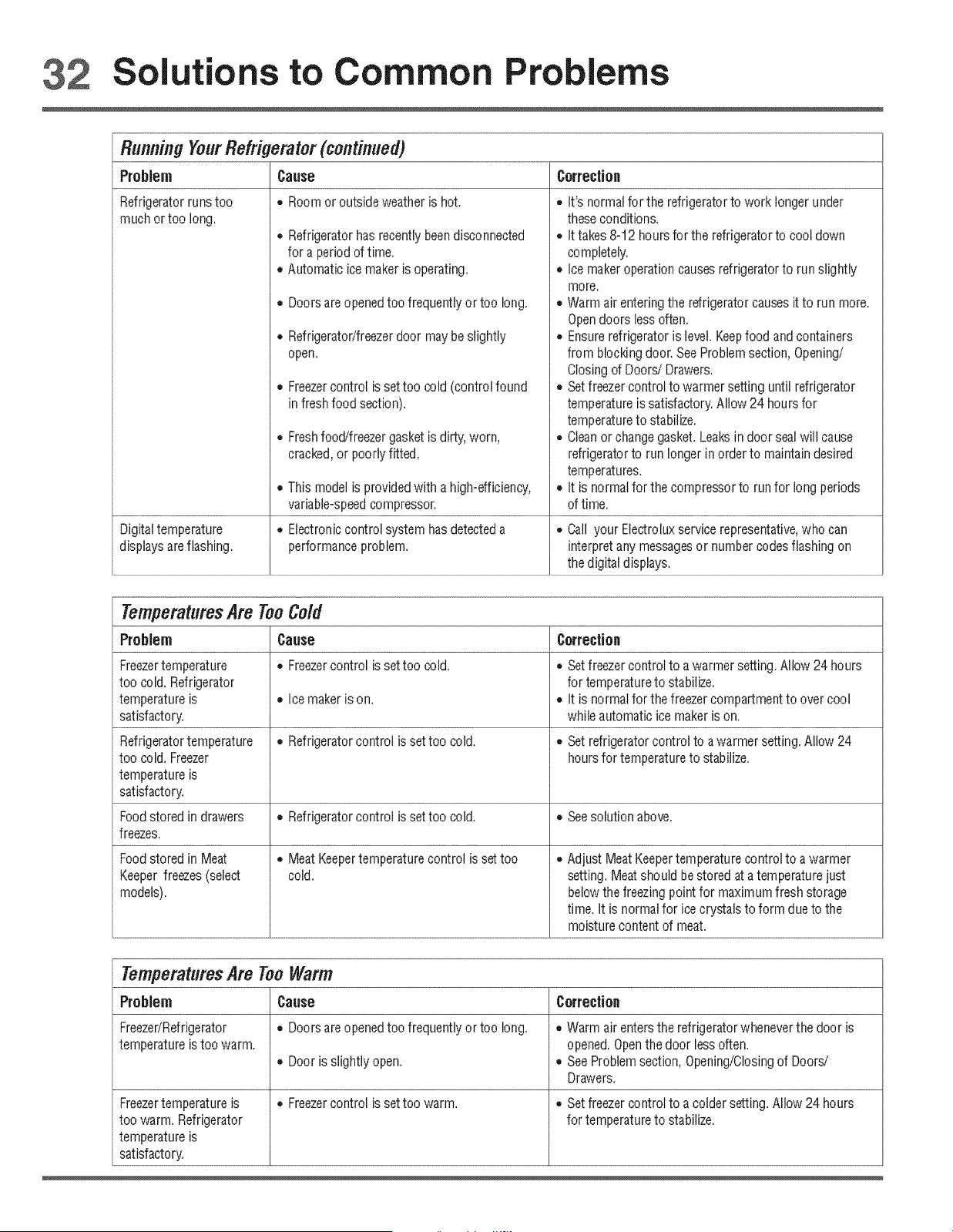

32 Solutions to Common Problems

Problem

Refrigeratorrunstoo

muchortoo long.

Running YourRefrigerator (continued)

Cause

,, Room or outside weather is hot.

Digitaltemperature

displays are flashing.

• Refrigerator has recentlybeen disconnected

for a period of time.

,, Automatic ice maker is operating.

,, Doors are opened too frequently or too long.

,, Refrigerator/freezerdoormaybesiightty

open.

, Freezercontrol is set too cold (control found

in fresh food section).

. Freshfoodtfreezer gasket is dirty, worn,

cracked,or poorly fitted.

,, This model is provided with a high-efficiency,

variable-speed compressor.

• Electronic control system has detected a

performance problem:

Correction

,, It's normal for the refrigerator to work longer under

these conditions.

• It takes 8-12 hours for the refrigerator to cool down

completely.

,, Ice makeroperation causesrefrigerator to run slightly

more.

,, Warm air entering the refrigerator causes it to run more.

Opendoors tess often.

,, Ensure refrigerator is level.Keepfood and containers

fronnblocking door.See Problem section, Opening/

Closing of Doors/Drawers.

,, Setfreezer control to warmer setting until refrigerator

temperature is satisfactory, Aitow 24 hours for

temperatureto stabilize.

• Clean or changegasket. Leaksin door sealwilt cause

refrigerator to run longer in order to maintain desired

temperatures.

,, It is normal for the compressor to run for long periods

of time.

Call your Electrolux service representative,who can

interpret any messagesor number codesflashing on

the digital displays.

TemperaturesAre TooCold

Problem

Freezertemperature

too cold. Refrigerator

temperature is

satisfactory.

Refrigeratortemperature

too cold. Freezer

temperature is

satisfactory.

Cause

,, Freezercontrol is set too cold.

,, Ice maker is on.

Refrigerator control is set too cold.

Correction

,, Setfreezer control to a warmer setting. Allow 24 hours

for temperatureto stabilize.

_,It is normal for the freezer compartment to over cool

while automatic ice maker is on.

o Refrigerator control is set too cold.

,, Meat Keepertemperature control is set too

cold.

• Set refrigerator control to awarmer setting. Allow 24

hours for temperature to stabilize.

Foodstored in drawers ,, Seesolution above.

freezes.

Foodstoredin Meat

Keeperfreezes(select

models).

,, Adjust Meat Keepertemperature control to a warmer

setting. Meat should be stored at a temperaturejust

below the freezing point for maximum fresh storage

time. It is normal for icecrystals to form due to the

moisture content of meat.

TemperaturesAre TooWarm

Problem

Freezer/Refrigerator

temperatureis toowarm.

Freezertemperatureis

too warm.Refrigerator

temperatureis

satisfactory.

Cause

- Doorsareopenedtoofrequentlyor too long.

,, Door is slightly open,

,, Freezercontrol is set too warm.

Correction

• Warm air enters the refrigerator whenever the door is

opened. Openthe door less often.

= SeeProblem section, Opening/Closingof Doors/

Drawers.

,, Set freezer control to a colder setting. Allow 24 hours

for temperature to stabilize.

Solutions to Common Problems 33

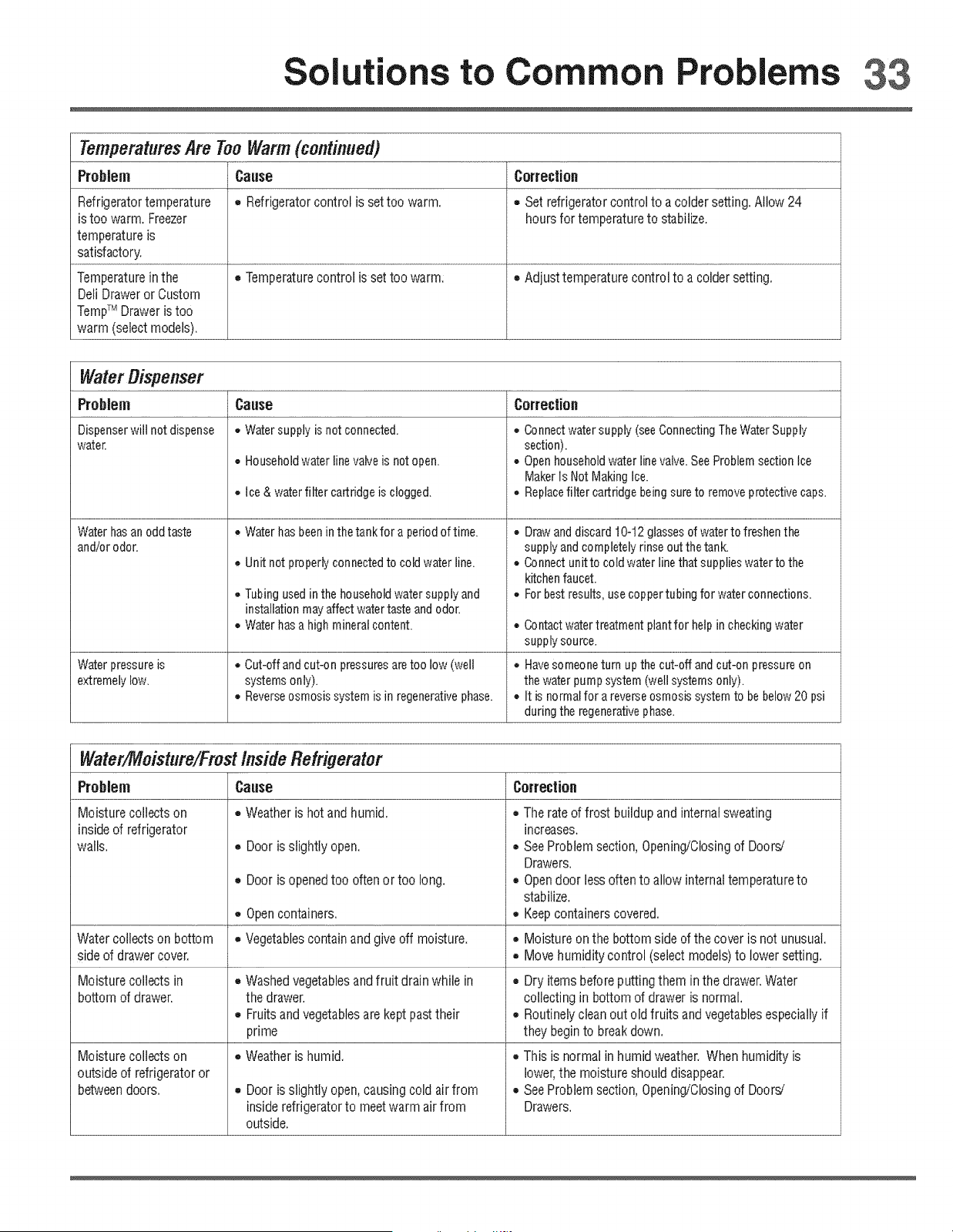

TemperaturesAre TooWarm(continued)

Problem - Cause

Refrigerator temperature

is too warm, Freezer

temperature is

satisfactory.

Temperaturein the

Dell Drawer or Custom

TempTM Drawer is too

warm (select models).

Correction

• Refrigeratorcontrol is set too warm,

• Temperaturecontrol is set too warm:

• Set refrigerator control to a colder setting. Allow 24

hours for temperature to stabilize.

• Adjust temperature control to a colder setting.

WaterDispenser

Problem

Dispenserwill not dispense

water

Waterhasanoddtaste

and/orodor.

Waterpressureis

extremelylow.

Cause

* Watersupplyisnotconnected.

, Householdwater linevalveis notopen.

, Ice & waterfilter cartridgeis clogged.

° Waterhasbeeninthetankfor a periodof time.

o Unitnot propertyconnectedto coldwater line.

o Tubingusedin thehouseholdwater supplyand

installationmayaffectwatertasteandodor.

° Waterhasa high mineralcontent.

, Cut-offandcut-onpressuresaretoo low(welt

systemsonly).

° Reverseosmosissystemis in regenerativephase.

Correction

, Connectwatersupply(seeConnectingTheWaterSupply

section).

• Openhouseholdwater linevalve.SeeProblemsectionIce

MakerIs Not MakingIce.

° Replacefilter cartridgebeingsureto removeprotectivecaps.

• Drawanddiscard10-12glassesof waterto freshenthe

supplyandcompletelyrinseoutthetank.

• Connectunitto coldwater linethatsupplieswaterto the

kitchenfaucet.

,, Forbestresults,usecoppertubing for waterconnections.

Contactwatertreatmentplantfor helpin checkingwater

supplysource.

• Havesomeoneturn up thecut-offandcut-onpressureon

thewaterpumpsystem(wellsystemsonly).

, It is normalfor a reverseosmosissystemto bebelow20 psi

duringthe regenerativephase.

Problem

Moisture collects on

inside of refrigerator

walls.

Water collects on bottom

side of drawer cover,

Moisture collects in

bottom of drawer,

Water/Moisture/FrostInsideRefrigerator

Cause

• Weather is hot and humid,

• Door is slightly open.

• Door is openedtoo often or too long.

• Opencontainers.

, Vegetablescontain and give off moisture.

Moisture collects on

outside of refrigerator or

between doors.

• Washed vegetablesandfruit drain while in

the drawer.

• Fruits and vegetablesare kept past their

prime

• Weather is humid.

• Door is slightly open, causing cold air from

inside refrigeratorto meet warm air from

outside.

Correction

The rate of frost buildup and internal sweating

increases.

SeeProblem section, Opening/Closingof Doors/

Drawers.

Opendoor less often to allow internal temperatureto

stabilize.

Keepcontainers covered.

Moistureonthebottomsideof thecoveris notunusual,

Movehumiditycontrol(selectmodels)to lowersetting,

Dry items before putting them in the drawer.Water

collecting in bottom of drawer is normal.

Routinely clean out old fruits and vegetablesespecially if

they begin to break down.

This is normal in humid weather. When humidity is

lower,the moisture should disappear.

SeeProblem section, Opening/Closingof Doors/

Drawers.

34 Warranty

REFRIGERA TOR WARRANTY Your refrigerator is protected by this warranty

WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE

PERIOD WE WILL: RESPONSIBLE FOR:

FULL ONE-

YEAR

WARRANTY

LIMITED 2 "d- 5TM

YEAR

WARRANTY

(Cabinet Liner

and Sealed

System)

LIMITED

WARRANTY

(Applicable to

the State of

Alaska)

One year from

original

purchase date.

Second through

fifth years from

original

purchase date.

Time periods

listed above.

Pay all costs for repairing or replacing any paris of

this appliance which prove to be defective in

materials or workmanship. Excludes original and

replacement Ice & Water filter cartridges (if

equipped). Original and replacement cartridges are

warranted for 30 days (paris only).

Repair or replace any parts in the cabinet liner or

sealed refrigeration system (compressor,

condenser, evaporator, dryer or tubing) which

prove to be defective in materials or workmanship.

A!l of the provisions of the full warranties above

and the exclusions listed below apply.

Costs of service calls that are listed under

NORMAL RESPONSIBILITIES OF THE

CONSUMER.*

Costs for pickup and delivery of the

appliance required because of service.

Costs for labor, parts and transporlation

other than with respect to the cabinet liner

or Sealed Refrigeration System.

Costs of the technician's travel to the

home and any costs for pick up and

delivery of the appliance required because

of service.

In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authonze no person to change or add to

any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by

us or an authorized Electrolux Home Products, Inc. servicer. In Canada, your appliance is warranted by Electrolux

Canada Corp.

*NORMAL

RESPONSIBILITIES

OFTHE

CUSTOMER

This warranty applies only to products in ordinary household use, and the consumer is

responsible for the items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the

appliance and in accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses,

repair of loose connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs andtor fluorescent tubes (on models with these features).

EXCLUSIONS

This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND

INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY

IMPLIED WARRANTY.

Note: Some states do not allow the exclusion or limitation of incidental or consequential

damages, so this limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for

appliances not in ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc.,

Electrolux Canada Corp., or its authorized servicers; use of parts other than genuine Electrolux

Home Products parts; obtained from persons other than such servicers; or external causes such

as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily

determined.

IF YOU NEED

SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill

establishes the warranty period should service be required. If service is performed, it is in your best

interest to obtain and keep all receipts. This written warranty gives you specific legal rights. You may

also have other rights that vary from state to state. Service under this warranty must be obtained by

contacting Electrolux Home Products, Inc. or Electrolux Canada Corp.

This warranty only applies in the 50 States of the U.S.A. and Puerto Rico, and Canada. Product features or specifications

as described or illustrated are subject to change without notice. All warranties are made by Electrolux Home Products,

Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

USA

1-877-435-3287

Etectrolux Major Appliances North America

p.o. Box 212378

Augusta, GA 30907

Canada

1-800-265-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada L5V 3E4

Use a Care Guide

Frer_ch Door Bottom Freezer/Refrigerator

Guia de Uso y Cuidado

Refrigerador (o_ cor_gelador ir_fefior de puerta doble

Guide d'utilisation et d'entretien

R_ffig_rateur i_portes fran{:aisesiCor_g{qa_eur er_ bas

241978401 June 2009

2 Finding information

P_ease read and save this 9uide

Thank you for choosing Electrolux, our new premium

brand in home appliances.This Use & Care Guide is

part of our commitment to customer satisfaction and

product quality throughout the service life of your new

appliance.

Keep a record for quick

TabJe of contents

FindingInformation .............................................. 2

Salely ............................................................... 3

FeatureOverview ................................................. 5

installation......................................................... G

Removingthe Doors............................................ 10

Purchase date

Etectrolux model number

Electrolux serial number

Connectingthe WaterSupply .................................. 12

Controls........................................................... 13

AutomaticIce & Water Maker/Dispenser.................... 1G

NOTE

Registering your product with Electrolux enhances

our ability to serve you. You can register online at

www.electroluxappliances.com or by sending your

Product Registration Card in the mail.

Storage Features ................................................ 18

Storing Food and Saving Energy.............................. 23

Normal Operating Sounds & Sights .......................... 24

Changingthe Water andAir Filters ........................... 25

Careand Cleaning............................................... 27

For toll-free telephone support in the U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and product information visit http:/i

www.electroluxicon.com

Solutions to CommonProblems............................... 30

Warranty.......................................................... 34

Jnsta_mation Checklist

Doors

[] Handles are secure and tight

rq Door seals completely to cabinet on all sides

[] Freezer door is level across the top

Leveling

[] Refrigerator is level, side-to-side and tilted 1/4"

(Cmm) front-to-back

13 Toe grille is properly attached to refrigerator

[] Cabinet is setting solid on all corners

Electrical Power

83 House power turned on

[] Refrigerator plugged in

Ice Maker

[:3 House water supply connected to refrigerator

[:3 No water leaks present at all connections -

recheck in 24 hours

[] Ice maker is turned ON

[] Ice & water dispenser operates correctly

[] Front filter must be flush with filter housing

(select models)

Final Checks

[] Shipping material removed

[] Fresh food and freezer temperatures set

[] Crisper humidity controls set

[] Registration card sent in

Safety 3

Important safety instructions

Safety Precautions

Do not attempt to install or operate your unit until

you have read the safety precautions in this manual.

Safety items throughout this manual are labeled with a

Danger, Warning, or Caution based on the risk type.

Definitions

_This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible

injury or death.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

IMPORTANT

Indicates installation, operation, or maintenance

information which is important but not hazard-related.

General Safety

WARNING

Please read all safety instructions before using

your new refrigerator.

,, Do not store or use gasoline or other flammable

liquids near this or any other appliance.

Read product labels for 'warnings regarding

flammability and other hazards.

• Do not operate the refrigerator in the presence of

explosive fumes.

,, Avoid contact with any moving parts of the

automatic ice maker.

Remove all staples from the carton to avoid

injury. Staples can also damage finishes if

they come in contact with other appliances or

furniture.

Child Safety

Packing Materials:

Packing cartons covered with rugs, bedspreads,

plastic sheets, or stretch wrap may become

airtight chambers and can quickly cause

suffocation.

Destroy or recycle the product's carton, plastic

bags, and any other exterior wrapping material

immediately after the refrigerator is unpacked.

Children should never play with these items.

Child Entrapment and Suffocation:

. These problems are not limited to the past.

Whether junked, abandoned, or temporarily

stored (even for a few hours), unattended

refrigerators and freezers are dangerous. Please

take the precautions listed below.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling/

disposal methods. Check with your utility, company or

visit www.recyctemyoldfridge.com for more information

on recycling your old refrigerator.

Before you recycle or dispose of your old refrigerator/

freezer:

Remove the

doors.

Leave the

shelves and

baskets in place

so children may

not easily climb

inside.

Have refrigerant

and compressor

oil removed by a

qualified service technician.

4 Safety

Emectdcal information

WARNING

You must follow these guidelines to ensure

that your refrigerator's safety mechanisms are

operating correctly,

. The refrigerator must be plugged into its own

dedicated 115 Volt, 60 Hz, AC-only non=GFCl

electric outlet. The power cord of the appliance

is equipped with a three-prong grounding plug for

your protection against electrical shock hazards.

It must be plugged directly into a properly

grounded three-prong receptacle. The receptacle

must be installed in accordance with local codes

and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

o If the power cord is damaged, it should be

replaced by the manufacturer, service technician,

or a qualified person.

• Never unplug the refrigerator by pulling on the

power cord. Always grip the plug firmly and

pull straight out from the receptacle to prevent

damaging the power cord.

• To avoid electrical shock, unplug the refrigerator

before cleaning and before replacing a light bulb

or LED light.

o Performance may be affected if the voltage varies

by 10% or more. Operating the refrigerator with

insufficient power can damage the compressor.

Such damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a

walt switch or pull cord to prevent the refrigerator

from being turned off accidentally.

Grounding

wall reeeptac e

| IMPORTANT

To turn off power to your refrigerator, unplug the

power cord from the wall outlet.

Feature Overview 5

Understanding features and terms

Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. The illustration below is

provided to assist you with familiarizing yourself with product features and terminology,

NOTE

Features may vary according to model,

Model is shown without freezer drawer cover.

Custom Design TM

Shelves

Crisper

Drawer --

Special Items

Rack

(inside CTD)

(select models)

LED Light

(select models)

Watel

Filter

Adjustable

Hinges

(select models)

Ice Bin

Incandescent Light (select models)

Flipper Guide LED Light(select models)

Ice Maker Dairy

Flipper

Mullion

[:1

[]

Crisper

Drawer

Tilt Can

Bin

LED Light (select models)

Custom DesignTM

Shelves

Custom TempTM Drawer (CTD)

(select models)

or Dell Drawer

(with humidity slides)

Freezer Baskets

(top basket select

models only)

Grille

I1:_'b,

Wire Tilt-Out Shelf

(inside freezer drawer)

installation

Required Tools

You will need the following tools:

Components Provided."

Top Hi_ _ToP Ht_

Cover Fro_

$ctew _ _ Screw

ToolsN_n/:

114" Nut

Driv_

This Use & Care Guide provides general installation

and operating instructionsfor your model. We

recommend using a service or kitchen contracting

professional to install your refrigerator. Use the

refrigerator only as instructed in this Use & Care

Guide. Before starting the refrigerator, follow these

important first steps.

,, Choose a place that is near a grounded, non-

GFCI, electrical outlet. Do Not use an extension

cord or an adapter plug.

• If possible, place the refrigerator out of direct

sunlight and away from the range, dishwasher, or

other heat sources.

,, The refrigerator must be installed on a floor that

is level and strong enough to support a fully

loaded refrigerator.

,, Consider water supply availability for models

equipped with an automatic ice maker.

CAUTION

DO NOT install the refrigerator where the

temperature will drop below 55°F (13°O) or rise

above 110°F (43°C). The compressor will not be

able to maintain proper temperatures inside the

refrigerator,

DO NOT block the toe grille on the lower front

of your refrigerator. Sufficient air circulation

is essential for the proper operation of your

refrigerator.

Installation

,, Allow the following clearances for ease of

installation, proper air circulation, and plumbing

and electrical connections:

Sides & Top ¾ inch (9.5 mm)

Back 1 inch (25.4 mm)

NOTE

If your refrigerator is placed with the door hinge

against a wall, you may have to allow additional space

so the door can be opened wider.

Door opening

NOTE

The refrigerator doors are designed to shut by

themselves within a 20 degree opening.

Your refrigerator should be positioned to aitow easy

access to a counter when removing food. For best

use of refrigerator drawers and freezer baskets, the

refrigerator should be in a position where both can be

fully opened.

Guidelines for final positioning

of your refrigerator

* All four corners of the cabinet must rest firmly on

the floor.

The cabinet should be level at the front and rear.

The sides should tilt ¼ inch (6 mm) from front

to back (to ensure that doors close and seal

properly).

Doors should align with each other and be level.

Most of these conditions can be met by raising or

lowering the adjustable front rollers.

installation 7

To level the cabinet using the front rollers (select

models):

1 Remove the screw from each side of the toe grille

(see illustration),

2 Pull the toe grille forward and lift it off (see

illustration),

After unit is leveled, lower anti-tip leg until it

contacts the floor,

Use a flat-blade screwdriver or ¾-inch socket

wrench to raise or lower the front rollers,

Ensure both doors are bind-free with their seals

touching the cabinet on all four sides,

NOTE

The anti-tip leg must be in contact with the floor to

keep the refrigerator stable. DO NOT use the anti-tip

leg to level the refrigerator,

6 Replace the toe grille by fitting it into place and

replacing the screws,

installation

To adjust the door stop:

Door stop is adjustable between 85 to 145 degrees.

NOTE

View shown is looking up at the bottom of the

refrigerator door,

Adjustable Door Stop

1 Open door to provide access to set screw.

2 Loosen set screw.

3 Adjust door to desired location,

5 Re-tighten set screw.

SetScrew

Re-tighten Set Screw

6 Ensure door stops in desired location before

resuming normal use.

To level the doors using the adjustable lower hinge

(select models):

1 Remove all food items from door bins on door

being adjusted.

2 Open doors to 90 degrees.

3 Loosen or remove set screw.

Adjusting Door

Rotate door stop until it makes contact with the

lower hinge.

Bottom of Door

Loosen/Remove Set Screw

installation 9

Lift the door while adjusting the washer. To

raise the door, rotate washer clockwise (when

viewed from the bottom). To lower door, rotate

washer counter_clockwise 'when viewed from the

bottom).

Raising/Lowering Door

Adjust flipper mullion height. For proper

connection with the flipper mullion guide, there

should be a separation about the thickness of a

coin (0.060 inches, or 1.5 mm) between the guide

and flipper mullion.

5 Re-tighten the set screw, ensuring it is between

the spokes of the set washer. Set screw will not

be tight, just insert until it is flush with the hinge.

Adjusting Flipper Mullion Height

3 Re-tighten set screw.

Set Screw

To adjust the flipper mullion:

1 Loosen the set screw located on the flipper

mullion hinge.

_Flipper

_ _ Mullion

Set

Mullion

Adjusting Flipper Mullion Screw

Removing e Doors

Getting through narrow spaces

if your refrigerator will not fit through an entrance area,

you can remove the doors. Check first by measuring the

entrance.

To remove the refrigerator doors:

1 Trace lightly around the door's top hinges with a

pencil. This makes reinstallation easier.

To prepare for removing the doors:

Make sure the electrical power cord is unplugged

from the wall outlet.

2 Open the freezer drawer and remove the toe

grille (see "1nstallation" section).

3 Remove any food from the door shelves and

close the doors.

To remove the top hinge covers:

1 Remove the two (2) screws from each cover over

the top door hinges,

2 Lift inside edge of hinge cover and tilt back.

Mulll-v_

I scr_ jzF'--....f

I "%_b _"-. I1| "._,l,Qe

Disconnect the harness by grasping both sides of

the connector firmly, depress the latch, and pull

apart. Remove the two (2) screws from the top

hinge. Lift the door off of the bottom hinge and

set it aside.

Detach the water tube from the connector

located behind the refrigerator and pull the tube

back out to the front of the unit, The connector

releases when you press inward on the outer

sleeve while pushing the tube toward the

connector then while continuing to hold in the

sleeve, pull the tube away.

NOTE

DO NOT remove the ground screw from hinge.

Removin

the Doors 1 1

NOTE

You will be pulling approximately three (3) feet of

water tube from the back of the refrigerator.

4 Unscrew the three (3) lower hinge screws and

hinge if necessary.

To reinstall the right door, reverse the above steps.

Lower Hinge Removal

Once both doors are in place, ensure they are aligned

with each other and level (Please see the "Installation"

section for more details), and replace the top hinge

cover.

CAUTION

Be sure doors are set aside in a secure position

where they cannot fall and cause personal injury,

or damage to the doors or handles.

Removing Freezer Drawer

1 Open freezer drawer,

2 Remove drawer screws on right and left sides

(two (2) screws on each side),

3 Lift drawer up and out to remove.

CAUTION

Drawer is heavy. Use caution when lifting.

Installing Freezer Drawer

1 With lower slides and basket pulled out, mount

drawer in reverse of removal.

2 Tighten drawer screws then turn another 1/4 turn.

3 Check gasket seal around freezer drawer. Make

adjustments on drawer screws if necessary.

NOTE

DO NOT remove center screw from freezer drawer.

This is a factory" adjustment.

NOTE

Support door and hold stationary while removing

screws. Factory adjustment may be affected if door is

allowed to fall forward during screw removal.

2 Connecting theWater upply

WARNING

To avoid electric shock, which can cause death or

severe personal injury, disconnect the refrigerator

from electrical power before connecting a water

supply line to the refrigerator.

CAUTION

To Avoid Properly Damage:

* Copper or Stainless Steel braided tubing is

recommended for the water supply line. Water

supply tubing made of ¼ inch plastic is not

recommended to be used. Plastic tubing greatly

increases the potential for water leaks, and the

manufacturer will not be responsible for any

damage if plastic tubing is used for the supply fine.

* DO NOT install water supply tubing in areas

where temperatures fall below freezing.

° Chemicals from a malfunctioning softener

can damage the ice maker, if the ice maker

is connected to soft water, ensure that the

softener is maintained and working properly.

IMPORTANT

Ensure that your water supply line connections

comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

* Basic Tools: adjustable wrench, flat-blade

screwdriver, and Phillips TM screwdriver

- Access to a household cold water line with water

pressure between 30 and 100 psi.

,, A water supply line made of ¼ inch (6.4 mm) OD,

copper or stainless steel tubing.To determine the

length of tubing needed, measure the distance

from the ice maker inlet valve at the back of the

refrigerator to your cold 'water pipe. Then add

approximately 7 feet (2.1 meters), so the refrigerator

can be moved out for cleaning (as shown).

* A shutoff valve to connect the water supply line

to your household water system. DO NOT use a

self-piercing type shutoff valve.

,, A compression nut and ferrule (sleeve) for connecting

a copper water supply lineto the ice maker inlet valve.

NOTE

Check with your local buildingauthority for

recommendations on ,waterlines and associated materials

prior to installingyour new refrigerator. Depending on

your local/state building codes, Electrolux recommends for

homes with existing valves itsSmart Choice@water line kit

5305513409 (with a 6 ft. Stainless Steel Water Line) and for

homes without an existing valve, Etectrotuxrecommends

its Smart Choice water_lbline kit5305510264 (with a 20 ft.

Copper Water Line with self-tapping saddle valve). Please

refer to vvvvw'frigidaire'c°rrdst°refor more information.

To Connect Water Supply Line To ice Maker inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket.

-rijrn ON water supply and flush supply line until

water is clear.Turn OFF water supply at shutoff valve.

3. Remove plastic cap from water valve inlet and

discard cap.

4. If you use copper tubing - Slide brass compression

nut, then ferrule (sleeve) onto water supply line. Push

water supply line into water valve inlet as far as it will

go (¼ inch/ 6.4 mm). Slide ferrule (sleeve) into valve

inlet and finger tighten compression nut onto valve.

Tighten another half turn with a wrench; DO NOT

over tighten. See Figure 1.

If "you use stainless steel tubing -The nut and

ferrule are already assembled on the tubing. Slide

compression nut onto vakseinlet and finger tighten

compression nut onto valve.Tighten another half turn

with a wrench; DO NOT over tighten. See Figure 2.

5. Wllhsteelclampand screw,secure'watersupplyline

(coppertubingonb!)to rear panelof refrigeratoras shown.

6. Coil excess water supply line (copper tubing

only), about 2Y2turns, behind refrigerator as

shown and arrange coils so they do not vibrate or

wear against any other surface.

7. Turn ON water supply at shutoff valve and tighten

any connections that leak.

8. Reconnect refrigerator to electrical power source.

9. To turn ice maker on, lower wire signal arm (side

mounted) or set the ice maker's On/Off power

switch to the 'T' position (rear mounted).

-- m

t_ I_ Make_

_r_

Ill /I/ L_ ".41\

tff //t2_.-,_ _,,.,o,,,.,.o

Figure 1 Figure 2

IMPORTANT

After connecting the water supply, refer to "How to Prime

the Water Supply System" for important information

about priming an empty water supply system.

Your refrigerator's water supply system includes

several tubing lines, a water filter, a water valve, and

a water tank.To ensure that your water dispenser

works properly, this system must be completely

filled with water when your refrigerator is first

connected to the household water supply line.

Controls 13

Your refrigerator is equipped with a Wave-Touch TM

control panel display, It is only necessary to gently

touch the glass. There are three (3) levels of display,

1_tLevel: Sleep Mode

2ndLevel: Awakened Display Mode

Sleep Mode displays only the WATER, CUBES and

CRUSHED options. Touch an icon to activate the

desired dispenser mode. The active dispenser mode is

more brightly illuminated.

The control panel is awakened by touching anywhere

on the glass where there is an indicator, Black space

will not awaken the display, After 10 seconds of

inactivity; the control panel will return to the Sleep mode.

The following dispenser options are illuminated:

ice off Press and hold for three (3) seconds to turn the

ice maker "ON" or "OFF".

expressfreeze Activates afaster rate for freezingfood

dispenser light On/Off

controllock Press and hold for three (3) seconds to activate

and deactivate.This restricts undesiredchanges

to the refrigerator's settings and prevents use of

the ice and water dispenser,

IMPORTANT

When the ice maker is turned off, the ice in the bucket

should be transferred to the freezer or discarded to

prevent it from melting.

8 Centre

3rdLevel: User Variable Options

Touching the options icon displays the following options:

vacationmode

waterfilter

air filter

tempdisplay

fempmode

mutesounds

factorydefault

on off

Conservesenergy by increasing the time

betweenautomatic defrost. This feature is auto-

matically activatedduring long periods between

door openings. Vacation mode is manually

activatedwhen the red indicator is fit.

Touch to display filter condition status. Press

and holdfor three (3) seconds to reset after filter

change.

Touch to display filter status. Press and hold for

three (3) seconds to reset after filter change.

When active, it allows the display of the freezer

and fridge temps during "Sleep Mode". The

temperature is displayedwhen the red indicator

is tit.

Touchto toggledisplayfromFahrenheitto

Celsius.

Tones emitted by each keypresscan be turned

off basedon user preference.The sounds are

muted when the red indicator is tit, Warning

signals witl stay active.

Resets all refrigerator settings such as temp,

temp display, and alarm tones to their factory

default settings.

Press and hold for three (3) seconds to turn off

the cooling system to clean the refrigerator. It

also turns off the ice maker,all dispenserfunc-

tions, andthe Custom TempTM drawer (select

models). Thetemperature display will read OFF.

| IMPORTANT

Pressing the system onloff icon does not turn off

power to your refrigerator. You must unplug the power

cord from the wall outlet.

Setting cooling temperatures

Touch the glass panel to illuminate the 2ndlevel of

display.

Select the options icon.

Plus (+) and minus (-)

indicators will appear on

either side of the displayed

temperatures.

Press the + or- indicator

to adjust the temperature to the desired setting.

The temperature display will begin to blink

with the first touch. After five (5) seconds of

inactivity, the display will beep to accept the new

temperature. After t0 seconds, the display times

out and returns to the basic display.

Alarms

DoorAjar

HighTemp

PowerFail

If the door has been left open for an extended

period of time, an alarm will sound and the door

ajar indicator will display on the center of the

display.The alarm is turned off by closing the

door.The alarm elf keywill blink to prompt the

reset of any pending alarms. Pressthis keyto

reset any system Alarms.

In the eventof a high temperature condition, the

temperature displaywitl blink and display "HI'.

After 20 minutes, the high temp alertwill be

displayed andthe alarm off icon will illuminate

until pressed, acknowledging the alarm, at which

time the highest temperature reachedwill be dis-

playedand the refrigerator will resume normal

operation. All other modes are turned off until

the alarrn is acknowledged.

In the eventof a power failure, the power

fail alert wilt be displayed and the alarm off key

witi blink until the alarm off icon is pressed,

acknowledging the atarrn.Other modes may

be turned off until the alarm is acknowledged.

When the power fail alert is turned off, the

refrigerator witl resume normal operation. The

highletup alarm may also be illuminated until

a safe operating range temperature has been

reached,

Controls 15

WaveoTouch TM"Sabbath Mode"

The Sabbath Mode is a feature that disables portions

of the refrigerator and its controls in accordance with

observance of the weekly Sabbath and religious

holidays within the Orthodox Jewish community.

NOTE

While in Sabbath Mode, the Wave-Touch TM model will

only illuminate the -/+ keys used to turn the Sabbath

Mode Off.

Sabbath Mode is turned ON and OFF by pressing

and holding both the outermost "-" and "+" indicators

for five (5) seconds. The display shows "Sb" while in

Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for

health reasons. If a high temperature alarm

is activated during tMs time, for example

due to a door left ajar, the alarm wilt sound

intermittently for about 10 minutes. The

alarm will then silence on its own and a red high

temperature icon will display. The high temp icon will

continue to display, even if the door is closed, until

the Sabbath mode is exited and the icon reset. The

refrigerator will function normally once the door is

closed, without any violation of the Sabbath/Holidays.

For further assistance, guidelines for proper usage and

a complete list of models with the Sabbath feature,

please visit the web at http:\\v, rww.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser,

nor the control panel will work until Sabbath Mode is

deactivated.

Refrigerator stays in Sabbath Mode after power

failure recovery. It must be deactivated with the

buttons on the control panel.

! NOTE

Although you have entered the Sabbath Mode, the ice

maker will complete the cycle it had already initiated.

The ice cube compartment will remain cold and new

ice cubes can be made with standard trays.

Sabbath Mode and the Custom Temp TM Drawer

The CustomTemp TM Drawer should be turned off for the

Sabbath/Holidays. Before putting the refrigerator into

the Sabbath mode, turn the Custom TempTM Drawer off

by pressing the drawer on/off button. The display will

show "OFF" and the drawer will turn off. Then enter the

Sabbath mode function on the main refrigerator display.

See Wave-Touch "Sabbath Mode" section. When in

Sabbath mode, the display wilt not illuminate and the

drawer will remain off. The drawer can still be used as

a non-temp controlled drawer in this mode. When the

refrigerator is taken out of Sabbath mode, the Custom

TempTM Drawer will have to be turned back on.

NOTE

If the CustomTemp TM Drawer is not turned off prior to

putting the unit into Sabbath Mode, it will continue

to adjust itself to maintain the set point even if the

display does not illuminate to show that it is still on.

6 Automatic ice Water Maker/Dispenser

Priming the water supply system

CAUTION

For proper dispenser operation, recommended

water supply pressure should fall between 30 psi

and 100 psi. Excessive pressure may cause water

filter to malfunction.

"OFF". When the ice maker is "OFF" the red LED above

the icon will be illuminated.

Begin filling the tank by pressing and holding

a drinking glass against the water dispenser

paddle, r=

Keep the glass

in this position

until water

comes out of the

dispenser, it may

take about 1½

minutes.

Continue

dispensing water

for about three

(3) minutes to

flush the system and plumbing connections of

any impurities (stopping to empty the glass as

necessary).

NOTE

The water dispenser has a built-in device that shuts

off the water flow after three (3) minutes of continuous

use. To reset this shutoff device, simply release the

dispenser paddle.

maker operation & care

After the refrigerator is installed properly and has

cooled for several hours, the ice maker can produce ice

within 24 hours. It can completely fill an ice bin in about

eight (8) hours.

The ice maker will produce up to nine (9) pounds of ice

every 24 hours depending on usage conditions.

IMPORTANT

Your ice maker is turned on at the factory so it can work

as soon as you install your refrigerator. If you cannot

connect a water supply, set the ice maker's On/Off icon

to Off and turn off the water supply valve; otherwise, the

ice maker's fill valve may make a loud chattering noise

when it attempts to operate without water.

Turning the ice maker on and off

Ice production is controlled by the ice maker's On/Off

icon on the control panel. Press and hold the "Ice Off"

icon for three (3) seconds to turn the ice maker "ON" or

IMPORTANT

Turning off the ice maker will result in existing ice

melting in the bin.

IMPORTANT

Turning off the ice maker will disable the ice

dispenser. You will still be able to dispense water.

NOTE

The ice maker also has a built-in plastic signal bate

arm that automatically stops ice production when the

ice bin is full, This signal arm should not be used to

manually stop the ice maker.

Using the ice maker after installation

Before making ice for the first time, be sure to prime

the water supply system. Air in new plumbing lines can

result in two (2) or three (3) empty ice maker cycles.

Furthermore, if the system is not flushed, the first ice

cubes may' be discolored or have an odd flavor.

IMPORTANT

On occasion, unusually small disc-shaped ice may be

noticed in the bucket or in dispensed ice. This could

occur in normal operation of the ice maker. If you start

seeing these more frequently, it may be an indication

of low water pressure or the water filter needs to

be replaced. As the water filter nears the end of its

useful life and becomes clogged with particles, less

water is delivered to the ice maker during each cycle.

Remember, if it's been six (6) months or longer since

you last changed your water filter, replace the water

filter with a new one. Poor quality household water may

require the filter to be changed more frequently.

Automatic ice Water aker/Dispenser 17

ice maker/dispenser tips

• If your refrigerator is not connected to a water

supply or the water supply is turned off, turn off

the ice maker by holding the On/Off soft-touch

icon for three (3) seconds.

The following sounds are normal when the ice

maker is operating:

- Motor running

Ice dropping into ice bin

- Water valve opening or closing

Running water

,, When dispensing ice, you will hear a snapping

or clicking sound when the ice chute opens and

closes.

• If you need a large quantity of ice at one time, it is

best to get cubes directly from the ice bin.

o When dispensing cubed ice, it is normal to have

a small quantity of little pieces along with the

whole cubes.

,, ice cubes stored too tong may develop an odd

flavor. Empty the ice bin as explained below.

CAUTION

if the water supply to your refrigerator is softened,

be sure the softener is properly maintained.

Chemicals from a water softener can damage the

ice maker.

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals,

especially prior to vacation or moving.

1 Turn off the ice

maker.

2 Remove the ice bin

by pulling straight

out.

Empty and carefully

clean the ice bin

with mild detergent.

Do not use harsh or

abrasive cleaners.

Rinse with clear

water.

Removing Ice Bin

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

An extended power failure (one hour or longer)

causes ice cubes in the ice bin to melt and freeze

together, jamming the dispenser mechanism.

You do not use the ice dispenser frequently. Ice

cubes will freeze together in the bin, jamming the

dispenser mechanism.

Remove the ice bin and shake to loosen the cubes or

clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This could damage

the ice bin and dispenser mechanism.

To loosen stuck ice, use warm water. Before

replacing the ice bin, make sure it is completely

dry.

IMPORTANT

When removing or replacing the ice bin, DO NOT

rotate the auger in the ice bin. If the auger is

accidentally rotated, you must realign the auger by

turning it in 90 degree turns (see below) until the ice

bin fits into place with the drive mechanism, if the

auger is not properly aligned when replacing the ice

bin, the bin will not install correctly. The fresh food

door also may not close properly causing warm air to

leak into the fresh food compartment.

Adjusting ice Bin Auger

Storage Features

CAUTION

To avoid injury from breakage, handle tempered

glass shelves carefully.

NOTE

Features may vary according to model.

Your refrigerator includes a variety of storage drawers.

These drawers are located in fixed positions at the

bottom of the fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits,

vegetables, and other fresh produce.

Your refrigerator includes Custom Design TM glass shelves

that are designed to catch and hold accidental spills.

"Youcan easily adjust shelf positions in the fresh food

compartments to suit your needs. The shelves have

mounting brackets that attach to slotted supports at the

rear of each compartment.

To change the position of a shelf:

1 Before adjusting a shelf, remove all food.

2 Lift the front edge up and pull the shelf out.

3 Replace by inserting the mounting bracket hooks

into the desired support slots.

4 Lower the shelf and lock into position.

Shemf features

Opening Crisper Drawer

Crisper humidity control

Crisper drawers include a sliding control for adjusting

the humidity inside the crisper. Leafy vegetables keep

best when stored with the Humidity Control set on

Higher Humidity. Fresh fruits keep best when stored

with the Humidity Control set on Lower Humidity.

humidity corf_ol

Full Custom Design TM Shelf

Adjusting Crisper Humidity

HaJf Custom Design TM Shelf

Storage Features 19

To remove the Crisper Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the drawer.

Removing Crisper Drawer

Special items rack (select models)

The innovative design of the special items rack allows

you to store four (4) bottles of wine or soft drink bottles.

Special Items

Deli keeper (select models)

Some models are equipped with a meat keeper drawer

for short-term storage of bulk meat items. This drawer

includes sliding controls for adjusting the humidity

inside.

Any meat to be kept longer than two (2) days should be

frozen. If you store fruits or vegetables in this drawer,

set it to a higher humidity.

Custom Temp TM Drawer (select models)

'Tt_'@ _S_sw__

i: ;iiii ii ii

The Custom TempTM Drawer is designed to keep food items at a precise temperature whether cooler warmer, or

the same as the fresh food section of the refrigerator. The thaw setting holds a temperature for thawing frozen

foods for 12 hours. At the end of that time, it then switches to the mixed items setting to store the thawed food.

To operate:

To turn on and off, press the drawer's On/Off

button. The numeric display will show a temperature

between "28°F and 42°F ' when on and "OFF" when

off.

2 Press FiC if you prefer to display Fahrenheit "F,"

or Celsius "C".

3 Press either the up _.,or down v scroll buttons to

illuminate the desired item.

set and store personal temperature selections.

The temperature is adjusted up by pressing the

+ or - buttons. The drawer will store the selected

temperature setting until it is changed.

The control buttons can be locked to prevent

accidental changes by pressing the control

lock button for three (3)seconds. Deactivate by

pressing for three (3)seconds again.

4 Once an option is selected, the drawer will adjust

and maintain the temperature for the setting

selected.

5 When turned off, the Custom Temp TM Drawer

functions as a standard meat pan. The Custom

TempTM Drawer is best used for packaged food

products. Leafy vegetables and unpackaged

fruits are best kept in one of the crisper drawers.

6 The three favorite selections provide flexibility to

Opening the Drawer

Storage Features

IMPORTANT

DO NOT clean the display area of the Custom Temp TM

Drawer with abrasive or caustic cleaners. Wipe clean

with a moist sponge.

CAUTION

The Custom TempTM Drawer and cover can

be removed for cleaning but the control unit,

attached to the right side of the fridge, cannot be

removed. Do not immerse the Custom Temp TM

Drawer cover in water or put it in a dishwasher.

Clean with a damp cloth or sponge.

To change the position of an adjustable door bin:

1 Before adjusting a bin, remove all food.

2 Grip the bin firmly with both hands and lift it

upward.

3 Remove the bin.

4 Place the bin just above desired position.

5 Lower the bin onto supports until locked in place.

To remove the Custom Temp TM Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the drawer.

Removing the Drawer

Adjustable Door Bin

Accessories (varies by model)

Tall bottle retainer

The tall bottle retainer keeps tall containers in the

bin from falling forward when opening or closing the

refrigerator door. To install, insert the ends of the

retainer into the holes.

NOTE

When the refrigerator is turned off by pressing the

main Wave-Touch TM or IQ-Touch TM on/off button, the

Custom TempTM Drawer wilt also be turned off. When

the refrigerator is turned back on, the Custom TempTM

Drawer will resume operations at the temp setting that

was set before the refrigerator was turned off.

Storage bins

The doors to your fresh food compartment use a

system of modular storage bins. All of these bins are

removable for easy cleaning. Some of them have fixed

positions, while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and

large drink containers. They also enable quick selection

of frequently used items.

Tilt can bins

The can bins allow you to efficiently and securely store

up to eight !2-ounce canned beverages.

Tilt Can Bin

Storage Features 21

Dairy compartment

Use the dairy compartment, at the top of the fresh food

compartment door, for short-term storage of cheese,

spreads, or butter.The dairy compartment is designed

to be warmer than the open area and includes a lift-up

cover that may be locked and a dairy divider (select

models).

i iiiiiii _ ii_i

iill ii i _

ill iii _

Dairy Compartment

Freezer Features (varies by model)

Three Freezer Baskets (select models)

To Remove Upper and Middle Baskets

1 Remove all items from baskets.

2 Remove baskets by pulling baskets out to their

full extension and lift out.

Removing Upper and Middle

Baskets (select models)

To reinstall upper and middle baskets (select models),

position basket onto the retainer clips making sure

the front of the basket rests in the retainer clips on the

stabilizer bar.

If the upper basket is installed with the tabs towards the

front of the unit, the upper basket will "kick out" when

the drawer is opened.

If the upper basket is installed with the tabs towards

the rear of the unit (backwards), the upper basket will

remain inside the freezer when the drawer is opened.

NOTE

If basket is not resting on stabilizer bar retainer clips,

the drawer will not close properly.

To Remove Lower Basket

1 Remove all items from basket.

Remove the basket by tilting it forward and lifting

it from the retainer clips.

i iii

Removing Lower Basket

To reinstall lower basket, insert basket into retainer

clips.

NOTE

The third basket is designed to partially pull out

when the drawer is opened. To disable this feature,

turn the third basket 180 degrees and re-install.

Tilt Wire Shelf

The freezer tilt wire shelf (located on the inside of the

freezer drawer) is not designed to be removed.

22 Storage Features

Dividers Removal

Lift up on the front of the middle divider and pull out,

Middle Basket Divider

Lift up on the rear of the lower divider and pull out.

Lower Basket Divider &

Spill Guard Tray

To reposition the pivoting divider (some models), lift up

and slide to desired location then snap back into place.

The pivoting divider is not designed to be removed,

Lower Basket Pivoting Divider

(some models)

NOTE

Spill Guard Tray should be hand washed in warm

water.

Storing Food and Saving Energy

ideas for storing foods

Fresh food storage

,, Keep the fresh food compartment between 34 ° F

and 40° F with an optimum temperature of 37° R

- Avoid overcrowding the refrigerator shelves,

which reduces air circulation and causes uneven

cooling.

Fruits and vegetables

,, Store fruits and vegetables in crisper drawers,

where trapped moisture helps preserve food

quality for longer time periods.

Wash items and remove excess water.

Wrap any items that have strong odors or high

moisture content.

Meat

_, Wrap raw meat and poultry separately and

securely to prevent leaks and contamination of

other foods or surfaces,

Use the dell drawer or Custom Temp TM drawer

and set to meat/poultry setting for short-term

storage. Any meat to be kept longer than two (2)

days should be frozen.

Frozen food storage

,, Keep the freezer compartment at 0 ° F or lower.

,, A freezer operates most efficiently when it is at

least _ full.

Packaging foods for freezing

_, To minimize food dehydration and quality

deterioration, use aluminum foil, freezer wrap,

freezer bags, or airtight containers. Force as

much air out of the packages as possible and

seal them tightly. Trapped air can cause food to

dry out, change color, and develop an off-flavor

(freezer burn).

,, Wrap fresh meats and poultry with suitable

freezer wrap prior to freezing.

o Do not refreeze meat that has completely

thawed.

Avoid adding too much warm food to the freezer

at one time. This overloads the freezer, slows the

rate of freezing, and can raise the temperature of

frozen foods.

,, Leave a space between packages, so cold air

can circulate freely, allowing food to freeze as

quickly as possible.

ideas for saving energy

Installation

,, Locate the refrigerator in the coolest part of

the room, out of direct sunlight, and away from

heating ducts or registers.

,, Do not place the refrigerator next to heat-

producing appliances such as a range, oven, or

dishwasher. If this is not possible, a section of

cabinetry or an added layer of insulation between

the two (2) appliances will help the refrigerator

operate more efficiently.

o Level the refrigerator so that the doors close

tightly.

Temperature settings

,, Refer to the"Controls" section for procedures on

temperature settings.

Food storage

= Avoid overcrowding the refrigerator or blocking

cold air "vents. Doing so causes the refrigerator to

run longer and use more energy.

• Cover foods and wipe containers dry before

placing them in the refrigerator. This cuts down

on moisture build-up inside the unit.

,, Organize the refrigerator to reduce door

openings. Remove as many items as needed at

one time and close the door as soon as possible.

,, Do not place a hot container directly on a cold

shelf. Remember, such an extreme temperature

change may damage the glass.

Loading the freezer

,, Prior to grocery shopping, activate "express

freeze" so that on your return you can ensure

your newly purchased food designated for the

freezer will be preserved as quickly as possible.

,, Activating "express freeze" also will help your

freezer more efficiently maintain the selected

temperature after placing new purchases with

pre-existing frozen foods.

24 ormai Operating Sounds

Understanding the sounds you

may hear

Your new, high-efficiency refrigerator may introduce

unfamiliar sounds, These sounds normally indicate

your refrigerator is operating correctly. Some surfaces

on floors, walls, and kitchen cabinets may make these

sounds more noticeable.

The following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the evaporator

may create a boiling or gurgling sound.

B Evaporator fan "Youmay hear air being forced

through the refrigerator by the evaporator fan.

C Defrost heater During defrost cycles, water

dripping onto the defrost heater may cause a

hissing or sizzling sound. After defrosting, a

popping sound may occur.

D Automatic ice maker When ice has been

produced, you will hear ice cubes falling into the

ice bin. Ice maker fan, water valve activation, and

refrigerant gas fluid may create sounds from its

operation.

E Electronic control & automatic defrost control

These parts can produce a snapping or clicking

sound when turning the cooling system on and

off.

F Condenser fan You may hear air being forced

through the condenser.

G Compressor Modern, high-efficiency

compressors run much faster than older models.

The compressor may have a high-pitched hum or

pulsating sound.

H Water valve Makes a buzzing sound each time it

opens to fill the ice maker.

I Drain pan (not removable) You may hear water

dripping into the drain pan during the defrost

cycle.

J Condenser May create minimal sounds from

forced air.

Motorized Custom Temp TM drawer damper

May produce a light humming during operation.

Ice dispensing paddle When dispensing ice,

you will hear a snapping, clicking, or popping

sound when the solenoid opens and closes the

ice chute.

Motorized damper May produce a light

humming during operation.

N CustomTemp TM drawerfan Turns off when

door opens or Custom Temp TM drawer is turned

off.

NOTE

Energy efficient foam in your refrigerator is not a

sound insulator.

NOTE

During automatic defrost cycle, a red glow in the back

wall vents of your freezer compartment is normal.

Changin TheWater an Air Filters 25

Your refrigerator is equipped with separate water and

air filtering systems. The water filter system filters all

dispensed drinking water, as well as the water used to

produce ice. The air filter removes odors and impurities

from the refrigerator compartment.

NOTE

The control panel includes controls to monitor the

status of your water and air filters. See the Controls

section for more information.

About your advanced water fitter

The PureAdvantage rMice and water

filter system is tested and certified

by NSF International, the nationally

respected, not-for=profit certification

organization for public health safety. The

PureAdvantage TM ice and water filter system is tested

and certified to ANSIiNSF Standards 42 and 53 for

the reduction of claims specified on the performance

data sheet.

Do not use with water that is microbiologically unsafe

or of unknown quality without adequate disinfection

before or after the system. Systems certified for cyst

reduction may be used on disinfected waters that may

contain filterable cysts.

,, Rated Capacity - 400 gallons for

PureAdvantage TM ice and water filter

,, Rated service flow- .5 gallons per minute

,, Maximum Rated Pressure - 100 pounds per

square inch

,, Recommended Minimum Operating Pressure:

30 pounds per square inch

,, Operating Temp.: Min.33°F, Max. 100°F

tt is not necessary to turn the water supply off to

change the filter. Be ready to wipe up any small

amounts of water released during the filter replacement.

1 Turn Off the ice maker on the control panel.

2 Push the filter release button above the cartridge

to disconnect it.

PushWater Filter Button

Slide the old water filter cartridge straight out of

the housing and discard it.

Unpack the new filter cartridge and remove the

two (2) protective caps covering the inlet and exit

of the filter. Slide the filter gently into the housing

until it stops against the snap-in connector at the

back of the housing.

Water filter

The water filter is located at the lower left side of the

fresh food compartment.

Replacing your PureAdvantage TM water

filter

In general, you should change the water filter every

six (6) months to ensure the highest possible water

quality: The "Water Filter Status light on the Touch

Panel prompts you to replace the filter after a standard

amount of water (400 gallons) has flowed through the

system.

If your refrigerator has not been used for a period of

time (during moving for example), change the filter

before reinstalling the refrigerator.

Changin TheWater and Air Filters

Push firmly until the cartridge snaps into

place (you should hear two clicks). When fully

engaged, the front of the filter cartridge should be

flush with the filter release button.

Reinstall Water Filter

6 Turn On the ice maker at the control panel.

7 Press a drinking glass against the water

dispenser while checking for any leaks at the filter

housing. Spurts and sputters may occur as the

system purges air out of the dispenser system.

8 Prime the water supply system as described

previou sly.

9 Press and hold the Filter Status button on the

control panel for three (3) seconds. When the

display changes from "Replace" to "Good," the

status has been reset.

Air fiWter

The air filter is located inside of the left door above ice

maker chute.

Replacing your PureAdvantage TM air filter

To ensure optimal filtering of refrigerator odors, you

should change the air filter every six (6) months (the

filter status light on the Touch Panel prompts you to

replace the filter after six (6) months). You may want

to adjust this time period depending on the types and

amounts of food you typically store in your refrigerator.

1 Open the air filter door.

2 Remove the old filter and discard it.

Unpack the new filter and slide it into the housing.

Close the air filter door.

Press and hold the Air Filter Reset button on

the control panel for three (3)seconds. When the

display changes from "Replace" to "Good," the

status has been reset.

The Air Filter Reset wilt turn itself off after a few

seconds.

Ordering repmacement filters

Order new filters by calling 877-808-4195, online at

www.electroluxappliances.com, or through the dealer

where you bought your refrigerator. You may want to

consider ordering extra filters when you first install your

refrigerator.

Water Filter FC-300 PureAdvantage TM

Replacement Cartridge # EWF01

Air Filter Replacement cartridge, part

# EAFCBF

Care and Cleaning 27

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills

immediately and clean the freezer and fresh food compartments at least twice a year.

÷ NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors,

gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.

,, Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

,, Never use CHLORIDE or cleaners with bleach to clean stainless steel.

,, Do not wash any removable parts in a dishwasher,

o Always unplug the electrical power cord from the wall outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will

continue until you unplug the power cord from the wall outlet.

Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the

appliance surface.

,, Do not remove the serial plate. Removal of your serial plate voids your warranty.

,, Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent

the floor from being damaged.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be

careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply

system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a

service representative to perform this operation.

Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

Care and Cleaning

Care and cJeaning tips

Interior& Door

Liners

,, Soap and water , Use2 (2) tablespoons of bakingsoda in 1 (1) quart of warm water,

,, Baking soda and t Besure to wring excess water out of sponge or cloth before cleaning

water around controls, fight bulb or any electrical part.

Drawers & Bins = Soap and water

o Usea softclothto cleandrawerrunnersandtracks.

,, Donotwashany removableitems (bins,drawers,etc.) in dishwasher.

ToeGrille

t Soap and water

= Mitd liquid

sprays

o Vacuum

,, Remove toe grille (see installation Instructions).

,, Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and

dry.

Exterior & • Soap and water ,, Never usa CHLORIDEor cleaners with bleach to clean stainless

Handles

(Stainless Steel w Stainless steel

Models Only) cleaners

steel.

,, Clean stainless steel front and handles with non-abrasive soapy water

and a dishcloth, Rinse with clean water and a soft cloth.

Usea non-abrasive stainless steel cleaner.These cleaners can be

purchased at most home improvement or major department stores.

Always follow manufacturer's instruction. Do not use household

cleaners containing ammonia or bleach.

,, NOTE:Always clean, wipe and dry with grain to prevent scratching.

,, Wash the rest of the cabinet with warm water and mild liquid

detergent. Rinse well and wipe dry with a clean soft cloth,

Vacation and moving tips

Short Vacations

_, Leave refrigerator operating during vacations of three (3) weeks or less.

,, Use all perishable items from refrigerator compartment.

t Turn automatic ice maker off and empty ice bucket, even if you will only be gone afew

days.

Moving ,, Rernoveall food and ice,

o If using a handcart, loadfrom the side.

o Adjust rollers all the way Lipto protect them during sliding or moving.

,, Pad cabinet to avoid scratching surface.

Care an Cleaning 29

RepJacin 9 LED Lights (sew÷ormodems)

Both the freezer and fresh food compartments of your

refrigerator include LED lights. Always use Electrolux

parts for replacement.

To replace LED Lights:

1 Unplug your refrigerator's power cord.

2 Remove light cover by pushing up and out.

3 Hold the LED cover with one hand and putt the

connector with the other hand while pressing the

connector latch.

Replace LED light and snap in place assuring the

light is facing in toward the unit (inside fresh food

and freezer) or facing outward on bottom of fresh

food doors,

! i! ii_ '! !ii_ii

!i_ i_

LED Light Removal

LED Light Harness Removal

CAUTION

Wear gloves when replacing incandescent light

bulbs to avoid getting cut.

To replace light bulbs:

1 Unplug your refrigerator's power cord.

2 Wear protective gloves.

3 Remove light cover, if necessary.

4 Unscrew and replace old bulb with an appliance

bulb of the same type and wattage (normally 40

watts).

5 Replace light cover, if necessary.

6 Plug in the refrigerator's power cord.

Refrigerator Light

NOTE

LED lights are in series so if one is bad or unplugged,

several lights may not light up.

Replacing Light Bulbs (so,cotmod÷_s>

Both the freezer and fresh food compartments of your

refrigerator include incandescent light bulbs that will

need replacing from time-to-time. Some lights have

covers that need to be removed before replacing

the bulbs. Always use bulbs that are designed for

appliance lighting.

Freezer Light

Ordering Replacement LED Lights

Order new LEDs by calling 877-808-4195, online at

w_vw.electroluxappliances.com, or through the dealer

where you bought the refrigerator. Here is the product

number to request when ordering:

LED Light, Part #241891101

incandescent Lights (40-watt bulb), Part

#5305514148

Solutions to Common Problems

Before you call.°.

if you experience a problem with your refrigerator or notice a product behavior or condition that you do not

understand, you can usually avoid a call to your service representative by referring to this section for an answer.

Beginning with the following table, this information includes common problems, causes, and suggested solutions.

Autornaticice Maker

Problem

Icemakeris not making

anyice.

Ice maker is not making

enough ice.

Icehasbadodorand

taste.

CeHS8

,, Ice maker setting is Off.

,, Water supply is not connected to refrigerator.

,, Householdwater line valve is not open.

• Valve on cold water pipe is clogged or

restricted by foreign material, if valve is of

the self-piercing type, it may not have created

a sufficiently sized hole in tube for water to

pass through.

,, Checkto see ifthe water dispenser is

dispensingwater.

,, Water filter is not completely seated.

,, Ice maker is producing less icethan you

expect.

,, Householdwater line valve is not completely

open.

, Checkto see ifwater dispenser is dispensing

slower than normal.

, Icehaspickedupodororflavorfrom strong

foodstoredin refrigerator.

,, Icenot usedfrequentlyenough.

Correction

• Turn on ice maker.

• Connectwater supply (see Installation Instructions).

, Turn on household water line valve.

Q Turn off household water line valve. Remove valve.

Ensurethat valve is not a self-piercing valve. Clean

valve. Replacevalve if necessary.

• If not, the ice & water filter cartridge is clogged or

restricted, and must be replaced.

• Push firmly until the water filter snaps into place(you

should hear two (2) clicks).

Ice makershould produce approximately 9 poundsof

ice every 24 hours.

, Turn on household water line valve.

• If it is, replacethe ice & water filter cartridge.

,, Coverfoods tightly. Discard staleice. ice makerwill

produce fresh supply.

,, Discard stale ice.

Ice Dispenser

Problem

Dispenserwill not

dispense ice.

Ice dispenser is jammed.

Cause

,, Water supply is not connected.

_,Ice storage bin is empty.

. Household water linevalve is not open.

,, Fresh Fooddoor is not closed.

,, ice dispensing paddlehas been held in for

more than four to (4*5) minutes.

Ice has meltedandfrozen around auger due to

infrequent use, temperature fluctuations, and/

or power outages.

ice cubes arefrozen together.

Ice cubes are smaller than normal.

Correction

,, Connectwater supply (see ConnectingThe Water

Supply section).

° Ensureice maker is turned on. When the first supply

of ice is dropped into the bin, the dispenser should

operate.

,, Openhousehold water line valve. Allow sufficient time

for the ice to be made.When ice is made,the dispenser

should operate.

• EnsureFreshFood door is closed. (SeeProblem

Section, Opening/Closingof Doors/Drawers)

,, Motor is overloaded. Motor overload protector will reset

in approximately three (3) minutes. Ice canthen be

dispensed.

• Remove ice bin,thaw, and empty the contents. Clean

bin, wipe dry, and replacein proper position. When new

ice is made,dispenser should operate.

,, Usethe dispenser often so that cubes do not freeze

together.

The ice & water filter cartridge could be clogged.

Replacethe filter cartridge. Dispensingsystem operates

bestat 30-1go psi water pressure.Well water pressures

should fall within this range.

Solutions to Common Problems 31

Light is Not On

Problem

Light is not on.

Cause

• Light bulb is burned out or LED lightis

damaged.

• Noelectric current is reaching refrigerator.

,, Control system has disabled lights because

one or both doors were left open too long.

Correction

,, SeeReplacing Light Bulbs or LEDlights in Careand

Cleaningsection.

- See"Problem" section, "Running Your Refrigerator",

,, Closeand reopen door(s) to enable lights.

Odorsin Refrigerator

Problem Cause Correction

Interioris dirty. ,, interior needs to be cleaned. ,, SeeCare & CleaningTips.

Odors ,, Foodwith strong odors is stored in ,, Coverfood tightly. Turn on air filtration system. Air filter

refrigerator, may needto be changed morefrequently if foods with

strong odors are routinely stored in refrigerator.

Opening/Closing OfBoors/Drawers

Problem Cause Correction

Door(s) will not close, o Refrigerator is not level. It rocks on the floor ,, Ensurefloor is leveland solid, and can adequately

when moved slightly, support the refrigerator. Contact a carpenterto correct a

saggingor sloping floor.

Drawers are difficult to • Foodis touching shelf on top of drawer. • Keepless food in drawer.

move, t Drawer is overloaded • Remove or redistribute food,

Running YourRefrigerator

Cause Correction

,, Cooling system is turned Off.

Problem

Compressordoesnot

run.

,, Refrigerator is in defrost cycle.

• Plug at wall outlet is disconnected.

,, Housefuse is blown or a tripped circuit

breaker.

,, Power outage.

J Electroniccontrol system keepsthe

refrigerator at aconstant temperature.

. Turn cooling system On. SeeControls Section for

location of cooling system On/Off button.

,, This is normal for a fully automatic defrost refrigerator:

The defrost cycleoccurs periodically,lasting about 30

minutes.

, Ensureplug istightly pushed into outlet.

,, CheckJreplacefuse with a 15 amp time-delay fuse.

Resetcircuit breaker,

,, Checkhouse lights. Calllocal ElectricCompany.

,, This is normal. Refrigerator goes on and off to keep

temperature constant.

32 Solutions to Common Problems

Problem

Refrigeratorrunstoo

muchortoo long.

Running YourRefrigerator (continued)

Cause

,, Room or outside weather is hot.

Digitaltemperature

displays are flashing.

• Refrigerator has recentlybeen disconnected

for a period of time.

,, Automatic ice maker is operating.

,, Doors are opened too frequently or too long.

,, Refrigerator/freezerdoormaybesiightty

open.

, Freezercontrol is set too cold (control found

in fresh food section).

. Freshfoodtfreezer gasket is dirty, worn,

cracked,or poorly fitted.

,, This model is provided with a high-efficiency,

variable-speed compressor.

• Electronic control system has detected a

performance problem:

Correction

,, It's normal for the refrigerator to work longer under

these conditions.

• It takes 8-12 hours for the refrigerator to cool down

completely.

,, Ice makeroperation causesrefrigerator to run slightly

more.

,, Warm air entering the refrigerator causes it to run more.

Opendoors tess often.

,, Ensure refrigerator is level.Keepfood and containers

fronnblocking door.See Problem section, Opening/

Closing of Doors/Drawers.

,, Setfreezer control to warmer setting until refrigerator

temperature is satisfactory, Aitow 24 hours for

temperatureto stabilize.

• Clean or changegasket. Leaksin door sealwilt cause

refrigerator to run longer in order to maintain desired

temperatures.

,, It is normal for the compressor to run for long periods

of time.

Call your Electrolux service representative,who can

interpret any messagesor number codesflashing on

the digital displays.

TemperaturesAre TooCold

Problem

Freezertemperature

too cold. Refrigerator

temperature is

satisfactory.

Refrigeratortemperature

too cold. Freezer

temperature is

satisfactory.

Cause

,, Freezercontrol is set too cold.

,, Ice maker is on.

Refrigerator control is set too cold.

Correction

,, Setfreezer control to a warmer setting. Allow 24 hours

for temperatureto stabilize.

_,It is normal for the freezer compartment to over cool

while automatic ice maker is on.

o Refrigerator control is set too cold.

,, Meat Keepertemperature control is set too

cold.

• Set refrigerator control to awarmer setting. Allow 24

hours for temperature to stabilize.

Foodstored in drawers ,, Seesolution above.

freezes.

Foodstoredin Meat

Keeperfreezes(select

models).

,, Adjust Meat Keepertemperature control to a warmer

setting. Meat should be stored at a temperaturejust

below the freezing point for maximum fresh storage

time. It is normal for icecrystals to form due to the

moisture content of meat.

TemperaturesAre TooWarm

Problem

Freezer/Refrigerator

temperatureis toowarm.

Freezertemperatureis

too warm.Refrigerator

temperatureis

satisfactory.

Cause

- Doorsareopenedtoofrequentlyor too long.

,, Door is slightly open,

,, Freezercontrol is set too warm.

Correction

• Warm air enters the refrigerator whenever the door is

opened. Openthe door less often.

= SeeProblem section, Opening/Closingof Doors/

Drawers.

,, Set freezer control to a colder setting. Allow 24 hours

for temperature to stabilize.

Solutions to Common Problems 33

TemperaturesAre TooWarm(continued)

Problem - Cause

Refrigerator temperature

is too warm, Freezer

temperature is

satisfactory.

Temperaturein the

Dell Drawer or Custom

TempTM Drawer is too

warm (select models).

Correction

• Refrigeratorcontrol is set too warm,

• Temperaturecontrol is set too warm:

• Set refrigerator control to a colder setting. Allow 24

hours for temperature to stabilize.

• Adjust temperature control to a colder setting.

WaterDispenser

Problem

Dispenserwill not dispense

water

Waterhasanoddtaste

and/orodor.

Waterpressureis

extremelylow.

Cause

* Watersupplyisnotconnected.

, Householdwater linevalveis notopen.

, Ice & waterfilter cartridgeis clogged.

° Waterhasbeeninthetankfor a periodof time.

o Unitnot propertyconnectedto coldwater line.

o Tubingusedin thehouseholdwater supplyand

installationmayaffectwatertasteandodor.

° Waterhasa high mineralcontent.

, Cut-offandcut-onpressuresaretoo low(welt

systemsonly).

° Reverseosmosissystemis in regenerativephase.

Correction

, Connectwatersupply(seeConnectingTheWaterSupply

section).

• Openhouseholdwater linevalve.SeeProblemsectionIce

MakerIs Not MakingIce.

° Replacefilter cartridgebeingsureto removeprotectivecaps.

• Drawanddiscard10-12glassesof waterto freshenthe

supplyandcompletelyrinseoutthetank.

• Connectunitto coldwater linethatsupplieswaterto the

kitchenfaucet.

,, Forbestresults,usecoppertubing for waterconnections.

Contactwatertreatmentplantfor helpin checkingwater

supplysource.

• Havesomeoneturn up thecut-offandcut-onpressureon

thewaterpumpsystem(wellsystemsonly).

, It is normalfor a reverseosmosissystemto bebelow20 psi

duringthe regenerativephase.

Problem

Moisture collects on

inside of refrigerator

walls.

Water collects on bottom

side of drawer cover,

Moisture collects in

bottom of drawer,

Water/Moisture/FrostInsideRefrigerator

Cause

• Weather is hot and humid,

• Door is slightly open.

• Door is openedtoo often or too long.

• Opencontainers.

, Vegetablescontain and give off moisture.

Moisture collects on

outside of refrigerator or

between doors.

• Washed vegetablesandfruit drain while in

the drawer.

• Fruits and vegetablesare kept past their

prime

• Weather is humid.

• Door is slightly open, causing cold air from

inside refrigeratorto meet warm air from

outside.

Correction

The rate of frost buildup and internal sweating

increases.

SeeProblem section, Opening/Closingof Doors/

Drawers.

Opendoor less often to allow internal temperatureto

stabilize.

Keepcontainers covered.

Moistureonthebottomsideof thecoveris notunusual,

Movehumiditycontrol(selectmodels)to lowersetting,

Dry items before putting them in the drawer.Water

collecting in bottom of drawer is normal.

Routinely clean out old fruits and vegetablesespecially if

they begin to break down.

This is normal in humid weather. When humidity is

lower,the moisture should disappear.

SeeProblem section, Opening/Closingof Doors/

Drawers.
