INSTALLATION:
IFM640B16
09/19
SAFETY PRECAUTIONS:
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5. Install proper bulb type
and wattage (not included).
6. Secure the shade in place
using the hex nut and finial.
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH
CIRCUIT CONDUCTOR.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Star
Washer
Cap
Nut
Stud
Fixture
EASY CONNECT
INSTALLATION INSTRUCTIONS
TM
Bulb
Hex Nut
Finial
Shade
Easy Connect
mounting
bracket
TM

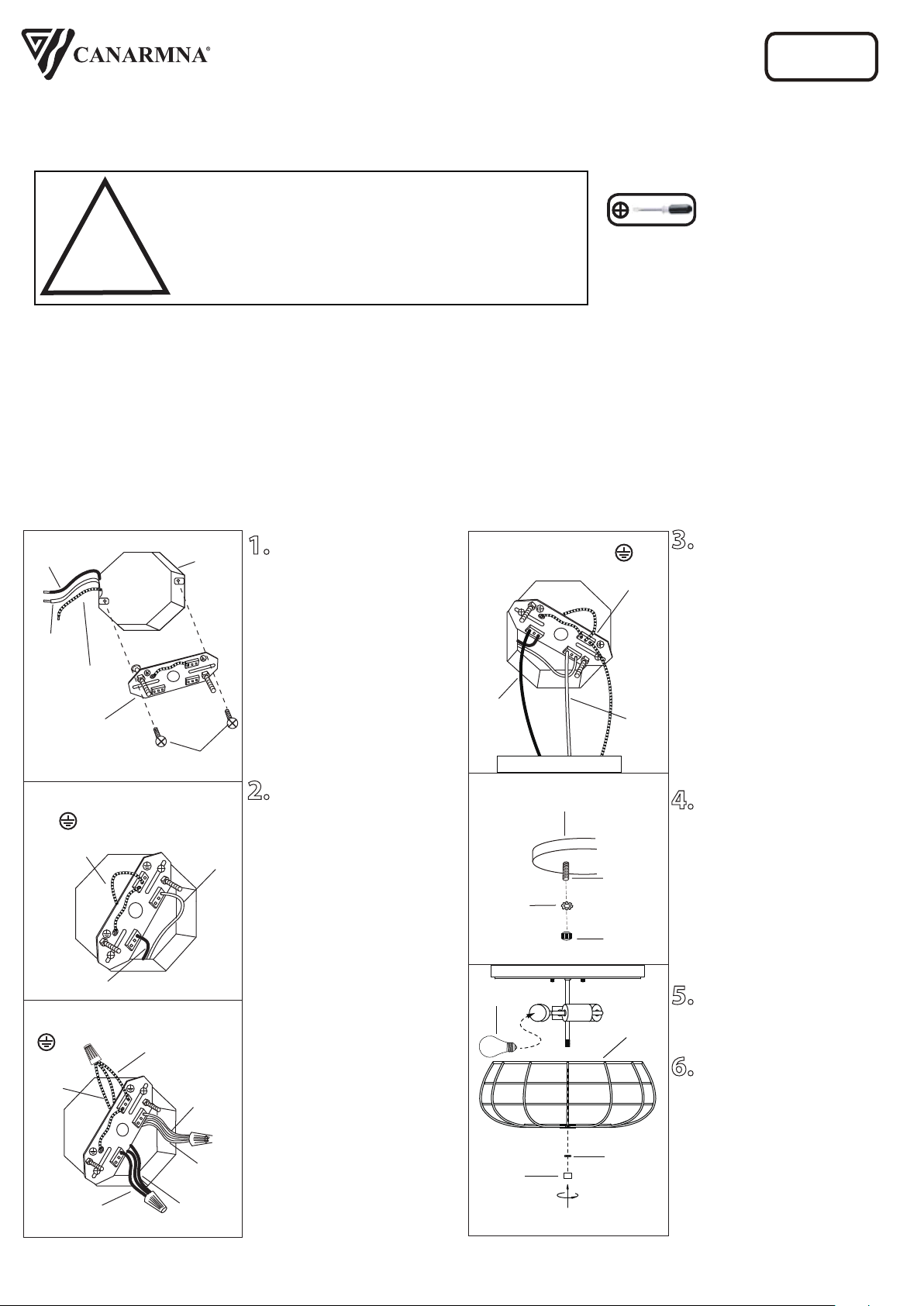

1. Attach Easy Connect™
mounting bracket to electrical
box with electrical box screws
(not included).
2. Option 1: Connect (push)
electrical wires from electric
box (house wiring) into correct
inserts.
Option 2: For multiple green
(ground), black (live) and
white (neutral) wires joined in
the electrical box (house
wiring), attach a single “green”,
“black” and “white” jumper wire
before connecting. Strip 7mm
from the 6” jumper wires
supplied. Then connect (push)
wires into the correct inserts.
(L)
Black
(Live)
(N)
White
(Neutral)
Electrical
Box
Electrical box
screws
Black (Live)
White
(Neutral)
Green
(Ground)
Green
(Ground)
L
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Jumper
Wire
Jumper
Wire
Jumper
Wire
L
N
Option 1
Option 2
(N)
White
(Neutral)
L
N
L
N
Fixture
