HRF516YS
HRF516YHS
HRF516YHC
HRF565YHS
HRF565YHC

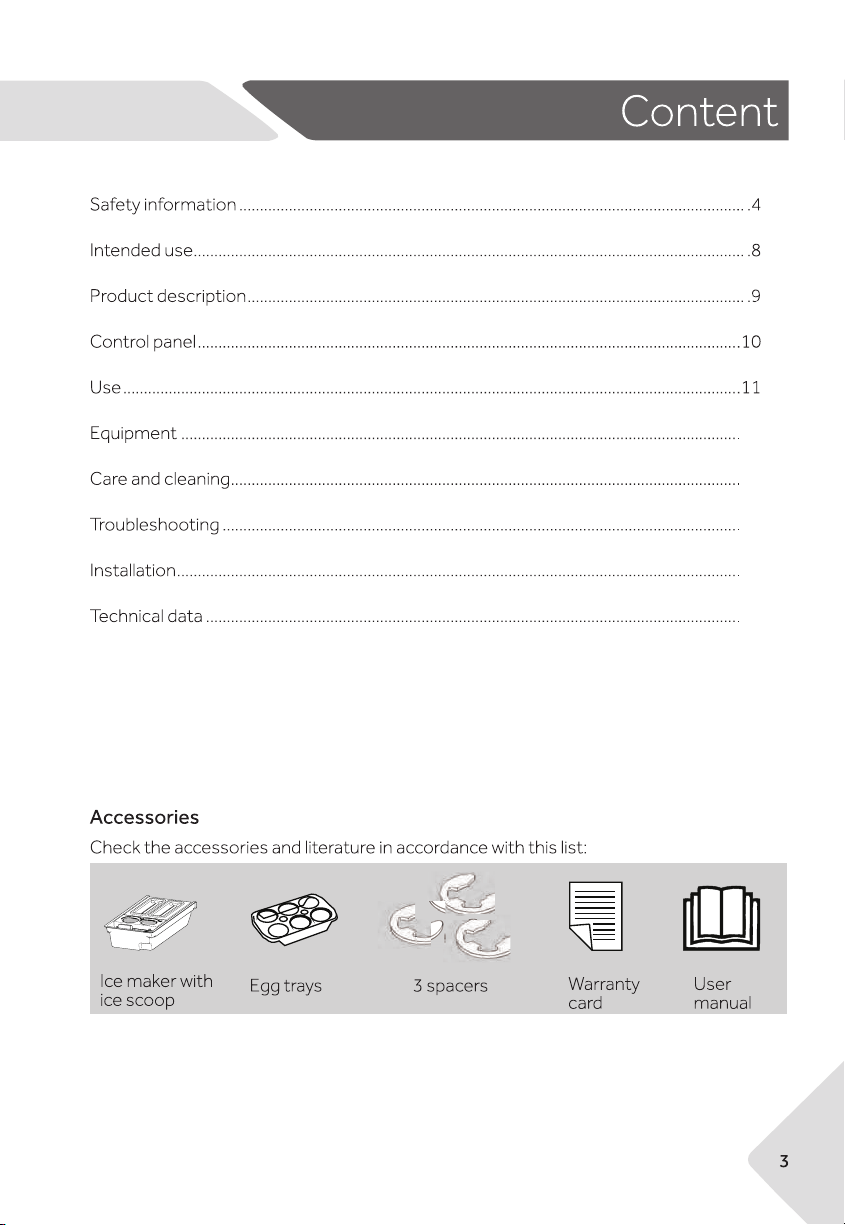

This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
19
25
22
31
28
5
When positioning the appliance, ensure the supply cord is not tra-
pped or damaged.
Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
Children should be supervised to ensure that they do not play with the
appliance.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Do not store explosive substances
such aerosol cans with a flammable propellant in this appliance.
Check the condition of food if a warming in the fre ezer has taken place
inflammable
not
-

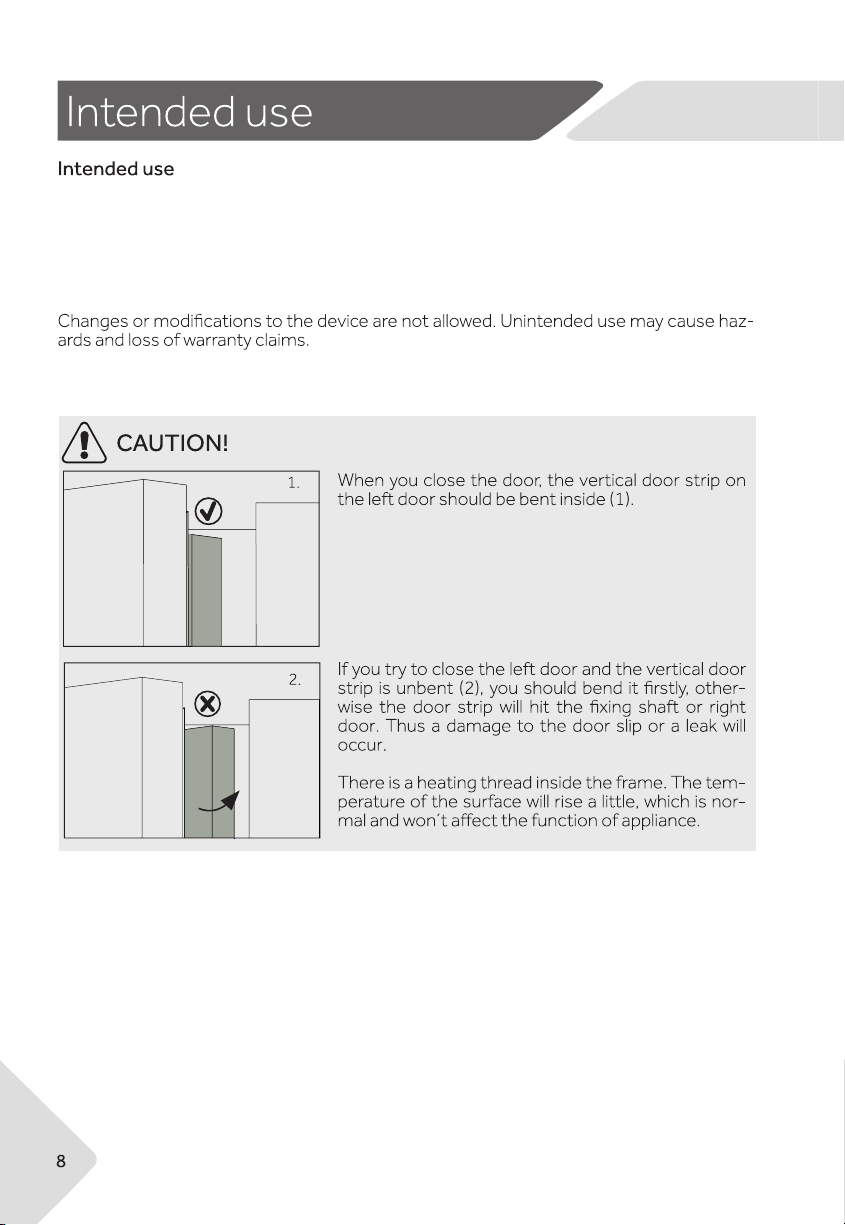

This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, o ffices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail app
Please abandon the refrigerator according to local regulators for it use flammable
blowing gas and refrigerant.
lications.

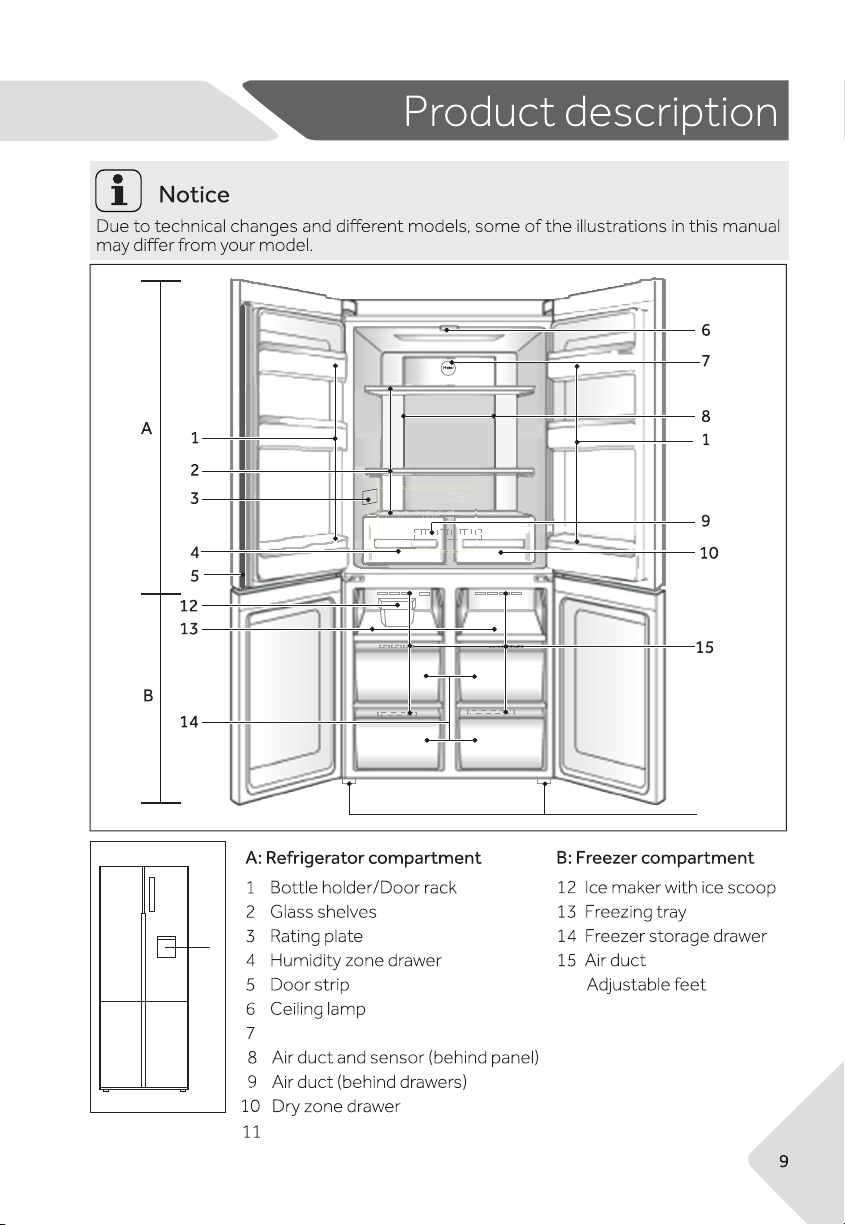

This product contains flammable refrige rant isobutane (R600a)
It is hazardous f or anyone other than an Authorised Service Person to
service this appliance. In Queensland – the authorized Service Person
MUST hold a Gas Work Authorisation f or hydrocarbon refrigerants, to
carry out Servicing or repairs which involve the removal of covers .
pac revo c tcud riA

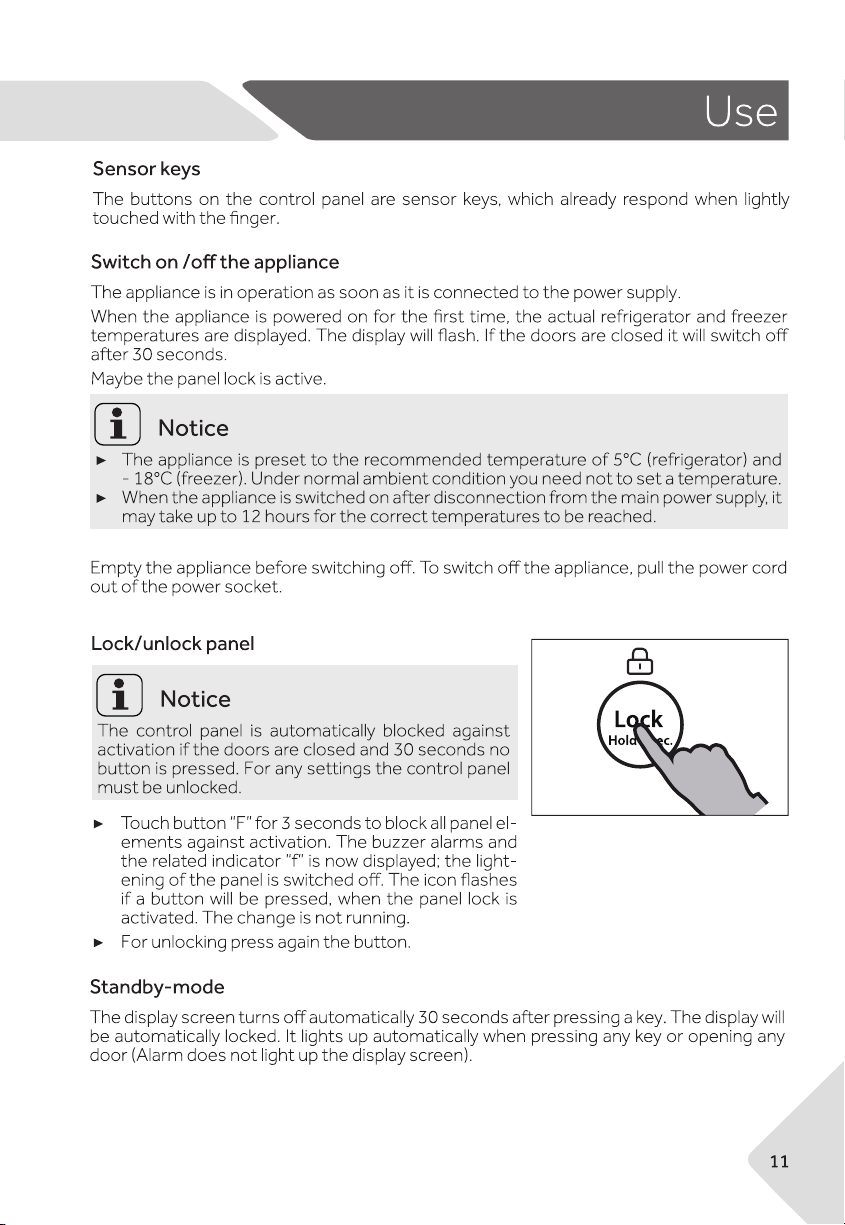

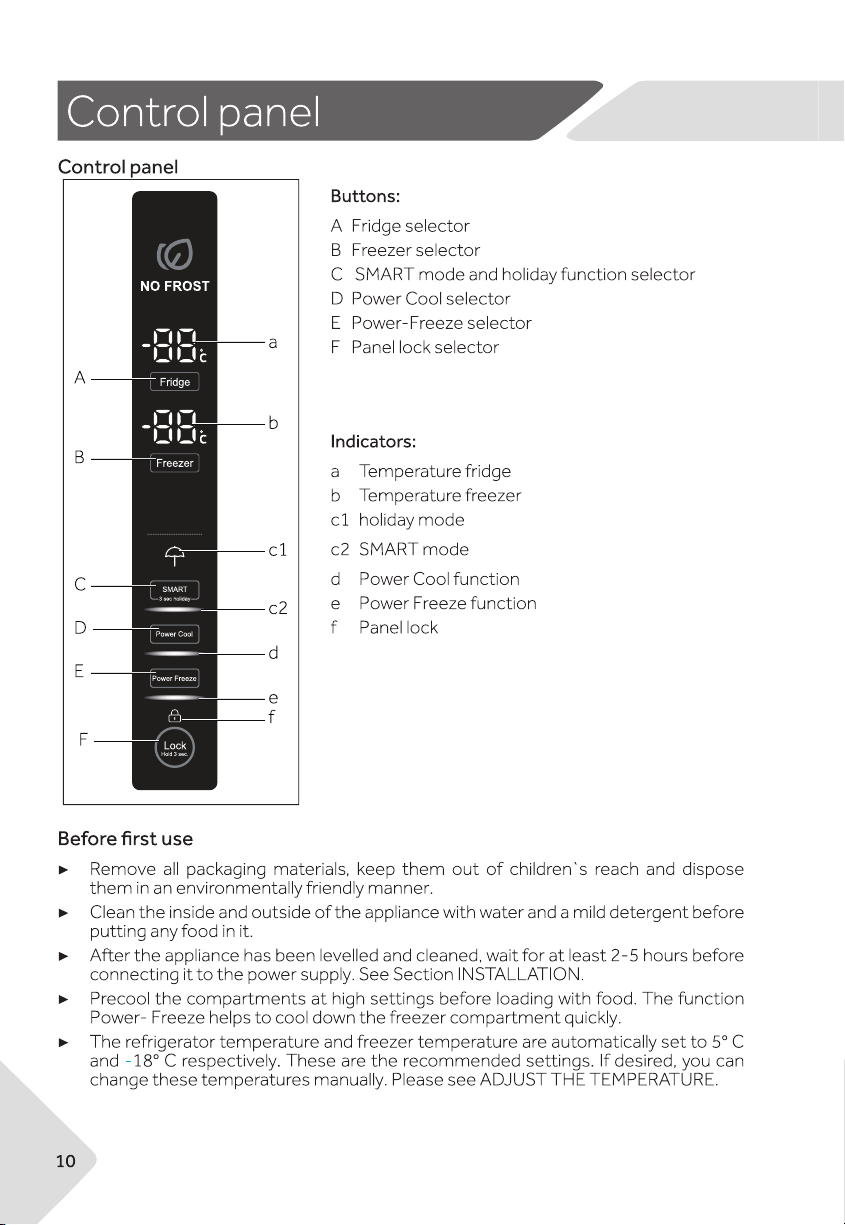

11

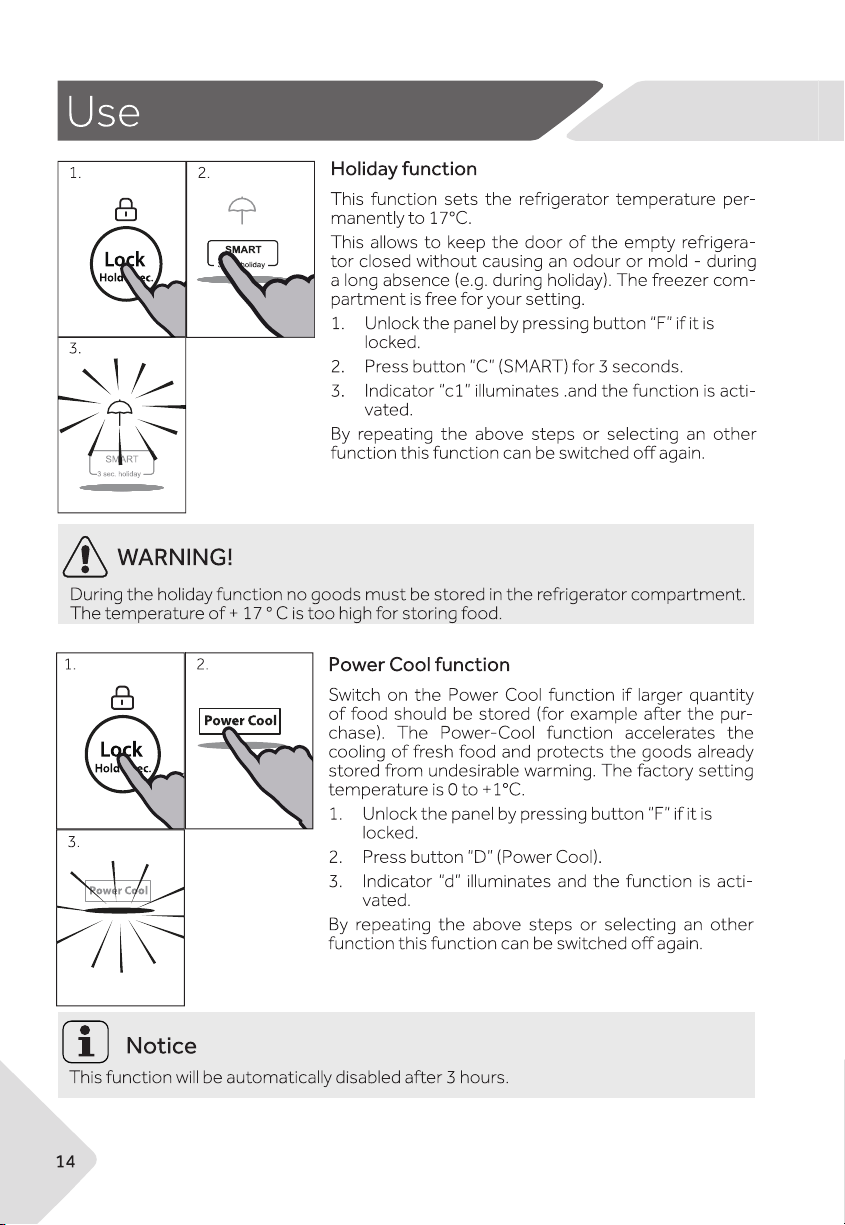

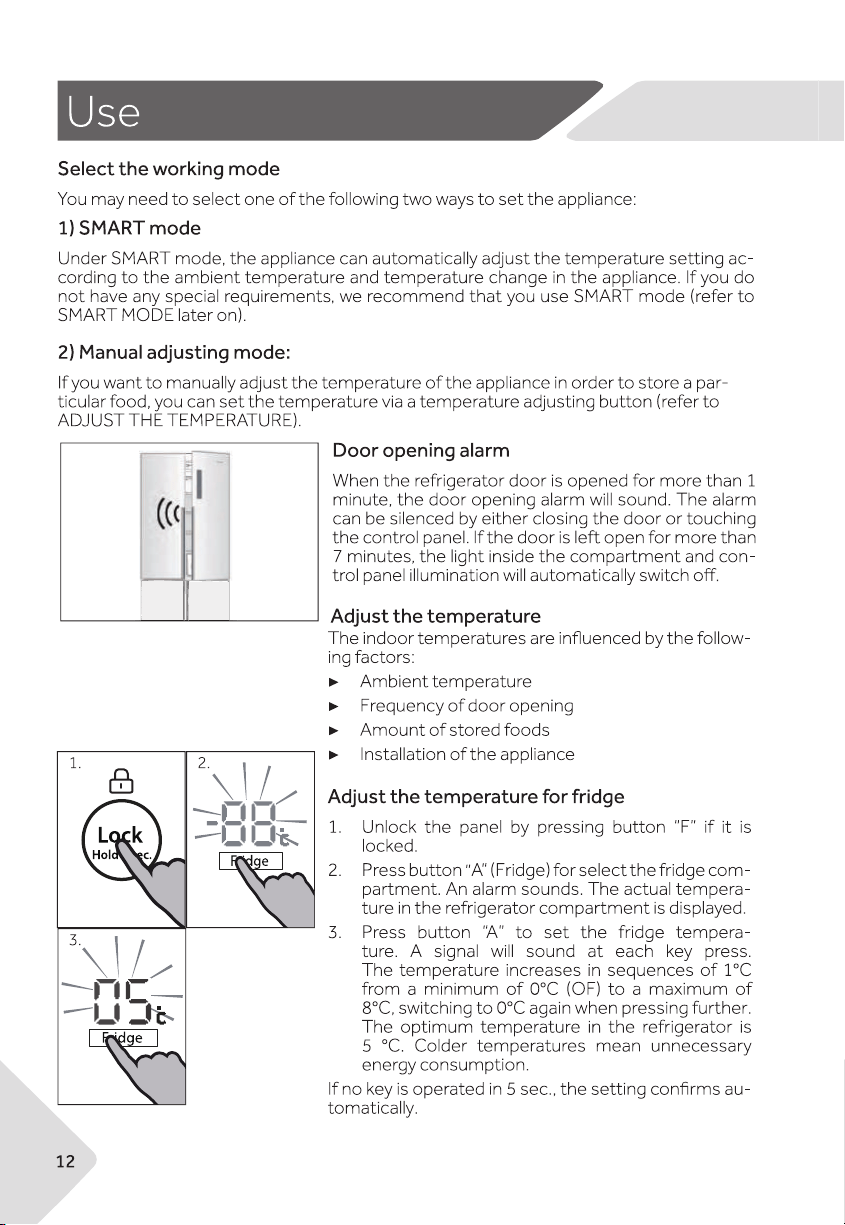

Water dispenser
16
16
(HRF516YHS/C, HRF565YHS/C)
A
C
WARNING!
Use drinking water only.
1. Ensure that the water tank is properly inserted
(see EQUIPMENT)
2.
tank up with fresh drinking water .
3. Fill water only up to the mark (1.8 l); as it could
4. Close the round lid (A) until it clicks into place.
Notice: Water dispenser
▶
▶ When you don‘t need water for a long time, please empty the water tank and insert
the cleaned tank.
▶ The cover (C) on the water tank is additionally used to save energy. If you do not want
to get water from the water dispenser for a long period, please still install the cover
because of better insulating and saving energy.
Getting water from the dispenser
1. Place a glass underneath the water outlet.
2. Push it gently against the water dispenser lever
Make sure the glass is in line with the dispenser to
prevent the water from splashing out
3. Water in the tray (B) should be removed in time,as
WATER DISPENSER
B
Water dispenser（
HRF516YHS/C,HRF565YHS/C)
With the water dispenser cool drinking water can be tapped.

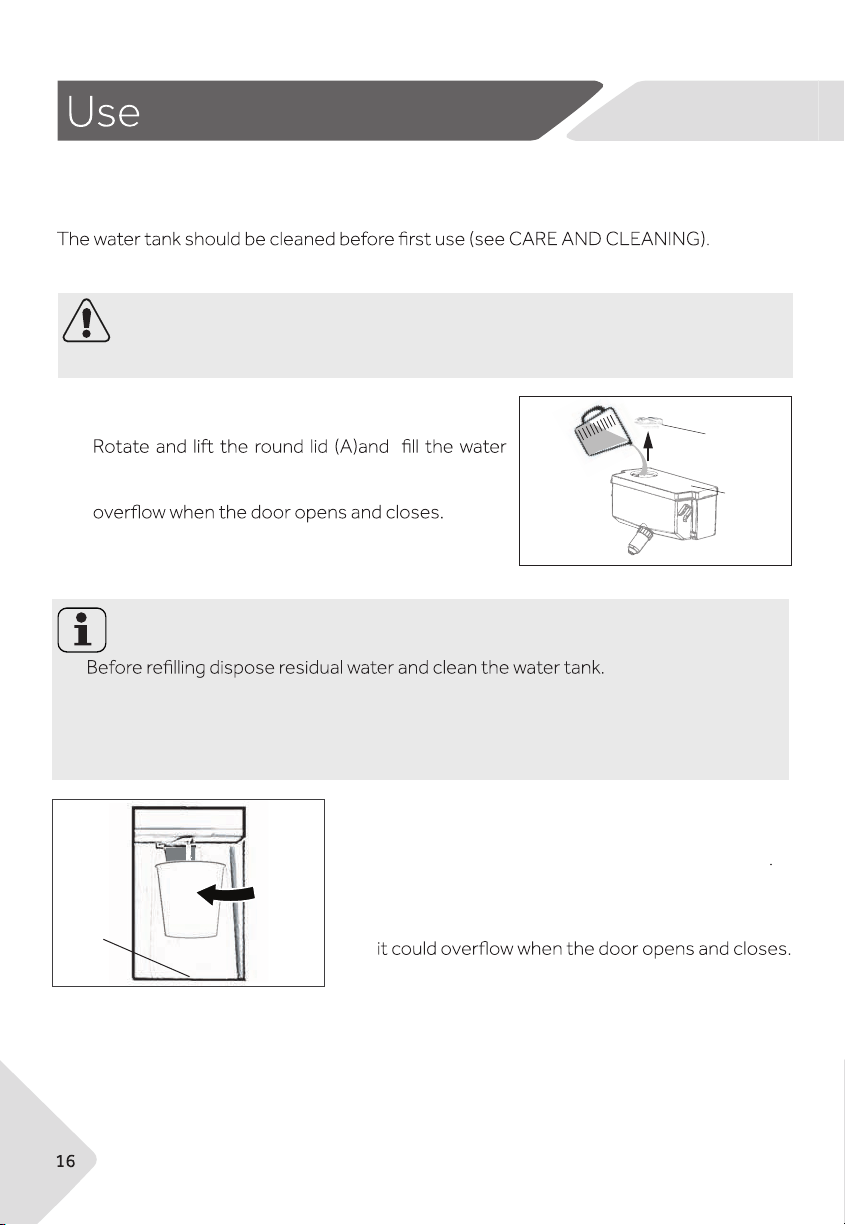

Filling the water tank
17
18
19
A
B
C
B
Notice: Water tank
▶
position.
▶ If the water tank is not properly inserted, water can drip from the connection.
▶ Do not use excessive force when removing or installing the water tank, to avoid dam-
aging the tank.
20
Water tank (HRF516YHS/C,HRF565YHS/C)

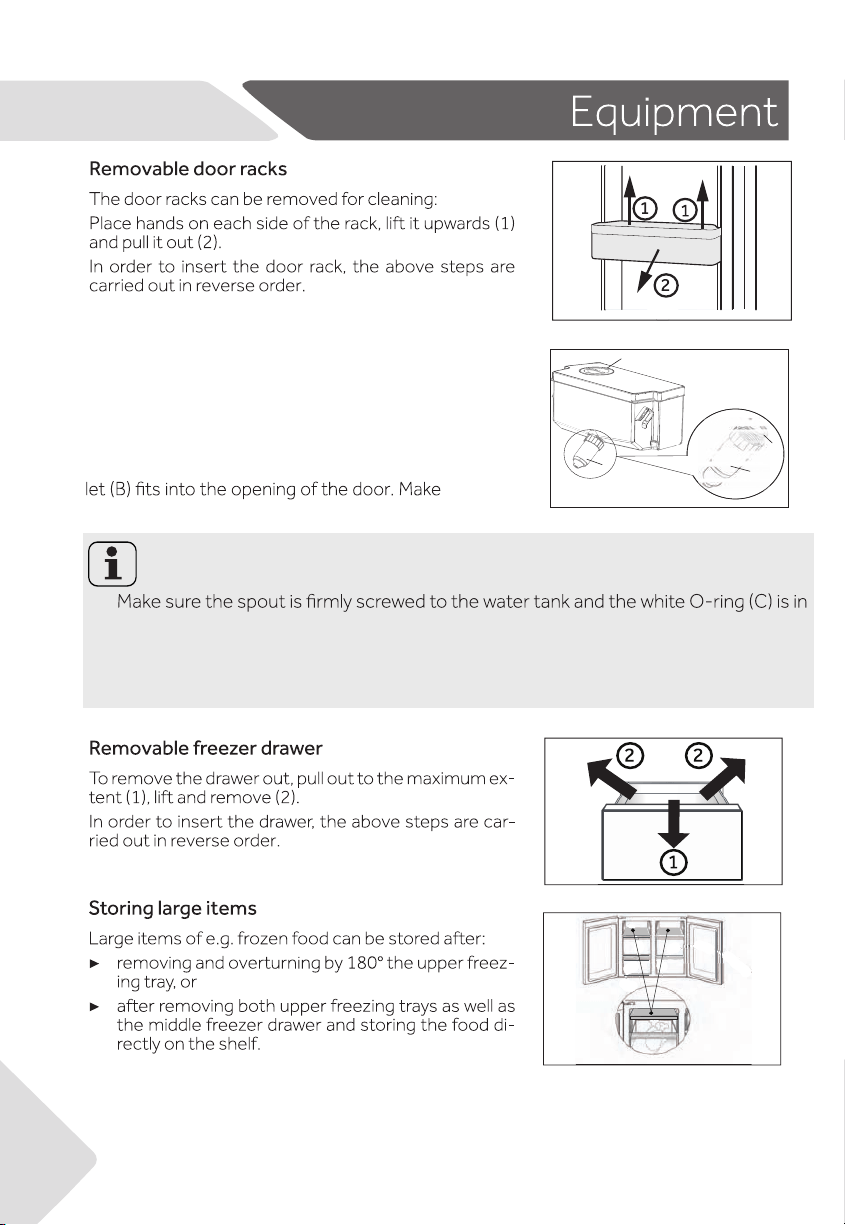

Removable water tank
The water tank can be removed and reinstalled for
cleaning in the same way as the door racks.
Insert water tank
Place the water tank in the position that the water out-
sure that
the water tank is locked.
21
22

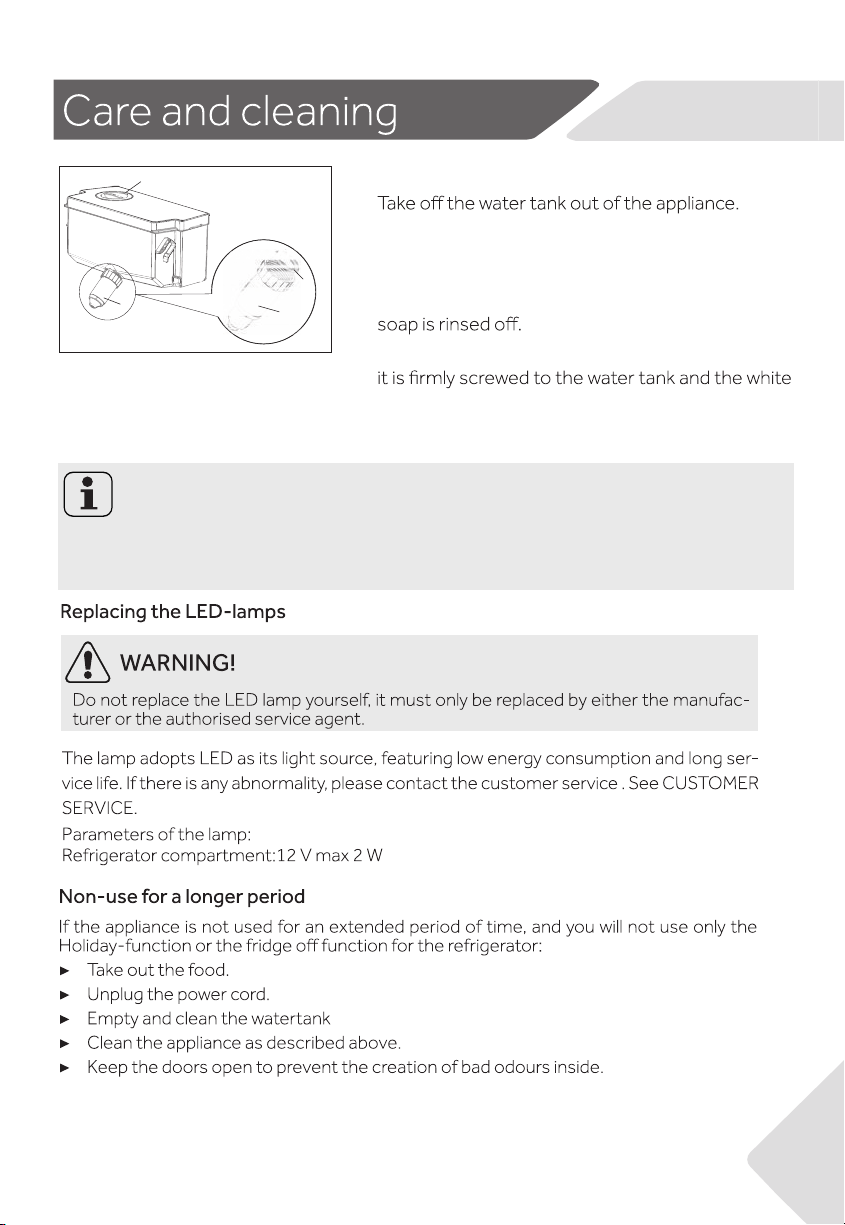

Cleaning the water tank
A
B
C
B
1.
2. Remove the cover (A).
3. Unscrew the dispenser spout (B)
4. Clean the tank and dispenser spout with warm wa-
ter and liquid dishwashing detergent. Make sure all
5. Mount the dispenser spout (B), and take care that
O-ring (C) is in position.
6. Close the cover (A) and replace the tank inside the
appliance.
Notice: Water tank
▶ If the water tank is not properly inserted, water can drip from the connection.
▶ Do not use excessive force when removing or installing the water tank, to avoid dam-
aging the tank.

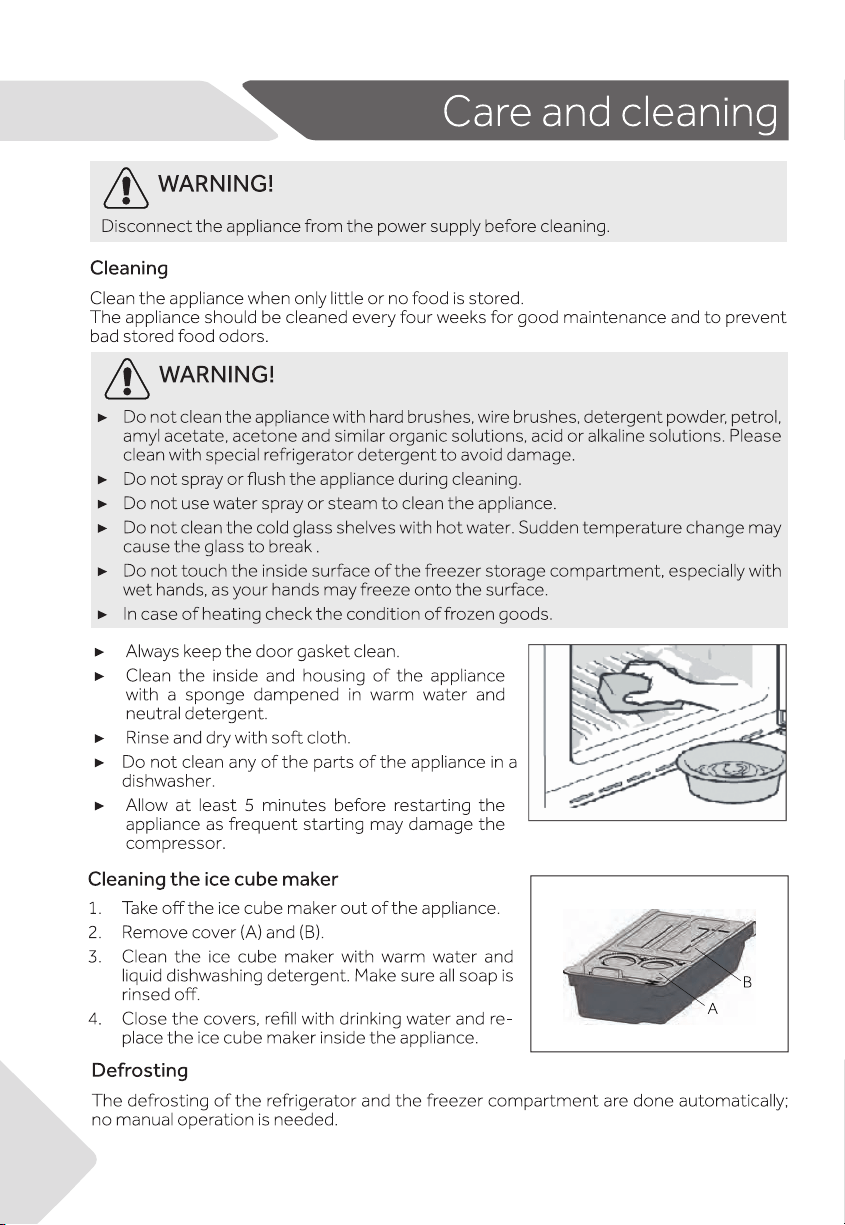

23
(HRF516YHS/C,HRF565YHS/C)
24
25
26
27

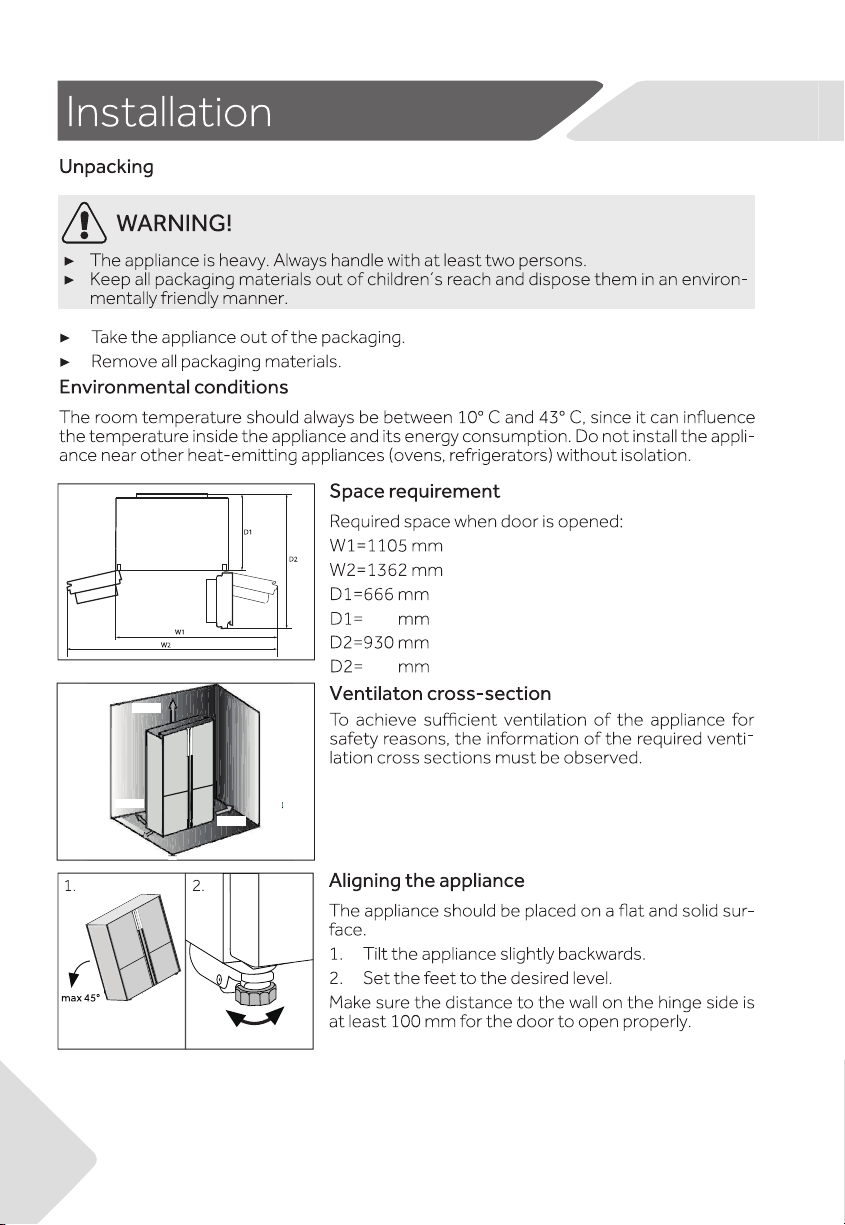

716
980
5 cm
5 cm
5 cm
5 cm
28
(HRF516YS/YHS/YHC)
(HRF516YS/YHS/YHC)
(HRF565YHS/YHC)
(HRF565YHS/YHC)
29
30
31
Trade mark Haier Haier
Model No.
HRF516YS
HRF516YHS
HRF516YHC
HRF565YHS
HRF565YHC
Category of the model Refrigerator-freezer Refrigerator-freezer
Voltage/Frequency 220V-240V~/50Hz 220V-240V~/50Hz
Energy Star 3 Stars 3 Stars
Frost free system Yes Yes
Product group 5B 5B
Total gross volume 514L 565L
Total storage volume 455L 492L
Fresh food compartment volume 315L 336L
Freezer compartment volume 140L 156L
Climate class T T
Refrigerant R600a 60g R600a 60g
Insulaon blowing gas HC-C601 HC-C601
Dimension(D×W×H) 666×833×1804 716×833×1804
Protecon class I I
