Life's Good
FRE CH DOOR
REFRIGERATOR
Please read this owner's manua thoroughly before
operating and keep i1 handy for reference at all times.
LMXC23746S
MFL62184490

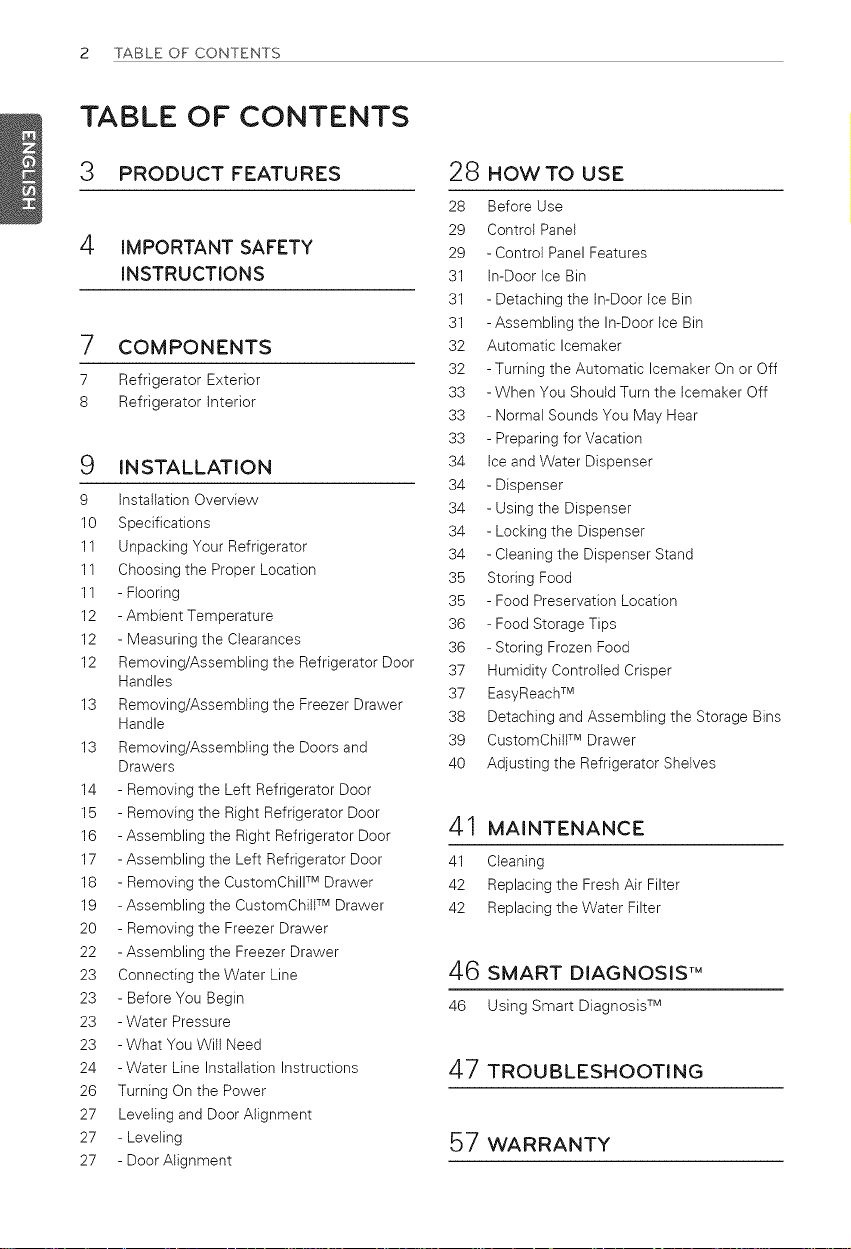

2 TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 IMPORTANT SAFETY
INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator interior
9
9
0
1
1
1
2
2
2
4
5
6
7
8
9
2O
22
23
23
23
23
24
26
27
27
27
INSTALLATION
Installation Overview
Specifications

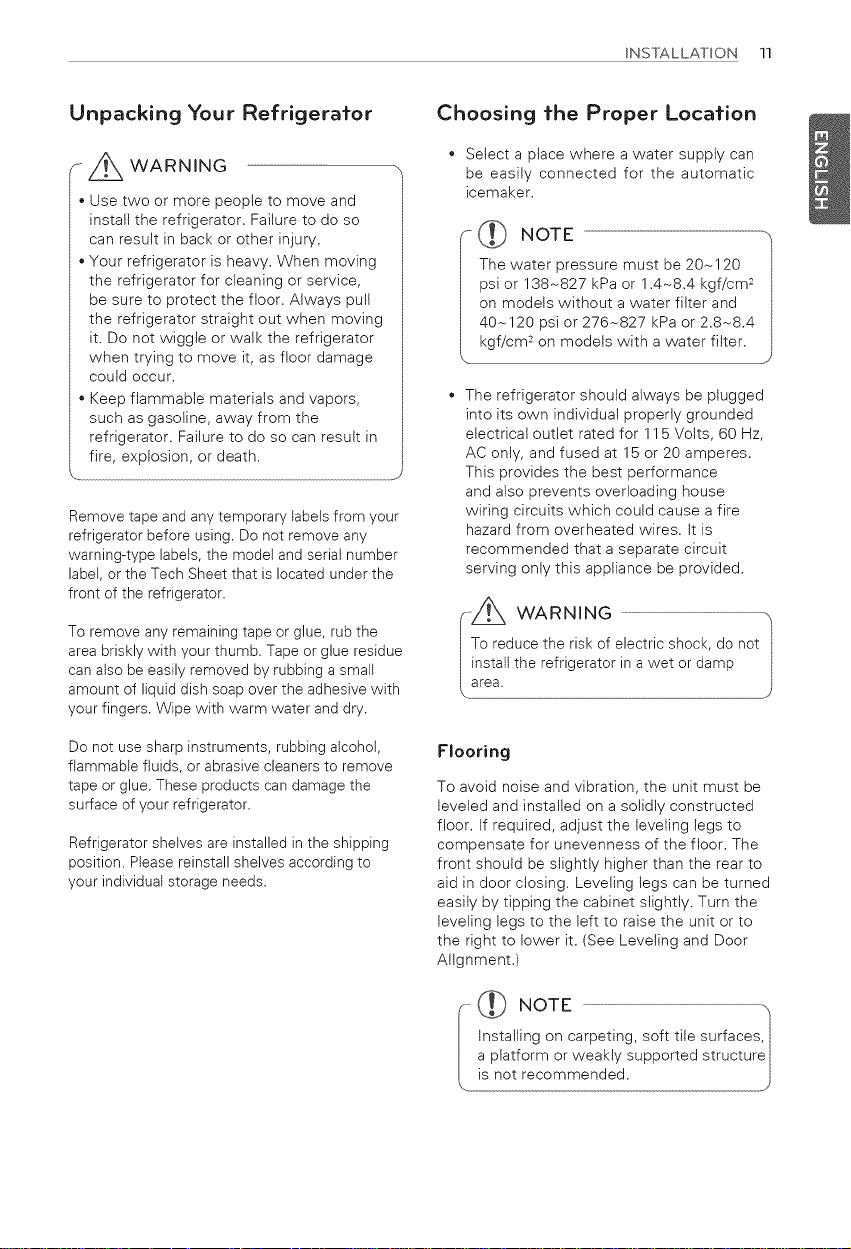

Unpacking Your Refrigerator
Choosing the Proper Location
- Flooring
- Ambient Temperature
- Measuring the Clearances
Removing/Assembling the Refrigerator Door
Handles

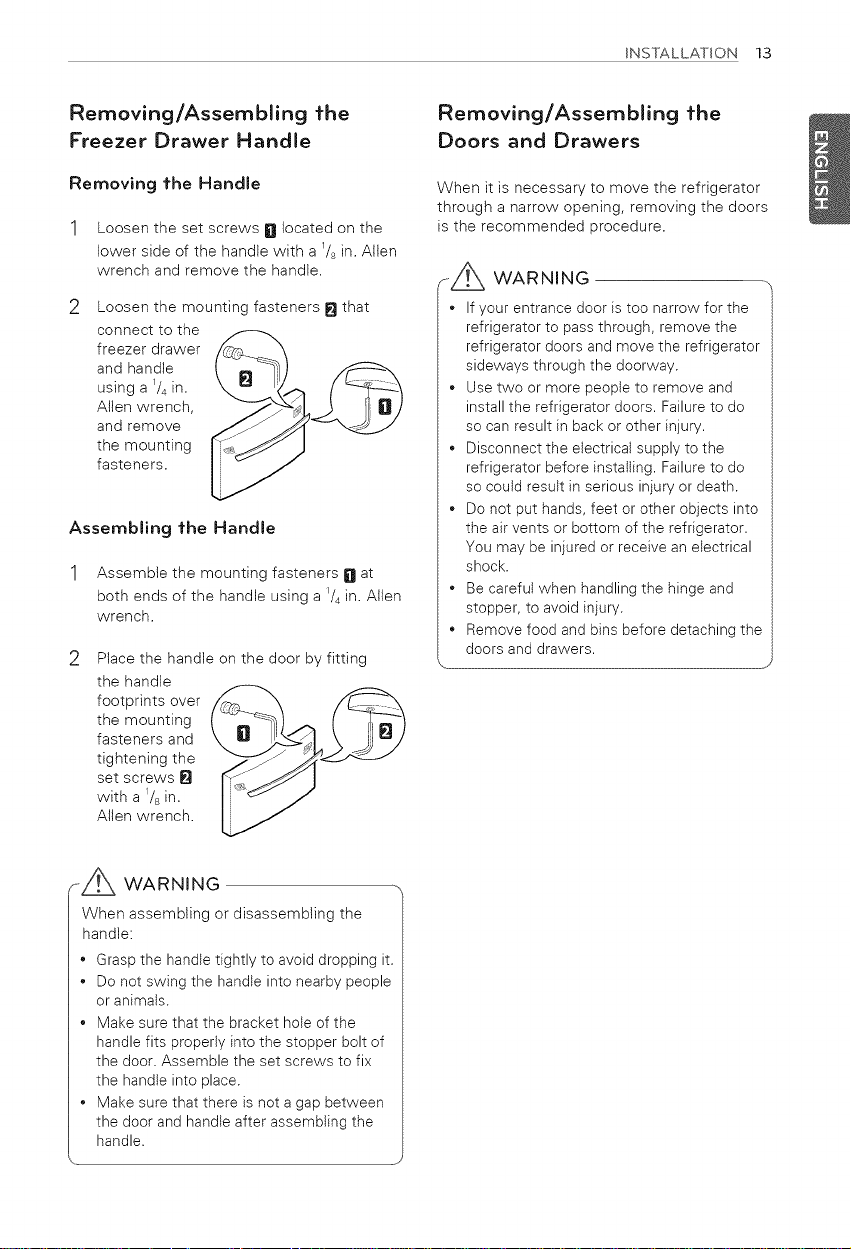

Removing/Assembling the Freezer Drawer
Handle
Removing/Assembling the Doors and
Drawers

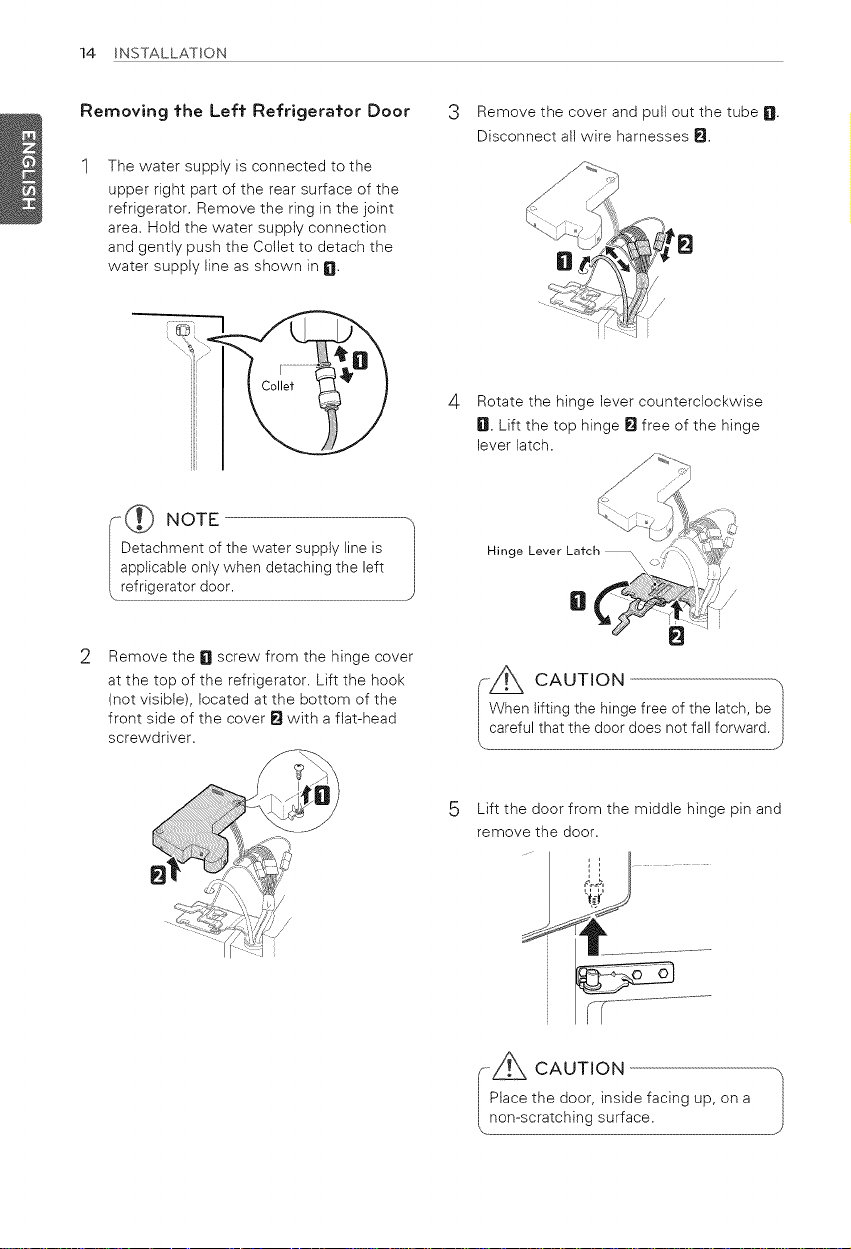

- Removing the Left Refrigerator Door

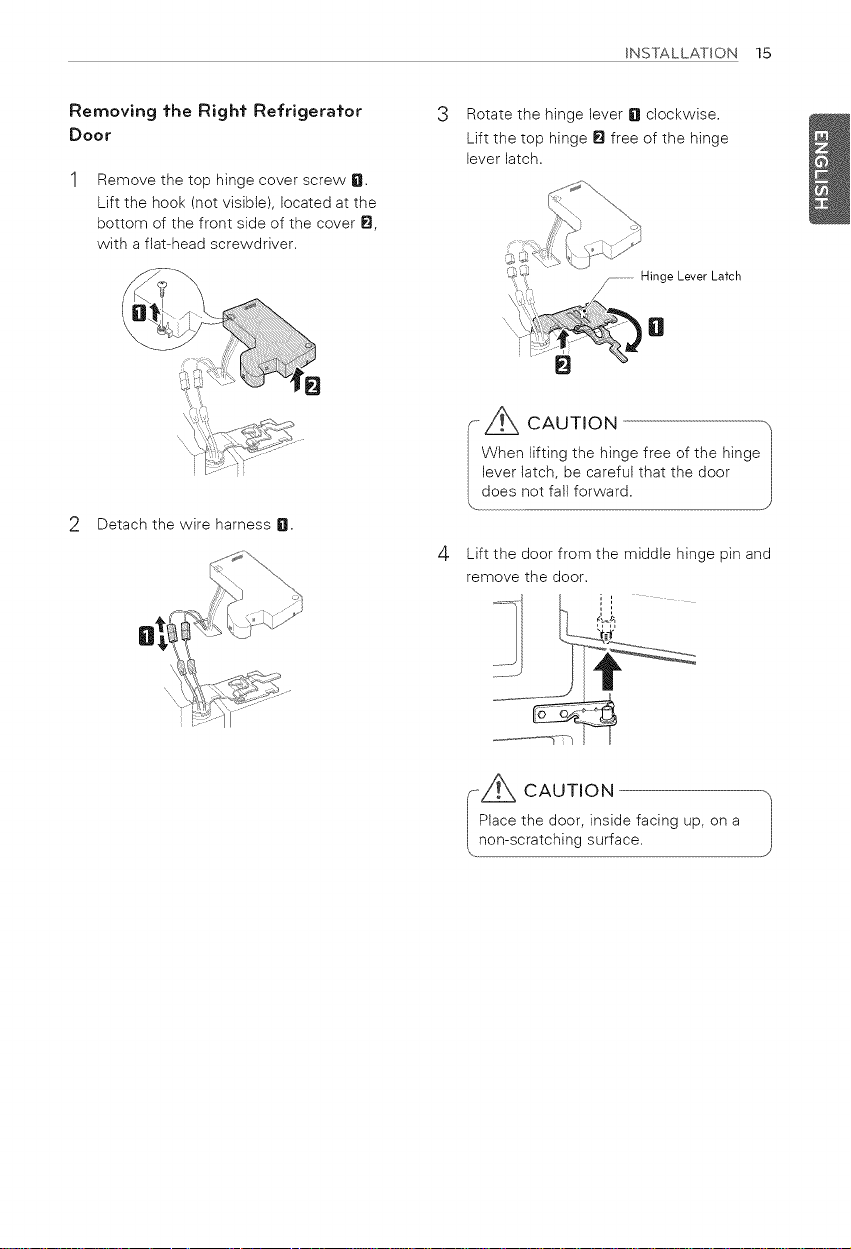

- Removing the Right Refrigerator Door

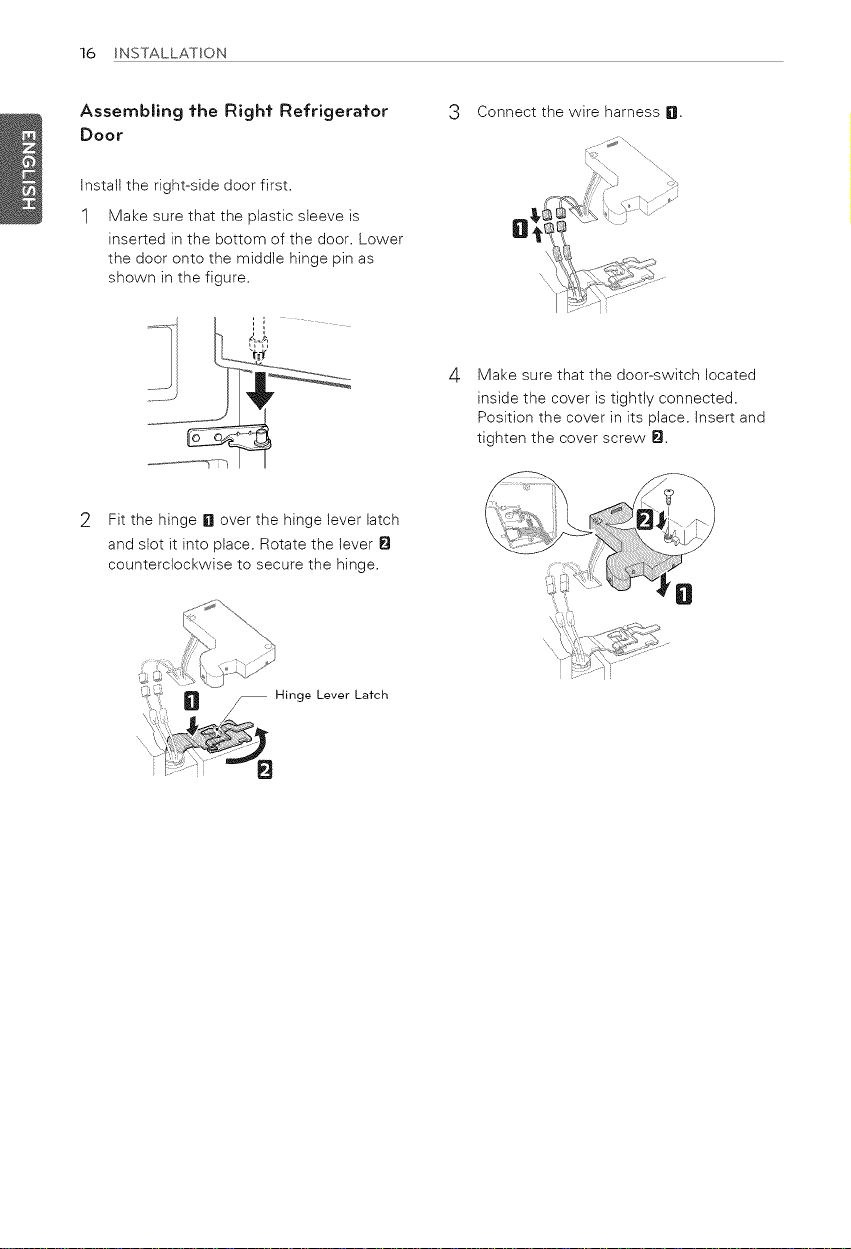

- Assembling the Right Refrigerator Door
- Assembling the Left Refrigerator Door

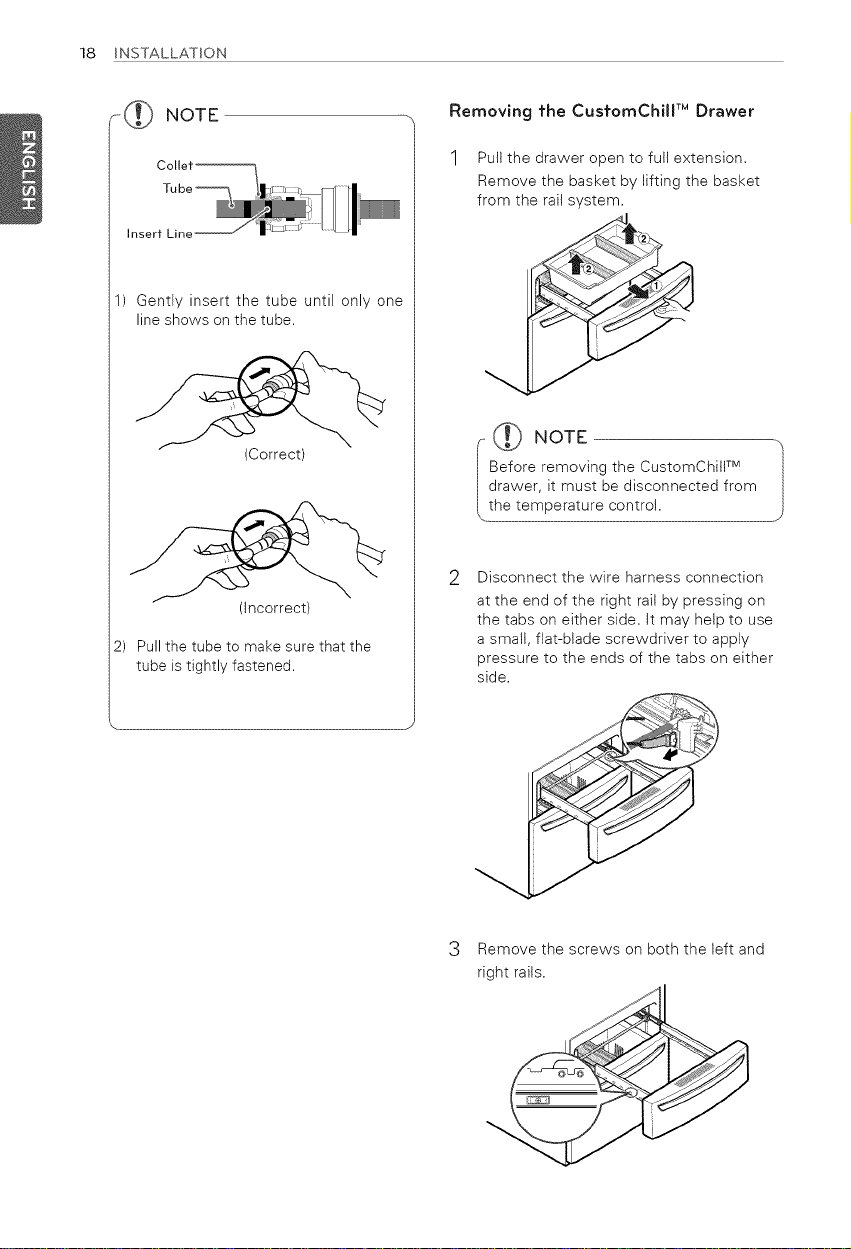

- Removing the CustomChill TM Drawer

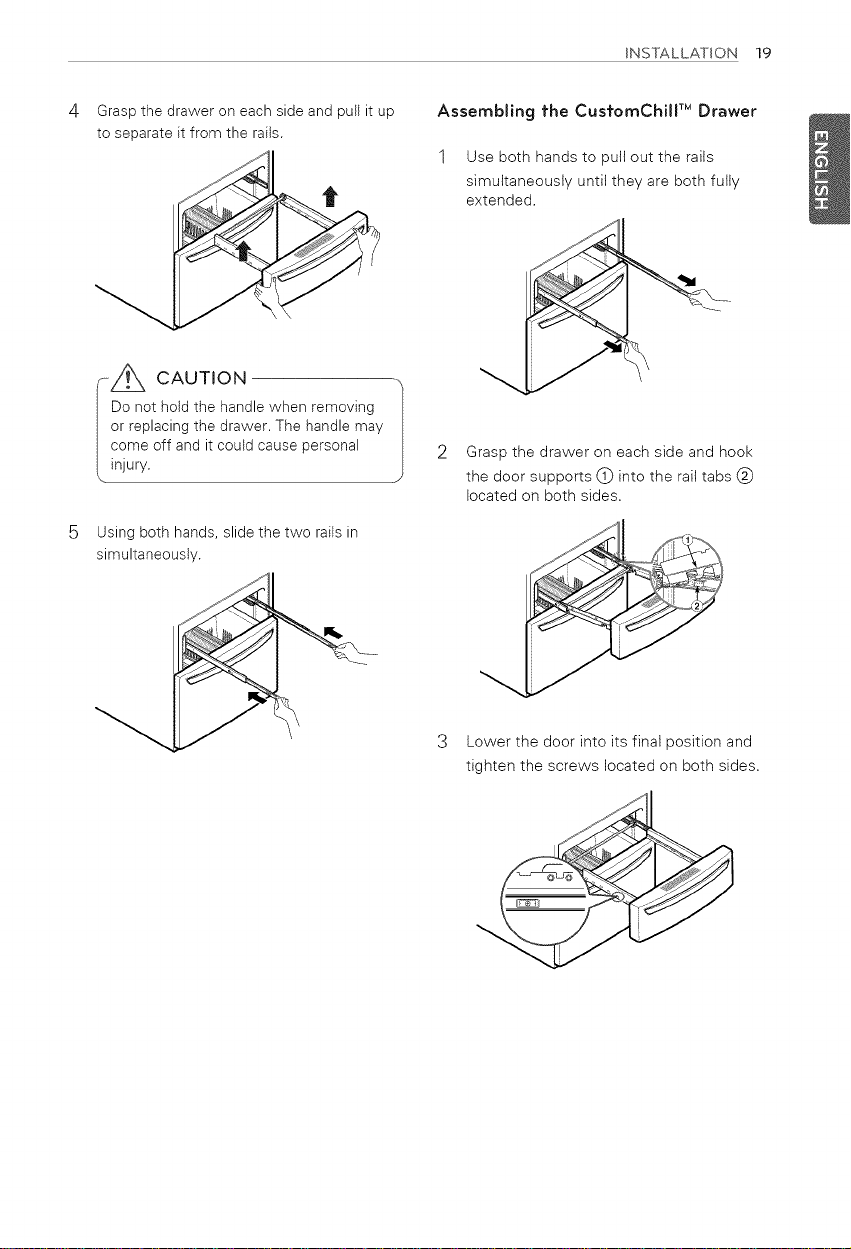

- Assembling the CustomChiIF MDrawer

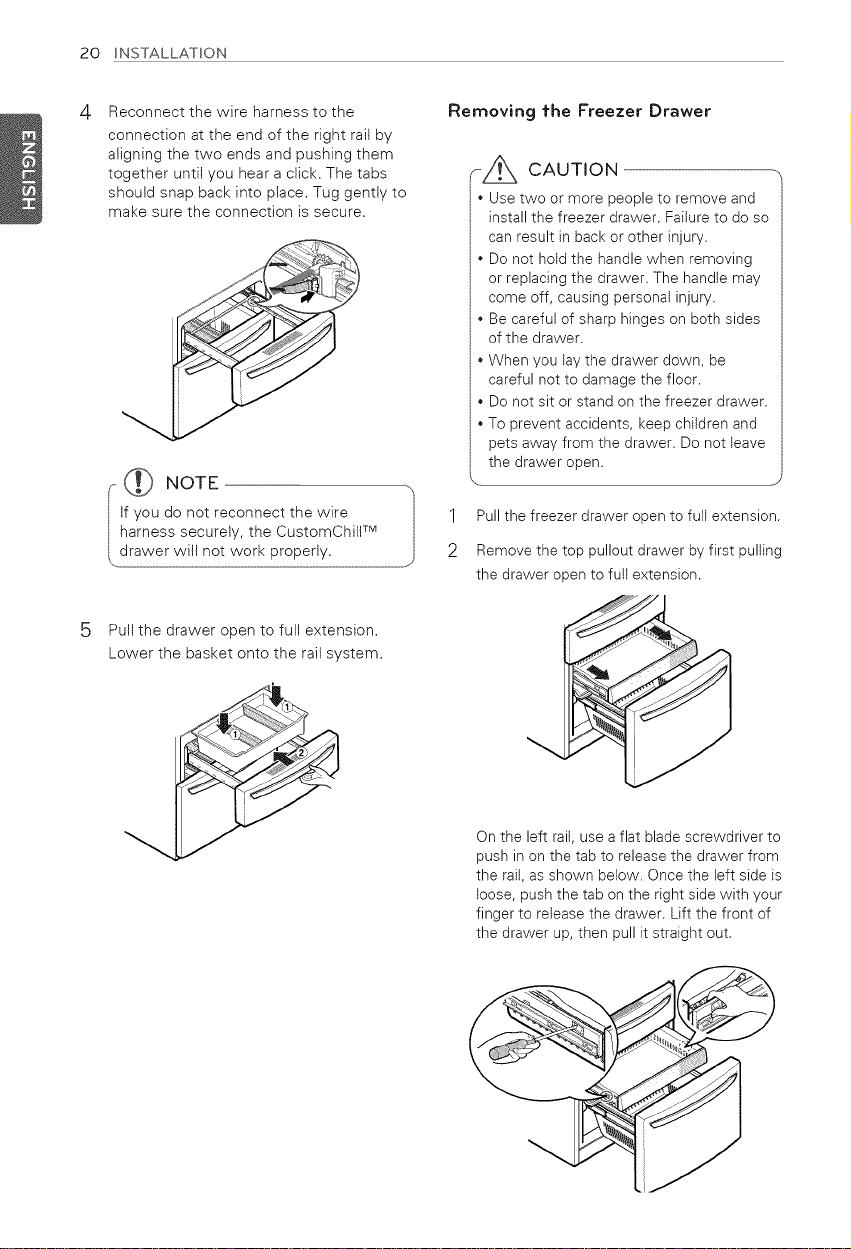

- Removing the Freezer Drawer

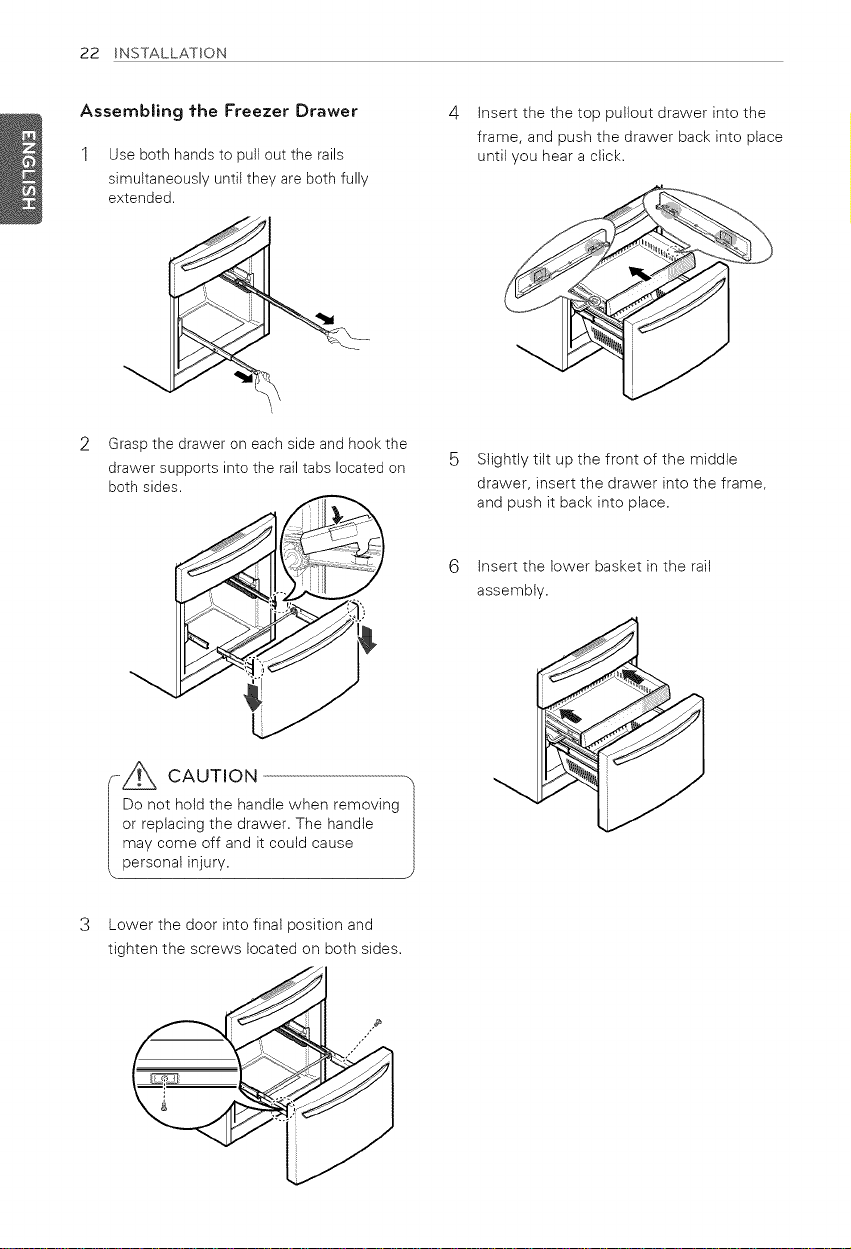

- Assembling the Freezer Drawer
Connecting the Water Line
- Before You Begin
- Water Pressure
- What You Will Need

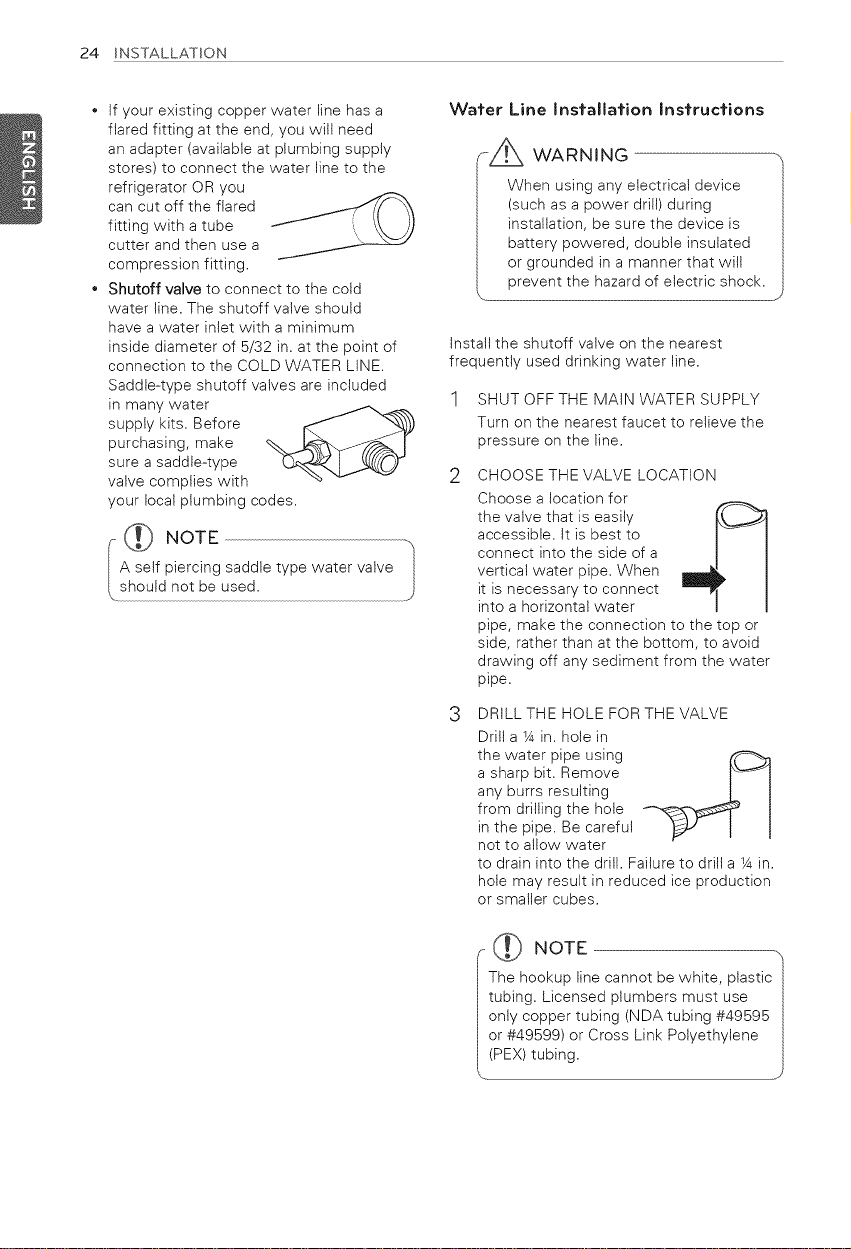

- Water Line Installation Instructions

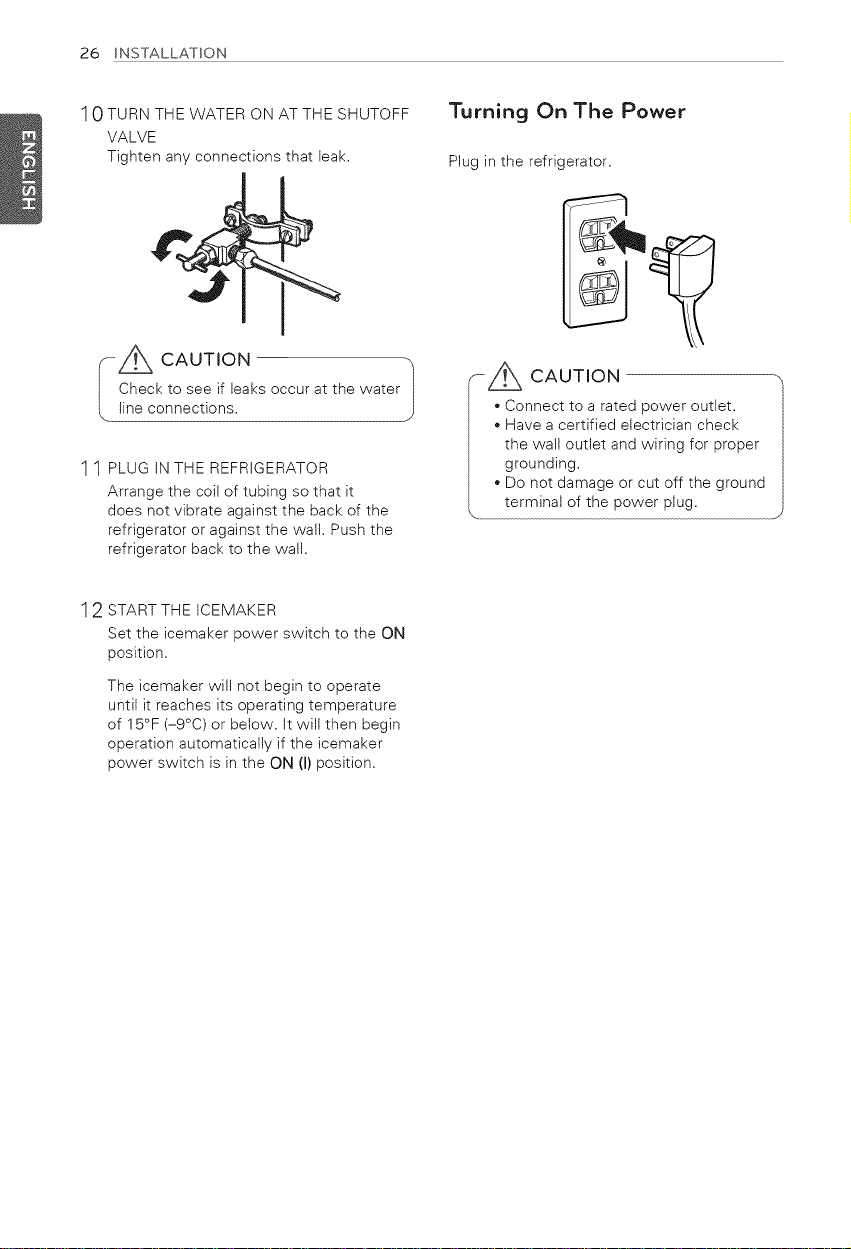

Turning On the Power

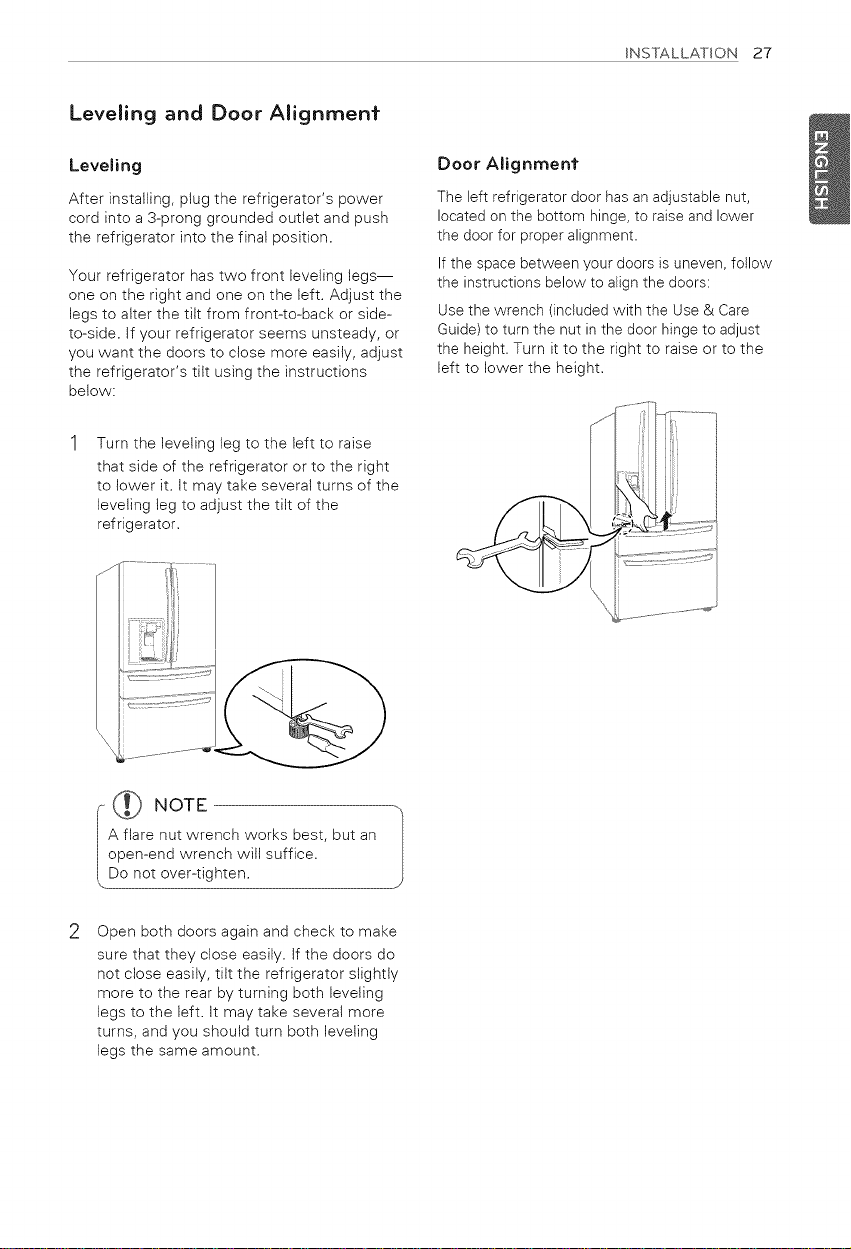

Leveling and Door Alignment
- Leveling
- Door Alignment
28 HOW TO USE

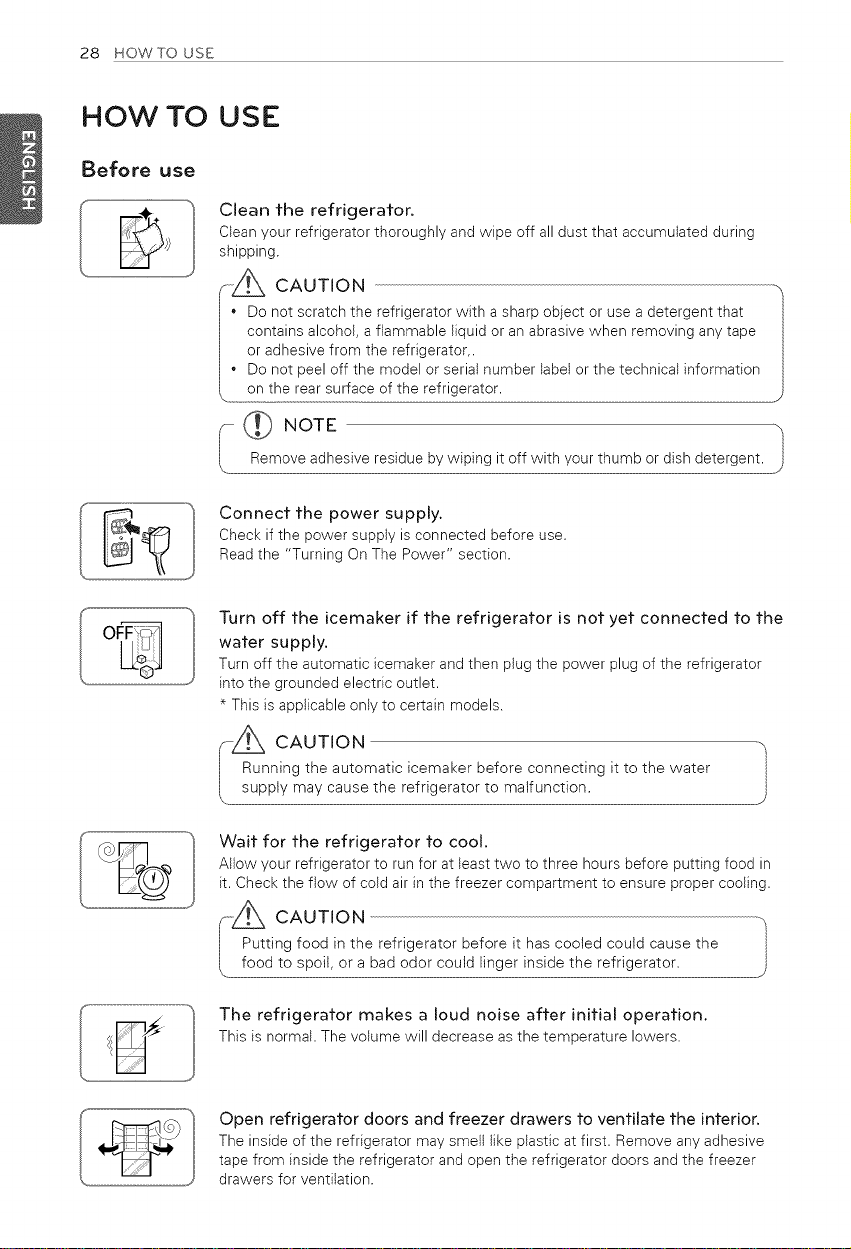

28 Before Use

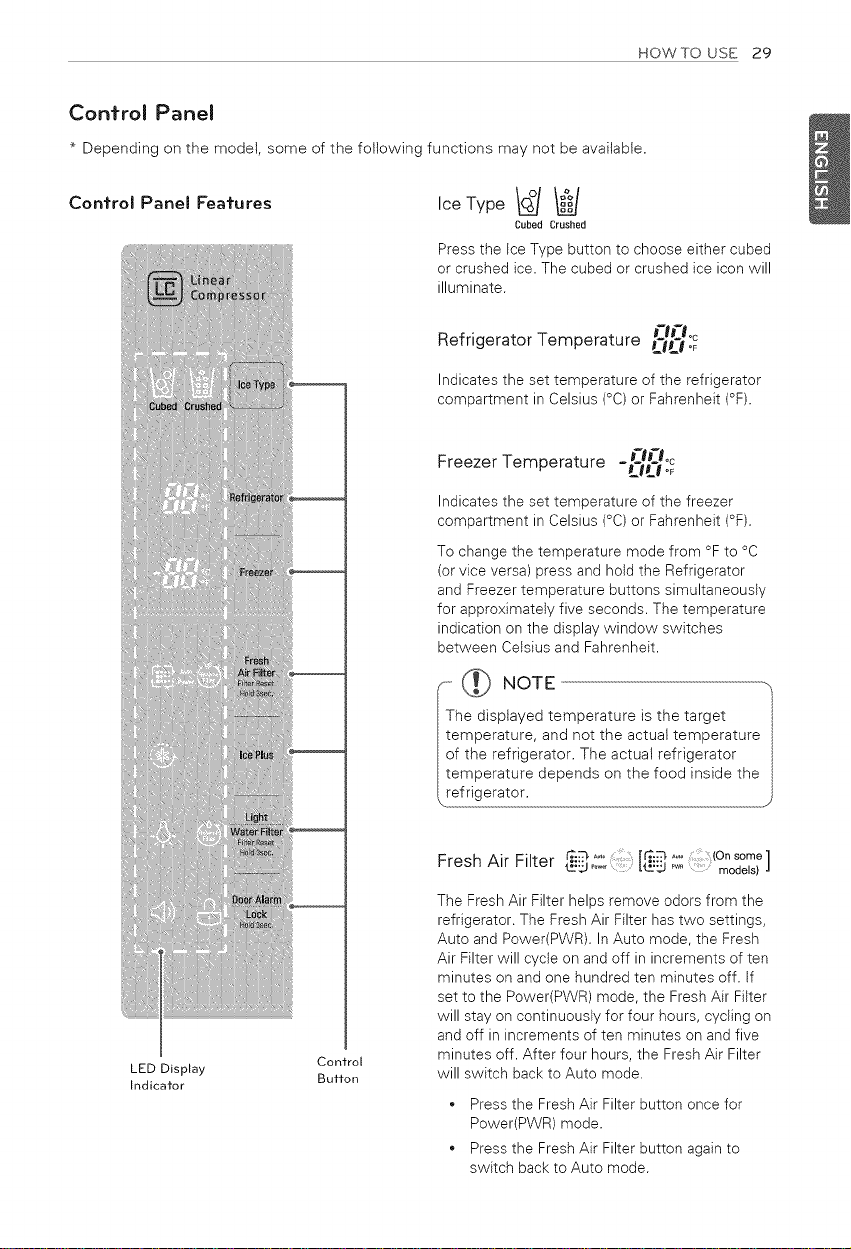

29 Control Panel

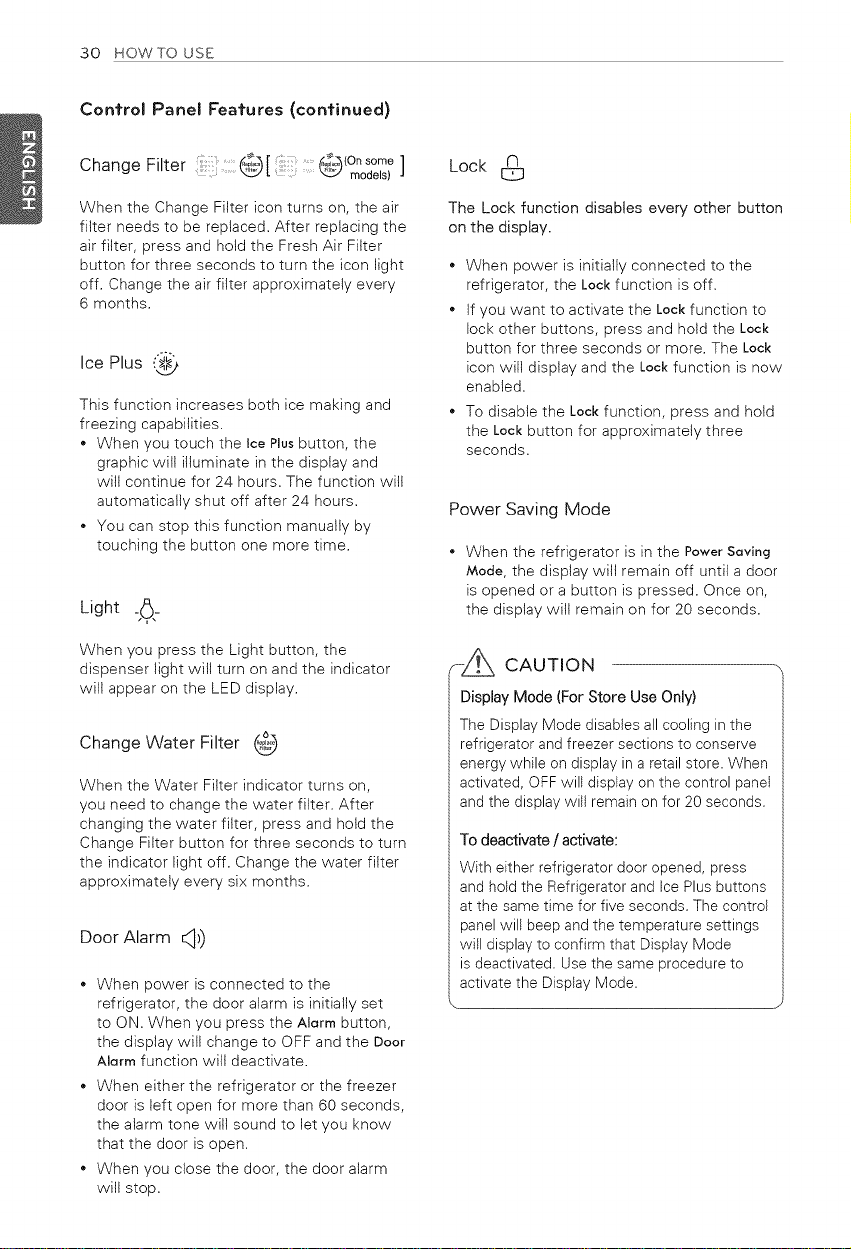

29 - Control Panel Features

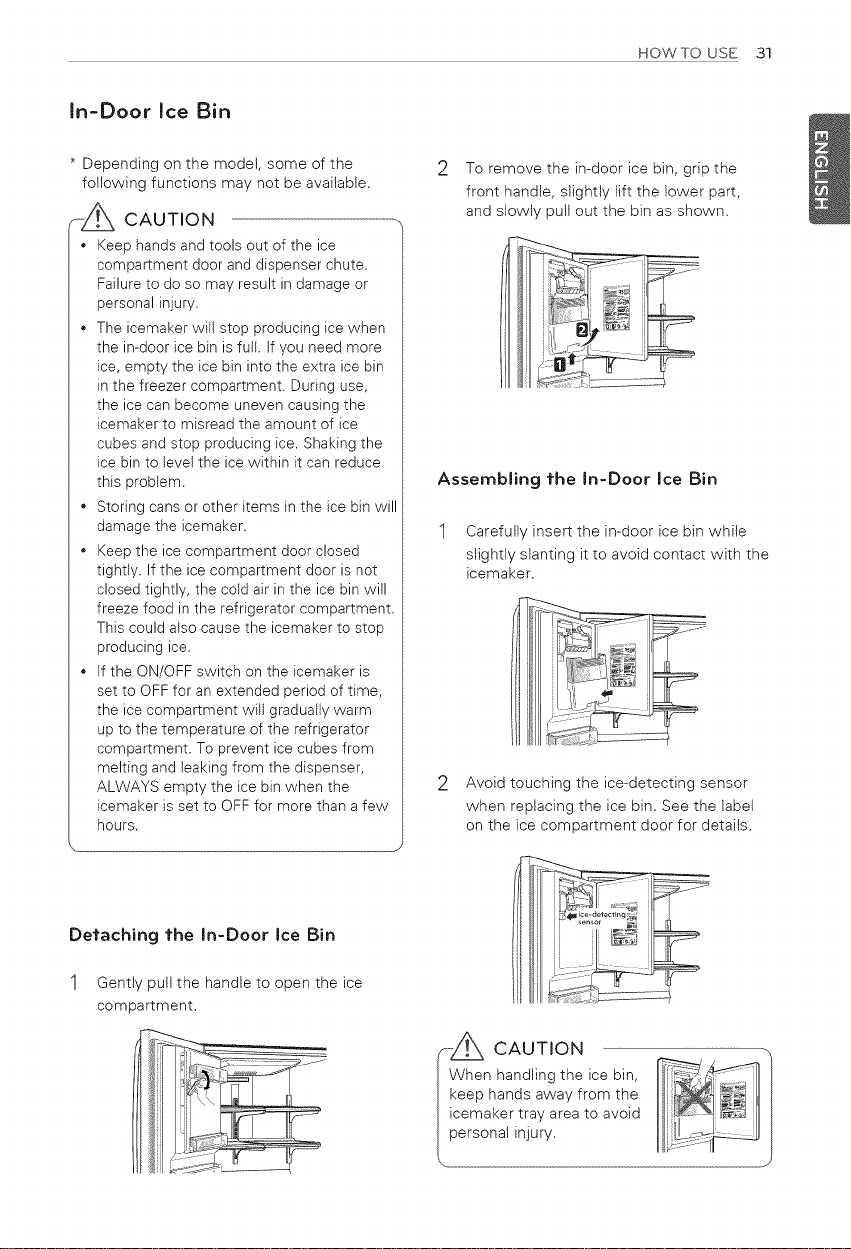

31 In-Door ice Bin
31 - Detaching the In-Door ice Bin
31 - Assembling the In-Door Ice Bin

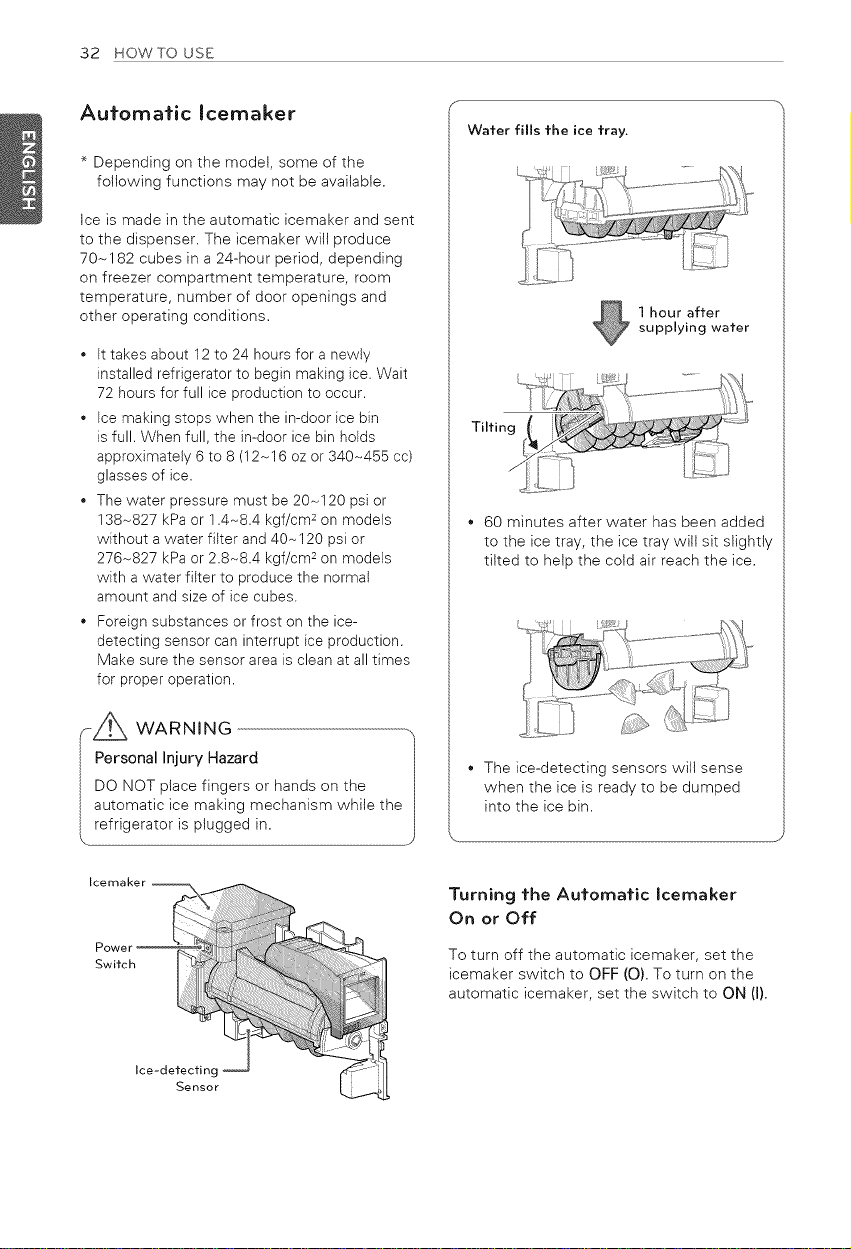

32 Automatic Icemaker
32 - Turning the Automatic Icemaker On or Off

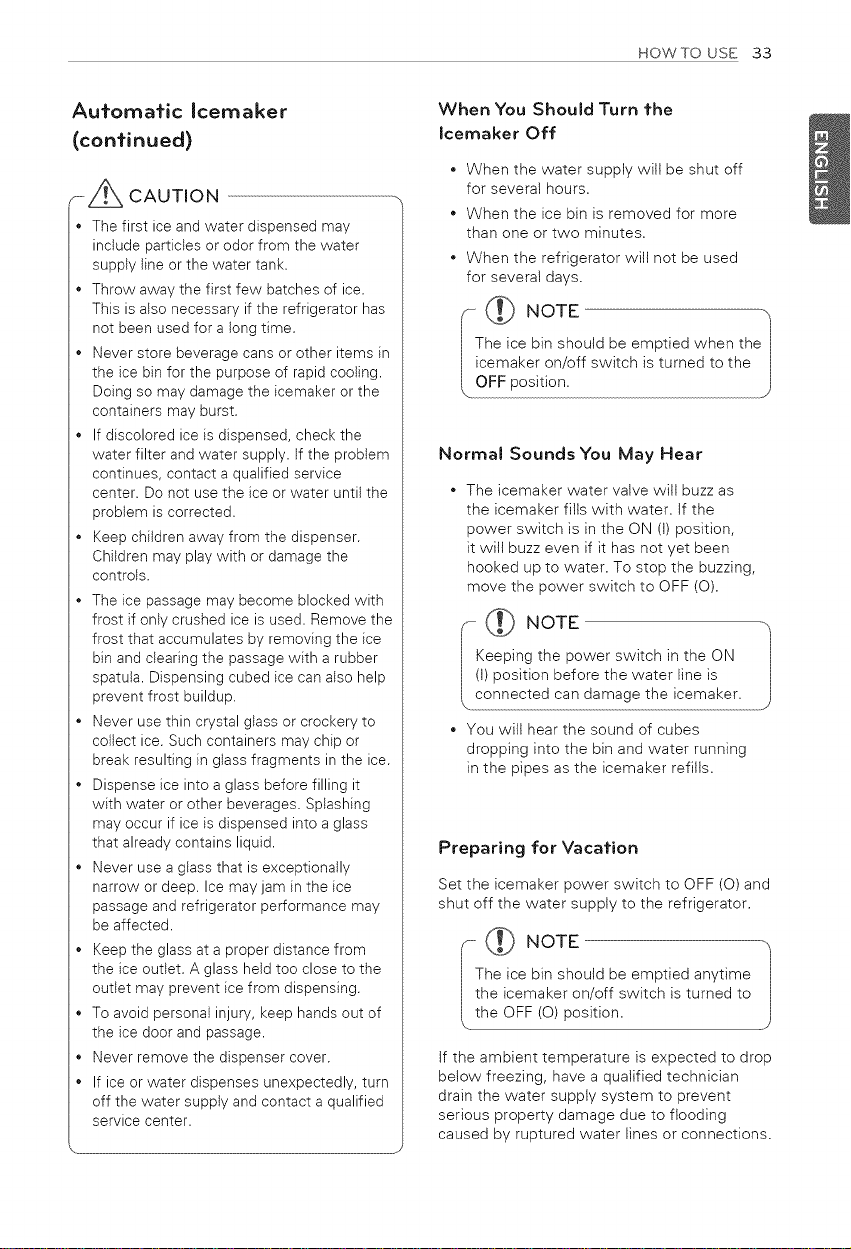

33 - When You Should Turn the Icemaker Off
33 - Normal Bounds You May Hear
33 - Preparing for Vacation

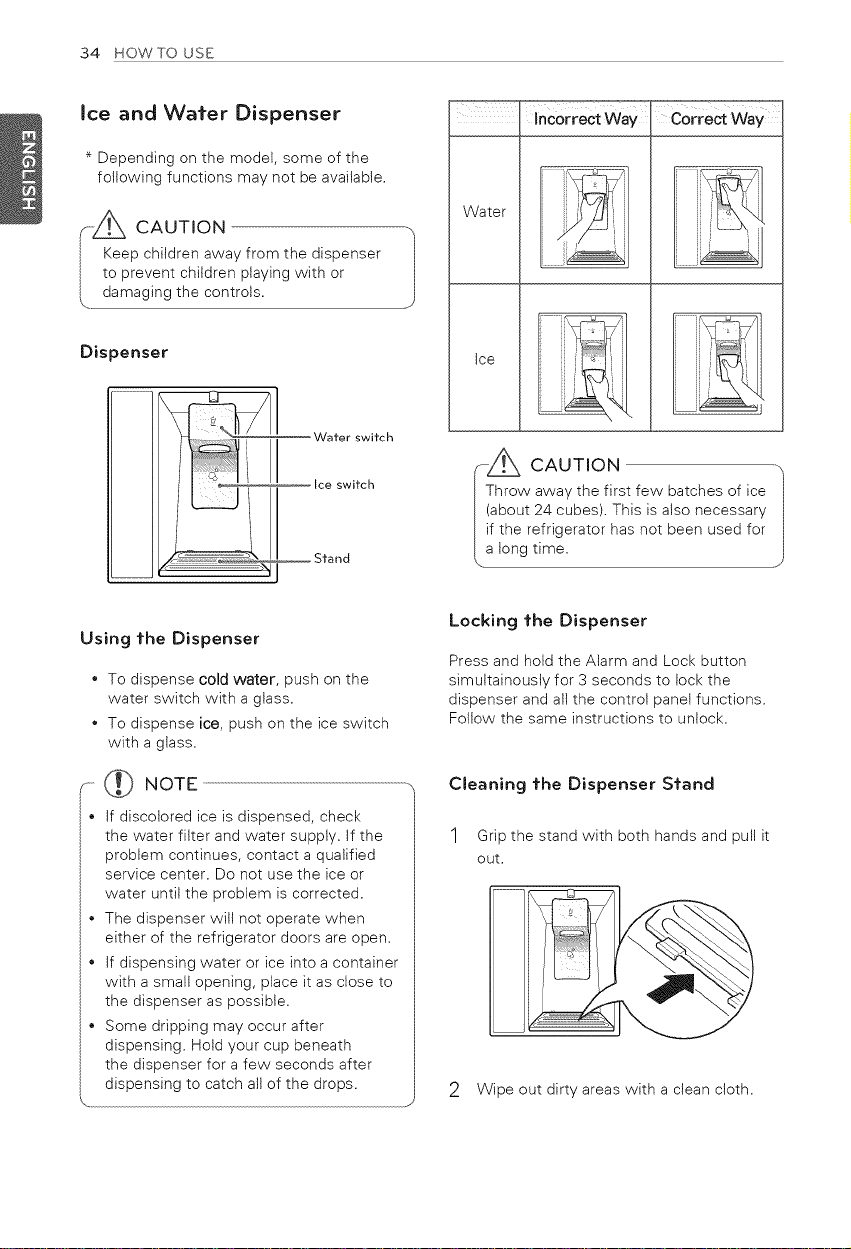

34 Ice and Water Dispenser
34 - Dispenser
34 - Using the Dispenser
34 - Locking the Dispenser
34 - Cleaning the Dispenser Stand

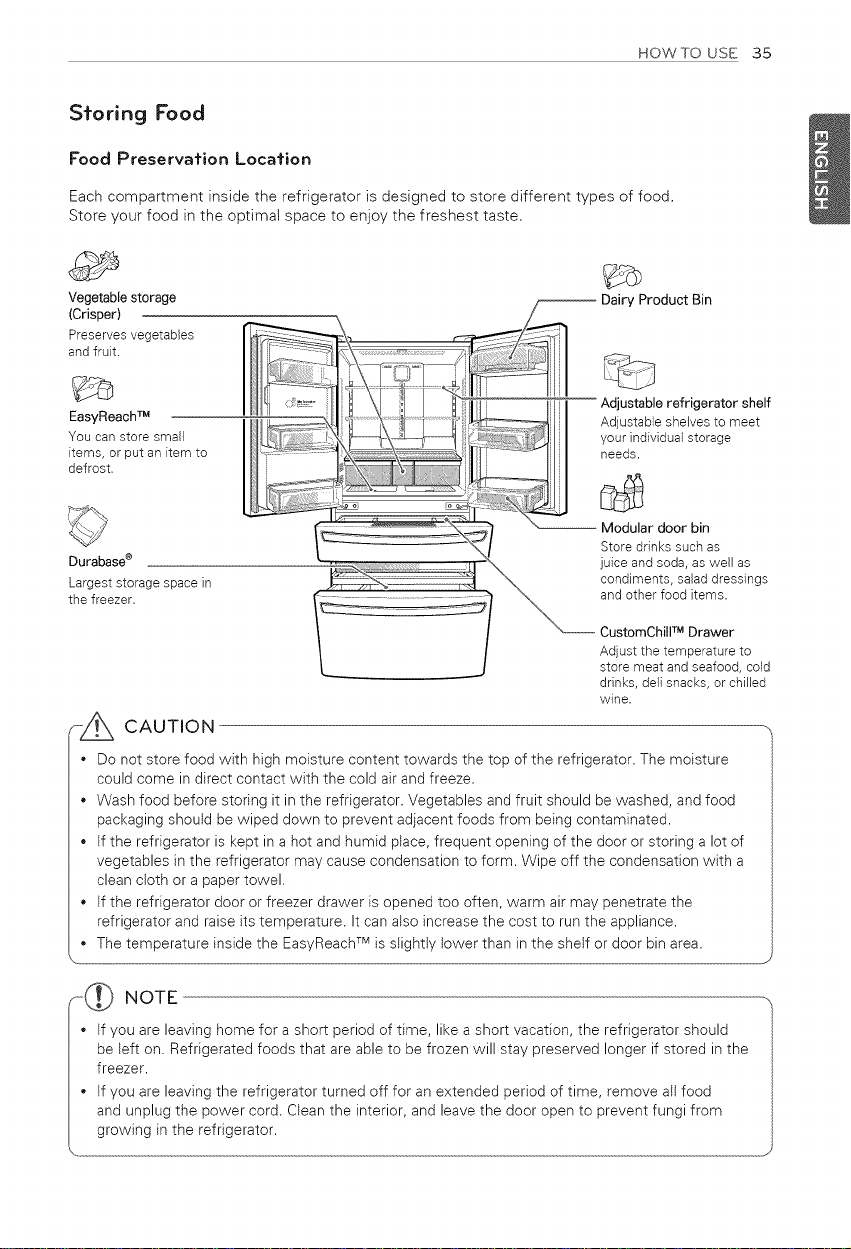

35 Storing Food
35 - Food Preservation Location
36 - Food Storage Tips
36 - Storing Frozen Food
37 Humidity Controlled Crisper
37 EasyReachTM
38 Detaching and Assembling the Storage Bins

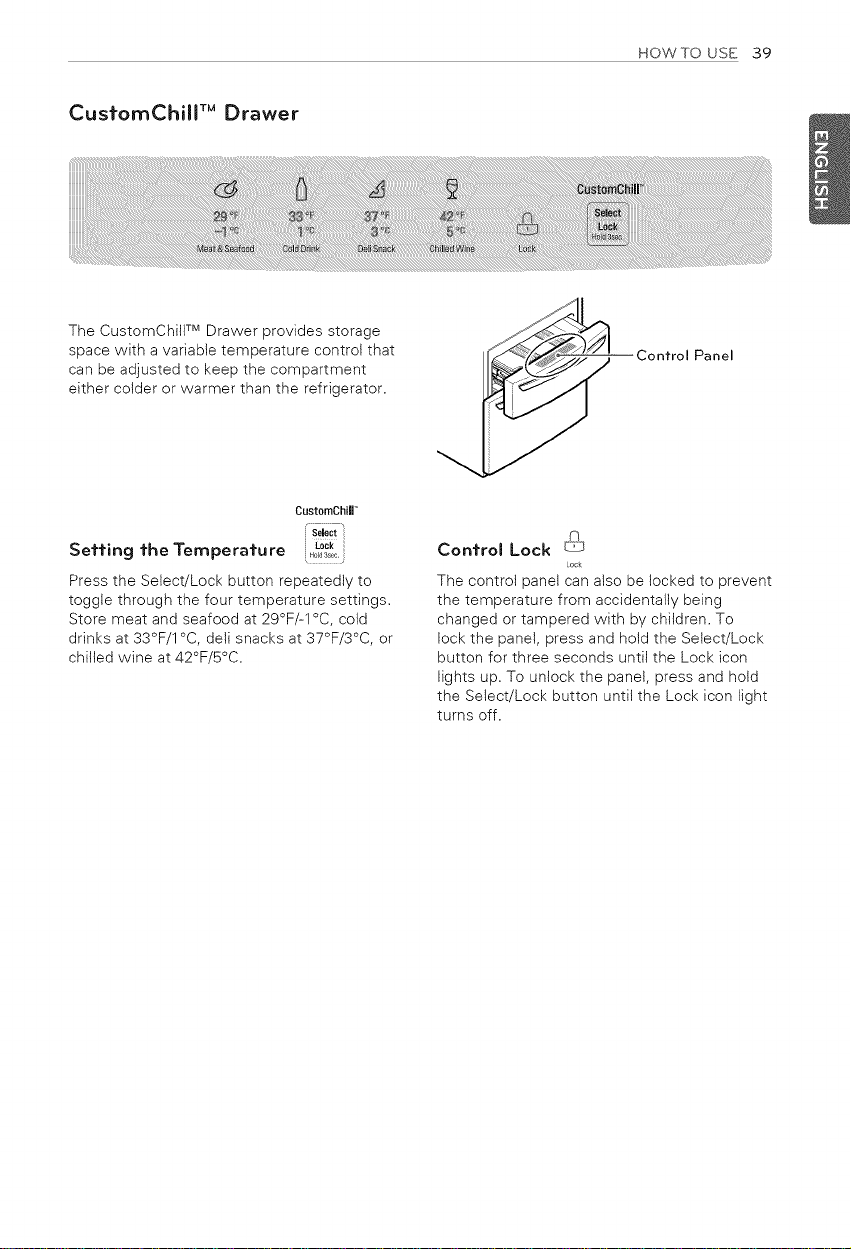

39 CustomChill TM Drawer

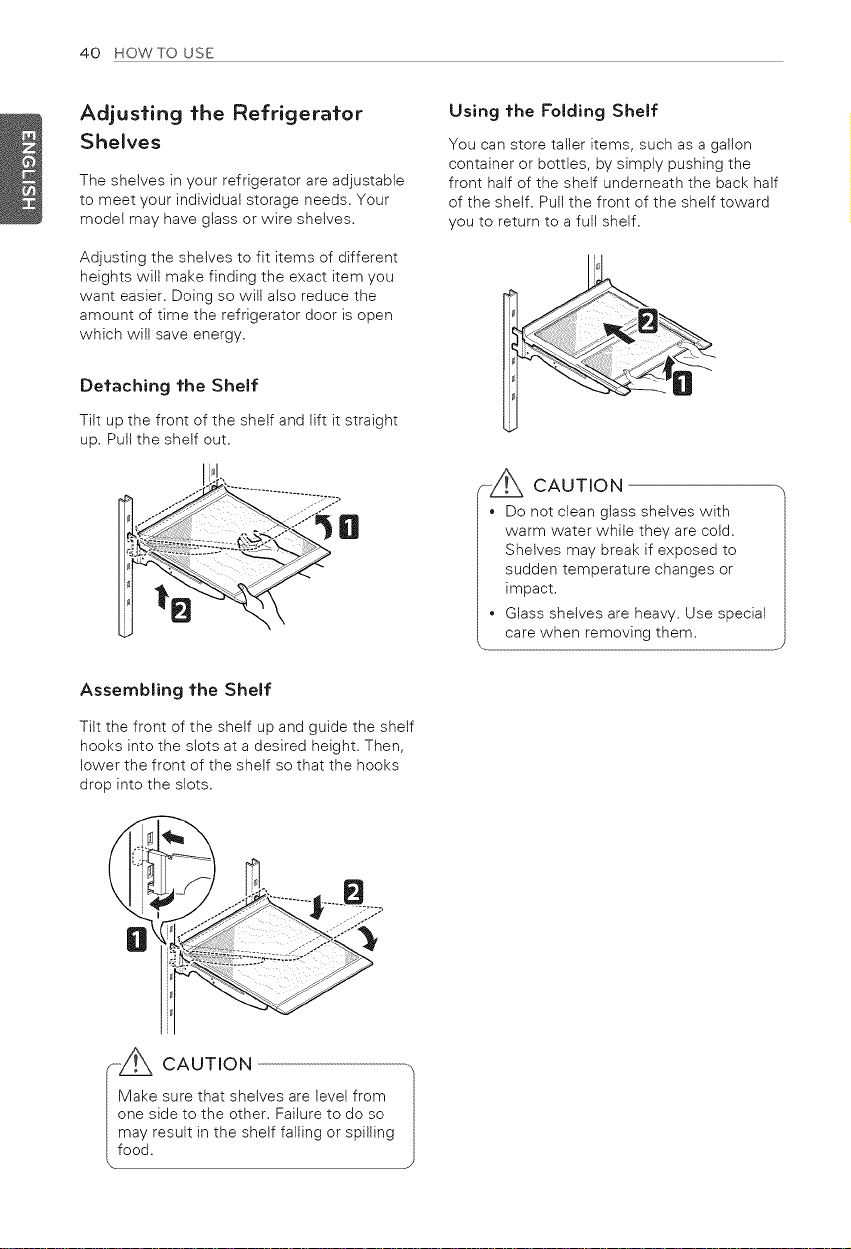

40 Adjusting the Refrigerator Shelves
41 MAINTENANCE
41 Cleaning
42 Replacing the Fresh Air Filter

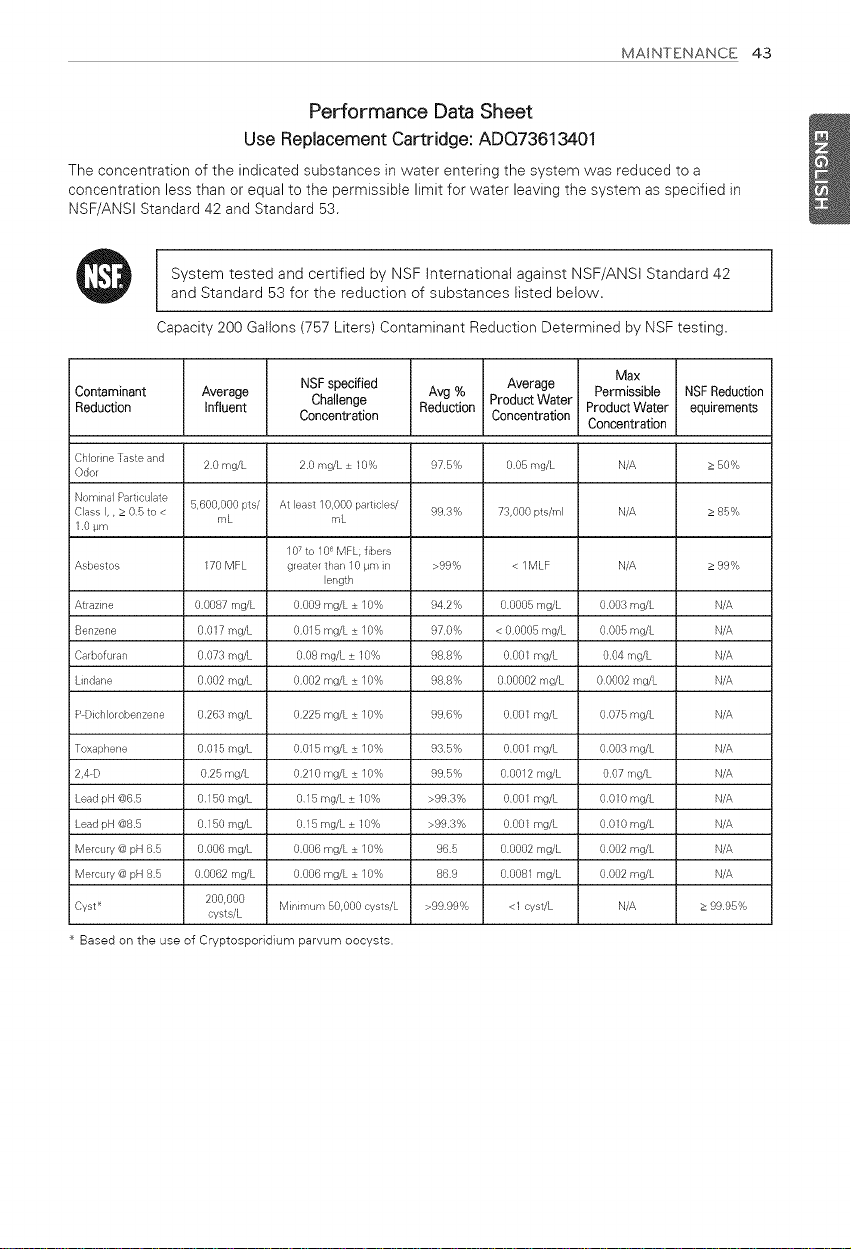

42 Replacing the Water Filter

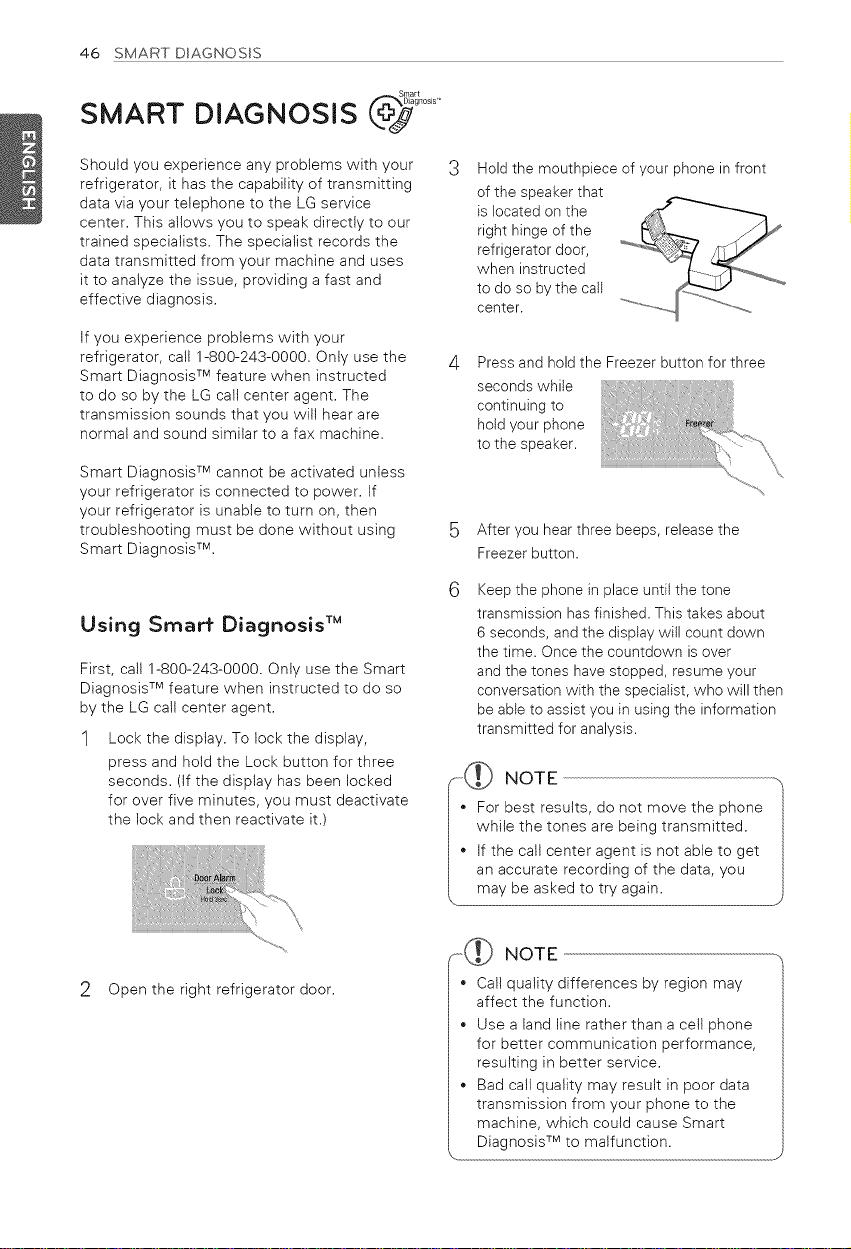

46 SMART DIAGNOSIS TM
46 UsingSmart Diagnosis TM

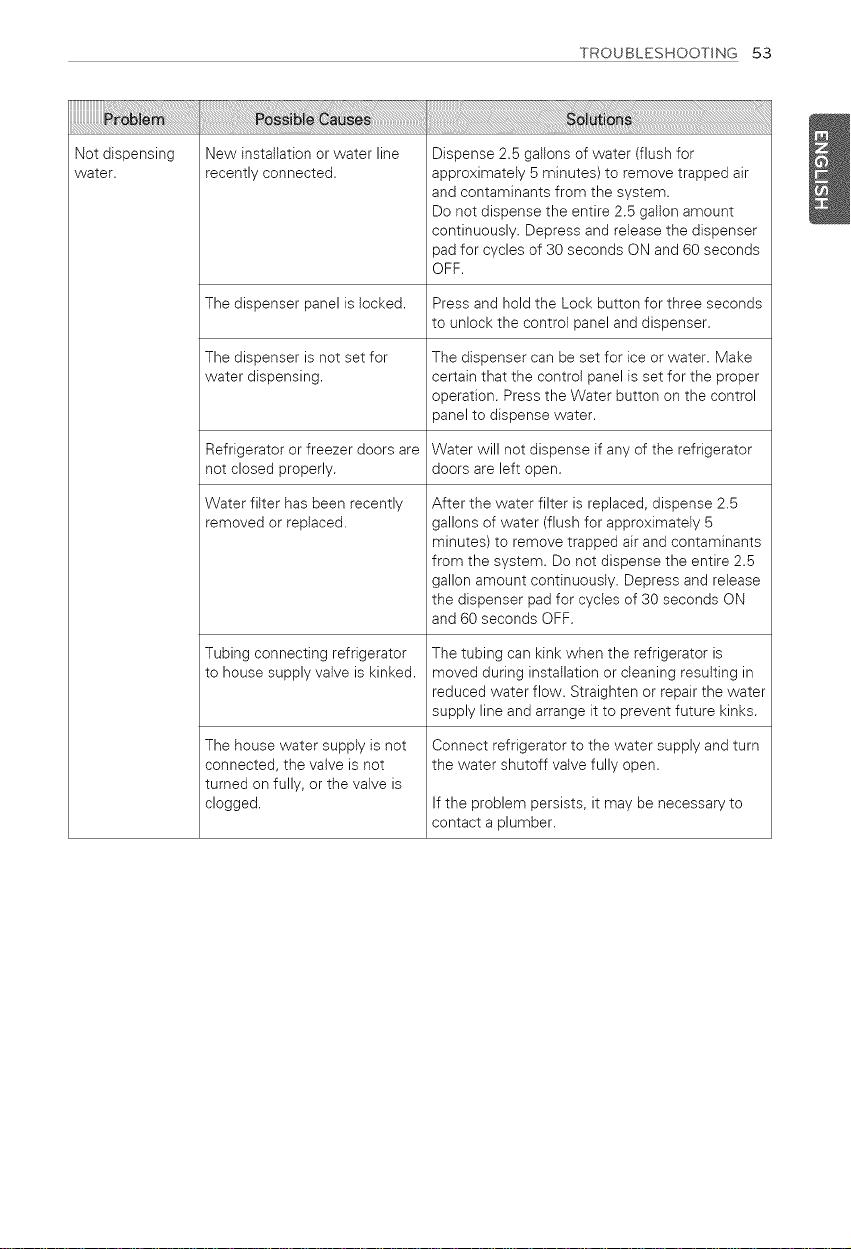

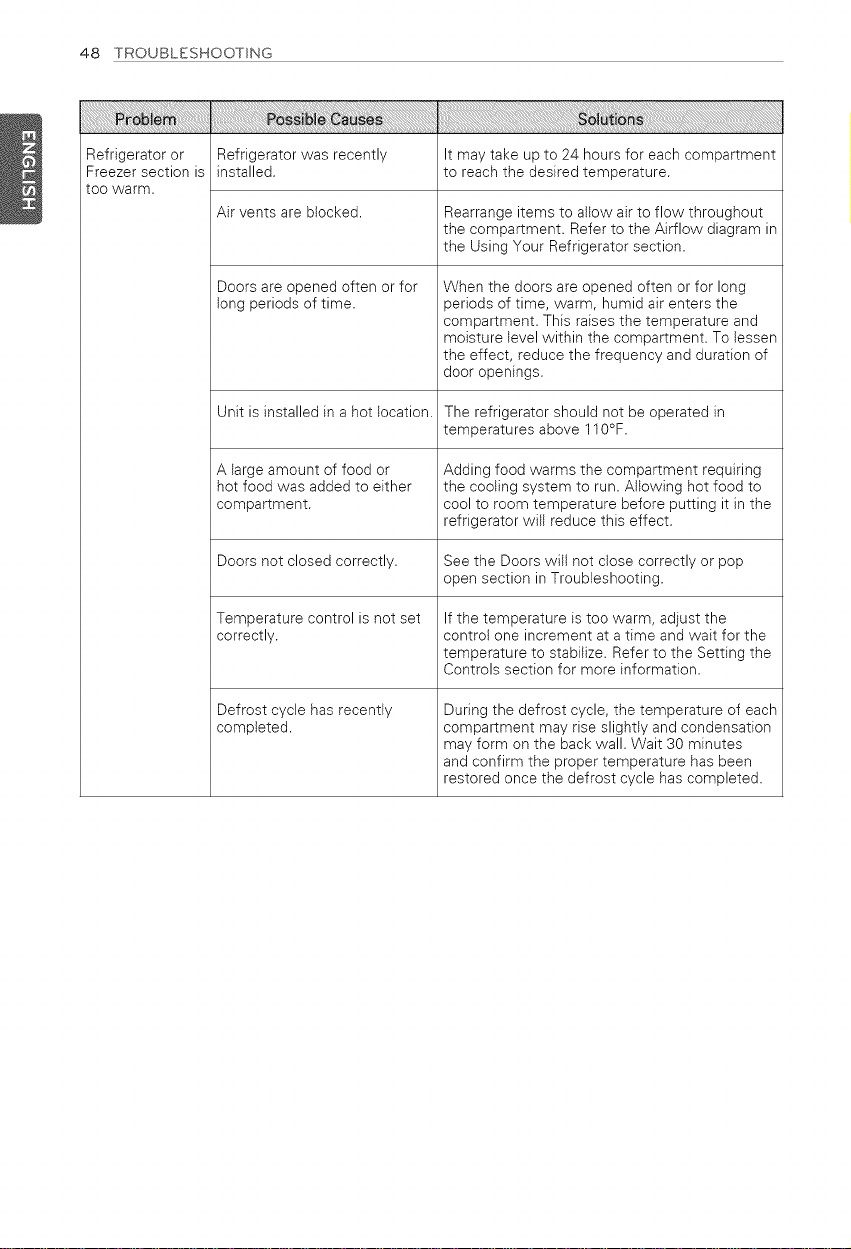

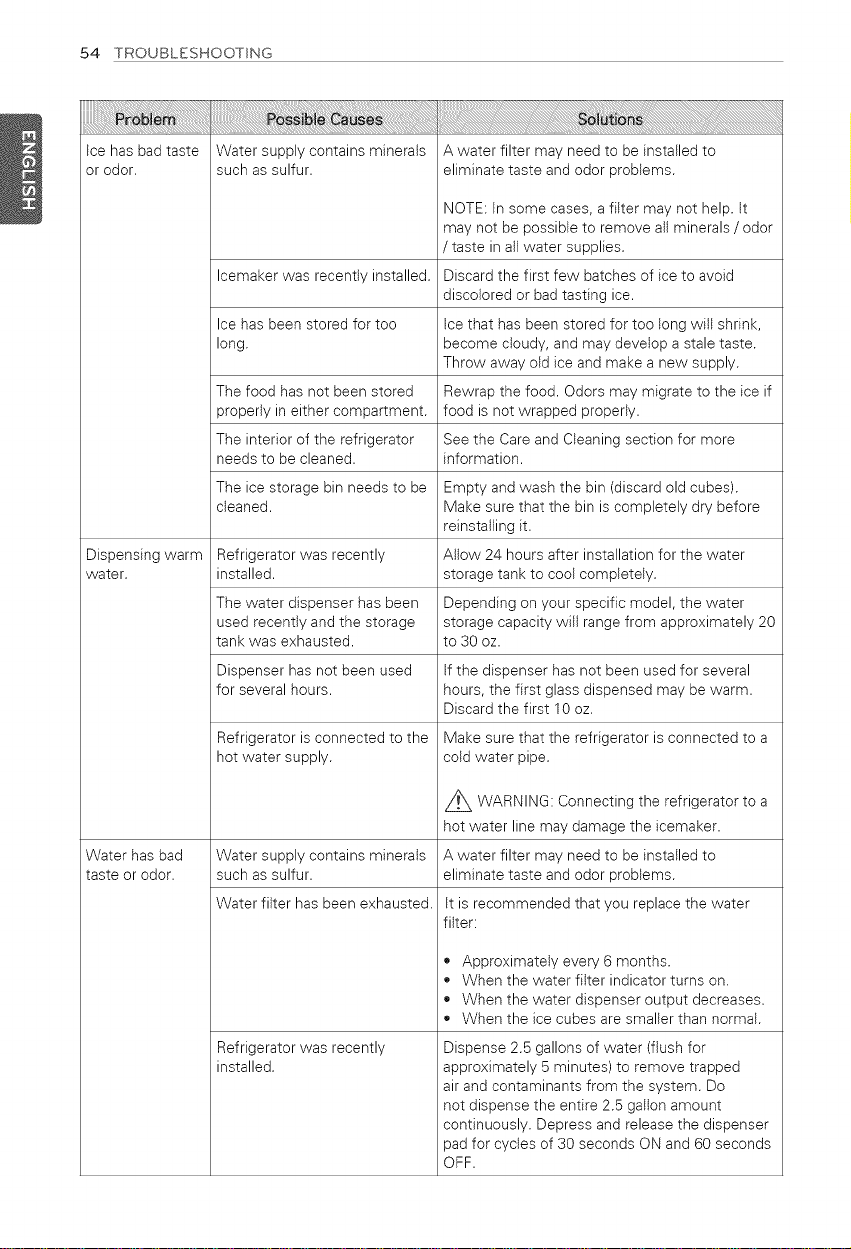

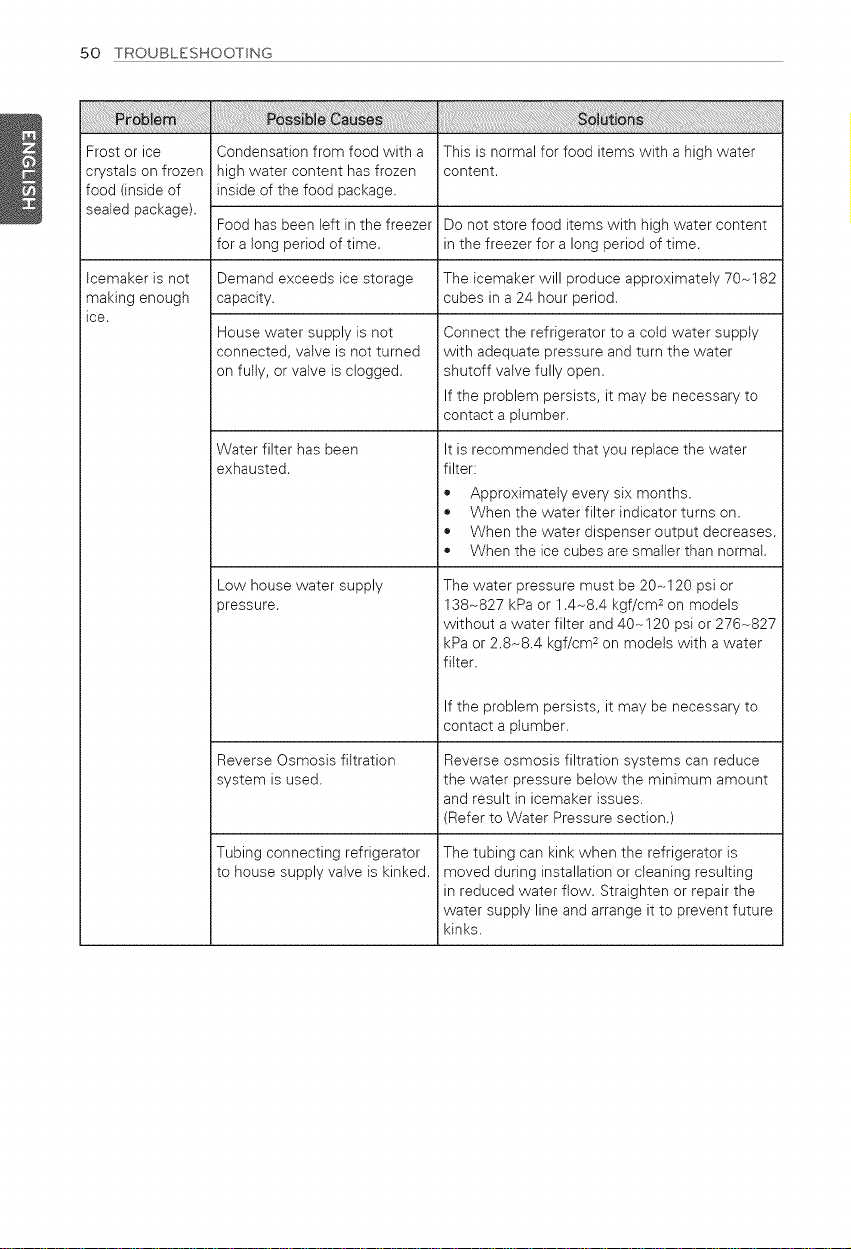

47 TROUBLESHOOTING
57 WARRANTY

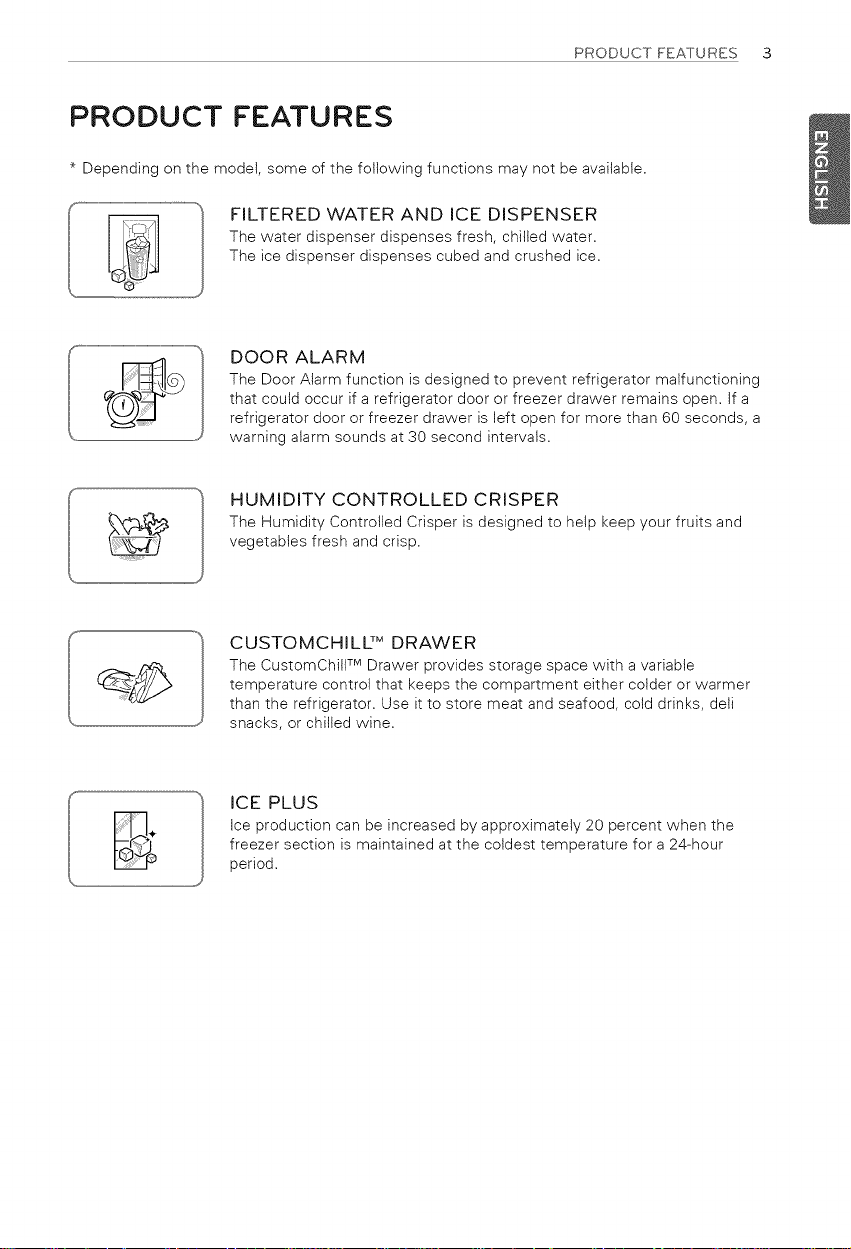

PRODUCT FEATURES 3
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open, If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds at 30 second intervals,
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and
vegetables fresh and crisp,
CUSTOMCHILE M DRAWER
The CustomChill TM Drawer provides storage space with a variable
temperature control that keeps the compartment either colder or warmer
than the refrigerator, Use it to store meat and seafood, cold drinks, dell
snacks, or chilled wine,
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period,

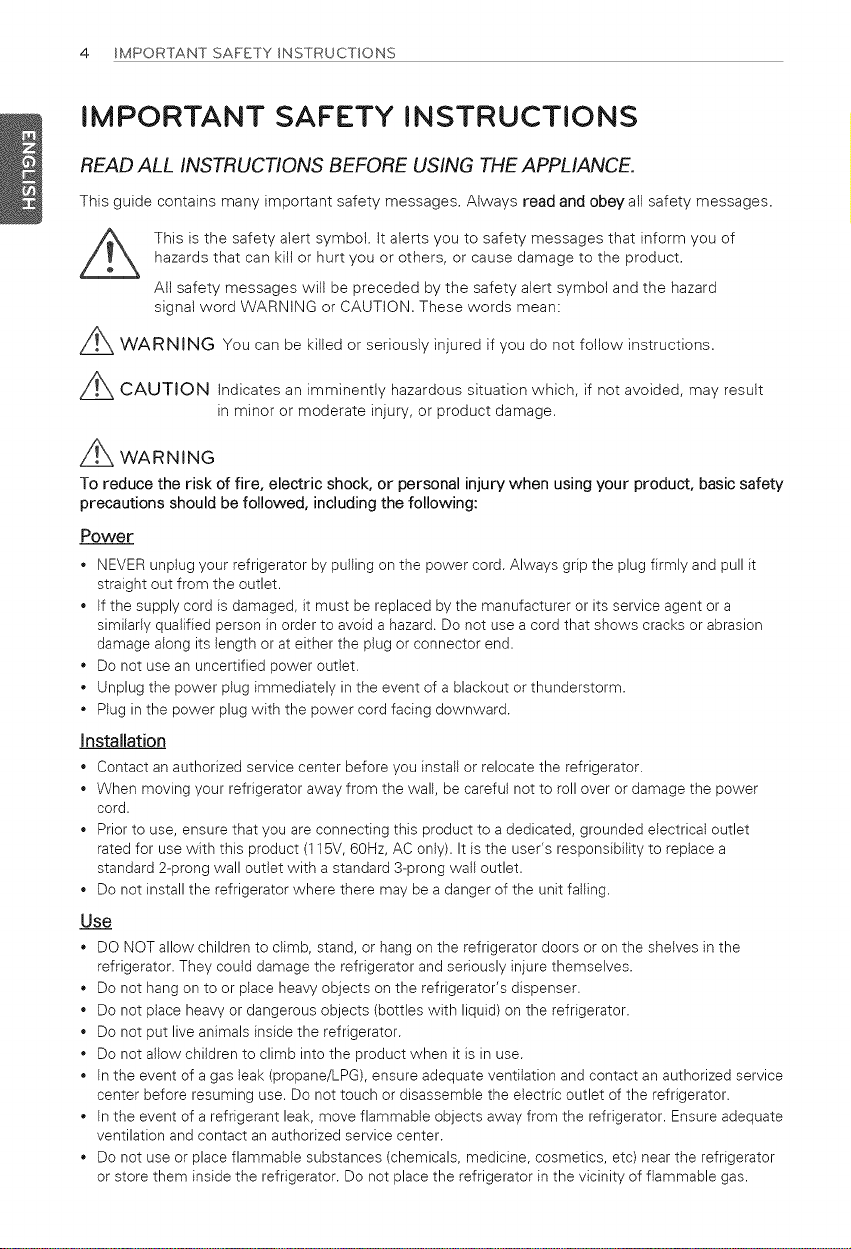

4 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:
Z_ WARNING You can be killed or seriously injured if you do not follow instructions.
Z_ CAUTION indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
Z._ WARNING
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following:
Power
• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it
straight out from the outlet.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard. De not use a cord that shows cracks or abrasion
damage along its length or at either the plug or connector end.
• Do not use an uncertified power outlet.
• Unplug the power plug immediately in the event of a blackout or thunderstorm.
• Plug in the power plug with the power cord facing downward.
Installation
• Contact an authorized service center before you install or relocate the refrigerator.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the power
cord.
• Prior to use, ensure that you are connecting this product to adedicated, grounded electrical outlet
rated for use with this product (115V, 60Hz, AC only). It is the user's responsibility to replace a
standard 2-prong wall outlet with a standard 3-prong wall outlet.
• Do not install the refrigerator where there may be a danger of the unit failing.
Use
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not hang on to or place heavy objects on the refrigerator's dispenser.
• Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
• Do not put live animals inside the refrigerator.
• Do not allow children to climb into the product when it is in use.
• In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service
center before resuming use. Do not touch or disassemble the electric outlet of the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure adequate
ventilation and contact an authorized service center.
• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator
or store them inside the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.

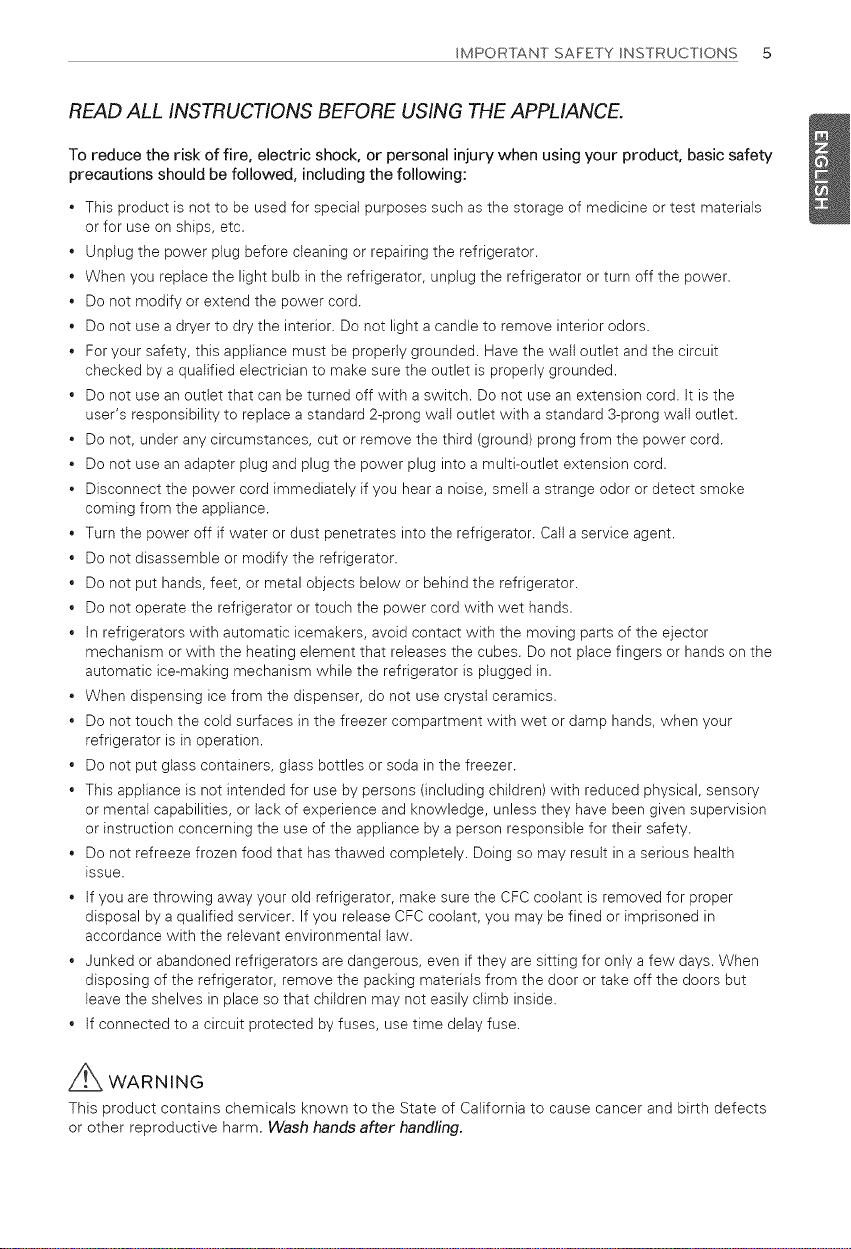

IMPORTANT SAFETY INSTRUCTIONS 5
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following:
• This product is not to be used for special purposes such as the storage of medicine or test materials
or for use on ships, etc.
• Unplug the power plug before cleaning or repairing the refrigerator
• When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.
• Do not modify or extend the power cord.
• Do not use a dryer to dry the interior. Do not light a candle to remove interior odors.
• For your safety, this appliance must be properly grounded Have the wall outlet and the circuit
checked by a qualified electrician to make sure the outlet is properly grounded
• Do not use an outlet that can be turned off with a switch Do not use an extension cord It is the
user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke
coming from the appliance.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent
• Do not disassemble or modify the refrigerator
• Do not put hands, feet, or metal objects below or behind the refrigerator
• Do not operate the refrigerator or touch the power cord with wet hands
• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
mechanism or with the heating element that releases the cubes. Do not place fingers or hands on the
automatic ice-making mechanism while the refrigerator is plugged in
• When dispensing ice from the dispenser, do not use crystal ceramics
• Do not touch the cow surfaces in the freezer compartment with wet or damp hands, when your
refrigerator is in operation
• Do not put glass containers, glass bottles or soda in the freezer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
• Do not refreeze frozen food that has thawed completely Doing so may result in a serious health
issue.
• If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
disposal by a qualified servicer. If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law.
• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days When
disposing of the refrigerator, remove the packing materials from the door or take off the doors but
leave the shelves in place so that children may not easily climb inside
• If connected to a circuit protected by fuses, use time delay fuse
Z_ WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm, Wash hands after handling.
6 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following:
Z_ CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that were
taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and other
packing materials out of reach of children.
The appliance must be positioned for easy access to a power source.
Use
Close the door carefully when children are around.
Keep fingers out of pinch point areas; clearances between the doors and cabinets are
necessarily small. Be careful closing doors when children are nearby.
If you store food improperly, be aware that it may fall and cause injury.
Do not use aerosols near the refrigerator.
Do not store articles on the top of the appliance.
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact
areas regularly.
Do not store, disassemble or repair the refrigerator by yourself.
Remove any dust or foreign matter from the power plug pins.
Do not use a wet or damp cloth when cleaning the plug.
If the refrigerator is disconnected from the power supply, you should wait for at least five
minutes before plugging it back in.
If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator
immediately and contact your LG Electronics Service Center.
SAVE THESE INSTRUCTIONS

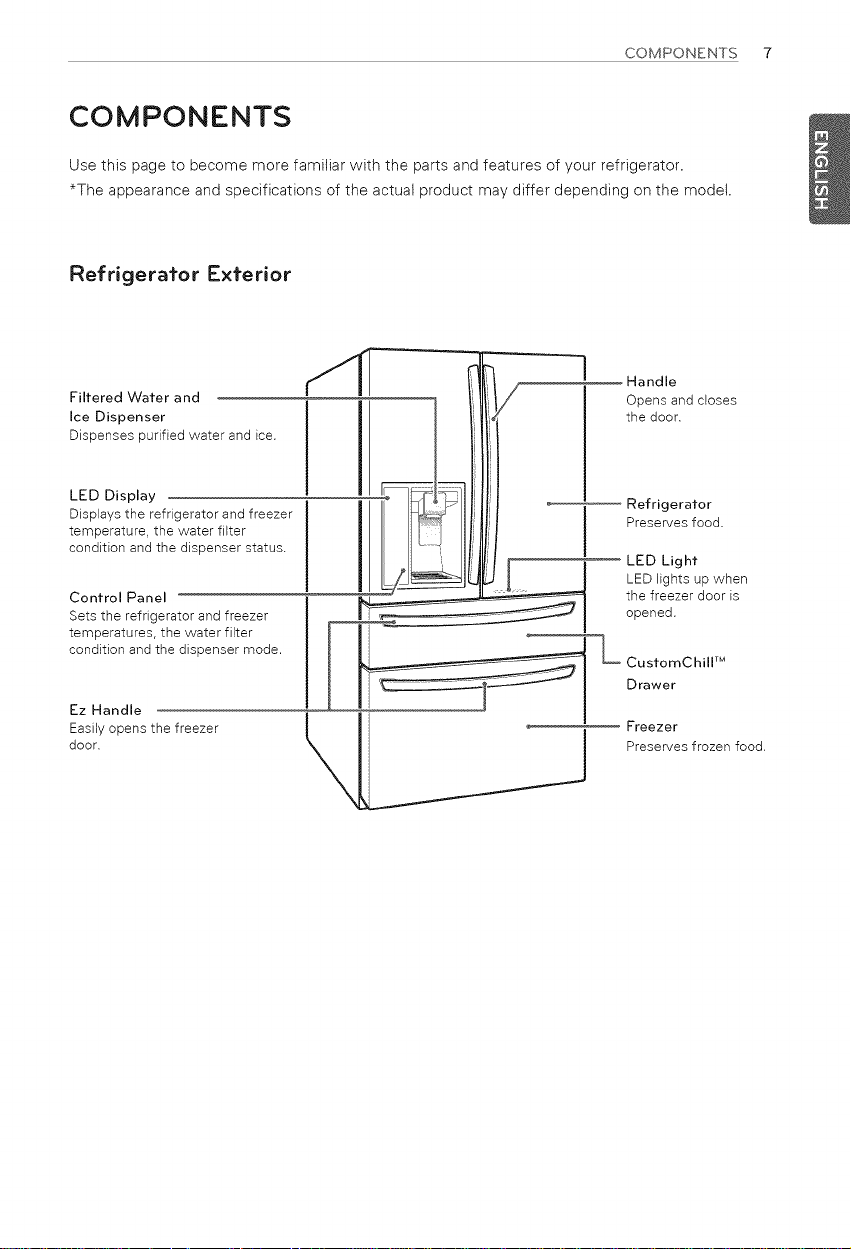

COMPONENTS 7
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerator Exterior
Filtered Water and
Ice Dispenser
Dispenses purified water and ice.
LED Display
Displays the refrigerator and freezer
temperature, the water filter
condition and the dispenser status.
Control Panel
I
Handle
Opens and closes
the door.
Refrigerator
Preserves food.
LED Light
LED Eights up when
the freezer door is
Sets the refrigerator and freezer
temperatures, the water filter
condition and the dispenser mode.
Ez Handle
Easily opens the freezer
door.
opened.
CustomChilF M
Drawer
Freezer
Preserves frozen food.

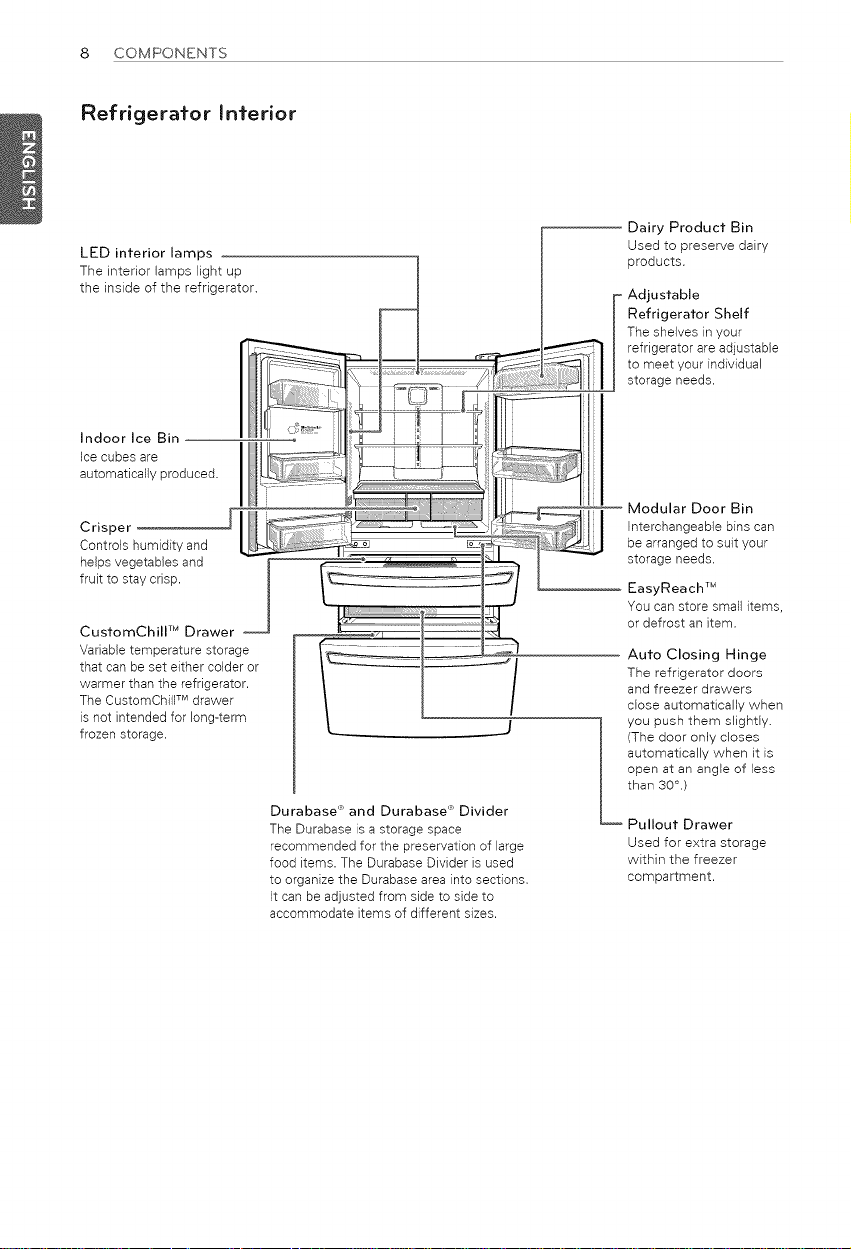

8 COMPONENTS
Refrigerafor Inferior
LED interior lamps
The interior lamps light up
the inside of the refrigerator.
indoor ice Bin
Ice cubes are
automatically produced.
Dairy Product Bin
Used to preserve dairy
products.
Adjustable
Refrigerator Shelf
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
Modular Door Bin
Interchangeable bins can
be arranged to suit your
storage needs.
EasyReach TM
You can store small items,
or defrost an item.
Auto Closing Hinge
The refrigerator doors
and freezer drawers
dose automatically when
you push them slightly.
(The door only closes
automatically when it is
open at an angle of less
than 30°.)
The Durabase is a storage space
recommended for the preservation of large
food items. The Durabase Divider is used
to organize the Durabase area into sections.
It can be adjusted from side to side to
accommodate items of different sizes.
Pullout Drawer
Used for extra storage
within the freezer
compartment.
INSTALLATION9
INSTALLATION
Insfallafion Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
1 Unpacking your
refrigerator
Choosing the proper
location
3 Disassembling/Assembling
..........
4 Connecting the water
supply and water line
5 Leveling and Door
Alignment
---C(_ NOTE
onnect to potable water supply only.
10 INSTALLATION
Specificafions
The appearance and specifications listed in this manual may vary due to constant product
improvements.
353/4" (W) X 31 1/4" (D)X 70 1/4" (H), 42 5/8" (D w/door open) 1
(D w/door open)
(H), 1083 mm
Dimensions _mm_(W) x 793 mm (D)X 1782 mm
Net weight [330 lb. (150 kg)
INSTALLATION 11
Unpacking Your Refrigerator
"_ Z_ WARNING
Use two or more people to move and
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
Choosing the Proper Location
Select a place where a water supply can
be easily connected for the automatic
icemaker.
'_ NOTE
The water pressure must be 20-120
psi or 138-827 kPa or 1.4-8.4 kgf/cm=
on models without a water filter and
40-120 psi or 276-827 kPa or 2.8-8.4
kgf/cm =on models with a water filter.
The refrigerator should always be plugged
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
SZ_ WARNING "/
JTo reduce the risk of electric shock, do not
Jinstall the refrigerator in a wet or damp
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and Door
Alignment.)
(_ NOTE
Installing on carpeting, soft tile surfaces,
platform or weakly supported structure

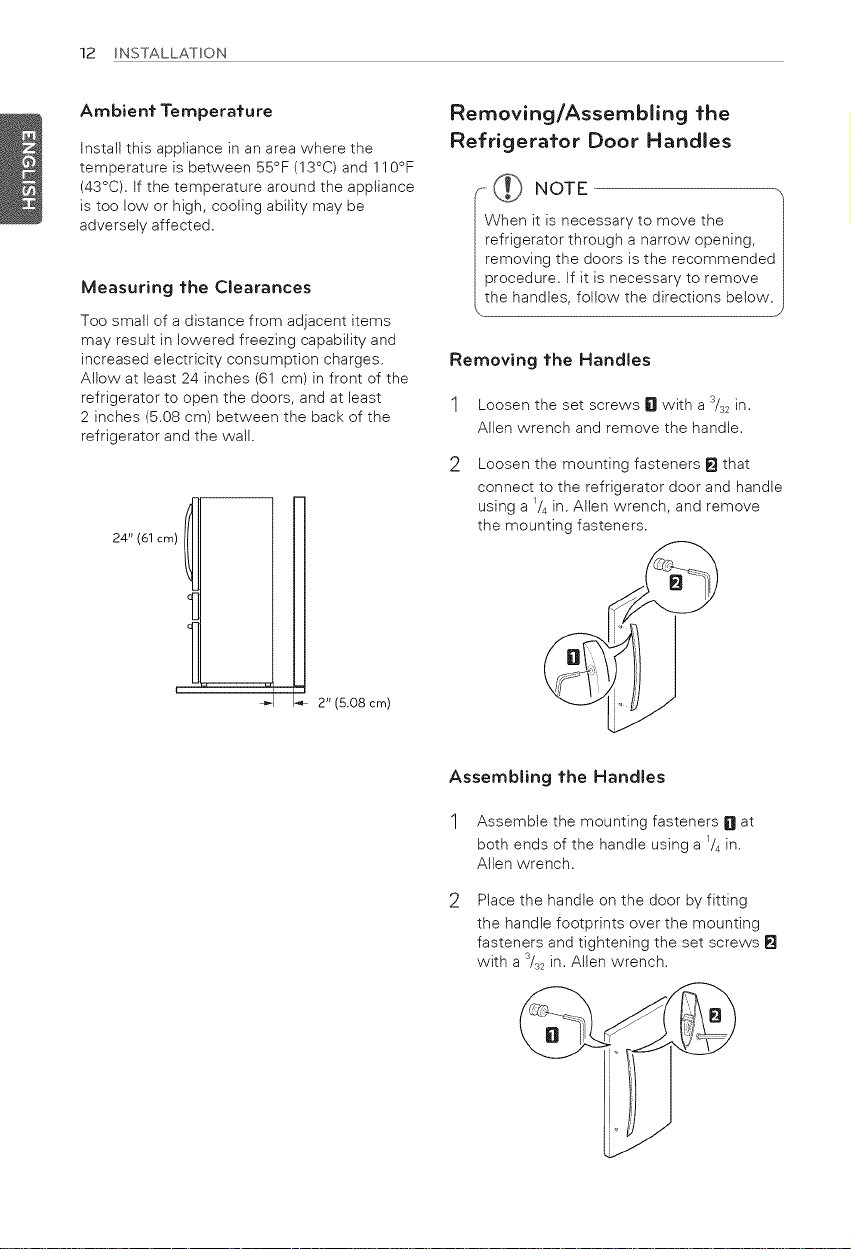

12 INSTALLATION
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of the
refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
24" (61 cm)
L
i
÷ 2" (5.08cm)
Removing/Assembling the
Refrigerator Door Handles
[_--_') NOTE
I When it is necessary to move the
_refrigerator through a narrow opening,
_removing the doors is the recommendec
_procedure. If it is necessary to remove
,,,the handles, follow the directions below
Removing the Handles
1 Loosen the set screws D with a 3/32 in.
Allen wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the refrigerator door and handle
using a _/4in. Allen wrench, and remove
the mounting fasteners.
Assembling the Handles
1 Assemble the mounting fasteners D at
both ends of the handle using a/4 in.
Allen wrench.
2
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32in. Allen wrench.
INSTALLATION 13
Removing/Assembling fhe
Freezer Drawer Handle
Removing "the Handle
1 Loosen the set screws D located on the
lower side of the handle with a 1/sin. Alien
wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the
freezer drawer
and handle
using a/L in.
Allen wrench,
and remove
the mounting
fasteners.
Assembling "the Handle
1 Assemble the mounting fasteners D at
both ends of the handle using a//4 in. Atlen
wrench.
Place the handle on the door by fitting
the handle
footprints over
the mounting
fasteners and
tightening the
set screws
with a//g in.
Allen wrench.
Removing/Assembling fhe
Doors and Drawers
When it is necessary to move the refrigerator
through a narrow opening, removing the doors
is the recommended procedure.
F_ WARNING
• If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and
install the refrigerator doors, Failure to do
so can result in back or other injury.
• Disconnect the electrical supply to the
refrigerator before installing. Failure to do
so could result in serious injury or death.
• Do net put hands, feet or other objects into
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
• Be careful when handling the hinge and
stopper, to avoid injury.
° Remove food and bins before detaching the
doors and drawers.
"Z_ WARNING
When assembling or disassembling the
handle:
®
®
Grasp the handle tightly to avoid dropping it.
Do not swing the handle into nearby people
or animals.
• Make sure that the bracket hole of the
handle fits properly into the stopper bolt of
the door. Assemble the set screws to fix
the handle into place.
• Make sure that there is not agap between
the door and handle after assembling the
handle.
14 INSTALLATION
Removing the Left Refrigerat'or Door
The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in D
3
4
Remove the cover and >ull out the tube 0.
Disconnect all wire harnesses El.
Rotate the hinge lever counterclockwise
B. Lift the top hinge E]free of the hinge
lever latch.
NOTE
Detachment of the water supply line is
applicable only when detaching the left
Hinge Lever Latch
D
2
Remove the E] screw from the hinge cover
at the top of the refrigerator. Lift the hook
(not visible), located at the bottom of the
front side of the cover _ with a flat-head
screwdriver.
_Z_ cAUTION '-"1
I Whenliftingthe hingefreeof the latch,be I
5 Lift the door from the middle hinge pin and
remove the door.
Zho u ,o. }
Place the door, inside facing up, on a
non-scratching surface.
INSTALLATION 15
Removing the Right Refrigerator
Door
Remove the top hinge cover screw D.
Lift the hook (not visible), located at the
bottom of the front side of the cover 8,
with a flat-head screwdriver.
3
Rotate the hinge lever O clockwise.
Lift the top hinge 8 free of the hinge
lever latch.
................Hinge Lever Latch
/
8
2 Detach the wire harness D.
4
- CAUTION "/
When lifting the hinge free of the hinge_
lever latch, be careful that the door
Lift the door from the middle hinge pin and
remove the door.
_-Z_ CAUTION
Place the door, inside facing up, on a J
16 INSTALLATION
Assembling fhe Right Refrigerator
Door
Install the right-side door first.
1 Make sure that the plastic sleeve is
inserted in the bottom of the door. Lower
the door onto the middle hinge pin as
shown in the figure.
3 Connect the wire harness B.
4
Make sure that the door-switch located
inside the cover is tightly connected.
Position the cover in its ptace. Insert and
tighten the cover screw El.
2 Fit the hinge D over the hinge lever latch
and slot it into place. Rotate the lever
counterclockwise to secure the hinge.
0 _ Hinge L.... Larch
INSTALLATION 17
Assembling "the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed.
1 Make sure that the plastic sleeve is
inserted in the bottom of the door. Install
the refrigerator door onto the middle hinge.
2 Fit the hinge D over the hinge lever latch
and slot it into place. Rotate the lever
clockwise _ and fasten the hinge.
4
Push the water supply tube into the hole
on the top case and pull it through the
backptate.
Hold the water suppty connection and
gently push in the coliet to connect the
water supply line as shown in O. Insert
the tube at least 5/s inch (15 ram) into the
connector,
Hinge Lever Latch
3 Connect all the wire harnesses.
6 Make sure that the door-switch located
inside the cover is tightly connected. Place
the cover O in its position and tighten the
cover screw _.
18 INSTALLATION
_(_b NOTE
) Gently insert the tube until only one
line shows on the tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened.
Removing the CusfomChilP Drawer
2
Pull the drawer open to full extension.
Remove the basket by lifting the basket
from the rail system.
- ) NOTE TM ]
Before removing the CustomChill
drawer, it must be disconnected from
the temperature control.
Disconnect the wire harness connection
at the end of the right rail by pressing on
the tabs on either side. It may help to use
a small, flat-blade screwdriver to apply
pressure to the ends of the tabs on either
side.
3 Remove the screws on both the left and
right rails.
INSTALLATION 19
4
Grasp the drawer on each side and pull it up
to separate it from the rails.
Assembling fhe CusfomChilP Drawer
1 Use both hands to pull out the rails
simultaneously until they are both fully
extended.
-Z_ CAUTION
Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
Using both hands, slide the two rails in
simultaneously.
2
3
Grasp the drawer on each side and hook
the door supports (_ into the rail tabs (_)
located on both sides.
Lower the door into its final position and
tighten the screws located on both sides.
20 INSTALLATION
4
Reconnect the wire harness to the
connection at the end of the right rail by
aligning the two ends and pushing them
together until you hear a click. The tabs
should snap back into ptace. Tug gently to
make sure the connection is secure.
NOTE
If you do not reconnect the wire
harness securely, the CustomChill TM
J
Pull the drawer open to full extension.
Lower the basket onto the rail system.
Removing fhe Freezer Drawer
_Z_ CAUTION
• Use two or more people to remove and
install the freezer drawer. Failure to do so
can result in back or other injury.
• Do not hold the handle when removing
or replacing the drawer. The handle may
come off, causing personal injury.
• Be careful of sharp hinges on both sides
of the drawer.
• When you lay the drawer down, be
careful not to damage the floor.
• Do not sit or stand on the freezer drawer.
• To prevent accidents, keep children and
pets away from the drawer. Do net leave
the drawer open.
1
2
Pull the freezer drawer open to full extension.
Remove the top pullout drawer by first pulling
the drawer open to full extension.
On the left rail, use a flat blade screwdriver to
push in on the tab to release the drawer from
the rail, as shown below. Once the left side is
loose, push the tab on the right side with your
finger to release the drawer. Lift the front of
the drawer up, then pull it straight out.
INSTALLATION 21
4
Remove the middle drawer by pulling the
drawer out to full extension. Lift the front
of the drawer up, then pull it straight out.
Remove the Durabase by opening the
freezer drawer to full extension and lifting
the basket off of the rail assembly.
6
With both hands, grip both sides of the
drawer and pull it up to remove it from the
rails.
Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
5 Remove the screws from the rails at both
ends.
Using both hands, slide the two rails in
simultaneously.
22 INSTALLATION
Assembling fhe Freezer Drawer
2
Use both hands to pull out the rails
simultaneously until they are both fully
extended.
Grasp the drawer on each side and hook the
drawer supports into the rail tabs located on
both sides.
4 Insert the the top pullout drawer into the
frame, and push the drawer back into place
until you hear a click.
5 Slightly tilt up the front of the middle
drawer, insert the drawer into the frame,
and push it back into place.
-Z_ CAUTION
Do not hold the handle when removing
or replacing the drawer. The handle
may come off and it could cause
personal injury.
6
Insert the lower basket in the rail
assembly.
:3 Lower the door into final position and
tighten the screws located on both sides.
INSTALLATION 23
Connecting the Wafer Line
Before You Begin
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
Water hammer (water banging in the pipes) in
house plumbing can cause damage to refrigerator
parts and can lead to water leakage or flooding.
Call a qualified plumber to correct water hammer
before installing the water supply line to the
refrigerator.
-Z_ CAUTION
To prevent burns and product damage,
only connect the refrigerator water line to
a cold water supply.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF (O) position.
Z_ CAUTION
Do not install the icemaker tubing _n
areas where temperatures fall below
freezing.
Water Pressure
The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm 2on models
without a water filter and 40~120 psi or 276~827
kPa or 2.8~8.4 kgf/cm 2on models with a water
filter.
If a reverse osmosis water filtration system is
connected to your cold water supply, this water
line installation is not covered by the refrigerator
warranty. Follow the instructions carefully to
minimize the risk of expensive water damage.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs
to be a minimum of 40 to 60 psi (276~414 kPa or
2.8~4.2 kgf/cm 2,less than 2.0~3.0 sec. to fill a
cup of 7 oz or 198 cc capacity).
_- Z_ CAUTION -.
Wear eye protection during installation
to prevent injury.
J
If the water pressure from the reverse osmosis
system is less than 20 psi or 138 kPa or 1.4 kgf/
cm2(takes more than 4.0 sec to fill a cup of 7 oz
or 198cc capacity):
• Check to see if the sediment filter in
the reverse osmosis system is blocked.
Replace the filter if necessary.
• Allow the storage tank on the reverse
osmosis system to refill after heavy
usage.
• If the issue concerning water pressure
from reverse osmosis remains, call a
licensed, qualified plumber.
• Atl installations must be in accordance
with local plumbing code requirements.
What You Will Need
Copper Tubing, _A in, outer diameter, to
connect the refrigerator to the water
supply. Be sure both ends of the tubing
are cut square.
/£
To determine how
much tubing you need:
measure the distance
from the water valve on the back of
the refrigerator to the water supply
pipe. Then, add 8 feet (2.4 m). Be sure
there is sufficient extra tubing (about 8
feet [2.4 m] coiled into 3 turns of about
10 in. [25 cm] diameter) to allow the
refrigerator to move out from the wan
after insta%tion.
Powerdrill.
* 1/2 in. or adjustable
wrench.
®Flaf blade and Phillips
head screwdrivers.
* Two 1/t in. outer
diameter compression
nuts and 2 ferrules (sleeves) to connect the
copper tubing to the shutoff valve and
the refrigerator water valve,
24 INSTALLATION
• If your existing copper water line has a
flared fitting at the end, you will need
an adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you
can cut off the flared _..,_--//t/--_X_
fitting with a tube
cutter and then use a
compression fitting.
Shutoff valve to connect to the cold
water line. The shutoff valve should
have a water inlet with a minimum
inside diameter of 5/32 in. at the point of
connection to the COLD WATER LINE.
Saddle-type shutoff valves are included
in many water
supply kits. Before
purchasing, make
sure a saddle-type
valve complies with
your local plumbing codes.
• ('-W-'_ NOTE
A self piercing saddle type water valve /
Water Line Installation Instructions
FZ_ WARNING
When using any electrical device
(such as a power drill) during
installation, be sure the device is
battery powered, double insulated
or grounded in a manner that will
prevent the hazard of electric shock.
Install the shutoff valve on the nearest
frequently used drinking water line.
1 SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the
pressure on the line.
2 CHOOSE THE VALVE LOCATION
Choose a location for
the valve that is easily _(,..,._
accessible. It is best to
connect into the side of a
vertical water pipe. When
it is necessary to connect
into a horizontal water
pipe, make the connection to the top or
side, rather than at the bottom, to avoid
drawing off any sediment from the water
pipe.
3 DRILL THE HOLE FOR THE VALVE
Drill a X in. hole in
the water pipe using (_'_n
a sharp bit. Remove
any burrs resulting
from drilling the hole
in the pipe. Be careful
not to allow water
to drain into the drill. Failure to drill a X in.
hole may result in reduced ice production
or smaller cubes.
,.__) NOTE ..................................
The hookup line cannot be white, plastic /
tubing. Licensed plumbers must use I
only copper tubing (NDA tubing #49595 I
or #49599) or Cross Link Polyethylene I
INSTALLATION 25
4 FASTEN THE SHUTOFF VALVE 7
Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
Pipe Clamp_
Saddle-Type _ _ _Vertical Cold
Shutoff Valve _ I Water Pipe
NOTE "/
Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered I
to. Saddle valves are illegal and their use is_
not permitted in Massachusetts. Consult _ 8
. with your licensed plumber
TIGHTEN THE PiPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE: Do not overtighten the clamp or
you may crush the tubing.
Pipe Clamp
Clamp Screw
Washer
_ Inlet End
ROUTE THE TUBING
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wall
as possible.
_) NOTE
Be sure there is sufficient extra tubing
(about 8 feet coiled into 3 turns of
about 10 in. diameter) to allow the
refrigerator to move out from the wan
after installation.
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule
(sleeve) for the copper tubing onto the
end of the tubing and connect it to the
shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the
compression nut securely.
Saddle-Type
Shutoff Valve
Packing Nutl _'_
Outlet Valve _
Compression
t
Ferrule (sleeve)
FLUSH OUT THE TUBING
Turn the main water
supply on and flush out
the tubing until the water
is clear.
Shut the water off at the
water valve after about
one quart of water has
been flushed through the tubing.
9 CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE: Before making the connection
to the refrigerator, be sure that the
refrigerator power cord is not plugged into
the wall outlet.
a. Remove the plastic flexible cap from the
water valve.
b. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
c. Insert the end of the copper tubing into
the connection as far as 3ossible. While
holding the tubing, tighten the fitting.
Tubing Clamp /.1['[_ 1,4in. Tubing
Compression_lUlIAX II // ZZ/I_tttt
Nut ...... _......
Ferrule _1_ _ _ff
(sleeve)
_---_ Re fnr_geera_or
- ;-_::;: --- " Co ecto
26 INSTALLATION
10TURN THE WATER ON AT THE SHUTOFF
VALVE
Tighten any connections that leak.
Turning On The Power
Plug in the refrigerator.
Z_ CAUTION --]
Check to see ifleaksoccurat thewaterJ
/
1 1 PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it
does not vibrate against the back of the
refrigerator or against the waN, Push the
refrigerator back to the waN,
-_ CAUTION
Connect to a rated power outlet,
Have a certified electrician check
the walt outlet and wiring for proper
grounding.
Do not damage or cut off the ground
terminal of the power plug.
12 START THE ICEMAKER
Set the icemaker power switch to the ON
position.
The icemaker wilt not begin to operate
until it reaches its operating temperature
of 15°F (-9°C) or below. It wilt then begin
operation automatically if the icemaker
power switch is in the ON (I) position.
INSTALLATION 27
Leveling and Door Alignrnenf
Leveling
After installing, ptug the refrigerator's power
cord into a 3-prong grounded outlet and push
the refrigerator into the final position.
Your refrigerator has two front leveling legs--
one on the right and one on the left. Adjust the
legs to alter the tilt from front-to-back or side-
to-side. If your refrigerator seems unsteady, or
you want the doors to close more easily, adjust
the refrigerator's tilt using the instructions
below:
Door Alignment
The left refrigerator door has an adjustable nut,
located on the bottom hinge, to raise and lower
the door for proper alignment.
If the space between your doors is uneven, follow
the instructions below to align the doors:
Use the wrench (included with the Use & Care
Guide) to turn the nut in the door hinge to adjust
the height. Turn it to the right to raise or to the
left to lower the height.
Turn the leveling leg to the left to raise
that side of the refrigerator or to the right
to lower it. It may take several turns of the
leveling leg to adjust the tilt of the
refrigerator.
_ (_} NOTE
A flare nut wrench works best, but an
open-end wrench will suffice.
Do not over-tighten.
Open both doors again and check to make
sure that they close easily. If the doors do
not close easily, tilt the refrigerator slightly
more to the rear by turning both leveling
legs to the left. It may take several more
turns, and you should turn both leveling
legs the same amount.
28 HOWTO USE
HOW TO USE
Be{ore use
Clean the refrigerator.
Clean your refrigerator thoroughly and wipe off all dust that accumulated during
shipping.
Z_D CAUTION
o not scratch the refrigerator with a sharp object or use a detergent that
contains alcohol, a flammable liquid or an abrasive when removing any tape
or adhesive from the refrigerator,.
Do not peel off the model or serial number label or the technical information
on the rear surface of the refrigerator.
NOTE
Remove adhesive residue by wiping it off with your thumb or dish detergent.
Connect the power supply.
Check if the power supply is connected before use.
Read the "Turning On The Power" section.
Turn off the icemaker if the refrigerator is not yet connected to the
water supply.
Turn off the automatic icemaker and then plug the power plug of the refrigerator
into the grounded electric outlet.
* This is applicable only to certain models.
____.WCAUTION
Running the automatic icemaker before connecting it to the water
. supply may cause the refrigerator to malfunction. /
Wait for the refrigerator to cool.
Allow your refrigerator to run for at least two to three hours before putting food in
it. Check the flow of cold air in the freezer compartment to ensure proper cooling.
-A CAUTION
utting food in the refrigerator before it has cooled could cause the
food to spoil, or a bad odor could linger inside the refrigerator.
The refrigerator makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature lowers.
Open refrigerator doors and freezer drawers to ventilate the interior.
The inside of the refrigerator may smell like plastic at first. Remove any adhesive
tape from inside the refrigerator and open the refrigerator doors and the freezer
drawers for ventilation.
HOWTO USE 29
Control Panel
* Dependingon the model, some of the following functions may not be available,
Control Panel Features
Ice Type _/ W
Cubed Crushed
Press the ice Type button to choose either cubed
or crushed ice. The cubed or crushed ice icon will
illuminate.
LED Display
Indicator
Control
Button
L-IL-8oc
Refrigerator Temperature &l[loF
Indicates the set temperature of the refrigerator
compartment in Celsius (°C) or Fahrenheit (°F).
Freezer Temperature -ClCl°c
U[l oF
Indicates the set temperature of the freezer
compartment in Celsius (°C) or Fahrenheit (°F).
To change the temperature mode from °F to °C
(or vice versa) press and hold the Refrigerator
and Freezer temperature buttons simultaneously
for approximately five seconds. The temperature
indication on the display window switches
between Celsius and Fahrenheit.
NOTE
he displayed temperature is the target
emperature, and not the actual temperature
f the refrigerator. The actual refrigerator
emPerature depends on the food inside the
J
Fresh Air Filter ¢...n_ : r:._ ,°_: Onsome]
_ pow., [t_'_ P_ models)
The Fresh Air Filter helps remove odors from the
refrigerator. The Fresh Air Filter has two settings,
Auto and Power(PWR). In Auto mode, the Fresh
Air Filter will cycle on and off in increments of ten
minutes on and one hundred ten minutes off. if
set to the Power(PWR) mode, the Fresh Air Filter
will stay on continuously for four hours, cycling on
and off in increments of ten minutes on and five
minutes off. After four hours, the Fresh Air Filter
will switch back to Auto mode.
• Press the Fresh Air Filter button once for
Power(PWR) mode.
• Press the Fresh Air Filter button again to
switch back to Auto mode.
30 HOWTO USE
Control Panel Features (continued)
Change Filter (o_5[ _070_Onsome ]
[ _ models)
When the Change Filter icon turns on, the air
filter needs to be replaced. After replacing the
air filter, press and hoid the Fresh Air Filter
button for three seconds to turn the icon light
off. Change the air filter approximately every
6 months.
Ice Plus ,,_
This function increases both ice making and
freezing capabilities.
* When you touch the Ice Plusbutton, the
graphic will illuminate in the display and
witl continue for 24 hours. The function will
automatically shut off after 24 hours.
* You can stop this function manually by
touching the button one more time.
Light -,0-
When you press the Light button, the
dispenser light will turn on and the indicator
will appear on the LED display.
Change Water Filter (_
When the Water Filter indicator turns on,
you need to change the water filter. After
changing the water filter, press and hold the
Change Filter button for three seconds to turn
the indicator light off. Change the water filter
approximately every six months.
Door Alarm (_))
* When power is connected to the
refrigerator, the door alarm is initially set
to ON. When you press the Alarm button,
the display will change to OFF and the Door
Alarm function will deactivate.
* When either the refrigerator or the freezer
door is left open for more than 60 seconds,
the alarm tone will sound to let you know
that the door is open.
* When you close the door, the door alarm
will stop.
Lock n
EZ_
The Lock function disables every other button
onthe display.
* When power is initially connected to the
refrigerator, the Lock function is off.
* If you want to activate the Lockfunction to
lock other buttons, press and hold the Lock
button for three seconds or more. The Lock
icon win display and the Lock function is now
enabled.
* To disable the Lock function, press and hold
the Lock button for approximately three
seconds.
Power Saving Mode
* When the refrigerator is in the PowerSaving
Mode, the display will remain off until a door
is opened or a button is pressed. Once on,
the display will remain on for 20 seconds.
r-----_ CAUTION
Display Mode (For Store Use Only)
The Display Mode disables all cooling in the
refrigerator and freezer sections to conserve
energy while on display in a retail store. When
activated, OFF will display on the control panel
and the display will remain on for 20 seconds.
To deactivate / activate:
With either refrigerator door opened, press
and hold the Refrigerator and Ice Plus buttons
at the same time for five seconds. The control
panel will beep and the temperature settings
will display to confirm that Display Mode
is deactivated. Use the same procedure to
activate the Display Mode.
HOWTO USE 31
In-Door ice Bin
* Depending on the model, some of the
following functions may not be available.
_-z_ CAUTION
. Keep hands and tools out of the ice
compartment door and dispenser chute.
Failure to do so may result in damage or
personal injury.
. The icemaker will stop producing ice when
the in-door ice bin is full. If you need more
ice, empty the ice bin into the extra ice bin
in the freezer compartment. During use,
the ice can become uneven causing the
icemaker to misread the amount of ice
cubes and stop producing ice. Shaking the
ice bin to level the ice within it can reduce
this problem.
Storing cans or other items in the ice bin wil
damage the icemaker.
Keep the ice compartment door closed
tightly. If the ice compartment door is not
closed tightly, the cold air in the ice bin will
freeze food in the refrigerator compartment.
This could also cause the icemaker to stop
producing ice.
If the ON/OFF switch on the icemaker is
set to OFF for an extended period of time,
the ice compartment will gradually warm
up to the temperature of the refrigerator
compartment. To prevent ice cubes from
melting and leaking from the dispenser,
ALWAYS empty the ice bin when the
icemaker is set to OFF for more than afew
hours.
2 To remove the in-door ice bin, grip the
front handle, slightly lift the lower part,
and slowly pull out the bin as shown.
Assembling "the In-Door Ice Bin
1 Carefully insert the in-door ice bin while
slightly slanting it to avoid contact with the
icemaker.
2 Avoid touching the ice-detecting sensor
when replacing the ice bin. See the label
on the ice compartment door for details.
Defaching "the In-Door _ce Bin
1 Gently pull the handle to open the ice
compartment.
F_ CAUTION
I _A/hen handling the ice bin,
I keep hands away from the
I icemakertray area to avoid
32 HOWTO USE
Automatic Icemaker
* Depending on the model, some of the
following functions may not be available.
Ice is made in the automatic icemaker and sent
to the dispenser. The icemaker will produce
70-182 cubes in a 24-hour period, depending
on freezer compartment temperature, room
temperature, number of door openings and
other operating conditions.
• it takes about 12 to 24 hours for a newly
installed refrigerator to begin making ice. Wait
72 hours for full ice production to occur.
• Ice making stops when the in-door ice bin
is full. When full, the in-door ice bin holds
approximately 6 to 8 (t2~16 oz or 340~455 cc)
glasses of ice.
• The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm =on models
without a water filter and 40~120 psi or
276~827 kPa or 2.8~8.4 kgf/cm =on models
with a water filter to produce the normal
amount and size of ice cubes.
• Foreign substances or frost on the ice-
detecting sensor can interrupt ice production.
Make sure the sensor area is clean at all times
for proper operation.
r---Z_ WARNING
Personal Injury Hazard
DO NOT place fingers or hands on the
automatic ice making mechanism while the
refrigerator is plugged in.
Icemaker
Power ice_de_Switch
Sensor
Water {ills the ice tray.
1 hour after
supplying water
Tiltin
60 minutes after water has been added
to the ice tray, the ice tray witl sit slightly
tilted to hetp the cold air reach the ice.
The ice-detecting sensors witt sense
when the ice is ready to be dumped
into the ice bin.
Turning the Automatic Icemaker
On or Off
To turn off the automatic icemaker, set the
icemaker switch to OFF (O). To turn on the
automatic icemaker, set the switch to ON (I).
HOWTOUSE33
Aufomafic Icemaker
(confinued)
_ Z_ CAUTION
• The first ice and water dispensed may
include particles or odor from the water
supply line or the water tank.
• Throw away the first few batches of ice.
This is also necessary if the refrigerator has
not been used for a long time.
• Never store beverage cans or other items in
the ice bin for the purpose of rapid cooling.
Doing so may damage the icemaker or the
containers may burst.
• If discolored ice is dispensed, check the
water filter and water supply. If the problem
continues, contact a qualified service
center. Do not use the ice or water until the
problem is corrected.
• Keep children away from the dispenser.
Children may play with or damage the
controls.
• The ice passage may become blocked with
frost if only crushed ice is used. Remove the
frost that accumulates by removing the ice
bin and clearing the passage with a rubber
spatula. Dispensing cubed ice can also help
prevent frost buildup.
° Never use thin crystal glass or crockery to
collect ice. Such containers may chip or
break resulting in glass fragments in the ice.
° Dispense ice into a glass before filling it
with water or other beverages. Splashing
may occur if ice is dispensed into a glass
that already contains liquid.
° Never use aglass that is exceptionally
narrow or deep. Ice may jam inthe ice
passage and refrigerator performance may
be affected.
° Keep the glass at a proper distance from
the ice outlet. A glass held too close to the
outlet may prevent ice from dispensing.
° To avoid personal injury, keep hands out of
the ice door and passage.
° Never remove the dispenser cover.
° If ice or water dispenses unexpectedly, turn
off the water supply and contact a qualified
service center.
\
When You Should Turn "the
Icemaker Ot:t:
° When the water supply will be shut off
for several hours.
* When the ice bin is removed for more
than one or two minutes.
* When the refrigerator will not be used
for several days.
@NOTE "1
J The ice bin should be emptied when theJ
Jicemaker on/off switch is turned to the J
Normal Sounds You May Hear
° The icemaker water valve wilt buzz as
the icemaker fills with water. If the
power switch is in the ON (I) position,
it will buzz even if it has not yet been
hooked up to water. To stop the buzzing,
move the power switch to OFF (0).
F NOTE -/
JKeeping the power switch in the ON
J(I) position before the water line is
* You will hear the sound of cubes
dropping into the bin and water running
in the pipes as the icemaker refills.
Preparing for Vacation
Set the icemaker power switch to OFF (O) and
shut off the water supply to the refrigerator.
NOTE
he ice bin should be emptied anytime
e icemaker on/off switch is turned to
he OFF (0) position.
if the ambient temperature is expected to drop
below freezing, have a qualified technician
drain the water suppty system to prevent
serious property damage due to flooding
caused by ruptured water lines or connections.
34 HOWTO USE
Ice and Wafer Dispenser
* Depending on the model, some of the
following functions may not be available.
Keep children away from the dispenser
to prevent children playing with or
damaging the controls.
Dispenser
-- Water switch
Ice switch
Stand
Using the Dispenser
* To dispense cold water, push on the
water switch with a glass.
* To dispense ice, push on the ice switch
with a glass.
- (_ NOTE
* If discolored ice is dispensed, check
the water filter and water supply. If the
problem continues, contact a qualified
service center. Do not use the ice or
water until the problem is corrected.
* The dispenser will not operate when
either of the refrigerator doors are open.
* If dispensing water or ice into a container
with a small opening, place it as close to
the dispenser as possible.
* Some dripping may occur after
dispensing. Hold your cup beneath
the dispenser for a few seconds after
dispensing to catch all of the drops.
k.
Incorrect Way Correct Way
Water
Ice
_ CAUTION
row away the first few batches of ice
about 24 cubes). This is also necessary
f the refrigerator has not been used for
long time.
Locking the Dispenser
Press and hold the Alarm and Lock button
simultainousty for 3 seconds to lock the
dispenser and alt the control panel functions.
Follow the same instructions to unlock.
Cleaning the Dispenser Stand
1 Grip the stand with both hands and pull it
out.
2 Wipe out dirty areas with a clean cloth.
HOWTO USE 35
Sforing Food
Food Preservafion Location
Each compartment inside the refrigerator is designed to store different types of food.
Store your food in the optimal space to enjoy the freshest taste.
Vegetablestorage y Product Bin
(Crisper)
Preserves vegetables
andfruit.
Adjustable refrigerator shelf
EasyReachTM Adjustable shelves to meet
You can store small your individual storage
items, or put an item to needs.
defrost,
Durabase ®
Largest storage space in
the freezer.
@
Modular door bin
Store drinks such as
juice andsoda,as well as
condiments,saladdressings
andother fooditems.
CustomChillTM Drawer
Adjust thetemperatureto
storemeatandseafood,cold
drinks,dellsnacks,or chilled
wine.
FZ_ CAUTION
* Do not store food with high moisture content towards the top of the refrigerator. The moisture
could come in direct contact with the cold air and freeze.
* Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food
packaging should be wiped down to prevent adjacent foods from being contaminated.
* If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of
vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a
clean cloth or a paper towel.
* If the refrigerator door or freezer drawer is opened too often, warm air may penetrate the
refrigerator and raise its temperature. It can also increase the cost to run the appliance.
. The temperature inside the EasyReachTM is slightly lower than in the shelf or door bin area.
_----_ NOTE
* If you are leaving home for a short period of time, like a short vacation, the refrigerator should
be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the
freezer.
* If you are leaving the refrigerator turned off for an extended period of time, remove all food
and unplug the power cord. Clean the interior, and leave the door open to prevent fungi from
growing in the refrigerator.
36 HOWTO USE
Food Storage Tips
The following tips may not be applicable
depending on the model.
Wrap or store food in the refrigerator in airtight
and moisture-proof material unless otherwise
noted. This prevents food odor and taste transfer
throughout the refrigerator. For dated products,
check date code to ensure freshness.
Food How to
Butter or Keep opened butter in a covered
Margarine dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese Store in the original wrapping
until you are ready to use it.
Once opened, rewrap tightly in
plastic wrap or aluminum foil.
Milk Wipe milk cartons. For coldest
milk, place containers on
interior shelf.
Eggs Store in original carton on
interior shelf, not on door shelf.
Fruit Do not wash or hull the fruit
until it is ready to be used. Sort
and keep fruit in its original
container, in a crisper, or store
in a completely closed paper
bag on a refrigerator shelf.
Leafy
Vegetables
Vegetables
with skins
(carrots,
peppers)
Fish
Remove store wrapping and
trim or tear off bruised and
discolored areas. Wash in cold
water and drain. Place in plastic
bag or plastic container and
store in crisper.
Place in plastic bags or plastic
container and store in crisper.
Store fresh fish and shellfish
in the freezer section if they
are not being consumed the
same day of purchase. It is
recommended to consume
fresh fish and shellfish the
same day purchased.
Leftovers Cover leftovers with plastic wrap
or aluminum foil, or store in
plastic containers with tight lids.
Storing Frozen Food
NOTE "/
Check a freezer guide or a reliable cookbook I
for further information about preparing food I
for freezing or food storage times.
Freezing
Your freezer will not quick-freeze a large
quantity of food. Do not put more unfrozen
food into the freezer than will freeze within
24 hours (no more than 2 to 3 Ibs. of food per
cubic foot of freezer space). Leave enough
space in the freezer for air to circulate around
packages. Be careful to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality
and type of food, the type of packaging or wrap
used (how airtight and moisture-proof) and
the storage temperature. Ice crystals inside a
sealed package are normal. This simply means
that moisture in the food and air inside the
package have condensed, creating ice crystals.
_ NOTE
Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze.
Cooling hot foods before freezing saves
energy.
HOWTO USE 37
Sforing Frozen Food (continued)
Packaging
Successful freezing depends on correct
packaging. When you close and seal the
package, it must not aliow air or moisture in or
out. If it does, you could have food odor and
taste transfer throughout the refrigerator and
could also dry out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting
lids
Straight-sided canning/freezing jars
Heavy-duty aluminum foil
Plastic-coated paper
Non-permeable plastic wraps
Specified freezer-grade self-sealing plastic
bags
Follow package or container instructions for
proper freezing methods.
Humidify Confrolled Crisper
* Depending on the model, some of the
following functions may not be available.
The crispers provide fresher tasting fruit
and vegetables by letting you easily control
humidity inside the drawer.
You can control the amount of humidity in
the moisture-sealed crispers by adjusting the
control to any setting between Vegetable and
Fruit.
Vegetable keeps moist air in the
crisper for best storage of fresh, leafy
vegetables.
* Fruit lets moist air out of the crisper for
best storage of fruit.
Do not use
Bread wrappers
Non-polyethylene plastic containers
Containers without tight lids
Wax paper or wax-coated freezer wrap
Thin, semi-permeable wrap
EasyReach TM
The EasyReach TM compartments are slightly
cooler than the shelf or door bin areas, so they
are a convenient place to store dairy snacks or
other small items you want to keep especially
cold. They are also a handy place to defrost
meat.
Open and close by pulling the handle.
38 HOWTO USE
Defaching and Assembling fhe
Sforage Bins
Humidify Confrolled Crisper
To remove, pull out the Crisper D to full
extension, lift the front up, and pull straight
out.
To install, slightly tilt up the front, insert the
drawer into the frame and push it back into
place.
To Remove "the Glass
(Pantry drawer not shown for clarity)
Lift up the glass under the crisper cover, and
pull up and out.
Door Bins
The door bins are removable for easy cleaning
and adjustment.
2
To remove the bin, simply lift the bin up
and pull straight out.
To replace the bin, slide it in above the
desired support and push down until it
snaps into place.
"- @ NOTE -_
Some bins may vary in appearance and ]
will only fit in one location,
_-Z_ CAUTION
Do not apply excessive force while
detaching or assembling the storage
bins.
Do not use the dishwasher to clean
the storage bins and shelves.
Regularly detach and wash the
storage bins and shelves; they can
become easily contaminated by the
food.
N.
HOWTO USE 39
CustomChilF MDrawer
The CustomChill TM Drawer provides storage
space with a variable temperature control that
can be adjusted to keep the compartment
either colder or warmer than the refrigerator.
Cust0mChill"
i_ Select
Setting the Temperature _i.o,_,ooi_°_k
Press the Select/Lock button repeatedly to
toggle through the four temperature settings.
Store meat and seafood at 29°F/-1 °C, cold
drinks at 33°F/I °C, dell snacks at 37°F/3°C, or
chilled wine at 42°F/5°C.
_Control Panel
Control Lock _
took
The control panel can also be locked to prevent
the temperature from accidentally being
changed or tampered with by children. To
lock the panet, press and hold the Select/Lock
button for three seconds until the Lock icon
lights up. To unlock the panet, press and hold
the Select/Lock button until the Lock icon light
turns off.
40 HOWTO USE
Adjusting the Refrigerator
Shelves
The shelves in your refrigerator are adjustable
to meet your individual storage needs. Your
model may have glass or wire shelves.
Adjusting the shelves to fit items of different
heights wilt make finding the exact item you
want easier. Doing so wilt also reduce the
amount of time the refrigerator door is open
which will save energy.
Detaching the Shelf
Tilt up the front of the shelf and lift it straight
up. Pull the shelf out.
Using the Folding Shelf
You can store taller items, such as a gallon
container or bottles, by simply pushing the
front half of the shelf underneath the back half
of the shelf. Pult the front of the shelf toward
you to return to a full shelf.
-\CAUTION
Do not clean glass shelves with
warm water while they are cold.
Shelves may break if exposed to
sudden temperature changes or
impact.
Glass shelves are heavy. Use special
care when removing them.
Assembling the Shelf
Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height. Then,
lower the front of the shelf so that the hooks
drop into the slots.
S//_ CAUTION
I Make sure that shelves are level from
I one side to the other. Failure to do so
Imay result in the shelf falling or spilling
/ food.
MAINTENANCE 41
MAINTENANCE
Cleaning
• Both the refrigerator and freezer sections defrost automatically; however, clean both
sections about once a month to prevent odors.
Wipe up spills immediately.
Always unplug the refrigerator before cleaning.
General Cleaning Tips
Unplug refrigerator or disconnect power.
Remove alt removable parts, such as
shelves, crispers, etc.
Use a clean sponge or soft cloth and a
mild detergent in warm water. Do not
use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces
thoroughly.
Exterior
Waxing external painted metal surfaces helps
provide rust protection. Do not wax plastic
parts. Wax painted metal surfaces at least
twice a year using appliance wax (or auto paste
wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior,
use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft
cloth.
"_D CAUTION
o not use a rough clothor sponge
when cleaningthe interiorand exteriol
of therefrigerator,
Do not placeyourhand on the bottom
surfaceofthe refrigeratorwhen
opening and closing.
Inside Walls (allow freezer to warm
up so the cloth will not stick)
To help remove odors, you can wash the inside
of the refrigerator with a mixture of baking
soda and warm water. Mix 2 tablespoons of
baking soda to 1 quart of water (26 g soda
to 1 liter water) Be sure the baking soda is
completely dissolved so it does not scratch the
surfaces of the refrigerator.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use cleaning
waxes, concentrated detergents, bleaches,
or cleaners containing petroleum on plastic
refrigerator parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use glass
cleaners, abrasive cleansers, or flammable
fluids. These can scratch or damage the
material.
Condenser Coils
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
(_ WARNING
se non-flammable cleaner. Failure to do[
o can result in fire, explosion, or death. /
42 MAINTENANCE
Replacing the Fresh Air Filter
It is recommended that you replace the air filter:
• Approximately every six months.
• When the CHANGE FILTER light turns on.
Remove the Old Filter
Turn the filter cover to the left to detach
from the refrigerator wall. The filter is
located on the inside of the filter cover.
Remove the filter from the cover and
replace it with a new filter.
Replacing the Water Filter
(_ NOTE -_
This refrigerator does not require a filter
bypass plug when the filter is not in place .l
It is recommended that you replace the water filter:
• Approximately every six months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
1 Remove the old water filter.
Lift up and remove the lower door bin. Swing
the right end of the water filter out of the
compartment and then grasp and rotate the
filter counterclockwise to remove it from the
filter head.
2 Install a NewAir Filter,
Place the new filter inside of the cover
with the side that says "Front" facing
outward. Turn the filter cover to the right
to attach to the refrigerator walt.
2
NOTE
Replacing the water filter could cause a
small amount of water to drain. Place a cupl
under the filter head to catch any water.
Replace with a new water filter.
Insert the new filter into the filter head and
rotate it clockwise until the arrow on the
new filter lines up with the arrow on the
filter head. Swing the filter back into the
compartment.
After changing the filter, push and hold the
Air Filter button for three seconds to reset
the filter sensor.
3 Assemble the door
bin.
MAgNTENANCE 43
Performance Data Sheet
Use Replacement Cartridge: ADQ73613401
The concentration of the indicated substances in water entering the system was reduced to a
concentration less than or equal to the permissible limit for water leaving the system as specified in
NSF/ANSI Standard 42 and Standard 53.
System tested and certified by NSF International against NSF/ANSt Standard 42
and Standard 53 for the reduction of substances listed below.
Capacity 200 Gallons (757 Liters) Contaminant Reduction Determined by NSF testing.
JContaminant
Reduction
Average
Influent
NSFspecified Avg % Average
Challenge Reduction Product Water
Concentration Concentration
Max
Permissible
Product Water
Concentration
NSFReduction
equirements
Chlorine Taste and
Odor
Nominal Particulate
Class I,, _>05 to <
10 L_rn
Asbestos
Atrazme
Benzene
Carbofuran
Lindane
i P Dichlorobenzene
Toxaphene
2,4 D
Lead pH @65
Lead pH @85
Mercury @pH 65
Mercury @pH 85
Cyst _
20 mg/L
5,600,000 pts/
mL
170 MFL
00087 mg/L
0017 mg/L
0073 mg/L
0002 mg/L
0263mg/L
0015 mg/L
025 mg/L
0150 mg/L
0150 mg/L
0006 mg/L
00062 mg/L
200,000
cysts/L
20 mg/L + 10% 975% 005 mg/L
At least 10,000 partic es/
mL 993% 73,000 pts/ml
107 to 10s MFL; fibers
greater than 10 _lm in
length
0009 mg/L + 10%
0015 mg/L + 10%
008 mg/b + 10%
0002 mg/L + 10%
0225 mg/L + 10%
0015mg/L + 10%
0210mg/L + 10%
015 mg/L + 10%
015 mg/b + 10%
0006 mg/L + 10%
0006 mg/L + 10%
Minimum 50,000 cysts/L
>99% < 1MLF
942% 00005 mg/L
970% < 00005 mg/L
988% 0001 mg/L
988% 000002 mg/L
996% 0001 mg/b
935% 0001 mg/b
995% 00012 mg/L
>993% 0001 mg/b
>993% 0001 mg/b
965 00002 mg/L
869 00081 mg/L
>9999% <I cyst/L
N/A
N/A
N/A
0003 mg/L
0005 mg/L
004 mg/L
00002 mg/L
0075 mg/L
0003 mg/L
007 mg/L
0010 mg/L
0010 mg/L
0002 mg/L
0002 mg/L
N/A
> 50%
> 85%
> 99%
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
_>9995%
x Based on the use of Cryptosporidium parvum oocysts.
44 MAINTENANCE
Application Guidelines / Water Supply Parameters
Note that while the testing was performed under
standard laboratory conditions, actual performance
may vary.
iService Flow 0.5 gpm (1.9 Ipm)
Water Supply Communky or private well
-- PotableWater
Water Pressure 20-120 psi (138- 827 kPa)
iWater Temperature 33-100°F (0.6-37.8°0
Capacity 200 gallons (757 liters)
NSF System Trade Name Code : ADQ73613401-S
NSF Replacement Code : ADQ73613401
It is essential that the manufacturer's
recommended installation, maintenance and filter
replacement requirements be carried out for the
product to perform as advertised.
Replacement Cartridge: ADQ73613401
For estimated costs of replacement elements
please call 1-877-714-7486 or visit our website at
www.lge.com
Refer to the "warranty" section of the
Refrigerator Owner's Manual for Limited Warranty
information.
SAFETY INFORMATION
Read, understand, and follow all safety Information contained in these instructions prior to installation and
use of this product. Retain these instructions for future reference.
r-----Z_ WARNING
To reduce the risk associated with the ingestion of contaminants:
o Do not use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
J
F_ CAUTION
Please note that water could leak while replacing the filter which could result in property damage.
To reduce the risk associated with property damage due to water leakage:
o Read and follow Use Instructions before installation and use of this system.
Installation must comply with existing state or local plumbing codes.
• Protect filter from freezing Drain filter when room temperature drops below 33°F (0.6°0.
Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi,
you must install a pressure limiting valve. Contact a plumbing professional if you are uncertain how
to check your water pressure.
Do not install where water hammer conditions may occur, tf water hammer conditions exist you
must install a water hammer attester. Contact a plumbing professional if you are uncertain how to
check for this condition.
Do not install on hot water supply lines. Install on cold water lines only. The maximum operating
water temperature of this filter system is 100°F (37.8°0.
Where a backflow prevention device is installed on a water system, a device for controlling pressur_
due to thermal expansion must be installed.
The disposable filter cartridge must be replaced every six months, at the rated capacity or if a
noticeable reduction inflow rate occurs.
J
NSFis atrademark of NSFInternational. LGis a trademark of LGCorp. MCM Co..Ltd.
MAgNTENANCE 45
NSF International
RECOGNIZES
MCM Co., Ltd.
Republicof Korea
AS COMPLYING WITH NSF/ANS142, 53 AND ALL APPLICABLE REQUIREMENTS,
PRODUCTSAPPEARINGIN THE NSF OFFICIAL LISTINGARE
AUTHORIZEDTO BEAR THE NSF MARK.
,_l'a_ri6a1_ NNiolla_ S_andards (_u_cl
StandardsIn_it_8 ofCa,_a
October4,2013
Ce_ificate#C0t74200-02
David Purkiss
General Mmlager, Water Systems
California Department of Public Health Certification 14-3015
46 SMART DIAGNOSIS
SMART DIAGNOSIS
Should you experience any problems with your
refrigerator, it has the capability of transmitting
data via your telephone to the LG service
center. This allows you to speak directly to our
trained specialists. The specialist records the
data transmitted from your machine and uses
it to analyze the issue, providing a fast and
effective diagnosis.
If you experience problems with your
refrigerator, can 1-800-243-0000. Only use the
Smart Diagnosis TM feature when instructed
to do so by the LG call center agent. The
transmission sounds that you will hear are
normal and sound similar to a fax machine.
Smart Diagnosis TM cannot be activated unless
your refrigerator is connected to power. If
your refrigerator is unable to turn on, then
troubleshooting must be done without using
Smart Diagnosis TM.
Using Smarf Diagnosis TM
First, can 1-800-243-0000. Only use the Smart
Diagnosis TM feature when instructed to do so
by the LG call center agent.
1 Lock the display. To lock the display,
press and hold the Lock button for three
seconds. (If the display has been locked
for over five minutes, you must deactivate
the lock and then reactivate it.)
2 Open the right refrigerator door.
3
Hold the mouthpiece of your phone in front
of the speaker that
is located on the
right hinge of the
refrigerator door,
when instructed
to do so by the call
center.
4 Press and hold the Freezer button for three
seconds while
continuing to
hold your phone
to the speaker.
5 After you hear three beeps, release the
Freezer button.
6 Keep the phone in place until the tone
transmission has finished. This takes about
6 seconds, and the display will count down
the time. Once the countdown is over
and the tones have stopped, resume your
conversation with the specialist, who will then
be able to assist you in using the information
transmitted for analysis.
_ NOTE
For best results, do not move the phone
while the tones are being transmitted.
If the call center agent is not able to get
an accurate recording of. the data, you
......C_ NOTE
Call quality differences by region may
affect the function.
Use a land line rather than a cell phone
for better communication performance,
resulting in better service.
Bad call quality may result in poor data
transmission from your phone to the
machine, which could cause Smart
Diagnosis TM to malfunction.
TROUBLESHOOTING 47
TROUBLESHOOTING
Review the Troubleshooting section before calling for service; doing so will save you both time
and money.
Refrigerator and The refrigerator control is set to Turn the control ON. Refer to the Setting the
iFreezer section OFF (some models). Controls section for proper temperature settings.
are not cooling.
Refrigerator is in the defrost
cycle.
iDuring the defrost cycle, the temperature of
ieach compartment may rise slightly. Wait 30
minutes and confirm the proper temperature
has been restored once the defrost cycle has
icompleted.
Refrigerator was recently iit may take up to 24 hours for each compartment
installed, to reach the desired temperature.
Refrigerator was recently iif the refrigerator was stored for a long period of
relocated, time or moved on its side, it is necessary for the
irefrigerator to stand upright for 24 hours before
iconnecting it to power.
Cooling System Refrigerator is replacing an Modern refrigerators require more operating
runs too much. older model, time but use less energy due to more efficient
itechnology.
Refrigerator was recently iThe refrigerator will take up to 24 hours to cool
plugged in or power restored, i completely.
Door opened often or a large
amount of food / hot food was
added.
Doors are not dosed
completely.
Refrigerator is installed in a hot
location.
Condenser / back cover is
clogged.
iAdding food and opening the door warms the
irefrigerator, requiring the compressor to run
ilonger in order to cool the refrigerator back
idown. in order to conserve energy, try to get
ieverything you need out of the refrigerator
iat once, keep food organized so it is easy to
find, and close the door as soon as the food is
iremoved. (Refer to the Food Storage Guide.)
iFirmly push the doors shut.
iThe compressor will run longer under warm
iconditions. At normal room temperatures (70°F)
expect your compressor to run about 40% to
80% of the time. Under warmer conditions,
iexpect it to run even more often. The refrigerator
should not be operated above 1IO°F.
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
48 TROUBLESHOOTING
Refrigerator or Refrigerator was recently It may take up to 24 hours for each compartment
Freezer section is installed, to reach the desired temperature.
too warm.
Air vents are blocked. Rearrange items to allow air to flow throughout
the compartment. Refer to the Airflow diagram in
the Using Your Refrigerator section.
Doors are opened often or for
long periods of time.
Unit is installed in a hot location.
A large amount of food or
hot food was added to either
compartment.
Doors not closed correctly.
Temperature control is not set
correctly.
Defrost cycle has recently
completed.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To lessen
the effect, reduce the frequency and duration of
door openings.
The refrigerator should not be operated in
temperatures above 110°F.
Adding food warms the compartment requiring
the cooling system to run. Allowing hot food to
cool to room temperature before putting it in the
refrigerator will reduce this effect.
See the Doors will not close correctly or pop
open section in Troubleshooting.
If the temperature is too warm, adjust the
control one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation
may form on the back wall. Wait 30 minutes
and confirm the proper temperature has been
restored once the defrost cycle has completed.
TROUBLESHOOTING 49
Interior moisture
buildup.
Food is freezing
in the refrigerator
compartment.
Frost or ice
crystals form
on frozen food
(outside of
package).
Doors are opened often or for
long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To
lessen the effect, reduce the frequency and
duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in
the Troubleshooting section.
Weather is humid.
Defrost cycle recently
completed.
Food is not packaged correctly.
Food with high water content
was placed near an air vent.
Refrigerator temperature control
is set incorrectly.
Refrigerator is installed in a cold
location.
Door is opened frequently or for
long periods of time.
Door is not closing properly.
Refrigerator or Incorrect temperature control
Freezer section is settings.
too cold.
Humid weather allows additional moisture
to enter the compartments when the doors
are opened leading to condensation or frost.
Maintaining a reasonable level of humidity in the
home will help to control the amount of moisture
that can enter the compartments.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation
may form on the back wall. Wait 30 minutes and
confirm that the proper temperature has been
restored once the defrost cycle has completed.
Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation
within each compartment. Wipe all containers
dry and store food in sealed packaging to prevent
condensation and frost.
Rearrange items with high water content away
from air vents.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
When the refrigerator is operated in temperatures
below 41°F (5°C), food can freeze in the
refrigerator compartment. The refrigerator should
not be operated in temperatures below 55°F (13°C).
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. Increased
moisture will lead to frost and condensation.
To lessen the effect, reduce the frequency and
duration of door openings.
Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
50 TROUBLESHOOTING
Frost or ice Condensation from food with a This is normal for food items with a high water
crystals on frozen high water content has frozen content.
food (inside of inside of the food package.
sealed package).
Food has been left inthe freezer Do not store food items with high water content
for a long period of time. inthe freezer for a long period of time.
Icemaker is not Demand exceeds ice storage The icemaker will produce approximately 70~ 182
making enough capacity, cubes in a 24 hour period.
ice.
House water supply is not
connected, valve is not turned
on fully, or valve is dogged.
Water filter has been
exhausted.
Low house water supply
pressure.
Reverse Osmosis filtration
system is used.
Tubing connecting refrigerator
to house supply valve is kinked.
Connect the refrigerator to a cold water supply
with adequate pressure and turn the water
shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
It is recommended that you replace the water
filter:
• Approximately every six months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm2on models
without a water filter and 40~120 psi or 276~827
kPaor 2.8~8.4 kgf/cm _on models with a water
filter.
If the problem persists, it may be necessary to
contact a plumber.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to Water Pressure section.)
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting
in reduced water flow. Straighten or repair the
water supply line and arrange it to prevent future
kinks.

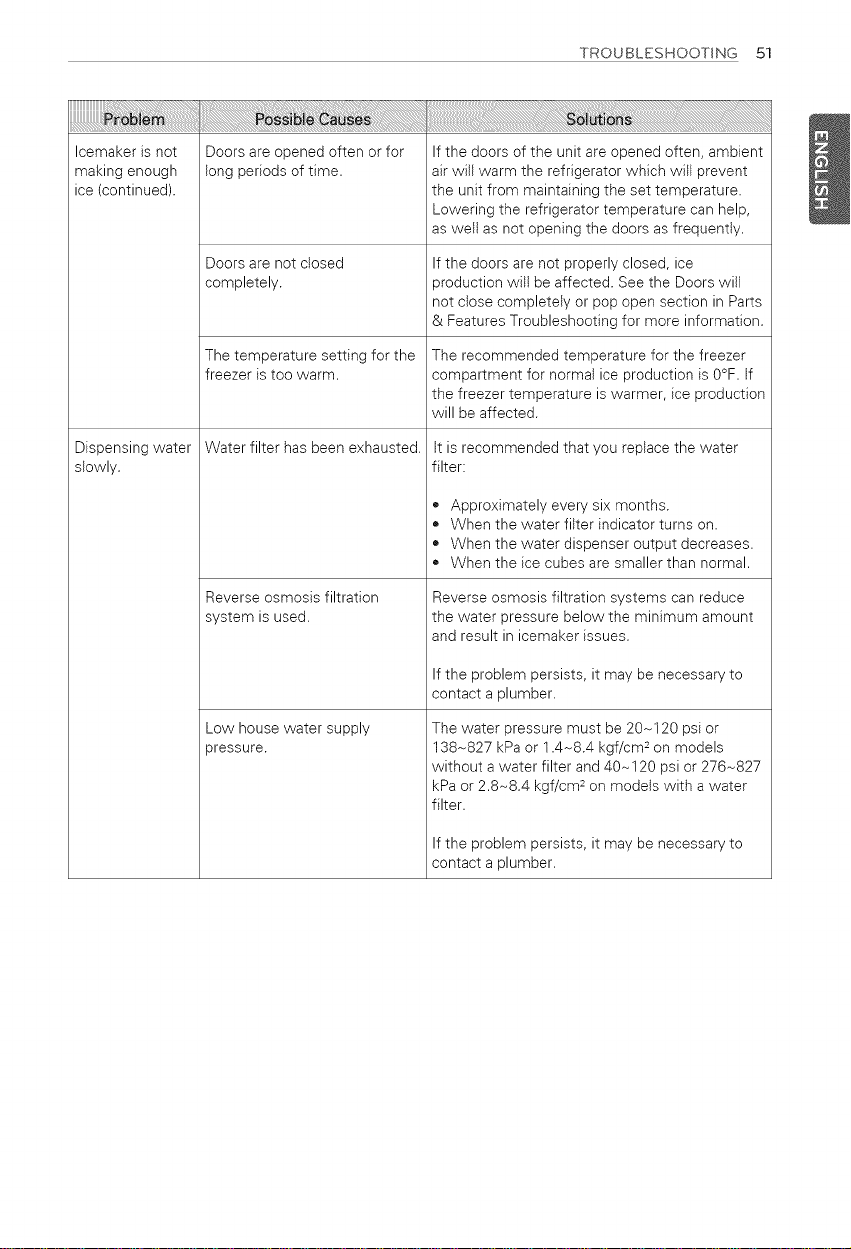

TROUBLESHOOTING 51
Icemaker is not
making enough
ice (continued).
Dispensing water
slowly.
Doors are opened often or for
long periods of time.
Doors are not dosed
completely.
The temperature setting for the
freezer is too warm.
Water filter has been exhausted.
Reverse osmosis filtration
system is used.
Low house water supply
pressure.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent
the unit from maintaining the set temperature.
Lowering the refrigerator temperature can help,
as well as not opening the doors as frequently.
If the doors are not properly closed, ice
production will be affected. See the Doors will
not dose completely or pop open section in Parts
& Features Troubleshooting for more information.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. tf
the freezer temperature is warmer, ice production
will be affected.
It is recommended that you replace the water
filter:
• Approximately every six months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
If the problem persists, it may be necessary to
contact a plumber.
The water pressure must be 20~120 psi or
138~827 kPa or 1.4~8.4 kgf/cm _on models
without a water filter and 40~120 psi or 276~827
kPa or 2.8~8.4 kgf/cm_on models with a water
filter.
If the problem persists, it may be necessary to
contact a plumber.

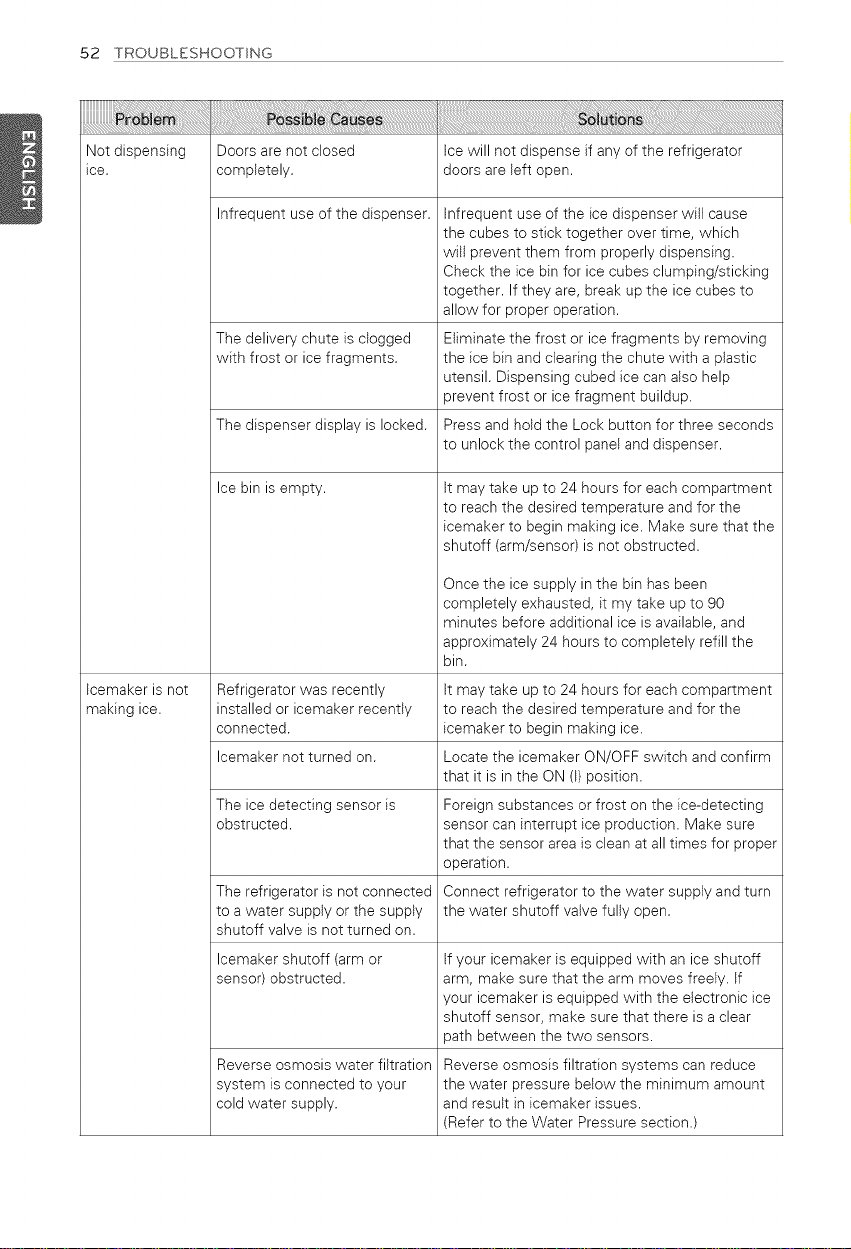

52 TROUBLESHOOTING
i
Not dispensing Doors are not closed Ice will not dispense if any of the refrigerator
ice. completely, doors are left open.
Infrequent use of the dispenser.
Icemaker is not
making ice.
The delivery chute is clogged
with frost or ice fragments.
The dispenser display is locked.
Ice bin is empty.
Refrigerator was recently
installed or icemaker recently
connected.
Icemaker not turned on.
The ice detecting sensor is
obstructed.
The refrigerator is not connected
to a water supply or the supply
shutoff valve is not turned on.
Icemaker shutoff (arm or
sensor) obstructed.
Reverse osmosis water filtration
system is connected to your
cold water supply.
Infrequent use of the ice dispenser will cause
the cubes to stick together over time, which
will prevent them from properly dispensing.
Check the ice bin for ice cubes clumping!sticking
together. If they are, break up the ice cubes to
allow for proper operation.
Eliminate the frost or ice fragments by removing
the ice bin and clearing the chute with a plastic
utensil. Dispensing cubed ice can also help
prevent frost or ice fragment buildup.
Press and hold the Lock button for three seconds
to unlock the control panel and dispenser.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice. Make sure that the
shutoff (arm/sensor) is not obstructed.
Once the ice supply in the bin has been
completely exhausted, it my take up to 90
minutes before additional ice is available, and
approximately 24 hours to completely refill the
bin.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice.
Locate the icemaker ON/OFF switch and confirm
that it is in the ON (1)position.
Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for proper
operation.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
If your icemaker is equipped with an ice shutoff
arm, make sure that the arm moves freely. If
your icemaker is equipped with the electronic ice
shutoff sensor, make sure that there is a clear
path between the two sensors.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to the Water Pressure section.)
TROUBLESHOOTING 53
Not dispensing
water.
New insta%tion or water line
recently connected.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped air
and contaminants from the system.
Do not dispense the entire 2.5 gallon amount
continuously. Depress and release the dispenser
padfor cycles of 30 seconds ON and 60 seconds
OFF.
The dispenser panel is locked. Press and hold the Lock button for three seconds
to unlock the control panel and dispenser.
The dispenser is not set for The dispenser can be set for ice or water. Make
water dispensing, certain that the control panel is set for the proper
operation. Press the Water button on the control
panel to dispense water.
Refrigerator or freezer doors are Water will not dispense if any of the refrigerator
not closed properly, doors are left open.
Water filter has been recently
removed or replaced.
Tubing connecting refrigerator
to house supply valve is kinked.
The house water supply is not
connected, the valve is not
turned on fully, or the valve is
clogged.
After the water filter is replaced, dispense 2.5
gallons of water (flush for approximately 5
minutes) to remove trapped air and contaminants
from the system. Do not dispense the entire 2.5
gallon amount continuously. Depress and release
the dispenser pad for cycles of 30 seconds ON
and 60 seconds OFF.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting in
reduced water flow. Straighten or repair the water
supply line and arrange it to prevent future kinks.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
54 TROUBLESHOOTING
Ice has bad taste
or odor.
Water supply contains minerals
such as sulfur.
A water filter may need to be installed to
eliminate taste and odor problems.
NOTE: In some cases, a filter may not help. It
may not be possible to remove all minerals / odor
/ taste in all water supplies.
Discard the first few batches of ice to avoid
discolored or bad tasting ice.
Icemaker was recently installed.
Ice has been stored for too Ice that has been stored for too long will shrink,
long. become cloudy, and may develop a stale taste.
Throw away old ice and make a new supply.
The food has not been stored Rewrap the food. Odors may migrate to the ice if
properly in either compartment, food is not wrapped properly.
The interior of the refrigerator See the Care and Cleaning section for more
needs to be cleaned, information.
The ice storage bin needs to be Empty and wash the bin (discard old cubes).
cleaned. Make sure that the bin is completely dry before
reinstalling it.
Dispensing warm Refrigerator was recently Allow 24 hours after installation for the water
water, installed, storage tank to cool completely.
The water dispenser has been Depending on your specific model, the water
used recently and the storage storage capacity will range from approximately 20
tank was exhausted, to 30 oz.
Dispenser has not been used If the dispenser has not been used for several
for several hours, hours, the first glass dispensed may be warm.
Discard the first 10 oz.
Refrigerator is connected to the
hot water supply.
Water has bad Water supply contains minerals
taste or odor. such as sulfur.
Water filter has been exhausted.
Refrigerator was recently
installed.
Make sure that the refrigerator is connected to a
cold water pipe.
Z_ WARNING: Connecting refrigerator to a
the
hot water line may damage the icemaker.
A water filter may need to be installed to
eliminate taste and odor problems.
It is recommended that you replace the water
filter:
• Approximately every 6 months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped
air and contaminants from the system. Do
not dispense the entire 2.5 gallon amount
continuously. Depress and release the dispenser
pad for cycles of 30 seconds ON and 60 seconds
OFF.
TROUBLESHOOTING 55
Icemaker is
making too much
ice.
Clicking
Icemaker shutoff (arm/sensor)
is obstructed.
The defrost control will click
when the automatic defrost
cycle begins and ends.
The thermostat control (or
refrigerator control on some
models) will also click when
cycling on and off.
Empty the ice bin. If your icemaker is equipped
with an ice shutoff arm, make sure that the arm
moves freely. If your icemaker is equipped with
the electronic ice shutoff sensor, make sure that
there is aclear path between the two sensors.
Reinstall the ice bin and wait 24 hours to confirm
proper operation.
Normal Operation
Rattling Rattling noises may come from Normal Operation
the flow of refrigerant, the
water line on the back of the
unit, or items stored on top of
or around the refrigerator.
Refrigerator is not resting solidly Floor is weak or uneven or leveling legs need to
on the floor, be adjusted. See the Door Alignment section.
Refrigerator with linear Normal Operation
compressor was jarred while
running.
Whooshing Evaporator fan motor is Normal Operation
circulating air through the
refrigerator and freezer
compartments.
Air is being forced over the Normal Operation
condenser by the condenser
fan.
Gurgling Refrigerant flowing through the Normal Operation
cooling system.
Popping Contraction and expansion of Normal Operation
the inside walls due to changes
in temperature.
Sizzling Water dripping on the defrost Normal Operation
heater during a defrost cycle.
Vibrating If the side or back of the To eliminate the noise, make sure that the sides
refrigerator is touching a cabinet and back cannot vibrate against any wall or
or wall, some of the normal cabinet.
vibrations may make an audible
sound.
Dripping Water running into the drain pan Normal Operation
during the defrost cycle.

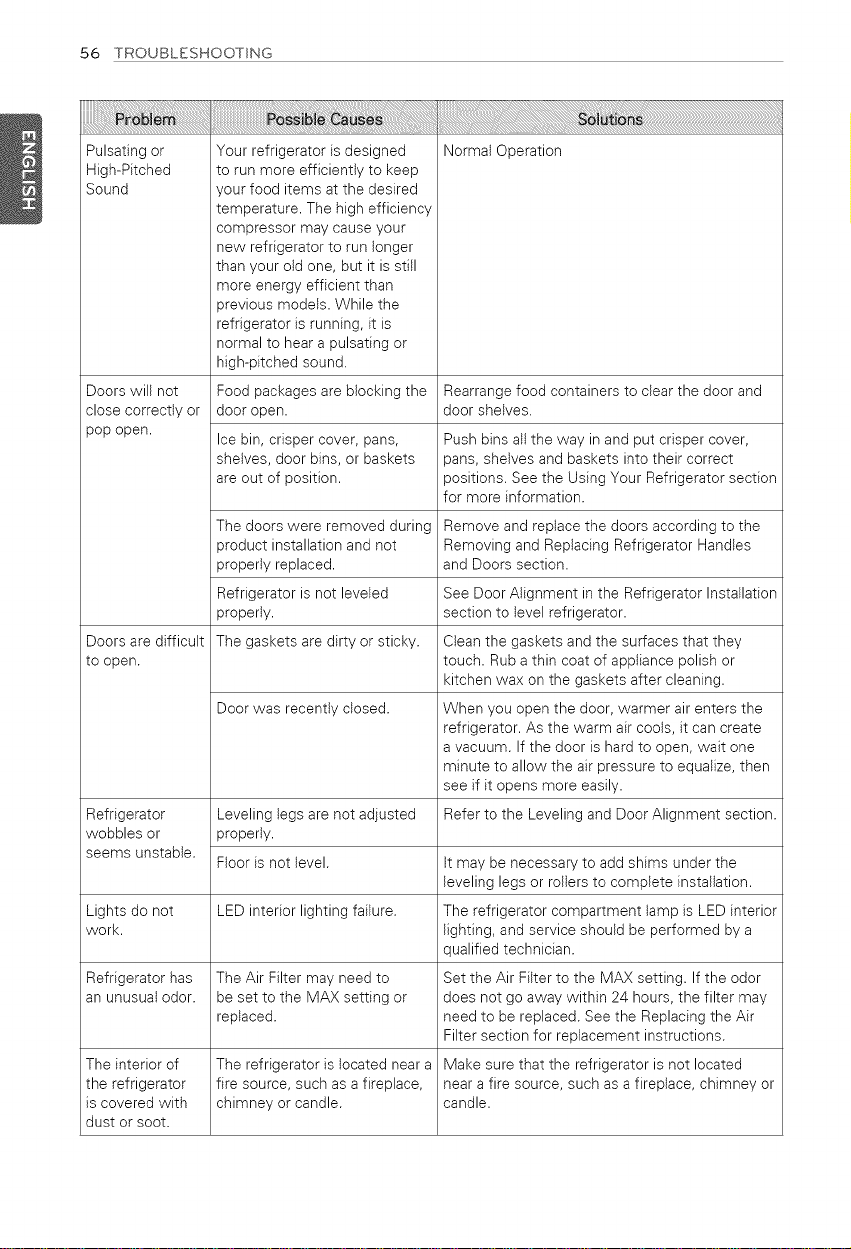

56 TROUBLESHOOTING
Pulsating or
High-Pitched
Sound
Your refrigerator is designed
to run more efficiently to keep
your food items at the desired
temperature. The high efficiency
compressor may cause your
new refrigerator to run longer
than your old one, but it is still
more energy efficient than
previous models. While the
refrigerator is running, it is
normal to hear a pulsating or
high-pitched sound.
Food packages are blocking the
door open.
Normal Operation
Doors win not Rearrange food containers to dear the door and
close correctly or door shelves.
pop open. Ice bin, crisper cover, pans, Push bins all the way in and put crisper cover,
shelves, door bins, or baskets pans, shelves and baskets into their correct
are out of position, positions. See the Using Your Refrigerator section
for more information.
The doors were removed during Remove and replace the doors according to the
product installation and not Removing and Replacing Refrigerator Handles
properly replaced, and Doors section.
Refrigerator is not leveled See Door Alignment in the Refrigerator Installation
properly, section to level refrigerator.
Doors are difficult The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they
to open. touch. Ruba thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create
a vacuum. If the door is hard to open, wait one
minute to allow the air pressure to equalize, then
see if it opens more easily.
Refrigerator Leveling legs are not adjusted Refer to the Leveling and Door Alignment section.
wobbles or properly.
seems unstable.
Floor is not level. It may be necessary to add shims under the
leveling legs or rollers to complete installation.
Lights do not LED interior lighting failure. The refrigerator compartment lamp is LED interior
work. lighting, and service should be performed by a
qualified technician.
Refrigerator has The Air Filter may need to Set the Air Filter to the MAX setting. If the odor
an unusual odor. be set to the MAX setting or does not go away within 24 hours, the filter may
replaced, need to be replaced. See the Replacing the Air
Filter section for replacement instructions.
The interior of The refrigerator is located near a Make sure that the refrigerator is not located
the refrigerator fire source, such as a fireplace, near a fire source, such as a fireplace, chimney or
is covered with chimney or candle, candle.
dust or soot.
WARRANTY 57
WARRANTY (USA)
Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under
normal home use, during the warranty period set forth below, LG will at its option repair or replace
the product. This limited warranty is valid only to the original retail purchaser of the product and
applies only when purchased and used within the United States including U.S. Territories. Proof of
original retail purchase is required to obtain warranty service under this limited warranty.
WARRANTY PERIOD
Sealed System
Refrigerator (Condenser. Dryer. Connecting Tube, Linear Compressor
Refrigerant and Evaporator)
One (1) year from One (1) year from the Seven (7) years from Ten (10) years from the
the date of original date of original retail the date of original date of original retail
retail purchase purchase retail purchase purchase
Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will
(internal/functional will be charged for be charged for labor)
parts only) labor)
Noises associated with normal operation and failure to follow instructions found in the use and
care and installation guides or operating the unit in an unsuitable environment will not be covered
under this warranty.
1_Replacement products and parts are warranted for the remaining portion of the original warranty
period or ninety (90) days, whichever is greater.
1_Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED
BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.
NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY
OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do
not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This
warranty gives you specific legal rights and you may also have other rights that vary from state
to state.
58 WARRANTY
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on operation
of the product; repair or replace fuses or correct wiring or plumbing, or correction of unauthorized
repairs/insta%tion.
2. Failure of product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the product in acorrosive atmosphere or contrary to the
instructions outlined inthe product owner's manual.
5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of
God.
6. Damage resulting from misuse, abuse, improper insta%tion, repair, or maintenance. Improper repair
includes use of parts not approved or specified by LG.
7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the
intended purpose, or any water leakage where the unit was not properly installed.
8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial
or industrial use, or use of accessories, components, or consumable cleaning products that are not
approved by LG.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).
0. Damage or missing items to any display, open box, discounted, or refurbished product.
1. Products with original serial numbers that have been removed, altered, or can not be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
2. Increases in utility costs and additional utility expenses.
3. Replacement of light bulbs, filters, or any consumable parts.
4. Repairs when your product is used in other than normal and usual household use (e.g. commercial
use, offices, and recreational facilities) or contrary to the instructions outlined in the product owner's
manual.
5. Costs associated with removal of your product from your home for repairs.
6. The removal and reinstallation of the product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including LG's owner's and insta%tion
manuals.
7. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were originally
included with this particular model.
8. Service trips to your home to teach you how to use the product.
9. Replacement of the water filter cartridge due to water pressure that is outside the specified
operating range or due to excessive sediment in the water supply.
The cost of repair or replacement under these excluded circumstances shall be borne
by the consumer,
For complete warranty details and customer assistance, please call or visit our website:
Call 1-800-243-0000 (24 hours aday, 365 days a year) and select the appropriate option from the
menu, or visit our website at http://wvcwJg.eom Or by mail: LG Customer Information Center:
P.O. Box 240007, 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
WARRANTY 59
WARRANTY (Canada)
WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship
under normal home use during the warranty period set forth below, LG Canada will at its option
repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid
only to the originat retail purchaser of the product and applies only to a Product distributed in Canada
by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products
located and used within Canada.
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
Refrigerator/ Sealed System Linear Compressor
Freezer (Condenser, Dryer, Connecting Tube,
Refrigerant and Evaporator)
One (1) year from One (1) year from Seven (7) years from Ten (10) years from the
the date of original the date of original the date of original date of original retail
retail purchase retail purchase retail purchase purchase
Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will
(internal/functional will be charged for be charged for labor)
parts only) labor)
Noises associated with normal operation and failure to follow instructions found in the use and care
and installation guides or operating the unit in an unsuitable environment will not be covered under
this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty
period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT
AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS
ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT
AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY
OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT
ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL
NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT
DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES
OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY
CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR
OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may
have other rights which may vary from province to province depending on applicable provincial
laws. Any term of this warranty that negates or varies any implied condition or warranty under
provincial law is severable where it conflicts with provincial law without affecting the remainder
of this warranty's terms.
60 WARRANTY
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of
the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of
unauthorized repairs/insta%tion.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical
service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate
or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the
instructions outlined inthe Product owner's manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of
God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the
Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its
intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes,
commercial or industrial use, or use of accessories, components, or cleaning products that are not
approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery.
0. Damage or missing items to any display, open box, discounted, or refurbished Product.
1. Products with original serial numbers that have been removed, altered, or cannot be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
2. Increases in utility costs and additional utility expenses.
3. Replacement of light bulbs, filters, or any consumable parts.
4. Repairs when your Product is used inother than normal and usual household use (including, without
limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined
in the Product owner's manual.
5. Costs associated with removal of the Product from your home for repairs.
6. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including the Product owner's and
installation manuals.
7. Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts
besides those that were originally included with the Product.
8. Service trips to your home to teach you how to use the product.
9. Replacement of the water filter cartridge due to water pressure that is outside the specified
operating range or due to excessive sediment in the water supply.
All costs associated with the above excluded circumstances
shall be borne by the consumer,
For complete warranty details and customer assistance, please call or visit our website:
Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the
menu, or visit our website at http://vcwwJg.com
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
Life's Good
For inquiries or COmFr_eNTS,
visi¢ www_[g_com or c_:_ll;
1-800-243-0000 usA,c..........,e_;<_
1-888-865-3026 usA,co_,......,, u,,÷
1-888-542-2623 CAN/,,_>/,,
