1 / 7
Country of Origin: China
ASSEMBLY INSTRUCTION
Item No.: A304001200
WE HAVE YOU IN MIND, LET US SERVE YOU!
Questions? Issues?
CONTACT US
24 hours / 7 days a week
www.sunjoyonline.com
[email protected]
Production Number: xxxxxxxxxx
background
2 / 7
Warnings
DO NOT use the fireplace to cook food. The fireplace is not designed for grilling food.
DO NOT allow children or pets near the fireplace without supervision.
DO NOT touch the surface of the fireplace while in use as it may cause burns.
NEVER burn in vehicles, tents or indoors. CARBON MONOXIDE HAZARD.
Use a poker and / or heat-resistant gloves to open / close the mesh cover while in use.
DO NOT use water to extinguish as this is dangerous and can cause damage to the fireplace.
Burn only untreated wood or fire logs in this fireplace.
DO NOT use gasoline or kerosene to start the fire in this fireplace.
Only place/use this fireplace on stable and non-combustible surfaces.
DO NOT attempt to move the fireplace while it is hot or in use.
Place the fireplace no closer than 8' (2.4 m) from walls or combustibles during use.
This Fireplace is intended for outdoor use only. NEVER LEAVE A FIRE UNATTENDED.
Adequate fire extinguishing material should be readily available.
Always ensure that the mesh cover is secured over the fireplace while in use.
The poker handle may become hot during and after use.
Check local fire regulations and municipal by-laws for information regarding the safe use of this fire bowl.
The maximum amount of firewood should be stacked no higher than 1/3 of the fireplace chamber inside height.
NEVER leave a burning fire unattended when in use. Always extinguish fire completely before leaving it. DO NOT
COVER THE UNIT UNTIL FIRE HAS BEEN EXTINGUISHED FOR 24 HOURS.
Always use caution while using your fire place.
DO NOT attempt to storage wood or fire logs on the rack under the fireplace while it is hot or in use. This rack is
for storage wood or fire logs when the fireplace is COMPLETELY out and cool to touch, or when it’s not in use.
background
3 / 7
A
B
C
D
G1
F1
I
J
K
H
Exploded Drawing
background
4 / 7
Label Part Number Description Qty Part Image
A
P000900085
Chimney 1
B
P000300048
Top 1
C
P007900044
Body 1
D
P002800026
Grate 1
G1
P003000013
Ash Tray
1
F1
P000100284
Base
1
H
P002700014
Porker 1
I
P000100287
Side Table Top 2
J
P000100285
Upper Side Base 2
K
P000100286
Lower Side Base 2
Parts List
background
5 / 7
Label Part Number Description Qty Part Image
AA
H010020011
Bolt M6*15 8
BB
H050030001
Flat washer M6 8
CC
H090010017
Wrench M6 1
Hardware Pack
Fig.2:PlaceBody(C)ontobase(F1)
Fig.1:PutGrate(D)inAshtray(G1),theninsert
theAshtray(G1)intoBase(F1).
Assembly Steps
background
6 / 7

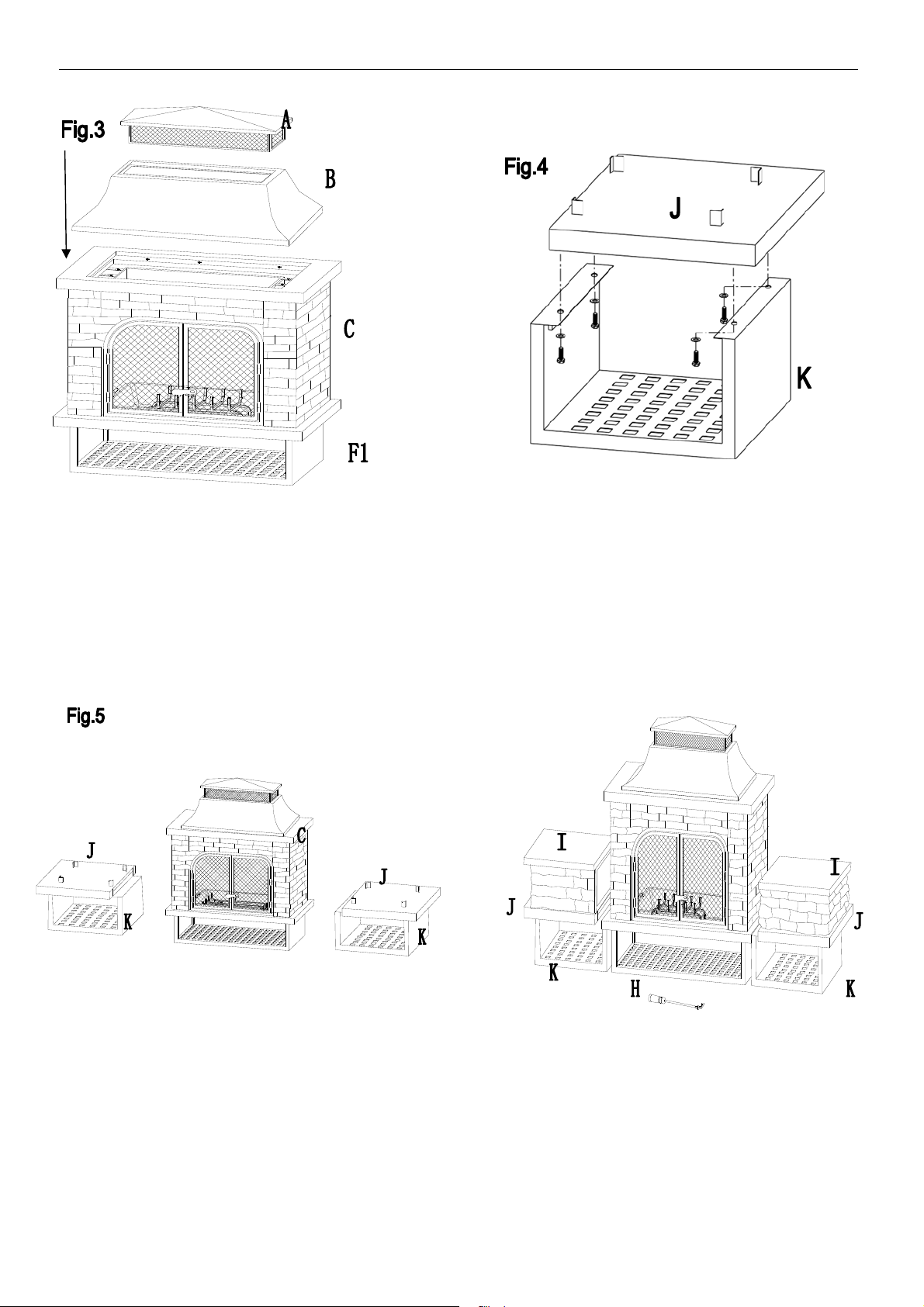

Fig.3:Puttop(B)onbody(C)andchimney
(A) ontop(B)inorderasFig.3
Fig.4: Attach upper side base (J) and lower
sideb
ase(K)withbolt(AA)andflatwasher
(BB),asFig.4
Fig.5:Inserttheassembledsidebase(K)into
Body(C).
Fig.6:Putthesidetabletop(I)onassumedside
base(J&K).(Note:Thetabletopsidewithoutstone
shouldfacethebody).UsePoker(H)asnecessary.
Now,yourfireplaceisreadyforuse.
Fi
g
.6
background
7 / 7
Lighting
• Makesurethereisonlyasmallamountofashinthebottomofthebowl.
• Placealayerofdryseasonedhardwoodthatcoversnomorethan3/4ofthebowl.
• Useamatchtolightkindlingorfirestarter.
•
Usethepokerthatisprovidedtooperate.Pleasewearheat‐resistantglovesduringuse.
Extinguishing
• Allowfire toburnitselfout.
•
DONOTusewatertoextinguishasthisisdangerousandcandamagethisfireplace.
Cleaning
• Thisfireplaceshouldbecleanedonaregularbasistopromotesaferexperienceandlongproductlife.
• DONOTattempttocleanthisfireplaceuntilthefireisCOMPLETELYoutandcooltotouch.
•
DONOTuseovencleanerorabrasivecleanerasthiswilldamagethefirebowl.
Storage
• DONOTmoveorstorethisfireplaceuntilthefireisCOMPLETELYoutandcooltotouch.
• Storethefireplaceinadrylocationtomaximizeproductlife.
• Storeassembledfireplaceinalocationawayfromchildrenandpets.
Thislimitedwarrantyisextendedtotheoriginalpurchaserandappliestodefectsinmaterialandworkmanshipof
youritemprovidedtheitemismaintainedwithcareandusedonlyforpersonal,residentialpurposes.The
manufacturerSunjoyGroupwarrantsthisitemisfreeofdefectsinmaterialandworkmanshipforaperiodofONE
YEAR.Ifanydefectisfound,pleasecallourSunjoyGroupcustomerservicedepartmentat
[email protected]forhelp.ThemanufacturerSunjoyGroupwillnotcovertransportationor
deliverycostsorcompensatetheindividualoranyoutsidepartyforassemblingordisassemblingtheproduct.
Caution!
Checkallscrewsandnutsperiodicallyfortightness,fasteningthemagainasrequired.
LIMITED WARRANTY
Cleanin
g
and Maintenance
Production Number: xxxxxxxxxx
Country of Origin: China
