4. Once connections of
wires are completed, carefully
tuck wires and wire nuts into
the electrical box making sure
no bare wire (on the black
and white) is visible at the
wire nuts. Install the
mounting pan to the
mounting bracket through
the stud and tighten by star
washer, hex nut and cap nut.
5. Remove spinner nut from
socket. Position glass on
lamp and secure with spinner
nut.
6. Install the specified bulb
type and wattage.

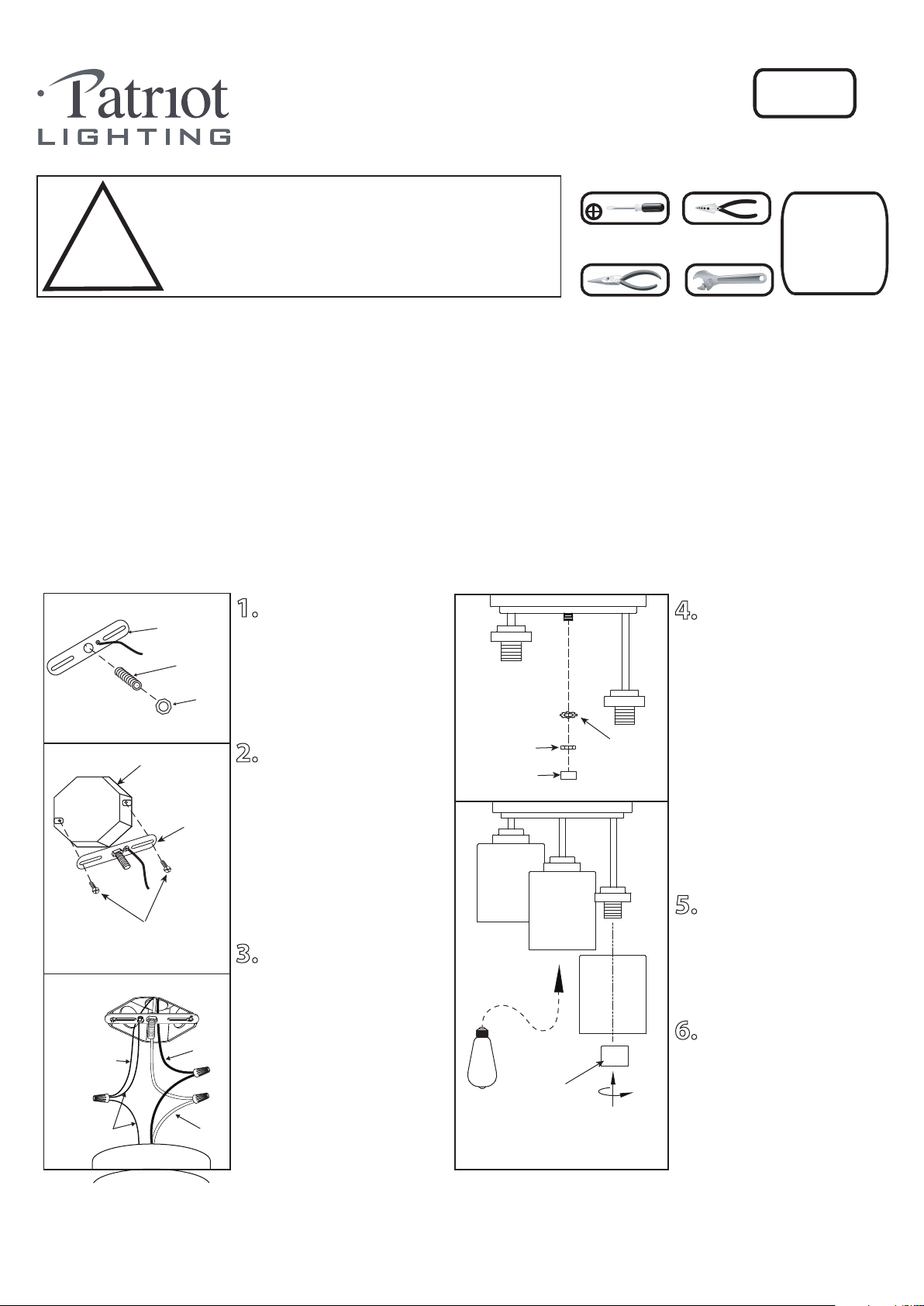

1.
Attach stud to
mounting bracket. Adjust so
it will clear hole in back of
fixture and then lock stud in
place with hex nut.
2.
Attach mounting
bracket to electrical box with
electrical box screws (not
included).
3. Connect the ground
wires (bare copper or green)
from your fixture to the
ground wire (bare copper or
green) or ground screw in
the electrical box. Connect
the black wire (or wire with
marking) from the fixture to
the black wire in the
electrical box and connect
the white wire from the
fixture to the white wire in
the electrical box.
INSTALLATION:
TOOLS AND MATERIALS REQUIRED:
SAFETY PRECAUTIONS:
Phillips
Screwdriver
Wire Cutters
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.
4. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
Pliers Wrench
CEILING MOUNT
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Electrical
Box
Star
Washer
Cap Nut
Mounting
Bracket
Stud
Mounting
Bracket
Hex
Nut
Spinner
Nut
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
NOTE: Product may not look exactly as shown in figures.
Electrical Box Screws
(not included)
Bulb
Hex Nut
White
Black
House
supply
Ground
wire
Fixture
Ground wire
QUESTIONS OR CONCERNS CONTACT PATRIOT AT: 1-800-267-4427 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T. or email to: guestser[email protected]
351-4478
07/15
