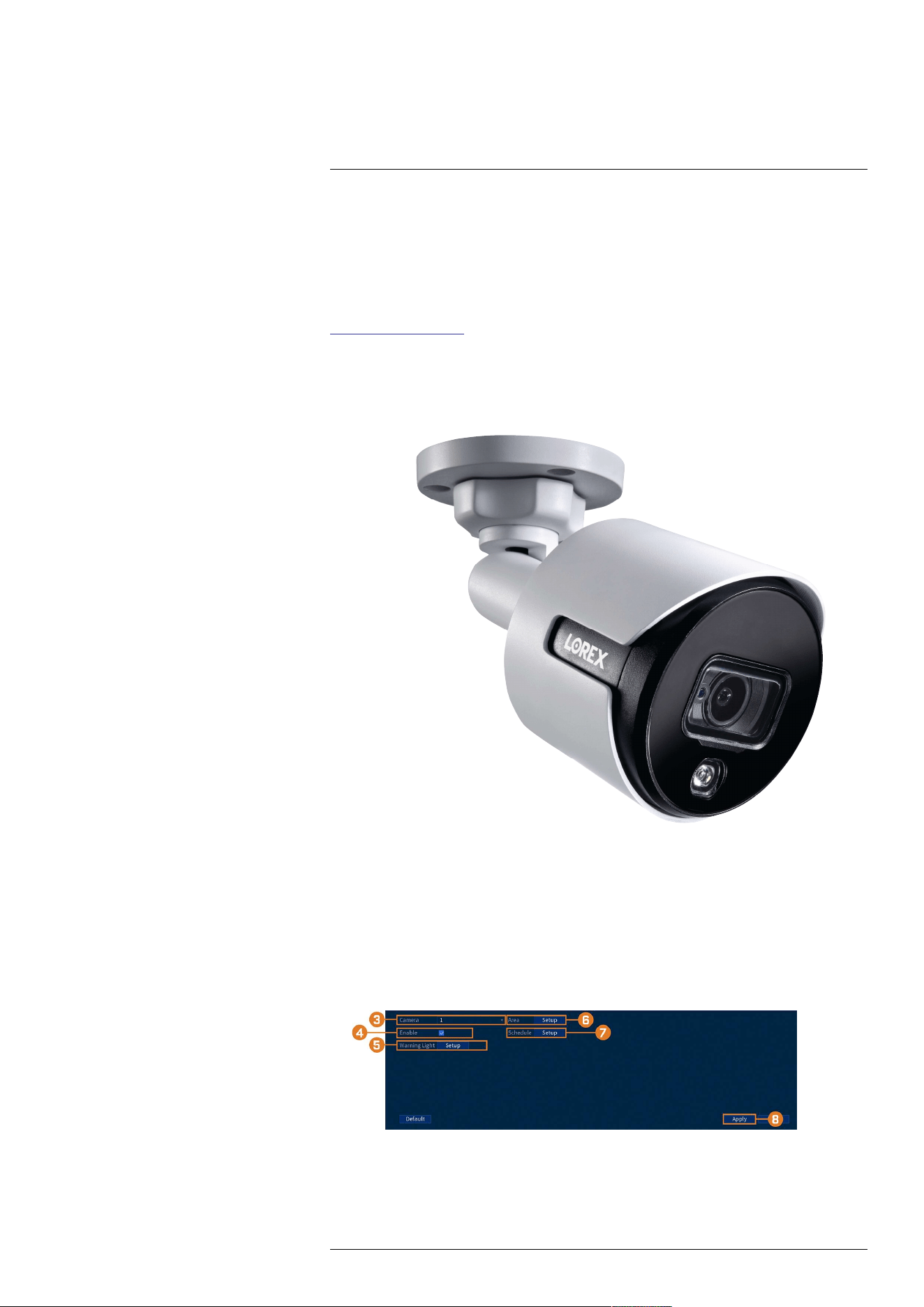

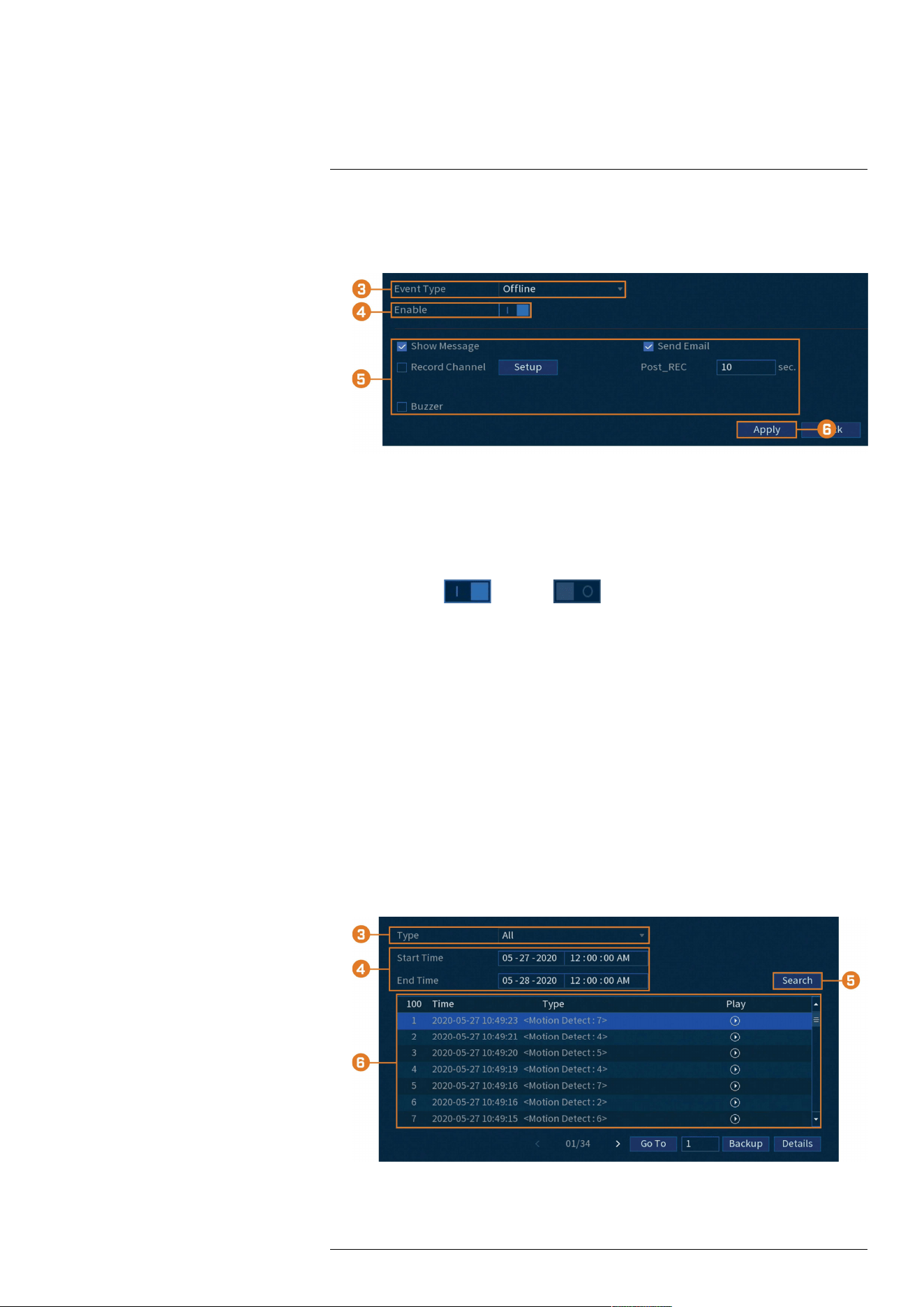

User Manual Lorex D861A81T-88CA 4K Indoor/Outdoor Analog Wired Security Camera System, Ultra HD Bullet Cameras with Motion Detection Surveillance, Color Night Vision & Smart Home Compatibility, 1TB 8 -Channel DVR, 8 Cameras

Documents for Lorex D861A81T-88CA

The following documents are available:

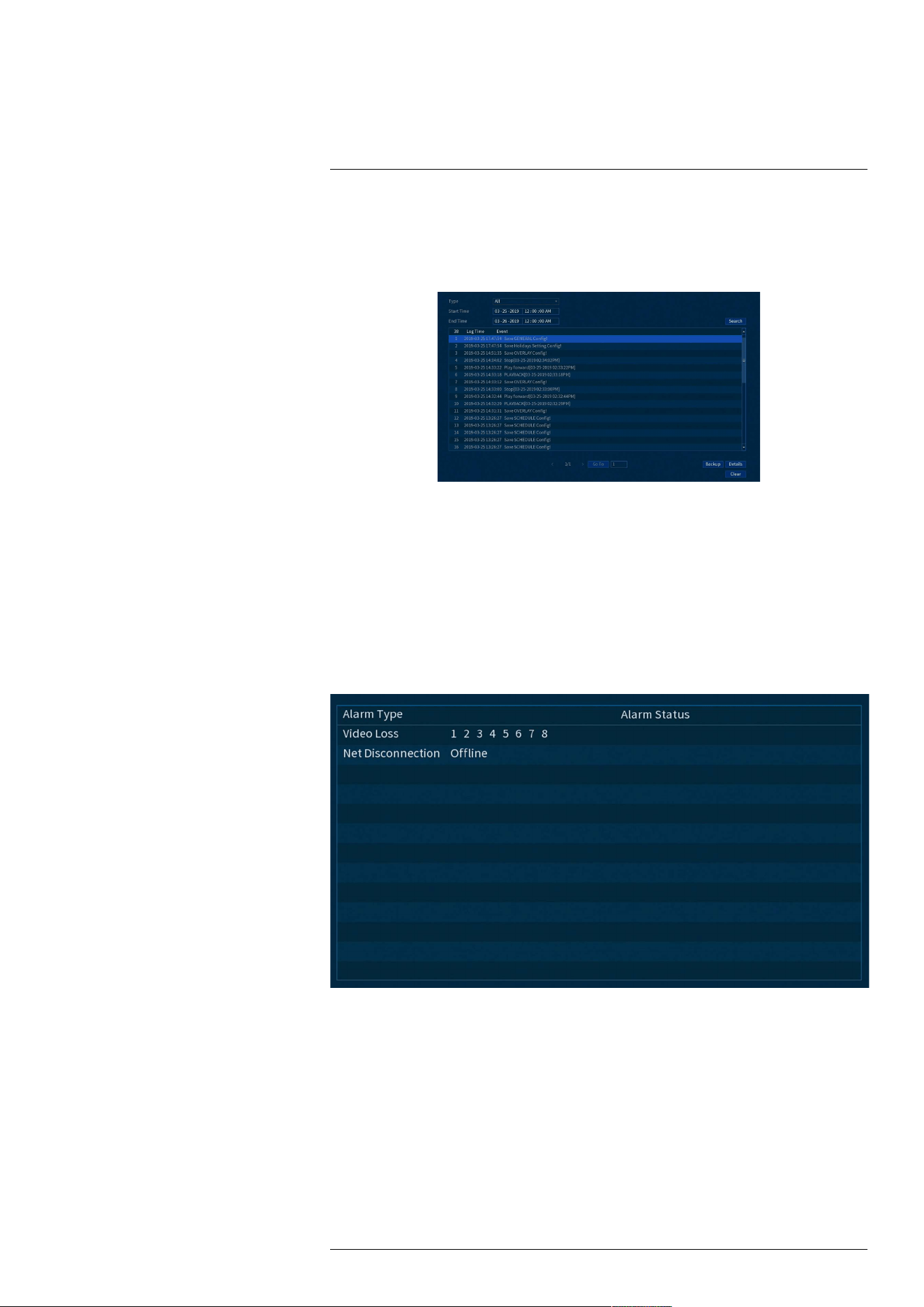

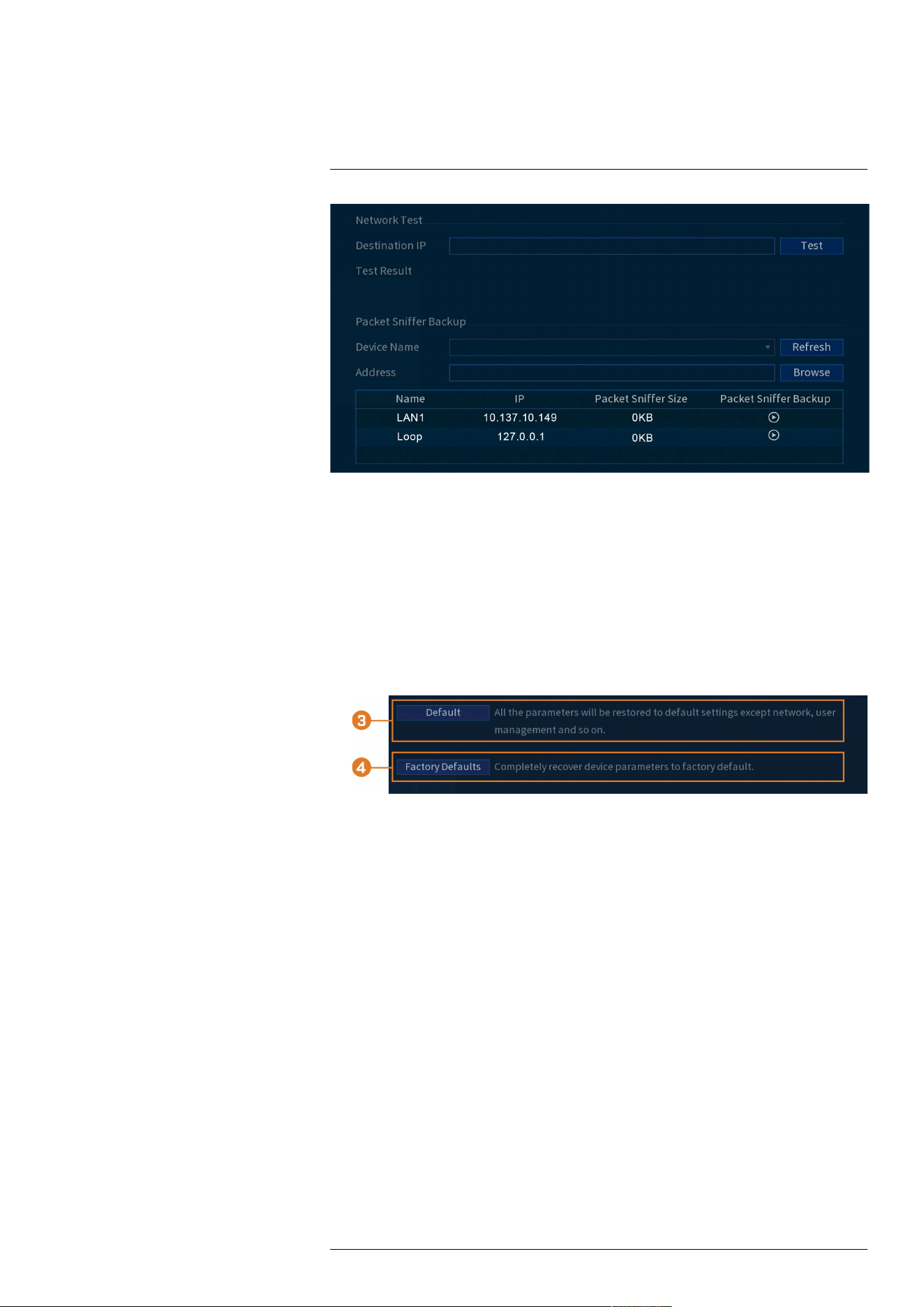

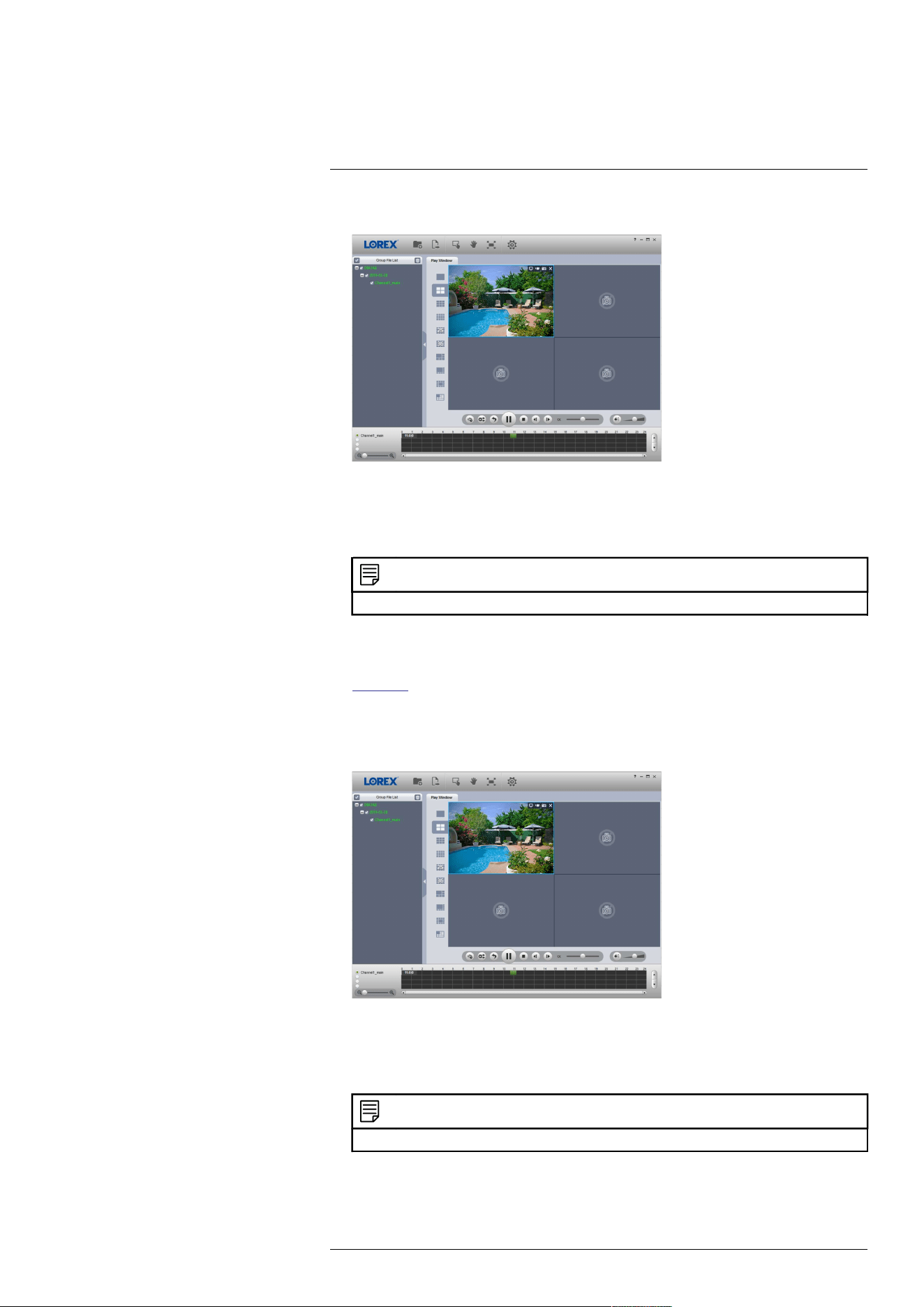

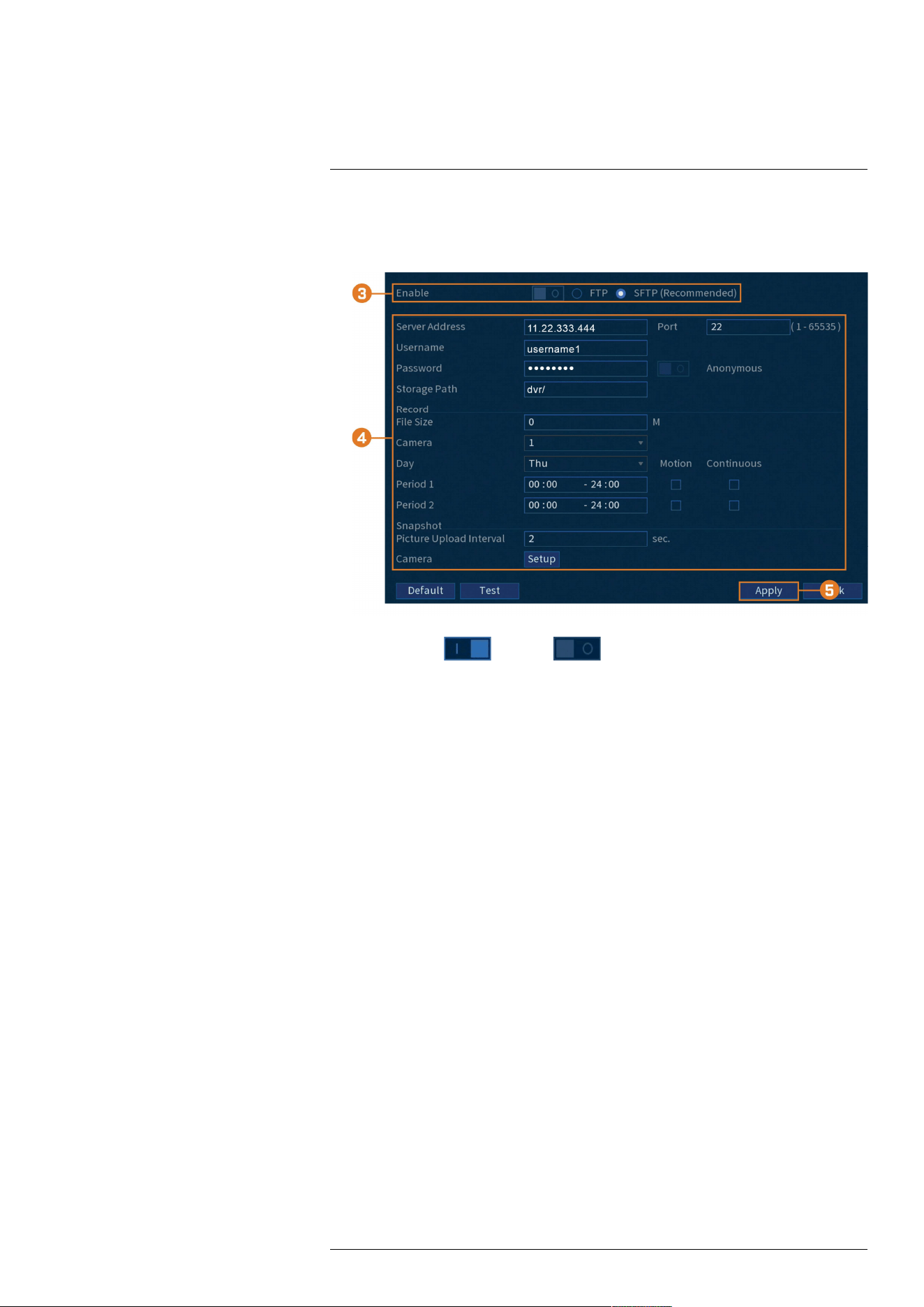

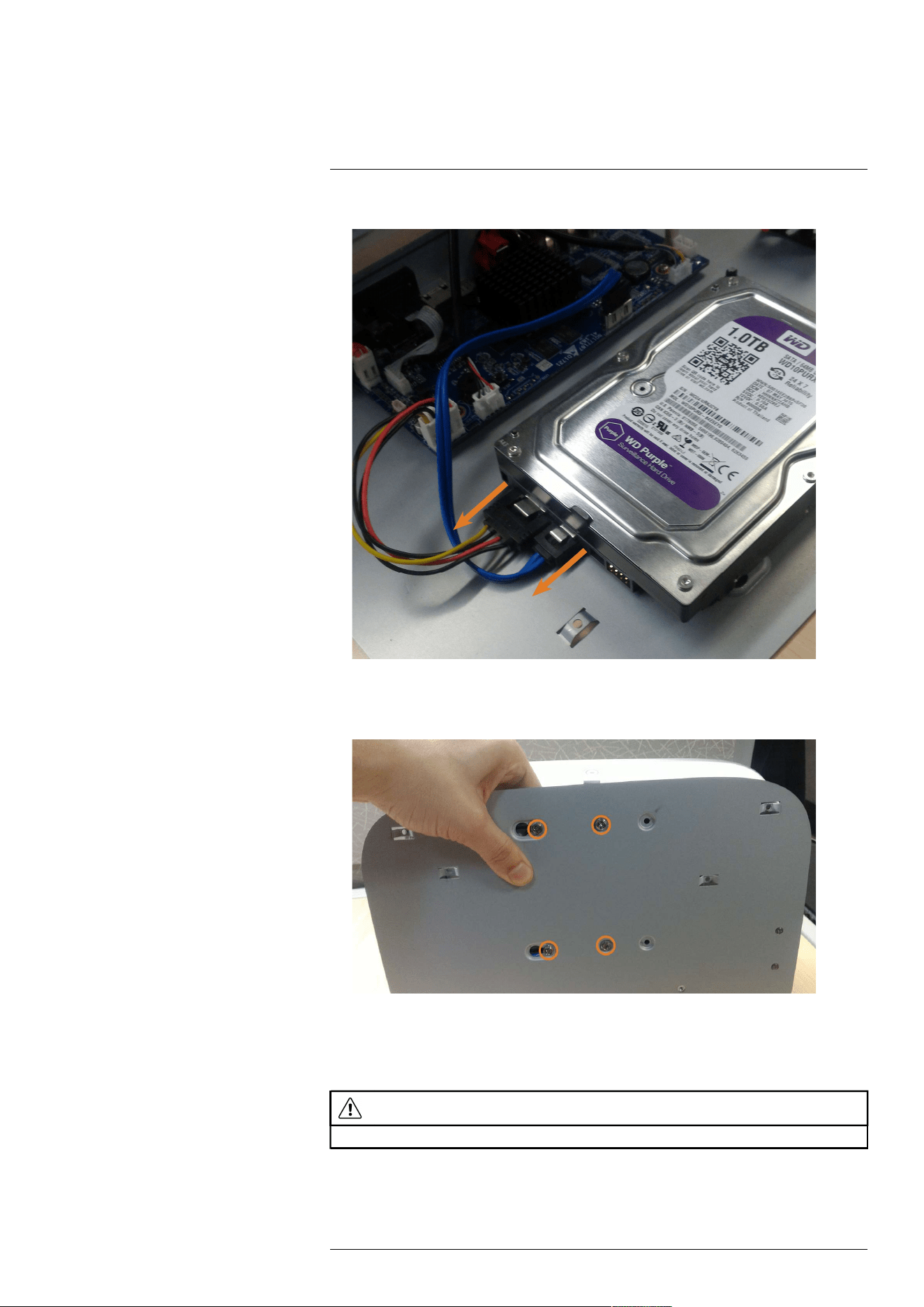

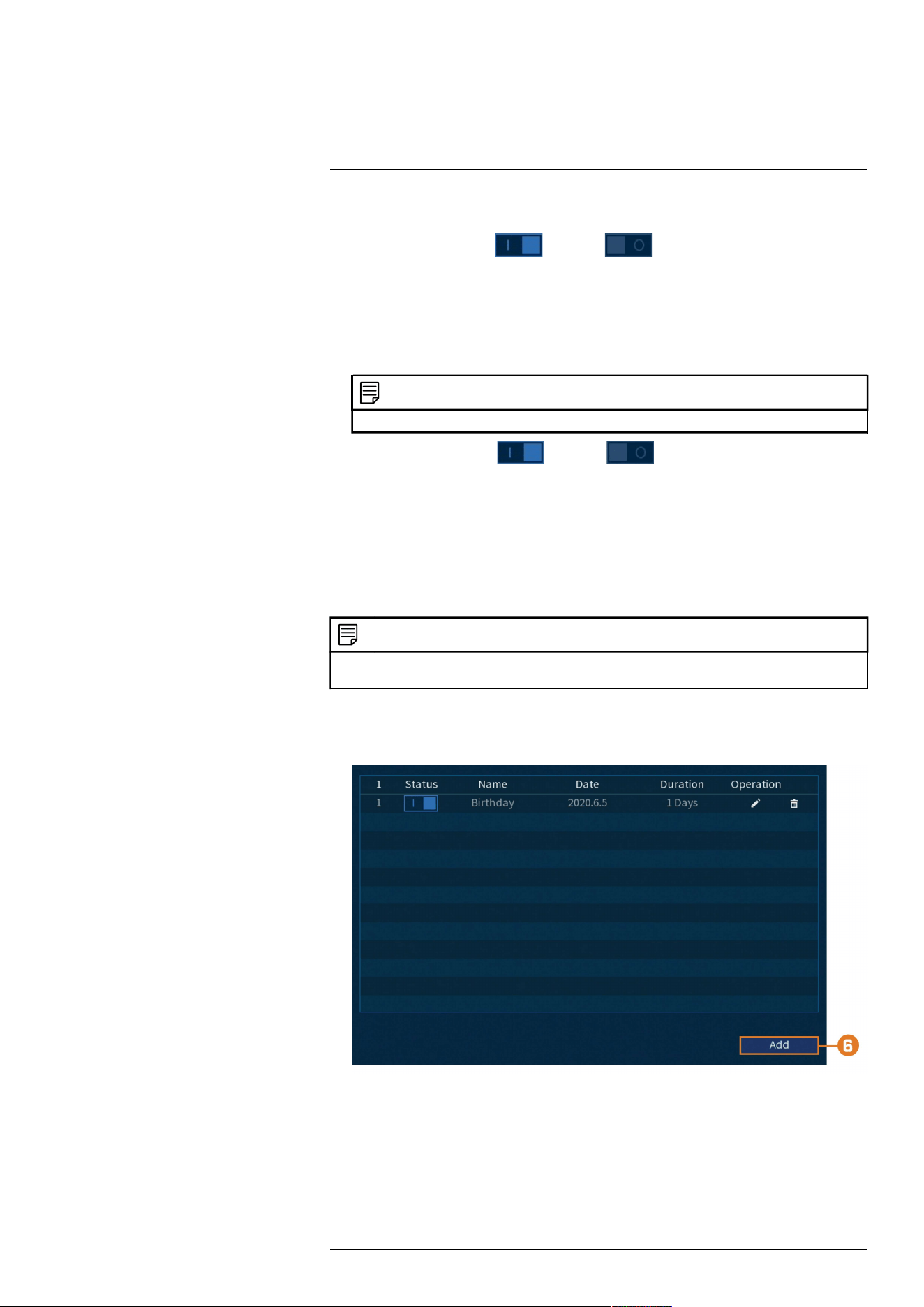

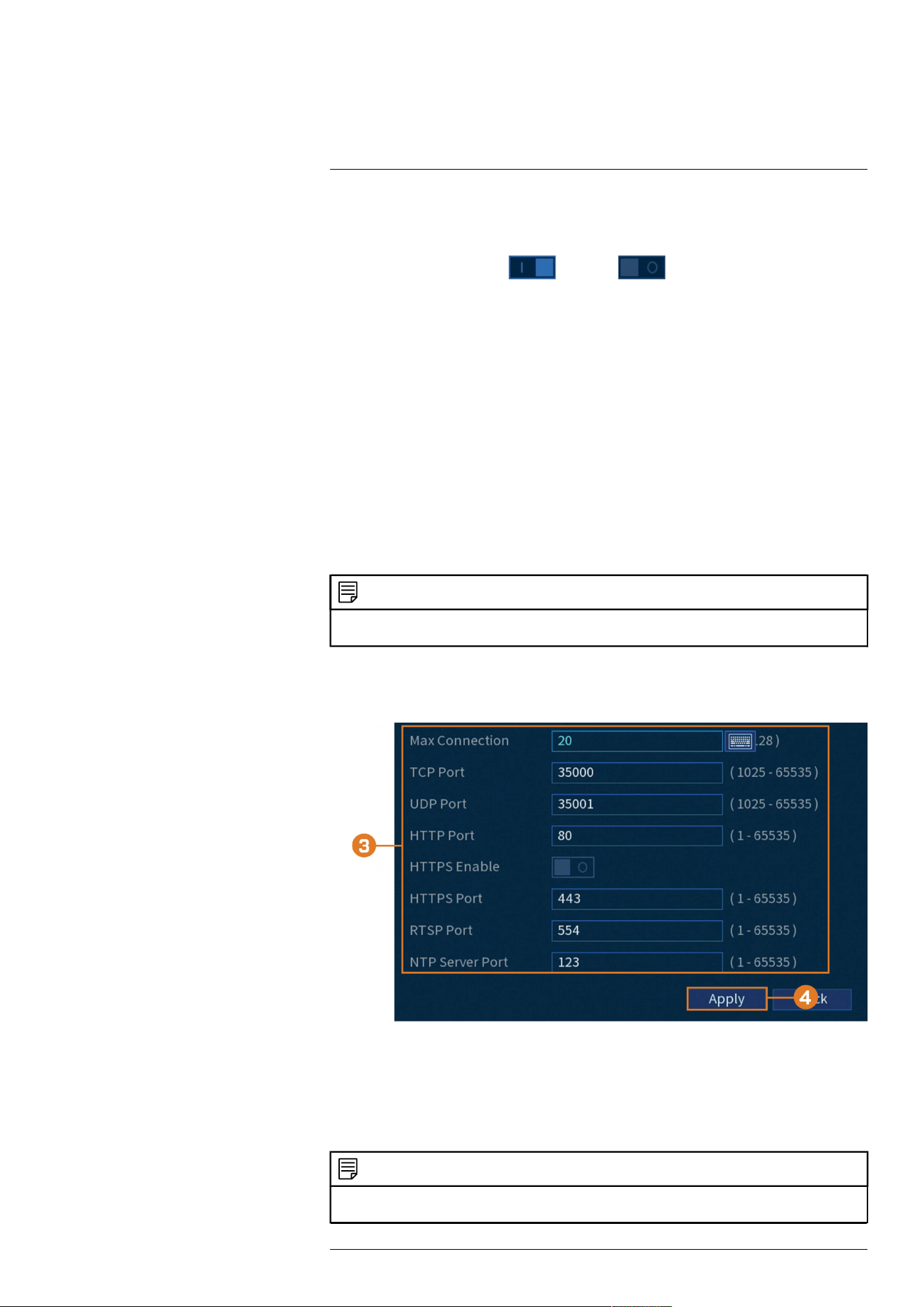

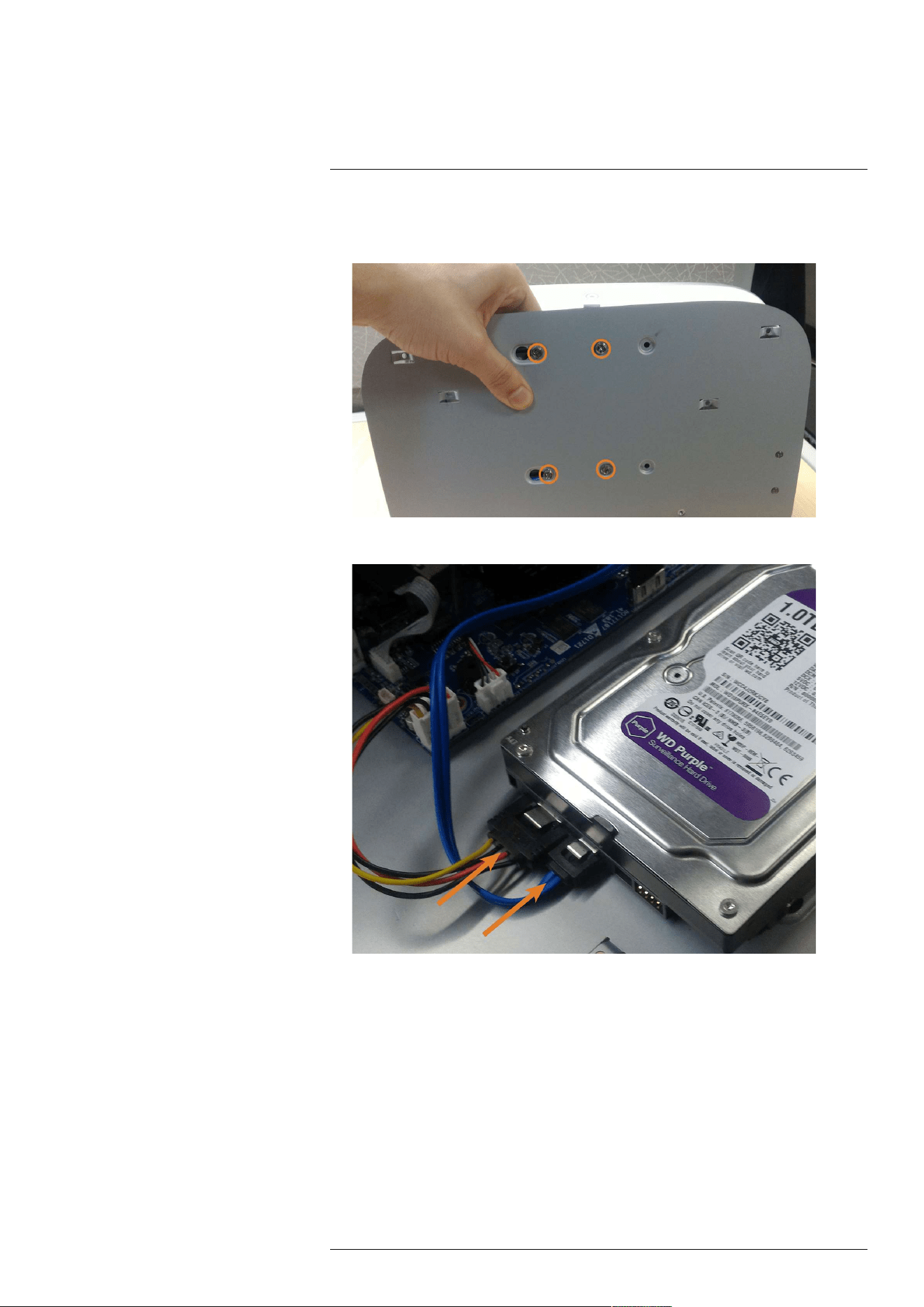

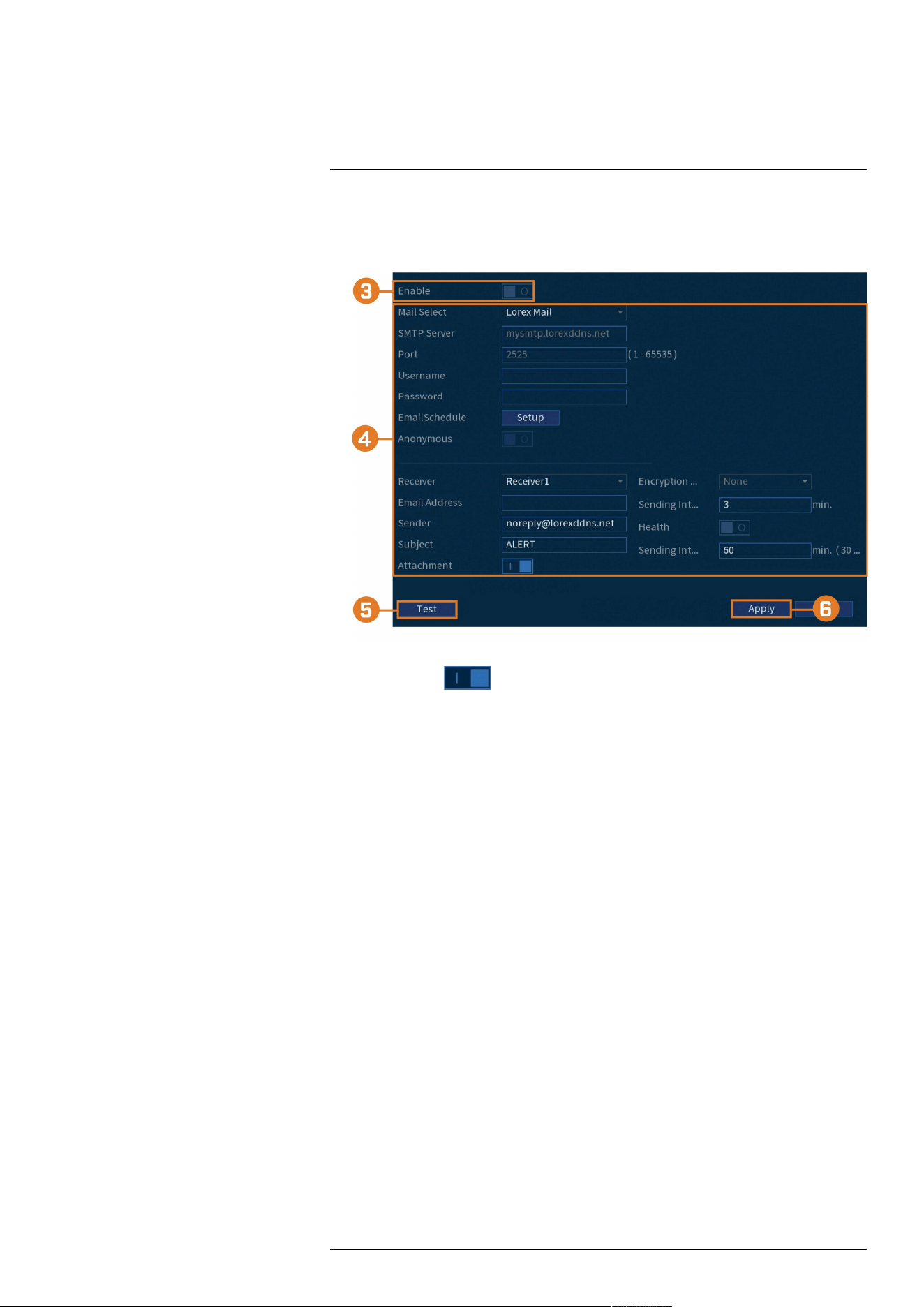

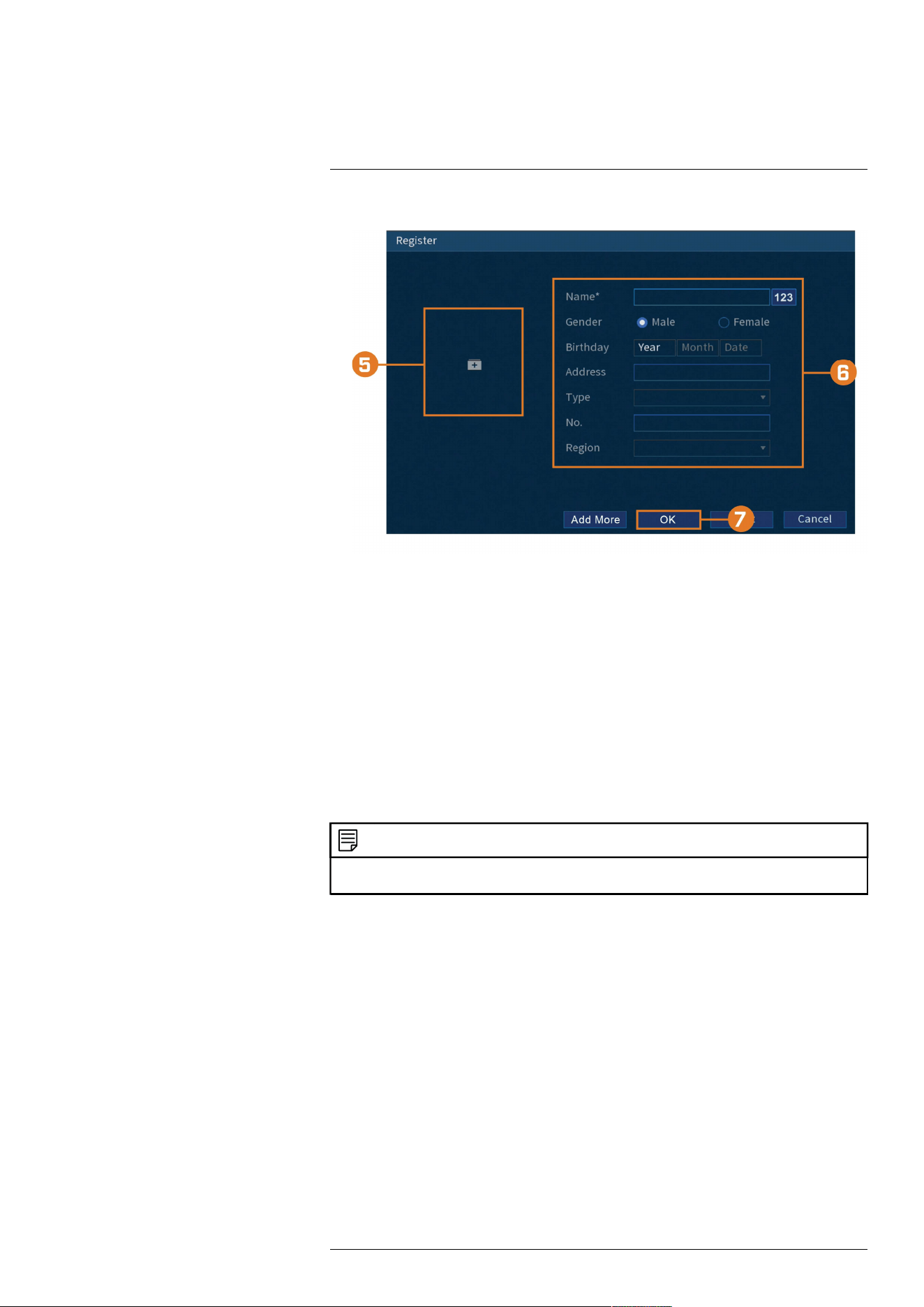

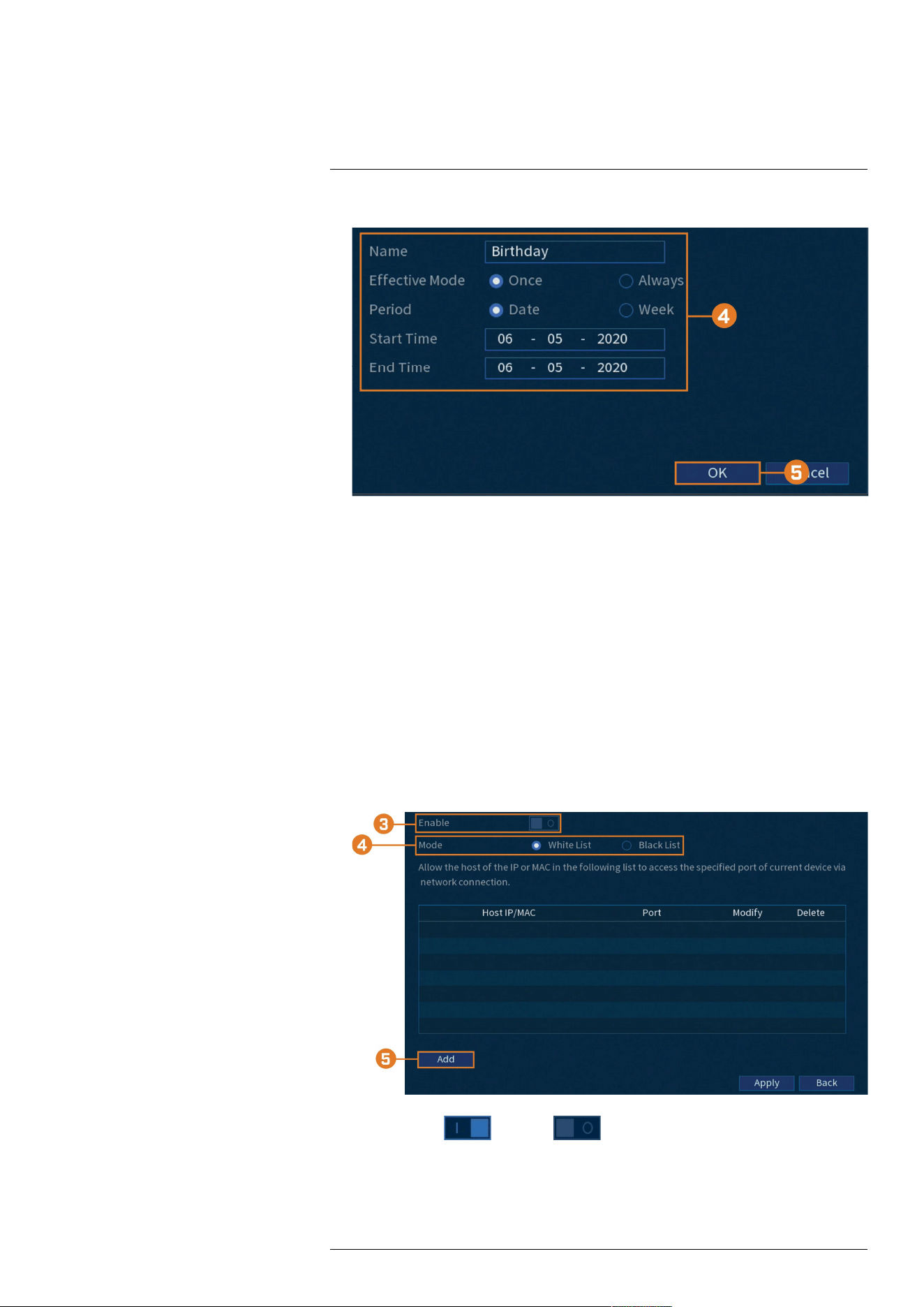

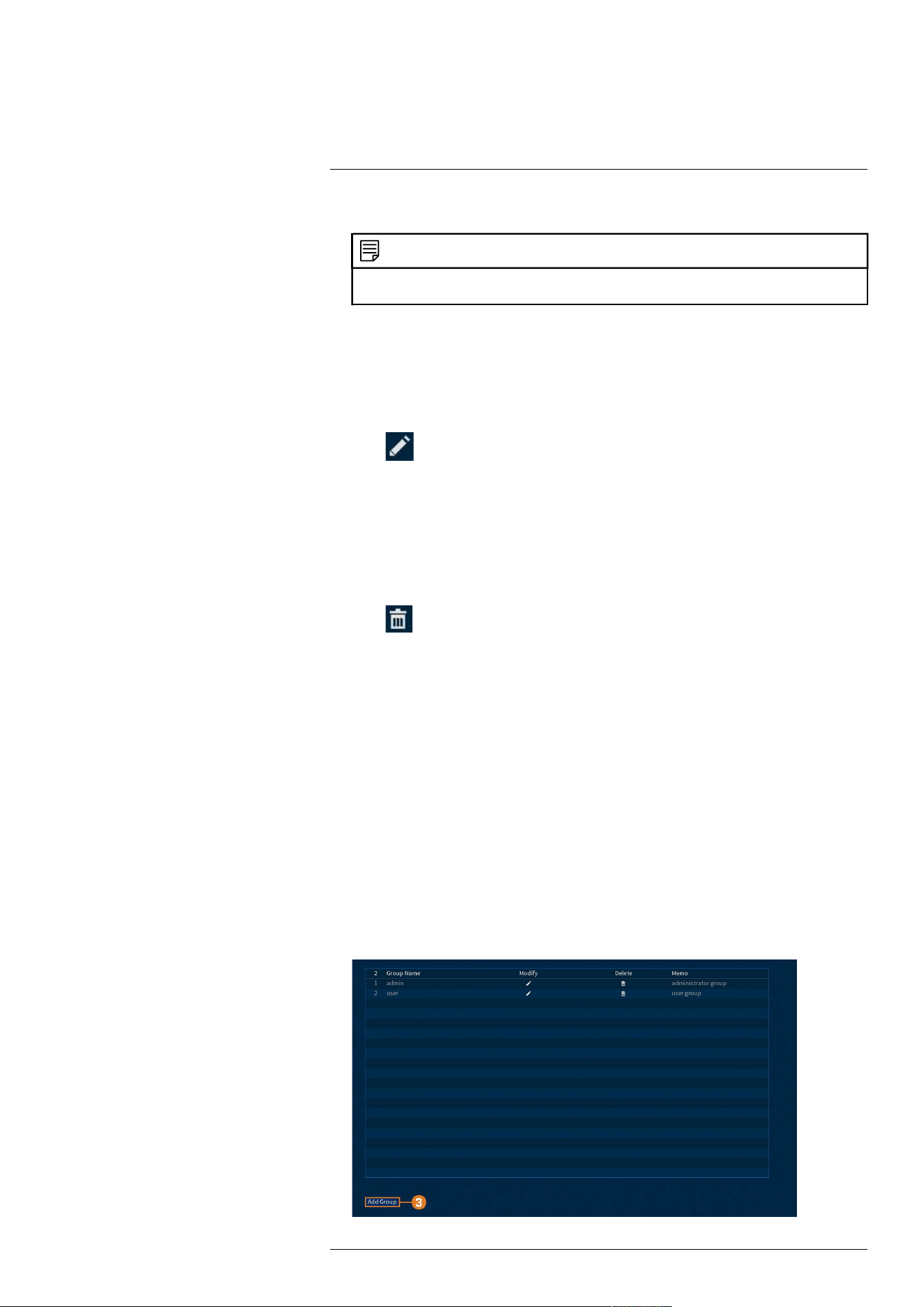

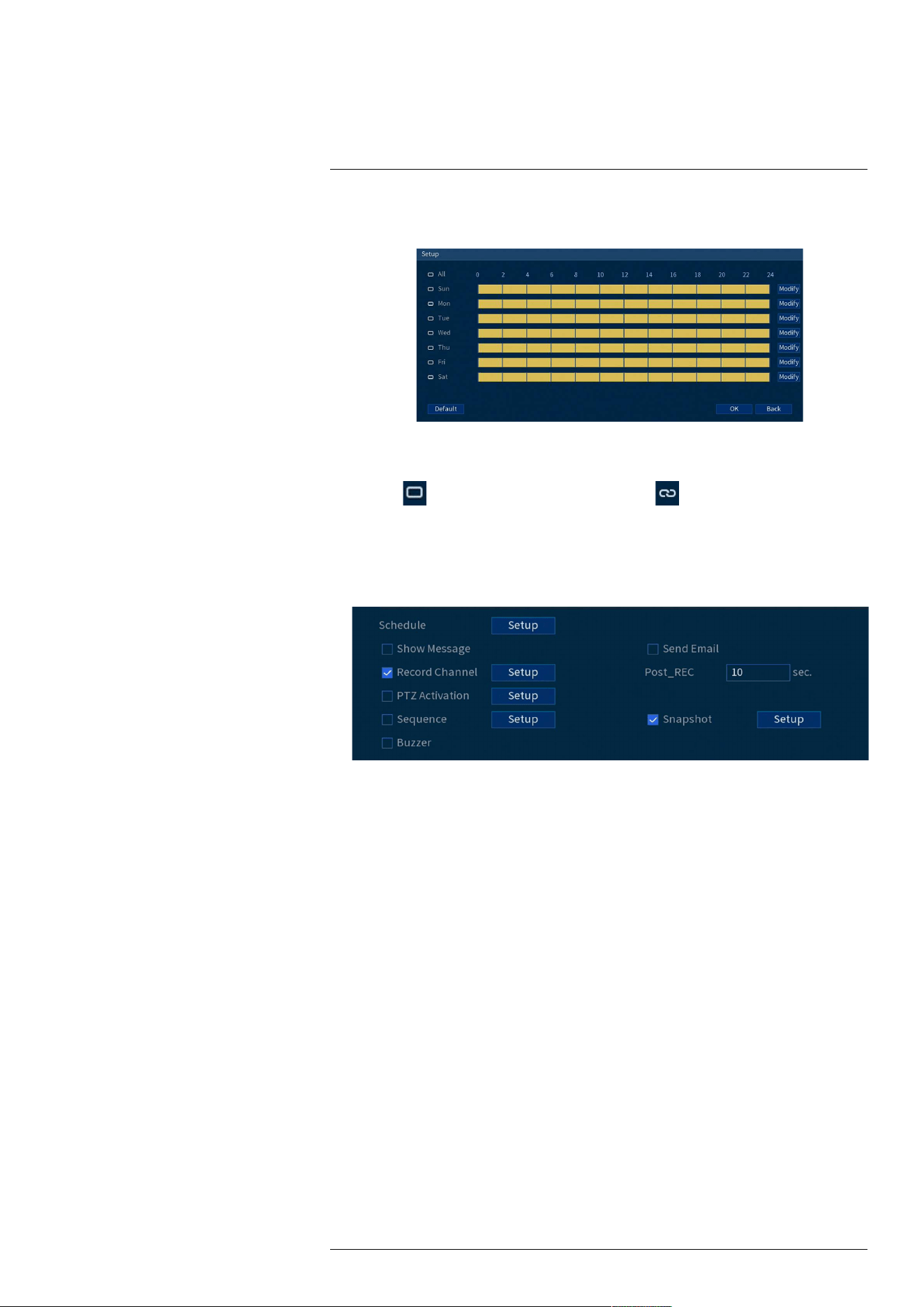

User Manual Other Documents
  • Specification Sheet - (English) Download
Photos
D861A81T-88CA photo

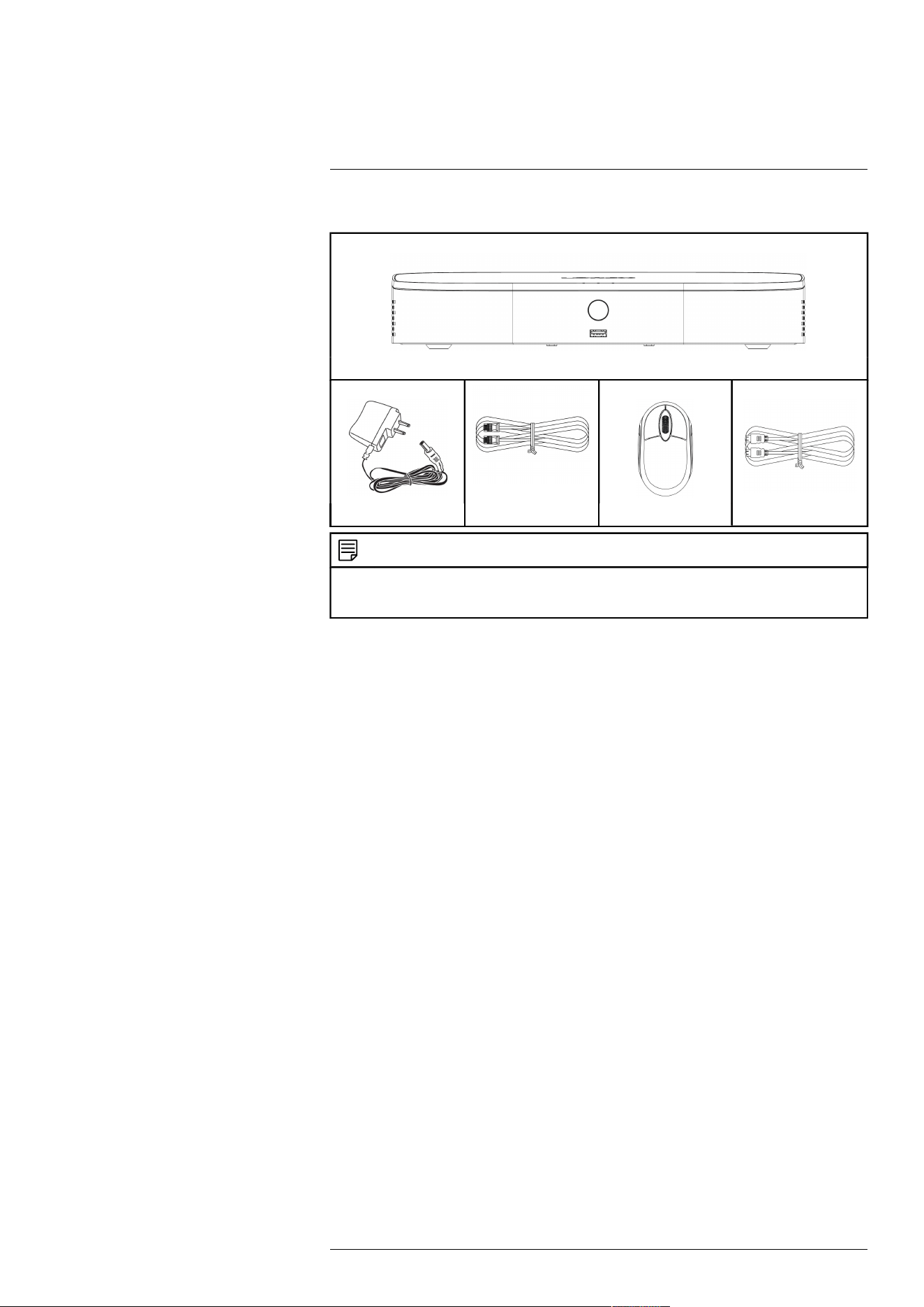

Package Contents
D861B_QSG_EN_R1
USB MouseEthernet CablePower Adapter HDMI Cable

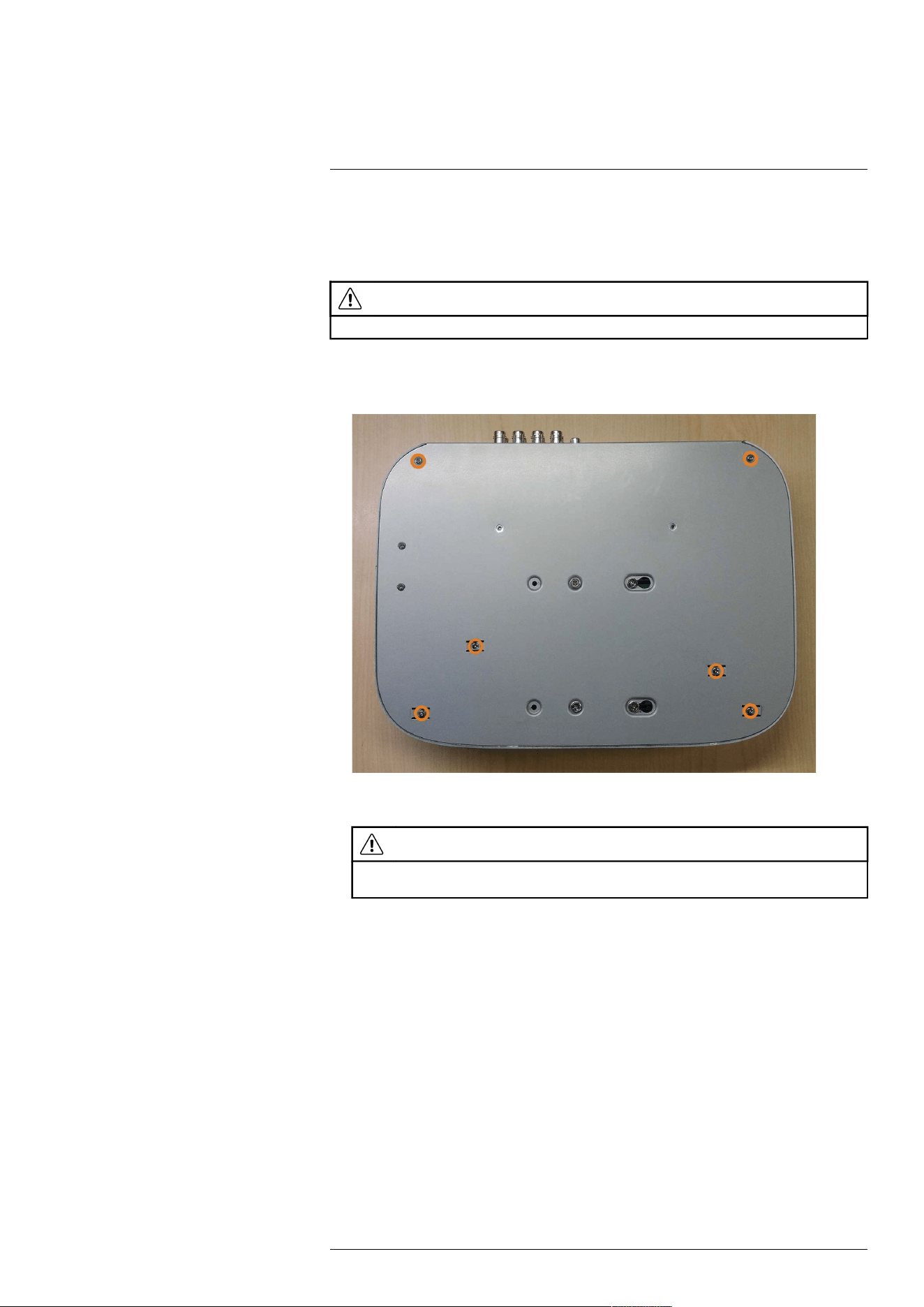

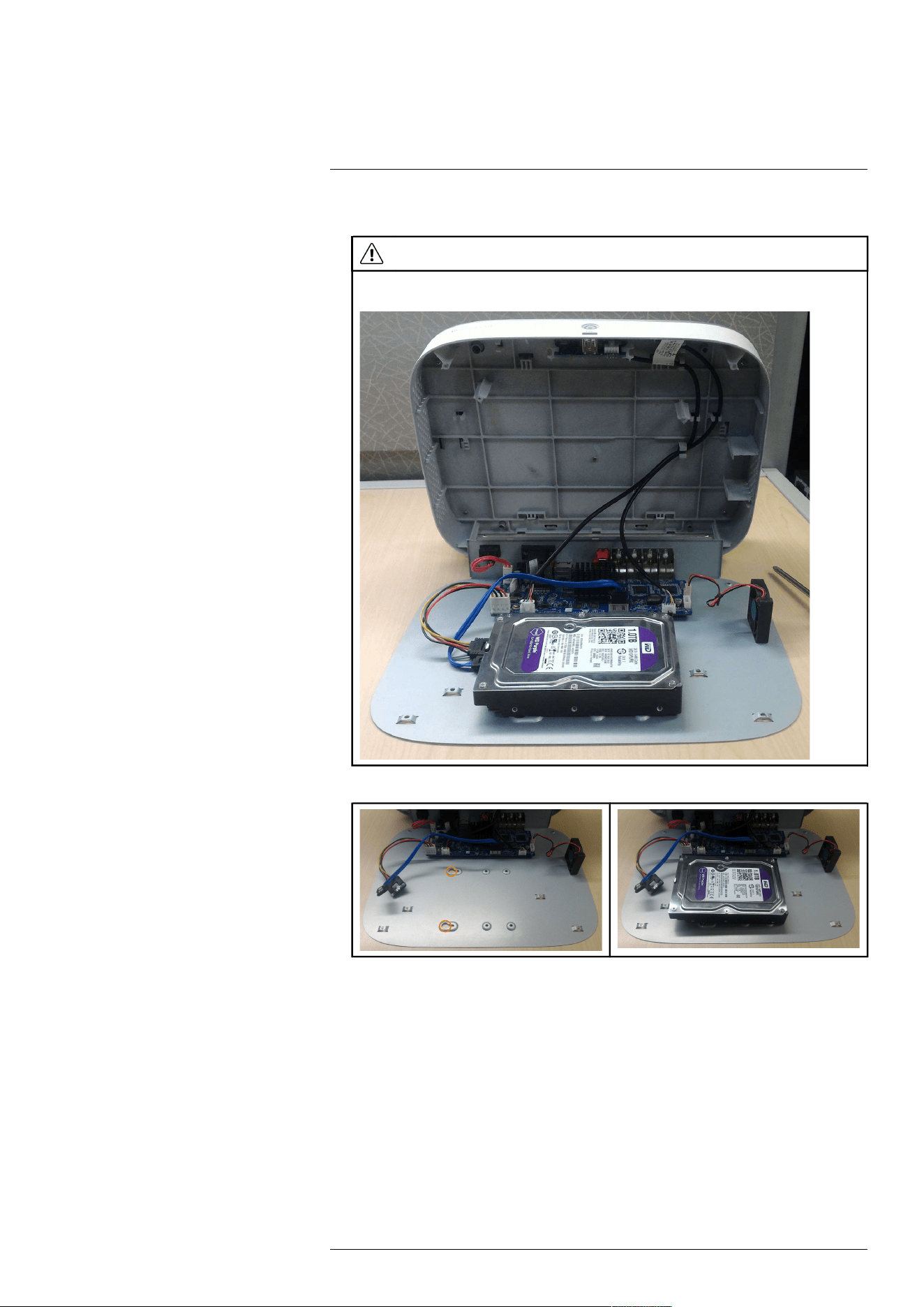

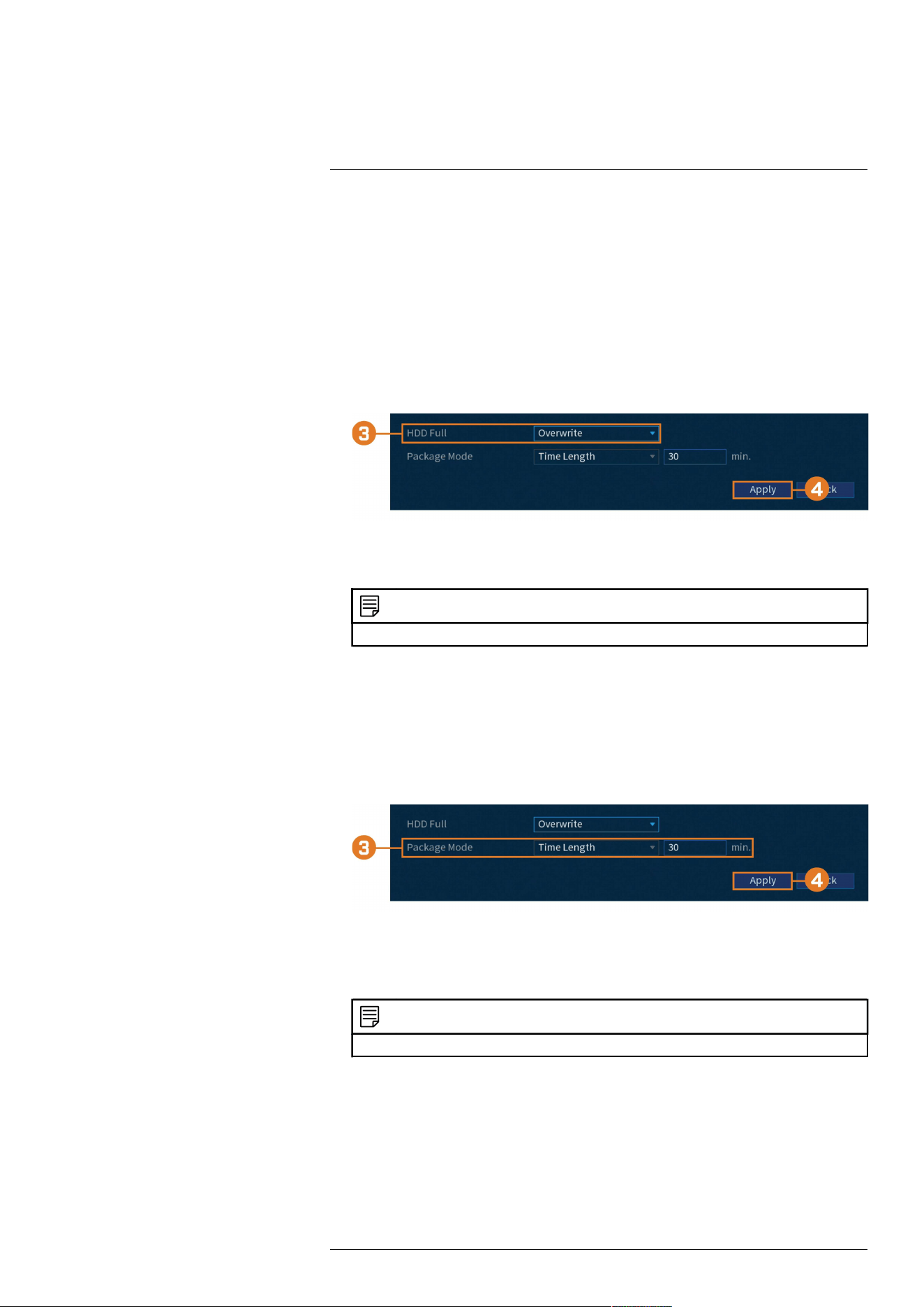

4K Ultra HD Security DVR
Dimensions
Test your cameras prior to selecting a permanent mounting location by temporarily connecting the
cameras and cables to your DVR.
D861B Series
Quick Setup Guide
Physical setup of the recorder and essential system settings
1 / 2

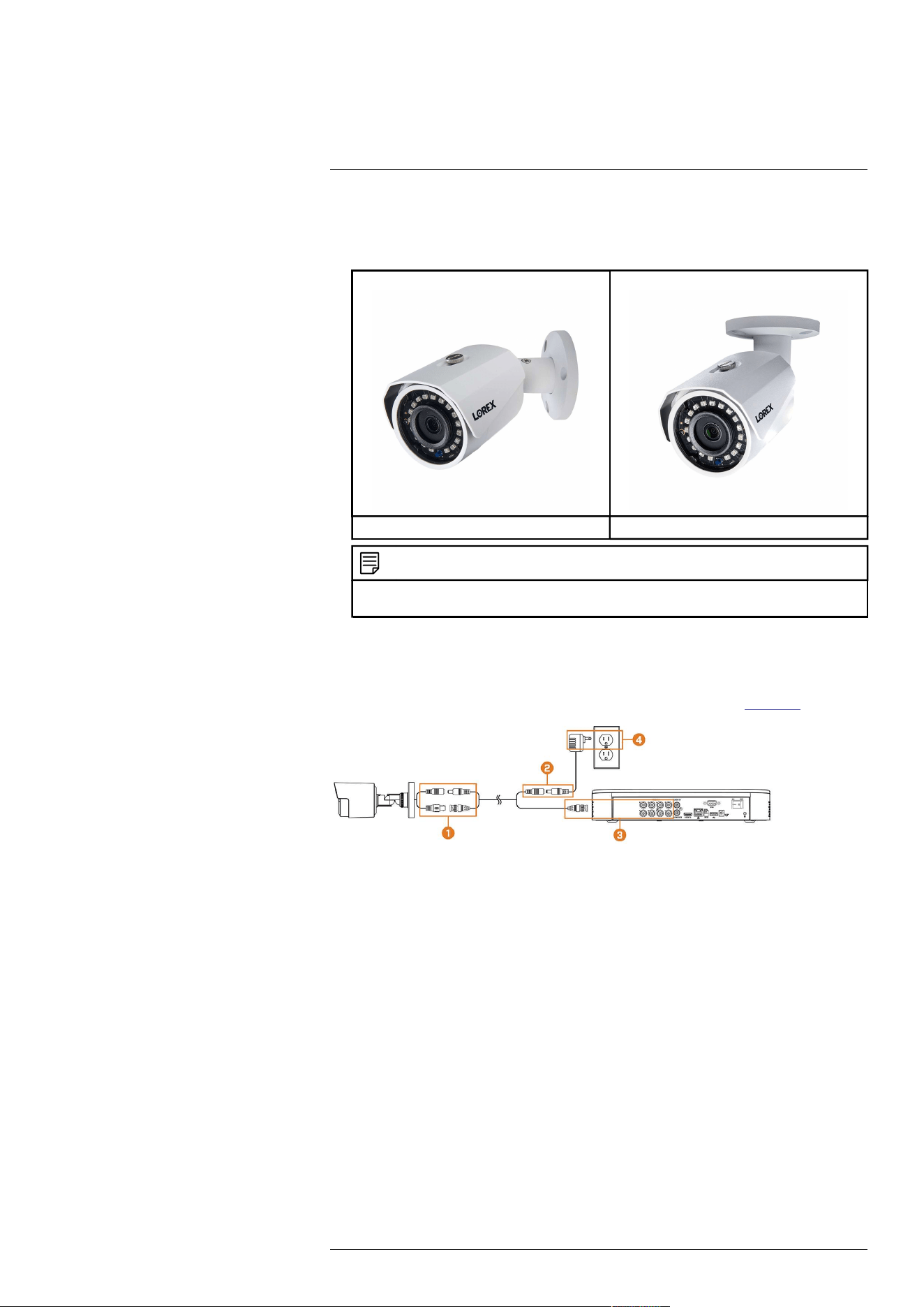

STEP 1: Connect cameras*

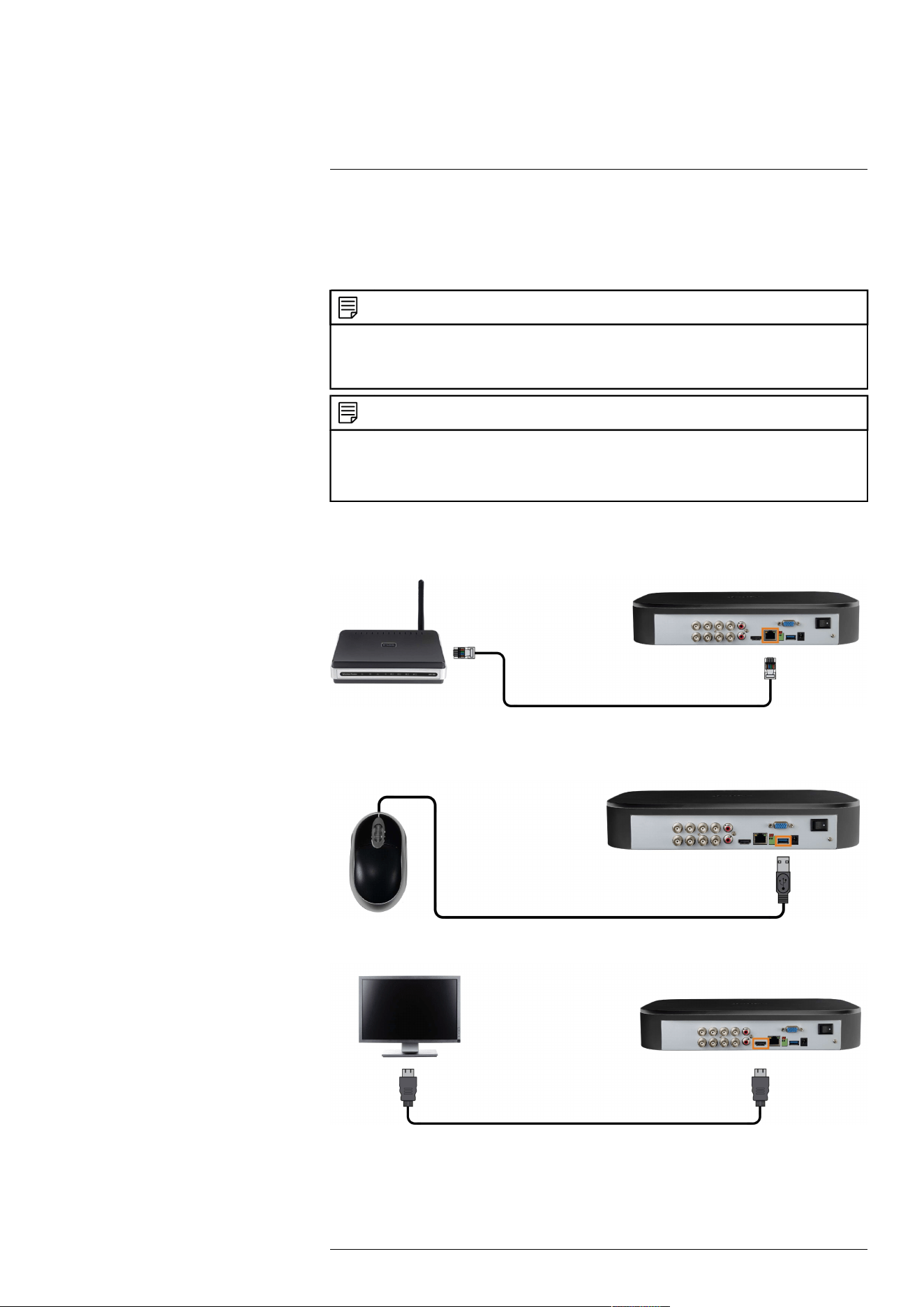

Connect the recorder to your router using the included Ethernet cable.

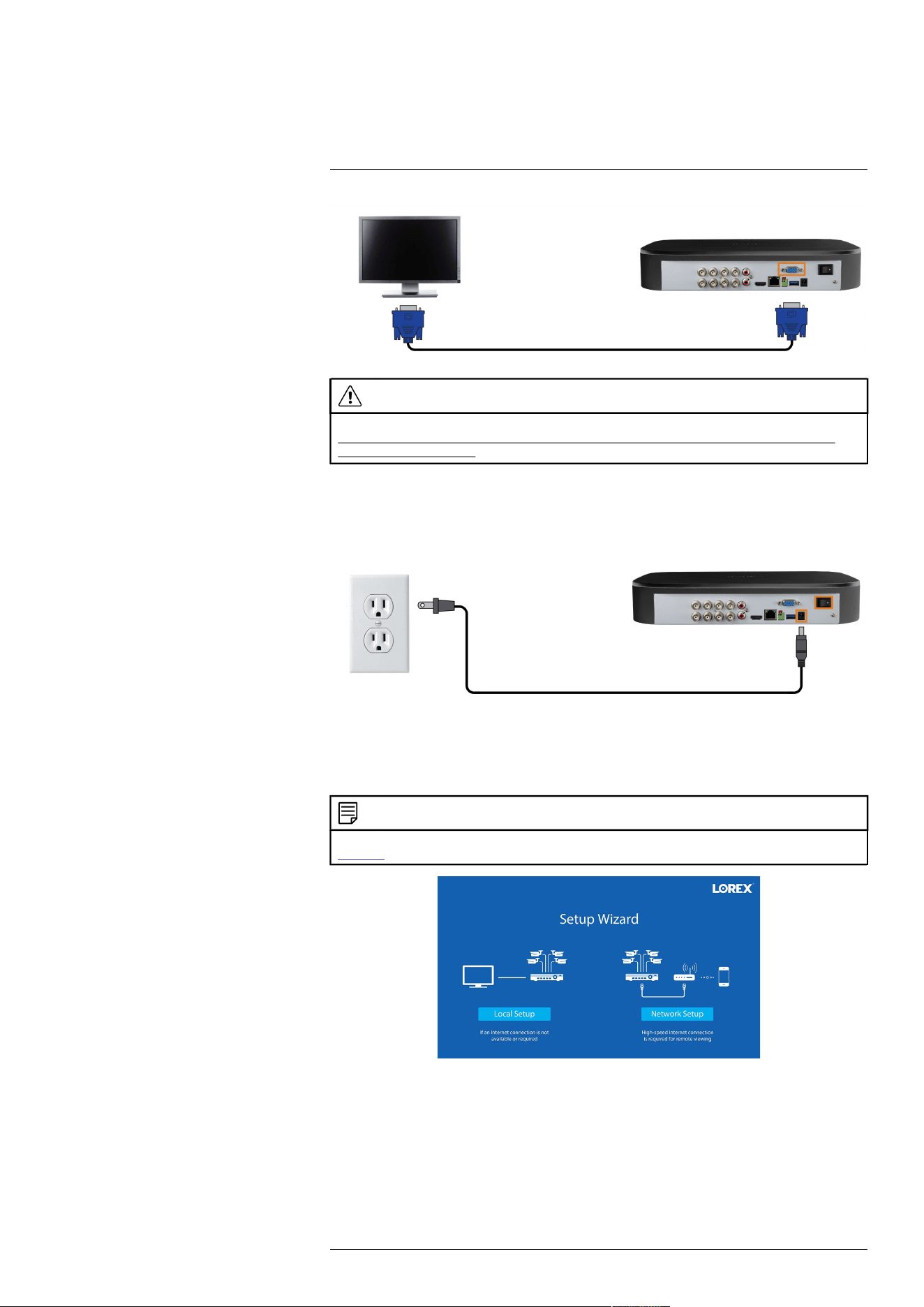

Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not included). The
HDMI port supports up to 4K resolution, and VGA supports up to 1080p.

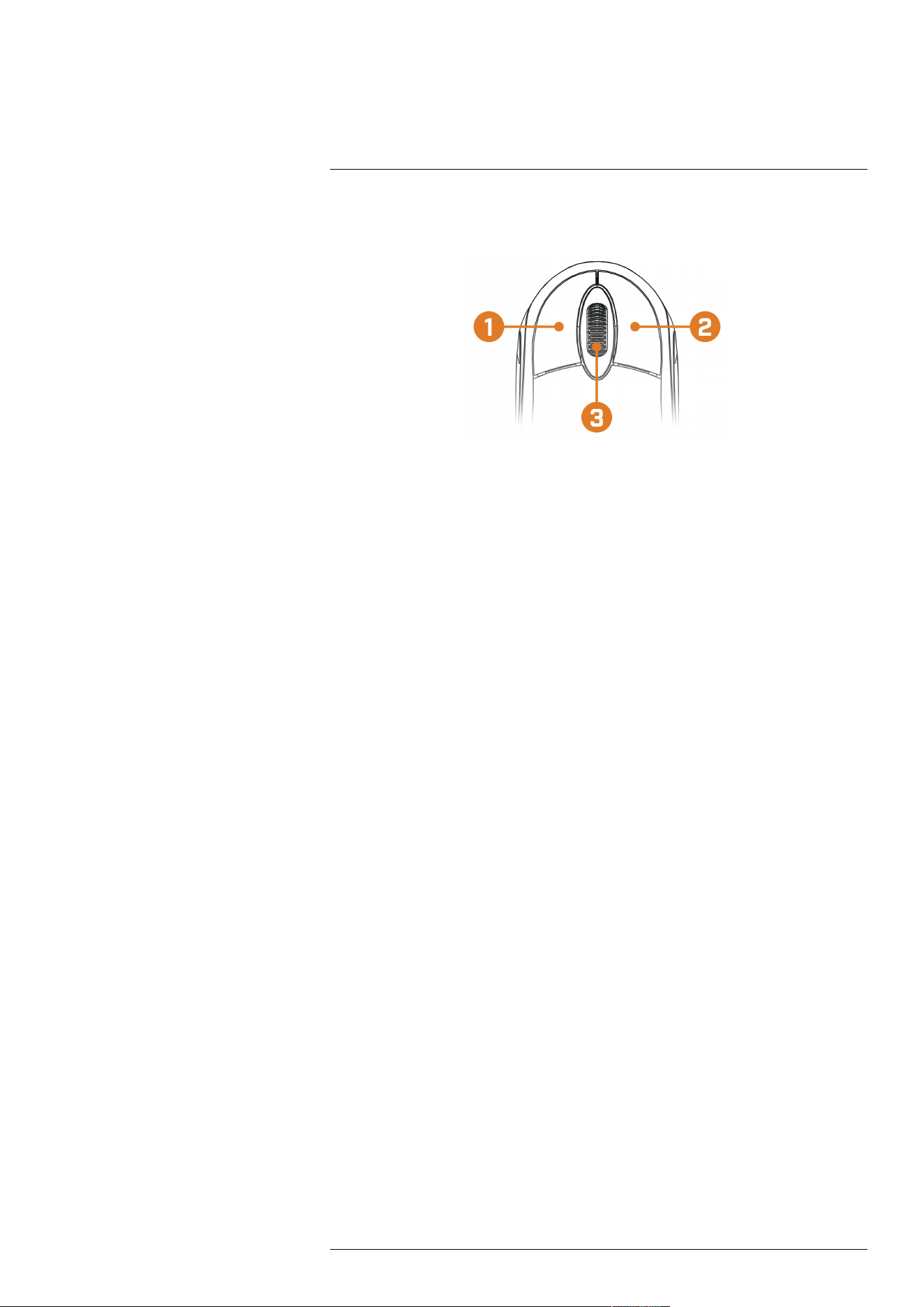

Connect the included mouse to a USB port on the recorder.

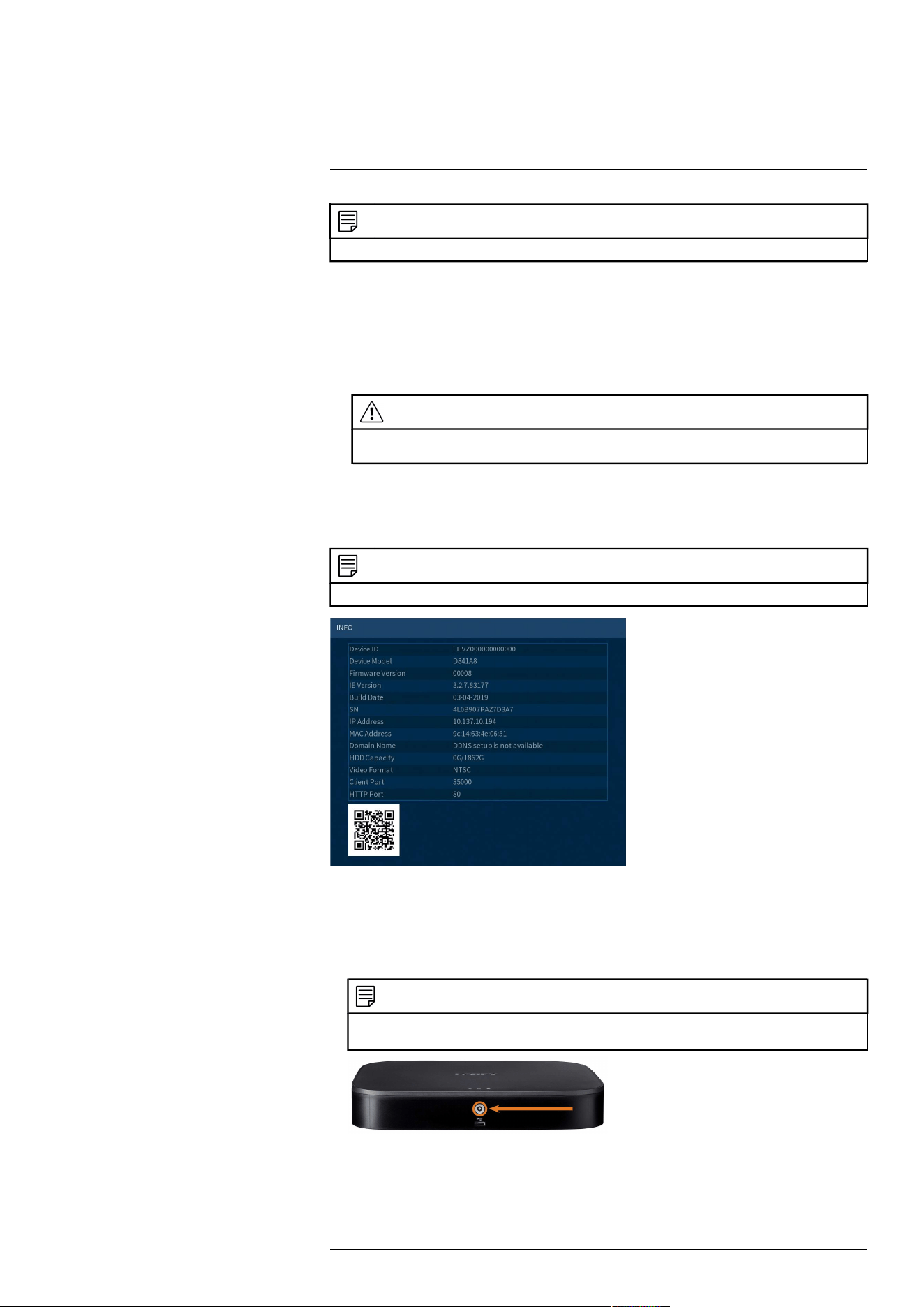

Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder on using
the power switch on the back panel.
12.8” / 324mm
9.8” / 249mm
2.4”
60mm
NOTES:
The extension cable must be a single stretch of cable between the recorder and camera. You cannot connect
multiple extension cables to each other.
This guide covers connecting cameras to your security recorder only. For full instructions on installing your
cameras, please refer to your cameras documentation at lorex.com.
Before selecting a permanent mounting location for your cameras, see Ensuring Accurate Person and Vehicle
Detection below for important camera installation notes.

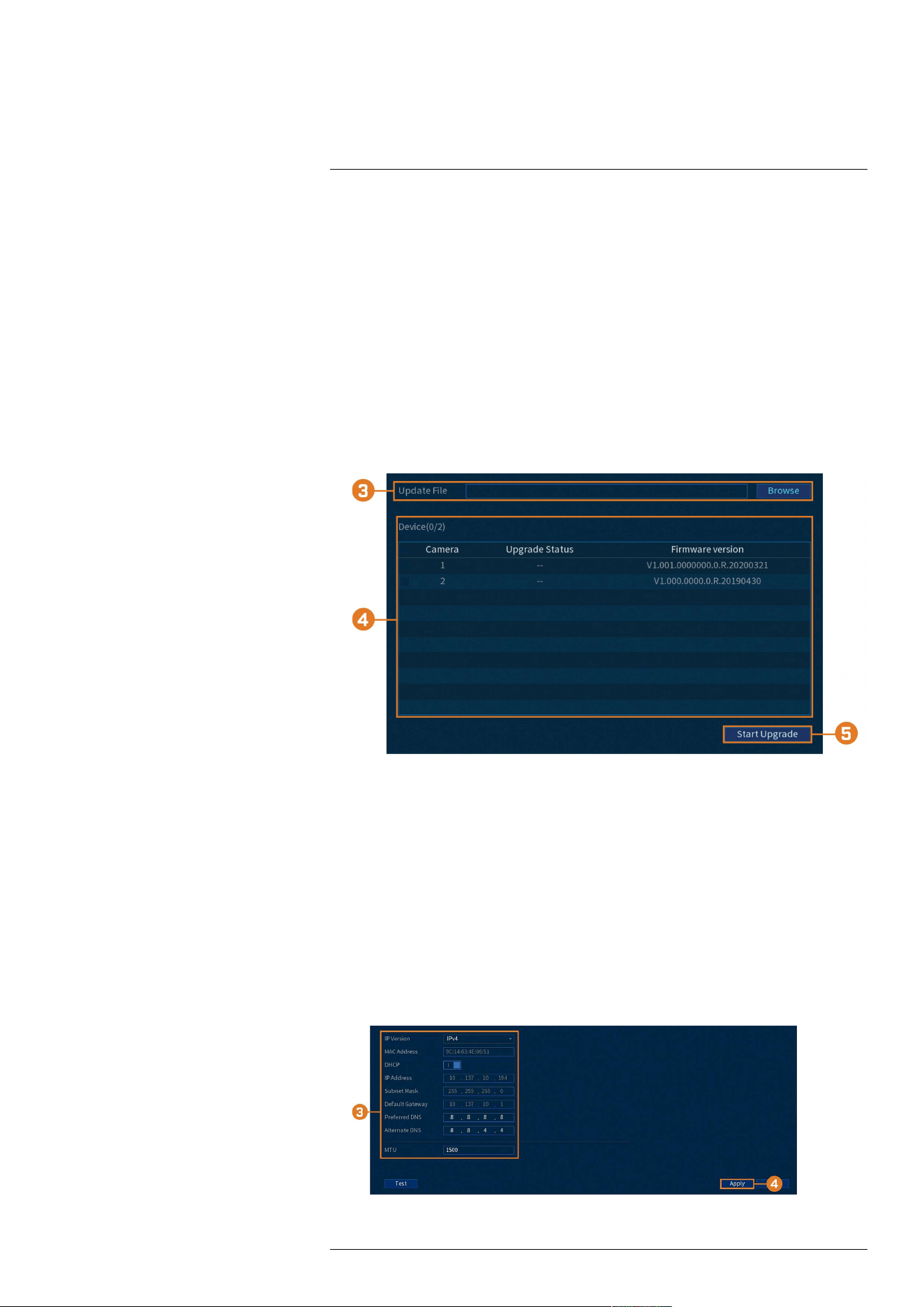

NOTE: To receive automatic rmware updates and enable remote viewing with mobile apps, a high speed Internet
connection is required (minimum upload speed of 5Mbps required for 4K viewing; 3.5Mbps for lower resolutions). All
other system features can be used without an Internet connection.
OR

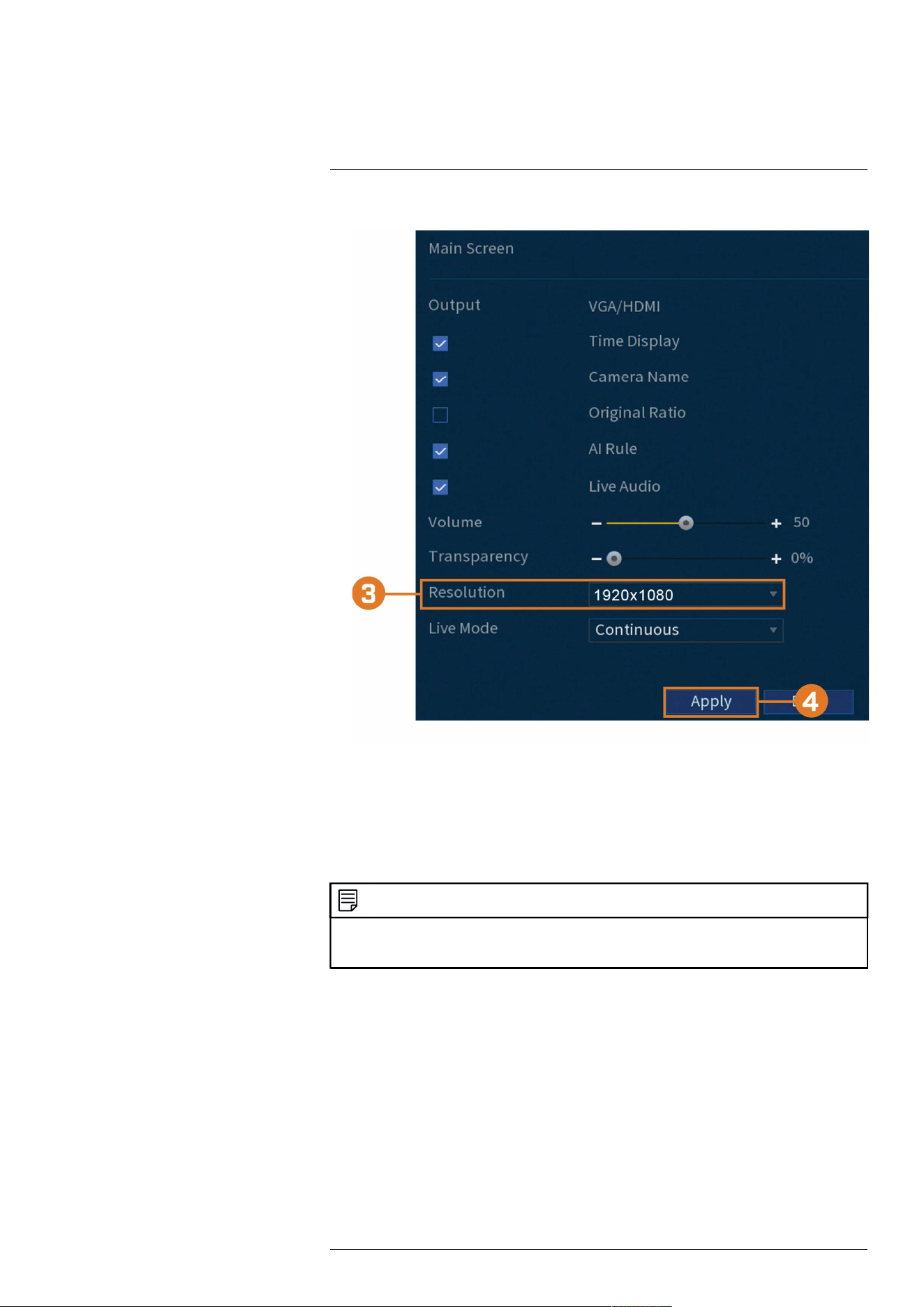

IMPORTANT: The system will automatically match the resolution of the connected monitor the rst time you use the
recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new
monitor before switching. See Changing the Recorder’s Output Resolution on the rear for details.

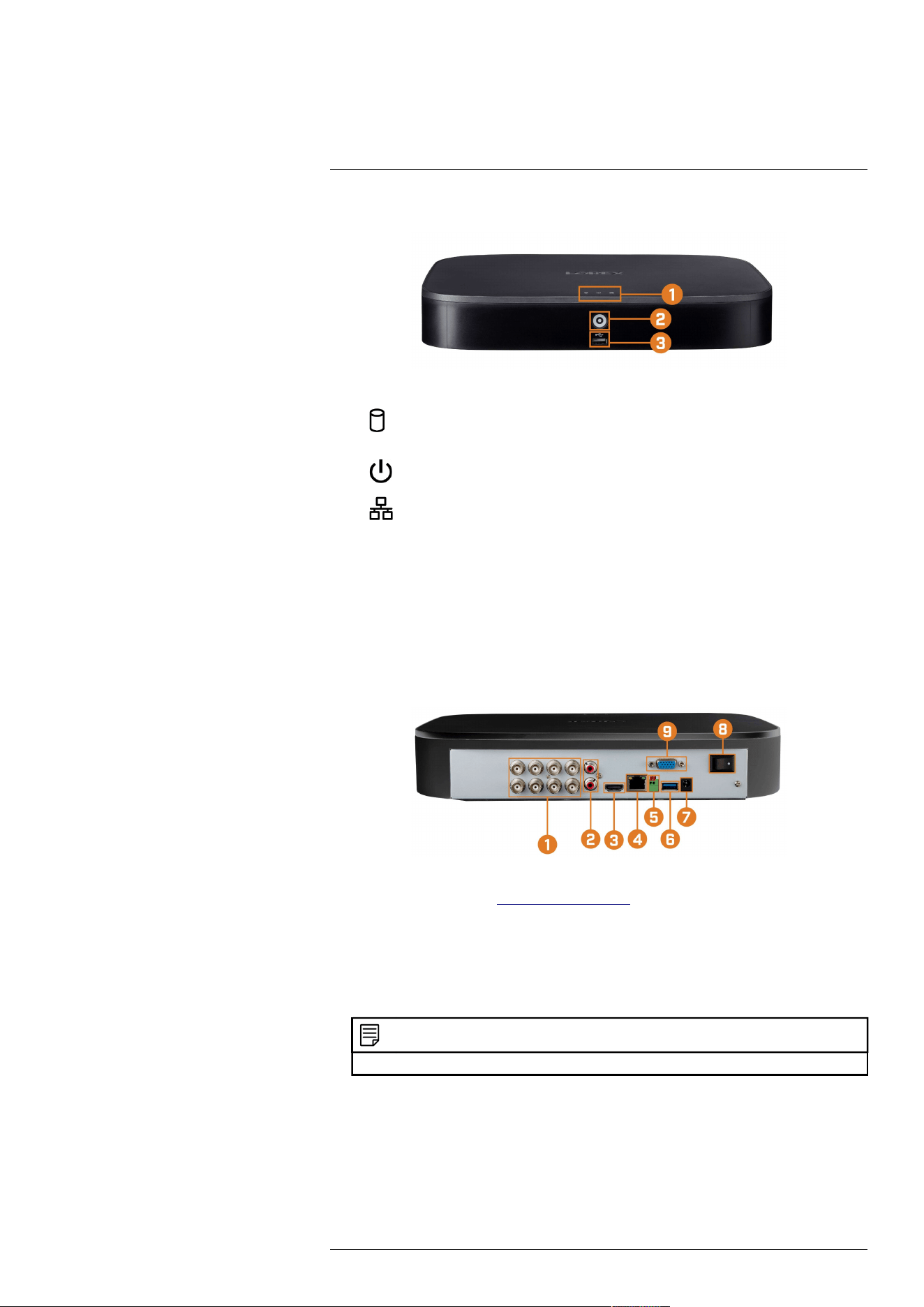

Back panels shown below are for illustration only. Your recorder’s back panel
may appear different, with all the same ports in different locations.
Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specications
and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
Need Help?
Visit us online for up-to-date software
and complete instruction manuals.
Click on the Downloads tab
4
Visit lorex.com
Search for the model
number of your product
Click on your product
in the search results
3
2
1
Record your password below and store in a secure place:

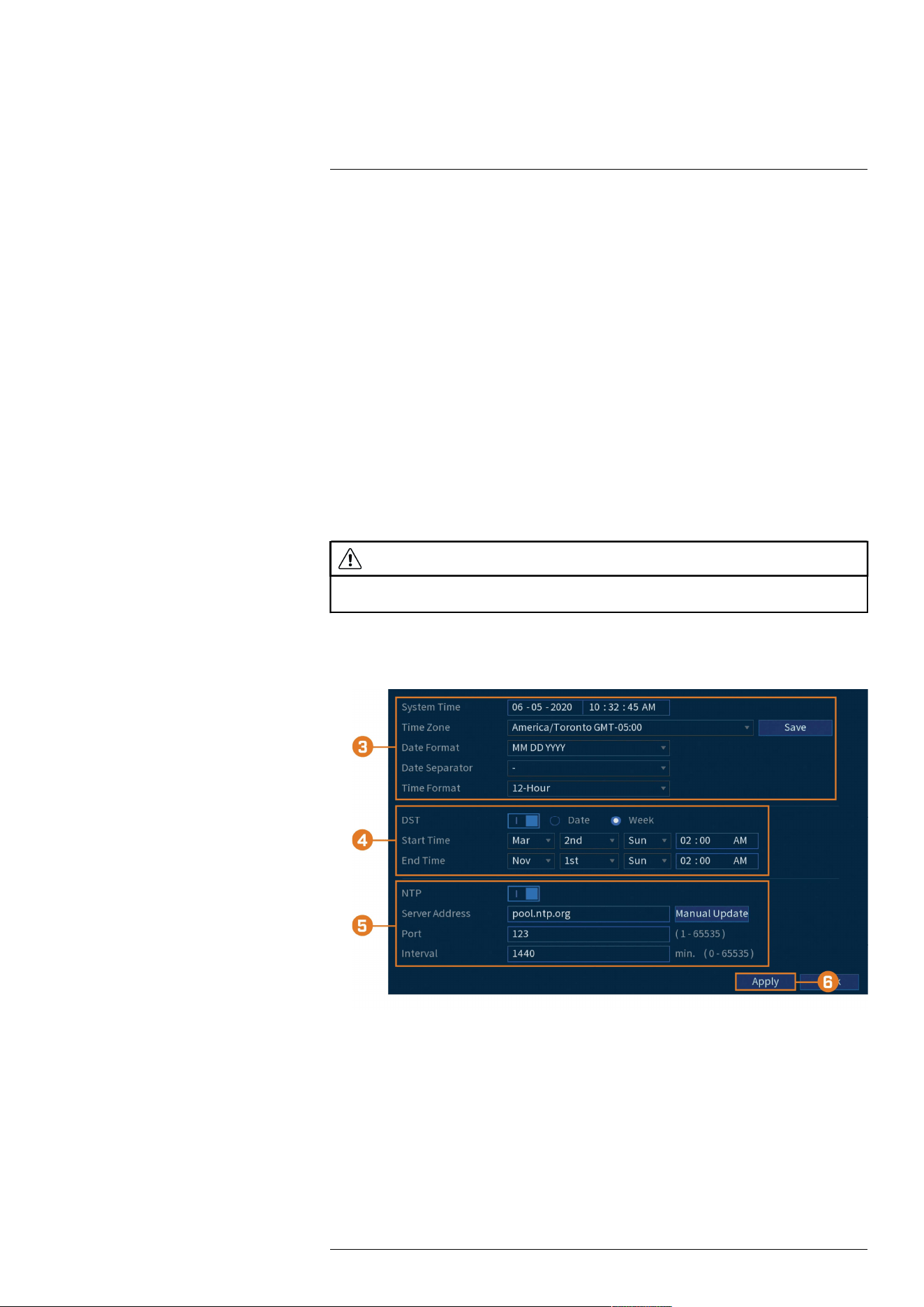

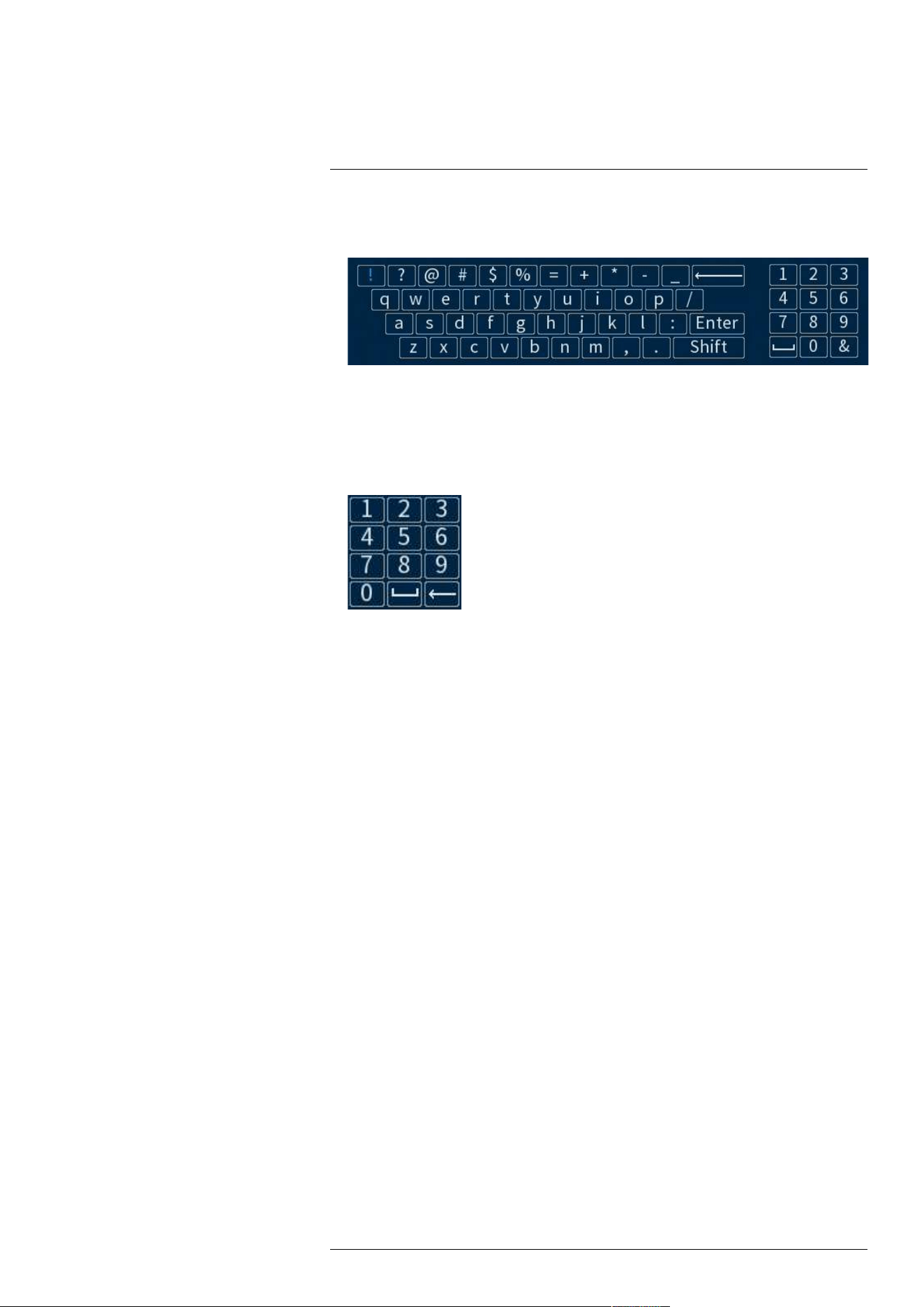

When you rst power up your recorder, the
Lorex Setup Wizard will begin. The Wizard will help you
congure core system settings.
You will also create a secure password. For future reference,
it is recommended that you record your password here:
Setting Up Your Recorder
See the steps below (expanded instructions to the right) to complete initial setup of the
recorder:
* Not included / sold separately.
8-channel conguration shown. 16-channel will have the respective number of video inputs.
For camera compatibility information, visit lorex.com/compatibility.
STEP 1:
Connect cameras*
STEP 2:
Connect router*
STEP 3:
Connect mouse
STEP 5:
Connect power
STEP 4:
Connect monitor*
STEP 6:
Lorex Setup Wizard
Overview of extra ports:
NOTE: For full instructions on using the extra ports, please refer to your security recorder’s instruction
manual at lorex.com.

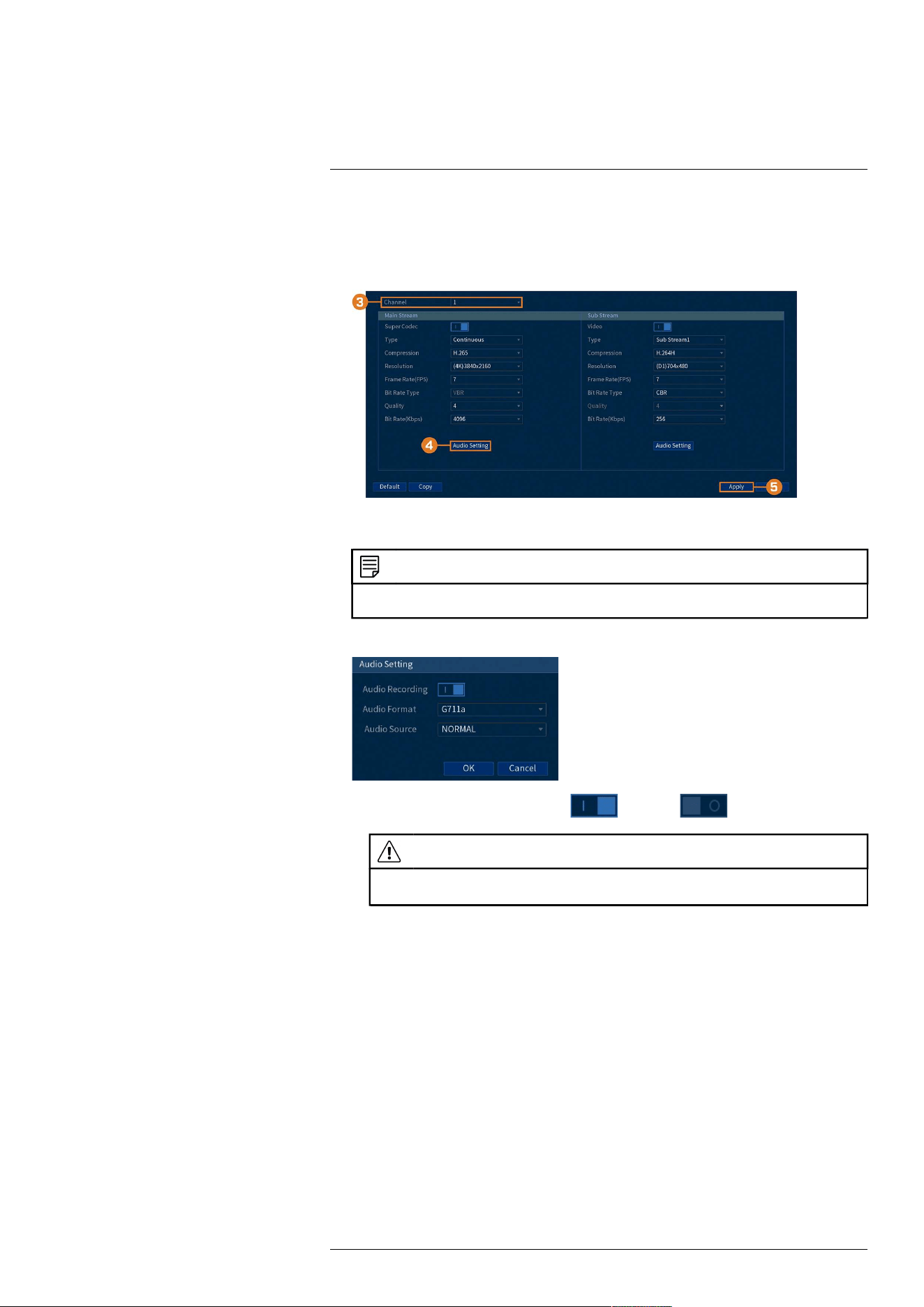

Audio In/Out
Connect microphone / speaker*

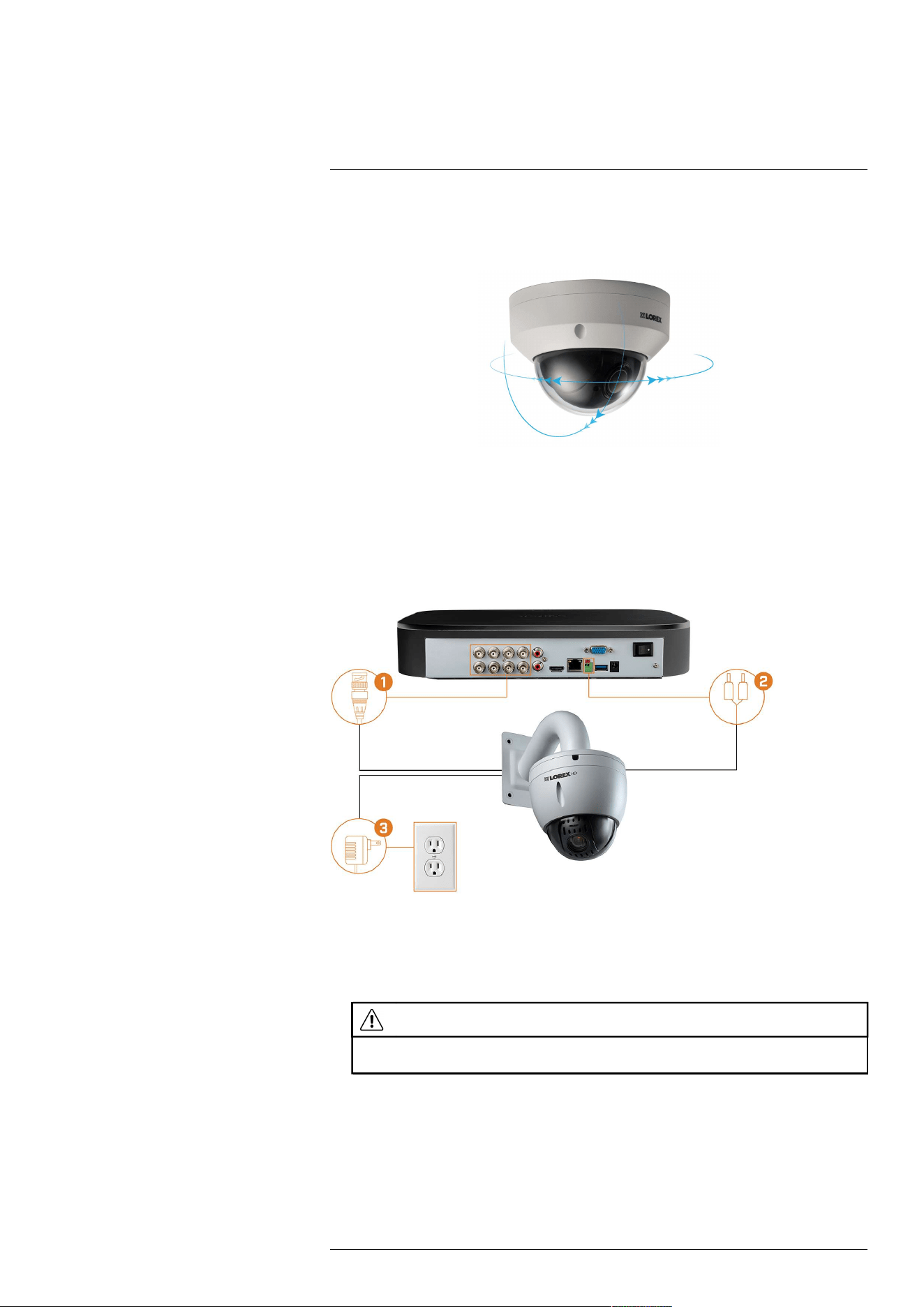

RS485
Connect Pan-Tilt-Zoom (PTZ) cameras*
STEP 2: Connect router*
STEP 3: Connect mouse
STEP 4: Connect monitor*
STEP 5: Connect power
STEP 6: Lorex Setup Wizard

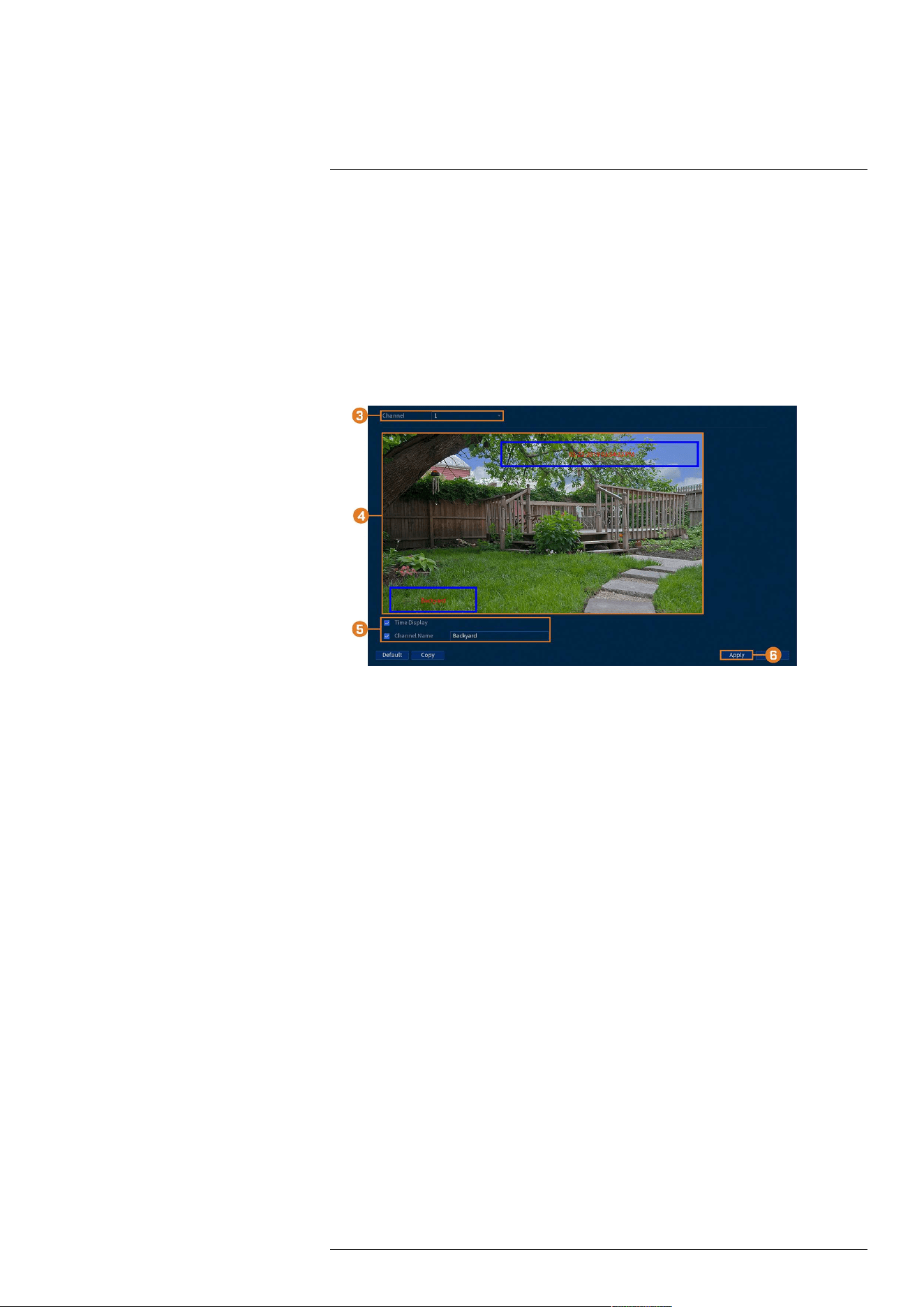

Ensuring Accurate Person and Vehicle Detection
The following are important camera installation notes to ensure accurate person and vehicle detection.
For full camera mounting instructions, see your cameras documentation at lorex.com.

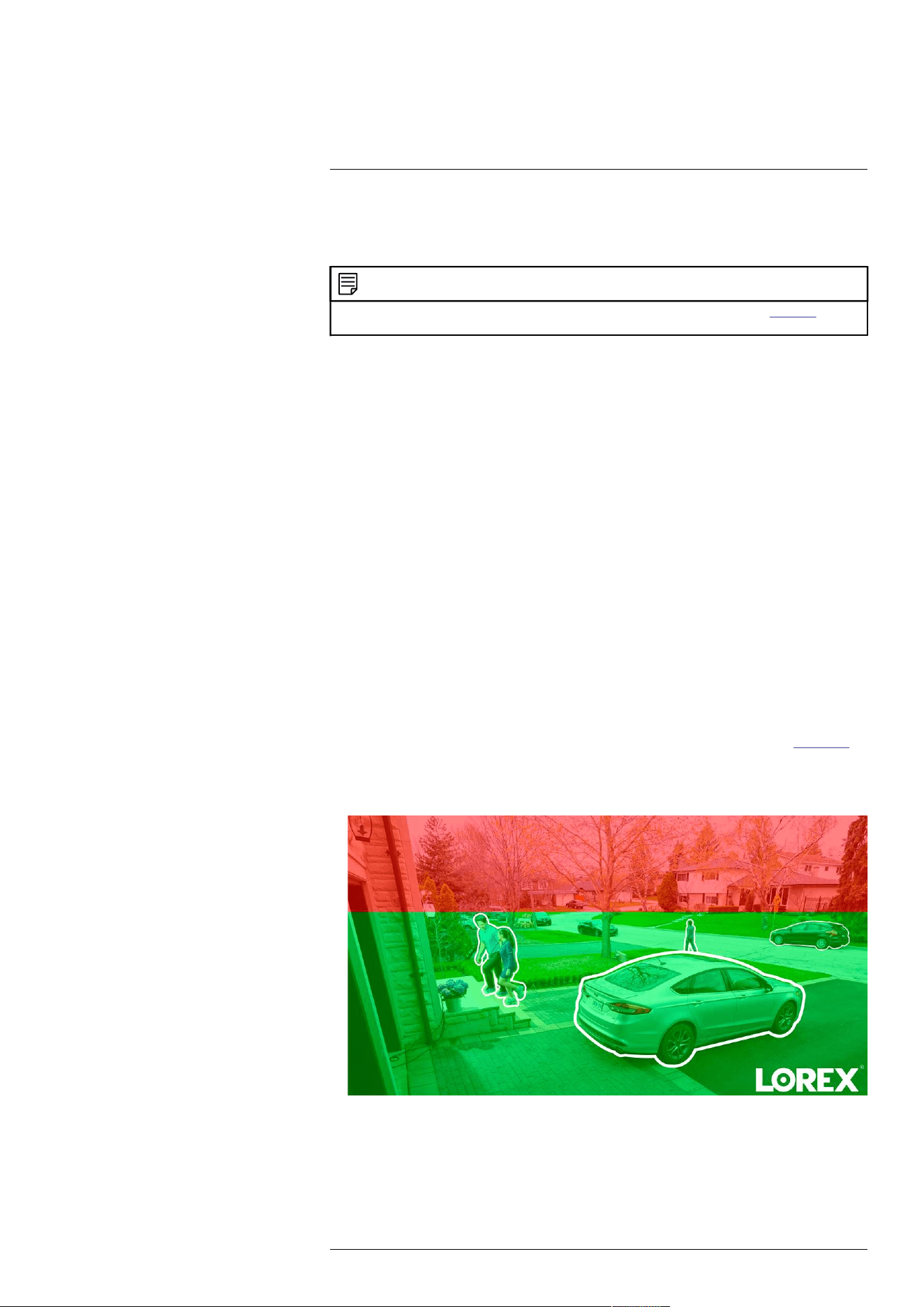

Optimal accuracy for objects within 50ft (~15m) and
in the bottom
of the image.
Lower accuracy for objects further away than 50ft
(~15m) and/or in the top
of the image.
Additional Installation Tips:
Point the camera where there is the least amount of obstructions (e.g., tree branches).
Install the camera where vandals cannot easily reach.
Secure cabling so that it is not exposed or easily cut.
This camera is rated for outdoor use. Installation in a sheltered location is recommended.
Angle the camera between 30~60° down from the level position.
Install the camera between 8-16ft (2.5-5m) off of the ground.
Level position (i.e., ceiling)
Optimal
angle
range
NOTE: Accuracy of person and vehicle detection will be inuenced by multiple
factors, such as the object’s distance from the camera, the size of the object,
and the height and angle of the camera. Night vision will also impact the
accuracy of detection.
Angle the camera so that objects of interest appear in the bottom
of the camera image.
Choose a location where objects of interest will be no further than 50ft (~15m) from the camera.
