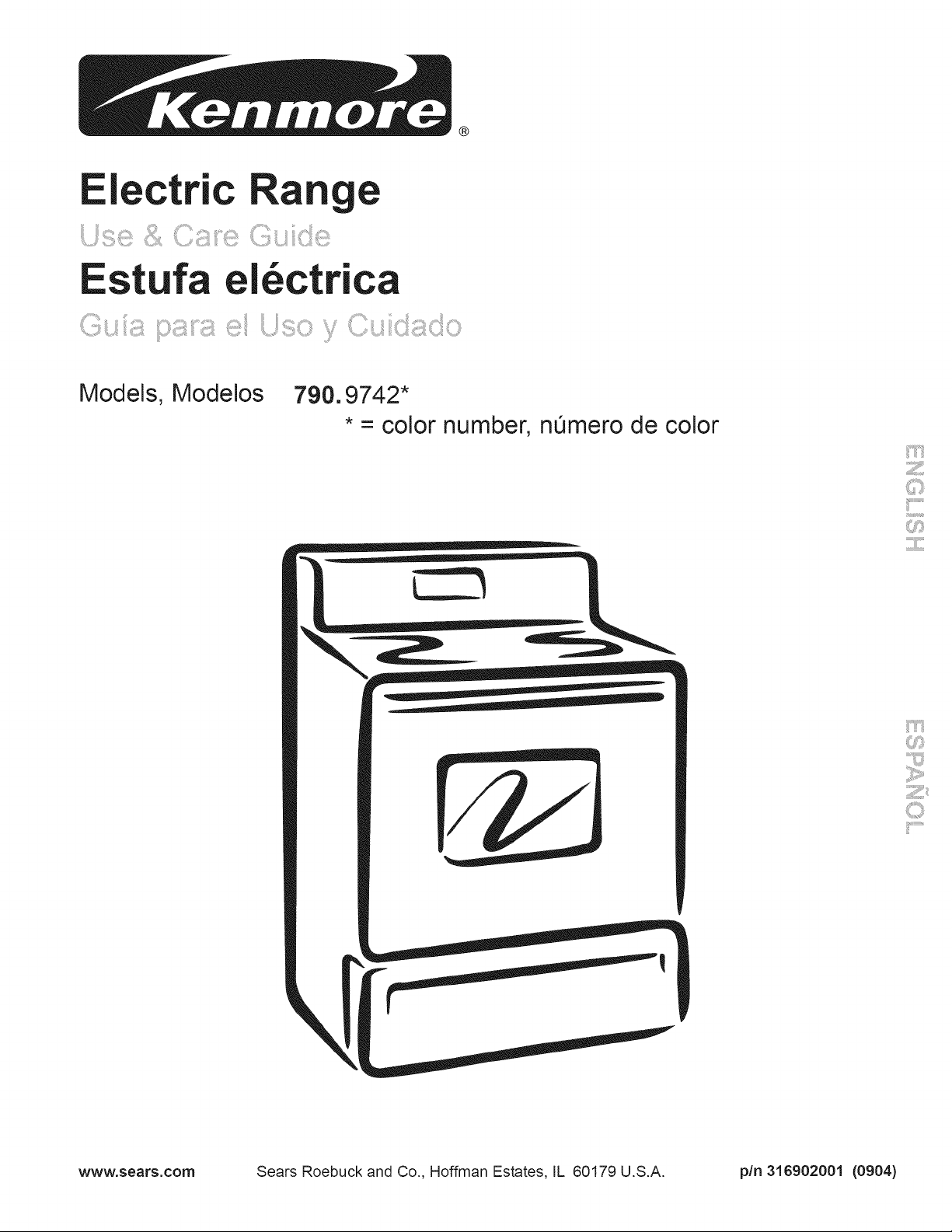

Electric =an e
Estufa el6ctrica
ii
Models, Modelos 790.9742*
* = color number,
nOmero de color
_IIIII,YI?
..........iii.........
www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. pin 316902001 (0904)

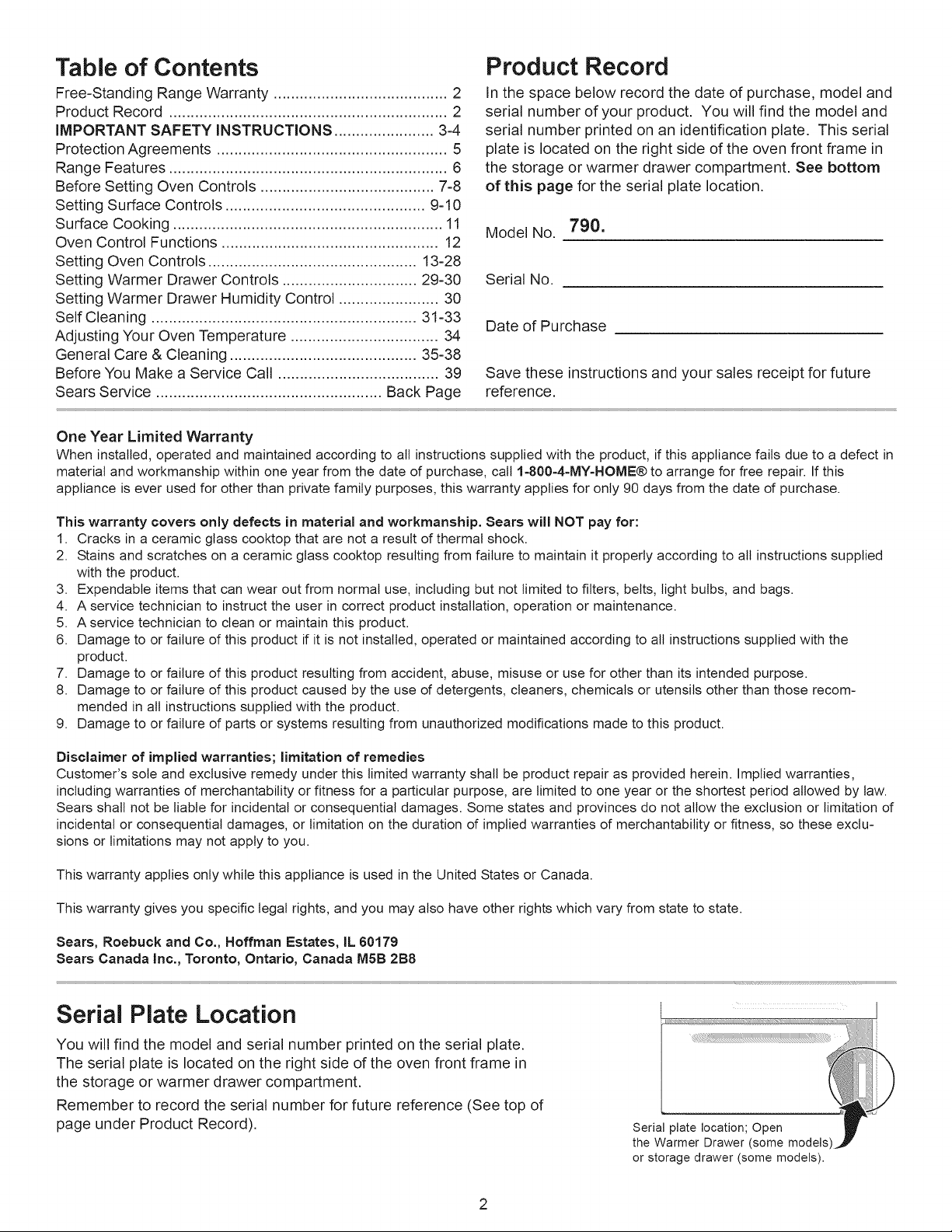

Table of Contents
Free-Standing Range Warranty ........................................ 2
Product Record ................................................................ 2
iMPORTANT SAFETY INSTRUCTIONS ....................... 3-4

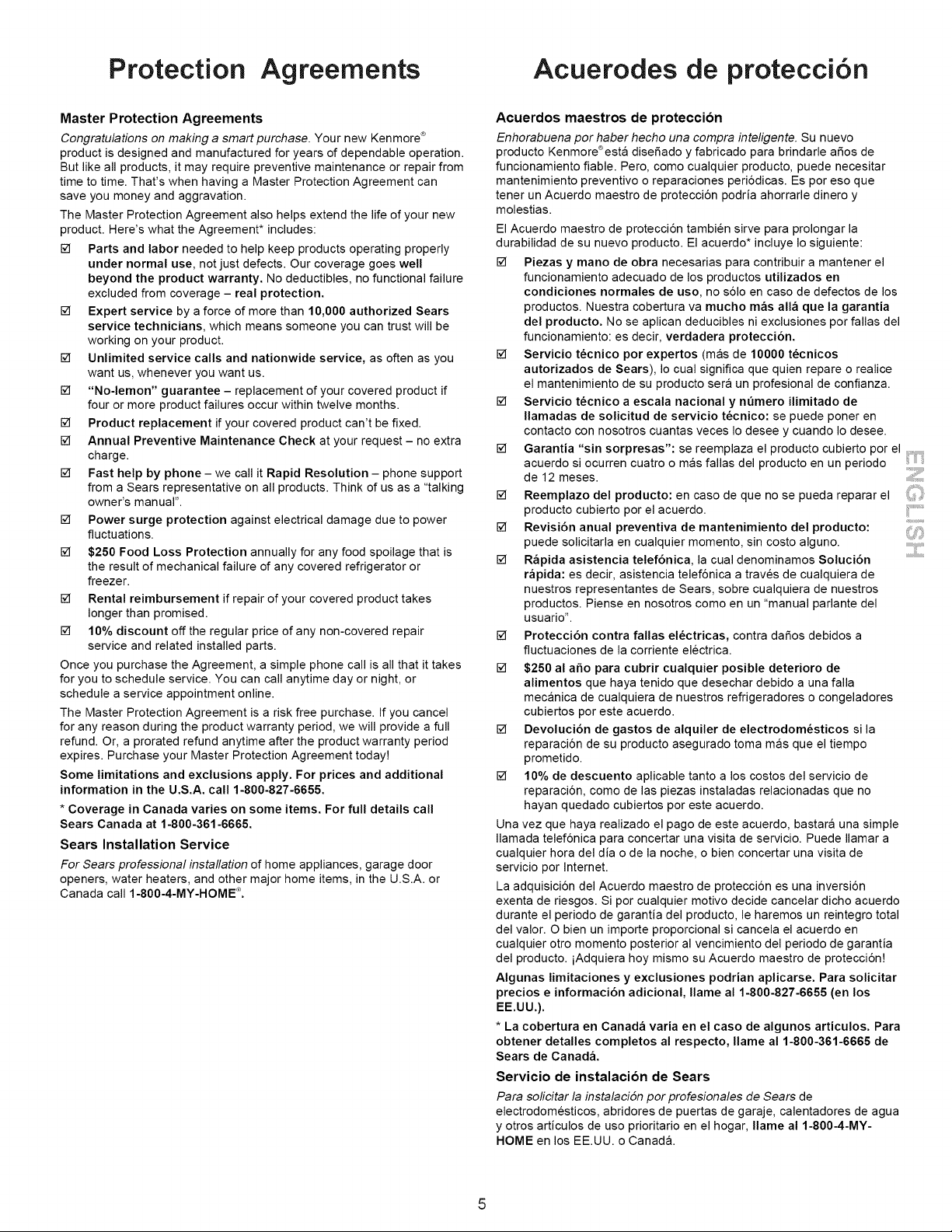

Protection Agreements ..................................................... 5

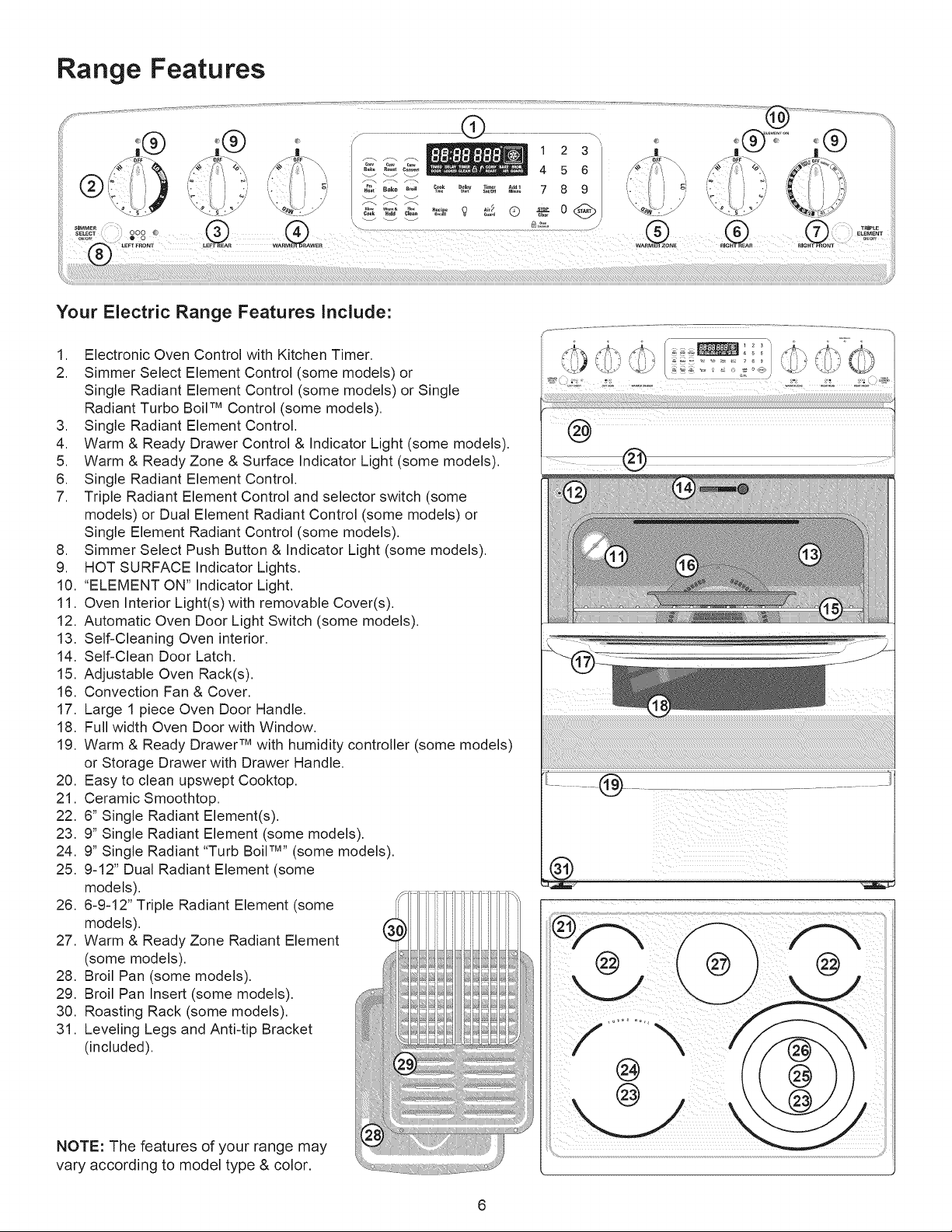

Range Features ................................................................ 6

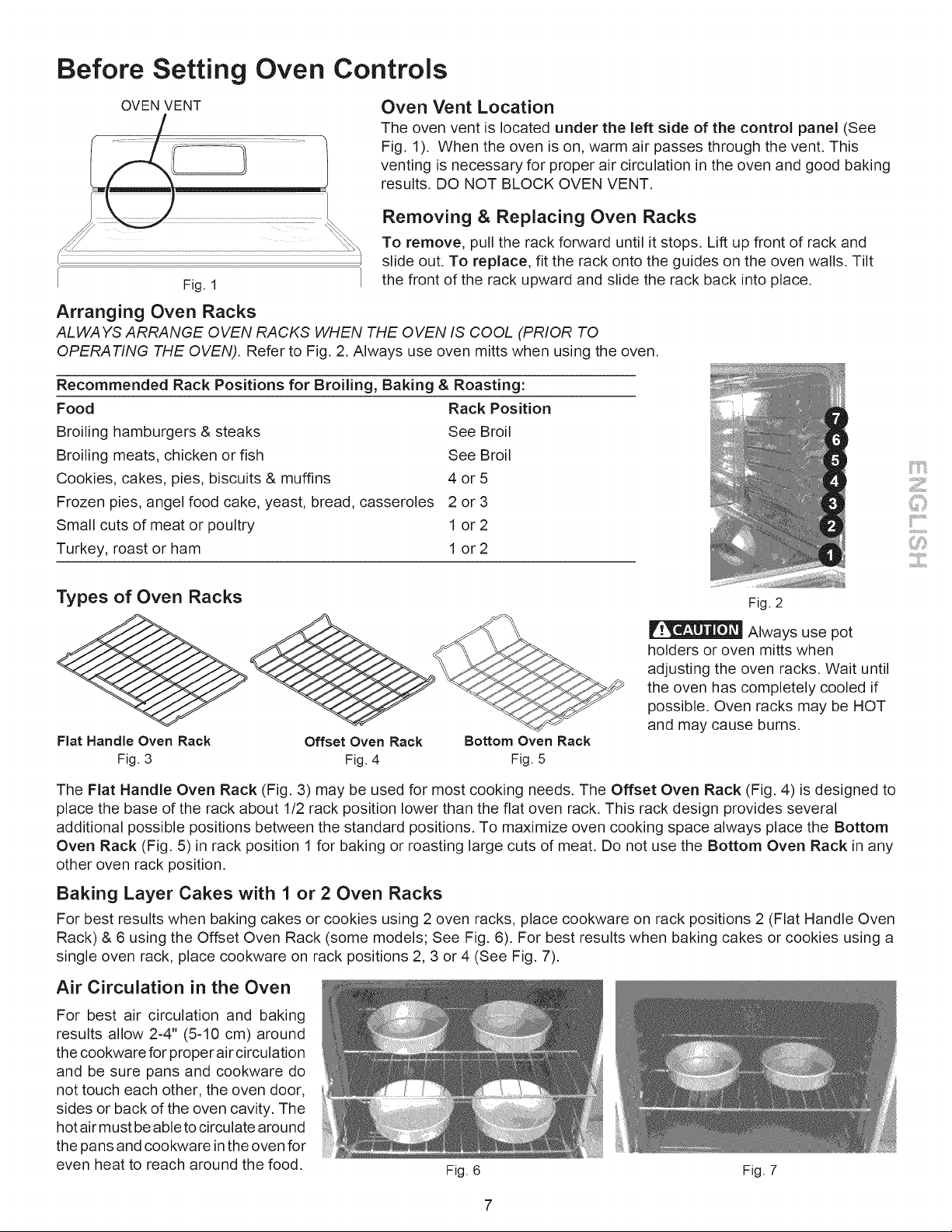

Before Setting Oven Controls ........................................ 7-8

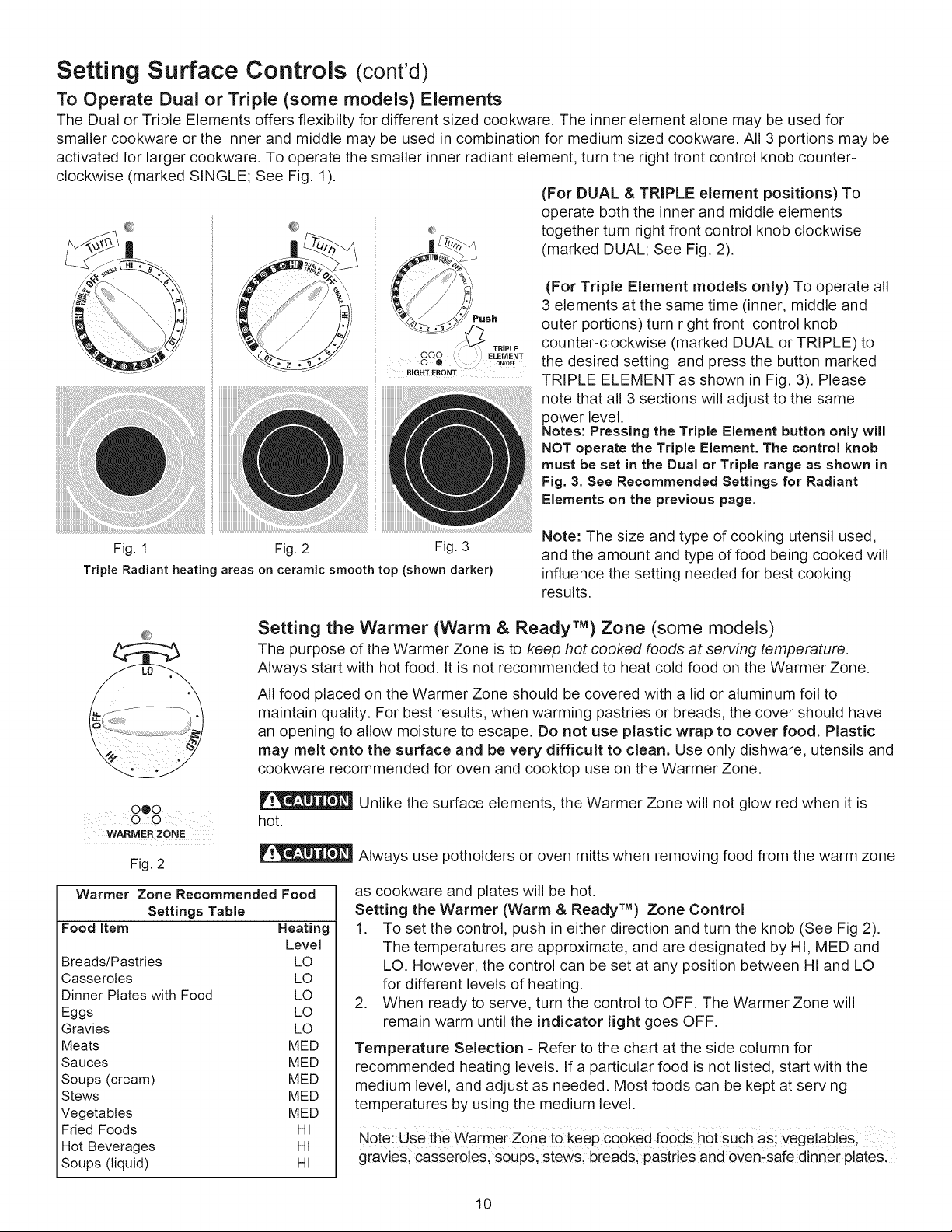

Setting Surface Controls .............................................. 9-10

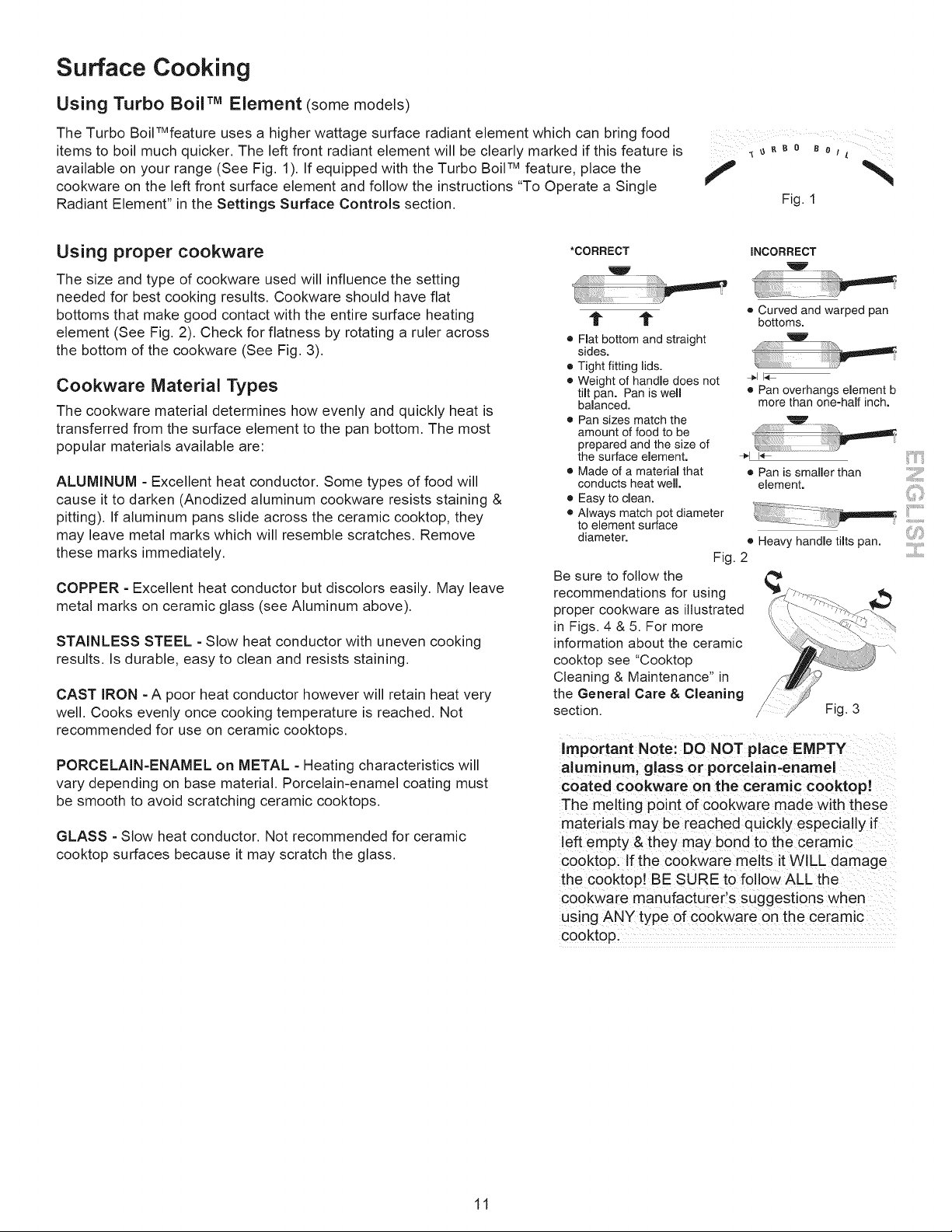

Surface Cooking .............................................................. 11

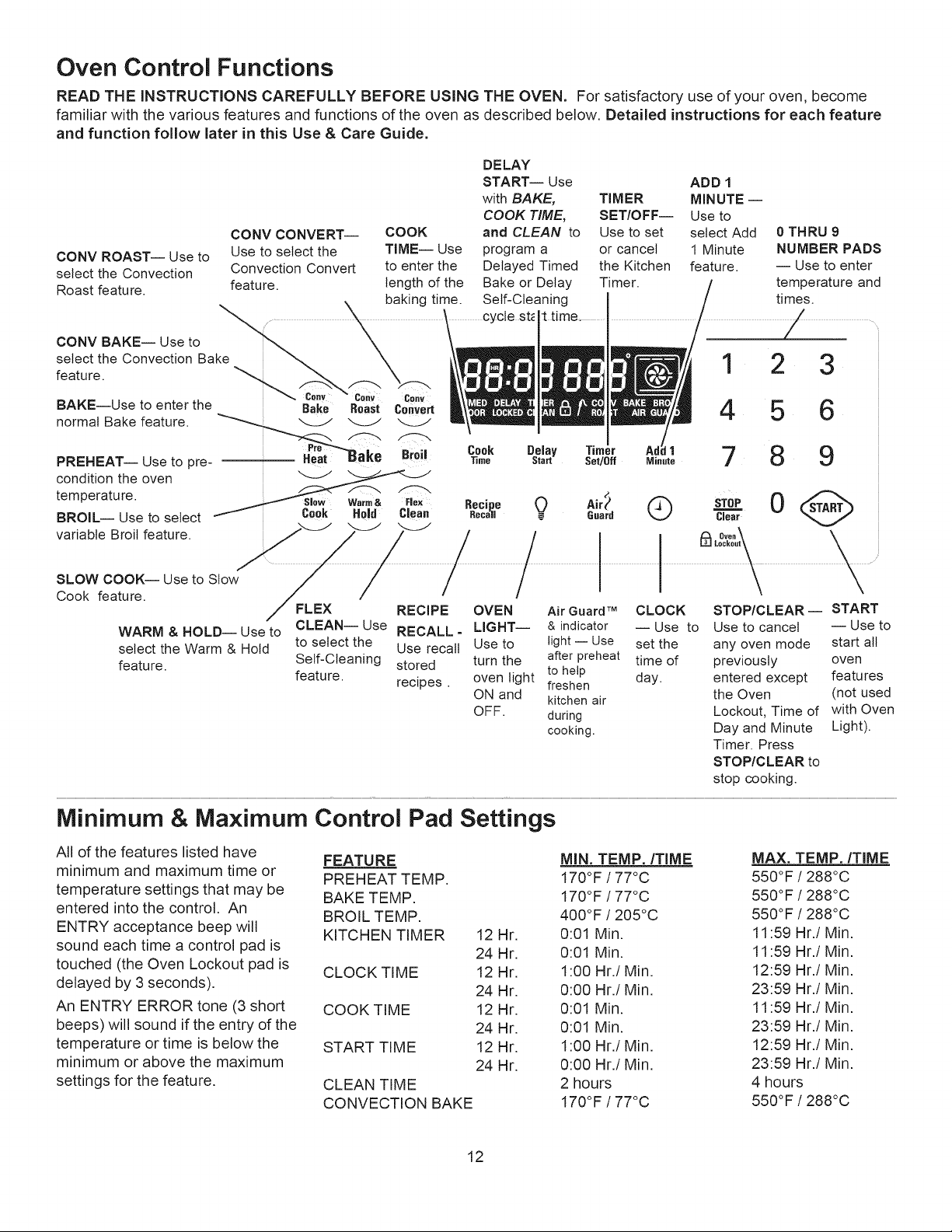

Oven Control Functions .................................................. 12

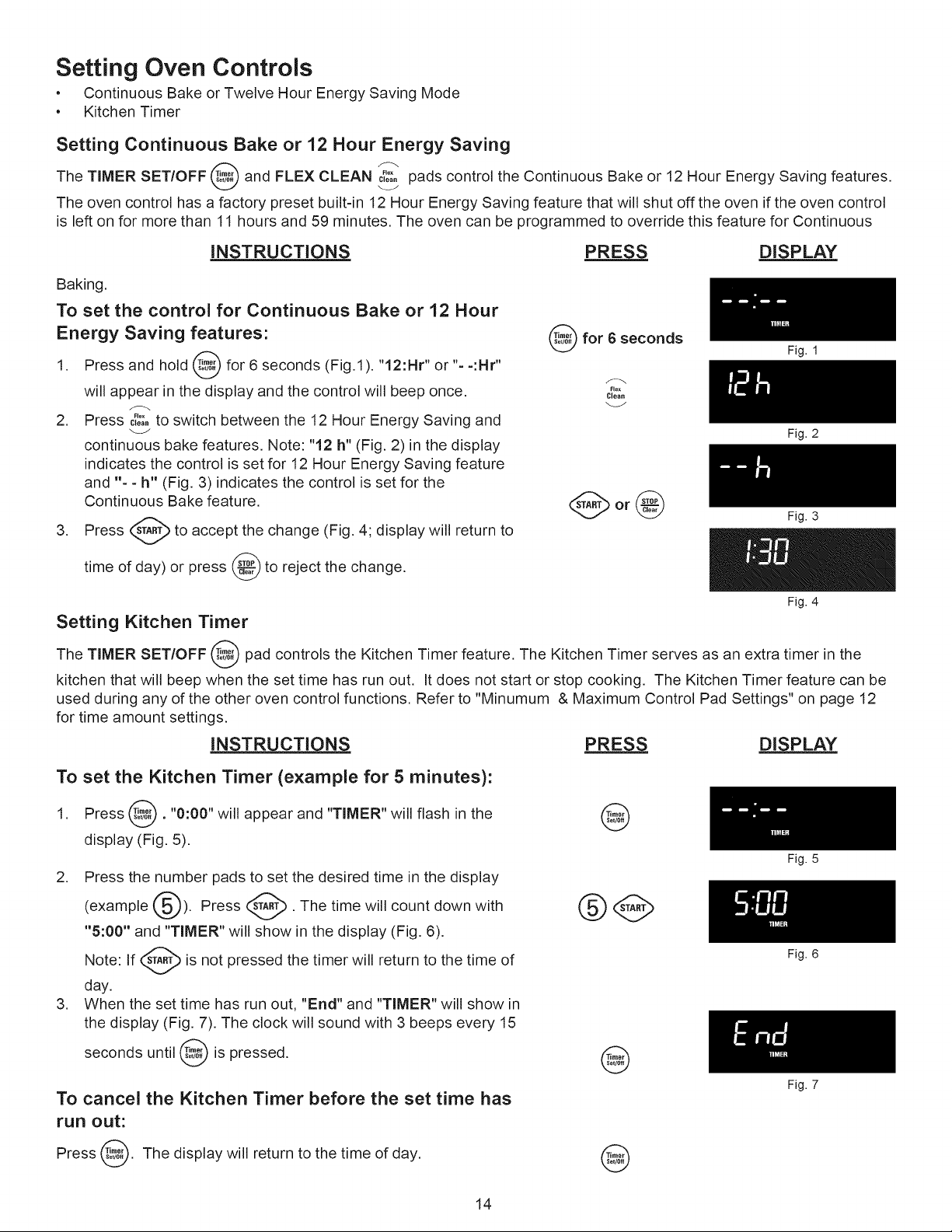

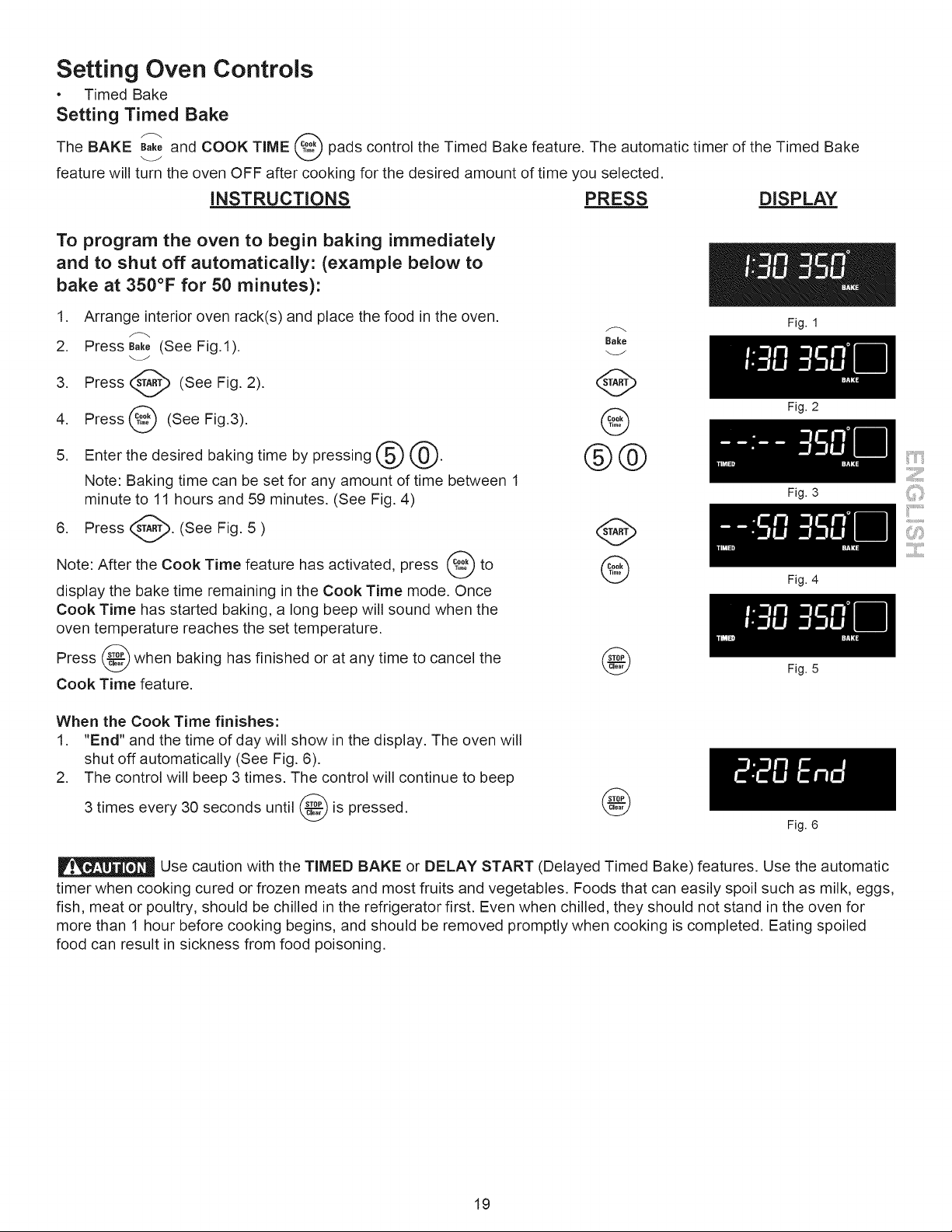

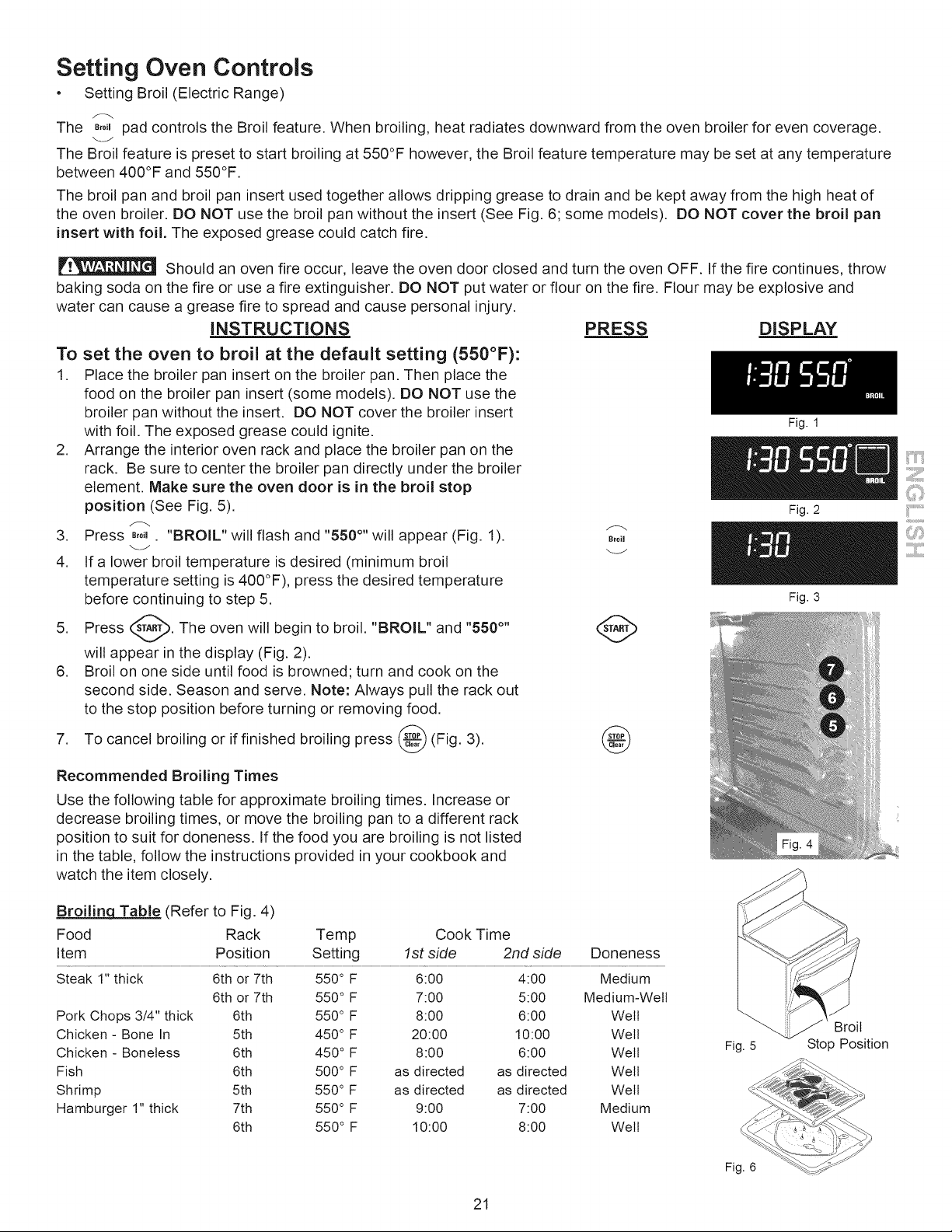

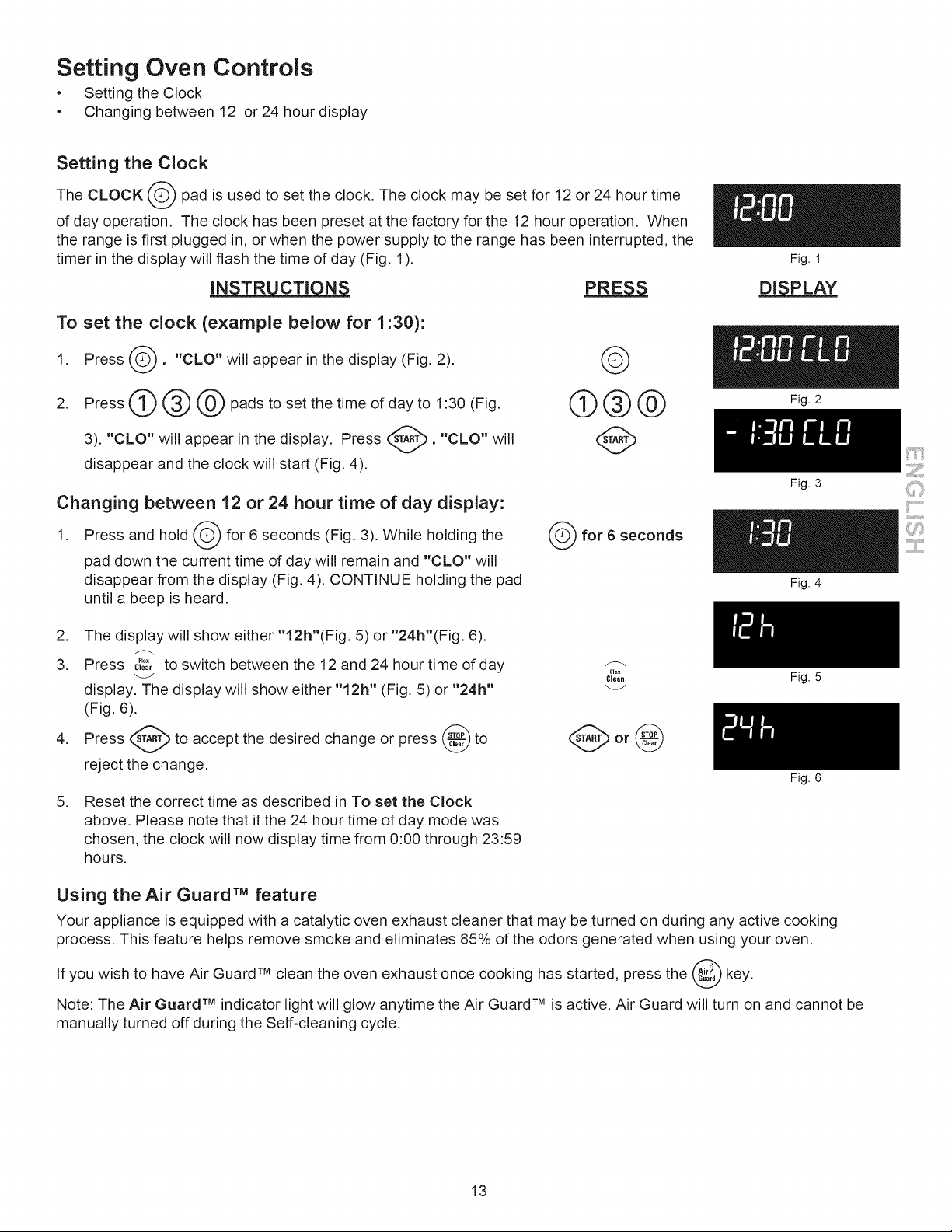

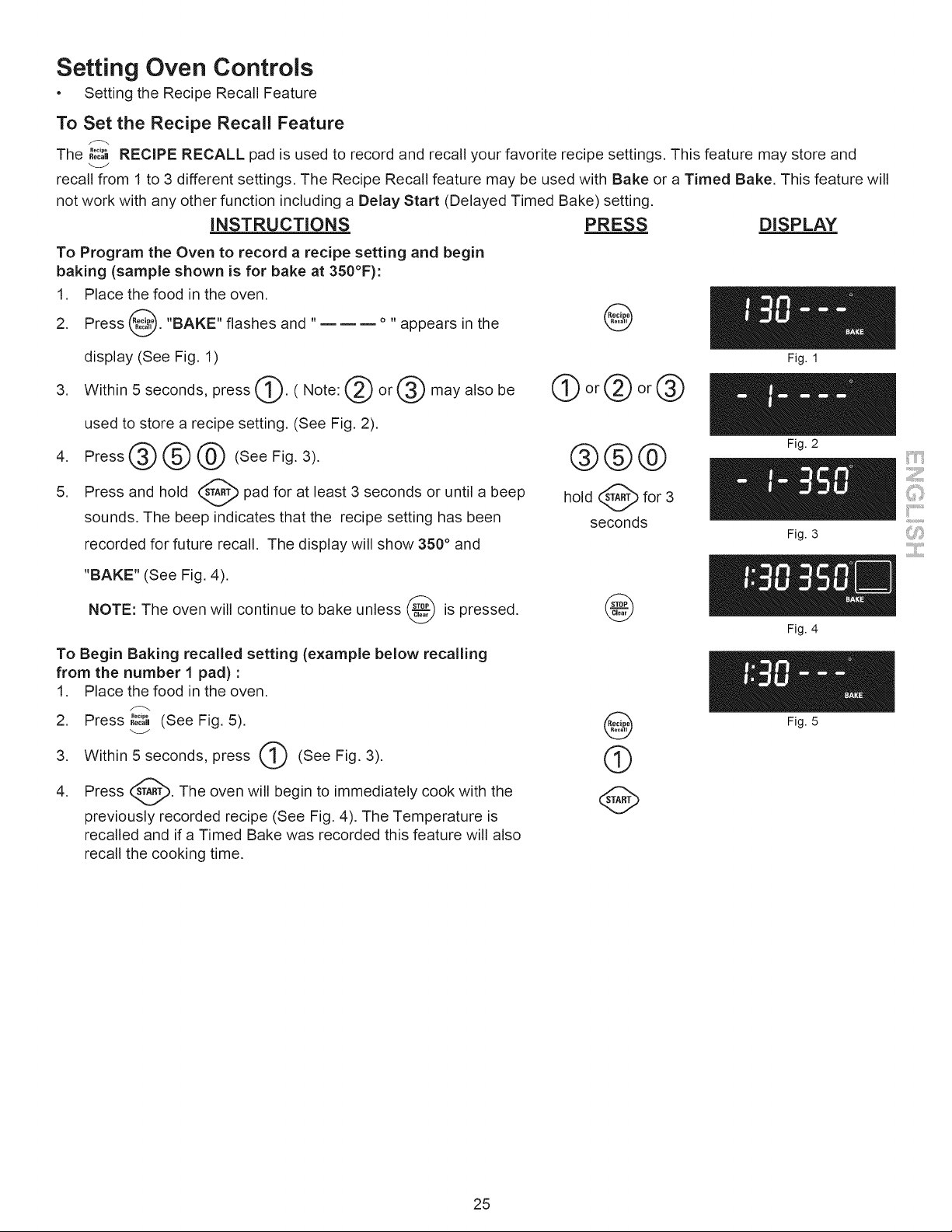

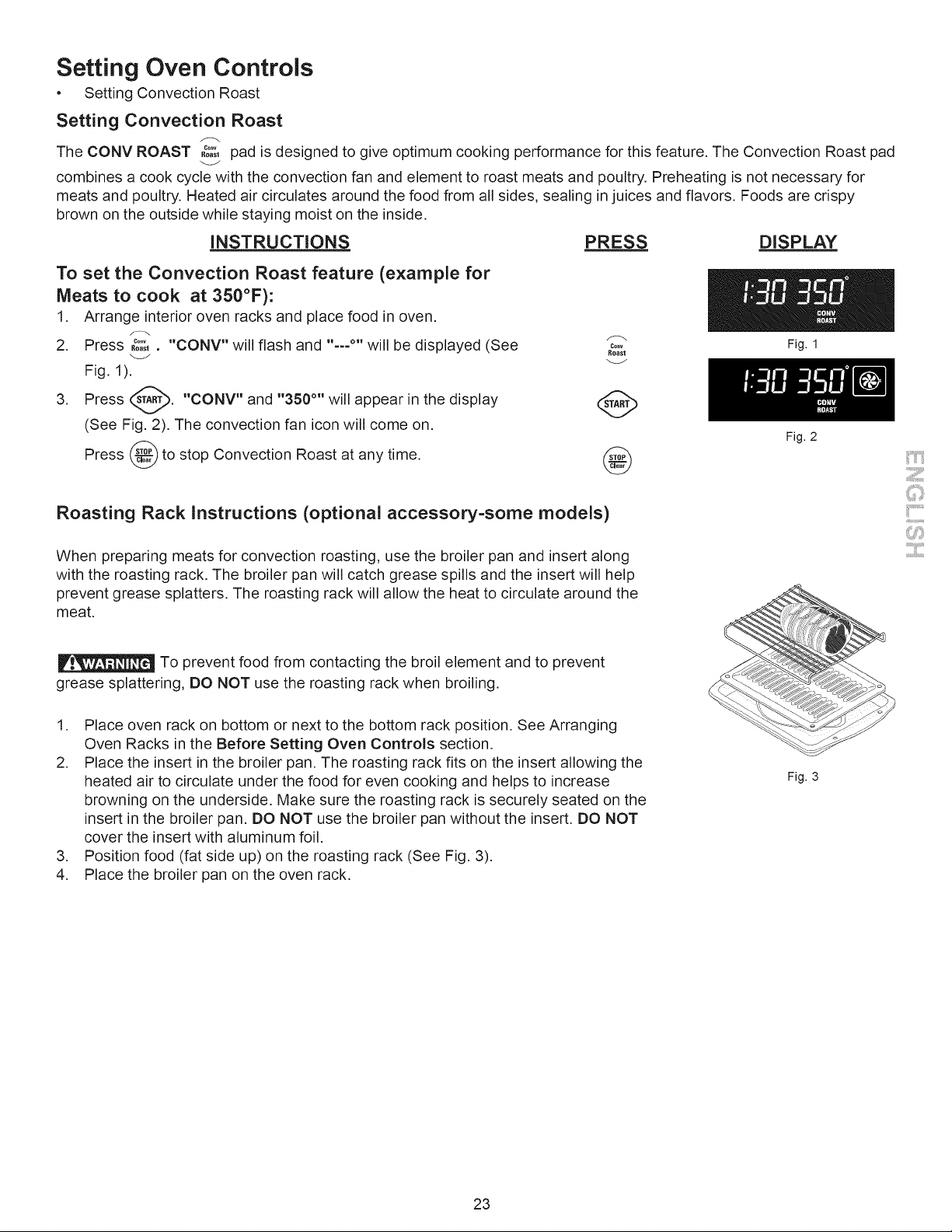

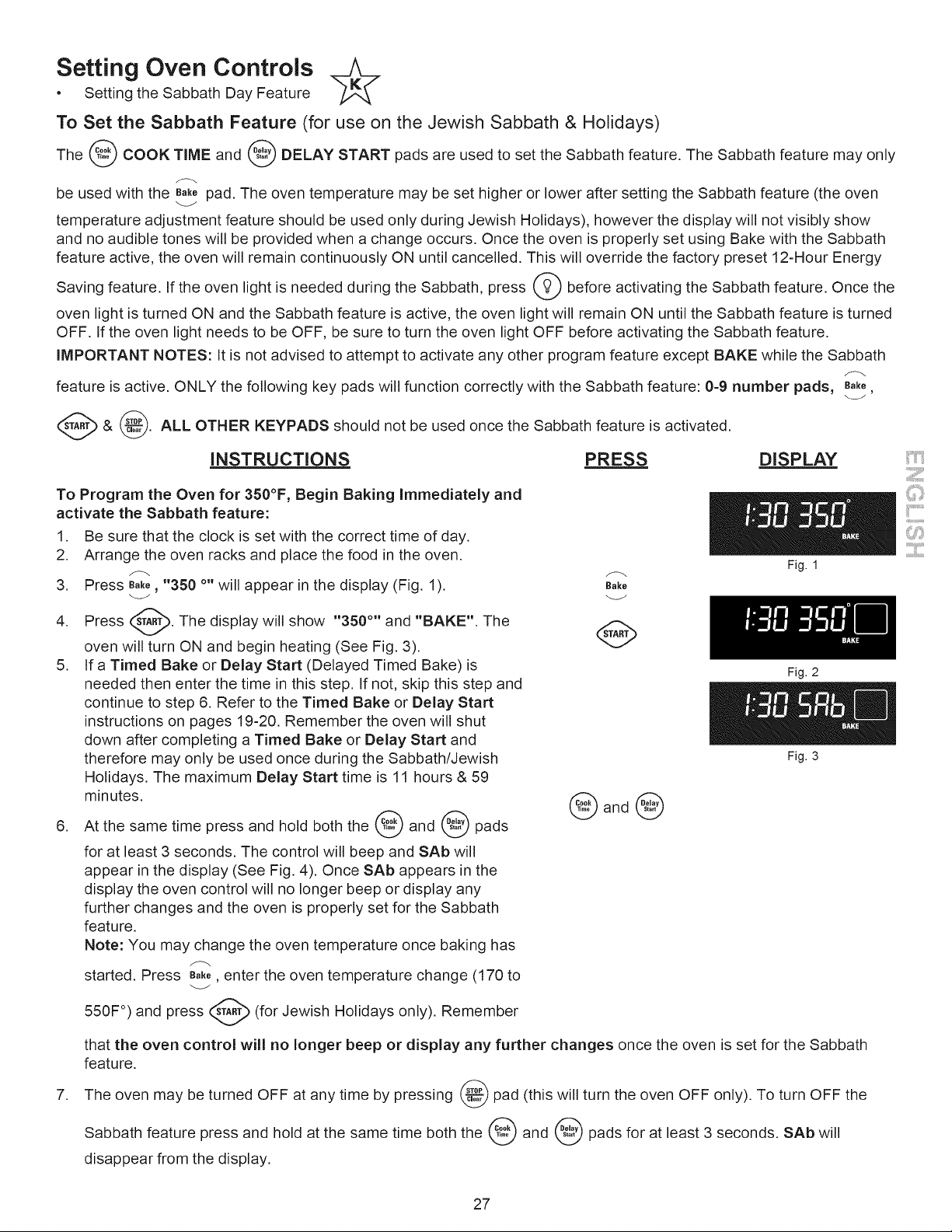

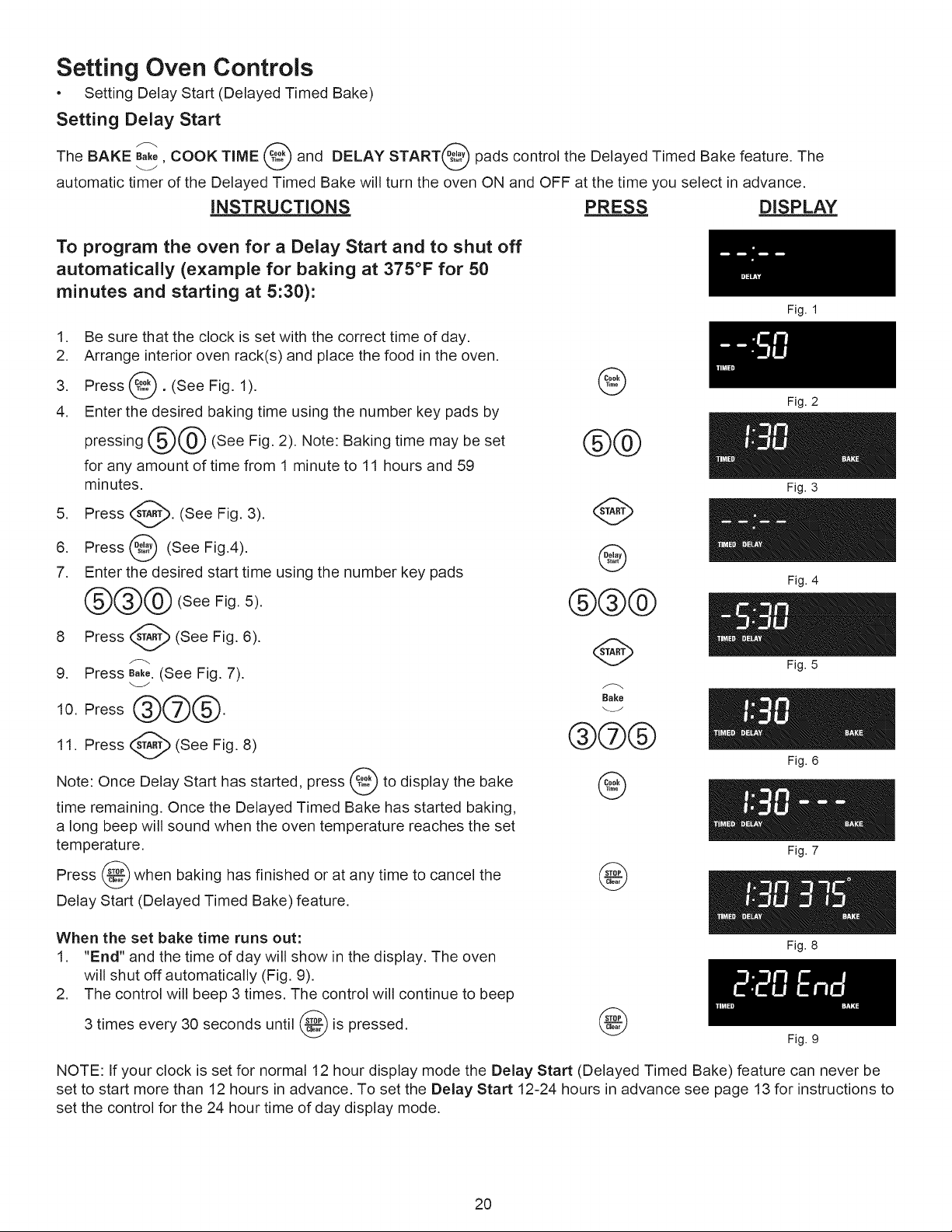

Setting Oven Controls ................................................ 13-28

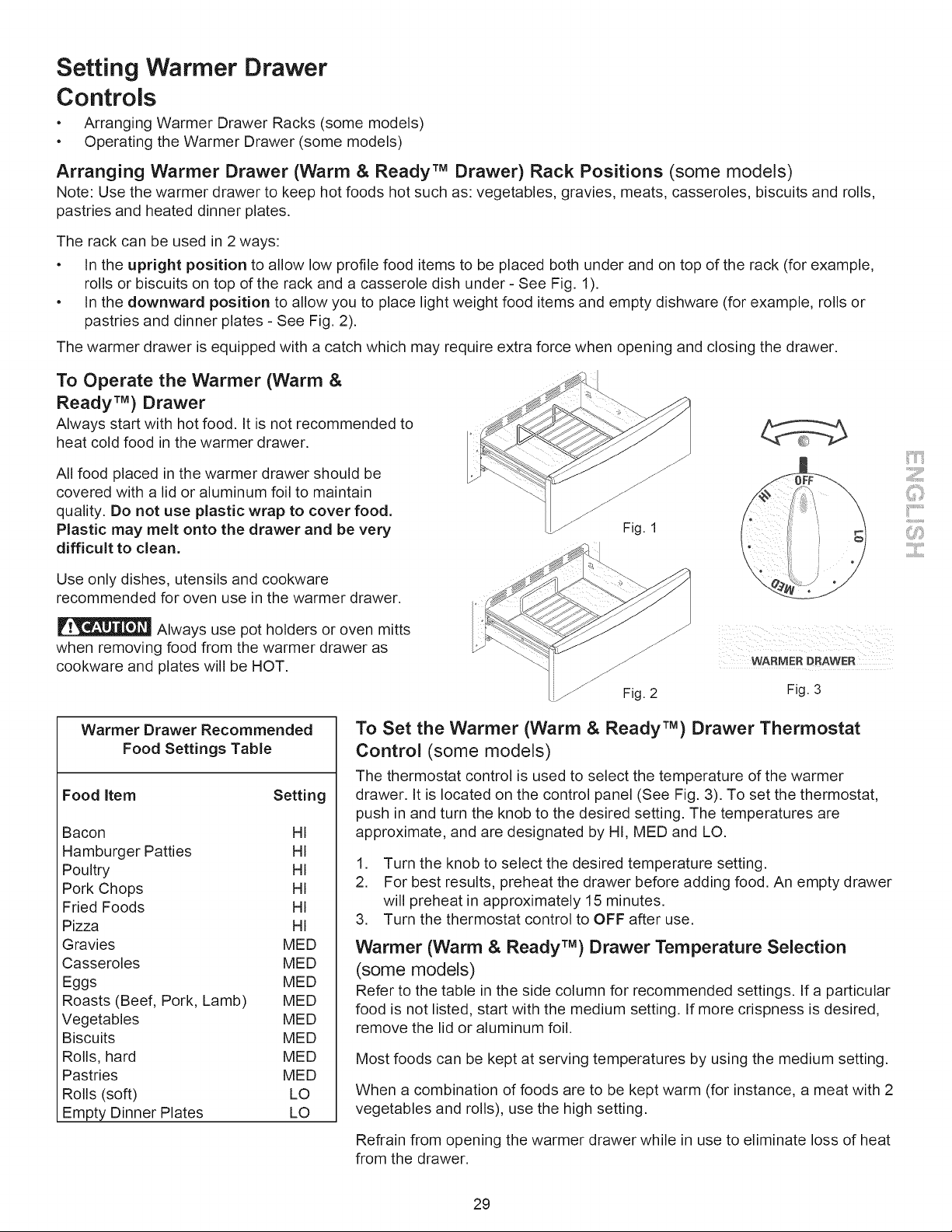

Setting Warmer Drawer Controls ............................... 29-30
Setting Warmer Drawer Humidity Control ....................... 30

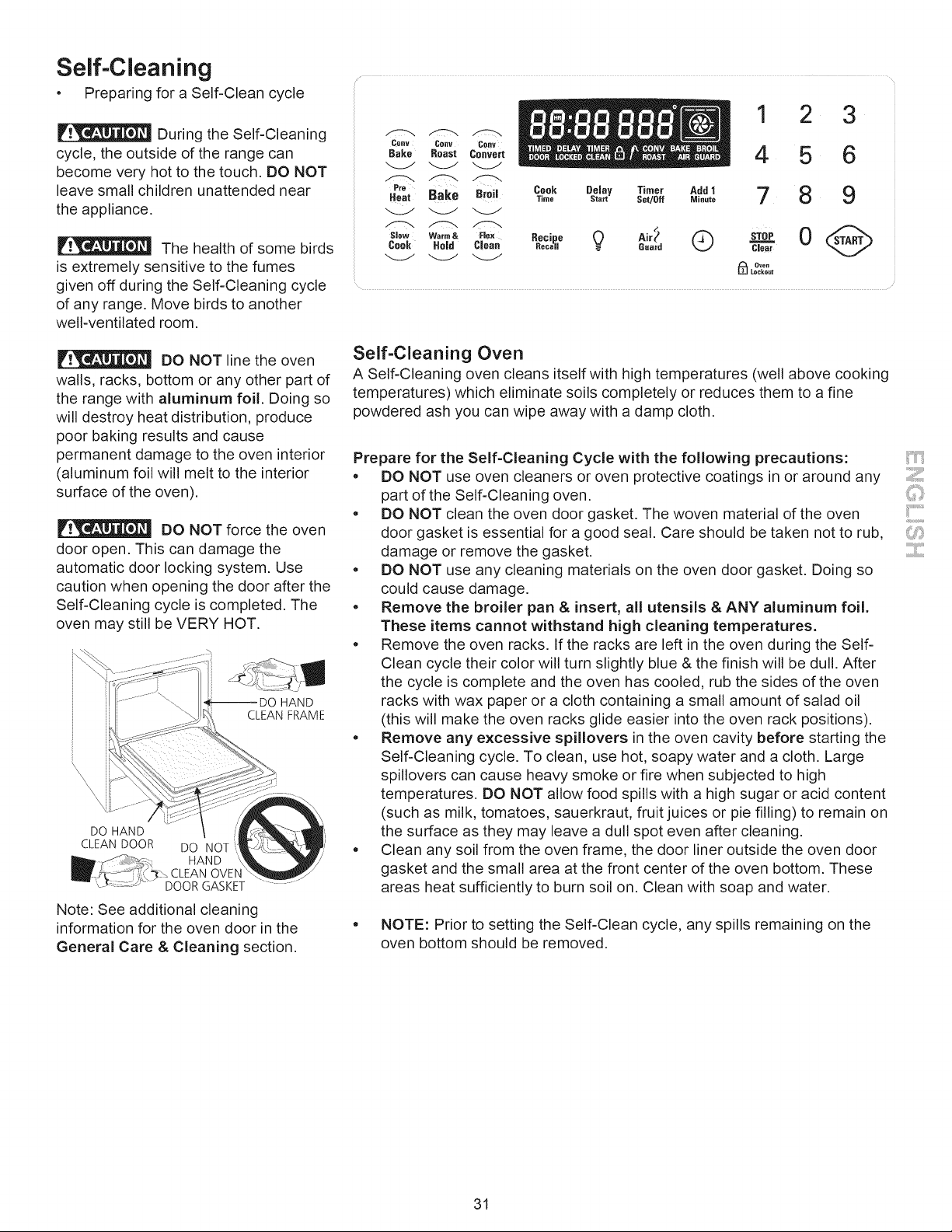

Self Cleaning ............................................................. 31-33

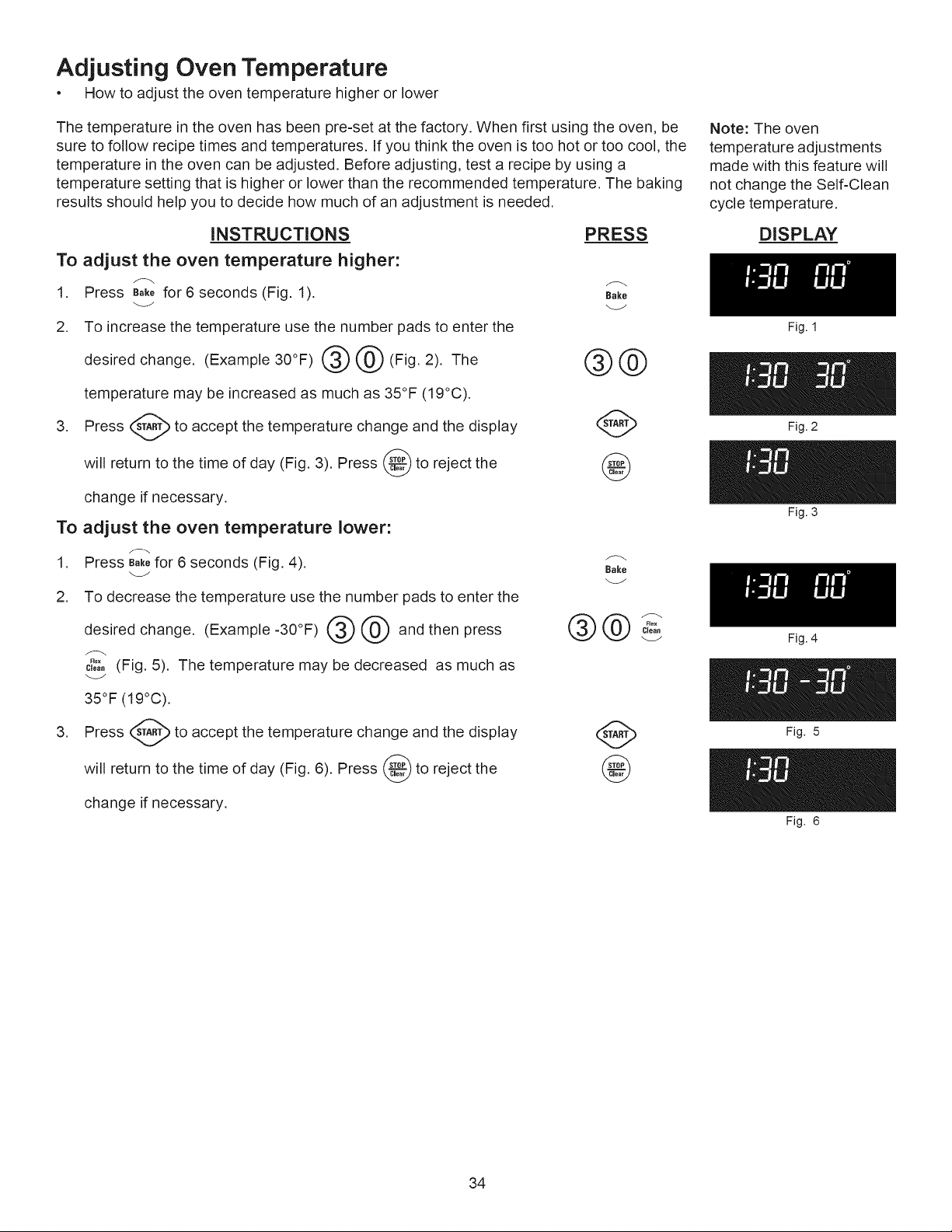

Adjusting Your Oven Temperature .................................. 34
General Care & Cleaning ........................................... 35-38
Product Record
In the space below record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on an identification plate. This serial
plate is located on the right side of the oven front frame in
the storage or warmer drawer compartment. See bottom
of this page for the serial plate location.
Model No. 790.
Serial No.
Date of Purchase

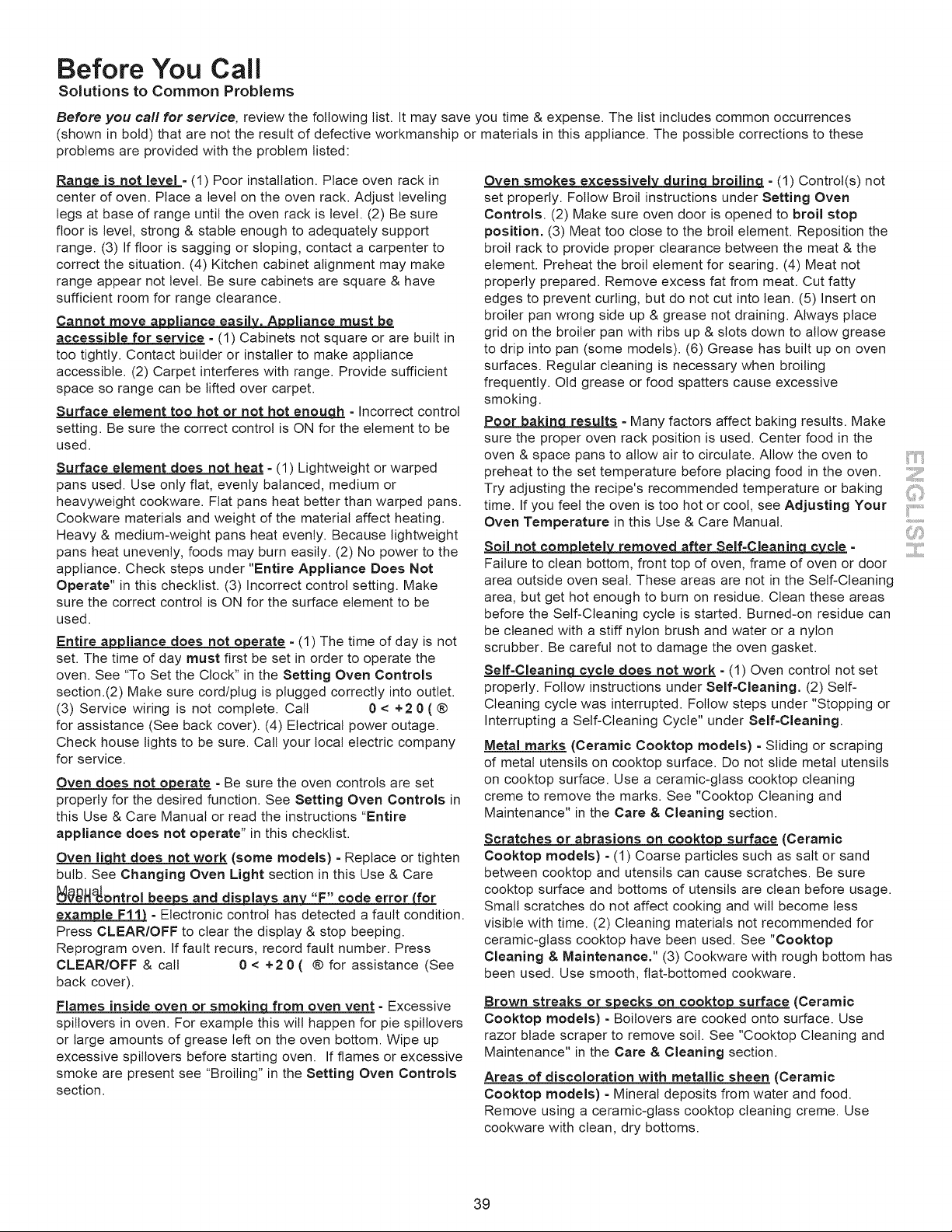

Before You Make a Service Call ..................................... 39 Save these instructions and your sales receipt for future

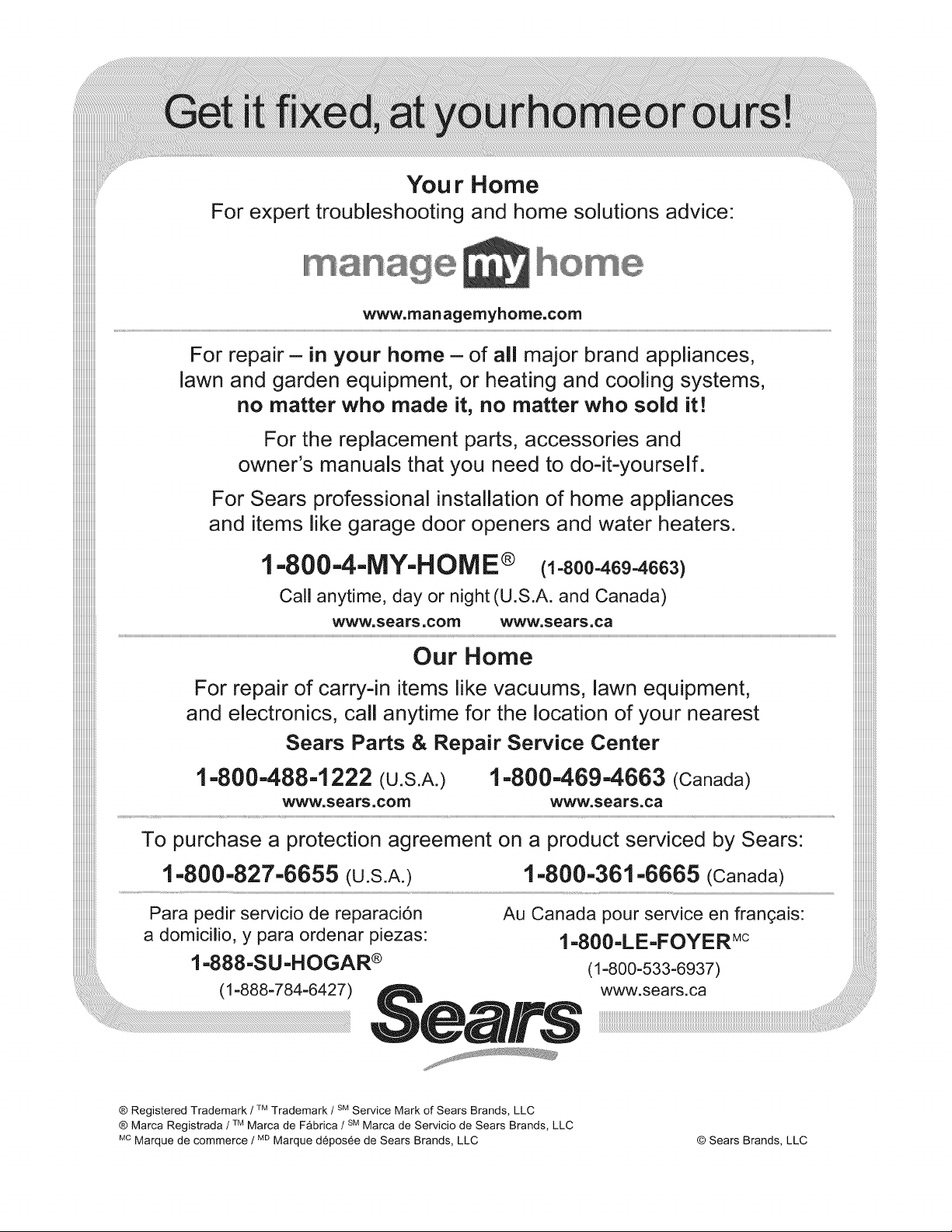

Sears Service .................................................... Back Page reference.
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in
material and workmanship within one year from the date of purchase, call 1-800-4=MY-HOME® to arrange for free repair. If this
appliance is ever used for other than private family purposes, this warranty applies for only 90 days from the date d purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions supplied
with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recom-
mended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclu-
sions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada inc., Toronto, Ontario, Canada MSB 2B8
Serial Plate Location
You will find the model and serial number printed on the serial plate.
The serial plate is located on the right side of the oven front frame in
the storage or warmer drawer compartment.
Remember to record the serial number for future reference (See top of
page under Product Record).
]
Serial plate location; Open
the Warmer Drawer (some
or storage drawer (some models),

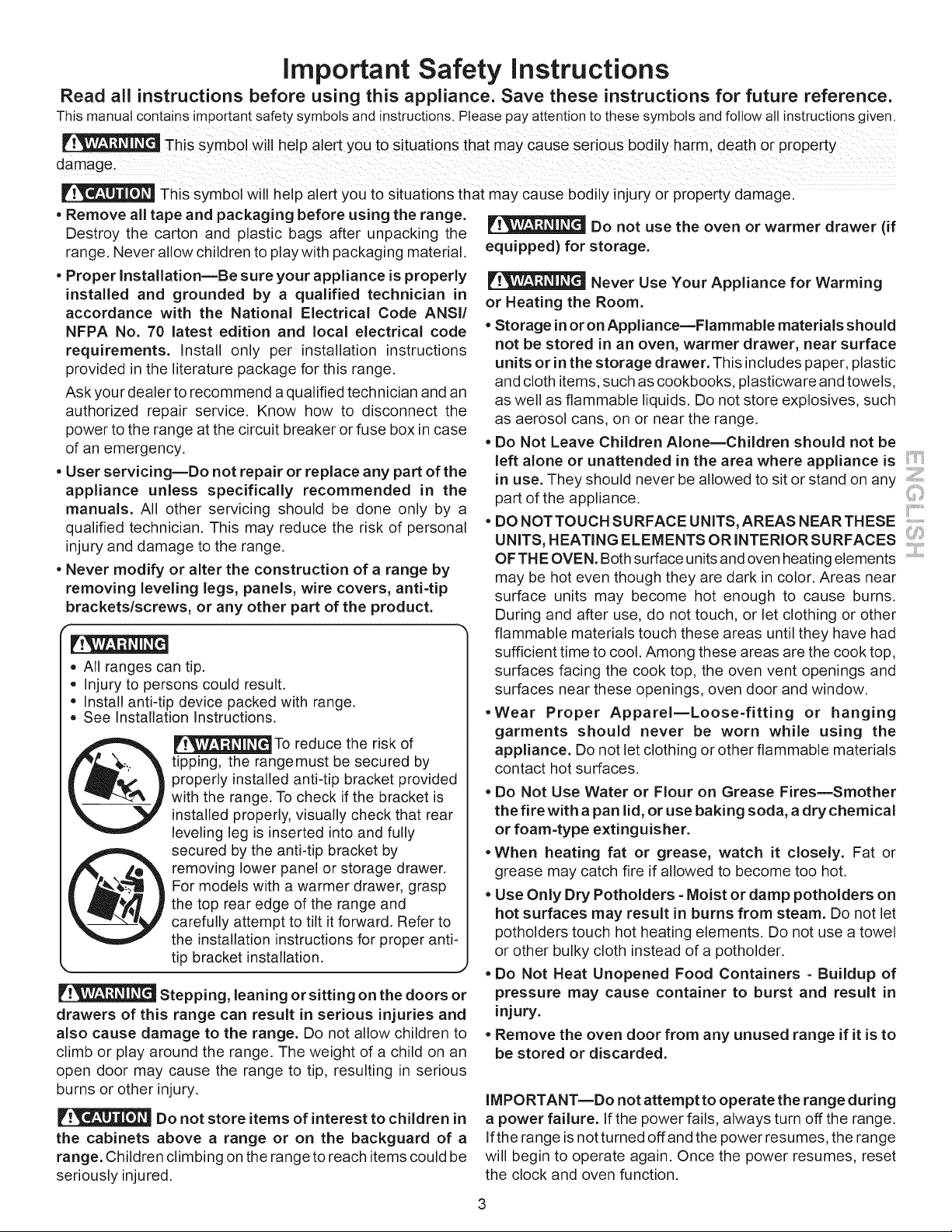

important Safety instructions
Read all instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This Symbol Will help alert y0u t0 sitUations that may CaUse Sed0Us b0dily ha[m; death 0r property
damagel
This symb0i Will help alert you to situations that may cause bodily injury or property damagel
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to playwith packaging material.
• Proper Installation=Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only per installation instructions
provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in case
of an emergency.
• User servicing=Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
, All ranges can tip.
, Injury to persons could result.
• Install anti-tip device packed with range.
o See Installation Instructions.
_To reduce the risk of
tipping, the rangemust be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the installation instructions for proper anti-
tip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weight of a child on an
open door may cause the range to tip, resulting in serious
burns or other injury.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be
seriously injured.
Do not use the oven or warmer drawer (if
equipped) for storage.
Never Use Your Appliance for Warming
or Heating the Room.
• Storage in or on Appliance=Flammable materials should
not be stored in an oven, warmer drawer, near surface
units or in the storage drawer. This includes paper, plastic
and cloth items, such as cookbooks, plasticware and towels,
as well as flammable liquids. Do not store explosives, such
as aerosol cans, on or near the range.
• Do Not Leave Children Alone=Children should not be
left alone or unattended in the area where appliance is
in use. They should never be allowed to sit or stand on any
part of the appliance.
• DO NOTTOUCH SURFACE UNITS,AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES
OFTHE OVEN. Both surface units and oven heating elements
may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns.
During and after use, do not touch, or let clothing or other
flammable materials touch these areas until they have had
sufficient time to cool. Among these areas are the cook top,
surfaces facing the cook top, the oven vent openings and
surfaces near these openings, oven door and window.
• Wear Proper Apparel=Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable materials
contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires=Smother
the fire with a pan lid, or use baking soda, a dry chemical
or foam=type extinguisher.
• When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
• Use Only Dry Potholders - Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel
or other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food Containers - Buildup of
pressure may cause container to burst and result in
injury.
• Remove the oven door from any unused range if it is to
be stored or discarded.
IMPORTANT=Do not attempt to operate the range during
a power failure. If the power fails, always turn off the range.
If the range is not turned off and the power resumes, the range
will begin to operate again. Once the power resumes, reset
the clock and oven function.

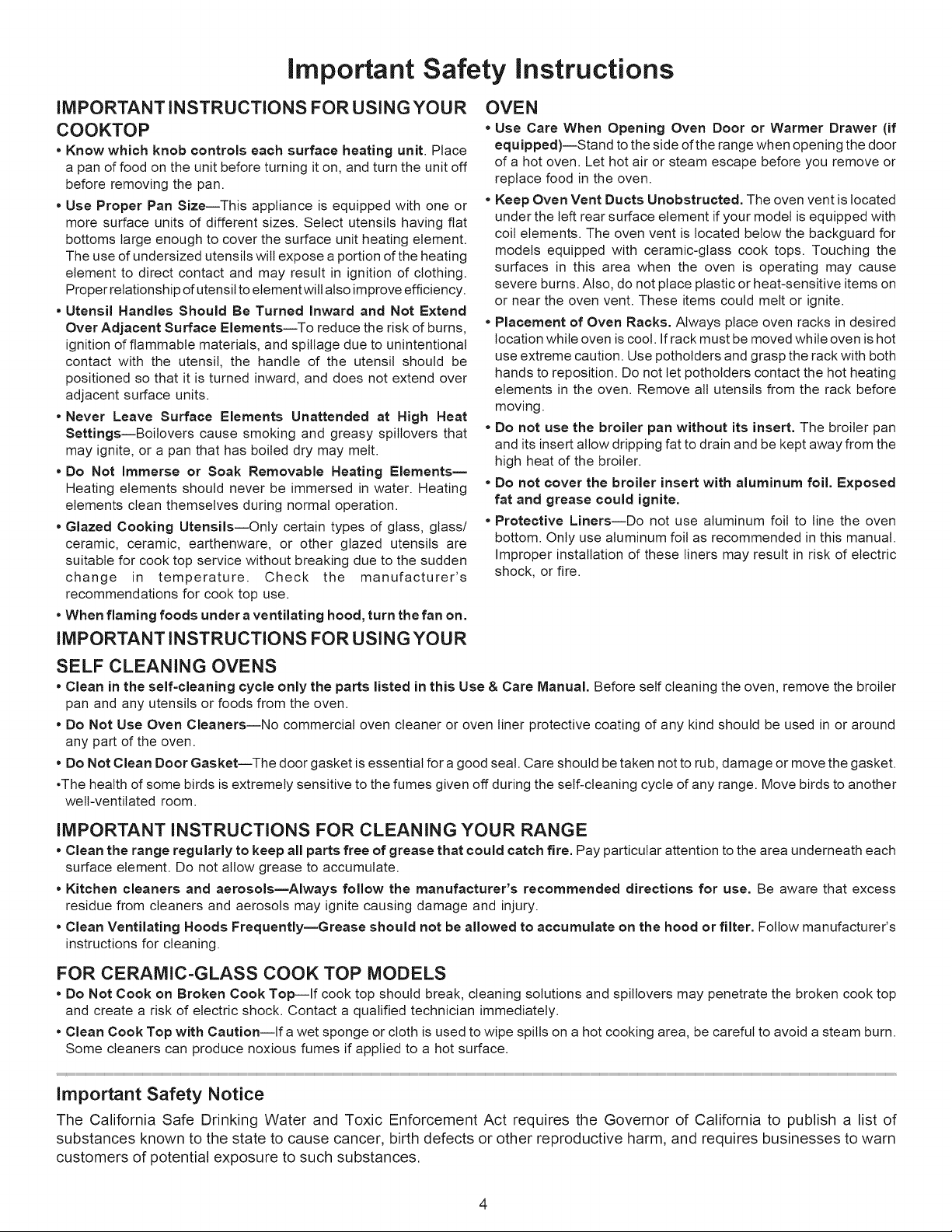

important Safety instructions
iMPORTANT iNSTRUCTiONS FOR USING YOUR
COOKTOP
, Know which knob controls each surface heating unit. Place
a pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
, Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having fiat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the heating
element to direct contact and may result in ignition of clothing.
Proper relationship of utensit to element witl also improve efficiency.
, Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface ElementsiTo reduce the risk of burns,
ignition of flammable materials, and spillage due to unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend over
adjacent surface units.
, Never Leave Surface Elements Unattended at High Heat
Settings--Boitovers cause smoking and greasy spittovers that
may ignite, or a pan that has boiled dry may melt.
, Do Not Immerse or Soak Removable Heating Elements m
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
, Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
When flaming foods under a ventilating hood, turn the fan on.
iMPORTANT iNSTRUCTiONS FOR USING YOU R
SELF CLEANING OVENS
OVEN
, Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
, Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items on
or near the oven vent. These items could melt or ignite.
, Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is hot
use extreme caution. Use potholders and grasp the rack with both
hands to reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack before
moving.
, Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from the
high heat of the broiler.
, Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
, Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
, Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
, Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around
any part of the oven.
, Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
•The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
welt-ventilated room.
iMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
, Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each
surface element. Do not allow grease to accumulate.
, Kitchen cleaners and aerosolsmAIways follow the manufacturer's recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.
, Clean Ventilating Hoods Frequently_Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's
instructions for cleaning.
FOR CERAMIC=GLASS COOK TOP MODELS
, Do Not Cook on Broken Cook Top--If cook top should break, cleaning solutions and spittovers may penetrate the broken cook top
and create a risk of electric shock. Contact a qualified technician immediately.
, Clean Cook Top with Caution--If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
Protection Agreements Acuerodes de protecci6n
Master Protection Agreements
Congratulations on making a smart purchase, Your new Kenmore '_
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No-lemon" guarantee - replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request- no extra
charge.
[] Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1-800-4-MY-HOME °'.
Acuerdos maestros de proteccion
Enhorabuena por haber hecho una compra inteligente, Su nuevo
producto Kenmore®esta diseSado y fabricado para brindarle aSos de
funcionamiento liable. Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones peri6dicas. Es por eso que
tener un Acuerdo maestro de protecci6n podria ahorrarle dinero y
molestias.
El Acuerdo maestro de protecci6n tambien sirve para prolongar la
durabilidad de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no s61o en caso de defectos de los
productos. Nuestra cobertura va mucho m&s all_ que la garantia
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera protecci6n.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos
autorizados de Sears), Io cual significa que quien repare o realice
el mantenimiento de su producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y nt_mero ilimitado de
Ilamadas de solicitud de servicio t_cnico: se puede poner en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresas": se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo
de 12 meses.
[] Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
[] Revisi6n anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier momento, sin costo alguno
[] R&pida asistencia telef6nica, la cual denominamos Soluci6n
r&pida: es decir, asistencia telef6nica a traves de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un "manual parlante del
usuario".
[] Protecci6n contra fallas el_ctricas, contra da_os debidos a
fluctuaciones de la corriente electrica.
[] $250 al aSo para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mecanica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
[] Devoluci6n de gastos de alquiler de electrodom_sticos si la
reparaci6n de su producto asegurado toma masque el tiempo
prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de
reparaci6n, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hora del dia o de la noche, o bien concertar una visita de
servicio por Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantia
del producto, iAdquiera hoy mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los
EE.UU.).
* La cobertura en Canad_ varia en el caso de algunos articulos. Para
obtener detalles completos al respecto, Ilame al 1-800-361-6665 de
Sears de Canad&
Servicio de instalacion de Sears
Para solicitar la instalacidn por profesionales de Sears de
electrodomesticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de uso prioritario en el hogar, Ilame al 1-800-4-MY-
HOME en los EE.UU. o Canad&
Range Features
(9
Your Electric Range Features include:
1. Electronic Oven Control with Kitchen Timer.
2. Simmer Select Element Control (some models) or
Single Radiant Element Control (some models) or Single
Radiant Turbo Boil TM Control (some models).
3. Single Radiant Element Control.
4. Warm & Ready Drawer Control & Indicator Light (some models).
5. Warm & Ready Zone & Surface Indicator Light (some models).
6. Single Radiant Element Control.
7. Triple Radiant Element Control and selector switch (some
models) or Dual Element Radiant Control (some models) or
Single Element Radiant Control (some models).
8. Simmer Select Push Button & Indicator Light (some models).
9. HOT SURFACE Indicator Lights.
10. "ELEMENT ON" Indicator Light,
11. Oven Interior Light(s) with removable Cover(s).
12. Automatic Oven Door Light Switch (some models).
13. Self-Cleaning Oven interior.
14. Self-Clean Door Latch.
15. Adjustable Oven Rack(s).
16. Convection Fan & Cover.
17. Large 1 piece Oven Door Handle.
18. Full width Oven Door with Window.
19. Warm & Ready Drawer TM with humidity controller (some models)
or Storage Drawer with Drawer Handle.
20. Easy to clean upswept Cooktop.
21. Ceramic Smoothtop.
22. 6" Single Radiant Element(s).
23. 9" Single Radiant Element (some models).
24. 9" Single Radiant "Turb Boil TM''(some models).
25. 9-12" Dual Radiant Element (some
models).
26. 6-9-12" Triple Radiant Element (some
models).
27. Warm & Ready Zone Radiant Element
(some models).
28. Broil Pan (some models).
29. Broil Pan Insert (some models).
30. Roasting Rack (some models).
31. Leveling Legs and Anti-tip Bracket
(included).
NOTE: The features of your range may
vary according to model type & color.
f_.____ .................................................. ...... :: _ ................................................................
Before Setting Oven Controls
OVEN VENT
Fig. 1
Arranging Oven Racks
Oven Vent Location
The oven vent is located under the left side of the control panel (See
Fig. 1). When the oven is on, warm air passes through the vent. This
venting is necessary for proper air circulation in the oven and good baking
results. DO NOT BLOCK OVEN VENT.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and
slide out. To replace, fit the rack onto the guides on the oven walls. Tilt
the front of the rack upward and slide the rack back into place.
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Refer to Fig. 2. Always use oven mitts when using the oven.
Recommended Rack Positions for Broiling, Baking & Roasting:
Food
Broiling hamburgers & steaks
Broiling meats, chicken or fish
Cookies, cakes, pies, biscuits & muffins
Frozen pies, angel food cake, yeast, bread, casseroles
Small cuts of meat or poultry
Turkey, roast or ham
Rack Position
See Broil
See Broil
4or5
2or3
1 or2
1 or2
iiii..................
..........iiii.......
Types of Oven Racks
Flat Handle Oven Rack Offset Oven Rack Bottom Oven Rack
Fig. 3 Fig. 4 Fig. 5
Fig. 2
Always use pot
holders or oven mitts when
adjusting the oven racks. Wait until
the oven has completely cooled if
possible. Oven racks may be HOT
and may cause burns.
The Flat Handle Oven Rack (Fig. 3) may be used for most cooking needs. The Offset Oven Rack (Fig. 4) is designed to
place the base of the rack about 1/2 rack position lower than the flat oven rack. This rack design provides several
additional possible positions between the standard positions. To maximize oven cooking space always place the Bottom
Oven Rack (Fig. 5) in rack position 1 for baking or roasting large cuts of meat, Do not use the Bottom Oven Rack in any
other oven rack position.
Baking Layer Cakes with 1 or 2 Oven Racks
For best results when baking cakes or cookies using 2 oven racks, place cookware on rack positions 2 (Flat Handle Oven
Rack) & 6 using the Offset Oven Rack (some models; See Fig. 6). For best results when baking cakes or cookies using a
single oven rack, place cookware on rack positions 2, 3 or 4 (See Fig. 7).
Air Circulation in the Oven
For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookware for proper air circulation
and be sure pans and cookware do
not touch each other, the oven door,
sides or back of the oven cavity. The
hot air must be able to circulate around
the pans and cookware in the oven for
even heat to reach around the food.
Fig. 6 Fig. 7

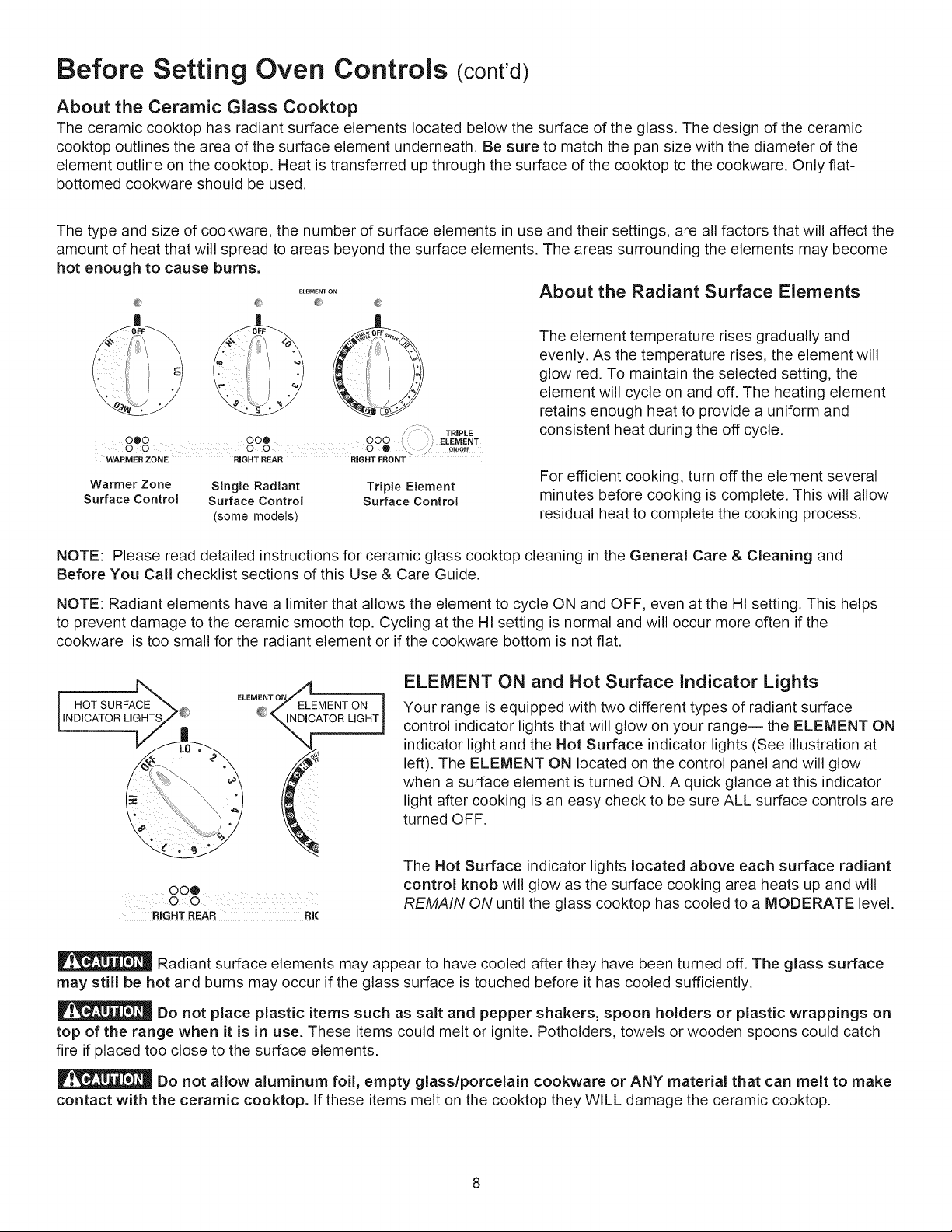

Before Setting Oven Controls (cont'd)
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the
element outline on the cooktop. Heat is transferred up through the surface of the cooktop to the cookware. Only flat-
bottomed cookware should be used.
The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the
amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become
hot enough to cause burns.
ELEMENTON
<b
TR PLE
000 000 000 ELEMENT
O O O O O O _ o_/o_F
WARMER ZONE RIGHT REAR RIGHT FRONT
Warmer Zone
Surface Control
Single Radiant
Surface Control
(some models)
Triple Element
Surface Control
About the Radiant Surface Elements
The element temperature rises gradually and
evenly. As the temperature rises, the element will
glow red. To maintain the selected setting, the
element will cycle on and off. The heating element
retains enough heat to provide a uniform and
consistent heat during the off cycle.
For efficient cooking, turn off the element several
minutes before cooking is complete. This will allow
residual heat to complete the cooking process.
NOTE: Please read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning and
Before You Call checklist sections of this Use & Care Guide.
NOTE: Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps
to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and will occur more often if the
cookware is too small for the radiant element or if the cookware bottom is not flat.
HOT SURFACE_ ..... ELEMENT_ON
I INDICATOR _ _" _> _ATOR LIGHT I
oo®
0 0
RIGHT REAR RJ(
ELEMENT ON and Hot Surface Indicator Lights
Your range is equipped with two different types of radiant surface
control indicator lights that will glow on your range-- the ELEMENT ON
indicator light and the Hot Surface indicator lights (See illustration at
left). The ELEMENT ON located on the control panel and will glow
when a surface element is turned ON. A quick glance at this indicator
light after cooking is an easy check to be sure ALL surface controls are
turned OFF.
The Hot Surface indicator lights located above each surface radiant
control knob will glow as the surface cooking area heats up and will
REMAIN ON until the glass cooktop has cooled to a MODERATE level.
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the surface elements.
Do not allow aluminum foil, empty glass/porcelain cookware or ANY material that can melt to make
contact with the ceramic cooktop. If these items melt on the cooktop they WILL damage the ceramic cooktop.

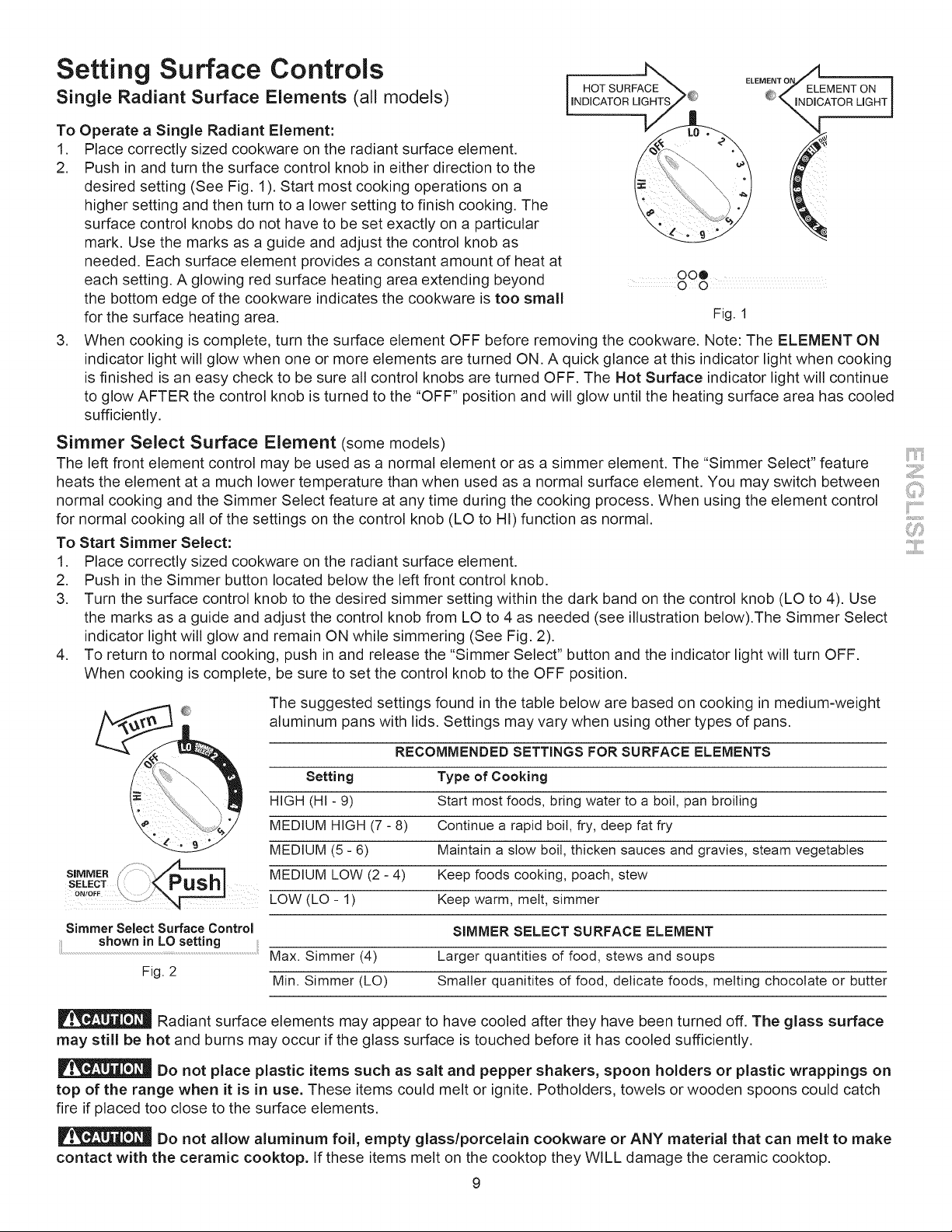

Setting Surface Controls
Single Radiant Surface Elements (all models)
To Operate a Single Radiant Element:
1. Place correctly sized cookware on the radiant surface element.
2. Push in and turn the surface control knob in either direction to the
desired setting (See Fig. 1 ). Start most cooking operations on a
higher setting and then turn to a lower setting to finish cooking. The
surface control knobs do not have to be set exactly on a particular
mark. Use the marks as a guide and adjust the control knob as
needed. Each surface element provides a constant amount of heat at
each setting. A glowing red surface heating area extending beyond
the bottom edge of the cookware indicates the cookware is too small
for the surface heating area.
,
When cooking is complete, turn the surface element OFF before removing the cookware. Note: The ELEMENT ON
indicator light will glow when one or more elements are turned ON. A quick glance at this indicator light when cooking
is finished is an easy check to be sure all control knobs are turned OFF. The Hot Surface indicator light will continue
to glow AFTER the control knob is turned to the "OFF" position and will glow until the heating surface area has cooled
sufficiently.
Simmer Select Surface Element (some models)
The left front element control may be used as a normal element or as a simmer element. The "Simmer Select" feature
heats the element at a much lower temperature than when used as a normal surface element. You may switch between
normal cooking and the Simmer Select feature at any time during the cooking process. When using the element control
for normal cooking all of the settings on the control knob (LO to HI) function as normal.
To Start Simmer Select:
1. Place correctly sized cookware on the radiant surface element.
2. Push in the Simmer button located below the left front control knob.
3. Turn the surface control knob to the desired simmer setting within the dark band on the control knob (LO to 4). Use
the marks as a guide and adjust the control knob from LO to 4 as needed (see illustration below).The Simmer Select
indicator light will glow and remain ON while simmering (See Fig. 2).
4. To return to normal cooking, push in and release the "Simmer Select" button and the indicator light will turn OFF.
When cooking is complete, be sure to set the control knob to the OFF position.
SIMMER
SELECT
ON/OFF ',
@
The suggested settings found in the table below are based on cooking in medium-weight
aluminum pans with lids. Settings may vary when using other types of pans.
RECOMMENDED SETTINGS FOR SURFACE ELEMENTS
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5 - 6) Maintain a stow boil, thicken sauces and gravies, steam vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer
SIMMER SELECT SURFACE ELEMENT
Max. Simmer (4) Larger quantities of food, stews and soups
Min. Simmer (LO) Smaller quanitites of food, delicate foods, melting chocolate or butter
Simmer Select Surface Control
shown in LO setting
Fig. 2
.........iiii......
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the surface elements.
Do not allow aluminum foil, empty glass/porcelain cookware or ANY material that can melt to make
contact with the ceramic cooktop. If these items melt on the cooktop they WILL damage the ceramic cooktop.
Setting Surface Controls (cont'd)
To Operate Dual or Triple (some models) Elements
The Dual or Triple Elements offers flexibilty for different sized cookware. The inner element alone may be used for
smaller cookware or the inner and middle may be used in combination for medium sized cookware. All 3 portions may be
activated for larger cookware. To operate the smaller inner radiant element, turn the right front control knob counter-
clockwise (marked SINGLE; See Fig. 1).
@
C
®
@
/'z/,P'- _ .%\
OOO ELEMENT
0 t , ONZOFF
RIGHT FRONT
(For DUAL & TRIPLE element positions) To
operate both the inner and middle elements
together turn right front control knob clockwise
(marked DUAL; See Fig. 2).
(For Triple Element models only) To operate all
3 elements at the same time (inner, middle and
outer portions) turn right front control knob
counter-clockwise (marked DUAL or TRIPLE) to
the desired setting and press the button marked
TRIPLE ELEMENT as shown in Fig. 3). Please
note that all 3 sections will adjust to the same
power level.
Notes: Pressing the Triple Element button only will
NOT operate the Triple Element. The control knob
must be set in the Dual or Triple range as shown in
Fig. 3. See Recommended Settings for Radiant
Elements on the previous page.
Fig. 1 Fig. 2 Fig. 3
Triple Radiant heating areas on ceramic smooth top (shown darker)
Note: The size and type of cooking utensil used,
and the amount and type of food being cooked will
influence the setting needed for best cooking
results.
@
Setting the Warmer (Warm & Ready TM) Zone (some models)
The purpose of the Warmer Zone is to keep hot cooked foods at serving temperature.
Always start with hot food. It is not recommended to heat cold food on the Warmer Zone.
All food placed on the Warmer Zone should be covered with a lid or aluminum foil to
maintain quality. For best results, when warming pastries or breads, the cover should have
an opening to allow moisture to escape. Do not use plastic wrap to cover food. Plastic
may melt onto the surface and be very difficult to clean. Use only dishware, utensils and
cookware recommended for oven and cooktop use on the Warmer Zone.
000
0
WARMER ZONE
Fig. 2
Unlike the surface elements, the Warmer Zone will not glow red when it is
hot.
Always use potholders or oven mitts when removing food from the warm zone
Warmer Zone Recommended Food
Settings Table
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs LO
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI
as cookware and plates will be hot.
Setting the Warmer (Warm & Ready TM) Zone Control
1. To set the control, push in either direction and turn the knob (See Fig 2).
The temperatures are approximate, and are designated by HI, MED and
LO. However, the control can be set at any position between HI and LO
for different levels of heating.
2. When ready to serve, turn the control to OFF. The Warmer Zone will
remain warm until the indicator light goes OFF.
Temperature Selection - Refer to the chart at the side column for
recommended heating levels. If a particular food is not listed, start with the
medium level, and adjust as needed. Most foods can be kept at serving
temperatures by using the medium level.
Note:use the warmer zone to keep c00ked foods hot such as; vegetables,
gravies, casseroles, soups, stews, breads, pastries and oven,safe dinner platesl
10
Surface Cooking
Using Turbo Boil TM Element (some models)
The Turbo BoilTMfeature uses a higher wattage surface radiant element which can bring food
items to boil much quicker. The left front radiant element will be clearly marked if this feature is
available on your range (See Fig. 1). If equipped with the Turbo Boil TM feature, place the
cookware on the left front surface element and follow the instructions "To Operate a Single
Radiant Element" in the Settings Surface Controls section.
i! TM ::
1_ Be Bo_ z
/ N
Fig. 1
Using proper cookware
The size and type of cookware used will influence the setting
needed for best cooking results. Cookware should have flat
bottoms that make good contact with the entire surface heating
element (See Fig. 2). Check for flatness by rotating a ruler across
the bottom of the cookware (See Fig. 3).
Cookware Material Types
The cookware material determines how evenly and quickly heat is
transferred from the surface element to the pan bottom. The most
popular materials available are:
ALUMINUM = Excellent heat conductor. Some types of food will
cause it to darken (Anodized aluminum cookware resists staining &
pitting). If aluminum pans slide across the ceramic cooktop, they
may leave metal marks which will resemble scratches. Remove
these marks immediately.
COPPER - Excellent heat conductor but discolors easily. May leave
metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL = Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
CAST IRON = A poor heat conductor however will retain heat very
well. Cooks evenly once cooking temperature is reached. Not
recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL - Heating characteristics will
vary depending on base material. Porcelain-enamel coating must
be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic
cooktop surfaces because it may scratch the glass.
*CORRECT INCORRECT
t t
• Flat bottom and straight
sides.
• Tight fitting lids.
• Weight of handle does not
tilt pan. Pan is well
balanced.
• Pansizes match the
amount of food to be
prepared and the size of
the surface element.
• Made of a material that
conducts heat well.
• Easyto clean.
® Always match pot diameter
to element surface
diameter.
Fig. 2
Be sure to follow the
recommendations for using
proper cookware as illustrated
in Figs. 4 & 5. For more
information about the ceramic

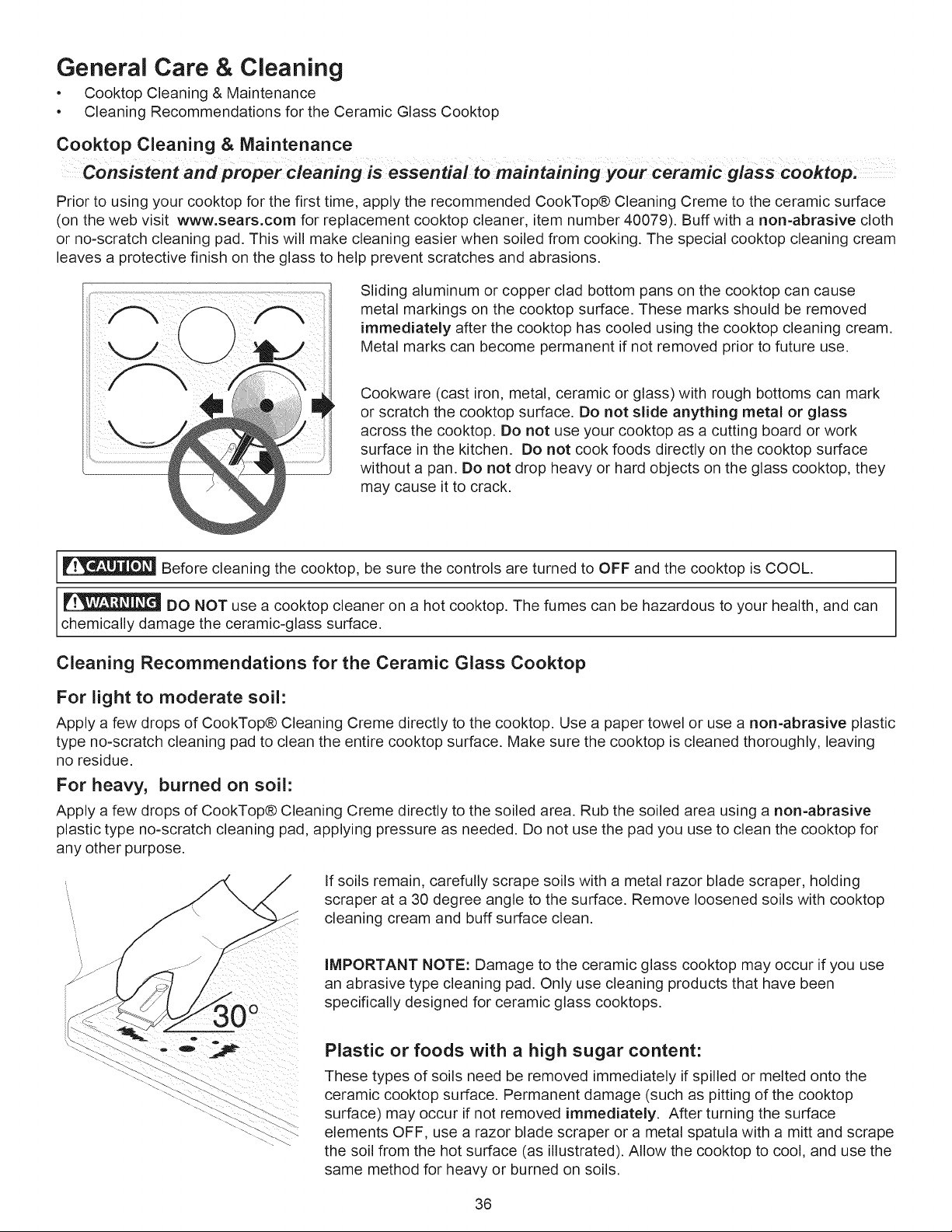

cooktop see "Cooktop
Cleaning & Maintenance" in
the General Care & Cleaning
section.
e Curved and warped pan
bottoms.
÷1 I_-
• Pan overhangs element b
more than one-half inch.
w
÷1 I_
® Pan is smaller than
element.
• Heavy handle tilts pan
Fig. 3
Important Note: DO NOT place EMPTY
aluminum, glass or porcelain-enamel
coated cookware on the ceramic cooktopY
The melting point of cookware made with these
materials may be reached quickly especially if
left empty & they may bond to the ceramic
cooktop. If the cookware melts it WILL damage
the cooktop! BE SURE to follow ALL the
cookware manufacturer's suggestions when
using ANY type of cookware on the ceramic
cooktop.
11
Oven Control Functions
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each feature
and function follow later in this Use & Care Guide.
CONV CONVERTi COOK
CONV ROAST i Use to Use to select the TIME i Use
select the Convection Convection Convert to enter the
Roast feature• feature• length of the
baking time.
CONV BAKE i Use to
select the Convection Bake
feature. _ co_.v'_'_ Cony
BAKEEUSe to enter the Bake Roast Convert
normal Bake feature. _ _ _ "-_
PREHEAT i Use to pre- Heat BaKe eroil
condition the oven _ "_
temperature, arm& Flex
BROIL i Use to select i COOk H01d Clean
DELAY
STARTi Use
with BAKE,
COOK TIME,
and CLEAN to
program a
Delayed Timed
Bake or Delay
Self-Cleaning
cycle st_ j:t time.
I
ADD 1
TIMER MINUTE i
SET/OFF i Use to
Use to set select Add 0 THRU 9
or cancel 1 Minute NUMBER PADS
the Kitchen feature, i Use to enter
Timer. temperature and
times.
1 2 3
4 5 6
Cook Delay Timer Ad 1
Time Start Set/0ff Minute 7 8 9
,.o.°oo 0 ,,0=Recall @ Guard CJear
WARM & HOLD i Use to CLEAN i Use RECALL- LIGHTi
select the Warm & Hold to select the Use recall Use to light i Use set the any oven mode start all
feature. Self-Cleaning stored turn the after preheat time of previously oven
feature, recipes oven light to help day. entered except features
• freshen
ON and kitchen air the Oven (not used
OFF. during Lockout, Time of with Oven
cooking. Day and Minute Light).
Timer. Press
STOP/CLEAR to
stop cooking.
varlabieBrotifeature. // / / / i
SLOW COOK-- Use to Slow _ / / / j j \ \
Cook feature. _/ -- / - TM " -- --
/ FLEX RECIPE OVEN Air Guard CLOCK STOP/CLEARi START
& indicator i Use to Use to cancel i Use to
Minimum & Maximum Control Pad Settings
All of the features listed have
minimum and maximum time or
temperature settings that may be
entered into the control, An
ENTRY acceptance beep will
sound each time a control pad is
touched (the Oven Lockout pad is
delayed by 3 seconds),
An ENTRY ERROR tone (3 short
beeps) will sound if the entry of the
temperature or time is below the
minimum or above the maximum
settings for the feature.
FEATURE
PREHEAT TEMP.
BAKE TEMP.
BROIL TEMP.
KITCHEN TIMER
CLOCK TIME 12
24
COOK TIME 12
24
START TIME 12
24
CLEAN TIME
CONVECTION BAKE
12 Hr.
24 Hr.
Hr.
Hr.
Hr.
Hr.
Hr.
Hr.
MIN. TEMP./TIME MAX. TEMP./TIME
170°F / 77°C 550°F / 288°C
170°F / 77°C 550°F / 288°C
400°F / 205°C 550°F / 288°C
0:01 Min. 11:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
1:00 Hr./Min. 12:59 Hr./Min.
0:00 Hr./Min. 23:59 Hr./Min.
0:01 Min. 11:59 Hr./Min.
0:01 Min. 23:59 Hr./Min.
1:00 Hr./Min. 12:59 Hr./Min.
0:00 Hr./Min. 23:59 Hr./Min.
2 hours 4 hours
170°F / 77°C 550°F / 288°C
12
Setting Oven Controls
• Setting the Clock
• Changing between 12 or 24 hour display
Setting the Clock
The CLOCK @ pad is used to set the clock. The clock may be set for 12 or 24 hour time
of day operation. The clock has been preset at the factory for the 12 hour operation. When
the range is first plugged in, or when the power supply to the range has been interrupted, the
timer in the display will flash the time of day (Fig. 1).
INSTRUCTIONS PRESS
Fig. 1
DISPLAY
To set the clock (example below for 1:30):
1. Press @. "CLO" will appear in the display (Fig. 2).
2. Press @ @ @ pads to set the time of day to l:30 (Fig.
3). "CLO" will appear in the display. Press _. "CLO" will
disappear and the clock will start (Fig. 4).
Changing between 12 or 24 hour time of day display:
1. Press and hold @ for 6 seconds (Fig. 3). While holding the
pad down the current time of day will remain and "CLO" will
disappear from the display (Fig. 4). CONTINUE holding the pad
until a beep is heard.
@
®@@
@
for 6 seconds
Fig. 2
Fig. 3
Fig. 4
2. The display will show either "12h"(Fig. 5) or "24h"(Fig. 6).
3. Press c_o_,.... to switch between the 12 and 24 hour time of day
display. The display will show either "12h" (Fig. 5) or "24h"
(Fig. 6).
4. Press _ to accept the desired change or press @ to
reject the change.
Clean
, Reset the correct time as described in To set the Clock
above. Please note that if the 24 hour time of day mode was
chosen, the clock will now display time from 0:00 through 23:59
hours.
Fig. 5
Fig. 6
Using the Air Guard TM feature
Your appliance is equipped with a catalytic oven exhaust cleaner that may be turned on during any active cooking
process. This feature helps remove smoke and eliminates 85% of the odors generated when using your oven.
If you wish to have Air Guard TM clean the oven exhaust once cooking has started, press the @
key.
Note: The Air Guard TM indicator light will glow anytime the Air Guard TM is active. Air Guard will turn on and cannot be
manually turned off during the Self-cleaning cycle.
13
Setting Oven Controls
• Continuous Bake or Twelve Hour Energy Saving Mode
• Kitchen Timer
Setting Continuous Bake or 12 Hour Energy Saving
The TIMER SET/OFF and FLEX CLEAN C_oa..... pads control the Continuous Bake or 12 Hour Energy Saving features.
The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control
is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous
INSTRUCTIONS PRESS DISPLAY
Baking.
To set the control for Continuous Bake or 12 Hour
Energy Saving features:
1. Press and hold _ for 6 seconds (Fig.l). "12:Hr" or "- -:Hr"
will appear in the display and the control will beep once.
2. Press c,oo..... to switch between the 12 Hour Energy Saving and
continuous bake features. Note: "12 h" (Fig. 2) in the display
indicates the control is set for 12 Hour Energy Saving feature
and "- - h" (Fig. 3) indicates the control is set for the
Continuous Bake feature.
3. Press _ to accept the change (Fig. 4; display will return to
day) or press _ to reject the change.
time of
Setting Kitchen Timer
for 6 seconds
Clean
Fig. 1
Fig. 2
The TIMER SET/OFF (_o,I_pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the
v
kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be
used during any of the other oven control functions. Refer to "Minumum & Maximum Control Pad Settings" on page 12
for time amount settings.
INSTRUCTIONS PRESS DISPLAY
To set the Kitchen Timer (example for 5 minutes):
1. Press _. "0:00" will appear and "TIMER" will flash in the
display (Fig. 5).
O
2. Press the number pads to set the desired time in the display
Lf5_). Press _. The time will count down with
(example
"5:00" and "TIMER" will show in the display (Fig. 6).
Note: If _ is not pressed the timer will return to the time of
day.
3. When the set time has run out, "End" and "TIMER" will show in
the display (Fig. 7). The clock will sound with 3 beeps every 15
seconds until _ is
pressed.
To cancel the Kitchen Timer before the set time has
run out:
Press 8. The display will return to the time of
day.
@
@
14
Fig. 5
Fig. 6
Fig. 7

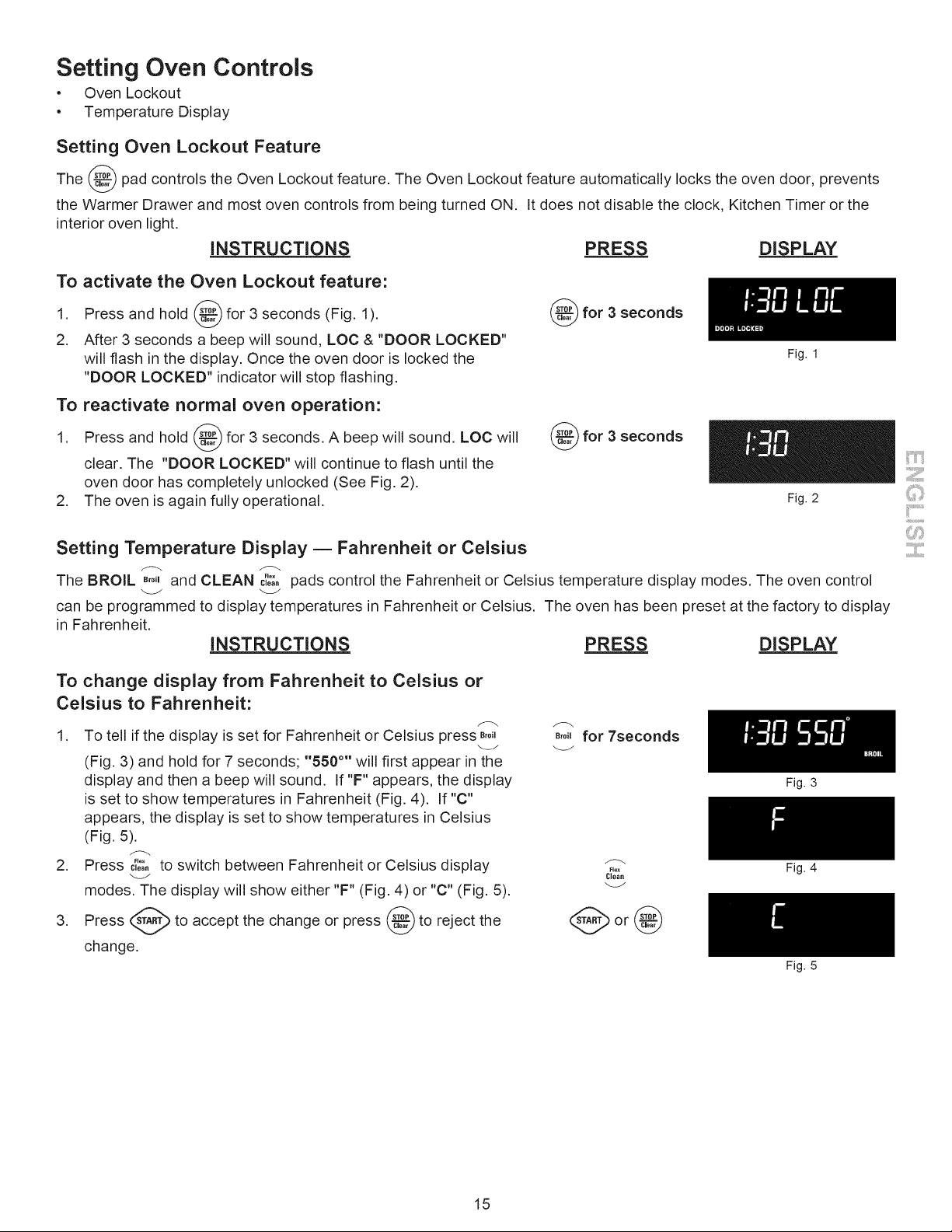

Setting Oven Controls
• Oven Lockout
• Temperature Display
Setting Oven Lockout Feature
The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the
oven door,
prevents
the Warmer Drawer and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the
interior oven light.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature:
1. Press and hold _ for 3 seconds (Fig. 1
).
2. After 3 seconds a beep will sound, LOC & "DOOR LOCKED"
will flash in the display. Once the oven door is locked the
"DOOR LOCKED" indicator will stop flashing.
To reactivate normal oven operation:
1. Press and hold _ for 3 seconds. A beep will sound. LOC will
clear. The "DOOR LOCKED" will continue to flash until the
oven door has completely unlocked (See Fig. 2).
2. The oven is again fully operational.
for 3 seconds
for 3 seconds
Fig. 1
Fig. 2
Setting Temperature Display m Fahrenheit or Celsius
The BROIL B,o_and CLEAN ctoo..... pads control the Fahrenheit or Celsius temperature display modes. The oven control
can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display
in Fahrenheit.
INSTRUCTIONS PRESS DISPLAY
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit:
1. To tell if the display is set for Fahrenheit or Celsius press B,o,
(Fig. 3) and hold for 7 seconds; "550 °" will first appear in the
display and then a beep will sound. If "F" appears, the display
is set to show temperatures in Fahrenheit (Fig. 4). If "C"
appears, the display is set to show temperatures in Celsius
(Fig. 5).
2. Press c_o_,.... to switch between Fahrenheit or Celsius display
modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).
3. Press _ to accept the change or press _ to reject the
change.
B,o_for 7seconds
Fig. 3
Fig. 4
Clean
Fig. 5
!!..................
..........iii.........
15

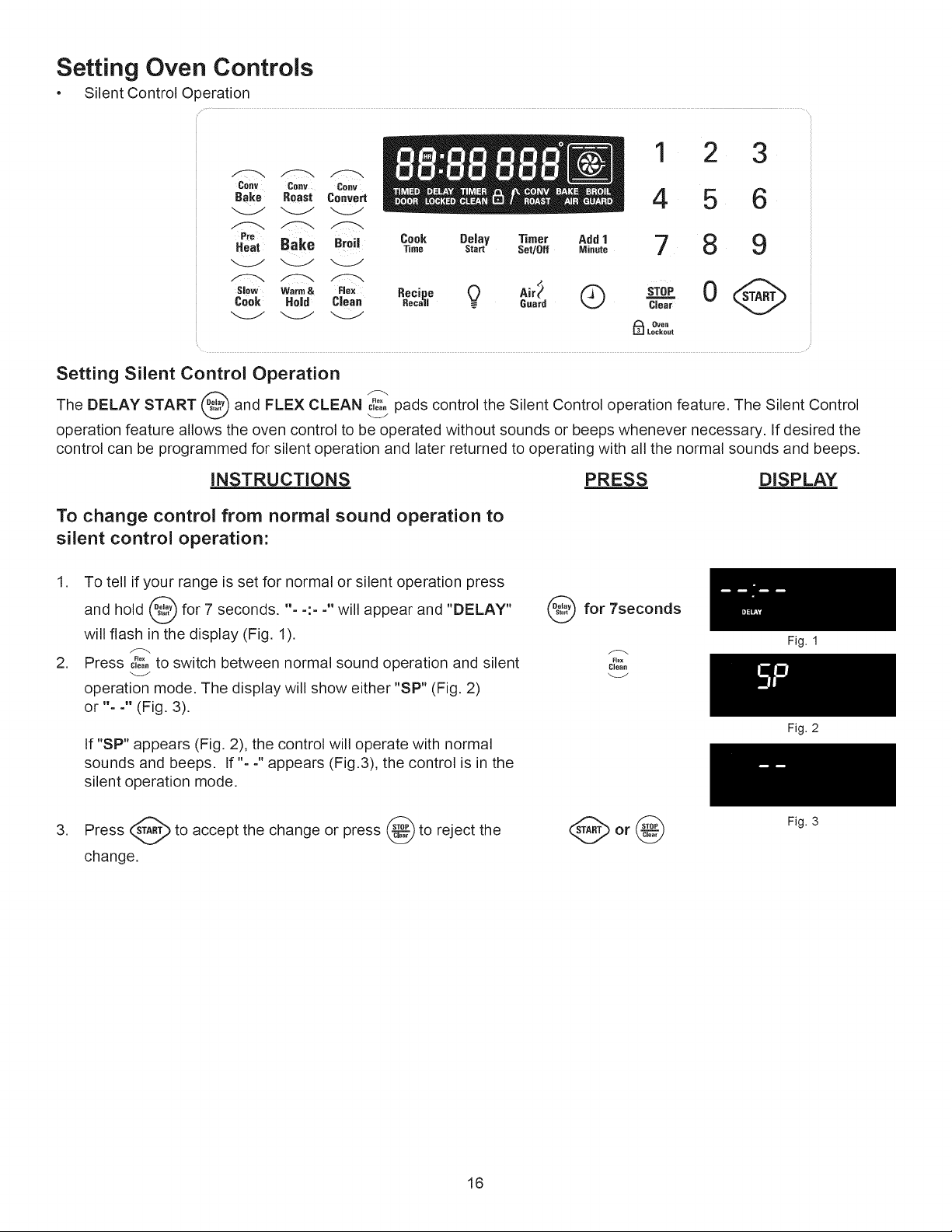

Setting Oven Controls
, Silent Control Operation
Cony Cony Cony
Bake Roast Convert
Pro
Heat Bake Broil
Slew Warm & Flex
Cook Hold CJean
Cook Belay Timer Add 1
Time Start Set/0ff Minute
call _- Guard
1 2 3
4 5 6
7 8 9
_,o---_0 @
Clear
Oven
Lockout
Setting Silent Control Operation
The DELAY START and FLEX CLEAN Cloa,.... pads control the Silent Control operation feature. The Silent Control
operation feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the
control can be programmed for silent operation and later returned to operating with all the normal sounds and beeps.
iNSTRUCTiONS PRESS DISPLAY
To change control from normal sound operation to
silent control operation:
1. To tell if your range is set for normal or silent operation press
and hold _ for 7 seconds. " : "will appear and "DELAY"
will flash in the display (Fig. 1).
2. Press c_oo,.... to switch between normal sound operation and silent
operation mode. The display will show either "SP" (Fig. 2)
or % -" (Fig. 3).
.
If "SP" appears (Fig. 2), the control will operate with normal
sounds and beeps. If %-" appears (Fig.3), the control is in the
silent operation mode.
A
Press
to accept the change or press _ to reject
the
change.
for 7seconds
Clean
16
Fig. 1
Fig. 2
Fig. 3
Setting Oven Controls
• Preheat for Electric Ranges
Setting Preheat
f_
For the best baking performance use the PREHEAT _& feature. The Preheat feature will bring the oven up to the set
baking temperature and then indicate when to place the food in the oven. Use this feature in combination with the Bake
pad when recipes call for preheating. Preheating is not necessary when roasting or cooking casseroles. The oven can be
programmed to preheat at any temperature between 170°F to 550°F.
INSTRUCTIONS PRESS DISPLAY
To set the Preheat temperature for 350°F:
1. Arrange the interior oven racks.
2. Press _;_,t. "350 F", the default oven set temperature, will
appear in the display (See Fig. 1). (See BAKE instructions for
changing oven set temperature.)
3. Press _. "PRE" and "BAKE" will appear in the display
as
the oven heats and reaches 350°F (See Fig 2).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control will sound a long beep, the "PRE" light
will turn off and oven set temperature will be displayed (Fig. 3).
When PRE disappears from the display, the oven set temperature
has been reached. Once the oven has preheated, PLACE FOOD
IN THE OVEN.
Press (_) when baking is complete or to cancel the Preheat
feature.
Heat
Fig. 1
Fig. 2
Fig. 4
Heat
®@®
To change Preheat temperature while oven is
preheating (example changing from 350 to 425°F):
If it is necessary to change the preheat temperature while the oven
is preheating to the original set temperature:
1. While preheating, press ¢& again. (See Fig. 3)
2. Enter the new preheat temperature. Press @ @ @.
"425 °" will appear in the display (See Fig. 4).
3. Press _. "PRE" will appear in the display as the
oven
heats to 425°F (See Fig. 5). A long beep will sound once the
oven set temperature reaches 425°F (See Fig. 6).
baking is complete press @.
4. When
(_ Fig. 5
Fig. 6
@
17
Setting Oven Controls
• Bake
Cnnv Cony Cony
Bake RoaSt Convert
Pro
Heat Bake Broil
Slew Warm& Flex
Cook Hold Clean
Cook Belay Timer Add 1
Time Start Set/0ff Minute
_oO,pO0 Ai,# C)
carl @ Guard
1 2 3
4 5 6
7 8 9
Clear
Oven
Lockout
Setting Bake
The BAKE Bekopad controls normal baking. If preheating is necessary, refer to the PREHEAT ,% feature for instructions.
The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F).
Please Note: When setting Bake or a cooking feature that preheats the oven (except Broil), the Convection fan will turn on
and stay on until the oven reaches the set temperature. If the oven temperature is set higher during the cooking process,
the Convection fan will turn on again until the oven reaches the adjusted set temperature.
INSTRUCTIONS PRESS DISPLAY
To set the Bake Temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press Bake,350 ° will automatically appear in the display (See
Fig. 1).
3. Press _. Along beep will sound once the oven set
temperature reaches 350 ° F (See Fig. 2).
Note: Pressing _ will cancel the Bake feature at any time.
Bake
@
To change the Bake Temperature (example changing
from 350 ° to 425°F):
1. After the oven has already been set to bake at 350°F and the
oven set temperature needs to be changed to 425°F, press
Bake(See Fig. 2).
2. Press@@@. 425° will appear in the display.
(See Fig. 3).
3. Press
4. The oven is now set for 425°F.
Bake
®®®
18
Fig. 2
Fig. 3
Setting Oven Controls
• Timed Bake
Setting Timed Bake
The BAKE Bakeand COOK TIME pads control the Timed Bake feature. The automatic timer of the Timed Bake
feature will turn the oven OFF after cooking for the desired amount of time you selected.
INSTRUCTIONS PRESS DISPLAY
To program the oven to begin baking immediately
and to shut off automatically: (example below to
bake at 350°F for 50 minutes):
1. Arrange interior oven rack(s) and place the food in the oven.
2. Press Bako(See Fig.l).
(See Fig. 2).
3. Press
@ (See Fig.3).
4. Press
5. Enter the desired baking time by pressing _ @.
Note: Baking time can be set for any amount of time between 1
minute to 11 hours and 59 minutes. (See Fig. 4)
_. (See Fig. 5 )
6. Press
Note: After the Cook Time feature has activated, press _ to
v
display the bake time remaining in the Cook Time mode. Once
Cook Time has started baking, a long beep will sound when the
oven temperature reaches the set temperature.
Press _ when baking has finished or at any time to cancel the
Cook Time feature.
Bake
@
®®
Fig. 1
When the Cook Time finishes:
1. "End" and the time of day will show in the display. The oven will
shut off automatically (See Fig. 6).
2. The control will beep 3 times. The control will continue to beep
3 times every 30 seconds until _ is
pressed.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Use caution with the TIMED BAKE or DELAY START (Delayed Timed Bake) features. Use the automatic
timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs,
fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for
more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled
food can result in sickness from food poisoning.
19
Setting Oven Controls
• Setting Delay Start (Delayed Timed Bake)
Setting Delay Start
The BAKE B.k.,COOK TIME and DELAY START pads control the Delayed Timed Bake feature. The
automatic timer of the Delayed Timed Bake will turn the oven ON and OFF at the time you select in advance.
INSTRUCTIONS PRESS DISPLAY
To program the oven for a Delay Start and to shut off
automatically (example for baking at 375°F for 50
minutes and starting at 5:30):
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
@ o(See Fig. 1).
3. Press
4. Enter the desired baking time using the number key pads by
pressing @@ (See Fig. 2). Note: Baking time may be set
for any amount of time from 1 minute to 11 hours and 59
minutes.
_. (See Fig. 3).
5. Press
@ (See Fig.4).
6. Press
7. Enter the desired start time using the number key pads
@@@ (See Fig. 5).
(See Fig. 6).
8 Press
9. Press Bake.(See Fig. 7).
10. Press @@@.
(See Fig. 8)
11. Press
Note: Once Delay Start has started, press @ to display the bake
time remaining. Once the Delayed Timed Bake has started baking,
a long beep will sound when the oven temperature reaches the set
temperature.
Press @ when baking has finished or at any time to cancel the
Delay Start (Delayed Timed Bake) feature.
When the set bake time runs out:
1. "End" and the time of day will show in the display. The oven
will shut off automatically (Fig. 9).
2. The control will beep 3 times. The control will continue to beep
3 times every 30 seconds until _ is
pressed.
@
@®
@
@®@
Bake
@@@
@
@
@
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
NOTE: If your clock is set for normal 12 hour display mode the Delay Start (Delayed Timed Bake) feature can never be
set to start more than 12 hours in advance. To set the Delay Start 12-24 hours in advance see page 13 for instructions to
set the control for the 24 hour time of day display mode.
2O
Setting Oven Controls
• Setting Broil (Electric Range)
The B,o,,pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage.
The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature
between 400°F and 550°F.
The broil pan and broil pan insert used together allows dripping grease to drain and be kept away from the high heat of
the oven broiler. DO NOT use the broil pan without the insert (See Fig. 6; some models). DO NOT cover the broil pan
insert with foil. The exposed grease could catch fire.
Should an oven fire occur, leave the oven door closed and turn the oven OFF. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and
water can cause a grease fire to spread and cause personal injury.
INSTRUCTIONS
To set the oven to broil at the default setting (550°F):
1. Place the broiler pan insert on the broiler pan. Then place the
food on the broiler pan insert (some models). DO NOT use the
broiler pan without the insert. DO NOT cover the broiler insert
with foil. The exposed grease could ignite.
2. Arrange the interior oven rack and place the broiler pan on the
rack. Be sure to center the broiler pan directly under the broiler
element. Make sure the oven door is in the broil stop
position (See Fig. 5).
3. Press B,o,. "BROIL" will flash and "550°" will appear (Fig. 1).
4. If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired temperature
before continuing to step 5.
5. Press _. The oven will begin to broil. "BROIL" and "550 °''
will appear in the display (Fig. 2).
6. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack out
to the stop position before turning or removing food.
broiling or if finished broiling press @ (Fig. 3).
7. To cancel
Recommended Broiling Times
Use the following table for approximate broiling times. Increase or
decrease broiling times, or move the broiling pan to a different rack
position to suit for doneness. If the food you are broiling is not listed
in the table, follow the instructions provided in your cookbook and
watch the item closely.
PRESS DISPLAY
Broil
@
Fig. 1
Fig. 2 .........
Fig. 3
Broilin_ (Refer to Fig. 4)
Food Rack Temp Cook Time
Item Position Setting 1st side 2nd side Doneness
Steak 1" thick 6th or 7th 550° F 6:00 4:00 Medium
6th or 7th 550 ° F 7:00 5:00 Medium-Welt
Pork Chops 3/4" thick 6th 550 ° F 8:00 6:00 Well
Chicken- Bone In 5th 450 ° F 20:00 10:00 Well
Chicken - Boneless 6th 450 ° F 8:00 6:00 Well
Fish 6th 500 ° F as directed as directed Well
Shrimp 5th 550 ° F as directed as directed Welt
Hamburger 1" thick 7th 550 ° F 9:00 7:00 Medium
6th 550 ° F 10:00 8:00 Welt
Broil
Fig. 5 Stop Position
Fig. 6
_.....
21
Setting Oven Controls
• Setting Convection Bake
Benefits of Convection Bake:
--Some foods cook up to 25 to 30% faster, saving time and energy.
--Multiple rack baking.
--No special pans or bakeware needed.
Setting Convection Bake
The CONV BAKE B_;_,_pad controls the Convection Bake feature. Use
the Convection Bake feature when cooking speed is desired. The
oven can be programmed for Convection Bake at any temperature
between 170 ° F (77 ° C) to 550 ° F (288 ° C).
Air circulation of Convection Cooking
Fig. 1
Convection baking uses a fan to circulate the oven's heat evenly and continuously within the oven (See Fig. 1). This
improved heat distribution allows for even cooking and excellent results using multiple racks at the same time. Foods
cooked on a single oven rack will generally cook faster and more evenly with Convection Bake. Multiple oven rack
cooking may slightly increase cook times for some foods, but the overall result is time saved. Breads and pastries brown
more evenly.
Tips for Convection Bake
1. Time reductions will vary depending on the amount and type of food to be cooked. Cookies and biscuits should be
baked on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans
with a dark finish will cook faster.
2. Preheating is not necessary when cooking casseroles with Convection Bake.
3. When using Convection Bake with a single rack, place oven rack in position 4 or 5. If cooking on multiple racks, place
the oven racks in positions 2, 4 and 7 (for 3 racks) and positions 3 and 6 (See Fig. 1).
4. Cakes have better results when baked using the BAKE BBkepad.
INSTRUCTIONS PRESS DISPLAY
To set the oven for Convection Bake and
temperature to 350°F:
1. Arrange interior oven racks and place food in oven (See Fig.
1).
2. Press Bake....... CONV BAKE" will flash and .....--- will appear in
_J
the display (Fig. 2).
3. Press _. "CONV BAKE" and the oven temperture will
appear in the display. A beep will sound once the oven
temperature is reached (Fig. 3).
Cony
Bake
Fig. 2
Note: The oven icon will show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating
(See rotating fan in Fig. 3).
Press _ to stop Convection Bake or cancel Convection Bake
at
anytime.
22
Fig. 3
Setting Oven Controls
• Setting Convection Roast
Setting Convection Roast
The CONY ROAST _;';;t pad is designed to give optimum cooking performance for this feature. The Convection Roast pad
combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating is not necessary for
meats and poultry. Heated air circulates around the food from all sides, sealing in juices and flavors. Foods are crispy
brown on the outside while staying moist on the inside.
INSTRUCTIONS PRESS DISPLAY
To set the Convection Roast feature (example for
Meats to cook at 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press _;_;;1. "CONY" will flash and "---°" will be displayed (See
Fig. 1).
3. Press _. "CONY" and "350 °" will appear in the
display
v
(See Fig. 2). The convection fan icon will come on.
Press _ to stop Convection Roast at any time.
Co.v
Roast
@
Fig. 1
Roasting Rack instructions (optional accessory=some models)
When preparing meats for convection roasting, use the broiler pan and insert along
with the roasting rack. The broiler pan will catch grease spills and the insert will help
prevent grease splatters. The roasting rack will allow the heat to circulate around the
meat.
Fig. 2
..........iii.........
To prevent food from contacting the broil element and to prevent
grease splattering, DO NOT use the roasting rack when broiling.
1. Place oven rack on bottom or next to the bottom rack position. See Arranging
Oven Racks in the Before Setting Oven Controls section.
2. Place the insert in the broiler pan. The roasting rack fits on the insert allowing the
heated air to circulate under the food for even cooking and helps to increase
browning on the underside. Make sure the roasting rack is securely seated on the
insert in the broiler pan. DO NOT use the broiler pan without the insert. DO NOT
cover the insert with aluminum foil.
3. Position food (fat side up) on the roasting rack (See Fig. 3).
4. Place the broiler pan on the oven rack.
Fig. 3
23
Setting Oven Controls
• Setting Convection Convert
Feature
• Setting Add 1 Minute Feature
To set the Convection Convert feature
The c2;;_rtCONV CONVERT pad is used to automatically convert a standard baking recipe for convection baking. When
set properly, this feature is designed to display the actual converted (reduced) temperature in display.
Convection Convert MUST be used with a Convection Bake keypad. When used with a Timed Bake or a Delayed Timed
Bake setting, the Convection Convert feature will display a "CF" for check food when the bake time is 75% complete (See
Fig. 4). At this time the oven control will sound 3 long beeps at regular intervals until baking has finished. When the bake
time has completely finished the control will display "End" and will sound 3 long beeps every 30 seconds until the
pad
is pressed (See Fig. 5).
INSTRUCTIONS
Using Convection Convert feature to adjust oven
temperature from a Bake recipe (example below
when setting oven for 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press B_;_,_,(See Fig. 1). If a Cook Time or a Delay Start is
desired, enter the times now.
3. Press co.vort"CONV BAKE" and the oven set temperature
adjustment will appear in the display (for this example it is
325°F). A beep will sound once the adjusted oven set
temperature is reached. (See Fig. 2).
PRESS DISPLAY
Fig. 1
Cony
Bake
co.v
Convert
Fig. 2
Notes: When used with a Cook Time or a Delay Start setting,
the Convection Convert feature will display a "CF" for check
food when the bake time is 75% complete (See Fig. 3). At this
time the oven control will sound 3 long beeps at regular intervals
until baking has finished. When the bake time has completely
finished the control will display "End" and will sound 3 long beeps
every 30 seconds until the _ pad is pressed (See Fig. 4).
Fig. 3
Fig. 4
The oven icon will show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating
(See Figs 2 or 3)
Press _ to cancel Convection feature at any time,
Note: The minimum amount of cook time using the Convection
Convert feature with a Cook Time or a Delay Start function is
20 minutes.
To Set Add 1 Minute Feature
The @ ADD 1 MINUTE pad is used to set additional minutes to the Minute Timer. Each time the @ pad is pressed, another
minute is added to the Minute Timer if the Minute Timer is already active. If the Minute Timer is not active and the _dd_ pad is
pressed, the Minute Timer feature will become active and will begin counting down from 1 minute.
When the Minute Timer reaches the end of the set time, the timer will display "End" and signal 3 long beeps at regular intervals until
@is pressed. If a Minute Timer function has ended pressing @ wilt restart the timer at 1 minute. For further information on how
to set the Minute Timer feature see To Set the Minute Timer instructions.
24
Setting Oven Controls
• Setting the Recipe Recall Feature
To Set the Recipe Recall Feature
The ......
Rooo,RECIPE RECALL pad is used to record and recall your favorite recipe settings. This feature may store and
recall from 1 to 3 different settings. The Recipe Recall feature may be used with Bake or a Timed Bake. This feature will
not work with any other function including a Belay Start (Delayed Timed Bake) setting.
INSTRUCTIONS PRESS DISPLAY
To Program the Oven to record a recipe setting and begin
baking (sample shown is for bake at 350°F):
1. Place the food in the oven.
2. Press ___,,_."BAKE" flashes and ,,m m _ o ,,appears in the
display (See Fig. 1)
3. Within 5 seconds, press @. ( Note: @ or @ may also be
used to store a recipe setting. (See Fig. 2).
4. Press@@@ (SeeFig. 3).
5. Press and hold _ pad for at least 3 seconds or until
a
beep
sounds. The beep indicates that the recipe setting has been
recorded for future recall. The display will show 350 ° and
"BAKE" (See Fig. 4).
NOTE: The oven will continue to bake unless _ is
pressed.
To Begin Baking recalled setting (example below recalling
from the number 1 pad) :
1. Place the food in the oven.
2. Press ,ooo,,...... (See Fig. 5).
3. Within 5 seconds, press @ (See Fig. 3).
4. Press _. The oven will begin to immediately cook with the
previously recorded recipe (See Fig. 4). The Temperature is
recalled and if a Timed Bake was recorded this feature will also
recall the cooking time.
@
®
@@@
hold _ for 3
seconds
@
@
®
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
..........iii.........
25
Setting Oven Controls
• Setting the Slow Cook Feature
Setting the Slow Cook Feature
The ,,ow
cookSLOW COOK pad is used to activate this feature. The Slow Cook feature may be used to cook foods more
slowly, at lower oven temperatures and provides cooking results much the same way as a Slow Cooker or Crock-Pot.
The Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats
becoming dark but not burnt. This is normal.
There are 2 settings available, high (HI) or low (LO). The HI setting is best for cooking foods from a 4 to 5 hour time
period. The LOW setting is best for cooking foods from a 8 to 9 hour time period. The maximum cook time for the Slow
Cook feature is 12 hours unless the oven control has been changed to the Continuous Bake mode.This feature may be
used with the additional settings of a Timed Bake or a Delay Start (Delayed Timed Bake).
Some tips you should review for best possible results using Slow Cook feature:
• Completely thaw all frozen foods before cooking with the Slow Cook.
• When using a single rack, place in position 2 or 3.
• Position multiple racks to accommodate size of cooking utensils when cooking multiple food item.
• Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the
Slow Cook time may need to extended.
• Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.
• Roasts may be left uncovered so browning can occur. Cook times will vary; depending on the weight, fat content, bone
& the shape of the roast.
• Use the recipe's recommended food temperature and a food thermometer to determine when the food is done.
• Preheating the oven will not be necessary when using the Slow Cook feature.
• Add any cream or cheese sauces during the last hour of cooking.
See the suggested Slow Cook feature recipes provided in the back of this Use & Care Guide.
INSTRUCTIONS
To Program the Oven to begin baking with the Slow Cook
feature (example below shows clock at 1:30):
1. Place the food in the oven.
2. Press ".... SLO .... HI"
cook. and (See Fig. 1) will appear in the
display (If no further keypads are touched within 25 seconds
the request for Slow Cook will clear).
3. If a low setting is desired, press the cook"°wa 2nd time to set the
Slow Cook feature with a low setting. "SLO" and "Lo" will
appear in the display (See Fig. 2).
5. Press _. The Slow Cook feature will activate (See Fig. 3).
4. If desired, add any Timed Bake or Delay Start (Delayed
Timed Bake) settings at this time.
6. To cancel the Slow Cook feature press _ at anytime.
PRESS
Slow
Cook
Slow
Cook
DISPLAY
Fig. 1
Fig. 2
26
Setting Oven Controls
• Setting the Sabbath Day Feature
To Set the Sabbath Feature (for use on the Jewish Sabbath & Holidays)
The _.,_ COOK TIME and _'_ DELAY START pads are used to set the Sabbath feature. The Sabbath feature may only
be used with the Bakepad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven
temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show
and no audible tones will be provided when a change occurs. Once the oven is properly set using Bake with the Sabbath
feature active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour Energy
Saving feature. If the oven light is needed during the Sabbath, press _ before activating the Sabbath feature. Once the
oven light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned
OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.
IMPORTANT NOTES: It is not advised to attempt to activate any other program feature except BAKE while the Sabbath
feature is active. ONLY the following key pads will function correctly with the Sabbath feature: 0-9 number pads, Bake,
_& _. ALL OTHER KEYPADS should be used the Sabbath feature is activated.
not once
INSTRUCTIONS PRESS DISPLAY
To Program the Oven for 350°F, Begin Baking Immediately and
activate the Sabbath feature:
1. Be sure that the clock is set with the correct time of day.
2. Arrange the oven racks and place the food in the oven.
3. Press Bake,"350 °" will appear in the display (Fig. 1).
4. Press _/b. The display will show "350 °" and "BAKE". The
oven will turn ON and begin heating (See Fig. 3).
5. If a Timed Bake or Delay Start (Delayed Timed Bake) is
needed then enter the time in this step. If not, skip this step and
continue to step 6. Refer to the Timed Bake or Delay Start
instructions on pages 19-20. Remember the oven will shut
down after completing a Timed Bake or Delay Start and
therefore may only be used once during the Sabbath/Jewish
Holidays. The maximum Delay Start time is 11 hours & 59
minutes.
6. At the same time press and hold both the @ and @ pads
for at least 3 seconds. The control will beep and SAb will
appear in the display (See Fig. 4). Once SAb appears in the
display the oven control will no longer beep or display any
further changes and the oven is properly set for the Sabbath
feature.
Note: You may change the oven temperature once baking has
started. Press Bake,enter the oven temperature change (170 to
550F °) and press _ (for Jewish Holidays only).
Remember
Bake
@and
Fig. 1
Fig. 2
Fig. 3
,
that the oven control will no longer beep or display any further changes once the oven is set for the Sabbath
feature.
The oven may be turned OFF at any time by pressing _ pad (this will turn the oven OFF only). To turn OFF the
Sabbath feature press and hold at the same time both the @ and @ pads for at least 3 seconds. SAb will
disappear from the display.
27
Setting Oven Controls
* Setting the Sabbath Day Feature (cont'd)
* Setting the Warm & Hold TM Feature
* Oven Light
It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of
the START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher
than the oven control can accept. If the oven temperature is set incorrectly, the oven temperature will default to 170°F or
550°F. Try to set the desired oven temperature again.
Should you experience a power failure or interruption, the oven will shut off. When power is returned the oven will not turn
back on automatically. The oven will remember that it is set for the Sabbath and the food may be safely removed from the
oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath/Holidays. After
the Sabbath observance turn OFF the Sabbath feature. At the same time press and hold both the @ and _ pads for
at least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further
assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at
http:\\www.star=k.org.
Setting the Warm & Hold TM Feature
The $;_' pad turns ON the Warm & Hold feature and will maintain an oven temperature of 170 ° F. The Warm & Hold
feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &
Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other cooking
operations or can be used after cooking has finished using TIMED BAKE or DELAY START (Delayed Timed Bake),
INSTRUCTIONS
To set Warm & Hold:
1. Arrange interior oven racks and place baked food in oven. If
the food is already in the oven go to step 2.
2. Press %°_'. "HLd" will appear in the display (See Fig. 1).
Note: If no further pads are touched within 25 seconds the
request to turn ON Warm & Hold will be cleared.
3. Press _. "HLd" shows and the oven icon will appear in the
display (See Fig. 2).
4. To turn Warm & Hold OFF at any time press w_;_or .
To set Warm & Hold to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the
oven properly and start a Timed Bake or Delay Start (Delayed
Timed Bake).
2. Press w_,. "HLd" will appear in the display.
3. Press _. "HLd" shows and the oven icon will appear in the
display. Warm & Hold is set to turn ON automatically after
completing a Timed Bake or Delay Start (Delayed Timed
Bake).
4. To turn Warm & Hold OFF at any time press _°_tor .
PRESS DISPLAY
Warm&
Hold
Warm&
Holdor
Fig. 1
Fig. 2
Warm&
Hold
W_rm&
H0=dor
Note: The Warm & Hold feature can be turned ON or OFF at anytime without canceling Bake or any other cooking
functions by pressing ......Hold ,
To turn ON/OFF the Oven Light
The oven light automatically turns ON when the door is opened, The oven light may also be manually turned ON or OFF
by pressing the _ pad.
28
Setting Warmer Drawer
Controls
• Arranging Warmer Drawer Racks (some models)
• Operating the Warmer Drawer (some models)
Arranging Warmer Drawer (Warm & Ready TM Drawer) Rack Positions (some models)
Note: Use the warmer drawer to keep hot foods hot such as: vegetables, gravies, meats, casseroles, biscuits and rolls,
pastries and heated dinner plates.
The rack can be used in 2 ways:
• In the upright position to allow low profile food items to be placed both under and on top of the rack (for example,
rolls or biscuits on top of the rack and a casserole dish under- See Fig. 1).
• In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or
pastries and dinner plates - See Fig. 2).
The warmer drawer is equipped with a catch which may require extra force when opening and closing the drawer.
To Operate the Warmer (Warm &
Ready TM) Drawer
Always start with hot food. It is not recommended to
heat cold food in the warmer drawer.
All food placed in the warmer drawer should be
covered with a lid or aluminum foil to maintain
quality, Do not use plastic wrap to cover food,
Plastic may melt onto the drawer and be very
difficult to clean.
Use only dishes, utensils and cookware
recommended for oven use in the warmer drawer.
Always use pot holders or oven mitts
when removing food from the warmer drawer as
cookware and plates will be HOT.
Warmer Drawer Recommended
Food Settings Table
Food Item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Rolls (soft) LO
Empty Dinner Plates LO
To Set the Warmer (Warm & Ready TM) Drawer Thermostat
Control (some models)
The thermostat control is used to select the temperature of the warmer
drawer. It is located on the control panel (See Fig. 3). To set the thermostat,
push in and turn the knob to the desired setting. The temperatures are
approximate, and are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. Turn the thermostat control to OFF after use.
Warmer (Warm & Ready TM) Drawer Temperature Selection
(some models)
Refer to the table in the side column for recommended settings. If a particular
food is not listed, start with the medium setting. If more crispness is desired,
remove the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with 2
vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat
from the drawer.
..........iii.........
29
Setting Warmer Drawer Controls
• Warmer Drawer Humidity Controller (some models)
• Removing & Replacing Warmer Drawer (some models)
Warmer Drawer Humidity Controller Feature (some models)
This feature may be used to control humidity levels in the Warmer Drawer. The
control knob is located on the inner front panel of the Warmer Drawer.
To help keep foods moist, move the handle to the right. This closes the vents
and helps keep the moisture inside the Warmer Drawer. For crisp foods, move
the handle to the left. This opens the vents and allows more of the moisture to
escape.
For Moist Heat: Slide the humidity control knob in the direction of (More) _>
(See Fig. 1). This will help keep the food in the Warmer Drawer from drying out.
Both heat and moisture will be applied to the Warmer Drawer cavity.
For Dry Heat: Slide the humidity control knob in the direction of (Less) 4_ (See
Fig. 2). This allows more of the moist heat to escape and provides a dryer
environment for the food in the Warmer Drawer.
Fig. 1
Fig. 2
Note: For some types of servings you may want to store previously prepared food in a "dry heat" environment.
For frequent controller adjustments, slightly loosen humidity controller knob and slide to any desired position. To maintain
a desired setting, adjust controller knob into position and tighten knob.
Warmer (Warm & Ready TM) Drawer Indicator Light (some models)
The indicator light is located above the Warmer Drawer thermostat control. It turns on when the control is set, and stays
on until the control is turned OFF. The warmer drawer is inoperable during the Self-Clean cycle. The indicator light will not
come on during the Self-Clean cycle.
30
Self-Cleaning
* Preparing for a Self-Clean cycle
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near
the appliance.
The health of some birds
is extremely sensitive to the fumes
given off during the Self-Cleaning cycle
of any range. Move birds to another
well-ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
HAND
CLEAN FRAME
Note: See additional cleaning
information for the oven door in the
General Care & Cleaning section.
Cony Coaa Cony
Bake Boast Convert
Pro
Heat Bake 8rail
Slaw Warm & Flex
Cook Bold Clean
Cook Delay Timer Add 1
Time Start Set/Off Minute
.ee, e 0 @
Recall _ Gual"d
1 2 3
4 5 6
7 8 9
sTjz 0 @Clear
Oven
_ Lockout
Self=Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Prepare for the Self=Cleaning Cycle with the following precautions:
* DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
* DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
* DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
* Remove the broiler pan & insert, all utensils & ANY aluminum foil.
These items cannot withstand high cleaning temperatures.
* Remove the oven racks. If the racks are left in the oven during the Self-
Clean cycle their color will turn slightly blue & the finish will be dull. After
the cycle is complete and the oven has cooled, rub the sides of the oven
racks with wax paper or a cloth containing a small amount of salad oil
(this will make the oven racks glide easier into the oven rack positions).
* Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.
* Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
* NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the
oven bottom should be removed.
..........iii.........
31
Self- Cleaning
• Setting Flex Clean
• Setting Delay Flex Clean
The FLEX CLEAN Clea..... pad is used to start a Self=Cleaning cycle. When used with the DELAY START pad, a
delayed Self-Cleaning cycle may also be programmed. The FLEX CLEAN feature allows for any Self-Cleaning cycle
time from 2 (2:00) to 4 hours (4:00) to be selected. You may also choose the clean time in 1 minute increments (for
example 2 hours and 50 minutes) by pressing the number keypads _ _ @.
During the Self=Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air
or steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To start an immediate Self=Cleaning cycle or to set a delay start
time of 9:00 o'clock and shut off automatically (example
provided is a default 3 hour Self-Clean cycle):
1. Be sure the clock is set with the correct time of day, the oven is
empty and the oven door is closed.
2. Press c_o,,...... . CLEAN" will flash, "3:00" (hours) and the
Cooktop locked icon will show in the display (See Fig. 1). 2-4
hours of Self-Cleaning time may be choosen by pressing any
amount of time from _ @ @ (2 hours) through @ @
(4 hours)in one minute increments. You may also skip
the time entry and accept the default cleaning time of 3 hours
by pressing the Start key pad (See Step 3).
3. Press _ .The "DOOR LOCKED" icon will
flash; "CLEAN",
Cooktop Lockout icon and the letters "CLn" will remain on in
the display (Fig. 2).
4. As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
2:00 to 4:00 using
number pads
Fig. 3
NOTE: If the optional delay Self=Clean feature is needed, finish steps 5=7. If Self=Clean is started immediately skip the remain=
ing steps and continue with "When the Self=Clean cycle is done" on the following page.
,
,
,
and remain on. The Cooktop locked icon will remain on (Fig.
3).
Press _ (See Fig. 4). Enter the desired Self-Clean
starting
v
time using the number pads _ _'O_ @ (See Fig. 5).
Press _. "CLn" icon will turn off; "DELAY", "DOOR
v
LOCKED", "CLEAN" and Cooktop locked icons will remain on.
The control will calculate forward from the set start time to
determine when the Self-Cleaning cycle should end. The Self-
Cleaning cycle will turn on automatically at the set time. At that
time the icon "DELAY" will go out; the oven icon will come on,
the start time, Cooktop locked icon, "CLEAN" and "CLn" will
remain in the display (See Fig. 6).
32
Fig. 5
Fig. 6
Self- Cleaning
• Setting Flex Clean
• Setting Delay Flex Clean
INSTRUCTIONS
When the Self=Clean cycle is done:
1. The time of day,"Hot, DOOR LOCKED" and "CLEAN" icon will
remain in the display (See Fig. 7).
2. Once the oven has cooled down for approximately 1 HOUR,
and the "DOOR LOCKED" icon is no longer displayed, the
oven door can then be opened.
Stopping or Interrupting a Self=Cleaning cycle:
If it becomes necessary to stop or interrupt a Self=Cleaning cycle
due to excessive smoke or fire in the oven
1. Press_.
2. Once the oven has cooled down for approximately 1 HOUR
and the "DOOR LOCKED" icon is no longer displayed,the oven
door can then be opened (Fig. 8).
PRESS DISPLAY
Fig.7
Fig.8
IMPORTANT NOTES when using the Self-Clean feature:
1. The Self-Clean feature will not operate whenever a radiant surface remains ON.
2. A Self-Clean cycle may be started if the appliance has the Cooktop Lockout active. A Self-Clean cycle cannot be
started if Oven Lockout feature is active.
3. If a Self-Cleaning-Cycle has started but not finished and a power failure occurs, the appliance may not have thoroughly
cleaned. Once power is restored, set for another Self-Clean cycle to finish.
4. If your clock is set for normal 12 hour display mode the Delay Self-Clean cycle can never be set to start more than 12
hours in advance. To set for Delay Flex-Clean 12-24 hours in advance see page 13 for instructions to set the control for
the 24 hour time of day display mode.
..........iii.........
33
Adjusting Oven Temperature
• How to adjust the oven temperature higher or lower
The temperature in the oven has been pre-set at the factory. When first using the oven, be
sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the
temperature in the oven can be adjusted. Before adjusting, test a recipe by using a
temperature setting that is higher or lower than the recommended temperature• The baking
results should help you to decide how much of an adjustment is needed•
INSTRUCTIONS PRESS
To adjust the oven temperature higher:
1 Press B,ke for 6 seconds (Fig• 1)•• Bake
2. To increase the temperature use the number pads to enter the
desired change. (Example 30°F) @ _ (Fig. 2). The @
temperature may be increased as much as 35°F (19°C)•
3. Press _ to accept the temperature change and the display
will return to the time of day (Fig. 3). Press _ to reject the
change if necessary•
To adjust the oven temperature lower:
1 Press Bakefor 6 seconds (Fig. 4). _-_
• Bake
2. To decrease the temperature use the number pads to enter the
®® ®®
Flex
Clean
desired change. (Example -30°F) and then press
c_oo.(Fig. 5). The temperature may be decreased as much as
35°F(19°C).
3. Press _ to accept the temperature change and the display
will return to the time of day (Fig. 6). Press _ to reject the
',,:'C3/
changeifnecessary.
Note: The oven
temperature adjustments
made with this feature will
not change the Self-Clean
cycle temperature•
DISPLAY
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
34
General Care & Cleaning
Cleaning Table
Surfaces How to Clean
Glass, Painted Plastic
Body Parts & Control
Knobs
Forgeneral cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution of
vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Glass
cleaners may be used if sprayed on a soft cloth. DO NOT spray liquids directly on the control pad
and display areas. DO NOT use large amounts of water on the control panel - excess water on the
control area may cause damage to the appliance. DO NOT use other liquid cleaners, abrasive
cleaners, scouring pads, or some paper towels - they will damage the finish.
Painted Control
Panels & Display
areas
Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To remove,
pull each knob straight off the shaft. Use the general cleaning instructions provided in the
paragraph above.
Porcelain Enamel
Burner Grates,
Cooktop Surface,
Below Cooktop,
Broiler Pan & Insert,
Broiler Drawer, Door
Liner & Oven Bottom
Oven Racks
Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not
removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clean water & ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for
30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled scouring
pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may become
damaged during future heating. DO NOT use spray oven cleaners on the range top.
Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.
Use a mild, abrasive cleaner, following the cleaner's recommendations. Rinse with clean water &
let dry. After cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a
small amount of salad oil (this will make the racks glide easier into the oven rack positions).
..........iii.........
Oven Door
Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You may
use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO
NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven
cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven
door. DO NOT clean the oven door gasket. The oven door gasket is made of a woven material, on
Self-Cleaning models, which is essential for a good seal. Care should be taken not to rub, damage
or remove this gasket.
Stainless
Steel
Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth. DO
NOT use cleaners with high conecentrations of chlorides or chlorines. DO NOT use harsh
scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel.
Always be sure to rinse the cleaners form the surface as bluish stains may occur during heating
that cannot be removed."
Ceramic Cooktop See "Cooktop Cleaning & Maintenance" in this section for complete instructions.
35
General Care & Cleaning
• Cooktop Cleaning & Maintenance
• Cleaning Recommendations for the Ceramic Glass Cooktop
Cooktop Cleaning & Maintenance
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream
leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause
metal markings on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the cooktop cleaning cream.
Metal marks can become permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark
or scratch the cooktop surface. Do not slide anything metal or glass
across the cooktop. Do not use your cooktop as a cutting board or work
surface in the kitchen. Do not cook foods directly on the cooktop surface
without a pan. Do not drop heavy or hard objects on the glass cooktop, they
may cause it to crack.
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chem ca y damage the ceram c-g ass surface.
Cleaning Recommendations for the Ceramic Glass Cooktop
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving
no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive
plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for
any other purpose.
O
If soils remain, carefully scrape soils with a metal razor blade scraper, holding
scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop
cleaning cream and buff surface clean.
IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you use
an abrasive type cleaning pad. Only use cleaning products that have been
specifically designed for ceramic glass cooktops.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape
the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the
same method for heavy or burned on soils.
36
General Care & Cleaning
• Cleaning Recommendations for the Ceramic Glass Cooktop (cont'd)
• Special Caution for Aluminum Use on the Ceramic Cooktop
• Removing & Replacing the Lift-Off Oven Door
Do not use the following on the ceramic glass cooktop:
• Do not use abrasive cleaners and scouring pads, such as metal and some nylon
pads. They may scratch the cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners,
as they may etch or discolor the cooktop.
• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on
the cooktop which can burn and cause discoloration.
Special Caution for Aluminum Use on the Ceramic Cooktop:
Door Hinge
locations
with oven door
fully open
Fig. 1
Fig. 2
Aluminum Foil - Use of aluminum foil on a hot cooktop will damage the
ceramic cooktop. Do not use thin aluminum cooking utensils or allow aluminum
foil to touch the ceramic cooktop under ANY circumstances.
Aluminum utensils - The melting point of aluminum is much lower than that of
other metals. Care must be taken when aluminum pots or pans are used on the
cooktop. If allowed to boil dry, not only will the utensil be destroyed, but it may
fuse to, break or mark the ceramic glass surface, permanently damaging the
cooktop surface.
Removing & Replacing the Lift=Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges down from the
oven frame completely towards the oven door (See Fig. 2). A tool such as a
small flat-blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will stop into this
position just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms
over the roller pins located on each side of the oven frame (See Fig. 4).
@::iJi_
..........iii.........
Oven
Door-
Fig. 3
Fig. 4
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the
oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the
hook of the hinge arm over the roller pins located on each side of the oven
door frame (See Fig. 4). The hook of the hinge arms must be fully seated
onto the roller pins.
3. Fully open the oven door (horizontal with floor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left
and right oven door hinges (See Fig. 2) to the locked position.
5. Close the oven door.
Door Care Instructions - Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
37
General Care & Cleaning
• Changing the Oven Light(s)
Oven
Light
Wire
Holder
Changing the Oven Light (s)
The oven light(s) automatically turn ON when the oven door is opened. The
oven light(s) may also be manually operated by pressing the _ pad.
The oven light bulb(s) are located at the rear of the oven and covered with a
glass shield held by a wire holder. The glass shield(s) must be in place
whenever the oven is in use.
To replace the oven light bulb:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock will then need to be reset. To reset, see Setting the Clock and
Minute Timer in this Use & Care Guide.
Be sure the range is unplugged and all parts are COOL before replacing oven light. Wear a leather-faced
glove for protection against possible broken glass.
Care and Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Refer to the Care & Cleaning Table for detailed cleaning instructions.
38
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences
(shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these
problems are provided with the problem listed:
Ranae is not level = (1) Poor installation. Place oven rack in
center of oven. Place a level on the oven rack. Adjust leveling
legs at base of range until the oven rack is level. (2) Be sure
floor is level, strong & stable enough to adequately support
range. (3) If floor is sagging or sloping, contact a carpenter to
correct the situation. (4) Kitchen cabinet alignment may make
range appear not level. Be sure cabinets are square & have
sufficient room for range clearance.
Cannot move appliance easily. Appliance must be
accessible for service - (1) Cabinets not square or are built in
too tightly. Contact builder or installer to make appliance
accessible. (2) Carpet interferes with range. Provide sufficient
space so range can be lifted over carpet.
Surface element too hot or not hot enouah = Incorrect control
setting. Be sure the correct control is ON for the element to be
used.
Surface element does not heat =(1) Lightweight or warped
pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans.
Cookware materials and weight of the material affect heating.
Heavy & medium-weight pans heat evenly. Because lightweight
pans heat unevenly, foods may burn easily. (2) No power to the
appliance. Check steps under "Entire Appliance Does Not
Operate" in this checklist. (3) Incorrect control setting. Make
sure the correct control is ON for the surface element to be
used.
Entire appliance does not operate = (1) The time of day is not
set. The time of day must first be set in order to operate the
oven. See "To Set the Clock" in the Setting Oven Controls
section.(2) Make sure cord/plug is plugged correctly into outlet.
(3) Service wiring is not complete. Call 0 < +2 0 ( ®
for assistance (See back cover). (4) Electrical power outage.
Check house lights to be sure. Call your local electric company
for service.
Oven does not operate - Be sure the oven controls are set
properly for the desired function. See Setting Oven Controls in
this Use & Care Manual or read the instructions "Entire
appliance does not operate" in this checklist.
Oven liaht does not work (some models) = Replace or tighten
bulb. See Changing Oven Light section in this Use & Care
_Ha_ontrol beeps and displays any "F" code error (for
example Fll} = Electronic control has detected a fault condition.
Press CLEAR/OFF to clear the display & stop beeping.
Reprogram oven. If fault recurs, record fault number. Press
CLEAR/OFF & call 0 < +2 0 ( ® for assistance (See
back cover).
Flames inside oven or smokinq from oven vent = Excessive
spitlovers in oven. For example this wilt happen for pie spittovers
or large amounts of grease left on the oven bottom. Wipe up
excessive spitlovers before starting oven. If flames or excessive
smoke are present see "Broiling" in the Setting Oven Controls
section.
Oven smokes excessively durina broilinq = (1) Control(s) not
set properly. Follow Broil instructions under Setting Oven
Controls. (2) Make sure oven door is opened to broil stop
position. (3) Meat too close to the broil element. Reposition the
broil rack to provide proper clearance between the meat & the
element. Preheat the broil element for searing. (4) Meat not
properly prepared. Remove excess fat from meat. Cut fatty
edges to prevent curling, but do not cut into lean. (5) Insert on
broiler pan wrong side up & grease not draining. Always place
grid on the broiler pan with ribs up & slots down to allow grease
to drip into pan (some models). (6) Grease has built up on oven
surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive
smoking.
Poor bakina results - Many factors affect baking results. Make
sure the proper oven rack position is used. Center food in the
oven & space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven.
Try adjusting the recipe's recommended temperature or baking
time. If you feet the oven is too hot or cool, see Adjusting Your
Oven Temperature in this Use & Care Manual.
Soil not completely removed after Self=Cleanin. CCLC3L_le=
Failure to clean bottom, front top of oven, frame of oven or door
area outside oven seal. These areas are not in the Self-Cleaning
area, but get hot enough to burn on residue. Clean these areas
before the Self-Cleaning cycle is started. Burned-on residue can
be cleaned with a stiff nylon brush and water or a nylon
scrubber. Be careful not to damage the oven gasket.
Self=CleanincLcvcle does not work = (1) Oven control not set
properly. Follow instructions under Self=Cleaning. (2) Self-
Cleaning cycle was interrupted. Follow steps under "Stopping or
Interrupting a Self-Cleaning Cycle" under Self=Cleaning.
Metal marks (Ceramic Cooktop models) = Sliding or scraping
of metal utensils on cooktop surface. Do not slide metal utensils
on cooktop surface. Use a ceramic-glass cooktop cleaning
creme to remove the marks. See "Cooktop Cleaning and
Maintenance" in the Care & Cleaning section.
Scratches or abrasions on cooktop surface (Ceramic
Cooktop models) =(1) Coarse particles such as salt or sand
between cooktop and utensils can cause scratches. Be sure
cooktop surface and bottoms of utensils are clean before usage.
Small scratches do not affect cooking and wilt become tess
visible with time. (2) Cleaning materials not recommended for
ceramic-glass cooktop have been used. See "Cooktop
Cleaning & Maintenance." (3) Cookware with rough bottom has
been used. Use smooth, flat-bottomed cookware.
Brown streaks or specks on cooktop surface (Ceramic
Cooktop models) = Boitovers are cooked onto surface. Use
razor blade scraper to remove soil. See "Cooktop Cleaning and
Maintenance" in the Care & Cleaning section.
Areas of discoloration with metallic sheen (Ceramic
Cooktop models) = Mineral deposits from water and food.
Remove using a ceramic-glass cooktop cleaning creme. Use
cookware with clean, dry bottoms.
..........iii.........
39
You r Home
TM
® Registered Trademark / Trademark / SM Service Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fabrica / SM Marca de Servicio de Sears Brands, LLC
MD
MCMarque de commerce / Marque d6pos6e de Sears Brands, LLC © Sears Brands, LLC
