Kenmore 72164684300 microwave/hood combo User Manual

E L I T E

ULTRA WAVETMMicrowave Hood Combination

Use & Ca_°eGuide

Combinacibn Microondas Campana

de ULTRA WAVE TM

Guia de uso y cuidado

Models/Modelos 721.64682/721.64683

721.64684/721.64689

3828W5A3631 Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.sears.com

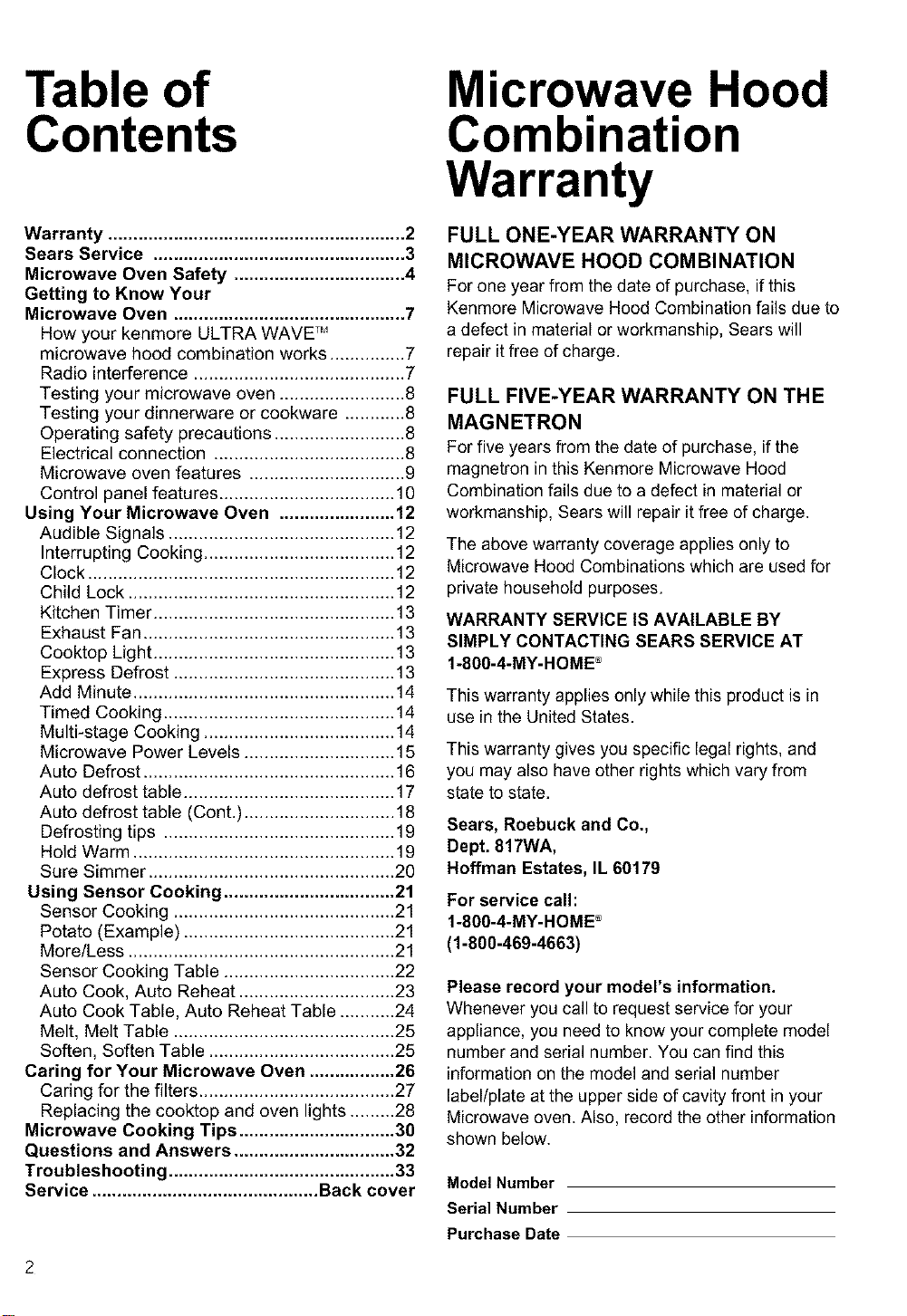

Table of

Contents

Warranty ........................................................... 2

Sears Service .................................................. 3

Microwave Oven Safety .................................. 4

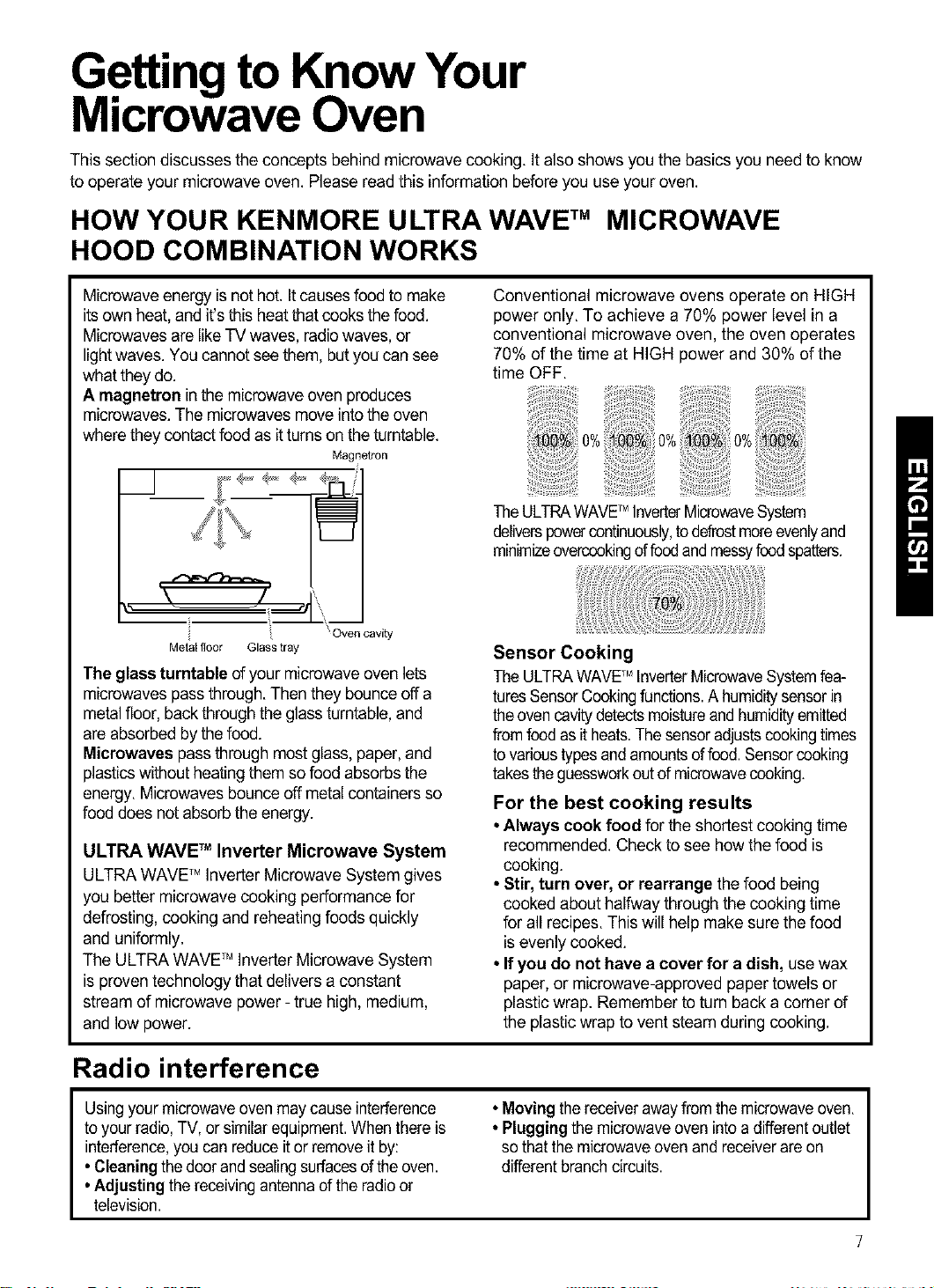

Getting to Know Your

Microwave Oven .............................................. 7

How your kenmore ULTRA WAVE TM

microwave hood combination works ............... 7

Radio interference .......................................... 7

Testing your microwave oven ......................... 8

Testing your dinnerware or cookware ............ 8

Operating safety precautions .......................... 8

Electrical connection ...................................... 8

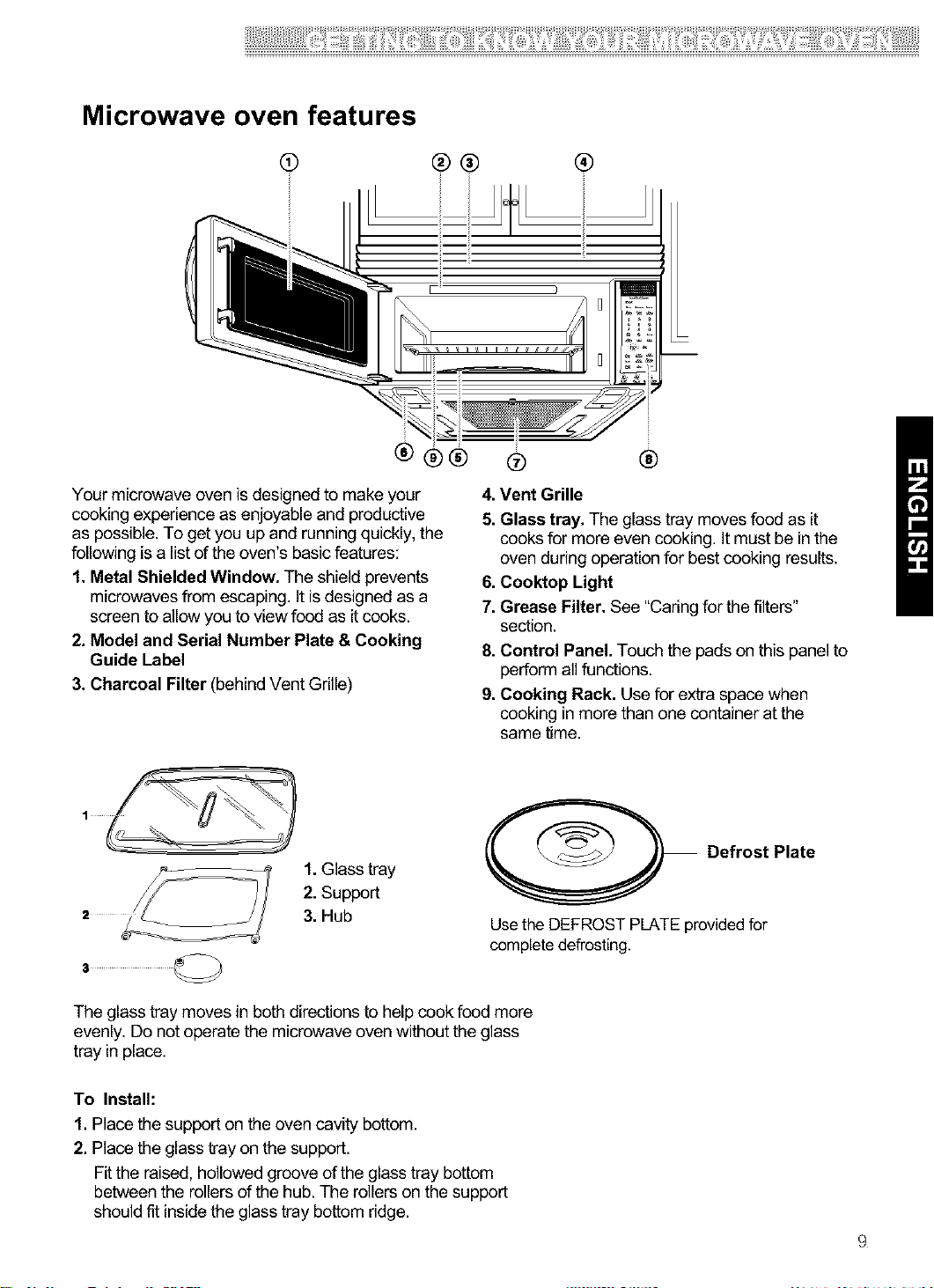

Microwave oven features ............................... 9

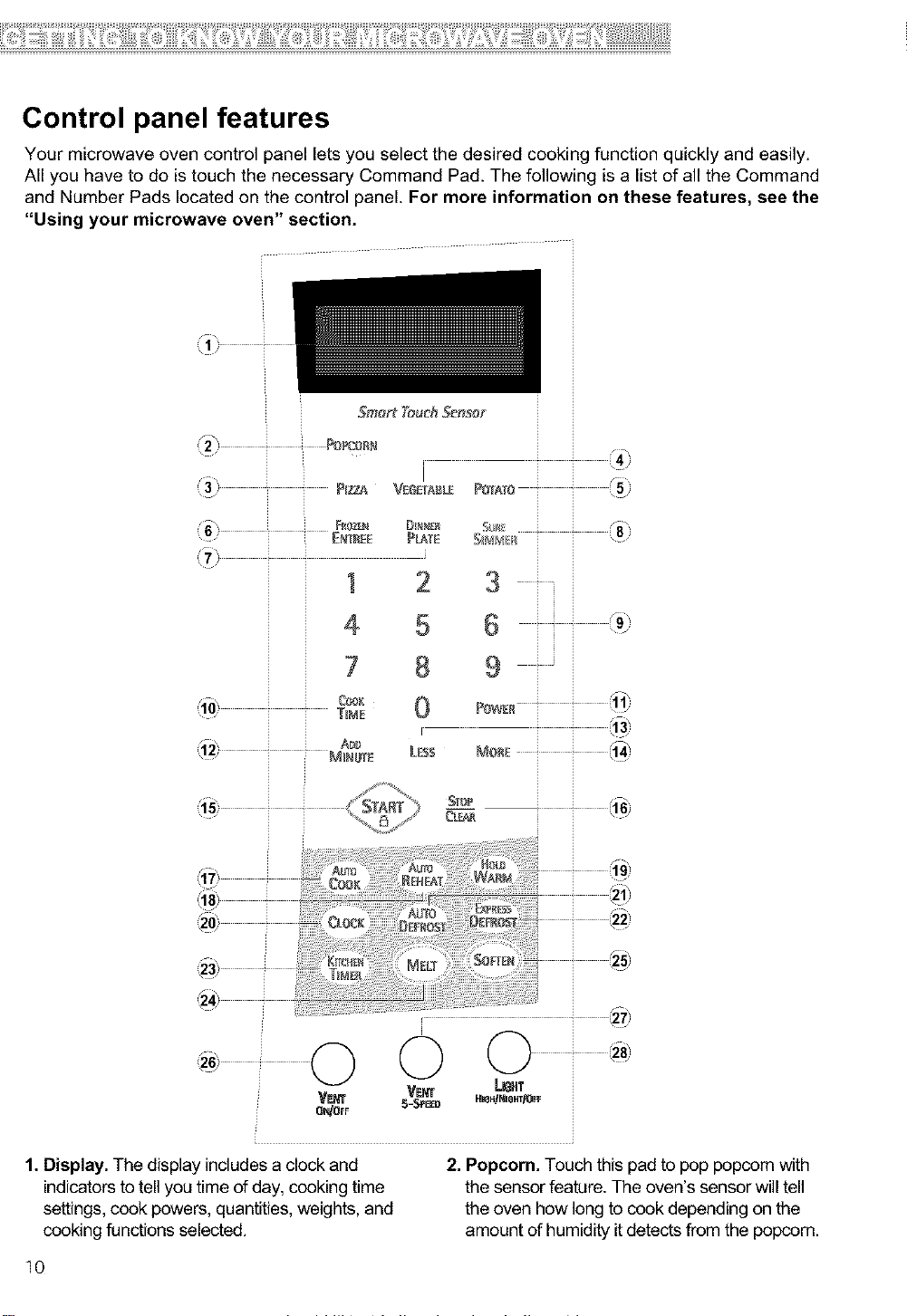

Control panel features ................................... 10

Using Your Microwave Oven ....................... 12

Audible Signals ............................................. 12

Interrupting Cooking ...................................... 12

Clock ............................................................. 12

Child Lock ..................................................... 12

Kitchen Timer ................................................ 13

Exhaust Fan .................................................. 13

Cooktop Light ................................................ 13

Express Defrost ............................................ 13

Add Minute .................................................... 14

Timed Cooking .............................................. 14

Multi-stage Cooking ...................................... 14

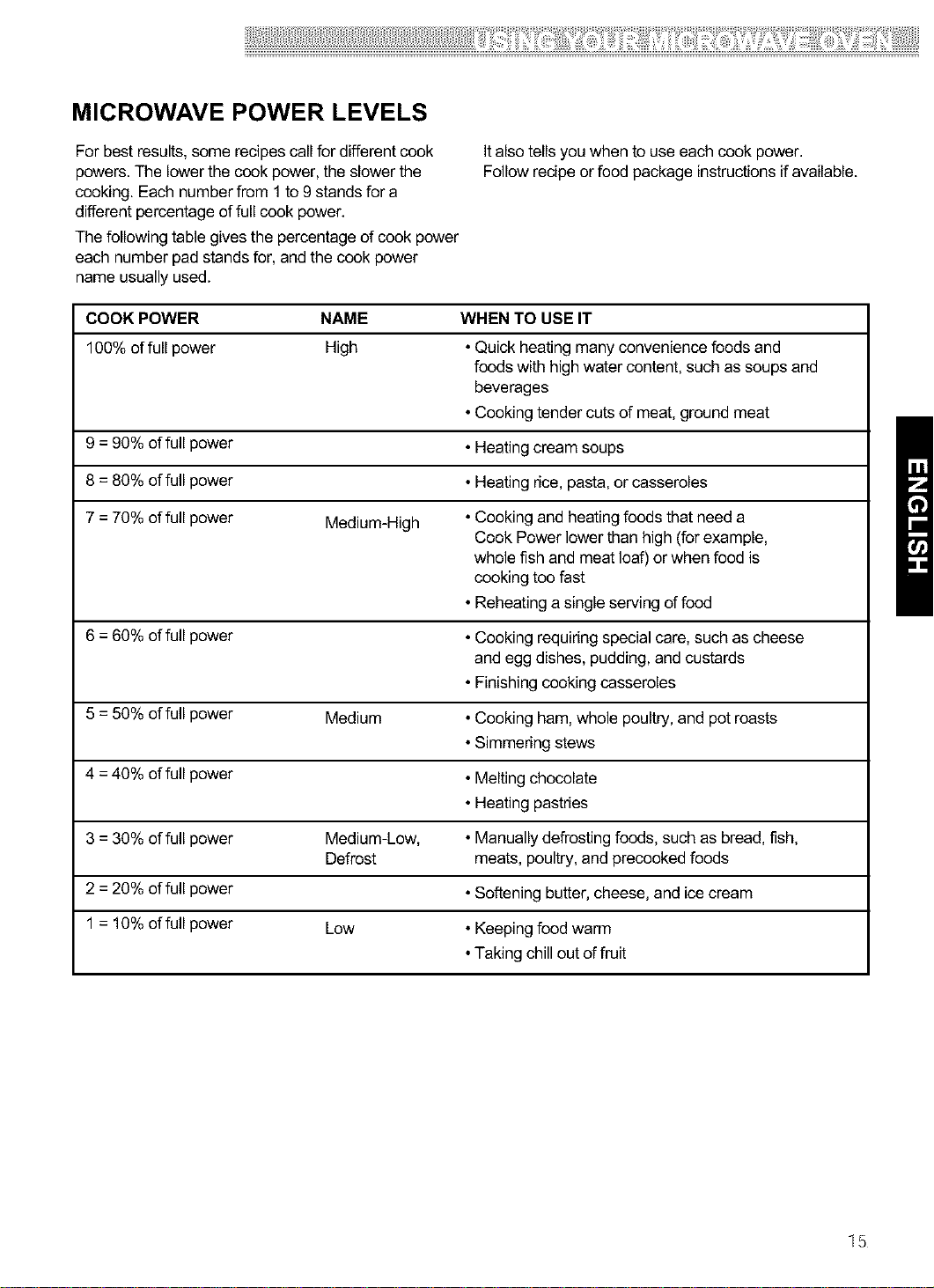

Microwave Power Levels .............................. 15

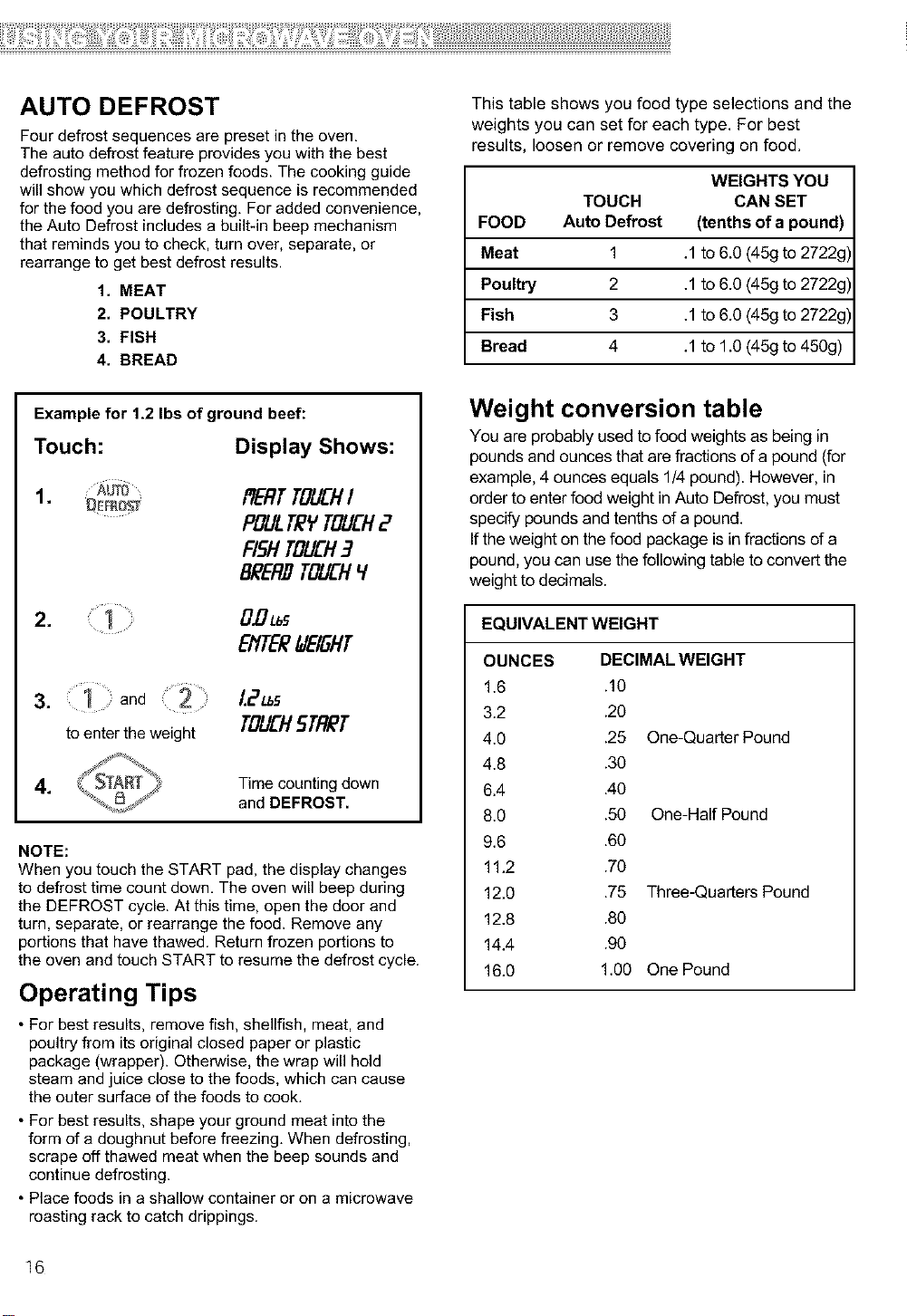

Auto Defrost .................................................. 16

Auto defrost table .......................................... 17

Auto defrost table (Cont.) .............................. 18

Defrosting tips .............................................. 19

Hold Warm .................................................... 19

Sure Simmer ................................................. 20

Using Sensor Cooking .................................. 21

Sensor Cooking ............................................ 21

Potato (Example) .......................................... 21

More/Less ..................................................... 21

Sensor Cooking Table .................................. 22

Auto Cook, Auto Reheat ............................... 23

Auto Cook Table, Auto Reheat Table ........... 24

Melt, Melt Table ............................................ 25

Soften, Soften Table ..................................... 25

Caring for Your Microwave Oven ................. 26

Caring for the filters ....................................... 27

Replacing the cooktop and oven lights .........28

Microwave Cooking Tips ............................... 30

Questions and Answers ................................ 32

Troubleshooting ............................................. 33

Service ............................................. Back cover

Microwave Hood

Combination

Warranty

FULL ONE-YEAR WARRANTY ON

MICROWAVE HOOD COMBINATION

For one year from the date of purchase, if this

Kenmore Microwave Hood Combination fails due to

a defect in material or workmanship, Sears will

repair it free of charge.

FULL FIVE-YEAR WARRANTY ON THE

MAGNETRON

For five years from the date of purchase, if the

magnetron in this Kenmore Microwave Hood

Combination fails due to a defect in material or

workmanship, Sears will repair it free of charge.

The above warranty coverage applies only to

Microwave Hood Combinations which are used for

private household purposes.

WARRANTY SERVICE IS AVAILABLE BY

SIMPLY CONTACTING SEARS SERVICE AT

I-8O0-4-MY-HOME ®

This warranty applies only while this product is in

use in the United States.

This warranty gives you specific legal rights, and

you may also have other rights which vary from

state to state.

Sears, Roebuck and Co.,

Dept. 817WA,

Hoffman Estates, IL 60179

For service call:

1-8O0-4-MY-HOME®

(1-800-469-4663)

Please record your model's information.

Whenever you call to request service for your

appliance, you need to know your complete model

number and serial number. You can find this

information on the model and serial number

label/plate at the upper side of cavity front in your

Microwave oven. Also, record the other information

shown below.

Model Number

Serial Number

Purchase Date

Sears Service

Master Protection Agreements

Congratulations on making a smart purchase.

Your new Kenmore _'product is designed and manufactured for years of dependable operation.

But like all products, it may require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle

and expense.

The Master Protection Agreement also helps extend the life of your new product. Here's

what's included in the Agreement:

Expert service by our 12,000 professional repair specialists

[_ Unlimited service and no charge for parts and labor on all covered repairs

_Y_ "No-lemon" guarantee - replacement of your covered product if four or more product failures

occur within twelve months

[_ Product replacement if your covered product can't be fixed

[_ Annual Preventive Maintenance Check at your request- no extra charge

Fast help by phone - phone support from a Sears technician on products requiring in-home

repair, plus convenient repair scheduling

[_ Power surge protection against electrical damage due to power fluctuations

[_ Rental reimbursement if repair of your covered product takes longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality

parts and accessories. That's the kind of professionalism you can count on to help prolong the life of

your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information call 1-800-827-

6655.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and

other major home items, in the U.S.A. call

1-800-4-MY-HOME ®

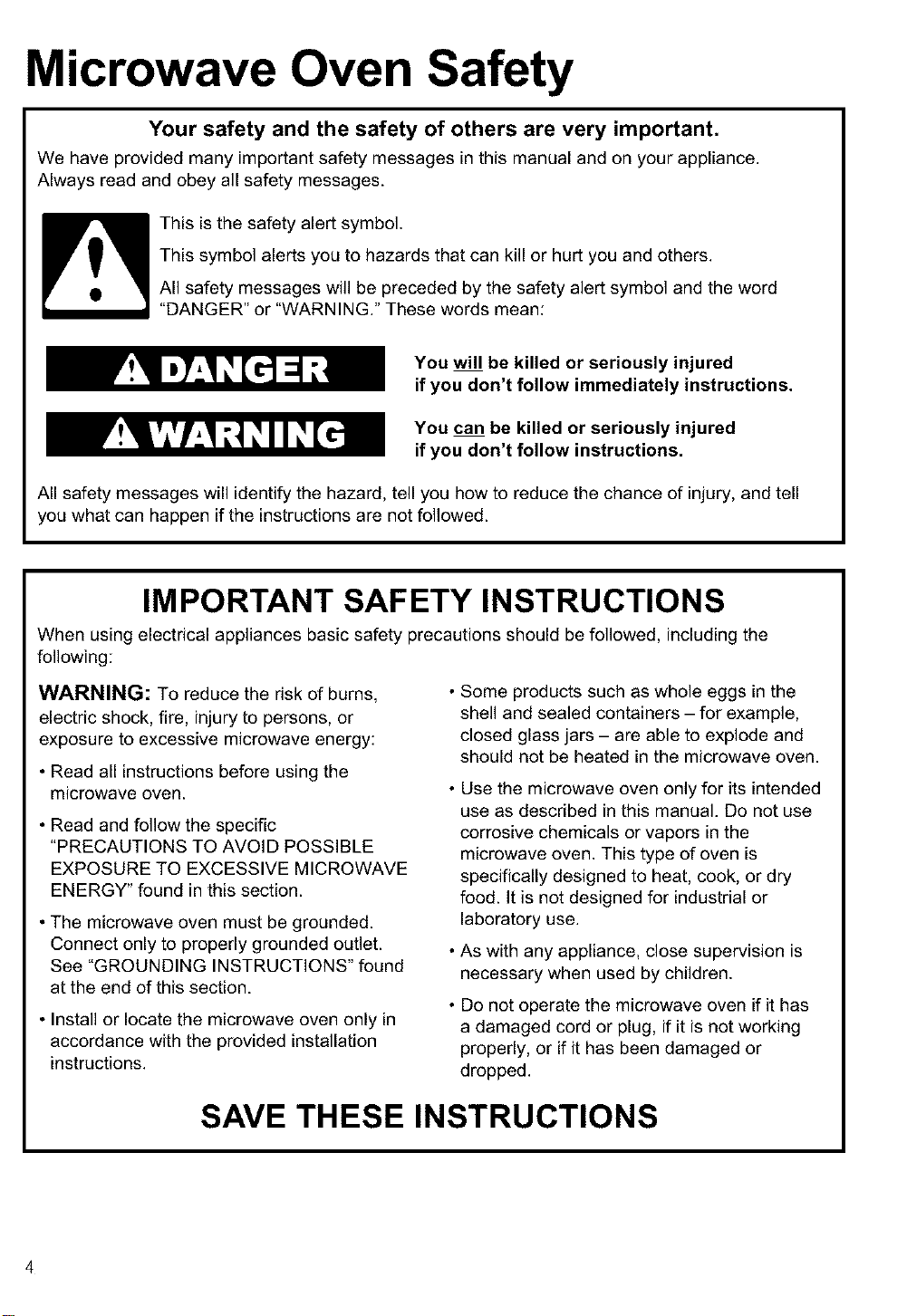

Microwave Oven Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word

"DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow immediately instructions.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell

you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the

following:

WARNING: To reduce the risk of burns,

electric shock, fire, injury to persons, or

exposure to excessive microwave energy:

• Read all instructions before using the

microwave oven.

• Read and follow the specific

"PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY" found in this section.

• The microwave oven must be grounded.

Connect only to properly grounded outlet.

See "GROUNDING INSTRUCTIONS" found

at the end of this section.

• Install or locate the microwave oven only in

accordance with the provided installation

instructions.

• Some products such as whole eggs in the

shell and sealed containers - for example,

closed glass jars - are able to explode and

should not be heated in the microwave oven.

• Use the microwave oven only for its intended

use as described in this manual. Do not use

corrosive chemicals or vapors in the

microwave oven. This type of oven is

specifically designed to heat, cook, or dry

food. It is not designed for industrial or

laboratory use.

• As with any appliance, close supervision is

necessary when used by children.

• Do not operate the microwave oven if it has

a damaged cord or plug, if it is not working

properly, or if it has been damaged or

dropped.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

• Themicrowaveovenshouldbeservicedonlyby

qualifiedservicepersonnel.Callan authorized

servicecompanyfor examination,repair,or

adjustment.

• Seedoorsurfacecleaninginstructionsin the"Caring

forYour MicrowaveOven"section.

• Toreducetheriskoffire intheovencavity:

- Donotoverceokfood.Carefullyattendthe

microwaveovenwhenpaper,plastic,or other

combustiblematerialsare placedinsidetheovento

facilitatecooking.

- Removewiretwist-tiesfrom paperor plasticbags

beforeplating bagsin oven.

- If materialsinsidetheoven ignite,keepovendoor

closed,turnovenoff,and disconnectthe power

cord,or shutoff poweratthefuse orcircuitbreaker

panel.

- Donotusethecavityforstoragepurposes.Donot

leavepaperproducts,cookingutensils,orfood in

thecavitywhennotin use.

• Suitablefor useabovebothgasand electriccooking

equipment.

• Intendedtobe usedaboverangeswith maximum

widthof 36 inches(91 cm).

• CleanVentilatingHoodsFrequently- Greaseshould

notbeallowedto accumulateonhoodor filter.

• Whenflamingfoodsunderthehood,turnthefanon.

• Usecarewhencleaningthevent-hoodfilter.

Corrosivecleaningagents,suchaslye-basedoven

cleaners,may damagethefilter.

• Oversizedfoodsor oversizedmetal utensilsshould

notbeinsertedinthe microwaveovenasthey may

createa fireor riskofelectricshock.

• Donotcleanwith metalscouringpads.Piecescan

burnoffthe padandtouchelectricalpartsinvolvinga

riskofelectricshock.

• Do not store anything directly on top of the

microwave oven when the microwave oven is in

operation.

• Do not cover or block any openings on the

microwave oven.

• Do not store this microwave oven outdoors. Do not

use the microwave oven near water for example,

near a kitchen sink, in a wet basement, near a

swimming pool, or similar location.

• Do not immerse cord or plug in water.

• Keep cord away from heated surfaces.

• Do not let cord hang over edge of table or counter.

• Do not mount over asink.

• Do not cover racks or any other part of the oven with

metal foil. This will cause overheating of the oven.

• Liquids such as water, coffee, or tea are able to

be overheated beyond the boiling point without

appearing to be boiling due to surface tension of

the liquid. Visible bubbling or boiling when the

container is removed from the microwave oven is

not always present. This could result in very hot

liquids suddenly boiling over when a spoon or

other utensil is inserted into the liquid. To reduce

the risk of injury to persons.

1) Do not overheat the liquid.

2) Stir the liquid both before and halfway through

heating it.

3) Do not use straight-sided containers with

narrow necks.

4) After heating, allow the container to stand

in the microwave oven for a short time before

removing the container.

5) Use extreme care when inserting a spoon or

other utensil into the container.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY

(a) Do not attempt to operate this oven with the

door open since open - door operation can

result in harmful exposure to microwave

energy. It is important not to defeat or tamper

with the safety interlocks.

(b) Do not place any object between the oven

front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

particularly important that the oven door close

properly and that there is no damage to the:

(1) Door (bent),

(2) Hinges and latches (broken or loosened),

(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired

by anyone except properly qualified service

personnel.

Electrical

requirements

Observe all governing codes and

ordinances. A 120 Volt, 60 Hz, AC only,

20 amp fused electrical supply is

required. (A time-delay fuse is recommended.)

It is recommended that a separate circuit

serving only this appliance be provided.

Electrical Shock Hazard

Plug into a grounded 3-prong

outlet. Do not remove ground

prong. Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in death,

fire, or electrical shock.

GROUNDING INSTRUCTIONS

• For all cord connected appliances:

The microwave oven must be grounded.

In the event of an electrical short circuit,

grounding reduces the risk of electric

shock by providing an escape wire for the

electric current. The microwave oven is

equipped with a cord having a grounding

wire with a grounding plug. The plug must

be plugged into an outlet that is properly

installed and grounded.

Ensure proper ground

exists before use

WARNING: Improper use of the

grounding can result in a risk of electric

shock.

Consult a qualified electrician or

serviceman if the grounding instructions

are not completely understood, or if doubt

exists as to whether the microwave oven

is properly grounded.

Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician or serviceman install an outlet

near the microwave oven.

• For a permanently connected appliance:

The microwave oven must be connected

to a grounded, metallic, permanent wiring

system, or an equipment grounding

conductor should be run with the circuit

conductors and connected to the

equipment grounding terminal or lead

on the microwave oven.

SAVE THESEINSTRUCTIONS

Gettingto Know Your

MicrowaveOven

This section discusses the concepts behind microwave cooking. It also shows you the basics you need to know

to operate your microwave oven. Please read this information before you use your oven.

HOW YOUR KENMORE ULTRA WAVE TM MICROWAVE

HOOD COMBINATION WORKS

Microwave energy is not hot. Itcausesfood to make

its own heat, and it'sthis heatthat cooks the food.

Microwaves are likeTV waves, radio waves, or

lightwaves. You cannot seethem, butyou can see

what they do.

A magnetron in the microwave oven produces

microwaves. The microwaves move into the oven

where they contact food as itturns on the turntable.

Magnetron

Conventional microwave ovens operate on HIGH

power only. To achieve a 70% power level in a

conventional microwave oven, the oven operates

70% of the time at HIGH power and 30% of the

time OFF.

TheULTRAWAVETM InverterMicrowaveSystem

deliverspowercontinuously,todefrostmoreevenlyand

minimizeovercookingoffoodandmessyfoodspatters.

Oven cavity

Metal floor Glass tray

The glass turntable of your microwaveoven lets

microwaves pass through. Then they bounceoff a

metal floor, back through the glassturntable, and

are absorbed by thefood.

Microwaves pass through mostglass, paper, and

plasticswithout heating them so food absorbsthe

energy. Microwaves bounce off metalcontainers so

food does notabsorb the energy.

ULTRA WAVE TM Inverter Microwave System

ULTRA WAVETM Inverter Microwave System gives

you better microwave cooking performance for

defrosting, cooking and reheating foods quickly

and uniformly.

The ULTRA WAVETM Inverter Microwave System

is proven technology that delivers a constant

stream of microwave power - true high, medium,

and low power.

Sensor Cooking

TheULTRAWAVEMInverterMicrowaveSystemfea-

turesSensorCookingfunctions.A humiditysensorin

theovencavitydetectsmoistureand humidityemitted

fromfoodas itheats.Thesensoradjustscookingtimes

to varioustypesandamountsoffood. Sensorcooking

takestheguessworkoutof microwavecooking.

For the best cooking results

• Always cook food for the shortest cooking time

recommended. Check to see howthe food is

cooking.

• Stir, turn over, or rearrange the food being

cooked about halfway through the cooking time

for all recipes. This will help make sure the food

isevenly cooked.

• If you do not have a cover for a dish, use wax

paper, or microwave-approved paper towels or

plasticwrap. Remember to turn back a corner of

the plastic wrap to vent steam during cooking.

Radio interference

Usingyour microwaveovenmay causeinterference

to your radio,TV, or similarequipment.Whenthereis

interference,you canreduceit or removeit by:

•Cleaning thedoorand sealingsurfacesofthe oven.

•Adjusting the receivingantennaofthe radioor

television.

• Movingthereceiverawayfrom themicrowaveoven.

• Pluggingthe microwaveovenintoa differentoutlet

so that themicrowaveovenand receiverare on

differentbranchcircuits.

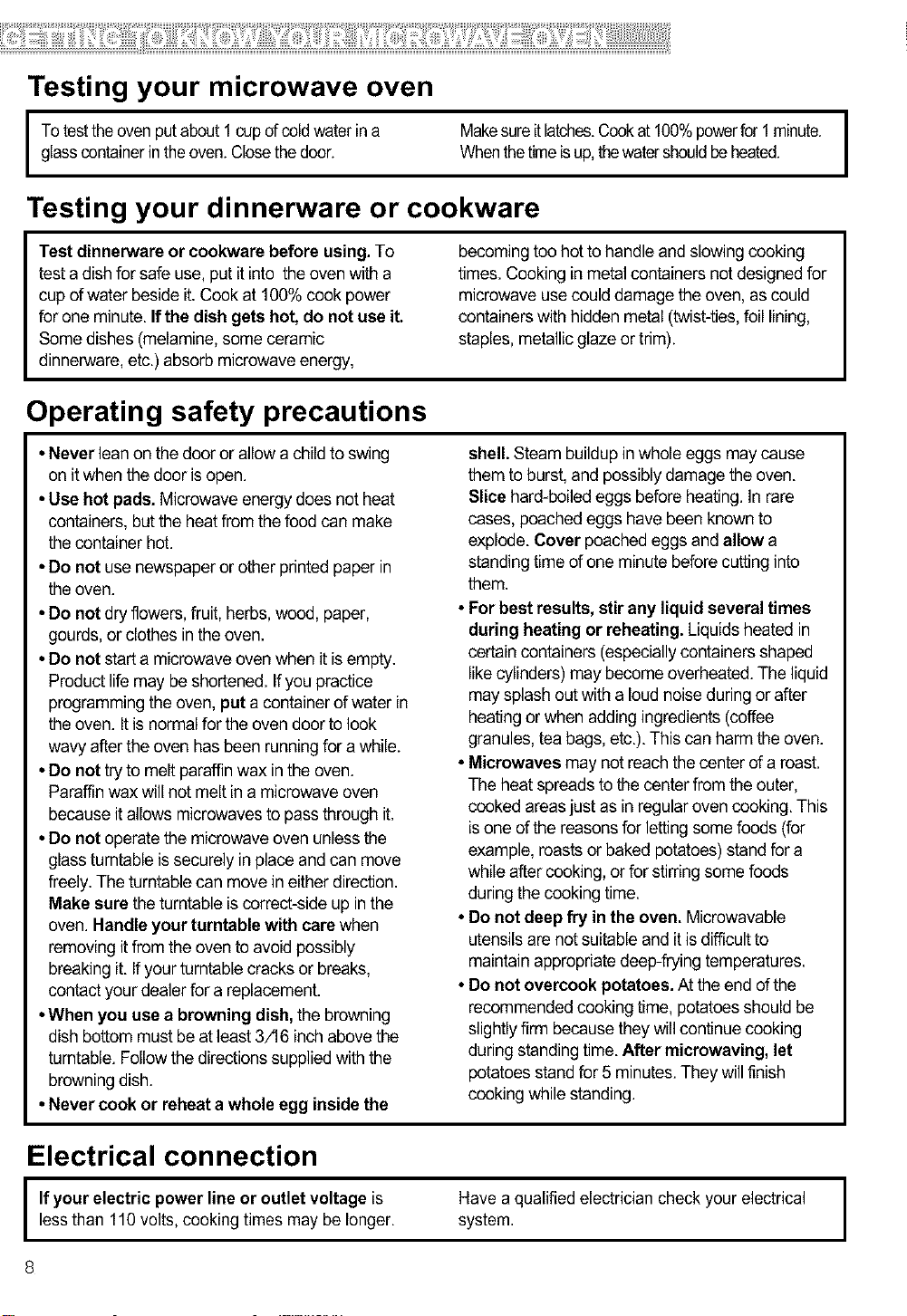

Testing your microwave oven

I Totesttheovenputabout1cup ofcoldwater ina Makesureitlatches.Cookat 100%powerfor 1minute.

glasscontainerin theoven.Closethedoor. Whenthetimeisup,thewatershouldbeheated.

Testing your dinnerware or cookware

Test dinnerware or cookware before using.To

test a dish for safe use,put it into the oven with a

cup ofwater beside it. Cook at 100% cook power

for one minute. If the dish gets hot, do not use it.

Some dishes (melamine,some ceramic

dinnerware, etc.) absorb microwave energy,

becoming too hotto handle and slowing cooking

times. Cooking in metal containers not designedfor

microwave use coulddamage theoven, as could

containers with hidden metal (twist-ties,foil lining,

staples, metallicglaze or trim).

Operating safety precautions

• Never leanonthe dooror allow a childto swing

on itwhen the door isopen.

• Use hot pads. Microwaveenergy does not heat

containers, butthe heat from thefood can make

the container hot.

• Do not use newspaper or other printedpaper in

the oven.

• Do not dry flowers, fruit,herbs, wood, paper,

gourds, or clothes in theoven.

• Do not start a microwave oven when itis empty.

Product lifemay be shortened. If you practice

programming the oven, put a containerof water in

the oven. It is normalfor theoven door to look

wavy after the oven has been runningfor a while.

• Do not try to melt paraffinwax in the oven.

Paraffinwax willnot melt in a microwave oven

because itallows microwavesto pass through it.

• Do not operate the microwave oven unless the

glass turntable issecurely in place and can move

freely.The turntable can move in either direction.

Make sure theturntable iscorrect-side up in the

oven. Handle your turntable with care when

removing itfrom the ovento avoid possibly

breakingit. Ifyour turntable cracks or breaks,

contact your dealer for a replacement.

•When you use a browning dish, the browning

dish bottom must be at least 3A6 inchabove the

turntable. Follow the directionssupplied with the

browningdish.

• Never cook or reheat awhole egg inside the

shell. Steam buildup in whole eggs maycause

them to burst, and possiblydamage theoven.

Slice hard-boiled eggs before heating.In rare

cases, poached eggs have beenknownto

explode. Cover poached eggs andallow a

standing time of oneminute beforecutting into

them.

• For best results, stir any liquid several times

during heating or reheating. Liquids heated in

certain containers (especiallycontainersshaped

likecylinders) may become overheated.The liquid

may splash outwith a loud noise during orafter

heatingor when adding ingredients (coffee

granules, tea bags, etc.).Thiscan harm the oven.

• Microwaves may not reachthe center of a roast.

The heatspreads tothe center from the outer,

cooked areasjust as in regular oven cooking. This

isone ofthe reasons for lettingsome foods (for

example, roastsor baked potatoes)stand for a

whileafter cooking, or for stirring some foods

during the cooking time.

• Do not deep fry in the oven. Microwavable

utensilsare notsuitable and it isdifficultto

maintain appropriate deep-fryingtemperatures.

• Do not overcook potatoes. At the end of the

recommended cooking time, potatoes shouldbe

slightlyfirm because they willcontinue cooking

during standing time. After microwaving, let

potatoesstand for 5 minutes. They will finish

cooking while standing.

Electrical connection

I Ifyour electric powerline or outletvoltage is

less than 110 volts, cooking times may be longer.

Have a qualified electrician check your electrical

system.

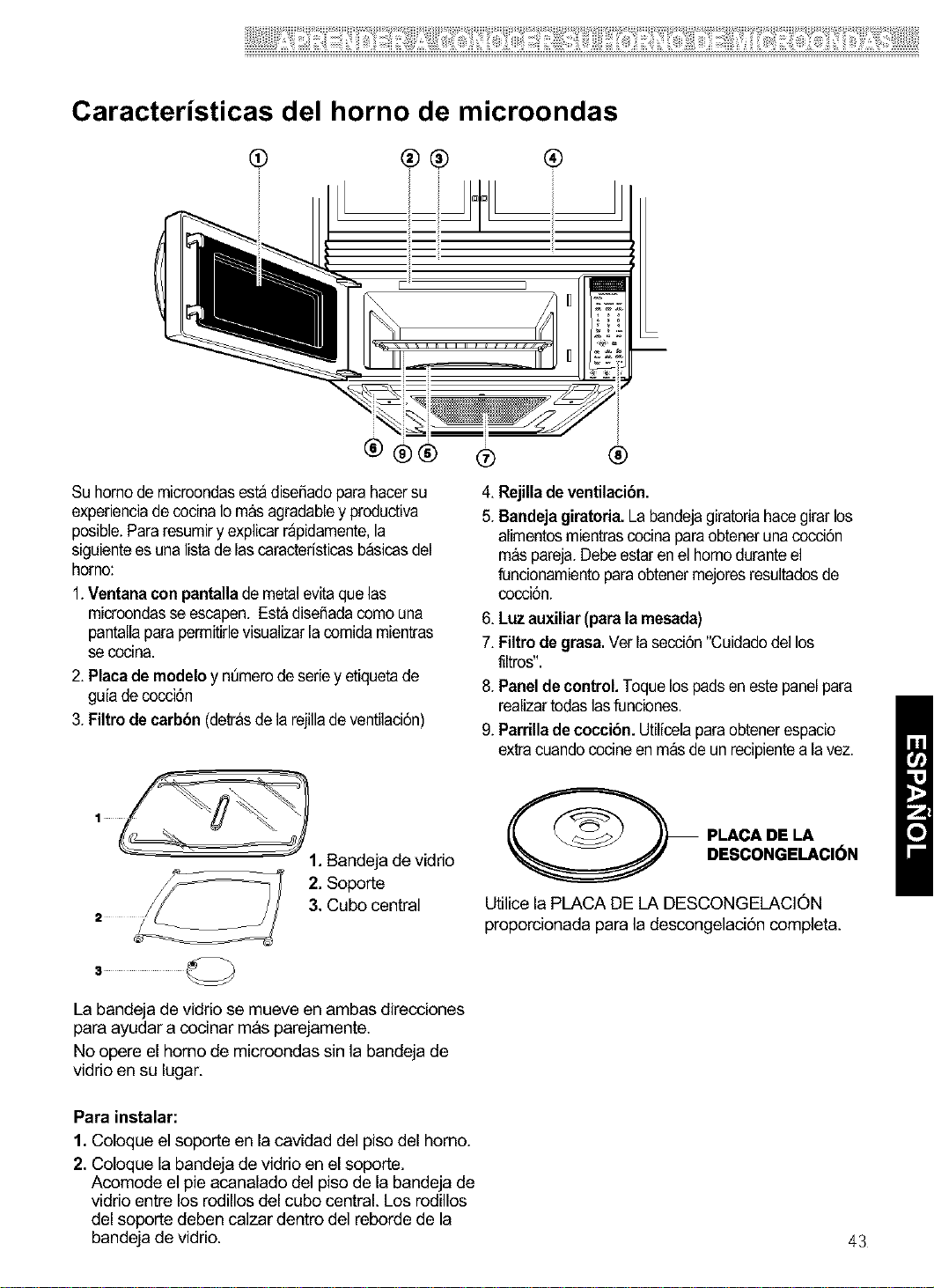

Microwave oven features

® ®® ®

®®®

Your microwave oven is designed to make your

cooking experience as enjoyable and productive

as possible. To get you up and running quickly, the

following is a list of the oven's basic features:

1. Metal Shielded Window. The shield prevents

microwaves from escaping. It is designed as a

screen to allow you to view food as itcooks.

2. Model and Serial Number Plate & Cooking

Guide Label

3. Charcoal Filter (behind Vent Grille)

® ®

4. Vent Grille

5. Glass tray. The glass tray moves food as it

cooks for more even cooking. It must be inthe

oven during operation for best cooking results.

6. Cooktop Light

7. Grease Filter. See "Caring for the filters"

section.

8. Control Panel. Touch the pads on this panel to

perform all functions.

9. Cooking Rack. Use for extra space when

cooking in more than one container at the

same time.

1. Glass tray

2. Support

3. Hub

Defrost Plate

Use the DEFROST PLATE provided for

completedefrosting.

The glass tray moves in both directions to help cook food more

evenly. Do not operate the microwave oven without the glass

tray in place.

To Install:

1. Place the support on the oven cavity bottom.

2. Place the glass tray on the support.

Fit the raised, hollowed groove of the glass tray bottom

between the rollers of the hub. The rollers on the support

should fit inside the glass tray bottom ridge.

!!!ii!i;i!i_iili___iii¸i!i;iiiiiiiiill¸iiiiii!iii_i_!!iii_;i_i!i!!!i!i!_!!iiii:iiiill_!iiiii!!iii!iil;iiiiii!iiiii¸i!!!iil;i!i_ii_iii:iliiii!!!i;iii!!iiii!iiiiii!!!;iiii!iiiii¸_iii_iii!!!!iilli!_!_i!!!ii!!_i_!_i_lili!!iliiiilli!_iii!!ili!!iiiiii_i_!i!:!!_ii!ii!iiii_'!iiiill!!!i;iii!!i;i!!_iiii_iii!!!iii!!!_!!iii_ililliiiiii!iiiii!;!i!ii!!i_il_i_iiii!!!!!iii!iliiiiiiii_i;i_!iii!i!_iiiiiX_iiii!ii!_!ili!i_iJ!J!i!i!i!ii!i!_!

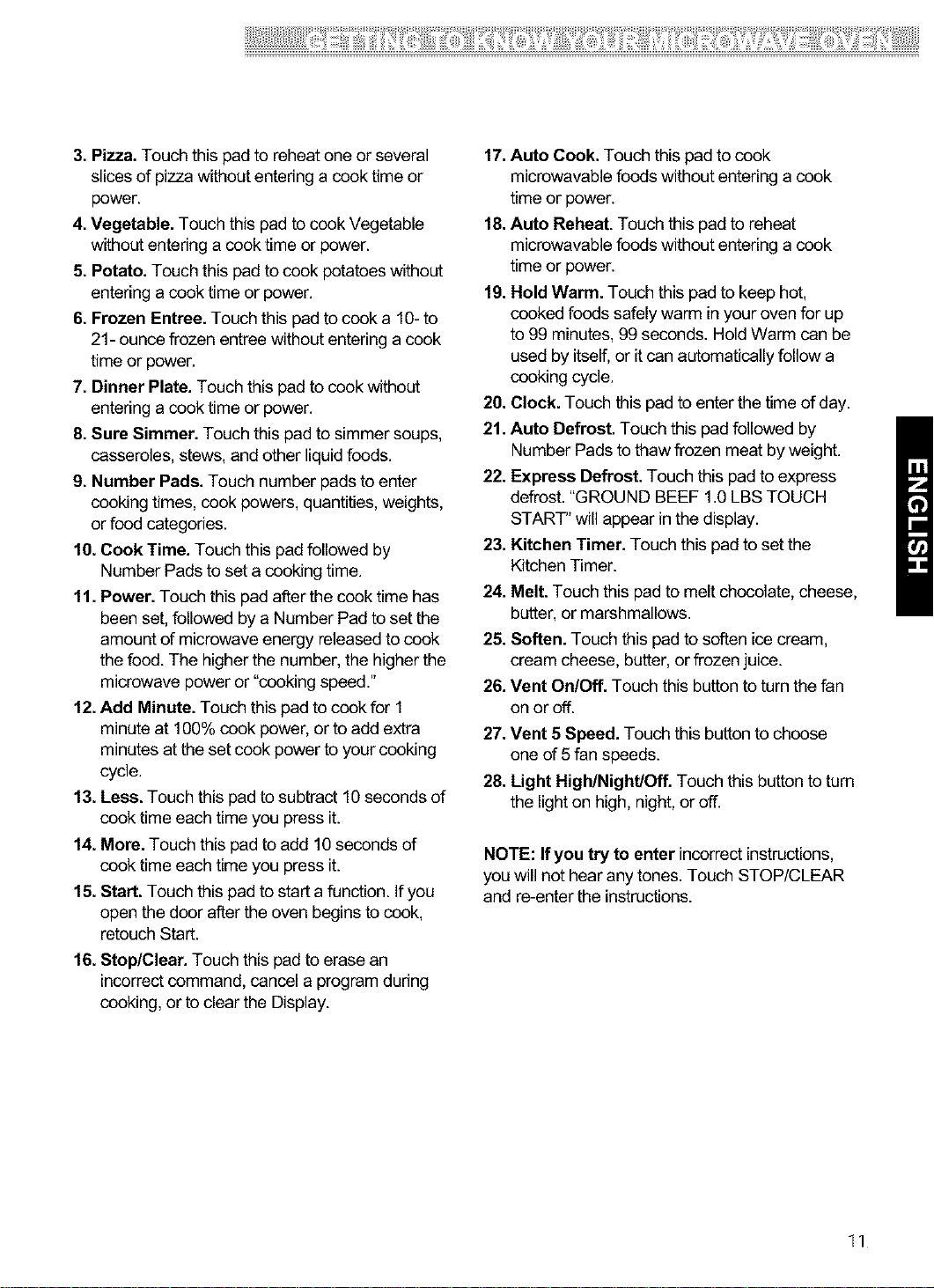

Control panel features

Your microwave oven control panel lets you select the desired cooking function quickly and easily.

All you have to do is touch the necessary Command Pad. The following is a list of all the Command

and Number Pads located on the control panel. For more information on these features, see the

"Using your microwave oven" section,

5m_ Trench5en,_;or

PLATE

4 5

.... TIME

AD#

3 ii

8 9 _J

,,J

CLE_

VEetr V_rr LIGHT

1. Display. The display includesa clock and 2. Popcorn. Touch this pad to pop popcorn with

indicatorsto tell you time of day, cooking time the sensor feature. The oven's sensor will tell

settings, cook powers, quantities, weights, and the oven how long to cook depending on the

cooking functions selected, amount of humidity itdetects from the popcom.

3. Pizza. Touch this pad to reheat one or several

slices of pizza without entering a cook time or

power.

4. Vegetable. Touch this pad to cook Vegetable

without entering a cook time or power.

5. Potato. Touch this pad to cook potatoes without

entering a cook time or power.

6. Frozen Entree. Touch this pad to cook a 10- to

21- ounce frozen entree without entering a cook

time or power.

7. Dinner Plate. Touch this pad to cook without

entering a cook time or power.

8. Sure Simmer. Touch this pad to simmer soups,

casseroles, stews, and other liquid foods.

9. Number Pads. Touch number pads to enter

cooking times, cook powers, quantities, weights,

or food categories.

10. Cook Time. Touch this pad followed by

Number Pads to set a cooking time.

11. Power. Touch this pad after the cook time has

been set, followed by a Number Pad to set the

amount of microwave energy released to cook

the food. The higher the number, the higher the

microwave power or "cooking speed."

12.Add Minute. Touch this pad to cook for 1

minute at 100% cook power, orto add extra

minutes at the set cook power to your cooking

cycle.

13. Less. Touch this pad to subtract 10 seconds of

cook time each time you press it.

14. More. Touch this pad to add 10 seconds of

cook time each time you press it.

15. Start. Touch this pad to start a function. If you

open the door after the oven begins to cook,

retouch Start.

16. Stop/Clear. Touch this pad to erase an

incorrect command, cancel a program during

cooking, or to clear the Display.

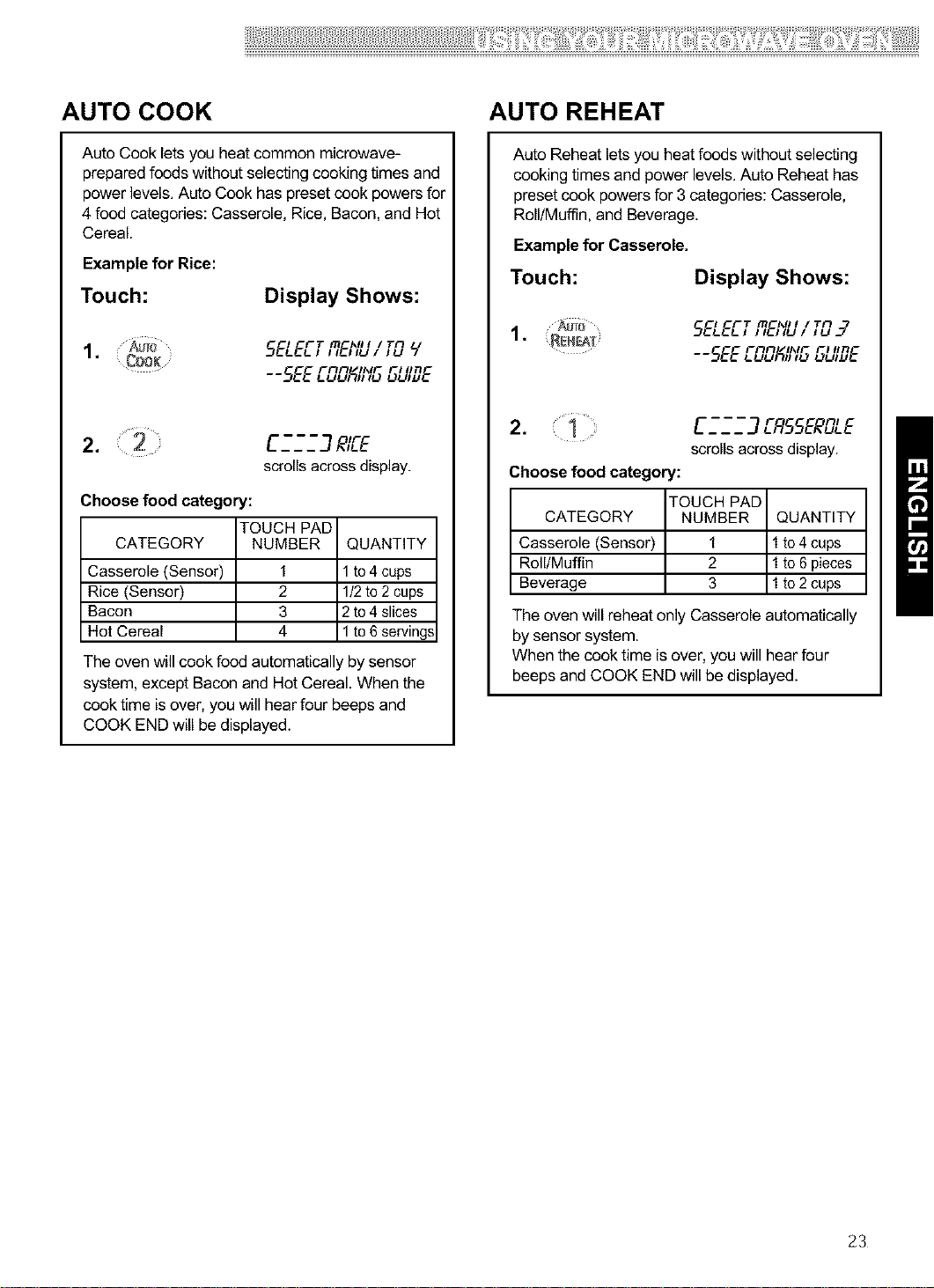

17.Auto Cook. Touch this pad to cook

microwavable foods without entering a cook

time or power.

18.Auto Reheat. Touch this pad to reheat

microwavable foods without entering a cook

time or power.

19. Hold Warm. Touch this pad to keep hot,

cooked foods safely warm in your oven for up

to 99 minutes, 99 seconds. Hold Warm can be

used by itself, or it can automatically follow a

cooking cycle.

20. Clock. Touch this pad to enter the time of day.

21. Auto Defrost. Touch this pad followed by

Number Pads to thaw frozen meat by weight.

22. Express Defrost. Touch this pad to express

defrost. "GROUND BEEF 1.0 LBS TOUCH

START" will appear in the display.

23. Kitchen Timer. Touch this pad to set the

Kitchen Timer.

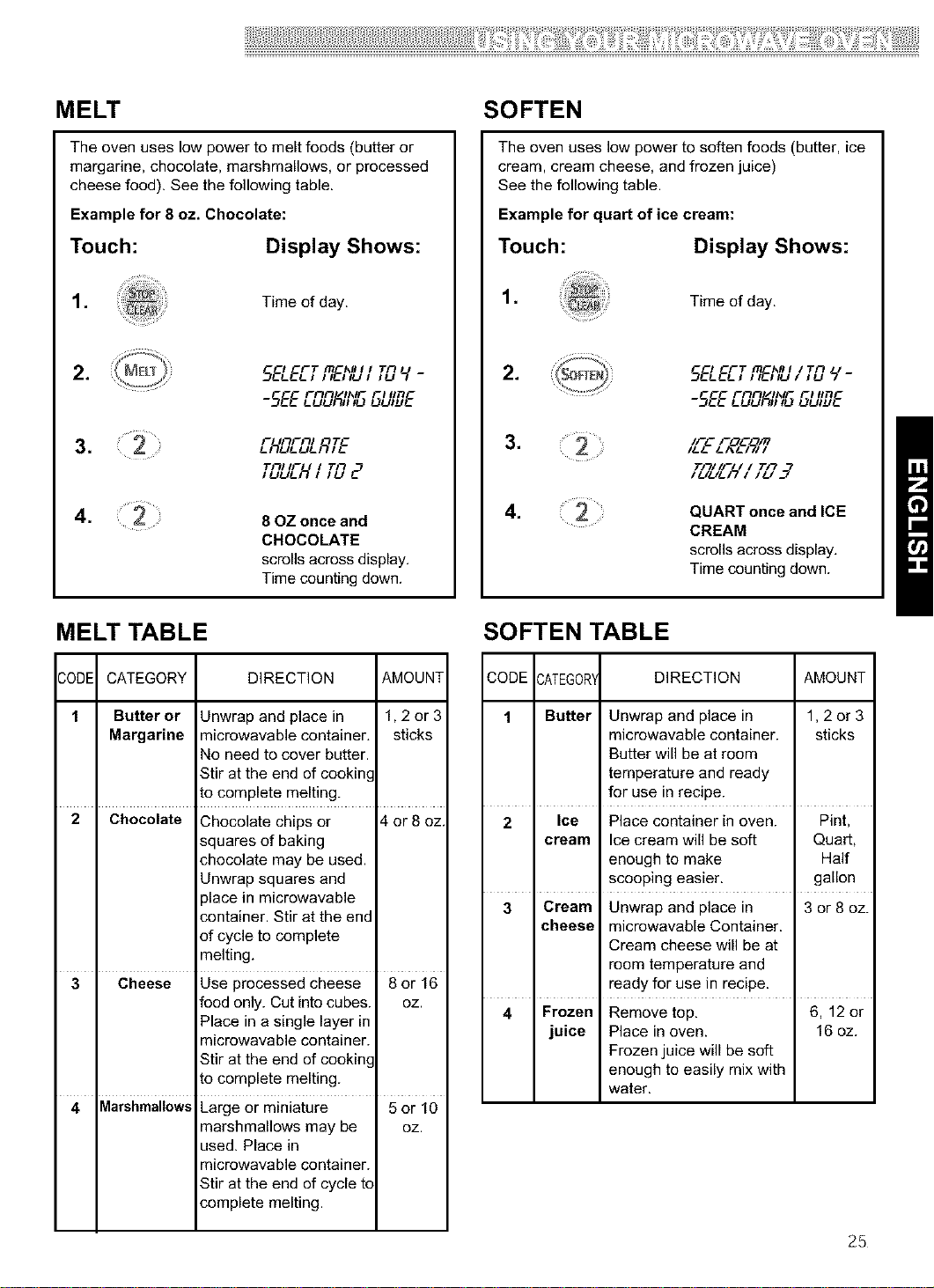

24. Melt. Touch this padto melt chocolate, cheese,

butter, or marshmallows.

25. Soften. Touch this pad to soften ice cream,

cream cheese, butter, or frozen juice.

26. Vent On/Off. Touch this button to turn the fan

on or off.

27. Vent 5 Speed. Touch this button to choose

one of 5 fan speeds.

28. Light High/Night/Off. Touch this button to tum

the light on high, night, or off.

NOTE: If you try to enter incorrect instructions,

you will not hear any tones. Touch STOP/CLEAR

and re-enter the instructions.

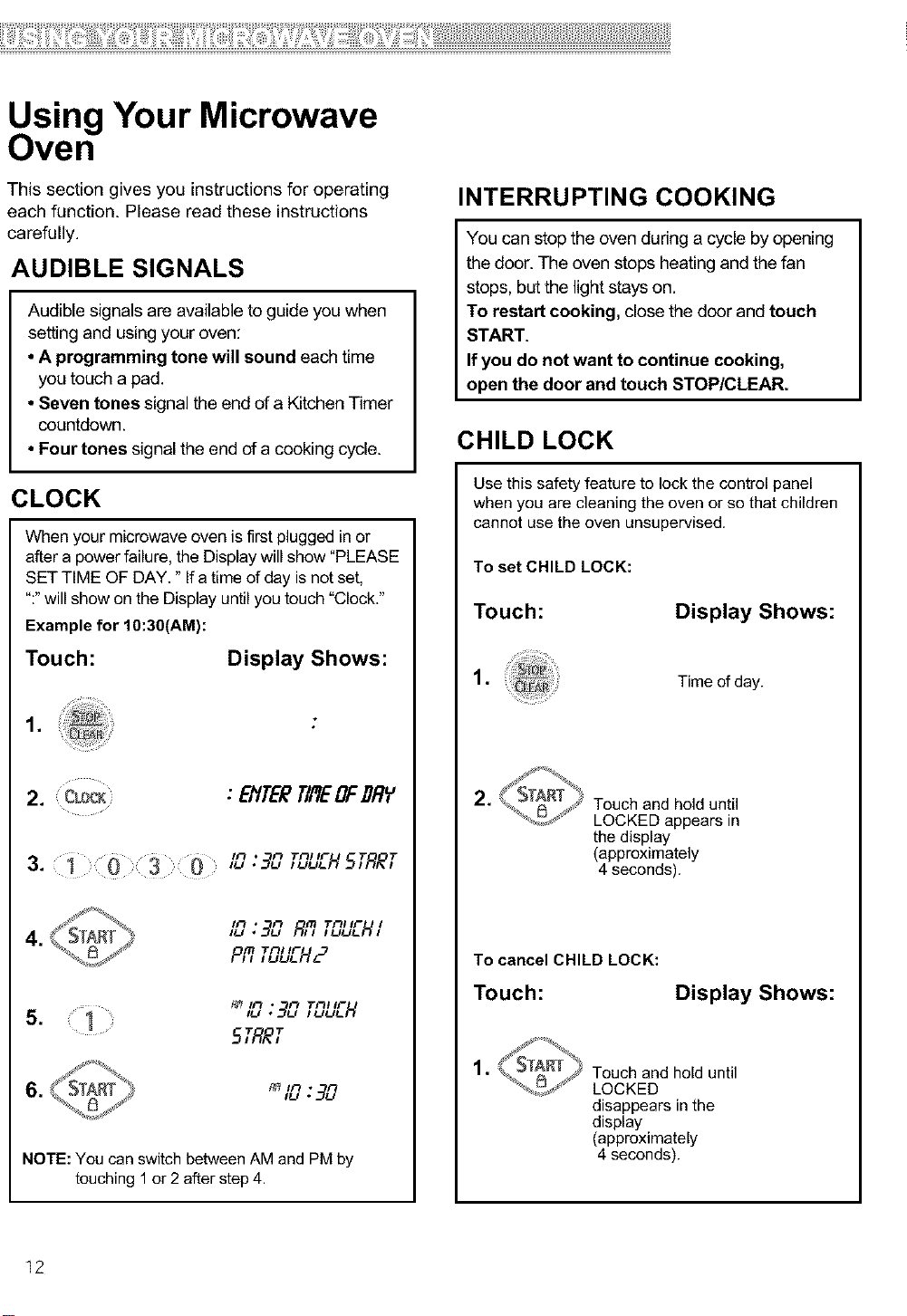

Using Your Microwave

ven

This section gives you instructions for operating

each function. Please read these instructions

carefully.

AUDIBLE SIGNALS

Audible signals are available to guide you when

setting and using your oven:

• A programming tone will sound each time

you touch a pad.

• Seven tones signal the end of a Kitchen Timer

countdown.

• Four tones signal the end of a cooking cycle.

CLOCK

When your microwave oven is first plugged in or

after a power failure, the Display will show "PLEASE

SET TIME OF DAY." If a time of day is not set,

":" will show on the Display until you touch "Clock."

Example for 10:30(AM):

Touch:

Display Shows:

: EIfTERTitleOF#RY

3, I 0 3 0 '_'3D ,uuLHS,fl°_,

TI'H I_"

P,_,_-H_

5. ( 1

_ I1'-I • 13 Tl"ll IF"

5 TR°_T

NOTE: You can switch between AM and PM by

touching 1or 2 after step 4.

INTERRUPTING COOKING

You can stop the oven during a cycle by opening

the door. The oven stops heating and the fan

stops, but the light stays on.

To restart cooking, close the door and touch

START.

If you do not want to continue cooking,

open the door and touch STOP/CLEAR.

CHILD LOCK

Use this safety feature to lock the control panel

whenyou are cleaning the oven or sothat children

cannot use the oven unsupervised.

To set CHILD LOCK:

Touch: Display Shows:

Time of day.

Touch and hold until

LOCKED appears in

the display

(approximately

4 seconds).

To cancel CHILD LOCK:

Touch: Display Shows:

Touch and hold until

LOCKED

disappears in the

display

(approximately

4 seconds).

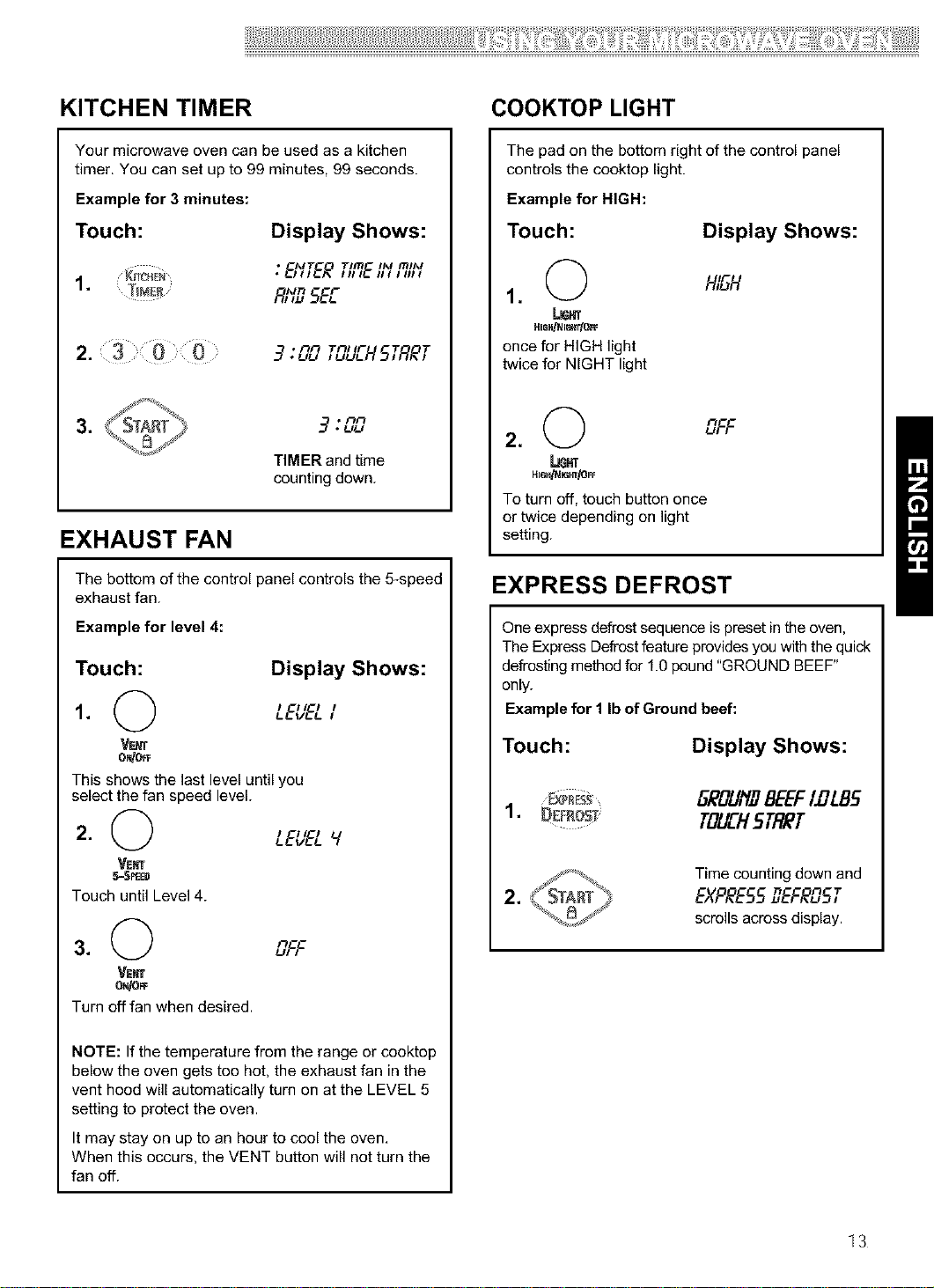

KITCHEN TIMER COOKTOP LIGHT

Your microwave oven can be used as a kitchen

timer. You can set up to 99 minutes, 99 seconds.

Example for 3 minutes:

Touch:

Display Shows:

Tim I_I ml_l

:Eh'TER,,,,E,,, ,,,,

R_,_5EL

• I-#-I Tl'l! ir T T

2. 3 0 0 3.uu ,uuLHS,_R,

. .LILI

TIMER and time

counting down.

EXHAUST FAN

The bottom of the control panel controls the 5-speed

exhaust fan.

Example for level 4:

Touch: Display Shows:

O I I,' I /

1. _.Ef)EL,

V_r

0_0_

This shows the last level until you

select the fan speed level.

O I I,' I2. _.Ef)EL

VENT

5=S_EB

Touch until Level 4.

VERT

0_0_

Turn off fan when desired.

NOTE: Ifthe temperature from the range or cooktop

below the oven gets too hot, the exhaust fan in the

vent hood will automatically turn on at the LEVEL 5

setting to protect the oven.

It may stay on up to an hour to cool the oven,

When this occurs, the VENT button will not turn the

fan off.

The pad on the bottom right of the control panel

controls the cooktop light.

Example for HIGH:

Touch:

Display Shows:

1. 0 HISH

once for HIGH light

twice for NIGHT light

2. 0 EIFF

bG_

HIGF_IN_fOFF

To turn off, touch button once

or twice depending on light

setting.

EXPRESS DEFROST

One express defrost sequence is preset in the oven,

The Express Defrost feature provides you with the quick

defrosting method for 1.0 pound "GROUND BEEF"

only.

Example for IIb of Ground beef:

Touch:

Display Shows:

5ROUI'IDBEEF/.LTLB5

1. TOUEH5TRRT

Time counting down and

EXP°_E55DEF°_OST

scrolls across display.

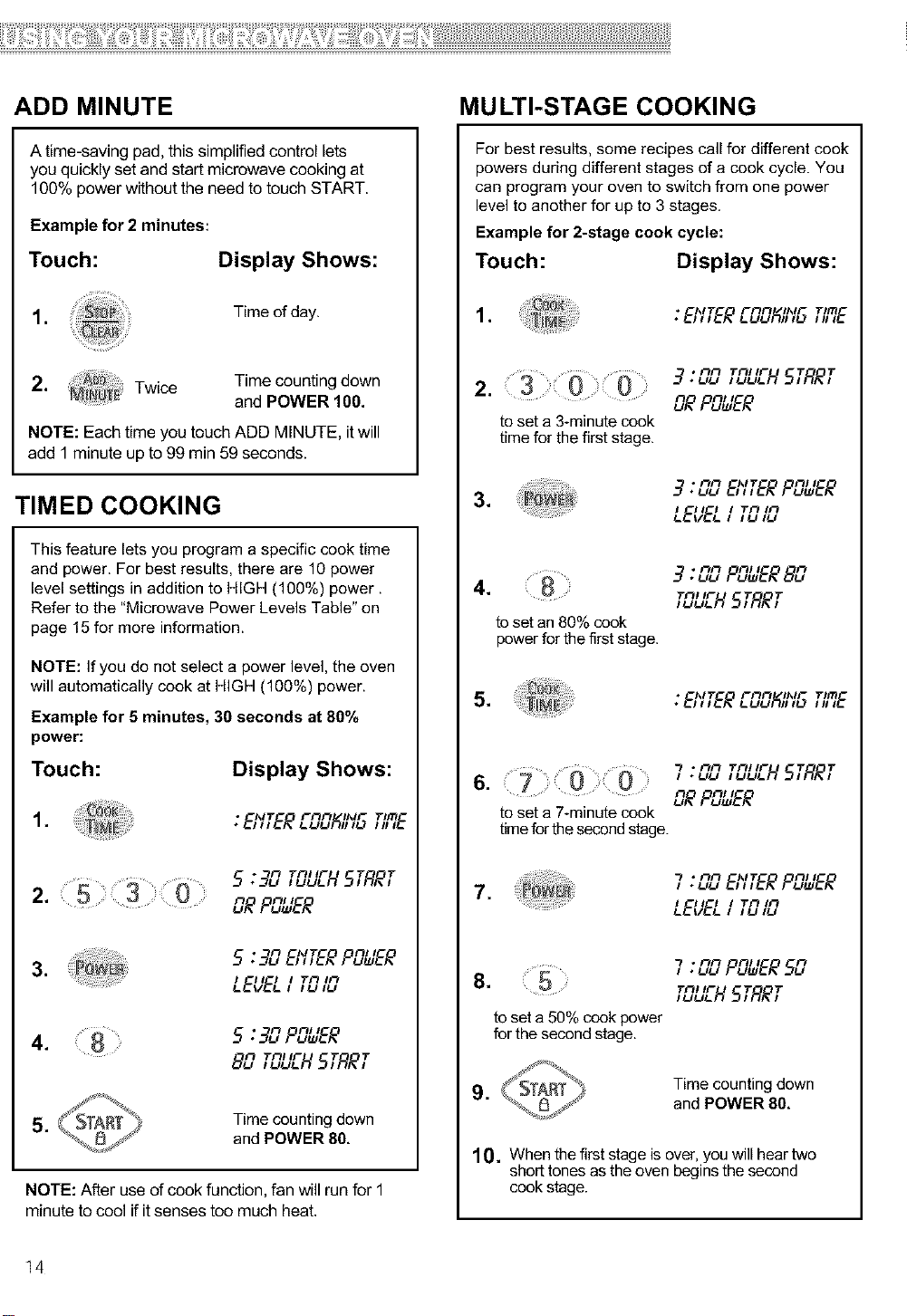

ADD MINUTE

A time-saving pad,this simplifiedcontrol lets

you quickly set and start microwavecookingat

100% power withoutthe need to touch START.

Example for 2 minutes:

Touch: Display Shows:

Time of day.

Twice

Time counting down

and POWER 100.

NOTE: Each time you touch ADD MINUTE, it will

add 1 minute up to 99 rain 59 seconds.

TIMED COOKING

This feature lets you program a specific cook time

and power. For best results, there are 10 power

level settings in addition to HIGH (100%) power.

Refer to the "Microwave Power Levels Table" on

page 15 for more information.

NOTE: If you do not select a power level, the oven

will automatically cook at HIGH (100%) power.

Example for 5 minutes, 30 seconds at 80%

power:

Touch: Display Shows:

TFH IF T T

5:30 ,uuLHS,RE,

FI FII I

u_ PE_,EE

9E;E;,,EEPO_EE

I II I ! TFIIF_

• 1'3 /31 I

4. 5 ._gDPO_'E,9

80 ,_H S,RE,

5. Time counting down

and POWER 80,

NOTE: After useof cook function,fan will runfor 1

minute tocool ifitsenses too much heat,

MULTI-STAGE COOKING

For best results, some recipes call for different cook

powers during different stages of a cook cycle. You

can program your oven to switch from one power

level to another for up to 3 stages.

Example for 2-stage cook cycle:

Touch:

Display Shows:

2. :3 0 ' 0

to set a 3-minute cook

time for the first stage.

TFI! IF T T

FI FII I

JRPE_,EE

_9.uu"nn EMTEEPE,UEE

I It I ! TFIIF_

LEVEL,,u,u

to set an 80% cook

power for the first stage.

FI, I F_

TFH IF

,uu__H5TRET

•_ ,_H 5,RE,* _J_.l TFH IF T T

FI FI, I

JRPO_,EE

to set a 7-minute cook

time for the second stage.

• r_r_ hit FI, I

._,_,E_,,_ P_,_'E_

, ,I , ! TFIIF_

_EJE", ,_,_

to set a 50% cook power

for the second stage.

7 _ P_ER 50

TFH IF"

,uuLH 5TRET

Time counting down

and POWER 80,

10. When the first stage is over, you will hear two

short tones as the oven begins the second

cook stage.

MICROWAVE POWER LEVELS

Forbest results,some recipes call fordifferent cook

powers.The lower the cook power, the slower the

cooking. Each number from 1 to 9 standsfor a

different percentage offull cook power.

The following table gives the percentageof cook power

each numberpad standsfor, and the cook power

name usually used.

It also tells you when to use each cook power.

Follow recipe or food package instructions if available.

COOK POWER NAME WHEN TO USE IT

100% of full power High • Quick heating many convenience foods and

foods with high water content, such as soups and

beverages

• Cooking tender cuts of meat, ground meat

9 = 90% of full power * Heating cream soups

8 = 80% of full power • Heating rice, pasta, or casseroles

7 = 70% of full power Medium-High • Cooking and heating foods that need a

Cook Power lower than high (for example,

whole fish and meat loaf) or when food is

cooking too fast

• Reheating a single serving of food

6 = 60% of full power • Cooking requiring special care, such as cheese

and egg dishes, pudding, and custards

• Finishing cooking casseroles

5 = 50% of full power Medium • Cooking ham, whole poultry, and pot roasts

• Simmering stews

4 = 40% of full power • Melting chocolate

• Heating pastries

3 = 30% of full power Medium-Low, • Manually defrosting foods, such as bread, fish,

Defrost meats, poultry, and precooked foods

2 = 20% of full power • Softening butter, cheese, and ice cream

1 = 10% of full power Low • Keeping food warm

• Taking chill out of fruit

AUTO DEFROST

Four defrost sequences are preset in the oven,

The auto defrost feature provides you with the best

defrosting method for frozen foods. The cooking guide

will show you which defrost sequence is recommended

for the food you are defrosting, For added convenience,

the Auto Defrost includes a built-in beep mechanism

that reminds you to check, turn over, separate, or

rearrange to get best defrost results.

1. MEAT

2. POULTRY

3. FISH

4. BREAD

This table shows you food type selections and the

weights you can set for each type. For best

results, loosen or remove covering on food.

WEIGHTS YOU

TOUCH CANSET

FOOD Auto Defrost (tenths of a pound)

Meat 1 .1to 6.0 (45g to 2722g)

Poultry 2 .1to 6.0 (45g to 2722g)

Fish 3 .1to 6.0 (45g to 2722g)

Bread 4 .1to 1.0(45g to 450g)

Example for 1.2 Ibs of ground beef:

Touch: Display Shows:

1, NERTTOUEHI

POULTRYTOUEH2

FISHTDUEH9

BEER#TOUEH_/

2, O.OL_5

El/TEEgEISHT

3, 1 and L2_5

to enter the weight TOUEH5TRET

Time counting down

and DEFROST.

NOTE:

When you touch the START pad, the display changes

to defrost time count down. The oven will beep during

the DEFROST cycle. At this time, open the door and

turn, separate, or rearrange the food. Remove any

portions that have thawed. Return frozen portions to

the oven and touch START to resume the defrost cycle.

Operating Tips

• For best results, remove fish, shellfish, meat, and

poultry from its original closed paper or plastic

package (wrapper). Otherwise, the wrap will hold

steam and juice close to the foods, which can cause

the outer surface of the foods to cook,

• For best results, shape your ground meat into the

form of a doughnut before freezing, When defrosting,

scrape off thawed meat when the beep sounds and

continue defrosting.

• Place foods in a shallow container or on a microwave

roasting rack to catch drippings.

Weight conversion table

You are probably used to food weights as being in

pounds and ounces that are fractions of a pound (for

example, 4 ounces equals 1/4 pound). However, in

order to enter food weight in Auto Defrost, you must

specify pounds and tenths of a pound.

If the weight on the food package is in fractions d a

pound, you can use the following table to convert the

weight to decimals.

EQUIVALENT WEIGHT

OUNCES

1.6

3.2

4.0

4.8

6.4

8.0

9.6

11.2

12.0

12.8

14.4

16.0

DECIMAL WEIGHT

.10

.20

.25 One-Quarter Pound

.30

.40

.50 One-Half Pound

.60

.70

.75 Three-Quarters Pound

.80

.90

1.00 One Pound

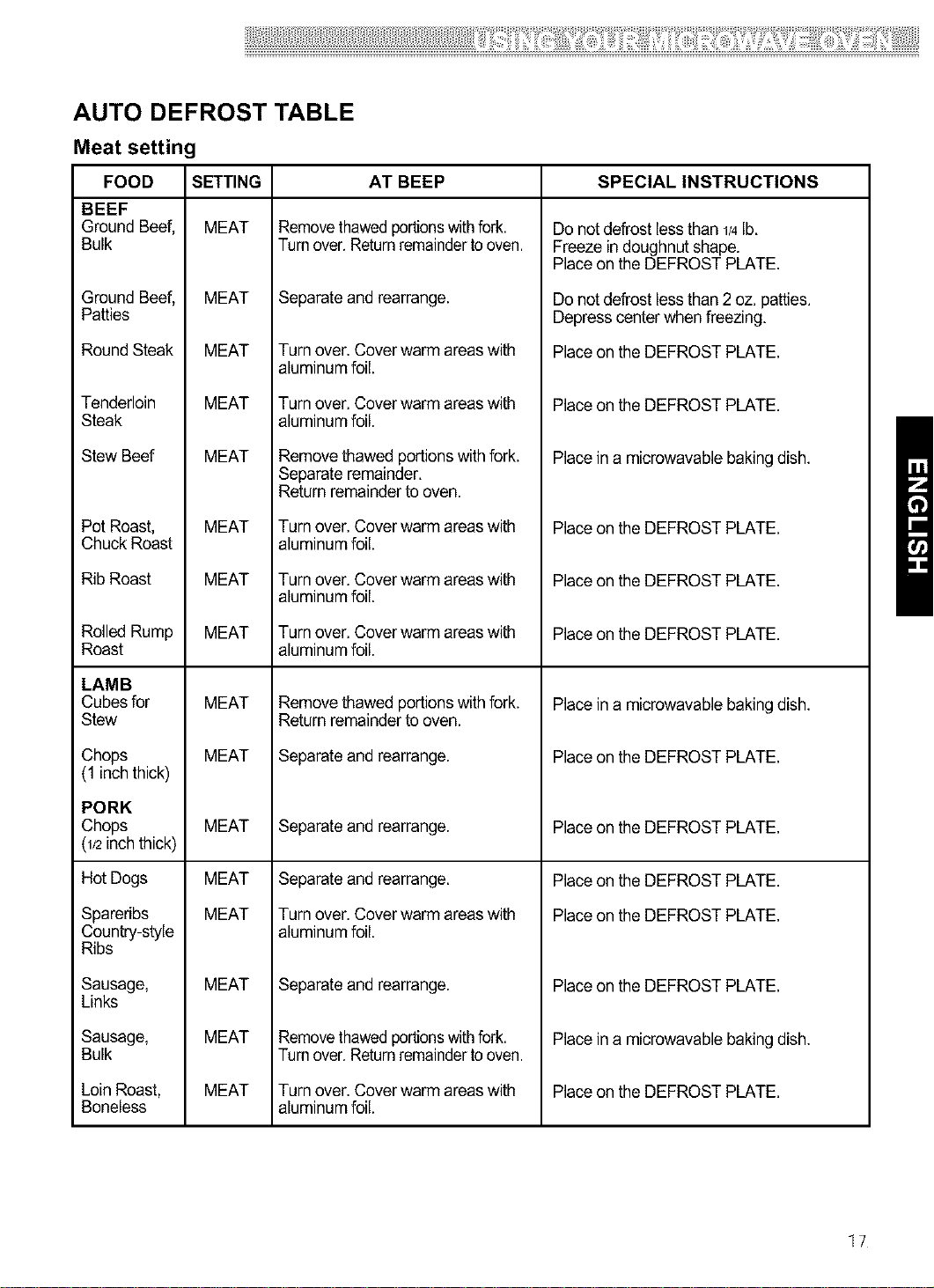

AUTO DEFROST TABLE

Meat setting

SETTING SPECIAL INSTRUCTIONS

MEAT

FOOD

BEEF

Ground Beef,

Bulk

Ground Beef,

Patties

Round S_ak

Tenderloin

Steak

Stew Beef

Pot Roast,

Chuck Roast

Rib Roast

Roiled Rump

Roast

LAMB

Cubes for

Stew

Chops

(1 inch thick)

PORK

Chops

(1/2 inchthick)

Hot Dogs

Spareribs

Country-style

Ribs

Sausage,

Links

Sausage,

Bulk

Loin Roast,

Boneless

MEAT

AT BEEP

Removethawedportionswithfork.

Turnover. Returnremaindertooven.

Separateand rearrange.
