Sound Bar Quick Guide
Installing and using the Product
a Connect the sound bar to your TV via an optical cable or an HDMI
cable.
HDMI OUT
OPTICAL
IN
HDMI IN
HDMI IN
(ARC)
HDMI IN
OPTICAL
OUT
HDMI d TV
(eARC / ARC)
a
b
D
E
a
C
C
c
c
c
B
A
A Sound bar
B Remote Control Receiver / Status Display
C Rear Speakers / Wireless Receiver (Sold separately, SPQ8-S)
D Wireless Subwoofer - Install it close to the sound bar.
E External Device - (Blu-ray player, game console, etc.)
3
b If you are using an external device (ex. Blu-ray player, game console, etc.), connect it to the sound bar via an
HDMI cable.
c If you purchased the rear speakers and wireless receiver separately, connect the rear speakers to the wireless
receiver via a speaker cable. When connecting the rear speakers to the wireless receiver, connect the black
striped cable to the negative terminal of each speaker and the remaining cable to the positive terminal of
each speaker.
d Connect to power in the following order: wireless subwoofer [ wireless receiver [ sound bar. Then, turn on
the sound bar. When the connection is automatically established with the sound bar, the LEDs on the wireless
subwoofer and the wireless receiver will light up green. ([ See “Connecting the Product” on page 6.)
e Using the product with your TV ([ See “Connecting with an
Optical Cable”, “Connecting with an HDMI Cable”, “Connecting
via Bluetooth” on page 31, 33, 35.)
A Press the Function
button repeatedly until “OPT/HDMI ARC” appears on the status display.
B On your TV's settings, set the output speaker to [HDMI ARC], [Optical], or [External Speaker].
C When the TV is properly connected to the product, “OPT”, “ ARC”, or “E-ARC” will appear on the status display
with a sound.

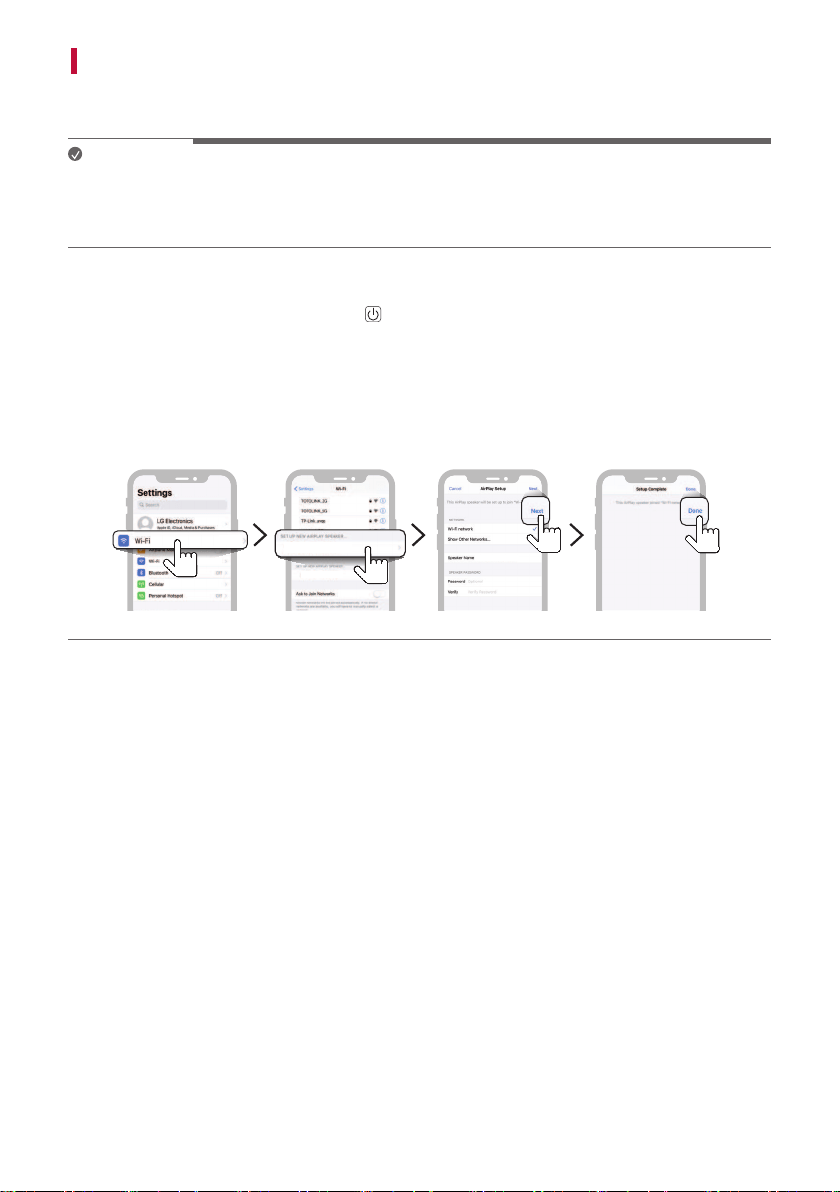

f Connecting the product to your smartphone via Wi-Fi ([ See
“Connecting with a Smartphone via Wi-Fi” on page 16.)
A Connect your smartphone to Wi-Fi.
B Install the LG Sound Bar app on Google Play or the App Store.
C Run the LG Sound Bar app and follow the instructions.
D The product will connect to your smartphone and you can control the product with LG Sound Bar app.
g Connecting the product to your smartphone via Bluetooth ([
See “Connecting via Bluetooth” on page 39.)
A Tap the Settings
button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (
Off > On)

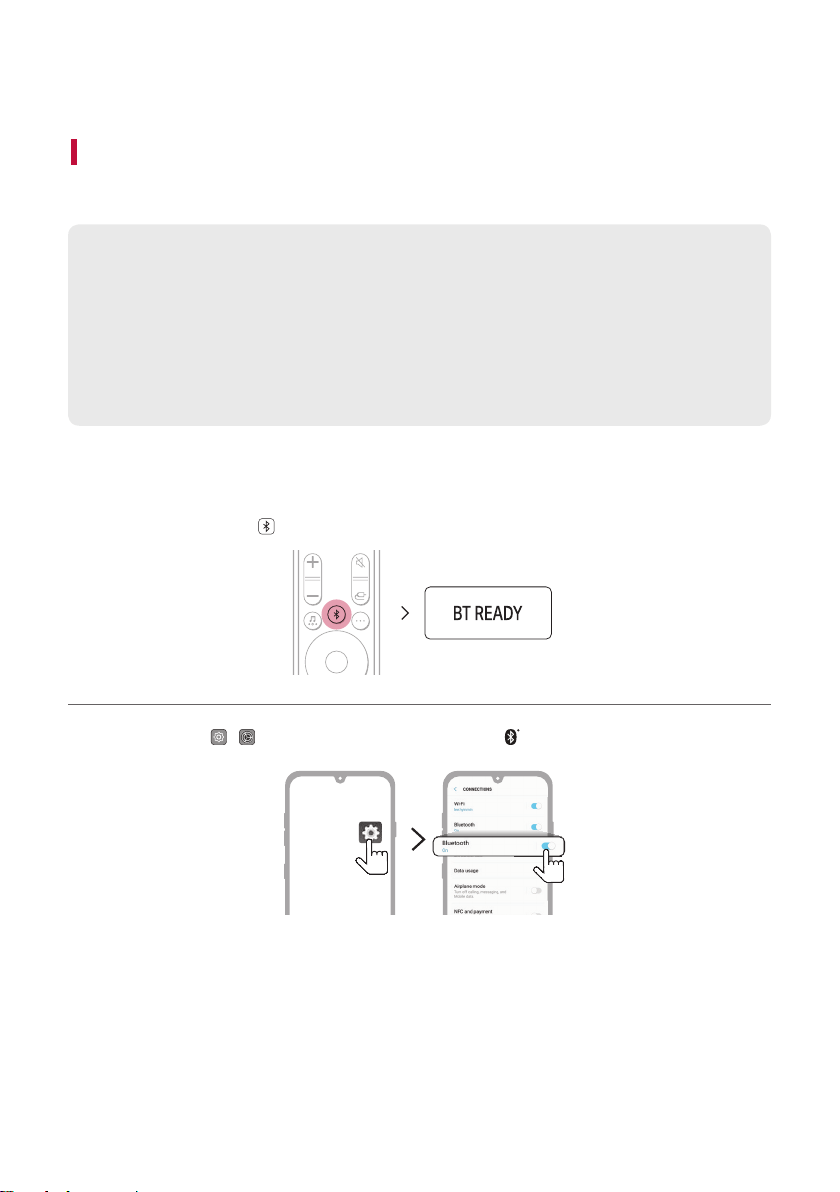

B Press the Bluetooth pair
button. After a moment, you will see “BT READY” on the status display.
C Find and tap “LG_Speaker_S80QY_XXXX” or the name you registered on the Google Home app.
D When the product is connected to your smartphone via Bluetooth, you can see the status display change
from “PAIRED” [ “Connected Bluetooth device name” [ “BT”.
4
Manually connecting the sound bar to the wireless subwoofer or wireless
receiver ([ See “Connecting the wireless subwoofer manually”, “Manual
connection” on page 8, 10.)
If you see a red LED on the back of the wireless subwoofer or on the front of the wireless receiver, it means
that the sound bar is not connected to the speakers. If this is the case, connect them in the following order.
A Press the Power
button on the sound bar to turn it off.
B Press the PAIRING button on the back of the disconnected wireless subwoofer or wireless receiver.
Check if each LED blinks green.
- If you still see a red LED on the back of the wireless subwoofer, press and hold the button on the
back of the subwoofer again.
C Press the Power
button on the sound bar to turn it on.
D When the connection is established, you will see a green LED light on the back of the wireless
subwoofer or on the front of the wireless receiver light up green.
5
Table of Contents
Sound Bar Quick Guide
2 Installing and using the Product
Installation
6 Connecting the Product
16 Connecting with a Smartphone via Wi-Fi
20 Resetting the Product
Exploring the Product
21 Front
23 Back

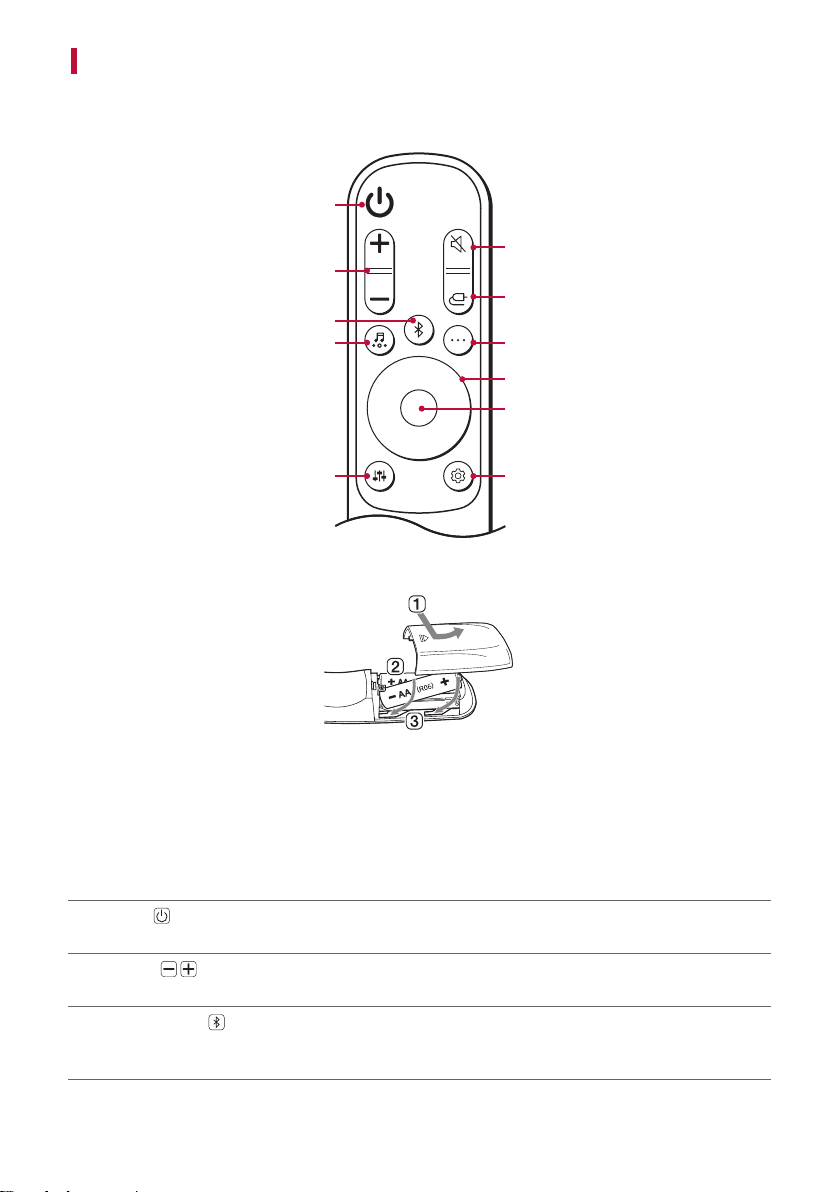

24 Exploring Remote Control
Connecting to the TV
31 Connecting with an Optical Cable
33 Connecting with an HDMI Cable
35 Connecting via Bluetooth
Connecting to an External Device
36 Connecting with an HDMI Cable
38 Connecting with an Optical Cable
Using the Product as an Audio
System
39 Connecting via Bluetooth
42 Connecting to a USB Storage Device
44 Using the LG Sound Bar app
45 Compatible with Google Assistant
46 Works with Apple AirPlay
47 Spotify Connect
48 Works with Alexa
Mounting the Product to a Wall
50 Checking before mounting to a wall
52 Mounting the Product to a Wall
Safety Precautions
54 Safety and Regulatory
Before Reporting Product
Malfunction
57 Troubleshooting
Appendix
61 Specications
63 Registered Trademarks and Licenses
65 What You Need to Know about Network
Services
65 Open Source Software Notice Information
66 Handling the Product
6
Installation
Connecting the Product
You can enjoy a richer sound by connecting the sound bar to the wireless subwoofer.
Connecting the wireless subwoofer automatically
After completing installation, the wireless subwoofer will automatically be connected to the sound bar. Connect
the sound bar to the subwoofer in the following order.
a Plug the power cable into the wireless subwoofer.
b Plug the power cable connected to the wireless subwoofer into an outlet.
c Plug the power cable into the sound bar.
d Plug the power cable connected to the sound bar into an outlet.
e When the connection is automatically established, you will see the LED on the back of the wireless subwoofer
light up green.
7
Checking the connection with the LED on the back of the wireless
subwoofer
You can check the connection status by looking at the LED on the back of the wireless subwoofer.
LED Colour Status
Blinking green Connecting in progress
Green Connected successfully
Red Bad connection, or the subwoofer is in standby
Off Power cable not connected
8
Connecting the wireless subwoofer manually
If you see a red LED on the back of the wireless subwoofer, it means that the sound bar is not connected to the
subwoofer. If this is the case, connect them in the following order.
a Press the Power
button on the sound bar to turn it off.

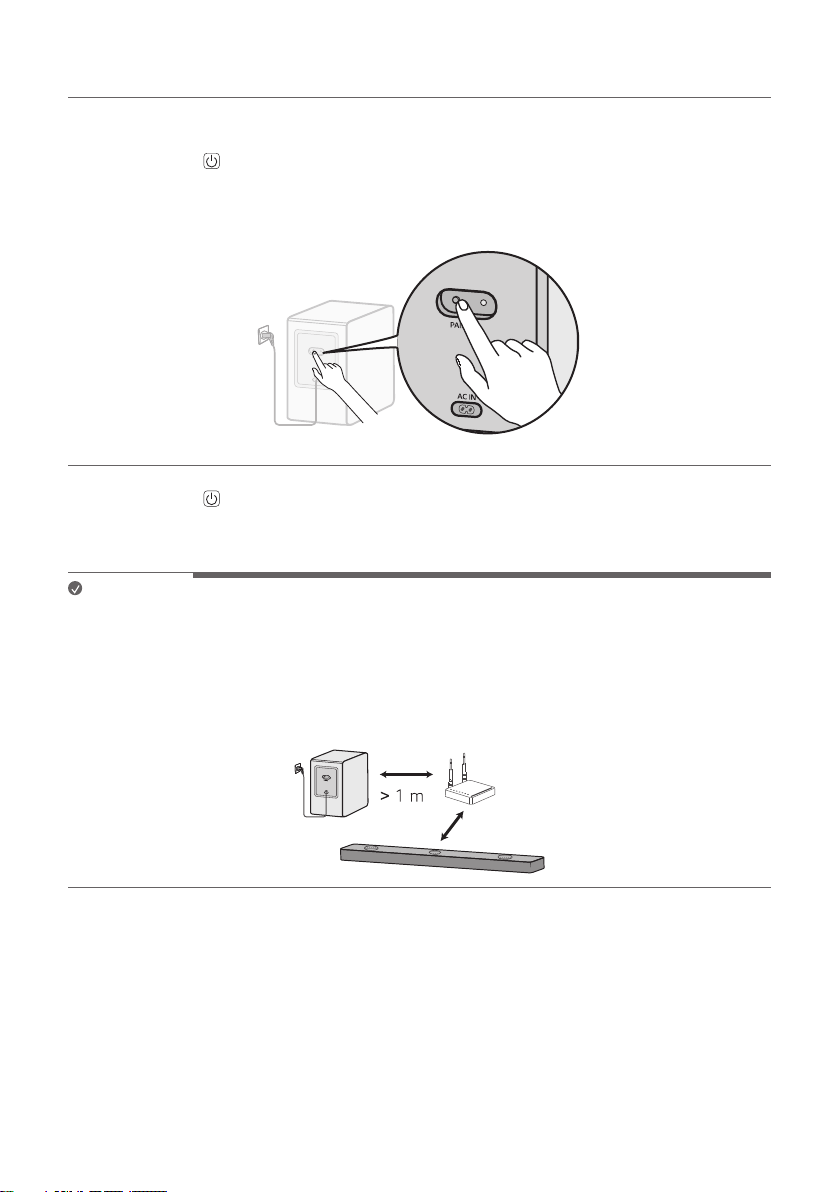

b Press the PAIRING button on the back of the wireless subwoofer. Check if the LED on the back of the
subwoofer is blinking green. If you still see a red LED on the wireless subwoofer, press and hold the button on
the back of the subwoofer again.
c Press the Power button on the sound bar to turn it on.
d When the connection is established, you will see the LED light on the back of the wireless subwoofer light up
green.
Note
• Install the sound bar as close to the wireless subwoofer as possible. The closer the distance between the sound
bar and the wireless subwoofer, the better the sound quality.
• Please ensure there are no obstacles between the sound bar and the wireless subwoofer.
• To prevent wireless interference, maintain a distance of at least 1 m between the sound bar or the wireless
subwoofer and any peripheral devices that generate strong electromagnetic waves (ex. wireless routers,
microwave ovens, etc.).
9
Connecting the rear speakers to the wireless receiver (SPQ8-S, sold
separately)
Automatic connection
After completing installation, the wireless receiver will automatically be connected to the sound bar. Connect the
sound bar to the wireless receiver in the following order.
a Connect the speaker cables to the corresponding terminals on the rear speakers (left, right). Connect the
black striped cable to the negative terminal and the other cable to the positive terminal.
b Connect the speaker cables on the rear speakers (left, right) to the wireless receiver.
Receiver Terminal Colour Speaker Position
Blue
L Left rear
Grey
R Right rear
c Plug the power cable into the wireless receiver.
d Plug the power cable connected to the wireless receiver into an outlet.
e Press the Power
button on the sound bar to turn it on.
f When the connection is automatically established, you will see the LED on the front of the wireless receiver
light up green.
Note
• Please only use the speakers provided with the product. Using other speakers may cause malfunction.
• Connect the speaker cables to the corresponding terminals. Connect to the positive cable to the positive
terminal and the negative cable to the negative terminal. An incorrectly connected cable will distort the sound
or produce no bass.
10
Checking connection status with the LED colour
You can check the connection status with the LED on the front of the wireless receiver.
LED Colour Status
Blinking green Connecting In progress
Green Connected successfully
Red Bad connection, or the receiver is in standby
Off Power cable not connected
Manual connection
If you see a red LED on the front of the wireless receiver, it means that the sound bar is not connected to the
receiver. If this is the case, connect them in the following order.
a Press the Power
button on the sound bar to turn it off.
b Press the PAIRING button on the back of the wireless receiver. Check if the LED on the front of the wireless
receiver is blinking green.
c Press the Power button on the sound bar to turn it on.
d When the connection is established, you will see the LED light on the front of the wireless receiver light up
green.
Note
• Keep the rear speakers at least 30 cm away from the TV or monitor.
• To prevent wireless interference, maintain a distance of at least 1 m between the sound bar or the wireless
receiver and any peripheral devices that generate strong electromagnetic waves (ex. wireless routers,
microwave ovens, etc.).
11
Setting up surround sound
The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from
the speakers, regardless of the channels in the originally recorded content.
For example, if you listen to music recorded in 2.0 channels with standard sound effects while the wireless rear
speakers are connected, you can hear the following difference.
When the surround sound is off
When the surround sound is on
Note

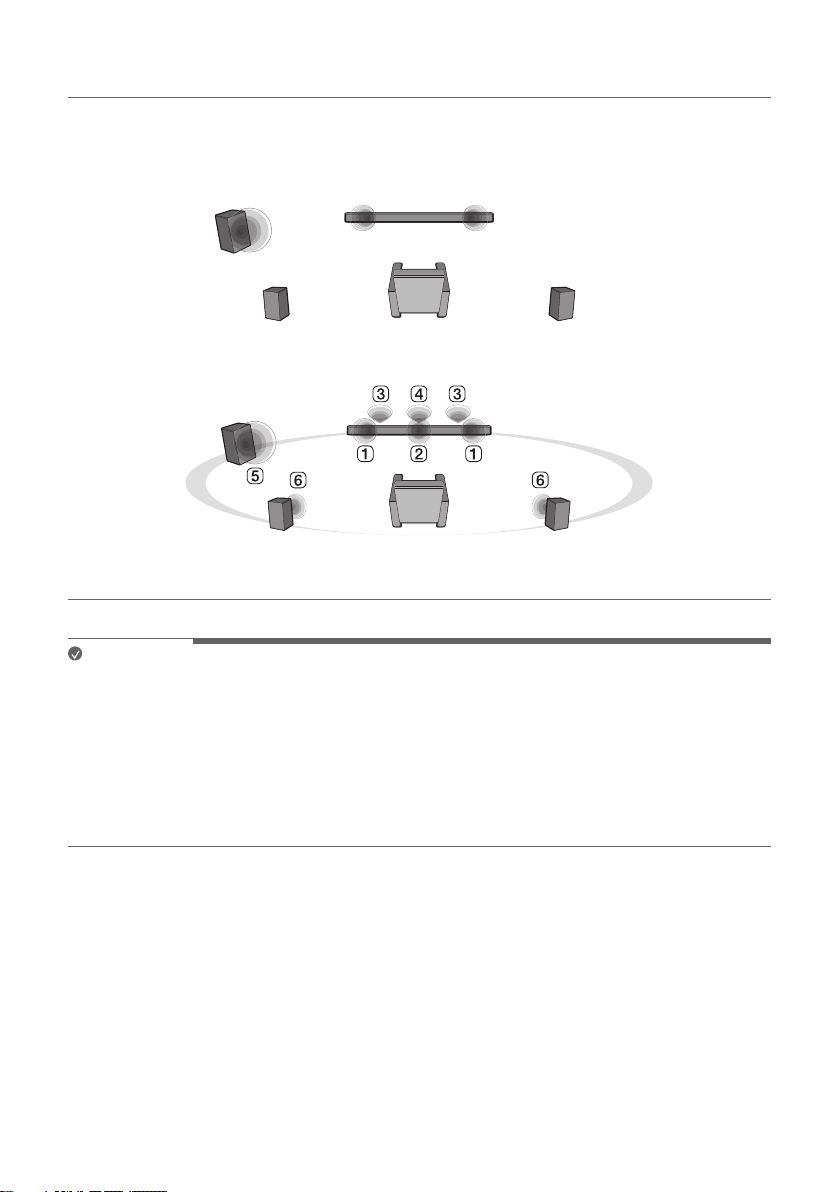

• Speaker positions are as follows.
A Front speakers
B Centre speaker
C Top speakers
D Top centre speaker
E Subwoofer
F Rear speakers
12
Turning surround sound on/off

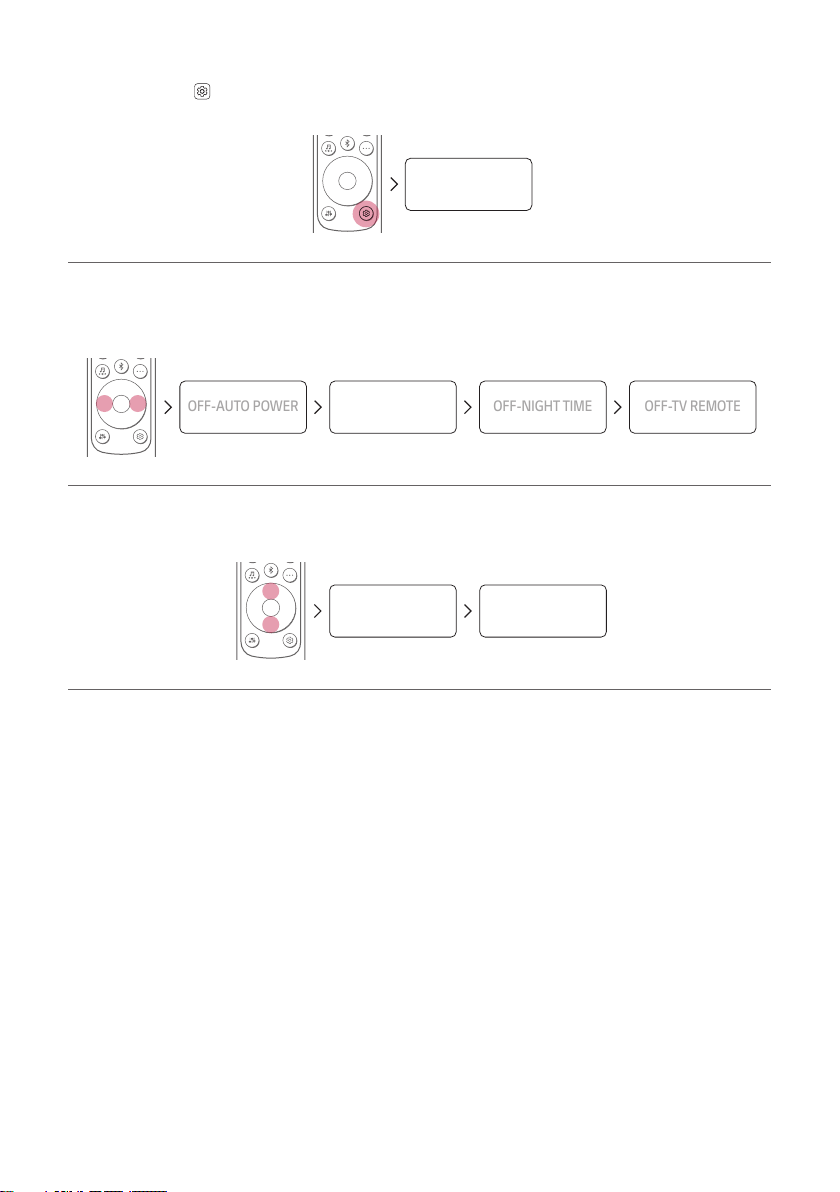

a Press Settings
button. The product enters the setting mode and you can see “OFF-AUTO POWER” or
“ON-AUTO POWER”.
OFF-AUTO POWER
b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/
Right button to select the surround sound setting. You can see the status of the surround sound, “OFF-
SURROUND” or “ON-SURROUND”.
OFF-AUTO POWER
OFF-SURROUND
OFF-NIGHT TIME
OFF-TV REMOTE
c While the “OFF-SURROUND” or “ON-SURROUND” is scrolling in the status display, press Up/Down
button to turn on or off the surround sound.
OFF-SURROUND ON-SURROUND
13

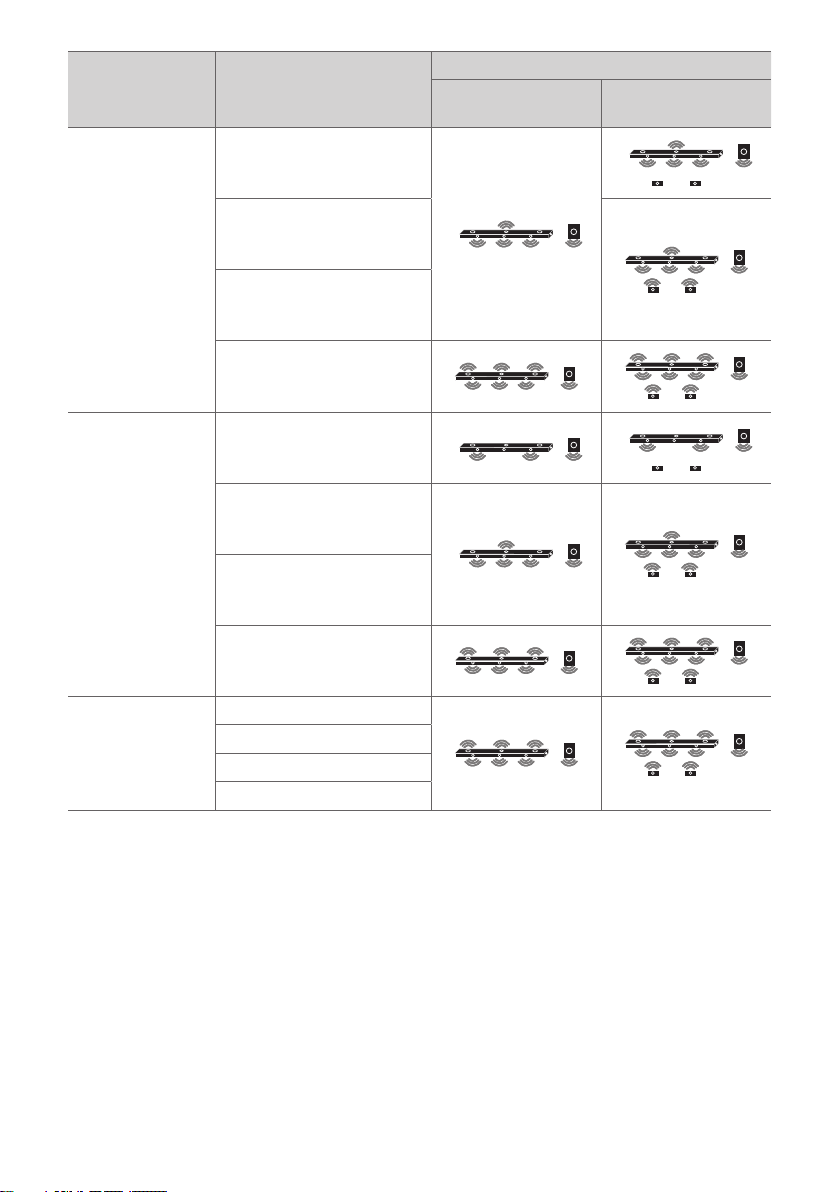

Speaker sound based on input channels
Sound Effects Input
Output
Rear speakers not
connected
Rear speakers
connected
AI SOUND PRO
Sound customised
witharticial
intelligence
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
STANDARD
You can enjoy
optimised sound.
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
14
Sound Effects Input
Output
Rear speakers not
connected
Rear speakers
connected
MUSIC
Sound enriched
with MERIDIAN
technology
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
CINEMA
Cinematic 3D
sound
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
CLEAR VOICE
Voice sound clear,
improving the
quality of voice
sound
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
15
Sound Effects Input
Output
Rear speakers not
connected
Rear speakers
connected
SPORTS
Realistic sound like
in a stadium
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
GAME
Optimised sound
for game
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
BASS BLAST
(BASS BLAST+)
Sound with
reinforced bass
2.0 channels
5.1 channels
7.1 channels or more
7.1.4 channels
16
Connecting with a Smartphone via Wi-Fi
LG Sound Bar app allows you to connect the product to the network and to control the product.
Please check the following rst.
• Do you have a wireless router?
- To connect your smartphone and the product via Wi-Fi, you must have a wireless router.
- Make sure that they are both connected to the same Wi-Fi network.
• Does your smartphone have Bluetooth enabled?
- Enable Bluetooth on your smartphone.
- If Bluetooth is enabled, you can easily connect to Wi-Fi. If Bluetooth is disabled, the product may
not be registered on the LG Sound Bar app.
• The LG Sound Bar app is available in the versions listed below.
- Android™ OS: Version 5.0 or higher
- iOS OS: Version 10 or higher
- Minimum supported versions for each OS may change later.
17
Installing the app
Install the LG Sound Bar app on your smartphone. To install the LG Sound Bar app, you can scan the QR code
with a QR code scan app or download on Google Play or the App Store.
Downloading with a QR code
a Scan the QR code below with a QR code scan app.
b You will be directed to a page where you can download the LG Sound Bar app. Tap the app to install it.
(Android Phone OS)
(iPhone OS)
Downloading on Google Play or App Store
Go to the Google Play or the App Store on your smartphone and search for the LG Sound Bar app to install it.
(Android™ Phone)
(iPhone)
18
Note
• Settings menu items may vary depending on the smartphone manufacturer and OS.
• Google, Android, Google Play, Google Home and Chromecast built-in are trademarks of Google LLC.
Connecting with a Smartphone via LG Sound Bar app
You must connect the product to the smartphone via Wi-Fi on the LG Sound Bar app to use network services.
The app installation method differs depending on the smartphone.
a Find and tap the LG Sound Bar app installed on your smartphone.
b Follow the instructions on the LG Sound Bar app. You will need to agree to the terms of service, Chromecast
guide screen, and location permission settings. Turn on Wi-Fi and Bluetooth.
c Select the product to connect. This product will be indicated as “LG_Speaker_S80QY_XXXX”.
LG_Speaker_S80QY_XXXX
LG_Speaker_S80QY_XXXX
d Select a Wi-Fi network and enter the password.
Wi-Fi Network
e After completing product connection on the LG Sound Bar app, you will see “CONNECTED” appear on the
status display on the product.
19
Note
• You can register the product on Google Home app. For more information, please visit http://www.google.com/
cast/setup/.
• You can create a speaker group with Google Home app and add up to 4 devices as a speaker group. Adding too
many devices may become inconvenient when listening to music.
• If you want to check or change the registered home’s nickname or the product name, connect to the Google
Home app and tap the Device Settings
button.
• YoucannotcongureorcontroltheproductwiththeLG ThinQ app.
20
Resetting the Product
If the product is frozen and does not work, or if the network connection is unstable, you will need to reset it. If the
Wi-Fi network has been changed, you will need to reset the product and connect it to your smartphone again.
How to reset
a Press and hold the Wi-Fi button on the top of the product until you hear a sound signal.
b You will see “RESET” appear on the status display, and all wireless network settings on the product will be
cleared.
Note
• Once you reset the product, you will also need to reconnect the product to the smartphone via Wi-Fi on the LG
Sound Bar app.
How to deactivate the wireless network connection(s).
Press and hold the Power
button for 3 seconds or longer to turn off the product.
21
Exploring the Product
Front
a
Power
This turns the product on/off.
• If you press and hold the Power
button for longer than 3 seconds, Wi-Fi will disconnect and the
product will no longer emit sound. Press the Power button quickly to maintain the Wi-Fi connection
for future use.
Function
Press the button repeatedly to select the desired function or input mode.
• WI-FI: Connects the product via Wi-Fi
• BT: Connects the product via Bluetooth
• OPT/HDMI ARC: Connects the product to a TV that supports an optical cable, ARC, E-ARC, or LG
Sound Sync
• HDMI: Connects the product to an HDMI input port
• USB: Connects the product to a USB storage device
Volume
This adjusts the speaker volume with levels 0 to 40.
Play/Pause
This allows you to pause or play music.
Bluetooth pair
It allows you to pair your Bluetooth device such as a smartphone to this product for three minutes. ([
See “Connecting via Bluetooth” on page 39.)
Wi-Fi
It goes to the Wi-Fi function directly.
b
Built-in microphone
This uses when operating the AI room calibration on LG Sound Bar app.
22
c
Remote Control Receiver
This receives wireless signals from the remote control.
d
Status display
Options such as input mode and volume are displayed in text.
• If there is no active input for 15 seconds, the status display will automatically dim. When you press the
button, the status display will light up again.
Note
• To reduce power consumption, the product will automatically turn off after 15 minutes of no input signal from
an external device.
23
Back
a
HDMI IN
Plug in an HDMI cable to connect an external device to the product.
b HDMI d TV (eARC / ARC)
Plug in an HDMI cable to connect the TV to the product.
c
USB port
Plug in a USB storage device to play music with the product.
d
OPTICAL IN
Plug in an optical cable to connect the TV to the product.
e
AC IN
Plug in the power cord.
24
Exploring Remote Control
You can use the remote to control all functions of the product, from turning the power on/off to enabling
cinematic sound.
a
b
c
j
i
d
e
h
k
g
f
Replacement of Battery
Use AA 1.5V batteries. Replace the two batteries by inserting them into the remote control in accordance with the
directions indicated.
A Open the battery cover on the back of the remote control.
B Insert the batteries with the + and – ends corresponding to the markings.
C Close the battery cover.
Riskofreorexplosionifthebatteryisreplacedbyanincorrecttype.
a
Power
Turns the product on/off
b
Volume
Adjusts the sound volume
c
Bluetooth pair
It allows you to pair your Bluetooth device such as a smartphone to this product for three minutes. ([
See “Connecting via Bluetooth” on page 39.)
25
d
Sound Effects
Pressthebuttontoselectthedesiredsoundeld.
• AISOUNDPRO:Articialintelligenceselectstheoptimalsoundsettingstosuityourcontent.
• STANDARD: You can enjoy optimised sound.
• MUSIC: Experience premium sound technology from MERIDIAN.
• CINEMA: Play content with 3D sound similar to a movie theater.
• CLEAR VOICE: Voice sound clear, improving the quality of voice sound
• SPORTS: Realistic sound like in a stadium
• GAME: Optimised sound for game
• BASS BLAST (BASS BLAST+): Bass sounds are enhanced.
e
Sound Tuning
This adjusts the sound level of the connected speaker. Press the Sound Tuning button and then Left/
Right button to select the desired speaker before you press the Up/Down button to increase/decrease
the sound volume. Adjustable speakers and adjustment ranges are as follows:
• WF (Subwoofer): -15 - 6
• C (Centre speaker): -6 - 6
• OVC (Top speaker): -6 - 6
• R (Rear Speaker): -6 - 6
• TRE (Front speaker (treble)): -5 - 5
• BAS (Front speaker (bass)): -5 - 5
• Adjusting rear speakers level is applied only when the rear speakers are connected.
26
f
Mute
This turns off the sound from the product.
g
Function
Press the button repeatedly to select the desired input mode or function.
h
Information
View the connected input source, Wi-Fi network or Bluetooth information.
• WI-FI: Connected app name
• BT: Connected Bluetooth device name
• OPT/ARC/E-ARC/HDMI: Current sound source
• USB:Currentsoundlename
i
Up/Down/Left/Right
These buttons are used to adjust the settings of the convenient functions.
Up/Down: This scrolls through the folders on the USB storage device. You can press the button to select
the desired folder.
Left/Right: If you play a previous song, press Left button. If you play a next song, press Right button.
j
Play/Pause
If you play or pause a song, press this button.
• When listening to music on a USB storage device, you can select the play mode by pressing the button
for 3 seconds or longer, then press Up/Down to select the desired Repeat option.
• OFF:Playsthelesinorder,thenendsplayback
• ONE:Playsthecurrentlerepeatedly
• FOLDER:Onlyplaysthelesinthefolderonaloop
• ALL:Playsalllesonaloop
• SHUFFLE:Playsarandomleuntilalllesareplayed,thenendsplayback
27
k
Settings
It allows you to adjust the settings of this product: AUTO POWER, SURROUND, NIGHT TIME, TV REMOTE.
Press Settings button and select the setting by using Left/Right button before you press the Up/
Down button to turn on/off the setting.
• AUTO POWER: When the TV or an external device is turned on or off, the product will also turn on or off
automatically. It is available only when the product is connected to the TV with an optical cable. ([ See
“Using Auto Power” on page 29.)
• SURROUND: The surround sound function allows you to hear immersive 3D sound produced by multiple
audio channels from the speakers, regardless of the channels in the originally recorded content. ([ See
“Turning surround sound on/off” on page 12.)
• NIGHT TIME: This reduces the general sound volume, but raises the volume of soft and delicate sounds.
This is useful when enjoying music or a movie late at night. ([ See “Using Night Time” on page 30.)
• TV REMOTE: This convenient function allows you to adjust the volume of the product with your TV’s
remote control. ([ See “Controlling the product with your TV’s remote control” on page 28.)
28
Controlling the product with your TV’s remote control
The product volume can be adjusted with LG TV Remote control as well as other brands.
Functions controllable with a TV remote control
Volume, mute on/off
TV brands supported
LG, Panasonic, Philips, Samsung, Sharp Electronics, Sony, Toshiba, Vizio
Activating/Deactivating this function
a Press Settings
button. The product enters the setting mode and you can see “OFF-AUTO POWER” or
“ON-AUTO POWER”.
OFF-AUTO POWER
b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right
button to select the TV remote setting. You can see the status of the TV remote, “ON-TV REMOTE” or “OFF-
TV REMOTE”.
OFF-AUTO POWER
OFF-SURROUND
OFF-NIGHT TIME
OFF-TV REMOTE
c While the “ON-TV REMOTE” or “OFF-TV REMOTE” is scrolling in the status display, press Up/Down button
to turn on or off the TV remote.
OFF-TV REMOTE ON-TV REMOTE
29
Note
• Press the Settings button on the TV remote control to check if the TV's audio output is set to [External
Speaker].
• You cannot control the product with the LG TV's Magic Remote Control.
• When the SIMPLINK or Sound Sync functions of the TV are turned on, this function may not work properly.
Press the Settings button on the TV remote control to turn off this function.
• This function may not work well when the unit and the TV are connected with an HDMI cable.
Using Auto Power
This function automatically turns the product on or off when the TV or external device is turned on or off.
When the connected device is turned on, the product turns on automatically and selects a function according to
the input signal.
Activating/Deactivating the Auto Power function
a Press Settings
button. The product enters the setting mode and you can see “OFF-AUTO POWER” or
“ON-AUTO POWER”.
OFF-AUTO POWER
b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Up/Down
button to turn on or off the Auto Power function.
OFF-
AUTO POWER
ON-
AUTO POWER
30
Using Night Time
This reduces the general sound volume, but raises the volume of soft and delicate sounds. This is useful when
enjoying music or a movie late at night.
Activating/Deactivating the Night Time function
a Press Settings
button. The product enters the setting mode and you can see “OFF-AUTO POWER” or
“ON-AUTO POWER”.
OFF-AUTO POWER
b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right
button to select the Night time setting. You can see the status of the Night time, “ON-NIGHT TIME” or
“OFF-NIGHT TIME”.
OFF-AUTO POWER
OFF-SURROUND
OFF-NIGHT TIME
OFF-TV REMOTE
c While the “ON-NIGHT TIME” or “OFF-NIGHT TIME” is scrolling in the status display, press Up/Down
button to turn on or off the Night time.
OFF-NIGHT TIME ON-NIGHT TIME
31
Connecting to the TV
Connecting with an Optical Cable
Transmit your TV’s audio to the product by connecting it to the TV with an optical cable. You can add a variety of
3Deffectstotheoriginalaudiotolltheroomwithadeep,richsound.
Watching TV after connecting with an optical cable
a Ifthedigitalcableterminalhasacover,rstremovethecoversfrombothends.
b Using an optical cable, connect the OPTICAL IN terminal on the back of the product to the Optical Digital
Output (OPTICAL OUT) terminal on the TV as shown in the picture.
32
c Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.
d Press the Settings button on the TV remote control to enter the [Speaker] menu and set the output speaker
to [Optical] or [External Speaker]. Settings and menu items may vary depending on the TV manufacturer.
Note
• If the optical input signal and the ARC signal attempt to connect at the same time, the ARC signal will take
priority.
When you use an LG TV
You can adjust the volume with the LG TV remote control if the TV is connected to the product with an optical
cable. You can only do so on a TV that supports the LG TV Sound Sync function. Check your TV’s user manual to
see if your TV is supported.
Functions controllable with an LG TV remote control
Volume, mute on/off
Note
• When the TV is properly connected to the product, “LGOPT” will appear on the status display.
• When using the product with an LG TV remote control, the volume and mute status set on the TV will
automatically be applied to the product.
• You can still use the product’s remote control even after connecting it to an LG TV.
• To use LG Sound Sync, you may have to change the sound setting of your TV. It may vary depending on the TV.
33
Connecting with an HDMI Cable
You can transmit TV audio to the product by connecting the TV to the product with an HDMI cable. Add a variety
of3Deffectstotheoriginalaudiotolltheroomwithadeep,richsound.
Watching TV after connecting with an HDMI cable
a Using the HDMI cable, connect the HDMI d TV (eARC / ARC) terminal on the back of the product to the
HDMI IN (ARC) terminal on the TV as shown in the picture.
b Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.
c Press the Settings button on the TV remote control to enter the [Speaker] menu and set the output speaker
to [HDMI ARC]. Settings and menu items may vary depending on the TV manufacturer.
d When the TV is properly connected to the product, “ARC” or “E-ARC” will appear on the status display.
Note
• E-ARC supports high-quality audio such as DTS-HD Master Audio™, DTS:X®, Dolby TrueHD, and Dolby Atmos®.
• If you wish to use Dolby Atmos® or DTS:X®, the connected device and its content should support Dolby Atmos®
or DTS:X®.
• Ensure that your TV supports the eARC function before you turn on eARC from the Settings menu. For more
information on how to use this function, please refer to your TV’s user manual. Settings may vary depending on
the TV.
• UseacertiedcablewiththeHDMIlogo.
34
SIMPLINK
• SIMPLINK refers to the HDMI-CEC function that allows you to use a single TV remote control to easily operate
an audio device or player connected to an LG TV via HDMI.
- Functions controllable with a SIMPLINK-compatible LG TV remote control: Power on/off, volume control,
mute on/off, etc.
• For more information on how to set up SIMPLINK, consult your LG TV’s user manual.
Note
• The SIMPLINK function may not work properly depending on the status of the product or other connected
devices.
- HDMI-CEC features by TV manufacturer: LG SIMPLINK, Sony BRAVIA Sync/Link, Philips EasyLink, Samsung
Anynet+, etc.
35
Connecting via Bluetooth
Bluetooth is a technology that wirelessly connects electronic products around you.
Connect the product to a TV via Bluetooth and enjoy your TV audio in high quality.
Watching TV after connecting it wirelessly
a Press the Bluetooth pair
button. After a moment, “BT READY” appears on the status display.
b Press the Settings button on the TV remote control and enter the [Speaker] menu to set the output speaker
to [Bluetooth].
c Find and tap “LG_Speaker_S80QY_XXXX” or the name you registered on the Google Home app.
d When the product is connected to the TV via Bluetooth, you can see the status display change from
“PAIRED” (Connected) [ “Connected TV name” [ “BT” (Ready to use).
Note
• VieworchangethenameoftheproductintheSettingsmenuontherstscreenoftheGoogleHomeapp.If
you assigned the nickname “Living Room Cinema” in the Google Home app, it will be displayed on TV as “Living
Room Cinema”.
• For Bluetooth devices, characters that cannot be displayed (ex. Korean Hangul) are shown as ‘-’ on the product
status display.
• Press the Information
button on the remote control to check the name of the connected Bluetooth device.
You will see the name of the connected Bluetooth device appear on the status display.
36
Connecting to an External Device
Connecting with an HDMI Cable
Connect the TV and external device (game console, DVD player, etc.) with an HDMI cable and enjoy a deep and rich
sound.
Connecting an external device via HDMI
a Connect an external device such as a DVD or Blu-ray player. Following the picture below, connect the HDMI
OUT terminal of the device to the HDMI IN terminal on the back of the product.
b Using the HDMI cable, connect the HDMI d TV (eARC / ARC) terminal on the back of the product to the
HDMI IN (ARC) terminal on the TV.
37
c Press the Function
button repeatedly until “HDMI” appears on the status display.
d When the external device is properly connected to the product, you can listen to the sound of the device.
When playing the video with Dolby Atmos® or DTS:X® technology, either “DOLBY ATMOS” or “DTS:X” will
appear on the status display.
Note
• Dolby Atmos® or DTS:X® audio supports 3.1.3 channels. When the wireless rear speakers are connected, 5.1.3
channels are supported.
• Please check the audio output settings in the Settings menu of your external device (ex. Blu-ray player or TV).
The audio output should be set to [No encoding], [Bitstream], [Auto], or [Pass through]. For more information
on how to set the output, please refer to your external device’s user manual.
• UseacertiedcablewiththeHDMIlogo.
38
Connecting with an Optical Cable
Connect the TV and external device (game console, DVD player, etc.) with an optical cable and enjoy a deep and
rich sound.
Connecting an external device via optical cable
a Use the optical cable to connect the OPTICAL IN terminal on the back of the product to the OPTICAL OUT
terminal of your external device (ex. TV, Blu-ray player) as shown in the picture.
b Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.
c When the external device is properly connected to the product, “OPT” will appear on the status display.
39
Using the Product as an Audio System
Connecting via Bluetooth
YoucanplaymusiclesstoredonaBluetooth device, or run music apps to enjoy the music with this product.
Please check the following rst.
• Bluetoothdevicestobeconnectedtotheproductshouldmeetthefollowingspecications.
- Version: 5.0 or higher
- Codec: SBC, AAC
• Steps to connect the device to the product may vary depending on the Bluetooth device type and
model. For more information on how to connect the device, please refer to your external device’s user
manual.
Select the [Bluetooth] from your smartphone's Settings menu.
Settings menu items may vary depending on your smartphone manufacturer and model.
a Turn on the product.
b Press the Bluetooth pair
button. After a moment, “BT READY” appears on the status display.
c Tap the Settings ( / ) button on your smartphone and select Bluetooth.
(Android Phone)
40
(iPhone)
d Turn on the Bluetooth function. ( Off > On)
e You will see a list of connectable devices on your smartphone. Find and tap “LG_Speaker_S80QY_XXXX” or
the name you registered on the Google Home app.
LG_Speaker_S80QY_XXXX
Bluetooth devices
LG Smart Phone
Bluetooth devices
AVAILABLE DEVICES
LG_Speaker_S80QY_XXXX
AVAILABLE DEVICES
f When the product is connected to the smartphone via Bluetooth, you will see the status display change
from “PAIRED” (Connected) [ “Connected Bluetooth device name” [ “BT” (Ready to use).
g Ifyoucannotndtheproduct“LG_Speaker_S80QY_XXXX”,taptheRefresh
button at the top right of the
screen on the Android smartphone or turn the Bluetooth off and turn it on again on iPhone.
Bluetooth
Speaker
Bluetooth devices
LG Smart Phone
Bluetooth devices
On
AVAILABLE DEVICES
(Android Phone)
Not Connected
LG Speaeker1
Not Connected
Not Connected
Not Connected
Settings
LG Speaeker2
LG Speaeker3
LG Speaeker4
MY DEVICES
Now discoverable as “iPhone”
Bluetooth
Bluetooth
(iPhone)
41
h Run a Music app and listen to music on the smartphone.
Note
• The closer the Bluetooth device is to the product, the better your connection.
• If you pressed the Bluetooth pair
button of the product and selected the “BT” option, but could not
connect to the Bluetooth device, you will see “BT READY” on the status display. Check the status of the
Bluetooth device.
• When using Bluetooth, you should adjust the volume level to an appropriate level.
• In the Bluetooth name of this product “LG_Speaker_S80QY_XXXX”, “XXXX” is randomly generated four-digit
numbers and alphabets.
42
Connecting to a USB Storage Device
Enjoyhigh-qualitysoundbyconnectingaUSBstoragedevicecontainingmusiclestotheproduct.
Connecting the product to a USB storage device
a Plug the USB storage device into the USB port on the back of the product.
• The product cannot play any devices connected via a USB storage device hub or a USB storage device cable.
• The product cannot be connected to any USB storage device, USB type MP3 player, or card reader that
requires a separate device drive to be installed.
b Press the Function button repeatedly until “USB” appears on the status display.
c WhentheproductisproperlyconnectedtoaUSBstoragedevice,thenumberofmusiclesintheUSBdevice
will appear on the status display. Press the Play/Pause button on the remote control to enjoy the music.
Note
• It is recommended that you purchase a separate USB gender changer to make it easier to plug in and out USB
storage devices.
• Purchase a USB gender changer with a USB 2.0 extension cable.
• USBdeviceswithalargestoragevolumemaytakeseveralminutestobrowsethroughles.
• LG Electronics is not responsible for any data loss. Please always back up the data on your USB storage device
to minimise damage caused by data loss.
• Only FAT16/FAT32/NTFS formats are supported. exFAT format is not supported.
43
USB storage devices supported
• MP3 player
• Flash MP3 player
• USBashdevice
• USB 2.0
This product may not recognise some USB storage devices.
Playable file specifications
File extension Sampling frequency / Bitrate
MP3 32 kHz - 48 kHz / 8 kbps - 320 kbps
AAC 32 kHz - 48 kHz / 8 kbps - 320 kbps
OGG 32 kHz - 48 kHz / 64 kbps - 320 kbps
File extension Sampling frequency
FLAC (16 bit/24 bit) 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
WAV (16 bit/24 bit) 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Numberofplayableles:Upto2,000
• Maximum number of directories: Up to 200
• ThisproductcannotplaylesprotectedbyDRM(DigitalRightsManagement).
• ThisproductcannotplayvideolesfromaUSBstoragedevice.
44
Using the LG Sound Bar app
Controlling device functions
Run the LG Sound Bar app and tap the Settings
buttonontherstscreen.
You can easily set [Sound Effect] and [Night Time] and adjust the level of each speaker without a remote control.
Using AI Room Calibration
Thistechnologyallowsyoutoanalysethesoundcomingfromtheproductandne-tunetheaudiosettings.Tap
the Settings
buttonontherstscreenoftheLG Sound Bar app and tap the [AI Room Calibration] from the
list. Please note that, when you start AI Room Calibration, the product may make a louder sound than expected.
Sound Settings
45
Using Chromecast built-in™
You can listen to your favourite music on this product using hundreds of Chromecast-enabled apps on your phone,
tablet or laptop.
Simply tap the Cast button from apps you already know and love. No new logins or downloads
required. Use your phone to search, play, pause and turn up the volume from anywhere in the
home.
For more information on Chromecast built-in, including a list of Chromecast-enabled apps you can cast from, visit
g.co/cast/audio
To set up multiroom with other Chromecast-enabled speakers, download the Google Home app.
Compatible with Google Assistant
This unit can be controlled using just your voice with Google.
If you have a Google Assistant-enabled speaker, simply add this device in your Google Home app. You will be able
to play, skip, or stop music, and change the volume - just ask Google.
Requirements
• Google Assistant-enabled device (Sold Separately)
• This product must be connected to the Internet.
• This product must be registered in the Google Home app.
46
Works with Apple AirPlay
This product allow you to listen to the music from your iOS device through AirPlay.
Note
• Make sure that this product and your iOS device are connected to the same Wi-Fi network.
• Make sure that your iOS device is running iOS 11.4 or later.
• The AirPlay 2–Enabled Speakers are needed to stream to multiple speakers.
Wi-Fi network setting with iOS device
a Turn on the product by pressing the Power
button.
b On your iOS device, select the Settings and then Wi-Fi.
c Select “LG_Speaker_S80QY_XXXX” on the SET UP NEW AIRPLAY SPEAKER.
d Make sure your home router is selected. In this step, you can change the product’s name of your choice and
also you can set up a password. After completing the settings, select the Next.
e Select Done.
Wi-Fi network
Wi-Fi network
LG_Speaker_S80QY_XXXX
LG_Speaker_S80QY_XXXX
LG_Speaker_S90QY
LG_Speaker_S80QY_XXXX
47
Stream music through AirPlay
From the Control Centre:
a Open the Control Centre on your iOS device.
b Tap AirPlay (
).
c Choose your product to listen to music. You can choose one or more AirPlay 2 -enabled speakers.
From a music player app:
a Open a music player app.
b Tap AirPlay (
).
c Choose your product to listen to music. You can choose one or more AirPlay 2 -enabled speakers.
Apple®, AirPlay®, iPad®, iPad Air®, iPad Pro® and iPhone® are trademarks of Apple Inc., registered in the U.S. and
other countries.
UseoftheWorkswithApplebadgemeansthatanaccessoryhasbeendesignedtoworkspecicallywiththe
technologyidentiedinthebadgeandhasbeencertiedbythedevelopertomeetAppleperformancestandards.
To control this AirPlay 2–enabled speaker, iOS 11.4 or later is required.
Spotify Connect
Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.
The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-
licenses.
48
Works with Alexa
Alexa lets you use your voice to control this product by speaking commands through an Alexa Built-in device.
Alexa Built-in device is sold Separately.
Alexa setup flow
a Run the LG Sound Bar app and tap amazon alexabuttonontherstscreenandthenfollowthe
instructions.
b Sign in to amazon.
49
How to use Alexa
• Explicating targeting: Through Alexa Built-in devices (e.g. Amazon Echo), you can ask Alexa to play music on
your [LG S80Q Soundbar]. For example, “Alexa, play jazz on [LG S80Q Soundbar]”.
• Preferred Speaker:YoucansetoneormorespeakerssospecicdeviceswithinaSmartHomeGroupplays
music. You can set a speakers using the Alexa app.
• Music casting from Alexa app: You can control music playback to your [LG S80Q Soundbar] remotely from
the Alexa app.
Amazon,AlexaandallrelatedlogosaretrademarksofAmazon.com,Inc.oritsafliates.
Note
• This service is provided by Amazon and can be terminated at any time. LG does not assume responsibility for
service availability.
• Amazon Alexa app screen is subject to change without prior notice.
• This feature may not be available in some countries.
• For more information, visit the web site
- https://www.amazon.com/gp/help/customer/display.html?nodeId=202207000
50
Mounting the Product to a Wall
Checking before mounting to a wall
You can mount this product onto a wall.
When mounting the product to the wall, follow the instructions below.
Please check the following rst.
• Itmaybedifculttoconnectexternaldevicesandcablesafterwall-mounting.First,connectanexternal
device with the proper connection cable to the product before mounting it to the wall.
• Please note the following when you mount the product to the wall. Product damage or injury may occur
during the process.
- Do not put objects on top of the wall-mounted product.
- Securetheproductrmlytothewallusingthexingscrewssothatitdoesnotfalloff.
- Ensure it is out of the reach of children. Pulling or shaking the mounted product may cause it to fall.
• There are also speakers on the top of the product. When installing the product under the TV, install it
10 cm away from the bottom of the TV.
Components for mounting the product
Sound bar
Wall bracket
Sound bar screws
Wall bracket installation guide
51
Sold separately
Bracket screws
Wall plugs
Note
• Screws and Wall Plugs are not supplied for mounting the product. We recommend the Hilti (HUD-1 6 x 30) for
the mounting.
52
Mounting the Product to a Wall
a Find the wall bracket installation guide in the product package.
b Align the “TV Bottom Line” on the wall bracket installation guide with the bottom of the TV, and attach it to
the wall. Align the centre of the wall-mounted TV with the part marked “TV Center” in the installation guide.
c With a pen, mark screw holes on the installation guide where the wall brackets will be attached.
d Drill screw holes in the marked positions on the installation guide.
e Remove the wall bracket installation guide from the wall.
53

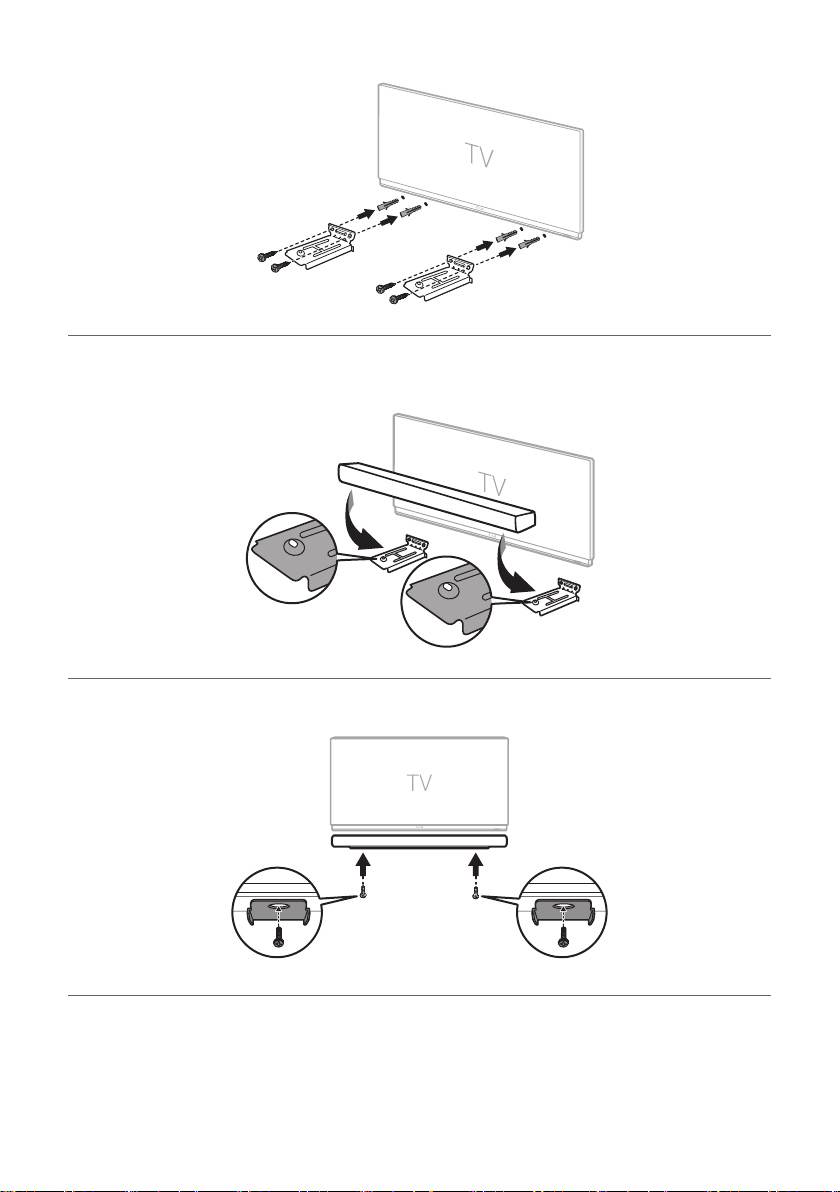

f Fixthebracketsrmlytothewallusingthewallplugsandscrews.
g Place the product on the brackets. Position the product on the brackets so the screw holes on the bottom of
the product align with the screw holes on the wall bracket.
h Firmly attach the product to the wall brackets using the screws provided.
54
Safety Precautions
Safety and Regulatory
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-
SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Thislightningashwitharrowheadsymbolwithinanequilateraltriangleisintendedto
alert the user to the presence of uninsulated dangerous voltage within the product’s
enclosurethatmaybeofsufcientmagnitudetoconstituteariskofelectricshockto
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
WARNING:
• TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
• Donotinstallthisequipmentinaconnedspacesuchasabookcaseorsimilarunit.
CAUTION:
• Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due
to electrical shock.
• Nonakedamesources,suchaslightedcandles,shouldbeplacedontheapparatus.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and
openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to
protect it from over heating. The openings should never be blocked by placing the product on a bed, sofa, rug or
other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s instruction has been adhered to.
• Theapparatusshouldnotbeexposedtowater(drippingorsplashing)andnoobjectslledwithliquids,suchas
vases, should be placed on the apparatus.
• Forsafetymarkinginformationincludingproductidenticationandsupplyratings,pleaserefertothemain
label on the bottom or the other surface of the product.
• Be careful to make sure children do not put their hands or any objects into the *speaker duct.
- * speaker duct: A hole for plentiful bass sound on speaker cabinet. (enclosure)
55
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily
accessible.
Checkthespecicationpageofthisowner’smanualtobecertainofthecurrentrequirements.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock
orre.Periodicallyexaminethecordofyourdevice,andifitsappearanceindicatesdamageordeterioration,unplug
it, discontinue use of the device, and have the cord replaced with an exact replacement part by an authorised
service centre.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door,
or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device.
For models using an adapter
Only use the AC adapter supplied with this device. Do not use a power supply from another device or another
manufacturer. Using any other power cable or power supply may cause damage to the device and void your
warranty.
For models using a Laser device
This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual
carefully and retain it for future reference. Shall the unit require maintenance, contact an authorised service
centre.Useofcontrols,adjustmentsortheperformanceofproceduresotherthanthosespeciedhereinmay
result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.
56
For models using a battery
This device is equipped with a portable battery or accumulator.
CAUTION:Riskofreorexplosionifthebatteryisreplacedbyanincorrecttype.
For models using a built-in battery
Do not store or transport at pressures lower than 11.6 kPa and at above 15,000 m altitude.
• replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some
lithium battery types);
• disposalofabatteryintoreorahotoven,ormechanicallycrushingorcuttingofabattery,thatcanresultin
an explosion;
• leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or
theleakageofammableliquidorgas;and
• abatterysubjectedtoextremelylowairpressurethatmayresultinanexplosionortheleakageofammable
liquid or gas.
Symbols
: Alternating current (AC).
0 : Direct current (DC).
: This is a class II equipment.
1 : Standby power state.
! : The power is turned on.
: Danger voltage.
57
Before Reporting Product Malfunction
Troubleshooting
If you experience the following issues while using the product, please perform several checks, as they may not be
malfunctions.
General Errors
Issue Solution
The product
does not work
properly
• Unplug the power cables and any external devices such as your TV, subwoofer, or
amplierfromtheproduct,thenplugtheminagain.
• After resetting the product, connect your smartphone and Wi-Fi again. ([ See
“Connecting with a Smartphone via Wi-Fi” on page 16.) (Please beware that
previous product settings may be lost.)
The power does
not turn on
• Is the power cord plugged into the outlet properly?
- Connect the power plug to the outlet correctly.
There is no
sound
• Is the volume set to minimum?
- Press the Volume
button on the remote control to turn up the volume.
- If you are using an external device such as a set-top box, portable device, or
Bluetooth device, adjust the volume of the external device.
• Is the mute function activated?
- If “MUTE” appears on the status display, the mute function is on. Press the Mute
button to unmute.
• Is the correct product function selected according to the external device connected?
- Press the Function
button to check if you selected the correct function.
The subwoofer
does not
produce sound
• Is the product properly connected to the wireless subwoofer?
- If the LED on the back of the wireless subwoofer is blinking green or lit in red, it
means it is not connected. If the connection is established, a green light will appear.
Reconnect the product to the wireless subwoofer. ([ See “Connecting the
Product” on page 6.)
The remote
control does not
work properly
• When using the remote control, point it at the front of the product.
• Use the remote control within a 7-m radius of the product.
• Replace the batteries with new ones as needed.
The Auto Power
function does
not work
• Check connection to external devices (ex. set-top box, portable device, Bluetooth
device).
LG Sound Sync
does not work
• Check whether your TV supports LG Sound Sync.
• Check if the TV is properly connected to the product via an optical cable.
- Press the Settings button on the TV remote control to check if the function is
turned on in [LG Sound Sync].
58
The product
volume is low
• Check the following and change the settings accordingly.
- Run the LG Sound Bar app, tap the Settings
buttonontherstscreen,and
change the [DRC] function to [Off] on the [Sound Settings] menu.
- When the product is connected to a TV, press the Settings button on the TV
remote control, select the [Speaker] menu, and change the [Digital Sound Output]
setting from [PCM] to [AUTO] or [BITSTREAM].
- If the product is connected to a playback device such as a DVD player or Blu-ray
disc player, go to the connected device's Settings menu. Change the [Digital Sound
Output] setting from [PCM] to [PRIMARY PASS-THROUGH] or [BITSTREAM]. Set
the [DRC] of the connected device to [OFF].
- If the product's Night Time mode is on, turn it off by pressing the Settings
button and Left/Right and then Up/Down.
The product
fails to
recognise a USB
storage device
• TheproductmaynotsupporttheleformatoftheUSBstoragedevice.Formatthe
USB storage device and reconnect it. When formatting, refer to the USB storage
deviceformatssupportedbytheproductandselectanappropriateleformat.([
See “Connecting to a USB Storage Device” on page 42.)
A Bluetooth
device cannot
be paired
• Press the Settings button on the Bluetooth device and check whether the Bluetooth
function is enabled. If Bluetooth is enabled, turn it off and on, then try again.
• Remove any obstacles between the product and the Bluetooth device.
• Bluetooth pairing (connection) may not work properly depending on the Bluetooth
device type or the surrounding environment.
59
Network Connection Errors
Issue Solution
The product
cannot be
connected to
the LG Sound
Bar app
• The connection may not be smooth when disturbed by other electric appliances that
use radio waves, such as microwave ovens and medical equipment. Install the product
1 m away from other home appliances.
• Turn off your wireless router and turn it on again.
• Check if your smartphone's Wi-Fi function is turned on. You can check the Wi-Fi
connection status in your smartphone's settings.
• Check if the product and smartphone are on the same Wi-Fi network.
The product
does not
connect to the
Wi-Fi network
• Did you turn off the wireless router and turn it on again?
- Turn off the product and then turn it on again.
• Have you installed a new wireless router?
- Youwillneedtorecongurethenetworksettingsoftheproduct.([ See
"Connecting with a Smartphone via Wi-Fi" on page 16.)
App Errors
Issue Solution
The app is
not working
properly
• Do you get an error when running the app?
- Check if the power of the device is turned on.
- Check if the app you wish to run supports the operating system of your
smartphone.Youcanvisittheappmanufacturer'swebsitetoconrmsupported
operating systems.
- Check if you have the latest version of the app. Search for the app on Google Play
or the App Store and check if an Update button appears next to it. If it is not the
latest version, tap the Update button.
60
Problems in Wireless Connection
Issue Solution
There is radio
interference
• Install the product and the wireless subwoofer as close to each other as possible.
• Do not install the product on metal furniture.
• Wireless communication may not work properly in weak signal areas.
The Bluetooth
connection
is causing a
malfunction or
making noise
• Do you hear noise or experience malfunctions when using Bluetooth?
- Do not let any part of your body contact the transceiver of the Bluetooth device or
the product.
- Do not install the Bluetooth device on a wall or in a secluded spot.
- Remove any obstacles between the product and the Bluetooth device.
- Install the Bluetooth device near the product.
• When the Bluetooth device is too far from the product, Bluetooth may be
disconnected or malfunctions may occur.
- Install the Bluetooth device 1 m away from devices that use the same frequency
as the product, such as wireless routers, medical equipment, and microwave ovens.
Turning off the Demo Mode
Issue Solution
The remote
control does not
work
• Does the text on the status display remain unchanged, even if you press the Function
button several times?
• Do you only see the text “DEMO” in the status display?
- The demo mode may be activated on the product. Unplug the product's power cable
and plug it back in.
- If the remote control still does not work, press the Volume
button on the
product to set the volume level at 2, the press and hold the Function button for
about 5 seconds. If the currently selected function appears on the status display, it
means that demo mode has been turned off.
61
Appendix
Specifications
General
Power Requirement Refer to the main label.
Power Consumption Refer to the main label.
Dimensions (W x H x D) Approx. 1000.0 mm x 63.0 mm x 135.0 mm (including the base)
Operation Temperature Range 5 °C - 40 °C
Operation Humidity Range 5 % - 60 % RH
Bus Power Supply (USB)
5 V 0 500 mA
Available Digital Input Audio Sampling
Frequency
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Available Digital Input Audio format
Dolby Digital, Dobly Digital Plus, Dolby TrueHD, Dolby Atmos,
DTS Digital Surround, DTS-HD HRA, DTS-HD MA, DTS:X, IMAX DTS,
IMAX DTS:X, PCM
Input/Output
OPTICAL IN 3.0 V (p-p), (optical audio connection terminal) × 1
HDMI IN 19-pin (Type A, HDMI™ connection terminal) × 1
HDMI d TV (eARC / ARC)
19-pin (Type A, HDMI™ connection terminal) × 1
4K resolution is supported for 4K sources applied with HDCP 2.3.
Amplier (RMS output)
Total 480 W RMS
Front 45 W RMS×2 (Impedance: 4 Ω, THD 10 %)
Centre 40 W RMS (Impedance: 4 Ω, THD 10 %)
To p 45 W RMS×2 (Impedance: 4 Ω, THD 10 %)
Top centre 40 W RMS (Impedance: 4 Ω, THD 10 %)
Subwoofer 220 W RMS (Impedance: 3 Ω, THD 10 %)
62
Wireless Subwoofer
Power Requirement Refer to the main label on the Wireless Subwoofer.
Power Consumption Refer to the main label on the Wireless Subwoofer.
Type 1-way 1 speaker
Impedance 3 Ω
Rated power 220 W RMS
Max. Power 440 W RMS
Dimensions (W x H x D) Approx. 201.7 mm x 407.0 mm x 403.0 mm
System
Wireless LAN (Internet antenna) 802.11a/b/g/n Wi-Fi network compatible
Rear Speakers and Wireless Receiver (SPQ8-S (SPQ8-S, S78S2-S)) (Sold
Separately)
Wireless Receiver
Power Requirement Refer to the main label on the wireless receiver.
Power Consumption Refer to the main label on the wireless receiver.
Rear power 70 W RMS x 2 (3 Ω at 1 kHz, THD 10 %)
Dimensions (W x H x D) Approx. 175.0 mm x 61.0 mm x 175.0 mm
Rear Speakers
Type 1-way 1 speaker
Impedance 3 Ω
Rated power 70 W RMS
Max. power 140 W RMS
Dimensions (W x H x D) Approx. 100.0 mm x 140.0 mm x 100.0 mm
• Designandspecicationsaresubjecttochangewithoutnotice.
63
Registered Trademarks and Licenses
All trademarks and trade names are the property of their respective owners.
Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories
LicensingCorporation.ManufacturedunderlicensefromDolbyLaboratories.Condentialunpublishedworks.
Copyright © 2012–2021 Dolby Laboratories. All rights reserved.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of
such marks by LG Electronics is under license.
Other trademarks and trade names are those of their respective owners.
ThetermsHDMI,HDMIHigh-DenitionMultimediaInterface,andtheHDMILogoaretrademarksorregistered
trademarks of HDMI Licensing Administrator, Inc.
64
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies
headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies).
DTS, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and other
countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.
Manufactured under license from IMAX Corporation. IMAX® is a registered trademark of IMAX Corporation in the
United States and/or other countries. For DTS patents, see http://patents.dts.com. Manufactured under license
from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing
Limited (for all other companies). DTS and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the
United States and other countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.
65
What You Need to Know about Network Services
Allinformation,data,documents,correspondence,downloads,les,text,images,photos,graphics,videos,
webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products, and
any other content (“Content”) and services and offerings (“Services”) made available by a third-party are provided
under the sole responsibility of the service providers that produced them.
Withholding, removal, or suspension of any or all of these Content and Services are not restricted, and the use of
and access to Contents and Services provided through LG Electronics products by the service providers may be
changed anytime without prior notice.
If you have any demands or issues regarding Content and Services, you can refer to the service provider's website
for the most up-to-date information. LG Electronics is not responsible for consumer services related to Content
and Services, and does not undertake any obligations. Any questions or requirements regarding Content and
Servicesshouldbefullleddirectlybytherespectivecontentandserviceproviders.
It is clear that LG Electronics is not responsible for any Content or Services, or any change, removal, or suspension
of each Content or Service, and does not certify or guarantee the use of or access to such Content or Services.
Open Source Software Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open source licenses that have the obligations to
disclose source code, that is contained in this product, and to access all referred license terms, copyright notices
and other relevant documents please visit https://opensource.lge.com.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to opensour[email protected].
This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this
product.
66
Handling the Product
When shipping the Product
Please save the original shipping carton and packing materials. If you need to ship the product, for maximum
protection, re-pack the product as it was originally packed at the factory.
Keeping the exterior surfaces clean
• Do not use volatile liquids such as insecticide spray near the product.
• Wiping with strong pressure may damage the surface.
• Do not leave rubber or plastic products in contact with the product for a long period of time.
Cleaning the product
To clean the product, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened
with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might
damage the surface of the product.
