TOP-LOADING WASHER
SAV5600
NOTE:Inourcontinuingefforttoimprove
thequalityof ourappliances,it may be
necessaryto makechangesto theappli-
ancewithoutrevisingthisguide.
IMPORTANT:Keep this guide and the
salesreceiptin a safe placefor future
reference. Proof of original purchase
dateisneededforwarrantyservice.
IMPORTANT:For serviceand warranty
information,seepage11.
INTRODUCTION..............................................Page1
SAFETY.................................................................Page2
CONTROLS....................................................Pages 3-5
OPERATINGTIPS...................................Pages 5-6
LAUNDRYTIPS........................................Pages 6-7
MOVINGANDSTORAGE......................Page8
BEFOREYOUCALL..........................Pages 9-10
WARRANTY.....................................................Page 11
A/09/0I Part No. 40137801 _ _ http://www.maytagcom Litho U S A.

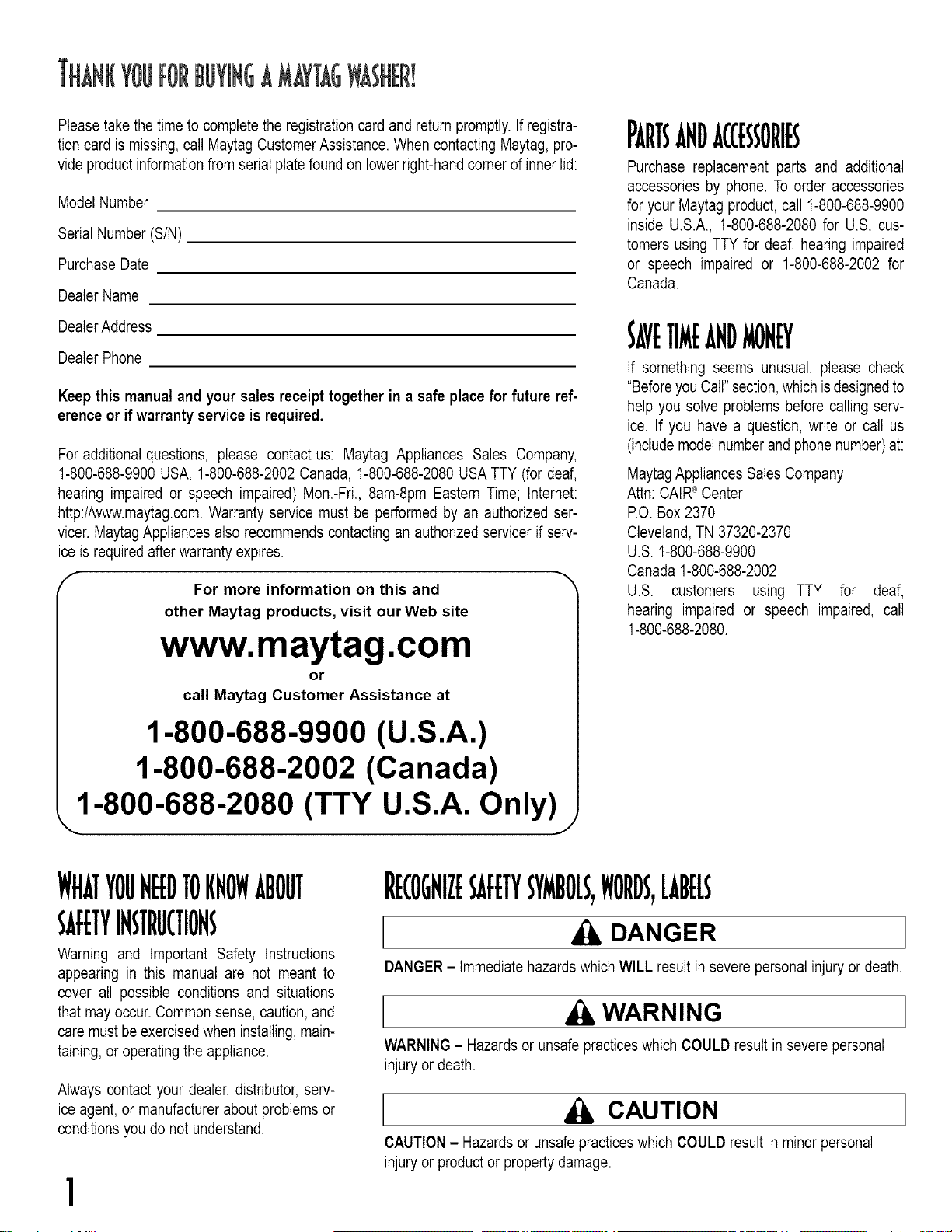

IKYOU_:ORBUYMNG__4AYTAGWASHER!
Pleasetake the time to completethe registrationcard and return promptly. If registra-
tion card is missing, call MaytagCustomerAssistance. When contactingMaytag, pro-
vide product informationfrom serial platefound on lower right-handcorner of inner lid:
Model Number
Serial Number (S/N)
Purchase Date
Dealer Name
DealerAddress
Dealer Phone
Keep this manual and your sales receipt together in a safe place for future ref-
erence or if warranty service is required.
For additional questions, please contact us: Maytag Appliances Sales Company,
1-800-688-9900USA, 1-800-688-2002Canada, 1-800-688-2080 USATTY (for deaf,
hearing impaired or speech impaired) Mon.-Fri., 8am-8pm Eastern Time; Internet:
http://wwwmaytag.com Warranty service must be performed by an authorized ser-
vicer. MaytagAppliances also recommends contacting an authorized servicer if serv-
ice is required after warranty expires.
f
For more information on this and
other Maytag products, visit ourWeb site
www.maytag.com
or
call Maytag Customer Assistance at
1-800-688-9900 (U.S.A.)
1-800-688-2002 (Canada)
1-800-688-2080 (TTY U.S.A. Only)
PARTSANDACCESSORIES
Purchase replacement parts and additional
accessories by phone. To order accessories
for your Maytag product,call 1-800-688-9900
inside U.S.A., 1-800-688-2080for U.S. cus-
tomers usingTTY for deaf, hearing impaired
or speech impaired or 1-800-688-2002 for
Canada.
SAVETIMEANDMONEY
If something seems unusual, please check
"BeforeyouCall"section,which isdesignedto
help you solve problems before calling serv-
ice. If you have a question, write or call us
(includemodelnumberand phone number)at:
MaytagAppliances SalesCompany
Attn: CAIR° Center
EO. Box 2370
Cleveland,TN 37320-2370
U.S. 1-800-688-9900
Canada 1-800-688-2002
U.S. customers using TTY for deaf,
hearing impaired or speech impaired, call
1-800-688-2080.
WHATYOUNEEDTOKNOWABOUT
SAFETYINSTRUCTIONS
Warning and Important Safety instructions
appearing in this manual are not meant to
cover all possible conditions and situations
that may occur.Commonsense, caution,and
care mustbe exercisedwhen installing,main-
taining, or operating the appliance.
Always contact your dealer, distributor, serv-
ice agent, or manufacturerabout problems or
conditionsyou do not understand.
1
RECOGNIZESAFETYSYMBOLS,WORDS,LABELS
DANGER ]
DANGER- Immediate hazardswhich WILL result in severe personalinjury or death.
WARNING ]
WARNING- Hazardsor unsafe practiceswhich COULD result in severe personal
injury or death.
_IL CAUTION ]
CAUTION- Hazardsor unsafe practiceswhich COULD result in minorpersonal
injury or product or property damage.

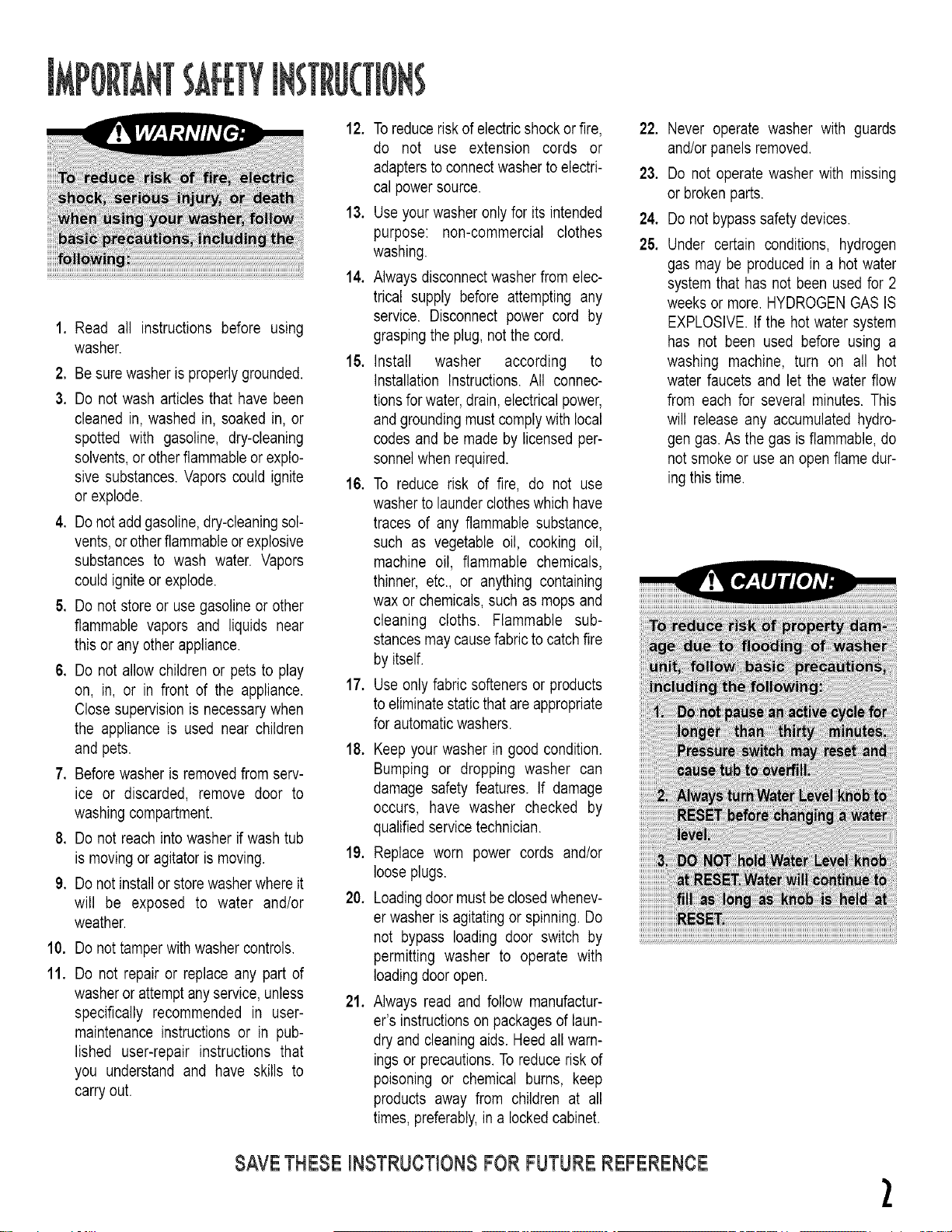

1.Readall instructionsbeforeusing
washer.
2. Besurewasherisproperlygrounded.
3. Donotwasharticlesthathavebeen
cleanedin,washedin,soakedin,or
spottedwithgasoline,dry-cleaning
solvents,orotherflammableorexplo-
sivesubstances.Vaporscouldignite
orexplode.
4. Donotaddgasoline,dry-cleaningsol-
vents,orotherflammableorexplosive
substancesto washwater.Vapors
couldigniteorexplode.
5.Donotstoreorusegasolineorother
flammablevaporsandliquidsnear
thisoranyotherappliance.
6. Donotallowchildrenorpetstoplay
on,in,orinfrontof theappliance.
Closesupervisionisnecessarywhen
theapplianceisusednearchildren
andpets.
7. Beforewasherisremovedfromserv-
iceor discarded,removedoorto
washingcompartment.
8. Donotreachintowasherifwashtub
ismovingoragitatorismoving.
9. Donotinstallorstorewasherwhereit
willbe exposedto waterand/or
weather.
10.Donottamperwithwashercontrols.
11.Donotrepairorreplaceanypartof
washerorattemptanyservice,unless
specificallyrecommendedin user-
maintenanceinstructionsorinpub-
lisheduser-repairinstructionsthat
youunderstandandhaveskillsto
carryout.
12.Toreduceriskofelectricshockorfire,
do not useextensioncordsor
adapterstoconnectwashertoelectri-
calpowersource.
13.Useyourwasheronlyforitsintended
purpose:non-commercialclothes
washing.
14.Alwaysdisconnectwasherfromelec-
tricalsupplybeforeattemptingany
service.Disconnectpowercordby
graspingtheplug,notthecord.
15.Install washer according to
InstallationInstructions.Allconnec-
tionsforwater,drain,electricalpower,
andgroundingmustcomplywithlocal
codesandbemadebylicensedper-
sonnelwhenrequired.
16.Toreduceriskoffire,donotuse
washertolaunderclotheswhichhave
tracesofanyflammablesubstance,
suchasvegetableoil,cookingoil,
machineoil,flammablechemicals,
thinner,etc.,or anythingcontaining
waxorchemicals,suchasmopsand
cleaningcloths.Flammablesub-
stancesmaycausefabrictocatchfire
byitself.
17.Useonlyfabricsoftenersorproducts
toeliminatestaticthatareappropriate
forautomaticwashers.
18.Keepyourwasheringoodcondition.
Bumpingor droppingwashercan
damagesafetyfeatures.If damage
occurs,havewashercheckedby
qualifiedservicetechnician.
19.Replacewornpowercordsand/or
looseplugs.
20.Loadingdoormustbeclosedwhenev-
erwasherisagitatingorspinning.Do
notbypassloadingdoorswitchby
permittingwasherto operatewith
loadingdooropen.
21.Alwaysreadandfollowmanufactur-
er'sinstructionsonpackagesoflaun-
dryandcleaningaids.Heedallwarn-
ingsorprecautions.Toreduceriskof
poisoningor chemicalburns,keep
productsawayfromchildrenat all
times,preferably,inalockedcabinet.
22.
23.
24.
25.
Neveroperatewasherwithguards
and/orpanelsremoved.
Donotoperatewasherwithmissing
orbrokenparts.
Donotbypasssafetydevices.
Undercertainconditions,hydrogen
gasmaybeproducedinahotwater
systemthathasnotbeenusedfor2
weeksormore.HYDROGENGASIS
EXPLOSIVE.Ifthehotwatersystem
hasnotbeenusedbeforeusinga
washingmachine,turnon all hot
waterfaucetsandletthewaterflow
fromeachforseveralminutes.This
willreleaseanyaccumulatedhydro-
gengas.Asthegasisflammable,do
notsmokeoruseanopenflamedur-
ingthistime.
SAVETHESEINSTRUCTIONSFORFUTUREREFERENCE
2

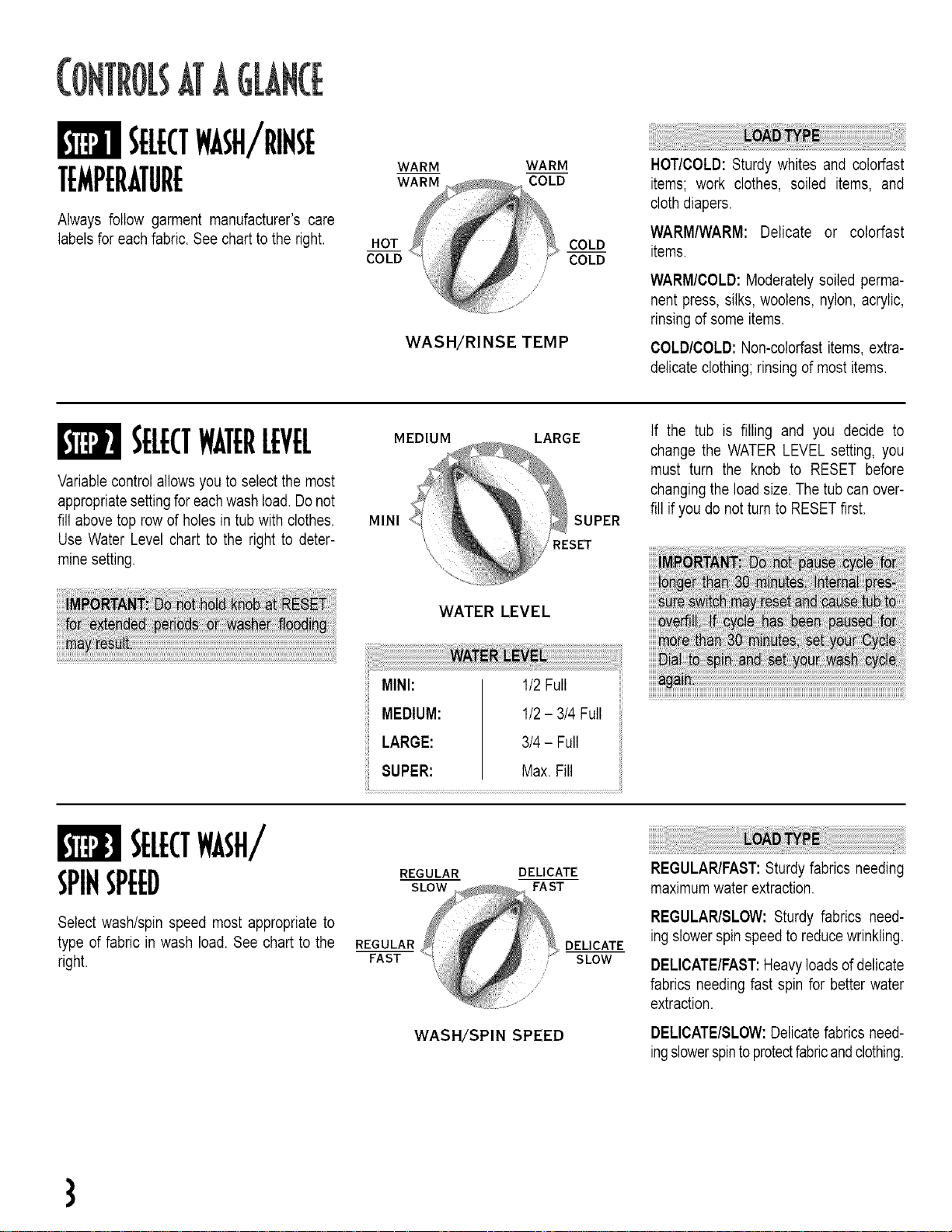

seLectwAsH/rinsE
teMPerAtUre
Always follow garment manufacturer's care
labelsfor eachfabric. See chart to the right.
wARM wARM
wARM COLD
HOT
COLD
COLD
COLD
WASH/RINSE TEMP
HOT/COLD: Sturdy whites and colorfast
items; work clothes, soiled items, and
cloth diapers.
WARM/WARM: Delicate or colorfast
items.
WARM/COLD: Moderatelysoiled perma-
nent press, silks, woolens, nylon, acrylic,
rinsingof some items.
COLD/COLD: Non-colorfast items, extra-
delicate clothing; rinsingof most items.
SELECTWATER[EVE[ MEDIUM,, LARGE
Variablecontrol allows you to select the most >.<_/ w_
appropriatesettingfor eachwash load. Donot
fill above top row of holes in tub with clothes. MINI <_ _ SUPER
Use Water Level chart to the right to deter- ..... _';_
RESET
mine setting. _
WATER LEVEL
MINI:
MEDIUM:
LARGE:
SUPER:
1/2Full
1/2- 3/4 Full
3/4- Full
Max. Fill
If the tub is filling and you decide to
change the WATER LEVEL setting, you
must turn the knob to RESET before
changingthe load size.The tub can over-
fill if you do not turn to RESET first.
i
te
sELE(TWASH/
SPiNSPEED
Select wash/spin speed most appropriate to
type of fabric in wash load. See chart to the
right.
REGULAR
SLOW t_'
REGULAR S_
FAST
DELICATE
WASH/SPIN SPEED
REGULAR/FAST:Sturdy fabrics needing
maximumwater extraction.
REGULAR/SLOW: Sturdy fabrics need-
ing slower spinspeed to reducewrinkling.
DELICATE/FAST:Heavyloadsofdelicate
fabrics needing fast spin for better water
extraction.
DELICATE/SLOW:Delicatefabrics need-
ingslowerspinto protectfabricand clothing.
}

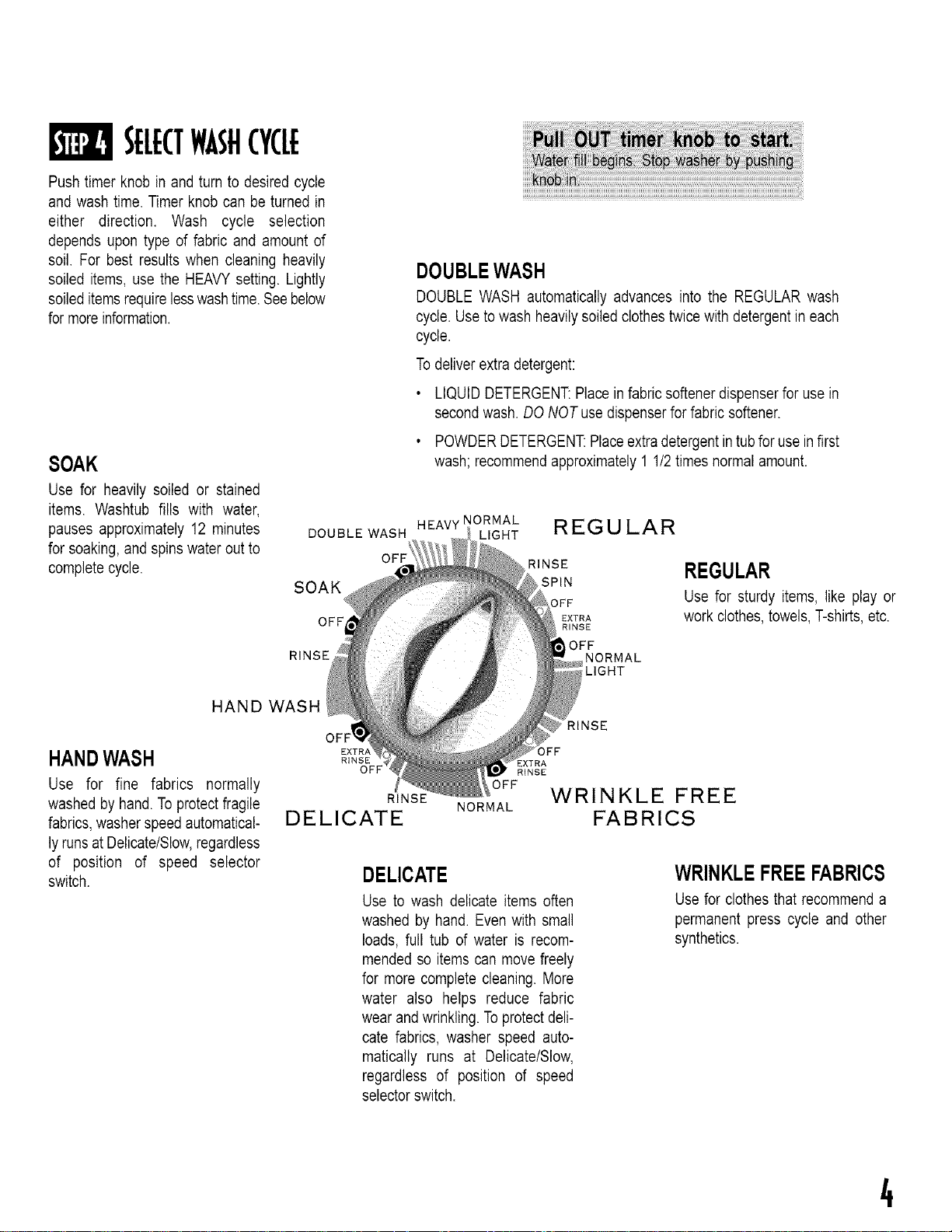

SELECTWASHCYCLE
Push timer knob in and turn to desired cycle
and wash time. Timer knob can be turned in
either direction. Wash cycle selection
depends upon type of fabric and amount of
soil. For best results when cleaning heavily
soiled items, use the HEAVYsetting. Lightly
soileditems requirelesswashtime.See below
for moreinformation.
SOAK
Use for heavily soiled or stained
items. Washtub fills with water,
pauses approximately 12 minutes
for soaking, and spins water out to
completecycle.
DOUBLE WASH
SOAK
OFF
RINSE
DOUBLEWASH
DOUBLE WASH automatically advances into the REGULAR wash
cycle. Useto wash heavily soiledclothes twicewith detergent in each
cycle.
Todeliver extra detergent:
• LIQUIDDETERGENT:Placeinfabric softener dispenserfor use in
second wash. DO NOT use dispenserfor fabric softener.
• POWDERDETERGENT:Placeextradetergentintubfor useinfirst
wash; recommendapproximately 1 1/2times normalamount.
HEAVY NORMAL
LIGHT
REGULAR
RINSE
SPIN
DFF
EXTRA
RINSE
OFF
NORMAL
LIGHT
REGULAR
Use for sturdy items, like play or
work clothes, towels, T-shirts,etc.
HAND WASH
'JNSE
HANDWASH
Use for fine fabrics normally
washed by hand. Toprotect fragile
fabrics,washer speedautomatical-
ly runsat Delicate/Slow,regardless
of position of speed selector
switch.
EXTR_
RINSE
OF
RINSE
DELICATE
FF
RINSE
OFF
WRINKLE FREE
NORMAL
FABRICS
DELICATE
Use to wash delicate items often
washed by hand. Even with small
loads, full tub of water is recom-
mended so items can move freely
for more complete cleaning. More
water also helps reduce fabric
wear and wrinkling. Toprotectdeli-
cate fabrics, washer speed auto-
matically runs at Delicate/Slow,
regardless of position of speed
selector switch.
WRINKLEFREEFABRICS
Use for clothes that recommend a
permanent press cycle and other
synthetics.
4

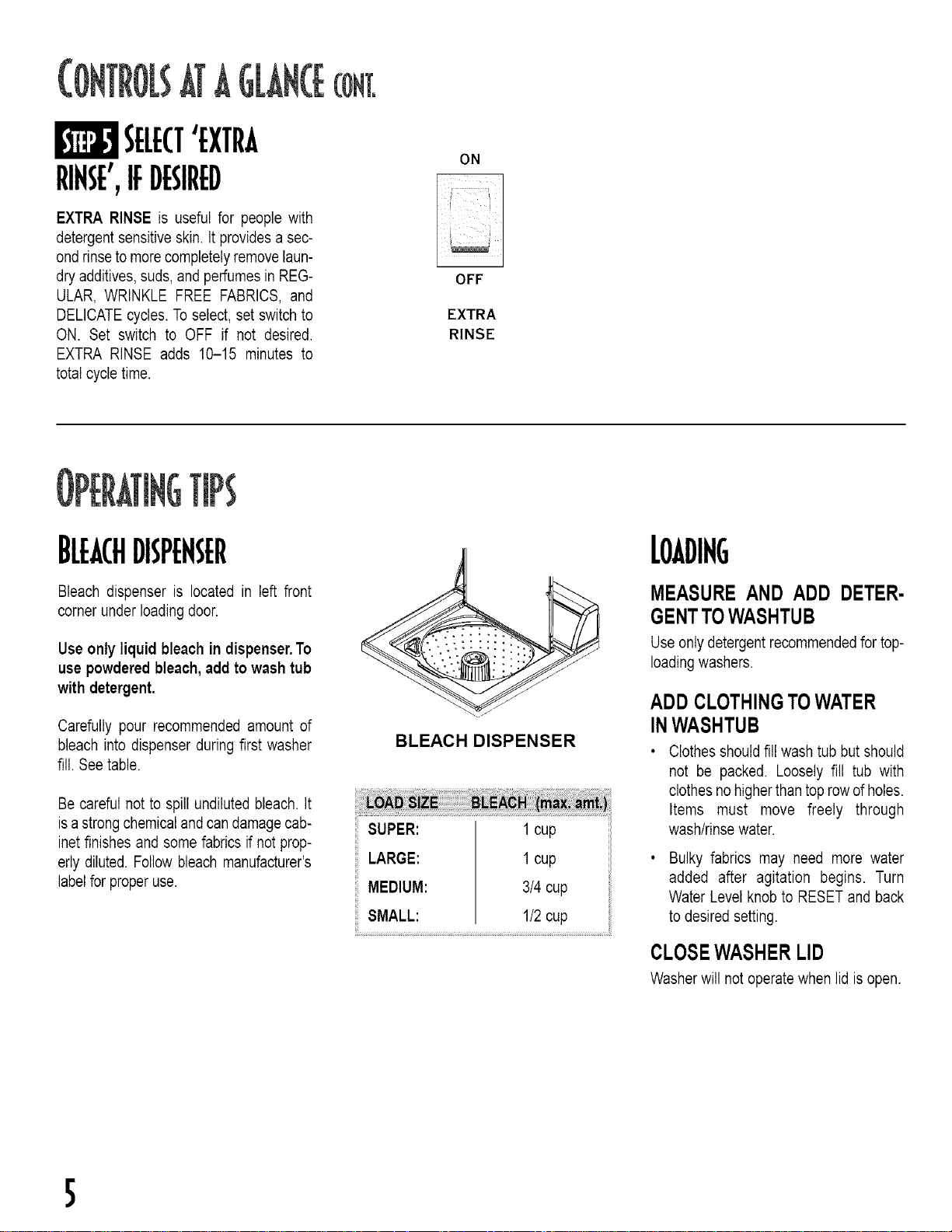

EXTRA RINSE is useful for people with
detergent sensitive skin. It provides a sec-
ond rinseto morecompletely remove laun-
dryadditives, suds, and perfumesin REG-
ULAR, WRINKLE FREE FABRICS, and
DELICATEcycles. Toselect, set switch to
ON. Set switch to OFF if not desired.
EXTRA RINSE adds 10-15 minutes to
total cycle time.
(0NT.
ON
OFF
EXTRA
RINSE
BLEACHDISPENSER
Bleach dispenser is located in left front
corner under loading door.
Use only liquid bleach in dispenser.To
use powderedbleach, add to wash tub
with detergent,
Carefully pour recommended amount of
bleach into dispenser during first washer
fill. See table.
Be careful not to spill undiluted bleach. It
isa strong chemicaland candamagecab-
inet finishes and some fabrics if not prop-
erly diluted. Follow bleach manufacturer's
labelfor proper use.
BLEACH DISPENSER
SUPER:
LARGE:
MEDIUM:
SMALL:
1 cup
1 cup
3/4 cup
112cup
LOADING
MEASUREAND ADD DETER-
GENTTOWASHTUB
Use only detergent recommendedfor top-
loadingwashers.
ADD CLOTHINGTOWATER
INWASHTUB
• Clothesshould fill washtub but should
not be packed. Loosely fill tub with
clothesno higherthantop rowof holes.
Items must move freely through
wash/rinse water.
Bulky fabrics may need more water
added after agitation begins. Turn
Water Level knob to RESET and back
to desired setting.
CLOSEWASHERLID
Washerwill not operate when lid is open.
5

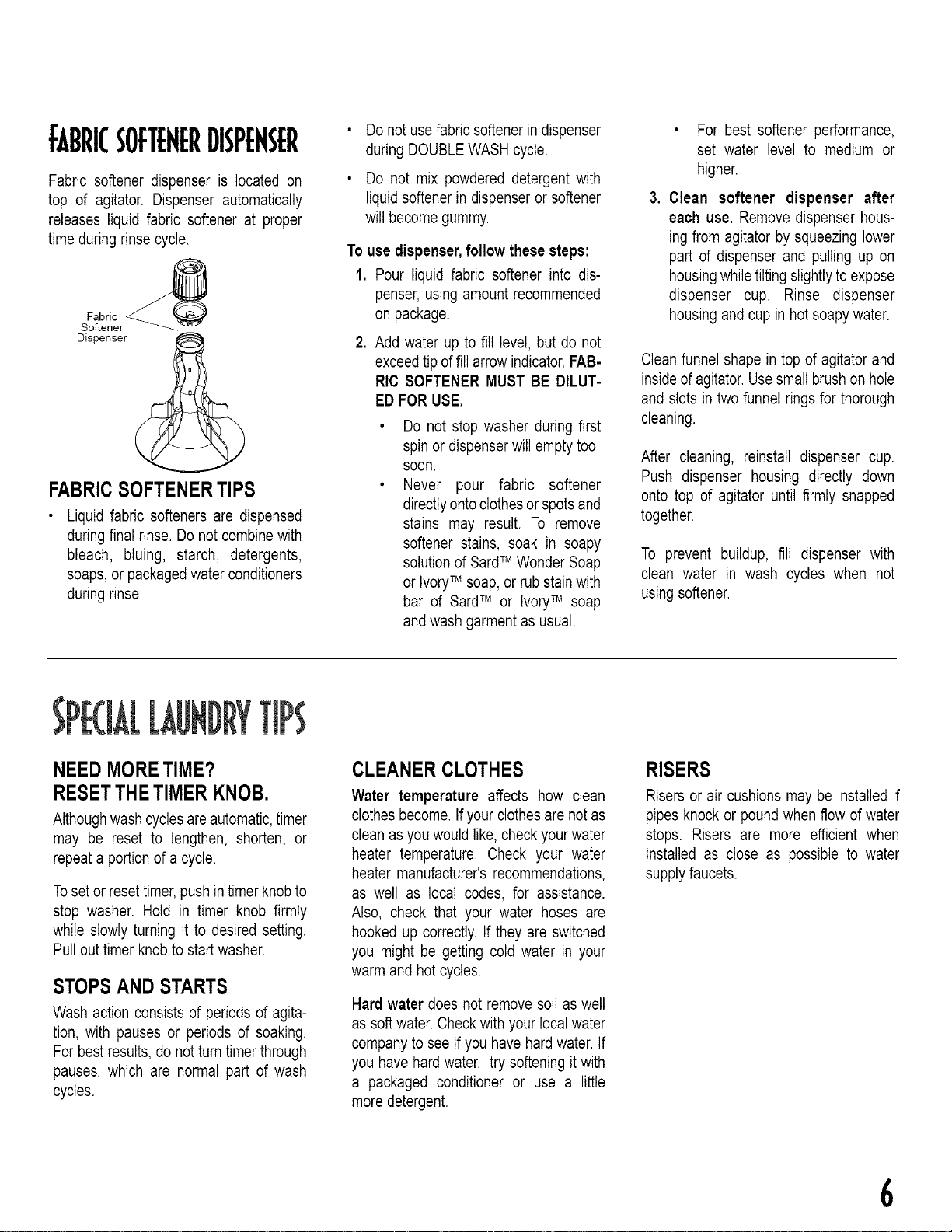

fABRICSOFTENERDISPENSER
Fabric softener dispenser is located on
top of agitator. Dispenser automatically
releases liquid fabric softener at proper
time during rinsecycle.
sFo etr
Dispenser _
FABRICSOFTENERTIPS
• Liquid fabric softeners are dispensed
during final rinse. Donot combine with
bleach, bluing, starch, detergents,
soaps,or packagedwater conditioners
during rinse.
Do not usefabric softenerin dispenser
during DOUBLEWASH cycle.
Do not mix powdered detergent with
liquid softener in dispenser or softener
will become gummy.
To use dispenser,follow these steps:
1. Pour liquid fabric softener into dis-
penser, using amount recommended
on package.
2. Add water up to fill level, but do not
exceedtip of fill arrowindicator.FAB-
RIC SOFTENER MUST BE DILUT-
ED FOR USE.
• Do not stop washer during first
spin or dispenser will emptytoo
soon.
• Never pour fabric softener
directlyontoclothesor spotsand
stains may result. To remove
softener stains, soak in soapy
solution of SardTMWonder Soap
or IvoryTMsoap, or rub stain with
bar of SardTMor IvoryTMsoap
and wash garment as usual.
• For best softener performance,
set water level to medium or
higher.
3. Clean softener dispenser after
each use. Remove dispenser hous-
ing from agitator by squeezing lower
part of dispenser and pulling up on
housingwhile tilting slightlytoexpose
dispenser cup. Rinse dispenser
housingand cup in hotsoapy water.
Clean funnel shape in top of agitator and
insideof agitator.Use small brushon hole
and slots in two funnel rings for thorough
cleaning.
After cleaning, reinstall dispenser cup.
Push dispenser housing directly down
onto top of agitator until firmly snapped
together.
To prevent buildup, fill dispenser with
clean water in wash cycles when not
using softener.
NEEDMORETIME?
RESETTHETIMERKNOB.
Althoughwash cycles are automatic,timer
may be reset to lengthen, shorten, or
repeata portion of a cycle.
Tosetor reset timer,pushin timer knobto
stop washer. Hold in timer knob firmly
while slowly turning it to desired setting.
Pull out timer knobto start washer.
STOPSANDSTARTS
Wash action consists of periods of agita-
tion, with pauses or periods of soaking.
For best results, do not turn timer through
pauses, which are normal part of wash
cycles.
CLEANERCLOTHES
Water temperature affects how clean
clothesbecome. If yourclothes are not as
cleanas you would like, checkyour water
heater temperature. Check your water
heater manufacturer's recommendations,
as well as local codes, for assistance.
Also, check that your water hoses are
hooked up correctly. If they are switched
you might be getting cold water in your
warm and hotcycles.
Hard water does not remove soil as well
as softwater. Checkwith your localwater
companyto see ifyou have hardwater. If
you have hard water, try softening it with
a packaged conditioner or use a little
more detergent.
RISERS
Risers or air cushions may be installed if
pipes knock or pound when flow of water
stops. Risers are more efficient when
installed as close as possible to water
supply faucets.
6

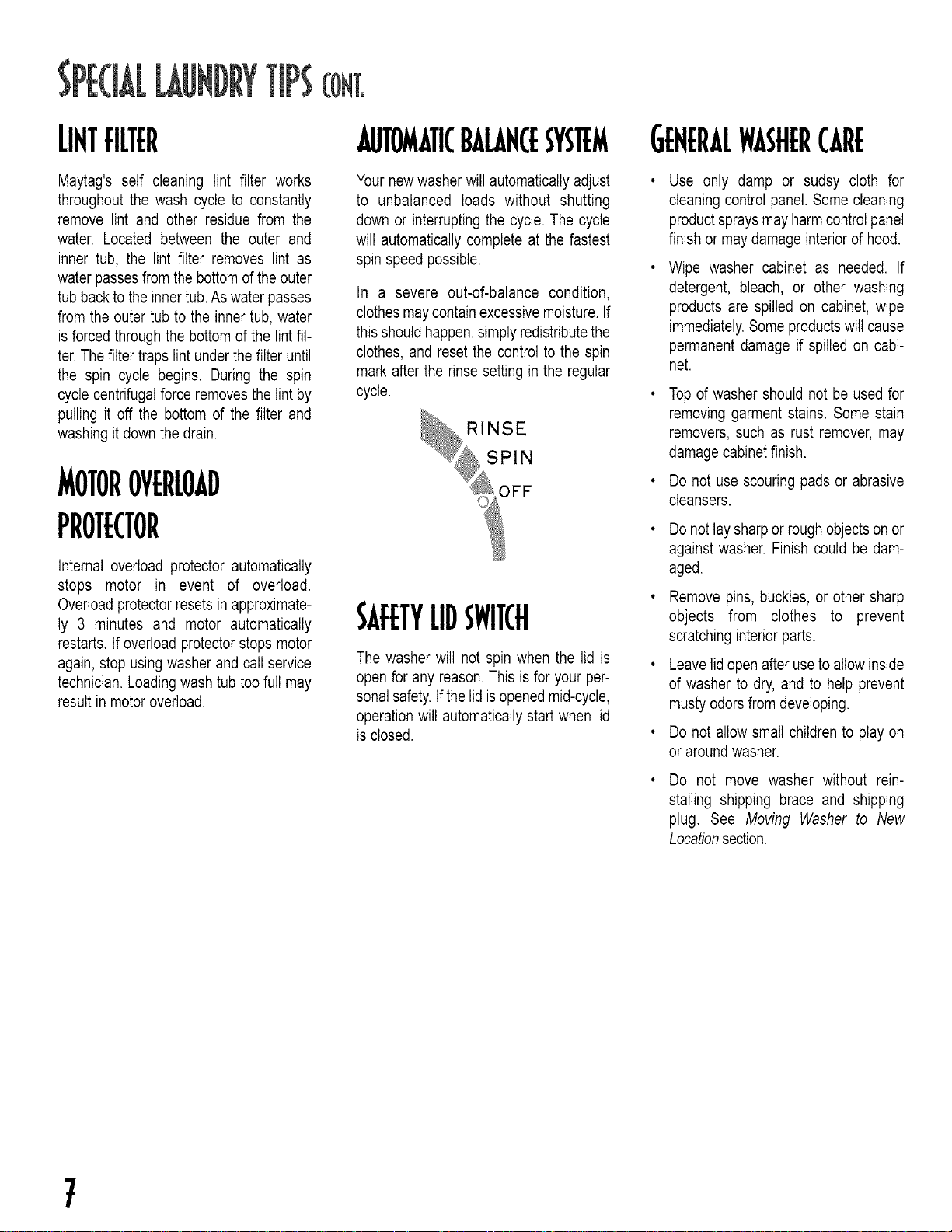

LIHTFILTER
Maytag's self cleaning lint filter works
throughout the wash cycle to constantly
remove lint and other residue from the
water. Located between the outer and
inner tub, the lint filter removes lint as
water passesfrom the bottomof the outer
tub backto the inner tub.As water passes
from the outer tub to the inner tub, water
is forced through the bottom of the lintfil-
ter.The filter traps lint under thefilter until
the spin cycle begins. During the spin
cycle centrifugalforce removes the lint by
pulling it off the bottom of the filter and
washing it down the drain.
MOTOROVERLOAD
PROTECTOR
Internal overload protector automatically
stops motor in event of overload.
Overloadprotector resetsin approximate-
ly 3 minutes and motor automatically
restarts. If overload protector stopsmotor
again, stop using washer and call service
technician. Loading wash tub too full may
result in motor overload.
[ONE
AUTOMATICBAB.NCESYSTEM
Yournew washer will automaticallyadjust
to unbalanced loads without shutting
down or interrupting the cycle. The cycle
will automatically complete at the fastest
spin speed possible.
In a severe out-of-balance condition,
clothesmaycontain excessivemoisture.If
this shouldhappen,simplyredistributethe
clothes, and reset the control to the spin
mark after the rinse setting in the regular
cycle.
RINSE
SPIN
SAFETYLIDSWITCH
The washer will not spin when the lid is
open for any reason. This is for your per-
sonalsafety.Ifthe lid is openedmid-cycle,
operationwill automaticallystart when lid
is closed.
GENERALWASHERCARE
Use only damp or sudsy cloth for
cleaning control panel. Some cleaning
productsprays may harmcontrolpanel
finish or may damage interiorof hood.
Wipe washer cabinet as needed. If
detergent, bleach, or other washing
products are spilled on cabinet, wipe
immediately.Some productswill cause
permanent damage if spilled on cabi-
net.
• Topof washer should not be used for
removing garment stains. Some stain
removers, such as rust remover, may
damagecabinet finish.
• Do not use scouring pads or abrasive
cleansers.
• Do notlay sharporroughobjectsonor
against washer. Finish could be dam-
aged.
• Remove pins, buckles, or other sharp
objects from clothes to prevent
scratching interiorparts.
• Leavelidopenafteruse toallow inside
of washer to dry, and to help prevent
musty odorsfrom developing.
• Do not allow small children to play on
or around washer.
Do not move washer without rein-
stalling shipping brace and shipping
plug. See Moving Washer to New
Locationsection.
7
COLDSTORAGEANDF!OF!-
USEPERIODS
COLDWEATHERCARE
If washer is delivered when outside tem-
perature is belowfreezing or if washer is
stored in unheated room or area during
cold months, do not operate until wash-
er has warmed to room temperature.
Do not install or operate washer where
temperatures will drop below freezing,
COLDWEATHERSTORAGE
If washer must be stored in seasonal
home or storage building, use one of the
following storage methods.
METHOD 1
1. Turnoff watersupply faucets and dis-
connecthoses.Drainwater from both
hoses.
2. Add one gallon of non-toxic RV
antifreeze (available from hardware
or recreational vehicle dealers) to
washer tub.
3. Push in cycle selector knob and turn
to SPIN.
4. Pull knobout and let washer spinfor
1-2 minutes to drain water. Some
antifreeze will also be lost. (if you
have a septic system, contact
antifreeze manufacturer and make
sure itwill not harmsystem.)
G. Push in cycle selector knob to stop
washer. Dry inner wash tub, discon-
nect electricalplug,and closewasher
lid. If moving washer, disconnect
drain hose. Move and store washer
ONLY in upright position. To remove
antifreeze after storage, run washer
through a complete cycle using 1/2
cup of detergent. DO NOT ADD
CLOTHESTO CYCLE.
METHOD 2
1. Push in cycle selector knob and turn
to SPIN. Run through complete spin
cycleto remove excess water.
2. When spin cycle is complete,push in
cycle selectorknob to stop washer.
3. Turnoffwater supply faucets and dis-
conned hoses.Drainwater fromboth
hoses.
4. Dry inner wash tub, disconnect elec-
trical plug, and close washer lid. If
moving washer, disconnect drain
hose. Move and store washer ONLY
in uprightposition.
G. It is normalfor some water to remain
inside pump. To prevent damage to
washer and pump if remainingwater
freezes, allow washer to warm 24 to
48 hours after removing from stor-
age, sowater can thaw before use.
VACATIONSAND EXTENDED
NON-USE
IMPORTANT:To avoid possible property
damagefrom flooding, turn off water sup-
ply to washer during extended periodsof
non-use.
Toprevent mold or mildew,leave lid open
so moisture inside machine can evapo-
rate.
When closing your home for extended
periods, have service technician drain
washer to avoid stagnant water. Unplug
cord from electrical outlet. Disconnect
hoses from faucets.
MOVING WASHER TO NEW
LOCATION
Replace shipping plug under motor and
shippingbrace in tub. Refer to Installation
Instructions for proper procedures when-
everwasher is moved. See illustration.
Shipping
brace
Cardboard
base
Shipping
plug and
location
in washer
Tilt washer back slightly and slide ship-
ping plug intoposition underwasher.
8

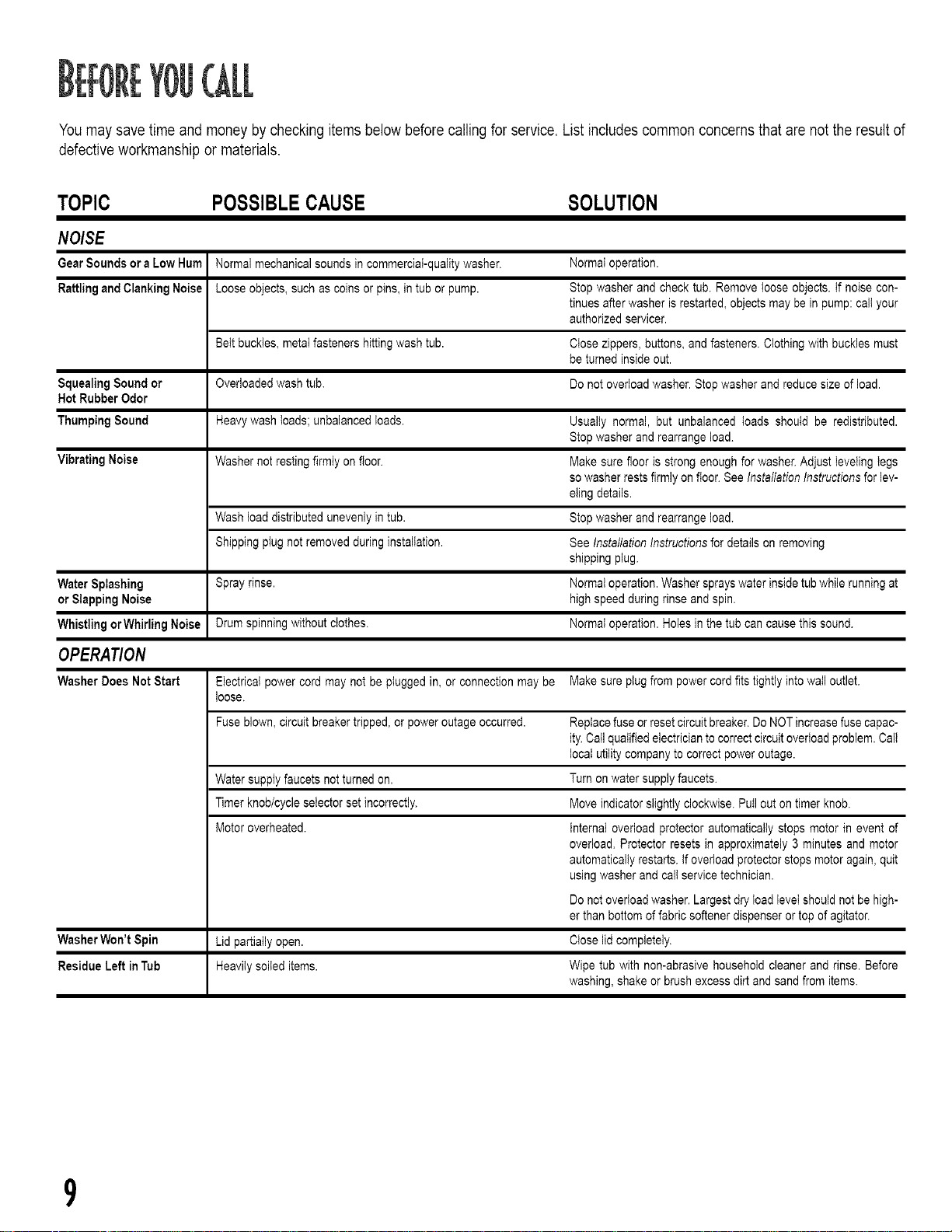

Youmay save time and money bychecking items belowbefore callingfor service. List includescommon concernsthat are not the result of
defective workmanship or materials.
TOPIC POSSIBLECAUSE SOLUTION
NOISE
Gear Sounds or a Low Hum Normal mechanical sounds incommercial-quality washer. Normat operation.
Rattling and Clanking Noise Loose objects, such as coins or pins, in tub or pump. Stop washer and check tub. Remove loose objects, tf noise con-
tinues after washer is restarted, objects may be in pump: call your
authorized servicer.
Belt buckles, metat fasteners hitting wash tub. Close zippers, buttons, and fasteners. Clothing with buckles must
be turned insideout.
Squealing Sound or Overloaded wash tub. Do not overload washer. Stop washer and reduce size of load.
Hot Rubber Odor
Thumping Sound Heavywash toads; unbalanced loads.
Vibrating Noise Washer not resting firmly on floor.
Wash load distributed unevenly intub.
Shipping plug not removed during installation.
Water Splashing Spray rinse.
or Slapping Noise
Whistling orWhirling Noise Drum spinning without clothes.
OPERAtiON
Washer Does Not Start
Usually normal, but unbalanced loads should be redistributed.
Stop washer and rearrange load.
Make sure floor is strong enough for washer. Adjust leveling legs
so washer rests firmly on floor. See Installation Instructions for lev-
eling details.
Stop washer and rearrange load.
See Installation Instructions for details on removing
shipping plug.
Normal operation. Washer sprays water inside tub while running at
high speed during rinse and spin.
Normal operation. Holes in the tub can cause this sound.
Electrical power cord may not be plugged in, or connection may be Make sure plug from power cord fits tightly intowail outlet.
loose.
Fuseblown, circuit breaker tripped, or power outage occurred. Replace fuse or reset circuit breaker. Do NOTincrease fuse capac-
ity.Catl qualified electrician to correct circuit overload problem. Call
local utility company to correct power outage.
Water supply faucets not turned on. Turn onwater supply faucets.
Timer knob/cycle selector set incorrectly. Move indicator slightly clockwise. Putl out on timer knob.
Motor overheated, internal overload protector automatically stops motor in event of
overload. Protector resets in approximately 3 minutes and motor
automatically restarts, tf overload protector stops motor again, quit
using washer and call service technician.
Do not overload washer. Largest dry load level should not be high-
er than bottom of fabric softener dispenser or top of agitator.
Washer Won't Spin Lid partially open. Close lid completely.
Residue Left in Tub Heavily soiled items. Wipe tub with non-abrasive household cleaner and rinse. Before
washing, shake or brush excess dirt and sand from items.
9

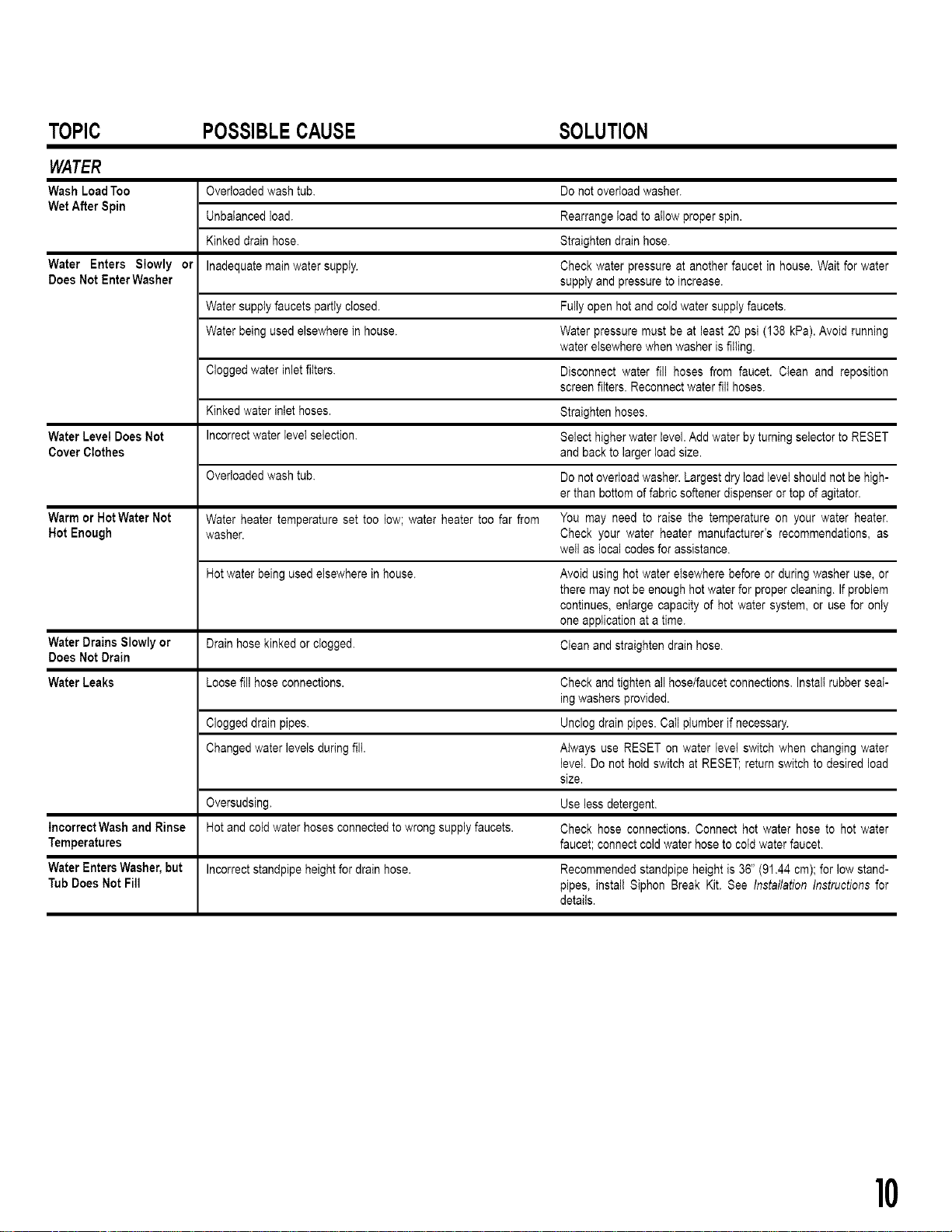

TOPIC POSSIBLECAUSE SOLUTION
WATER
Wash Load Too Overloaded wash tub. Do not overtoad washer.
Wet After Spin
Unbalanced load. Rearrange load to allow proper spin.
Kinked drain hose. Straighten drain hose.
Water Enters Slowly or Inadequate main water supply. Check water pressure at another faucet in house. Wait for water
Does Not EnterWasher supply and pressure to increase.
Water supply faucets partly closed. Fully open hot and cold water supply faucets.
Water being used elsewhere in house. Water pressure must be at least20 psi (138 kPa). Avoid running
water elsewhere when washer isfilling.
Clogged water inletfilters. Disconnect water fill hoses from faucet. Clean and reposition
screen filters. Reconnect water filI hoses.
Kinked water inlet hoses. Straighten hoses.
Water Level Does Not Incorrect water level selection. Select higher water level. Add water by turning selector to RESET
Cover Clothes and back to larger load size.
Overloaded wash tub. Do not overload washer. Largest dry load level should not be high-
er than bottom of fabric softener dispenser or top of agitator.
Warm or Hot Water Not Water heater temperature set too low; water heater too far from You may need to raise the temperature on your water heater.
Hot Enough washer. Check your water heater manufacturer's recommendations, as
well as local codes for assistance.
Hotwater being used elsewhere in house. Avoid using hot water elsewhere before or during washer use, or
there may not be enough hot water for proper cleaning. If problem
continues, enlarge capacity of hot water system, or use for only
one application at a time.
Water Drains Slowly or Drain hose kinked or clogged. Clean and straighten drain hose.
Does Not Drain
Water Leaks Loose fill hose connections. Check and tighten all hose/faucet connections. Install rubber seat-
ing washers provided.
Clogged drain pipes. Unclog drain pipes. Call plumber if necessary.
Changed water levels during fill. Always use RESET on water level switch when changing water
level. Do not hold switch at RESET; return switch to desired load
size.
Oversudsing. Use less detergent.
Incorrect Wash and Rinse Hot and cold water hoses connected to wrong supply faucets. Check hose connections. Connect hot water hose to hot water
Temperatures faucet; connect cold water hose to cold water faucet.
Water EntersWasher, but Incorrect standpipe height for drain hose. Recommended standpipe height is 36" (91.44 cm); for low stand-
Tub Does Not Fill pipes, install Siphon Break Kit. See Installation Instructions for
details.
]0
TORECEIVEWARRAHTYSERVICE
Service must be performed by an authorized Maytag service representative.
To schedule service, contact the Maytag dealer where you purchased your
applianceor contact :
MaytagAppliances SalesCompany
Attn: CAIR®Center
EO. Box 2370
Cleveland,TN 37320-2370
U.S. 1-800-688-9900 Canada 1-800-688-2002
U.S. customers using TTY for deaf, hearing impaired or
speech impaired,call 1-800-688-2080.
When contacting MaytagAppliances Sales Company,please include the fol-
lowing information:
a. Your name, address and telephone number;
b. Modelnumber and serial numberof your appliance;
c. The nameand address of your dealerand the dateof purchase;
d. A clear descriptionof the problem.
e. Proofof purchase (sales receipt).
WHATISHOTCOVEREDBYTHESEWARRAHTIES:
1. Conditionsand damagesresulting from any ofthe following:
a. Improper installation,delivery,or maintenance.
b. Any repair,modification,alterationor adjustment notauthorized bythe
manufacturer or an authorized servicer.
c. Misuse, abuse, accidents,or unreasonableuse.
d. Incorrect electriccurrent, voltage or supply.
e. Impropersetting of any control.
2. Warranties are void if the original serial numbers have been removed,
altered, or cannot be readily determined.
3. Productspurchased for commercial or industrial use.
4. The cost of serviceor servicecall to:
a. Correct installationerrors.
b. Instructthe user on proper use ofthe product.
c. Transportthe applianceto the servicer.
& Consequentialor incidental damagessustainedbyany personas a result of
anybreach of these warranties.
Some states do not allow the exclusion or limitation of consequential or inci-
dental damages,so the aboveexclusion maynot apply.
User's Guides, servicemanuals and parts catalogsare availablefrom
MaytagAppliances Sales Company,MaytagCustomerAssistance.
MAYTAG • 403 W. 4'_ Street N. ° EO. Box 39 ° Newton, Iowa 50208
PartNo. 40_37801 _ _ _ " ' http://www.maytag.com
A/09/01 LJtho U.SA
