website:http://us.lge.com
"Z_1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
para el ServtctoLG (Atenct6nal Chente)24 horasal dia, 7 dias a la semana
24 HEURES SUR 24, SERVICE _,LA CLIENTI2LELG 7 JOURS SUR 7
BOTTOM FREEZER
REFRIGERATOR
= L
_ _ _/rJ r _J_ (d ; r{_ _ _ _
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
CONGELADOR
INFERIOR
REFRIGERADOR
....... i_ ,_ •
Lea detenidamente estas instrucciones antes
utilizar el frigorifico y gua.rdelascomo referencia
para el futuro.
CONGI_LATEUR
INFI_RIEUR
RI_FRIGI_RATEUR
Veuillez lire ce manuel en entier avant de mettre
en marche I'unit4et conservez-le a.portee de la
main pour le consulter &tout moment.
Models / Modelos / ModUles
LFX25970**/LFX21970**/LFX25960**/LFX21960**
P/No 3828JL8097A
English Version 2
Spanish Version 40
French Version 78

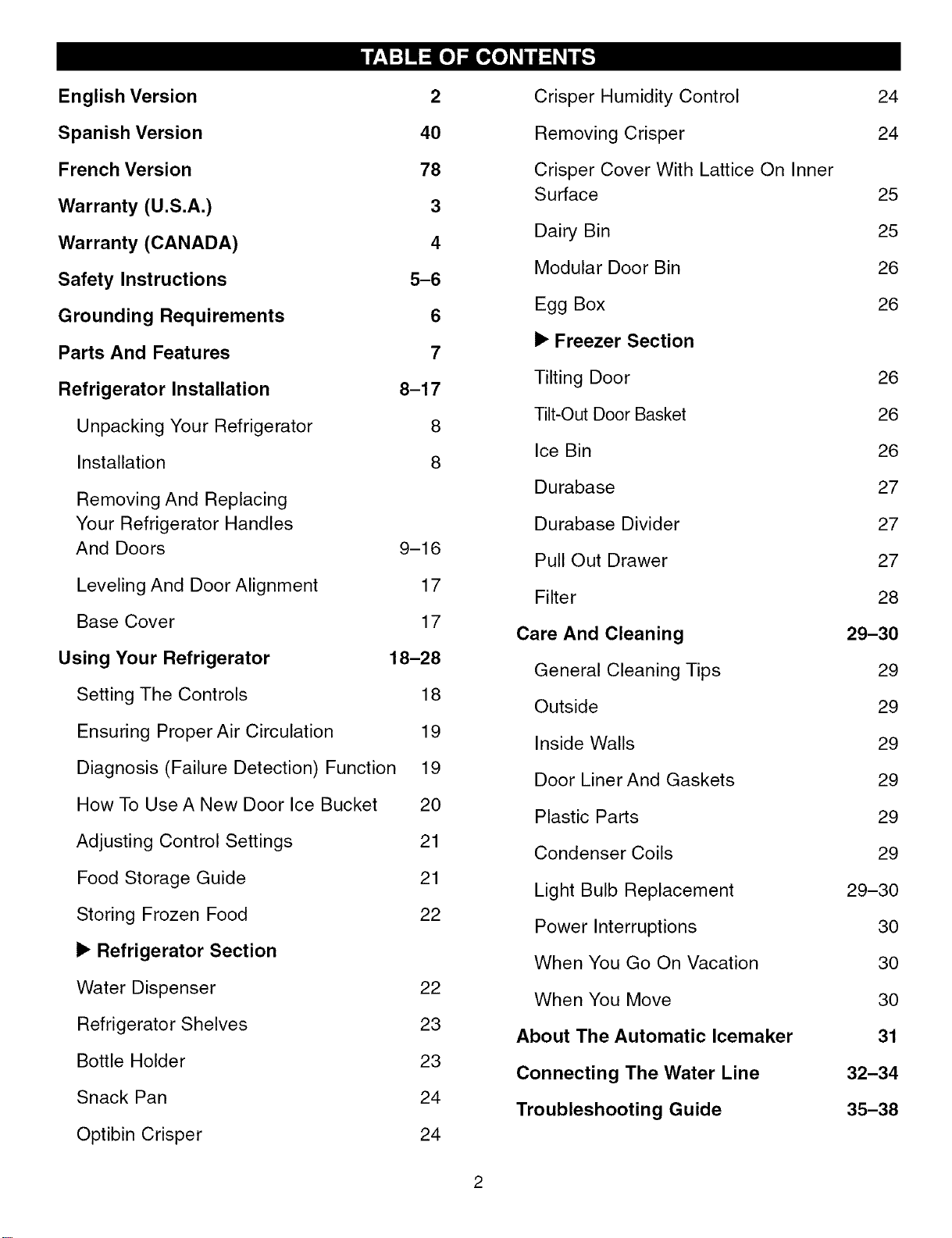

Warranty (U.S.A.) 3
Warranty (CANADA) 4
Safety Instructions 5-6

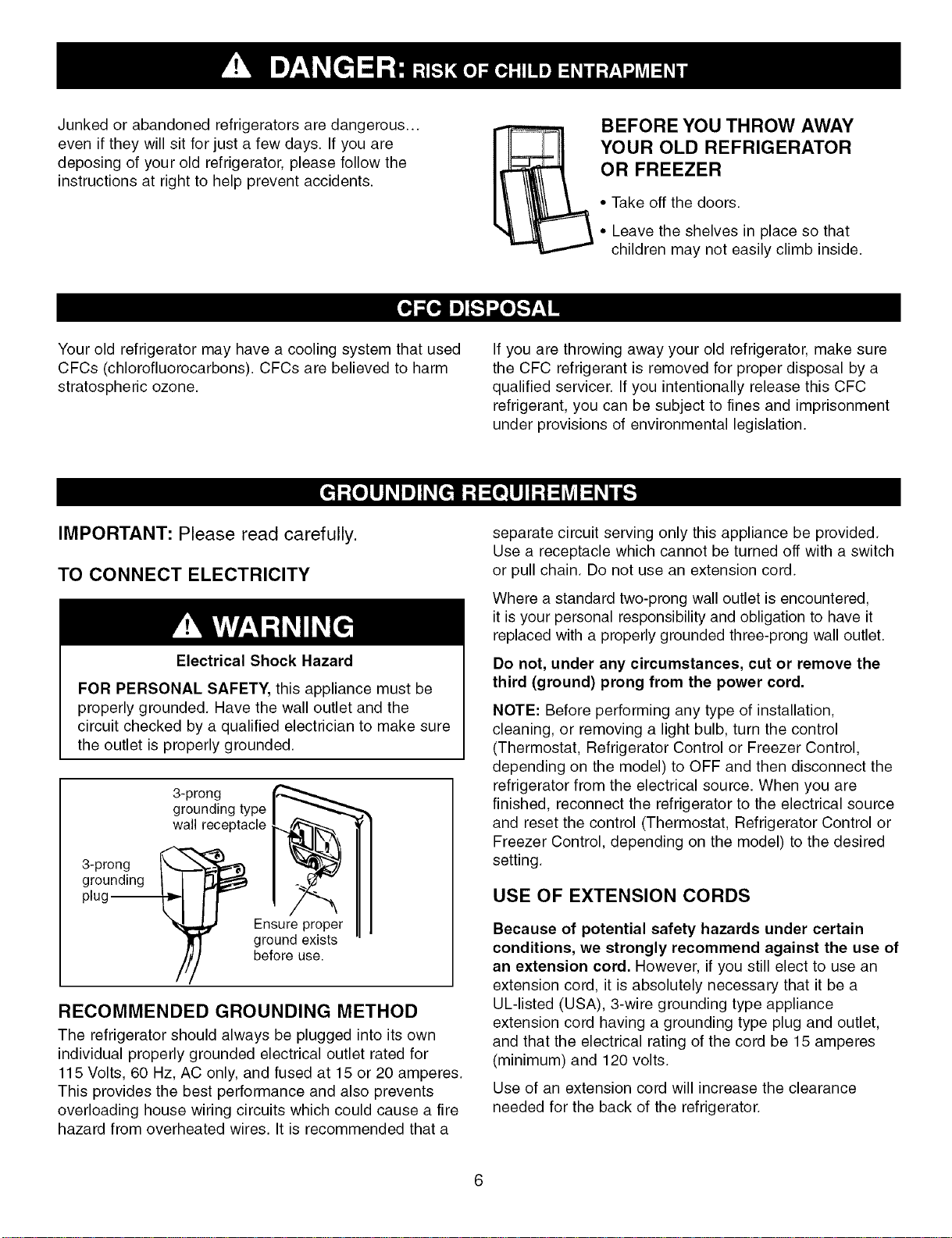

Grounding Requirements 6

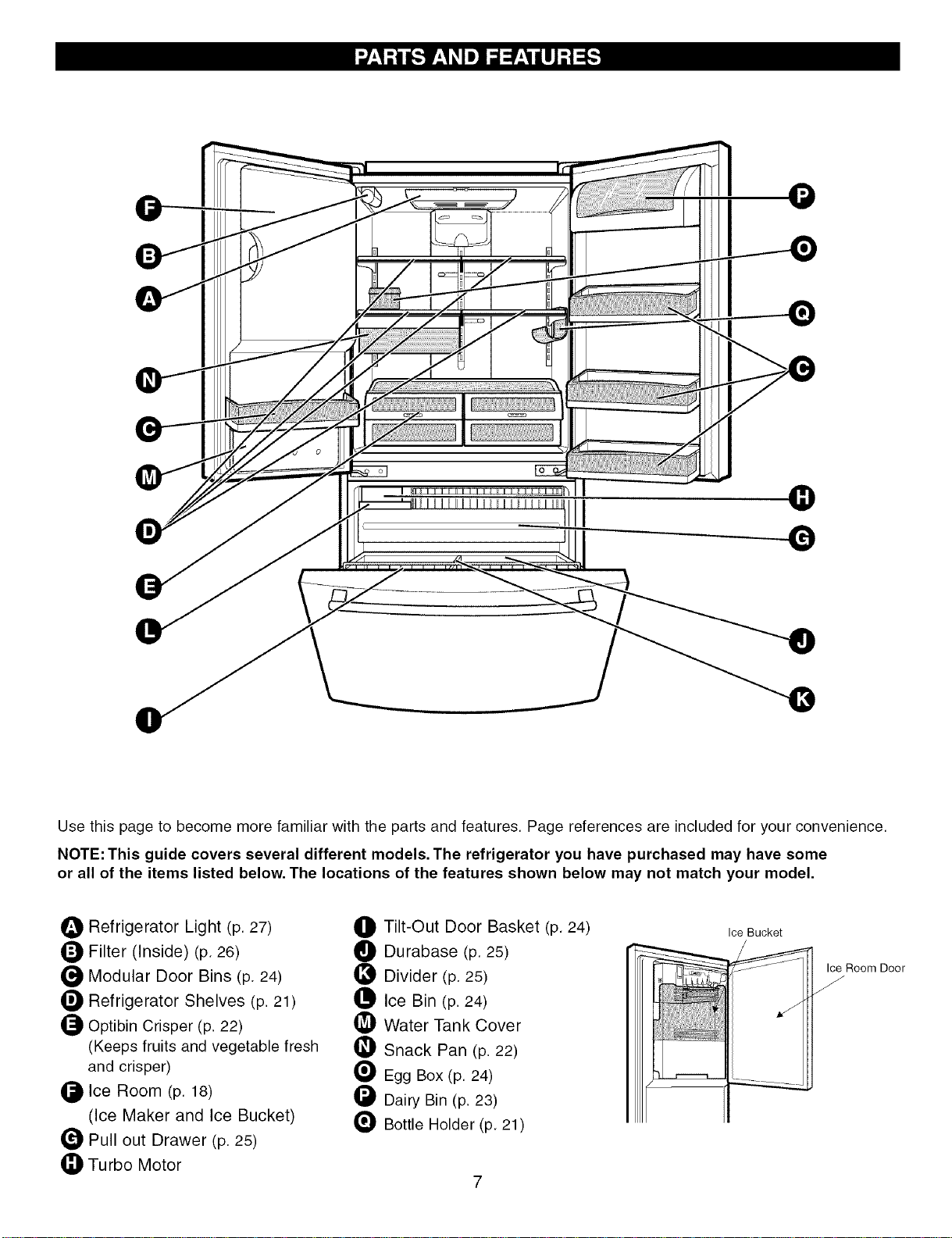

Parts And Features 7
Refrigerator Installation 8-17

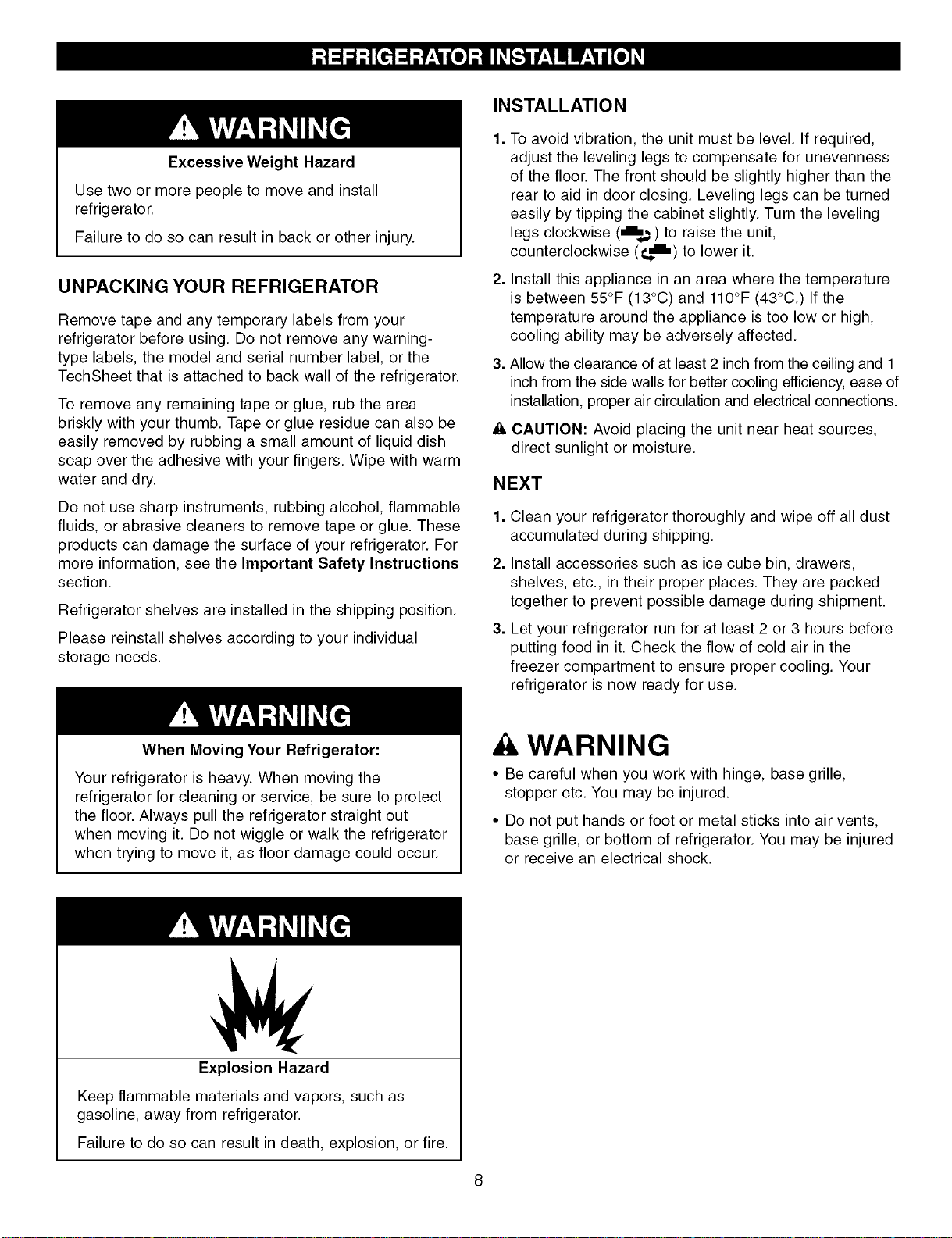

Unpacking Your Refrigerator 8
Installation 8

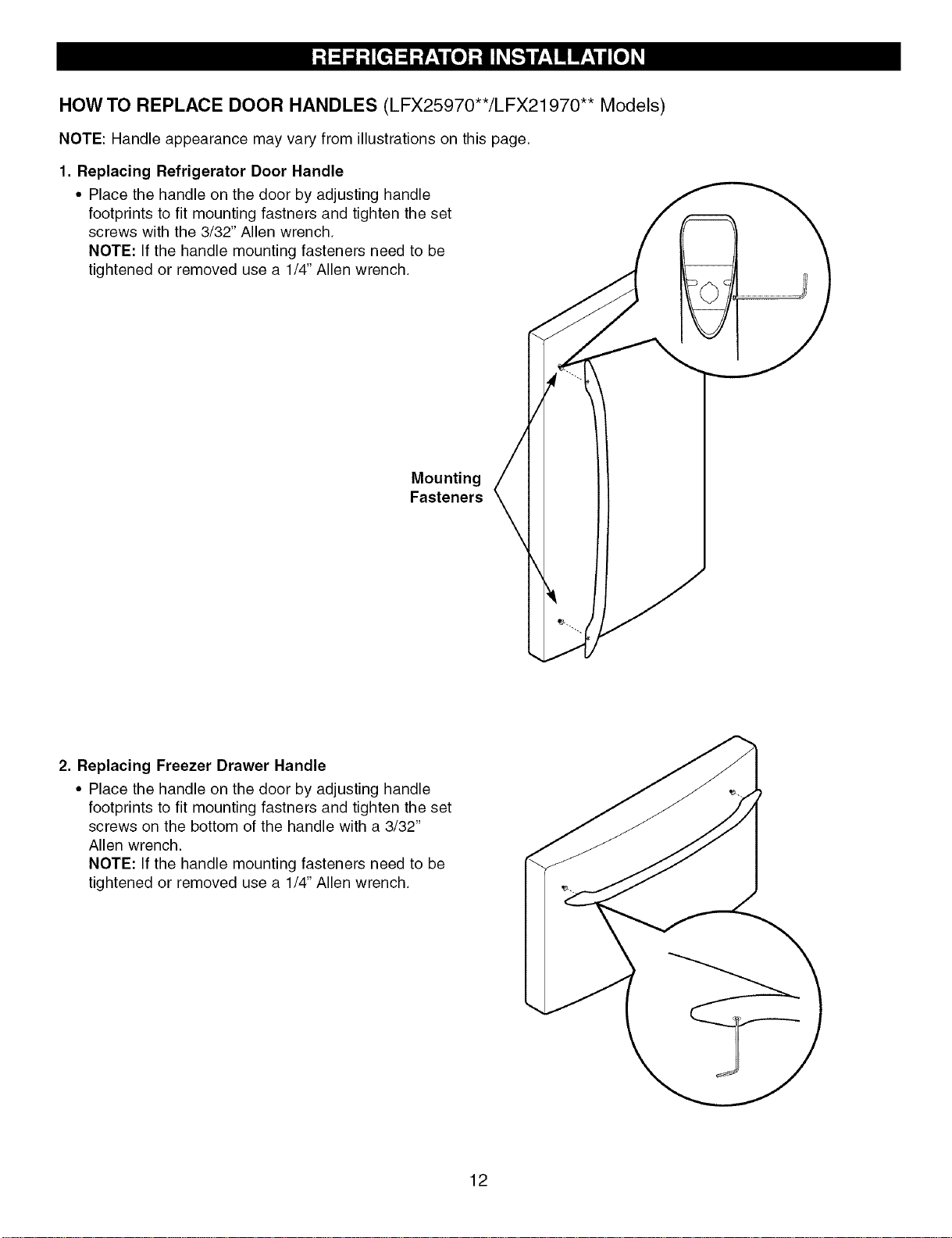

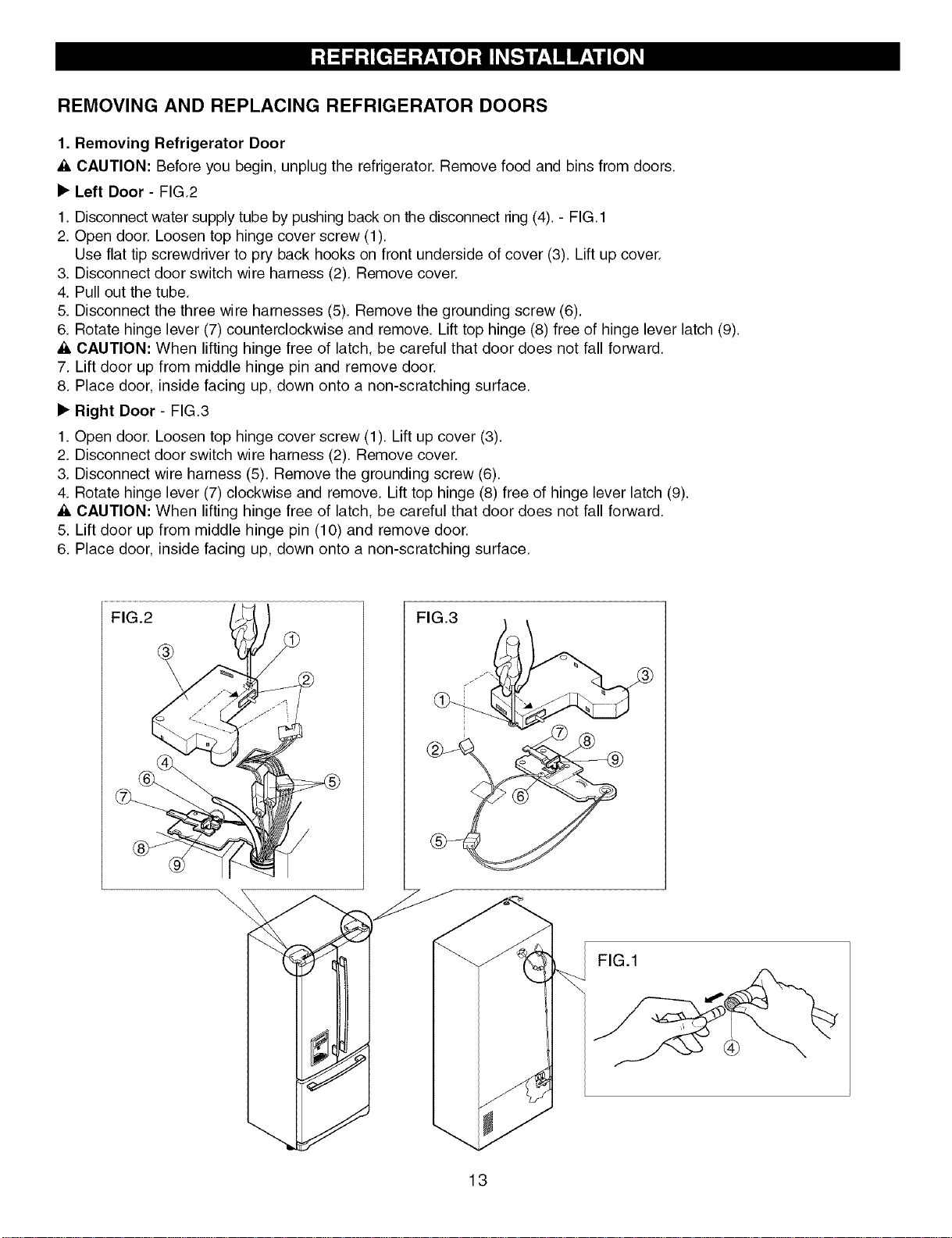

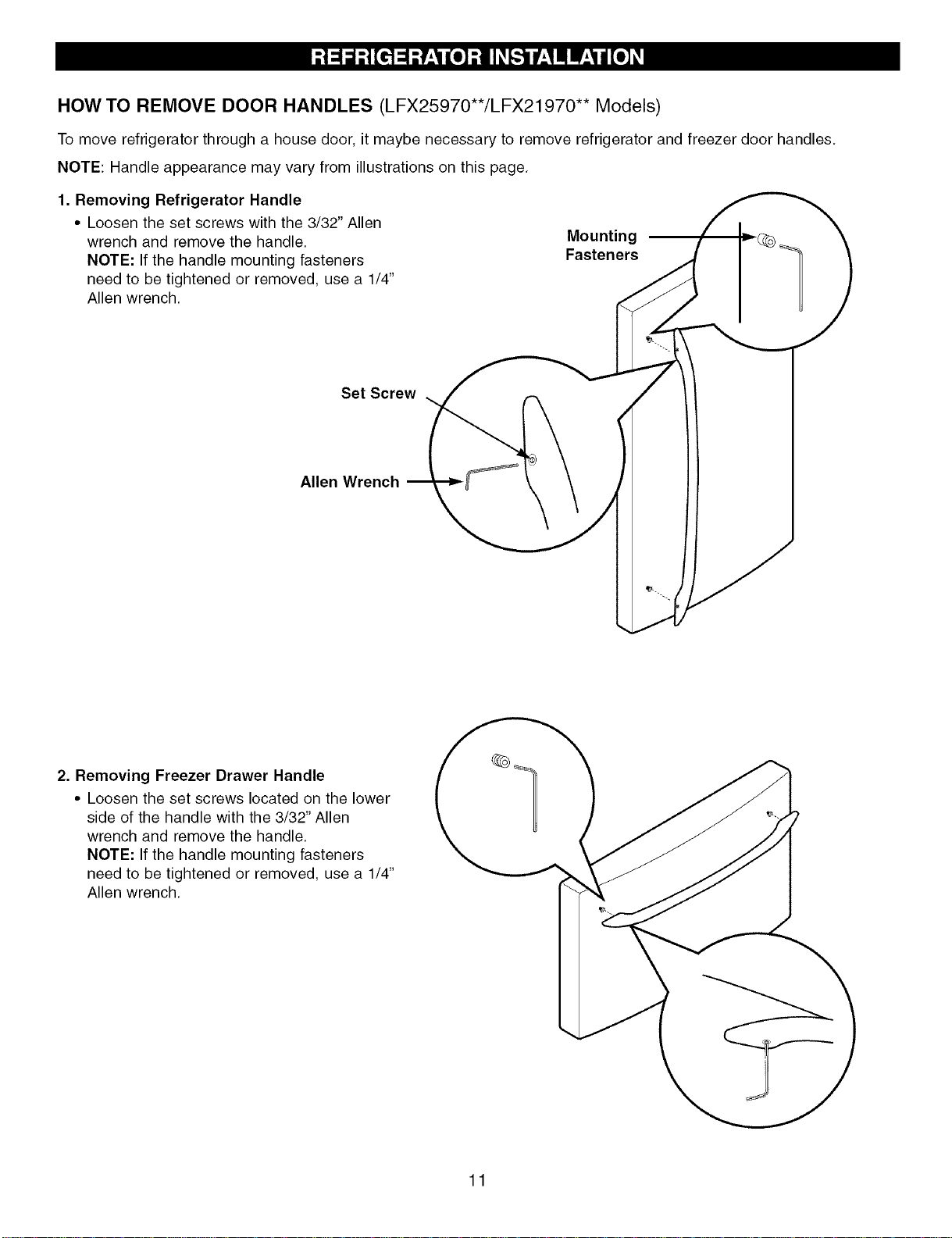

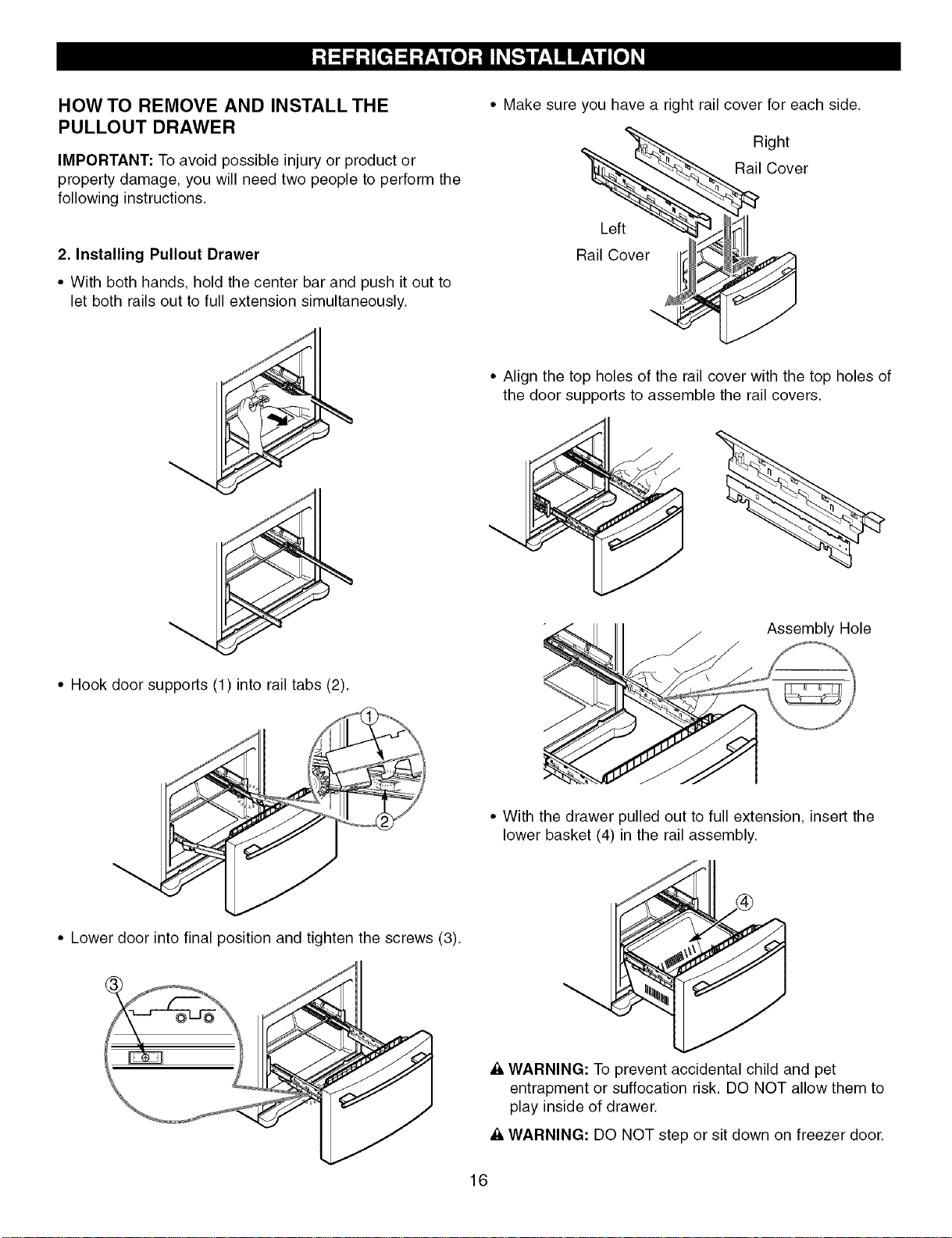

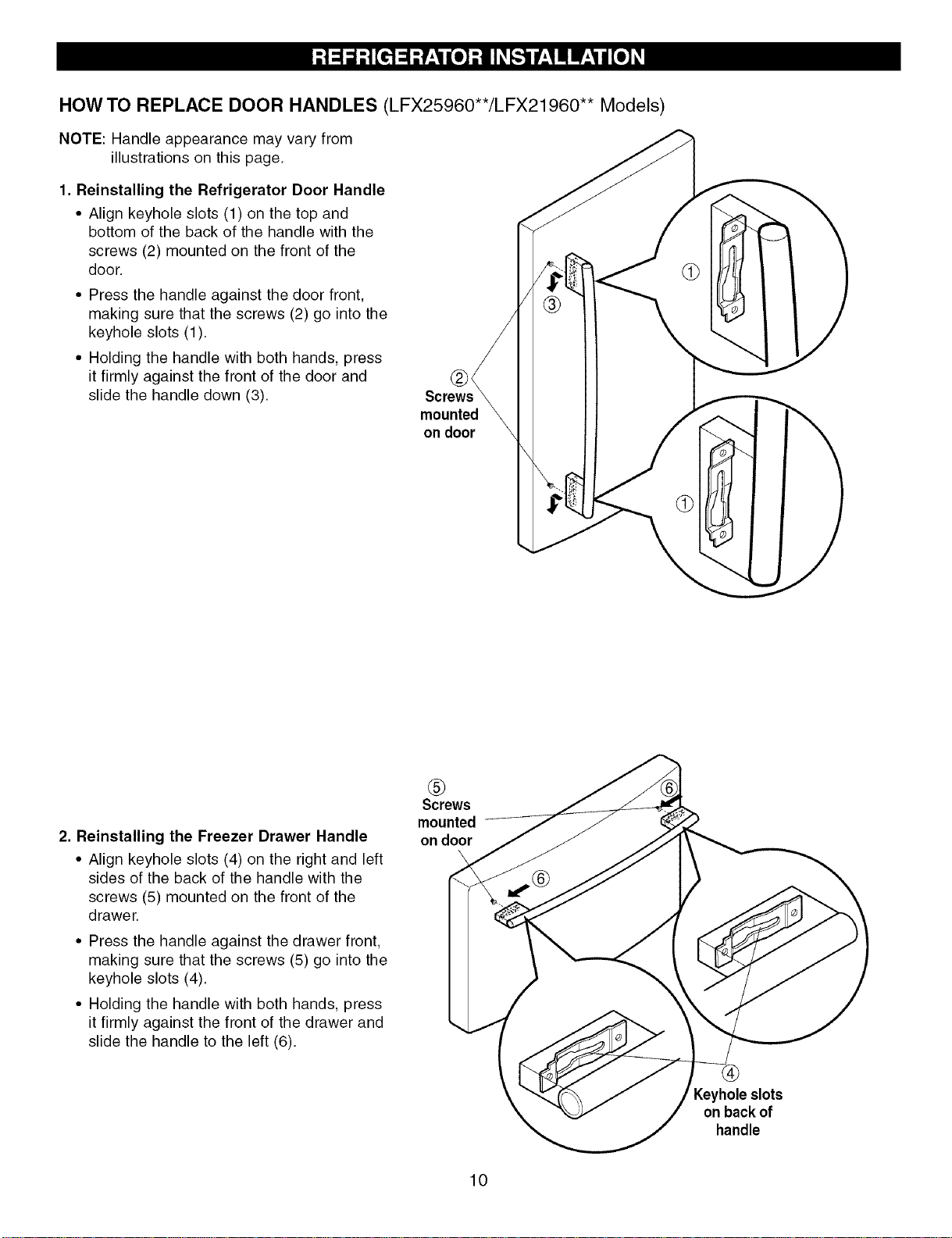

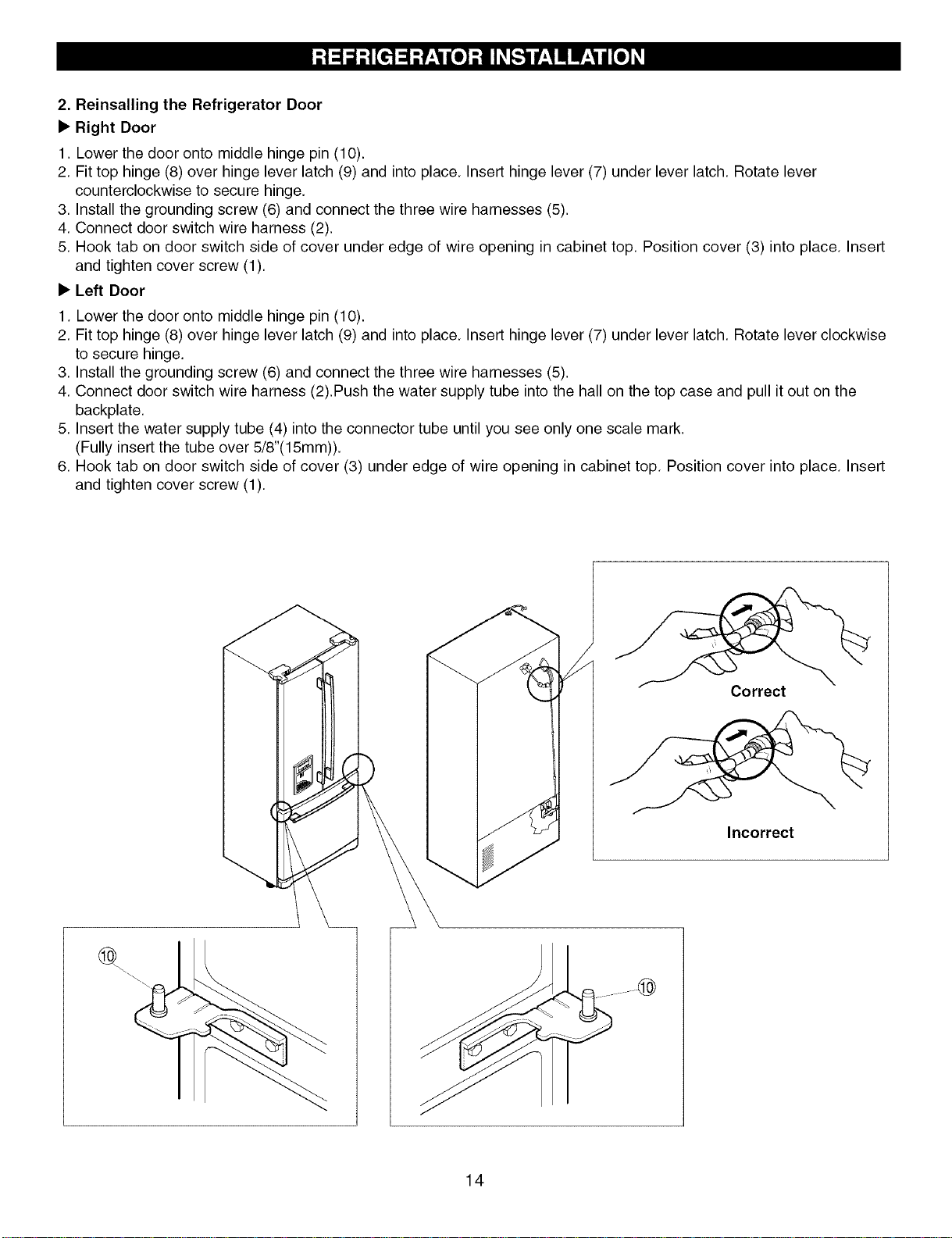

Removing And Replacing
Your Refrigerator Handles
And Doors 9-16

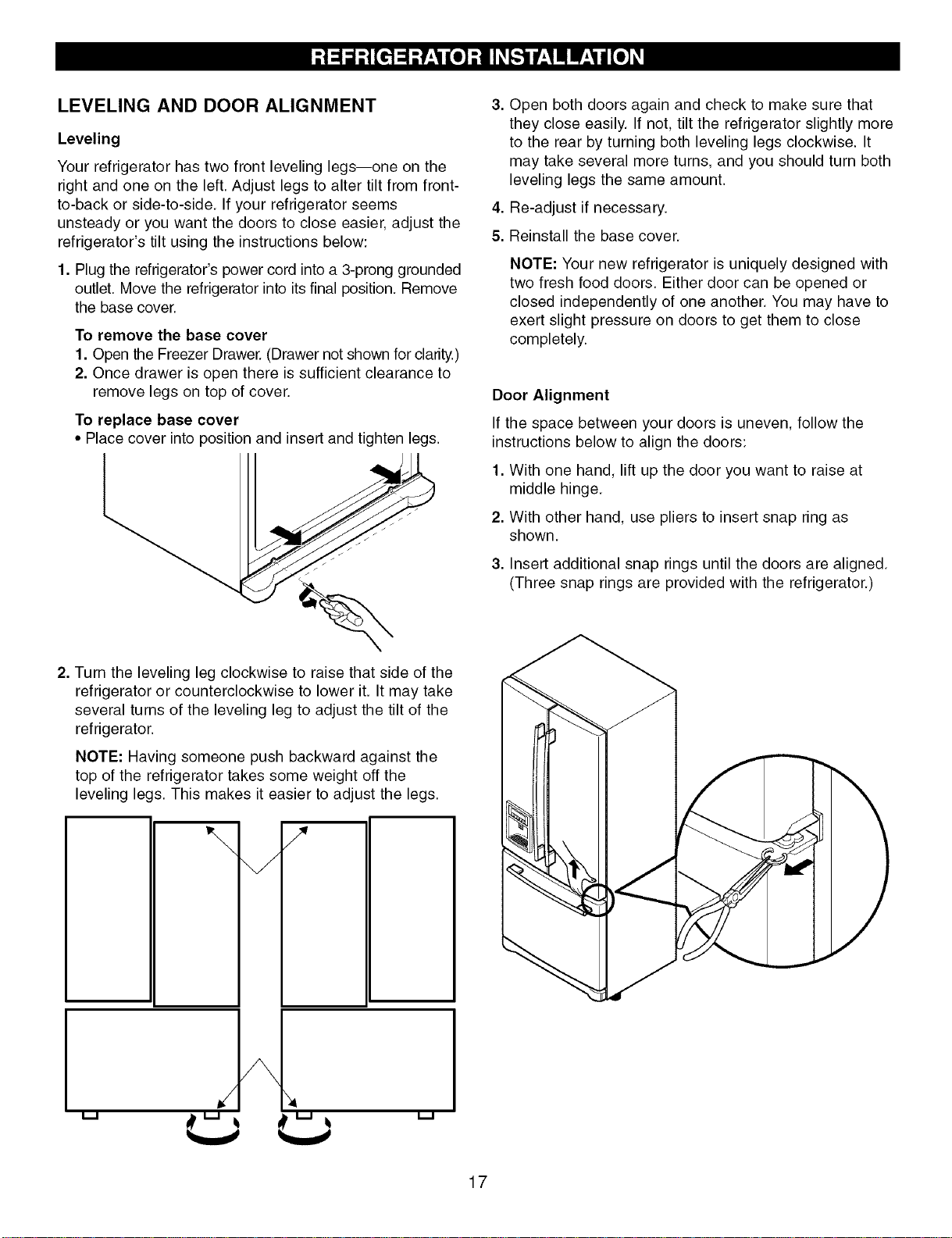

Leveling And Door Alignment 17
Base Cover 17
Using Your Refrigerator 18-28

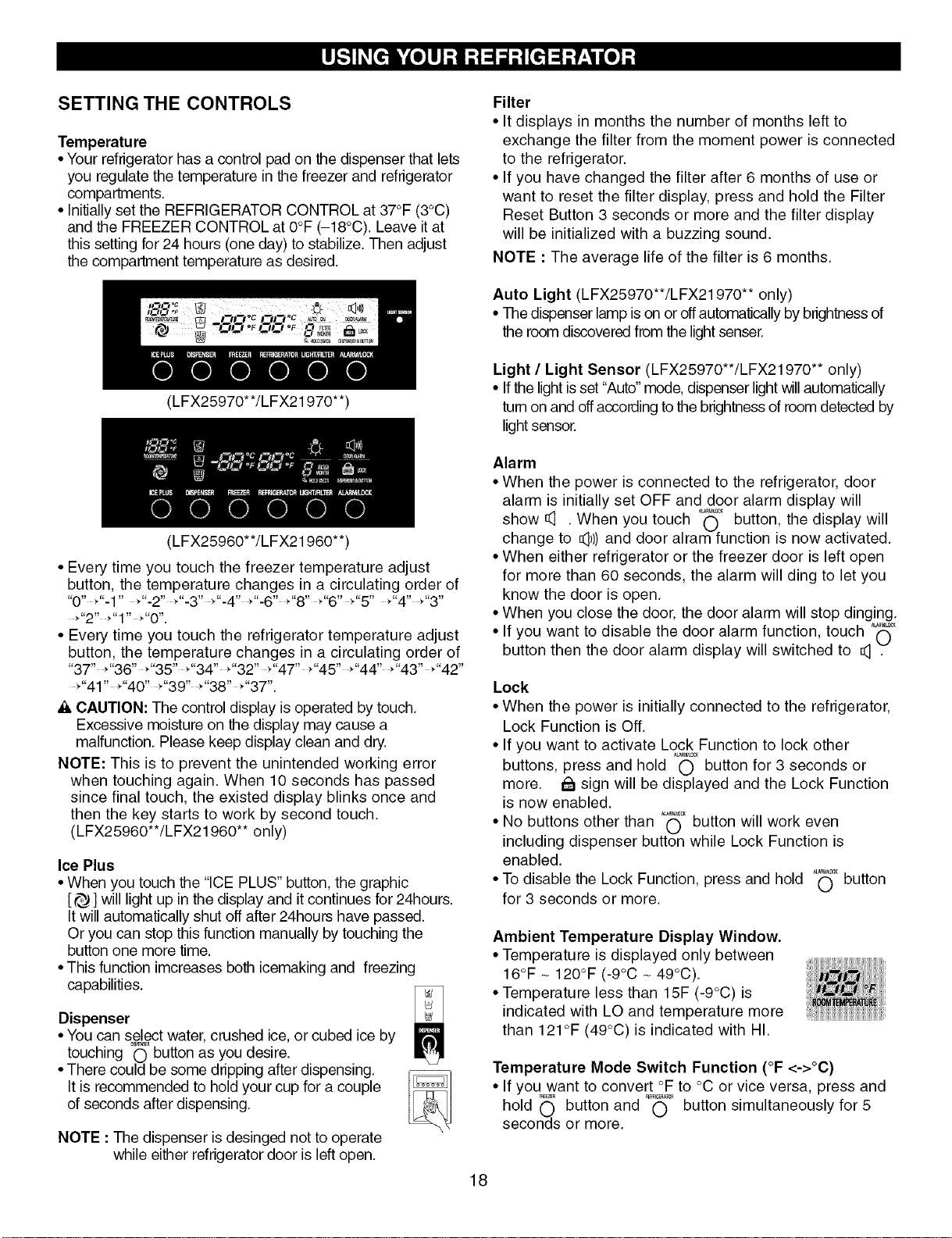

Setting The Controls 18

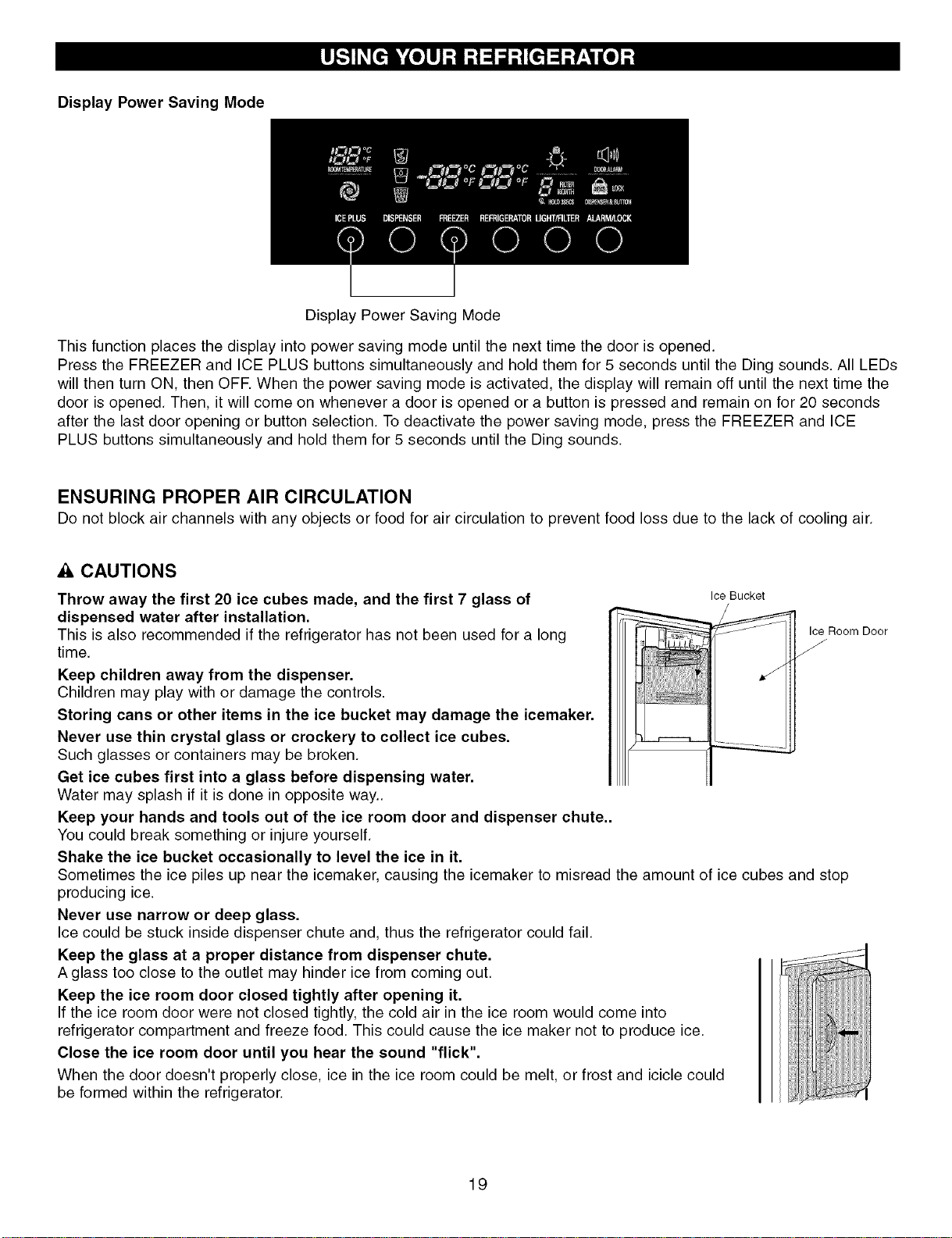

Ensuring Proper Air Circulation 19
Diagnosis (Failure Detection) Function 19

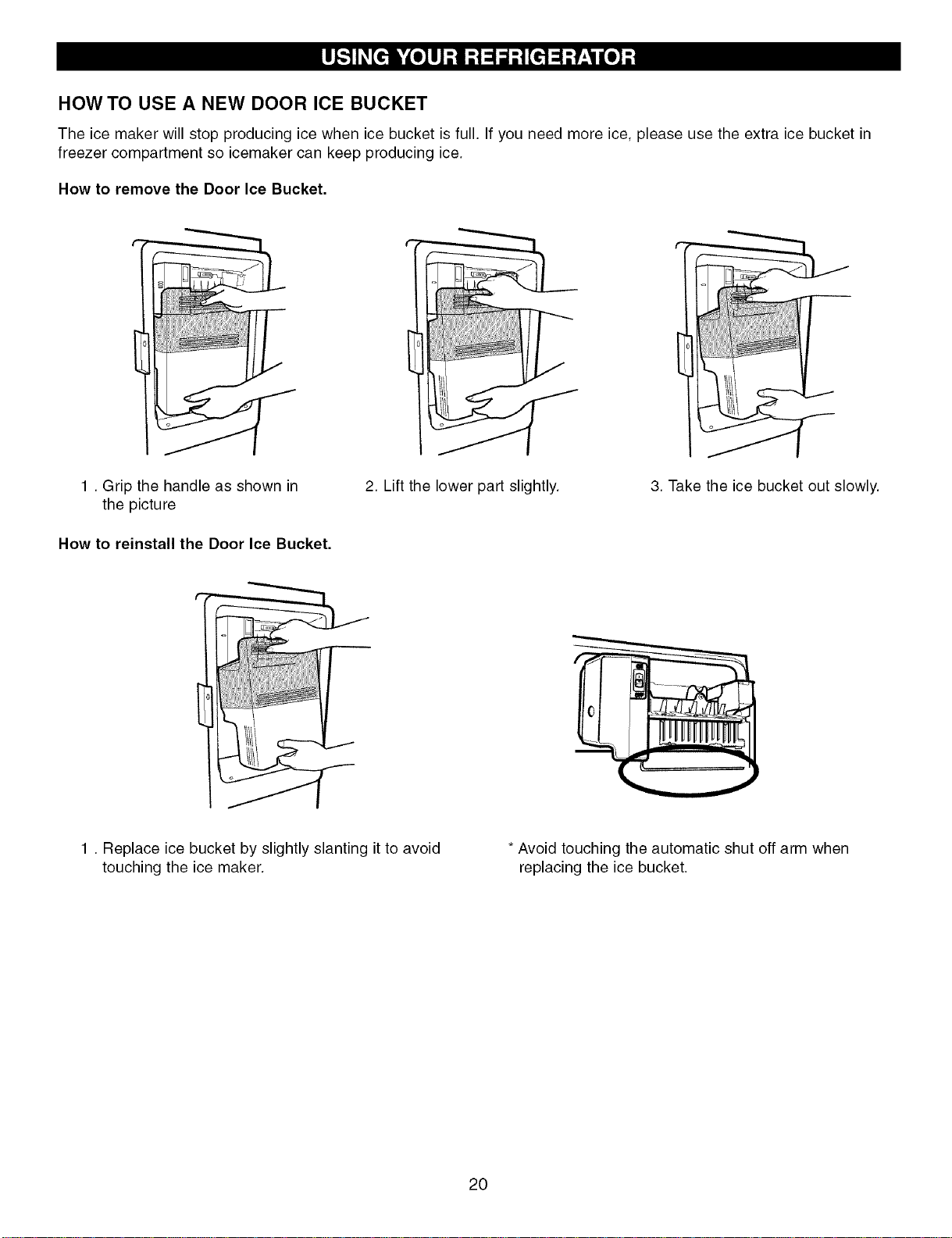

How To Use A New Door Ice Bucket 20

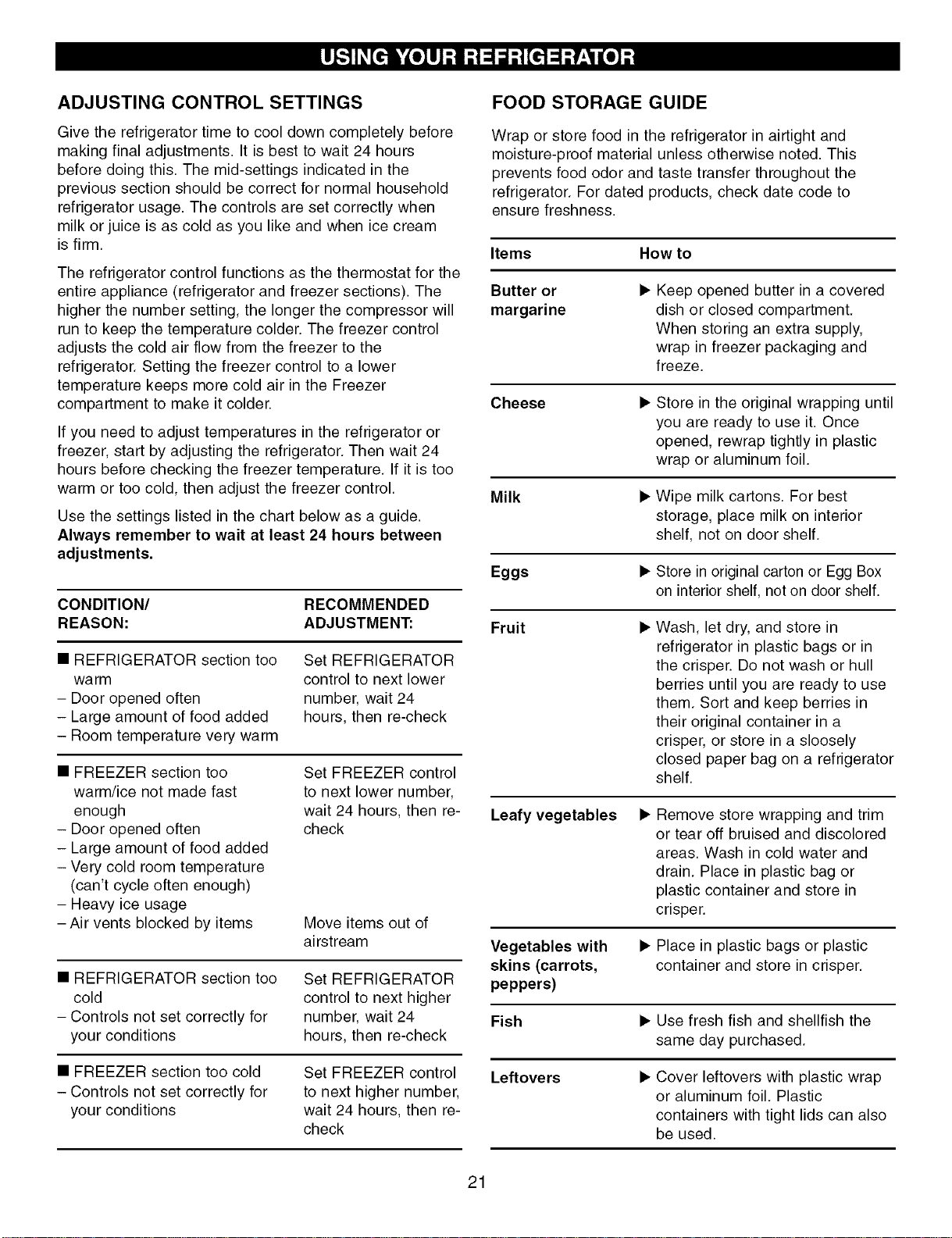

Adjusting Control Settings 21
Food Storage Guide 21

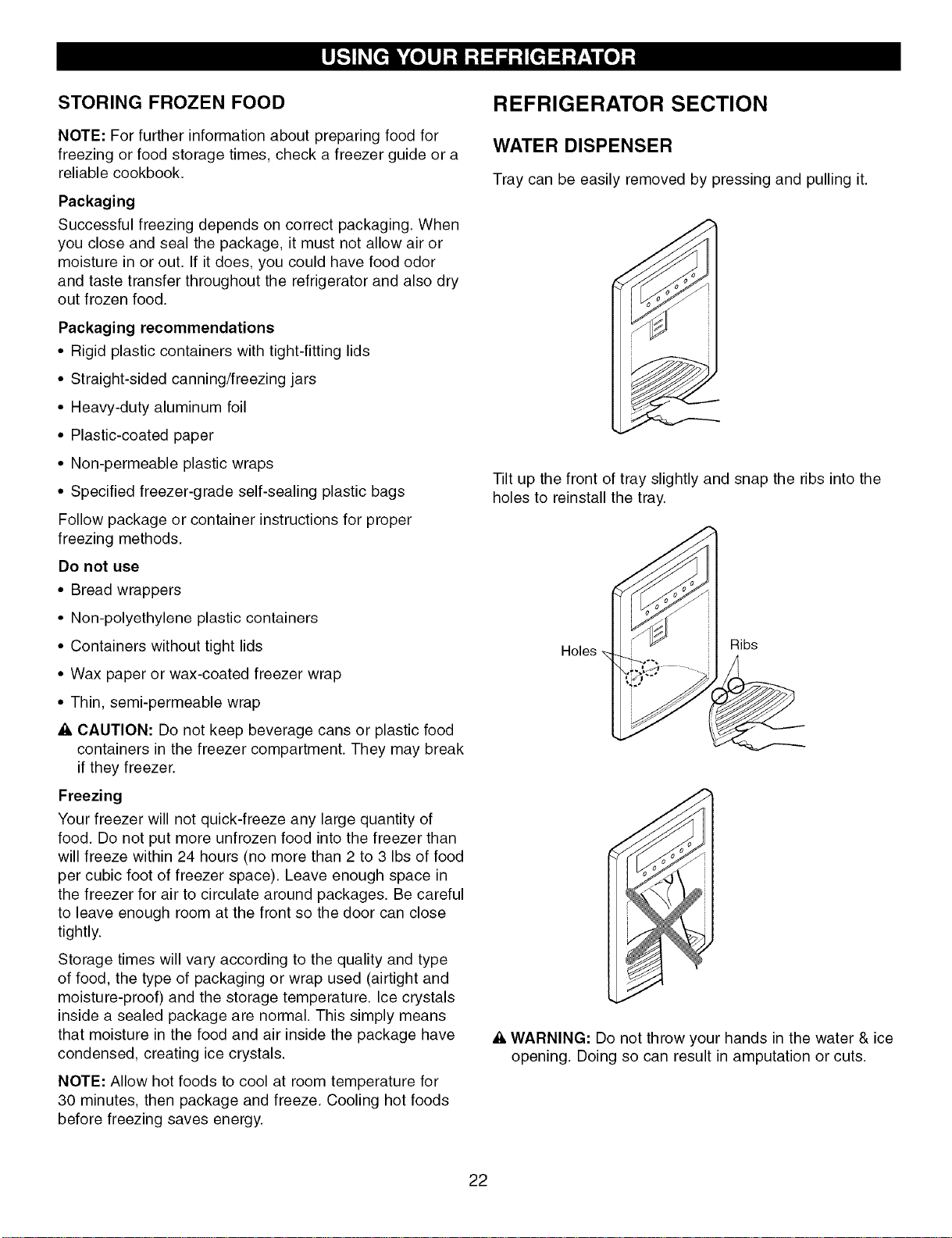

Storing Frozen Food 22
I_ Refrigerator Section
Water Dispenser 22

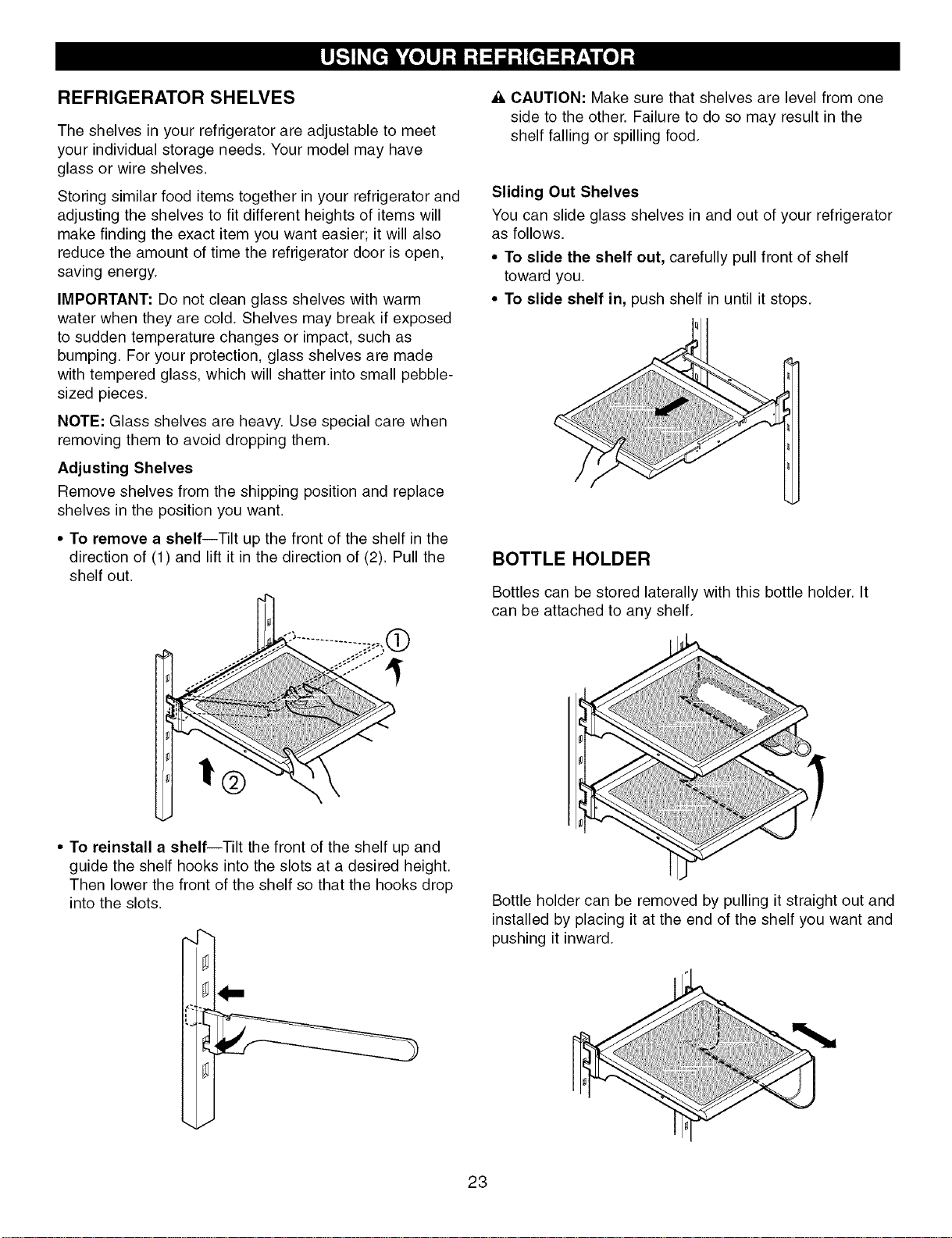

Refrigerator Shelves 23
Bottle Holder 23

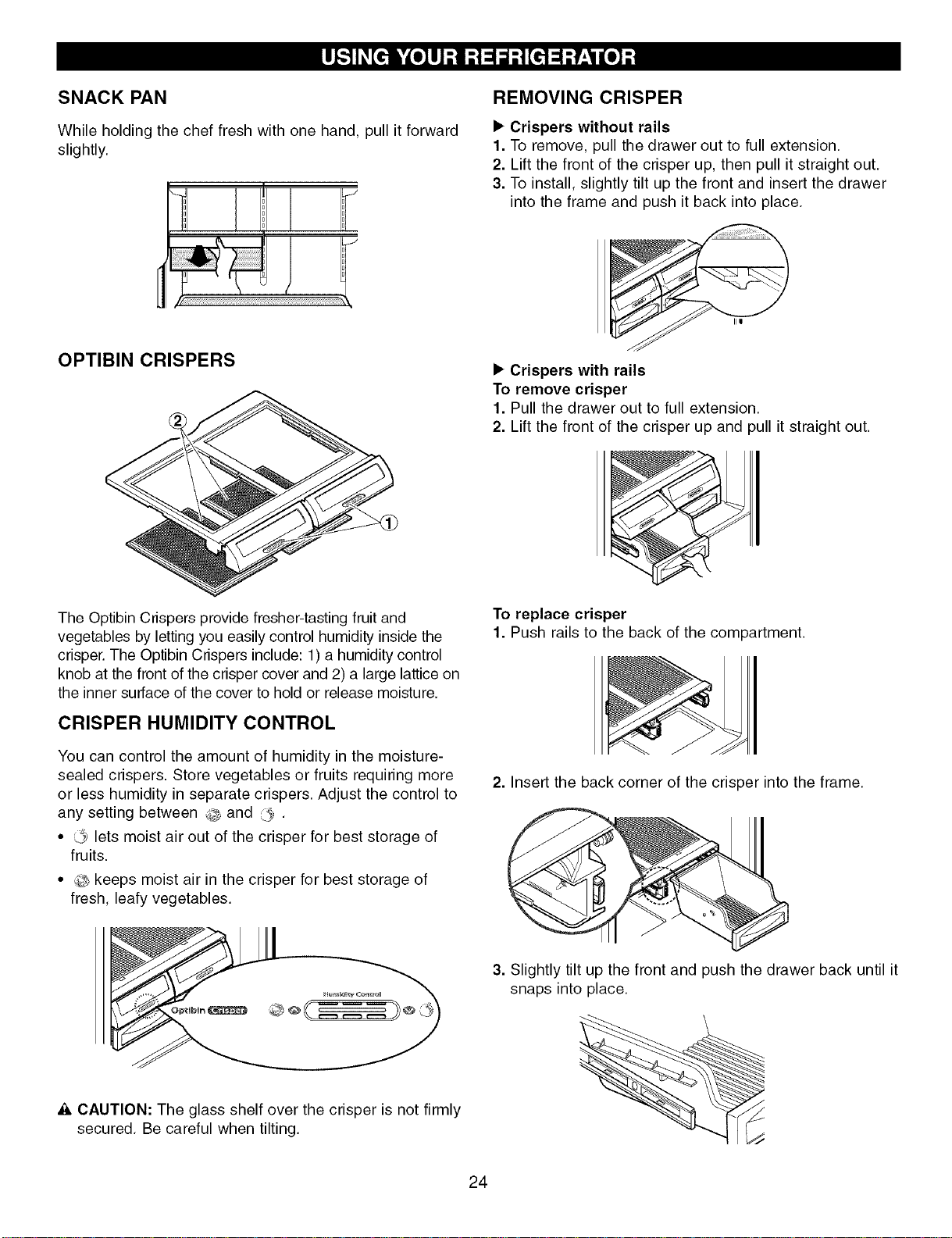

Snack Pan 24
Optibin Crisper 24
Crisper Humidity Control 24
Removing Crisper 24

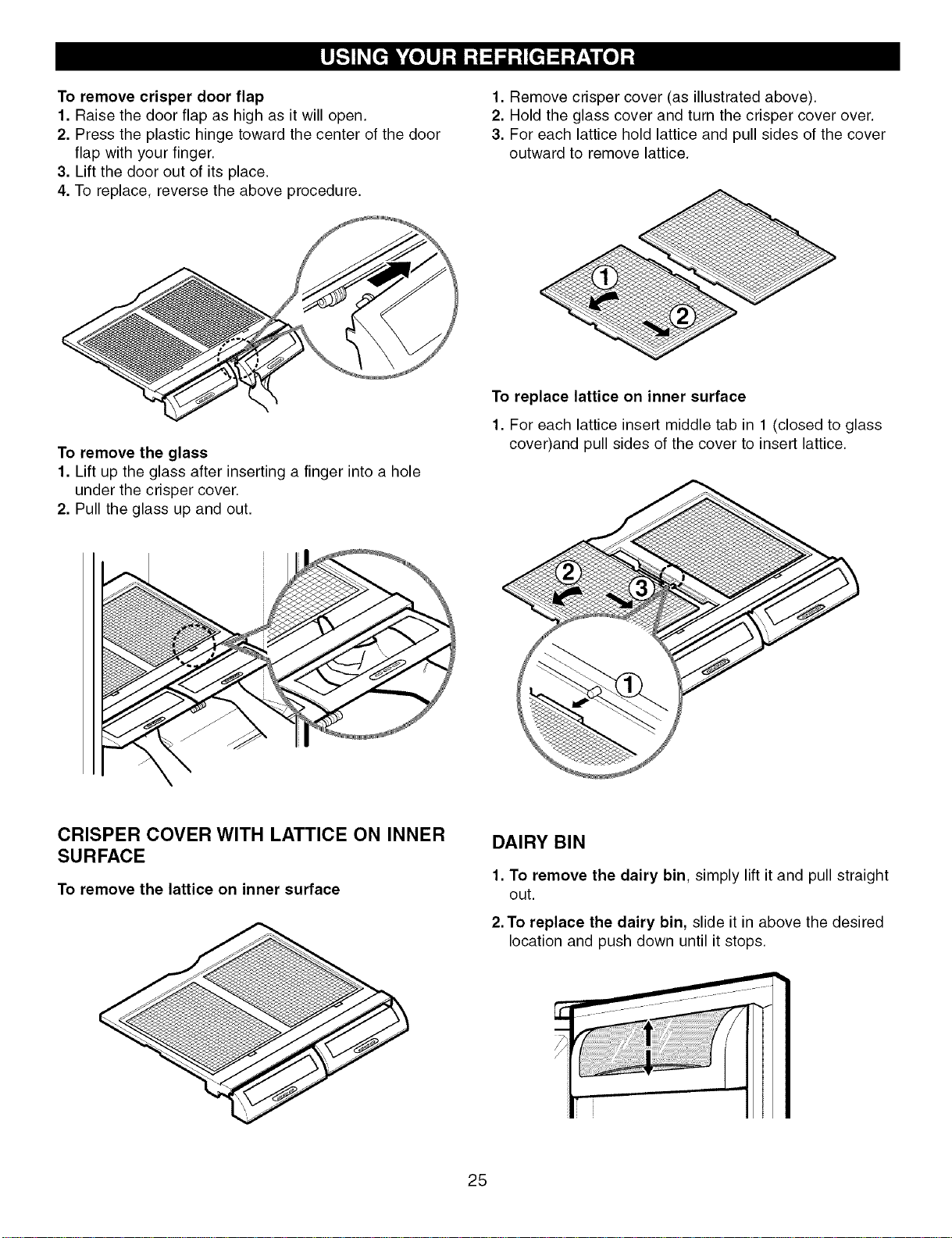

Crisper Cover With Lattice On Inner
Surface 25
Dairy Bin 25

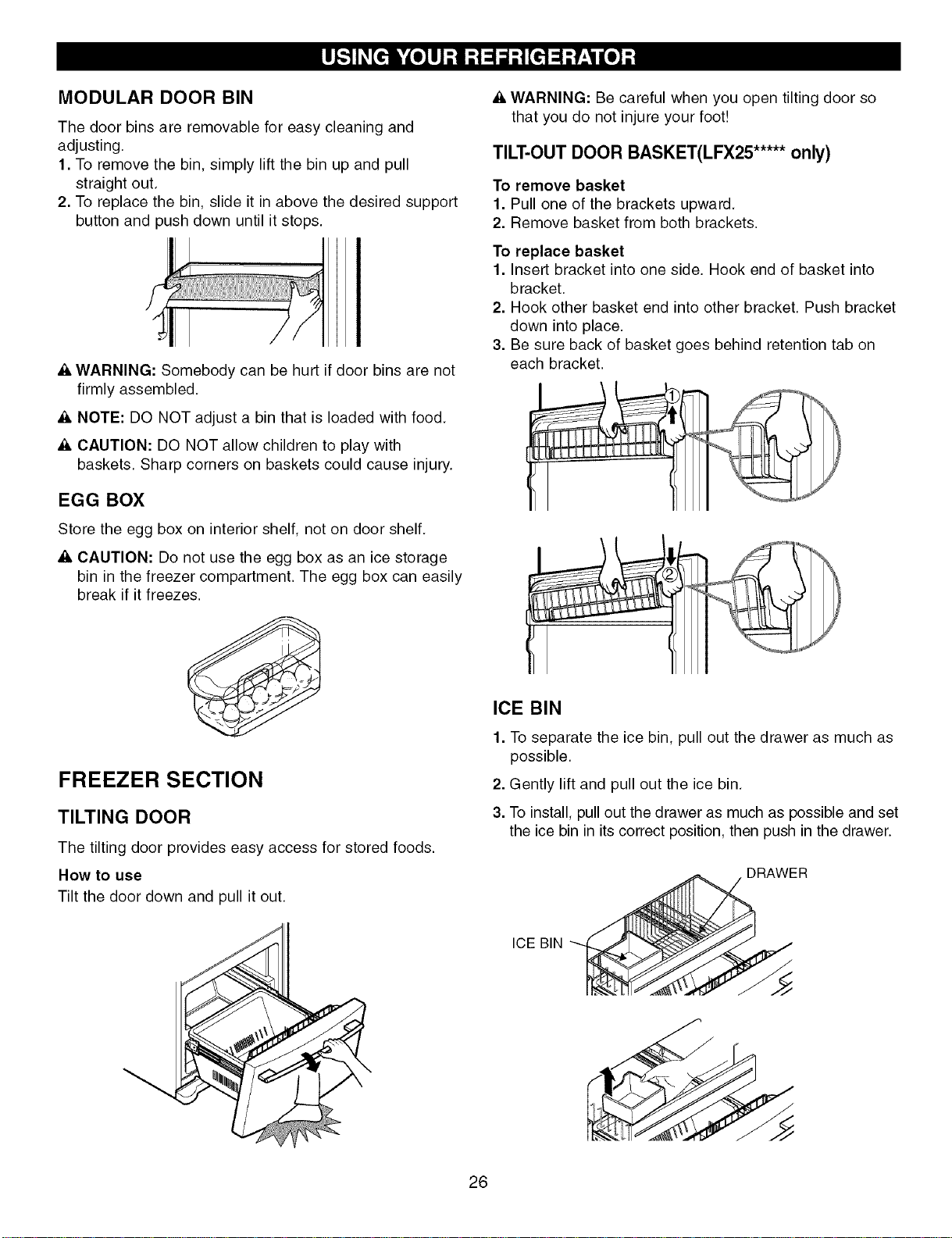

Modular Door Bin 26
Egg Box 26
I_ Freezer Section
Tilting Door 26
Tilt-Out Door Basket 26
Ice Bin 26

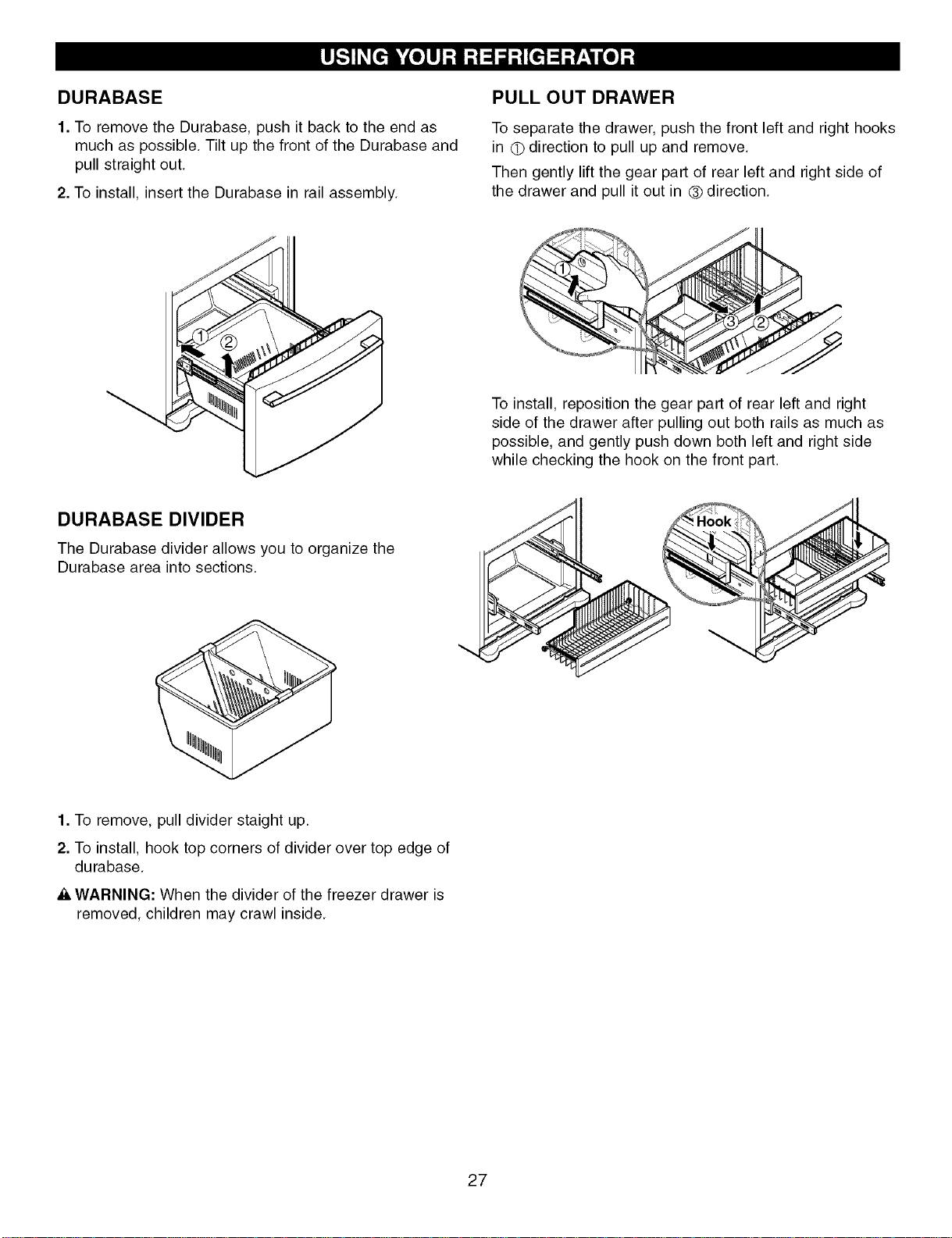

Durabase 27
Durabase Divider 27

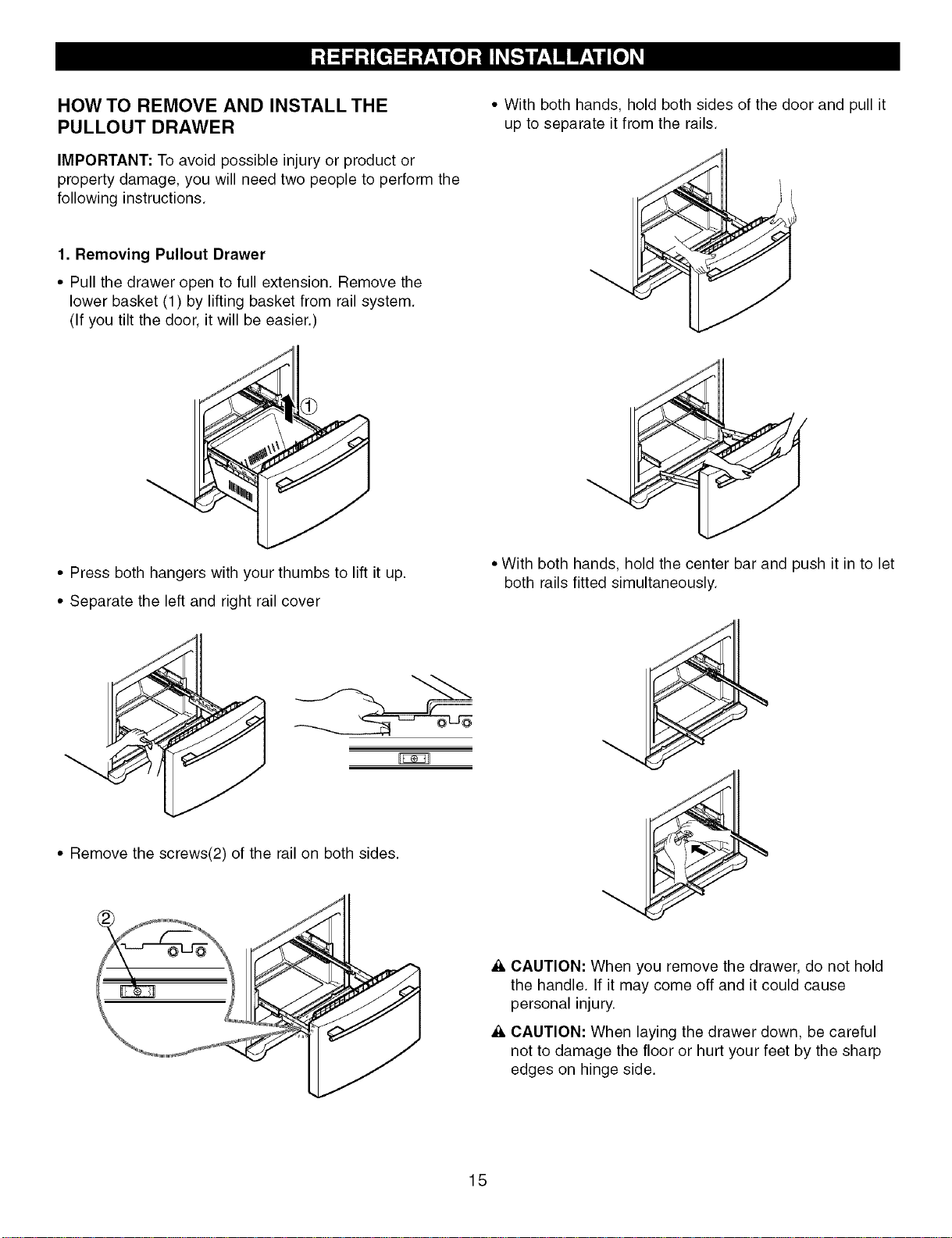

Pull Out Drawer 27

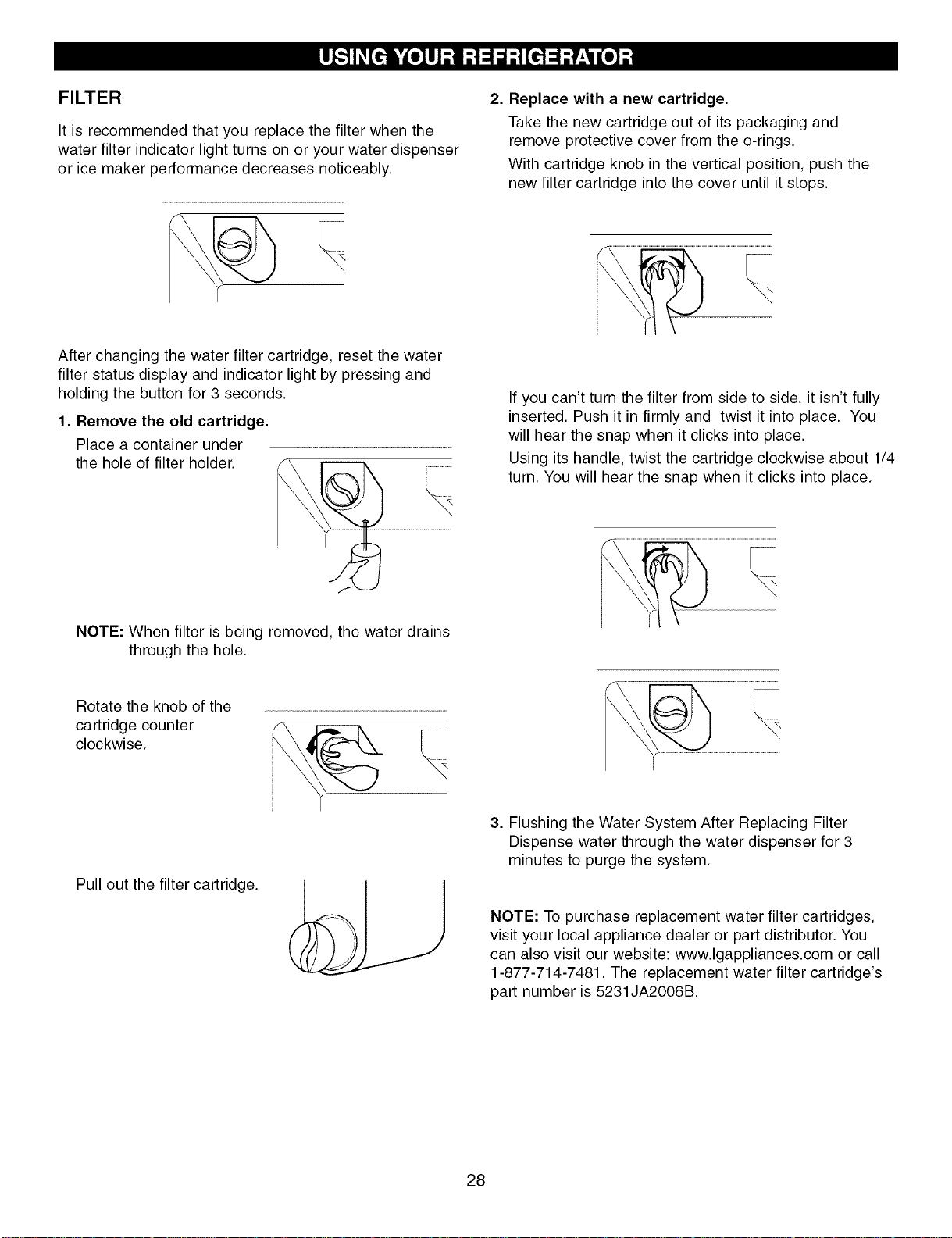

Filter 28
Care And Cleaning 29-30

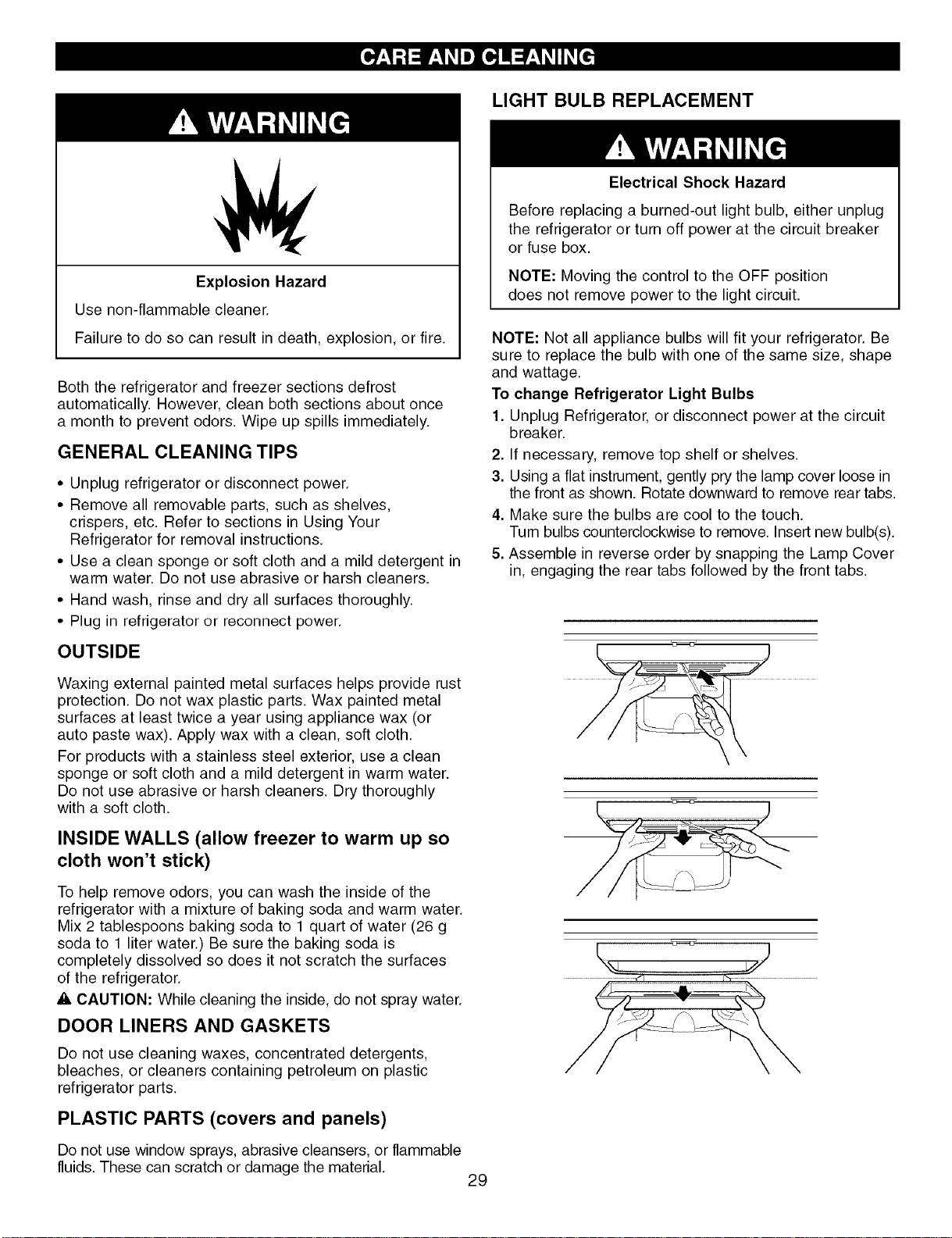

General Cleaning Tips 29
Outside 29
Inside Walls 29
Door Liner And Gaskets 29
Plastic Parts 29
Condenser Coils 29

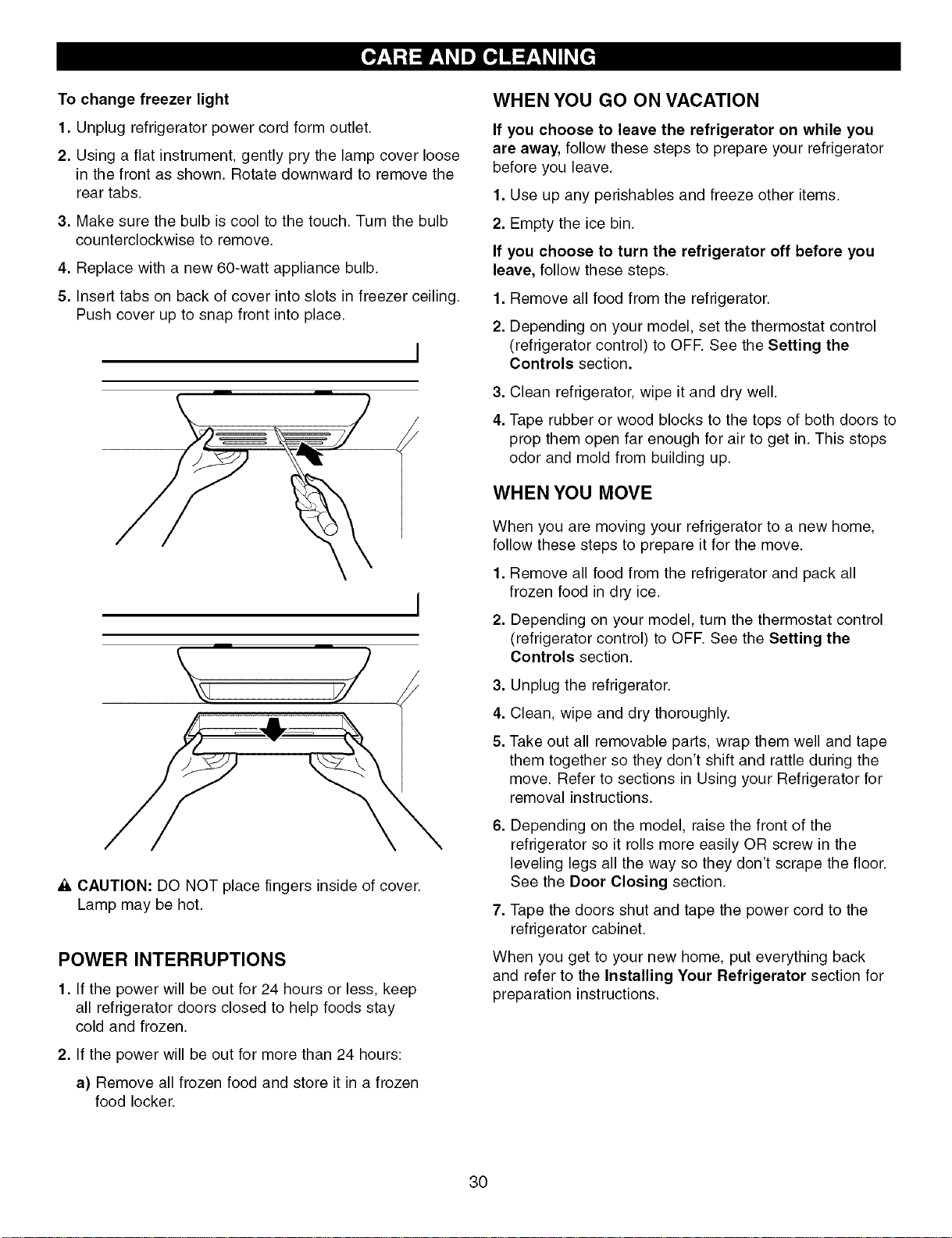

Light Bulb Replacement 29-30
Power Interruptions 30
When You Go On Vacation 30
When You Move 30

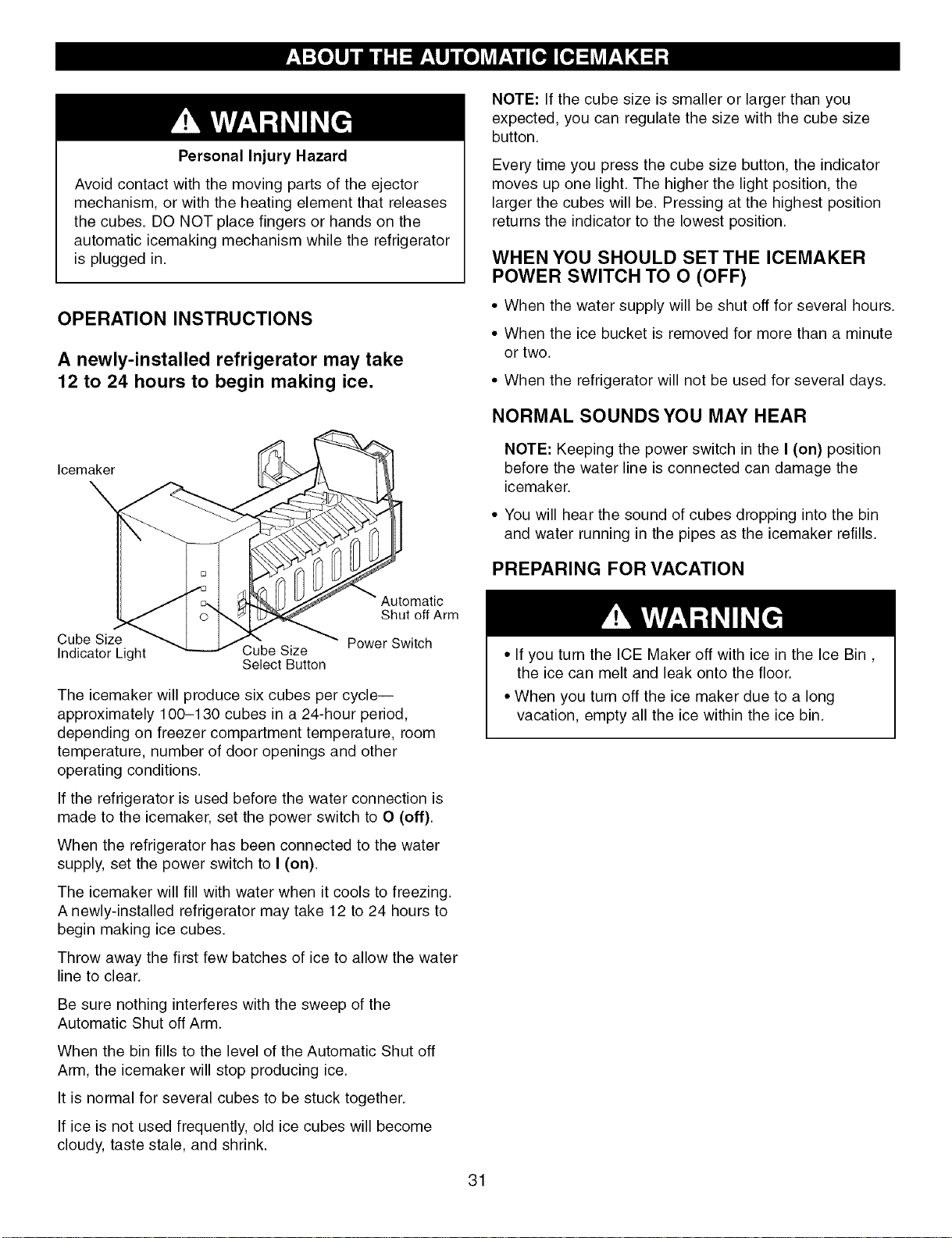

About The Automatic Icemaker 31

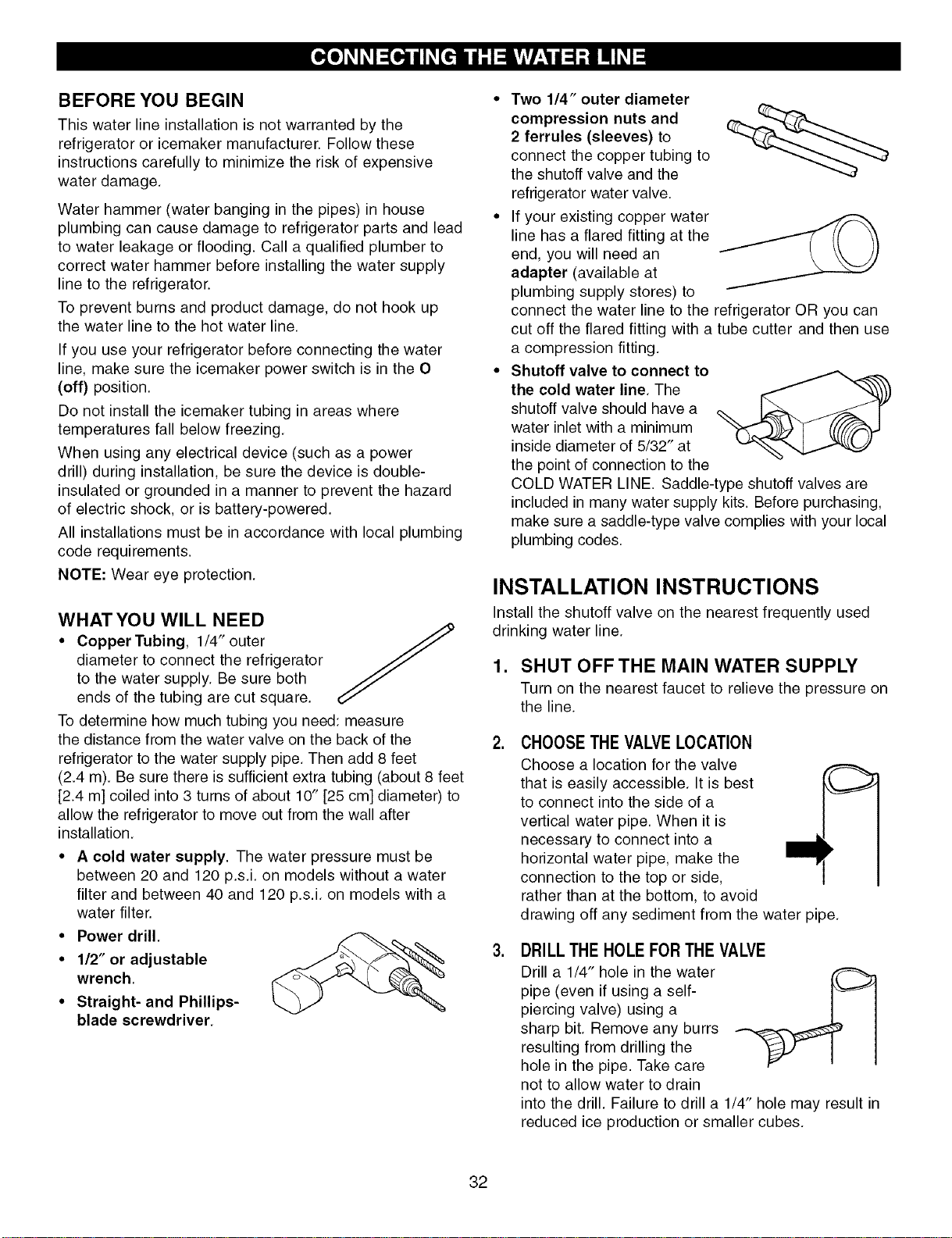

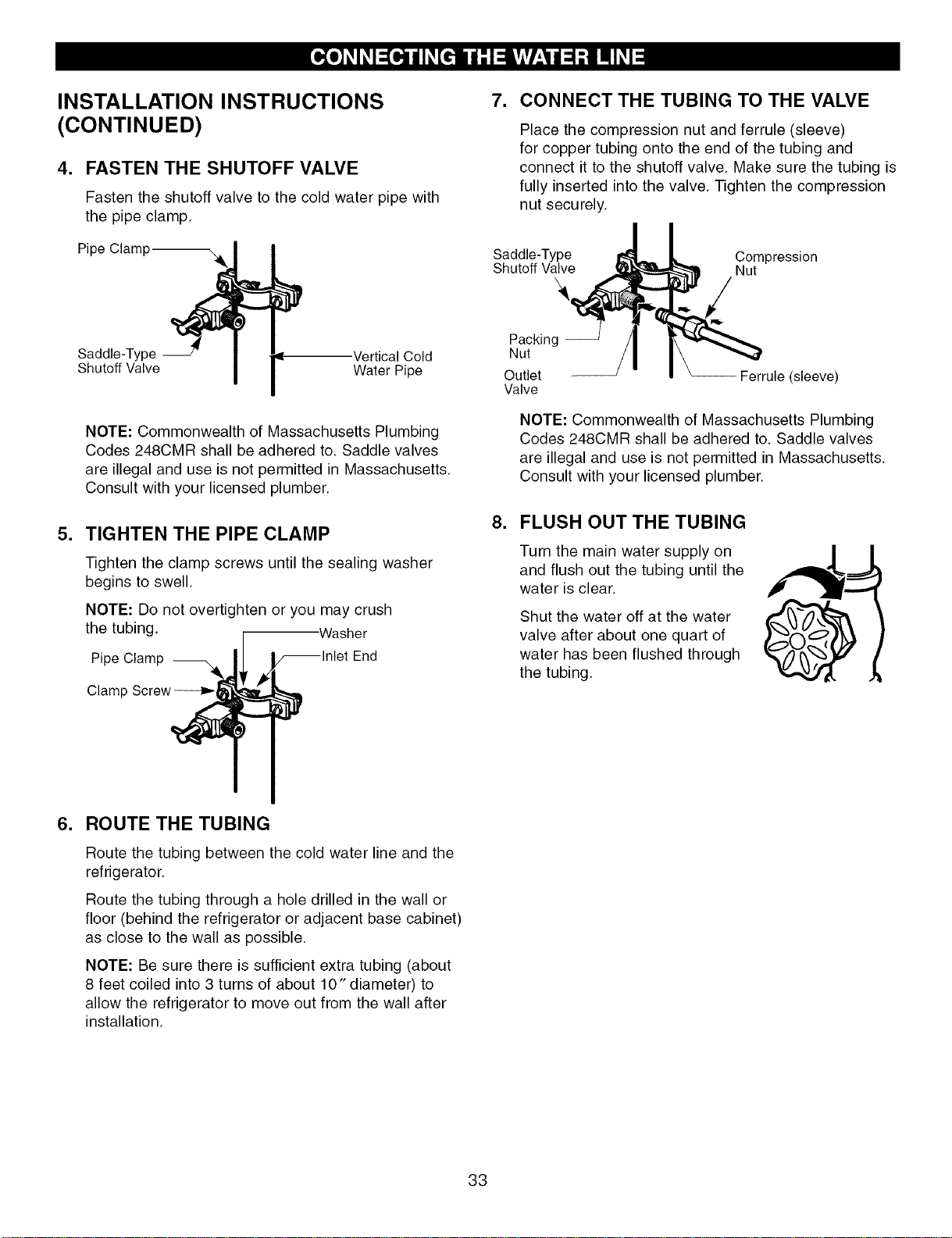

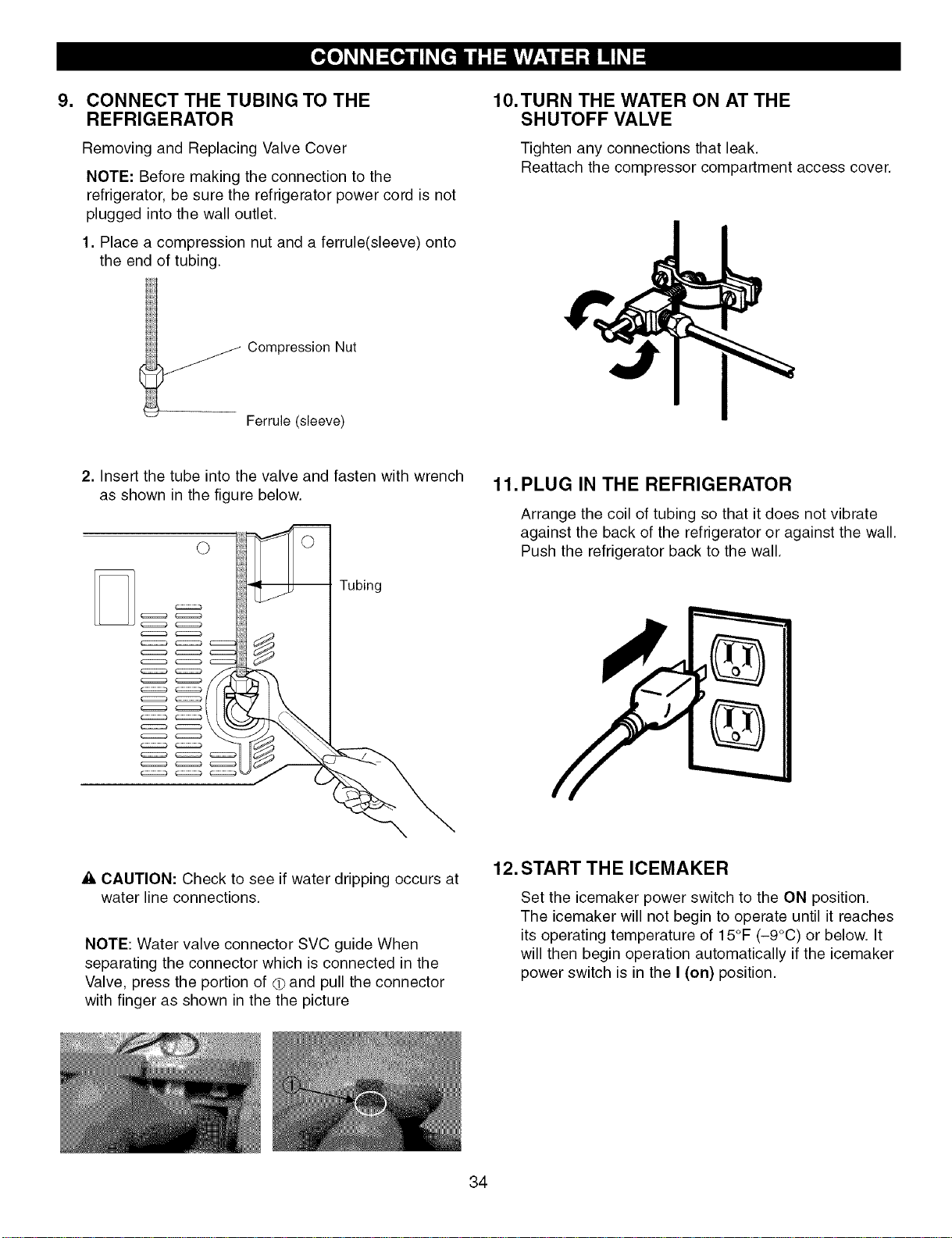

Connecting The Water Line 32-34

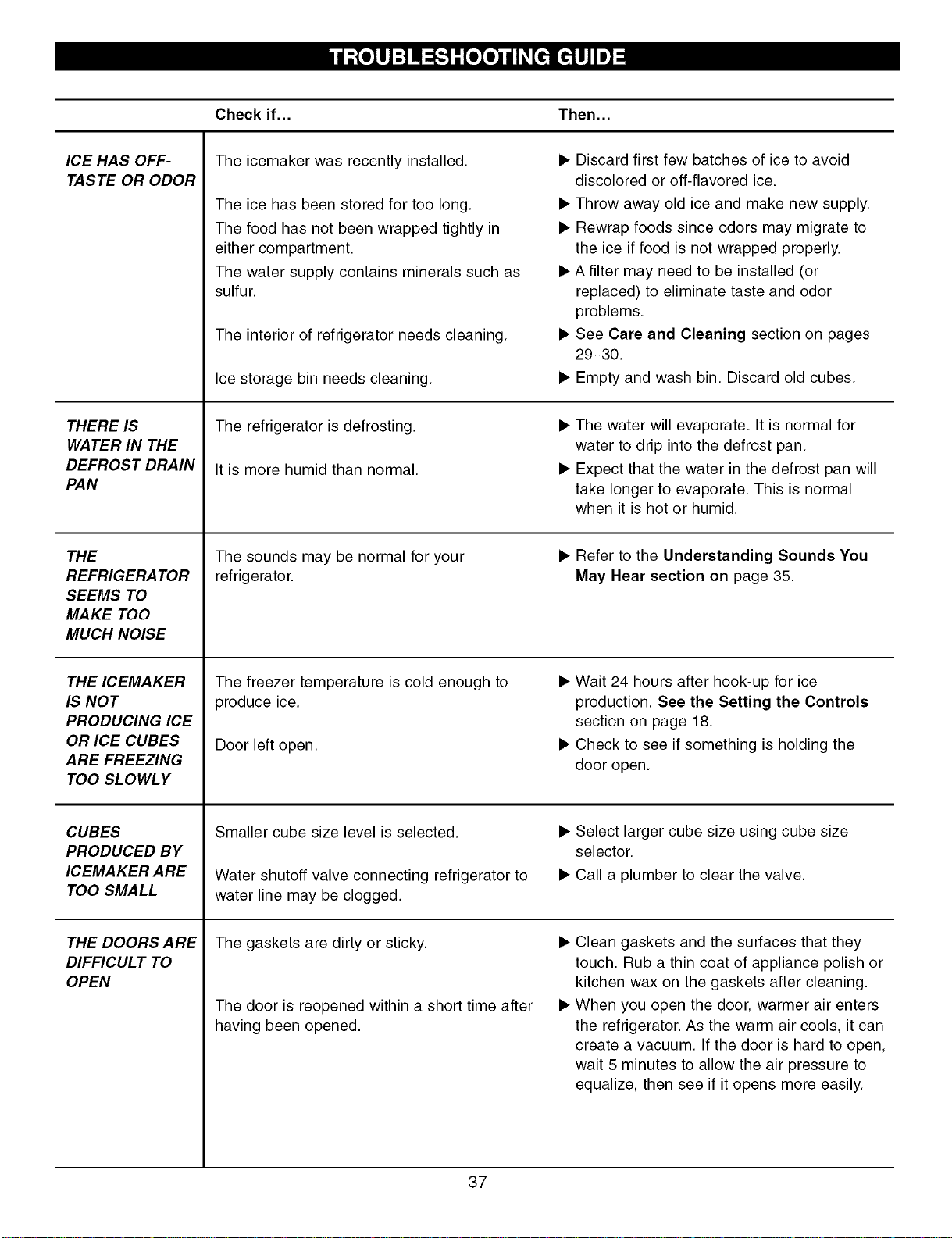

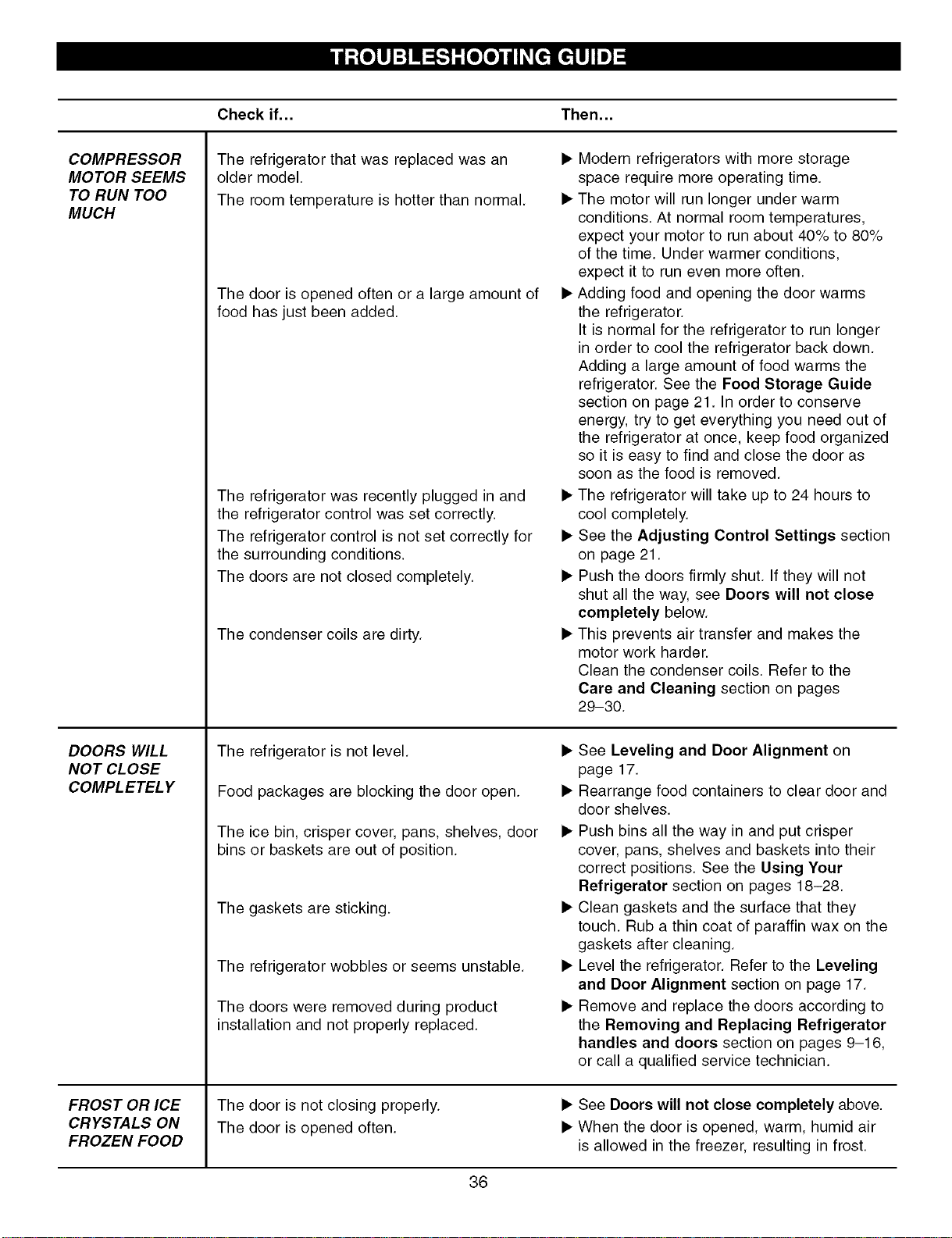

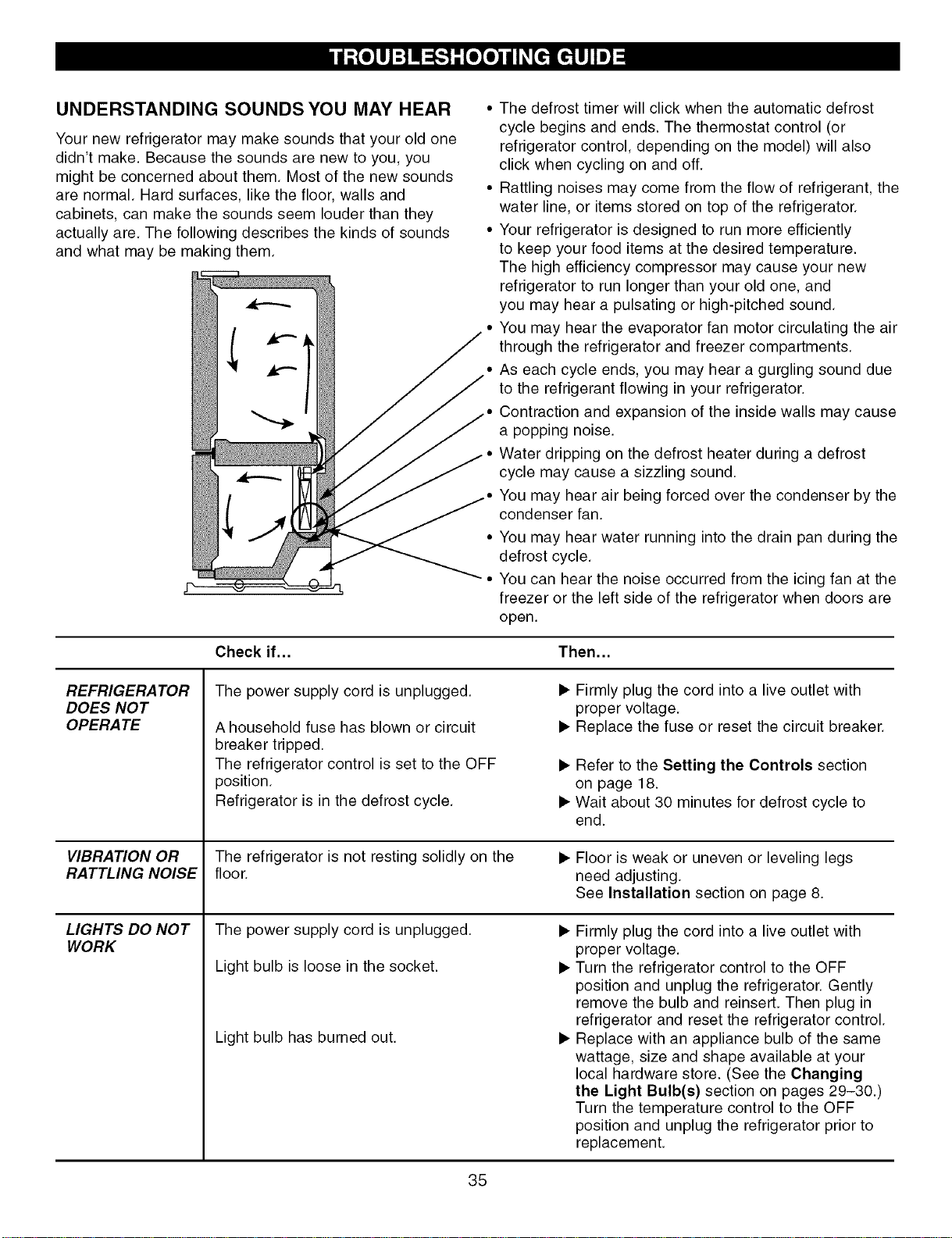

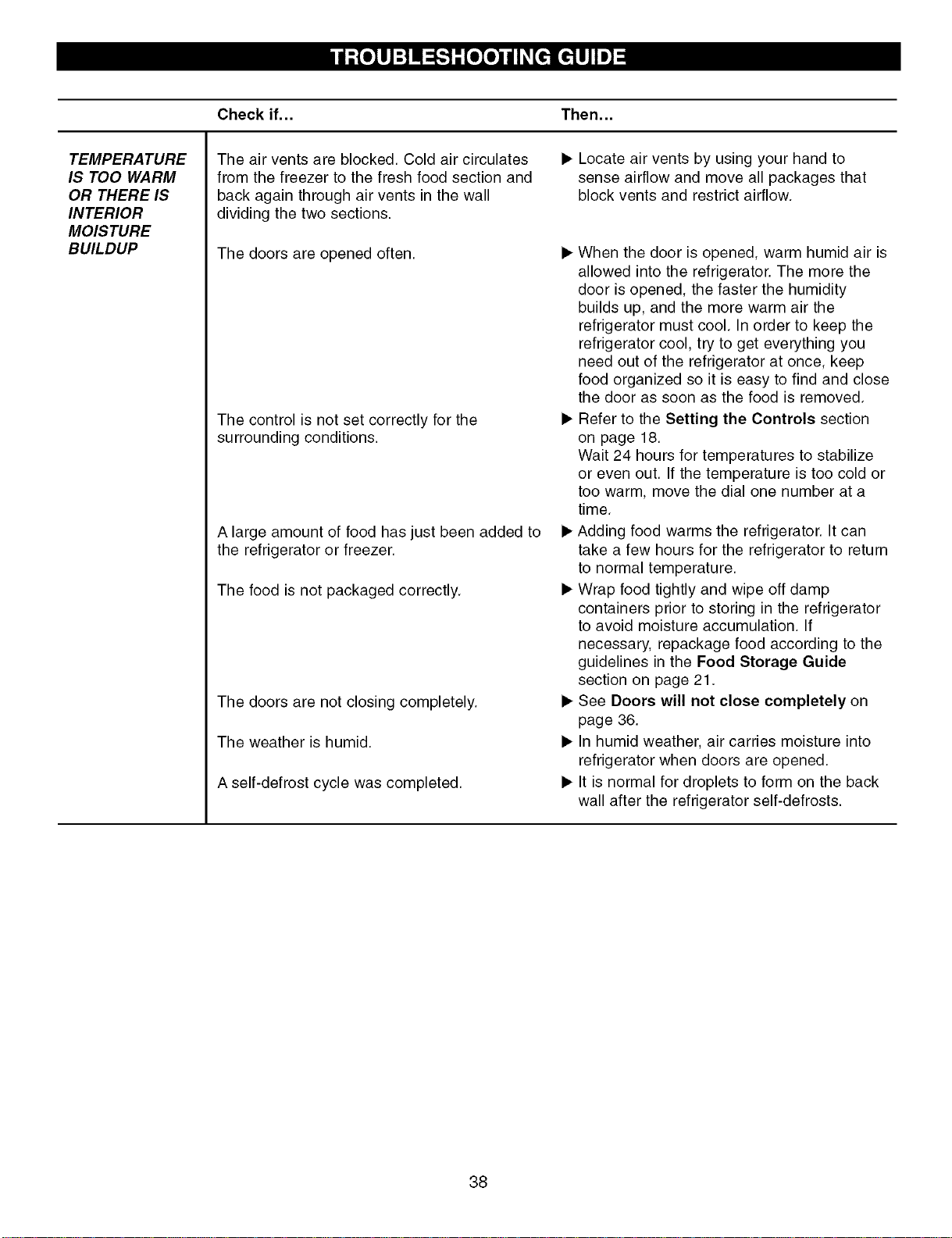

Troubleshooting Guide 35-38

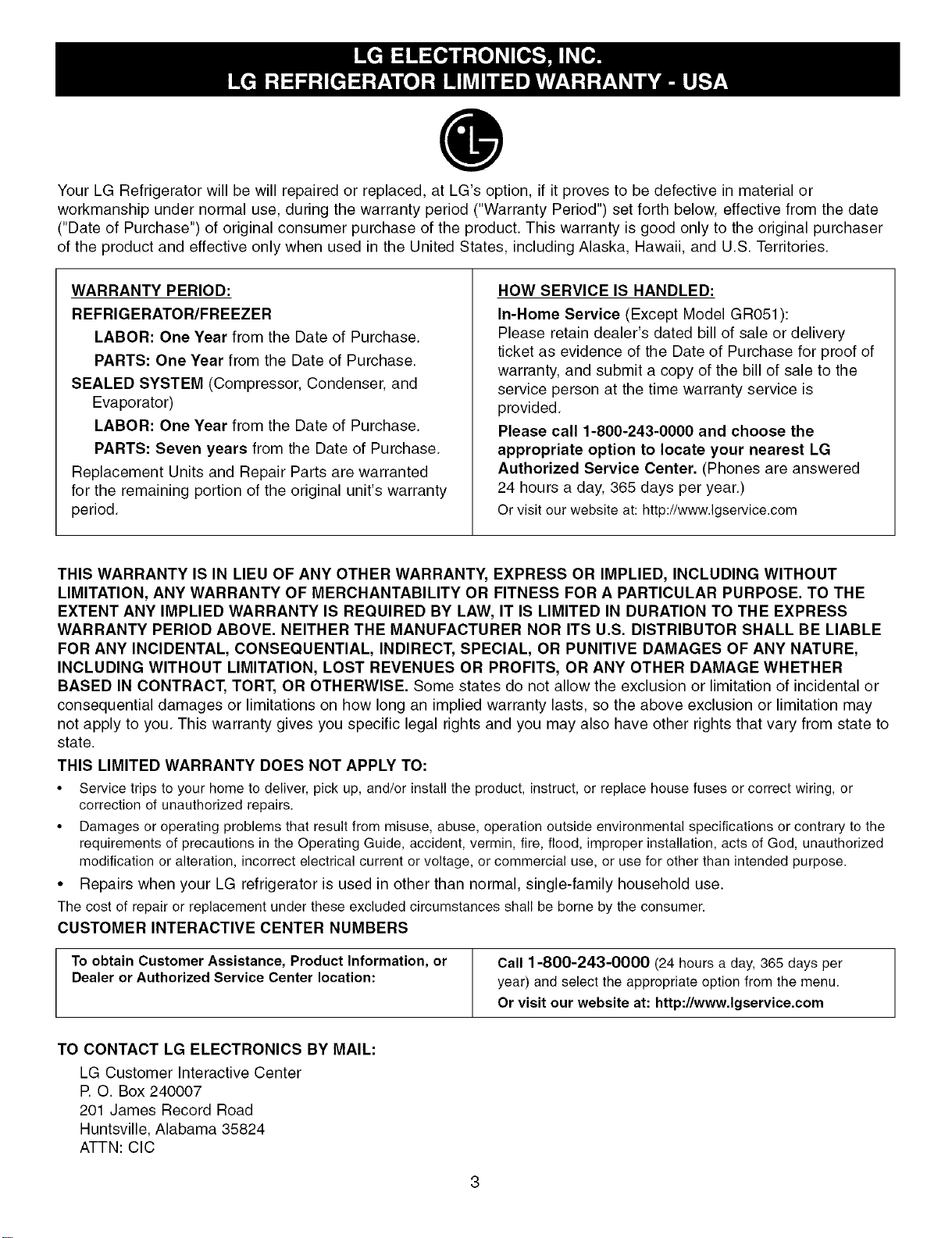

Your LG Refrigerator will be will repaired or replaced, at LG's option, if it proves to be defective in material or
workmanship under normal use, during the warranty period ("Warranty Period") set forth below, effective from the date
("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser
of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.
WARRANTY PERIOD:
REFRIGERATOR/FREEZER
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
SEALED SYSTEM (Compressor, Condenser, and
Evaporator)
LABOR: One Year from the Date of Purchase.
PARTS: Seven years from the Date of Purchase.
Replacement Units and Repair Parts are warranted
for the remaining portion of the original unit's warranty
period.
HOW SERVICE IS HANDLED:
In-Home Service (Except Model GR051):
Please retain dealer's dated bill of sale or delivery
ticket as evidence of the Date of Purchase for proof of
warranty, and submit a copy of the bill of sale to the
service person at the time warranty service is
provided.
Please call 1-800-243-0000 and choose the
appropriate option to locate your nearest LG
Authorized Service Center. (Phones are answered
24 hours a day, 365 days per year.)
Or visit our website at: http://www.lgservice.com
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE
FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE,
INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER
BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may
not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to
state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
• Service trips to your hometo deliver,pick up, and/or installthe product, instruct, or replace house fuses or correct wiring, or
correction of unauthorized repairs.
• Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or contrary to the
requirements of precautions in the Operating Guide, accident,vermin, fire,flood, improper installation,acts of God, unauthorized
modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.
• Repairs when your LG refrigerator is used in other than normal, single-family household use.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product Information, or
Dealer or Authorized Service Center location:
Call 1-800-243-0000 (24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: http://www.lgservice.com
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
ATTN: CIC

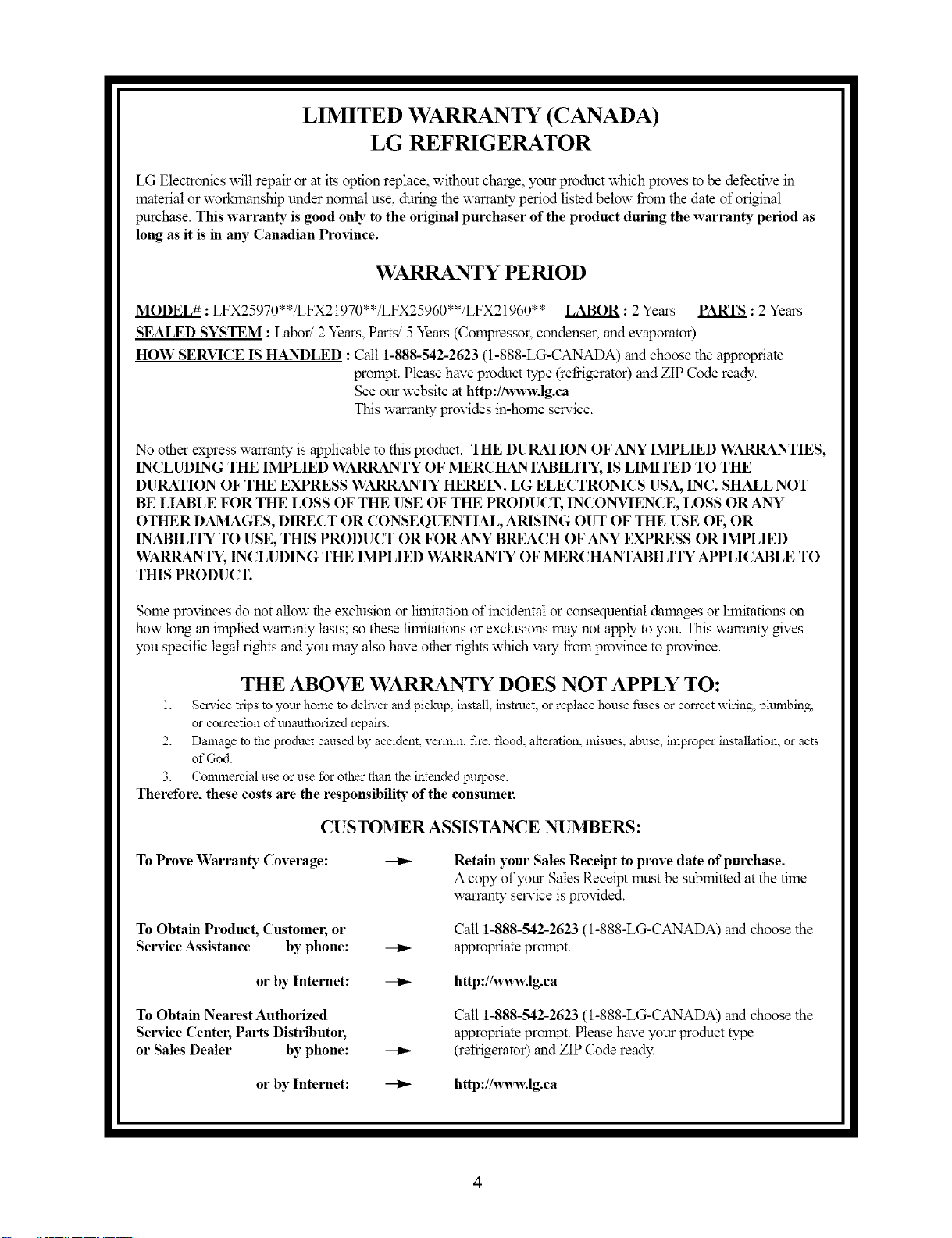

LIMITED WARRANTY (CANADA)
LG REFRIGERATOR
LG Electronics will repair or at its option replace, without charge, yore product which proves to be detective in
material or workananship under normal use, during the warranty period listed below fiom the date of original
purchase. This warranD is good onb 7to the original purchaser of the product during the warranD period as
long as it is in any Canadian Pro+Jnce.
WARRANTY PERIOD
MODEL# : LFX25970**/LFX21970**/LFX25960**/LFX21960** LABOR : 2Years PARTS : 2 Years
SEALED SYSTEM : Labor/2 Years, Parts/5 Years (Compressoi; condensm; and evaporator)
HOW SERVICE IS HANDLED : Call 1-888-542-2623 (1-888-LG-CANADA) and choose the appropriate
prompt. Please have product type (refrigerator) and ZIP Code ready.
See our website at http:/A_vw.lg.ca
This wan'amy provides in-home sin=ice.
No other express warranty is applicable to this product. THE DURATION OFANW IMPLIED WARRANTIES,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE
DURATION OF THE EXPRESS WARRANTY HEREIN'. LG ELECTRONICS USA, INC. SHALL NOT
BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONWIENCE, LOSS OR ANY
OTHER DAMAGES, DIRECT OR CONSEQUENTIAL ARISING OUT OF THE USE OF, OR
INABILITY TO USE, THIS PRODUCT OR FOR ANN BREACH OF ANN EXPRESS OR IMPLIED
WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO
THIS PRODUCT.
Some provinces do not allow the exclusion or lhnitation of incidental or consequential damages or lhnitations on
how long an implied wananty lasts; so these limitations or exclusions may not apply to you. This wananty gives
you specific legal rights and you may also have other rights which vary fiom province to provthce.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct wiring, plumbing,
o1"correction of unauthorized repairs.
2. Damage to the product caused by accident, vermin, fire, flood, alteration, misues, abuse, improper installation, or acts
of God.
3. Commercial use or use for other than the intended purpose.
Therefore, these costs are the responsibiliD of the consumel:
CUSTOMER ASSISTANCE NUMBERS:
To Prove WarranO _Coverage:
To Obtain Product, Customel; or
Service Assistance by phone:
or by Internet:
To Obtain Nearest Authorized
Service Centel; Parts Distributol;
or Sales Dealer by phone:
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the time
wananty smice is provided.
Call 1-888-842-2623 (1-888-LG-CANADA) and choose the
appropriate prompt.
http://_v.lg.ca
Call 1-888-542-2623 (1-888-LG-CANADA) and choose the
appropriate prompt. Please have your product type
(refi-igerator)and ZIP Code ready.
or by Internet: --_ http://_v.lg.ca

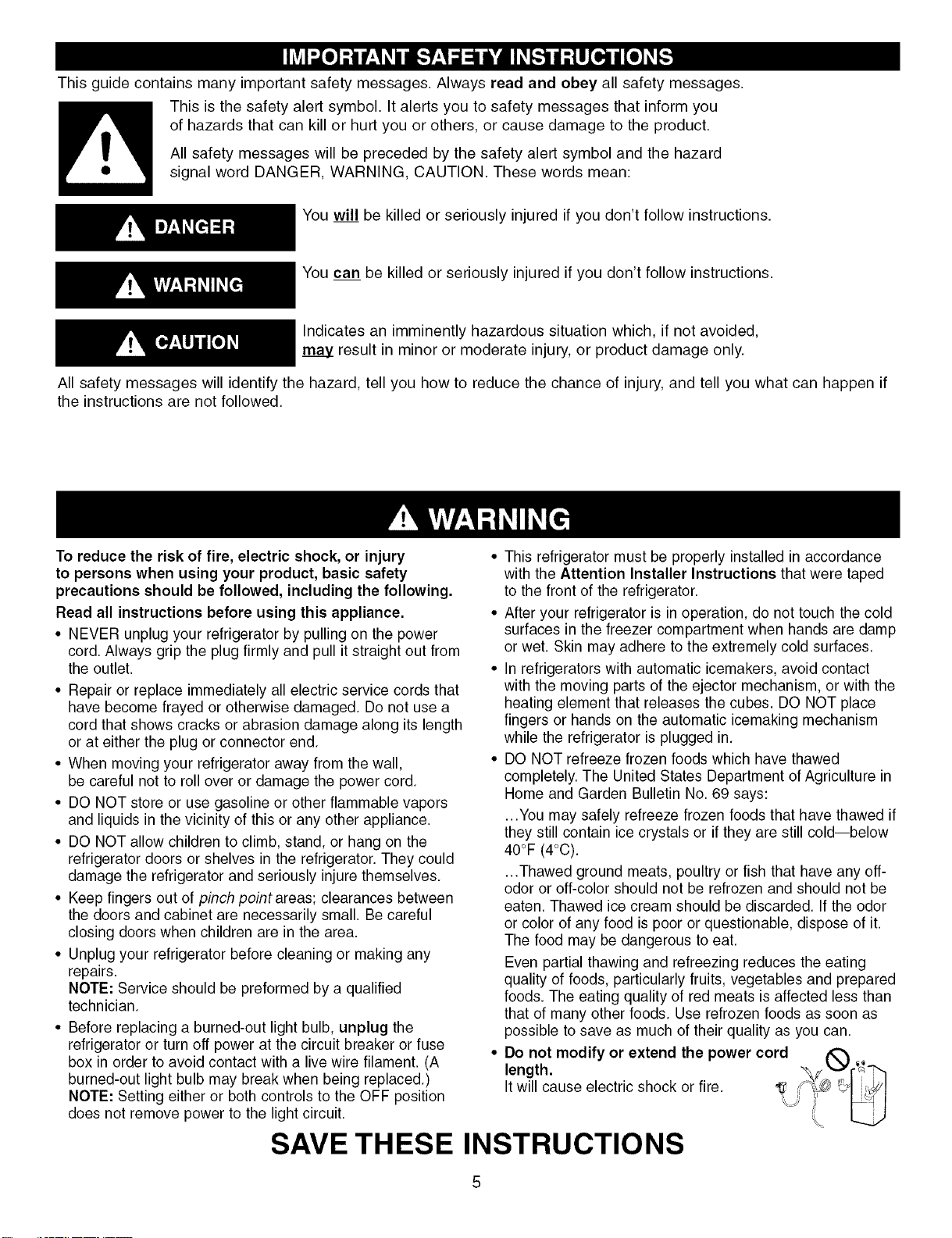

This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
To reduce the risk of fire, electric shock, or injury
to persons when using your product, basic safety
precautions should be followed, including the following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the power
cord. Always grip the plug firmly and pull it straight out from
the outlet.
• Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length
or at either the plug or connector end.
• When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• DO NOT allow children to climb, stand, or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
• Keep fingers out of pinch point areas; clearances between
the doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making any
repairs.
NOTE: Service should be preformed by a qualified
technician.
• Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse
box in order to avoid contact with a live wire filament. (A
burned-out light bulb may break when being replaced.)
NOTE: Setting either or both controls to the OFF position
does not remove power to the light circuit.
• This refrigerator must be properly installed in accordance
with the Attention Installer Instructions that were taped
to the front of the refrigerator.
• After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp
or wet. Skin may adhere to the extremely cold surfaces.
• In refrigerators with automatic icemakers, avoid contact
with the moving parts of the ejector mechanism, or with the
heating element that releases the cubes. DO NOT place
fingers or hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture in
Home and Garden Bulletin No. 69 says:
...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still coldIbelow
40°F (4°C).
...Thawed ground meats, poultry or fish that have any off-
odor or off-color should not be refrozen and should not be
eaten. Thawed ice cream should be discarded. If the odor
or color of any food is poor or questionable, dispose of it.
The food may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and prepared
foods. The eating quality of red meats is affected less than
that of many other foods. Use refrozen foods as soon as
possible to save as much of their quality as you can.
• Do not modify or extend the power cord
length.
It will cause electric shock or fire.
SAVE THESE INSTRUCTIONS
Junked or abandoned refrigerators are dangerous...
even if they will sit for just a few days. If you are
deposing of your old refrigerator, please follow the
instructions at right to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric ozone.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
3-prong
grounding type
wall receptacle
3-prong
grounding I l
plug_
Ensure proper
ground exists
before use.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the
refrigerator from the electrical source. When you are
finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator Control or
Freezer Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (USA), 3-wire grounding type appliance
extension cord having a grounding type plug and outlet,
and that the electrical rating of the cord be 15 amperes
(minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
I
Use this page to become more familiar with the parts and features. Page references are included for your convenience.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
O Refrigerator Light (p. 27)
Q Filter (Inside) (p. 26)
Modular Door Bins (p. 24)
Refrigerator Shelves (p. 21)
Optibin Crisper (p. 22)
(Keeps fruits and vegetable fresh
and crisper)
Ice Room (p. 18)
(Ice Maker and Ice Bucket)
Pull out Drawer (p. 25)
Turbo Motor
tI) Tilt-Out Door Basket (p. 24)
t_ Durabase (p. 25)
Divider (p. 25)
Ice Bin (p. 24)
!_ Water Tank Cover
i_ Snack Pan (p. 22)
Egg Box (p. 24)
Dairy Bin (p. 23)
Bottle Holder (p. 21)
Ice Bucket
Ice Room Door
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
INSTALLATION
1. To avoid vibration, the unit must be level. If required,
adjust the leveling legs to compensate for unevenness
of the floor. The front should be slightly higher than the
rear to aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the leveling
legs clockwise ("_'_) to raise the unit,
counterclockwise (_,.L) to lower it.
2. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
3. Allow the clearance of at least 2 inch from the ceiling and 1
inch from the side walls for better cooling efficiency, ease of
installation, proper air circulation and electrical connections.
& CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours before
putting food in it. Check the flow of cold air in the
freezer compartment to ensure proper cooling. Your
refrigerator is now ready for use.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out
when moving it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage could occur.
WARNING
• Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
• Do not put hands or foot or metal sticks into air vents,
base grille, or bottom of refrigerator. You may be injured
or receive an electrical shock.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.

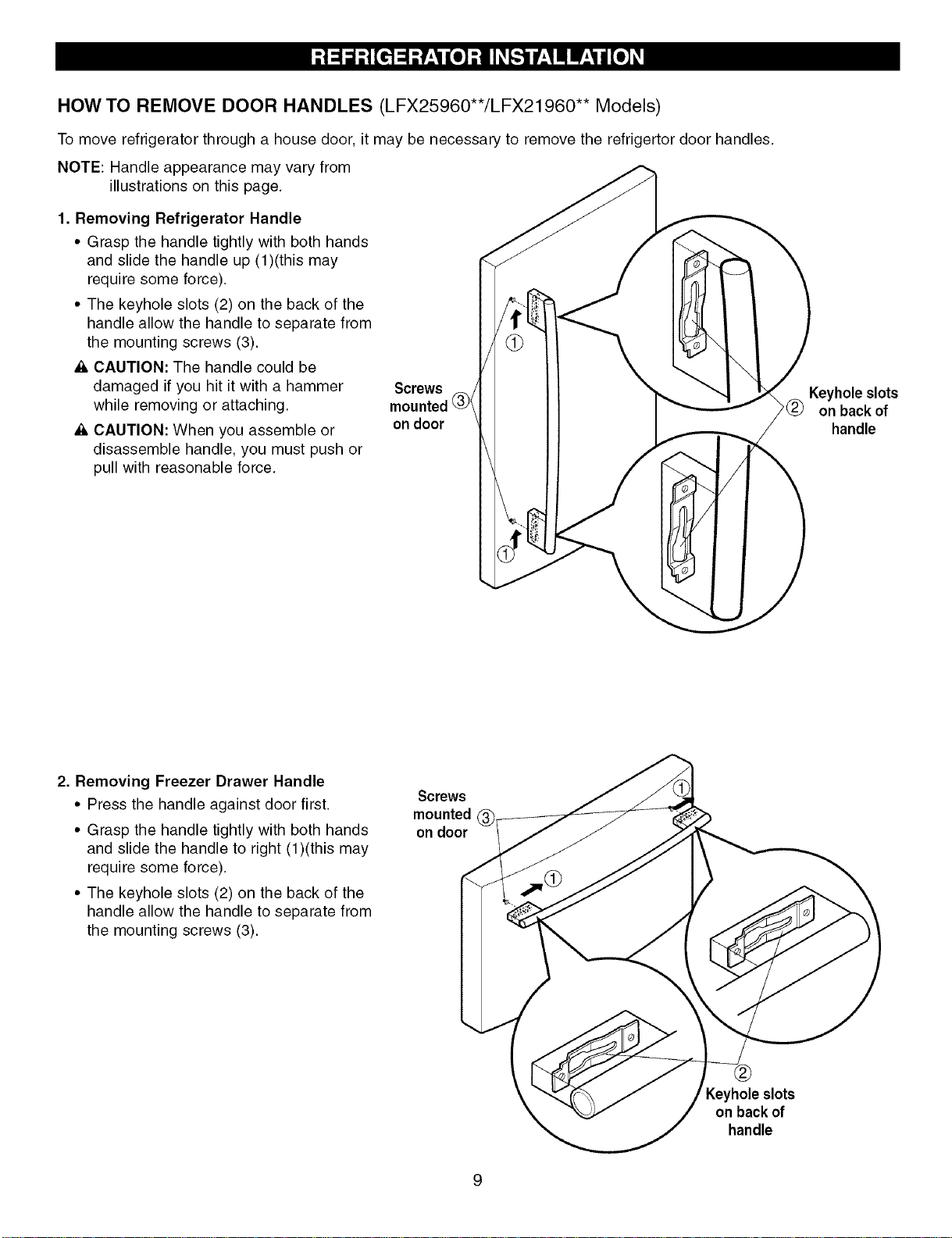

HOW TO REMOVE DOOR HANDLES (LFX25960**/LFX21960** Models)
To move refrigerator through a house door, it may be necessary to remove the refrigertor door handles.
NOTE: Handle appearance may vary from
illustrations on this page.
1. Removing Refrigerator Handle
• Grasp the handle tightly with both hands
and slide the handle up (1)(this may
require some force).
• The keyhole slots (2) on the back of the
handle allow the handle to separate from
the mounting screws (3).
_, CAUTION: The handle could be
damaged if you hit it with a hammer
while removing or attaching.
_, CAUTION: When you assemble or
disassemble handle, you must push or
pull with reasonable force.
Screws
on door
A Keyholeslots
?_ on back of
j handle
2. Removing Freezer Drawer Handle
• Press the handle against door first.
• Grasp the handle tightly with both hands
and slide the handle to right (1)(this may
require some force).
• The keyhole slots (2) on the back of the
handle allow the handle to separate from
the mounting screws (3).
Screws
mounted _!
on door
Keyhole slots
on backof
handle
HOW TO REPLACE DOOR HANDLES (LFX25960**/LFX21960** Models)
NOTE: Handle appearance may vary from
illustrations on this page.
1. Reinstalling the Refrigerator Door Handle
• Align keyhole slots (1) on the top and
bottom of the back of the handle with the
screws (2) mounted on the front of the
door.
• Press the handle against the door front,
making sure that the screws (2) go into the
keyhole slots (1).
• Holding the handle with both hands, press
it firmly against the front of the door and
slide the handle down (3).
Screws
mounted
on door
2. Reinstalling the Freezer Drawer Handle
• Align keyhole slots (4) on the right and left
sides of the back of the handle with the
screws (5) mounted on the front of the
drawer.
• Press the handle against the drawer front,
making sure that the screws (5) go into the
keyhole slots (4).
• Holding the handle with both hands, press
it firmly against the front of the drawer and
slide the handle to the left (6).
®
Screws
mounted
on door
Keyholeslots
on back of
handle
10
HOW TO REMOVE DOOR HANDLES (LFX25970**/LFX21970** Models)
To move refrigerator through a house door, it maybe necessary to remove refrigerator and freezer door handles.
NOTE: Handle appearance may vary from illustrations on this page.
1. Removing Refrigerator Handle
• Loosen the set screws with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.
Set Screw
Allen Wrench
Mounting
Fasteners
2. Removing Freezer Drawer Handle
• Loosen the set screws located on the lower
side of the handle with the 3/32" Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4"
Allen wrench.
11
HOW TO REPLACE DOOR HANDLES (LFX25970**/LFX21970** Models)
NOTE: Handle appearance may vary from illustrations on this page.
1. Replacing Refrigerator Door Handle
• Place the handle on the door by adjusting handle
footprints to fit mounting fastners and tighten the set
screws with the 3/32" Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4" Allen wrench.
Mounting
Fasteners
2. Replacing Freezer Drawer Handle
• Place the handle on the door by adjusting handle
footprints to fit mounting fastners and tighten the set
screws on the bottom of the handle with a 3/32"
Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4" Allen wrench.
12
REMOVING AND REPLACING REFRIGERATOR DOORS
1. Removing Refrigerator Door
_, CAUTION: Before you begin, unplug the refrigerator. Remove food and bins from doors.
• Left Door - FIG.2
1. Disconnect water supply tube by pushing back on the disconnect ring (4). - FIG.1
2. Open door. Loosen top hinge cover screw (1).
Use flat tip screwdriver to pry back hooks on front underside of cover (3). Lift up cover.
3. Disconnect door switch wire harness (2). Remove cover.
4. Pull out the tube.
5. Disconnect the three wire harnesses (5). Remove the grounding screw (6).
6. Rotate hinge lever (7) counterclockwise and remove. Lift top hinge (8) free of hinge lever latch (9).
_, CAUTION: When lifting hinge free of latch, be careful that door does not fall forward.
7. Lift door up from middle hinge pin and remove door.
8. Place door, inside facing up, down onto a non-scratching surface.
• Right Door - FIG.3
1. Open door. Loosen top hinge cover screw (1). Lift up cover (3).
2. Disconnect door switch wire harness (2). Remove cover.
3. Disconnect wire harness (5). Remove the grounding screw (6).
4. Rotate hinge lever (7) clockwise and remove. Lift top hinge (8) free of hinge lever latch (9).
_, CAUTION: When lifting hinge free of latch, be careful that door does not fall forward.
5. Lift door up from middle hinge pin (10) and remove door.
6. Place door, inside facing up, down onto a non-scratching surface.
FIG.2 FIG .3
\\
FIG.1
13
2. Reinsalling the Refrigerator Door
• Right Door
1. Lower the door onto middle hinge pin (10).
2. Fit top hinge (8) over hinge lever latch (9) and intoplace. Insert hinge lever (7) under lever latch. Rotate lever
counterclockwise to secure hinge.
3. Install the grounding screw (6) and connect the three wire harnesses (5).
4. Connect door switch wire harness (2).
5. Hook tab on door switch side of cover under edge of wire opening in cabinet top. Position cover (3) into place. Insert
and tighten cover screw (1).
• Left Door
1. Lower the door onto middle hinge pin (10).
2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever clockwise
to secure hinge.
3. Install the grounding screw (6) and connect the three wire harnesses (5).
4. Connect door switch wire harness (2).Push the water supply tube into the hall on the top case and pull it out on the
backplate.
5. Insert the water supply tube (4) into the connector tube until you see only one scale mark.
(Fully insert the tube over 5/8"(15mm)).
6. Hook tab on door switch side of cover (3) under edge of wire opening in cabinet top. Position cover into place. Insert
and tighten cover screw (1).
Correct
Incorrect
14
HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to perform the
following instructions.
1. Removing Pullout Drawer
• Pull the drawer open to full extension. Remove the
lower basket (1) by lifting basket from rail system.
(If you tilt the door, it will be easier.)
• Press both hangers with your thumbs to lift it up.
• Separate the left and right rail cover
• Remove the screws(2) of the rail on both sides.
J
• With both hands, hold both sides of the door and pull it
up to separate it from the rails.
• With both hands, hold the center bar and push it in to let
both rails fitted simultaneously.
_i, CAUTION: When you remove the drawer, do not hold
the handle. If it may come off and it could cause
personal injury.
_i, CAUTION: When laying the drawer down, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.
15
HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to perform the
following instructions.
2. Installing Pullout Drawer
• With both hands, hold the center bar and push it out to
let both rails out to full extension simultaneously.
• Hook door supports (1) into rail tabs (2).
• Make sure you have a right rail cover for each side.
Right
Rail Cover
Left
Rail Cover
• Align the top holes of the rail cover with the top holes of
the door supports to assemble the rail covers.
Assembly Hole
• Lower door into final position and tighten the screws (3).
J
• With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly.
f
WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
WARNING: DO NOT step or sit down on freezer door.
16
LEVELING AND DOOR ALIGNMENT
Leveling
Your refrigerator has two front leveling legs--one on the
right and one on the left. Adjust legs to alter tilt from front-
to-back or side-to-side. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator's tilt using the instructions below:
1. Plug the refrigerator's power cord into a 3-prong grounded
outlet. Move the refrigerator into its final position. Remove
the base cover.
To remove the base cover
1. Open the Freezer Drawer. (Drawer not shown for clarity.)
2. Once drawer is open there is sufficient clearance to
remove legs on top of cover.
To replace base cover
• Place cover into position and insert and tighten legs.
2. Turn the leveling leg clockwise to raise that side of the
refrigerator or counterclockwise to lower it. It may take
several turns of the leveling leg to adjust the tilt of the
refrigerator.
NOTE: Having someone push backward against the
top of the refrigerator takes some weight off the
leveling legs. This makes it easier to adjust the legs.
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling legs clockwise. It
may take several more turns, and you should turn both
leveling legs the same amount.
4. Re-adjust if necessary.
5. Reinstall the base cover.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have to
exert slight pressure on doors to get them to close
completely.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with the refrigerator.)
17
SETTING THE CONTROLS
Temperature
•Your refrigerator has a control pad on the dispenser that lets
you regulate the temperature in the freezer and refrigerator
compartments.
• Initially set the REFRIGERATOR CONTROL at 37°F (3°C)
and the FREEZER CONTROL at 0°F (-18°C). Leave it at
this setting for 24 hours (one day) to stabilize. Then adjust
the compartment temperature as desired.
Filter
• It displays in months the number of months left to
exchange the filter from the moment power is connected
to the refrigerator.
• If you have changed the filter after 6 months of use or
want to reset the filter display, press and hold the Filter
Reset Button 3 seconds or more and the filter display
will be initialized with a buzzing sound.
NOTE : The average life of the filter is 6 months.
Auto Light (LFX25970**/LFX21970** only)
• The dispenser lamp is on oroffautomaticallyby brightnessof
the room discoveredfrom the lightsenser.
(LFX25970**/LFX21970**)
1111 |
(LFX25960**/LFX21960**)
Light/Light Sensor (LFX25970**/LFX21970** only)
• Ifthe lightisset "Auto" mode, dispenser lightwill automatically
turn on and offaccording to the brightnessof room detected by
light sensor.
• Every time you touch the freezer temperature adjust
button, the temperature changes in a circulating order of
"0" *"-1" *"-2" *"-3" *"-4" *"-6" *"8" *"6" *"5" *"4" *"3"
*"2" *"1" *"0".
• Every time you touch the refrigerator temperature adjust
button, the temperature changes in a circulating order of
"37" *"36" *"35" *"34" *"32" *"47" *"45" *"44" *"43" *"42"
*"41" *"40" *"39" *"38" *"37".
CAUTION: The control display is operated by touch.
Excessive moisture on the display may cause a
malfunction. Please keep display clean and dry.
NOTE: This is to prevent the unintended working error
when touching again. When 10 seconds has passed
since final touch, the existed display blinks once and
then the key starts to work by second touch.
(LFX25960**/LFX21960** only)
Ice Plus
• When you touch the "ICE PLUS" button, the graphic
[_ ] will light up in the display and itcontinues for 24hours.
It will automatically shut off after 24hours have passed.
Or you can stop this function manually by touching the
button one more time.
•This function imcreases both icemaking and freezing
capabilities.
Dispenser
•You can select water, crushed ice, or cubed ice by
touching 0 button as you desire.
•There could be some dripping after dispensing.
It is recommended to hold your cup for a couple
of seconds after dispensing.
NOTE : The dispenser is desinged not to operate
while either refrigerator door is left open.
Alarm
• When the power is connected to the refrigerator, door
alarm is initially set OFF and door alarm display will
show K] . When you touch _0_ button, the display will
change to @) and door alram function is now activated.
• When either refrigerator or the freezer door is left open
for more than 60 seconds, the alarm will ding to let you
know the door is open.
• When you close the door, the door alarm will stop dinging.
• If you want to disable the door alarm function, touch '_(_=
button then the door alarm display will switched to _] T
Lock
• When the power is initially connected to the refrigerator,
Lock Function is Off.
• If you want to activate Lock Function to lock other
buttons, press and hold 0 button for 3 seconds or
more. I_1sign will be displayed and the Lock Function
is now enabled.
,tua_t0c_
• No buttons other than 0 button will work even
including dispenser button while Lock Function is
enabled.
• To disable the Lock Function, press and hold _('_' button
for 3 seconds or more.
Ambient Temperature Display Window.
• Temperature is displayed only between
16OF- 120OF (-9°C - 49oc).
• Temperature less than 15F (-9°C) is
indicated with LO and temperature more
than 121°F (49°C) is indicated with HI.
Temperature Mode Switch Function (°F <->°C)
• If you want to convert °F to °C or vice versa, press and
hold 0 button and "_°" button simultaneously for 5
seconds or more.
18
Display Power Saving Mode
Display Power Saving Mode
This function places the display into power saving mode until the next time the door is opened.
Press the FREEZER and ICE PLUS buttons simultaneously and hold them for 5 seconds until the Ding sounds. All LEDs
will then turn ON, then OFR When the power saving mode is activated, the display will remain off until the next time the
door is opened. Then, it will come on whenever a door is opened or a button is pressed and remain on for 20 seconds
after the last door opening or button selection. To deactivate the power saving mode, press the FREEZER and ICE
PLUS buttons simultaneously and hold them for 5 seconds until the Ding sounds.
ENSURING PROPER AIR CIRCULATION
Do not block air channels with any objects or food for air circulation to prevent food loss due to the lack of cooling air.
CAUTIONS
Throw away the first 20 ice cubes made, and the first 7 glass of
dispensed water after installation.
This is also recommended if the refrigerator has not been used for a long
time.
Keep children away from the dispenser.
Children may play with or damage the controls.
Storing cans or other items in the ice bucket may damage the icemaker.
Never use thin crystal glass or crockery to collect ice cubes.
Such glasses or containers may be broken.
Get ice cubes first into a glass before dispensing water.
Water may splash if it is done in opposite way..
Keep your hands and tools out of the ice room door and dispenser chute..
You could break something or injure yourself.
Shake the ice bucket occasionally to level the ice in it.
Ii-- 1
Ice Bucket
Ice Room Door
Sometimes the ice piles up near the icemaker, causing the icemaker to misread the amount of ice cubes and stop
producing ice.
Never use narrow or deep glass.
Ice could be stuck inside dispenser chute and, thus the refrigerator could fail.
Keep the glass at a proper distance from dispenser chute.
A glass too close to the outlet may hinder ice from coming out.
Keep the ice room door closed tightly after opening it.
If the ice room door were not closed tightly, the cold air in the ice room would come into
refrigerator compartment and freeze food. This could cause the ice maker not to produce ice.
Close the ice room door until you hear the sound "flick".
When the door doesn't properly close, ice in the ice room could be melt, or frost and icicle could
be formed within the refrigerator.
19
HOW TO USE A NEW DOOR ICE BUCKET
The ice maker will stop producing ice when ice bucket is full. If you need more ice, please use the extra ice bucket in
freezer compartment so icemaker can keep producing ice.
How to remove the Door Ice Bucket.
1 . Grip the handle as shown in
the picture
How to reinstall the Door Ice Bucket.
2. Lift the lower part slightly.
t-
3. Take the ice bucket out slowly.
1 . Replace ice bucket by slightly slanting it to avoid
touching the ice maker.
* Avoid touching the automatic shut off arm when
replacing the ice bucket.
20
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
making final adjustments. It is best to wait 24 hours
before doing this. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is as cold as you like and when ice cream
is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator. Then wait 24
hours before checking the freezer temperature. If it is too
warm or too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
CONDITION/ RECOMMENDED
REASON: ADJUSTMENT:
• REFRIGERATOR section too
warm
- Door opened often
- Large amount of food added
- Room temperature very warm
Set REFRIGERATOR
control to next lower
number, wait 24
hours, then re-check
• FREEZER section too
warm/ice not made fast
enough
- Door opened often
- Large amount of food added
- Very cold room temperature
(can't cycle often enough)
- Heavy ice usage
- Air vents blocked by items
Set FREEZER control
to next lower number,
wait 24 hours, then re-
check
Move items out of
airstream
• REFRIGERATOR section too
cold
- Controls not set correctly for
your conditions
Set REFRIGERATOR
control to next higher
number, wait 24
hours, then re-check
• FREEZER section too cold
- Controls not set correctly for
your conditions
Set FREEZER control
to next higher number,
wait 24 hours, then re-
check
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Items How to
Butter or •
margarine
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese •
Store in the original wrapping until
you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Milk • Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs • Store in original carton or Egg Box
on interior shelf, not on door shelf.
Fruit • Wash, let dry, and store in
refrigerator in plastic bags or in
the crisper. Do not wash or hull
berries until you are ready to use
them. Sort and keep berries in
their original container in a
crisper, or store in a sloosely
closed paper bag on a refrigerator
shelf.
Leafy vegetables •
Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Vegetables with
skins (carrots,
peppers)
• Place in plastic bags or plastic
container and store in crisper.
Fish • Use fresh fish and shellfish the
same day purchased.
Leftovers
Cover leftovers with plastic wrap
or aluminum foil. Plastic
containers with tight lids can also
be used.
21
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If it does, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
A CAUTION: Do not keep beverage cans or plastic food
containers in the freezer compartment. They may break
if they freezer.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 Ibs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
REFRIGERATOR SECTION
WATER DISPENSER
Tray can be easily removed by pressing and pulling it.
Tilt up the front of tray slightly and snap the ribs into the
holes to reinstall the tray.
Holes
Ribs
WARNING: Do not throw your hands in the water & ice
opening. Doing so can result in amputation or cuts.
22
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have
glass or wire shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
• To remove a shelf--Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
• To reinstall a shelf--Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired height.
Then lower the front of the shelf so that the hooks drop
into the slots.
_, CAUTION: Make sure that shelves are level from one
side to the other. Failure to do so may result in the
shelf falling or spilling food.
Sliding Out Shelves
You can slide glass shelves in and out of your refrigerator
as follows.
• To slide the shelf out, carefully pull front of shelf
toward you.
• To slide shelf in, push shelf in until it stops.
BOTTLE HOLDER
Bottles can be stored laterally with this bottle holder. It
can be attached to any shelf.
Bottle holder can be removed by pulling it straight out and
installed by placing it at the end of the shelf you want and
pushing it inward.
23
SNACK PAN
While holding the chef fresh with one hand, pull it forward
slightly.
1
OPTIBIN CRISPERS
The Optibin Crispers provide fresher-tasting fruit and
vegetables by letting you easily control humidity inside the
crisper. The Optibin Crispers include: 1) a humidity control
knob at the front of the crisper cover and 2) a large lattice on
the inner surface of the cover to hold or release moisture.
CRISPER HUMIDITY CONTROL
You can control the amount of humidity in the moisture-
sealed crispers. Store vegetables or fruits requiring more
or less humidity in separate crispers. Adjust the control to
any setting between @ and .:_ .
• _._lets moist air out of the crisper for best storage of
fruits.
• @ keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
_, CAUTION: The glass shelf over the crisper is not firmly
secured. Be careful when tilting.
REMOVING CRISPER
• Crispers without rails
1. To remove, pull the drawer out to full extension.
2. Lift the front of the crisper up, then pull it straight out.
3. To install, slightly tilt up the front and insert the drawer
into the frame and push it back into place.
c
• Crispers with rails
To remove crisper
1. Pull the drawer out to full extension.
2. Lift the front of the crisper up and pull it straight out.
To replace crisper
1. Push rails to the back of the compartment.
2. Insert the back corner of the crisper into the frame.
3. Slightly tilt up the front and push the drawer back until it
snaps into place.
24
To remove crisper door flap
1. Raise the door flap as high as it will open.
2. Press the plastic hinge toward the center of the door
flap with your finger.
3. Lift the door out of its place.
4. To replace, reverse the above procedure.
To remove the glass
1. Lift up the glass after inserting a finger into a hole
under the crisper cover.
2. Pull the glass up and out.
1. Remove crisper cover (as illustrated above).
2. Hold the glass cover and turn the crisper cover over.
3. For each lattice hold lattice and pull sides of the cover
outward to remove lattice.
To replace lattice on inner surface
1. For each lattice insert middle tab in 1 (closed to glass
cover)and pull sides of the cover to insert lattice.
CRISPER COVER WITH LATTICE ON INNER
SURFACE
To remove the lattice on inner surface
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull straight
out.
2.To replace the dairy bin, slide it in above the desired
location and push down until it stops.
25
MODULAR DOOR BIN
The door bins are removable for easy cleaning and
adjusting.
1. To remove the bin, simply lift the bin up and pull
straight out.
2. To replace the bin, slide it in above the desired support
button and push down until it stops.
WARNING: Somebody can be hurt if door bins are not
firmly assembled.
NOTE: DO NOT adjust a bin that is loaded with food.
CAUTION: DO NOT allow children to play with
baskets. Sharp corners on baskets could cause injury.
EGG BOX
Store the egg box on interior shelf, not on door shelf.
A CAUTION: Do not use the egg box as an ice storage
bin in the freezer compartment. The egg box can easily
break if it freezes.
FREEZER SECTION
TILTING DOOR
The tilting door provides easy access for stored foods.
How to use
Tilt the door down and pull it out.
WARNING: Be careful when you open tilting door so
that you do not injure your foot!
TILT-OUTDOOR BASKET(LFX25*****only)
To remove basket
1. Pull one of the brackets upward.
2. Remove basket from both brackets.
To replace basket
1. Insert bracket into one side. Hook end of basket into
bracket.
2. Hook other basket end into other bracket. Push bracket
down into place.
3. Be sure back of basket goes behind retention tab on
each bracket.
ICE BIN
1. To separate the ice bin, pull out the drawer as much as
possible.
2. Gently lift and pull out the ice bin.
3. To install, pull out the drawer as much as possible and set
the ice bin in its correct position, then push in the drawer.
DRAWER
ICE BIN
26
DURABASE
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly.
PULL OUT DRAWER
To separate the drawer, push the front left and right hooks
in O direction to pull up and remove.
Then gently lift the gear part of rear left and right side of
the drawer and pull it out in ® direction.
To install, reposition the gear part of rear left and right
side of the drawer after pulling out both rails as much as
possible, and gently push down both left and right side
while checking the hook on the front part.
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections.
1. To remove, pull divider staight up.
2. To install, hook top corners of divider over top edge of
durabase.
_i,WARNING: When the divider of the freezer drawer is
removed, children may crawl inside.
27
FILTER
It is recommended that you replace the filter when the
water filter indicator light turns on or your water dispenser
or ice maker performance decreases noticeably.
2. Replace with a new cartridge.
Take the new cartridge out of its packaging and
remove protective cover from the o-rings.
With cartridge knob in the vertical position, push the
new filter cartridge into the cover until it stops.
After changing the water filter cartridge, reset the water
filter status display and indicator light by pressing and
holding the button for 3 seconds.
1. Remove the old cartridge.
Place a container under ..............................................................................................................................................
the hole of filter holder.
If you can't turn the filter from side to side, it isn't fully
inserted. Push it in firmly and twist it into place. You
will hear the snap when it clicks into place.
Using its handle, twist the cartridge clockwise about 1/4
turn. You will hear the snap when it clicks into place.
NOTE: When filter is being removed, the water drains
through the hole.
Rotate the knob of the
cartridge counter
clockwise.
Pull out the filter cartridge.
3. Flushing the Water System After Replacing Filter
Dispense water through the water dispenser for 3
minutes to purge the system.
NOTE: To purchase replacement water filter cartridges,
visit your local appliance dealer or part distributor. You
can also visit our website: www.lgappliances.com or call
1-877-714-7481. The replacement water filter cartridge's
part number is 5231JA2006B.
28
Explosion Hazard
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freefler sections defrost
automatically. However, clean both sections about once
a month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or
auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
INSIDE WALLS (allow freezer to warm up so
cloth won't stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is
completely dissolved so does it not scratch the surfaces
of the refrigerator.
& CAUTION: While cleaning the inside, do not spray water.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergents,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
PLASTIC PARTS (covers and panels)
LIGHT BULB REPLACEMENT
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
NOTE: Not all appliance bulbs will fit your refrigerator. Be
sure to replace the bulb with one of the same size, shape
and wattage.
To change Refrigerator Light Bulbs
1. Unplug Refrigerator, or disconnect power at the circuit
breaker.
2. If necessary, remove top shelf or shelves.
3. Using a flat instrument, gently pry the lamp cover loose in
the front as shown. Rotate downward to remove rear tabs.
4. Make sure the bulbs are cool to the touch.
Turn bulbs counterclockwise to remove. Insert new bulb(s).
5. Assemble in reverse order by snapping the Lamp Cover
in, engaging the rear tabs followed by the front tabs.
Do not use window sprays, abrasive cleansers, or flammable
fluids. These can scratch or damage the material.
29
Tochangefreezerlight
1.Unplugrefrigeratorpowercordformoutlet.
2.Usingaflatinstrument,gentlyprythelampcoverloose
inthefrontasshown.Rotatedownwardto removethe
reartabs.
3.Makesurethebulbiscooltothetouch.Turnthebulb
counterclockwisetoremove.
4.Replacewithanew60-wattappliancebulb.
5.Inserttabsonbackofcoverintoslotsinfreezerceiling.
Pushcoveruptosnapfrontintoplace.
I
_i, CAUTION: DO NOT place fingers inside of cover.
Lamp may be hot.
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep
all refrigerator doors closed to help foods stay
cold and frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFR See the Setting the
Controls section.
.
4.
Clean refrigerator, wipe it and dry well.
Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Unplug the refrigerator.
4. Clean, wipe and dry thoroughly.
5. Take out all removable parts, wrap them well and tape
them together so they don't shift and rattle during the
move. Refer to sections in Using your Refrigerator for
removal instructions.
6. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don't scrape the floor.
See the Door Closing section.
7. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
3O
!:l :l{I]lli / / I 1:1l:llii{I] illI:t / [4 lilt :1illI:I N ! it
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
OPERATION INSTRUCTIONS
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
Icemaker
Automatic
Shut off Arm
Cube Size Power Switch
Indicator Light Cube Size
Select Button
The icemaker will produce six cubes per cycle--
approximately 100-130 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to O (off).
When the refrigerator has been connected to the water
supply, set the power switch to I (on).
The icemaker will fill with water when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the
Automatic Shut off Arm.
When the bin fills to the level of the Automatic Shut off
Arm, the icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
31
NOTE: If the cube size is smaller or larger than you
expected, you can regulate the size with the cube size
button.
Every time you press the cube size button, the indicator
moves up one light. The higher the light position, the
larger the cubes will be. Pressing at the highest position
returns the indicator to the lowest position.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
• When the water supply will be shut off for several hours.
• When the ice bucket is removed for more than a minute
or two.
• When the refrigerator will not be used for several days.
NORMAL SOUNDS YOU MAY HEAR
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
• If you turn the ICE Maker off with ice in the Ice Bin,
the ice can melt and leak onto the floor.
• When you turn off the ice maker due to a long
vacation, empty all the ice within the ice bin.
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house •
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O •
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
NOTE: Wear eye protection.
WHAT YOU WILL NEED
• Copper Tubing, 1/4" outer JJ
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8 feet
[2.4 m] coiled into 3 turns of about 10" [25 cm] diameter) to
allow the refrigerator to move out from the wall after
installation.
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i, on models without a water
filter and between 40 and 120 p.s.i, on models with a
water filter.
• Power drill.
• 1/2" or adjustable
wrench.
• Straight- and Phillips-
blade screwdriver.
Two 1/4" outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
Shutoff valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
, CHOOSETHEVALVELOCATION
Choose a location for the valve
that is easily accessible. It is best
to connect into the side of a
vertical water pipe. When it is
necessary to connect into a
horizontal water pipe, make the
connection to the top or side,
rather than at the bottom, to avoid
drawing off any sediment from the water pipe.
3. DRILL THEHOLEFOR THE VALVE
Drill a 1/4" hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4" hole may result in
reduced ice production or smaller cubes.
32
INSTALLATION INSTRUCTIONS
(CONTINUED)
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clam_
Saddle-Type Vertical Cold
Shutoff Valve Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush
the tubing.
Pipe Clamp
Clamp Screw_
-Washer
_lnlet End
rE
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
Saddle-Type
Shutoff Valve _
Packing
Nut
Outlet
Valve
Compression
_€/, Nut
Ferrule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10" diameter) to
allow the refrigerator to move out from the wall after
installation.
33
, CONNECT THE TUBING TO THE
REFRIGERATOR
Removing and Replacing Valve Cover
NOTE: Before making the connection to the
refrigerator, be sure the refrigerator power cord is not
plugged into the wall outlet.
1. Place a compression nut and a ferrule(sleeve) onto
the end of tubing.
Compression Nut
Ferrule (sleeve)
10.TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that leak.
Reattach the compressor compartment access cover.
2. Insert the tube into the valve and fasten with wrench
as shown in the figure below.
©
[_
j
Tubing
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.
A CAUTION: Check to see if water dripping occurs at
water line connections.
NOTE: Water valve connector SVC guide When
separating the connector which is connected in the
Valve, press the portion of _ and pull the connector
with finger as shown in the the picture
12. START THE ICEMAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (-9°C) or below. It
will then begin operation automatically if the icemaker
power switch is in the I (on) position.
34
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
didn't make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds
and what may be making them.
• The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and
you may hear a pulsating or high-pitched sound.
• You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
Contraction and expansion of the inside walls may cause
a popping noise.
• Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
You may hear air being forced over the condenser by the
condenser fan.
• You may hear water running into the drain pan during the
defrost cycle.
• You can hear the noise occurred from the icing fan at the
freezer or the left side of the refrigerator when doors are
open.
Check if... Then...
REFRIGERATOR
DOES NOT
OPERATE
VIBRATION OR
RATTLING NOISE
LIGHTS DO NOT
WORK
The power supply cord is unplugged.
A household fuse has blown or circuit
breaker tripped.
The refrigerator control is set to the OFF
position.
Refrigerator is in the defrost cycle.
The refrigerator is not resting solidly on the
floor.
• Firmly plug the cord into a live outlet with
proper voltage.
• Replace the fuse or reset the circuit breaker.
• Refer to the Setting the Controls section
on page 18.
• Wait about 30 minutes for defrost cycle to
end.
The power supply cord is unplugged.
Light bulb is loose in the socket.
• Floor is weak or uneven or leveling legs
need adjusting.
See Installation section on page 8.
Light bulb has burned out.
• Firmly plug the cord into a live outlet with
proper voltage.
• Turn the refrigerator control to the OFF
position and unplug the refrigerator. Gently
remove the bulb and reinsert. Then plug in
refrigerator and reset the refrigerator control.
• Replace with an appliance bulb of the same
wattage, size and shape available at your
local hardware store. (See the Changing
the Light Bulb(s) section on pages 29-30.)
Turn the temperature control to the OFF
position and unplug the refrigerator prior to
replacement.
35
Check if... Then...
COMPRESSOR
MOTOR SEEMS
TO RUN TOO
MUCH
DOORS WILL
NOT CLOSE
COMPLETELY
FROST OR ICE
CRYSTALS ON
FROZEN FOOD
The refrigerator that was replaced was an
older model.
The room temperature is hotter than normal.
The door is opened often or a large amount of
food has just been added.
The refrigerator was recently plugged in and
the refrigerator control was set correctly.
The refrigerator control is not set correctly for
the surrounding conditions.
The doors are not closed completely.
The condenser coils are dirty.
• Modern refrigerators with more storage
space require more operating time.
• The motor will run longer under warm
conditions. At normal room temperatures,
expect your motor to run about 40% to 80%
of the time. Under warmer conditions,
expect it to run even more often.
• Adding food and opening the door warms
the refrigerator.
It is normal for the refrigerator to run longer
in order to cool the refrigerator back down.
Adding a large amount of food warms the
refrigerator. See the Food Storage Guide
section on page 21. In order to conserve
energy, try to get everything you need out of
the refrigerator at once, keep food organized
so it is easy to find and close the door as
soon as the food is removed.
• The refrigerator will take up to 24 hours to
cool completely.
• See the Adjusting Control Settings section
on page 21.
• Push the doors firmly shut. If they will not
shut all the way, see Doors will not close
completely below.
• This prevents air transfer and makes the
motor work harder.
Clean the condenser coils. Refer to the
Care and Cleaning section on pages
29-30.
The refrigerator is not level.
Food packages are blocking the door open.
The ice bin, crisper cover, pans, shelves, door
bins or baskets are out of position.
The gaskets are sticking.
The refrigerator wobbles or seems unstable.
The doors were removed during product
installation and not properly replaced.
• See Leveling and Door Alignment on
page 17.
• Rearrange food containers to clear door and
door shelves.
• Push bins all the way in and put crisper
cover, pans, shelves and baskets into their
correct positions. See the Using Your
Refrigerator section on pages 18-28.
• Clean gaskets and the surface that they
touch. Rub a thin coat of paraffin wax on the
gaskets after cleaning.
• Level the refrigerator. Refer to the Leveling
and Door Alignment section on page 17.
• Remove and replace the doors according to
the Removing and Replacing Refrigerator
handles and doors section on pages 9-16,
or call a qualified service technician.
The door is not closing properly.
The door is opened often.
• See Doors will not close completely above.
• When the door is opened, warm, humid air
is allowed in the freezer, resulting in frost.
36
Check if... Then...
ICE HAS OFF-
TASTE OR ODOR
THERE IS
WATER IN THE
DEFROST DRAIN
PAN
THE
REFRIGERATOR
SEEMS TO
MAKE TOO
MUCH NOISE
THE ICEMAKER
IS NOT
PRODUCING ICE
OR ICE CUBES
ARE FREEZING
TOO SLOWLY
CUBES
PRODUCED BY
ICEMA KER ARE
TOO SMALL
THE DOORS A RE
DIFFICULT TO
OPEN
The icemaker was recently installed.
The ice has been stored for too long.
The food has not been wrapped tightly in
either compartment.
The water supply contains minerals such as
sulfur.
The interior of refrigerator needs cleaning.
Ice storage bin needs cleaning.
• Discard first few batches of ice to avoid
discolored or off-flavored ice.
• Throw away old ice and make new supply.
• Rewrap foods since odors may migrate to
the ice if food is not wrapped properly.
• A filter may need to be installed (or
replaced) to eliminate taste and odor
problems.
• See Care and Cleaning section on pages
29-30.
• Empty and wash bin. Discard old cubes.
The refrigerator is defrosting.
It is more humid than normal.
• The water will evaporate. It is normal for
water to drip into the defrost pan.
• Expect that the water in the defrost pan will
take longer to evaporate. This is normal
when it is hot or humid.
The sounds may be normal for your
refrigerator.
• Refer to the Understanding Sounds You
May Hear section on page 35.
The freezer temperature is cold enough to
produce ice.
Door left open.
• Wait 24 hours after hook-up for ice
production. See the Setting the Controls
section on page 18.
• Check to see if something is holding the
door open.
Smaller cube size level is selected.
Water shutoff valve connecting refrigerator to
water line may be clogged.
• Select larger cube size using cube size
selector.
• Call a plumber to clear the valve.
The gaskets are dirty or sticky.
The door is reopened within a short time after
having been opened.
• Clean gaskets and the surfaces that they
touch. Rub a thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
• When you open the door, warmer air enters
the refrigerator. As the warm air cools, it can
create a vacuum. If the door is hard to open,
wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
37
Check if... Then...
TEMPERATURE
IS TOO WARM
OR THERE IS
INTERIOR
MOISTURE
BUILDUP
The air vents are blocked. Cold air circulates
from the freezer to the fresh food section and
back again through air vents in the wall
dividing the two sections.
The doors are opened often.
The control is not set correctly for the
surrounding conditions.
A large amount of food has just been added to
the refrigerator or freezer.
The food is not packaged correctly.
The doors are not closing completely.
The weather is humid.
A self-defrost cycle was completed.
• Locate air vents by using your hand to
sense airflow and move all packages that
block vents and restrict airflow.
• When the door is opened, warm humid air is
allowed into the refrigerator. The more the
door is opened, the faster the humidity
builds up, and the more warm air the
refrigerator must cool. In order to keep the
refrigerator cool, try to get everything you
need out of the refrigerator at once, keep
food organized so it is easy to find and close
the door as soon as the food is removed.
• Refer to the Setting the Controls section
on page 18.
Wait 24 hours for temperatures to stabilize
or even out. If the temperature is too cold or
too warm, move the dial one number at a
time.
• Adding food warms the refrigerator. It can
take a few hours for the refrigerator to return
to normal temperature.
• Wrap food tightly and wipe off damp
containers prior to storing in the refrigerator
to avoid moisture accumulation. If
necessary, repackage food according to the
guidelines in the Food Storage Guide
section on page 21.
• See Doors will not close completely on
page 36.
• In humid weather, air carries moisture into
refrigerator when doors are opened.
• It is normal for droplets to form on the back
wall after the refrigerator self-defrosts.
38
39
LG El÷ctron_cs into
