User Manual KitchenAid KXW4436YSS0 30" & 36" professional hood

KitchenAid KXW4436YSS0 30" & 36" professional hood - Use Manual - Use Guide PDF.
Documents: Go to donwload!
  • Owner's manual - (English)

User manual of KitchenAid KXW4436YSS0 (32 pages)
file thumbnail

TABLE OF

RANGE HOOD SAFETY .. INSTALLATION REQUIREMENTS

Tools and Parts . Location Requirements . Venting Requirements Electrical Requirements

INSTALLATION INSTRUCTIONS Prepare Location .. Install Range Hood .. Connect Vent System Make Electrical Connection

Install Vent Covers Complete Installation ..

CONTENTS

RANGE HOOD USE . Display . Bottom Lights .. Timer . Fan Speed . Top (Ambient) Lights RANGE HOOD CARE . Cleaning .. WIRING DIAGRAM

ASSISTANCE OR SERVICE In the U.S.A .. Accessories .. In Canada .. WARRANTY .

TABLE DES

SICURITI DE LA Ho'n'E DE CUISINIIRE

EXIGENCES D'INSTALLATION

Outils et pieces Exigences d'emplacement

Exigences concernant I'evacuation . Specifications electriques . INSTRUCTIONS D'INSTALLATION Preparation de I'emplacement Installation de la hotte . Raccordement du circuit d'evacuation .. Raccordement electrique .. Installation des cache-conduits

Achever I'installation

MATII RES

UTILISATION DE LA HOTTE . Affichage . Lampes inferieures Minuterie . Vitesse du ventilateur .. Lampes (d'ambiance) superieures ENTRETIEN DE LA Ho'n'E . Nettoyage .. SCHIMA DE C.. LAGE

ASSISTANCE OU SERVICE Au Canada . Accessoires ..

GARANTIE .

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

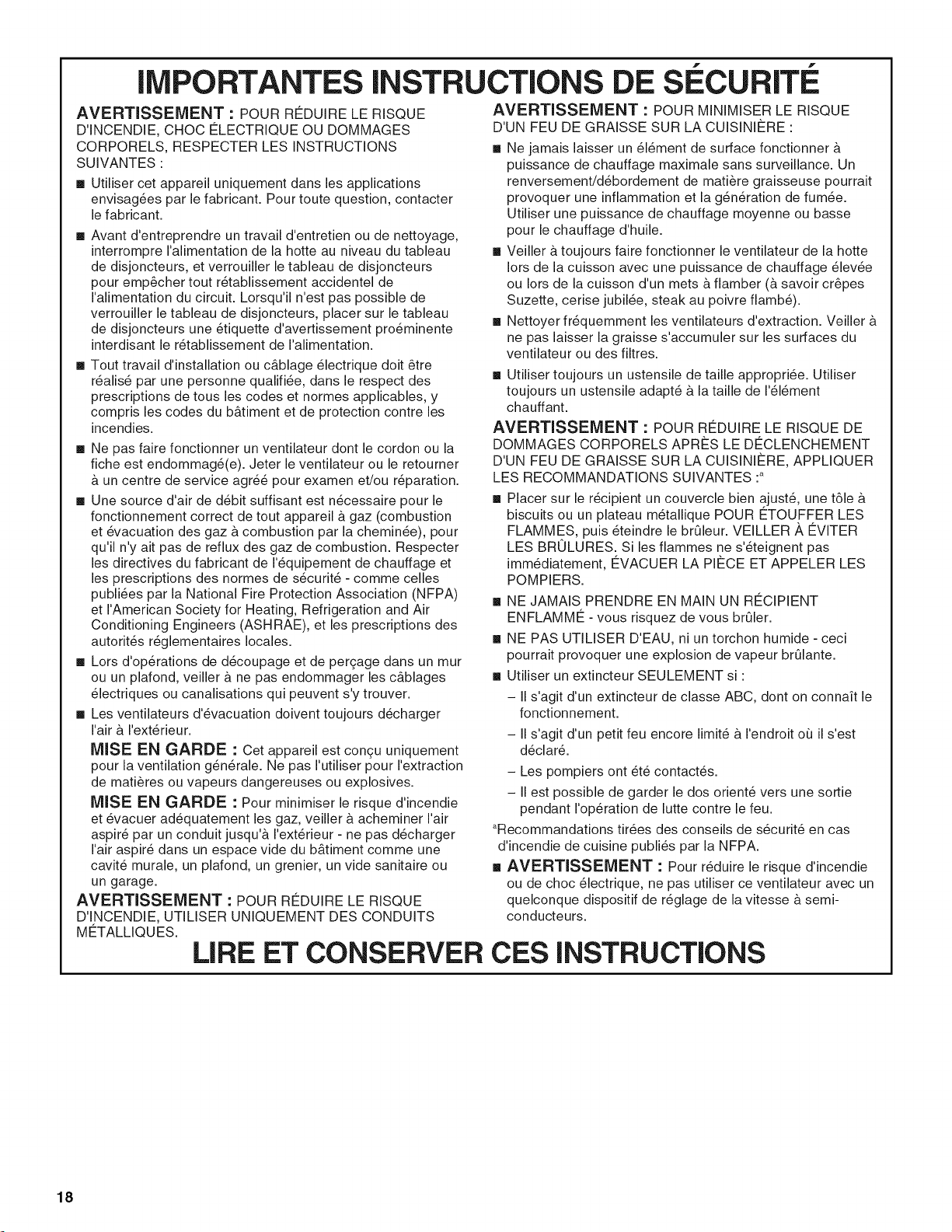

WARNING: TO REDUCE THE RISK OF FIRE. ELECTRIC SHOCK. OR INJURY TO PERSONS.

OBSERVE THE FOLLOWING:

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

You know you have a class ABC extinguisher. and you already know how to operate it.

The fire is small and contained in the area where it started.

The fire department is being called.

You can fight the fire with your back to an exit.

READ AND SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

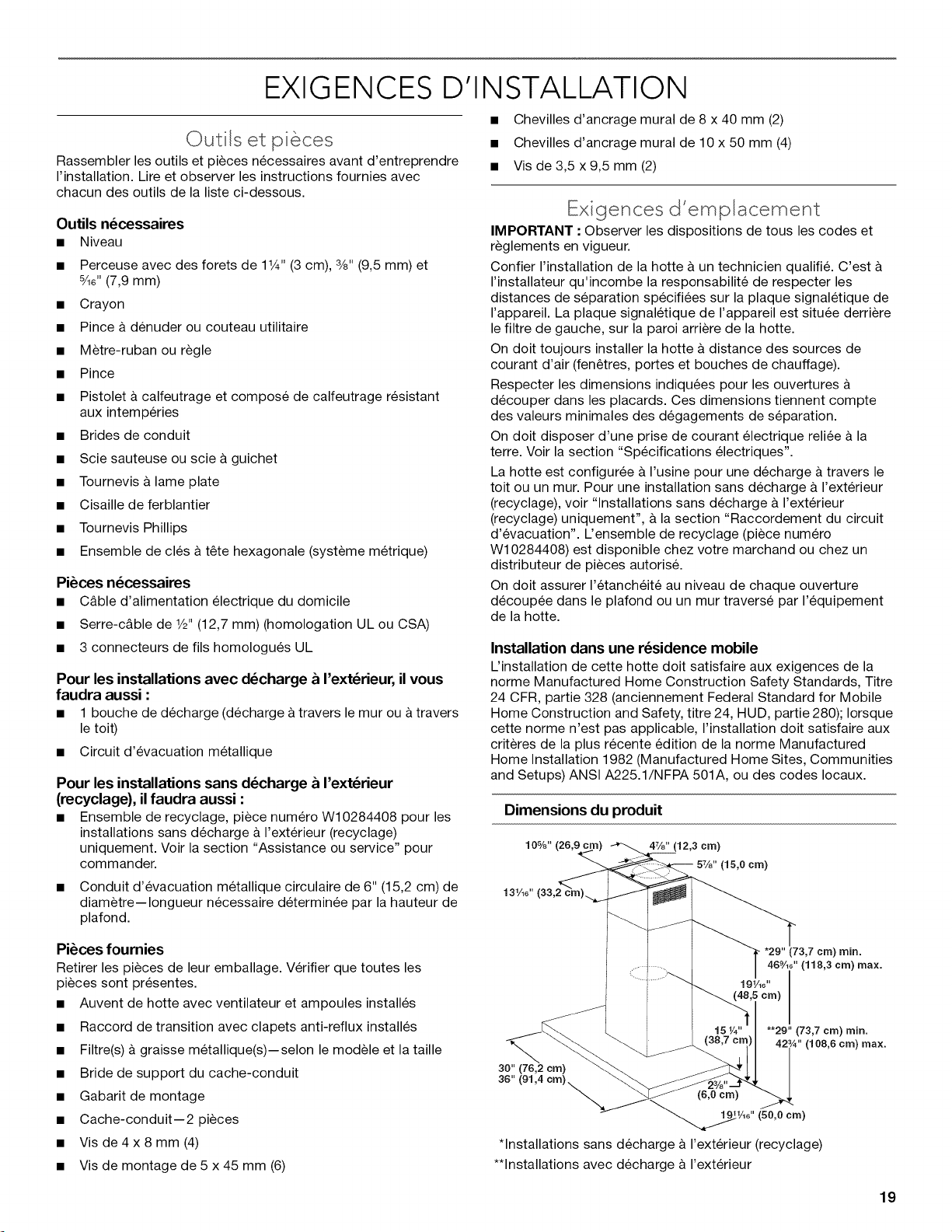

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed here.

Tools Needed Level

Drill with 11¼"(3.0 cm). 3/8"(9.5 mm). and %e" (7.9 mm) drill bits

Pencil

Wire stripper or utility knife

Tape measure or ruler

Pliers

Caulking gun and weatherproof caulking compound

Vent clamps

Jigsaw or keyhole saw

Flat-blade screwdriver

Metal snips

Phillips screwdriver

Metric hex key set

Parts Needed

Home power supply cable

1/2"(12.7 mm) UL listed or CSA approved strain relief

3 UL listed wire connectors

For Vented Installations.

You Will Also Need: 1 wall or roof cap

Metal vent system

For Non-Vented (Recirculating) Installations.

You Will Also Need: Recirculation Kit Part Number W10284408 for non-vented (recirculating) installations only. See "Assistance or Service" section to order.

6" (15.2 cm) dia. round metal vent duct - length required is determined by ceiling height.

Parts Supplied Remove parts from packages.

Check that all parts are included.

Hood canopy assembly with ventilator and light bulbs installed

Vent transition with back draft dampers installed

Metal grease filter(s)--depending on model and size

Vent cover support bracket

Mounting template

2-piece vent cover

4 x 8 screws (4)

5 x 45 mm mounting screws (6)

8 x 40 mm wall anchors

10 x 50 mm wall anchors

3.5 x 9.5 mm screws (2)

Locat on Requ rements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas. such as windows. doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

Grounded electrical outlet is required.

See "Electrical Requirements" section.

The canopy hood is factory set for venting through the roof or wall. For non-vented (recirculating) installation see "For non vented (recirculating) installation only" in the "Connect Vent System" section.

Recirculation Kit Part Number W10284408 is available from your dealer or an authorized parts distributor.

All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards.

Title 24 CFR. Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety. Title 24. HUD. Part 280) or when such standard is not applicable. the standard for Manufactured Home Installation 1982 (Manufactured Home Sites. Communities and Setups) ANSI A225.1/NFPA A. or latest edition. or with local codes.

Product Dimensions

10%" (26.9 47/8" (12.3 crn)

57/8" (15.0 cm)

V16"

30" (76.2 cm) 36"(91.4

+29" (73.7 cm) rain.

46%e" (118.3 cm) max.

Vc'rn)

+*29" (73.7 crn) rnin.

4" (108.6 cm) max.

+For non-vented (recirculating) installations

+*For vented installations

Cabinet Dimensions

10" (25.4 cm) rain.

Side cabinet

17" (43.2 cm)*

"X" bottom of canopy to cooking SUrface

+For non-vented (recirculating) installations IMPORTANT:

Minimum distance "X": 24" (61.0 cm) from electric cooking surface.

Minimum distance "X": 27" (68.6 cm) from gas cooking surfaces.

Suggested maximum distance "X": 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the following chart.

Vented Installations

Min. ceiling height Max. ceiling height

Electric cooking 7' 5" (2.26 m) 9' 6" (2.9 m) surface

Gas cooking 7' 8" (2.34 m) 9' 6" (2.9 m) surface

Non-Vented (Recirculating) Installations

Min. ceiling height Max. ceiling height

Electric cooking 7' 5" (2.26 m) 9' 10" (3.0 m) surface

Gas cooking 7' 8" (2.34 m) 9' 10" (3.0 m) surface

Note: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "X" between the bottom of the range hood and the cooking surface.

For higher ceilings. a Stainless Steel Chimney Extension Kit Part Number W10272076 is available from your dealer or an authorized parts distributor.

The chimney extension replaces the upper chimney shipped with the range hood.

Vent ng Requ rements

(vented mode)s on(y)

Vent system must terminate to the outdoors. except for non vented (recirculating)installations.

Do not terminate the vent system in an attic or other enclosed area.

Do not use 4" (10.2 cm) laundry-type wall cap.

Use metal vent only. Rigid metal vent is recommended.

Plastic or metal foil vent is not recommended.

The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the Most Efficient and Quiet Operation: Use no more than three 90° elbows.

Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.

Do not install 2 elbows together.

Use clamps to seal all joints in the vent system.

The vent system must have a damper.

If the roof or wall cap has a damper. do not use the damper supplied with the range hood.

Use caulking to seal exterior wall or roof opening around the cap.

The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement.

The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your area.

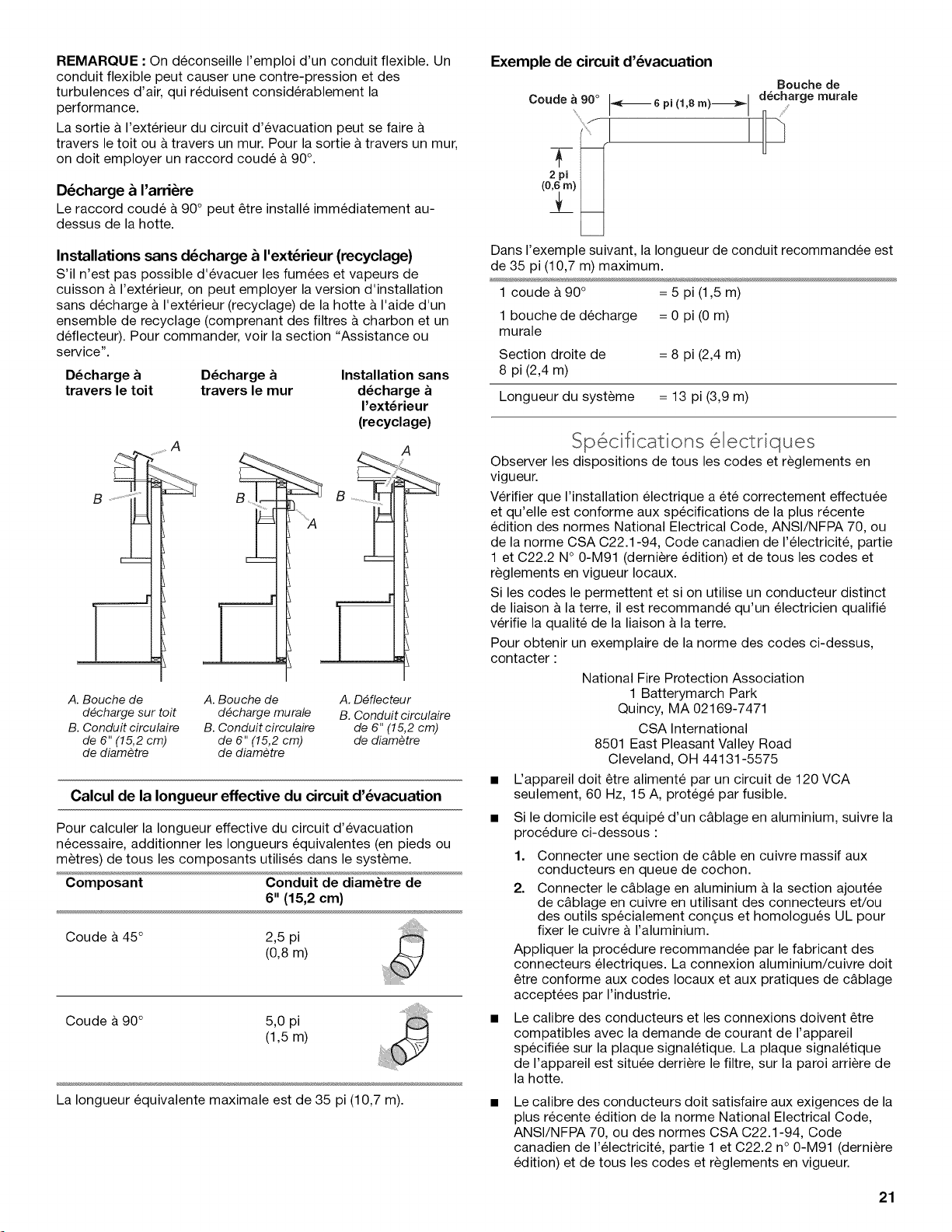

Venting Methods

This canopy hood is factory set for venting through the roof or wall.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended.

Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent through a wall. a 90° elbow is needed.

Rear Discharge A 90° elbow may be installed immediately above the hood.

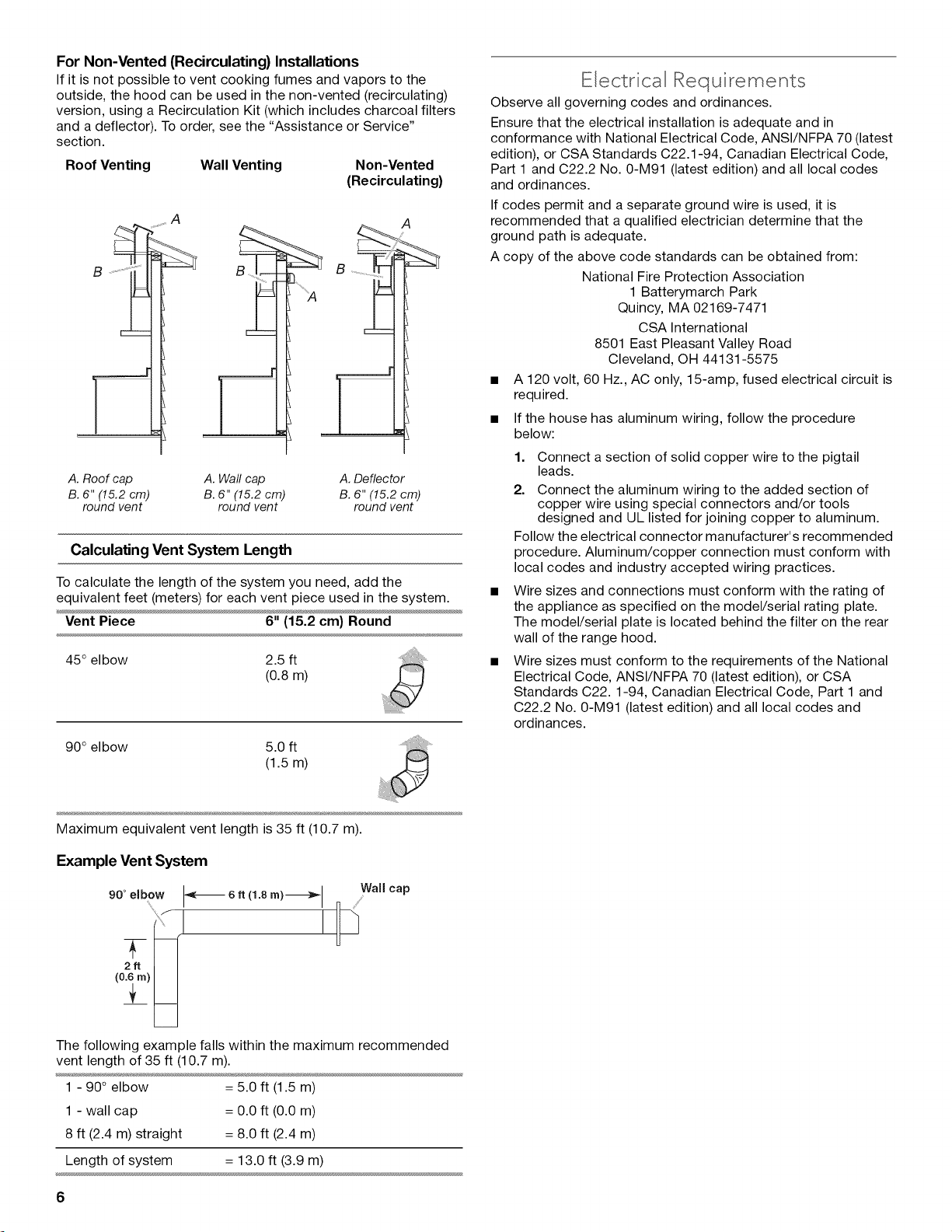

For Non-Vented (Recirculating) Installations If it is not possible to vent cooking fumes and vapors to the outside. the hood can be used in the non-vented (recirculating) version. using a Recirculation Kit (which includes charcoal filters and a deflector).

To order. see the "Assistance or Service" section.

Roof Venting Wall Venting Non-Vented (Recirculating)

A. Roof cap A. Wall cap A. Deflector B. 6" (15.2 cm) round vent

Calculating Vent System Length

To calculate the length of the system you need. add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft (0.8 m)

90° elbow 5.0 ft (1.5 m)

Electr cal Requ rements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code. ANSI/NFPA 70 (latest edition). or CSA Standards C22.1-94.

Canadian Electrical Code.

Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used. it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy. MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland.

OH 44131-5575

A 120 volt. 60 Hz. AC only. 15-amp. fused electrical circuit is required.

If the house has aluminum wiring. follow the procedure below:

Connect a section of solid copper wire to the pigtail leads.

Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure.

Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate.

The model/serial plate is located behind the filter on the rear wall of the range hood.

Wire sizes must conform to the requirements of the National Electrical Code. ANSI/NFPA 70 (latest edition). or CSA Standards C22.1-94.

Canadian Electrical Code. Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System

90° elbow

6 ft (1.8 m)

W aHcap

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1 - 90° elbow

1 - wall cap

8 ft (2.4 m) straight

Length of system

= 5.0 ft (1.5 m)

= 0.0 ft (0.0 m)

= 8.0 ft (2.4 m)

= 13.0 ft (3.9 m)

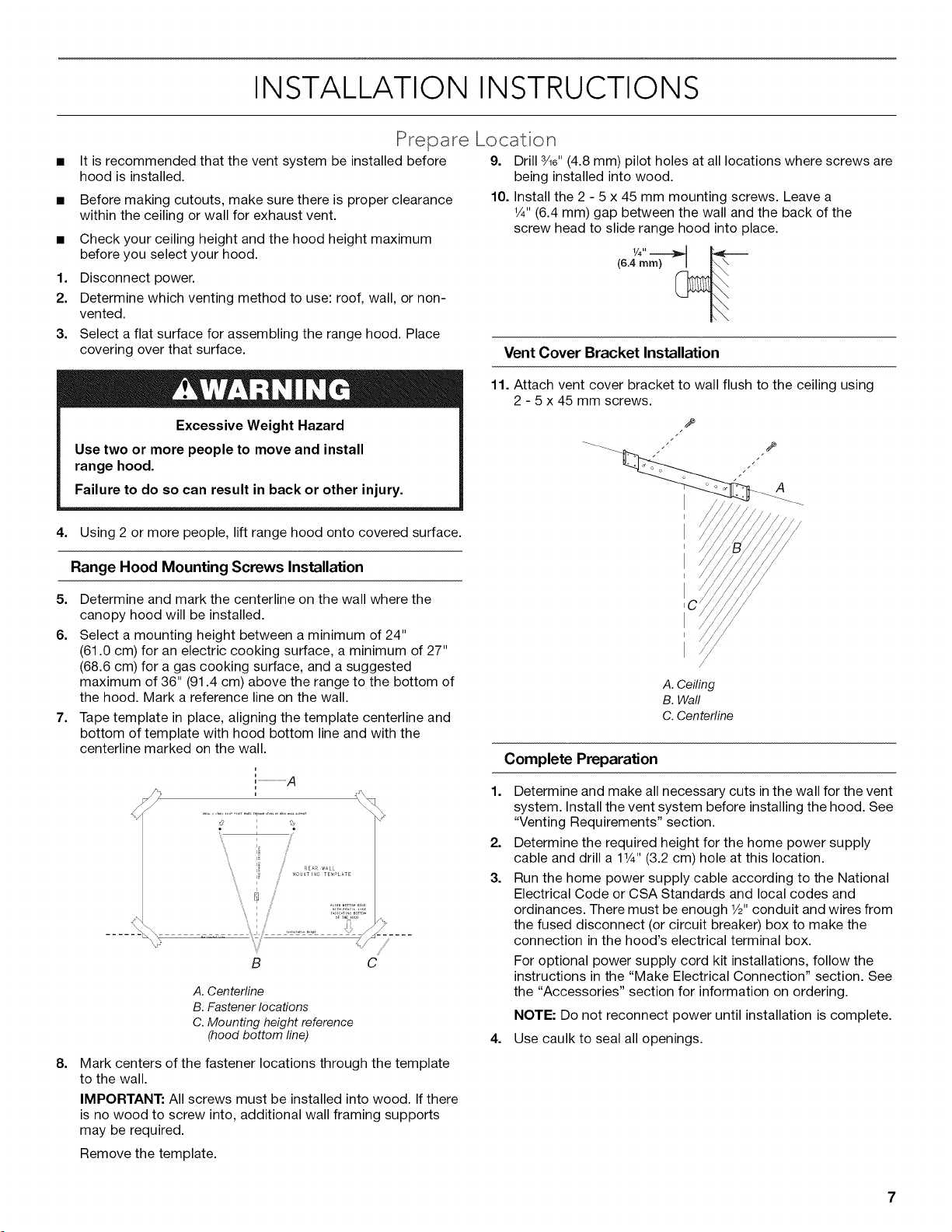

INSTALLATION INSTRUCTIONS

Prepare Locat on

It is recommended that the vent system be installed before hood is installed.

Before making cutouts. make sure there is proper clearance within the ceiling or wall for exhaust vent.

Check your ceiling height and the hood height maximum before you select your hood.

Disconnect power.

Determine which venting method to use: roof. wall. or non vented.

Select a flat surface for assembling the range hood. Place covering over that surface.

Drill 3/le"(4.8 mm) pilot holes at all locations where screws are being installed into wood.

10. Install the 2 - 5 x 45 mm mounting screws.

Leave a 1/4"(6.4 mm) gap between the wall and the back of the screw head to slide range hood into place.

(6.4 ram)

Vent Cover Bracket Installation

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

Using 2 or more people. lift range hood onto covered surface.

Range Hood Mounting Screws Installation

Determine and mark the centerline on the wall where the canopy hood will be installed.

Select a mounting height between a minimum of 24" (61.0 cm) for an electric cooking surface. a minimum of 27" (68.6 cm) for a gas cooking surface. and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a reference line on the wall.

Tape template in place. aligning the template centerline and bottom of template with hood bottom line and with the centerline marked on the wall.

I ..

A. Centerline B. Fastener locations

C. Mounting height reference (hood bottom line)

11. Attach vent cover bracket to wall flush to the ceiling using 2 - 5 x 45 mm screws.

A. Ceiling B. Wall C. Centerline

Complete Preparation

Determine and make all necessary cuts in the wall for the vent system.

Install the vent system before installing the hood. See "Venting Requirements" section.

Determine the required height for the home power supply cable and drill a 11¼'' (3.2 cm) hole at this location.

Run the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances.

There must be enough 1/2"conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.

For optional power supply cord kit installations. follow the instructions in the "Make Electrical Connection" section.

See the "Accessories" section for information on ordering.

NOTE: Do not reconnect power until installation is complete.

Use caulk to seal all openings.

Mark centers of the fastener locations through the template to the wall.

IMPORTANT: All screws must be installed into wood.

If there is no wood to screw into. additional wall framing supports may be required.

Remove the template.

Install Range Hood

Using 2 or more people. hang range hood on 2 mounting screws through the mounting slots on back of hood.

A. Mounting screws

B. Mounting slots C. Lower mounting screws

Remove the grease filter. See "Range Hood Care" section.

Level the range hood and tighten upper mounting screws.

Install 2 - 5 x 45 mm lower mounting screws and tighten.

Co ct Ve nt nn e bysxe m Install transition on top of hood (if removed for shipping) with 2 - 3.5 x 9.5 mm sheet metal screws.

A. Vent transition B. 3.5 x 9.5 mm screw

For vented installations only:

Fit vent system over transition piece.

Seal connection with clamps.

Check that back draft dampers work properly.

For non-vented (recirculating) installation only:

Assemble the air deflector with the duct cover bracket with 4 assembly screws provided with the Recirculation Kit.

A. Assembly screws B. Air deflector C. Duct cover bracket

Measure from the bottom of the air deflector to the bottom of the hood outlet.

E .. . . . . :

A. Air deflector B. Vent clamp C. X = length to cut vent duct D. Vent duct E Exhaust outlet

Cut the duct to the measured size (X).

Remove the air deflector.

Slide the duct onto the bottom of the air deflector.

Place the assembled air deflector and duct over the exhaust outlet from the hood.

Reassemble the air deflector to the duct cover bracket with 4 assembly screws.

Seal connections with vent clamps.

Make Electrical Connect on

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Disconnect power.

Remove the terminal box cover.

Remove the knockout in the terminal box cover and install a UL listed or CSA approved 1/2"strain relief.

A. Knockout B. Terminal box cover

Run the power supply cable or power cord kit (see the "Accessories" section for information on ordering) through strain relief. into terminal box.

A. Power supply cable or power cord kit B. UL listed or CSA approved strain relief C. Black wires

D. UL listed wire connectors E. White wires

F. Green (or bare) and yellow green ground wires

Use UL listed wire connectors and connect the black wires (C) together.

Use UL listed wire connectors and connect the white wires (E) together.

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

Connect green (or bare) ground wire from the power supply or power cord kit to yellow-green ground wire (F) in terminal box using UL listed wire connectors.

Tighten the strain relief screw.

Install the terminal box cover.

10. Check that all light bulbs are secure in their sockets.

11. Reconnect power.

Install Vent Covers

When using both upper and lower vent covers. push lower cover down onto hood and lift upper cover to ceiling and install with 2 4 x 8 mm screws.

NOTE: For vented installations. upper vent cover may be reversed to hide slots.

A. Upper vent cover B. Lower vent cover C. 4 x 8 mm screws D. Bracket

Secure the bottom of the duct with 2 - 4 x 8 mm assembly screws.

Complete Installat on

For non-vented (recirculating) installations only. install charcoal filters over grille on blower housing.

See the "Range Hood Care" section.

Install metal filters.

See the "Range Hood Care" section.

Check the operation of the range hood blower and light. See the "Range Hood Use" section.

NOTE: To get the most efficient use from your new range hood. read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke. cooking vapors and odors from the cooktop area. For best results. start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The range hood controls are located on the front side of the canopy. The light switch for the top lights is located on the underside right of the canopy.

Audible Signal Activation and Deactivation

The audible signals can be activated or deactivated by pressing the "LIGHT" button for 5 seconds.

If the audible signal is activated. a tone will sound. and "Snd" symbol will appear in the display for 3 seconds.

If the audible signal is deactivated. the "Snd" symbol will appear on the display for 3 seconds.

A. Louver holes (non-vented [recirculating] installations only) B. Duct covers

C. Bottom fight housings D. Canopy

E. Grease filters F. Grease filter handles

G. Light switch - top H. Top fight housings

I. Control panel

Control Panel

Replace Charc°a Filter

Clean Grease Filter

A. Power decrease B. Power increase

C. Display

D. Bottom lights E. Timer

Charcoal Filter (Recirculation Accessory) Inclusion and Exclusion

When the charcoal filter is in use (recirculating mode). press and hold the POWER DECREASE and POWER INCREASE buttons at the same time for 5 seconds. "Able" will appear in the display for 3 seconds.

If the charcoal filter is not used (vented mode). press and hold the POWER DECREASE and POWER INCREASE buttons at the same time for 5 seconds. "None" will appear in the display for 3 seconds.

When the charcoal filter has been excluded. the charcoal filter alarm is disabled.

The inclusion or exclusion of the charcoal filter must be selected while the lights and the fan motor are Off.

Heat Sensor

The control is equipped with a heat sensor that will turn on the blower to the highest speed if excessive heat occurs around the control area.

If the blower is On or Off. the blower will automatically set to the highest speed. "Auto" will appear in the display to indicate that the heat sensor has detected excessive heat.

When the blower is operating due to excessive heat detected by the heat sensor. the blower speed cannot be decreased.

When the temperature level on the hood drops to normal. the blower will return to its setting before the excessive heat was sensed.

Grease Filter Saturation Alarm

After 30 hours of fan function. the display will show "Clean Grease Filter" when the fan is active. When this icon shows in the display. the installed grease filters should be washed.

See "Range Hood Care" section.

To reset the grease filter saturation alarm. press and hold the POWER INCREASE button for 5 seconds.

The "Clean Grease Filter" icon will no longer be displayed.

Charcoal Filter Saturation Alarm

After 120 hours of fan function. the display will show "Replace Charcoal Filter" when the fan is active. When this icon shows in the display. the charcoal filters should be replaced.

See "Range Hood Care" section.

To reset the charcoal filter saturation alarm. press and hold the POWER DECREASE button for 5 seconds.

The "Replace Charcoal Filter" icon will no longer be displayed.

Bottom L 9 hts

To Operate the Bottom Lights:

Press the Light button on the control panel to turn the bottom lights on to high.

Press the Light button on the control panel again to turn the bottom lights to low.

Press the Light button on the control panel a third time to turn off the bottom lights.

Truer

The timer can be set from 1 to 60 minutes. The default timer setting is 10 minutes.

To Use the Timer:

Press the Timer button to enter the timer mode. After 5 seconds the default time will be automatically selected.

Press the POWER DECREASE and POWER INCREASE buttons while the display is flashing (5 seconds) to adjust to the desired time. Pressing the timer button again or waiting 5 seconds after selecting the desired time will start the timer countdown.

The timer can be canceled at any time by pressing the Timer button again.

NOTE: During the timer setup. the Power Decrease and Power Increase buttons are dedicated to the timer. After the timer starts. the Power Decrease and Power Increase buttons can be used for other functions.

Fan Speed

Power Increase/On

This button is used to turn the fan On or increase the fan speed.

The fan will turn On if the Power Increase button is pressed and the hood was Off.

An audible tone will sound when the fan reaches its highest speed.

Power Decrease/Off

This button is used to turn the fan Off or to decrease the fan speed.

Timed Fan Off

The control has a "Timed Fan Off" feature. When activated. it automatically turns the blower fan off after 10 minutes. Press and hold the TIMER button for 5 seconds to activate.

The fan icon will flash and 10:00 (ten minutes) will show in the display. The time will start counting down after 3 seconds.

Top (Am bent) L ghts

Press the switch on the underside of the control panel to turn the top lights On or Off.

RANGE HOOD CARE

Cleaning IMPORTANT: Clean the hood and grease filters frequently according to the following instructions.

Replace grease filters before operating hood.

Exterior Surfaces:

To avoid damage to the exterior surface. do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

Liquid detergent soap and water. or all-purpose cleanser

Wipe with damp soft cloth or nonabrasive sponge. then rinse with clean water and wipe dry.

Metal Grease Filters

To Install/Replace Charcoal Filters

Turn fan and lights off. Check that halogen lamp is cool.

Remove the metal grease filters. See "Metal Grease Filters" section.

Set metal grease filters aside.

Push charcoal filter handles in and pull the charcoal filter from the motor housing frame.

The filters should be washed frequently.

Place metal filters in dishwasher or hot detergent solution to clean.

Let filter dry thoroughly before replacing it.

Turn off fan and lights. Check that halogen lamp is cool.

Remove each filter by pulling the spring release handle and then pulling down the filter.

A. Motor housing frame B. Charcoal filter

Clean or discard the charcoal filter.

Install cleaned or replacement filter. Push charcoal filter handles in and push filter into motor housing frame. Release handles.

A. Spring releasehandle

Wash metal filters as needed in dishwasher or hot detergent solution.

Reinstall the filter by making sure the spring release handles are toward the front. Insert metal grease filter into upper track.

Pull the spring release handle down.

Push up on metal filter and release handle to latch into place.

Repeat steps 1-5 for the other filter.

Charcoal Filters - For Non-Vented (recirculating) Installations

NOTE: After approximately 1 year of use. the charcoal filter should be replaced. To order a replacement Charcoal Filter Kit. see the "Assistance or Service" section.

The charcoal filters can be cleaned and reactivated.

Clean the filter in the dishwasher using normal detergent and choosing the highest temperature setting.

To reactivate the filter. the filter should be dried in an oven for 10 minutes with a maximum temperature of 210°F (100°C).

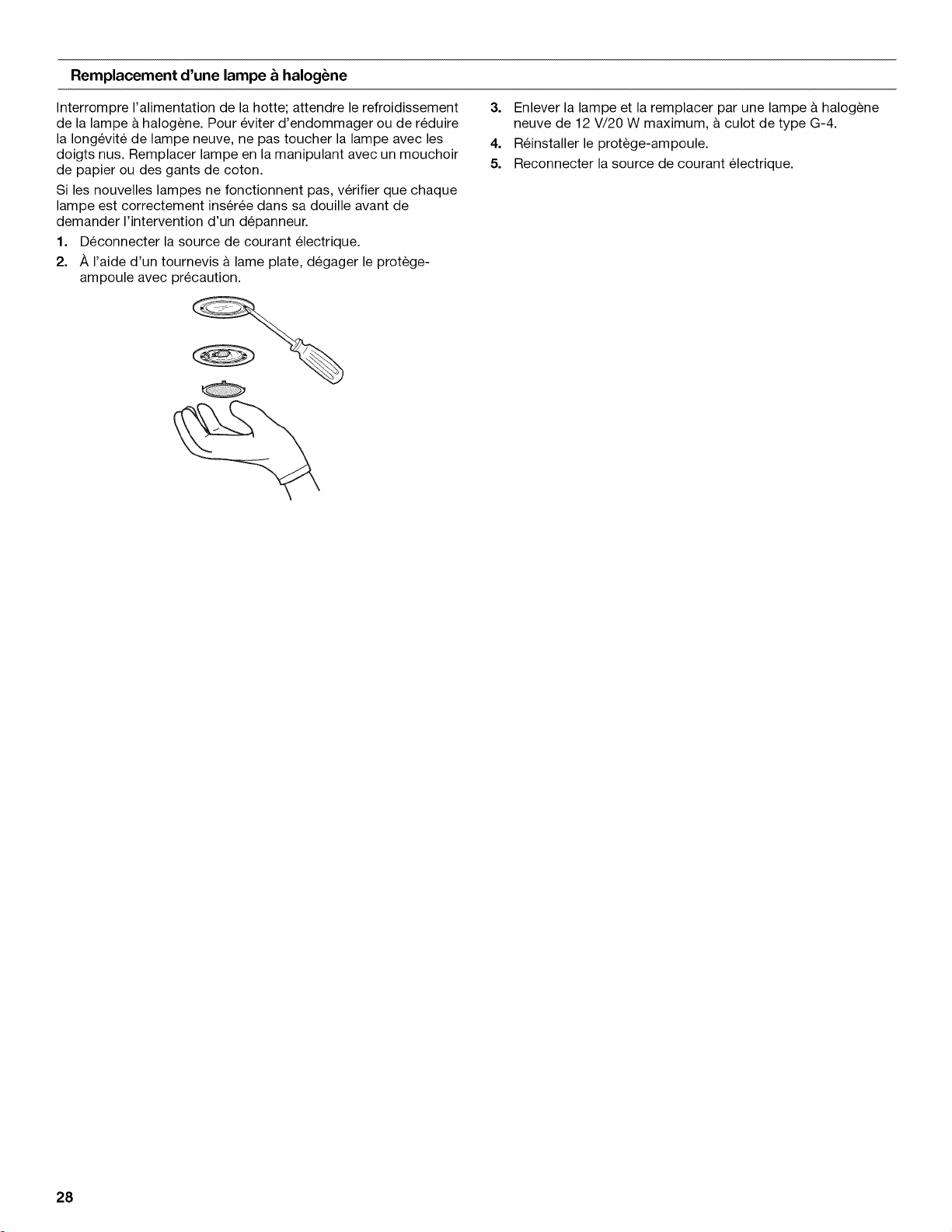

Replacing a Halogen Lamp

Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new lamp. do not touch lamp with bare fingers. Replace lamp. using tissue or wearing cotton gloves to handle lamp.

If new lights do not operate. make sure the lamps are inserted correctly before calling service.

Disconnect power.

Use a flat-blade screwdriver and gently pry the light cover loose.

Remove the lamp and replace with a 12-volt. 20-watt maximum. halogen lamp made for a G-4 base.

Replace the light cover.

Reconnect power.

ASSISTANCE

When calling for assistance or service. please know the purchase date and the complete model and serial number of your appliance.

This information will help us to better respond to your request.

If you need replacement parts If you need to order replacement parts. we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area. call us or your nearest designated service center.

In the U. . .

Call the KitchenAid Customer eXperience Center toll free; 1-800-422-1230 or visit our website at www.kitchenaid.com.

Our consultants provide assistance with:

Features and specifications on our full line of appliances.

Installation information.

Use and maintenance procedures.

Accessory and repair parts sales.

Specialized customer assistance (Spanish speaking. hearing impaired. limited vision. etc.).

Referrals to local dealers. repair parts distributors and service companies.

KitchenAid designated service technicians are trained to fulfill the product warranty and provide after warranty service. anywhere in the United States.

To locate the KitchenAid designated service company in your area. you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance. you can write to KitchenAid with any questions or concerns at:

KitchenAid Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor. MI 49022-2692

Please include a daytime phone number in your correspondence.

OR SERVICE

Charcoal Filter

(for non-vented installations only) Order Part Number W10285062

Power Cord Kit Order Part Number W10355452

Recirculation Kit

(for non-vented installations only) Order Part Number W10284408

Chimney Extension Kit Order Part Number W10272076

6" (15.2 cm) Makeup Air Kit (consult local building codes) Order Part Number W10446915

In Canada

Call the KitchenAid Canada Customer experience Centre toll free: 1-800-807-6777 or visit our website at www.kitchenaid.ca.

Our Consultants Provide Assistance With: Features and specifications on our full line of appliances.

Use and maintenance procedures.

Accessory and repair parts sales.

Referrals to local dealers. repair parts distributors and service companies.

KitchenAid Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service. anywhere in Canada.

For Further Assistance If you need further assistance. you can write to KitchenAid Canada with any questions or concerns at:

Customer eXperience Centre KitchenAid Canada 200 - 6750 Century Ave.

Mississauga.

Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

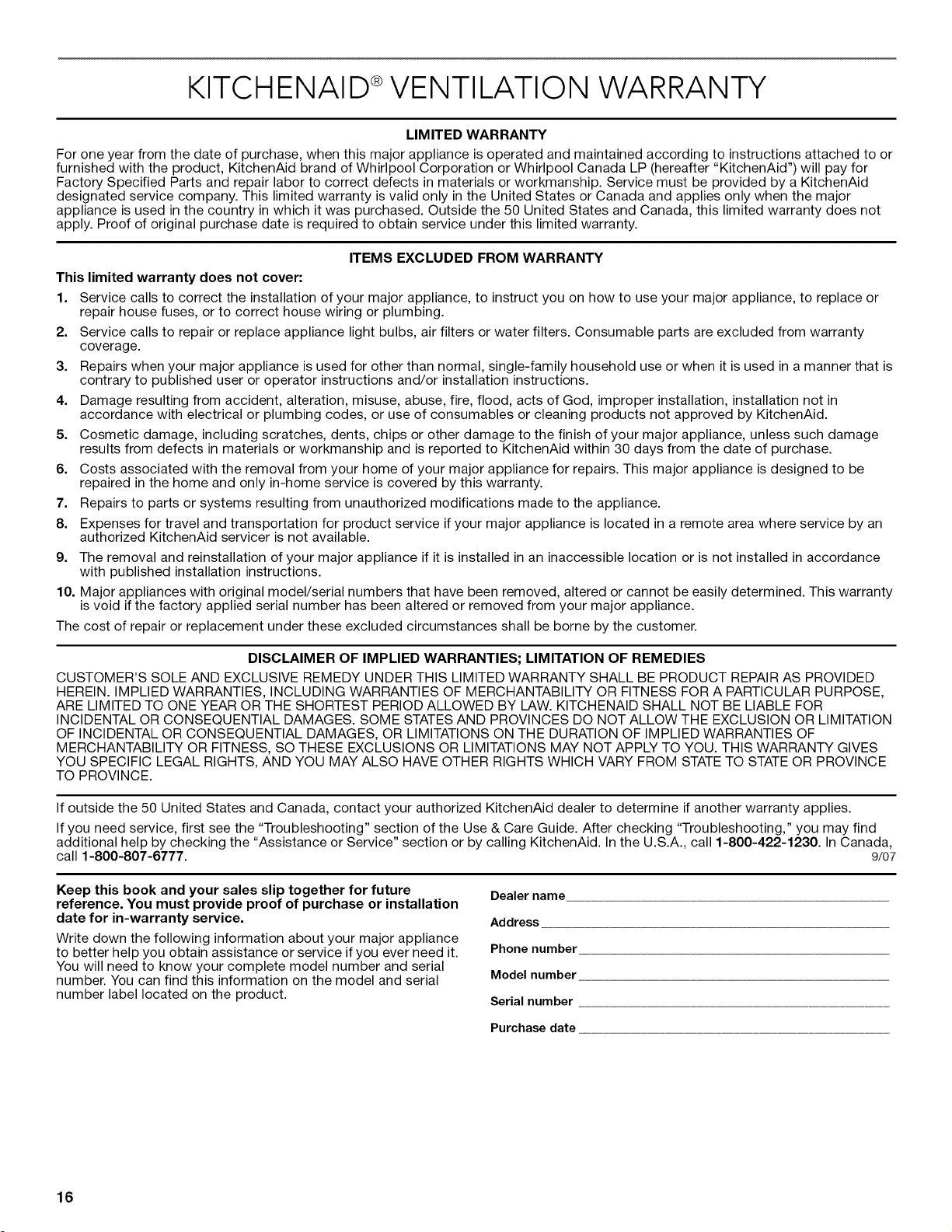

KITCHENAID ®VENTILATION WARRANTY

LIMITED WARRANTY

For one year from the date of purchase. when this major appliance is operated and maintained according to instructions attached to or furnished with the product.

KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "KitchenAid") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship.

Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased.

Outside the 50 United States and Canada. this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

Service calls to correct the installation of your major appliance. to instruct you on how to use your major appliance. to replace or repair house fuses. or to correct house wiring or plumbing.

Service calls to repair or replace appliance light bulbs. air filters or water filters. Consumable parts are excluded from warranty coverage.

Repairs when your major appliance is used for other than normal. single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.

Damage resulting from accident. alteration. misuse. abuse. fire. flood. acts of God. improper installation. installation not in accordance with electrical or plumbing codes. or use of consumables or cleaning products not approved by KitchenAid.

Cosmetic damage. including scratches. dents. chips or other damage to the finish of your major appliance. unless such damage results from defects in materials or workmanship and is reported to KitchenAid within 30 days from the date of purchase.

Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.

Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized KitchenAid servicer is not available.

The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

10. Major appliances with original model/serial numbers that have been removed. altered or cannot be easily determined.

This warranty is void if the factory applied serial number has been altered or removed from your major appliance.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES.

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

If outside the 50 United States and Canada. contact your authorized KitchenAid dealer to determine if another warranty applies.

If you need service. first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting. you may find additional help by checking the "Assistance or Service" section or by calling KitchenAid.

In the U.S.A. call 1-800-422-1230.

In Canada. call 1-800-807-6777.

9/07

Keep this book and your sales slip together for future reference.

You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it.

You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

W10322990G ®/[email protected] KitchenAid.

Used under license in Canada.

All rights reserved.

Utilise sous licence au Canada.

Tous droits reserves.

5/13 Printed in Mexico Imprime au Mexique



Newest Added: KF26M2XBU5 KHMS2040WSS3 KUDC10FXSS2 KUDM24SEWH1 KFCS22EVMS5

KitchenAid KXW4436YSS0 | Pages: 32 | File type: PDF | Filename: 32709672_kxw4436yss0.pdf | Size: 3.23 MB | Language: English

Download User Manual

Contact us

KitchenAid in United States

1 (800) 422-1230, 1 (800) 541-6390 Hours of Operation Mon - Fri: 8 a.m. - 8 p.m. EST
