Use & Care Guide for Danby ADR70B6PC
Table of Contents
Installation Instructions
LOCATION
• Select a suitable location, making sure you have easy access to an electrical outlet (avoid the use of extension cords).
• Make sure there are no obstructions restricting airfl ow through the front air intake grill. Maintain a minimum clearance of at least 20 cm (8”) between adjacent walls and the back of the unit, to allow for proper air circulation and maximum effi ciency. To achieve maximum operating effi ciency from your dehumidifi er, the recommended (room ambient) operating temperatures should be between 5°C (41°F) and 35°C (95°F).
• It is important to remember the effi ciency of a dehumidifi er will be affected/infl uenced by the rate at which new humid air (moisture) is allowed to infi ltrate the same space/area. To maintain effi ciency, the dehumidifi er must be operated in an enclosed area. Keep all doors and windows closed.
• Do not use this unit outdoors. This dehumidifer is intended for indoor residential applications only. This dehumidifi er should not be used for commercial or industrial applications.
• Place the dehumidifier on a smooth, level fl oor strong enough to support the unit with a full bucket of water.
• Place the unit where it has access to an electrical outlet.
• This unit has 4 castors which can move freely. Do not force castors to move over carpet, and refrain from moving the unit with water in the bucket (the unit may tip over and spill water). Protect wood fl oors from possible spillage or scratches when moving unit.
• Remove accessories and store them in a safe place.
FEATURES
• Soft touch (Electronic) Control Key Pads
• Auto-Sensing Humidity Control
• Adjustable Humidity Settings (35% - 85%)
• 2 Fan Speed Settings (Turbo/Normal)
• Delay Start Protection (Compressor)
• Auto-Defrost (De-Icer)
• Full Bucket Indicator Light
• Easy Roll Castors (4)
• Front Mounted Water Tank (Removable)
• Direct Drain Option (Hose not included)
• Quiet Operation
• Removable Air Filter
Operating Instructions

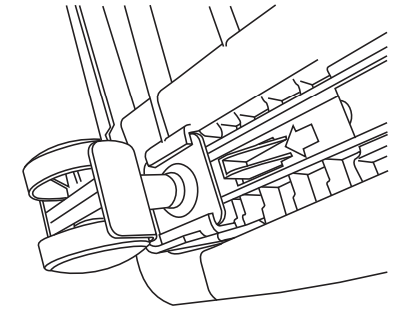

CASTOR INSTALLATION (some models)
Castor installation is recommended to avoid damage to floors.
1. Remove the castors from the bucket of the dehumidifier.
2. Position the dehumidifi er on its side.
3. Locate the arrow on the bottom of the dehumidifi er and insert the castor according to the arrow direction.
4. Slide the castor in as far as it will go. The castor will snap into place.
5. Repeat steps 1 to 4 for the other 3 castors.

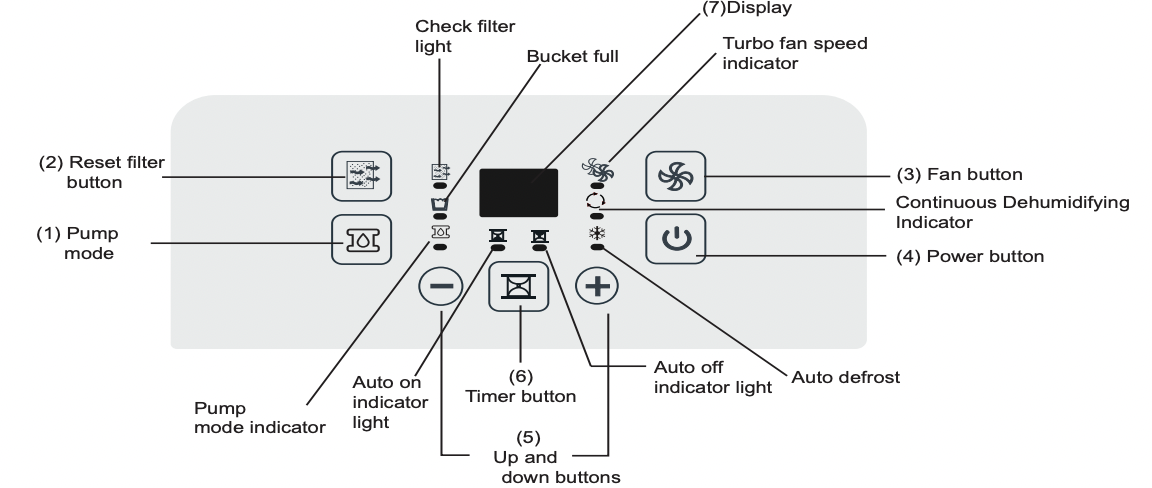

CONTROL PANEL INSTRUCTIONS
NOTE: The control panel of the unit you purchased may be slightly different depending on the model number.
When you push the button to change operation modes, the unit will make a beeping sound to indicate that it is changing modes.
1. Pump Button: Press to activate pump operation.
Note: make sure the pump hose is installed and that the continuous drain hose has been removed.
2. Filter Button: This product has a check fi lter feature that is a reminder to clean the air fi lter for more effi cient operation. The check fi lter light will illuminate after 250 hours of operation. To reset this function after cleaning the fi lter, press the reset fi lter button and the light will go off.
3. Fan button: Controls the fan speed. Press to select either high (turbo) or normal fan speed. Set the fan control to high for maximum moisture removal. When the humidity has been reduced and quiet operation is preferred, set the fan control back to normal.
4. Power Button: Press to turn the dehumidifi er on or off.
5. (+ / -) Buttons: The humidity level can be set within a range of 35% RH (Relative Humidity) to 85% RH in 5% increments using these buttons. For drier air, press the (-) button and set to a lower percentage value (%). For more damp air, press the (+) button and set a higher percentage value (%).
6. Timer Button: Press to initiate the auto-start and auto-stop feature. Set a start or stop time from 0.0 to 24 hours using the (+) and (-) keys.
7. Display: Shows the actual (± 5% accuracy) room humidity level in a range of 30% RH to 90% RH. Otherwise, displays selection when programming humidity or timer.
• To activate Continuous Dehumidifying, press the (-) button until 35% RH is set, then hold the (-) button until the continuous indicator lights up. To cancel press the (+) button and reset the RH.
Note: The fan does not shut off the moment you remove the bucket, the fan will shut off after 2-3 minutes.
ERROR CODES
AS - Humidity sensor error -- Unplug the unit and plug it back in. If error repeats, call for service.
ES - Temperature sensor error -- Unplug the unit and plug it back in. If error repeats, call for service.
P2 - Bucket is full or the bucket is not in correct position -- Empty the bucket and/or adjust it to the proper position.
EC - Unit malfunction. Please ensure that the room ambient temperature matches the recommended operating temperature for the unit, 5°C (41°F) - 35°C (95°F). If the temperature is within this range, call for service.
Eb - Bucket has been removed or is not in the correct position. Please replace the bucket or correct positioning.
INDICATOR LIGHT FUNCTIONS
Note: Depending on the humidity conditions of the surrounding environment, the dehumidifi er may not start automatically when the “on/off” button is pressed (see dehumidifying mode instructions for details).
Memory Setting: Each time the unit is disconnected / re-connected and/or in the event of a power failure, the electronic circuit board automatically defaults to the last program setting that was used. After the unit has stopped, it may take several minutes before operating conditions resume.
Auto-restart: If the unit shuts off unexpectedly due to a power outage, it will restart with the previous function settings automatically when the power resumes.
Bucket Full Indicator Light: When the bucket is full and/or incorrectly positioned inside the cabinet, the bucket full light will turn on and remain on until the bucket is emptied and/or correctly re-positioned. This condition will result in the immediate shut down of the dehumidifying system (both compressor and fan motor operation are terminated). This is a safety feature. When the bucket is emptied and/or correctly re-positioned, the dehumidifi er will resume operation automatically.
NOTE: It may take several minutes before operating conditions resume.
Auto-defrost: When frost builds on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears.
TIMER FUNCTIONS
Follow these steps to program the Auto-on or Auto-off feature using the control panel:
Auto-off:
1. When the unit is on, and the TIMER button is pressed, the timer off indicator light illuminates to indicate that the autooff program is initiated.
2. Press or hold the UP or DOWN button to change the ‘Auto’ time by 0.5 hour increments, up to 10 hours (then at 1 hour increments up to 24 hours). The unit control will count down the time remaining until start.
3. Within 5 seconds of setting auto-off time, press the TIMER button again to complete the auto-off program.
Auto-on:
4. When the unit is off, and the TIMER button is pressed, the auto-on program is initiated. Set the auto-on time as in step 2 above. Within 5 seconds of setting auto-on time, press the TIMER button again to complete the auto-on program.
NOTE: When the auto-on and auto-off times are set, within the same program sequence, TIMER ON OFF indicator lights illuminate indicating that both ON and OFF times are now programmed.
NOTE: Turning the unit ON or OFF at any time, changing the on/off timer setting to 0.0, and a P2 error code will cancel the Auto-on/off functions
WATER TANK OPERATION
The water tank holds accumulated condensed water and, by means of a safety switch, controls both the water level and operation of the dehumidifi cation process. When the water tank is full and/or accidentally displaced inside the cabinet, the fl oat switch actuator (inside the tank) breaks contact with the safety switch. This condition results in the immediate shut down of the compressor and fan motor system, preventing moisture from being condensed.
Note: On some models, the fan will continue to run for approximately 2-3 minutes after the unit has stopped and the bucket has been removed. As a result, water may drip from the tray onto the base of the unit, and then onto the fl oor. Please ensure that you protect your wood and carpet from such leakage.
IMPORTANT Never tamper with or attempt to defeat the water level (safety) fl oat switch system. Proper installation of the water tank is crucial in maintaining reliable dehumidifi er operation.
DEHUMIDIFYING
Dehumidifying is a means of removing moisture from the air. A dehumidifi er will help to protect your home and valued possessions from damage due to swelling caused by moisture in the air. Essentially a dehumidifi er removes moisture from air as moist air passes over a dehumidifying (evaporator) coil. Moisture is condensed on the evaporator coil, drained, and collected inside an internal (removable) water tank located at the front of the unit. The exhausted air being returned into the room environment is elevated several degrees causing the surrounding air temperature to increase (slightly). This process also contributes to lowering the relative humidity of the surrounding air.
Note: For optimal performance, ensure that the unit is set at least 10% lower than the relative humidity level. It is normal for the humidity to vary by 5% above or below the set humidity. It is recommended that in normal conditions, the humidity be set at 40-45%.
DEHUMIDIFYING MODE INSTRUCTIONS
When the unit is first connected to the electrical outlet, the (green) power light will not light up until the “on/off” button is pressed. When the “on/off” button is pressed, the power light turns on and the dehumidifi er automatically defaults to:
Display: Current ambient room humidity (RH%)
Humidity Setting: 40% RH
Fan Speed: High.
Note: Depending on humidity conditions of the surrounding environment, the dehumidifi er may not start automatically under the default setting (this is an indication that the humidity level of the surrounding environment is lower than the “default” setting).
Dehumidifying Mode Selection:
1. The unit enters dehumidify mode when the ON/OFF button is pressed.
2a. Press the + / - buttons to select a desired RH operating value (35%-85%). OR
2b. Press the continuous button. When continuous mode is selected, the humidistat (sensor) will be by-passed and the compressor will operate non-stop regardless of humidity conditions.
Fan Speed Selection:
3. You can choose a fan speed (normal/turbo) using the keypad. The speed you select is identifi ed by the (illuminated) indicator light located directly above the selection made.
AIR FILTER
Note: All the pictures in the manual are for explanatory purposes only. The actual shape of the unit you purchased may be slightly different, but the operation and functions are the same.
Your dehumidifi er features a removable Air Filter. This fi lter is located at the front of the unit (behind the air intake grill) directly above the water tank compartment. The air fi lter plays an important role in helping to reduce (minimize) dust/ dirt particles from the surrounding environment. A blocked/clogged air fi lter reduces air intake, impacting negatively on operating effi ciency. To maintain maximum operating effi ciency, the fi lter must be checked and cleaned regularly (every 2 weeks). More frequent cleaning may be required depending upon indoor air quality
IMPORTANT: Never operate the unit without the air fi lter in place.
AIR FILTER REMOVAL:
1. There are two options depending on your model.

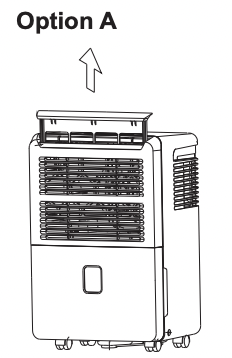

Option A: Grasp the fi lter handle, and pull the filter out. The fi lter will slide out easily (Fig. 2).
Option B: Remove the bucket and pull the fi lter downwards.
2. Clean the fi lter thoroughly using a vacuum cleaner or wash using lukewarm water and mild detergent. Dry thoroughly before re-installing.
3. To re-install the air filter, slide the filter back inside the tracks and push inward.
4. Press the reset filter button.

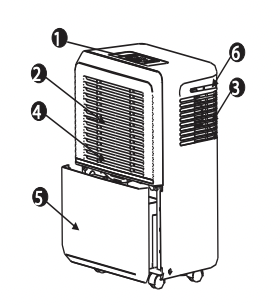

Front:
1. Control Panel
2. Air Intake Grill
3. Air Outlet Grill
4. Air Filter (behind the grill)
5. Water Bucket
6. Handle (both sides)

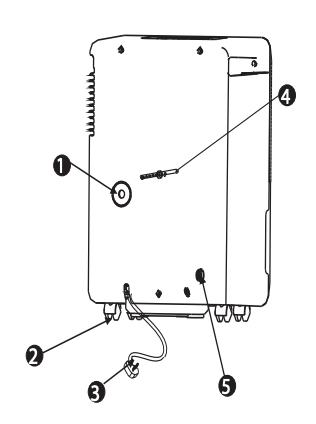

Back:
1. Continuous Drain Hose Outlet
2. Castor
3. Power Cord and Plug
4. Band (used only when storing unit)
5. Pump Drain Hose Outlet
REMOVING COLLECTED WATER
A1. Pull the bucket out a little
A2. Hold both sides of the bucket with even strength, and pull it out from the unit. Pour the water out.
B1.
B2
B3.
B4.
There are two ways to remove collected water:
1. Use the bucket
When the unit is off and the bucket is full, the unit will beep 8 times, the bucket full indicator light will fl ash, and the digital display shows P2. When the unit is on and the bucket is full, the compressor turns off and the fan turns off after drying the water off the condenser for 30 seconds. The unit will then beep 8 times and the bucket full indicator light will fl ash, and the digital display shows P2.
To empty the full bucket, slowly pull out the bucket. Grip the left and right handles securely, and carefully pull it straight out so water does not spill. Do not put the tank on the fl oor because the bottom of the bucket is uneven. Otherwise the bucket will fall and cause water to spill. Discard the water and return the bucket to the unit. The bucket must be placed and properly positioned for the dehumidifi er to operate. The machine will restart when the bucket is restored in its correct position.
Note: When you remove the bucket, do not touch any parts inside of the unit. Doing so may damage the product. Be sure to push the bucket gently all the way into the unit. Banging the bucket against anything or failing to push it in securely may cause the unit not to operate. When you remove the bucket, if there is some water inside the unit you must dry it. The power button fl ashes when the bucket is not properly in place.
2. Continuous draining:

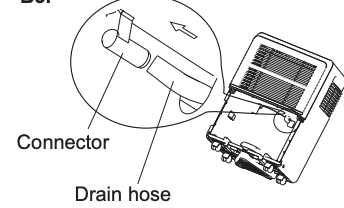

Water can be automatically emptied into a fl oor drain by attaching the unit to an ID ≥ 5/16” water hose with a OD:M=1 male threaded end (not included, a standard garden hose works well). Install the drain hose onto the adaptor A (see B1). The adaptor is found in the accessory bag located in the bucket. Remove the plastic cover from the back drain outlet of the unit and set it aside. Remove the bucket, then insert the drain hose through the drain outlet of the unit and securely press it into the connector on the front of the unit (see B2 and B3).
Tighten the adaptor A and the unit by using two screws (found in the Owner’s manual bag). Install the female threaded end of the water hose into the adaptor A (see B4), then lead the water hose to the fl oor drain or a suitable drainage facility. Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the water from fl owing. Place the end of the hose into the drain and make sure the end of the hose is level or declining to let the water fl ow smoothly. Place the bucket back in the unit and make sure that it is located correctly. Select the desired humidity setting and fan speed on the unit for continuous draining to start.
Accessories (for continuous drain):
Drain hose (1 pc)
Adaptor A (1 pc)
Screw (2 pc)
3. Continuous draining using a pump:
Water can be automatically emptied into a fl oor drain or suitable drainage receptacle by inserting the supplied pump hose in to the drain pump outlet. Ensure the continuous drain hose is not installed to the unit and that the plastic cover is securely placed on the continuous drain outlet. Insert the pump drain hose into the drain pump outlet ensuring there is a depth of at least 15 mm. Once properly inserted lead the pump hose to the fl oor drain. Once the hose is placed where water can easily drain out, press the “Pump” button on the control panel to activate the pump draining feature. To remove the pump hose, press the “Pump” button again on the control panel and remove the hose in the reverse order of installing it.
Note: It is normal for the pump to make a little bit of noise when it is running. Ensure there are no bends or kinks in the hose that will stop the water from flowing freely.
Note: If the “Pump” indicator light is fl ashing that means that the pump has failed to operate.
• Check that the pump fi lter is clean, to check the pump filter, turn the unit off and unplug it, remove the water bucket from the unit, pull the pump down, gently pull the fi lter off and clean the filter if needed. Once clean, reinstall the filter by reversing how it came off and gently pushing the pump back in to place.
• Check that the pump hose is not kinked or blocked.
• Empty the water in the bucket.
• If the pump hose has dropped, reinstall it.
CAUTION
1. DO NOT pull on the power cord to avoid breakage, potential danger or injury
2. DO NOT use insecticide/ repellents, oil or paint/spray paint around the machine, these might cause damage to plastic parts or start a fire.
3. DO NOT place the unit on uneven ground to avoid shaking, noise and water leakage.
4. Always keep the unit 20 cm or more from the wall to dissipate heat properly
5. DO NOT drop anything into the machine.
6. Close all windows to allow for the maximum possible efficiency for removing moisture.
7. Keep the machine away from any type of heat source.
8. When moving or putting in storage, do not place the dehumidifier on its side or upside down.
Care and Maintenance
CLEANING
IMPORTANT
1. Be sure to unplug the unit before cleaning or servicing.
2. Do not use gasoline, paint thinner or other chemicals to clean the unit.
3. Do not wash the unit directly under a tap or using a hose. It may cause electrical damage.
4. If the power cord is damaged, contact the service depot immediately.
1. Clean the grill and case
Use water and a mild detergent. Do not use bleach or abrasives. Do not splash water directly onto the main unit. Doing so may cause an electric shock, cause the insulation to deteriorate, or cause the unit to rust. The air intake and outlet grills become dirty easily, so use a vacuum attachment or brush to clean.
2. Clean the bucket
Every few weeks, clean the bucket to prevent growth of mold, mildew and bacteria. Partially fi ll the bucket with clean water and add a small amount of mild detergent. Swish it around in the bucket, empty and rinse.
Note: Do not use a dishwasher to clean the bucket. After cleaning, the bucket must be placed and properly positioned for the dehumidifi er to operate.
3. Clean the air filter
Remove and clean the fi lter every two weeks based on normal operating conditions. Remove the fi lter from the top of the unit (option A), or you can choose to remove the bucket and then pull the fi lter downwards (option B). Wash the fi lter with clean water, then dry. Re-install the fi lter, replace the bucket (option B). Press the “reset fi lter” button.
Caution: DO NOT operate the dehumidifi er without a fi lter because dirt and lint will clog it and affect performance.
4. When not using the unit for long periods of time
After turning the unit off, wait one day before emptying the bucket. Clean the main unit, water bucket and air fi lter. Cover the unit with a plastic bag. Wrap the cord and bundle it with the band (as shown in Fig. 3). Store the unit upright in a dry, well ventilated place.
Troubleshooting
Occasionally, a minor problem may arise, and a service call may not be necessary- use this troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot or Danby’s Toll Free Number for assistance.
Dehumidifier does not start
POSSIBLE CAUSE
• The dehumidifi er is unplugged
• The fuse is blown/circuit breaker is tripped
• Dehumidifi er has reached its preset level or bucket is full
• Bucket is not in the proper position
• Power failure
SOLUTION
• Make sure the plug is pushed completely into the outlet
• Check the house fuse/circuit breaker box and replace the fuse or reset the breaker
• The unit turns off automatically when either condition occurs. Change to a lower setting or empty the bucket and replace properly
• The bucket must be in place and securely seated for the unit to operate.
• There is a protective time delay (up to 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normally for 3 minutes after it is turned back on.
Dehumidifier does not dry the air as it should
POSSIBLE CAUSE
• Did not allow enough time to remove the moisture
• Airfl ow is restricted
• Dirty filter
• The humidity control may not be set low enough
• Doors and windows may not be closed tightly
• Clothes dryer may be blowing moisture-laden air into the room
• Room temperature is too low
SOLUTION
• When fi rst installed, allow at least 24 hours to maintain the desired dryness
• Make sure there are no curtains, blinds or furniture blocking the front or back of the dehumidifi er. See the “Location” section.
• See the “Air fi lter” section
• For drier air, press the ▼ button and set to a lower percent value (%)
• Check that all doors, windows and other openings are securely closed
• Install the dehumidifi er away from the dryer. The dryer should be vented to the outside.
• Moisture removal is best at higher room temperatures. Lower room temperatures will reduce the moisture removal rate. Modes are designed to be operated at temperatures above 5°C (41°F)
Dehumidifier runs too much but does not collect water
POSSIBLE CAUSE
• Need to reset controller
SOLUTION
• Set to 40% RH. Allow bucket to fi ll and then empty bucket. Adjust controller to desired % RH.
Dehumidifer runs too much collects water
POSSIBLE CAUSE
• Area to be dehumidifed is too large
• Doors and windows are open
SOLUTION
• The capacity of your dehumidifier may not be adequate
• Close all doors and windows
Frost appears on the coils
POSSIBLE CAUSE
• Unit has been recently turned on, or room temperature is below 5°C (41°F)
SOLUTION
• This is normal. Frost will usually disappear within 60 minutes. See the “Defrost” section
Controls cannot be set
POSSIBLE CAUSE
• The compressor will turn off and the fan will automatically continue to run for approx. 3 minutes at a fi xed setting
SOLUTION
• This is normal. Wait approximately 3 minutes and set the fan as desired.
Fan noise
POSSIBLE CAUSE
• Air is moving through the dehumidifier
SOLUTION
• This is normal
Water on floor
POSSIBLE CAUSE
• Hose connection may be loose
• Bucket used to collect water, but the hose is attached
SOLUTION
• Check the hose connection. See “Continuous Drain” section
• Disconnect the hose if using the bucket to collect water, see “Continuous Drain” section.
The pump operation light is blinking
POSSIBLE CAUSE
• The filter may be blocked
• There may be a kink in the hose
SOLUTION
• Clean the pump filter
• Check that the hose has no kinks in it
LIMITED CARRY-IN APPLIANCE WARRANTY
This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.
First 24 months During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser
To obtain service Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any appliance requiring service outside the limited boundaries of “In Home Service" it will be the consumer's responsibilty to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See "Boundaries of in Home Service” below.
See other models: DAR044A1SSO-6 DWM12C1WDB-6 DCR016A1BBSL DAR044A9SLDB DFF180E1WDB
Contact your dealer from whom your unit was purchased. or contact your nearest authorized Danby service depot. where service must be performed by a qualified service technician. If service is performed on the units by anyone other than an authorized service depot. or the unit is used for commercial application. all obligations of Danby under this warranty shall be void.
Boundaries of In-home service If the appliance is installed in a location that is 100 Kilometers (62 miles) or more from the nearest service center your unit must be delivered to the nearest authorized Danby Service Depot. as service must only be performed by a technician qualified and certified for warranty service by Danby. Transpor tation charges to and from the service location are not protected by this warranty and are the respons! bility of the purchaser.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spollage or damage to food or other contents of this appliance. whether due to any defect of the appliance. or its use. whether proper or improper.
EXCLUSIONS
Save as herein provided. by Danby. there are no other warranties. conditions. representations or guarantees. express or Implied. made or intended by Danby or its authorized distributors and all other warranties. conditions. representations or guarantees. including any warranties. conditions. representations or guarantees under any Sale of Goods Act or lke legislation or statute is hereby expressly excluded. Save as herein provided. Danby shall not be responsible for any damages to persons or property. including the unit itself. howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit. the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage. defective house wiring or inadequate fuses.
4) Accident. alteration. abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire. water damage. theft. war. riot. hostility. acts of God such as hurricanes. floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (le. Building-in ofa free standing appliance or using an appliance outdoors that is not approved for outdoor application). Proof of purchase date will be required for warranty claims; so. please retain bills of sale. In the event warranty service is required. present this document to our AUTHORIZED SERVICE DEPOT.
