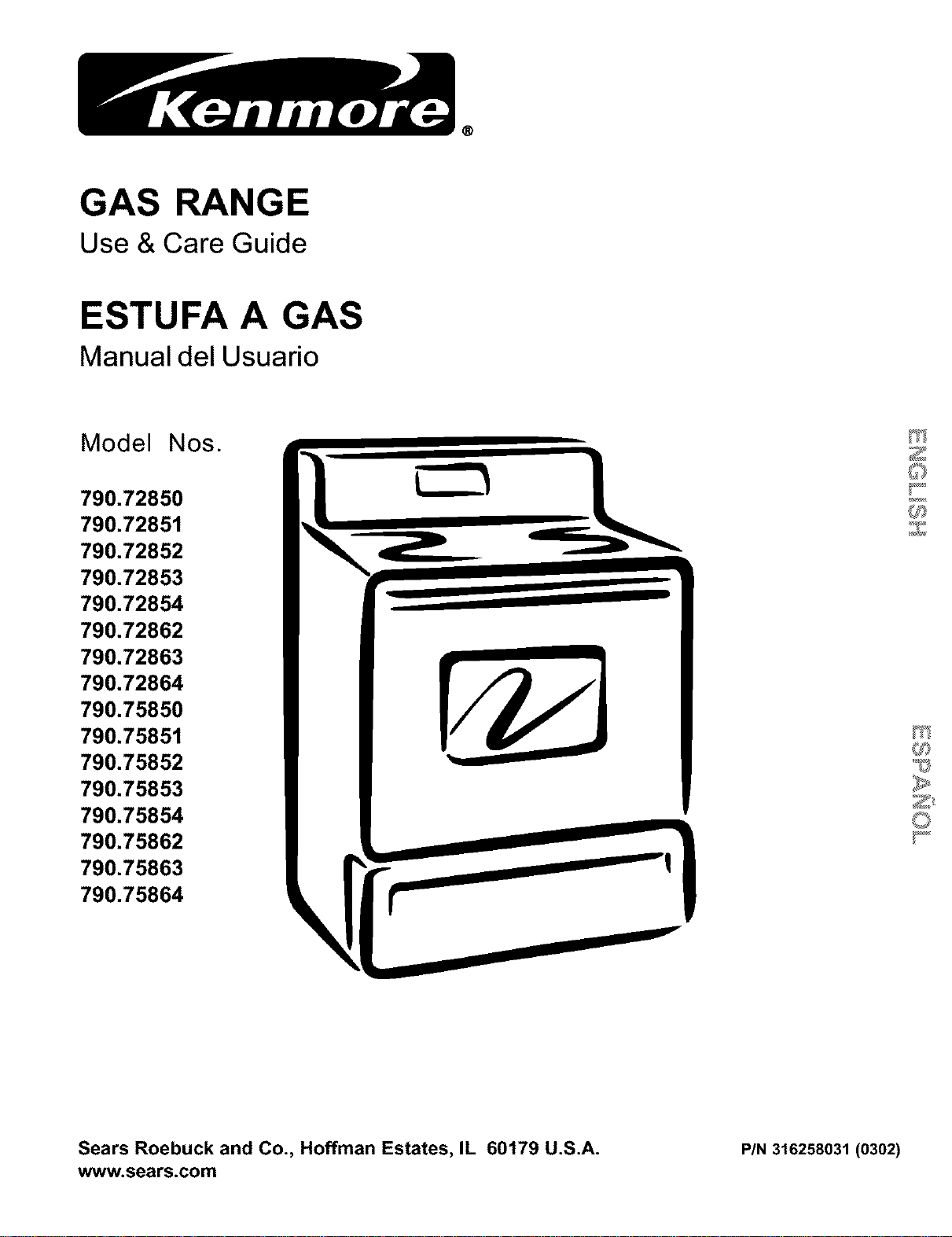

GAS RANGE
Use & Care Guide
ESTUFA A GAS
Manual del Usuario
Model Nos.
790.72850
790.72851
790.72852
790.72853
790.72854
790.72862
790.72863
790.72864
790.75850
790.75851
790.75852
790.75853
790.75854
790.75862
790.75863
790.75864
r
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PIN 316258031(0302)
www.sears.com

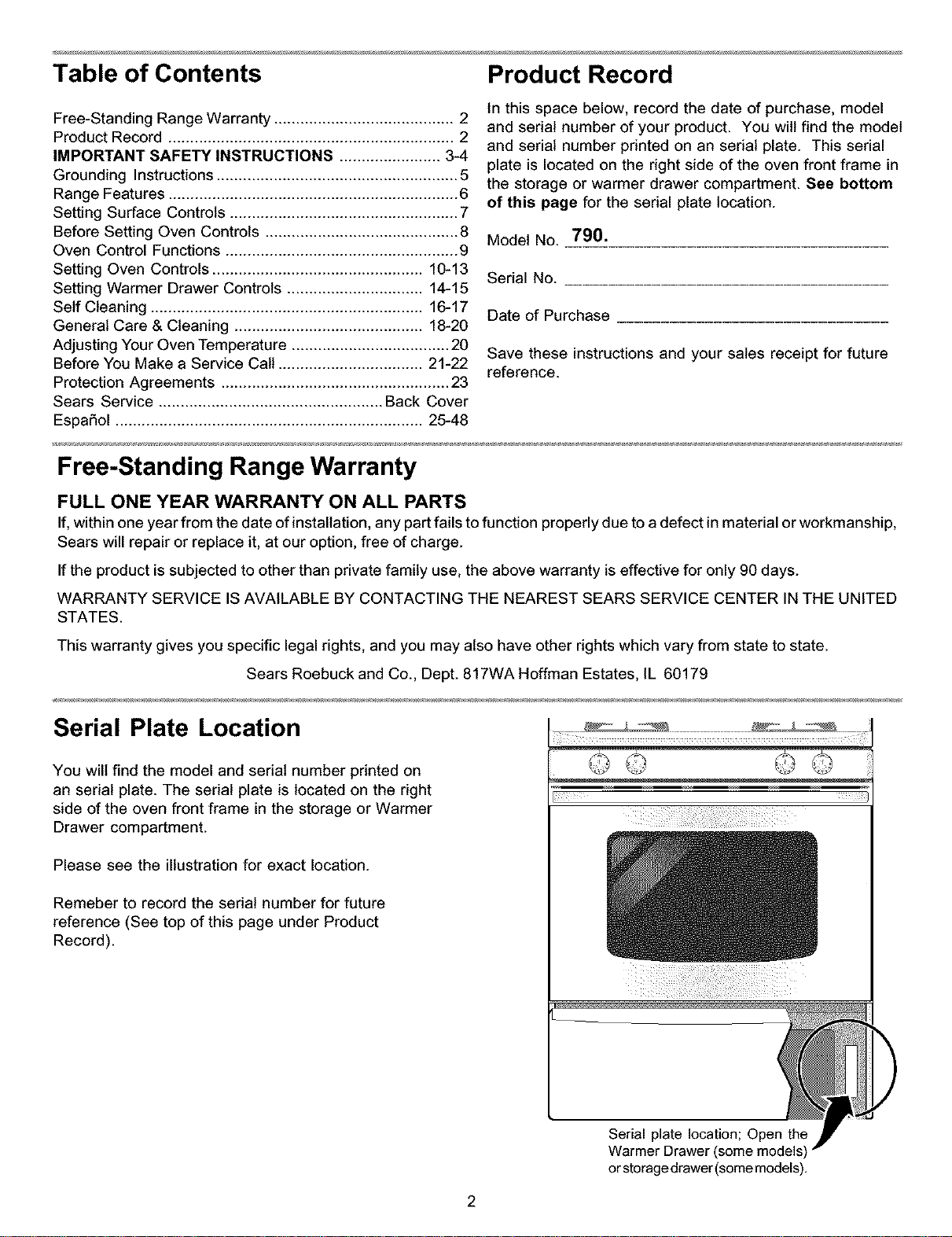

Table of Contents Product Record
Free-Standing Range Warranty ......................................... 2
Product Record ................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS ....................... 3-4

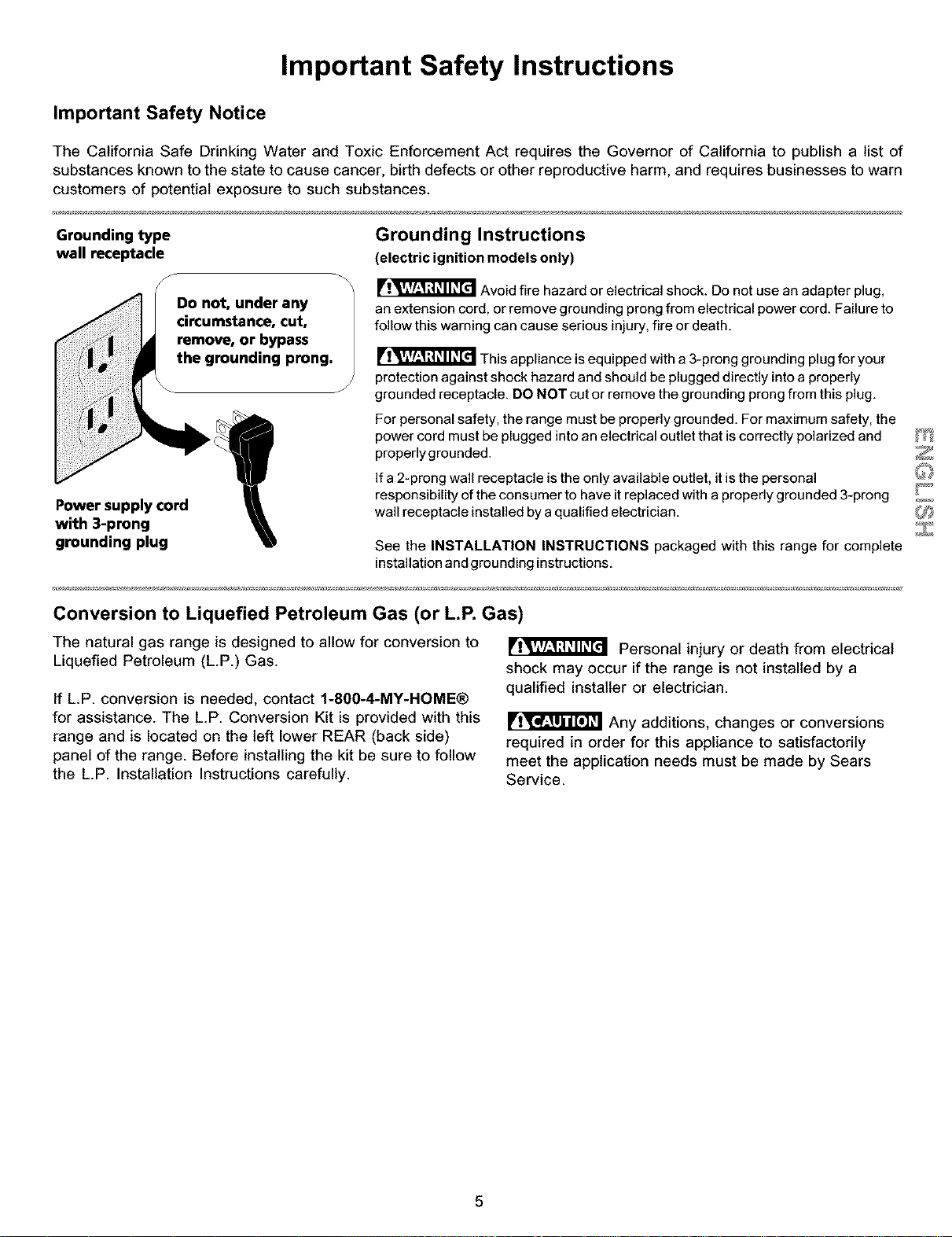

Grounding Instructions ....................................................... 5

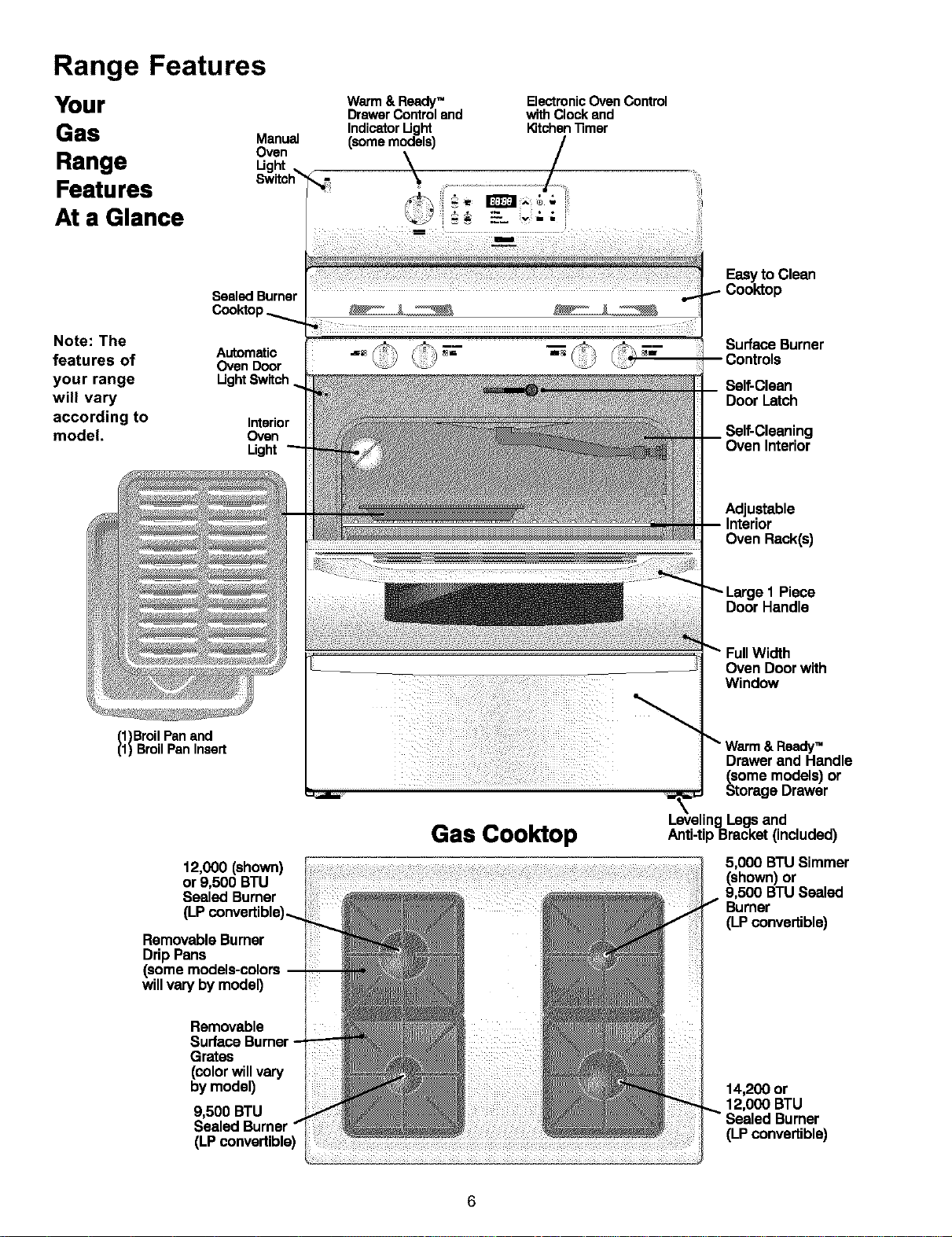

Range Features .................................................................. 6
Setting Surface Controls .................................................... 7

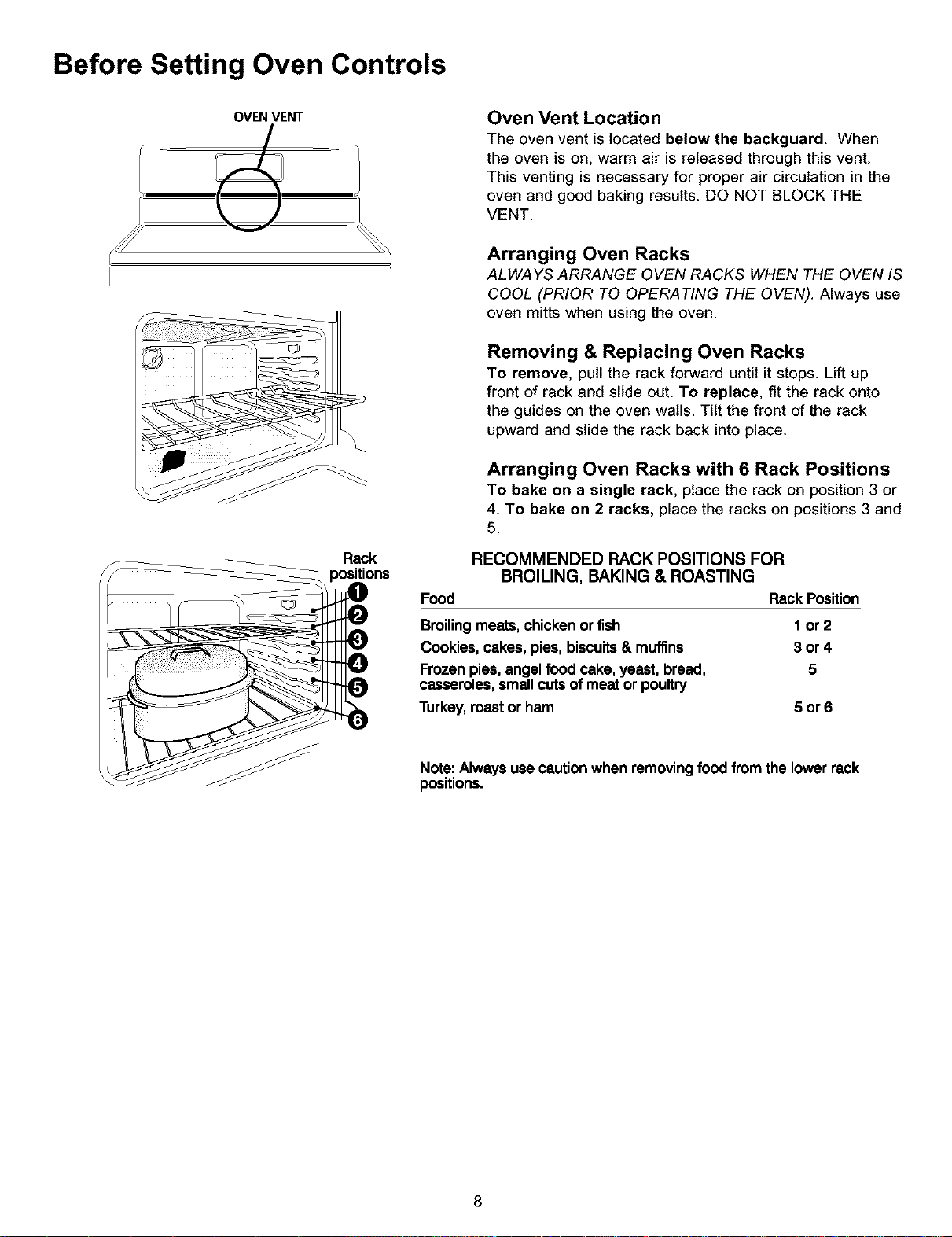

Before Setting Oven Controls ............................................ 8

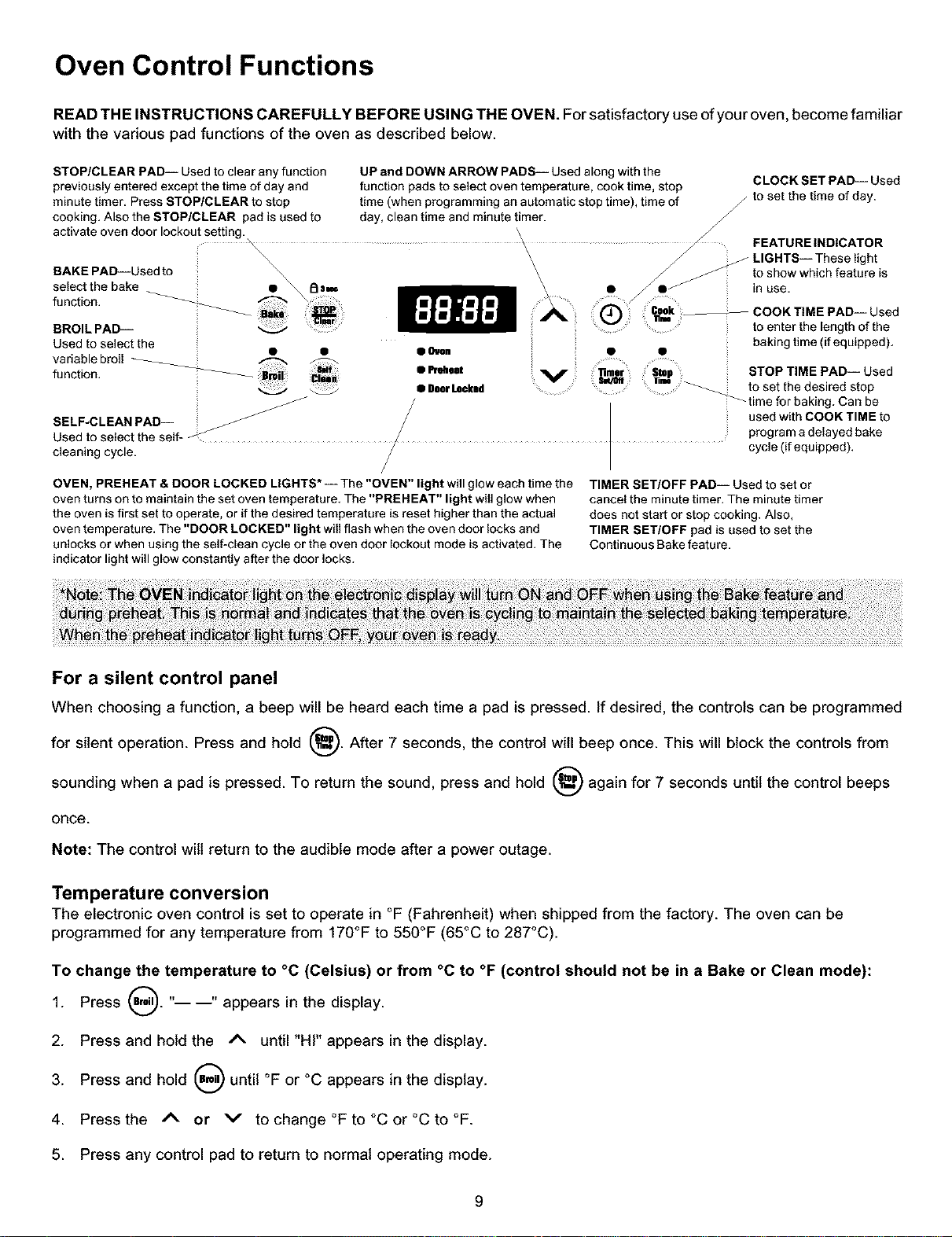

Oven Control Functions ..................................................... 9

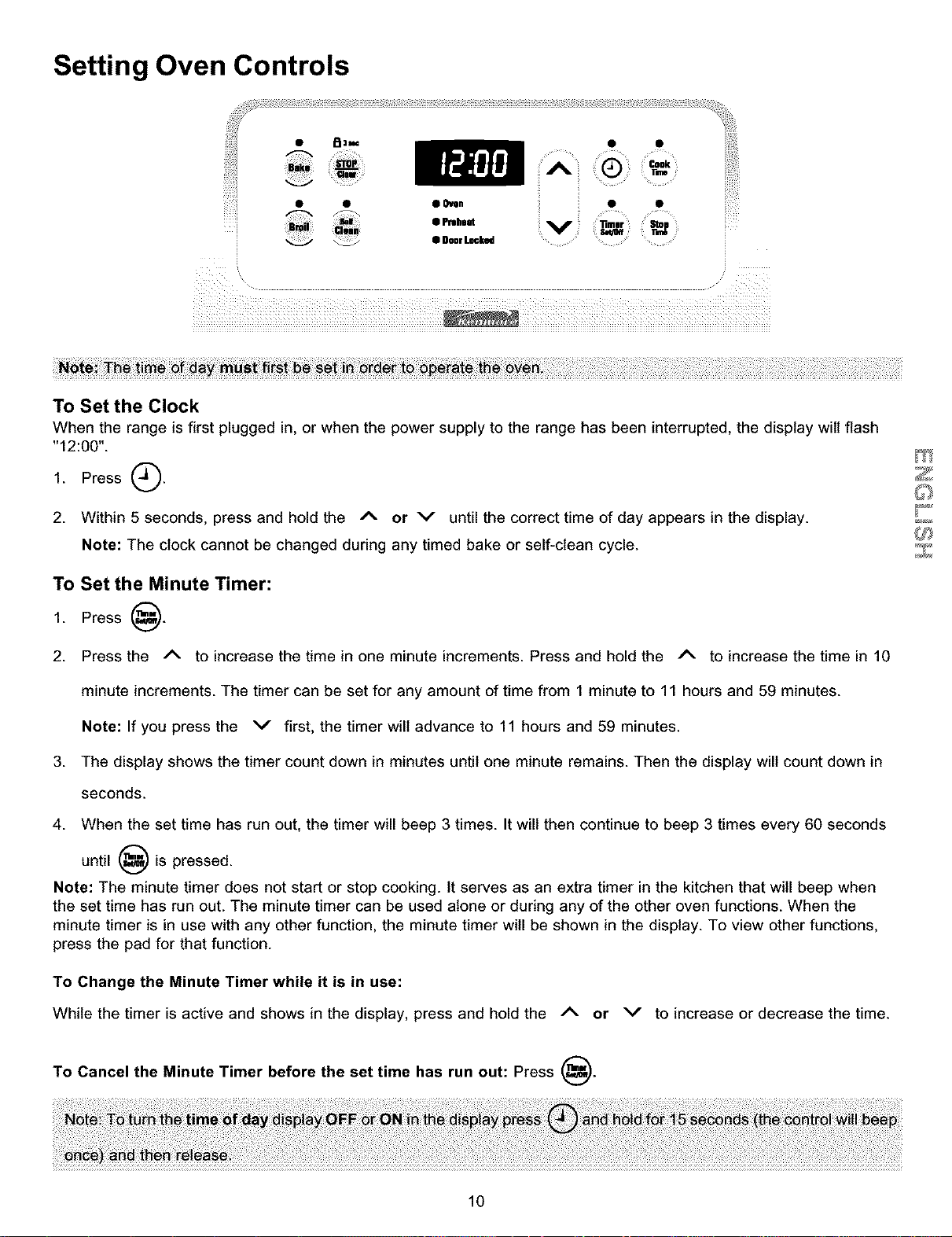

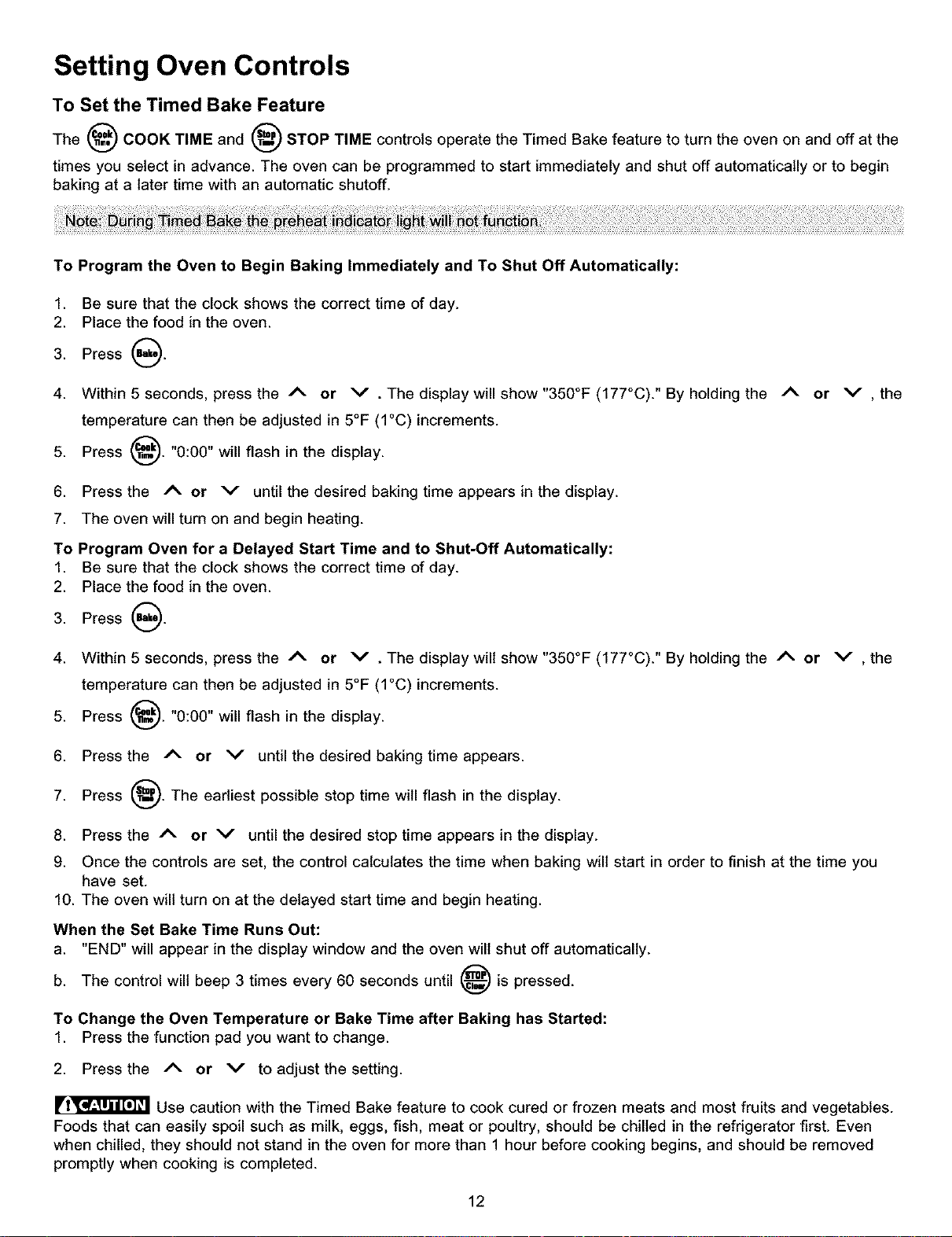

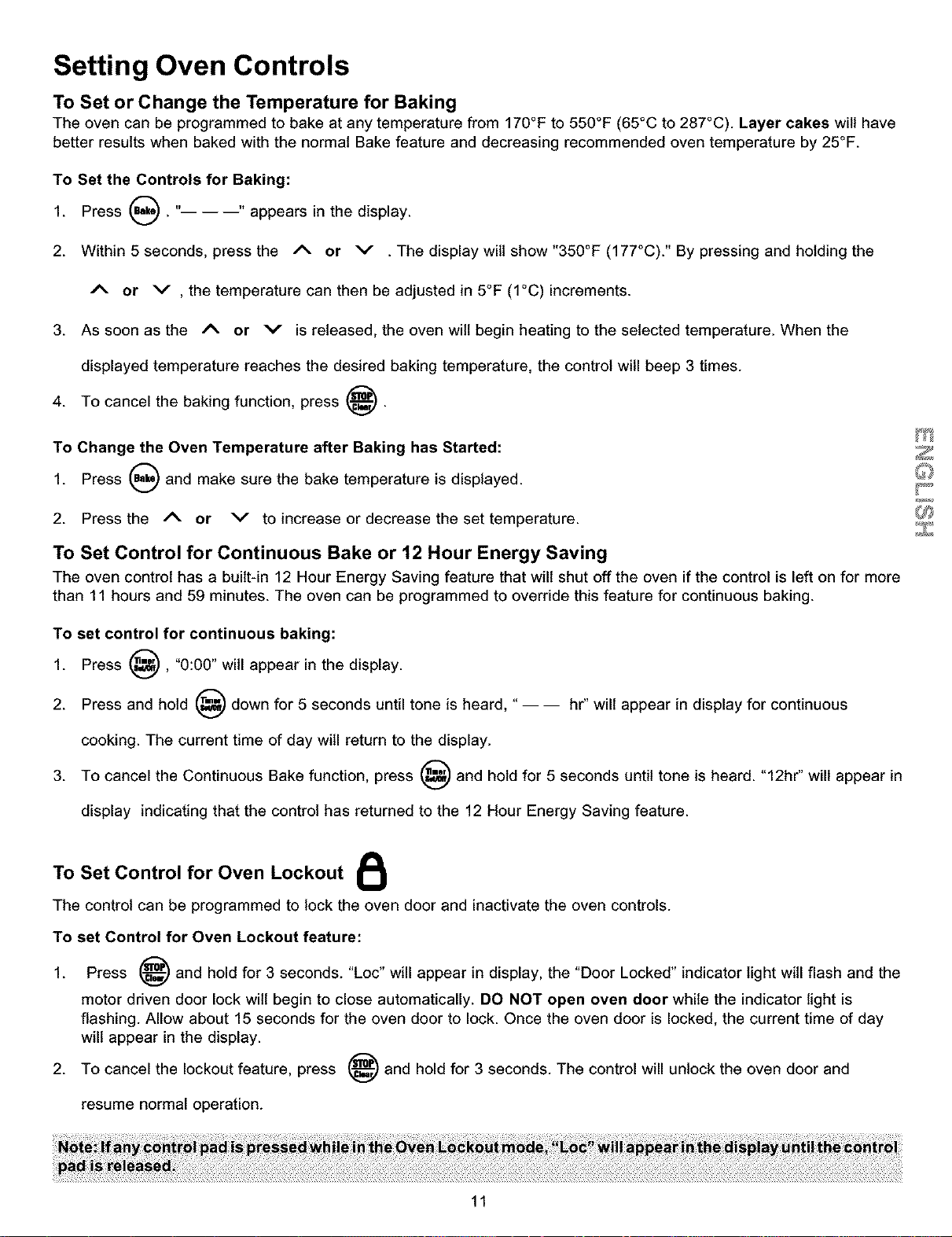

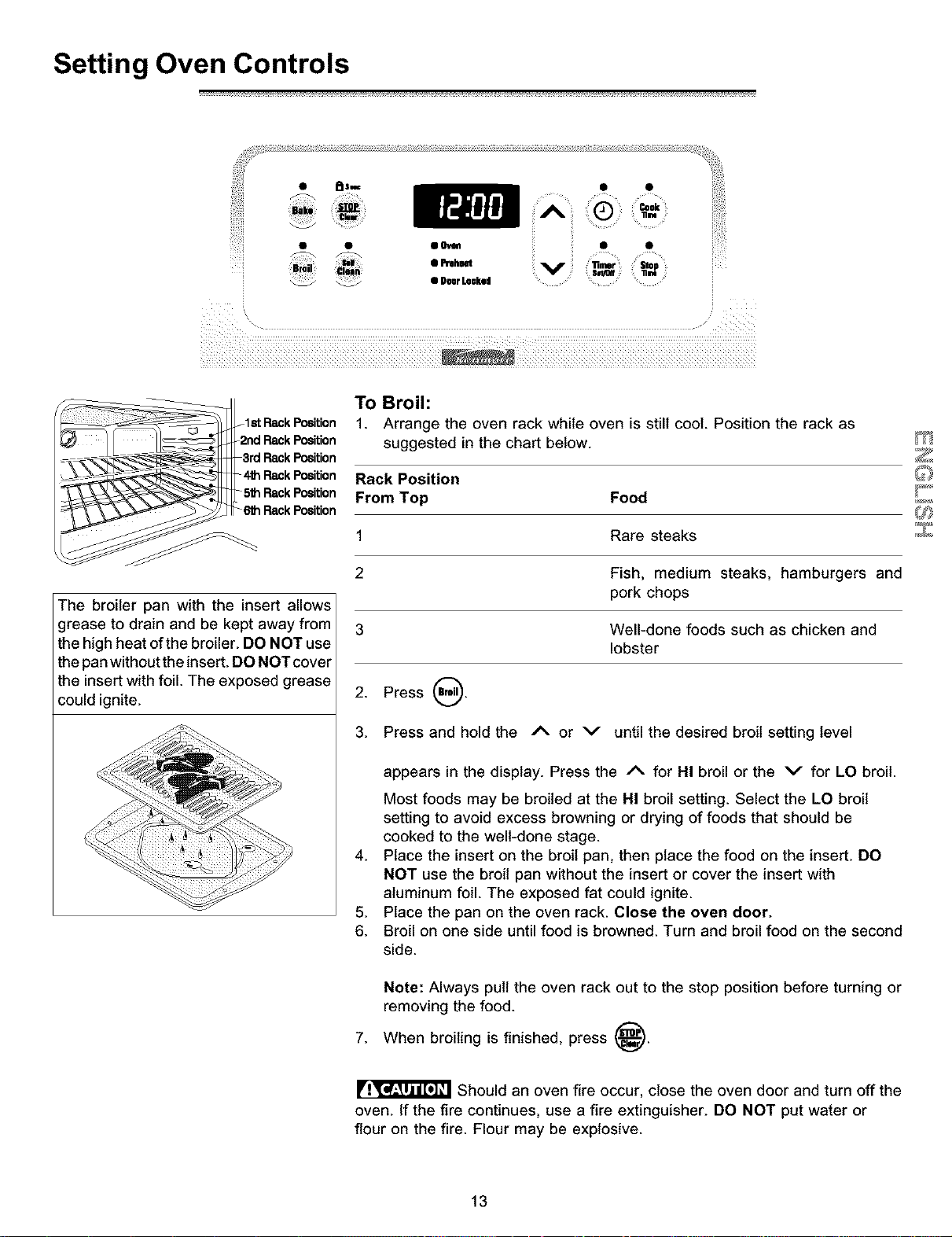

Setting Oven Controls ................................................ 10-13

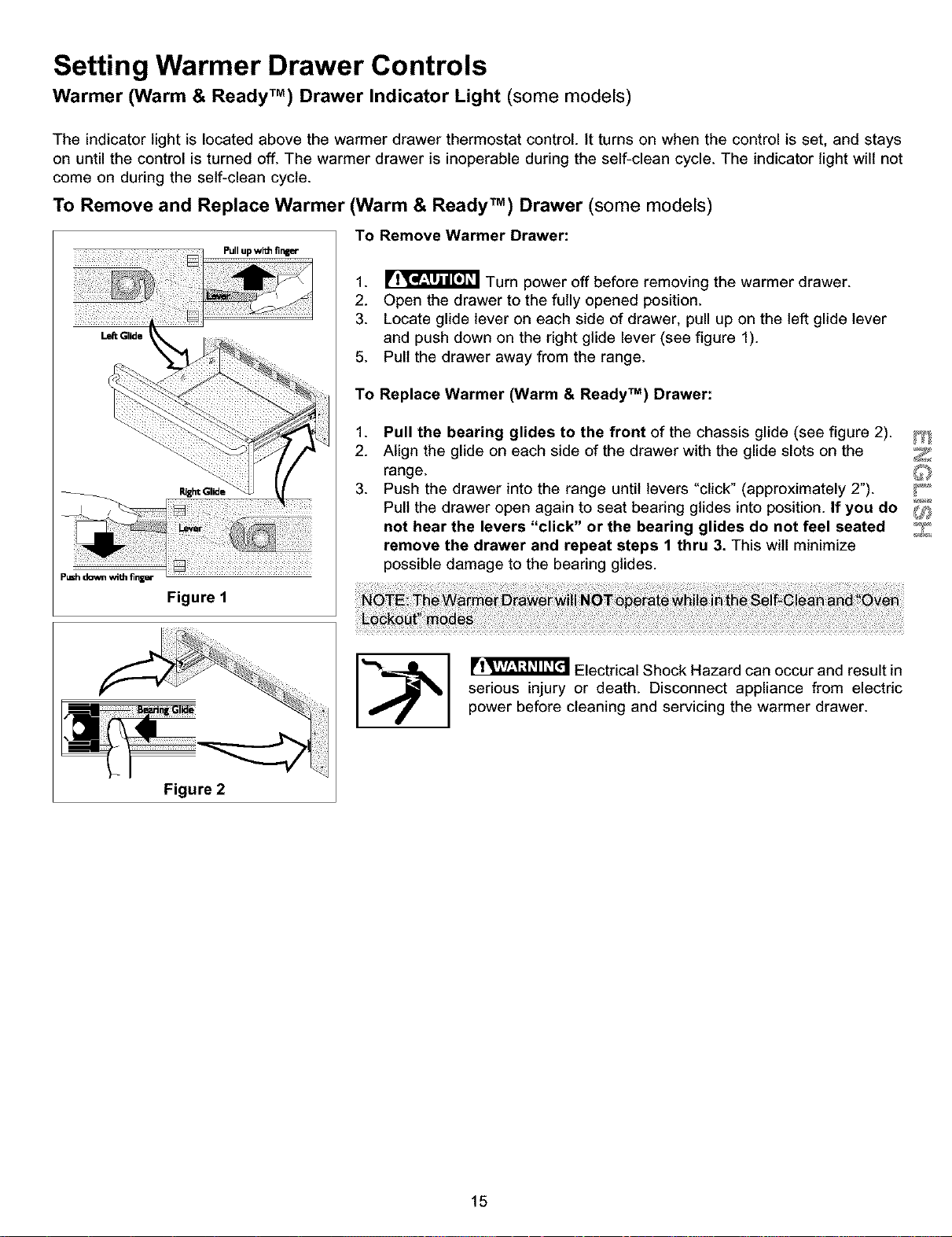

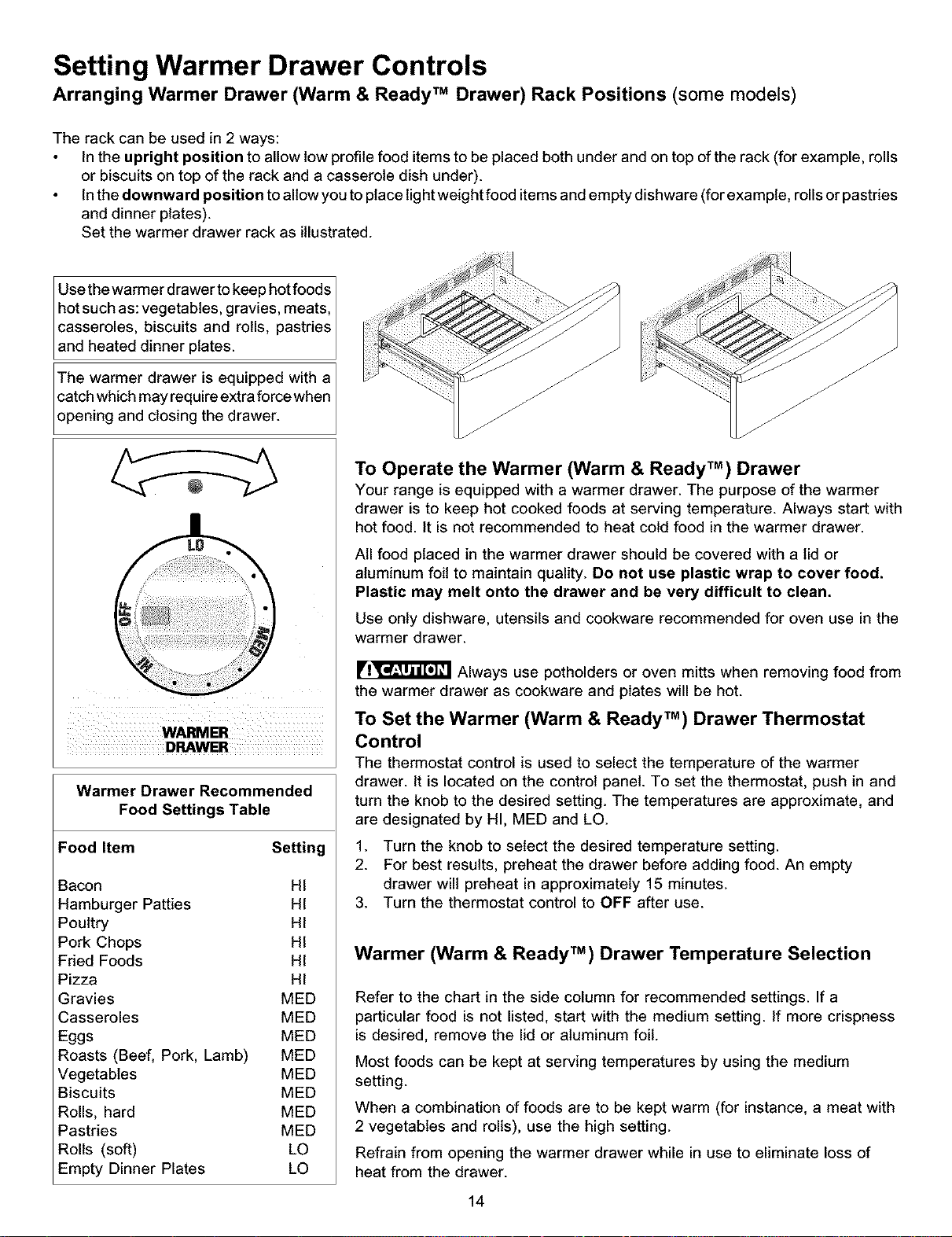

Setting Warmer Drawer Controls ............................... 14-15

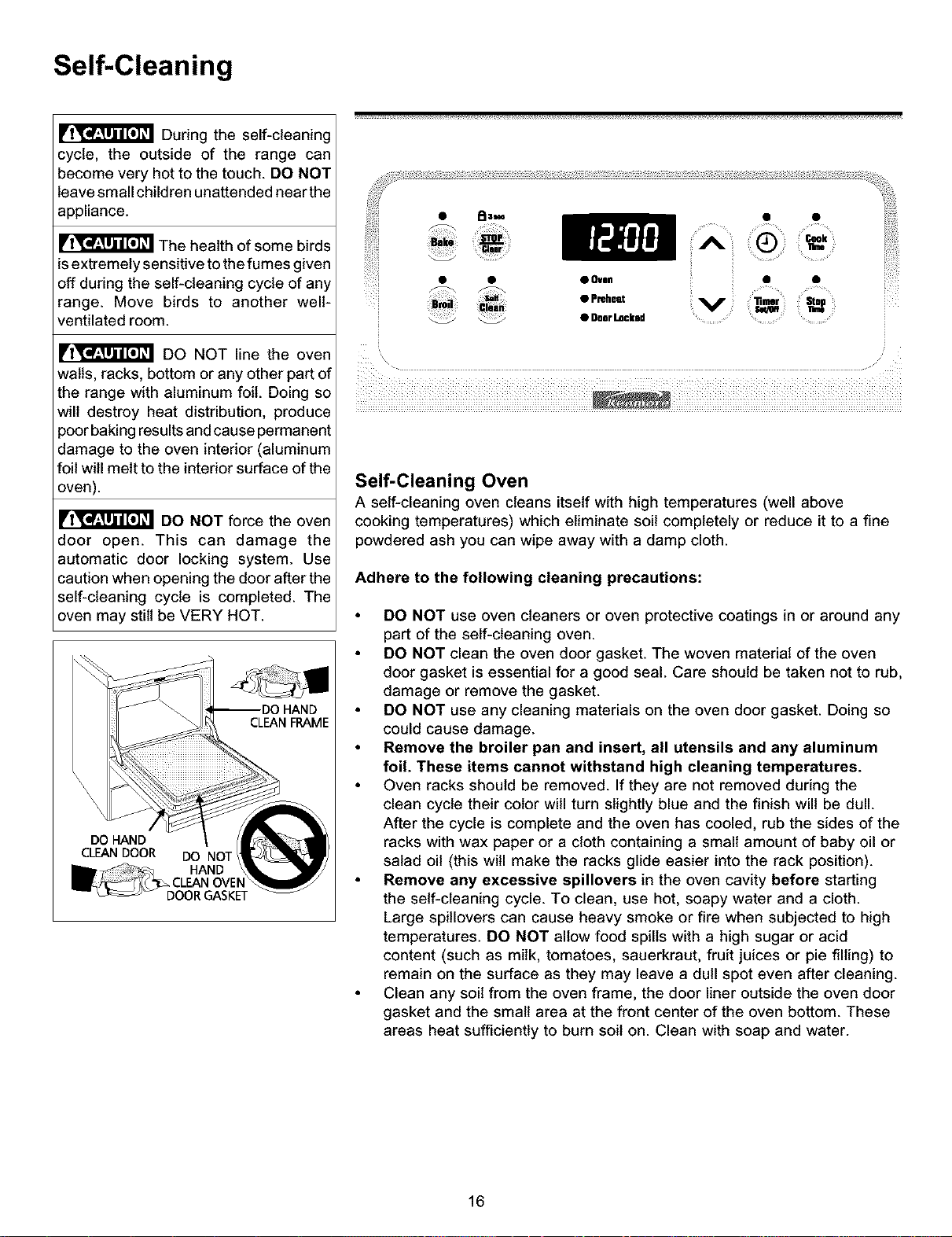

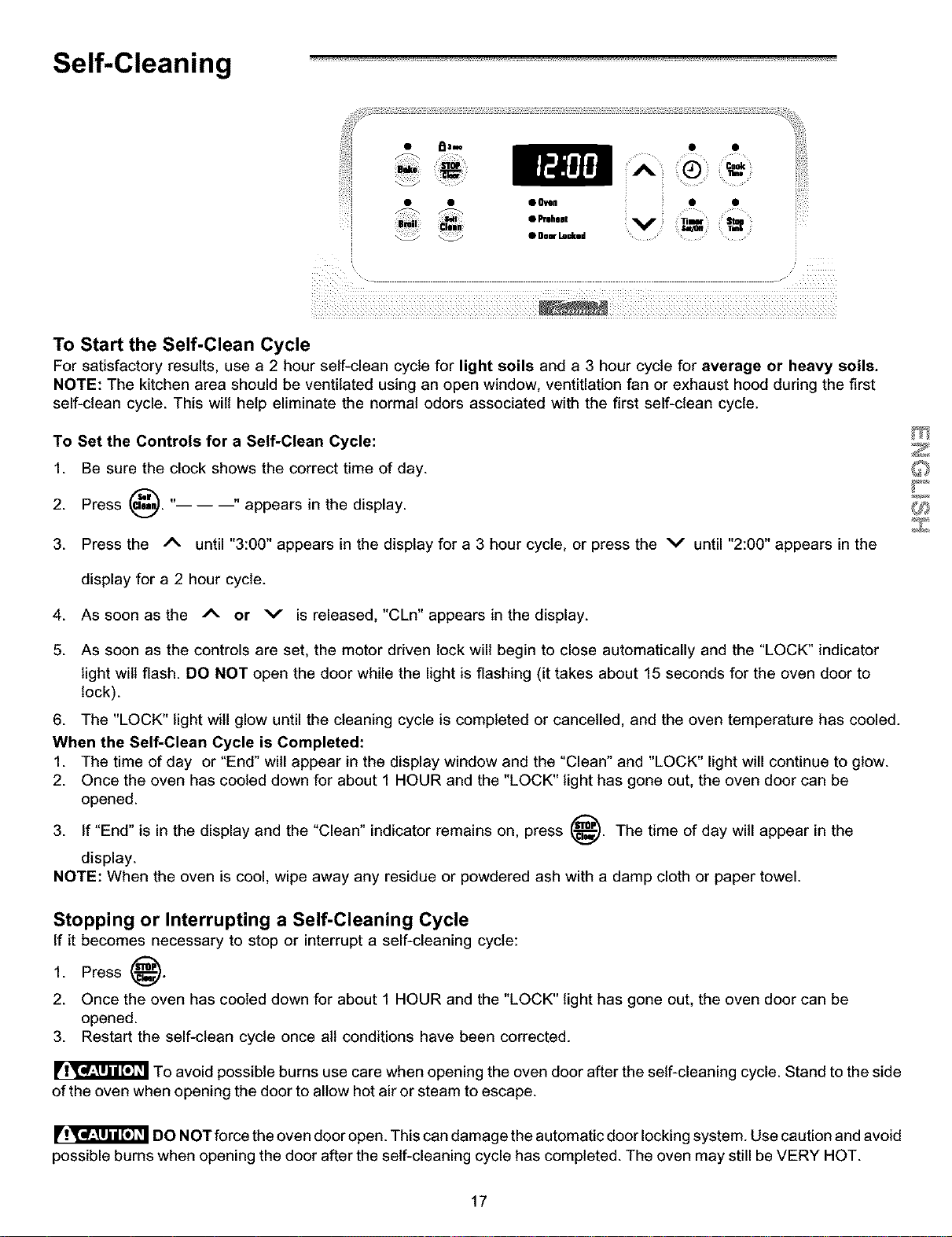

Self Cleaning .............................................................. 16-17

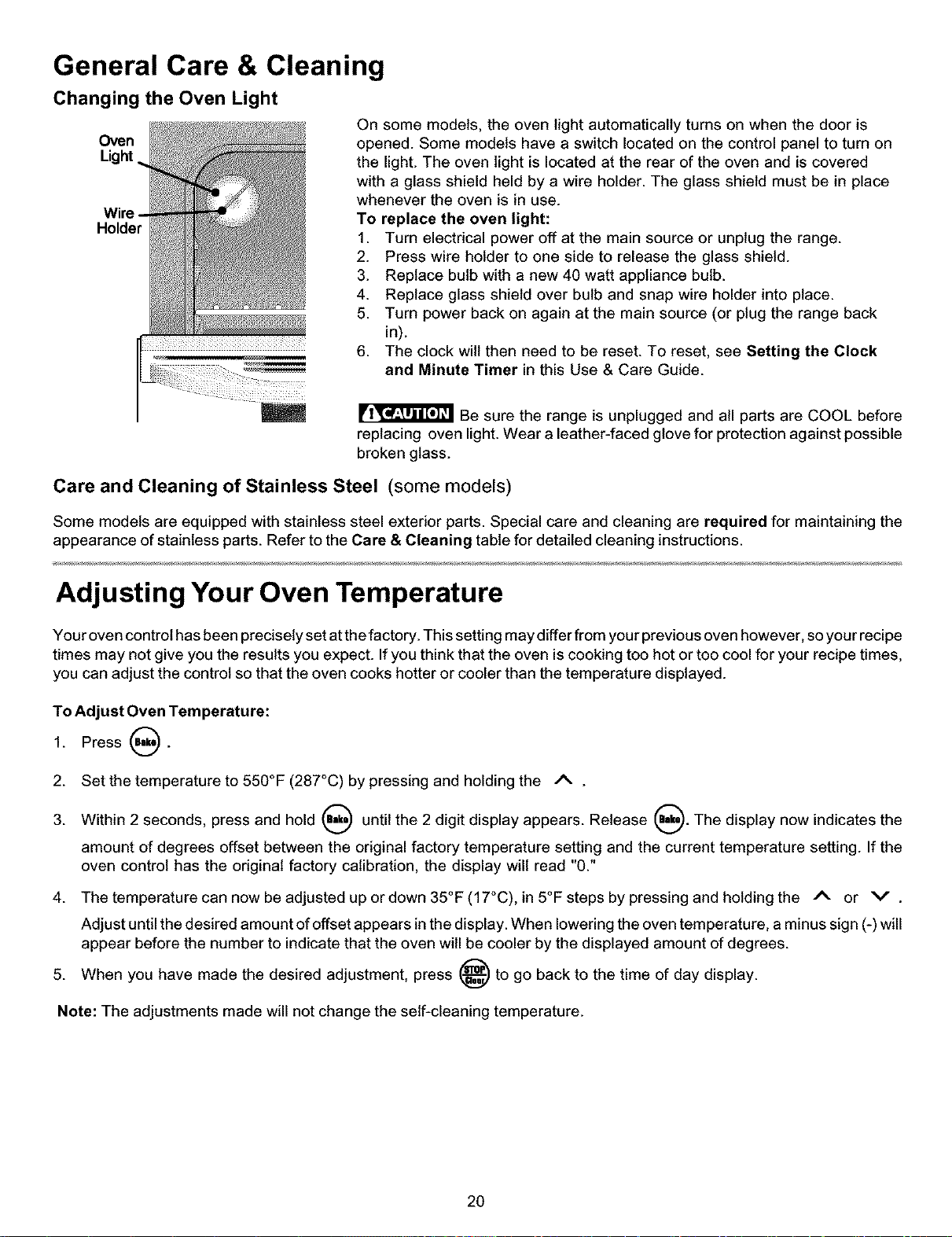

General Care & Cleaning ........................................... 18-20
Adjusting Your Oven Temperature .................................... 20

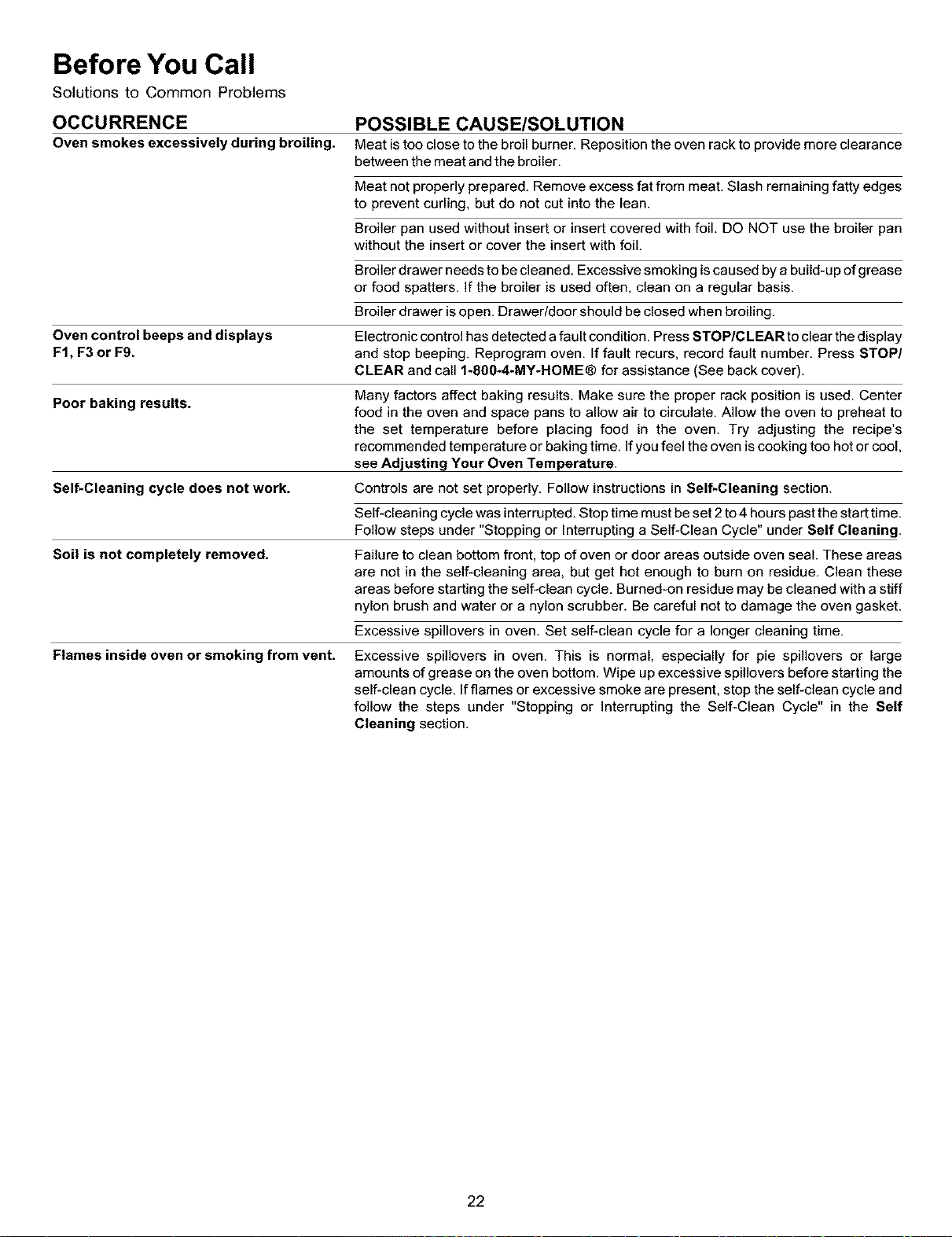

Before You Make a Service Call ................................. 21-22

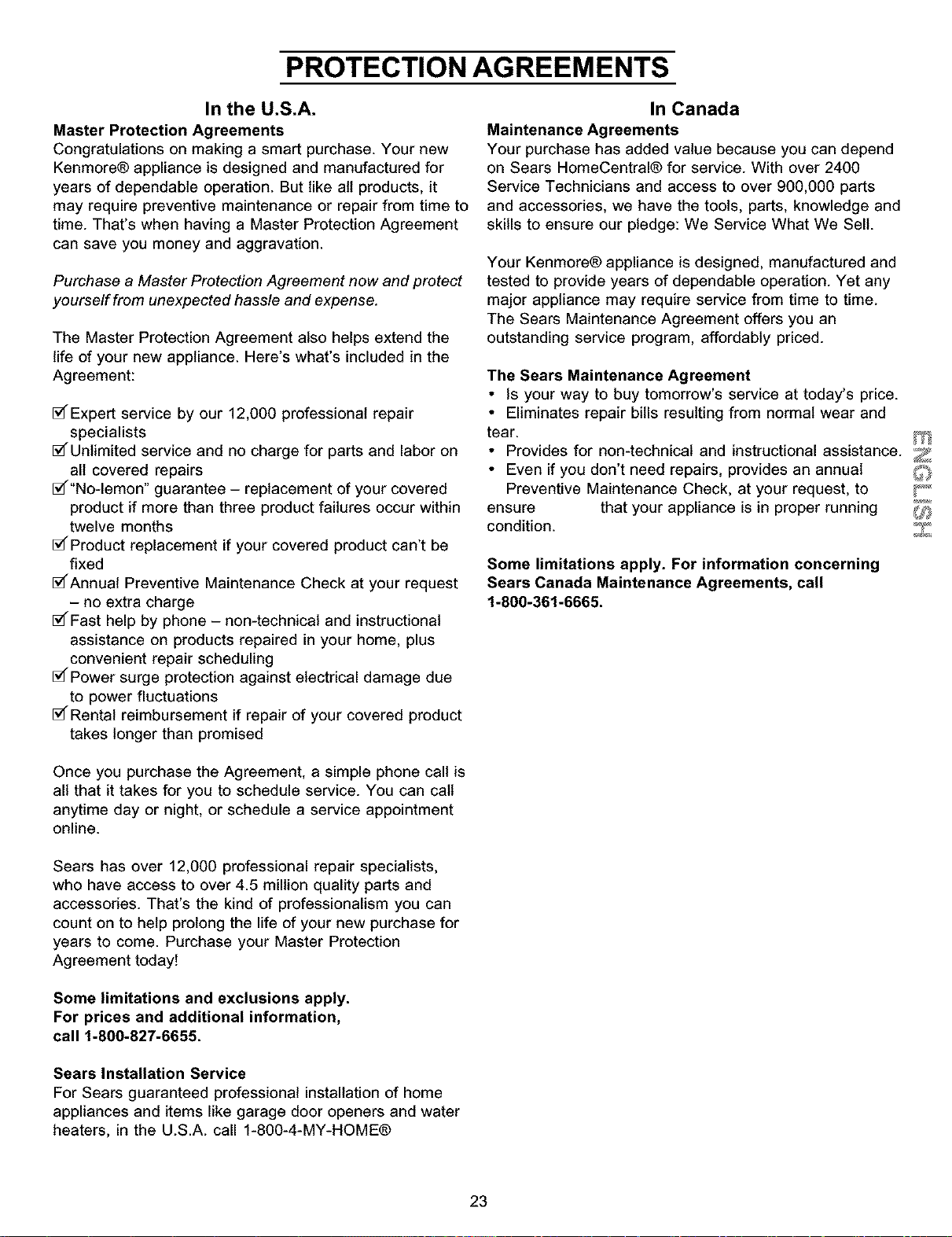

Protection Agreements .................................................... 23

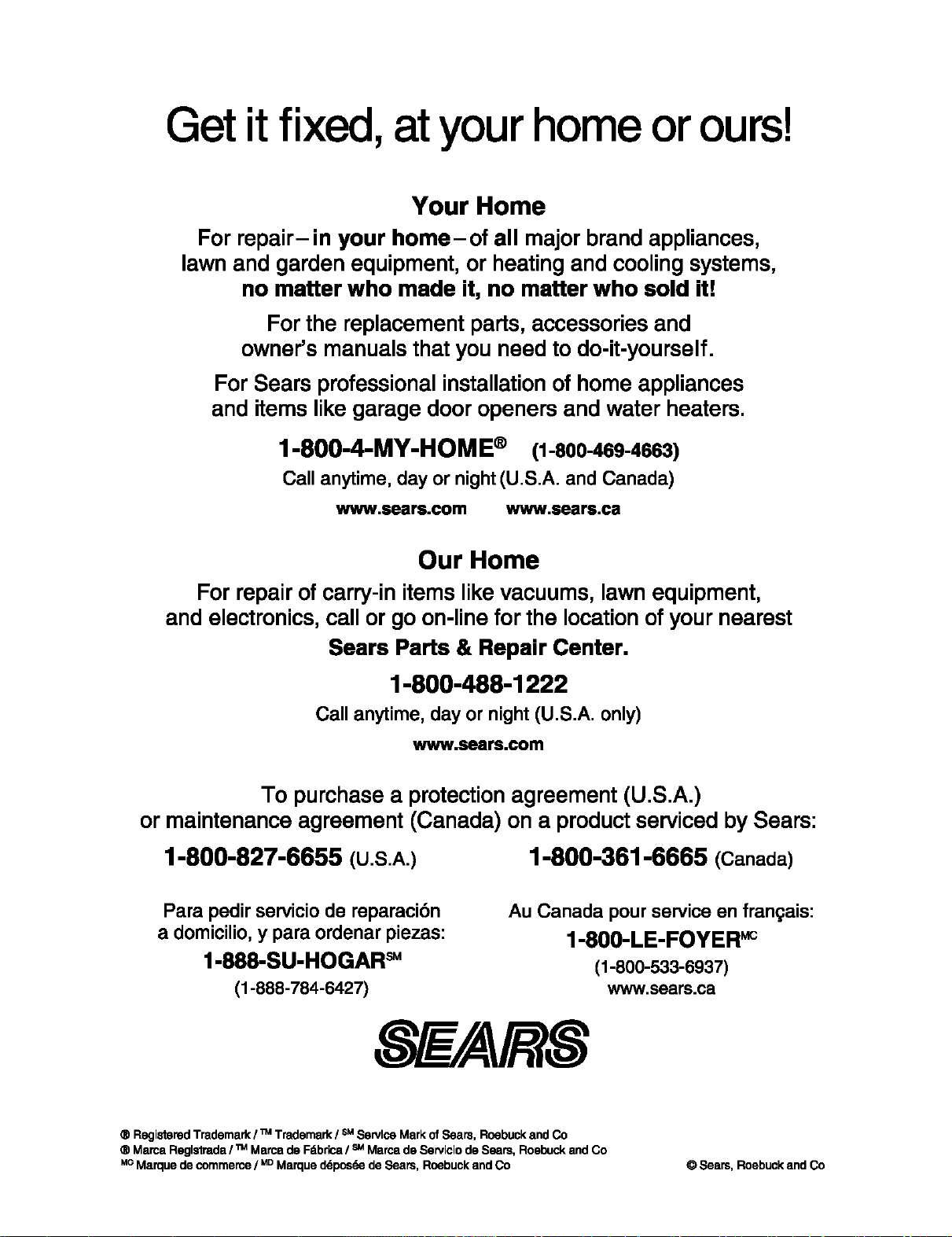

Sears Service ................................................... Back Cover
EspaSol ...................................................................... 25-48
In this space below, record the date of purchase, model
and serial number of your product. You will find the model
and serial number printed on an serial plate. This serial
plate is located on the right side of the oven front frame in
the storage or warmer drawer compartment. See bottom
of this page for the serial plate location.
Model No. 790.
Serial No..................................
Date of Purchase
Save these instructions and your sales receipt for future
reference.
Free-Standing Range Warranty
FULL ONE YEAR WARRANTY ON ALL PARTS
If,within one year from the date ofinstallation, any partfails to function properly due to a defect in material orworkmanship,
Sears will repair or replace it, at our option, free of charge.
If the product is subjected to other than private family use, the above warranty is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE UNITED
STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
Serial Plate Location
You will find the model and serial number printed on
an serial plate. The serial plate is located on the right
side of the oven front frame in the storage or Warmer
Drawer compartment.
Please see the illustration for exact location.
Remeber to record the serial number for future
reference (See top of this page under Product
Record).
Serial plate location; Open the
Warmer Drawer (some models)
or storage drawer (some models),

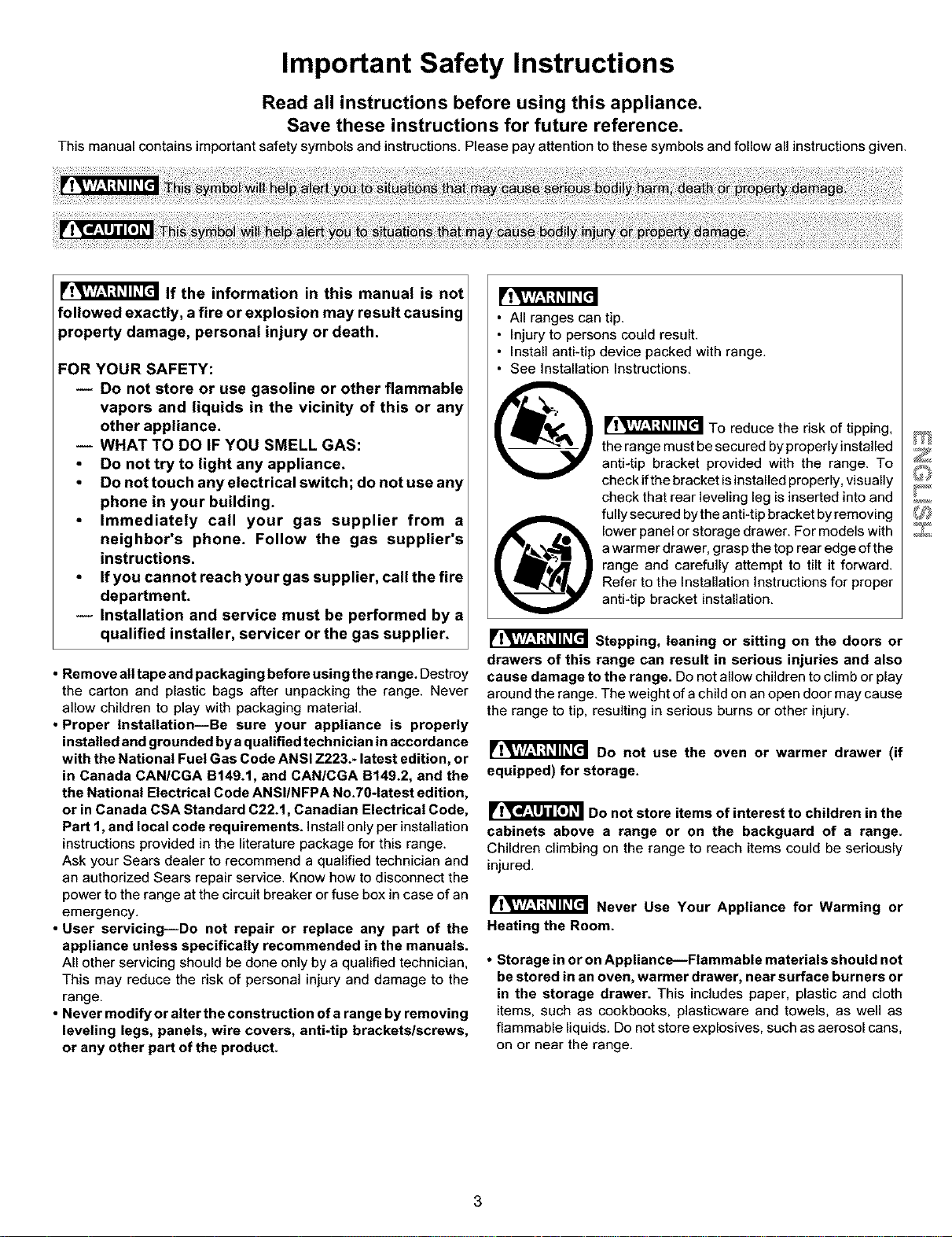

Important Safety Instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
F!_A'f.'l;t_ll_[cll If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
Ifyou cannot reach you rgas supplier, call the fire
department.
-- Installation and service must be performed by a
qualified installer, servicer or the gas supplier.
• Remove all tape and packaging before using the range. Destroy
the carton and plastic bags after unpacking the range. Never
allow children to play with packaging material.
• Proper InstallatieniBe sure your appliance is properly
installed and grounded by a qualified technician in accordance
with the National Fuel Gas Code ANSI Z223.* latest edition, or
in Canada CAN/CGA B149.1, and CAN/CGA B149.2, and the
the National Electrical Code ANSlINFPA No.704atest edition,
or in Canada CSA Standard C22.1, Canadian Electrical Code,
Part 1, and local code requirements. Install only per installation
instructions provided in the literature package for this range.
Ask your Sears dealer to recommend a qualified technician and
an authorized Sears repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician,
This may reduce the risk of personal injury and damage to the
range.
• Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti-tip brackets/screws,
or any other part of the product.
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• See Installation Instructions.
_'IVAV-'I;i_II_[t To reduce the risk of tipping.
the range must be secured by properly installed
anti-tip bracket provided with the range. To
check if the bracket isinstalled properly, visually
check that rear leveling leg is inserted into and
fully secured bythe anti-tip bracket by removing
lower panel or storage drawer. For models with
a warmer drawer, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
Refer to the Installation Instructions for proper
anti-tip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do notallow children toclimb or play
around the range. The weight of achild on an open door may cause
the range to tip, resulting in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
_IF_!_'I_ Do not store items of interest to children in the
cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be seriously
injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on ApplianceiFlammable materials should not
be stored in an oven, warmer drawer, near surface burners or
in the storage drawer. This includes paper, plastic and cloth
items, such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as aerosol cans,
on or near the range.
3

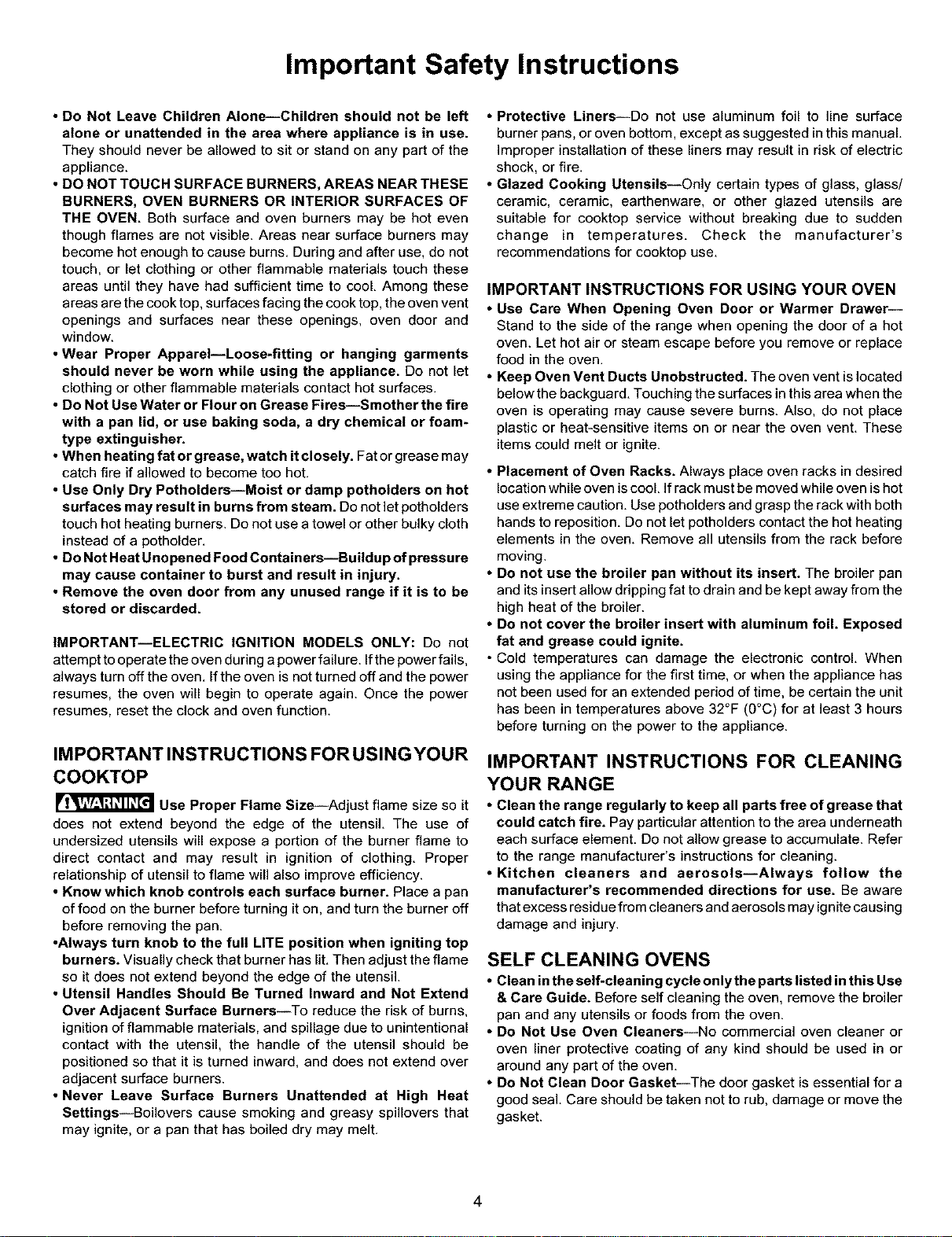

Important Safety Instructions
• DO Not Leave Children Alone---Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE
BURNERS, OVEN BURNERS OR INTERIOR SURFACES OF
THE OVEN. Both surface and oven burners may be hot even
though flames are not visible. Areas near surface burners may
become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven vent
openings and surfaces near these openings, oven door and
window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam*
type extinguisher.
• When heating fat or grease, watch it closely. Fat orgrease may
catch fire if allowed to become too hot.
• Use Only Dry Pothelders--Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating burners. Do not use a towel or other bulky cloth
instead of a potholder.
• Do Not Heat Unopened Food ContainersiBuildup of pressure
may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANTiELECTRIC IGNITION MODELS ONLY: Do not
attempt to operate the oven during a power failure. If the power fails,
always turn off the oven. If the oven is not turned off and the power
resumes, the oven will begin to operate again. Once the power
resumes, reset the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
_'I _IvjV'-l:t_ll_[cll Use Proper Flame Size--Adjust flame size so it
does not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
• Know which knob controls each surface burner. Place a pan
of food on the burner before turning it on, and turn the burner off
before removing the pan.
•Always turn knob to the full LITE position when igniting top
burners. Visually check that burner has lit. Then adjust the flame
so it does not extend beyond the edge of the utensil.
• Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Burners--To reduce the risk of burns,
ignition of flammable materials, and spillage due to unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend over
adjacent surface burners.
• Never Leave Surface Burners Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners--Do not use aluminum foil to line surface
burner pans, or oven bottom, except as suggested in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to sudden
change in temperatures. Check the manufacturer's
recommendations for cooktop use.
IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN
• Use Care When Opening Oven Door or Warmer Drawer--
Stand to the side of the range when opening the door of a hot
oven. Let hot air or steam escape before you remove or replace
food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
below the backguard. Touching the surfaces in this area when the
oven is operating may cause severe burns. Also, do not place
plastic or heat-sensitive items on or near the oven vent. These
items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is hot
use extreme caution. Use potholders and grasp the rack with both
hands to reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack before
moving.
• Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from the
high heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
• Cold temperatures can damage the electronic control. When
using the appliance for the first time, or when the appliance has
not been used for an extended period of time, be certain the unit
has been in temperatures above 32°F (0°C) for at least 3 hours
before turning on the power to the appliance.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate. Refer
to the range manufacturer's instructions for cleaning.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite causing
damage and injury.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this Use
& Care Guide. Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for a
good seal. Care should be taken not to rub, damage or move the
gasket.
4
Important Safety Instructions
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
Grounding type Grounding Instructions
wall receptacle (electric ignitionmodels only)
_'_ _ Avoid fire hazard orelectrical shock. Do notuseanadapter plug,
an extension cord, or remove grounding prong from electrical power cord. Failureto
follow this warningcan cause serious injury, fire or death.
Do not, under any
circumstance, cut,
remove, or bypass
the grounding prong,
Power supply cord
with 3-prong
grounding plug
This appliance is equipped with a 3-prong grounding plug for your
protection against shock hazard and should be plugged directly into a properly
grounded receptacle. DO NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded. For maximum safety, the
power cord must be plugged into an electrical outlet that is correctly polarized and
propedygrounded.
If a 2-prong wall receptacle is the only available outlet, it is the personal
responsibility of the consumer to have it replaced with a properly grounded 3-prong
wall receptacle installed bya qualified electrician.
See the INSTALLATION INSTRUCTIONS packaged with this range for complete
installation and grounding instructions.
Conversion to Liquefied Petroleum Gas (or L.P. Gas)
The natural gas range is designed to allow for conversion to
Liquefied Petroleum (L.P.) Gas.
If L.P. conversion is needed, contact 1-800-4-MY-HOME®
for assistance. The L.P. Conversion Kit is provided with this
range and is located on the left lower REAR (back side)
panel of the range. Before installing the kit be sure to follow
the L.P. Installation Instructions carefully.
_'!'vJV-'1:t_ll_[1 Personal injury or death from electrical
shock may occur if the range is not installed by a
qualified installer or electrician.
Any additions, changes or conversions
required in order for this appliance to satisfactorily
meet the application needs must be made by Sears
Service.
5
Range Features
Your
Gas
Range
Features
At a Glance
Warm & ReadyTM
Drawer Controland
IndicatorLight
ElectronicOven Control
with Clock and
_tchen "l]mar
Sealed Burner
Easyto Clean
Cooktop
Note: The
features of
your range
will vary
according to
model.
Automatic
Oven Door
LightSwitch,
Interior
Oven
Light
Surface Burner
Self-Clean
Door Latch
Self-Cleaning
Adjustable
Interior
Oven Rack(s)
Piece
Door Handle
FullWidth
Oven Doorwith
Window
I1)Broil Panand
1) BroilPan Insert
12,000 (shown)
or 9,500 BTU
Sealed Burner
RemovableBurner
DripPans
(somemodels-colors
willvary bymodel)
Gas Cooktop
Warm&ReadyTM
Drawerand Handle
(some models)or
Storage Drawer
ig Legsand
Anti-tipBracket (included)
5,000 BTUSimmer
(shown)or
9,500 BTUSealed
Burner
(LPconvertible)
Removable
Surface
Grates
(colorwillvary
bymodel)
9,500 BTU
(LPconvertible)
14,200 or
12,000 BTU
Sealed Burner
(LPconvertible)

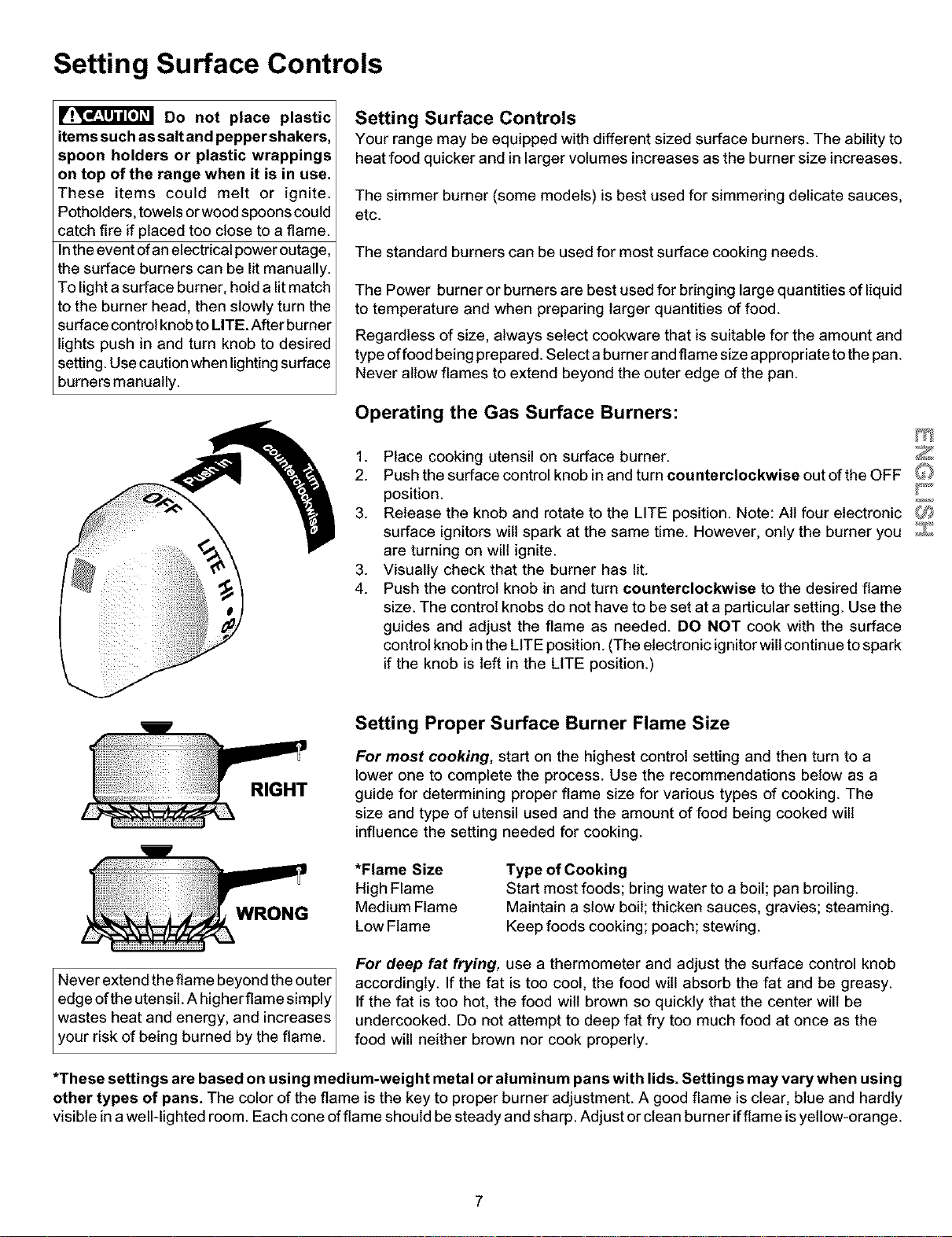

Setting Surface Controls
Do not place plastic
items such as salt and pepper shakers,
spoon holders or plastic wrappings
on top of the range when it is in use.
These items could melt or ignite.
Potholders,towels orwoodspoonscould
catch fire if placed too close to a flame.
Intheevent ofan electricalpoweroutage,
the surface burners can be lit manually.
To light a surface burner, hold a lit match
to the burner head, then slowly turn the
surface control knob to LITE. After burner
lights )ush in and turn knob to desired
setting. Use caution when lighting surface
burners manually.
Setting Surface Controls
Your range may be equipped with different sized surface burners. The ability to
heat food quicker and in larger volumes increases as the burner size increases.
The simmer burner (some models) is best used for simmering delicate sauces,
etc.
The standard burners can be used for most surface cooking needs.
The Power burner or burners are best used for bringing large quantities of liquid
to temperature and when preparing larger quantities of food.
Regardless of size, always select cookware that issuitable for the amount and
type offood being prepared. Select a burner and flame size appropriateto the pan.
Never allow flames to extend beyond the outer edge of the pan.
Operating the Gas Surface Burners:
1. Place cooking utensil on surface burner.
2. Push the surface control knob inand turn counterclockwise out of the OFF
position.
3. Release the knob and rotate to the LITE position. Note: Alt four electronic
surface ignitors wilt spark at the same time. However, only the burner you
are turning on will ignite.
3. Visually check that the burner has lit.
4. Push the control knob in and turn counterclockwise to the desired flame
size. The control knobs do not have to be set at a particular setting. Use the
guides and adjust the flame as needed. DO NOT cook with the surface
control knob in the LITE position. (The electronic ignitor will continue to spark
if the knob is left in the LITE position.)
RIGHT
Setting Proper Surface Burner Flame Size
For most cooking, start on the highest control setting and then turn to a
lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The
size and type of utensil used and the amount of food being cooked will
influence the setting needed for cooking.
WRONG
*Flame Size
High Flame
Medium Flame
Low Flame
Type of Cooking
Start most foods; bring water to a boil; pan broiling.
Maintain a slow boil; thicken sauces, gravies; steaming.
Keep foods cooking; poach; stewing.
Never extend the flame beyond the outer
edge of the utensil. A higherflame simply ]
wastes heat and energy, and increases
your r sk of be ng burned by the fame.
For deep fat frying, use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy.
If the fat is too hot, the food wilt brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the
food will neither brown nor cook properly.
*These settings are based on using medium-weight metal or aluminum pans with lids. Settings may vary when using
other types of pans. The color of the flame is the key to proper burner adjustment. A good flame isclear, blue and hardly
visible in a well-lighted room. Each cone offlame should be steady and sharp. Adjust or clean burner ifflame isyellow-orange.
7
Before Setting Oven Controls
OVEN VENT
Oven Vent Location
The oven vent is located below the backguard. When
the oven is on, warm air is released through this vent.
This venting is necessary for proper air circulation in the
oven and good baking results. DO NOT BLOCK THE
VENT.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS
COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up
front of rack and slide out. To replace, fit the rack onto
the guides on the oven walls. Tilt the front of the rack
upward and slide the rack back into place.
Rack
Arranging Oven Racks with 6 Rack Positions
To bake on a single rack, place the rack on position 3 or
4. To bake on 2 racks, place the racks on positions 3 and
5.
RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broilingmeats, chickenor fish 1 or 2
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozenpies, angelfood cake, yeast, bread, 5
casseroles,small cutsofmeat or poultry
Turkey,mast or ham 5 or 6
Note:Always use cautionwhen removingfoodfrom the lower rack
positions.
8
Oven Control Functions
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. Forsatisfactory use ofyour oven, become familiar
with the various pad functions of the oven as described below.
STOP/CLEAR PAD-- Used to clear any function UP and DOWN ARROW PADS-- Used along with the
previously entered except the time of day and function pads to select oven temperature, cook time, stop CLOCK SET PAD-- Used
minute timer. Press STOP/CLEAR to stop time (when programming an automatic stop time), time of _ to set the time of day.
cooking. Also the STOP/CLEAR pad is used to day, clean time and minute timer.
activate oven door lockout setting. \ /J
FEATURE INDICATOR
\ LIGHTS-- These light
\
BAKE PAD_Used to _ to show which feature is
select the bake _ O f in use.
COOKT ME PAD-- Used
_J lllme
...... to enter the ength of the
function.
BROIL PAD--
Used to select the baking time (if equipped).
variable broil _ • • eOven • •
function. _ • Rt_om V Step STOP TIME PAD-- Used
• DoorLooked
to set the desired
stop
_time for baking. Can be
SELF-CLEAN PAD-- used with COOK TIME to
Used to select the self- _ / program a delayed bake
cleaning cycle. _ ' cycle (if equipped).
/
OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN" light will glow each time the TIMER SET/OFF PAD-- Used to set or
oven turns on to maintain the set oven temperature. The "PREHEAT" light will glow when cancel the minute timer. The minute timer
the oven is first set to operate, or if the desired temperature is reset higher than the actual does not start or stop cooking. Also,
oven temperature. The "DOOR LOCKED" light will flash when the oven door locks and TIMER SET/OFF pad is used to set the
unlocks or when using the self-clean cycle or the oven door lockout mode is activated. The Continuous Bake feature.
indicator light will glow constantly after the door locks.
For a silent control panel
When choosing a function, a beep will be heard each time a pad is pressed. If desired, the controls can be programmed
for silent operation. Press and hold (_). After 7 seconds, the control will beep once. This will block the controls from
sounding when a pad is pressed. To return the sound, press and hold (_) again for 7 seconds until the control beeps
once.
Note: The control wilt return to the audible mode after a power outage.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F (65°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Press a,_. " " appears in the display.
2. Press and hold the A until "HI" appears in the display.
3. Press and hold (_) until °F or °C appears in the display.
4. Press the A or V to change °F to°Cor°Cto°F.
5. Press any control pad to return to normal operating mode.
9
Setting Oven Controls
B3_
STOp
(_) C=okrm
A
• BeerLedkod
To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
1. Press Q.
2. Within 5 seconds, press and hold the A or v until the correct time of day appears in the display.
Note: The clock cannot be changed during any timed bake or self-clean cycle.
To Set the Minute Timer:
1. Press _).
2. Press the ,A, to increase the time in one minute increments. Press and hold the _ to increase the time in 10
minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: If you press the v first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer count down in minutes until one minute remains. Then the display will count down in
seconds.
4. When the set time has run out, the timer will beep 3 times. It will then continue to beep 3 times every 60 seconds
until (_) is pressed.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when
the set time has run out. The minute timer can be used alone or during any of the other oven functions. When the
minute timer is in use with any other function, the minute timer will be shown in the display. To view other functions,
press the pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the _ or v to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press _).
r
10
Setting Oven Controls
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (65°C to 287°C). Layer cakes will have
better results when baked with the normal Bake feature and decreasing recommended oven temperature by 25°F.
To Set the Controls for Baking:
1. Press (_. " " appears in the display.
2. Within 5 seconds, press the /_ or v . The display will show "350°F (177°C)." By pressing and holding the
A or v , the temperature can then be adjusted in 5°F (1°C) increments.
3. As soon as the A or V is released, the oven will begin heating to the selected temperature. When the
displayed temperature reaches the desired baking temperature, the control will beep 3 times.
4. To cancel the baking function, press _.
To Change the Oven Temperature after Baking has Started:
1. Press _ and make sure the bake temperature is displayed.
2. Press the ,A, or V to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more
than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
1. Press _, "0:00" will appear in the display.
2. Press and hold (_) down for 5 seconds until tone is heard, "-- -- hr" will appear in display for continuous
cooking. The current time of day will return to the display.
3. To cancel the Continuous Bake function, press _ and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout _'_
The control can be programmed to lock the oven door and inactivate the oven controls.
To set Control for Oven Lockout feature:
1. Press _ and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is
flashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day
will appear in the display.
2. To cancel the lockout feature, press _ and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
11
Setting Oven Controls
To Set the Timed Bake Feature
The _ COOK TIME and _ STOP TIME controls operate the Timed Bake feature to turn the oven on and off at the
times you select in advance. The oven can be programmed to start immediately and shut off automatically or to begin
baking at a later time with an automatic shutoff.
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically:
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press (_.
4. Within 5 seconds, press the A or v . The display will show"350°F (177°C)." By holding the A. or v , the
temperature can then be adjusted in 5°F (1°C) increments.
5. Press (_). "0:00" will flash in the display.
6. Press the A. or v until the desired baking time appears in the display.
7. The oven will turn on and begin heating.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically:
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press @.
4. Within 5 seconds, press the _- or v . The display will show "350°F (177°C)." By holding the _ or v , the
temperature can then be adjusted in 5°F (1°C) increments.
5. Press (_). "0:00" will flash in the display.
6. Press the _ or v until the desired baking time appears.
7. Press (_). The earliest possible stop time will flash in the display.
8. Press the A or v until the desired stop time appears in the display.
9. Once the controls are set, the control calculates the time when baking will start in order to finish at the time you
have set.
10. The oven will turn on at the delayed start time and begin heating.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven will shut off automatically.
b. The control will beep 3 times every 60 seconds until _ is pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the A. or v to adjust the setting.
Use caution with the Timed Bake feature to cook cured or frozen meats and most fruits and vegetables.
Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even
when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed
promptly when cooking is completed.
12
Setting Oven Controls
-4th Rack Position
-5th Rack Position
L6th Rack Position
The broiler pan with the insert allows
grease to drain and be kept away from
the high heat of the broiler. DO NOT use
the pan without the insert. DO NOT cover
the insert with foil. The exposed grease
could ignite.
To Broil:
1. Arrange the oven rack while oven is still cool. Position the rack as
suggested in the chart below.
Rack Position
From Top Food
1 Rare steaks
2 Fish, medium steaks, hamburgers and
pork chops
3 Well-done foods such as chicken and
lobster
2. Press _.
3. Press and hold the A or v until the desired broil setting level
appears in the display. Press the A. for HI broil or the v for LO broil.
Most foods may be broiled at the HI broil setting. Select the LO broil
setting to avoid excess browning or drying of foods that should be
cooked to the well-done stage.
4. Place the insert on the broil pan, then place the food on the insert. DO
NOT use the broil pan without the insert or cover the insert with
aluminum foil. The exposed fat could ignite.
5. Place the pan on the oven rack. Close the oven door.
6. Broil on one side until food is browned. Turn and broil food on the second
side.
Note: Always pull the oven rack out to the stop position before turning or
removing the food.
7. When broiling is finished, press _.
Should an oven fire occur, close the oven door and turn off the
oven. If the fire continues, use a fire extinguisher. DO NOT put water or
flour on the fire. Flour may be explosive.
13
Setting Warmer Drawer Controls
Arranging Warmer Drawer (Warm & Ready TM Drawer) Rack Positions (some models)
The rack can be used in 2 ways:
In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls
or biscuits on top of the rack and a casserole dish under).
Inthe downward position to allow you to place light weight food items and empty dishware (for example, rolls or pastries
and dinner plates).
Set the warmer drawer rack as illustrated.
Use the warmer drawer to keep hotfoods
hot such as: vegetables, gravies, meats,
casseroles, biscuits and rolls, pastries
and heated dinner plates.
The warmer drawer is equipped with a
catch which may require extra force when
opening and closing the drawer.
WARMER
DRAWER
Warmer Drawer Recommended
Food Settings Table
Food Item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Roils (soft) LO
Empty Dinner Plates LO
To Operate the Warmer (Warm & Ready TM) Drawer
Your range is equipped with a warmer drawer. The purpose of the warmer
drawer is to keep hot cooked foods at serving temperature. Always start with
hot food. It is not recommended to heat cold food in the warmer drawer.
All food placed in the warmer drawer should be covered with a lid or
aluminum foil to maintain quality. Do not use plastic wrap to cover food.
Plastic may melt onto the drawer and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven use in the
warmer drawer.
Always use potholders or oven mitts when removing food from
the warmer drawer as cookware and plates will be hot.
TO Set the Warmer (Warm & Ready TM) Drawer Thermostat
Control
The thermostat control is used to select the temperature of the warmer
drawer. It is located on the control panel. To set the thermostat, push in and
turn the knob to the desired setting. The temperatures are approximate, and
are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty
drawer will preheat in approximately 15 minutes.
3. Turn the thermostat control to OFF after use.
Warmer (Warm & Ready TM) Drawer Temperature Selection
Refer to the chart in the side column for recommended settings. If a
particular food is not listed, start with the medium setting. If more crispness
is desired, remove the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium
setting.
When a combination of foods are to be kept warm (for instance, a meat with
2 vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of
heat from the drawer.
14
Setting Warmer Drawer Controls
Warmer (Warm & Ready TM) Drawer Indicator Light (some models)
The indicator light is located above the warmer drawer thermostat control, it turns on when the control is set, and stays
on until the control is turned off. The warmer drawer is inoperable during the self-clean cycle. The indicator light will not
come on during the self-clean cycle.
TO Remove and Replace Warmer (Warm & Ready TM) Drawer (some models)
I_ht Glide
Push down with finpr
Figure 1
PullupwithflnL_er
To Remove Warmer Drawer:
1. [Iri_ '_"_1 Turn power off before removing the warmer drawer.
2. Open the drawer to the fully opened position.
3. Locate glide lever on each side of drawer, pull up on the left glide lever
and push down on the right glide lever (see figure 1).
5. Pull the drawer away from the range.
To Replace Warmer (Warm & Ready TM) Drawer:
1.
2.
.
Pull the bearing glides to the front of the chassis glide (see figure 2).
Align the glide on each side of the drawer with the glide slots on the
range.
Push the drawer into the range until levers "click" (approximately 2").
Pull the drawer open again to seat bearing glides into position. If you do
not hear the levers "click" or the bearing glides do not feel seated
remove the drawer and repeat steps 1 thru 3. This will minimize
possible damage to the bearing glides.
r
_ _ Electrical Shock Hazard can occur and result in
serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
Figure 2
15
Self-Cleaning
During the self-cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some birds
is extremely sensitive to the fumes given
off during the self-cleaning cycle of any
range. Move birds to another well-
ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause permanent
damage to the oven interior (aluminum
foil will melt to the interior surface of the
oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
self-cleaning cycle is completed. The
oven may still be VERY HOT.
DO HAND
CLEAN DOOR DO NOT
HAND
CLEAN O\
OOR GASKET
83m
P
O Ovie • •
• Preheat V _
O DnorLacke_
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soil completely or reduce it to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
DO NOT use oven cleaners or oven protective coatings in or around any
part of the self-cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
Oven racks should be removed. If they are not removed during the
clean cycle their color will turn slightly blue and the finish will be dull.
After the cycle is complete and the oven has cooled, rub the sides of the
racks with wax paper or a cloth containing a small amount of baby oil or
salad oil (this will make the racks glide easier into the rack position).
Remove any excessive spillovers in the oven cavity before starting
the self-cleaning cycle. To clean, use hot, soapy water and a cloth.
Large spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may leave a dull spot even after cleaning.
Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
16
Self-Cleaning
• Oven • •
• Preheat V : TStO_
e Ua_ l,udmd
/
i: ii ....... •
To Start the Self-Clean Cycle
For satisfactory results, use a 2 hour self-clean cycle for light soils and a 3 hour cycle for average or heavy soils.
NOTE: The kitchen area should be ventilated using an open window, ventitlation fan or exhaust hood during the first
self-clean cycle. This wilt help eliminate the normal odors associated with the first self-clean cycle.
To Set the Controls for a Self-Clean Cycle:
1. Be sure the clock shows the correct time of day.
2. Press @. " " appears in the display.
3. Press the A. until "3:00" appears in the display for a 3 hour cycle, or press the v until "2:00" appears in the
display for a 2 hour cycle.
4. As soon as the I_. or v is released, "CLn" appears in the display.
5. As soon as the controls are set, the motor driven lock will begin to close automatically and the "LOCK" indicator
light wilt flash. DO NOT open the door while the light is flashing (it takes about 15 seconds for the oven door to
lock).
6. The "LOCK" light will glow until the cleaning cycle is completed or cancelled, and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. The time of day or "End" will appear in the display window and the "Clean" and "LOCK" light will continue to glow.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be
opened.
3. If "End" is in the display and the "Clean" indicator remains on, press @. The time of day will appear in the
display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-cleaning cycle:
1. Press @.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be
opened.
3. Restart the self-clean cycle once all conditions have been corrected.
To avoid possible burns use care when opening the oven door after the self-cleaning cycle. Stand to the side
of the oven when opening the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid
possible burns when opening the door after the self-cleaning cycle has completed. The oven may still be VERY HOT.
17

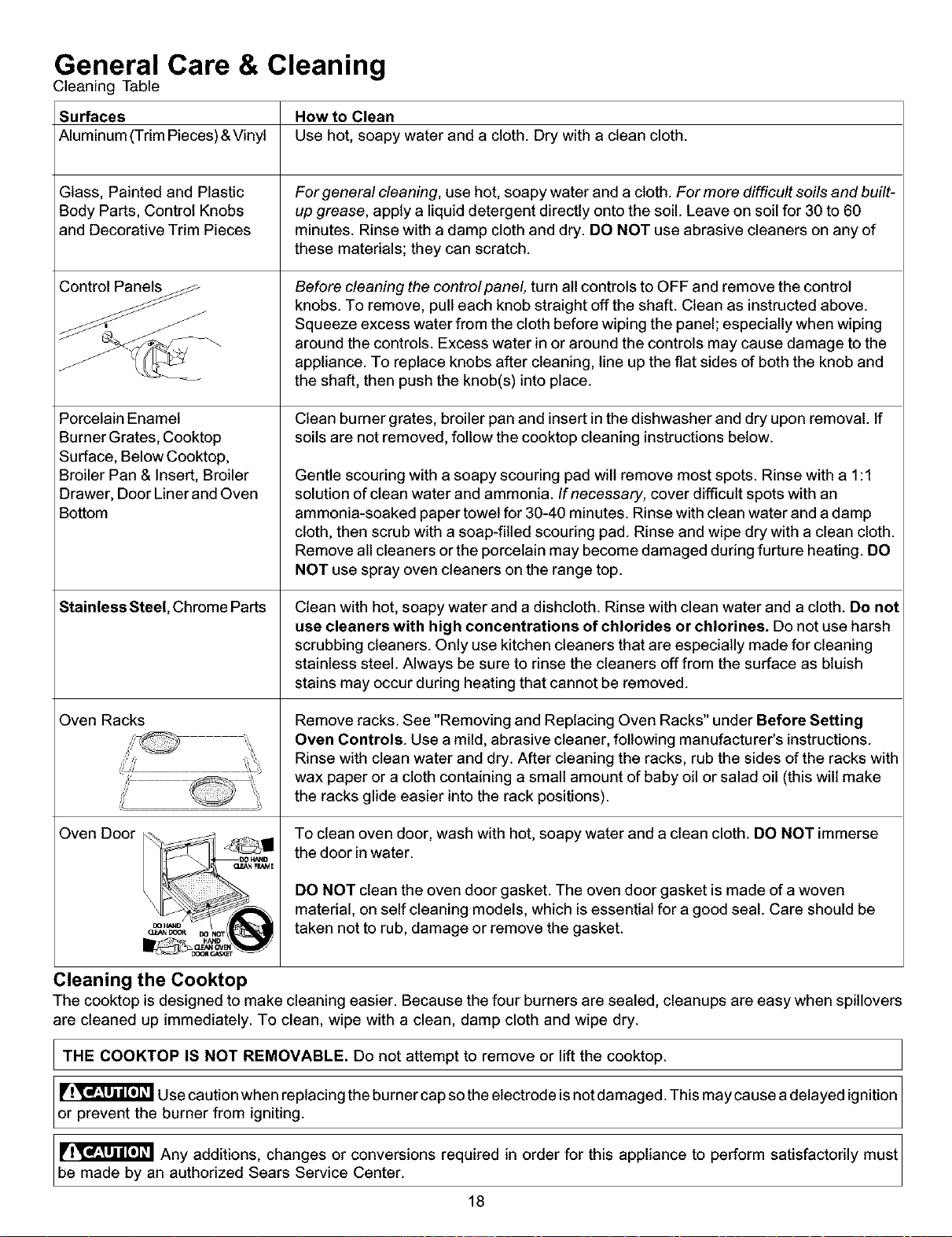

General Care & Cleaning
Cleaning Table
Surfaces How to Clean
Aluminum (Trim Pieces) &Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Glass, Painted and Plastic For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-
Body Parts, Control Knobs up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60
and Decorative Trim Pieces minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of
these materials; they can scratch.
Porcelain Enamel
Burner Grates, Cooktop
Surface, Below Cooktop,
Broiler Pan & Insert, Broiler
Drawer, Door Linerand Oven
Bottom
Stainless Steel, Chrome Parts
Oven Racks
Oven Door _ _
Before cleaning the controlpanel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to the
appliance. To replace knobs after cleaning, line up the flat sides of both the knob and
the shaft, then push the knob(s) into place.
Clean burner grates, broiler pan and insert in the dishwasher and dry upon removal. If
soils are not removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clean water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30-40 minutes. Rinse with clean water and a damp
cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth.
Remove all cleaners orthe porcelain may become damaged during furture heating. DO
NOT use spray oven cleaners on the range top.
Clean with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Do not
use cleaners with high concentrations of chlorides or chlorines. Do not use harsh
scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning
stainless steel. Always be sure to rinse the cleaners off from the surface as bluish
stains may occur during heating that cannot be removed.
Remove racks. See "Removing and Replacing Oven Racks" under Before Setting
Oven Controls. Use a mild, abrasive cleaner, following manufacturer's instructions.
Rinse with clean water and dry. After cleaning the racks, rub the sides of the racks with
wax paper or a cloth containing a small amount of baby oil or salad oil (this will make
the racks glide easier into the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse
the door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on self cleaning models, which is essential for a good seal. Care should be
taken not to rub, damage or remove the gasket.
Cleaning the Cooktop
The cooktop is designed to make cleaning easier. Because the four burners are sealed, cleanups are easy when spillovers
are cleaned up immediately. To clean, wipe with a clean, damp cloth and wipe dry.
I THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
[Ir_[_!_'_l'_t_ Use caution when replacing the burner cap so the electrode is not damaged. This may cause a delayed ignition
or prevent the burner from igniting.
Any additions, changes or conversions required in order for this appliance to perform satisfactorily must
be made by an authorized Sears Service Center.
18

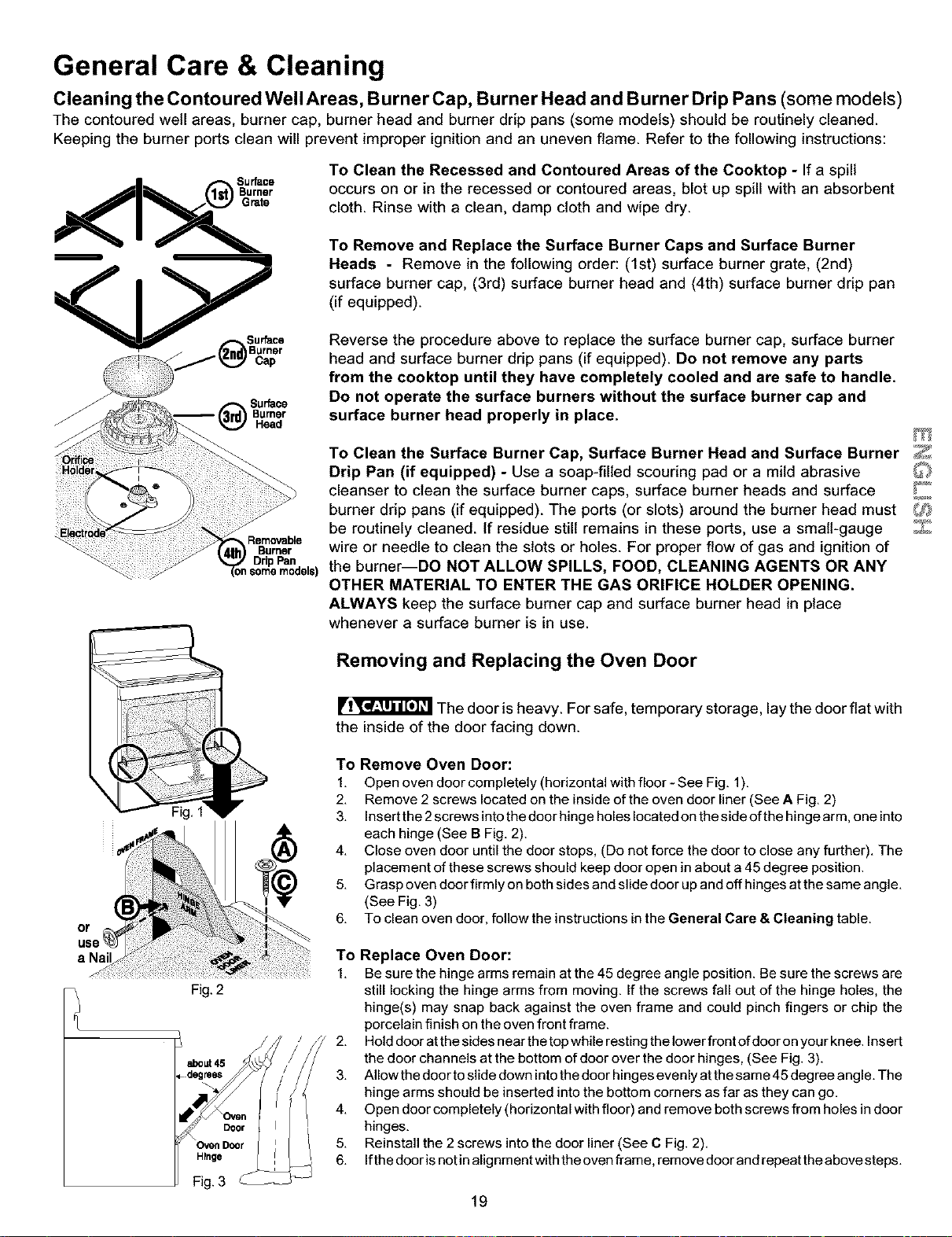

General Care & Cleaning
Cleaning the Contoured WellAreas, Burner Cap, Burner Head and Burner Drip Pans (some models)
The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned.
Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions:
Surface
Burner
Fig. 2
Cap
To Clean the Recessed and Contoured Areas of the Cooktop - If a spill
occurs on or in the recessed or contoured areas, blot up spill with an absorbent
cloth. Rinse with a clean, damp cloth and wipe dry.
To Remove and Replace the Surface Burner Caps and Surface Burner
Heads - Remove in the following order: (1st) surface burner grate, (2rid)
surface burner cap, (3rd) surface burner head and (4th) surface burner drip pan
(if equipped).
Surface
Burner
Head
Removable
Burner
Reverse the procedure above to replace the surface burner cap, surface burner
head and surface burner drip pans (if equipped). Do not remove any parts
from the cooktop until they have completely cooled and are safe to handle.
Do not operate the surface burners without the surface burner cap and
surface burner head properly in place.
To Clean the Surface Burner Cap, Surface Burner Head and Surface Burner _
Drip Pan (if equipped) - Use a soap-filled scouring pad or a mild abrasive
cleanser to clean the surface burner caps, surface burner heads and surface _'_
burner drip pans (if equipped). The ports (or slots) around the burner head must <',F#
be routinely cleaned. If residue still remains in these ports, use a small-gauge
wire or needle to clean the slots or holes. For proper flow of gas and ignition of
the burner--DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY
OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING.
ALWAYS keep the surface burner cap and surface burner head in place
whenever a surface burner is in use.
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with
the inside of the door facing down.
or
use
a Nail
Oven DOOr
Hinge
Fig. 3
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Remove 2 screws located on the inside of the oven door liner (See A Fig. 2)
3. Insert the 2screwsinto the door hinge holes located on the side of the hinge arm, one into
each hinge (See B Fig. 2).
4. Close oven door until the door stops, (Do not force the door to close any further). The
placement of these screws should keep door open in about a 45 degree position.
5. Grasp oven door firmly on both sides and slide door up and off hinges at the same angle.
(See Fig. 3)
6. To clean oven door, follow the instructions in the General Care & Cleaning table.
To Replace Oven Door:
1, Be sure the hinge arms remain at the 45 degree angle position. Be sure the screws are
still locking the hinge arms from moving. If the screws fall out of the hinge holes, the
hinge(s) may snap back against the oven frame and could pinch fingers or chip the
porcelain finish on the oven front frame.
2. Hold door atthe sides near thetop while resting thelower front of door on your knee. Insert
the door channels at the bottom of door over the door hinges, (See Fig. 3).
3. Allowthe door to slide down intothe door hinges evenly at the same 45 degree angle. The
hinge arms should be inserted into the bottom corners as far as they can go.
4. Open door completely (horizontal with floor) and remove both screws from holes in door
hinges.
5. Reinstall the 2 screws into the door liner (See C Fig. 2).
6. Ifthe door is not in alignment with the oven frame, remove door and repeat the above steps.
19
General Care & Cleaning
Changing the Oven Light
On some models, the oven light automatically turns on when the door is
opened. Some models have a switch located on the control panel to turn on
the light. The oven light is located at the rear of the oven and is covered
with a glass shield held by a wire holder. The glass shield must be in place
whenever the oven is in use.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back
in).
6. The clock wilt then need to be reset. To reset, see Setting the Clock
and Minute Timer in this Use & Care Guide.
Wire •
Holder
Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection against possible
broken glass.
Care and Cleaning of Stainless Steel (some models)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the
appearance of stainless parts. Refer to the Care & Cleaning table for detailed cleaning instructions.
Adjusting Your Oven Temperature
Your oven control has been precisely set atthe factory. This setting may differ from your previous oven however, so your recipe
times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe times,
you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.
To Adjust Oven Tem perature:
1. Press _.
2. Set the temperature to 550°F (287°C) by pressing and holding the A..
3. Within 2 seconds, press and hold (_) until the 2 digit display appears. Release _,). The display now indicates the
amount of degrees offset between the original factory temperature setting and the current temperature setting. If the
oven control has the original factory calibration, the display will read "0."
4. The temperature can now be adjusted up or down 35°F (17°C), in 5°F steps by pressing and holding the A. or v .
Adjust until the desired amount of offset appears inthe display. When lowering the oven temperature, a minus sign (-) will
appear before the number to indicate that the oven will be cooler by the displayed amount of degrees.
5. When you have made the desired adjustment, press _ to go back to the time of day display.
Note: The adjustments made will not change the self-cleaning temperature.
2O
Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
OCCURRENCE
Range is not level.
Cannot move appliance easily. Appliance
must be accessible for service.
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range. Contact
a carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets
are square and have sufficient room for range clearance.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over
carpet.
Gas line is hard-plumbed. Have aflexible C.S.A. Internatienal approved metal appliance _
connector installed. _
Surface burners do not light.
Surface Control knob has not been completely turned to LITE. Push in and turn the _,_
Surface Control knob to LITE until burner ignites and then turn control knob to desired _',F#
flame size.
Burner ports are clogged. With the burner off, use a small-gauge wire or needle to clean
ports. See "Surface Burners"in the General Care & Cleaning table for additional cleaning
instructions.
Range power cord is disconnected from outlet (electric ignition models only). Be sure
cord is securely plugged into the outlet.
Surface burner flame burns half way
around.
Electrical power outage (electric ignition models only). Burners can be lit manually. See
Setting Surface Controls.
Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire
or needle.
Surface burner flame is orange.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until
flame is full. Dry the burners thoroughly following instructions in the General Care &
Cleaning section.
Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
Oven does not operate.
Entire appliance does not operate.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
Be sure the oven controls are set correctly for the desired function. See Setting Oven
Controls or Entire Appliance Does Not Operate (see below).
Be sure regulator gas valve is "ON". See installation instructions.
The time of day must first be set in order to operate the oven.
Oven light does not work.
Make sure electrical cord/plug is plugged tightly into outlet (electric ignition models only).
Service wiring not complete. Call 1-800-4-MY*HOME® for assistance (See back cover).
Electrical power outage (electric ignition models only). Check house lights to be sure.
Call your local electric company for service. Surface burners can be lit manually. See
Setting Surface Controls.
Be sure gas supply is turned on,
Burned-out or loose bulb, See Changing the Oven Light (some models) to replace or
tighten the bulb,
21
Before You Call
Solutions to Common Problems
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven smokes excessively during broiling. Meat is too close tothe broil burner. Reposition the oven rack to provide more clearance
between the meat and the broiler.
Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges
to prevent curling, but do not cut into the lean.
Broiler pan used without insert or insert covered with foil. DO NOT use the broiler pan
without the insert or cover the insert with foil.
Broiler drawer needs to be cleaned. Excessive smoking is caused by a build-up of grease
or food spatters. If the broiler is used often, clean on a regular basis.
Broiler drawer is open. Drawer/door should be closed when broiling.
Oven control beeps and displays
F1, F3 or F9.
Poor baking results.
Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display
and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/
CLEAR and call 1-800-4-MY-HOME® for assistance (See back cover).
Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. Ifyou feel the oven is cooking too hot or cool,
see Adjusting Your Oven Temperature.
Self*Cleaning cycle does not work. Controls are not set properly, Follow instructions in Self-Cleaning section.
Self-cleaning cycle was interrupted. Stop time must be set 2 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting a Self-Clean Cycle" under Self Cleaning.
Soil is not completely removed.
Failure to clean bottom front, top of oven or door areas outside oven seal. These areas
are not in the self-cleaning area, but get hot enough to burn on residue. Clean these
areas before starting the self-clean cycle. Burned-on residue may be cleaned with a stiff
nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.
Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
Flames inside oven or smoking from vent.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large
amounts of grease on the oven bottom. Wipe up excessive spillovers before starting the
self-clean cycle. If flames or excessive smoke are present, stop the self-clean cycle and
follow the steps under "Stopping or Interrupting the Self-Clean Cycle" in the Self
Cleaning section,
22
PROTECTION AGREEMENTS
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore® appliance is designed and manufactured for
years of dependable operation. But like all products, it
may require preventive maintenance or repair from time to
time. That's when having a Master Protection Agreement
can save you money and aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the
life of your new appliance. Here's what's included in the
Agreement:
_Expert service by our 12,000 professional repair
specialists
5i_'Unlimited service and no charge for parts and labor on
all covered repairs
_"No-lemon" guarantee - replacement of your covered
product if more than three product failures occur within
twelve months
5i_'Product replacement if your covered product can't be
fixed
_Annual Preventive Maintenance Check at your request
- no extra charge
5_Fast help by phone -non-technical and instructional
assistance on products repaired in your home, plus
convenient repair scheduling
5_Power surge protection against electrical damage due
to power fluctuations
_Rental reimbursement if repair of your covered product
takes longer than promised
In Canada
Maintenance Agreements
Your purchase has added value because you can depend
on Sears HomeCentral® for service. With over 2400
Service Technicians and access to over 900,000 parts
and accessories, we have the tools, parts, knowledge and
skills to ensure our pledge: We Service What We Sell.
Your Kenmore® appliance is designed, manufactured and
tested to provide years of dependable operation. Yet any
major appliance may require service from time to time.
The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement
• is your way to buy tomorrow's service at today's price.
• Eliminates repair bills resulting from normal wear and
tear.
• Provides for non-technical and instructional assistance. _Z_
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to _'
ensure that your appliance is in proper running _,F_
condition.
Some limitations apply. For information concerning
Sears Canada Maintenance Agreements, call
1-800-361-6665.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase for
years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information,
call 1-800-827-6655.
Sears Installation Service
For Sears guaranteed professional installation of home
appliances and items like garage door openers and water
heaters, in the U.S.A. call 1-800-4-MY-HOME®
23
Get it fixed, at your home or ours!
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professionalinstallationof home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night(U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items likevacuums, lawn equipment,
and electronics, call or go on-line forthe locationof your nearest
Sears Parts & Repair Center,
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparacibn
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR sM
(1-888-784-6427)
Au Canada pour service en fran_ais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
® Registered Trademark/'hA Trademark / SMService Mark of Sears, Roebuck and Co
® Mama Reglstrada/'n_ Marea de Fdbrica / SMMarca de Servicio de Sears, Roebuckand Co
MC MD
Marque de commerce / Marque d_posde de Sears, Roebuck and Co © Seam, Roebuck and Co
