CLEAN MIST
™
SMART HUMIDIFIER
™
Instruction Manual and Warranty Information
IM0002E
READ AND SAVE THESE INSTRUCTIONS
Contents
Safety Instructions ............................................................................................................. 1
Unpacking / Specications ............................................................................................... 2
Parts & Contents ............................................................................................................... 3
Filling The Water Tank ....................................................................................................... 4
Operating Instructions ....................................................................................................... 5
Weekly Cleaning & Care / Storage .................................................................................... 6
Troubleshooting ................................................................................................................. 7
Other Great Products ........................................................................................................ 8
Warranty ............................................................................................................................ 9
If you have a respiratory condition, please contact your physician prior to use.
FCC Statement
Potential for Radio/Television interference
This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.This product has been tested and
found to comply with the limits for a Class B digital device, pursuant to Part 18 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. The product generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a particular installation. If the product
does cause harmful interference to radio or television reception, which can be determined by turning the
product on or o, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
• Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
1
SAFETY INSTRUCTIONS
Prior to using the appliance, read through the instructions for complete use and
keep in a safe place for later reference.
•
WARNING: DO NOT use outdoors. Only use as intended and described
in this manual.
•
WARNING: DO NOT expose or immerse the Base in water or other liquids.
• Before using the appliance, extend the cord and inspect for any signs of
damage.
WARNING: DO NOT use if cord has been damaged.
•
WARNING: Keep cord away from heated surfaces and out of the way,
where it cannot be stepped on or tripped over.
•
WARNING: This appliance has a polarized plug (one blade is wider than the other)
as a safety feature. If the plug does not t fully into the outlet, reverse the plug.
If it still doesn’t t, contact a qualied electrician.
WARNING: DO NOT attempt
to defeat this safety feature.
•
WARNING: ALWAYS place humidier on an elevated rm, at, level surface
where it’s not easily knocked over. (e.g. on a table, chest, cabinet, etc).
•
WARNING: DO NOT place the appliance directly on the oor, next to a heating
vent, under direct sunlight, high temperature areas, near computers or sensitive
electronic equipment.
•
WARNING: DO NOT place the appliance directly on wood furniture or other
surfaces which could get damaged by water.
•
WARNING: NEVER use in an environment where explosive gases are present.
•
WARNING: DO NOT use any attachments not provided with the unit.
•
WARNING: NEVER use the appliance after a malfunction, after it has been
dropped or damaged in any other way.
• Only operate when fully assembled.
• Keep out of reach of children. Close supervision is necessary when this
appliance is used by or near children, elderly or disabled persons.
•
WARNING: NEVER drop or insert any object into any opening.
•
WARNING: DO NOT block any air outlets or intakes.
•
WARNING: NEVER cover the appliance when it’s in operation.
•
WARNING: To unplug turn controls to the “OFF” position, then remove the plug
from the outlet. Ensure your hands are dry.
•
WARNING: ALWAYS unplug and EMPTY the Water Tank when not in use for a
long period of time.
•
WARNING: ALWAYS turn o or unplug before removing, lling or emptying
the Water Tank.
•
WARNING: DO NOT wash, adjust or move without rst unplugging the unit.
•
WARNING: DO NOT touch the water or any other part in the Base
during operation.
•
WARNING: NEVER operate WITHOUT water in the tank.
•
WARNING: DO NOT use hot water in the tank.
•
WARNING: ONLY use water in the tank, never use any additive such as
essential oils, eucalyptus, water conditioners, etc… in the water.
•
WARNING: DO NOT move appliance with water inside the tank. In this case
remove the Water Tank and empty the Water Reservoir prior to moving.
•
WARNING: DO NOT attempt to repair or adjust the unit. Servicing must be
performed by professional or qualied personnel.
•
WARNING: Discontinue use if unit makes loud noises or has a strange smell.
• Perform regular maintenance of the Ultrasonic Nebulizer.
•
WARNING: DO NOT direct the mist against a wall or other home appliance.
•
WARNING: DO NOT pour water into the Base through Air Outlet during
cleaning and lling.
•
WARNING: DO NOT rinse Base under faucet.
•
WARNING: DO NOT immerse the Base in water.
•
WARNING: NEVER scrape the Ultrasonic Nebulizer with a hard or sharp object.
No More Dry Air
Thank you for choosing the Air Innovations – Clean Mist
™
Smart Humidier
™
and congratulations
on taking this important step in improving the quality of air in your home or oce.
The Air Innovations – Clean Mist
™
Smart Humidier
™
uses Ultrasonic Technology to create
humidity instantaneously, while working silently to erase the discomforts of dry air.
Unpacking
Specications
Carefully remove the humidier
from the box by pulling the Base
of the unit (Do not take the unit
out of the box by pulling the tank).
2
Remove the plastic bag
from the humidier.
3
*Follow directions to ll and operate the humidier
2
Open the box and remove
packaging material.
1
Proudct Model Power Consumption Current Rating Voltage Tank Capacity Dimensions Weight
MH-505 30W 0.4A 110-120V~60Hz
5.2L / 1.37
Gallon
L9.25” X W6.5”
X H12.75”
3.5 Lbs.
6
7
8
9
10
11
12
1. Rotating Mist Nozzle
2. Handle
3. Water Tank
4. Base
5. Control Panel
6. Air Outlet
7. Water Sensor
8. Water Reservoir
9. Ultrasonic Nebulizer
10. Cleaning Brush
11. Ceramic Filter
12. Tank Cap
13. Bottom Tank Handle
3
Parts & Contents
1
1
3
4
4
5
2
2
13
Lift the Water Tank with both
hands using the Handle to
remove the humidier from
the Base.
Remove Rotating Mist Nozzle
prior to lling the Water Tank.
Turn the Water Tank upside down
and remove the Tank Cap by
turning it counter clockwise.
21
3
4
5
6
WARNING: Replace the Tank
Cap by rmly turning clockwise
until tight. Turn the Water Tank
upright and check the Tank Cap
for leaks. If any water drips,
remove the Tank Cap and retighten.
WARNING: DO NOT place
Water Tank on the humidier Base
if the cap is leaking.
Lift the Water Tank with both
hands using the Handle and
replace on the humidier base.
Make sure to follow the shape
of the Water Tank and the hu-
midier Base, so that the tank
sits level and ush to the Base.
Ensure the tank is rmly seated.
4
Filling The Water Tank
WARNING: Always unplug the unit before removing the Water Tank.
WARNING: DO NOT touch the water in the Base.
WARNING: NEVER ll the Water Tank from the top of the unit. Follow Water Tank
lling instructions in #4.
Filling the Water Tank: Use clean,
cool, tap water.
WARNING:
DO NOT
use extremely cold water,
since it may temporarily reduce the
mist output.
WARNING:
NEVER
ll with hot/warm water or use
additives as this could damage the
unit and void the warranty.
WARNING:
If you have hard
tap water use our Humidier
Demineralization (hard water) Filters
(available at www.Air-Innovations.com)
or use ONLY ltered, distilled, cold
boiled or bottled water.
Attach the Rotating Mist Nozzle
to the top of the Water Tank by
snapping into place for desired
use as pictured.
7
Operating Instructions
WARNING: DO NOT operate the humidier without water in the tank.
WARNING: NEVER lift the tank o the Base while the unit is operating.
5
ON/OFF – Plug in to a standard (120V AC) electrical outlet. The LED Display will
turn on for 2 seconds then turn OFF. Press the ON/OFF button once and the
“Operating” indicator will turn on. Mist may not appear immediately; allow up to
15 minutes for water in the tank to transfer to the Base.
Mist Output – When you turn the unit ON, it will default to the lowest mist
setting. Pressing the “Mist” button ; each time will increase the output. Press
once for Medium, twice for High, three times for Supreme. Pressing the Mist
button a fourth time will bring the unit back to Low.
Humidistat –
By using this feature the humidier will automatically monitor and
control the humidity level according to your desired setting. Once the desired humidity
level is reached the mist will shut OFF until the humidity drops below the setting and
then the mist will turn back ON automatically to maintain the humidity level desired. To
set this feature press the “Humidistat” button to your desired setting. Settings range
from 40%-95% RH (Relative Humidity) in 5% RH increments. A 40%-60% Relative
Humidity is recommended. Once you set your desired humidity, the number will blink
three times and then the display will revert back to the Relative Humidity. To view the
set humidity level, press the Humidistat button once.
1
2
4
3
The Preset and Timer buttons allow you to set the humidier to turn ON and OFF
automatically as desired.
Preset – The Preset feature allows you to program the unit to turn ON
Automatically. To use, press the “Preset” button once; you will see “Preset”
01:00H illuminated on the display. This feature works in one hour increments and
is programmable up to 24 hours. Simply keep pressing the Preset button until
you get to your desired Preset time, once you have reached the time the display
will ash three times and then will start to countdown until the unit turns ON.
Timer – The Timer feature allows you to run the humidier now and set it to turn o
at a specic time automatically (in 1 hour increments from 1-24 hours). To use -
press the “Timer” button once; you will see “Timer” 01:00H illuminated on the
display. This feature works in one hour increments and is programmable up to 24
hours. Simply keep pressing the Timer button until you get to your desired time,
once you have reached the time the display will ash three times and then start to
count down until the unit turns OFF. The display will start alternating between the
current ambient humidity and the Timer. NOTE: You can use the Preset and Timer
functions together on this fully programmable LED Display to program the
humidier to turn ON and turn OFF at your desired times.
5
7
6
LED/Dim – To turn OFF the LED Display, press the “LED Dim” button once. The
unit will remain working but without the the display illuminated. Press any
button to illuminate the display for one minute. Press the “LED Dim” button
once more to turn the display ON.
LOW Water – When the tank is out of water the “waterless” indicator will
appear in the display, you will hear three beeps and the automatic safety
shut-o will turn the Ultrasonic Nebulizer & unit OFF.
Automatic Use
Safety Shut O
Extra Features
Manual Use
Weekly Cleaning & Care
WARNING: Before cleaning always turn power o and unplug the unit from outlet.
WARNING: DO NOT rinse Base under faucet. To clean, wipe the Base with a paper towel.
WARNING: DO NOT use any solvents or aggressive cleaning agents. Keep water away
from the Air Outlet.
WARNING: DO NOT tamper with the Water Sensor.
About White Dust -Use of high-mineral content water may cause a white mineral residue to
accumulate on room surfaces near the humidier. The mineral residue is commonly referred to as
“White Dust”. The higher the mineral content (the harder your water is), the greater the potential for
White Dust. The White Dust is not caused by a defect in the humidier, but is due only to minerals
suspended in the water from your tap.
WARNING: If you have hard tap water STOP using tap
water and use ONLY ltered, distilled, cold boiled or bottled water to minimize the White Dust
residue or visit our website to purchase our Humidier Demineralization (hard water) Filters
(www.Air-Innovations.com).
Tank Cleaning - Remove the Rotating Mist Nozzle from the top of the Water Tank then remove the
Water Tank from the unit. Turn the tank upside down, unscrew the Tank Cap and drain any water
from the tank. Wipe the tank with a soft damp cloth then
rinse it with warm water inside and out.
Base Cleaning - Gently wipe the Base with a
soft damp cloth.
White Dust Cleaning - If mineral deposits
“White Dust” are evident around the Ultrasonic
Nebulizer
a
and Water Sensor, clean these surfaces
with a soft cloth and a small amount of undiluted
white vinegar. If necessary, mix a solution of 50%
white vinegar and 50% water and ll the Base with
enough solution to cover the Ultrasonic Nebulizer
a
.
Allow it to soak for an hour and then use the provided
brush to gently loosen buildup on the
Ultrasonic Nebulizer
b
. Put 1 cup of water in the
Base and wipe clean with a soft cloth.
WARNING: DO NOT rinse Base under faucet.
Ceramic Water Filter Cleaning - Remove the
Water Tank from the humidier Base. Remove the
Tank Cap
c
and rinse Ceramic Filter thoroughly with
tap water
d
, then replace on Water Tank.
Surface Cleaning - Clean all surfaces of the unit with a clean
damp soft cloth.
WARNING: When emptying the Water Reservoir on the Base, make
sure that the water is poured away from the Air Outlet
e
. If water is
poured into the outlet it may damage the humidier.
.
Storage
1. Follow all cleaning instructions prior to storage.
2. Dry all parts, including the inside of the Water Tank.
WARNING: NEVER
leave water inside the tank for several days.
3. Leave the tank cap partially loosened to prolong the life of the cap.
4. Preferably store in its original box, in a dry place away from high temperatures.
5. Follow all cleaning instructions after long periods of storage.
a
e
c
b
d
6
Troubleshooting
7
PROBLEM: Power Light is OFF
POSSIBLE CAUSES
a. Unit is not plugged in
b. No power at outlet
POSSIBLE SOLUTIONS
a. Plug in power cable
b. Check circuits, fuses, or try a dierent outlet
c. Press the POWER button to turn
the power on
PROBLEM: Weak or No mist output
POSSIBLE CAUSES
a. No water in tank
b. Unit is not level
c. White Dust on Ultrasonic Nebulizer
and/or Water Sensor
d. Blower not operating
e. Water temperature is too low
f. Ultrasonic Nebulizer is not operating
POSSIBLE SOLUTIONS
a. Fill tank with water and wait 10 – 15 minutes
b. Place unit on level surface
c. Clean humidier per instructions
d. Ensure there is enough water in Base
to activate Water Sensor
e. Set output to High and wait for
10 – 15 minutes
f. See Warranty
PROBLEM: Peculiar Odor
POSSIBLE CAUSES
a. If new unit
b. Dirty Water Tank or old water in tank
c. Minerals in well water or hard water
POSSIBLE SOLUTIONS
a. Gently wipe the Base with a soft damp cloth
b. Empty old water and clean Water Tank per
instructions
c. Use ltered, distilled, cold boiled or bottled
water or visit our website to purchase our
Humidier Demineralization (hard water)
Filters (www.Air-Innovations.com)
PROBLEM: White Dust on unit or nearby
furniture
POSSIBLE CAUSE
a. Hard water used
POSSIBLE SOLUTION
a. Use ltered, distilled, cold boiled or bottled
water or visit our website to purchase our
Humidier Demineralization (hard water)
Filters (www.Air-Innovations.com)
PROBLEM: Condensation forms
around humidier or windows
POSSIBLE CAUSES
a. Mist output is set too high for the room size
b. Direction of Rotating Mist Nozzle
POSSIBLE SOLUTIONS
a. Decrease the mist output
b. Change direction of the Rotating Mist Nozzle
PROBLEM: Water is leaking
POSSIBLE CAUSES
a. Tank Cap is not properly attached
b. Water Tank is not properly seated
c. Unit is not on level surface
POSSIBLE SOLUTIONS
a. Follow #5 on page 4 “Filling the Water Tank”
b. Follow #6 on page 4 “Filling the Water Tank”
c. Place on level surface
8
Try These Other Great
Products For Your Life!
Available at: www.ForLifeProducts.com, www.Air-Innovations.com, www.Pursfection.com, www.RejuvenateProducts.com
1-YEAR WARRANTY -
MH-505
Air Innovations
®
Clean Mist™ Smart Humidier™ comes with a 1-year manufacturer’s
warranty. If this unit should become defective within 1-year from the date of purchase,
or if you have any questions or comments or regarding replacements for any of our
products, please contact us directly at:
Call us toll free at: 844-600-1370
Monday thru Friday 8:30 AM to 5:00 PM EST.
Visit us on the web at: www.Air-Innovations.com
e-mail us: sales@air-innovations.com
Or write us:
Air Innovations
Att: Quality Assurance Dept.
2301 SW 145
th
Ave.
Miramar, FL. 33027 USA
Please ll out the warranty card and
mail back to the above address.
Or, register your warranty online today.
Simply go to:
http://www.Air-Innovations.com
NAME
ADDRESS
CITY
STATE ZIP
TELEPHONE
E-MAIL
DATE OF PURCHASE
PLACE OF PURCHASE
THIS UNIT COMES WITH A 1-YEAR WARRANTY SUBJECT TO THE FOLLOWING CONDITIONS:
In the rst year, all repairs will be performed free of charge or the unit will be replaced. This
warranty is not transferable, it is valid only for the original purchaser. This warranty will be
voided if the unit is subjected to unauthorized repair or impact damage. If you have any
questions please call toll free: 844-600-1370. This warranty gives you specic legal rights,
and you may also have other rights which vary from state to state.
Please check here if you would not like to receive any solicitations from our company
9
!
Air Innovations
®
©2016 Great Innovations, LLC. All Rights Reserved. US & International Patents Pending.

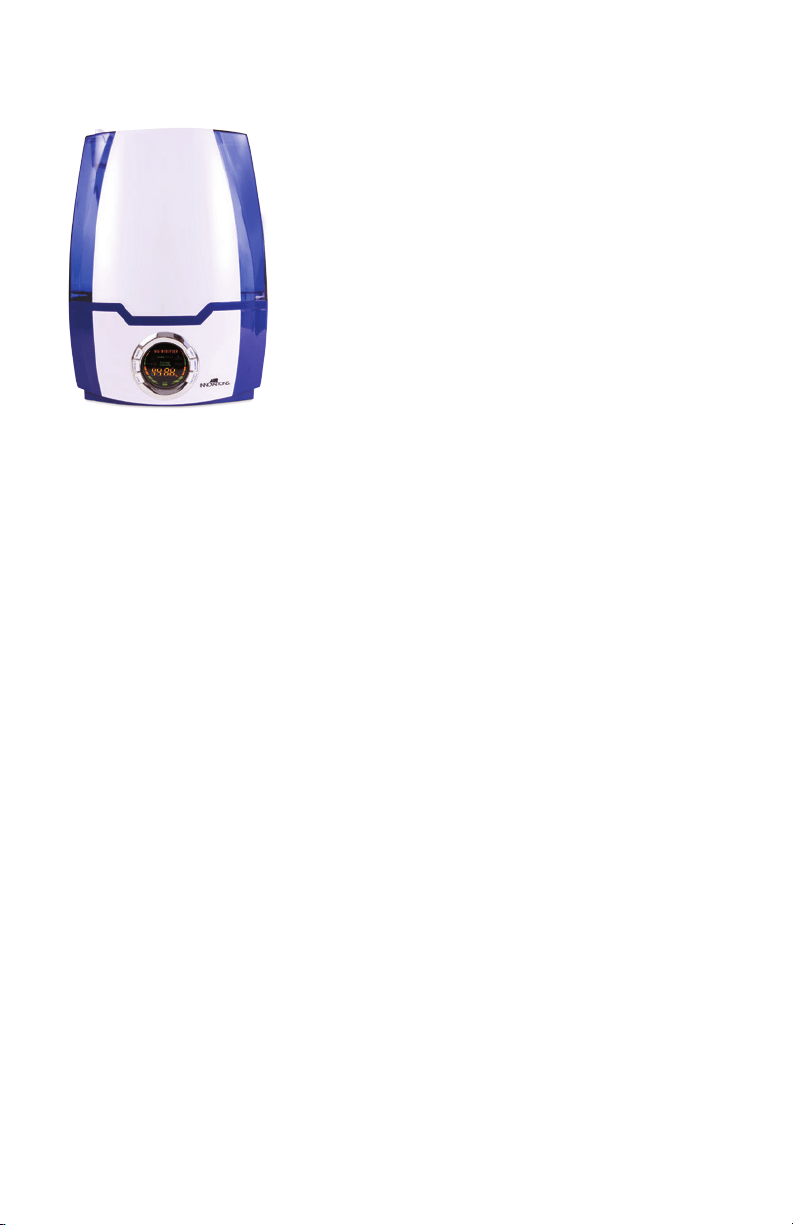

Available In A Variety Of Colors
