1
INSTRUCTION MANUAL
WINE/BEVERAGE CELLAR SEAMLESS FRAME
WINE COOLER model:
ILWS18BV、ILWD36BV、ILWD37BV、ILWD154BV、ILWDD154BV
BEVERAGE COOLER model:
ILBC142BV
To ensure proper use of this appliance and your safety, please read the following
instructions completely before operating this appliance.
Version number : V20200615
2
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING
Before the appliance is used, it must be properly positioned and installed as described in this manual.
So read the manual carefully. To reduce the risk of fire, electric shock or injury when using the
appliance, follow basic precautions.
To avoid a hazard due to instability of the appliance, if must be fixed in accordance with the instructions.
SAFETY PRECAUTIONS
• Carefully inspect the appliance. If you discover any faults, stop the installation and contact
the vendor.
• In the event that the appliance is damaged on delivery, contact the supplier immediately.
• The packaging material is recyclable and is marked with a recycling symbol. For disposal,
follow the local regulations. Packaging materials (plastic bags, polystyrene parts, etc.) must
be kept out of the reach of children, because they present a possible source of danger.
• When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried out by the customer service
department, as unauthorized work could prove highly dangerous for the user. The same
applies to changing the power cable. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not stand on the base, drawers or doors or use them to support anything else.
• Do not allow flames or sources of ignition to enter the appliance. When transporting and
cleaning the appliance, ensure that the refrigerant circuit is not damaged. In the event of
damage, make sure that there are no ignition sources nearby
• Keep the room well ventilated.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge unless they have been
given initial supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
• Do not store explosives or sprays using combustible propellants such as butane, propane,
pentane, etc., in the appliance.
• Electrical components might cause leaking gas to ignite. You may identify such sprays by the
printed contents or a flame symbol.
• Do not use electrical devices inside the appliance.
• Before you throw away your old appliance: Take off the door. Leave the parts in place so
that children may not easily climb inside.
3
• When disposing of your appliance, please choose an authorized disposal site.
• This appliance is equipped with a power cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly installed and grounded
• Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• Do not use an adapter plug with this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
4
2. INSTALLATION INSTRUCTIONS
ATTENTION
If the appliance is transported in a horizontal position, the oil from the compressor may leak into the
cooling circuit. For this reason, allow the appliance to rest in a vertical position for 12 hours before
turning it on, so that the oil flows back into the compressor.
Remove the external packaging, remove the protective plastic film from the surface of the appliance (if
used) and clean the external parts of the appliance with a cleaner designed for this purpose. Do not use
steel wool or any coarse agents, which could irreparably damage the surface of the appliance.
IMPORTANT

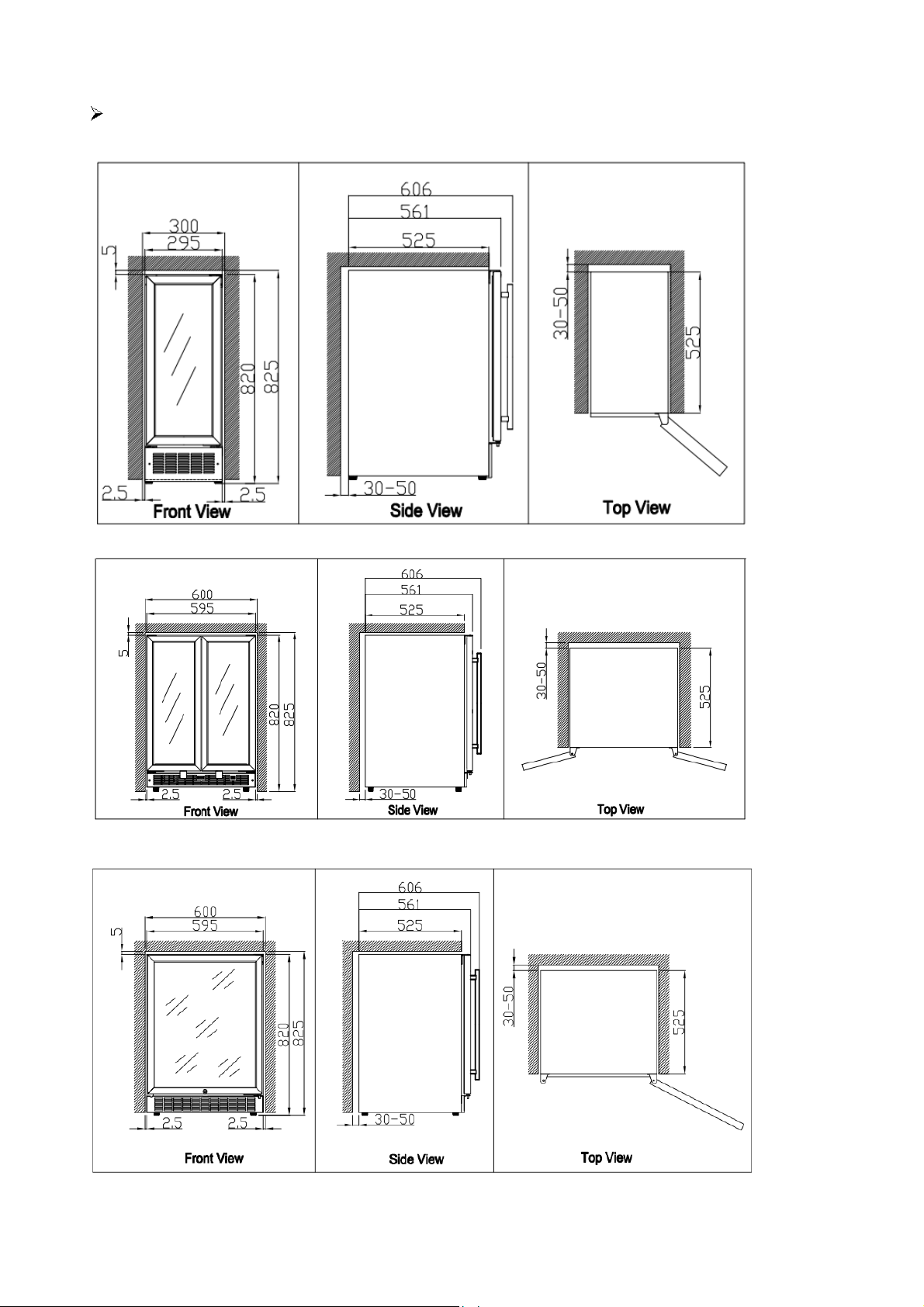

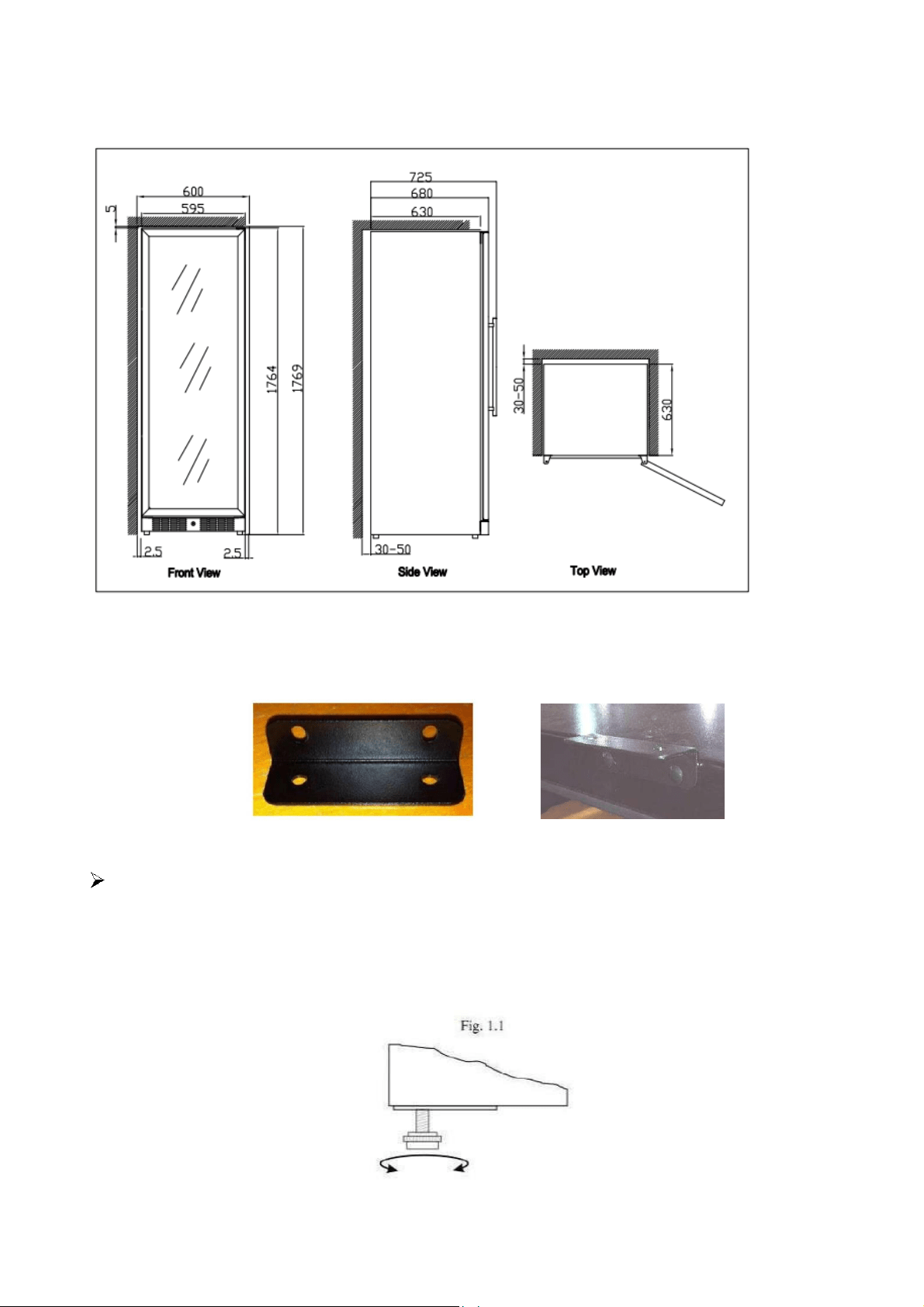

For built-in installation, certain clearances are necessary for optimal operation.In this case,allow 2.5mm(1/8”) on
left and right sides, 30-50mm(1”- 2 1/8”) at the rear and 5mm(1/6”) at the top to ensure proper ventilation.
Take care that the air vent at the front of the appliance is never covered or blocked in any way.
BEFORE INSTALLATING OF YOUR APPLIANCE
• The placement of the appliance must meet the requirements in the section operating
conditions and must include a stable floor with a load-bearing capacity corresponding to the
weight of the appliance.
• Level the appliance using the adjustable feet. Ensure there is a gap between the bottom
edge of the appliance and the ground, so that there is sufficient circulation of air. This will
ensure the optimal performance of the cooling system.
• Check whether any coolant circulation pipes have been damaged during the installation.
• Use the appliance only for the purposes for which it has been designed.
• The appliance must be located on a rigid and even surface. In this way you will ensure free
circulation of the coolant and effective operation of your appliance.
• If possible, place the appliance in a cool, well ventilated and dry room.
• Do not locate the appliance in direct sunlight or in a room with a high ambient temperature,
or in the vicinity of any sources of direct heat, such as a radiator or oven. This would cause
the compressor to work harder, resulting in a substantially higher power consumption level.
5
3. OPERATING YOUR APPLIANCE
OPERATING CONDITIONS
Proper operation of the appliance is guaranteed only if the following conditions are met:
• The temperature in the room where the appliance is located conforms to the
climate class stated on the appliance’s rating label.
• Maximum ambient relative humidity: RH75%.
• The appliance must be placed at a sufficient distance from heat sources ( e.g.,
ovens, central heating, direct sunlight, etc.).
• The appliance must be located in such a place that it is protected against the
effects of weather.
• Regular maintenance is performed according to the instructions in this user’s manual.
• The ventilation openings on the appliance must not be covered.
• Correct installation (e.g. leveling, the capacity of the system corresponds to the
specifications on the rating label of the appliance).

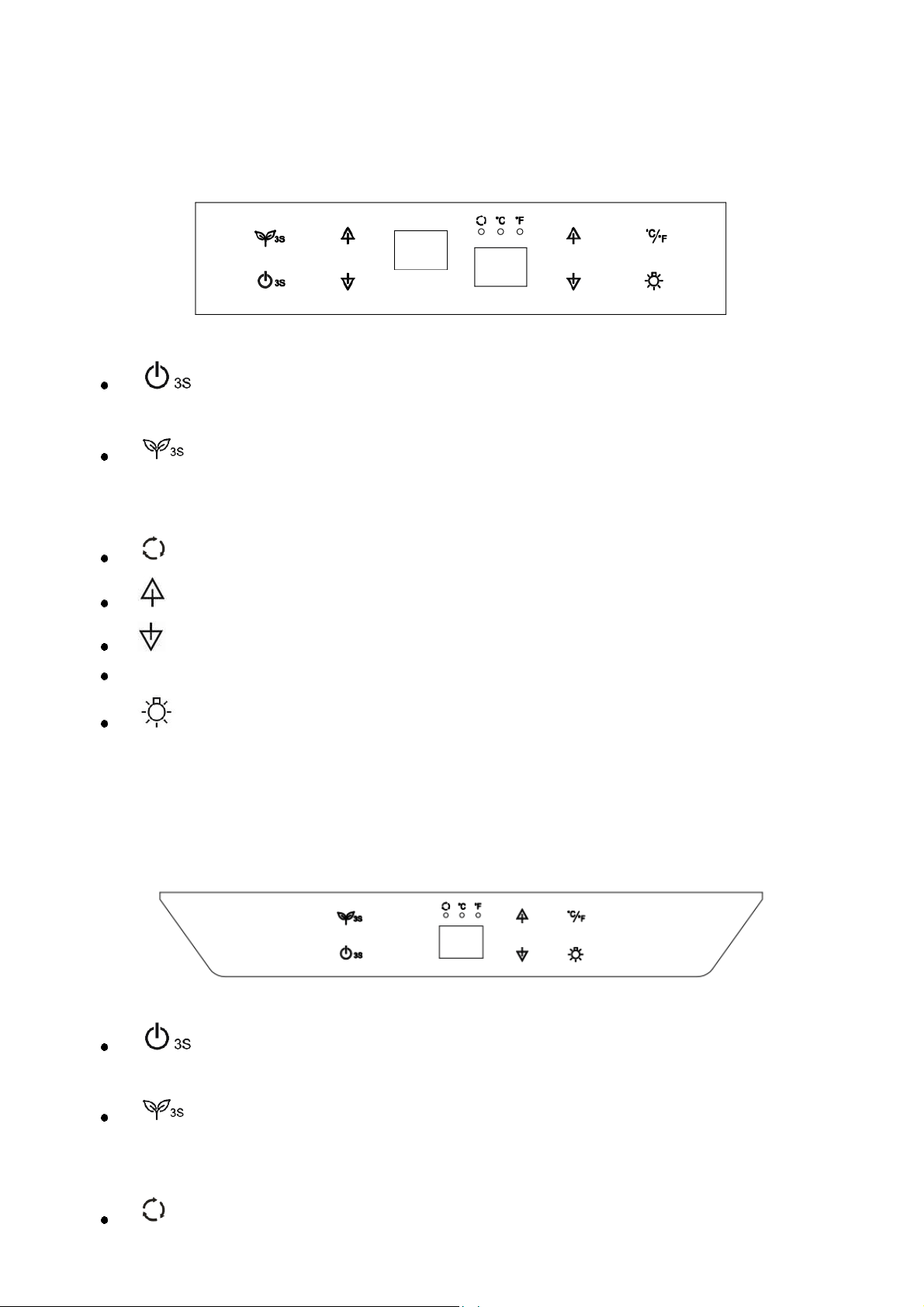

COMMANDS
ILWS18BV、ILWD36BV
This wine cooler has a temperature range from 4°C to 18°C
“ ”button to turn the unit ON and OFF,press and hold this button for approximately 3
seconds.
“ ” button Energy conservation button: Pressing this button for 3 seconds will turn the
energy conservation mode ON or OFF. In this mode, the LED light and display will turn off,
and the °C/°F light will be on.
“ ”Indicator light: shows that the compressor is in operation.
“ ” button: It is used to increase (warm) the temperature in steps of 1°C.
“ ” button: It is used to decrease (cool) the temperature in steps of 1°C.
“ °C/°F ” button : press this button to switch the indicator light between° C/°F.
6
“ ” button: turns the interior light ON and OFF. If you use this button, the light is no
longer controlled by the switch, and remains ON.(Light button is useless when Energy
conservation button is on ) LED display Display screen shows the temperature setting.
ILWD37BV
IL
The upper zone has a temperature range of 5°C to 12°C,
The lower zone has a temperature range of 12°C to 18°C.

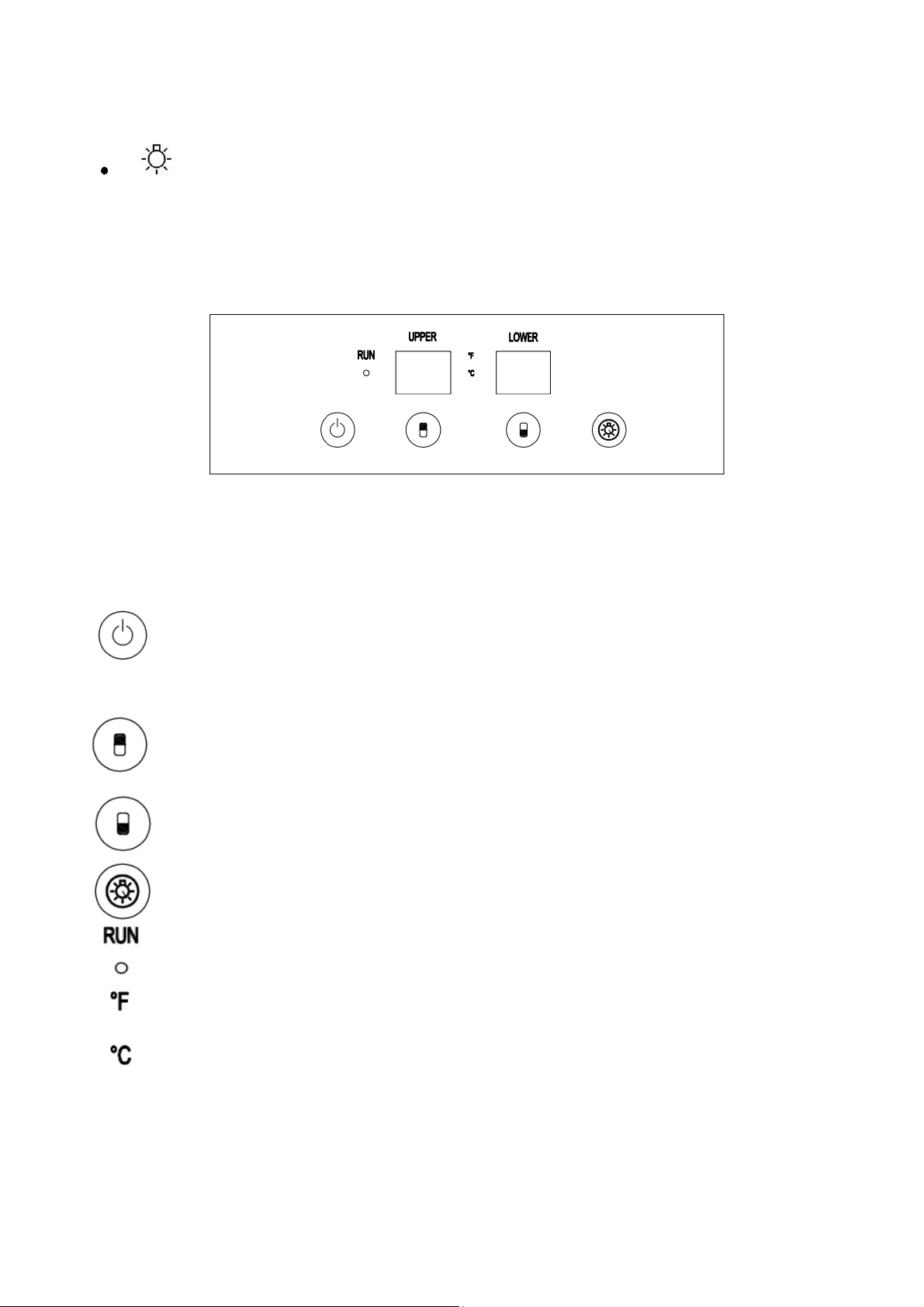

SELECTOR BUTTONS
POWER BUTTON: Press and hold down for three seconds to power your unit on,once
pressed the “Run” indicator light will illuminate to indicate the unit is on and running.
Press and hold for three seconds again and the unit will power off and the “Run”
Indicator
light will turn off .
UPPER ZONE TEMPERATURE: It is used to decrease (cool) the temperature in steps
of 1°F (or 1°C) for upper department
LOWER ZONE TEMPERATURE: It is used to decrease (cool) the temperature in
steps of 1°F (or 1°C) for lower department
INTERIOR LIGHT: Press this button to turn on the interior LED light. Press again to
turn the light off .
When lit, the unit is in cooling mode.
This unit can be displayed in Fanrenheit or Celsisus. To change between press and
hold the upper and lower zone temperature buttons at the same time for five seconds.
A sound will then beep and the indicator light will illiuminate next to desired
temperature setting.
7
ILWD154BV、ILWDD154BV
This wine cooler has a temperature range from 4°C to 18°C.
“ ”button to turn the unit ON and OFF,press and hold this button for approximately 3
seconds.
“ ” button Energy conservation button: Pressing this button for 3 seconds will turn the
energy conservation mode ON or OFF. In this mode, the LED light and display will turn off,
and the °C/°F light will be on.
“ ”Indicator light: shows that the compressor is in operation
“ ” button: It is used to increase (warm) the temperature in steps of 1°C.
“ ” button: It is used to decrease (cool) the temperature in steps of 1°C.
“ °C/°F ” button : press this button to switch the indicator light between° C/°F.
“ ” button: turns the interior light ON and OFF. If you use this button, the light is no
longer controlled by the switch, and remains ON.(Light button is useless when Energy
conservation button is on ) LED display Display screen shows the temperature setting.
ILBC142BVL
This Beverage cooler has a temperature range from 2°C to 10°C.
“ ”button to turn the unit ON and OFF,press and hold this button for approximately 3
seconds.
“ ” button Energy conservation button: Pressing this button for 3 seconds will turn the
energy conservation mode ON or OFF. In this mode, the LED light and display will turn off,
and the °C/°F light will be on.
“ ”Indicator light: shows that the compressor is in operation
8
“ ” button: It is used to increase (warm) the temperature in steps of 1°C.
“ ” button: It is used to decrease (cool) the temperature in steps of 1°C.
“ °C/°F ” button : press this button to switch the indicator light between° C/°F.
“ ” button: turns the interior light ON and OFF. If you use this button, the light is no
longer controlled by the switch, and remains ON.(Light button is useless when Energy
conservation button is on ) LED display Display screen shows the temperature setting.
TEMPERATURE SETTINGS
The zone temperature may have a difference of +/- 5°F (+/- 3ºC) from the setting depending
on loading and ambient conditions. For example, placing your unit in extreme cold or hot
conditions may cause interior temperatures to fluctuate.
When you press the button once, the temperature will increase or decrease by 1°F (or 1°C).
If you try to go beyond the minimum/maximum value that can be established, the display will
jump to the lowest/highest adjustable temperature value automatically. If a button is not
pressed for 5 seconds, the LED will stop flashing and the setting mode will be exited.
FUNCTIONS
TEMPERATURE MEMORY FUNCTION
If the power is suddenly lost, the set temperature will be saved by the unit. Once the power
is back on, the unit will be at the same set temperature.
TEMPERATURE ALARM FUNCTION
If the interior temperature is higher than 73°F (23°C), “HI” is shown on the display panel and
the buzzer alarm sounds continuously after one hour. This indicates that the inner
temperature is too high, and you should look for the reason. If the inner temperature is
lower than 32°F (0°C),ILBC142BV is lower than 26°F (-3°C) “LO” is shown on the display
panel; the alarm and the malfunction indicator light go on at the same time.
NOTES
If too many bottles are put in at once or the door has not been closed tightly, the unit will
display the "HI" signal on the display panel. This is normal. Please wait 5 minutes after
closing the door and “HI” will disappear.
9
It is normal that the cabinet shows “HI” or “LO” from time to time. If it occurs frequently or
lasts for a long time, you can restart the unit by unplugging it, then re-plugging after 5
minutes. If the problem occurs again after restarting, please contact customer service.
Before reconnecting the power, wait 3 to 5 minutes. Otherwise you could damage your
appliance. If you attempt to start the appliance before the end of this time delay, the
appliance will not turn on.
If you turn on the appliance for the first time or after a restart, or after it has been out of
operation for a long time, there may be a temperature difference between the temperature
inside the appliance and that on the LED display. This is a normal event caused by the
duration of the activation period. Leave the appliance turned on for several hours and the
temperatures will stabilize during operation.
WINE STORAGE
If you are storing wine for long periods of time, it should be stored at a temperature of between
10°C and 14°C (50°F and 57°F). The following drinking temperatures are recommended for the
various types of wine:
Red wines: 57°F to +64°F (+14°C to +18°C)
Rosé wines: 50°F to +54°F (+10°C to +12°C)
White wines: 46°F to +54°F (+8°C to +12°C)

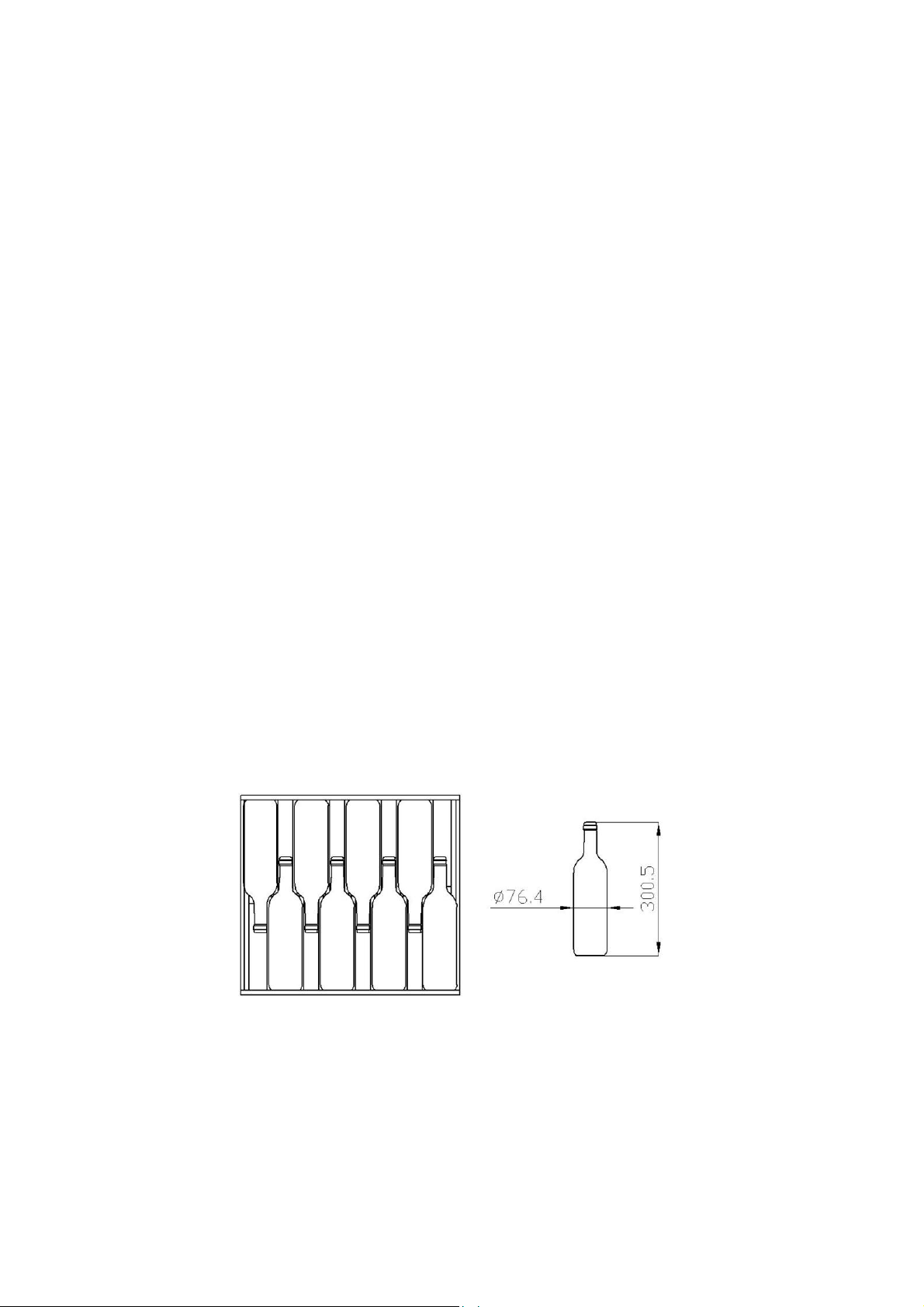

The wine cooler shelving suits Bordeaux Style Bottles (76.5mm diameter and 300.5mm Height).
10
SHELVES
ILWS18BV 、ILWD36BV、ILWD37BV、ILBC142BV

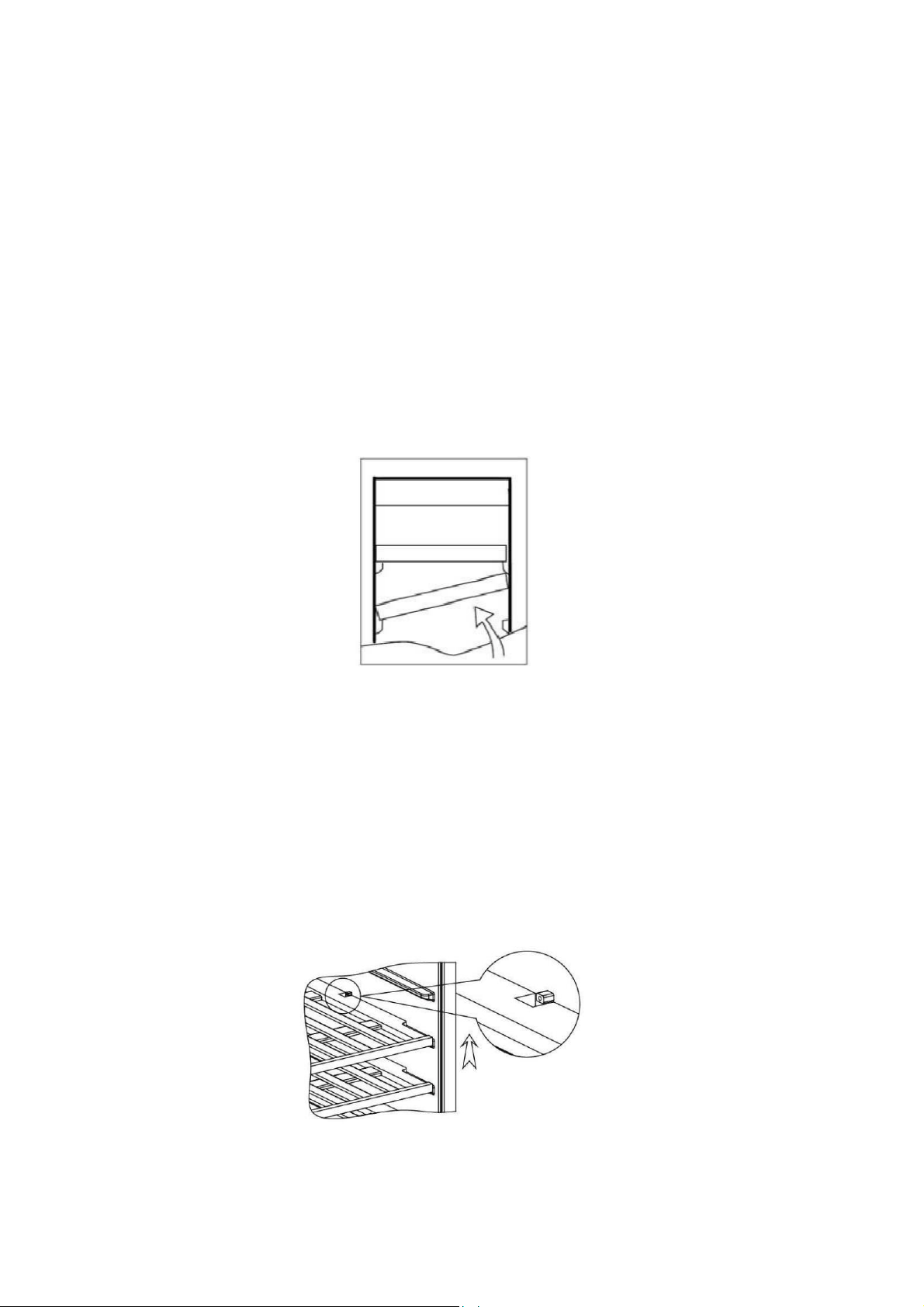

To prevent damaging the doors or gasket seals, open the doors wide when removing the
shelves. When removing any of these shelves out of the rail compartment, you must lift (from
the rear) and pull it towards you. To re-install, ensure the shelf is resting securely on the
support brackets and push shelf inward until it locks into place.
MPORTANT: Do not cover the gap of glass shelves with aluminum foil or any other TYPE OF
material that will prevent adequate air circulation within the cabinet.
ILWD154BV、ILWDD154BV
Open the door completely.
If necessary,make sure you remove all the contents sitting on the shelf.
Pull the shelf forward until the notch aligns with the metal post on each side of the shelf track.
Lift the shelf until both notches pass through the posts.
Continue to pull the shelf forward until it is completely removed from the inner compartment.
11

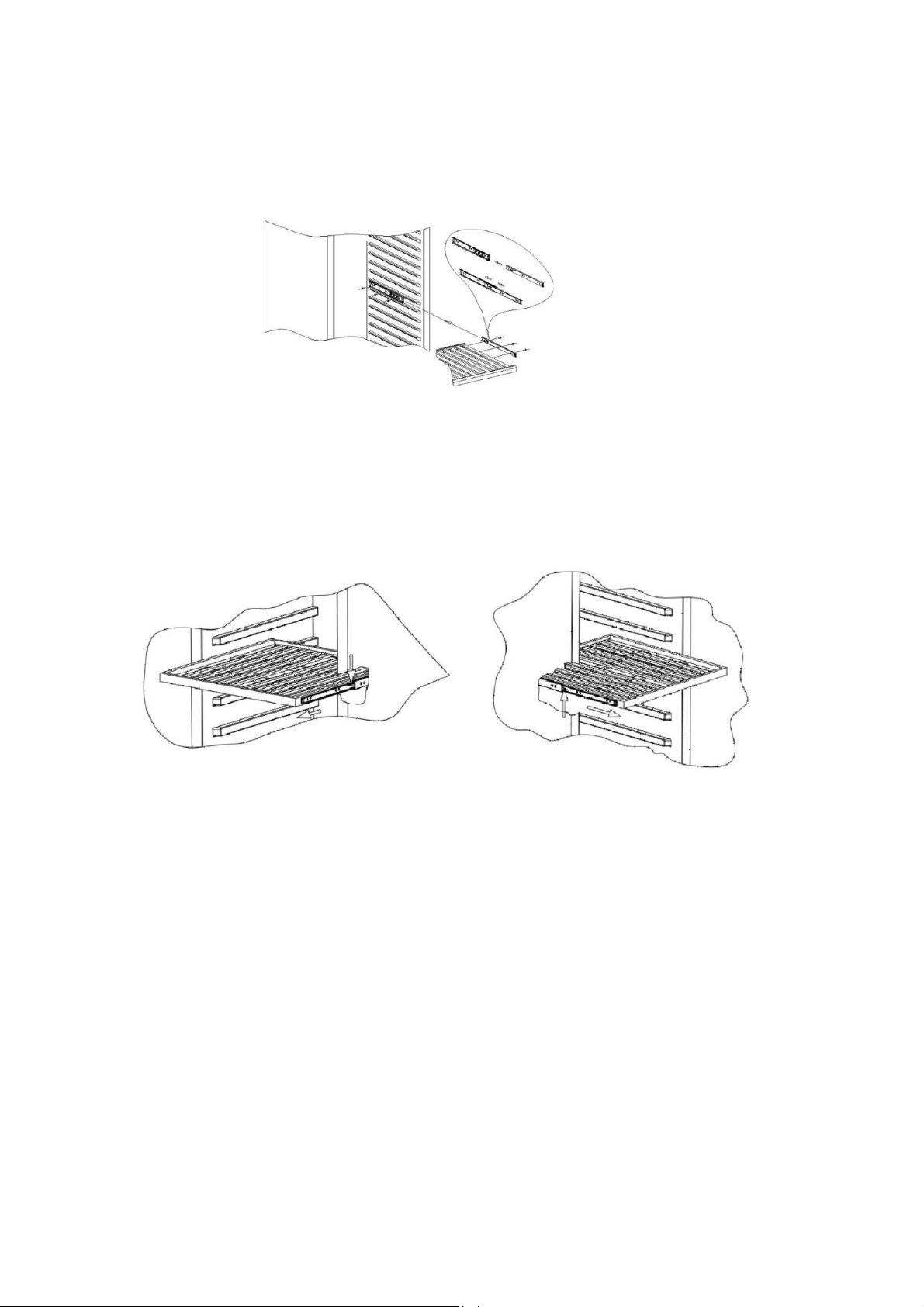

Pull-out Roller Shelves
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment.
For easy access to the bottles, you must pull the shelves approximately 1/3 out of the rail
compartment.
To remove the shelves out of the rail pull each shelf approximately 1/3 out. Use a long flat
screwdriver to press down the right plastic notch as shown in Figure A and at the same time
lift the left plastic notch as shown in Figure B. Then proceed to pull out the shelf slowly.
Contact our service department if assistance is needed.
Figure A Figure B
12
Installation specifications for built-in purposes
ILWS18BV
ILWD36BV
ILBC142BV、ILWD37BV
13
ILWD154BV、ILWDD154BV
In order to guarantee the stability of the model ILWD36X,
install and screw the fastening bracket correctly onto the kitchen furniture:
Cabinet Leg
To ensure correct function it is important that the cabinet is level. The cabinet is supplied with
legs,
Which can be adjusted by pliers or professional installer. See fig.1.1.
14
4. CARE AND MAINTENANCE
CLEANING YOUR WINE CELLAR
• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda with a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for
a longer period of time, you need to take the proper steps to protect your contents.
VACATION TIME
• Short vacations: Leave the Wine Cellar operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and
turn off the appliance. Clean and dry the interior thoroughly. To prevent door and mold
growth, leave the door open slightly: blocking it open if necessary.
MOVING YOUR WINE CELLAR
• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
15
1. Troubleshooting guide
You can solve many common appliance problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling the servicer.
Problem
Possible cause
Appliance does not operate.
Not plugged in.
The appliance is turned off.
Tripped circuit breaker or blown fuse.
Appliance is not cold enough.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is higher than normal.
A large amount of contents has been added to the appliance.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
Tripped circuit breaker or blown fuse.
The bulb has burned out.
The light button is OFF. Or
Energy conservation button is on.
Vibrations.
Check to be sure the appliance is level.
The appliance seems to make too
The rattling noise may come from the flow of
much noise.
the refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds caused
by the flow of refrigerant in your appliance.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The appliance is not level.
The door will not close properly.
The appliance is not level.
The door was reversed and not properly re-installed.
The gasket is dirty.
The shelves are out of position.
ILVE LIMITED WARRANTY
Eurolinx Pty Limited A.B.N. 50 001 473 347
trading as ILVE (“ILVE”)
Office: 48-50 Moore Street, Leichhardt N.S.W 2040
Post: Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 MY ILVE (694 583)
WARRANTY REGISTRATION
Your ongoing satisfaction with your ILVE product is
important to us. We ask that you complete the
enclosed Warranty Registration Card and return it to us
so that we have a record of the ILVE products you
purchased. Alternatively you can register on line (see
registration card for details)
PRIVACY
ILVE respects your privacy and is committed to
handling your personal information in accordance with
the National Privacy Principles and the Privacy Act
1988 (Cth). A copy of the ILVE Privacy Policy is
available at www.ilve.com.au. ILVE will not disclose
any personal information set out in the Warranty
Registration Card (“Personal Information”) without your
consent unless required by:
1. law;
2. any ILVE related company;
3. any service provider which provide services to
ILVE or assist ILVE in providing services (including
repair and warranty services) to customers. Our
purpose in collecting the Personal Information is
to keep a record of the ILVE product purchased by
you, in order to provide a better warranty service to
you in the unlikely event that there is a problem with
your ILVE product. ILVE may contact you at any one
or more of the address, email address or telephone
numbers set out in the Warranty Registration Card.
Please contact ILVE on 1300 694 583 should you not
wish to be contacted by ILVE.
WARRANTY
1. Warranty
ILVE warrants that each ILVE product will remain, for a
period of twenty four (24) months computed from the
date of purchase of the ILVE product, free from defects
arising in the manufacture of the ILVE product
(“Warranty”). Except for consumer guarantees set out in
the Competition and Consumer Act 2010 (Cth) (“Act”),
ILVE does not make any further warranties or
representations in relation to ILVE products.
2. What is not Covered by the Warranty.
The Warranty does not apply if an ILVE product is
defective by a factor other than a defect arising in
the manufacture of the ILVE product, including but
not limited to:
(a) damage through misuse (including failure to
maintain, service or use with proper care),
neglect, accident or ordinary wear and tear
(including deterioration of parts and accessories
and glass breakage);
(b) use for purpose for which the ILVE product was
not sold or designed;
(c) use or installation which is not in accordance with
any specified instructions for use or installation;
(d) use or operation after a defect has occurred or
been discovered;
(e) damage through freight, transportation or handling in
transit (other than when ILVE is responsible);(f )
damage through exposure to chemicals, dusts,
residues, excessive voltage, heat, atmospheric
conditions or other forces or environmental factors
outside the control or ILVE;
(g) repair, modification or tampering by the purchaser
or any person other than ILVE, an employee of ILVE or
an authorised ILVE service contractor;
(h) use of parts, components or accessories which have
not been supplied or specifically approved by ILVE.
(i) damage to surface coatings caused by cleaning or
maintenance using products not recommended in the
ILVE product handbook provided to the purchaser upon
purchase of the ILVE product;
(j) damage to the base of an electric oven due to items
having been placed on the base of the oven cavity or
covering the base, such as aluminium foil (this
impedes the transfer of heat from the element to the
oven cavity and can result in irreparable damage); or
(k) damages, dents or other cosmetic imperfections not
affecting the performance of the ILVE in respect of
anILVE product purchased as a “factory second” or
from display. The Warranty does not extend to light
globes used in ILVE products.3. Domestic Use
Each ILVE product is made for domestic use. This
Warranty may not extend to ILVE products used for
commercial purposes; under those circumstances the
warranty period is limited to 3 month.
4. Time for Claim under the Warranty
You must make any claim under this Warranty within
twenty eight (28) days after the occurrence of an event
which gives rise to a claim pursuant to the Warranty,
by booking a service call on the telephone number
below. 5. Proof of Purchase
Customers must retain proof of purchase in order to be
eligible to make a warranty claim in respect of an ILVE
product.
Continued over...
ILVE LIMITED WARRANTY
6. Claiming under the Warranty
Customers will bear the cost of claiming under this
Warranty unless ILVE determines the expenses are
reasonable, in which case the customer must claim
those expenses by providing written evidence of
each expense to ILVE at the address on the
Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not a ect your
statutory rights.
(b) The limitations on the Warranty set out in this
document do not exclude or limit the application of the
consumer guarantees set out in the Act or any other
equivalent or corresponding legislation in the relevant
jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction; or
(ii) cause any part of the Warranty to be void.
(c) ILVE excludes indirect or consequential loss of any
kind (including, without limitation, loss of use of the
ILVE product) and (other than expressly provided for
in these terms and conditions) subject to all terms,
conditions and warranties implied by custom, the
general law, the Act or other statute.
(d) The liability of ILVE to you for a breach of any
express or non-excludable implied term, condition or
warranty is limited at the option of ILVE to:
(i) replacing or repairing the defective part of the
ILVE product;
(ii) paying the cost of replacing or repairing the
defective part of the ILVE product;
(iii) replacing the ILVE product; or
(iv) paying the cost of replacing the ILVE product.
(e) Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure
does not amount to a major failure.
8. Defects
Any part of an ILVE product deemed to be defective
and replaced by ILVE is the property of ILVE. ILVE
reserves the right to inspect and test ILVE products in
order to determine the extent of any defect and the
validity of a claim under the Warranty.
*To locate your closest ILVE authorised service
agent please contact ILVE on 1300 694 583,
custome[email protected] or visit
http://ilve.com.au/support/service/
IMPORTANT!
All warranty service calls must be booked via
the customer care department. The team can
be contacted on 1 300 85 64 11 option 1 or
customercare@eurolinx.com.au
Service is delivered through a network of Service
Agents. If the Appliance is located outside our
normal Service Area of our agents you, t he
Customer will need to bear the cost of travel outside
that area.
If you are unable to provide proof of purchase, the
fault is not covered under warranty or the product is
found to be working to specification you may be
required to bear the full cost of the service visit
08042016
WARRANTY REGISTRATION
CARD 08042016
Please complete and send to ilve at: REPLY PAID
83617
LEICHHARDT NSW
2040
Last Name:
First Name:
Address:
State:
Postcode:
Email:
Home Phone:
Mobile:
Purchase Date:
/
/
(Please attach proof of purchase to validate warranty)
MODEL NUMBER
SERIAL NUMBER
(if you cannot locate the serial number please call ILVE on 1300 85 64 11)
1
2
3
4
