Frigidaire FRS26R2AWG Side by Side Refrigerator

Use & Care Manual - Transcript

• Page 1 - English - : Espahol 26 0m 7 Controls 8 Looking Inside 9 Automatic Ice and Water Dispenser 12 Food Storage amp Energy Saving Tips 17 11D 16D 3 Normal Operating Sounds 18 Care amp Cleaning 19 Warranty 21 Before You Call Solutions to Common Problems 22 25 READ AND SAVE THESE INSTRUCTIONS PN2403893110303

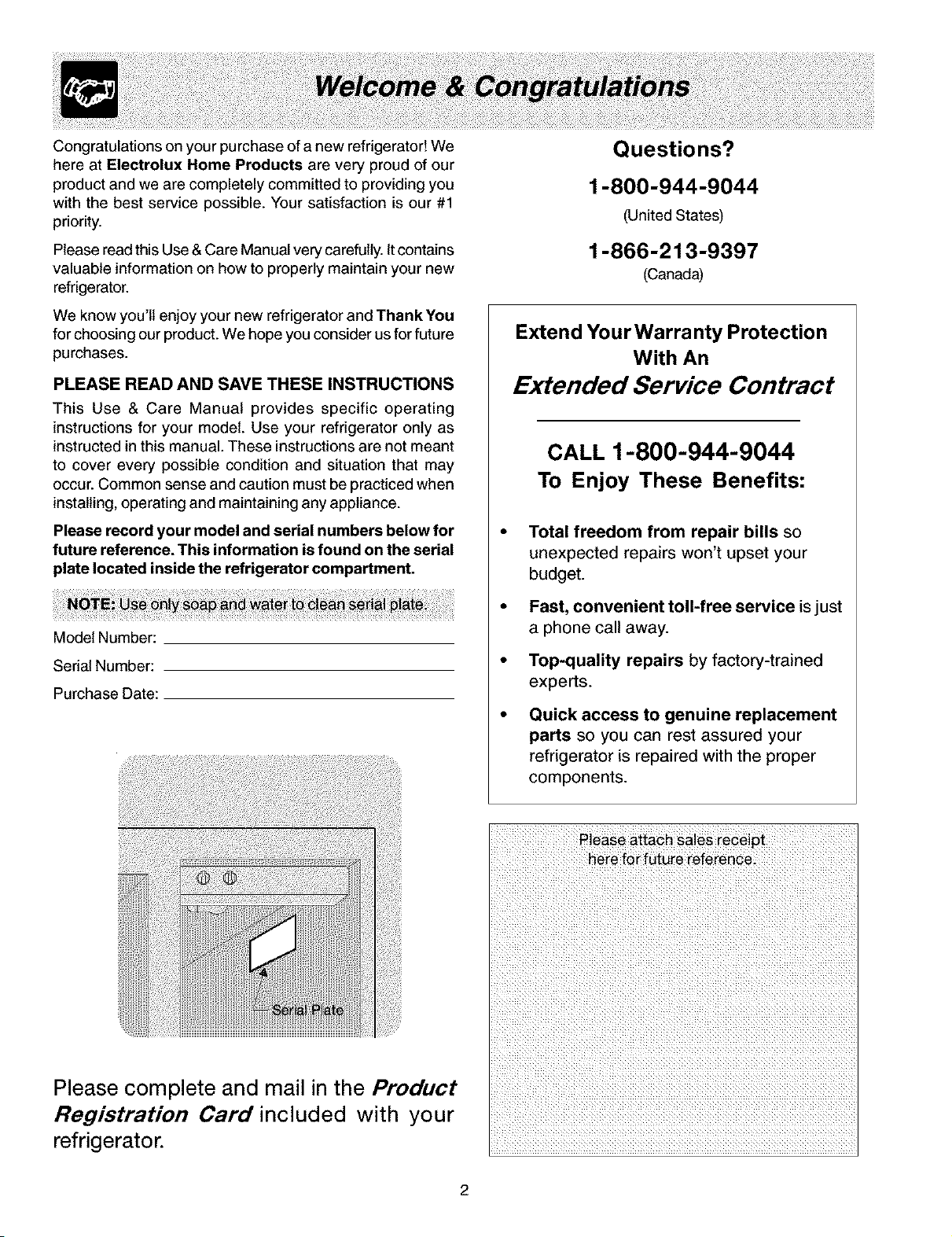

• Page 2 - English - : Congratulations on your purchase of a new refrigerator We here at Electrolux Home Products are very proud of our product and we are completely committed to providing you with the best service possible Your satisfaction is our 1 priority Please read this Use amp Care Manual very carefully Itcontains valuable information on how to properly maintain your new refrigerator We know youll enjoy your new refrigerator and Thank You for choosing our product We hope you consider us for future purchases PLEASE READ AND SAVE THESE INSTRUCTIONS This Use amp Care Manual provides specific operating instructions for your model Use your refrigerator only as instructed in this manual These instructions are not meant to cover every possible condition and situation that may occur Common sense and caution must be practiced when installing operating and maintaining any appliance Please record your model and serial numbers below for future reference This information is found on the serial plate located inside the refrigerator compartment Model Number Serial Number Purchase Date Questions 18009449044 United States 18662139397 Canada Extend Your Warranty Protection With An Extended Service Contract CALL 18009449044 To Enjoy These Benefits Total freedom from repair bills so unexpected repairs wont upset your budget Fast convenient tollfree service isjust a phone call away Topquality repairs by factorytrained experts Quick access to genuine replacement parts so you can rest assured your refrigerator is repaired with the proper components Please complete and mail in the Product Registration Card included with your refrigerator Please attach sales receiot here for future reference

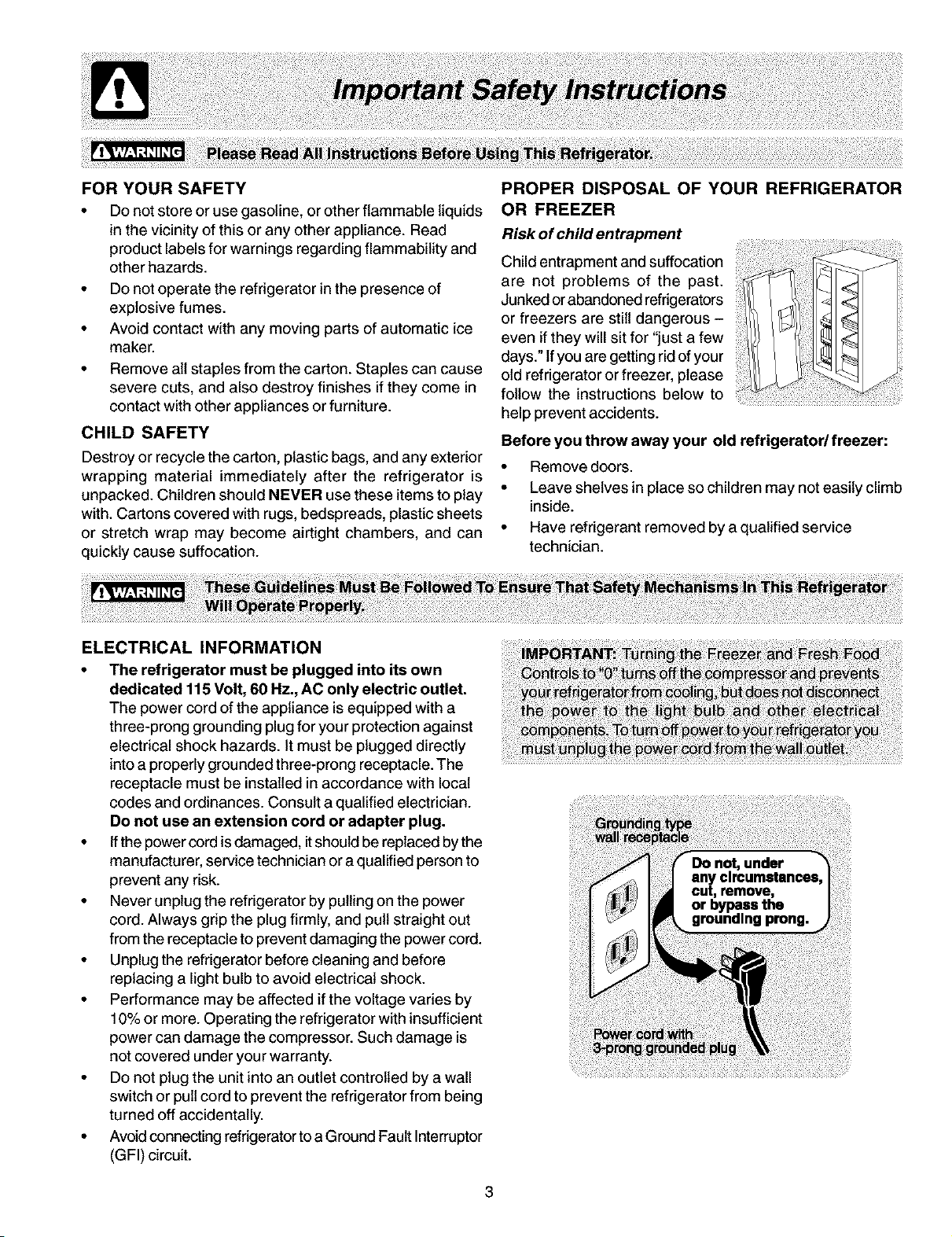

• Page 3 - English - : FORYOURSAFETY Donotstoreorusegasolineorotherflammableliquids inthevicinityofthisoranyotherapplianceRead productlabelsforwarningsregardingflammabilityand otherhazards Donotoperatetherefrigeratorinthepresenceof explosivefumes Avoidcontactwithanymovingpartsofautomaticice maker RemoveallstaplesfromthecartonStaplescancause severecutsandalsodestroyfinishesiftheycomein contactwithotherappliancesorfurniture CHILD SAFETY Destroyorrecyclethecartonplasticbagsandanyexterior wrappingmaterialimmediatelyafterthe refrigeratoris unpackedChildrenshouldNEVERusetheseitemstoplay withCartonscoveredwithrugsbedspreadsplasticsheets orstretchwrapmaybecomeairtightchambersandcan quicklycausesuffocation PROPER DISPOSAL OF YOUR REFRIGERATOR OR FREEZER Risk of child entrapment Child entrapment and suffocation are not problems of the past Junked orabandoned refrigerators or freezers are still dangerous even if they will sit for quotjust a few daysquot Ifyou are getting rid of your old refrigerator or freezer please follow the instructions below to help prevent accidents Before you throw away your old refrigerated freezer Remove doors Leave shelves in place so children may not easily climb inside Have refrigerant removed by a qualified service technician ELECTRICAL INFORMATION The refrigerator must be plugged into its own dedicated 115 Volt 60 Hz AC only electric outlet The power cord ofthe appliance isequipped with a threeprong grounding plug for yourprotection against electrical shock hazards It must be plugged directly into a properly grounded threeprong receptacle The receptacle must be installed in accordance with local codes and ordinances Consult a qualified electrician De net use an extension cord or adapter plug Ifthe power cord is damaged itshould be replaced by the manufacturer service technician or a qualified person to prevent any risk Never unplug the refrigerator by pulling on the power cord Always grip the plug firmly and pull straight out from the receptacle to prevent damaging the power cord Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock Performance may be affected if the voltage varies by 10 or more Operating the refrigerator with insufficient power can damage the compressor Such damage is not covered under your warranty Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally Avoid connecting refrigerator toa Ground Fault Interrupter GFI circuit

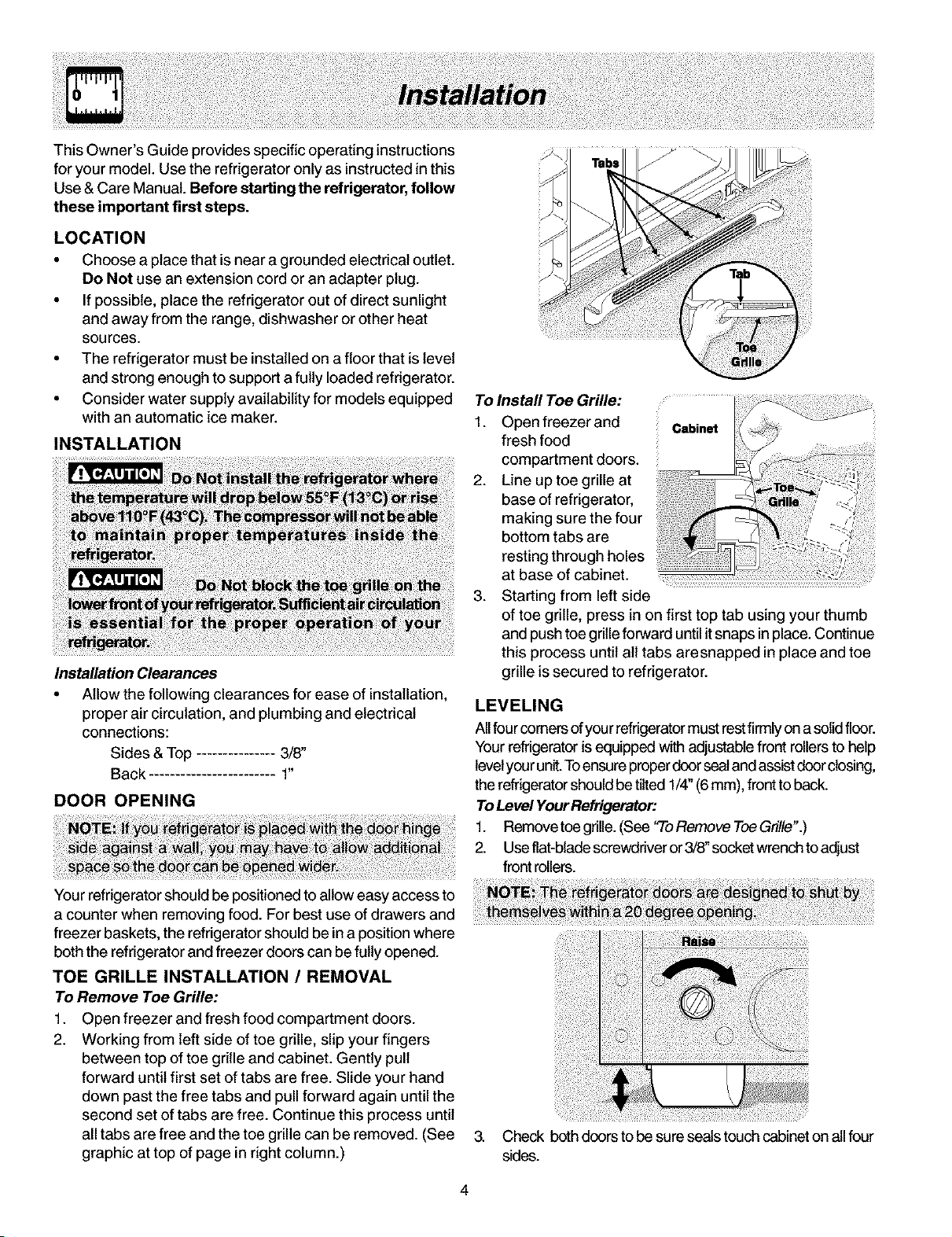

• Page 4 - English - : ThisOwnersGuideprovidesspecificoperatinginstructions foryourmodelUsetherefrigeratoronlyasinstructedinthis UseampCareManualBeforestartingtherefrigeratorfollow these important first steps LOCATION Choose a place that isnear a grounded electrical outlet Do Not use an extension cord or an adapter plug If possible place the refrigerator out of direct sunlight and away from the range dishwasher or other heat sources The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator Consider water supply availability for models equipped with an automatic ice maker INSTALLATION Installation Clearances Allow the following clearances for ease of installation proper air circulation and plumbing and electrical connections Sides ampTop 38quot Back 1quot DOOR OPENING Your refrigerator should be positioned to allow easy access to a counter when removing food For best use of drawers and freezer baskets the refrigerator should be in a position where both the refrigerator and freezer doors can befully opened TOE GRILLE INSTALLATION REMOVAL To Remove Toe Grille 1 Open freezer and fresh food compartment doors 2 Working from left side of toe grille slip your fingers between top of toe grille and cabinet Gently pull forward until first set of tabs are free Slide your hand down past the free tabs and pull forward again until the second set of tabs are free Continue this process until all tabs are free and the toe grille can be removed See graphic at top of page in right column To Install Toe Grille 1 Open freezer and fresh food compartment doors 2 Line up toe grille at base of refrigerator making sure the four bottom tabs are resting through holes at base of cabinet 3 Starting from left side of toe grille press in on first top tab using your thumb and push toe grille forward until itsnaps in place Continue this process until all tabs aresnapped in place and toe grille is secured to refrigerator LEVELING Allfourcomers ofyour refrigerator must restfirmlyon a solidfloor Your refrigerator is equipped with adjustable front rollersto help levelyour unitToensureproper door sealand assistdoor closing the refrigerator should be tilted 14quot6 mm front toback ToLevel YourRefrigerator 1 Remove toegrilleSee quotqoRemove ToeGrillequot 2 Use flatbladescrewdriver or 38quotsocket wrench toadjust front rollers 3 Check both doors to besure seals touch cabinet on all four sides

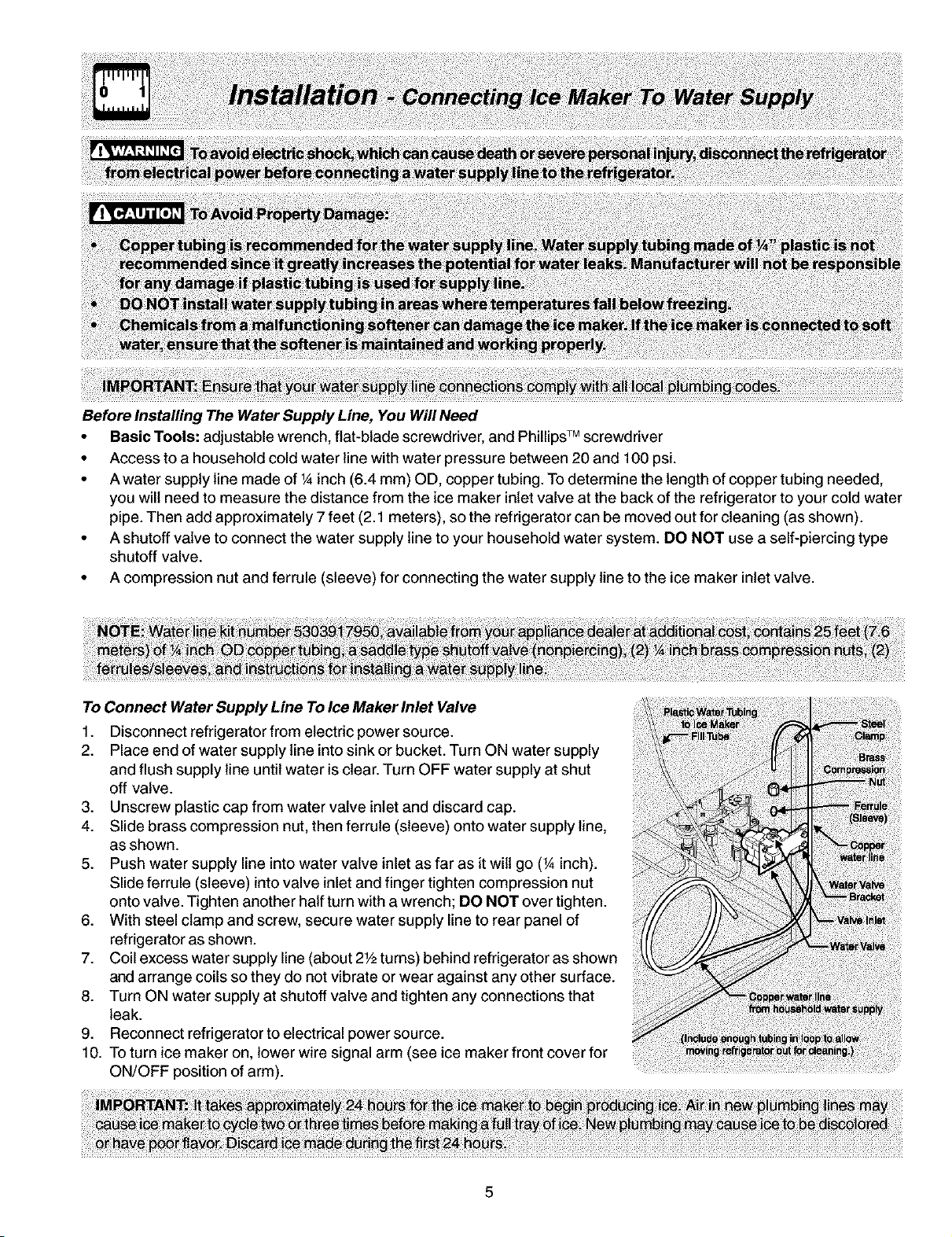

• Page 5 - English - : Before Installing The Water Supply Line You Will Need Basic Tools adjustable wrench flatblade screwdriver and Phillips TM screwdriver Access to a household cold water line with water pressure between 20 and 100 psi A water supply line made of 1Ainch 64 mm OD copper tubing To determine the length of copper tubing needed you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe Then add approximately 7 feet 21 meters so the refrigerator can be moved out for cleaning as shown A shutoff valve to connect the water supply line to your household water system DO NOT use a selfpiercing type shutoff valve A compression nut and ferrule sleeve for connecting the water supply line to the ice maker inlet valve To Connect Water Supply Line To Ice Maker inlet Valve 1 Disconnect refrigerator from electric power source 2 Place end of water supply line into sink or bucket Turn ON water supply and flush supply line until water is clear Turn OFF water supply at shut off valve 3 Unscrew plastic cap from water valve inlet and discard cap 4 Slide brass compression nut then ferrule sleeve onto water supply line as shown 5 Push water supply line into water valve inlet as far as it wilt go Ainch Slide ferrule sleeve into valve inlet and finger tighten compression nut onto valve Tighten another half turn with a wrench DO NOT over tighten 6 With steel clamp and screw secure water supply line to rear panel of refrigerator as shown 7 Coil excess water supply line about 2Y2turns behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface 8 Turn ON water supply at shutoff valve and tighten any connections that leak 9 Reconnect refrigerator to electrical power source 10 To turn ice maker on lower wire signal arm see ice maker front cover for ONOFF position of arm

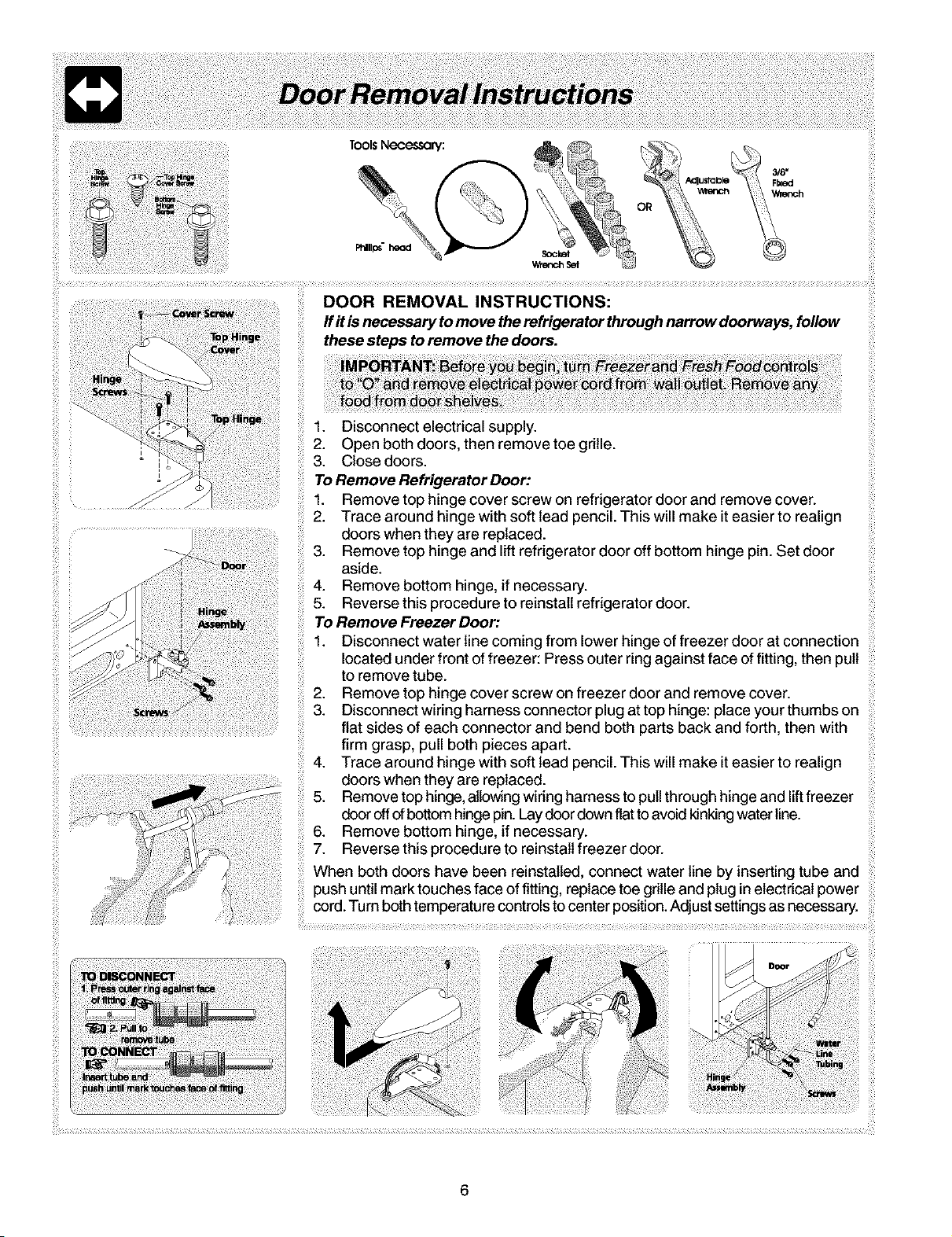

• Page 6 - English - : Tools Necessary 38quot Fed Wrench DOOR REMOVAL INSTRUCTIONS flit is necessary tomove the refrigerator through narrow doorways follow these steps toremove the doors 1 Disconnect electrical supply 2 Open both doors then remove toe grille 3 Close doors To Remove Refrigerator Door 1 Remove top hinge cover screw on refrigerator door and remove cover 2 Trace around hinge with soft lead pencil This will make it easier to realign doors when they are replaced 3 Remove top hinge and lift refrigerator door off bottom hinge pin Set door aside 4 Remove bottom hinge if necessary 5 Reverse this procedure to reinstall refrigerator door TORemove Freezer Door 1 Disconnect water line coming from lower hinge of freezer door at connection located under front of freezer Press outer ring against face of fitting then pull to remove tube 2 Remove top hinge cover screw on freezer door and remove cover 3 Disconnect wiring harness connector plug at top hinge place your thumbs on flat sides of each connector and bend both parts back and forth then with firm grasp pull both pieces apart 4 Trace around hinge with soft lead pencil This will make it easier to realign doors when they are replaced 5 Remove top hinge allowing wiring harness to pull through hinge and lift freezer door off ofbottom hingepin Laydoor down flat to avoid kinking water line 6 Remove bottom hinge if necessary 7 Reverse this procedure to reinstall freezer door When both doors have been reinstalled connect water line by insertingtube and push until mark touches face of fitting replace toe grille and plug in electrical power cord Turn both temperature controls to center position Adjust settings as necessary

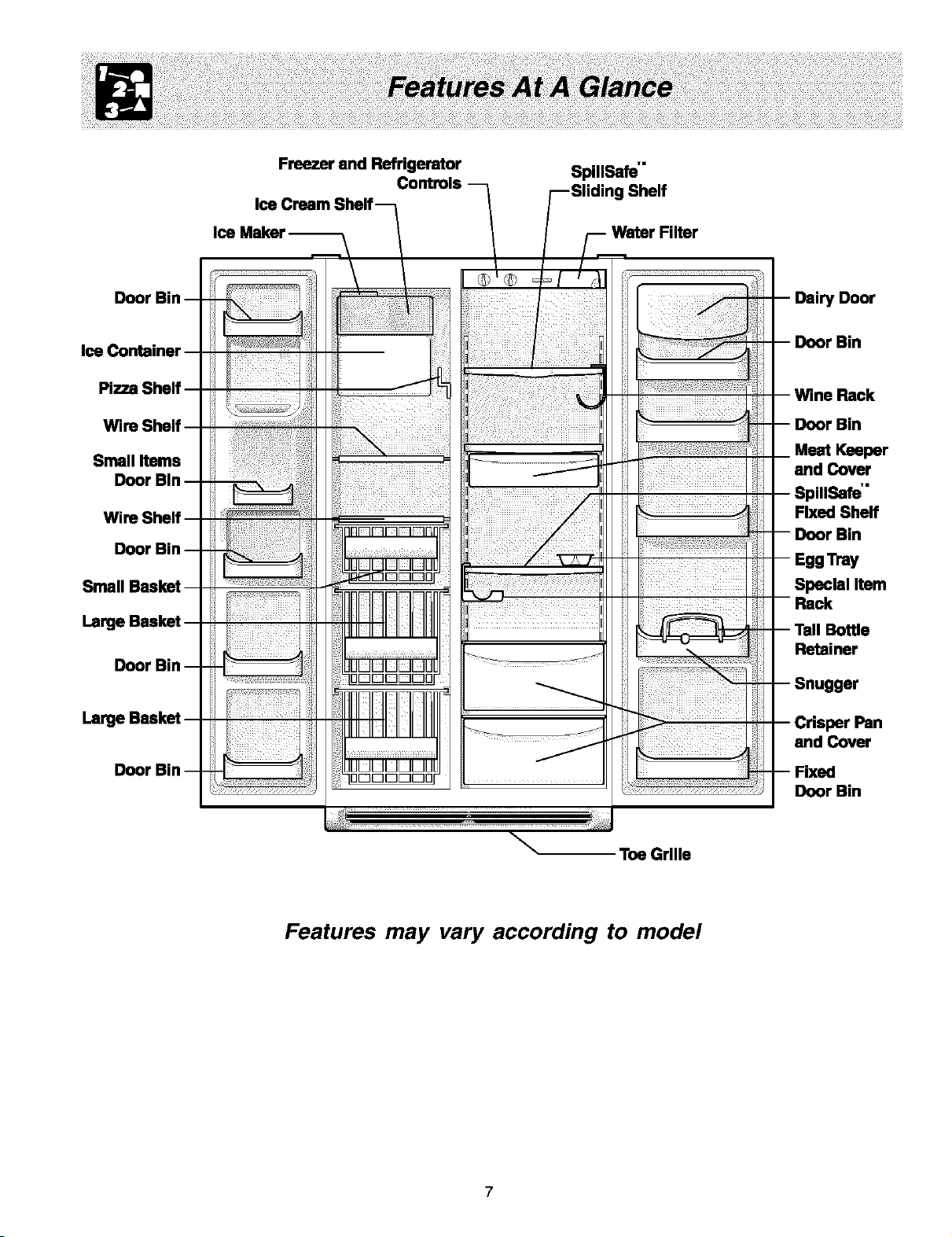

• Page 7 - English - : Ice Freezer end Refrigerator Controls Ice SpillSafequot Shelf Water Filter Door Small Items rBin Meat Keeper and Cover Fixed Shelf Largq Special Item Bottle Retainer Largq and Cover Door Bin Toe Grllle Features may vary according to model

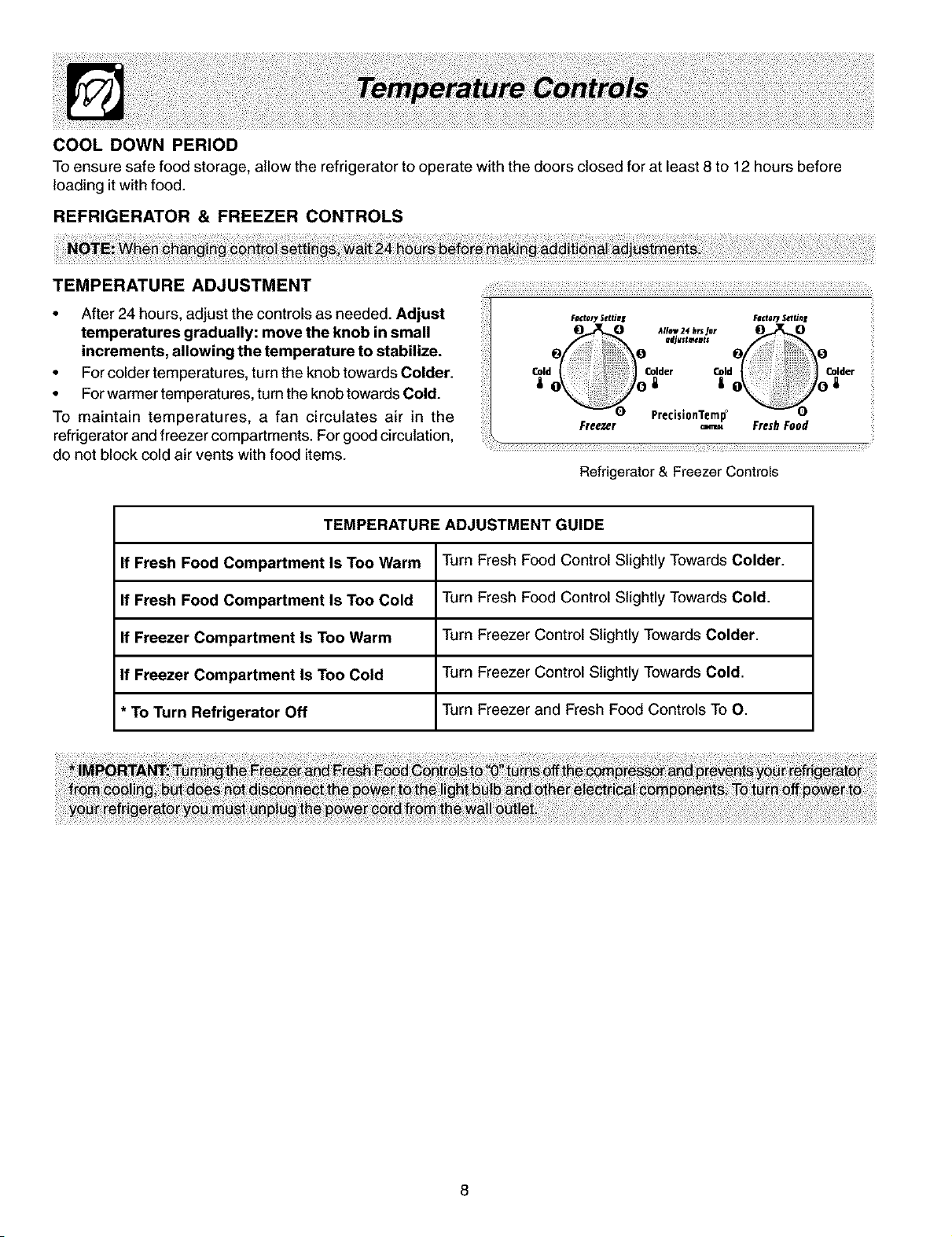

• Page 8 - English - : COOL DOWN PERIOD To ensure safe food storage allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food REFRIGERATOR amp FREEZER CONTROLS TEMPERATURE ADJUSTMENT After 24 hours adjust the controls as needed Adjust temperatures gradually move the knob in small increments allowing the temperature to stabilize For colder temperatures turn the knob towards Colder For warmer temperatures turn the knob towards Cold To maintain temperatures a fan circulates air in the refrigerator and freezer compartments For good circulation do not block cold air vents with food items Factetyttil Factety ttln t Freezer FreshFood Refrigerator amp Freezer Controls TEMPERATURE ADJUSTMENT GUIDE If Fresh Food Compartment Is Too Warm Turn Fresh Food Control Slightly Towards Colder If Fresh Food Compartment Is Too Cold Turn Fresh Food Control Slightly Towards Cold If Freezer Compartment Is Too Warm Turn Freezer Control Slightly Towards Colder If Freezer Compartment Is Too Cold Turn Freezer Control Slightly Towards Cold To Turn Refrigerator Off Turn Freezer and Fresh Food Controls To O

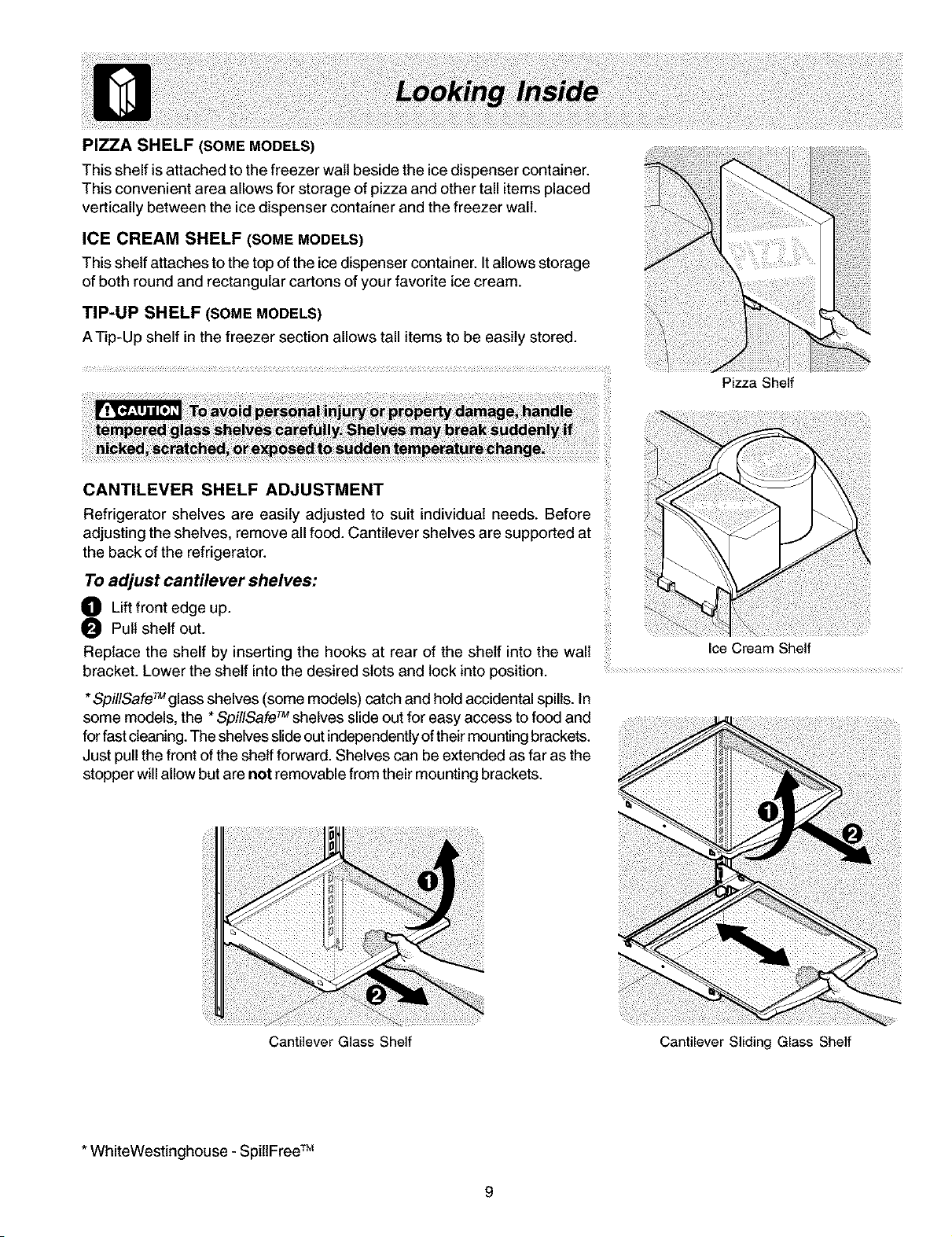

• Page 9 - English - : PIZZA SHELF SOME MODELS This shelf isattached to the freezer watt beside the icedispenser container This convenient area allows for storage of pizza and other tall items placed vertically between the ice dispenser container and the freezer wall ICE CREAM SHELF SOME MODELS This shelf attaches to the top of the icedispenser container Itallows storage of both round and rectangular cartons of your favorite ice cream TIPUP SHELF SOME MODELS ATipUp shelf in the freezer section allows tall items to be easily stored CANTILEVER SHELF ADJUSTMENT Refrigerator shelves are easily adjusted to suit individual needs Before adjusting the shelves remove all food Cantilever shelves are supported at the back of the refrigerator TOadjust cantilever shelves Lift front edge up Pull shelf out Replace the shelf by inserting the hooks at rear of the shelf into the wall bracket Lower the shelf into the desired slots and lock into position SpillSafemglass shelves some models catch and hold accidental spills In some models the SpillSafe TM shelves slide out for easy access to food and for fast cleaning The shelves slide out independently of their mounting brackets Just pull the front of the shelf forward Shelves can be extended as far as the stopper will allow but are not removable from their mounting brackets Cantilever Glass Shelf Pizza Shelf Ice Cream Shelf WhiteWestinghouse SpitIFreeTM Cantilever Sliding Glass Shelf

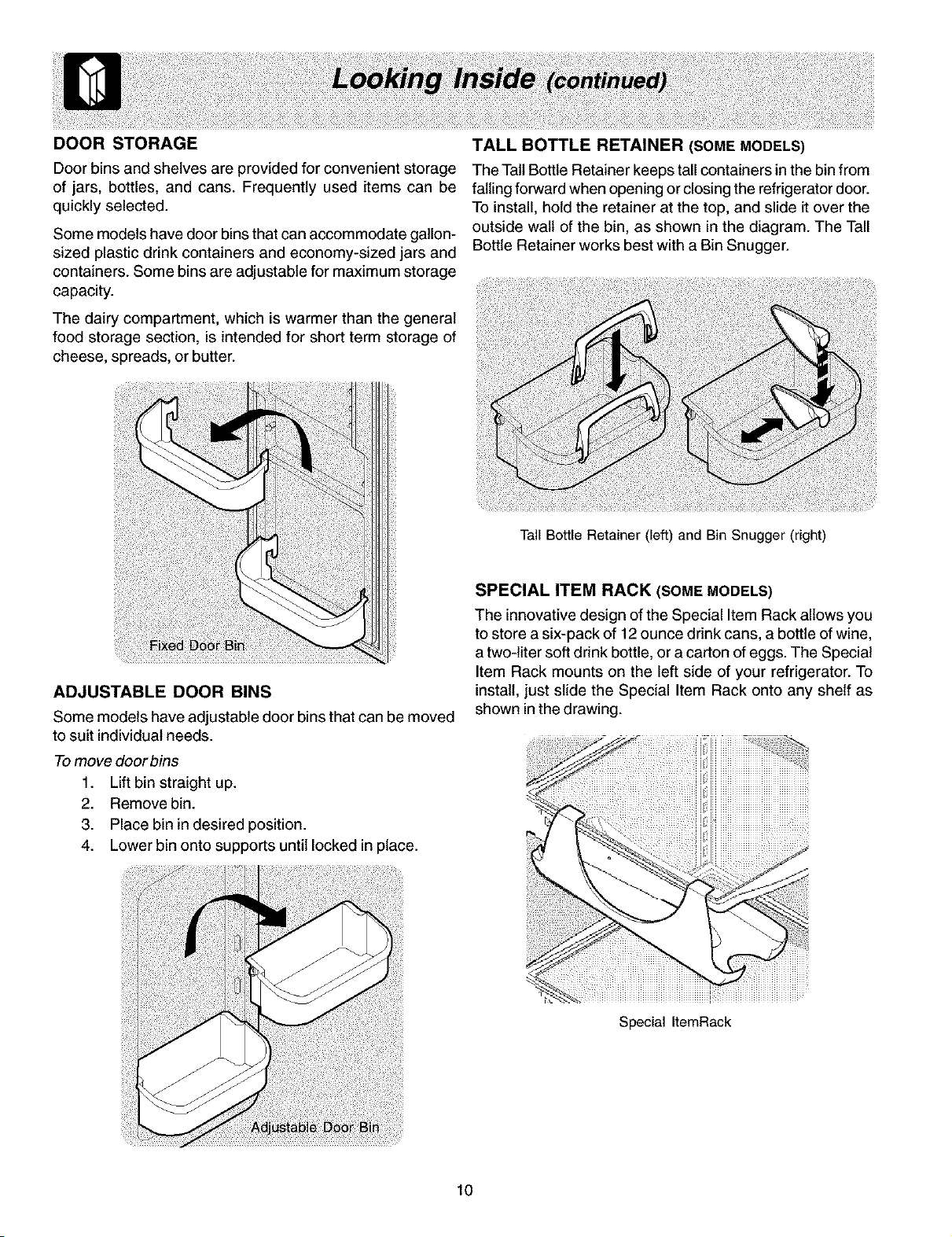

• Page 10 - English - : DOOR STORAGE Door bins and shelves are provided for convenient storage of jars bottles and cans Frequently used items can be quickly selected Some models have door bins that can accommodate gallon sized plastic drink containers and economysized jars and containers Some bins are adjustable for maximum storage capacity The dairy compartment which is warmer than the general food storage section is intended for short term storage of cheese spreads or butter TALL BOTTLE RETAINER SOME MODELS The Tall Bottle Retainer keeps tall containers in the bin from falling forward when openingor closingthe refrigeratordoor To install hold the retainer at the top and slide itover the outside walt of the bin as shown in the diagram The Tall Bottle Retainer works best with a Bin Snugger Tall Bottle Retainer left and Bin Snugger right ADJUSTABLE DOOR BINS Some models have adjustable door binsthatcan be moved to suit individualneeds To move door bins 1 Liftbin straight up 2 Remove bin 3 Place bin in desired position 4 Lower bin onto supports until locked in place SPECIAL ITEM RACK SOME MODELS The innovative design of the Special Item Rack allows you to store a sixpack of 12 ounce drink cans a bottle of wine a twoliter soft drink bottle or a carton of eggs The Special Item Rack mounts on the left side of your refrigerator To install just slide the Special Item Rack onto any shelf as shown in the drawing iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiSiSi Special ItemRack

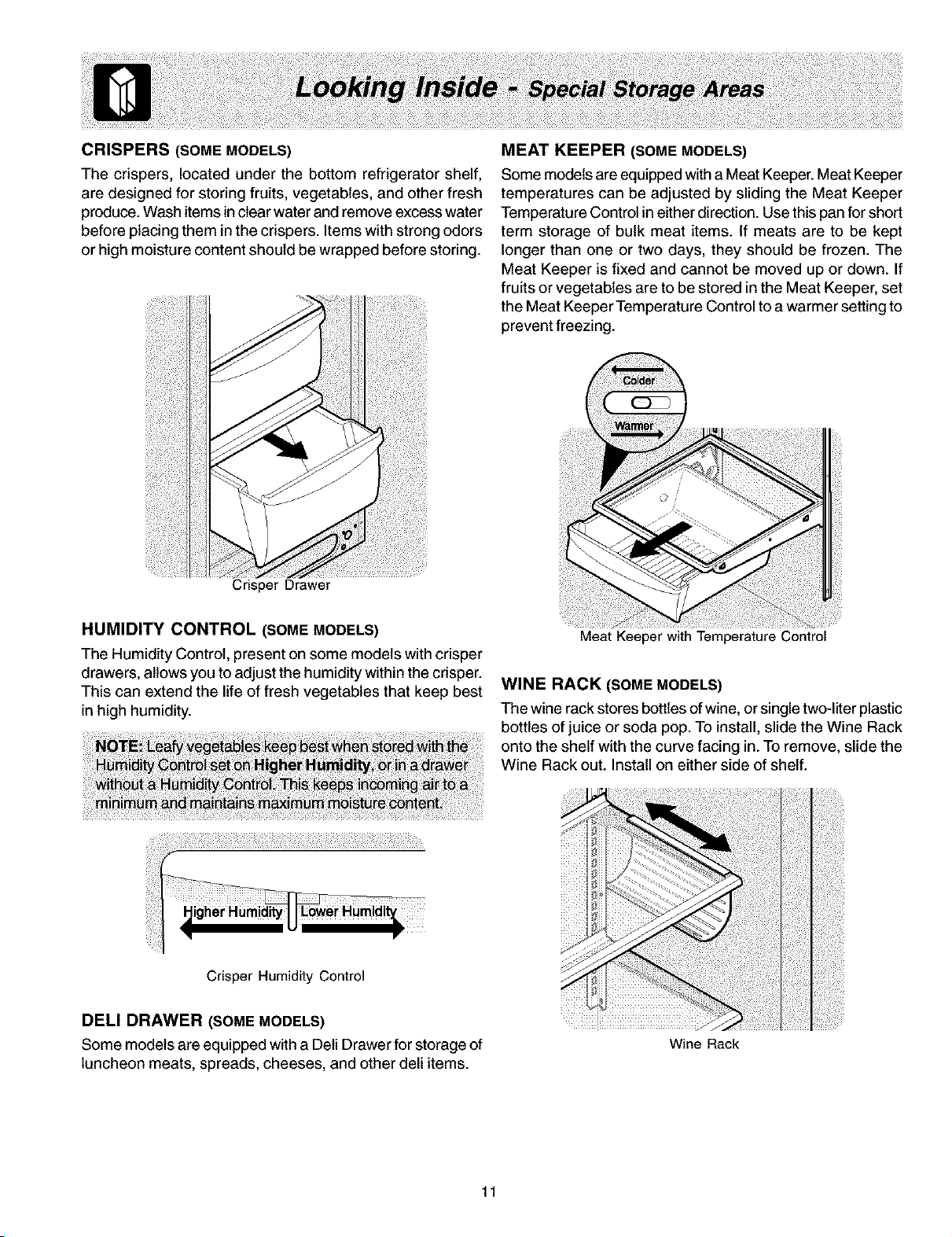

• Page 11 - English - : CRISPERS SOME MODELS The crispers located under the bottom refrigerator shelf are designed for storing fruits vegetables and other fresh produce Wash items in clear water and remove excess water before placing them in the crispers Items with strong odors or high moisture content should be wrapped before storing Crisper Drawer MEAT KEEPER SOME MODELS Some models are equipped with a Meat Keeper Meat Keeper temperatures can be adjusted by sliding the Meat Keeper Temperature Control ineitherdirection Use thispan for short term storage of bulk meat items If meats are to be kept longer than one or two days they should be frozen The Meat Keeper is fixed and cannot be moved up or down If fruits or vegetables are tobe stored inthe Meat Keeper set the Meat Keeper Temperature Control toa warmer setting to prevent freezing HUMIDITY CONTROL SOME MODELS The Humidity Control present on some models with crisper drawers allowsyou to adjust the humidity within the crisper This can extend the life of fresh vegetables that keep best in high humidity Crisper Humidity Control DELl DRAWER SOME MODELS Some models are equipped witha Deti Drawer for storage of luncheon meats spreads cheeses and other dell items Meat Keeper with Temperature Control WINE RACK SOME MODELS The wine rack stores bottles of wine or single twoliter plastic bottles of juice or soda pop To install slide the Wine Rack onto the shelf with the curve facing inTo remove slide the Wine Rack out Install on either side of shelf Wine Rack

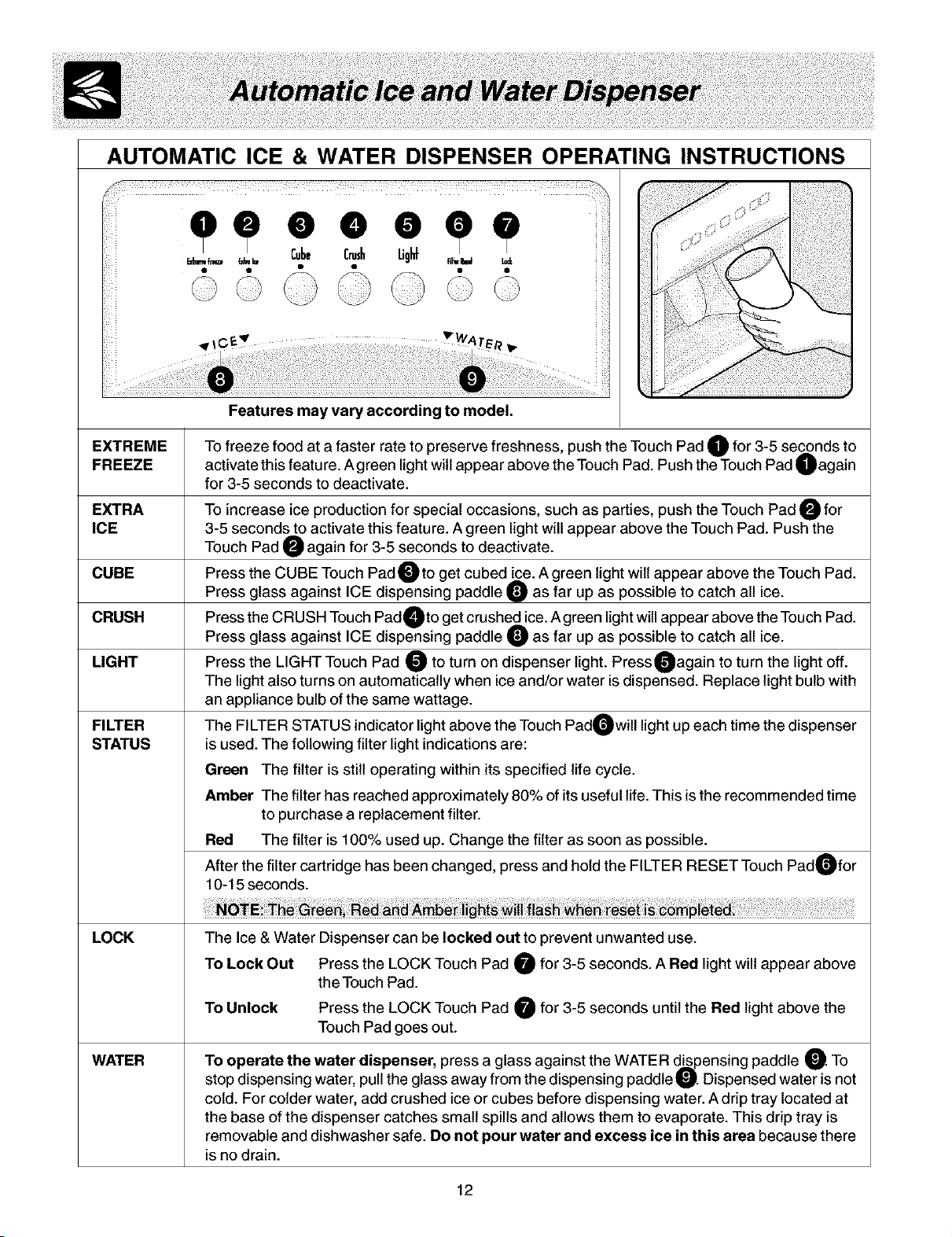

• Page 12 - English - : AUTOMATIC ICE amp WATER DISPENSER OPERATING INSTRUCTIONS EXTREME FREEZE EXTRA ICE CUBE CRUSH LIGHT FILTER STATUS LOCK WATER Features may vary according to model To freeze food at a faster rate to preserve freshness push the Touch Pad O for 35 seconds to activate this featu re A green light will appear above the Touch Pad Push the Touch Pad Oagain for 35 seconds to deactivate To increase ice production for special occasions such as parties push the Touch Pad for 35 seconds to activate this feature A green light will appear above the Touch Pad Push the Touch Pad again for 35 seconds to deactivate Press the CUBE Touch Pad to get cubed ice A green light wilt appear above the Touch Pad Press glass against ICE dispensing paddle j as far up as possible to catch all ice Press the CRUSH Touch Pad Oto get crushed ice A green light will appear above the Touch Pad Press glass against ICE dispensing paddle as far up as possible to catch all ice Press the LIGHT Touch Pad to turn on dispenser light Pressagain to turn the light off The light also turns on automatically when ice andor water is dispensed Replace light bulb with an appliance bulb of the same wattage The FILTER STATUS indicator light above the Touch Padwill light up each time the dispenser is used The following filter light indications are Green The filter is still operating within its specified life cycle Amber The filter has reached approximately 80 of its useful life This is the recommended time to purchase a replacement filter Red The filter is 100 used up Change the filter as soon as possible After the filter cartridge has been changed press and hold the FILTER RESETTouch PadOfor 1015 seconds The Ice amp Water Dispenser can be locked out to prevent unwanted use To Lock Out Press the LOCK Touch Pad for 35 seconds A Red light will appear above the Touch Pad To Unlock Press the LOCK Touch Pad for 35 seconds until the Red light above the Touch Pad goes out To operate the water dispenser press a glass against the WATER dispensing paddle To stop dispensing water pull the glass away from the dispensing paddle Dispensed water is not cold For colder water add crushed ice or cubes before dispensing water Adrip tray located at the base of the dispenser catches small spills and allows them to evaporate This drip tray is removable and dishwasher safe Do not pour water and excess ice in this area because there is no drain

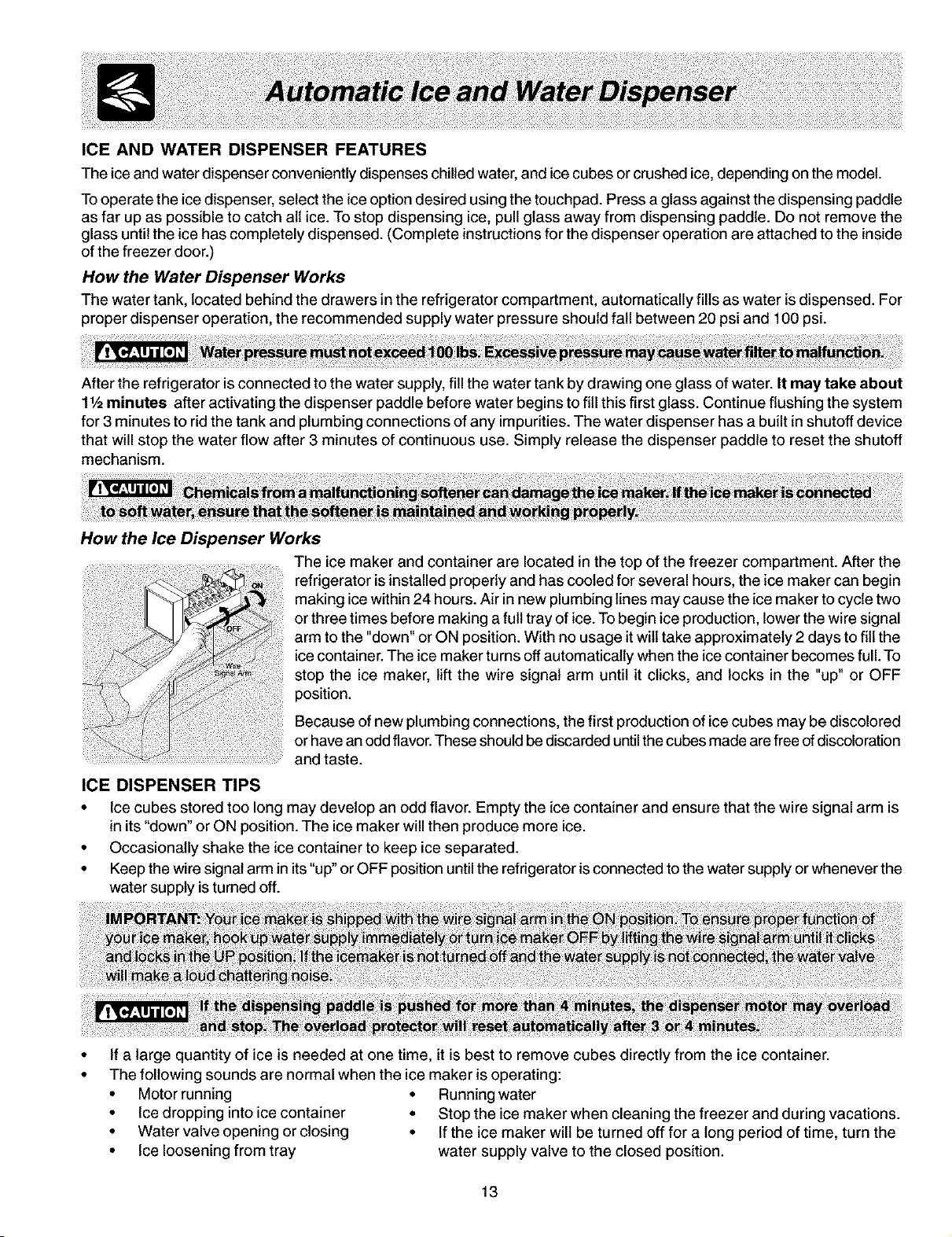

• Page 13 - English - : ICE AND WATER DISPENSER FEATURES The ice and water dispenser conveniently dispenses chilled water and icecubes or crushed ice depending on the model To operate the ice dispenser select the ice option desired using the touchpad Press a glass against the dispensing paddle as far up as possible to catch all ice To stop dispensing ice pull glass away from dispensing paddle Do not remove the glass until the ice has completely dispensed Complete instructions for the dispenser operation are attached to the inside of the freezer door How the Water Dispenser Works The water tank located behind the drawers in the refrigerator compartment automatically fills as water isdispensed For proper dispenser operation the recommended supply water pressure should fall between 20 psi and 100 psi After the refrigerator is connected to the water supply fill the water tank by drawing one glass of water It may take about 112minutes after activating the dispenser paddle before water begins to fill this first glass Continue flushing the system for 3 minutes to rid the tank and plumbing connections of any impurities The water dispenser has a built in shutoff device that will stop the water flow after 3 minutes of continuous use Simply release the dispenser paddle to reset the shutoff mechanism How the Ice Dispenser Works The ice maker and container are located in the top of the freezer compartment After the refrigerator is installed properly and has cooled for several hours the ice maker can begin making ice within 24 hours Air in new plumbing lines may cause the ice maker to cycle two or three times before making a full tray of ice To begin ice production lower the wire signal arm to the quotdownquot or ON position With no usage it wilt take approximately 2 days to fill the ice container The ice maker turns off automatically when the ice container becomes full To stop the ice maker lift the wire signal arm until it clicks and locks in the quotupquot or OFF position Because of new plumbing connections the first production of ice cubes may be discolored or have an odd flavor These should be discarded until the cubes made are free ofdiscoloration and taste ICE DISPENSER TIPS Ice cubes stored too long may develop an odd flavor Empty the ice container and ensure that the wire signal arm is in its quotdownquot or ON position The ice maker will then produce more ice Occasionally shake the ice container to keep ice separated Keep the wire signal arm in its quotupquot or OFF position until the refrigerator isconnected to the water supply or whenever the water supply is turned off If a large quantity of ice is needed at one time it is best to remove cubes directly from the ice container The following sounds are normal when the ice maker is operating Motor running Running water Ice dropping into ice container Stop the ice maker when cleaning the freezer and during vacations Water valve opening or closing If the ice maker will be turned off for a long period of time turn the Ice loosening from tray water supply valve to the closed position

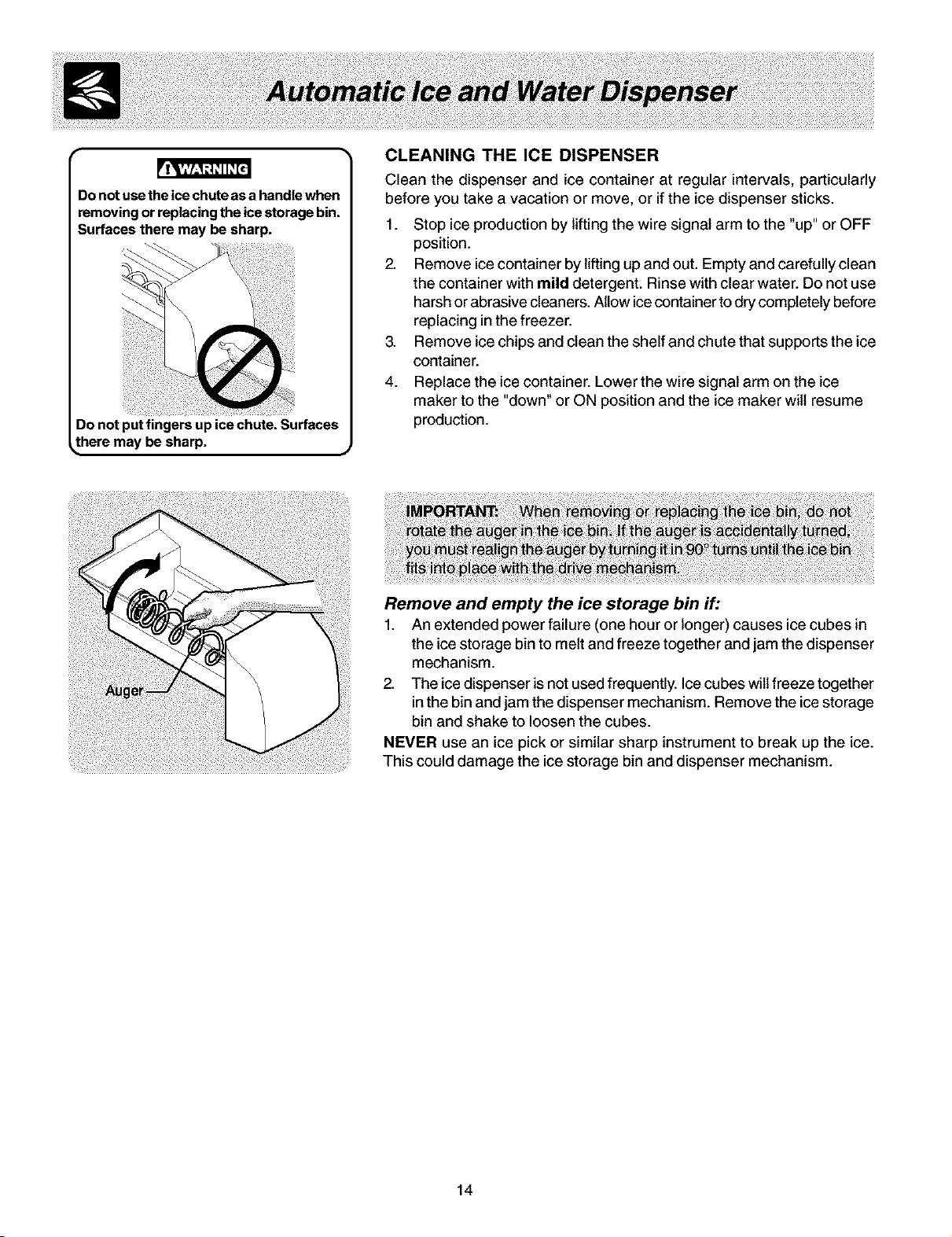

• Page 14 - English - : o notusetheicechuteas ahandlewhen removingorreplacingtheice storagebin Surfacesthere may be sharp Do notputfingers upicechuteSurfaces there may be sharp CLEANING THE ICE DISPENSER Clean the dispenser and ice container at regular intervals particularly before you take a vacation or move or if the ice dispenser sticks 1 Stop ice production by lifting the wire signal arm to the quotupquot or OFF position 2 Remove ice container by lifting up and out Empty and carefully clean the container with mild detergent Rinse with clear water Do not use harsh or abrasive cleaners Allow ice container todry completely before replacing in the freezer 3 Remove ice chips and clean the shelf and chute that supports the ice container 4 Replace the ice container Lower the wire signal arm on the ice maker to the quotdownquot or ON position and the ice maker will resume production Remove and empty the ice storage bin if 1 An extended power failure one hour or longer causes ice cubes in the ice storage bin to melt and freeze together and jam the dispenser mechanism 2 The ice dispenser is not used frequently Ice cubes will freeze together in the bin and jam the dispenser mechanism Remove the ice storage bin and shake to loosen the cubes NEVER use an ice pick or similar sharp instrument to break up the ice This could damage the ice storage bin and dispenser mechanism

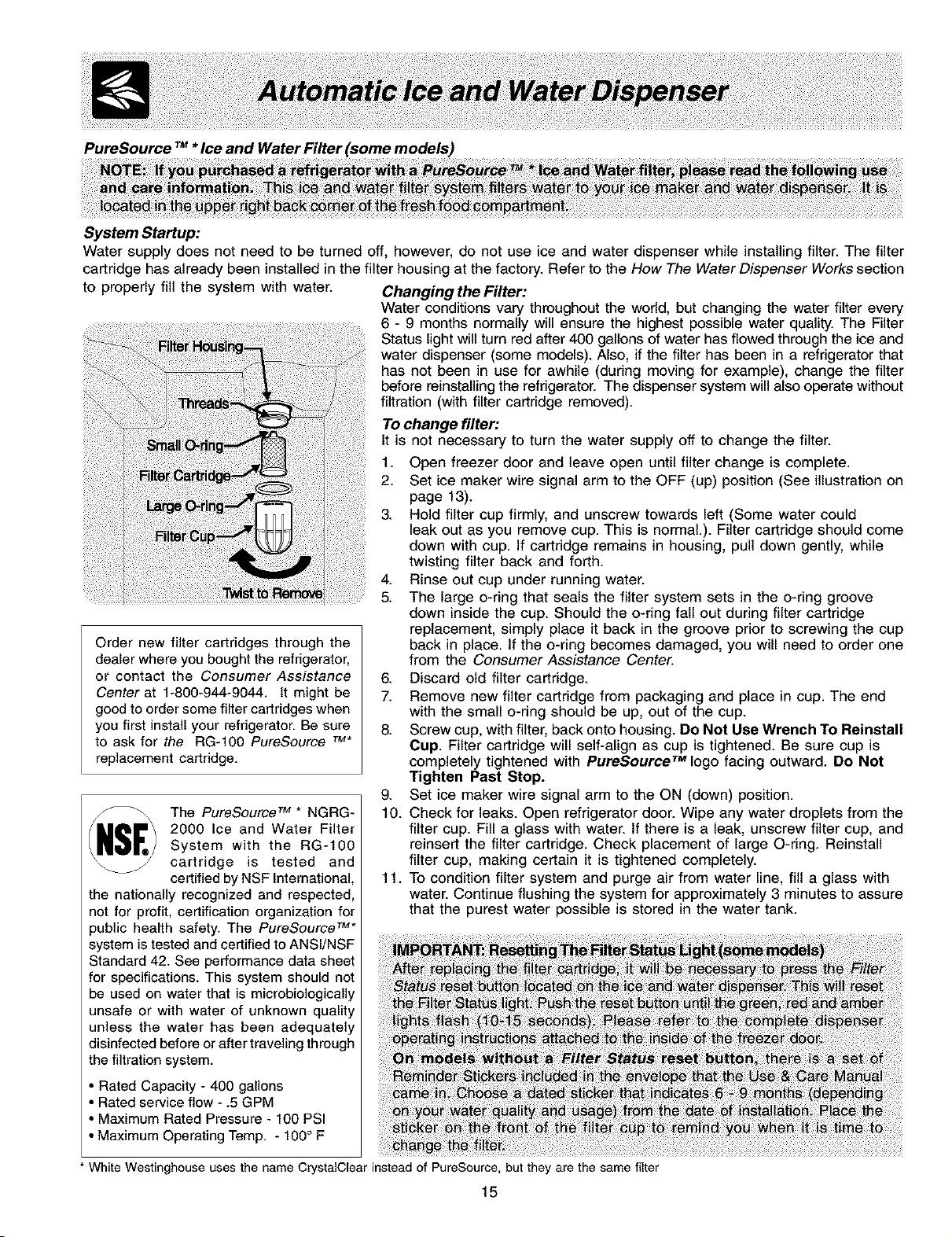

• Page 15 - English - : PureSource TMIce and Water Filter some models System Startup Water supply does not need to be turned off however do not use ice end water dispenser while installing filter The filter cartridge has already been installed in the filter housing at the factory Refer to the How The Water Dispenser Works section to properly fill the system with water Changing the Filter Order new filter cartridges through the dealer where you bought the refrigerator or contact the Consumer Assistance Center at 18009449044 It might be good to order some filter cartridges when you first install your refrigerator Be sure to ask for the RG100 PureSource TM replacement cartridge The PureSource TM NGRG 2000 Ice and Water Filter System with the RG100 cartridge is tested and certified by NSF Intemational the nationally recognized and respected not for profit certification organization for public health safety The PureSource TM system is tested and certified to ANSINSF Standard 42 See performance data sheet for specifications This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after traveling through the filtration system Rated Capacity 400 gallons Rated service flow 5 GPM Maximum Rated Pressure 100 PSI Maximum Operating Temp 100 F Water conditions vary throughout the world but changing the water filter every 6 9 months normally will ensure the highest possible water quality The Filter Status light will turn red after 400 gallons of water has flowed through the ice and water dispenser some models Also if the filter has been in a refrigerator that has not been in use for awhile during moving for example change the filter before reinstalling the refrigerator The dispenser system will also operate without filtration with filter cartridge removed To change filter It is not necessary to turn the water supply off to change the filter 1 Open freezer door and leave open until filter change is complete 2 Set ice maker wire signal arm to the OFF up position See illustration on page 13 3 Hold filter cup firmly end unscrew towards left Some water could leak out as you remove cup This is normal Filter cartridge should come down with cup If cartridge remains in housing pull down gently while twisting filter back and forth 4 Rinse out cup under running water 5 The large oring that seals the filter system sets in the oring groove down inside the cup Should the oring fall out during filter cartridge replacement simply place it back in the groove prior to screwing the cup back in place If the oring becomes damaged you will need to order one from the Consumer Assistance Center 6 Discard old filter cartridge 7 Remove new filter cartridge from packaging and place in cup The end with the small oring should be up out of the cup 8 Screw cup with filter back onto housing Do Not Use Wrench To Reinstall Cup Filter cartridge will selfalign as cup is tightened Be sure cup is completely tightened with PureSource TM logo facing outward Do Not Tighten Past Stop 9 Set ice maker wire signal arm to the ON down position 10 Check for leaks Open refrigerator door Wipe any water droplets from the filter cup Fill a glass with water If there is a leak unscrew filter cup and reinsert the filter cartridge Check placement of large Oring Reinstall filter cup making certain it is tightened completely 11 To condition filter system and purge air from water line fill a glass with water Continue flushing the system for approximately 3 minutes to assure that the purest water possible is stored in the water tank White Westinghouse uses the name CrystalClear instead of PureSource but they are the same filter

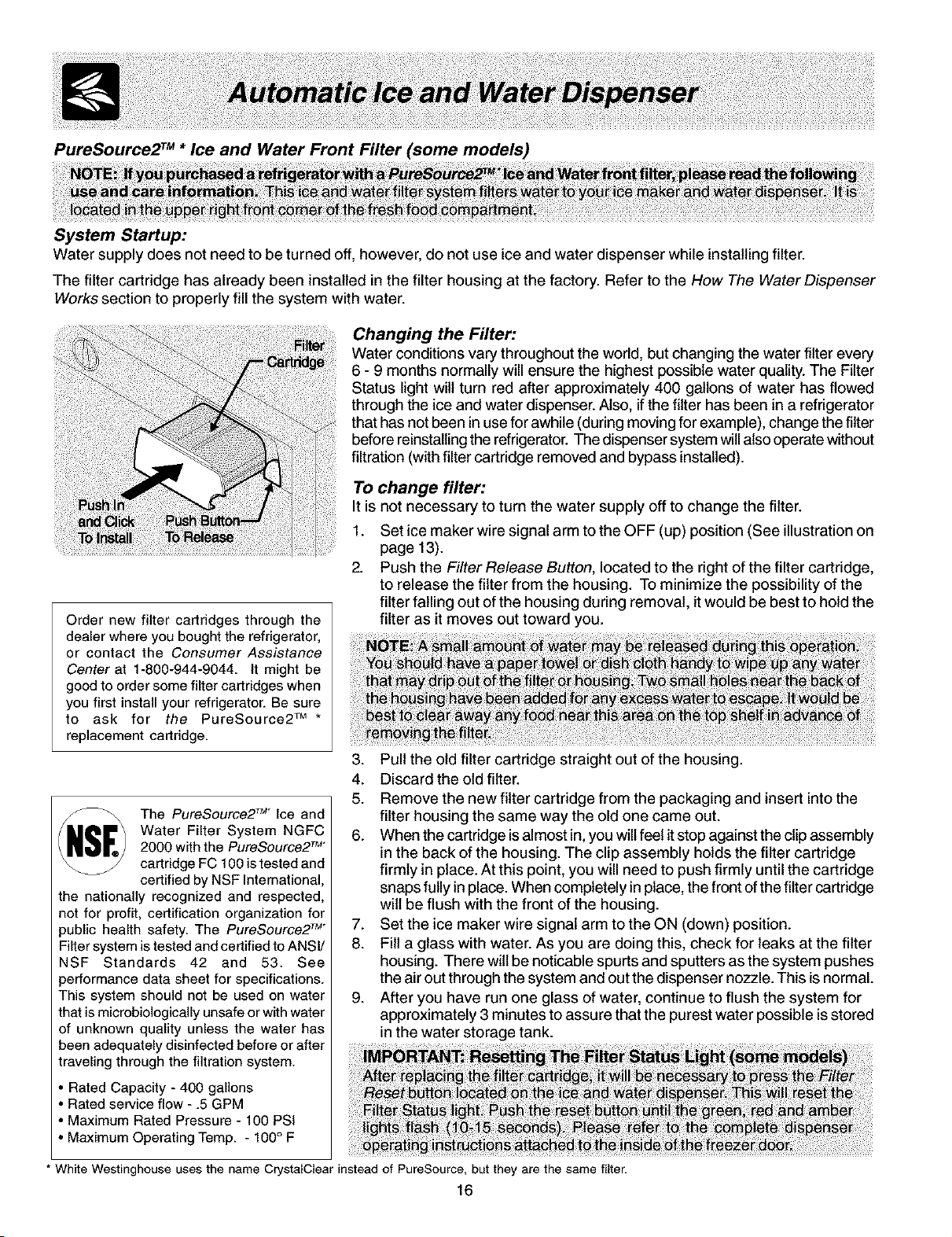

• Page 16 - English - : PureSource2 TM Ice and Water Front Filter some models System Startup Water supply does not need to be turned off however do not use ice and water dispenser while installingfilter The filter cartridge has already been installed in the filter housing at the factory Refer to the How The Water Dispenser Works section to properly fill the system with water Order new filter cartridges through the dealer where you bought the refrigerator or contact the Consumer Assistance Center at 18009449044 It might be good to order some filter cartridges when you first install your refrigerator Be sure to ask for the PureSource2 TM replacement cartridge The PureSource2 TMIce and Water Filter System NGFC 2000 with the PureSource2 TMquot cartridge FC 100 is tested and certified by NSF International the nationally recognized and respected not for profit certification organization for ublic health safety The PureSource2 TM Filter system is tested and certified to ANSI NSF Standards 42 and 53 See erformance data sheet for specifications This system should not be used on water that is microbiologically unsafe or with water of unknown quality unless the water has been adequately disinfected before or after traveling through the filtration system Rated Capacity 400 gallons Rated service flow 5 GPM Maximum Rated Pressure 100 PSI Maximum Operating Temp 100 F Changing the Filter Water conditions vary throughout the world but changing the water filter every 6 9 months normally will ensure the highest possible water quality The Filter Status light wilt turn red after approximately 400 gallons of water has flowed through the ice and water dispenser Also ifthe filter has been in a refrigerator that has not been in use for awhile during moving for example change the filter before reinstalling the refrigerator The dispenser system will also operate without filtration with filter cartridge removed and bypass installed To change filter It is not necessary to turn the water supply off to change the filter Set ice maker wire signal arm to the OFF up position See illustration on page 13 Push the Filter Release Button located to the right of the filter cartridge to release the filter from the housing To minimize the possibility of the filter falling out of the housing during removal itwould be best to hold the filter as it moves out toward you 3 Pull the old filter cartridge straight out of the housing 4 Discard the old filter 5 Remove the new filter cartridge from the packaging and insert into the filter housing the same way the old one came out 6 When the cartridge isalmost in you will feel itstop against the clip assembly in the back of the housing The clip assembly holds the filter cartridge firmly in place At this point you will need to push firmly until the cartridge snaps fully in place When completely in place the front of the filter cartridge wilt be flush with the front of the housing 7 Set the ice maker wire signal arm to the ON down position 8 Fill a glass with water As you are doing this check for leaks at the filter housing There will be noficable spurts and sputters as the system pushes the air out through the system and out the dispenser nozzle This is normal 9 After you have run one glass of water continue to flush the system for approximately 3 minutes to assure that the purest water possible is stored in the water storage tank White Westinghouse uses the name CrystaCearinstead of PureSourcebut they are the same filter

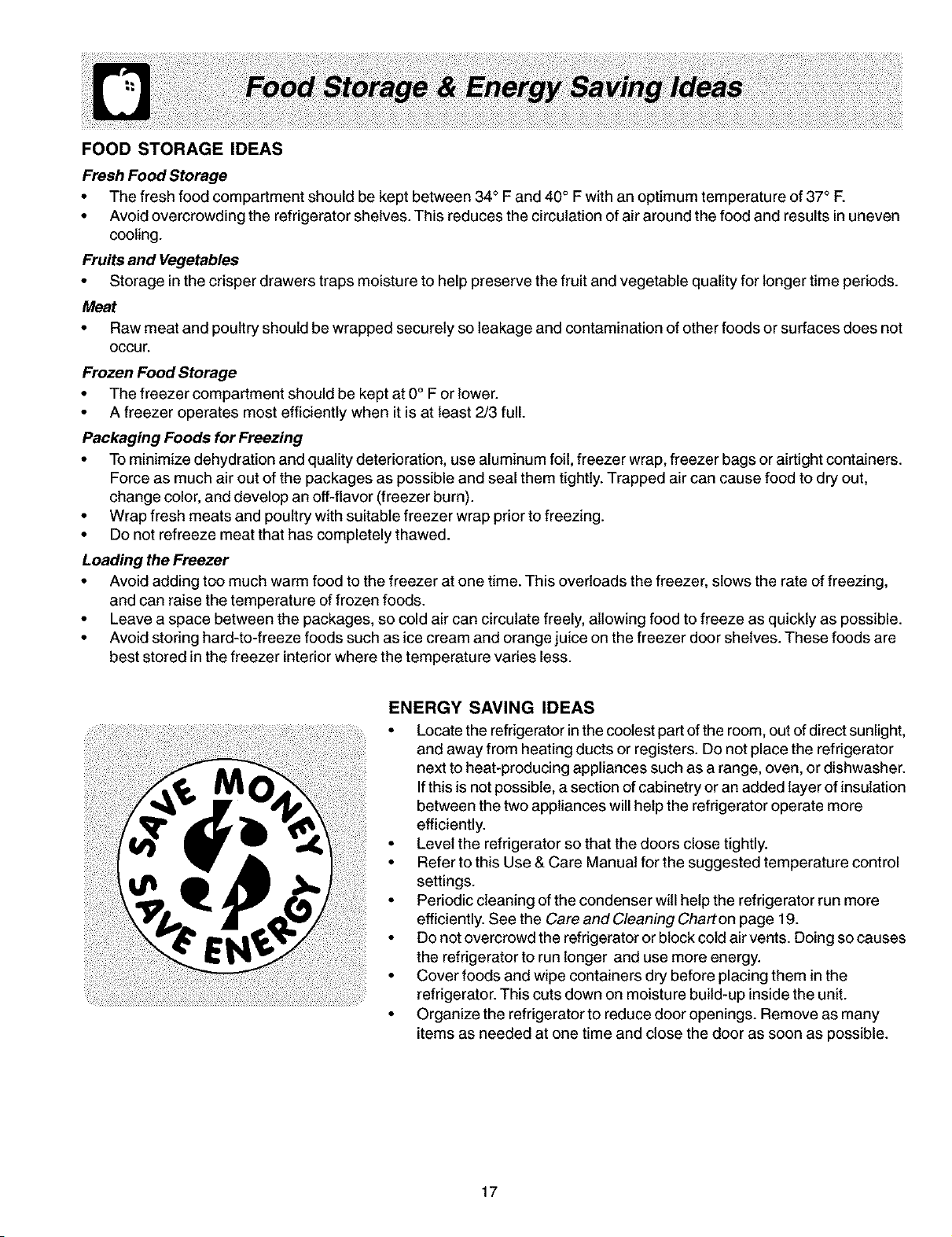

• Page 17 - English - : FOOD STORAGEIDEAS Fresh Food Storage The fresh food compartment should be kept between 34 F and 40 F with an optimum temperature of 37 F Avoid overcrowding the refrigerator shelves This reduces the circulation of air around the food and results in uneven cooling Fruits and Vegetables Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods Meat Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not occur Frozen Food Storage The freezer compartment should be kept at 0 F or lower A freezer operates most efficiently when it is at least 23 full Packaging Foods for Freezing To minimize dehydration and quality deterioration use aluminum foil freezer wrap freezer bags or airtight containers Force as much air out of the packages as possible and seal them tightly Trapped air can cause food to dry out change color and develop an offflavor freezer burn Wrap fresh meats and poultry with suitable freezer wrap prior to freezing Do not refreeze meat that has completely thawed Loading the Freezer Avoid adding too much warm food to the freezer at one time This overloads the freezer slows the rate of freezing and can raise the temperature of frozen foods Leave a space between the packages so cold air can circulate freely allowing food to freeze as quickly as possible Avoid storing hardtofreeze foods such as ice cream and orange juice on the freezer door shelves These foods are best stored in the freezer interior where the temperature varies less ENERGY SAVING IDEAS Locate the refrigerator inthe coolest part of the room out of direct sunlight and away from heating ducts or registers Do not place the refrigerator next to heatproducing appliances such as a range oven or dishwasher If this is not possible a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more efficiently Level the refrigerator so that the doors close tightly Refer to this Use amp Care Manual for the suggested temperature control settings Periodic cleaning of the condenser will help the refrigerator run more efficiently See the Care and Cleaning Chart on page 19 Do not overcrowd the refrigerator or block cold air vents Doing so causes the refrigerator to run longer and use more energy Cover foods and wipe containers dry before placing them in the refrigerator This cuts down on moisture buildup inside the unit Organize the refrigerator to reduce door openings Remove as many items as needed at one time and close the door as soon as possible

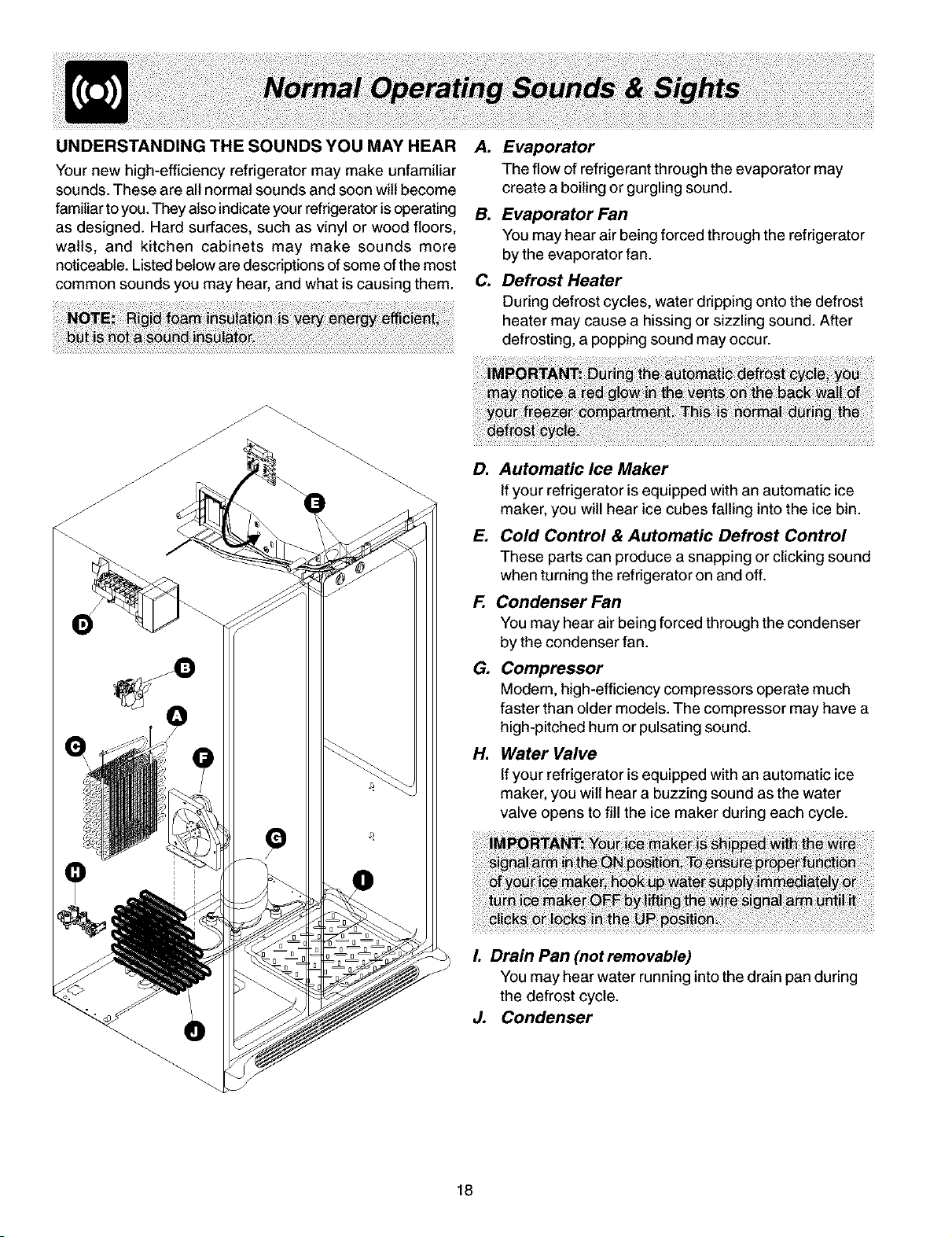

• Page 18 - English - : UNDERSTANDING THE SOUNDS YOU MAY HEAR Your new highefficiency refrigerator may make unfamiliar sounds These are all normal sounds and soon will become familiar to you They also indicate your refrigerator is operating as designed Hard surfaces such as vinyl or wood floors walls and kitchen cabinets may make sounds more noticeable Listed below are descriptions of some of the most common sounds you may hear and what is causing them A Evaporator The flow of refrigerant through the evaporator may create a boiling or gurgling sound B Evaporator Fan You may hear air being forced through the refrigerator by the evaporator fan C Defrost Heater During defrost cycles water dripping onto the defrost heater may cause a hissing or sizzling sound After defrosting a popping sound may occur D Automatic Ice Maker If your refrigerator is equipped with an automatic ice maker you will hear ice cubes falling into the ice bin E Cold Control amp Automatic Defrost Control These parts can produce a snapping or clicking sound when turning the refrigerator on and off E Condenser Fan You may hear air being forced through the condenser by the condenser fan G Compressor Modern highefficiency compressors operate much faster than older models The compressor may have a highpitched hum or pulsating sound H Water Valve If your refrigerator is equipped with an automatic ice maker you wilt hear a buzzing sound as the water valve opens to fill the ice maker during each cycle L Drain Pan not removable You may hear water running into the drain pan during the defrost cycle J Condenser

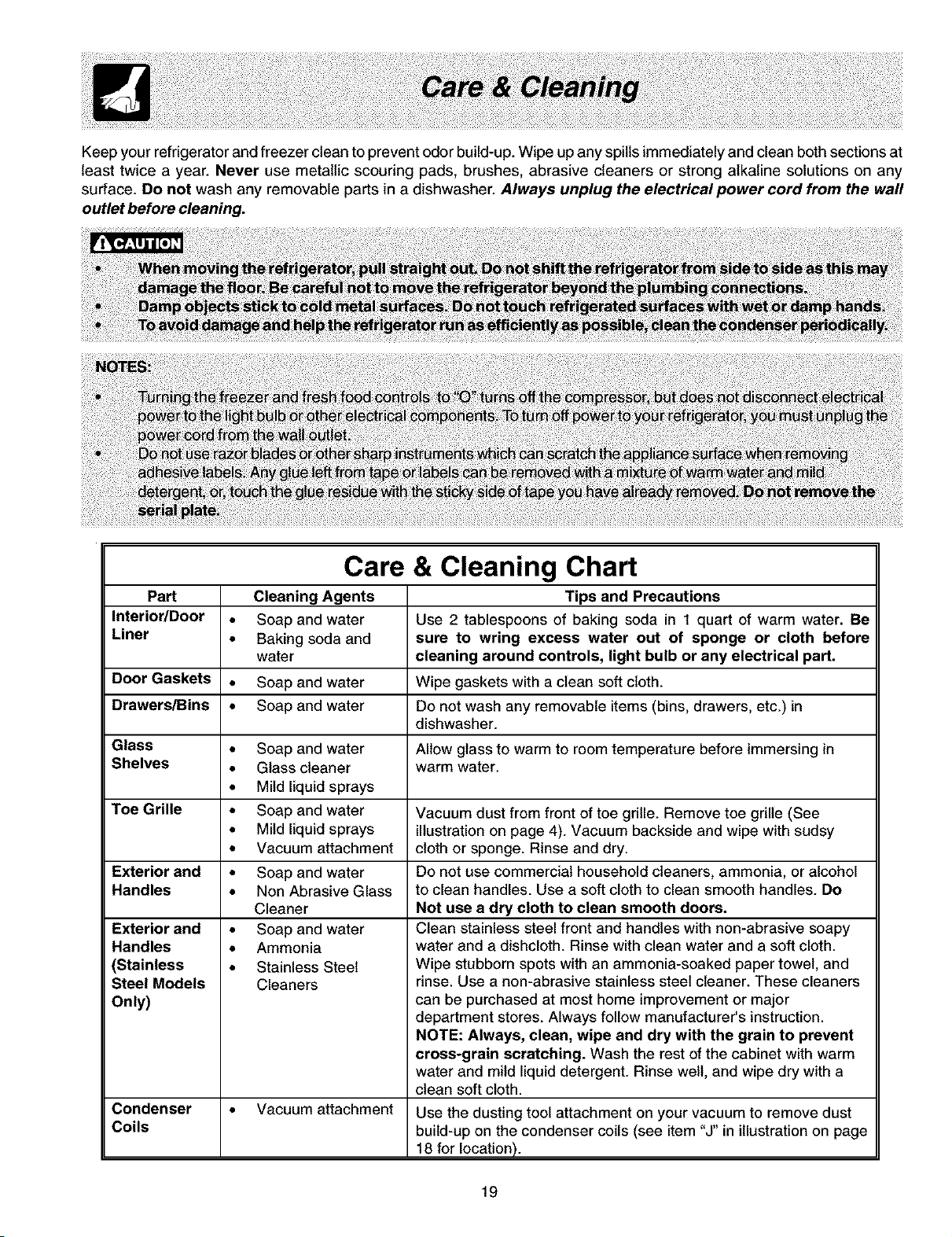

• Page 19 - English - : Keep your refrigerator and freezer clean to prevent odor buildup Wipe upany spills immediately and clean both sections at least twice a year Never use metallic scouring pads brushes abrasive cleaners or strong alkaline solutions on any surface Do not wash any removable parts in a dishwasher Always unplug the electrical power cord from the wall outlet before cleaning Part InteriorDoor Liner Door Gaskets DrawersBins Glass Shelves Toe Grille Exterior and Handles Exterior and Handles Stainless Steel Models Only Condenser Coils Care amp Cleaning Chart Cleaning Agents Tips and Precautions Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water Be Baking soda and sure to wring excess water out of sponge or cloth before water cleaning around controls light bulb or any electrical part Soap and water Wipe gaskets with a clean soft cloth Soap and water Do not wash any removable items bins drawers etc in dishwasher Allow glass to warm to room temperature before immersing in warm water Vacuum dust from front of toe grille Remove toe grille See illustration on page 4 Vacuum backside and wipe with sudsy cloth or sponge Rinse and dry Soap and water Glass cleaner Mild liquid sprays Soap and water Mild liquid sprays Vacuum attachment Soap and water Non Abrasive Glass Cleaner Soap and water Ammonia Stainless Steel Cleaners Do not use commercial household cleaners ammonia or alcohol to clean handles Use a soft cloth to clean smooth handles Do Not use a dry cloth to clean smooth doors Clean stainless steel front and handles with nonabrasive soapy water and a dishcloth Rinse with clean water and a soft cloth Wipe stubborn spots with an ammoniasoaked paper towel and rinse Use a nonabrasive stainless steel cleaner These cleaners can be purchased at most home improvement or major department stores Always follow manufacturers instruction NOTE Always clean wipe and dry with the grain to prevent crossgrain scratching Wash the rest ofthe cabinet with warm water and mild liquid detergent Rinse welt and wipe dry with a clean soft cloth Vacuum attachment Use the dusting tool attachment on your vacuum to remove dust buildup on the condenser coils see item quotJquot in illustration on page 18 for location

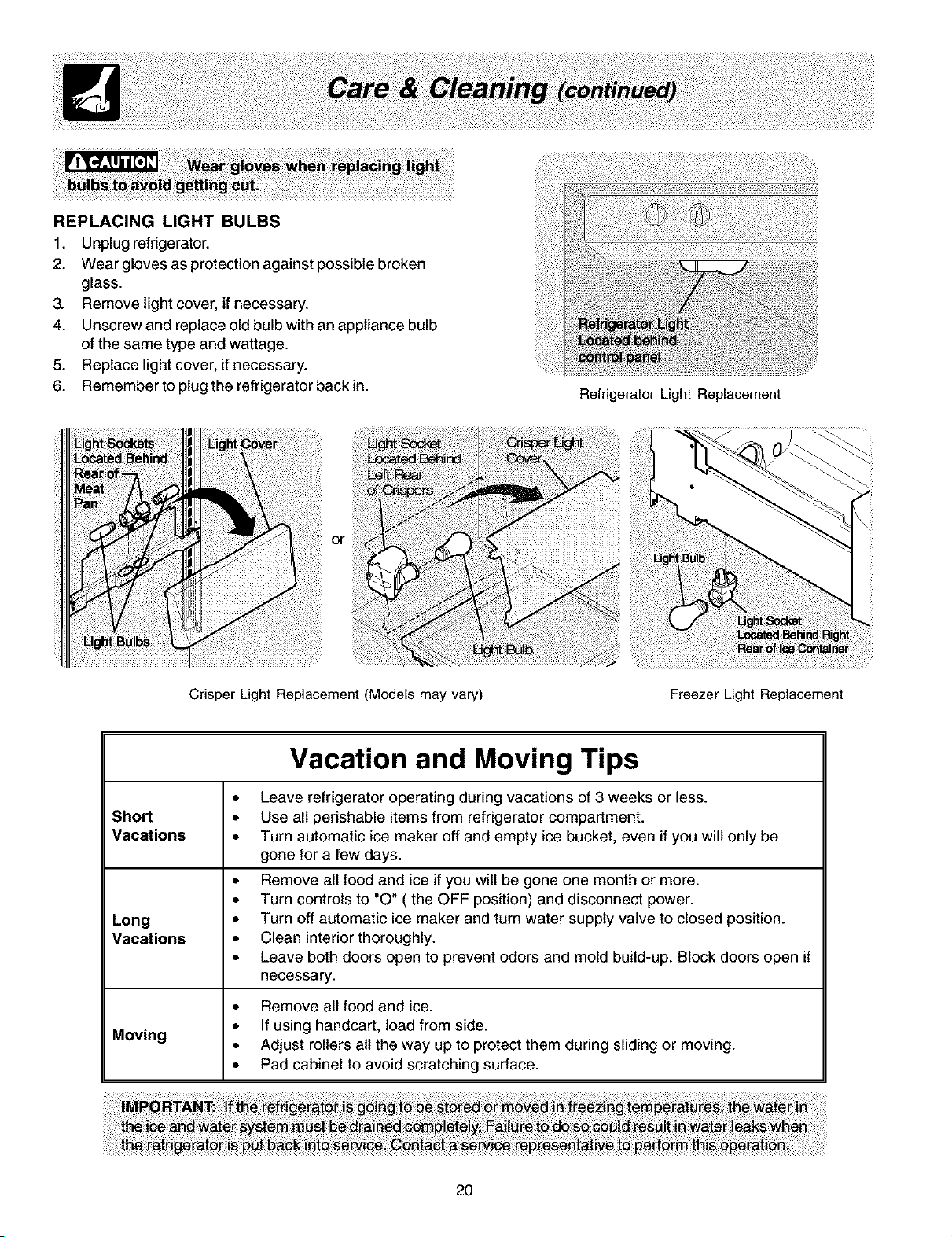

• Page 20 - English - : REPLACING LIGHT BULBS 1 Unplug refrigerator 2 Wear gloves as protection against possible broken glass 3 Remove light cover if necessary 4 Unscrew and replace old bulb with an appliance bulb of the same type and wattage 5 Replace light cover if necessary 6 Remember to plug the refrigerator back in or Crisper Light Replacement Models may vary Refrigerator Light Replacement Freezer Light Replacement Vacation and Moving Tips Leave refrigerator operating during vacations of 3 weeks or less Short Use all perishable items from refrigerator compartment Vacations Turn automatic ice maker off and empty ice bucket even if you will only be gone for a few days Remove all food and ice if you wilt be gone one month or more Turn controls to quotOquot the OFF position and disconnect power Long Turn off automatic ice maker and turn water supply valve to closed position Vacations Clean interior thoroughly Leave both doors open to prevent odors and mold buildup Block doors open if necessary Remove all food and ice If using handcart load from side Moving Adjust rollers all the way up to protect them during sliding or moving Pad cabinet to avoid scratching surface 2O

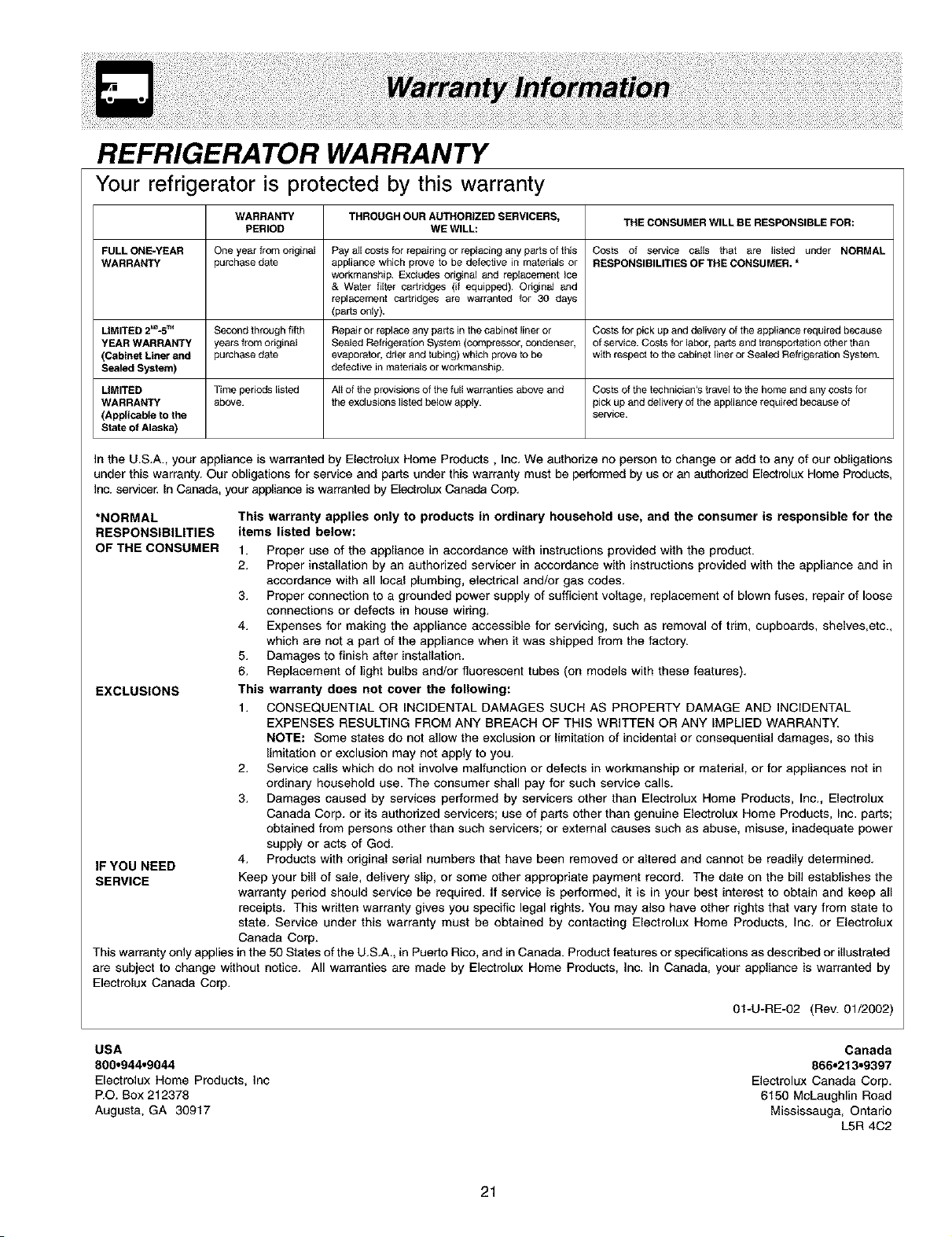

• Page 21 - English - : REFRIGERATOR WARRANTY Your refrigerator is protected by this warranty WARRANTY THROUGHOURAUTHORIZEDSERVICERS THECONSUMERWILLBE RESPONSIBLEFOR PERIOD WEWILL FULLONEYEAR Oneyearfromedginai Payallcostsforrepairingorreplacinganypartsofthis Costs of service calls that are listed under NORMAL WARRANTY purchasedate appliancewhichproveto be defectiveinmateriaJsor RESPONSIBILITIESOFTHECONSUMER workmanshipExcludesoriginaland replacementce amp Wafer filter cadedges if equipped OriginaJPnd replacementcadridges are warranted for 30 days partsonly DMITED2N5TM Secondthroughfifth Repairor replaceanypartsinthecabinetlineror Costsfor pickupand deliveryoftheappliancerequiredbecause YEARWARRANTY yearsfromoriginal SealedRefrigerationSystemcompressorcondenser ofserviceCostsforlaborpartsandtransdedationotherthan Cabinet Linerand purchasedate evaporatordrierand tubingwhichprovetobe with respectto thecabinetlineror SealedRefrigerationSystem SealedSystem defectiveinmaterialsor workmanship DMITED Timeperiodslisted Alloftheprowsionsofthefullwarrantiesaboveand Costsof thetechnicianstravelto thehomeandanycostsfor WARRANTY above theexclusionslistedbelowapply pick upanddeliveryoftheappliancerequiredbecauseof Applicableto the service Stateof Alaska In the USA your appliance is warranted by Electrolux Home Products Inc We authorize no person to change or add to any of our obligations under this warranty Our obligations for service and parts under this warranty must be performed by us or an aLChorizedElectrolux Home Products Inc servicer In Canada your appliance is warranted by Electrolux Canada Corp NORMAL RESPONSIBILITIES OF THE CONSUMER This warranty applies only to products in ordinary household use and the consumer is responsible for the items listed below 1 Proper use of the appliance in accordance with instructions provided with the product 2 Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance with all local plumbing electrical andor gas codes 3 Proper connection to a grounded power supply of sufficient voltage replacement of blown fuses repair of loose connections or defects in house wiring 4 Expenses for making the appliance accessible for servicing such as removal of trim cupboards shelvesetc which are not a part of the appliance when it was shipped from the factory 5 Damages to finish after installation 6 Replacement of light bulbs andor fluorescent tubes on models with these features EXCLUSIONS This warranty does not cover the following 1 CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY NOTE Some states do not allow the exclusion or limitation of incidental or consequential damages so this limitation or exclusion may not apply to you 2 Service calls which do not involve malfunction or defects in workmanship or material or for appliances not in ordinary household use The consumer shall pay for such service calls 3 Damages caused by services performed by servicers other than Electrolux Home Products Inc Electrctux Canada Corp or its authorized servicers use of parts other than genuine Electrolux Home Products Inc parts obtained from persons other than such servicers or external causes such as abuse misuse inadequate power supply or acts of God 4 Products with original serial numbers that have been removed or altered and cannot be readily determined IF YOU NEED SERVICE Keep your bill of sale delivery slip or some other appropriate payment record The date on the bill establishes the warranty period should service be required if service is performed it is in your best interest to obtain and keep all receipts This written warranty gives you specific legal rights You may also have other rights that vary from state to state Service under this warranty must be obtained by contacting Electrolux Home Products Inc or Electrolux Canada Corp This warranty only applies in the 50 States of the USA in Puerto Rico and in Canada Product features or specifications as described or illustrated are subject to change without notice All warranties are made by Electrolux Home Products Inc In Canada your appliance is warranted by Electrolux Canada Corp 01URE02 Rev 012002 USA 8009449044 Electrctux Home Products Inc lEO Box 212378 Augusta GA 30917 Canada 8662139397 Electrolux Canada Carp 6150 McLaughlin Road Mississauga Ontario L5R 4C2

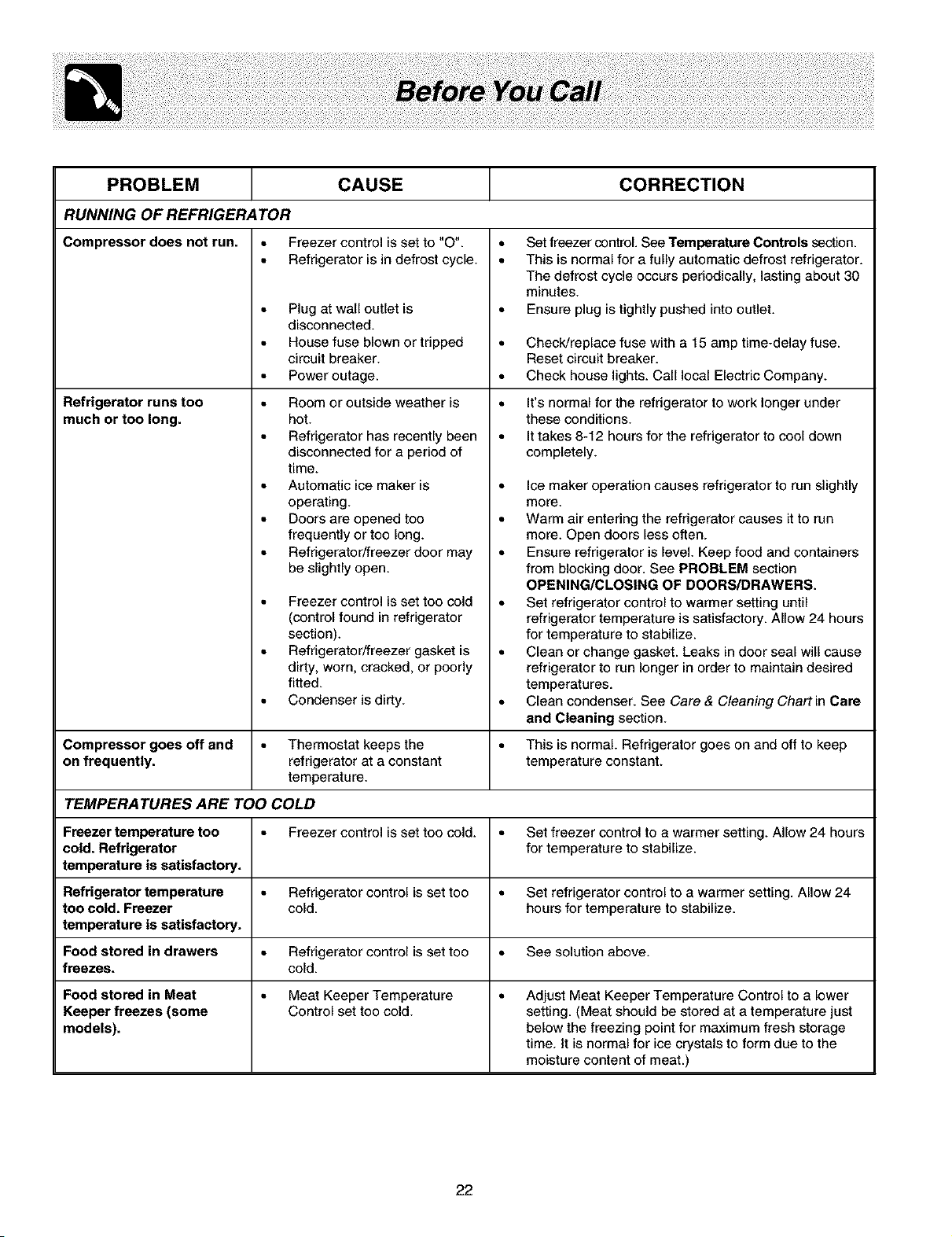

• Page 22 - English - : PROBLEM CAUSE CORRECTION RUNNING OF REFRIGERATOR Compressor does not run Refrigerator runs too much or too long Freezer control is set to quotOquot Refrigerator is in defrost cycle Plug at wall outlet is disconnected House fuse blown or tripped circuit breaker Power outage Room or outside weather is hot Refrigerator has recently been disconnected for a period of time Automatic ice maker is operating Doors are opened too frequently or too long Refrigeratorfreezer door may be slightly open Freezer control is set too cold control found in refrigerator section Refrigeratorfreezer gasket is dirty worn cracked or poorly fitted Condenser is dirty Set freezer control See Temperature Controls section This is normal for a fully automatic defrost refrigerator The defrost cycle occurs periodically lasting about 30 minutes Ensure plug is tightly pushed into outlet Checkreplace fuse with a 15 amp timedelay fuse Reset circuit breaker Check house lights Call local Electric Company Its normal for the refrigerator to work longer under these conditions Ittakes 812 hours for the refrigerator to cool down completely Ice maker operation causes refrigerator to run slightly more Warm air entering the refrigerator causes it to run more Open doors less often Ensure refrigerator is level Keep food and containers from blocking door See PROBLEM section OPENINGCLOSING OF DOORSDRAWERS Set refrigerator control to warmer setting until refrigerator temperature is satisfactory Allow 24 hours for temperature to stabilize Clean or change gasket Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures Clean condenser See Care amp Cleaning Chart in Care and Cleaning section Compressor goes off and Thermostat keeps the This is normal Refrigerator goes on and off to keep on frequently refrigerator at a constant temperature constant temperature TEMPERATURES ARE TOO COLD Freezer temperature too Freezer control is set too cold Set freezer control to a warmer setting Allow 24 hours cold Refrigerator for temperature to stabilize temperature is satisfactory Refrigerator temperature Refrigerator control is set too Set refrigerator control to a warmer setting Mow 24 too cold Freezer cold hours for temperature to stabilize temperature is satisfactory Food stored in drawers Refrigerator control is set too See solution above freezes cold Food stored in Meat Meat Keeper Temperature Adjust Meat Keeper Temperature Control to a lower Keeper freezes some Control set too cold setting Meat should be stored at a temperature just models below the freezing point for maximum fresh storage time It is normal for ice crystals to form due to the moisture content of meat

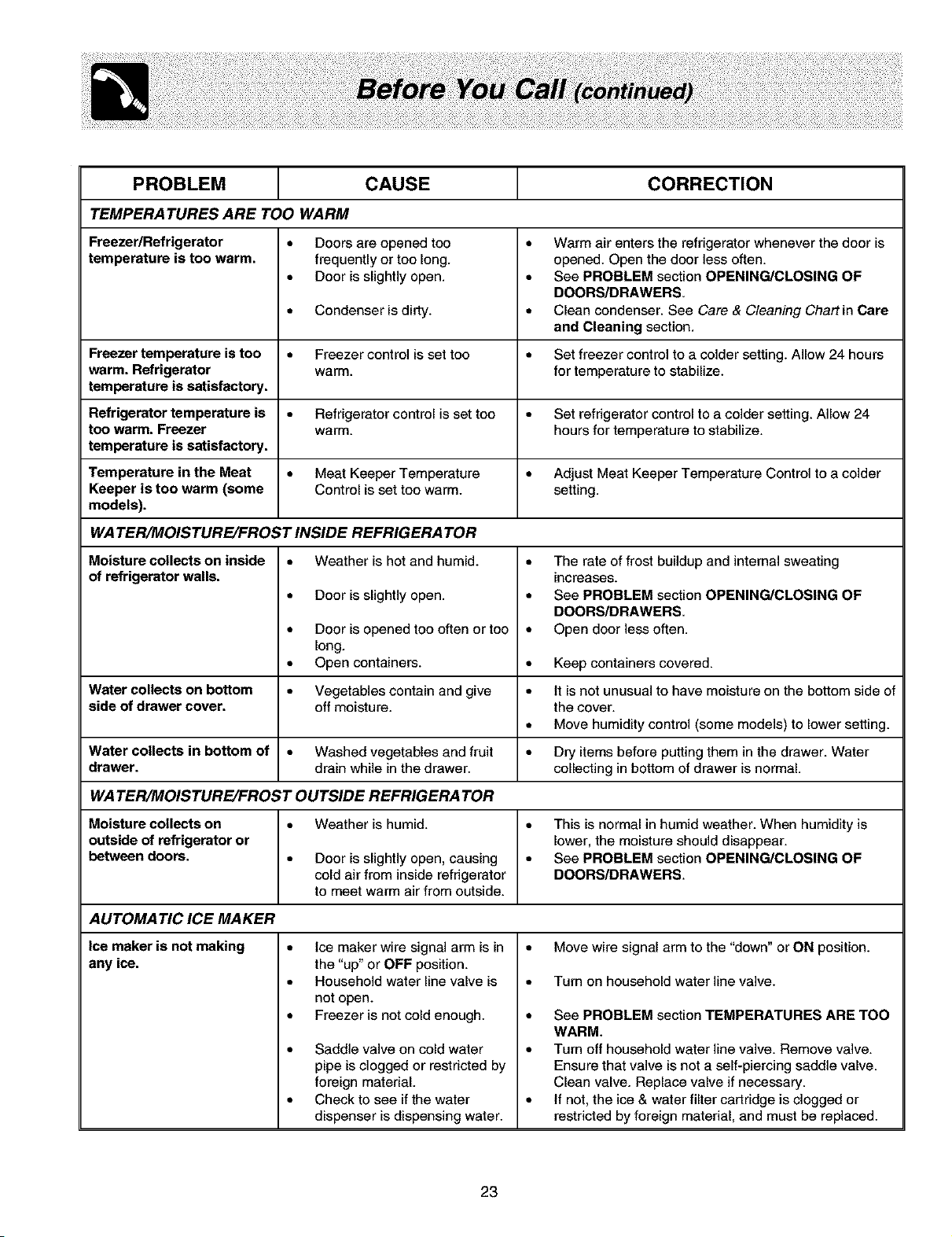

• Page 23 - English - : PROBLEM CAUSE CORRECTION TEMPERATURES ARE TOO WARM FreezerRefrigerator Doors are opened too Warm air enters the refrigerator whenever the door is temperature is too warm frequently or too long opened Open the door less often Door is slightly open See PROBLEM section OPENINGCLOSING OF DOORSDRAWERS Condenser is dirty Clean condenser See Care amp Cleaning Chart in Care and Cleaning section Freezer temperature is too Freezer control is set too Set freezer control to a colder setting Allow 24 hours warm Refrigerator warm for temperature to stabilize temperature is satisfactory Refrigerator temperature is Refrigerator control is set too Set refrigerator control to a colder setting Allow 24 too warm Freezer warm hours for temperature to stabilize temperature is satisfactory Temperature in the Meat Meat Keeper Temperature Adjust Meat Keeper Temperature Control to a colder Keeper is too warm some Control is set too warm setting models WA TERMOISTUREFROST INSIDE REFRIGERATOR Weather is hot and humidMoisture collects on inside of refrigerator walls Door is slightly open Door is opened too often or too long Open containers The rate of frost buildup and internal sweating increases See PROBLEM section OPENINGCLOSING OF DOORSDRAWERS Open door less often Keep containers covered Water collects on bottom Vegetables contain and give It is not unusual to have moisture on the bottom side of side of drawer cover off moisture the cover Move humidity control some models to lower setting Water collects in bottom of Washed vegetables and fruit Dry items before putting them in the drawer Water drawer drain while in the drawer collecting in bottom of drawer is normal WA TERMOISTURFJFROST OUTSIDE REFRIGERATOR Moisture collects on Weather is humid This is normal in humid weather When humidity is outside of refrigerator or lower the moisture should disappear between doors Door is slightly open causing See PROBLEM section OPENINGCLOSING OF cold air from inside refrigerator DOORSDRAWERS to meet warm air from outside AUTOMATIC ICE MAKER ice maker is not making any ice Ice maker wire signal arm is in the quotupquot or OFF position Household water line valve is not open Freezer is not cold enough Saddle valve on cold water pipe is clogged or restricted by foreign material Check to see if the water dispenser is dispensing water Move wire signal arm to the quotdownquot or ON position Turn on household water line valve See PROBLEM section TEMPERATURES ARE TOO WARM Turn off household water line valve Remove valve Ensure that valve is not a selfpiercing saddle valve Clean valve Replace valve if necessary If not the ice amp water filter cartridge is clogged or restricted by foreign material and must be replaced

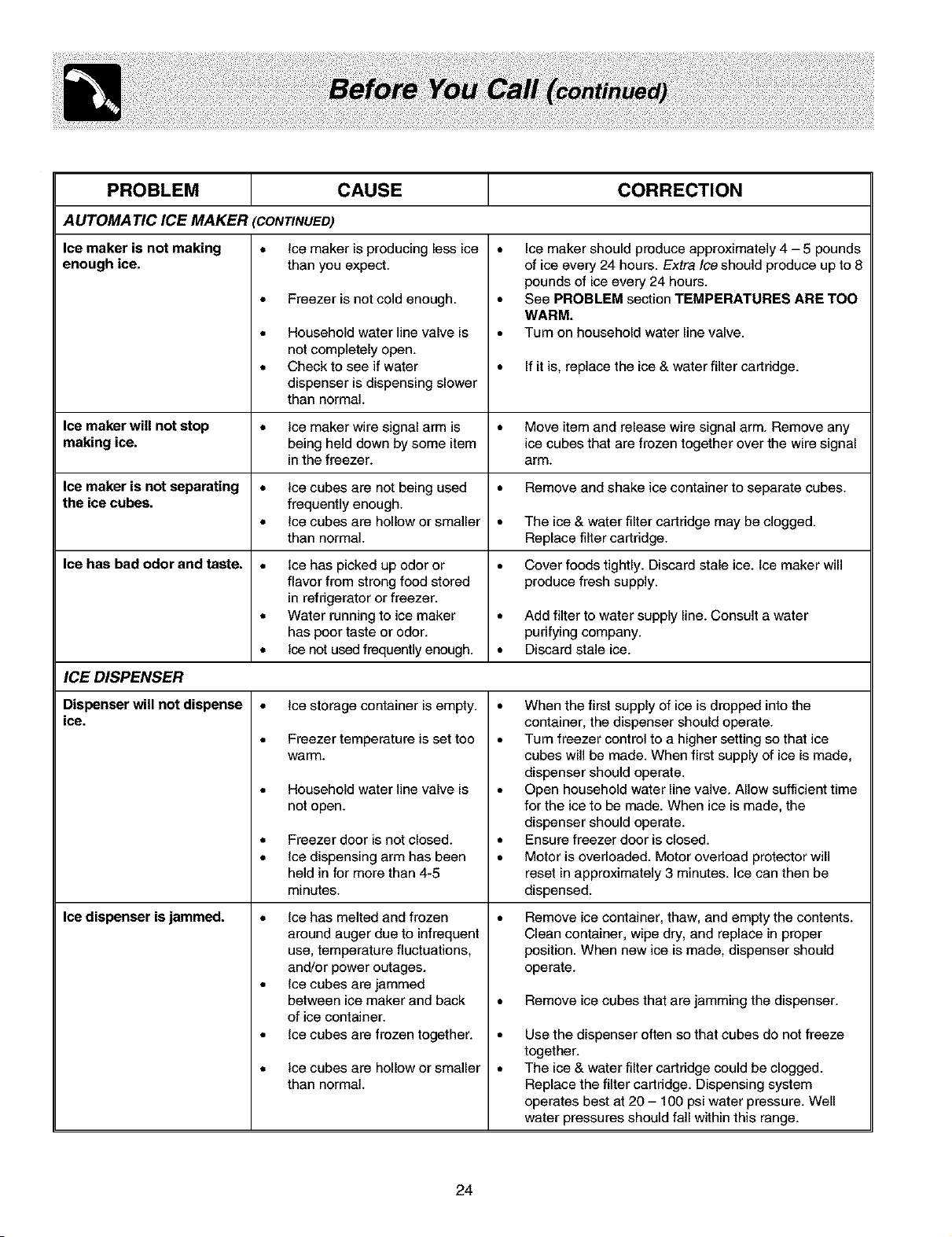

• Page 24 - English - : PROBLEM CAUSE CORRECTION AUTOMATIC ICE MAKER CONTINUED Ice maker is not making enough ice Ice maker is producing less ice than you expect Freezer is not cold enough Household water line valve is not completely open Check to see if water dispenser is dispensing slower than normal Ice maker should produce approximately 4 5 pounds of ice every 24 hours Extra Ice should produce up to 8 pounds of ice every 24 hours See PROBLEM section TEMPERATURES ARE TOO WARM Turn on household water line valve If it is replace the ice amp water filter cartridge Ice maker will not stop Ice maker wire signal arm is Move item and release wire signal arm Remove any making ice being held down by some item ice cubes that are frozen together over the wire signal in the freezer arm Ice maker is not separating Ice cubes are not being used Remove and shake ice container to separate cubes the ice cubes frequently enough Ice cubes are hollow or smaller The ice amp water filter cartddge may be clogged than normal Replace filter cartridge Ice has bad odor and taste Ice has picked up odor or Cover foods tightly Discard stale ice Ice maker will flavor from strong food stored produce fresh supply in refrigerator or freezer Water running to ice maker Add filter to water supply line Consult a water has poor taste or odor purifying company Ice not used frequently enough Discard stale ice ICE DISPENSER Dispenser will not dispense ice Ice dispenser is jammed Ice storage container is empty Freezer temperature is set too warm Household water line valve is not open Freezer door is not closed Ice dispensing arm has been held in for more than 45 minutes Ice has melted and frozen around auger due to infrequent use temperature fluctuations andor power outages Ice cubes are jammed between ice maker and back of ice container Ice cubes are frozen together Ice cubes are hollow or smaller than normal When the first supply of ice is dropped into the container the dispenser should operate Turn freezer control to a higher setting so that ice cubes will be made When first supply of ice is made dispenser should operate Open household water line valve Allow sufficient time for the ice to be made When ice is made the dispenser should operate Ensure freezer door is closed Motor is overloaded Motor overload protector will reset in approximately 3 minutes Ice can then be dispensed Remove ice container thaw and empty the contents Clean container wipe dry and replace in proper position When new ice is made dispenser should operate Remove ice cubes that are jamming the dispenser Use the dispenser often so that cubes do not freeze together The ice amp water filter cartddge could be clogged Replace the filter cartridge Dispensing system operates best at 20 100 psi water pressure Well water pressures should fall within this range

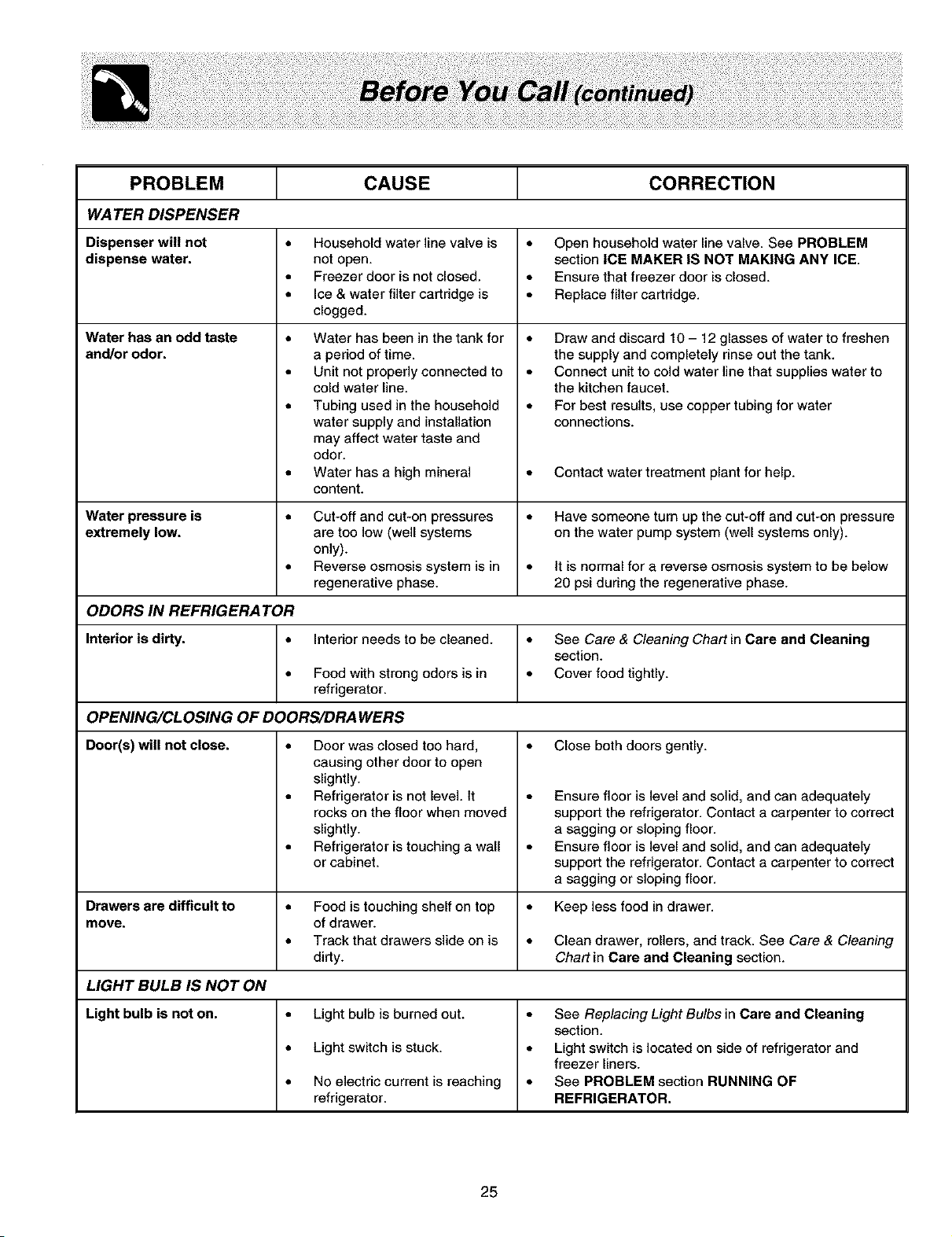

• Page 25 - English - : PROBLEM CAUSE CORRECTION WATER DISPENSER Dispenser will not Household water line valve is Open household water line valve See PROBLEM dispense water not open section ICE MAKER IS NOT MAKING ANY ICE Freezer door is not closed Ensure that freezer door is closed Ice amp water filter cartridge is Replace filter cartridge clogged Water has an odd taste andor odor Water has been in the tank for a period of time Unit not properly connected to cold water line Tubing used in the household water supply and installation may affect water taste and odor Water has a high mineral content Draw and discard 10 12 glasses of water to freshen the supply and completely rinse out the tank Connect unit to cold water line that supplies water to the kitchen faucet For best results use copper tubing for water connections Contact water treatment plant for help Water pressure is Cutoff and cuton pressures Have someone turn up the cutoff and cuton pressure extremely low are too low well systems on the water pump system well systems only only Reverse osmosis system is in It is normal for a reverse osmosis system to be below regenerative phase 20 psi during the regenerative phase ODORS IN REFRIGERATOR Interior is dirty Interior needs to be cleaned See Care amp Cleaning Chart in Care and Cleaning section Food with strong odors is in Cover food tightly refrigerator OPENINGCLOSING OF DOORSADRA WERS Doors will not close Close both doors gently Door was closed too hard causing other door to open slightly Refrigerator is not level It rocks on the floor when moved slightly Refrigerator is touching a wall or cabinet Ensure floor is level and solid and can adequately support the refrigerator Contact a carpenter to correct a sagging or sloping floor Ensure floor is level and solid and can adequately support the refrigerator Contact a carpenter to correct a sagging or sloping floor Drawers are difficult to Food is touching shelf on top Keep less food in drawer move of drawer Track that drawers slide on is Clean drawer rollers and track See Care amp Cleaning dirty Chart in Care and Cleaning section LIGHT BULB IS NOT ON Light bulb is not on Light bulb is burned out See Replacing Light Bulbs in Care and Cleaning section Light switch is stuck Light switch is located on side of refrigerator and freezer liners No electric current is reaching See PROBLEM section RUNNING OF refrigerator REFRIGERATOR
