Assembly and Operating Instructions
FOR OUTDOOR USE ONLY
1600 SERIES
TROLLEY MODELS BMG1641SA, BMG1651SA,
BMG1641DA & BMG1651DA
AUSTRALIA / NEW ZEALAND
2 CONTENTS
Important safety instructions .................................................. 3
Product description ................................................................. 4
Product dimensions ................................................................ 5
Assembling the barbecue ....................................................... 6
Side burner operating instructions ....................................... 22
Gas specifications and mobile restraint ................................ 23
Notes ..................................................................................... 24
Warranty ................................................................................ 27
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have these
meanings:
WARNING
WARNING
This symbol indicates information concerning your
personal safety.
WARNING
CAUTION
This symbol indicates information on how to avoid damaging
the appliance.
WARNING
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENTAL TIPS
ENVIRONMENT
This symbol indicates tips and information about economical
and ecological use of the appliance.
Dear Customer,
Congratulations and thank you for choosing our barbecue.
We are sure you will find it a pleasure to use. Before you
use the barbecue, we recommend that you read through
the relevant sections of this manual, as well as the built-in
manual to get a full understanding of your appliance and its
functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully
to avoid misuse and hazards.
We recommend that you keep both instruction booklets
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but contact
your local customer care centre.
This appliance complies with requirements of Australian
Standards AS5263.
Conditions of use
These important notes apply to your appliance, failure to
adhere to these conditions of use may affect your ability to
make a claim under the manufacture’s warranty.
• This appliance must be serviced only by a qualified
licenced person.
• This product is intended for personal, domestic or
household use only, not commercial use.
• This product is intended for outdoor use only.
• This product must be installed, operated and
maintained as per the instructions.
Please ensure you read both instruction manuals fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here:
Model number: ..........................................................................
Serial number: ..........................................................................
PNC: ..........................................................................................
CONTENTSCONGRATULATIONS
IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual
is extremely important for health and safety. Failure
to strictly adhere to the requirements in this manual
may result in personal injury, property damage
and affect your ability to make a claim under the
BeefEater manufacturer’s warranty provided with
your product. Products must be used, installed and
operated in accordance with this manual. You may
not be able to claim on the BeefEater manufacturer’s
warranty in the event that your product fault is due to
failure to adhere this manual.
3SAFETY
Please read the user manuals carefully and store in a
handy place for later reference.
WARNING
IMPORTANT
Important – check for any damages or marks
If you find the barbecue is damaged or marked, you must
report it within 7 days if you wish to claim for damage/
marks under the manufacturer’s warranty. This does not
affect your statutory rights.
ENVIRONMENTAL TIPS
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
WARNING
WARNING
This appliance must be serviced only by a qualified
licensed person.
Improper installation, adjustment, alteration or
maintenance can cause injury or property damage and
may affect your ability to claim under the manufacturer’s
warranty.
Please contact your nearest BeefEater Service Department
for additional information or assistance from an approved
installer.
Notes to the installer
• After the barbecue is removed from the packaging take
care to protect the gas hose connection from damage.
• Wear gloves when assembling the barbecue to protect your
hands from cuts
• This manual must remain with the owner for future
reference.
WARNING
WARNING
• Do not lean over barbecue when lighting.
• Do not leave the barbecue unattended when alight.
• Do not delay lighting once the gas has been turned on.
• Do not store or use aerosol cans in the vicinity of
the barbecue.
• Do not store or use flammable liquids or flammable
materials in the vicinity of this barbecue.
• Do not use caustic or abrasive based cleaners on
the barbecue.
• Do not attempt to dismantle or adjust the control
valves.
• Do not attempt to dismantle or adjust the regulator.
• Do not test for leaks with a naked flame.
• Do not modify the construction of this appliance or
modify the injector orifice size.
• Do not place articles on or against this appliance
• Do not obstruct any ventilation of the barbecue.
• Do not allow children to operate or play near
the barbecue.
Failure to adhere to the above warnings may cause injury
or property damage and affect your ability to make a claim
under the manufacturer’s warranty.
WARNING
CAUTION
This appliance is set up for LPG gas and is labelled
accordingly. A natural gas conversion kit is available as
an accessory if required. Conversion of this unit to natural
gas must be carried out by a qualified licensed person and
a Certificate of Compliance must be issued to the owner
at the completion of the installation and conversion.
WARNING
IMPORTANT
BeefEater Barbecues are approved for OUTDOOR USE ONLY
and must not be used in a building, garage or any other
enclosed area.
• BeefEater Barbecues must not be used inside
recreational vehicles or boats.
• Read instructions thoroughly before operating this
Barbecue.
• Save this manual for future reference.
• Always use the Barbecue on a flat, level surface.
• Some foods produce flammable fats and juices.
Regular cleaning is essential.
• Attend an operating barbecue at all times. Damage
caused by fat & grease fires is not covered by warranty.
• When not in use keep Barbecue dry and covered.
WARNING
WARNING
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open hood.
4. If odour continues, immediately call your gas supplier
or your fire department.
For your safety
1. Do not store or use gasoline or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. An LPG cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
IMPORTANT SAFETY INSTRUCTIONS
4 PRODUCT DESCRIPTION

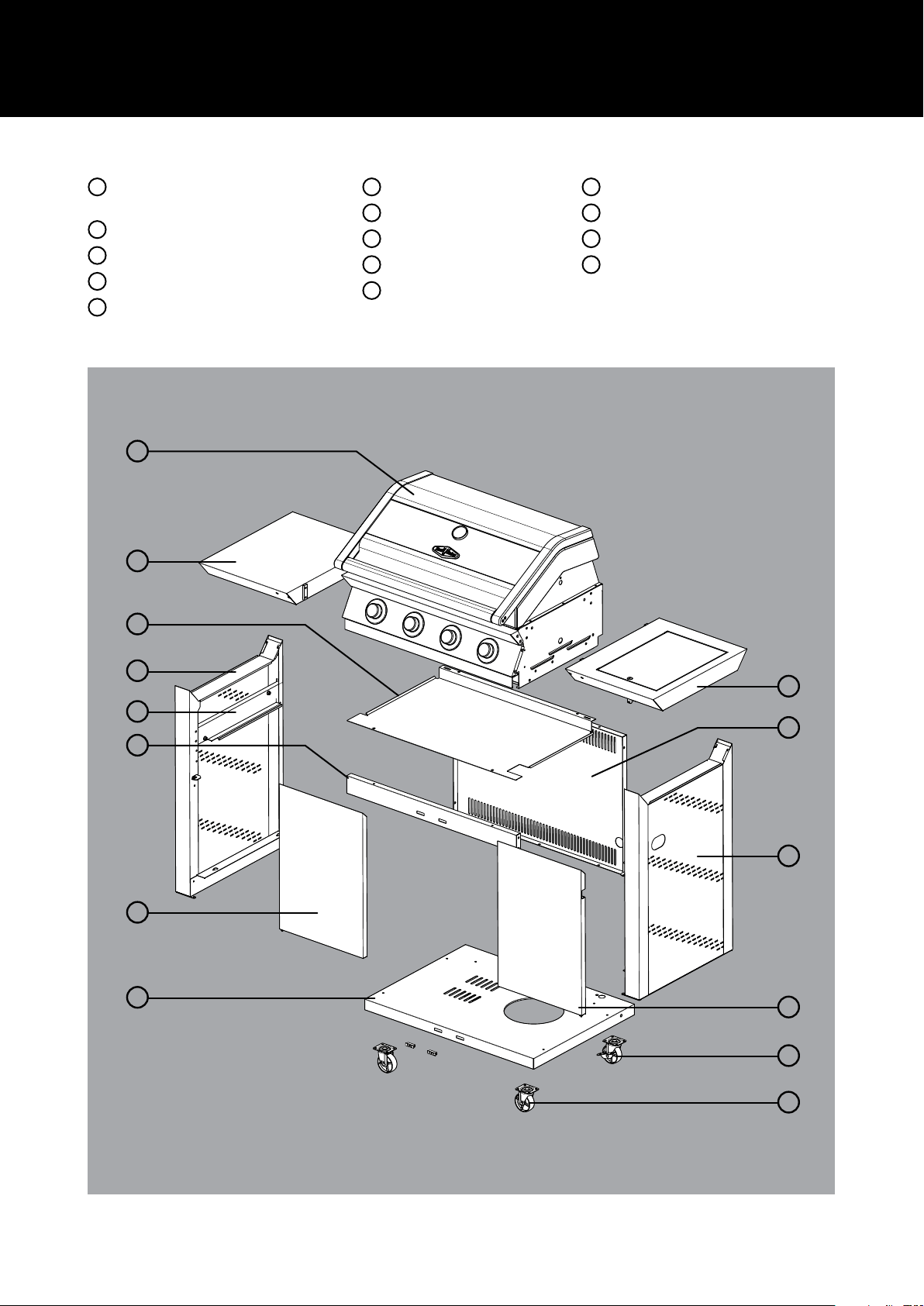

PRODUCT DESCRIPTION
1
2
4
5

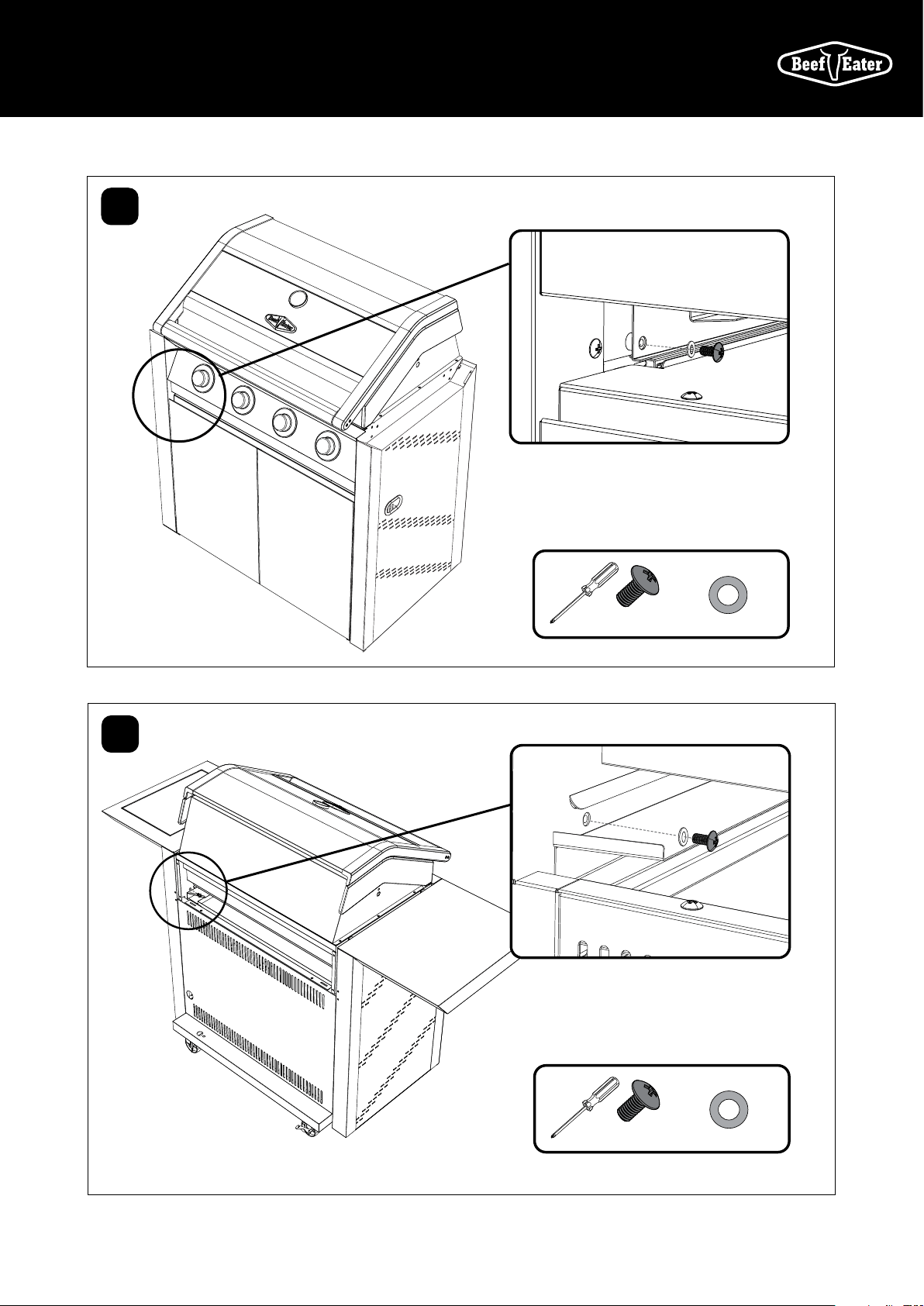

7
8
6
3
14
13
9
11
12
10
1
4 burner barbecue
BMG1641 shown
2
Left hand side table
3
Separation panel
4
Side panel LH
5
Side panel support LH and RH
6
Brace
7
Door LH
8
Base panel
9
Right hand side burner
10
Rear panel
11
Side panel RH
12
Door RH
13
Locking castors x 2
14
Castors x 2
5

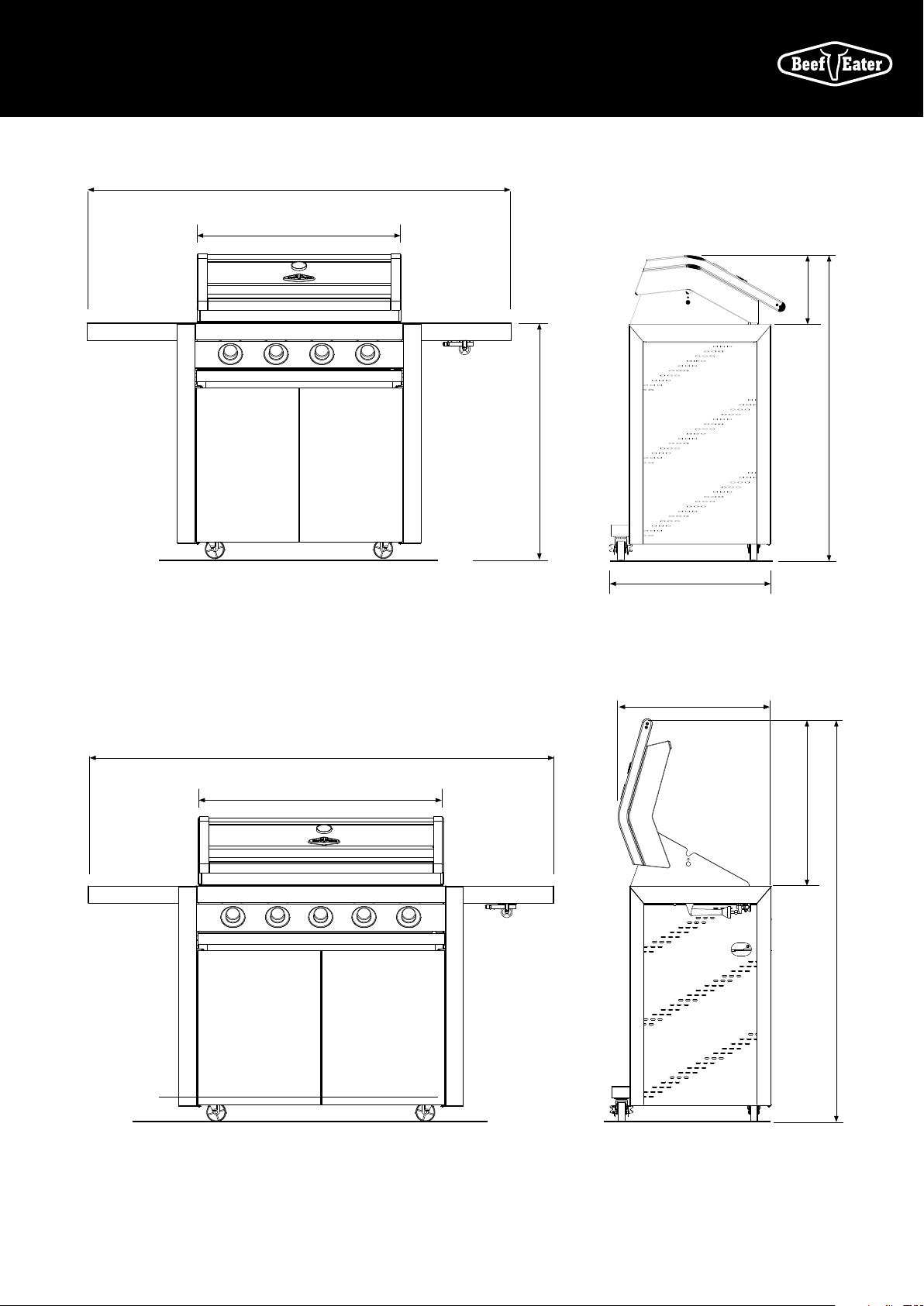

PRODUCT DIMENSIONS
686mm
1200mm
271mm
610mm
1583mm
657mm
Hood open
1670mm
1840mm
804.5mm
975mm
926mm
DIMENSIONS

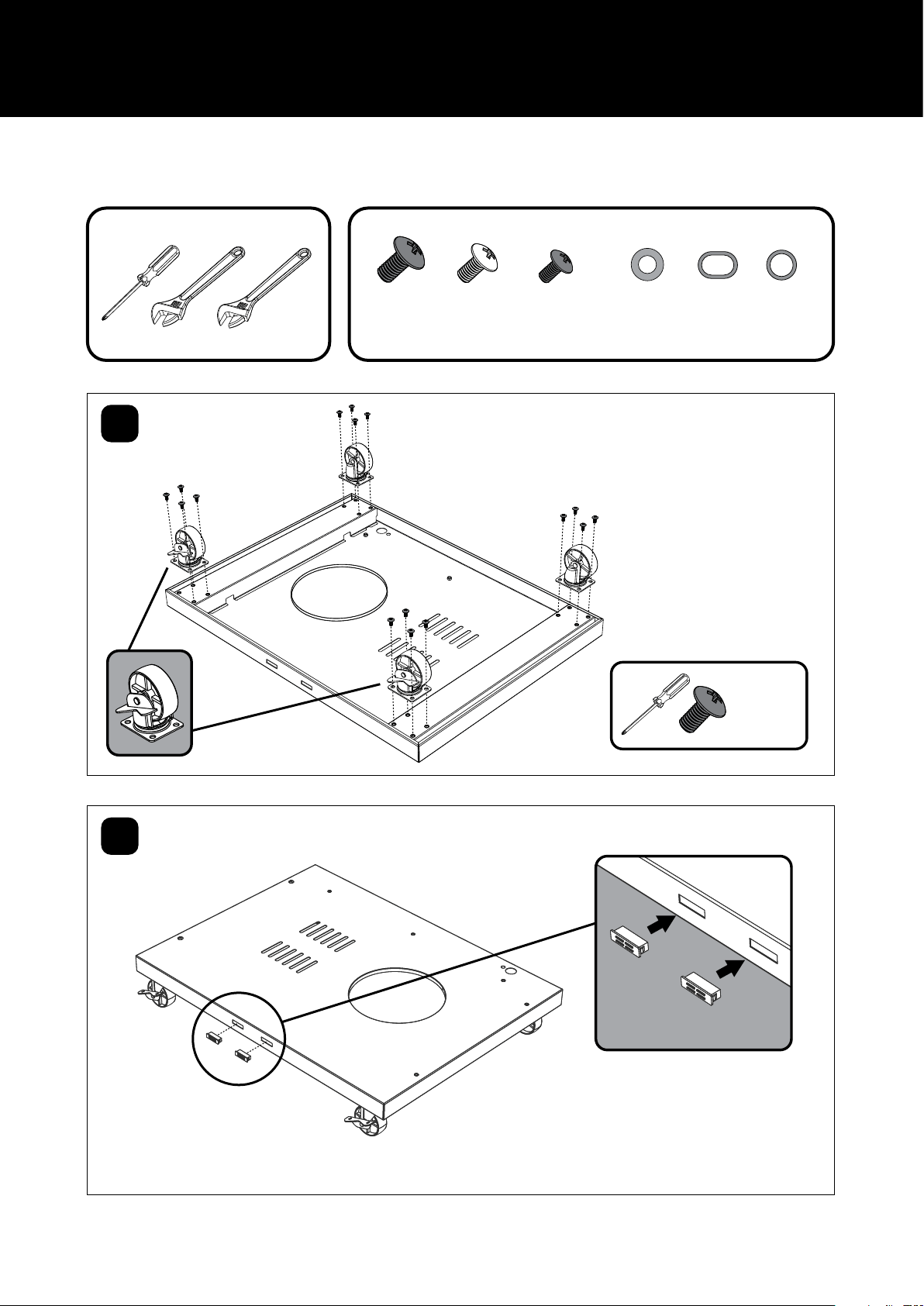

6 ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
2
Tools required: Fasteners supplied:
M6 x 10mm
47
M5 x 10mm
12 off
M4 x 10mm
4 off (5 burner
models only)
12 Fibre
washers
1 x Oval
grommet
1 x Circle
grommet
1
M6 x 10mm
x 16
Important:
ensure locking casters are fitted to
the front of the trolley, with locks
facing forward.

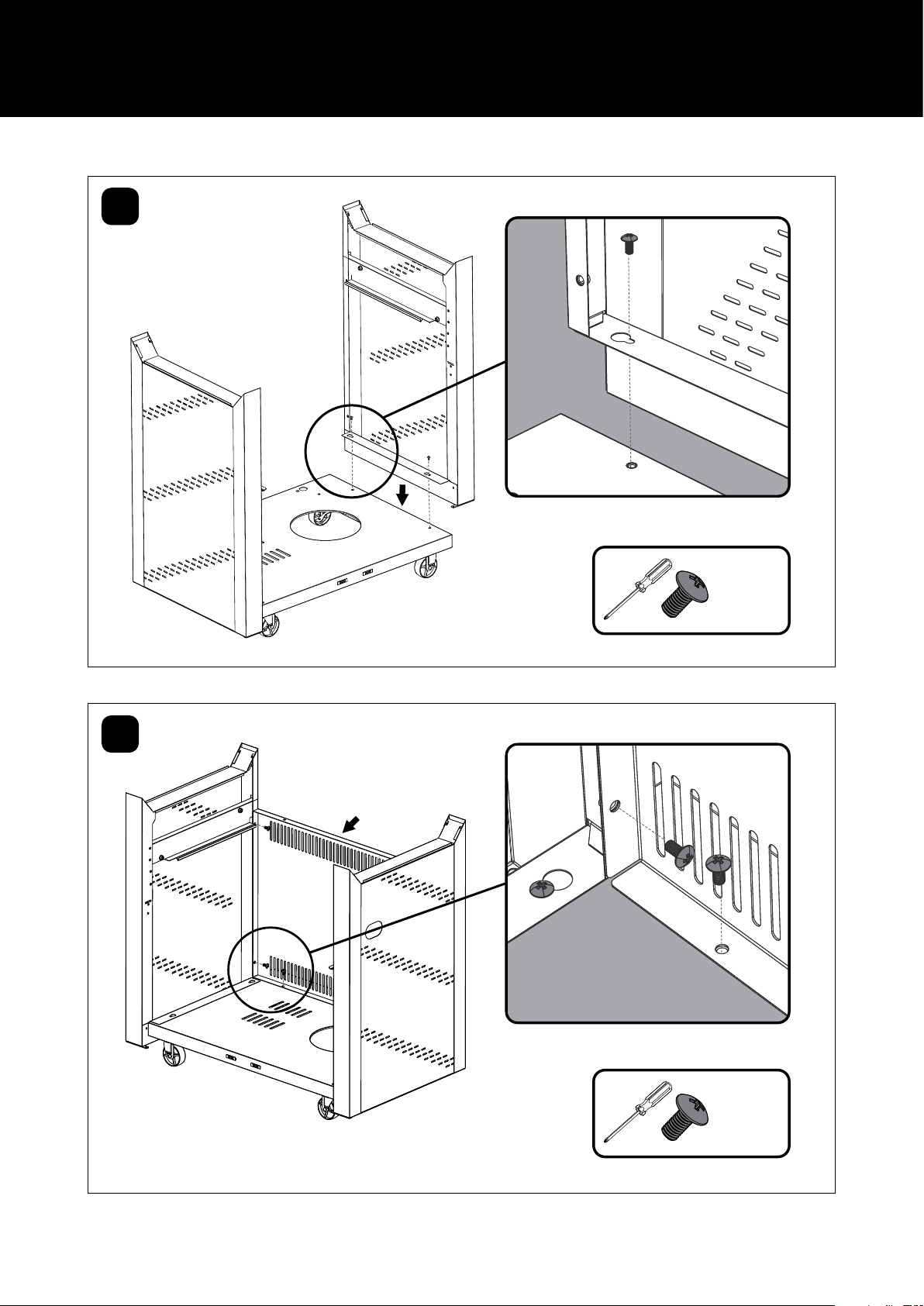

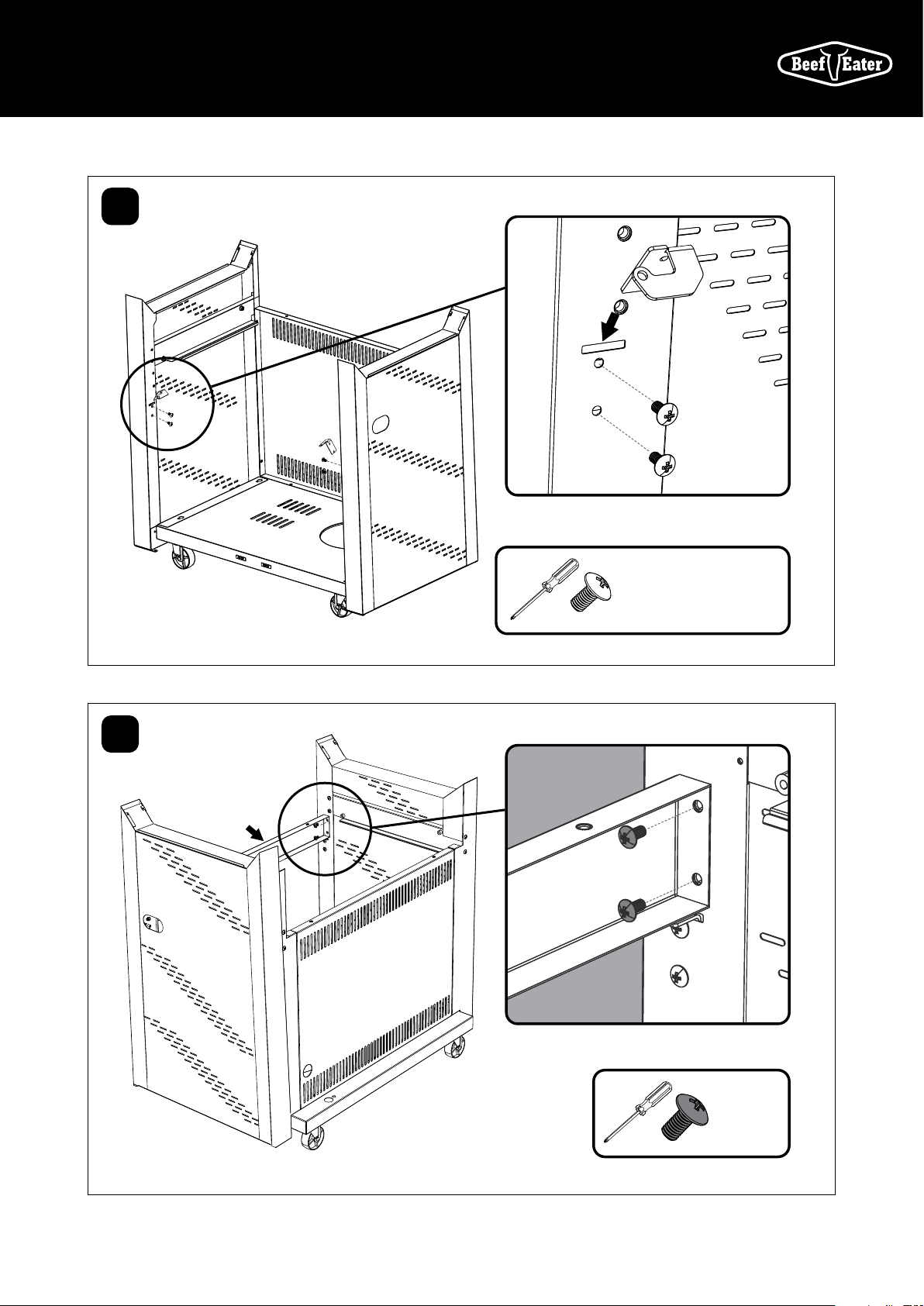

7ASSEMBLING THE BARBECUE
M6 x 10mm
x 2
4
Fit screws but do no tighten
to position subsequent
screws more easily.

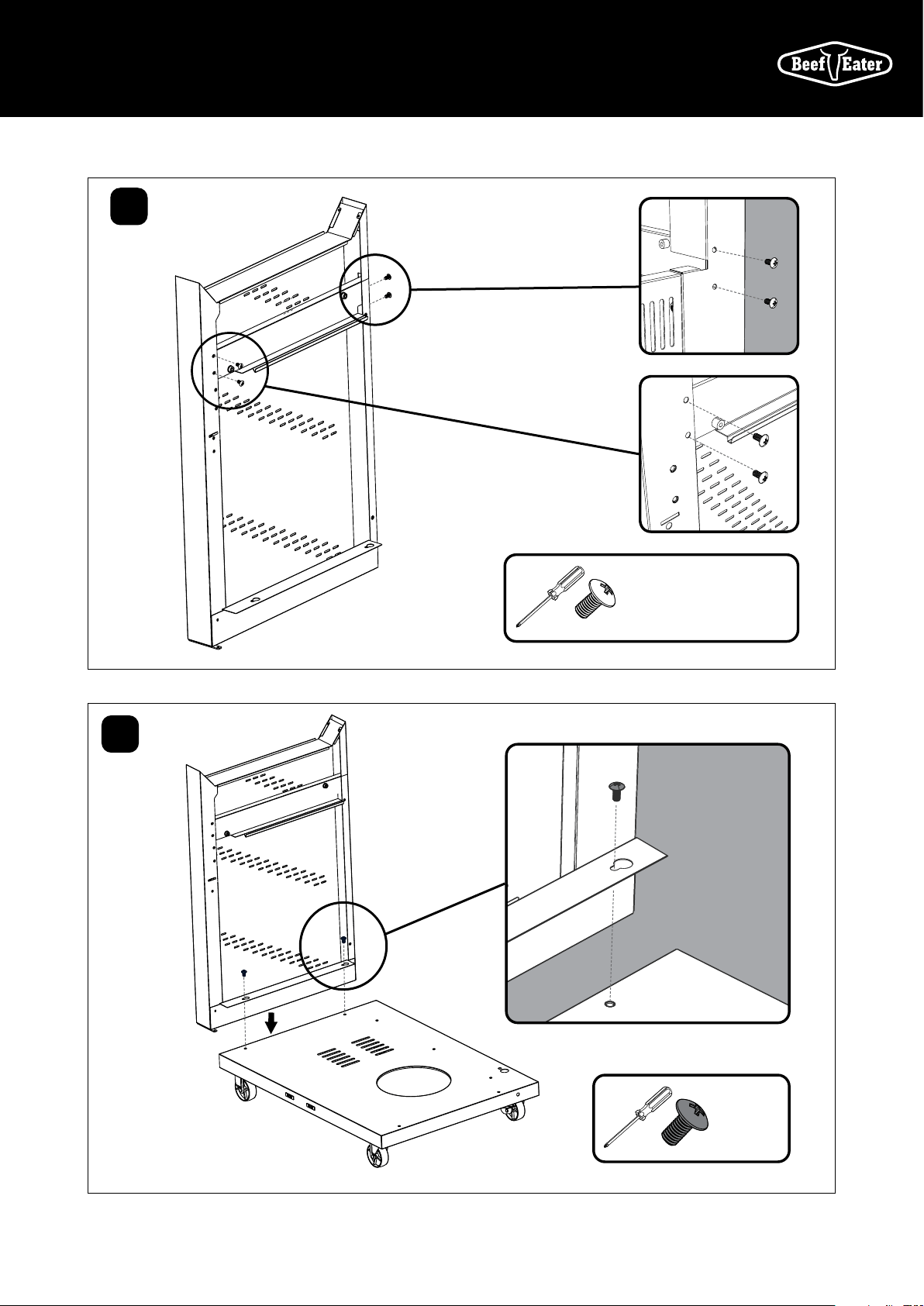

3
Repeat same assembly
process on right hand
side panel.
4 x screws for
LHS panel
4 x screws for
RHS panel
x 8
M5 x 10mm
8 ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE

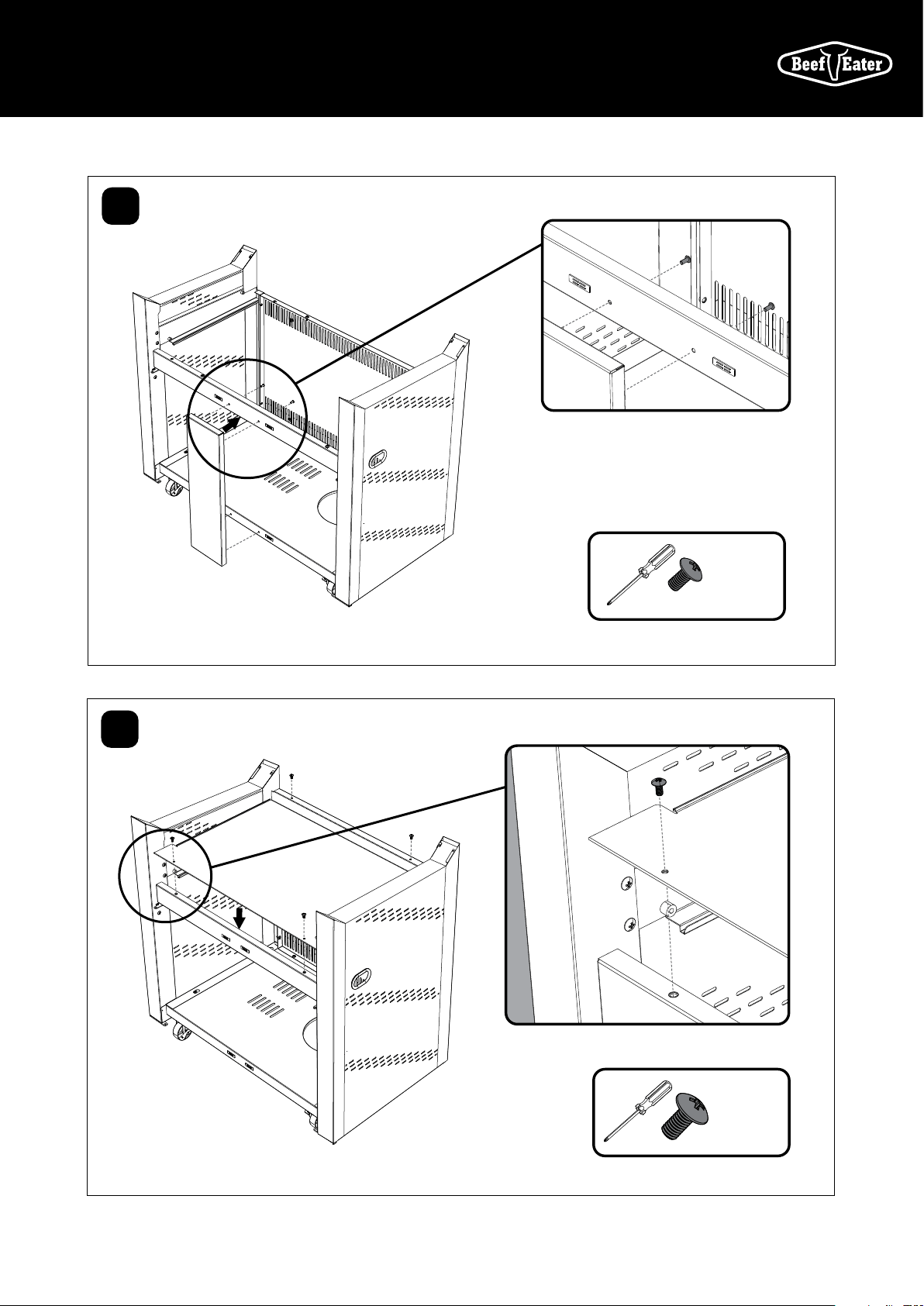

5
6
Fit screws but do no tighten
to position subsequent
screws more easily.
Fit screws but do no tighten
to position subsequent
screws more easily.
M6 x 10mm
x 2
M6 x 10mm
x 7
9ASSEMBLING THE BARBECUE
7
8
Tighten all screws to secure
all panels.
M6 x 10mm
x 4
x 4
M5 x 10mm
2 x screws for
LHS panel
2 x screws for
RHS panel
Repeat same assembly
process on right hand
hinge plate.

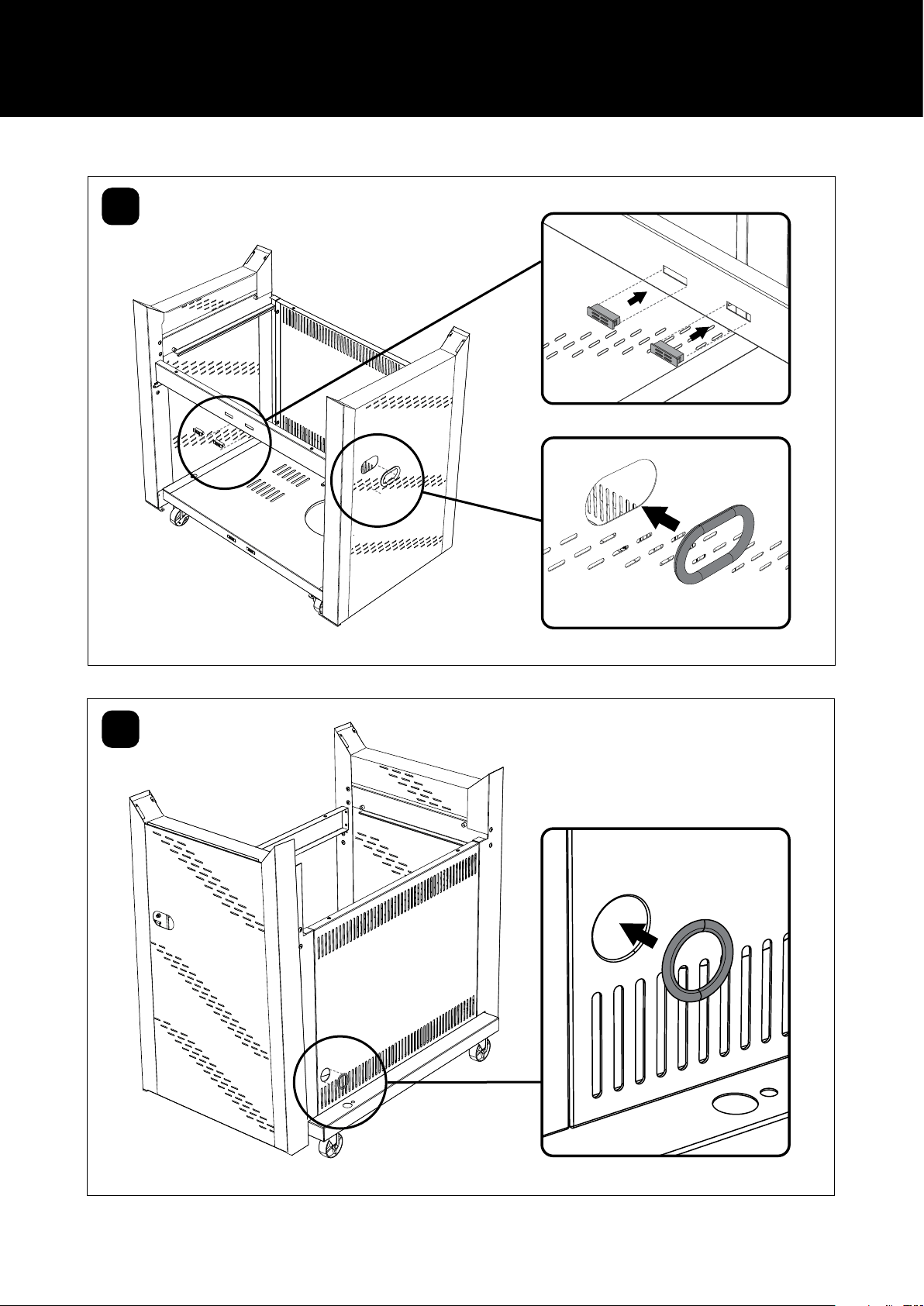

10 ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
9
10
11ASSEMBLING THE BARBECUE
11
12
5 Burner model only
x 4
M4 x 10mm
M6 x 10mm
x 4
12
13

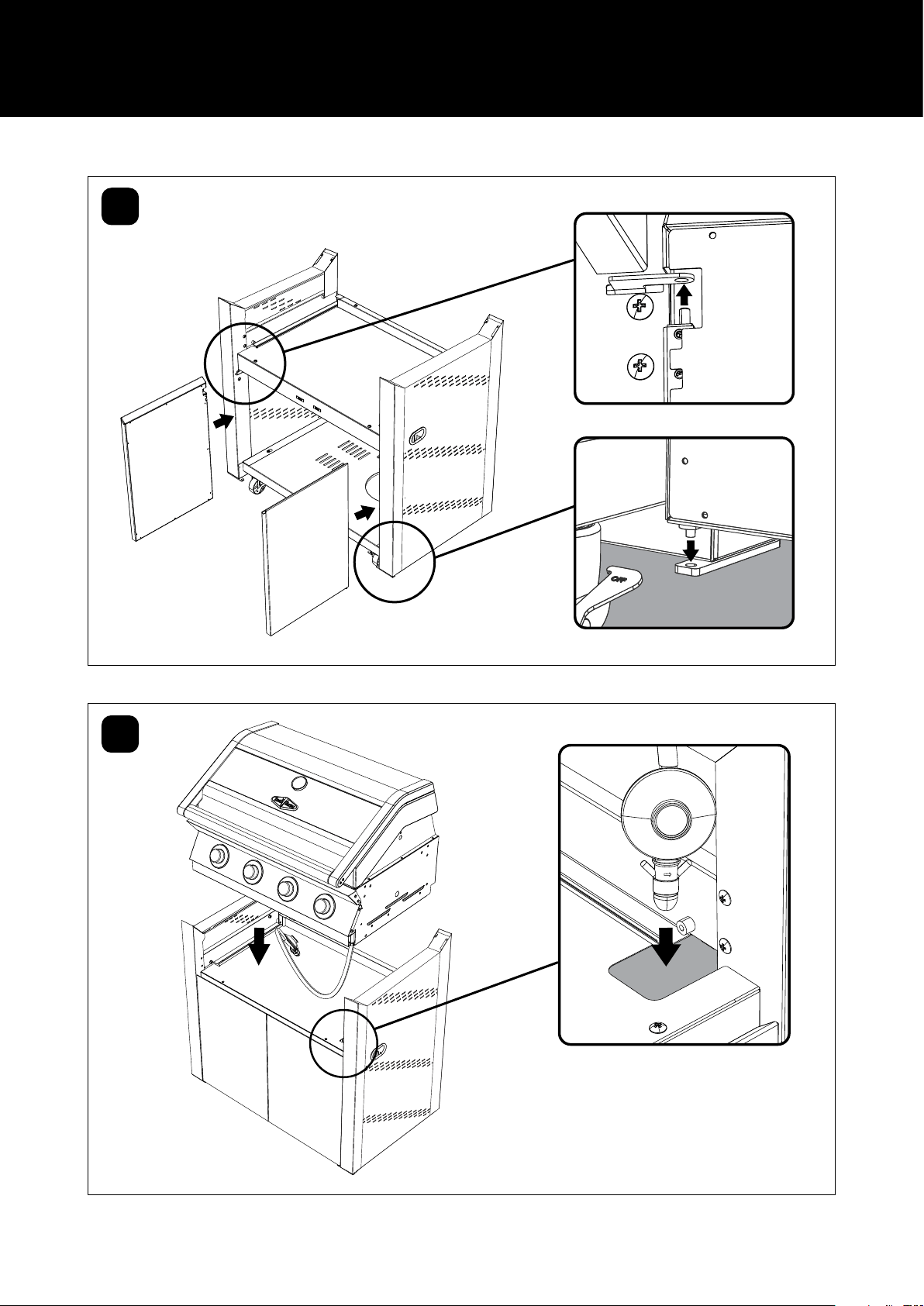

First fit lower door pin into the hole on the base assembly. Then depress
the upper door pin with your finger, line up with the hole above on the
separator panel, and release to allow the pin into the hole.

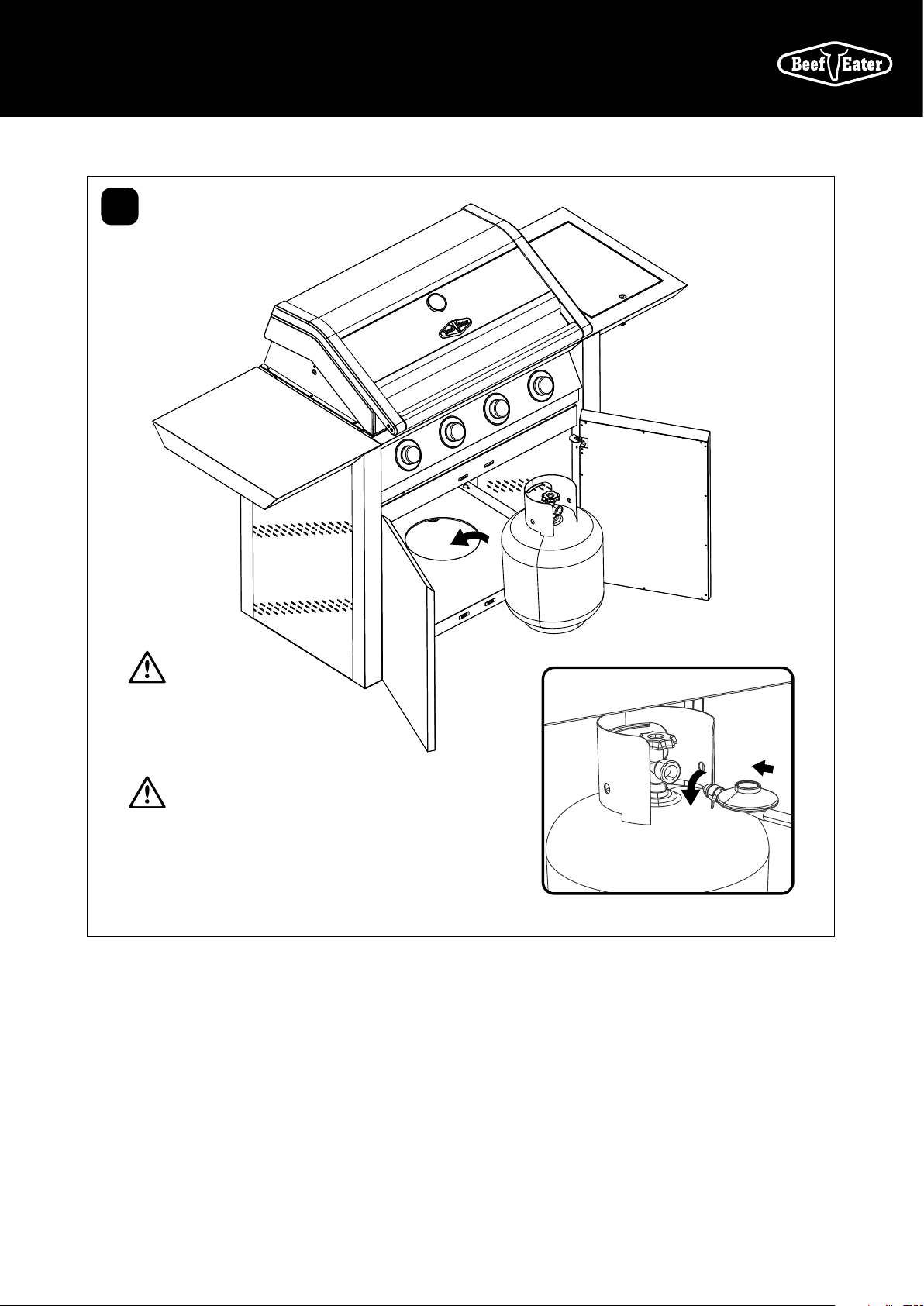

ASSEMBLING THE BARBECUE
14
ASSEMBLING THE BARBECUE
Remove the grease tray, then carefully
lift the barbecue onto the trolley with
two people, inserting the gas connector
into the hole as shown.
13ASSEMBLING THE BARBECUE
15
x 2x 2
M6 x 10mm
Repeat same assembly process on right hand side.
16
Repeat same assembly process on right hand side.
Refit the grease tray that was removed in step 14.
x 2x 2
M6 x 10mm

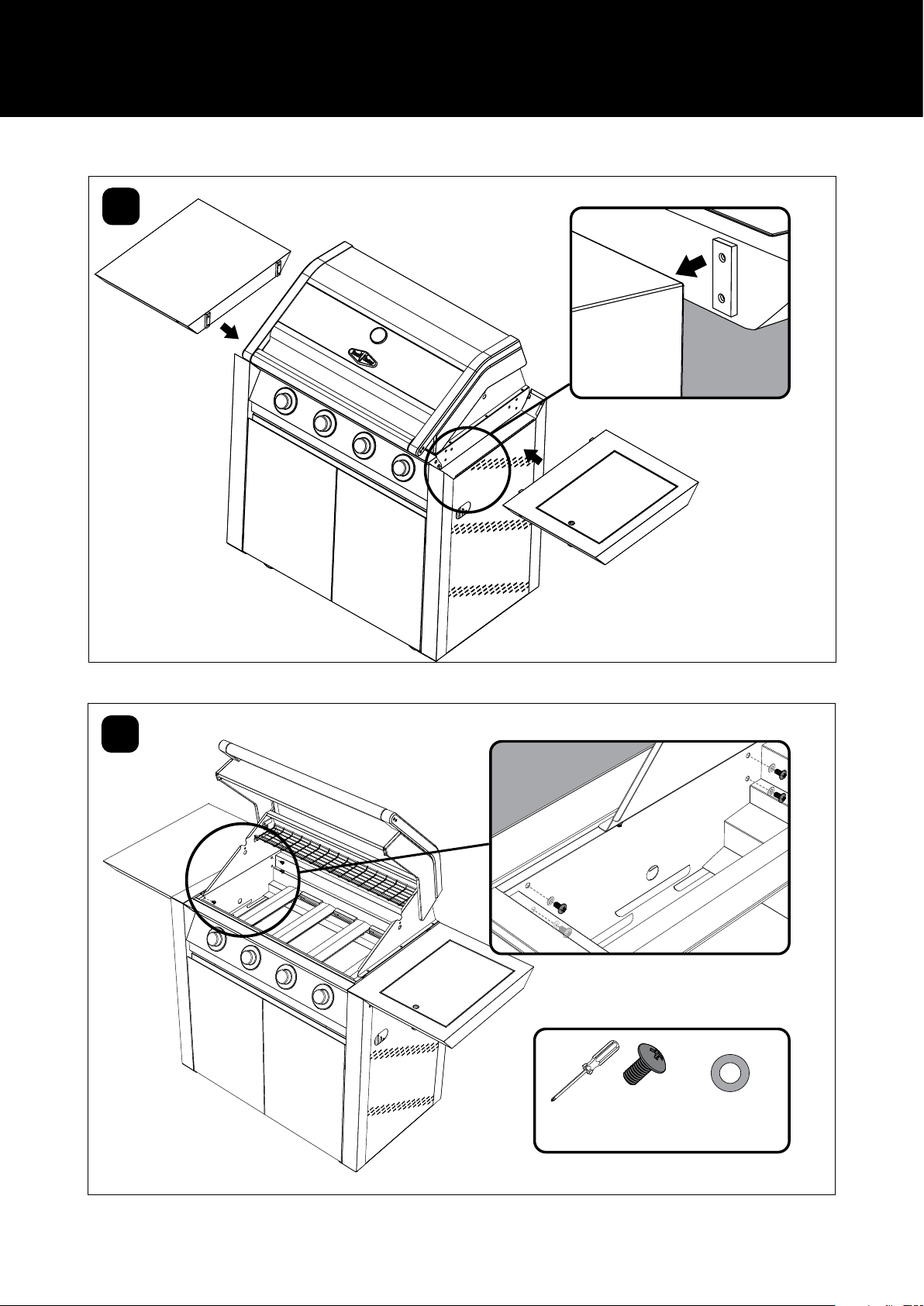

14 ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
17
18
x 8x 8
M6 x 10mm
4 x screws for LHS panel
4 x screws for RHS panel
Repeat same assembly process on
right hand side.
15ASSEMBLING THE BARBECUE
19

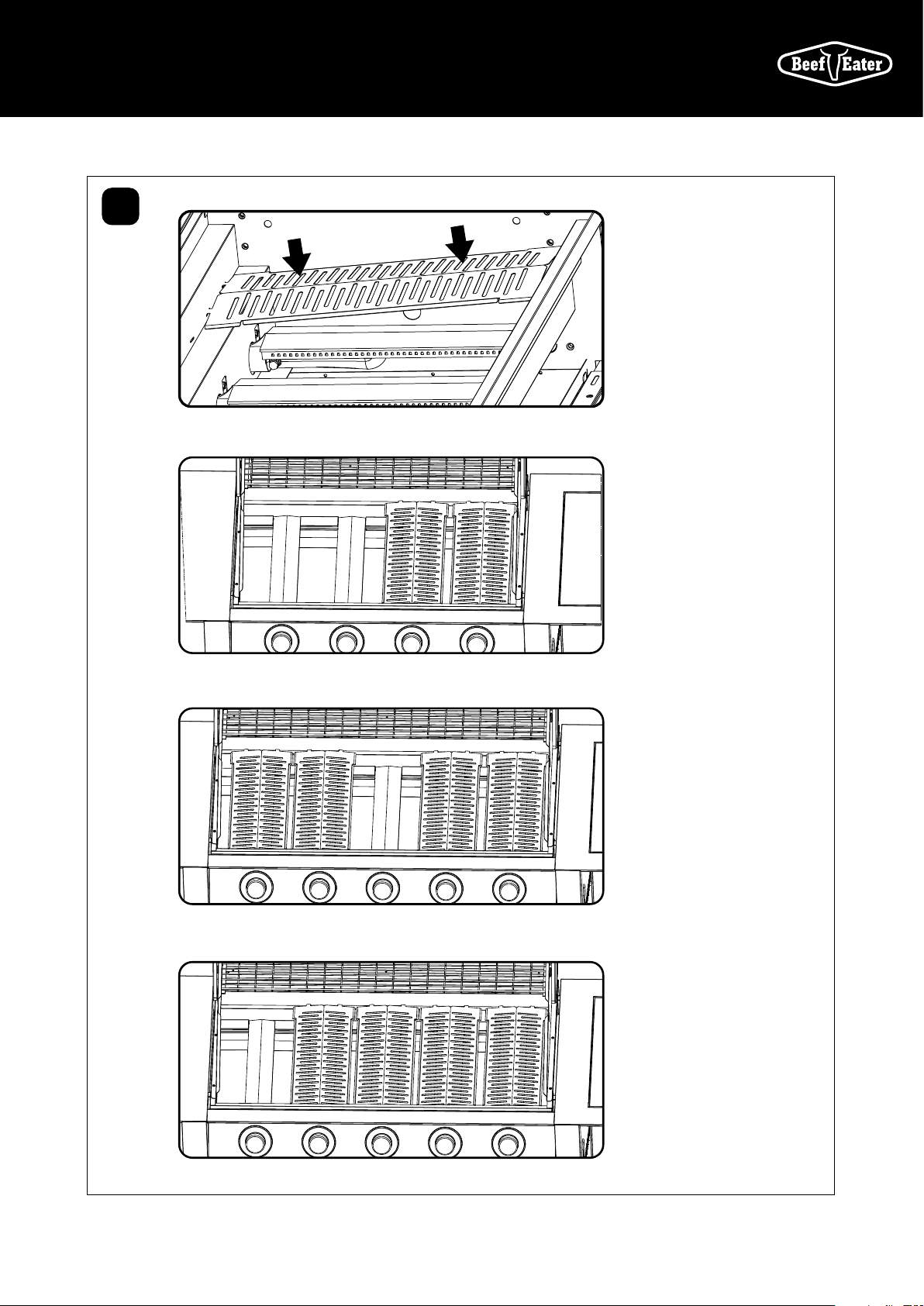

Install the flame tamers
above the burners that will
be under a grill plate.

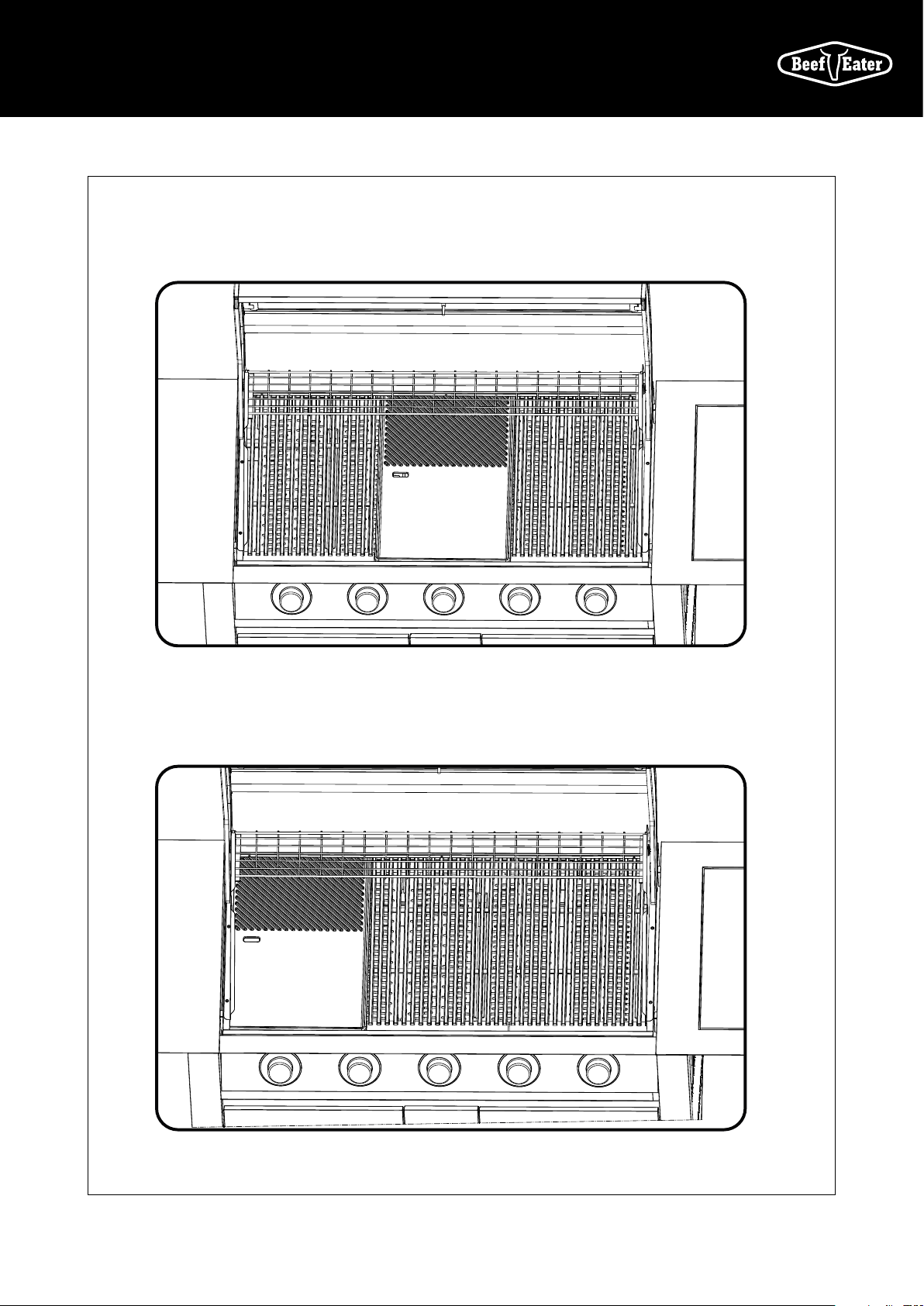

See below for configuration.
For 4 burner models:
For 5 burner models (to suit Option 1 plate and grill setup, see Step 20):
For 5 burner models (to suit Option 2 plate and grill setup, see Step 20):
16
ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
20

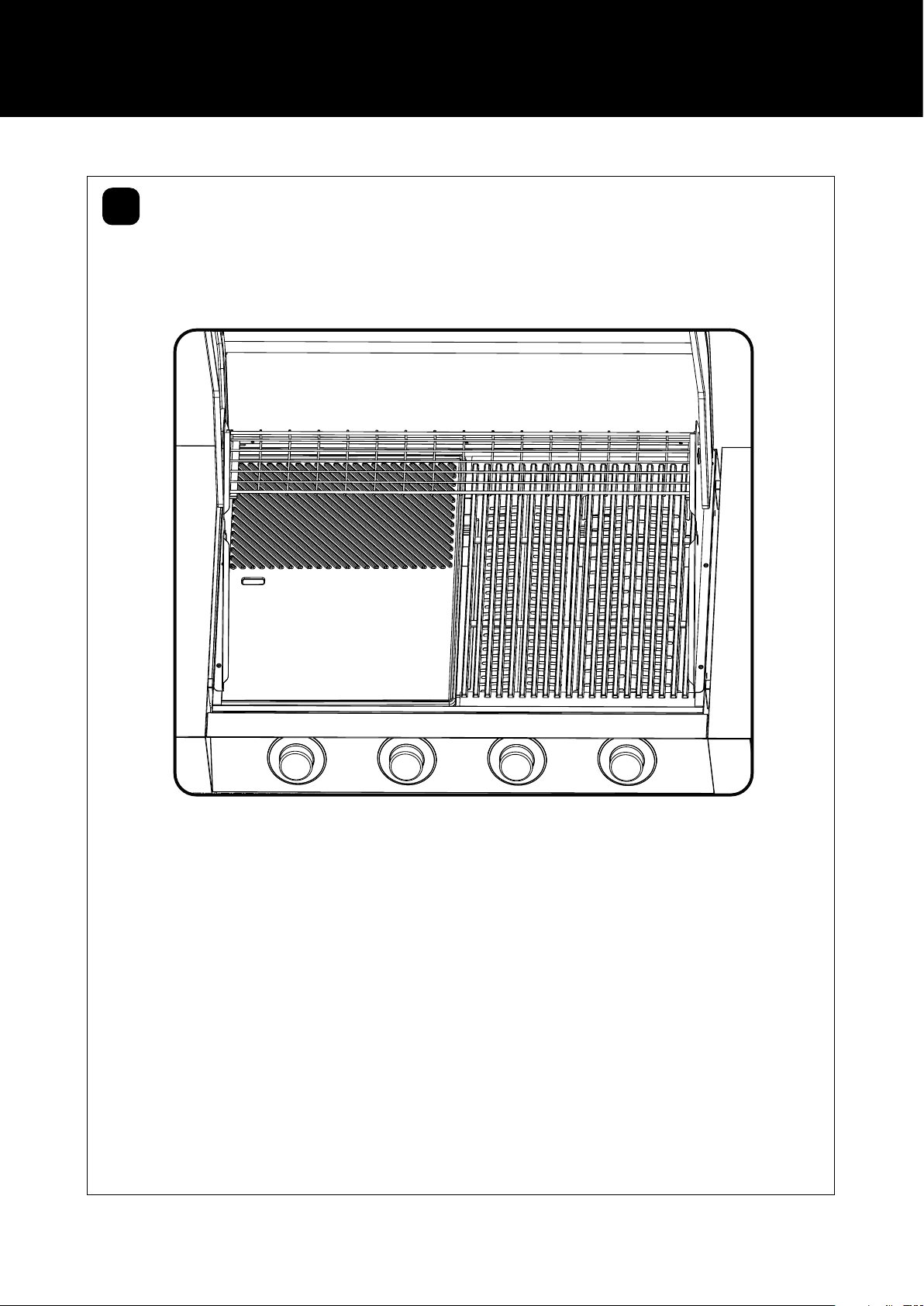

Install the solid plate and grill/s in one of the below configuration options, in order to keep the fat drainage
hole from being placed directly above a burner. For easier installation, place the solid plate first, followed
by the grill plates.
For 4 burner models:
17ASSEMBLING THE BARBECUE
For 5 burner models:
Option 1
For 5 burner models:
Option 2
18 ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
21

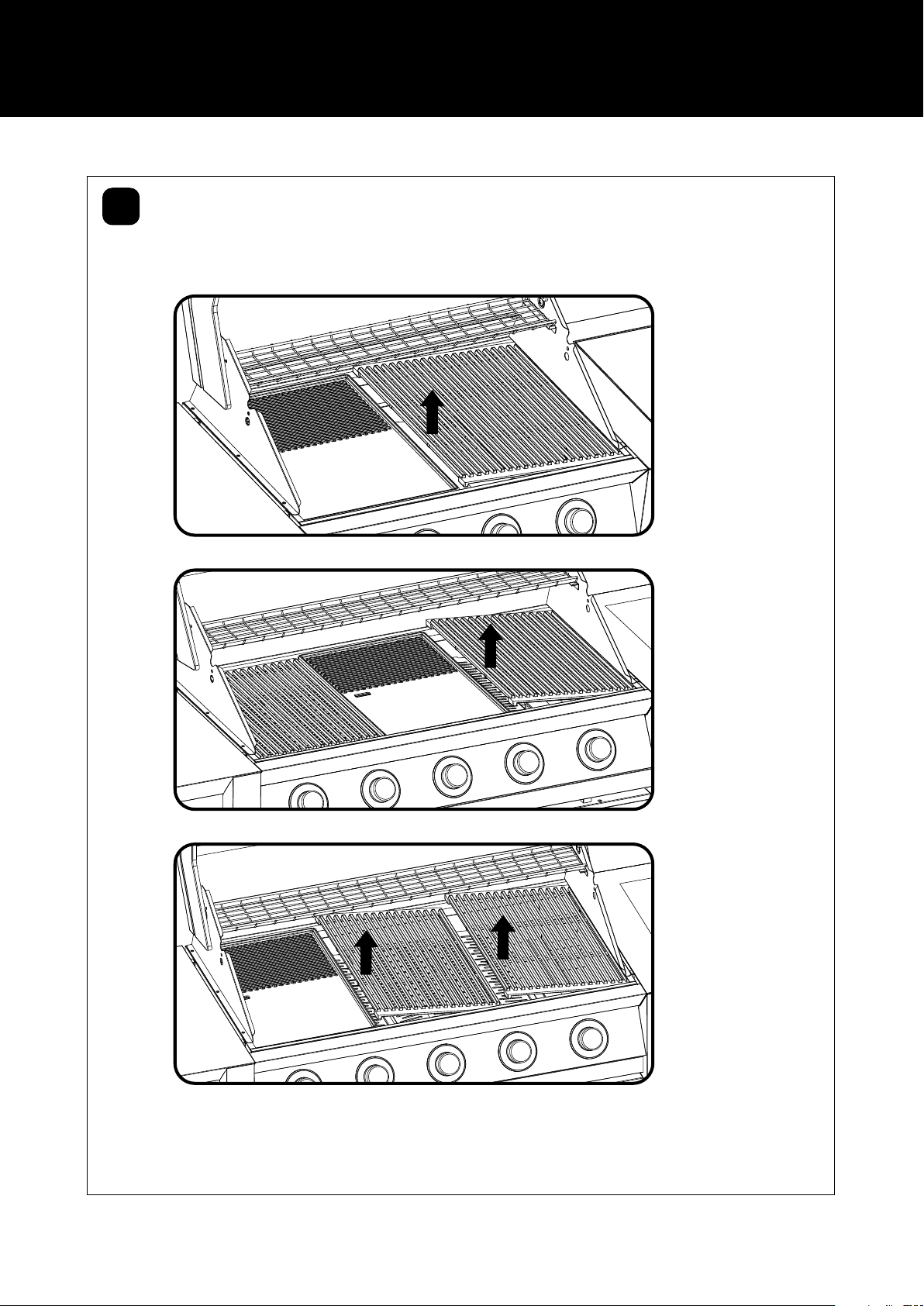

The plate and grill may be removed for cleaning following below steps:
First lift up the grill from the centre edge as pictured, then remove the solid plate
(and 2nd grill if fitted) for cleaning.
Plate and grill removal

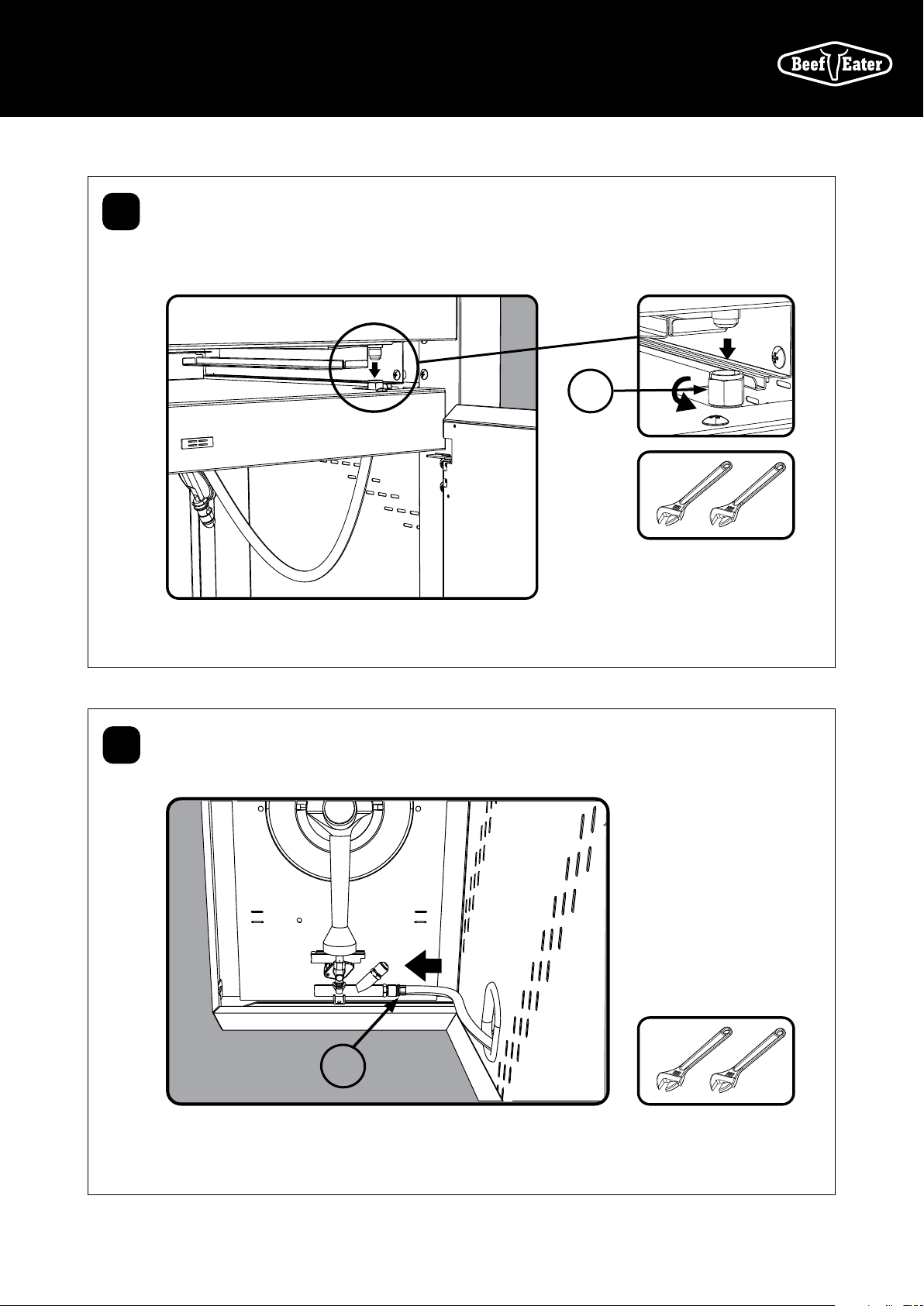

19ASSEMBLING THE BARBECUE
22
A

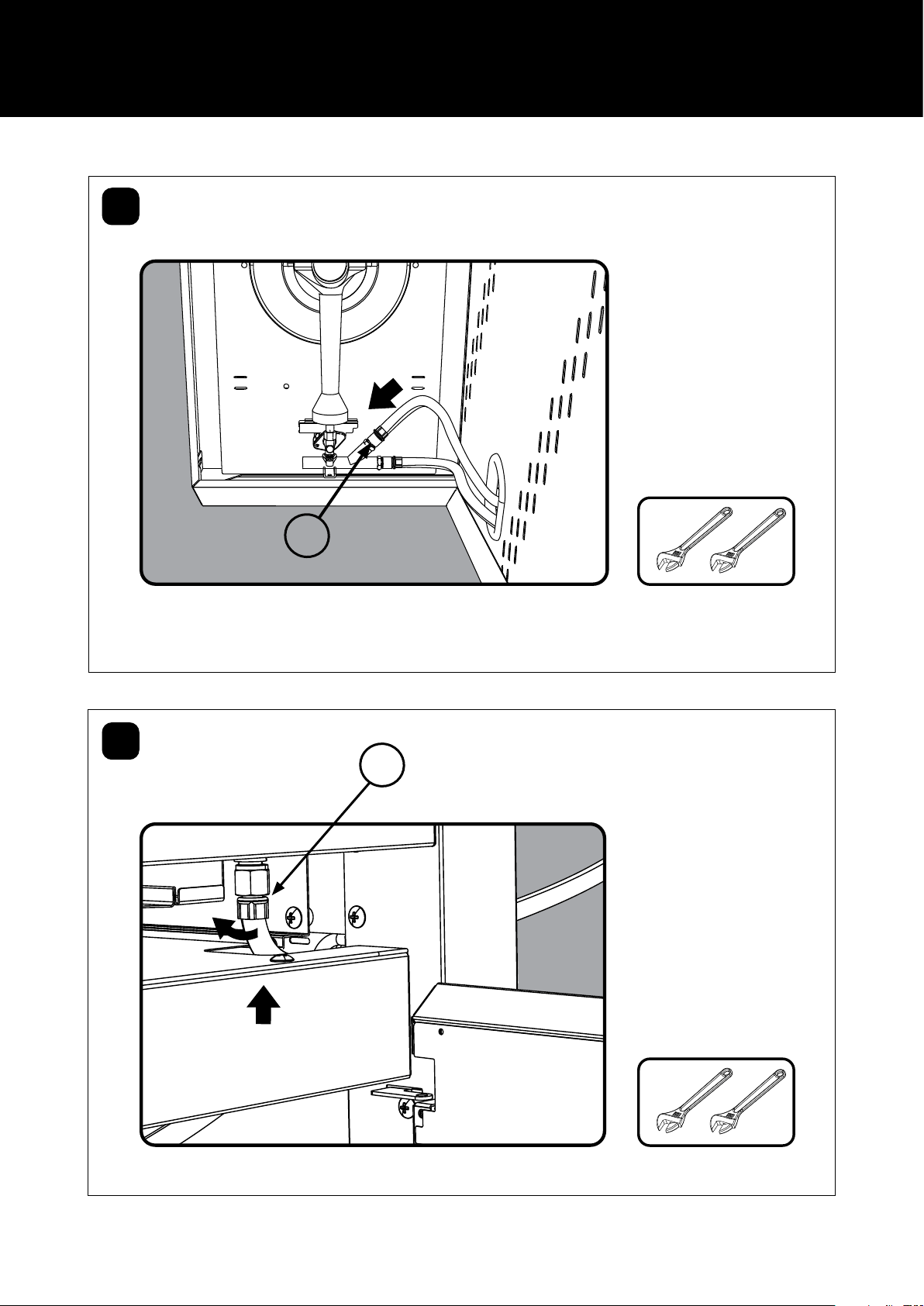

Disconnect the gas hose and
regulator assembly (A) from the
barbecue using 2 spanners.
To connect the side burner:
Connecting the side burner
23
Connect the gas hose and
regulator assembly (A) to
the side burner connection
using 2 spanners.
A
20 ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
24
25
B
B
Connect the gas hose
(B) to the remaining
connection on the side
burner using 2 spanners.
Connect the other side of
gas hose (B) to the barbecue
connection using 2 spanners
21ASSEMBLING THE BARBECUE
26
WARNING
IMPORTANT
After completing the gas hose
connections, conduct a leak test
following the leak test procedure before
using the appliance.
WARNING
WARNING
To ensure gas tight connections,
complete the gas leak test procedure
before and after gas hose connection
and after every reconnection of the gas
cylinder. Failure to do so may result in a
fire or explosion.
Leak test procedure
• Ensure all gas valves are in the ‘OFF’ position.
• In a small container, mix a solution of water and
detergent or soap.
• After connection of the hose, turn on the gas supply at
the gas bottle.
• Using a brush apply the solution to all gas connection
points and look for bubbles forming.
• Bubbling will indicate a leak.
• Turn off the gas supply and re-tighten the joint.
Repeat the leak test.
• If the leak persists, turn off the gas at the bottle and
contact a licensed gas fitter to correct.
22 SIDE BURNER OPERATING INSTRUCTIONS
SIDE BURNER OPERATING INSTRUCTIONS
Control functions
Before lighting the side burner:
• Check that all hoses and gas fittings are tight
• Open the roasting hood
• Check all control knobs are in the ‘OFF’ position
• Ensure that the cooking surfaces are clean
• Turn the gas isolation valve ‘ON’
Lighting instructions
WARNING
WARNING
• Do not close the lid with the side burner lit
• Do not attempt to light the burner with the lid closed
• To light the burner, depress the knob and rotate
to
. The starter mechanism will click and the
burner will light
• If the burner did not light, depress the knob and turn
back to the ‘OFF’ position
• Allow several minutes for gas to disperse then repeat
lighting procedure
• Once ignited, the knob can then be turned to the
desired heat setting. The knob does not need to be
pushed in while selecting the heat setting
Manual lighting
• In the event of the automatic ignition system not
working, the barbecue can be lit manually
• Position the manual igniter next to the burner.
Depress the knob and rotate to ‘HIGH’
• The burner should light
• Do not attempt to manually light the burner for more
than 5 seconds
• If the burner did not light, depress the knob and turn
back to the ‘OFF’ position
• Allow several minutes for gas to disperse then repeat
lighting procedure

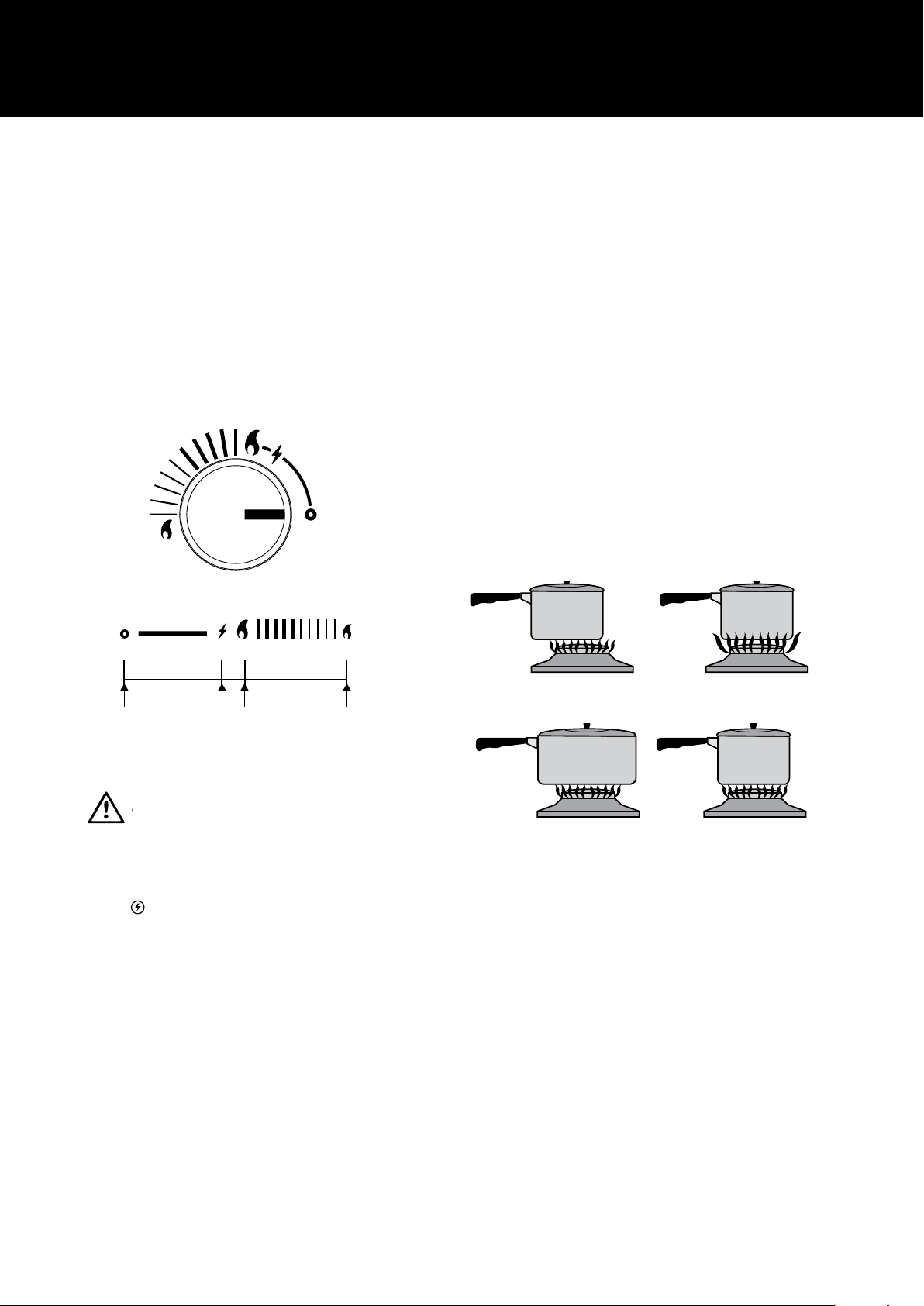

Using cookware on the side burner
Do not use oversized cookware or place cookware off-
centre over the burner as this can cause high temperatures
in control knob and surrounding panels. Cookware should
not exceed 200mm in diameter, the use of larger cookware
may cause damage to the appliance and is not covered
under warranty.
Correct
P
Incorrect – pan too large
Incorrect – pan not centred
Incorrect – flame too high
OFF IGNITE HIGH LOW

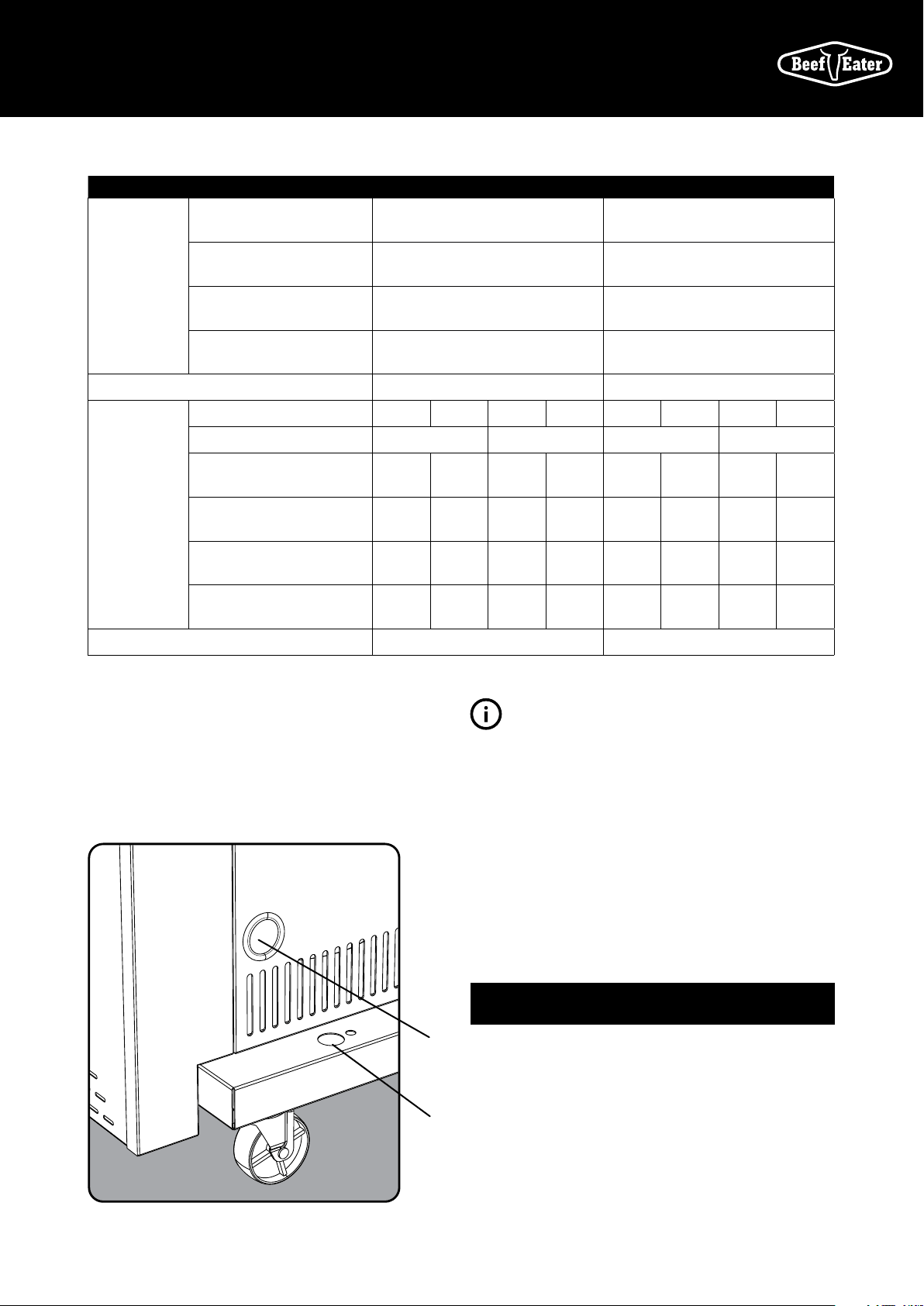

23GAS SPECIFICATIONS AND MOBILE RESTRAINT
GAS SPECIFICATIONS AND MOBILE RESTRAINT
Mobile restraint with hose assembly
When the mobile barbecue is connected to a fixed gas
supply via a flexible hose connection, a retraining tether
of adequate strength shall be fixed to the appliance and
be suitable to be fixed to the wall within 50mm of each
connection point. The retaining tether must be less than
80% of the gas hose length.
REFER TO BUILT-IN INSTRUCTION MANUAL
Flexible
hose outlet
Tether
connection
point
TIPS & INFORMATION
IMPORTANT
For further information on:
GAS SPECIFICATIONS
LPG INSTALLATION
NATURAL GAS INSTALLATION
OPERATING INSTRUCTIONS
COOKING INSTRUCTIONS
CLEANING AND CARE
TROUBLESHOOTING
CLEARANCE TO COMBUSTIBLE CONSTRUCTION
AND LOCATION OF THE APPLIANCE.
Gas Type Natural Gas Universal LPG
Injector orifice
diameter -
barbecue
burner
BMG1641SA 1.80 1.10
BMG1651SA 1.80 1.10
BMG1641DA 1.90 1.15
BMG1651DA 1.90 1.15
Injector orifice diameter - side burner 1.80 1.15
Gas
consumption
Barbecue burners 4 5 4 5 4 5 4 5
Side burners No Yes No Yes
BMG1641SA
Total Gas Consumption (MJ/h)
60 75 75 90 60 75 76 91
BMG1651SA
Total Gas Consumption (MJ/h)
60 75 75 90 60 75 76 91
BMG1641DA
Total Gas Consumption (MJ/h)
68 85 83 100 68 85 84 101
BMG1651DA
Total Gas Consumption (MJ/h)
68 85 83 100 68 85 84 101
Regulator Pressure (kPa) 1.00 2.75
24
NOTES
24 NOTES
NOTES
NOTES
25NOTES
NOTES
26 NOTES
NOTES
26
NOTES
27
This document sets out the terms and conditions of the product
warranties for BeefEater 1600 series BBQ. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should there be a manufacturing
defect in your Appliance. This warranty is in addition to other rights
you may have under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘BeefEater’ is the brand controlled by Electrolux Home Products Pty
Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.Speciccomponentsarewarrantedagainstmanufacturing
defects in Australia and New Zealand for the periods listed below;
• Burner Box - Further 3 years.
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced.
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the
terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: BEEFEATER 1600 SERIES BBQ
BGal1600_BBQ_Warr_Nov20
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 1300 307 939
For the cost of a local call
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
WARRANTY
WARRANTY
AUSTRALIA
phone: 1300 307 939
fax: 1800 356 669
email: customercare@electrolux.com.au
web: beefeaterbbq.com
NEW ZEALAND
phone: 0800 436 245
fax: 0800 225 088
email: customercare@electrolux.co.nz
web: beefeaterbbq.com
For more information on all Beefeater products,
or for dimension and installation information,
call into your retailer, phone or email our customer
care team or visit our website:
BeefEater. We are part of the Electrolux Family.
To add a touch of professional inspiration to your
home, visit electrolux.com.au
© 2021 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
B_MAN_1600_MOB_Jun21
