Kenmore 79074463810 gas freestanding range User Manual

Kenmore Elite®

Gas Range

Use & Care Guide

Guía de uso y cuidada

English / Español

Model/Modelos: 790.7446*

P/N 808530508 Rev D

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

Table of Contents

Cooking Recommendations........................................................................ 10

Before Setting Surface Controls............................................................... 13

Using Proper Cookware .........................................................................14

Cookware Material Types .....................................................................14

Setting Proper Burner Flame Size .........................................................14

Home Canning ..........................................................................................15

Setting Surface Controls............................................................................. 16

Setting Surface Burners ..........................................................................16

Before Setting Oven Controls ................................................................... 17

Oven Vent Location .................................................................................17

Oven Controls ............................................................................................. 18

Self Clean ..................................................................................................30

Steam Clean .............................................................................................32

Care and Cleaning ..................................................................................... 33

Before You Call ........................................................................................... 37

Oven Baking .............................................................................................37

Solutions to Common Problems ..............................................................38

KENMORE ELITE LIMITED WARRANTY

WITH PROOF OF SALE

the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to

all supplied instructions.

One Year on Appliance

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appliance will receive

free repair or replacement at option of seller.

Two Years on Ceramic Glass Cooktop

FOR TWO YEARS from the date of sale, a free replacement part will be supplied for a ceramic glass cooktop that fails due to thermal shock. If the

failure or defect is within the first year, a new cooktop will be installed at no charge. If the failure or defect is after the first year, a new cooktop

will be supplied but not installed at no charge. You are responsible for the labor cost of cooktop installation after the first year from the date of

sale.

Lifetime on Cooktop Gas Burners, Cooktop Electric Elements and Oven Door Glass

FOR AS LONG AS IT IS USED

from the date of sale, a free replacement will be supplied for a defective cooktop gas burner, cooktop electric ele-

ment or oven door glass. If the defect appears within the first year, a new burner, element or door glass will be installed at no charge. If the defect

appears after the first year, a new burner, element or door glass will be supplied but not installed at no charge. This Lifetime warranty covers only

the burner, element or door glass, and does not apply to any other related component or mechanism. You are responsible for the labor cost of

burner, element or door glass installation after the first year from the date of sale.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

All warranty coverage applies for only 90 DAYS from the sale date if this appliance is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.

2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.

3. Discoloration of cooktop surfaces resulting from normal use.

4. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.

5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.

6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit

breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that

was not in accord with electrical, gas or plumbing codes.

8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all

supplied instructions.

9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for

other than its intended purpose.

10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils

other than those recommended in all instructions supplied with the product.

11. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.

12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification

logo.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties,

including warranties of merchantability or fitness for a particular purpose, are limited to one year on the appliance, two years on the ceramic glass

cooktop, and for as long as used on cooktop gas burners, cooktop electric elements or oven door glass, or the shortest period allowed by law.

Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental

or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may

not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Save these instructions for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

This manual contains important safety

symbols and instructions. Pay attention to

these symbols and follow all instructions

given.

Do not attempt to install or operate your

appliance until you have read the safety

precautions in this manual. Safety items

throughout this manual are labeled with a

WARNING or CAUTION statement based on

the hazard type.

Warnings and important instructions

appearing in this guide are not meant to

cover all possible conditions and situations

that may occur. Common sense, caution, and

care must be exercised with installing, main-

taining, or operating your appliance.

DEFINITIONS

This is the safety alert symbol. It is used

to alert you to potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury or

death.

Important: Indicates installation, operation,

maintenance, or valuable information that is

not hazard related.

NOTE - Indicates a short, informal reference

– something written down to assist the

memory or for future reference.

Indicates a potentially

hazardous situation which, if not avoided,

may result in death or serious injury.

Indicates a potentially

hazardous situation which, if not avoided,

may result in minor or moderate injury.

If the information in this manual

is not followed exactly, a fire or explosion

may result causing property damage,

personal injury or death.

FOR YOUR SAFETY:

—Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

—WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do

not use any phone in your building.

• Immediately call your gas supplier from

a neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier,

call the fire department.

—Installation and service must be

performed by a qualified installer,

servicer or the gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR UNPACKING

AND INSTALLATION

IMPORTANT - Read and follow the below

instructions and precautions for unpacking,

installing, and servicing your appliance:

Remove all tape and packaging before using

the appliance. Destroy the carton and plastic

bags after unpacking the appliance. Never

allow children to play with packaging

material. Do not remove the wiring label and

other literature attached to the appliance.

Do not remove model/serial number plate.

Cold temperatures can damage the elec-

tronic control. When using this appliance for

the first time, or when the appliance has not

been used for an extended period of time, be

sure the appliance has been in temperatures

above 32ºF (0ºC) for at least 3 hours before

turning on the power to the appliance.

Never modify or alter the construction of the

appliance by removing the leveling legs,

panels, wire covers, anti-tip brackets/screws,

or any other part of the appliance.

Be sure to have an appropriate foam-type

fire extinguisher available, visible, and easily

accessible located near the appliance

Air curtain or other overhead

range hoods which operate that operate by

blowing a downward air flow onto a range

or cooktop, shall not be used in conjunction

with gas ranges or cooktops other than when

the range or cooktop and hood have been

designed, tested, and listed by an indepen-

dent test laboratory for use in combination

with each other.

GROUNDING INSTRUCTIONS

Avoid fire hazard or electrical

shock. Failure to follow this warning may

cause serious injury, fire, or death.

Avoid fire hazard or electrical

shock. Do not use an adapter plug, use an

extension cord, or remove grounding prong

from the power cord. Failure to follow this

warning may cause serious injury, fire, or

death.

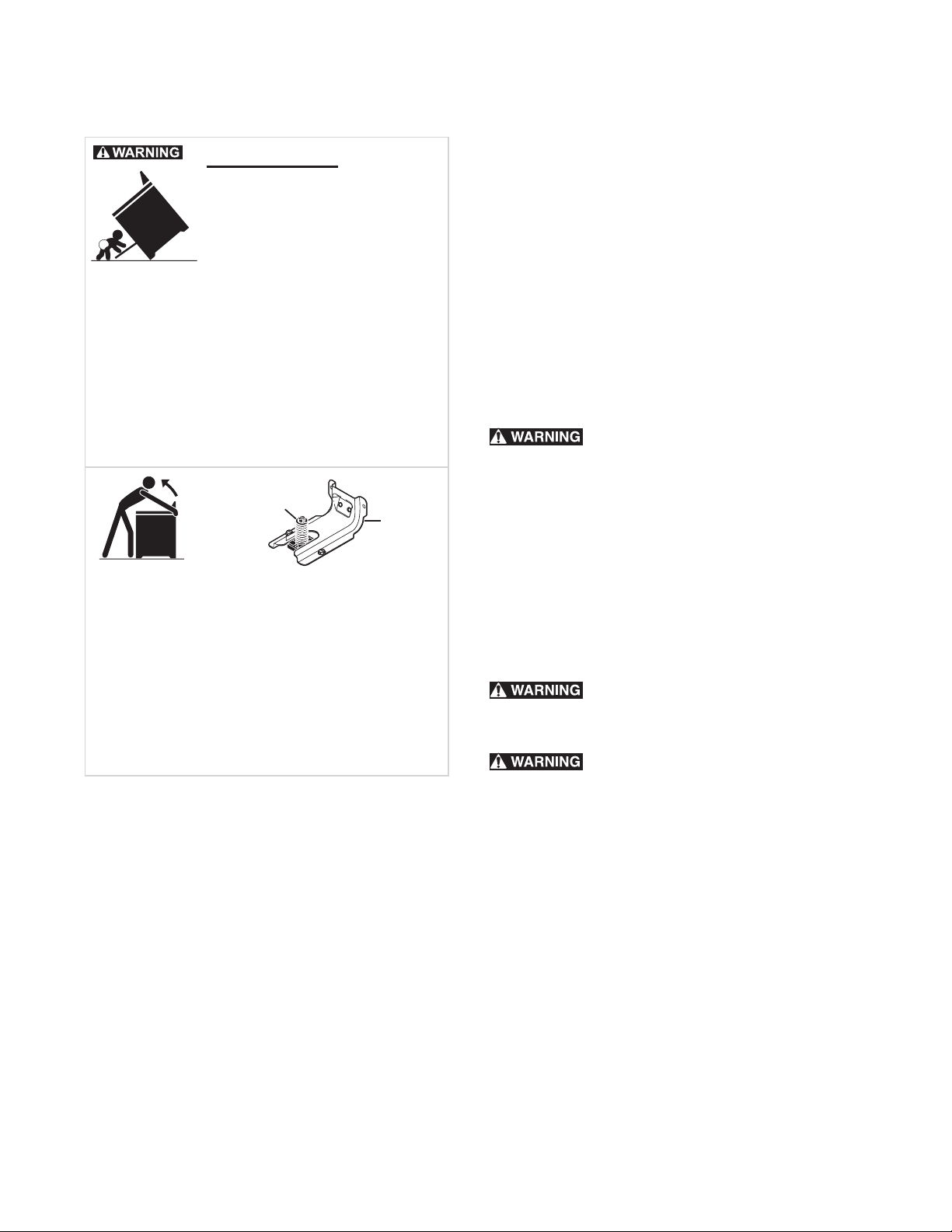

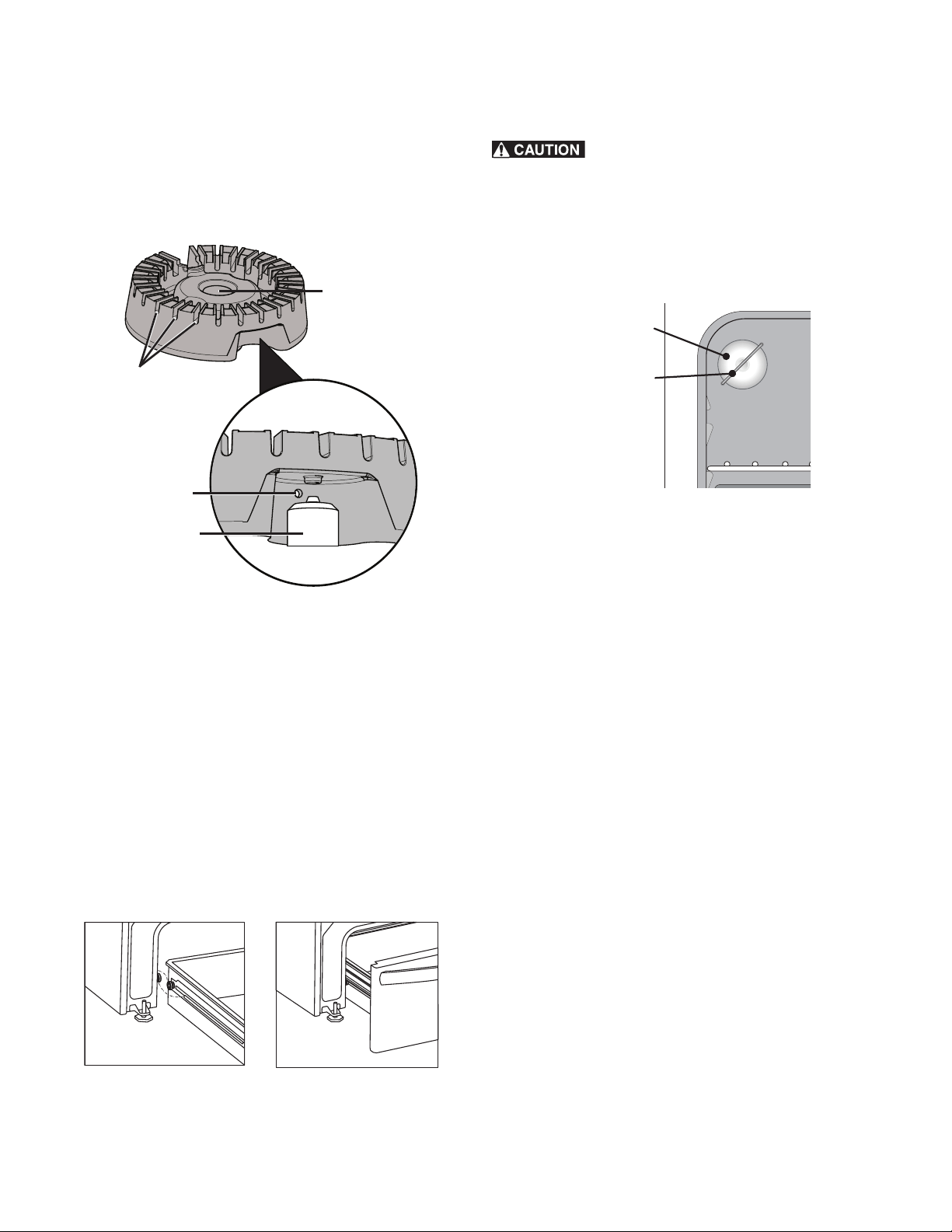

Tip Over Hazard

To check if the anti-tip bracket is installed

properly, use both arms and grasp the rear

edge of the range back. Carefully attempt

to title range forward. When properly

installaed, the range should not tilt forward.

Refer to the anti-tip bracket installation

instructions supplied with your range for

proper installation.

Range

leveling leg

Anti-tip

bracket

• A child or adult can tip the

range and be killed.

• Verify the anti-tip device

has been installed to ﬂoor or

wall.

• Ensure the anti-tip device is re-engaged to

ﬂoor or wall when the range is moved.

• Do not operate the range without the

anti-tip device in place and engaged.

• Failure to follow these instructions can

result in death or serious burns to children

and adults.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

Proper Installation—Be sure your appliance

is properly installed and grounded by a

qualified technician. In the United States,

install in accordance with the National Fuel

Gas Code ANSI Z223.1/NPFA No. 54, latest

edition and National Electrical Code NFPA

No. 70 latest edition, and local electrical

code requirements. In Canada, install in

accordance with CAN/CGA B149.1 and

CAN/CGA B149.2 and CSA Standard

C22.1, Canadian Electrical code, Part 1-

latest editions and local electrical code

requirements. Install only per installation

instructions provided in the literature

package for this appliance.

For personal safety, this appliance must be

properly grounded. For maximum safety, the

power cord must be securely connected to an

electrical outlet or junction box that is the

correct voltage, is correctly polarized and

properly grounded, and protected by a

circuit breaker in accordance with local

codes.

It is the personal responsibility of the

consumer to have the appropriate outlet or

junction box with the correct, properly

grounded wall receptacle installed by a

qualified electrician. It is the responsibility

and obligation of the consumer to contact a

qualified installer to assure that the electrical

installation is adequate and is in confor-

mance with all local codes and ordinances.

This appliance is equipped with a 3-prong

grounding plug for your protection against

shock hazard and should be plugged directly

into a properly grounded receptacle. Do not

cut or remove the grounding prong from this

plug.

For personal safety, the appliance must be

properly grounded. For maximum safety, the

power cord must be plugged into an elec-

trical outlet that is correctly polarized and

properly grounded.

If a 2-prong wall receptacle is the only

available outlet, it is the personal responsi-

bility of the consumer to have it replaced

with a properly grounded 3-prong wall

receptacle, installed by a qualified techni-

cian.

Conversion to (L.P.) Gas

This appliance allows for conversion to

Liquefied Petroleum (L.P.) Gas.

Personal injury or death from

electrical shock may occur if the conversion to

L.P. gas is not made by a qualified installer

or electrician. Any additions, changes or

conversions required in order for this

appliance to satisfactorily meet the applica-

tion needs must be made by a qualified

technician.

If L.P. conversion is needed, contact your local

L.P. Gas provider for assistance.

See the installation instructions packaged

with this appliance for complete installation

and grounding instructions.

Do not cut, remove, or

bypass the grounding

plug under any

circumstances.

Grounding type

wall receptacle

Power supply

cord with 3-prong

grounding plug

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR USING THE

APPLIANCE

Storage In or On Appliance—

Flammable materials should not be stored in

an oven or microwave, near surface burners

or elements, or in the storage or warmer

drawer (if equipped). This includes paper,

plastic, and cloth items, such as cookbooks,

plastic ware, and towels, as well as

flammable liquids. Do not store explosives,

such as aerosol cans, on or near the appli-

ance.

Do not leave children alone -

Children should not be left alone or unat-

tended in the area where appliance is in use.

They should never be allowed to sit or stand

on any part of the appliance, including the

storage drawer, lower broiler drawer, warmer

drawer, or lower double oven.

Do not store items of interest to

children in the cabinets above the appliance

or on the backguards of ranges. Children

climbing on or near the appliance to reach

items could be seriously injured.

Do not allow children to climb or

play around the appliance. The weight of a

child on an open over door may cause the

appliance to tip, resulting in serious burns or

other injury. An open drawer when hot may

cause burns.

Stepping, leaning, or sitting on

the door or drawers of this appliance can

result in serious injuries and also cause

damage to the appliance.

Never cover any slots, holes or

passages in the oven bottom or cover and

entire rack with materials such as aluminum

foil. Doing so blocks air flow through the

oven and may cause carbon monoxide

poisoning. Aluminum foil linings may also

trap heat, causing a fire hazard.

Do not use oven or warmer

drawer (if equipped) for storage.

Never use your appliance as a

space heater to heat or warm the room.

Doing so may result in carbon monoxide

poisoning and overheating of the appliance.

When heating fat or grease,

watch it closely. Grease may catch fire if it

becomes too hot.

Do not use water or flour on

grease fires. Smother fire or flame or use

dry chemical or foam-type extinguisher.

Cover the fire with a pan lid or use baking

soda.

Use dry potholders. Moist or

damp potholders on hot surfaces may result

in burns from steam. Do not let potholders

touch hot cooking areas. Do not use towels or

other bulky cloths.

Do not heat unopened food

containers - Build-up of pressure may cause

container to burst and result in injury.

Wear proper apparel - Loose-

fitting or hanging garments should never be

worn while using the appliance. Do not let

clothing or other flammable materials

contact hot surfaces.

Do not touch surface burners or

elements, areas near these burners or

elements, interior surfaces of the oven, or the

warmer drawer (if equipped). Surface

burners and elements may be hot even

though they appear cool. Areas near surface

burners and elements may become hot

enough to cause burns. During and after use,

do not touch, or let clothing or other

flammable materials touch these areas until

they are cool. These areas may include the

cooktop, surfaces facing the cooktop, oven

vent areas, oven door, and oven window.

Do not attempt to operate the

appliance during a power failure. If the

power fails, always turn off the appliance. If

the appliance is not turned off and the

power resumes, electric surface elements

may resume operation when power is

restored. Once the power resumes, reset the

clock and the oven function.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

IMPORTANT INSTRUCTIONS FOR USING YOUR

GAS COOKTOP

Use proper flame size — Adjust

flame size so it does not extend beyond the

edge of the utensil. The use of undersized

utensils will expose a portion of the burner

flame to direct contact and may result in

ignition of clothing. Proper relationship of

utensil to flame will also improve efficiency.

Know which knob or key controls each

surface heating area. Place cookware with

food on the cooking area before turning it

on. Turn the cooking area off before

removing the cookware.

Use proper pan size. This appliance is

equipped with one or more surface units of

different sizes. Select cookware with flat

bottoms that match the surface unit heating

element. The use of undersized cookware

may expose a portion of the flame to direct

contact and may result in the ignition of

clothing or other items. Using the proper

cookware on the cooking areas will improve

efficiency.

Always turn knob to the full LITE position

when igniting top burners. Visually check that

burner has lit. Then adjust the flame so it

does not extend beyond the edge of the

utensil.

To reduce the risk of burns, ignition of

flammable materials, and spillage due to

unintentional contact with the utensil, the

handle of the utensil should be positioned so

that it is turned inward, and does not extend

over adjacent surface burners.

Never leave surface burners unattended at

high heat settings — Boil overs cause

smoking and greasy spill overs that may

ignite, or a pan that has boiled dry may melt.

Glazed cooking utensils — Only certain

types of glass, glass/ceramic, ceramic, earth-

enware, or other glazed utensils are suitable

for cook top service without breaking due to

the sudden change in temperature. Check the

manufacturer’s recommendations for cook

top use.

When you are flaming foods under a venti-

lating hood, turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

Protective liners—Do not use aluminum foil,

aftermarket oven liners, or any other

materials or devices to line oven bottom,

oven racks, or any other part of the appli-

ance. Only use aluminum as recommended

for baking, such as lining cookware or as a

cover placed on food. Any other use of

protective liners or aluminum foil may result

in a risk of electric shock or fire or a short

circuit.

Use care when opening oven door, lower

oven door, or warmer drawer (some models).

Stand to the side of the appliance when

opening the door of a hot oven. Let hot air or

steam escape before you remove or replace

food in the oven.

Keep oven vent ducts unobstructed. Touching

surfaces in this area when the oven is on may

cause severe burns. Do not place plastic or

heat-sensitive items on or near the oven vent.

These items can melt or ignite.

Placement of oven racks - Always place oven

racks in desired location while oven is cool. If

rack must be moved while oven is hot, do not

let potholder contact hot burner or element

in oven. Use potholders and grasp the rack

with both hands to reposition. Remove all

cookware and utensils before moving the

rack.

Do not use a broiler pan without its insert.

Broiler pans and inserts allow dripping fat to

drain away from the high heat of the broiler.

Do not cover the broiler insert with aluminum

foil; exposed fat and grease could ignite.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

Do not cook food on the oven bottom.

Always cook in proper cookware and always

use the oven racks.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR APPLIANCE

Before manually cleaning any

part of the appliance, be sure all controls are

turned off and the appliance is cool.

Cleaning a hot appliance can cause burns.

Clean the appliance regularly to keep all

parts free of grease that could catch fire. Do

not allow grease to accumulate. Greasy

deposits in the fan could catch fire.

Always follow the manufacturer’s recom-

mended directions for use of kitchen cleaners

and aerosols. Be aware that excess residue

from cleaners and aerosols may ignite

causing damage and injury.

Clean ventilating hoods frequently - Grease

should not be allowed to accumulate on

hood or filter. Follow the manufacturer’s

instructions for cleaning vent hoods.

IMPORTANT INSTRUCTIONS FOR SELF-CLEANING

OVENS

Do not clean the door gasket. The door

gasket is essential for a good seal. Care

should be taken not to rub, damage, or move

the gasket.

Do not use oven cleaners. No commercial

oven cleaner or oven liner protective coating

of any kind should be used in or around any

part of the appliance.

Before using self clean, remove the broiler

pan, any food, utensils, and cookware from

the oven, storage drawer or warming drawer

(if equipped). Remove oven racks unless

otherwise instructed.

Some birds are extremely sensitive to the

fumes given off during the self-clean cycle of

any oven. Move birds to another well-venti-

lated room.

IMPORTANT INSTRUCTIONS FOR SERVICE AND

MAINTENANCE

Do not repair or replace any part of the

appliance unless specifically recommended

in the manuals. All other servicing should be

done only by a qualified technician. This

reduces the risk of personal injury and

damage to the appliance.

Always contact your dealer, distributor,

service agent, or manufacturer about

problems or conditions you do not under-

stand.

Ask your dealer to recommend a qualified

technician and an authorized repair service.

Know how to disconnect the power to the

appliance at the circuit breaker or fuse box

in case of an emergency.

Remove the oven door from any unused oven

if it is to be stored or discarded.

Do not touch a hot oven light bulb with a

damp cloth. Doing so could cause the bulb to

break. Handle halogen lights (if equipped)

with paper towels or soft gloves. Disconnect

the appliance or shut off the power to the

appliance before removing and replacing

the bulb.

California Residents: for cancer

and reproductive harm information, visit

www.P65Warnings.ca.gov

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

Product Registration and Customer Information

Serial Plate Location

The serial plate is on the left side of the oven

frame.

Record the date of purchase, model and

serial number of your product in the corre-

sponding space below.

Model Number:_______________________

Serial Number:_______________________

Date of Purchase: _____________________

Save your sales receipt for future reference.

Cooking Recommendations

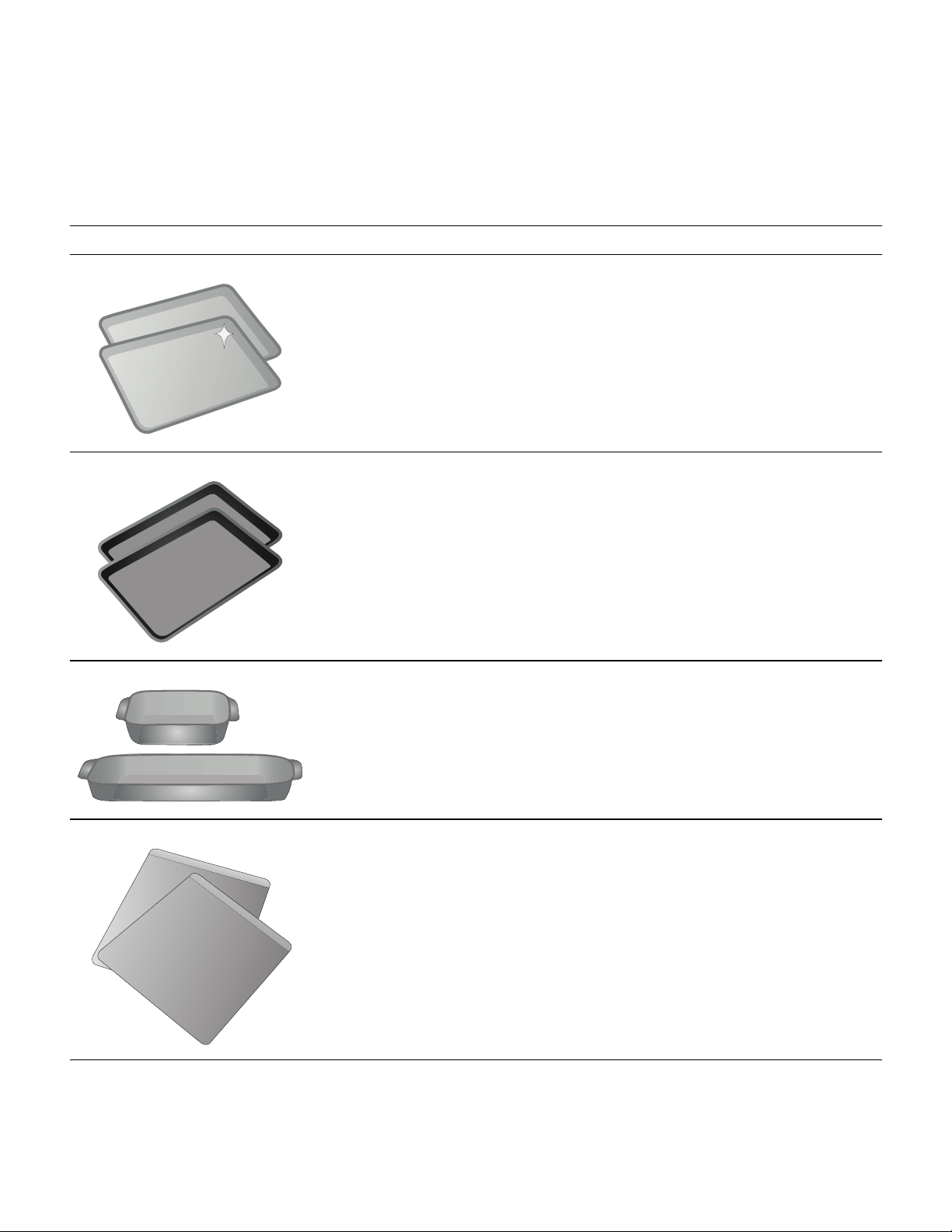

Bakeware

The material of bakeware affects how evenly and quickly it transfers heat from the pan to the food.

Material Attributes Recommendation

Shiny metal bakeware Shiny, aluminum, and non-coated bakeware

is the best for even heating. It is suitable for

all baked goods.

Recommended cooking temperatures and

times are based on shiny metal bakeware.

Dark metal bakeware Dark bakeware cooks hotter than shiny

bakeware.

Reduce the cooking temperature by 25° F

(13-14° C) when using dark bakeware.

Glass bakeware Glass bakeware cooks hotter than shiny

bakeware.

Glass is convenient, as the same piece of

bakeware can be used for cooking, serving,

and storing food.

Reduce the cooking temperature by 25° F

(13-14° C) when using glass bakeware.

Insulated bakeware Insulated bakeware cooks cooler than shiny

bakeware.

Insulated bakeware is designed for baking

in gas ovens.

Increase the cooking temperature by 25° F

(13-14° C) when using insulated bakeware.

Cooking Recommendations

Cooking Conditions

Conditions in your kitchen can affect the performance of your appliance when cooking food.

Condition AttributesRecommendation

Aging cookware As pans age and become discolored, cooking

times may need to be reduced slightly.

If food is too dark or overcooked, use the minimum cook

time in the recipe or packaging.

If food is too light or undercooked, use the middle to

maximum cook time in the recipe or packaging.

High altitude Air is drier and air pressure is lower.

Water boils at a lower temperature, and liquids

evaporate faster.

Foods may take longer to bake.

Doughs may rise faster.

Adjust cooking temperature, cooking time, or recipes as

needed.

Increase amount of liquid in baking recipes.

Increase cook time on cooktop. Cover dishes to reduce

evaporation.

Increase bake time or oven temperature.

Reduce amount of baking soda or baking powder in

recipe. Reduce rising time or punch down dough and allow

it to rise twice.

Cooking Results:

Small adjustments may fix a problem with food not being as done as you like.

Result Recommendation

Food too light Use the middle to maximum cook time recommended on packaging or recipe.

Food too dark Use the minimum cook time recommended on packaging or recipe.

Cooking Tips:

Use these additional tips to get the best results from your appliance.

Cooking Tips

Baking

Rack placement Follow the instructions in

“Oven Controls” on starting on page 18. When using only one rack, place the rack

so the food is in the center of the oven.

Preheat Fully preheat the oven before baking items like cookies, cakes, biscuits and breads. Insert food immediately

after the beep.

Checking food Use the window and oven light when checking food. Opening the door may reduce baking performance.

Food placement Allow at least 2 inches (5 cm) of space between bakeware for proper air circulation.

Broiling/Roasting

Broiling pan For best results when broiling, use a broil pan with a broil pan insert designed to drain the fat from the food,

help avoid spatter, and reduce smoking. The broiler pan will catch grease spills, and the insert helps prevent

grease splatters.

Note: If a broiler pan and insert are not supplied with this appliance, they may be purchased from Sears.

Call 1-844-553-6667 and order broiler pan kit 5304442087.

Cooking Recommendations

Convection Cooking

Convection

attributes

Convection cooking uses a fan to circulate hot air around the oven and food. It browns food more evenly and

reduces hot spots in the oven.

Convection saves time when using multiple racks or cooking several food items at once.

Convection bake Reduce cooking temperature by 25° F (13-14° C) from the recipe unless the recipe is written for convection

baking.

Preheat the oven for best results.

Convection roast Convection roast is best for meats and does not require preheating for most meats and poultry.

Reducing the cooking temperature for convection roast is not recommended. Carefully follow your recipe’s

temperature and time recommendations, adjusting the cooking time if the recipe does not specify convec-

tion roasting time.

Since convection roast cooks faster, cook time may be reduced by 25% to 40% depending on food type. You

can reduce cook times by 25% from the recommended time of your recipe, and check the food at this time.

If needed, continue cooking until the desired doneness is obtained.

Use a meat probe if available with your appliance. Meat probes are also available from most grocery and

home goods stores.

Arrange oven racks so large cuts of meat and poultry are on the lowest rack of the oven.

Do not cover foods when dry roasting - covering will prevent the meat from browning properly.

When cooking meats, use the broiler pan and insert or a roasting rack. The broiler pan will catch grease

spills and the insert helps prevent grease splatters. If a broiler pan and insert are not supplied with this appli-

ance, they may be purchased from Sears. Call 1-844-553-6667 and order broiler pan kit 5304442087.

Cooking Tips

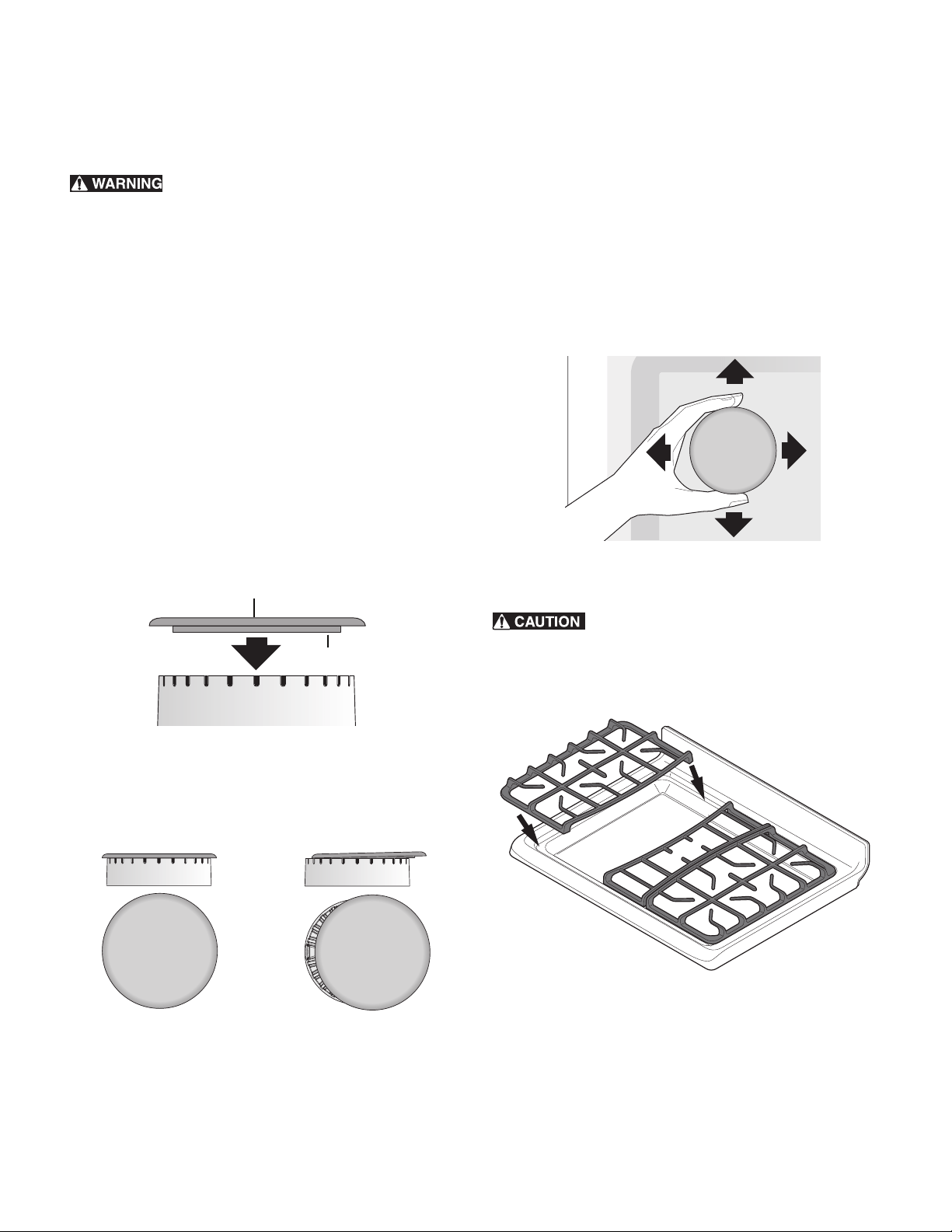

Before Setting Surface Controls

Check Burner Cap Placement Before Operating

the Surface Burners

To prevent flare-ups and avoid creation of

harmful by-products, do not use the cooktop without all burner

caps properly installed to insure proper ignition and gas flame

size.

It is very important to be sure that all surface burner caps and

burner grates are properly installed and in the correct locations

before operating the cooktop burners.

Important notes:

• Always keep surface burner caps in place whenever using a

surface burner.

• When placing the burner caps, be sure that all burner caps

are seated firmly and rest level on top of burner heads.

• For proper flow of gas and ignition of burners do not allow

spills, food, cleaning agents or any other material to enter

the gas orifice port opening.

On round style burners, the burner cap lip (See

Figure 1) should

fit snug into the center of burner head and rest level.

Refer to

Figure 2 for correct and incorrect burner cap place-

ment.

Once in place, you may check the fit by gently sliding the

burner cap from side to side to be sure it is centered and firmly

seated (See

Figure 3). When the burner cap lip makes contact

inside the center of the burner head you will be able to hear the

burner cap click. Please note that the burner cap should not

move off the center of the burner head when sliding from side to

side.

Check and be sure that all oval style (some models) burner caps

are correctly in place on oval burner heads.

Installing Burner Grates

Surface elements may appear to have cooled

after they have been turned off. The surface element may still

be hot and burns may occur if the surface element is touched

before it has cooled sufficiently.

Make sure the burner grates are properly placed on the cooktop

before using the surface burners. The grates are designed to rest

inside the recess on the cooktop.

To install burner grates, place grates flat-side down and align

into the cooktop recess. Grates should rest flush against each

other and against the sides of the recess (See

Figure 4).

Figure 1: Burner cap lip placement

Figure 2: Burner cap placement

Burner cap lip

Burner cap

Burner headBurner head

Correct burner cap

placement

Incorrect burner cap

placement

Correct burner cap

placement

Incorrect burner cap

placement

Figure 3: Checking the fit

Figure 4: Burner grates placement

Before Setting Surface Controls

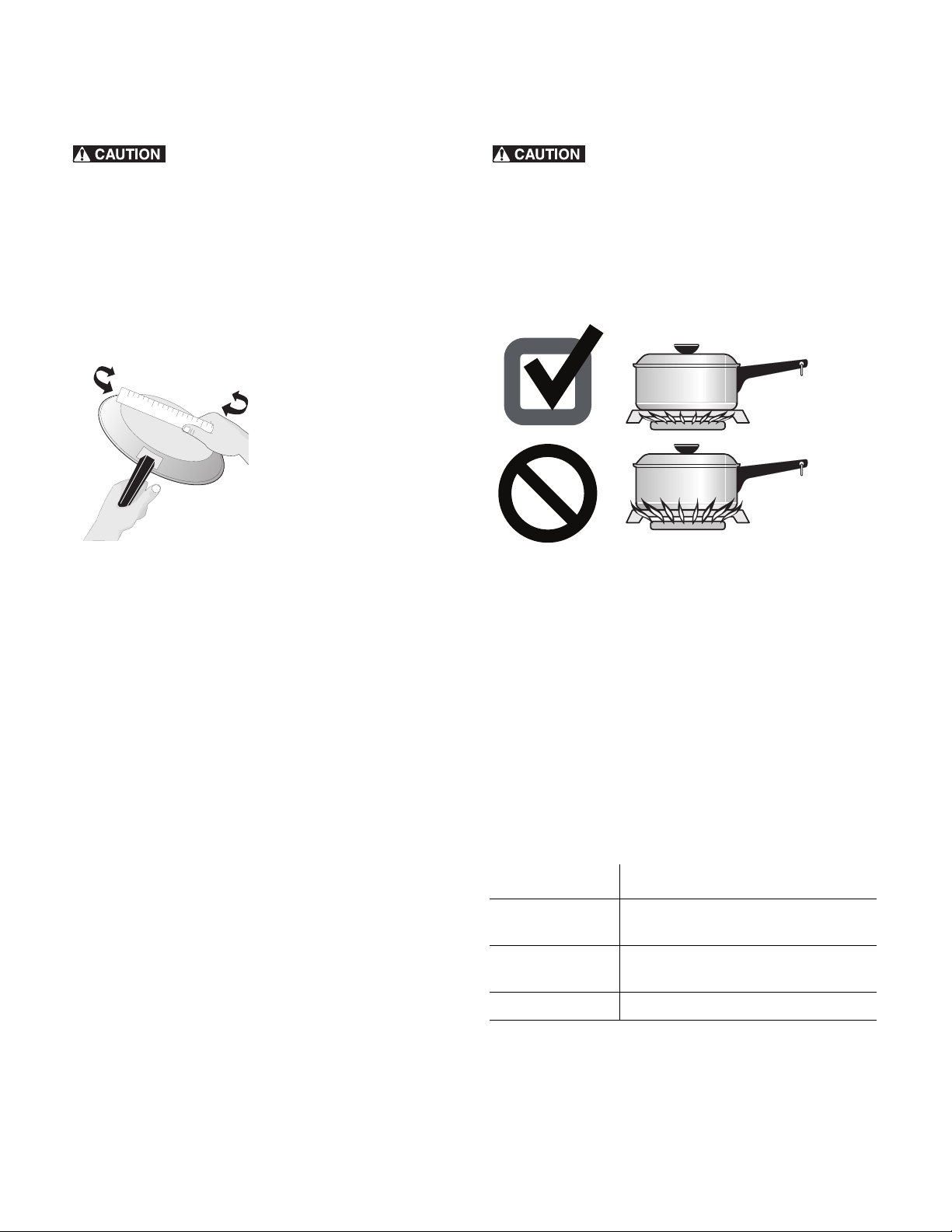

Using Proper Cookware

Do not place flammable items such as plastic

salt and pepper shakers, spoon holders or plastic wrappings on

the cooktop when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if placed

too close to the range cooktop.

Important:

Do not place aluminum foil, or any material that can melt on the

range cooktop. If these items melt they may damage the

cooktop.

Important:

The size and type of utensil used, and the amount and type of

food being cooked will influence the burner flame setting

needed for best cooking results.

Cookware Material Types

The cookware material determines how evenly and quickly heat

is transferred from the surface element to the pan bottom. The

most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food will

cause it to darken (Anodized aluminum cookware resists staining

and pitting).

Copper - Excellent heat conductor but discolors easily (See

Aluminum).

Stainless - Slow heat conductor with uneven cooking results. Is

durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor however will retain heat very

well. Cooks evenly once cooking temperature is reached.

Porcelain-enamel on metal - Heating characteristics will vary

depending on base material.

Glass - Slow heat conductor.

Setting Proper Burner Flame Size

Never extend the flame beyond the outer edge

of the cooking utensil. A higher flame wastes energy, and

increases your risk of being burned by the flame.

The color of the flame is the key to proper burner adjustment. A

good flame is clear, blue and hardly visible in a well-lighted

room. Each cone of flame should be steady and sharp. Adjust or

clean burner if flame is yellow-orange.

For most cooking: start on the highest setting and then turn to a

lower setting to complete the process. Use the recommendations

Table 1 as a guide for determining proper flame size for

various types of cooking.)

For deep fat frying: use a thermometer and adjust the surface

knob accordingly. If the fat is too cool, the food will absorb the

fat and be greasy. If the fat is too hot, the food will brown so

quickly that the center will be under cooked. Do not attempt to

deep fat fry too much food at once as the food will neither

brown or cook properly.

For best cooking results, cook-

ware should have flat bottoms

that rest level on the surface

burner grate. Before using

cookware, check for flatness by

rotating a ruler across the bot-

tom of the cookware (See

Figure 5).

Figure 5: Testing cookware

Figure 6: Correct and incorrect flame settings

Table 1: Flame size recommendations

Flame Size* Type of Cooking

High flame Start most foods; bring water to a boil;

pan broiling

Medium flame Maintain a slow boil; thicken sauces;

gravies; steaming

Low flame Keep foods cooking; poach; stewing

*These settings are based for medium-weight metal or

aluminum pans with lids. Settings may vary when using

cookware made from different materials.

correct

flame setting

incorrect

flame setting

Before Setting Surface Controls

Home Canning

Canning can generate large amounts of steam.

Use extreme caution to prevent burns. Always raise the lid to

vent steam away from you. Safe canning requires that harmful

micro-organisms are destroyed and the jars are sealed

completely. When canning in a water bath canner, a gentle but

steady boil must be maintained continuously for the required

time.

Be sure to read and observe all the following points when home

canning with your appliance. Check with the United States

Department of Agriculture (USDA) Web site and be sure to read

all the information they have available as well as follow their

recommendations for home canning procedures.

• Use only quality flat bottom canners when home canning.

Use a straight-edge to check canner bottom.

• Use only a completely flat bottom canner with no ridges

that radiate from the bottom center when home canning.

Heat is spread more evenly when the bottom surface is flat.

• Make sure the diameter of the canner does not exceed 1

inch beyond the surface element markings or burner. It is

recommended to use smaller diameter canners on electric

coil and ceramic glass cooktops and to center canners on

the burner grates.

• Start with hot tap water to bring water to boil more quickly.

• Use the highest heat seating when first bringing the water to

a boil. Once boiling is achieved, reduce heat to lowest

possible setting to maintain that boil.

• Use tested recipes and follow instructions carefully. Check

with your local Cooperative Agricultural Extension Service

or a manufacturer of glass jars for the latest canning infor-

mation.

• It is best to can small amounts and light loads.

• Do not leave water bath or pressure canners on high heat

for an extended amount of time.

• Alternate surface units between each batch to allow the

units and surrounding surfaces to cool down. Try to avoid

canning on the same burner unit all day.

Setting Surface Controls

Setting Surface Burners

Your gas appliance may be equipped with different sized

surface burners. The ability to heat food quicker and in larger

volumes increases as the burner size increases. It is important to

select cookware that is suitable for the amount and type of food

being prepared.

The smaller

SIMMER burner (on some models) is best suited for

simmering delicate sauces, etc.

The standard size burners may be used for most surface cooking

needs. Some models are equipped with a center burner.

The larger

POWER burners (on some models) or TURBO BOIL

burner (on some models) are recommended for bringing large

quantities of liquid to temperature and when preparing larger

quantities of food.

To set surface burners:

Do not place flammable items such as plastic

salt and pepper shakers, spoon holders or plastic wrappings on

the cooktop when it is in use. These items could melt or ignite.

Potholders, towels or wooden spoons could catch fire if placed

too close to the range cooktop.

Do not place aluminum foil, or any material

that can melt on the range cooktop. If these items melt they may

permanently damage the cooktop surface.

When operating the oven, it is possible for

residual heat from the oven to build-up and over time to eventu-

ally transfer to the surface control knobs located directly above

the oven door.

1. Place cooking utensil on center of surface burner grate. Be

sure the cooking utensil sets stable on the burner grate.

2. Push the desired surface control knob in and turn counter-

clockwise out of the OFF position (See Figure 7).

3. Release the surface control knob and rotate to the LITE

position. Visually check that the burner has lit.

4. Once the burner has a flame, push the control knob in and

turn counterclockwise to the desired flame size. Use the

control knob markings and adjust the flame as needed.

Important notes:

• Do not cook with the surface control knob left in the LITE

position. The electronic ignitor will continue to spark if the

control knob setting remains in the LITE position.

• When setting any surface control knob to the LITE position,

all electronic surface ignitors will spark at the same time.

However, only the surface burner you are setting will ignite.

• Never place or straddle a cooking utensil over two different

surface cooking areas at the same time. This can cause

uneven heating results.

• In the event of an electrical power outage, the surface

burners can be lit manually. Use caution when lighting

surface burners manually. To light a surface burner, hold a

lit match to the burner head, then slowly turn the surface

control knob to LITE. After burner lights push in and turn

knob to desired setting.

• The cooktop should not be used during a self-clean cycle.

On some models, turning on any cooktop surface burner will

cause the clean cycle to cancel. If the clean cycle is

canceled, the oven control display will show “SPr" for 5

seconds. The oven door will remain locked until the oven

has cooled down below cleaning temperature. If the oven is

below cleaning temperature, the user can start another

clean cycle immediately. If the oven is in cleaning tempera-

ture range, another self-clean cycle can be set once the

door unlocks (up to 4 hours).

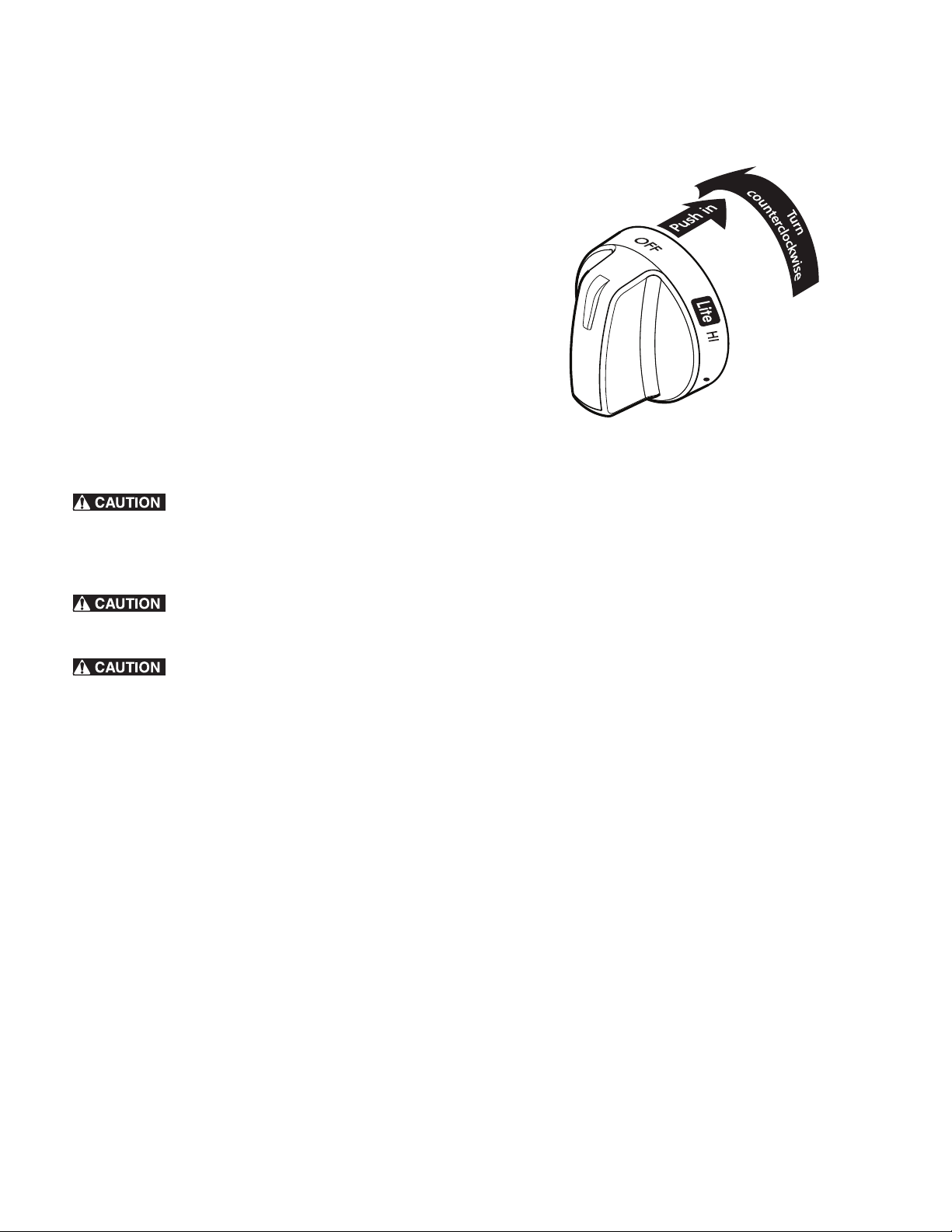

Figure 7: Surface control knob

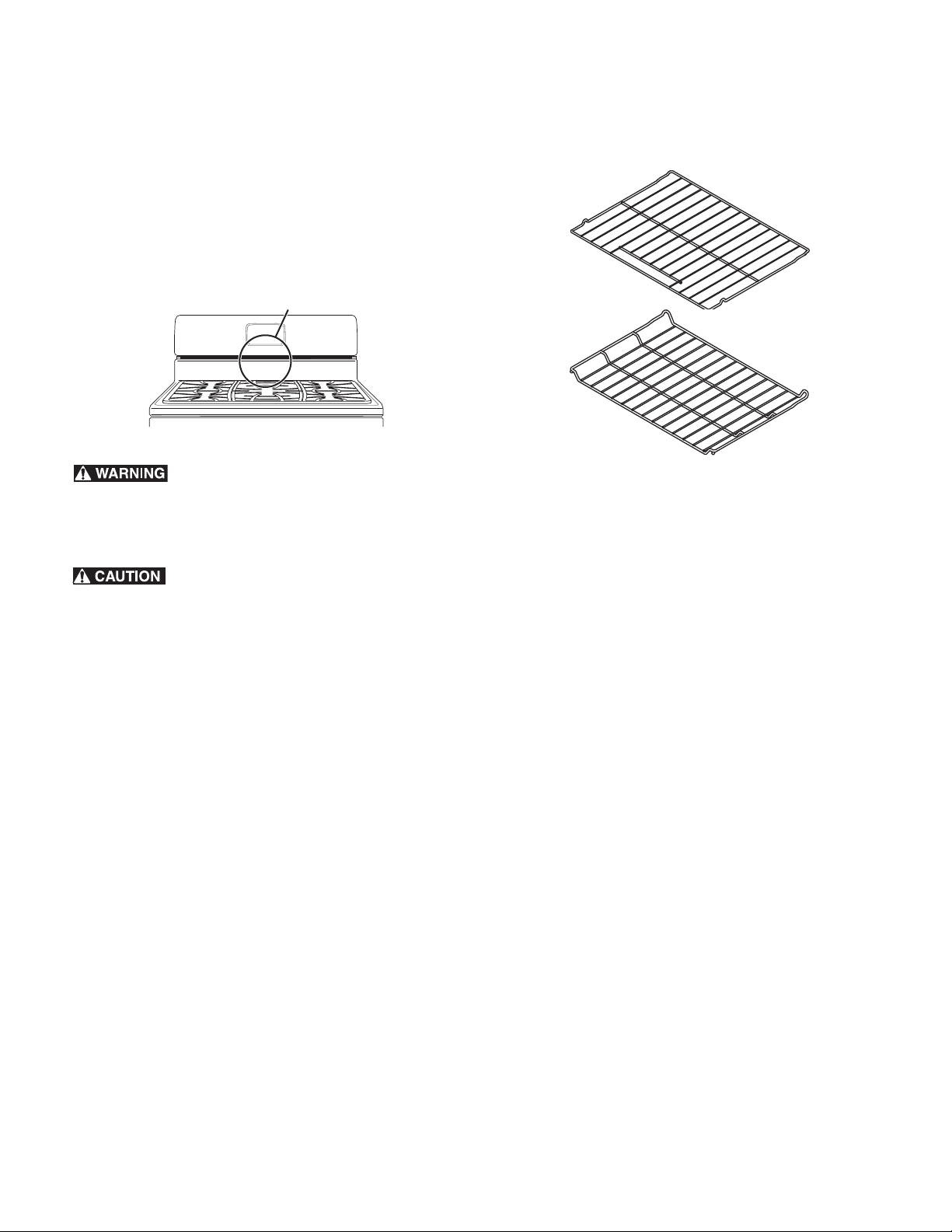

Before Setting Oven Controls

Oven Vent Location

The oven vent is located below the control panel (See

Figure 8).

When the oven is on, warm air passes through this vent. This

venting is necessary for proper air circulation in the oven and

good baking results. Steam or moisture may appear near the

oven vent, this is normal. Do not block oven vent.

Do not line the oven walls, racks, bottom or any

other part of the range with aluminum foil. Doing so will destroy

heat distribution, produce poor baking results and cause

permanent damage to the oven interior. Aluminum foil will melt

to the interior of the oven.

Always use pot holders or oven mitts when using

the oven. When cooking, the oven interior and exterior, as well

as the oven racks, will become very hot which can cause burns.

Removing, replacing, and arranging flat or offset oven

racks

To Arrange - Always arrange the oven racks when the oven is

cool (prior to operating the oven).

To Remove - Pull the oven rack straight forward until it reaches

the stop position. Lift up front of oven rack slightly and slide out.

To Replace - Place the oven rack on the rack guides on both

sides of oven walls. Tilt the front of oven rack upward slightly

and slide the oven rack back into place. Be sure oven racks are

level before using.

Important: Remove all racks before starting a self-clean cycle.

Oven Rack Descriptions

• Flat oven racks (or the flat handle oven rack) may be used

for most cooking needs and may be placed in most oven

rack positions.

• The offset oven rack (some models) provides additional

stepdown positions from the standard flat rack design. The

offset design positions the base of the rack about 1/2 of a

rack position lower than the flat rack and may be used in

most oven rack positions.

• To maximize oven cooking space, place the bottom oven

rack (some models) in the lowest rack position for baking or

roasting large cuts of meat.

Figure 8: Do not block oven vent location

oven vent

Figure 9: Oven rack types

at handle

oven rack

oset

oven rack

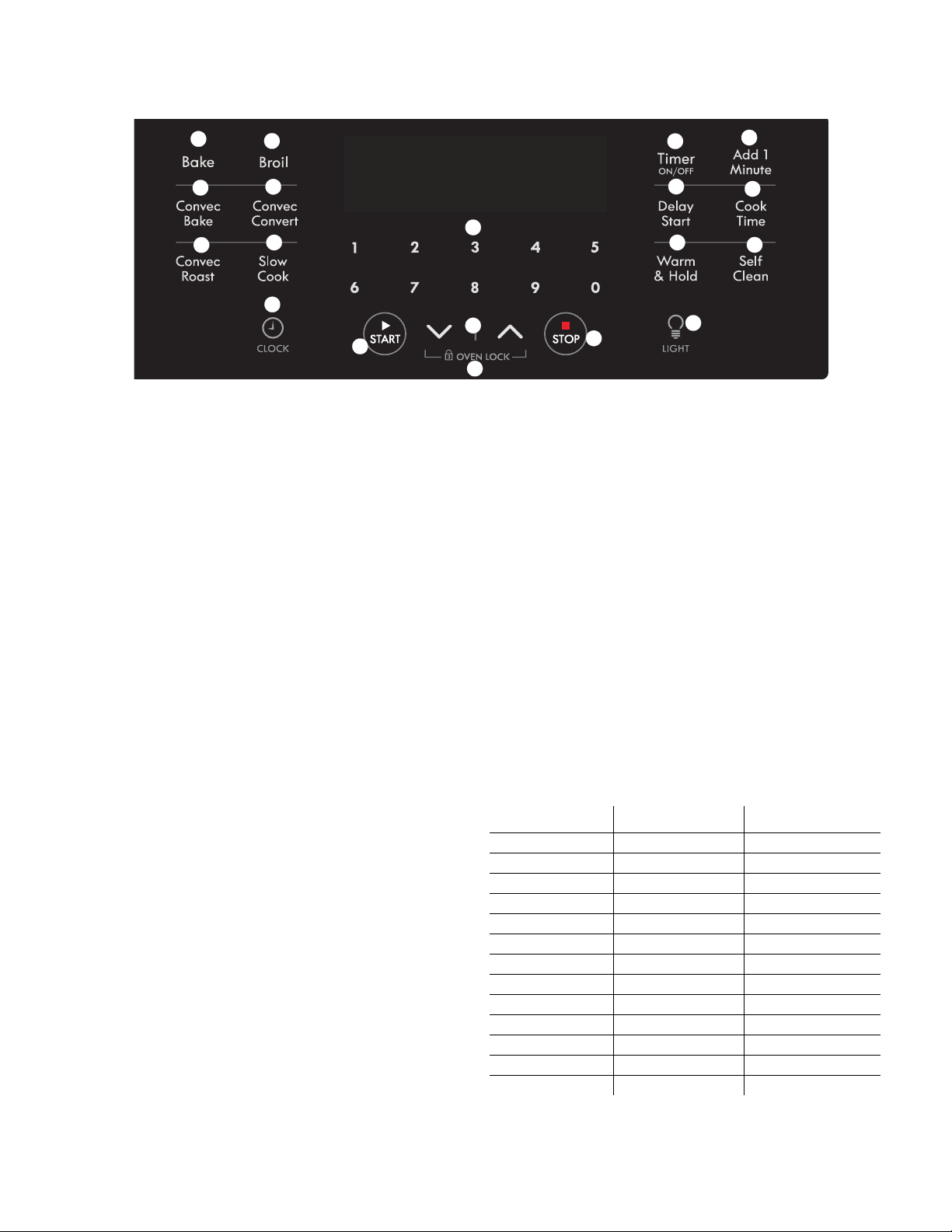

Oven Controls

1. Bake - Use to start a normal Bake function.

2. Broil - Use to select Broil function.

3. Convec Bake - Use to select Conv Bake function.

4. Convec Convert - Use to select Conv Convert function.

5. Convec Roast - Use to select Conv Roast function.

6. Slow Cook - Use to select Slow Cook function.

7. SET CLOCK - Use to set time of day.

8. START - Use to start oven functions.

9. Oven Lock - Hold up/down arrows simultaneously to

enable the oven lock.

10. Up / Down arrows - Use with the function keys to adjust set-

tings and adjust temperature and times.

11. STOP - Use to cancel any oven function previously entered

except clock and timer.

12. 0-9 keypad - Use to enter oven temperatures and times.

13. Timer ON/Off - Use to set and cancel the timer.

14. Add 1 Minute - Use to add one minute to the timer. This

works with the kitchen timer and does not affect any cook

time or start time functions.

15. Delay Start - Use with Bake, Conv Bake, Conv Concert, and

Self Clean functions to program a delayed start time.

16. Cook Time - Use to set a specific amount of time needed

for cooking. Automatically cancels cooking process at end

of set time.

17. Warm & Hold - Use to keep cooked food warm and at

serving temperature for up to 3 hours.

18. LIGHT - Use to turn internal oven light on and off.

Minimum and Maximum Control Settings

All of the features listed have minimum and maximum time and

temperature settings that may be entered into the control. An

entry acceptance beep will sound each time a key is touched.

An entry error tone (three short beeps) will sound if the entry of

the temperature or time is below the minimum allowable setting

or above the maximum setting for the cooking feature. The error

tone will also sound any time a key is pressed if the entry is

determined to be an invalid selection.

The oven control works with both the numeric keypad and the

Up / Down arrow keys. For cooking functions (Bake, Broil,

Convec Bake, Convec Convert, Convec Roast, and Slow Cook) as

well as for the Timer ON/OFF and the CLOCK functions, you

may press the

Up / Down arrows to adjust the temperature in

addition to (or instead of) using the digital keys. Regardless of

the method you choose, always press the

START key to start the

desired function.

Important: The Up / Down arrow keys will not operate with the

following functions: Warmer Drawer, Add 1 Minute, and Warm

& Hold. If an arrow key is pressed in an attempt to program any

given function that is invalid, the control will sound a triple beep.

Table 2: Minimum and maximum control settings

Feature Min. Temp or Time Max. Temp or Time

Bake 170°F (77°C) 550°F (288°C)

Broil 400°F (205°C) 550°F (288°C)

Timer 1 minute 11 hrs. 59 mins.

Self Clean 2 Hours 4 Hours

Warm & Hold 170°F (77°C) 3 Hours

Cook Time 1 Minute 11:59

Delay Time 12 Hr. 1:00 12:59

Delay Time 24 Hr. 0:00 23:59

Convec Bake 300°F (148°C) 550°F (288°C)

Convec Roast 300°F (148°C) 550°F (288°C)

Clock 12 Hr. 1:00 12:59

Clock 24 Hr. 0:00 23:59

Slow Cook LO 225°F (77°C) HI 275°F (134°C)

Oven Controls

Setting Clock

When the appliance is first powered up,

12:00 will flash in the

display (See Figure 10). The time of day must first be set before

operating the oven.

To set clock to 1:30:

1. Press . The word CLOCK will flash in display.

2. Enter 1 3 0 using numeric keypad or press the Up / Down

arrow keys until 130 appears in the display.

3. Press .

Important note:

The clock cannot be changed when a Cook Time, Self Clean,

Delay Start, or cooking feature is active.

Setting 12 Hour or 24 Hour Display Mode

The clock display mode allows you to select 12 hr or 24 hr

modes. The factory pre-set clock display mode is 12 hours.

To set 12 hr or 24 hr display mode:

1. Press and hold for 6 seconds.

2. Press the Up / Down arrow keys to toggle between 12 Hr

day or 24 Hr day display modes (See Figure 11).

3. Press to accept the choice.

Setting Timer

The minute timer allows you to track your cooking times without

interfering with the cooking process. The timer may be set from

a minimum time of 1 minute to a maximum of 11 hours and 59

minutes.

To set timer for 5 minutes:

1. Press Timer ON/OFF.

2. Enter 5 using numeric keypad or press the Up arrow key

until 5 appears in the display.

3. Press to start the timer. When set time ends, END will

show in the display and the control will sound a beep three

times every 30 seconds until Timer ON/OFF key is pressed.

To cancel the timer when active, press

Timer ON/OFF again.

Important note:

• The timer does not start or stop the cooking process. It

serves as an extra minute timer that will beep when the set

time has run out. The timer may be used alone or while

using any of the other oven functions.

• When timer is set for more than 1 hour it will display hours

and minutes until 1 hour remains. When less than 1 hour

remains, the display counts down in minutes and seconds.

With less than 1 minute remaining, only seconds will display.

• If the timer is active during a cooking process, the timer will

show in the display. To view the status of any other active

oven function, press the key of the cooking function once

and it will appear in the display for a few seconds.

Add 1 Minute

Use the Add 1 Minute feature to set additional minutes to the

timer. Each press of the key will add 1 additional minute. If

Add 1 Minute is pressed when the timer is not active, the timer

will activate and begin counting down from 1 minute.

To add 2 minutes to the timer:

Press

Add 1 Minute twice.

Figure 10: 12:00 in display before setting the clock

Figure 11: 12 Hr dAy and 24 Hr dAy settings

Oven Controls

Changing Between Continuous Bake Setting or 12 Hour

Energy Saving

The oven control has a factory preset built-in 12 Hour Energy

Saving feature that will turn off the oven if the oven is left on for

more than 12 hours. The control may be programmed to

override this feature to bake continuously.

To change between continuous bake or 12 hour energy saving

feature:

1. Press and hold Timer ON/OFF for 6 seconds

2. Press the Up / Down arrow keys to toggle between 12 Hour

OFF or Stay On feature (See Figure 12).

3. Press to accept choice

Changing Temperature Display to Fahrenheit (ºF) or

Celsius (ºC)

The electronic oven control is set to display °F when shipped

from the factory. The display may be changed to show either °F

or ºC oven temperatures.

To change temperature display mode from °F to °C or from

°C to °F:

1. Press and hold Broil for 6 seconds.

2. Once F (or C) appears in the display, press the Up / Down

arrow keys to toggle between Fahrenheit and Celsius

temperature display modes (See

Figure 13).

3. Press to accept the choice.

Important note:

The oven temperature display cannot be changed during the

cooking process or if a Delay Start has been set or Self Clean is

active.

Setting Silent or Audible Control mode

Silent mode allows the oven control to operate without audible

tones. The control may be programmed for silent operation and

later reset to operate with all the normal audible tones.

To set for silent or audible mode:

1. Press and hold Delay Start for 6 seconds.

2. Press the Up / Down arrow keys to toggle between bEEP On

or bEEP OFF.

3. Press to accept the choice.

Setting Oven Lockout

The control may be programmed to lock the oven door and lock

the oven control keys.

To activate the oven lockout features:

1. Be sure oven door is completely closed.

2. Press and hold the Up and Down arrows together for 3

seconds.

The motor driven door latch mechanism will begin

locking the oven door automatically. Do not open the oven

door. Allow about 15 seconds for the oven door to

completely lock.

To cancel the oven lockout feature:

1. Press and hold the Up and Down arrows for 3 seconds. The

motor door latch will begin unlocking the oven door auto-

matically. Do not open the oven door. Allow about 15

seconds for the oven door to completely unlock.

2. When the word DOOR with a lock icon no longer displays,

Hld will flash in display. When Opn is displayed, the oven

door may be opened and the oven control keypad will be

available for use.

Important note:

• To avoid damage to the oven door latching mechanism, do

not attempt to open or close the oven door whenever the

word

DOOR with a lock icon is displayed.

Operating Oven Lights

The interior oven lights will automatically turn on when the oven

door is opened. Oven lights will not operate during a self clean

cycle.

Press to turn the interior oven lights on and off whenever

the oven door is closed. For best results leave oven light off

while baking.

The interior oven lights are located on the rear wall of the oven

interior and are covered with a glass shield. The glass shield

protects the bulb from high temperatures and should always be

in place whenever the oven is in use.

To replace the interior oven light, see

“Replacing oven light

(some models)” on page 35.

Figure 12: 12 hr energy saving (L) and continuous setting (R)

Figure 13: Display showing Fahrenheit and Celsius

Oven Controls

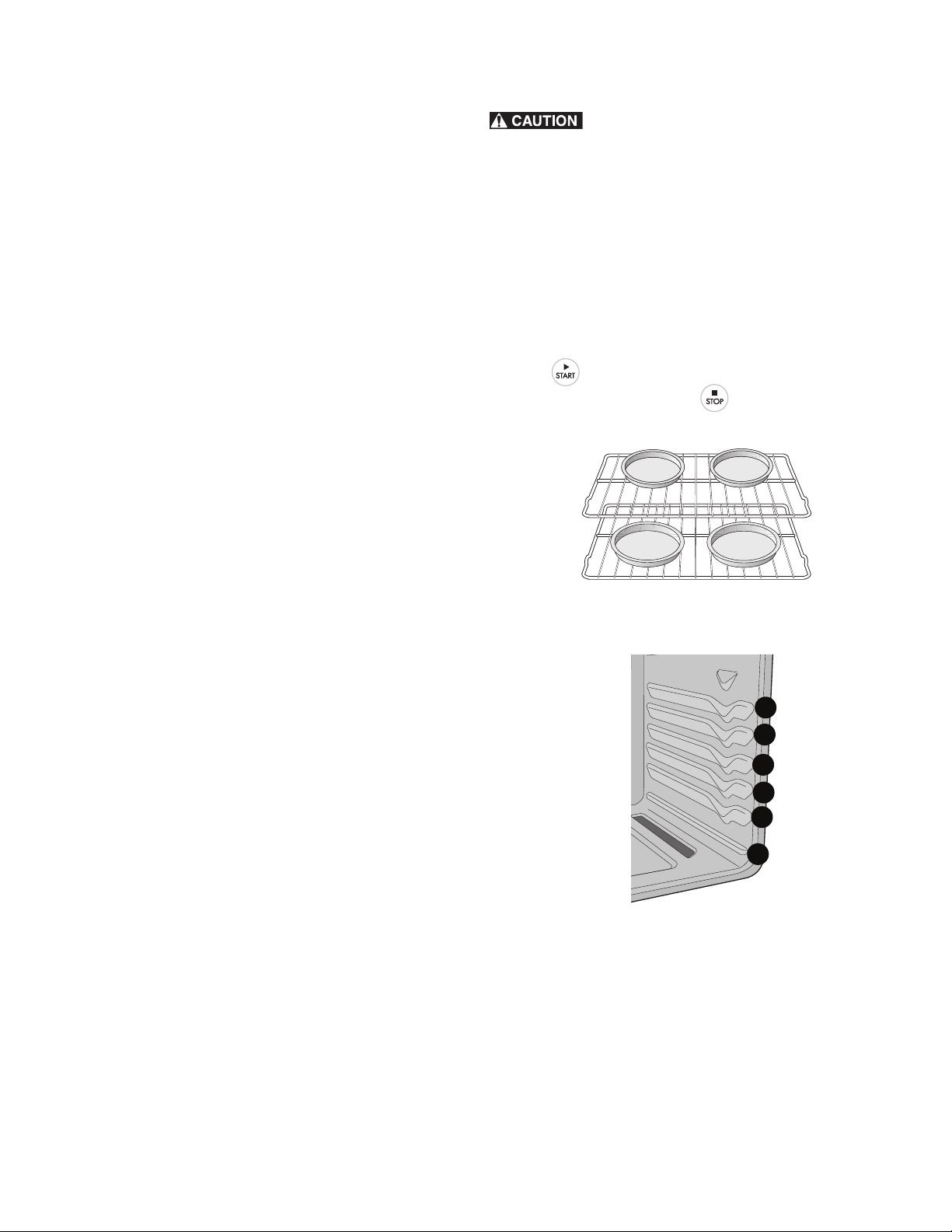

Setting Bake

Use the bake function whenever the recipe calls for baking

using normal temperatures. A reminder tone will sound when the

set bake temperature is reached. The oven will cycle on and off

during baking to maintain the set temperature.

Bake may be programmed for any temperature from 170°F to

550°F (77°C to 288°C). The factory preset bake temperature

is 350°F (177°C).

Radiant bake rack positions:

• Fully preheat the oven before baking items like cookies,

biscuits, and breads.

• When using any single rack, position the rack so that the

food is in the center of the oven.

• For best results when baking cakes or cookies using two

oven racks, place racks in positions 2 and 5 flat racks.

• When baking using two oven racks, position bakeware as

shown

Figure 14

Allow at least 2 inches (5 cm) of space

between bakeware for proper air circulation.

• Dark or dull pans absorb more heat than shiny bakeware,

resulting in dark or overbrowning of foods. It may be

necessary to reduce the oven temperature or cook time to

prevent overbrowning of some foods. Dark pans are recom-

mended for pies. Shiny pans are recommended for cakes,

cookies, and muffins.

• Glass cookware is a slow heat conductor. May require

reducing oven temperature.

• Minimize opening of the oven door. Opening the door will

reduce the temperature in the oven.

• For 2 rack cakes use Bake. For 2 rack cookies use Convec-

tion Bake.

• Do not open oven door often. Opening the door will reduce

the temperature in the oven and may increase cook time.

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks, and cook-

top will become very hot which can cause burn.

Important note:

The oven will bake no longer than 12 hours. If you wish to bake

for a longer period, see

“Setting Cook Time” on page 22 for

detailed information.

To set Bake for oven temperature of 425°F:

1. Press Bake.

2. Enter 4 2 5 using numeric keypad or press the Up arrow key

until

4 2 5 appears in the display.

3. Press . The word BAKE will appear on the display.

To cancel Bake at any time, press .

Figure 14: Baking on multiple levels

Figure 15: Oven rack positions

Oven Controls

Setting Cook Time

Use Cook Time to set the amount of time needed for baking.

The oven will turn on immediately and stop automatically after

the set cook time ends. When using Cook Time with Bake set the

Cook Time needed after the oven is fully preheated.

• The Cook Time feature may be set with Bake, Conv Bake,

Conv Roast, and Slow Cook. Cook Time or Delay Start will

not operate with the Broil function.

• The maximum Cook Time setting is 11 hours and 59 minutes

unless oven is set for continuous cooking.

To program oven to bake with oven default temperature of

350°F and to shut-off after 30 minutes:

1. Press Bake.

2. Press . The word BAKE will appear on the display.

3. When the preheat tone sounds press Cook Time.

4. Enter 3 0 using numeric keypad.

5. Press to accept.

When the programmed cook time ends:

End will appear in the display window and the oven will shut-off

automatically (See Figure 16). The oven control will beep three

times every 30 seconds as a reminder until is pressed.

To change the oven temperature or cook time after baking

has started:

1. Press Bake (for oven temperature) or Cook Time.

2. Press or or use numeric keys to enter new cook

time.

3. Press to accept.

When the cook time runs out,

End will appear in the display. The

oven control will beep three times every minute until is

pressed.

Setting Delay Start

Delay Start sets a delayed starting time to oven cooking or

cleaning functions. Prior to setting a delay start, be sure the time

of day is set correctly.

Food Poisoning Hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burn.

To program oven for a Delay Start beginning at 5:30, to shut-off

automatically after 50 minutes and for baking at 375°F:

1. Press Cook Time.

2. Enter 5 0 using numeric keypad or press the Up arrow key

until 5 0 appears in the display.

3. Press to accept.

4. Press Delay Start.

5. Enter 5 3 0 using numeric keypad or press the Up arrow key

until 5 3 0 appears in the display.

6. Press to accept.

7. Press Bake.

8. Enter 3 7 5 using numeric keypad or press the Up arrow key

until 3 7 5 appears in the display.

9. Press .

When the programmed cook time ends:

End will appear in the display window and the oven will shut off

automatically (See Figure 16). The oven control will beep three

times every 30 seconds as a reminder until key is pressed.

Important note:

Delay Start may be set using a 24 hr clock. To set clock for 24

Hr operation, see

“Setting 12 Hour or 24 Hour Display Mode”

on page 19 for more information. The Delay Start feature may

be used with Conv Bake, Conv Roast, Conv Convert, Bake, and

Slow Cook functions and Self Clean. Delay Start or Cook Time

will not operate with the Broil function.

Figure 16: Display showing cooking has ended

STOPSTOP

Oven Controls

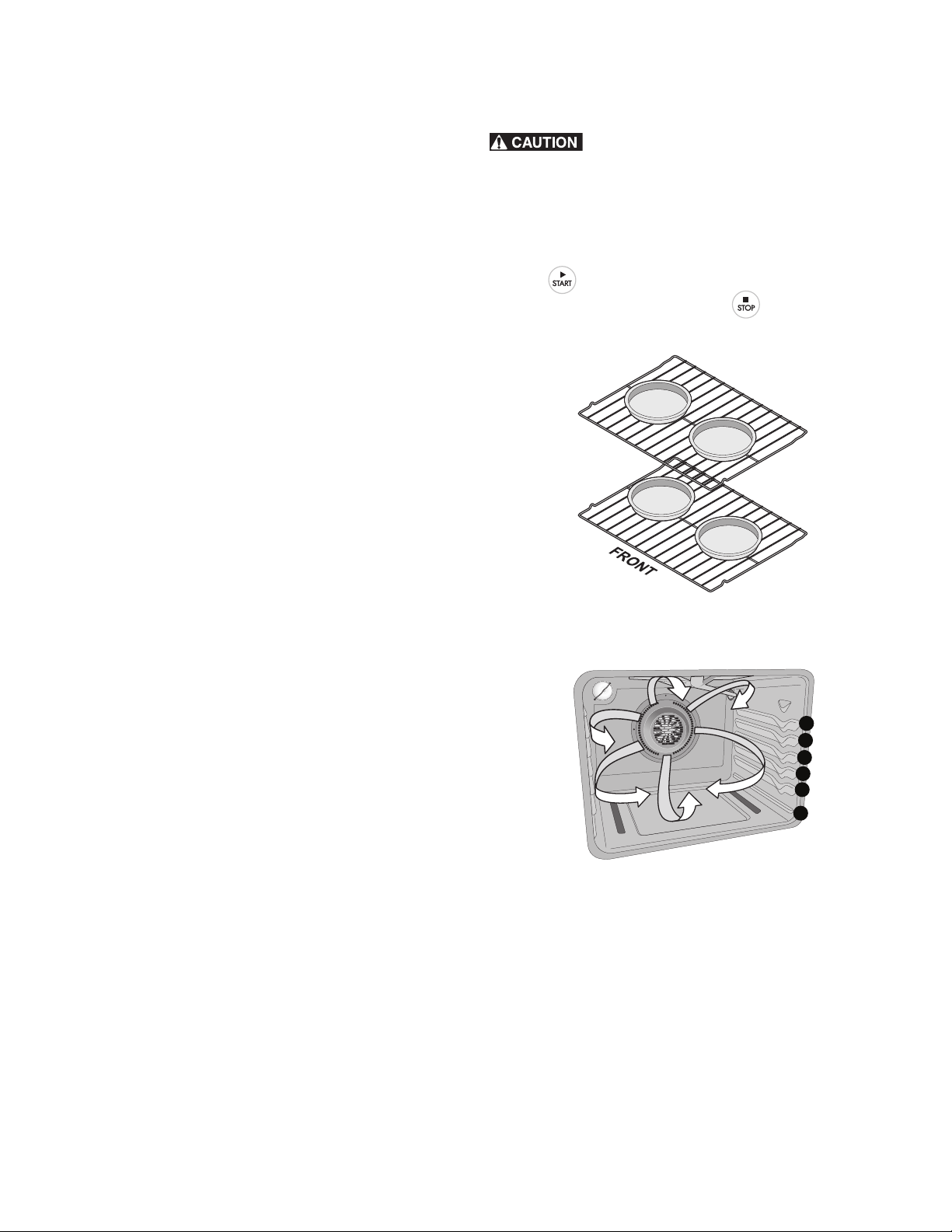

Convec Bake

Convection functions use a fan to circulate the oven's heat

uniformly and continuously around the oven. This improved heat

distribution allows for fast, even cooking and browning results. It

also gives better baking results when using two oven racks at the

same time. Heated air flows around the food from all sides,

sealing in juices and flavors. Breads and pastry brown more

evenly. Most foods baked in a standard pan will cook faster and

more evenly with the convection feature.

Convec Bake may be set for any oven temperature between

300°F (148°C) and 550°F (288°C).

• When using Convec Bake, cook time reductions may vary

depending on the amount and type of food being cooked.

Foods can cook up to 25% faster.

• Reduce oven temperature 25°F from recipe’s recommended

oven temperature. Follow the remainder of the recipe’s

instructions using the minimum recommended cook time.

• When using convection, use cookware or pans with

lowsides. This allows the air to circulate around the food

evenly.

Baking tips

• Fully preheat the oven before cooking items like cookies,

biscuits, and breads.

• When using any single rack, position the rack so that the

food is in the center of the oven.

• For best results when using a single oven rack, place rack in

position 2 or 3.

• For best results when baking cakes or cookies using two

oven racks, place racks in positions 3 offset and 5 flat (See

Figure 17).

• Dark or dull bakeware absorbs more heat than shiny

bakeware. It may be necessary to reduce oven temperature

and cook time to prevent overbrowning of some foods. Dark

bakeware is recommended for pies. Shiny bakeware is

recommended for cakes, cookies, and muffins.

• Use cookware or pans with low sides. This allows the air to

circulate around the food evenly.

• Glass cookware may require reduced temperatures.

• Do not open oven door often. Opening the door will reduce

the temperature in the oven and may increase cook time.

Always use pot holders or oven mitts when using

the oven. When cooking the oven interior, oven racks, and

cooktop will become very hot which can cause burn.

To set Convec. Bake with a default oven set temperature of

350°F:

1. Press Conv Bake.

2. Press .

To cancel Conv Bake at any time press .

Important notes:

• The convection fan on a gas range will not begin rotating

until Convec Bake has been heating for six minutes.

• If the oven door is opened when Convec Bake is active, the

convection fan will stop rotating until the oven door is

closed.

Figure 17: Baking on multiple levels

Figure 18: Air movement using convection

Oven Controls

Setting Conv Roast

The Conv Roast function combines a cook cycle with the convec-

tion fan to roast meats and poultry. Meats cooked using the

Conv Roast function will be juicier, and poultry will be crisp on

the outside while staying tender and moist on the inside.

Conv Roast may be set for any oven temperature between

300°F (148°C) and 550°F (288°C).

To set Conv Roast with a default oven set temperature of 350°F:

1. Press Conv Roast.

2. Press .

To cancel Conv Roast at any time press .

Suggestions for Conv Roast:

• Preheating is not necessary when roasting foods using Conv

Roast. Since Conv Roast cooks food faster, reduce the cook

time by 25% from the recommended cook time of your

recipe. If necessary, increase cooking time until the desired

doneness is obtained.

• The broiler pan will catch grease drippings, and the grid

will help prevent splatters. The roasting rack will hold the

meat. Use the offset rack on rack position 1.

• Do not cover foods when dry roasting because this will

prevent the meat from browning properly.

Important note:

• After 6 minutes, the convection fan will begin rotating once

Conv Bake, Conv Roast, or Conv Convert has been acti-

vated.

• If the oven door is opened when any convection function is

active, the convection fan will stop rotating until the oven

door is closed.

• It is not recommended to roast chicken on a roasting rack.

Use a deep pan instead.

Setting Conv Convert

Conv Convert automatically converts the cooking temperature

entered for any standard baking recipe to the lower tempera-

ture required for convection baking. Conv Convert should only

be used with Conv Bake and a Cook Time when the cooking

time is greater than 20 minutes.

When Conv Convert is used with a timed Conv Bake setting of

20 minutes or more, the function will display a CF message as a

reminder to check food when the bake time is 75% complete

(See

Figure 19). At this time the oven control will sound one long

beep at regular intervals until the set cook time has finished.

To add Conv Convert to Conv Bake function using default oven

set temperature of 350°F:

1. Press Conv Bake.

2. Press .

3. Press Conv Convert.

To cancel Conv Convert at any time, press .

To program oven for Conv Convert with oven default tempera-

ture of 350°F and to shut-off after 30 minutes:

1. Press Conv Bake.

2. Press .

3. Press Cook Time.

4. Enter 3 0 using numeric keypad.

5. Press .

6. Press Conv Convert.. The oven temperature is now lowered

for convection cooking.

To cancel Conv Convert at any time, press .

Important note:

• Conv Convert should only be used with the Conv Bake

function and with a minimum of 20 minutes cook time.

• When using Conv Convert feature, Cook Time reductions

may vary depending on the oven set temperature.

• If the oven door is opened when any convection function is

active, the convection fan will stop rotating until the oven

door is closed.

Figure 19: Check Food reminder shown in display.

Oven Controls

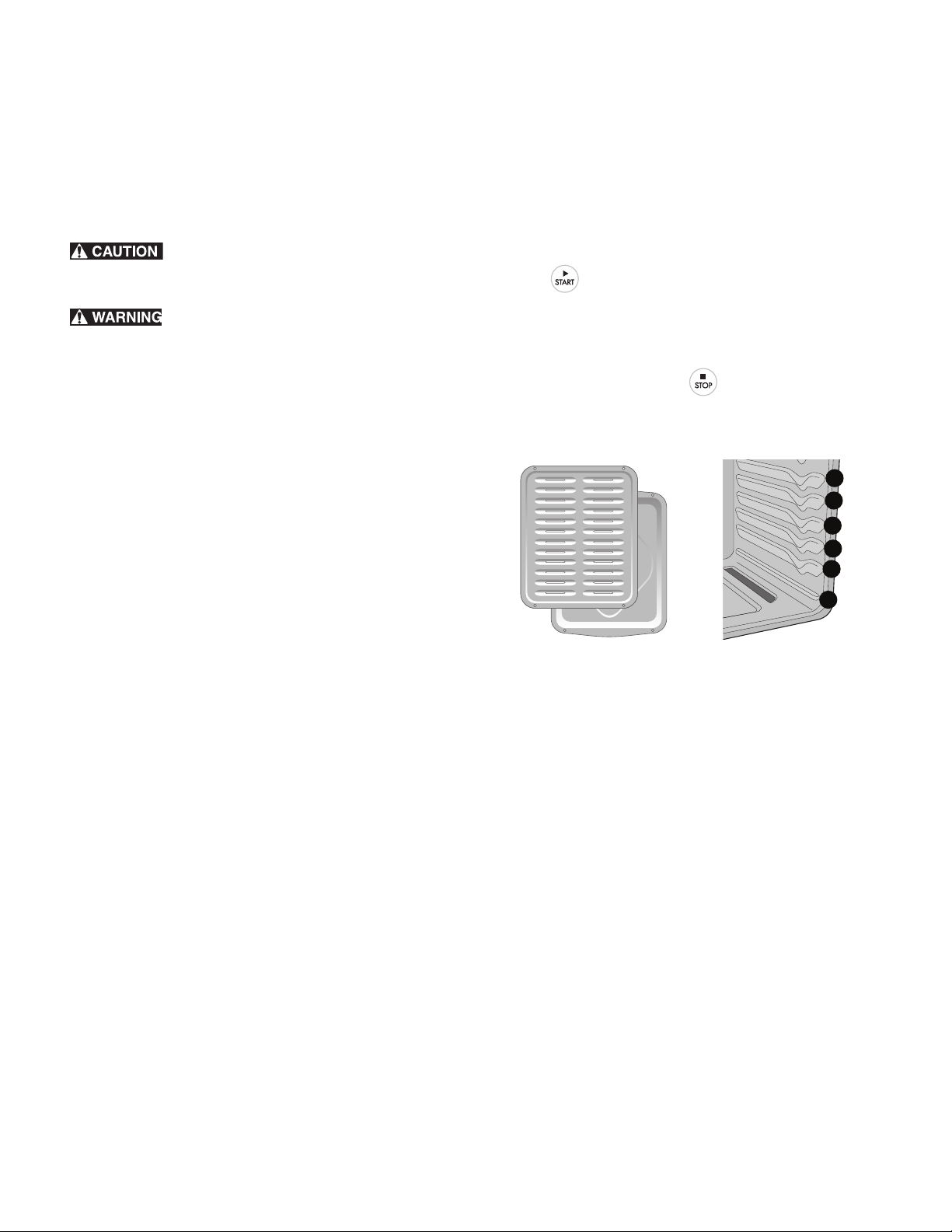

Setting Broil

Use the Broil function to cook meats that require direct exposure

to radiant heat for optimum browning results. The Broil feature is

factory preset to broil at 550°F. The Broil function temperature

may be set at any temperature between 400°F (205°C) and

550°F (288°C).

Always use pot holders or oven mitts when using

the oven. When cooking, the oven interior, oven racks, and cook-

top will become very hot which can cause burns.

Should an oven fire occur, close the oven door

and turn the oven off. If the fire continues, use a fire extin-

guisher. Do not put water or flour on fire. Flour may be explo-

sive.

The suggested broil settings are recommendations only (See

Table 3). Depending on cooking preferences, you can increase

or decrease cooking times or move food to a different rack

position. If the food you are broiling is not listed in the table, fol-

low the instructions provided in your cookbook and watch the

item closely.

Important notes:

• Broiling is direct heat cooking and will produce some

smoke. If smoke is excessive, place food further away from

teh broil element. Always watch food carefully to prevent

burning.

• BROIL DOOR ALARM: If the oven door is left open during a

broil, the alarm will sound after 60 seconds. If the door is

remains open the broil function will turn OFF after another

30 seconds.

• Always arrange oven racks when the oven is cool.

• For best results when broiling, use a broil pan with broil pan

insert. Broil pans and inserts allow the grease to drain away

from the high heat of the broiler. Do not use the pan without

the insert. Do not cover the insert with foil - the exposed

grease could ignite.

• When broiling, always pull the oven rack out to the stop

position before turning or removing food.

To set Broil with the default broil oven temperature of 550°F:

1. Arrange the oven racks when cool. For optimum browning

results, preheat oven for 5 minutes before adding food.

2. Position bakeware in oven to the preferred rack position (See

Figure 21).

3. Press Broil. Broil will flash in the display.

Important: Broil with oven door closed.

4. Press . To set to a lower broil temperature, press Broil

again and enter desired broil temperature between 550°F and

400°F.

5. Broil on one side until food is browned; turn an broil other side

until done to your satisfaction.

6. When finished broiling, press .

7. To cancel Broil at any time, press STOP.

If a broil pan and insert are not provided with this appliance,

they may be purchased from Sears. Call 1-844-553-6667 and

order broil pan kit 5304442087.

Figure 20: Broiler pan/insert Figure 21: Rack positions

Oven Controls

Table 3: Suggested Broil Settings

Food Rack Position Setting Cook time in minutes

1st side 2nd side

Internal

Temperature

Doneness

Steak, 1 inch thick 5* (HI) 550°F 6 5 135°F (57°C) Rare**

Steak, 1 inch thick 5 or 6 (HI) 550°F 7 5 145°F (63°C) Medium

Steak, 1 inch thick 5 or 6 (HI) 550°F 8 7 170°F (77°C) Well

Pork Chops, 3/4 inch

thick

5 (HI) 550°F 8 6 170°F (77°C) Well

Chicken, bone-in 4 (LO) 450°F 25 15 170°F (77°C) Well

Chicken, boneless 5 (LO) 450°F 10 8 170°F (77°C) Well

Fish 5 (HI) 550°F as directed 170°F (77°C) Well

Shrimp 4 (HI) 550°F as directed 170°F (77°C) Well

Hamburger, 1 inch 5* (HI) 550°F 6 5 135°F (57°C) Rare**

Hamburger, 1 inch 5 or 6 (HI) 550°F 7 5 145°F (63°C) Medium

Hamburger, 1 inch 5 or 6 (HI) 550°F 8 7 170°F (77°C) Well

For steaks, cook times are suggestions and should only be used as a guide.

The U.S. Department of Agriculture states, "**Rare fresh beef is popular, but you should know that cooking it to only 135°F (57°C) means some

food poisoning organisms may survive." (Source: Safe Food Book, Your Kitchen Guide, USDA). The lowest temperature recommended by the

USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC).

Oven Controls

Setting Slow Cook

The Slow Cook feature cooks foods more slowly and at lower

oven temperatures for longer periods of time. Slow Cook is ideal

for roasting beef, pork and poultry. Slow cooking meats may

result in the exterior of meats becoming dark but will not burn

the outside as it seals in the meat’s juices.

Two Slow Cook settings are available: high (Hi) and low (Lo). The

high setting is best for cooking foods between 4 and 5 hours.

The low setting is best for cooking foods up to 9 hours or longer.

Some tips for best results when using Slow Cook:

• Completely thaw all frozen foods before cooking.

• When using a single oven rack, place in oven rack position

2 or 3. Position racks to accommodate the size of various

bakeware when cooking multiple food items.

• Do not open the oven door often or leave the door open

when checking foods. If the oven heat escapes often, the

Slow Cook time may need to be extended.

• Cover to keep foods moist or use a loose or vented type

cover to allow foods to turn crisp or brown.

• Roasts may be left uncovered so browning can occur. Cook

times will vary depending on the weight, fat content, bone,

and the shape of the roast. Preheating the oven will not be

necessary when using the Slow Cook feature.

• Add any cream or cheese sauces during the last hour of

cooking.

• Slow Cook may be used with additional settings of Cook

Time and Delay Start.

• The maximum cook time for Slow Cook function is 11 hours

and 59 minutes unless the control has been changed to the

continuous bake mode.

To set Slow Cook:

1. Position bakeware in oven and close oven door.

2. Press Slow Cook. HI will appear in the display, indicating

the default temperature setting is for high.

3. If a low setting is needed, press Slow Cook again or

press

the

Down arrow key to select the low setting.

4. Press to activate Slow Cook.

To cancel Slow Cook at any time, press .

Warm & Hold™

Warm & Hold should only be used with foods that are already

at serving temperatures. Warm & Hold will keep cooked foods

warm and ready for serving for up to 3 hours after cooking has

finished. After 3 hours the Warm & Hold will shut-off automati-

cally. Warm & Hold will keep the oven temperature at 170° F

(77°C).

Food poisoning hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

To set Warm & Hold:

1. If needed, arrange oven racks and place cooked food in

oven.

2. Press Warm & Hold. Hold WARM will appear in the

display. (If no other keys are touched within 25 seconds the

request for Warm & Hold will clear.)

3. Press . Warm & Hold will automatically turn on and

then turn off after 3 hours unless cancelled.

To turn Warm & Hold off at any time, press .

To add Warm & Hold to turn ON after baking 45 minutes with

a set temperature of 425°F:

1. Press Cook Time.

2. Enter 4 5 using numeric keypad.

3. Press .

4. Press Bake and enter 425 on numeric keypad.

5. Press to accept.

6. Press Warm & Hold. Hold WARM will appear in the

display.

7. Press to accept. When the cook time is over, Warm &

Hold will automatically turn on. The Warm & Hold function

will automatically turn off after 3 hours.

Important note:

• Warm & Hold will maintain the oven temperature at 170° F

(77°C) for 3 hours.

• Warm & Hold may be set when finished cooking or may be

added to automatically turn on after cooking using Cook

Time. Delay Start may also be added.

Oven Controls

Setting the Sabbath feature (for use on the Jewish

Sabbath and Holidays)

For further assistance, guidelines for proper

usage, and a complete list of models with the

Sabbath feature, please visit the web at

www.star-k.org.

This appliance provides special settings for

use when observing the Jewish Sabbath/Holidays. Sabbath

mode disables all audible tones or visual display changes on the

oven control. Bake heating is the only cooking feature available

while in the Sabbath mode. Oven controls are locked during

Sabbath mode.

You must first set the Bake feature and temperature(s) needed

for the oven, the Cook Time, and the Delay Start

options (if

needed). Any settings made prior to setting the Sabbath mode

will be visible in the displays. The Cook Time option, if set prior

to the Sabbath mode, will give one audible alert at the end of

Cook Time.

The Sabbath mode will override the factory preset 12 hour

energy saving mode, and the appliance will stay on until the

cooking features are cancelled. If any of the cooking features

are cancelled when the appliance is in the Sabbath mode, no

audible or visual indicators will be available to verify the can-

cellation.

If the oven interior lights are needed, be sure to activate them

prior to setting the Sabbath mode. Once the oven light is turned

on and the Sabbath mode is active, the oven light will remain on

until the Sabbath mode is turned off and the oven lights are

turned off. The oven door will not activate the interior oven

lights when the oven door is opened or closed.

It is recommended that any oven temperature modification

made within an active Sabbath mode be followed with two

presses of the

START key. This will insure the oven remains on

even if an attempt is made to set the oven temperature outside

of its temperature range. If the oven temperature is set outside

of the temperature range, the oven will default to the nearest

available temperature. Try to set the desired oven temperature

again.

Food poisoning hazard. Do not let food sit for

more than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

To program oven to Bake with default oven temperature of

350°F and activate the Sabbath feature:

1. Be sure the clock is set with the correct time of day.

2. Arrange oven racks, place bakeware in oven, and close

oven door.

3. Press Bake.

4. Press .

5. If Cook Time or Delay Start are not needed, skip this step

and continue to step 6. If a Cook Time or Delay Start are

desired, enter the times at this point. Refer to the

“Setting

Cook Time” and “Setting Delay Start” on page 22 for

detailed instructions.

6. Press and hold Cook Time and Delay Start simultaneously

for about 3 seconds to set the Sabbath feature. Once the

feature is set, SAb will appear in the display indicating the

oven is properly set for the Sabbath feature (See

Figure 22).

Important note:

• Do not attempt to activate any other oven function except

Bake while the Sabbath feature is active. The following keys

will function correctly when the Sabbath feature is active:

0-9 number keypad, Bake, , and . All other keys

should not be used once the Sabbath feature is active.

• You may change the oven temperature once baking has

started. Press Bake, use the numeric keypad to enter the

oven temperature change (170°F to 550F°), and press

(for Jewish Holidays only).

• Remember that the oven control will no longer provide

audible tones or display any further changes when the

Sabbath feature is active.

• Remember the oven will shut-off automatically after

completing a Cook Time, Delay Start, or Warm & Hold and

therefore may only be used once during the Sabbath/

Jewish Holidays.

• If a Delay Start time longer than 11 hours and 59 minutes is

desired, set the oven control for the 24 hour day display

mode setting. For detailed instructions see “”

on page 20.

To turn the oven off and keep the Sabbath feature active:

Press .

To turn off the Sabbath feature:

Press and hold both

Cook Time and Delay Start simultaneously

for at least 3 seconds to turn the Sabbath feature off. The

control will provide an acceptance tone, and

SAb will disappear

from the display. The oven is no longer programmed for the

Sabbath feature.

Figure 22: Oven set for Sabbath baking.

Oven Controls

What to do during a power failure or power interruption after

the Sabbath feature was activated:

Should you experience a power failure or interruption, the oven

will shut-off. When power is restored the oven will not turn back

on automatically. The oven will remember that it is set for the

Sabbath, and the oven display will show the message

SF for

Sabbath failure (See

Figure 23).

The food may be safely removed from the oven while still in the

Sabbath feature, however the oven cannot be turned back on

until after the Sabbath/Holidays. After the Sabbath observance,

turn off the Sabbath feature. Press and hold both

Cook Time

and

Delay Start keys for at least 3 seconds simultaneously to

turn the Sabbath feature off.

SF will disappear from the display,

and the oven may be used with all normal functions.

Restoring Factory Default Settings

Your appliance was set with predetermined (default) oven

control settings. Over time, users may have made changes to

these settings. The following options may have been modified

since the appliance was new:

• 12 or 24 hr display mode

• Continuous bake or 12 hour energy savings mode

• Silent or audible control

• Oven temperature display (Fahrenheit or Celsius)

• Oven temperature adjustments (UPO)

To restore oven control to factory default settings:

If you choose to restore any of the options to a

factory default setting using this method, all of the above user

settings will be restored to the factory default settings. This

includes the oven temperature offset that will reset to (0) zero.

1. Press and hold 7 on numeric keypad until acceptance tone

sounds (about 6 seconds).

2. Press . The control has been reset with the default

settings.

Adjusting Oven Temperatures

Your appliance has been factory calibrated and tested to ensure

accurate baking temperatures. For the first few uses, follow your

recipe times and temperature recommendations carefully. If you

think the oven is cooking too hot or too cool for your recipe

times, you may adjust the control so the oven cooks hotter or

cooler than the oven temperature displayed.

The oven temperature may be increased as much as +35°F

(+19°C) or decreased -35°F (-19°C) from the factory calibrated

settings.

To increase (+) or decrease (-) the oven temperature by 20°F:

1. Press and hold Bake until the control produces an audible

tone (about 6 seconds). The factory offset temperature of

0 (zero) should appear in the display.

2. Enter 2 0 using numeric keypad.

3. To offset the oven temperature by -20°F, press the Down

arrow key until the display reads

-20.

4. Press to accept change.

Important note:

• Oven temperature adjustments will not change the Broil or

Self Clean function temperatures.

• Do not use oven thermometers such as those found in

grocery stores to check the temperature settings inside your

oven. These oven thermometers may vary as much as 20 to

40°F degrees from actual temperatures.

• The oven temperature adjustment may be made if your

oven control is set to display temperatures in °C (Celsius).

Minimum and maximum settings for Celsius range from plus

(+)19°C to minus (-) 19°C.

Figure 23: Display showing Sabbath failure

Oven Controls

Self Clean

A self cleaning oven cleans itself with high temperatures (well

above normal cooking temperatures), which eliminate soils com-

pletely or reduces them to a fine powdered ash you can wipe

away afterwards with a damp cloth. The Self Clean function

can be programmed for any duration between 2 and 4 hours.

Be sure to read all following caution and important statements

before starting a self clean cycle.

Do not leave small children unattended near

appliance. During self clean cycle, the outside of the oven can

become very hot and cause burns if touched.

Do not line the oven walls, racks, oven bottom,

or any part of the range with aluminum foil. Doing so will

destroy heat distribution, produce poor baking results, and

cause permanent damage to the oven interior (aluminum foil will

melt to the interior surface of the oven).

Do not force the oven door open. This can

damage the automatic door locking system. Use caution when

opening the oven door after the self clean cycle ends. The oven

may still be very hot and cause burns.

To avoid possible burns, stand to side of oven

when opening door to allow steam or hot air to escape.

The health of some birds is extremely sensitive

to fumes given off during the self clean cycle of any range.

Move birds to a well ventilated room.

Important notes:

• Completely remove all oven racks and any accessories

from oven cavity to avoid damage to oven racks. If the

oven racks are not removed they may discolor.

• Remove all items from the oven and cooktop including

cookware, utensils, and any aluminum foil. Aluminum foil will

not withstand high temperatures from a self clean cycle and

will melt.

• Do not line the oven walls, racks, bottom, or any other part

of the range with aluminum foil or with any oven liners or

materials. Doing so will destroy heat distribution, produce

poor baking results, and cause permanent damage to the

oven interior (aluminum foil will melt to the interior surface

of the oven).

• Do not spray oven cleaners or oven protective coatings in or

around any part of the oven interior.

• Clean any soil from the oven frame, the door liner outside

the oven door gasket, and the small area at the front center

of the oven bottom (See

Figure 24). These areas heat

sufficiently to burn soil on. Clean using soap and water

prior to starting Self Clean.

• Remove any excessive soil or debris from the oven bottom.

To clean, use hot, soapy water and a cloth. Large spills can

cause heavy smoke or fire when subjected to high

temperatures.

• Do not allow food spills with high sugar or acid content

(such as milk, tomatoes, sauerkraut, fruit juices, or pie

fillings) to remain on the surface as they may leave a dull

spot even after cleaning.

• Do not clean the oven door gasket. The woven material in

the gasket is essential for a good seal. Care should be

taken not to rub, damage, or remove the oven door gasket.

Doing so could cause damage to the door gasket and

compromise the performance of the oven.

• Do not force the oven door open when self-clean is active.

This can damage the automatic door locking system. Use

caution when opening the door after the clean cycle is

complete. The oven may still be VERY HOT.

• To avoid possible burns stand to the side of the oven when

opening the oven door to allow hot air or steam to escape.

The oven may appear to have cooled after it has been

turned off. It may still be hot and burns may occur if the

oven walls are touched before they have cooled.

• Do not attempt to open the oven door when the OVEN

LOCK indicator light is flashing. Allow about 15 seconds for

the motorized door latch mechanism to completely lock or

unlock the oven door.

• The cooktop should not be used during a self-clean cycle.

On some models, turning on any cooktop surface burner will

cause the clean cycle to cancel. If the clean cycle is

canceled, the oven control display will show “SPr" for 5

seconds. The oven door will remain locked until the oven has

cooled down below cleaning temperature. If the oven is

below cleaning temperature, the user can start another

clean cycle immediately. If the oven is in cleaning

temperature range, another self-clean cycle can be set

once the door unlocks (up to 4 hours).

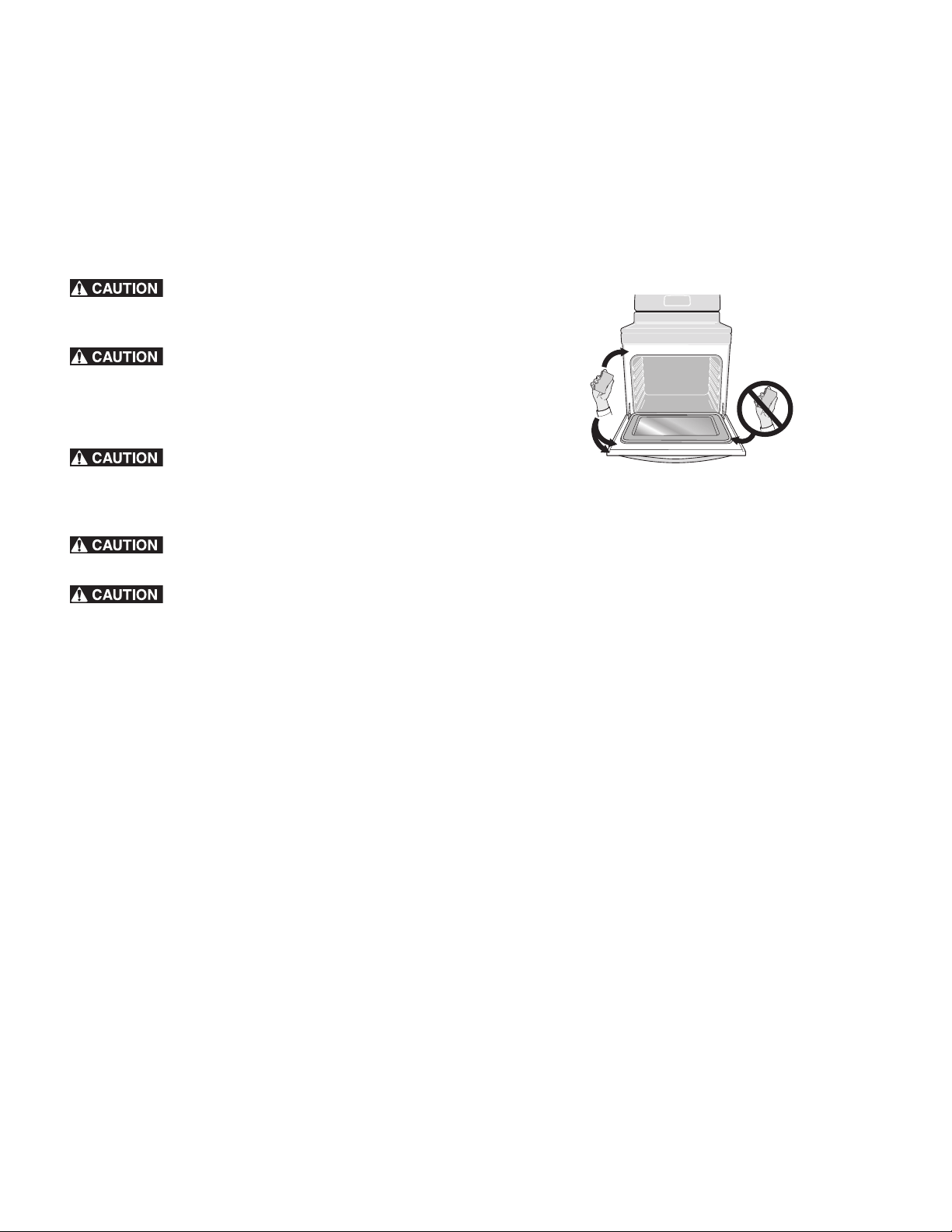

Figure 24: Areas to clean and to avoid

Oven Controls

Setting Self Clean

To set self clean:

1. Be sure the oven is empty and all oven racks are removed.

Remove all items from the oven. Be sure oven door is

completely closed.

2. Press Self Clean and the default 3 hour clean time will

appear in the display. You may accept the default 3 hour

clean time by going to step 3, or choose a different clean

time. Press Self Clean and use the numeric keypad or Up /

Down arrow keys to select any time between 2 hours and 4

hours. Once you have the desired clean time selected,

proceed to Step 3.

3. Press to activate Self Clean.

As soon as Self Clean becomes active, a motor driven lock

mechanism will begin locking the oven door automatically and

the lock icon will flash in the display along with

CLEAN. Do not

attempt to open the oven door (allow 15 seconds for the lock

mechanism to lock the oven).

Once the oven door has locked,

CLEAN will appear in the

display indicating Self Clean has started.

When Self Clean is finished:

Use caution when opening the oven door after

self cleaning. The oven may still be very hot and can cause

burns. To avoid possible burns stand to the side of the oven when

opening the oven door to allow hot air or steam to escape.

1. CLEAN message will turn off, and Hot will appear in display

window.

2. Once the oven has cooled down (about 1 hour) and Hot is

no longer displayed the door will unlock and the display

will show the time of day and the oven door may be

opened.

3. When the oven interior has completely cooled, wipe away

any residue or powdered ash with a damp cloth or paper

towel.

Setting Delay Start Self Clean

To start a delay Self Clean with default clean time of 3 hours

and a start time of 9:00 o’clock:

1. Be sure the clock is set with the correct time of day, the oven

is empty, and all oven racks are removed. Be sure oven door

is completely closed.

2. Press Delay Start.

3. Using numeric keypad, enter 9 0 0 or press the Up arrow

key until 9 0 0 appears in the display.

4. Press to accept

5. Press Self Clean.

6. Press .

As soon as Self Clean becomes active, a motor driven lock

mechanism will begin locking the oven door automatically and

the lock icon will flash in the display along with

CLEAN. Do not

attempt to open the oven door (allow 15 seconds for the lock

mechanism to lock the oven).

If it becomes necessary to stop Self Clean when active:

1. Press .

2. If Self Clean has heated the oven to a high temperature,

allow enough time for the oven to cool.

3. Before restarting Self Clean, be sure to read important

notes below.

Important note:

• If your clock is set with the (default) 12 hr display mode, the

Delay Start for a Self Clean can only be programmed to

start up to 11 hours and 59 minutes after the time showing in

the display (be sure to set the clock to current time before

programming a delay start). To set a Delay Start Self Clean

to begin 12 or more hours (maximum is 23 hours and 59

minutes) after the time of setting, be sure to first set the

control in the 24 Hr display mode.

• The Self Clean cycle will be canceled if a gas cooktop

burner is turned on during a self clean.

• If Self Clean was active and then interrupted by a power

failure or cancelled before the oven was thoroughly

cleaned, it may be necessary to run another Self Clean

cycle.

• If the oven temperature was high enough when Self Clean

was interrupted the oven control will not allow another Self

Clean cycle to be set once for up to 4 hours.

Oven Controls

Steam Clean

Steam cleaning works best for spot cleaning and light soils on

the oven bottom. Steam clean may also be used before manu-

ally cleaning the oven or before Self Clean to help loosen soils

on the oven bottom.

To set the controls for steam clean:

Do not set the cleaning temperature higher than

the temperature listed in these instructions. Higher temperatures

will dry the steam too soon and may lead to burns or serious

injury when cleaning.

Do not attempt to wipe out the oven before the

cooling off period or attempt to shorten the cooling off period.

Doing so may lead to burns or other serious injury when

cleaning.

Do not add ammonia, oven cleaners, or any

other household cleaners or chemicals to the water used for

steam cleaning.

1. Oven should be at room temperature. Remove all racks and

oven accessories.

2. Scrape or wipe loose debris from the oven bottom.

3. Pour 8 oz (235 ml) of distilled or filtered water onto the

oven bottom (

Figure 25). Close the oven door.

4. Press Bake.

5. Enter 170ºF (77ºC) using nymeric keys and press START.

6. Set the minute timer for 20 minutes.

7. Allow the oven to heat. Do not open the oven door while the

oven is heating.

8. An alert will sound when the timer is finished. Press Timer

ON/Off to stop the timer.

9. Press STOP to turn off the oven.

10. Set the minute timer for 10 minutes to allow for a cool-down

period. Do not attempt to wipe out the oven before a 10

minute cool-down period.

11. An alert will sound when the timer is finished. Press Timer

ON/Off to stop the timer.

12. Stand to the side of the range out of the way of escaping

vapor

when opening the oven door.

13. Wipe oven cavity and bottom. Do not clean oven door gas-

ket (

Figure 26).

To stop the steam cleaning cycle at any time, press .

Important notes:

• Always stay close to the oven when steam cleaning, so you

can hear the timer alert.

• For best results, wipe out oven immediately after the cool-

down period is complete.

• Removal of especially stubborn or baked-on soils may

require a manual cleaning or a self clean cycle. See

“Setting Self Clean” on page 31.

• Some condensation or water vapor may appear close to

the oven vent, and some water may remain on the oven

bottom. This is normal. Wipe with a soft cloth or sponge

when the cool-down period is complete.

• The oven gasket may become damp; do not wipe dry.

Open door to broil position and allow to air dry.

• Local water sources often contain minerals (hard water) and

will leave deposits on the oven cavity surfaces. If this occurs,

wipe cavity surfaces with diluted vinegar or lemon juice.

Use distilled or filtered water.

• If the door is opened during steam cleaning or cool-down

period, steam will escape and the oven may be more

difficult to clean. Keep oven door closed during steam

cleaning.

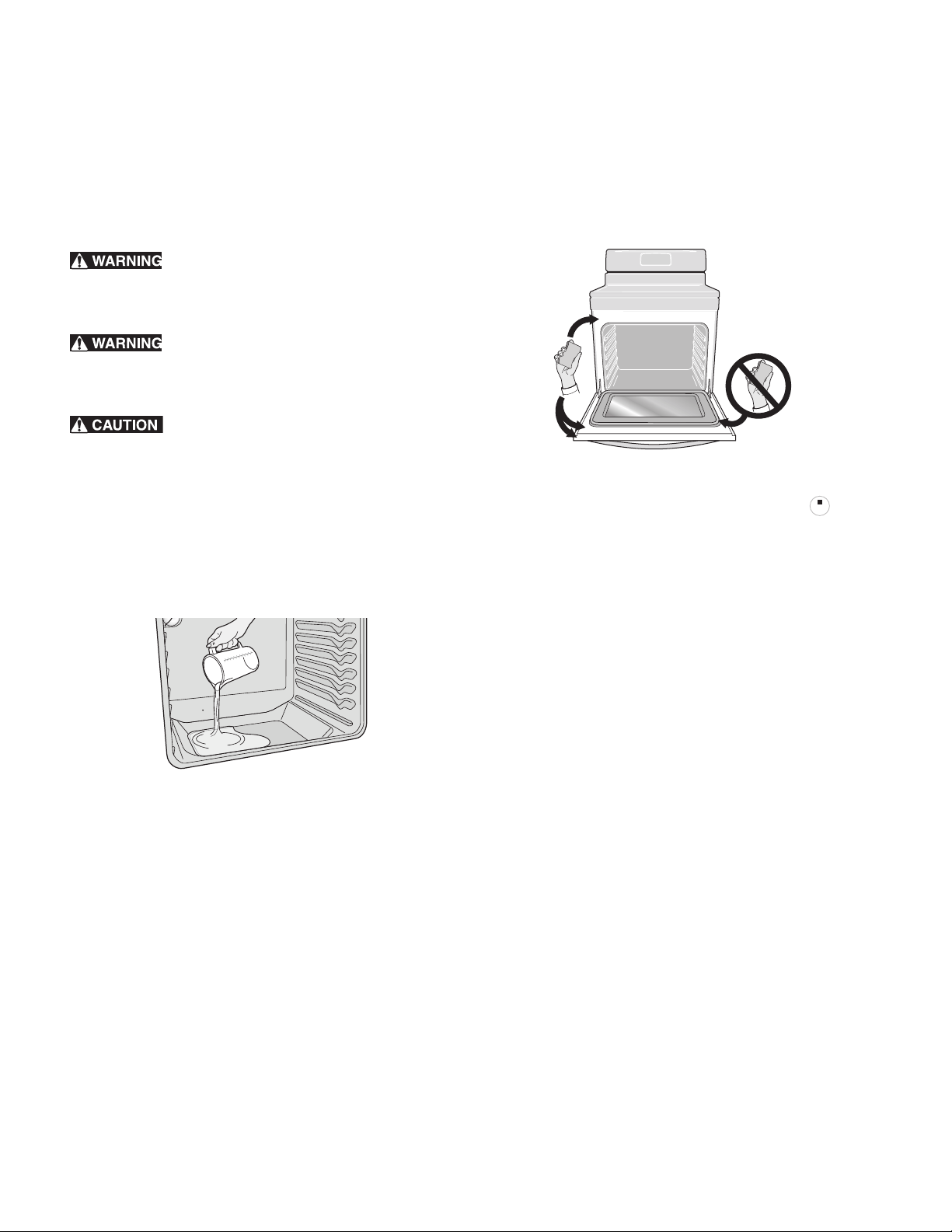

Figure 25: Pour water onto the oven bottom

Figure 26: Do not clean the oven door gasket

STOPSTOP

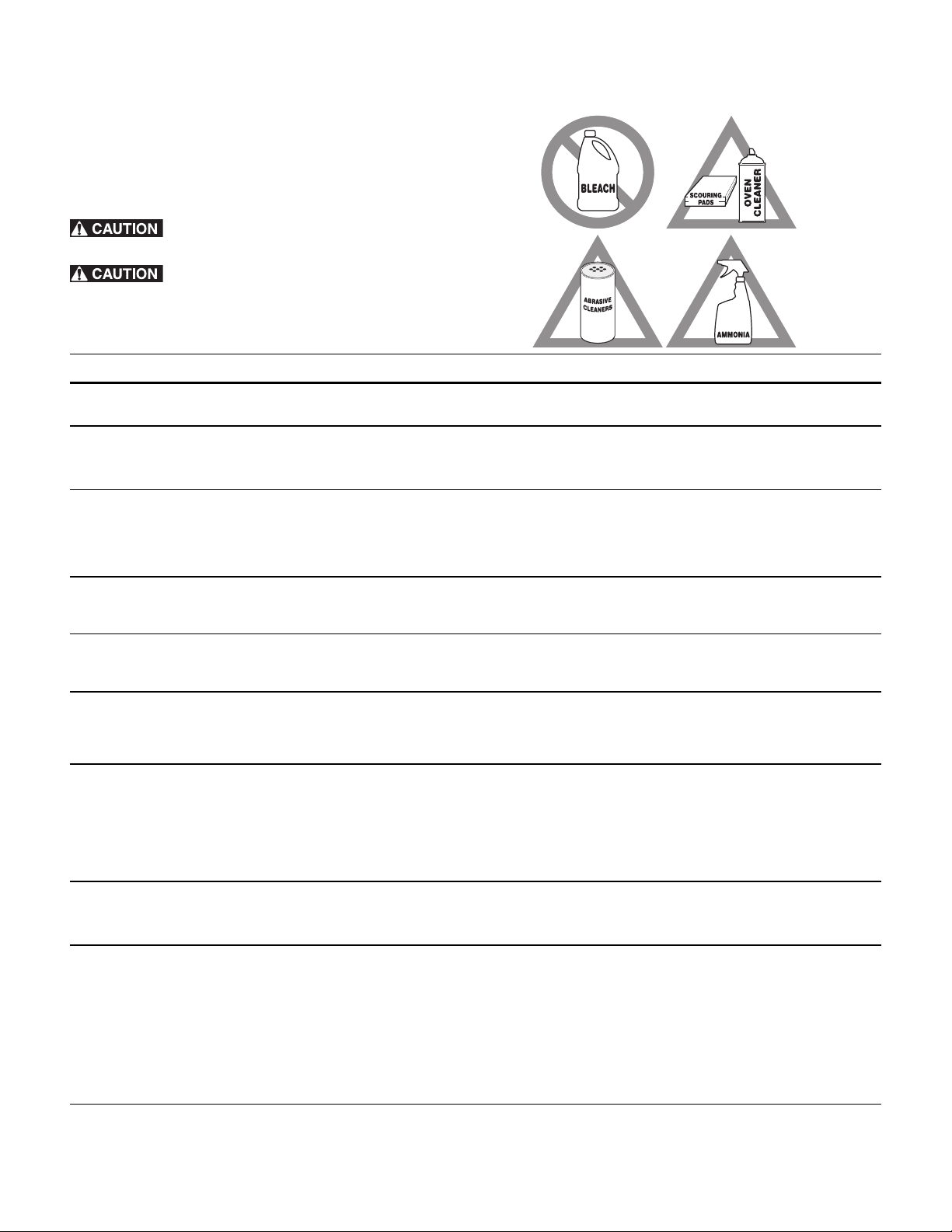

Care and Cleaning

Before cleaning any part of the appliance, be

sure all controls are turned off and the appliance is cool.

If ammonia or appliance cleaners are used, they

must be removed and the appliance must be thoroughly rinsed

before operating. Follow manufacturer's instructions and provide

adequate ventilation.

Remove spills and any heavy soiling as soon as possible.

Regular cleaning will reduce the difficulty of major cleaning

later.

Surface or Area Cleaning Recommendation

Aluminum and vinyl Using a soft cloth, clean with mild dish detergent and water. Rinse with clean water, dry and polish

with a soft, clean cloth.

Painted and plastic control knobs

Painted body parts

Painted decorative trims

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and

water. Rinse with clean water, dry and polish with a soft, clean cloth. Glass cleaners may be used,

but do not apply directly to surface; spray onto cloth and wipe.

Control panel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and

water. Do not spray liquids directly on the oven control and display area. Do not use large amounts

of water on the control panel - excess water on the control area may cause damage to the appli-

ance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will

damage the finish.

Control knobs Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and

water. To remove control knobs: turn to the OFF position, grasp firmly, and pull off the shaft. To

replace knobs after cleaning, line up the OFF markings and push the knobs into place.

Stainless Steel Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and

water. Rinse with clean water, dry with a soft clean cloth. Do not use cleaners containing abrasives,

chlorides, chlorine, or ammonia.

Easy Clean Stainless Steel

Black Stainless Steel

Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and

water. Rinse with clean water, dry with a soft clean cloth. Do not use appliance cleaner, stainless

steel cleaner, or cleaner containing abrasives, chlorides, chlorine, or ammonia. These cleaners may

damage the finish.

Porcelain-enameled broiler pan

and insert

Porcelain door liner

Porcelain body parts

Rinse with clean water and a damp cloth. Scrub gently with a soapy, non-abrasive scouring pad to

remove most spots. Rinse with a 50/50 solution of clean water and ammonia. If necessary, cover

difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse and wipe dry with

a clean cloth. Remove all cleaners or future heating could damage the porcelain. Do not allow food

spills with a high sugar or acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to

remain on porcelain surfaces. These spills may cause a dull spot even after cleaning.

Self-cleaning oven interior Before setting a self-clean cycle, clean soils from the oven frame, areas outside the oven door

gasket, and the small area at the front center of the oven bottom. See

“Setting Self Clean” on

page 31.

Oven door Use mild dish detergent and water or a 50/50 solution of vinegar and water to clean the top, sides,

and front of the oven door. Rinse well. Glass cleaner may be used on the outside glass of the door.

Ceramic smoothtop cleaner or polish may be used on the interior door glass. Do not immerse the

door in water. Do not spray or allow water or cleaners to enter the door vents. Do not use oven

cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven

door.

Do not clean the oven door gasket. The oven door gasket is made of a woven material which is

essential for a good seal. Do not rub, damage, or remove this gasket.

Care and Cleaning

General Cleaning

Refer to this chapter for more detailed information about

cleaning specific parts of the range.

Before manually cleaning any part of the

range, be sure all controls are turned off and the range is cool.

The range may be hot and can cause burns.

Ammonia must be rinsed before operating the

oven. Provide adequate ventilation.

Aluminum foil and utensils

Never cover any slots, holes, or passages in the

oven bottom or cover an entire oven rack with materials such as

aluminum foil. Doing so blocks air flow through the oven and

may cause carbon monoxide poisoning. Aluminum foil linings

may trap heat, causing a fire hazard.

Protective Liners — Do not use aluminum foil to

line the oven bottom. Only use aluminum foil as recommended

in this manual. Improper installation of these liners may result in

risk of electric shock, or fire.

• Aluminum foil - Use of aluminum foil on a hot cooktop can

damage the cooktop. Do not use thin aluminum cooking

utensils or allow aluminum foil to touch the surface burners

under any circumstances.

• Aluminum utensils - The melting point of aluminum is much

lower than that of other metals. Care must be taken when

aluminum pots or pans are used on the cooktop. If

aluminum pans are allowed to boil dry when using the

cooktop, the utensil will be damaged or destroyed.

Cleaning the Cooktop and Surface Burners

To avoid possible burns, do not attempt any of

the cooktop cleaning instructions provided before turning OFF

all of the surface burners and allow them to completely cool.

Any additions, changes or conversions required

in order for this appliance to satisfactorily meet the application

needs must be made by an authorized qualified agency.

Routinely clean the cooktop. Wipe with a clean, damp cloth and

wipe dry to avoid scratches. Keeping the surface burner head

ports and slots clean will prevent improper ignition and an

uneven flame.

Cleaning recessed and contoured areas of cooktop

If a spill occurs on or in the recessed or contoured areas, blot up

spill with an absorbent cloth. Rinse with a clean, damp cloth and

wipe dry.

Cleaning surface burner grates

• Clean only after the grates are completely cool.

• Use nonabrasive plastic scrubbing pad and mild abrasive

cleanser or clean in the dishwasher.

• Food soils containing acids may affect the finish. Clean

immediately after the grates are cool.

• Thoroughly dry grates immediately following cleaning.

Cleaning burner caps

• Remove caps from burner heads after they have cooled.

• Clean heavy soils with a plastic scrubbing pad and

absorbent cloth.

• Thoroughly dry burner caps immediately following cleaning

including the bottom and inside of cap.

• Do not use abrasive cleaners. They can scratch porcelain.

• Do not clean burner caps in the dishwasher.

• Do not operate surface burners without burner caps

properly in place. Read important notes.

Cleaning surface burner heads

For proper gas flow it may be necessary to clean the burner

head and slots. To clean, first use a clean DAMP cloth to soak up

any spills. Remove any food from between the burner slots using

a small nonabrasive brush like a toothbrush and afterwards

wipe up using a damp cloth. For stubborn soils located in the

slots, use a small-gauge wire or needle to clean.

Any spill on or around the electrode must be carefully cleaned.

Take care not to hit the electrode with any thing hard or it could

be damaged.

Important note:

Small food particulars on or around the electrode could stop the

burner from lighting.

Burner Cap

Burner Head

Burner Cap Lip

Care and Cleaning

To clean the burner head ignition ports

Each burner head has a small ignition port located as shown.

Should you experience ignition problems it may be that this port

hole is partially blocked with soil. With the burner head in

place, use a small wire gauge needle or the end of a paper clip

to clear the ignition port.

Important notes:

• The surface burner heads are secured to the cooktop and

must be cleaned in place on the cooktop.

• Always keep the surface burner caps in place whenever a

surface burner is in use.

• When replacing the burner caps, be sure the burner caps

are seated firmly on top of the burner heads.

• For proper flow of gas and ignition of burners do not allow

spills, food, cleaning agents or any other material to enter

the gas orifice port opening.

To remove and replace storage drawer (some models)

Use the storage drawer for storing cooking utensils. The drawer

can be removed to facilitate cleaning under the range. Use care

when handling the drawer.

Replacing oven light (some models)

Be sure the range is unplugged and all parts

are cool before replacing oven light. Wear a leather-faced

glove for protection against possible broken glass.

The oven light is located at the rear of the oven cavity and is

covered with a glass shield held by a wire holder. The glass

shield protects the light bulb and must be in place whenever the

oven is in use.

To replace the interior oven light bulb:

1. Turn electrical power off at the main source or unplug the

range.

2. Press wire holder to one side to release the glass shield that

covers the light bulb.

3. Replace light with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder back

into place.

5. Turn power on at the main source (or plug the appliance in).

6. The clock will then need to be reset. To reset, see “Setting

Clock” on page 19.

Figure 27: Open drawer(L)Closed drawer(R)

orifice port

slots

ignition port

ignitor

Figure 28: Replacing the oven light

wire

holder

glass

shield

Care and Cleaning

Removing and replacing the lift-off oven door

To avoid possible injury when removing or

replacing the oven door, follow the instructions below carefully

and always hold the oven door with both hands positioned

away from the door hinge area.

The door is heavy. For safe, temporary storage,

lay the door flat with the inside of the door facing down.

To remove the oven door:

1. Open oven door completely (horizontal with floor -

Figure 29).

2. Pull the door hinge locks on both left and right door hinges

down from the oven frame completely towards the oven

door (Figure 30). A tool such as a small flat-blade screw-

driver may be required.

3. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Figure 31).

4. Close the door to the broil stop position (the oven door will

stop into this position just before fully closing).

5. With the oven door in the broil stop position, lift the oven

door hinge arms over the roller pins located on each side of

the oven frame (Figure 32).

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle - Figure 31).

2. Holding the oven door at the same angle as the removal

position, seat the hook of the hinge arm over the roller pins

located on each side of the oven door frame (

Figure 32).

The hook of the hinge arms must be fully seated onto the

roller pins.

3. Fully open the oven door (horizontal with floor - Figure 29).

4. Push the door hinge locks up towards and into the oven

frame on both left and right oven door hinges (

Figure 30) to

the locked position; then, close the oven door.

Special care instructions

Most oven doors contain glass that can break. Follow these

recommendations:

• Do not close the oven door until all the oven racks are fully

in place inside the oven cavity.

• Do not hit the glass with pots, pans, or any other object.

• Scratching, hitting, jarring, or stressing the glass may

weaken its structure causing an increased risk of breakage

at a later time.

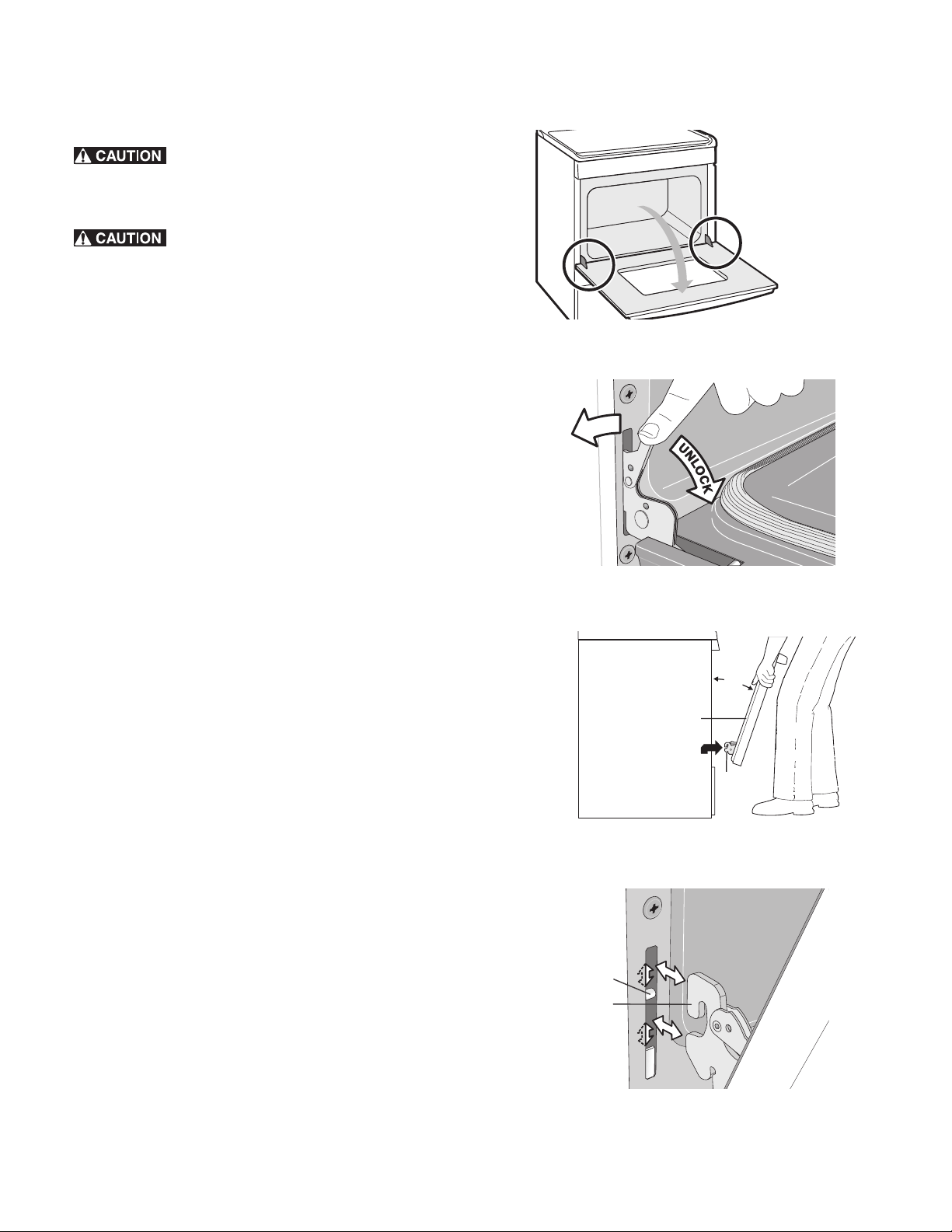

Figure 29: Oven hinge locations

Figure 30: Hinge lock/unlock positions

Figure 31: How to remove door

Figure 32: Hinge pin locations

Oven door

hinge

locations

about

10°

hinge

oven

door

roller

hinge

arm

Before You Call

Oven Baking

For best cooking results, heat the oven before baking cookies, breads, cakes, pies, pastries, et cetera. There is no need to preheat the

oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

Baking Problems and Solutions

Baking Problems Causes Corrections

Cookies and biscuits burn on

the bottom.

• Cookies and biscuits put into

oven before the preheating

time is completed.

• Oven rack is overcrowded.

• Dark pans absorbs heat too

fast.

• Allow oven to preheat to desired temperature before placing

food in oven.

• Choose pan sizes that will permit 2” to 4” of air space (5.1

cm o 10.2 cm) on all sides when placed in the oven.

• Use a medium weight baking sheet.

Cakes too dark on top or

bottom

• Cakes put in oven before

preheating time is completed.

• Rack position too high or too

low.

• Oven too hot.

• Allow oven to preheat to the selected temperature before

placing food in the oven.

• Use proper rack position for baking needs.

• Set oven temperature 25°F (12°C) lower than recommended.

Cakes not done in center

• Oven too hot.

• Incorrect pan size.

• Pan not centered in oven.

• Glass cookware slow heat

conductor.

• Set oven temperature 25°F (12°C) lower than recommended.

• Use pan size suggested in recipe.

• Use proper rack position and place pan so there is 5.1 cm to

10.2 cm (2” to 4”) of space on all sides of pan.

• Reduce temperature and increase cook time or use shiny

bakeware.

Cakes not level.

• Oven not level.

• Pan too close to oven wall or

rack overcrowded.

• Pan warped.

• Place a marked glass measuring cup filled with water on the

center of the oven rack. If the water level is uneven, refer to

the installation instructions for leveling the oven.

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance on

all sides of each pan in the oven.

• Do not use pans that are dented or warped.

Foods not done when cooking

time is over.

• Oven too cool.

• Oven overcrowded.

• Oven door opened too

frequently.

• Set oven temperature 25°F (12°C) higher than suggested and

bake for the recommended time.

• Be sure to remove all pans from the oven except the ones to

be used for baking.

• Open oven door only after shortest recommended baking

time.

• Make sure to allow 2” to 4” of clearance between all pans

and racks, allowing for even air flow.

Before You Call

Solutions to Common Problems

Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the

problem listed:

Problem Solution

Poor baking results • Many factors affect baking results. Make sure the proper oven rack position is used.

Center food in the oven and space pans to allow air to circulate. Allow the oven to

preheat to the set temperature before placing food in the oven. Try adjusting the recipe's

recommended temperature or baking time. If you feel the oven is too hot or cool, see

“Adjusting Oven Temperatures” on page 29.

Appliance is not level.

• Be sure floor is level, strong, and stable enough to adequately support range.

• If floor is sagging or sloping, contact a carpenter to correct the situation.

• Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust

leveling legs at base of appliance until the rack is level.

• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are

square and have sufficient room for appliance clearance.

Cannot move appliance easily.

Appliance must be accessible for

service.

• Cabinets not square or are built in too tightly. Contact builder or installer to make

appliance accessible.

• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over

carpet.

• Gas line is hard-plumbed. Have a flexible CSA International approved metal appliance

connector installed.

Entire appliance does not operate.

• Make sure power cord is plugged properly into outlet.

• Electrical power outage. Check house lights to be sure. Call your local electric company

for service outage information.

• Service wiring is not complete. Call 1-844-553-6667 for assistance (See back cover).

Oven portion of appliance does not

operate.

• Be sure regulator gas valve is turned to ON. See installation instructions.

• The time of day is not set. The time of day must first be set in order to operate the oven.

See “Setting Clock” on page 19.

• Be sure the oven controls are set properly for the desired function. See the “Oven

Controls” chapter starting on page 18 and review instructions for the desired cooking

function in this manual or see “Entire appliance does not operate” in this checklist.

Oven light does not work.

• Be sure the oven light is secure in the socket. Also see “Replacing oven light (some

models)” on page 35.

Oven smokes excessively when

broiling.

• Incorrect setting. Follow the “Setting Broil” instructions on page 25.

• Be sure oven door is closed when broiling.

•

Meat too close to the broiler. Reposition the broil rack to provide proper clearance

between the meat and the broiler. Preheat the broiler for searing.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to

prevent curling, but do not cut into lean.

• Grease has built up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Old grease or food spatters cause excessive smoking.

Before You Call

Flames inside oven or smoking from

oven vent.

• Excessive spillovers in oven. For example, this will happen for pie spillovers or large

amounts of grease left on the oven bottom. Wipe up excessive spillovers before starting

oven. If flames or excessive smoke are present, follow the

“Setting Broil” instructions on

page 25.

Oven control panel beeps and

displays any F code error.

• Oven control has detected a fault or error condition. Press STOP to clear the error code.

Try Bake or Broil function. If the F code error repeats, remove power from appliance, wait

5 minutes, and then repower appliance and set clock with the correct time of day. Try

Bake or Broil function again. If the fault recurs, press STOP to clear and call 1-844-553-

6667 for assistance (See back cover).

Self Clean does not work.

• Oven control not set properly. Review the “Self Clean” instructions on page 30.

Soil not completely removed after

Self Clean.

• Self Clean was interrupted. Review the “Self Clean” instructions on page 30.

• Excessive spillovers on oven bottom. Remove before starting Self Clean.

• Failure to clean soil from the oven frame, the door liner outside the oven door gasket and

the small area at the front center of the oven bottom. These areas are not in the self-

cleaning area, but get hot enough to burn on residue. Clean these areas before the self-

cleaning cycle is started. Burned-on residue can be cleaned with a stiff nylon brush and

water or a nylon scrubber. Be careful not to damage the oven gasket.

Oven racks discolored.

• Oven racks left in oven cavity during Self Clean. Always remove oven racks from oven

cavity before starting a self-clean cycle. Clean by using a mild, abrasive cleaner

following manufacturer's instructions. Rinse with clean water, dry and replace in oven.

Convection fan does not rotate.

• Allow 6 minutes for convection fan to start rotating after setting Convection.

• Oven door is open. Convection fan will turn off if oven door is opened when Convection

is active. Close oven door.

Surface burners do not ignite.

• Surface control knob was not completely turned to LITE. Push in and turn the surface

control knob to LITE until burner ignites and then turn control knob to desired flame size.

• Burner ports are clogged. With the burner OFF, use a small-gauge wire or needle to

burner head slots and ignition ports. See “Cleaning the Cooktop and Surface Burners” in

the Care & Cleaning section on page 34 for additional cleaning instructions.

• Range power cord is disconnected from outlet (electric ignition models only). Be sure

power cord is securely plugged into the power outlet.

• Electrical power outage. Burners may be lit manually. See “Setting Surface Burners” on

page 16.

Surface burner flame uneven or only

part way around burner cap.

• Burner slots or ports are clogged. With the surface burner OFF, clean ports with a small-

gauge wire or needle.

• Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until

flame is full.

• Burner caps are not seated properly. Check that all burner caps are level and seated

correctly on burner heads. See “Cleaning the Cooktop and Surface Burners” in the Care

& Cleaning section on page 34 for additional cleaning instructions.

Surface burner flame is too high. • Surface control knob is set too high. Adjust to lower flame setting.

• Burner caps are not seated properly. Check that all surface burner caps are level and

seated correctly on surface burner heads. See“Cleaning the Cooktop and Surface

Burners” in the Care & Cleaning section on page 34 for additional cleaning instructions.

• Incorrect L.P. conversion. Refer to L.P. conversion kit instructions to correct.

Before You Call

Surface burner flame is orange.

• Dust particles in main gas line. Allow the burner to operate a few minutes until flame

turns blue. In coastal areas, a slightly orange flame is unavoidable due to salt content in

air.

• Incorrect L.P. conversion. Refer to L.P. conversion kit instructions to correct.

The oven control display shows “SCC"

and self-clean is not working.

• If the cooktop is used during a self-clean cycle, the oven may turn off. The oven control

display will show “SCC". Press STOP to clear the SCC message. The oven door will

remain locked until the oven has cooled down below cleaning temperature. If the oven is

below cleaning temperature, the user can start another clean cycle immediately. If the

oven is in cleaning temperature range, another self-clean cycle can be set once the door

unlocks (after 4 hours).

Kenmore ®

Customer Care Hotline

To schedule in-home repair service

or order replacement parts

Para pedir servicio de reparación

a domicilio, y ordenar piezas

1-844-553-6667

Kenmore 79074463810 gas freestanding range

Product's Documents

User Manual

Specifications

Kenmore 79074463810 Questions and Answers
