Operating and installation instructions
Heat-pump dryer
Always read the operating instructions before setting up, installing and
commissioning the appliance. This prevents both personal injury and
damage to the machine.
en-GB M.-Nr. 11 455 410
Contents
2
Caring for the environment ................................................................................. 5
Warning and Safety instructions ......................................................................... 6
Operating the tumble dryer ................................................................................ 18
Control panel......................................................................................................... 18
How the control field works................................................................................... 19
Drum lighting ......................................................................................................... 20
Initial commissioning .......................................................................................... 21
1. Notes on correct laundry care ....................................................................... 22
Washing................................................................................................................. 22
Drying .................................................................................................................... 22
Care label symbols ................................................................................................ 22
2. Load the tumble dryer..................................................................................... 23
3. Selecting a programme .................................................................................. 24
Selecting a programme ......................................................................................... 24
Drying level for programmes with a selectable drying level ............................. 24
Time-controlled and other programmes........................................................... 25
Selecting Gentletumble ........................................................................................ 25
Selecting the Delay start function ......................................................................... 26
4. Starting the programme ................................................................................. 27
5. End of programme – unloading the drum ..................................................... 28
End of programme................................................................................................. 28
Unloading the drum............................................................................................... 28
Observe any maintenance notes........................................................................... 28
Programme overview .......................................................................................... 29
Changing the programme sequence ................................................................ 33
Changing a programme once it has started.......................................................... 33
Adding laundry ...................................................................................................... 33
Fragrance flacon.................................................................................................. 34
Inserting a fragrance flacon................................................................................... 34
Opening the fragrance flacon................................................................................ 36
Closing the fragrance flacon ................................................................................. 36
Removing/replacing the fragrance flacon ............................................................. 37
Contents
3
Cleaning and care ............................................................................................... 38
Observing the cleaning intervals ........................................................................... 38
Cleaning the fluff filters.......................................................................................... 38
Removing the fragrance flacon ........................................................................ 38
Removing visible fluff ....................................................................................... 39
Cleaning the fluff filters and air flow openings thoroughly ............................... 40
Cleaning the plinth filter......................................................................................... 42
Removing the plinth filter ................................................................................. 42
Cleaning the plinth filter.................................................................................... 43
Replacing the plinth filter.................................................................................. 43
Cleaning the plinth filter flap............................................................................. 45
Checking the heat exchanger........................................................................... 46
Inserting the plinth filter.................................................................................... 47
Cleaning the tumble dryer ..................................................................................... 48
Problem solving guide ........................................................................................ 49
Indicator lights or information on the time display ................................................ 49
Unsatisfactory drying results................................................................................. 51
The drying cycle duration is very long................................................................... 52
Other problems ..................................................................................................... 53
Service.................................................................................................................. 54
Contact in case of malfunction ............................................................................. 54
Optional accessories............................................................................................. 54
Installation............................................................................................................ 55
Front view .............................................................................................................. 55
Rear view............................................................................................................... 56
Locations............................................................................................................... 56
Side view .......................................................................................................... 56
View from above............................................................................................... 56
Washer-dryer stack .......................................................................................... 57
Transporting the tumble dryer to its installation site ............................................. 57
Installation ............................................................................................................. 58
Downtime after installation............................................................................... 58
Levelling the tumble dryer ................................................................................ 58
Room ventilation .............................................................................................. 59
Hose for external drainage of condensed water ................................................... 60
Electrical connection ............................................................................................. 62
Technical data...................................................................................................... 63
Data sheet for household tumble driers ................................................................ 64
Consumption data............................................................................................... 66
Contents
4
Programmable functions .................................................................................... 67
Programming......................................................................................................... 67
Cottons drying levels....................................................................................... 69
Minimum iron drying levels............................................................................. 69
Cooling phase ................................................................................................ 69
Buzzer volume................................................................................................ 69
Keypad tone................................................................................................... 70
PIN code......................................................................................................... 70
Conductivity ................................................................................................... 70
Control field switch-off status .......................................................................... 71
Memory............................................................................................................ 71
Anti-crease ...................................................................................................... 71
Buzzer.............................................................................................................. 72
Airways indicator............................................................................................ 72
Backlight brightness dimmed......................................................................... 72
Caring for the environment
5
Disposal of the packing mater-
ial
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the manufactur-
ing process and also reduces the
amount of waste in landfill sites.
Disposing of your old appli-
ance
Electrical and electronic appliances of-
ten contain valuable materials. They
also contain specific materials, com-
pounds and components, which were
essential for their correct function and
safety. These could be hazardous to hu-
man health and to the environment if
disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local com-
munity waste collection / recycling
centre for electrical and electronic ap-
pliances, or contact your dealer or
Miele for advice. You are also respons-
ible for deleting any personal data that
may be stored on the appliance being
disposed of. Please ensure that your
old appliance poses no risk to children
while being stored prior to disposal.
Warning and Safety instructions
6
It is essential to read these instructions.
This tumble dryer complies with all current local and national
safety requirements. However, inappropriate use can lead to per-
sonal injury and damage to property.
Read the operating instructions carefully before using the tumble
dryer. They contain important information on safety, installation,
use and maintenance. This prevents both personal injury and dam-
age to the tumble dryer.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the tumble dryer as well as the safety instruc-
tions and warnings.
Miele cannot be held liable for damage caused by non-compliance
with these instructions.
Keep these operating instructions in a safe place and pass them
on to any future owner.
When instructing other people how to use the tumble dryer, they
must be made aware of these safety and warning instructions.
Correct application
This tumble dryer is only intended for drying fabrics which have
been washed in a water solution, and marked on the manufacturer's
care label as being suitable for tumble drying. “Dry cleaning kits” for
freshening up garments in a tumble dryer are increasingly available
on the market. If using, do so at your own risk, and follow the in-
structions provided on the packaging. Any other applications may be
dangerous. Miele cannot be held liable for damage resulting from in-
correct or improper use or operation.
Warning and Safety instructions
7
This tumble dryer may also be operated in public areas.
The tumble dryer is not intended for outdoor use.
This appliance can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, if
they are supervised whilst using it or have been shown how to use it
in a safe way and understand and recognise the consequences of in-
correct operation.
Children under 8 years of age must be kept away from the tumble
dryer unless they are constantly supervised.
Children 8 years and older may only use the tumble dryer unsu-
pervised if they have been shown how to use it safely and recognise
and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the tumble
dryer unsupervised.
Please supervise children in the vicinity of the tumble dryer and do
not let them play with it.
Warning and Safety instructions
8
Technical safety
Before setting up the tumble dryer, check it for any externally vis-
ible damage.
Do not install or use a damaged tumble dryer.
Do not make any alterations to the tumble dryer, unless authorised
to do so by Miele.
Do not connect the tumble dryer to the mains electricity supply by
an extension lead. Extension leads are a fire hazard and do not guar-
antee the required safety of the tumble dryer.
If the electrical connection cable is faulty it must always be re-
placed by a Miele authorised service technician to protect the user
from danger.
The electrical safety of this tumble dryer can only be guaranteed
when correctly earthed. It is essential that this standard safety re-
quirement is met. If in any doubt, please have the on-site wiring sys-
tem inspected by a qualified electrician. Miele cannot be held liable
for the consequences of an inadequate earthing system (e.g. electric
shock).
Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician, otherwise any
subsequent damage will not be covered by the warranty. Ensure cur-
rent is not supplied to the tumble dryer until after maintenance or re-
pair work has been carried out.
Faulty components must only be replaced by genuine Miele ori-
ginal spare parts. The manufacturer can only guarantee the safety of
the appliance when Miele replacement parts are used.
To ensure the correct performance of the tumble dryer and to pre-
vent the risk of faults and fire, it is important to carry out mainten-
ance on a regular basis.
Warning and Safety instructions
9
In the event of a fault or for cleaning purposes, the tumble dryer
is only completely isolated from the electricity supply when:
– it is switched off at the wall socket or the plug is withdrawn, or
– it is switched off at the mains, or the mains fuse is disconnected
– the screw-out fuse is removed (in countries where this is applic-
able), or it is switched off at the isolator switch.
See “Installation - Electrical connection”.
This appliance must not be used in a non-stationary location (e.g.
on a ship).
See “Installation” and “Technical data”.
The accessibility of the plug must be always ensured, in order to
separate the tumble dryer from the mains. All electrical work should
be carried out only by a suitably qualified and competent person, in
strict accordance with national and local safety regulations.
If the appliance is hard wired, adequate provision must be made
on site to switch off all poles to disconnect the tumble dryer from the
electrical supply.
Do not block the gap between the bottom of the tumble dryer and
the floor with plinth facings, deep pile carpet etc. This would hinder a
sufficient flow of air to the dryer.
Do not install a lockable door, a sliding door or a door which is
hinged in the opposite direction to the dryer door.
This tumble dryer is supplied with a special lamp to cope with
particular conditions (e.g. relating to temperature, moisture, chemical
resistance, abrasion resistance and vibration). This special lamp
must only be used for the purpose for which it is intended. It is not
suitable for room lighting. Replacement lamps may only be fitted by
a Miele authorised person or by Miele Service.
Warning and Safety instructions
10
Information on the heat pump and refrigerant
– This tumble dryer uses refrigerant gas which is not flammable and
not explosive.
– The humming noises caused by the heat pump during the drying
process are normal. They do not impair the efficient functioning of
the tumble dryer.
Damage to the tumble dryer by switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer, wait for at least one hour before
switching it on.
– This tumble dryer contains fluorinated greenhouse gases (F-Gas).
They are hermetically sealed.
Designation of refrigerant: R450A
Amount of refrigerant: 0,310 kg
Global warming potential of refrigerant: 605 kg CO
2
e
Global warming potential of appliance: 188 kg CO
2
e
Warning and Safety instructions
11
Correct use
The maximum load for this tumble dryer is 7 kg (dry weight).The
maximum recommended loads for individual programmes are given
in the Programme chart.
Do not lean on the door. Otherwise, the tumble dryer may tip over,
causing injury to yourself or others.
Always close the door after use. This way you will avoid the
danger of:
– children climbing onto or into the dryer or hiding things in it.
– pets or other small animals climbing into it.
Do not use a pressure washer or hose to clean the tumble dryer.
Always keep the area around the tumble dryer free of dust and
fluff. Dust drawn into the dryer can, over time, cause blockages.
Faults can then occur as well as the risk of fire.
The tumble dryer must not be used:
– Without the fluff filters in place or without the filter in the plinth.
– If the fluff filters or the filter in the plinth are damaged in any way.
In case of damage, the fluff filters and plinth filter must be re-
placed immediately.
A damaged filter would cause an excessive build-up of fluff which in
turn would cause a tumble dryer fault.
Warning and Safety instructions
12
To ensure problem-free operation of the tumble dryer:
– Remove the fluff from the fluff filter surfaces after every drying
cycle.
– The fluff filters and the plinth filter must be thoroughly dried after
cleaning them with water. Wet or damp fluff filters/plinth filter
could cause operational faults while drying.
– In addition, the fluff filters, filter surfaces and the air passages
must be cleaned when prompted by the display.
Do not install the tumble dryer in a room where there is a risk of
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly. There is a risk of damage
if the condensed water is allowed to freeze in the pump or hoses.
The ambient room temperature should be between 2°C and 35°C.
If the water is drained externally through the drain hose instead of
being collected in the condensed water container,
make sure the drain hose is securely attached if you hang it in a sink
or basin to avoid the hose slipping and the water causing damage.
Condensed water is not drinking water.
It can cause health problems in both people and animals.
Warning and Safety instructions
13
To prevent the risk of fire, the following textiles must not be dried
in this tumble dryer:
– items which have not been washed.
– Items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other depos-
its (such as cosmetics, lotions etc). If items have not been thor-
oughly cleaned there is a danger that these might ignite when
heated, even after they have been removed from the dryer at the
end of the programme.
– Items that have been soiled with substances such as acetone,
petrol, kerosene, stain removers, turpentine, waxes, wax re-
movers and other chemicals (e.g. mops and floor cloths) should
be washed in hot water with extra detergent before being dried in
the tumble dryer.
– Items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
When washing very heavily soiled items ensure that you use suffi-
cient detergent and select a high temperature. If in doubt wash
several times before drying.
Remove all items from pockets (e.g. lighters, matches).
In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry self-ig-
niting). The programme is not finished until the cooling down phase
is complete. Ensure that you always wait until the end of the pro-
gramme before removing the laundry.
Warning and Safety instructions
14
To prevent the risk of fire, do not connect the tumble dryer via a
controllable socket (e.g. a timer or a peak-load switch-off).
If the drying programme is interrupted before the end of the cooling
down phase, this could cause the laundry to self-ignite.
To prevent the risk of fire, the following textiles must not be dried
in this tumble dryer:
– items which have been cleaned using chemicals (e.g. professional
dry-cleaning agents).
– fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
– Fabrics which contain damaged padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of it
igniting in the dryer.
The programme ends when the cooling phase starts. Many pro-
grammes are followed by the cooling phase to ensure that the items
are not too hot to handle when you remove them (this also reduces
the risk of the laundry self-igniting).
Always remove all laundry as soon as the programme has finished.
Fabric conditioner and similar products must be used according
to the instructions on the manufacturer's packaging.
Benzine, petrol, paraffin, or any easily flammable liquid must not
be stored or used near the machine. Danger of explosion.
Warning and Safety instructions
15
Do not expose the dryer to air which is contaminated with vapour
of chlorine, fluorine or other solvents. Danger of fire.
For tumble dryers with stainless steel surfaces:
The stainless steel surfaces must not come into contact with liquid
cleaning and disinfecting agents which contain chlorine or sodium
hypochlorite. These agents can have a corrosive effect on stainless
steel.
Aggressive vapours containing chlorine can also be corrosive.
Do not store containers of these agents near the tumble dryer.
Warning and Safety instructions
16
Using a fragrance flacon (optional accessory)
Only ever use original Miele fragrance flacons.
The fragrance flacon must be stored in its packaging so please
make sure you retain this.
Make sure that you always keep the fragrance flacon or the fluff
filter with the flacon inserted in it in a horizontal position when carry-
ing, and do not tip or place it down on any surface. The fragrance
can leak out of the flacon.
Use an absorbent cloth to wipe up any fragrance which has
leaked out of the flacon onto the floor, the dryer or any dryer com-
ponents (e.g. the fluff filter) immediately.
If fragrance which has leaked out of a flacon: comes into contact
with the skin - wash the skin thoroughly with soap and water; comes
in contact with the eyes - rinse the eyes with clean water for at least
15minutes; is swallowed - rinse out the mouth thoroughly with
clean water. Seek medical advice in the case of contact with the
eyes or if fragrance has been swallowed.
If fragrance which has leaked out of a flacon comes in contact
with clothing, change the clothing immediately. Wash the clothing or
any cloths used for mopping up fragrance thoroughly with plenty of
water and detergent.
There is the risk of fire or damage to the tumble dryer if the follow-
ing instructions are not observed:
– Never refill a flacon with fragrance.
– Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
Warning and Safety instructions
17
Accessories
Only use genuine Miele original spare parts and accessories with
this appliance. If spare parts or accessories from other manufactur-
ers are used, this will invalidate the guarantee, and Miele cannot ac-
cept liability.
The tumble dryer can also be combined with a Miele washing ma-
chine in a washer-dryer stack. The appropriate “WTV” stacking kit
(available to order) to match your dryer is required.
Make sure that you order the correct plinth for this tumble dryer
(available from Miele as an optional accessory).
Miele cannot be held liable for damage caused by non-compli-
ance with these Warning and Safety instructions.
Operating the tumble dryer
18

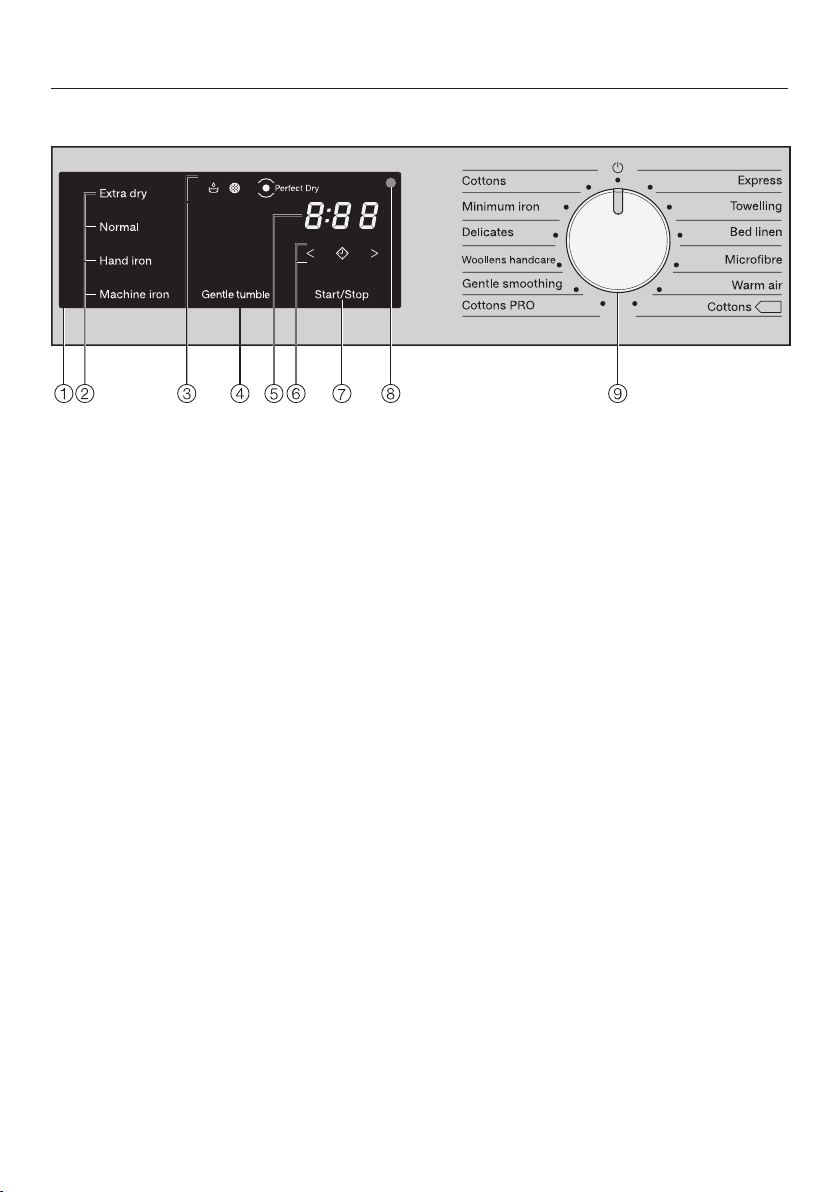

Control panel
a
Control field
b
Sensor controls for the drying
levels
c
Indicator lights
light up when necessary
d
Gentletumble sensor control
for gentle drying
e
Time display
for the programme duration
f
Sensor controls
for time selection
g
Start/Stop sensor control
Starts the selected programme and
cancels a programme once it has
started.
h
Optical interface
This is used by the Service depart-
ment as a transmission point.
i
Programme selector
for selecting programmes and for
switching off. The tumble dryer is
switched on by selecting a pro-
gramme, and switched off by turning
the programme selector to the po-
sition.
Operating the tumble dryer
19
How the control field works
The,,and sensor controls
react to fingertip contact. If a sensor
control is illuminated, it can be selec-
ted.
If a sensor control is brightly lit, this
means it is currently selected
If a sensor control is dimly lit, this
means it can be selected
Sensor controls for the drying
levels
After selecting a drying level pro-
gramme with the programme selector,
the recommended drying level lights up.
Drying levels that can be selected are
dimly lit.
Indicator lights
–
lights up if condensate drainage via
the drain hose is hindered.
–
lights up when the plinth filter has to
be cleaned.
– PerfectDry
With programmes with a selectable
drying level, the PerfectDrysystem
calculates the residual moisture
present in the laundry to ensure pre-
cise drying results.
This indicator. . .
. . .will flash until the programme
duration has been determined, and
then go out.
. . .lights up again when the selected
drying level is reached towards the
end of the programme.
. . .remains off with the following
programmes: Woollens handcare,
Warm air.
Gentletumble sensor control
For drying temperature-sensitive textiles
with the symbol. When the sensor
control is touched, Gentletumble will
light up brightly.
With some programmes, Gentletumble
is always active (lights up) or inactive
(does not light up).
Operating the tumble dryer
20
Time display
The remaining programme duration is
displayed in hours and minutes.
With most programmes, the duration
displayed may vary or “jump”. The fol-
lowing factors, among others, affect the
programme duration displayed: the
quantity of laundry, the type of fabric
and the residual moisture in the laundry.
The electronic module adapts to these
parameters and then adjusts the pro-
gramme duration with increasing accur-
acy.
Sensor controls
–
After touching the sensor control,
a later start time for the programme
(Delay start) can be selected. Once
selected, lights up brightly.
–
The or sensor controls are used
for selecting the duration of the Delay
start period or the duration of the
Warm air programme.
Start/Stop sensor control
Touching the Start/Stopsensor control
starts a programme or cancels a pro-
gramme that has already been started.
The programme can be started when
the sensor control is flashing on and off.
The sensor control lights up constantly
once the programme has started.
Drum lighting
The inside of the drum lights up so that
you don't forget any items of laundry
when you empty it.
The drum lighting will go out automatic-
ally to save energy.
Initial commissioning
21
Risk of injury or damage to prop-
erty due to improper installation.
Incorrect installation of the tumble
dryer can lead to personal injury or
damage to property.
Before commissioning the tumble
dryer for the first time, make sure it
has been installed and connected
correctly. Please observe the instruc-
tions in “Installation”.
Damage caused by switching the
appliance on too soon.
This can damage the heat pump in
the tumble dryer.
After setting up the tumble dryer,
wait for at least one hour before
starting a drying programme.
1. Notes on correct laundry care
22
Washing
– Heavily soiled laundry must be
washed particularly thoroughly. Use
sufficient detergent and select a high
temperature. If in doubt, wash the
items several times.
– New, coloured items must be washed
thoroughly and separately. Do not dry
these items with light coloured gar-
ments. There is the risk of colours
running and discolouring other gar-
ments or even plastic components in
the tumble dryer. Dark coloured fluff
can also settle on light coloured gar-
ments and vice versa.
Drying
Damage due to foreign objects
which were not removed from the
laundry.
Foreign objects can melt, burn, or
explode.
Ensure that any foreign objects, e.g.
detergent dispensing balls, lighters,
etc., have been removed from the
laundry.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the tumble dryer and the surround-
ings.
See the section on “Warning and
safety” for further information.
– Check seams and stitching to ensure
that the items are intact. This way you
will avoid the danger of fillings com-
ing out and causing a fire.
– Sew in or remove underwiring from
bras.
Care label symbols
Drying
Normal/higher temperature
Low temperature*
* Select Gentletumble
Do not tumble dry
Ironing
Very hot
Hot
Warm
Do not iron

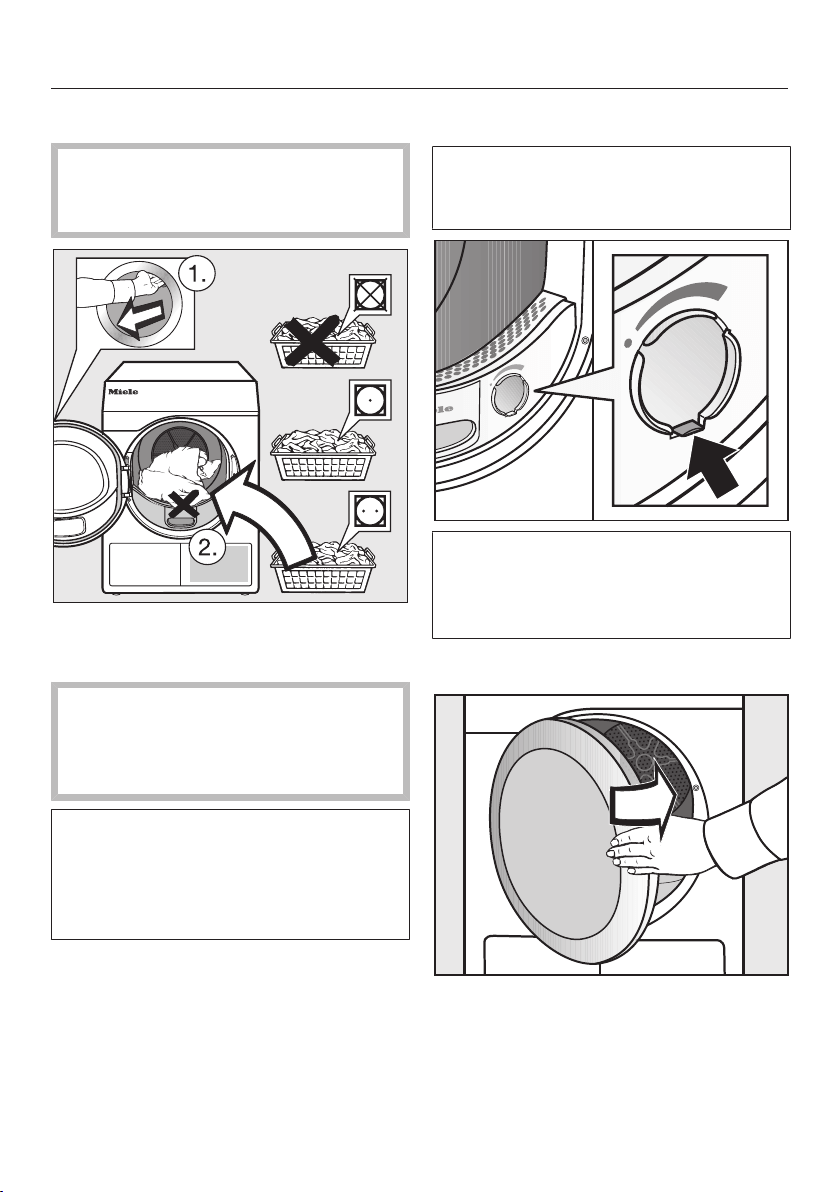

2. Load the tumble dryer
23
Loading the laundry
Preventing textile damage.
Before loading, read chapter “1.
Notes on correct laundry care.”
Open the door.
Load the laundry.
Preventing textile damage.
When closing the door, make sure
that laundry does not get trapped in
the door opening.
Do not overload the drum. Overload-
ing can cause unnecessary wear and
tear to the laundry and and cause a
disappointing drying result. It can also
cause more creasing.

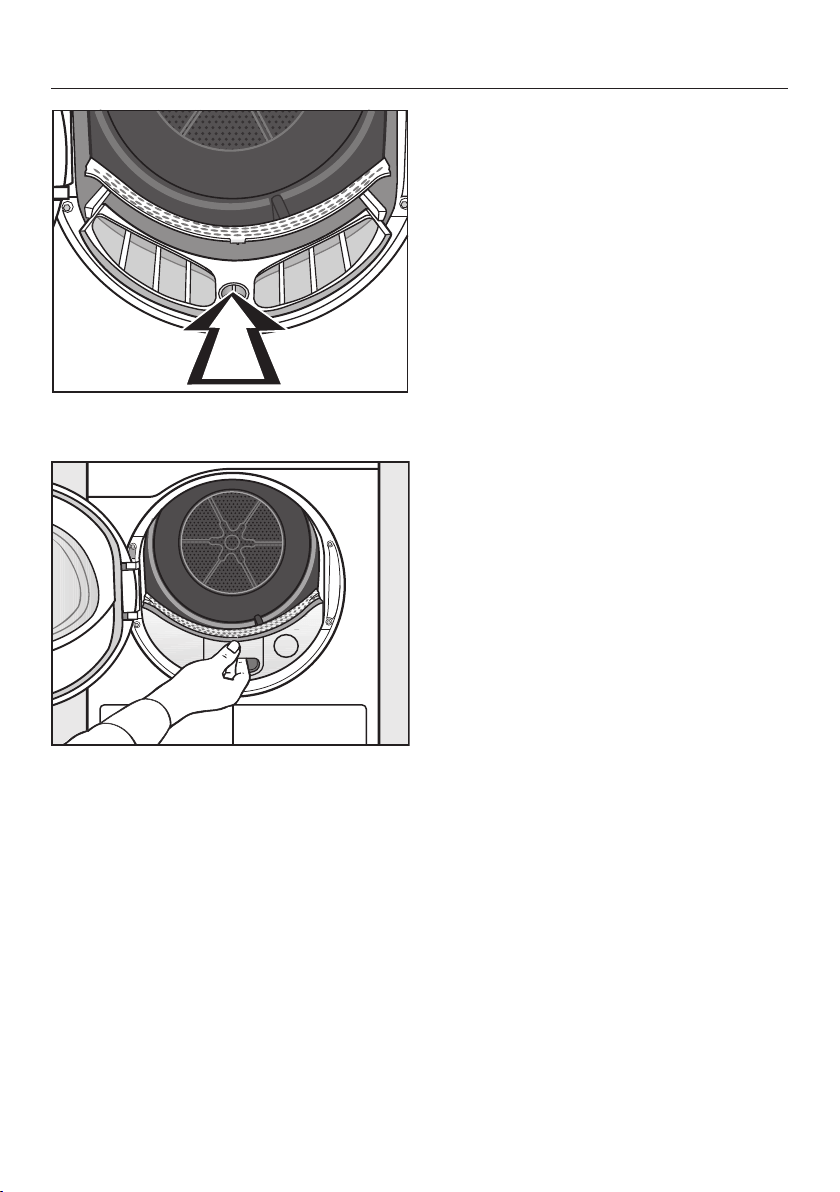

Socket for the fragrance flacon
The “Fragrance flacon” chapter de-
scribes how to use the fragrance
flacon.
If you are not using a fragrance flacon:
push the tab down completely (see ar-
row) so that the socket is closed. Oth-
erwise, fluff will accumulate here.
Closing the door
Shut the door with a gentle swing.
3. Selecting a programme
24

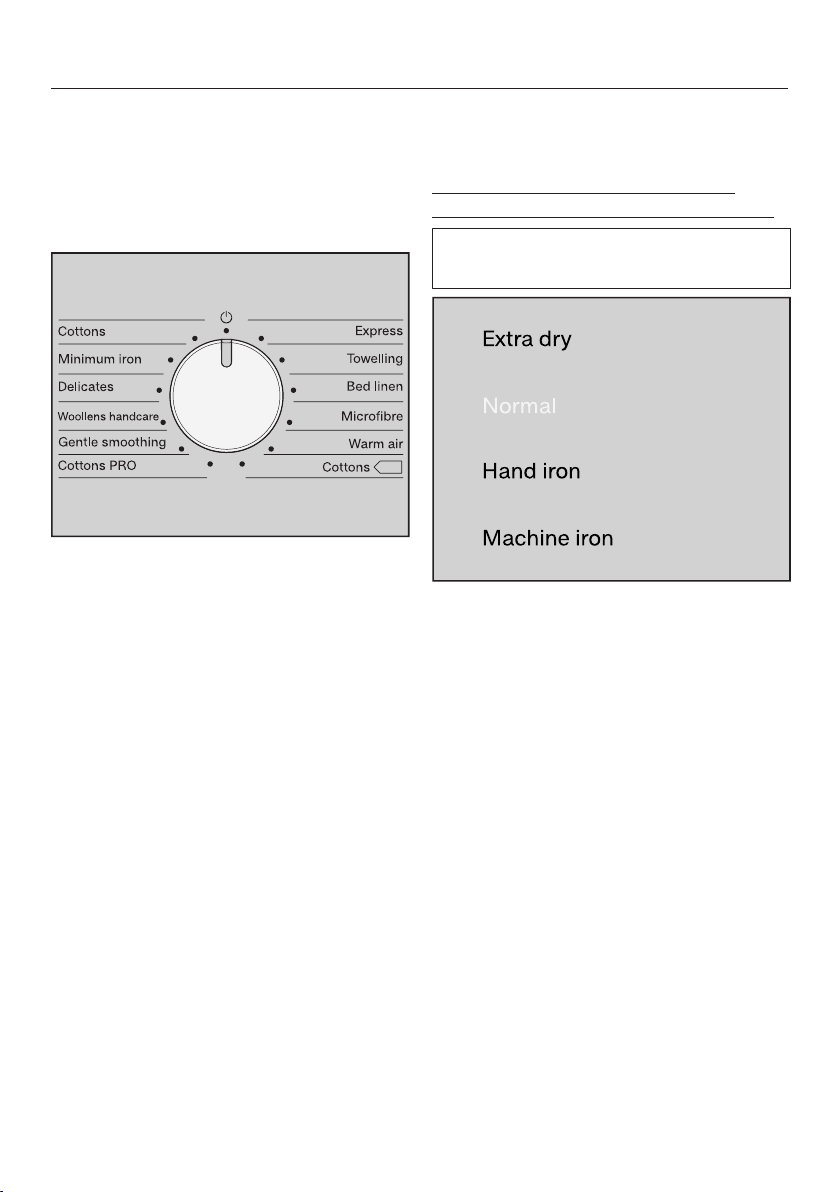

Selecting a programme
The tumble dryer is switched on by se-
lecting a programme, and switched off
by turning the programme selector to
the position.
Turn the programme selector.
A drying level may also light up and
durations will appear in the time display.
Drying level for programmes with a
selectable drying level
Cottons, Minimum iron, Delicates,
Gentle smoothing, Express, Microfibre
The pre-set drying level can be
changed if required.
Touch the sensor control for the dry-
ing level you want. It then lights up
brightly.
Any drying level can be selected for the
Cottons and Express programmes. A
more limited range is available when us-
ing the other programmes.
3. Selecting a programme
25
Time-controlled and other pro-
grammes
Warm air
You can set the duration in ten-minute
increments fromminutes
tohours.
Touch the or sensor control re-
peatedly until the required pro-
gramme duration appears in the time
display.
Cottons, Cottons PRO, Towelling,
Bed linen, Woollens handcare
The drying result is preset by the
tumble dryer and cannot be altered.
Selecting Gentletumble
Delicate fabric (with the symbol on
the care label, e.g. acrylic garments) is
dried at a lower temperature. The pro-
gramme duration is also longer.
Touch the Gentletumble sensor con-
trol. It then lights up brightly.
– Gentletumble can be selected with
the following programmes:
– Cottons
– Minimum iron
– Warm air
– Gentletumble is always activated/
cannot be deselected with Delicates
and Gentle smoothing.
3. Selecting a programme
26
Selecting the Delay start func-
tion
With Delay start, you can delay the
start of a programme from
minutes up to hours.
However: Delay start cannot be used
with the Warm air programme.
Touch the sensor control.
lights up brightly.
Touch the or sensor control re-
peatedly until the required Delay start
time appears in the time display.
Tip: The time will count upwards or
downwards automatically if you touch
the or sensor controls continu-
ously.
Changing the Delay start time
Touch the Start/Stop sensor control.
Touch the or sensor control re-
peatedly until the required Delay start
time appears in the time display.
Touch the Start/Stop sensor control.
The Delay start function continues to
count down.
Cancelling/deleting Delay start
Turn the programme selector to the
position.
Delay start countdown
– Delay start times of more than will
count down in hours and then in
minutes until the start of the pro-
gramme.
– The drum will turn briefly every hour
until the start of the programme to re-
duce laundry creasing.
4. Starting the programme
27
Starting the programme
Touch the flashing Start/Stop sensor
control.
The Start/Stopsensor control lights up.
Programme sequence
– If Delay start has been selected, the
Delay start time will start to count
down first.
– With a longer Delay start time, the
drum will rotate occasionally to un-
tangle the laundry. This will loosen
the laundry.
– The programme starts.
– The Perfect Dry indicator will only
flash/light up with programmes with
selectable drying levels (see also
“Operating the tumble dryer”).
– The tumble dryer measures the resid-
ual moisture of the laundry and cal-
culates the required programme dur-
ation.
If a small load or dry laundry is
placed in the tumble dryer, it is dried/
aired for a preset duration. In this
case, the Perfect Dry indicator does
not light up at the end of the pro-
gramme.
Laundry items and fabrics can wear
out unnecessarily.
Avoid overdrying the laundry.
Energy savings
After 10minutes, the indicators dim.
The Start/Stop sensor control flashes
slowly.
Touch the Start/Stopsensor control
to switch the indicators on again (this
does not have any effect on a running
programme).
– Before the programme finishes, the
laundry is cooled.
5. End of programme – unloading the drum
28
End of programme
The laundry will be cooled down shortly
before the end of the programme. The
laundry can now be unloaded.
The programme has ended when
only is left on the display.
If Anti-crease (see “Programmable func-
tions”) has been selected, the drum ro-
tates in intervals. This reduces creasing
if the laundry cannot be removed
straight away.
The tumble dryer will switch off auto-
matically 15 minutes after the end of a
programme.

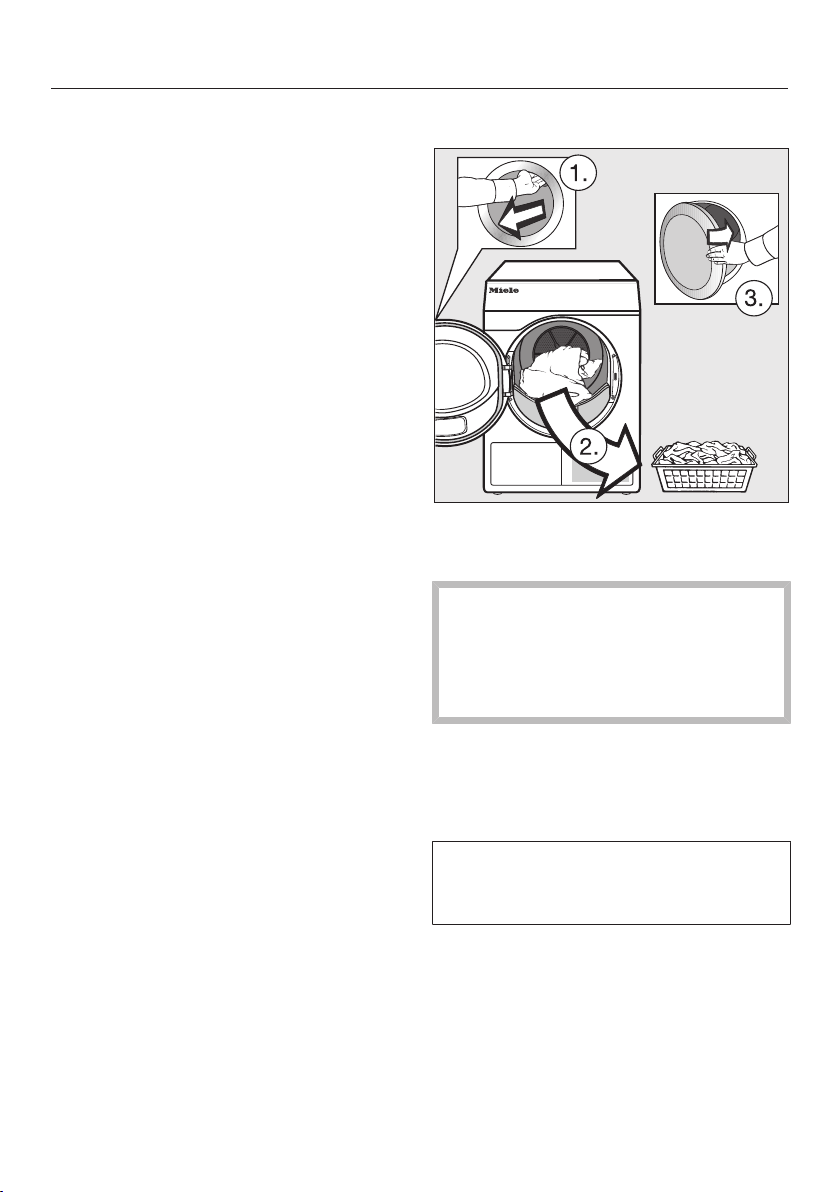

Unloading the drum
Open the door.
Remove everything from the drum.
Items left in the tumble dryer could
be damaged by overdrying when the
tumble dryer is used the next time.
Always remove all items from the
drum.
Switch the tumble dryer off.
Observe any maintenance
notes
This tumble dryer requires regular
maintenance, particularly if it is used
on a continuous basis.
Tip: Please see “Cleaning and care” for
details. Read the “Cleaning the appli-
ance at the correct intervals” section
first.
Programme overview
29
All weights marked with * are based on the weight of dry laundry.
Cottons Maximum 7kg*
Extra dry, Normal
Items – Single and multi-layered cotton items.
– Towelling, bathrobes, T-shirts, underwear, jersey/terry bed linen,
baby clothes.
– Workwear, jackets, cotton blankets, aprons, tea towels, bed linen,
towels, table linen.
Note – Select Extradry for multi-layered and very thick fabrics.
– Do not use Extradry for jersey fabrics (e.g.T-shirts, underwear,
baby clothes) because they can shrink.
Hand iron, Machine iron
Items – Cotton and linen fabrics.
– Table linen, bed linen, starched laundry.
Tip To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
Minimum iron Maximum 4kg*
Normal, Hand iron
Items – Minimum iron fabrics made of synthetic, cotton or mixed fibre.
– Workwear, overalls, pullovers, dresses, trousers, table linen, tights.
Programme overview
30
Delicates Maximum 4kg*
Normal, Hand iron
Items – Delicate synthetic, cotton or mixed fibre fabrics.
– Lightweight pullovers, dresses, trousers, overalls, table cloths,
shirts and blouses.
– Lingerie and appliquéd fabrics.
Note Less creasing occurs in this programme.
Tip Reducing the load will reduce creasing even further.
Woollens handcare Maximum 2kg*
Items Woollen garments and fabric containing wool blends, e.g. pullovers,
cardigans, tights.
Note – Wool and wool blend items are only fluffed up; they are not dried
completely.
– Remove garments as soon as the programme has finished and
leave to finish drying at room temperature.
Gentle smoothing Maximum 1kg*
Normal, Hand iron
Items – Cotton and linen fabrics.
– For minimum iron items made of cotton, mixed or synthetic fibre.
For example, cotton trousers, anoraks and shirts.
Tip – This programme smoothes out creasing caused during the spin
cycle in the washing machine.
– This programme is also suitable for dry fabrics.
– Please remove the garments as soon as the programme has fin-
ished.
CottonsPRO maximum 7 kg*
Items Cotton items such as those described under CottonsNormal with
normal residual moisture.
Note Items are dried to a Normal level only in this programme.
Programme overview
31
Express Maximum 4kg*
Extradry, Normal, Handiron, Machine iron
Items Garments suitable for the Cottons programme
Note Shorter programme duration
Towelling Maximum 7kg*
Items Large quantities of single-layered and multi-layered towelling items.
These include, for example, towels, bathrobes, face flannels, flannel
bed linen.
Note Items are dried to a Extra dry level only in this programme.
Bed linen Maximum 4kg*
Items Bed linen, pillowcases
Note Items are dried to a Normal level only in this programme.
Microfibre Maximum 7kg*
Extra dry, Normal
Items Microfibre mops and cleaning cloths.
Warm air Maximum 7kg*
Items – Voluminous items e.g. jackets, pillows and padded items.
– Fabrics made up of multiple layers, e.g. heavy cotton table cloths.
– Individual items of laundry, e.g. towels, swimwear, tea towels.
Note – Used for airing multi-layered fabrics or large items that dry un-
evenly due to their make-up.
– Used for drying a small number of individual garments.
– Do not select the longest drying time to start with. Check the
items as you are drying them to find the optimum time.
Programme overview
32
Cottons Eco maximum 7 kg*
Items Cotton items such as those described under CottonsNormal with
normal residual moisture.
Note – Items are dried to a Normal level only in this programme.
– The Cottons programme is the most energy-efficient for dry-
ing cotton items with normal residual moisture levels.
Note for
test insti-
tutes
Test programme in accordance with Regulation392/2012/EU, meas-
ured in accordance with EN61121.
Changing the programme sequence
33
Changing a programme once it
has started
You cannot change to another pro-
gramme once a programme has started
(this prevents unintentional alterations).
You will need to cancel the current pro-
gramme before you can select a new
one.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the tumble dryer and the surround-
ings.
See the section on “Warning and
safety” for further information.
If you adjust the programme selector,
the symbol will light up in the time
display. The symbol goes out when
you select the original programme.
Cancelling the current pro-
gramme
Touch the Start/Stop sensor control.
The items will be cooled down, depend-
ing on the temperature reached and
how long they have been dried for.
will light up if you press the Start/
Stopsensor control again during the
cooling-down phase.
Open the door.
Selecting another programme
Close the door.
Turn the programme selector to a dif-
ferent programme.
Touch the Start/Stop sensor control.
Adding laundry
Open the door.
Risk of burns by touching hot
laundry in the drum.
You could burn yourself.
Let the laundry cool down and re-
move it carefully.
Add items.
Close the door.
Start the programme.
Adding laundry during ongoing
Delay start period
You can open the door to add or re-
move laundry.
– All programme settings will be saved.
– You can change the drying level, if re-
quired.
Open the door.
Add or remove laundry.
Close the door.
Touch the Start/Stop sensor control
so that the Delay start period contin-
ues.
Time remaining
Altering the programme sequence can
cause adjustments in the h min time re-
maining display.
Fragrance flacon
34

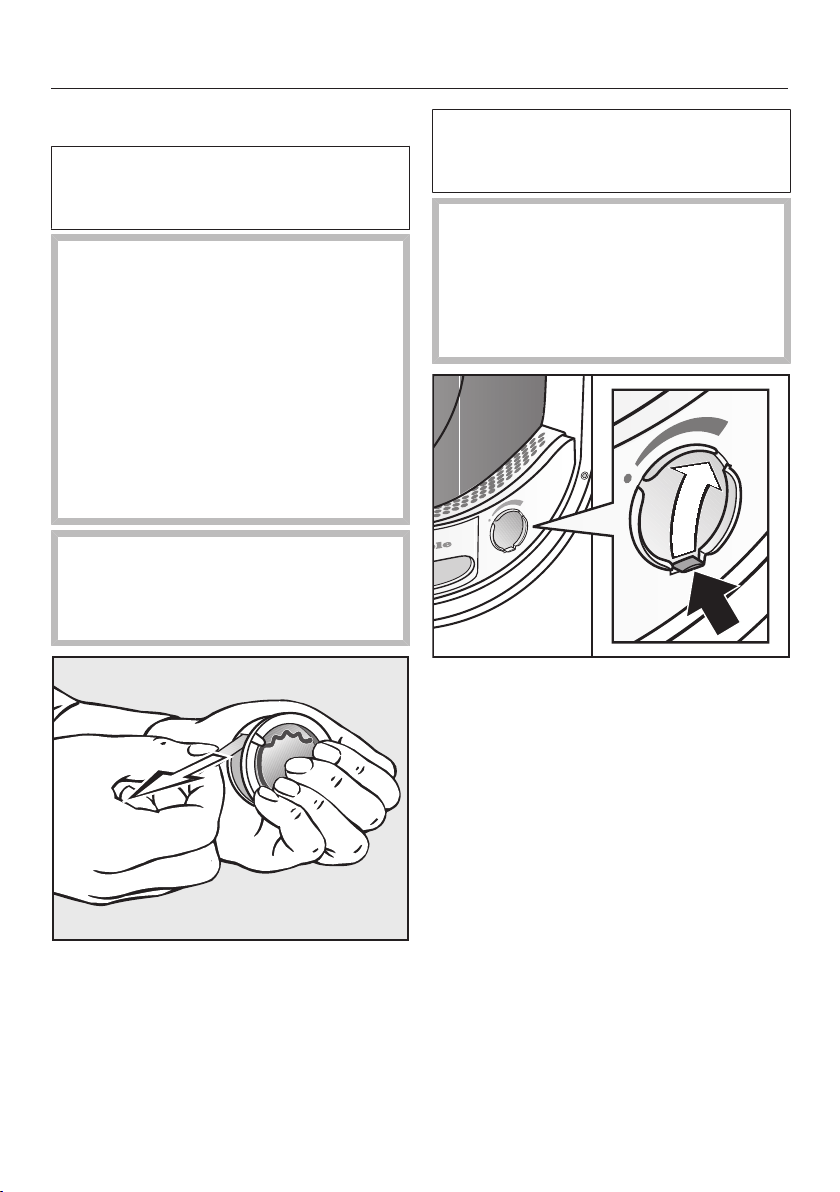

Inserting a fragrance flacon
Fragrance flacons (optional accessor-
ies) can be used to give your laundry a
pleasant scent.
Risk of fire and damage to the
health if fragrance flacons are used
incorrectly.
The leaked fragrance can damage
your health if it comes into contact
with your body. Leaked fragrance
can cause fire.
Before using a fragrance flacon,
please read “Using a fragrance
flacon (optional accessory)” under
the “Warning and safety instructions”
Only hold the fragrance flacon as il-
lustrated. Do not hold it at an angle
or tip it as the fragrance will leak out
of it.
Hold the fragrance flacon securely so
that you do not open it by mistake.
Pull off the protective seal.
Open the door of the tumble dryer.
The fragrance flacon is inserted in the
upper fluff filter. The socket is next to
the recessed grip.
If you are not using a fragrance
flacon, the cover to the unused
socket must remain closed to pre-
vent the build-up of fluff.
Push the tab on the cover to the bot-
tom (see arrow).
Open the cover using the tab until the
tab is right at the top.
Fragrance flacon
35

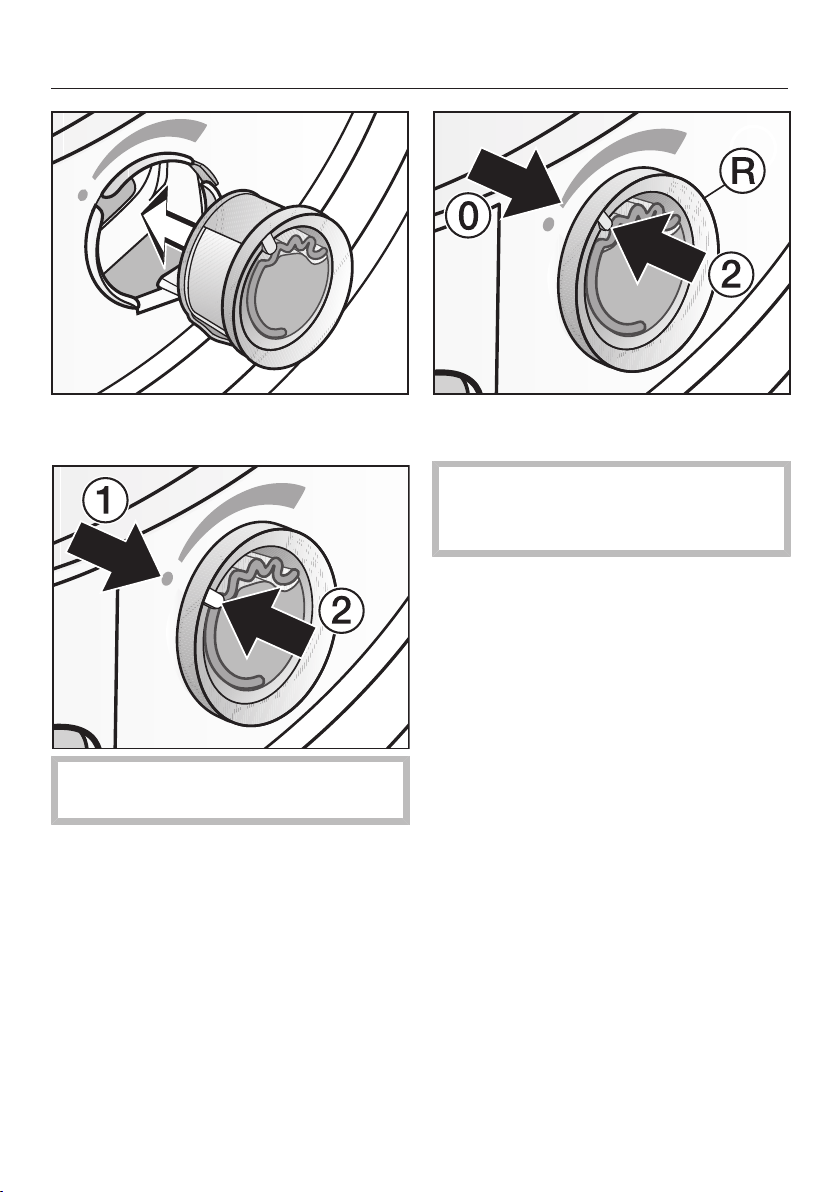

Insert the fragrance flacon as far it will
go into the socket.
The markers and must line up
with one another.
Turn the outer ring clockwise a
little.
The fragrance flacon may slip out.
Turn the outer ring in such a way that
the markers and line up.
Fragrance flacon
36

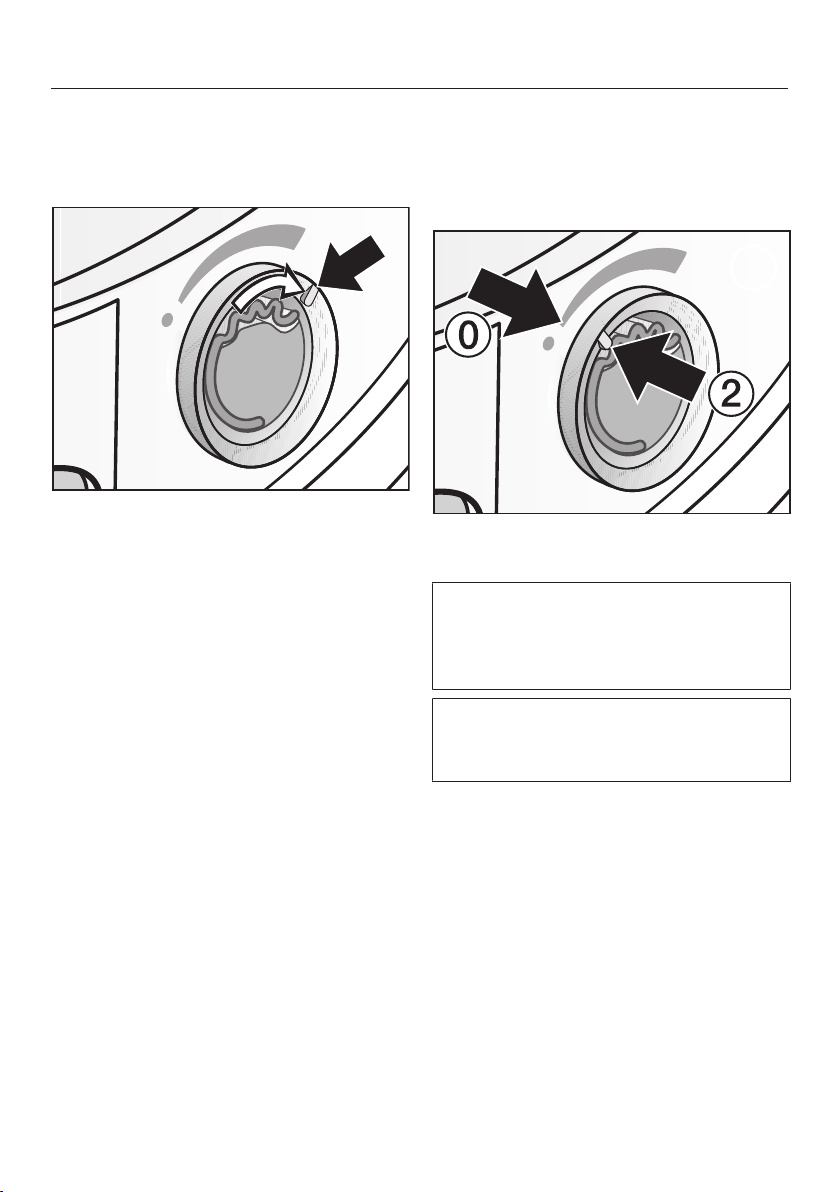

Opening the fragrance flacon
Before drying, you can select the in-
tensity of the fragrance.
Turn the outer ring clockwise: the fur-
ther you open the fragrance flacon,
the more intense the fragrance.
Damp laundry and longer drying dura-
tions with sufficient heat transfer are
needed for the fragrance to be released
into the laundry effectively. The fra-
grance will also be noticeable in the
ambient air during the process. The
Timed drying cold air programme will
not generally apply fragrance.
Closing the fragrance flacon
After drying, the fragrance flacon should
be closed to prevent the fragrance from
escaping needlessly.
Turn the outer ring anti-clockwise un-
til the marker b is in position _.
If you wish to dry without the fra-
grance occasionally: remove the fra-
grance flacon and store it in its original
packaging.
Replace the fragrance flacon with a
new one when the intensity of the fra-
grance is no longer sufficient.
Fragrance flacon
37

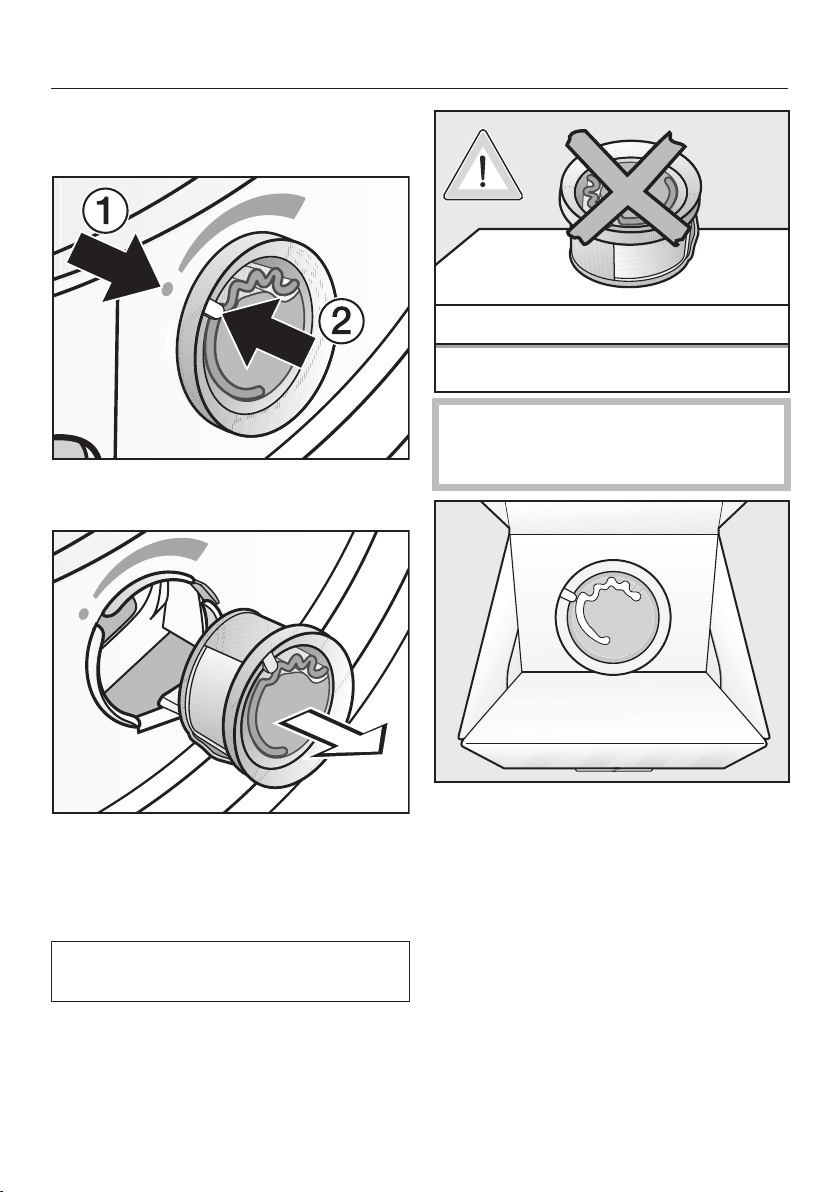

Removing/replacing the fra-
grance flacon
Turn the outer ring anti-clockwise un-
til the markers a and b line up.
Replace the fragrance flacon with a
new one.
When not in use, you can store the fra-
grance flacon in its original packaging.
Fragrance flacons are available to or-
der from Miele or online.
The fragrance can leak out of the
flacon. Do not lay the fragrance
flacon down.
– If you are keeping the fragrance
flacon in its original packaging, do
not store the packaging upright on its
edge or upside down. Otherwise, the
fragrance will leak out.
– Always store in a cool, dry place
away from direct sunlight.
– When purchasing new fragrance flac-
ons, only remove the protective seal
just before use.
Cleaning and care
38
Observing the cleaning inter-
vals
This tumble dryer is equipped with a
multi-stage filter system, which con-
sists of a fluff filter and a plinth filter.
This filter system collects all fluff gen-
erated during the drying process.
Failure to clean the filter regularly could
increase drying times.
Fire hazard due to irregular main-
tenance.
Too many fluff deposits in the filter
system and tumble dryer will result in
a risk of fire.
Check the filter system and air guide
area on a regular basis. Clean the fil-
ter if you find any fluff deposits.
Damage caused by a missing or
damaged filter system.
Too many fluff deposits in the filter
system and tumble dryer will result in
a risk of appliance malfunctions and
a risk of fire.
Never use the tumble dryer without
the filter system. Always replace a
damaged filter system immediately.
Cleaning the fluff filters
This tumble dryer has 2fluff filters in
the door opening: the upper and lower
fluff filters trap fluff produced during
the drying process.
Clean the fluff filters after each drying
programme. This prevents an exten-
sion of the programme duration.
Also clean the fluff filters when the
indicator light comes on.
To turn the indicator light off:
Open and close the door while the
tumble dryer is switched on.
Removing the fragrance flacon
The intensity of the fragrance will be di-
minished if the fluff filters and the plinth
filter are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon”, “Removing/repla-
cing the fragrance flacon”.
Cleaning and care
39
Removing visible fluff
Tip: You can also use a vacuum cleaner
so that you can remove the fluff without
touching it.
Open the door.
Pull the upper fluff filter forwards to
remove it.
Remove the fluff (see arrows).
Remove the fluff (see arrows) from
the surface of all the fluff filters and
the perforated laundry deflector.
Push the upper fluff filter back into
position until it clicks.
Close the door.
Cleaning and care
40

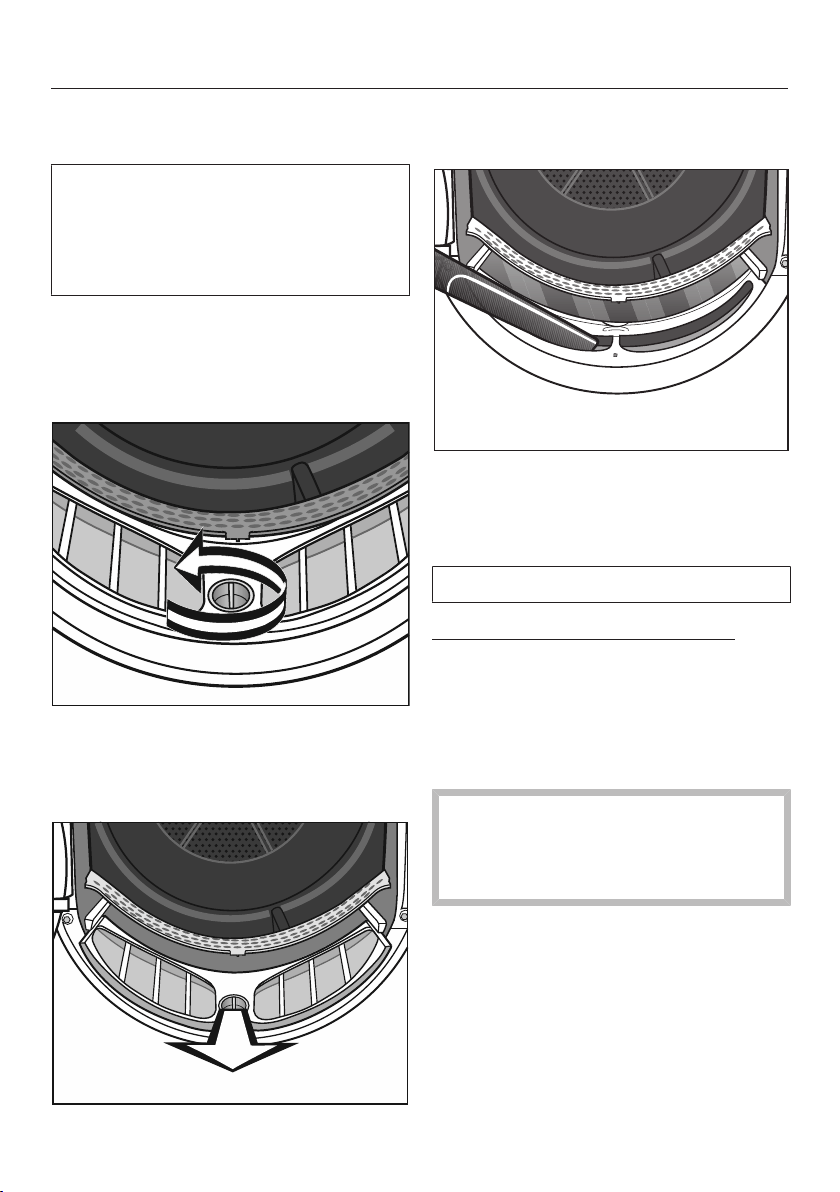

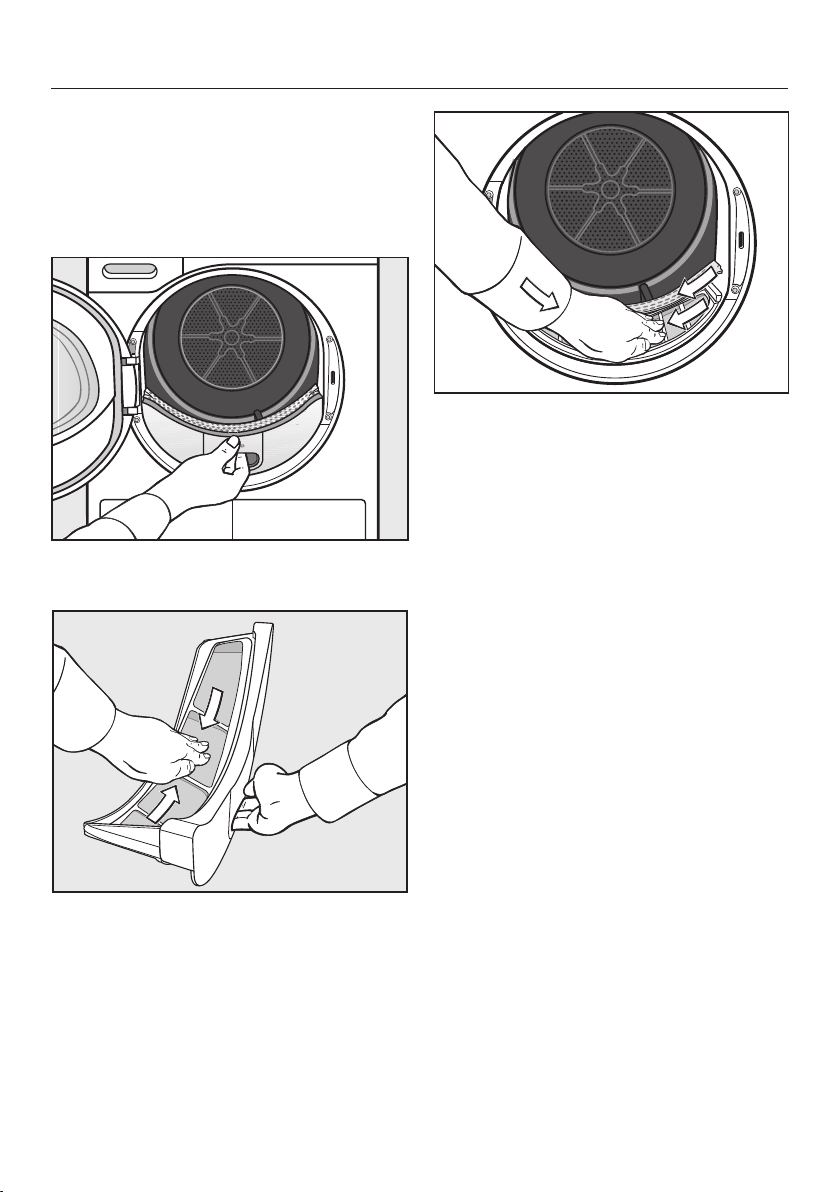

Cleaning the fluff filters and air flow
openings thoroughly
If the drying duration has become
longer or the surface of the fluff filters
is visibly compacted with fluff, you
should carry out the following cleaning
procedure.
Remove the fragrance flacon. See
“Fragrance flacon”.
Pull the upper fluff filter forwards to
remove it.
Turn the yellow rotary control on the
lower fluff filter in the direction of the
arrow (until it reaches the stop posi-
tion).
Hold the rotary control and pull the
fluff filter forwards to remove it.
Use a vacuum cleaner with a long
crevice nozzle attached to remove
any visible fluff from the upper air
flow openings.
Finally, clean the fluff filters with water.
Cleaning the fluff filters with water
Rinse the filter surfaces through un-
der warm running water.
Wipe the smooth plastic surfaces of
both fluff filters with a damp cloth to
clean them.
Wet filters could cause operational
faults while drying.
Shake the fluff filters thoroughly and
then dry them carefully.
Cleaning and care
41
Push the lower fluff filter in com-
pletely and lock it with the yellow dial.
Push the upper fluff filter all the way
in.
Close the door.
Cleaning and care
42
Cleaning the plinth filter
Clean the plinth filter whenever the
indicator light comes on or when
the programme duration is longer than
usual.
To turn the indicator light off:
Open and close the door while the
tumble dryer is switched on.
Tip:
With normal use
of the tumble dryer,
clean the plinth filter when the indic-
ator light comes on.
With continuous use
of the tumble
dryer, clean the plinth filter once a day.
Damage caused by insufficient
cleaning or by operation with a worn,
damaged filter in the plinth.
There is insufficient flow of air and
heat in the heat exchanger due to
clogging. This requires a visit from
the Service department.
This can be avoided by following the
advice in these operating instruc-
tions.

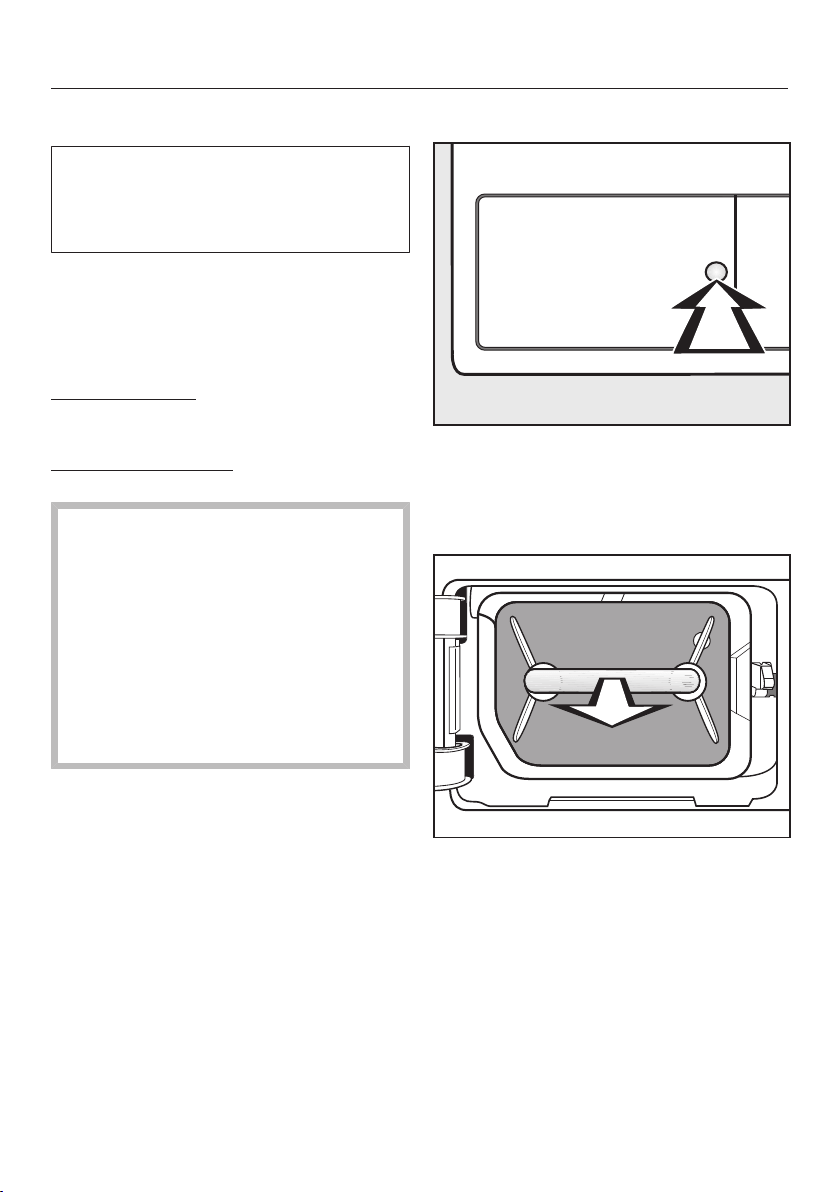

Removing the plinth filter
Press the round, indented area on the
heat exchanger access panel to open
it.
The panel will spring open.
Pull the plinth filter out by the handle.
This causes the right-hand guide pin in
the tumble dryer to come out. This
guide pin ensures that the heat ex-
changer access panel can only be
closed if the plinth filter is inserted the
right way round.
Cleaning and care
43
Cleaning the plinth filter
Clean the plinth filter thoroughly un-
der running water.
Squeeze the plinth filter very carefully
several times as you rinse it.
Rinse the plinth filter until all visible
residues have been removed.
This can cause a fault.
The plinth filter must not be replaced
dripping wet.
Damage caused by an insuffi-
ciently cleaned or damaged plinth fil-
ter.
If the plinth filter has not been prop-
erly cleaned or is damaged, the heat
exchanger will be clogged. There will
be an insufficient flow of air and heat
in the heat exchanger. This will re-
quire a visit from the Service depart-
ment.
Before and after cleaning, check the
plinth filter in accordance with the
description in “Replacing the plinth
filter”. The plinth filter must be per-
fectly functional and undamaged
after cleaning.
Use a damp cloth to remove any fluff
from the handle.
Replacing the plinth filter
Filter wear caused by continuous
tumble dryer use.
If the tumble dryer is in continuous
use and is being cleaned regularly,
the plinth filter can begin to show
signs of wear after a while. This can
clog up the heat exchanger.
Replace the filter immediately if you
see the following signs of wear be-
fore or after cleaning (optional ac-
cessory).
Cleaning and care
44

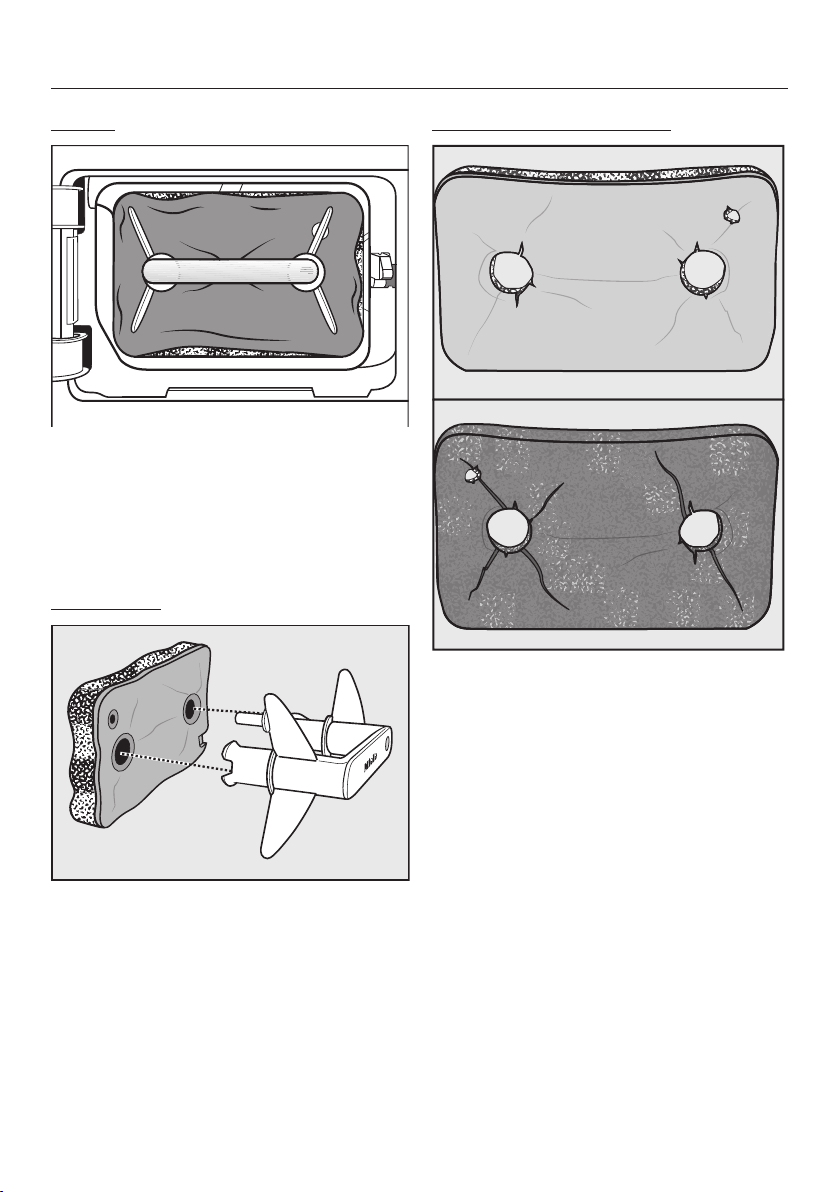

Poor fit
The edges of the filter do not sit prop-
erly and the filter is deformed. Fluff will
blow into the heat exchanger unfiltered
through edges that do not sit properly.
This will cause a permanent obstruction
in the heat exchanger.
Deformation
Deformations indicate that the filter has
become blocked and worn by continu-
ous use.
Cracks, tears, indentations
Fluff will blow into the heat exchanger
unfiltered through cracks and tears and
will cause obstruction.
Indentations indicate that the filter has
become blocked and worn by continu-
ous use.
Cleaning and care
45

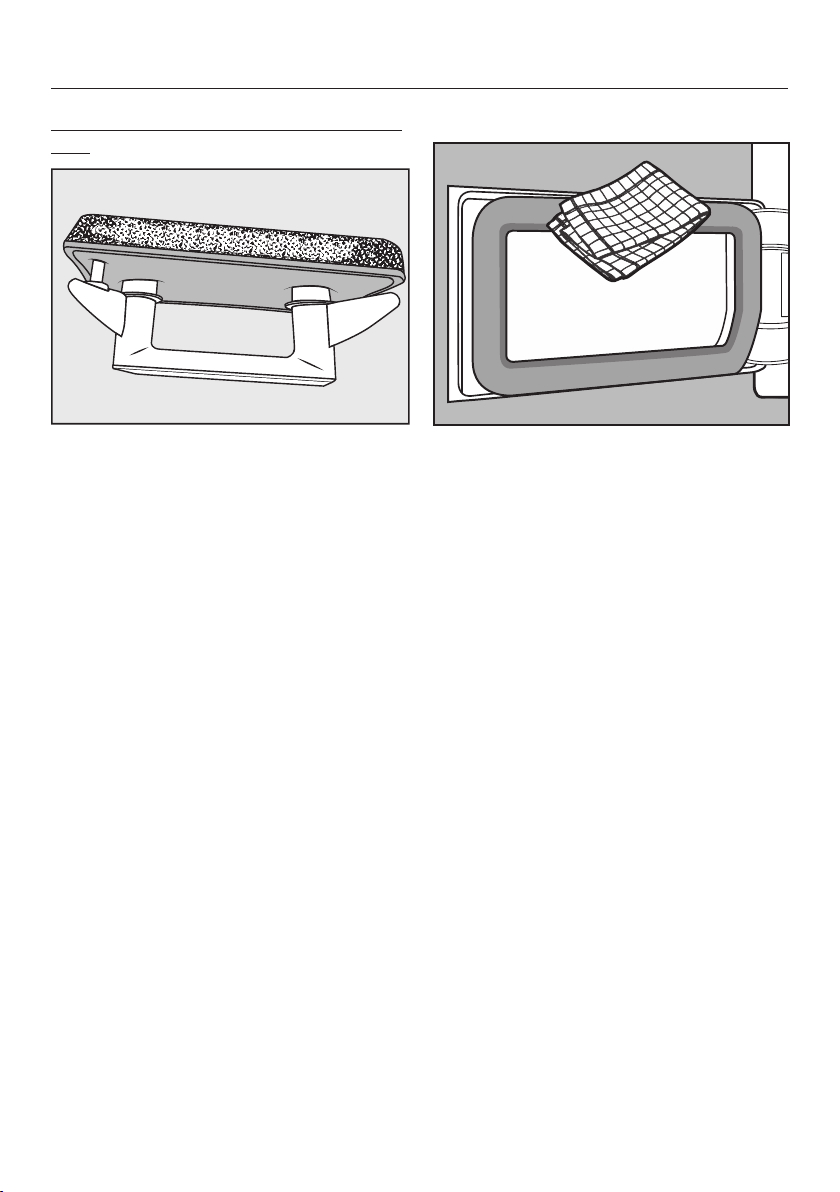

White residues or residues of other col-
ours
Residues arise from laundry fibres and
traces of detergent components which
can clog the filter. They can be found
on the front and side edges of the filter.
In extreme cases, they can form stub-
born crust.
Residues are a sign that the filter is no
longer a snug fit at the sides, even if it
appears to be perfect: fluff is getting in
unfiltered at the edges.
If these residues appear on the filters
again soon after cleaning, the filter must
be replaced.
Cleaning the plinth filter flap
Use a damp cleaning cloth to remove
any fluff.
Make sure you do not damage the
rubber seal.
Check whether the cooling fins are
blocked with fluff (as follows).
Cleaning and care
46

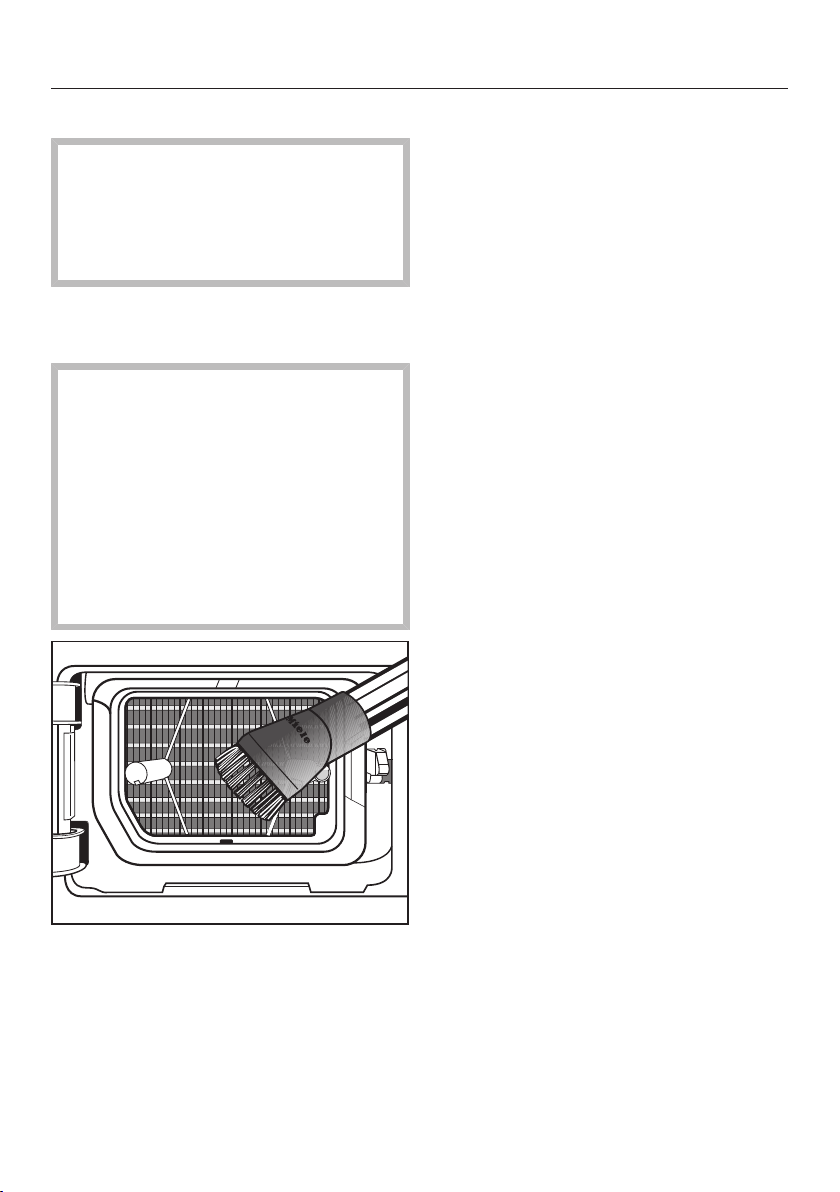

Checking the heat exchanger
Risk of injury from sharp cooling
fins.
You could cut yourself.
Do not touch the cooling fins with
your hands.
Look to see if fluff has accumulated.
If you notice any visible soiling:
Damage due to incorrect clean-
ing of the heat exchanger.
The tumble dryer will not dry if the
cooling fins are damaged or bent.
Clean using a vacuum cleaner with a
suction brush attached. Only pass
the vacuum cleaner suction brush
over the heat exchanger cooling fins
lightly, without applying any pres-
sure.
Carefully vacuum up any visible fluff
or soiling.
Cleaning and care
47

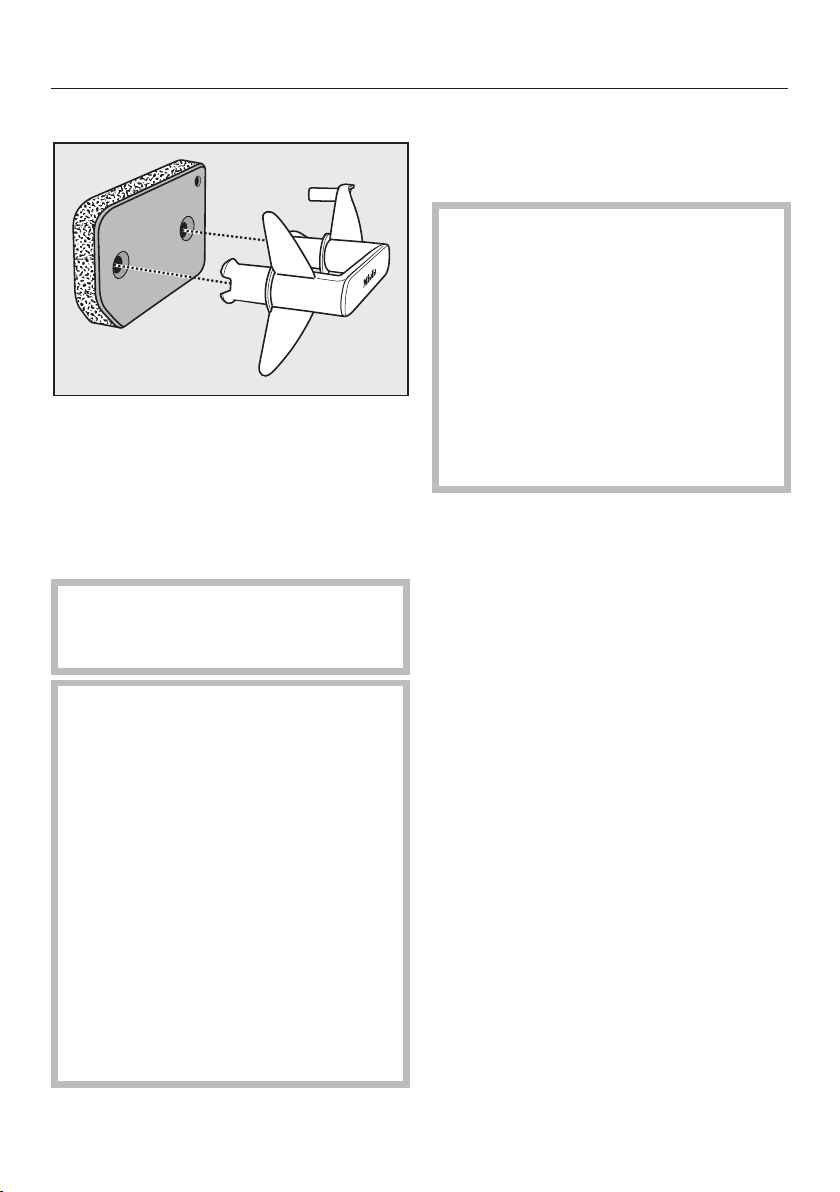

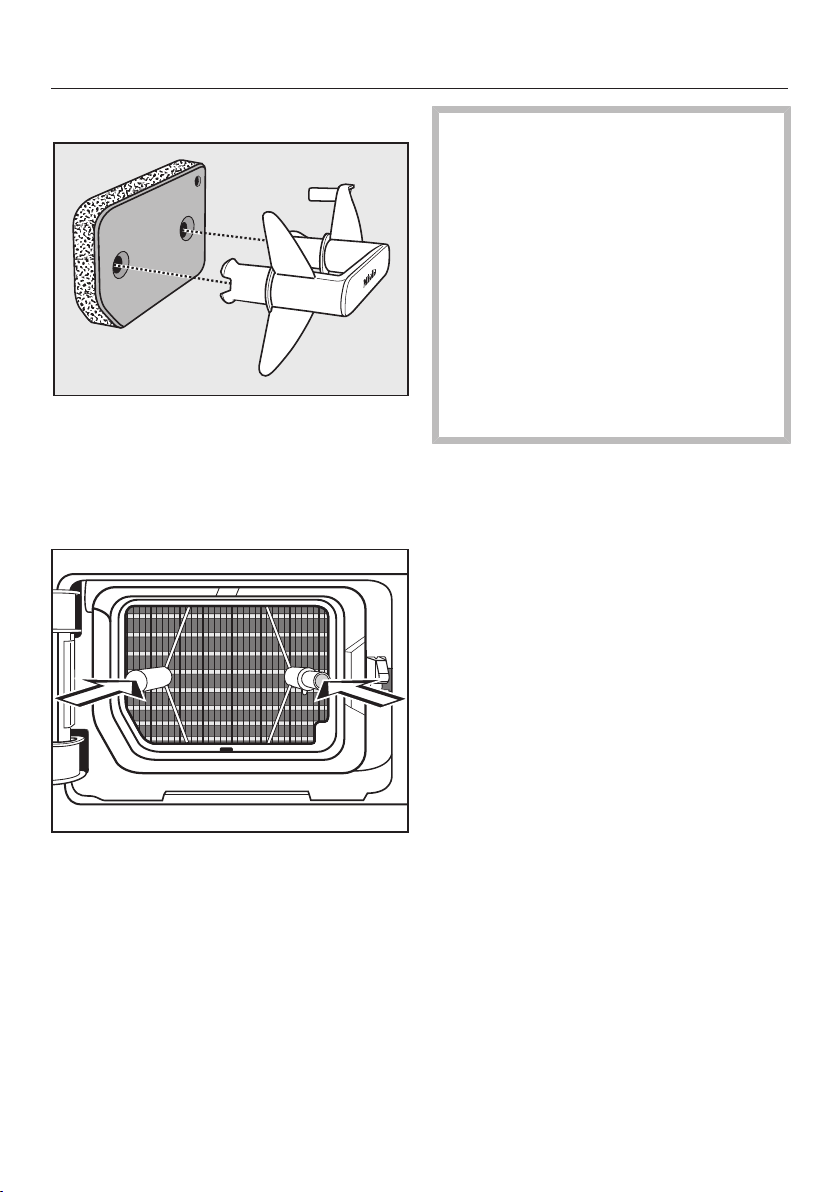

Inserting the plinth filter
Fit the plinth filter back on the handle.
Make sure it is the correct way round.
To ensure that the plinth filter is posi-
tioned correctly in the front of the heat
exchanger unit:
First insert the handle with the plinth
filter attached over the two guide
pins:
– The word Miele on the handle must
be the correct way up.
Push the plinth filter in completely.
This will push in the right-hand guide
pin at the same time.
Close the heat exchanger access
panel.
Damage or ineffective drying if
drying takes place without a plinth
filter or when the heat exchanger ac-
cess panel is open.
An excessive accumulation of fluff
can damage the tumble dryer in the
long term. If the system is not leak-
tight, this can make the drying inef-
fective.
You may only operate the tumble
dryer with the plinth filter fitted cor-
rectly and the heat exchanger access
panel closed.
Cleaning and care
48

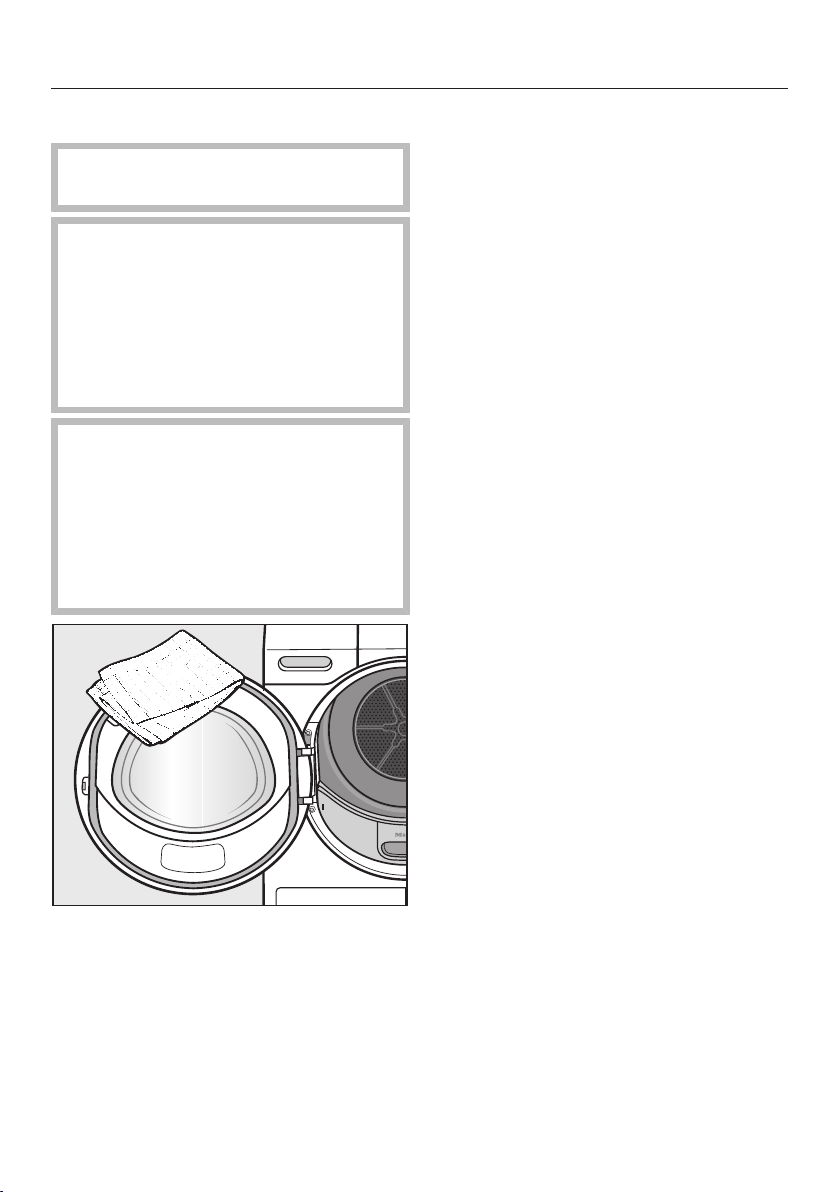

Cleaning the tumble dryer
Disconnect the tumble dryer from the
electrical supply.
Damage caused by the use of
unsuitable care products.
Unsuitable care products could dam-
age plastic surfaces and other parts.
Do not use any solvents, abrasive
cleaners, glass cleaners, or all-pur-
pose cleaners.
Danger of electric shock caused
by water.
There is a risk of electric shock if wa-
ter runs over or into the tumble dryer.
Never spray the tumble dryer with
water. Only ever clean the appliance
with a slightly damp, soft cloth.
Clean the tumble dryer and the seal
on the inside of the door with a
slightly damp soft cloth and a mild
solution of washing-up liquid and wa-
ter.
Dry all parts with a soft cloth.
The drum and other stainless steel
parts can be cleaned with a suitable
stainless steel cleaner.
Problem solving guide
49
Many malfunctions and faults that can occur in daily operation can be easily
remedied. Time and money will be saved because a service call will not be
needed.
The following guide may help you to find the reason for a malfunction or a fault,
and to correct it.
Indicator lights or information on the time display
Problem Cause and remedy
The indicator light
comes on at the end of
the programme.
The fluff filters are clogged with fluff.
Clean the fluff filters.
Clean the plinth filter.
See “Cleaning and care”.
To switch the indicator light off:
Open and close the door (with the tumble dryer
switched on).
You can influence when the indicator light comes
on: See “Programmable functions”, “Airways in-
dicator”.
The indicator light
comes on after a pro-
gramme has been can-
celled and a signal
sounds.
The drain hose kinked.
Check the drain hose.
To switch the indicator light off:
Open and close the door (with the tumble dryer
switched on).
lights up The programme selector has been moved.
Select the original programme. The time left will
appear in the display again.
Bars flash in the display
at the end of a pro-
gramme:
.........
The programme has finished but the laundry has not
yet cooled down.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down
during the cooling phase.
Problem solving guide
50
Problem Cause and remedy
flashes / lights
up after the
tumble dryer has
been switched on
and a programme
cannot be selec-
ted.
Access via a PIN code has been activated.
See “Programmable functions”, “PIN code”.
and light up after
a programme has been
cancelled, a signal
sounds.
The fluff filters and plinth filter are clogged with fluff.
Clean the fluff filters.
Clean the plinth filter.
Clean the airways. This is the area underneath the
plinth filter and the heat exchanger.
See “Cleaning and care”.
To switch the fault message off:
Switch the tumble dryer off and then on again.
and another number
combination flash after
a programme has been
cancelled, a signal
sounds.
There is no obvious cause.
Switch the tumble dryer off and then on again.
Start a programme.
If the programme terminates again with the same er-
ror message, then there is a fault. Contact the Miele
Customer Service Department.
:lights up and the
programme has been
cancelled, a signal
sounds.
The laundry is unevenly distributed or has rolled up.
Disentangle the laundry and remove a few items if
necessary.
Switch the tumble dryer off and then on again.
Start a programme.
Problem solving guide
51
Unsatisfactory drying results
Problem Cause and remedy
The laundry is not suffi-
ciently dry.
The load consisted of different types of fabric.
Finish drying using the Warm air programme.
Select a more suitable programme next time.
Useful tip: You can alter the drying levels for some
programmes. See “Programmable functions”, sec-
tions “ Drying levels Cottons” and “ Drying
levels Minimum iron”.
Laundry or feather filled
pillows smell after dry-
ing.
The laundry was washed with insufficient detergent
Feathers are a natural product and this is quite nor-
mal.
Laundry: use sufficient detergent next time.
Allow feather pillows to air after tumble drying.
Items made of synthetic
fibres are charged with
static electricity after
drying.
Synthetic fibres tend to attract static charge.
Static charge can be reduced by adding a fabric
conditioner to the final rinse in the washing pro-
gramme or a fabric conditioner sheet to the load
when drying.
There is a build-up of
fluff.
Fluff is principally the result of friction when garments
are being worn and to some extent when they are be-
ing washed. Machine drying hardly causes any fluff
to form and has no appreciable effect on the lifetime
of the fabric.
Fluff is collected by the fluff filters and fine filter and
can be easily removed
(see “Cleaning and care”).
Problem solving guide
52
The drying cycle duration is very long
Problem Cause and remedy
The drying process
goes on too long or
even switches off.*
The room where the tumble dryer is located is too
warm.
Ventilate the room thoroughly.
Detergent residues, hair and fine fluff can clog the fil-
ters.
Clean the fluff filters and the plinth filter (see
“Cleaning and care”, sections “Cleaning the fluff
filters” and “Cleaning the plinth filter”).
Remove any visible fluff from the heat exchanger
(see “Cleaning and care”, “Cleaning the plinth fil-
ter”).
The laundry is unevenly distributed or has rolled up.
The drum is too full.
Disentangle the laundry and remove a few items.
Start a programme.
The bottom right grille is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The fluff filters and the plinth filter were wet when re-
placed.
The fluff filters and the plinth filter must be dry.
The laundry is too damp.
Spin using a higher spin speed in the washing ma-
chine.
Metallic components, e.g. zips, have prevented the
tumble dryer from registering the correct laundry
moisture level.
Open any zips next time.
If the problem recurs, dry these items using the
Warm air timed drying programme.
* Switch the tumble dryer off; wait a short while before starting a new programme.
Problem solving guide
53
Other problems
Problem Cause and remedy
There are humming
noises.
The compressor is operating.
These noises are quite normal and do not indicate a
fault.
A programme does not
start.
There is no obvious cause.
Connect the tumble dryer to the mains.
Turn on the tumble dryer.
Close the tumble dryer door.
Check whether the mains fuse has tripped.
Only the Start/Stop
sensor control is flash-
ing.
10minutes after the end of the programme, the Start/
Stopsensor control will begin to flash and the indic-
ators will go out to save energy. This is not a fault,
but a normal function.
The drum will turn at intervals when the tumble dryer
is in the Anti-crease phase.
Touch a sensor control to switch on the indicators.
See “Programmable functions“, “Control field
switch-off status”.
The tumble dryer is
switched off at the end
of the programme.
This tumble dryer switches off automatically to save
energy. This is not a fault, but a normal function.
To switch the tumble dryer on, select a pro-
gramme.
The drum lighting does
not come on.
The drum lighting switches off automatically when
the door is closed.
To save energy, the drum lighting will switch off
after a few minutes if the door is left open for an ex-
tended period.
The drum lighting will come on when the door is
opened if the tumble dryer is switched on.
Service
54
Contact in case of malfunction
In the event of any faults which you
cannot remedy yourself, please contact
your Miele Dealer or Miele Service.
Contact information for Miele Service
can be found at the end of this docu-
ment.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Please quote the model and serial num-
ber of your appliance when contacting
Miele. This information can be found on
the data plate.

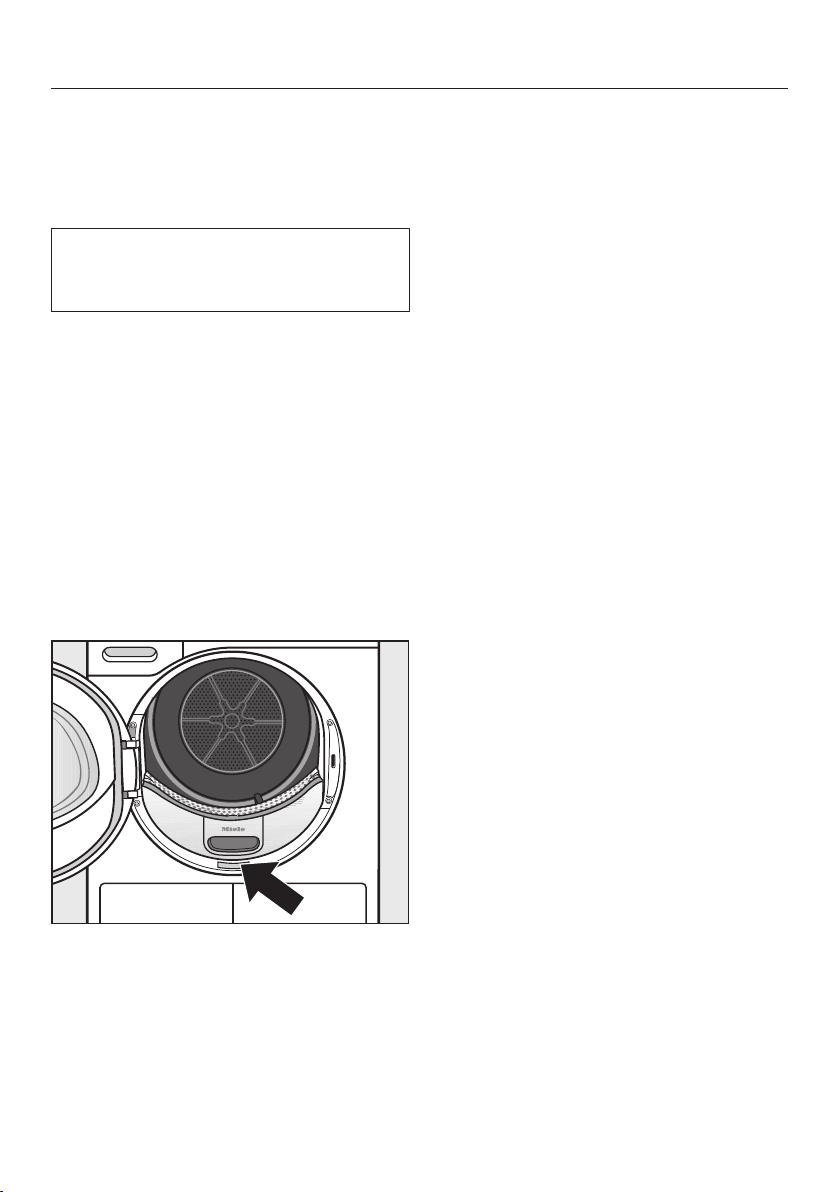

Open the door of your tumble dryer to
find the data plate:
Optional accessories
Optional accessories for this tumble
dryer are available from your Miele
Dealer or from the Miele Spare Parts
Department.
Installation
*INSTALLATION*
55

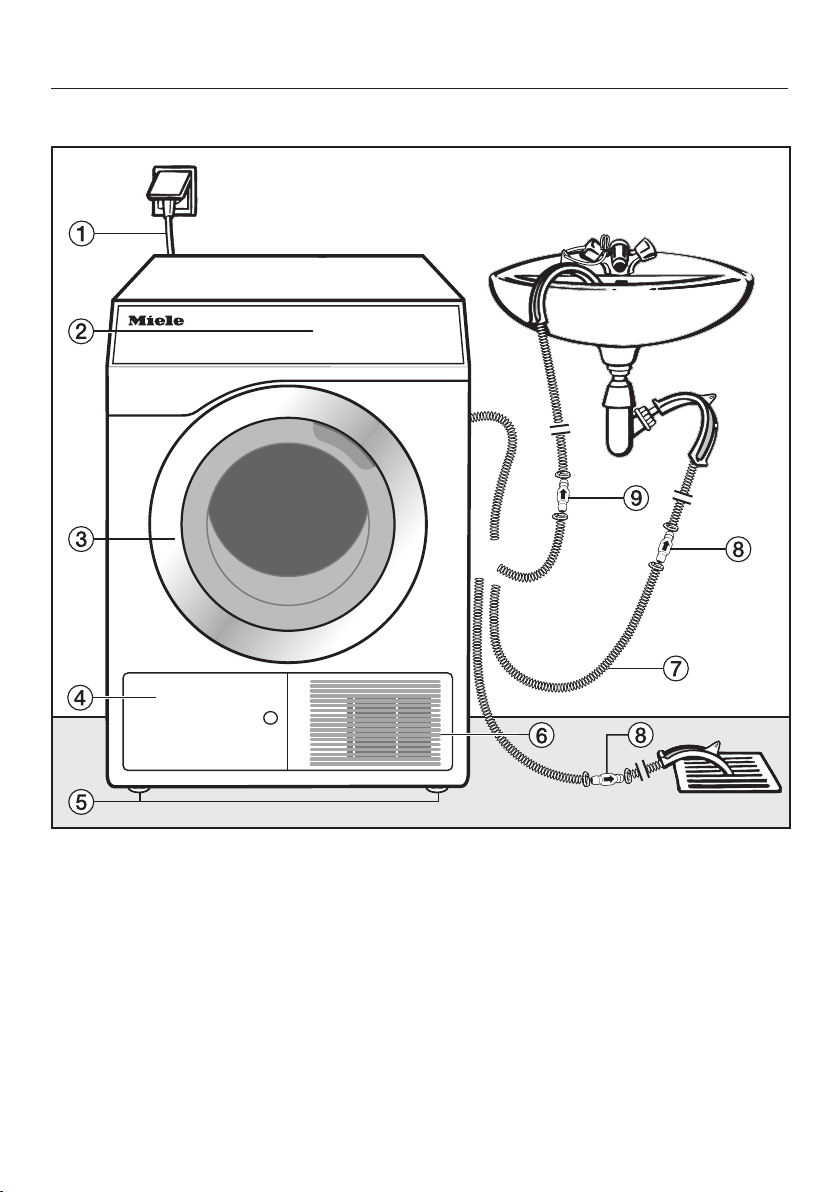

Front view
a
Mains connection cable
b
Control panel
c
Door
d
Fluff filter flap for the filter in the
plinth
– Do not open during drying
e
4 height-adjustable screw feet
f
Intake for air cooling
– Do not obstruct with a laundry
basket or other objects
g
Drain hose for condensation
h
Non-return valve, required
i
Non-return valve, recommended
Installation
*INSTALLATION*
56

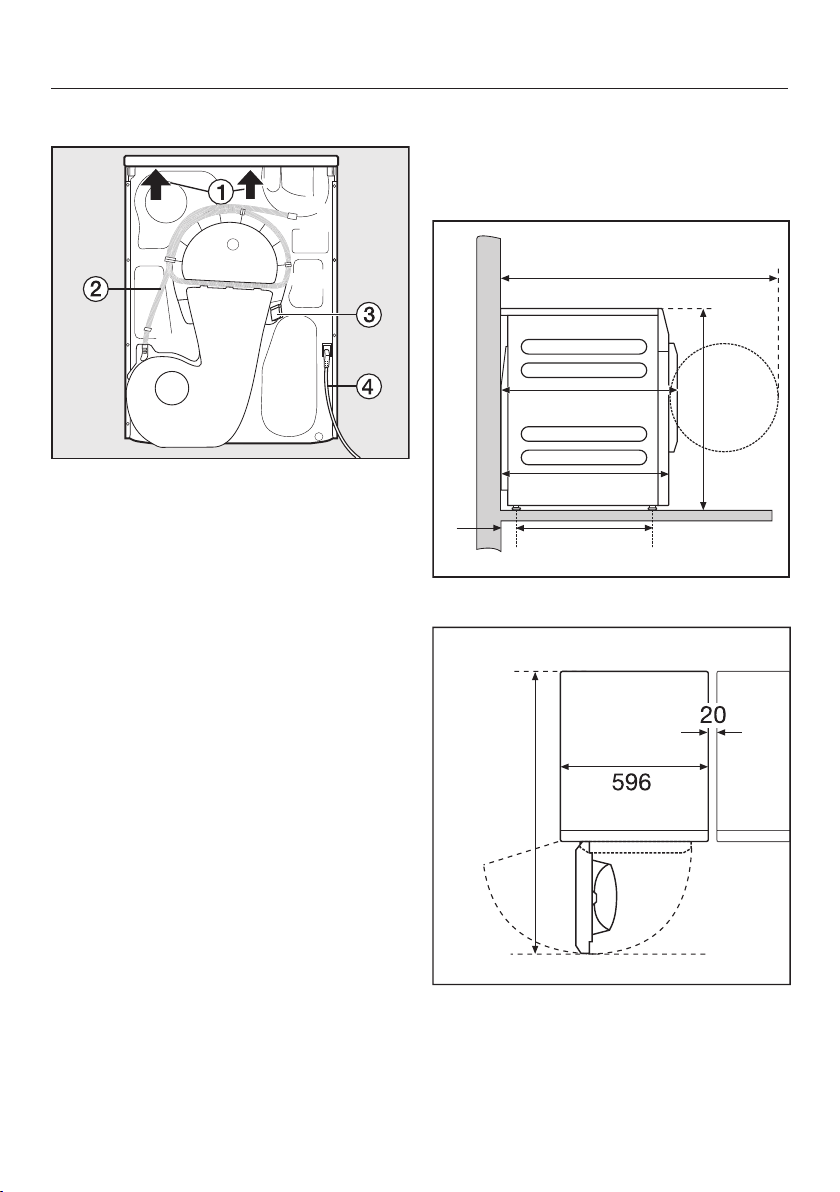

Rear view
a
Protruding lid for holding when mov-
ing the tumble dryer (see arrows)
b
Drain hose for condensation
c
Hook for winding the mains cable
around during transport
d
Mains cable
Locations
All measurements in mm
Side view
1054
636
850
600
47062
View from above
1054
170°
Installation
*INSTALLATION*
57

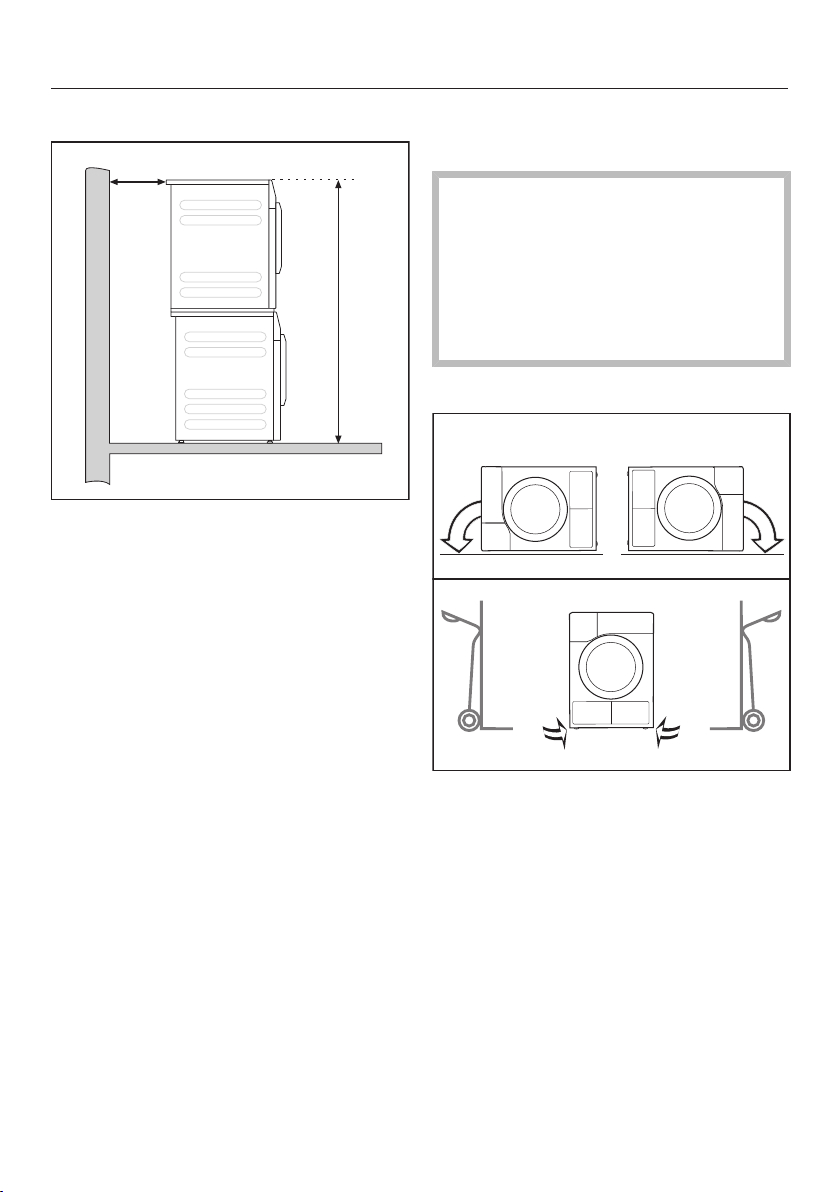

Washer-dryer stack
min. 300
1702
A stacking kit* is needed. This must be fitted
by a Miele authorised service technician.
* Miele accessory available to order
Transporting the tumble dryer
to its installation site
Damage caused by incorrect
transportation of the tumble dryer.
If the tumble dryer tips over, there is
a danger of injury to people and
damage to property.
Ensure that the tumble dryer is stable
during transportation.
Transporting the tumble dryer
If the tumble dryer is being transpor-
ted on its side, it must be tipped onto
its left or right side.
If the tumble dryer is being transpor-
ted upright, always transport it on a
sack truck with its left or right side
resting on the truck.

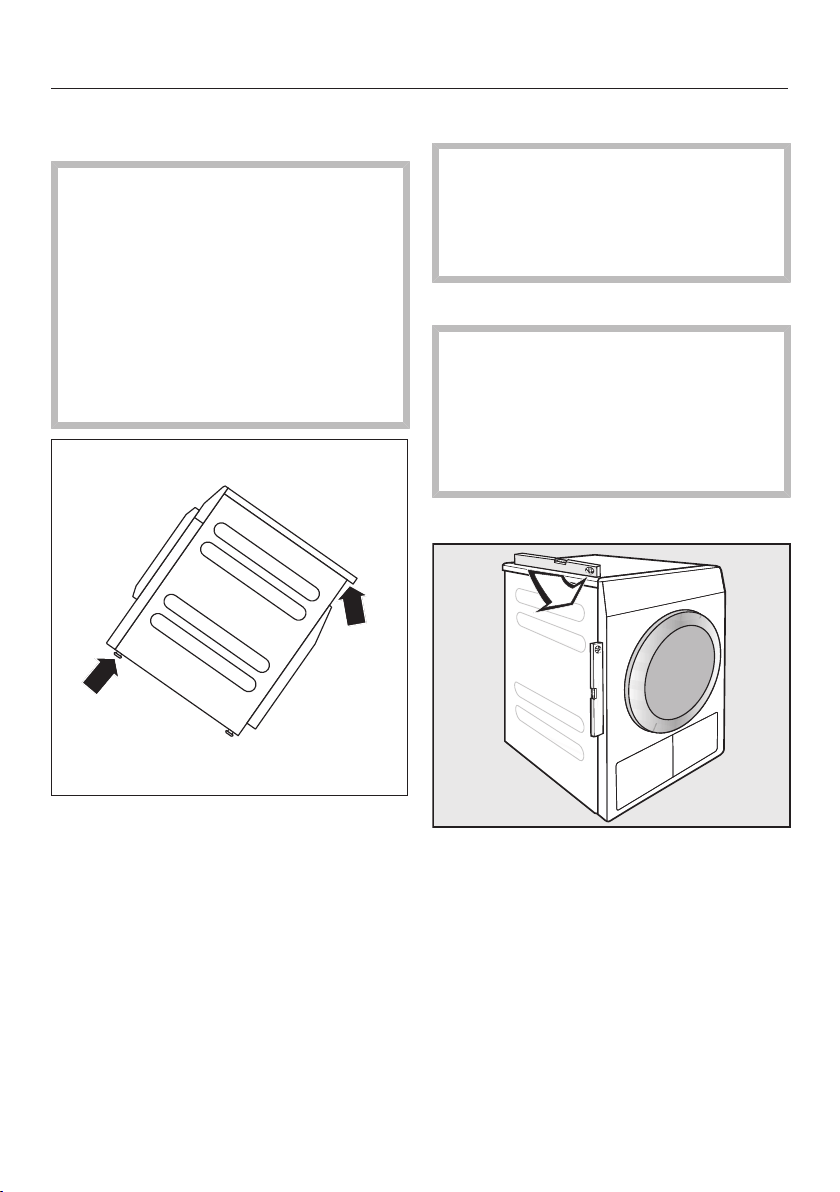

Installation
*INSTALLATION*
58
Transporting the tumble dryer to its
installation site
Danger of injury due to unsecure
lid.
The fixings at the back of the lid
could break as a result of external
forces. There is a danger of the lid
being pulled off when carrying the
machine.
Before carrying the machine, check
that the lid is secure where it pro-
trudes at the back of the machine.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
Installation
Ensure that no closeable door, slid-
ing door, or an oppositely hinged
door is installed that would hinder
the door of the tumble dryer being
opened in any way.
Downtime after installation
Damage caused by switching the
appliance on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
switching it on.
Levelling the tumble dryer
The appliance must stand perfectly
level on all four feet to ensure safe and
proper operation.
Installation
*INSTALLATION*
59
The screw feet can be adjusted to com-
pensate for unevenness in the floor.
This tumble dryer is not suitable for
building under.
Never block the ventilation slots on
the tumble dryer. Do not block the
gap between the bottom of the
tumble dryer and the floor with plinth
facings, deep pile carpet etc. This
would hinder a sufficient flow of air
to the tumble dryer.
Room ventilation
– Air drawn in for use in the drying pro-
cess will be warm when it is expelled
back into the room. It is therefore
very important to ensure the room is
adequately ventilated, particularly if
the dryer is located in a small room.
– Make sure the room temperature is
not too high. If there are other heat
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
Otherwise running times and energy
consumption could be increased.
Installation
*INSTALLATION*
60

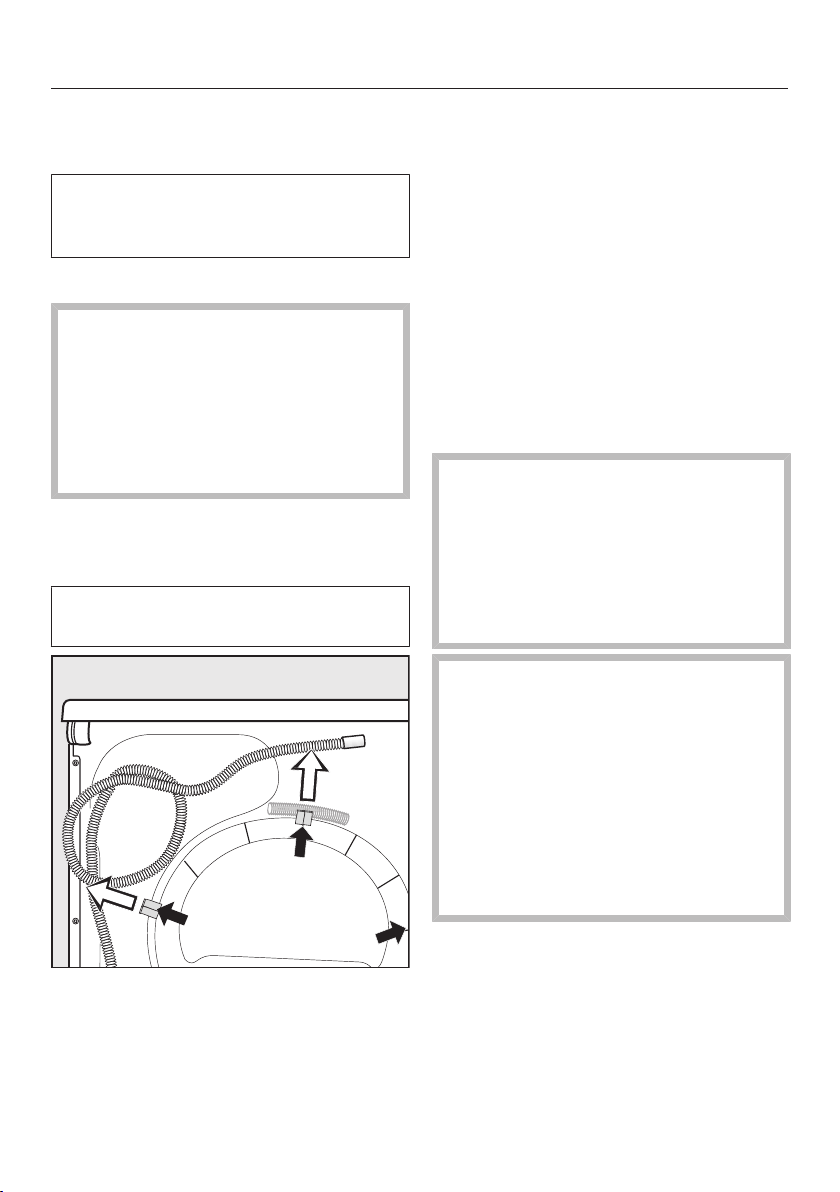

Hose for external drainage of
condensed water
The condensed water is pumped away
through the drain hose which is loc-
ated at the back of the dryer.
Laying the drain hose
Damage to the drain hose due to
incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
Tip: Use the bow-shaped guide to pre-
vent the drain hose from becoming
kinked.
Drain hose length: 1400mm
Delivery head: 1000mm
Pull the drain hose out of the clips.
Drainage options
Tip: Follow the warnings regarding leak-
ing or returning water if you select one
of the following connection options.
– Directed into a sink or basin
– Directed into a floor gully
– Connected directly to a sink drain
outlet
– Connection to a drainage system
already in use by another appliance,
e.g. a dishwasher or washing ma-
chine
Water damage.
Should the end of the hose come
loose, overflowing water can cause
damage.
Secure the drain hose carefully (e.g.
by tying it) to make sure it cannot
slip.
Damage caused by condensa-
tion back-flow.
Water could flow back into the
tumble dryer or be drawn into it. The
tumble dryer will sustain damage
and water will leak out.
The non-return valve should be used
if the end of the hose is immersed in
water, or if other water connections
are installed.
Installation
*INSTALLATION*
61
Example: Connected directly to a
sink drain outlet
1. Adapter
2. Nut
3. Hose clip
4. Hose extension
5. Non-return valve and hose clips
6. Tumble dryer drain hose
Install adapter 1 to the sink drain out-
let using nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to ad-
apter 1.
Use a screwdriver to tighten hose clip
3 up close to the nut.
Insert the non-return valve 5 into the
tumble dryer's drain hose 6.
Install the non-return valve 5 so that
the arrow points in the direction of
flow (towards the sink).
Secure the non-return valve using
hose clips.
Installation
*INSTALLATION*
62
Electrical connection
This description applies to tumble dry-
ers both with and without a mains
plug.
The following applies to tumble dryers
with a mains plug:
– This tumble dryer is supplied with a
mains cable and plug ready for con-
nection.
– The electrical socket must be easily
accessible so that the tumble dryer
can be disconnected from the electri-
city supply.
Damage caused by incorrect
supply voltage.
The data plate indicates the nominal
power consumption and the appro-
priate fuse rating.
Compare the specifications on the
data plate with those of the mains
electricity supply and make sure that
they match.
The tumble dryer may only be connec-
ted to a permanent electrical system
that conforms to the national and local
codes and regulations.
The tumble dryer should never be con-
nected by an extension cable, e.g.
power strips, to avoid the risk of fire.
If the machine is hard wired, a dual cir-
cuit breaker must be provided on-site.
When switched off there must be an all-
pole contact gap of at least 3mm in the
isolator switch (including miniature cir-
cuit breaker, switch, fuses and relays
according to IEC/EN60947). This con-
nection process must be performed by
a qualified electrician.
The plug connector or isolator switch
should be easily accessible at all times.
Risk of electric shock from mains
voltage.
If the tumble dryer is disconnected
from the mains, protective measures
must be taken to ensure that the
point of disconnection cannot acci-
dentally be switched on again.
Make sure the isolator is lockable or
the point of disconnection is mon-
itored at all times.
New connections, modifications to the
system, or servicing of the earthing
conductor, including determining the
correct fuse amperage, must be carried
out by a qualified electrician, as they
are familiar with the pertinent regula-
tions and the specific requirements of
the electric utility company.
The tumble dryer must not be con-
nected to devices such as timers
which would switch it off automatic-
ally.
Single phase AC 230 V – country vari-
ant 230V 25A
This device is intended for connection
to a power supply system where the
maximum value of external phase neut-
ral loop impedance Zmax of 0.38 Ohms
at the point of distributor supply con-
nection is not exceeded.
The user has to ensure that this device
is connected only to a power supply
system which fulfils the requirement
above. If in doubt, please ask your elec-
trical distributor for actual impedance
value.
Technical data
63
Height 850mm
Width 596mm
Width (only for appliances with a stain-
less steel lid)
605mm
Depth 636mm
Depth with door open 1054mm
Weight 62kg
Drum volume 120l
Load size 7kg (weight of dry laundry)
Hose length 1400mm
Length of connection cable 2000mm
Voltage See data plate on back of appliance
Rated load See data plate on back of appliance
Fuse rating See data plate on back of appliance
Test certifications awarded See data plate on back of appliance
LEDs Class1
Designation of refrigerant R450A
Refrigerant quantity 0,310kg
Refrigerant global warming potential 605kg CO
2
e
Appliance global warming potential 188kg CO
2
e
Max. floor load during operation 925N
Product safety standard EN50570, EN60335
A-rated sound emissions L
pA
in accord-
ance with ENISO11204/11203
<70dBre20μPa
Technical data
64
Data sheet for household tumble driers
In acc. with delegated regulation (EU) No. 392/2012
MIELE
Model name/identifier PDR300HP SmartBiz
Rated capacity
1
7,0 kg
Type of tumble drier (Air-vented / condenser) - / ●
Energy efficiency class
A+++ (most efficient) to D (least efficient) A+++
Weighted annual energy consumption (AE
c
)
2
152 kWh/year
Tumble drier (Automatic / non-automatic) ● / -
Energy consumption of the standard cotton programme
Energy consumption at full load 1,22 kWh
Energy consumption at partial load 0,71 kWh
Weighted power consumption in off-mode (P
o
) 0,40 W
Weighted power consumption in the left-on mode (P
l
) 0,40 W
Duration of the 'left-on' mode (T
l
)
3
15 min
Standard programme to which the information in the label and the fiche
relates
4
Cottons with arrow
Programme time of the 'standard cotton programme'
Weighted programme time 131 min
Programme time at full load 165 min
Programme time at partial load 106 min
Condensation efficiency class
5
A (most efficient) to G (least efficient) A
Weighted condensation efficiency for the 'standard cotton programme' at
full and partial load
95 %
Average condensation efficiency of the 'standard cotton programme' at full
load
95 %
Average condensation efficiency of the 'standard cotton programme' at par-
tial load
95 %
Sound power level (L
WA
)
6
66 dB(A) re 1 pW
Built-in -
● Yes, standard feature
1
In kg of cotton laundry for the standard cotton programme at full load.
2
based on 160 drying cycles of the standard cotton programme at full and partial load, and the con-
sumption of the low-power modes. Actual energy consumption per cycle will depend on how the ap-
pliance is used.
Technical data
65
3
If the household tumble drier is equipped with a power management system.
4
This programme is suitable for drying normal wet cotton laundry and is the most efficient programme
in terms of energy consumption for cotton.
5
If the household tumble drier is a condenser tumble drier.
6
For the standard cotton programme at full load.
Consumption data
66
Load size
1
Final spin
speed in
washing ma-
chine
Resid-
ual
mois-
ture
Energy Cycle
dura-
tion
kg rpm % kWh min
Cottons Eco
Normal
2
7.0
3.5
1000
1000
60
60
1.22
0.71
165
106
Cottons, Normal 7.0
7.0
7.0
1200
1400
1600
53
50
44
1.08
1.02
0.90
133
125
110
Cottons, Hand iron 7.0
7.0
7.0
7.0
1000
1200
1400
1600
60
53
50
44
0.92
0.84
0.78
0.66
130
101
94
79
Minimum iron, Normal 4.0 1200 40 0.47 74
Woollens handcare 2.0 1000 50 0.02 5
Gentle smoothing 1.0 1000 50 0.30 50
Express, Normal 4.0 1000 60 0.85 125
1
Weight of dry laundry
2
Test programme in accordance with Regulation 392/2012/EU for energy labelling, measured in ac-
cordance with EN61121
All data was calculated using EN61121 unless otherwise stated
Note for comparison tests:
For testing in accordance with EN 61121, before testing, dry a 3kg load of cotton laundry with 70% re-
sidual moisture as per the above standard using the Cottons Normal programme without any extra op-
tions selected.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning and fluctuations in the electricity
supply, or when water hardness levels and extra options differ from specified values.
Programmable functions
67
Programming
You can use the programmable func-
tions to alter the tumble dryer's elec-
tronic modules to suit your require-
ments.
Programming is carried out by following
these steps (,,... ) using the
sensor controls.
Accessing the programming level
Prerequisite
– Make sure that the programme se-
lector is turned to any of the pro-
gramme settings.
– Make sure that the door of the
tumble dryer is open.
Touch the Start/Stopsensor control
and hold it down whilst carrying out
steps–.
Close the tumble dryer door.
Wait until the Start/Stopsensor con-
trol, which will now be flashing
quickly, lights up constantly...
...and then release the Start/
Stopsensor control.
will light up in the time display.
Choosing and selecting a program-
mable function
The number of the programmable
function will appear in the time display
as and a number:
e.g..
Touch the or sensor control to
scroll to the next or previous pro-
grammable function:
Programmable function
Cottons drying levels
Minimum iron drying levels
Cooling phase
Buzzer volume
Keypad tone
PIN code
Conductivity
Control field switch-off status
Memory
Anti-crease
Buzzer
Airways indicator
Backlight brightness dimmed
Confirm the selected programmable
function by touching theStart/Stop
sensor control.
Programmable functions
68
Editing and saving a programmable
function
You can either switch a programmable
function on/off or select different op-
tions.
The programmable function option will
appear in the time display as and a
number:
e.g..
Touch the or sensor control to
switch the programmable function
on/off or to select an option:
Programmable function
Available options
X
X X X X X
X X X X X X
X X to
X
X
X
X
X
X
X X
X
X X X
X X X X X X
X = Can be selected
= Factory default setting
Confirm the chosen selection with
the Start/Stopsensor control.
The number of the programmable func-
tion, e.g., will then light up again.
Exiting the programming level
Turn the programme selector to the
position.
The settings you have selected are now
stored in the memory. You can alter the
settings again at any time.
Programmable functions
69
Cottons drying levels
You can alter the drying levels for the
Cottons programme in 7stages.
Options
= Even damper
= Damper
= A little damper
= Factory default setting
= A little drier
= Drier
= Even drier
Minimum iron drying levels
You can alter the drying levels for the
Minimum iron programme in 7stages.
Options
= Even damper
= Damper
= A little damper
= Factory default setting
= A little drier
= Drier
= Even drier
Cooling phase
The automatic cooling-down phase
which takes place before the end of a
programme can be extended.
Options
= Factory default setting
= Cool down time 2minutes
longer
= Cool down time 4minutes
longer
= Cool down time 6minutes
longer
= Cool down time 8minutes
longer
= Cool down time 10minutes
longer
= Cool down time 12minutes
longer
= Cool down time 14minutes
longer
= Cool down time 16minutes
longer
= Cool down time 18minutes
longer
Buzzer volume
The buzzer volume can be changed.
Options
= Off
= Quieter
Programmable functions
70
Keypad tone
The buzzer that sounds when a sensor
control is pressed can be switched off.
Options
= Off
= Factory default setting
PIN code
The PIN code prevents your tumble
dryer being used without your know-
ledge.
When the PIN code has been activated,
you have to enter the PIN code after
switching the tumble dryer on. Other-
wise it cannot be operated.
Options
= Off (factory default setting)
= On
If the option has been selected, after
switching on you will have to enter the
PIN code before you can operate the
tumble dryer.
Using the tumble dryer when the PIN
code is activated
After the tumble dryer is switched on,
will flash in the time display.
The PIN code is; it cannot be
altered.
Touch the sensor control until a
flashes in the first position.
Confirm with the Start/Stop sensor
control.
Enter the two other numbers in the
same way.
The tumble dryer is ready for use
after has been entered and con-
firmed.
Conductivity
This programmable function must only
be set if the residual moisture reading
in your laundry is incorrect due to ex-
tremely soft water.
Options
= Off (factory default setting)
= Low
Condition
This programmable function should only
be set if the water used for washing the
laundry is extremely soft with a con-
ductivity reading (electrical conductivity)
of less than 150μS/cm. Contact your
local water authority for the conductivity
level of your mains water supply.
Make sure that you only activate
for the condition described above.
Otherwise, drying results can be un-
satisfactory.
Programmable functions
71
Control field switch-off
status
To save energy, the time display and
sensor controls will go out once the
programme has been running for
10minutes. The Start/Stopsensor
control then flashes slowly.
However, there is no switch-off in the
event of a fault.
Options
= Off
The time display and sensor
controls do not go out.
= On (factory default setting)
The time display and sensor
controls will go out once the
programme has been running
for 10minutes.
“Switching on” the display again
– Touch the Start/Stop sensor control.
This will not affect a running pro-
gramme.
Memory
You can set the following: the elec-
tronic module will save the drying level
and any options selected for the cur-
rent drying programme. It will also
save the duration of the Warm air pro-
gramme. When the programme is se-
lected again, these saved settings will
appear in the display.
Options
= Off (factory default setting)
= On
Anti-crease
After the drying cycle has finished, the
drum will continue to rotate in a spe-
cial Anti-crease rhythm for a max. of
2hours. This helps prevent creasing if
the laundry is not removed immedi-
ately after the end of the programme.
The duration can be shortened.
Options
= No Anti-crease
= 1hour
= 2hours (factory default set-
ting)
Programmable functions
72
Buzzer
The buzzer sounds at the end of the
programme.
Options
= Off (factory default setting)
= On
Airways indicator
Fluff should be removed after drying.
The indicator light will also come
on when a certain amount of fluff has
collected in the filters. You can decide
at what level of fluff this reminder
should be given.
You will have an idea of how often this
should be done after a few drying pro-
grammes.
Options
= Off
The indicator light does not
come on. However, if there is a
very severe blockage in the
ducting, the programme will be
cancelled and the error mes-
sage will appear in the
display regardless of this op-
tion.
= Heavy
The indicator light will come
on when there is a heavy build-
up of fluff.
= Normal (factory default set-
ting)
= Light
The indicator light will come
on when there is only a small
build-up of fluff.
Backlight brightness
dimmed
The brightness of the dimmed sensor
controls in the control field can be set
to one of 7different levels.
The brightness changes as soon as you
select a different setting.
Options
= Darkest level
= Factory default setting
...
= Brightest level
Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Miele & Cie. KG
Manufacturer:
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana Petroleum
Solaris Dutamas No. 1, Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
Level 2, 10 College Hill
Freemans Bay, Auckland 1011, NZ
Tel: 0800 464 353
Internet: www.miele-professional.com.au
E-mail: [email protected]
New Zealand
Miele Pte. Ltd.
163 Penang Road
# 04 - 03 Winsland House II
Singapore 238463
Tel: +65 6735 1191, Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel: (011) 875 9000, Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
Sheikh Zayed Road, Umm Al Sheif
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999, Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected], Website: www.miele.ae
United Arab Emirates
United Kingdom
Miele Co. Ltd.
Fairacres, Marcham Road
Abingdon, Oxon, OX14 1TW
Professional Sales, Tel: 0845 365 6608
E-mail: [email protected]
Internet: www.miele.co.uk/professional
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
1 Gilbert Park Drive, Knoxfield, VIC 3180
Tel: 1300 731 411
Internet: www.miele-professional.com.au
E-mail: [email protected]
Australia
Miele (Shanghai) Trading Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District, 200040 Shanghai, PRC
Tel: +86 21 6157 3500, Fax: +86 21 6157 3511
E-mail: [email protected], Internet: www.miele.cn
China
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025, Fax: (852) 3579 1404
Email: [email protected]
Website: www.miele.hk
Miele (Hong Kong) Limited
Miele India Pvt. Ltd.
Ground Floor, Copia Corporate Suites
Plot No. 9, Jasola
New Delhi - 110025
Tel: 011-46 900 000, Fax: 011-46 900 001
E-mail: [email protected], Internet: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus, Dublin 24
Tel: (01) 461 07 10, Fax: (01) 461 07 97
E-Mail: [email protected], Internet: www.miele.ie
Ireland
M.-Nr. 11 455 410 / 00en-GB
PDR 300 HP SmartBiz
