Welcome
Thank you for purchasing your Thor Kitchen Appliance! We appreciate
your business and we recommend that you read this entire User’s
Manual before operating your new appliance for the first time.
This manual contains instructions on how to properly install and set up
your new range, as well as insights into the unique features that our
product offers. Please keep this manual for future reference, as it
contains answers to questions that you might have as you begin to cook.
For any inquiries, please reach our customer service support at +1 877-
288-8099 at our business hours or email service@thorgroup.us.
Thank you,
Thor Group
This manual applies to the following models’ series:

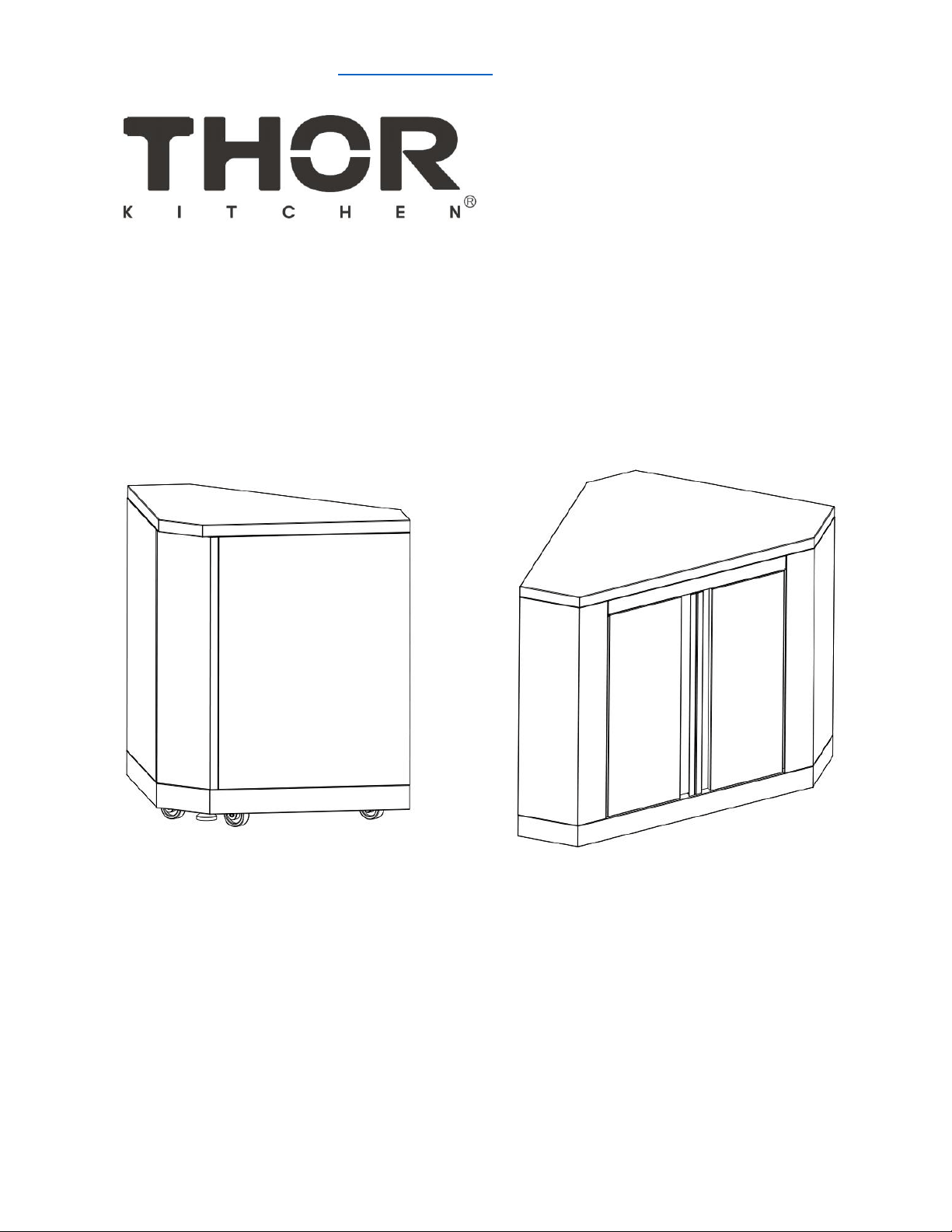

Model # MK06SS304 (Outdoor Corner Cabinet)
service@thorgroup.us +1 877-288-8099

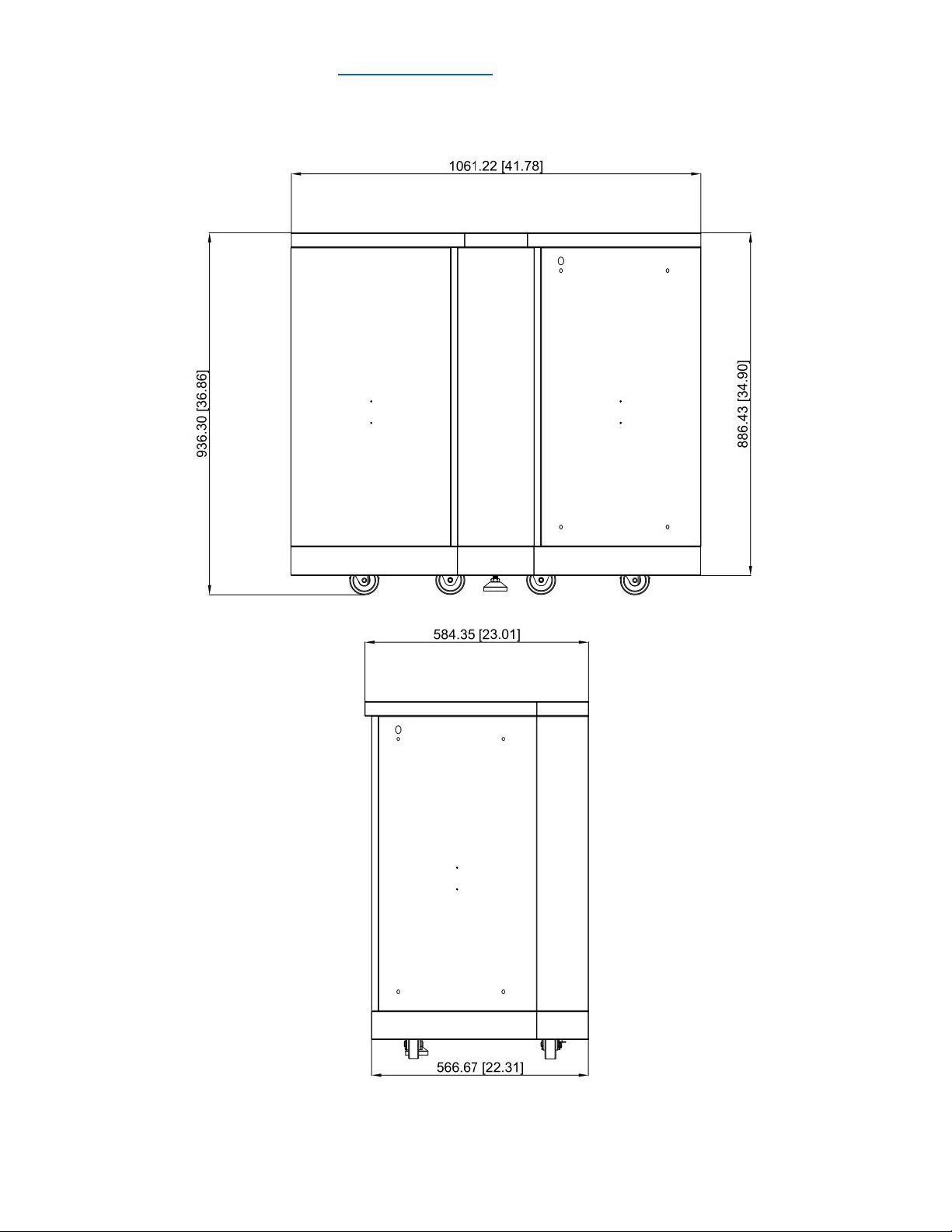

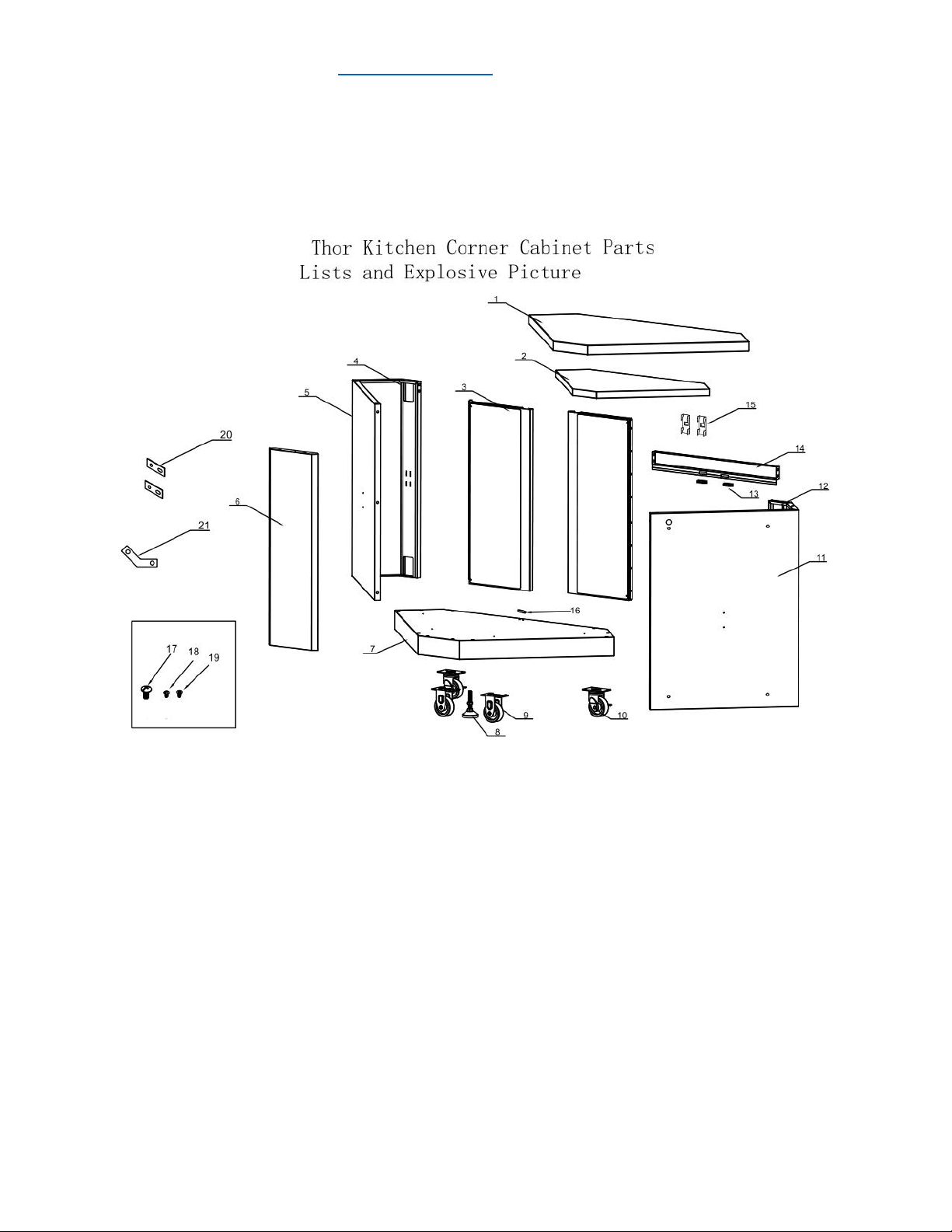

Parts List
If you are missing any part, please contact Thor Kitchen Customer Service
for help.
Explosive
#
Part #
Part Name
Quantity
1
20.01.008054-000-A0
Countertop welding assembly
1
2
20.01.001063-000-A0
Laminate welding assembly
1
3
22.99.009228-000-A0
Door welding assembly
2
4
20.01.001059-000-A0
Left side panel A welding assembly
1
5
20.01.001060-000-A0
Left side panel B welding assembly
1
6
20.01.001064-000-A0
Front panel welding assembly
1
7
20.01.008077-000-A0
Bottom panel welding assembly
1
8
05.01.008004-000-A0
Supporting leg
2
9
05.10.000122-000-A0
Fixed caster
2
10
05.10.000123-000-A0
Universal caster
2
11
20.01.001062-000-A0
Right side panel B welding assembly
1
12
20.01.001061-000-A0
Left side panel A welding assembly
1
13
05.12.008009-000-A0
Door magnetic
2
14
20.05.008086-000-A0
Beam welding assembly
1
15
04.04.008570-000-A0
Laminate welding holder
2
16
04.01.002596-000-A1
Door barrier strip
1
17
06.02.000093-000-A0
¼” Philips thumb head screw with
anti-slip design
58
18
06.10.000042-000-A0
Philips thumb head screw
2
19
06.11.008056-000-A0
flat head screw
16
20
04.01.002580-000-A0
cabinet back connecting plate
2
21
04.01.002640-000-A0
corner cabinet front connecting
plate
1
service@thorgroup.us +1 877-288-8099
Cabinet Installation

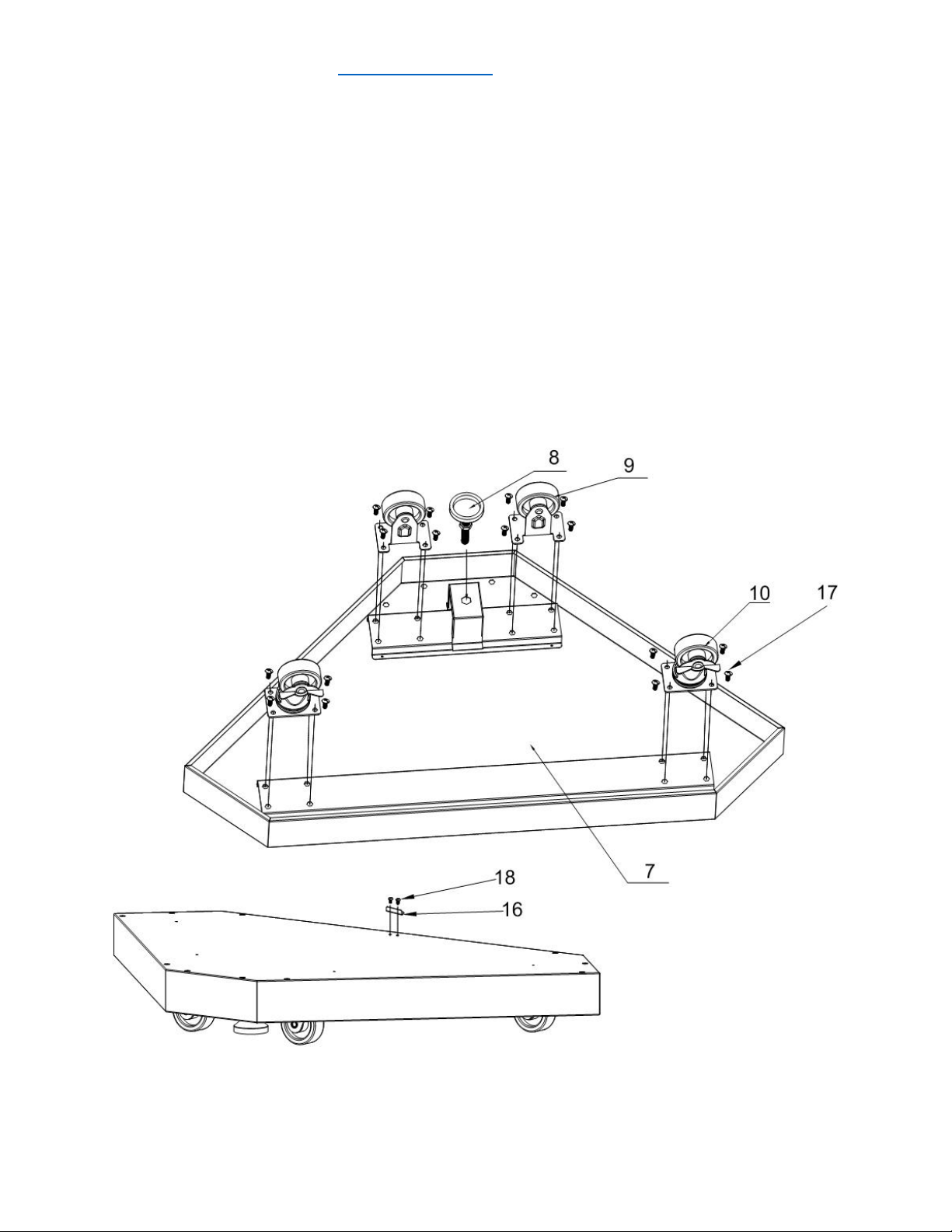

Step 1
1. Reverse the bottom welding part (Part # 7) and put 1 pc supporting leg
(Part # 8) to Part # 7. Use hand to adjust the leg to the suitable position;
2. Use 16 pcs ¼” flat Philip’s head screw (Part #17) to connect 2 pcs fixed
casters (Part # 9) and 2 pcs universal casters with brake (Part # 10) to Part
#7;
3. Reverse Part # 7 and use 2 pcs Philips thumb head screw (Part # 18) to
install Door barrier strip (Part # 18) to Part # 7.
service@thorgroup.us +1 877-288-8099

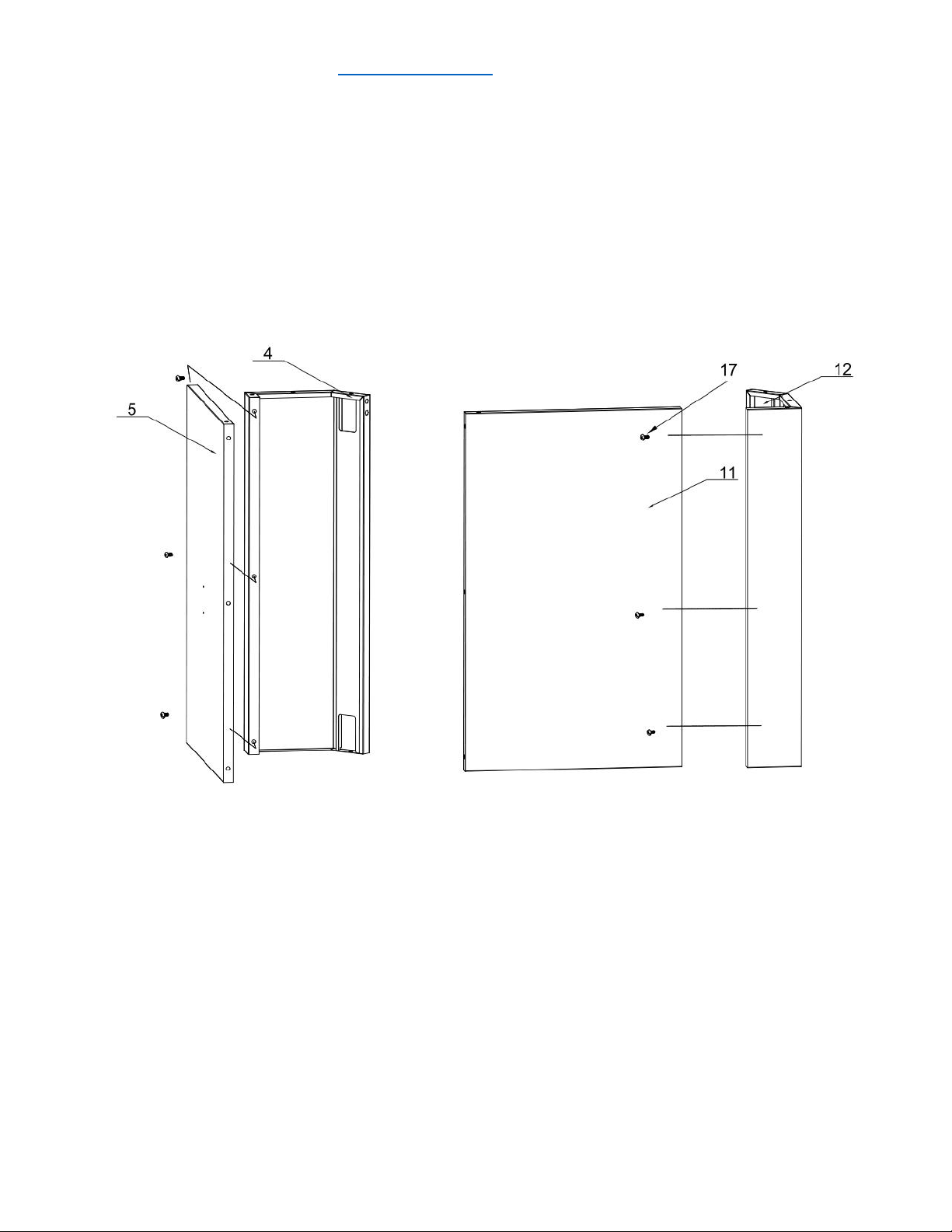

Step 2
1. Use 3 pcs ¼” flat Philip’s head screw (Part # 17) to connect left side panel A
(Part # 4) to Part # 5;
2. Use 3 pcs ¼” flat Philip’s head screw (Part # 17) to connect right side panel
a (Part # 12) to Part # 11;
3. Do not over-tighten all the screws until parts are lined up.
service@thorgroup.us +1 877-288-8099

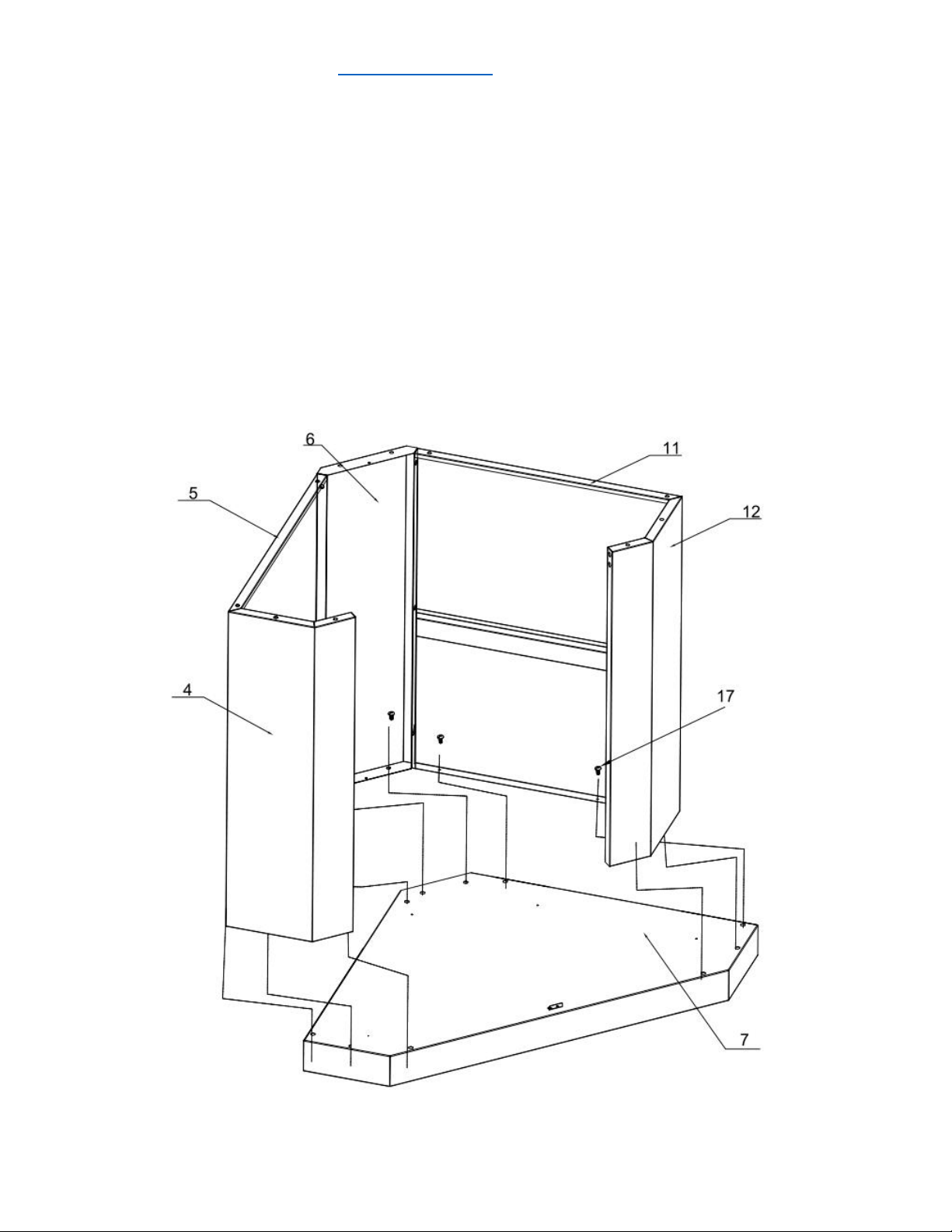

Step 4

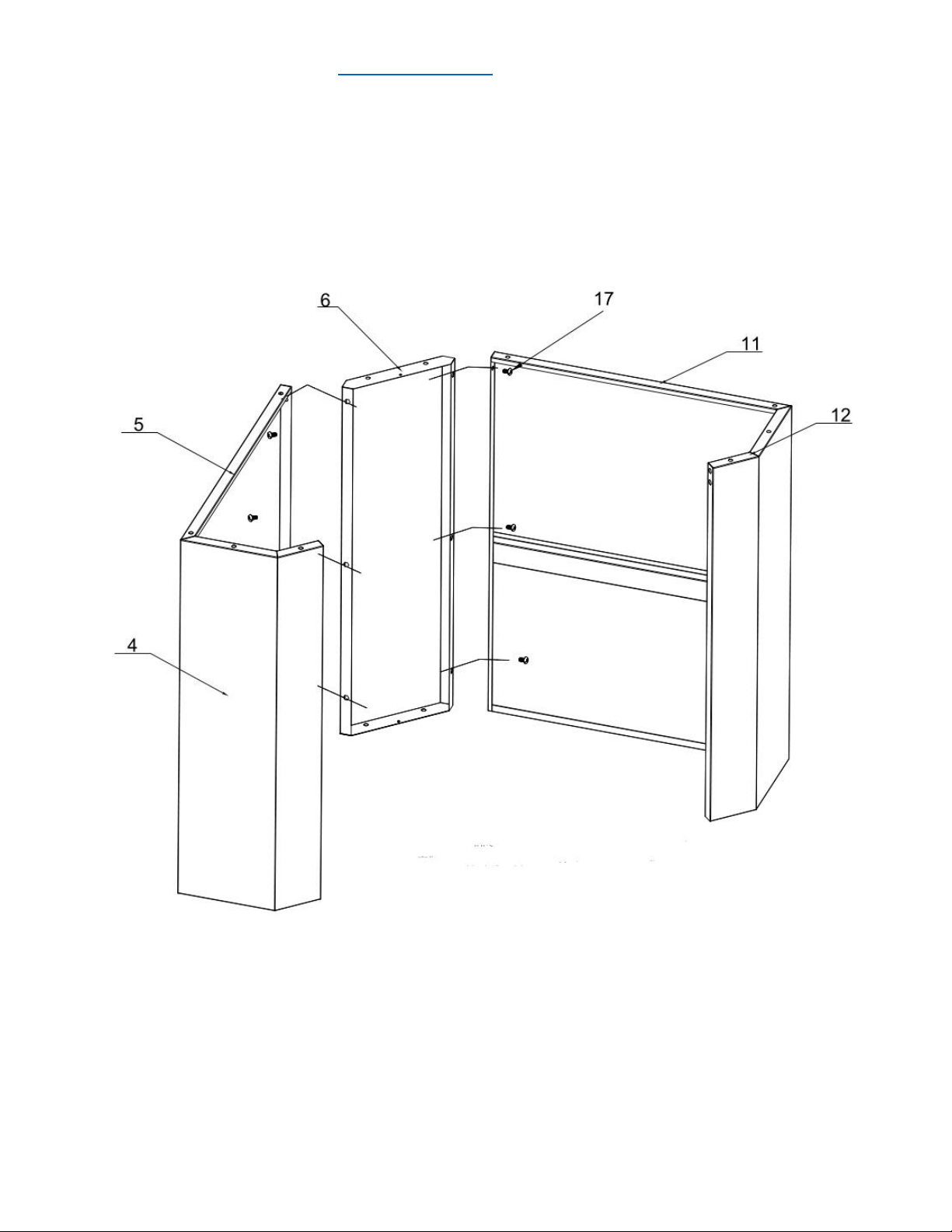

1. Use 4 pcs Philips thumb head screw with anti-slip design (Part # 17) to
connect Left side panel A welding assembly (Part # 4) and Left side panel B
welding assembly (Part # 5) to Bottom panel welding assembly (Part # 7);
2. Use 4 pcs Part # 17 to connect Right side panel B welding assembly (Part #
11) and Left side panel A welding assembly (Part # 12) to Part # 7;
3. Use 2 pcs Part 17 to connect Front panel welding assembly (Part # 6) to Part
# 7.
4. Do not over-tighten all the screws until parts are lined up.
service@thorgroup.us +1 877-288-8099

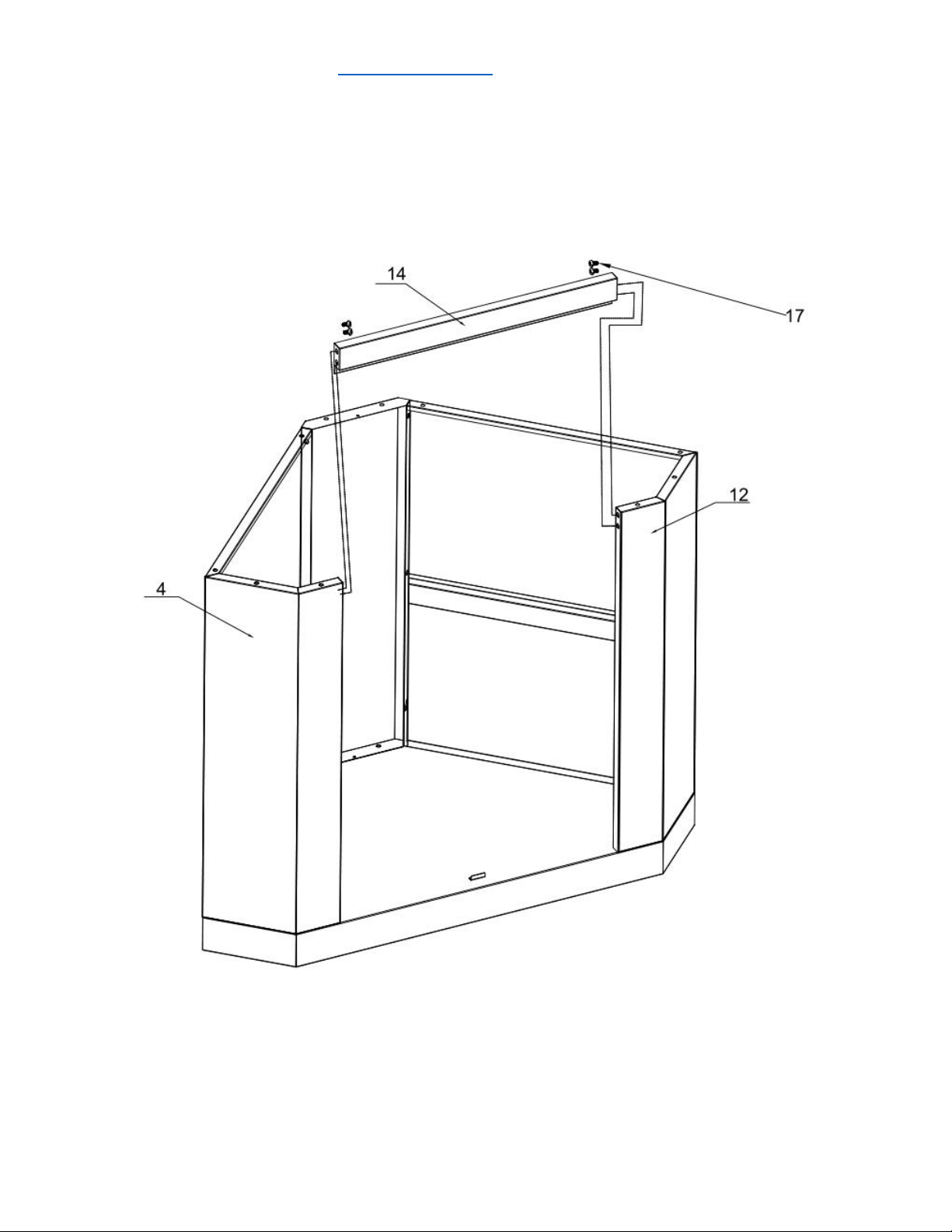

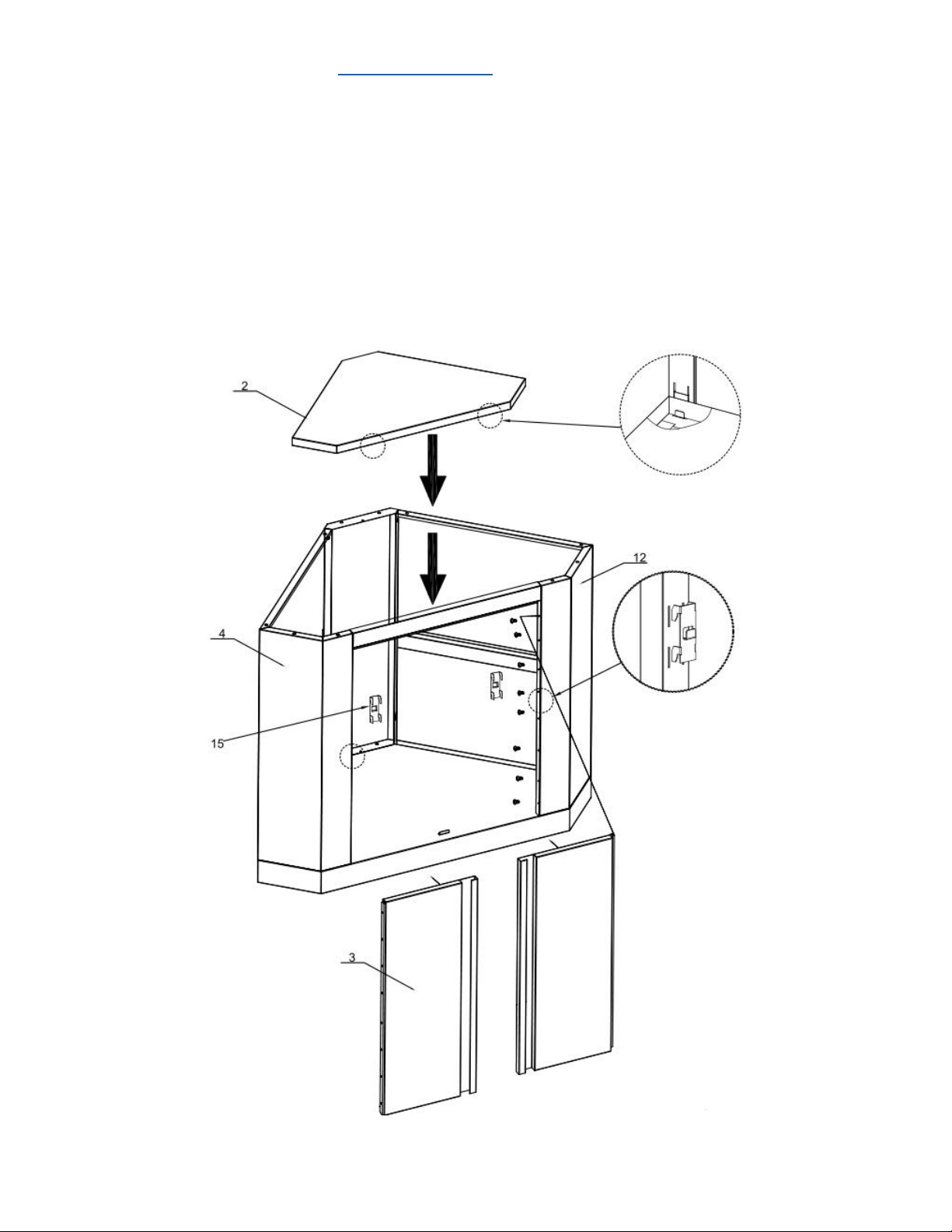

Step 6
1. Install 2 pcs Laminate welding holder (Part # 15) to Part # 4 and Part # 12,
and then install Laminate welding assembly (Part # 2) on the top;
2. Use 16 pcs flat head screw (Part # 19) to install Door welding assembly (Part
# 3) to Part # 4 and Part # 12.

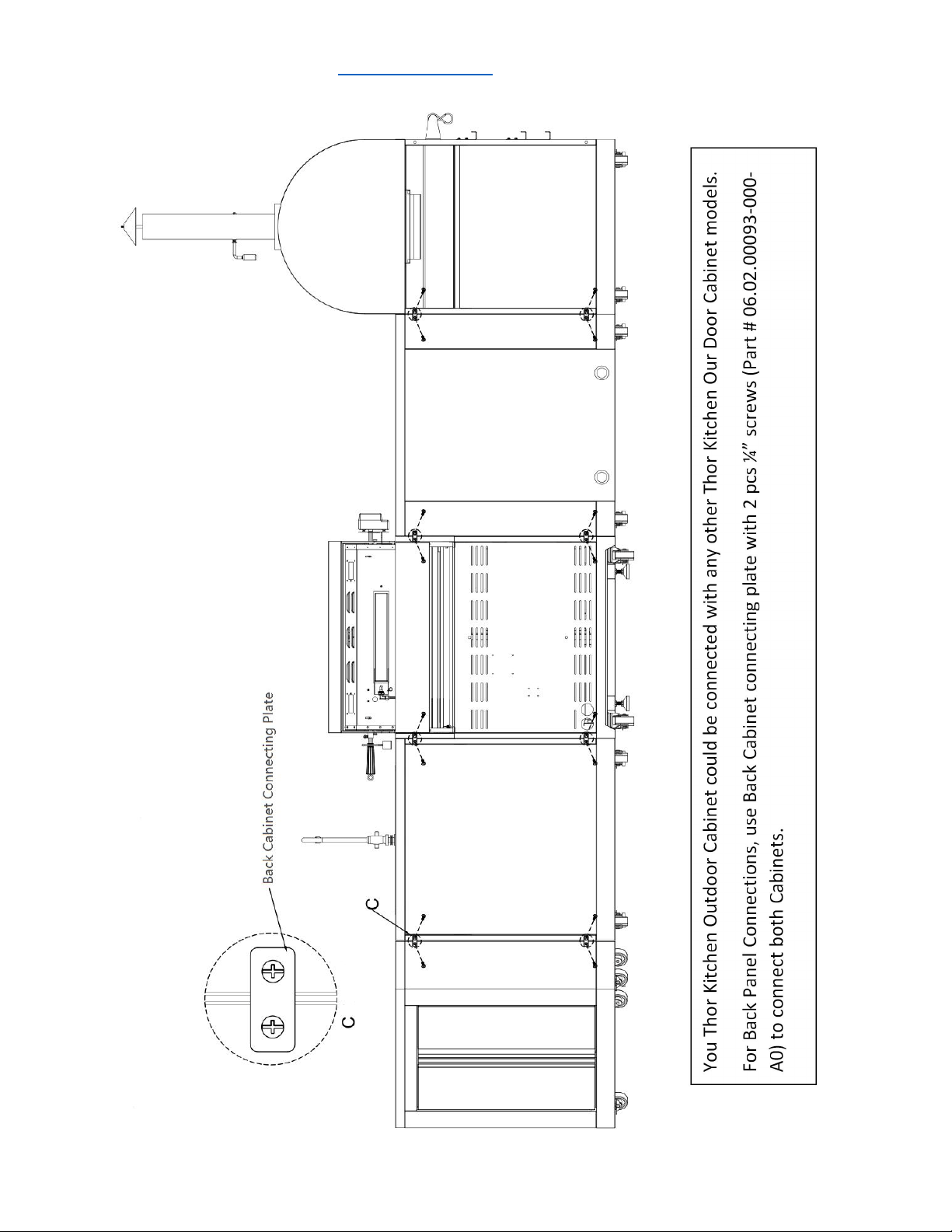

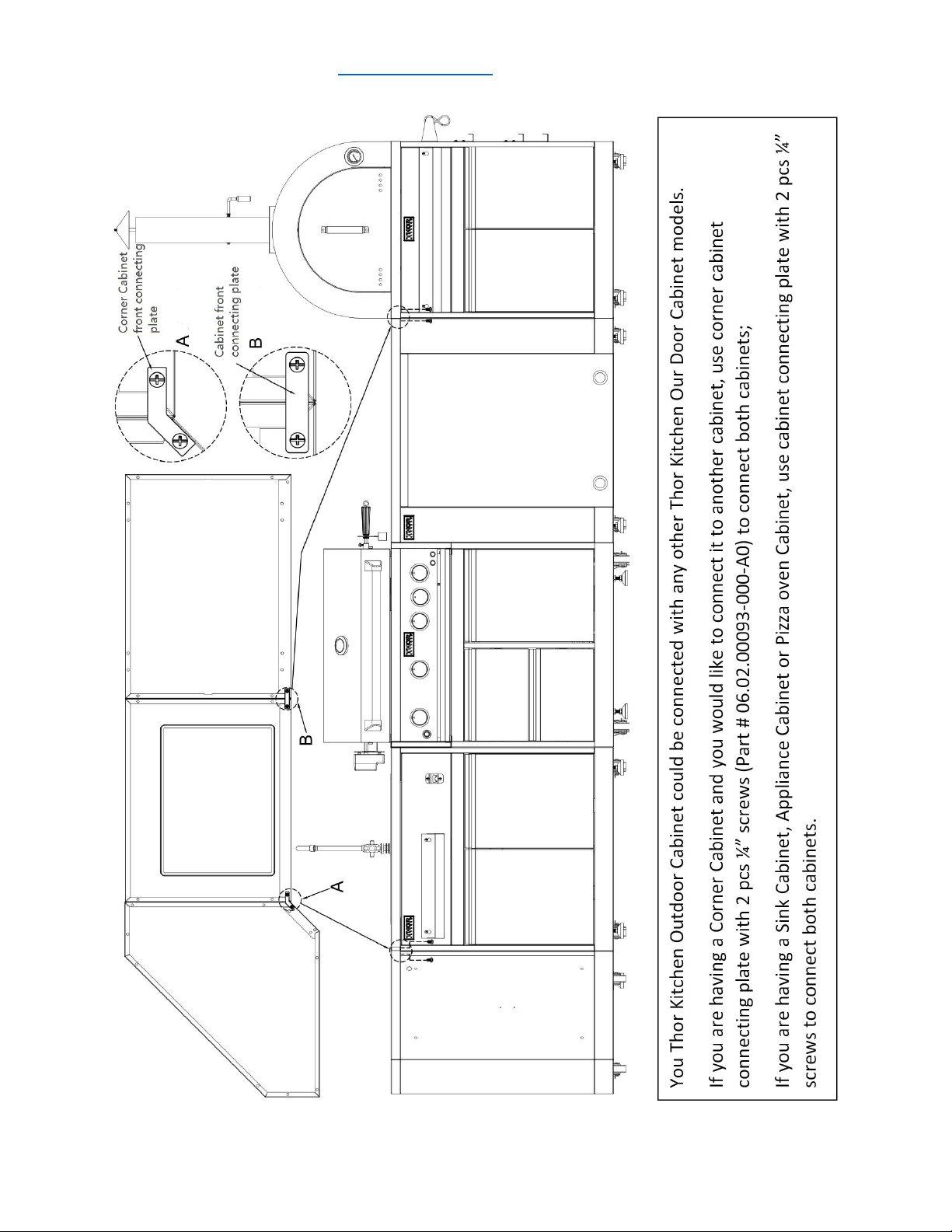

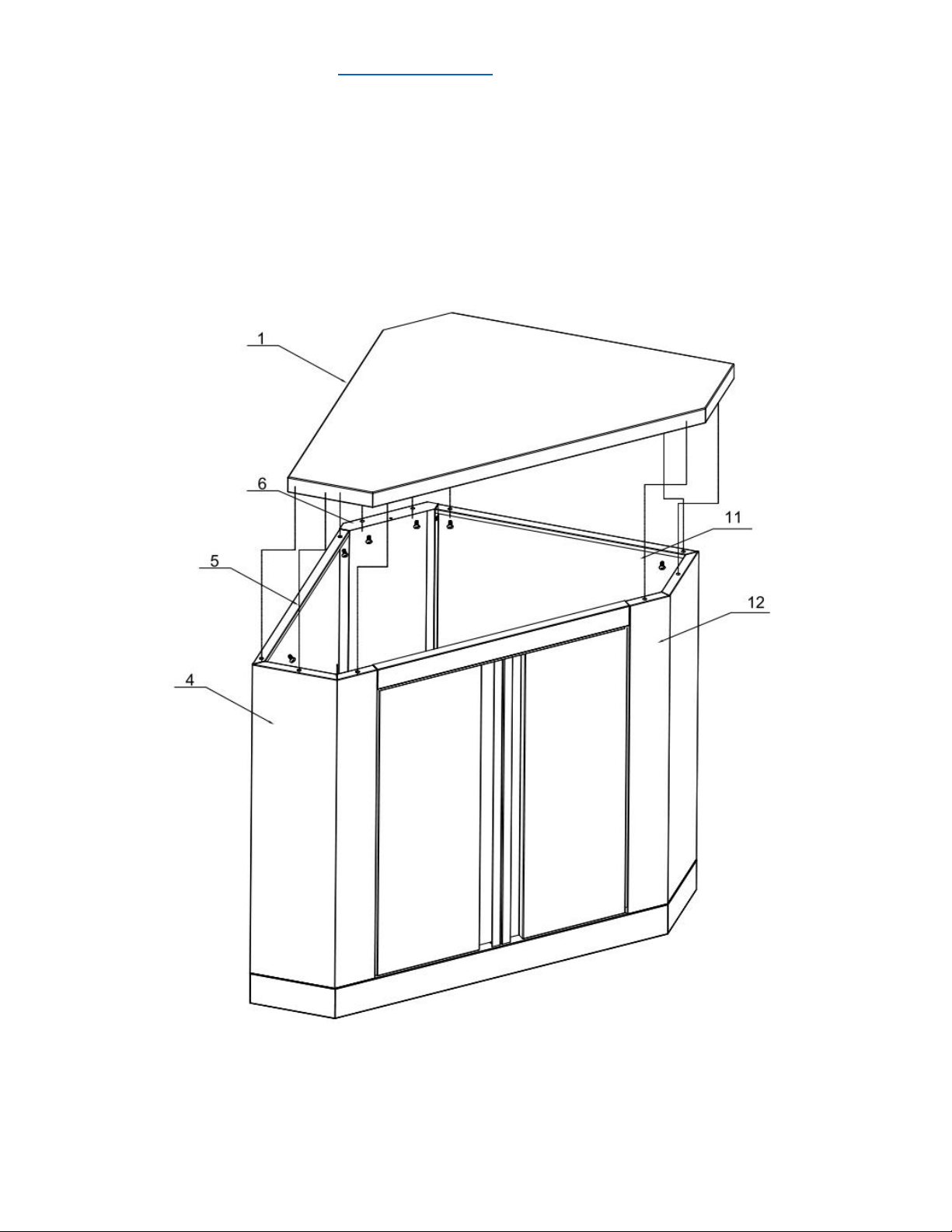

3. Do not over-tighten all the screws until parts are lined up.
