CKPUMPKIT
Assembly Instructions for Your Kitchenette Water Pump
MODELS:
C48ELPUMP
C48ELGLASSPUMP
Write Serial Number (on lower left corner of
inside cabinet) here:
Serial No.: _______________________
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
The Bronx, NY 10474
www.summitappliance.com
Summit Appliance Division · Felix Storch, Inc. · www.summitappliance.com · 718-893-3900 · info@summitappliance.com

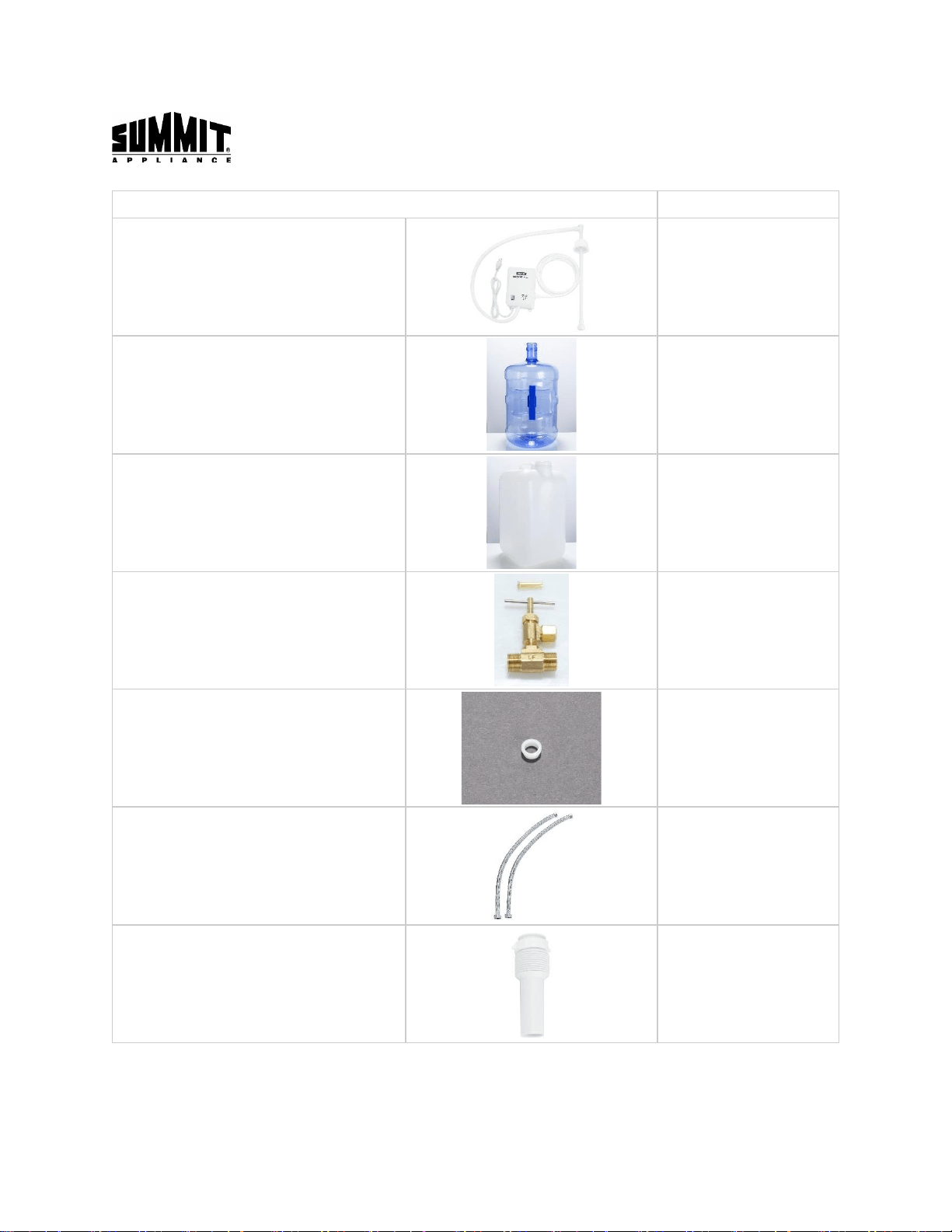

Pump Kit Installation – CKPUMPKIT
Component
Quantity
Bottled Water Dispenser Pump System,
20ft 110V AC US Plug Water Dispensing
Pump
1
5 Gallon Freshwater Container
1
6 Gallon Waste Container
1
3/8 in. Brass Water Cut-off Valve
1
1/4" Acetal Copolymer Compression
Sleeve
1
20 in. Length Braided Stainless Steel
Faucet Connector
2
1-1/2-in Flexible Plastic Drainage Pipe
1
Summit Appliance Division · Felix Storch, Inc. · www.summitappliance.com · 718-893-3900 · info@summitappliance.com

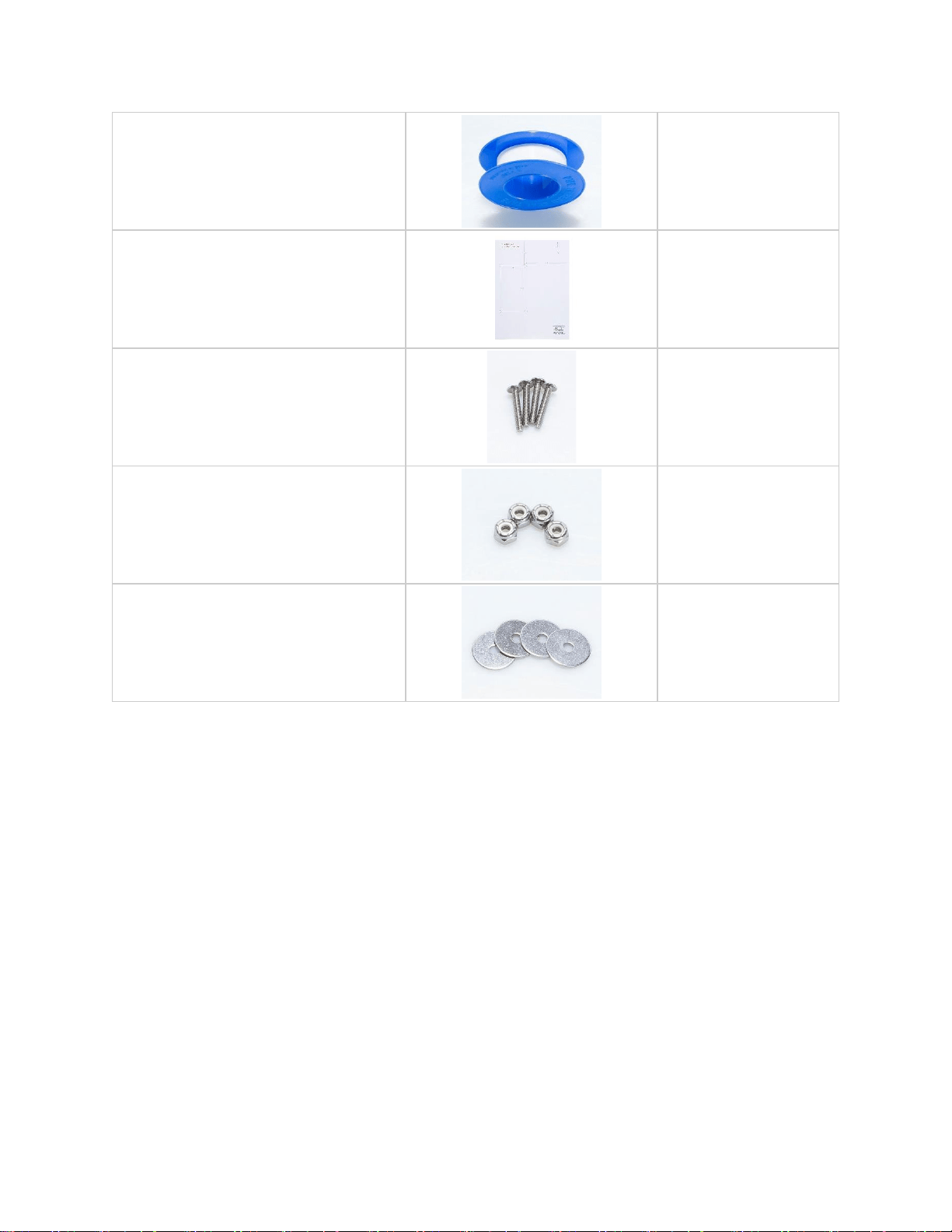

1/2 in. x 520 in. White Teflon Tape
1
Mounting Template (18x12)
1
10-32 x 1 1/4" Phillips Head Truss Screw
Stainless Steel
4
10-32 Nylon Lock Nut Stainless Steel
4
10 x 5/8" Fender Washer Stainless Steel
4
Installation Instructions
1) Open the cabinet of your combo kitchen. Move the wire shelf to the floor of the cabinet. This is to
ensure nothing sits directly on the floor, keeping any cords or wires dry.
2) To install the faucet, set the gasket on top of the pre-drilled holes of the combo kitchen.
3) Insert the water faucet thought the gasket and secure the faucet with the provided nuts on the
underside of the sink.
4) The pump will be secured to the outer wall of the combo kitchen, using four machine screws and
nuts.
5) Place the provided template on the left side of the combo kitchen, in the top-right corner. It should
align to the front edge and along the bottom edge of the stainless steel top.
6) Using a ¼” drill bit, drill the four template holes.
7) Secure the pump to the interior wall of the cabinet, using the four provided screws, washers, and
nuts. Be sure the screw heads are on the outside of the cabinet.
NOTE: If mounting is not possible for your particular set-up, the pump can be placed on the floor of the
cabinet. It is recommended to place it, so the ON/OFF switch is accessible.
Summit Appliance Division · Felix Storch, Inc. · www.summitappliance.com · 718-893-3900 · info@summitappliance.com
8) The pump has two tubes, a thinner tube which runs to the metal water cut-off valve and a thicker
water pull tube, which pulls water from your freshwater jug.
9) To connect the pump to the valve, place the valve nut over the water line.
10) The plastic sleeve has a wider and a narrower side. Place the plastic sleeve onto the water line
through the larger side.
11) Insert the metal flange into the end of the water line as far as it will go.
12) Wrap the threading of the valve, then secure the water line to the cut off valve. Tighten the nut as
much as you can.
13) Now that the water intake line is attached, wrap the other two threads of the cut-off valve in Teflon
tape, then connect the small ends of the two faucet connector lines to the cut off valve.
14) Wrap the threads of the faucet underneath the sink, then attach the wider ends of the connector lines
to the faucet.
15) Set the freshwater jug in the rear right-hand corner. Uncap the freshwater jug and insert the water pull
into the freshwater jug. Be careful, as some water may overflow when the device is first inserted.
16) Attach the drainage pipe to the underside of the sink drain, then set the end into the wastewater jug.
17) Open the water cut-off valve.
If you need further assistance, contact Summit Tech. Support, or visit
www.summitappliance.com/handwash-station to see a video of the installation.
Final Assembly
