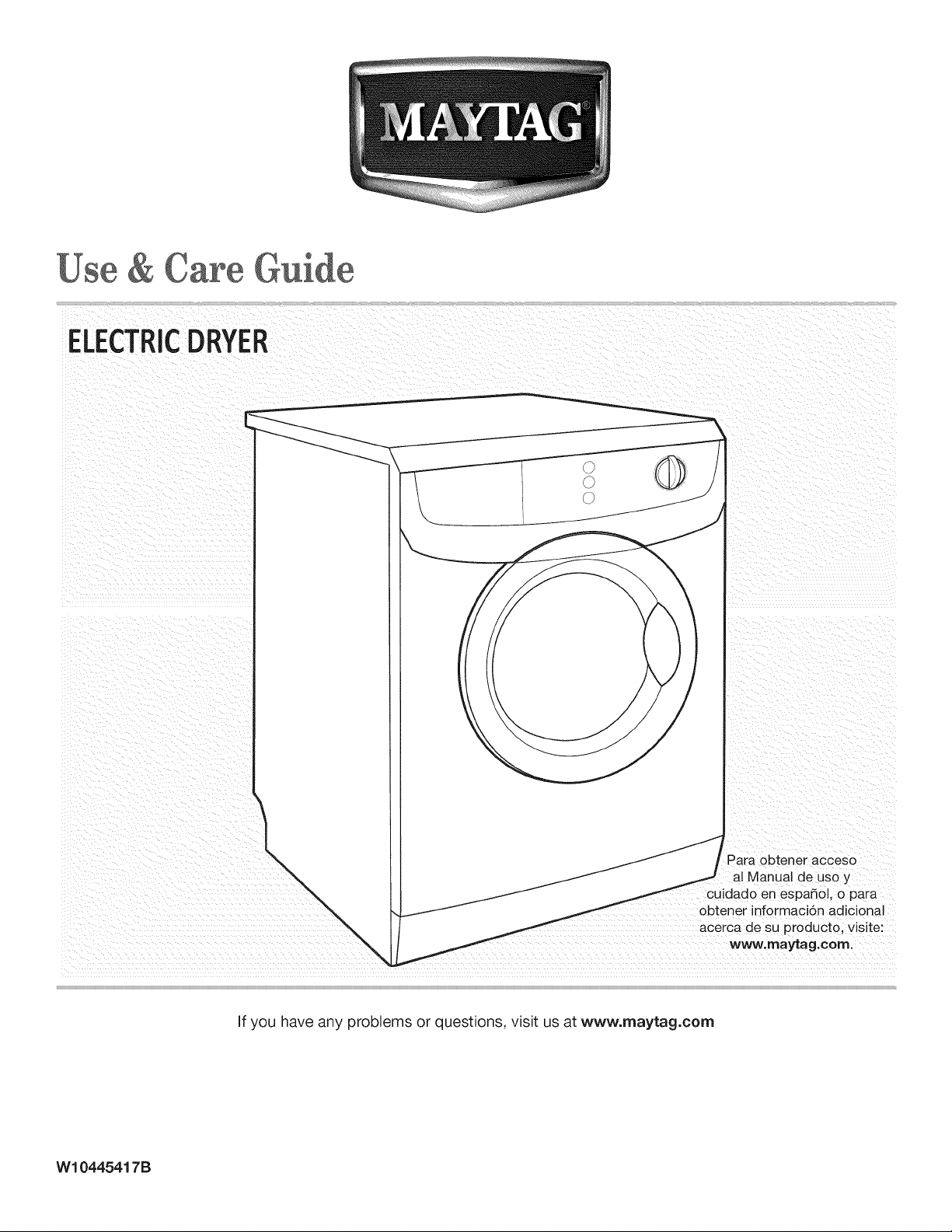

Care Guide
ELECTRICDRYER
Para obtener acceso
al Manual de uso y
cuidado en espafiol, o para
obtener informaciSn adicional
acerca de su produ cto. visite:
www.maytag.com.
If you have any problems or questions, visit us at www.maytag.com
W10445417B

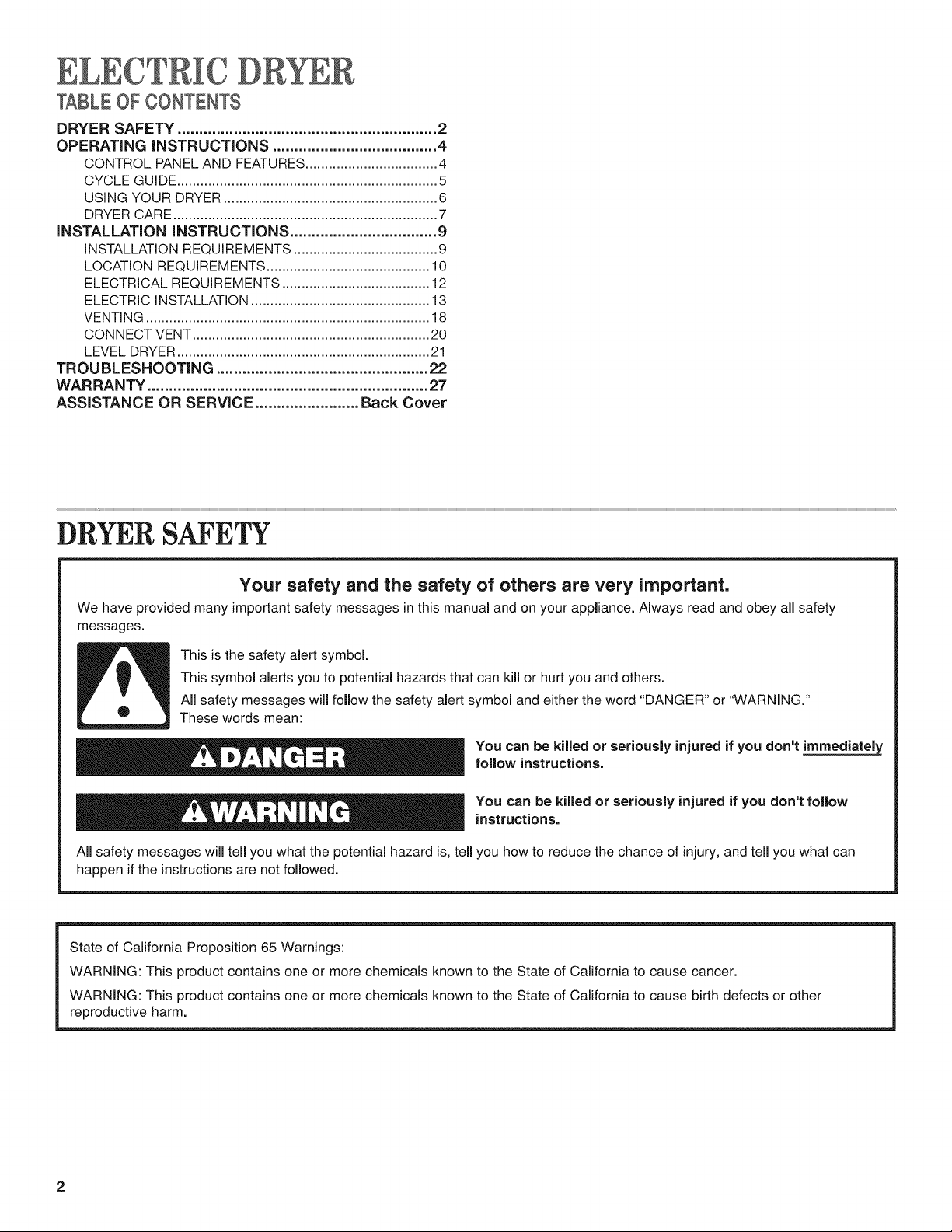

TABLEOFCONTENTS
DRYER SAFETY ............................................................ 2
OPERAT{NG {NSTRUCT{ONS ...................................... 4
CONTROL PANEL AND FEATURES .................................. 4
CYCLE GUIDE ................................................................... 5
USING YOUR DRYER ....................................................... 6
DRYER CARE .................................................................... 7
{NSTALLATiON {NSTRUCT{ONS .................................. 9
INSTALLATION REQUIREMENTS ..................................... 9
LOCATION REQUIREMENTS .......................................... 10
ELECTRICAL REQUIREMENTS ...................................... 12
ELECTRIC iNSTALLATiON .............................................. 13
VENTING ......................................................................... 18
CONNECT VENT ............................................................. 20
LEVEL DRYER ................................................................. 21
TROUBLESHOOTING ................................................. 22
WARRANTY ................................................................. 27
ASSISTANCE OR SERV{CE ........................ Back Cover
DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manua{ and on your app{iance. Always read and obey al{ safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages wil{ fo{{ow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediate!Y
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tel{ you what the potential hazard is, te{{ you how to reduce the chance of injury, and te{{ you what can
happen if the instructions are not foi{owed.
State of California Proposition 65 Warnings:
WARN{NG: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
2

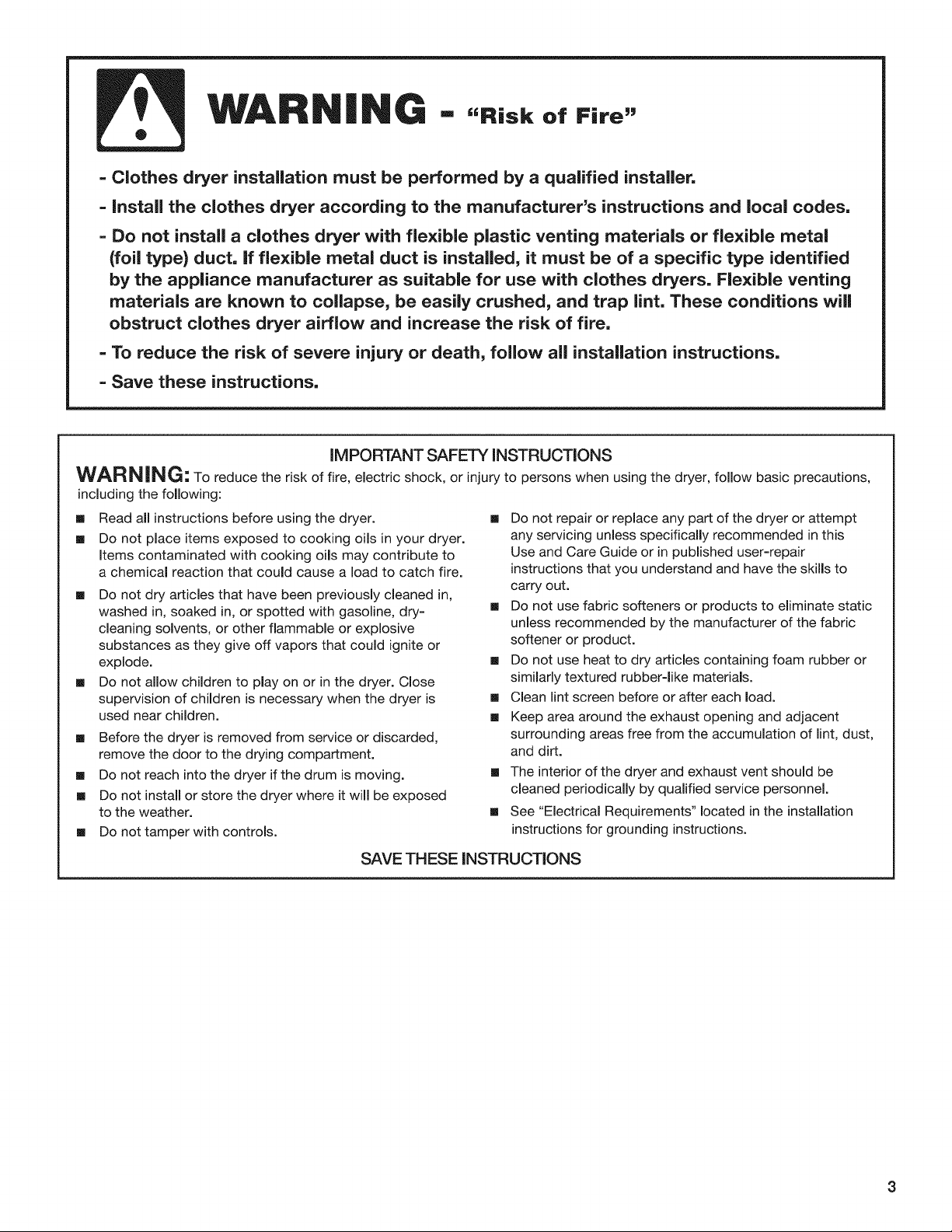

WARNING - ,,ei kofFir°,,
- Clothes dryer installation must be performed by a qualified installer.
= install the clothes dryer according to the manufacturer's instructions and local codes.
= Do not install a clothes dryer with fle×ible plastic venting materials or fle×ible metal
(foil type) duct. if fle×ible metal duct is installed, it must be of a specific type identified
by the appliance manufacturer as suitable for use with clothes dryers. Fle×ible venting
materials are known to collapse, be easily crushed, and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
=To reduce the risk of severe injury or death, follow all installation instructions.
=Save these instructions.
iMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
[] Read all instructions before using the dryer.
[] Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
[] Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry=
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.
[] Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
[] Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
[] Do not reach into the dryer if the drum is moving.
[] Do not install or store the dryer where it will be exposed
to the weather.
[] Do not tamper with controls.
[] Do not repair or replace any part of the dryer or attempt
any servicing unless specifically recommended in this
Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
[] Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
[] Do not use heat to dry articles containing foam rubber or
similarly textured rubber=like materials.
[] Clean lint screen before or after each load.
[] Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
[] The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
[] See "Electrical Requirements" located in the installation
instructions for grounding instructions.
SAVE THESE INSTRUCTIONS

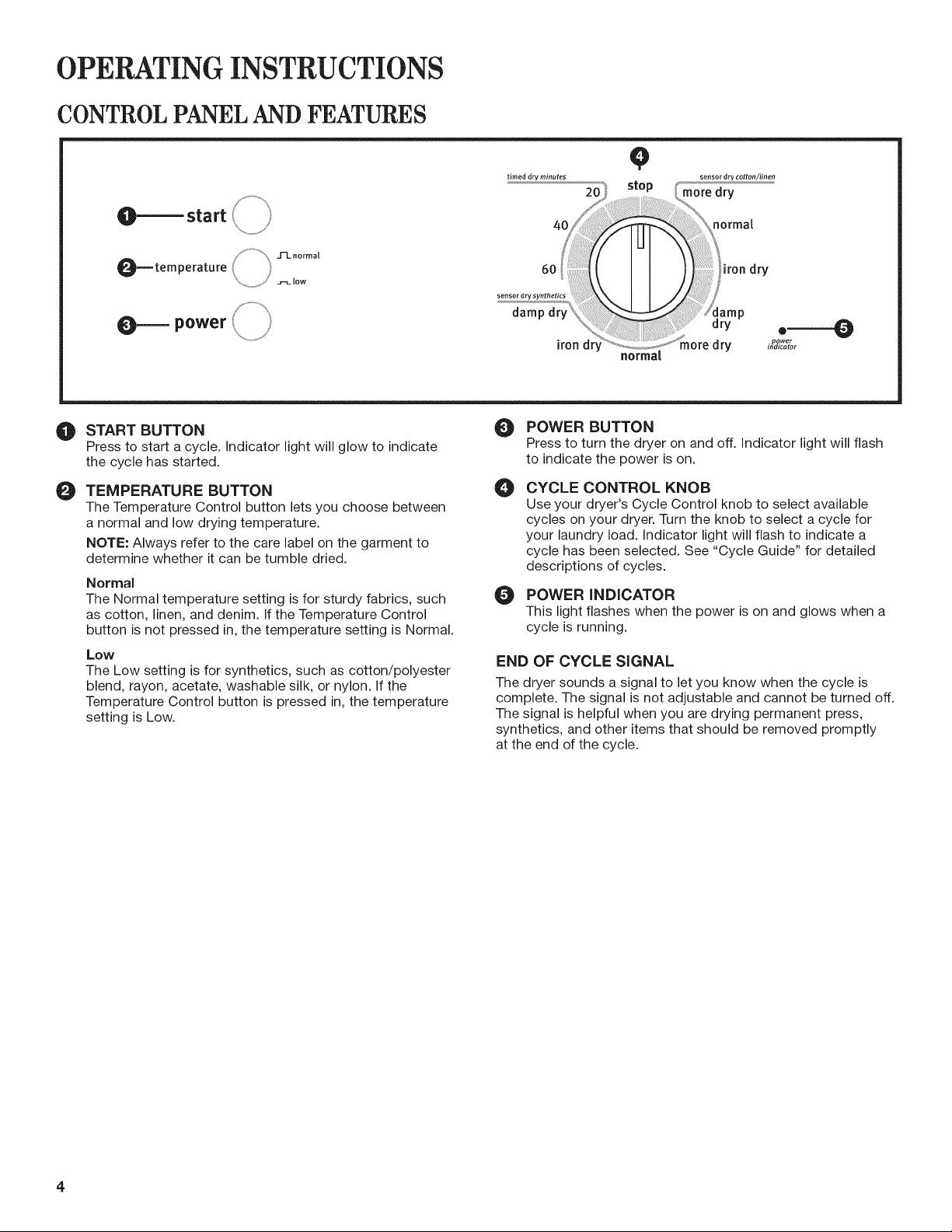

OPERATING INSTRUCTIONS
CONTROL PANEL AND FEATURES
O_start
0 mtemperature / ............._ J-Lnorrna[
low
0_ power
timed dry minutes
40
0
stop
6O
sensor dry synthetics
dam
iron ._dry
normal
sensor dry cotton/linen
,---------O
power
indicator
O START BUTTON
Press to start a cycle. Indicator light will glow to indicate
the cycle has started.
TEMPERATURE BUTTON
The Temperature Control button lets you choose between
a normal and low drying temperature.
NOTE: Always refer to the care label on the garment to
determine whether it can be tumble dried.
Normal
The Normal temperature setting is for sturdy fabrics, such
as cotton, linen, and denim. If the Temperature Control
button is not pressed in, the temperature setting is Normal.
Low
The Low setting is for synthetics, such as cotton/polyester
blend, rayon, acetate, washable silk, or nylon. If the
Temperature Control button is pressed in, the temperature
setting is Low.
0
0
0
POWER BUTTON
Press to turn the dryer on and off. Indicator light will flash
to indicate the power is on.
CYCLE CONTROL KNOB
Use your dryer's Cycle Control knob to select available
cycles on your dryer. Turn the knob to select a cycle for
your laundry load. Indicator light will flash to indicate a
cycle has been selected. See "Cycle Guide" for detailed
descriptions of cycles.
POWER INDICATOR
This light flashes when the power is on and glows when a
cycle is running.
END OF CYCLE SIGNAL
The dryer sounds a signal to let you know when the cycle is
complete. The signal is not adjustable and cannot be turned off.
The signal is helpful when you are drying permanent press,
synthetics, and other items that should be removed promptly
at the end of the cycle.
4

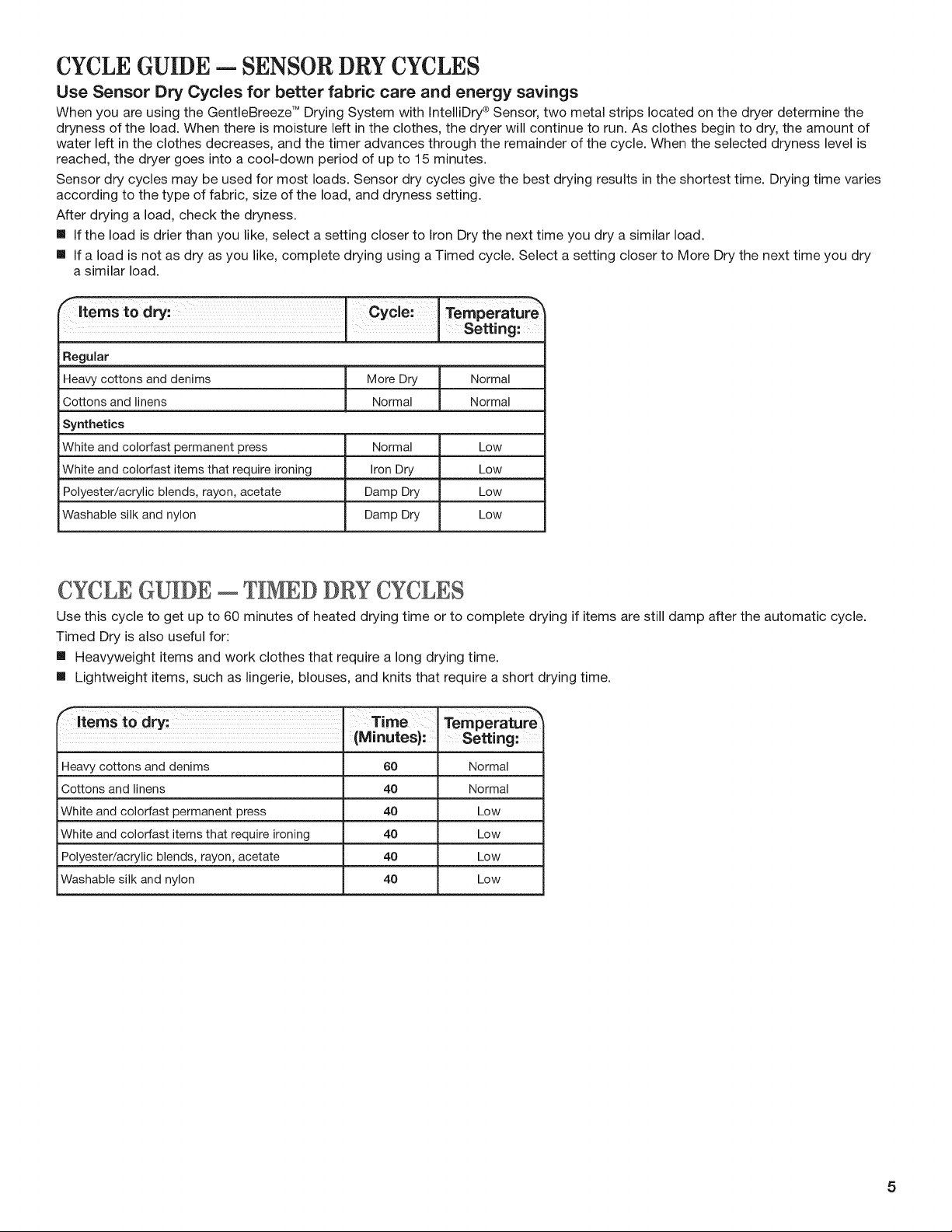

CYCLE GUIDE -- SENSOR DRY CYCLES
Use Sensor Dry Cycles for better fabric care and energy savings
When you are using the GentleBreeze TM Drying System with Intellibry ®Sensor, two metal strips located on the dryer determine the
dryness of the load. When there is moisture left in the clothes, the dryer will continue to run. As clothes begin to dry, the amount of
water left in the clothes decreases, and the timer advances through the remainder of the cycle. When the selected dryness level is
reached, the dryer goes into a cool-down period of up to 15 minutes.
Sensor dry cycles may be used for most loads. Sensor dry cycles give the best drying results in the shortest time. Drying time varies
according to the type of fabric, size of the load, and dryness setting.
After drying a load, check the dryness.
[] If the load is drier than you like, select a setting closer to Iron Dry the next time you dry a similar load.
[] If a load is not as dry as you like, complete drying using a Timed cycle. Select a setting closer to More Dry the next time you dry
a similar load.
! ! Setting:
Regular
Heaw cottons and denims More Dry Normal
Cottons and linens Normal Normal
Synthetics
White and colorfast permanent press Normal Low
White and colorfast items that require ironing Iron Dry Low
Polyester/acrylic blends, rayon, acetate Damp Dry Low
Washable silk and nylon Damp Dry Low
CYCLE GUIDE -- TI ED DRY CYCLES
Use this cycle to get up to 60 minutes of heated drying time or to complete drying if items are still damp after the automatic cycle.
Timed Dry is also useful for:
[] Heavyweight items and work clothes that require a long drying time.
[] Lightweight items, such as lingerie, blouses, and knits that require a short drying time.
Items to dry: ........... Time Temperature
(Minutes}: Setting:
Heavy cottons and denims 60 Normal
Cottons and linens 40 Normal
Whiteand colorfast permanent press 40 Low
Whiteand colorfast items that require ironing 40 Low
Polyester/acrylic blends, rayon, acetate 40 Low
Washablesilk and nylon 40 Low

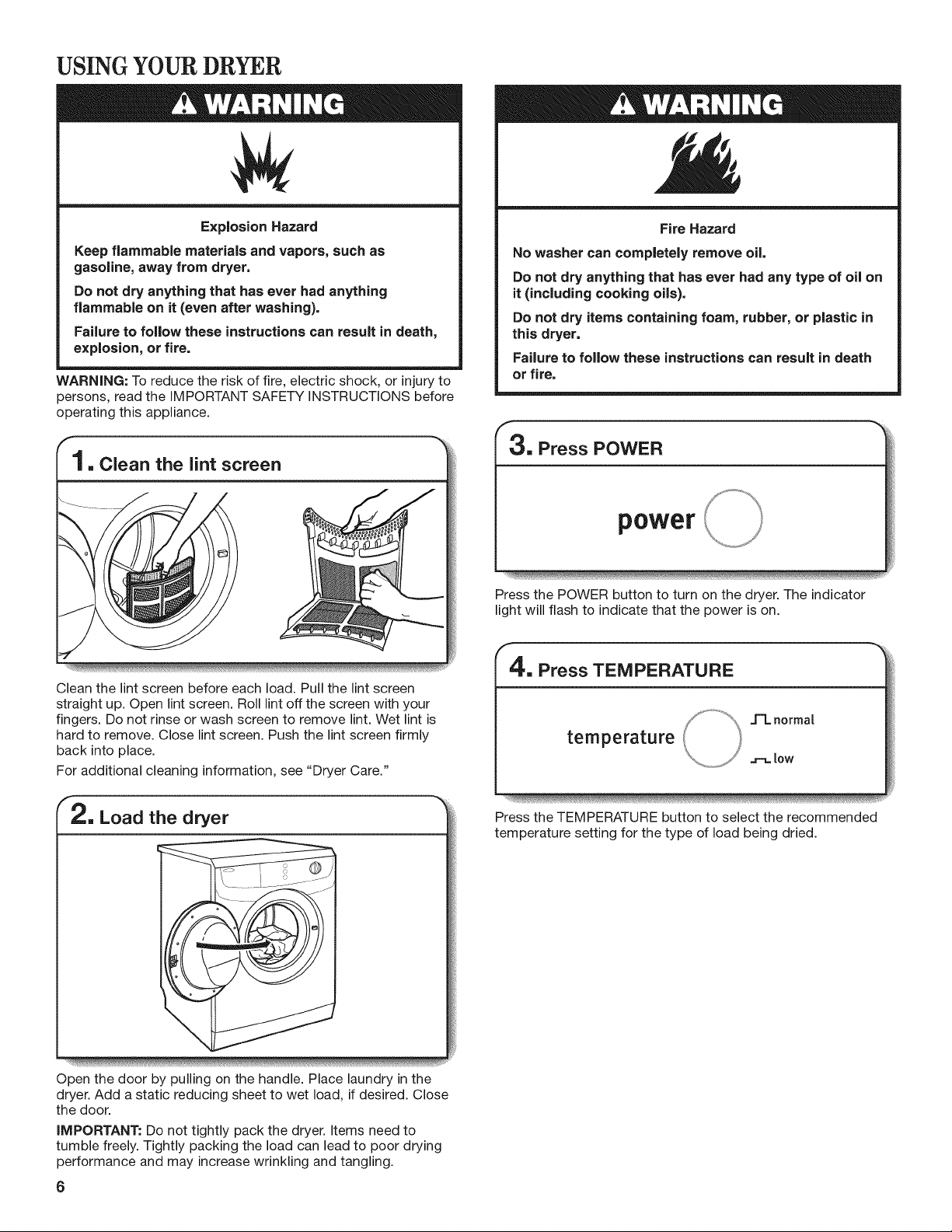

USING YOUR DRYER
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not dry anything that has ever had anything
flammable on it (even after washing).
Failure to follow these instructions can result in death,
explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on
it (including cooking oils).
Do not dry items containing foam, rubber, or plastic in
this dryer.
Failure to follow these instructions can result in death
or fire.
3. Press POWER
Clean the lint screen before each load. Pull the lint screen
straight up. Open lint screen. Roll lint off the screen with your
fingers. Do not rinse or wash screen to remove lint. Wet lint is
hard to remove. Close lint screen. Push the lint screen firmly
back into place.
For additional cleaning information, see "Dryer Care."
2. Load the dryer
power
Press the POWER button to turn on the dryer. The indicator
light will flash to indicate that the power is on.
--_
4, Press TEMPERATURE
temperature
J-L normal
tow
Press the TEMPERATURE button to select the recommended
temperature setting for the type of load being dried.
Open the door by pulling on the handle. Place laundry in the
dryer. Add a static reducing sheet to wet load, if desired. Close
the door.
iMPORTANT: Do not tightly pack the dryer. Items need to
tumble freely. Tightly packing the load can lead to poor drying
performance and may increase wrinkling and tangling.
6
5. Select the desired cycle
timed dry minutes sensor dry cotton/linen
stop more dry
40 ,normal
60 dry
dam amp
iron dr dry
normal
Select the desired cycle for your load. See the "Cycle Guide"
for more information about each cycle.
NOTE: Most loads may be dried using the Normal dryness
level, which is shown in bold letters on the control panel.
Normal is the energy preferred dryness level and will use
the least energy.

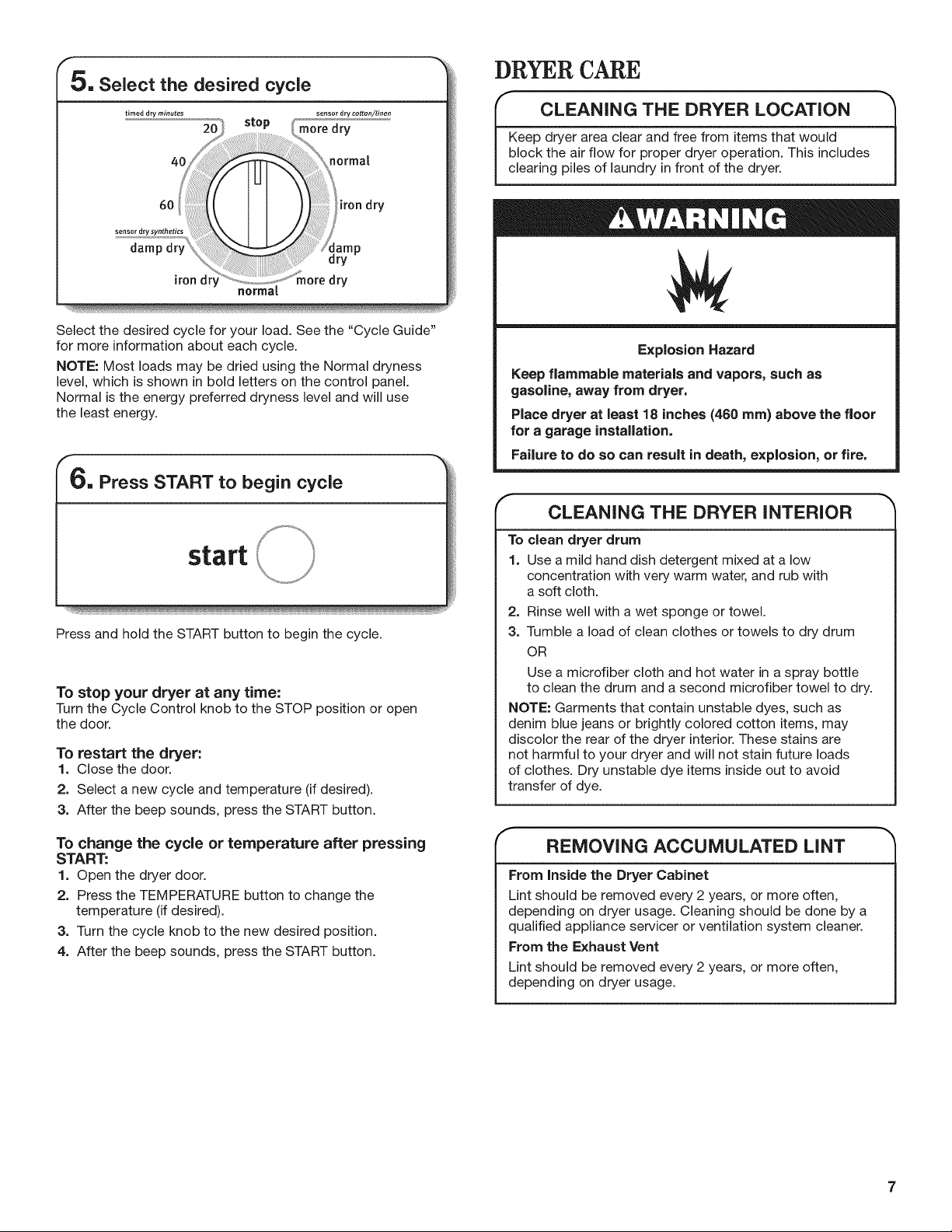

6. Press START to begin cycle
Press and hold the START button to begin the cycle.
To stop your dryer at any time:
Turn the Cycle Control knob to the STOP position or open
the door.
To restart the dryer:
1, Close the door.
2. Select a new cycle and temperature (if desired).
3. After the beep sounds, press the START button.
To change the cycle or temperature after pressing
START:
1. Open the dryer door.
2. Press the TEMPERATURE button to change the
temperature (if desired).
3. Turn the cycle knob to the new desired position.
4. After the beep sounds, press the START button.
DRYER CARE
CLEANING THE DRYER LOCATION 1
l eep dryer area clear and free from items that would
block the air flow for proper dryer operation. This includes
clearing piles of laundry in front of the dryer.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (460 ram) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
CLEANING THE DRYER INTERIOR
To clean dryer drum
1. Use a mild hand dish detergent mixed at a low
concentration with very warm water, and rub with
a soft cloth.
2. Rinse well with a wet sponge or towel.
3. Tumble a load of clean clothes or towels to dry drum
OR
Use a microfiber cloth and hot water in a spray bottle
to clean the drum and a second microfiber towel to dry.
NOTE: Garments that contain unstable dyes, such as
denim blue jeans or brightly colored cotton items, may
discolor the rear of the dryer interior. These stains are
not harmful to your dryer and will not stain future loads
of clothes. Dry unstable dye items inside out to avoid
transfer of dye.
r
REMOVING ACCUMULATED LINT
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often,
depending on dryer usage. Cleaning should be done by a
qualified appliance servicer or ventilation system cleaner.
From the Exhaust Vent
Lint should be removed every 2 years, or more often,
depending on dryer usage.

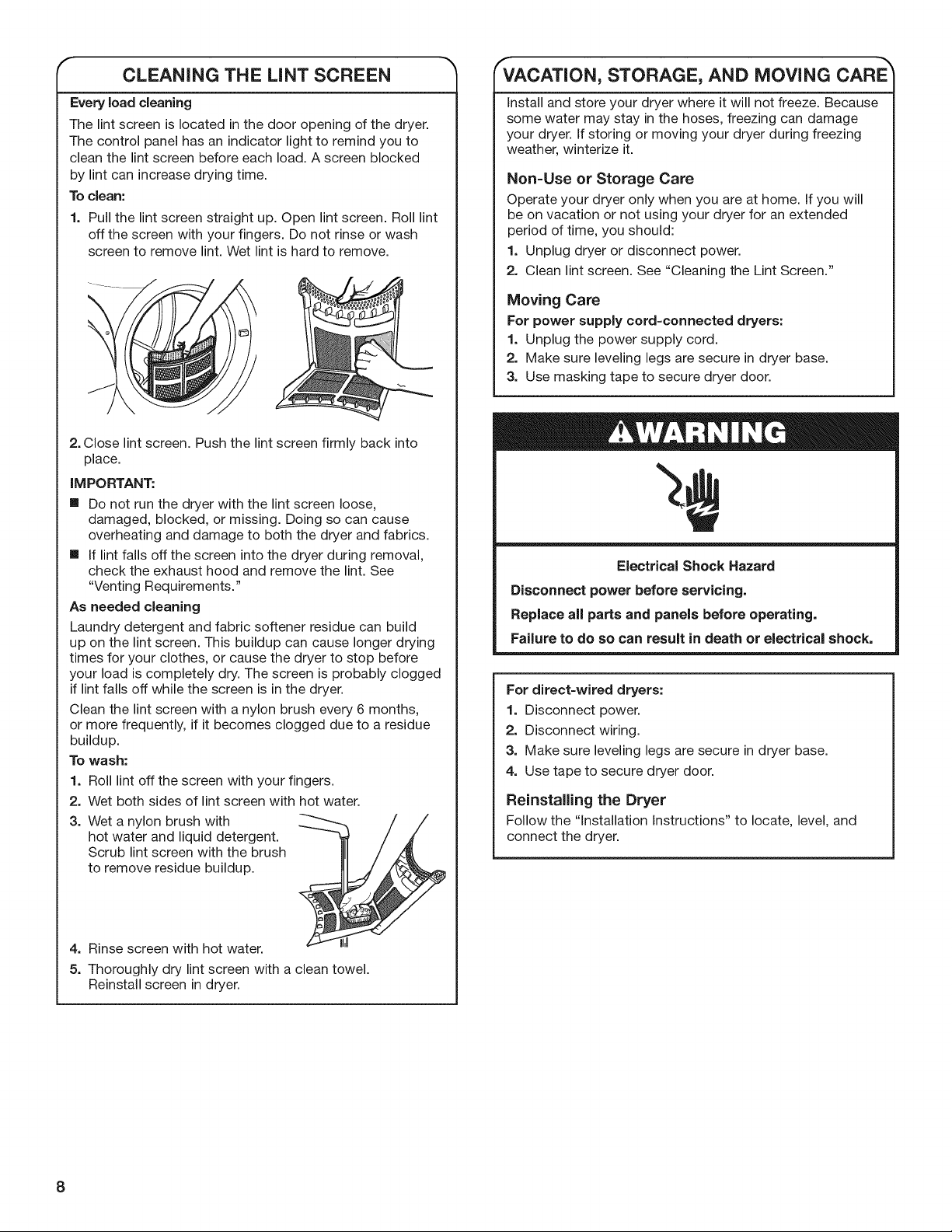

CLEANING THE LiNT SCREEN
Every load cleaning
The lint screen is located in the door opening of the dryer.
The control panel has an indicator light to remind you to
clean the lint screen before each load. A screen blocked
by lint can increase drying time.
To clean:
1. Pull the lint screen straight up. Open lint screen. Roll lint
off the screen with your fingers. Do not rinse or wash
screen to remove lint. Wet lint is hard to remove.
2. Close lint screen. Push the lint screen firmly back into
place.
iMPORTANT:
[] Do not run the dryer with the lint screen loose,
damaged, blocked, or missing. Doing so can cause
overheating and damage to both the dryer and fabrics.
[] If lint falls off the screen into the dryer during removal,
check the exhaust hood and remove the lint. See
"Venting Requirements."
As needed cleaning
Laundry detergent and fabric softener residue can build
up on the lint screen. This buildup can cause longer drying
times for your clothes, or cause the dryer to stop before
your load is completely dry. The screen is probably clogged
if lint falls off while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months,
or more frequently, if it becomes clogged due to a residue
buildup.
To wash:
1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with
hot water and liquid detergent.
Scrub lint screen with the brush
to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel.
Reinstall screen in dryer.
fVACATION, STORAGE, AND MOVING CARE
Install and store your dryer where it will not freeze. Because
some water may stay in the hoses, freezing can damage
your dryer. If storing or moving your dryer during freezing
weather, winterize it.
Non=Use or Storage Care
Operate your dryer only when you are at home. If you will
be on vacation or not using your dryer for an extended
period of time, you should:
1. Unplug dryer or disconnect power.
2. Clean lint screen. See "Cleaning the Lint Screen."
Moving Care
For power supply cord-connected dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use masking tape to secure dryer door.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
For direct=wired dryers:
1. Disconnect power.
2. Disconnect wiring.
3. Make sure leveling legs are secure in dryer base.
4. Use tape to secure dryer door.
Reinstalling the Dryer
Follow the "Installation Instructions" to locate, level, and
connect the dryer.
8

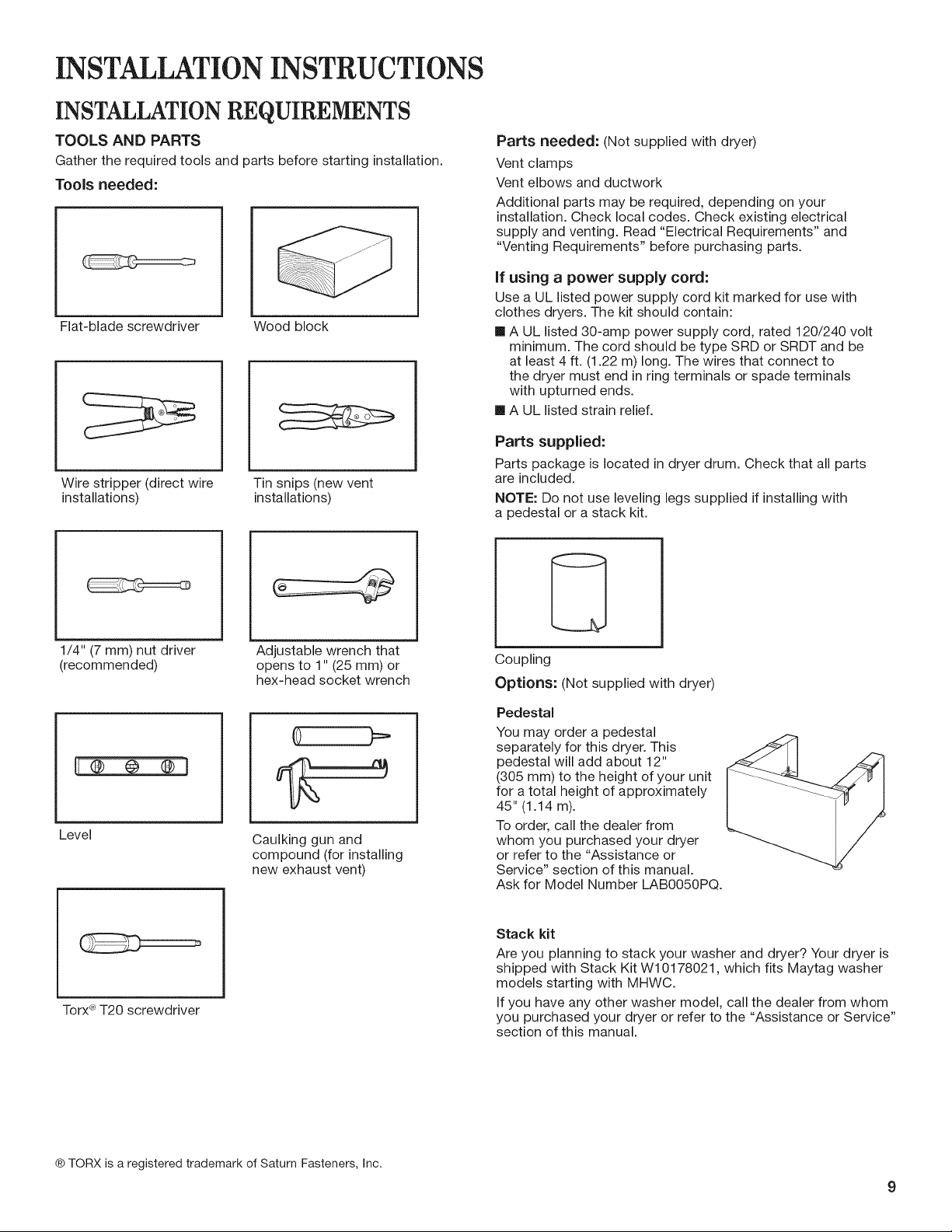

INSTALLATION INSTRUCTIONS
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation.
Tools needed:
Flat-blade screwdriver Wood block
Wire stripper (direct wire
installations)
Tin snips (new vent
installations)
Parts needed: (Not supplied with dryer)
Vent clamps
Vent elbows and ductwork
Additional parts may be required, depending on your
installation. Check local codes. Check existing electrical
supply and venting. Read "Electrical Requirements" and
"Venting Requirements" before purchasing parts.
if using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
[] A UL listed 30-amp power supply cord, rated 120/240 volt
minimum. The cord should be type SRD or SRDT and be
at least 4 ft. (1.22 m) long. The wires that connect to
the dryer must end in ring terminals or spade terminals
with upturned ends.
[] A UL listed strain relief.
Parts supplied:
Parts package is located in dryer drum. Check that all parts
are included.
NOTE: Do not use leveling legs supplied if installing with
a pedestal or a stack kit.
1/4" (7 mm) nut driver
(recommended)
Level
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
Caulking gun and
compound (for installing
new exhaust vent)
Coupling
Options: (Not supplied with dryer)
Pedestal
You may order a pedestal
separately for this dryer. This
pedestal will add about 12"
(305 mm) to the height of your unit
for a total height of approximately
45" (1.14 m).
To order, call the dealer from
whom you purchased your dryer
or refer to the "Assistance or
Service" section of this manual.
Ask for Model Number LAB0050PQ.
Torx° T20 screwdriver
Stack kit
Are you planning to stack your washer and dryer? Your dryer is
shipped with Stack Kit W10178021, which fits Maytag washer
models starting with MHWC.
If you have any other washer model, call the dealer from whom
you purchased your dryer or refer to the "Assistance or Service"
section of this manual.
® TORX is a registered trademark of Saturn Fasteners, Inc.

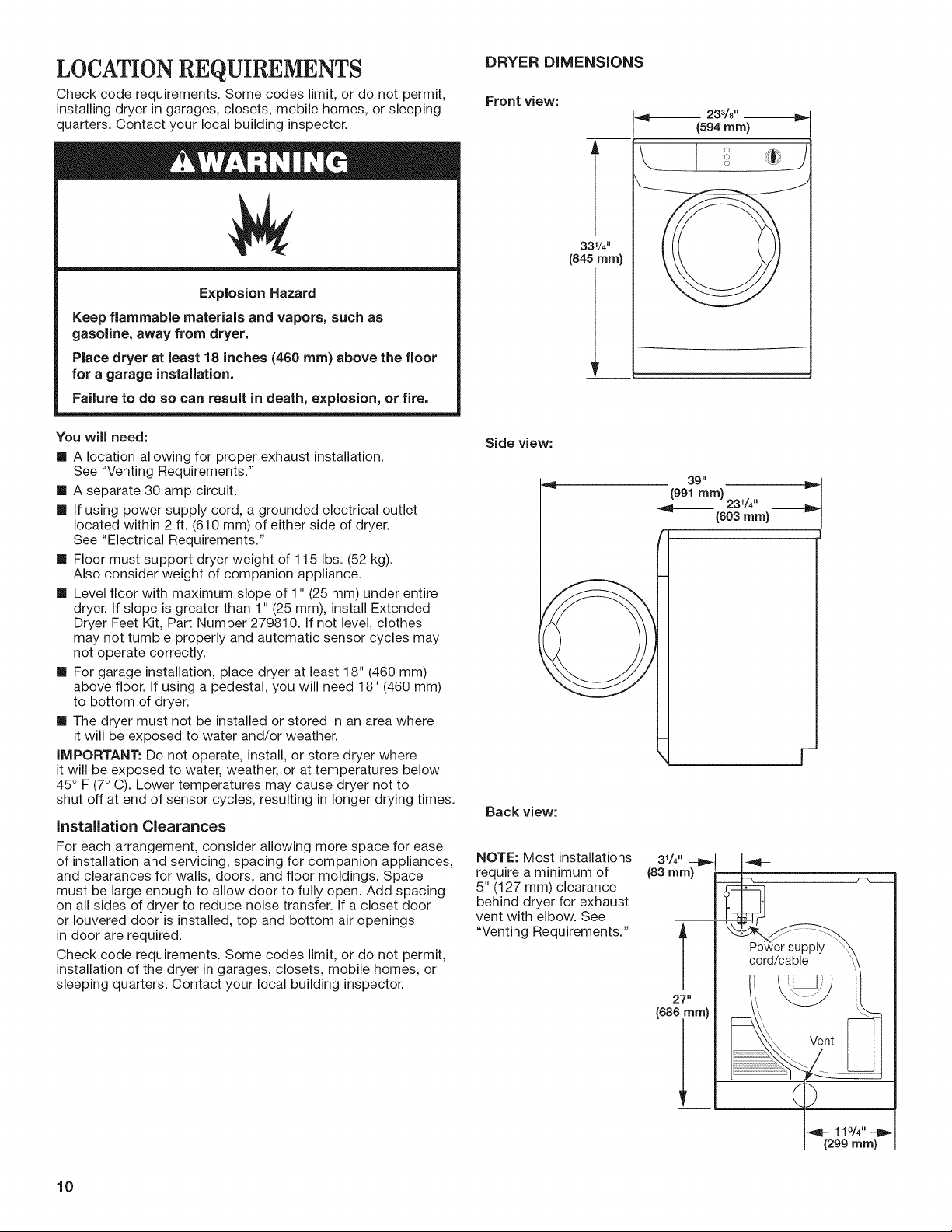

LOCATIONREQUIREMENTS
Check code requirements. Some codes limit, or do not permit,
installing dryer in garages, closets, mobile homes, or sleeping
quarters. Contact your local building inspector.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (460 ram) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
You will need:
[] A location allowing for proper exhaust installation.
See "Venting Requirements."
[] A separate 30 amp circuit.
[] If using power supply cord, a grounded electrical outlet
located within 2 ft. (610 mm) of either side of dryer.
See "Electrical Requirements."
[] Floor must support dryer weight of 115 Ibs. (52 kg).
Also consider weight of companion appliance.
[] Level floor with maximum slope of 1" (25 mm) under entire
dryer. If slope is greater than 1" (25 mm), install Extended
Dryer Feet Kit, Part Number 279810. If not level, clothes
may not tumble properly and automatic sensor cycles may
not operate correctly.
[] For garage installation, place dryer at least 18" (460 mm)
above floor. If using a pedestal, you will need 18" (460 mm)
to bottom of dryer.
[] The dryer must not be installed or stored in an area where
it will be exposed to water and/or weather.
iMPORTANT: Do not operate, install, or store dryer where
it will be exposed to water, weather, or at temperatures below
45° F (7° C). Lower temperatures may cause dryer not to
shut off at end of sensor cycles, resulting in longer drying times.
installation Clearances
For each arrangement, consider allowing more space for ease
of installation and servicing, spacing for companion appliances,
and clearances for walls, doors, and floor moldings. Space
must be large enough to allow door to fully open. Add spacing
on all sides of dryer to reduce noise transfer. If a closet door
or Iouvered door is installed, top and bottom air openings
in door are required.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
DRYER DIMENSIONS
Front view:
331/4"
(845 ram)
I'
233/8" --IIP-
(594 mra)
Side view:
39"
(991
__ram) 23114" __
(603 ram)
Back view:
NOTE: Most installations
require a minimum of
5" (127 mm) clearance
behind dryer for exhaust
vent with elbow. See
"Venting Requirements."
31/4"
(83ram) ___
113/4"
(299 mm)
10

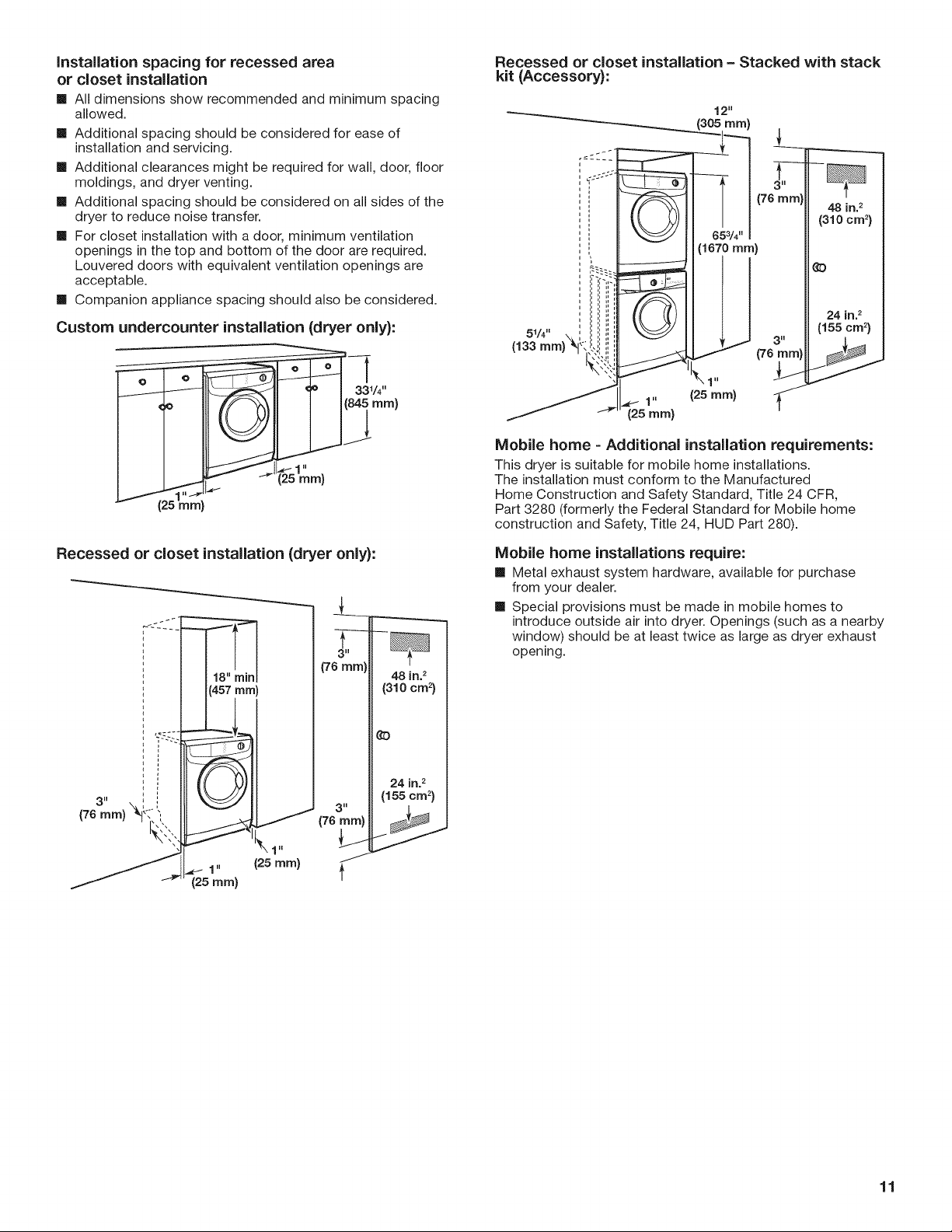

Installation spacing for recessed area Recessed or closet installation = Stacked with stack
or closet installation kit {Accessory):
[] All dimensions show recommended and minimum spacing
allowed.
[] Additional spacing should be considered for ease of
installation and servicing.
[] Additional clearances might be required for wall, door, floor
moldings, and dryer venting.
[] Additional spacing should be considered on all sides of the
dryer to reduce noise transfer.
[] For closet installation with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
[] Companion appliance spacing should also be considered.
Custom undercounter installation (dryer only):
)
Recessed or closet installation {dryer only):
1 ml
1" (25ram}
(25ram}
(76 mm}
,= ....
5,/." ,,,: El!i!i
v
(25 ram}
12 mn
(305 ram)
6
(1670 ram}
_ 3"
(76 ram}
"1"
125mm} 1_ j
48 in.2
(310 cm2}
24 in. 2
(155 cm2}
Mobile home =Additional installation requirements:
This dryer is suitable for mobile home installations.
The installation must conform to the Manufactured
Home Construction and Safety Standard, Title 24 CFR,
Part 3280 (formerly the Federal Standard for Mobile home
construction and Safety, Title 24, HUD Part 280).
Mobile home installations require:
[] Metal exhaust system hardware, available for purchase
from your dealer.
[] Special provisions must be made in mobile homes to
introduce outside air into dryer. Openings (such as a nearby
window) should be at least twice as large as dryer exhaust
opening.
11

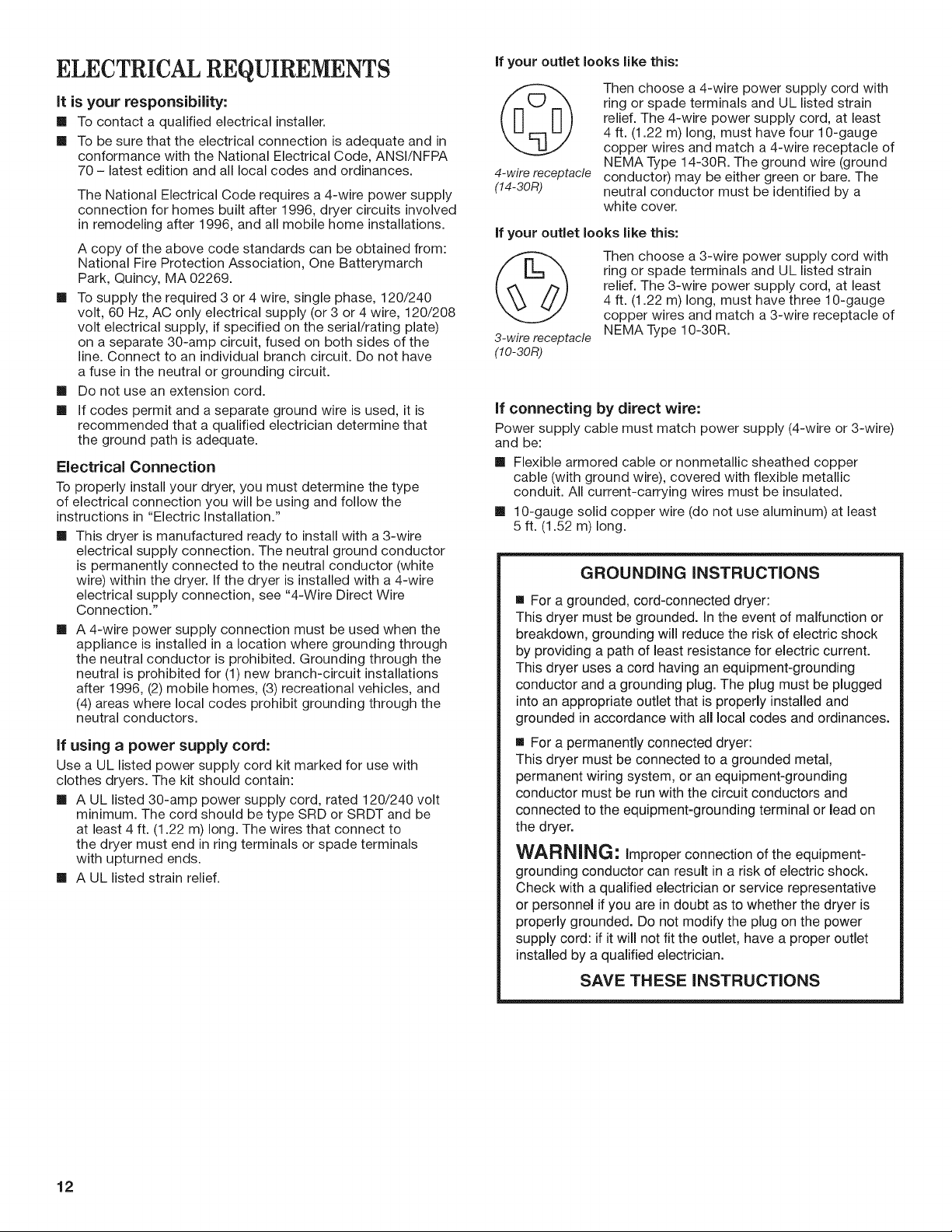

ELECTRICAL REQUIREMENTS
it is your responsibility:
[] To contact a qualified electrical installer.
[] To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70 - latest edition and all local codes and ordinances.
[]
[]
[]
The National Electrical Code requires a 4-wire power supply
connection for homes built after 1996, dryer circuits involved
in remodeling after 1996, and all mobile home installations.
A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch
Park, Quincy, MA 02269.
To supply the required 3 or 4 wire, single phase, 120/240
volt, 60 Hz, AC only electrical supply (or 3 or 4 wire, 120/208
volt electrical supply, if specified on the serial/rating plate)
on a separate 30-amp circuit, fused on both sides of the
line. Connect to an individual branch circuit. Do not have
a fuse in the neutral or grounding circuit.
Do not use an extension cord.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
Electrical Connection
To properly installyour dryer, you must determine the type
of electrical connection you will be using and follow the
instructions in "Electric installation."
[] This dryer is manufactured ready to install with a 3-wire
electrical supply connection. The neutral ground conductor
is permanently connected to the neutral conductor (white
wire) within the dryer. If the dryer is installed with a 4-wire
electrical supply connection, see "4-Wire Direct Wire
Connection."
[] A 4-wire power supply connection must be used when the
appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installations
after 1996, (2) mobile homes, (3) recreational vehicles, and
(4) areas where local codes prohibit grounding through the
neutral conductors.
if using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
[] A UL listed 30-amp power supply cord, rated 120/240 volt
minimum. The cord should be type SRD or SRDT and be
at least 4 ft. (1.22 m) long. The wires that connect to
the dryer must end in ring terminals or spade terminals
with upturned ends.
[] A UL listed strain relief.
if your outlet looks like this:
4-wire receptacle
(14-30R)
Then choose a 4-wire power supply cord with
ring or spade terminals and UL listed strain
relief. The 4-wire power supply cord, at least
4 ft. (1.22 m) long, must have four 10-gauge
copper wires and match a 4-wire receptacle of
NEMA Type 14-30R. The ground wire (ground
conductor) may be either green or bare. The
neutral conductor must be identified by a
white cover.
if your outlet looks like this:
3-wire receptacle
(10-30R)
Then choose a 3-wire power supply cord with
ring or spade terminals and UL listed strain
relief. The 3-wire power supply cord, at least
4 ft. (1.22 m) long, must have three 10-gauge
copper wires and match a 3-wire receptacle of
NEMA Type 10-30R.
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire)
and be:
[] Flexible armored cable or nonmetallic sheathed copper
cable (with ground wire), covered with flexible metallic
conduit. All current-carrying wires must be insulated.
[] 10-gauge solid copper wire (do not use aluminum) at least
5 ft. (1.52 m) long.
GROUNDING INSTRUCTIONS
[] For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
intoan appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
[] For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING" Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
12

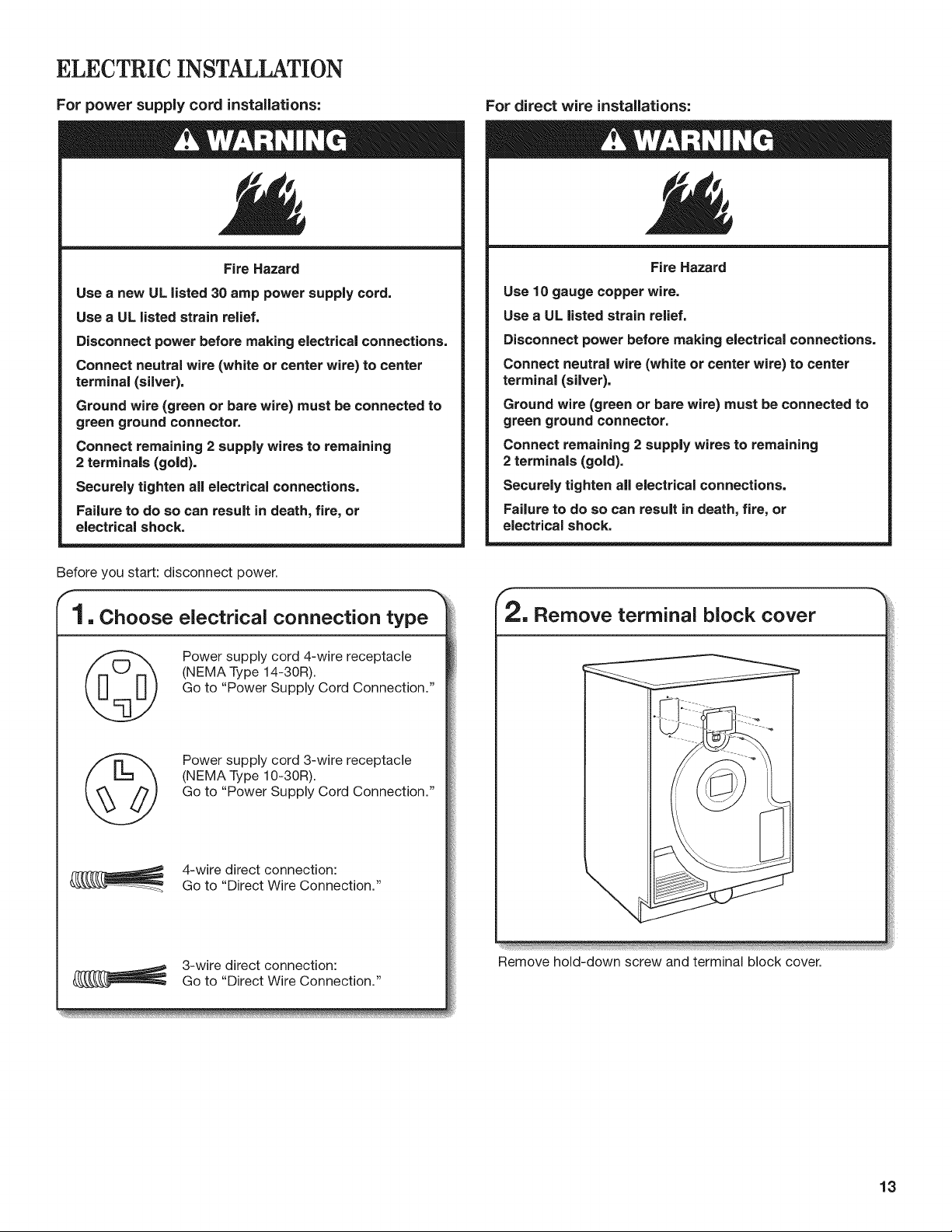

ELECTRIC INSTALLATION
For power supply cord installations:
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Before you start: disconnect power.
1, Choose electrical connection type
Power supply cord 4-wire receptacle
(NEMA Type 14-30R).
Go to "Power Supply Cord Connection."
Power supply cord 3-wire receptacle
(NEMA Type 10-30R).
Go to "Power Supply Cord Connection."
4-wire direct connection:
Go to "Direct Wire Connection."
3-wire direct connection:
Go to "Direct Wire Connection."
For direct wire installations:
Fire Hazard
Use 10 gauge copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Remove hold-down screw and terminal block cover.
13

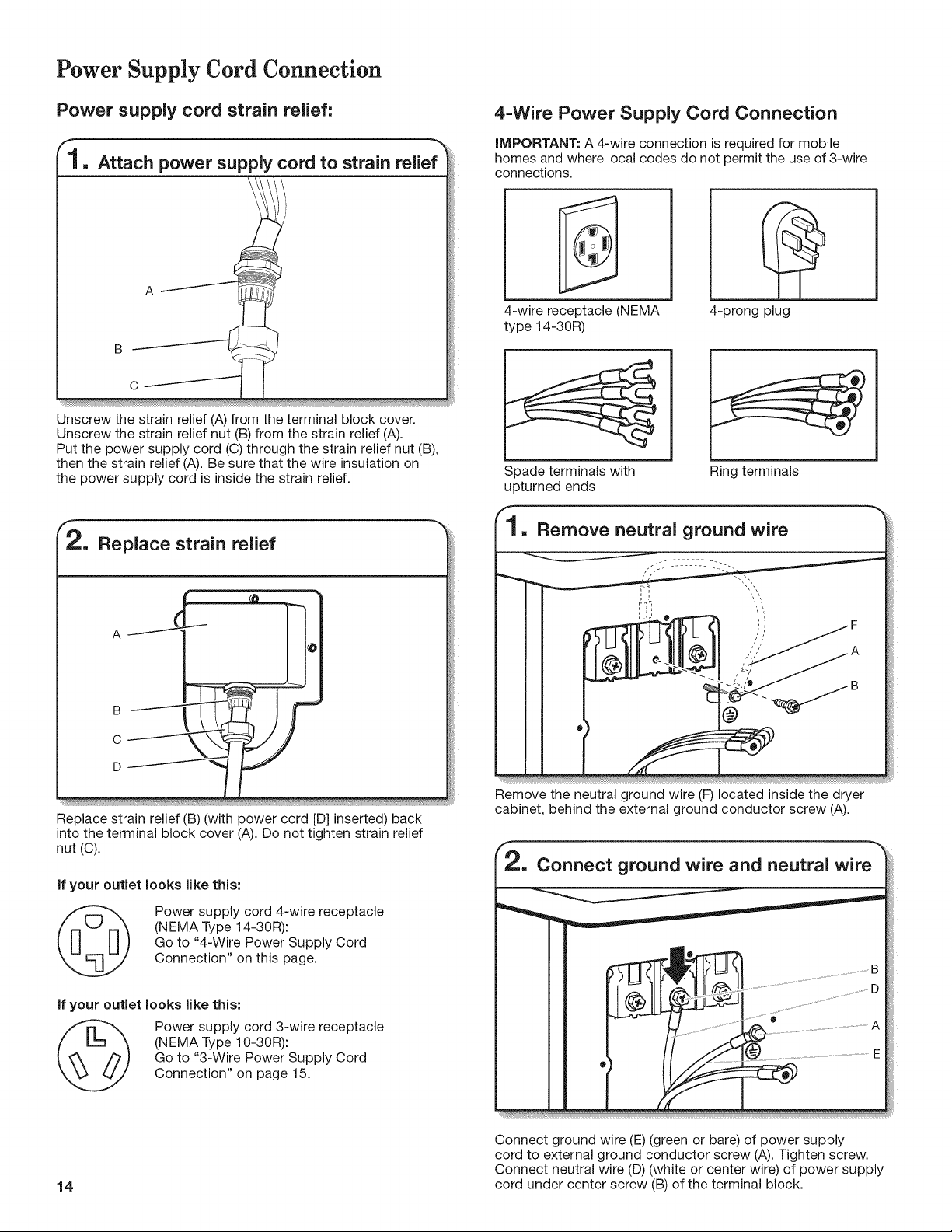

Power Supply Cord Connection
Power supply cord strain relief:
g-Wire Power Supply Cord Connection
IMPORTANT: A 4-wire connection is required for mobile
homes and where local codes do not permit the use of 3-wire
connections.
4-wire receptacle (NEMA
type 14-30R)
4-prong plug
Unscrew the strain relief (A) from the terminal block cover.
Unscrew the strain relief nut (B)from the strain relief (A).
Put the power supply cord (C) through the strain relief nut (B),
then the strain relief (A). Be sure that the wire insulation on
the power supply cord is inside the strain relief.
2, Replace strain relief
A
B
Replace strain relief (B) (with power cord [D] inserted) back
into the terminal block cover (A). Do not tighten strain relief
nut (C).
If your outlet looks like this:
Power supply cord 4-wire receptacle
(NEMA Type 14-30R):
Go to "4-Wire Power Supply Cord
Connection" on this page.
If your outlet looks like this:
(_) Power supply cord 3-wire receptacle
(NEMA Type 10-30R):
Go to "3-Wire Power Supply Cord
Connection" on page 15.
Spade terminals with
upturned ends
i, Remove neutral ground wire
Ring terminals
Remove the neutral ground wire (F) located inside the dryer
cabinet, behind the external ground conductor screw (A).
2, Connect ground wire and neutral wire
14
Connect ground wire (E)(green or bare) of power supply
cord to external ground conductor screw (A). Tighten screw.
Connect neutral wire (D) (white or center wire) of power supply
cord under center screw (B) of the terminal block.
3. connectremaining wires
0
Connect the other wires to outer terminal block screws.
Tighten screws. Replace the terminal block cover on the back
of the dryer. Tighten strain relief nut. Now, go to "Venting
Requirements."
i. Remove center screw
[j ,,,,
y/'
S-/
Remove center terminal block screw (B).

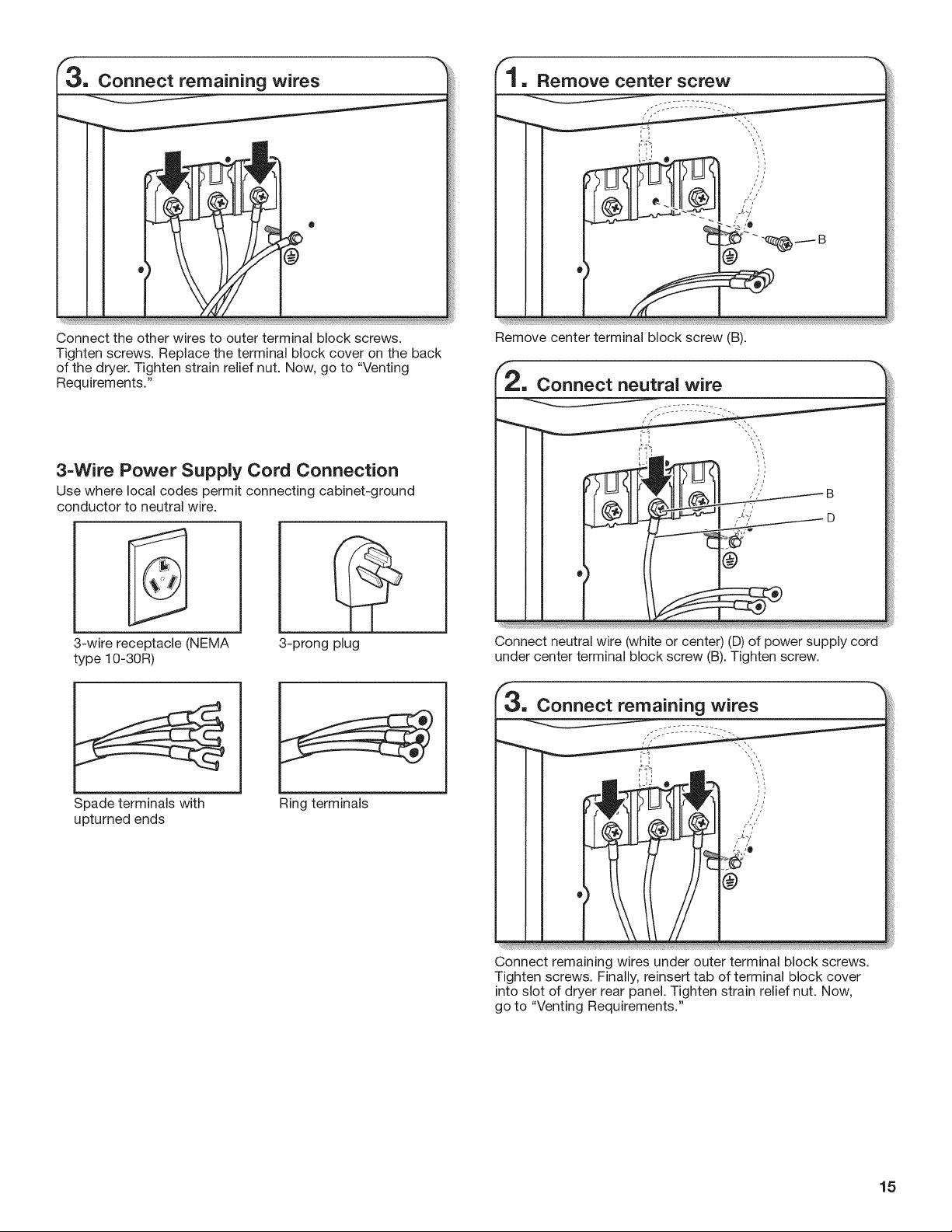

3=Wire Power Supply Cord Connection
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
3-wire receptacle (NEMA
type 10-30R)
3-prong plug
Spade terminals with
upturned ends
Ring terminals
Connect neutral wire (white or center) (D) of power supply cord
under center terminal block screw (B). Tighten screw.
Connect remaining wires under outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Tighten strain relief nut. Now,
go to "Venting Requirements."
15

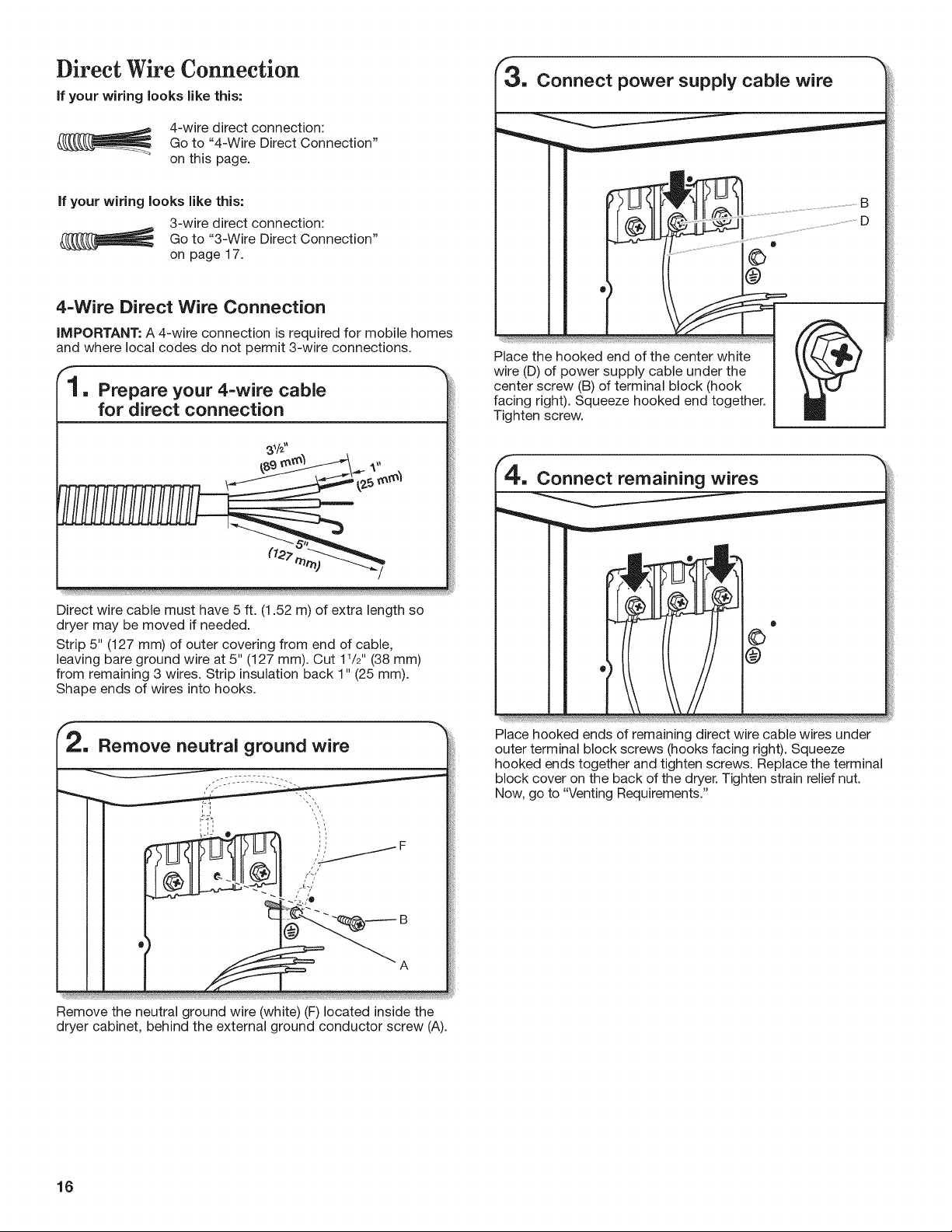

Direct Wire Connection
if your wiring looks like this:
4-wire direct connection:
Go to "4-Wire Direct Connection"
on this page.
if your wiring looks like this:
3-wire direct connection:
Go to "3-Wire Direct Connection"
on page 17.
4-Wire Direct Wire Connection
iMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit 3-wire connections.
"_, Prepare your 4-wire cable
for direct connection
Direct wire cable must have 5 ft. (1.52 m) of extra length so
dryer may be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable,
leaving bare ground wire at 5" (127 mm). Cut 11/2" (38 mm)
from remaining 3 wires. Strip insulation back 1" (25 mm).
Shape ends of wires into hooks.
Place hooked ends of remaining direct wire cable wires under
outer terminal block screws (hooks facing right). Squeeze
hooked ends together and tighten screws. Replace the terminal
block cover on the back of the dryer. Tighten strain relief nut.
Now, go to "Venting Requirements."
Remove the neutral ground wire (white) (F) located inside the
dryer cabinet, behind the external ground conductor screw (A).
16

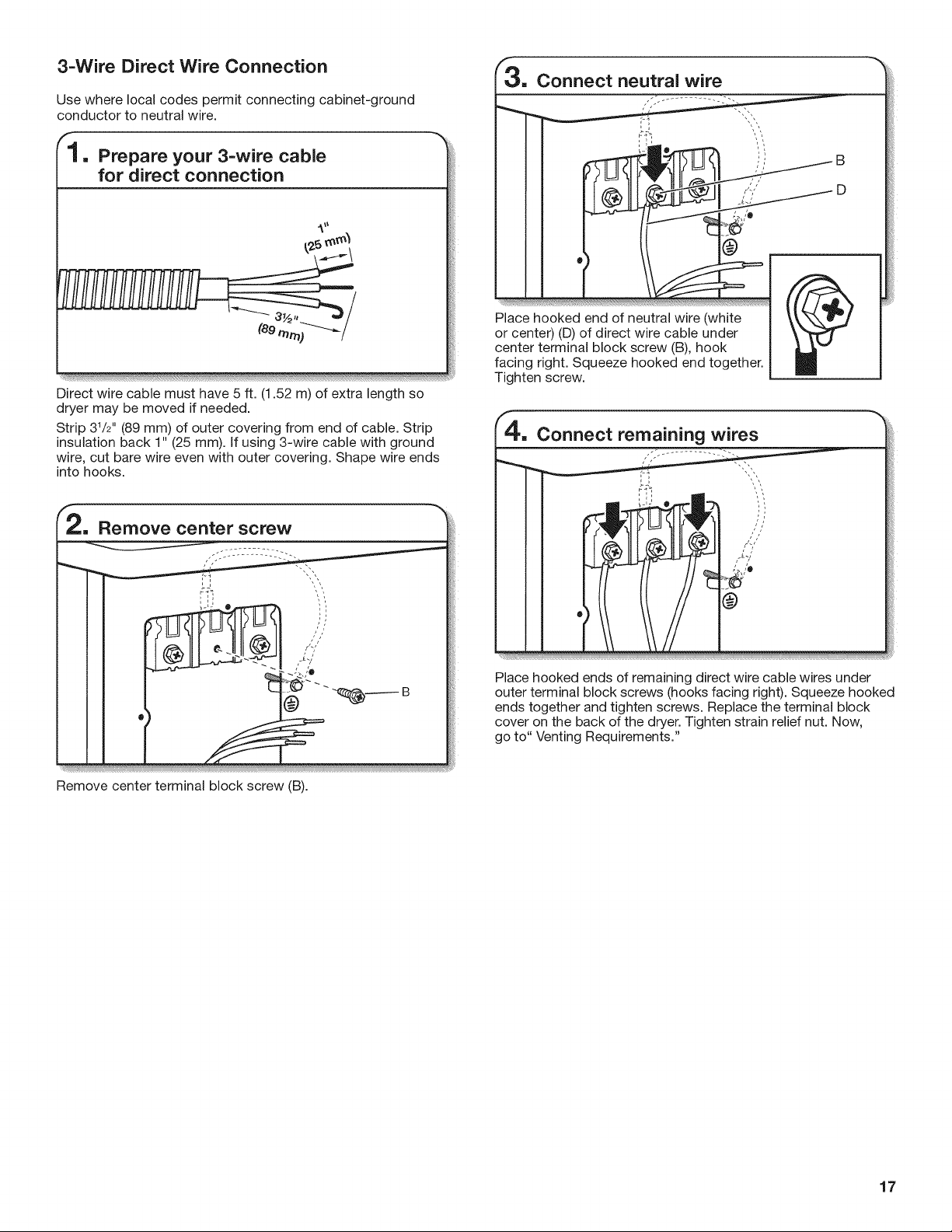

3=Wire Direct Wire Connection
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
f
"1, Prepare your 3-wire cable
for direct connection
Direct wire cable must have 5 ft. (1.52 m) of extra length so
dryer may be moved if needed.
Strip 31/2'' (89 mm) of outer covering from end of cable. Strip
insulation back 1" (25 mm). If using 3-wire cable with ground
wire, cut bare wire even with outer covering. Shape wire ends
into hooks.
2, Remove center screw
i
i
Remove center terminal block screw (B).
f
3, Connect neutral wire
Place hooked end of neutral wire (white
or center) (D) of direct wire cable under
center terminal block screw (B), hook
facing right. Squeeze hooked end together.
Tighten screw.
r4, Connect remaining wires
Place hooked ends of remaining direct wire cable wires under
outer terminal block screws (hooks facing right). Squeeze hooked
ends together and tighten screws. Replace the terminal block
cover on the back of the dryer. Tighten strain relief nut. Now,
go to" Venting Requirements."
17

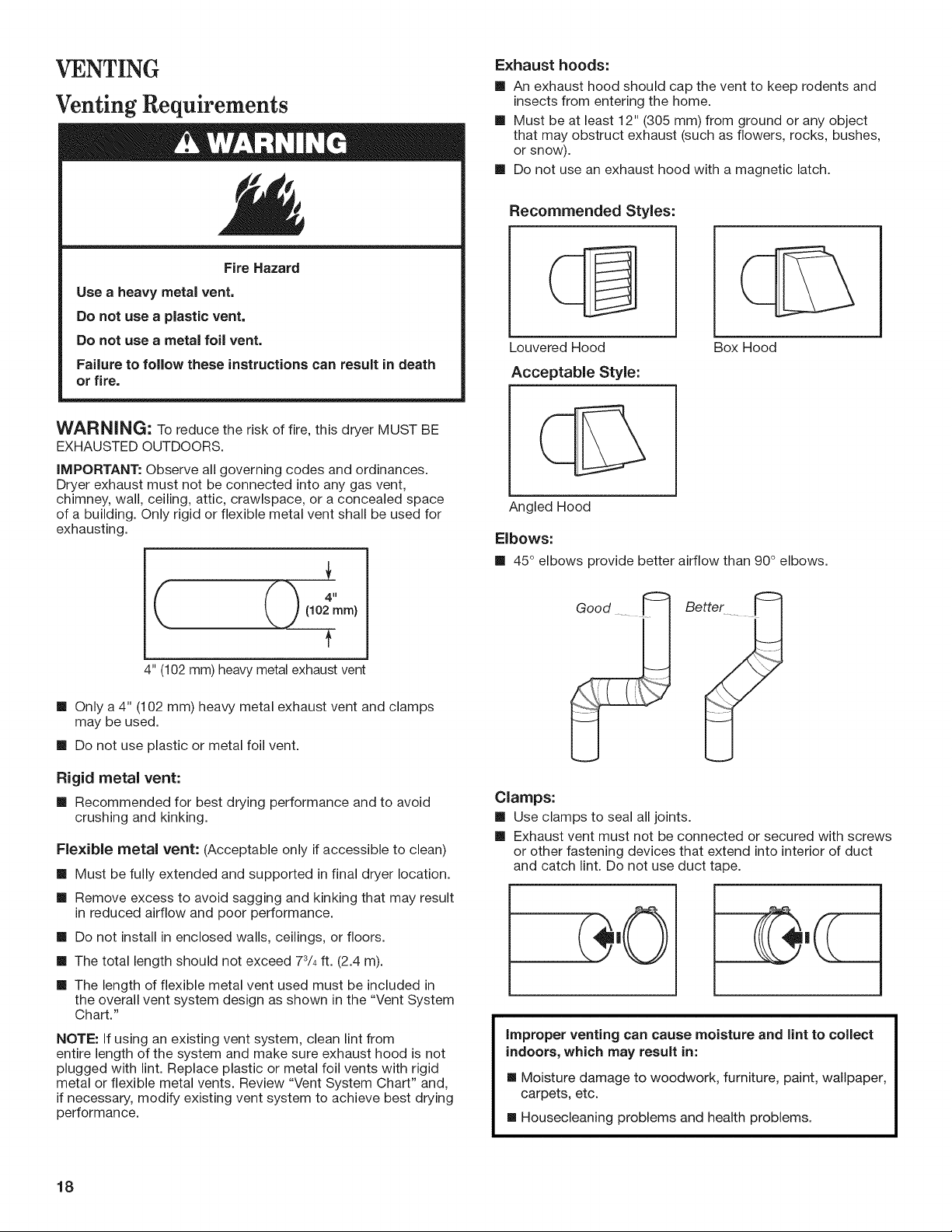

VENTING
Venting Requirements
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foi( vent.
Failure to follow these instructions can result in death
or fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
Dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, attic, crawlspace, or a concealed space
of a building. Only rigid or flexible metal vent shall be used for
exhausting.
( 0'
(102 ram)
t
4" (102 ram) heavy metal exhaust vent
[] Only a 4" (102 mm) heavy metal exhaust vent and clamps
may be used.
[] Do not use plastic or metal foil vent.
Rigid metal vent:
[] Recommended for best drying performance and to avoid
crushing and kinking.
Flexible metal vent: (Acceptable only ifaccessible to clean)
[] Must be fully extended and supported in final dryer location.
[] Remove excess to avoid sagging and kinking that may result
in reduced airflow and poor performance.
[] Do not install in enclosed walls, ceilings, or floors.
[] The total length should not exceed 73/4ft. (2.4 m).
[] The length of flexible metal vent used must be included in
the overall vent system design as shown in the "Vent System
Chart."
NOTE: If using an existing vent system, clean lint from
entire length of the system and make sure exhaust hood is not
plugged with lint. Replace plastic or metal foil vents with rigid
metal or flexible metal vents. Review "Vent System Chart" and,
if necessary, modify existing vent system to achieve best drying
performance.
Exhausthoods:
[] An exhaust hood should cap the vent to keep rodents and
insects from entering the home.
[] Must be at least 12" (305 mm) from ground or any object
that may obstruct exhaust (such as flowers, rocks, bushes,
or snow).
[] Do not use an exhaust hood with a magnetic latch.
Recommended Styles:
Louvered Hood
Acceptable Style:
Angled Hood
Elbows:
[]
Box Hood
45° elbows provide better airflow than 90° elbows.
Be
Clamps:
[]
[]
Use clamps to seal all joints.
Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior of duct
and catch lint. Do not use duct tape.
improper venting can cause moisture and lint to collect
indoors, which may result in:
[] Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
[] Housecleaning problems and health problems.
18

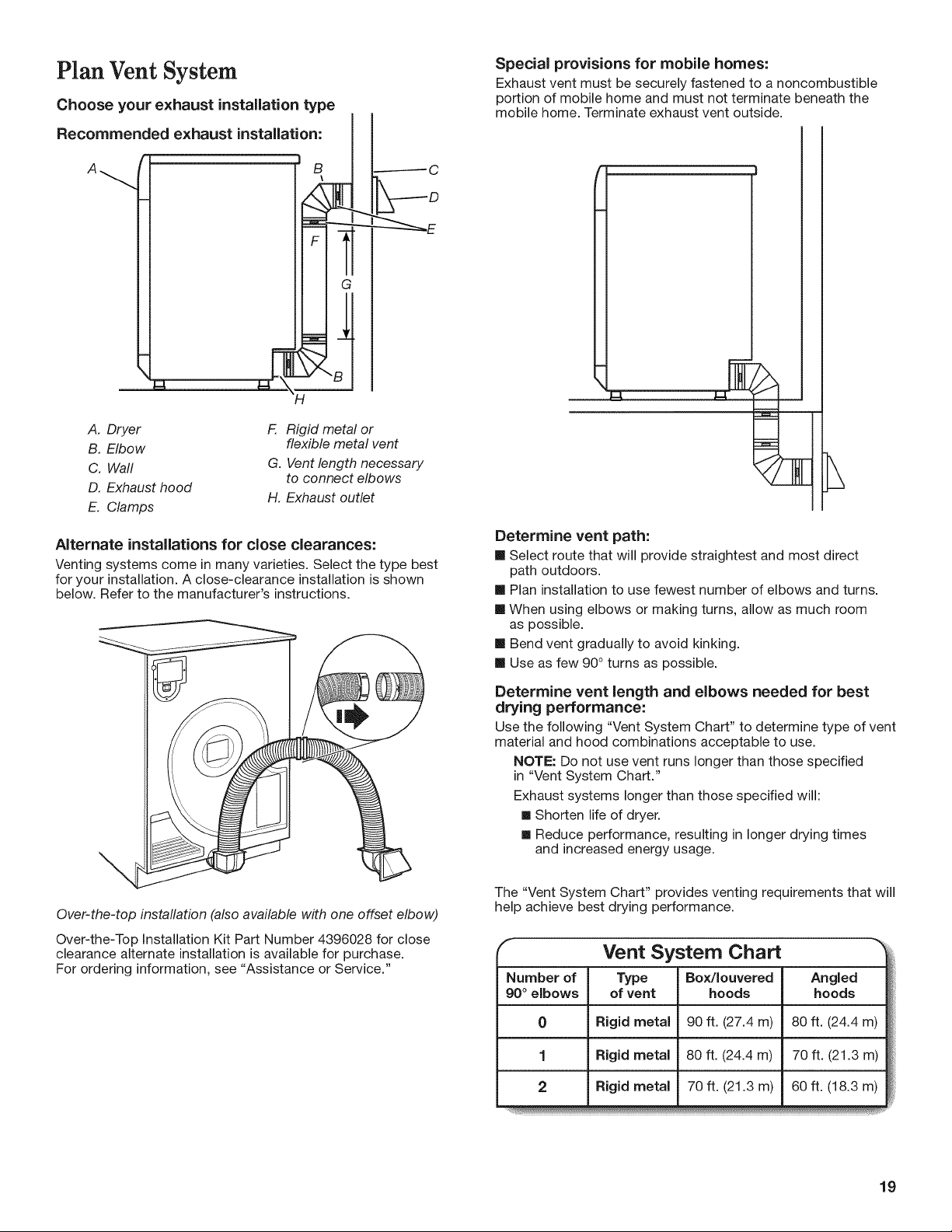

Plan Vent System
Choose your exhaust installation type
Recommended exhaust installation:
B,
(
---------C
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
E. Clamps
F. Rigid metal or
flexible metal vent
G. Vent length necessary
to connect elbows
H. Exhaust out_t
Alternate installations for close clearances:
Venting systems come in many varieties. Select the type best
for your installation. A close-clearance installation is shown
below. Refer to the manufacturer's instructions.
Special provisions for mobile homes:
Exhaust vent must be securely fastened to a noncombustible
portion of mobile home and must not terminate beneath the
mobile home. Terminate exhaust vent outside.
Determine vent path:
[] Select route that will provide straightest and most direct
path outdoors.
[] Plan installation to use fewest number of elbows and turns.
[] When using elbows or making turns, allow as much room
as possible.
[] Bend vent gradually to avoid kinking.
[] Use as few 90° turns as possible.
Determine vent length and elbows needed for best
drying performance:
Use the following "Vent System Chart" to determine type of vent
material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specified
in "Vent System Chart."
Exhaust systems longer than those specified will:
[] Shorten life of dryer.
[] Reduce performance, resulting in longer drying times
and increased energy usage.
Over-the-top installation (also available with one offset elbow)
Over-the-Top Installation Kit Part Number 4396028 for close
clearance alternate installation is available for purchase.
For ordering information, see "Assistance or Service."
The "Vent System Chart" provides venting requirements that will
help achieve best drying performance.
Vent System Chart
Number of Type Box/Iouvered Angled
90° elbows of vent hoods hoods
0 Rigid metal 90 ft. (27.4 m) 80 ft. (24.4 m)
1 Rigid metal 80 ft. (24.4 m) 70 ft. (21.3 m)
2 Rigid metal 70 ft. (21.3 m) 60 ft. (18.3 m)
19

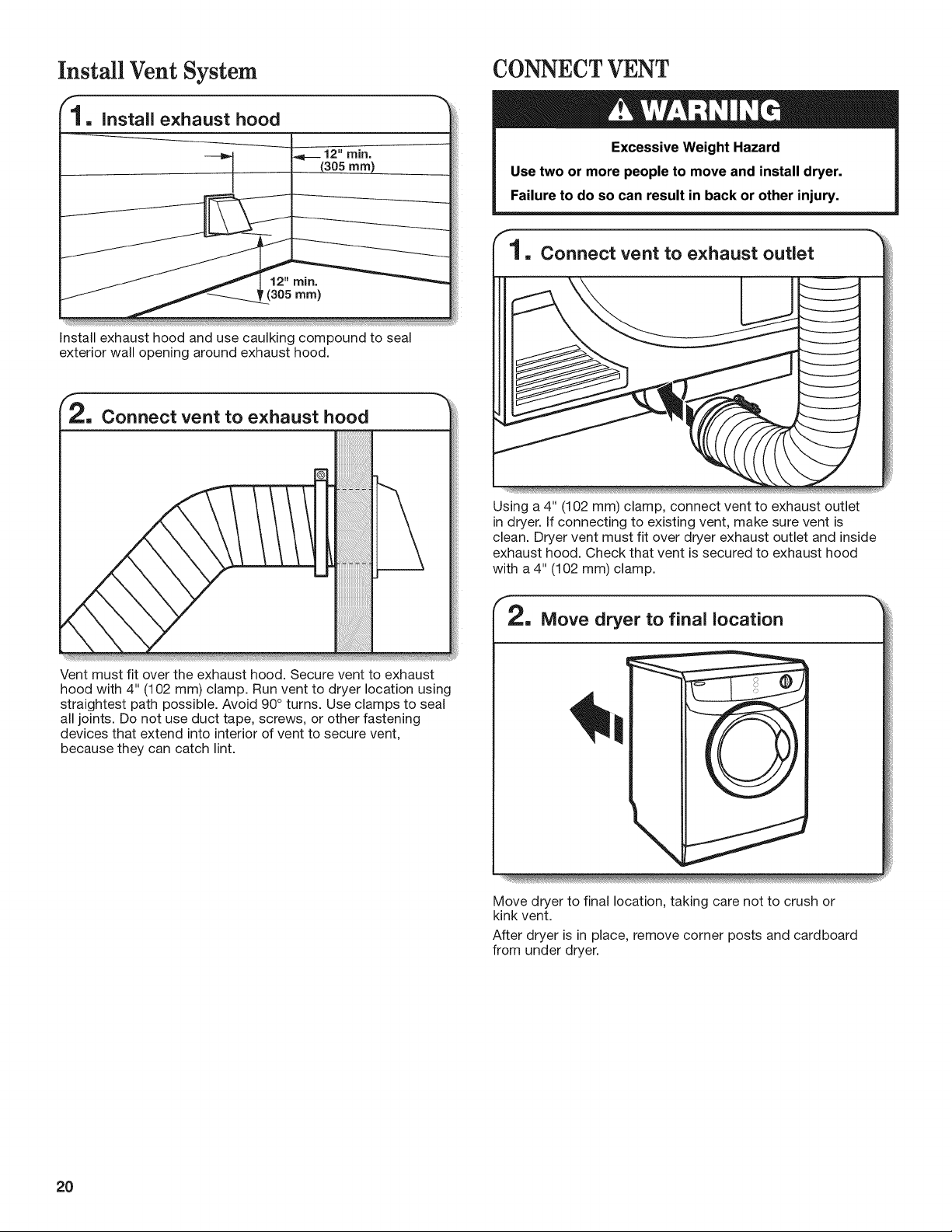

Install Vent System
i "
. install exhaust hood
install exhaust hood and use caulking compound to seal
exterior wall opening around exhaust hood.
_. Connect vent to exhaust hood
Vent must fit over the exhaust hood. Secure vent to exhaust
hood with 4" (102 mm) clamp. Run vent to dryer location using
straightest path possible. Avoid 90° turns. Use clamps to seal
all joints. Do not use duct tape, screws, or other fastening
devices that extend into interior of vent to secure vent,
because they can catch lint.
CONNECT VENT
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
Using a 4" (102 mm) clamp, connect vent to exhaust outlet
in dryer. If connecting to existing vent, make sure vent is
clean. Dryer vent must fit over dryer exhaust outlet and inside
exhaust hood. Check that vent is secured to exhaust hood
with a 4" (102 mm) clamp.
. Move dryer to final location
Move dryer to final location, taking care not to crush or
kink vent.
After dryer is in place, remove corner posts and cardboard
from under dryer.
2O

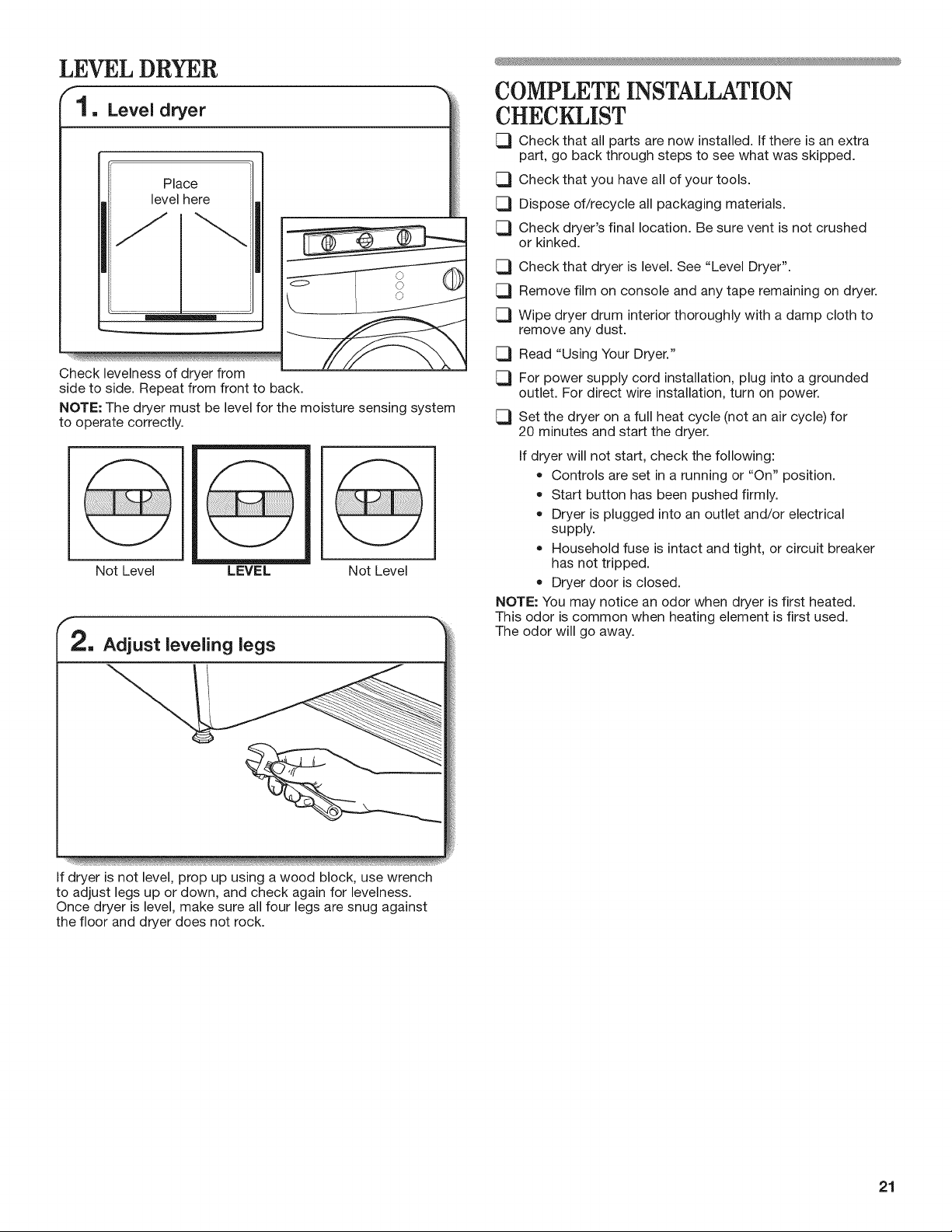

LEVEL DRYER
1. Level dryer
Place
level here
Check levelness of dryer from
side to side. Repeat from front to back.
NOTE: The dryer must be level for the moisture sensing system
to operate correctly.
Not Level LEVEL Not Level
2, Adjust leveling legs
COMPLETE INSTALLATION
CHECKLIST
[_ Check that all parts are now installed. If there is an extra
part, go back through steps to see what was skipped.
[_ Check that you have all of your tools.
[_ Dispose of/recycle all packaging materials.
[_ Check dryer's final location. Be sure vent is not crushed
or kinked.
C3
C3
C3
Check that dryer is level. See "Level Dryer".
Remove film on console and any tape remaining on dryer.
Wipe dryer drum interior thoroughly with a damp cloth to
remove any dust.
[_ Read "Using Your Dryer."
[_ For power supply cord installation, plug into a grounded
outlet. For direct wire installation, turn on power.
[_ Set the dryer on afull heat cycle (not an air cycle) for
20 minutes and start the dryer.
If dryer will not start, check the following:
* Controls are set in a running or "On" position.
. Start button has been pushed firmly.
. Dryer is plugged into an outlet and/or electrical
supply.
. Household fuse is intact and tight, or circuit breaker
has not tripped.
. Dryer door is closed.
NOTE: You may notice an odor when dryer is first heated.
This odor is common when heating element is first used.
The odor will go away.
If dryer is not level, prop up using a wood block, use wrench
to adjust legs up or down, and check again for levelness.
Once dryer is level, make sure all four legs are snug against
the floor and dryer does not rock.
21

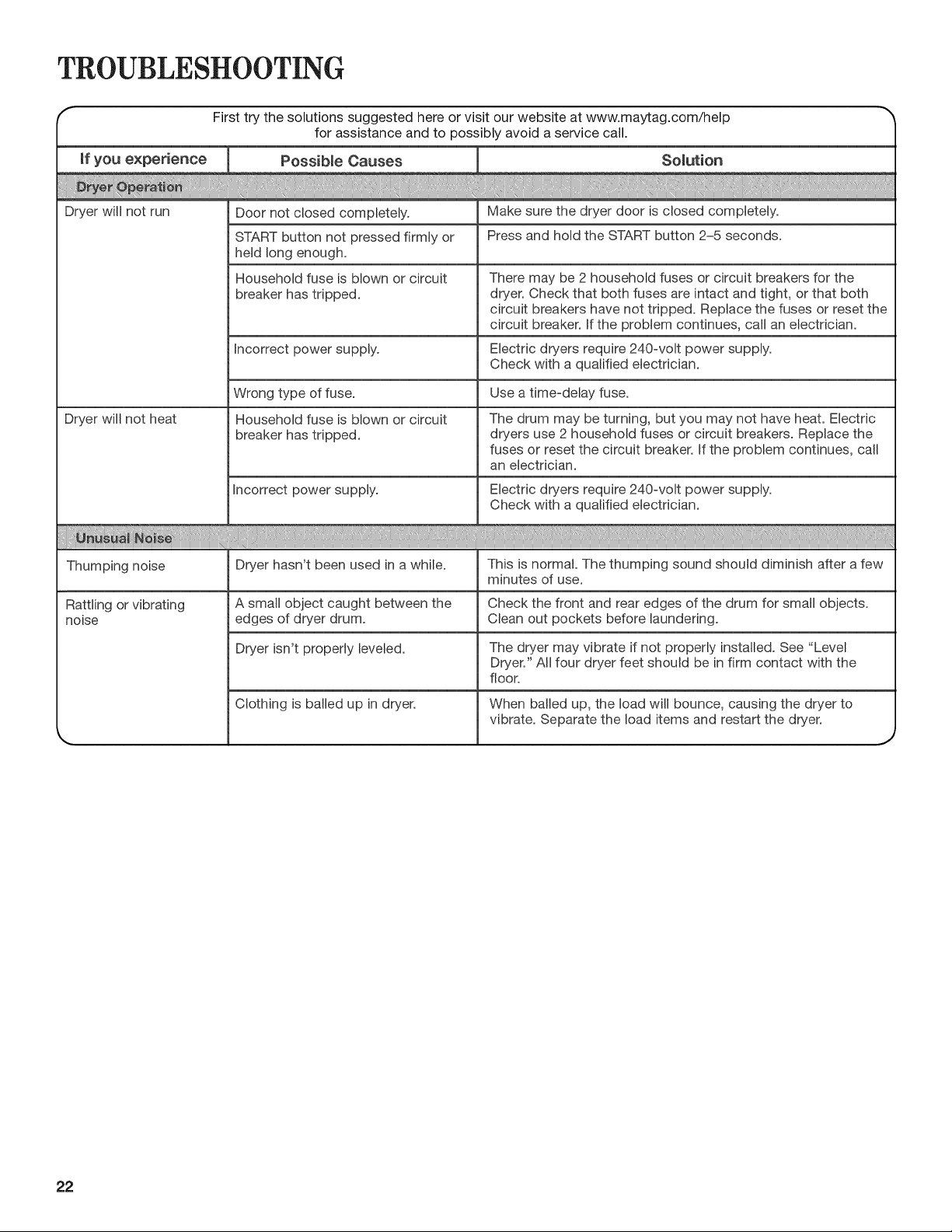

TROUBLESHOOTING
f First try the solutions suggested here or visit our website at www.maytag.com/help -_
for assistance and to possibly avoid a service call.
mfyou experience Possibme Causes Somution
Dryer will not run
Dryer will not heat
Door not closed completely.
START button not pressed firmly or
held long enough.
Household fuse is blown or circuit
breaker has tripped.
incorrect power supply.
Wrong type of fuse.
Household fuse is blown or circuit
breaker has tripped.
incorrect power supply.
Make sure the dryer door is closed completely.
Press and hold the START button 2-5 seconds.
There may be 2 household fuses or circuit breakers for the
dryer. Check that both fuses are intact and tight, or that both
circuit breakers have not tripped. Replace the fuses or reset the
circuit breaker. Ifthe problem continues, call an electrician.
Electric dryers require 240-volt power supply.
Check with a qualified electrician.
Use a time-delay fuse.
The drum may be turning, but you may not have heat. Electric
dryers use 2 household fuses or circuit breakers. Replace the
fuses or reset the circuit breaker. If the problem continues, call
an electrician.
Electric dryers require 240-volt power supply.
Check with a qualified electrician.
Thumping noise Dryer hasn't been used in a while. This is normal. The thumping sound should diminish after a few
minutes of use.
Rattling or vibrating A small object caught between the Check the front and rear edges of the drum for small objects.
noise edges of dryer drum. Clean out pockets before laundering.
Dryer isn't properly leveled. The dryer may vibrate if not properly installed. See "Level
Dryer." All four dryer feet should be in firm contact with the
floor.
Clothing is bailed up in dryer. When balled up, the load will bounce, causing the dryer to
vibrate. Separate the load items and restart the dryer.
J
22

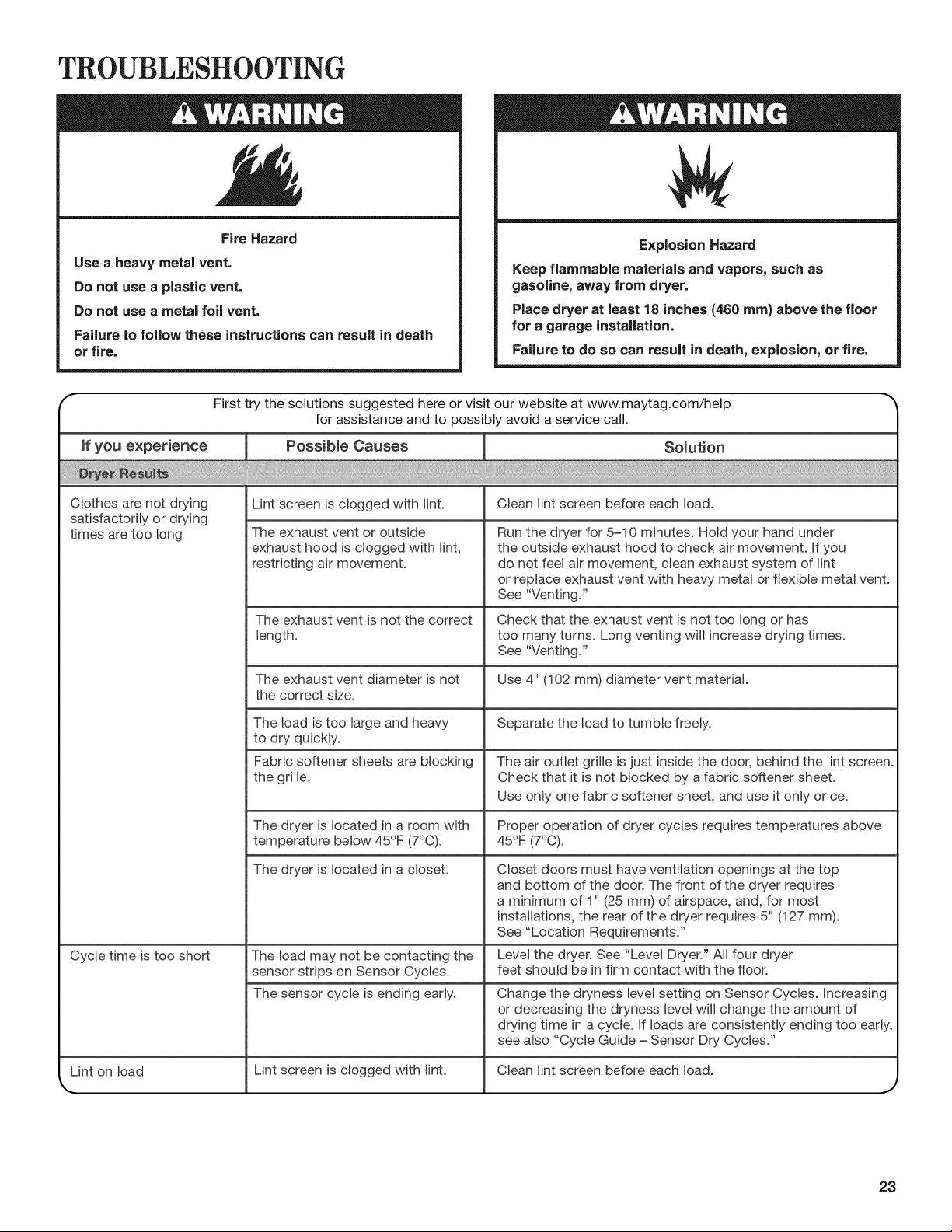

TROUBLESHOOTING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
orfire.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (460 ram) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
f
First try the solutions suggested here or visit our website at www.maytag.com/help
for assistance and to possibly avoid a service call.
Clothes are not drying
satisfactorily or drying
times are too long
Lint screen is clogged with lint. Clean lint screen before each load.
The exhaust vent or outside
exhaust hood is clogged with lint,
restricting air movement.
Run the dryer for 5=10 minutes. Hold your hand under
the outside exhaust hood to check air movement. Hfyou
do not feel air movement, clean exhaust system of lint
or replace exhaust vent with heavy metal or flexible metal vent.
See "Venting."
The exhaust vent is not the correct Check that the exhaust vent is not too long or has
length, too many turns. Long venting will increase drying times.
See "Venting."
The exhaust vent diameter is not Use 4" (102 mm) diameter vent material.
the correct size.
The load is too large and heavy Separate the load to tumble freely.
to dry quickly.
Fabric softener sheets are blocking The air outlet grille is just inside the door, behind the lint screen.
the grille. Check that it is not blocked by a fabric softener sheet.
Use only one fabric softener sheet, and use it only once.
The dryer is located in a room with Proper operation of dryer cycles requires temperatures above
temperature below 45°F (7°C). 45°F (7°C).
The dryer is located in a closet. Closet doors must have ventilation openings at the top
and bottom of the door. The front of the dryer requires
a minimum of 1" (25 mm) of airspace, and, for most
installations, the rear of the dryer requires 5" (127 mm).
See "Location Requirements."
Level the dryer. See "Level Dryer." All four dryer
feet should be in firm contact with the floor.
Cycle time is too short The load may not be contacting the
sensor strips on Sensor Cycles.
The sensor cycle is ending early. Change the dryness level setting on Sensor Cycles. Increasing
or decreasing the dryness level will change the amount of
drying time in a cycle. If loads are consistently ending too early,
see also "Cycle Guide = Sensor Dry Cycles."
Lint on load Lint screen is clogged with lint. Clean lint screen before each load.
23

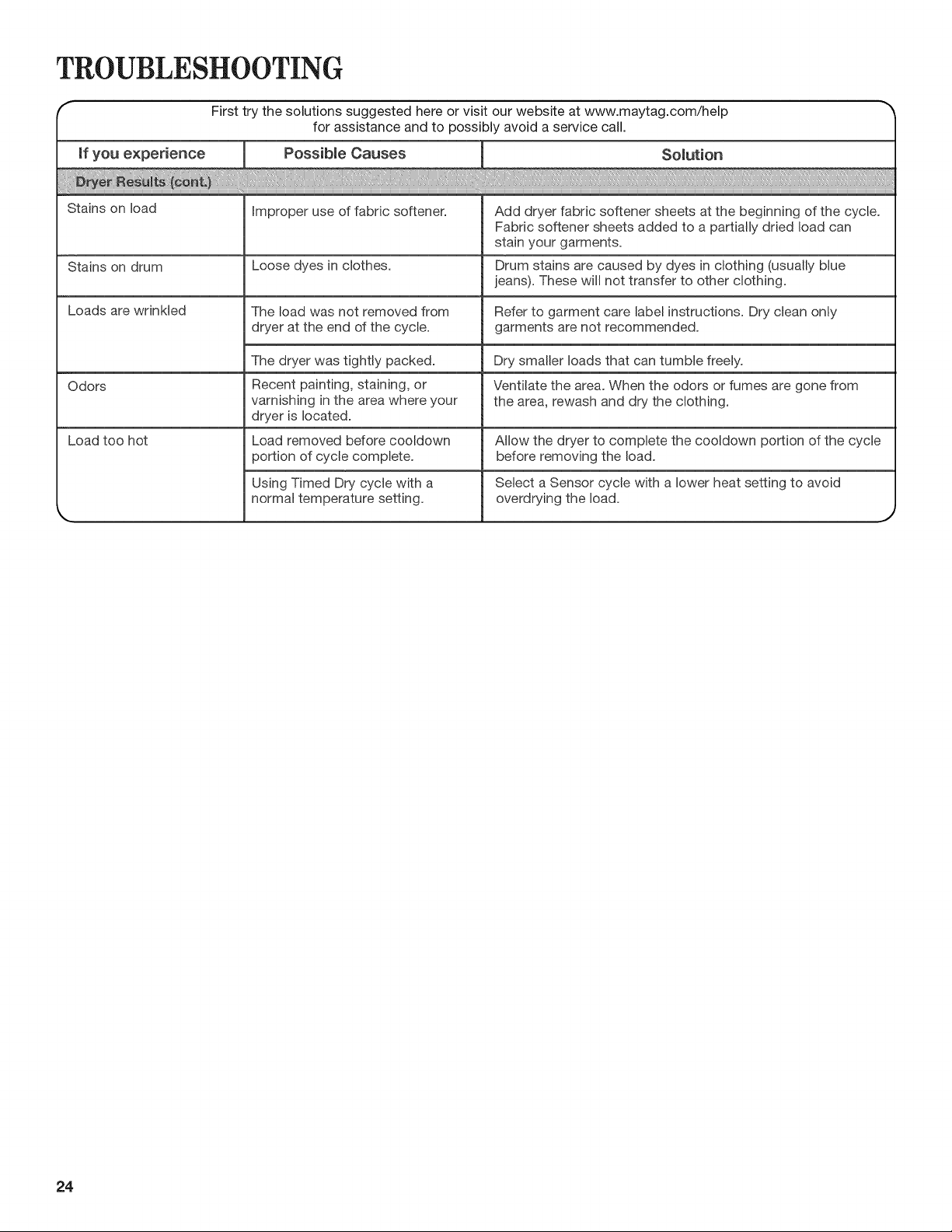

TROUBLESHOOTING
f First try the solutions suggested here or visit our website at www.maytag.com/help
for assistance and to possibly avoid a service call.
mfyou experience
Stains on load Hmproper use of fabric softener. Add dryer fabric softener sheets at the beginning of the cycle.
Fabric softener sheets added to a partially dried load can
stain your garments.
......Stains on drum Loose dyes in clothes. Drum stains are caused by dyes in clothing (usually blue
jeans). These will not transfer to other clothing.
Loads are wrinkled The load was not removed from Refer to garment care label instructions. Dry clean only
dryer at the end of the cycle, garments are not recommended.
The dryer was tightly packed. Dry smaller loads that can tumble freely.
Odors Recent painting, staining, or Ventilate the area. When the odors or fumes are gone from
varnishing in the area where your the area, rewash and dry the clothing.
dryer is located.
Load too hot Load removed before cooldown Allow the dryer to complete the cooldown portion of the cycle
portion of cycle complete, before removing the load.
Using Timed Dry cycle with a Select a Sensor cycle with a lower heat setting to avoid
normal temperature setting, overdrying the load.
_. J
24
NOTES
25
NOTES
26
MAYTAG ®LAUNDRY WARRANTY
LIMITED WARRANTY
For one year frorn the date of purchase, when this rna'orj appliance is operated and rnaintained according to instructions attached to or
furnished with the product, Maytag brand of Whirlpool Corporation or Whirlpool Canada I_P (hereafter "Maytag") will pay for factory
specified parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.
Service must be provided by a Maytag designated service company. YOUR SOLE AND EXCI_USIVE REMEDY UNDER THIS IJMITED
WARRANTY SHAI.L BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and
applies on[}/when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain
service under this limited warranty.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Rep[acernent parts or repair labor if this rnajor appliance is used for other than norrna[, sing[e-farni[y household use or when it is used in
a manner that is inconsistent to published User or operator instructions and/or installation instructions.
2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair
house fuses, or to correct house wMng or plumbing.
3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance
with electrical or plumbing codes, or use of products not approved by Maytag.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your ma'orj appliance, unless such damage results
from defects in materials or workmanship and is reported to Maytag within 30 days from the date of purchase.
6. Pick up and delivery. This major appliance is intended to be repaired in your home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized Maytag servicer is not available.
9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
Maytag published installation instructions.
10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be
easily determined.
DISCLAIMER OF IMPLIED WARRANTIES
IMPI.IED WARRANTIES, INCI_UDING ANY IMPIJEI) WARRANTY OF MERCHANTABIHTY OR IMPHEI) WARRANTY OF FITNESS FOR A
PARTICUI_AR PURPOSE, ARE IJMITED TO ONE YEAR OR THE SHORTEST PERIOD AH_OWED BY I.AW. Some states and provinces do not
allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty
gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOI_E AND EXCI_USIVE REMEDY UNDER THIS I.IMITEI) WARRANTY SHAM_ BE PRODUCT REPAIR AS PROVIDED HEREIN.
MAYTAG SHAI.I_ NOT BE I.IABI_E FOR INCIDENTAl_ OR CONSEQUENTIAl_ DAMAGES. Some states and provinces do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary from state to state or province to province.
If outside the 50 United States and Canada, contact your authorized Maytag dealer to determine if another warranty applies.
If you think you need repair service, first see the "Troubleshooting" section of the Use & Care Guide. If you are unable to resolve the problem
after checking "Troubleshooting," additional help can be found by checking the "Assistance or Service" section or by calling Maytag. In the
U.S.A., call 1-800-688-9900. In Canada, call 1-800-807-6777. 6/08
Keep this book and your sales slip together for future reference.
You must provide proof of purchase or installation date for in-
warranty servmce.
Write down the following inforrnation about your rnajor appliance
to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
27
ASSISTANCE OR SERVICE
Before callin for assistance or service, lease check "Troubleshootin " or visit www ma ta com/helg
g P still need help, fg_[[ow the instructions below.It may save you the cost of a service ca[[. If you " Y g" J "
When calling, please know the purchase date and the complete model and serial number of your appliance.
If you need replacement parts or to order accessories
We recommend that you use only Factory Specified Parts.
These parts will fit right and work right because they are made with the same precision
used to build every new MAYTAG _'>appliance.
To locate factory specified replacement parts, assistance in your area, or accessories:
Maytag Services, IJ_C Whirlpool Canada LP
1-800-688-9900 www.maytag.com Customer Assistance
1-800-901-2042 (Accessories) 1-800-807-6777
www.maytag.com/accesso r[es www.maytag.ca
or ca[[ your nearest designated service center or refer to your Yellow Pages telephone directory.
Our consultants provide assistance with
In the U.S.A.
I Features and specifications on our full line of appliances.
I Installation information.
I Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
In the U.S.A. and Canada
I Use and maintenance procedures.
I Accessory and repair parts sales.
I Referrals to local dealers, repair parts distributors,
and service companies. Maytag _' designated service
technicians are trained to fulfil[the product warranty
and provide after-warranty service, anywhere in the
United States and Canada.
You can write with any questions or concerns at:
Maytag Services, I_l_C Customer eXperience Centre
ATTN: CAIR _>Center Whirlpool Canada I.P
P.O. Box 2370 Unit 200 - 6750 Century Ave.
Cleveland, TN 37320-2370 Mississauga, ON 1.5N 0B7
Please include a daytime phone number in your correspondence.
ASSISTANCE OU SERVICE
Avant de faire un appe[ pour assistance ou service, veuillez vdrifier [a section "Ddpannage" ou visiter [e site www.maytag.com/
help. Cette vdrification peut vous faire 6conomiser [e coot d'une visite de rdparation. Si vous avez encore besoin d'aide, suivre [es
instructions ci-dessous.
I_orsd'un appe[, veuillez connattre [a date d'achat et [es num6ros au complet de mod?4le et de s6rie de votre apparei[.
Ces renseignements nous aideront _ mieux r6pondre _ votre demande.
Si vous avez besoin de pi_ces de rechange
Si vous avez besoin de commander des pi6ces de rechange, nous vous recommandons d'uti[iser seu[ement des pi6ces sp6cifi6es
par ['usine. Cos pi6ces conviendront et fonctionneront bien parce qu'e[[es sont fabriqu6es solon los m6mes sp6cifications
pr6cises uti[is6es pour construire chaque nouve[ apparel[ MAYTAG°L
Pour trouver des plbces de rechange sp6cifi6es par ['uslne dans votre r6glon :
Whirlpool Canada I P - Assistance _ [a clientble
1-800-807-6777 www.maytag.ca
ou contacter votre centre de rdparation ddsignd [e plus proche ou consulter ['annuaire td[dphonique des Pages Jaunes.
I
I
Nos consultants fournissent
['assistance pour :
Proc6d6s d'uti[isation et d'entretien.
Vente d'accessoires et de pibces de rechange.
Vous pouvez 6crire en soumettant toute question
ou tout probl?_me au :
Customer experience Centre
Whirlpool Canada I.P
Unit 200 - 6750 Century Ave.
W10445417B
@2011
All rights reserved.
TM
®Registered trademarW Trademark of Maytag Properties LLC or its related companies.
12/11
Printed in U.S.A.
